Baby Lock Regalia ST Spec Sheet

BABY LOCK

Longarm Quilting Machine The Regalia STTM longarm stationary quilting machine is the perfect machine to step into the world of longarm quilting. It features a large 20" throat space and two optional tables to fit your sewing preference and space. Whether you prefer to sit or stand, the Regalia ST comes with all the big features to fit in any space and finish your quilts with ease.

20" Of Creative Space

Two Table Options

Up to 2,500 Stitches per Minute

Stitch HarmonyTM Stitch Regulation

LCD Touch Screen

BabyLock.com

Longarm Quilting Machine

10" 20" 20" Workspace

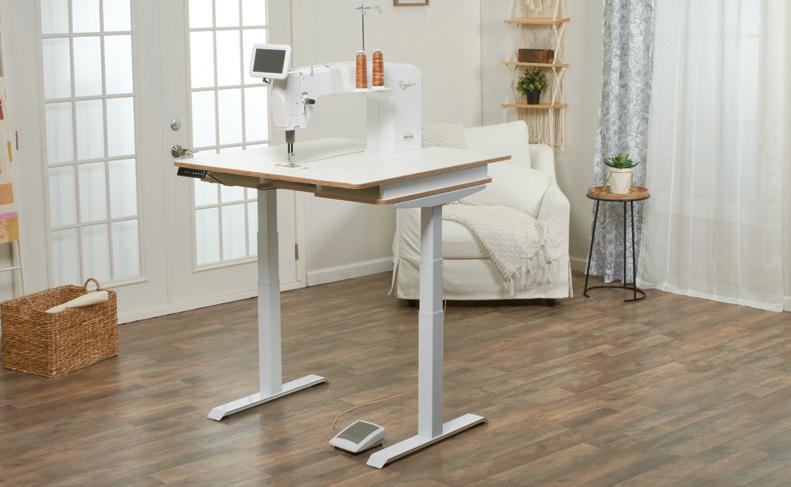

Two Table Options

With 20” of workspace and 10” of vertical space, the Regalia ST gives ample room to finish quilts of all sizes.

• The Baby Lock Lift Table (38”x 38”) with an adjustable table height from 23” to 49” • The Baby Lock Standard Table (36” x 38”)

2,500 Stitches Per Minute

Stitch Harmony Stitch Regulation

Keep a quick and steady tempo of up to 2,500 stitches per minute. The Regalia ST is as fast as it is accurate.

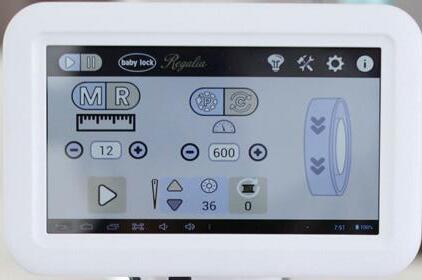

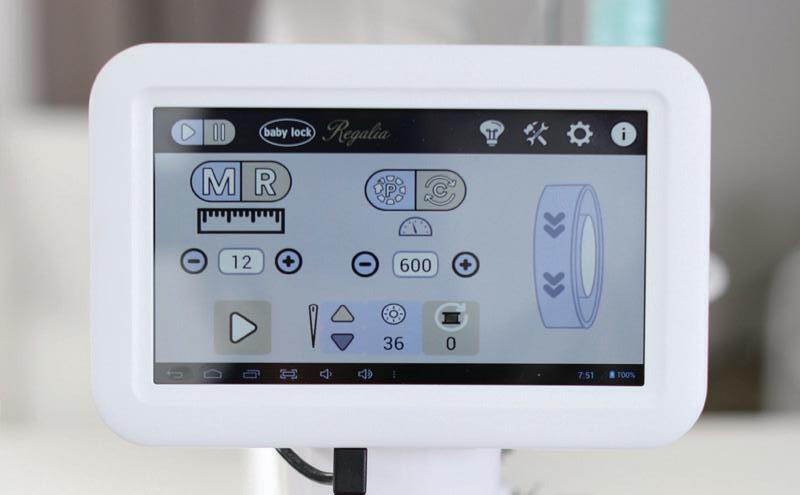

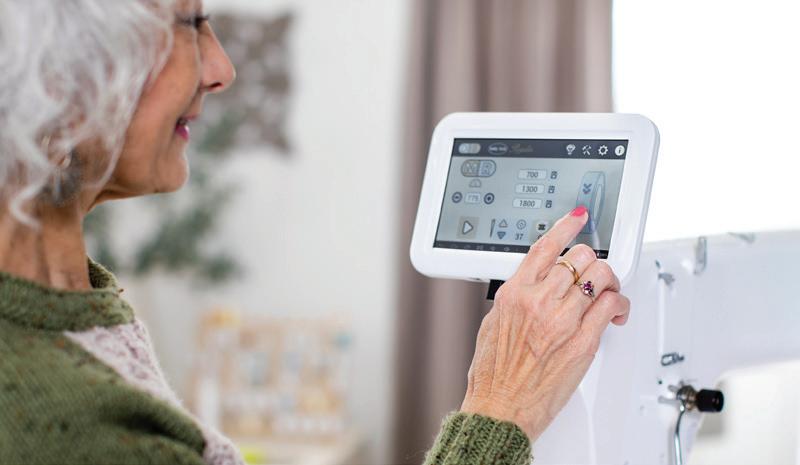

7" Color Touchscreen

Choose between the speed settings of Cruise Mode or the ability to make hard pauses without interruption with Precision Mode.

Set and easily read Stitch Control Features. The on-screen handwheel raises and lowers your needle without having to reach around the machine.

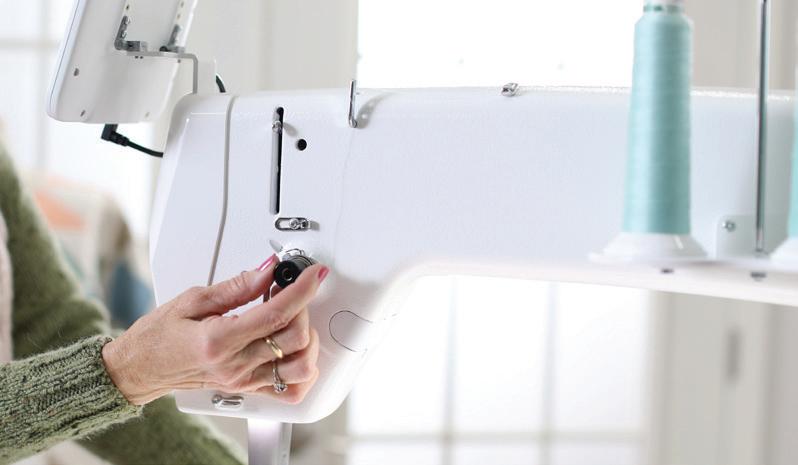

Quick-Set Tension

Easily adjust upper thread tension and view your settings on the digital LCD readout.

Technical Features • 20” wide workspace to right of needle and 10” high • Needle Beam • 7” color touchscreen • LED Menu-controlled Lighting for on/off throat space lighting, needle bar lighting, and bobbin light • Stitch Regulator is built-in and regulates your selected stitch length from 5 to 24 stitches per inch • Cruise and Precision Mode • Quick-Set Tension • Upper thread break sensor • Automatic Needle Positioning; Needle Up/Down • Maximum sewing speed of 2,500 spm • High-speed rotary hook with “M” Class Bobbin • External electric bobbin winder with variable speeds • Low bobbin estimator warning when bobbin thread is running low • Two timers Included Accessories • Electronic bobbin winder with variable speed • 5 “M” class metal bobbins • Interchangeable Open Toe Hopping Foot • 2 packs of needles (size 16 and 18) • Thread Mast • Oiler • 1 wrench, 4 Allen wrenches, and 1 screwdriver • Lint Brush • Instruction manual on USB Optional Accessories • Ruler and Echo Quilting Foot Set (BLQ-REFS) • Bobbins – M Class (BLJ-BOB) • ¼" Acrylic Ruler Set – High Shank & Long Arm (BLRK-HSLA) • ¼" Acrylic Basic Ruler Set – High Shank & Long Arm (BLRK2-HSLA) • ¼" Acrylic Ruler Expansion Set – High Shank & Long Arm (BLRK3-HSLA) • Creative Couching Foot Set (BLQ-CCF) • Horizontal Spool Pin (BLJ18-HS) Warranty • 10-year casting parts, 5-year parts, 5-year circuit boards, 5-year electrical, 90-day labor

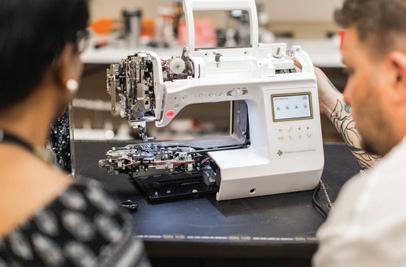

Service

The Baby Lock Experience

We provide the highest quality products and services, and can meet your needs better than anyone else.

Education We provide you with a comprehensive library of education and training so you’ll always have something to learn.

For complete list of specifications and accessories visit the Our Products section at BabyLock.com

Support

You can rely on Baby Lock for the support you need to get the most out of your machine.

LBSP-BLRG20ST 11/22
