Baby Lock Jazz II Spec Sheet

BABY LOCK

Quilting a nd Sewing Machine Your second act starts here! You may think the Baby Lock Jazz II is the same old song at first, but it gets into the groove with its own melody right away. The Jazz II comes with everything a quilter would want, plus the features you need on a utility stitch machine to get the job done – all at an affordable price!

12" Of Creative Space

28 Built-in Stitches

Programmable Needle/Up Down

Up to 1,000 Stitches per Minute

Built-In Needle Threader

BabyLock.com

Jazz II

Quilting and Sewing Machine

12” Work Space

The Jazz II has an expanded throat space that gives you plenty of room to work comfortably.

Large Reverse Lever

We’ve increased the size of a standard reverse lever, making it easer to get your hand on it without taking your focus off your work.

Progra mmable Needle Up/Down

Choose to have your needle start in the up or down position, eliminating interruptions and making it easier to complete your projects.

Built-In Needle Threader

With a few simple motions, your needle is threaded and ready to use. No guesswork, no near-misses and no frustration!

Key Features • 12” Workspace to the right of the needle • Sews up to 1,000 SPM • 28 Built-in stitches including a one-step buttonhole • 6 LED lights that illuminate the needle and work area • Pattern selection and dial indicator window • Needle up/down Button • Needle Stop Position Button • Needle threader • Stretch stitch capabilities • Maximum utility stitch width: 7 mm • Stitch length 0.0 mm – 4.0 mm • Thread tension dial • Hands-free presser foot • Drop feed for free-motion stitching • Needle plate with markings in inches and millimeters • Presser foot pressure adjustment • Variable needle with 24 positions • Twin needle sewing capabilities with straight stitch • Quick-set, top-loading bobbin • Built-in bobbin winder • Free arm • Side thread cutter • Reverse sewing lever • Accessory tray with two storage compartments Included Accessories • Knee Lift • 9 feet (8 are snap-on) • Quilting Guide • Bobbins (4) • Vertical spool pin • Machine dust cover Optional Accessories • Machine Trolley (BLMTXL-BK) • Extension Table (BLMJZ-ET) • 17-Foot Collection Kit (BLMAFTKIT) • Walking Foot (BLG-WF) • Fabric Guide (BLES8-FG) • 28 mm Single Fold Bias Binder (BLE8-S4) • 28 mm Double Fold Bias Binder (BLE8-S3) • 3/4” Belt Loop Binder (BLE8-S12)

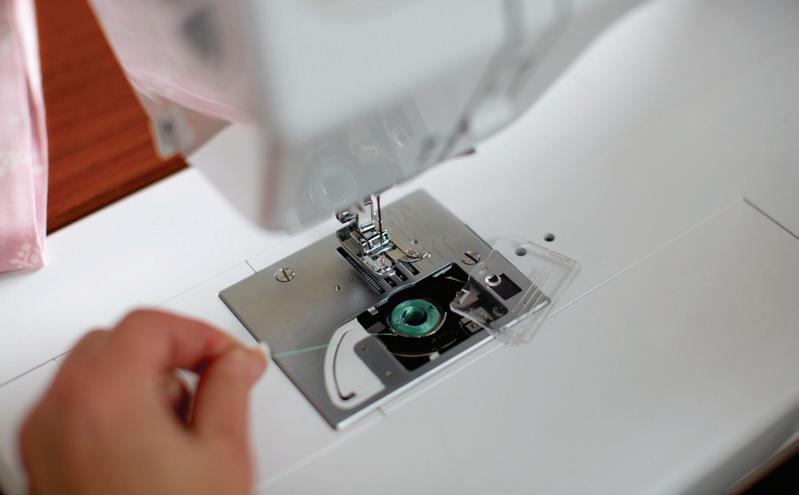

Quick Set/Top Loading Bobbin

Drop in a new bobbin, pull your thread through the guide and Jazz does the rest.

28 Built-In Stitches

With 28 built-in stitches, Jazz is well-equipped to take your creativity to new heights. Keep a quick and steady tempo of up to 1,000 stitches per minute.

Service

T he Ba by Lo ck Edu cation We provide you with a Ex pe rie nc e comprehensive library of education and training so you’ll always have something to learn.

We provide the highest quality products and services, and can meet your needs better than anyone else.

Warranty Information • Warranty: 25-Year Limited manufacturer’s warranty • 10 year parts • 1 year circuit boards • 2 years electrical • 1 year labor • Ask your Baby Lock Retailer about machine maintenance programs

For complete list of specifications and accessories visit the Our Products section at BabyLock.com

Su pport You can rely on Baby Lock for the support you need to get the most out of your machine.

LBSP-BLMJZ-2
