Baby Lock Capella Spec Sheet

BABY LOCK

Capella

Single-Needle Embroidery Machine The Baby Lock Capella single-needle, free-arm embroidery machine is ideal for your small embroidery business. Its crosshair positioning laser allows for perfect embroidery design placement, and the free-arm also provides ease and effectiveness when embroidering hard-to-hoop items.

7-7/8" x 11-3/4" embroidery field

Embroidery crosshair positioning laser

1,000 Stitches per minute

Automatic needle threader

175 Built-in designs

BabyLock.com

Capella

Features • Built-in memory (1 MB) • Bobbin system: front loading, vertical rotary hook • Quick-Set, built-in bobbin winder with independent motor • Can use pre-wound bobbins (Class L) • Push button, automatic needle threader • 2 LED lights to illuminate work area • Upper thread breakage sensors • Manual tension controls • Automatic thread trimmer (upper and lower) • Start/Stop button with lock feature • On-screen speed control while stitching • 4-thread spool stand • Built-in holder with stylus

Single-Needle Embroidery Machine

Single-Needle Free-Arm Embroidery

With its single needle and free-arm, the Capella is engineered to embroider an array of designs in hard-to-reach areas such as inside pockets, hats, tote bags, and more.

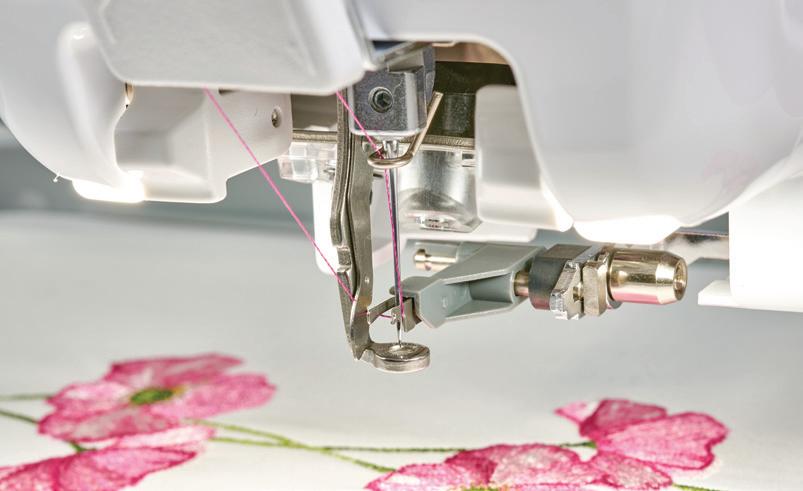

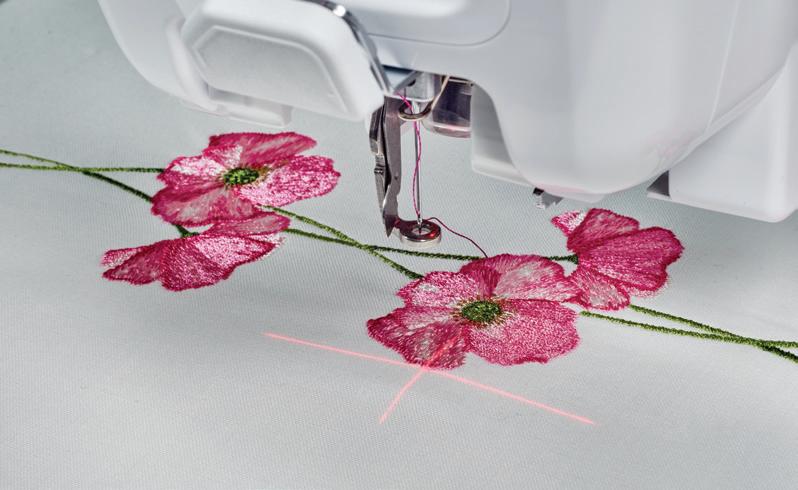

Embroidery Crosshair Positioning Laser

Use the crosshair positioning laser to preview the layout of your embroidery design; then adjust the position and angle for precise alignment.

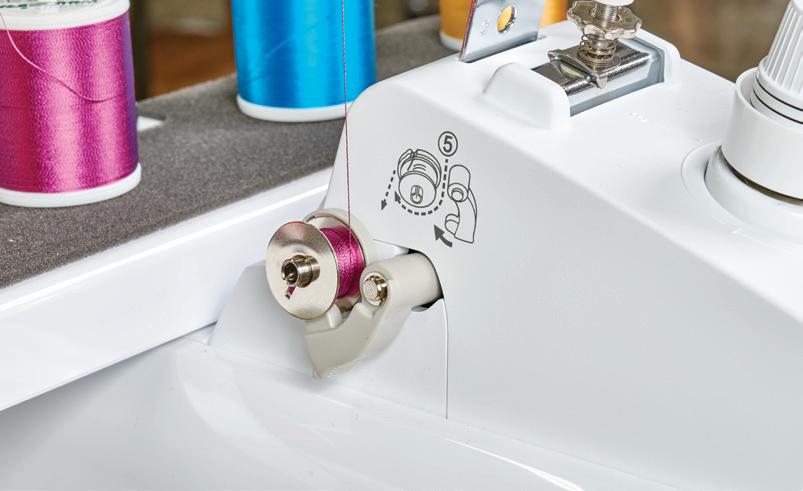

Quick-Set, Built-in Bobbin Winder The Capella bobbin system includes an automatic bobbin winder with its own motor.

The winder seat holds the thread in place and stops automatically when the bobbin is full.

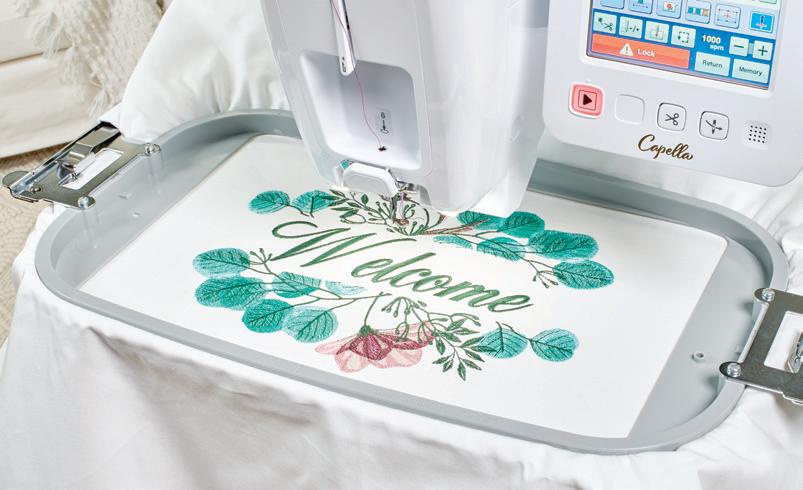

7-7/8" x 11-3/4" Embroidery F ield

The Capella machine gives you 7-7/8" x 11-3/4" of generous space for your embroidering needs.

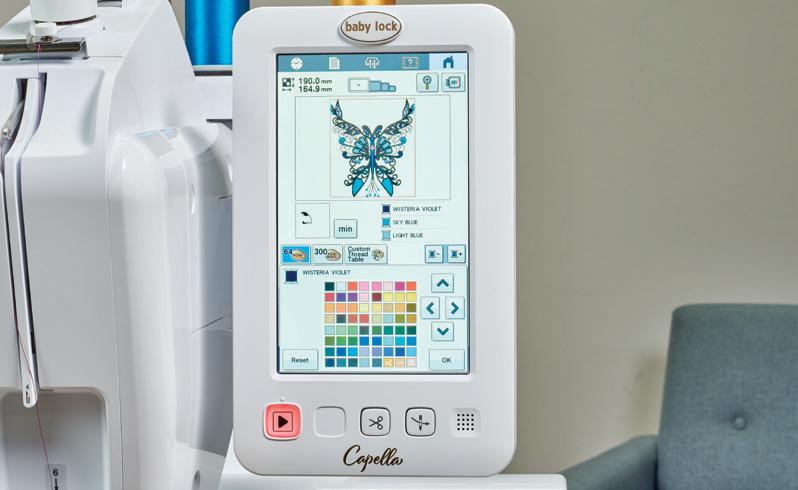

Truview™ Designer

This high-definition TruView™ LCD color touchscreen brings your embroidery designs to life. It displays more than 260,000 colors, providing a bold, vivid image to help you edit and perfect each design.

Automatic Needle Threader Stitch with worry-free threading with the automatic needle threader. It threads your needle for you!

Service

The Education Baby Lo ck We provide you with a Experience comprehensive library of education and training so you’ll always have something to learn.

We provide the highest quality products and services, and can meet your needs better than anyone else.

Customizing Features • Built-in embroidery designs

• 175 designs

• 38 fonts

• 1 monogram font

• 120 frame combinations • Combine embroidery designs onscreen • Character/text array function • Multi-line text • Character spacing • Pattern rotation (1°, 10°, and 90°) • Design size change (10% reduction and 20% enlargement) on most designs • Needle forward and reverse position placement (1, 10, 100, or 500 stitch increments) and by color • Design duplication • Color sorting on non-overlapping designs • Automatic basting • Mirror imaging • Change color selections within designs • Continuous border capabilities and color sorting on border designs • Monochrome option for embroidery designs • Instant needle edge placement (9 starting and ending positions) • Hoop sensor advises hoop size for chosen design Included Accessories • Touch pen (stylus) • USB cable • Accessory case • Spool • Prewound bobbins • Spool caps • Metal bobbins • Embroidery frame holder A • Embroidery frame holder B • Embroidery hoops:

• 7-7/8" x 11-3/4" (200mm x 300mm)

• 4" x 4" (100mm x 100mm) Optional Accessories • 4" x 4" Versatile Magnetic Frame M Kit (ENMF-100S) • 5" x 7" Versatile Magnetic Frame L Kit (ENMF-180S) • Continuous Border Hoop - 4" x 7" (100 mm x180 mm) • Embroidery Stand (ALSTAND) • Flat Brim Cap Set (EPCF-4) • Tubular Frame Table (ESTABLE) • Wide Table (ALTABLE2) Warranty • 25-year product casting • 5-year circuit boards • 5-year electrical • 2-year parts • 1-year labor

For a complete list of Baby Lock specifications and accessories visit BabyLock.com

Support You can rely on Baby Lock for the support you need to get the most out of your machine.

LBSP-BMCAP

9/23
