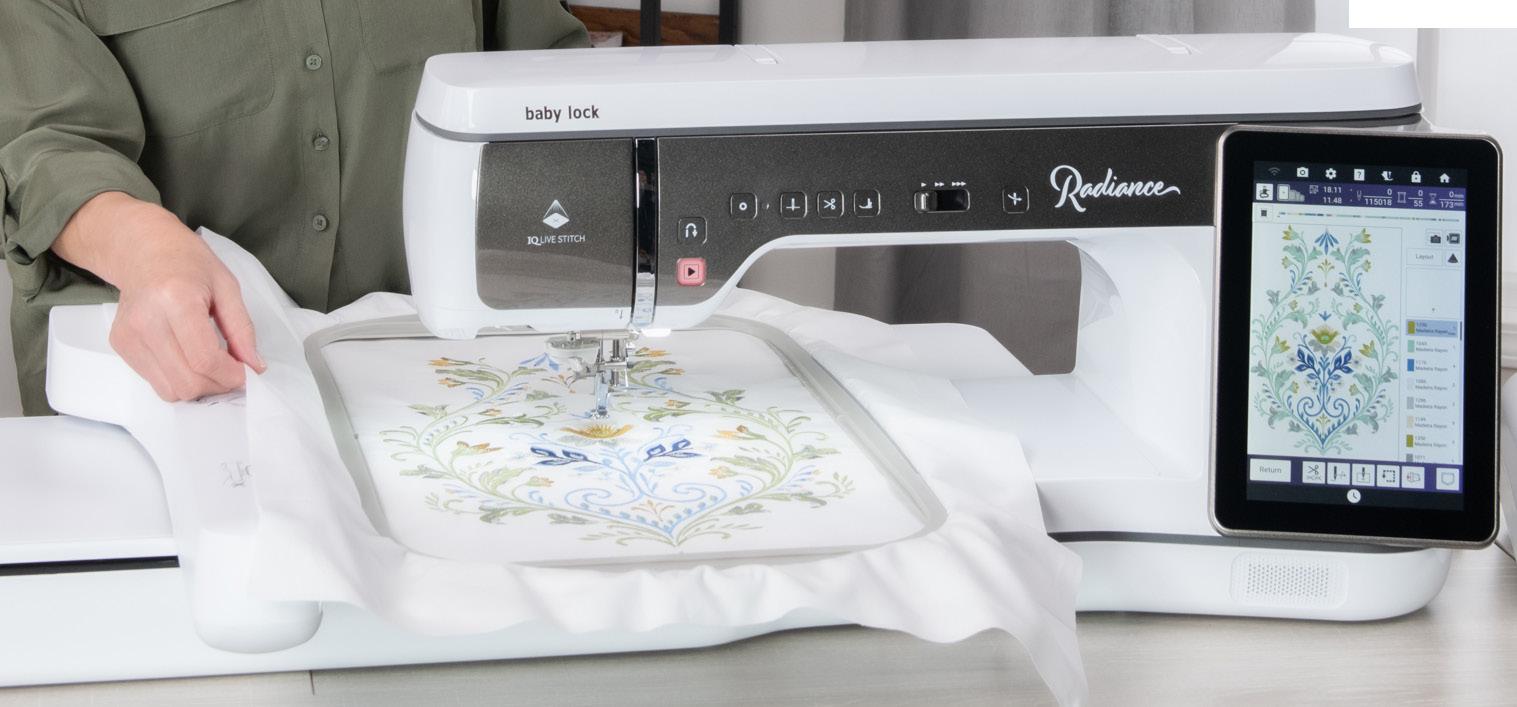

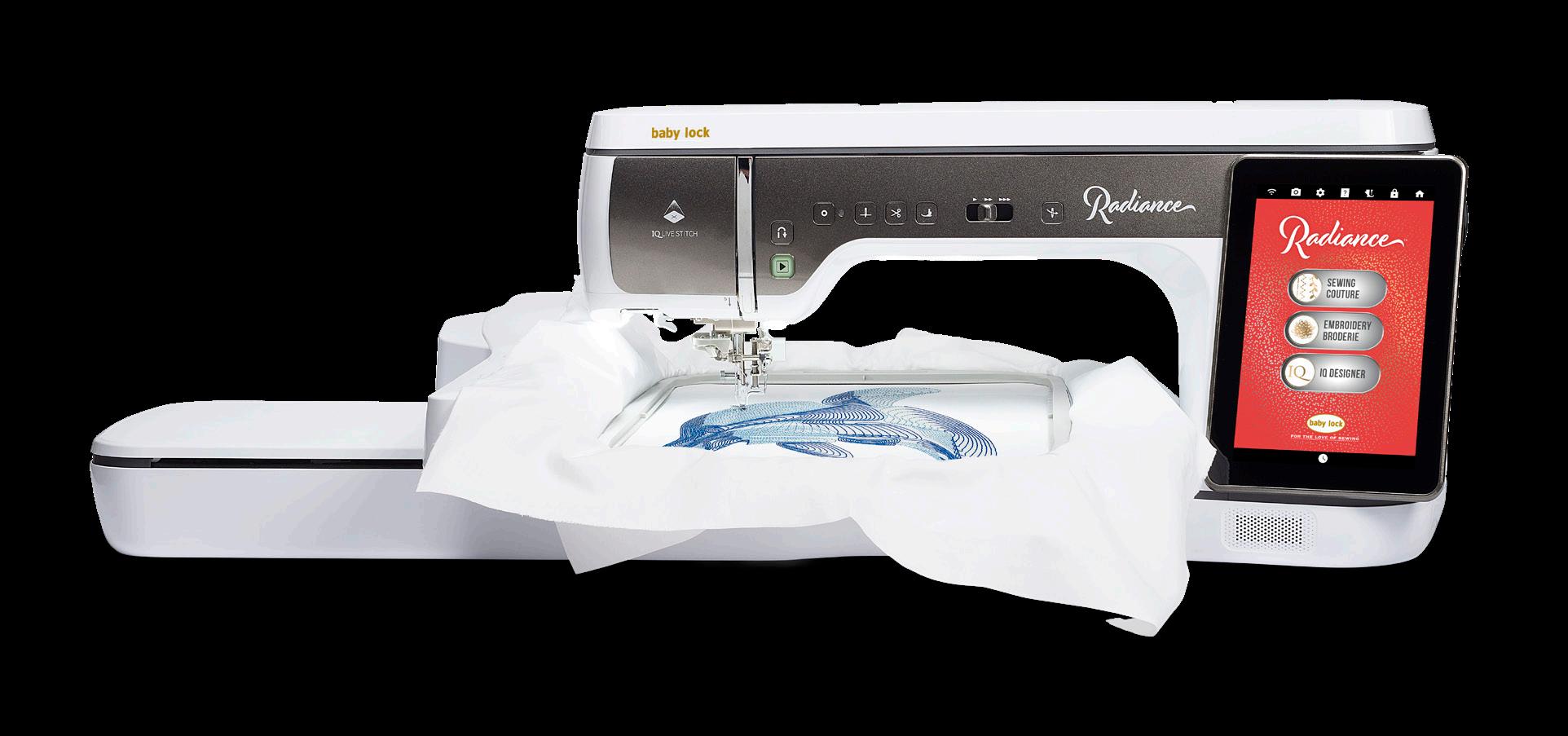

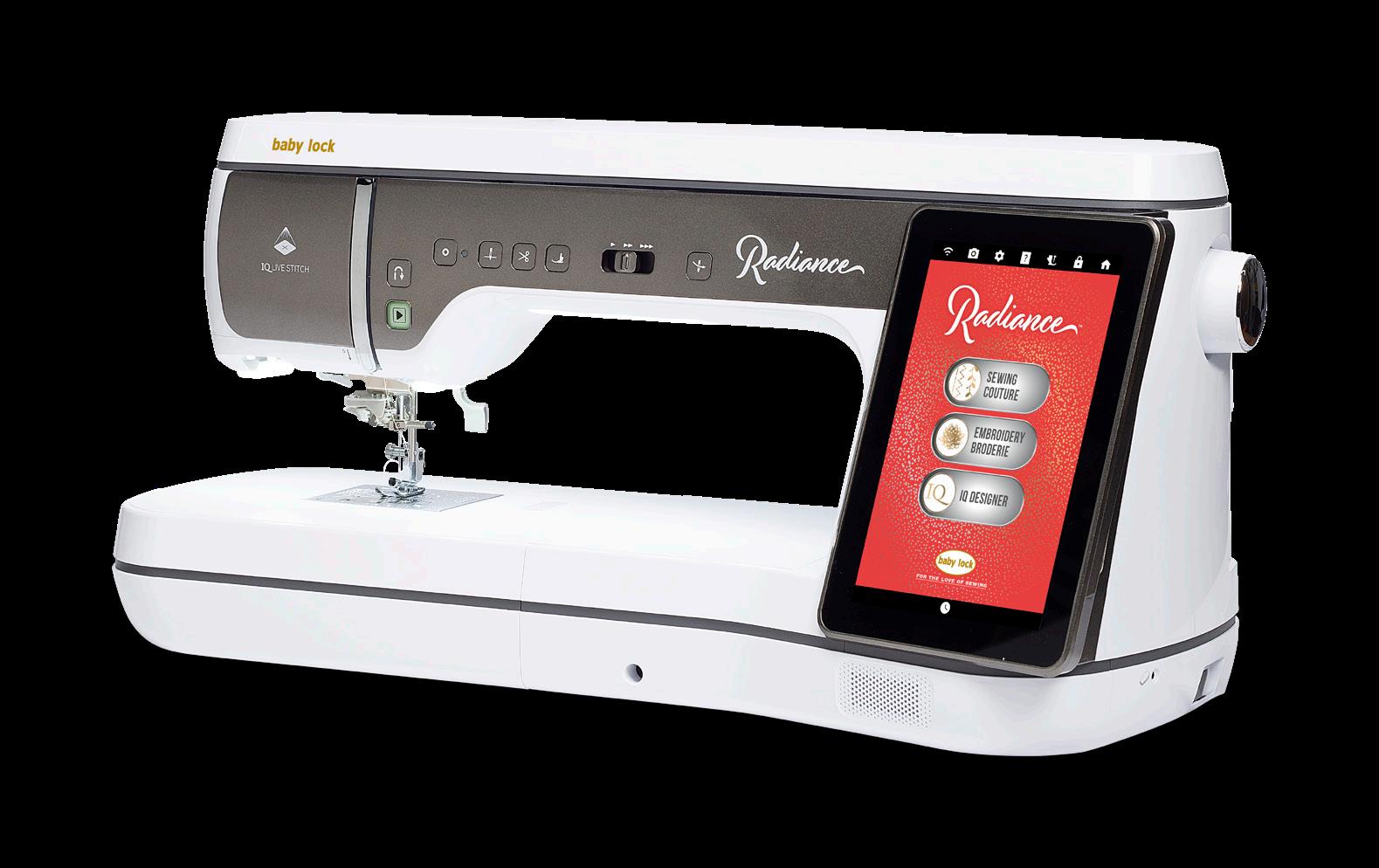

Discover THE BABY LOCK

With the largest projection area featuring IQ Live Stitch™ technology, you can project designs and stitches directly onto your fabric for flawless placement every time.

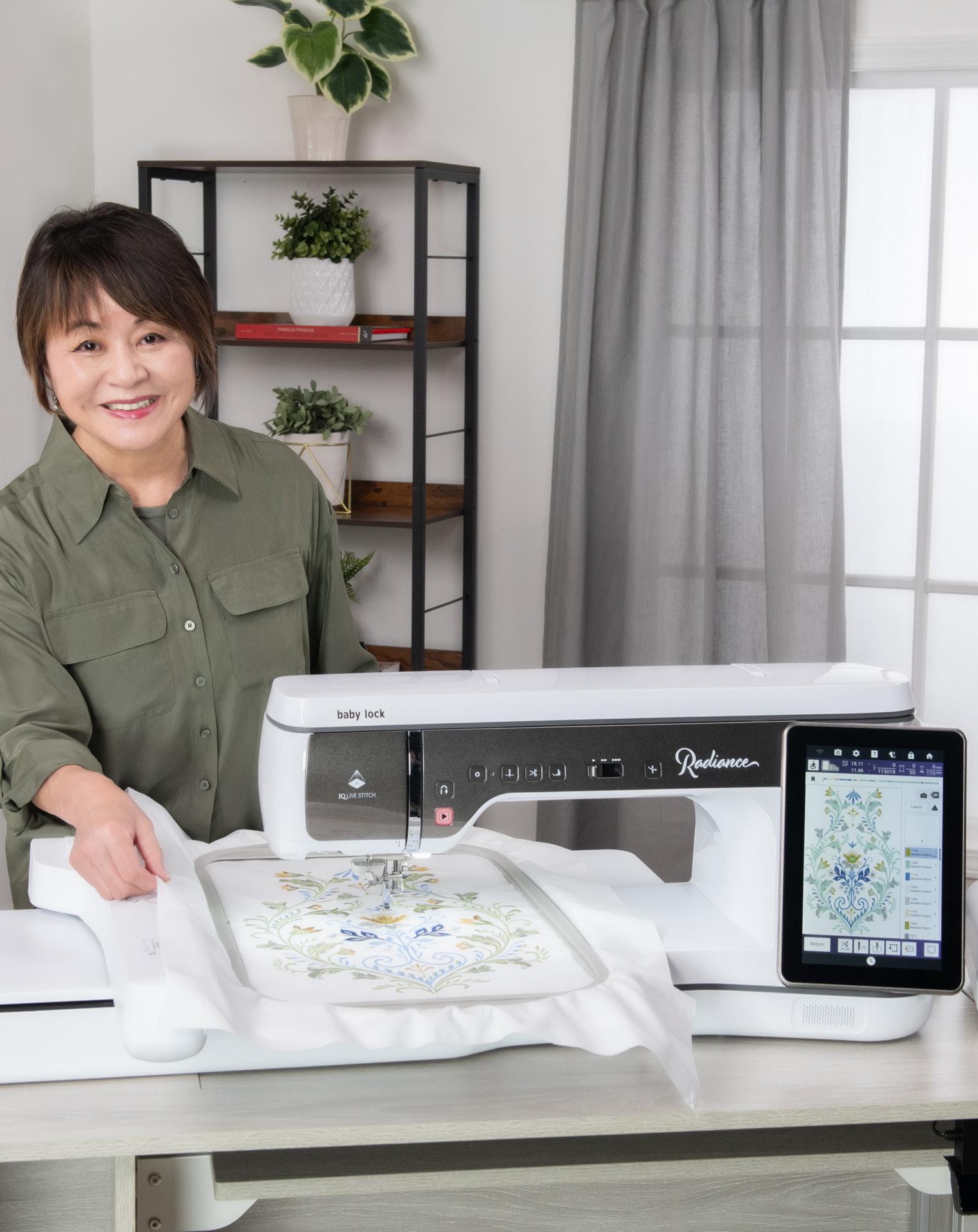

The expansive 11 5/8” x 18 1/4” embroidery hoop, IQ Designer features, and editing capabilities allow for grand, intricate designs, making your creative possibilities endless. Plus, advanced quilting features like StitchSync Regulation™ enable you to master a wide range of free-motion techniques.

Radiance Embroidery Features

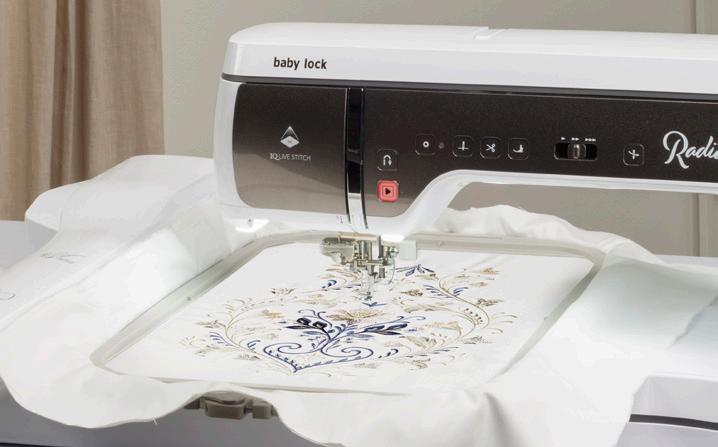

115/8" x 18 1/4" (297mm x 465mm) Embroidery Hoop

This is Baby Lock’s LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.

IQ Designer and IQ Intuition Positioning®

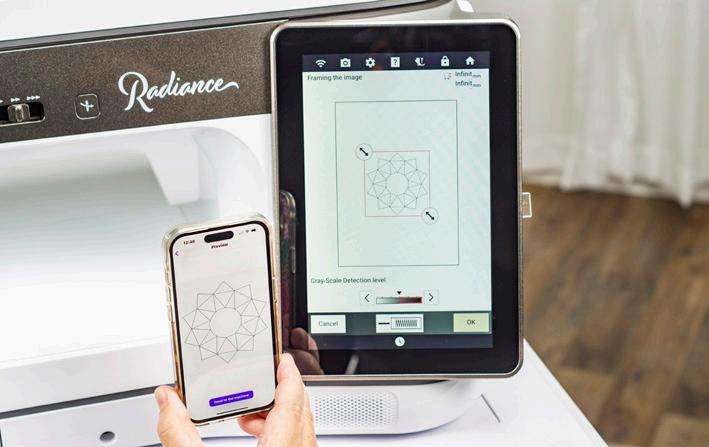

Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!

Fill Couching Alphabet

Stitch dimensional couched letters, characters and designs.

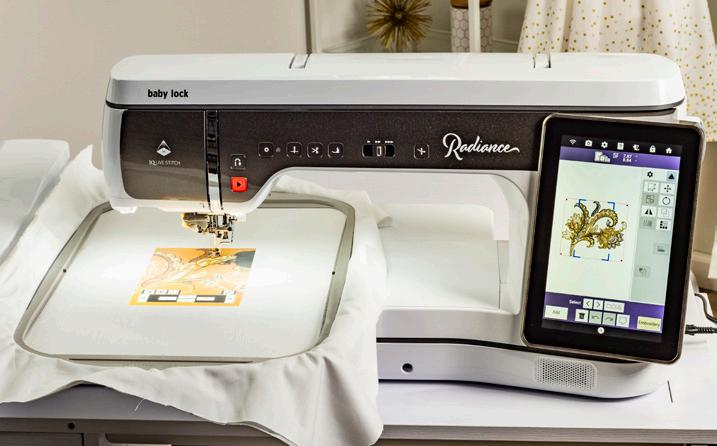

Largest Projection Area with IQ Live Stitch™

Picture Play

While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" (203mm x 127mm) projection area.

Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10” x 10” (254mm x 254mm) embroidery frame.

WATCH VIDEO

WATCH VIDEO

Large-connect Embroidery Patterns

Long Stitch Embroidery Patterns

WATCH VIDEO

WATCH VIDEO

Embroider large, stunning patterns in three connecting segments using the camera to precisely align each segment.

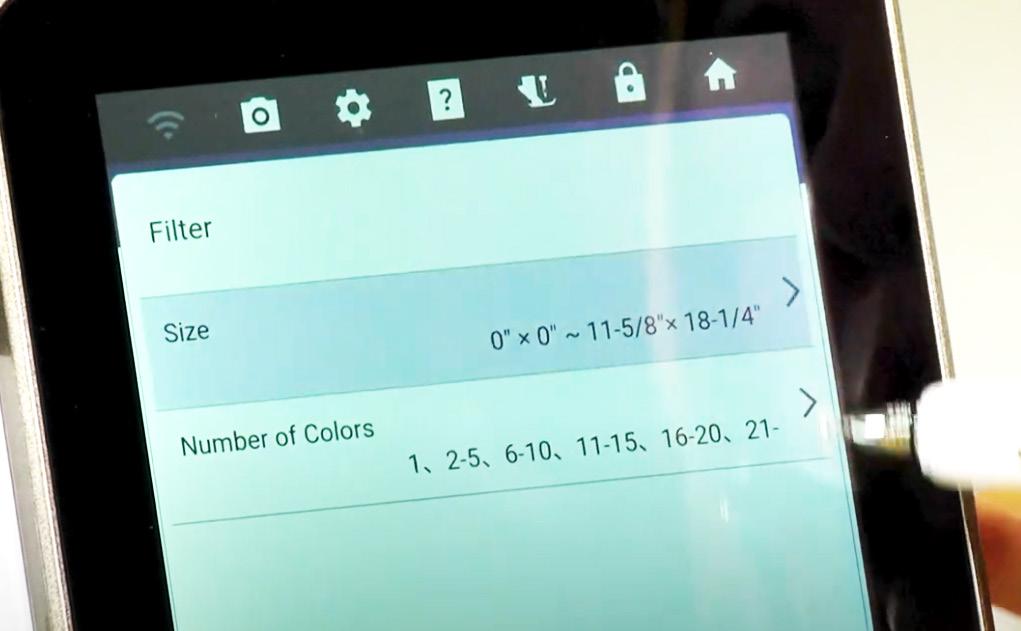

Filtering Designs

Stitch unique, decorative designs with long, overlapping stitches.

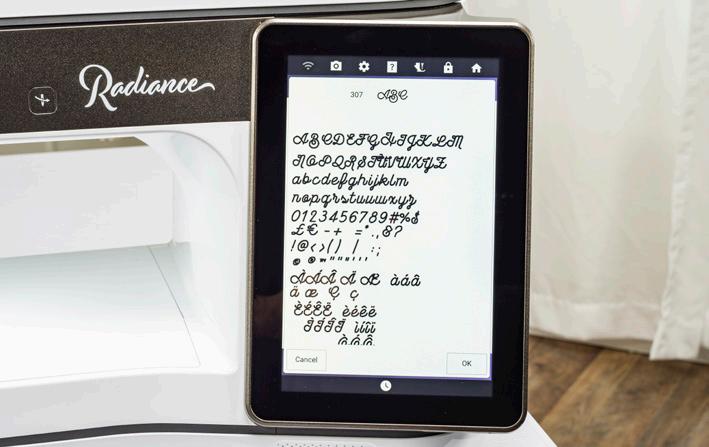

Font Preview

If you’ve got a certain size design in mind, you can now filter based on hoop size or number of colors! When using this filter, the machine only shows you the designs that fit your perimeters.

When choosing from the Radiance’s built-in fonts, you can preview the entire alphabet onscreen to see exactly how the font will look before starting your project. Plus, on most of the built-in fonts, you can resize up to 4”.

WATCH VIDEO

WATCH VIDEO

Unexpected benefits “I knew the embroidery options would be a mazing, but I didn’t expect the machine to be so quiet when stitching! What a pleasant surprise.” - Mary Expert-led video tutorials included with your purchase “I started my Baby Lock adventure with the Ellisimo. Then the Destiny and the Solaris. I watched the training video thinking I wouldn’t really learn much, but I was so wrong! Thanks for a great training session.

It’s a mazing how many little tidbits you gave to even this experienced BL owner.

Looking forward to the rest!”

- Jackie

FIND A RETAILER

Don’t forget SEE BOOK HERE the Mastering IQ Designer book!

“The Mastering IQ Designer book is a fantastic book, a fun way to learn all about IQ Designer with lots of projects to choose from. And, of course, I made the projects on my AWESOME & BEAUT IF UL Radiance.”

With new software - Brenda updates as technology advances, your machine just keeps getting better.

“I just made more oven mitts to go with my aprons! The walking foot that ca me with the Radiance is a mazing. I used to hand quilt and assemble all sections including making the 1/4” binding. I a m so enjoying VIDEO SERIES this machine. Can’t wait to see what the next updates will offer.” - Lisa

Radiance Quilting & Sewing Features

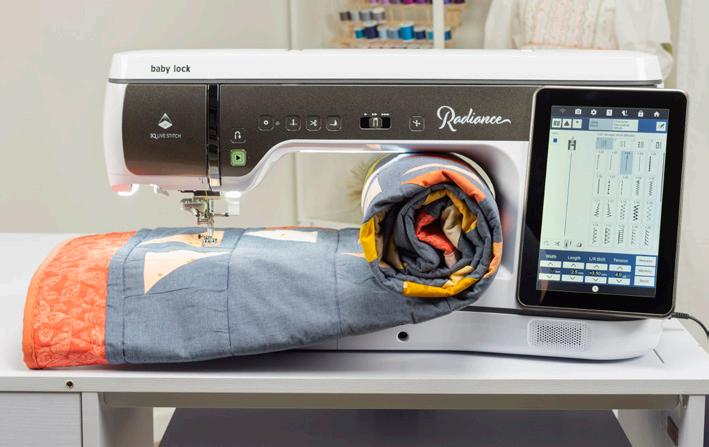

14.1” to the Right of the Needle

An unprecedented 14.1” (358mm) to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full size quilts.

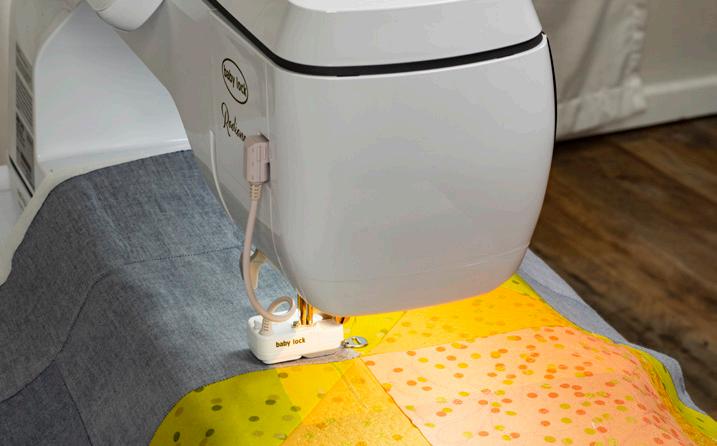

StitchSync Regulation™

With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free‑motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.

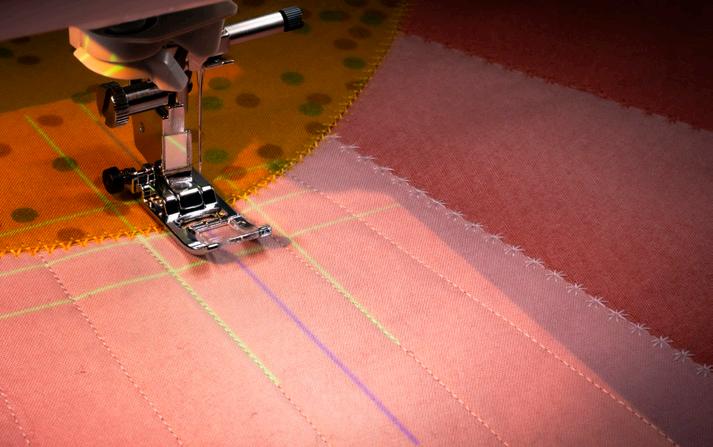

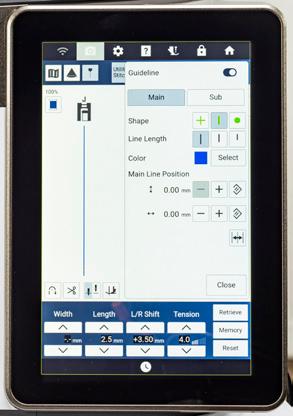

Sewing Placement with Projected Guidelines

The Radiance uses a variety of guideline markers and grids for placement. While in sewing mode, switch between 16 different laser colors for better visibility.

WATCH VIDEO

Edge-to-Edge Quilting

Create beautiful edge-to-edge quilting projects using the 15 built-in patterns. Enter a few measurements, select a hoop, specify flip options, and the Radiance sets up your entire quilt. The on-screen instructions and design projections guide you every step of the way for quilts measuring up to 118” x 118” (2,997mm x 2,997mm).

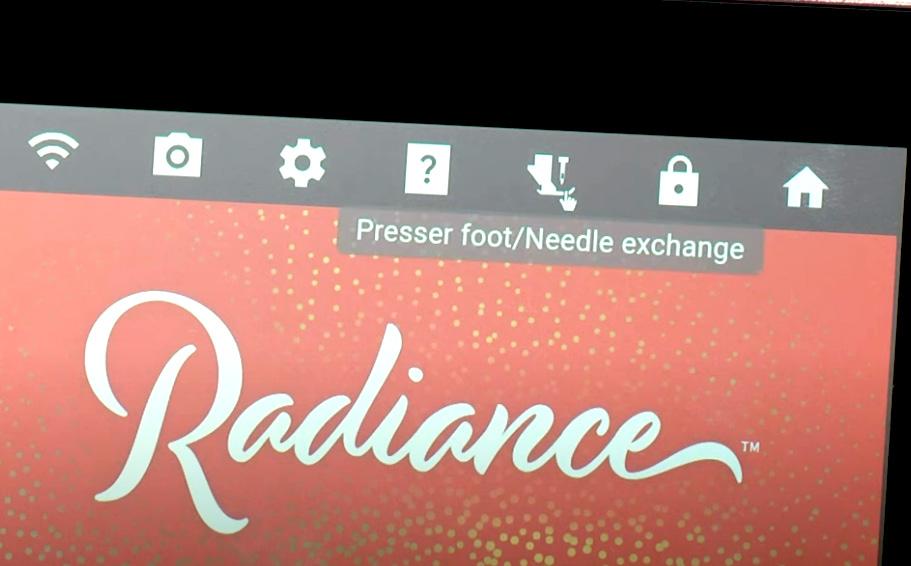

Enhanced User Interface

You can now use a wireless mouse and hover over icons to see what they represent, making it easier to navigate the machine’s features.

WATCH VIDEO

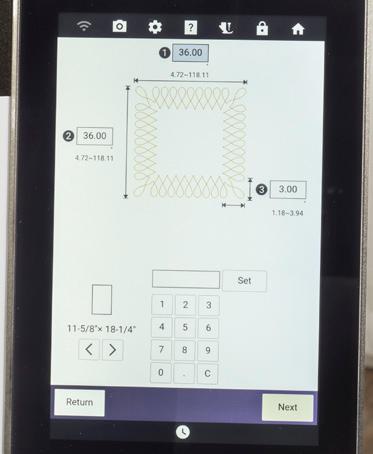

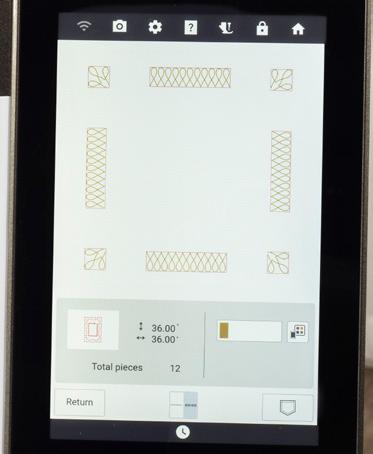

Enhanced Quilt Borders and Sashing

Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118” x 118” (2,997mm x 2,997mm).

Tapering Stitches

Match your project’s sharp angles or create mitered corners with the Radiance's Stitch Tapering. With 12 angle settings, two ending methods, and 20 decorative stitches, you can customize a variety of sewing projects.

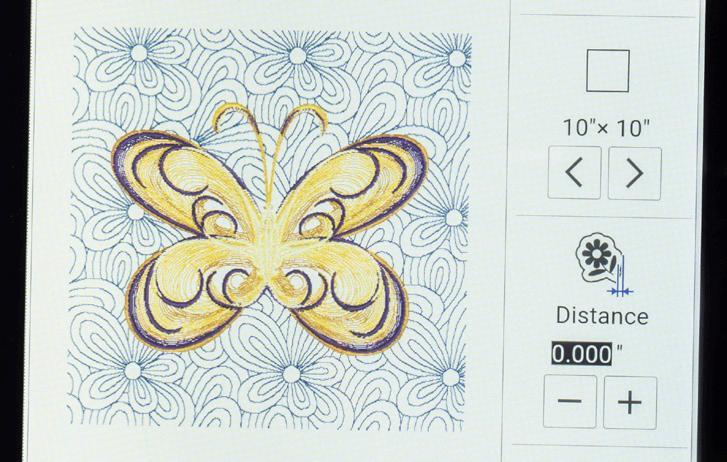

Quilting Around an Embroidery Pattern Add stippling, echo quilting, or any of the 54 Decorative Fill patterns from IQ Designer around a selected design. Line spacing, distance and frame size are all easily adjustable.

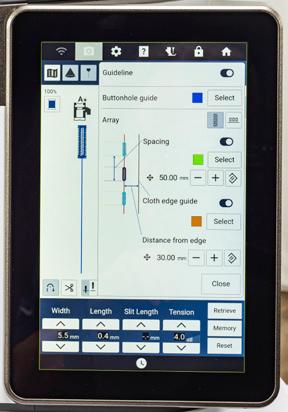

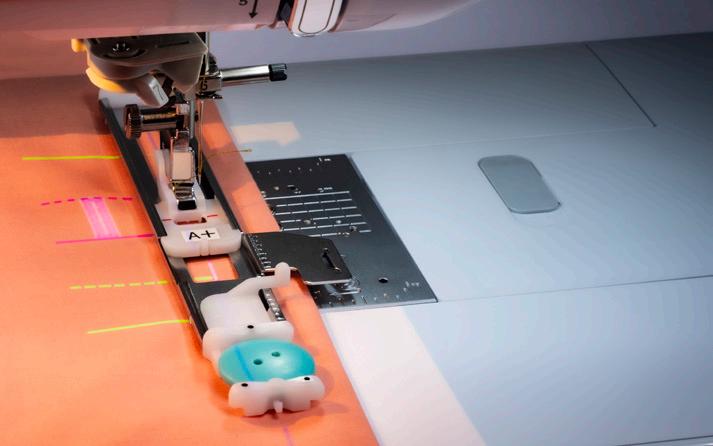

Buttonhole Preview

Using the IQ Live Stitch Projector, preview the style, vertical or horizontal placement, and spacing of your buttonhole.

WATCH VIDEO

Inspiring Projects for the Radiance Sweet Stitches Embroidered Bodice Dress

Add embroidered stitches to the bodice of your next special occasion dress! And when you’re done, why stop there? These full sleeves are a perfect canvas to highlight a favorite embroidery design, like this one from the Radiance Collection.

SEE INSTRUCTIONS

Butterfly Radiance Quilt

Showcase the beautiful embroidery designs from the Baby Lock Design Suite Radiance Collection in this fun quilt. This modified version of the Prism Quilt pattern allows large areas for designs that fill the Radiance’s large embroidery field. Use any of the embroidery patterns to enhance this project.

SEE INSTRUCTIONS

Radiance Sunrise Tote

Make your afternoon picnic special by creating this easy-to-make tote which takes advantage of some of the best features of the Baby Lock Radiance!

StitchSync Regulation™ and your free motion skills are the backdrop for the sunrise-themed pocket that features decorative stitches for added impact.

SEE INSTRUCTIONS

what our Sewlebrities™ are saying about the Radiance "The Baby Lock Radiance isn’t just an embroidery machine — it’s a creative revolution. With the Radiance hoop, I can finally drea m as big as I design — and that makes me so excited! The oversized hoop, combined with the sturdy hooping system and extension table, feels like having a support tea m built right in. It gives me the confidence to take on large projects without the stress of shifting or re-hooping. The "Technology stability is a mazing — smoother stitching, fewer has come so far in the interruptions, and pure joy in creating!”

30+ years I have been a part of the - Z andra Shaw of the Embroider Baby Lock fa mily of machine Shoppe & Baby Lock owners and 20+ as a Baby Lock educator.

Event Partner The ability to turn a photograph into an embroidery with Picture Play on the Baby Lock Radiance is one of my absolute favorites along with the HUGE hoop and IQ Designer capabilities!! I mean, just WOW!!

For the LOVE!!" - Missy Billingsley, Baby Lock Educator "The Radiance has completely elevated my sewing. I knew the stitch quality would be beautiful, but I didn’t realize how effortless it would make my projects feel.

From precise quilting to embroidery that stitches out flawlessly, it’s like having a trusted creative partner sitting right beside me. Every time I use it, I discover a new feature that makes me love it even more!" – Lori Hernandez of the Serge Fun Club & Baby Lock Educator

FIND A RETAILER

Radiance Optional Accessories

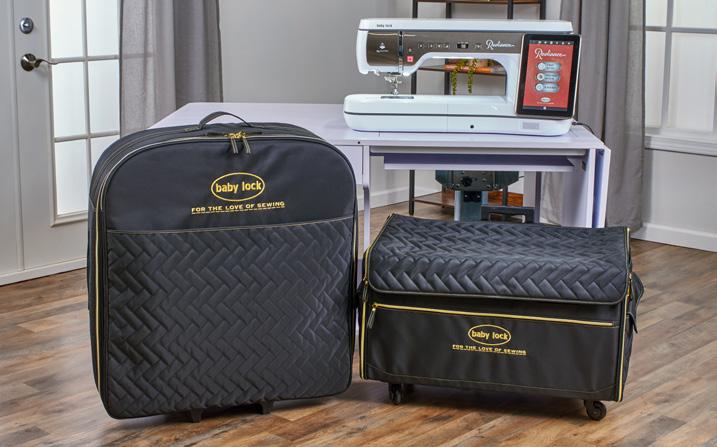

Baby Lock Radiance Quilted Trolley & Embroidery Unit Bag (BLRA-TROLLEYSET)

Store, protect, and travel with your Radiance machine and embroidery arm using this exclusive trolley set designed to perfectly fit the Radiance and its accessories.

Palette 11 Software (ESC11)

Instantly create a larger sewing surface with this 27 7/8" x 16" extension table. This table helps keep your fabric level, giving you better control when handling a variety of projects.

LEARN MORE

LEARN MORE

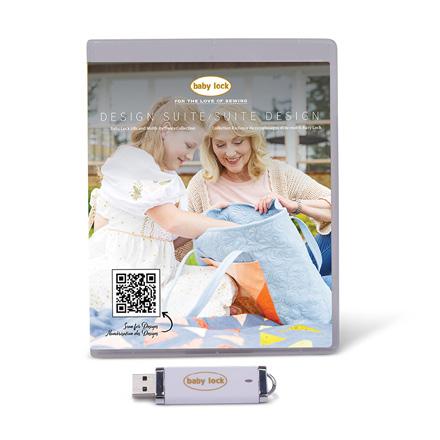

Baby Lock Design Suite Collections

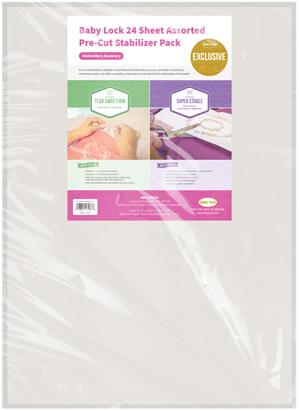

Baby Lock 24 Sheet Assorted Pre-Cut Stabilizer Pack (BL-PRECUTSTAB-LTD)

LEARN MORE

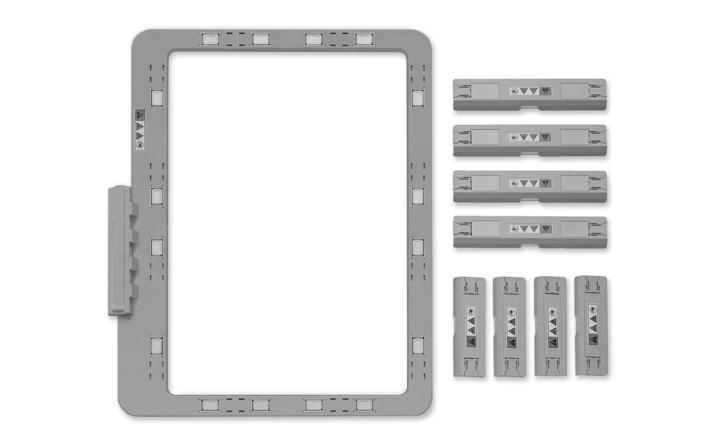

7” x 12” Magnetic Hoop (EMF300)

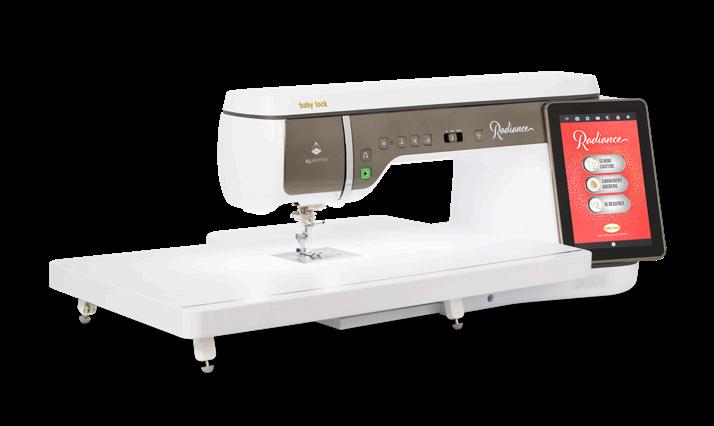

Extension Table (BLRA-ET)

Using this advanced embroidery digitizing software, you'll create and edit embroidery designs easier than ever before.

The magnets on this make it super easy to reposition your fabric for multiple hoopings, making it a must-have for quilting or large embroidery designs.

Take your creativity to the next level with Baby Lock’s Design Suite Fills & Motifs Collections! Each collection includes decorative fills and coordinating motifs, ready to use in IQ Designer or Palette 11.

LEARN MORE

LEARN MORE

FIND A RETAILER

This pack includes 12x Super Stable, 12x Cut Away 3.0 Stabilizer, and 12x Tear Away Firm 1.5oz Medium Stabilizer. Each sheet is 20" x 30".

LEARN MORE

SHOP NOW

For more optional accessories, visit your local Baby Lock retailer or babylock.com.

Technology Features

• New higher contrast AAArated WXGA IPS TFT LCD Color Touch Screen Technology • Voice Guidance available with some processes • IQ Live Stitch™ • Projects your embroidery design or sewing stitches in an 8" x 5" (203mm x 127mm) area • Advance and select stitches from projection using the Dual-Purpose Stylus • Select background color from projection using Dual Purpose Stylus • Set stitch width, length, and left/right shift • Projection of Guide Beam, Grid, and Needle Beam for precision alignment of stitches • Buttonhole preview either vertically or horizontally • NeedleCam™ Digital Camera for embroidery and sewing positioning with faster scanning • Precise Touch Positioning™ using NeedleCam • Camera detecting buttonhole foot with stabilization plate • IQ Designer Scanning Frame • Enhanced Stadium Lighting for 14.1" (358mm) area of brighter true color LED lighting on the needle and work area with 5 settings • 2 (Type A) USB 2.0 drives • Wireless Wi-LAN Function • Directly download update files to machine • IQ Intuition Monitoring® • IQ Intuition Positioning® • Design Database Transfer • Palette 11 pattern transfer to embroidery and IQ Designer • NeverMiss™ Automatic Advanced Threading System • Digital Dual-Feed System • StitchSync Regulation™ • Advanced Pivoting Feature and Automatic Fabric Sensor System • Automatic sensors • Embroidery and sewing speed up to 1,050 spm • Precise tracking system on embroidery carriage • Resume mode for Embroidery and IQ Designer • Programmable shutoff capabilities • Eco power mode • Wireless mouse compatible

Embroidery Capabilities

• 1858 built-in embroidery designs • 381 Baby Lock Exclusives • 35 Sewlebrity designs • 17 Buttonhole embroidery designs in 5 sizes • 27 Buttonhole embroidery decoration designs • 240 Large decorative stitch designs • Couching Alphabet • 74 Quilting designs • 40 Couching patterns • 7 Large-connect designs

• 7 Crochet lace designs • 11 Large alphabet designs • 18 Long-stitch designs • 11 Applique designs • 140 Frame combinations • 39 font styles • New hoop size with 115/8" x 181/4" (297mm x 465mm) embroidery field. This hoop has a new locking mechanism and side grips for fabric support.

• Embroidery design memory capacity approximately 10MB • Reads embroidery designs with a stitch capacity of up to 850,000 stitches per design and 127 color changes • Color Visualizer with favorite color options • 9-Point trial to check position • Starting point key for instant alignment of characters or patterns • Alternate bobbin case when using bobbin thread other than The Finishing Touch™ • On-screen grid • Cuts jump stitches (with on/off capability) • Embroider without removing the foot control • Compatible with optional W+ Needle Beam Foot

• 20 Tapering • 4 Built-in alphabets • 40 Quilting stitches offer 57 needle position options • Stitch length 0.0mm - 5.0mm (Stitch length over 2mm can increase in increments of 0.2mm) • 2 Basting stitch options: Regular (5mm) and free‑motion • Maximum Utility stitch width 7mm • Utility stitch editing capabilities • 5 Memory settings for each Utility stitch • Decorative stitch editing capabilities • Sewing function is available while the embroidery arm is attached • Specify end-point for stitch line with capability to end with a completed pattern • Stitch taper for specifying start and end angles of a select category of stitches • Dual Feed Foot • Stitch Regulator • Automatic drop feed key on screen • Lock key for Utility and Decorative stitches • Reinforcement priority settings • Lateral and diagonal feeding • Variable needle positions • Fully automatic built-in darning • Twin needle settings

Embroidery Editing Capabilities

• Increase in bobbin capacity 4.5m (14.75 feet) • Larger sewing bed and workspace with 14.1" (358mm) to the right of the needle • Frosted surface finish on machine bed • Convenient one-touch buttons for • Start/Stop • Reverse sewing • Reinforcement key • Needle up/down • Thread cutter • Automatic presser foot lift • Automatic needle threading • Sewing speed control doubles as width control • Quick-Set, Top-Loading bobbin with sensor • Quick-Set Independent bobbin winding system • One finger removable needle plate for easy access cleaning • Ergonomic 3-position, adjustable knee lift with extra high presser foot lift 10mm Automatic and 13mm Manual • Programmable 3-step needle up/down • Adjustable volume with 5 settings • Automatic thread cutter (with on/off capability) • Needle plate with scale in inches and centimeters and additional guideline markings • Free arm • Foldable two-spool thread stand attaches magnetically to machine lid • Two accessory storage compartments in sewing tray • Enhanced Accessory Storage Box with 3 interchangeable trays

• Combine embroidery designs on screen • Character/text array function • Character spacing • Multi-line text with justification options • Character insert and group edit capabilities • Change fonts on letters or words before or after the design is set • 0.1°, 1°, 10°, and 90° pattern rotation • Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities • Design duplication • Multiple design selection capabilities • Automatic appliqué • Automatic basting • Add automatic stippling, echo stitching, and decorative fill patterns around embroidery designs • Mirror imaging • Change color selections within designs • Enhanced color sorting to optimize sewing order • Monochrome option for embroidery designs • Programmable custom thread color palette • 14 Major thread brands color palettes built-in

Advanced Sewing Capabilities • 1610 Built-in stitches including • 184 Utility including 15 onestep buttonhole styles and 1 four-step custom buttonhole • 527 Decorative • 79 Decorative satin • 20 Satin • 21 Cross-stitch • 63 Combinable Utility • 3 Hand-look Quilting

Convenience Features

Instruction and Help Resources

• Built-in Instruction and Reference Manual • Built-in Operational Guide with up to 40 help topics • Videos available online using QR code • Built-in Sewing Application Guide • Built-in Help Messages • Embroidery Stitch Count System – SCS • Capability to save settings screen images

Downloadable Software

• Your machine will stay current with future upgrades/updates via USB or WLAN connection

Additional Information

• Language conversion capabilities (12 languages) • 115/8"x 18¼" (297mm x 465mm) Hoop required space is at least 20" (508mm) clearance from any back wall

Included Accessories

• Dual Purpose Stylus • Adjustable knee lifter with 3-position handle • Advanced multi-function foot controller • 17 Presser feet • 1/4" Quilting foot with a guide • Blind stitch • Button fitting • Camera Detecting Buttonhole foot with stabilization plate • Couching Dual Feed sole • Compact Digital Dual-Feed System • Embroidery foot “W” • Embroidery couching foot • Free-motion echo • Free-motion open toe quilting • Free-motion quilting • General purpose zigzag • Advanced monogramming N+ • Overcasting • Stitch Regulator • Stitch Regulator Quilting sole • Stitch Regulator Open Toe Quilting sole

• Stitch Regulator Echo Quilting sole • Straight Stitch • Zipper • Easy-lock accessory case for presser foot storage with 3 interchangeable trays • 2 Thread king spool stand for larger cones • Straight stitch needle plate • Bobbin Covers with and without markings • Alternate bobbin case • Bobbin center pin • Embroidery bobbin thread • Bobbins • Embroidery Positioning Stickers (2 Sheets) • End-point stickers (4 sheets, 243 stickers per sheet) • White needle calibration stickers • Multi-position screwdriver • Presser foot adaptor • Seam ripper • Scissors • Eyelet Punch • Spool nets (2) • Foot control • Twin needle • Yarn guide for couching • Yarn threader • Scanning frame with magnets • Embroidery Support Table • Embroidery hoops • 115/8" x 181/4" (297mm x 465mm) • 105/8" x 105/8" (272mm x 272mm) • 5" x 7" (130mm x 180mm) • 4" x 4" (100mm x 100mm)

Warranty

• 25 years casting limited • 10 years parts • 5 years circuit boards • 5 years electrical • 1 year labor
