Capstone Construction Document Binder: drafting example by Azra Fifić

SAN JOSE YOUTH CENTER

2021 The Alameda, San Jose, CA 95126

GENERAL PROJECT INFORMATION

DIRECTORY DRAWING INDEX PROJECT AND CODE INFORMATION

TENANTS:

KITCHENS FOR GOOD 2799 Health Center Drive San Diego, CA 92123

youMEDIA NETWORK

818 Connecticut Ave NW, 7th Floor Washington, DC 20006

FAMILY & YOUTH SERVICES

330 C Street, S.W. Washington, D.C. 20201

VICINITY MAP

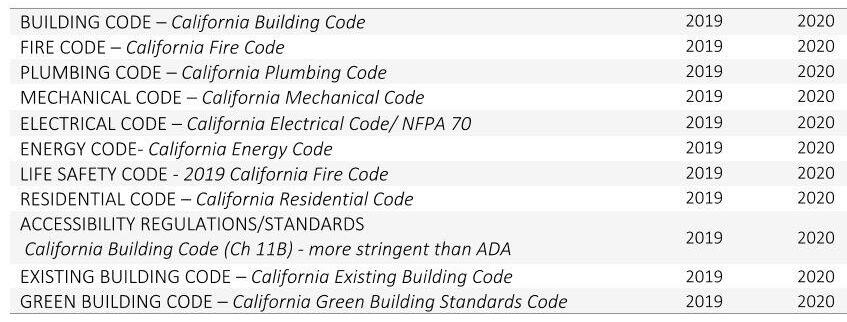

APPLICABLE CODES:

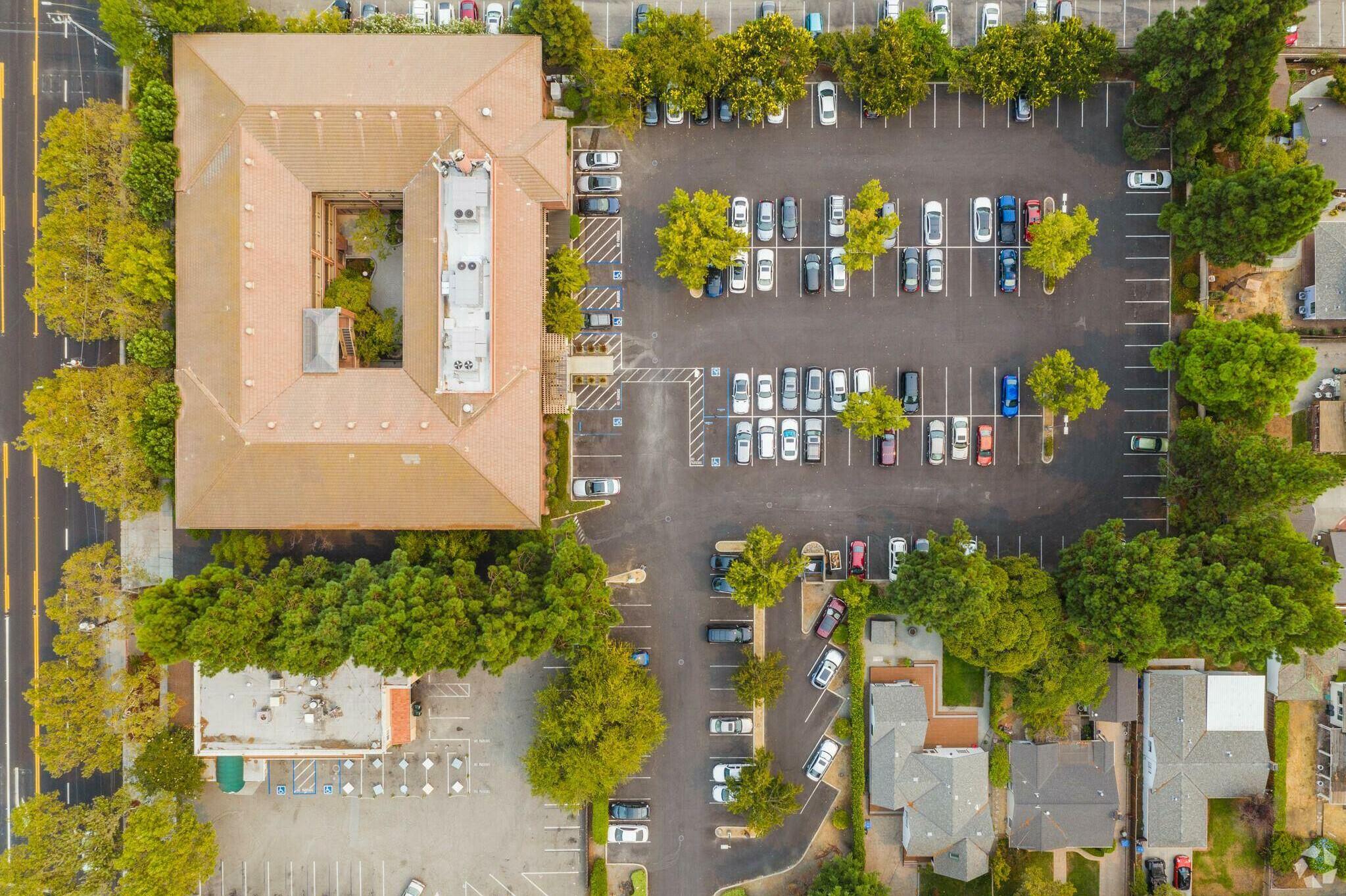

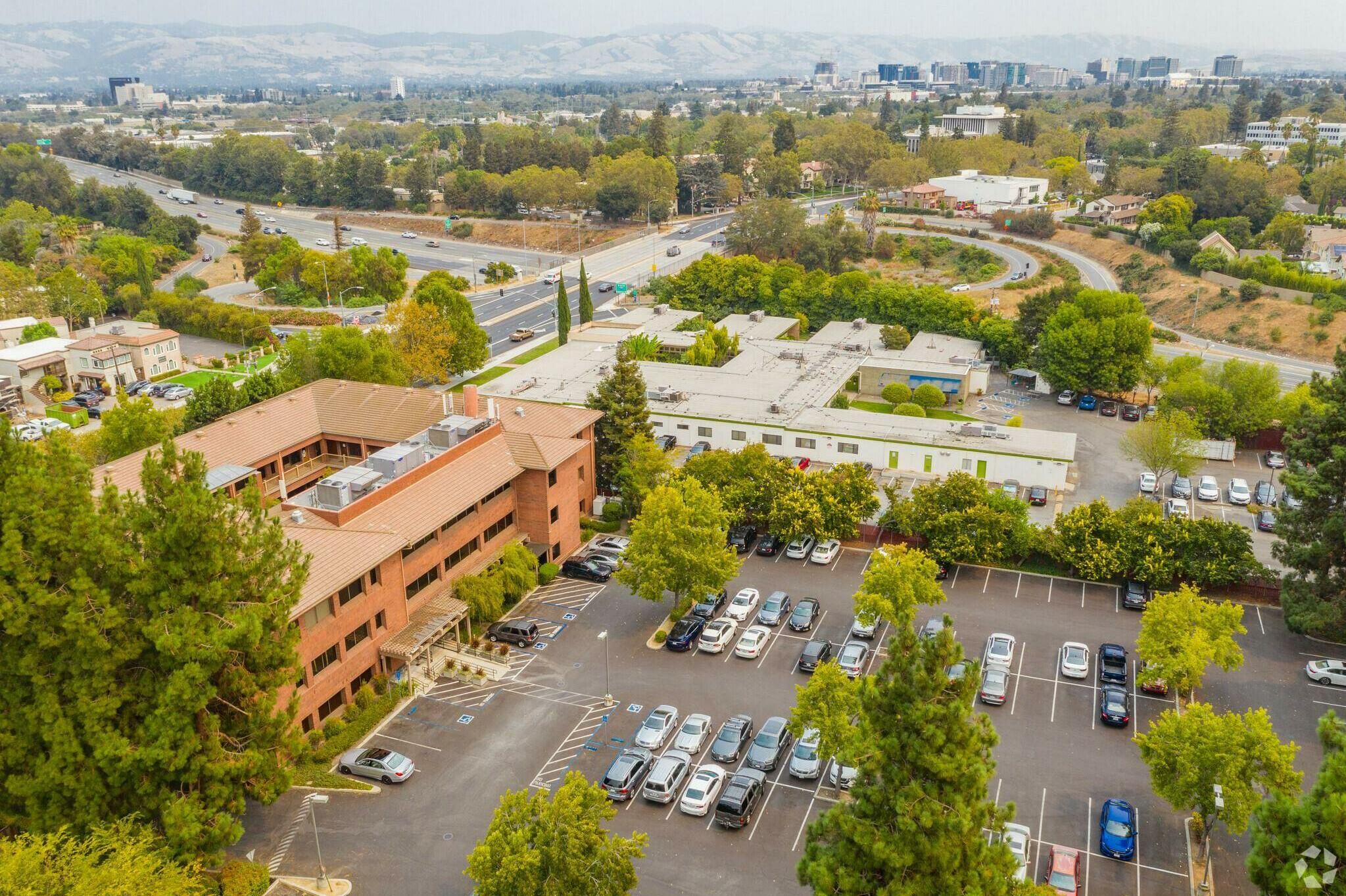

AERIAL SITE VIEW

INTERIORS:

AZRA FIFIC

University of Oklahoma

Department of Interior Design

830 Van Vleet Oval Norman, OK 73019

FYSB

THE GROUND AND SECOND FLOOR WERE CONSIDERED IN THIS PROPOSAL.

THE FIRST FLOOR IS SHARED BY TWO TENANTS: KITCHENS FOR GOOD AND youMEDIA LEARNING LABS. THE SECOND FLOOR IS SHARED BY TWO TENANTS ALSO: KITHENS FOR GOOD & FSYB.

THREE UNITS (1 ON GROUND, 2 ON SECOND FLOOR) WEREN'T INCLUDED IN THIS PROJECT'S SCOPE, AND HAVE BEEN RESERVED FOR FUTURE EXPANSIONS: DORMITORY (2ND FLOOR), A MEDICAL CLINIC (GROUND FLOOR). FURTHER DORMITORY EXPANSION HAS BEEN PLANNED FOR THE THIRD FLOOR.

IMPROVEMENTS TO EXISTING CODE, ACCESSIBILITY AND LIFE SAFETY CONSIDERATIONS HAVE BEEN MADE. NEW FURNITURE, FINISHES, AND EQUIPMENT HAVE BEEN SPECIFIED FOR EACH PROJECT FOCUS.

ACCESSIBILITY STANDARDS:

ALL NEW CONSTRUCTION SHALL COMPLY WITH THE CALIFORNIA BUILDING CODE. ALL WORK SHALL BE SUBMITTED TO RELEVANT AGENCIES FOR VERIFICATION. WHERE STATE AND LOCAL ACCESSIBILITY REQUIREMENTS CONFLICT, THE MOST STRINGENT SHALL BE APPLIED, UNLESS NOTED OTHERWISE.

BUILDING INFORMATION: OCCUPANCY CLASSIFICATION: MIXED USE OCCUPANCY LOAD: 642 AREA: 25, 542 sq. ft. SPRINKLERS: YES

FINISH REQUIREMENTS: WALL/CEILING: CLASS B (as defined by CFC) (ASTM E84) flame

PROJECT-SPECIFIC INFORMATION:

26 - 75 smoke spread: 0 - 450 FLOOR: CLASS II

GENERAL G001 - COVER SHEET G002 - INDEX KITCHENS FOR GOOD A100 - LIFE SAFETY PLAN A101 - DEMOLITION PLAN A102 - FLOOR PLAN A103 - REFLECTED CEILING PLAN A200 - ELEVATION DRAWINGS A201 - ELEVATION DRAWINGS A202 - ELEVATION DRAWINGS A300 - SECTION DRAWINGS

LIBRARY I100 - FLOOR FINISH PLAN I101 - FURNITURE PLAN

spread:

(ASTM E648)

youMEDIA

DORMITORY A100 - LIFE SAFETY PLAN A101 - DEMOLITION PLAN A102 - FLOOR PLAN A103 - REFLECTED CEILING PLAN A200 - ELEVATION DRAWINGS A201 - ELEVATION DRAWINGS A202 - ELEVATION DRAWINGS A300 - SECTION DRAWINGS

PROJECT SCOPE

FOR GOOD OCCUPANCY CLASSIFICATION: A-2 AREA: 8 624 sq.ft.(GROSS), 7 321 sq.ft.(NET), 1 303 sq.ft.(CIRCULATION) OCCUPANCY LOAD: 242

LIBRARY OCCUPANCY CLASSIFICATION: A-3 AREA: 6 690 sq.ft.(GROSS), 5 437 sq.ft.(NET), 1 253 sq.ft.(CIRCULATION) OCCUPANCY LOAD: 195

DORMITORY: OCCUPANCY CLASSIFICATION: R-2 AREA: 9 495 sq.ft.(GROSS), 7 735 sq.ft.(NET), 1 706 sq.ft.(CIRCULATION) OCCUPANCY LOAD: 205 NOT TO SCALE

KITCHENS

youMEDIA

FYSB

SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" G-003 KEY PLANS KEY PLAN - LEVEL 1 KEY PLAN - LEVEL 2 LEGEND COMMON ABBREVIATION LIST - KITCHENS FOR GOOD - youMEDIA LIBRARY - FYSB DORMITORY A.F.F - ABOVE FINISH FLOOR C - CEILING FINISH F - FLOORING FA - FURNITURE ACCESSORIES L - LIGHTING MF - MILLWORK FINISH P - PLUMBING S - SEATING ST - STORAGE T - TABLE WF - WALL FINISH - NOT IN PROJECT SCOPE NOT TO SCALE NOT TO SCALE NOT TO SCALE

BIULDING CODE:

NOTES

WITH CITY OF SAN JOSE

ALL EXITS AND PATHS OF TRAVEL ARE COMPLIANT WITH THE

CALIFORNIA BUILDING CODE

WHERE TWO EXIT DOORWAYS ARE REQUIRED, THEY SHALL BE PLACED A DISTANCE APART EQUAL TO NOT LESS THAN 1/2 OF THE LENGHT OF THE MAXIMUM OVERALL STRAIGHT DIAGONAL DIMENSIONOF THE BUILDING OR THE AREA SERVED

THE MAXIMUM COMMON PATH OF TRAVEL SHALL NOT EXCEED 100 FT

THE MAXIMUM TRAVEL DISTANCE WITHIN THE EXIT ACCESS PORTION OF THE SYSTEM SHALLNOT EXCEED 300 FT.

THIS BUILDING IS EQUIPPED WITH AN AUTOMATIC SPRINKLER SYSTEM IN ACCORDANCE WITH THE IFC 2015

LEGEND

COMMON PATH OF TRAVEL

ILLUMINATED

UP UP UP 1 2 3 4 5 6 7 8 9 10 B C D A E F G H 2339 SF COURTYARD 433 SF RECEPTION Redundant Room ELEV. 83 SF MECH 71 SF UTIL. 72 SF STRG 1 31 1 2 348 SF STORAGE 1163 SF CREATIVE LAB 514 SF CLASSROOM 234 SF RESTRM 235 SF RESTRM 391 SF LIBRARIAN DESK + OFFICE 428 SF ENTRY + LOBBY 897 SF STACKS & READING 431 SF CLASSROOM 1 177 SF LOCKERS 100 SF STRG 445 SF OFFICE 104 SF ELEV. 218 SF LOADING DECK 104 SF MOP RM. 155 SF DRY STRG. 425 SF COLD STORAGE 1620 SF KITCHEN PRINTING 434 SF DISH 207 SF LOBBY 981 SF HALLWAY 325 SF CRAFT RM. 104 SF UTILITY 205 SF MALE EMPL. RESTROOM 206 SF FEM EMPL RESTROOM 62 SF Room 1269 SF COURT EXIT EXIT EXIT EXIT 17' 3" 17' 2 3/4" 18' 6 1/4" 19' 0" 19' 0" 19' 0" 19' 0" 18' 6" 2 37 1 / 2 2 37 1 / 2 2 01 0 2 01 0 2 01 0 2 37 1 2 2 37 1 2 SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" G-004 LIFE SAFETY PLAN - LEVEL 1 N 1/8" = 1'-0" LIFE SAFETY PLAN - LEVEL 1

2019

AMENDMENTS

FOOTAGE: 12, 661 sq. ft.

TYPE: TYPE NON-COMBUSTIBLE BUILDING CLASS: B FIRE SPRINKLERS: YES

CALIFORNIA BUILDING CODE

LEVEL 1 SQ.

CONSTRUCTION

2019

EXIT SIGN - 1 HOUR FIRE-RATED PARTITION - 2 HOUR FIRE-RATED PARTITION - INTERIOR - 2 HOUR FIRE-RATED PARTITION - EXTERIOR - PLUMBING WALL 1 G-007 2 G-007 4 G-007 3 G-007 - 36" x 80" FLUSH HOLLOW CORE WOOD DOOR - 36" x 80" FULL GLASS METAL DOOR - 36" x 80" FLUSH HOLLOW METAL EGRESS DOOR - 72" x 80" FULL GLASS DOUBLE DOOR - 72" x 80" FLUSH METAL EGRESS DOOR - 72" x 80" FULL GLASS METAL EGRESS DOOR D1 D2 D3 D4 D5 D6 1 G-006 2 G-006 3 G-006 4 G-006 WALL TYPES DOOR TYPES 5 G-006 6 G-006 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D2 D2 D2 D2 D2 D2 D3 D3 D3 D3 D3 D3 D3 D3 D5 D4 D4 D4 D4 D4 D4 D5 D6 D6 D6

BUILDING CODE WITH CITY OF SAN JOSE

EXITS AND PATHS OF TRAVEL ARE COMPLIANT WITH THE 2019 CALIFORNIA BUILDING CODE

THE MAXIMUM COMMON PATH OF TRAVEL SHALL NOT EXCEED 100 FT

THE MAXIMUM TRAVEL DISTANCE WITHIN THE EXIT ACCESS PORTION OF THE SYSTEM SHALLNOT EXCEED 300 FT.

THIS BUILDING IS EQUIPPED WITH AN AUTOMATIC SPRINKLER SYSTEM IN ACCORDANCE WITH THE IFC 2015

LEGEND

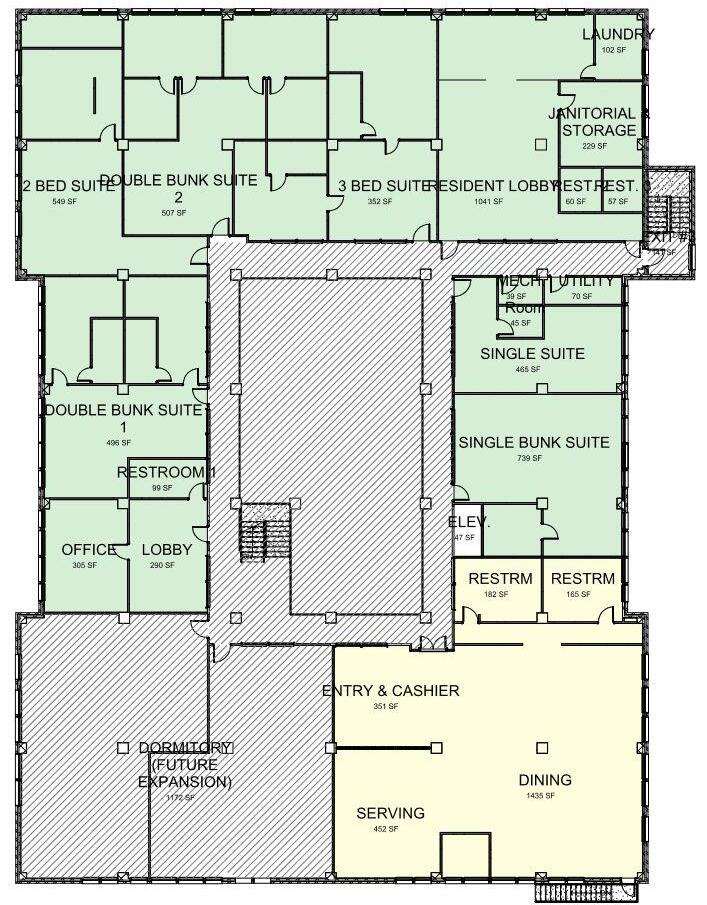

DN DN DN 141 SF EXIT 1041 SF RESIDENT LOBBY 465 SF SINGLE SUITE 39 SF MECH. 507 SF DOUBLE BUNK SUITE 2 351 SF ENTRY & CASHIER 452 SF SERVING 1435 SF DINING 165 SF RESTRM 182 SF RESTRM 305 SF OFFICE 290 SF LOBBY 99 SF RESTROOM 1 496 SF DOUBLE BUNK SUITE 1 60 SF REST. 2 229 SF JANITORIAL & STORAGE 70 SF UTILITY 739 SF SINGLE BUNK SUITE 352 SF 3 BED SUITE 549 SF 2 BED SUITE 45 SF Room 1172 SF DORMITORY (FUTURE EXPANSION) 102 SF LAUNDRY 57 SF REST. 3 47 SF ELEV. SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" G-005 LIFE SAFETY PLAN - LEVEL 2 N 1/8" = 1'-0" LIFE SAFETY PLAN - LEVEL 2

BIULDING CODE: 2019 CALIFORNIA

AMENDMENTS LEVEL 2 SQ. FOOTAGE: 12, 148

TYPE

BUILDING CLASS: B FIRE SPRINKLERS: YES

NOTES

sq. ft. CONSTRUCTION TYPE:

NON-COMBUSTIBLE

ALL

- 1 HOUR FIRE-RATED PARTITION - 2 HOUR FIRE-RATED PARTITION - INTERIOR - 2 HOUR FIRE-RATED PARTITION - EXTERIOR - PLUMBING WALL 1 G-007 2 G-007 4 G-007 3 G-007 - 36" x 80" FLUSH HOLLOW CORE WOOD DOOR - 36" x 80" FULL GLASS METAL DOOR - 36" x 80" FLUSH HOLLOW METAL EGRESS DOOR - 72" x 80" FULL GLASS METAL EGRESS DOOR D1 D2 D3 D6 1 G-006 2 G-006 3 G-006 WALL TYPES DOOR TYPES 6 G-006 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D2 D2 D2 D3 D3 D3 D3 D3 D3 D2 D6 D1 D1 D3

- COMMON PATH OF TRAVEL - ILLUMINATED EXIT SIGN

DOOR SCHEDULE

1. ALL WOOD DOORS SHALL BE FINISHED WITH THE DOOR VENEER SPECIFIED FOR EACH PROJECT TYPE, DEPENDING ON THE DOOR'S LOCATION. MF-1 IN KITCHEN, MF-6 IN LIBRARY, MF-8 IN DORMITORY.

3' - 0" 68 3' - 0" 68 04 58 08 0' - 4" 2' - 4" 0' - 4" 3' 0" 68 3' 0" 3' - 0" 6' 0" 70 04 64 04 3' 0" 3' 0" 6' - 0" 68 3' 0" 6' 0" 0' - 4" 2' - 4" 0' 4" 08 58 04 68 SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1" = 1'-0" G-006 DOOR ELEVATIONS

HOLLOW CORE WOOD DOOR FULL GLASS METAL DOOR

HOLLOW METAL EGRESS DOOR FULL GLASS DOUBLE DOOR SWINGING METAL EGRESS DOUBLE DOOR FULL GLASS METAL EGRESS DOUBLE DOOR MARK DOOR OPENING WIDTH HEIGHT THICK. FINISH FRAME HEAD JAMB MATERIAL FINISH HARDWARE D1 36" 80" 1 3/4" MF1 1 1 MF1 KEYED LEVERSET D2 36" 80" 1 3/4" METAL 1 1 METAL METAL D3 36" 80" 1 3/4" METAL 1 1 METAL METAL D4 72" 80" 1 3/4" GLASS 2 2 GLASS GLASS PULL PLATES D5 72" 80" 1 3/4" METAL 2 2 METAL METAL D6 72" 80" 1 3/4" 2 2 PANIC/PASSAGE LEVER METAL METAL METAL 1" = 1'-0" D1 ELEVATION 1 1" = 1'-0" D2 ELEVATION 2 1" = 1'-0" D3 ELEVATION 3 1" = 1'-0" D4 ELEVATION 4 1" = 1'-0" D5 ELEVATION 5 1" = 1'-0" D6 ELEVATION 6 MF1 PULL PLATES KEYED LEVERSET KEYED LEVERSET

FLUSH

NOTES

2. ALL EXISTING WINDOWS TO REMAIN AS THEY ARE. NO NEW WINDOWS HAVE BEEN SPECIFIED. PAINT INTERIOR WINDOW TRIM AND DOOR FRAMES WITH WF6 IN LIBRARY, DORM, AND KITCHEN'S GROUND FLOOR. PAINT INTERIOR TRIM WITH W7 ON KITCHEN'S SECOND FLOOR.

4 7/8"

CONTINUOUS ACOUSTICAL TAPE

FILL ALL VOIDS WITH FIRE-RATED SEALER

METAL SLIP TRACK

SPECIFIED CEILING

WALL ANGLE

5/8" GYPSUM BOARD, EACH SIDE; FIRE-RATED GYP. BD. MUST BE UTILIZED FOR 1-HOUR-RATED PARTITIONS

11/2" SOUND INSULATION

SPECIFIED WALL BASE

METAL RUNNER CHANNEL

PROVIDE FIRE-RATED SEALANT AT BASE, BOTH SIDES OF PARTITION

ONE-HOUR FIRE-RATED FULL HEIGHT PARTITION WITH ACOUSTICAL INSULATION

20 GA. METAL STUDS @ 16" O.C. WITH 5/8" GYPSUM BOARD (TYPE X) ON EACH SIDE

CONTINUOUS ACOUSTICAL TAPE

FILL ALL VOIDS ABOVE CEILING WITH FIRE-RATED SEALER

METAL SLIP TRACK, FASTEN TO UNDERSIDE OF STRUCTURE

SPECIFIED CEILING

WALL ANGLE

WATER MEMBRANE, EACH SIDE

5/8" GYPSUM BOARD, EACH SIDE; MOISTURE AND MOLD RESISTANT GYP. BD. MUST BE UTILIZED (PURPLE)

SPECIFIED WALL FINISH

11/2" SOUND INSULATION (OPTIONAL), CAVITY TO BE USED FOR PLUMBING EQUIPMENT

SPECIFIED WALL BASE

METAL RUNNER CHANNEL

PROVIDE WATER RESISTANT SEALANT AT BASE, BOTH SIDES OF PARTITION

CONTINUOUS ACOUSTICAL TAPE

FILL ALL VOIDS WITH FIRE-RATED SEALER

METAL SLIP TRACK, FASTEN TO UNDERSIDE OF STRUCTURE

SPECIFIED CEILING

WALL ANGLE

DOUBLE LAYER OF 5/8" GYPSUM BOARD, EACH SIDE; FIRE-RATED GYP. BD. MUST BE UTILIZED (TYPE X)

11/2" SOUND INSULATION

SPECIFIED WALL BASE

METAL RUNNER CHANNEL

PROVIDE FIRE-RATED SEALANT AT BASE, BOTH SIDES OF PARTITION

PLUMBING FULL HEIGHT PARTITION WITH ACOUSTICAL INSULATION

INTERIOR TWO-HOUR FIRE-RATED FULL HEIGHT PARTITION WITH ACOUSTICAL INSULATION

20 GA. METAL STUDS @ 16" O.C. WITH DOUBLE LAYER OF 5/8" GYPSUM BOARD (TYPE X) ON EACH SIDE

CONTINUOUS ACOUSTICAL TAPE

FILL ALL VOIDS ABOVE CEILING WITH FIRE-RATED SEALER

METAL SLIP TRACK, FASTEN TO UNDERSIDE OF STRUCTURE

SPECIFIED CEILING

WALL ANGLE

5/8" GYPSUM BOARD, ONE LAYER; MOISTURE AND MOLD RESISTANT GYP. BD. MUST BE UTILIZED (PURPLE)

WATER MEMBRANE

5/8" GYPSUM BOARD; FIRE-RATED GYP. BD. MUST BE UTILIZED (TYPE X)

11/2" SOUND INSULATION (OPTIONAL), CAVITY TO BE USED FOR PLUMBING EQUIPMENT

SPECIFIED WALL FINISH

SPECIFIED WALL BASE

METAL RUNNER CHANNEL

PROVIDE WATER RESISTANT SEALANT AT BASE, BOTH SIDES OF PARTITION

EXTERIOR TWO-HOUR FIRE-RATED FULL HEIGHT PARTITION WITH PLUMBING CAVITY

20 GA. METAL STUDS @ 16" O.C. WITH 5/8" GYPSUM BOARD (TYPE X, PURPLE) ON EACH SIDE

20 GA. METAL STUDS @ 16" O.C. WITH 5/8" GYPSUM BOARD ON EACH SIDE 8"

E X T E R I O R S I D E 3" = 1'-0"

1 3" = 1'-0"

2 3" = 1'-0"

3 3" = 1'-0"

W1 SECTION DRAWING W2 SECTION DRAWING W3 SECTION DRAWING

W4 SECTION DRAWING

SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) C-100 SITE PLAN TENANT PARKING SAN JOSE YOUTH CENTER THEALAMEDA PRIVATERESIDENTIALPROPERTIES PRIVATERESIDENTIALPROPERTIES PRIVATERESIDENCES RPRIVATEESIDENCES PRIVATERESIDENTIALPROPERTIES PRIVATERESIDENTIALPROPERTIES THEALAMEDA I-880 I-880 BILLSCAFE MOMENTUMMENTALHEALTH SITE PLAN NOT TO SCALE N NOT TO SCALE

1. ALL DEMOLITION WORK TO BE CONDUCTED IN ACCORDANCE WITH STATE AND CITY REQUIREMENTS

2. GENEREAL CONTRACTOR (G. C.) TO INSPECT THE SITE BEFORE ANY WORK IS DONE, TO DERMINE THE TECHNIQUES AND EQUIPMENT NECCESSARY FOR A SUCCESSFUL DEMOLITION PROCESS. THE G. C. HAS TO FAMILIARIZE THEMSELVES WITH ALL PROJECT INFORMATION PROVIDED IN THIS PROPOSAL. FAILURE TO DO SO WILL HOLD THEM ACCOUNTABLE FOR ANY DRAWBACKS IN SCHEDULE OR ANY INCOMPLETE WORK OUTLINED IN THE PROJECT SCOPE.

3. AFTER DEMOLITION IS COMPLETE, ALL MEASUREMENTS TO BE INSPECTED FOR ACCURACY. ALL DISCREPANCIES TO BE IMMEDIATELY REPORTED TO LEAD ARCHITECT.

4. NO LOAD BEARING WALLS OR ANY OTHER ELEMENTS THAT MIGHT COMPROMISE THE STRUCTURAL INTEGRITY OF THE BUIDING SHALL BE DEMOLISHED. ANY CONCERNS REGARDING THIS MUSTE BE IMMEDIATELY REPORTED TO LEAD ARCHITECT.

5. ALL EXISTING PARTITIONS AND DOOR OPENINGS TO BE REMOVED AS NOTED ON THE PLAN

6. ALL EXISTING FLOORING TO BE REMOVED IN UNSHADED AREAS NOTED ON THE DEMOLITION PLAN. FLOOR TO BE PREPARED FOR THE INSTALLMENT OF NEW FLOOR FINISHES AS PER THE MANUFACTURER'S REQUIREMENTS. REFER TO FINISH PLAN ON SHEET -100 FOR MORE INFORMATION.

7. ALL GRID CEILINGS TO BE REMOVED IN ALL UNSHADED AREAS AS NOTED ON THE PLAN. ANY FIXTURES AND EQUIPMENT SHALL BE REMOVED ALSO, UNLESS NOTED OTHERWISE. REFER TO THE RCP ON SHEET A200 FOR DETAILED INFORMATIONON THE NEW EQUIPMENT TO BE INSTALLED

8. ALL EXISTING ELECTRICAL, PLUMBING AND MECHANICAL EQUIPMENT TO BE RECONFIGURED IN ACCORDANCE TO THE FINAL FLOOR AND REFLECTED CEILING PLANS 9. ANY FIRE SAFETY EQUIPMENT TO BE RECONFIGURED ACCORDING TO STATE AND LOCAL CREQUIREMENTS, WITHOUT COMPROMISING THE INTEGRITY OF THE SYSTEM.

LEGEND

- WINDOW TO BE REMOVED

- INTERIOR PARTITION TO BE REMOVED

- INTERIOR DOOR TO BE REMOVED

- INTERIOR PARTITION TO REMAIN

- WINDOW TO REMAIN

- INTERIOR DOOR TO REMAIN

- AREA NOT INCLUDED IN THIS PROPOSAL

NOTES

1. ALL DEMOLITION WORK TO BE CONDUCTED IN ACCORDANCE WITH STATE AND CITY REQUIREMENTS

3. AFTER DEMOLITION IS COMPLETE, ALL MEASUREMENTS TO BE INSPECTED FOR ACCURACY. ALL DISCREPANCIES TO BE IMMEDIATELY REPORTED TO LEAD ARCHITECT.

5. ALL EXISTING PARTITIONS AND DOOR OPENINGS TO BE REMOVED AS NOTED ON THE PLAN

7. ALL GRID CEILINGS TO BE REMOVED IN ALL UNSHADED AREAS AS NOTED ON THE PLAN. ANY FIXTURES AND EQUIPMENT SHALL BE REMOVED ALSO, UNLESS NOTED OTHERWISE. REFER TO THE RCP ON SHEET A201 FOR DETAILED INFORMATIONON THE NEW EQUIPMENT TO BE INSTALLED

8. ALL EXISTING ELECTRICAL, PLUMBING AND MECHANICAL EQUIPMENT TO BE RECONFIGURED IN ACCORDANCE TO THE FINAL FLOOR AND REFLECTED CEILING PLANS

9. ANY FIRE SAFETY EQUIPMENT TO BE RECONFIGURED ACCORDING TO STATE AND LOCAL CREQUIREMENTS, WITHOUT COMPROMISING THE INTEGRITY OF THE SYSTEM.

LEGEND

- WINDOW TO BE REMOVED

- INTERIOR PARTITION TO BE REMOVED

- INTERIOR DOOR TO BE REMOVED

- INTERIOR PARTITION TO REMAIN

- WINDOW TO REMAIN

- INTERIOR DOOR TO REMAIN

- AREA NOT INCLUDED IN THIS PROPOSAL

1/8" = 1'-0" DEMOLITION PLAN - LEVEL 2 N

NOTES

1. THE G.C. IS RESPONSIBLE FOR EXECUTING THE PROPOSAL TO ITS FULL EXTENT, AND EXACTLY AS IT WAS SPCIFIED. ALL INQUIRIES SHALL BE FORWARDED DO LEAD ARCHITECT OR LEAD DESIGNER DEPENDING ON THEIR NATURE.

2. THE G.C IS REPONSIBLE FOR PROVIDING ALL NECCESSARY MACHINERY, EQUIPMENT, TRANSPORTATION AND PERSONELL TO FULLY STATISFY THE PROPOSAL AS SPECIFIED.

3. MEASUREMENTS TO BE FOLLOWED ARE NOTED ON THESE CONSTRUCTION DRAWINGS. DO NOT SCALE DRAWINGS.

4. ALL MEASUREMENTS ARE FROM CENTER OF WALL TO CENTER OF WALL.

5. ALL WALLS ARE TYPE W1 WALLS, UNLESS NOTED OTHERWISE ON THE PLAN. REFER TO SHEET G-004 AND G-007 FOR DETAILED WALL TYPE INFORMATION.

6. DETAILED INFORMATION ABOUT SOFFIT AND LIGHTING INFORMATION CAN BE FOUND ON SHEET A-200.

7. REFER TO SHEET G-006 FOR DETAILED INFORMATION ON DOORS. ALL WOOD DOORS SHALL BE FINISHED WITH THE DOOR VENEER SPECIFIED FOR EACH PROJECT TYPE, DEPENDING ON THE DOOR'S LOCATION.

8. ALL EXISTING WINDOWS TO REMAIN AS THEY ARE. NO NEW WINDOWS HAVE BEEN SPECIFIED. PAINT INTERIOR TRIM WITH WF6 IN LIBRARY, DORM, AND KITCHEN'S GROUND FLOOR. PAINT INTERIOR TRIM WITH W7 ON KITCHEN'S SECOND FLOOR.

9. ALL CONSTRUCTION TO BE NON-COMBUSTIBLE.

10. ALL GYPSUM BOARD TO BE TYPLE X, EXCEPTI IN WET AREAS.

11. PURPLE GYPSUM BOARD TO BE MOUNTED IN WET AREAS.

- ELEVATION

- SECTION

- REGION CALLOUT

- AREA NOT INCLUDED IN THIS PROPOSAL

1 A500 2 A500 431 SF CLASSROOM 1 1269 SF COURT 348 SF STORAGE 514 SF CLASSROOM 118 SF GROUP 4 114 SF GROUP 3 107 SF GROUP 2 125 SF GROUP 1 235 SF RESTRM 234 SF RESTRM 391 SF LIBRARIAN DESK + OFFICE 428 SF ENTRY + LOBBY 897 SF STACKS & READING 1163 SF CREATIVE LAB 325 SF CRAFT RM. 433 SF RECEPTION 207 SF LOBBY 445 SF OFFICE 434 SF DISH 1620 SF KITCHEN 981 SF HALLWAY 425 SF COLD STORAGE 155 SF DRY STRG. 104 SF MOP RM.104 SF UTILITY 218 SF LOADING DECK 104 SF ELEV. 206 SF FEM EMPL RESTROOM 205 SF MALE EMPL. RESTROOM 177 SF LOCKERS 100 SF STRG OPEN TO ABOVE 19' - 0 1/4" 10' 2 3/4" 8' 9 1/4" 19' - 0" 18' 11 1/4" 9' - 4" 9' - 8" 19' 0 1/2" 2 42 2 31 0 1 2 93 3 / 4 3 11 1 3 23 1 24 1 / 4 2 41 1 2 19' - 0 1/4" 5' - 2" 13' - 10" 9' 4 3/4" 9' 4 3/4" 19' 4 1/2" 9' 8" 18' - 4 3/4" 9' 9" 2 33 3 / 4 1 01 3 / 4 1 51 1 / 4 1 07 3 / 4 94 1 2 4 15 3 4 1 94 1 / 4 2 87 39 41 1 1 / 2 65 1 / 2 85 1 / 4 41 40 1 / 4 41 0 3 / 4 42 1 / 21 1 / 2 34 1 2 41 1 65 1 2 81 0 1 / 2 4' 1 3/4" 2' 7 1/4" 2' - 11 3/4" 3' - 4 3/4" 2' - 11 3/4" 8' 3 3/4" 2' - 9 1/2" 8' 8 3/4" 9' 4 3/4" 17' 4 1/2" 26' - 3 3/4" 6' 2" 7' 7" 11' - 11 1/2" 5' - 9" 28 61 0 3 / 4 48 1 / 2 36 1 2 35 41 0 1 2 65 1 2 94 1 / 2 21 0 41 3 4 41 0 1 2 41 1 2 44 1 4 96 1 2 65 1 / 2 41 1 1 2 32 3 / 4 13' - 3 3/4" 3' - 3 3/4" 2' 4 3/4" 2' - 11 3/4" 3' 2 3/4" 2' 10 1/2" 4' 0 1/4"4' 8 1/2"3' 11 3/4"3' - 5" 38 1 06 1 10 1 32 3 4 1 21 0 1 / 2 2 19 3 / 4 15' 0 1/2" 11' 3" 18' 11 3/4" 1 01 3 / 4 1 11 1 / 2 " 18' 6 3/4" 1 A701 A502 2 SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" A-100 FLOOR PLANLEVEL 1 1/8" = 1'-0" FLOOR PLAN - LEVEL 1

N EXIT EXIT

LEGEND

NOTES

2. THE G.C IS REPONSIBLE FOR PROVIDING ALL NECCESSARY MACHINERY, EQUIPMENT, TRANSPORTATION AND PERSONELL TO FULLY STATISFY THE PROPOSAL AS SPECIFIED.

3. MEASUREMENTS TO BE FOLLOWED ARE NOTED ON THESE CONSTRUCTION DRAWINGS. DO NOT SCALE DRAWINGS.

4. ALL MEASUREMENTS ARE FROM CENTER OF WALL TO CENTER OF WALL.

5. ALL WALLS ARE TYPE W1 WALLS, UNLESS NOTED OTHERWISE ON THE PLAN. REFER TO SHEET G-004 AND G-007 FOR DETAILED WALL TYPE INFORMATION.

6. DETAILED INFORMATION ABOUT SOFFIT AND LIGHTING INFORMATION CAN BE FOUND ON SHEET A-201.

7. REFER TO SHEET G-006 FOR DETAILED INFORMATION ON DOORS. ALL WOOD DOORS SHALL BE FINISHED WITH THE DOOR VENEER SPECIFIED FOR EACH PROJECT TYPE, DEPENDING ON THE DOOR'S LOCATION.

9. ALL CONSTRUCTION TO BE NON-COMBUSTIBLE.

10. ALL GYPSUM BOARD TO BE TYPLE X, EXCEPTI IN WET AREAS.

11. PURPLE GYPSUM BOARD TO BE MOUNTED IN WET AREAS.

- ELEVATION

- SECTION - REGION CALLOUT

- AREA NOT INCLUDED IN THIS PROPOSAL

DORMITORY (FUTURE EXPANSION)

A500 D. W. FRG. FRG. FRG. FRG. D. W. FRG. D. W. FRG. D. W. FRG. D. W. 2 A500 1172 SF

OPEN TO BELOW 28' 6" 9' 3" 18' - 4 1/4" 18' 10" 19' 1" 19' 11 3/4" 13' 1 1/4" 3' 4 3/4" 2' 6 1/4" 2' - 11" 3' - 4 3/4" 3' 2"4' - 1 3/4" 4' 11" 4' 1 1/4" 2' - 8 1/4" 37 1 / 2 41 0 65 1 / 2 88 1 4 1 26 3 / 4 1 58 1 / 2 83 1 / 4 53 1 / 4 63 1 / 4 2 13 3 4 2 00 1 04 1 06 49 3 4 4 21 1 1 4 93 3 4 65 41 0 37 31 1 / 2 41 1 / 2 48 43 41 43 48 42 3 / 4 45 1 / 2 42 1 2 41 3 4 49 1 2 44 1 4 49 1 / 2 34 1 / 2 34 1 / 2 41 0 3 / 4 65 1 / 2 56' 9" 19' 7 1/4" 8' - 10 3/4" 28' 3" 4 87 3 4 2 09 1 2 2 09 1 2 1 99 2 48 1 4 1 68 1 2 67 3 4 114' - 0" 1 5 80 8' - 10 3/4" 87 1 / 2 18' 9 1/4" 1 56 18' 3" 7' 0 1/2" 31 1 3 / 4 15' 0 1/2" 16' 2 1/2" 60 53 1 / 4 7' 10" 7' - 10" 6' - 2" 34 1 / 4 81 0 3 4 1 21 3 4 64 1 13 1 / 4 1 13 1 / 4 10' 0" 11' - 1 1/2" 1 74 3 4 5' - 1 3/4" 17' 2 1/4" 1 20 1 / 2 6' 0" 9' 0 1/2" 14' 6 1/4" 2 09 1 2 74 8' - 4" 14' 6 1/4" 1 20 3 / 4 22' - 1" 6' 5" 9' 3" 5' 6 3/4" 11 1 46 1 / 4 14' 1" 7' 8 3/4" 10 3' - 8 1/2" 12' - 2 1/2" 1 A702 1 A700 1 A502 A502 2 A702 2 SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" A-101 FLOOR PLANLEVEL 2

N 1/8" = 1'-0" FLOOR PLAN - LEVEL 2

-LEGEND

- PAINTED GYP. BOARD CEILING

LIGHTING SCHEDULE

L-4 SQUARE PENDANT LIGHT

L-5 SQUARE RECESSED LIGHT

L-6 TAPE LIGHT IN STANDARD COVE CONSTRUCTION L-7 PENDANT LIGHT

L-9 4x4 RECESSED TROFFER

L-10 2x2 RECESSED TROFFER

L-11 2x2 RECESSED TROFFER

L-12 WET AREA APPROVED ROUND RECESSED LIGHT

L-13 CEILING MOUNT ROUND LIGHT

L-14 SCONCE LIGHT

L-15 WALL MOUNT TABLE LIGHT

L-16 ACOUSTIC PENDANT LIGHT

L-17 PENDANT LIGHT

L-18 PENDANT LIGHT

C-3 ACOUSTIC PENDANT ACCESSORY

434 SF DISH 445 SF OFFICE 207 SF LOBBY 433 SF RECEPTION 100 SF STRG 177 SF LOCKERS 205 SF MALE EMPL. RESTROOM 981 SF HALLWAY 206 SF FEM EMPL RESTROOM 104 SF ELEV. 218 SF LOADING DECK 104 SF UTILITY 104 SF MOP RM. 155 SF DRY STRG. 425 SF COLD STORAGE 1620 SF KITCHEN NOT IN PROJECT 8' 9 1/2" 9' 10 1/4" 9' - 9 3/4" 39 1 / 2 51 0 3 4 71 0 1 2 8' - 8" 66 10' 8 3/4" 3' - 11 1/2" 50 7' - 6 1/2" 3' 11 3/4" 61 1 2 3' 4 1/4" 12' 6" 3' 2" 67 6' - 6" 6' 0" 3' 2" 3' 2" 7' - 6" 4' 7 1/2" 4' 8 3/4" 56 4' 3 3/4" 10' - 11" 2' 7 1/2" 13' 1 1/2" 21 1 3 4 40 36 4' 6"2' 11 3/4" 0' - 11 3/4" 9' - 10" 4' 4" 9' 4 1/2" 99 3 / 4 4' 3 3/4" 9' - 10" 4' 3" 1 11 0 67 3 4 11' - 10" 4' 0" 9' 3 3/4" 51 0 48 5' - 8" 3' - 0 3/4" 12' 5 1/4" 46 24 1 / 4 4' 11 3/4" 7' - 9 1/2" 31 0 3 4 79 1 / 2 51 1 3 4 31 1 7' 10 3/4" 6' 7 1/2" 20 7' - 11 3/4" 6' 2 3/4" 34 40 78 3 / 4 41 1 / 4 11' 3 3/4" 4' 2 1/4" 66 21 1 3 41 1 4 2 00 96 31 62 4' 0 1/4" 8' 0" 9' 5 1/2" 8' 0" 8' 9 1/2" 80 1 / 4 80 1 4 31 3 4 41 8' 5" 4' 6 1/2"4' 8 3/4" 5' - 0" 8' - 0" 7' 3 1/4" 7' 4" 7' - 11 3/4" 8' - 9 1/4" 56 3' 9 3/4" 11' 6" 44 1 / 2 5' 3 1/2" 5' - 10 1/4" 7' 10 1/2" 1 23 40 1 / 2 6' 0" 7' 10 1/2" 5' 1 1/4" 1' - 10 1/4"6' 0" 4' - 0" 4' 6" 31 1 3 / 4 38 40 1 / 4 47 1 4 91 0 91 0 3 / 4 5' - 5" 7' 10 1/2" 7' 9" CEILING DROPPED TO 8' AFF CEILING DROPPED TO 8' AFF CEILING DROPPED TO 8' AFF 1269 SF COURT 348 SF STORAGE 1163 SF CREATIVE LAB 391 SF LIBRARIAN DESK + OFFICE 897 SF STACKS & READING 431 SF CLASSROOM 1 125 SF GROUP 1 107 SF GROUP 2 235 SF RESTRM 234 SF RESTRM 114 SF GROUP 3 118 SF GROUP 4 514 SF CLASSROOM 1110 SF MED. CLINIC (FUTURE EXPANSION) SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA

CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" A-200 REFL. CEILING PLAN - LEVEL 1 1/8" = 1'-0" REFLECTED CEILING PLAN - LEVEL 1 N NOTES LEGEND 1. DETAILED CEILING FINISH INFORMATION CAN BE FOUND ON SHEET I600 2. ALL CEILINGS ARE AT 9' AFF, UNLESS NOTED

CIELINGS NOTED AT 8' 6" AFF ON THE RCP ARE LOWERED GYPSUM CEILINGS WITH A COVE LIGHT ON EDGE

REFER TO PROJECT BOOKLET FOR DETAILED INFORMATION ON THE ITEMS OF CORRESPONDING KEY - AREA NOT INCLUDED IN THIS PROPOSAL

95126

OTHERWISE ON RCP. 3.

SYMBOL KEY DESCRIPTION L-1 2x4 RECESSER TROFFER L-2 RECESSER LINEAR LIGHT L-3 PENDANT LINEAR LIGHT

DINING SCONCES L-8

DETAILS

SEE -103 FOR LOCATION

- 2x2 ACT GRID - 2x4 ACT GRID

- EXPOSED CEILING

REFLECTED CEILING PLAN - LEVEL 2

1/8" = 1'-0"

ON EDGE

4. REFER TO PROJECT BOOKLET FOR DETAILED INFORMATION ON THE ITEMS OF CORRESPONDING KEY

- AREA NOT INCLUDED IN THIS PROPOSAL

- PAINTED GYP. BOARD CEILING

- 2x2 ACT GRID

- 2x4 ACT GRID

- EXPOSED CEILING

LIGHTING SCHEDULE

SYMBOL KEY DESCRIPTION

L-1 2x4 RECESSER TROFFER L-2 RECESSER LINEAR LIGHT L-3 PENDANT LINEAR LIGHT

L-4 SQUARE PENDANT LIGHT

L-5 SQUARE RECESSED LIGHT

L-6 TAPE LIGHT IN STANDARD COVE CONSTRUCTION

LIGHT

DINING SCONCES L-8 SEE -103 FOR LOCATION DETAILS

L-9 4x4 RECESSED TROFFER

L-10 2x2 RECESSED TROFFER

L-11 2x2 RECESSED TROFFER

L-12 WET AREA APPROVED ROUND RECESSED LIGHT

L-13 CEILING MOUNT ROUND LIGHT

L-14 SCONCE LIGHT

L-15 WALL MOUNT TABLE LIGHT

L-16 ACOUSTIC PENDANT LIGHT

L-17 PENDANT LIGHT

L-18 PENDANT LIGHT

C-3 ACOUSTIC PENDANT ACCESSORY

1435 SF DINING 351 SF ENTRY & CASHIER 452 SF SERVING 182 SF RESTRM 165 SF RESTRM 68 SF ELEV. COVE LIGHTING TRACK LIGHTING WALL SCONCES, SEE -103 FOR DETAILS CEILING DROPPED TO 8' AFF IN KITCHEN AREA. CEILING DROPPED TO 8' AFF IN KITCHEN & DINING AREA. CEILING DROPPED TO 8' CEILING DROPPED TO 8' 8' - 0 3/4" 1 60 1 / 4 290 SF LOBBY 305 SF OFFICE 1172 SF DORMITORY (FUTURE EXPANSION) 496 SF DOUBLE BUNK SUITE 1 552 SF 2 BED SUITE 352 SF 3 BED SUITE 510 SF DOUBLE BUNK SUITE 2 1041 SF RESIDENT LOBBY 465 SF SINGLE SUITE 739 SF SINGLE BUNK SUITE OPEN TO BELOW 2' - 8 1/2" 13' 1 3/4" 31 1 3 4 1 00 1 2 32 3 4 2' 5 3/4" 2' 8" 7' 10 1/4" 82 40 58 3 / 4 8' - 4 3/4" 5' 11 1/4" 61 3 / 4 38 1 4 8' - 4 3/4" 5' 11 1/4" 2' - 9 1/4"5' 0 3/4"2' 4" 5' 2" 4' 8 1/2" 78 1 / 4 31 1 3 4 2' - 9 1/4" 4' - 0 3/4" 00 48 1 2 19 3 4 8' 1 1/4" 38 51 1 3 4 9' 4" 9' 11" 51 1 3 4 48 3 4 49 5' 0" 2' - 9" 3' 2 1/4"5' - 11 1/2" 32 51 0 3 / 4 7' 11 1/4" 50 48 5' 3 1/2" 45 4' - 0" 90 16 3 4 3' 0" 1 10 1 / 2 51 1 / 4 10' 5 1/4" 9' 8" 22 7' 2 3/4" 8' 0 1/4" 10' - 6" 8' - 0 1/4" 41 1 4 4' 2"3' 10 1/4"41 1 4 8' - 0 1/4" 3' 11 3/4" 36 1 / 2 90 1' 4" 23 1 2 11 0 25 1 4 25 1 / 4 1 16 8' 6" 55 4' 2" 4' 2 1/4" 21 1 1 4 7' 4 1/4" 91 0 3 4 3' 2" 18 90 61 1 / 4 3' 2" 9' 10 1/2" 38 12' 5 3/4" 8' 4 1/2" 48 1 23 3 '6 " 17 " 3' - 0" 7' 6 1/2" 2' 0"4' 0" 42 1 / 4 4' 5 1/4"2' 0"5' - 10 3/4" 47 1 / 4 4' 5 3/4" WALL SCONCES, SEE -103 FOR DETAILS 46 19 3 / 4 33 1 2 66 24 1 / 22 52 61 0 69 1 / 2 14' - 11" 17' 6 1/2" 6' 8 1/4" 11' 10 1/4" 3' 2" 41 0 41 3 4 21 3 / 4 55 1 / 2 58 1 / 4 3' 3 3/4" 10' 3 3/4" 5' 9" 5' 4 3/4" 9' - 11 1/2" 43 3 / 4 83 1 / 2 71 0 3 / 4 6' 5 1/4" 5' 0 1/4" 4' - 6 1/4" 4' - 5 3/4" 1 01 1 1 4 46 1 / 2 43 1 / 4 21 3 / 4 41 3 4 41 0 10' - 9 1/2" 11' 5" 10' 0 1/2" 1 00 1 2 36 1 / 2 4' 4 1/2" 15 1 2 81 1 2' 10" 1 00 1 2 36 1 / 2 4' - 8" 83 1 / 2 6' 7 1/2" 6' 4" 4' 4"3' 10 1/4" 7' 6" 3' 2" 61 3 4 28 3 4 2' - 9 3/4" 69 27 3 4 7' 6" 3' 2" 8' 0 1/2" 48 5' 1 1/4" 5' 10 3/4" 45 1 / 2 6' 11 1/4" 53 1 / 2 00 CEILING DROPPED TO 8' AFF. CEILING DROPPED TO 8' AFF. CEILING DROPPED TO 8' AFF. CEILING DROPPED TO 8' AFF. SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" A-201 REFL. CEILING PLAN - LEVEL 2

1. DETAILED CEILING FINISH INFORMATION CAN BE FOUND ON SHEET I600 2. ALL CEILINGS ARE AT 9' AFF, UNLESS NOTED OTHERWISE ON RCP. 3. CIELINGS NOTED AT 8' 6" AFF ON THE RCP ARE LOWERED GYPSUM CEILINGS WITH A COVE LIGHT

NOTES LEGEND

L-7 PENDANT

LEVEL 3 18' - 0" LEVEL 2 9' - 0" 1 81 1 4 156' - 11 3/4" LEVEL 1 0' - 0" SERVING LOADING DOCK HALLWAY OFFICE CASHIER COURTYARD LIB. OFFICE ENTRY M. RESTRM. BEDRM. BATH 3 BED SUITE LEVEL 3 18' - 0" LEVEL 2 9' - 0" LEVEL 1 0' - 0" DINING KITCHEN DISH OFFICE STORAGE LOBBY LOCKERS SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" A-500 BUILDING SECTION 1/8" = 1'-0" LONGITUDINAL BUILDING SECTION 1 1/8" = 1'-0" TRANSVERSE BUILDING SECTION 2

A502 2 13' - 9 1/4" 4' 9 3/4" 1' - 11 1/4" 18' 8" 34 1 / 2 01 3 4 21 1 3 / 4 24 1 / 4 07 3 4 09 3 4 97 1 406 3 / 4 0' 11" 0 -101/2" 0 -2 0 -41/2" 0' -11/2 0 -13/4" 21 1 1 / 4 06 3 4 0' 5 1/2" 0' 1" 0' - 1 1/2" 0' 2" 0' - 0 1/4" ROUND METAL HANDRAIL METAL GUARDRAIL SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) As indicated A502 STAIR DETAILS 3/4" = 1'-0" ENLARGED PLAN - METAL FIRE ESCAPE STAIR 1 1/2" = 1'-0" FIRE ESCAPE ELEVATION 2 D-3 DN 3 A-502 3/4" = 1'-0" STAIR DETAIL 3 4 A-502 3" = 1'-0" METAL RAILING DETAIL 4

A700 2 1' 8" 22 7' - 0 1/2" 3' - 7 1/2" 5' 4 1/2" 5' - 4 1/4" 3' 4" 5' 10 3/4" 1' 6" 6' 3 1/2" 52 72 1 / 4 5' - 1 1/4" 3' 6 1/2" 0' - 1 1/4" 5' 1 1/4" 3' 3" 5' TURNING RADIUS 5' TURNING RADIUS 5' - 3 1/2" 1' - 6" 1 11 1 36 10 3' - 0" 0' 6" 20 04 44 04 04 17 37 34 05 18 09 4" DROPPED CEILING BACK-LIT CUSTOM MIRROR 4" BAND OF WF-3 TILE WF-4 TILE MF-4 COUNTER MF-3 SCALD GUARD F2 BASE WF-6 WALL 182 SF RESTRM 165 SF RESTRM 0' 8" ADA STALL DOOR ADA STALL REGULAR STALL SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) As indicated A-700 VISITOR RESTRM. MILLWORK DRAWINGS 1/2" = 1'-0" KITCHEN VISITOR RESTROOMS - ENLARGED PLAN 1 3/4" = 1'-0" VISITOR RESTROOM ELEVATION 2 3/4" = 1'-0" VISITOR RESTROOM SECTION 3 W3 PLUMBING PARTITION TAPE LIGHT MF-1 STALL W1 PARTITION

A701 2 3 A701 1' 0" 5' 0" 2' 0" 8' 0" 56 10 40 16 14 20 20 1' 0" 36 31 1 1 2 7' - 3" 02 8' - 0" 2' 0" 26 08 1 / 4 01 1 09 02 24 4' 0 1/2" 0' 11 1/2" 1' 0" 01 03 1 / 2 01 0 10 1 / 2 03 1 / 2 1' 11 1/2" SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 3/4" = 1'-0" A-701 LIBRARIAN'S DESK MILLWORK DRAWINGS 3/4" = 1'-0" LIBRARIAN'S DESK PLAN 1 3/4" = 1'-0" LIBRARIAN'S DESK - FRONT ELEVATION 2 WF-10 FINISHED WALL MF-7 FINISHED COUNTER GLASS WINDOW 3/4" = 1'-0" LIBRARIAN'S DESK - SECTION 3 WF-6 FINISHED WALL GLASS WINDOW MF-7 COUNTER MF-6 FINISHED WOOD DESK BASE

FRIDGE DISH WASHER A702 2 8' 8" 2' - 6" 1' 0" 3' 0" 2' - 6" 2' - 0" 1' - 2" 02 20 11 1 1 / 4 21 61 1 / 4 3 A702 1' - 6" 1' 6" 1' 3 1/4" 1' - 0" 1' 0" 1' 0" 1' - 0" 1' - 0" 1' 0" 0' 11" 3' 0" 1' 3 1/4" 2' 0" 2' 0" 2' 0" 0' 11" 02 1 / 2 10 1 / 2 01 1 / 2 10 1 / 2 02 1 / 2 02 3 4 20 13 3 / 4 28 3 / 4 03 3 4 3' 3" 2' 0" 2' 7 3/4" 0' 7" A702 ADJUSTABLE SHELVING 2" MF-6 COUNTERTOP MF-6 BACKSPLASH 4" DEEP DRAWER TOEKICK ADJUSTABLE SHELF 01 04 1 / 2 20 062 1 / 4 13 3 / 4 27 1 / 2 WF-6 PAINTED CABINETRY (BASE AND WALL HUNG) SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) As indicated A-702 KITCHENETTE MILLWORK DRAWINGS 3/4" = 1'-0" KITCHENETTE ENLARGED PLAN 1 1" = 1'-0" KITCHENETTE ELEVATION 2 1" = 1'-0" KITCHENETTE CABINETRY SECTION 3

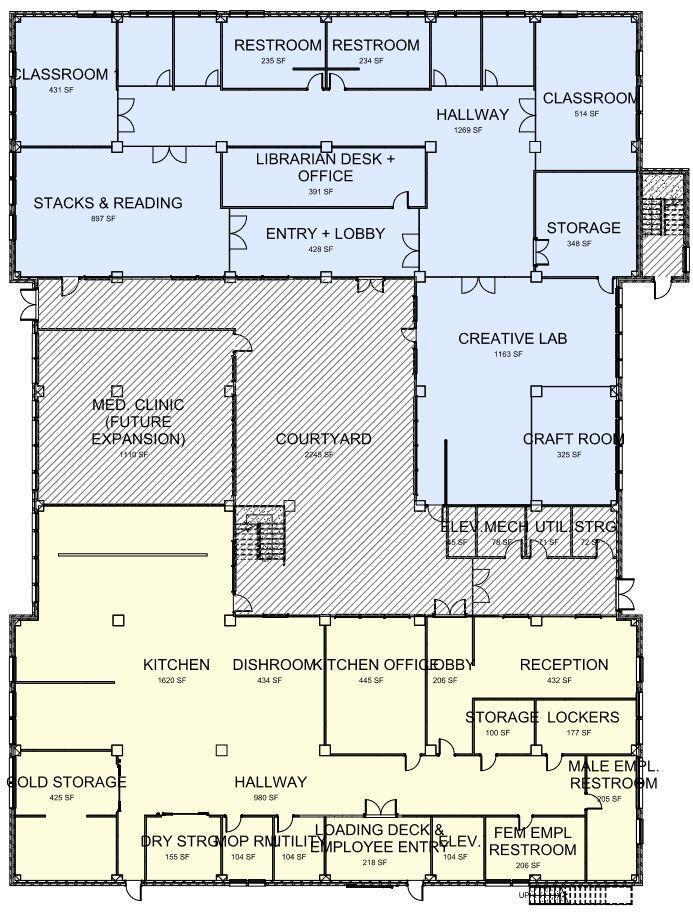

UP UP UP 2339 SF COURTYARD 433 SF RECEPTION 83 SF MECH 71 SF UTIL. 72 SF STRG 348 SF STORAGE 1163 SF CREATIVE LAB 514 SF CLASSROOM 234 SF RESTRM 235 SF RESTRM 391 SF LIBRARIAN DESK + OFFICE 428 SF ENTRY + LOBBY 897 SF STACKS & READING 431 SF CLASSROOM 1 177 SF LOCKERS 100 SF STRG 445 SF OFFICE 104 SF ELEV. 218 SF LOADING DECK 104 SF MOP RM. 155 SF DRY STRG. 425 SF COLD STORAGE 1620 SF KITCHEN PRINTING FLATTOP GRILL PREP TABLE WITH SINK CATERING FRIDGE FREEZER DISH STORAGE SHELVING FLATTOP GRILL RESTAURANT FOOD PREP RESTAURANT FOOD PREP BAKERY 434 SF DISH WORK SURFACE 207 SF LOBBY 981 SF HALLWAY 325 SF CRAFT RM. 104 SF UTILITY 205 SF MALE EMPL. RESTROOM 206 SF FEM EMPL RESTROOM 1269 SF COURT EDUCATIONAL WALL 1110 SF MED. CLINIC (FUTURE EXPANSION) 18" 18" 18" 18" 18" 18" 44" 44" 44" 44" 44" 44" 44" 44" 44" 44" 44" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" E-100 POW, SEC, VOICE & DATA PLAN-LVL 1 1/8" = 1'-0" POWER, SECURITY, VOICE & DATA PLAN - LEVEL 1 LEGEND 18" 120V, 20A DUPLEX OUTLET MOUNTED 18" AFF. 44" 120V, 20A DUPLEX OUTLET MOUNTED 44" AFF. GFCI GROUND FAULT CIRCUIT INTERRUPTER. USED IN WET AREAS. DUPLEX FLOOR OUTLET TELEPHONE JACK DATA JACK KEY PAD 36" AFF. SECURITY CAMERA - CEILING MOUNTED N

DN DN DN 141 SF EXIT 1041 SF RESIDENT LOBBY 465 SF SINGLE SUITE 39 SF MECH. 510 SF DOUBLE BUNK SUITE 2 OPEN TO BELOW 351 SF ENTRY & CASHIER 452 SF SERVING 1435 SF DINING 165 SF RESTRM 182 SF RESTRM 305 SF OFFICE 290 SF LOBBY 99 SF RESTROOM 1 496 SF DOUBLE BUNK SUITE 1 60 SF REST. 2 229 SF JANITORIAL & STORAGE 70 SF UTILITY QUEEN BUNK QUEEN BUNK 739 SF SINGLE BUNK SUITE Q U E E N B U N K QUEEN BED FRDG. OVEN QUEEN BUNK QUEEN BUNK QUEEN BUNK QUEEN BUNK Q U 352 SF 3 BED SUITE GALLERY SPACE 552 SF 2 BED SUITE 1172 SF DORMITORY

102 SF LAUNDRY 57 SF REST. 3 18" 18" 44" 44" 44" 44" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" GFCI GFCI 18" GFCI GFCI 18" 18" 18" GFCI GFCI 44" 44" 18" GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI GFCI 18" 18" 18" GFCI GFCI 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 18" 44" 18" 18" 18" 18" 18" 18" 18" 18" SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" E-101 POW, SCRT, VOICE & DATA PLAN-LVL 2 1/8" = 1'-0" POWER, SECURITY, VOICE AND DATA PLAN - LEVEL 2 LEGEND 18" 120V, 20A DUPLEX OUTLET MOUNTED 18" AFF. 44" 120V, 20A DUPLEX OUTLET MOUNTED 44" AFF. GFCI GROUND FAULT CIRCUIT INTERRUPTER. USED IN WET AREAS. DUPLEX FLOOR OUTLET TELEPHONE JACK DATA JACK KEY PAD 36" AFF. SECURITY CAMERA - CEILING MOUNTED N

(FUTURE EXPANSION)

1. REFER TO PROJECT BOOKLET FOR DETAILED INFORMATION ON THE FINISHES SPECIFIED IN THE FINISH SCHEDULE

2. ALL WALL MATERIAL IS GYPSUM WALL BOARD (TYPE X OR PURPLE), REFER TO SHEETS G-007 FOR DETAILED INFORMATION ON WALL TYPES AS NECESSARY

3. INSTALLATION OF ALL FINISH MATERIALS TO BE EXECUTED PER MANUFACTURER'S DIRECTIONS

4. FOR DETAILED INFORMATION ON CEILING FINISH PATTERNS, SEE SHEET A-200

LEGEND

- AREA NOT INCLUDED IN THIS PROPOSAL

FINISH SCHEDULE - MAJOR AREAS

SPACE FLOOR BASE WALL

KITCHEN F-5 F-5 WF-1 (KITCHEN+HALLWAY) WF-2 (BAKERY) WF-3 (DISH) WF-6 (FROM 5' AFF)

CEILING REMARKS

C-1, WF-6 THE HALF-WALL IN THE KITCHEN AREA TO BE FINISHED WITH WF-2

RECEPTION F-13 F-13 WF-6 C-1, WF-6

CASHIER, DINING WF-5 (RESTAURANT SIGN, BOOTH WALL) WF-7

SERVING

F-2 F-1, F-2, F-3 WF-7 MF-1 LOWERED CEILINGS TO BE FINISHED WITH MF-1

WF-3 (BACKSPLASH), WF-7 (REST) F-2 F-1, F-2 WF-7 MF-1 LOWERED CEILINGS TO BE FINISHED WITH MF-1

SPACE FLOOR BASE WALL CEILING REMARKS

ENTRY F-14 WF-10 OVER WF-7

F-14 WF-6

STACKS F-7 WF-11, WF-6

F-14 WF-6

COURT F-14 WF-6, WF-9, WF-12

F-14 WF-6, WF-12

WF-10 METAL PANEL TO BE INSTALLED OVER WF-7 FINISHED WALL

WF-11 METAL PANEL TO BE INSTALLED ON SOUTHERN WALL, BETWEEN TWO CURTAIN WALLS

WF-12 ACOUSTIC PANEL TO BE INSTALLED ON WALLS IN FRONT OF RESTRMS THAT IS COVERED BY LOWERED CEILING. WF-9 TO BE INSTALLED ON WALLS ON EITHER SIDE OF THE SEATING INSTALLATION.

CREATIVE LAB F-6, F-8, F-14 WF-6, WF-16 WF-16 ON SW AND N WALL F-14 C-2

CRAFTING ROOM F-14 WF-16 WF-16 ON SW AND N WALL

F-14 WF-6, C-3

Jose, CA 95126

1/8" = 1'-0"

FINISH PLAN - LEVEL

NOTES

1. REFER TO PROJECT BOOKLET FOR DETAILED INFORMATION ON THE FINISHES SPECIFIED IN THE FINISH SCHEDULE

2. ALL WALL MATERIAL IS GYPSUM WALL BOARD (TYPE X OR PURPLE), REFER TO SHEETS G-007 FOR DETAILED INFORMATION ON WALL TYPES AS

NECESSARY

3. INSTALLATION OF ALL FINISH MATERIALS TO BE EXECUTED PER MANUFACTURER'S DIRECTIONS

4. FOR DETAILED INFORMATION ON CEILING FINISH PATTERNS, SEE SHEET A-201

LEGEND

- AREA NOT INCLUDED IN THIS PROPOSAL

FINISH SCHEDULE - MAJOR AREAS

SPACE FLOOR BASE WALL

CEILING REMARKS

DORMITORY (FUTURE EXPANSION)

F-2 F-1, F-2, F-3

CASHIER, DINING WF-5 (RESTAURANT SIGN, BOOTH WALL) WF-7

SERVING WF-3 (BACKSPLASH), WF-7 (REST) F-2 F-1, F-2

WF-7 MF-1 LOWERED CEILINGS TO BE FINISHED WITH MF-1

SPACE FLOOR BASE WALL CEILING REMARKS

LOBBY F-13 WF-6, WF-21 WF-21 TO BE MOUNTED BEHIND TV IN EVERY SUITE F-13 WF-6

OFFICE F-7 WF-11, WF-6 F-14 C-1

KITCHENETTE F-3 WF-6, F-9 (BACKSPLASH) F-3

LIVING F-13 WF-6, WF-21 F-13

WF-21 TO BE MOUNTED ON SW WALL

WF-6

BEDROOM F-13 WF-6, WF-20 F-13 WF-6

BATH

RESIDENT LOBBY

F-11, F-12 F-11 WF-6 (ABOVE 5' AFF) WF-1 MF-9 (BACKSPLASH) WF-19 ( SHOWER)

F-3, F-13 F-13 WF-5 (POOL PARTITION) WF-6 WF-21

WF-6 WF-20 TO BE INSTALLED ON WALL NEXT TO LONGEST SIDEOF BED

WF-6

WF-21 TO BE MOUNTED BEHIND TV IN EVERY SUITE

95126

D. W. FRG. FRG. FRG. FRG. D. W. FRG. D. W. FRG. D. W. FRG. D. W.

1172 SF

OPEN TO BELOW F-13 F-13 F-13 F-13 F-13 F-13 F-13 F-13 F-13 F-13 F-13 F-3 F-3 F-3 F-3 F-3 F-3 F-3 F-11 F-11 F-11 F-11 F-11 F-11 F-11 F-11 F-12 F-12 F-12 F-12 F-12 F-2 F-2 F-2 F-2 F-3 F-3 F-2 F-1 SCALE DATE:

PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA

LOCATION

1/8" = 1'-0" FINISH PLAN - LEVEL 2

KITCHEN & LIBRARY FURNITURE + EQUIPMENT SCHEDULE - MAJOR AREAS

KEY

FA-1 MICROSOFT TOUCHSCREEN TV

FA-2 STEELCASE WHITEBOARD ALPINE WHITE

FA-3 MICROSOFT TOUCHSCREEN TV

ST-1 STEELCASE DOUBLE LOCKER ASH NOCE, NATURAL CHERRY V2

ST-2 STEELCASE SINGLE LOCKER

ST-3 STEELCASE STORAGE BIN

ST-4 STEELCASE FILE STORAGE

ASH NOCE, NATURAL CHERRY V2 ASH NOCE, NATURAL CHERRY V2

ASH NOCE, NATURAL CHERRY V2

ST-5 STEELCASE FILE STORAGE ASH NOCE, NATURAL CHERRY V2

T-1 STEELCASE OCCASIONAL TABLE UHRU BLACK, WALNUT VENEER

T-2 HERMAN MILLER TRAINING TABLE LIGHT BROWN WALNUT, WHITE

T-3 WEST ELM WORKTABLE WITH RETURN DARK BRONZE, NATURAL OAK

T-4 WORKTABLE WEST ELM DARK BRONZE, NATURAL OAK

T-5 SIDE TABLE COALESSE 4242 MILK

T-6 BAR TABLE STEELCASE 4242 MILK, 2730 ARCTIC WHITE

T-7 COFFEE TABLE WEST ELM PLANKED OAK

T-8 COFFEE TABLE STEELCASE 4242 MILK, 2730 ARCTIC WHITE

T-11 4 PERSON DINING TABLE AFRA FURNITURE NERO BLACK

T-12 2 PERSON DINING TABLE AFRA FURNITURE NERO BLACK

T-13 DESK SYSTEM STEELCASE PLANKED WALNUT

S-1 SIDE CHAIR VICCARBE MLF13

S-2 SOFA GEIGER POPPY

S-3 BENCH GEIGER POPPY

S-4 TASK CHAIR HERMAN MILLER LARIAT, ICEBERG

S-6 TASK CHAIR HERMAN MILLER DESERT BRISTOL LEATHER

S-7 DINING CHAIR HERMAN MILLER WALNUT, DARK SHALE

S-8 BAR STOOL HERMAN MILLER WALNUT

S-9 DINING CHAIR HERMAN MILLER WALNUT

S-10 COLLABORATIVE BENCH BUZZISPACE OAK

S-11 BAR STOOL MATTIAZZI NATURAL ASH

S-12 LOUNGE CHAIR COALESSE BUTTERSCOTCH

S-13 LOUNGE CHAIR COALESSE DIJON

S-14

LOUNGE CHAIR COALESSE SEAWEED

WALL MOUNT WALL MOUNT

CONTAINS CABINET, BUILT IN WALL WALL MOUNT

S-15 S-16

LOUNGE SOFA GEIGER LUGGAGE

LOUNGE SOFA KETTAL POROUSGREY, SANDSTONE

SOFA STEELCASE AQUAMARINE S-17

TASK CHAIR STEELCASE WASABI, COCONUT S-18

TASK CHAIR STEELCASE CANARY, COCONUT S-19

TASK CHAIR STEELCASE SCARLET, GRAPHITE S-20

TASK CHAIR STEELCASE BLUE JAY, COCONUT S-21

TASK CHAIR STEELCASE CONCORD S-22

TASK CHAIR STEELCASE ROYAL BLUE, COCONUT S-23

LOUNGE SEATING BUZZISPACE FLUO YELLOW S-24

UP UP UP 2339 SF COURTYARD 433 SF RECEPTION Redundant Room ELEV. 83 SF MECH 71 SF UTIL. 72 SF STRG 348 SF STORAGE 1163 SF CREATIVE LAB 514 SF CLASSROOM 234 SF RESTRM 235 SF RESTRM 391 SF LIBRARIAN DESK + OFFICE 428 SF ENTRY + LOBBY 897 SF STACKS & READING 431 SF CLASSROOM 1 177 SF LOCKERS 100 SF STRG 445 SF OFFICE 104 SF ELEV. 218 SF LOADING DECK 104 SF MOP RM. 155 SF DRY STRG. 425 SF COLD STORAGE 1620 SF KITCHEN PRINTING FLATTOP GRILL SMOKER OVEN OVEN WARMER FLATTOP GRILL PREP TABLE WITH SINK CATERING FRIDGE FREEZER DISH STORAGE SHELVING RESTAURANT FOOD PREP RESTAURANT FOOD PREP BAKERY 434 SF DISH WORK SURFACE 207 SF LOBBY 981 SF HALLWAY 325 SF CRAFT RM. 104 SF UTILITY 205 SF MALE EMPL. RESTROOM 206 SF FEM EMPL RESTROOM 1269 SF COURT EDUCATIONAL WALL 1110 SF MED. CLINIC (FUTURE EXPANSION) FA-2 FA-2 FA-2 FA-2 FA-2 FA-2 FA-2 FA-2 FA-2 FA-2 ST-2 STST-1 FA-1 FA-1 FA-1 FA-3 FA-3 S-1 STSTST-S-1 T-2 S-2 ST-5 S-3 S-4 S-4 ST-5 T- T-4 TST-4 -4 STST-4 T-6 T-5 S-10 S-11 S-11 T-6 S-4 S-1 S-2 T-1 T-6 S-11 S-13 S-13 S-12 S-14 S-15 S-16 S-17 S-19 S-18 S-20 S-21 T-2 S-22 S-23 T-5 S-24 T-7 T-8 T-8 T-13 SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" I-102 FURNITURE PLAN - LEVEL 1 1/8" = 1'-0" FURNITURE PLAN - LEVEL 1 N NOTES LEGEND - AREA NOT INCLUDED IN THIS PROPOSAL 1. REFER TO PROJECT BOOKLET FOR DETAILEDINFPRMATION ON THE FURNITURE AND EQUIPMENT SPECIFIED IN THE FURNITURE PLAN

DESCRIPTION MANUFACTURER FINISH NOTES

DORMITORY (FUTURE EXPANSION)

1. REFER TO PROJECT BOOKLET FOR DETAILEDINFPRMATION ON THE FURNITURE AND EQUIPMENT SPECIFIED IN THE FURNITURE PLAN

DORM FURNITURE AND EQUIPMENT SCHEDULE - MAJOR AREAS

KEY

RUGS USA IVORY

ST-6 CREDENZA BLUDOT WHITEWASHED MAPLE

ST-7 DRESSER BLUDOT WALNUT

ST-8 WARDROBE BLUDOT WALNUT

T-3 WEST ELM WORKTABLE WITH RETURN DARK BRONZE, NATURAL OAK

T-4 WORKTABLE WEST ELM DARK BRONZE, NATURAL OAK

T-7 COFFEE TABLE WEST ELM PLANKED OAK

T-9 DINING TABLE BLUDOT WHITE OAK

T-10 COFFEE TABLE BLUDOT WALNUT

S-11 BAR STOOL MATTIAZZI NATURAL ASH

S-25 DINING CHAIR AFRA FURNITURE F04

S-26 LOUNGE CHAIR COALESSE CAMEL

S-27 SOFA BLUDOT CAMEL LEATHER

S-28 TASK CHAIR HERMAN MILLER ICEBERG, STONE

S-29 TASK CHAIR STEELCASE CAMEL

S-30 QUEEN BED BLUDOT WALNUT

DN DN DN 141 SF EXIT 1041 SF RESIDENT LOBBY 465 SF SINGLE SUITE 39 SF MECH. 510 SF DOUBLE BUNK SUITE 2 OPEN TO BELOW 351 SF ENTRY & CASHIER 452 SF SERVING 1435 SF DINING 165 SF RESTRM 182 SF RESTRM 305 SF OFFICE 290 SF LOBBY 99 SF RESTROOM 1 496 SF DOUBLE BUNK SUITE 1 60 SF REST. 2 229 SF JANITORIAL & STORAGE 70 SF UTILITY QUEEN BUNKQUEEN BUNK 739 SF SINGLE BUNK SUITE Q U E E N B U N K QUEEN BED FRDG. OVEN QUEEN BUNK QUEEN BUNK QUEEN BUNK QUEEN BUNK Q U 352 SF 3 BED SUITE GALLERY SPACE 552 SF 2 BED SUITE 1172 SF

102 SF LAUNDRY 57 SF REST. 3S-6 S-7 S-8 S-9 T-12 T-11 S-7 T-12 T-12 S-7 T--3 T-3 -4 -4 T- -4 TTTFA-5 ST-7 ST-6 FA-9 FA-10 S-25 S-26 S-27 S-28 S-25 T-2 T-7 S-2 S-26 T-7 S-2 S-26 S-29 T-9 T-10 ST-8 ST-8 ST-7 FA-10 FAS-23 ST-7 S-26 S-27 T-10 FA-9 ST-6 S-11 S-23 S-23 ST-8 S-23 FA-10 FA-10 FA-10 FA-10 S-23 ST-8 T-9 S-25 S-26 ST-6 ST-7 T-10 S-27 FAST-8 ST-7 FA-10 T-10 S-27 S-9 T-9 S-26 S-23 ST-8 FA-10 T-10 S-27 S-11 T-10 S-27 S-11 T-6 S-11 S-30 S-30 S-23 T-10 S-27 S-26 ST-8 ST-6 S-25 T-9 ST-7 S-25 T-9 S-11 S-26 ST-6 T-10 S-27 ST-7 S-23 ST-8 FA-10 SCALE DATE: LOCATION PROJECT SHEET: CLIENTS SAN JOSE YOUTH CENTER 2021 The Alameda, San Jose, CA 95126 CONTACT: AZRA FIFIC UNIVERSITY OF OKLAHOMA DEPARTMENT OF INTERIOR DESIGN 830 VAN VLEET OVAL, NORMAN, OK, 73019 04 - 22 - 2021 SPRING 2021 ID 47763 - Interior Design Capstone (Design Phase) 1/8" = 1'-0" I-103 FURNITURE PLAN - LEVEL 2 1/8" = 1'-0" FURNITURE PLAN - LEVEL 2 N NOTES LEGEND - AREA NOT INCLUDED IN THIS PROPOSAL

MANUFACTURER FINISH

FA-5 VERDERA LIGHT-UP MIRROR FA-6 RESIDENTIAL TV SONY FA-9 AREA RUG RUGS USA OFF-WHITE JUTE FA-10 AREA RUG

DESCRIPTION

NOTES
