Auditorium & foyer FACT SHEET

Auditorium

Auditorium & foyer. Fact sheet

DESCRIPTION & LAYOUT

The Azkuna Zentroa Auditorium stage is set as if within a picture frame, giving it a personal touch. The stalls are very comfortable and offer excellent visibility. They provide the possibility of holding a wide variety of cultural and business events, such as congresses, concerts, award winning ceremonies, presentations or conferences.

LOCATION

CAPACITY

Floor -1

• 2 VIP dressing rooms

1045 m2

Width: 8 to 13 metres

8 people

HEIGHT

Height: 5 metres

(2)

(2)

7m

FOYER

lift

8,2m

STALLS

STAGE

SOUND (2)

(2)

access

WC WC

CLOAKROOM

1

2

interpreting booths

azkunazentroa.eus

Depth: 7 metres

3 to 6 metres

access

• 2 choir/cast dressing rooms Azkuna Zentroa is an accessible centre committed to making its services available to everyone

392 people +

8,6m

EXHIBITION HALL FOYER

• 3 interpreting booths

STAGE

8 people

The auditorium has unbeatable acoustics and is fully equipped with audiovisual equipment, dressing rooms and interpreting booths.

There are:

AREA

3

13,6m

1,75m

0,92m

0,55m

AUDITORIO

77cm

columna

vara 15

vara 14 vara 13 vara 12 vara 11 vara 10 vara 9 vara 8 vara 7 vara 6 vara 5 vara 4 vara 3 vara 2 vara 1

esc.1/100

planta

7,36m 1,37m

1m 5,57m 7,4m

cortinón americana

13,63m

vara frontal

azkunazentroa.eus

Auditorium & foyer. Fact sheet

Auditorium

2,6m 8,7m

Auditorium

Auditorium & foyer. Fact sheet

22,31m 7,4m

1,37m 0,94m

4,63m

1m

4,29m

3,52m

5m

1m 4,63m

9,71m

AUDITORIO alzado

esc.1/100 5m

AUDITORIO azkunazentroa.eus

caballera

Auditorium EQUIPMENT

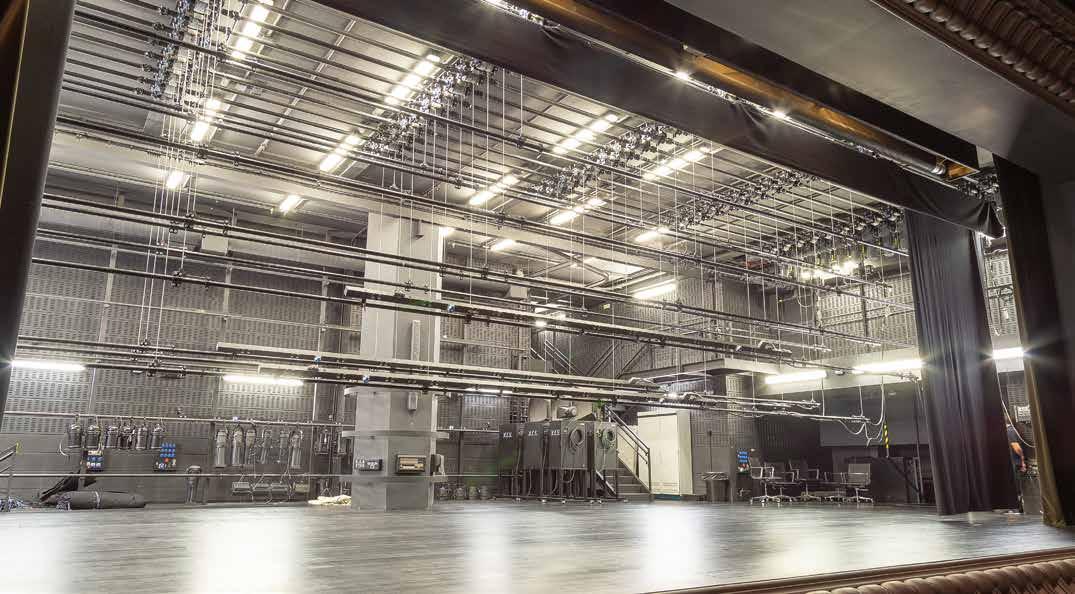

Stage Auditorium

azkunazentroa.eus

Auditorium & foyer. Fact sheet

Auditorium

Auditorium & foyer. Fact sheet

EQUIPMENT

Audiovisual equipment

Sound table

Projection screen

Cyclorama

1 item

Projector

10,000 lm laser type Panasonic Projector with 1920 x 1200 native resolution, WUXGA. 16:9

17” Table monitor

Sound table

1 item

1 item

Yamaha LS9-16 digital mixing console.

16 Microphone inputs/analogical lines & 8 analogical outputs, complemented with a Yamaha RIO16/8 rack, i.e. 32 In & 16 out

17” table monitor to follow the presentations

2 items

Compact wide Meyer Sound UPA-1compact wide range range loudspeaker loudspeaker. Loudspeaker: 1x12”. 550 W.

4 items

Lectern monitor

32” monitor and 16:9 format to follow presentations

1 item

Ultra-compact wide range loudspeaker case

Meyer Sound UPM-1P TLS Loudspeaker: 2x5”.

Tweeter: 1”. 123 dB. 350 W. 100º H x100º V. With “U” adapter for UPM-1P/2P

2 items

Information monitor

42” monitor and 21:9 format outside the hall for information purposes

1 item

Subwoofer

2 items

Integrated HD camera**

Video, control & feed via IP. Outlets: 3G / HD / SDSDI, HDMI & Compound. Panasonic

1 item

Meyer Sound USW-1P. Two 15” cones. Nominal impedance: 4 Ω Coil: 3” Power Capacity: 400 W4

Monitors

12” loudspeaker JBL EON 612

4 items

4K/HD Integrated camera**

20x optical zoom with digital expansion to 30x without loss of quality (up to 22x in 4K Panasonic.

Mounted on tripod)

1 item

Double CD reader

Numark Double CD reader, mp3, cd & usb CDN 77USB

1 item

Camera control **

Compact control panel for up to 100 cameras via Panasonic designed for use in live events.

Complete camera control likewise pan/tilt with menu access

1 item

Microphony

Dynamic microphone SM58 2 Shure SM58 2 Wireless microphones

Interpreting booth **

Booth equipped with 2 desks. Interpreting & translation devices not included.

azkunazentroa.eus

1 item

Auditorium

Auditorium & foyer. Fact sheet

EQUIPMENT

REGULATION & CONTROL

LIGHTING EQUIPMENT Profile spotlight 15º to 30º - Spotlight Philips selecon SPX ZOOM 15º - 35º

8 items

Avolites Tiger Touch DMX512 Light mixing console - Light control console

1 item

Spotlight Philips selecon SPX ZOOM 25º - 50º

8 items

1 item LT PICCOLO S1000 Light mixing console - Light control console

1 item

Foco PC - Foco Robert Juliat Proyector Lente PC 150mm. Ángulo 10-66, lámpara de 1000 w.

12 items

ETC sensor 3 Kw Dimmer; 48 on rods, 24 on wall, 36 on floor, 12 on front

132 items

PAR Spotlight - Par 64 Thomas Spotlight

6 items

ETC sensor 5 Kw Dimmer

28 items

PAN Spotlight – 1000w Philips Projector selecon asymmetric panorama typ

4 items

Dimmer connection boxes distributed on the stage

16 items

Spotlight- Automated ** - Clay Paky Automated Projector

2 items

3Kw Dimmer sockets on stage front

12 items

LED PAR** Spotlight - Colorado zoom Tour RGBW

8 items

Splitter DMX Splitter in Dimmer room

1 item

Motorised poles - 500 kg per unit

14 items

Ethernet Switch in Dimmer room

1 item

Motorised pole – Trust Type. Last pole Nº15

1 item

Fixed pole – Stage front. Scaffolding access

1 item

TEXTILE EQUIPMENT

Aisles – 3m height structure with exchangeable steps

6 items

Grey traveller curtain

1 item

Floor bases – H shaped wooden structure

10 items

Drop scenes 16.50 x 0.80m

2 items

Drop scenes 16.50 x 1.00m

1 item

Gerriets Duvetin R55 black-out fabric

3 items

Black lining in 2 sheets Total 16.8 x 5.00m Gerriets Duvetin R55 black-out fabric

1 item

Black legs 2.50 x 5.00m Gerriets Duvetin R55 black-out fabric

6 items

White PVC Cyclorama for front & back projection. Dimensions: 16.8 x 5.10m.

1 item

Harlequin Duo Black/Grey Linoleum

5 items

Harlequin Duo Black/White Linoleum 1.5 x 15.00m. Use white exclusively

5 items

DMX signal & Ethernet connector on all lighting boxes

INTERCOMMUNICATION SYSTEM Intercom Station base + 3 posts ALTAIR mono-channel wireless station base Brand ALTAIR WBS‐200

azkunazentroa.eus

1 item

Auditorium

Auditorium & foyer. Fact sheet

SERVICES

General services CLOAKROOM

INTERPRETING BOOTHS

Located in the foyer, it has a mechanised coat rail and luggage lockers.

There are 3 interpreting booths inside the Auditorium

To use it, you must hire at least one Customer Service person.

Stalls, with no central aisle but with lateral access, offer optimum view of stage from any seat.

DRESSING ROOMS There are 4 dressing rooms for Auditorium events: • 2 Individual

Individual capacity: 5 people

• 2 Group

STALLS Cloakroom

Stalls

Dressing rooms

Interpreting booths

Technical control cabin

Stalls

The Auditorium stalls offer total comfort, soft warm touch, armrests and the possibility of an auxiliary support table on request.

Group capacity: 14 people

Fully equipped showers, WCs, lockers, hangers, etc., with direct stage access.

Consult availability & rates

azkunazentroa.eus

Auditorium

Auditorium & foyer. Fact sheet

GALLERY

Olatz de Andrés. The Endgame

OSA+Mujika. Loser

Matarile Teatro. Daimon y la jodida lógica

Mal Pelo. On Goldberg Variations / Variations

azkunazentroa.eus

Auditorium GALLERY

Auditorium & foyer. Fact sheet

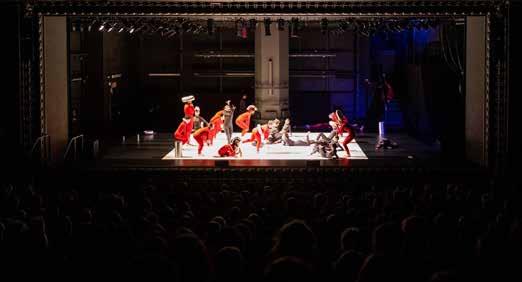

Live show during an institutional event. Use of cyclorama and lighting effect.

Gutun Zuria. Bilbao International LiteratureFestival. LED Screen.

ANESVAD Sariak Award Gala with twin lectern format and stair access to stage.

Event for Childhood Attention organised by Bilbao City Council. Roundtable format.

azkunazentroa.eus

Foyer

Auditorium & foyer. Fact sheet

DESCRIPTION & LAYOUT

The foyer area accompanies the Auditorium events as the place for reception and accreditation, catering for coffee break, cocktail or lunch, and photocall.

LOCATION

CAPACITY

Floor-1

200 people

2.70 metres

E lift

access

SOUND

access

AUDITORIUM

azkunazentroa.eus

3

375,85 m2

Floor 0

�

HEIGHT

Floor -2

CLOAKROOM

Azkuna Zentroa is an accessible centre committed tomaking its services available to everyone.

o

EXHIBITION HALL FOYER

WC

WC

The foyer can also be hired separately from the Auditorium.

3

lift

Its 200 people capacity can be expanded to admit 400 by adding other areas such as the Exhibition Hall Vestibule.

AREA

Foyer GALLERY

Installation with fabrics, special lighting & bodily lettering

azkunazentroa.eus

Auditorium & foyer. Fact sheet

In the presentation of the ÉLITE Series, the cloakroom was turned into a bar counter with the event image.

Foyer

Auditorium & foyer. Fact sheet

GALLERY

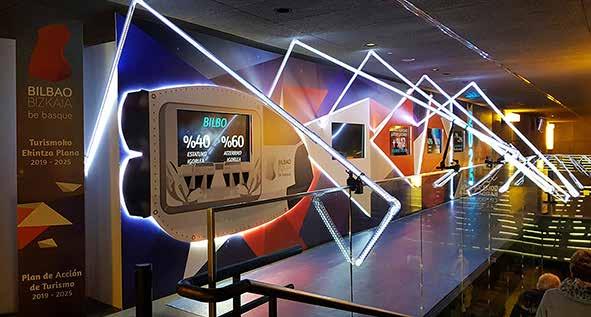

Customised foyer with the Bilbao Bizkaia Tourism Plan exhibition of projects.

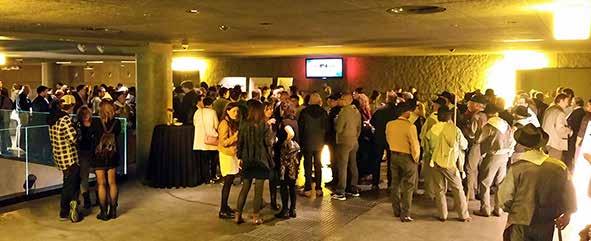

Festival Sozialak International Invisible FilmFestival, cocktail.

azkunazentroa.eus

D’Avignon forum accreditation counters.

Communication Formats

Auditorium & foyer. Fact sheet

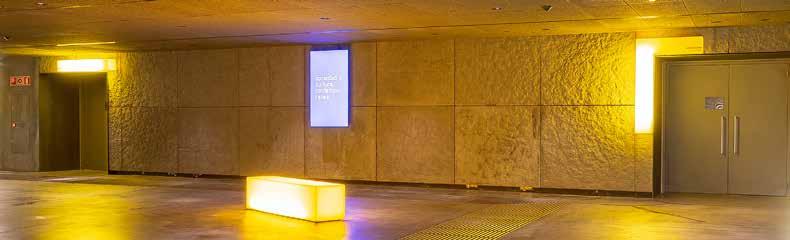

DIGITAL FORMATS Foyer Plasma You can identify your event on the plasma in the Foyer.

• Vertical plasma to put your event logo: 65” monitor, 9:16 (1080x1920px) • Image format: bmp, rga, jpg, png, gif, tif, tiff Sun Screen To surprise and offer a spectacular welcome for the attendees, we have the Sun Screen*, one of the Azkuna Zentroa ́s icons, which overlooks the Atrium of Cultures. This huge screen offers the possibility of aunique experience as the guests arrive.

Foyer plasma

• Dimensions: 1034x1222 px. (upper & lower safety margin: 70 px; side margins: 65 px.)

* Consult availability & rates

azkunazentroa.eus

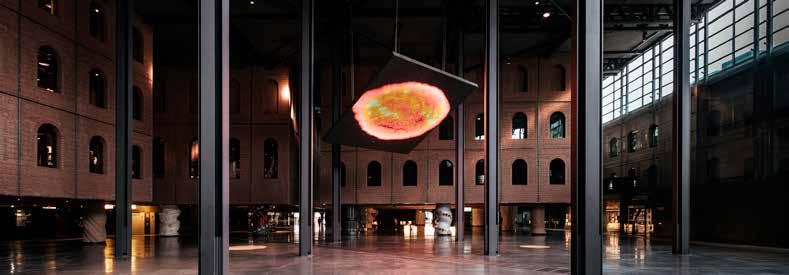

Sun Screen, Atrium of Cultures

Yandiola Catering Service Yandiola group, Azkuna Zentroa ́s gastronomic provider, offers a customised catering service adjusted to each event and prepared at the Centre itself. Its extensive catering offer (cocktails, aperitifs and coffee breaks) includes decorating the setting. Its culinary proposal is inspired by the past but projected into the future with creativity as a driving force.It is committed to using local, authentic products as the basis of a healthy quality cuisine. eventos@yandiola.com Tel.: 94 413 36 36

azkunazentroa.eus

Auditorium & foyer. Fact sheet

Accesses

Auditorium & foyer. Fact sheet

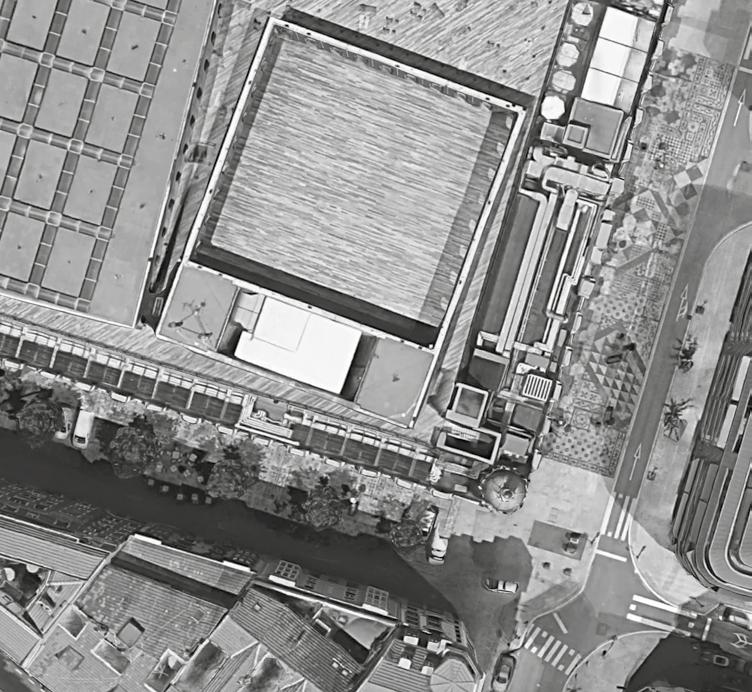

AZKUNA ZENTROA LOADING & UNLOADING POINT The loading and unloading operations of material required for the shows take place in Calle Fernández del Campo (in a pedestrian area), on the intersection with Alameda Recalde.

Azkuna Zentroa Alhóndiga Bilbao

Material can be introduced in the building at ground floor level and subsequently taken to its location from this loading and unloading area (not the car park).
