AZAT BIKMULLIN

PORTFOLIO

SELECTED WORKS 2021 — 2025

Diebenkorn Foundation

Housing in San Juan

Polustanok

Retreat

Diebenkorn Foundation

A Museum shaped by Zenithal Light

Washington University in St. Louis

Fall 2024 Design Studio

Professor: Robert McCarter

Location: Berkeley, California

This studio is an exploration of architectural space illuminated by zenithal light, where natural light from above transforms the experience of inhabited interiors. The project centers on designing a museum dedicated to the works of Richard Diebenkorn, one of the most significant Abstract Expressionist painters of the 20th century. The museum is to be sited in Berkeley, California, just north of the University of California campus. It will house a collection of Diebenkorn's works, including 100 paintings and 8,000 works on paper. The museum will also feature exhibitions of related artists and contemporary works inspired by Diebenkorn.

The design emphasizes the relationship between Diebenkorn's art and the spaces in which they are displayed. Natural top lighting, reminiscent of the painter's connection to landscape and light, is a critical element, ensuring that the architecture remains understated and complementary to the artworks. The program calls for a 30,000-square-foot building that includes galleries, an education center, a café, a research library, storage spaces, and a conservation lab. These elements are further enhanced by a 20,000-square-foot courtyard garden, creating a dialogue between the built environment and the natural world.

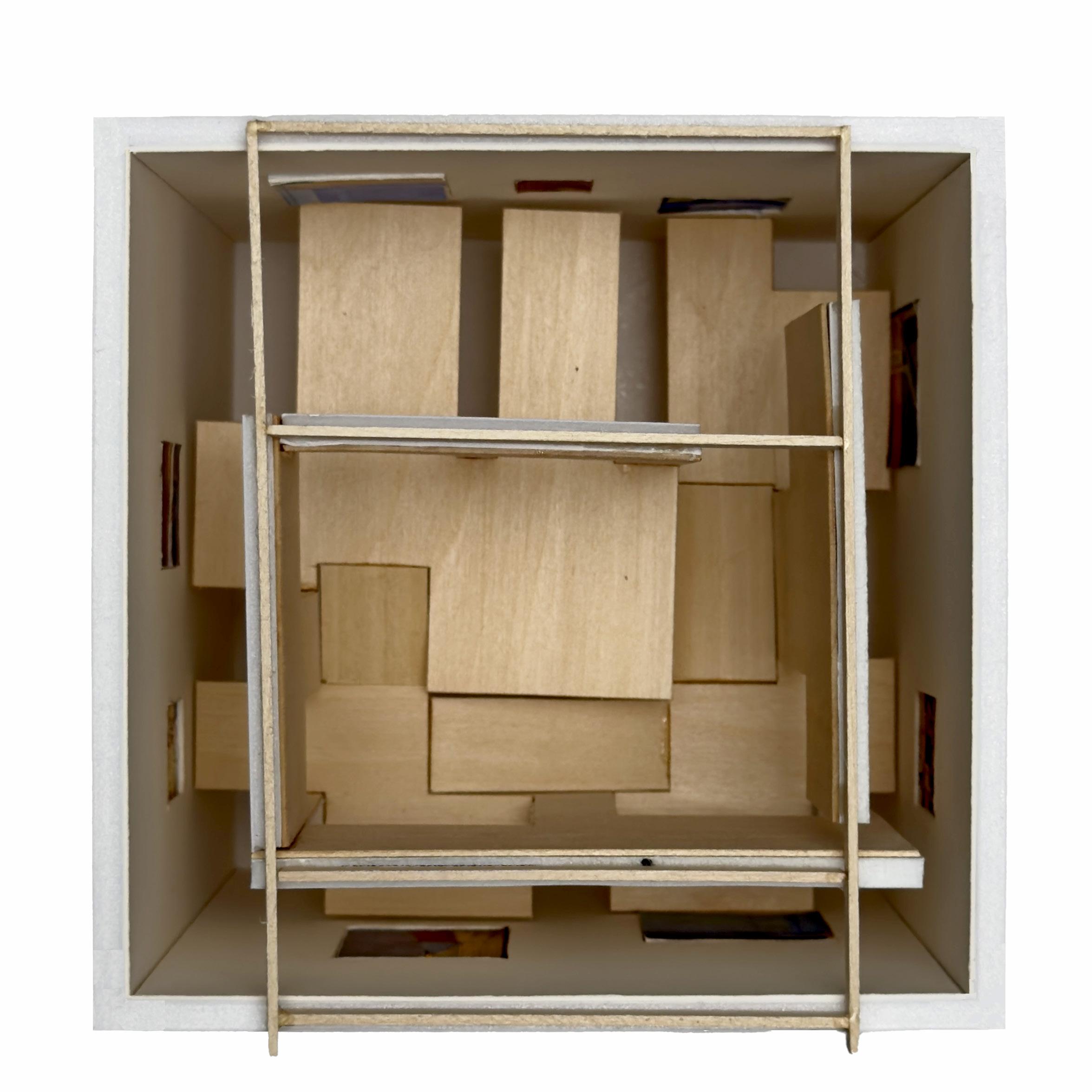

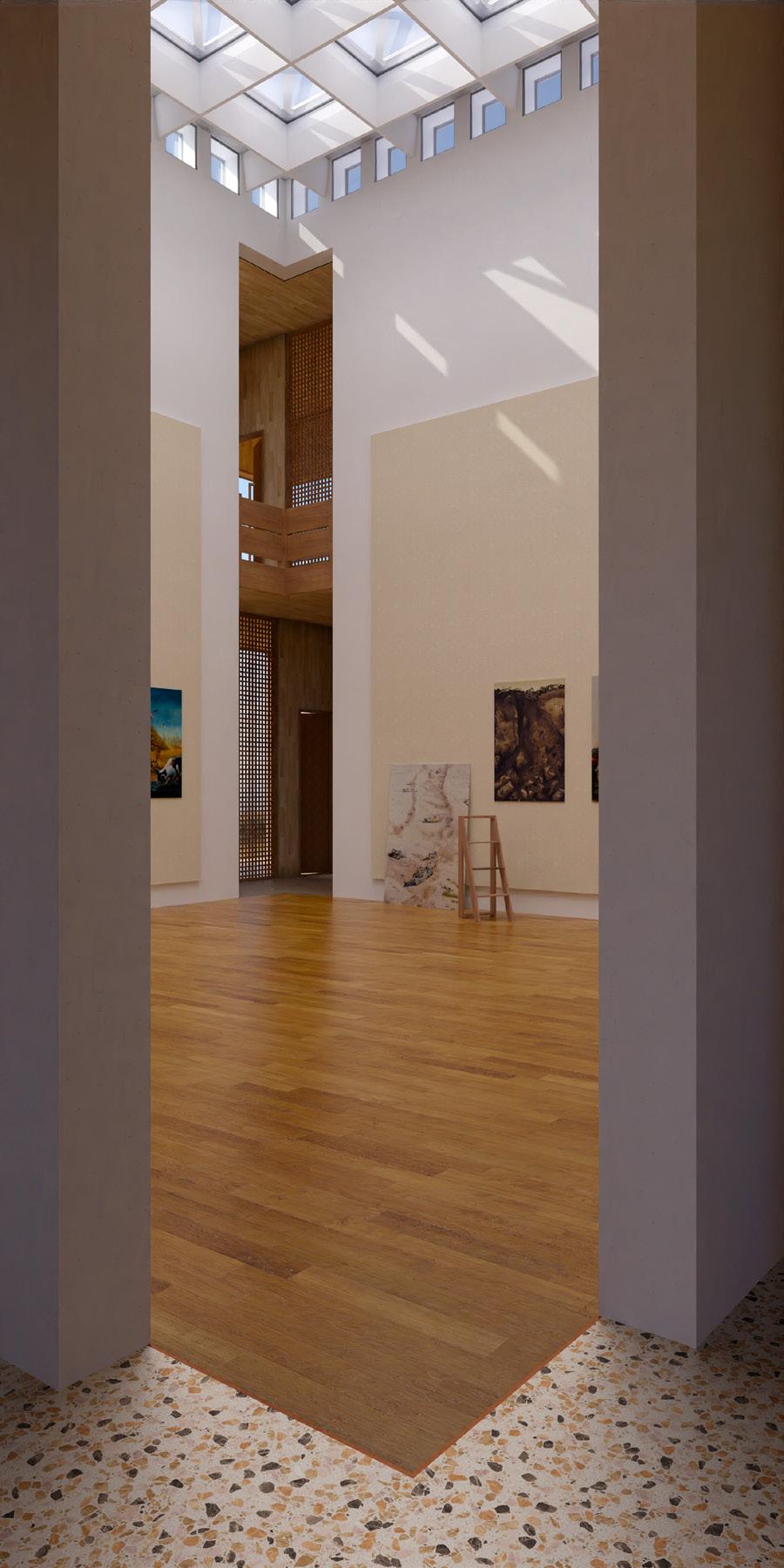

The Cube serves as the starting point for the Diebenkorn Foundation, conceived as a 32-foot volume to showcase nine paintings by Richard Diebenkorn.

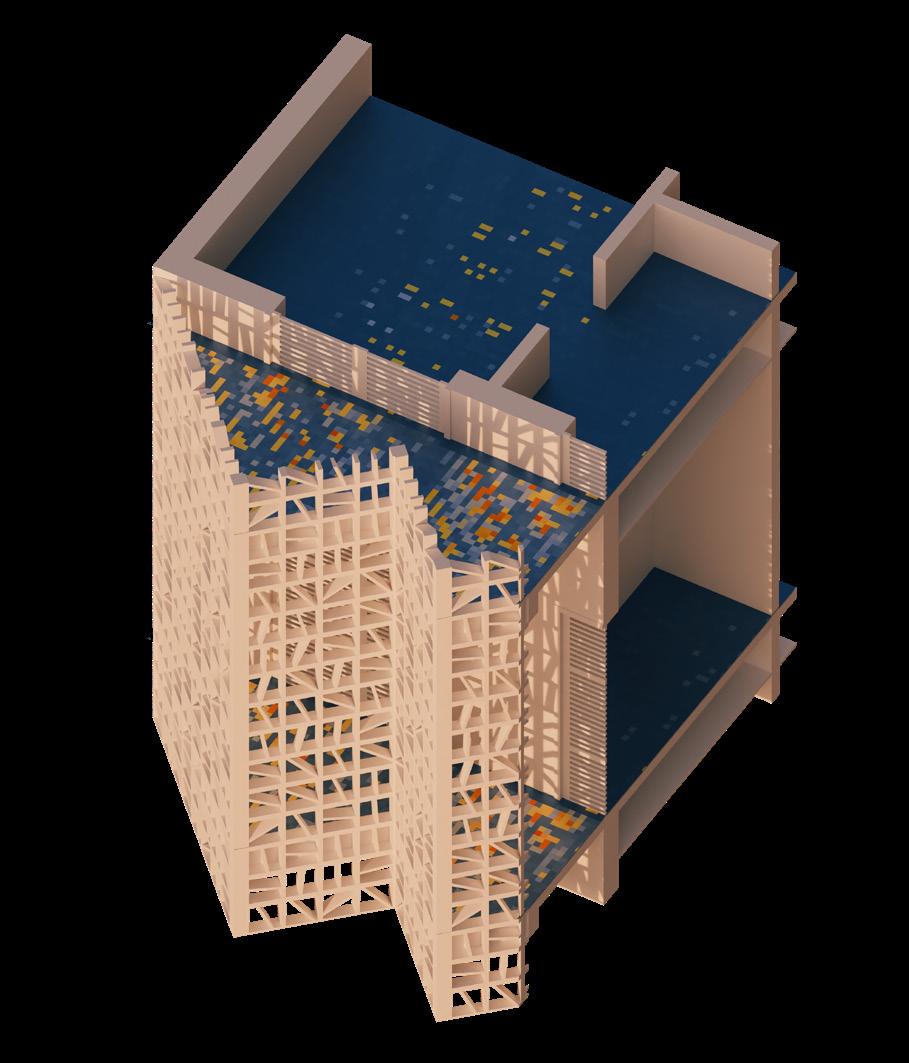

The design is organized around two contrasting elements: an outer concrete skin and an inner wooden core. The concrete envelope holds the paintings, illuminated solely by zenithal light filtering through skylights. This diffused light washes the walls, accentuating the paintings’ textures and colors while preserving their integrity. The outer space is occupied only by paintings.

The wooden body is suspended within the cube, serving as the only space for visitor movement. Its warm materiality and compact pathways direct visitors through the gallery, guiding them to view the paintings from varying distances and perspectives. The core’s shadowed interior heightens the transition to the luminous periphery where the art resides.

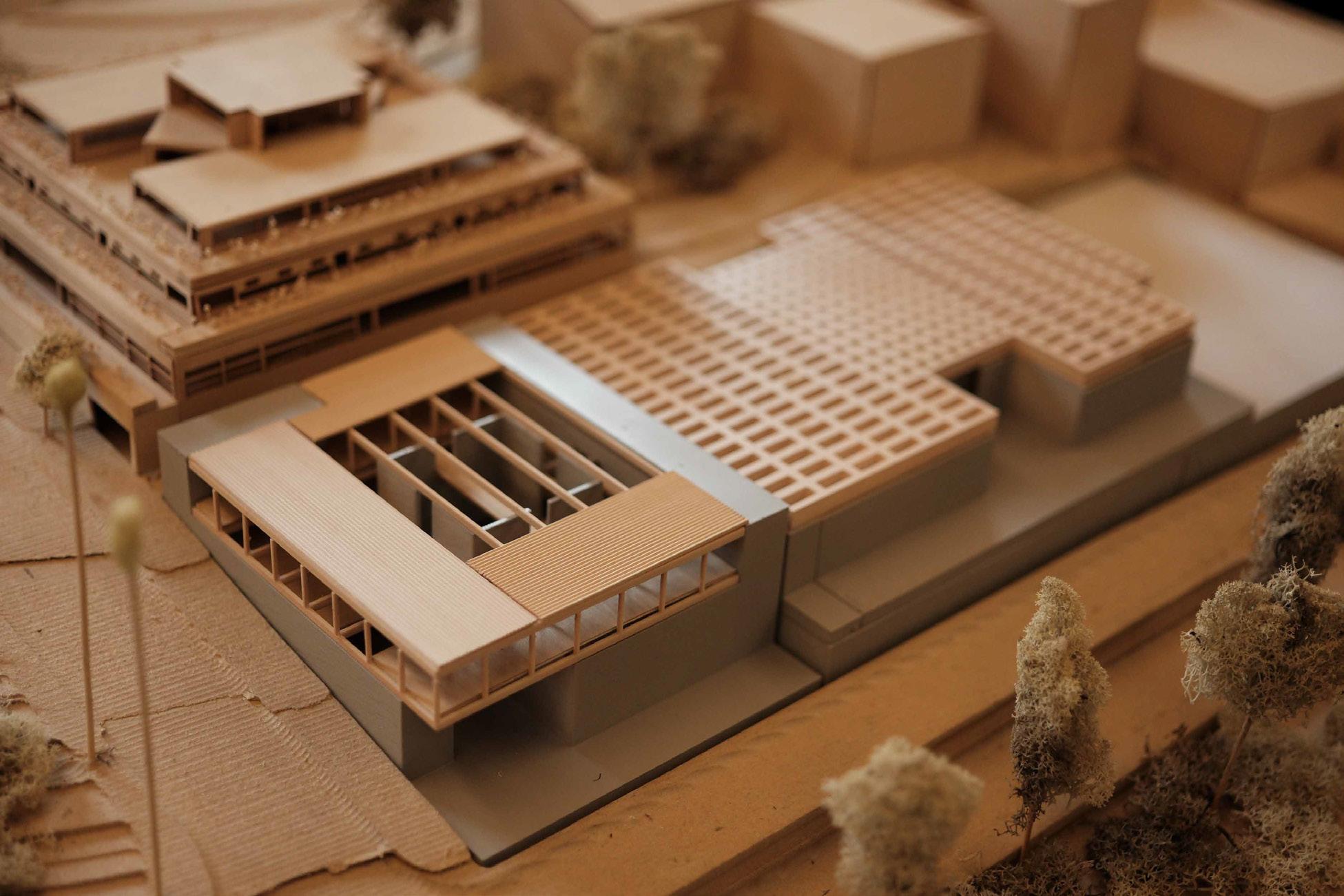

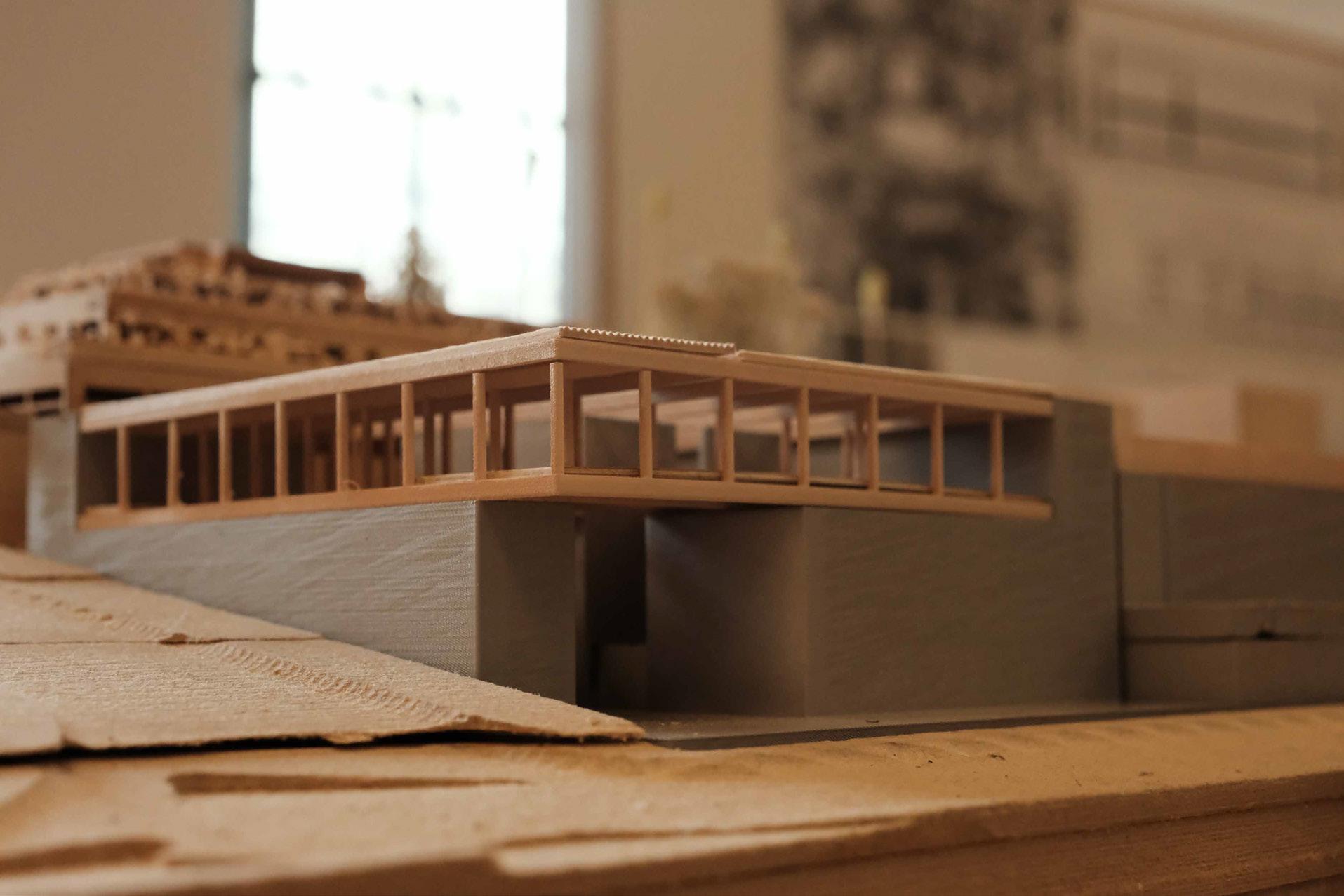

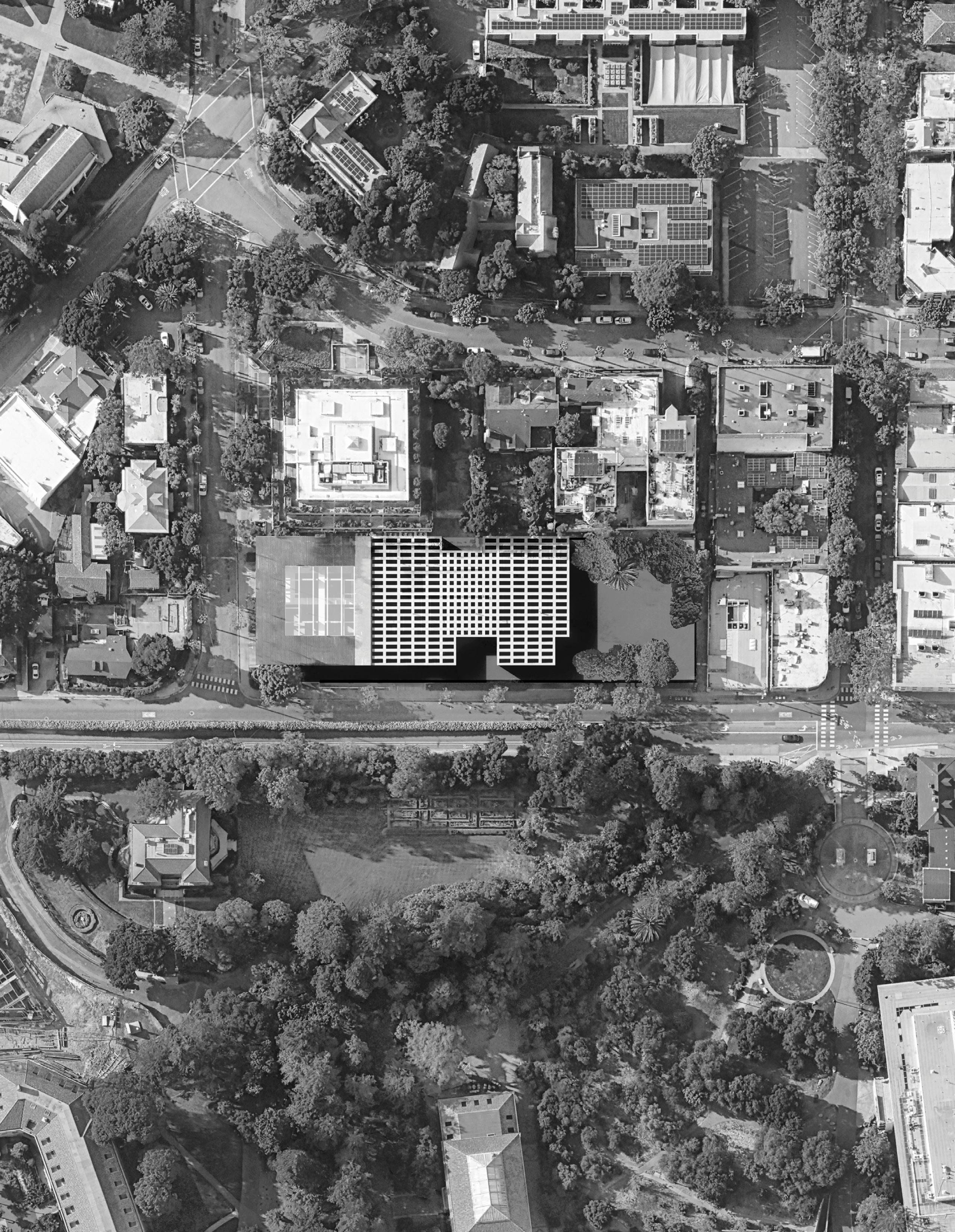

SITE MODEL

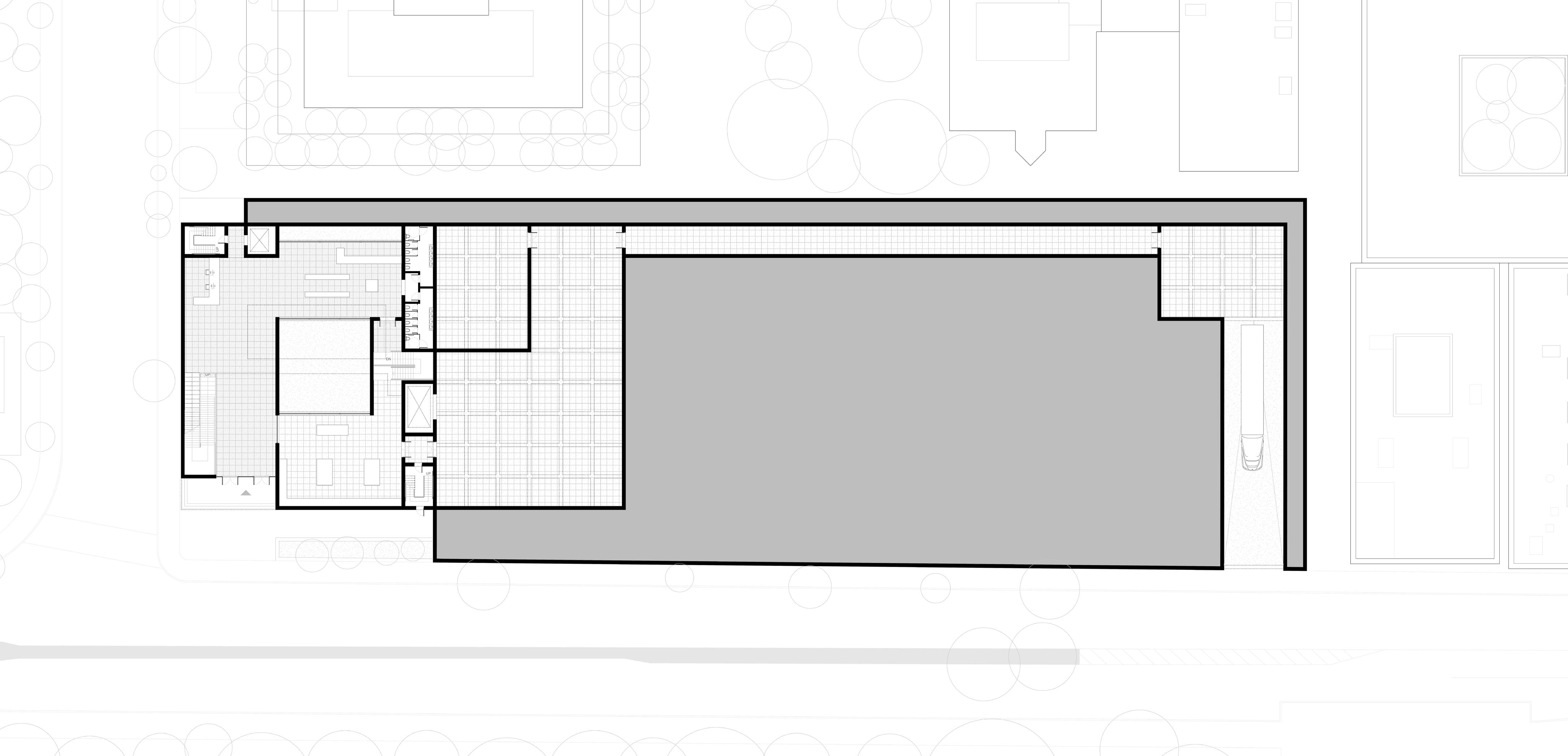

Visitors enter the museum on the ground floor, where they are greeted by a conservation lab visible through glass, offering a glimpse into the restoration process. Adjacent to the lab, a dedicated storage area houses the museum's painting collection.

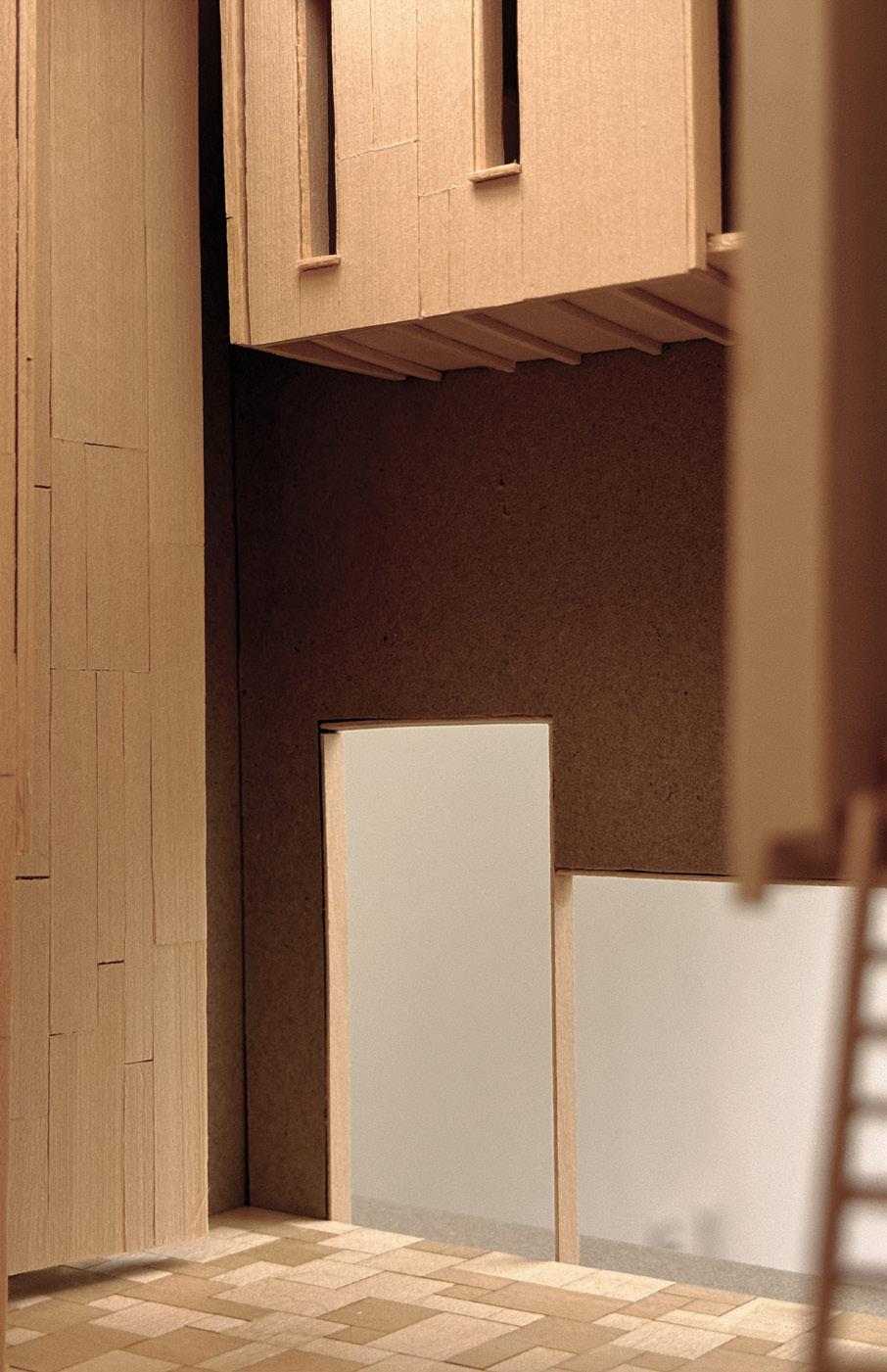

INNER COURTYARD

Visitors ascend the grand stair to the second floor, arriving at the gallery level. They walk through the sunlit inner courtyard along a suspended pathway, leading into the art galleries. Newcomers who wish to learn more about Diebenkorn can choose an alternate route by passing through the education gallery.

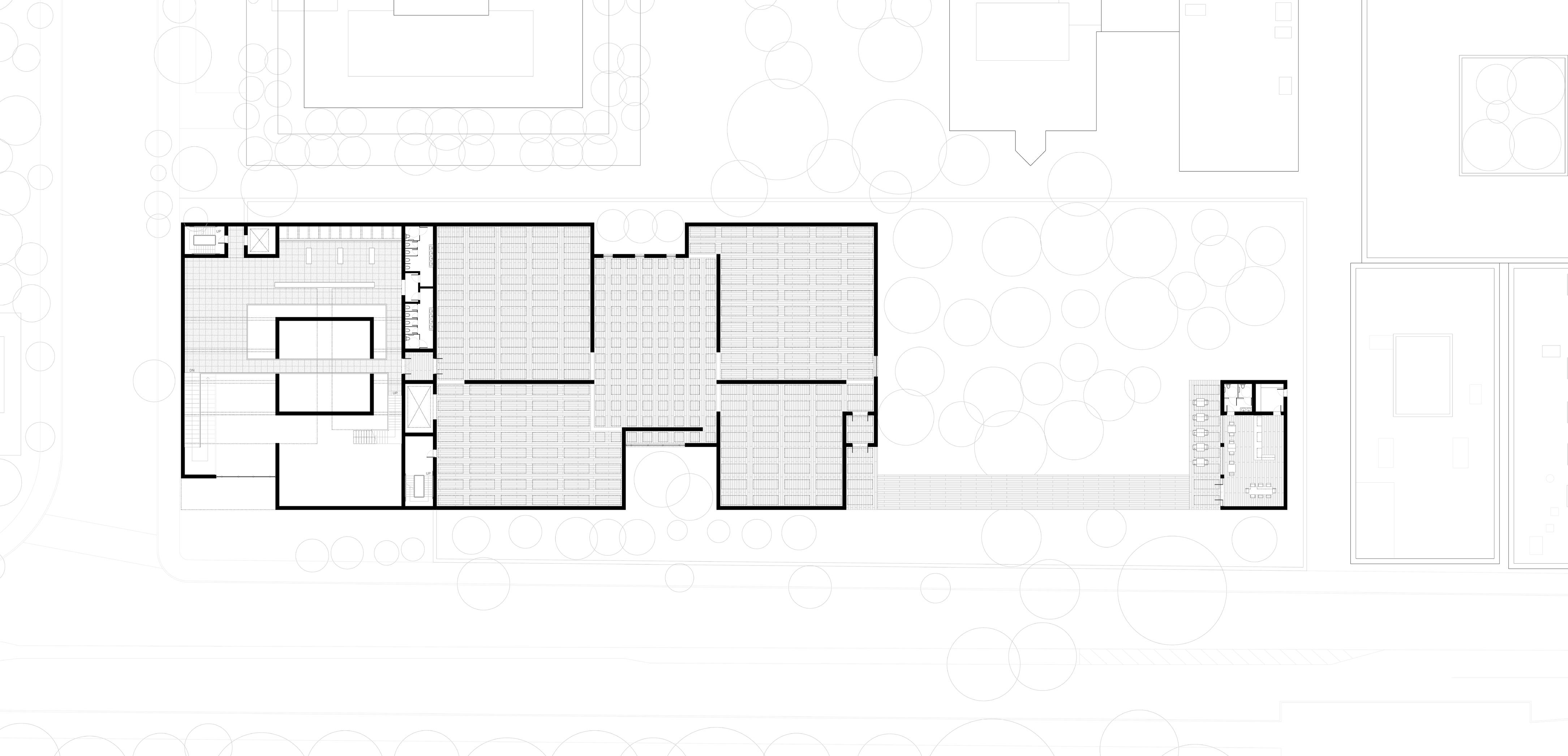

GALLERY FLOOR PLAN

9 — Galleries

10 — Cafe

11 — Garden

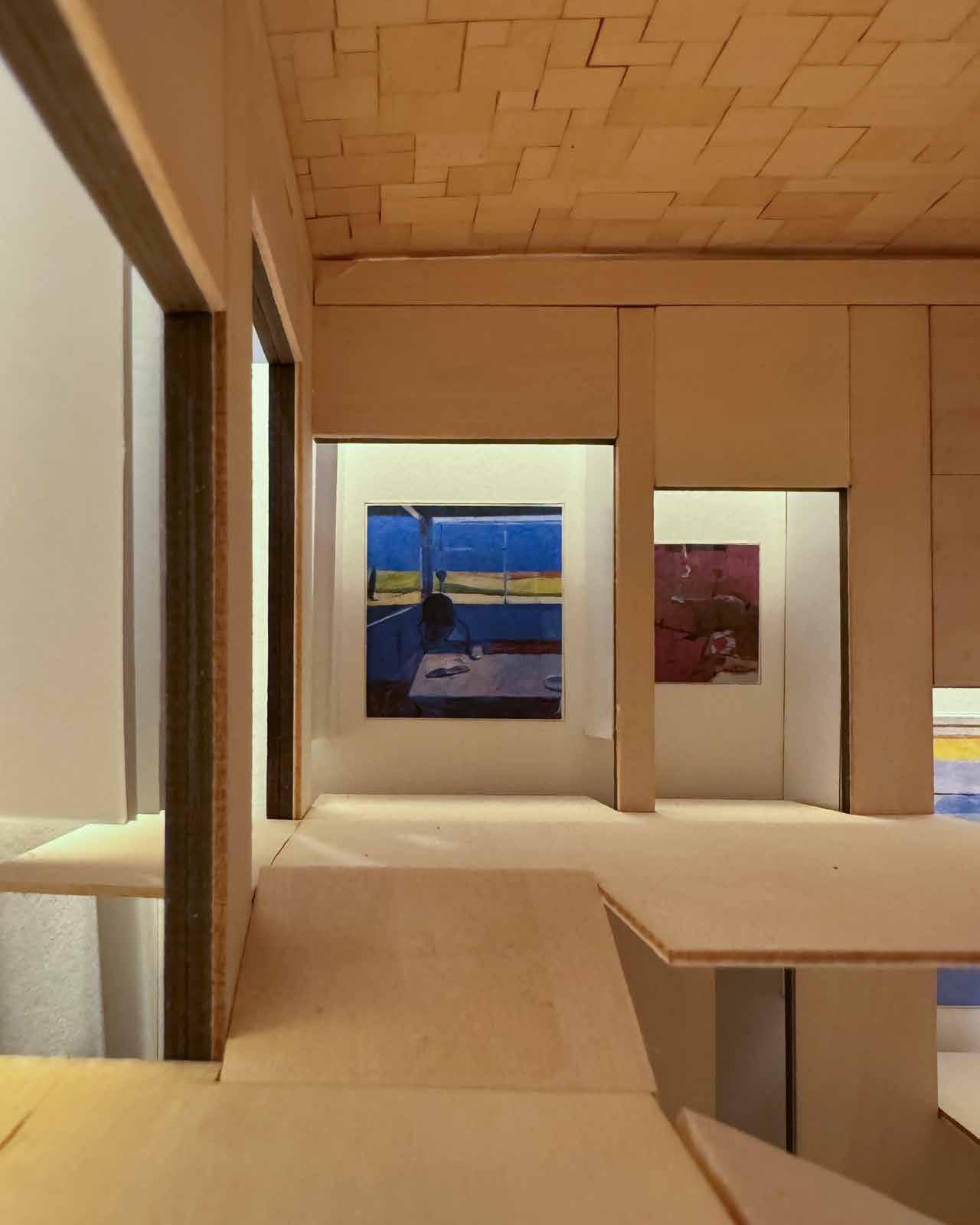

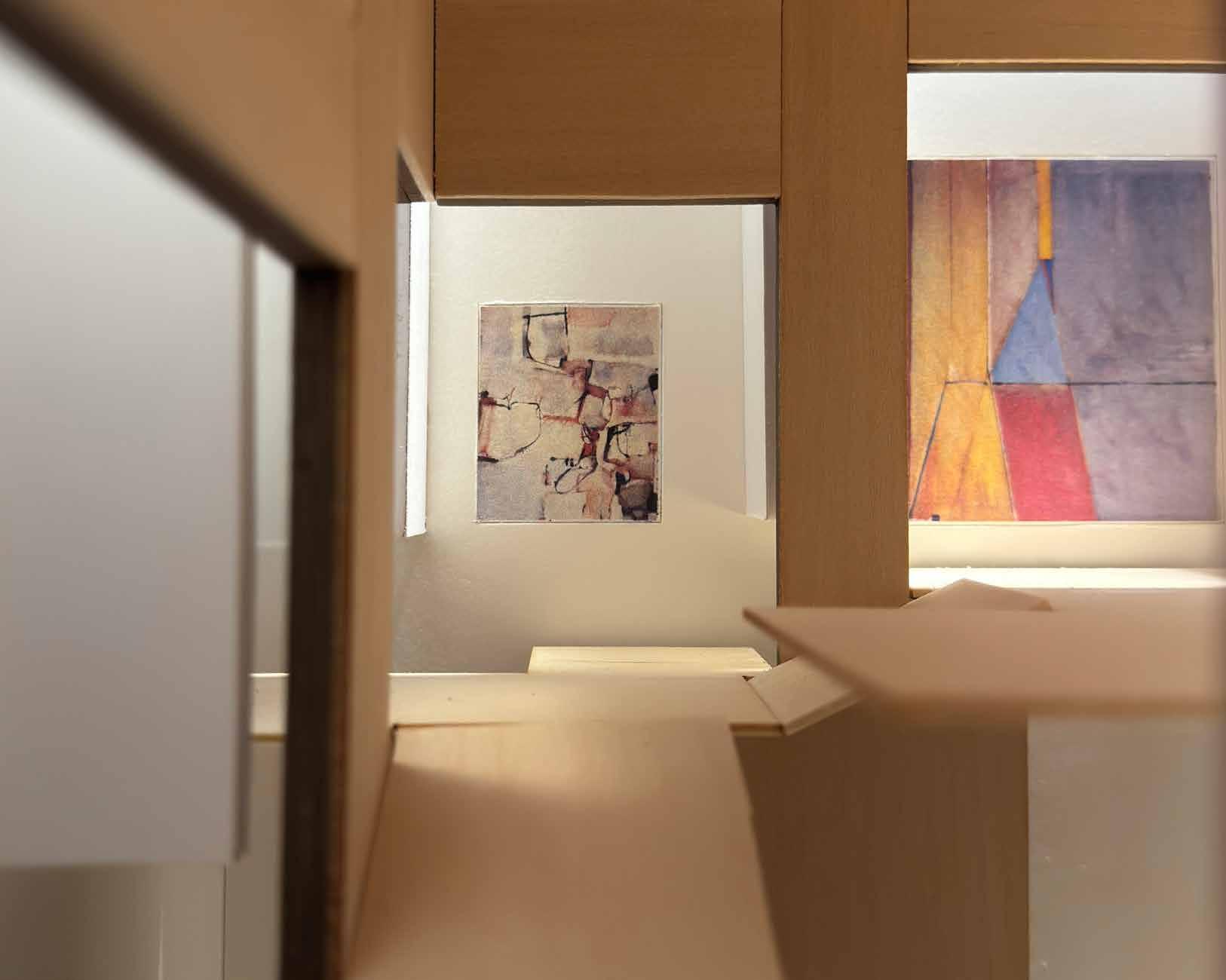

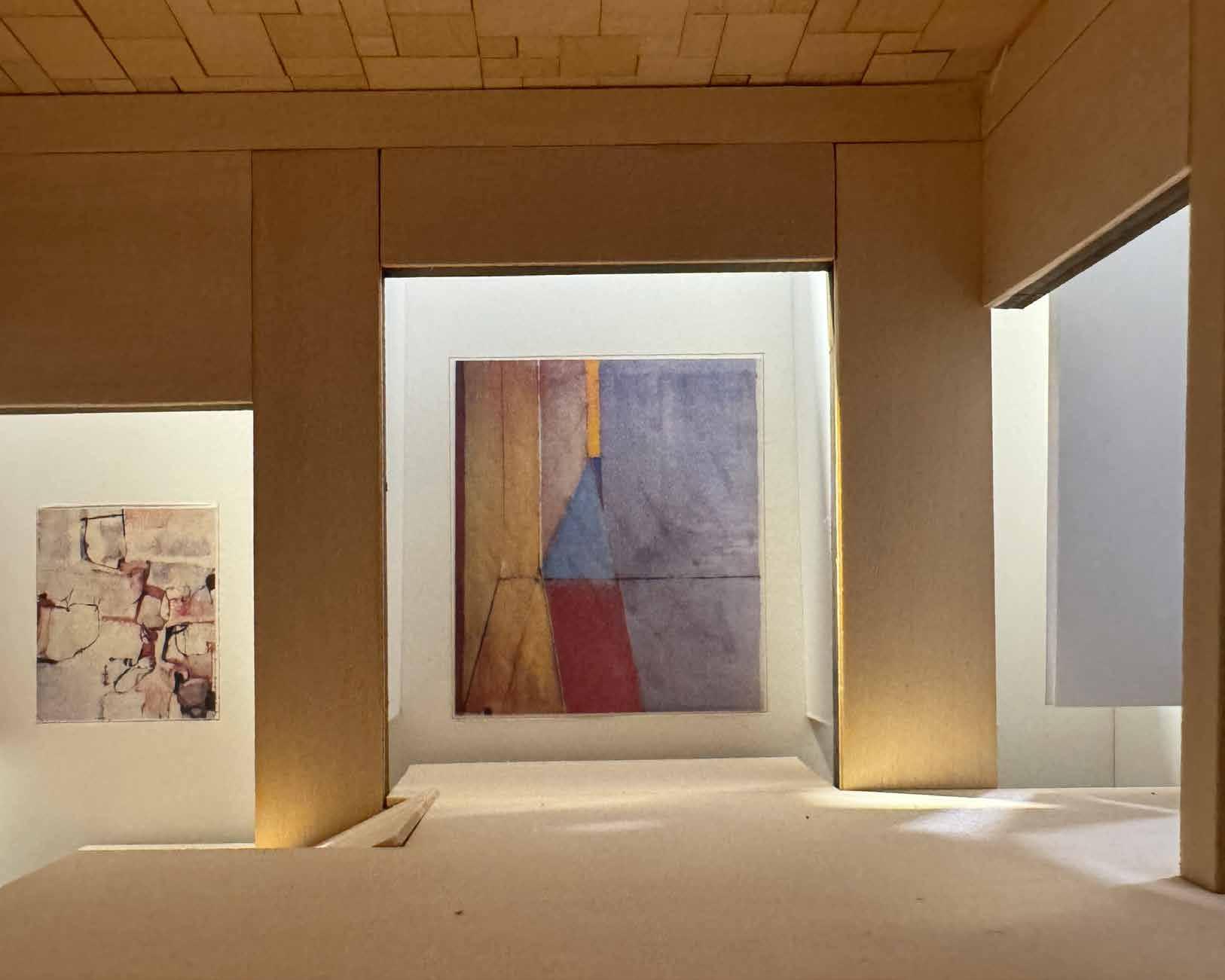

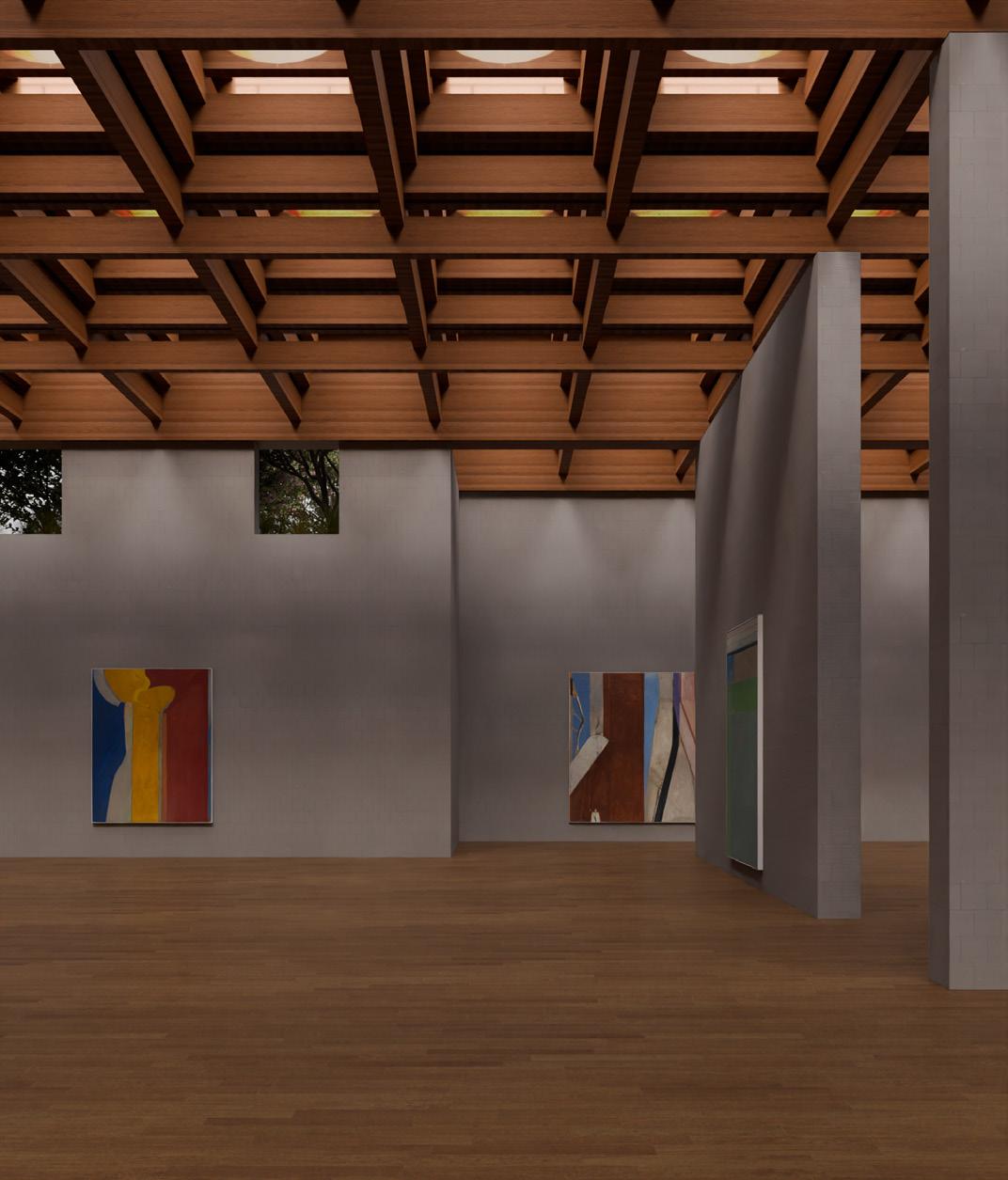

The gallery space is composed of five intersecting galleries, offering multiple ways to experience the collection.

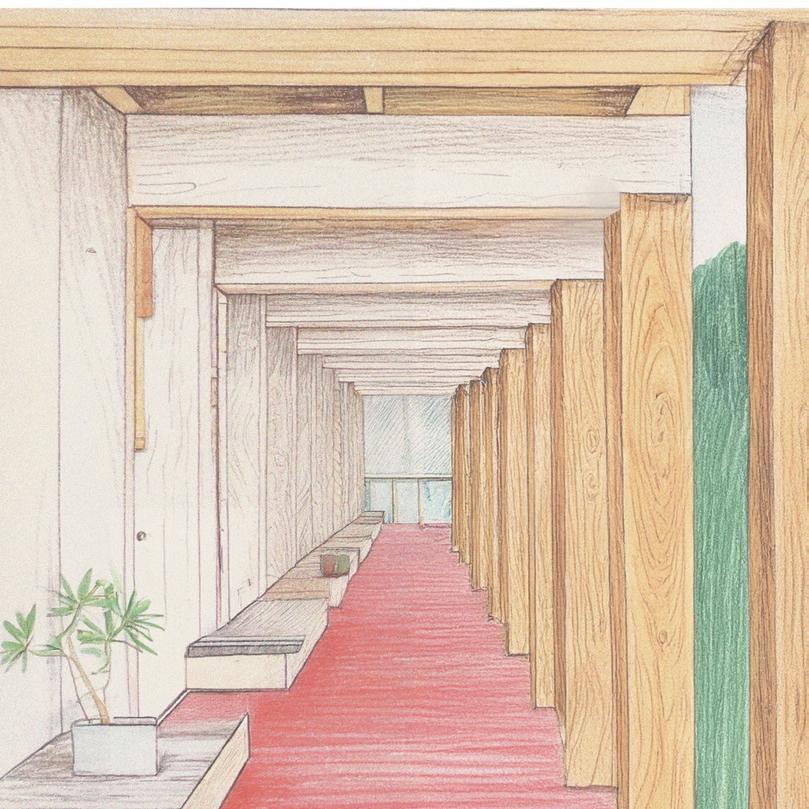

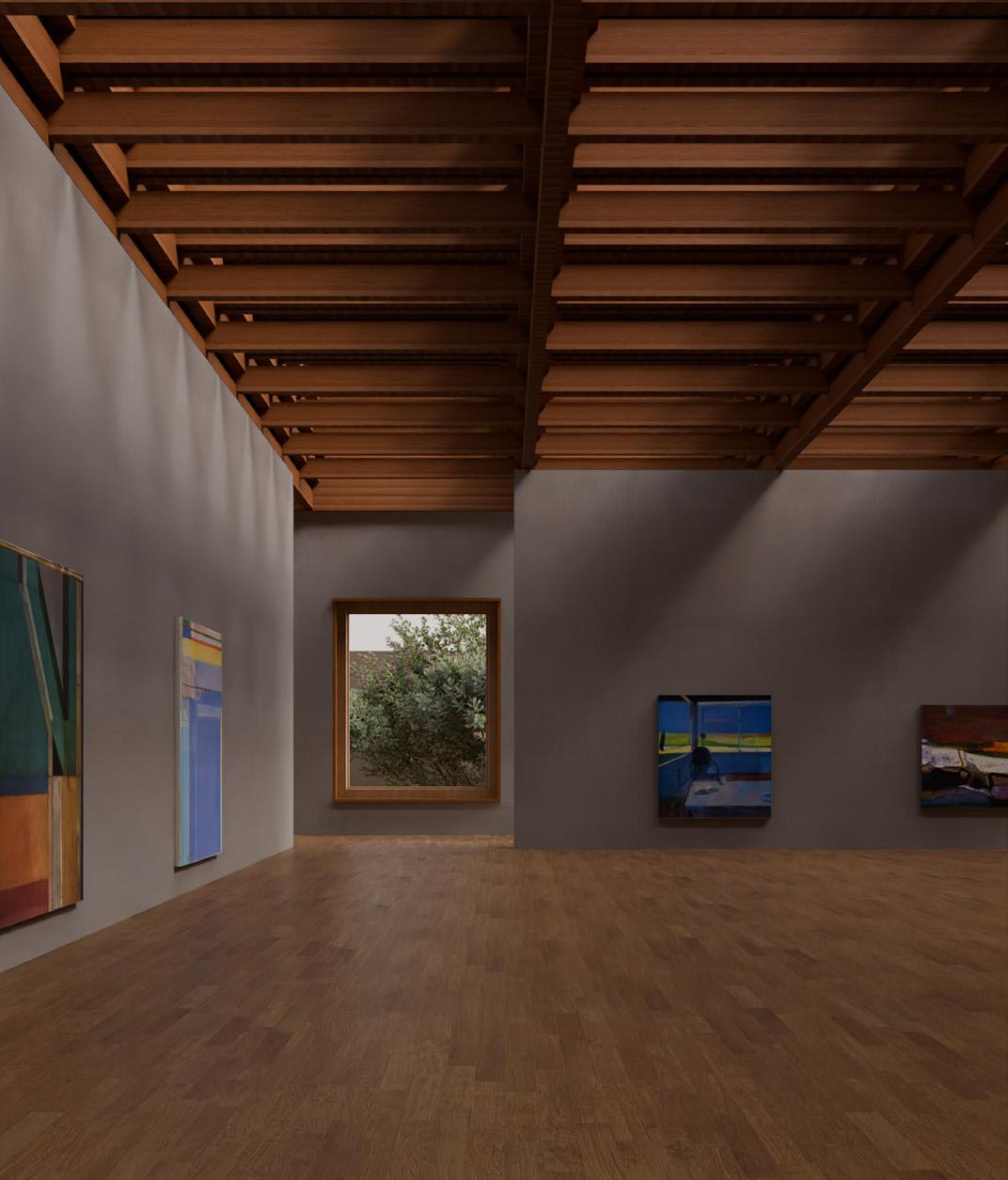

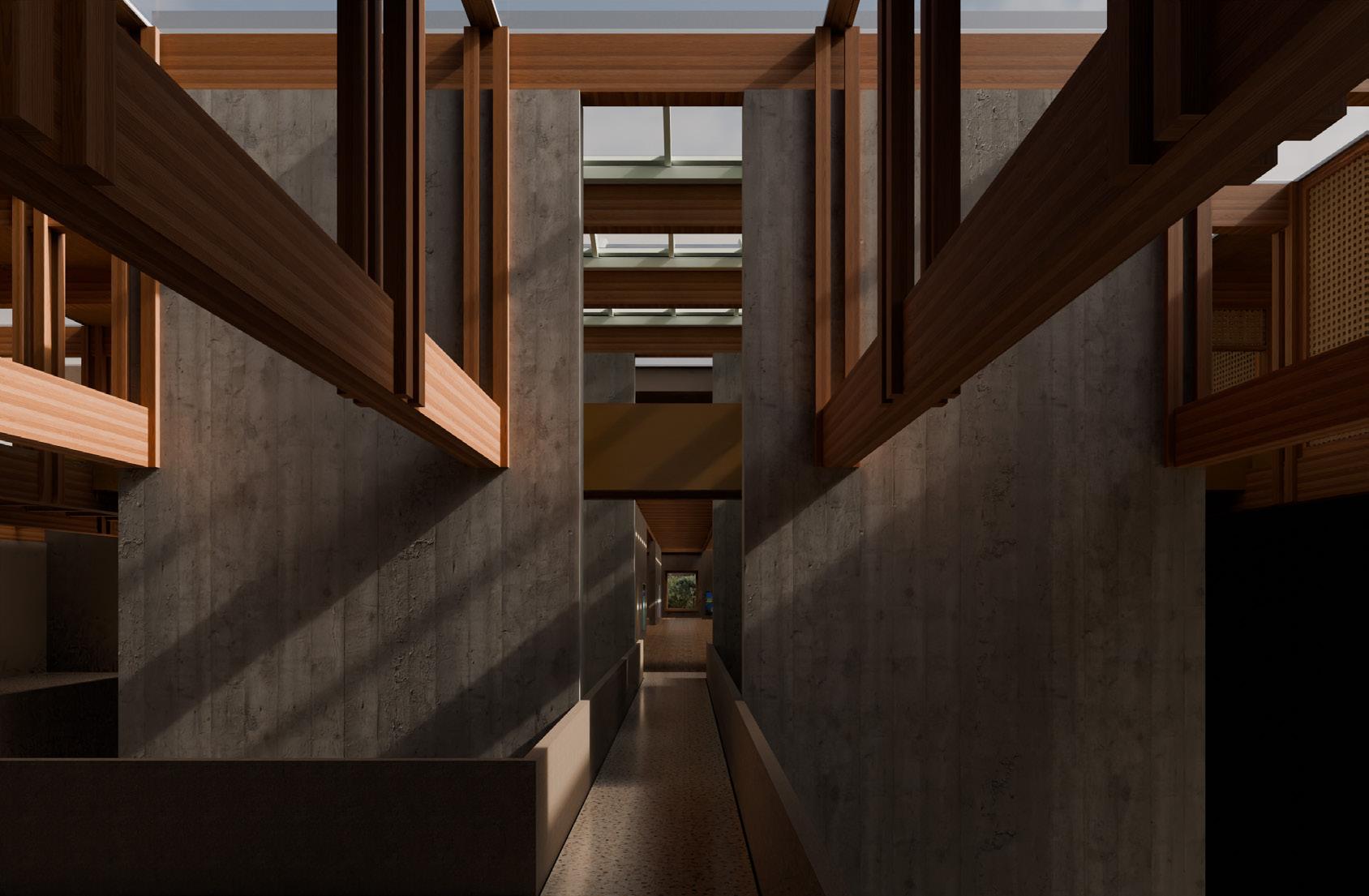

A linear passageway guides visitors from the entrance through all five galleries. At the end of the passage, a large window opens to the garden, offering a moment of reflection and a visual connection between the collection and garden.

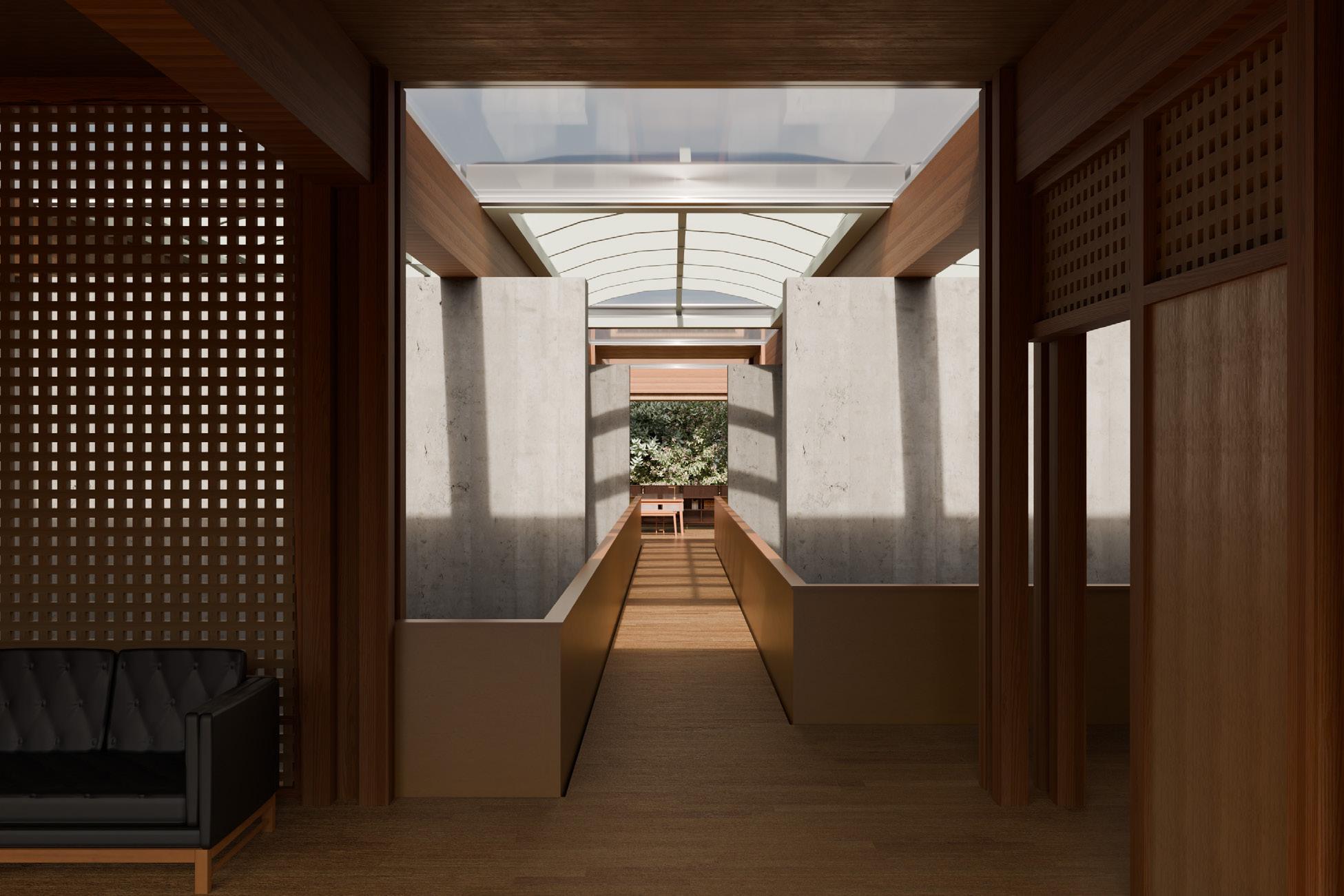

The third floor is built within a large wooden truss, housing an office and a research library. The office overlooks both the museum's lobby and the Golden Gate Bridge, providing a functional workspace with expansive views. A hanging pathway through a sunlit courtyard connects the office to the research library, creating an open transition between the two spaces.

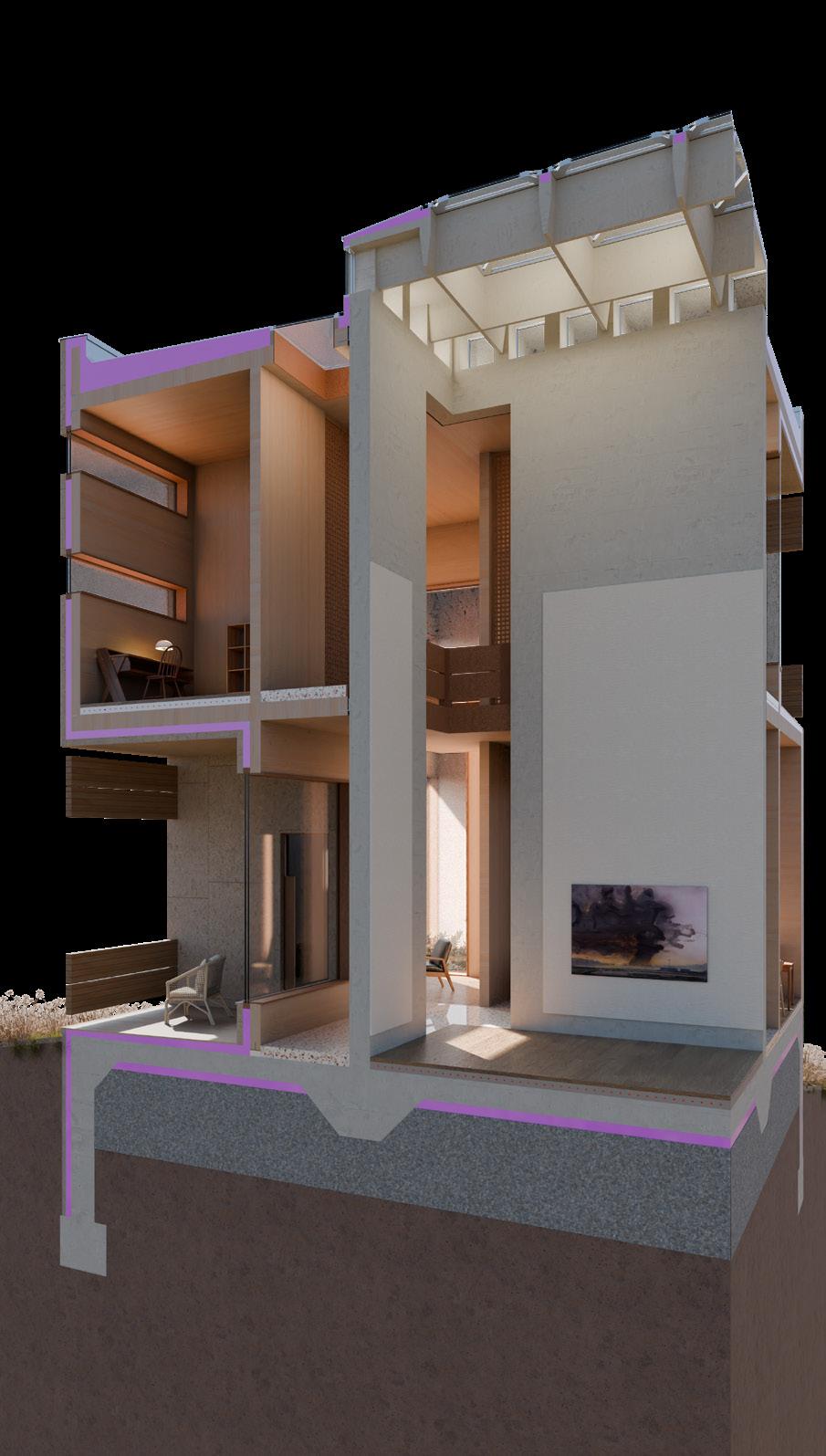

SECTION 1-1

A building section through the Entry Hall, Office and Research Library

Housing in San Juan

Living in the Tropical Thresholds

Washington University in St. Louis

Fall 2023 Design Studio

Professor: Monica Rivera

Location: San Juan, Puerto Rico

The studio explores the intersection of climate, culture, and community through the design of a residential building in San Juan, Puerto Rico. Responding to the region's hot, humid climate, intense sunlight, heavy rainfall, and vulnerability to hurricanes, the design emphasizes passive climate strategies and community-focused living.

Cross-ventilation is prioritized to naturally cool the interior spaces, reducing reliance on mechanical systems in a context where access to air conditioning is limited. The building incorporates secure, weather-resilient materials and thoughtful spatial layouts that foster a sense of connection among residents while addressing environmental challenges.

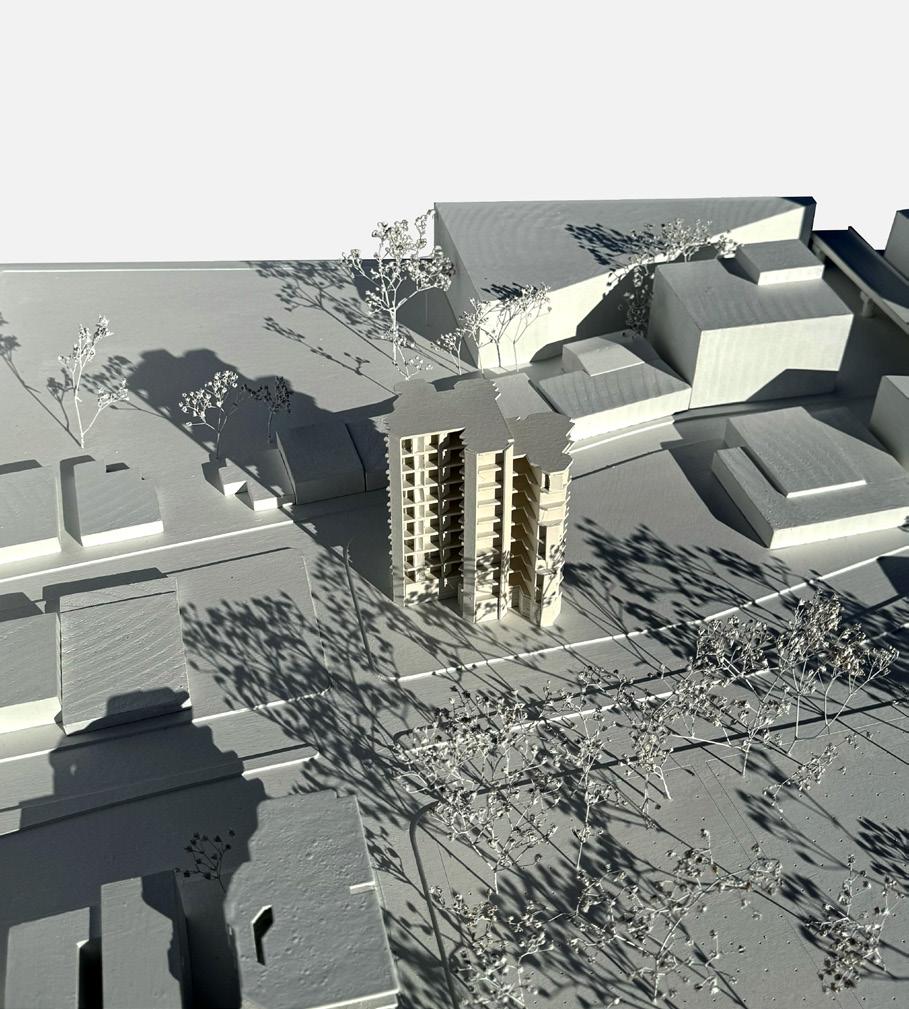

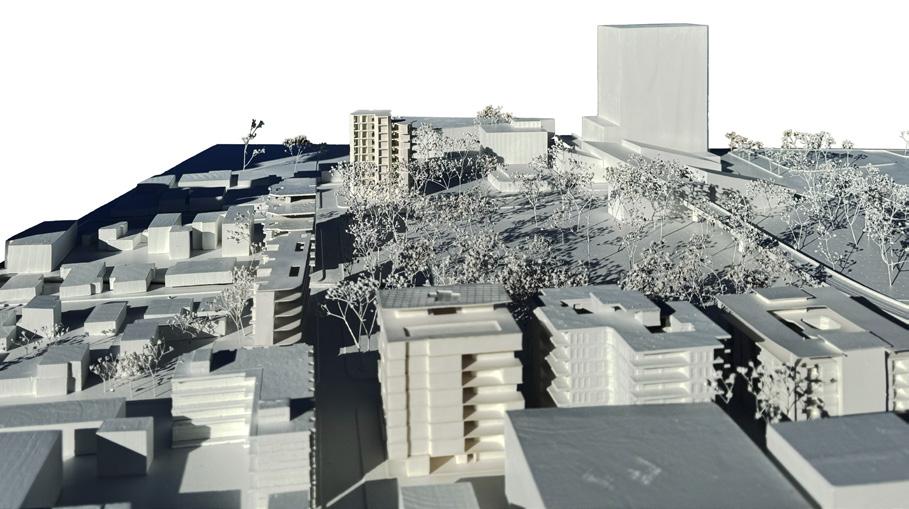

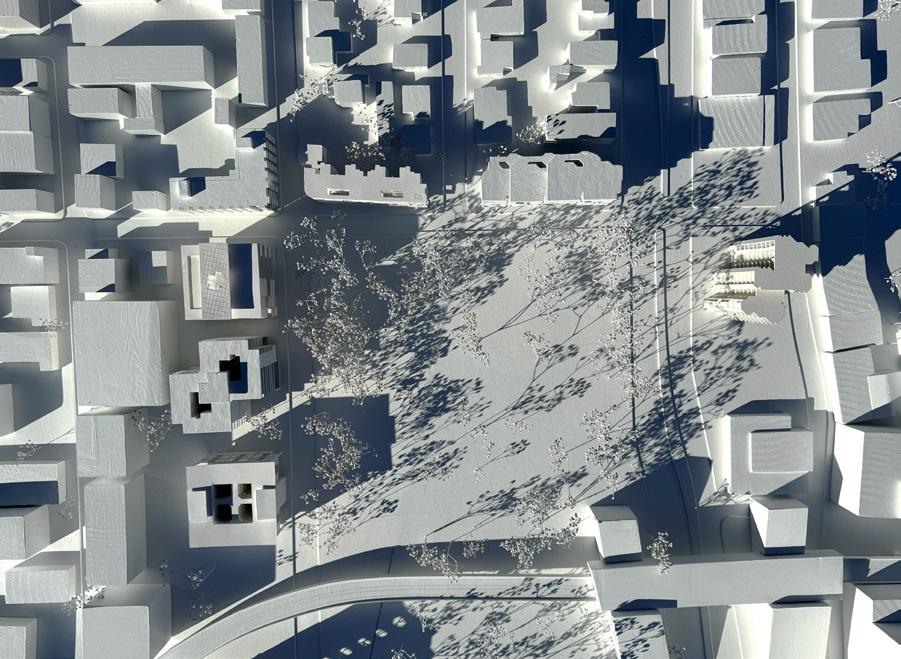

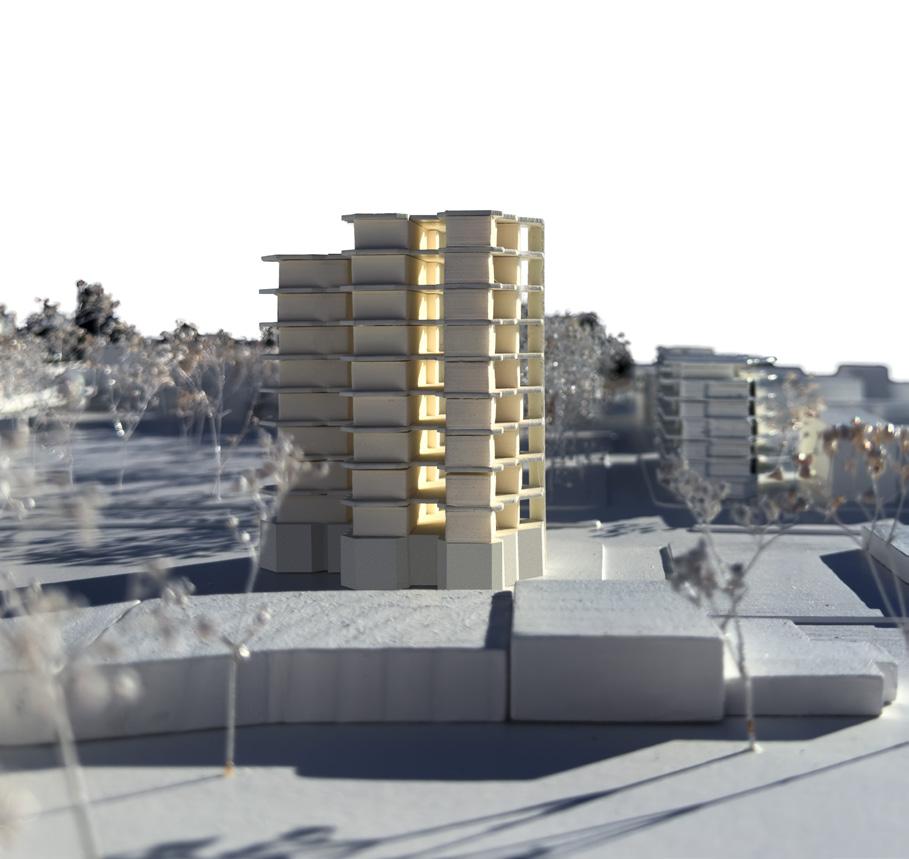

SITE MODEL

The site model was a team effort.

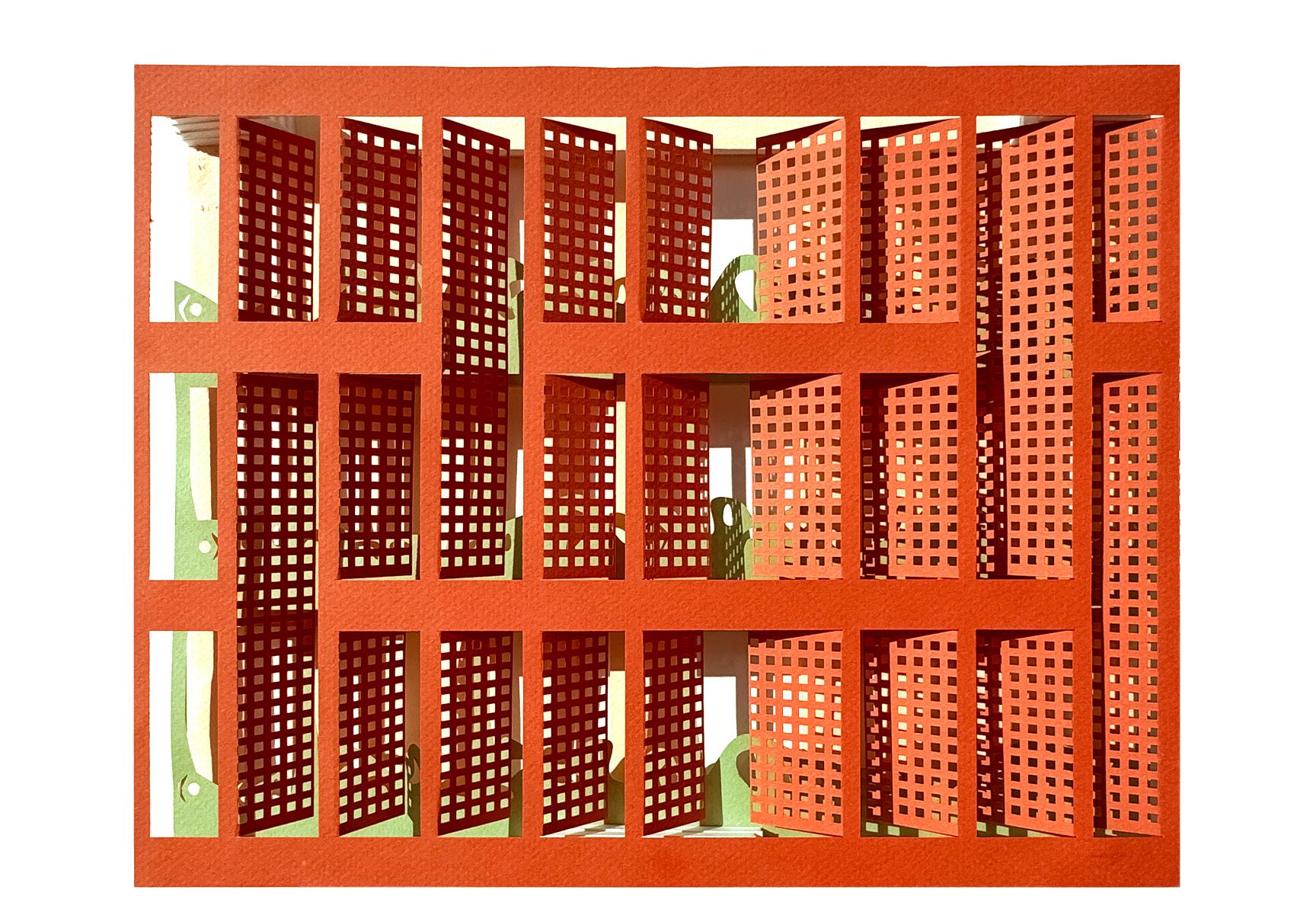

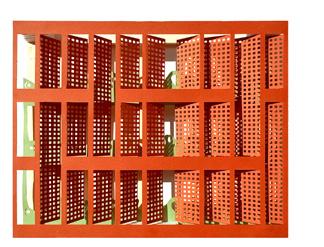

FACADE MODEL

The facade was designed with a solar radiation in mind.

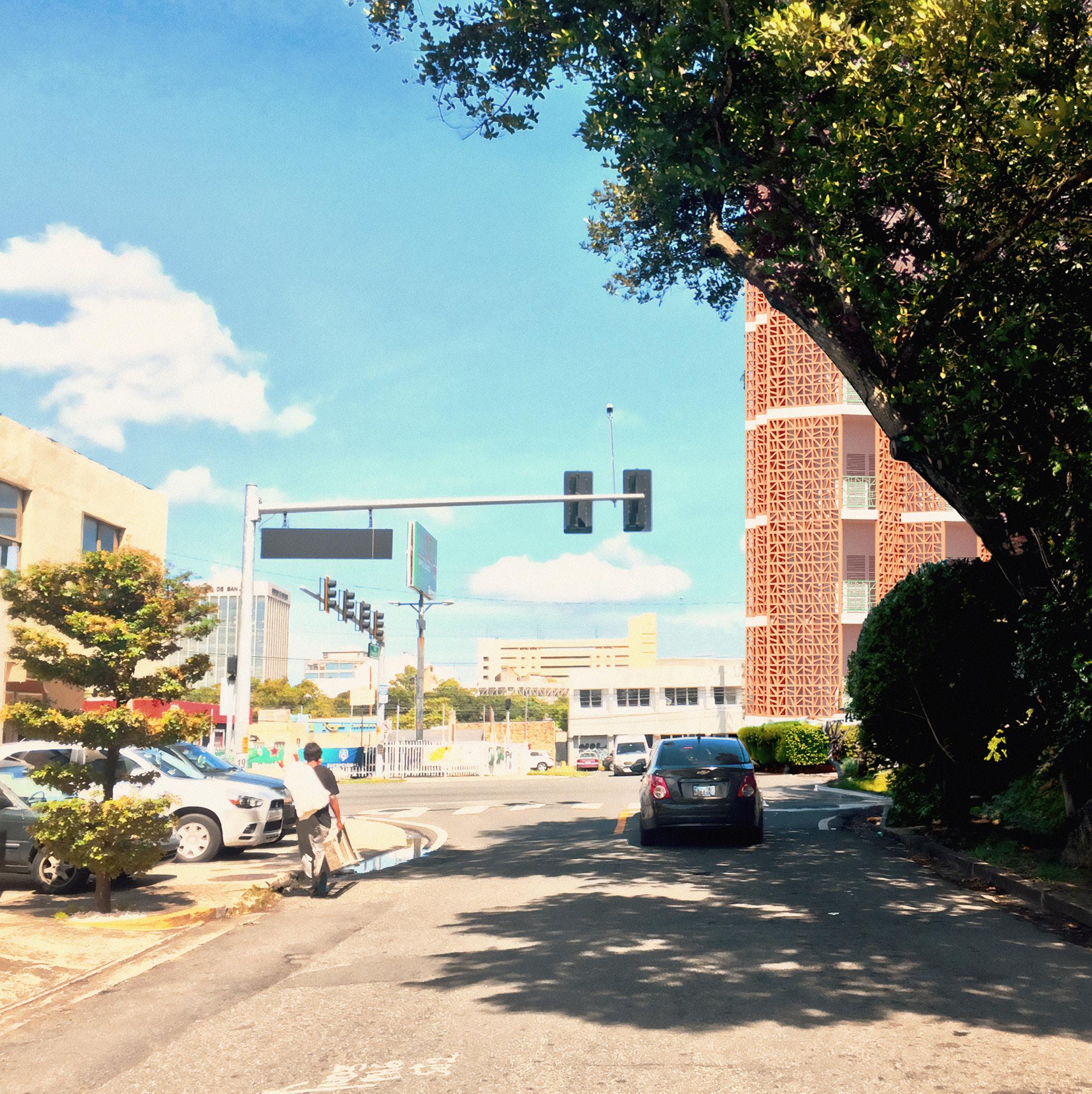

CONTEXT IMAGE

The building is situated between the activity of the business district and the quiet of residential streets. Next to the metro station, it connects to the city’s movement, while the nearby park provides a moment of green amidst the urban fabric.

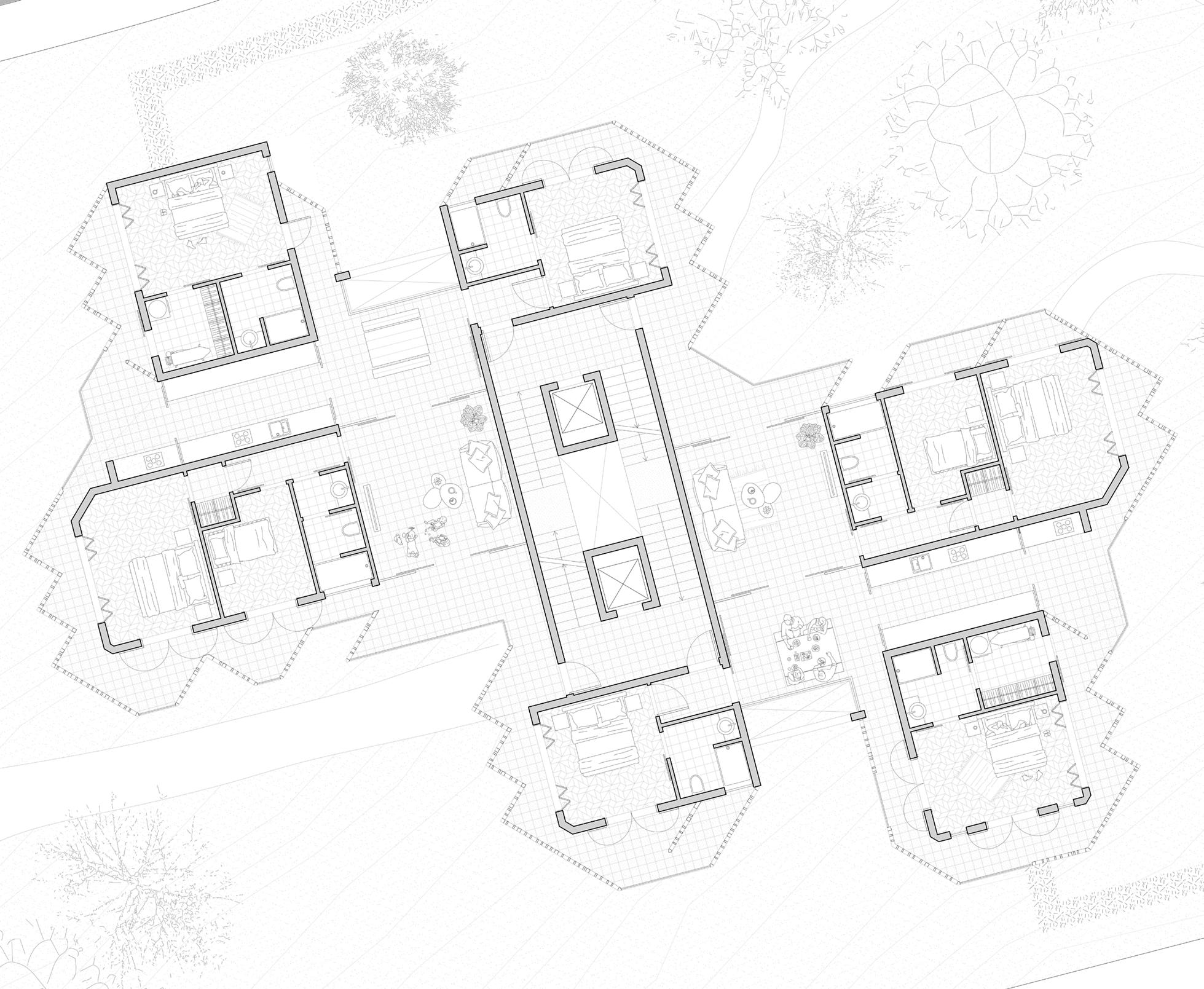

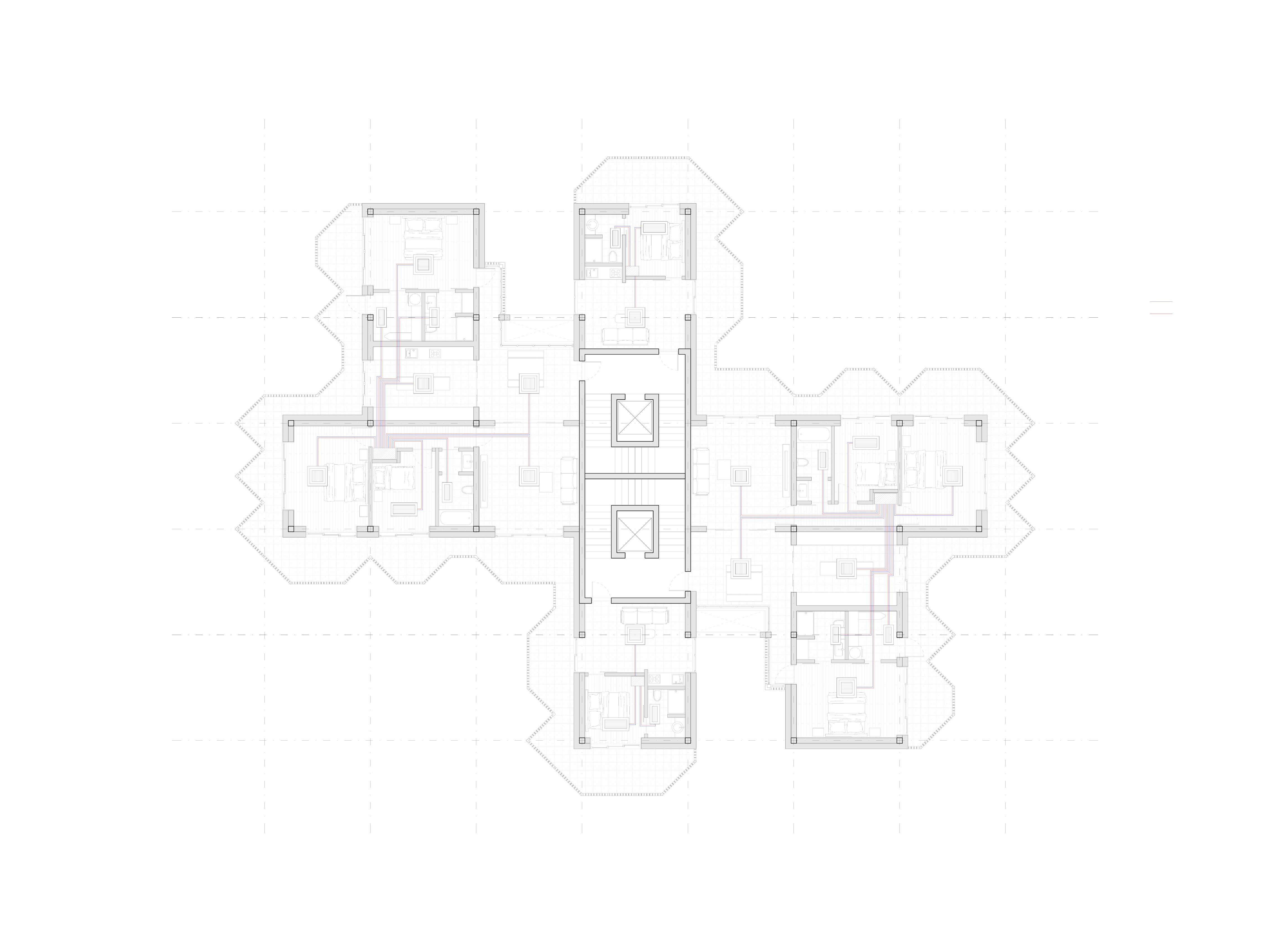

TYPICAL FLOOR PLAN

Designed for high density and a hot climate, each apartment incorporates cross-ventilated living spaces, outdoor kitchens for hurricane resilience, and sun-shading elements for comfort. An additional room with separate access adds flexibility to the layout.

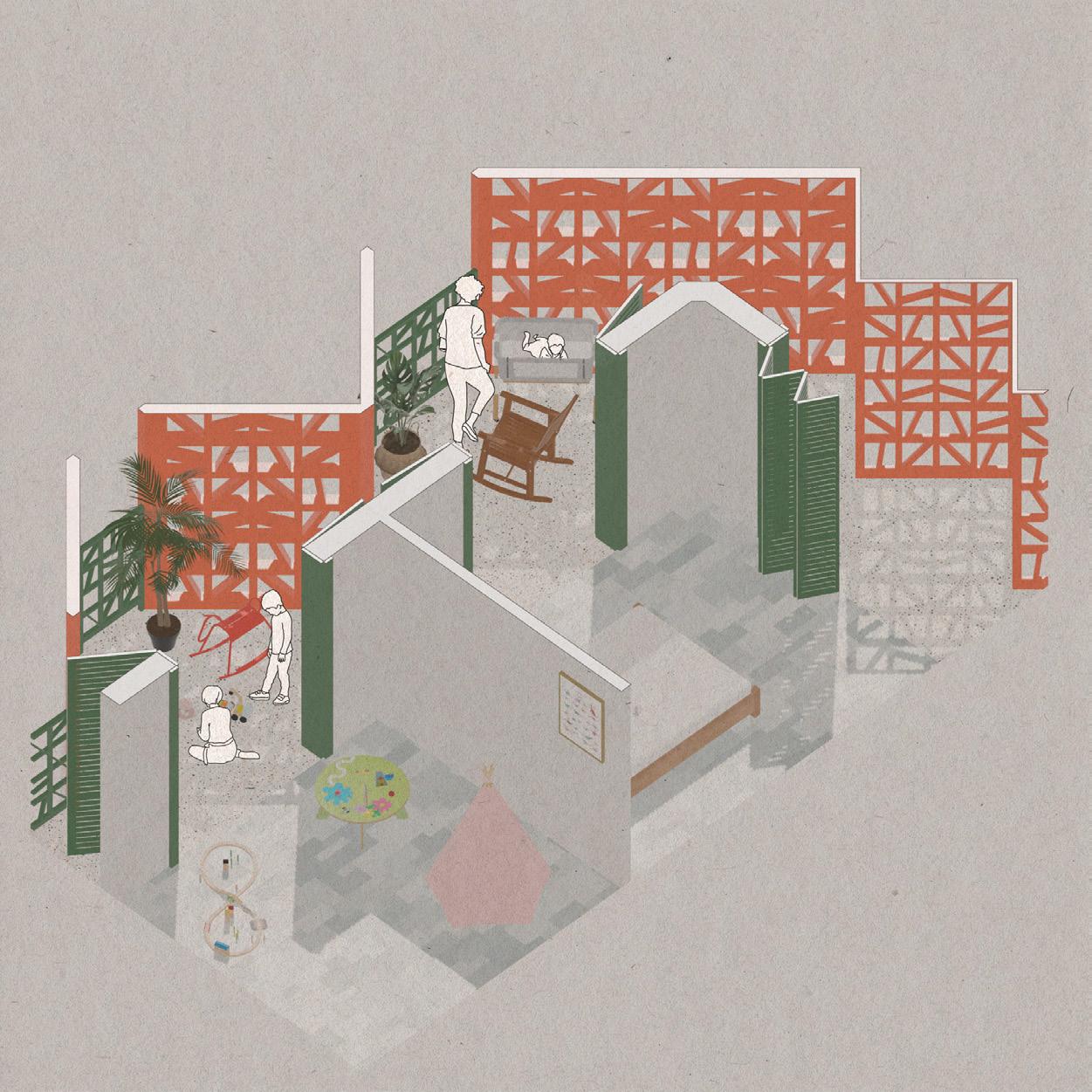

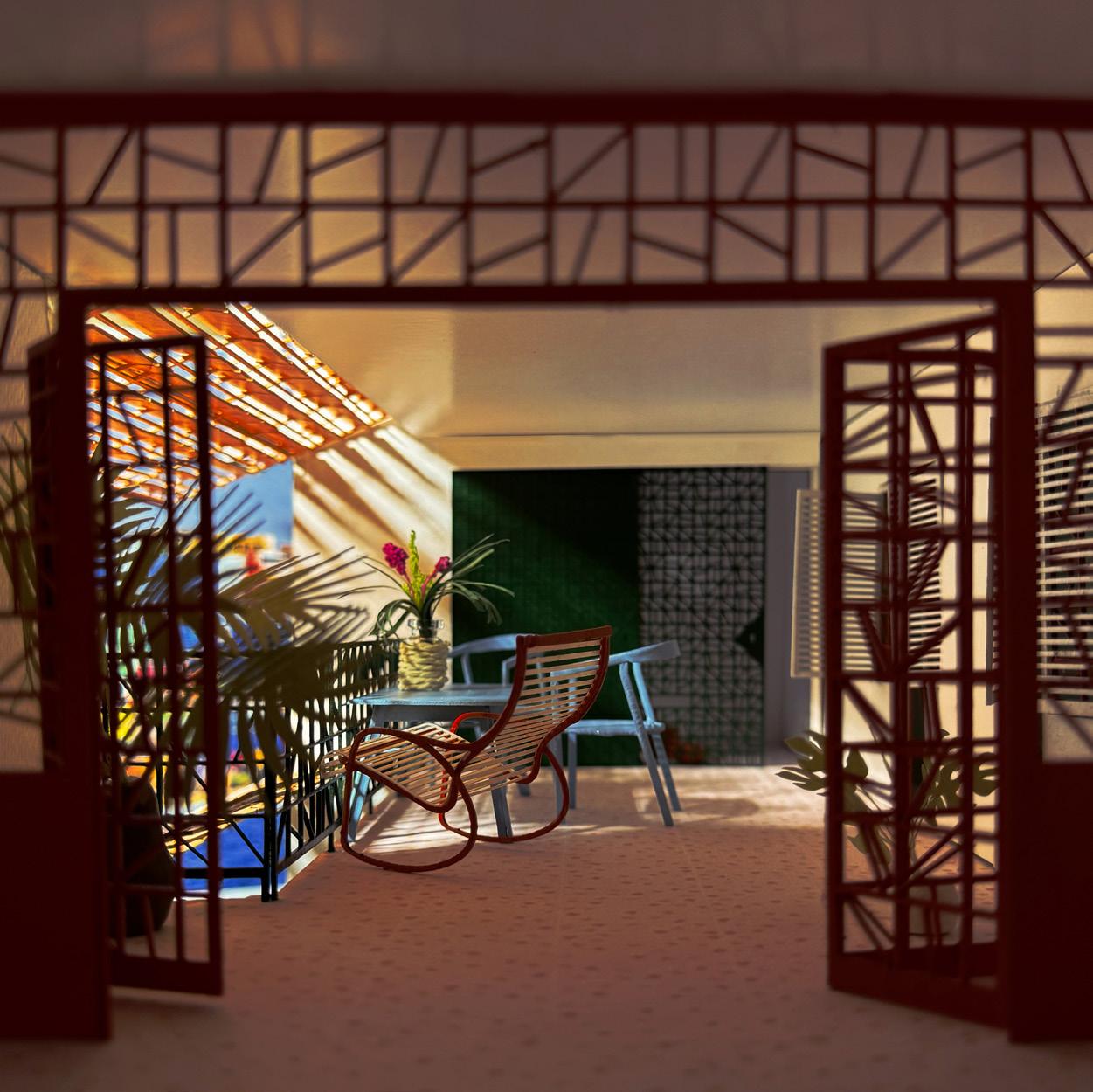

ENTRANCE

AND LIVING ROOM

The physical model of a threshold features a living room for a multigenerational family. A solid door and a gate provide both privacy and airflow.

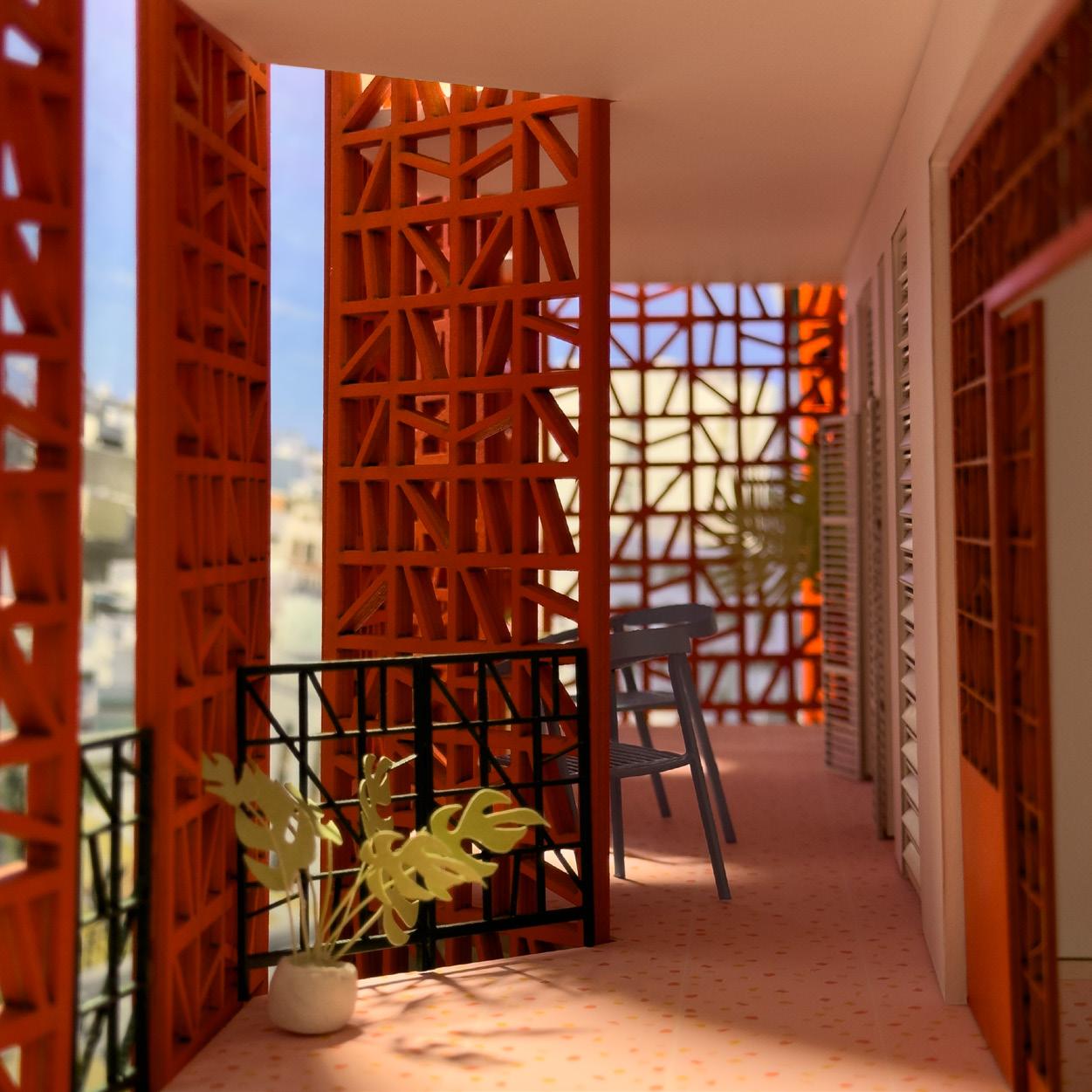

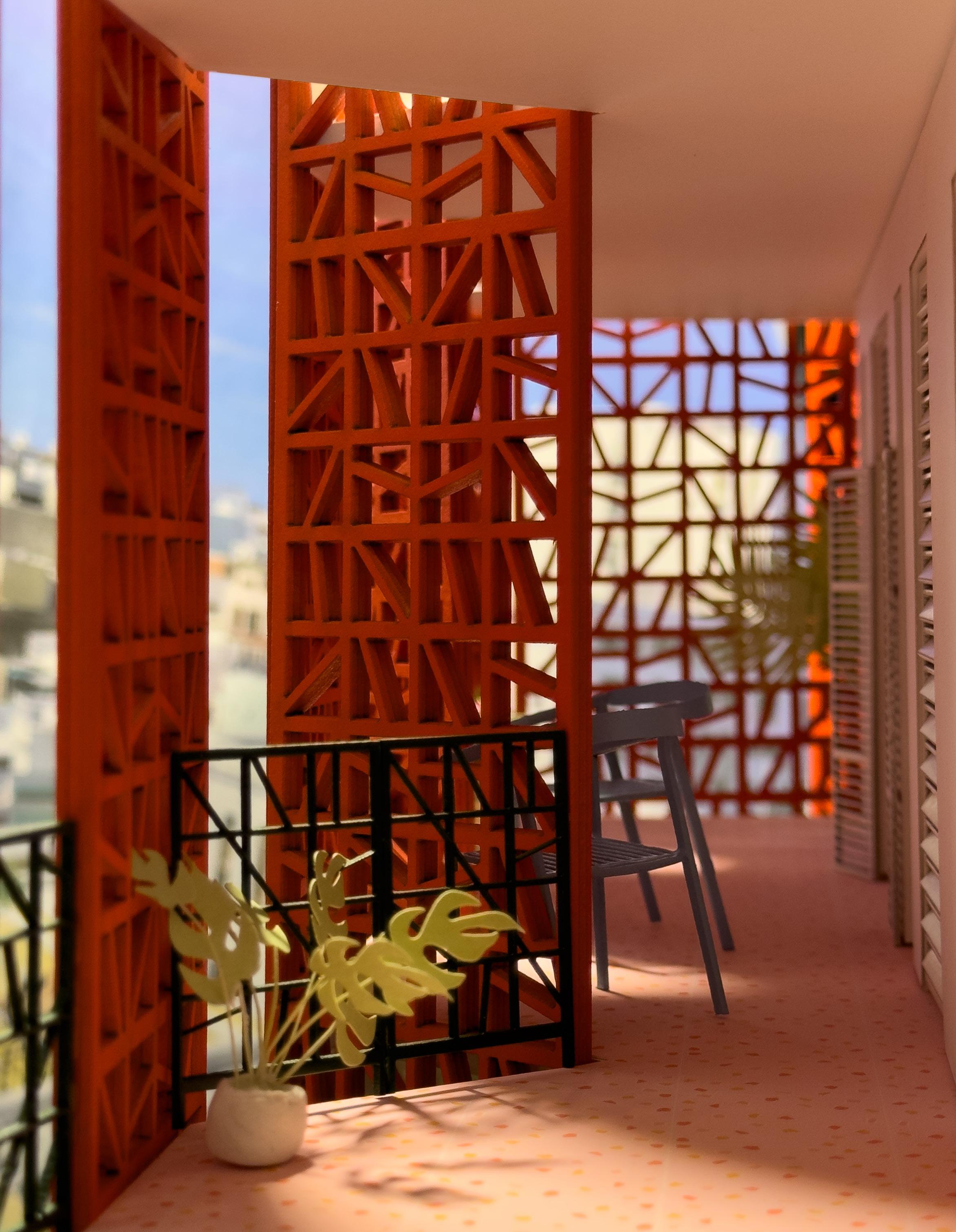

TERRACE

The second image features a terrace designed for comfort in a hot climate, shaded by carefully placed sun shaders. These shaders, tested for radiance using Grasshopper, ensure effective protection from direct sunlight while preserving the view

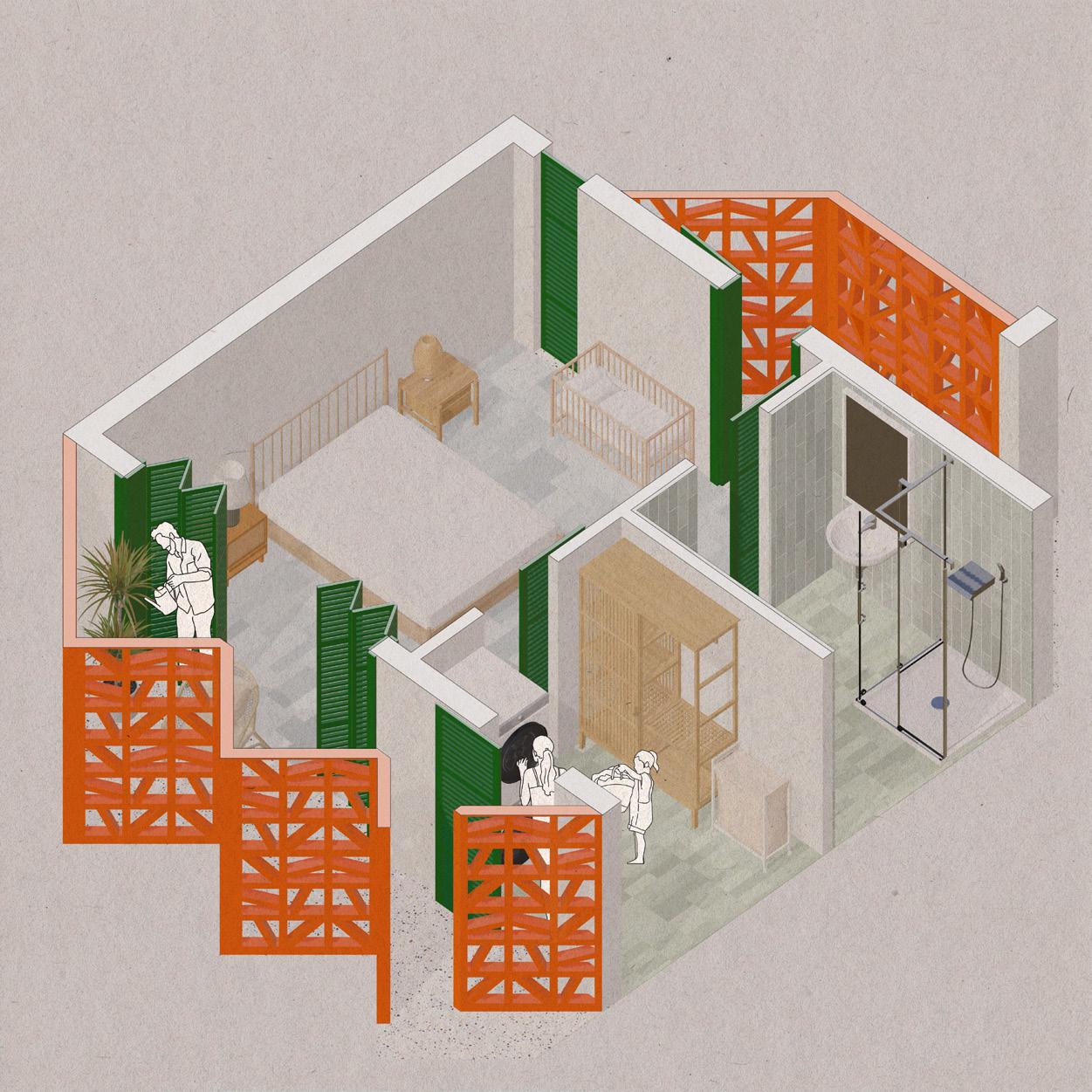

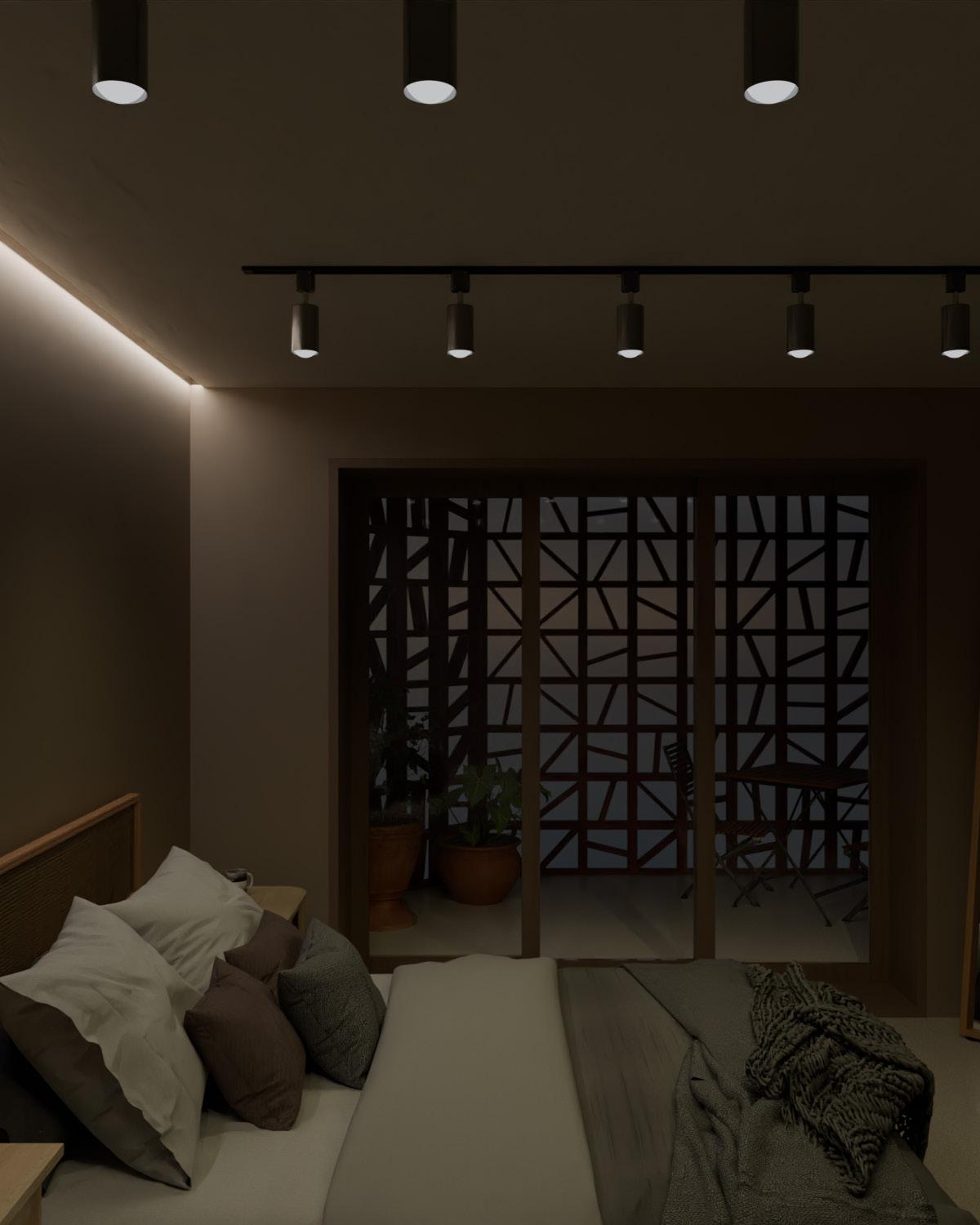

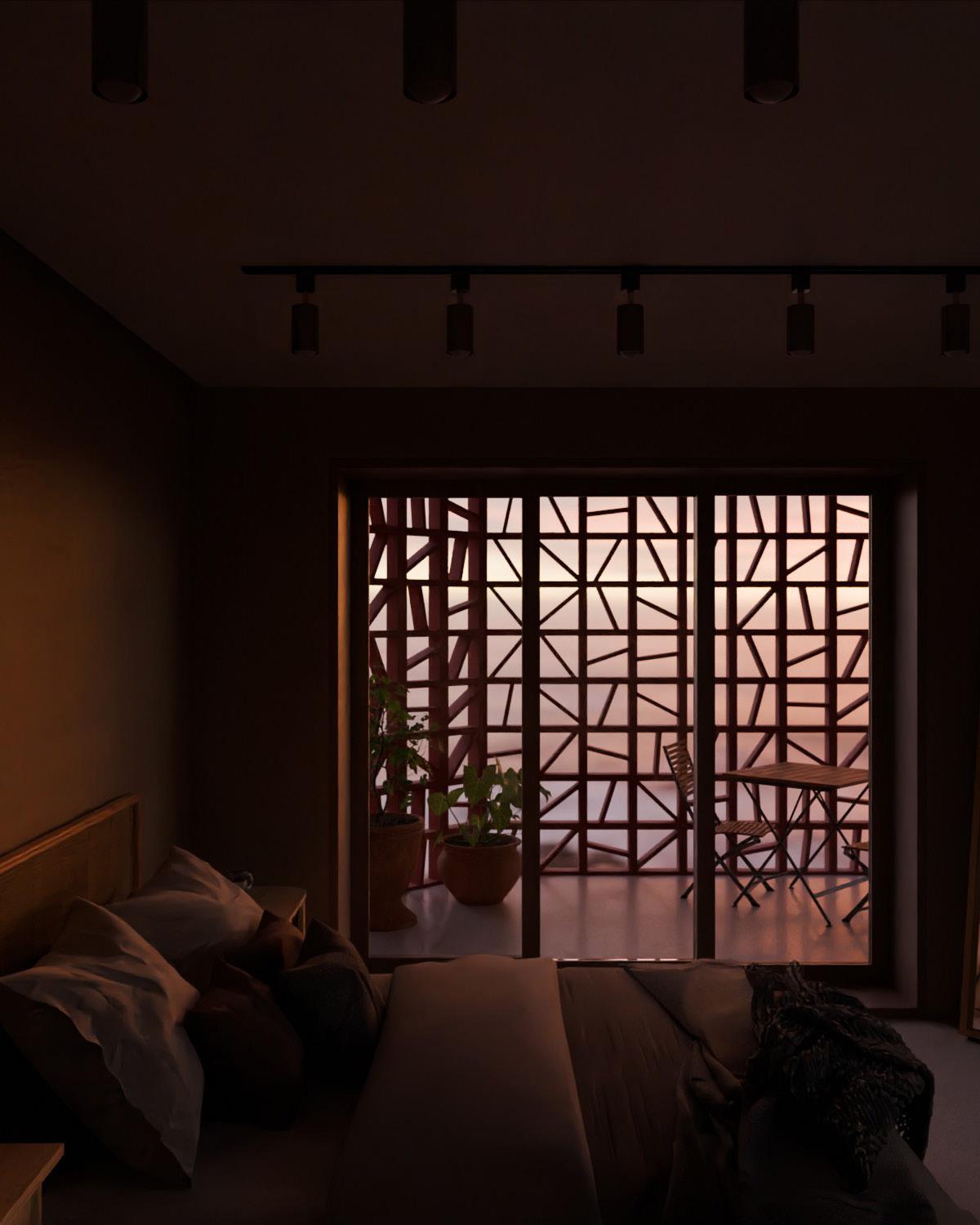

BEDROOMS

The bedrooms have access to a terrace, creating a shared outdoor space, while the angled design of the shaders ensures privacy for each room. The carefully oriented shaders shield views between the bedrooms, allowing residents to enjoy the terrace without compromising their sense of seclusion.

MAIN BEDROOM

The main bedroom is directly connected to the laundry room. This connection allows the unit’s owners to access the laundry room without passing through shared spaces like the living room

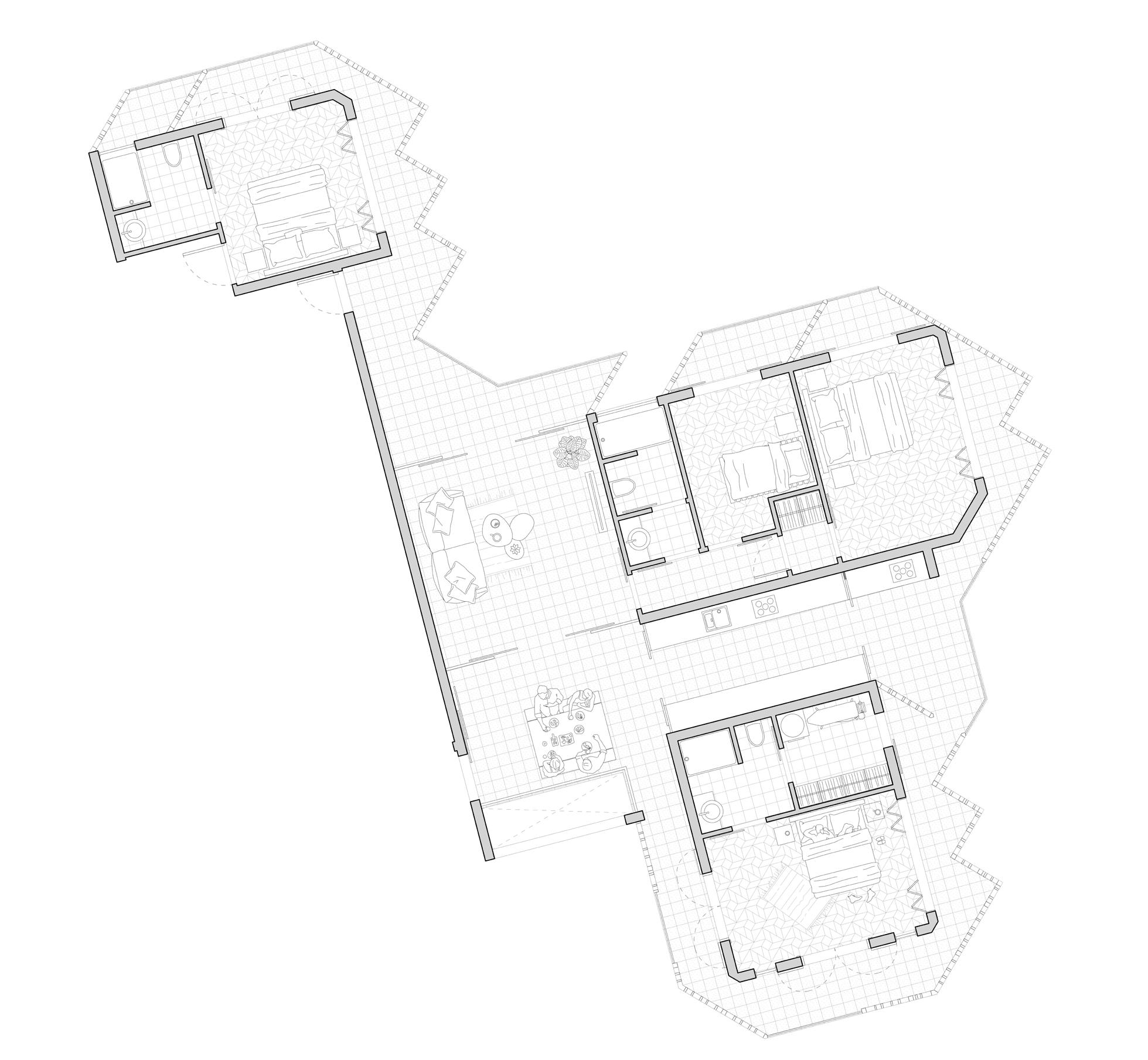

UNIT C PLAN

The unit includes three bedrooms and a guest bedroom with separate entrance and bathroom. This layout allows the guest room to function independently, making it ideal for visitors, extended family, or even as a rental space, while maintaining privacy and convenience for the main household.

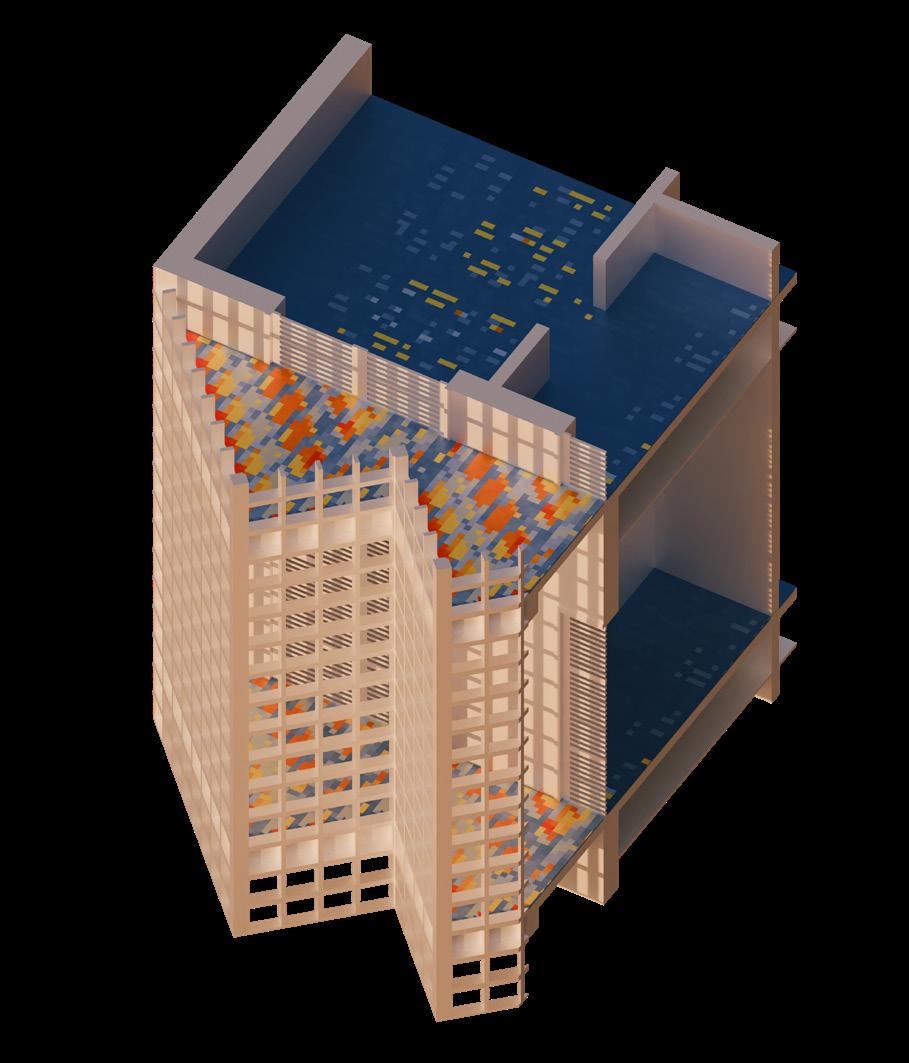

SHADING TYPE 1 — WEST FACADE

The first axonometric study tests a square grid shading system applied to the east facade. While the grid introduces some degree of shading, the Grasshopper solar radiation analysis indicates relatively high radiation levels across the surface. The uniform grid lacks sufficient depth and directional control, resulting in limited solar protection during the hottest evening hours.

SHADING TYPE 2 — WEST FACADE

The second study adds vertical and horizontal dividers to the shading system, creating a more dynamic and responsive facade. Ladybug analysis shows a significant reduction in solar radiation, as the additional elements provide better shading angles and block direct sunlight more effectively. This configuration improves solar performance while maintaining visual openness.

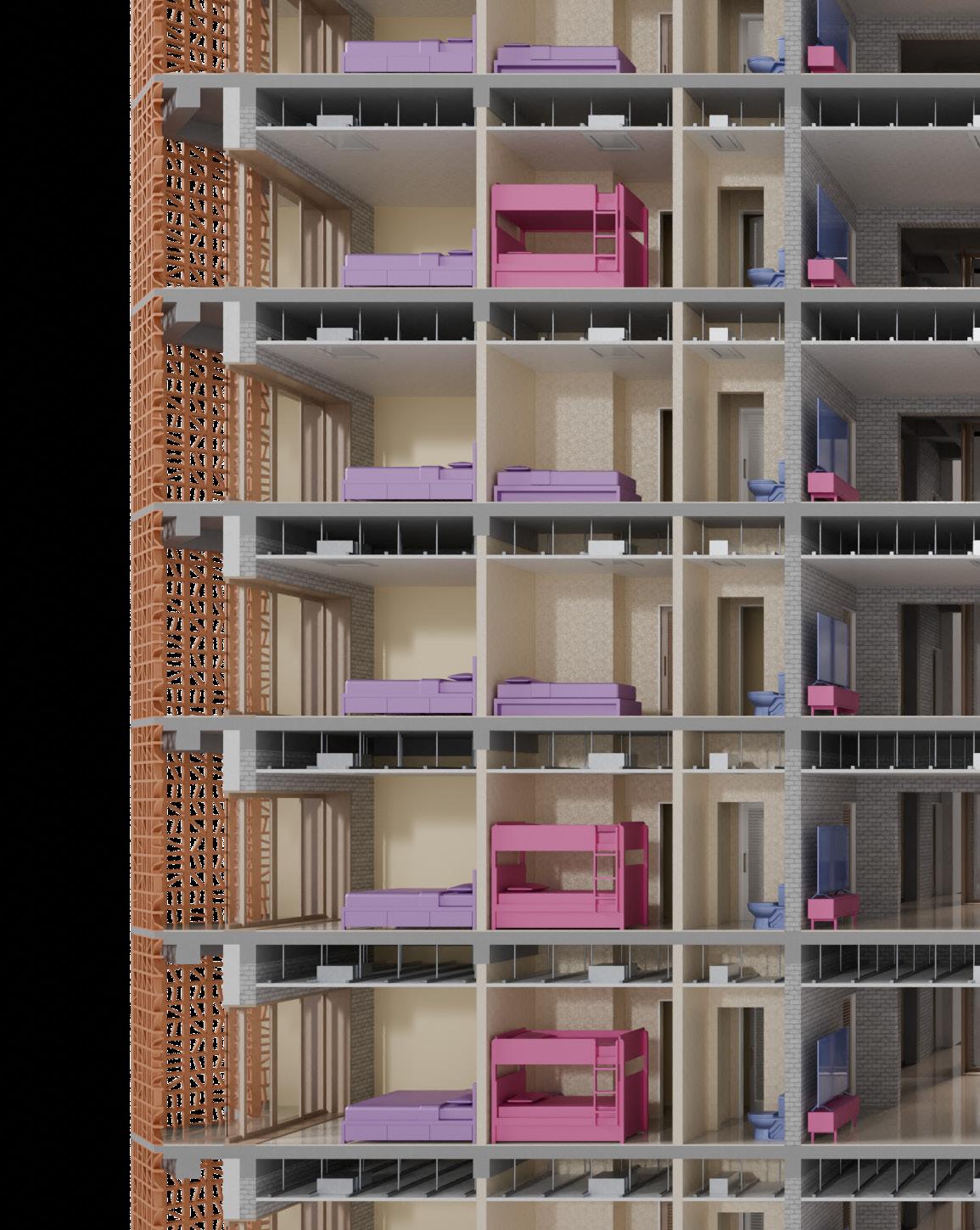

RENDERED PERSPECTIVE BUILDING SECTION

The building section highlights the integration of structure, envelope, and mechanical systems within the 9-story residential tower.

VRF Indoor Unit – 4-Way Smart Cassette

VRF Indoor Unit — 4-Way Smart Cassette

VRF One Way Blown Cassette

VRF Indoor Unit – 1-Way Cassette

VRF Indoor Unit — 1-Way Cassette

Branch Selector Box

High pressure gas

High Pressure Gas

Low pressure gas

Low Pressure Gas

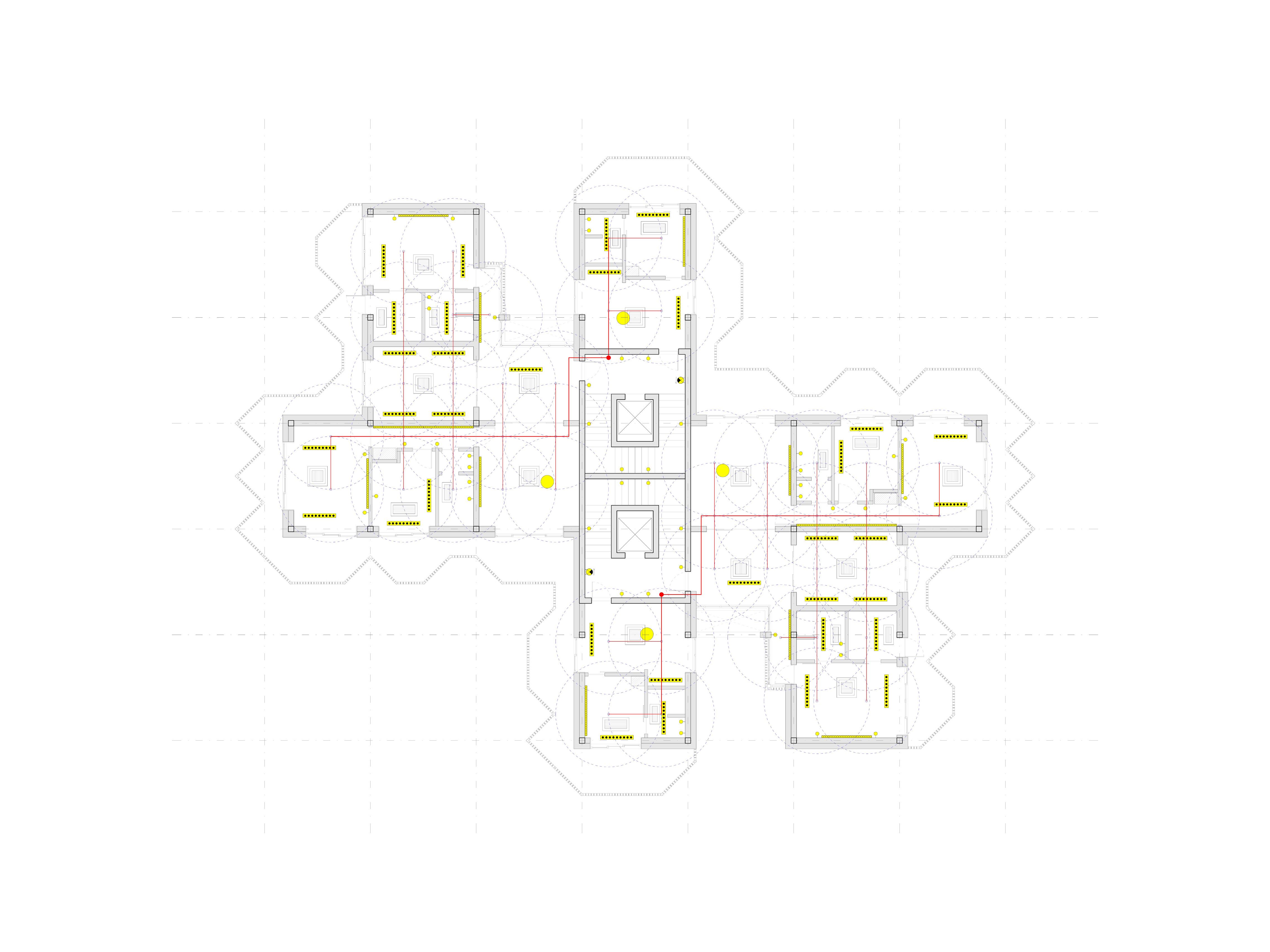

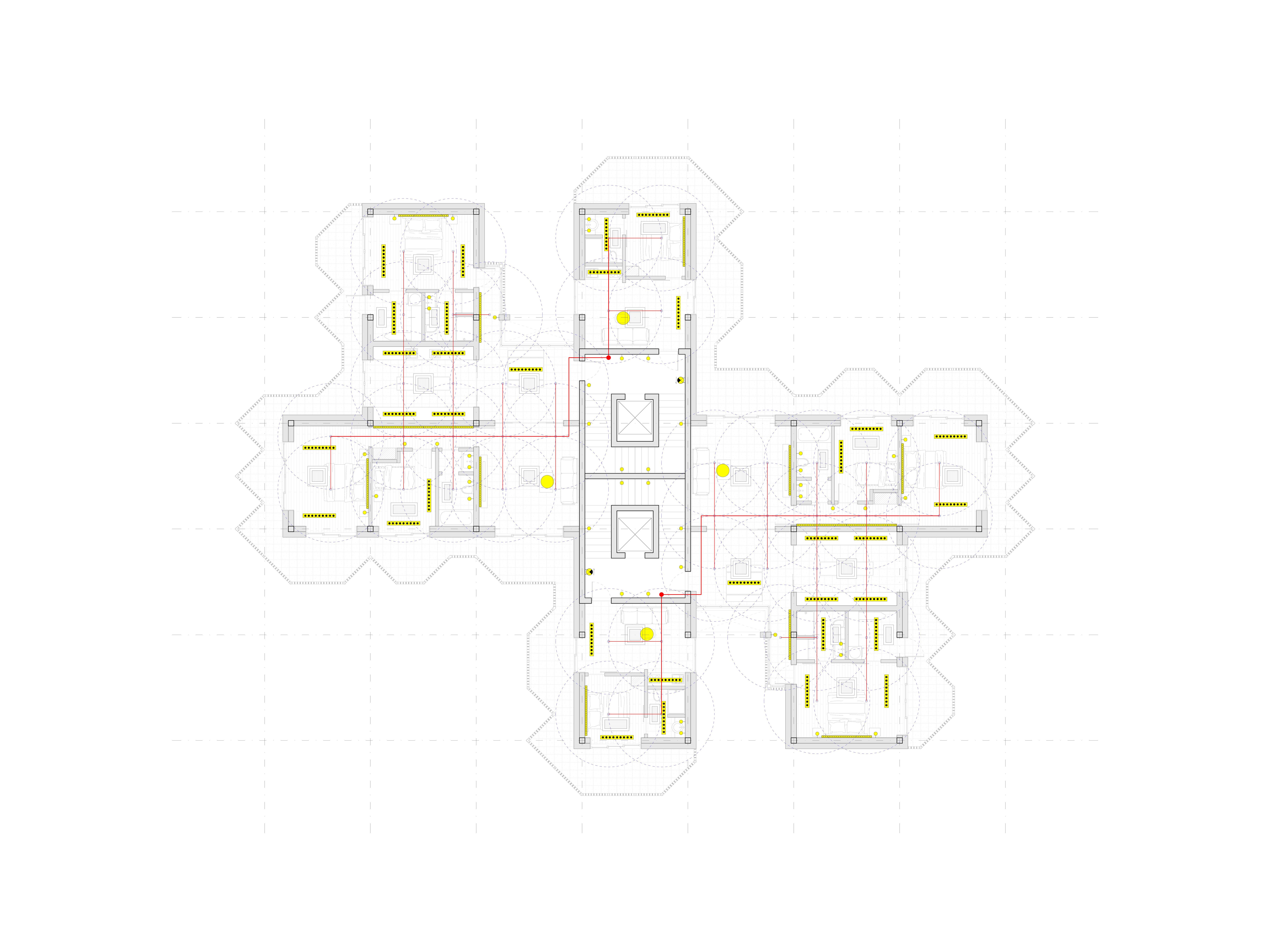

REFLECTED CEILING PLAN

The reflected ceiling plan integrates the lighting design with the building’s fire protection system. The lighting system combines LED linear wall washers, chandeliers, cylinder wall lights, and pendant lamps. Sprinkler heads, with an 8-foot coverage radius, are coordinated with the ceiling layout, and the main standpipe is located within

LED Linear Light Wall Washer

Stiletto LED Chandlier

LED Cylinder Wall Light

Modular Creative Form Kreal LED Pendant Lamp Shape Round

Emergency Sign (Shading Indicates Read Face Arrow Indicates Direction of Egress)

Sprinkle Standpipe

Sprinkle Mains

Sprinkle Mains and Branches

LED Linear Light Wall Washer

Sprinkle Branches

Sprinkler Heads (8 ft radius)

Pendent Sprinkler Head (8 ft radius)

Polustanok

A Railway Station

Moscow Architecture School

Fall 2021 Design Studio

Professor: Nadejda Korbut

Location: Podmoskovye, Russia

The Polustanok railway station is located on the Ryazansky suburban railway line between Beloozyorsky and Irga suburbs. There were a lot of accidents because of unsafe pedestrian crossings through the railway line. The main design purpose of this project is to create safe and accessible environment for the local residents.

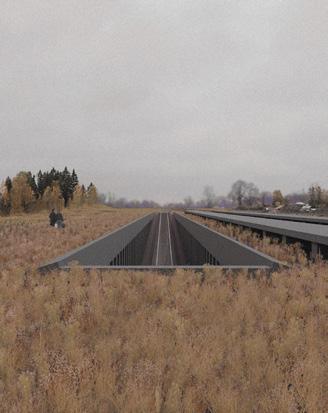

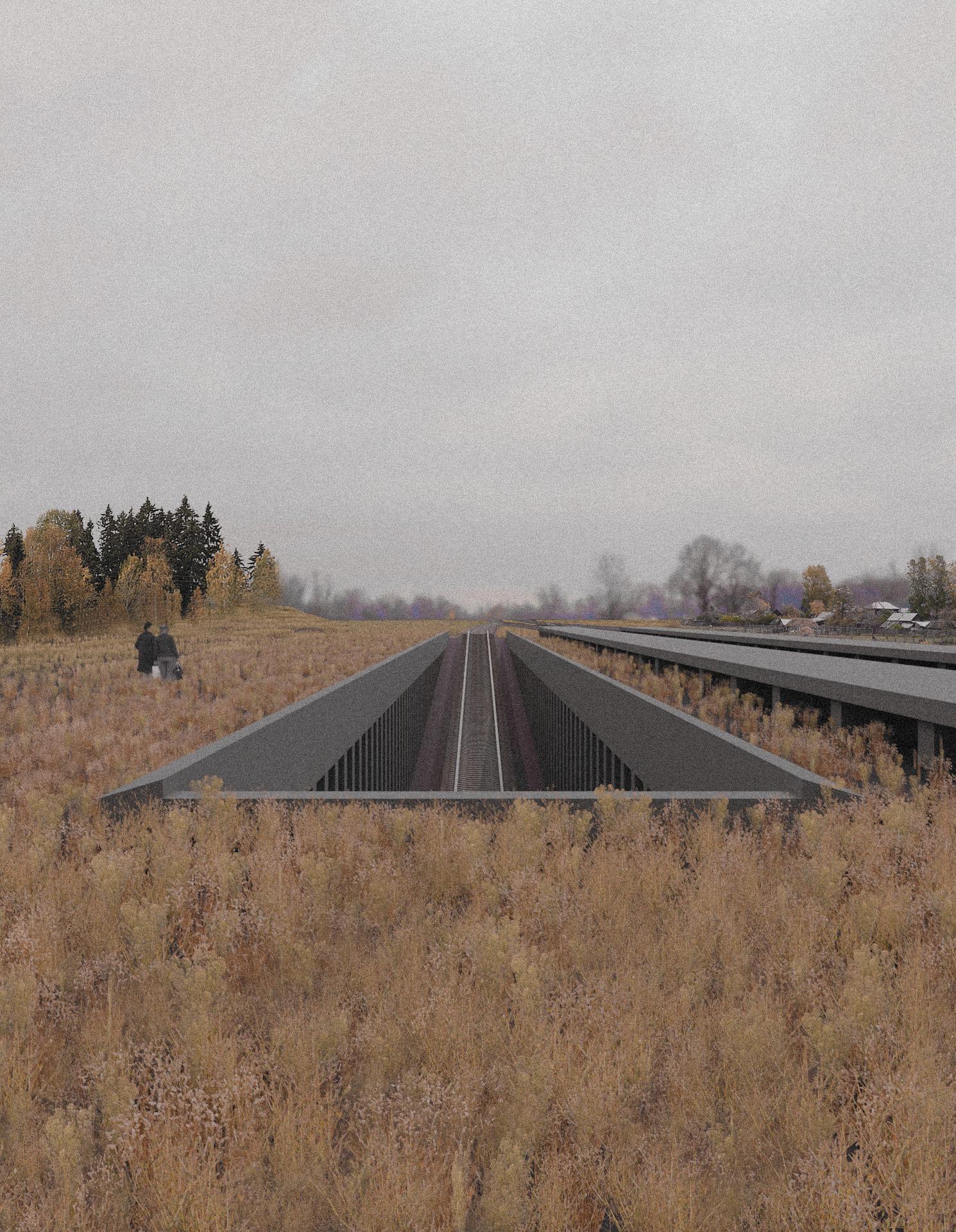

The Polustanok contains three railway lines. Two of them are underground and one is above the ground. When a train passes the station without stopping, it goes through one of the underground rails. A train which stops at the station goes through the ground rails and stops between two buildings. So passengers can get on the desired train from both sides of the railway line and not have to cross it.

The Polustanok consists of four connected spaces: cafe, dining room, hall, and ticket office. Passengers can have coffee, eat lunch, and buy train tickets while moving through the building.

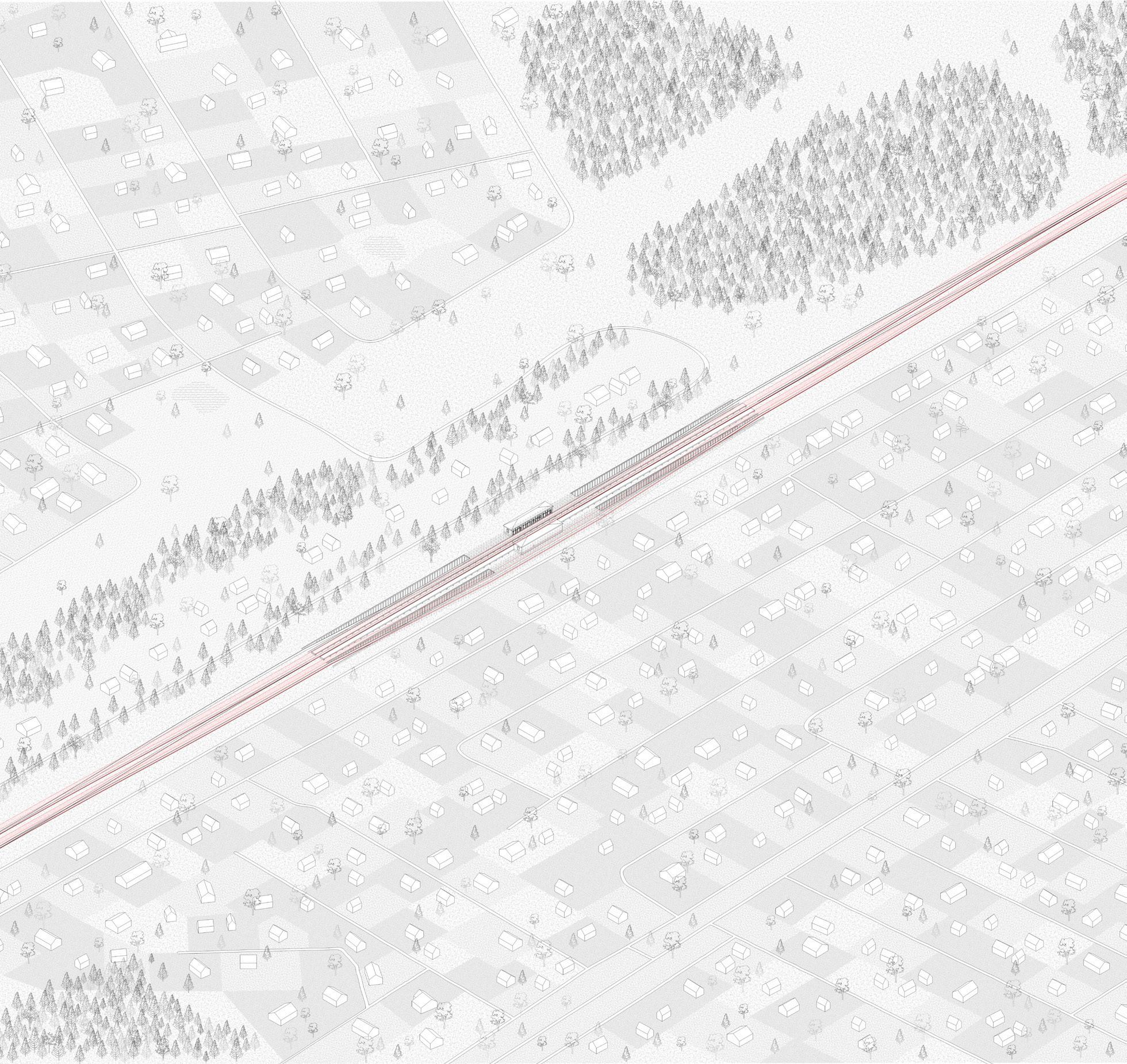

SITE AXONOMETRIC

Polustanok Railway Station is situated between the Beloozyorsky and Irga suburbs along the Ryazansky suburban railway line, serving as a vital connection point for local commuters. The surrounding area is a mix of residential neighborhoods and natural landscapes, with the railway acting as a crucial transportation link for daily travelers.

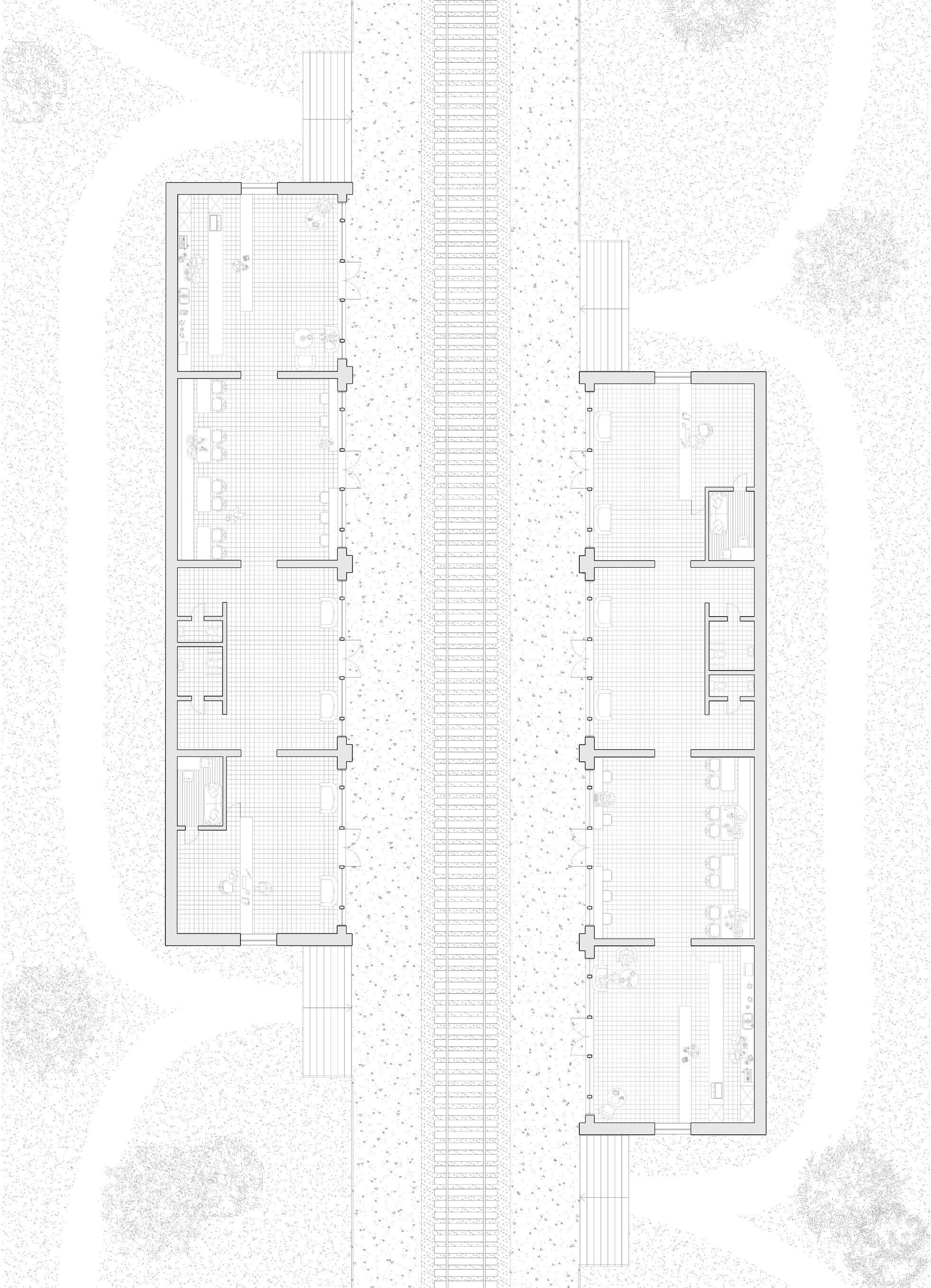

FLOOR PLAN

Polustanok is designed as an integrated public space, consisting of four interconnected areas: a café, dining room, hall, and ticket office. This layout enables passengers to move seamlessly through the station—grabbing a coffee, enjoying a meal, or purchasing tickets—while waiting for their train.

1. Cafe

2. Dining room

3. Hall

4. Bathroom

5. Ticket office

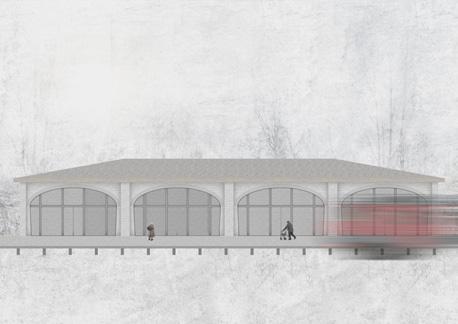

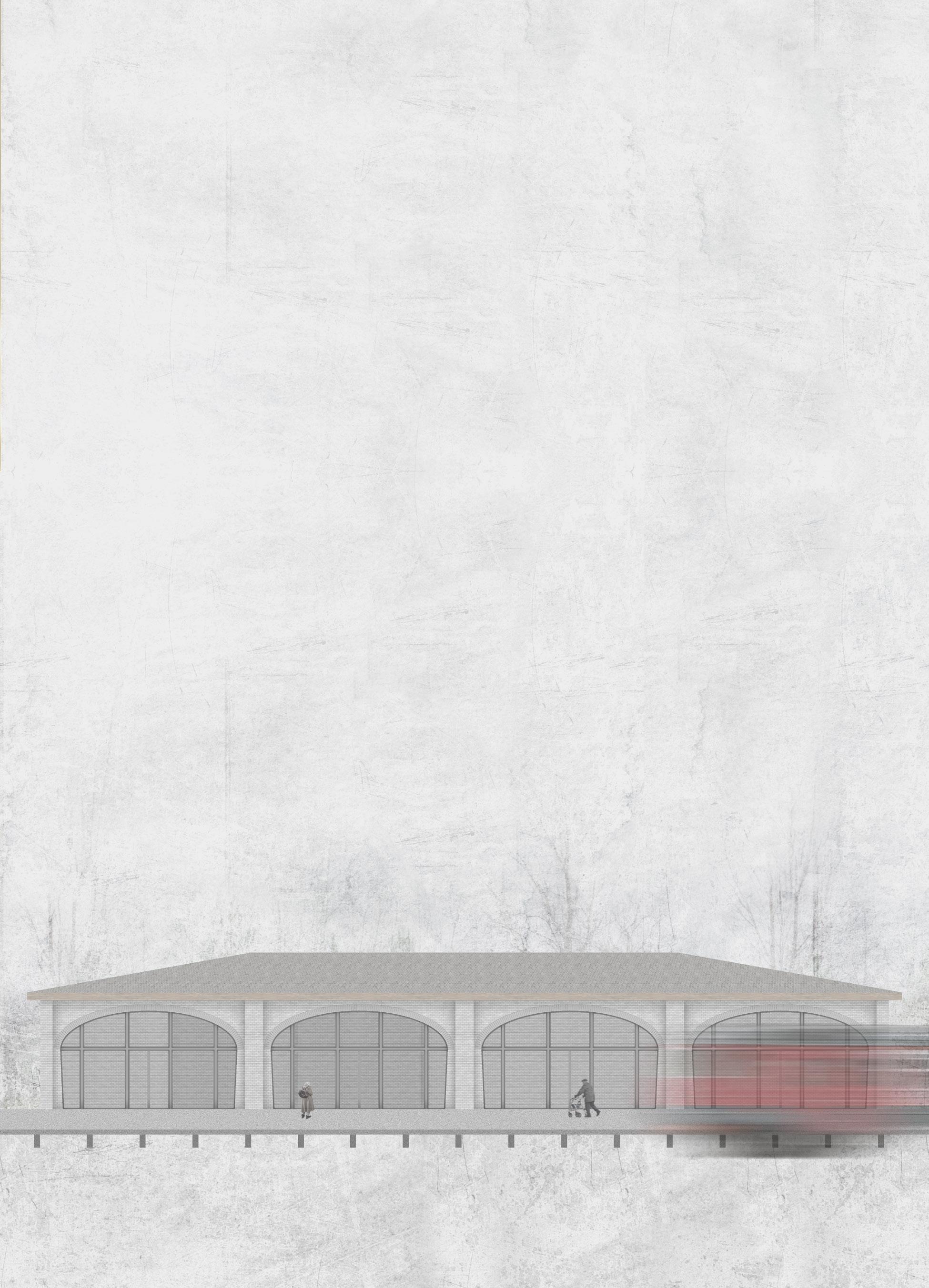

FACADE COLLAGE

The facade of the Polustanok, built from white silicate brick with a pitched roof, seamlessly blends with the surrounding architecture and natural landscape. The pitched roof adds a familiar, traditional element, harmonizing with the suburban setting. This thoughtful integration ensures the station feels like a natural extension of its environment rather than an isolated structure.

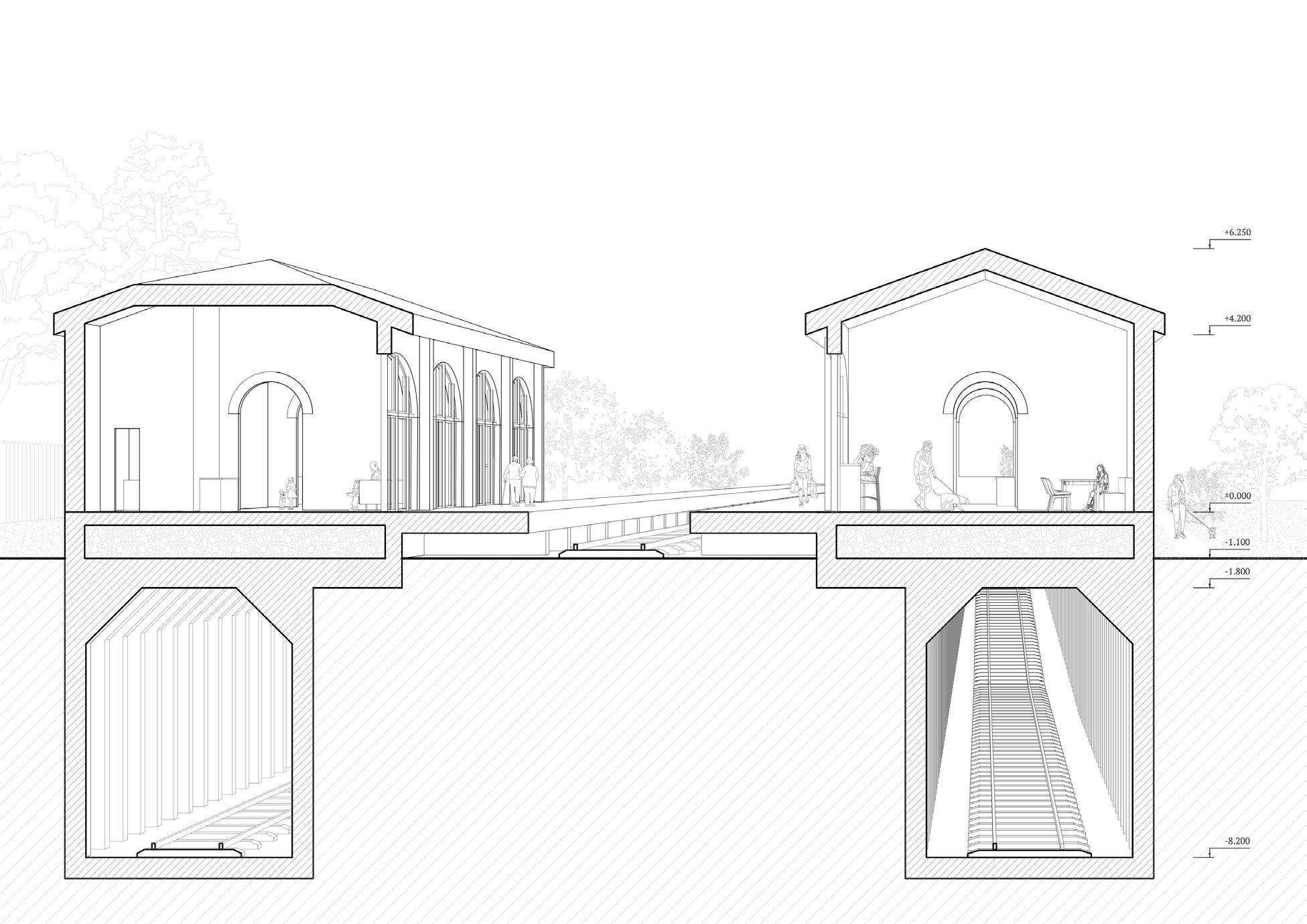

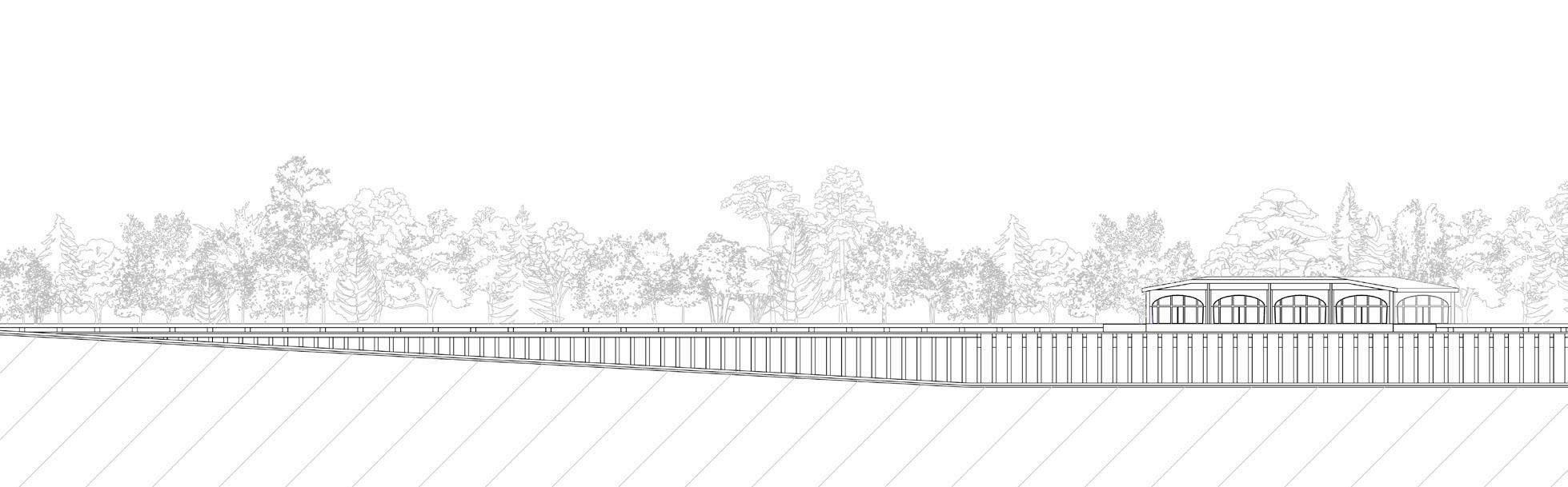

SECTIONS

The station is designed to accommodate three railway lines, ensuring both efficiency and safety for passengers. Two of the tracks run underground, allowing non-stopping trains to pass through without disrupting pedestrian movement. The ground-level track is designated for stopping trains, which arrive between two buildings, enabling passengers to board from either side without crossing the railway.

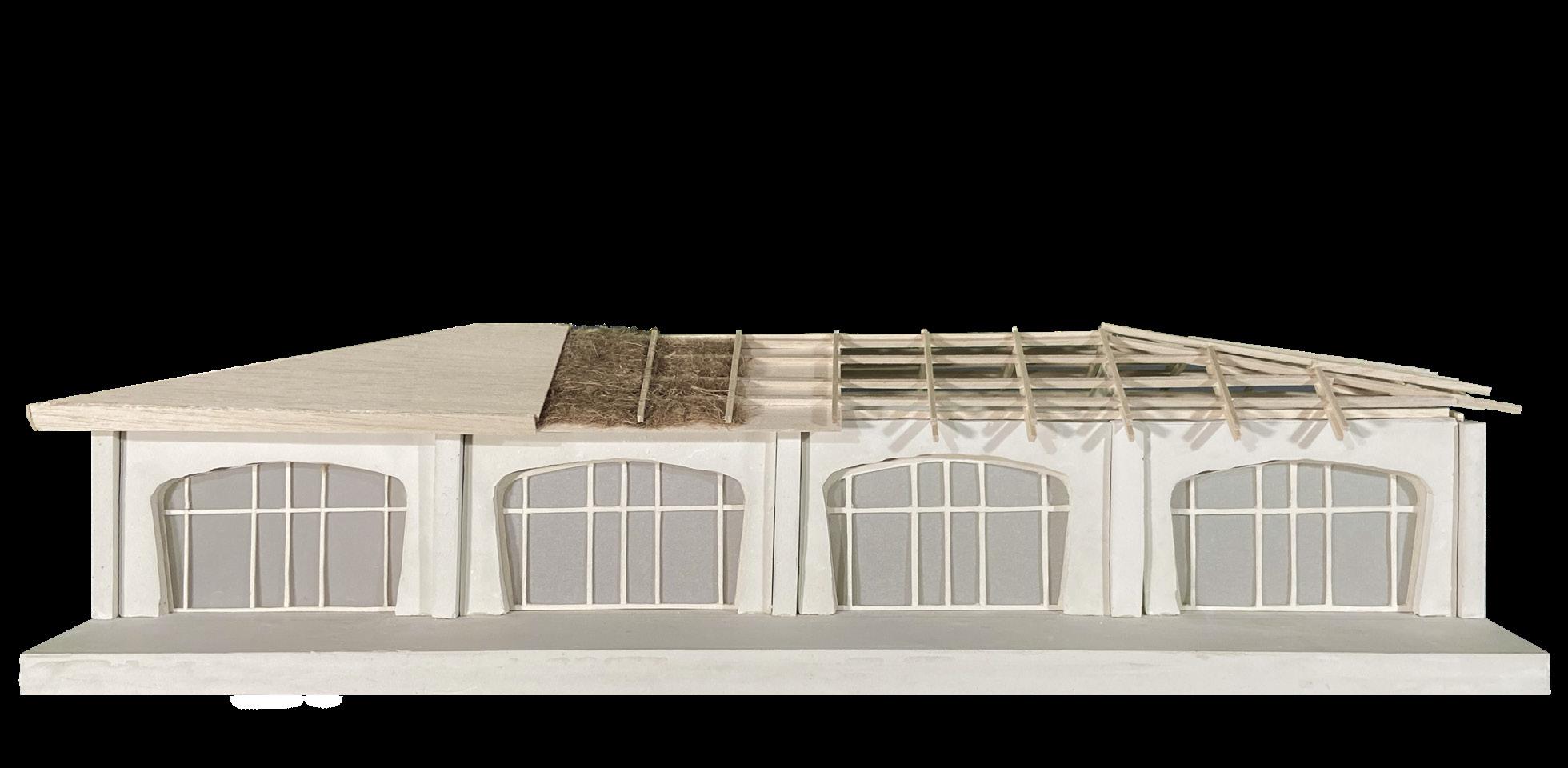

STRUCTURE MODEL

Materials: gypsum, basswood, hay

ROOF DETAIL SECTION

The roof of the station is a timber pitched structure with wood sheathing.

Wood Shingles

Timber Battens

Vapor Barrier

Mineral Wool Thermal Insulation

Timber Rafters

Interior Finish Board

30 mm

30x30 mm

200 mm

100x 200 mm

50x200 mm

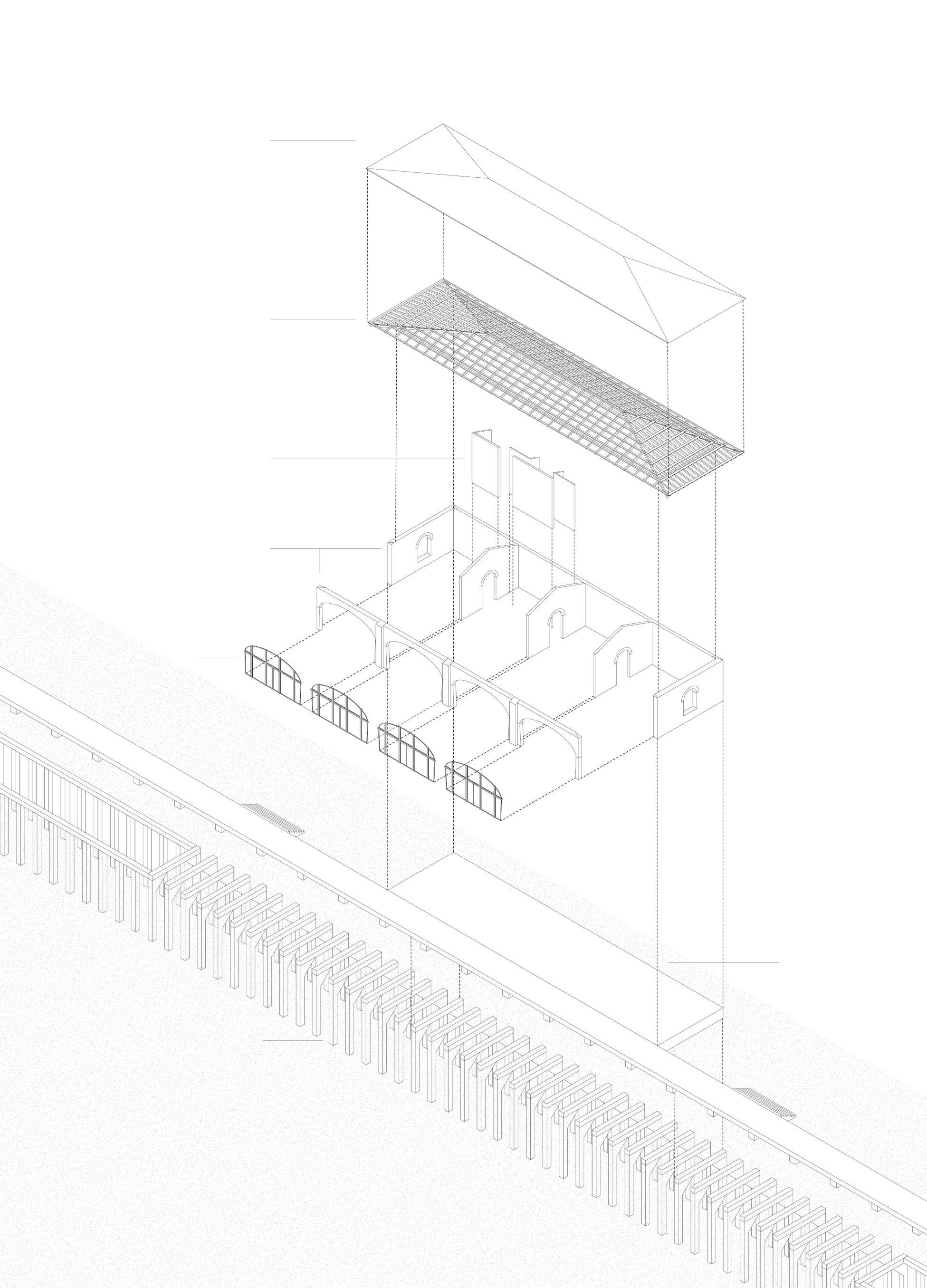

BUILDING EXPLODED AXONOMETRIC

The pavilion features a frameless cross-wall structural system with load-bearing walls made of white silicate brick, known for its strength, eco-friendliness, and frost resistance. The walls are insulated, and the four-sided pitched roof has two rows of rafters to prevent thermal bridging, with insulation placed between them. A tunnel beneath the pavilion is supported by reinforced concrete columns.

Roof sheathing

Outter brick walls

Inner brick walls Windows

Rafter system

Concrete slab

Reinforced concrete structure of the tunnel

A Retreat for Painters

As an Addition to the Salk Institute

Washington University in St. Louis

Spring 2024 Design Studio

Professor: Robert McCarter

Location: La Jolla, California

This proposal builds on Louis Kahn’s unbuilt Meeting House at the Salk Institute, designed as a space where Jonas Salk envisioned bringing luminaries like Picasso to engage with scientists. The addition expands this vision by introducing a Retreat for Painters that includes six artist residences and a communal gallery for interdisciplinary interaction. This addition embraces the Meeting House’s original purpose: fostering breakthroughs through dialogue between art and science.

Situated northwest of the Salk Institute, on a valley leading down to the Pacific Ocean, the design reflects Kahn’s exploration of “shadow-giving walls”. The studios — live/ work spaces for painters — are conceived as monastic cells, each shaded from direct sunlight and illuminated by indirect and reflected light. These are paired with terraces and courtyards, allowing for reflection and creation.

The central gallery serves as a colloquium, providing a setting for informal meetings and exhibitions. Open to indirect light and views, this space becomes the nexus where artists and scientists convene. The Retreat’s design captures the spirit of Kahn’s unbuilt masterpiece, reinforcing its role as a sanctuary for creativity and innovation.

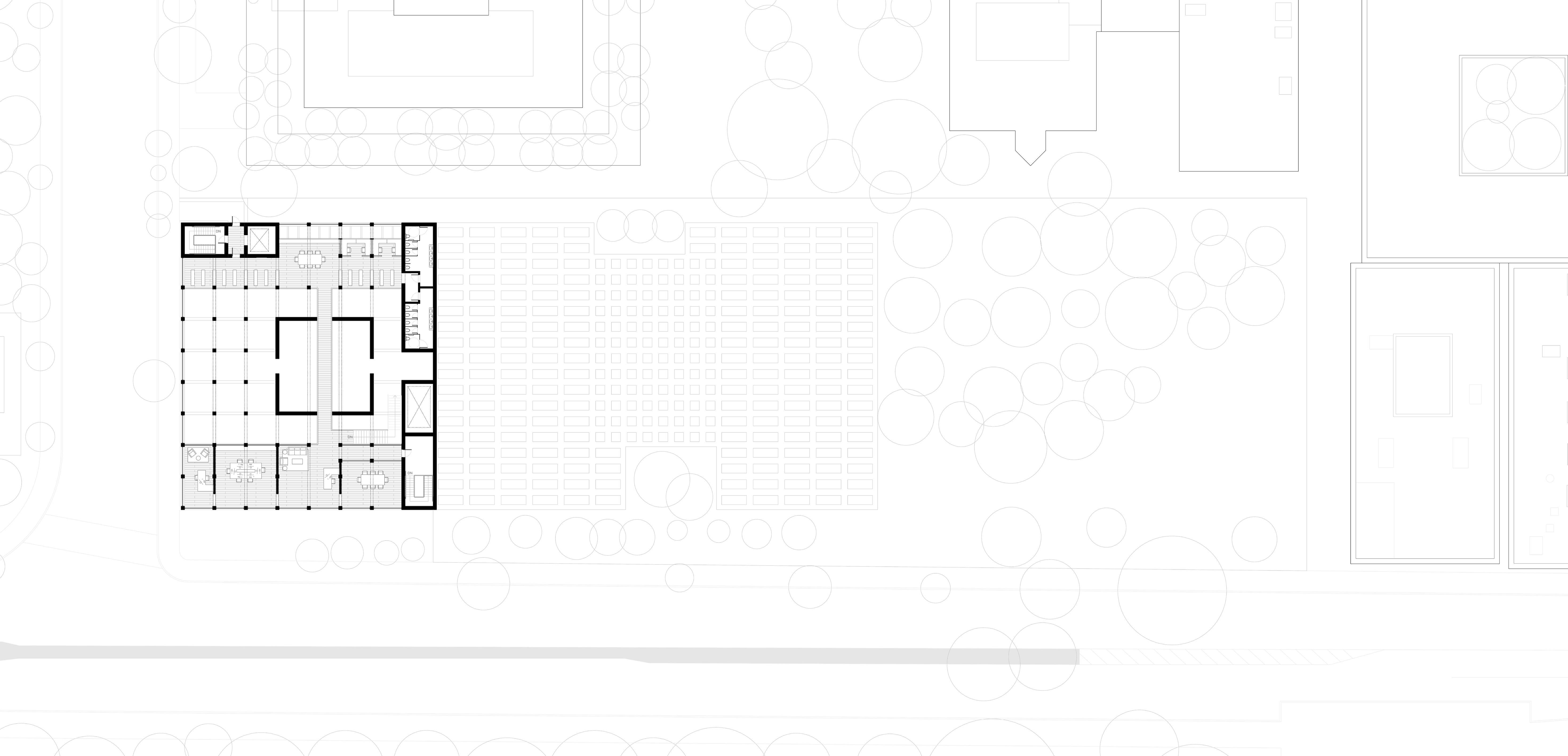

SITE PLAN WITH SALK INSTITUTE LABS

The Meeting House is situated in the southwest corner of Kahn’s unbuilt design, anchoring the addition near the existing laboratories.

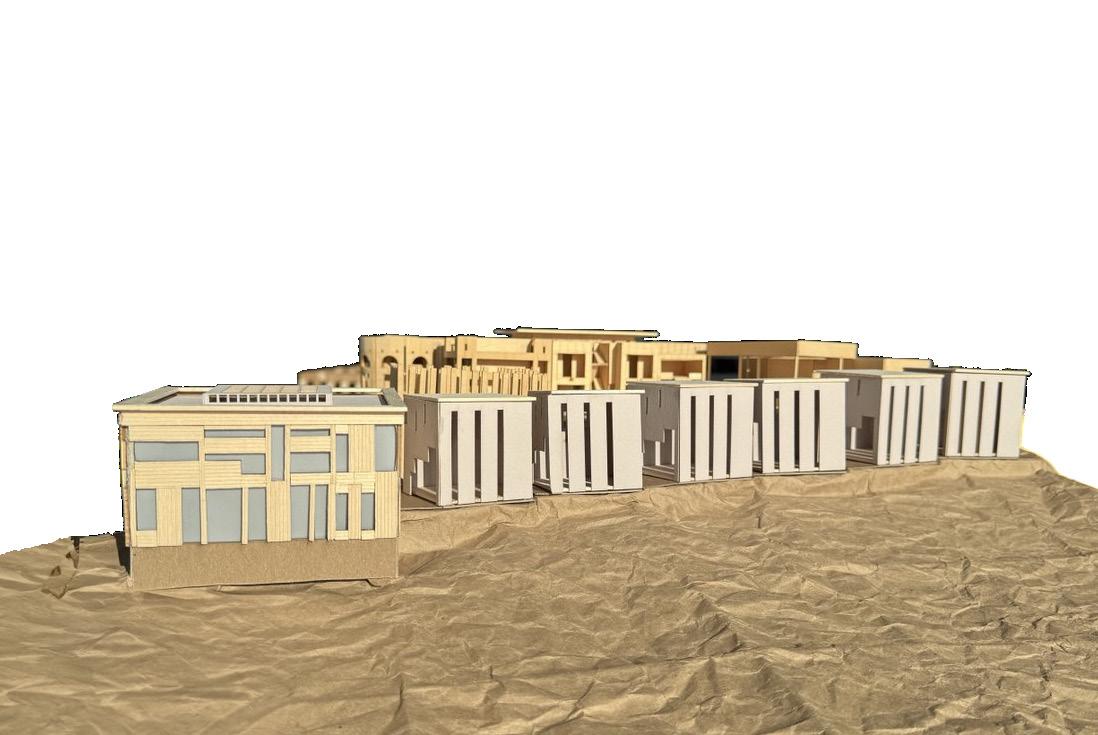

SITE MODEL

The proposal is located within the Salk Institute complex, positioned to integrate seamlessly with Kahn’s original vision.

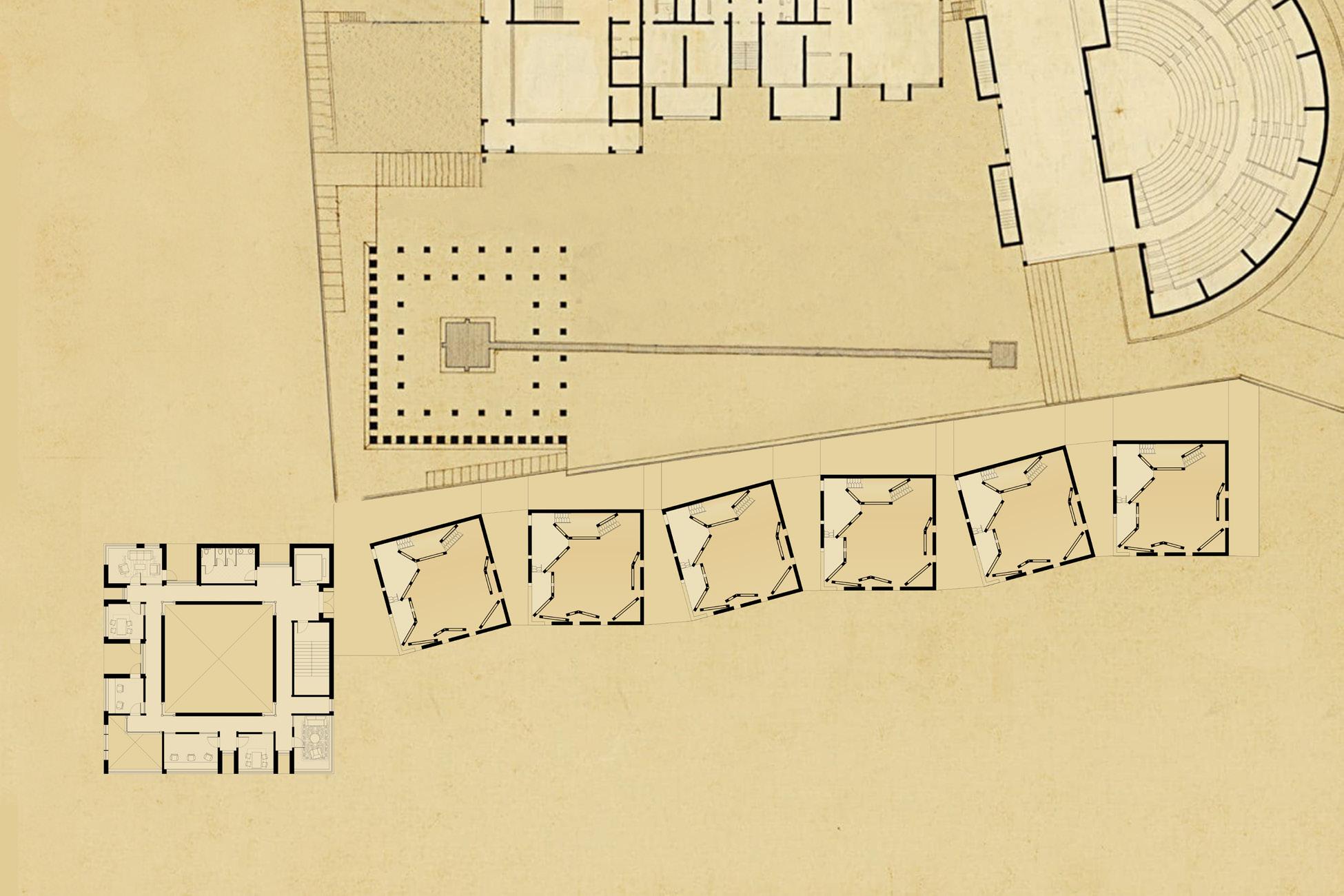

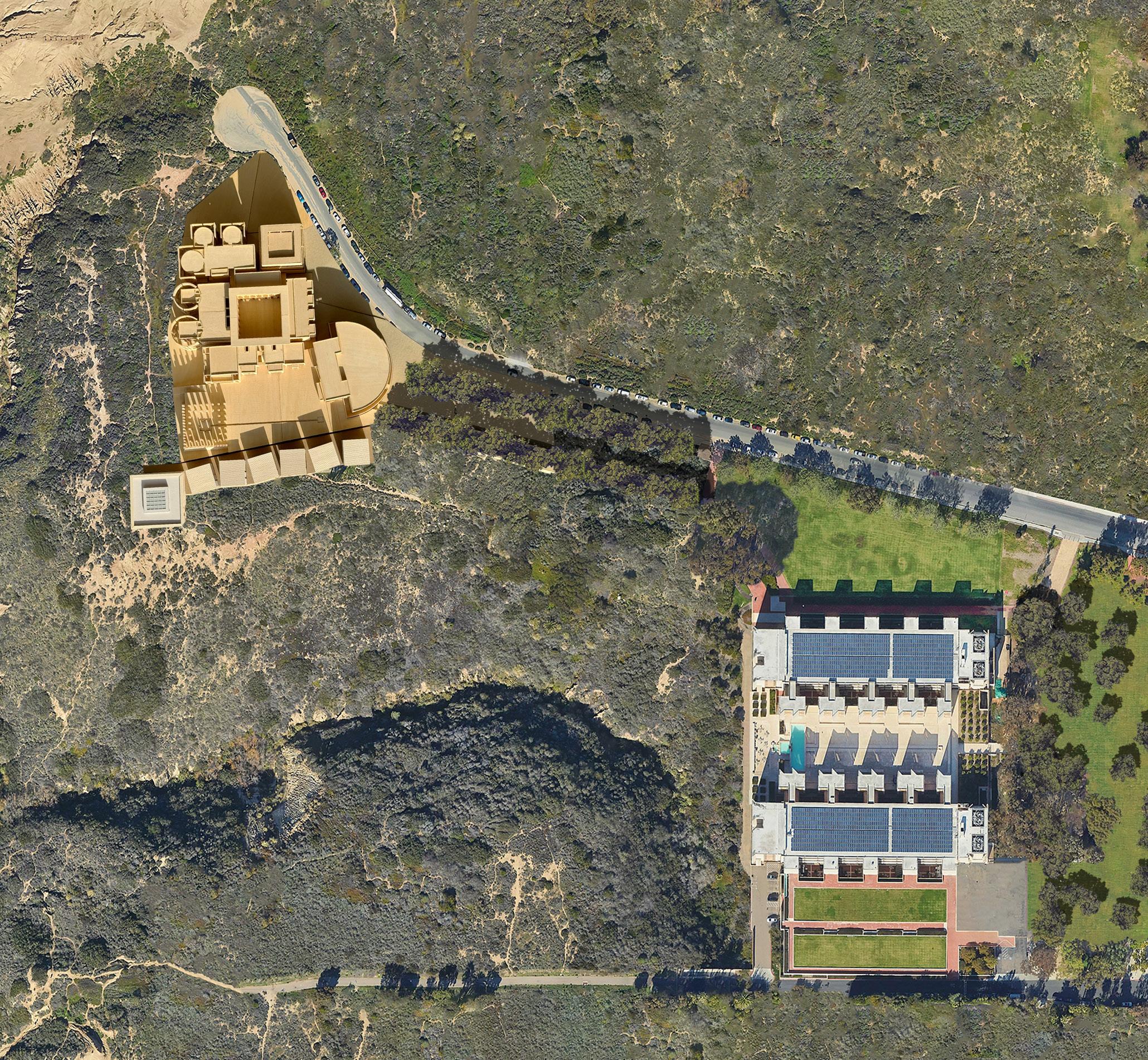

SITE PLAN

The six artist studios are arranged along a path to the east, creating a spatial dialogue with the Meeting House and framing views of the Pacific Ocean.

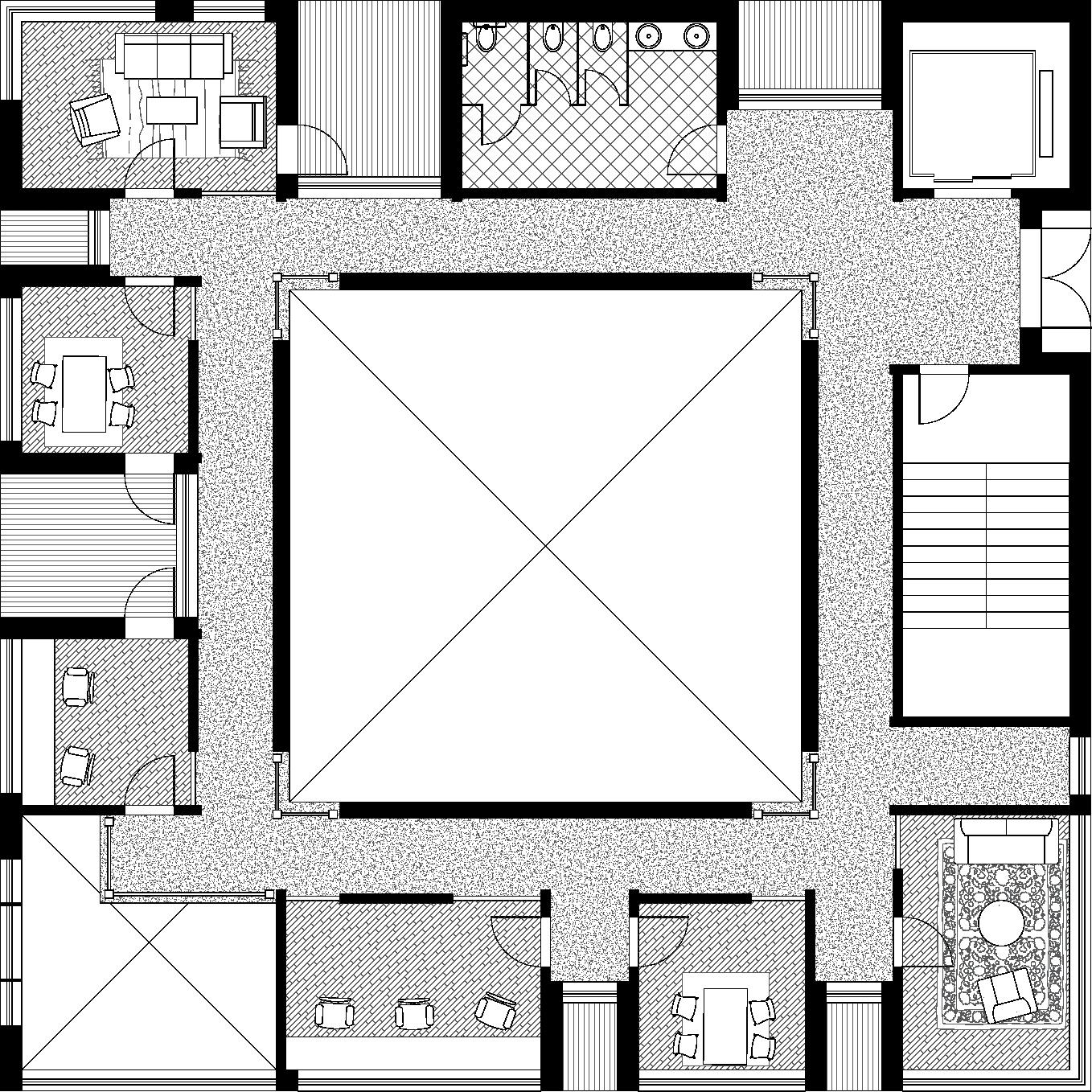

2ND FLOOR PLAN OF MEETING HOUSE

The Meeting House is designed as a squareplan building, with a double-height concrete gallery at its center serving as the focal space. Surrounding the gallery are the meeting rooms, wrapped in wood to create a protective enclosure that shields the gallery from direct sunlight.

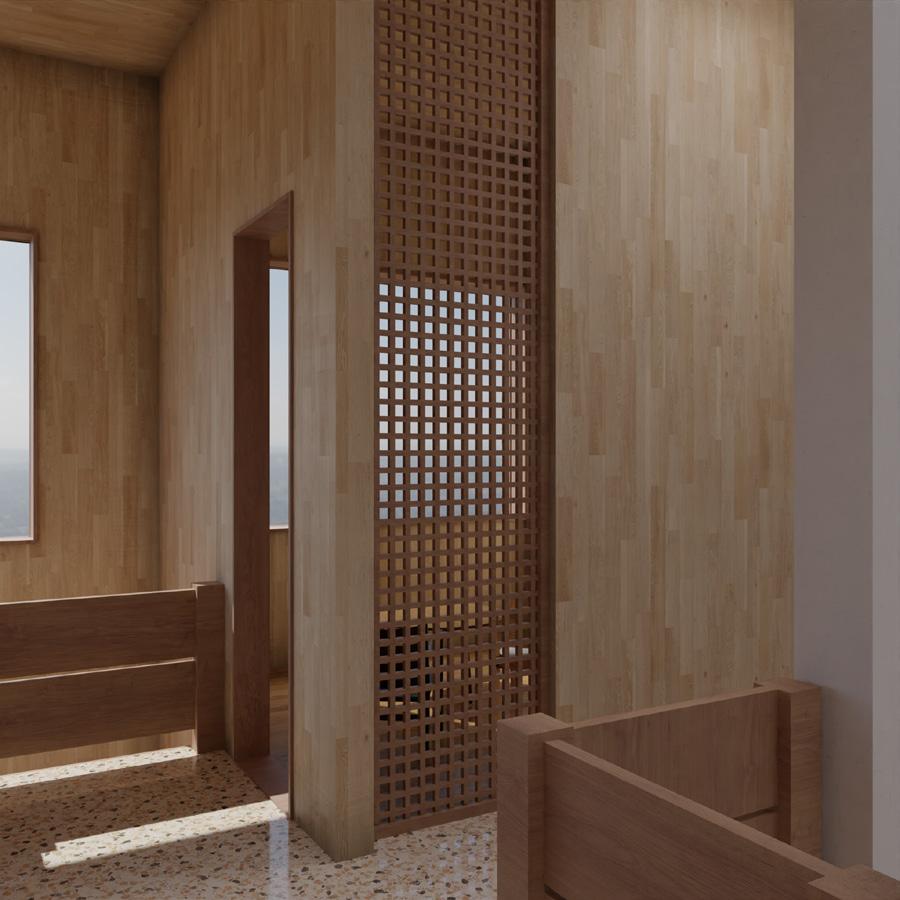

A MEETING ROOM ON THE 2ND FLOOR

The meeting rooms are enclosed to ensure privacy, yet they feature perforated panels near their entrances. These panels provide subtle visibility, allowing passersby to check whether the room is occupied without intruding.

AN ART GALLERY 1ST FLOOR

The central gallery features vertical slots in its corners, utilizing these less prominent areas to bring in light or create subtle architectural moments, as they are not considered prime locations for displaying paintings.

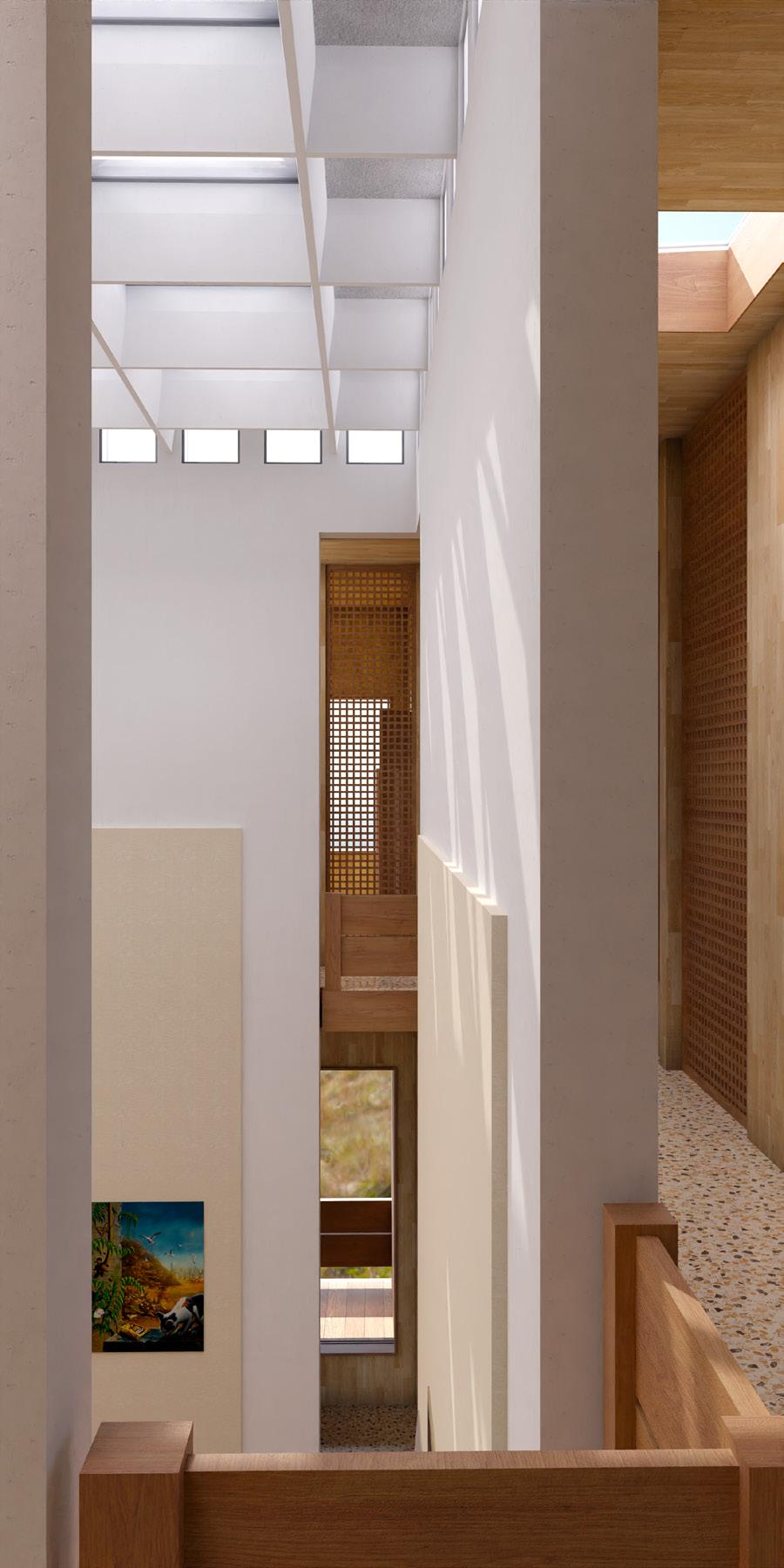

VIEW FROM THE 2ND FLOOR

On the second floor, the corner slots transform into balconies, offering a unique perspective to observe the art from different angles. Together with the perforated panels, these elements create a semi-transparent quality, seamlessly blending the interior space with the landscape.

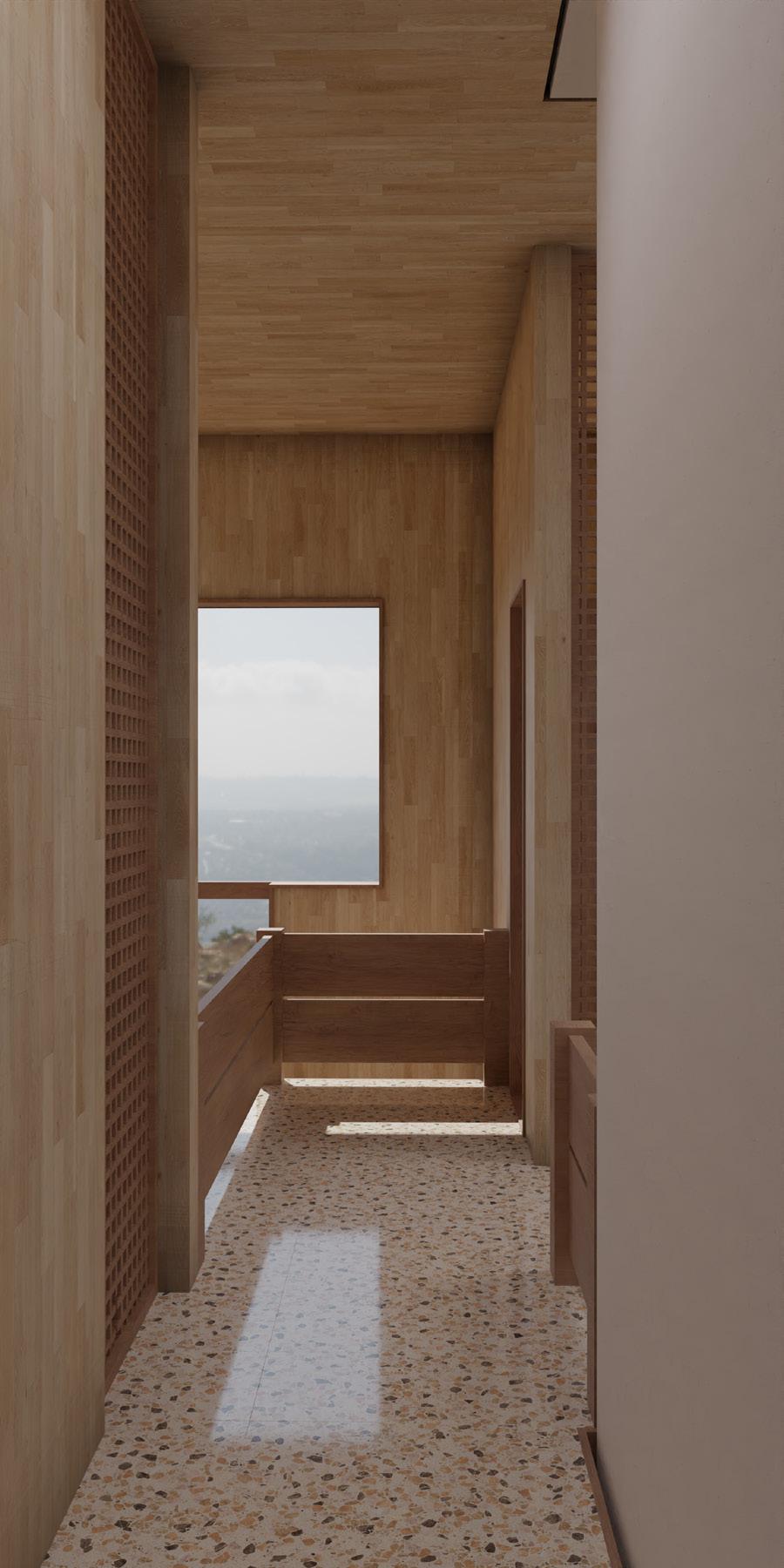

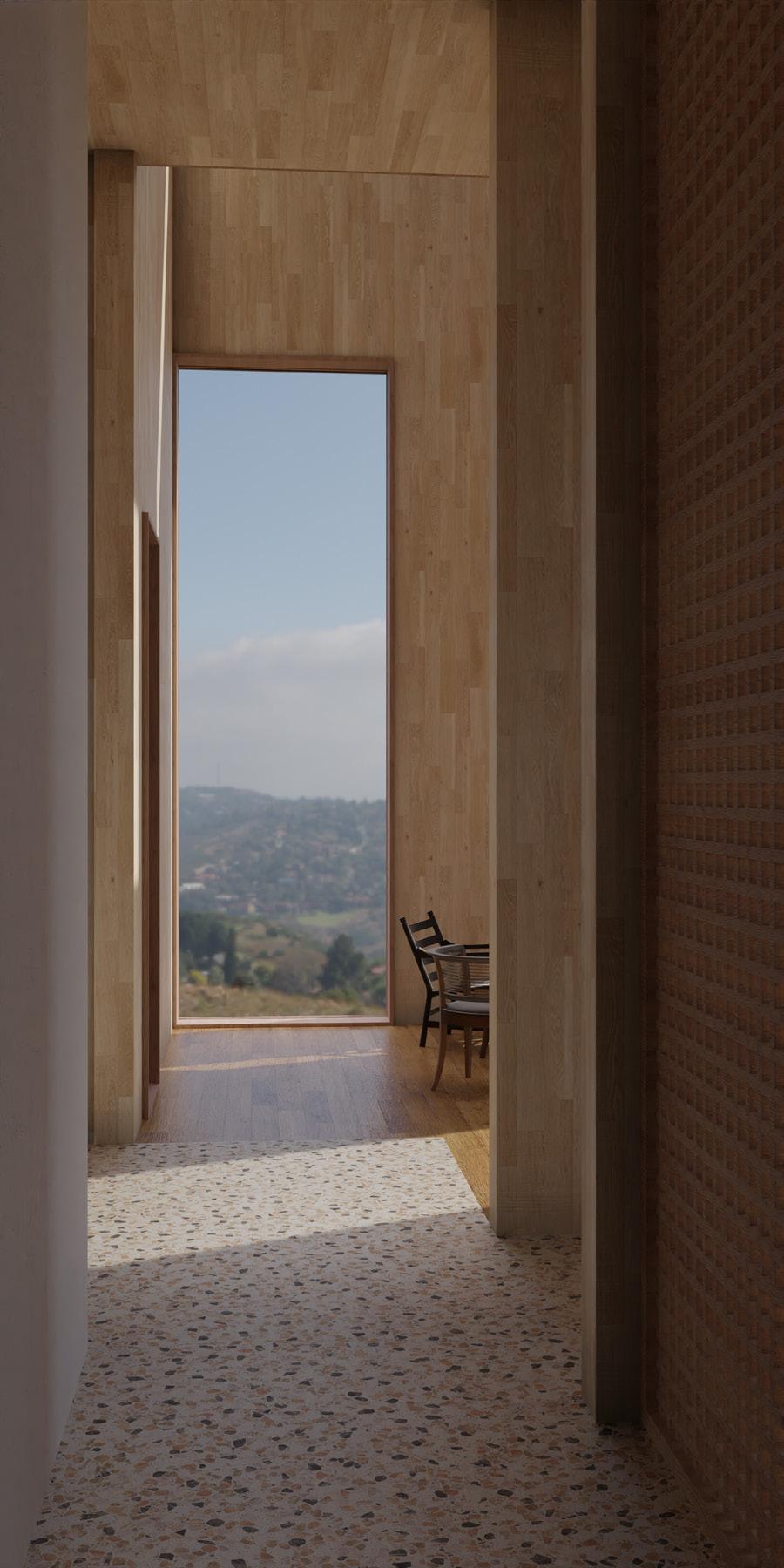

SECOND FLOOR

The flooring throughout the hallway is made of terrazzo. In contrast, the meeting rooms feature wooden flooring.

FIRST FLOOR

The meeting rooms are designed with large windows that frame breathtaking views of the Pacific Ocean and the dramatic cliffs. The openings bring in natural light and connect the interior spaces to the surrounding landscape.

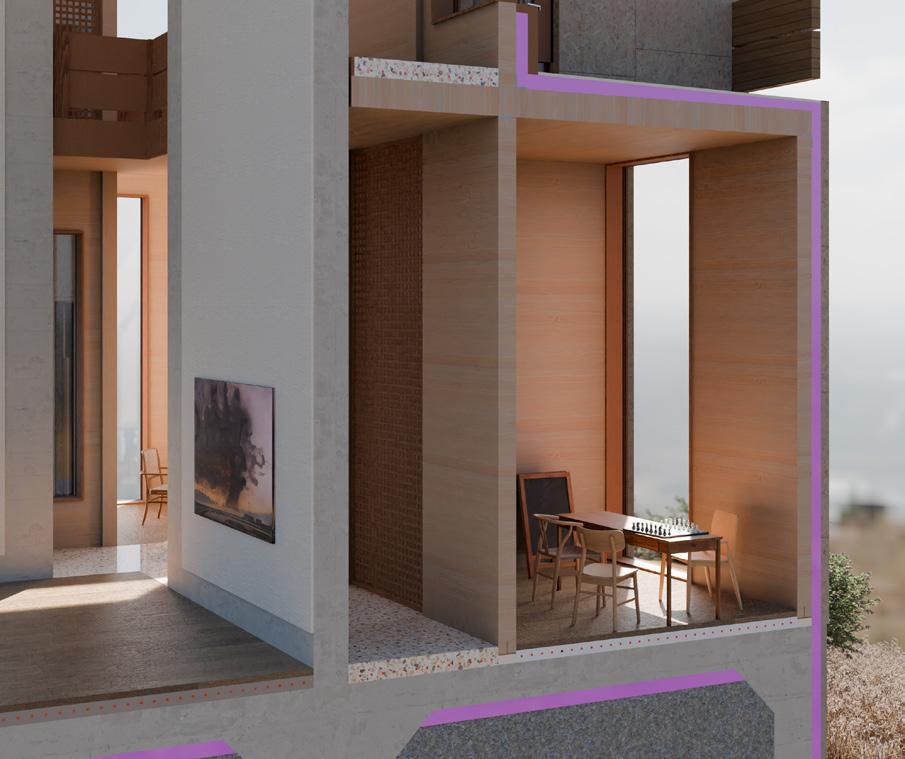

PERSPECTIVE SECTION

In the rendered perspective section, the outer wooden skin of the meeting rooms is constructed using Cross-Laminated Timber (CLT) panels, suspended from the central concrete structure of the gallery with metal plates. The meeting rooms also feature radiant heating integrated into the wooden flooring, providing a comfortable and evenly distributed warmth.

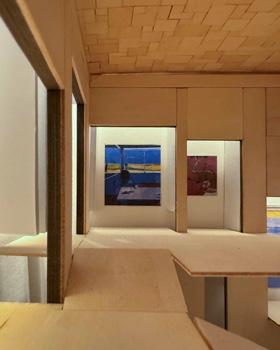

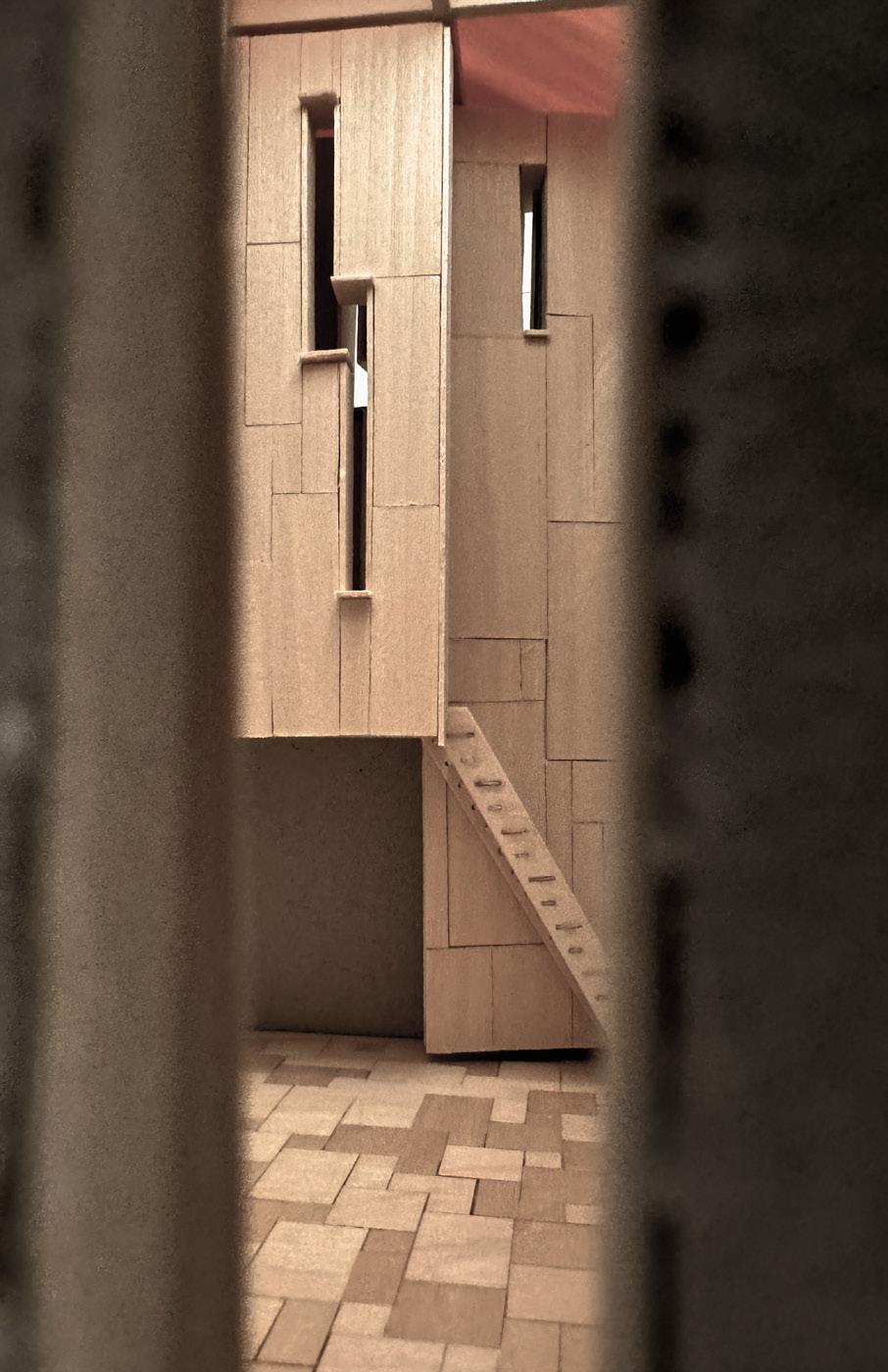

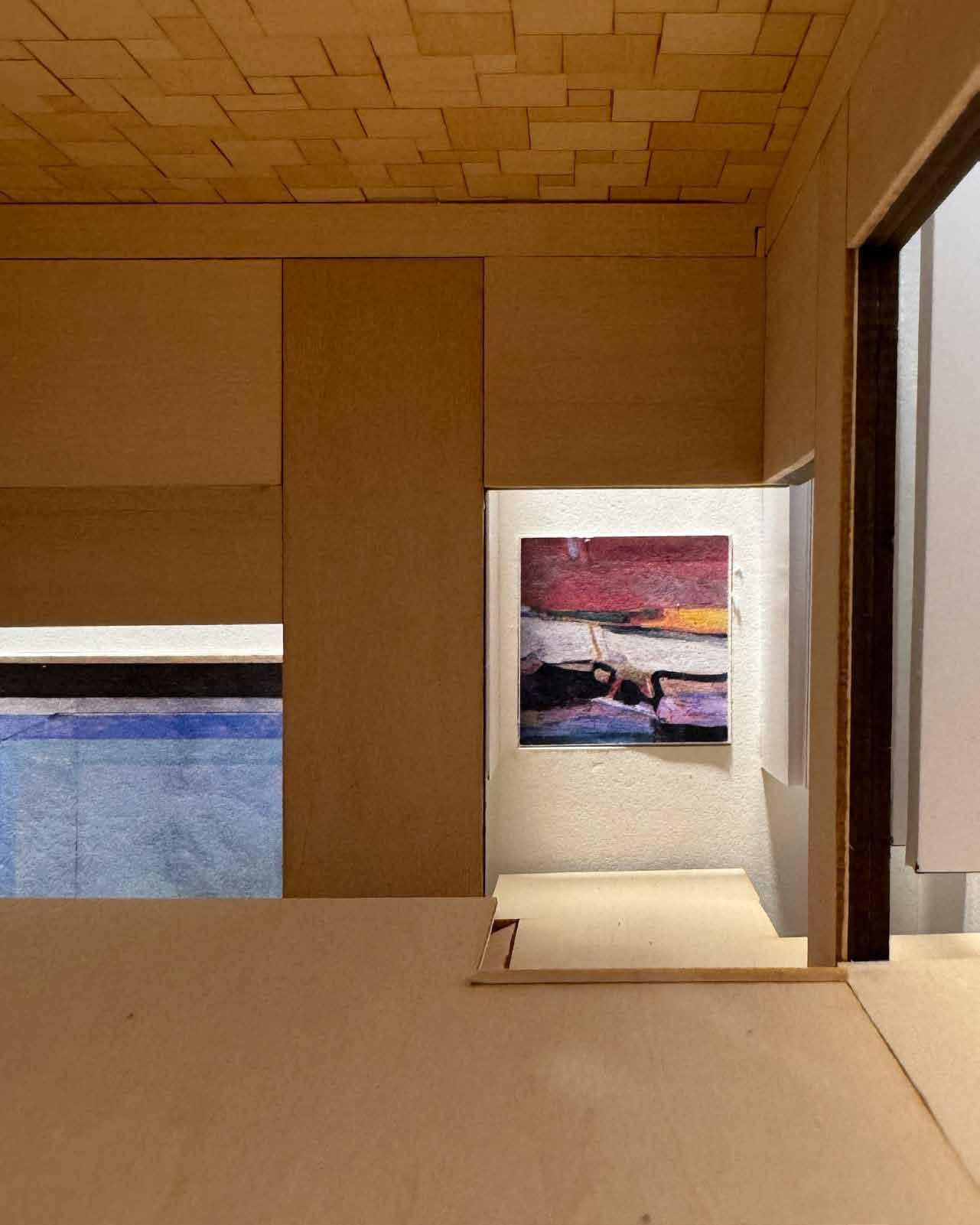

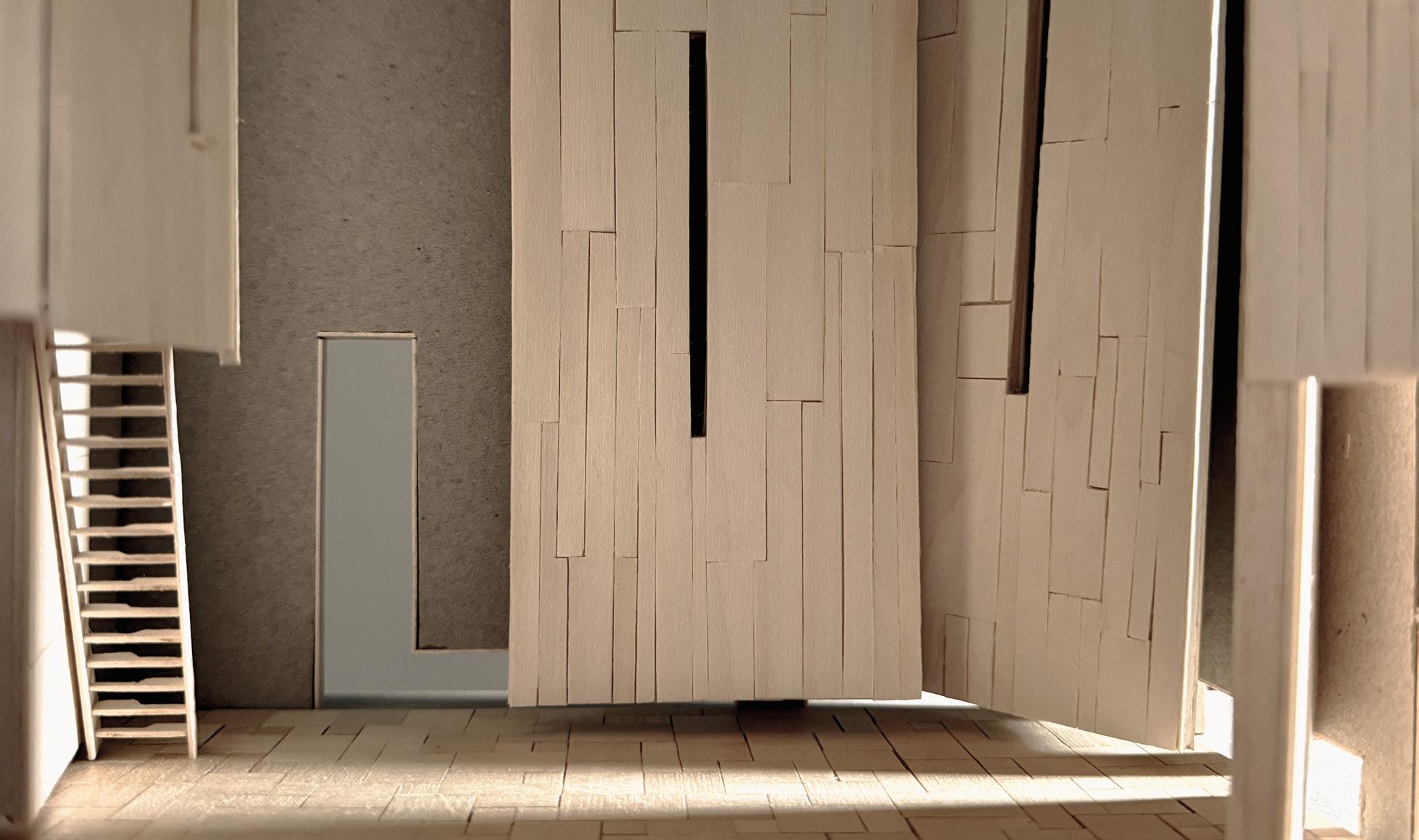

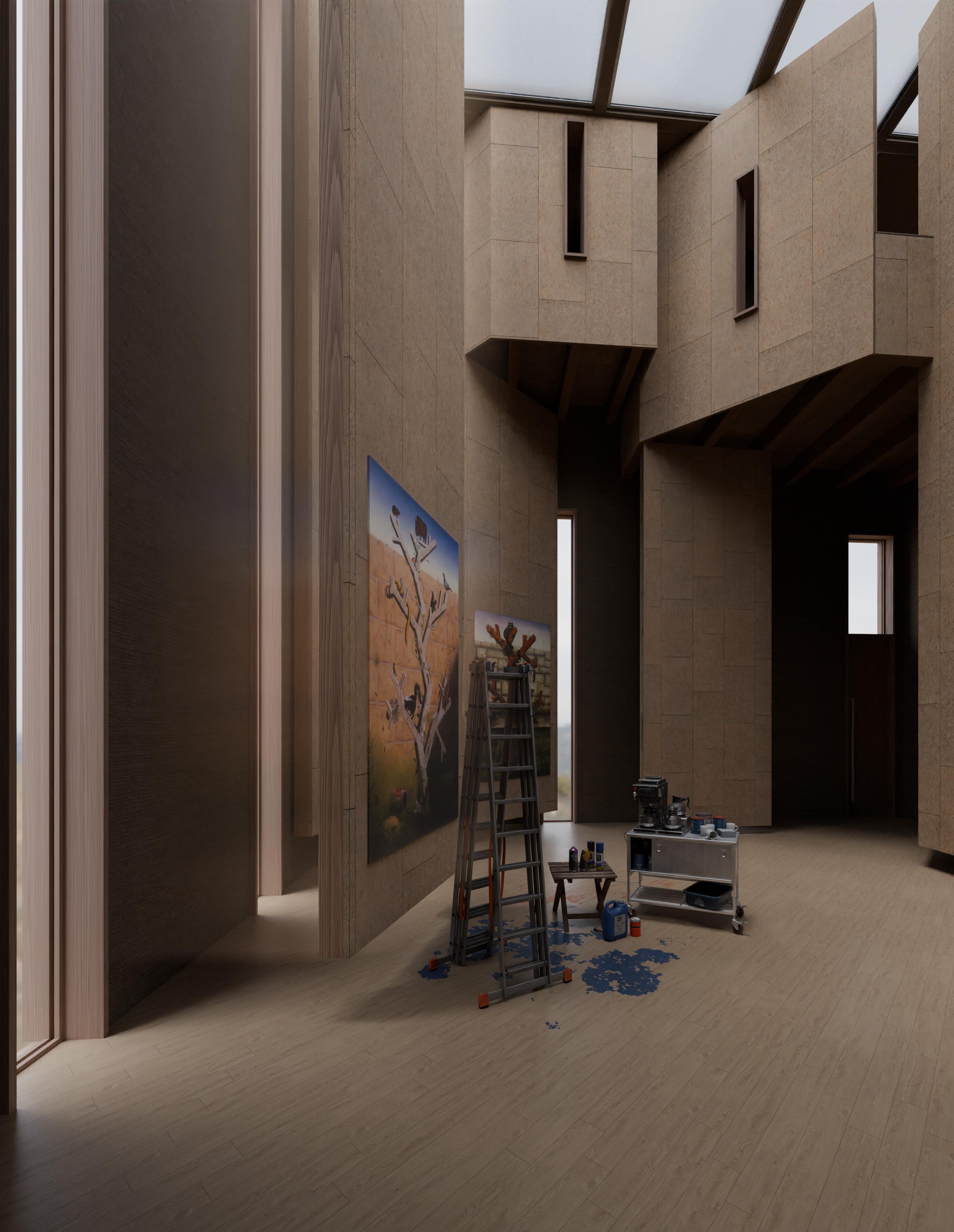

PHYSICAL MODEL OF INTERIOR

Each artist's studio features a concrete outer core for structural stability and a wooden inner skin that hangs from the ceiling, creating surfaces for artists to work and spaces to live. These wooden surfaces are movable, allowing artists to adjust their environment based on the specific light conditions needed for their paintings. Indirect north light and filtered daylight shape the interiors, ensuring optimal illumination while preventing harsh glare.

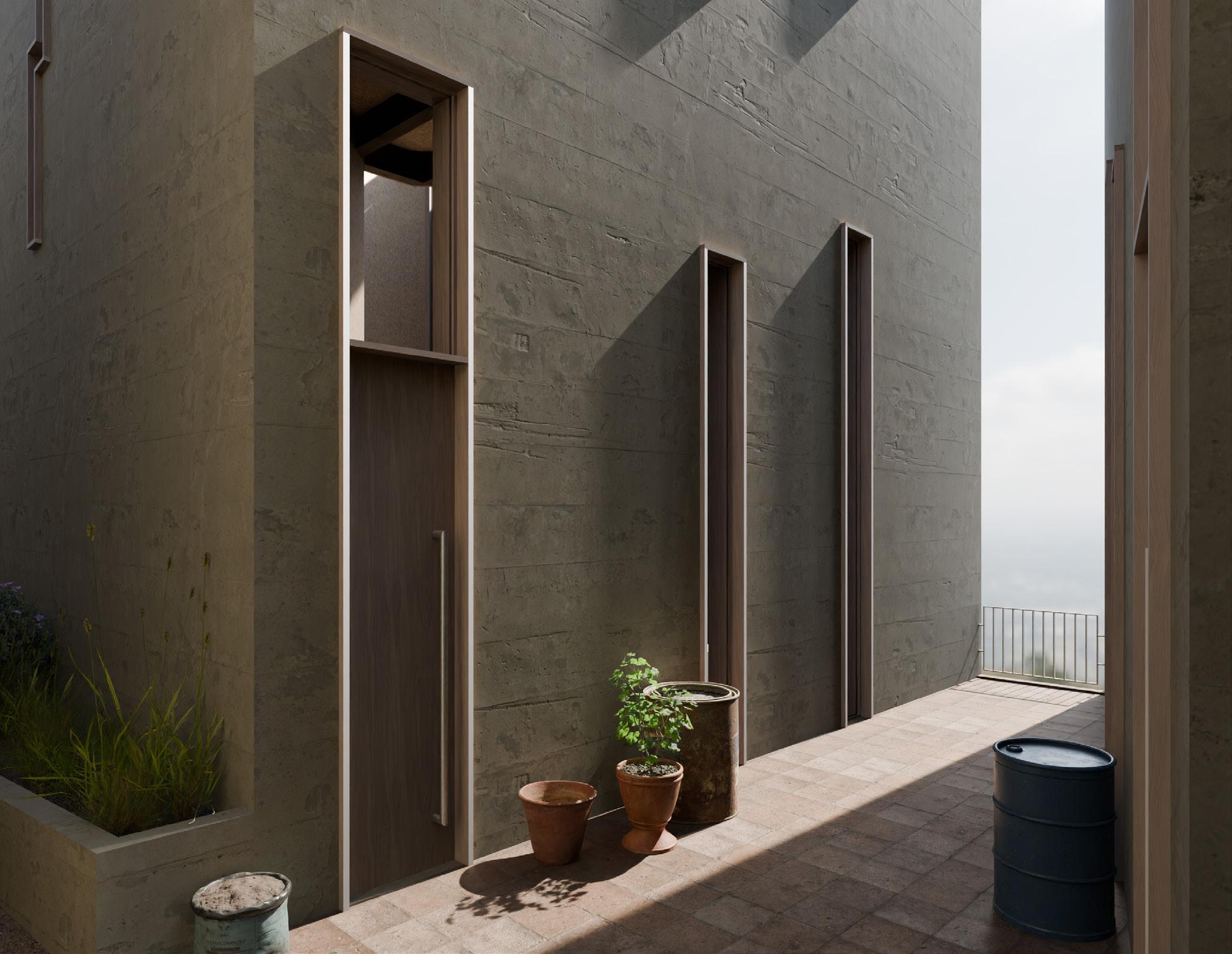

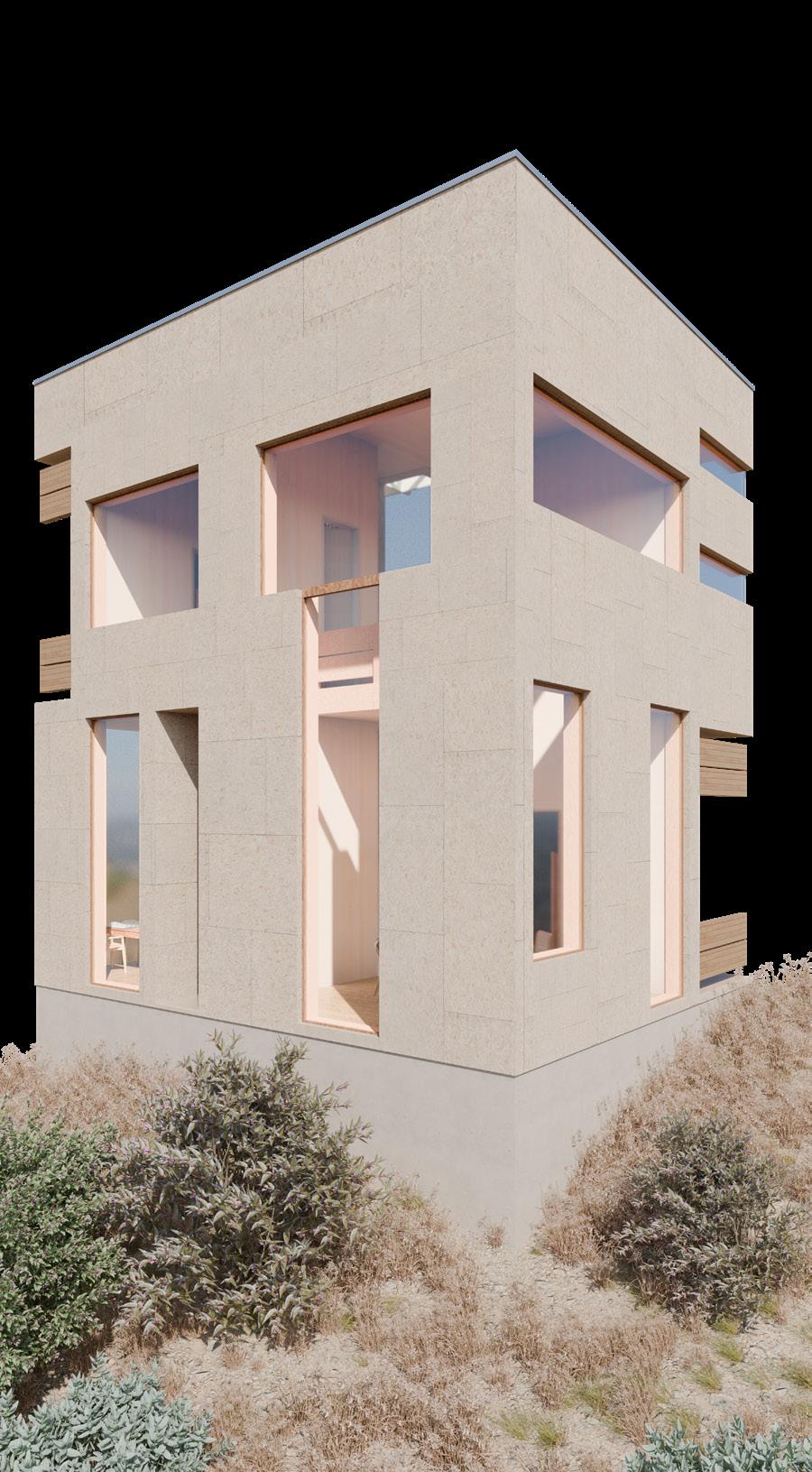

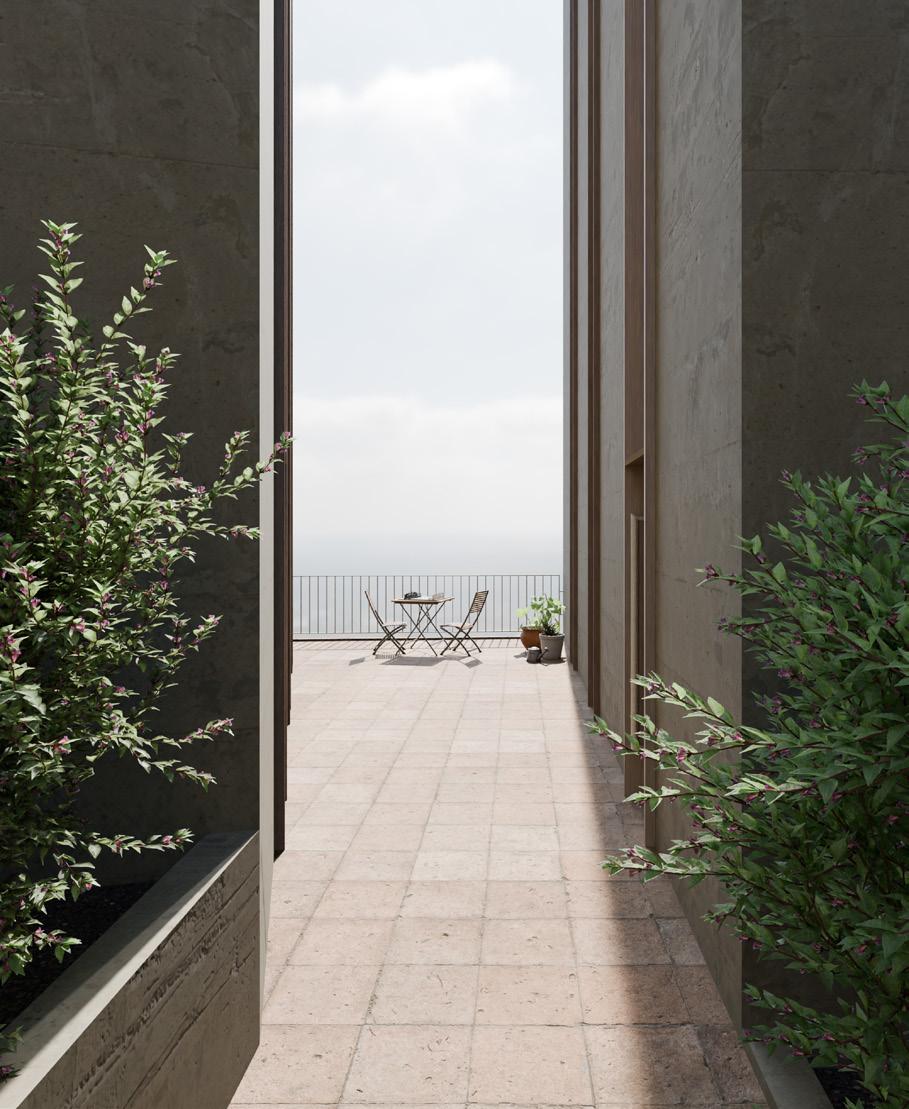

RENDER OF EXTERIOR

The studios open onto a shared terrace, providing moments of reflection and engagement with the surrounding landscape.
