Profile Ayush Singh ( Junior Architect ) Bangalore,India Contact info- 7008689663 Mail id- ayush210708@gmail.com

Work Experience Oct’ 23 - Mar’ 24 ( Architect ) Stapati Architects, Bangalore

Education 2022 ( B.arch ) Amity University, Gwalior C.G.P.A.- 8.8

2017( XII CBSE ) D.A.V Public School, Odisha C.G.P.A.- 7.4

2015( X CBSE ) D.A.V Public School, Odisha C.G.P.A.- 8.4

Position Held 2019 - 20 Unit Secreatary NASA India

Administrative, trophies management for Zonal Nasa Convention at Poornima University, Jaipur.

2018 - 19 Unit Designee NASA India

Administrative, Reubens trophy management for Zonal Nasa Convention at IET Bhaddal, Punjab.

2017 - 16 Inter House Display Head Display Board presentation and management

Commercial and residence project working drawing, Design presentation and site meeting.

Aug’ 22 - Sep’ 23 ( Junior Architect ) Studio Decode, Bangalore Institutional project and residence working drawing, Design presentation and site meeting.

Jan - Jun’ 21 ( Professional Training ) Spaceforms Architects, Bangalore Residence & Office working drawing, 3D renders and design presentation.

May - Jun’ 19 ( Summer Internship ) Spaceforms Architects, Bangalore Learned detailed drawing presentation, V-ray visualization and Measuring drawing.

Software Skills Autocad ( Drafting ) Sketchup ( 3D Modelling ) VRay, Enscape, Lumion( 3D Visualisation ) Adobe Photoshop, Illustrator, InDesign ( Desgin Presentation, Motion Graphic )

PROJECTS Academics

01 02

Mid-way Yard Housing Project

Kutumbh

Inter-generational Living

Studio Work

01 02 03 04 05

Renovation

RV Managment - Institutional

Renovation

RV VIP Lounge- Institutional

Extention

Bysani- Residence

Renovation

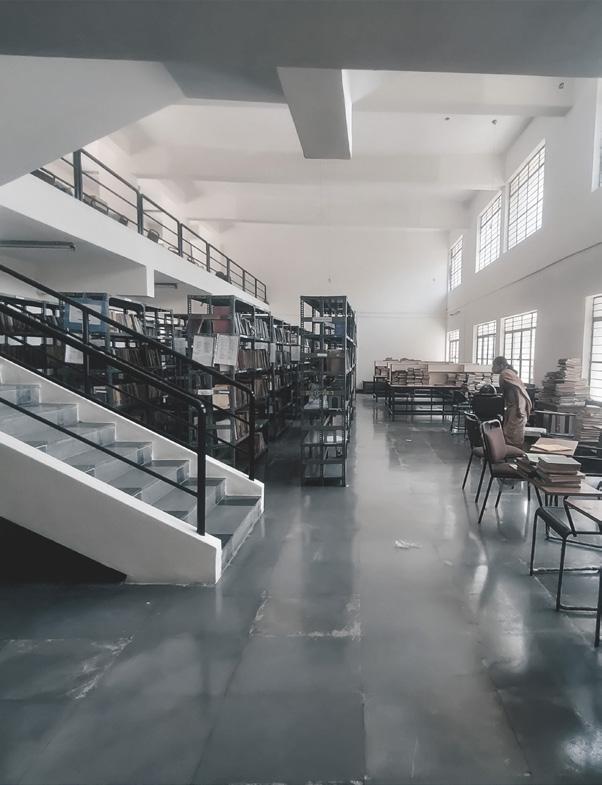

RV Library- Institutional

Renovation

SSMRV Phase-II- Institutional Link - Working Drawing 23

01 Midway Yard: Faculty Housing The objective of the project proposal is to create interactive community spaces. The design must respond to the climatic conditions of the site.

The design attempt to create a central courtyard in the building.

The main aim was to provide natural light and ventilation insiwde the tower for healthy environment.The tower provide both privacy and protection from extreme temperature.

4

Housing | 2021

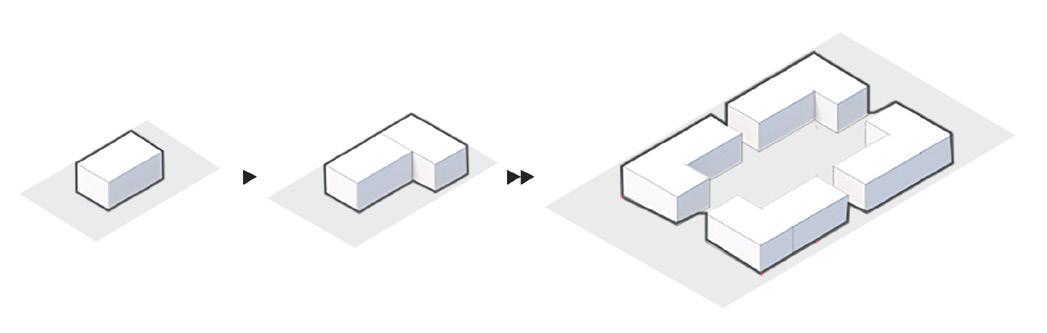

Conceptualization

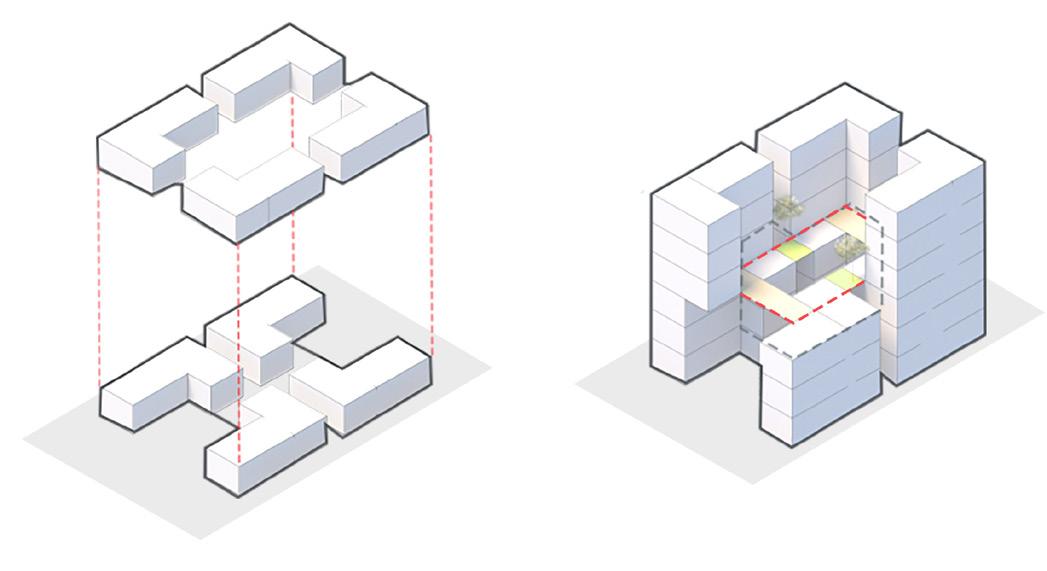

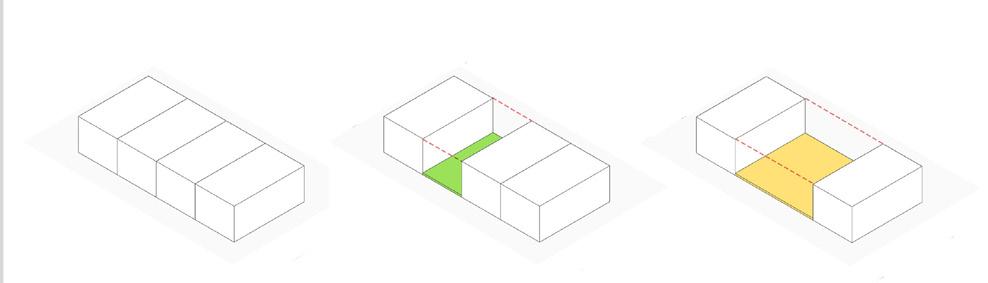

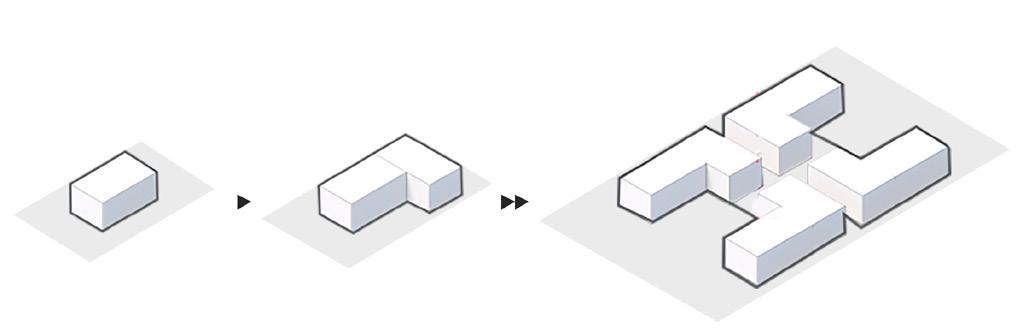

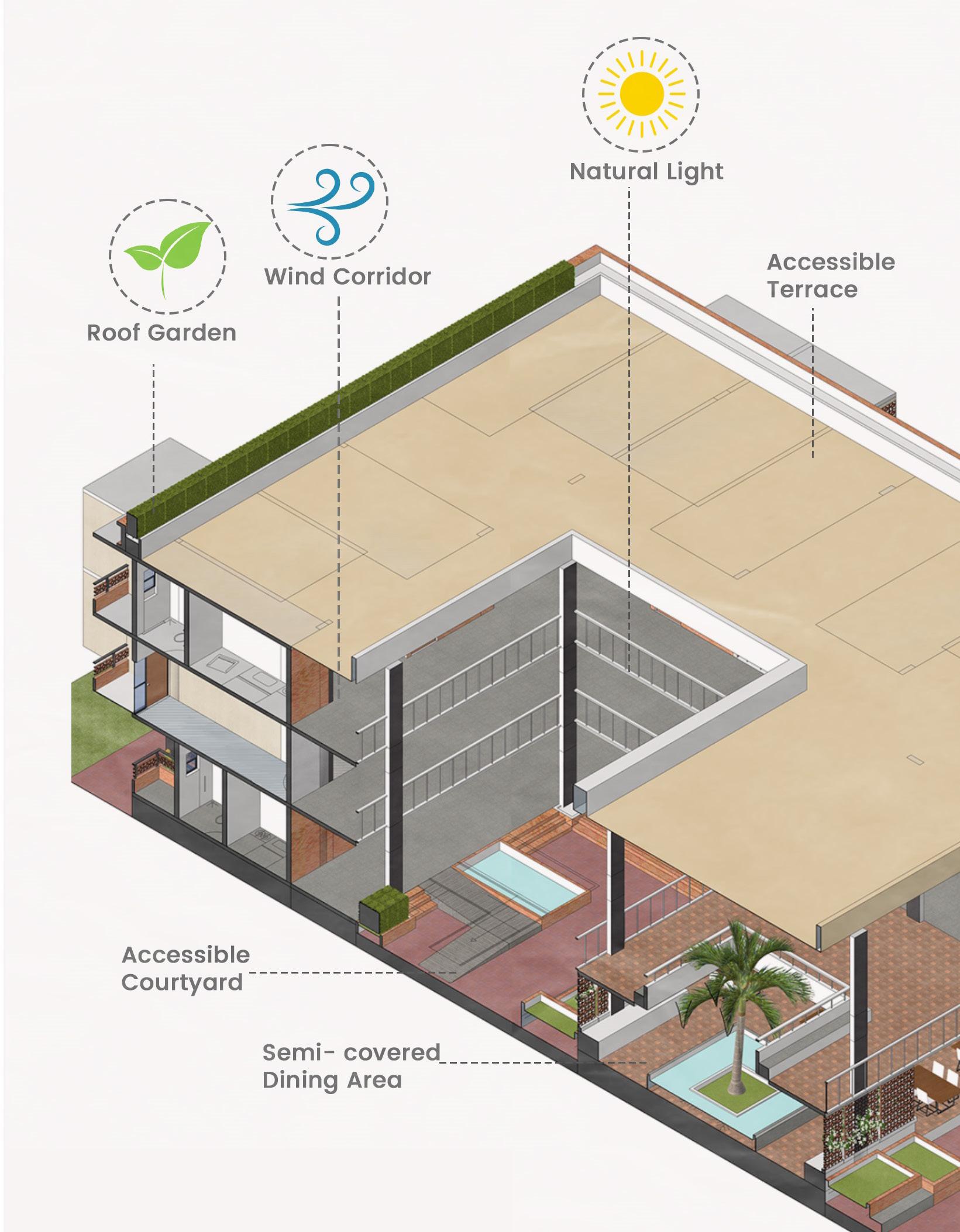

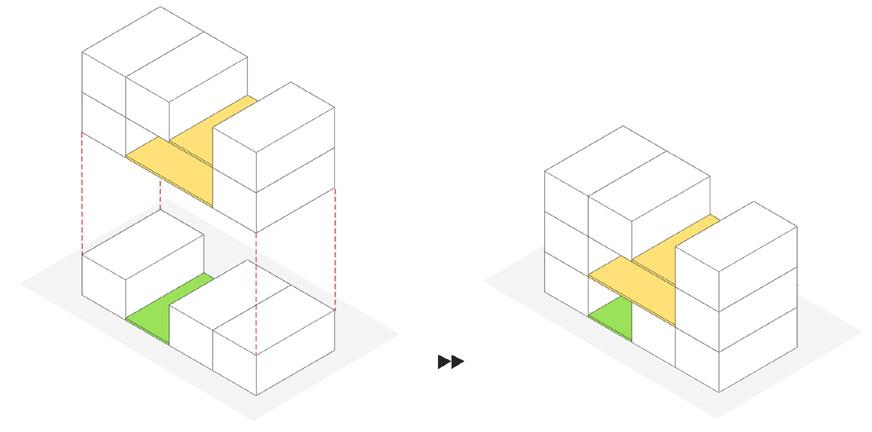

Staggered units have been made to allow winds to flow through the building. The lobby act as a common space between the four units.

Two central long corridor connecting two nodes at center of building. Shorter facade toward south to reduce the sun penetration. er provide both privacy and protection from extreme temperature.

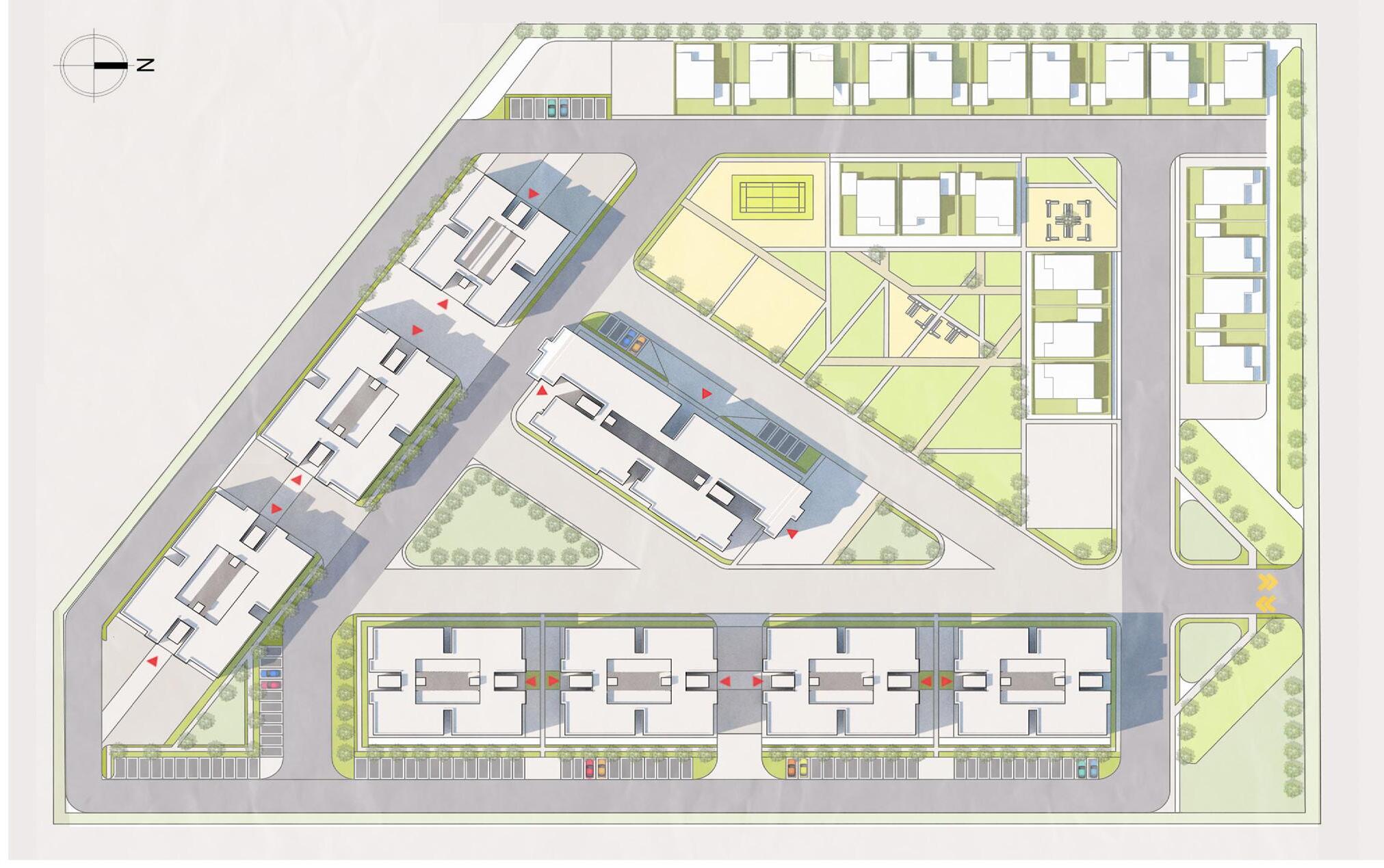

Site Plan

5

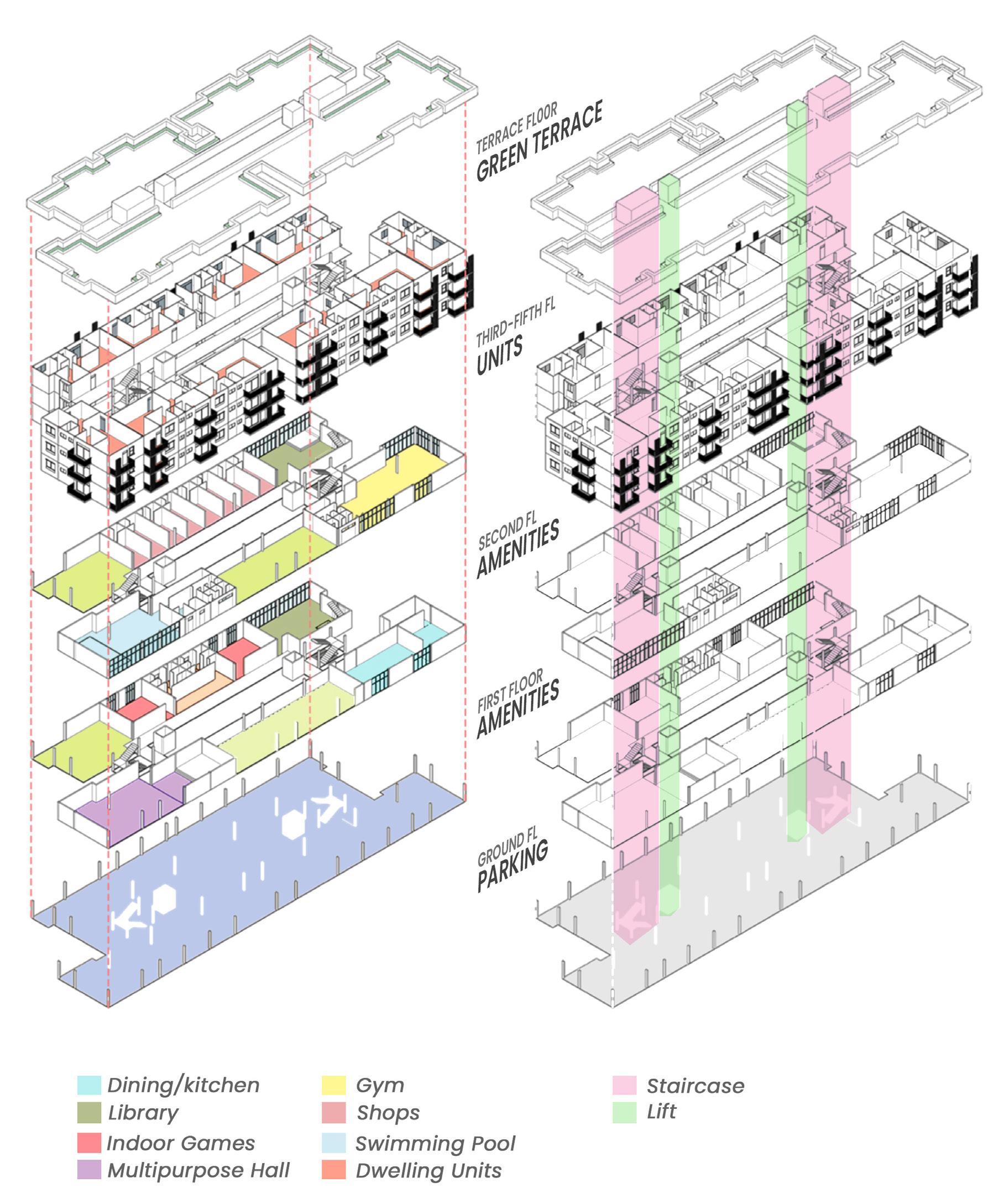

Stack Diagram

6

Housing | 2021

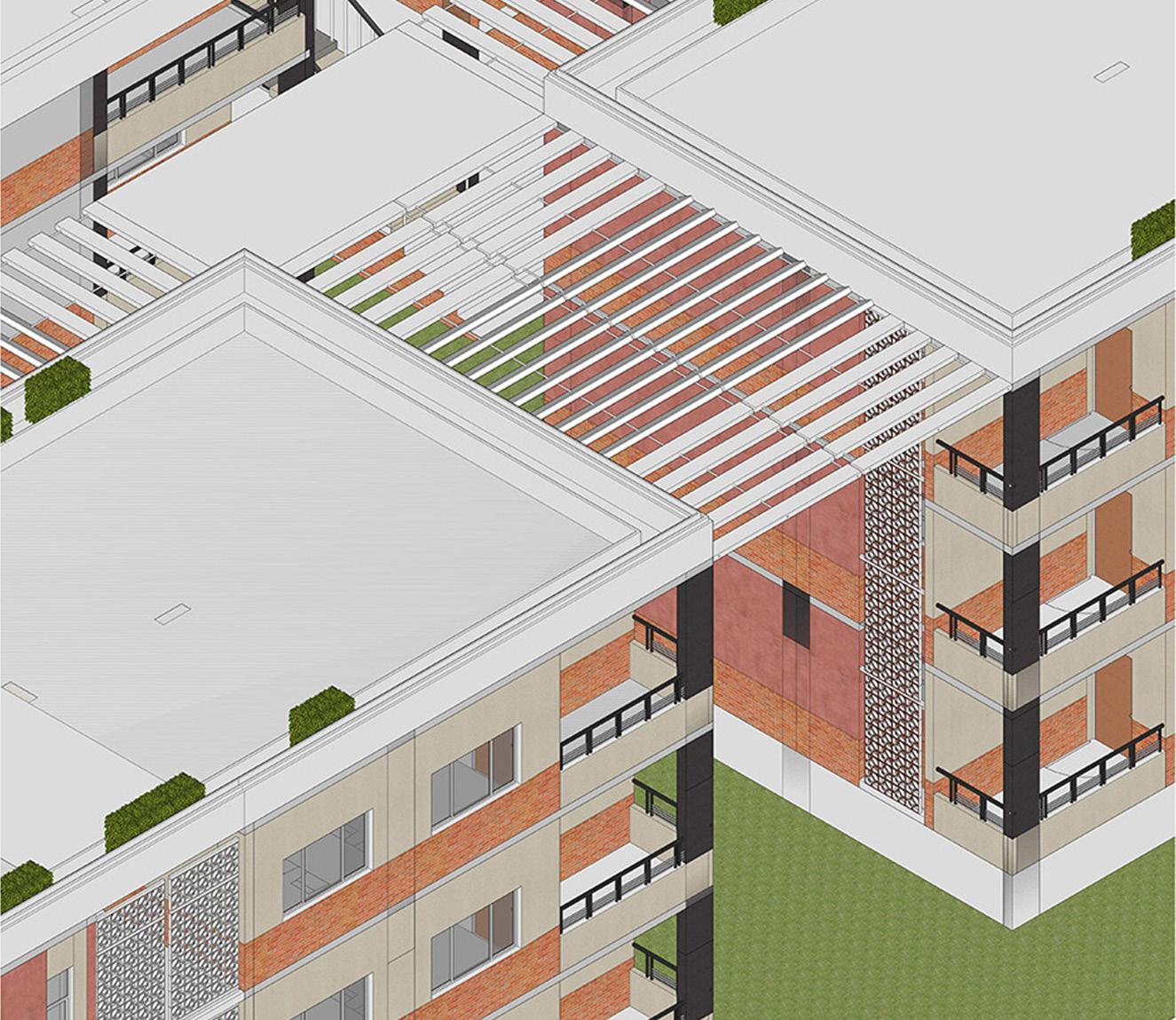

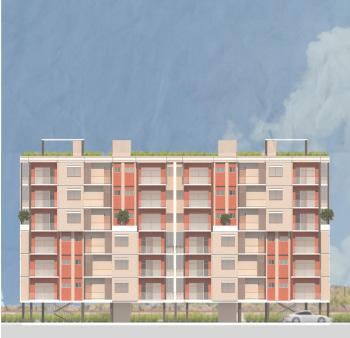

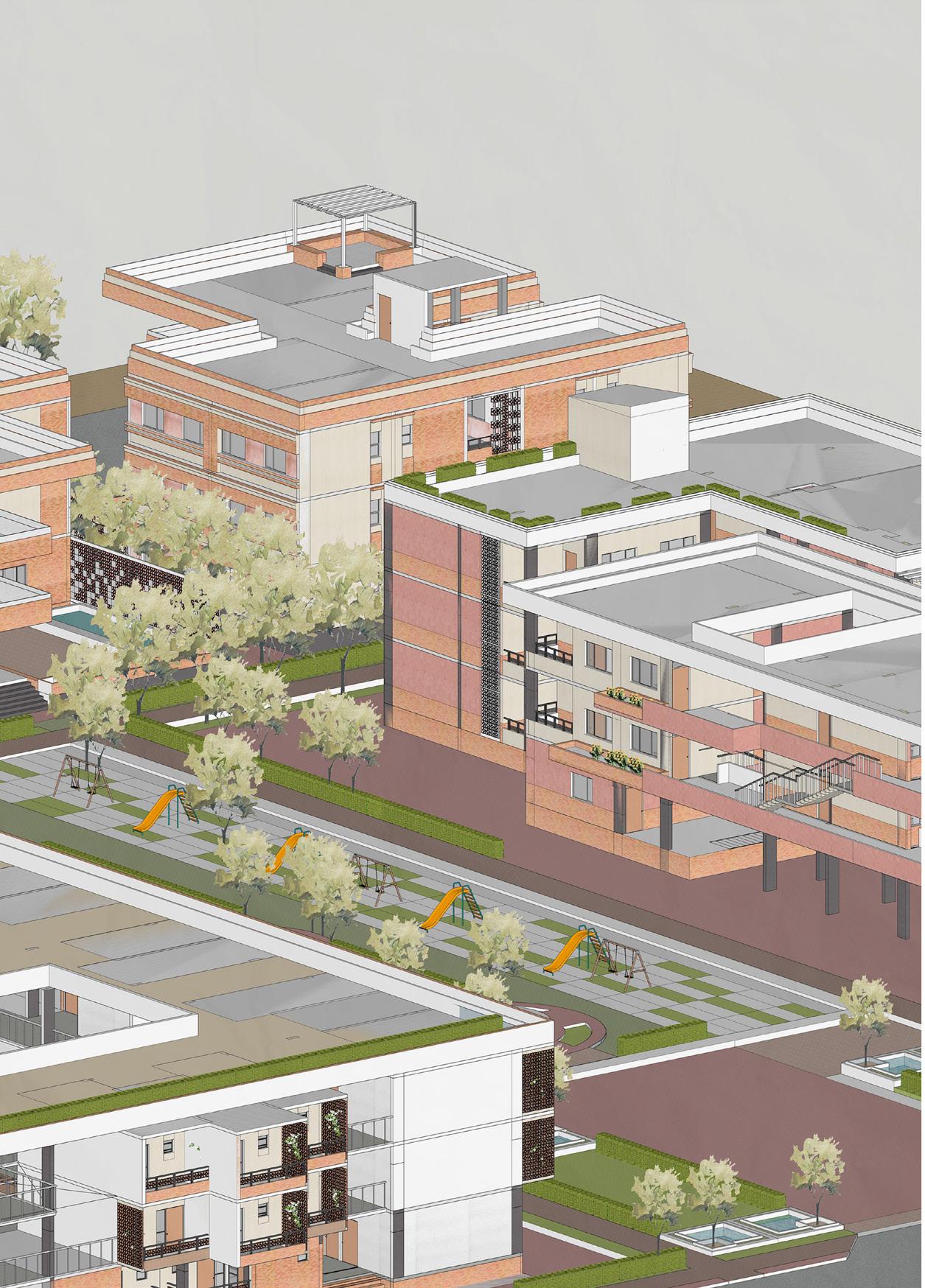

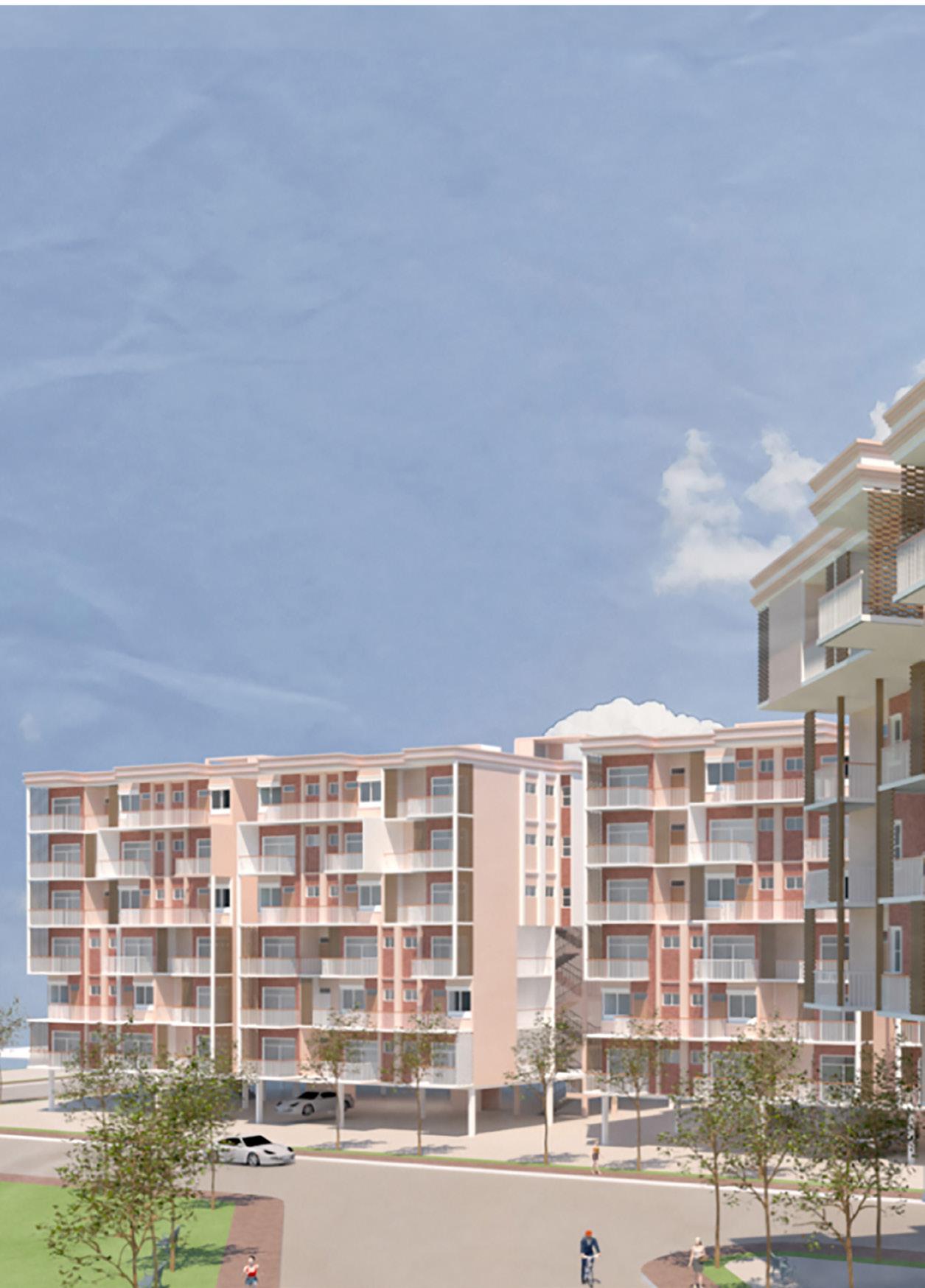

Type-2 Front Elevation The facade is articulated to maximise the greenery with medium heighted trees near the balcony.

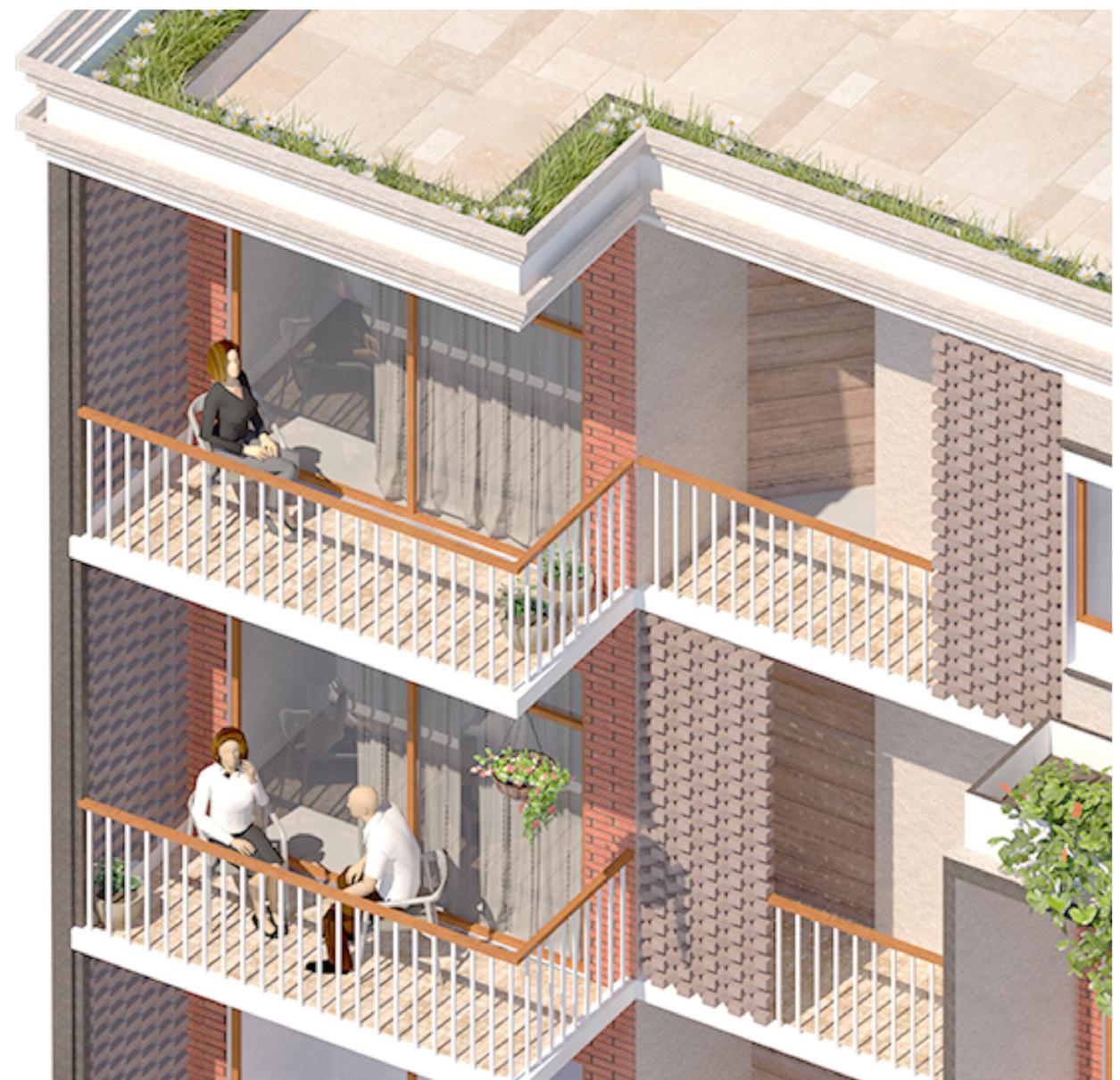

Balcony The jaalis are used for both shading and vertical gardening.The material color palettes are kept same as Campus.

7

01 Kutumbh: An Inter-Generational living To create sharing platform for elders and youth providing sense of assurance and safety. A favourable environment and propose design interventions which can respond to changing demands of resident grow older. On one side children who have lost their parents , reinforce their psyche in order to help them pursue their future in right-way and secondly the elderly who feel limited because of age/deterioration of the human body.

8

Thesis | 2022

Conceptualization

The idea is to plan a purely functional campus and for that the gird iron planning of various building blocks stretched/planned throughout the whole site.

The grid iron pattern gives us unrestricted circulation/movement and maximum open spaces. It also mitigates any negative spaces.

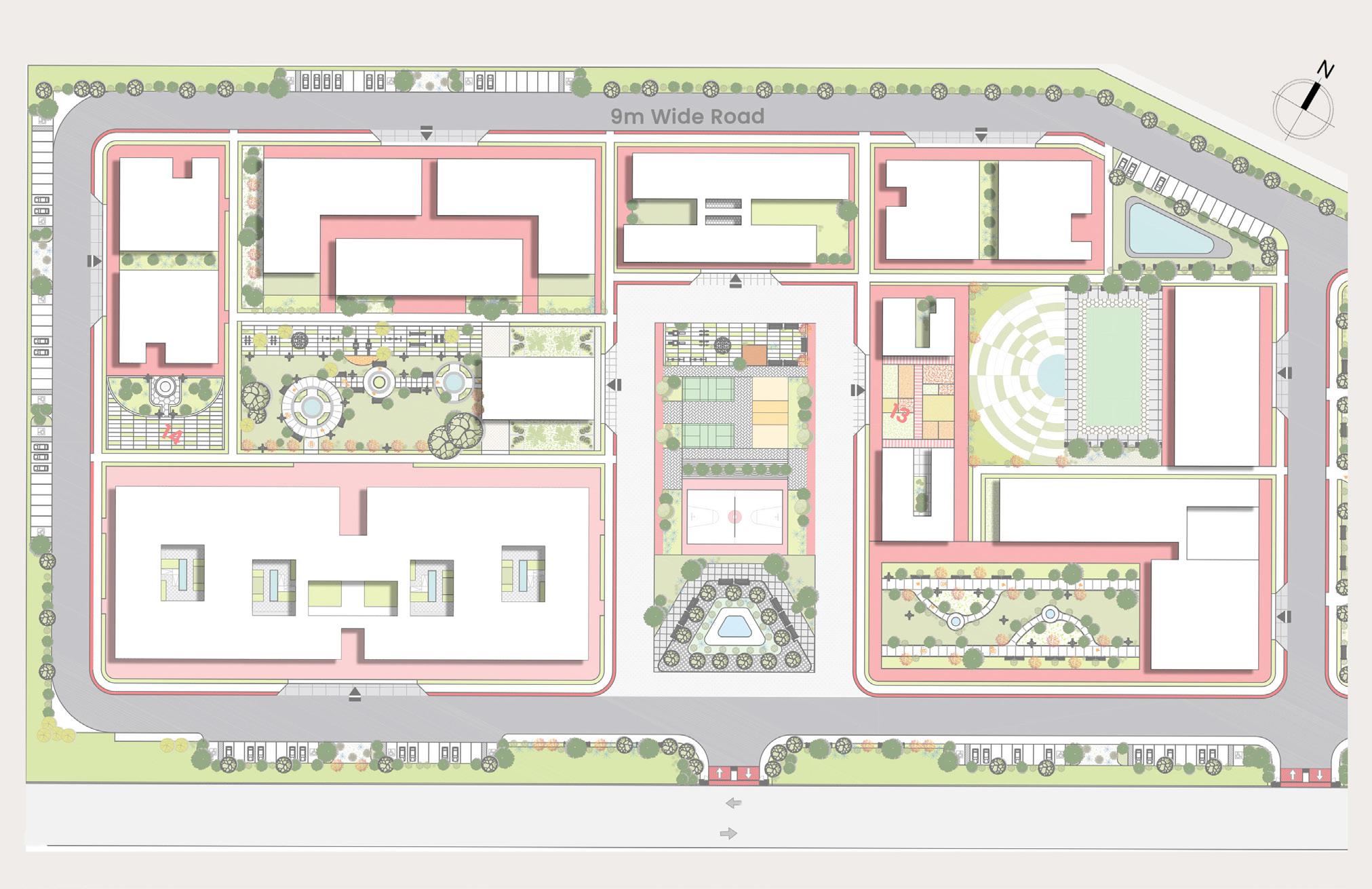

Site Plan

9

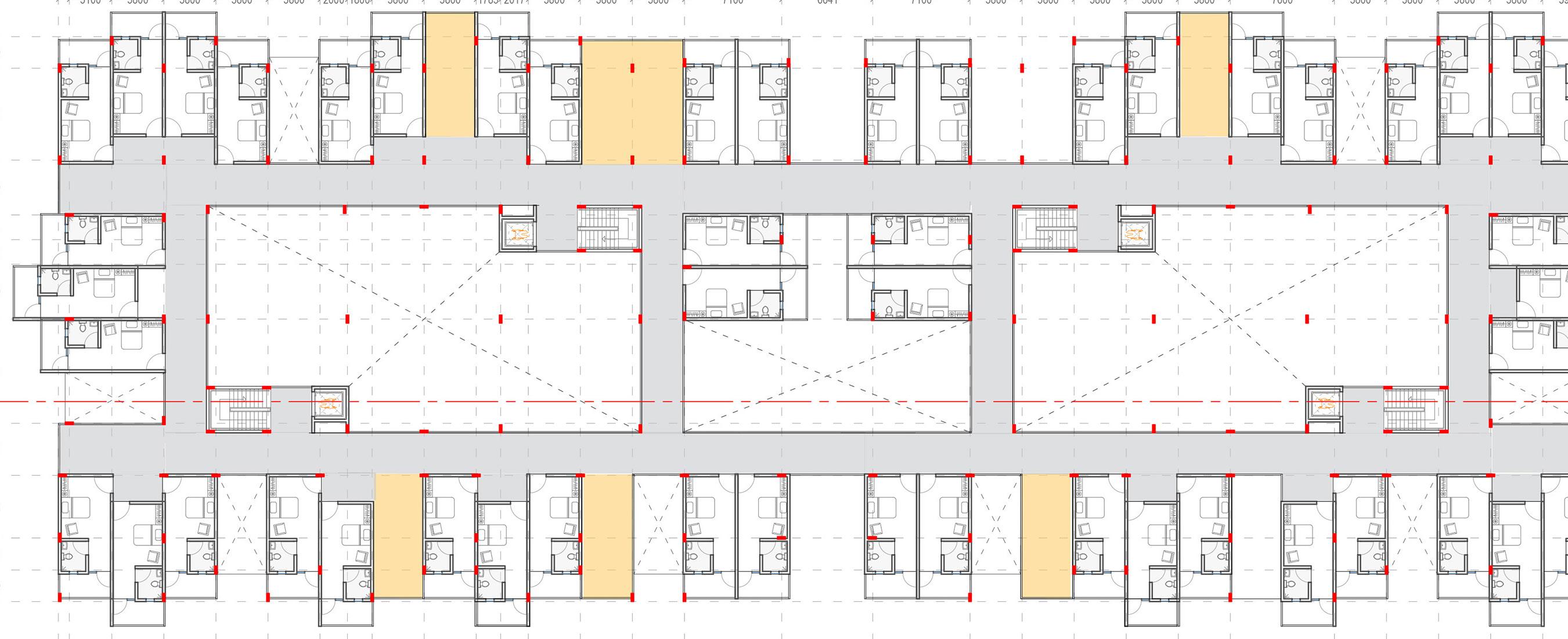

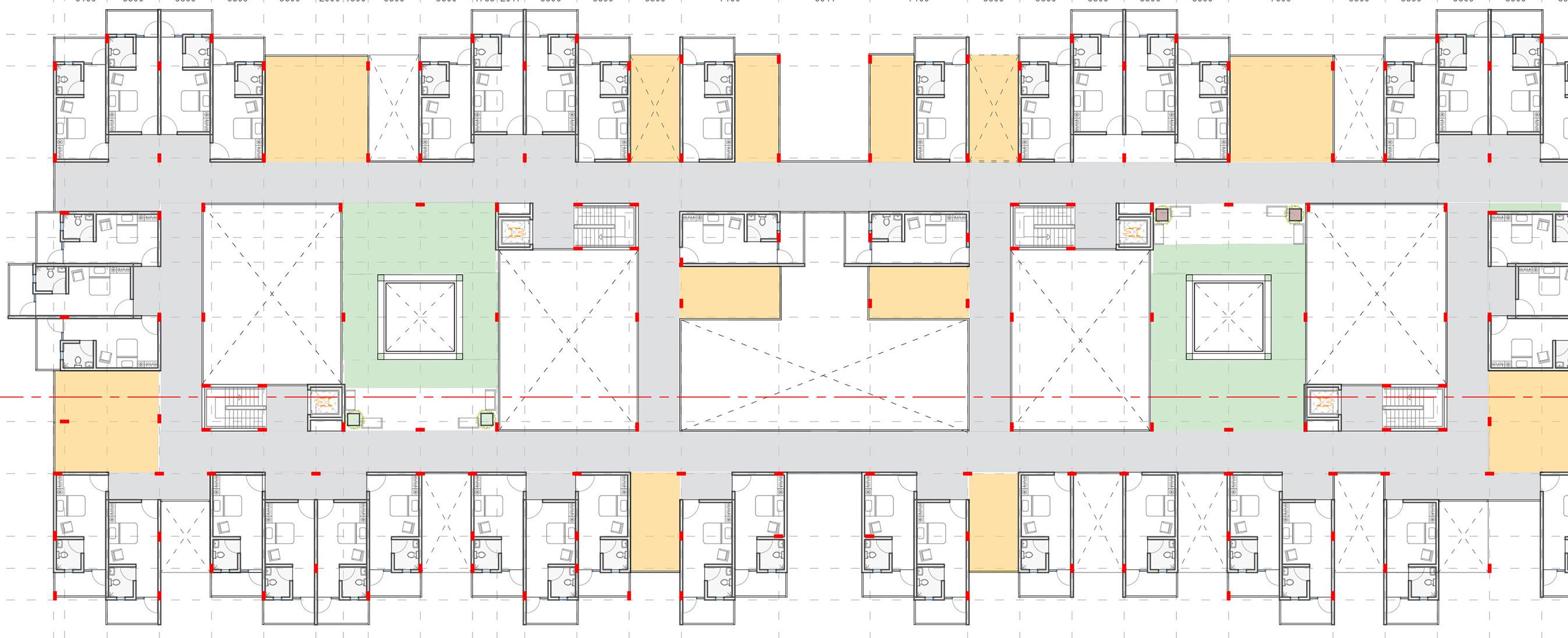

Ground Floor Plan

First Floor Plan

Second Floor Plan

10 Thesis | 2022

Courtyard Courtyards are incorporated within every zones which will provide a spacious environment as well as add an additional advantage form environmental point of view and further leads to overall ambiance of campus.

The whole layout is purely on functional basis.

Thus, i am co-relating my zoning according to the function of human body where every part does their own function without conflicting the function of others.

11

01 Renovation: RV Management Program Total Area4065 sq.ft

Status-

Completed

Team-

Principal Ar. Meghana Dutta Senior Ar. Shiraj Kharb Junior Ar. Ayush Singh

12 Studio Work | 2023

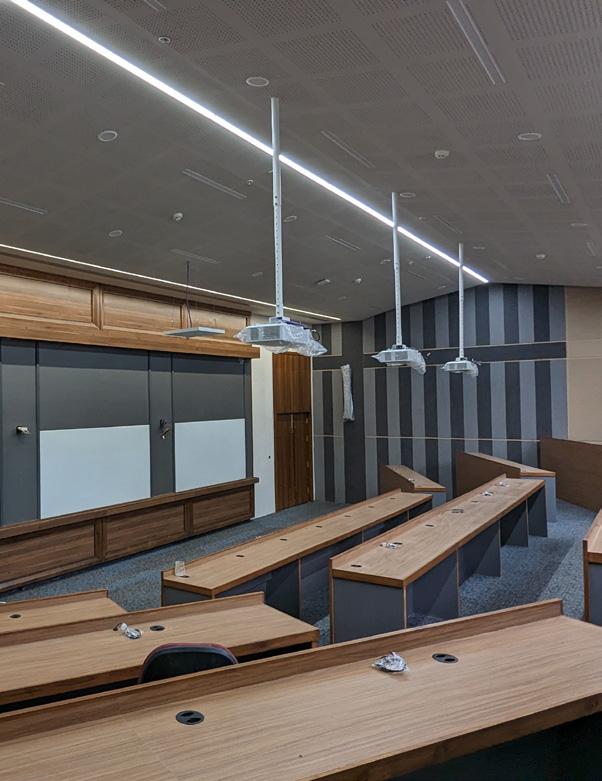

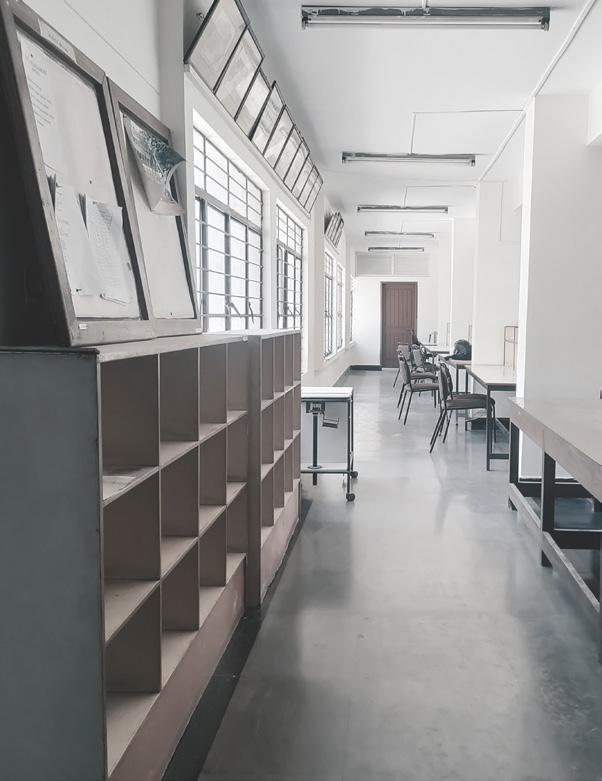

Our objective was to uplift the existing space for MBA students and provide them with all necessary advanced AV tech for classroom where both online and offline classes can be held together, small library space and discussion room.

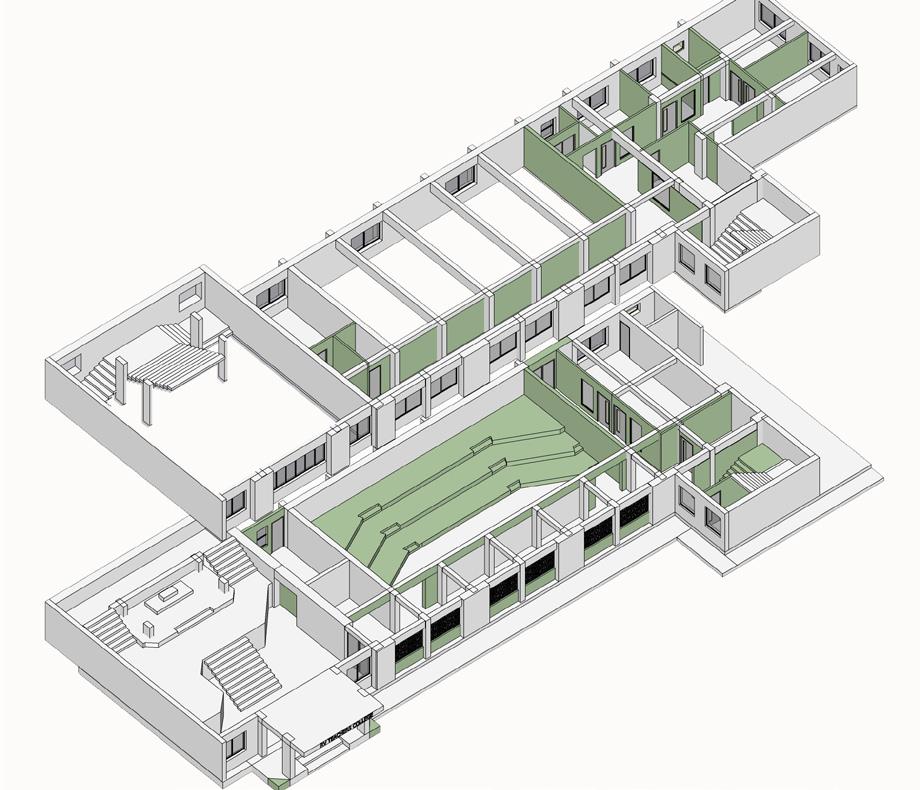

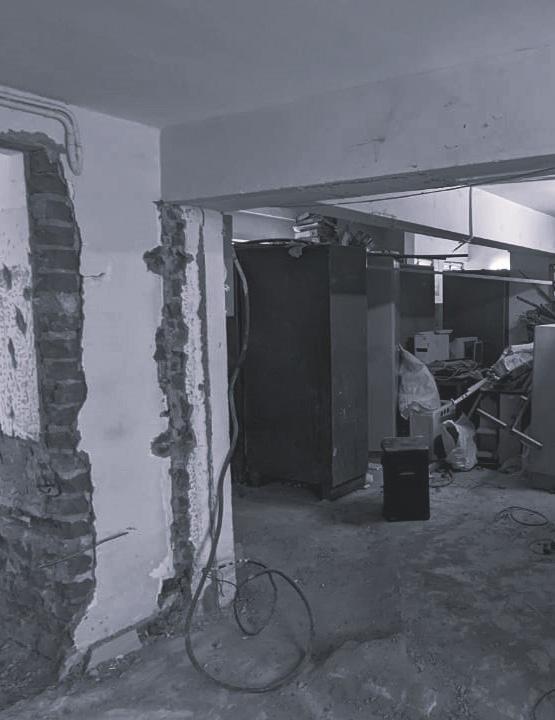

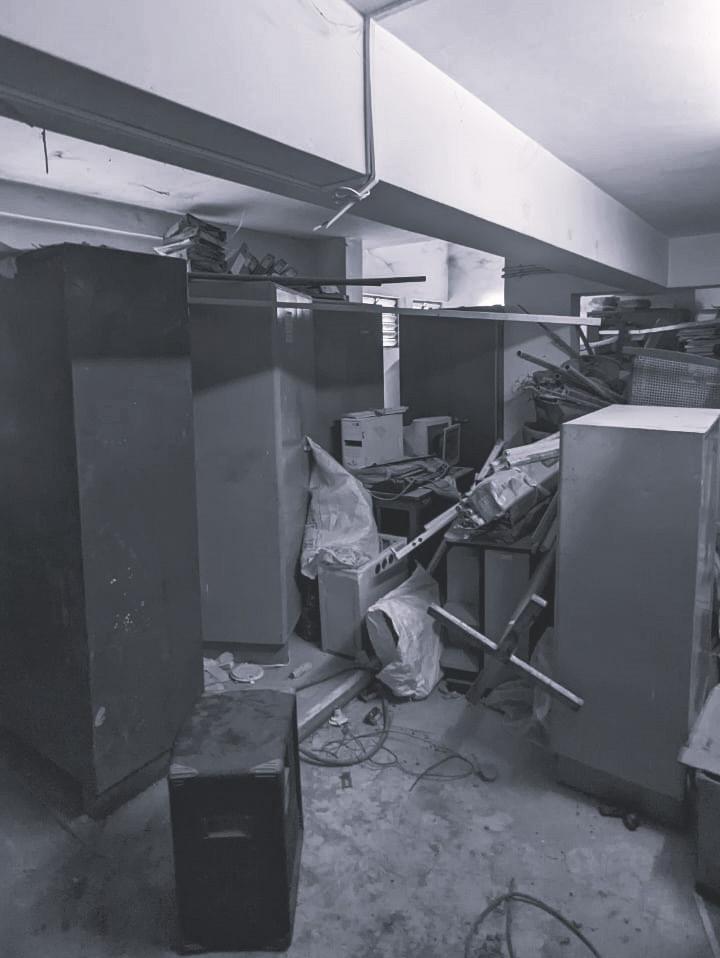

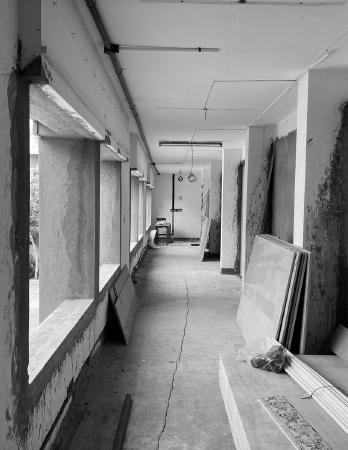

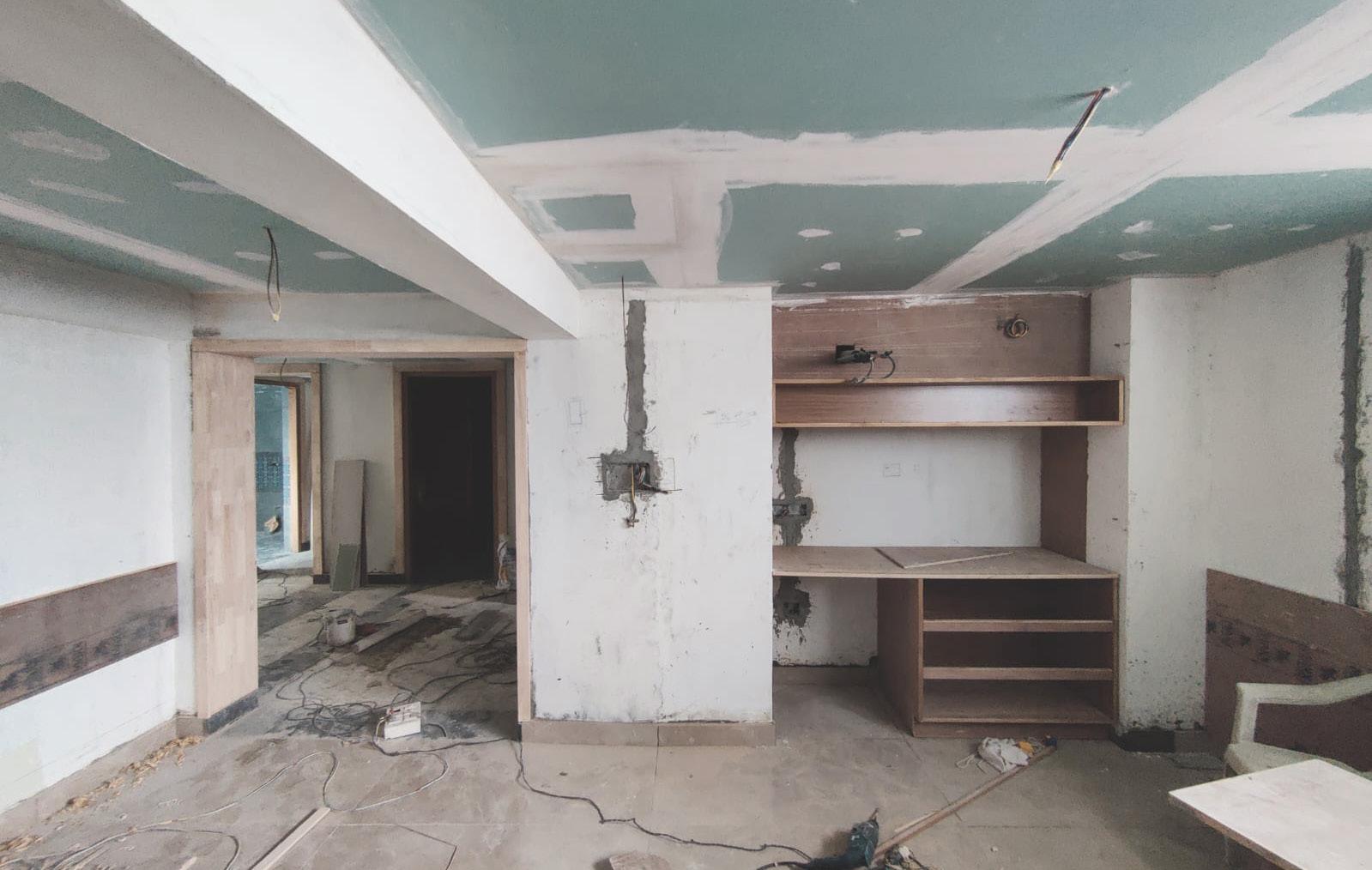

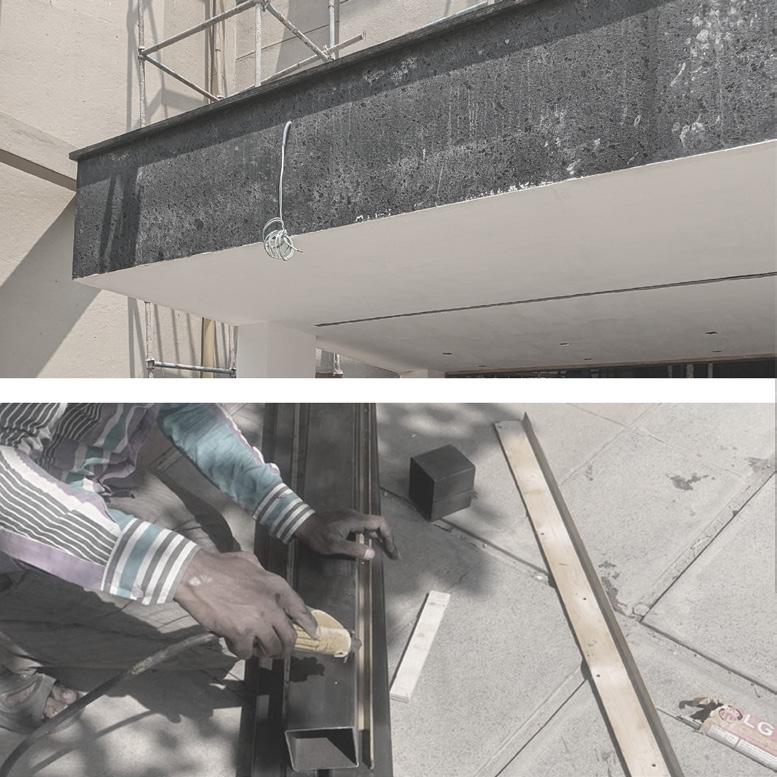

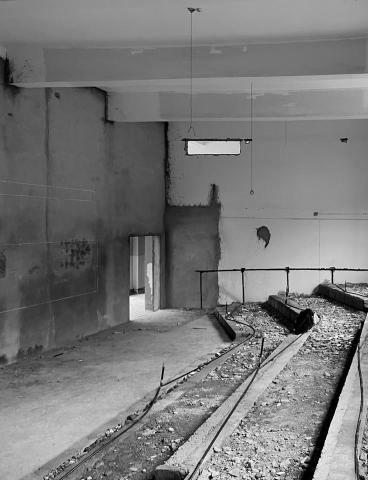

Demolition work Removal of exisiting wall, flooring, door, window , slab and existing steps to introduce new staircase.

Use of debris in classroom steps as filler.

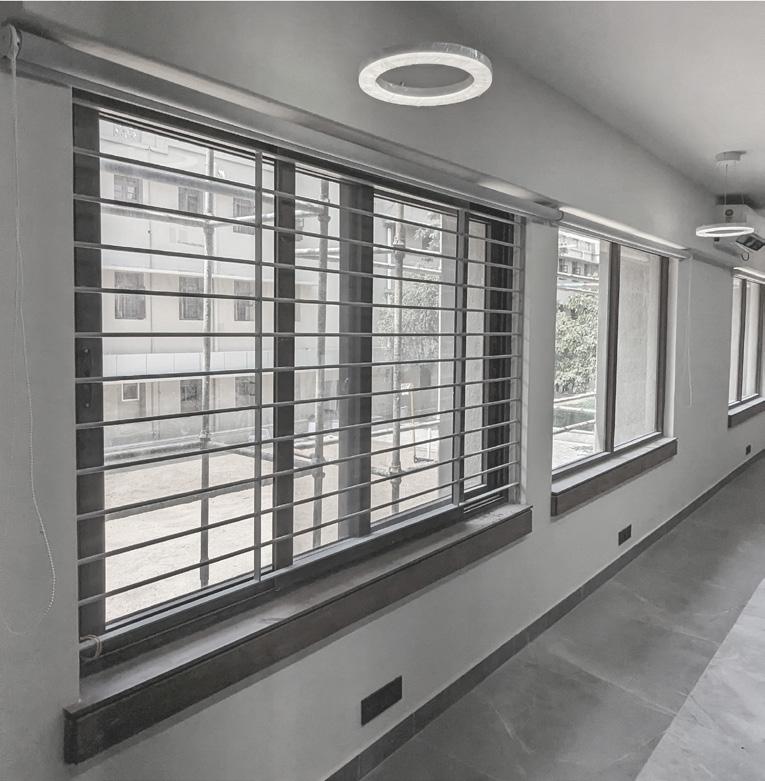

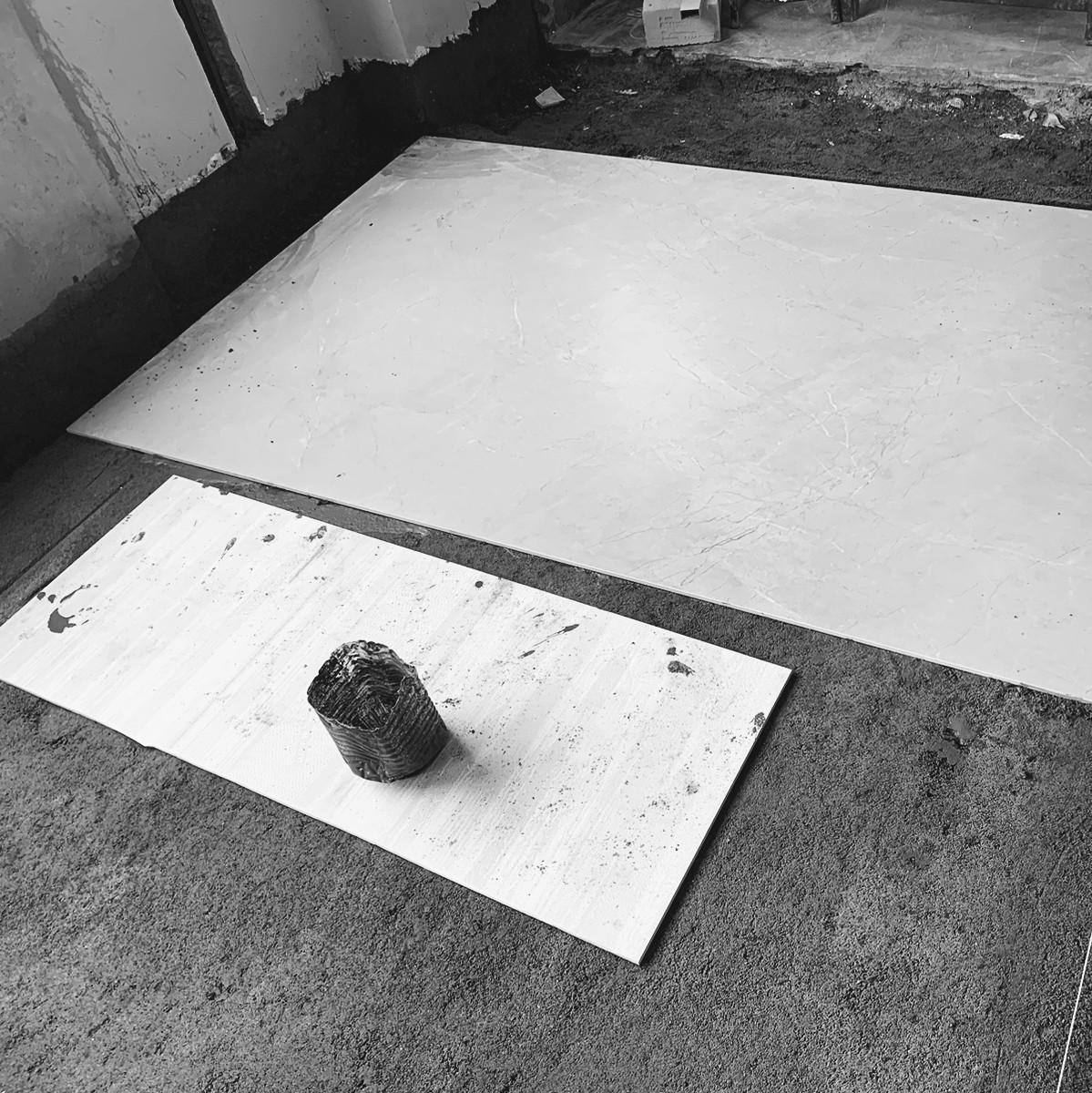

Civil work New masonary and partition wall to create new space. Different type of floorings as per spaces requirement. Newly design window, jaalis and door.

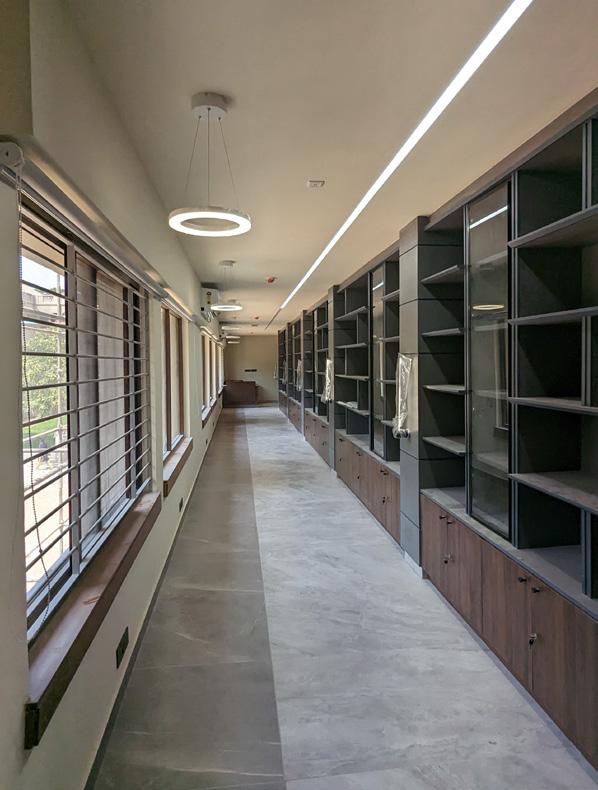

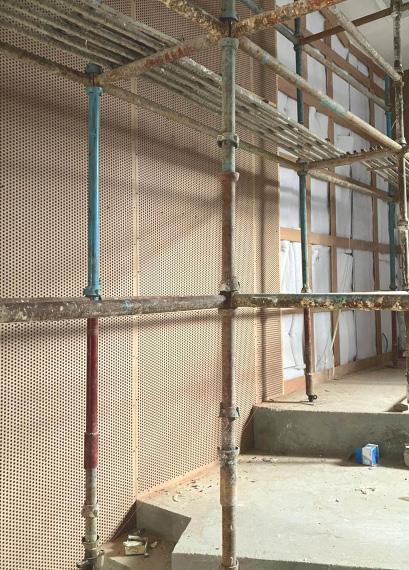

Carpentary work Acoustical panels, doors for classroom and discussion room, with newly design for furnitures, bookshelves and wall panels.

13

9 10

6 5 3 2

4

7

1

8

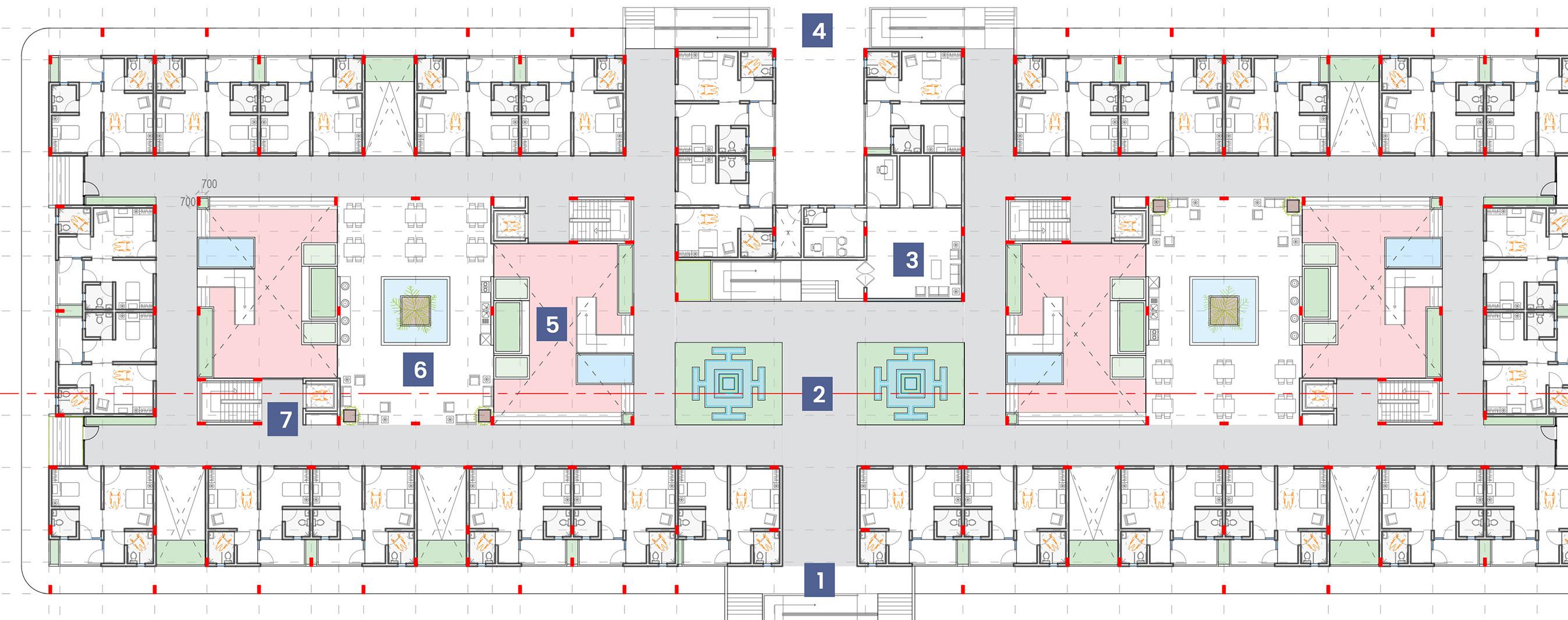

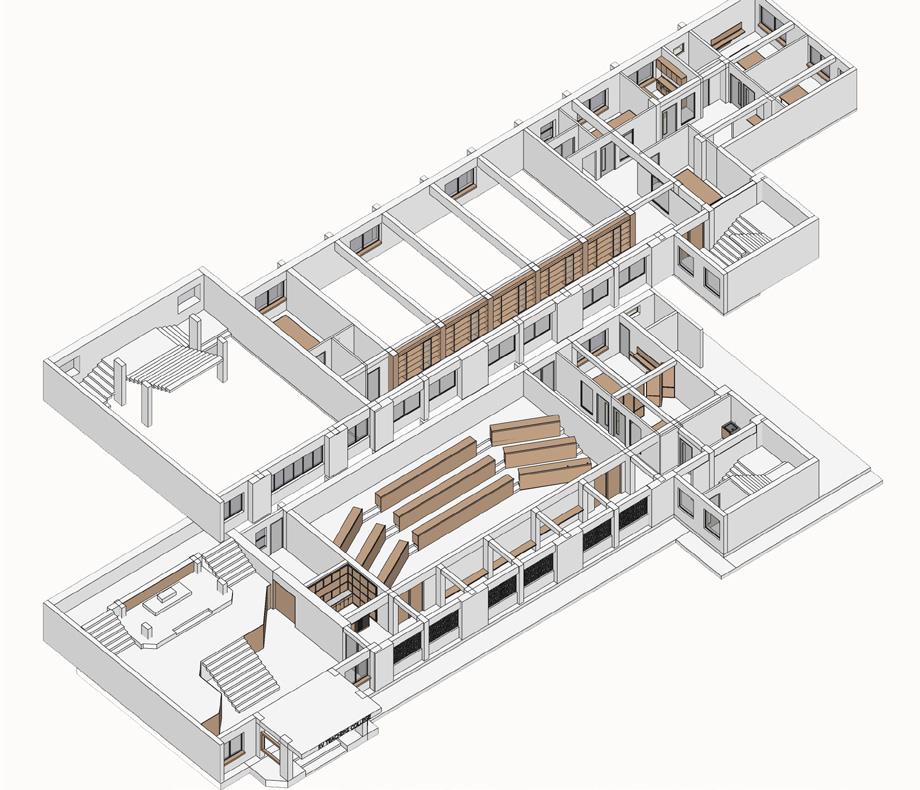

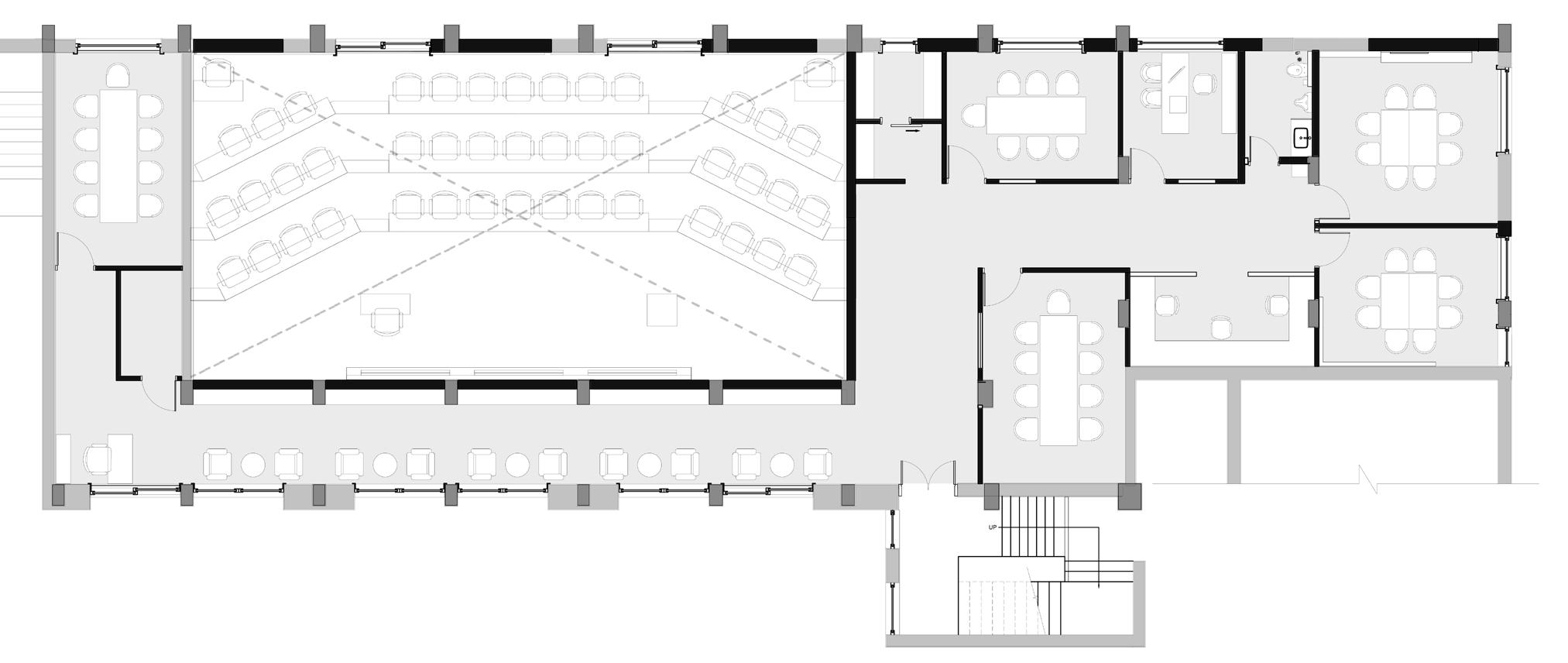

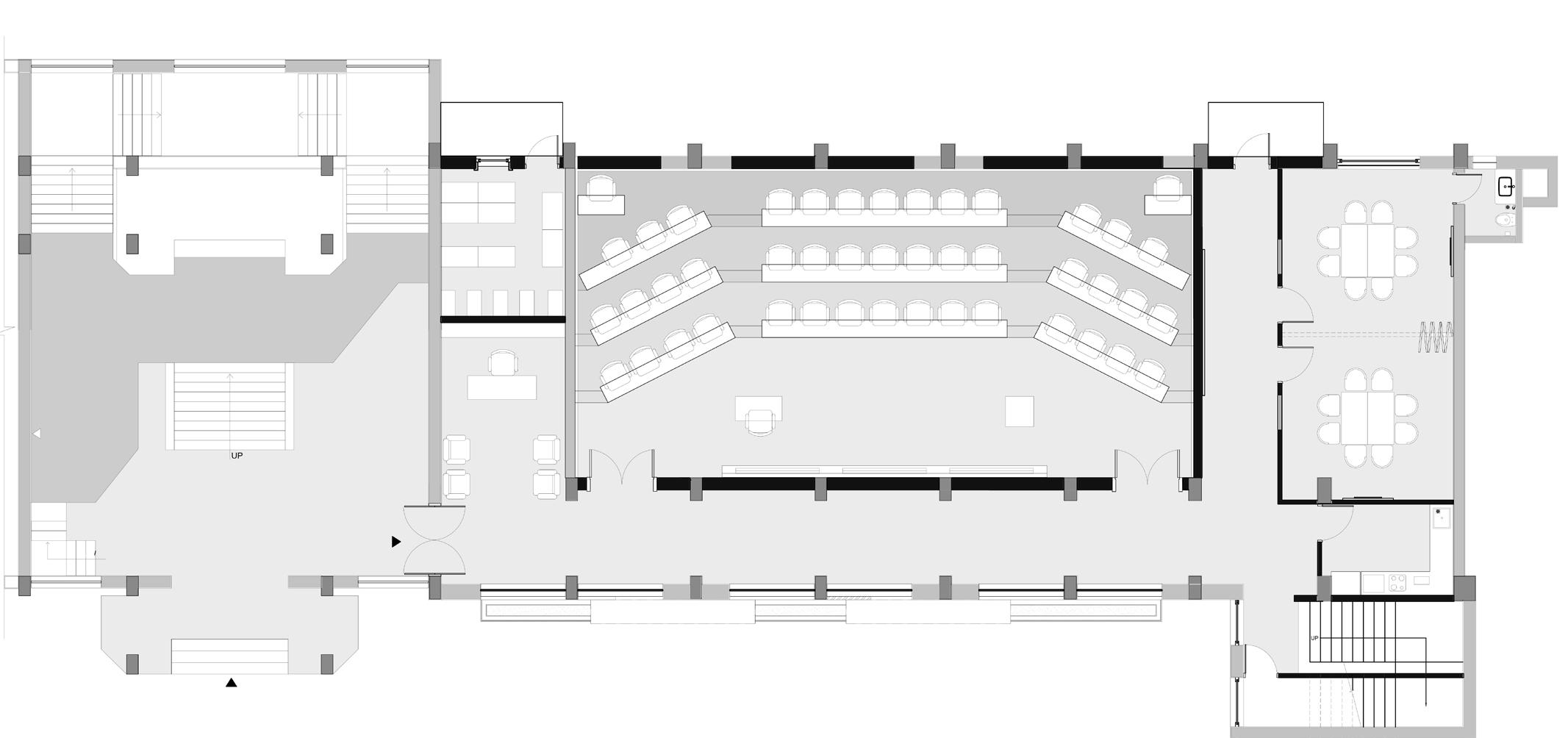

Ground Floor Plan

9

6 12

6

13

6

6

6 11

First Floor Plan

Legends1. Entrance Portico 2. Entrance Lobby 3. Reception 4. Corridor 5. Classroom

14 Studio Work | 2023

6.

7.

8.

9.

Discussion room 1-7 Pantry New Staircase Toilet

10. UPS room 11. Library Corridor 12. Director’s Cabin 13. Open office

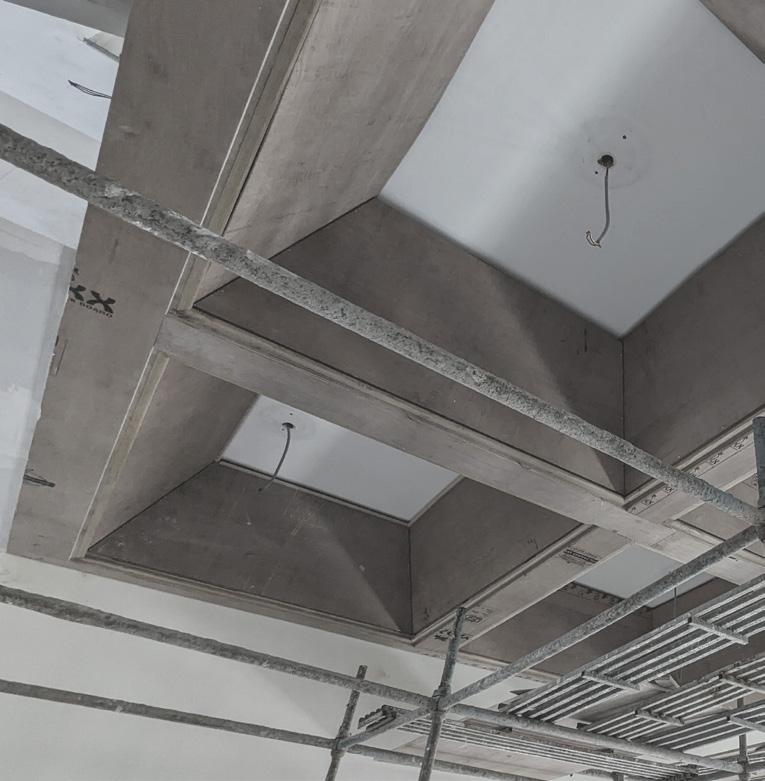

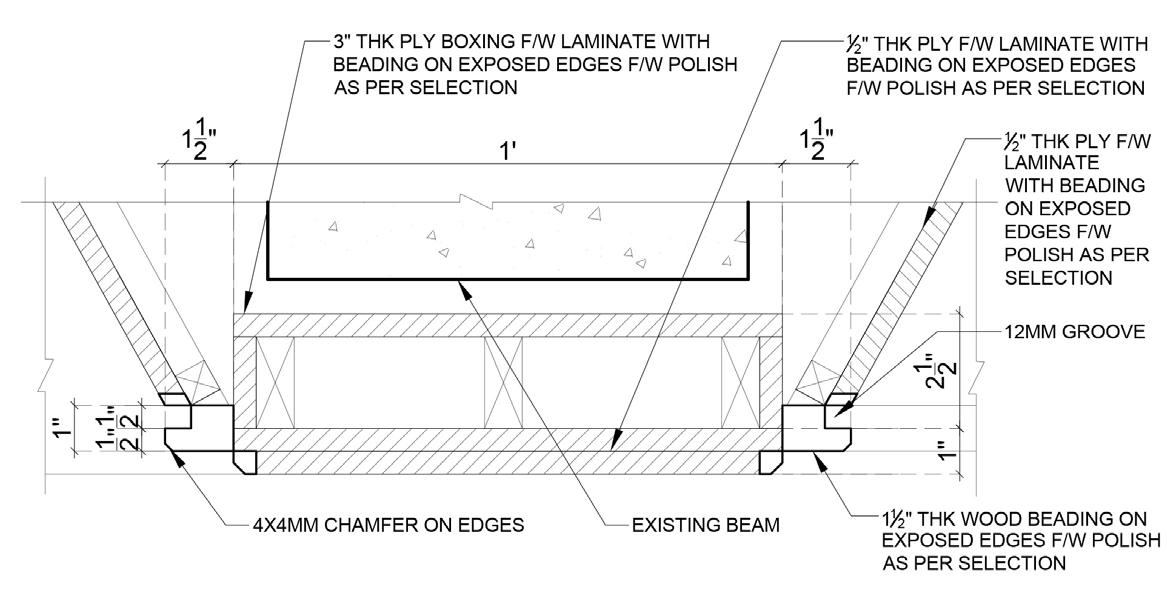

1. DETAIL @Entrance Lobby Ceiling

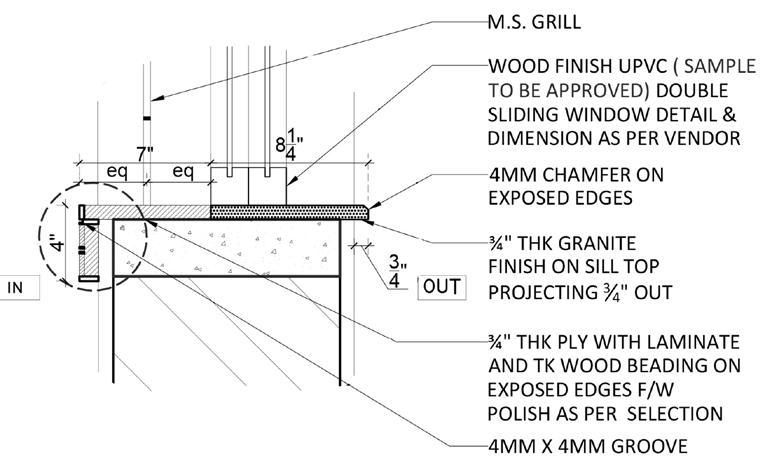

3. DETAIL @Window Edges

15

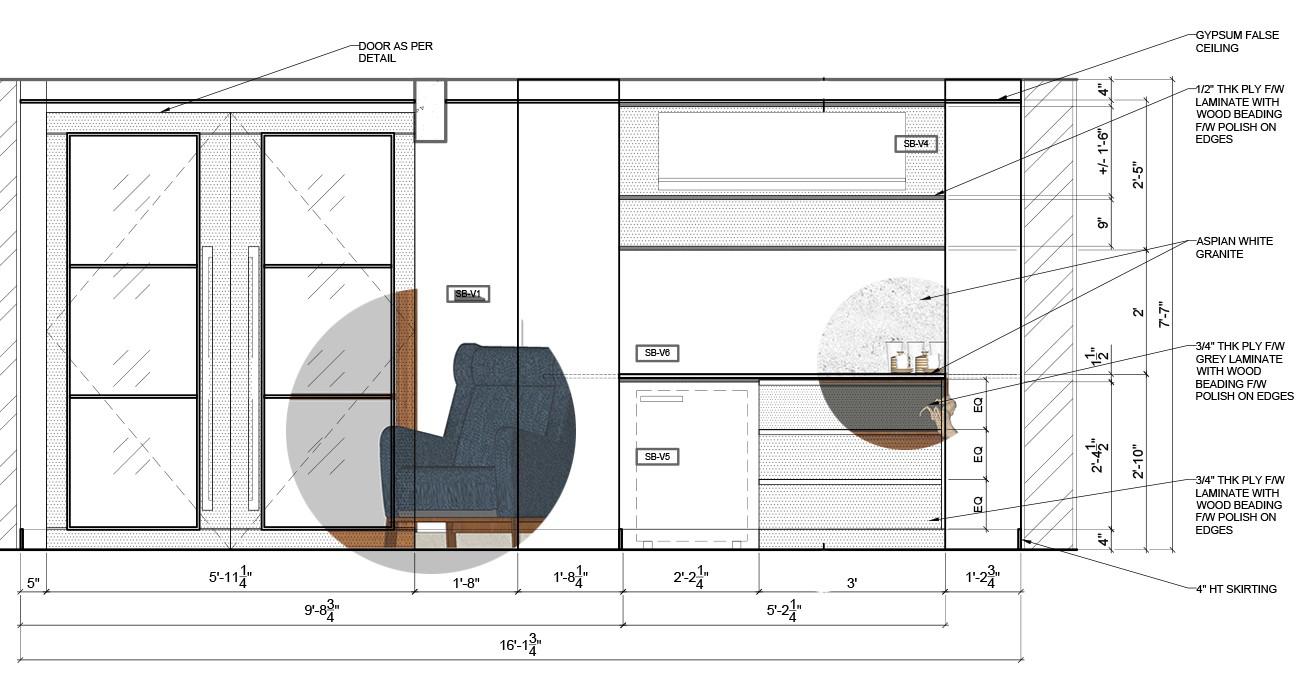

Sectional Elevation

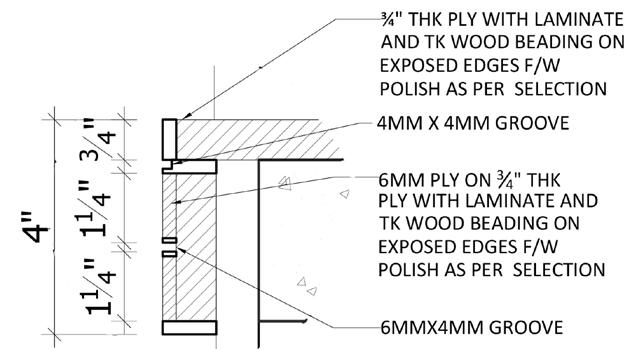

12mm Polyester fiber panel board 4mm Wood beading 25mm Perforated acoustic wood board 12mm MDF Board 300mm Existing wall 50mm Metal framework 50mm Insulation 25mm Linear acoustic wood board

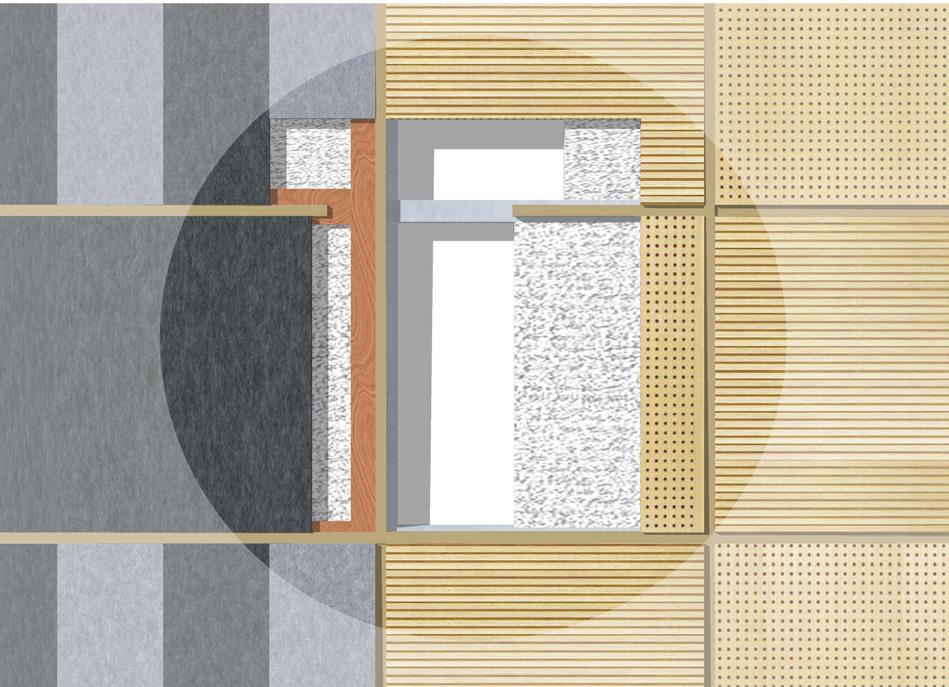

4. DETAIL @Acoustical Panel

16 Studio Work | 2023

17

02 Renovation: RV VIP Lounge Total Area4065 sq.ft

Status-

Completed

Team-

Principal Ar. Meghana Dutta Junior Ar. Ayush Singh

18 Studio Work | 2023

Our objective was to uplift the existing space for visitors and create waiting area with all necessary facility. The finshes and material are kept same as managment block.

Legends 1. Entry Lobby 2. VIP Lounge 3. Store room 4. Dry Pantry 5. Toilets 6. Janitor Room 01

05

02

03 06 04

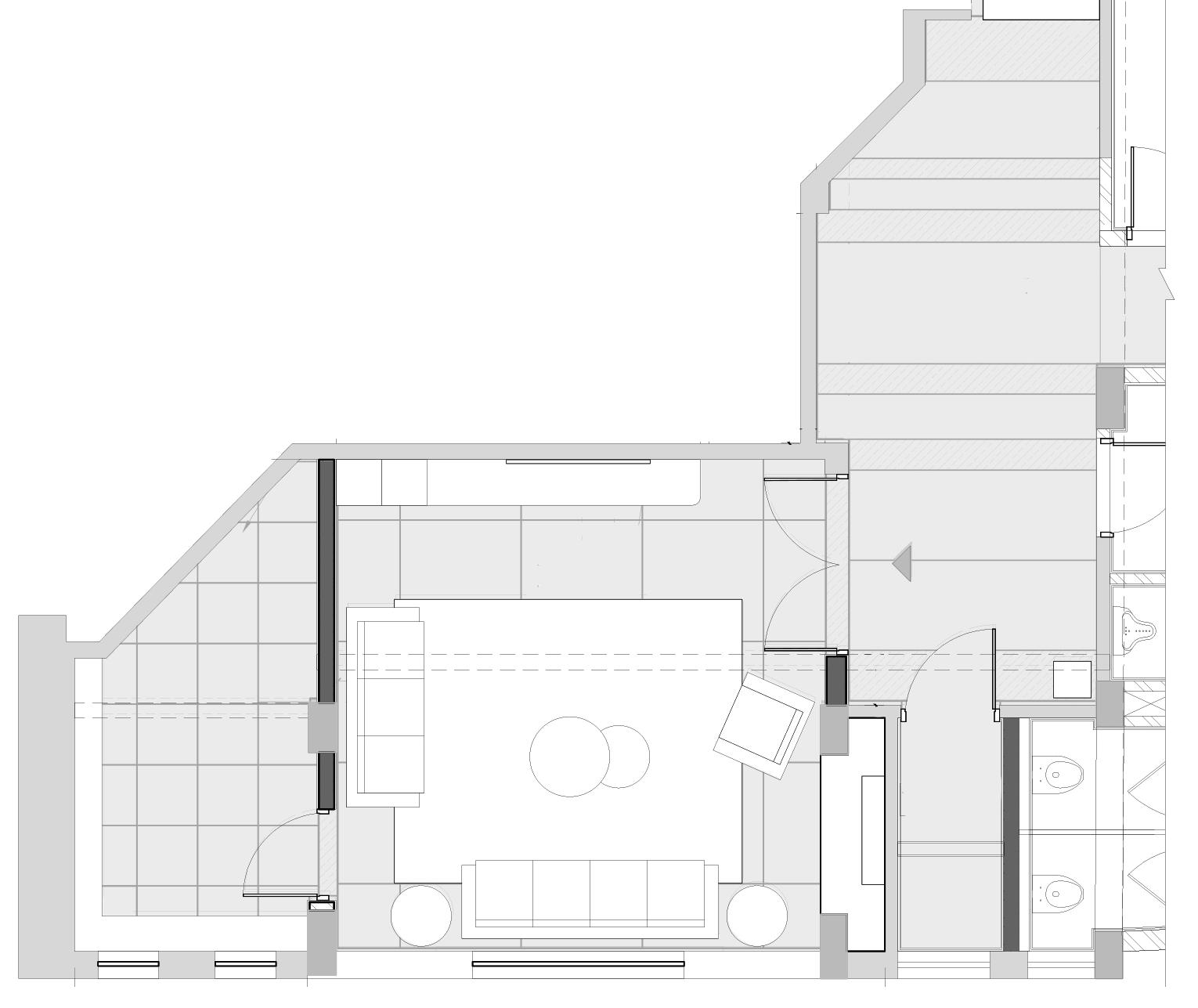

Basement VIP Lounge Plan

2

5 4

2

1

6

1

Materials 7 Natural Linen

Desert Dreams

3

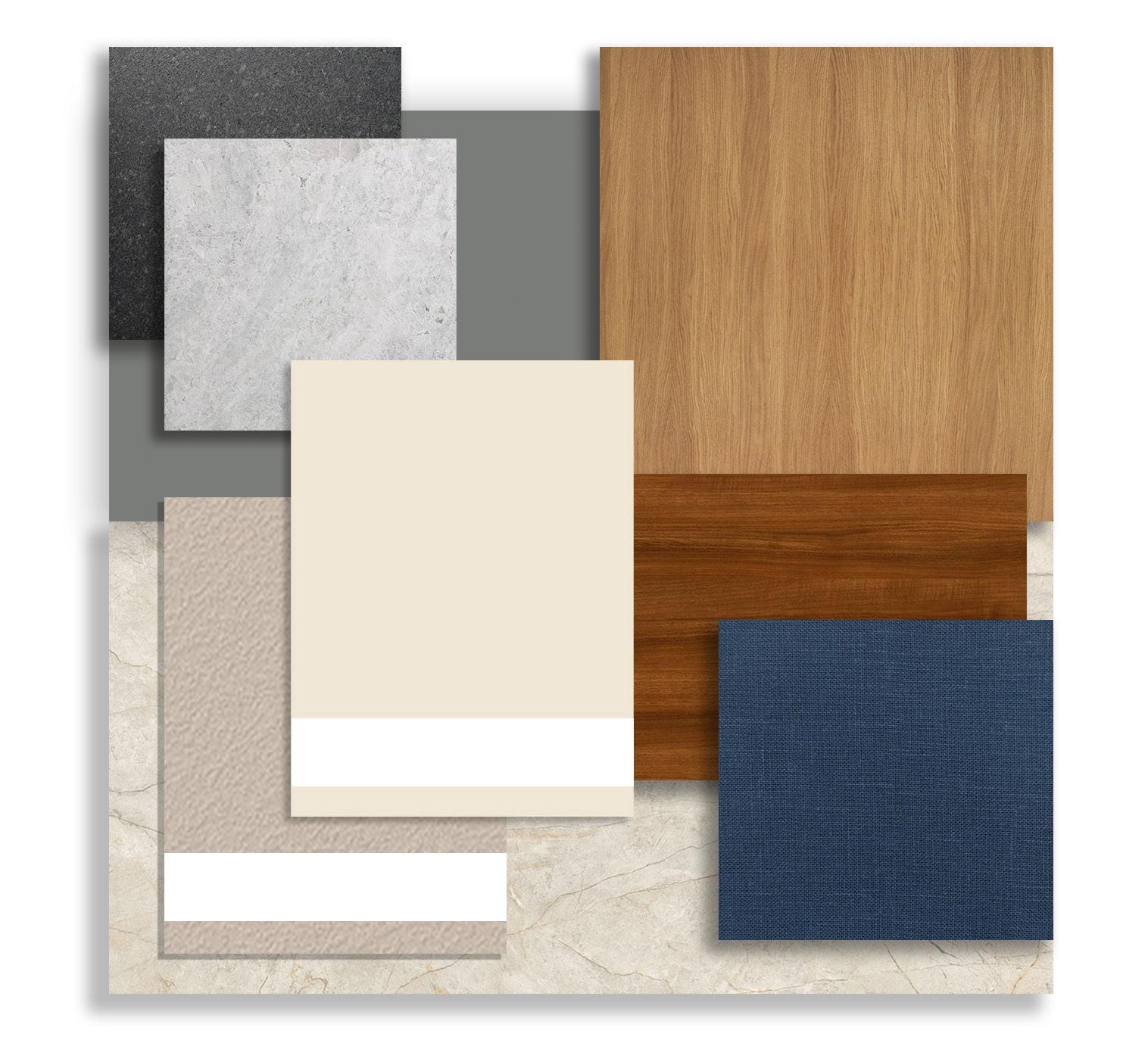

1. Texture Paints 2. Aspian white & Steel Grey Granite 3. Vertified Marble Finish Tile 4. Solid Grey Laminate 5. Saturno Walnut Laminate 6. Dark Polish Finish Laminate 7. Blue Fabric

19

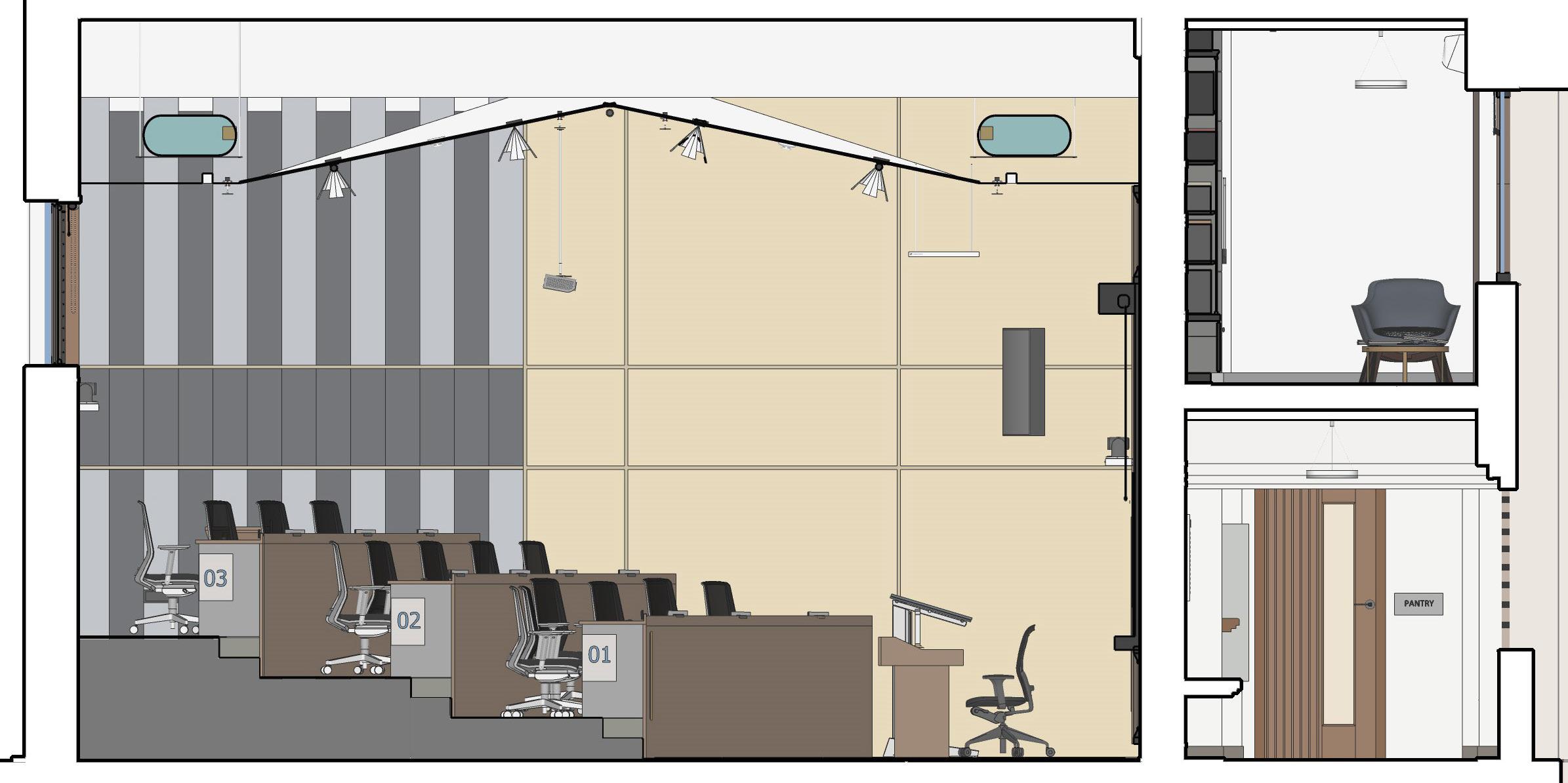

Sectional Elevation

Interior View

20 Studio Work | 2023

21

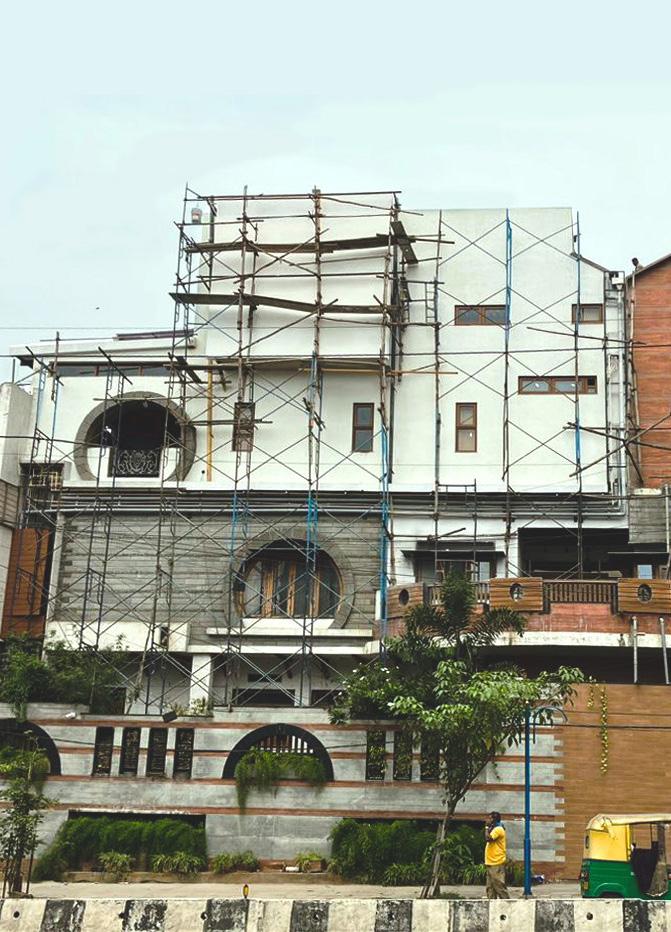

03 Extension: Bysani Residence Total Area2205 sq.ft

StatusOngoing

Team-

Principal Ar. Meghana Dutta Senior Ar. Shiraj Kharb Junior Ar. Ayush Singh

22 Studio Work | 2023

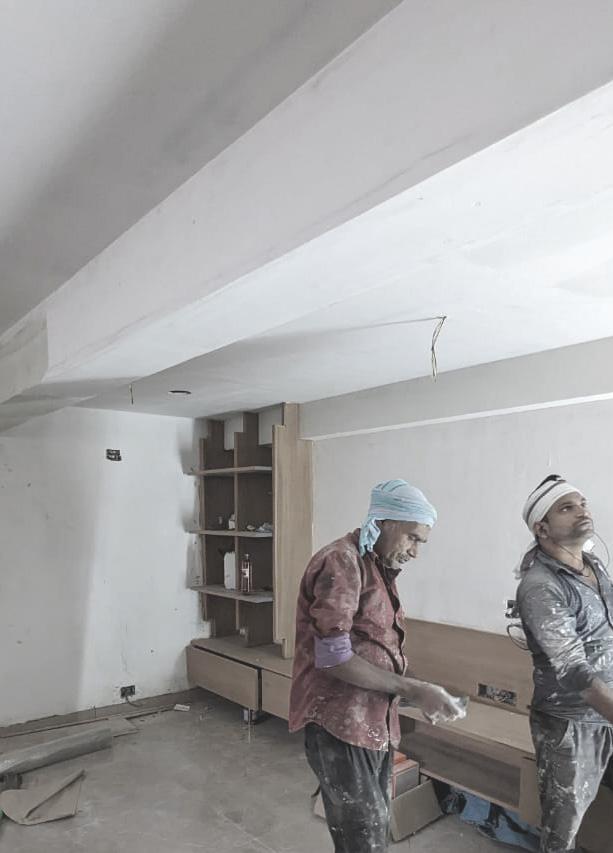

The project was an extention of two floor to an existing two floor residence of two brothers. The project was divided in two phase for two brother. I worked on the electrical and interior details as per proposed design.

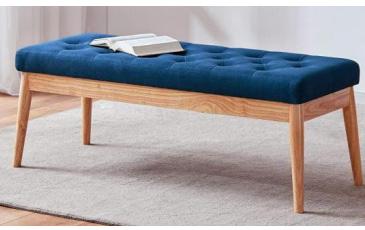

Material Selection

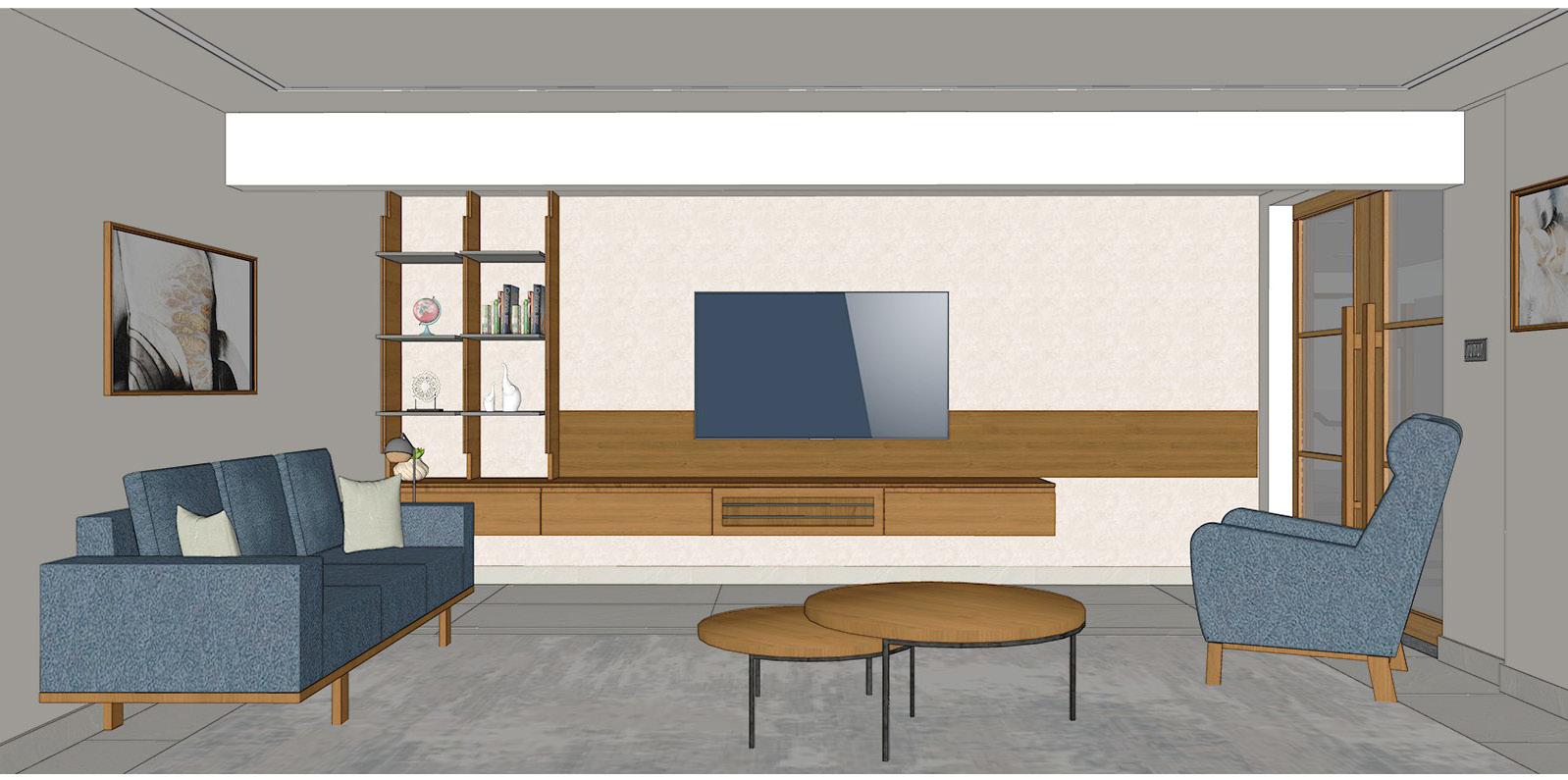

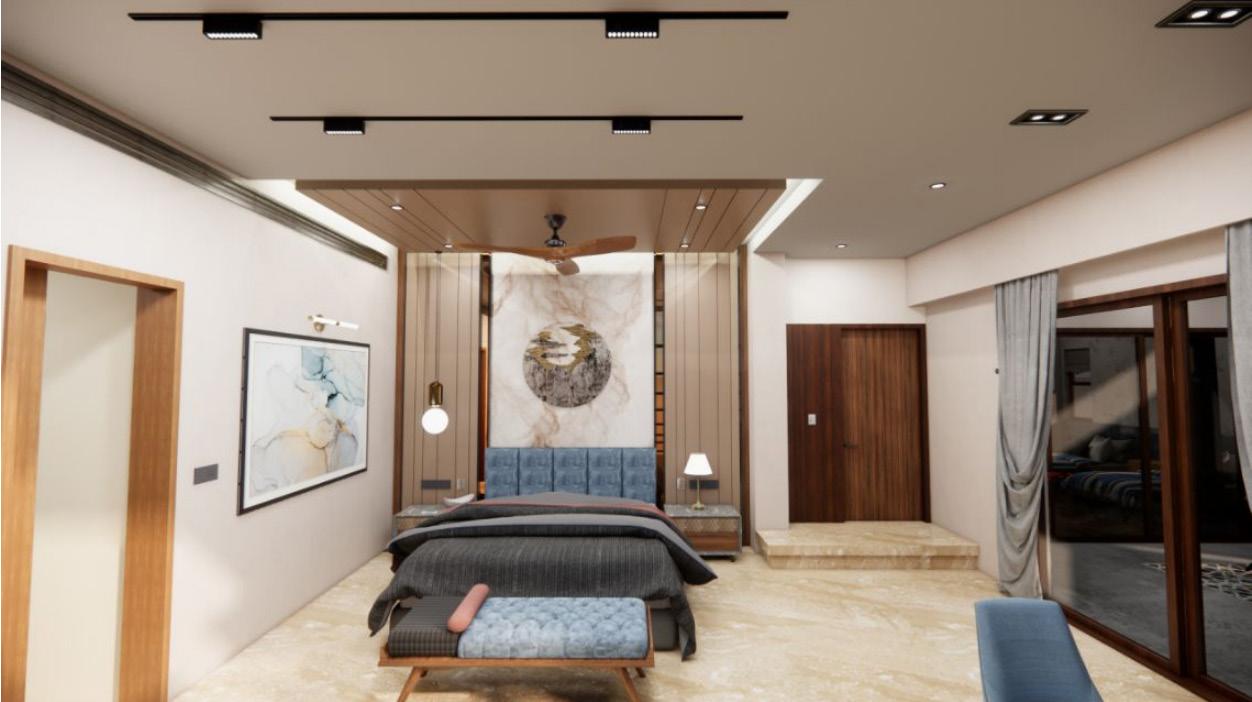

Master Bedroom

23

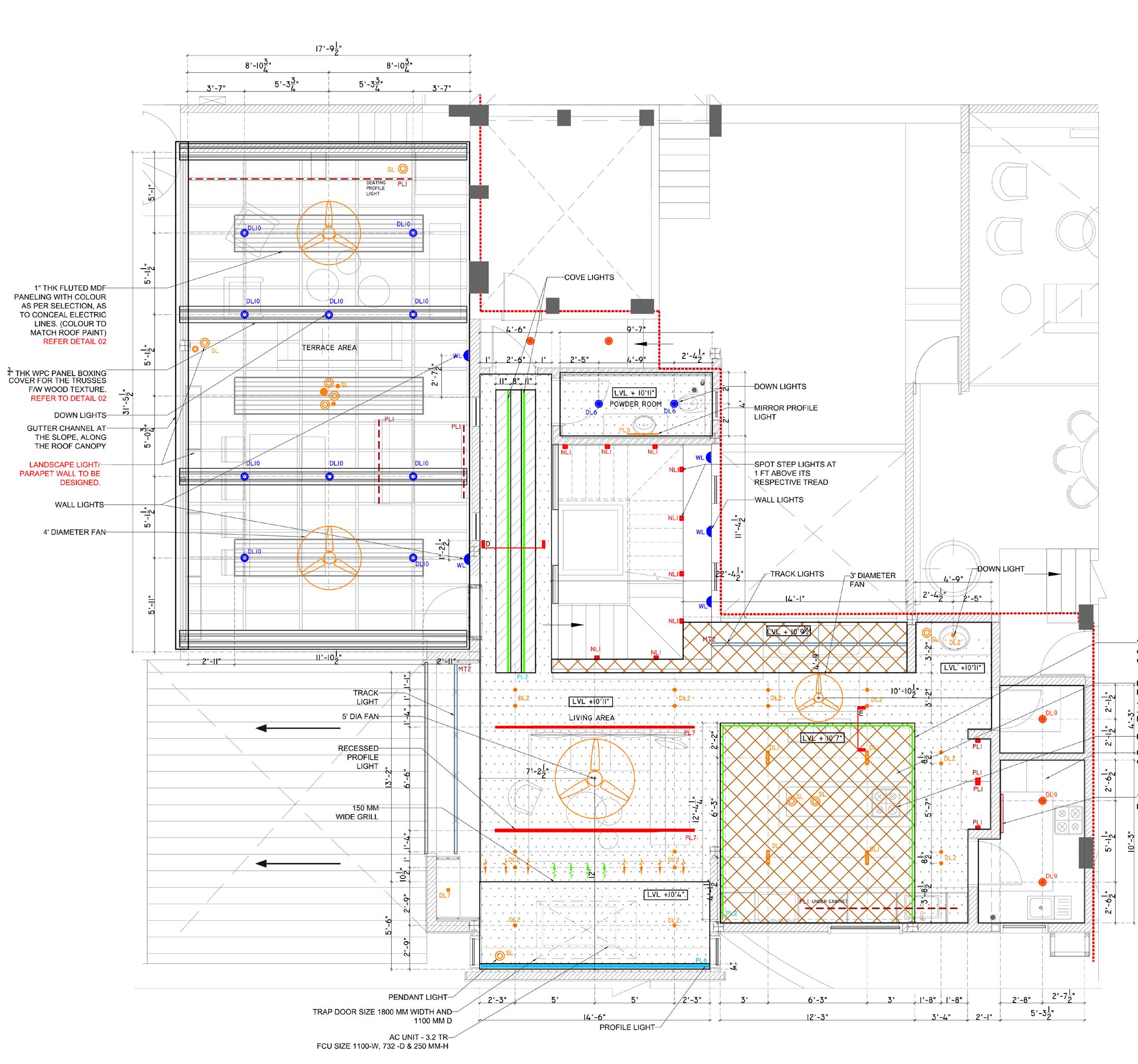

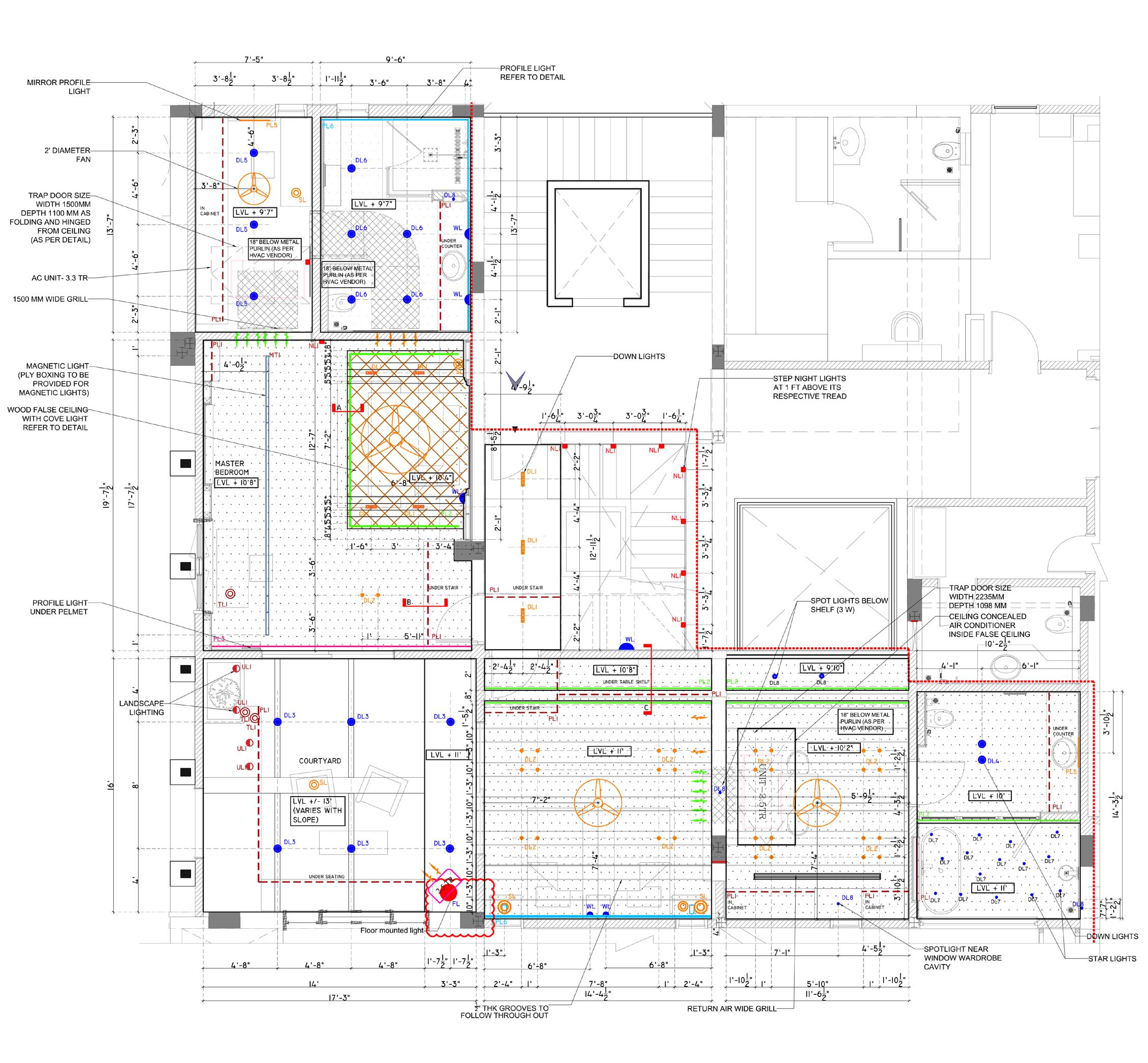

Second Floor Lighting Layout

24 Studio Work | 2023

Third Floor Lighting Layout

25

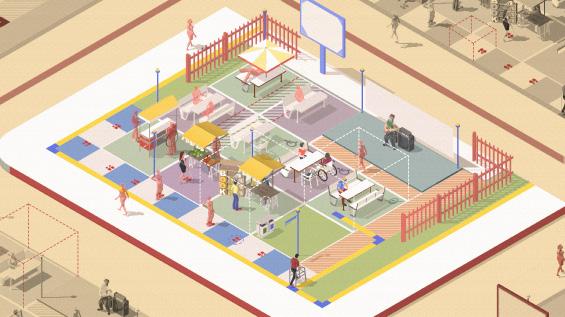

Desgin Competition 6 feet Apart is an inclusive streetscape that aims to create a social venue that brings diverse groups together. We are bound to maintain the 6 feet distance which created an opportunity for people with disabilities to access the public spaces.

26 Misecellaneous
