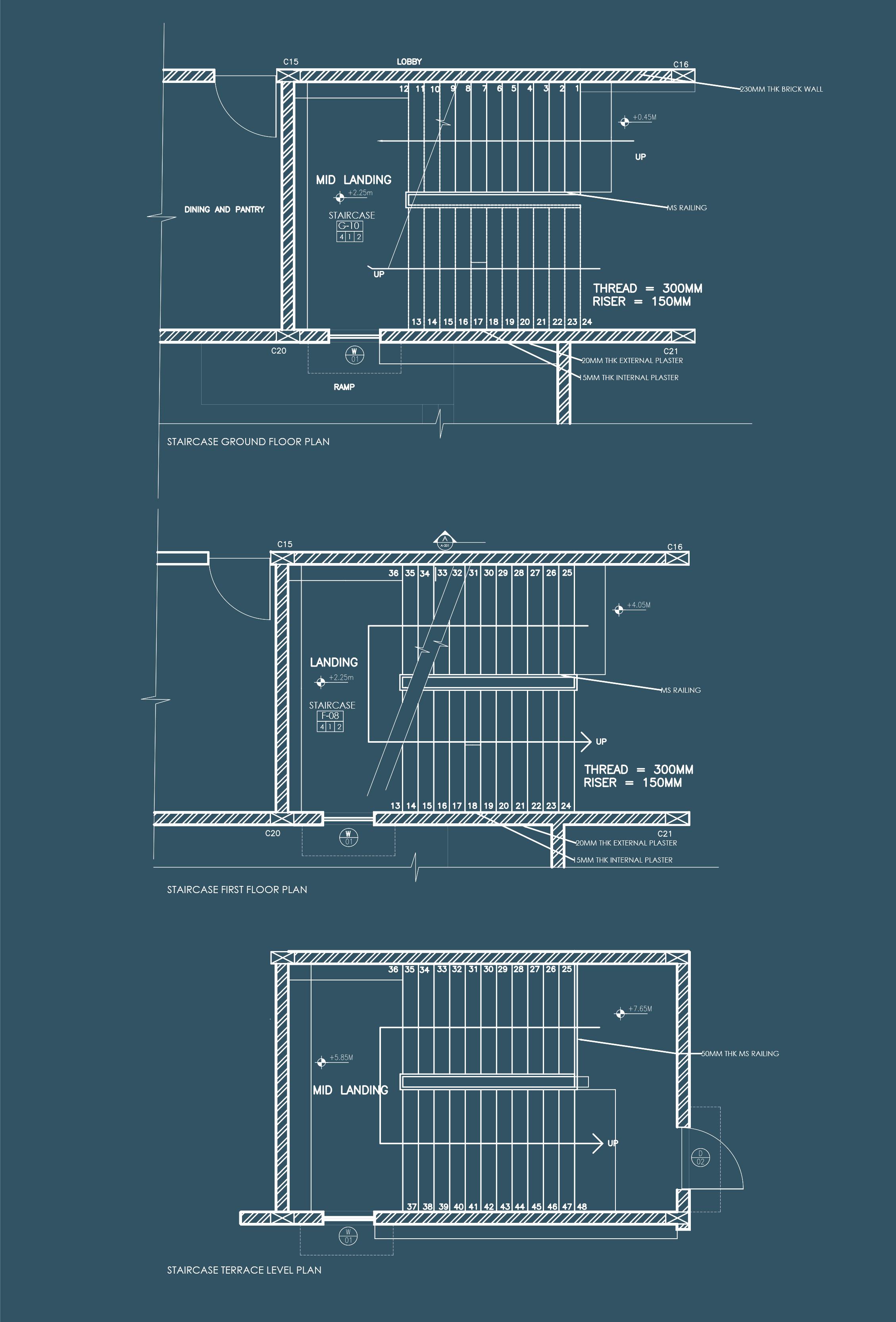

HANDRAIL 50MM DIA MS BALUSTER 30 MM THK TREAD 300MM 50 MM THK FLOORING 150 MM THK RCC SLAB RCC BEAM MS BALUSTER CHEMICAL GROUT RISER 150 MM THK RAILING OF 10 MM DIA FIXING PLATE 10 MM THK NOSING 5 MM THK TILE FLOORING AS PER DETAIL 20 MM PCC GROUT 12 MM PLASTER RISER DETAIL HANDRAIL DETAIL STAIRCASE LOBBY 1100 HIGH MS RAIL (AS PER DETAIL) 20MM THK EXTERNAL PLASTER 15MM THK EXTERNAL PLASTER 450.0000 1800 1800 1800 1800 2100.0000 1500.0000 608.5009 MUMTY TOP LEVEL +11.86M MIMTY LEVEL +11.25M LINTEL LEVEL +9.75M SECOND FLOOR LEVEL +7.65M MID LANDING LEVEL +5.85M FIRST FLOOR LEVEL +4.05M MID LANDING LEVEL +2.25M PLINTH LEVEL +0.45M STAIRCASE SECTION

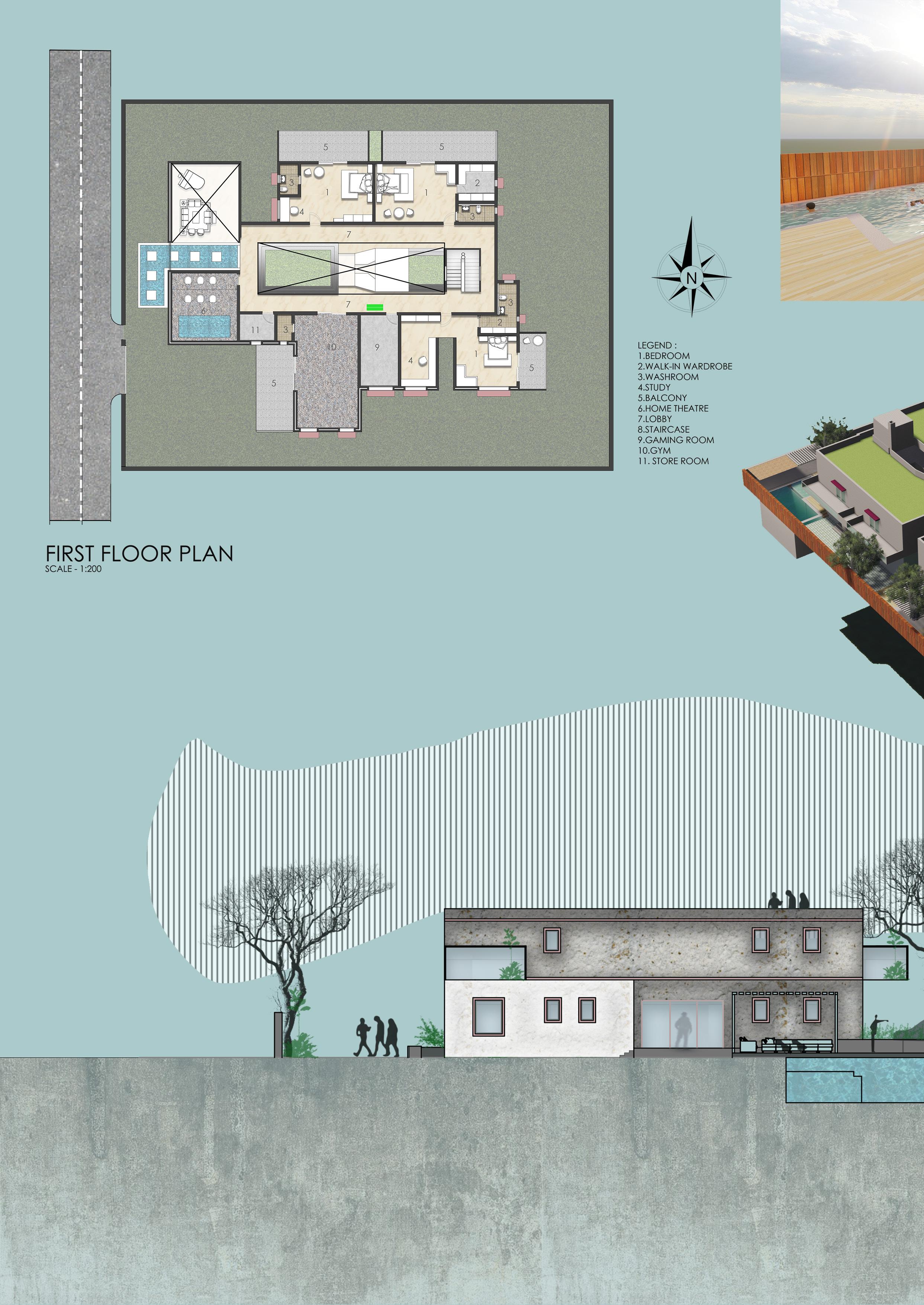

First floor plan
Ground floor plan
Terrace floor plan
Site plan
G-06 WELLNESS ROOM G-04 WAITING SPACE G-08 G-09 PUBLIC RELATIONS OFFICER FRONT OFFICE 4 3 2 G-16 4770 4770 4770 X 4000 4770 X 6080 4770 8230 BALCONY F-06LOCKER ROOM F-03F-09 WOMEN'S WASHROOM 3000 4770 3000 X 4770 4770 X 4000 brick parapet wall 1100mm high 600mm wide chajja below
ADMINISTRATIVE BUILDING
Section AA'
Section BB'
Section CC'
South side elevation
West side elevation
North side elevation
WATER PROOFING 600 MM WIDE CHAJJA WATER PROOFING 230 THK PARAPET WALL WATER PROOFING PCC COPING WATERPROOF EXPULSION PAINT ON EXTERNAL WALLSF-14 4770 7000 4770 X 4770 4770 8230
MEN'S WASHROOM G-01 F W C ANTI SKID TILE 500X500 NAHANI TRAP 230MM THK EXTERNAL WALL 20MM THK EXTERNAL PLASTER NAHANI TRAP 100 DIA 150MM THK INTERNAL WALL B' B D' D A-405 A C A-201 A A-201 C' A-201 A-405 A-405 A-405 TOILET LAYOUT PLAN TOILET TILING PLAN STARTING POINT SINGLE LEVER BASIN MIXER 20MM THK MIRROR DADO LINE GROUND LEVEL +0.0 PLINTH LEVEL +0.45M LINTEL LEVEL +2.55M UPPER SLAB LEVEL +3.95M GROUND LEVEL +0.0 PLINTH LEVEL +0.45M LINTEL LEVEL +2.55M UPPER SLAB LEVEL +3.95M GROUND LEVEL +0.0 PLINTH LEVEL +0.45M LINTEL LEVEL +2.55M UPPER SLAB LEVEL +3.95M GROUND LEVEL +0.0 PLINTH LEVEL +0.45M LINTEL LEVEL +2.55M UPPER SLAB LEVEL +3.95M DADO LINE DADO LINE DADO LINE WALL HUNG WC URINAL HEALTH FAUCET DROP-IN BASIN SINGLE LEVER BASIN MIXER WALL HUNG WC FLUSH TANK SILL LINTEL MIRROR LINTEL PARTITION WALL SECTION AA' SECTION BB' SECTION CC' SECTION DD' WASHROOM
DETAILS
