Swimming Goggles 2026

4

6

8

12

14

16

• Any prescription, fully customized, ask about our full Rx service • Accommodate all types of lenses, e.g. clear, tinted, anti-fog coated, UV-block, for crisp vision under water.

• Hypo-allergenic, latex free, silicone eye-seals and strap.

• Soft neoprene pouch included.

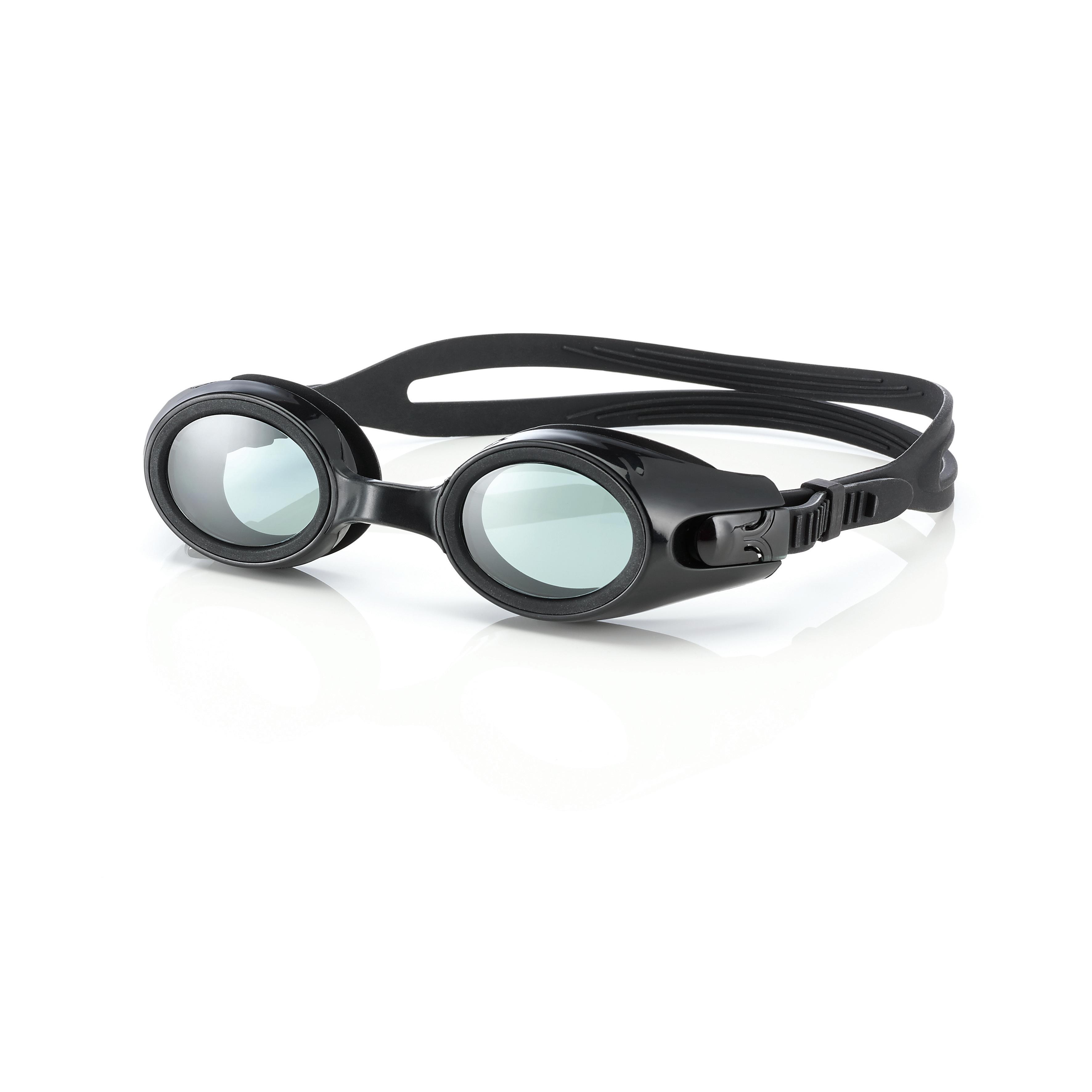

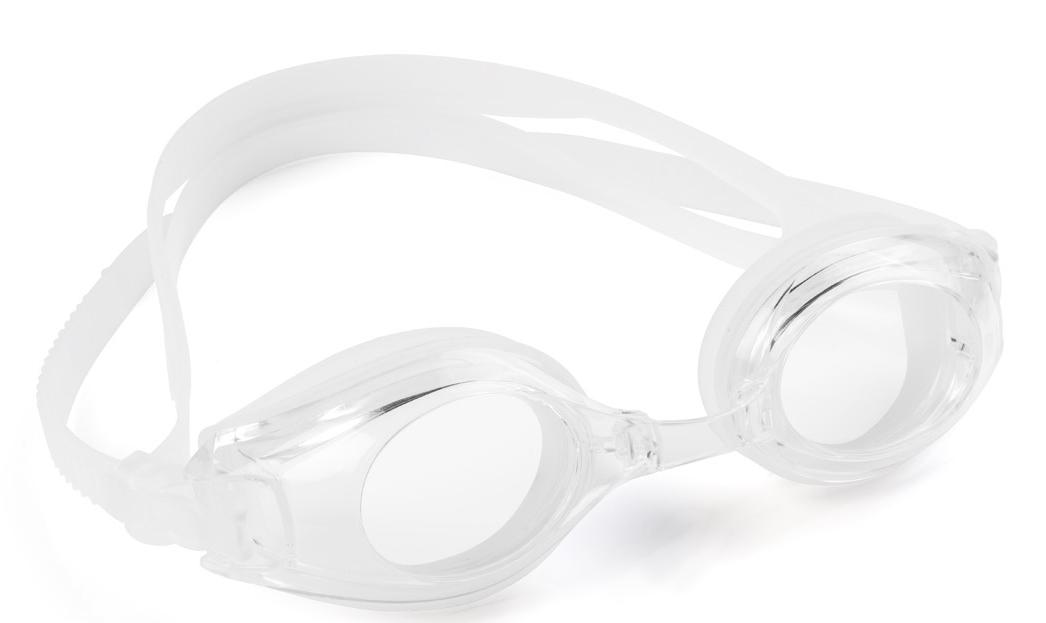

HSV-1302

Large Cup Size

Adult Bridge sizes: L/M/S included

41.48mm

32.54mm

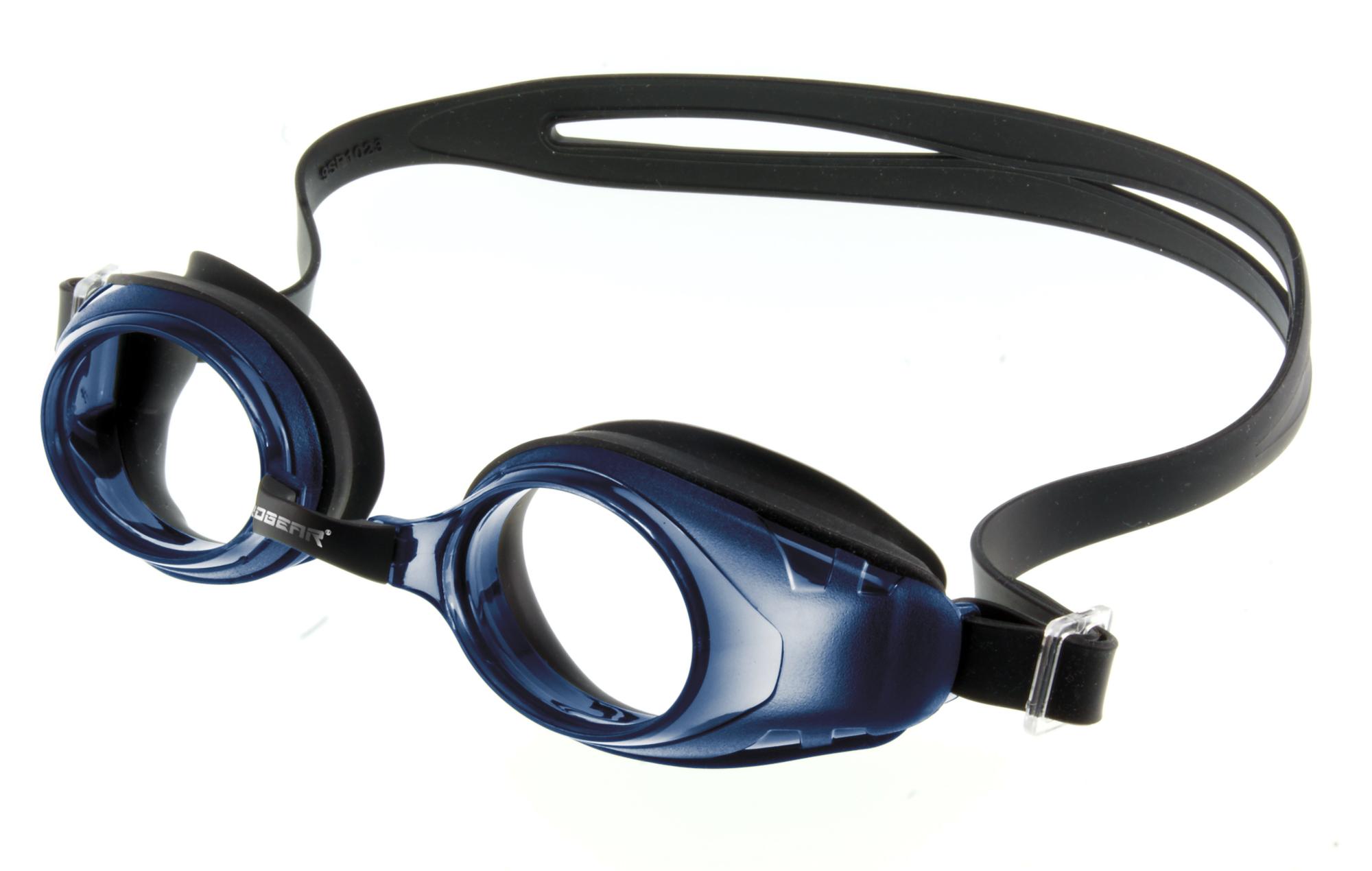

HSV-1302

Colour #1 - Smoke

HSV-1302

Colour #2 - Blue

HSV-1302

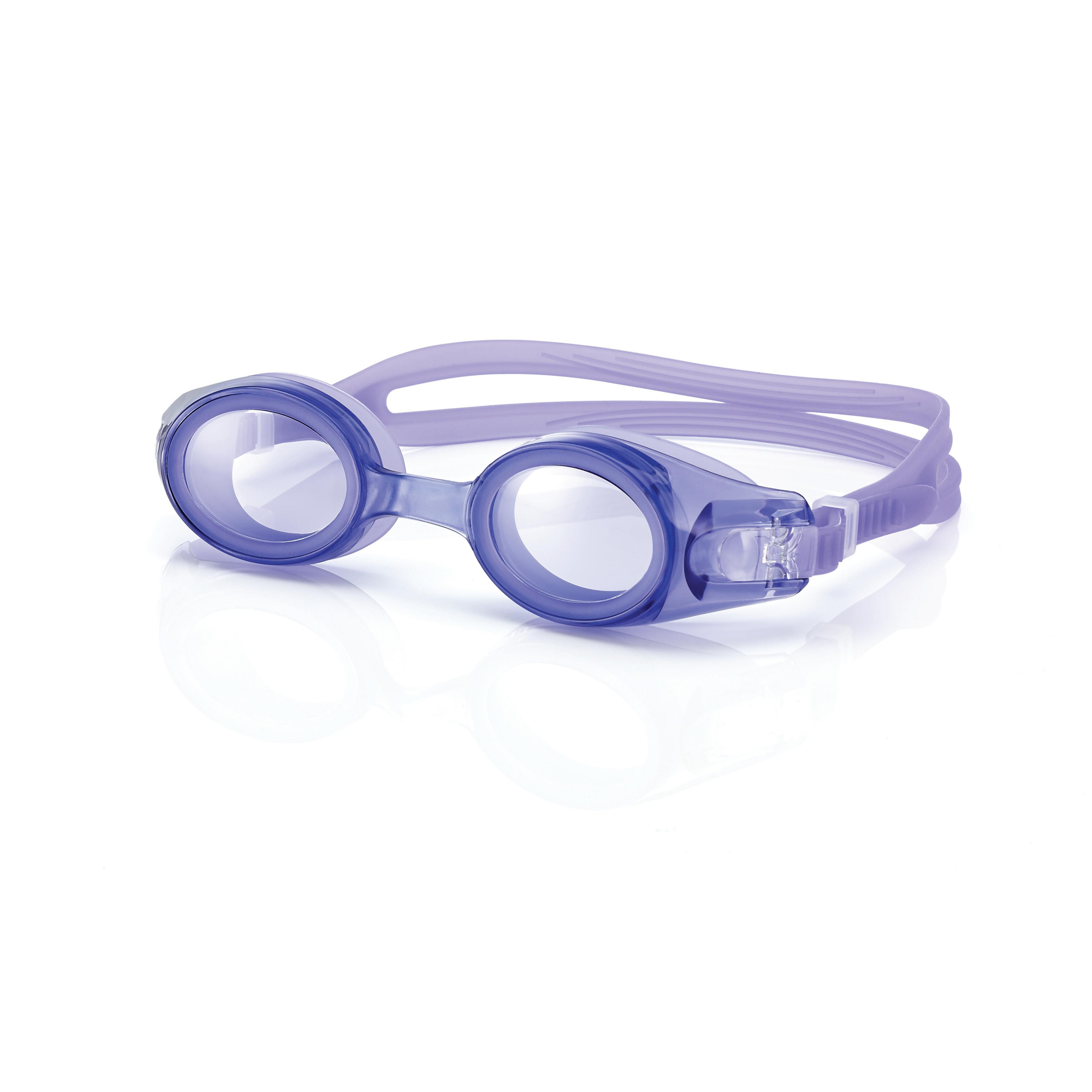

Colour #3 - Violet

4

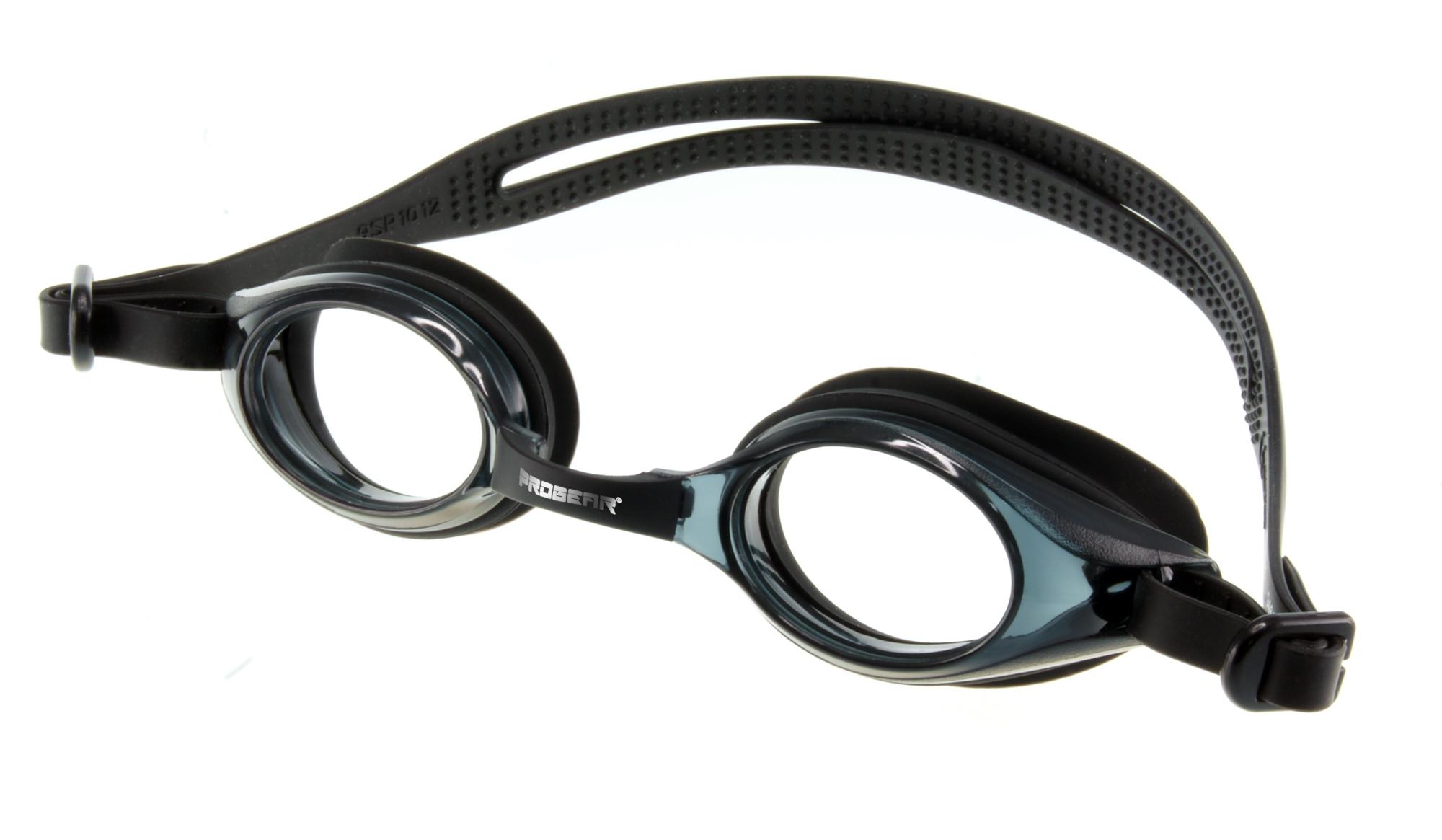

HSV-1301

Standard Cup Size

Adult Bridge sizes: L/M/S included

38.56mm

26.59mm

HSV-1302

Colour #3 - Violet

HSV-1302

Colour #1 - Smoke

HSV-1302

Colour #2 - Blue

Follow steps in picture 1 through 5. Insert a rubber seal (O-ring included in the package) in the frame groove from the front. The Rx lens is then pushed into the swimming goggles from the front. It is important for the rubber seal (O-ring) be properly applied to the inner edge of the frame. The rubber seal must completely disappear behind the lens after insertion. If necessary, push the lens forward out of the frame again and readjust the rubber seal. In case a small portion of the O-ring is dislocated after the lens is plugged in, apply a little force on the lens in the outward direction and use your finger nail to squeeze in the O-ring(picture 6).

1

2

3

4

5

6

5

Glazeable Ideal for prescription lenses

Soft silicone band, easy to adjust

N LENSES

CRIPTIO OR PRES

F

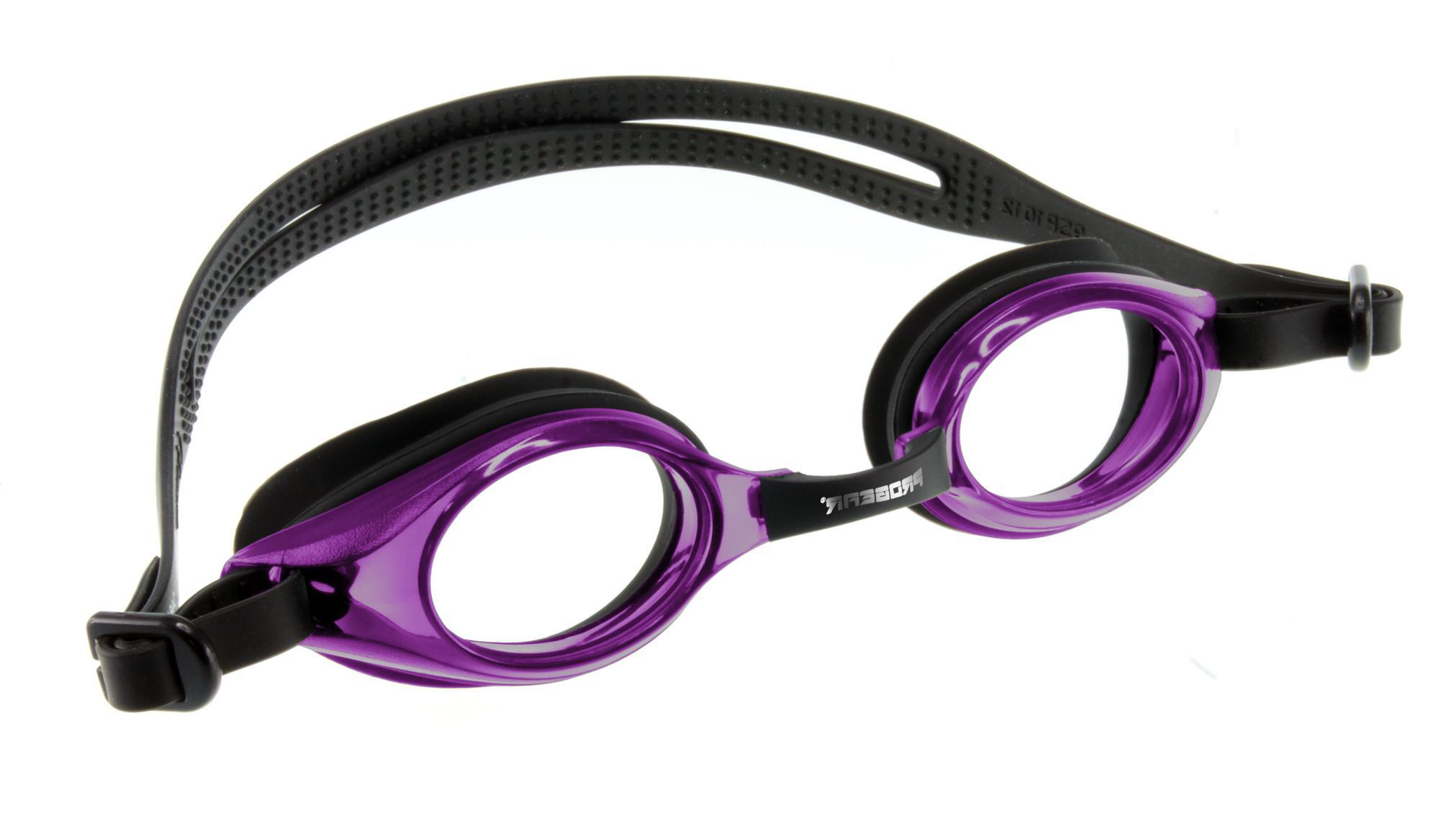

Eye-piece made of resistant, nondeformable plastic material.

Ref 12002

Colour Dark Purple

Soft silicone seal for a good adherence to the face.

Plain polycarbonate lens. Prescription lens.

Max. negative power: -10 dpt.

Max. positive power: no limit

6

Glazeable

Ref 12004

Ref 12003

Colour Crystal Blue

Colour Black

Ref 12006

Ref 12005

Colour Transparent Turquoise

Colour Transparent Purple

1

2

3

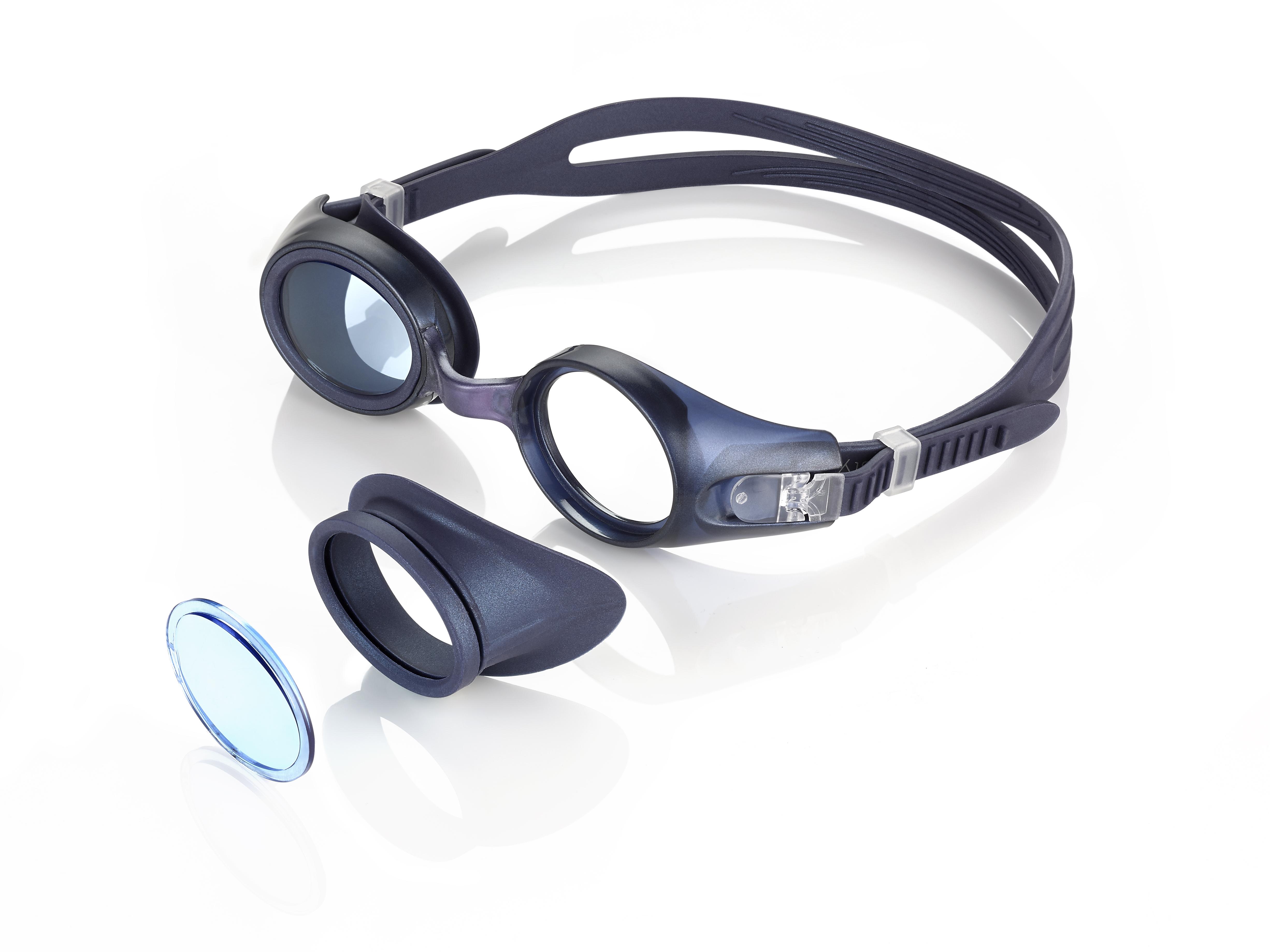

1. Remove the silicone ocular

2. Remove the Plano lens

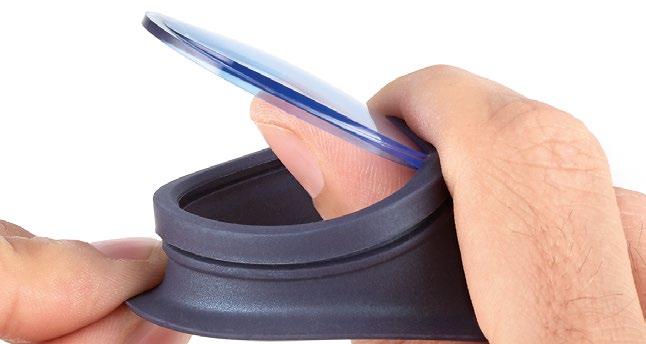

3. Inset the power lens into the silicone occular

1.5-1.8 mm

lens size 44x32,3 mm

1.5-1.8 mm

lens size 44x32,3 mm

2.2-2.5 mm

• Suitable lens type for security reasons and prismatic defects should be utilised polycarbonate or high index lenses with external base curves as flat as possible.

• In order to ascertain the correct fitting of the seal, the edge of the lens must measure between 2.2 and 2.5mm and have a thichness of 1.5 to 1.8mm (see drawings).

• In order to ascertain a sufficient shock proofness, the minimum thickness in the focal centre of a negative lens is 1.8-2.0mm (minimum thickness recommended for any lens).

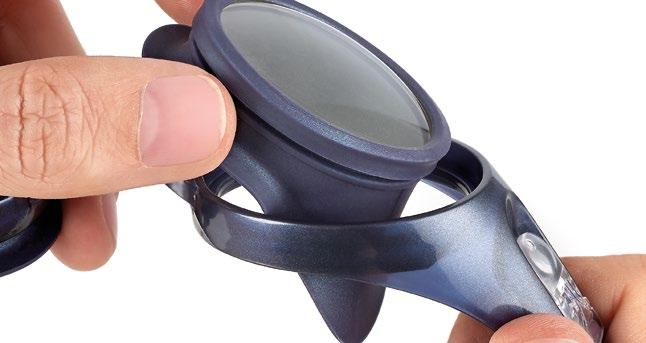

4 4. Place the ocular back into the frame.

7

Reactivate with a swipe!

After extended research, a new generation of anti-fog technology, "SWIPE ANTI-FOG" has been developed.

If the swimming goggle lens fogs, you can reactivate the anti-fog by simply swiping the lens with your finger.

Compared to other VIEW goggles, the new SWIPE goggle anti-fog lasts 10 times longer.

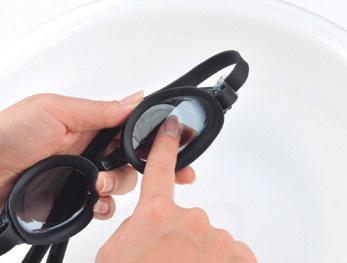

How to maintain: • Wet the inside lens surface and firmly swipe a few times with your finger.

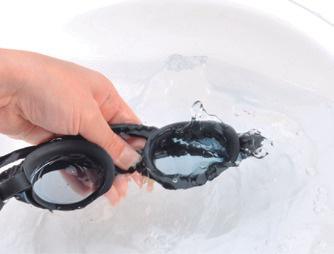

Wet the lens surface

8

Swipe the lens 5 to 10 times with your finger firmly

Rinse the lens surface with water

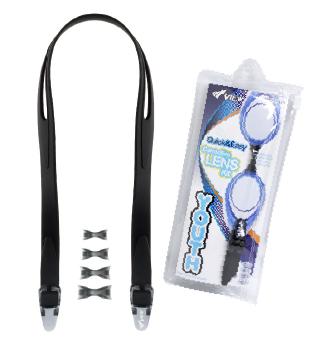

+ VC580AS

=

VPS570A PK

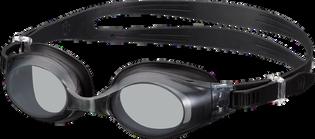

TABATA | VPS-570 ADULT

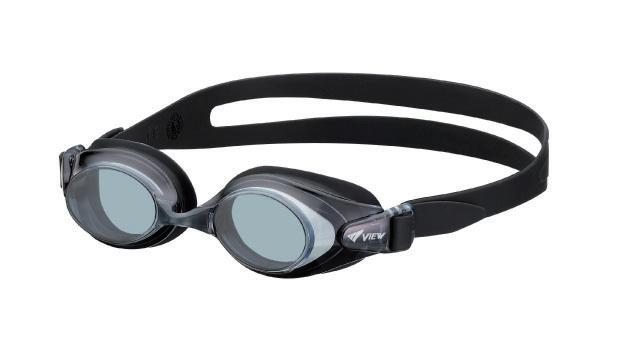

VIEW Swipe Optical Goggles

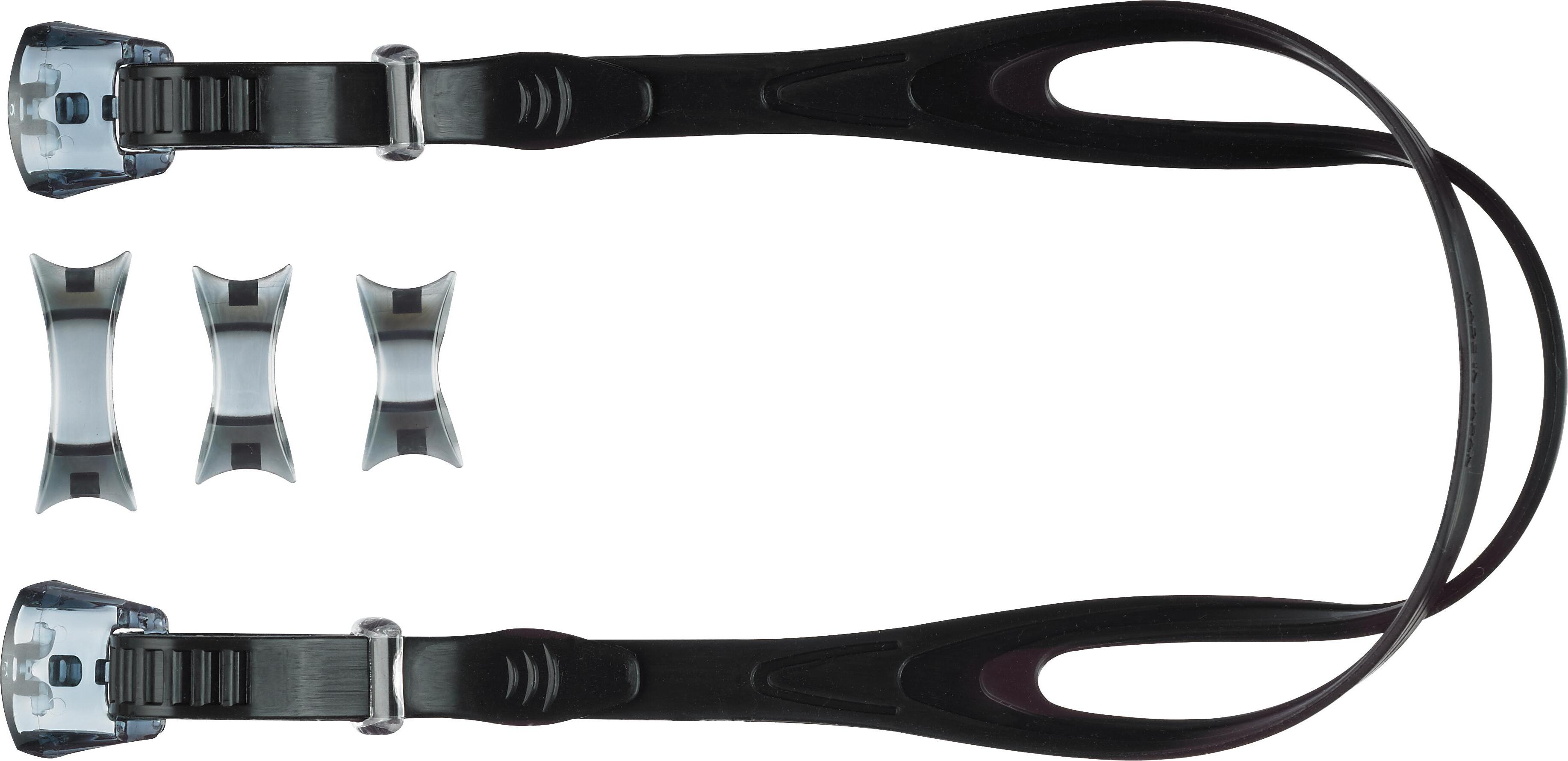

Select 2 Optical lenses VC580 and 1 Parts Kit VPS570A PK to assemble your Swipe Optical goggles. *Different powers may be selected for left and right eye.

9

TABATA | VPS-741 JUNIOR •

Junior Swimming Goggle

Recommended Ages 6-12 Years • Straps available in Black and Blue.

• 4 Nose Pieces Supplied (XS, S, M, L) • Smoke Lens Only • 100% UV Protection • Super Anti-Fog •

10

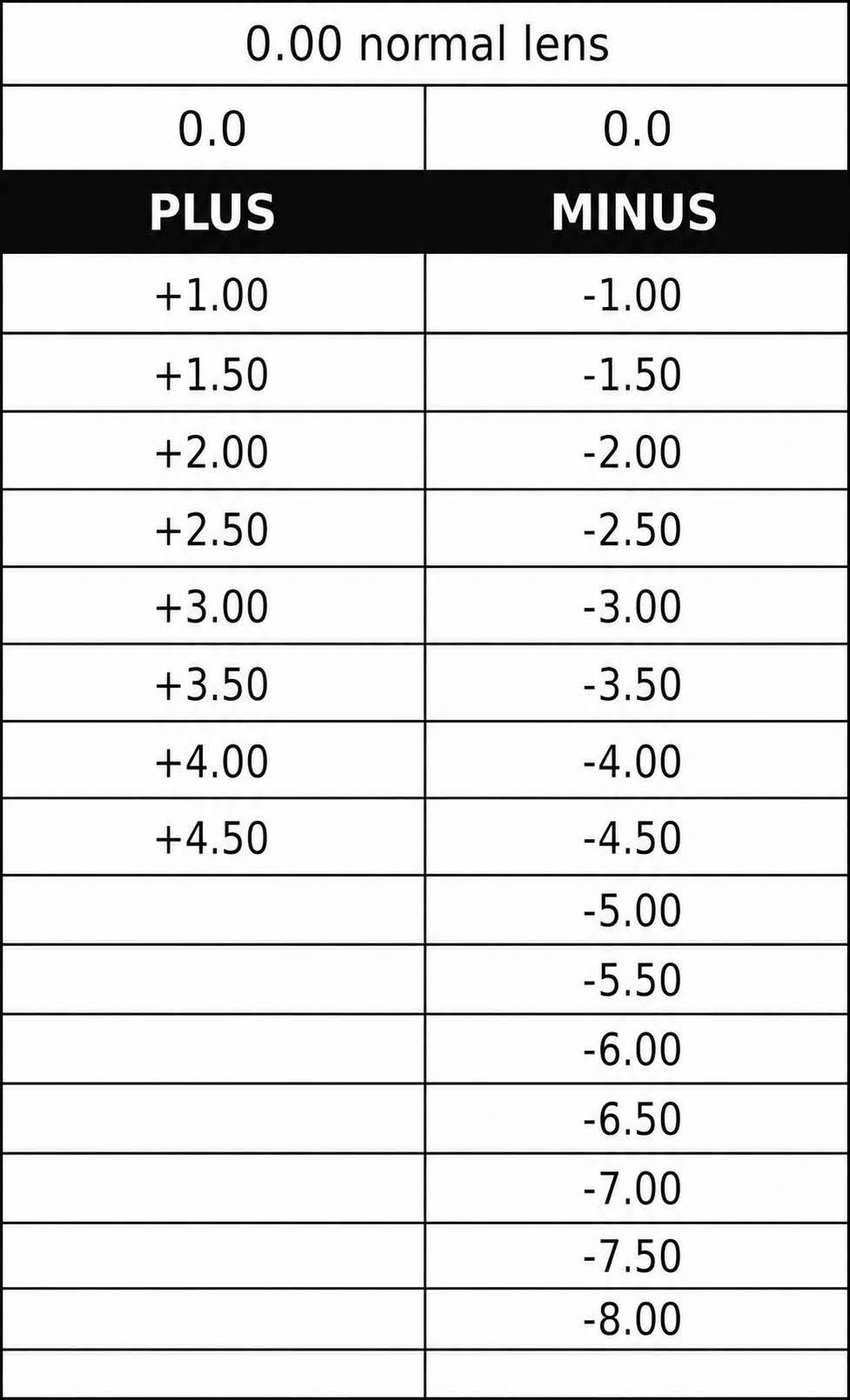

*Different powers may be selected for left and right eye.

Prescription Swimming Goggles Counter Card Let your customers know that prescription swimming goggles are available in-store with this compact A-frame counter card. Designed to sit neatly on your counter, it helps start conversations and encourages enquiries from swimmers looking for clear vision in the water.

The reverse side features a handy quick-reference guide with available Tabata View Adult and Junior models, along with lens power options for easy selection.

Available on request to qualifying accounts.

Size: 150 x 210 x 100mm

11

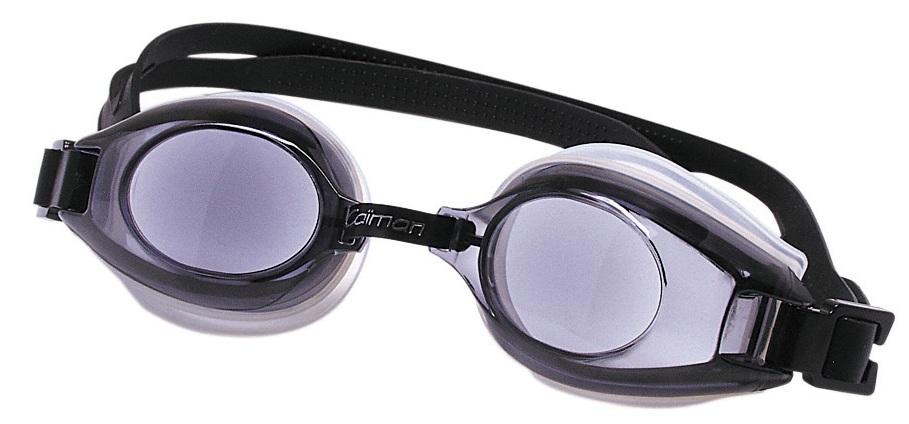

GATOR GOGGLE | CAIMAN Adult Size Goggle.

Plus or minus tinted lens.

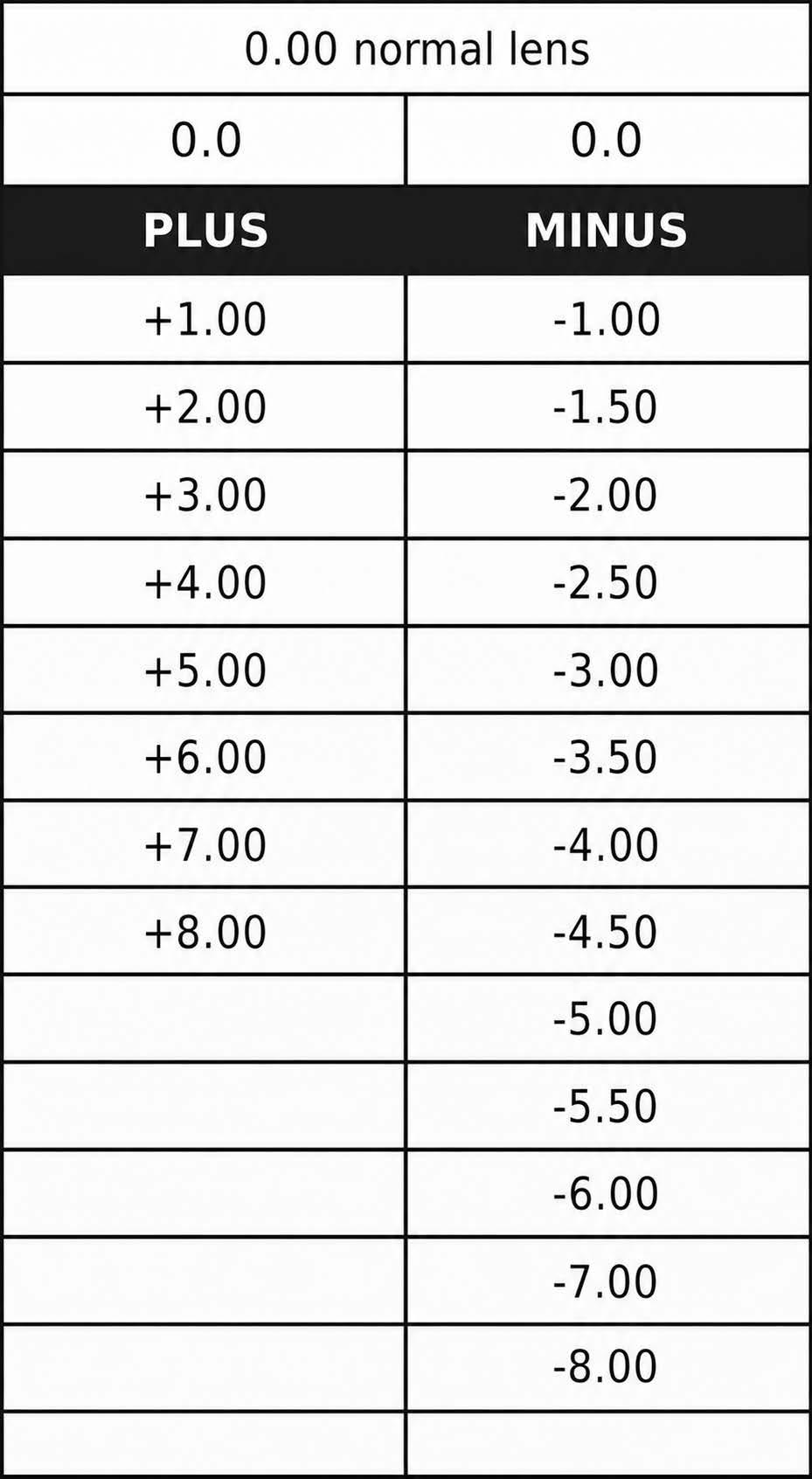

Different powers may be selected for left and right eye.

- UV Protection

- Anti-Fog Lens

- Adjustable bridge

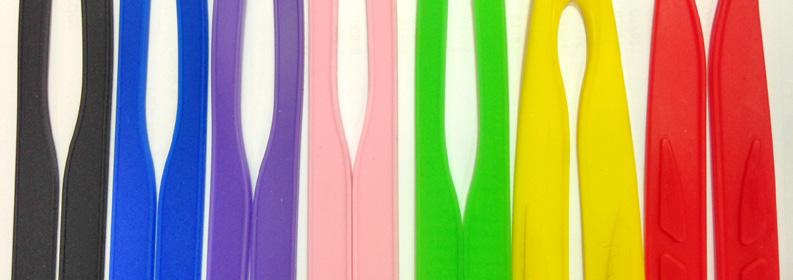

Headstrap available in: Black, Blue, Green, Pink, Purple, Red or Yellow.

12

*Different powers may be selected for left and right eye.

GATOR GOGGLE | CAIMAN Junior Size Goggle.

Plus or minus tinted lens.

Different powers may be selected for left and right eye.

- UV Protection

- Anti-Fog Lens

- Adjustable bridge

Headstrap available in: Black, Blue, Green, Pink, Purple, Red or Yellow.

*Different powers may be selected for left and right eye.

13

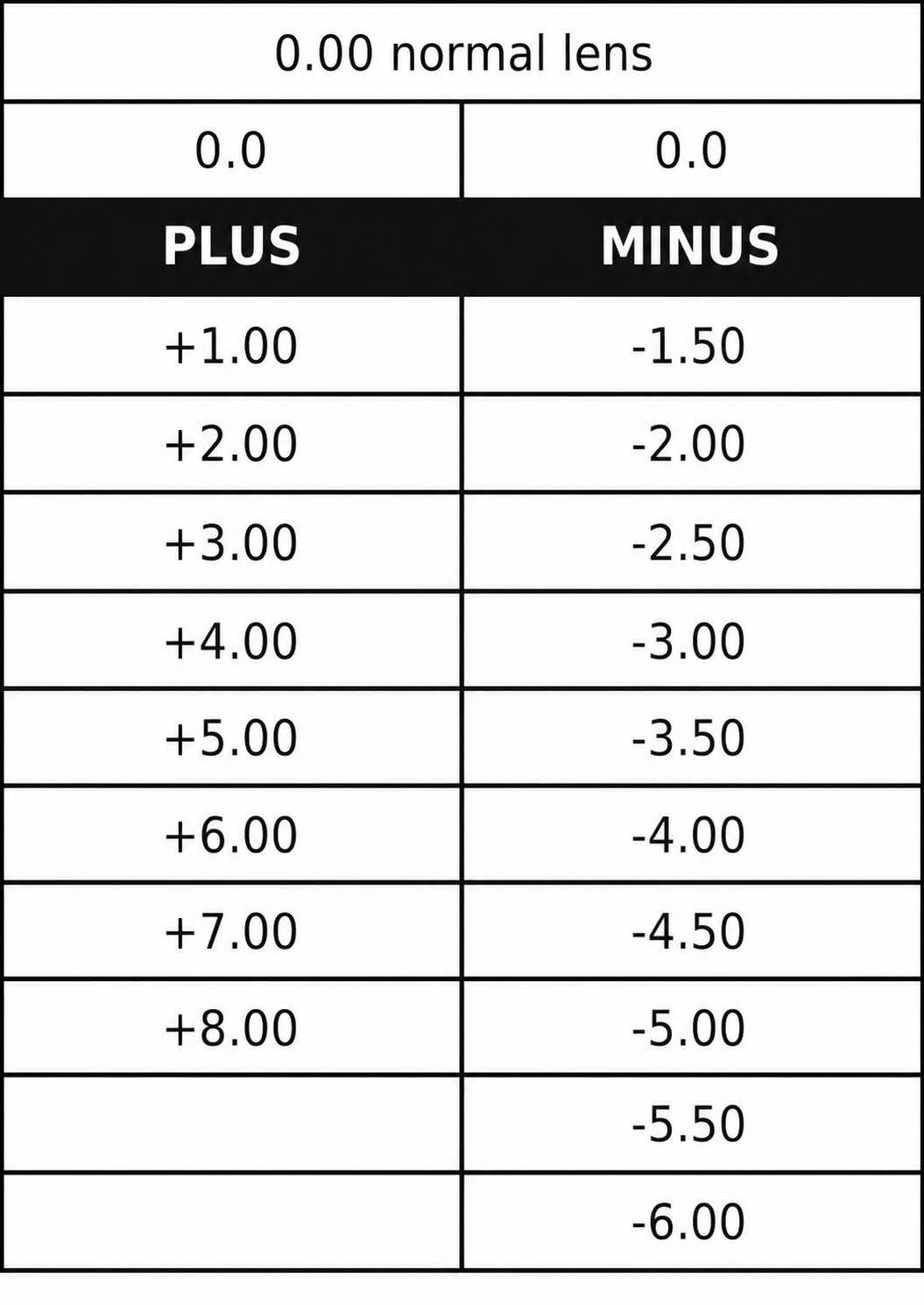

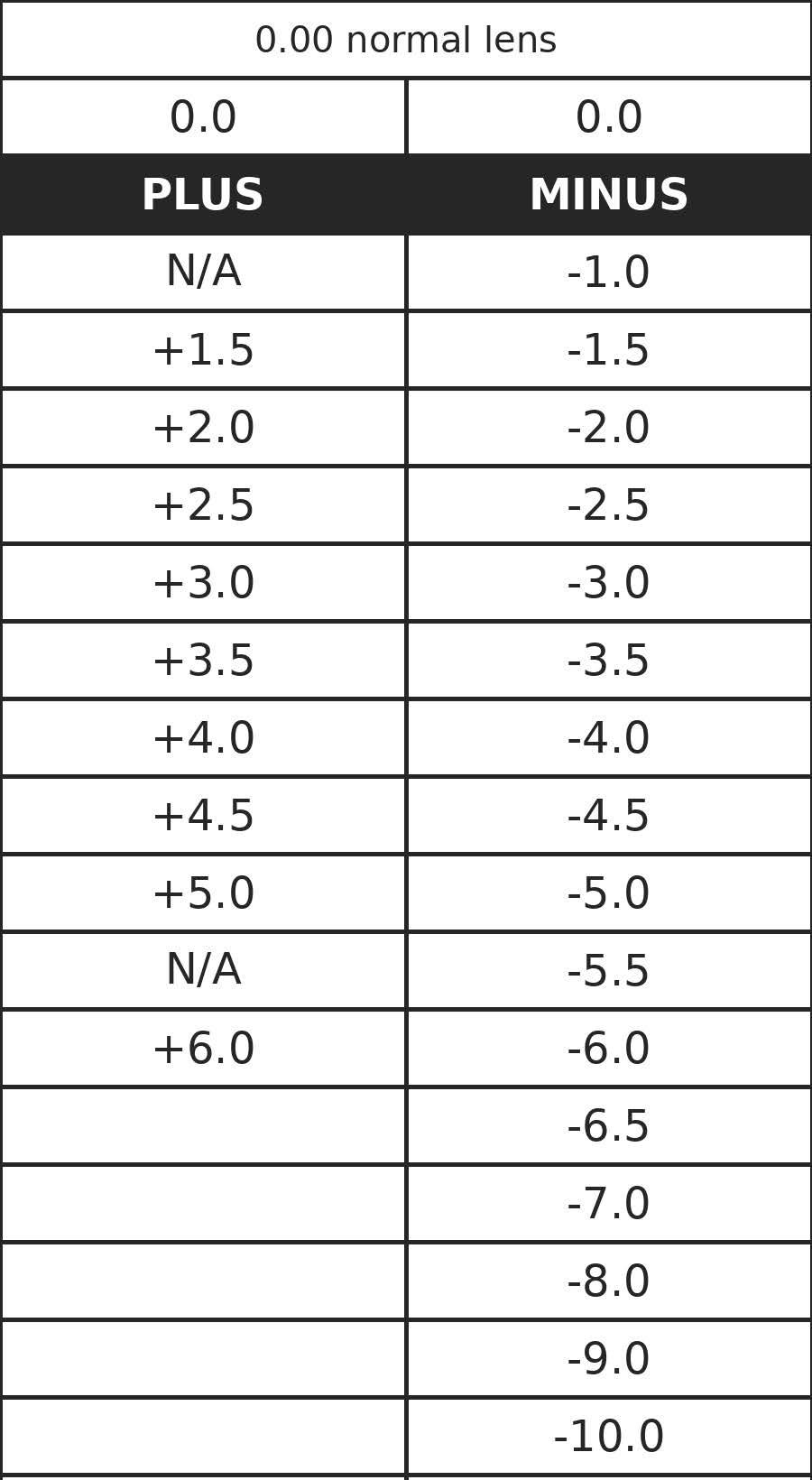

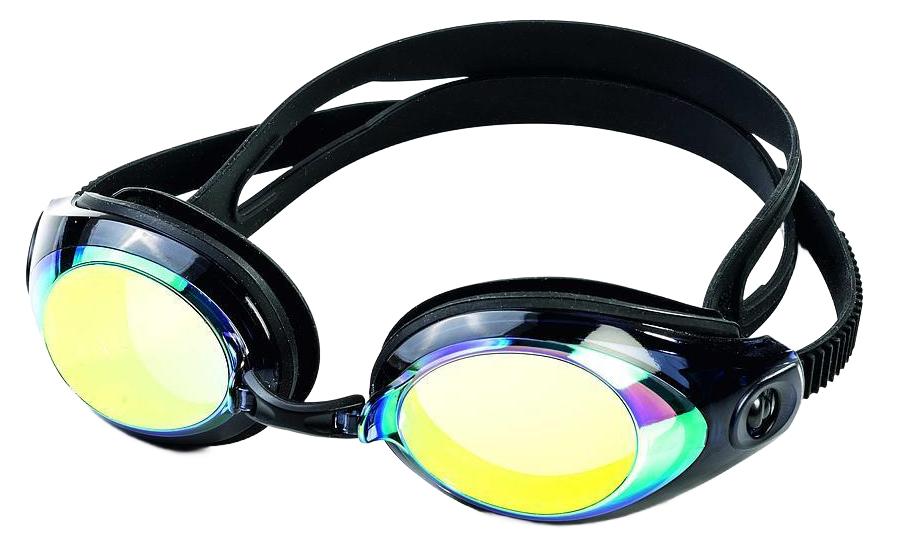

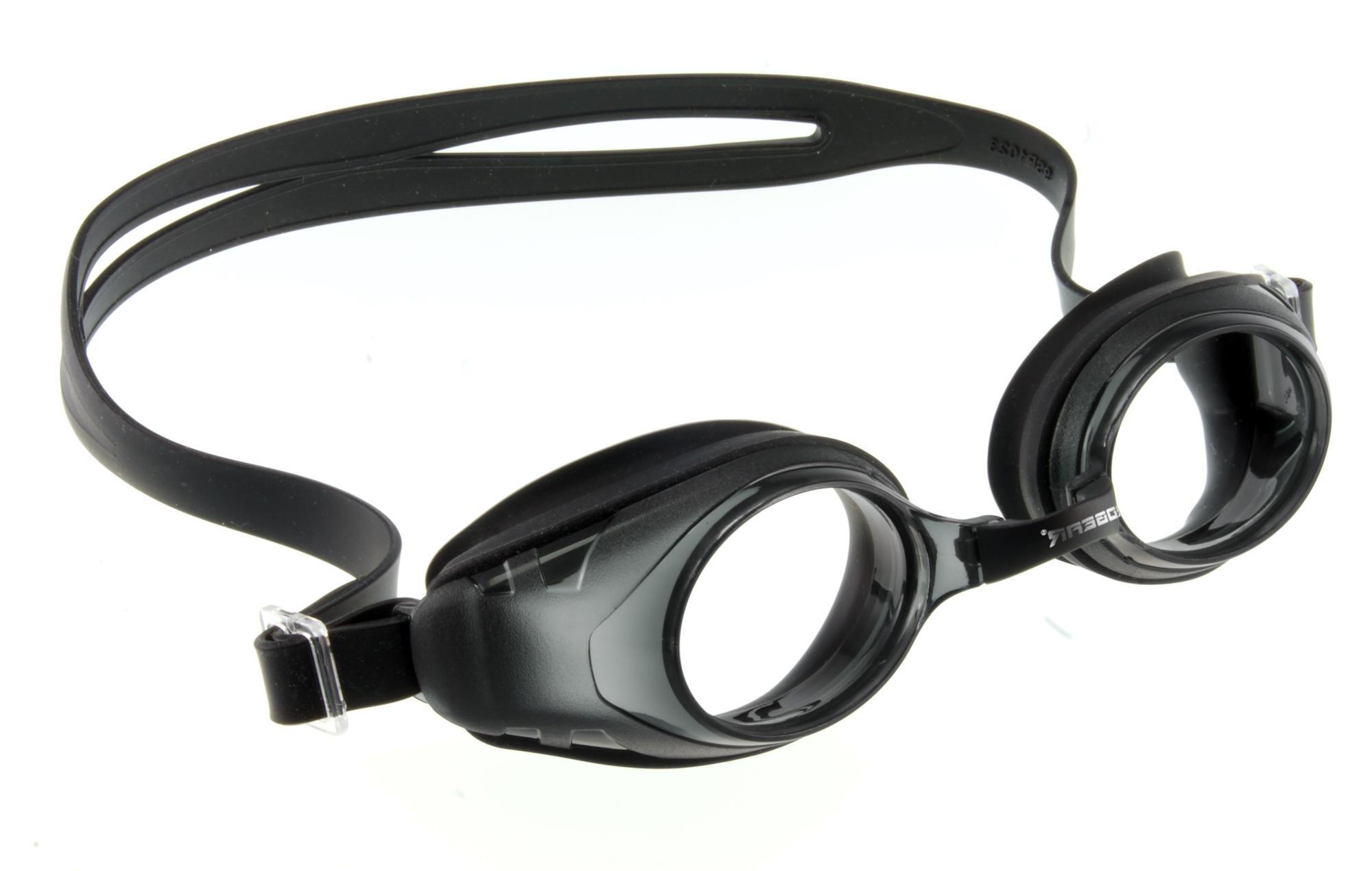

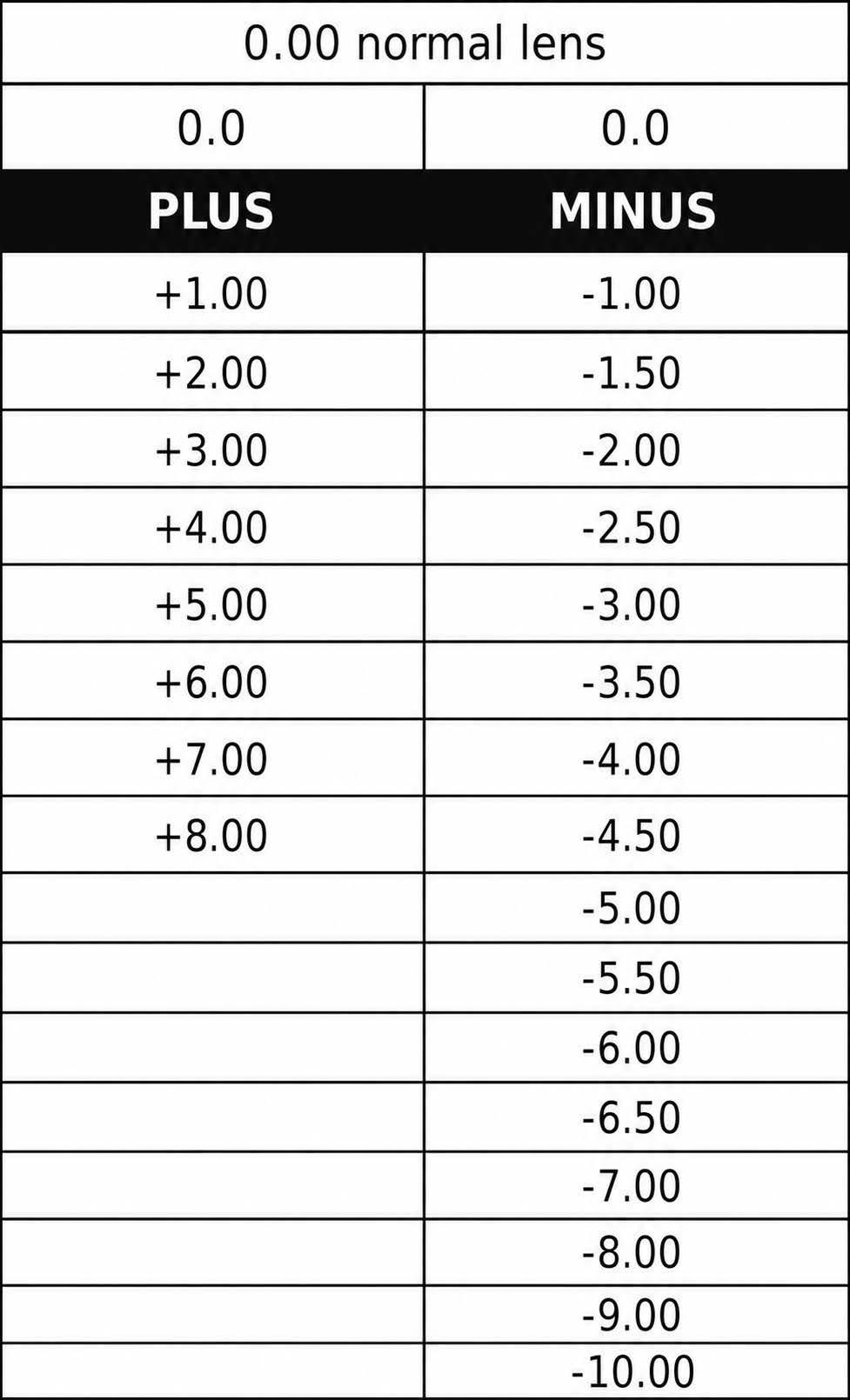

Adult Sizing • UVA & UVB Protection • High-Performance Anti-Fog Treatment • Myopia and Prebyopia from -10.00 to +8.00 diopter • Impact resistant polycarbonate construction • Interchangable nosepieces for customised fit • Patented easy-clip adjustable buckle • Comfortable seals, no leaks

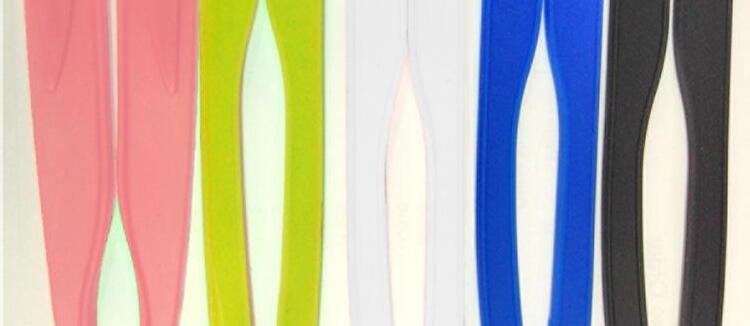

Head Straps Available In:

Pink, Green, Clear, Blue or Black

14

*Different powers may be selected for left and right eye.

Adult Sizing

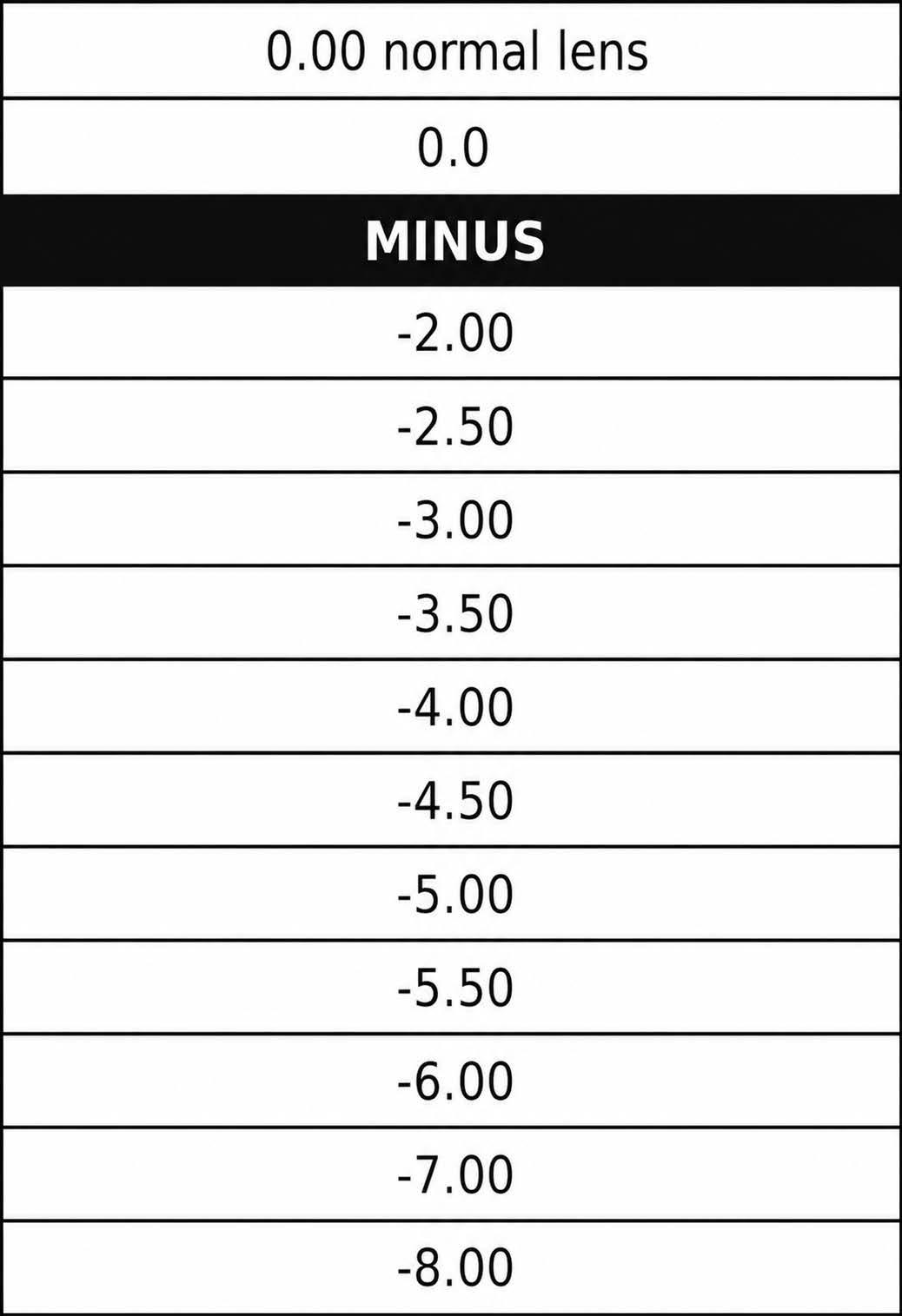

UVA & UVB Protection High-Performance Anti-Fog Treatment Lenses from -2.00 to -8.00 diopter Impact resistant polycarbonate construction • Interchangable nosepieces for customised fit • Patented easy-clip adjustable buckle • Comfortable seals, no leaks

• • • •

Head Straps Available In:

Pink, Green, Clear, Blue or Black

*Different powers may be selected for left and right eye.

15

•

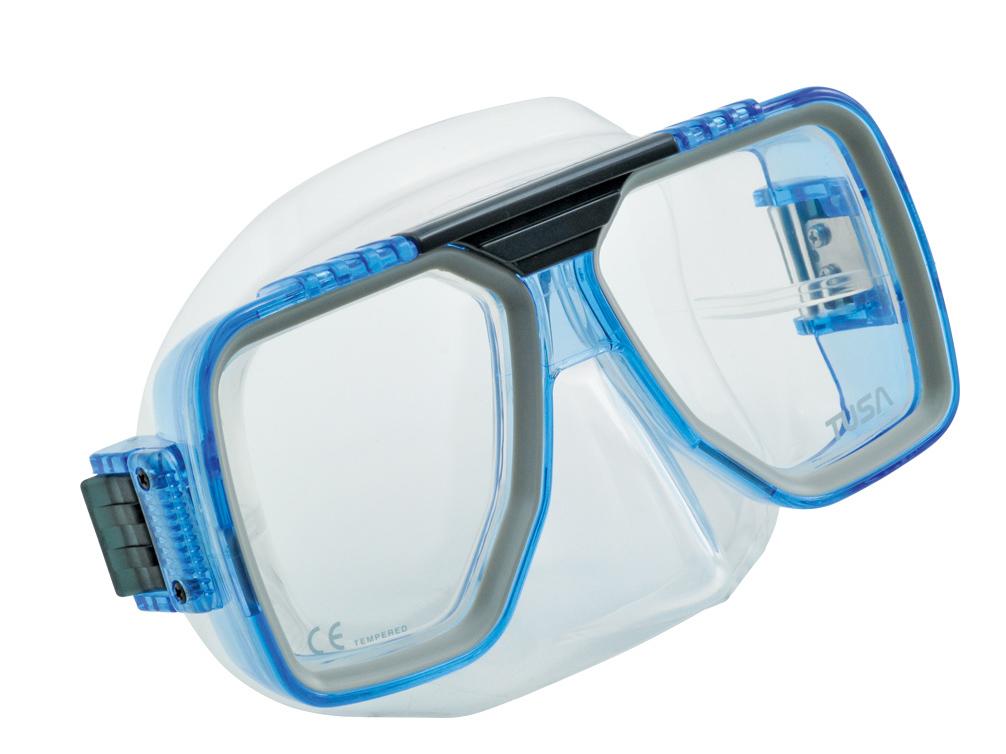

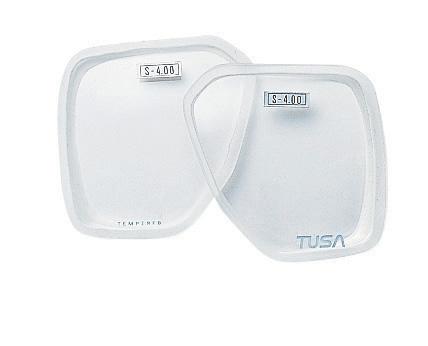

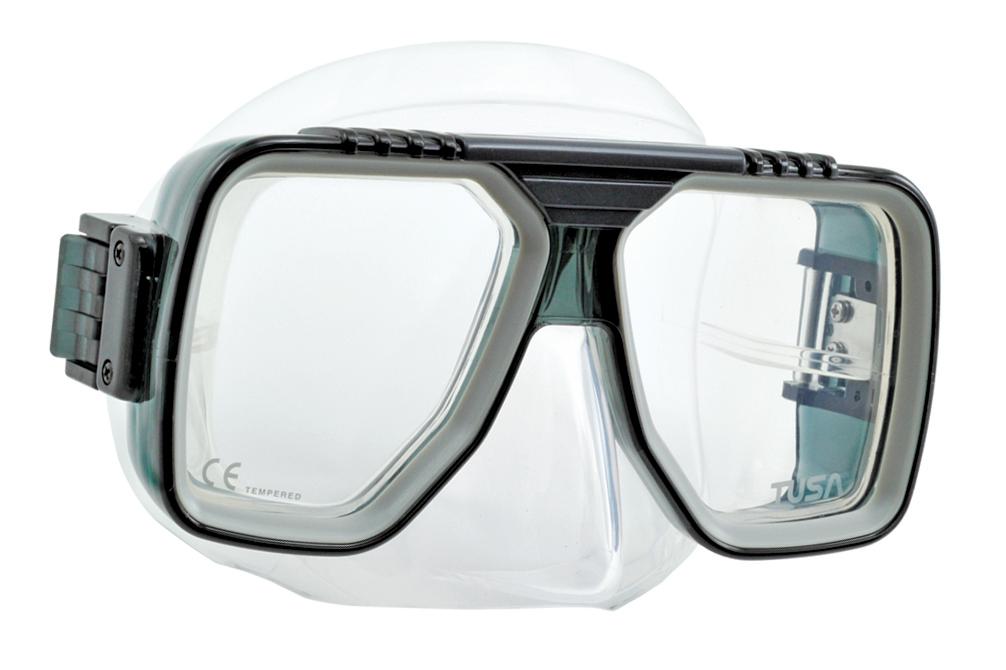

The TM-5700 Liberator Plus mask is often the first choice of many divers offering comfort and features to suit most faces and diving styles.

•

The Liberator Plus tempered glass lenses are carefully crafted to provide optical clarity and the silicone skirt assures a precise, comfortable fit.

•

Mask available in Black and Blue

16 *Different powers may be selected for left and right eye.

17

www.avivamann.com.au info@avivamann.com.au | 1300 850 882
