KanexPro Catalog 2024

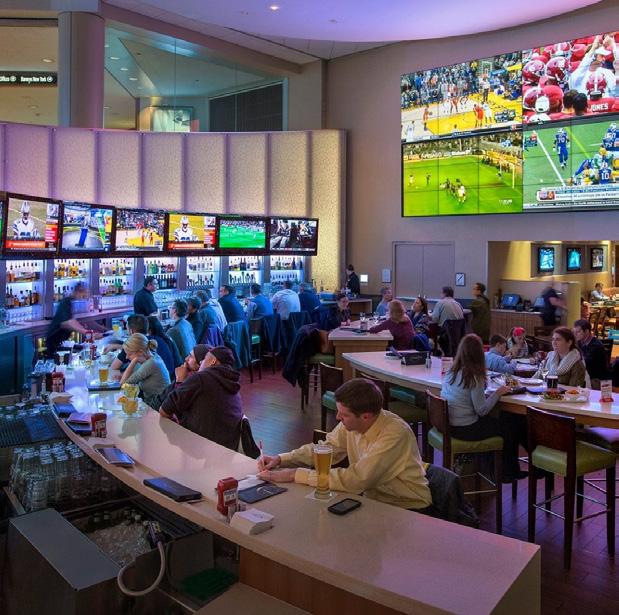

HOSPITALITY GOVERNMENT

HOSPITALITY

RESTAURANTS

BARS

KanexPro is an industryleading provider of connectivity solutions to A/V markets. We provide integrators access to top A/V connectivity products that empower the ability to broadcast, extend, split, or multiply HD signal transmissions simply and cost-effectively in any installation environment anywhere in the world.

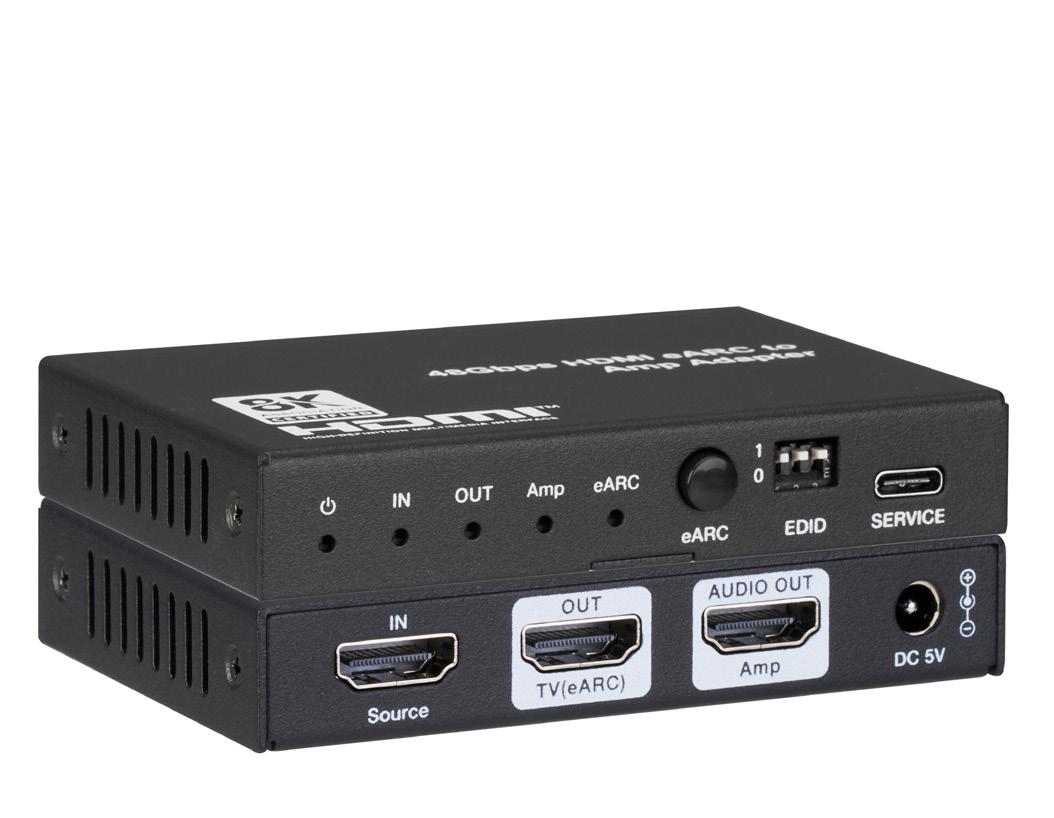

NEW HDMI 8K Audio to Amplifier w/ eARC

MPN: AUD-AMP-8K

• HDCP 2.3 compliant

• Support 48Gbps FRL and 18Gbps TMDS video bandwidth, as specified in HDMI 2.1

• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

• Support VRR, ALLM, QMS, QFT, SBTM, as specified in HDMI 2.1

• HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through

• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio passthrough

• HDMI input audio or TV ARC/eARC audio de-embedded to HDMI audio output

• Support CEC control from TV to the source and amplifier

• Support CEC volume control from TV to the amplifier sound system

• Advanced EDID management

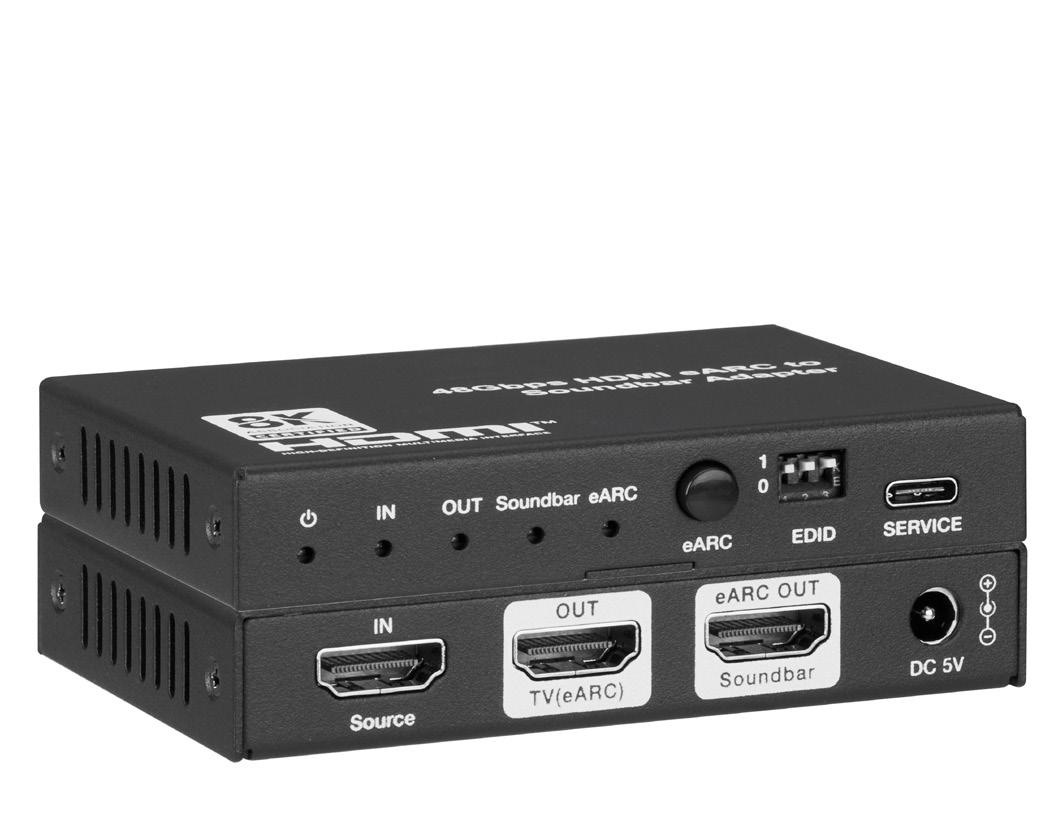

NEW HDMI 8K Soundbar Adapter w/ eARC

MPN: AUD-SBAR-8K

• HDMI 2.1 and HDCP 2.3 compliant

• Support 48Gbps FRL and 18Gbps TMDS video bandwidth

• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

• HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported

• HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through

• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio passthrough

• HDMI input audio or TV eARC audio de-embedded to any Soundbar

• Full audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC &

• Beam or any eARC Soundbar

• Support CEC control from TV to the source and Soundbar

• Support CEC volume control from TV to any sound system

• Advanced EDID management

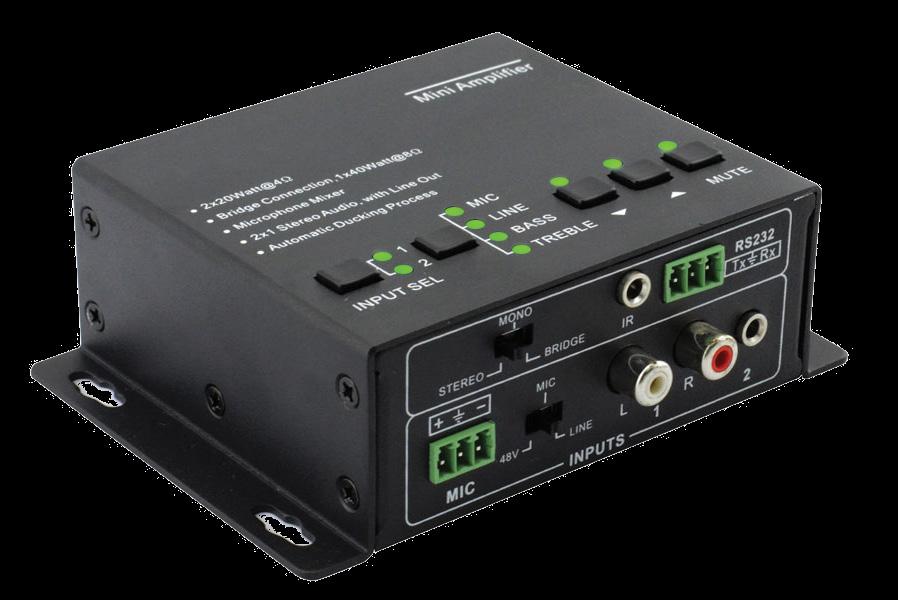

Mini Audio Amplifier with Mic Mixer

MPN: AP2DBL

• Fast switching audio amplifier

• 2x20 Watt@4Ohm as the default amplifier output

• Bridge connection supported by switching the amplifier to be 1x40Watt@8Ohm

• Supports Dual-mono output

• Built-in Microphone mixer (separately controllable)

• Line audio output, with volume controllable

• MIC input supports 48V phantom power

• IR remote & sensor included

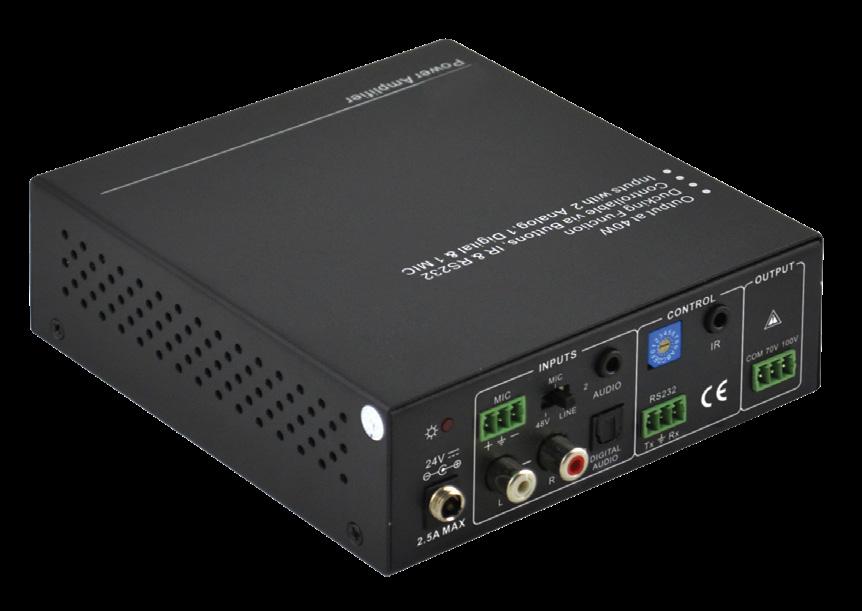

Mini 3-input Audio Amplifier with Mic Mixer

MPN: AP3DBL

• Fast switching 3 audio inputs (1 digital, 2 analog)

• One 3-level MIC input with mixer function

• 40 Watt amplifier output at 70V or 100V

• Ducking function for auto detect

• ID loop for RS232 looping control

• Adjustable volume with Bass & treble

• Locking power supply

• Control via front panel, RS232 & IR control

• Supports Dual-mono output

• Built-in Microphone mixer (separately controllable)

AUDIO EXTRACTOR

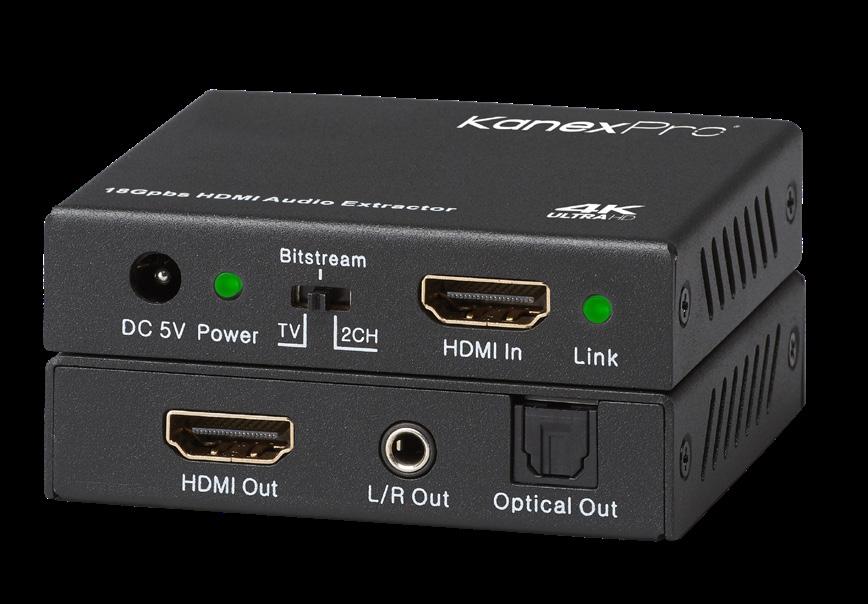

18Gbps 4K HDMI Audio Extractor with Dolby Atmos®

MPN: HAECOAX3

• 4K/60 HDMI Audio Extractor with Dolby Atmos ®

• Select your bit-stream audio by switching instantly

• 18 Gbps bandwidth with latest HDMI 2.0 Specs

• Supports HDMI HBR (High Bit Rate) audio pass-through

• Supports HDR 10(High Dynamic Range) pass-through for wide color gamut

• Supports video resolutions up to 4K@24/30/50/60Hz (YUV4:4:4) & 1080p HD

• De-embeds audio to multi-channel digital via TOSLINK / SPDIF or analog

• HDCP 2.2 compliant

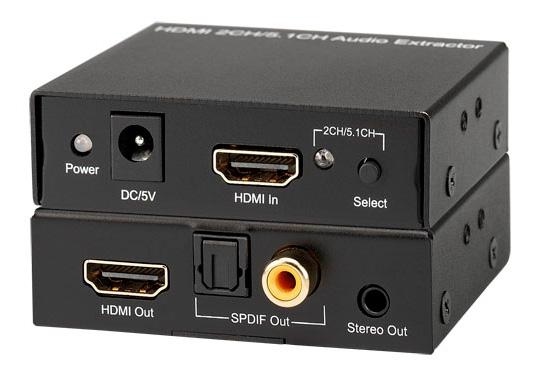

Audio De-Embedder with 3D Support

MPN: HAECOAX

• De-embeds HDMI audio output simultaneously to Stereo and S/PDIF

• Converts 2CH from 24-bit up to 192 kHz audio

• HDCP compliant

• Supports 3D & CEC pass-through

• Supports selectable audio through switching

• Audio: 2.0CH/5.1CH selection through

• HD resolution to full 1080p/60

• Supports data rates up to 6.75Gbps

• Automatic cable input equalization

• Supports Color Depth up to 12-bit per channel (36-bit all channels)

• Supports uncompressed audio such as LPCM

• Supports compressed audio such as DTS Digital, Dolby Digital

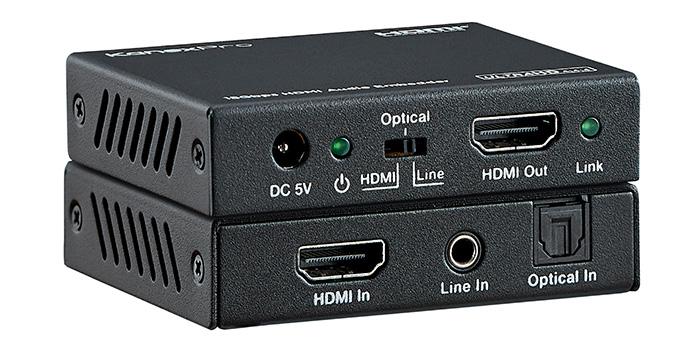

HDMI 2.0 Audio Embedder

MPN: HAECOAX4

• Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output

• Optical audio supports LPCM 2CH, Dolby Digital 2/ 5.1CH, DTS 2/5.1CH

• Analog audio supports PCM2.0

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant

• Video resolutions up to 4K2K@50/60Hz (YUV444)

• Supports HDMI High Bit Rate (HBR) audio pass through

• 10bits HDR (High Dynamic Range) pass through

• Supports CEC bypass 2.0

CABLES

NEW

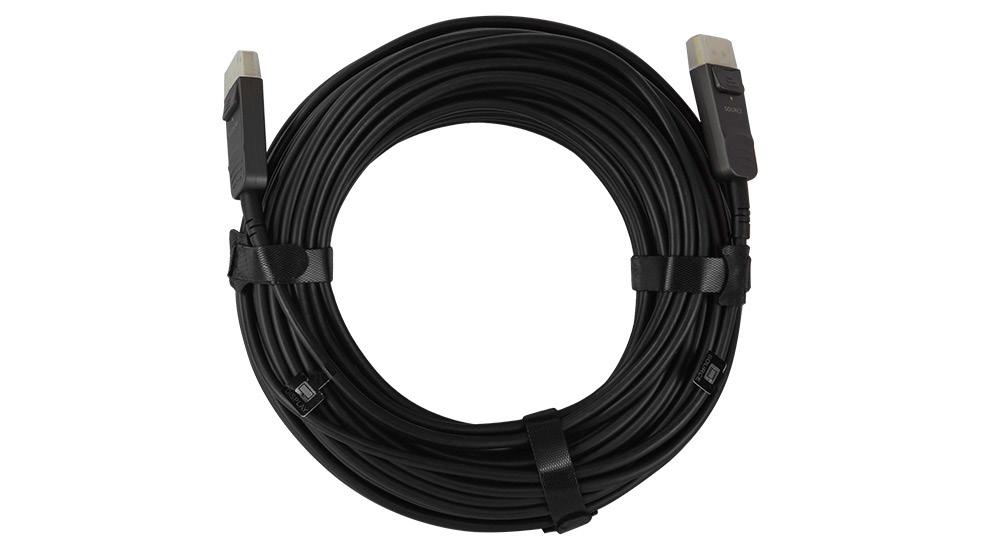

DisplayPort 2.0 40GB 8K Active Fiber

Long Cable

MPN: CBL-AOCDP8K-30M

CBL-AOCDP8K-60M

CBL-AOCDP8K-90M

• No external power required

• Plug and Play

• HDCP1.4/2.2 Support

• Supports DP2.0 UHBR 10 standard, 10Gbps per channel, 40Gpbs total bandwidth.

• EDID Support

• No Signal Loss

• Supports both Single Stream Transport (SST) and Multi-Stream Transport (MST) modes

• Compatible with AMD® FreeSync™ 2.0 technology

• Supports High Dynamic Range (HDR) video

• Supports video resolutions up to 8K@60Hz, including 4K@144Hz

• Supports DisplayPort Dual-Mode (DP++)

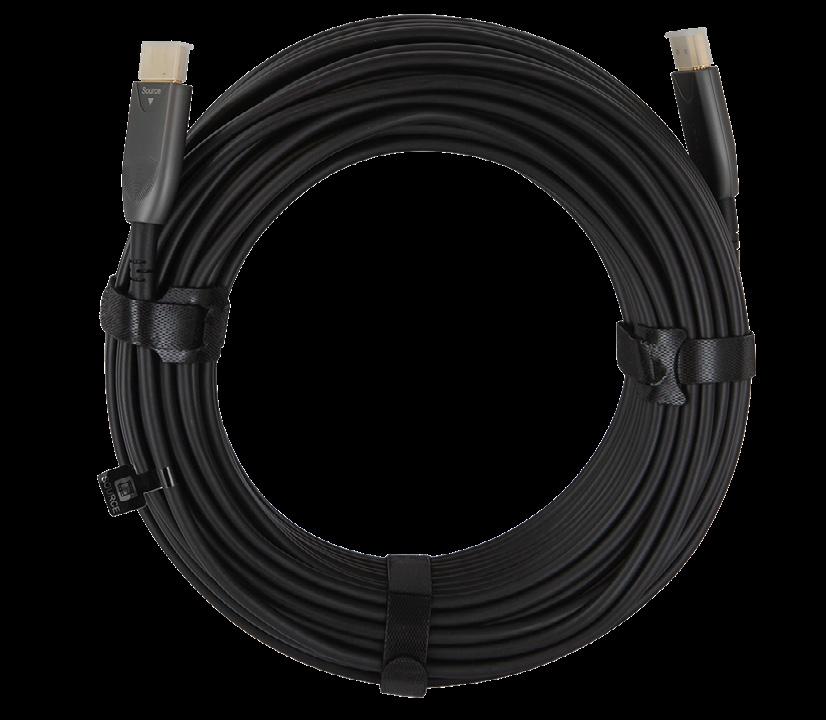

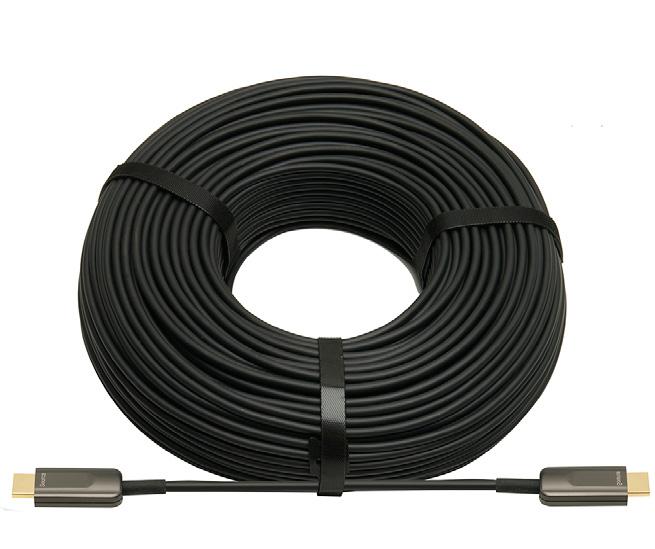

Active Fiber High Speed HDMI Cable

MPN: CBL-HDMIAOC20M

CBL-HDMIAOC30M

CBL-HDMIAOC50M

• Uncompressed optical transmission of 18Gbps HDMI content at 4K/60 4:4:4 or HDR at 60Hz

• Bandwidth up to 18Gbps (6Gbps per channel)

• Supports all the features contained in the HDMI 2.0 specification

• Optical fiber cable is ideal for use in environments with excessive EM or RF interference

• Gold plated connectors prevent corrosion for when deployed on long term projects

• Plenum (CMP) fire safety rating makes it safe for use in the Plenum air duct spaces of commercial and residential buildings

CABLES

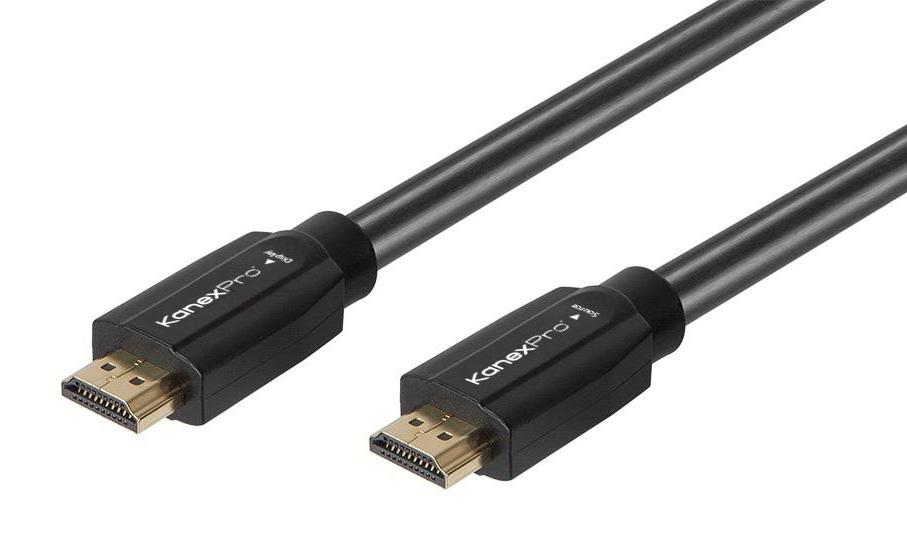

KanexPro Active High Speed HDMI Cable CL3 Rated

MPN: CBL-HT7180HDMI75FT

CBL-HT7180HDMI100FT

• Spectra7 Active transmission technology

• Active technology delivers 10.2Gbps HDMI content at 4K/30Hz or 1080p/60Hz

• Gold plated connectors prevent corrosion for when deployed on long term projects

• UL CL3 fire safety rating makes it safe for use in walls of commercial and residential buildings

• Supports HD Multichannel audio up to DTS:X and Dolby Atmos

• Supports SA-CD, DVD-Audio, DTS-HD Master Audio™, Dolby TrueHD™, and other high-definition audio standards

• Supports Deep Color, up to 16-bits per channel, including Sony’s x.v.Color™ standard

• Supports extended CEC (Consumer Electronics Control) commands and functions, the HDMI Ethernet Channel, and the Audio Return Channel features

• ARC and CEC enabled for true native HDMI communication

• Supports HDCP 2.2 content encryption

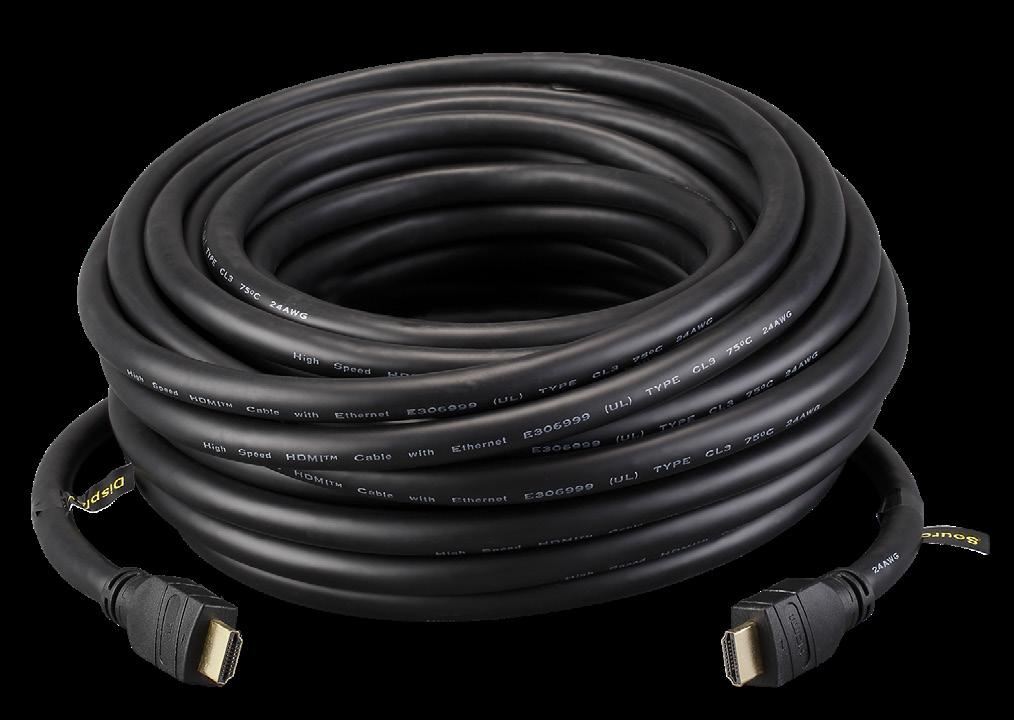

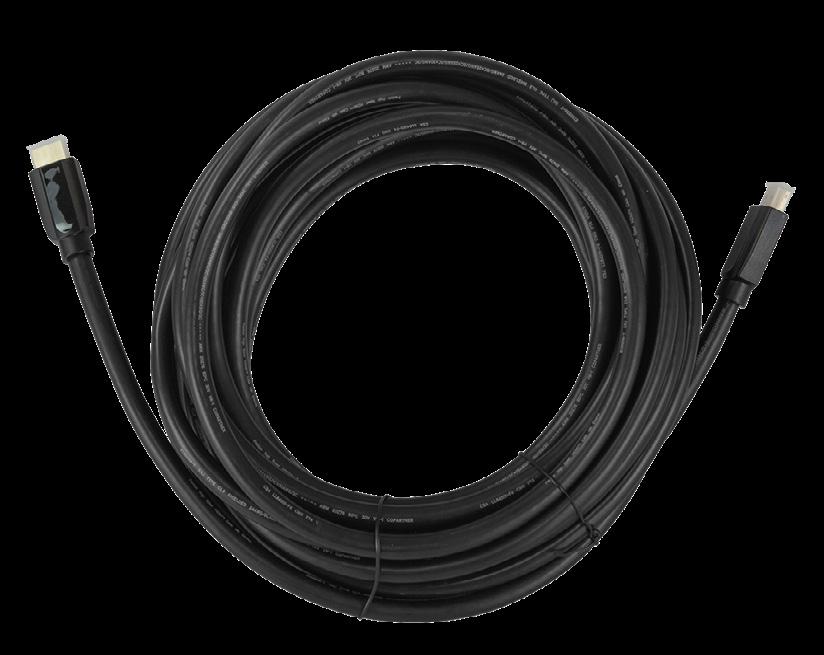

High-resolution HDMI ® Cables with Signal Equalizer

High Speed HDMI cables with Ethernet plus signal equalization.

MPN: CBL-HT8181HDMI25FT

CBL-HT8181HDMI50FT

CBL-HT8180HDMI75FT

CBL-HT8180HDMI100FT

• High Speed HDMI cables with Ethernet

• CL3 Rated for In-Wall Installation

• Built-in signal EQ

• Supports 3D and 4Kx2K

• Data rates up to 10.2 Gbps

• Support color depths to 48 bits

• HDCP compliant

• Available in lengths of 25 feet, 50 feet, 75 feet and 100 feet

• 24 AWG Copper Wire Construction

CABLES

Premium High Speed Certified HDMI Cable

MPN: CBL-HDMICERTSS3FT

CBL-HDMICERTSS6FT

CBL-HDMICERT15FT

CBL-HDMICERT25FT

• Supports all HDMI resolutions up to 4K (3840x2160p @60Hz), including 3D and Multi View video

• Durable PVC connectors and Jacket for years of operation

• Gold plated connectors prevent corrosion for when deployed on long term projects

• Ideal length to be used for connecting devices that are close together.

• Supports HDR, HDR10, and DolbyVision dynamic range picture modes.

• Supports SA-CD, DVD-Audio, DTS-HD Master Audio™, Dolby TrueHD™, and other high-definition audio standards

• Supports Deep Color, up to 16-bits per channel, including Sony’s x.v.Color standard

• Supports extended CEC (Consumer Electronics Control) commands and functions, the HDMI Ethernet Channel, and the Audio Return Channel features

• Compatible with Apple TV 4K, MacBook, Media Players, Distribution Amplifiers, Extender, Converters, Gaming Systems, Xbox One, PlayStation 4, PCs, and HDMI enabled device.

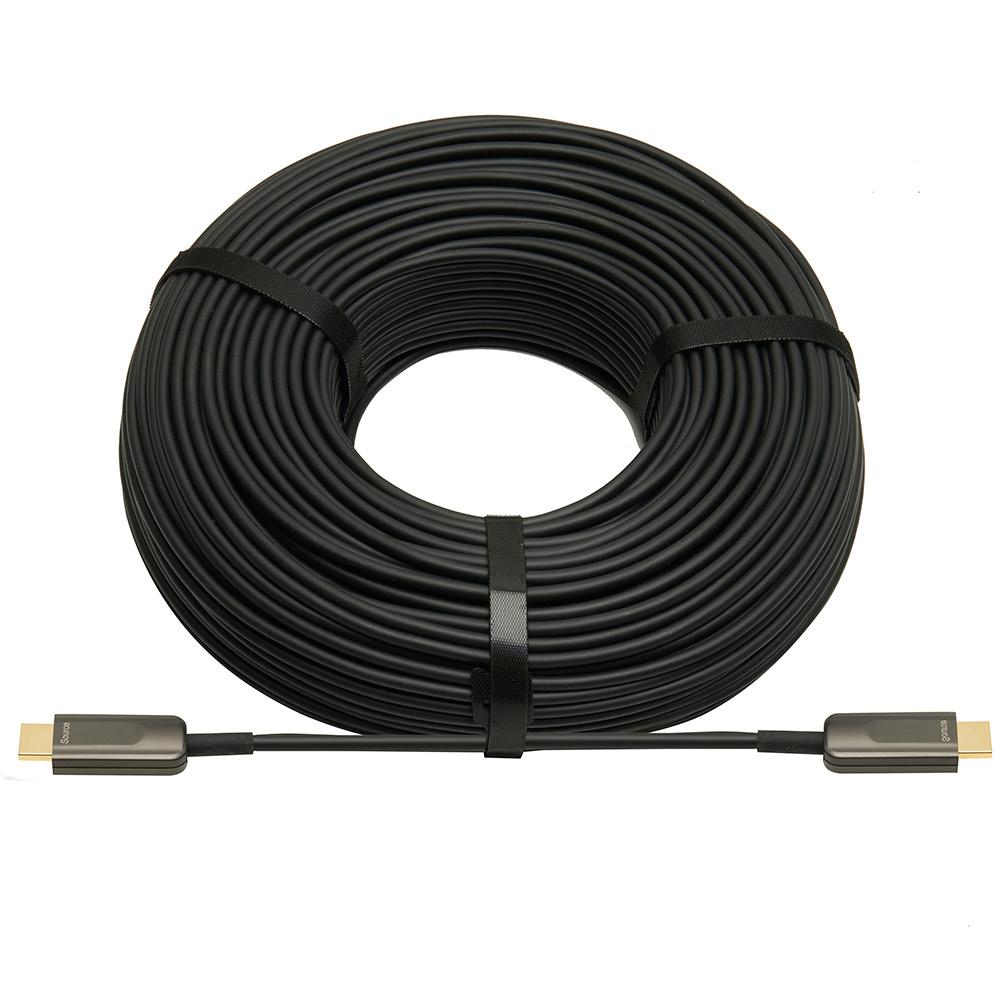

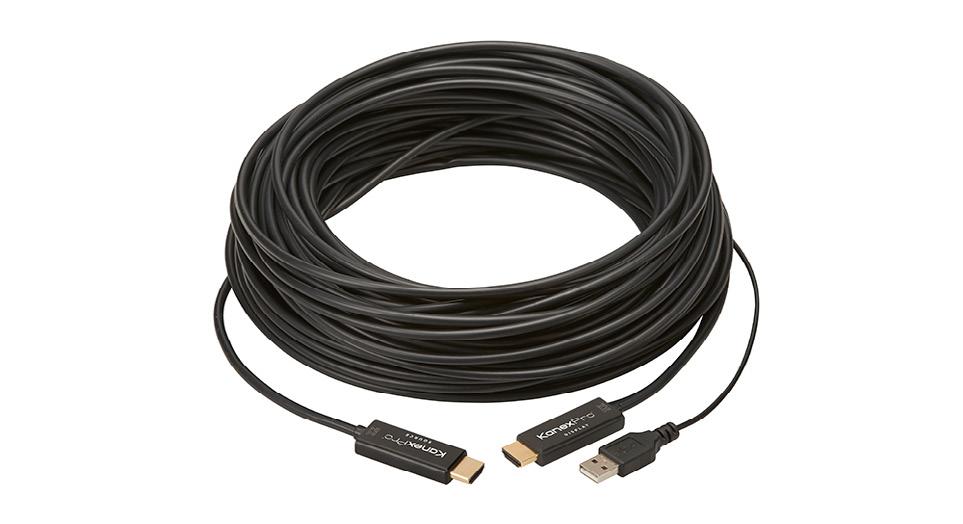

18G HDMI® Active Optical Cable with 4K/60Hz -

100m

MPN: CBL-AOC100M4K

CBL-AOC30M4K

CBL-AOC50M4K

• HDMI® AOC- Active optical cable – 100m

• Premium video quality up to 4096x2160p/50Hz or 60Hz

• Bandwidth up to 18Gbps (6Gbps per channel)

• Color Sub-sampling of 4:4:4, 4:2:2, 4:2:0 with Deep Color & HDR

• Integrated USB connector draws power from the display

• EMI/RF free for clear signal transmission

• Up to 32 audio channels for a multi-dimensional immersive audio

• Up to 1536kHz audio sample frequency for the highest audio fidelity

• Support for the wide angle theatrical 21:9 video aspect ratio

• Dynamic synchronization of video and audio streams

• Supports CEC extensions

• Low power consumption

• Supports 3D and 4Kx2K

• Support color depths to 48 bits

• HDCP 2.2 compliant

HDMI 8K Long Active Optical Cable - 30M

MPN: CBL-AOCHDMI8K-30M

CBL-AOCHDMI8K-60M

CBL-AOCHDMI8K-90M

• Plug and Play

• Compatible with HDMI 2.1 standard .

• Backward compatible with HDMI2.0/ HDMI1.4

• Support HDCP

• Support 48Gbps Bandwidth with 4K/50/60/100/120 Hz and 8K/50/60Hz

• Self- detecting function for EDID information

• Support eARC

• No loss of signal – delivering crystal clear digital images instantly .

• Dynamic HDR formats is supported .

• Hybrid optical cable with fiber and copper wire

CABLES

KanexPro Active Fiber High Speed DisplayPort 1.4 C

MPN: CBL-DP14AOC20M

CBL-DP14AOC30M

CBL-DP14AOC50M

• No external Power required

• Plug and Play

• HDCP Support

• EDID Support

• No Signal Loss

• Supports both Single Stream Transport (SST) and Multi-Stream Transport (MST) modes

• Compatible with AMD® FreeSync™ 2.0 technology

• Supports Dolby Vision™ video technology

• Supports High Dynamic Range (HDR) video

• Active cable is compatible with passive video adapters

• Compliant with the HDMI® 2.0 and DVI™ specifications

• Supports video resolutions up to 8K@30Hz, including 5K@60Hz and 4K@120Hz

• Supports DisplayPort Dual-Mode (DP++)

NEW

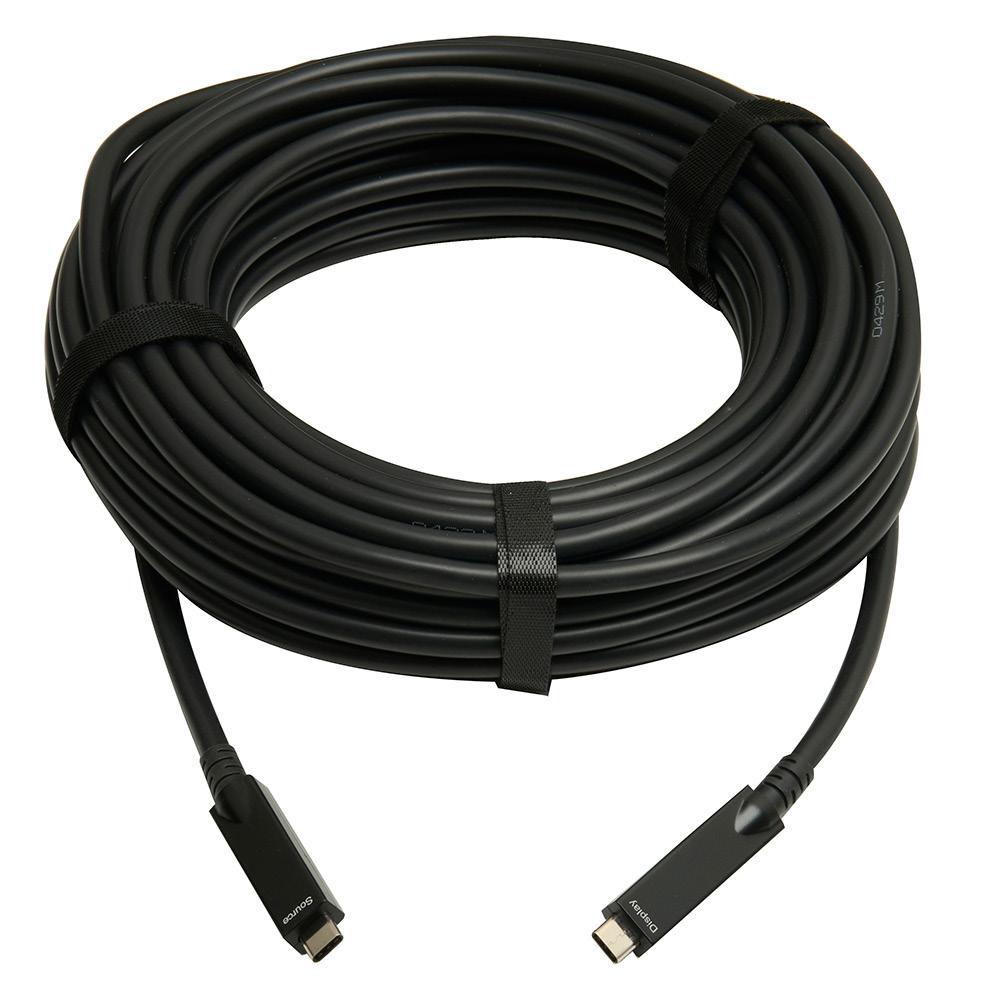

USBC Active Fiber Long Cable w/ Data, AV, Power Delivery - 5M

MPN: CBL-AOCUSBC-05M

CBL-AOCUSBC-10M

CBL-AOCUSBC-15M

• No external power required

• Plug and Play

• Supports 4-lane DP 2.1&USB 2.0

• Supports 2-lane DP1.4&USB3.2 10Gbps

• Backwards compatible with USB 2.0/1.1

• Support PD 60W, 20V3A

• Highly resistant to EMI and RFI

• Special GGP ber: 2mm bend radius

CONTROL PANELS

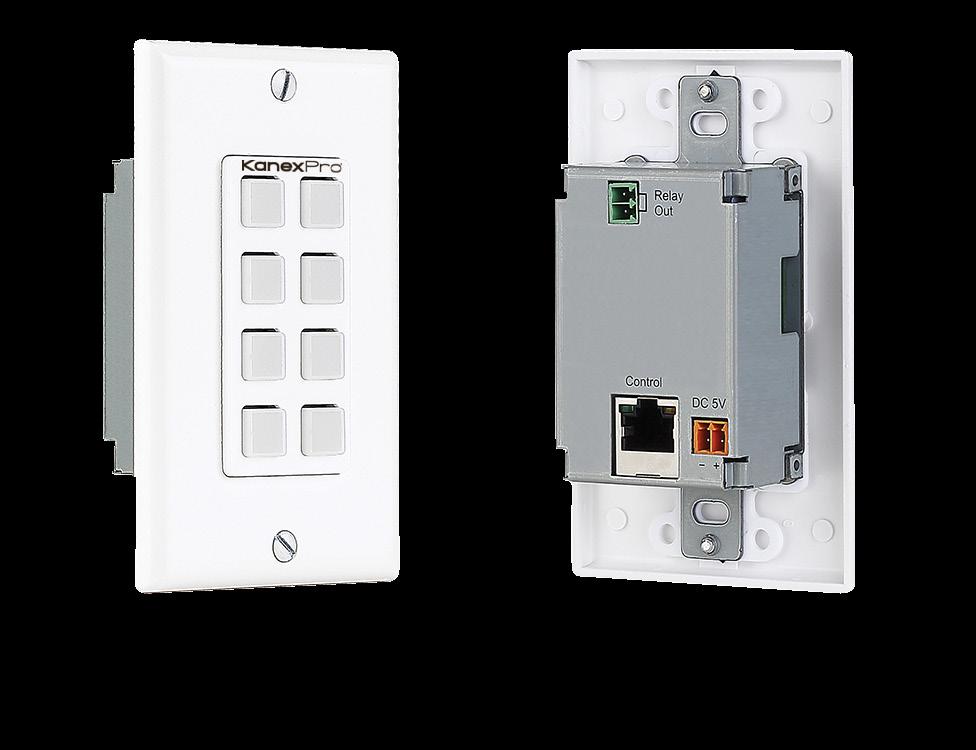

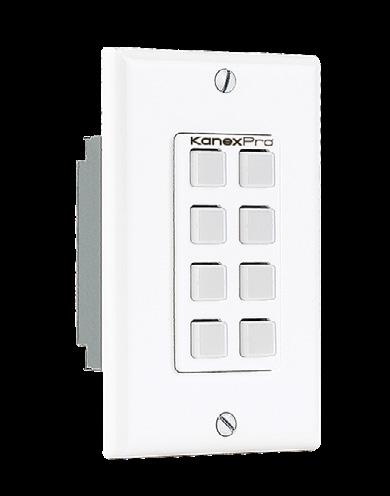

8-button Control based IP Keypad

MPN: WP-IPKEYPAD8

• US single gang wall plate design with adjustable LED brightness

• Eight customizable backlit buttons

• Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro)

• Supports relay triggers to control compatible devices

• Supports time and date macro scheduling (single and recurring)

• Supports 48 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss

• Supports customizable daylight savings time settings for scheduling

• Can be controlled via Keypad, Telnet & WebGUI control

• PoE –powered over Ethernet or DC power supply

• TCP/IP Ethernet control for simple set up and programming

• Built-in WEB GUI provides fast and simple set-up

• Mini USB port - behind decorator-style wallplate for easy configuration access

• Sticker labels for buttons included for controller customization

• Macro capability - Any button can be configured to execute multiple actions through Web based GUI. For instance, the touch of a single button could trigger commands to turn on the display, select the display’s input, and trigger a relay.

• Toggle capability - provides additional flexibility by allowing two different sets of commands to be executed with alternating presses of a button.

• Activity LED’s to indicate various controller states

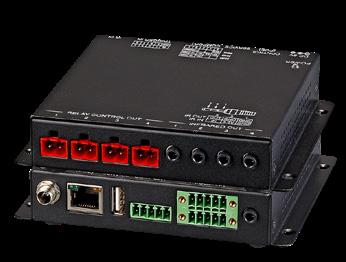

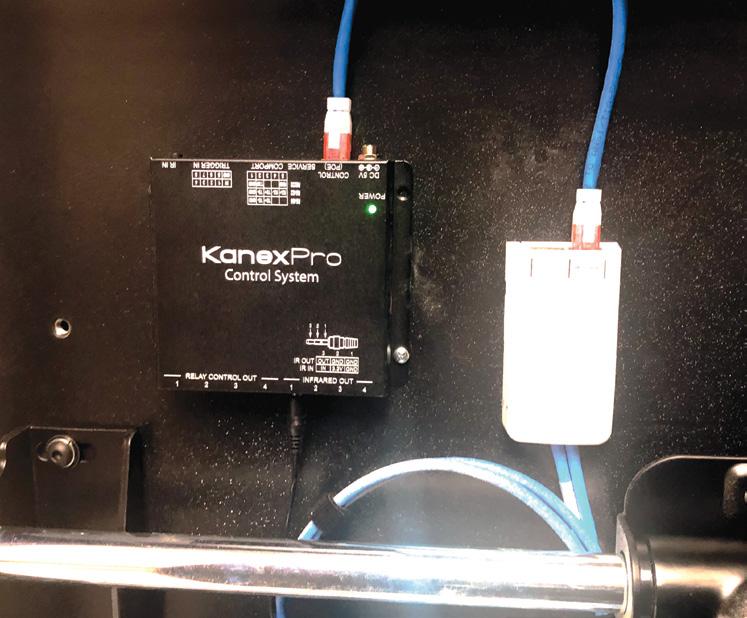

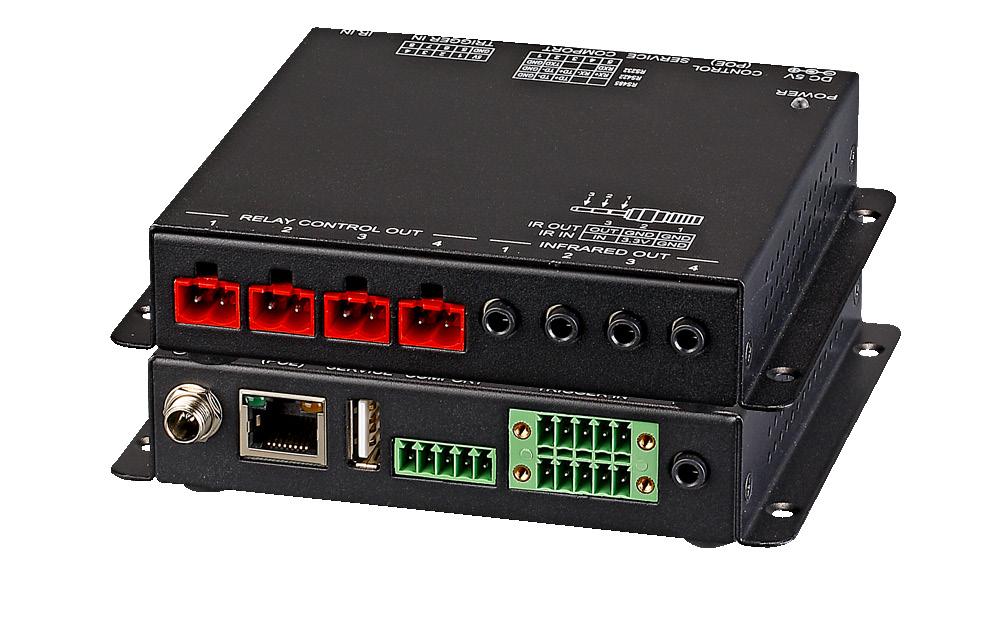

Integrated IR/RS-232 and Relay Controller

MPN: CR-3XCONTROL

• Integrated IR/RS-232 and Relay Controller

• 8 trigger inputs linked directly to 8 user macros allowing instant control

• 4 relay trigger outputs to control devices such as projector screens, lighting, etc.

• 4 IR outputs to control devices such as TVs, blu-ray players, media players, etc.

• Integrated IR code learning functionality

• Multiple user control interfaces including WebGUI, Telnet and RS-232

• Simple configuration of macros, triggers and relay settings via the WebGUI

• PoE (Power over Ethernet) support

• Firmware can easily be updated in the field via USB

CONTROL ACCESSORIES

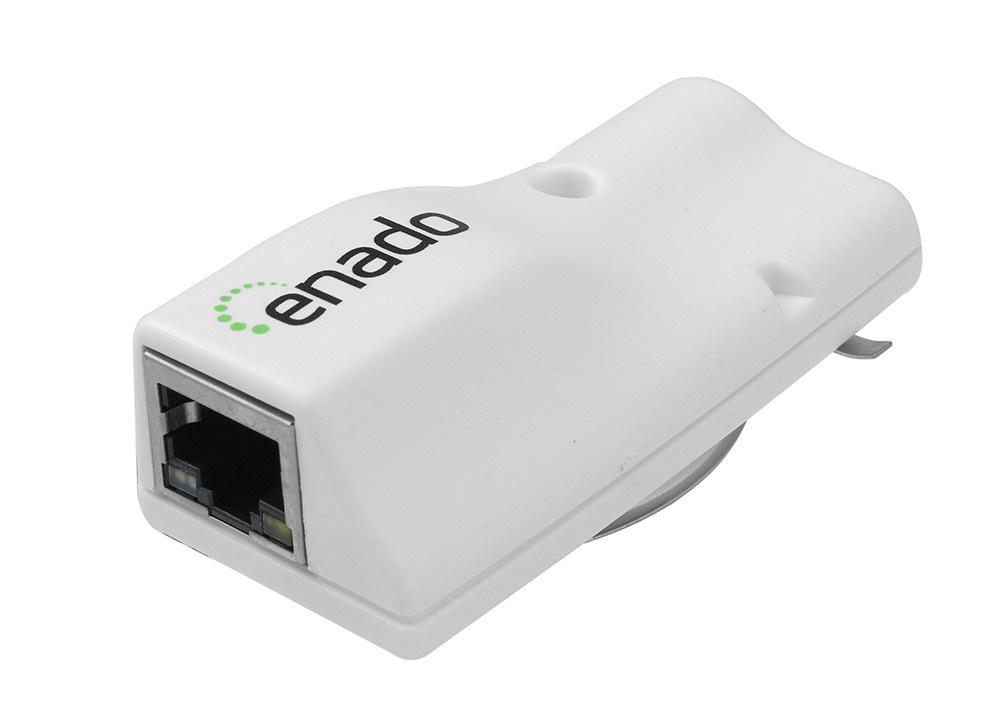

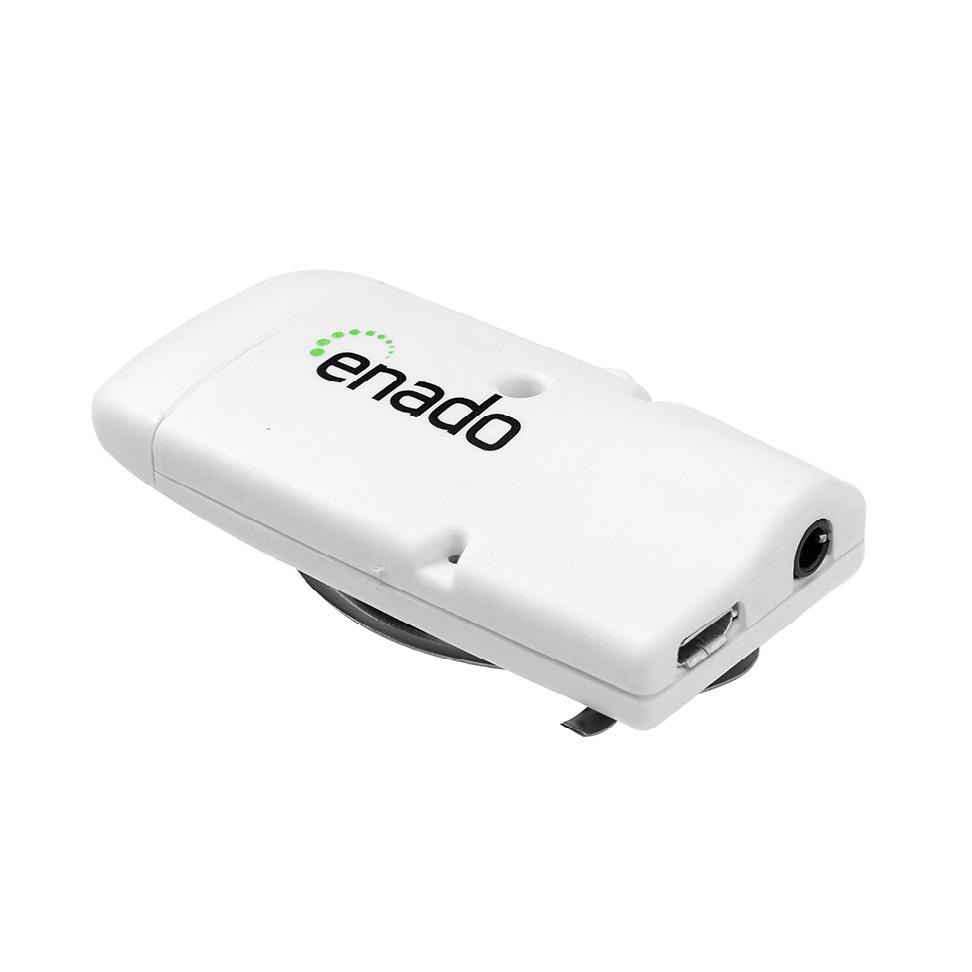

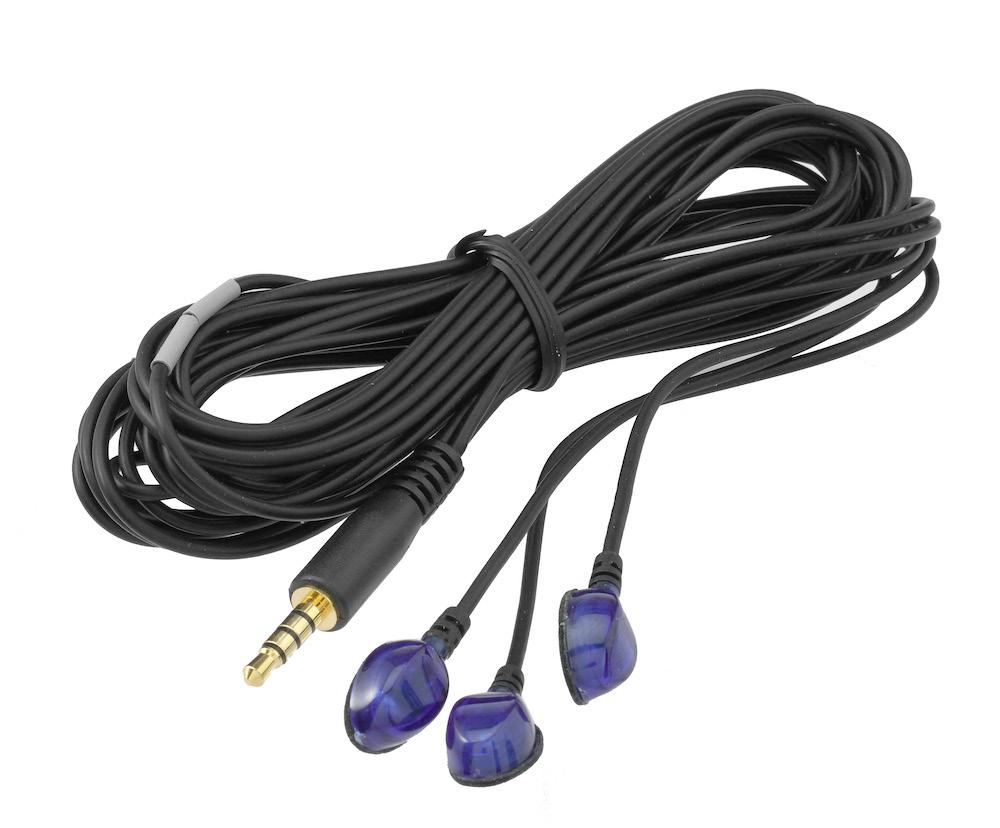

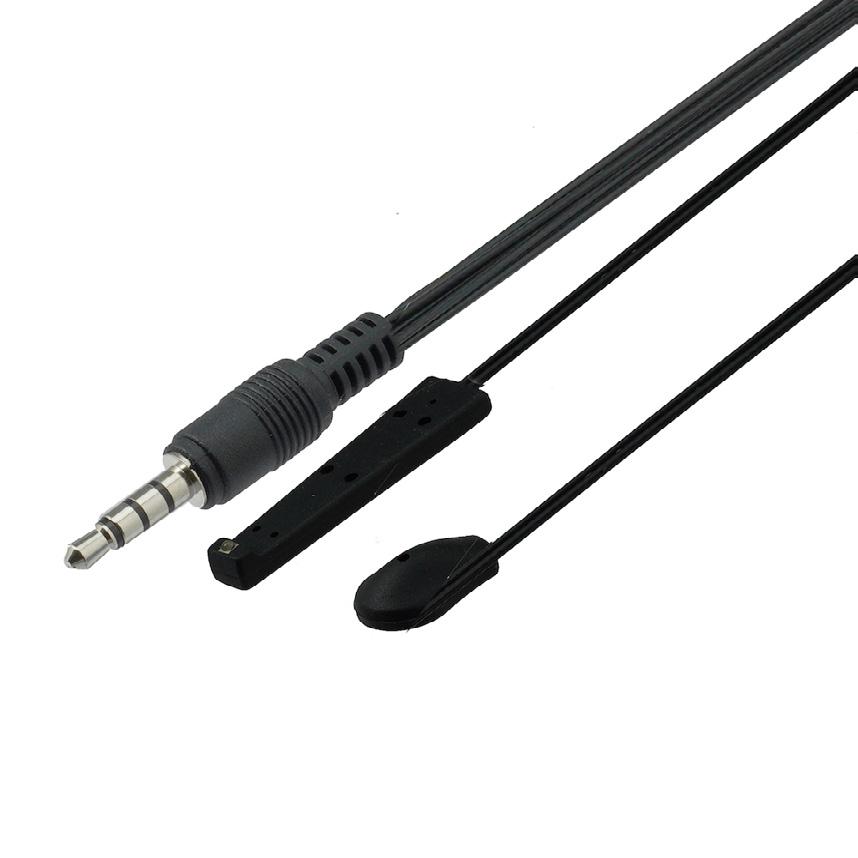

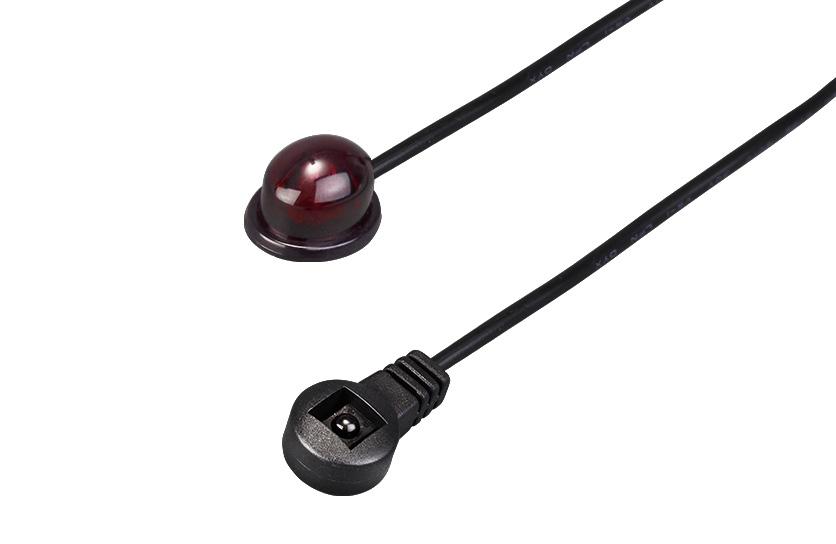

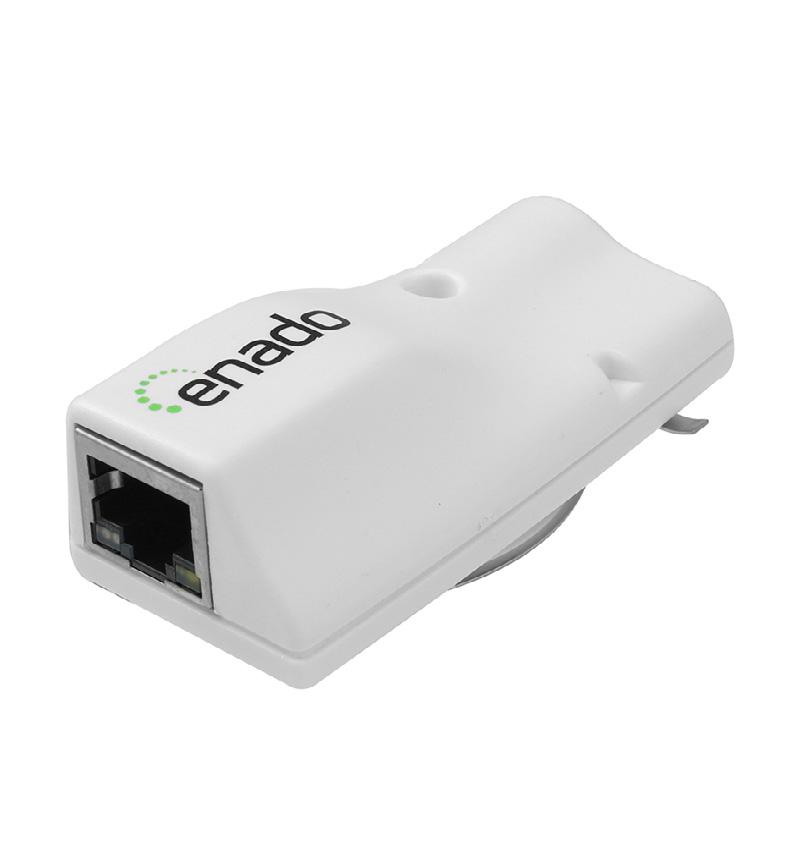

Enado Enlink 3 Emitter

MPN: CR-LINKEMITTER3

• Sending Commands: When you press a button on your remote control or through the Enado APP, it sends a command to your device using infrared light. This command tells the device what action to perform, like changing the channel or adjusting the volume.

• IR Blaster Setup: Sometimes, you might have devices that are out of direct line-of-sight from your remote control. This is where an IR blaster comes in. You place the IR blaster in a location where it can “see” all of your devices.

• Transmitting Signals: When you use your remote control, the IR blaster receives the commands and then emits similar infrared signals to your AV devices. It effectively acts as a bridge between your remote control and your equipment.

• Enhanced Accessibility: IR blasters can also be used with home automation systems or smart assistants like Amazon Alexa or Google Assistant. This allows you to control your AV equipment using voice commands or smartphone apps.

NEW NEW

Enado Enlink 2-1 Emitter

MPN: CR-LINKEMITTER21

• Integrated IR/RS-232 and Relay Controller

• 8 trigger inputs linked directly to 8 user macros allowing instant control

• 4 relay trigger outputs to control devices such as projector screens, lighting, etc.

• 4 IR outputs to control devices such as TVs, blu-ray players, media players, etc.

• Integrated IR code learning functionality

• Multiple user control interfaces including WebGUI, Telnet and RS-232

• Simple configuration of macros, triggers and relay settings via the WebGUI

• PoE (Power over Ethernet) support

• Firmware can easily be updated in the field via USB

NEW Enado Mini Rack Mount Kit

MPN: CR-MINIRM

• Compliant with USB 2.0 Full Speed Operation

• Compliant with USB Audio Device Class

• Specification V1.0

• Analog sound card, supporting MIC input and SPK output

• Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)

• Dante solution supports AES67 RTP audio transmission

• Support USB 5V power supply and POE function

• (IEEE802.3af Class 0)

CONTROL ACCESSORIES

NEW

Enado Enlink IP

MPN: CR-LINKIP

• Smart end-point that enables control of connected devices anywhere on a network.

• Allows events and tasks to be triggered with simple web-based commands.

• All EnLinks can support up to 3 infra red, RS232, RS485 or relay outputs.

• Automatic configuration within Enado.

• Allows legacy equipment to be controlled using the Enado IP control system.

• Modular, allowing systems to be built to any size any scale throughout a building.

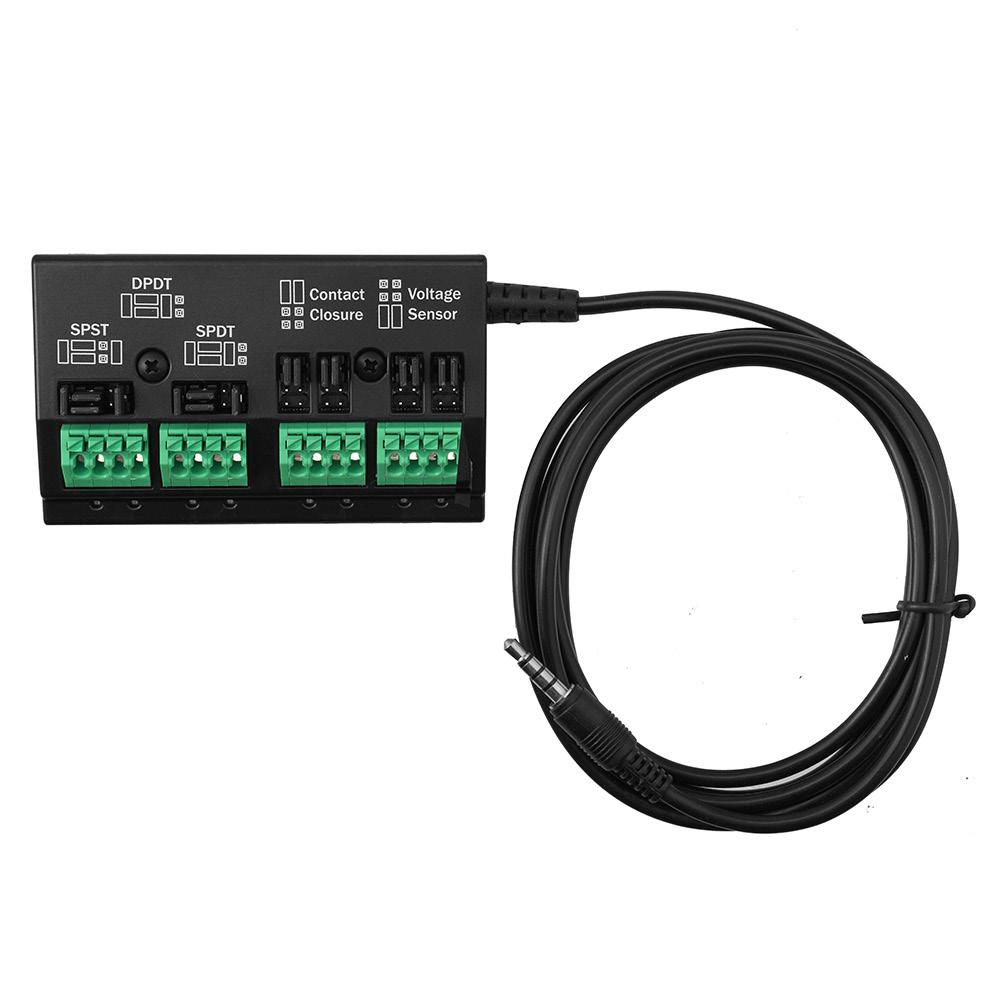

NEW EnLink Relay+Sensor

MPN: CR-LINKRELAY

• Versatile Control: Manage various electronic devices effortlessly with four integrated SPST relays, providing flexible on/off control.

• Customizable Configuration: Tailor the behavior of the relays to your specific needs with configurable settings, including different relay types like SPST, SPDT, and DPDT.

• Sensing Capabilities: Detect the status of connected devices using four configurable sensor inputs, allowing for voltage or contact closure sensing modes to monitor device activity.

• Seamless Integration: Easily connect to other devices using EnLink Serial cables with adjustable settings, ensuring smooth communication and integration within your system.

CONTROL ACCESSORIES

NEW

Enado Enlink Wifi

MPN: CR-LINKWIFI

• Smart end-point that enables control of connected devices anywhere on a network.

• Allows events and tasks to be triggered with simple web-based commands.

• All EnLinks can support up to 3 infra red, RS232, RS485 or relay outputs.

• Automatic configuration within Enado.

• Allows legacy equipment to be controlled using the Enado IP control system.

• Modular, allowing systems to be built to any size any scale throughout a building.

NEW Enado Enlink POE

MPN: CR-LINKPOE

• Smart end-point that enables control of connected devices anywhere on a network.

• Allows events and tasks to be triggered with simple web-based commands.

• All EnLinks can support up to 3 infra red, RS232, RS485 or relay outputs.

• Automatic configuration within Enado.

• Allows legacy equipment to be controlled using the Enado IP control system.

• Modular, allowing systems to be built to any size any scale throughout a building.

CONTROL ACCESSORIES

IR Remote Control Kit

IR Remote Control Kit for all Extenders & Switchers using IR

MPN: EXT-IRKIT

• IR Infrared Receiver extender cable

• Suitable for wide range of 38khz devices such as cable box & AV equipment

• Easy installation: Simply plug 3.5mm jack into IR IN port of your device

• Ideal for use with AV signal extenders, switchers and home theater devices

NEW Enado Mini-S Control System Professional

MPN: CR-MINISP3

• Offers an easy-to-use and customizable interface for controlling multiple devices and AV components.

• Easily expands to control any AV component connected to the network.

• Compatible with multiple web client platforms such as iOS, Android, Macs, and PCs, supporting an unlimited number of user control devices.

• Designed as a web server-based system, simplifying setup, operation, maintenance, and remote management.

• Utilizes a wizard-based HTML setup for connected displays and sources, enabling quick setup and template-driven integration.

• Provides seamless integration with Amazon Alexa and Siri, allowing for convenient hands-free voice control with multiple commands.

• Implements QR Code integration for COVID-safe control, enabling easy management of environments using clients’ own devices.

• Integrates with third-party systems controllable via IP, RS232, or IR.

• Compatible with Lutron Leap, supporting QS, QSX, and RA systems.

NEW Enado Mini-S + 3 year License

MPN: CR-MINISR3

• Offers an easy-to-use and customizable interface for controlling multiple devices and AV components.

• Easily expands to control any AV component connected to the network.

• Compatible with multiple web client platforms such as iOS, Android, Macs, and PCs, supporting an unlimited number of user control devices.

• Designed as a web server-based system, simplifying setup, operation, maintenance, and remote management.

• Utilizes a wizard-based HTML setup for connected displays and sources, enabling quick setup and template-driven integration.

• Provides seamless integration with Amazon Alexa and Siri, allowing for convenient hands-free voice control with multiple commands.

• Implements QR Code integration for COVID-safe control, enabling easy management of environments using clients’ own devices.

• Integrates with third-party systems controllable via IP, RS232, or IR.

• Compatible with Lutron Leap, supporting QS, QSX, and RA systems.

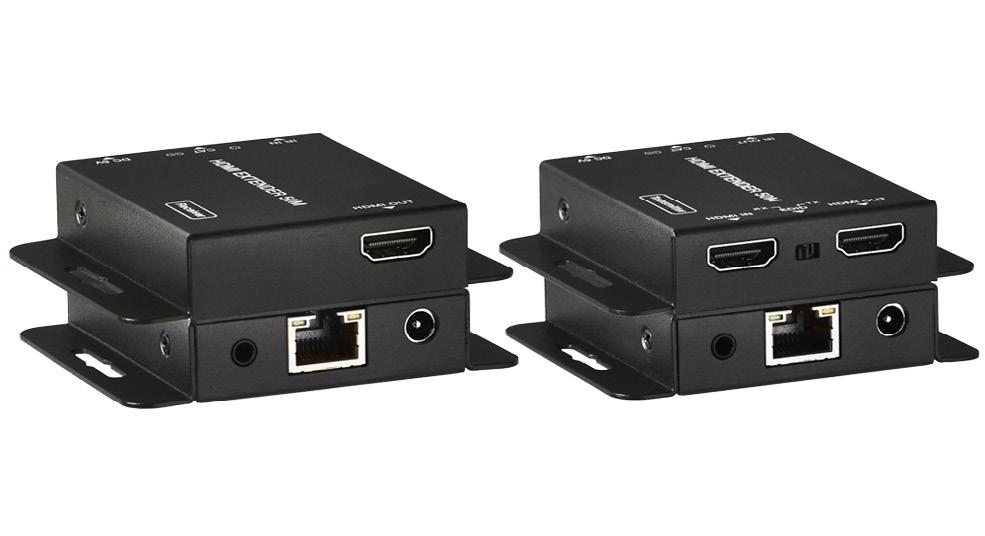

HDMI Extender over CAT6 up to 196ft. (60m)

MPN: EXT-HD60M

• Extend DVI/HDMI over CAT6 cable up to 196ft. (60m)

• Local HDMI output on Transmitter for preview

• Supports full HD 1080p (1920x1080@60Hz)

• Digital audio support

• HDCP & EDID compliant

• Full IR control over CAT6

• Supports 16-bit per channel (48-bit all channels)

• Compact metal enclosure

• Built-in mounting kits

• Easy to install

• * Only works with CAT6/CAT6a or better.

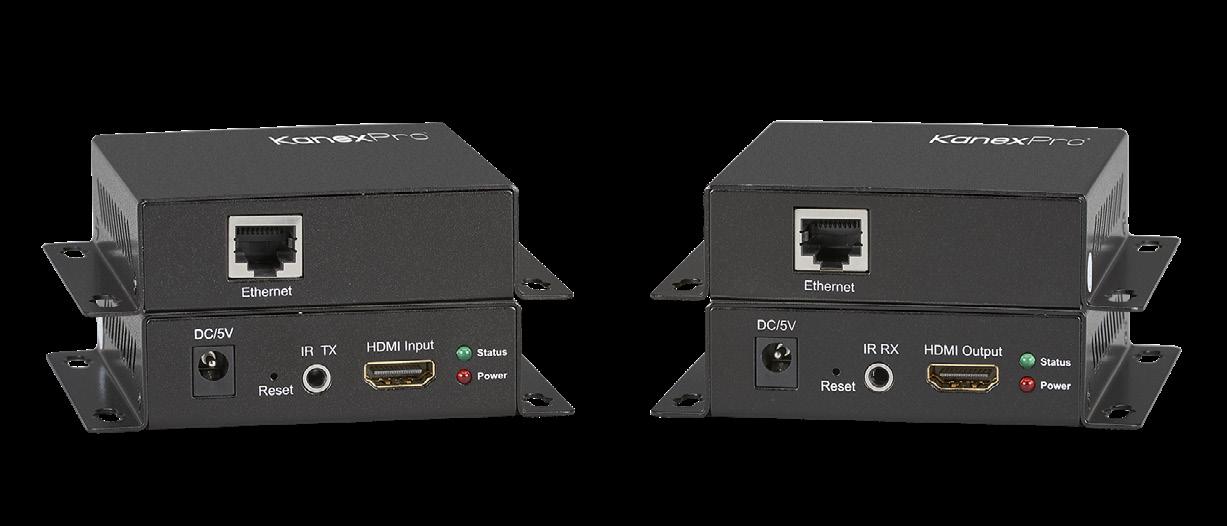

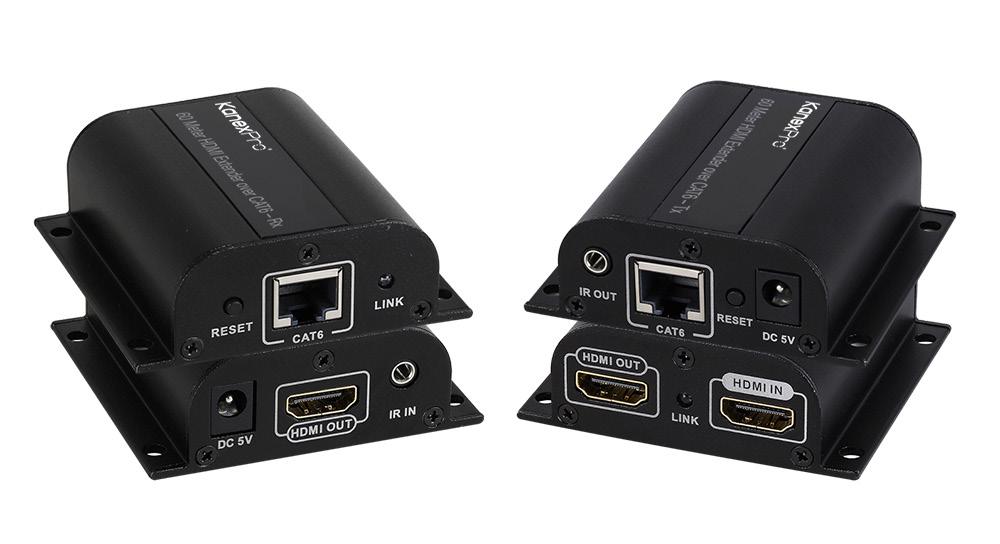

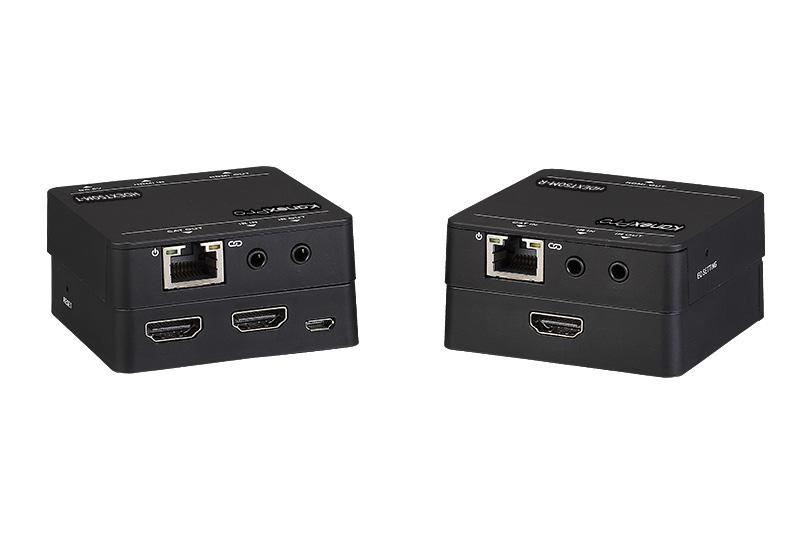

HDMI Extender over CAT5/6 up to 164ft. (50m)

MPN: HDEXT50M

• Extend DVI/HDMI over cost-effective Cat5 cable up to 164 ft. (50m)

• Supports full HD 1080p (1920x1080@60Hz)

• Local HDMI output (loop out)

• Built-in EDID to ensure proper HDMI transmission

• Built in EQ button on the side to compensate for signal equalization

• Digital audio support through HDMI

• HDCP 1.4 compliant

• Bi-directional wideband IR control

• Plug & Play - no set-up required

• Includes IR kits & Micro USB based power supplies

EXTENDERS HDMI

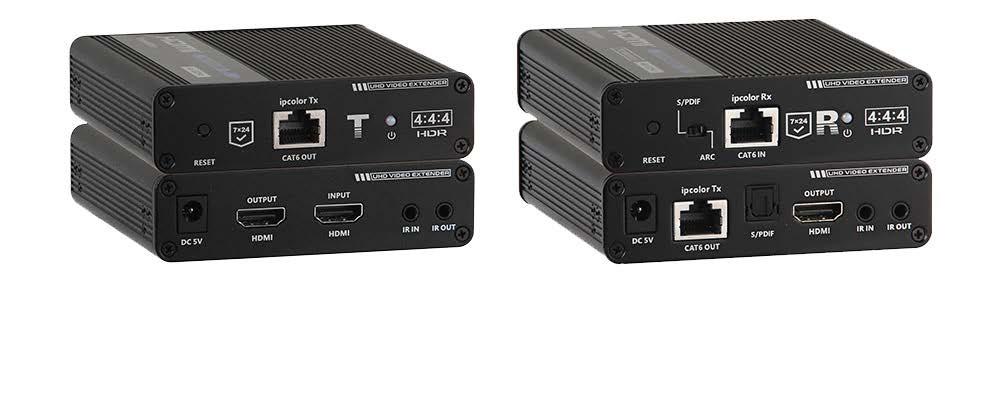

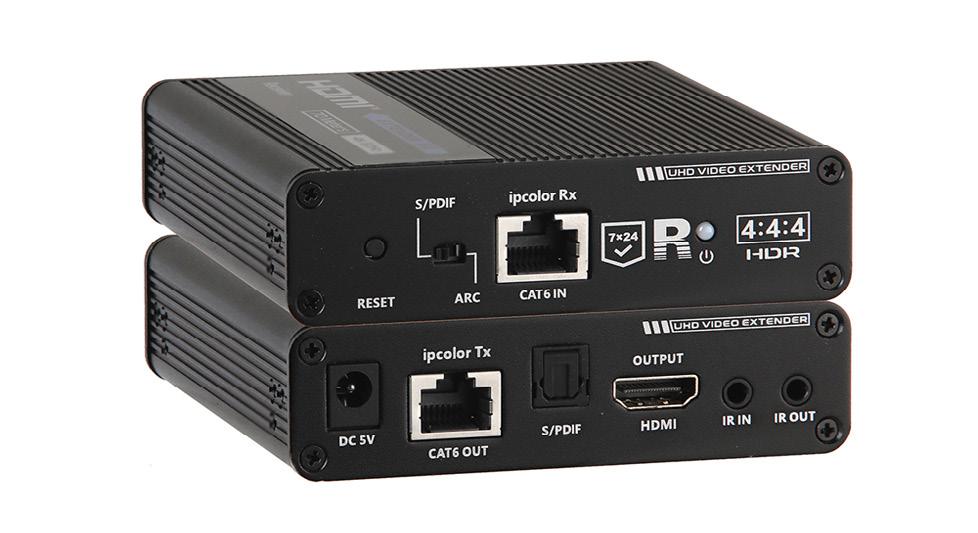

4K60Hz HDMI Extender over Cat6 70M

MPN: EXT-4KHD70M

• Zero Latency

• Supports transmission distance up to 230ft. (70m)

• Supports HDR(YUV 4:4:4)

• Supports UHD 4K (4K x 2K @ 60Hz)

• IR bi-directional Pass through 20-60KHz (kits included)

• HDCP 2.2 & EDID support for multiple displays

• Simple set up with zero configuration

• Compact design for flexible installations

• Support ARC S/PDIF digital audio de-embedded outputs

4K60Hz HDMI Cascading Extender Kit over Cat6 70M

MPN: EXT-HDMICAS70m

• Zero Latency

• Supports transmission distance up to 230ft. (70m)

• Cascade up to 10 additional receivers

• Receiver units can individually manage display resolution and EDID

• Supports HDR(YUV 4:4:4)

• Supports UHD 4K (4K x 2K @ 60Hz)

• IR bi-directional Pass through 20-60KHz (kits included)

• HDCP 2.2 & EDID support for multiple displays

• Simple set up with zero configuration

• Compact design for flexible installations

• Support ARC S/PDIF digital audio de-embedded outputs

4K60Hz HDMI KVM extender over Cat6 w/ USB 2.0 70M

MPN: EXT-HDMIKVM70M

• Zero Latency

• KVM Function supporting USB 2.0/1.1

• Supports transmission distance up to 230ft. (70m)

• Supports HDR(YUV 4:4:4)

• Supports UHD 4K (4K x 2K @ 60Hz)

• IR bi-directional Pass through 20-60KHz (kits included)

• HDCP 2.2 & EDID support for multiple displays

• Simple set up with zero configuration

• Compact design for flexible installations

• Support ARC S/PDIF digital audio de-embedded outputs

KanexPro 4K60Hz HDMI Cascading Extender Receiver over Cat6 70M

MPN: EXT-HDMICAS70MRX

• Zero Latency

• Supports transmission distance up to 230ft. (70m)

• Cascade up to 10 additional receivers

• Receiver units can individually manage display resolution and EDID

• Supports HDR(YUV 4:4:4)

• Supports UHD 4K (4K x 2K @ 60Hz)

• IR bi-directional Pass through 20-60KHz (kits included)

• HDCP 2.2 & EDID support for multiple displays

• Simple set up with zero configuration

• Compact design for flexible installations

• Support ARC S/PDIF digital audio de-embedded outputs

• Backed by KanexPro’s 3 Year limited warranty

HDMI Extender over CAT5/6 up to 164ft. (50m)

MPN: EXT-HD50C

• HDMI 1.4 and HDCP 1.4 compliant

• Support video resolution up to 4K@30Hz

• The maximum transmission distance via a single Ca6/5e cable is as follows:

• Cat6: 230ft/70m for 1080p, 131ft/40m for 4Kk30

• Cat5e: 197ft/60m for 1080p, 115ft/35m for 4K30

• Support copying EDID from receiver display or loop out display

• Allowing for Cascading via additional HDMI loop out ports

• Compact design for easy and flexible installation

• Backed by KanexPro 3-year parts and labor warranty

Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

50M 4K 18Gbps HDMI Extender

MPN: EXT-50M18G

• Ultra Slim 164ft. (50m) HDMI extender

• HDMI loop-out

• Extend up to 50m for 4K/60 video w/ 4:4:4 Chroma

• HDR (High Dynamic Range) & Wider color gamut support

• Bi-directional IR, RS-232

• HDCP 2.2 and EDID compliant

• Dolby TrueHD & DTS Master Audio ready

• Compact design for easy and flexible installation

• Backed by KanexPro 3-year parts and labor warranty

Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

HDMI PRO

NEW

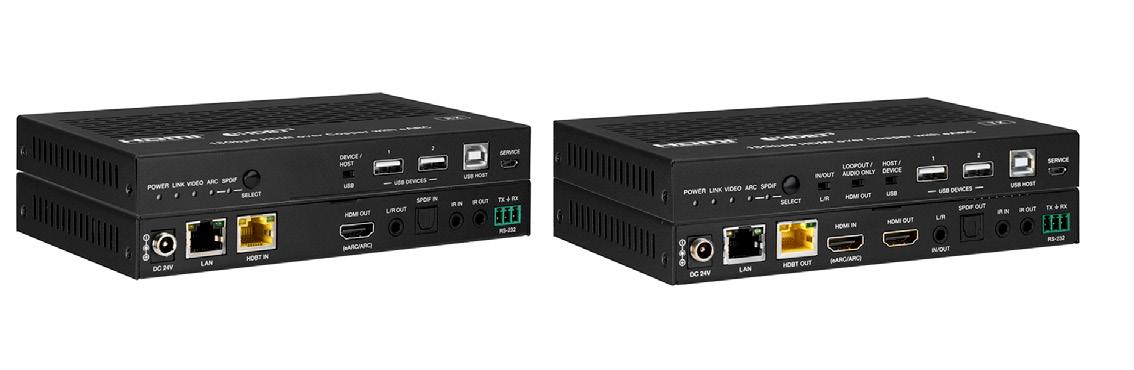

HDMI Extender Over RJ45 100M w/ eARC Kit TX RX

MPN: EXT-HDBT3ARC-100M

• HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant

• Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth

• HDR, HDR10, HDR10+, Dolby Vision and HLG pass through

• LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,

• DTS High Res, DTS-HD Master Audio, DSD pass through

• Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable

• Supports eARC/ARC function (the audio is returned to the HDMI IN port,

• HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)

• Supports SPDIF audio reverse transmission

• Bi-directional IR, RS-232 and 1G Ethernet signal pass through

• Supports USB2.0 transmission, Host/Device is configurable

• Bi-directional 24V POC function

NEW

HDMI Extender Transmitter Over RJ45 100M w/ eARC Optical R/L Audio

MPN: EXT-HDBT3ARC-TX

• HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant

• Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth

• HDR, HDR10, HDR10+, Dolby Vision and HLG pass through

• LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS96/24,

• DTS High Res, DTS-HD Master Audio, DSD pass through

• Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable

• Supports eARC/ARC function (the audio is returned to the HDMI IN port,

• HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)

• Supports SPDIF audio reverse transmission

• Bi-directional IR, RS-232 and 1G Ethernet signal pass through

• Supports USB2.0 transmission, Host/Device is configurable

• Bi-directional 24V POC function

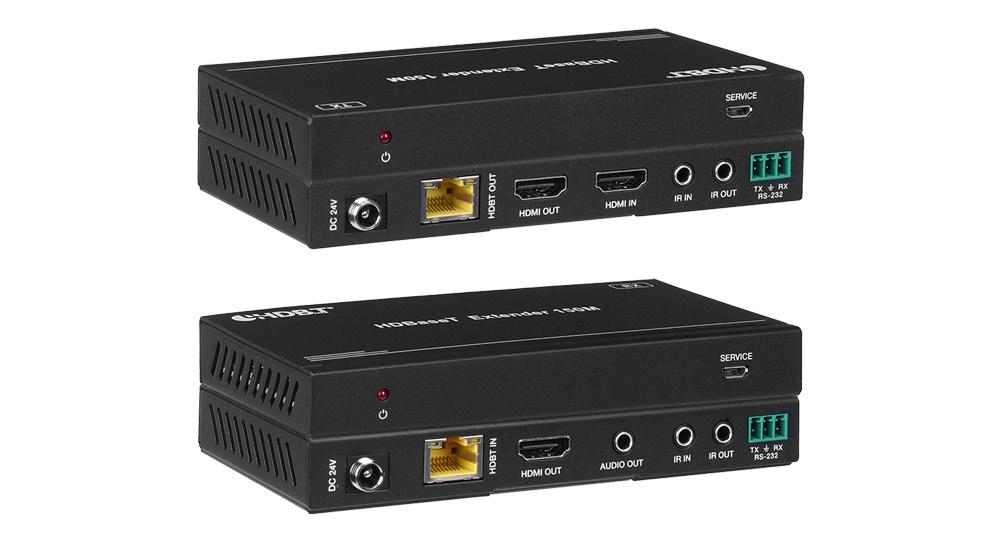

KanexPro Premium HDMI Extender up to 150M 18G 4K

MPN: EXT-4KHD150M2

• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

• Support 18Gbps video bandwidth

• The maximum extended transmission distance via a single Cat5e/6 cable:

• 394ft / 120 meters for 4K2K signal;

• 492ft / 150 meters for 1080P signal

• Support one HDMI loop output on the transmitter

• Extract audio to analog stereo output on receiver

• With bi-directional IR, RS-232 and CEC pass-through

• HDR, HDR10+, Dolby Vision and HLG function supported

• Support PoC (Power over Cable)

• Compact design for easy and flexible installation

• Covered by KanexPro’s 3 year limited product warranty

HDMI PRO

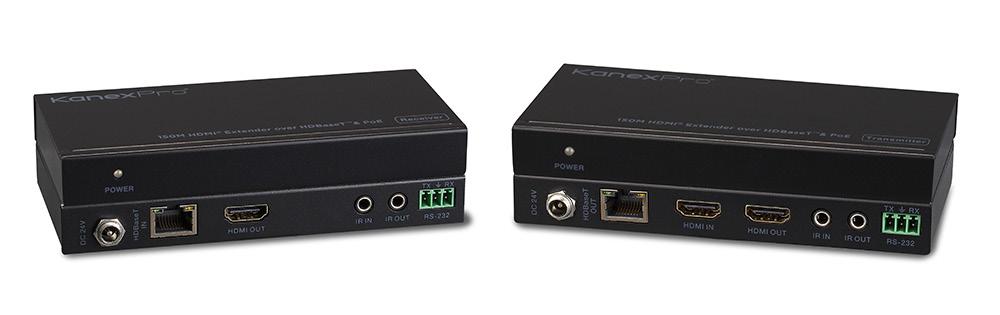

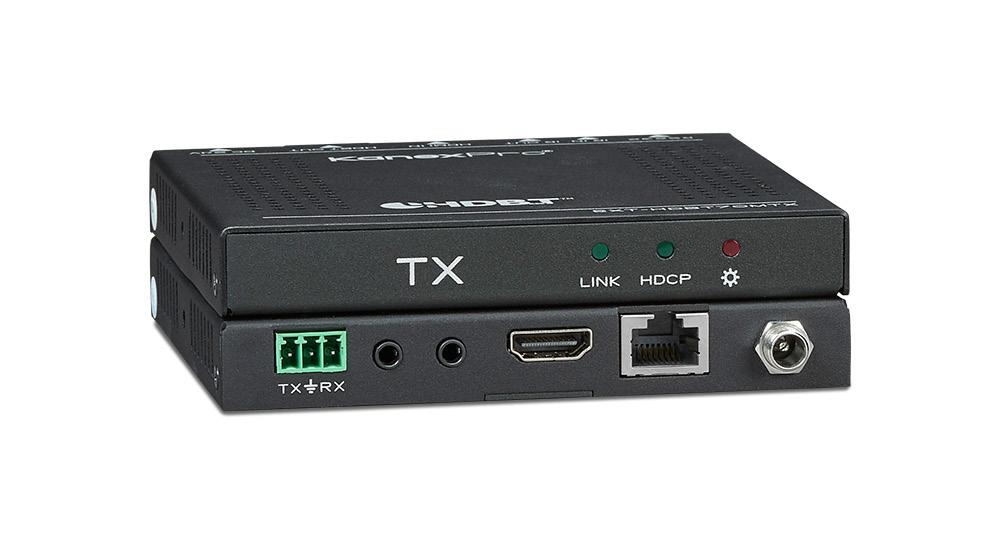

HDMI Extender 70M RJ45 4K

MPN: EXT-HDBT70C

• Basic point-to-point HDMI extender over HDBaseT

• Extend full HD 1080p up to 70m (230ft.)

• Extend 4K/30 up to 40m (131ft.)

• Supports Ultra HD 4K@30Hz resolutions &

• Video resolutions from 1080p/60@48bit

• Bi-directional PoC (power over cable)

• HDCP 2.2 & EDID compliant

• Bandwidth 10.2 Gbps

• Bi-directional RS-232 & IR control

• Supports CEC/IR/RS-232 pass-thru

• IR input/output - embedded over CATx extension

• Dolby TrueHD & DTS Master Audio ready

• Supports uncompressed audio - LPCM

• Includes separate mounting ears

• One locking power supply included

• Backed by KanexPro 3-year parts and labor warranty

• Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

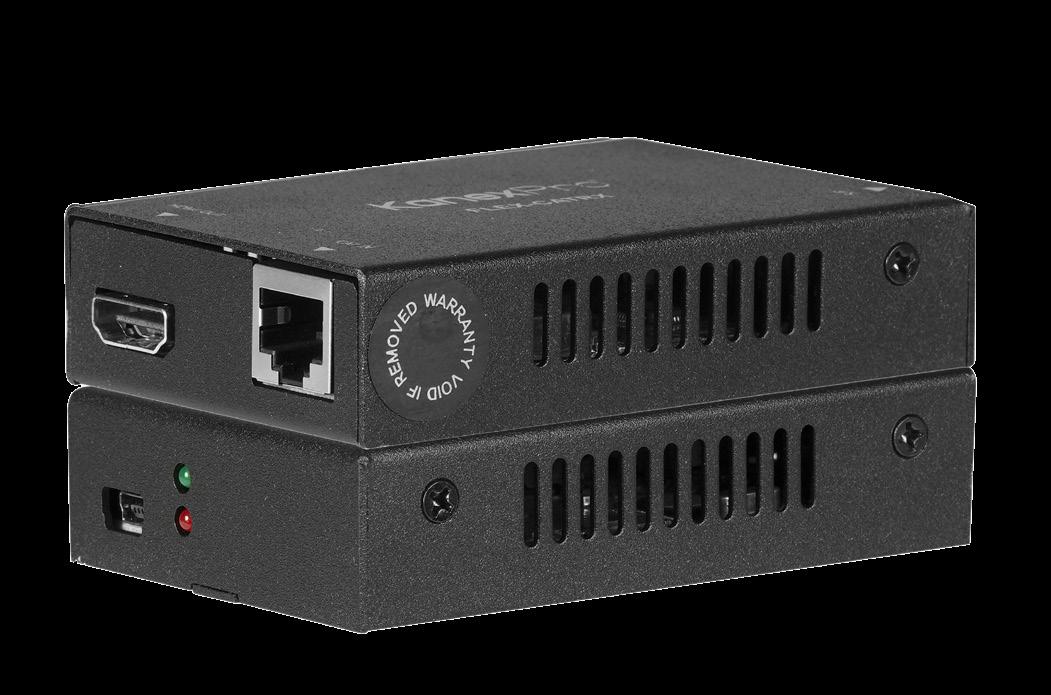

HDMI Extender 150M w/ Loop Out

MPN: EXT-HDBT150M

• Compact 150m HDMI extender over CAT6

• Extends up to 492ft. (150m) with full HD 1080p/60

• Local HDMI loop out on Tx (sender)

• Bi-directional PoE (Power over Ethernet)

• HDCP 1.4 & EDID compliant

• IR input/output - embedded over CATx extension

• Dolby TrueHD & DTS Master Audio support

• Supports uncompressed audio - LPCM

• Bi-directional RS-232 & IR control

• One locking power supply included

• Note: Please use a CAT5e/6 cable with low impedance (Shielded twisted pair is recommended with proper grounding) for excellent transmission of AV signals.

UltraSlim 4K/60 HDMI Extender 70M

MPN: EXT-HDBT70M

• UltraSlim point-to-point HDMI extender over HDBaseT

• Extend full HD 1080p up to 70m

• Extend 4K/60 up to 40m

• Supports Ultra HD 4K@24/30/60Hz resolutions &

• PC resolutions from 1080p/60@48bit

• 4K/60Hz w/ 4:2:0

• Bi-directional PoH (power over HDBaseT)

• HDCP 2.2 and EDID compliant

• Bandwidth 10.2 Gbps

• Bi-directional RS-232 & IR control

• Supports CEC/IR/RS-232 pass-thru

• IR input/output - embedded over CATx extension

• Dolby TrueHD & DTS Master Audio ready

• Supports uncompressed audio - LPCM

• Backed by KanexPro 3-year parts and labor warranty

• Please note: use a CAT6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

HDMI PRO

UltraSlim 4K/30 HDMI Transmitter 70M

MPN: EXT-HDBT70MTX

• UltraSlim point-to-point HDMI Transmitter over HDBaseT

• Extend full HD 1080p up to 70m

• Extend 4K/30 up to 40m

• Supports Ultra HD 4K@30Hz resolutions &

• Video resolutions from 1080p/60@48bit

• Bi-directional PoH (power over HDBaseT)

• HDCP 2.2 and EDID compliant

• Bandwidth 10.2 Gbps

• Bi-directional RS-232 & IR control

• Supports CEC/IR/RS-232 pass-thru

• IR input/output - embedded over CATx extension

• Dolby TrueHD & DTS Master Audio ready

• Supports uncompressed audio - LPCM

• Includes separate mounting ears

• One locking power supply included

• Backed by KanexPro 3-year parts and labor warranty

• Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

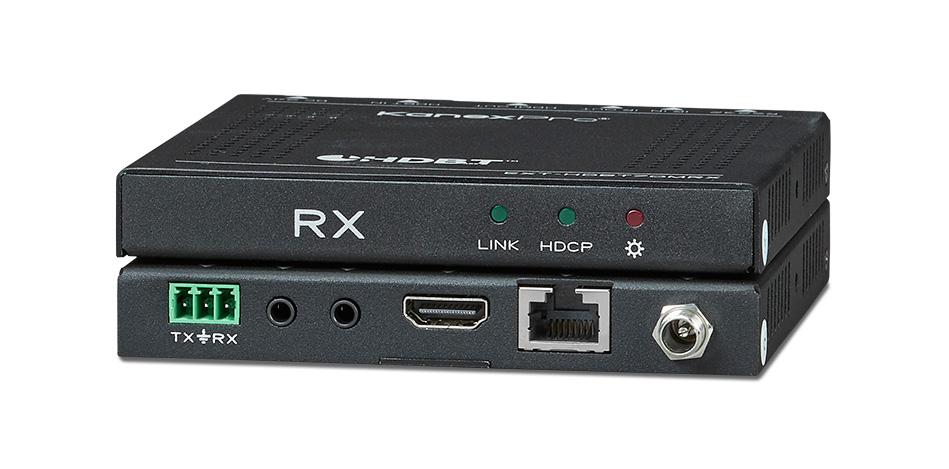

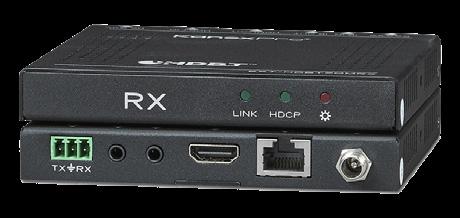

UltraSlim 4K/60 HDMI Receiver 70M

MPN: EXT-HDBT70MRX

• UltraSlim point-to-point HDMI Receiver over HDBaseT

• Extend full HD 1080p up to 70m

• Extend 4K/60 up to 40m

• Supports Ultra HD 4K@24/30/60 Hz resolutions &

• PC resolutions from 1080p/60@48bit

• 4K/60Hz w/ 4:2:0

• Bi-directional PoH (power over HDBaseT)

• Bi-directional RS-232 & IR control

• HDCP 2.2 and EDID compliant

• Bandwidth 10.2 Gbps

• IR input/output - embedded over CATx extension

• Dolby TrueHD & DTS Master Audio ready

• Supports uncompressed audio - LPCM

• Backed by KanexPro 3-year parts and labor warranty

• Please note: use a CAT6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

• ** Power supply not included in the box, to order, please use SKU # EXT-PSU2

NETWORK AV ™

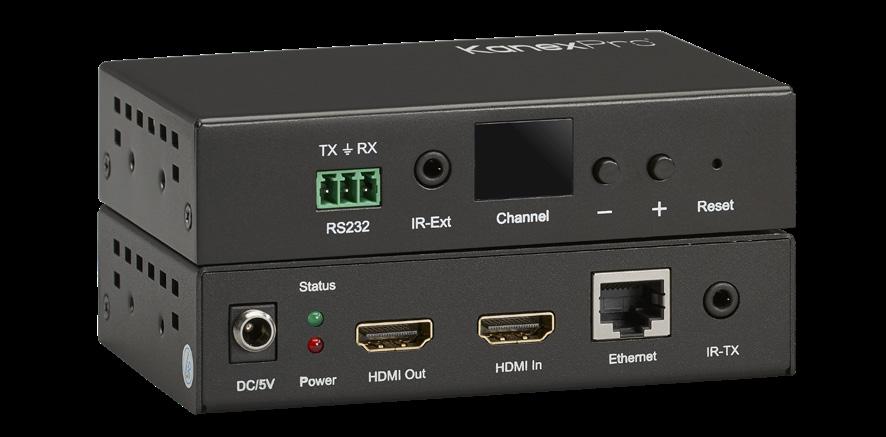

H.264 HDMI ® Encoder & Decoder over IP with POE & RS-232

MPN: EXT-AVIPH264TX

MPN: EXT-AVIPH264RX

• Encode and extend pure 1080p resolutions up to 394’ / 120 meters

• Features real-time AV coding and decoding to broadcast 1080p

• H.264 Compression technology

• Can be used with DVI connection

• Supports one to many, many to many and point to point broadcasting

• Dual power input: 802.3af compliant w/ POE & DC 5V

• (No need power supply when connecting with POE Switch)

• Can be cascaded to multiple AV over IP Extenders

• Support LPCM audio format

Drivers available: Crestron, RTI, and Control 4

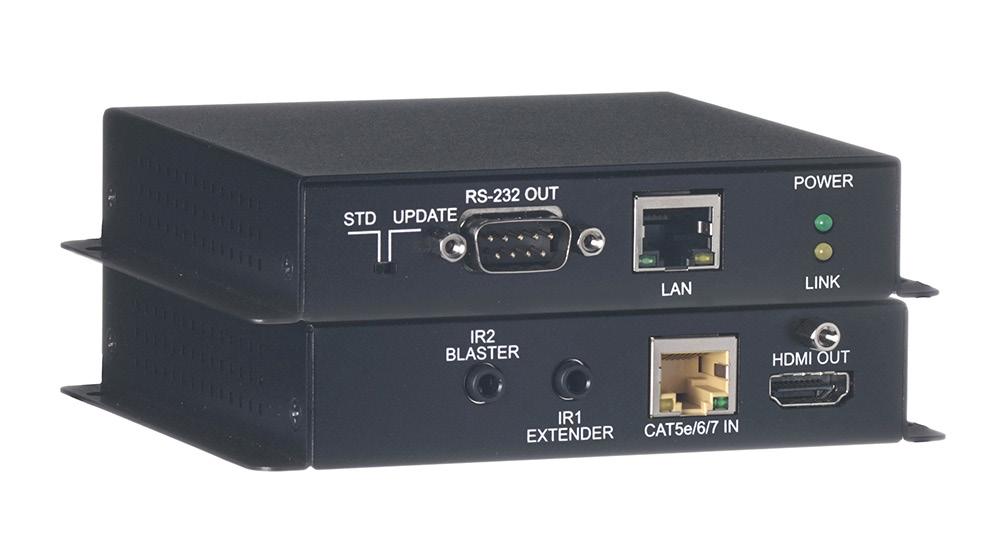

HDMI ® Video Over IP Encoder - Decoder Kit - 120m

MPN: EXT-AVIP120M

• HDMI AV over IP set

• Extends 1080p HDMI signals up to 120m over a single UTP CATx cable

• Control via IR (Kit included)

• Cascaded to many layers by adding 10G or more Ethernet switches

• Wideband IR (38-56kHz) control to the source

• HDCP compliant

• Supports TCP/IP protocol

• Metal enclosure built with mounting ears

• 5 V DC power supplies included

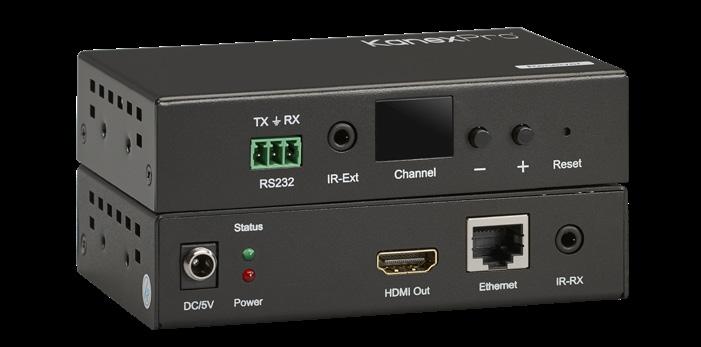

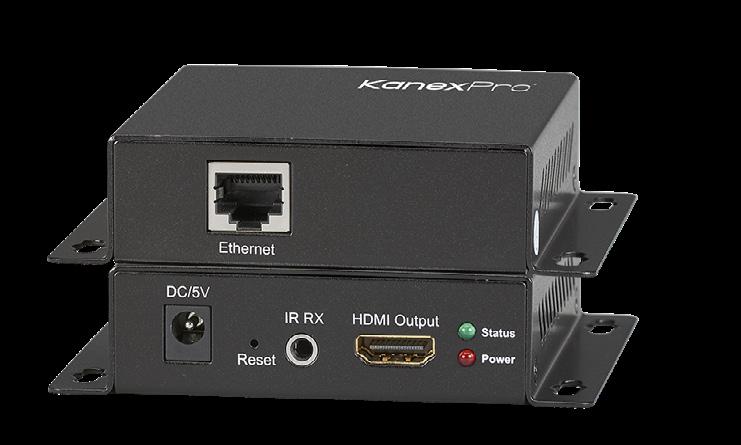

HDMI ® Video Over IP Decoder - 120m

MPN: EXT-AVIP120MRX

• AV over IP Decoder only

• Extends 1080p HDMI signals up to 120m over a single UTP CATx cable

• Control via IR (Kit included)

• Cascaded to many layers by adding 10G or more Ethernet switches

• Wideband IR (38-56kHz) control to the source

• HDCP compliant

• Supports TCP/IP protocol

• Metal enclosure built with mounting ears

• 5 V DC power supplies include

EXTENDERS USB

USB 3.0 Extender Over Cat6 100M

MPN: EXT-USB3100M

• USB 3.0 connectivity with data transfer rate up to 5Gbps

• Backwards compatible with USB 2.0 and 1.1

• Hardware acceleration for isochronous and bulk transfer

• Extension of USB 3.0 up to 100m/328ft over CAT6a cable

• USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver

• Simple plug and play, no driver and setting installation needed

• Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)

• Support bi-directional 24V PoC (Power Over CAT)

• Simple plug and play, no driver and setting installation needed

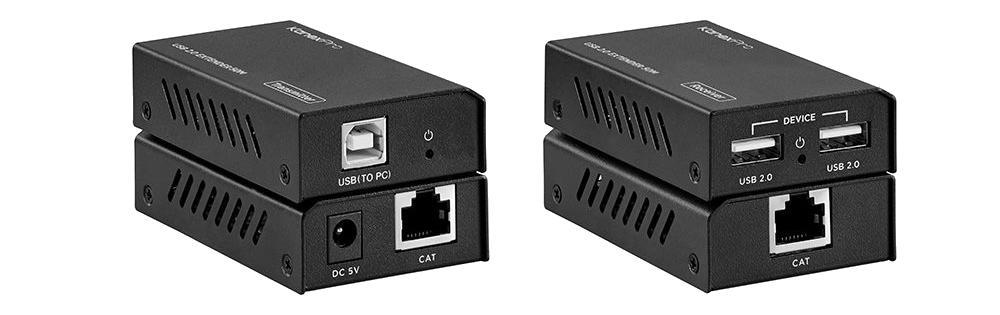

USB 2.0 Extender over Cat6 100 Meters

MPN: EXT-USB2100M

• Ultra Slim 330ft. (100m) USB 2.0 extender

• Simple plug and play, no drive and setting installation required

• Supports USB 2.0 protocol, transmission rate up to 480Mbps

• Features one USB-B port input in transmitter

• Features two USB 2.0 ports outputs on the receiver

• Compact design for easy and flexible installation

• Backed by KanexPro 3-Year Parts and Labor Warranty

USB 2.0 Extender over Cat6 50 Meters

MPN: EXT-USB250M

• Ultra Slim 165ft. (50m) USB 2.0 extender

• Simple plug and play, no drive and setting installation required

• Supports USB 2.0 protocol, transmission rate up to 480Mbps

• Features one USB-B port input in transmitter

• Features two USB 2.0 ports outputs on the receiver

• Compact design for easy and flexible installation

USB

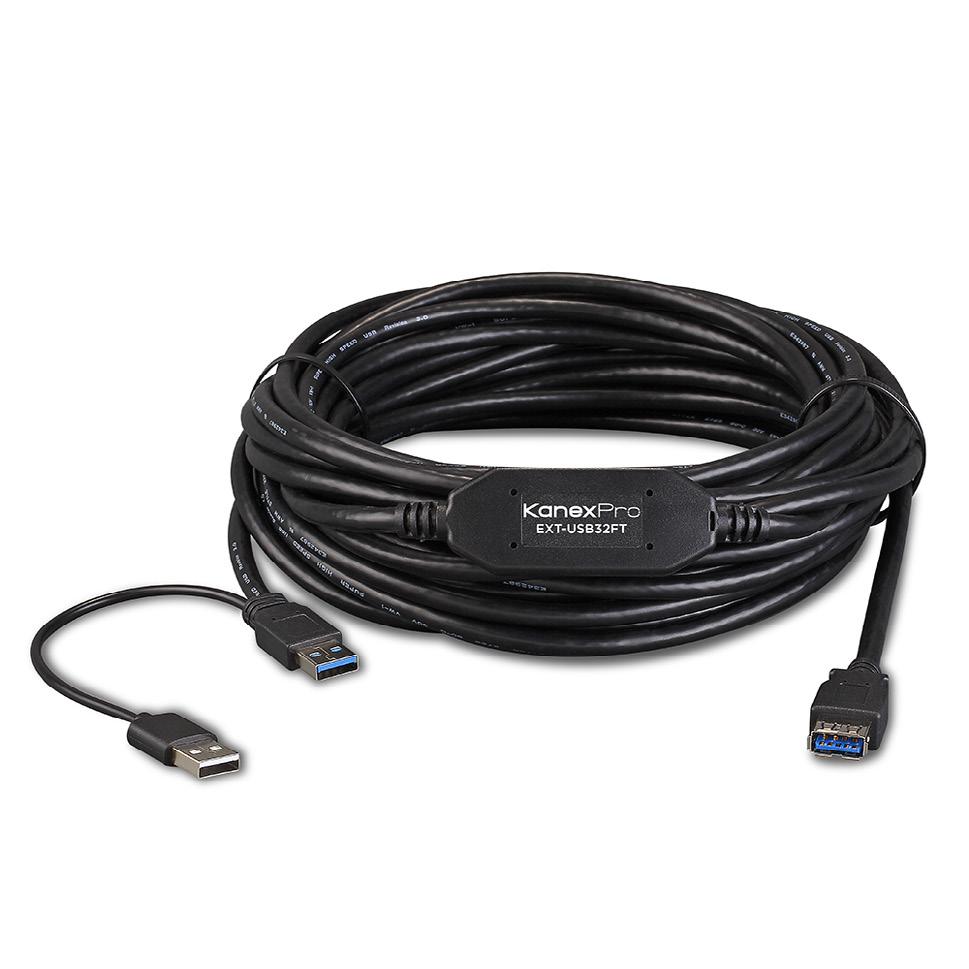

SuperSpeed USB 3.0 Active Extension Cable –16ft. (4.9m) and 32ft. (10m)

MPN: EXT-USB16FT

MPN: EXT-USB32FT

• USB 3.0 Active Extension cable - 16ft. (4.9m) and 32ft. (10m)

• Supports USB 3.0 throughputs up to 5Gbps

• Bus powered from host PC, no external power supply needed

• No drivers or software installation required

• USB 3.0 device port provides 5V, 900mA power

• Backwards compatible with USB 1.0,1.1 & 2.0

• OS Compatibility: Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, Windows 8, Linux & Mac OS 10.X

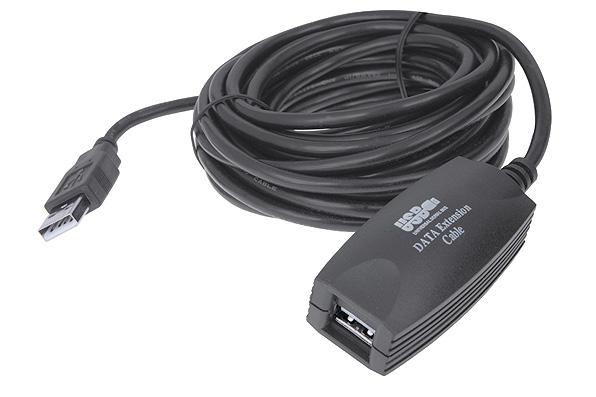

USB 2.0 Active Extension Cable – 16ft. (4.9m)

MPN: USBEXT16FT

• Extends USB peripherals up to 16 feet (4.9m) without any CAT5e boxes or external power

• Supports USB 1.0, 1.1, and 2.0 standards

• Date transfer speeds up to 480 Mbps

• True Plug and play solution

• No external power required

• Available in 16ft. (4.9m)

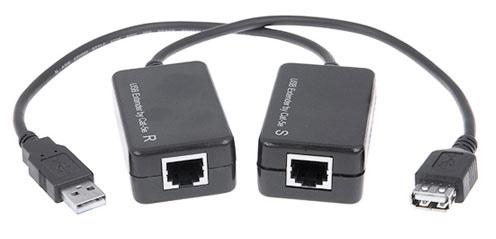

USB Single Extender over twisted pair – 150ft. (45.7m) DISCONTINUED

MPN: USBEXTRJ45

• Extend USB devices up to 150 feet (45.7m) on a single CAT5e/6 cable

• Supports USB 1.0 & 1.1

• Data rates up to full speed USB 1.0/1.1

• No external power required (powered through host PC)

• Ultra-compact in size

• Easy to set up

18Gbps Premium 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter

MPN: WP-EXTHDTC70

• Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a

• Support 18Gbps video bandwidth

• Video resolution up to 4K@60Hz 4:4:4

• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable

• Support DR10 and HDR10+

• Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch

• Support HDMI and USB-C inputs

• USB 2.0 extension with Receiver

• Supports POC function (only from Receiver to Transmitter)

• With USB-C charging port

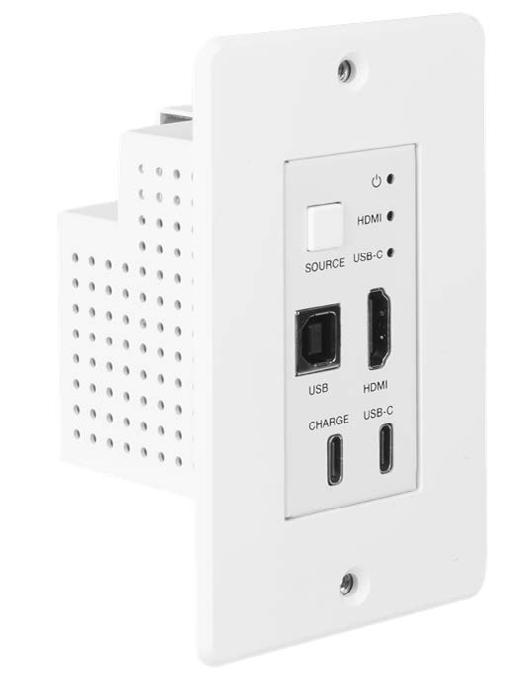

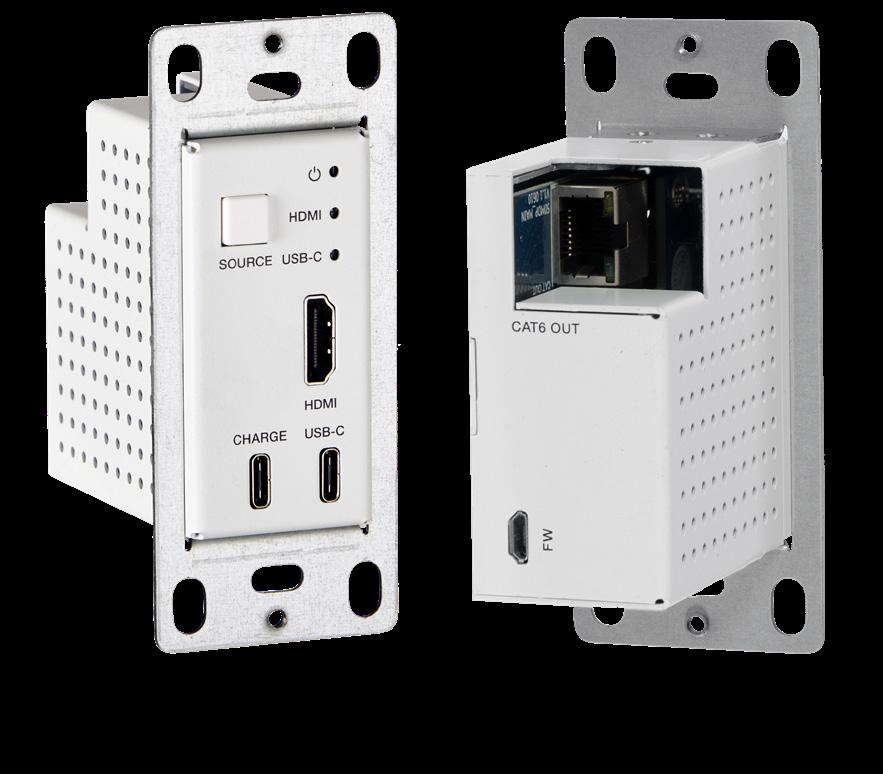

HDMI and USB-C 50M Extender Wall Plate Kit

MPN: WP-EXTHDTC50

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a standards

• HDMI input supports 18Gbps video bandwidth;

• USB-C input supports 5.4Gbps video bandwidth

• Video resolution up to 4K2K@50/60Hz 4:4:4

• CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable

• Support 3D, HDR10 and Dolby Vision

• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Support HDMI and USB-C input with USB-C charging port

• US one-gang enclosure for Decora-style wall plate openings

• Input signal selection supports automatic mode and manual mode

• Support POC function (only from Receiver to Transmitter)

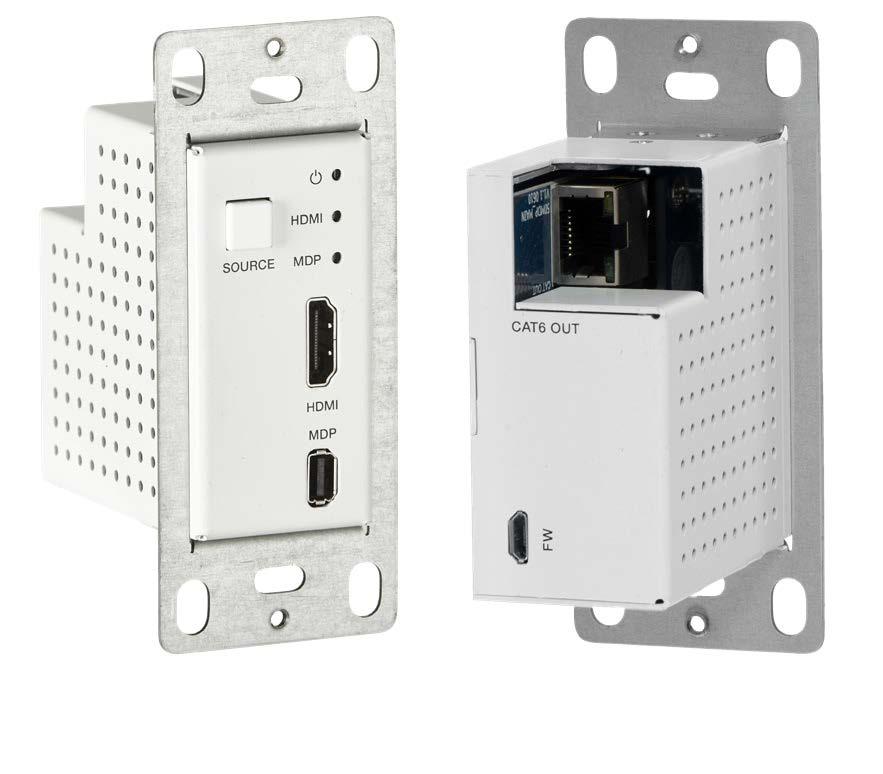

HDMI and mDP 50M Extender Wall Plate kit

MPN: WP-EXTHDMDP50

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a

• Support 18Gbps video bandwidth

• Video resolution up to 4K/UHD@60Hz 4:4:4

• CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable

• Support 3D and HDR format video, does not support CEC control

• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Support HDMI and MDP input

• US one-gang enclosure for Decora-style wall plate openings

• Input signal selection supports automatic mode and manual mode

• Support POC function (only from Receiver to Transmitter)

WALLPLATES

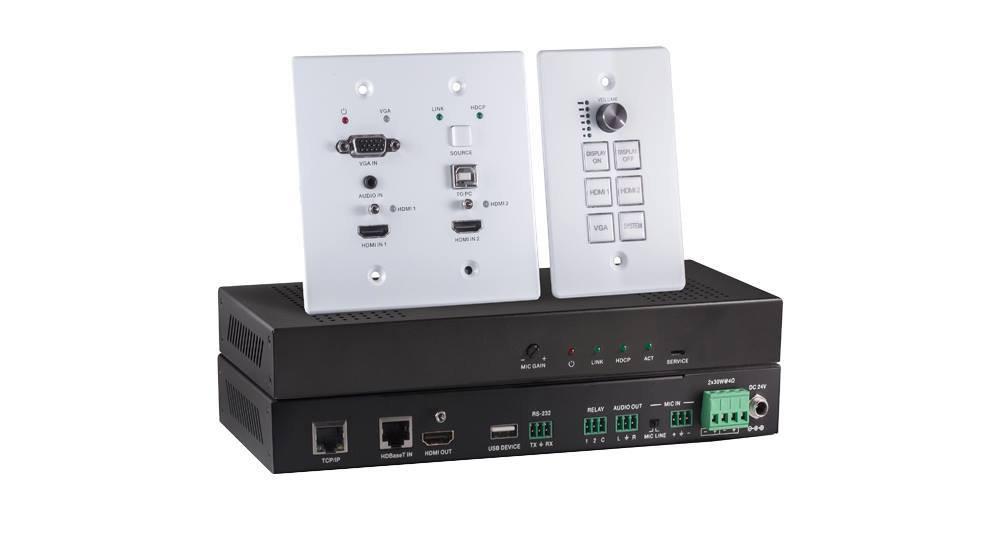

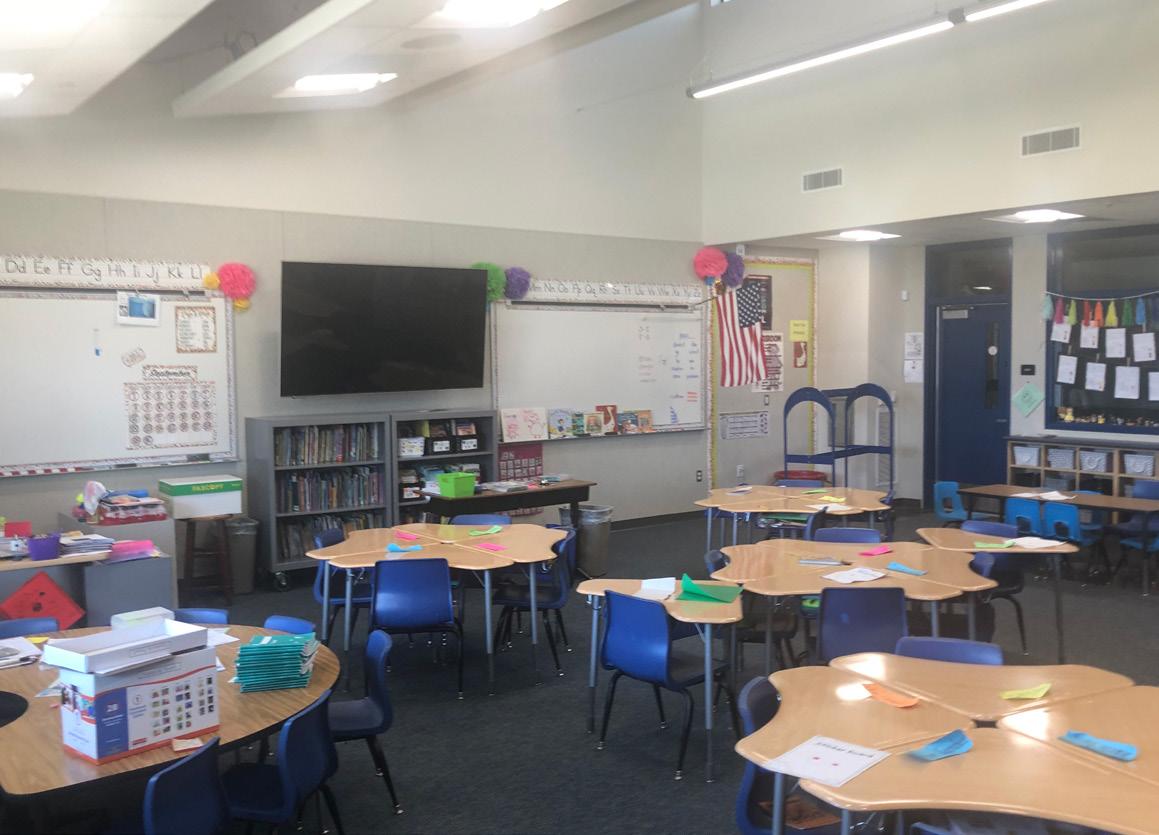

Premium Extender Kit for Classrooms

MPN: WP-50MEXTRX

• Switch freely between two HDMI and a single VGA input

• Supports HDMI output resolutions up to 4K@30Hz

• Supports HDCP 2.2

• Provides MIC input

• Provides 2x30Watt@4 Ω _amplifier output

• Supports Universal Plug and Play (UPnP)

• Backed by KanexPro 3-Year Parts and Labor Warranty

Premium Extender Kit for K-12 Educational Applications

MPN: WP-EDUKIT4K

• Switch freely between two HDMI and a single VGA input

• Supports HDMI output resolutions up to 4K@30Hz

• Supports HDCP 2.2

• Provides MIC input

• Provides 2x30Watt@4 Ω _amplifier output

• Supports Universal Plug and Play (UPnP)

• Backed by KanexPro 3-Year Parts and Labor Warranty

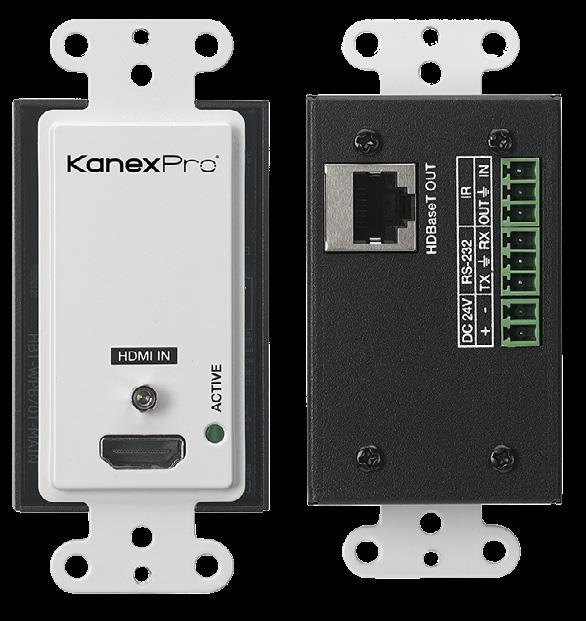

Single HDMI 2.0 Wall Plate Extender Kit with IR Control & Power over Cable

MPN: WP-EXTHDBTKIT

• Single-Gang, one HDMI Input Active Wall Plate Extender Kit

• Includes one Receiver for connecting to Display

• Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)

• Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)

• Supports the latest HDMI 2.0 specs with 18 Gbps bandwidth

• Digital Audio Support up to 7.1 channels of HD audio

• HDCP 2.2 Compliant

• Bi-directional IR & RS-232C

• Remote power support thru PoC (Either from sender/receiver)

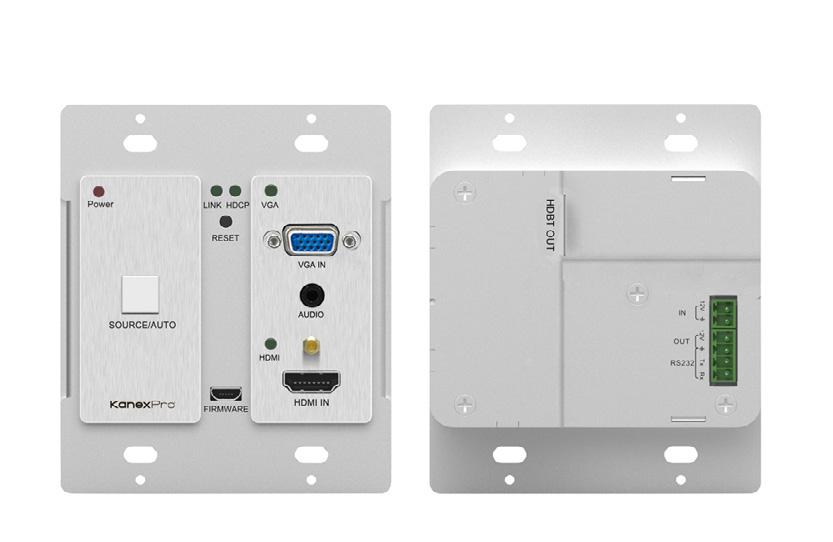

4K HDMI & VGA Wall Plate Transmitter Over HDBaseT™

MPN: WP-HDBASETX

• Transmits HDMI or analog video, control, and analog audio up to 200 feet (70 meters) over a shielded CAT6 cable

• Auto-switching between inputs

• Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 4K

• Remote power supporting PoE

• HDCP & EDID compliant

• RS-232 for control

• Supports high bandwidth up to 10.2 Gbps

• Locking HDMI connector

• High grade aluminum design for commercial grade applications

• Backed by KanexPro 3-Year Parts and Labor Warranty

FLEX CHASSIS

NEW

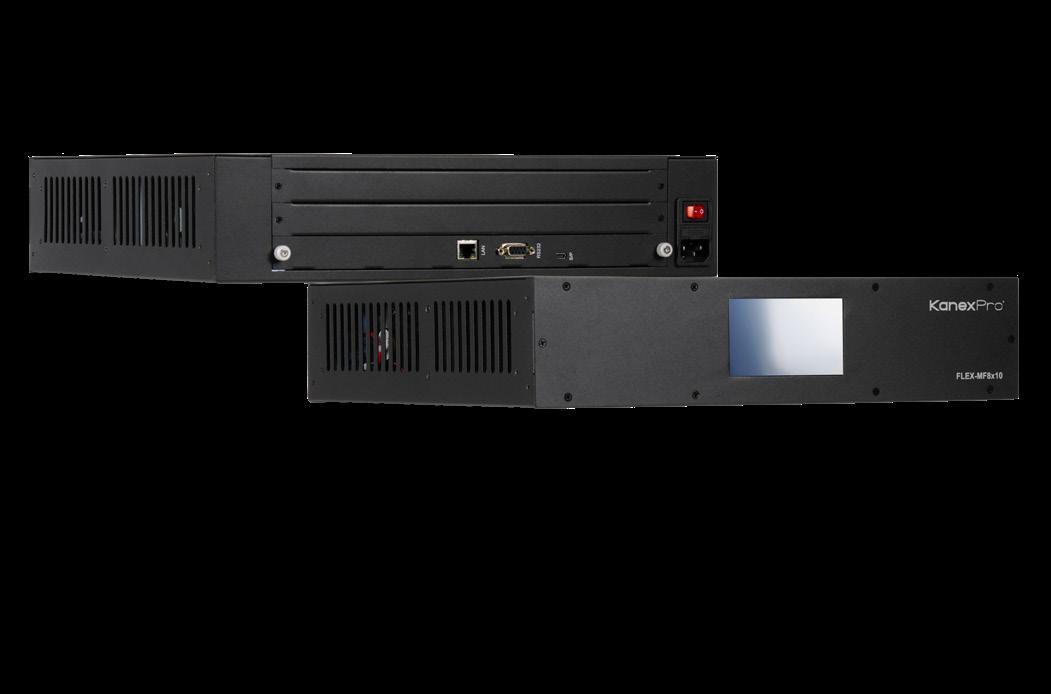

Modular Matrix Switcher 4K 60Hz UHD

Main Frame 8x10

MPN: FLEX-MF8X10

• Up to 8 inputs of 4K/UHD HDMI video (1 card slot)

• Up to 10 outputs of 4K/UHD HDMI video (1 card slot)

• HDMI 2.0, 18Gbps and HDCP 2.2 support

• Low cost single CAT cable to each display

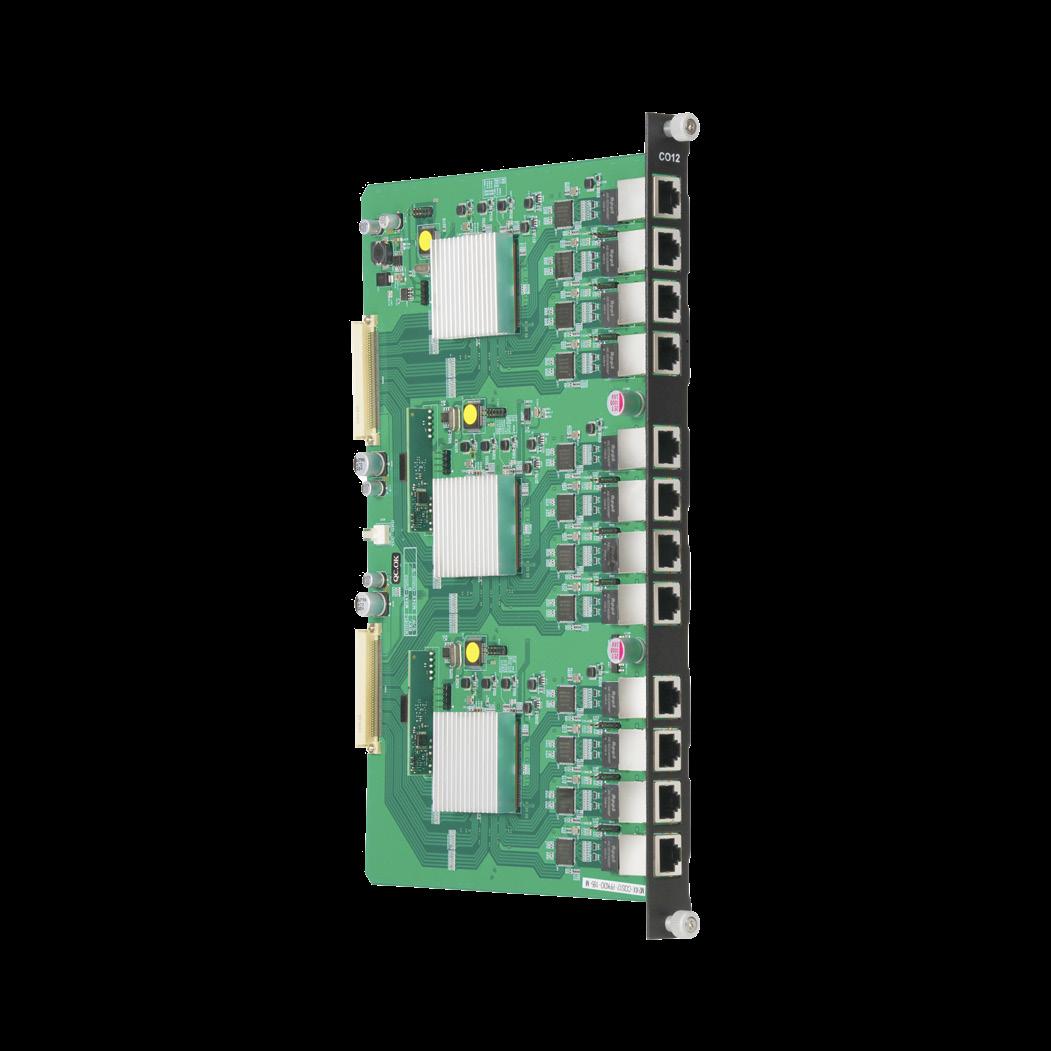

• FLEX-CAT12OUT CAT output transmits 4K60 video up to 165 feet (50M), and 1080p video up to 197 feet (60M)

• PoC (Power Over CAT) to power Rx from the main chassis

• Selectable independent scaling on all outputs

• Video wall up to 8 displays (1x8, 2x2, 2x4)

• Multi view (Quad view)

• CEC display control

• Audio extraction on all inputs

• 7” front panel touch control

NEW

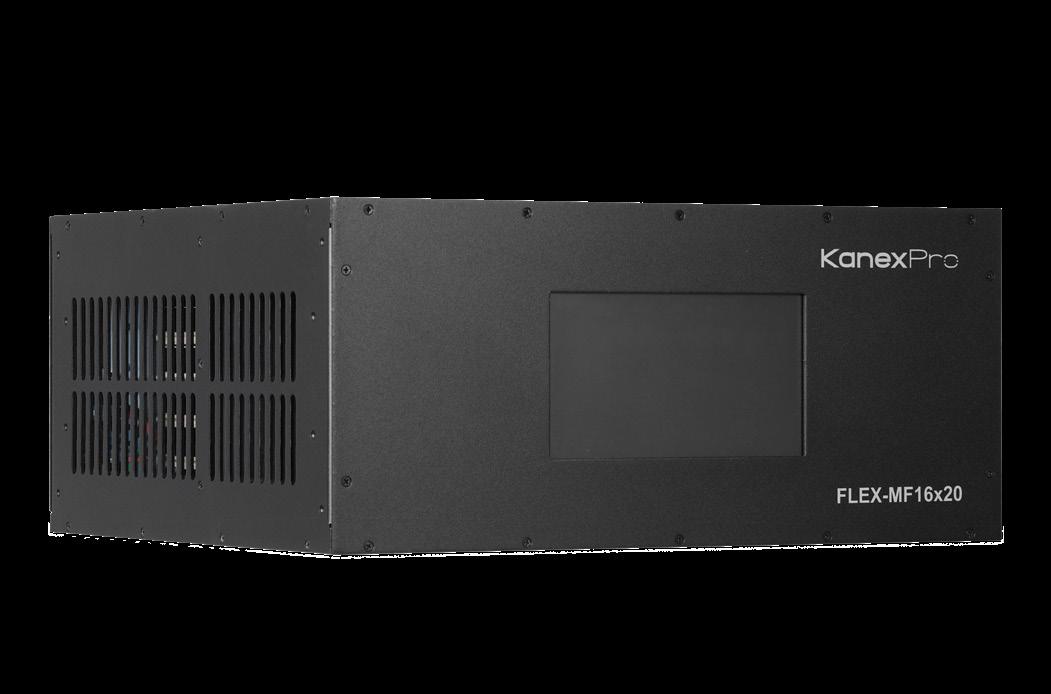

Modular Matrix Switcher 4K 60Hz UHD

Main Frame 16x20

MPN: FLEX-MF16X20

• Up to 16 inputs of 4K/UHD HDMI video (2 card slots)

• Up to 20 outputs of 4K/UHD HDMI video (2 card slots)

• HDMI 2.0, 18Gbps and HDCP 2.2 support

• Low cost single CAT cable to each display

• FLEX-CAT12OUT CAT output transmits 4K60 video up to 165 feet (50M), and 1080p video up to 197 feet (60M)

• PoC (Power Over CAT) to power Rx from the main chassis

• Selectable independent scaling on all outputs

• Video wall up to 12 displays (1x12, 2x6, 3x4, 4x3, 6x2, 12x1)

• Multi view (Quad view)

• CEC display control

• Audio extraction on all inputs

• 7” front panel touch control

FLEX CHASSIS

Modular Matrix Switcher 4K 60Hz UHD

Main Frame 24x36

MPN: FLEX-MF24X36

• Up to 24 inputs of 4K/UHD HDMI video (3 Card Slots)

• Up to 36 outputs of 4K/UHD HDMI video (3 Card Slots)

• HDMI 2.0, 18Gbps and HDCP 2.2 support

• Low cost single CAT cable to each display

• FLEX-CAT12OUT CAT output transmits 4K60 video up to 165 feet (50M), and 1080p video up to 197 feet (60M)

• PoC (Power Over CAT) to power Rx from the main chassis

• Selectable independent scaling on all outputs

• Video wall up to 12 displays (1x12, 2x6, 3x4, 4x3, 6x2, 12x1)

• Multi view (Quad view)

• CEC display control

• Audio extraction on all inputs

• 7” front panel touch control

NEW NEW

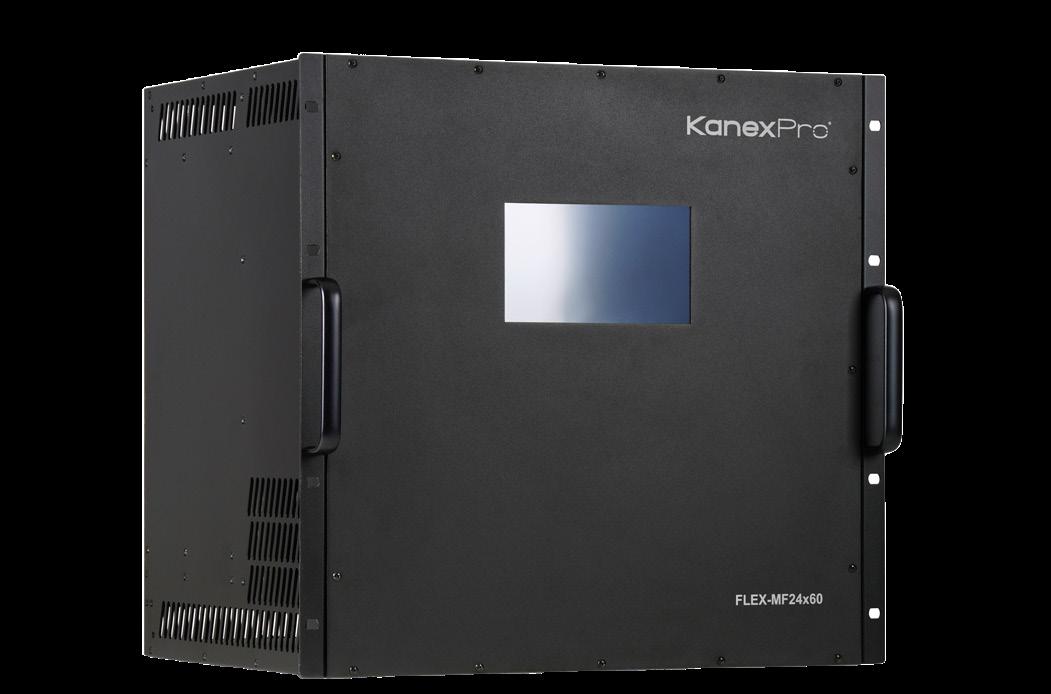

Modular Matrix Switcher 4K 60Hz UHD

Main Frame 24x60

MPN: FLEX-MF24X60

• Up to 24 inputs of 4K/UHD HDMI video (3 Card Slots)

• Up to 60 outputs of 4K/UHD HDMI video (5 Card Slots)

• HDMI 2.0, 18Gbps and HDCP 2.2 support

• Low cost single CAT cable to each display

• FLEX-CAT12OUT CAT output transmits 4K60 video up to 165 feet (50M), and 1080p video up to 197 feet (60M)

• PoC (Power Over CAT) to power Rx from the main chassis

• Selectable independent scaling on all outputs

• Video wall up to 12 displays (1x12, 2x6, 3x4, 4x3, 6x2, 12x1)

• Multi view (Quad view)

• CEC display control

• Audio extraction on all inputs

• 7” front panel touch control

INPUT CARDS

NEW

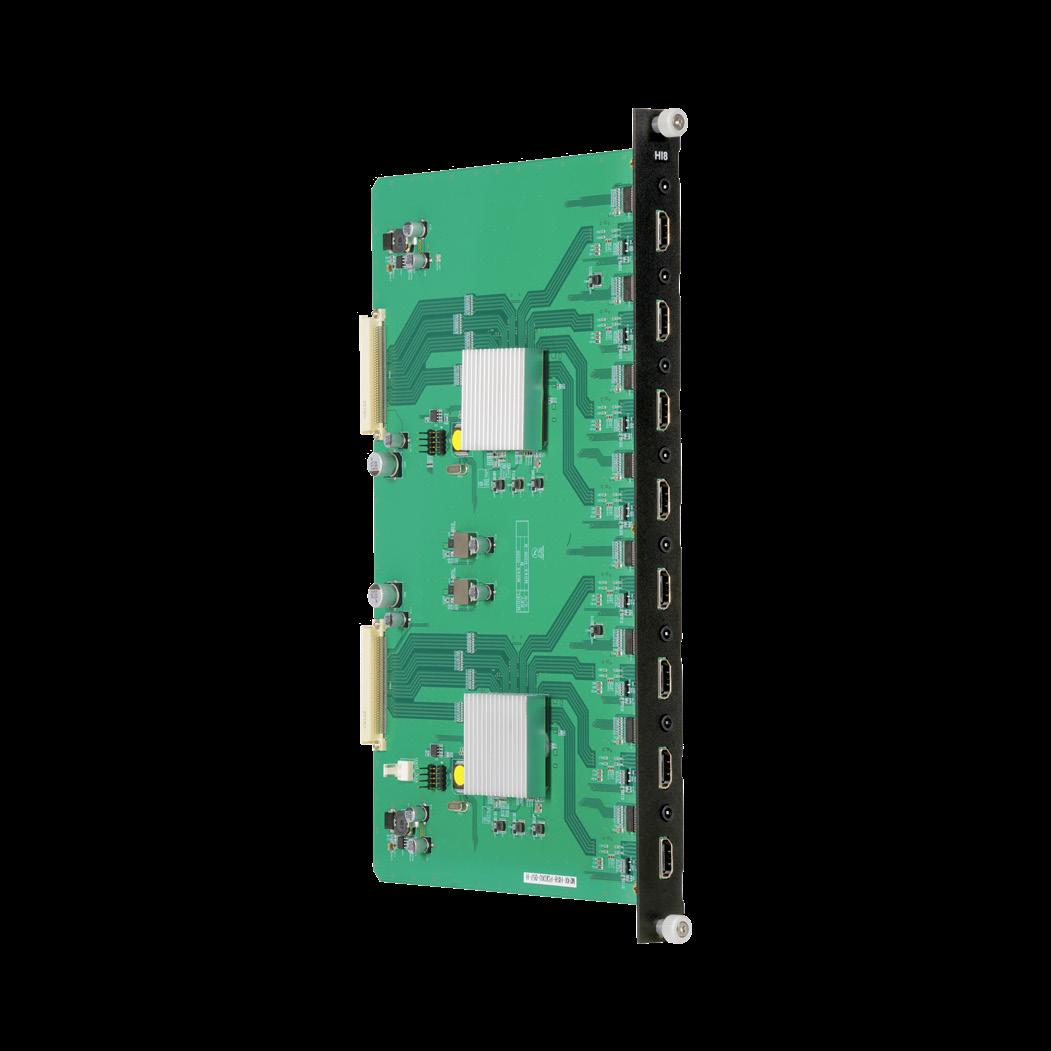

Modular Matrix Switcher HDMI Input card

8 x HDMI inputs

MPN: FLEX-HDMI8IN

• 8 ports per input card up to 3 cards,

• 8 ports for FLEX-MF8X10

• 16 ports for FLEX-MF16X20

• 24 ports for FLEX-MF24X36

• 24 ports for FLEX-MF24X60

NEW

Modular Matrix Switcher HDMI Output card

12 x HDMI outputs

MPN: FLEX-HDMI12OUT

• 12 ports per output card up to 5 cards

• 12 ports for FLEX-MF8X10

• 24 ports for FLEX-MF16X20

• 36 ports for FLEX-MF24X36

• 60 ports for FLEX-MF24X60

OUTPUT CARDS

NEW

Modular Matrix Switcher Cat5 Output card 12 x CAT outputs

MPN: FLEX-CAT12OUT

• 12 ports per output card up to 5 cards,

• 12 ports for FLEX-MF8X10

• 24 ports for FLEX-MF16X20

• 36 ports for FLEX-MF24X36

• 60 ports for FLEX-MF24X60

NEW

Modular Matrix Switcher Cat5 Extender receiver

MPN: FLEX-CATRX

• FLEX-CATRX Video receiver – one piece needed per desired output

• Receives 4K60 video up to 165 feet (50M), and 1080p video up to 197 feet (60M)

• Low cost single CAT cable to each display

• PoC (Power Over Cable) to power Rx from the main chassis

MATRIX MATRIX

HDMI Cable HDMI 2.0 4x4 Matrix Switcher with 4K to 1080p Down-scaling

MPN: SW-HDMX44DS

• Supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, including 1080p 3D.

• Fully compliant with HDMI V2.0 and HDCP 2.2 specifications.

• Supports 4K to 1080p down-scaling for each independent output to compatibility with the legacy 1080p displays.

• Smart EDID management.

• Supports front panel buttons, IR remote and RS232 control.

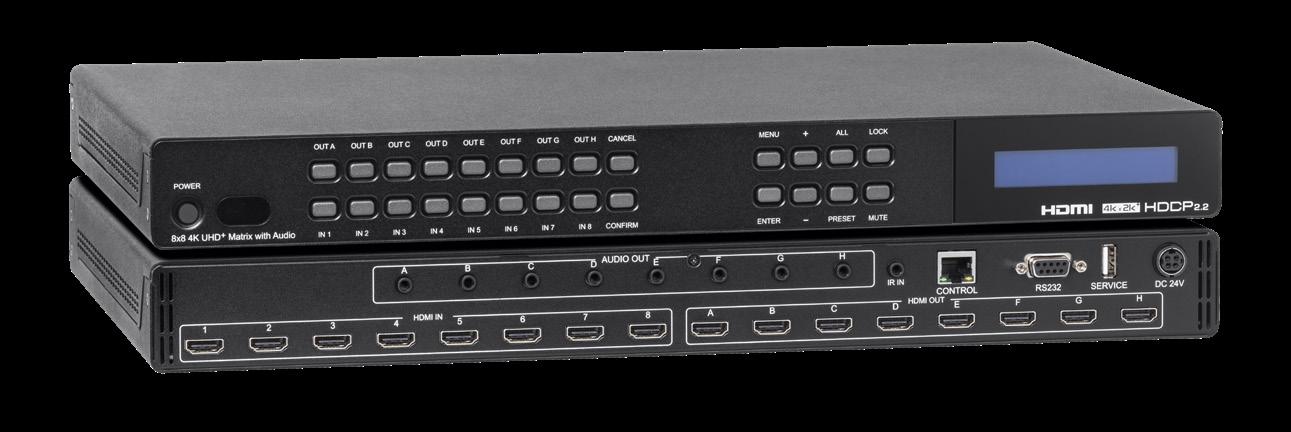

8x8 HDMI 2.0 Matrix Switcher with Audio outputs supporting 4K/60Hz

MPN: HDMX88A-18G

• Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K @60Hz

• Distribute 4Kx2K@60Hz signal up to 5m via HDMI port

• Supports standard 1080p & WUXGA resolutions up to 2 Channel analog audio outputs on each HDMI output channel

• HDR, DolbyVision & HDCP 2.2 Compliant

• Smart EDID DIP switch for proper display output

• Supports latest High Speed HDMI 2.0 specifications

• Supports Dolby Digital, DTS, DTS-HD

• Control thru front-panel keys, IR, RS-232 & Web based GUI

• Front-panel LCD screen provides real-time I/O connection status

• Expedient firmware upgrade thru Micro USB port

• 1U (19”) rack mountable aluminum enclosure

• Universal RS-232 code compatible with any 3rd party control systems

• Locking HDMI & Power supply

• Internal Universal power for worldwide compatibility

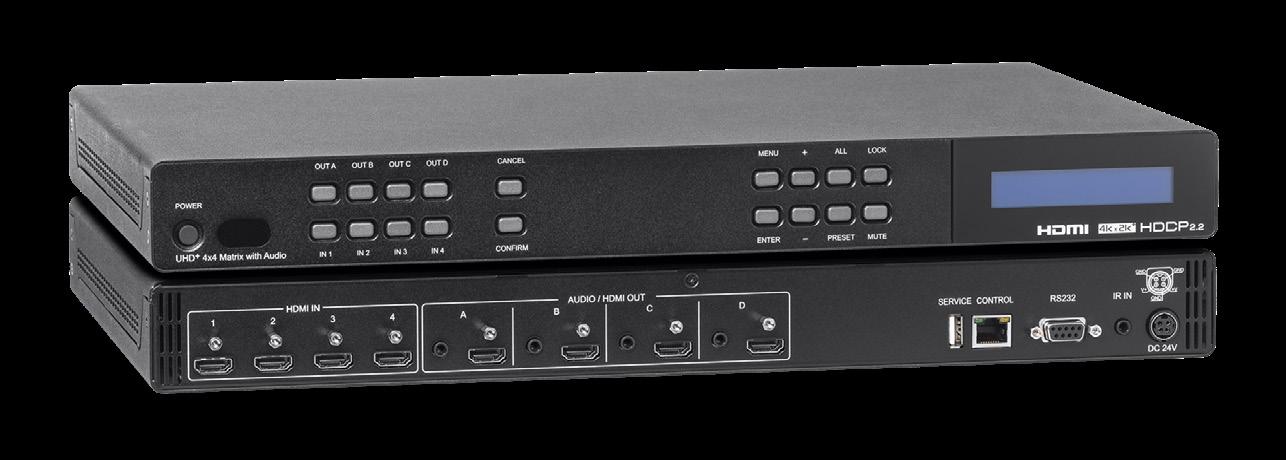

4x4 HDMI 2.0 Matrix Switcher with Audio outputs supporting 4K/60Hz

MPN: HDMX44A-18G

• Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz

• Distribute 4Kx2K@60Hz signal up to 5m over HDMI (max.)

• 4K & UHDTV resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit)

• 2 Channel analog audio outputs on each HDMI output channel

• True4K @ 4096x2160@60Hz (YUV 4:4:4,8-bit)

• Supports Dolby Vision & HDR pass-thru

• Supports 48-bit Deep Color up to 1080p/60

• Supports LPCM 7.1 pass-thru bit stream

MATRIX

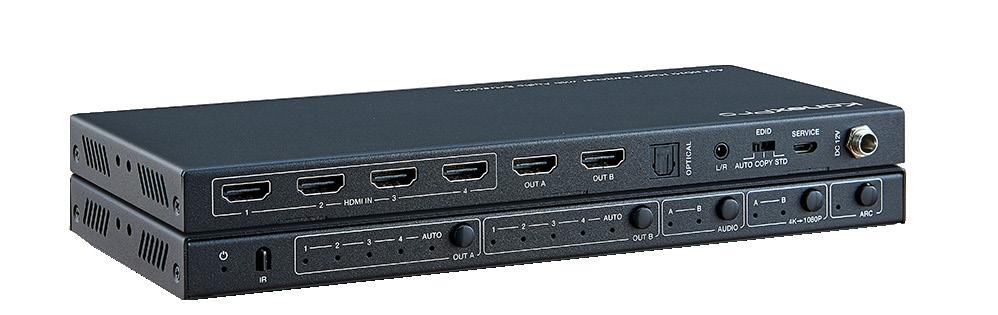

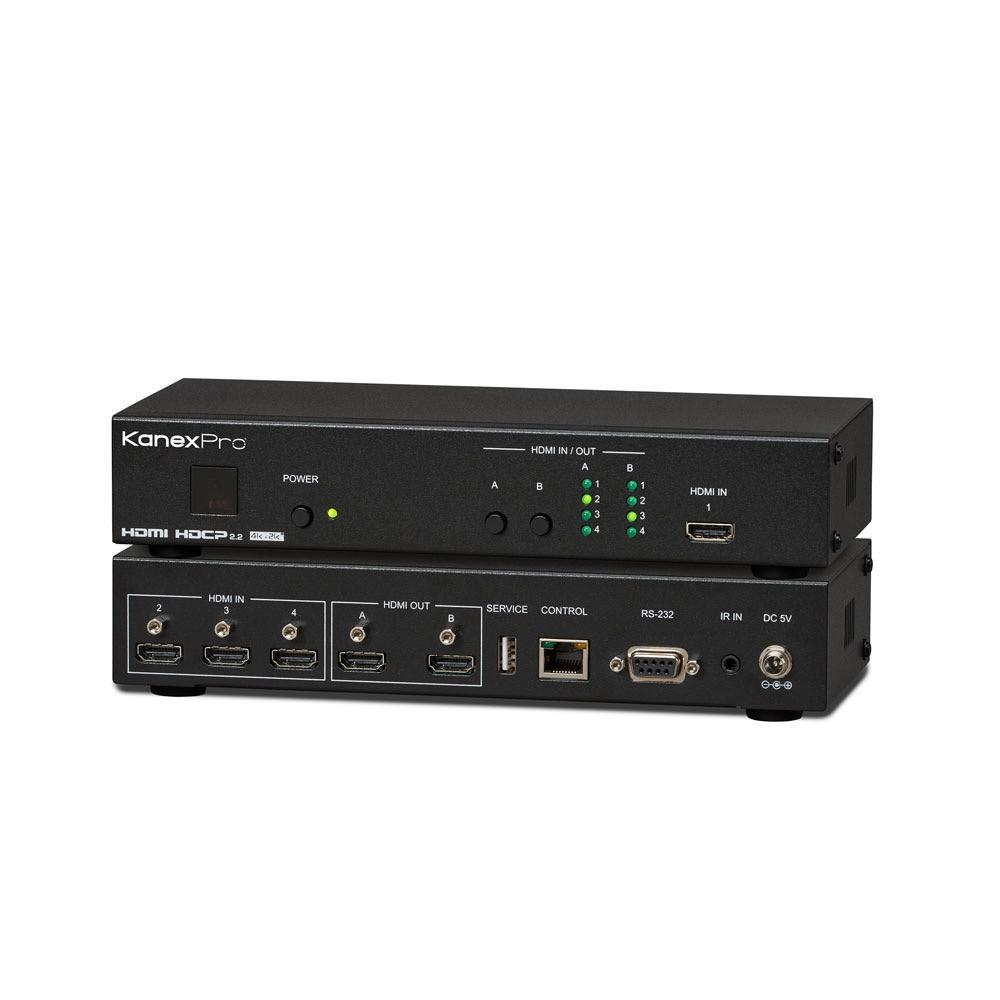

4x2 HDMI 2.0, 4K/60 Matrix Switcher w/ HDR10 & EDID Management

MPN: HDMX42A-18G

• Switch 4 HDMI devices to 2 Displays with 4K/60 + HDR & 4:4:4

• Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs

• Supports resolutions up to 4096x2160@60Hz (4:4:4, 8-bit)

• HDMI 2.0 and DVI 1.0 compliant

• HDCP 1.4 and 2.2 compliant

• Maximum data rate up to 18Gbps with Deep Color support up to 16bit at 1080p

• Supports pass-through of LPCM 7.1, Bit stream and HD Bit stream audio formats

• Supports EDID management via five pre-defined internal EDIDs and two external EDID options

4x2 HDMI®2.0, 4K/60 Matrix Switcher w/ HDR10 & EDID Managementr

MPN: HDMX42-18G

• Switch 4 HDMI devices to 2 Displays with 4K/60 + HDR & 4:4:4

• Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs

• Supports resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)

• HDMI 2.0 and DVI 1.0 compliant

• HDCP 1.4 and 2.2 compliant

• Maximum data rate up to 18Gbps with Deep Color support up to 16-bit at 1080p

• Supports pass-through of LPCM 7.1, Bit stream and HD Bit stream audio formats

• Supports EDID management via five pre-defined internal EDIDs and two external EDID options

• Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote

• Backed by KanexPro 3-year parts and labor warranty

WALL MOUNTS FIXED

NEW

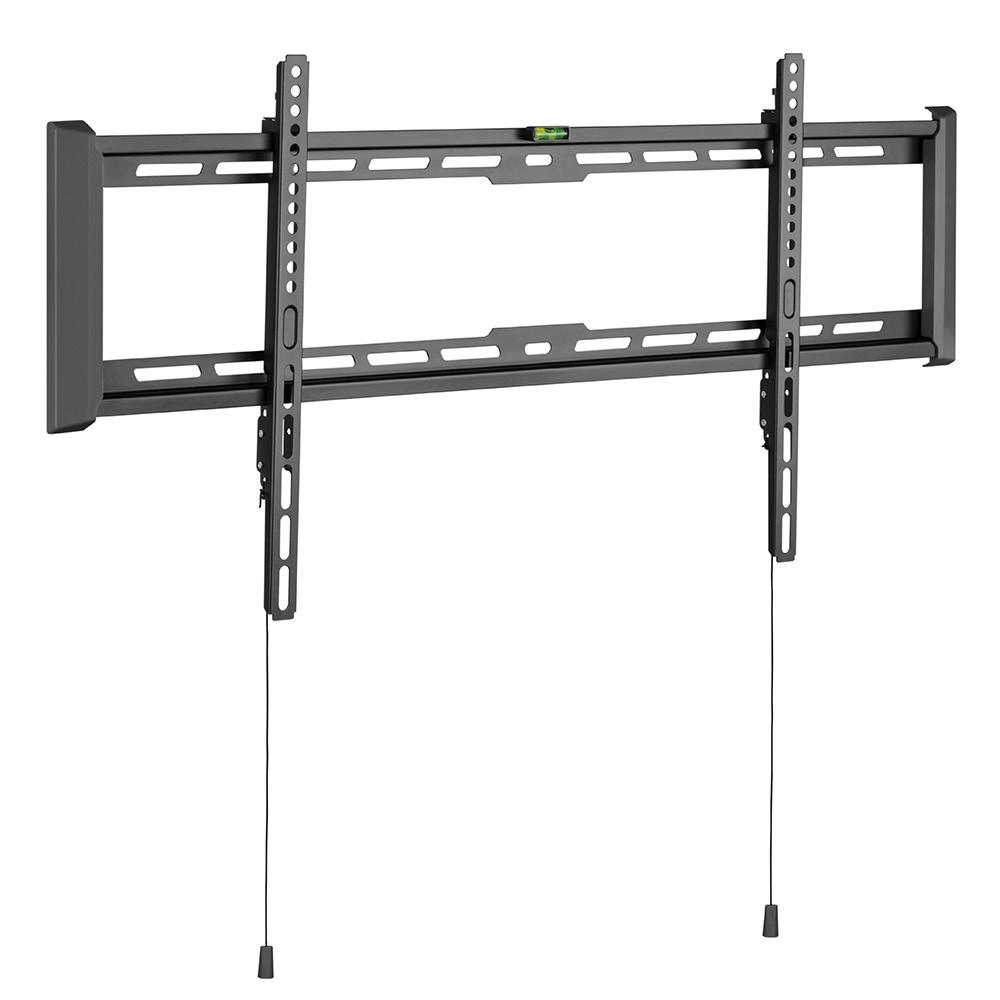

Ultra-Slim and Heavy-Duty TV Wall Mount

MPN: MOT-FIX-4390

• Leveling adjustments: allow TV to be perfectly positioned after hanging

• Ultra-slim design

• Decorative Covers: for a more elegant look

• Heavy-Duty Steel Construction: provides extra strength and durability

• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

• Bubble level included

• Magnetic Strap End: hides itself when not in use.

NEW

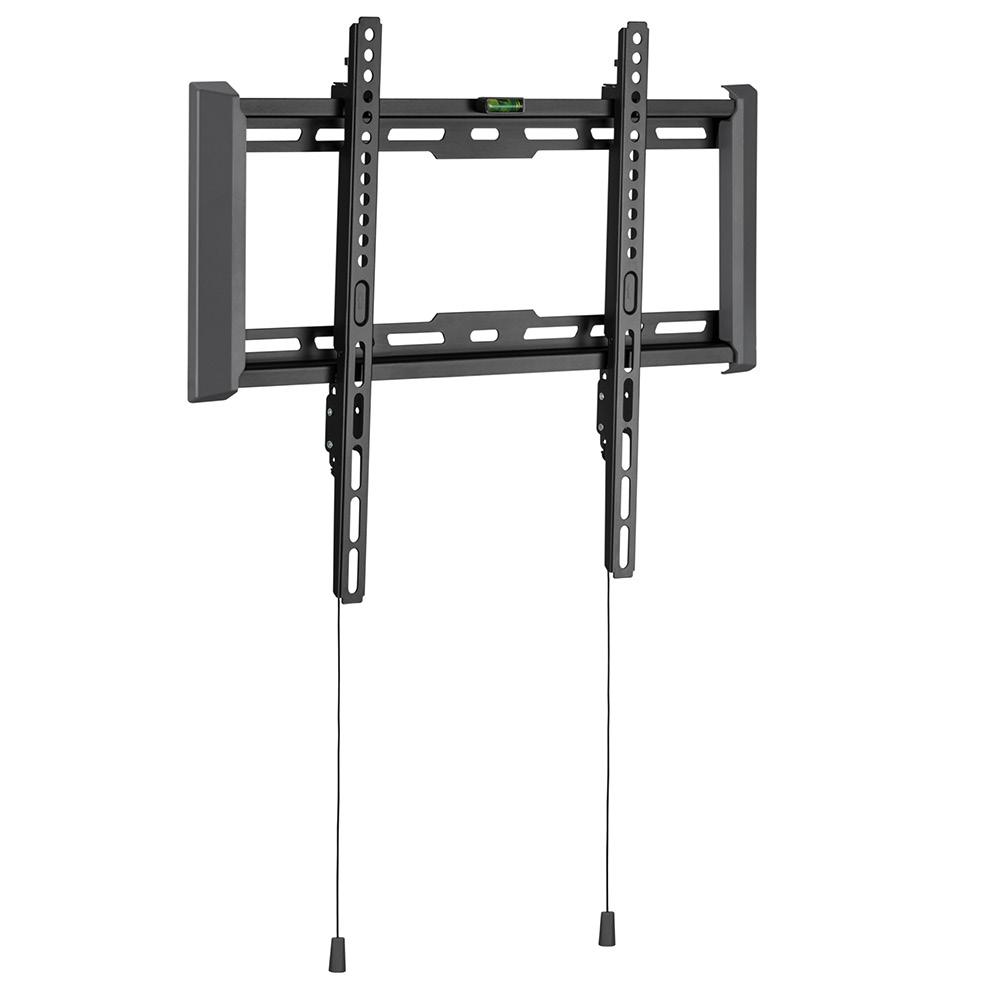

Low Profile and Heavy-Duty TV Wall Mount

MPN: MOT-FIX-3270

• Ultra-slim design

• Bubble level included

• Leveling adjustments: allow TV to be perfectly positioned after hanging

• Decorative Covers: for a more elegant look

• Heavy-Duty Steel Construction: provides extra strength and durability

• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

• Magnetic Strap End: hides itself when not in use.

NEW

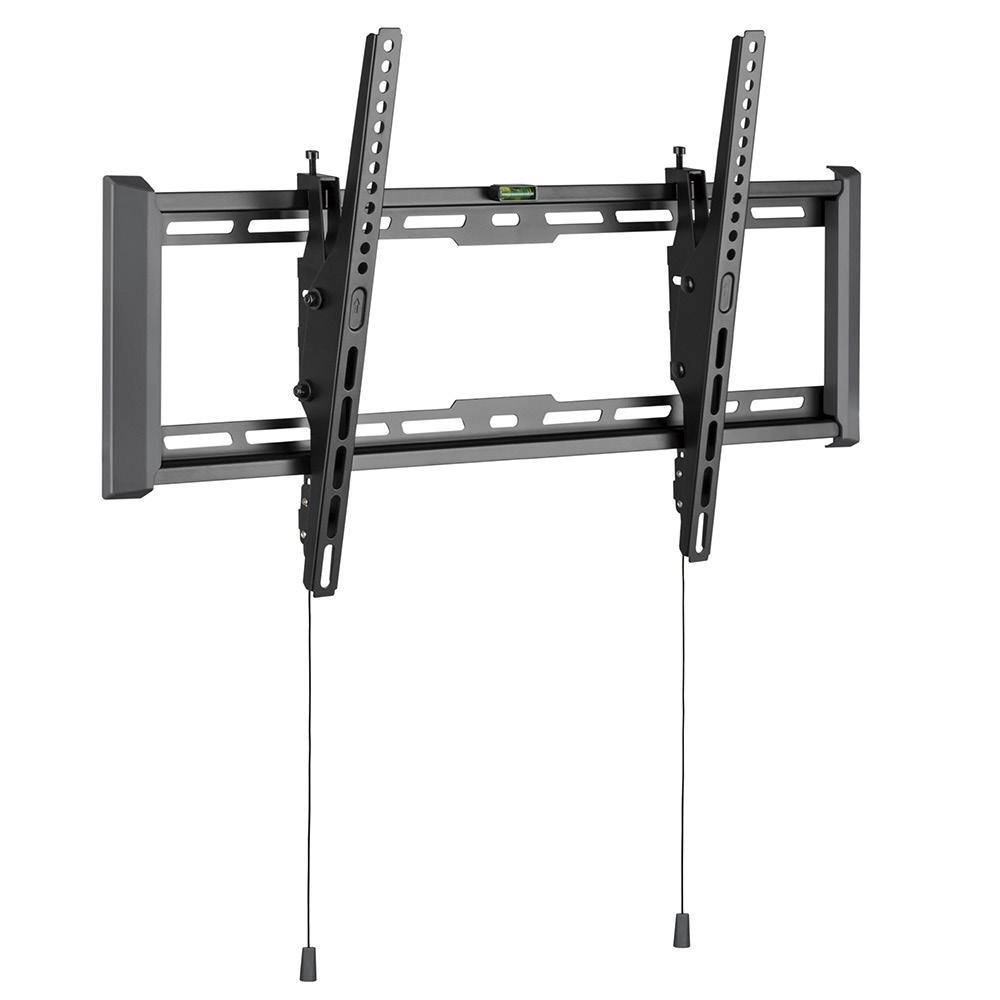

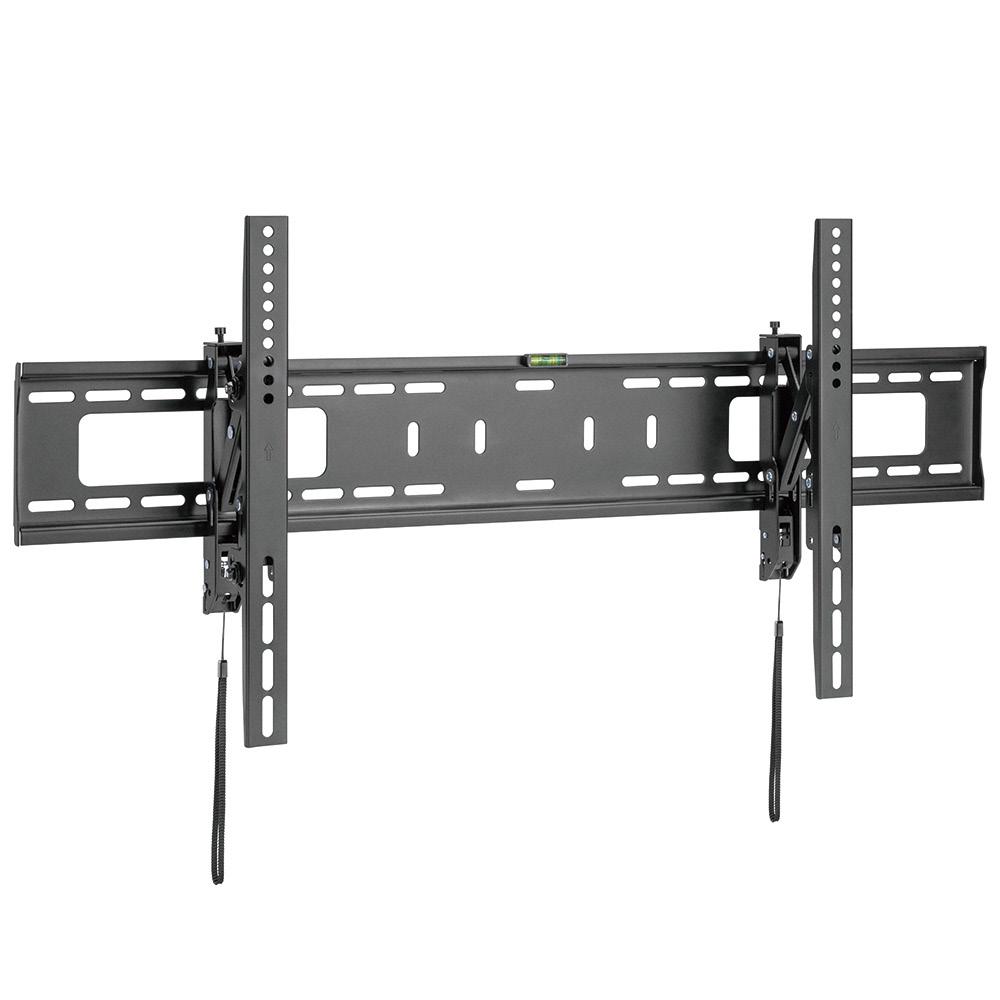

Heavy-Duty Large Tilt Mount

MPN: MOT-TIL-3780

• Leveling adjustments: allows TV to be perfectly positioned after hanging

• Bubble level included

• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

• Heavy-Duty Steel Construction: provides extra strength and durability

• Magnetic Strap End: hides itself when not in use.

• Ultra-slim design

• Decorative Covers: for a more elegant look

• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy.

NEW

Heavy-Duty X-Large Tilt Mount with Post Level Adjustment

MPN: MOT-TIL-4390

• Convenient Wiring: easy access to power outlets, cable input source, etc.

• Special Swivel Ability: supports flexible viewing angle and enough space for maintenance

• Leveling adjustments: allow TV to be perfectly positioned after hanging

• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)

• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

FULL MOTION

NEW

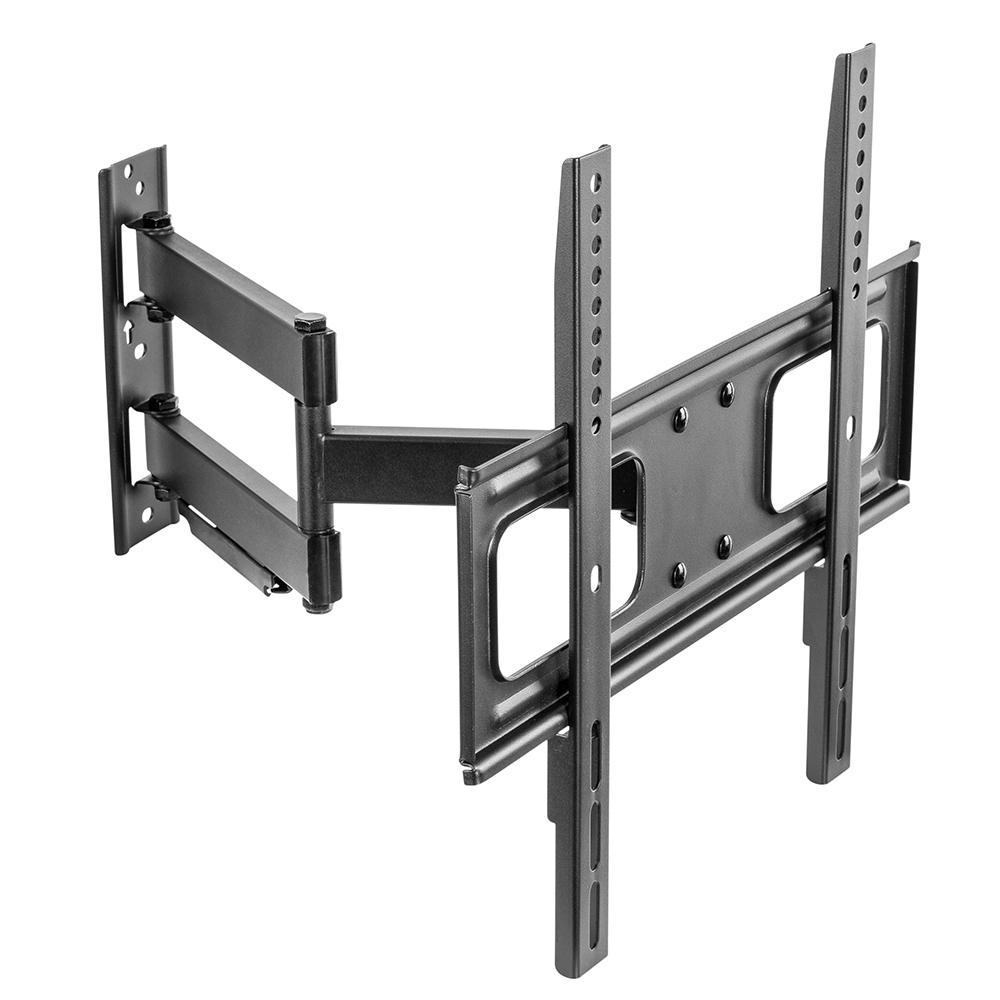

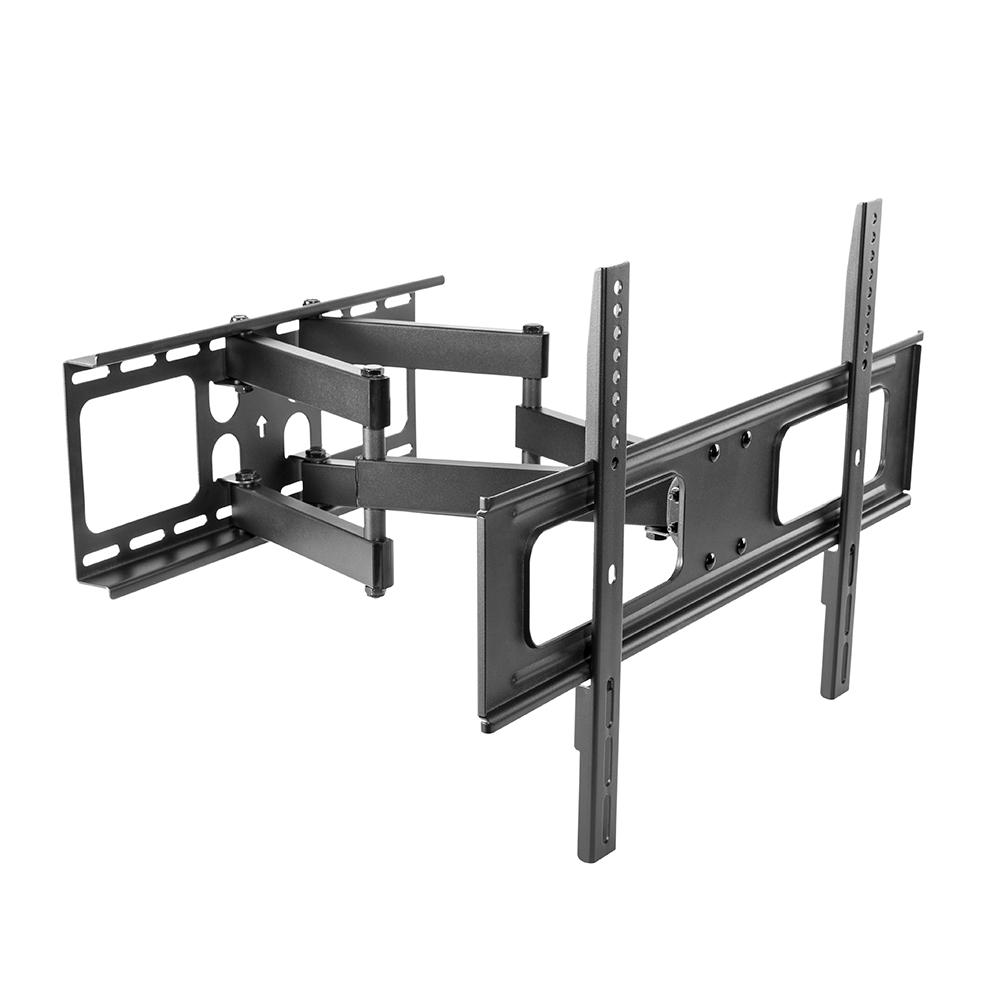

Slim Full Motion TV Wall Mount Fits 37-80 Inch

MPN: MOT-ART-3780

• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

• Leveling adjustments: allow TV to be perfectly positioned after hanging

NEW

Heavy-Duty Large Articulating Mount

MPN: MOT-ART-3270

• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

• Leveling adjustments: allow TV to be perfectly positioned after hanging

• Cable Management: keeps everything organized

FULL MOTION

NEW

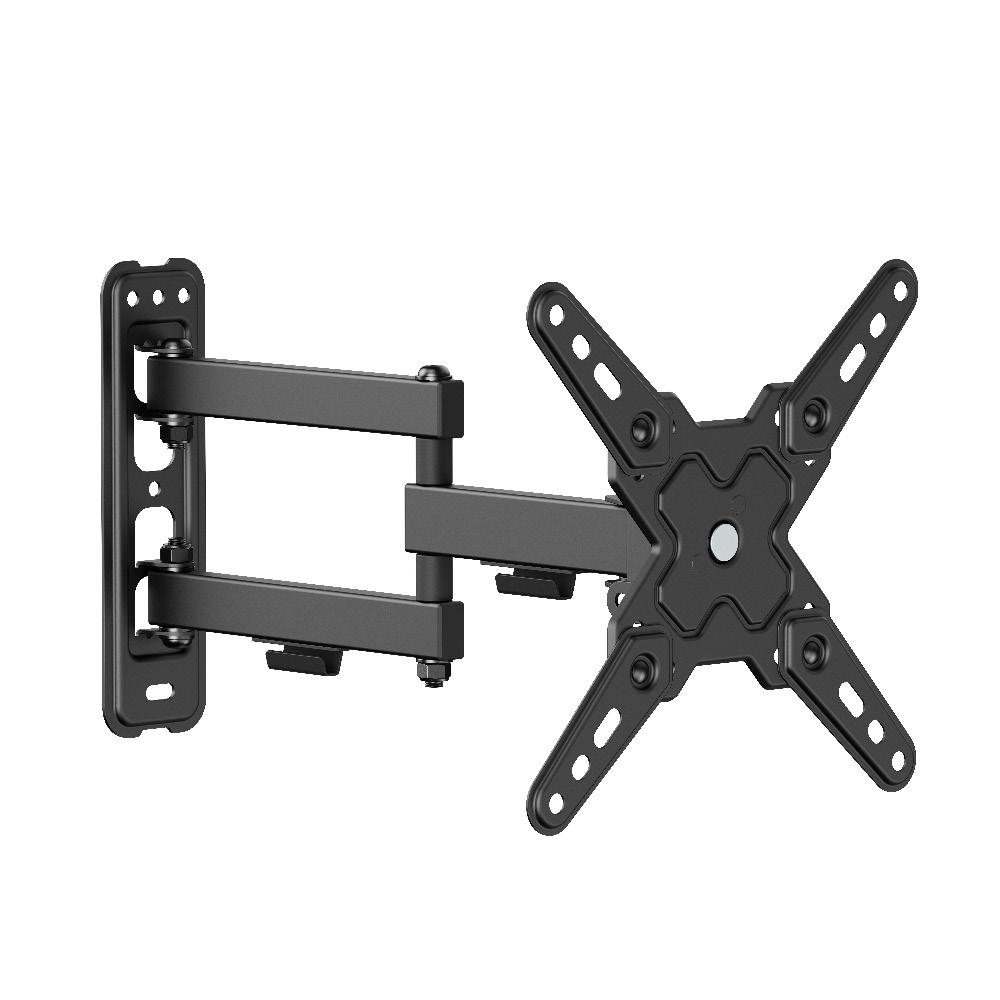

Small to Medium Full-motion Mount

MPN: MOT-ART-1343

• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

• Detachable Extension Plate: lengthens the stand to fit larger sized TVs

• Portrait and Landscape Orientation: matches different viewing needs

• Detachable VESA Plate Design: enables easy installation

• Cable Management: keeps everything organized

CONVERTERS

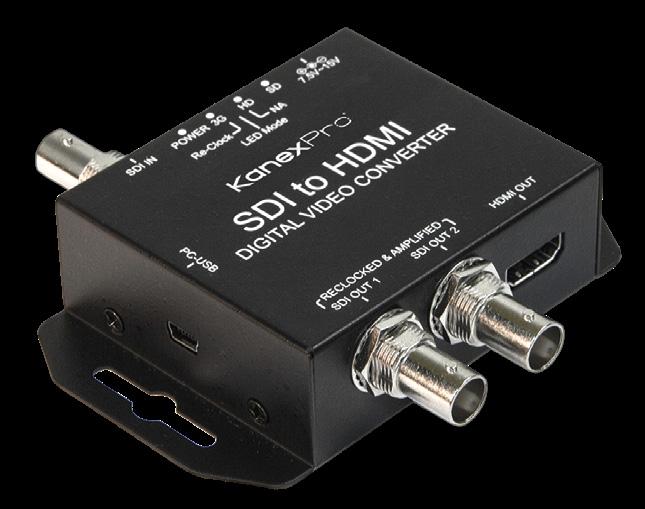

SDI to HDMI Converter with Signal EQ & Re-Clocking

MPN: SDI-SDHDXPRO

• Get the highest quality 3G-SDI conversion to HDMI

• 2 x SDI Loop outputs

• Integrated Audio de-embedder for 2-channel@20 bit,192 KHz audio

• Automatically switches between SD, HD and 3G-SDI standards

• Supports multiple video resolutions

• 3G mode length up to 130m

• HD mode length up to: 170m

• SD mode length up to 300m

• Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60

4:2:2 10-bit

• Supports cascading of multiple SDI’s in application

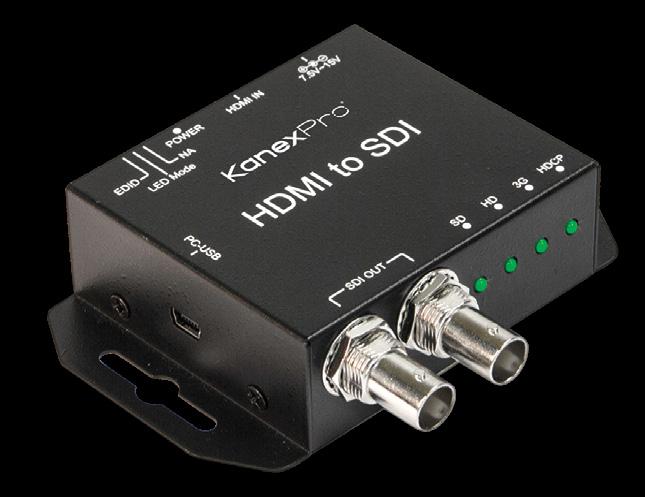

HDMI to SDI Converter with Signal EQ & Re-Clocking

MPN: SDI-HDSDXPRO

• Get the supreme quality HDMI conversion to HD-SDI

• SDI loop output for duplication or broadcasting

• Built-in re-clocking & equalization

• Integrated Audio de-embedder for 2-channel / 48KHz audio

• Supports multiple video resolutions

• 3G mode length up to 130m

• HD mode length up to: 170m

• SD mode length up to 300m

• Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60

4:2:2 10-bit

• Supports cascading of multiple SDI’s in application

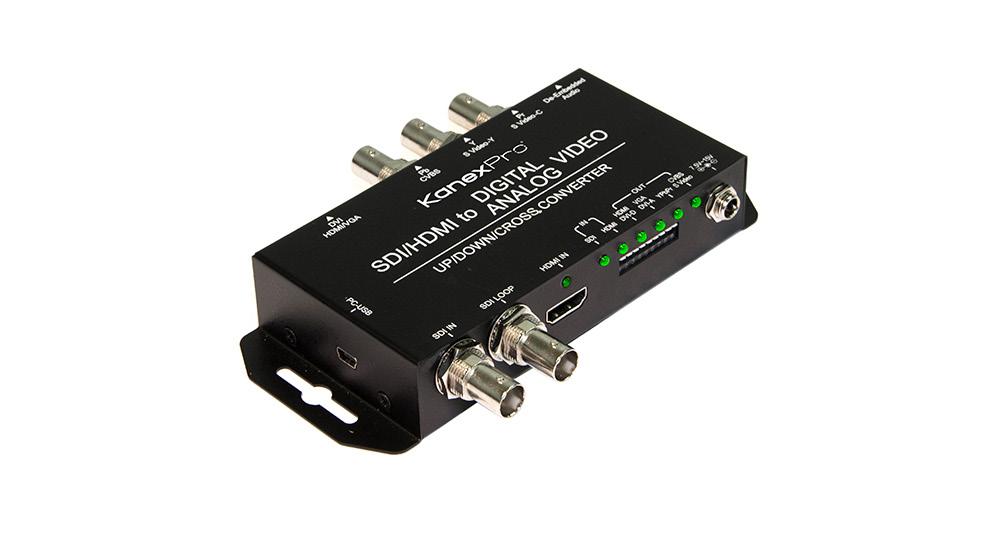

SDI/HDMI with Audio Embedder to Multiple Video - Discontinued

MPN: SDI-SDI2MULTIPRO

• Cross convert SDI & HDMI to analog video

• Powerful up/ down converter scaler

• Built-in anti – aliasing & 3D De-interlace

• Built-in test pattern generator

• Added DIP switch settings for various video resolutions

• Allows region of interest (ROI) – for annotation & quantitative information

• Simultaneous outputs to analog video and DVI

• Audio embedder supports output up to 8Ch/24Bit@48KHz

• Mini –USB port for firmware update

• Locking power supply & mounting ears

• Compact & ruggedized design makes perfect mobile broadcasting hardwarE

CONVERTERS

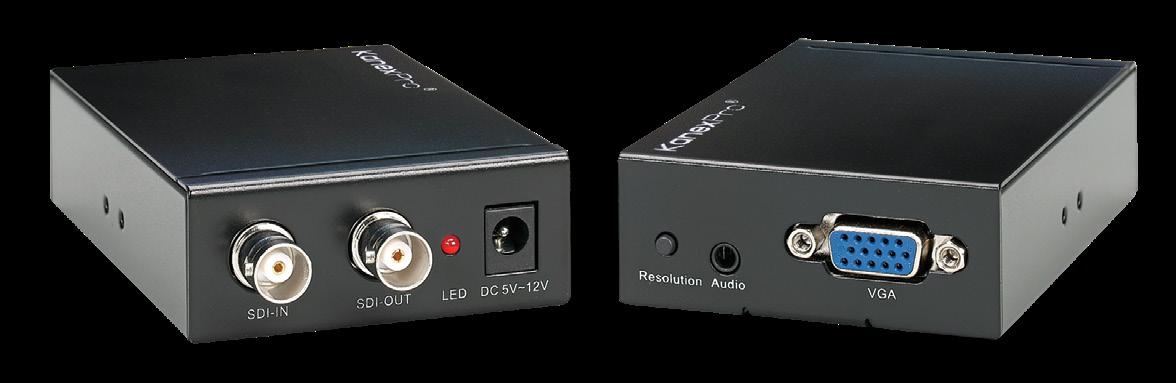

3G/HD-SDI/ SDI to VGA Converter

MPN: EXT-SDIVGA

• Get the highest quality 3G-SDI conversion to VGA formats

• Equalized and re-clocked loop output

• Conversion from SMPTE 425M Level B to Level A

• Supports multiple VGA output resolutions:

• SDI: 800x600,1024x768

• PC: 1280x720, 1440x900

• PC: 1280x1024, 1680x1050

• HD: 1600x1200, 1920x1080 & 1920x1200

3G-SDI to HDMI Converter

MPN: EXT-SDHDX

• Get the highest quality 3G-SDI conversion to HDMI

• Integrated Audio de-embedder for 8-channel / 48KHz audio

• Supports multiple video resolutions: SDI 525i, 625i

• HD: 720p 24, 25,30,50 & 60 Hz.

• HD: 1080i 50 & 60 Hz.

• HD: 1080p 24, 25,30, 50 & 60 Hz.

• Data rates up to 2.97 Gbps

• Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit

• SDI Input Cable Length Support - up to 300m

• HD mode length up to: 130m

• One way SDI output with re-clock function

• Supports cascading of multiple SDI’s in application

• Automatically switches between SD, HD and 3 Gb/s SDI standards

• Compact in size, perfect for mobile broadcasting units and users

• Note: RG59 cable is required for SDI transmission, we recommend a 75ohm high quality coaxial cable.

HD-SDI Repeater with Signal Equalization & Reclocking

MPN: SDI-HDRPTPRO

• Extend and repeat SDI signals up to 300 meters*

• Auto–input detection for 3G/HD/SD-SDI

• Supports full HD 1080p/60

• Built-in signal equalizer & re-clock function

• 3G mode length up to 130m

• HD mode length up to: 170m

• SD mode length up to 300m

• Audio format support up to 16-channel@24 bit, 48KHz

Fiber Optic SDI Extender Set

Up to 6.2 miles (10Km)

MPN: SDI-EXTFIBERPRO

• Convert and Extend SDI signals over Fiber LC

• Ideal for long haul transmissions

• Built-in signal equalizer & re-clock function

• Auto-sensing for 3G/HD/SD-SDI signals

• SDI Supported HD formats:

• 720p/50 & 60

• 1080i/50 & 60

• 1080p/24, 25, 30, 50 & 60

• SDI video formats: 525i & 625i SD D1

• Audio format support up to 8-channel@24 bit, 48KHz

• Mini –USB port for firmware update

• Compact & rugged housing

• Locking power supply & mounting ears

HDMI 2.0

8K HDMI Splitter 48Gbps 1x2

MPN: SP-HD1X28K

• Support 48Gbps FRL and 18Gbps TMDS video bandwidth

• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1

• HDCP 2.3 compliant and HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported

• Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through

• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

• 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs

• HDR to SDR auto converting on all outputs

• Advanced EDID management

• Compact design for easy and flexible installation

8K HDMI Splitter 48Gbps 1x4

MPN: SP-HD1X48K

• Support 48Gbps FRL and 18Gbps TMDS video bandwidth

• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1

• HDCP 2.3 compliant and HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported

• Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through

• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

• 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs

• HDR to SDR auto converting on all outputs

• Advanced EDID management

• Compact design for easy and flexible installation

HDMI 2.0

8K HDMI 1x2 Splitter

MPN: SP-1X2A8K

• HDMI 2.1 and HDCP 2.3 compliant

• Support 40Gbps video bandwidth

• Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit

• VRR, FVA, ALLM supported

• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through

• Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Built-in Equalizer, Retiming and Driver

• Advanced EDID management

• Support audio de-embedding function (output through the optical and analog port)

• Compact design for easy and flexible installation

8K HDMI 1x4 Splitter

MPN: SP-1X4A8K

• HDMI 2.1 and HDCP 2.3 compliant

• Support 40Gbps video bandwidth

• Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit

• VRR, FVA, ALLM supported

• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through

• Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Built-in Equalizer, Retiming and Driver

• Advanced EDID management

• Support audio de-embedding function (output through the optical and analog port)

• Compact design for easy and flexible installation

UltraSlim 4K HDMI ® 1X2 Splitter with 4:4:4 Color Space & 18G

MPN: SP-1X2SL18G

• UltraSlim 1x2 HDMI DA with 4K UHD resolutions

• Supports 1080p/60 & 4K/60Hz resolutions

• Supports YUC 4:4:4 color space w/ HDR 10

• Incredibly thin design – only 0.4” (11 mm) thick

• Transmits 4K up to 10m (32ft.)

• Auto-identifies input resolutions to match displays

• Supports EDID management

• Firmware update via micro USB

• Perfect for installing behind a thin bezel display

• Built-in Smart EDID Control

HDMI 2.0

UltraSlim 4K HDMI ® 1X4 Splitter with 4:4:4 Color Space & 18G

MPN: SP-1X4SL18G

• UltraSlim 1x4 HDMI DA with 4K UHD resolutions

• Supports 1080p/60 & 4K/60Hz resolutions

• Supports YUC 4:4:4 color space w/ HDR 10

• Incredibly thin design – only 0.4” (11 mm) thick

• High-bandwidth 18 Gbps

• Transmits 4K up to 10m (32ft.)

• HDCP 2.2 compliant

• Auto-identifies input resolutions to match displays

• Supports EDID management

• Firmware update via micro USB

1x8 HDMI 2.0 Splitter with Downscaling

MPN: SP-1X8SL18G

• Supports HDMI V2.0 and the video resolution up to 4K@60Hz 4:4:4.

• HDMI input supports HDCP 2.2 and the outputs support HDCP1.4.

• Compatible with HDMI AOC cables, provides up to 5V 200mA power on each output.

• Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.

• 18Gbps high bandwidth.

• Advanced EDID management: multiple preset and user defined allowed.

• Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.

• Backed by KanexPro’s 3 Year limited warranty

1x16 HDMI 2.0 Splitter with Downscaling

MPN: SP-1X16SL18G

• Supports HDMI V2.0 and the video resolution up to 4K@60Hz 4:4:4.

• HDMI input supports HDCP 2.2 and the outputs support HDCP1.4.

• Compatible with HDMI AOC cables, provides up to 5V 200mA power on each output.

• Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.

• 18Gbps high bandwidth.

• Advanced EDID management: multiple preset and user defined allowed.

• Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.

SPLITTERS HDMI 2.0

4K HDMI 1x4 Splitter with HDCP2.2

MPN: SP-HD20-1X44K

• Distribute True 4K HDMI video and audio signals to four HD 4K displays

• 4K@60Hz UHD, 1080p & 3D resolutions

• 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2, 4Kx2K @60Hz with 12bit YCBCR 4:2:0

• Conforms to High Speed HDMI specifications: (Deep color, HD lossless audio formats & Lip Sync)

• HDCP 2.2 compliant

• EDID Selector for optimal resolutions

• Built-in Smart EDID Control

• Front-panel LED’s for input/ output signal presence

• Includes 5V DC external power supply

4K HDMI 1x2 Splitter with HDCP2.2

MPN: SP-HD20-1X24K

• Distribute one 4K HDMI video and audio signals to two displays

• 4K@60Hz UHD, 1080p & 3D resolutions

• 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2, 4Kx2K @60Hz with 12bit YCBCR 4:2:0

• Conforms to High Speed HDMI specifications: (Deep color, HD lossless audio formats & Lip Sync)

• EDID Selector for optimal resolutions

• HDCP 2.2 compliant

• Built-in Smart EDID Control

• Front-panel LED’s for input/ output signal presence

• Includes 5V DC external power supply

4K UHD HDMI 1x4 Port Splitter

MPN: SP-HD1X44K

• Distribute high-resolution HDMI signals to four Ultra HD displays

• Supports 4Kx2K resolution

• Supports full HD 1080p (1920 x 1080@60Hz)

• Computer resolution up to WUXGA (1920 x1200@60Hz)

• EDID mode for copying the same resolution to input port

• HDCP compliant

• Supports latest HDMI High Speed Specifications

• Supports 12-bit per channel (36-bit all channel) Deep color

• Front USB ports for firmware update

• Compact metal enclosure

HDMI 2.0

4K UHD HDMI 1x2 Port Splitter

MPN: SP-HD1X24K

• Distribute high-resolution HDMI signals to 2 Ultra HD displays

• Supports full 3D and 4Kx2K resolution

• Supports full HD 1080p (1920 x 1080@60Hz)

• Computer resolution up to WUXGA (1920 x1200@60Hz)

• HDCP & CEC compliant Supports

• Supports latest HDMI High Speed Specifications

• 12-bit per channel (36-bit all channel) Deep color

• Compact metal enclosure

2x4 HDMI Splitter with Full HD 1080pDiscontinued

MPN: HDSP2X4

• Switch between two inputs and distribute to up to four outputs

• Splitter can be cascaded for additional HDMI inputs

• Supports data rates up to 6.75 Gbps

• Supports full HD 1080p (1920 x 1080@60Hz)

• Computer resolution up to WUXGA (1920 x1080@60Hz)

• Conforms to High Speed HDMI Specifications - (Deep color, HD lossless audio formats & Lip Sync)

• Supports Dolby Digital, DTS-HD and Dolby True HD audio

• EDID & HDCP compliant

• Front-panel LED’s for input/ output signal presence

• Metal enclosure

• 5VDC external power supply included

HDMI PRO

1x8 Distribution Amplifier over CAT5e/6 Outputs and PoC 60M

MPN: SP-HDPOC1X8

• Distribute & Extend HDMI over Single CAT5e/6 to eight HD displays

• Includes 8-independent receivers

• Supports transmission distance up to 192 ft. (60m)

• Supports UHD 4K (4K x 2K @ 60Hz)

• Control via IR (kits included)

• Supports 5.1, 7.1 digital audio and uncompressed LPCM

• HDCP 2.2 & EDID support for multiple displays

• Simple set up with zero configuration

• Low Power consumption - No Power supplied Needed for the RXs

• Power over Cable

• Compact design for flexible installations

• Support digital and analog audio de-embedded outputs.

1x4 Distribution Amplifier over CAT5e/6 Outputs and PoC 60M

MPN: SP-HDPOC1X4

• Distribute & Extend HDMI over Single CAT5e/6 to four HD displays

• Includes 4-independent receivers

• Supports transmission distance up to 192 ft. (60m)

• Supports UHD 4K ( 4K x 2K @ 60Hz)

• Control via IR (kits included)

• Supports 5.1, 7.1 digital audio and uncompressed LPCM

• HDCP 2.2 & EDID support for multiple displays

• Simple set up with zero configuration

• Low Power consumption - No Power supplied Needed for the RXs

• Power over Cable

• Compact design for flexible installations

• Support digital and analog audio de-embedded outputs

HDMI PRO

18G 1x8 HDMI 2.0 Splitter Extender 150m Kit

MPN: SP-1X8HD150M

• 18Gbps HDMI 1x8 extender splitter

• Support 18Gbps video bandwidth

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

• Support video resolution up to 4K2K@60Hz 4:4:4

• Support HDR, HDR10+, HLG and Dolby vision

• Support up to 7.1CH HD audio pass-through

• Support digital and analog audio de-embedded output

• Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

• Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs.

• IR, RS-232 routed to HDBaseT output

• Advanced EDID management

• Support one-way POC function (only from transmitter to receiver)

• Compact design for easy and flexible installation

18G 1x4 HDMI 2.0 Splitter Extender 150m Kit

MPN: SP-1X4HD150M

• 18Gbps HDMI 1x4 extender splitter

• Support 18Gbps video bandwidth

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

• Support video resolution up to 4K2K@60Hz 4:4:4

• Support HDR, HDR10+, HLG and Dolby vision

• Support up to 7.1CH HD audio pass-through

• Support digital and analog audio de-embedded output

• Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

• Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs.

• IR, RS-232 routed to HDBaseT output

• Advanced EDID management

• Support one-way POC function (only from transmitter to receiver)

• Compact design for easy and flexible installation

2-Input HDMI 4K USBC 1x4 Video Wall w/ Audio Out

MPN: VW-HDUSBC1X4

• HDMI 2.0, HDCP 2.2 and DP1.2a compliant

• Support HDMI input and USB-C input, and the resolution is up to 4k@60Hz 4:4:4

• Support optical audio and L/R analog audio de-embedding output

• Support 8 video wall splicing modes: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2

• Support image 180° rotation, convenient for ceiling installation

• Support bezel adjustment for splicing edge

• Advanced EDID management

• Control via front panel buttons, IR remote and RS-232 commands

• Simple plug and play, no drive and installation setting are required

NEW NEW

HDMI 4x1 Quad Multi-View w/ Seamless Switcher 4K60

MPN: VW-MVIEW4X1

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

• Support 18Gbps video bandwidth

• Input and output resolutions support up to 4K@60Hz

• Supprt LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel

• Seamless switching between input channels and combined multiple images on single UHd monitor

• Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

• Seamless switching in single screen display mode

• Fast switching in multiview display mode

• Audio de-embedding via analog and optical fiber audio ports

• Support volume control and independent audio selection

• Support OSD navigation for advanced setting

• EDID management

• Control via front panel buttons, IR remote, OSD menu navigation, controller software, RS-232 commands

• Compact design for easy and flexible installation

MULTIVIEW

1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction

MPN: VW-SP1X44K

• 1x4 Video Processor with Built-in Bezel Correction and Control

• Can be cascaded to create up to 3x3 Video Wall (9- displays)

• Can also be used as a 1x4 DA (splitter)

• Supports 4K x 2K@24/25/30Hz

• HDCP compliant

• Outputs video signal to 4 displays with a full image & adjustable Bezel Correction

• Input PC resolutions: from VGA~WUXGA & HDTV from 480i~1080p & 4K2K@24/25/30Hz

• Various Audio Format Support: AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio

• Control via RS-232 & Telnet (Ethernet)

• One locking power supply included

• 1U (19”) rack mountable enclosure

• Backed by KanexPro 3-year parts and labor warranty

HDMI SWITCHERS

KanexPro HDMI 1x2 Splitter w/ Audio 8k

MPN: SW-2X1A8K

• HDMI 2.1 and HDCP 2.3 compliant: HDMI 2.1 is the latest version of the HDMI specification, offering increased bandwidth and supporting advanced features. HDCP 2.3 (High-bandwidth Digital Content Protection) is the latest content protection standard for HDMI.

• Supports 40Gbps video bandwidth: This indicates that the device can handle a video signal with a maximum bandwidth of 40 gigabits per second (Gbps). It ensures compatibility with high-resolution and highrefresh-rate content.

• Supports video resolution: The device supports various video resolutions, including:

• 8K@60Hz 4:2:0 10bit: This means it can handle 8K resolution at 60 frames per second (fps) with 4:2:0 chroma subsampling and 10-bit color depth.

• 8K@30Hz 4:4:4 10bit: It can handle 8K resolution at 30 fps with 4:4:4 chroma subsampling and 10-bit color depth.

• 4K@120Hz 4:4:4 10bit: It can handle 4K resolution at 120 fps with 4:4:4 chroma subsampling and 10-bit color depth.

KanexPro HDMI 2x2 Switch/Splitter 8k

MPN: SW-2X28K

• HDMI 2.1 and HDCP 2.3 compliant: The device meets the standards of HDMI 2.1 and HDCP 2.3, ensuring compatibility and support for the latest HDMI and content protection technologies.

• Support 40Gbps video bandwidth: The device can handle high-speed data transfer up to 40Gbps, allowing for seamless transmission of high-quality audio and video signals.

• Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit: The device supports various video formats and resolutions, including up to 8K resolution at different frame rates and color depths, as well as 4K resolution at a high refresh rate and color precision.

• VRR, FVA, ALLM supported: The device supports Variable Refresh Rate (VRR), Fast Frame Transport (FVA), and Auto Low Latency Mode (ALLM). VRR enables smoother gameplay by synchronizing the display’s refresh rate with the source device, FVA reduces latency, and ALLM automatically activates game mode on compatible devices.

• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through: The device is capable of passing through High Dynamic Range (HDR) signals, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), allowing for enhanced color and contrast reproduction on compatible displays.

• Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD: The device can handle various HDMI audio formats, including uncompressed LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD, providing immersive sound experiences.

• 2x2 Switch with Dual Output: The device features a 2x2 switch with dual output, allowing you to connect and switch between two HDMI sources on two separate displays simultaneously.

HDMI SWITCHERS

KanexPro HDMI 2x1 Switcher 8k

MPN: SW-2X18K

• HDMI 2.1 and HDCP 2.3 compliant: The device meets the standards of HDMI 2.1 and HDCP 2.3, ensuring compatibility and support for the latest HDMI and content protection technologies.

• Support 48Gbps video bandwidth: The device can handle high-speed data transfer up to 48Gbps, allowing for seamless transmission of high-quality audio and video signals.

• 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support: The device can display various video formats and resolutions, including 8K content at different frame rates and color depths, as well as 4K content at high refresh rates and color precision.

• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through: The device is capable of passing through High Dynamic Range (HDR) signals, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), allowing for enhanced color and contrast reproduction on compatible displays.

• VRR, FVA, ALLM support: The device supports Variable Refresh Rate (VRR), allowing for smoother gameplay by synchronizing the display’s refresh rate with the source device. It also supports Fast Frame Transport (FVA) for reduced latency and Auto Low Latency Mode (ALLM) for automatic game mode activation on compatible devices.

KanexPro HDMI 4x1 Switcher 8k

MPN: SW-4X18K

• HDMI 2.1 and HDCP 2.3 compliant: The device meets the standards of HDMI 2.1 and HDCP 2.3, ensuring compatibility and support for the latest HDMI and content protection technologies.

• Support 48Gbps video bandwidth: The device can handle high-speed data transfer up to 48Gbps, allowing for seamless transmission of high-quality audio and video signals.

• 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support: The device supports various video formats and resolutions, including 8K content at different frame rates and color depths, as well as 4K content at high refresh rates and color precision.

• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through: The device is capable of passing through High Dynamic Range (HDR) signals, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), allowing for enhanced color and contrast reproduction on compatible displays.

• VRR, FVA, ALLM support: The device supports Variable Refresh Rate (VRR), Fast Frame Transport (FVA), and Auto Low Latency Mode (ALLM). VRR enables smoother gameplay by synchronizing the display’s refresh rate with the source device, FVA reduces latency, and ALLM automatically activates game mode on compatible devices.

• Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTSHD Master Audio: The device can handle various HDMI audio formats, including uncompressed LPCM 7.1-channel audio, as well as highdefinition audio formats like Dolby TrueHD and DTS-HD Master Audio, providing immersive sound experiences.

• 4x1 switch output, auto switch supported: The device features a 4x1 switch output, allowing you to connect up to four HDMI sources and switch between them as needed. It also supports automatic switching, which detects the active input and switches accordingly.

HDMI SWITCHERS

4x1 HDMI w/ USBC Switcher 8K@60

MPN: SW-4X1HDAUD

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a standards

• HDMI input supports 18Gbps video bandwidth;

• USB-C input supports 5.4Gbps video bandwidth

• Video resolution up to 4K2K@50/60Hz 4:4:4

• CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable

• Support 3D, HDR10 and Dolby Vision

• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Support HDMI and USB-C input with USB-C charging port

• US one-gang enclosure for Decora-style wall plate openings

• Input signal selection supports automatic mode and manual mode

• Support POC function (only from Receiver to Transmitter)

• Backed by KanexPro 3-Year Parts and Labor Warranty

Kanexpro Auto Switcher | 2-Input Collaboration System

MPN: SW-2X14KUSBC

• A true 4K/60, 2x1 auto-switcher with HDMI 2.0 and USB-C inputs

• Intelligent Automatic switching

• Provides charging on USB-C port up to 60W perfect for MacBook & iPads

• Controllable via front panel buttons & RS232C

• Built-in EDID management

• 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision & HDCP 2.2.

• Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port.

• Balanced analog audio for audio de-embedding.

• Peripheral units (e.g. microphone and camera) can be connected by type-A USB (USB 3.0/2.0) ports and automatically switched along with HDMI and USB-C input as USB DEVICES for corresponding HOST.

• Smart EDID management capable for various applications and customized setting.

• Control via front panel buttons

• Handles CEC & RS- 232 commands for display control such as, (ON, OFF, MUTE, VOL+, VOL -)

• Low profile, perfect for lecterns, small to medium sized huddle rooms

• International, locking power supply

• Backed by KanexPro 3 year parts and labor warranty

HDMI SWITCHERS

UltraSlim 4K HDMI® 4x1 Switcher with 4:4:4 Color Space & 18G

MPN: SW-4X1SL18G

• UltraSlim 4x1 HDMI switcher w/ ARC

• Auto-switching enabled

• Supports 4K x 2K@60Hz

• Supports YUV 4:4:4 color space

• Incredibly thin design – only 0.4” (11 mm) thick

• High-bandwidth 18 Gbps

• HDCP 2.2 compliant

• Transmits 4K over HDMI cable up to 10m (32ft.)

• HDMI supports ARC (Audio Return Channel)

• Auto-identifies input resolutions to match displays via hot-plug

• Supports CEC to control source or display device via IR Remote & RS232 commands.

• Supports EDID management

• Micro USB port for firmware update

• Control via RS-232, IR & front panel buttons

• Remote control included

4K/60Hz HDMI 3X1 Switcher

MPN: SW-HD20-3X14K

• Auto switch three HDMI sources to one 4K display

• 4K@60Hz UHD, 1080p & 3D resolutions

• 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2.

• Computer resolutions up to QSXGA@60Hz

• Supports 3D frame sequential video formats to 1080p @60Hz

• HDCP 2.2 compliant

• Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

• High bandwidth for ultimate video experience

• Front-panel LED’s for input/ output signal presence

• Ultra compact design

• 5V DC external power supply included

• Includes IR remote

HDMI SWITCHERS

4K/60Hz HDMI 5X1 Switcher

MPN: SW-HD20-5X14K

• Auto switch five HDMI sources to one 4K display

• 4K@60Hz UHD, 1080p & 3D resolutions

• 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2.

• Computer resolutions up to QSXGA@60Hz

• Supports 3D frame sequential video formats to 1080p @60Hz

• HDCP 2.2 compliant

• Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

• High bandwidth for ultimate video experience

• Front-panel LED’s for input/ output signal presence

• Ultra compact design

• 5V DC external power supply included

• Includes IR remote

3x1 HDMI Switcher with 4K Support

MPN: SW-HD3X14K

• Rapidly switch between 3 inputs to one output

• Supports resolutions up to 4K@30Hz

• Full HD 1080p & 1920x1200

• HDCP and EDID Compliant

• Supports all 3D formats

• Ultra-low power consumption, does not require a power supply

• Switch using a manual button or included IR remote

• Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats & Lip Sync)

• Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch

• Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

• Front-panel LED’s for input/ output signal presence

• Ultra compact design

• IR / Remote control included

HDMI SWITCHERS

5x1 HDMI Switcher with 4K Support

MPN: SW-HD5X14K

• Rapidly switch between 5 inputs to one output

• Supports resolutions up to 4K@30Hz

• Full HD 1080p & 1920x1200

• HDCP and EDID Compliant

• Supports all 3D formats

• Ultra-low power consumption, does not require a power supply

• Switch using a manual button or included IR remote

• Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats & Lip Sync)

• Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch

• Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

• Front-panel LED’s for input/ output signal presence

• Ultra compact design

• 5VDC external power supply included

• IR / Remote control included

KVM SWITCHERS

NEW HDMI 4X1 KVM Switcher w/ Multi-View Tiling 4K

MPN: KVM-4X1MV4K

• HDCP 2.2 and HDCP 1.x compliant

• Support 18Gbps uncompressed video bandwidth

• Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b

• Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel

• Seamless switching between input channels and combined multiple images on single UHD monitor

• Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1),

• Triple (2), Quad (1), Quad (2)

• Seamless switching in single screen display mode

• Fast switching in multiview display mode

• Using only 1 set of keyboard, mouse and monitor to control 4 computers

• Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers

• Support multimedia, wireless keyboards and mouse

NEW

HDMI KVM Switcher 2x1 Dual Display 8K60

MPN: KVM-2X1DUAL8K

• HDCP 2.3 compliant

• Support Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz

• HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

• Using only 1 set of keyboard, mouse and monitor to control 2 computers

• Support video fast switching, and keyboard/mouse seamless switching

• Each input port has an EDID emulator to provide the correct information for the PC

• Support hot plug, disconnect or connect devices to the KVM at any time

• Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands

• Support auto switching

• Advanced hardware/software design and production ensure zero latency

• The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam and hard disk between computers with data transfer rate up to 5Gbp/s

• Compact design for easy and exible installation

KVM SWITCHERS

NEW HDMI KVM Switcher 2 Port 8K

MPN: KVM-2X1HDMI8K

• HDCP 2.3 compliant

• Support Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz

• Support VRR, ALLM, QMS, QFT, SBTM as specified in HDMI 2.1

• HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

• Using only 1 set of keyboard, mouse and monitor to control 2 computers

• Support video fast switching, and keyboard/mouse seamless switching

• Each input port has an EDID emulator to provide the correct information for the PC

• Support hot plug, disconnect or connect devices to the KVM at any time

• Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands

• Support auto switching

• Advanced hardware/software design and production ensure zero latency

• The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam and hard disk between computers with data transfer rate up to 5Gbp/s

• Compact design for easy and flexible installation

DisplayPort KVM Switch – 2 Port with USB 2.0

MPN: DPKVM2P

• Supports two Dual-mode DisplayPort inputs to one Dual-mode DisplayPort and HDMI output

• Supports data rates up to 6.75 Gbps total for all channels

• Compatible with Mini DisplayPort, DVI and HDMI adapters

• HD-Resolution up to 1920 x 1080@60Hz

• Dual-mode DisplayPort resolutions up to 2560 x 1600@60Hz

• Microphone and Headphone support for external audio equipment

• Supports 2-Channel Audio LPCM thru HDMI

• USB 2.0 peripheral sharing with speeds up to 480Mbps

• Full control through RS-232, front panel and IR remote

• No driver or software installation required

• Confirms to VESA 1.1a DisplayPort interoperability guidelines

• *Note: This swicther only works with Dual-link DisplayPort sources / Displays

2.3

SCALERS

9 by 2 multi-format scaling switcher with HDBT In and Out

MPN: HDSC92D-4K

• HDMI 2.0 and DVI 1.0 compliant

• HDCP 1.x and 2.2 compliant

• 9 video inputs (1xUSB-C, 2xHDMI Extender, 4xHDMI, 2xVGA)

• 2 mirrored video outputs (1xHDMI, 1xHDMI Extender)

• Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDMI Extender outputs

• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C) and output (HDMI)

• VGA input supports resolutions up to 1080p60/WUXGA (RB)

• HDMI Extender output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@ any (10/12- bit) sources will be automatically color space converted to within the available bandwidth

• Supports Deep Color input and output up to 12-bit (Bypass only)

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI Bypass only)

• HDMI Extender inputs/output extend video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7

• Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream

• Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input

• Trigger Control Keypad support for easy, single-button, function activation (Optional)

• Supports standard PoH (PSE) from the HDMI Extender output and HDMI Extender inputs to connected HDMI Extender (PD) transmitters and receiver (compatible transmitters/receivers only)

SWITCHERS

SCALERS

KanexPro Output Extender for HDSC92D-4K scaler

MPN: HDSC92D-4KRX

• HDMI with 3D, 4K2K support, HDMI & DVI Compliant

• Supports CEC by pass

• Simultaneous reception of uncompressed data over a single100m/328ftCAT5e/6/6acable

• HDMI, LAN, PoE & Control (IR &RS-2232)

• Supports resolution up to 4K2K@50/60 & YUV_420 and21:9

• Supports standard 48V from Transmitter to Receiver

• Supports HDMI Output cable distance up to 5m at 4K2K@50/60& YUV_420

• Backed by KanexPro 3 -Year Parts & Labor Warranty

KanexPro Input Extender for HDSC92D-4K scaler

MPN: HDSC92D-4KTX

• HDMI with 3D & 4K support, DVI 1.0compatible

• HDCP 2.2 and HDCP 1.xcompliant

• Supports resolutions up to 4K@50/60Hz (4:2:0,8-bit)

• Supports CEC by pass

• Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60and70m/230ft at 4K

• HDBaseT feature support: HD Video and Audio, 100BaseTEthernet, 48VPoH, and Control (bidirectionalIR/RS-232pass-through)

• Supports standard 48V PoH from Receiver (PSE) to Transmitter(PD) (compatible Transmittersonly)

• Notes: The 48V PoH function is designed to power compatibleTransmitter units only. Non-PoH Transmitters will need their own powersupply.Other brands of Transmitter may not becompatible.

• The use of “Premium High Speed HDMI” cables ishighly recommended for displaying 3D and 4K content andcompatible display equipment isrequired.

• Backed by KanexPro 3 -Year Parts & Labor Warranty

DIGITECH INTEGRATION ENHANCES CLASSROOM COLLABERATION WITH KANEXPRO

DigiTech Integration, Inc. incorporates KanexPro® UltraSlim 4K HDMI Switcher and Splitter, IR/RS-232 and Relay Controller, and 8-Button Control-Based IP Keypad for multi-screen display and simplified display control

Brea, Calif. – Technology has always been at the forefront of human education, through evolution and change, technology’s importance in the classroom is evident now, more than ever. Integrating technology into the classroom is an effective way to connect with students of all learning types, meanwhile, providing the opportunity to enhance interaction with classmates and teachers through collaboration. And, studies have shown, students are more successful in life outside of the classroom when technology is integrated and embraced.

As the technology that classrooms can implement continue to evolve with technological advancements. Hanford, California-based DigiTech Integration, Inc. worked closely with a local school district to implement enhanced, multi-screen video with simplified display control. “In collaboration with local IT and facilities directors, their goal was to create a multi-screen display with three televisions in each room with the capability to display different content on each television simultaneously,” said Hugo Sanchez, Project Coordinator for DigiTech Integration. “We needed to provide reliable, easy-to-use, cost-effective video control solutions to allow the teachers to control the devices from their desk or wall-mount keypad controller, which is why we selected KanexPro’s UltraSlim 4K HDMI 4x1 Switcher and 1x4 Splitter paired with their 8-Button Control-Based IP Keypad and IR/RS-232 and Relay Controller.”

THE SOLUTION

In pairing the UltraSlim 4K HDMI 4x1 Switcher and 1x4 Splitter paired with their 8-Button Control-Based IP Keypad and IR/RS-232 and Relay Controller, DigiTech Integration provided their client with the specific capabilities they needed to enhance interactivity within the classroom. “Our client is incredibly satisfied with the final system. Especially in a classroom, reliability is imperative,” explained Sanchez. “The teachers are able to display content from their desktop icon or a keypad controller to multiple televisions, simultaneously and in high-resolution, while controlling each display with the simple touch of a button. Following the initial phase, we’ll be incorporating additional KanexPro UltraSlim Switchers and Splitters with 8-Button IP Keypads and IR/RS-232 and Relay Controllers into new classrooms within the same school.”

THE CHALLENGE

DigiTech Integration selected KanexPro solutions to create a well-rounded, versatile solution to provide each teacher with a single system to meet each need. “We’re a long-time KanexPro customer and we’ve trusted their solutions as go-to products for our vast range of customers,” noted Sanchez. “We strive to provide our customers with quality systems and with KanexPro, we are able to do just that. The quality, innovation and features of each of their products, as well as the cost-effective price, is a reason why we consistently use their solutions in K-12 education installation.”

Due to the environment of the installation, DigiTech Integration had to complete the installation quickly with very minimal footprint in the classroom. DigiTech Integration worked closely with KanexPro to ensure the installation and programming was completed flawlessly. “KanexPro is our go-to provider for connectivity solutions and we’re always pleased with the level of customer support we receive,” said Sanchez. “KanexPro’s product specialist worked closely with our technician through the programming process, which was incredibly simple, but we were appreciative of the time the product specialist spent with our programmer to ensure the system was flawless. KanexPro always provides us with quick, reliable and efficient customer support, and it’s one of the reasons we trust their products for our clients.”

BBVA BANCOMER MEXICO SELECTS

KANEXPRO & KOLO FOR DIGITAL SIGNAGE

BBVA is one of the largest private financial institutions around the world serving millions of customers. Grupo Financiero BBVA Bancomer has a significant presence in Mexico that offers a wide variety of financial products and services.

Kolo® is a leader in the integration of digital systems based in Mexico City. Partnering up with KanexPro to offer signal management and extension solutions, Kolo was selected as premium integrator for BBVA Bancomer with almost 2,000 branches, 7 corporate buildings and 5,000 screens nationwide. KanexPro HDBaseT™ Distribution amplifiers and extenders were used in all areas of install as one of the key components of the digital signage architecture.

“We also offered a full solution in branches with only one CPU (Player) with an optional interactive output. The KanexPro line-up of extenders helped us create a universal SKU which could be used in any situation, making it easier to maintain and service for the branches. We are overall very satisfied with KanexPro products.”

PABLO

THE SOLUTION

The solution proposed by Kolo DS integrated was the KanexPro SP-HDBT1X4 – a professional HDBaseT™ Distribution amplifier with one HDMI input and four HDBaseT outputs and a local HDMI output for daisy chaining or local monitor support, the DA is powered over Ethernet (PoE) extending uncompressed HDMI signals up to 4K/30Hz over a single CAT6 cable up to 230ft. (70m) to the receiver EXT-HDBT70MRX and equipped to run with Deneva software.

2000 BBVA BANK LOCATION BARANCHES

THE IMPACT

As a result of the integration, Client has a complete and competitive system of control and monitoring of the media exposure of all Internal and consumer communication throughout the nation.

THE CHALLENGE

BBVA Bancomer had suffered to integrate a reliable Digital Signage infrastructure which was long due. BBVA needed a reliable, affordable and interactive digital signage solution for their infrastructure in Mexico City. The need was to integrate over 5,000 digital screens in Mexico in 2,000 branches of their bank locations and 7 corporate buildings. Controlling all these displays was a key driver on this project using Deneva software which would constantly communicate with the computer and pass along the serial meta data protocol from the display device to end computers running inside these branches and corporate locations.

DIGITAL SIGNAGE

5000 DIGITAL SCREENS

MPN: SP-HDBT1X4

MPN: EXT-HDBT70MRX

FORTUNE 500 COMPANY SELECTS KANEXPRO FOR A DRIVE-THRU PROJECT

The rugged, heat-resistant extender is utilized by one of the largest American coffee chains to extend digital AV media reliably to its drive-thru menus because it can extend full 1080p at 100 meters with separate Ethernet connection to LAN and it survives with temperatures ranging from 69 ˚C to -20 ˚C for eight hours a day.

THE CLIENT NEEDS & CHALLENGES

The project was to create a rugged, heat–resistant solution to extend digital A/V media reliably using HDBaseT™ technology from a computer located inside the proprietor’s venue to an interactive display located outside the venue in the drive-thru lane bearing variant temperatures.

An HDCP compliant extender was needed that can run up to 100 meters (330 feet) over cat6 based on HDBaseT technology delivering crystal clear audio and video to the GDS display located at the drive-thru store.

In order to tackle this project efficiently and economically, GDS researched, explored and tested a variety of HDBaseT video extenders from different manufacturers that can withstand thermal environments such as extreme cold, heat and humidity. They encountered mixed and disappointing results when testing many off-market extenders. The receiver side of the extender failed several times in thermal testing and on multiple test runs a re-connect or dis-connect for both video and power would occur. They learned quickly that not all HD extenders are created equal.

A drive-thru restaurant cannot afford failures, disconnects, or time latencies, as that would mean loss of business and revenue. HDBaseT technology brings the versatility and simplicity demanded by such an application, guaranteeing the performance necessary under any condition. HDBaseT technology is ideal for a variety of applications, as catered by companies such as KanexPro.

- MICHA RISLING Marketing Chair of HDBaseT Alliance

These displays are interactive, so reliable connectivity is very important. The solution also relies heavily on the Video & Ethernet portion for communication for relaying the health and wellbeing of the display.

- GUS ROTHMALER Product Manager at GDS

Drive Thru Digital Signage with KanexPro Extender

THE SOLUTION

After passing vigorous tests, GDS chose the KanexPro HDBASE100ME Extender and recommended it to the end customer for their final install to their drive-thru stores.

The KanexPro HDBaseT Extender is a transmitter/receiver set that enables you to route ultra high-definition signals up to 330 feet (100 meters). It features two ethernet ports on both units to connect standard network devices, such as 100Base-T routers, switches and hubs for LAN access. It also features bi-directional RS-232 protocol for controlling all your sources to sink. The transmitter and receiver sets are built into a sturdy metal enclosure with locking power supplies and HDMI connectors that protect the unit from disengagement or signal loss.

The KanexPro extender was put to the test for an entire week. It was subjected to temperatures ranging from 69 °C to -20 °C for 8 hours a day. Amazingly, it was still operational at -20 °C. GDS found that the KanexPro HDBASE100ME was able to withstand extreme temperatures for outdoors as well as indoors.

DIGITAL SIGNAGE APPLICATION

“The KanexPro HDBASE100ME Extender is a high quality, robust device, tested and proven for durability in all extremes. Recommended for use wherever an HDMI™ over CAT6 extender is needed,” said Rothmaler.

THE IMPACT

The end customer and GDS were able to get the best video extender in the market, which could withhold these extreme temperatures and yet function without any interruptions. GDS Components were carefully selected with HDBASE100ME supporting superior audio, video and Ethernet connectivity.

MPN: HDBASE100ME
