ECONOMY MOUNT SERIES
06 MPN: MOT-ECO-327Q
08 MPN: MOT-ECO-3780
10 MPN: MOT-ECO-378Q
12 MPN: MOT-ECO-439Q
14 MPN: MOT-ECO-439QT
16 MPN: MOT-ECO-378QT
18 MPN: MOT-ECO-378A
20 MPN: MOT-ECO-377A
22 MPN: MOT-ECO-327A
24 MPN: MOT-ECO-133A
26 MPN: MOT-ECO-134A
30 MPN: MOT-PRE-3780T
32 MPN: MOT-PRE-3270T
34 MPN: MOT-PRE-3780A
36 MPN: MOT-PRE-4390Q
38 MPN: MOT-PRE-1342R
40 MPN: MOT-PRE-1327R
42 MPN: MOT-PRE-325C
44 MPN: MOT-PRE-325C2
46 MPN: MOT-PRE-234C
48 MPN: MOT-PRE-234C2
50 MPN: MOT-PRE-P101
52 MPN: MOT-PRE-P102
54 MPN: MOT-PRE-P103C
56 MPN: MOT-PRE-P106C
PREMIUM MOUNT SERIES PRO MOUNT SERIES
60 MPN: MOT-PRO-W111
62 MPN: MOT-PRO-W112
64 MPN: MOT-PRO-W114
66 MPN: MOT-PRO-W116
68 MPN: MOT-PRO-W1101
70 MPN: MOT-PRO-W1102
72 MPN: MOT-PRO-W1103
74 MPN: MOT-PRO-W1104
76 MPN: MOT-PRO-W1105
78 MPN: MOT-PRO-W1106
80 MPN: MOT-PRO-W3101
82 MPN: MOT-PRO-W2101
84 MPN: MOT-PRO-W21C
86 MPN: MOT-PRO-W22C
3
Products BY SERIES
ECONOMY WALL MOUNT SERIES

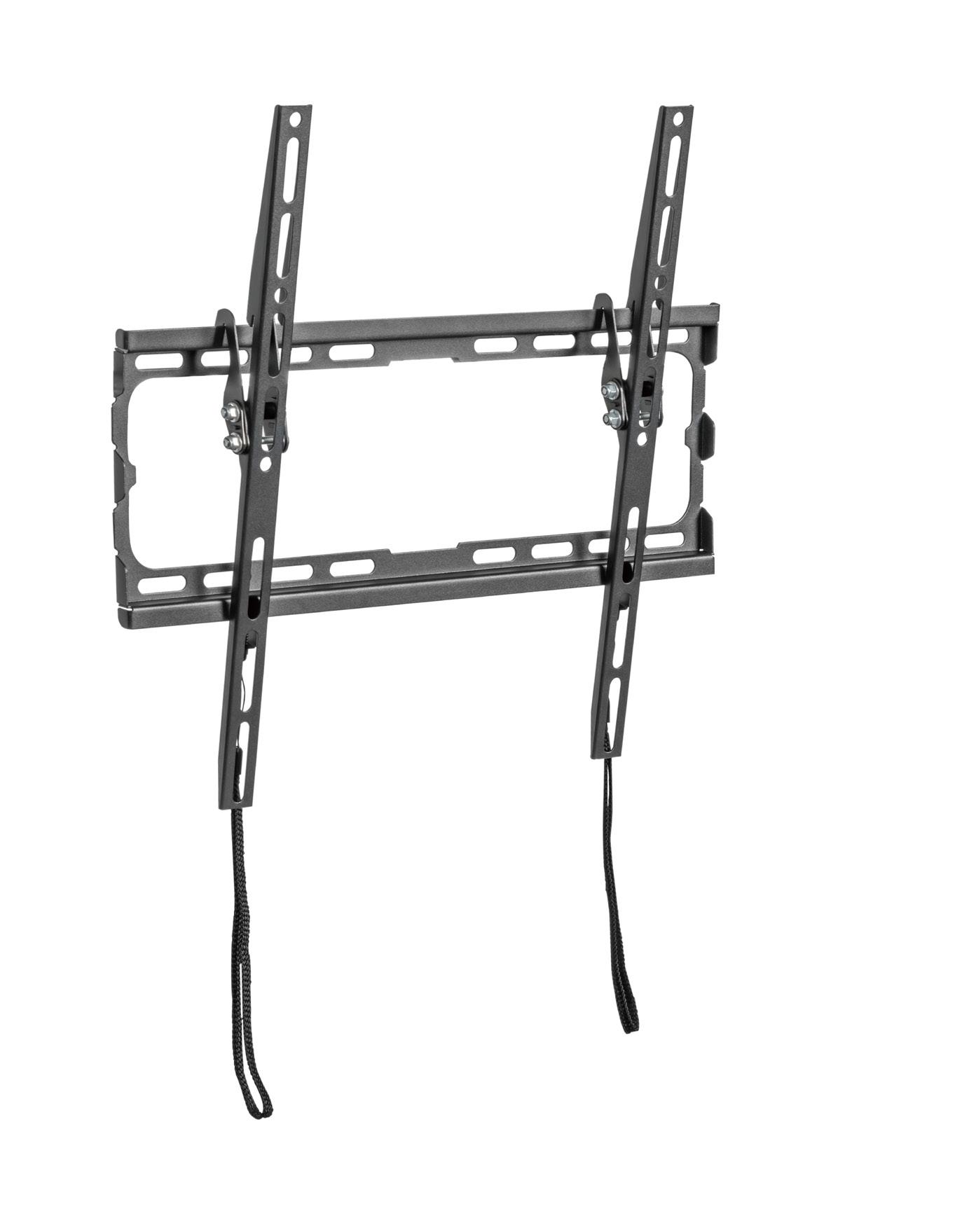

Economy Low-profile fixed TV wall mount 37”-70”
TV with quick release

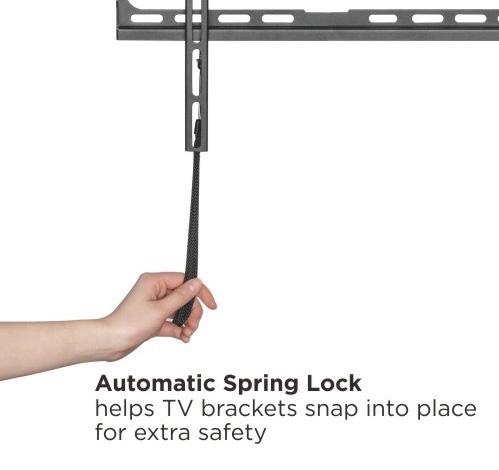

• Super Economy Low-Profile Tilt TV Wall Mount
• Slim Design: provides a low profile
• Picture Hanging Style: for a quick and easy installation

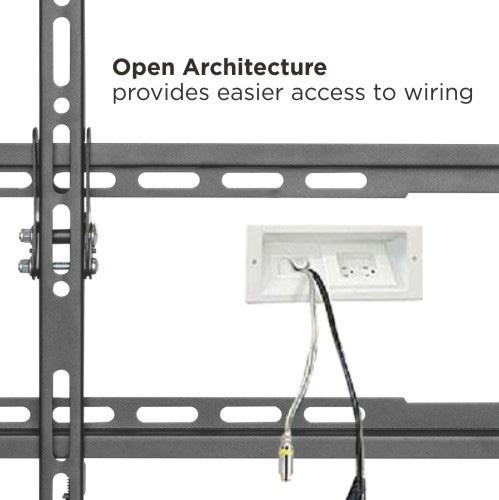

• Open Architecture: provides increased ventilation and easier access to wires
• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
• Slim Design: provides a low profile
6
WALL MOUNT SERIES
ECONOMY
MOT-ECO-327Q
MPN:
7 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions (mm) 445 170 24 418 50~400 0° -8° 20 50~400 Material Steel,Plastic Surface Finish Powder Coating Fit Screen Size 32"-70" VESA Compatible 75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200, 200x300,300x200,200x400,400x200,300x300,300x400,400x300,400x400 Weight Capacity 99lbs Profile 0.79" Tilt Range 0~-8° Swivel Range N/A Screen Level N/A Installation Solid Wall,Double Stud(16") Cable Management No Silk Screen N/A
MOT-ECO-327Q Line diagram
MPN:

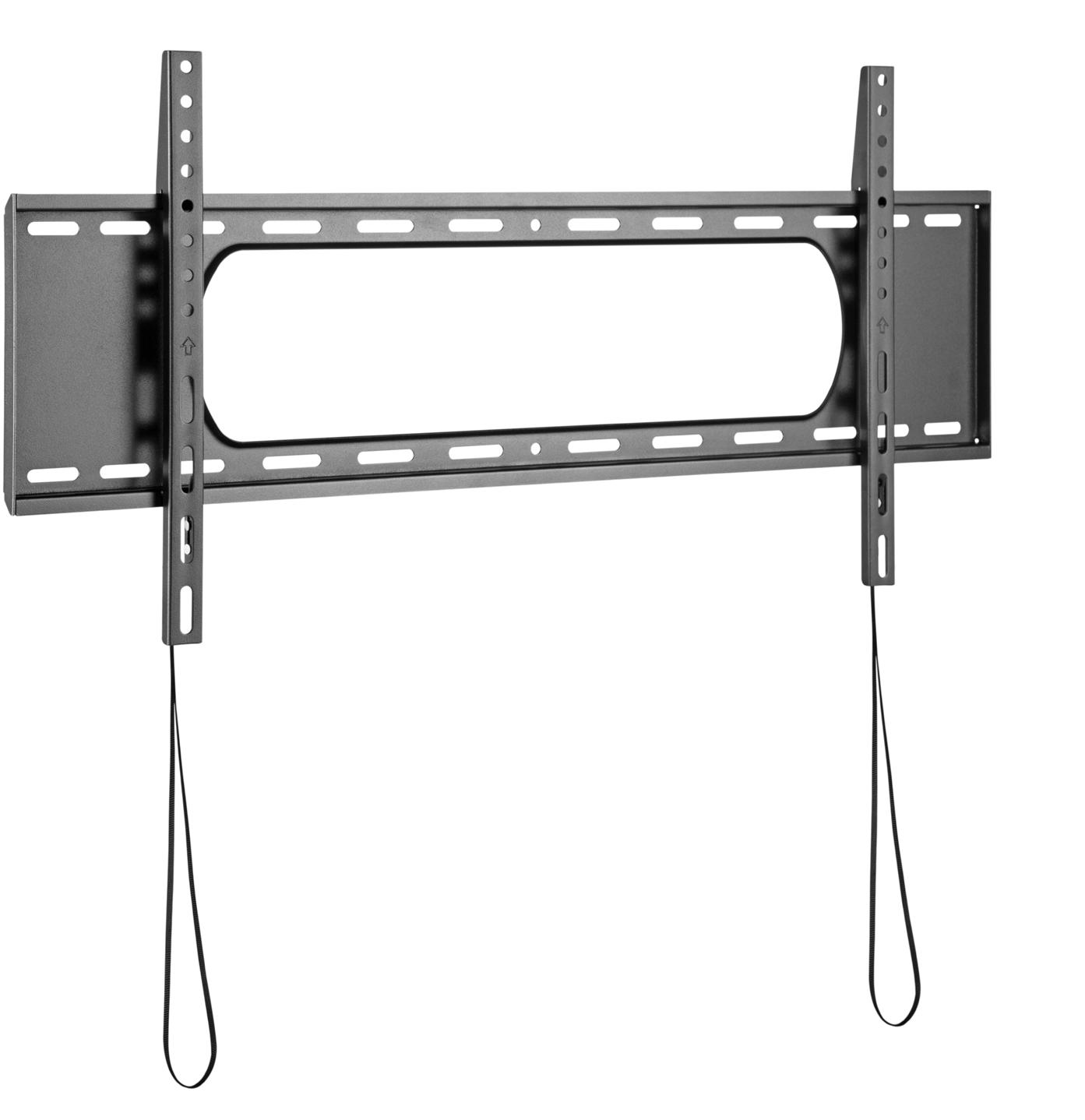

Economy Low-profile fixed TV wall mount
37”-80” TV
• Super Economy Low-Profile Fixed TV Wall Mount
• Slim Design: provides a low profile
• Picture Hanging Style: for a quick and easy installation
• Open Architecture: provides increased ventilation and easier access to wires

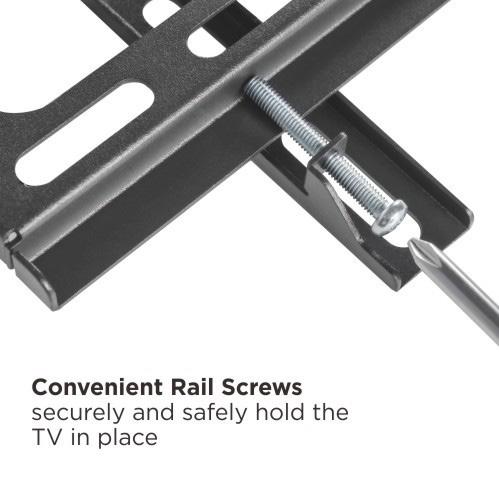

• Security Screws: hold TV securely to the wall plate
• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
• Slim Design: provides a low profile
8
MOUNT SERIES
ECONOMY WALL
MOT-ECO-3780
MPN:
9 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions (mm) 650 50~600 170 24 20 418 50~400 Material Steel,Plastic Surface Finish Powder Coating Fit Screen Size 37"-80" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 Weight Capacity 99lbs Profile 0.79" Tilt Range N/A Swivel Range N/A Screen Level N/A Installation Solid Wall,Double Stud(16"/17.7"/23.6") Cable Management No Silk Screen N/A MPN: MOT-ECO-3780 Line diagram
MPN: MOT-ECO-378Q
Economy Low-profile fixed TV wall mount with quick release 37”-80” TV
• Affordable Heavy-Duty TV Wall Mount

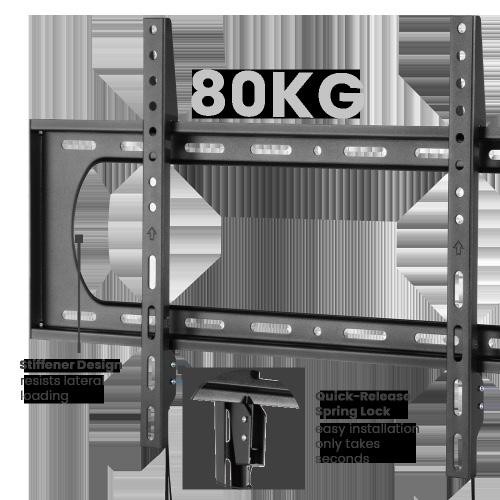

• Heavy-Duty Steel Construction: provides extra strength and durability
• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
• Open Architecture: provides increased ventilation and easier access to wires
10
ECONOMY WALL MOUNT SERIES
MPN: MOT-ECO-378Q

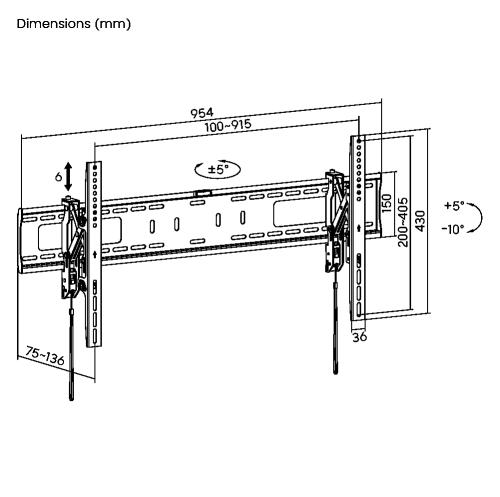

Line diagram
11 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 685 225 27 425 50~402 30 50~654 Dimensions
Material Steel Surface Finish Powder Coating Fit Screen Size 37"-80" VESA Compatible 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200, 200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400 Weight Capacity 176lbs Profile 1.2" Tilt Range N/A Swivel Range N/A Screen Level N/A Installation Solid Wall,Double Stud(16"/17.7"/23.6") Cable Management No Silk Screen Can be silkscreen printed
(mm)
Heavy-duty TV wall mount with quick release 43”-90” TV
• Affordable Heavy-Duty TV Wall Mount
• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
• Open Architecture: provides increased ventilation and easier access to wires
• Heavy-Duty Steel Construction: provides extra strength and durability
• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers) ECONOMY
12
WALL MOUNT SERIES
MPN: MOT-ECO-439Q
MPN: MOT-ECO-439Q
13 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions
50~402 225 885 50~854 27 30 425 Material Steel Surface Finish Powder Coating Fit Screen Size 43"-90" VESA Compatible 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400, 400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400,700x400,800x400 Weight Capacity 176lbs Profile 1.2" Tilt Range N/A Swivel Range N/A Screen Level N/A Installation Solid Wall,Double Stud(16"/17.7"/23.6") Cable Management No Silk Screen Can be silkscreen printed
(mm)
Line diagram
Heavy-duty TV wall mount with quick release and tilt adjustment 43”-90” TV
• Affordable Heavy-Duty Tilt TV Wall Mount
• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
• Heavy-Duty Steel Construction: provides extra strength and durability
• Open Architecture: provides increased ventilation and easier access to wires

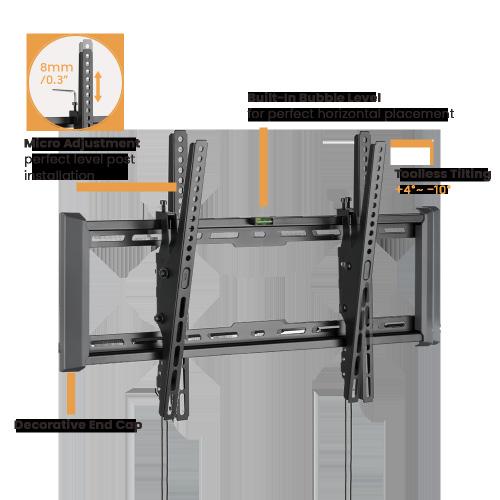

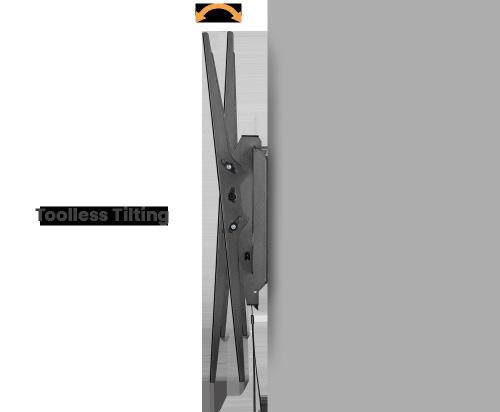

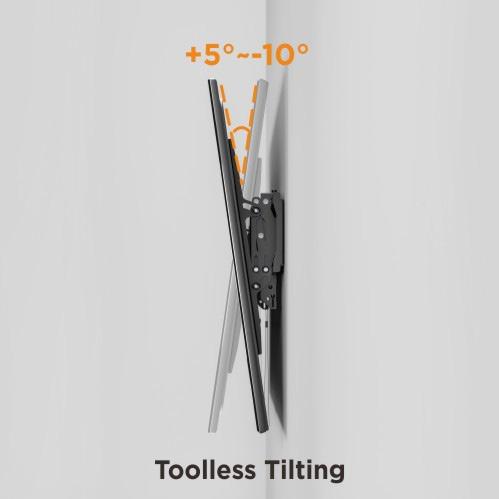

• Toolless Tilt: allows for effortless positioning
14
ECONOMY WALL MOUNT SERIES
MOT-ECO-439QT
MPN:
MPN:
15 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions
885 50~845 225 27 60 425 50~402 -10° +10° Material Steel Surface Finish Powder Coating Fit Screen Size 43"-90" VESA Compatible 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400, 400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400,700x400,800x400 Weight Capacity 176lbs Profile 2.4" Tilt Range +10°~-10° Swivel Range N/A Screen Level N/A Installation Solid Wall,Double Stud(16"/17.7"/23.6")
Management No
Screen Can be silkscreen printed
(mm)
Cable
Silk
Line
MOT-ECO-439QT
diagram
Slim Heavy-duty TV wall mount with quick release and tilt adjustment
37”-80” TV
• Ultra-Slim and Heavy-Duty TV Wall Mount
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Magnetic Strap End: hides itself when not in use.
• Bubble level included

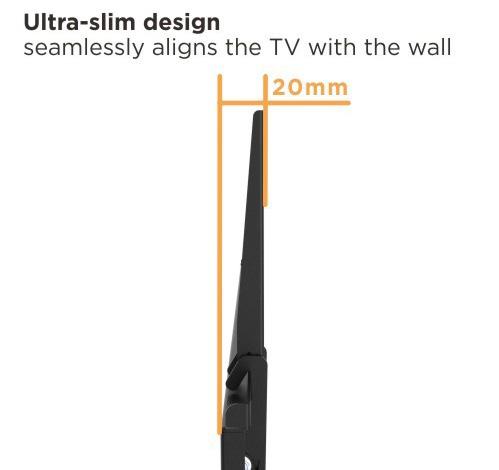

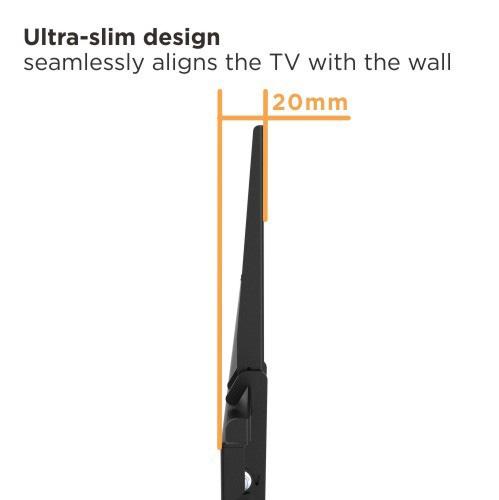

• Ultra-slim design
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare\
• Decorative Covers: for a more elegant look
• Heavy-Duty Steel Construction: provides extra strength and durability

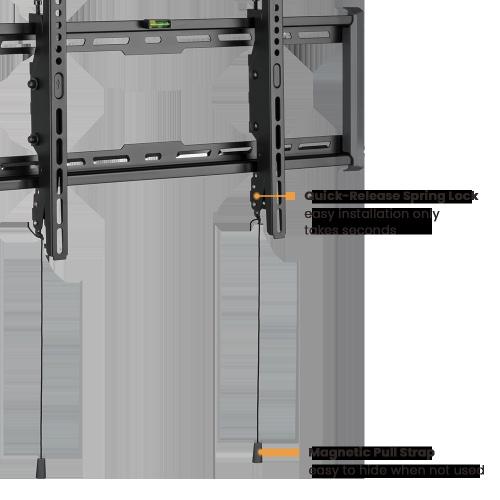

• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
16
ECONOMY WALL MOUNT SERIES
MPN: MOT-ECO-378QT
MPN:
17 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel,Plastic Surface Finish Powder Coating Fit Screen Size 37"-80" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 Weight Capacity 165lbs Profile 1.9" Tilt Range +4°~-10° Swivel Range N/A Screen Level 0.31" Installation Solid Wall,Double Stud(16"/17.7"/23.6") Cable Management No Silk Screen N/A
MOT-ECO-378QT Line diagram
Economy Full-Motion TV Mount
37”-80” TV
• Super Economy Full-Motion TV Mount
• Brackets with 2-level height adjustment
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized
18
ECONOMY WALL MOUNT SERIES
MPN: MOT-ECO-378A
MPN:
19 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 100~404 420 100~400 30 440 440 135 67~355 -15° +3° ±60° +3° -3° Dimensions (mm) Material Steel,Plastic Surface Finish Powder Coating Fit Screen Size 37"-80" VESA Compatible 100x100,100x150,150x100,100x200,200x100,150x150,200x200,300x200,400x200,300x300,400x300, 600x200,400x400,600x300,600x400 Weight Capacity 88lbs Profile 2.6"~14" Tilt Range +3°~-15° Swivel Range +60°~-60° Screen Level +3°~-3° Installation Solid Wall,Double Stud(16") Cable Management Yes Silk Screen N/A
MOT-ECO-378A Line diagram
Economy Full-Motion TV Mount 37”-70”

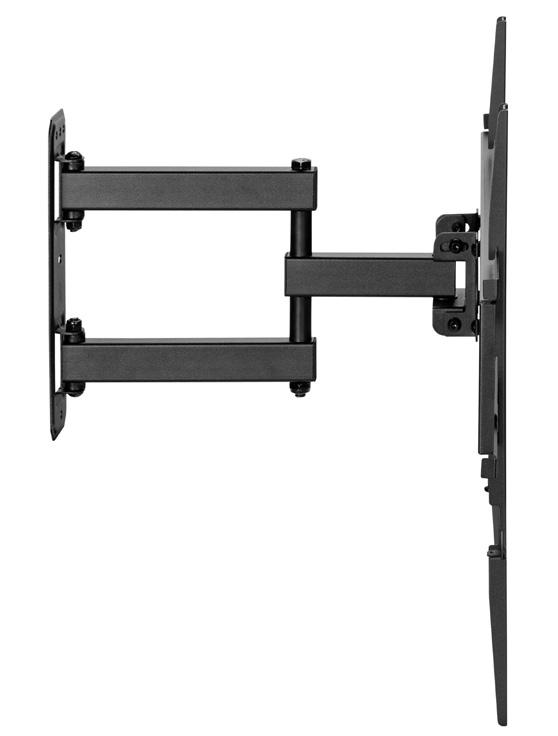

• Super Economy Full-Motion TV Mount
• Brackets with 2-level height adjustment
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized
20
ECONOMY WALL MOUNT SERIES
MPN: MOT-ECO-377A
MPN: MOT-ECO-377A
Line diagram
Silk
21 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 100~ 404 420 30 100~600 640 2 40 65 63~358 114 196 +3° -15° +3° -3° ±60° ±90° Dimensions (mm) Material Steel,Plastic Surface Finish Powder Coating Fit Screen Size 37"-70" VESA Compatible 100x100,100x150,150x100,100x200,200x100,150x150,200x200,300x200,400x200,300x300,400x300, 600x200,400x400,600x300,600x400 Weight Capacity 77lbs Profile 2.5"~14.1" Tilt Range +3°~-15° Swivel Range +60°~-60° Screen Level +3°~-3° Installation Solid Wall,Single Stud
Management Yes
Cable
Screen N/A
Economy Full-Motion TV Mount 32”-70”
• Modern Designed Full-Motion TV Mount
• Full-Motion Mechanism: for the most optimized viewing position
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized
• Decorative Covers: for a more elegant look ECONOMY
22
WALL MOUNT SERIES
MPN: MOT-ECO-327A
MPN: MOT-ECO-327A
diagram
23 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel,Plastic Surface Finish Powder Coating Fit Screen Size 32"-70" VESA Compatible 200x100,200x200,300x200,400x200,300x300,400x300,400x400,600x400 Weight Capacity 88lbs Profile 2.2"~20.1" Tilt Range +5°~-10° Swivel Range +90°~-90° Screen Level +3°~-3° Installation Solid Wall,Single Stud Cable Management Yes Silk Screen Can be silkscreen printed
Line

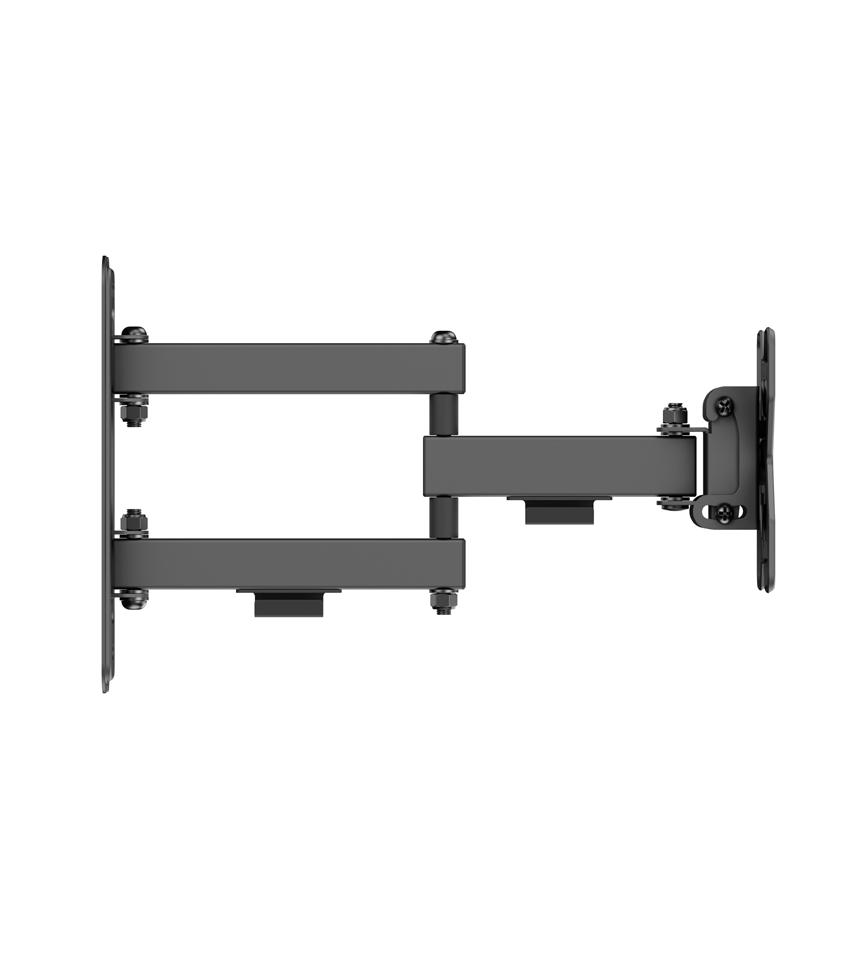

Economy Full-motion TV Wall Mount
Free-tilting design 13”-32” TV
• Economy Full-motion TV Wall Mount
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Portrait and Landscape Orientation: matches different viewing needs
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

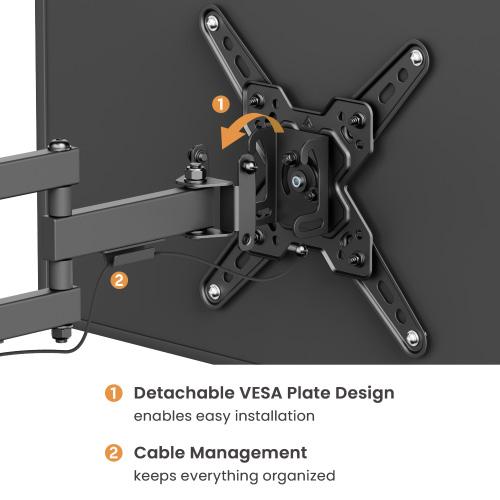

• Detachable VESA Plate Design: enables easy installation
• Cable Management: keeps everything organized
24
WALL MOUNT SERIES
ECONOMY
MOT-ECO-133A
MPN:
MPN:
Dimensions (mm)
25 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 129 100 75 129 100 75 214 60 62~366 187 127 -15° +5° ±90° ±90° +5° -90°
Material Steel Surface Finish Powder Coating Fit Screen Size 13"-32" VESA Compatible 75x75,100x100 Weight Capacity 44lbs Profile 2.4"~14.4" Tilt Range +5°~-15° Swivel Range +90°~-90° Screen Level N/A Installation Solid Wall,Single Stud Cable Management Yes Silk Screen Can be silkscreen printed
MOT-ECO-133A
Line diagram
Economy Full-motion TV Wall Mount
Free-tilting design 13”-43” TV
• Economy Full-motion TV Wall Mount
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Portrait and Landscape Orientation: matches different viewing needs
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Detachable VESA Plate Design: enables easy installation

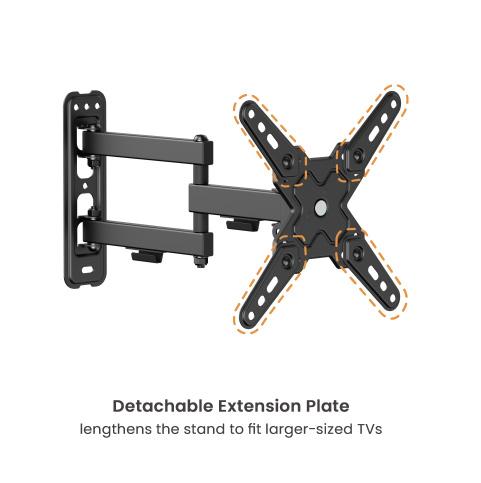

• Detachable Extension Plate: lengthens the stand to fit larger sized TVs
• Cable Management: keeps everything organized
26
ECONOMY WALL MOUNT SERIES
MPN: MOT-ECO-134A
MPN:
27 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 214 60 200 100 75 200 100 75 227 227 187 127 66~370 +5° -90° -15° +5° ±90° ±90° Dimensions (mm) Material Steel Surface Finish Powder Coating Fit Screen Size 13"-43" VESA Compatible 75x75,100x100,100x200,200x100,200x200 Weight Capacity 44lbs Profile 2.6"~14.6" Tilt Range +5°~-15° Swivel Range +90°~-90° Screen Level N/A Installation Solid Wall,Single Stud Cable Management Yes Silk Screen Can be silkscreen printed
MOT-ECO-134A
Line diagram
PREMIUM WALL MOUNT SERIES

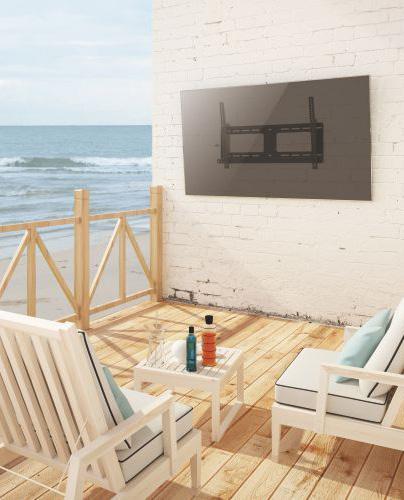

Weatherproof Tilt TV Wall Mount
37”-80” TV
• Anti-theft Weatherproof Tilt TV Wall Mount

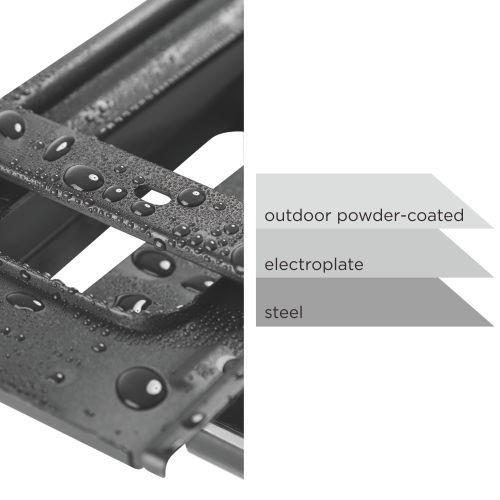

• High Quality Powder-Coated Finish: prevents scratches and rust
• Stainless Steel Screws: for added protection against salt air
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging

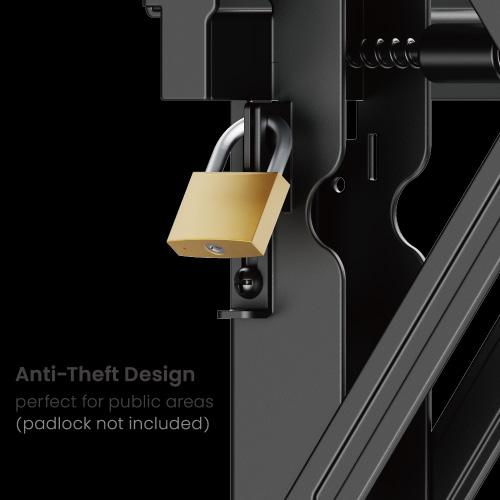

• Anti-theft Design: provide better protection
30
PREMIUM WALL MOUNT SERIES
MOT-PRE-3780T
MPN:
MPN:
31 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions (mm) 445 170 24 418 50~400 0° -8° 20 50~400 Material Steel Surface Finish Powder Coating,Electroplating Fit Screen Size 37"-80" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 Weight Capacity 176lbs Profile 2.1" Tilt Range +5°~-10° Swivel Range N/A Screen Level ±0.2" Installation Solid Wall,Double Stud(16"/17.7"/23.6") Cable Management No Silk Screen N/A
Line diagram
MOT-PRE-3780T
Weatherproof Tilt TV Wall Mount
32”-70” TV
• Anti-theft Weatherproof Tilt TV Wall Mount
• High Quality Powder-Coated Finish: prevents scratches and rust
• Stainless Steel Screws: for added protection against salt air
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Anti-theft Design: provide better protection
32
PREMIUM WALL MOUNT SERIES
MOT-PRE-3270T
MPN:
MPN: MOT-PRE-3270T Line diagram
33 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material
Surface Finish
Fit Screen Size 32"-70" VESA Compatible 75x75,100x100,100x150,150x100,200x100,150x150,200x200,300x200, 400x200,300x300,400x300,400x400 Weight Capacity 176lbs Profile 2.1" Tilt Range +5°~-10° Swivel Range N/A Screen Level ±0.2" Installation Solid Wall,Double Stud(16"/17.7"/23.6") Cable Management No Silk Screen N/A
Steel
Powder Coating,Electroplating
PREMIUM WALL MOUNT SERIES
MPN: MOT-PRE-3780A
Outdoor Weatherproof Slim Articulating Full-Motion TV Wall Mount 37”-80” TV
• Outdoor Weatherproof Slim Articulating Full-Motion TV Wall Mount
• High Quality Powder-Coated Finish: prevents scratches and rust
• Stainless Steel Screws: for added protection against salt air
• Free-tilting & Swiveling Design: for multiple TV viewing angles
• Leveling adjustments: allow TV to be perfectly positioned after hanging
34
MPN: MOT-PRE-3780A
diagram
35 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Surface Finish Powder Coating,Electroplating Fit Screen Size 37"-80" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 Weight Capacity 110lbs Profile 2.5"~20.1" Tilt Range +10°~-20° Swivel Range +60°~-60° Screen Level +3°~-3° Installation Solid Wall,Single Stud Cable Management No
Screen N/A
Silk
Line
Advanced Heavy-Duty Extension Tilt TV
Wall Mount
43”-90” TV
• Advanced Heavy-Duty Extension Tilt TV Wall Mount
• Convenient Wiring: easy access to power outlets, cable input source, etc.

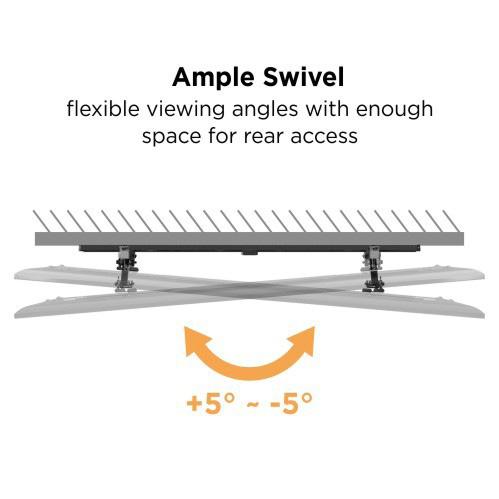

• Special Swivel Ability: supports flexible viewing angle and enough space for maintenance
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
36
PREMIUM WALL MOUNT SERIES
MOT-PRE-4390Q
MPN:
MPN: MOT-PRE-4390Q
Line diagram
Cable Management No
Silk Screen Can be silkscreen printed
37 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com
Fit Screen Size 43"-90" VESA Compatible 200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300, 600x200,400x400,600x300,600x400,800x400 Weight Capacity 165lbs Profile 3"~5.4" Tilt Range +5°~-10° Swivel Range +5°~-5° Screen Level 0.24"
Material Steel,Plastic Surface Finish Powder Coating
Installation Solid Wall,Double Stud(16"/17.7"/23.6")
MPN:

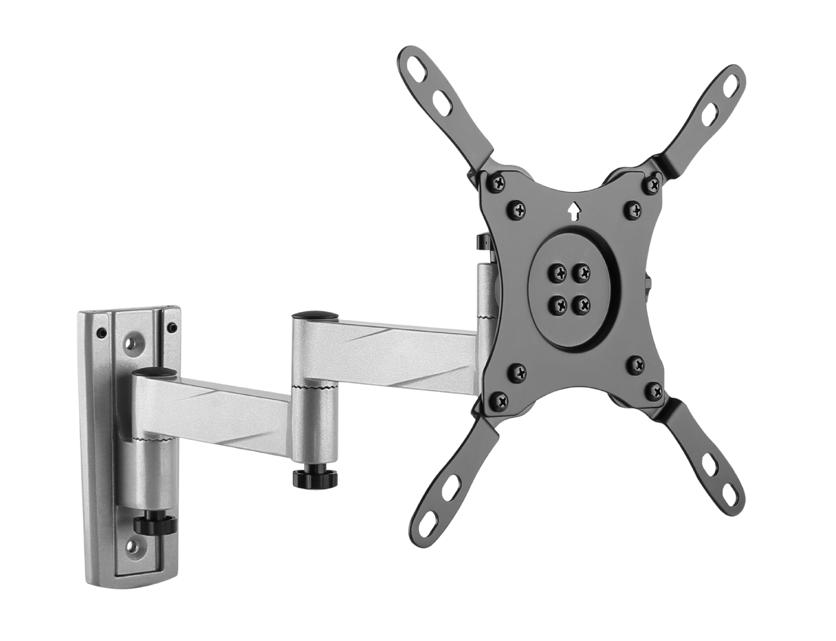

Aluminum Articulating TV Wall Mount 13”-42” TV
• Aluminum Articulating TV Wall Mount
• Stepped Joints: prevents in-transit vibration for increased stability
• Lockable Design with Knob: resists arm-shaking and reduces noise while the vehicle is in motion
• Slide-In Wall Plate: provides easy access for attachment and detachment
• Easy-Grip Knobs: for quick tilt and lock
• Integrated Bubble Level: assures alignment
• Cable Management: keeps everything organized
PREMIUM WALL MOUNT SERIES
MOT-PRE-1342R
MPN:
Line diagram
39 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 66mm 158mm 75mm 100mm 200mm 75mm 100mm 200mm 392mm ±90° +55° -35° ±90° ±90° Material Aluminum,Steel Surface Finish Powder Coating Fit Screen Size 13"-42" VESA Compatible 75x75,100x100,200x100,200x200 Weight Capacity 33lbs Profile 3.3"~15.4" Tilt Range +55°- -35° Swivel Range +90°~-90° Screen Level N/A Installation Solid Wall,Single Stud Cable Management Yes Silk Screen N/A
MOT-PRE-1342R
MPN:
Aluminum Articulating TV Wall Mount 13”-27” TV
• Aluminum Articulating TV Wall Mount
• Stepped Joints: prevents in-transit vibration for increased stability
• Lockable Design with Knob: resists arm-shaking and reduces noise while the vehicle is in motion
• Slide-In Wall Plate: provides easy access for attachment and detachment
• Easy-Grip Knobs: for quick tilt and lock
• Integrated Bubble Level: assures alignment
• Cable Management: keeps everything organized
40
WALL MOUNT SERIES
PREMIUM
MOT-PRE-1327R
MPN: MOT-PRE-1327R
41 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Aluminum,Steel Surface Finish Powder Coating Fit Screen Size 13"-27" VESA Compatible 75x75,100x100 Weight Capacity 33lbs Profile 15" Tilt Range +55°- -35° Swivel Range +90°~-90° Screen Level N/A Installation Solid Wall,Single Stud Cable Management Yes Silk Screen N/A
Line diagram
MPN: MOT-PRE-325C
Telescopic Full-motion TV Ceiling Mount 32”-55” TV
• Telescopic Full-motion TV Ceiling Mount
• Telescoping Height Adjustment: for the optimal viewing height
• Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized
42
PREMIUM WALL MOUNT SERIES
MPN:
43 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Surface Finish Powder Coating Fit Screen Size 32"-55" VESA Compatible 200x200,400x200,300x300,400x400 Weight Capacity 110lbs Profile 41.7"~61.4" Tilt Range +0° - -25° Swivel Range +180°~-180° Screen Level +3°~-3° Installation Ceiling Mounted Cable Management Yes Silk Screen N/A
MOT-PRE-325C Line diagram
MPN:
Telescopic Flat Panel Ceiling Mount 32”-55” TVx2
• Back-to-Back Flat Panel Ceiling Mount
• Telescoping Height Adjustment: for the optimal viewing height
• Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized PREMIUM
44
SERIES
WALL MOUNT
MOT-PRE-325C2
MPN:
45 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Surface Finish Powder Coating Fit Screen Size 32"-55" VESA Compatible 200x200,400x200,300x300,400x400 Weight Capacity 99lbs x2 Profile 41.7"~61.4" Tilt Range +5°- -20° Swivel Range -180°~+180° Screen Level +3°~-3° Installation Ceiling Mounted Cable Management Yes Silk Screen N/A
MOT-PRE-325C2 Line diagram
MPN:
Telescopic Full-motion TV Ceiling Mount 23”-42” TV
• Telescopic Full-motion TV Ceiling Mount
• Telescoping Height Adjustment: for the optimal viewing height
• Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized
46
PREMIUM WALL MOUNT SERIES
MOT-PRE-234C
MPN:
47 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions (mm) 200 1060~1560 200 100 226 200 100 226 1173~1673 Ø48 Ø40 -60° +60° -25° 0° ±180° +3° -3° Material Steel Surface Finish Powder Coating Fit Screen Size 23"-42" VESA Compatible 100x100,200x100,200x200 Weight Capacity 110lbs Profile 41.7"~61.4" Tilt Range +0°- -25° Swivel Range +180°~-180° Screen Level +3°~-3° Installation Ceiling Mounted Cable Management Yes Silk Screen N/A
MOT-PRE-234C
diagram
Line
MPN:
Back-to-back TV Ceiling Mount 23”-42” TVx2
• Back-to-Back Flat Panel Ceiling Mount
• Telescoping Height Adjustment: for the optimal viewing height
• Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized
48
SERIES
PREMIUM WALL MOUNT
MOT-PRE-234C2
MPN:
49 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Surface Finish Powder Coating Fit Screen Size 23"-42" VESA Compatible 100x100,200x100,200x200 Weight Capacity 99lbs x2 Profile 41.7"~61.4" Tilt Range +5° - -20° Swivel Range -180°~+180° Screen Level -3°~+3° Installation Ceiling Mounted Cable Management Yes Silk Screen N/A
MOT-PRE-234C2 Line diagram
Steel Short Throw Projector Wall Mount (Medium)
• Steel Short Throw Projector Wall Mount (Medium)
• Adjustable Support Arms: fit most projectors with ease
• 360° Rotating Joint: for optimal viewing angles
• Tilting Design: allows maximum viewing ability
• Swiveling Joint: offers maximum viewing flexibility
• Adjustable Length: for your different choices
• Cable Management: keeps everything organized
50
PREMIUM WALL MOUNT SERIES
MPN: MOT-PRE-P101
MPN: MOT-PRE-P101
Line diagram
51 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Weight Capacity 33lbs Mounting Range 2.1"~12.6" Mounting Hole Dimension N/A Tilt Range +15°~-15° Swivel Range +15°~-15° Rotation +180°~-180° Extension Range 18.3"~23.9" Anti-theft N/A
Steel Short Throw Projector Wall Mount (Long)
• Steel Short Throw Projector Wall Mount (Long)
• Adjustable Support Arms: fit most projectors with ease
• 360° Rotating Joint: for optimal viewing angles
• Swiveling Joint: offers maximum viewing flexibility
• Tilting Design: allows maximum viewing ability
• Adjustable Length: for your different choices
• Cable Management: keeps everything organized
52
PREMIUM WALL MOUNT SERIES
MPN: MOT-PRE-P102
MPN: MOT-PRE-P102
Line diagram
53 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Weight Capacity 33lbs Mounting Range 2.1"~12.6" Mounting Hole Dimension N/A Tilt Range +15°~-15° Swivel Range +15°~-15° Rotation +180°~-180° Extension Range 36.5"~59.8" Anti-theft N/A
MPN:
Heavy-Duty Projector Ceiling Mount (For
Flat Ceiling)
• Heavy-Duty Projector Ceiling Mount (For Flat Ceiling)
• 360° Rotating Joint: for optimal viewing angles
• Swiveling Joint: offers maximum viewing flexibility
• Tilting Design: allows maximum viewing ability
• Adjustable Length: for your different choices
• Ceiling plate can be fine tune adjusted for easy reposition
• Detachable Head Section: makes installation easier
• Adjustable Support Arms: fit most projectors with ease
PREMIUM WALL MOUNT SERIES
MOT-PRE-P103C
MPN: MOT-PRE-P103C Line diagram
55 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Weight Capacity 77lbs Mounting Range 5.1"~18.5" Mounting Hole Dimension N/A Tilt Range +20°~-20° Swivel Range +8°~-8° Rotation +180°~-180° Extension Range 23.4"~35.2" Anti-theft N/A
MPN:
Heavy-Duty Projector Ceiling Mount (For
Flat Ceiling)
• Heavy-Duty Projector Ceiling Mount (For Flat Ceiling)
• 360° Rotating Joint: for optimal viewing angles
• Swiveling Joint: offers maximum viewing flexibility
• Tilting Design: allows maximum viewing ability
• Adjustable Length: for your different choices
• Ceiling plate can be fine tune adjusted for easy reposition
• Detachable Head Section: makes installation easier
• Adjustable Support Arms: fit most projectors with ease
PREMIUM WALL MOUNT SERIES
MOT-PRE-P106C
MPN: MOT-PRE-P106C Line diagram
57 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Weight Capacity 77lbs Mounting Range 5.1"~18.5" Mounting Hole Dimension N/A Tilt Range +20°~-20° Swivel Range +8°~-8° Rotation +180°~-180° Extension Range 29.3"~45.1" Anti-theft N/A
PRO WALL MOUNT SERIES
Aluminum Height-Adjustable TV Cart 37”-70” TV
• Aluminum Height-Adjustable TV Cart
• Quick Assembly Shelf: assures easy post-installation and height adjustment
• Vertical Height Adjustment: for proper positioning
• Cable Management: keeps everything organized
• Sturdy steel base
• Column Height Markings: conveniently displays the current height
60
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W111
61 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions 33.1"x28"x68.3"~84.8" Fit Screen Size 37"-70" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 TV Weight Capacity 110lbs Tilt Range +5°~-12° Swivel Range N/A Screen Rotation 0°~-90° TV Height Adjustable Yes Shelf Weight Capacity 11lbs Cable Management Yes MPN: MOT-PRO-W111 Line diagram
Dual Aluminum Height-Adjustable TV Cart 37”-60” TVx2
• Dual Screen Aluminum Height-Adjustable TV Cart with Cabinet
• Quick Assembly Shelf: assures easy post-installation and height adjustment
• Vertical Height Adjustment: for proper positioning
• Cable Management: keeps everything organized
• Sturdy steel base
• Column Height Markings: conveniently displays the current height
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W112
63 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Dimensions 48"x28"x92.1" Fit Screen Size 37"-60" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 TV Weight Capacity 110lbs x2 Tilt Range +5°~-10° Swivel Range N/A Screen Rotation N/A TV Height Adjustable Yes Shelf Weight Capacity N/A Cable Management Yes MPN: MOT-PRO-W112 Line diagram
Aluminum Video Wall Stand
45”-55” TVx4 (2x2)
• Effortless Micro-Adjustments: allow seamless display alignment
• Lightweight Aluminum Construction: provides a sleek, lighter, and elegant look
• Heavy-Duty Casters with Locking Mechanism: can be moved or stopped at will
• Cable Management: keeps everything organized
64
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W114
MPN: MOT-PRO-W114
Line diagram
65 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com
Material: Aluminum, Steel, Plastic Weight Capacity(Per Screen): 50kg (110lbs) Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet Screen Qty: 2x2 Surface Finish: Sand-blasted Aluminum Anodic Oxidation Strength Tested: 4 Times Approved Color: Fine Texture Grey & Matte Black Fine Adjustment(Depth/ Height): 10mm/20mm (0.39"/0.79") Color(Accessory): Matte Black Tilt Range: +2°~-2° Dimensions: 2009x1000x2135mm (79.1"x39.4"x84.1") Installation: Locking Caster Column Size(Main Column/ Extension Column): 136x80x2mm (5.4"x3.1"x0.079") Direction Indicator: Yes Fit Screen Size: 45"-55" Cable Management: Yes VESA Compatible: 200x200,400x200,300x300,400x400,600x400 10 Degree Slope Testing: Yes Max. Mounting Hole: 600x400 Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Aluminum Video Wall Stand
45”-50” TVx9 (3x3)
• Effortless Micro-Adjustments: allow seamless display alignment
• Lightweight Aluminum Construction: provides a sleek, lighter, and elegant look
• Bolt-Down Base: tamper-proof solid support for extra security
• Cable Management: keeps everything organized
66
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W116
MPN: MOT-PRO-W116
Line diagram
67 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com
Material: Aluminum,Steel,Plastic Weight Capacity(Per Screen): 50kg (110lbs) Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet Screen Qty: 3x3 Surface Finish: Sand-blasted Aluminum Anodic Oxidation Strength Tested: 4 Times Approved Color: Fine Texture Grey & Matte Black Fine Adjustment(Depth/ Height): 10mm/20mm (0.39"/0.79") Color(Accessory): Matte Black Tilt Range: +2°~-2° Dimensions: 3009x510x2565mm (118.5"x20.1"x101") Installation: Bolt-Down Base Column Size(Main Column/ Extension Column): 136x80x2mm (5.4"x3.1"x0.079") Direction Indicator: Yes Fit Screen Size: 45"-50" Cable Management: Yes VESA Compatible: 200x200,400x200,300x300,400x400,600x400 10 Degree Slope Testing: Yes Max. Mounting Hole: 600x400 Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
MPN:
Pop-out Video Wall Mount
37”-70” TV
• Affordable Full Service Video Wall Mount
• Pop-Out Extension: provides quick access for installation and maintenance
• Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
• Lateral Shift Brackets: enable width adjustment and fast alignment
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Connecting wall plates make it easy to create longer menu board
68
PRO WALL MOUNT SERIES
MOT-PRO-W1101
69 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com +3° -3° 900 78~220 106 59.5 200~800 200~400 440 9 Dimensions (mm) Material Steel Color Fine Texture Black Dimensions 35.4"x17.3"x8.7" Fit Screen Size 37"-70" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Weight Capacity(Per Screen) 154lbs Screen Qty 1 Strength Tested 4 Times Approved Profile 3.1"~8.7" Fine Adjustment(Depth/Height) 0"/0.35" Tilt Range N/A Screen Level +3°~-3° Installation Solid Wall Cable Management No MPN: MOT-PRO-W1101 Line diagram
Super Slim Video Wall Mount 46”-52”
TV
• Super Slim Video Wall Mount
• Slim Design: provides a low profile
• Precise Display Alignment: height/depth adjustment for seamless digital signage
• Portrait or Landscape Viewing: one solution fits any installation
• Pop-Out Extension: provides quick access for installation and maintenance
• Slim Design: provides a low profile
70
PREMIUM VIDEO WALL MOUNTS
MPN: MOT-PRO-W1102
71 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 1009mm 12mm min49mm-max223mm 540mm min200mm-max600mm min200mm-max400mm 5mm Material Steel Color Matte Black Dimensions 39.7"x21.3"x1.9"~8.8" Fit Screen Size 46"-52" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400 Weight Capacity(Per Screen) 77lbs Screen Qty 1 Strength Tested 4 Times Approved Profile 1.9"~8.8" Fine Adjustment(Depth/Height) 0.2"/0.47" Tilt Range N/A Screen Level N/A Installation Solid Wall Cable Management No MPN: MOT-PRO-W1102
diagram
Line
Super Slim Video Wall Mount
50”-60” TV
• Super Slim Video Wall Mount
• Slim Design: provides a low profile
• Precise Display Alignment: height/depth adjustment for seamless digital signage
• Portrait or Landscape Viewing: one solution fits any installation
• Pop-Out Extension: provides quick access for installation and maintenance
• Slim Design: provides a low profile
72
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W1103
MPN: MOT-PRO-W1103
Line diagram
73 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com 1209mm 540mm 12mm 5mm min49mm-max223mm min200mm-max800mm min200mm-max400mm Material Steel Color Matte Black Dimensions 47.6"x21.3"x1.9"- 8.8" Fit Screen Size 55"-60" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400,600x600,800x600 Weight Capacity(Per Screen) 77lbs Screen Qty 1 Strength Tested 4 Times Approved Profile 1.9"~8.8" Fine Adjustment(Depth/Height) 0.2"/0.47" Tilt Range N/A Screen Level N/A Installation Solid Wall Cable Management No
Pop-out Landscape Video Wall Mount
45’’-80’’ TV
• Pop-out Landscape Video Wall Mount
• Pop-Out Extension: provides quick access for installation and maintenance
• Precise Display Alignment: height/depth adjustment for seamless digital signage
• Quick-Release Latch: locks/unlocks the display in place
• Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
74
PRO WALL MOUNT SERIES
MOT-PRO-W1104
MPN:
MPN:
Line diagram
75 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Color Fine Texture Black Dimensions 34.3"x3.7"~11.2"x20.6" Fit Screen Size 45"-80" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Weight Capacity(Per Screen) 154lbs Screen Qty 1 Strength Tested 4 Times Approved Profile 3.7"~11.2" Fine Adjustment(Depth/Height) 0.79"/0.98" Tilt Range +4°~-2° Screen Level +3°~-3° Installation Solid Wall Cable Management N/A
MOT-PRO-W1104
MPN:
Pop-out Landscape Video Wall Mount 45’’ Min.
• Pop-out Video Wall Mount
• Pop-Out Extension: provides quick access for installation and maintenance
• Precise Display Alignment: height/depth adjustment for seamless digital signage
• Quick-Release Latch: locks/unlocks the display in place
• Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
76
PRO WALL MOUNT SERIES
MOT-PRO-W1105
MPN:
Line diagram
77 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Color Matte Black Dimensions N/A Fit Screen Size Min. 45" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400,1000x400 Weight Capacity(Per Screen) 154lbs Screen Qty N/A Strength Tested 4 Times Approved Profile 4.5"~11.6" Fine Adjustment(Depth/Height) 0.79"/0.98" Tilt Range +4°~-2° Screen Level +3°~-3° Installation N/A Cable Management N/A
MOT-PRO-W1105
MPN:
Pop-out Landscape Video Wall Mount
Without Wall Pillar
45’’ Min.
• Pop-out Video Wall Mount Without Wall Pillar
• Pop-Out Extension: provides quick access for installation and maintenance
• Precise Display Alignment: height/depth adjustment for seamless digital signage
• Quick-Release Latch: locks/unlocks the display in place
• Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
78
PRO WALL MOUNT SERIES
MOT-PRO-W1106
MPN:
Line diagram
79 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material Steel Color Fine Texture Black Dimensions N/A Fit Screen Size Min. 45" VESA Compatible 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400,1000x400 Weight Capacity(Per Screen) 154lbs Screen Qty 1 Strength Tested 4 Times Approved Profile 4.1"/4.2"~11.5"/11.7" Fine Adjustment(Depth/Height) 0.79"/0.98" Tilt Range +4°~-2° Screen Level +3°~-3° Installation Solid Wall Cable Management N/A
MOT-PRO-W1106
Triple Screen Menu Board Wall Mount 45”-50” TVx3
• Triple Screen Menu Board Wall Mount
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
• Cable Management: keeps everything organized
80
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W3101
MPN: MOT-PRO-W3101
Line diagram
81 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material
Color
Dimensions 118.5"x17.3"x5.6" Fit Screen Size 45"-50" VESA Compatible 200x200,400x200,300x300,400x400,600x400 Weight Capacity(Per Screen) 110lbs Screen Qty 3x1 Strength Tested 4 Times Approved Profile 5.6" Fine Adjustment(Depth/Height) 0"/0.2" Tilt Range 0°/-5°/-10°/-15°/-20° Screen Level
Aluminum, Steel
Fine Texture Grey
N/A Installation Solid Wall Cable Management Yes
Dual Screen Menu Board Wall Mount
45”-50” TVx2
• Dual Screen Menu Board Wall Mount
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
• Cable Management: keeps everything organized
82
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W2101
MPN: MOT-PRO-W2101
Line diagram
83 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material
Color
Dimensions 79.1"x5.6"x17.3" Fit Screen Size 45"-55" VESA Compatible 200x200,400x200,300x300,400x400,600x400 Weight Capacity(Per Screen) 110lbs Screen Qty 2x1 Strength Tested 4 Times Approved Profile 5.6" Fine Adjustment(Depth/Height) 0"/0.2" Tilt Range 0°/-5°/-10°/-15°/-20° Screen
Aluminum, Steel
Fine Texture Grey
Level N/A Installation Solid Wall Cable Management Yes
Dual Screen Menu Board Wall Mount
45”-50” TVx2
• Dual Screen Menu Board Ceiling Mount with Long Pole
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
• Cable Management: keeps everything organized
84
PRO WALL MOUNT SERIES
MOT-PRO-W21C
MPN:
MPN:
85 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com Material
Color
Dimensions 79.1"x11"x62.2" Fit Screen Size 45"-55" VESA Compatible 200x200,400x200,300x300,400x400,600x400 Weight Capacity(Per Screen) 110lbs Screen Qty 2x1 Strength Tested 4 Times Approved Profile 62.2" Fine Adjustment(Depth/Height) 0"/0.2" Tilt Range 0°/-5°/-10°/-15°/-20° Screen Level N/A Installation Flat Ceiling Cable Management Yes
Aluminum, Steel, Plastic
Matte Black,Fine Texture Grey
MOT-PRO-W21C Line diagram
Video Wall Ceiling Mount with Long Pole 45”-55” TVx3
• Die-Cast Aluminum Construction with Anodized Finish: engineered for strength and durability
• Weight Balancing System: ensures perfect vertical pole alignment, no matter the size or thickness of TVs
• Effortless Micro-Adjustments: allow seamless display alignment
• Cable Management: keeps everything organized
86
PRO WALL MOUNT SERIES
MPN: MOT-PRO-W22C
MPN: MOT-PRO-W22C
Line diagram Material:
Black,Fine Texture
(79.1"x13.8"x74.6")
Flat Ceiling
87 US Sales & Support: 888.975.1368 • International Sales & Support: +1.714.332.1681 • kanexpro.com
Screen
Profile:
Aluminum,Steel,Plastic
Qty: 2x2 Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet Strength Tested: 4 Times Approved Surface Finish: Powder Coating,Sand-blasted Aluminum Anodic Oxidation
1895mm (74.6")
Color: Matte
Grey Fine Adjustment(Depth/ Height): 10mm/20mm (0.39"/0.79")
Fit Screen Size:
VESA Compatible: 200x200,400x200,300x300,400x400,600x400 Cable Management:
Max. Mounting Hole: 600x400 Bubble Level:
Weight Capacity(Per Screen): 50kg (110lbs) Accessory Kit Package:
Color(Accessory): Matte Black Tilt Range: +2°~-2° Dimensions: 2009x350x1895mm
Installation:
45"-55" Direction Indicator: Yes
Yes
No
Normal/Ziplock Polybag,Compartment Polybag
US TEL:
+1.888.975.1368
INTERNATIONAL TEL:
+1.714.332.1681
EMAIL:
sales@kanexpro.com
ADDRESS:
WWW.KANEXPRO.COM
88
3753 HOWARD HUGHES PARKWAY, SUITE 200-1083, LAS VEGAS, NEVADA 89169
