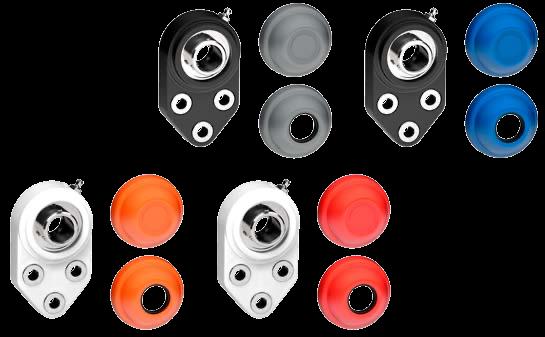

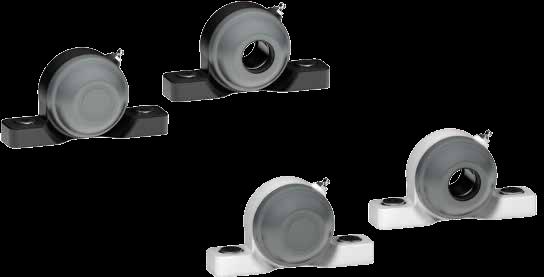

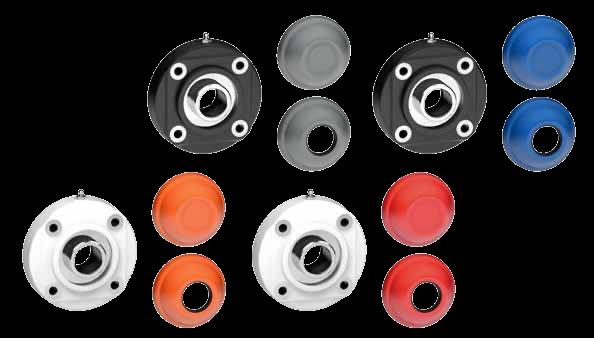

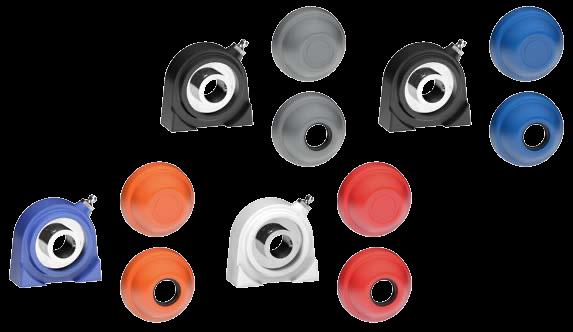

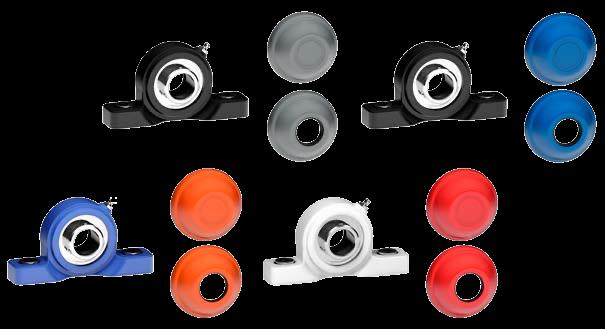

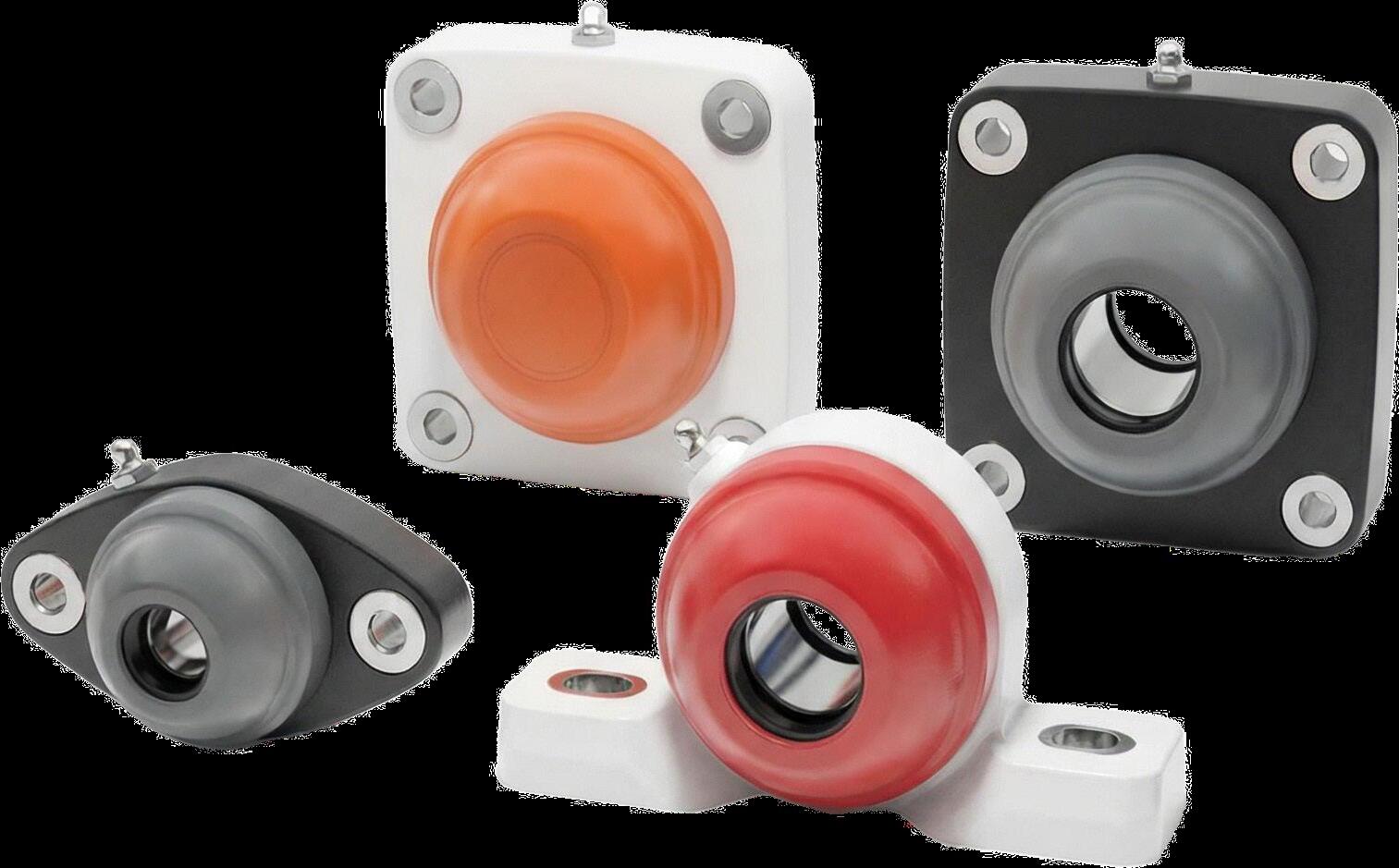

Self-aligning bearing supports

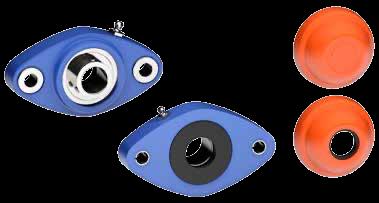

MUCF/CX 210 MUCFL 226 MUCFL/C 222 MUCFL/CS 228

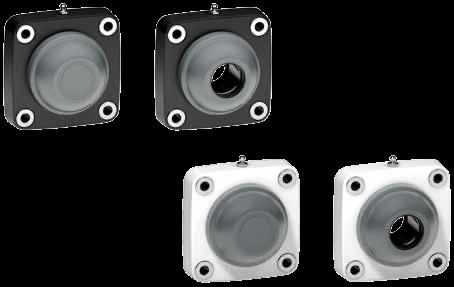

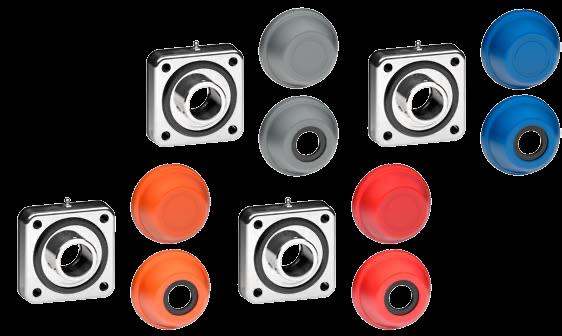

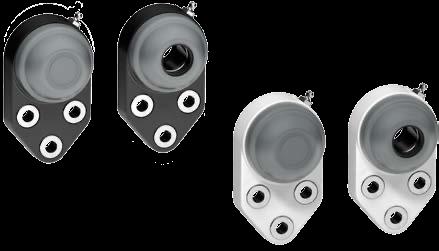

Square anged bearing supports

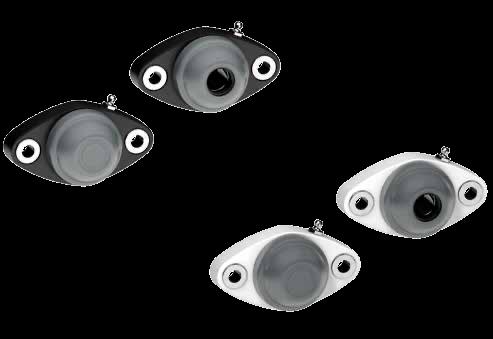

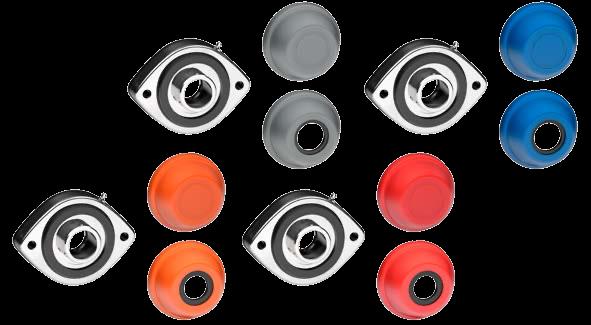

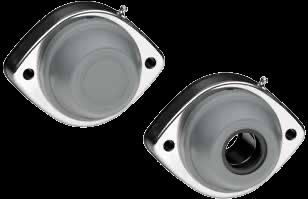

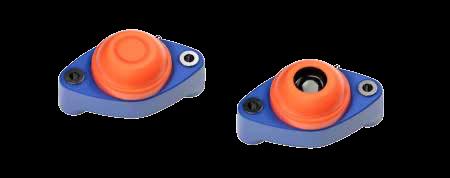

Oval anged bearing supports
UCF/CX 204
UCF/CX 210
UCF/CX 214
UCF/CXA 200 UCFL 226
UCFL/C 222
UCFL/C 232
UCFL/CA 218
UCFL/CS 228
UCFL/CX 224
UCFL/CX 230
UCFL/CX 234
UCFL/CXA 220
Self-aligning bearing supports

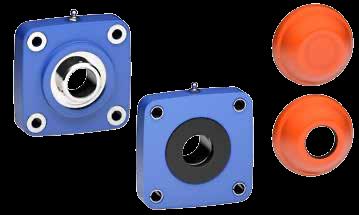

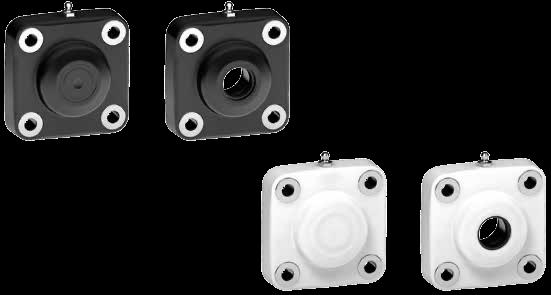

Square anged bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene. Series UCF/CA
On request covers in polypropylene red Ral 3000 colour. On request covers in polypropylene orange Ral 2004 colour. On request covers in polypropylene blue Ral 5015 colour.
Long Life bearings: life long lubrication.
External cover made out of stainless steel AISI 304
1) Internal body of support made out of black colour polypropylene reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) External cover of support made out of AISI 304 stainless steel.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber.
9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of black colour PP + glass ber; external cover of support made out of stainless steel AISI 304; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings made out of stainless steel AISI 304; gaskets made out of NBR rubber; protection cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Housing in polypropylene covered with a layer of AISI 304 stainless steel, to obtain the maximum chemical resistance to antibacterial detergents used in the food processing sector. More over this part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shaft. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Protection covers in different colours and with customized brand; internal body in reinforced polypropylene white or blue Ral 5005 colour; supports with eccentric collar shaft locking with chrome steel bearing; box quantity according to your request; Viton gaskets.
Square anged bearing supports ( Solid ) Technical data
Self-aligning bearing supports
Square anged bearing supports ( Solid )
Series UCF/CXA
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking
External cover made out of stainless steel AISI 304; without protection cover
Long
Life bearings: life long lubrication.
Eccentric collar shaft locking
External cover made out of stainless steel AISI 304; without protection cover
1) Internal body of support made out of black colour polypropylene reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) External cover of support made out of AISI 304 stainless steel.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of black colour PP + glass ber; external cover of support made out of stainless steel AISI 304; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings made out of stainless steel AISI 304; gaskets made out of NBR rubber; protection cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Housing in polypropylene covered with a layer of AISI 304 stainless steel, to obtain the maximum chemical resistance to antibacterial detergents used in the food processing sector. More over this part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shaft. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Protection covers in different colours and with customized brand; protection covers in polypropylene blue Ral 5015 FDA APPROVED; internal body in reinforced polypropylene white or blue Ral 5005 colour; box quantity according to your request; Viton gaskets.
Self-aligning bearing supports
Square anged bearing supports ( Solid ) Technical data
GRUB SCREWS SHAFT LOCKING - VERSIONS WITH MEASURES IN INCHES ECCENTRIC COLLAR SHAFT LOCKING
Self-aligning bearing supports

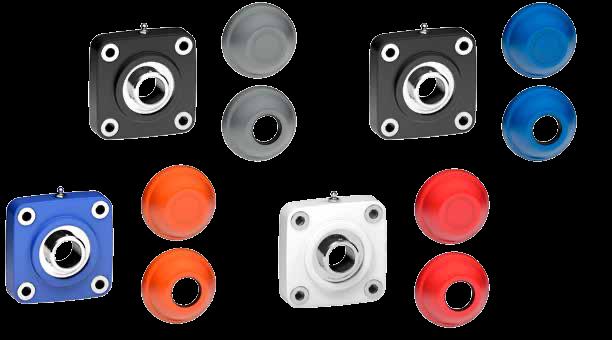

Square anged bearing supports
Series UCF/C
Series MUCF/C

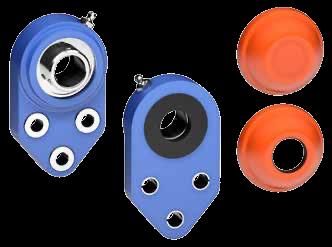

On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
Full protection of bearing
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber.
9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Square anged bearing supports
Series UCF/CX
Series MUCF/CX
Square anged bearing supports
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without protection cover
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules. Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°. BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Square anged bearing supports
35MUCF
GRUB SCREWS SHAFT LOCKING
35UCF
40UCF
GRUB SCREWS SHAFT LOCKING
ECCENTRIC COLLAR SHAFT LOCKING
Square anged bearing supports
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without cover and back gasket
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without cover and back gasket
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) Spacer for xing reinforcement made out of stainless steel AISI 304.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Square anged bearing supports
Series UCF/CS
Series MUCF/CS
Self-aligning bearing supports
Square anged bearing supports
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
Back gasket for shouldered shaft
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: Back gasket for shouldered shafts; the protection cover can be ordered separately as an accessory. Use of shouldered shafts allows a higher capability of axial load. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Square anged bearing supports
3025UCF
4035UCF 207 CS 801808525089233866978958489592 9212210,52610,543,257597055255001530018000 8007780078809698027582284822858754487545
4035MUCF
8007580076853848538582276822778754287543
3530UCF 206 CS 838298525689239895978960489612 8311310,52611,541,752,5556050125001120017500 8001180053841008035482278822798753187530
3530MUCF 206 CS 852598526189240895988960589613 8311310,52611,541,365686050125001120017500 8025680494830888727182280875558752887569
4035UCF 207 CS 841478525789241895998960689614 9212210,52610,543,257597055166001530018000 8007780078809698027582284822858754487545
4035MUCF 207 CS 852608526289242880908960789615 8312210,52610,542,865687055166001530018000 8025680495830888727782280875578752887529
4540UCF 208 CS 803228525889243896008960889616 10213310,526944,865687865200001900018000 8025680257830888672282280822818752882804
4540MUCF 208 CS 838288526389244896018960989617 8311310,526944,865687865200001900018000 8025680257830888672282280822818752882804
Series UCF/CX
Series MUCF/CX
Square anged bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without protection cover
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in blue Ral 5005 colour; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. This part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; housing in black colour polyamide reinforced with glass bers; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets; available without NBR rubber back gasket for turning shaft seal.
Self-aligning bearing supports
Square anged bearing supports ( Solid ) Technical data
GRUB SCREWS SHAFT LOCKING
ECCENTRIC COLLAR SHAFT LOCKING
8025680495
40UCF 208 CX 89175 89484 10213310,52619,552,265687865 325001980018000 8025680257
40MUCF 208 CX 88463 89444 8311310,52619,552,265687865 325001980018000 8025680257
GRUB SCREWS SHAFT LOCKING
20UCF 204 CX 89176 89486
8300660016500 8025480255872598390182305823068754087541
25UCF 205 CX 89177 89487 7099,510,52217,436,94749,55045 9150780017000 8007580076853848538582276822778754287543
30MUCF 206 CX 87676 89458 8311310,52620,741,365686050 125001120017500 8025680494830888727182280875558752887569
35UCF 207 CX 89178 89489 9212210,5262043,257597055 166001530018000 8007780078809698027582284822858754487545
35MUCF 207 CX 87677 89460 8311310,5262042,865687055 166001530018000 8025680495830888727782280875578752887529
40UCF 208 CX 89179 89491 10213310,52619,544,865687865
GRUB SCREWS SHAFT LOCKING - VERSIONS
Square anged bearing supports ( Solid )
Series UCF/C
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene grey Ral 7042 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Full protection of bearing
Long Life bearings: life long lubrication.
Example of application
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Protection cover made out of polypropylene (orange Ral 2004 colour).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber
9) Greaser, straight type with 1/8 gas thread, made out of stainless steel AISI 303 (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of blue Ral 5005 colour PA + glass ber; chrome steel or stainless steel bearing; greaser made out of stainless steel; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of orange Ral 2004 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. The reduced contact surface of the base of the support allows maximum sani cation. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; supports in polyamide blue RAL 5005 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Reduced contact surface for maximum sanitization
Self-aligning bearing supports
Square anged bearing supports ( Solid ) Technical data
Series UCF/CX Square anged bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of stainless steel AISI 303 (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of blue Ral 5005 colour PA + glass ber; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of stainless steel; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004, red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. The reduced contact surface of the base of the support allows maximum sani cation.
Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in polyamide blue RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets; available without NBR rubber back gasket for turning shaft seal.
Reduced contact surface for maximum sanitization
Grub screws shaft locking - Without protection cover
Eccentric collar shaft locking - Without protection cover
Example of application
Self-aligning bearing supports
20 UCF 204 CX 9069290701 63,590,510,51519,215,5395153,312800660016500 8837188372
25 UCF 205 CX 8869689497 7099,510,5152217,440,952,955,414000780017000 8837388374
30 UCF 206 CX 8869789498 8311310,515262046,759,461,9195001130017500 8837588376
35 UCF 207 CX 9069390702 92122,510,51526,32049,361,363,8255001530018000 8837788378
40 UCF 208 CX 90694 90703 10213310,51526,319,552,26568325001980018000 8025680257
40
Square anged bearing supports
Series F
The bearing cover integrated into the body of the support guarantees maximum sani cation
Mounting specifications Back gasket for shouldered shaft
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Intermediate bearing ring spacer made out of black colour polyamide reinforced with glass bers.
3) Back gasket made out of NBR rubber for turning shaft seal.
4) Chrome steel bearing type 1200 supplied without lubricant.
5) Spacer for xing reinforcement made out of stainless steel AISI 304.
6) UNI 6592 support washer made out of stainless steel AISI 304.
7) Front gasket made out of NBR rubber for turning shaft seal.
8) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; Intermediate bearing ring spacer made out of black colour PA + glass ber; chrome steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber.
FEATURES: Back gasket for shouldered shafts. Use of shouldered shafts allows a higher capability of axial load. Maximum shaft alignment error 2°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; box quantity according to your request; Viton gaskets.
Oval anged bearing supports ( Solid )
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
External cover made out of stainless steel AISI 304
1) Internal body of support made out of black colour polypropylene reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) External cover of support made out of AISI 304 stainless steel.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber.
9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of black colour PP + glass ber; external cover of support made out of stainless steel AISI 304; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings made out of stainless steel AISI 304; gaskets made out of NBR rubber; protection cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Housing in polypropylene covered with a layer of AISI 304 stainless steel, to obtain the maximum chemical resistance to antibacterial detergents used in the food processing sector. More over this part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shaft. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Protection covers in different colours and with customized brand; supports with eccentric collar shaft locking with chrome steel bearing; internal body in reinforced polypropylene white or blue Ral 5005 colour; box quantity according to your request; Viton gaskets.
Oval anged bearing supports ( Solid ) Technical data
Oval anged bearing supports ( Solid )
Series UCFL/CXA
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking
External cover made out of stainless steel AISI 304; without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking External cover made out of stainless steel AISI 304; without protection cover
1) Internal body of support made out of black colour polypropylene reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) External cover of support made out of AISI 304 stainless steel.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of black colour PP + glass ber; external cover of support made out of stainless steel AISI 304; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings made out of stainless steel AISI 304; gaskets made out of NBR rubber; protection cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Housing in polypropylene covered with a layer of AISI 304 stainless steel, to obtain the maximum chemical resistance to antibacterial detergents used in the food processing sector. More over this part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shaft. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Protection covers in different colours and with customized brand; protection covers in polypropylene blue Ral 5015 FDA APPROVED; internal body in reinforced polypropylene white or blue Ral 5005 colour; box quantity according to your request; Viton gaskets.
Oval anged bearing supports ( Solid ) Technical data
11714711211272147,765686050195001130013000
35UCFL 207 CXA 8855389989 11714711211272049,365687055255001530014000
117147112112719,552,265687865325001980015000
Series UCFL/C
Self-aligning bearing supports
Oval anged bearing supports
Series MUCFL/C
On request covers in polypropylene blue Ral 5015 colour
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
Full protection of bearing
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber
9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Oval anged bearing supports
Series UCFL/CX
Series MUCFL/CX
Self-aligning bearing supports
Oval anged bearing supports
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without protection cover
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°. BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Oval anged bearing supports
25 MUCFL 205 CX 830368469787703853438971689727 901228610,51915,5354446,5504514000780010000 8007580076853848538582276822778754287543
30UCFL 206 CX 801828466287433839088971789728 1171498610,5262041,752,5556050195001130013000 8001180053841008035482278822798753187530
30 MUCFL 206 CX 805408469887704874568971889729 901228610,519133452,5556050195001130013000 8276582764872708727287559875608757087571
35UCFL 207 CX 801838466387434897108971989730 1301639410,5262043,257597055255001530014000 8007780078809698027582284822858754487545
35 MUCFL 207 CX 839928469987705897118972089731 11714711210,5272043,257597055255001530014000
40UCFL 208 CX 852258522787435887208972189732 14417210010,52719,544,865687865325001980015000
ECCENTRIC COLLAR SHAFT LOCKING
20UCFL
901228610,51915,5395052,4504514000780010000
CX 824908850288513897398975089761 1171498610,5262047,459,461,96050195001130013000 8837588376
30 MUCFL 206 CX 884938850388514897408975189762 901228610,5191339,752,5556050195001130013000 8276582764
35UCFL 207 CX 842558850488515897418975289763 1301639410,5262049,361,363,87055255001530014000 8837788378
35 MUCFL 207 CX 884948850588516897428975389764 11714711210,5272049,36264,47055255001530014000 8837788378
40UCFL 208 CX 884958850688517897438975489765 14417210010,52719,552,265687865325001980015000 8025680257
40 MUCFL 208 CX 884968850788518897448975589766 11714711210,52719,552,665687865325001980015000 8025680257
20
25UCFL 205 CX 810548466587710853258563489786 991317210,5221736,94749,550459150780010000 8007580076853848538582276822778754287543
25 MUCFL 205 CX 830468470287711897708977889787 901228610,51915,5354446,550459150780010000 8007580076853848538582276822778754287543
30UCFL 206 CX 810558466687712884378570989788 1171498610,5262041,752,5556050125001120013000 8001180053841008035482278822798753187530
30 MUCFL 206 CX 830478470387713897718977989789 901228610,519133452,5556050125001120013000 8276582764872708727287559875608757087571
35UCFL 207 CX 810568466787714897728978089790 1301639410,5262043,257597055166001530014000
35 MUCFL 207 CX 840198470487715897738978189791 11714711210,5272043,257597055166001530014000
40UCFL 208 CX 852268522887716897748978289792 14417210010,52719,544,865687865200001900015000 8025680257830888672282280822818752882804 40 MUCFL 208 CX 839948470587717897758978389793 11714711210,52719,545,265687865200001900015000 8025680257830888672282280822818752882804
Oval anged bearing supports
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
Grub screws shaft locking - Without cover and back gasket Eccentric collar shaft locking - Without cover and back gasket
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) Spacer for xing reinforcement made out of stainless steel AISI 304.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Oval anged bearing supports
25MUCFL 205 830388470787727898488985589866 901228610,51915,5354446,514000780010000 8007580076853848538582276822778754287543
30UCFL 206 800648467087728804808985689867 1171498610,5262041,752,555195001130013000 8001180053841008035482278822798753187530
30MUCFL 206 805428470887729898498985789868 901228610,519133452,555195001130013000 8276582764872708727287559875608757087571
35UCFL 207 800658467187730804818985889869 1301639410,5262043,25759255001530014000 8007780078809698027582284822858754487545
35MUCFL
ECCENTRIC COLLAR SHAFT LOCKING
885238853388544898778988889899 901228610,51915,5395052,414000780010000
30UCFL 206 839858853488545898788988989900 1171498610,5262047,459,461,9195001130013000 8837588376
30MUCFL 206 885248853588546898798989089901 901228610,5191339,752,555195001130013000 8276582764
35UCFL 207 885258853688547898808989189902 1301639410,5262049,361,363,8255001530014000 8837788378
35MUCFL 207 885268853788548898818989289903 11714711210,5272049,36264,4255001530014000 8837788378
40UCFL 208 885278853888549898828989389904 14417210010,52719,552,26568325001980015000 8025680257
40MUCFL 208 885288853988550898838989489905 11714711210,52719,552,66568325001980015000 8025680257
25UCFL 205 805208467387737820308991689927 991317210,5221736,94749,59150780010000 8007580076853848538582276822778754287543
25MUCFL 205 830498471287738899088991789928 901228610,51915,5354446,59150780010000 8007580076853848538582276822778754287543
30UCFL 206 805218467487739820318991889929 1171498610,5262041,752,555125001120013000 8001180053841008035482278822798753187530
30MUCFL 206 830508471387740899098991989930 901228610,519133452,555125001120013000 8276582764872708727287559875608757087571
35UCFL 207 805228467587741803158992089931 1301639410,5262043,25759166001530014000 8007780078809698027582284822858754487545
35MUCFL 207 840208471487742899108992189932 11714711210,5272043,25759166001530014000 8007780078809698027582284822858754487545
40UCFL 208 852308523287743899118992289933 14417210010,52719,544,86568200001900015000 8025680257830888672282280822818752882804
40MUCFL 208 839978471587744899128992389934 11714711210,52719,545,26568200001900015000 8025680257830888672282280822818752882804 GRUB SCREWS SHAFT LOCKING GRUB SCREWS SHAFT LOCKING
GRUB SCREWS SHAFT LOCKING - VERSIONS WITH MEASURES IN INCHES
Self-aligning bearing supports
Oval anged bearing supports
Series UCFL/CS
Series MUCFL/CS
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
Back gasket for shouldered shaft
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: Back gasket for shouldered shafts; the protection cover can be ordered separately as an accessory. Use of shouldered shafts allows a higher capability of axial load. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Oval anged bearing supports
Series UCFL/CX
Series MUCFL/CX
Oval anged bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without protection cover
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in blue Ral 5005 colour; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. This part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; housing in black colour polyamide reinforced with glass bers; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets; available without NBR rubber back gasket for turning shaft seal.
Self-aligning bearing supports
Oval anged bearing supports ( Solid ) Technical data
30UCFL 206 CX 89184 89810 1171498610,5262041,752,5556050195001130013000 8001180053841008035482278822798753187530
30MUCFL 206 CX 89185 89811 901228610,519133452,5556050195001130013000 8276582764872708727287559875608757087571 35UCFL 207 CX 89186 89812 1301639410,5262043,257597055255001530014000 8007780078809698027582284822858754487545
ECCENTRIC COLLAR SHAFT LOCKING
40MUCFL 208 CX 89199 89825 11714711210,52719,552,665687865325001980015000 8025680257
89201 89827 901228610,5191634,34446,54540830066008500
20MUCFL 204 CX 87709 89785 76,51007010,51115,533,84446,54540830066008500 8025480255872598390182305823068754087541
25UCFL 205 CX 89202 89828 991317210,5221736,94749,550459150780010000 8007580076853848538582276822778754287543
25MUCFL 205 CX 89203 89829 901228610,51915,5354446,550459150780010000 8007580076853848538582276822778754287543
30UCFL 206 CX 89204 89830 1171498610,5262041,752,5556050125001120013000 8001180053841008035482278822798753187530
30MUCFL 206 CX 89205 89831
GRUB SCREWS SHAFT LOCKING - VERSIONS WITH MEASURES IN INCHES
Self-aligning bearing supports
Oval anged bearing supports ( Solid )
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene grey Ral 7042 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Full protection of bearing
Long Life bearings: life long lubrication.
Example of application
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Protection cover made out of polypropylene (orange Ral 2004 colour).
5) Front gasket made out of NBR rubber for turning shaft seal.
6) OR gasket made out of NBR rubber.
7) UNI 6592 support washer made out of stainless steel AISI 304.
8) Spacer for xing reinforcement made out of stainless steel AISI 304.
9) Greaser, straight type with 1/8 gas thread, made out of stainless steel AISI 303 (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of blue Ral 5005 colour PA + glass ber; chrome steel or stainless steel bearing; greaser made out of stainless steel; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of orange Ral 2004 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. The reduced contact surface of the base of the support allows maximum sani cation. Maximum shaft alignment error 2.5°. BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Reduced contact surface for maximum sanitization
Oval anged bearing supports ( Solid ) Technical
Self-aligning bearing supports
Oval anged bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Example of application
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Spacer for xing reinforcement made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of stainless steel AISI 303 (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of blue Ral 5005 colour PA + glass ber; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of stainless steel; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004, red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. The reduced contact surface of the base of the support allows maximum sani cation. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets; available without NBR rubber back gasket for turning shaft seal.
Reduced contact surface for maximum sanitization
Grub screws shaft locking - Without protection cover
Eccentric collar shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Self-aligning bearing supports
GRUB SCREWS SHAFT LOCKING
25UCFL
ECCENTRIC COLLAR SHAFT LOCKING
20UCFL 204 CX 9073590744 901186410,51519,215,53950,853,31280066008500 8837188372
25UCFL 205 CX 8864989842 991317210,5152217,440,952,955,414000780010000 8837388374
30UCFL 206 CX 8855189843 1171498610,515262046,759,461,9195001130013000 8837588376
35UCFL 207 CX 9073690745 1301639410,51526,32049,361,363,8255001530014000 8837788378
40UCFL 208 CX 9073790746 14417210010,51526,319,552,265,568325001980015000 8025680257
GRUB SCREWS SHAFT LOCKING
20UCFL
GRUB SCREWS SHAFT LOCKING - VERSIONS WITH MEASURES IN INCHES
Oval anged bearing supports
Mounting specifications Series FL
The bearing cover integrated into the body of the support guarantees maximum sani cation
Back gasket for shouldered shaft
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Intermediate bearing ring spacer made out of black colour polyamide reinforced with glass bers.
3) Back gasket made out of NBR rubber for turning shaft seal.
4) Chrome steel bearing type 1200 supplied without lubricant.
5) Spacer for xing reinforcement made out of stainless steel AISI 304.
6) UNI 6592 support washer made out of stainless steel AISI 304.
7) Front gasket made out of NBR rubber for turning shaft seal.
8) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; Intermediate bearing ring spacer made out of black colour PA + glass ber; chrome steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber.
FEATURES: Back gasket for shouldered shafts. Use of shouldered shafts allows a higher capability of axial load. Maximum shaft alignment error 2°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; box quantity according to your request; Viton gaskets.
Side anged bearing supports
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Long Life bearings: life long lubrication.
Full protection of bearing
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber
9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing, greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Side anged bearing supports
Self-aligning bearing supports
Side anged bearing supports
Series UCFB/CX
Long Life bearings: life long lubrication.
Grub screws shaft locking - Without protection cover
Eccentric collar shaft locking - Without protection cover
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°. BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; protection covers in different colours and with customized brand; protection covers in polypropylene blue Ral 5015 FDA APPROVED; box quantity according to your request; Viton gaskets.
Side anged bearing supports
Series UCFB/CX
GRUB SCREWS SHAFT LOCKING
ECCENTRIC COLLAR SHAFT LOCKING
511559460,53210,526,32043,256,5597055255001530013000
5016510060,54110,526,319,544,865687865325001980018000
25UCFB 205 CX 88556885609002890032 41,3126724628,610,5191740,552,955,450451400078009000 8837388374 30UCFB 206 CX 88557885619002990033 47,61428552,43210,526,320,747,459,461,96050195001130011000 8837588376
35UCFB 207 CX 88558885629003090034 511559460,53210,526,32049,361,363,87055255001530013000 8837788378
40UCFB 208 CX 88332885638759690035 5016510060,54110,526,319,552,265687865325001980018000 8025680257
GRUB SCREWS SHAFT LOCKING
20UCFB
GRUB SCREWS SHAFT LOCKING - VERSIONS WITH MEASURES IN INCHES

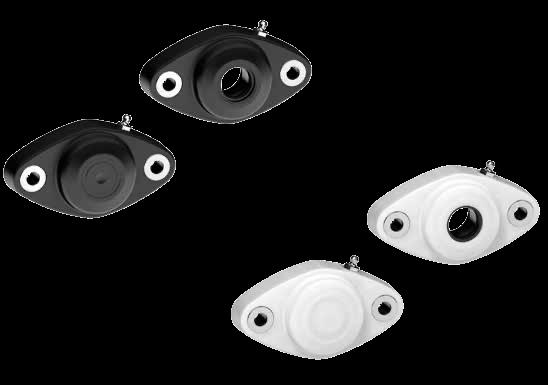

Self-aligning bearing supports
Side anged bearing supports
Series UCFB
Long Life bearings: life long lubrication.
Grub screws shaft locking - Without cover and back gasket
Eccentric collar shaft locking - Without cover and back gasket
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) Spacer for xing reinforcement made out of stainless steel AISI 304.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; protection covers in different colours and with customized brand; protection covers in polypropylene blue Ral 5015 FDA APPROVED; box quantity according to your request; Viton gaskets.

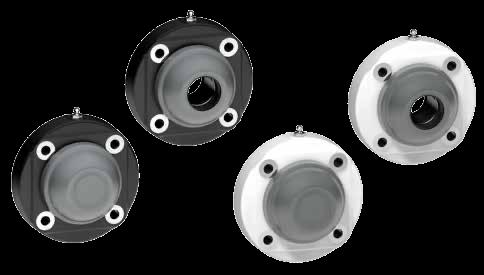

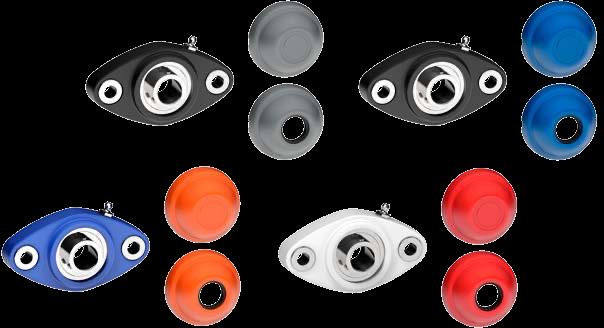

Side anged bearing supports
Series UCFB
Series UCFB/CX
Side anged bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in blue Ral 5005 colour; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. This part is moulded without internal cavities in order to obtain the best sani cation. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; housing in black colour polyamide reinforced with glass bers; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets; available without NBR rubber back gasket for turning shaft seal.
Grub screws shaft locking - Without protection cover
Eccentric collar shaft locking - Without protection cover
Self-aligning bearing supports
Side anged bearing supports ( Solid ) Technical data
GRUB SCREWS SHAFT LOCKING
ECCENTRIC COLLAR SHAFT LOCKING
35UCFB 207 CX 8916090052 511559460,53210,526,32049,361,363,87055 255001530013000 8837788378
40UCFB 208 CX 8916190053 5016510060,54110,526,319,552,265687865 325001980018000 8025680257
GRUB SCREWS SHAFT LOCKING
GRUB SCREWS SHAFT LOCKING - VERSIONS WITH MEASURES IN INCHES
Self-aligning bearing supports

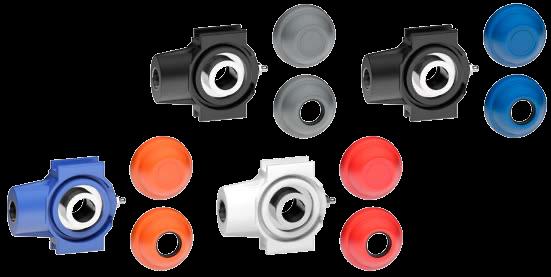

Pillow Blocks
Series UCP/C
On request covers in polypropylene blue Ral 5015 colour
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Long Life bearings: life long lubrication.
Full protection of bearing
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Safety ring in stainless steel AISI 304.
4) Chrome steel or stainless steel bearing AISI 440.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Spacer for xing reinforcement made out of stainless steel AISI 304.
7) Protection cover made out of polypropylene (grey colour Ral 7042).
8) Front gasket made out of NBR rubber for turning shaft seal.
9) OR gasket made out of NBR rubber.
10) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°.
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings, washers and safety ring made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.

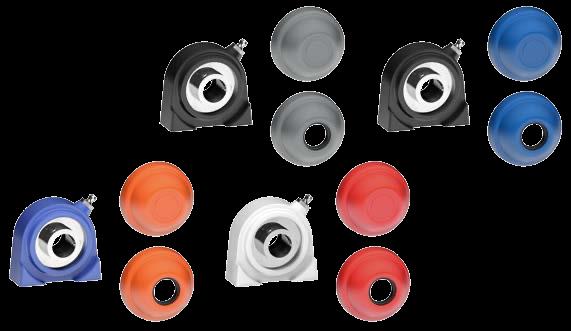

Pillow Blocks
Long Life bearings: life long lubrication.
Grub screws shaft locking - Without protection cover
Eccentric collar shaft locking - Without protection cover
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Safety ring in stainless steel AISI 304.
4) Chrome steel or stainless steel bearing AISI 440.
4B) Chrome steel bearing.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Spacer for xing reinforcement made out of stainless steel AISI 304.
7) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°.
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings, washers and safety ring made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°. BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Self-aligning bearing supports
1211631310204384,520,73647,461,8 19500113009200 8837588376
35UCP 207 CX 885778858288587901629016790172 12616813102047,693,322,7395266,6 255001530011500 8837788378
40UCP 208 CX 885788858388588901639016890173 1361851310205010022,538,655,270,9 325001980011500 8025680257
Series UCP/CX
GRUB
GRUB
Pillow Blocks
Series UCP
Long Life bearings: life long lubrication.
Grub screws shaft locking Without cover and back gasket
Eccentric collar shaft locking Without cover and back gasket
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) UNI 6592 support washer made out of stainless steel AISI 304.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°.
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
885928859788602902079021290217 9613013102033,565,5183041,656 1280066005750 8837188372
885938859888603902089021390218 10614013102036,571,519,6354357,6 1400078006900 8837388374
885948859988604902099021490219 1211631310204384,520,73647,461,8 19500113009200 8837588376
35UCP 207 885958860088605902109021590220 12616813102047,693,322,7395266,6 255001530011500 8837788378 40UCP 208 885968860188606902119021690221 1361851310205010022,538,655,270,9 325001980011500 8025680257
Series UCP
Self-aligning bearing supports
Pillow Blocks ( Solid )
Series UCP/C
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene grey Ral 7042 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
Full protection of bearing
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Spacer for xing reinforcement made out of stainless steel AISI 304.
6) Protection cover made out of polypropylene (orange Ral 2004 colour).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber.
9) Greaser, straight type with 1/8 gas thread, made out of stainless steel AISI 303 (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5° For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of blue Ral 5005 colour PA + glass ber; chrome steel or stainless steel bearing; greaser made out of stainless steel; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of orange Ral 2004 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. The reduced contact surface of the base of the support allows maximum sani cation. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.

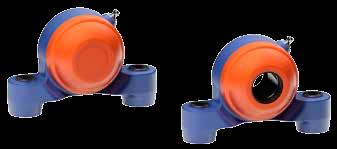

Pillow Blocks ( Solid )
Series UCP/CX
Pillow Blocks ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without protection cover
1) Housing made out of blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Spacer for xing reinforcement made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of stainless steel AISI 303 (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5°
For further information please contact our technical of ce or sales department.
MATERIALS: Support made out of blue Ral 5005 colour PA + glass ber; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of stainless steel; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004, red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. The reduced contact surface of the base of the support allows maximum sani cation. Assembly with not shouldered shafts. Maximum shaft alignment error 2.5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets; available without NBR rubber back gasket for turning shaft seal.
Pillow Blocks ( Solid ) Technical data
20UCP 204 CX 9077790786 9612610,51535,248,580,5183041,656 1280066005750 8837188372
25UCP 205 CX 8865090189 10614110,51534,551,586,519,6354357,5 1400078006900
12115710,51534,55899,520,73647,461,8 19500113009200 8837588376
35UCP 207 CX 9077890787 12616510,51534,562107,821,43950,866,5 255001530011500 8837788378
40UCP 208 CX 9077990788 136174,610,515356511522,538,655,270,8 325001980011500
Series UCP/CX
915078006900
166001530011500 8007780078809698027582284822858754487545
12115710,51534,55899,520,73642,755,6 19500113009200 8001185203841008727482278876618753187664
Self-aligning bearing supports
Compact Pillow Blocks ( Solid )
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Long Life bearings: life long lubrication.
protection of bearing
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Bushing made of nickel plated brass.
5) Protection cover made out of polypropylene (grey colour Ral 7042).
6) Front gasket made out of NBR rubber for turning shaft seal.
7) OR gasket made out of NBR rubber.
8) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Compact Pillow Blocks ( Solid )
Self-aligning bearing supports
Compact Pillow Blocks ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without protection cover
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Bushing made of nickel plated brass.
5) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°. BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Compact Pillow Blocks ( Solid )
Series UCPA/CX
Self-aligning bearing supports
Compact Pillow Blocks ( Solid )
Series UCPA
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking - Without cover and back gasket
Long Life bearings: life long lubrication.
Eccentric collar shaft locking - Without cover and back gasket
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) Bushing made of nickel plated brass.
4) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°.
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets
Compact Pillow Blocks ( Solid )
Series UCPA
GRUB SCREWS SHAFT LOCKING
Self-aligning bearing supports
Take-up bearing supports ( Solid )
Series UCT/C
On request covers in polypropylene blue Ral 5015 colour
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Full protection of bearing
Long Life bearings: life long lubrication.
Example of application
Lock the shaft
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
5) Bushing made of nickel plated brass.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber.
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Unscrew the lock
Screw to make the support advance
Take-up bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking Without protection cover
Long Life bearings: life long lubrication.
Eccentric collar shaft locking Without protection cover
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
5) Bushing made of nickel plated brass.
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules. Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Example of application
Lock the shaft
Unscrew the lock
Screw to make the support advance
Self-aligning bearing supports
Take-up bearing supports ( Solid ) Technical data
GRUB SCREWS SHAFT LOCKING
GRUB SCREWS SHAFT LOCKING
COLLAR SHAFT LOCKING
Take-up bearing supports ( Solid )
Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.
Grub screws shaft locking Without cover and back gasket
Long Life bearings: life long lubrication.
Eccentric collar shaft locking Without cover and back gasket
1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
4) Bushing made of nickel plated brass.
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules
Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports in blue polyamide RAL 5005 FDA APPROVED; protection covers in polypropylene blue Ral 5015 FDA APPROVED; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Example of application
Lock the shaft
Unscrew the lock
Screw to make the support advance
Self-aligning bearing supports
Take-up bearing supports ( Solid
) Technical data
GRUB SCREWS SHAFT LOCKING
Round anged bearing supports
Series UCFC/C
On request covers in polypropylene blue Ral 5015 colour.
On request covers in polypropylene orange Ral 2004 colour.
On request covers in polypropylene red Ral 3000 colour.
Long Life bearings: life long lubrication.
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Protection cover made out of polypropylene (grey colour Ral 7042).
7) Front gasket made out of NBR rubber for turning shaft seal.
8) OR gasket made out of NBR rubber.
9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.
FEATURES: Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.
Full protection of bearing
Round anged bearing supports
Self-aligning bearing supports
Round anged bearing supports
Long Life bearings: life long lubrication.
Grub screws shaft locking - Without protection cover
Eccentric collar shaft locking - Without protection cover
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Back gasket made out of NBR rubber for turning shaft seal.
3) Chrome steel or stainless steel bearing AISI 440.
3B) Chrome steel bearing.
4) Spacer for xing reinforcement made out of stainless steel AISI 304.
5) UNI 6592 support washer made out of stainless steel AISI 304.
6) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°.
For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; protection covers in different colours and with customized brand; protection covers in polypropylene blue Ral 5015 FDA APPROVED; box quantity according to your request; Viton gaskets.
Round anged bearing supports Technical data
Self-aligning bearing supports
Round anged bearing supports
Series UCFC
Long Life bearings: life long lubrication.
Grub screws shaft locking - Without cover and back gasket
Eccentric collar shaft locking - Without cover and back gasket
1) Housing made out of black or white colour polyamide reinforced with glass bers.
2) Chrome steel or stainless steel bearing AISI 440.
2B) Chrome steel bearing.
3) Spacer for xing reinforcement made out of stainless steel AISI 304.
4) UNI 6592 support washer made out of stainless steel AISI 304.
5) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).
NOTE: The back gasket and the protection cover can be ordered separately as accessories; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.
Support dimensions respect ISO 3228 set of rules.
Maximum shaft alignment error 2,5°. For further information please contact our technical of ce or sales department.
MATERIALS: Housing is made out of PA + glass ber in black or white colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.
FEATURES: The back gasket and the protection cover can be ordered separately as accessories. Assembly with shouldered and not shouldered shafts.
Maximum shaft alignment error 2,5°.
BOX QUANTITY: 8 pieces.
ON REQUEST: Versions with body in polypropylene + glass ber and antibacterial additive; protection covers in different colours and with customized brand; protection covers in polypropylene blue Ral 5015 FDA APPROVED; box quantity according to your request; Viton gaskets.
Round anged bearing supports
General warnings:
Mounting speci"cations
1. With bearings equipped with back rubber sealing, ll the space between the two lips of the gasket with grease.
2. For all support types: rstly x the ange, then tighten the bearing in order to avoid axial pre-loads and ensure the correct position of the bearing on the shaft. Tighten the screws diagonally (maximum recommended tightening torque for M10 screws: 5 kgm).
of the bearing by grub screws:
3. By using a hex key, screw the grub screws on the bearing; the table shows the recommended maximum tightening couples for the grub screws and the size of the hexagonal to use.
of the bearings by eccentric collar:
4. Using the appropriate hole on the collar, rotate it in the main rotation direction using a hook wrench.
5. By using a hex key, screw the grub screws on the bearing; the table shows the recommended maximum tightening couples for the grub screws and the size of the hexagonal to use.
Locking
Locking
Mounting speci"cations
Assembly of the protection cover:
6. On the back of the cover, grease the seat of the sealing gasket (OR) along its entire circumference. In open type covers, the space between the two lips of the sealing ring must also be greased
7. Insert the gasket into its seat.
8. On the body of the support, grease the edge of the cover attachment along its entire circumference
9. Position the lower edge of the cover on the body of the support, keeping the screwdriver seat facing downwards. By mounting the cover with the screwdriver seat facing downwards prevents the in ltration of liquids and facilitates their expulsion in the event of stagnation.
10. Apply a little pressure (by hand or with a small hammer) near the upper edge of the cover until it clicks into its seat.
Removal of the protection cover:
11. Insert the tip of a at screwdriver into the appropriate seat on the cover; then lever it outwards.
Closed cover
Open cover
Screwdriver seat
