ESD Anti-Static / Conductive Wheels & Castors
Get optimal performance for your requirement or application.
We estimate over 60% of all wheels and castors in use are the wrong specification for the requirement, environment, or application they are used for. The impact of this will range from an annoyingly wobbly trolly, to a potentially unsafe one. Getting it right saves time, effort, money and much more.
With over 40 years’ experience in the sector, we have built unrivalled levels of technical knowledge and expertise; and our global network provides access to the most comprehensive range of products and potential solutions available in the market. This means if we don’t stock the product you need, we can source it. If we can’t source it, we can design, develop and make it. The best solution is often in between.
We firmly believe in shared success. So, to support our customers evolving needs, and provide confidence in the products being used, we offer several purchasing routes:
'Off the Shelf' Confident of the specification you need?
This brochure provides details for our current range of ‘off the shelf’ anti-static wheels and castors. To place an order, simply email sales@aut.co.uk
Expert advice?
Unsure? Expert advice is always available so if in doubt, ask.
Alternatively, you may be interested in a technical review to confirm your current product optimises safety, output and is cost effective? Our experts are on hand to advise and guide you to the best options and why. Call 01457 837772 or email james_glover@aut.co.uk
Bespoke Services
Unique requirements?
25% of all wheels and castors supplied by AUT are created, developed, or designed to fit customers’ exact needs. To discuss bespoke services, call 01457 837772 or email guy_glover@aut.co.uk
Why Anti-Static/Conductive?
Anti-static or conductive wheels are designed to dissipate or prevent the build-up of static electricity, which can be potentially hazardous in certain industrial environments.
Industries
Anti-static or conductive wheels are used in environments where there is a concern of electrical charge build up, which may cause a spark resulting in a fire or explosion. Particularly in electronics manufacturing, medical and pharmaceutical and automotive.
Our Range
Our extensive range covers the full range of applications and extends to the most unusual functions.
→
Our anti-static range is available with Rubber, Polyurethane, Nylon and TPR wheels, as standard, our range is the most comprehensive on the market.
→
→
We have created a comprehensive offering, allowing you to choose a number of different specs, like shore hardness and carrying capacity, along with all diameters so you can get the right product for your application.
We can offer both anti-static and conductive options. Distinguished by their respective electrical conductivity, depending on what your application demands.
Most popular ranges
Series 53AE
Suitable for indoor and outdoor usage on trolleys with light duty loads. Earthing resistance below 0.1m ohm in accordance with ISO22878:2004. Commonly used for waste and recycling bins.
Series 62RE
Can be used in potentially explosive areas and ESD sensitive environments. Robust with excellent rolling resistance and elasticity. Even wheels with small diameter can easily handle heavy loads.
Series 68C
Intended mainly for medium-heavy capacity static use. Excellent rolling resistance means minimal manual effort is required when handling (on smooth surfaces). Does not handle obstacles well.
Solutions with specific conductive electrical resistance
Plastic materials, rubbers and elastomers commonly used in the wheels and castors sector are generally isolating and therefore non-conducting. Therefore, they do not allow the static possibly built on the trolley or equipment to be conducted to the ground.
The built up static can potentially compromise the functionality of sensible electrical equipment transported on the trolley and potentially trigger explosions in environments at risk.
Hence, wheels and castors made of those materials may not be fit for potentially explosive areas and for ESD sensible environments.
Tellure Rôta propose customised castor solutions with modified electrical resistance to comply with the electric conductivity guidelines for ESD applications, whose specifications are shown on the following pages.
Tellure Rôta do recommend to thoroughly assess the requirements of the final user and to compare them with the castor specifications in order to prevent any risk of damage.
As the electrical resistance can be altered by the conditions of the tread or by the environment, we also recommend a maintenance of the castors to inspect the electrical resistance at regular intervals (depending on the environment of use) not to exceed a 3 months period.
The main norms of reference for wheels and castors with specific electrical resistance are:
• ISO 22878:2004 which defines the methods of measuring the electrical resistance of wheels;
• ISO 22883:2004 which defines the range of the electrical resistance;
• IEC 61340-5-1:2007 which includes the general guidelines for protection of electrical devices from electrostatic events.
Wheels & Castors
53AS
Conductive black rubber tyre
° Standard duty loads
° Zinc plated pressed steel castor housings
° Conductive wheel has an earthing resistance below 0.1m ohm in accordance with ISO 22878:2004
° Tested in accordance with ISO 22878:2004
° Manufactured in accordance with ISO 22883:2004
Uses & Industries
Suitable for trolleys with light-duty loads, also in the presence of obstacles and for indoor-outdoor use.
Floor Suitablity
Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.
Environments
Wheels
Roller Bearing
*100mm wheel available with 34mm hub
Conductive wheel has earthing resistance in accordance with ISO 22878:2004
60AS

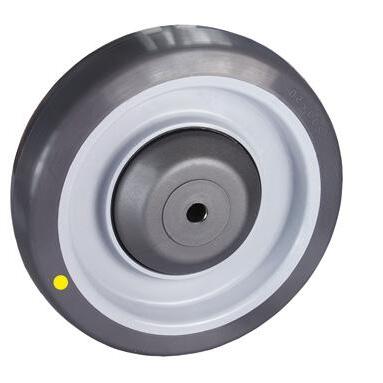

Grey statically conductive polyurethane tyre with grey plastic centre, ball bearing
° Electrically conductive grey non-marking thermoplastic polyurethane tyred wheel
° Conductive resistance <104 ohm
° Ball bearing bore. Bearings supplied with 2RS waterproof protection as standard. Quiet, easy running.
° Scratch and tear resistant. Suitable for internal and external use e.g. concrete, ceramic tiles, asphalt etc. Not suitable for rough terrain. Suitable for use where alcohol, hydrocarbons, solvents and weak acids are present. Suitable in a wet environment.
° Not recommended for use with strong bases.
Indicated for trolleys with light-duty loads, mainly for indoor use; the grey non-marking rubber tyre makes it suitable for use on fragile floors and also in domestic/institutional environments. Excellent rolling resistance guarantees minimum effort in manual handling.
It does not stain or damage fragile floors. Suitable for tiles and cementresin. Not recommended on abrasive, unpaved floors or in presence of processing residues.
Series 60AS
Castors
60WAS
Hard wrap around, conductive, polyurethane tyre, bonded to nylon centre
° Polyamide 6 wheel body, with ball bearing centre
° Tread 95 Shire A polyurethane with rounded edges
° High load capacities
° Low abrasion, non-marking, low rolling resistance
° Excellent chemical resistance, oil and grease resistance
° Leakage resistance is <10,000 ohms
Uses & Industries
Suitable for trolleys and machinery with medium-heavy duty loads, also in case of continuous handling. The ball bearing model is excellent for manualmechanical handling and speed up to 6km/h. Suitable for indoor and outdoor use with frequent washing and sterilisation.
Suitable for tiles and cement-resin. Not recommended for unpaved floors or in presence of processing residues. Not suitable in presence of obstacles, even if small. They do not mark or damage fragile floors.
Environments
62RE
Elastic polyurethane wheels with electrical resistance and R<109 Ohm, aluminium centre
° Very thick TR-Roll polyurethane, excellent rolling resistance, elasticity and good resistance to wear and tear. Centre made of cast aluminium
° Hub with shielded ball bearings with interference assembly in the seats obtained by centre moulding
° Also available without bearings
° With appropriate brackets they guarantee excellent performance for mechanical handling up to 16m/h
° Easy handling of heavy loads even with wheels of small diameter
Uses & Industries
The product is designed for potentially explosive areas and for ESD sensible environments. Combines the load capacity and resistance to wear and tear of the polyurethane with the ability to overcome obstacles and dampen noise, vibrations and impacts on the elastic rubber.
Floor Suitablity
Suitable for all types of industrial floors, even outdoors. Facilitates the overcoming of obstacles. It does not damage the floors.
Environments
Ball Bearing | Ball Bearing Facility
65RE
“TR” polyurethane wheels with electrical resistance <109 Ohm, aluminium centre
° Excellent rolling resistance, elasticity and good resistance to wear and tear
° Centre made of cast aluminium
° Hub with shielded ball bearings with interference assembly in the seats obtained by centre moulding
° Also available without bearings
Environments
The product is designed for potentially explosive areas and for ESD sensible environments; also where mechanical handling is required, with speed up to 6km/h. The excellent rolling resistance allows an easy handling of heavy loads even with wheels of small diameter.
Suitable for tiles and cement-resin. Not suitable if large obstacles are present.
Weak Acids
Weak Bases
Strong Bases
Strong Acids
Solvents
Ball Bearing | Ball Bearing Facility
68AS
Solid grey electrically conductive polyamide 6 wheel
° Electrically conductive grey non-marking wheel
° Excellent chemical resistance
° High load capacity
° Resistant to fracture, even at heavy loads, yielding a long service life
° Leakage resistance is <10,000 ohms
Uses & Industries
Intended mainly for static uses, for medium-heavy capacities. The excellent rolling resistance ensures that minimum effort is needed in handling, but only on smooth floors.
Floor Suitablity
Suitable for tiles and cement-resin. Not recommended on unpaved floors or in the presence of processing residues. They facilitate overcoming small obstacles along the path. They do not mark or damage fragile floors.
Environments
68C
Electrical conductive polyamide 6 wheels with electrical resistance <105 Ohm
° Polyamide 6 solid wheel with electrical resistance <105
° Conductive according to ISO 22883:2004
° Hub with cylindrical roller bearing with plastic cage
The product is designed for potentially explosive areas and for ESD sensible environments. It is intended mainly for static uses, for medium-heavy capacities. The excellent rolling resistance ensures that minimum manual effort is required in handling, but only on smooth floors.
Suitable for tiles and cement-resin. Not suitable if large obstacles are present.
ATA/E
Grey TPR conductive tyred apparatus wheels and castors
° Polypropylene light grey wheel centre with thermoplastic conductive rubber dark grey tread
° Pressed steel castor body
° Plain bearing with or without threadguards.Single ball bearing has plastic threadguards
° Ideal for use in manual handling, medical centres and the hotel industry
° Electrical (E) conductive resistance 103 < R <105
° Anti-static (A) conductive resistance 106 <R <109
Suitable for use on different types of trolleys within the furniture and institutional sector. They can also be used on fragile floors and in presence of small obstacles. Example of recommended applications: shop display units and windows, low carrying capacity tool trolleys, supermarket trolleys.
Suitable on tiles and resin-cement; not recommended on abrasive, unpaved floors or in presence of processing residues. They do not damage floors and are also suitable in the presence of small obstacles.
Series ATA/E
Bore | Ball Bearing
Wheels
Bore | Ball Bearing
Plain
Series ATA/E
Castors
50
50
75
75
50
50
75
75
Castors
Top Plate Swivel
ATA0125P2Z21A ATA0125P3Z21A ATA0125P4Z21A
ATA0125P2Z21E ATA0125P3Z21E ATA0125P4Z21E
Swivel Fixed Swivel & Brake
ATA0100B2Z21A ATA0100B3Z21A ATA0100B4Z21A
100
100 32 135 77X67 61.5/56x51.5/46.5 8.5 37 132 70 ATA0100B2Z21E ATA0100B3Z21E ATA0100B4Z21E 125
ATA0125B2Z21E ATA0125B3Z21E ATA0125B4Z21E
100
125
100
Castors Bolt Hole
Bolt Hole Bolt Hole & Brake
Bolt Hole Bolt Hole & Brake
KHA/E
Grey TPR tyred apparatus wheels and castors.
° Polypropylene light grey wheel centre with thermoplastic rubber dark grey tread.
° Pressed steel, zinc plated castor body.
° Plain bearing without threadguards. Single ball bearing has plastic threadguards.
° Ideal for use in manual handling, medical centres and the hotel industry.
Uses & Industries
Suitable for use on different types of trolleys within the furniture and institutional sector. They can also be used on fragile floors and in presence of small obstacles. Example of recommended applications: shop display units and windows, low carrying capacity tool trolleys, supermarket trolleys.
Suitable on tiles and resin-cement; not recommended on abrasive, unpaved floors or in presence of processing residues. They do not damage floors and are also suitable in the presence of small obstacles.
Environments
Castors
Top Plate
Castors
Top Plate
KSA/E
Soft conductive thermoplastic wheels and castors
° Soft conductive thermoplastic rubber tyre, bonded to polypropylene centre
° Excellent rolling resistance and quiet running, thanks to precision ball bearing centre
° Suitable for humid environments with medium harsh chemicals
° Organic solvents, chlorinated substances, hydrocarbons and mineral oils should be avoided
° Electrical (E) conductive resistance 103 < R <105
° Anti-static (A) conductive resistance 106 <R <109
Indicated for trolleys with light-duty loads, mainly for indoor use; the grey non-marking rubber tyre makes it suitable for use on fragile floors and also in domestic/institutional environments. Excellent rolling resistance guarantees minimum effort in manual handling.
It does not stain or damage fragile floors. Suitable for tiles and cementresin. Not recommended on abrasive, unpaved floors or in presence of processing residues.
S55ESD
Twin Wheel Bolt Hole Castor with Threaded Stem
° Medical spec plastic body castors.
° Available in a number of special colours and configuration Swivel
Swivel
Twin Wheel Top Plate Castor
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
85 Shore A -10°C to +50°C 80 - 200mm
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Twin Wheel Bolt Hole Castor with Solid Stem
Twin Wheel Bolt Hole Castor with Solid Stem
Swivel
Swivel
S84ESD
Swivel Bolt Hole Castor
° Medical spec plastic body castors.
° Available in a number of special colours and configurations. Swivel
Swivel Bolt Hole Castor, Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Bolt Hole Castor with Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
85 Shore A -10°C to +50°C 100 - 125mm
Swivel Bolt Hole Castor with Threaded Stem
° Medical spec plastic body castors.
° Available in a number of special colours and configuration Swivel
100
Swivel Bolt Hole Castor, Threaded Stem and Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Swivel
Bolt Hole Castor, Threaded Stem with Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Swivel Top Plate Castor 85
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Swivel Bolt Hole Castor, Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Bolt Hole Castor with Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Swivel Bolt Hole Castor with Solid Stem and Hex Bolt
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
100
125
Bolt Hole Castor, Solid Stem with Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Swivel Bolt Hole Castor with Solid Stem
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Swivel Bolt Hole Castor, Solid Stem and Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Bolt Hole Castor, Solid Stem Hex Bolt with Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
100
S88ESD
85 Shore A -20°C to +60°C 100 - 125mm
Swivel Bolt Hole Castor
° Medical spec plastic body castors.
° Available in a number of special colours and configuration
Swivel Bolt Hole Castor with Trailing/Front Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
100
125
Swivel Bolt Hole Castor, Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
100
Swivel
85 Shore A -10°C to +50°C 100 - 125mm
Swivel Top Plate Castor
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Swivel Top Plate Castor with a Trailing/Front Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Swivel Top Plate Castor, Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Swivel Bolt Hole Castor, Solid Stem with Cross Drilled Hole 85 Shore A -10°C to +50°C 100 - 125mm
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
100
125
Swivel Bolt Hole Castor, Solid Stem, Hex Bolt with Brake
° Medical spec plastic body castors.
° Available in a number of special colours and configurations.
Swivel Bolt Hole Castor, Solid Stem with a Cross Drilled Hole and Directional Lock
° Medical spec plastic body castors.
° Available in a number of special colours and configurations. Swivel
Swivel
100
