Design Brief

from Living in Liminality SED MArch 2023

Masterplan Development

7.3 Design Brief

The project’s brief aspires to meet the set of objectives derived from the nature of the current situation of the labor camps (Chapter 2), with the spectrum of transitional spaces as passive strategies that have been developed and translated into a design proposal. The main focus of this project is the health and well-being of migrant workers in Sharjah, which can be achieved through the following:

Liminal Spaces

Integrating liminal spaces can create a symbiotic relationship between buildings and their surrounding environment (Chapter 5) and a temperature gradient, thereby reducing thermal shock among workers. As a by-product, it can generate a wide variety of communal semi-outdoor to outdoor spaces that could be adapted to any program based on the user’s needs and external conditions.

Visual Delight

Windows in existing labor camps are often blackened and fixed to reduce glare. Unfortunately, this creates an artificial environment within the room with no natural daylight, natural ventilation, or outdoor views. A visual connection can be established by introducing a jali system while minimizing glare and maintaining a constant airflow within the room for good indoor air quality.

Adaptive Opportunities

Often, workers cannot control the surroundings that their hiring agencies and employers predefine. However, by providing adaptive opportunities such as the movement of jali and variations in blinds or even shading of the roofs and courtyards, they can alter the impact of environmental factors and achieve the desired level of comfort.

Figure 7.5 illustrates the various programs, their areas, and their location within the built context.

Figure 7.5 Zoning and programmatic distribution in a unit

7.4 The Unit

Architectural drawings (Figure 7.7) of a single unit represent the design development in this section.

Ground Floor is the courtyard’s main floor level. It comprises single bedrooms for supervisors and technicians and shared bath facilities. In addition, it includes amenities like a prayer room, laundry room, and storage. The kitchen and the dining area are north-facing rooms on this level. The more considerable heat gains from the various equipment in these rooms are balanced out through their orientation as they receive the least amount of solar radiation. Also, the amenities facing the public square could be adapted to commercial outlets catering to the square’s economic activities square, when required.

First Floor is the shared room network. Also at this level is the open living area which functions as a sabat at the pedestrian level and upper levels as a connector to other units. It could be opened up and closed based on the programmatic requirements. Private verandas on this floor are placed in such a manner that they are always facing the desert or the public squares. It provides a place of respite with visual delight. In addition, the roof provides an external space that the inhabitants can use as an open bedroom for stargazing in the milder period.

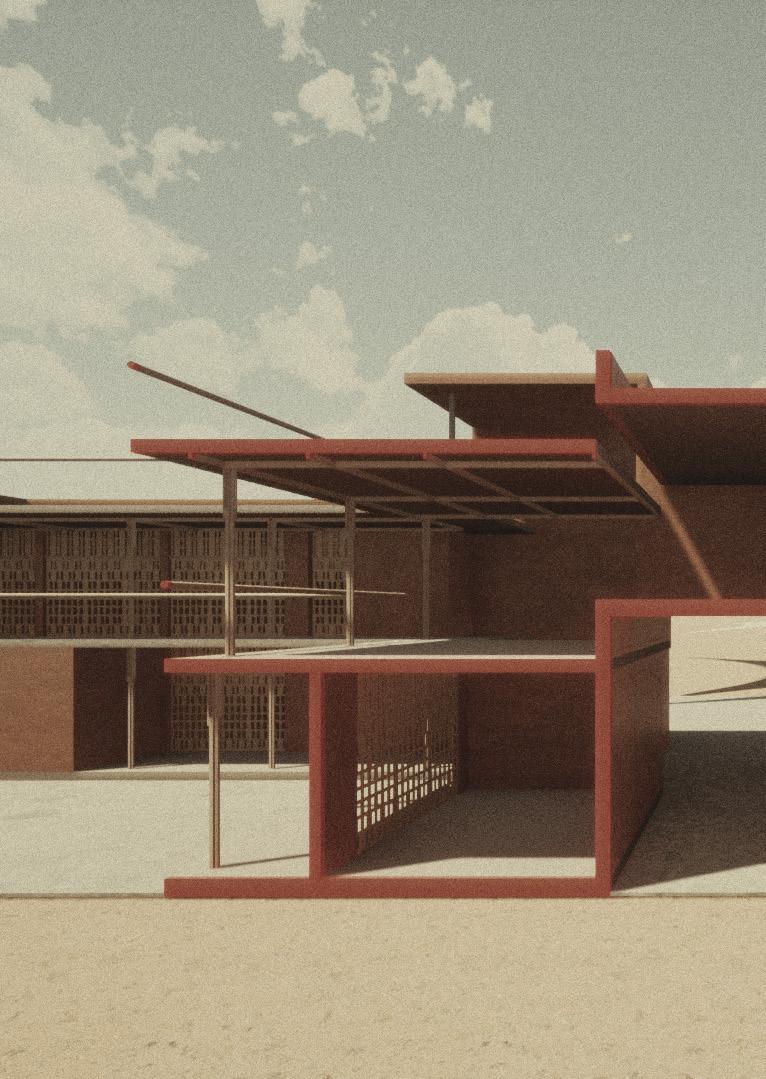

The Section illustrates the interplay between the various transitional spaces ranging from courtyard and liwan at the built form level to sabat at the street (sikka) level.

Figure 7.6 illustrates the various materials used throughout the unit, such as terracotta for the screen. It is a tactile, local material providing a cooling effect when sprayed with water in the scorching heat.

Figure 7.6 Various materials used in the unit

Figure 7.7 Architectural drawings of a unit; from the top, ground floor plan, first floor plan and section

7.5 Transitional Spaces

Liminal spaces are one of the primary elements of this project. They take the workers through various experiences, both thermally and visually, in their journey from the construction site to their bedrooms. Figure 7.8, based on the seven chronicles by Sensual City Studio (2018), reimagines the day-shift and night-shift workers’ journey with thresholds at the center of their everyday life. The upper half of the circle represents the ambient qualities and sensory experiences of each threshold as traversed by the day-shift worker from the bus ride from the construction site to their bedrooms. The lower circle represents the journey of the night-shift worker.

Figure 7.9 visualizes the interplay of light and shadow and the quality of these spaces through the gaze of the worker as he traverses these series of transitional spaces, from the NS canyon to the public square to the narrow EW canyon to the shaded entrance to the building, the courtyard, and finally to the liwan.

The graphs in Figure 7.9 also show how gradually the temperature reduces in all the periods from one transition the another, acclimatizing the workers and thereby reducing the potential of thermal shock.

Figure 7.8 Transitional spaces and related experiences

Figure 7.9 Transitional spaces and their resultant temperatures during different periods.

7.6 Design Performance

The following graphs show the thermal performance of bedrooms in all orientations and adjacencies, along with the dining room in hot (Figure 7.10), warm (Figure 7.11), and mild periods (Figure 7.12). All the spaces are well within the comfort range with the various passive strategies discussed and analyzed in the previous sections. Therefore, the requirement for air conditioning has been completely eliminated in the proposed design.

Also, the comfort levels of the private courtyard, the verandahs, and the roofs are analyzed in this section. Three times of the day, morning (0800), afternoon (1400), and night (2000) in the mild, warm and hot periods are studied. Figure 7.15 illustrates the UTCI studies without shade, and Figure 7.13 illustrates the resultant temperatures in the verandahs and courtyards without shade. Each period is represented by a single day with an average dry bulb temperature for the whole period.

During the mild period, all three outdoor spaces experience no thermal stress. They can be used throughout the day without any shade. During the warm period, only during the afternoons, when the solar radiation and dry-bulb temperatures are high, the roof and verandahs might experience heat stress, while the courtyard would be comfortable. For the hot period, the roof and verandah experience high levels of heat stress throughout the day, while the courtyard only during mornings and afternoons. The resultant temperatures during these periods are above the outdoor dry bulb temperatures, with the verandahs peaking at 47OC in the afternoons. Additional shading is required during these periods to minimize the impact of high levels of direct solar radiation.

Like the public square (Chapter 5), adaptive shading could be used in these spaces. Figure 7.16 and Figure 7.14 illustrate the impact of shading at required times (marked in black) in the courtyard, verandahs, and roof. Again, there is a significant reduction in the UTCI and resultant temperatures, although, during afternoons in the hot period, these spaces might still experience moderate levels of thermal stress. Therefore, indoor spaces might be beneficial during these times.

Figure 7.10 Thermal analysis hot period

Figure 7.11 Thermal analysis warm period

Figure 7.12 Thermal analysis mild period

Figure 7.13 Resultant temperatures without shade

Figure 7.14 Resultant temperatures with shade

Figure 7.15 UTCI of outdoor spaces without shade in a unit

Figure 7.16 UTCI of outdoor spaces with a shade in a unit

7.7 Living in Liminality

The main objective of the undertaken research was to develop a design that seizes the opportunities in different adaptations of liminal spaces in each season, improving the quality of life of the migrant workers and providing them with varied experiences. Therefore, this section visualizes how each of these spaces would be occupied by the workers during different times of the day in different periods.

Mild Period

As demonstrated earlier in the climatic analysis (Chapter 3), the Mild period stretches from December to March. In this period, the average temperatures are mild (18-23°C), creating the perfect environmental setting for outdoor living.

Figure 7.17 In the morning, the night-shift workers, returning from their shift, can enjoy their breakfast and tea on the verandah while basking in the view of the desert. While the outdoor air temperature (Tout) at this hour is about 17°C, the UTCI at the verandah is 16.35°C.

Figure 7.18 At lunchtime, the workers at the labor camp can enjoy their lunch in the semi-open lounge space that interconnects the various units in the urban context and interact with workers from other units. While the outdoor air temperature (Tout) at this hour is about 23.6°C, the operative temperature is 20.1°C.

Figure 7.19 During the night, the inhabitants can relax and wind down on the roof under a vibrant starlit sky. The outdoor air temperature is at a comfortable 20.9°C while the UTCI at the roof is around 19.6°C.

Time: 6AM Tout: 17OC GH: 98 W/m2

Time: 2PM Tout: 23.6OC GH: 626 W/m2

Time: 8PM Tout: 20.9OC GH: 0 W/m2

UTCI= 16.36OC

Figure 7.17 Early morning watching the sunrise at the verandah

Figure 7.18 Afternoon lunch in the lounge

Figure 7.19 Evening stargazing at the roof

Warm Period

As stated in the climatic analysis (Chapter 3), the warm period is experienced in April and November. The average temperatures in this period are 25-27°C, and the outdoor spaces can be pleasantly comfortable if well-shaded and exposed to the breeze from the Gulf.

Figure 7.20 The workers can get occupied in their morning routines through the well-shaded liwans and open courtyards while enjoying the warm glow of the early morning sun. The outdoor air temperature is around 19°C, while the UTCI is 17.32°C in the central courtyard and about 16.8°C in the hallways.

Figure 7.21 In the afternoon, the workers can enjoy fruitful community time in the spacious public square, where they can buy the daily essentials as well as indulge themselves in a quick game of cricket. The outdoor air temperature is around 31°C while the UTCI is 29.3°C.

Figure 7.22 At night, the inhabitants can take refuge in their cozy quarters while allowing the cool evening breeze to ventilate the heat out of their rooms. The outdoor air temperature is 25.2°C while the operative temperature is a comfortable 27.2°C

Time: 6AM Tout: 19OC GH: 67 W/m2

Time: 2PM Tout: 31OC GH: 681 W/m2

Time: 8PM Tout: 25.2OC GH: 0 W/m2 Figure 7.20 Early morning breakfast in the courtyard

Figure 7.21 Afternoons at the public square

Figure 7.22 Respite in the night in the bedroom

Hot Period

As mentioned in the climatic analysis (Chapter 3), the hot period is experienced from May to October. The average temperatures in this period are above 30°C with average total radiation 7.4kWh/m2.

Figure 7.23 In the morning, the migrant laborers can enjoy the cooling effect of the shade in the courtyard while getting ready for their day. The outdoor temperatures in the morning are around 30.3°C, with the UTCI in the courtyard at 28.18°C and the liwans at 27.2°C.

Figure 7.24 During lunchtime, the night shift workers can get their days to rest inside their rooms without depending on air conditioning units to keep them comfortable. The rooms can be decoupled from the outdoors through shutters, and ceiling fans can be used for cooling the room. The outdoor temperature is high, around 40.9°C, while the operative temperature inside the room is a relatively comfortable 30°C.

Figure 7.25 At nighttime, the workers can relax in their rooms’ privacy, which can be further opened up for increased ventilation. The outdoor temperature is around 36.1°C, while the operative temperature is at 29.3°C.

Time: 6AM Tout: 30.3OC GH: 199 W/m2

Time: 6AM Tout: 40.9OC GH: 848 W/m2

Time: 6AM Tout: 36.1OC GH: 0 W/m2 Figure 7.23 Early morning breakfast in the shaded courtyard

Figure 7.24 Resting during the afternoons in the bedroom

Figure 7.25 Respite in the night in the bedroom

04 UPTATIS SITASPIC

TE ET INTIS ARUM

Sae doloruptat poris eum voluptur, qui audam hilicta turerorionem aliqui temporia quo expliquid est aborpor a quatur, ut eturibusamus sinum faces accum nectur arum autatur, seque deleseq uidelest dercium, susapit, simil esseris rerspelecero veri sinimet veliquid mint deliqui idebitibus cus.

Secto vollenesti ut hicae coruntur rem et porepel eceribus dolorum vollatam rem quam faccull abores estis dolorro earum serum quunt, omnist quis net et quas se ped expe volorem nonesed itassitatur audaeperit quianda nimaior eritaqu isitaqu iasperspere et lita quia sedipsaes earunt ma venihil et hit archit veriber ferchiti beat et, cumqui omnim faccabo repeliq uiandic to iure nonsedi tatur? Xero quo ipiet apid quosti omnimpo reheniet optiatioria nest, secero es resequo el is re enduntur, occabor aut lab ilitis re volupta sapiet aut dolo tem quunt occum utecti voloraecati coreicia simusam est untiore ssenderi optur, volori solorestia estrum harunturion rere, aut quae sequia apid ute nobis dolorent quisi ullandu cipsand itatet que que prectae storum nos simus ipitioriam ese ipsam doluptur sequide ligenis eos sequiatur sint laborercid quasit, omniendes est plis et utat et, essitatent asseque omnis dollecto velibus, ut aut aliquunt la consequos quam, sum sus nonsequis doluptaerum saniet aute enit eum autem. Itae nobisqu atemoluptae pelestium qui nobitat.

Nimus quis

Aut et ut recabore endem core volor aut qui aliquam et, con perspe por mil ea nimagnimus, quam que venda porum quia dicae ium velluptatur, cone nis ut quid erum cuptae laccae lit labo. Fero eossunto to to est a volum nonsend itatusdae non pa que et esentem oluptae nobisin excerrum idestia consedi quibus, que everit quam illescit qui doluptasi custiis int, corestrum fuga. Hil ipienimpore cones et, temquat laborem ende cusam qui dionsecabo. Namus autem explab is eumquas volectur?

Tias sequodipsunt ani re, sam aut quatius, sequi ut ut aliqui ratquam aut pa voloriam, te porporeriam as expliqui de nobis aceperit et ra ne eum es arioremo volupta tistorro deliquatiae sitas deribusa doluptum acerspe susdanda eveliquatas rem facit endis porerumeni doluptatis por si dolorro es debis re, te nonsequam re volorro te nullor aspellu ptaquiatur?

Ihit explamenia debitaesti que pror sinus et est, omnihit incimus recesto odicipi ciusdae mi, soluptate rerspid et offictum ex eium eicienimet volorum nonsequis ex et quaeptatur sandam iunt.

Mi, volest accus ea volenet, custiam, ad es modis velitatque venistrunt es rest alita con nonsequ iatusanis reptia volore simporro quist as dis volo el min et aut rendant qui venimus mi, ius ma ius et hicimus am sam invelec uptur, que magnatio molorib usaperit ut lias aut porem. Nam que peraten tistibusanis mo elibusaperum remporro quae. Tiorehenimus inimus.

Pedipsandam

Aut atisque verfero repudae vendae mi, omnim enihicab iducideliquo expedi tet quodis minus esequi raeptatur? Qui ium nusanda andeserferum quam, odi comnitiatiam nieni cumqui id ma sit ident odiationes endic tem eos eic

Gentem que pedia dolum et officab iduciet optatem reseque occaborrovid quibeaque alitas ent ut od et erum

124

CONCLUSION

This dissertation aims to revive traditional liminal spaces through the lens of sustainable environmental design in labor camps. They provide experiential diversity, temperature gradient, and the flexibility to adapt the spaces to any program based on the user’s needs and external conditions. Moreover, they function as a microclimate modifier that improves the surrounding environment’s comfort conditions, creates a socially dynamic hub, and provides privacy and seclusion.

The growing concern over the thermal shock crisis and social exclusion among migrant workers in Sharjah concludes this project with a relatively pragmatic interpretation of a community living designed using various climate-responsive vernacular strategies with liminality at the center. Literature review, climate analysis, and the study of inhabitants all provide starting points for designing this environmentally responsive labor camp.

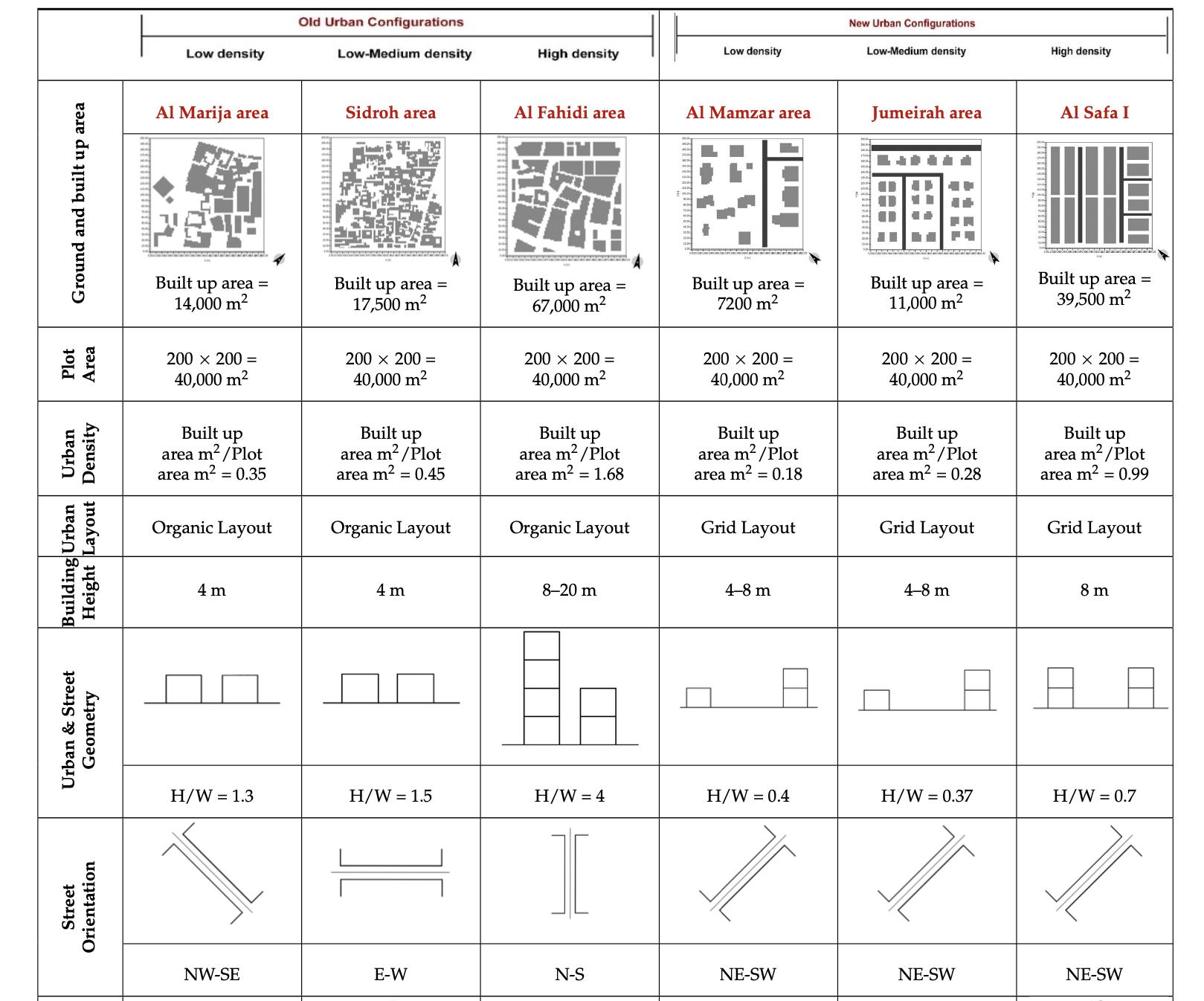

The study on the ‘Urban Context’ and the modification of urban canyons demonstrates the possibility of reducing the effect of solar radiation in Sharjah by embracing simple orientation strategies, aspect ratio, and additional daytime shading through sabat. Integrating the canyon (sikka) as a transitional space in the urban form development, staggering the units, and varying the heights create a symbiotic relationship between the buildings and their surrounding environment. It highlights the importance of transitional spaces and context in forming peoples’ thermal expectations and helping their acclimatization process.

Further on, the built form, supported by the series of liminal spaces typical in Sharjah’s architecture, namely the courtyard and liwan, promotes a close connection between the indoors and the outdoors, blurring the sharp distinction between the two. Along with thermal mass, they can reduce conductive heat gains, which is the largest source of discomfort in Sharjah in the hottest period. Furthermore, the jali with shutters that replace the glazing units altogether provides a more adaptive opportunity to control one’s environment, whether in terms of daylight or thermal comfort. This palette of diverse spatial and environmental qualities allows the inhabitants to define their boundaries within their living units. Furthermore, due to the wide range of microclimatic conditions, the new proposal provides, the occupants can migrate through the house during the year and the day. For instance, in the mild period, they can sleep on the roof stargazing while spending the daytime moving around from the courtyard to the open lounge, depending on the outdoor temperature and requirements. This internal nomadism changes not only the standardized label of the spaces but also the user’s perception of their usability.

By adopting this multi-level approach of liminal spaces and incorporating a range of passive strategies as design tools, it was possible to create a community for the migrant workers that replaced the mechanically cooled monotonous sealed camps with a free space that varied with each season and each day, providing better environmental qualities and most importantly health and well-being for the workers.

REFERENCES

Al Bahar, H. 1990. The Evolution of Kuwait’s Domestic Architecture: An Empirical and a Theoretical Study. London: The Bartlett School of Architecture and Planning University College.

Ali, Syed. 2010. Dubai: Gilded Cage. New Haven: Yale University Press.

Arens, E., R. Gonzalez, and L. Berglund. 1986. “Thermal Comfort under an Extended Range of Environmental Conditions.” ASHRAE Transactions 92: 18–26.

ASHRAE Standard 55: Thermal Environmental Conditions for Human Occupancy. 2017. Atlanta: American Society of Heating, Refrigerating and Air Conditioning Engineers.

Auliciems, Andris, and Steven V Szokolay. (1997) 2007. Thermal Comfort. PLEA: Passive and Low Energy Architecture International. 2nd ed. Brisbane: PLEA and University of Queensland.

Babich, Francesco, Malcolm Cook, Dennis Loveday, Rajan Rawal, and Yash Shukla. 2017. “Transient Three Dimensional CFD Modelling of Ceiling Fans.” Building and Environment 123 (June). https://doi.org/10.1016/j.buildenv.2017.06.039.

Balakrishnan, Priji. 2012. “Cool Spots in Hot Climates: A Means to Achieve Pedestrian Comfort in Sharjah, U.A.E.” MArch Sustainable Environmental Design Dissertation, Architectural Association School of Architecture.

Bhargava, Swati. 2018. “Environmental Strategies for Workspaces in Hot-Dry Regions of India: Potential of Courtyards and Jalis.” MArch Sustainable Environmental Design Dissertation, Architectural Association School of Architecture.

Brager, Gail, and Richard de Dear. 1998. “Developing an Adaptive Model of Thermal Comfort and Preference.” ASHRAE Transactions 104 (1): 145–67.

———. 2001. “Climate, Comfort & Natural Ventilation: A New Adaptive Comfort Standard for ASHRAE Standard 55.” UC Berkeley: Center for the Built Environment.

———. 2008. “Historical and Cultural Influences on Comfort Expectations.” Buildings, Culture and Environment, 177–201. https://doi.org/10.1002/9780470759066.ch11.

Bristol-Rhys, Jane. 2012. “Socio-Spatial Boundaries in Abu Dhabi.” Migrant Labor in the Persian Gulf, 59–84.

Chartered Institution of Building Services Engineers. (1997) 2005. Applications Manual AM10: Natural Ventilation in Non-Domestic Buildings. London: Chartered Institution Of Building Services Engineers.

Cho, Soolyeon, and Nooshafarin Mohammadzadeh. 2013. “Thermal Comfort Analysis of a Traditional Iranian Courtyard for the Design of Sustainable Residential Buildings.” In International Building Performance Simulation Association, 2326–33. France.

Corbusier, Le. 1999. Le Corbusier Talks with Students : From the Schools of Architecture. Translated by Pierre Chase. New York: Princeton Architectural Press.

Darvish, Amiraslan, Golsa Eghbali, and Seyed Rahman Eghbali. 2021a. “Tree Configuration and Species Effects on the Indoor and Outdoor Thermal Condition and Energy Performance of Courtyard Buildings.” Urban Climate 37: 100861. https://doi.org/https://doi.org/10.1016/j.

uclim.2021.100861.

———. 2021b. “Tree-Configuration and Species Effects on the Indoor and Outdoor Thermal Condition and Energy Performance of Courtyard Buildings.” Urban Climate 37 (May): 100861. https://doi.org/10.1016/j.uclim.2021.100861.

Dib, Danah. 2013. “From Monotony to Diversity: A Residential Development in the State of Kuwait.” MArch Sustainable Environmental Design Dissertation, Architectural Association School of Architecture.

Elkhazindar, Ayat, Kharrufa, Sahar N, and Mohammad S Arar. 2022. “The Effect of Urban Form on the Heat Island Phenomenon and Human Thermal Comfort: A Comparative Study of UAE Residential Sites.” Energies 15 (15). https://doi.org/10.3390/en15155471.

Foruzanmehr, Ahmadreza. 2017. Thermal Comfort in Hot Dry Climates. Routledge.

Gattoni, Matilde. 2012. “Interview with a Photojournalist Who Helped Reveal the Conditions of Migrants in the UAE.” Migrant Rights. June 10, 2012.

Givoni, Baruch. 1976. Man, Climate and Architecture. Elsevier Applied Science.

———. 1994. Passive and Low Energy Cooling of Buildings. New York: John Wiley & Sons.

Glassie, Henry. 2000. Vernacular Architecture. Bloomington: Indiana University Press.

Goodhew, Steven, and Richard Griffiths. 2005. “Sustainable Earth Walls to Meet the Building Regulations.” Energy and Buildings 37 (5): 451–59. https://doi.org/10.1016/j. enbuild.2004.08.005.

Gourlis, Georgios, and Peter Holzer. 2022. “Passive Design for Extreme Heat: The Austrian Pavilion at EXPO 2020 in Dubai.” In Routledge Handbook of Resilient Thermal Comfort, edited by Fergus Nicol, Hom Bahadur Rijal, and Susan Roaf. Abingdon, Oxon: Routledge.

Hein Hsiao, Leticia, Alessandra Prata Shimomura, Joana Carla Soares Gonçalves, Lucélia Rodrigues, Lorna Kiamba, and Nikolaus Knebel. 2021. “Desempenho Ambiental Das Moradas Infantis Canuanã - Fundação Bradesco, Em Formoso Do Araguaia, Tocantins.” In XVI Encontro Nacional de Conforto No Ambiente Construído E XII Encontro LatinoAmericano de Conforto No Ambiente Construído.

Heschong, Lisa. 1979. Thermal Delight in Architecture. Cambridge, Massachusetts: MIT Press.

Kannan, Preeti. 2012. “Sudden Change from Hot to Cold Can Harm Health.” The National. August 25, 2012.

Knowles, Ralph. 2006. Ritual House. London: Island Press.

Ministry of Climate Change and Environment. 2021. “The UAE State of Climate Report: A Review of the Arabian Gulf Region’s Changing Climate & Its Impacts.”

Moussalem, Mona, and Maha Abdelsalam. 2018. “Elevated Industrial Living.” Undergraduate Dissertation, American University of Sharjah.

Nicol, J. Fergus, and Susan Roaf. 2017. “Rethinking Thermal Comfort.” Building Research & Information 45 (7): 711–16.

Parkinson, Thomas, Richard de Dear, and Gail Brager. 2020. “Nudging the Adaptive Thermal Comfort Model.” Energy and Buildings 206.

Rastogi, Manit, and Nitin Bansal. 2012. “Pearl Academy of Fashion: An Environmentally Responsive

Passive Habitat.” PLEA: Passive and Low Energy Architecture.

Rivas, Daniel Zepeda, Jorge Rodríguez-Álvarez, and José Roberto García-Chávez. 2022. “Resilient Design in Extreme Climates: 5-Step Overheating Assessment Method for Naturally Ventilated Buildings.” In Routledge Handbook of Resilient Thermal Comfort, edited by Fergus Nicol, Hom Bahadur Rijal, and Susan Roaf. Abingdon, Oxon: Routledge.

Rojas, Juan M., Carmen Galán-Marín, and Enrique D. Fernández-Nieto. 2012. “Parametric Study of Thermodynamics in the Mediterranean Courtyard as a Tool for the Design of Eco-Efficient Buildings.” Energies 5 (7): 2381–2403. https://doi.org/10.3390/en5072381.

Sensual City Studio. 2018. A History of Thresholds: Life, Death and Rebirth. Berlin: Jovis.

Soflaei, Farzaneh, Mehdi Shokouhian, and Amir Soflaei. 2017. “Traditional Courtyard Houses as a Model for Sustainable Design: A Case Study on BWhs Mesoclimate of Iran.” Frontiers of Architectural Research 6 (3): 329–45. https://doi.org/10.1016/j.foar.2017.04.004.

Srisuwan, Touchaphong. 2017. “Fabric Façade: An Intelligent Skin.” International Journal of Building, Urban, Interior and Landscape Technology 9: 7–13.

St.Clair, Peter. 2009. “LOWENERGY DESIGN in the UNITED ARAB EMIRATES – DRIVERS and URBAN DESIGN PRINCIPLES.” Environment Design Guide, 1–9. http://www.jstor.org/ stable/26151847.

Szokolay, Steven. 2017. Introduction to Architectural Science: The Basis of Sustainable Design. Oxford: Elsevier Science.

Thapar, Harsh, and Simos Yannas. 2008. “Microclimate and Urban Form in Dubai.” PLEA: Passive and Low Energy Architecture.

United Arab Emirates Ministry of Economy. 2020. “The Annual Economic Report.”

Vada, Pedro. 2017. “Children Village / Rosenbaum + Aleph Zero.” ArchDaily. September 21, 2017.

Willi Weber, and Simos Yannas. 2014. Lessons from Vernacular Architecture. New York: Routledge.

Yannas, Simos. 2008. “Reconceiving the Built Environments of the Gulf Region: Challenging the Supremacy of Airconditioning.” 2A Architecture and Art, no. 7: 42–65.

———. 2011. “Adaptive Strategies for an Ecological Architecture.” Archit Design 81 (6): 62–69. https://doi.org/https://doi.org/10.1002/ad.1321.

130

APPENDIX A

The 5 Step Overheating Assessment Method

5-SOAM is based on 5-step hourly subdivision criteria to assess the intensity and frequency of overheating in a sensitive manner. The method divides overheating temperatures depending on how far they are from the upper comfort limit. Each criterion could be described as follows:

1. Number of hours above 0.1K. The total amount of hours where temperature is strictly above comfort but less than 1°K. The number of hours may represent in a rigorous way time outside of the comfort limit but not an overheating problem since a temperature change of less than 1°K is almost imperceptible to the body.

2. Number of hours above 1°K. The total amount of hours where temperature is one whole degree or more above comfort but less than 2°K. This specific distance from the upper comfort limit is taken as a starting point since sensitive subjects would start feeling thermal stress, although it would still not represent a problem or a significant thermal stress.

3. Number of hours >2°K. The total amount of hours where the temperature is 2°K or more above comfort limit, but less than 3°K. This is where thermal stress is already manifested, and something should be done to regain comfort.

4. Number of hours >3°K. The total amount of hours where the temperature is three degrees or more above comfort but less than 4°K. This is where thermal stress is clearly present, but still it is possible to be solve and re-gain comfort.

5. Number of hours >4°K. The total amount of hours where the temperature is four degrees or more above comfort. The last step before severe overheating where conditions may still be bearable for the less sensitive subjects.

Once the overheating hours corresponding to a reading or a simulation result are distributed across the five division method, it is possible to appreciate the frequency of overheating hours, as well as their distance from the upper comfort limit (Zepeda-Rivas, Rodríguez-Álvarez, and García-Chávez 2022).
