3ds Max 2020 PRODUCT FOCUS by: Brian Chapman 3ds Max with V-Ray and Unreal Engine
In the digital world, the currents haven’t been as course-altering as they have in the past few years. With the press toward AI and computer advancements, tasks that took weeks now take minutes. It’s difficult not to see this trend continue. In the meantime, users grasp to workflows that will allow them to highlight their understanding of these advancements and demonstrate the capability to produce more and create it faster. One of those workflows that I’ll be discussing is using 3ds Max with V-Ray and Unreal Engine. ➲
TRADITION Visualization is also one of the few industries that might take advantage of 3ds Max most comprehensively. To produce quality content, users need to understand several of the software’s more advanced features related to modeling, materials, animation, lighting, cameras, pre and post-production options. Add to that understanding V-Ray, architectural and environmental content, and CAD learning this can take a considerable amount of time and investment. After all this effort, what was the end game, though? A short animated clip of some buildings, a voice-over, a few still shots for a website or magazine that few see and even less will remember
3ds Max 2020 PRODUCT FOCUS (relatively speaking). The industry has to press forward, and this is where Unreal comes in. PRESSING FORWARD In the last several months, Epic Games Unreal introduced the Datasmith importer. The importer allows users working with 3ds Max and V-Ray to export data into Unreal Engine, which allows us to take advantage of some powerful features inside Unreal Engine. I’ll discuss a cursory overview of the workflow in this article. I’ll skip the installation instructions, but generally speaking, you’ll need to create an Epic Games account, install the Epic Games Launcher, which will allow you to install Unreal Engine/Studio and the Datasmith importer. To export content from 3ds Max, Revit, or Sketchup, you can download the plugin available on Unreal Engine’s website here: https://www.unrealengine.com/enUS/studio/downloads. After this, you’ll find the Datasmith file format available in your export options for 3ds Max.
When you launch the Unreal Engine, you can select a blank scene or begin with a blueprint. In this example, we’ll begin with the First Person blueprint displayed in Figure 1.
PRODUCT FOCUS 3ds Max 2020
Insert Figure 2 – Outliner
Insert Figure 3 – Occlusion
3ds Max 2020 PRODUCT FOCUS
Starting with this option will provide the basic elements for firstperson interactive content. For this example, I’m going to use the default scene it created but delete out the components I don’t want or need. See Figure 2 for the remaining elements in the outliner.
Next, select the Datasmith icon and import your 3ds Max scene. I can’t go over every aspect of Unreal Engine, but I’ll highlight a few of the primary features that make using 3ds Max with Unreal Engine so powerful.
Templates – The templates displayed in Figure 1 allow us to convert our 3ds Max scenes to interactive content using the options available with Unreal Engine. Some of those include AR, VR, First, and 3rd Person presentations.

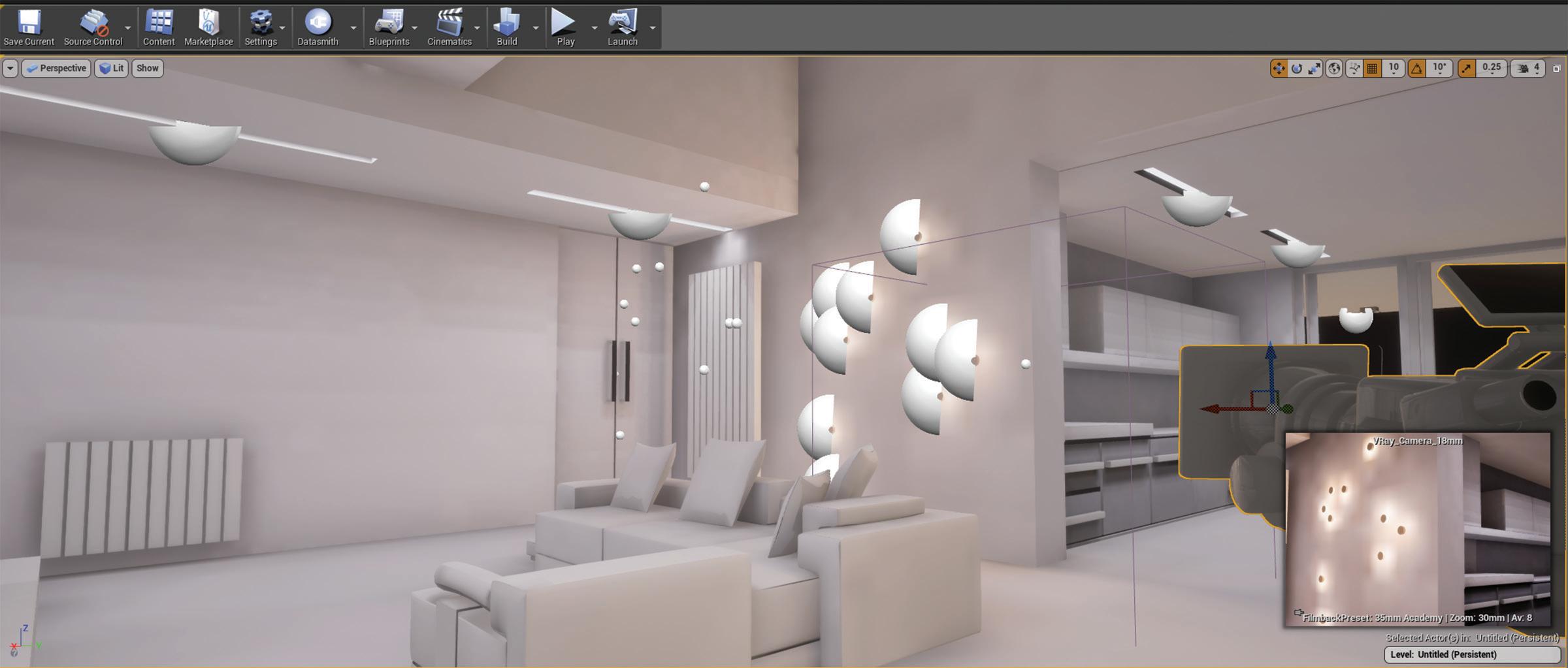

PostProcessVolume – The PostProcessVolume is used to apply various camera effects to what a user sees. Here we control several components that are important to creating an appealing image. In particular, this is where we can add ambient occlusion, toe/slope effects to our camera, exposure settings, color grading, and more. For occlusion example, see Figure 3.
Tip: Ensure your PostProcessVolume setting is unbounded by selecting the “Infinite Extent (Unbound)” box.

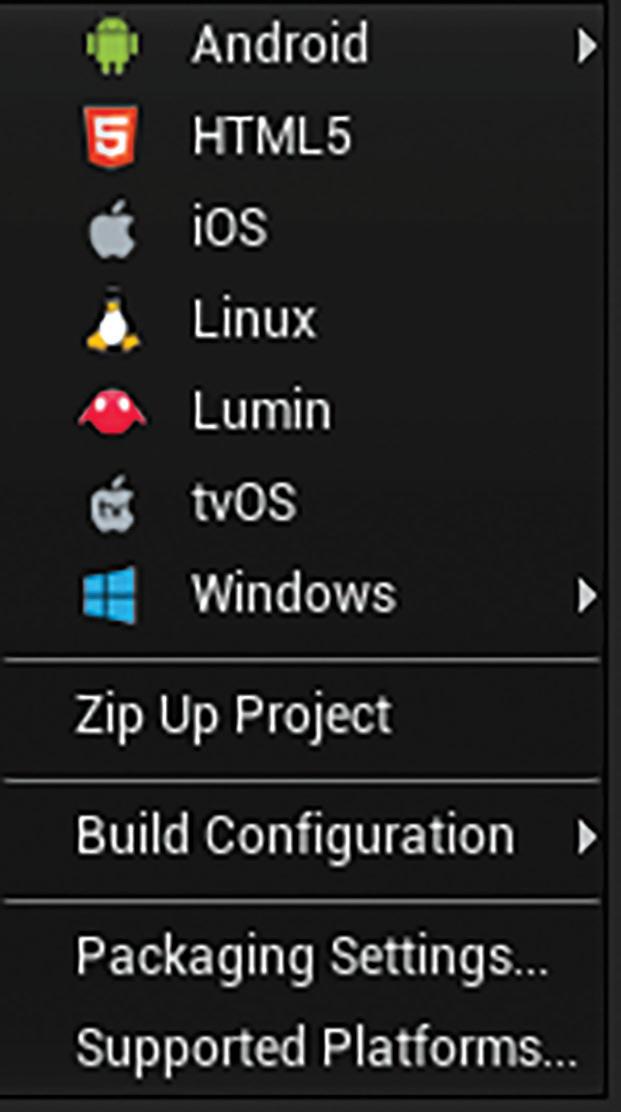

Packaging – Last but not least Unreal Engine allows us to package our projects for a variety of applications, including IOS/Android phones, windows operating systems, HTML, and more. See Figure 4.
