Carry-On Trailer Dump Trailers

DUMP TRAILERS

DUMP TRAILERS Powerful, Reliable, and Built for Heavy-Duty Tasks Dump trailers are indispensable for those demanding jobs that require efficient and reliable hauling solutions. Perfect for contractors transporting construction materials or landscapers moving soil and gravel, these trailers are built to handle heavy loads with ease. With their robust design and hydraulic lift capabilities, dump trailers simplify the process of unloading materials, saving you significant time and effort. Carry-On offers a range of dump trailers tailored to meet your specific needs, ensuring you have the strength and dependability required to complete any tough task with confidence.

DUMP TRAILERS GVWR 2,000 GVWR 2,990

GVWR

DLPE5K Series LOW PROFILE, SINGLE AXLE

Our 5K GVWR dump trailer is designed for lighter but essential tasks with efficiency and ease. Ideal for jobs like garden waste removal, small-scale landscaping, or transporting lighter materials, this single-axle trailer combines durability and practicality. Its sturdy steel frame and reliable components ensure dependable performance and longevity. The low profile design allows for easy loading and unloading, while the board-height extended side walls provide additional capacity for larger loads. The efficient hydraulic lift system facilitates easy dumping, saving you time and effort. Enhanced safety features, including electric brakes and radial tires, ensure secure and stable hauling, providing peace of mind during transport.

STEEL BODY CONSTRUCTION

STEEL BATTERY BOX

Crafted with heavy-duty 11 ga steel flooring and 14 ga steel walls, this trailer ensures exceptional durability, resistance to wear and tear, and long-lasting performance under heavy loads and tough conditions.

A solid steel box protects the battery against impacts and weather, ensuring longer life, enhanced security, and reliable performance in all conditions.

STEEL SIDES + EXTENDED HEIGHT BOARD BRACKETS

COMBO BARN DOOR + SPREADER GATE

Featuring solid steel construction, the side walls provide maximum strength and longevity, while the 2x board-extendable side walls increase load capacity for versatile use and secure cargo transport.

Offers the flexibility of both barn doors and a spreader gate. It can swing open like barn doors or act as a spreader gate, providing versatility for different unloading needs.

HYDRAULIC CYLINDER LIFT

E-Z LUBE™ AXLE

GVWR

Delivers powerful and direct lifting capability, smooth operation, simplified maintenance, and a compact design, enhancing efficiency and safety during loading and unloading.

Simplifies maintenance by allowing easy lubrication of both inner and outer bearings without disassembly, saving time and effort while also resulting in smoother operation.

12,000

WIRED REMOTE CONTROL

LOW PROFILE DESIGN

GVWR

Gives you convenient and precise control of the hydraulic cylinder from a distance, enhancing safety, efficiency, and ease of use during loading and unloading operations.

Offers easier loading and unloading compared to a deck over dump trailer, providing increased stability, enhanced safety, and a lower center of gravity, making it ideal for a variety of job sites.

5,000

GVWR 7,000 GVWR 9,990

14,000

SPECIFICATIONS TONGUE

SUSPENSION

Coupler

2-5/16" A-Frame (256T)

Tires

15" ST225/75R15 (225X15RADIAL-BLK)

Tongue Type

A-Frame 4" Steel Channel

Wheels

Black Mod

L: Frame–Coupler

42"

Axle Type

Level Tongue Height

16-1/4"

5,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 75/58 (5K7558EZBDROP)

Safety Chains

Class 4, 34" x 17/32" w/ Hooks (640T)

GVWR

5,000 Lbs.

Jack

5,000# Top-Wind

Leaf Springs

5-Leaf Eye-to-Eye (353T)

Breakaway System

Electric Kit w/ Battery Charger (701T)

U-Bolt

9/16" Round (653T)

Storage

Solid Steel Box

Tie Plate

Large 3-3/4" x 5-5/8" (650T)

REAR/GATE

LIFT SYSTEM Hydraulic Cylinder

Single Piston, 3" Bore x 20" Stroke

Hydraulic Pump

8 Qt. Usable Volume Reservoir w/ 14' Remote

Pump Action

Power Up, Gravity Down

Battery

12 Volt Deep Cycle w/ 1.5 Amp Charger

TRAILER BODY

4

Flooring Material

11 ga Steel

Deck Ht. from Ground

24-1/4"

Frame

4" Steel Channel

Side Walls

14 ga Steel, 18" H w/ 6" Board Side Bracket

Cargo Hold

Full Body Length 2" Flat Bar, (8) 2" x 3" Stake Pockets

Fenders

9" x 32" Steel, Jeep-Style

Gate Style

Combo Gate: Barn Door / Spreader

Rear Latch

Barn Door Cam Bar, Spreader Pivot and Chains

Ramps

N/A

LIGHTING Plug Type

7-Way Round

Tail Lights

LED

License Plate Illum.

Incorporated with Road Side Tail Light

Marker Lights

N/A

Clearance Lights

LED Amber Penny Light

ID Lights

N/A

Trailer Size

5' x 8'

5' x 10'

Item No.

5X8DLPE5K

5X10DLPE5K

Overall W x L

81" x 143"

81" x 167"

Deck W x L

60" x 95-1/2"

60" x 119-1/2"

Gate W x L

60" x 18"

60" x 18"

Empty Weight

1,620 Lbs.

1,760 Lbs.

Payload Capacity

3,380 Lbs.

3,240 Lbs.

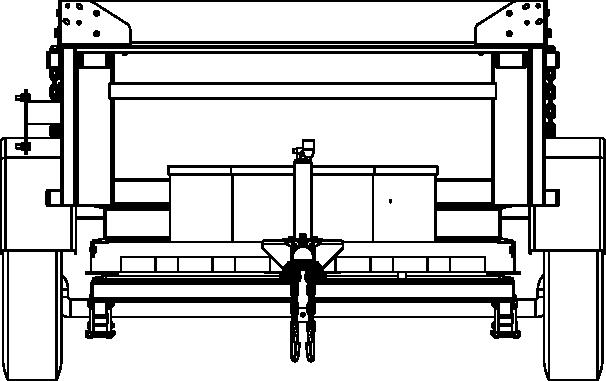

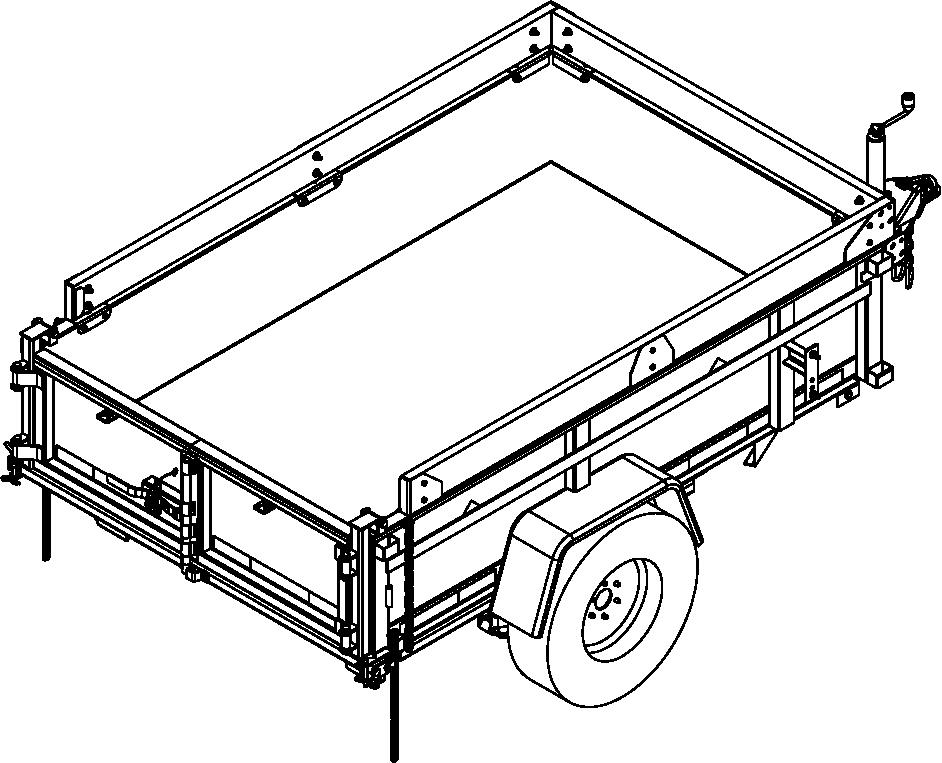

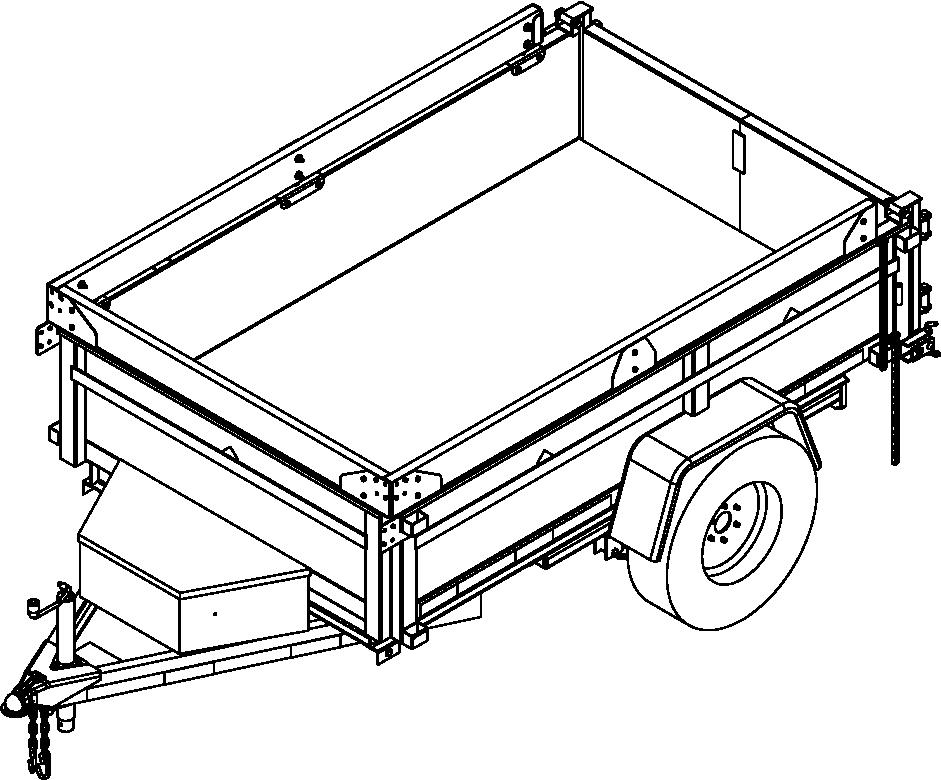

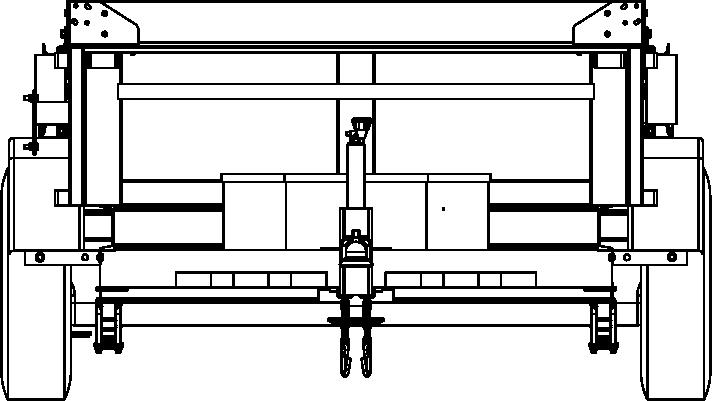

5X8DLPE5K model shown below

NOTE: BOARD BRACKETS

Brackets and boards are provided.

The dealer is responsible for drilling, cutting, and mounting prior to final delivery.

TARP BRACKETS

Equipped with a durable bracket, allowing for easy installation of a tarp system to help secure and protect your load during transit.

Tarp Roller (860) and Tarps sold separately: 5' x 10' Tarp (856) 6' x 12' Tarp (857) 7' x 14' Tarp (859)

5

DUMP TRAILERS GVWR 2,000 GVWR 2,990

GVWR

DLPE7K Series LOW PROFILE

Our 7K GVWR dump trailer is built to handle medium-duty tasks effortlessly. Perfect for transporting moderate loads of construction materials, mulch, or gravel, this tandem-axle trailer offers robust durability and performance. Featuring a reinforced steel frame and high-quality components, it ensures longlasting resilience in demanding conditions. The low profile design allows for easy loading and unloading, while the board-height extended side walls provide additional capacity for larger loads. The powerful hydraulic lift system makes dumping smooth and straightforward, reducing your workload significantly.

Enhanced safety features, such as electric brakes and radial tires, provide stable and secure hauling, ensuring peace of mind during transport.

STEEL BODY CONSTRUCTION

LED LIGHTS

Crafted with heavy-duty 11 ga steel flooring and 14 ga steel walls, this trailer ensures exceptional durability, resistance to wear and tear, and long-lasting performance under heavy loads and tough conditions.

Provide bright, energy-efficient illumination with a longer lifespan and increased visibility, enhancing safety during transport and ensuring reliable performance.

STEEL SIDES + EXTENDED HEIGHT BOARD BRACKETS

COMBO BARN DOOR + SPREADER GATE

Featuring solid steel construction, the side walls provide maximum strength and longevity, while the 2x board-extendable side walls increase load capacity for versatile use and secure cargo transport.

Offers the flexibility of both barn doors and a spreader gate. It can swing open like barn doors or act as a spreader gate, providing versatility for different unloading needs.

HYDRAULIC CYLINDER LIFT

RADIAL TIRES

GVWR

Delivers powerful and direct lifting capability, smooth operation, simplified maintenance, and a compact design, enhancing efficiency and safety during loading and unloading.

Deliver superior traction and stability, extended tread life, and improved fuel efficiency, ensuring consistent and reliable performance on various terrains.

12,000

TANDEM BRAKE AXLES

LOW PROFILE DESIGN

GVWR

The tandem brake axles provides enhanced stability, braking power, and increased weight capacity, ensuring safer, smoother transport of heavy loads.

Offers easier loading and unloading compared to a deck over dump trailer, providing increased stability, enhanced safety, and a lower center of gravity, making it ideal for a variety of job sites.

5,000

GVWR 7,000 GVWR 9,990

14,000

SPECIFICATIONS TONGUE

SUSPENSION

Coupler

2-5/16" A-Frame (256T)

Tires

15" ST205/75R15 (205X15RADIAL/BLACK)

Tongue Type

A-Frame 4" Steel Channel

Wheels

Black Mod

L: Frame–Coupler

47-1/2"

Axle Type

Level Tongue Height

17-1/2"

(2) 3,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 72/54 (3K7254EZBDROP)

Safety Chains

Class 4, 34" x 17/32" w/ Hooks (640T)

GVWR

7,000 Lbs.

Jack

5,000# Top-Wind

Leaf Springs

3-Leaf Eye-to-Eye (504T)

Breakaway System

Electric Kit w/ Battery Charger (701T)

U-Bolt

1/2" Round (514T)

Storage

Solid Steel Box

Tie Plate

Medium 4" x 5-1/2" (513T)

REAR/GATE

LIFT SYSTEM Hydraulic Cylinder

Single Piston, 3-1/2" Bore x 30" Stroke

Hydraulic Pump

8 Qt. Usable Volume Reservoir w/ 14' Remote

Pump Action

Power Up, Gravity Down

Battery

12 Volt Deep Cycle w/ 1.5 Amp Charger

TRAILER BODY

6

Flooring Material

11 Ga Steel

Deck Ht. from Ground

26-3/4"

Frame

5" Steel Channel

Side Walls

14 ga Steel, 18" H w/ 6" Board Side Bracket

Cargo Hold

Full Body Length 2" Flat Bar, (10) 2" x 4" Stake Pockets, (4) D-Rings

Fenders

10" x 75" Steel Diamond Plate

Gate Style

Combo Gate: Barn Door / Spreader

Rear Latch

Barn Door Cam Bar, Spreader Pivot and Chains

Ramps

N/A

LIGHTING Plug Type

7-Way Round

Tail Lights

LED

License Plate Illum.

Incorporated with Road Side Tail Light

Marker Lights

N/A

Clearance Lights

LED Amber Penny Light

ID Lights

N/A

Trailer Size

5' x 10'

Item No.

5X10DLPE7K

Overall W x L

80-1/4" x 167"

Deck W x L

60" x 119-1/2"

Gate W x L

60" x 18"

Empty Weight

2,300 Lbs.

Payload Capacity

4,700 Lbs.

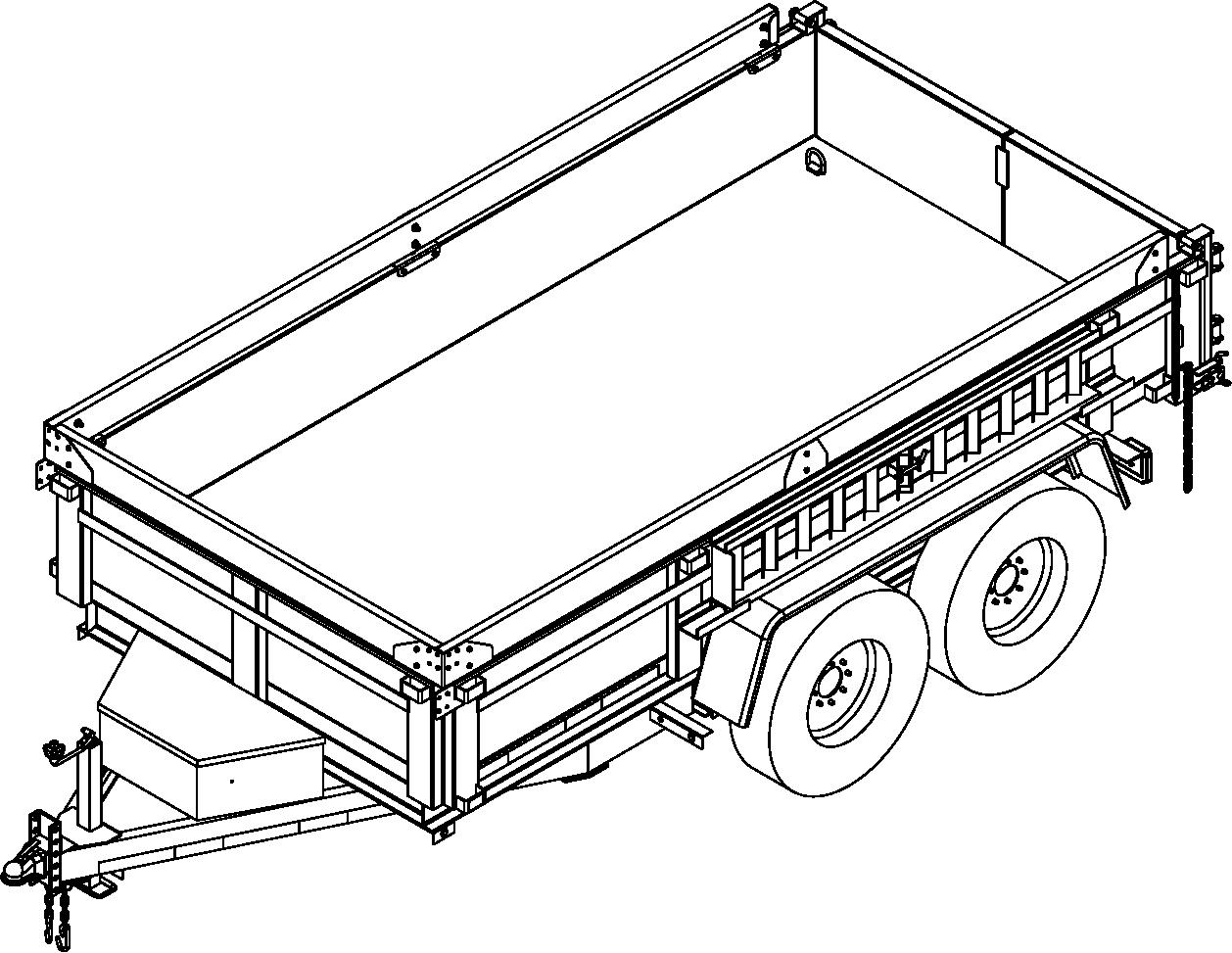

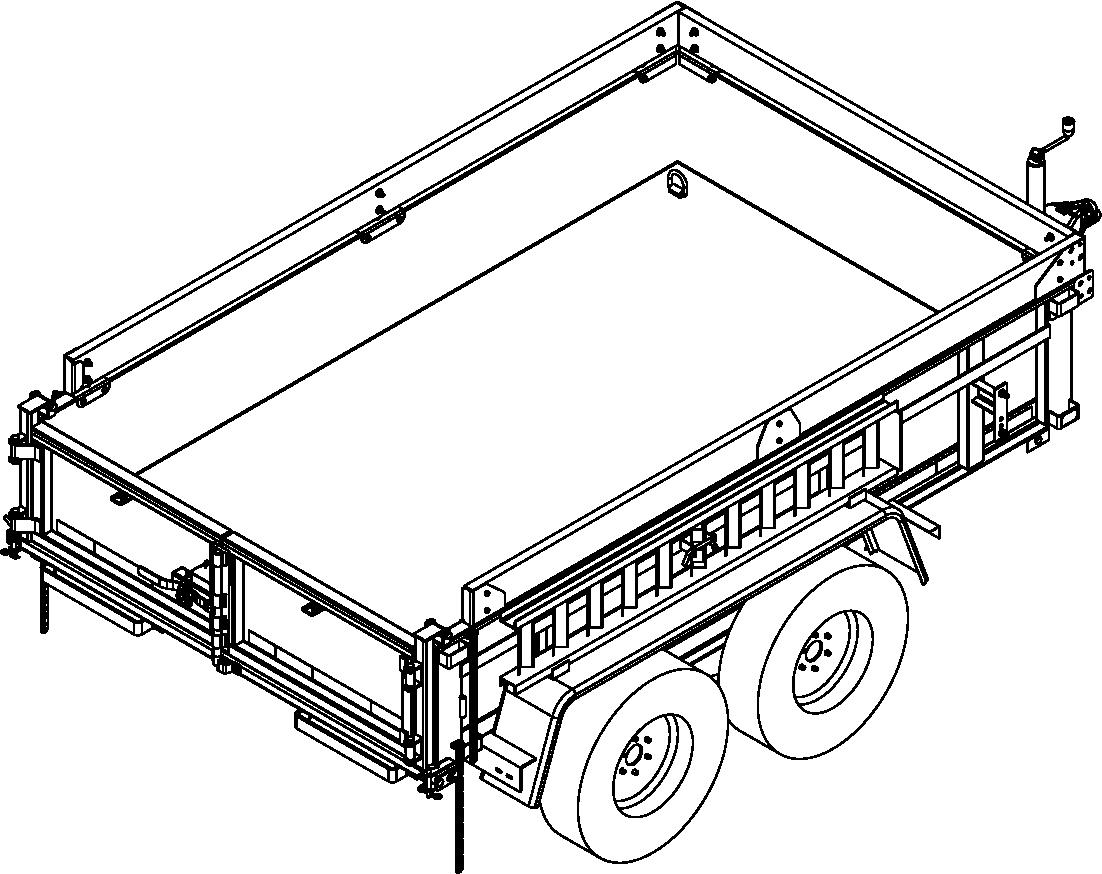

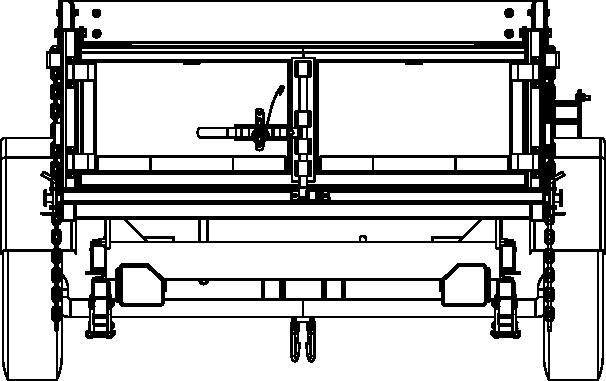

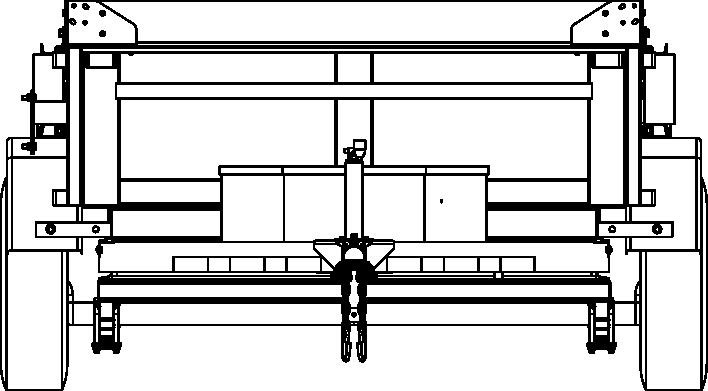

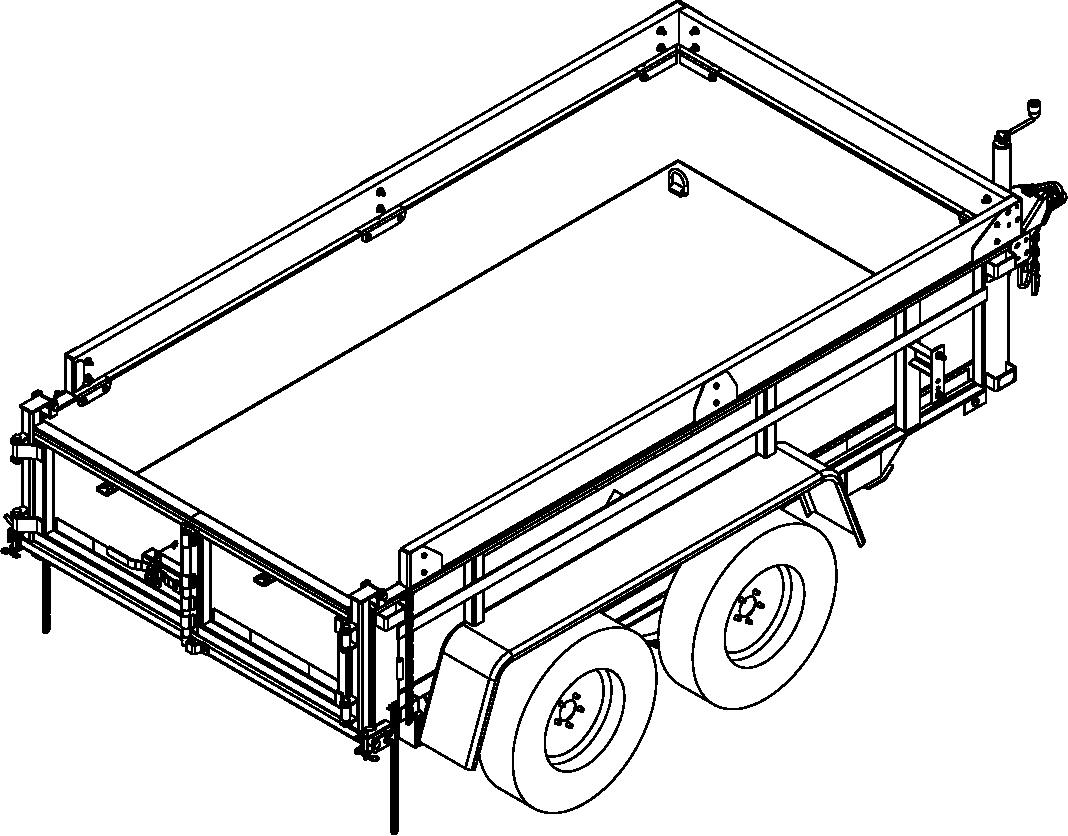

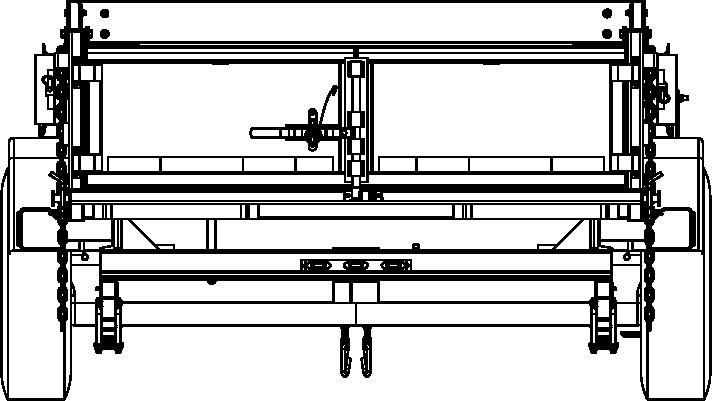

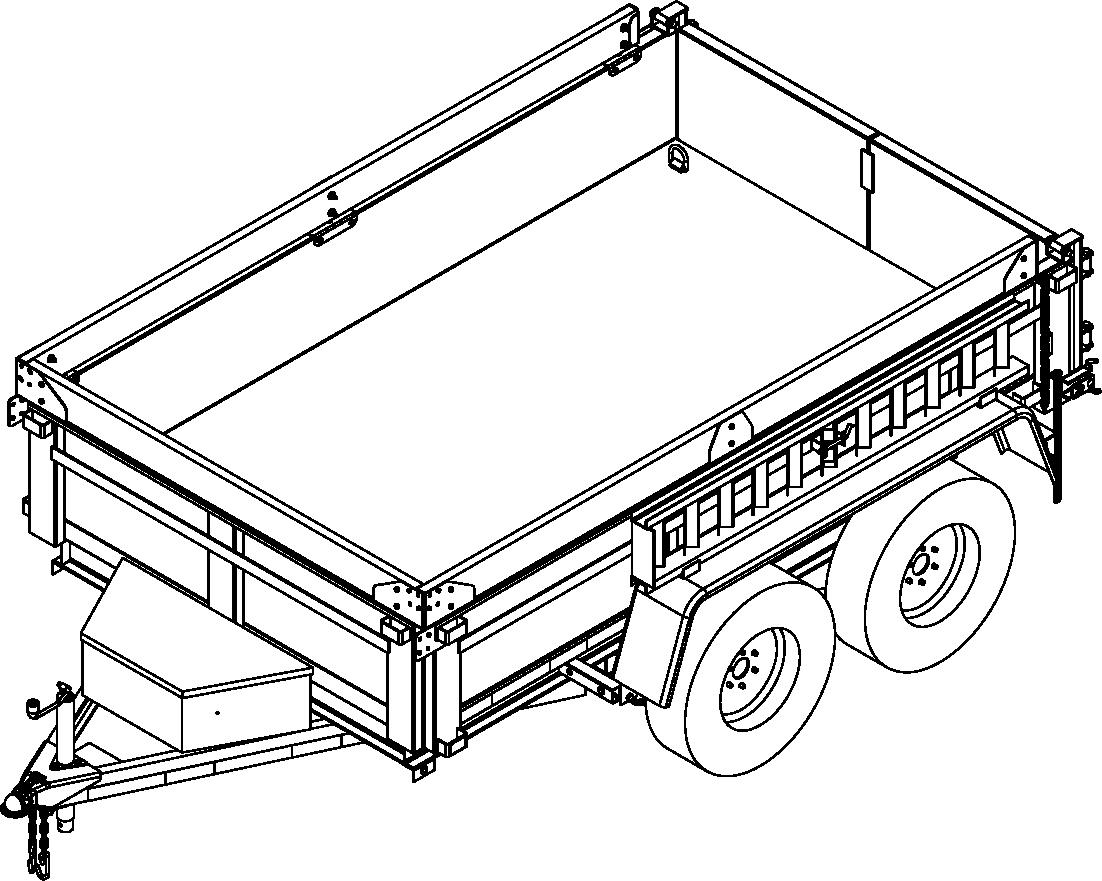

5X10DLPE7K model shown below

NOTE: BOARD BRACKETS

Brackets and boards are provided.

The dealer is responsible for drilling, cutting, and mounting prior to final delivery.

TARP BRACKETS

Equipped with a durable bracket, allowing for easy installation of a tarp system to help secure and protect your load during transit.

Tarp Roller (860) and Tarps sold separately: 5' x 10' Tarp (856) 6' x 12' Tarp (857) 7' x 14' Tarp (859)

7

DUMP TRAILERS GVWR 2,000 GVWR 2,990

GVWR

DLPE10K Series LOW PROFILE

Our 10K GVWR dump trailer is engineered for demanding tasks with remarkable ease. Ideal for heavy-duty jobs like moving large quantities of dirt, heavy construction debris, or other substantial materials, this tandem-axle trailer delivers impressive durability and performance. With a reinforced steel frame and premium components, it guarantees long-lasting resilience under rigorous use. The low profile design allows for easy loading and unloading, while the boardheight extended side walls provide additional capacity for larger loads. The powerful hydraulic lift system enables effortless dumping, saving you time and physical effort. Enhanced safety features, including electric brakes and radial tires, offer secure and stable hauling, ensuring peace of mind during transport.

STEEL BODY CONSTRUCTION

LED LIGHTS

Crafted with heavy-duty 11 ga steel flooring and 14 ga steel walls, this trailer ensures exceptional durability, resistance to wear and tear, and long-lasting performance under heavy loads and tough conditions.

Provide bright, energy-efficient illumination with a longer lifespan and increased visibility, enhancing safety during transport and ensuring reliable performance.

STEEL SIDES + EXTENDED HEIGHT BOARD BRACKETS

COMBO BARN DOOR + SPREADER GATE

Featuring solid steel construction, the side walls provide maximum strength and longevity, while the 2x board-extendable side walls increase load capacity for versatile use and secure cargo transport.

Offers the flexibility of both barn doors and a spreader gate. It can swing open like barn doors or act as a spreader gate, providing versatility for different unloading needs.

HYDRAULIC CYLINDER LIFT

RADIAL TIRES

GVWR

Delivers powerful and direct lifting capability, smooth operation, simplified maintenance, and a compact design, enhancing efficiency and safety during loading and unloading.

Deliver superior traction and stability, extended tread life, and improved fuel efficiency, ensuring consistent and reliable performance on various terrains.

12,000

TANDEM BRAKE AXLES

LOW PROFILE DESIGN

GVWR

The tandem brake axles provides enhanced stability, braking power, and increased weight capacity, ensuring safer, smoother transport of heavy loads.

Offers easier loading and unloading compared to a deck over dump trailer, providing increased stability, enhanced safety, and a lower center of gravity, making it ideal for a variety of job sites.

5,000

GVWR 7,000 GVWR 9,990

14,000

SPECIFICATIONS TONGUE

SUSPENSION

Coupler

2-5/16" A-Frame (256T)

Tires

15" ST225/75R15 (225X15RADIAL-BLK)

Tongue Type

A-Frame 4" Steel Channel

Wheels

Black Mod

L: Frame–Coupler

43"

Level Tongue Height

19"

Axle Type

Safety Chains

Class 4, 34" x 17/32" w/ Hooks (640T)

5' WIDE: (2) 5,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 72/54 (5K7254EZBDROP) 6' WIDE: (2) 5,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 85/66 (5K8566EZBDROP)

Jack

5,000# Top-Wind

GVWR

9,990 Lbs.

Breakaway System

Electric Kit w/ Battery Charger (701T)

Leaf Springs

5-Leaf Eye-to-Eye (353T)

Storage

Solid Steel Box

U-Bolt

9/16" Round (653T)

Tie Plate

Large 3-3/4" x 5-5/8" (650T)

LIFT SYSTEM Hydraulic Cylinder

Single Piston, 3-1/2" Bore x 30" Stroke

REAR/GATE

Hydraulic Pump

8 Qt. Usable Volume Reservoir w/ 14' Remote

Gate Style

Combo Gate: Barn Door / Spreader

Pump Action

Power Up, Power Down (5' Wide: Gravity Down)

Rear Latch

Barn Door Cam Bar, Spreader Pivot and Chains

Battery

12 Volt Deep Cycle w/ 1.5 Amp Charger

Ramps

5' WIDE: N/A 6' WIDE: Included, Side Mount

TRAILER BODY

8

Flooring Material

11 Ga Steel

Deck Ht. from Ground

28"

Frame

5" Steel Channel

Side Walls

14 ga Steel, 18" H w/ 6" Board Side Bracket

LIGHTING Plug Type

7-Way Round

Tail Lights

LED

License Plate Illum.

Incorporated with Road Side Tail Light

Marker Lights

Cargo Hold

Full Body Length 2" Flat Bar, , (4) D-Rings 10' LONG: (10) 2" x 4" Stake Pockets 12' LONG: (12) 2" x 4" Stake Pockets

5' WIDE: N/A 6' WIDE: LED Amber Penny Light (881T)

Clearance Lights

LED Amber Penny Light (881T)

Fenders

10" x 75" Steel Diamond Plate

ID Lights

5' WIDE: N/A 6' WIDE: LED 3-Light Bar (438T)

Trailer Size

5' x 10'

Item No.

5X10DLPE10K

Overall W x L

80-1/4" x 167"

Deck W x L

60" x 119-1/2"

Gate W x L

60" x 18"

Empty Weight

2,450 Lbs.

Payload Capacity

7,540 Lbs.

Trailer Size

6' x 10'

6' x 12'

Item No.

6X10DLPE10K

6X12DLPE10K

Overall W x L

92-1/4" x 167"

92-1/4" x 191-1/4"

Deck W x L

72" x 119-1/2"

72" x 143-1/2"

Gate W x L

72" x 18"

72" x 18"

Empty Weight

2,830 Lbs.

3,150 Lbs.

Payload Capacity

7,160 Lbs.

6,840 Lbs.

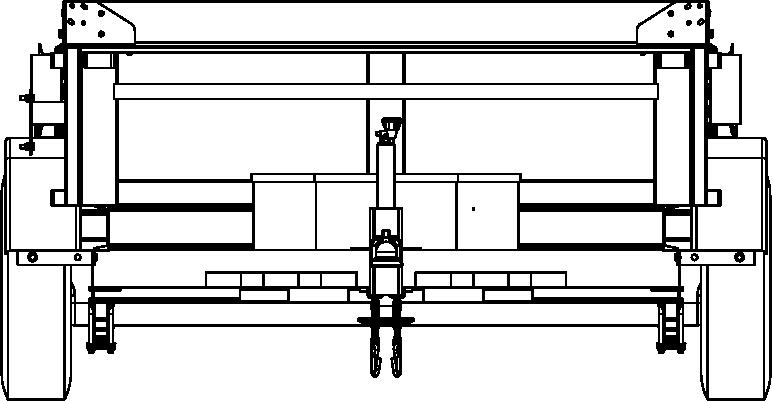

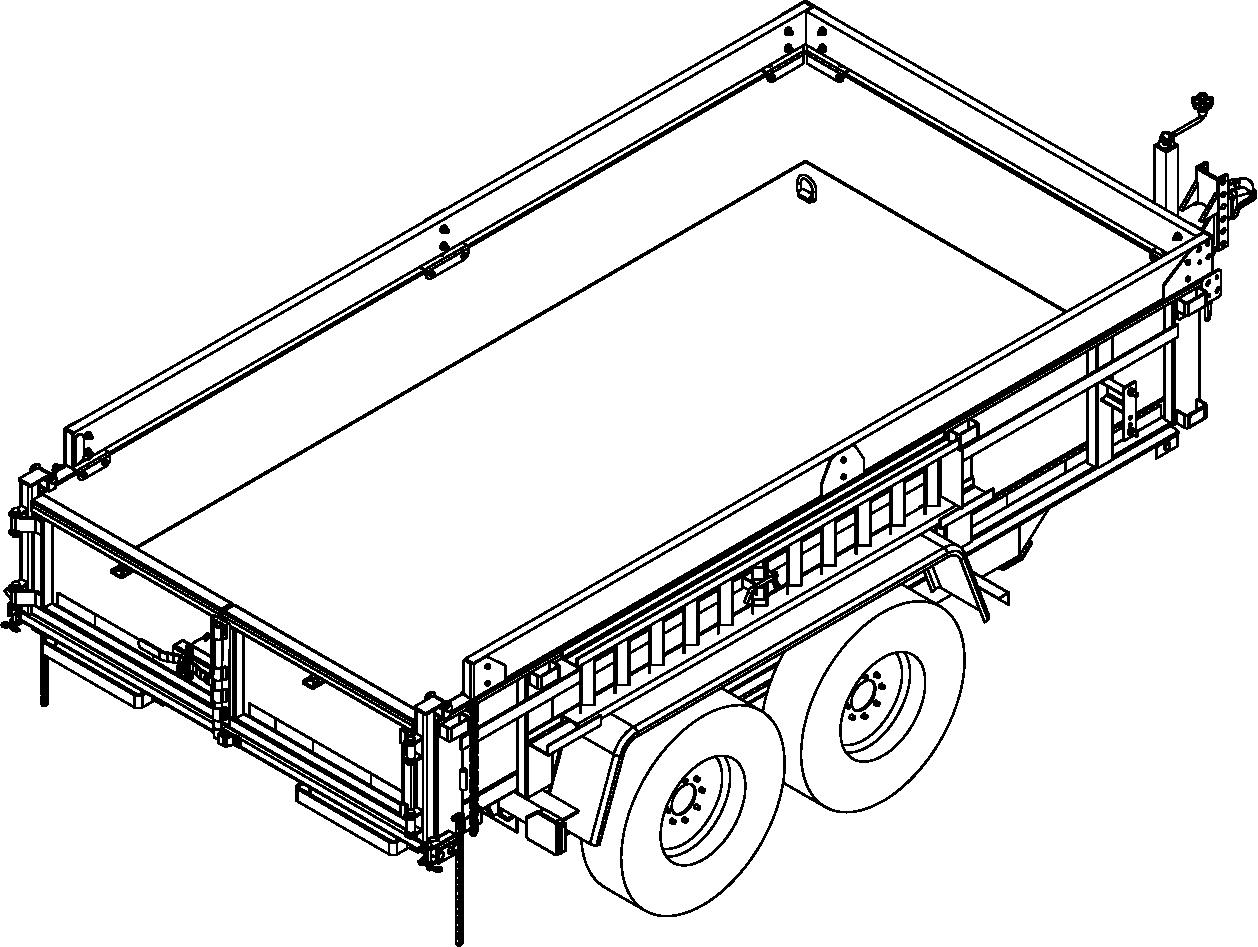

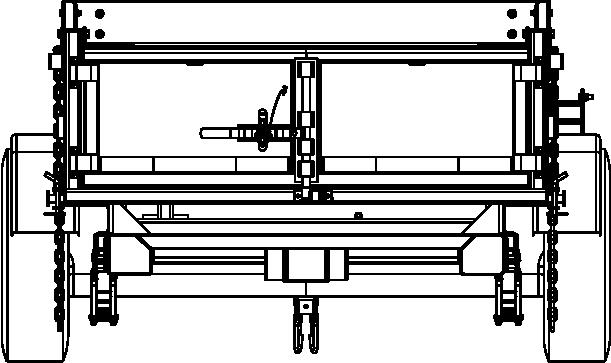

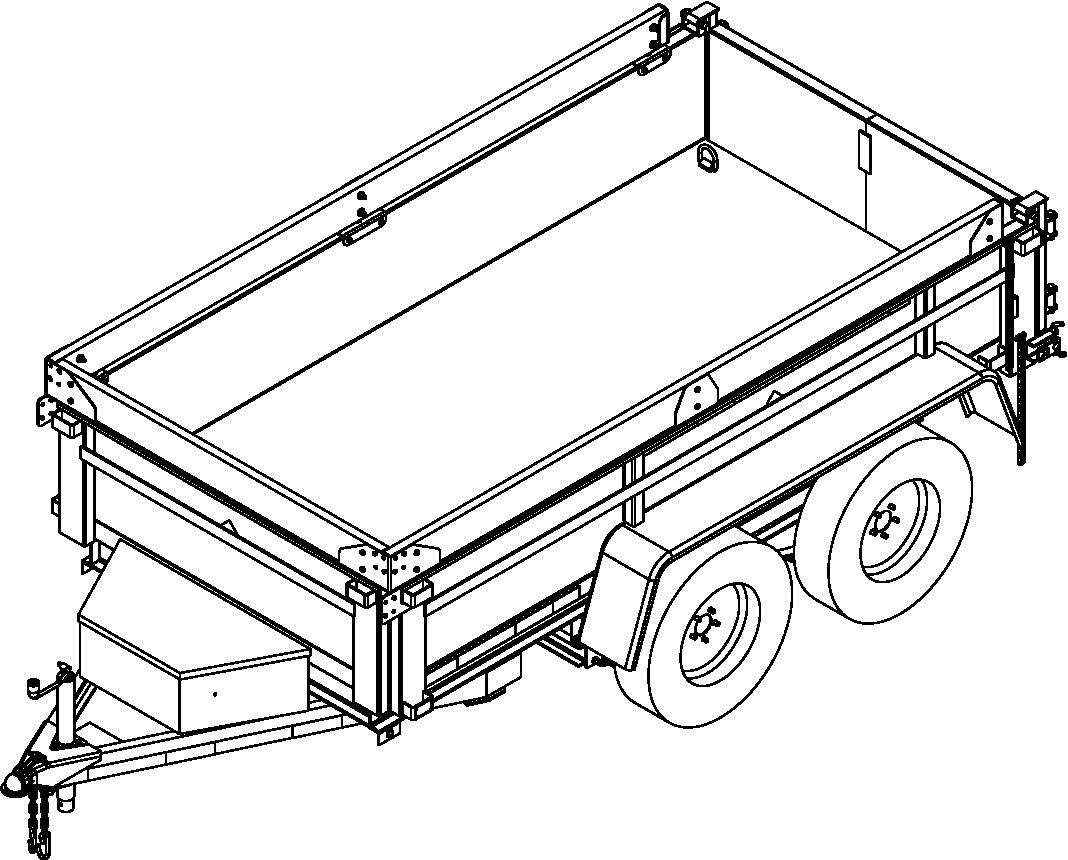

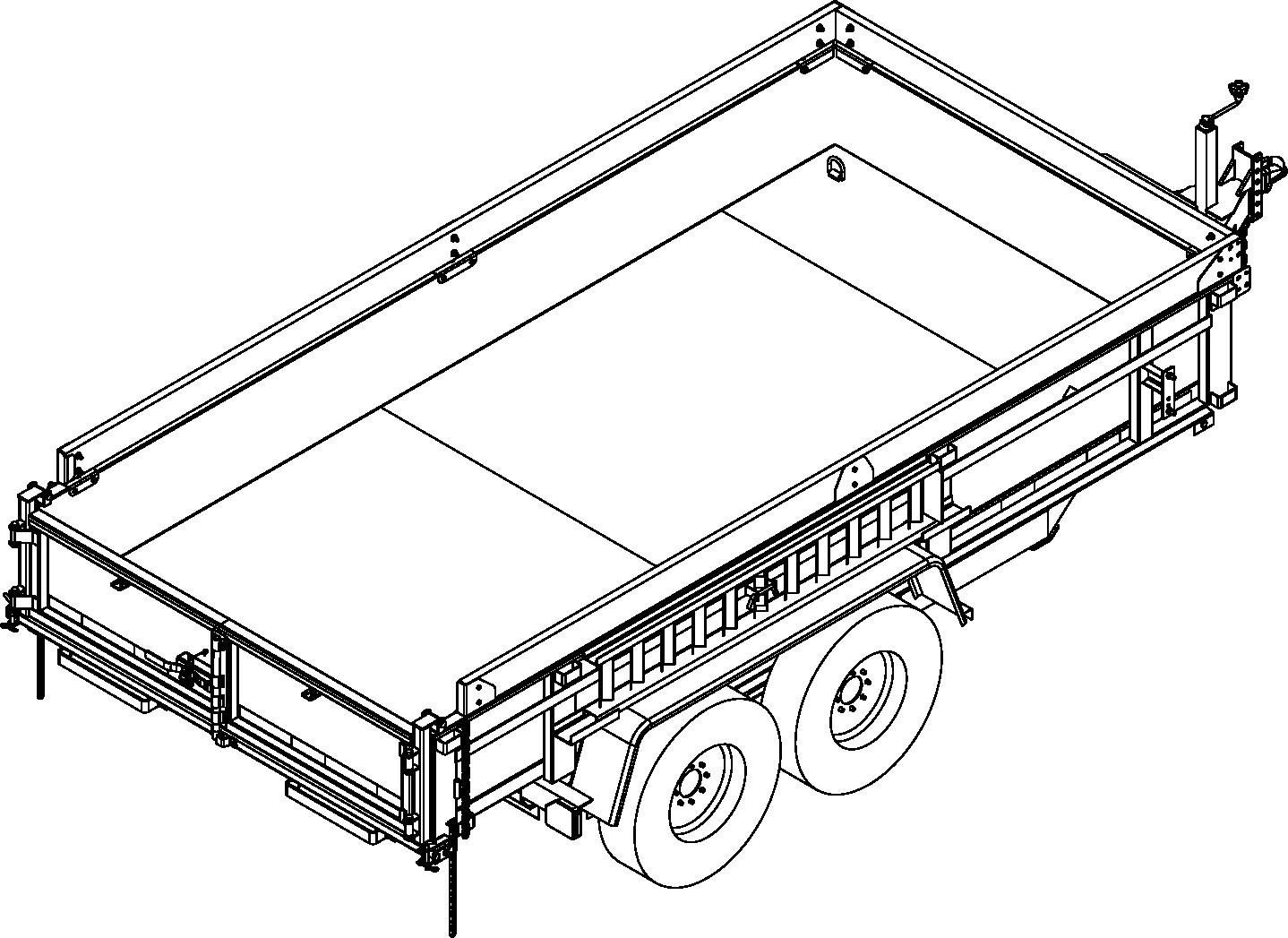

6X10DLPE10K model shown below

NOTE: BOARD BRACKETS

Brackets and boards are provided.

The dealer is responsible for drilling, cutting, and mounting prior to final delivery.

TARP BRACKETS

Equipped with a durable bracket, allowing for easy installation of a tarp system to help secure and protect your load during transit.

Tarp Roller (860) and Tarps sold separately: 5' x 10' Tarp (856) 6' x 12' Tarp (857) 7' x 14' Tarp (859)

9

DUMP TRAILERS GVWR 2,000 GVWR 2,990

GVWR

DLPE12K Series LOW PROFILE

Our 12K GVWR dump trailer is designed for the most challenging jobs with unmatched ease. Perfect for transporting large volumes of soil, heavy construction waste, or bulky materials, this tandem-axle trailer provides exceptional durability and performance. Its reinforced steel frame and superior components ensure long-lasting resilience under extreme conditions. The low profile design allows for easy loading and unloading, while the board-height extended side walls provide additional capacity for larger loads. The powerful hydraulic lift system allows for effortless dumping, significantly reducing time and physical effort on the job site. Enhanced safety features, including electric brakes and radial tires, ensure secure and stable hauling, offering peace of mind during transport.

STEEL BODY CONSTRUCTION

LED LIGHTS

Crafted with heavy-duty 11 ga steel flooring and 14 ga steel walls, this trailer ensures exceptional durability, resistance to wear and tear, and long-lasting performance under heavy loads and tough conditions.

Provide bright, energy-efficient illumination with a longer lifespan and increased visibility, enhancing safety during transport and ensuring reliable performance.

STEEL SIDES + EXTENDED HEIGHT BOARD BRACKETS

COMBO BAR DOOR + SPREADER GATE

Featuring solid steel construction, the side walls provide maximum strength and longevity, while the 2x board-extendable side walls increase load capacity for versatile use and secure cargo transport.

Offers the flexibility of both barn doors and a spreader gate. It can swing open like barn doors or act as a spreader gate, providing versatility for different unloading needs.

HYDRAULIC CYLINDER LIFT

ADJUSTABLE COUPLER

GVWR

Delivers powerful and direct lifting capability, smooth operation, simplified maintenance, and a compact design, enhancing efficiency and safety during loading and unloading.

Offers versatile height adjustments to ensure a perfect fit with various towing vehicles, enhancing safety, ease of use, and flexibility during transport.

12,000

TANDEM BRAKE AXLES

DROP LEG JACK

GVWR

The tandem brake axles provides enhanced stability, braking power, and increased weight capacity, ensuring safer, smoother transport of heavy loads.

Provides quick and easy height adjustment, reducing setup time and effort, while enhancing stability during loading and unloading.

5,000

GVWR 7,000 GVWR 9,990

14,000

SPECIFICATIONS TONGUE

SUSPENSION

Coupler

2-5/16" Adjustable A-Frame

Tires

16" ST235/80R16 (236X16-BLACK)

Tongue Type

A-Frame 5" Steel Channel

Wheels

Black Mod

L: Frame–Coupler

48"

Level Tongue Height

20-3/4", Adjustable ±4"

Axle Type

Safety Chains

Class 4, 34" x 17/32" w/ Hooks (640T)

6' WIDE: (2) 6,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 85/66 (6K8566EZBDROP) 7' WIDE: (2) 6,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 93/76 (6K9376EZBDROP)

Jack

5,000# Drop-Leg

GVWR

12,000 Lbs.

Breakaway System

Electric Kit w/ Battery Charger (701T)

Leaf Springs

5-Leaf Eye-to-Slipper

Storage

Solid Steel Box

U-Bolt

9/16" Round (653T)

Tie Plate

Large 3-3/4" x 5-5/8" (650T)

LIFT SYSTEM Hydraulic Cylinder

Single Piston, 4" Bore x 30" Stroke

REAR/GATE

Hydraulic Pump

8 Qt. Usable Volume Reservoir w/ 14' Remote

Gate Style

Combo Gate: Barn Door / Spreader

Pump Action

Power Up, Power Down

Rear Latch

Barn Door Cam Bar, Spreader Pivot and Chains

Battery

12 Volt Deep Cycle w/ 1.5 Amp Charger

Ramps

Included, Side Mount

LIGHTING

TRAILER BODY

10

Flooring Material

11 Ga Steel

Plug Type

7-Way Round

Deck Ht. from Ground

29-1/4"

Tail Lights

LED

Frame

5" Steel Channel

License Plate Illum.

Incorporated with Road Side Tail Light

Side Walls

14 ga Steel, 18" H w/ 6" Board Side Bracket

Marker Lights

LED Amber Penny Light (881T)

Cargo Hold

Full Body Length 2" Flat Bar, (14) 2" x 4" Stake Pockets, , (4) D-Rings

Clearance Lights

LED Amber Penny Light (881T)

ID Lights

LED 3-Light Bar (438T)

Fenders

10" x 75" Steel Diamond Plate

Trailer Size

6' x 12'

Item No.

6X12DLPE12K

Overall W x L

92-1/4" x 191-1/4"

Deck W x L

72" x 143-1/4"

Gate W x L

72" x 18"

Empty Weight

3,200 Lbs.

Payload Capacity

8,800 Lbs.

Trailer Size

7' x 12'

Item No.

7X12DLPE12K

Overall W x L

101-1/4" x 191-1/4"

Deck W x L

81" x 143-1/2"

Gate W x L

81" x 18"

Empty Weight

3,375 Lbs.

Payload Capacity

8,625 Lbs.

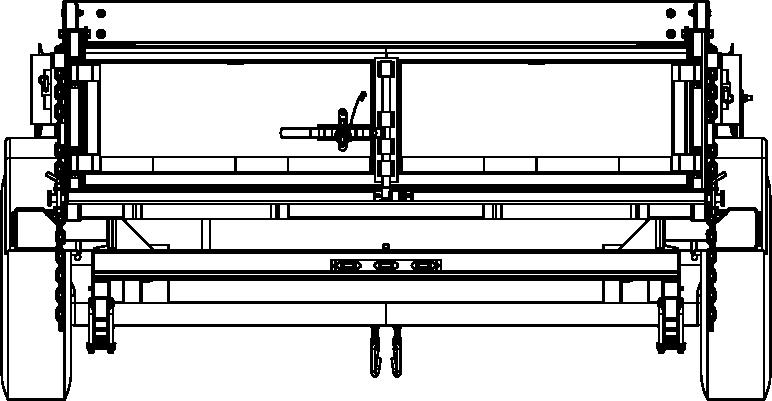

6X12DLPE12K model shown below

NOTE: BOARD BRACKETS

Brackets and boards are provided.

The dealer is responsible for drilling, cutting, and mounting prior to final delivery.

TARP BRACKETS

Equipped with a durable bracket, allowing for easy installation of a tarp system to help secure and protect your load during transit.

Tarp Roller (860) and Tarps sold separately: 5' x 10' Tarp (856) 6' x 12' Tarp (857) 7' x 14' Tarp (859)

11

DUMP TRAILERS GVWR 2,000 GVWR 2,990

GVWR

DLPE14K Series LOW PROFILE

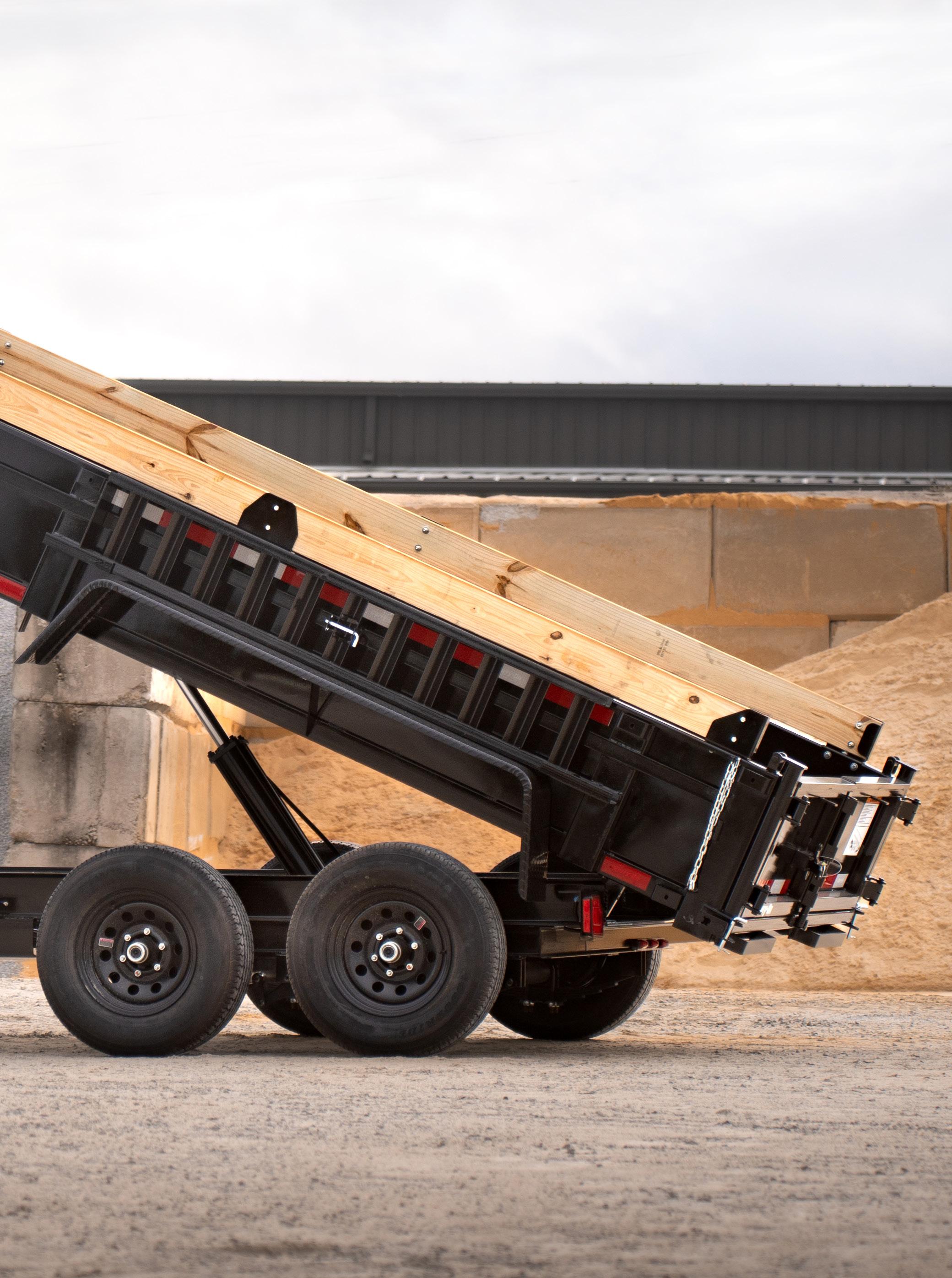

Our 14K GVWR dump trailer is engineered to tackle the toughest jobs with ease. Perfect for heavy-duty hauls with construction debris, a large volume of soil, or moving heavy materials, this tandem-axle trailer offers impressive durability and performance. Featuring a reinforced steel frame and high-quality components, it ensures long-lasting resilience under rigorous use. The low profile design allows for easy loading and unloading, while the board-height extended side walls provide additional capacity for larger loads. The powerful hydraulic lift system allows for effortless dumping, saving you significant time and physical effort on the job site. Enhanced safety features, including electric brakes and radial tires, provide secure and stable hauling, giving you peace of mind during transport.

STEEL BODY CONSTRUCTION

LED LIGHTS

Crafted with heavy-duty 11 ga steel flooring and 14 ga steel walls, this trailer ensures exceptional durability, resistance to wear and tear, and long-lasting performance under heavy loads and tough conditions.

Provide bright, energy-efficient illumination with a longer lifespan and increased visibility, enhancing safety during transport and ensuring reliable performance.

STEEL SIDES + EXTENDED HEIGHT BOARD BRACKETS

COMBO BARN DOOR + SPREADER GATE

Featuring solid steel construction, the side walls provide maximum strength and longevity, while the 2x board-extendable side walls increase load capacity for versatile use and secure cargo transport.

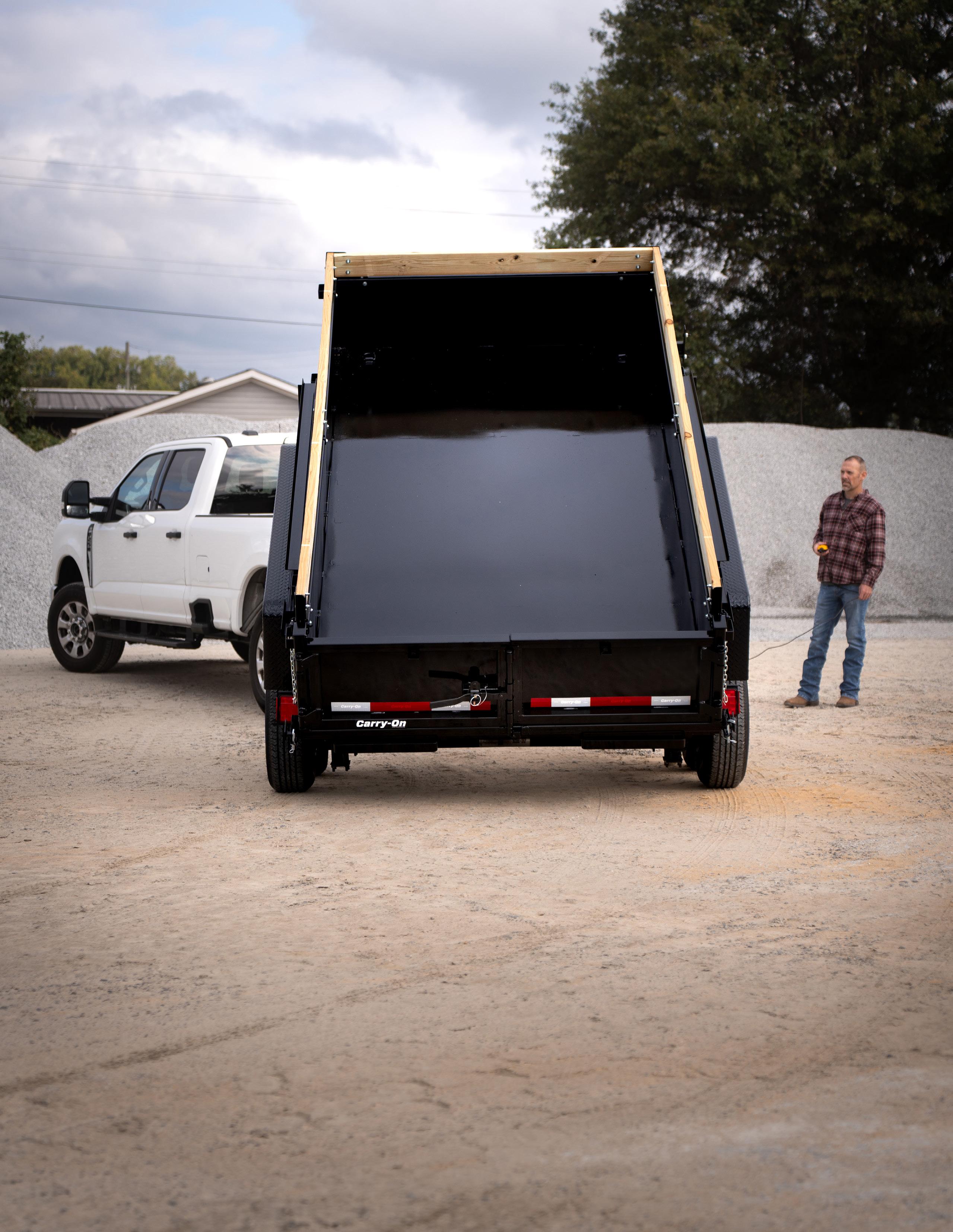

Offers the flexibility of both barn doors and a spreader gate. It can swing open like barn doors or act as a spreader gate, providing versatility for different unloading needs.

HYDRAULIC CYLINDER LIFT

ADJUSTABLE COUPLER

GVWR

Delivers powerful and direct lifting capability, smooth operation, simplified maintenance, and a compact design, enhancing efficiency and safety during loading and unloading.

Offers versatile height adjustments to ensure a perfect fit with various towing vehicles, enhancing safety, ease of use, and flexibility during transport.

12,000

TANDEM BRAKE AXLES

DROP LEG JACK

GVWR

The tandem brake axles provides enhanced stability, braking power, and increased weight capacity, ensuring safer, smoother transport of heavy loads.

Provides quick and easy height adjustment, reducing setup time and effort, while enhancing stability during loading and unloading.

5,000

GVWR 7,000 GVWR 9,990

14,000

SPECIFICATIONS TONGUE

SUSPENSION

Coupler

2-5/16" Adjustable A-Frame

Tires

16" ST235/80R16 (236X16-BLACK)

Tongue Type

A-Frame 5" Steel Channel

Wheels

Black Mod

L: Frame–Coupler

53-3/4"

Level Tongue Height

20-3/4", Adjustable ±4"

Axle Type

(2) 7,000 Lbs. E-Z Lube Brake Axle w/ 4" Drop 93/76 (7K9376EZBDROP)

Safety Chains

Class 4, 34" x 17/32" w/ Hooks (640T)

GVWR

14,000 Lbs.

Jack

5,000# Drop-Leg

Leaf Springs

5-Leaf Eye-to-Slipper

Breakaway System

Electric Kit w/ Battery Charger (701T)

U-Bolt

9/16" Round (653T)

Storage

Solid Steel Box

Tie Plate

Large 3-3/4" x 5-5/8" (650T)

REAR/GATE

LIFT SYSTEM Hydraulic Cylinder

(2) Single Piston, 3.5" Bore x 30" Stroke

Hydraulic Pump

8 Qt. Usable Volume Reservoir w/ 14' Remote

Pump Action

Power Up, Power Down

Battery

12 Volt Deep Cycle w/ 1.5 Amp Charger

TRAILER BODY

12

Flooring Material

11 Ga Steel

Deck Ht. from Ground

26-3/4"

Frame

5" Steel Channel

Side Walls

14 ga Steel, 18" H w/ 6" Board Side Bracket

Cargo Hold

Full Body Length 2" Flat Bar, (14) 2" x 4" Stake Pockets, , (4) D-Rings

Fenders

10" x 75" Steel Diamond Plate

Gate Style

Combo Gate: Barn Door / Spreader

Rear Latch

Barn Door Cam Bar, Spreader Pivot and Chains

Ramps

Included, Side Mount

LIGHTING Plug Type

7-Way Round

Tail Lights

LED

License Plate Illum.

Incorporated with Road Side Tail Light

Marker Lights

LED Amber Penny Light (881T)

Clearance Lights

LED Amber Penny Light (881T)

ID Lights

LED 3-Light Bar (438T)

Trailer Size

7' x 12'

7' x 14'

Item No.

7X12DLPE14K

7X14DLPE14K

Overall W x L

101-1/4" x 191-1/4"

101-1/4" x 224"

Deck W x L

81" x 143-1/2"

81" x 167-1/2"

Gate W x L

81" x 18"

81" x 18"

Empty Weight

3,550 Lbs.

3,725 Lbs.

Payload Capacity

10,450 Lbs.

10,275 Lbs.

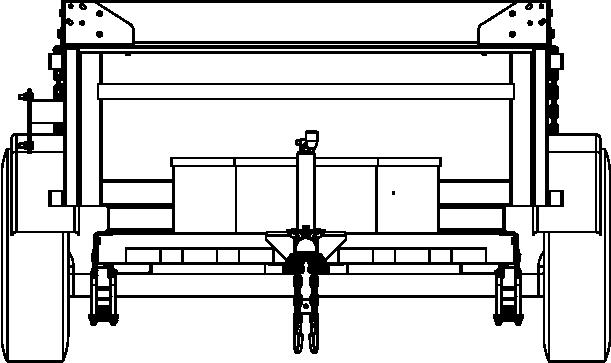

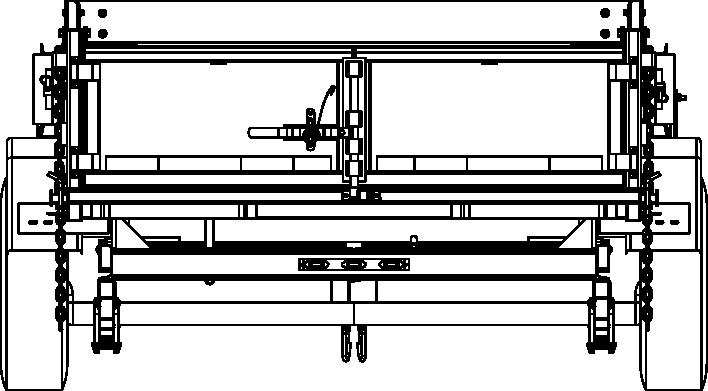

7X14DLPE14K model shown below

NOTE: BOARD BRACKETS

Brackets and boards are provided.

The dealer is responsible for drilling, cutting, and mounting prior to final delivery.

TARP BRACKETS

Equipped with a durable bracket, allowing for easy installation of a tarp system to help secure and protect your load during transit.

Tarp Roller (860) and Tarps sold separately: 5' x 10' Tarp (856) 6' x 12' Tarp (857) 7' x 14' Tarp (859)

13

101 Joe Harvey Street Lavonia, GA 30553 1-800-240-3121 www.carry-ontrailer.com
