Facade Exploration

22 FACADE EXPLORATION

Exercise 6 | ARC 108

Aidan Turner

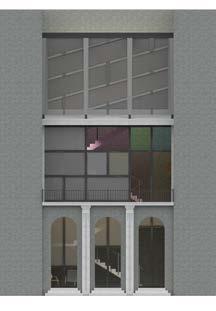

ELEVATION 1/4” = 1’-0”Front Elevation PARTIAL SECTION 1/4” = 1’-0” Side Section

This facade acts as a link between its neighboring buildings by drawing heavy influence from its context. Various elements in the windows are used to connect the horizontal lines from each of the adjacent buildings. The arches and pillars are borrowed from the building to the right while the simplistic geometries and windows are borrowed from the building to the left.

DESIGN STRATEGY DIAGRAMS

The facade of this building is also inspired by Casa Del Fascio in Como, Italy. The grid system used in Casa Del Fascio is adopted into this design, defining the entire program. Lastly, the open “column” structure
