TRACK & FIELD
Our range of track and field products is designed to meet the highest standards of performance and durability. From precision-engineered starting blocks and high-quality hurdles to robust javelins and discus equipment, each item is crafted to enhance athletes' training and competition experiences. Our products are suitable for various levels of use, from school sports programs to professional athletics, ensuring that every athlete has access to the best equipment available.
Product Variation

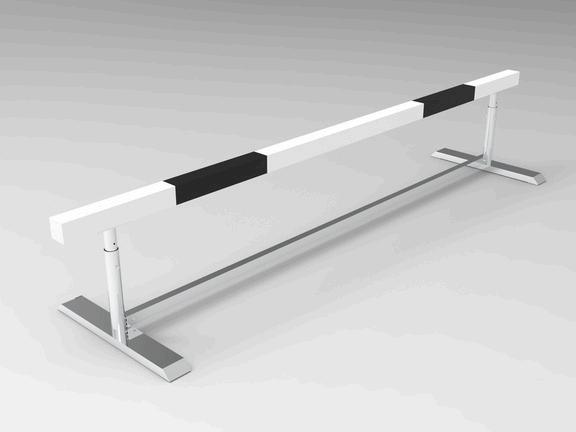

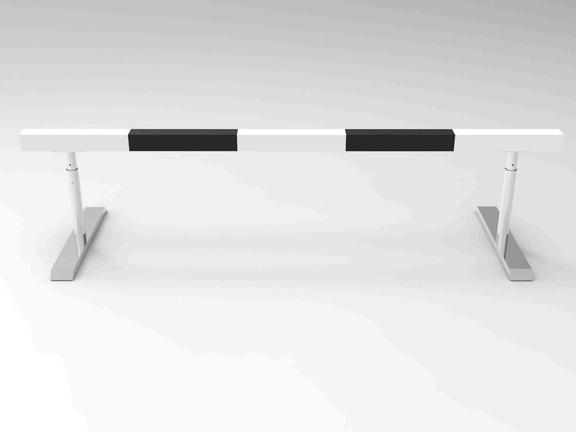

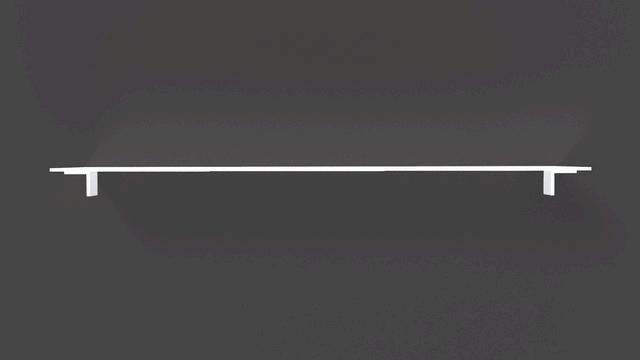

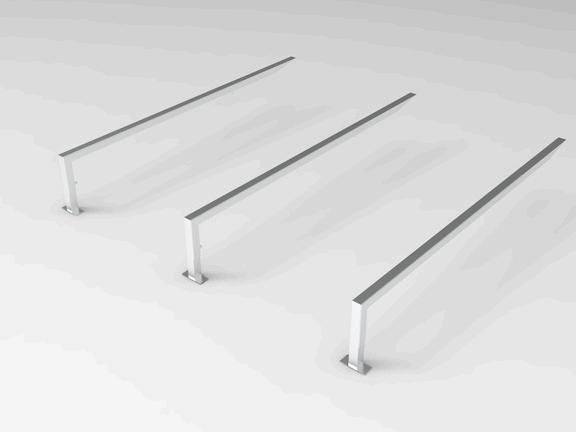

Steeplechase Hurdle
Made with a synthetic material with an integrated aluminium core. The surface is more resistant to the puncture of the spike and will not destroy the structure of the material
The height can be adjusted and it is certified by WA. Available in 2 options:
Item Code Options
FG10370SY
FG10370SYSET Length - 13.00ft
FG10390SY
FG10390SYSET With Base Support Without Base Support Length - 16.50ft With Base Support Without Base Support
Item Code Options
FG10370SY5M
FG10370SY5MSET
FG10390SY5M
FG10390SY5MSET
*1 set of order comes with 4 pcs of hurdle.
PRODUCT PROFILE : 36.00in for men
Adjusted Height at Crossbar Measurement : 5.00in : 30.00in for women
Total Weight : 90kg

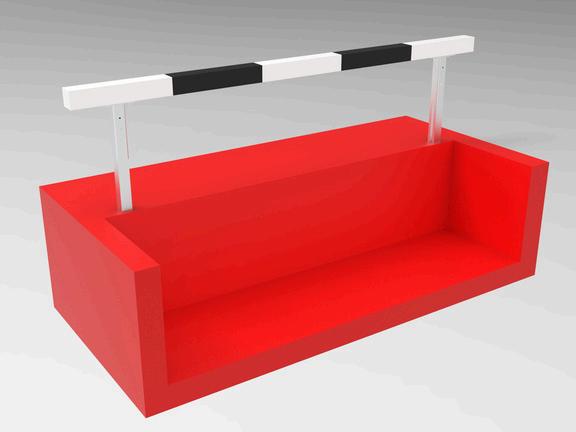

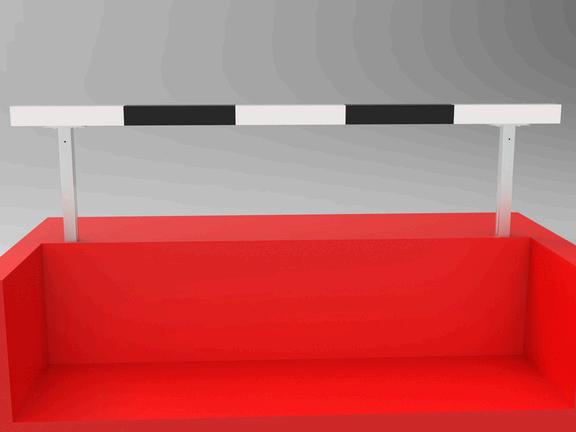

Water Ditch Hurdle
Individual Item Code: FG10410SY
Made with a combination of synthetic material with an integrated aluminium core
The height can be adjusted and it is certified by WA.
PRODUCT PROFILE
Adjusted Height at Crossbar Measurement
Total Length : 12.00ft : 30 00in | 36 00in : 5 00in
Product Variation
PRODUCT PROFILE
Base Profile
Vertical Profile
Height Adjustment Profile
Adjustable Height at

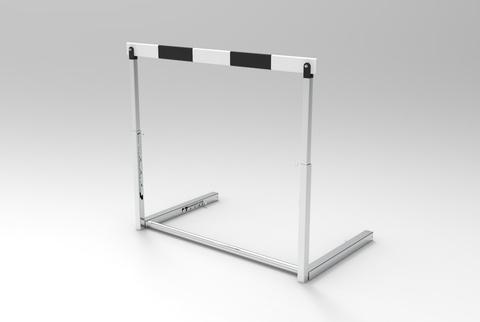

Competition Hurdle
Individual Item Code: FG10470
WA certified & it’s made from high grade aluminium
The crossbar is made from high quality, durable & extremely flexible wood.
The height can be adjusted & the scale is placed in a groove
: 2.00in x 2.00in x 0.12in : 1.58in x 1.58in x 0.12in : 1.30in x 1.30in x 0.12in : 27.00in | 30.00in | 33.00in : 36 00in | 39 00in |

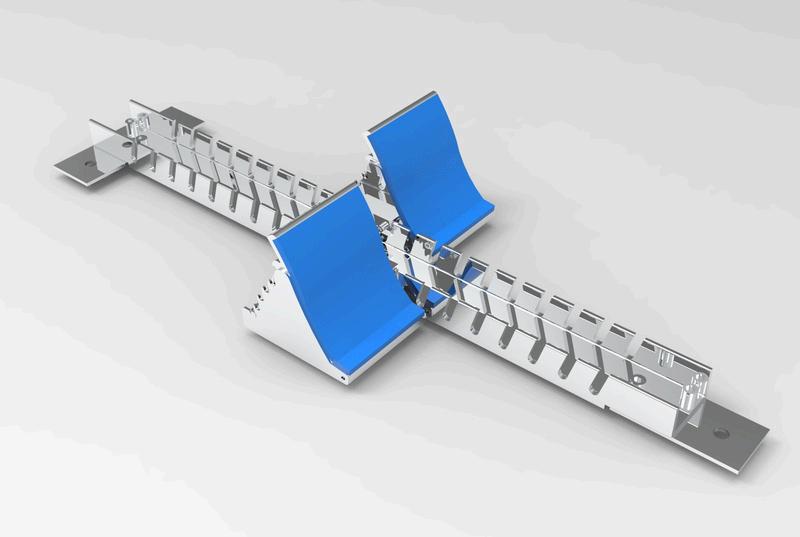

Competition Starting Block
Individual Item Code: FG10550
WA certified & it’s made from aluminium.
Parts are extruded.
The block is fixed to the ground with spikes.
The steps are covered with rubber & are height adjustable

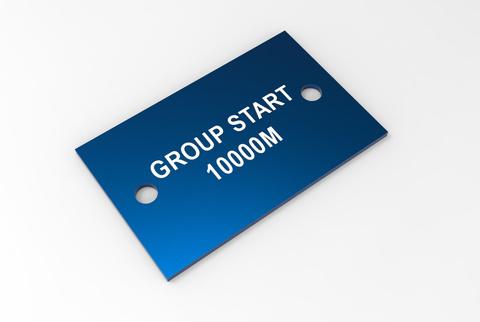

Running Track Sign 8 lanes
Individual Item Code: FG10790
Made from aluminium.
All signs are coloured anodized The set consists of all required signs for all WA certified events
Product Variation

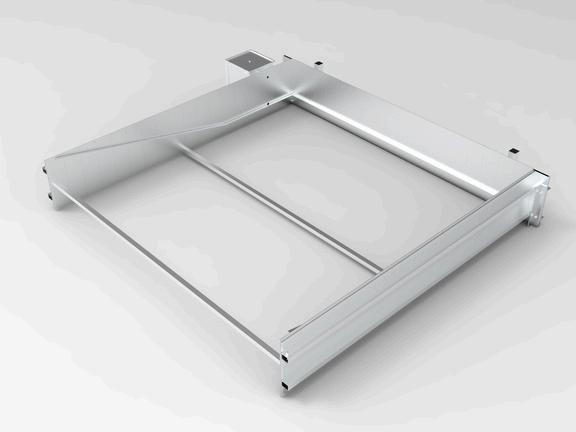

Under frame for Water Ditch Cover
Individual Item Code: FG10310
Support & put the water ditch cover in place.
All parts can be adjusted horizontally & vertically according to the site condition.

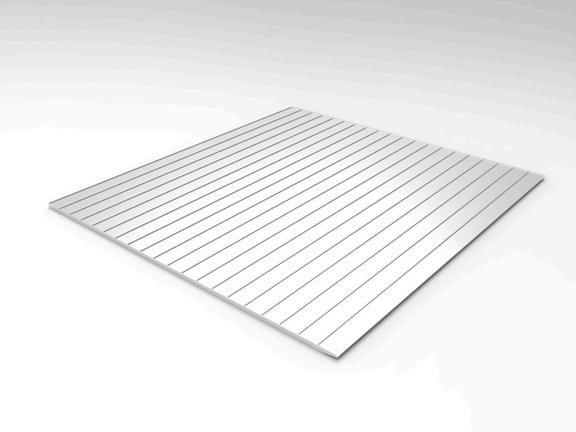

Water Ditch Covering With Rim
Individual Item Code: FG10270
Made from heavy duty aluminium profiles.
The parts of the cover are connected with tongues & grooves joints.
The rim allows the item to be covered with the surrounding area.
Water Ditch Kit, Supply Shaft Right Side
Individual Item Code: FG10285R
WA certified & it is made from extra sturdy aluminium profiles
The angle can be adjusted according to thickness of the installed flooring system.
The crossbars assure that the whole water ditch is aligned correctly.
Standard Ground Socket For Water Ditch Hurdle
Individual Item Code: FG10330
Design to match square hollow profile.
PRODUCT PROFILE
Dimension : 3.15in x 3.15in
Total Length : 15.75in
Insertion length : 13.78in
HIGH JUMP & POLE VAULT
Constructed from 6063T5 grade aluminum, our pole vault and high jump equipment epitomize durability and precision engineering. Designed for professional performance, they ensure stability and reliability, enhancing the intensity of every competition.
Product Variation

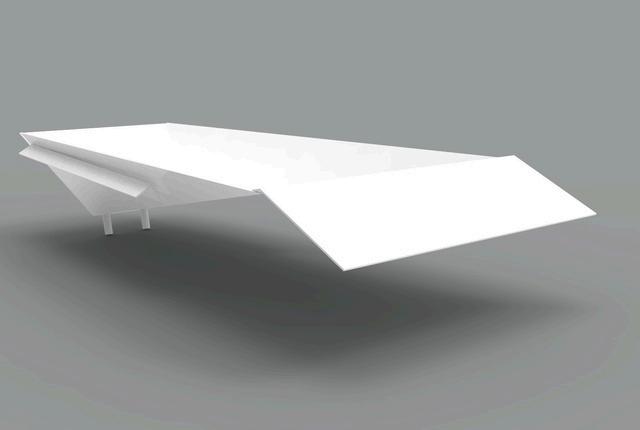

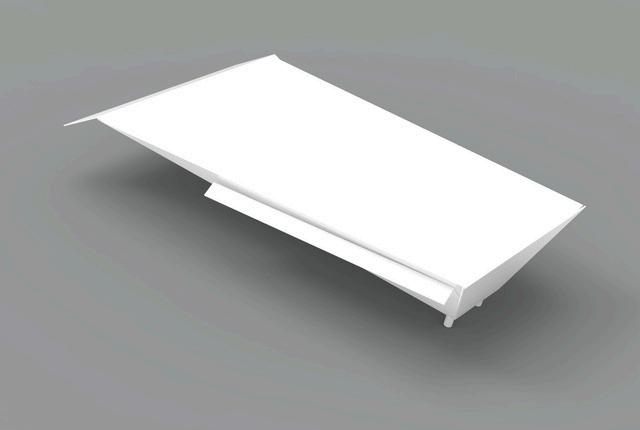

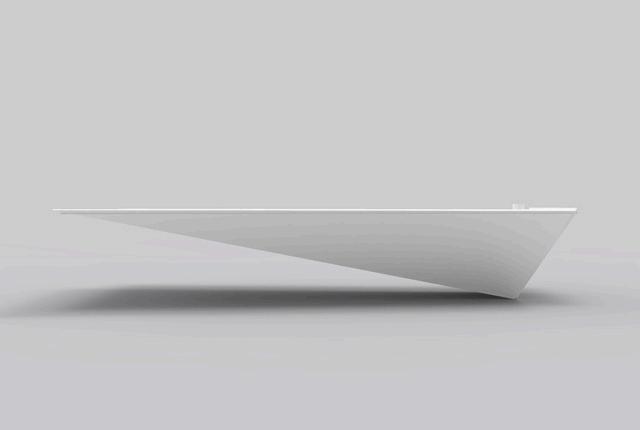

Pole Vault Box
Individual Item Code: FG20290
WA certified, the stainless steel box has a trapezoidal shape
The part towards the mat is reinforced to handle the pole's load It includes a drainage system to remove water after rain or watering.
Pole Vault Inlay
Individual Item Code: FG20310
WA certified & is made from aluminium. Matches & closes the pole vault box when not in use. Essential for runway areas shared with opposite pole vault facilities. Delivered without rubber, can be coated on site
HAMMER, DISCUSS, SHOT PUT & JAVELIN
Constructed from 6063-T5 grade aluminum, our hammer, discuss, shot put and javelin sports equipment epitomizes durability and precision engineering. Designed for professional performance, it ensures stability and reliability on the field, complementing the intensity of every game.
Product Variation
Discus Ring Dismantle
Individual Item Code: FG30220DS
It can be dismantled to reduce freight charges & prevent damage
PRODUCT PROFILE
Diameter : 8.20ft

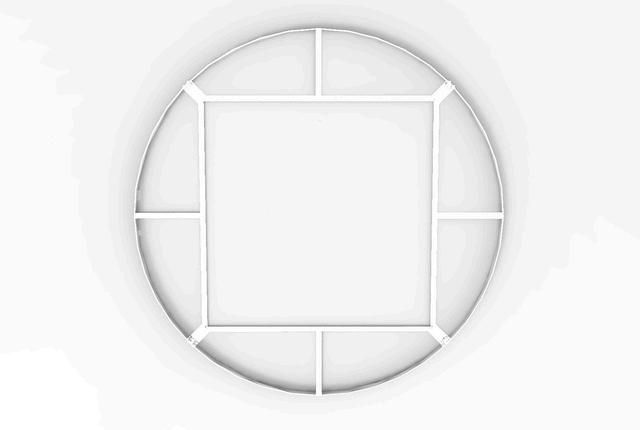

Shot Put Ring Dismantle
Individual Item Code: FG30210DS
It is built for space saving purpose. It can be dismantled to reduce freight charges & prevent damage.
PRODUCT PROFILE
Diameter : 7.00ft
Hammer Inlay Ring Fibre Glass
Individual Item Code: FG30140
It is made from fiberglass & consists of 4 elements The inlay ring reduces the discus ring diameter for the hammer event.

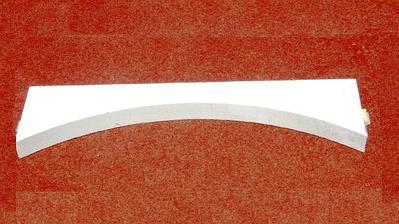

Shot Put Stop Board Synthetic
Individual Item Code: FG30440
Certified by WA, it is made from synthetic material, & it’s arcshaped to align with the inner edge of the shot put ring. It can be easily fixed to the ground with screws.
Product Variation

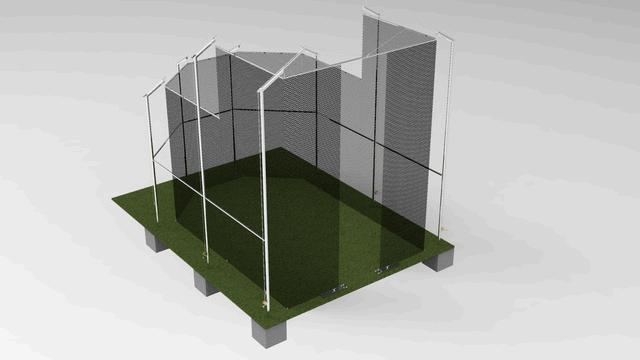

discus & Hammer Cage - Cyclone
Individual Item Code: FG30305
Extra sturdy aluminum profiles & made to withstand wind speed up to 34m/s.
Equipped with hinge & guide rail. Easy net position adjustment and installation.
PRODUCT PROFILE
Profile Measures
Wall Thickness of the Post Front Post Height
: 4 73in x 4 00in
: 0 158in - 0 237in : 32 80ft
Net Thickness
Mesh Width
: 0 20in : 1 78in : 23 00ft

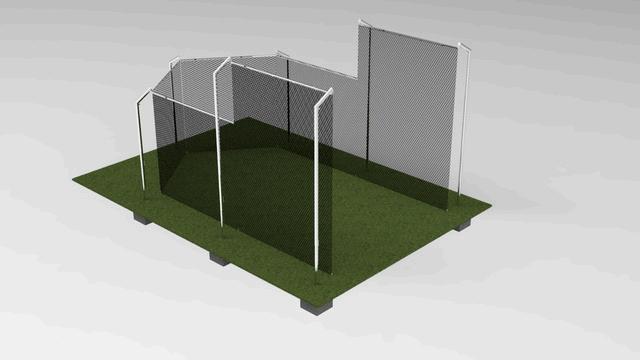

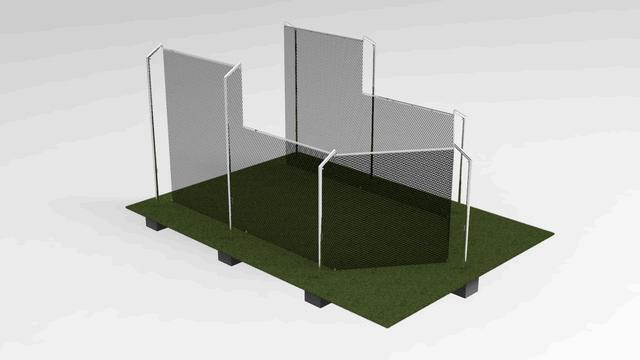

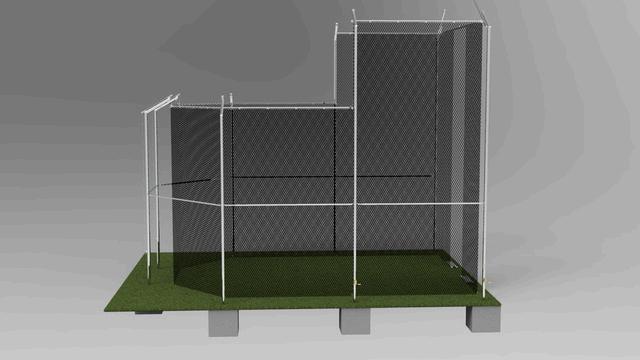

Discus Cage - Storm
Individual Item Code: FG30070
Made from special extra sturdy aluminum profiles.
Posts equipped with hinge & spacers to keep the net in position. Complies with new WA regulation 190.3.
PRODUCT PROFILE
Profile measures
Wall Thickness of the Post Front Post Height
: 4.73in x 4.00in : 0.12in : 20.00ft
Net Thickness
Mesh Width
Back Post Height
Back Post Height : 0.20in : 1.78in : 13.15ft
Product Variation
One Discus and Hammer cage - Cyclone comprises of:
FG30070DS
FG30070ACCS01
FG30070ACCS02
FG30070ACCS03
FG30070ACCS04
FG30070ACCS05
FG30070ACCS06
FG30070ACCS07
FG30070ACCS08
FG30070ACCS09
FG30070ACCS10
FG30100
FG30305DS
FG30305
FG30305ACCS01
FG30305ACCS02
FG30305ACCS03
FG30305ACCS04
FG30305ACCS05
FG30305ACCS06
FG30305ACCS07
FG30305ACCS08
FG30305ACCS09
FG30305ACCS10
FG30305ACCS11
FG30305ACCS12
FG30305ACCS13
FG30305ACCS14
FG30305ACCS15
FG30305ACCS16
FG30305ACCS17
: Discus cage 13.15ft - 20.00ft dismantle
: 20 00ft post
: 13.15ft post
: Crossbar for support on top length approx 14 00ft
: Crossbar for support on top length approx. 12.20ft
: Ground anchor including eye bolt
: Carabiner hook
: Steel cable length approx. 6.60ft for overhang crossbar
: Net discus cage 13.15ft - 20.00ft including pull up devices
: Fastening ropes
: Steel cable for front post 20.00ft
: Standard ground socket discus & hammer cage
: Discus & hammer cage 23 00ft - 33 00ft h dismantle
: Discus & hammer cage 23.00ft - 33.00ft h.
: 23 00ft post
: 33.00ft post
: 33 00ft front post including fix equipment for guide rail
: Nylon rollers
: Ground anchor incl eye bolt
: Black safety net 0.16in 1.78in mesh
: Fastening ropes
: Carabiner hook
: Movable weight for door opening
: Support bar for post stability length approx. 14.00ft
: Support bar for post stability length approx. 9.55ft
: Crossbar for support the net on top length approx. 14.00ft
: Crossbar for support the net on top length approx. 9.55ft
: Guide rail for hammer cage 30305
: Net for discus & hammer cage high 23.00ft - 33.00ft model 30305
: Carabiner hook pull - up devices for discus and hammer cage net
: Winch for hammer cage
Please note that different discus and hammer cage comprises of different items You’re advised to contact our sales representative and ask for a detailed TDS for items included in your orders.

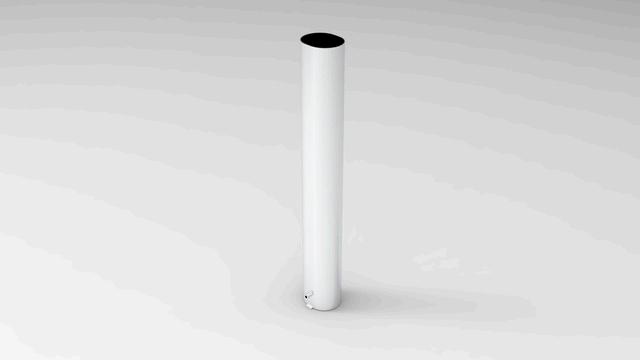

Standard Ground Socket for Discus & Hammer Cage
Type of Hammer Cage For Cyclone Model For Storm Model
It is made from aluminium
A compartment is designed to store debris without affecting the post height.
PRODUCT PROFILE
Oval Profile
: 4.73in x 3.95in
LONG JUMP & TRIPLE JUMP
Constructed from 6063T5 grade aluminum, our long jump and triple jump sports equipment is designed to meet the highest standards of performance and durability. It is ideal for athletes of all levels, helping them to achieve their best results.
Product Variation

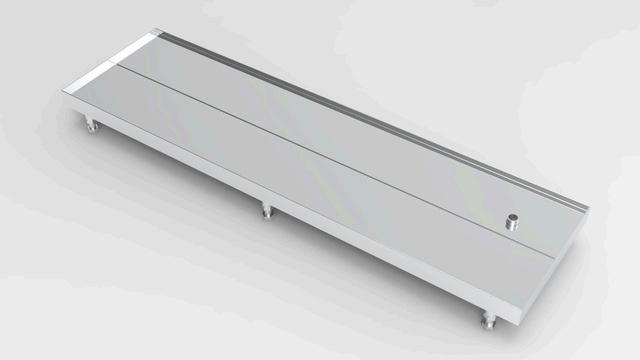

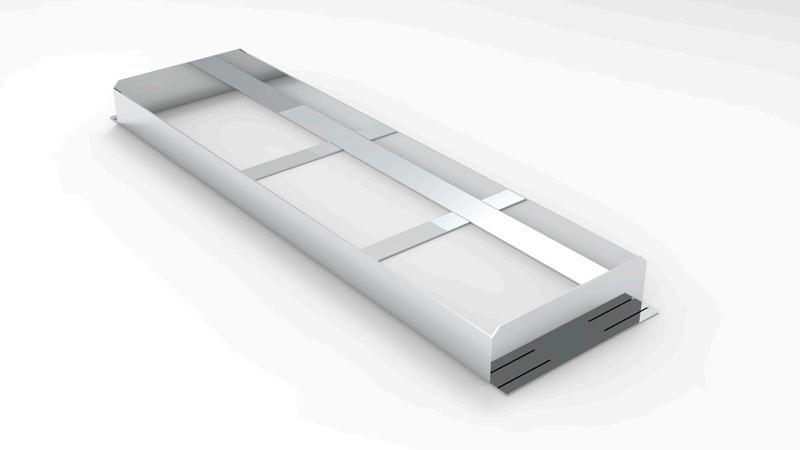

Installation Through for Take Off Board
Individual Item Code: FG40040
It is WA certified & is made from aluminium. When the tray is installed, the synthetic material can be fitted flush with the boards preventing athletes from treading on metal with their spikes & possibly getting caught there
Equipped with a distance boards on delivery to ensure the shape of the through is not affected during installation.
PRODUCT PROFILE
Dimension : 48.00in x 13.40in x 3.95in
Installation through Profile
: approx 0 52in lower

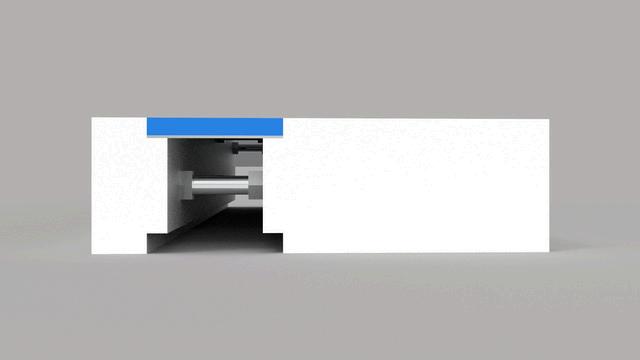

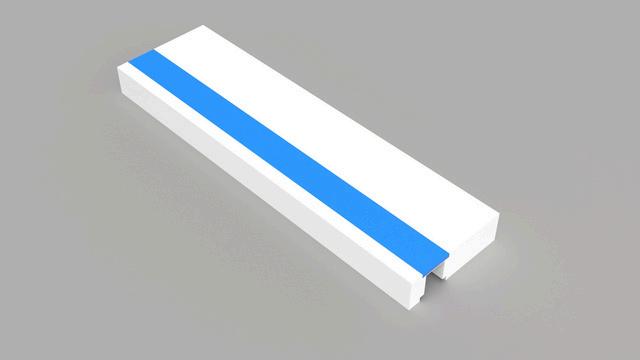

Take Off Board Aluminium & Synthetic
Individual Item Code: FG40155
WA certified & made from an aluminum core with a synthetic finish
Equipped with stainless steel bolts for vertical adjustment & horizontal bolts to secure it in place
Take-off area is replaceable.
PRODUCT PROFILE
Dimension
Replacement take of areas’ measurement
: 48.00in x 13.40in x 3.95in : 7.90in x 48.00in x 0.60in
Product Variation
Blanking Beam without Rubber
Individual Item Code: FG40010
WA certified & made from aluminum. Adjustable height with 6 stainless steel screws.
PRODUCT PROFILE
Dimension: 48.00in x 13.40in x 3.95in
Sand Trap ECO
Individual Item Code: FG40430
No aluminium base & must be installed on a concrete base at the site.
End Cap for Sand Trap
Individual Item Code: FG40440
Made from special aluminum profiles with aluminum grates & a honeycomb rubber mat. Can be installed as a single or double row End cap for aluminium sand trap.
PRODUCT PROFILE
Length Width : 39.40in : 19.70in
Product Variation

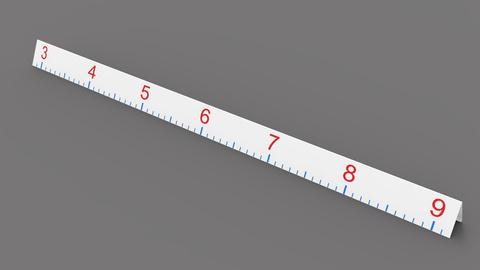

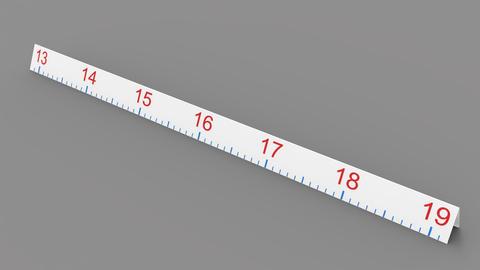

Measuring Board for Long Jump & Triple Jump
Made from white powder-coated aluminum.
Weatherproof panels equipped with scales on both sides
Delivered in 3 sections for easy transport & storage purposes
Item Code
Variations
FG40190 For long jump 10.00ft - 29.60ft
FG40200 For triple jump 42.65ft - 62.40ft
