IOPTRON

HEM27 and HEM27EC Mounts

(plus a tripod of course, we offer the new carbon fiber 8061 to fill this role). The initial response from dealers has been tremendous, we anticipate the same from the amateur astronomy community.

They continued, “The HEM27EC features a high resolution RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “ sans ” guiding. ”

Utilizing state of the art harmonic drive technology for the RA movement in tandem with a backlash free DEC worm/belt drive design, the HEM27s deliver a desirable

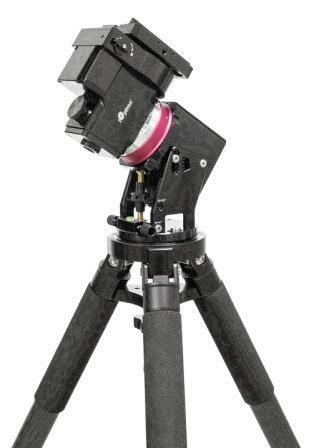

The HEM27 and the HEM27EC are iOptron ’ s new hybrid harmonic drive mounts. These light weight, high payload mounts weigh in at 8.15lbs with a payload capability of 29.74lbs, without a counter weight or shaft.

As the iOptron team notes, “We are pleased to introduce a revolutionary new mount family of equatorial mounts, the HEM27 and HEM27EC hybrid harmonic drive mounts. HEM27s do not need a heavy counterweight nor cumbersome shaft, ushering in a new era of portability. The mount ’ s weight of just over 8lbs is all one needs to support a payload of nearly 30lbs weight to payload efficiency. Its black anodized all metal CNC machined design offers a rugged platform that will perform at the highest level for many.

Unique features such as an electronic friction break and power down memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

Highlights of the iOptron HEM27 and HEM27EC Mounts include:

• Advanced harmonic drive technology • Payload capacity of 13.5 kg (29.7 lbs.) with the mount weight of 3.7 kg (8.15 lbs.) • CNC machined and cast metal body • Unique friction brake to safely stop movement during a planned or unplanned power interruption • 360 second gear period • Permanent periodic error correction (PPEC) • Go2Nova ® hand controller with • 212,000 object database • iPolar electronic polar scope for easy and accurate polar alignment • Cable management system, no hanging exterior cables to moving parts • Dual saddle (Vixen and

Losmandy-D styles) • Built in zero position search and locator • Power down position and location memory • Integrated ST-4 autoguiding port • Built-in Wi-Fi (via hand controller) • USB port for firmware upgrade and computer control • Soft carrying case • Two year warranty

Specifications of the iOptron HEM27 and HEM27EC Mounts include:

• Mount: Hybrid Equatorial Mount • RA Gear system: StrainWave 17

Continued on page 14

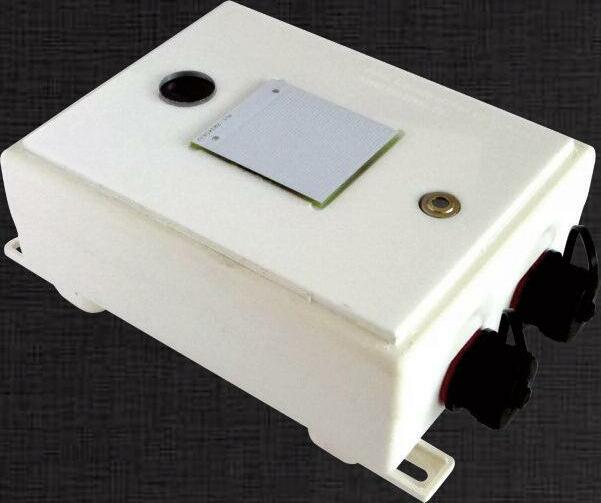

CLOUD DETECTION

With our permanent and portable cloud detection and sky condition options, you’ll be in the know wherever you go!

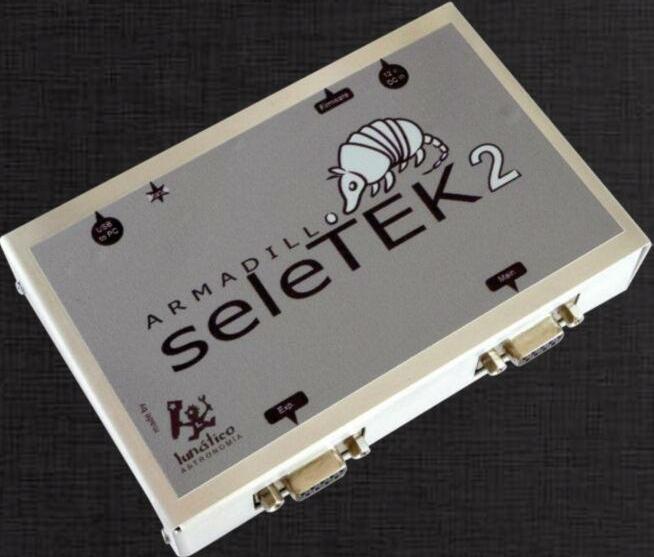

FOCUSER CONTROL

With our Seletek family of controllers every conceivable option is covered – including autonomous control!

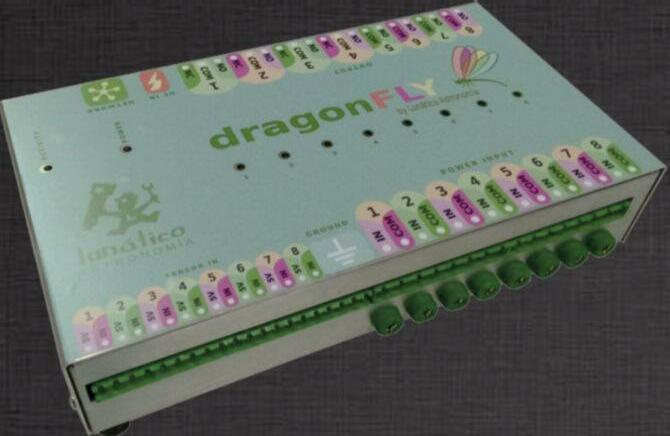

OBSERVATORY CONTROL

Our Dragonfly observatory controller system o ers the ultimate remote observatory control!

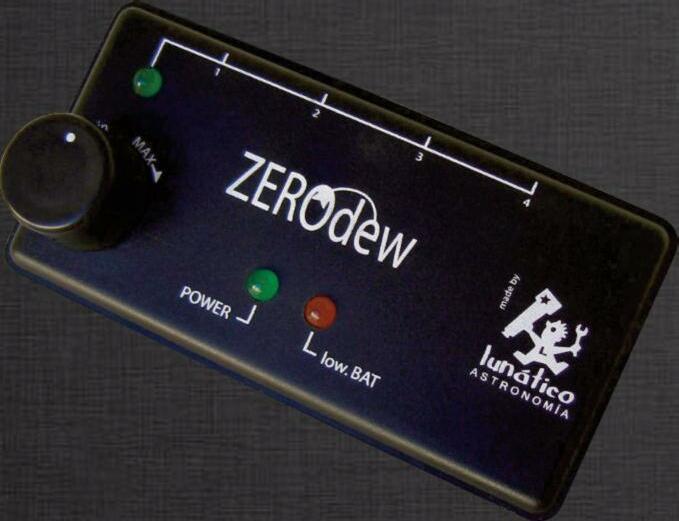

HUMIDITY CONTROL

Our ZeroDew system o ers state of the art control for conquering dew!

OBSERVATORY MONITORING

Use our Good Night System (GNS) to let your smartphone supervise the observatory while you sleep!

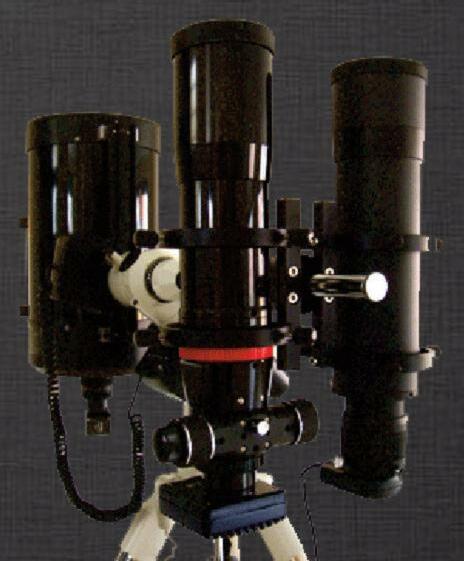

MOUNTING SYSTEM

Unique in the industry, our DuoScope system o ers unparalleled weight reduction with rock solid performance!

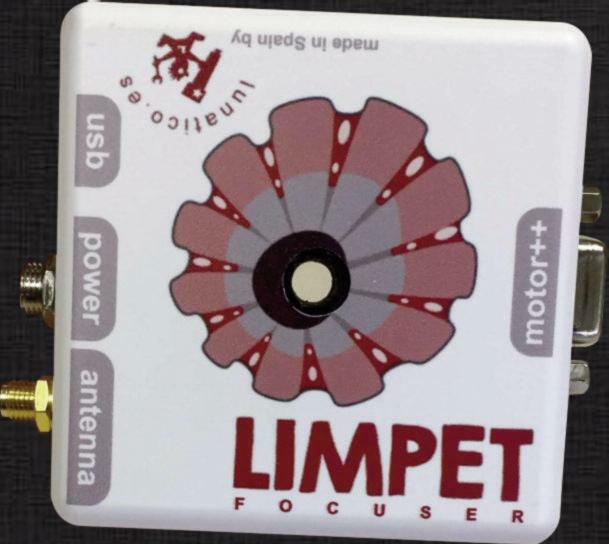

NEW FOR 2020

Just introduced! The Seletek Limpet is the new standard in streamlined focus control with WiFi and USB connectivity!

INTRODUCTORY PRICE - ONLY $149!

IOPTRON Continued from page 12

(RA)/worm gear (DEC) • DEC Gear system: Backlash-free worm/belt system • RA reduction ratio: 120 • Payload w/o CW : 29.14 lbs. (13.5kg) • Mount weight: 7.49lbs (3.4kg) w/o dovetail saddle, 8.15 ls (3.7kg) with dovetail saddle • Payload/Mount weight: 3.65 • Period: 360 second • Drive motor: Stepper motor • Structure Material: All metal,

CNC machined • Exterior finish: Anodized black • Polar Scope: iPolar electronic polar scope • PEC: Yes, Permanent PEC • Latitude adjustment range: 15º ~ 65º • Azimuth adjustment range: ± 5º • Level indicator: Level bubble • Control system:

GOTONOVA/Commander • Hand Controller: Go2Nova 8409 with ~212,000 objects database • Tracking: Automatic • Maximum slew speed: 6º/sec • Power consumption: 0.5A(Tracking), 1A(GOTO) • Power Requirement: 12V

DC, 5A • AC adapter: 100V ~ 240V

(included, indoor use only) • Power off brake: Electronic friction brake • Power-down memory: Yes • Wi-Fi: Built-in • Communication port Yes (Wi-Fi and USB) • Autoguide port: Yes (ST-4 compatible) • Firmware upgrade: Yes • Tripod: Optional • Operation temperature: -20ºC ~ 50ºC (hand controller -10ºC ~ 40ºC)

You can learn more about the iOptron HEM27 and HEM27EC Mounts at www.ioptron.com.
