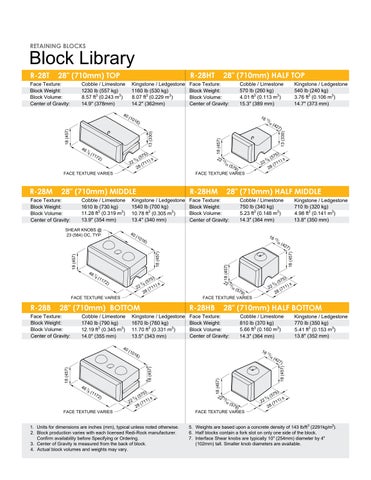

Block Library
R-28T 28" (710mm) TOP
Block Weight:
Block Volume: Cobble /
Center of Gravity:
R-28M 28" (710mm) MIDDLE
Face Texture:
Block Weight: Block Volume:
Center of Gravity:
Cobble / Limestone Kingstone / Ledgestone
R-28HT 28" (710mm) HALF TOP
Face Texture:
Block Weight: Block Volume:
Center of Gravity:
R-28B 28" (710mm) BOTTOM
Cobble / Limestone
Block
Center of Gravity:
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block.
4. Actual block volumes and weights may vary.
R-28HM 28" (710mm) HALF MIDDLE
Face Texture:
Block Weight: Block Volume:
Center of Gravity:
/ Limestone Kingstone / Ledgestone
R-28HB 28" (710mm) HALF BOTTOM
5. Weights are based upon a concrete density of 143 lb/ft3 (2291kg/m3).
6. Half blocks contain a fork slot on only one side of the
RETAINING BLOCKS
Block Library
R-41T 41" (1030mm) TOP *
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block.
4. Actual block volumes and weights may vary.
5. Weights are based upon a concrete density of 143 lb/ft3 (2291kg/m3).
6. Half blocks contain a fork slot on only one side of the block.
7. Interface Shear knobs are typically 10" (254mm) diameter by 4" (102mm) tall. Smaller knob diameters are available.
8. * 41" (1030mm) Top blocks are not typical and used in limited applications.
RETAININGBLOCKS
BlockLibrary
Cobble/Limestone
Kingstone/Ledgestone
SHEARKNOBS@ 23(584)OC,TYP.
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.BlockproductionvarieswitheachlicensedRedi-Rockmanufacturer. ConfirmavailabilitybeforeSpecifyingorOrdering.
3.CenterofGravityismeasuredfromthebackofblock.
4.Actualblockvolumesandweightsmayvary.
5.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3). 6.Halfblockscontainaforkslotononlyonesideoftheblock.
7.InterfaceShearknobsaretypically10"(254mm)diameterby4" (102mm)tall.Smallerknobdiametersareavailable.
RETAINING BLOCKS
Block Library
Face Texture:
Block Weight: Block Volume:
Center of Gravity:
Cobble / Limestone
Kingstone / Ledgestone
Center of Gravity: Block
(1520mm)
Cobble / Limestone
Kingstone / Ledgestone
Kingstone / Ledgestone
Cobble / Limestone Cobble / Limestone
Kingstone / Ledgestone
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block.
4. Actual block volumes and weights may vary.
7. Half blocks contain a fork slot on only one side of the block. 8. Interface Shear knobs are typically 10" (254mm) diameter by 4" (102mm) tall. Smaller knob diameters are available.
RETAINING BLOCKS
Block Library
Block
Infill
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block, excluding stone infill.
RETAINING BLOCKS
Block Library
Face Texture:
Block Weight: Block Volume:
Center of Gravity:
Cobble / Limestone
/ Limestone
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block.
4. Actual block volumes and weights may
Cobble / Limestone
of
/
Cobble
RETAINING BLOCKS
Block Library
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block.
4. Actual block volumes and weights may vary.
RETAINING BLOCKS
Block Library
R-28PCT 28" (710mm) PC TOP
Kingstone / Ledgestone
(1030mm)
Center of Gravity: Block
Kingstone / Ledgestone
R-28PCB 28" (710mm) PC BOTTOM
R-41PCB 41" (1030mm) PC BOTTOM
Block
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of
4. Actual block
5. Weights are based upon a concrete density of 143 lb/ft
6. Blocks
7. Interface Shear knobs
Block Library
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3.
RETAINING BLOCKS
Block Library
R-AB ANCHOR BOTTOM
Center of Gravity:
SPECIALITY BLOCK
SPECIALITY BLOCK
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Center of Gravity is measured from the back of block.
4. Actual block volumes and weights may vary.
R-AM ANCHOR MIDDLE
SPECIALITY BLOCK
5. Weights are based upon a concrete density of 143 lb/ft3 (2291kg/m3).
6. 27" (695) wide blocks contain a fork slot on only one side of the block. These are speciality blocks and may have limited availability and is only used in double 90 degree corner applications.
7. Interface Shear knobs are typically 10" (254mm) diameter by 4" (102 mm) tall. Smaller knob diameters are available.
FREESTANDING BLOCKS
Block Library
9" (230 mm) STEPDOWN TOP
Cobble / Limestone
Kingstone / Ledgestone
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
Kingstone / Ledgestone
3. Architectural faces on the blocks have varying texture. 4. Actual block volumes and weights may vary.
Weights
FREESTANDING BLOCKS
Block Library
Face Texture:
Block Weight: Block Volume:
F-SG STRAIGHT GARDEN TOP F-SB STRAIGHT BOTTOM
Face Texture:
Block Weight: Block Volume:
Cobble / Limestone
Kingstone / Ledgestone
Face Texture:
Block Weight: Block Volume:
Cobble / Limestone
Kingstone / Ledgestone
Cobble / Limestone
Kingstone / Ledgestone
Block Weight: Block Volume: Face Texture:
Cobble / Limestone
(610) ± LEDGESTONE
(584) ± LIMESTONE
Kingstone / Ledgestone
FACE TEXTURE VARIES
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Architectural faces on the blocks have varying texture.
4. Actual block volumes and weights may vary. 5. Weights are based upon a concrete density of
24 (610) ± LEDGESTONE COBBLESTONE
(584) ± LIMESTONE
).
6" (152 mm) diameter vertical semi-clyindrical voids at the ends of the block for mechanical tie-down are available, refer to Force Protection blocks for additional information.
Knobs are typically 10" (254mm) diameter by 4" (102 mm) tall. Smaller knobs are available.
FREESTANDINGBLOCKS
BlockLibrary
F-VMVARIABLERADIUSMIDDLE
FaceTexture:
BlockWeight: BlockVolume:
KNOBS@23 (584)OC,TYP.
RECESSOPTIONAL
Cobble/Limestone
Kingstone/Ledgestone
FaceTexture:
BlockWeight: BlockVolume:
Cobble/Limestone
Kingstone/Ledgestone
RECESSOPTIONAL
OPTIONAL GROOVE EXTENTION
12(305)x4(101)END RECESS
13(330) 18 (457) 461 8(1172)
FACETEXTUREVARIES
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
F-VBVARIABLERADIUSBOTTOM
FaceTexture:
BlockWeight:
BlockVolume:
OPTIONAL GROOVE EXTENTION
FACETEXTUREVARIES
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
KNOBS@23 (584)OC,TYP.
RECESSOPTIONAL
Cobble/Limestone
Kingstone/Ledgestone
F-VTVARIABLERADIUSTOP
FaceTexture:
BlockWeight: BlockVolume:
FACETEXTUREVARIES
10(254)DIAMETERx 4(102)HIGH,TYPICAL.6(152) DIAMETERKNOBSAVAILABLE.
TEXTURE VARIES
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.BlockproductionvarieswitheachlicensedRedi-Rockmanufacturer. ConfirmavailabilitybeforeSpecifyingorOrdering.
3.Variableradiusfeaturecanbecastononlyoneend,coordinate.
OPTIONAL GROOVE EXTENTION
Cobble/Limestone
Kingstone/Ledgestone
RECESSOPTIONAL
LIFTINGINSERTORTEXTURED TOPSURFACE,OPTIONAL
FACETEXTUREVARIES
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
4.Architecturalfacesontheblockshavevaryingtexture.
5.Actualblockvolumesandweightsmayvary.
6.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3).
7.Knobsaretypically10"(254mm)diameterby4"(102mm)tall. Smallerknobsareavailable.
FREESTANDING BLOCKS
Block Library
Face Texture:
Block Weight:
Block Volume:
Cobble / Limestone
Kingstone / Ledgestone
Face Texture:
Block Weight: Block Volume:
Cobble / Limestone
Kingstone / Ledgestone
LIFTING INSERT OR TEXTURED TOP SURFACE, OPTIONAL
Face Texture:
Block Weight:
Block Volume:
Cobble / Limestone
6 (152) DIAMETER x 18 (457) TALL RECESS EACH END
CAST-IN #4 (#13) REBAR HOOK EACH END
24 (610) ± LEDGESTONE COBBLESTONE
23 (584) ± LIMESTONE
Kingstone / Ledgestone
KNOBS @ 23 (584) OC, TYP. FACE TEXTURE VARIES
FACE TEXTURE VARIES
10 (254) DIAMETER x 4 (102) HIGH, TYPICAL. 6 (152) DIAMETER KNOBS AVAILABLE.
3 (76) DIAMETER HORIZONTAL VOID FULL LENGTH OF BLOCK, TYP.
(1172)
FACE TEXTURE VARIES
24 (610) ± LEDGESTONE COBBLESTONE 23 (584) ± LIMESTONE
1. Units for dimensions are inches (mm), typical unless noted otherwise.
2. Block production varies with each licensed Redi-Rock manufacturer. Confirm availability before Specifying or Ordering.
3. Architectural faces on the blocks have varying texture. 4. Actual block volumes and weights may vary.
FACE TEXTURE VARIES
24 (610) ± LEDGESTONE
COBBLESTONE
23 (584) ± LIMESTONE
FREESTANDINGBLOCKS
BlockLibrary
F-CMCORNERMIDDLE
FaceTexture:
BlockWeight: BlockVolume:
KNOBS@23 (584)OC,TYP.
Cobble/LimestoneKingstone/Ledgestone
FaceTexture:
BlockWeight: BlockVolume:
CORNERBLOCKS TEXTUREDON THREEFACES
FACETEXTUREVARIES
FaceTexture:
BlockWeight: BlockVolume:
KNOBS@23 (584)OC,TYP.
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
Cobble/LimestoneKingstone/Ledgestone
FACETEXTUREVARIES
10(254)DIAMETERx 4(101)HIGH,TYPICAL.6(152) DIAMETERKNOBSAVAILABLE.
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.BlockproductionvarieswitheachlicensedRedi-Rockmanufacturer. ConfirmavailabilitybeforeSpecifyingorOrdering.
3.Architecturalfacesontheblockshavevaryingtexture.
Cobble/LimestoneKingstone/Ledgestone
FACETEXTUREVARIES
FaceTexture:
BlockWeight: BlockVolume:
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE FACE TEXTURE VARIES
Cobble/LimestoneKingstone/Ledgestone
LIFTINGINSERTORTEXTURED TOPSURFACE,OPTIONAL
VARIES
FACETEXTUREVARIES 24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
4.Actualblockvolumesandweightsmayvary.
5.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3). 6.Knobsaretypically10"(254mm)diameterby4"(102mm)tall. Smallerknobsareavailable.
FREESTANDINGBLOCKS
BlockLibrary
FaceTexture:
BlockWeight: BlockVolume:
Cobble/LimestoneKingstone/Ledgestone
FaceTexture:
BlockWeight: BlockVolume:
FACETEXTUREVARIES
FaceTexture:
BlockWeight: BlockVolume:
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
Cobble/LimestoneKingstone/Ledgestone
10(254)DIAMETERx4(101)HIGH KNOB,TYPICAL.6(152)DIAMETER KNOBAVAILABLE.
(457)
Cobble/LimestoneKingstone/Ledgestone
CORNERBLOCKS TEXTUREDON THREEFACES 18 (457) 231 16(586) 18 (457) 231 16(586) 231 16(586) 4.6ft3(0.13m3)
FACETEXTUREVARIES
FaceTexture:
BlockWeight: BlockVolume:
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE FACE TEXTURE VARIES
Cobble/LimestoneKingstone/Ledgestone
(457) 231 16(586)
FACETEXTUREVARIES
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE FACE TEXTURE VARIES
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.BlockproductionvarieswitheachlicensedRedi-Rockmanufacturer. ConfirmavailabilitybeforeSpecifyingorOrdering.
3.Architecturalfacesontheblockshavevaryingtexture.
FACETEXTUREVARIES
LIFTINGINSERTORTEXTURED TOPSURFACE,OPTIONAL
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE FACE TEXTURE VARIES
4.Actualblockvolumesandweightsmayvary.
5.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3).
6.Knobsaretypically10"(254mm)diameterby4"(102mm)tall. Smallerknobsareavailable.
FREESTANDINGBLOCKS
BlockLibrary
BlockWeight: BlockVolume:
FaceTexture: F-HCHOLLOW-CORE
F-CHCCORNERHOLLOW-CORE
Cobble/Limestone
Kingstone/Ledgestone
FaceTexture:
FaceTexture: Cobble/Limestone
BlockWeight: BlockVolume:
FACETEXTUREVARIES
TEXTURE VARIES
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
FACETEXTUREVARIES
Cobble/Limestone
BlockWeight: BlockVolume:
FACETEXTUREVARIES
Kingstone/Ledgestone
FaceTexture:
BlockWeight:
Cobble/Limestone
Kingstone/Ledgestone
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE InfillVolume: InfillVolume: InfillVolume:
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
Kingstone/Ledgestone
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.ConfirmblockproductionwithlicensedRedi-Rockmanufacturer.
3.Architecturalfacesontheblockshavevaryingtexture.
4.Averageblockweightsshown.Actualblockvolumesandweightsmayvary.
5.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3).
FACETEXTUREVARIES FACE TEXTURE VARIES
FREESTANDINGBLOCKS
BlockLibrary
FaceTexture:
Cobble/Limestone BlockWeight: BlockVolume:
F-9SG9"(230)STEPDOWNGARDEN
FACETEXTUREVARIES
LIFTINGINSERT,OPTIONAL
FaceTexture:
BlockWeight: BlockVolume:
FaceTexture:
BlockWeight: BlockVolume:
4x6x2(102x152x51) OVALKNOBS@23 (584)OC,TYP.
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
F-90C90DEGREECORNER
Cobble/LimestoneKingstone/Ledgestone
FACETEXTUREVARIES
TOPBLOCKHASNOSHEARKNOBS ANDATEXTUREDTOPSURFACE.
Kingstone/Ledgestone Kingstone/Ledgestone
CORNERBLOCKS TEXTUREDON THREEFACES OPTIONAL6(152) DIAMETERKNOBIN LIEUOFOVALKNOB THISLOCATION 13(330)WIDEGROOVE NEARENDOFBLOCK
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.BlockproductionvarieswitheachlicensedRedi-Rockmanufacturer. ConfirmavailabilitybeforeSpecifyingorOrdering.
Cobble/Limestone
FACETEXTUREVARIES
LIFTINGINSERT,OPTIONAL
24(610)± LEDGESTONE COBBLESTONE 23(584)± LIMESTONE FACE TEXTURE VARIES
3.Architecturalfacesontheblockshavevaryingtexture.
4.Actualblockvolumesandweightsmayvary.
5.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3).
ACCESSORIES(COLUMNBLOCKS)
BlockLibrary
A-COL8COLUMN-8"(203mm)CORE
BlockWeight: BlockVolume:5.1ft3(0.14m3)
A-COL4COLUMN-4"(102mm)CORE
BlockWeight: BlockVolume:
810lb(370kg)
730lb(330kg) 5.6ft3(0.16m3)
CENTEREDTHRUTAPEREDHOLE 8-10(200-250)DIAMETERS
A-COLSCOLUMN-SOLIDCOREA-CCCOLUMNCAP
BlockWeight: BlockVolume:5.8ft3(0.16m3)
BlockWeight: BlockVolume:
390lb(180kg)
830lb(380kg) 2.7ft3(0.08m3)
1.Unitsfordimensionsareinches(mm),typicalunlessnotedotherwise.
2.BlockproductionvarieswitheachlicensedRedi-Rockmanufacturer. ConfirmavailabilitybeforeSpecifyingorOrdering.
3.Actualblockvolumesandweightsmayvary.
4.Weightsarebaseduponaconcretedensityof143lb/ft3(2291kg/m3).
5.Weightandvolumerangesrepresentstheblockswiththemaximum holesizeshownandwithnohole.
6.Optionalfencerailpocketsavailableuponrequest.Typicalpocket sizeis:2(50)widex5(130)deepx9(230)tall
