Express Door Series

ASSA ABLOY SL500 EX

Meeting the demands of your industry... today

A better way to serve your customers.

Time is everything - to you and your customers. As expectations increase to serve more customers, and serve them even faster, organizations are looking for ways to gain an edge. Enter innovative door/window solutions that can help maximize efficiency and throughput in your operation.

Whether you are serving customers through drive-thru, curbside pickup, or third-party delivery, the demands for simplicity and efficiency have never been higher.

As organizations adjust to these throughput demands, ASSA ABLOY Entrance Systems is pleased to offer the premier solution: The SL500 Express Door.

Designed to meet your needs

The SL500 EX door series was designed with input from top quick-service organizations in the nation.

Based on the reliable ASSA ABLOY SL500 automatic sliding door package, the SL500 EX works as both a door and a window, giving you the flexibility you need. Choose between Swing or Slide express door features, depending on your unique needs.

Regardless of your choice, you can expect your SL500 EX door to meet the rigors of your quick serve environment - both today and tomorrow.

Based on the high performance ASSA ABLOY SL500 system

Swing Express panels using common door hardware for simplicity & lower cost of ownership

Sliding Express panels that stay in the same plane when moved to the open or closed position

Sliding Express panels that self-open in unison and hold for convenience

Patented design for reliable performance and reduced maintenance

Tracks require regular cleaning and lubrication

Inverted concealed floor tracks to eliminate floor level gaps where food & debris can accumulate*

Stainless Steel Express window sill

Hurricane rated version (EXR)

*Exception - EXR

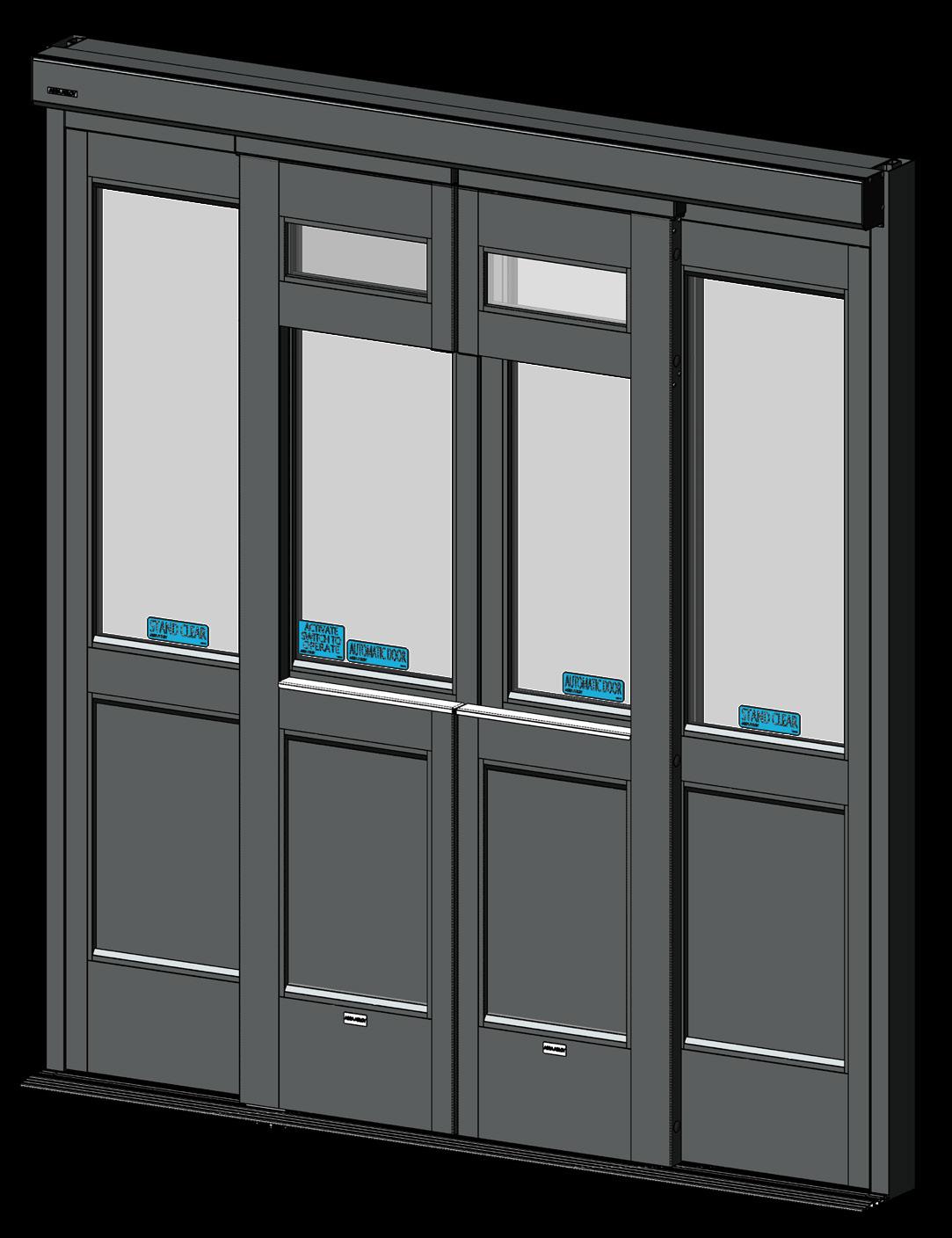

The SL500 EX-SW

With express half-panel doors

The SL500 EX-SL

With express C-panel slide doors

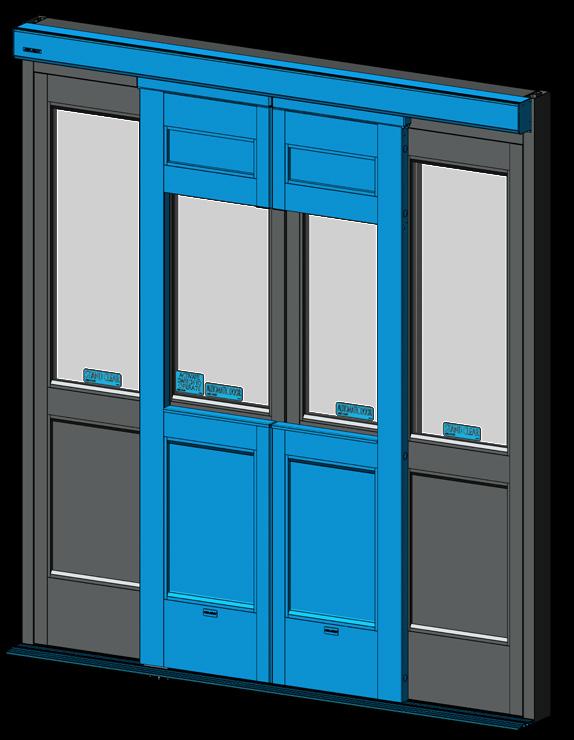

SL500 Doors: ASSA ABLOY’s proven, reliable automatic door package.

Express Doors: EX door panelseither half-panel swing or C-panel slide - that function as both a window and a door.

ASSA ABLOY SL500 EX advantages:

ƒ Intuitive and easy-to-use

ƒ Smooth operation

ƒ Easy to clean - no lubrication needed

ƒ Durable and reliable

ƒ Hurricane rated version

ƒ Backed by ASSA ABLOY Entrance Systems incomparable nationwide 24/7 service network

ƒ Quick service restaurants

ƒ Fast casual dining

ƒ Convenience stores

ƒ Coffee shops Industries we impact:

ASSA ABLOY SL500 EX-SW

Swing Express Door

How it works:

Minimalist design, maximum durability.

The SL500 EX-SW is an ideal solution for those who desire simplicity and practicality. Our patent-pending design uses common, industry hardware, so we can service your door with ease.

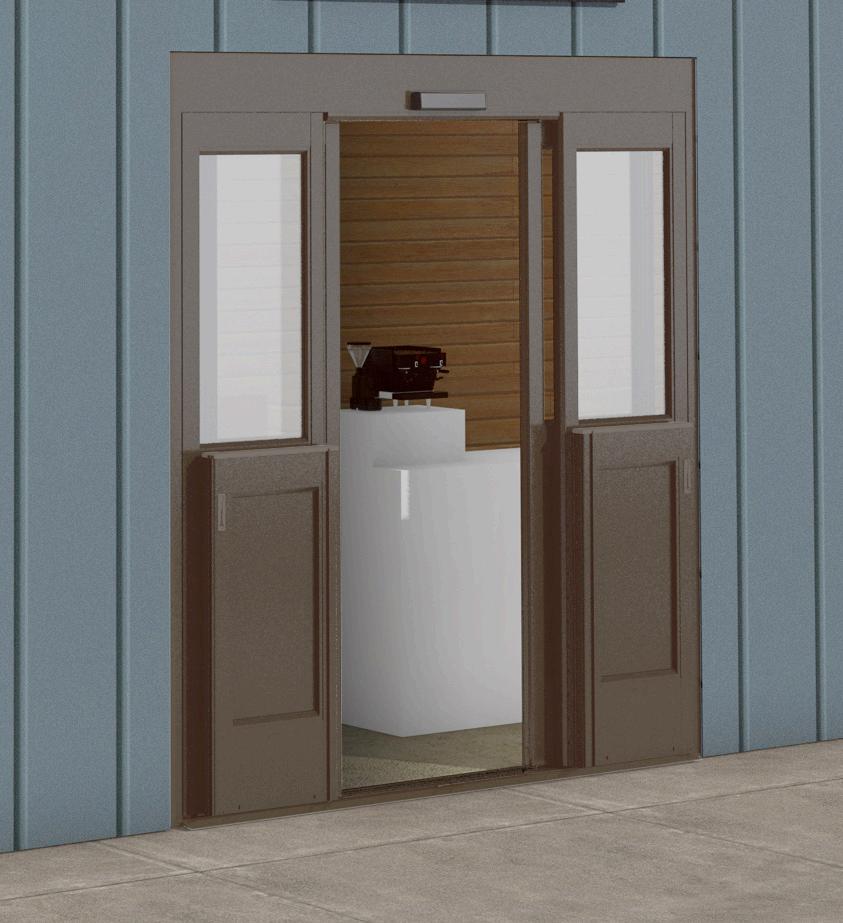

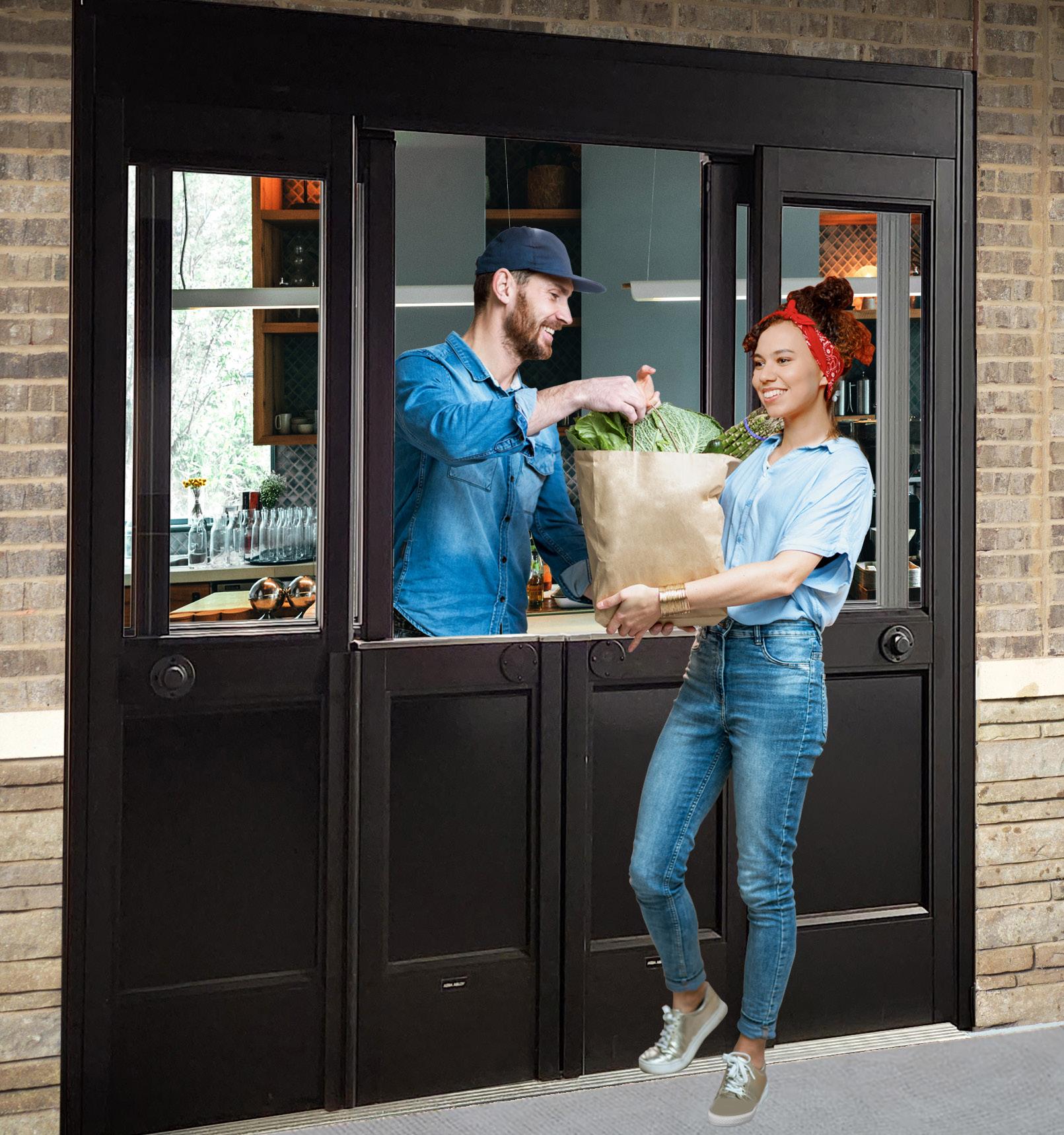

Shown here: the SL500 EX-SW with express swing doors in open position

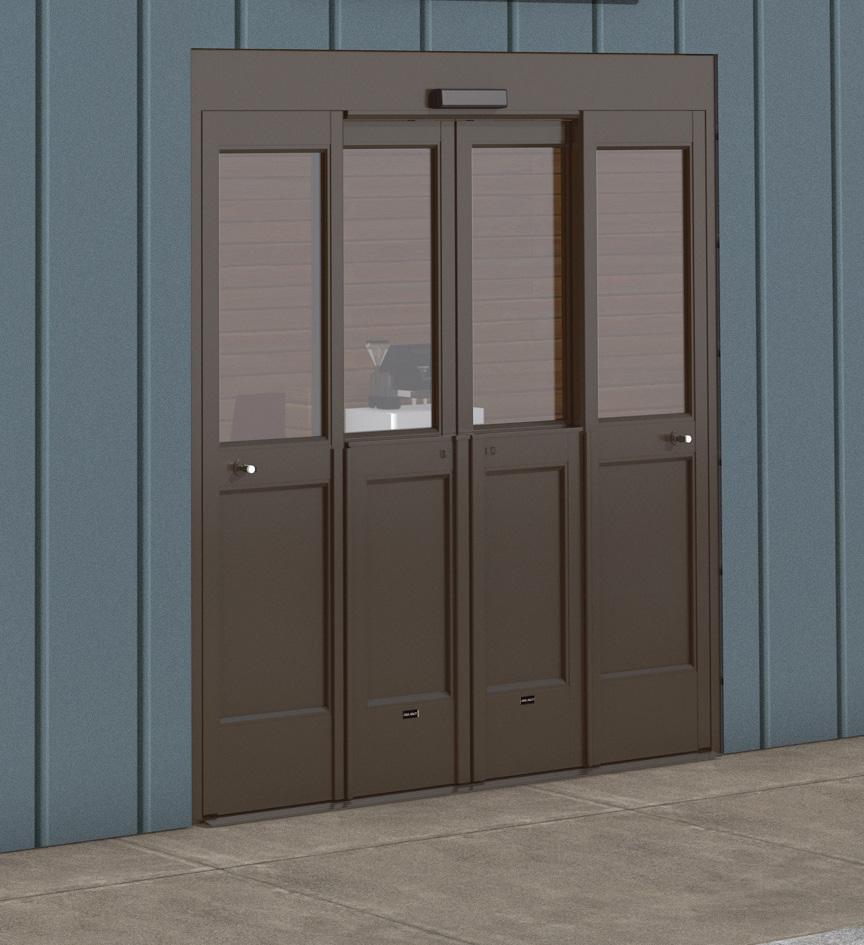

Automatic Window Express Features Closed Door

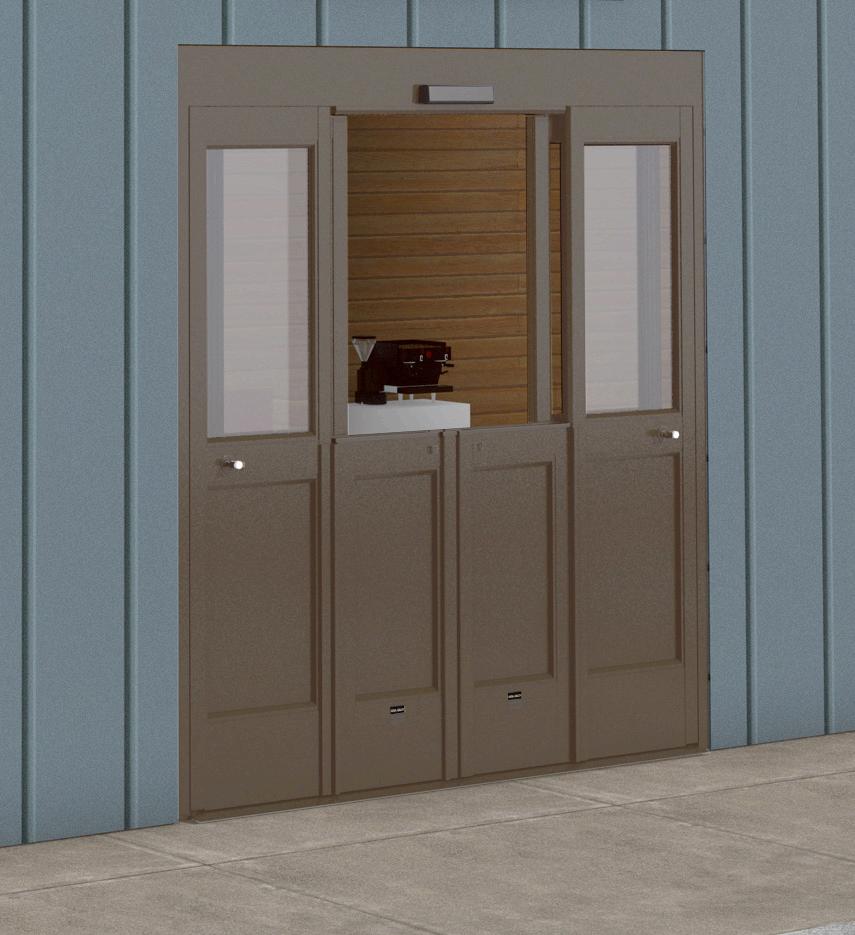

Here, the swing express doors remain closed, while the SL500 door opens as needed. This creates an automatic window. Here, swing express doors swing open and latch securely out of the way, letting employees safely enter and exit while the SL500 door secures behind them.

The door remains closed and electronically locked when not in use. When interior activation is required, simply open your SL500 EX-SW via motion activation or key FOB/ card reader from the exterior.

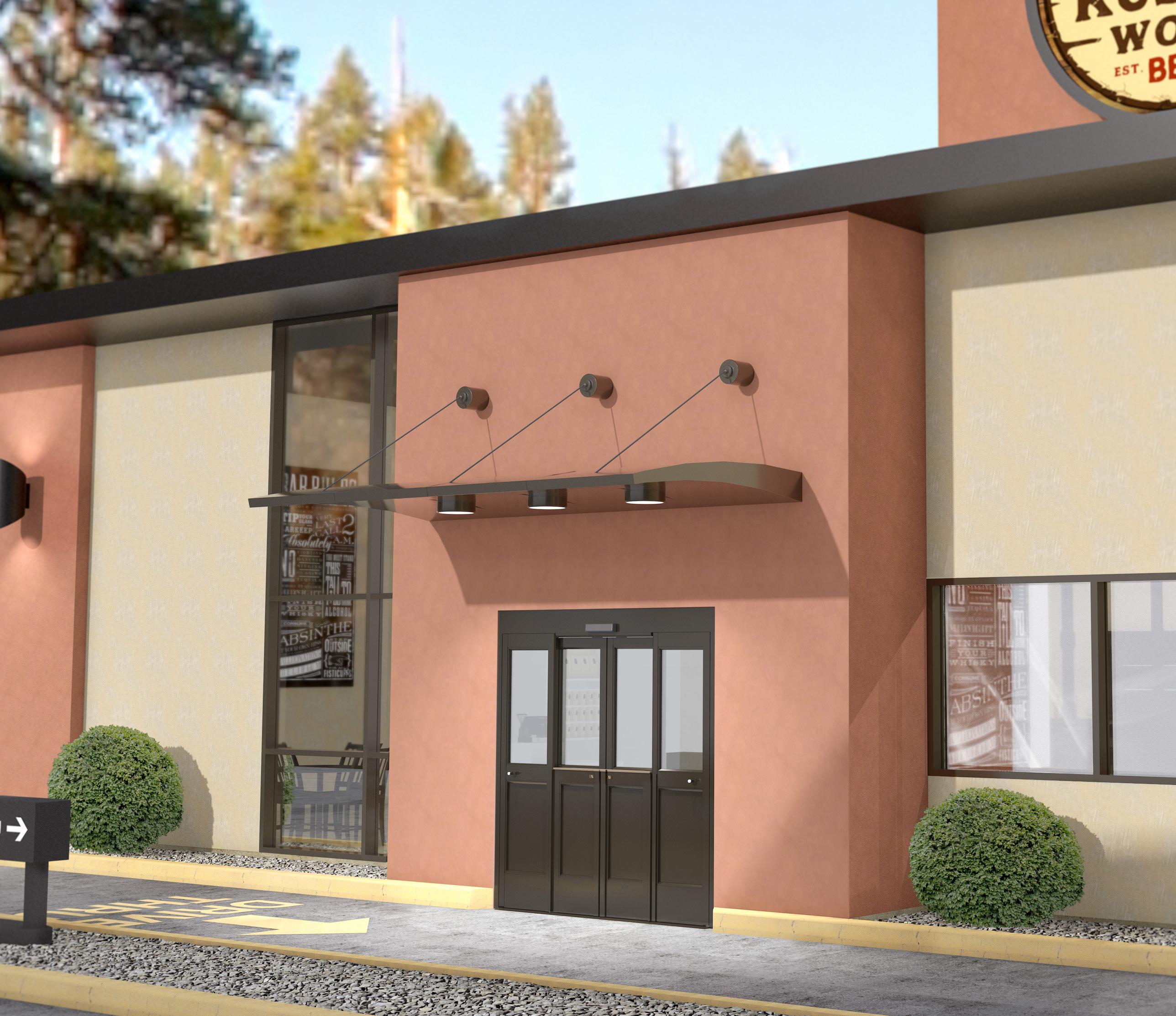

Exterior view

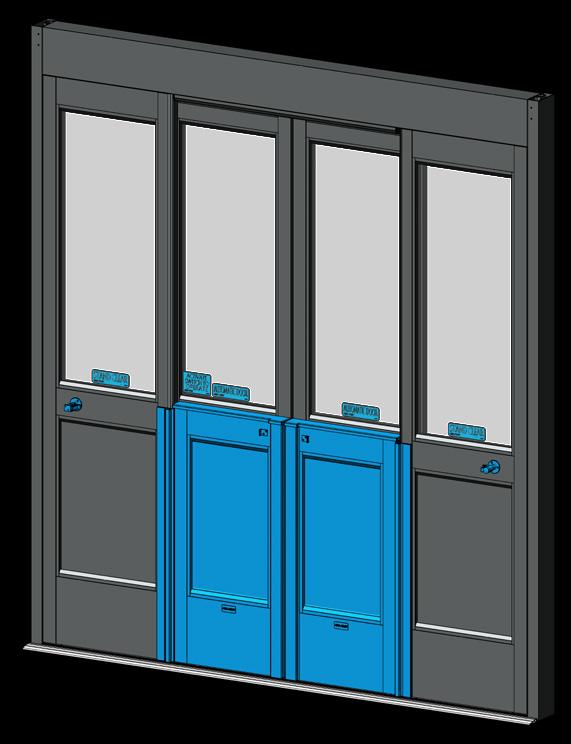

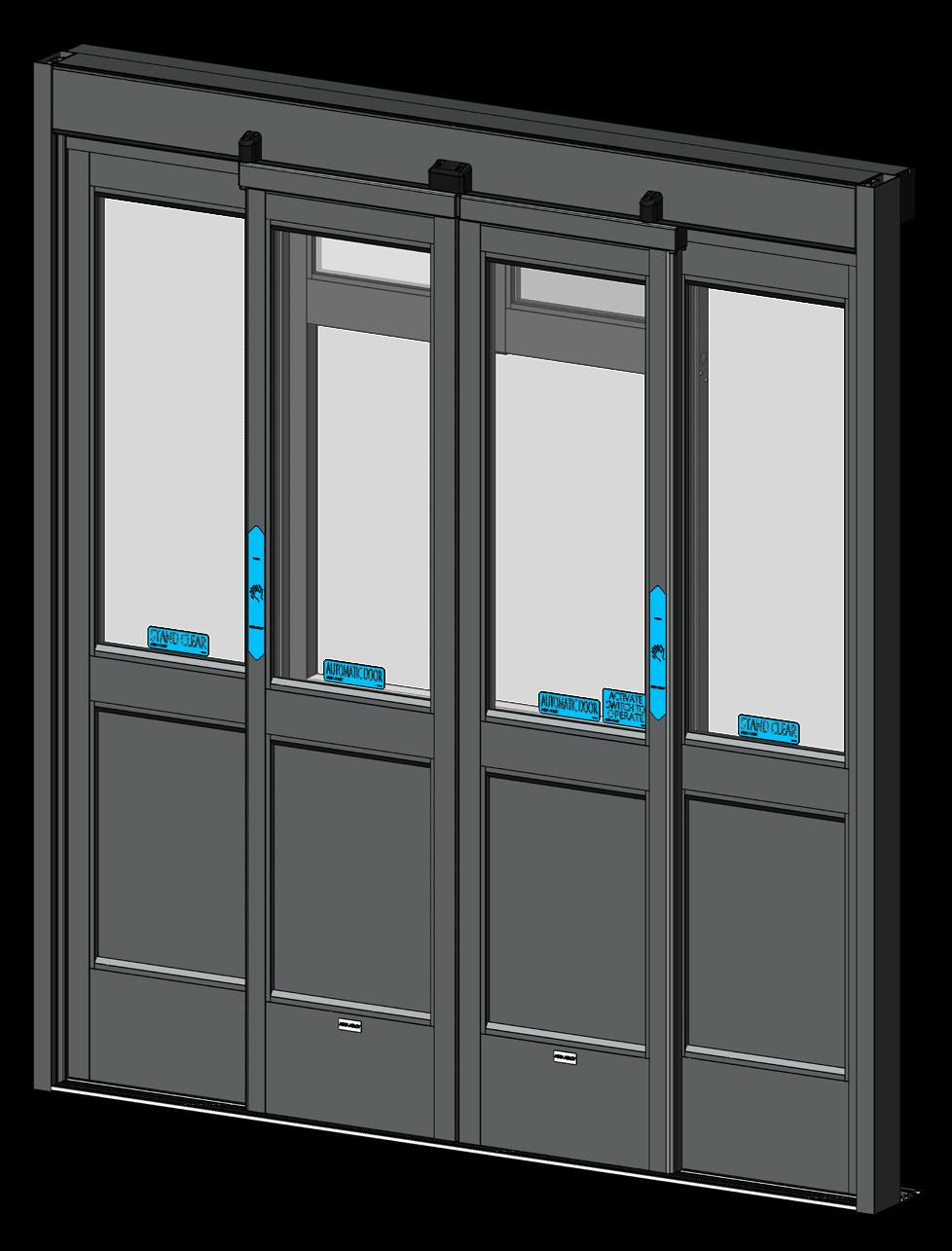

Swing Express Door Panels

Activation

Built with employee convenience in mind. Choose between wave plates, push plates, card readers, and fobs for efficient entry and exit.

Inverted Non-Panic Guides

Our inverted concealed track guides eliminate floor-level gaps where debris can build up... Making the door easier to clean.

Advanced Sensor Options: ASSA ABLOY SP-81 and SA-81 Sensors

Locks

Key cylinder and thumbturns hold the doors closed and secured. Locks only visible from the interior for enhanced security after hours.

Double locks for EXR Hurricane Version

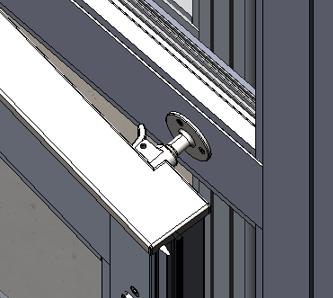

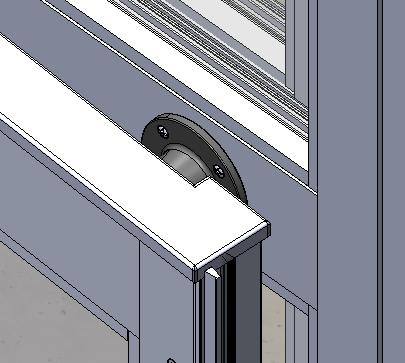

Hold-Open Latches

Magnets or latches to secure swing express doors in open position for easy passage.

Latch required for EXR Hurricane Version

Patented design # US11,448,003 and US11,713,616

• SP-81 Overhead Sensors: Allows you to set a narrow detection area, keeping nearby employee activity from accidentally triggering the door.

• SA-81 Activation Sensors: Small and sleek with excellent detection, these allow employees to activate the SL500 base package with the wave of a hand.

ASSA ABLOY SL500 EX-SL

Sliding Express Door

How it works:

Express doors self-open when unlocked, providing an automatic door opening that allows employees to enter and exit conveniently.

Increased automation, increased convenience.

The SL500 EX-SL takes convenience to the next level. Developed with employee efficiency in mind, the sliding express doors are ideal when there is limited space, such as drive thru lines.

Here, the sliding express doors remain closed, while the SL500 door opens automatically as needed. This creates an automatic window. In window mode, express doors must be manually closed and locked.

The door remains closed and electronically locked when not in use. When interior activation is required, simply open your SL500 EX-SL via motion activation or key FOB/ card reader from the exterior.

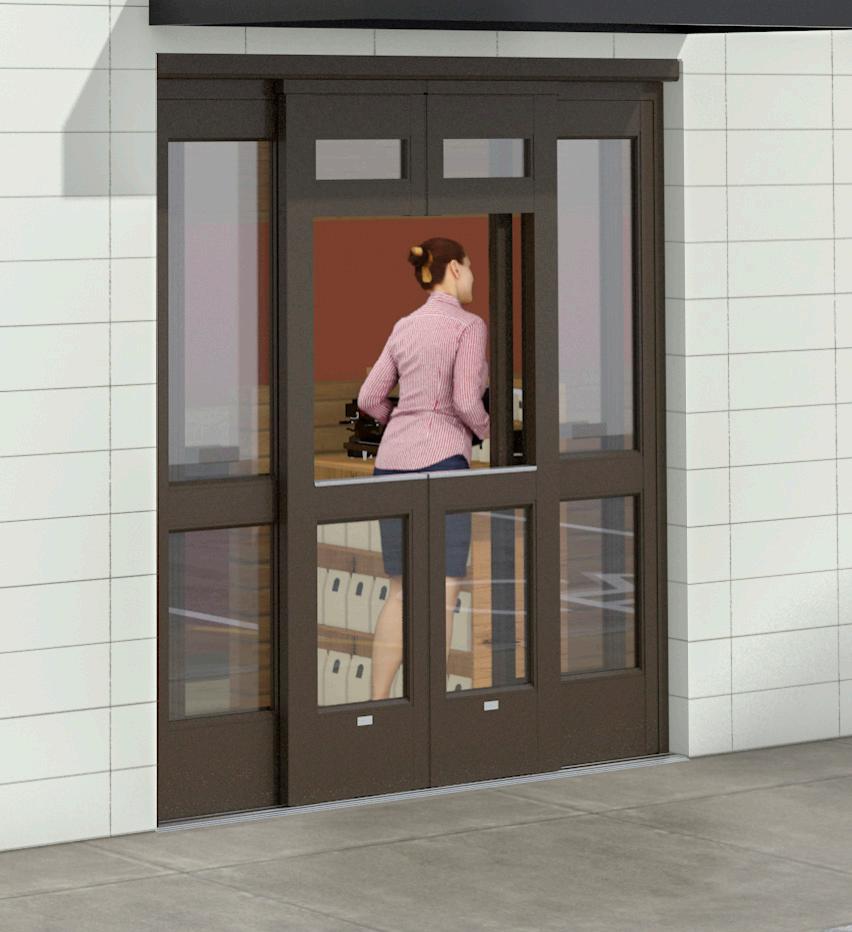

Automatic Window

Sliding Express Features

Closed Door

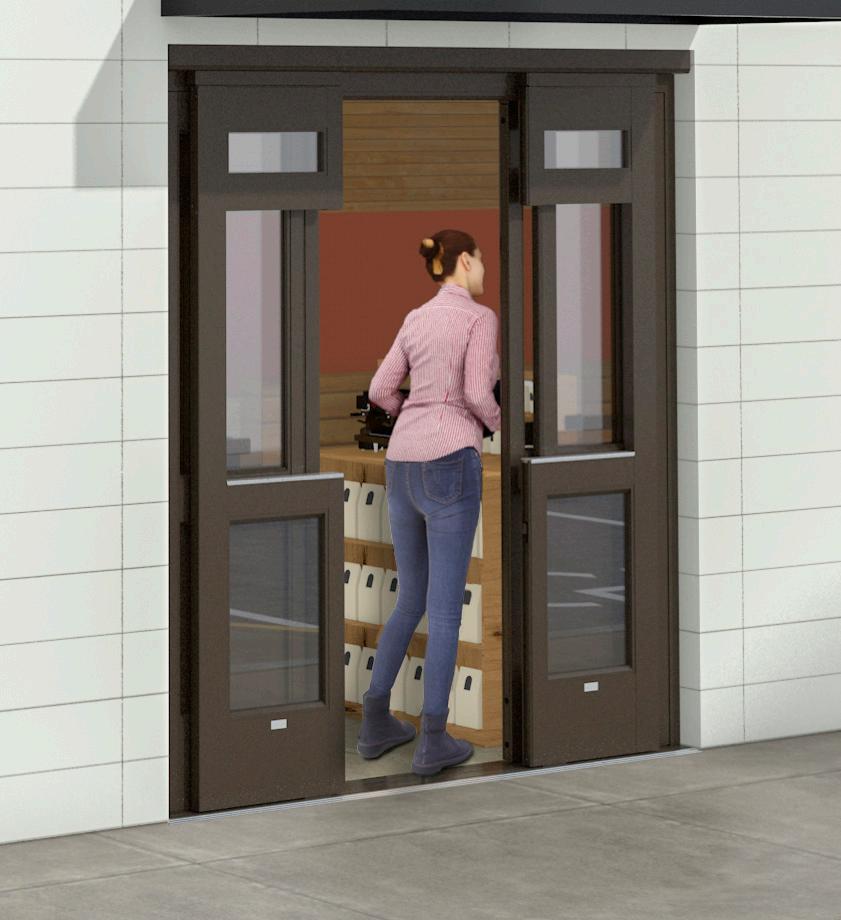

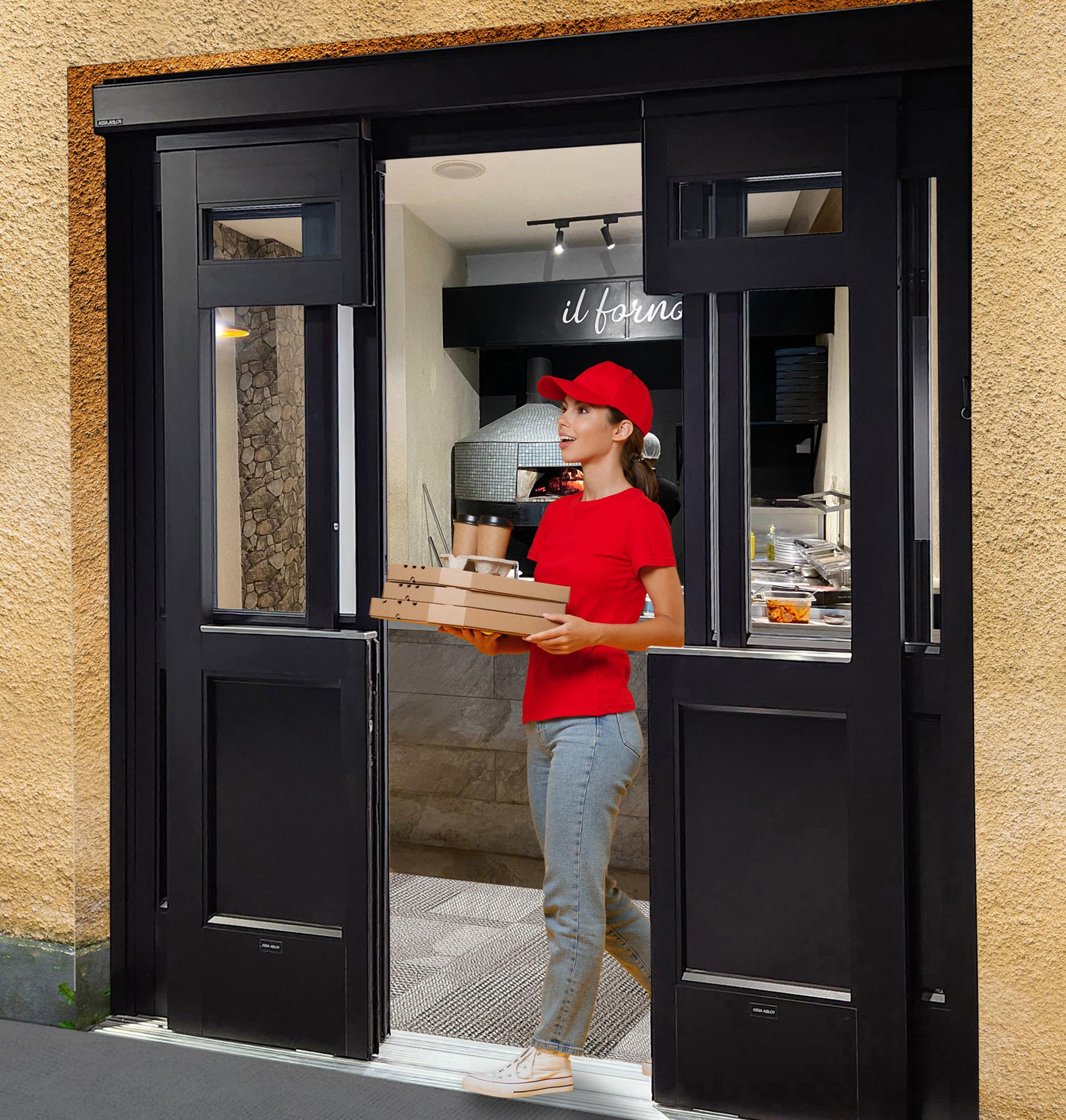

Shown here: the SL500 EX-SL with express sliding doors in use

Exterior view

Exterior view

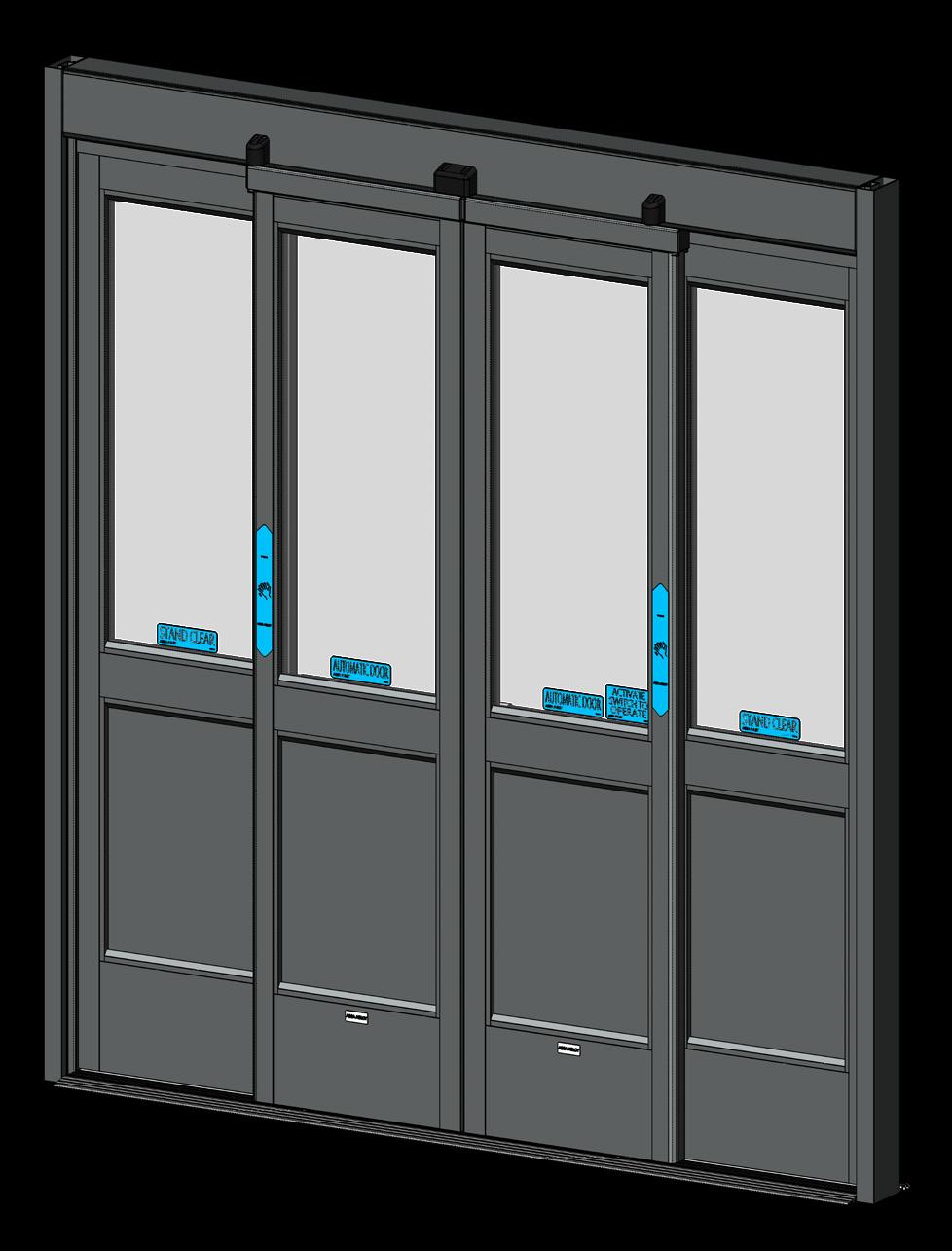

Sliding Express Door Panels

Interior and Exterior Inverted Non-Panic Guides

Our inverted concealed track guides eliminate floor-level gaps where debris can build up... Making the door easier to clean.

Exception: EXR Hurricane Version

Advanced Sensor Options:

ASSA ABLOY SP-81 and SA-81 Sensors

Locks

Key cylinder and thumbturns hold the doors closed and secured. Locks only visible from the interior for enhanced security after hours.

Double locks for EXR Hurricane Version

Activation

Built with employee convenience in mind. Choose between wave plates, push plates, card readers, and fobs for efficient entry and exit.

Patent Pending Design

• SP-81 Overhead Sensors: Allows you to set a narrow detection area, keeping nearby employee activity from accidentally triggering the door.

• SA-81 Activation Sensors: Small and sleek with excellent detection, these allow employees to activate the SL500 base package with the wave of a hand.

Interior view
