C O N T E N T

01

THE ORB OF MT. WILSON | FALL 2024

02

LEIMERT PARK COMMUNITY ART CENTER | FALL 2023

03

OBSERVATION FACILITY / INDIVIDUAL

COMMUNITY ARTS CENTER / INDIVIDUAL

AVALANCHE HOUSE | FALL 2023

GROUP CASE STUDY

04

POLY SCHOOL OF ARCHITECTURE | SPRING 2024

05

THE CULTURAL ALLEY | SPRING 2023

SCHOOL OF ARCHITECTURE / INDIVIDUAL

CULTURAL COMMUNITY DESIGN / INDIVIDUAL

PORTFOLIO | ASHLEY AVENDANO

01

THE ORB OF MT. WILSON

FALL 2024 / YEAR III, SEMESTER I Location: Mount Wilson, Los Angeles, CA Category: Observation Facility Softwares: Adobe Illustrator, Indesign, Photoshop, Rhino 7.

As we analyzed the site, we grasped that it had a rich history with scientific achievements and experiments. The buildings nearby helped develop the spaces. For example, the different telescopes, and towers affecting the spaces among the site influence the circulation. Major astronomical discoveries happened here.

Thus, Mt. Wilson greatly impacted circulation and shape as its location benefited from it. The idea behind the presented project is to create a connection between the galaxy and space. Creating the amphitheater the heart of the building which brings back individuals to enter and exit throughout the spaces. By dividing the program into three categories, for example, the privare rooms, and research labs are in two different wings illustrated in the diagrams . The circulation connects back to the amphitheater, each wing has a corridor which pulls you back to the ampitheater. This is shown throughout the materiality. The corridors consist of a tile material which is a calm tan while the exterior captivates the eye with a dark royal blue. Its layout and shape hones together the idea of outer space/galaxies with the help of the geometry of the “wings” circulating around you, such as the Milky Way spiraling around.You can enter through the amphitheater side doors. The main idea is to create a compelling image that nature brings you back to one place at the end. In this case, the amphitheater connects you back to every space in the building. It serves as the eye of the hurricane, each wing has program movement, the amphitheater gives individuals a moment of relaxation and tranquility before going on with their destination.

The circulation of the building consists of a hierarchical layout, it’s a consistent pattern that gives individuals the impression they have moved but it’s the same space. Each wing is different and the amphitheater brings them back.You can see this through the private living areas, the pattern is consistent through the bathroom layout and closets.

In the plan you can see how each wing has the “same” design. Before entering the program, for example, the rooms have the restrooms next to the room. While the research labs have equipment rooms . The windows serve to symbolize galaxies surrounding the Milky Way, that’s why there’s different sizes: a mixture of small and big. Using the site, and its history helped design the concept of the Orb of Mt. Wilson.

2022-2024 | CPP ARC

A5 - Item:

A: Entire System - ISO

Color Legend

STRUCTURAL LINE DIAGRAM Students:

Ashley Avendano

Studio Section: Nicholas Hopson

Column

Lateral x-direction

Joist

Lateral y-direction

Beam

Horizontal bracing

Girders/Trusses

Footings/Foundation

A5 - Item:

A: Entire System - ISO

Students:

Color Legend

Ashley Avendano

Hopson Studio Section: Nicholas A5 - Item: B: Entire System - Exploded ISO

Cantilevered Portion

Students:

Column

Lateral x-direction

Joist

Lateral y-direction

Beam

Horizontal bracing

Girders/Trusses Color Legend

Footings/Foundation

Column

Lateral x-direction

Joist

Lateral y-direction

Beam

Horizontal bracing

Girders/Trusses

Footings/Foundation

Cantilevered Portion

Ashley Avendano

Studio Section: Nicholas Hopson

Cantilevered Portion

Joist Span:

8”

Beam Rot:

d=L/20

Depth:

4”

Actual Depth:

4”

27 14

14 15 16 21

24

Span:

23

d=L/20

Depth:

12”

Actual Depth:

1’

20

17

20’

Beam Rot:

22

30

Beam 2

25

28

29

26 5 8

2

9 63 6 4

3D STRUCTURAL MODEL: Bracing, I-Beams, Joists A5 - Item:

14

16

Beam

1

15

Ashley Avendano

Studio Section: Nicholas Hopson

27

18

13A5 - Item:

14

14

Students:

16 24

25

22

23

21

24 22

16

14

12 10 9 8

25 23

15

20

17

16

Isometric Assembly Chunk28

29

26

8

14

30

17

19

Isometric Assembly Chunk

2

9 63

13

6 4

1

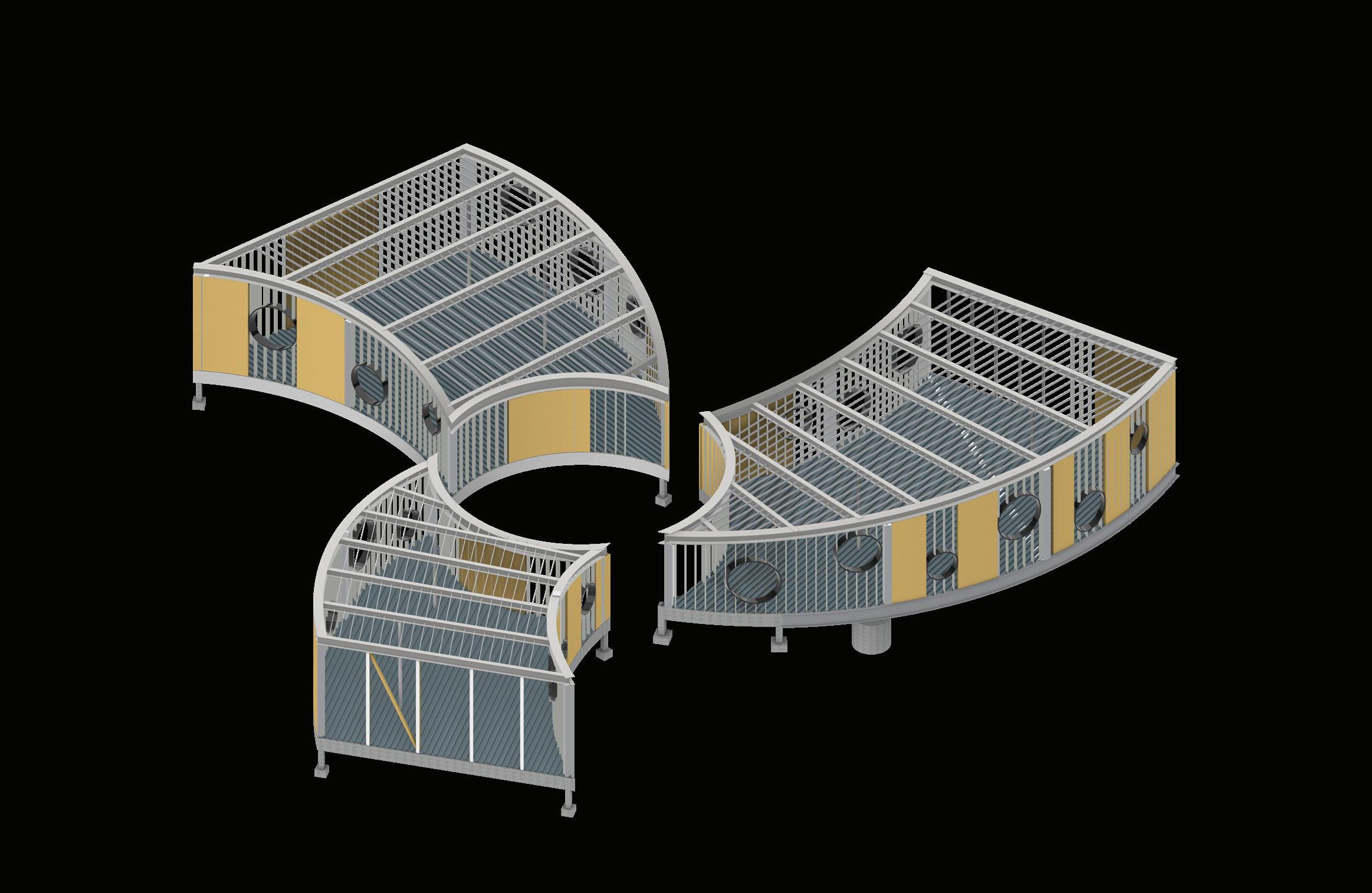

15 ISOMETRIC ASSEMBLY CHUNK

A5 - Item:

Project Dispription/Diagrams

Isometric Assembly Chunk

Material LegendAshley Avendano Students:

17 19

Studio Section: Nicholas Hopson

1.Plaster Finish

d=L/3

Length:

11’3”

Material Legend

28

29

16 7 6 5 4 3 2 1

34’1”

Shear Rot:

Ashley Avendano

15

5

18

27 14

14 26

Span:

D: Entire System - Exploded ISO

30

17

20

1.6”

Studio Section: Nicholas Hopson

15

21

19.2”

Moment Bracing

19 Students:

32”

Dep th: Actual Depth:

17

C: Entire System - ISO

Span:

Isometric Assembly Chunk d=L/20 Girder Rot:

13. Metal Stud Tracker

24. 5/8” Dens Glass

1.Plaster Finish

13. Metal Stud Tracker

24. 5/8” Dens Glass

2. Brown Coat

14. 2” Concrete

25. Subtrate/Finish Paint

3. Scratch Coat

15. Rebar

26. W12x65 Roof I-Beam

4. Metal Lathe

16. 3” Metal Deck

27. Shear Wall

5. 5/8” Dens Glass

17. W24x104 Floor I-Beam

28. Column Rebars

6. 2x6 Metal Studs

18. Foam insulation

29. Foundation Footing

7. Insulation

19. 6x6” Glass Mullion

30. Slab

8. Gypsum Board

20. Drywall

9. Metal Lathe

21. 2” Hat Channels

10. Scratch Coat

22. W4X13 Roof Joist

11. Thinset Mortar

23. Insulation

12. Tile

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

ENTRANCE RENDER

MAIN OFFICE/DAY ROOM RESEARCH STAT PRIVATE ROOMS

MASSING

AMPHITHEATER MASSIING

MAIN OFFICE/DAY ROOM RESEARCH STATIONS PRIVATE ROOMS AMPHITHEATER

CORRIDOR/ AMPHITHEATER ENTRANCES

CORRIDOR / AMPHITHEATER CIRCULATION

DAYROOM RENDER

ENTRANCES

DIAGRAMS

B

9

10

11

8

C

C

7 11

LAV.

5 W.C.

6 3

.

W.C

RE

F.

V.

LA

2

4

12 TV

1

13

TV

14 15

W.C

16

LA

V.

.

17 W.C.

LAV.

W.C.

17

9. MACHINE ROOM 10. TRASH 11. EQUIPMENT ROOMS 12. KITCHEN 13. LAUNDRY ROOM 14. PRIVATE SINGLE ROOM 15. PRIVATE DOUBLE ROOM 16. PRIVATE SUPERINDENT. ROOM 17. PRIVATE RESTROOMS/CLOSETS

VALLEY VIEW

LEGEND 1. MAIN OFFICE 2. PRIVATE READING AREA 3. POWDER ROOM 4. DAY ROOM 5. ADA RESTROOM 6. AMPHITHEATER 7. RESEARCH OFFICES 8. RESEARCH LABS

LAV.

17

A

A

B

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

1 2

5 3

4

LEGEND 1. MAIN OFFICE 2. DAY ROOM 3. AMPHITHEATER W5. PRIVATE ROOMS

SECTION A-A Scale: 1/4”=1’-0”

SECTION A-A Scale: 1/4”=1’-0”

1

2

3

4

5

LEGEND 1. CORRIDOR 2. PRIVATE RESTROOM 3. PRIVATE ROOM 4. RESEARCH LABS 5. MACHINE ROOM

SECTION B-B Scale: 1/4”=1’-0”

18

17

ELEVATION 1/4”=1’0”

15

12

12. CHARA BEAM SYNTHESIS 13. 100IN HOOKER TELESCOPE 14. CHARA OFFICE 15. THE ORB OF MT. WILSON

13

14

15

SITE PLAN 1/16”=1’0”

SITE SECTION 1/16”=1’0”

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

AMPHITHEATER RENDER

PHYSICAL MODEL

PORTFOLIO | ASHLEY AVENDANO

02

LEIMERT PARK COMMUNITY ART CENTER

FALL 2023 / YEAR II, SEMESTER I Location: Leimert Park, Los Angeles, CA Category: Community Arts Center Softwares: Adobe Illustrator, Photoshop, Rhino 7, Vray.

Exploring Leimert Park gave us a better understanding of the diversity in the community. It helped us learn about the community such as what music they like, food, games, and accessories. As I explored, something that caught my attention was that individuals liked to play games in shading areas, they took out their tables and chairs to sit outside and play card games with music in the back. However, the spaces they were sitting in weren’t adequate or lively enough. Which inspired the facade of this project.

As you can see the facade has a box theme that pulls in and out, this occurs in the second floor which offers individuals a space to play games or sit and enjoy the environment. You can see this in the other entrance as well. These moments are highlighted in the renders. For example, the spaces going in and out serve as balconies and lounges Also, another main factor about this is the double height spaces and balconies.

The main idea of these spaces is to highlight the program above and below, it will create curiosity between individuals which will lead them to explore the spaces. Another feature are the balconies in each floor as individuals can go look out to Leimert park and the surrounding buildings. The program in the community center offers individuals new ideas to explore the art production, and cultural stores, enjoy music and performances in the auditorium, personal workshops, and even learn about different cultures in the classroom. As shown in the program diagram, most spaces are activity and public spaces for anyone. As they developed, some spaces required a personal space. For example, the third floor offers a snack lounge where individuals in workshops and art products on can enjoy and take a breeze. Individuals can also enjoy the double-height balconies by engaging with top or bottom spaces. The balconies were created to the attention of individuals and the spaces inside. As they see what’s on top or below, it will bring engagement between individuals and offer beautiful views of leimert park.

The colors of the building were inspired by Leimert park surronding and dedication to their culture and roots. As you explore this area, stores/shops, theatres, etc. have strong and lively colors with African-American mururals which is a beautiful representation. Thus, it inspired the materiality in this art center, that have award-winning art from artists.

2022-2024 | CPP ARC

SEATING SPACE (THIRD-LEVEL)

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

AXONOMTERIC

ACTIVITY SPACES PUBLIC AREAS STAFF AREA SUPPORT

PROGRAM DIAGRAM

SPATIAL DIAGRAM

CIRCULATION DIAGRAM

PORTFOLIO | ASHLEY AVENDANO

LOBBY RENDER (GROUND-LEVEL)

GALLERY RENDER (SECOND-LEVEL)

C

B

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC UP

C

2

B DN UP

DN

A

A

1 1 4

A

3

A

DN

UP

DN UP

1

DN

2

DN

2

3

UP

3 UP

C

B

1 EXHIBITION SPACE 2 OUTDOOR BALCONY 3 READING LOUNGE C

1 ART PRODUCTION 2 OUTDOOR BALCONY 3 WORKSHOPS 4 SNACK LOUNGE

THIRD FLOOR PLAN Scale: 1/8”=1’-0”

CC

B

BB

UPDN

5

1 DN

1

AA

4

6

AA

2

8 7

2

DN4 DN

3

Service Counter

5 DN DN

UP

3 57

UP

1

6

REF.

SINK

4

1 STORE 2 LOBBY 3 OUTDOOR PATIO 1 CLASSROOM 4 FEATURE STAIRS 2 WATER FOUNTAIN CUPS 5 EGRESS 3 RESTROOMS 6 AUDITORIUM 4 STORAGE 7 CAFE 5 CONFERENCE RM 8 RESTROOMS 6 OUTOOR BALCONY 7 OFFICES

CC

BB

GROUND FLOOR PLAN Scale: 1/8”=1’-0”

0 1

5

10

0 1

5

20 10

20

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

T.O. ROOF LEVEL 2

T.O. LEVEL ROOF2

48’ +20’ - 0”- 0”

48’+20’ - 0”- 0” 8

9

8

9

LEVEL 2 4TH FLOOR

LEVEL 2 4TH FLOOR

36’+20’ - 0”- 0”

36’+20’ - 0”- 0” 6

7

6

7

3RD FLOOR LEVEL 2

LEVEL 2 3RD FLOOR

24’+20’ - 0”- 0”

5

24’+20’ - 0”- 0”

5

5

4 3

LEVEL 2 2ND FLOOR

2ND FLOOR LEVEL 2

12’+20’ - 0”- 0”

12’+20’ - 0”- 0”

4

2

3

GROUND LEVEL 2 FLOOR

1 AUDITORIUM

0’ -+20’ 0” - 0”

1

2

3

5 EXHIBITION SPACE

7 WORKSHOP 8 EGRESS

1

3 ENTRWANCE SUBTERRANEAN FLOOR LEVEL 2

4 STORE

6 RESTROOMS

0’ -+20’ 0” - 0”

1 AUD LOBBY 2 FEATURE STAIRS

2 RESTROOMS 3 ART STORAGE

GROUND LEVEL 2 FLOOR

2

-12’ +20’--0” 0”

SUBTERRANEAN FLOOR LEVEL 2

4 READING STATION 5 OUTDOOR BALCONY

-12’ +20’- -0” 0”

6 OUTDOOR BALCONY

CROSS SECTION A Scale: 1/8”=1’-0”

CROSS SECTION B Scale: 1/8”=1’-0”

7 ART PRODUCTION 9 CLASSROOM

LEVEL 2 T.O. ROOF

48’ - 0” +20’ - 0”

8

7

9

LEVEL 2 4TH FLOOR

36’ +20’ - 0”- 0”

6 LEVEL 2 3RD FLOOR

1. AUDITORIUM 2. RESTROOMS 3. ART STORAGE 4. STORE 5. EXIBITION SPACE 6. RESTROOMS 7. WORKSHOP 8. EGRESS 9. CONFERENCE ROOM

1. AUD LOBBY/ GALLERY DISPLAY 2. FEATURE STAIRS 3. ENTRANCE/STORE 4. READING STATION 4 5. OUTDOOR BALCONY 6. OUTDOOR BALCONY 7. ART PRODUCTION 8. WATER FOUNTAIN CUPS 9. CLASSROOM

4

5 LEVEL 2 2ND FLOOR

12’ - 0” +20’ - 0”

3

1

2

1 AUD LOBBY / GALLERY DISPLAY 2 AUDITORIUM

24’ - 0” +20’ - 0”

LEVEL 2 GROUND FLOOR

0’ - 0” +20’ - 0”

1

3 RESTROOMS SUBTERRANEAN FLOORLEVEL 2

4 EXHIBITION

-12’ - 0” +20’ - 0”

5 EGRESS 6 ART PRODUCTION 7 CLASSROOM 8 OFFICES 9 STORAGE

LONGITUDINAL SECTION Scale: 1/8”=1’-0”

PORTFOLIO | ASHLEY AVENDANO

03

AVALANCHE HOUSE

FALL 2023 / YEAR II, SEMESTER I Location: Wanaka, Central Otago, New Zealand Category: Group Case Study Softwares: Revit Architects: Intuitive Architects Year Built: 2018 | Total Floor Area: 1,500 sq ft.

The Avalanche House served as the focal case study for our Fall construction course, designed to consolidate and apply the construction knowledge we accumulated throughout the semester. This project emphasized the use of Revit, focusing on detailed technical drawings such as plans, sections, elevations, and axonometric views.

Each individual was tasked with independently producing a comprehensive set of drawings, reinforcing our understanding of architectural representation and construction processes.

Through Revit, I gained a profound appreciation for the significance of detailed drawings. These not only provide architects with a deeper comprehension of materiality and construction methodologies but serve as a crucial communication tool, enabling clients and project teams to visualize and understand how the design is realized. This project marked my initial foray into Revit, enhancing my proficiency in the software and establishing a strong foundation for its application in the architectural profession.

Once our individual drawings were complete, the focus shifted to group collaboration, where we translated our 3D models into a physical wood-framing model. This phase introduced us to critical framing components such as headers, studs, and sills, allowing us to implement these elements into our scaled representation of the case study.

The most challenging aspect was constructing the sloped roof and elevated floor, as precise angles and measurements were required to achieve accuracy. Our group addressed these complexities by calculating the spacing and angles of the rafters about the ridge board, which ultimately streamlined the assembly process. These obstacles highlighted the importance of problem-solving, adaptability, and collective effort, as overcoming them required effective communication and shared determination.

This project deepened my technical understanding of construction systems and materiality and underscored the value of teamwork and patience. Overall, the Avalanche House case study served as a pivotal learning opportunity, bridging the theoretical knowledge of construction with practical application, while also fostering essential collaborative and technical skills essential for professional growth in architecture.

2022-2024 | CPP ARC

PORTFOLIO | ASHLEY AVENDANO PORTFOLIO | ASHLEY AVENDANO

A

GUTTER

DOUBLE TOP PLATE

G 10' - 11 17/32"

2 A-211

16' - 10

PLYWOOD INTERIOR FINISH

FLASHING

Ash Cos Ser LIVING ROOM

KITCHEN

380 Pom ww

EXTERIOR WALL FINISH

Cli INSULATION

1

Ow 73 Wa

SECTION 1 1/8" = 1'-0"

Pr

3

1/2" SHEATING

Ava

---

#

SOLE PLATE 6" CONCRETE SLAB

17' - 0"

ANCHOR BOLT KITCHEN

Project

Drawn

BOTTOM OF FOOTING Date

Scale

Sheet N

WALL SECTION Scale: 1/2”=1’-0”

SECTION 2 2 1/8" = 1'-0"

Sheet N

B

C

2022-2024 | CPP ARC

E

48' - 6 1/2" 4' - 0"

16' - 8 1/2"

ROOF 15' - 10"

BATHROOM

16' - 10"

ASHLEY AVENDANO 3801 W TEMPLE AVE POMONA, CA, 91768

PLATE HEIGHT 9' - 0"

www.cpp.edu (909)869-7659 @calpolypomona

GROUND LEVEL 0' - 0" FOUNDATION -1' - 0"

1' - 0"

HALLWAY

9' - 0"

6' - 10"

0 15/32"

AVALANCHE HOUSE CLIENT Private

2

Wanaka, Central Otago, New Zealand

1

No.

47' - 11"

Description

Date

30' - 11"

16' - 10"

9' - 0"

6' - 10"

ROOF 15' - 10"

PLATE HEIGHT 9' - 0"

Project Number

3412.01 / EX 1.2 Drawn by

Date

10/5/23 Scale

1/8" = 1'-0" Sheet Name

BUILDING SECTIONS Sheet Number

A-211

10/12/2023 5:48:44 AM

1' - 0"

AA GROUND LEVEL 0' - 0" FOUNDATION -1' - 0"

PORTFOLIO | ASHLEY AVENDANO

04

POLY ARCHITECTURE SCHOOL

SPRING 2024 / YEAR II, SEMESTER II Location: Downtown, Pomona, CA Category: Architecture School Softwares: Adobe Illustrator, Photoshop, Rhino 7, Lumion.

The design of the Poly Architecture School was developed through a series of three exercises completed during the semester. Students began by exploring a grid system inspired by images of nature, translating these visual elements into a system of three-dimensional grids. Through analyzing both physical and digital models, we identified potential spatial arrangements for the program and refined the design by integrating these grids into the structural framework.

The façade of the school draws its inspiration from the grid system, featuring a dynamic composition of rectangular and square panels in shades of gray and white. As depicted in the renderings, these panels vary in size, creating a vibrant expression of architectural creativity. The design embodies the idea that architecture is a puzzle of art and ingenuity, inviting exploration of shapes and forms. The façade itself communicates the building’s identity as a space dedicated to art and architecture.

Each school floor offers unique spatial configurations, with varying square footage to accommodate different functions. Some levels feature expansive double-height spaces for lectures and lounges, while others include smaller studios with access to balconies and communal areas. This approach ensures that every floor supports its specific programmatic needs while fostering a sense of openness and collaboration throughout the building.

The spatial organization of the plinth floor plan prioritizes essential programs to support student’s academic and social needs. Key facilities such as the model shop and a welcoming cafeteria are strategically located to foster productivity and community engagement. The cafeteria, paired with adjacent lobby and patio spaces, offers students a place to relax, collaborate, or enjoy a meal in a comfortable setting.

Additionally, the gallery provides an inspiring venue for students to explore creative works, whether for motivation or leisure. A spacious auditorium is also incorporated, serving as a flexible space for large lectures, presentations, and significant academic or professional events. Academic and Staff are in the second and third floors. Studios run through the fourth floor to the twelfth floor. Overall, the design of the Poly Architecture School thoughtfully integrates structure, functionality, and creativity, resulting in a dynamic and inspiring environment that reflects contemporary architectural principles

.

2022-2024 | CPP ARC

STUDIO RENDER

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

EXPLODED ISOMETRIC

A Labs & Archive

Admin Office

UP

Mail Room

Faculty Room Chairs Offices

Balcony

Chairs Offices

Dean Office

Faculty Room

Labs & Archive

Conference Room

Conference Room

Balcony

Conference Room

Break Room

SECOND STUDIO FLOOR PLAN

SEVENTH STUDIO FLOOR PLAN

W 2nd St.

A

Lobby

Gallery

Patio

Gordon St

Storage

Cafe Service Counter

Park Ave

Stage

Model Shop

Fab Lab

Pantry

20'-0"

0

PLINTH FLOOR PLAN Scale: 1/16”=1’-0”

10

20

40

80

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

LEVEL 2 T.O. ROOF 185’ +20’ - 0” - 0” LEVEL 2 12TH FLOOR 170’ +20’ - 0” - 0” LEVEL 2 11TH FLOOR 155’ +20’ - 0” - 0”

LEVEL 2 10TH FLOOR 140’ +20’ - 0” - 0” LEVEL 2 9TH FLOOR 125’ +20’ - 0” - 0” LEVEL 2 8TH FLOOR 110’ +20’ - 0” - 0” LEVEL 2 7TH FLOOR 95’ -+20’ 0” - 0” LEVEL 2 6TH FLOOR 80’ -+20’ 0” - 0” LEVEL 2 5TH FLOOR 65’ -+20’ 0” - 0” LEVEL 2 4TH FLOOR 50’ -+20’ 0” - 0” LEVEL 2 3RD FLOOR 35’ -+20’ 0” - 0” LEVEL 2 2ND FLOOR 20’ -+20’ 0” - 0”

LEVEL 2 GROUND FLOOR 0’ - 0”+20’ - 0”

SECTION Scale: 1/16”=1’-0”

COMMUNAL RENDER

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

NIGHT RENDER

EAST

SOUTH

WEST

ELEVATIONS

NORTH

PORTFOLIO | ASHLEY AVENDANO

05

THE CULTURAL ALLEY

SPRING 2023 / YEAR I, SEMESTER II Location: Grand Park, Los Angeles, CA Category: Cultural Center Design Softwares: Adobe Illustrator, Adobe Indesign, Photoshop, Rhino 7 The main idea for The Cultural Alley is to bring and introduce new cultures in a diverse city like Los Angeles which welcomes people to parks, Little Tokyo, and different kinds of museums. All these activities have the same purpose—to bring individuals together and learn from one another. The idea behind the site is to promote diversity through individuals promoting/selling their cultural items. The outdoor vendor spaces will support individuals who want to sell their cultural accessories, clothing, jewelry, and food at an affordable price. These shops will be accessible outside the cultural center. Each space was designed to serve different stations, for example, the clothing vendors are near each other. Individuals can explore the site by moving to another station, taking children to the playground, or visiting the outdoor art displays.

The circulation of the site was derived from a woven sweater that was transformed into a line drawing. Futhermore, we developed it into 3D members to facades. Through the line drawing, you can see there are several paths where individuals can access the park’s activities and building. The cultural center has two entrances coming from the Lobby and Courtyard. The Lobby allows individuals to explore the culinary and workshop or head downstairs to enjoy shows in the auditorium. The main goal of having a subterranean level is to give individuals a different experience as they feel enclosed and have a quiet environment which is rare in a busy city. The shell patterns were shaped from a tile as well; individuals can explore the shadows and openings created by the shell as individual walkthroughs. The same tile pattern was utilized to appeal to visitors and create a connection between the tectonics on the site. Restrooms are located on both floors and emergency stairs lead to the ground level floor. Overall, this site gives individuals the opportunity to learn from cultures/backgrounds by working in workshops and trying varieties of food in the kitchen.

2022-2024 | CPP ARC

LOBBY RENDER

PORTFOLIO | ASHLEY AVENDANO

EXTERIOR RENDER

2022-2024 | CPP ARC

ISOMETRIC RENDER

PORTFOLIO | ASHLEY AVENDANO

2022-2024 | CPP ARC

SECTION A-A

SECTION B-B

Thank You

323.447.0322 ashleyave78@gmail.com
