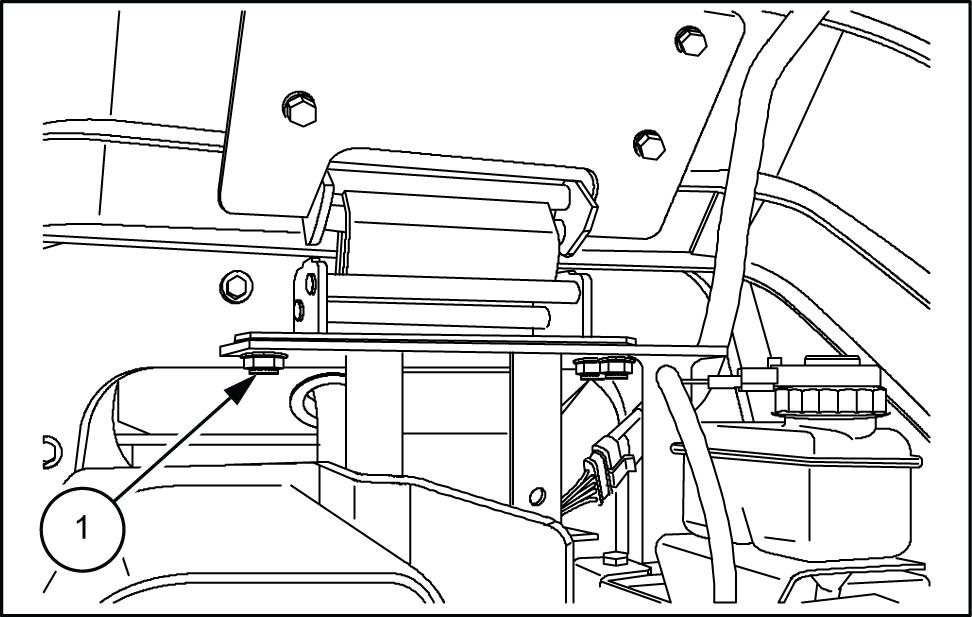

7. Remove the four bonnet hinge bolts (1) and lift the bonnet clear.

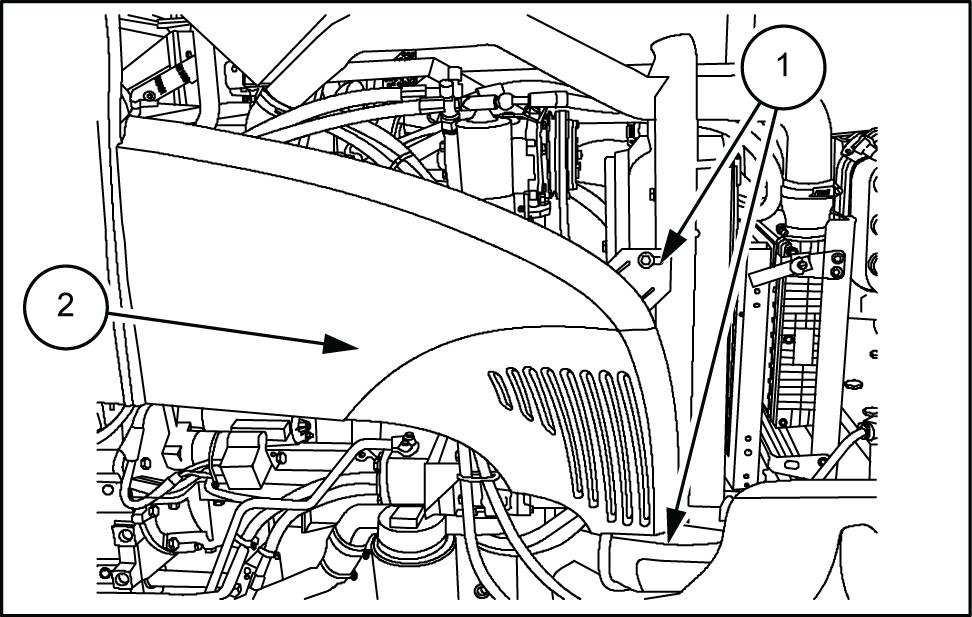

8. Remove the two retaining bolts (1) and the guard (2) on the right-left hand side of the fan.
Advertisement

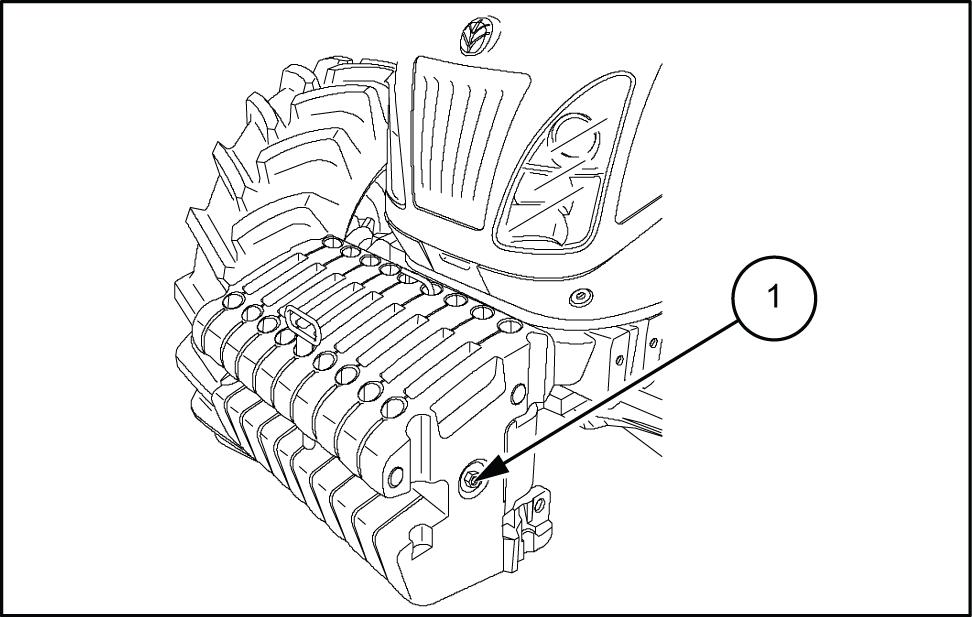

9. Unscrew the nut (1) from the weight retaining pin. Remove the weights from the front support.

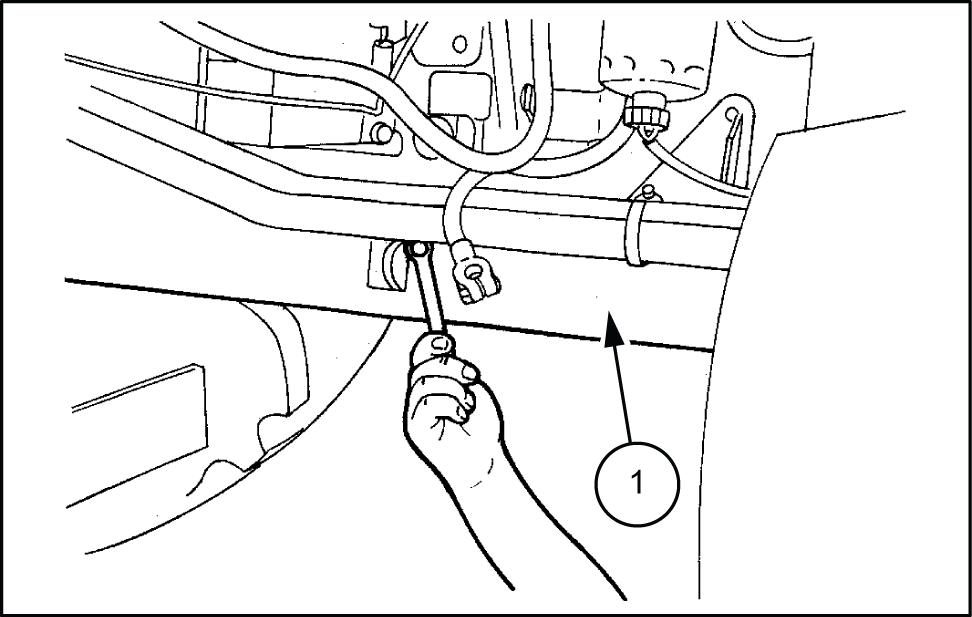

10. Unscrew the front central and rear retaining bolts on the front axle shaft guard, then remove the guard (1).
ANIL12TR00061AB 5
ANIL12TR00062AB 6
ANIL12TR00063AB 7
ANIL12TR00065AB 8

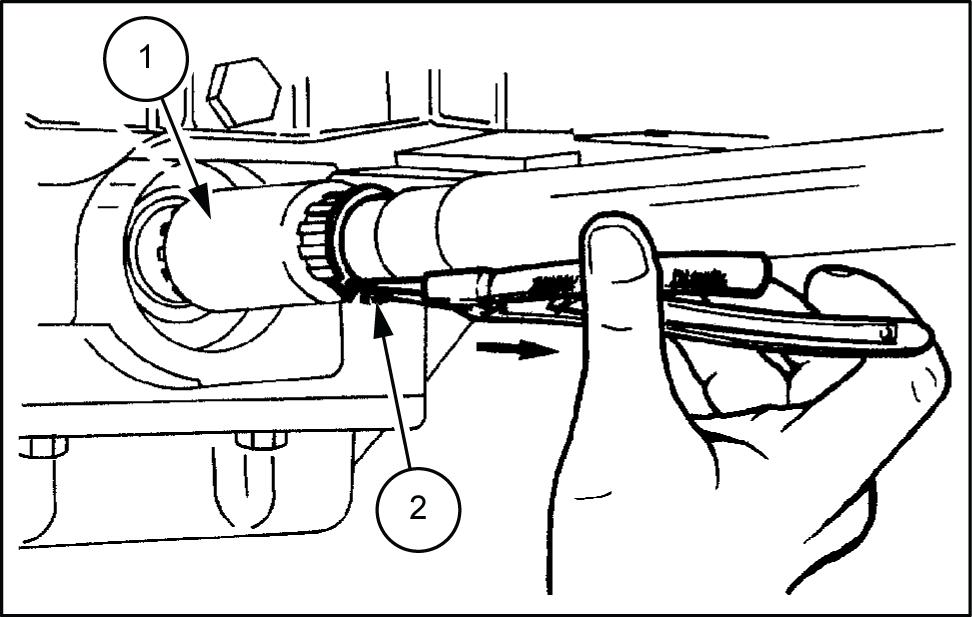

11. Remove the circlip (2) and move the front sleeve (1) in the direction indicated by the arrow until it is released from the groove on the front axle.

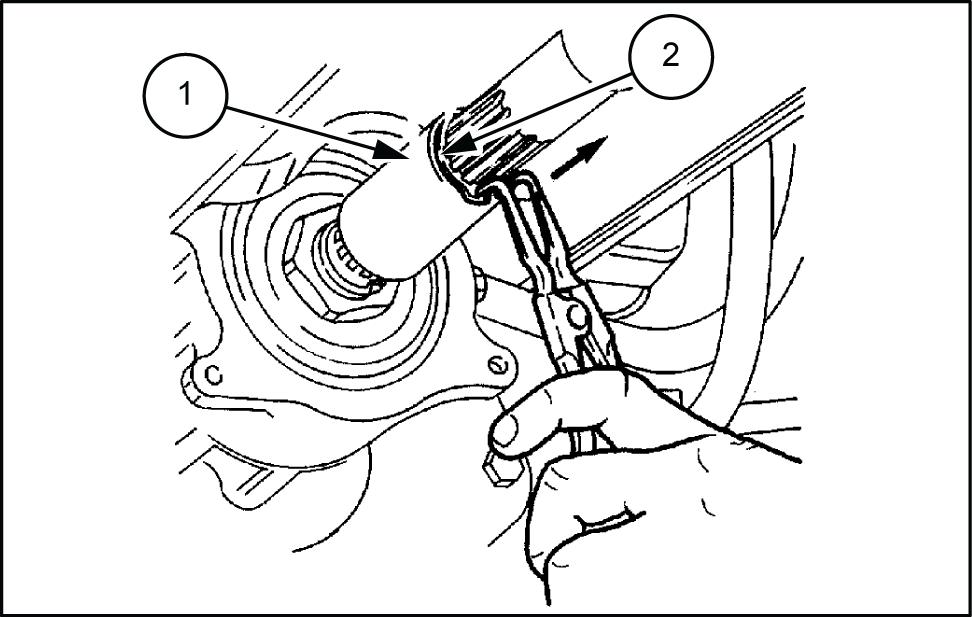

12. Remove the circlip (2) and move the rear sleeve (1) in the direction indicated by the arrow until it is released from the groove on the drive.

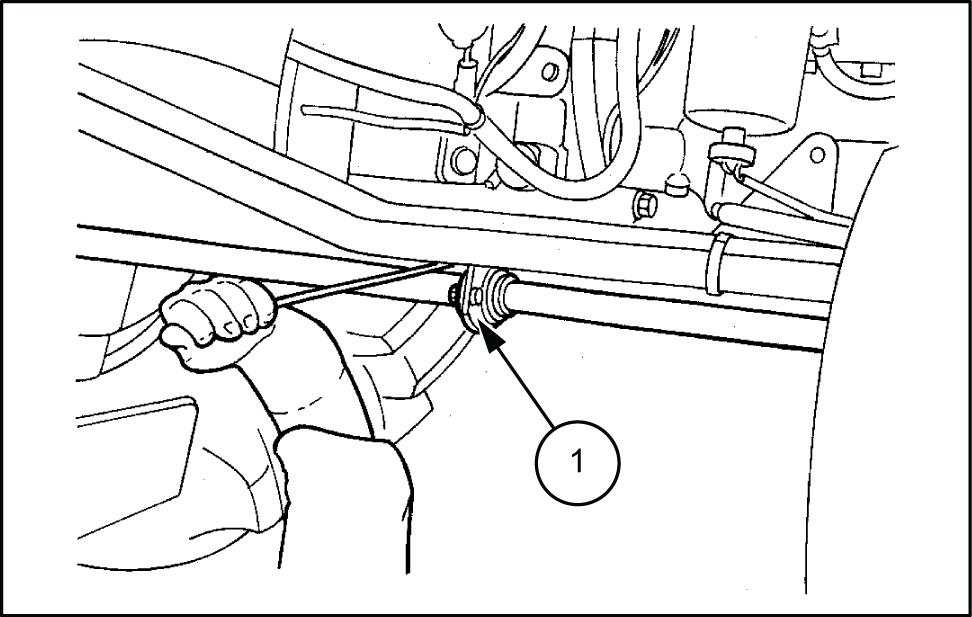

13. Remove the propeller shaft central support (1) retaining bolts and extract the shaft together with the support.
14. Remove the retaining bolts (1) of the suction pipe (2) of the lift pump.
ANIL12TR00066AB 9
ANIL12TR00067AB 10
ANIL12TR00068AB 11
ANIL12TR00069AB 12
