1.1 Water Temple Project Phase I: Vision and Government Adoption B.Arch Thesis, 2014. Presented to the Prime Minister of India, 2016.

Adopted under the National Mission for Clean Ganga (Water Resource Ministry of India) CSR initiative, 2017-19.

Design originator and project lead.

The Ganga is the most revered river in India and among

the most polluted. Once every twelve years, Varanasi and its sister cities host the Kumbh Mela, the largest human gathering on earth, where pilgrims arrive to bathe in water that is now unfit even for agriculture in many stretches.

The Water Temple began as my undergraduate thesis: an attempt to use the river’s own sacred significance as the instrument of its repair.

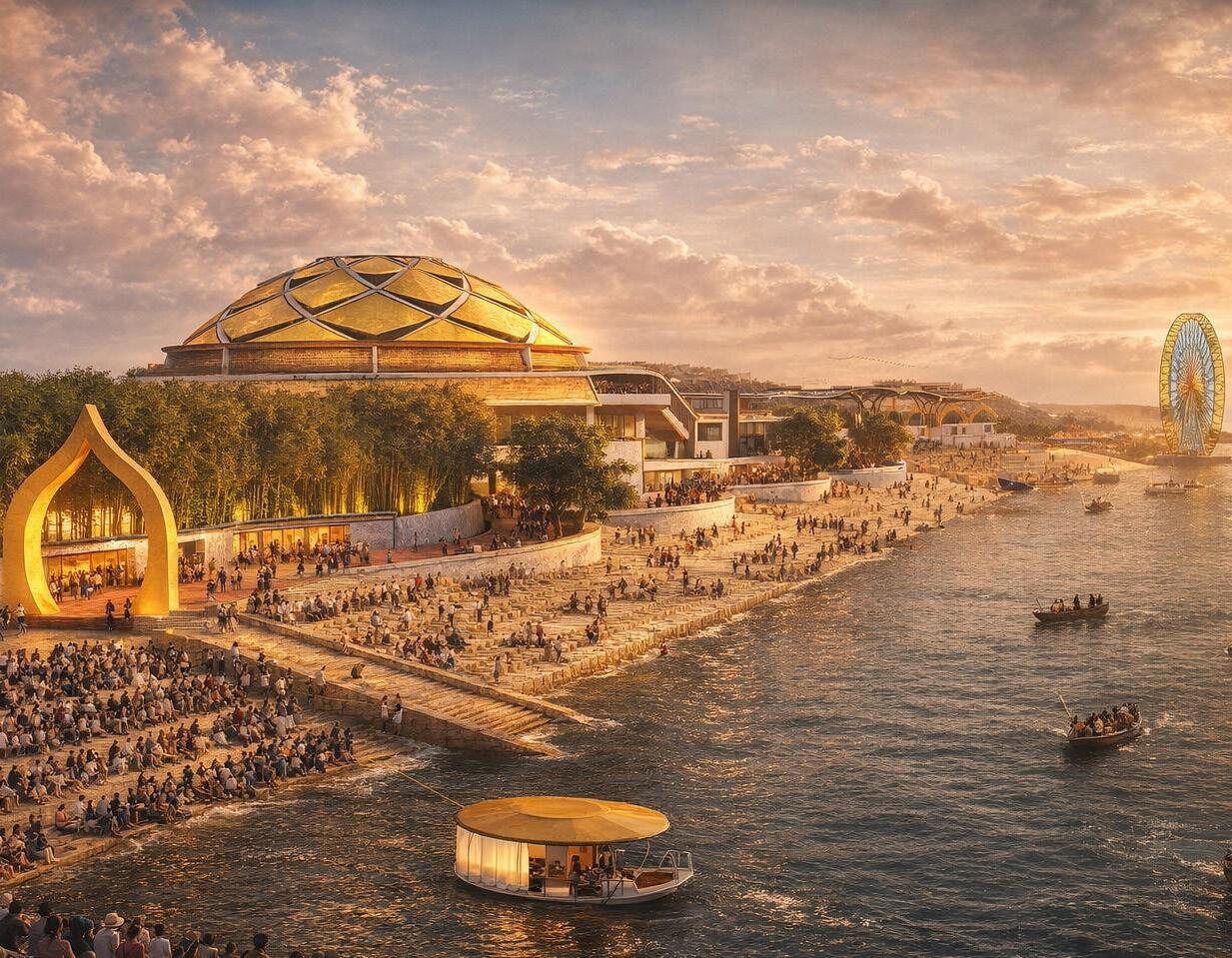

The proposal reimagines the Varanasi ghats as a riverfront that lets people see, taste, and return Ganga water through ritual, making the larger water cycle legible as a civic and spiritual experience. The project was presented to the Prime Minister of India and adopted under the National Mission for Clean Ganga CSR initiative, with land parcels identified along the Varanasi riverbank for a potential pilot.

CRITICALLY POLLUTED STRETCH

Kanpur Prayagraj

Varanasi

Bay of Bengal Arabian Sea

International boundary State Boundary Rivers Major Cities on course

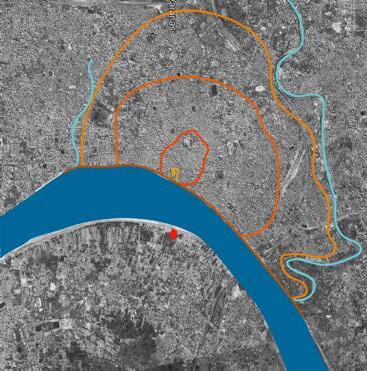

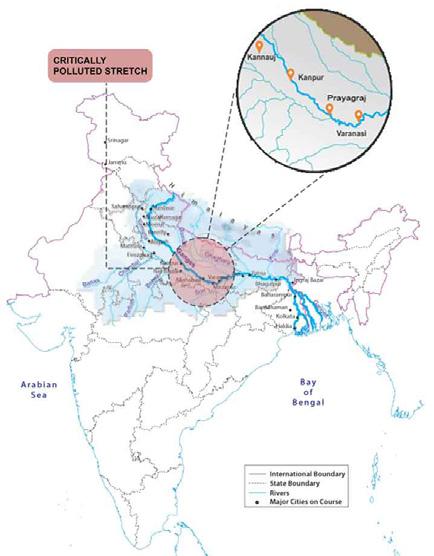

Map of India & Ganga basin

Presented proposal to Prime Minister of India

Picture with my first client (& mom), Presenting and submitting my Final Year thesis proposal “Water Temple” to H’nble Prime Ministe

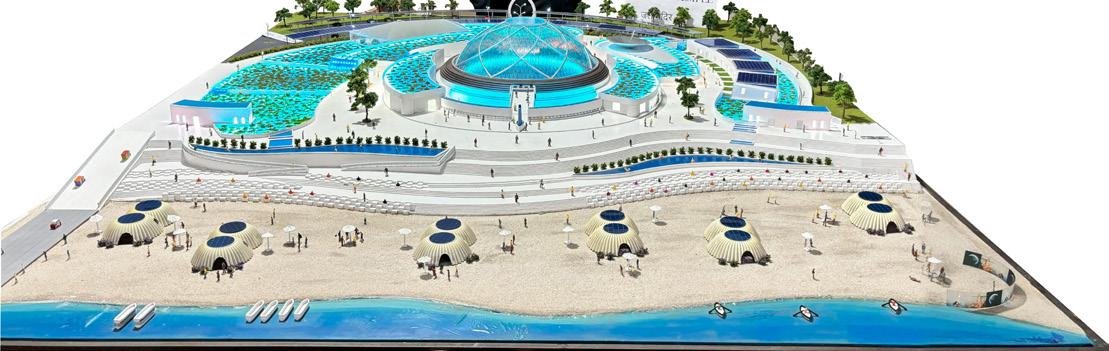

Physical model

1.2 Water Temple Project Phase II: Ecological Strategy with Experts M.Arch Thesis, Arizona State University, 2019-2021 Developed with ARUP Group under their community engagement program and landscape architect Charles Anderson Design originator and project lead

Five years on, the project returned as my graduate thesis,

deepening from a single riverfront into a full ecological strategy developed with landscape architect Charles Anderson around the geography of Varanasi, the land between the Varuna and Asi rivers.

The scheme treats architecture as a temporal system aligned with the monsoon: lightweight 3D-printed earthen suites dissolve and are reprinted each flood season, and water purification runs as a visible living-machine landscape. As design originator and project lead, I advanced the proposal in collaboration with ARUP Group, who backed it through their community engagement program, funding the feasibility study, physical model, and on-site prototype.

The project remains a working argument that a polluted sacred river can be repaired through the same rituals that draw people to it.

Land between the Varuna and Asi rivers, known as Varanasi Pilgrims path River Varuna and Asi

Site

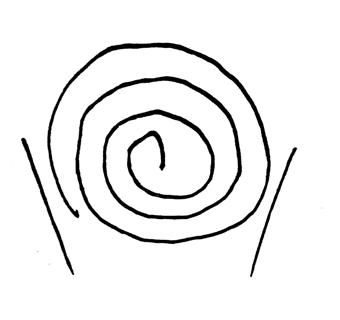

Mirroring the two rivers, with a spiral path for visitors

3D-printed structural study

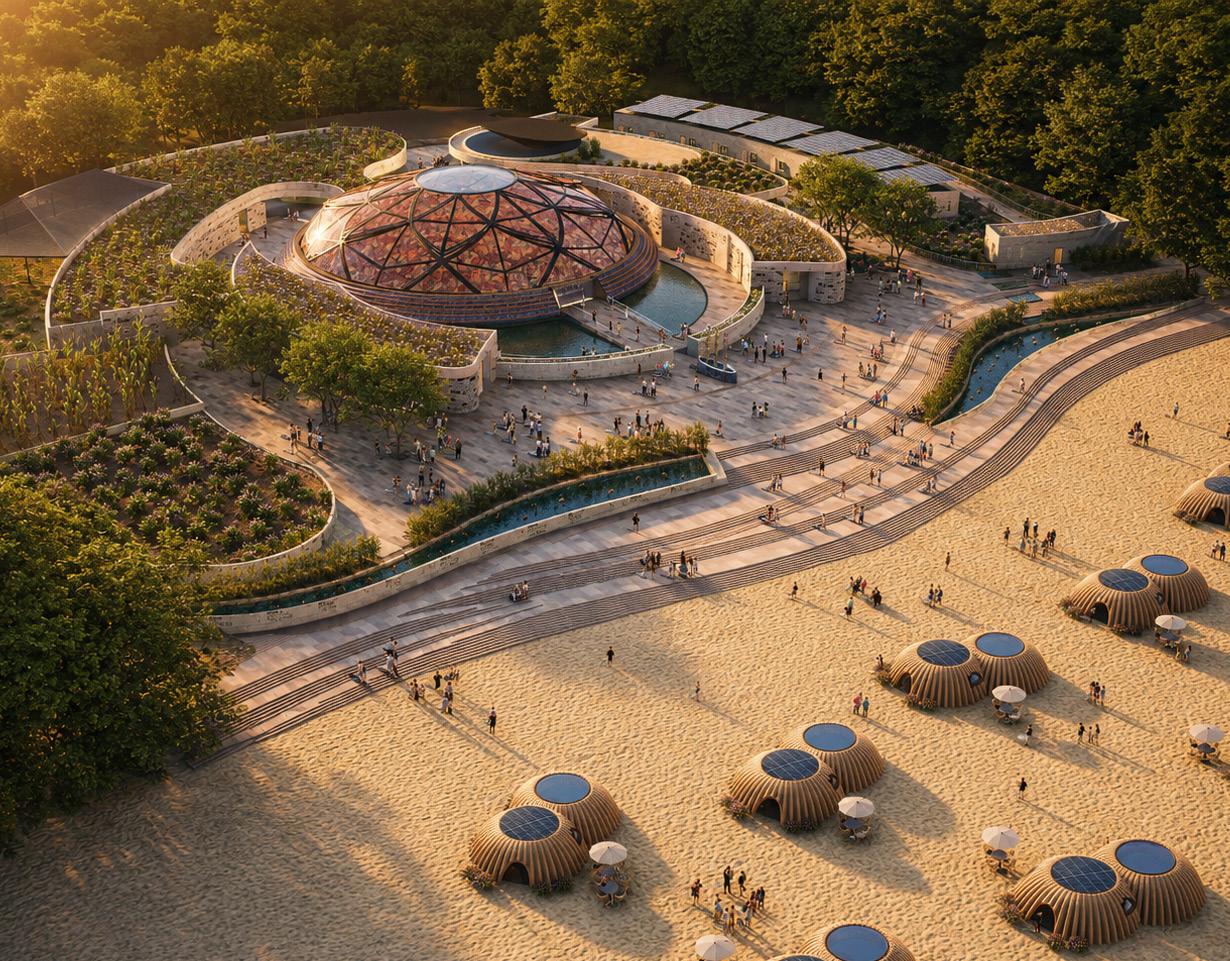

1.3 Concept and Design Temples in India are built in the image of man as a cosmic being, one with the universe. The Water Temple draws on this sacred relationship with the Ganga to frame the causes of pollution as everyday actions, and its remedies as daily and seasonal rituals.

The plan sits on the land between the Varuna and Asi rivers, the geography from which Varanasi takes its name. Two arcs mirror the rivers, and a spiral pilgrim path draws visitors inward to the central dome where ritual, filtration, and gathering converge.

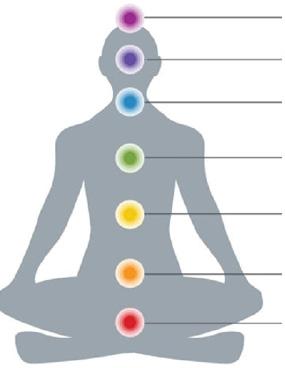

Geometry, water, and program are organized around the seven chakras (energy centers) of the body, aligning architectural experience with the cosmology that brings pilgrims to the river.

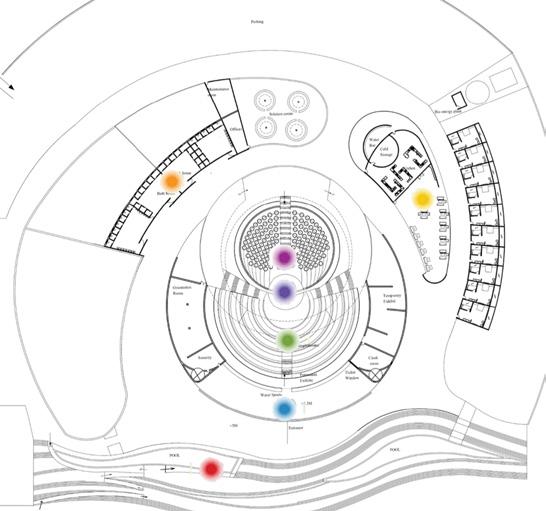

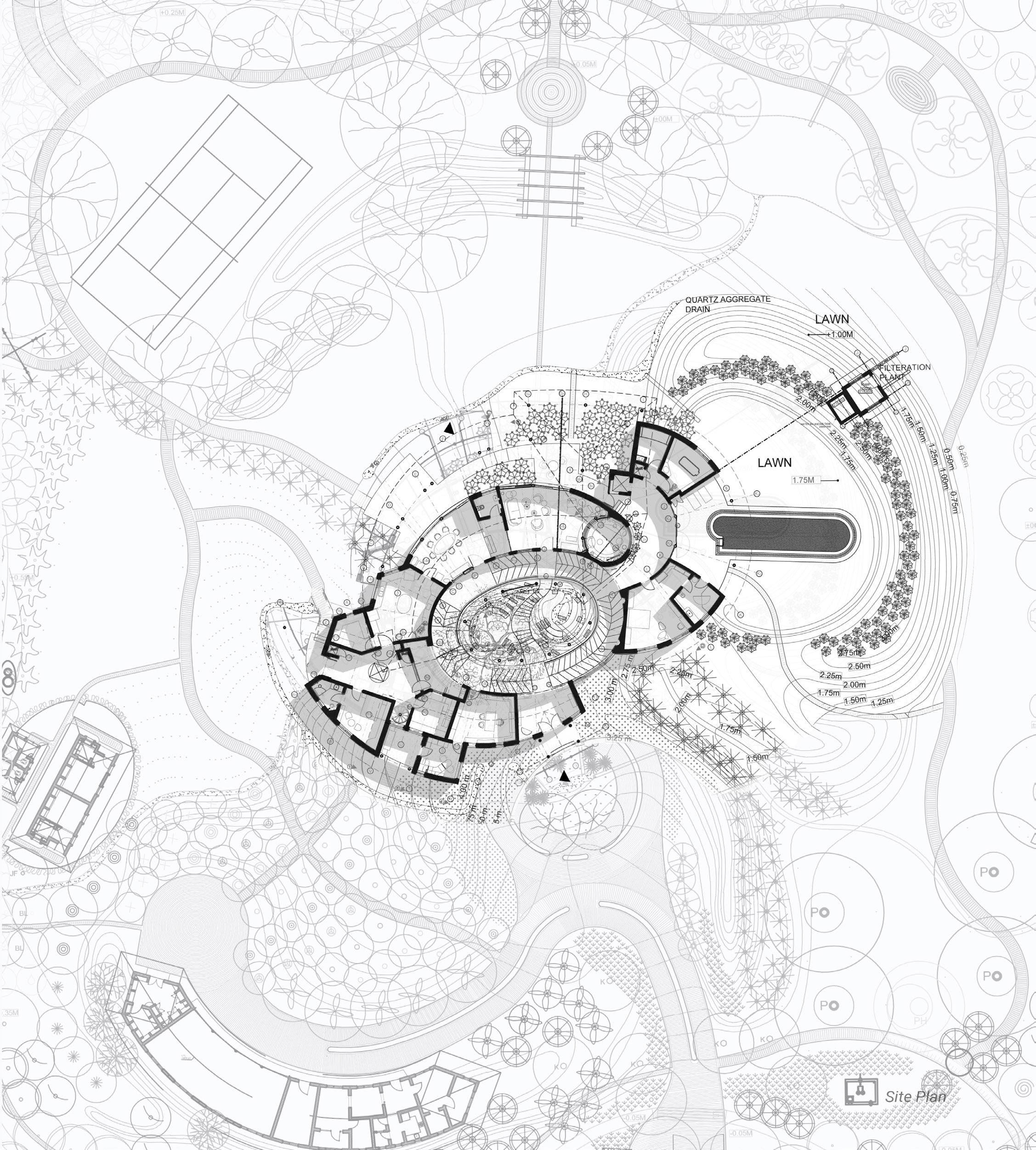

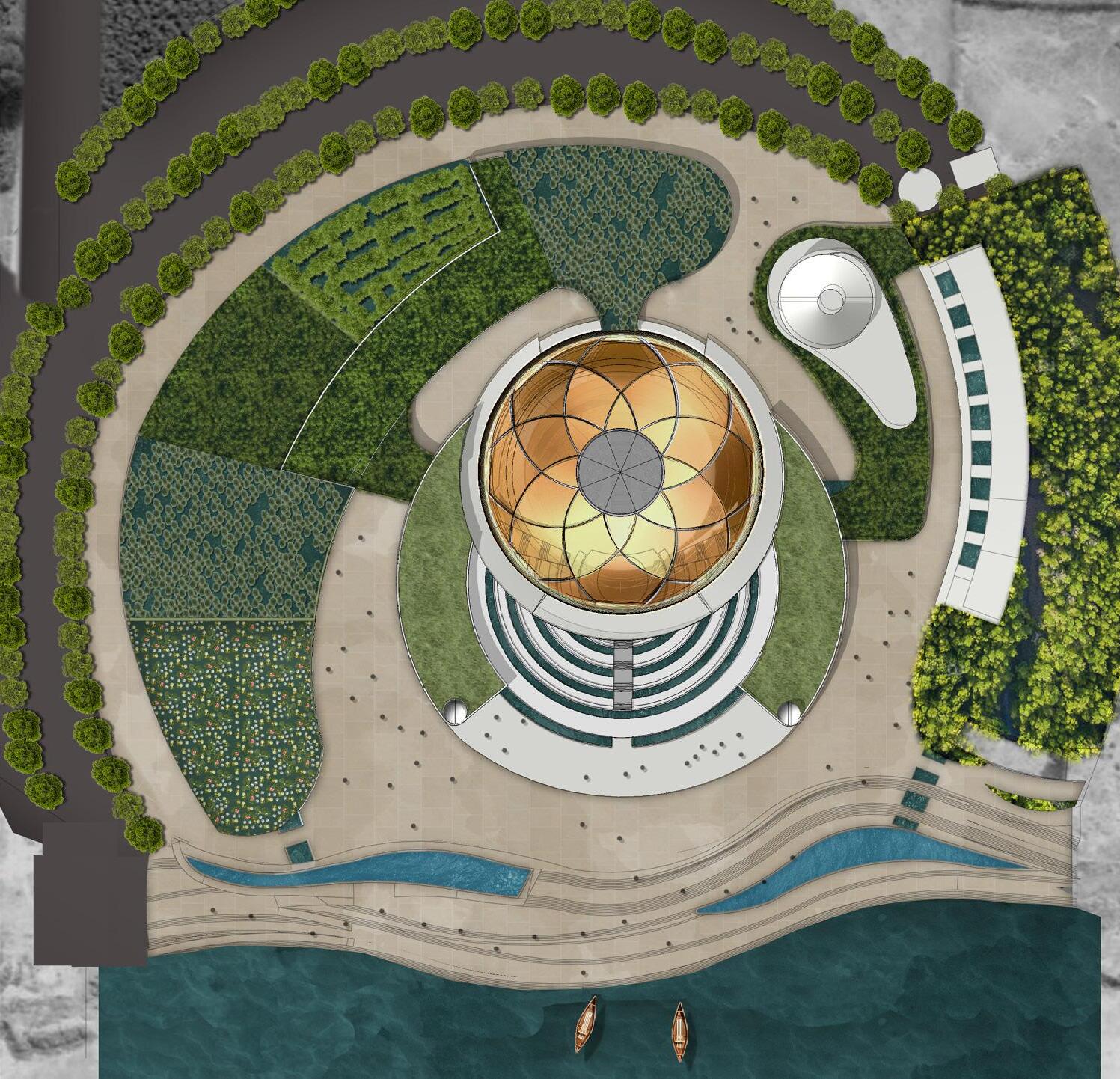

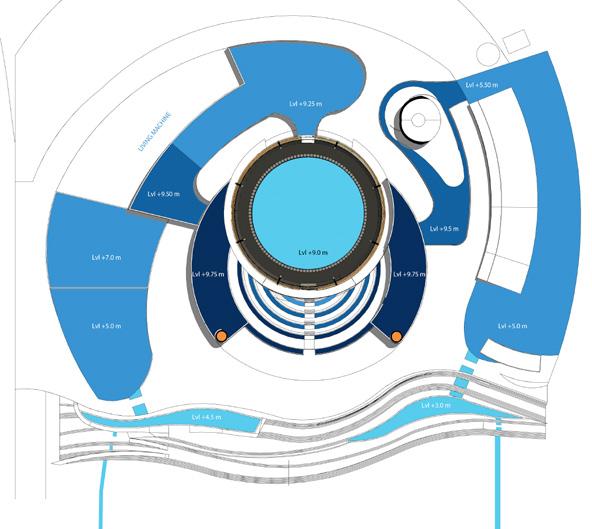

Site plan. Two arcs mirror the Varuna and Asi rivers; the spiral path leads pilgrims inward.

Problems in river basin Cropland or grassland Urban areas

Wasteful agriculture and untreated urban waste High rain Light rain

Groundwater depletion reducing base flow

Harmonizing human role in water cycle High rain Light rain

Rain causes floods Dams or barrages High rain Light rain

Dams and barrages reduce natural flow

1 2 3 4

Clouds Going within Quench thirst Blood flow

Rain water harvesting Conscious actions Reviving local water bodies Minimum ecological flow

5 6 7

Food digestion Toxins segregate Disappears (underground)

Sustainable farming Organic waste segregation Ground water recharge

Flow of water through the site, lightening in tone as it is progressively cleaned.

Architectural experience organized around the body’s energy centers.

Solar Panel Sedimentation tanks Planter 1 Planter 2 Planter 3 Sandfilter KETOS testing system

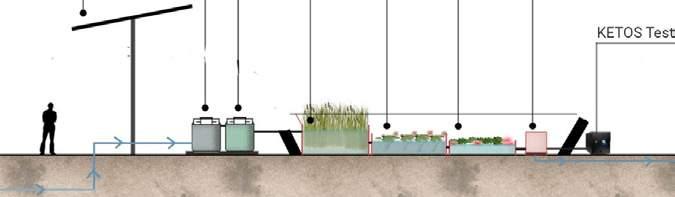

Schematic section - Biofiltration

Presentation of the Water Temple project during a formal interaction with the Honorable Prime Minister of India.

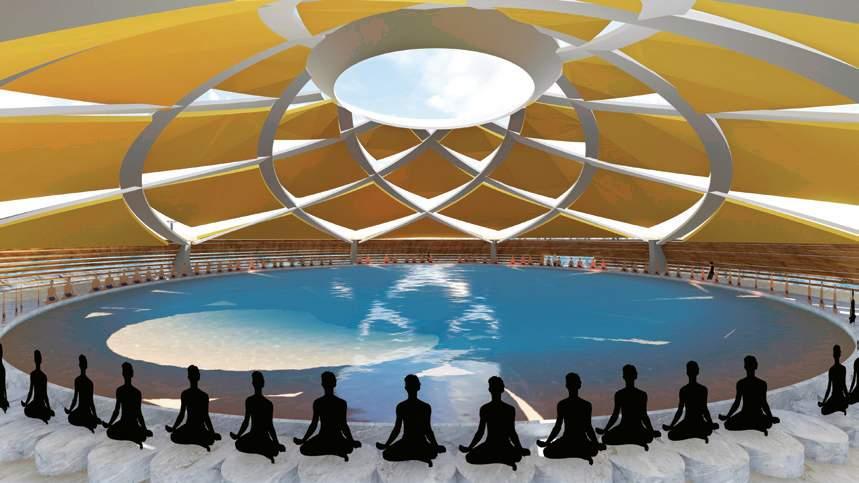

Water Meditation space

1 Dissolving Earthship

3

The project responds to cyclical flooding through a reversible construction strategy.

Lightweight, modular earthen structures are designed to perform during dry conditions and dissolve during monsoon periods, allowing the site to reset without residual impact.

Architecture is conceived as a temporal system aligned with hydrological cycles rather than a permanent imposition on the landscape.

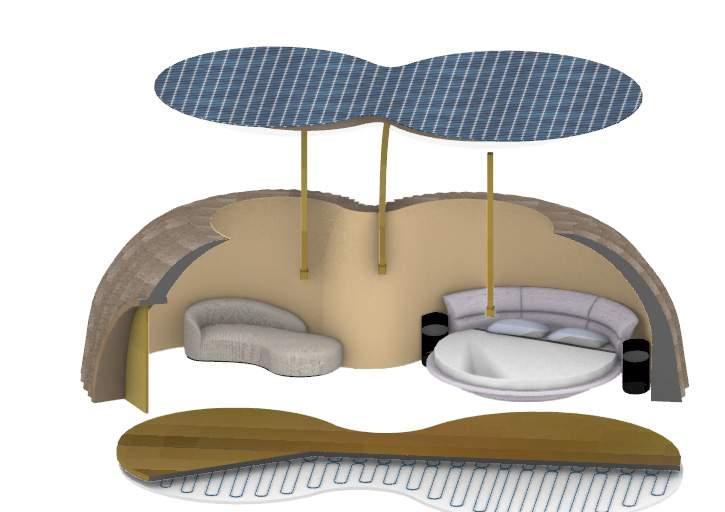

Solar Roof + battery

Mud based 3D printed shell

Infill ventilation

Coating for weather protection

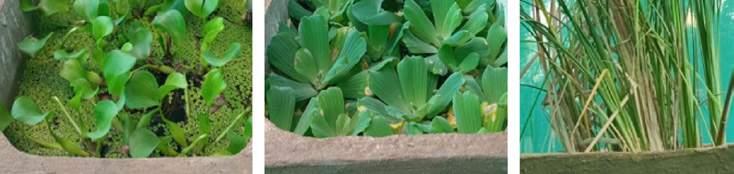

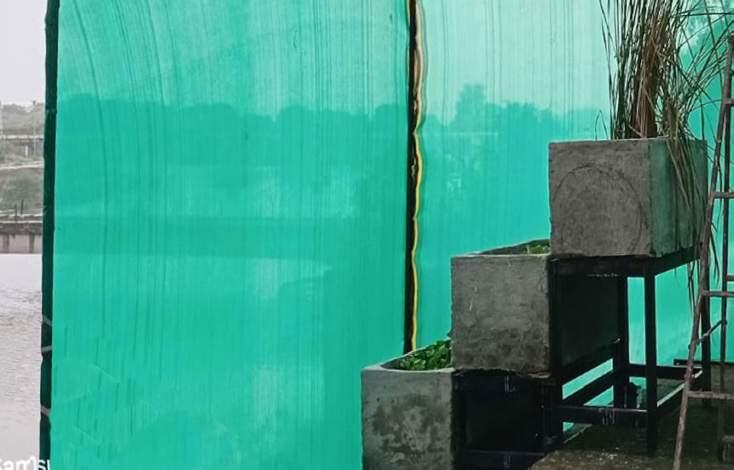

Prototype - Biofiltration

2

Living Landscape

Water purification is embedded within the architectural experience as a visible, performative system. River water is filtered through sequential ecological processes including sedimentation, planting, and time-based flow.

The system operates simultaneously as infrastructure and landscape, making environmental processes legible while maintaining ecological balance.

RHS200X150X6

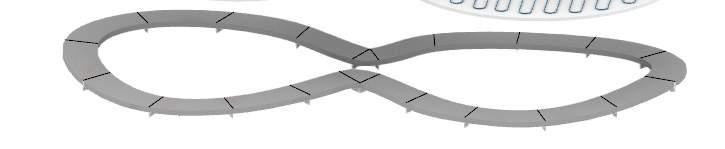

Precast plinth beam

Annual monsoon flood level

Ganga River

1

Layered materials and passive strategies modulate light, temperature, and water movement, allowing the structure to perform as both enclosure and environmental mediator.

Geometry emerges from structural and environmental performance, informed by sacred geometry, balancing cultural reference with material restraint..

Acrylic glass Secondary Structure steel pipes

Primary Steel Structure

RHS250X150X12 RC Grade Beam 450x900

1

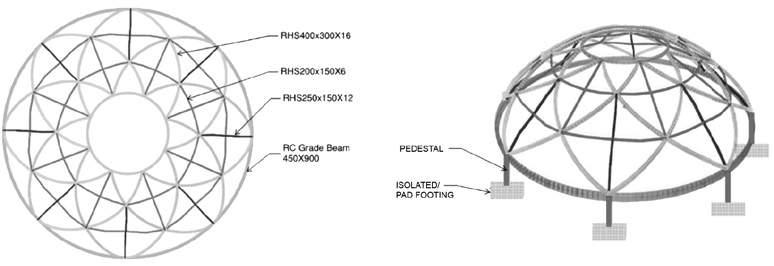

The Water Temple is conceived as a lightweight, low-impact structural system responsive to the seasonal sensitivity of the riverbank. A steel framework is configured as a porous environmental system, integrating filtration, airflow, and daylight while organizing a central gathering space oriented toward the river.

Ceramic sand filter

RHS400X300X16 Latent heating and cooling floor

Structure & skin design

Pedestal Isolated/ Pad footing

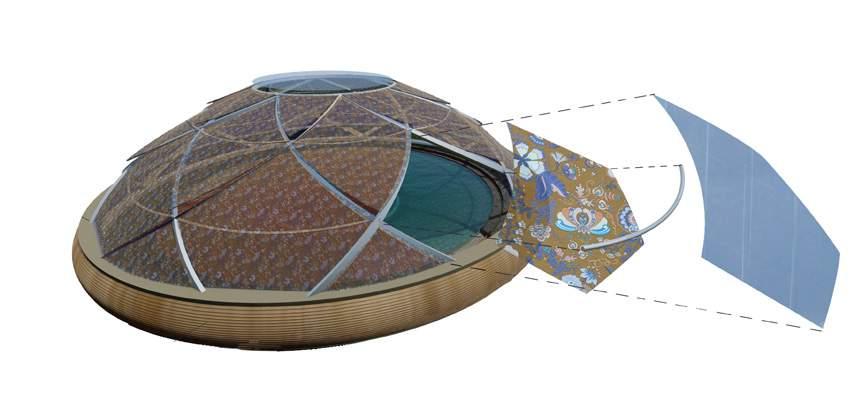

Dual fabric Roof skin ETFE + coated Silk

Tertiary Structure wooden louvers

2

2 3

1 Section showing water distribution

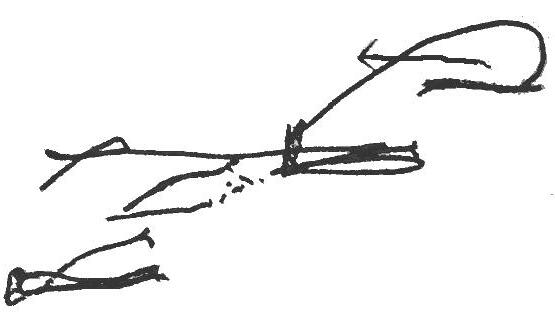

Sketch by Antoine Predock

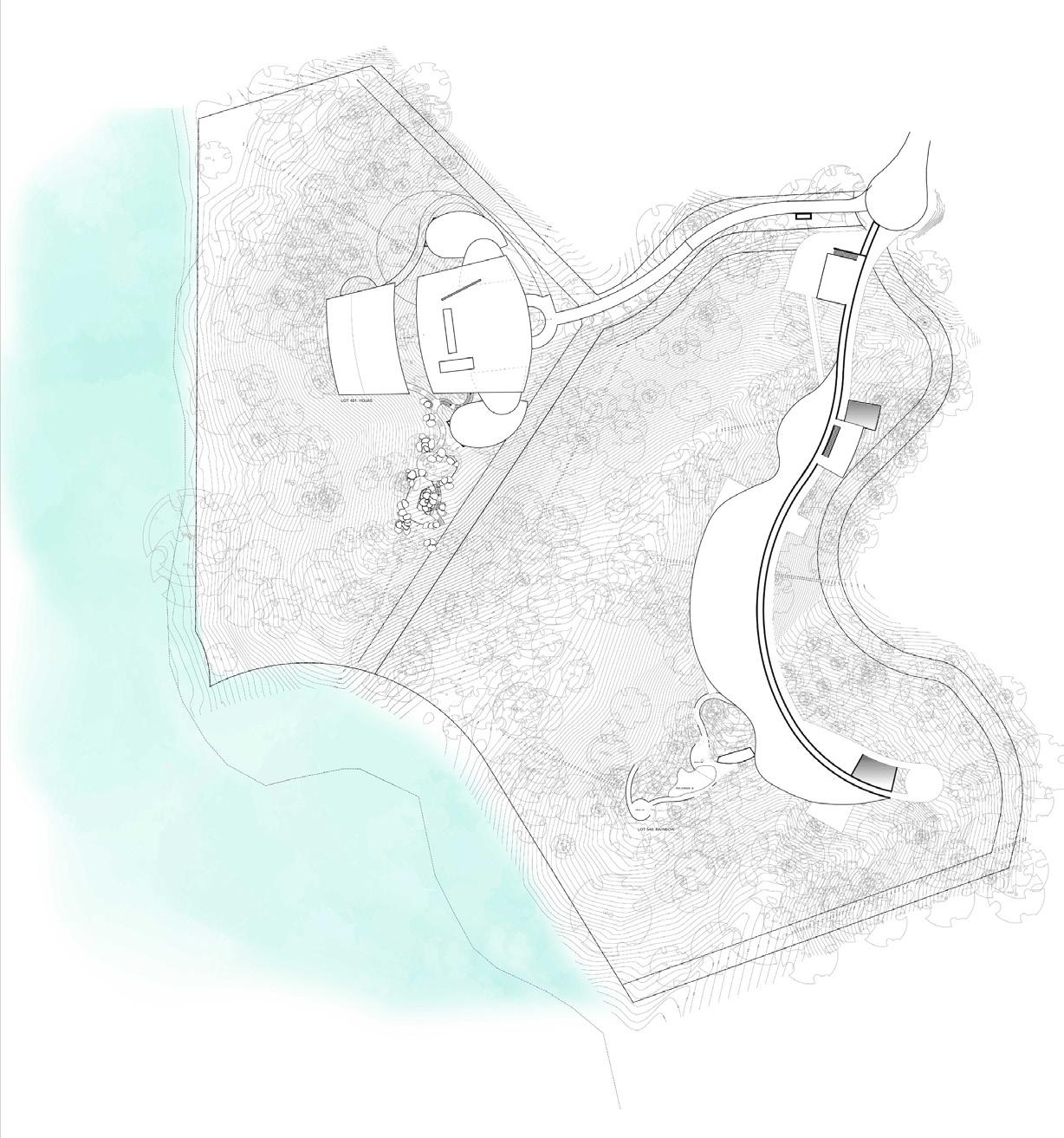

02. Hojas & Rainbow Ultra-luxury residences, Costa Rica Antoine Predock Architects, Albuquerque, NM, 2021-22 Junior Designer - core design team, Hojas and Rainbow houses

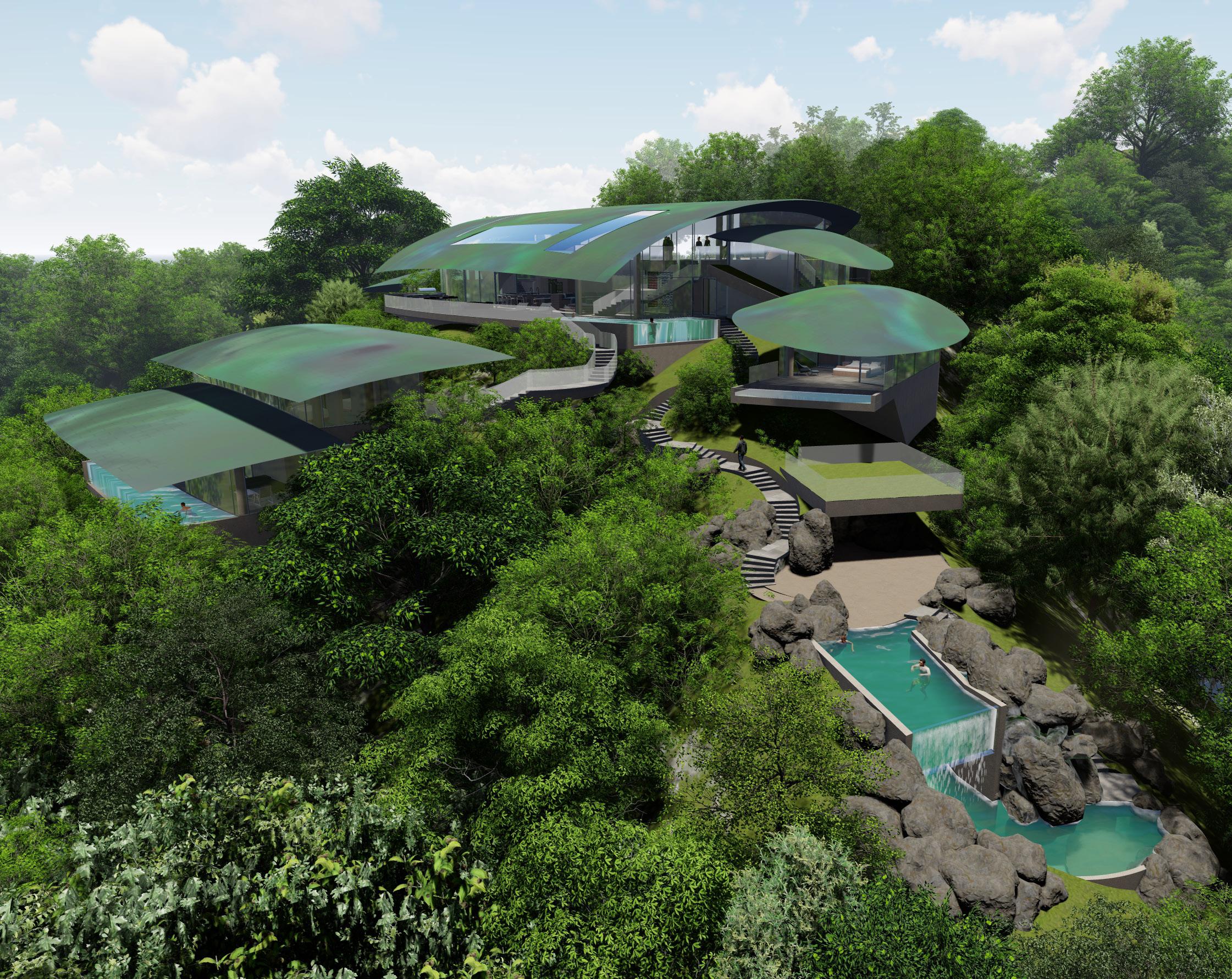

Inspired by Hojas, meaning “falling leaves,” this nine-

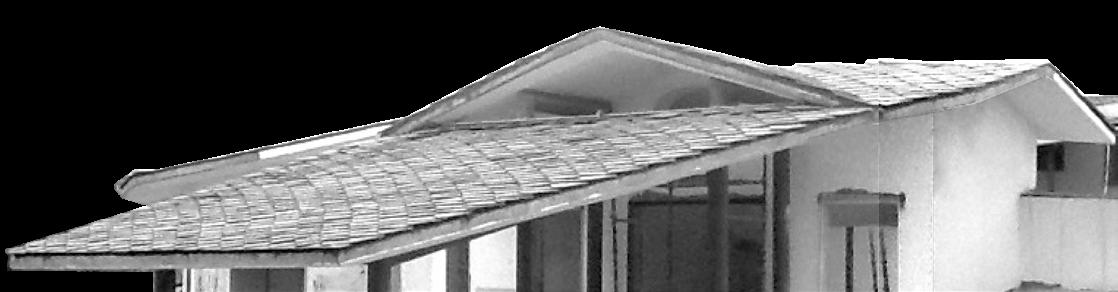

bedroom house cascades down a hill, its leaf-shaped roofs with knife-edge details opening views in all directions.

Rendered in Lumion

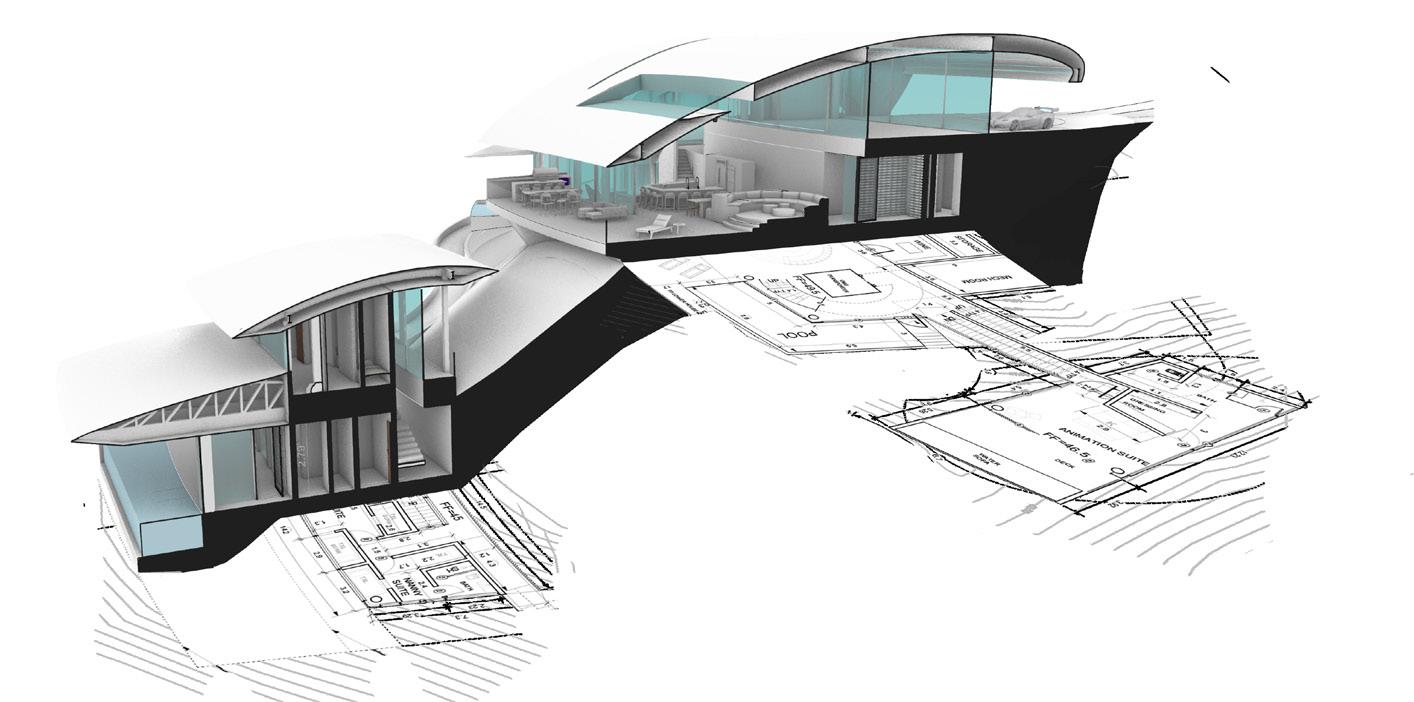

Working closely with FAIA Gold Medalist Antoine Predock, I translated his vision of “body in motion” into spatial sequences and built form. I developed parametric models in Rhino and Grasshopper, advanced SD and DD drawings, and produced renderings and walkthroughs in Lumion. I supported BIM coordination in meetings with consultants and local architects, and contributed to material selection and interior design alongside the lead architect.

03

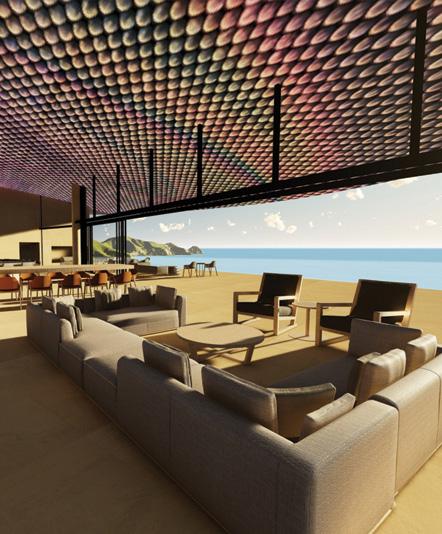

Rainbow residence

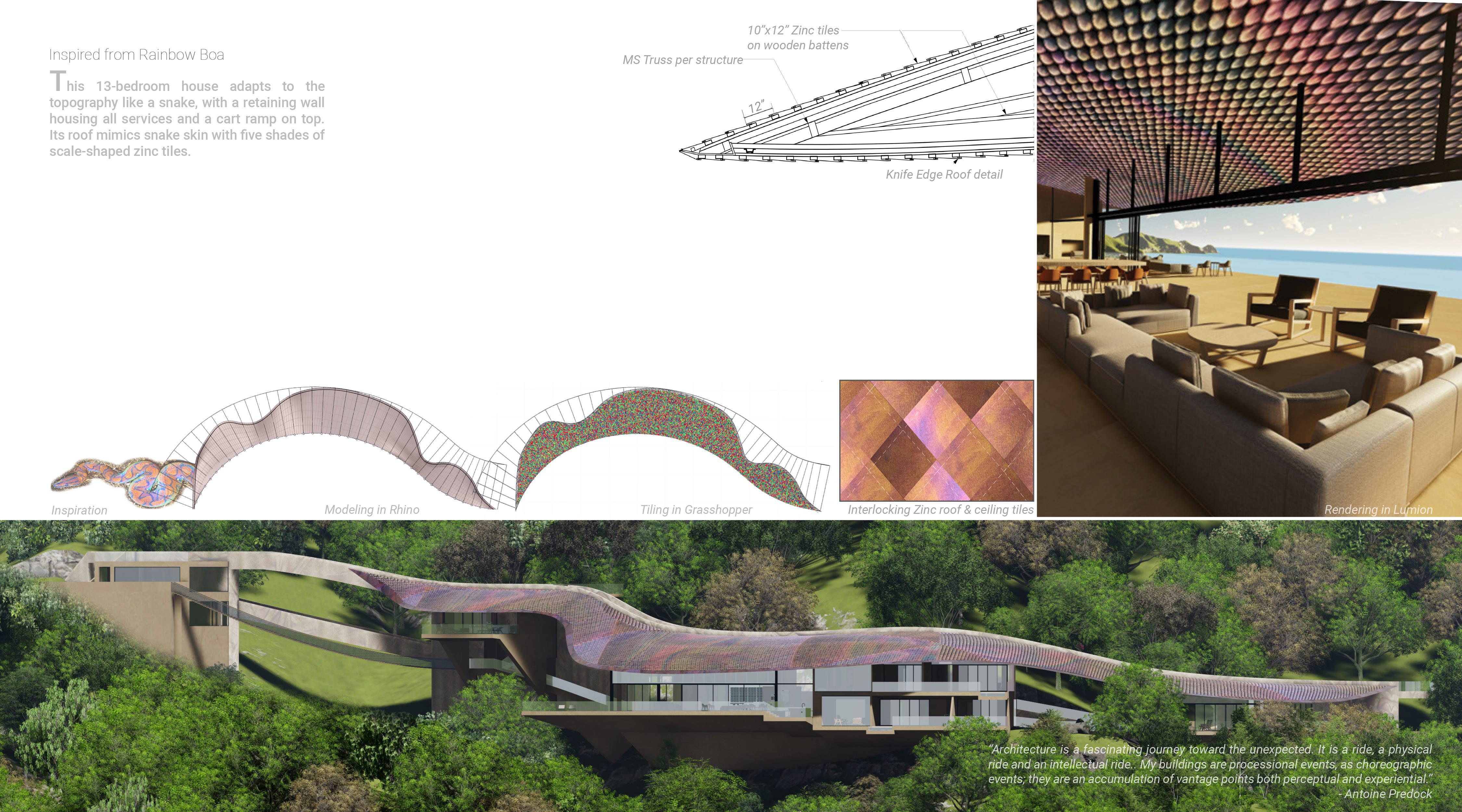

Inspired from the Rainbow Boa

This 13-bedroom house adapts to the topography

like a snake, with a retaining wall housing all services and a cart ramp on top. Its roof mimics snake skin with five shades of scale-shaped zinc tiles.

10”x12” Zinc tiles on wooden battens MS Truss per structure

12”

Knife Edge Roof detail

Inspiration

Modeling in Rhino

Tiling in Grasshopper

Interlocking Zinc roof & ceiling tiles

Rendering in Lumion

“Architecture is a fascinating journey toward the unexpected. It is a ride, a physical ride and an intellectual ride.. My buildings are processional events, as choreographic events; they are an accumulation of vantage points both perceptual and experiential.”

- Antoine Predock

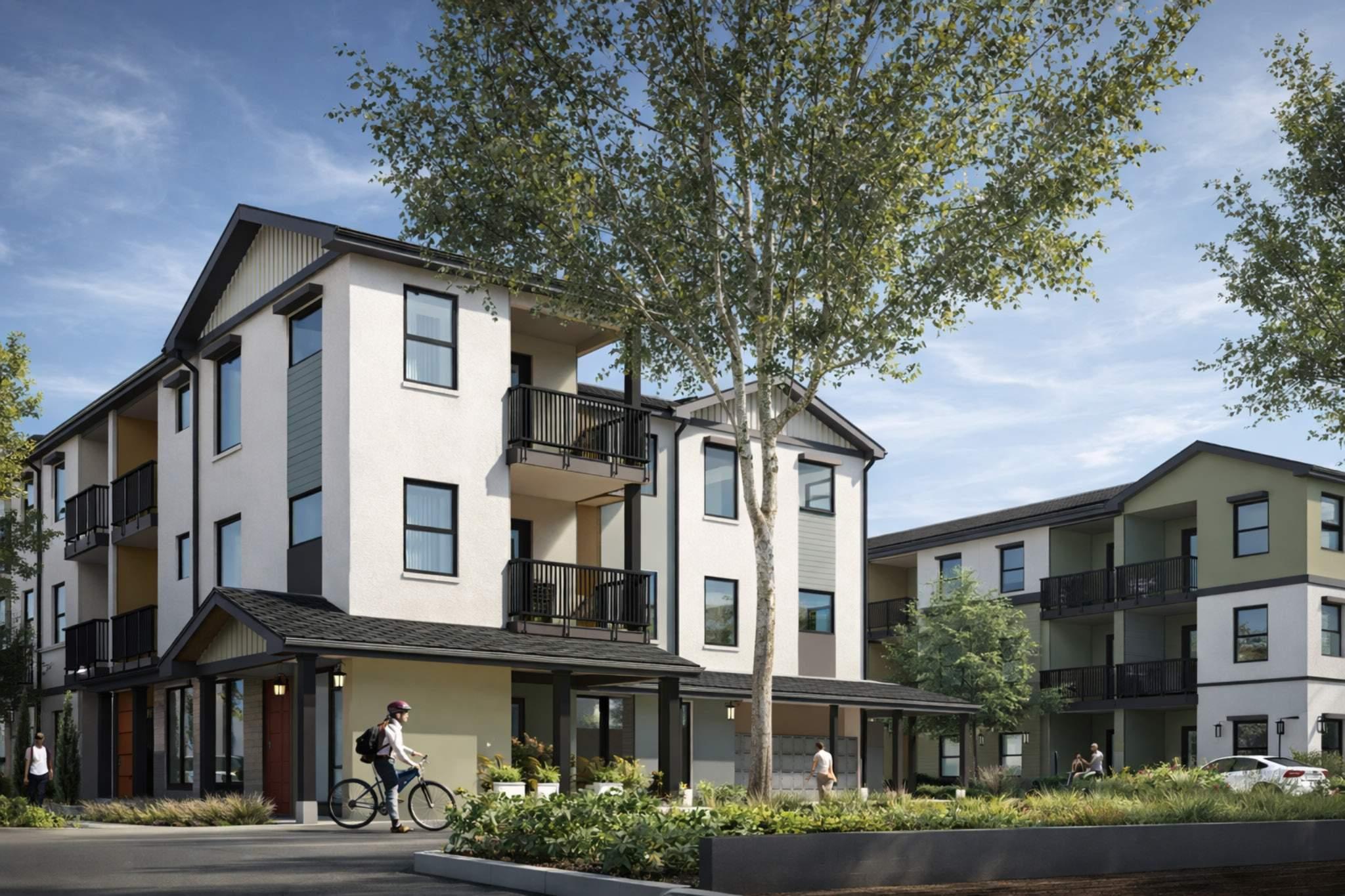

04. Multi-family housing A climate-responsive multi-family housing project Starq Design | 2025 | Multifamily Housing | Fontana, CA Architectural Designer

This multi-family housing project in Fontana, California adopts a climate-responsive approach informed by Southern California energy performance requirements, balancing density and neighborhood scale within a growing Inland Empire context. The design prioritizes clear massing, passive shading strategies, and shared outdoor spaces to support occupant comfort while moderating solar heat gain.

Stepped volumes, recessed balconies, and articulated façades provide effective self-shading and daylight control, supporting envelope performance consistent with California Title 24 energy efficiency goals. The overall approach emphasizes durability, constructability, and long-term performance appropriate to the regional climate.

PL

PL PL SETBACKSETBACK 5'-0" 5'-0"

39'-10"

A A BUILDINGBUILDING 100'-0" 100'-0"

39'-10" 11 DF

1 F 1 D

L3 Plate

17 E-

El. 35'-4"

5 1 F E

7 -

El. 35'-4"

85 F-

7 -

2 A

2 A

1 A

1 A

1 D 1 E

7 -

8 - G

-1 GC

6 H

16 BH

1 8 C -

1 B

L3 Plate

12 AD

83 E-

1 A

El. 35'-5" El. 33'-8"

El. 33'-8"

PL

SETBACKSETBACK 5'-0" 5'-0"

2 D

3 E

El. 35'-5"

L2 Level

L1 Level

L1 Level

L1 Level

L3 Plate

L3 Plate

L1 Level 34 F-

3 F

1 F

4 -

1 F

1 D

1 D

1 B

11 BF

11 J

1 10 FH

11 J

7 -

10 1 HE

9 7 - -

1 E

9 -

9 -

2

PL

PL

12 1 - D

H

12 -

1 F

1 F

2

- 9 H -

1 D

10'-4"

L2 Level

10'-4"

L2 Level

10'-4"

L3 Level 10'-4"

L3 Plate

L3 Level

10'-4"

10'-4"

L3 Plate

L3 Level

9'-1"

10'-4"

10'-4"

L2 Level

1 E G

50'-2"

9'-1"

9'-1"

9'-1"

L3 Level

1 D

G

50'-2"

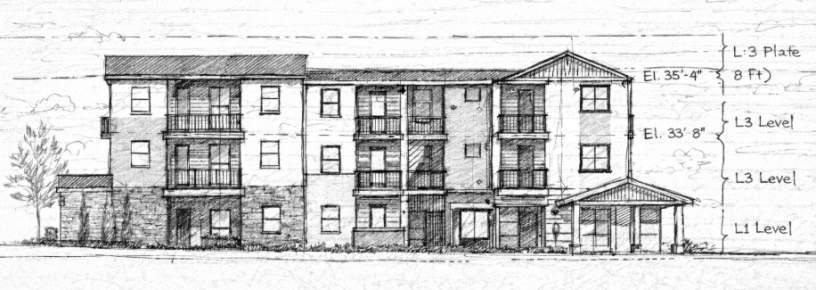

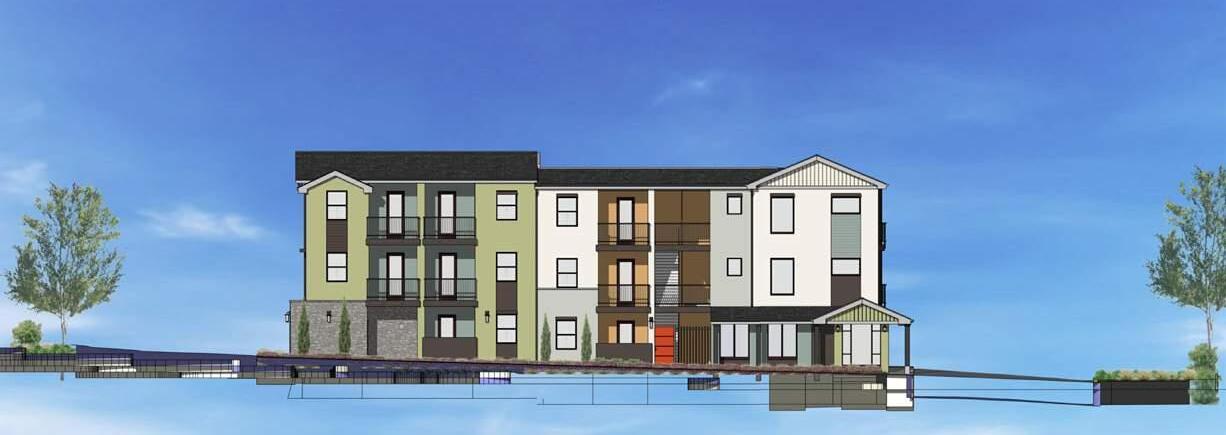

WEST ELEVATION WEST ELEVATION

1"= 10' 1"= 10' Facade materials: Stucco, fiber-cement siding, manufactured stone base, metal railings, asphalt shingle PLroof.

PL

SETBACKSETBACK 38'-2" 5'-0" 5'-0"

38'-2"

5 F 1 D

B B BUILDINGBUILDING 95'-1" 95'-1"

5 F 1 F

1 1 DE

El. 35'-5"

17 F-

1 E

El. 35'-5"

17 A-

2 D

1 A

G

28 D-

-GG

1 E 81 -B

G

6 H

El. 34'-3"

1 1 B C

16 AH

El. 34'-3"

1 1 C F

1 A

44'-1"

1 E 1 F

7 -

El. 35'-5"

1 F

44'-1"

SETBACKSETBACK 5'-0" 5'-0"

7 -

El. 35'-5"

05. Presence Farm house Brijwasan (New Delhi), 2015-16 Kamath Design Studio Jr Architect position

Located on the outskirts of Delhi, surrounded by

farmland and the distant Aravalli Hills, the house emerges quietly from its setting. Its presence unfolds gradually as one moves through the organic farm.

13 12

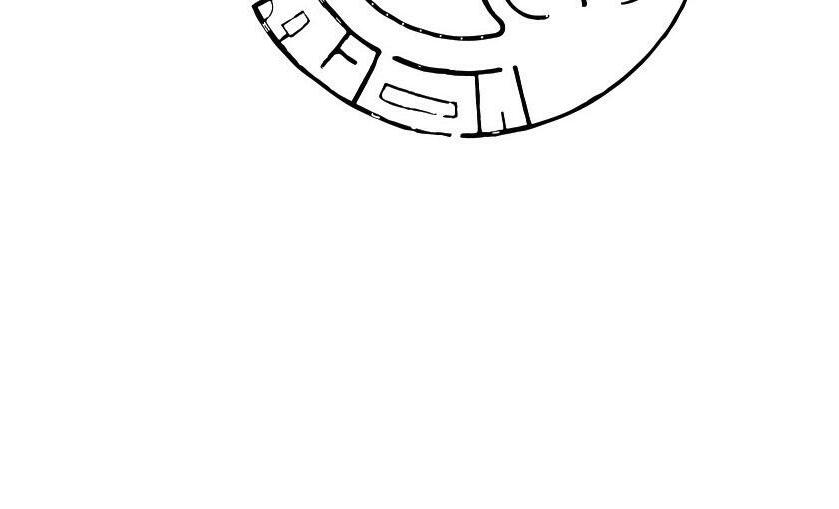

Our client, a trustee of Auroville, the visionary township often called the “City of the Future,” drew inspiration from its Master Plan. Rooted in the form of a spiral galaxy, the design symbolizes dynamic movement, interconnectedness, and a balance between urban and natural environments.

9

10

8

All materials were sourced within 200 km of the site.

Working under the project manager, I contributed to design development, interior drawings, detailed construction documents, budgeting, client presentation, and site visit documentation.

15

16 11

7

6

14

1 3

5

2

4 17

LEGEND 1. Foyer 2. Office 3. Utility room 4. PA 5. House keeper room 6. Store 7. Kitchen 8. Dining 9. Living Room 10. Music room 11. Family living 12. Massage 13. Sauna 14. Yoga Space 15. Pool 16. Ramp 17. Servant quarter 18. Storage 19. Garage 20. Office

18

Section : Highlighting passive cooling stratergies like vegetative cooling + diffused light

19

20

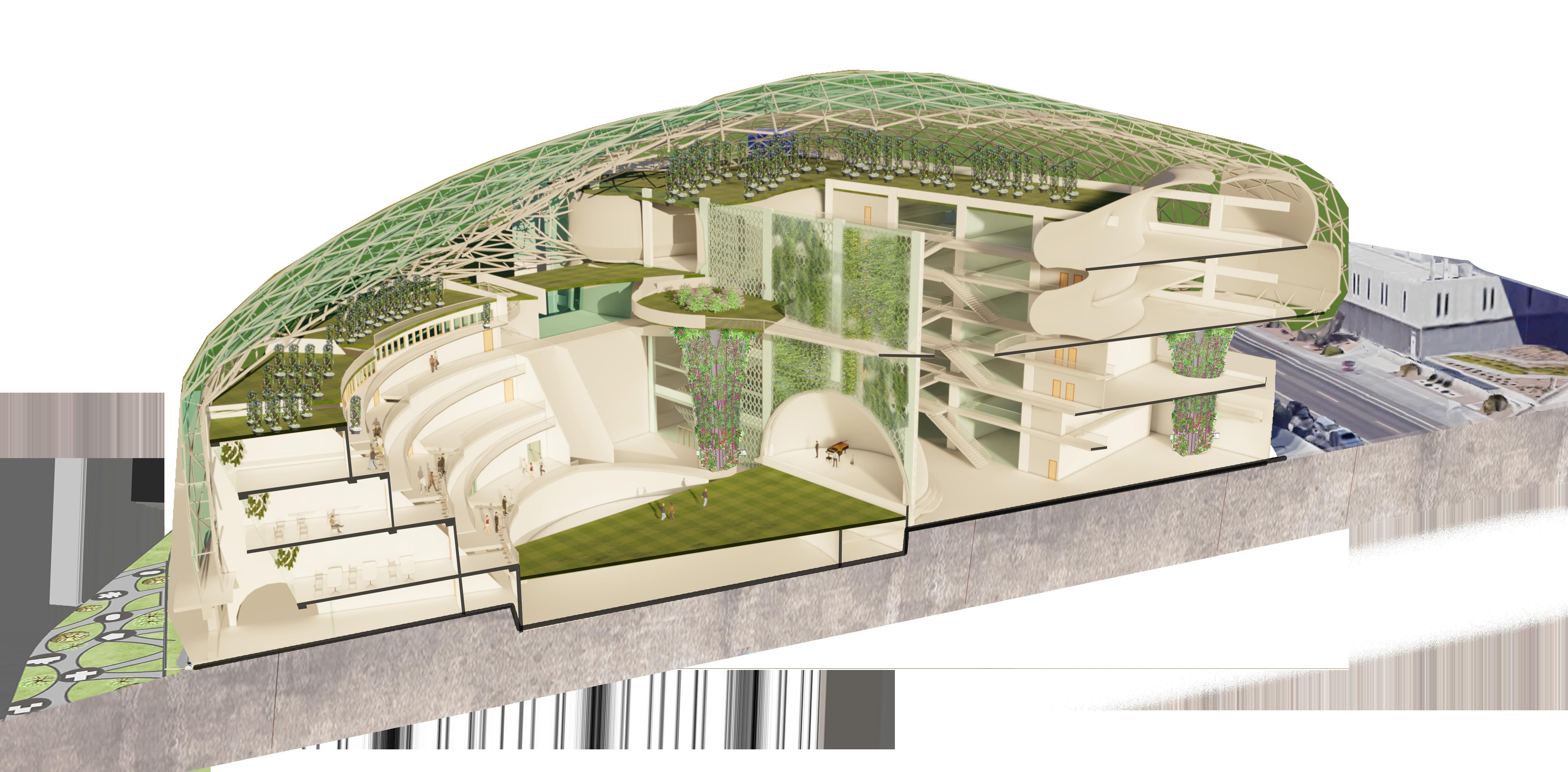

05. School of Arcology Reimagining concepts of Paolo Soleri (Architecture + Ecology) Arizona State University, M.Arch Studio Student work, 2019-2020

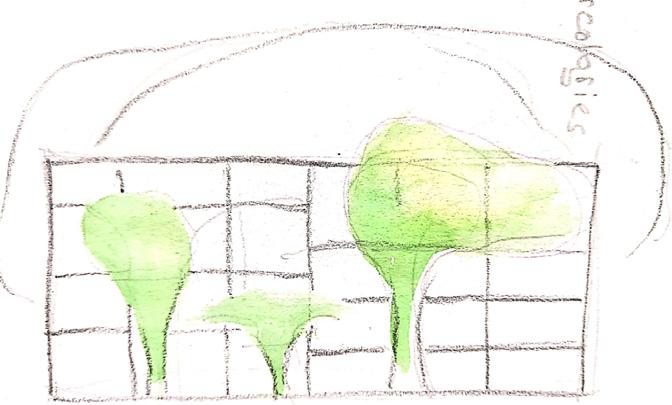

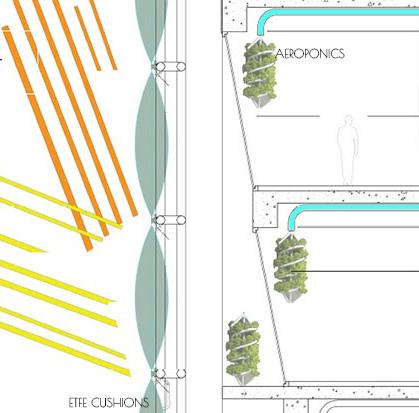

Aeroponic plants absorb sunlight while evaporating water through their leaves, lowering ambient temperature. Inflatable ETFE controls solar gain, creating a stable microclimate. A water mist system runs through the ceiling and dendrophile columns, supplying plants that grow downward from above, out of human reach but clearly visible, producing a biophilic environment for learning.

ETFE SKIN & STEEL STRUCTURE

GREEN CAFE

ATION AND MEDIT

R

CE CENTE

EXPERIEN

OP

NIR SH

SOUVE

STAFF

AM

ROOM

CL

PHI THE

ATR E

M ASSROO

WALL SECTION

ROOM

CLASS

SECTIONAL VIEW

GYM

LOBBY

06. The Cloud

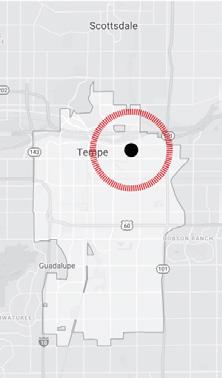

Located in ASU’s future Novus Innovation Corridor, the site receives abundant sunlight, making solar strategies a key design component.

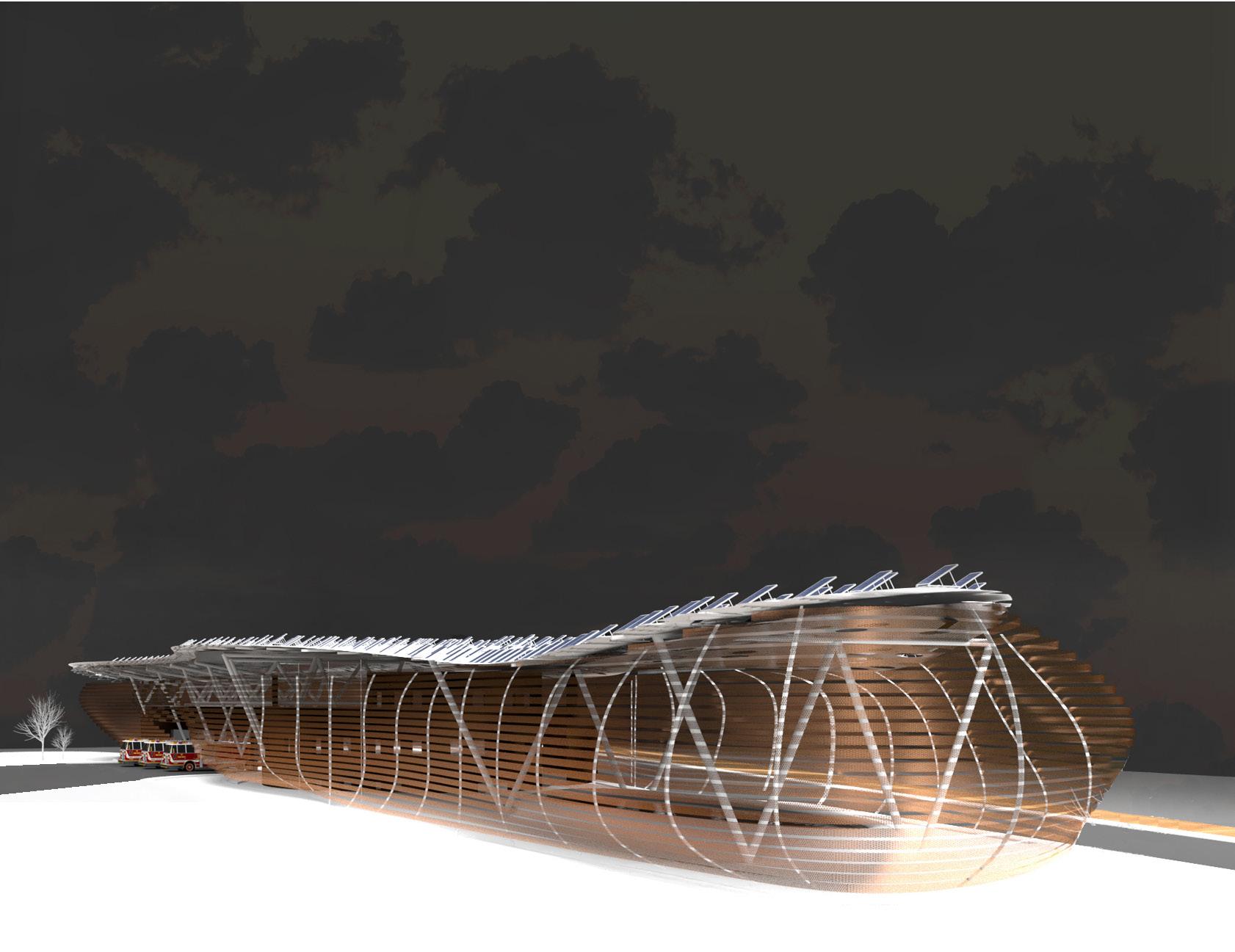

Fire Station

Water from air, used for community Third Semester, 2020 Site: Tempe, AZ Independent Studio project Instructor: Ed Soltero

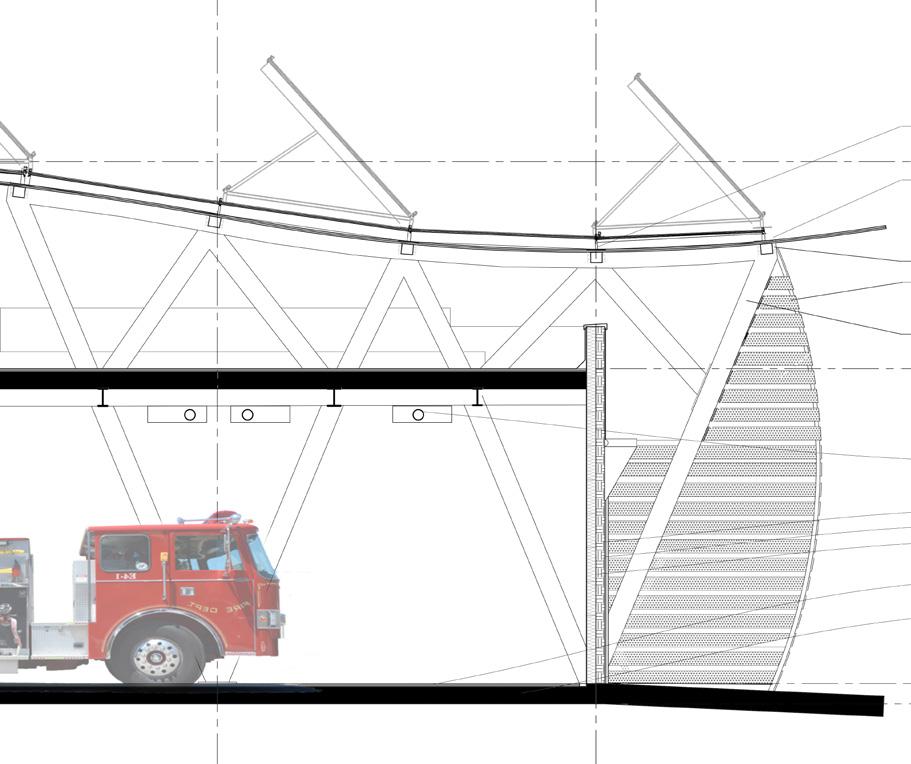

The fire station’s form was shaped by the site’s triangular geometry and the turning radius of fire trucks.

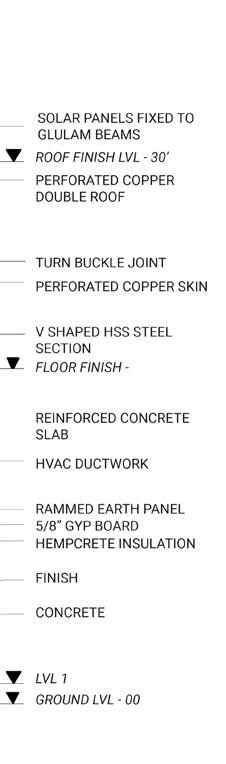

Inspired by a fire truck’s water-carrying

role, I designed a fire station with a cloudlike, free-flowing copper skin that creates a comfortable microclimate for firefighters.

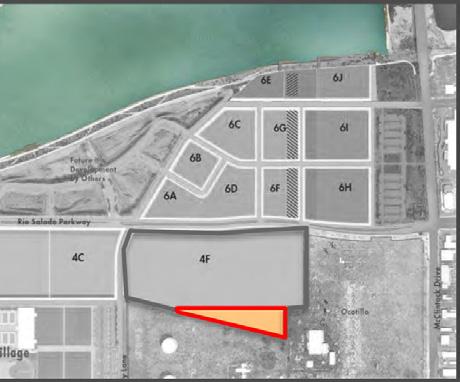

Located in ASU’s future Novus Innovation Corridor, the site receives abundant sunlight, making solar strategies a key design component.

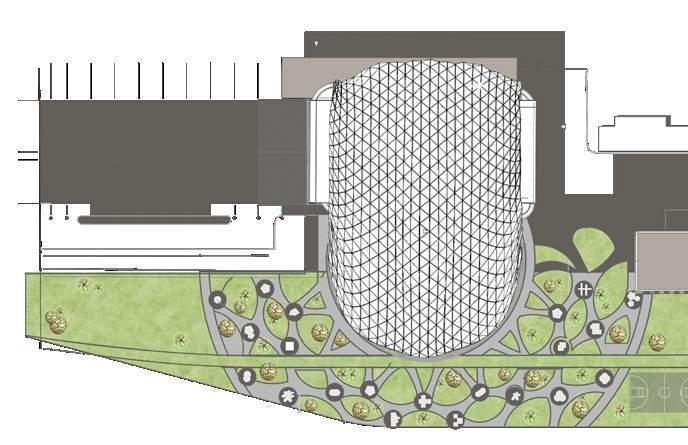

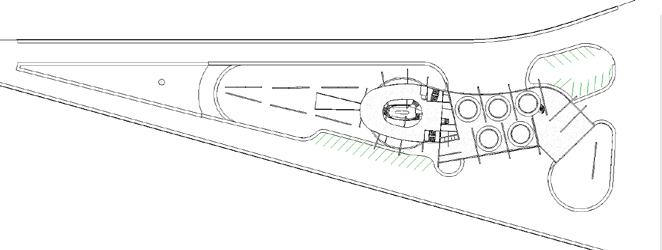

Key plan
