One situation where transformers can go wrong is when connecting one transformer directly to another. The result can be poor frequency response. I remember an unwanted 4 dB bass boost around 150 Hz when that happened. All that was needed was a 3 dB resistor audio pad between them to keep the transformers from “electronically talking” to each other.
Audio transformers can exhibit poor frequency response when not terminated or not terminated properly (Fig. 2). If an audio console has an output transformer, make sure it sees the specified load impedance, which is normally 600 ohms. If the device it feeds has an input impedance of 600 ohms, then that is OK. If it is feeding a 10,000-ohm bridging device like a digital recorder, then it needs a little help. Put a 620-ohm or 680-ohm resistor across the output terminals. The total resistance is close enough to 600 to keep the transformer happy. The power is so low that a quarter-watt resistor is fine for the application.
Fig. 3 shows an audio transformer terminated with a half-watt resistor. If you do the math, sixteen 10,000ohm loads have a combined parallel resistance of 625 ohms. It works.
An analog audio console without transformers might have an output (source) impedance low enough to deliver audio at its output terminals so a 600-ohm load could be placed on it without causing problems. Many consoles today have output impedances as low as 50 ohms. The console doesn’t need to see a termination resistance. Audio can be fed from there to multiple locations if those devices have an input impedance of 10,000 ohms or so. Up to 50,000 ohms is common in

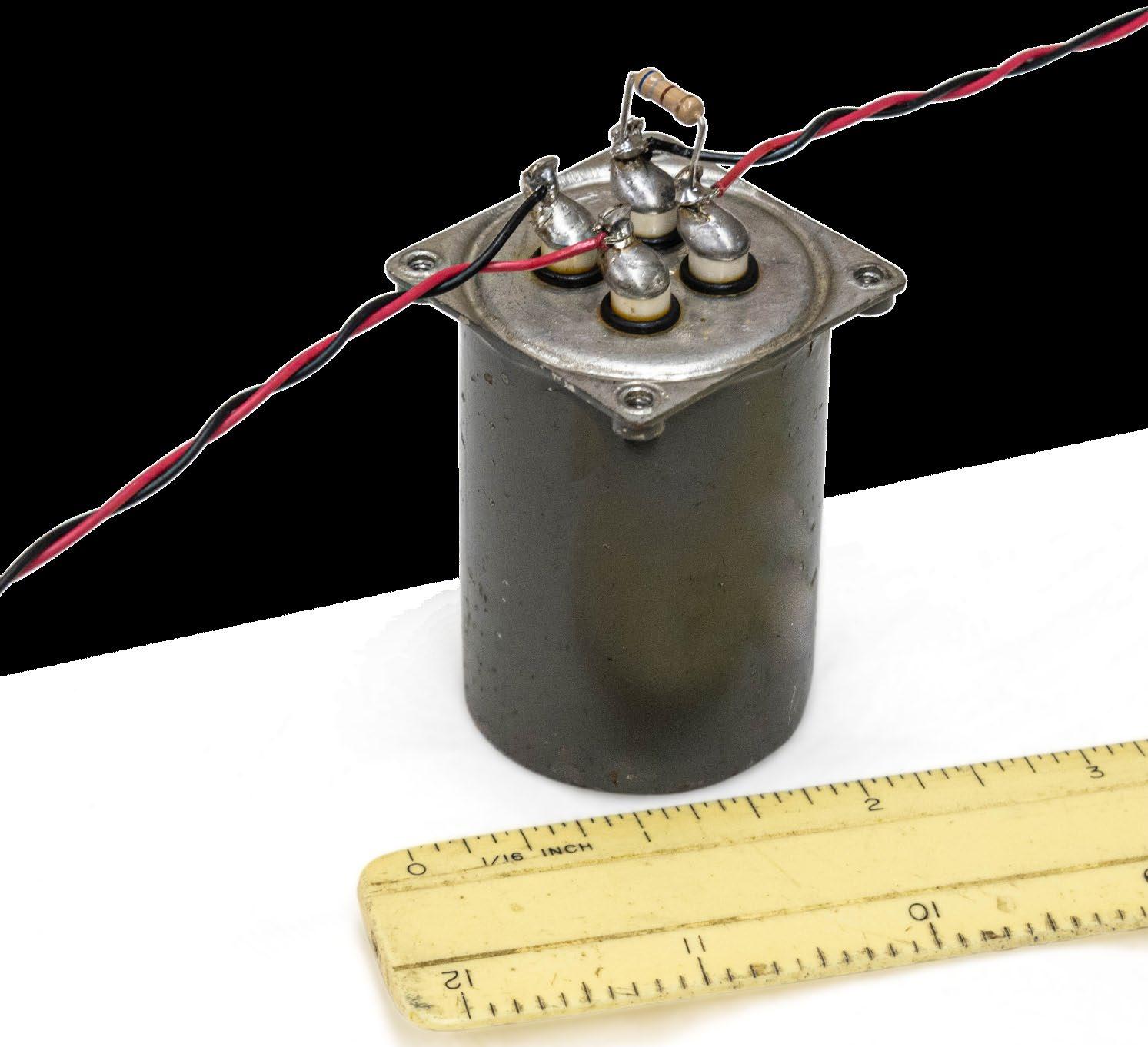

Right Fig. 3: Audio transformer with terminating resistor.
today’s equipment. Today’s active balanced audio solves problems without audio transformers.
In conclusion, beware of audio pitfalls. Know and understand audio in the facilities you work on. Radio depends on keeping listeners. My next article will explore more of the science of broadcast audio.
