Get ready for fuel delivery diagnostics

By Craig Truglia

Truglia is the owner of Car Clinic, a stateof-the-art repair facility in Mahopac, N.Y. He is ASE certif ed with a M.A. from Columbia University. In the automotive world he has been trained by Technicians Service Training and Automotive Technician Training Services. Car Clinic’s facility is fully equipped with factory-level equipment and services American, European and Asian vehicles, including diesels and hybrids.

Tip Number One: Give up on current ramping, or don’t even start if you have heard about it.

Back in the day, when 90% of vehicles were made by three American companies, there was not a lot of diversity in what fuel pumps these vehicles had. Not coincidentally, when the amperage of these pumps was ascertained using an amp clamp and a labscope, they produced neat looking waveforms, such as the one seen in Figure 1.

The present-day is an interesting time for the automotive technician. Perhaps now more than ever, the vehicles that are on the road resist breakdown, and with the help of a few repairs can routinely last about 200,000 miles.

This is a far cry from the day when vehicles had carburetors or early versions of fuel injection. While it appears that fuel-saving technologies such as direct fuel injection and the increased use of turbochargFigure 1: This 1987 Pontiac Grand Am creates a nice and neat ers may also break down amperage waveform when running the fuel pump. quicker in the future, many of these vehicles are so new they have not Many technicians think that all fuel yet reached the point where they have pumps can be diagnosed this way. However, breakdown-related issues. if they actually tried the technique on vehi

So, the question service technicians need cles made after the year 2000, they would to ask themselves is whether or not they see that the fuel pump waveforms don’t are prepared to deal with a fuel-related nolend themselves to such easy interpretation. start or misf re. Take a look at Figures 2 and 3. Does this

Because the truth is, it has been about vehicle have a bad fuel pump? 20 years since OBD II technology hit the Many current ramping gurus would say market and aside from General Motors “most def nitely.” The problem is, the vehicles, it is not very common to run into actual answer is no! This fuel pump is f ne one of these issues. and this is not even a new vehicle, it is a

Figure 2: A 1998 Chevy Malibu with a driveability problem. See waveform on next page. 1998 model year GM. Further, as one can see in Figure 4, the vehicle’s fuel trim is not highly positive, compensating for a bad fuel pump. It is well within normal range. Quite frankly, the fuel pump is f ne. Further, to effectively current ramp fuel pumps the technician is required to undergo the impossible task of taking specs of every new car he f nds. And it is not always easy to access fuel pump relays. Rents and taxes are too high and labor is too expensive to waste time doing this, especially when, quite frankly, it does not work anyway.

Tip Number Two: Checking fuel volume is the only way to test for a bad fuel pump or restricted fuel f lter.

Many technicians have a fuel pressure gauge and the vehicle usually has a fuel pressure sensor on the rail. Both the gauge and the scan tool can help us test for fuelpump drain back and an underperforming pump, so they can be quite useful.

However, it should be known that just because a vehicle has low fuel pressure, it does not mean that the fuel pump is bad. For example, a vehicle with a bad fuel f lter may have barely any fuel pressure, especially if it is causing such a restriction that the vehicle will not start. Yet, the fuel pump can still be good.

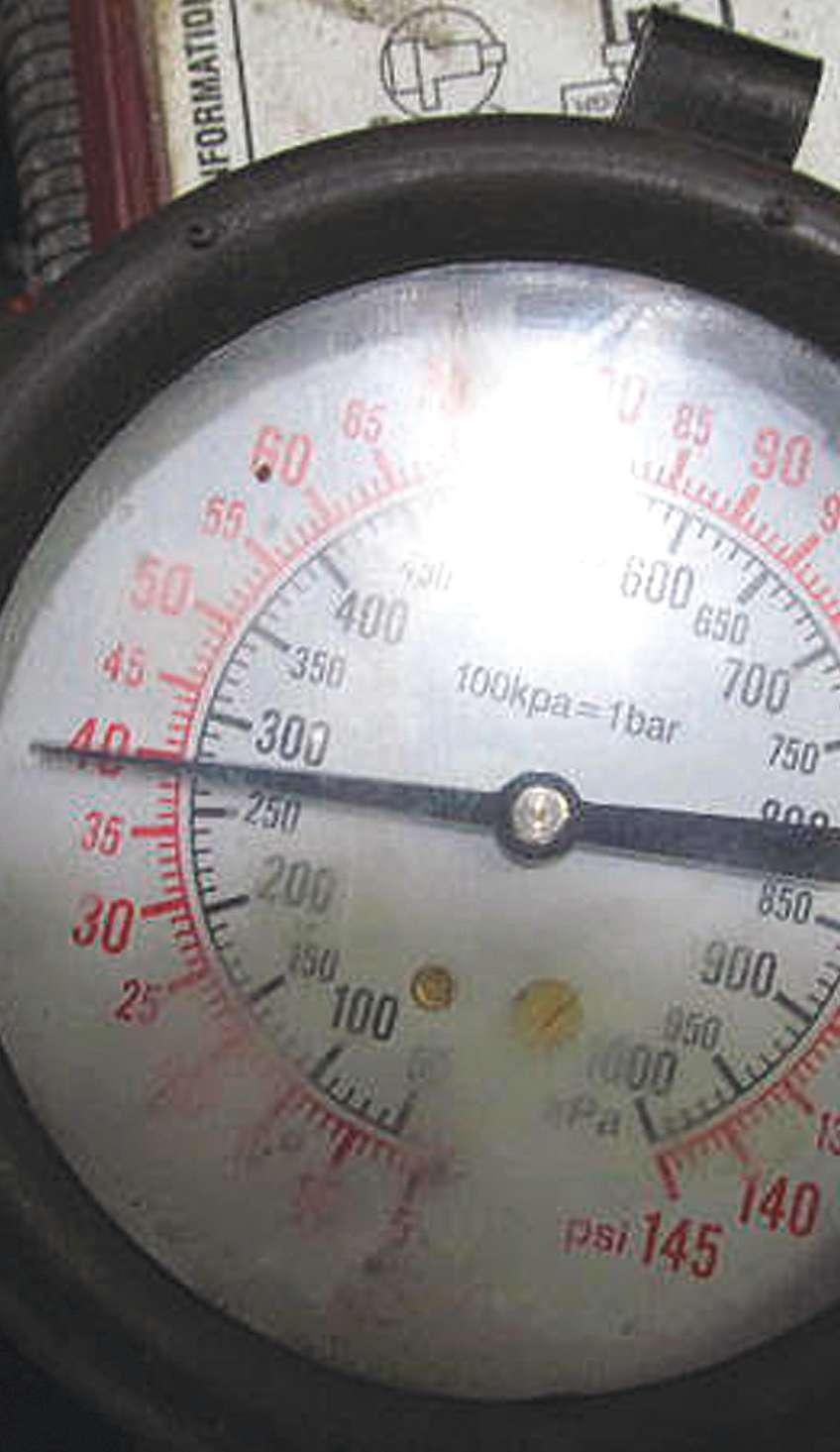

Figure 5: Before replacing the fuel f lter on this 2004 Ford Taurus 3.0L, the observed fuel pressure on the vehicle was acceptable. However, the engine did not have enough fuel volume to start, let alone run.

So, if the shop can spring for the bucks, a fuel volume gauge is the way to go. It is simply placed in line, preferably before the fuel f lter, and it tells us both fuel pressure and fuel volume in gallons-per-minute.

Better yet, there is no need to memorize fancy specif cations. Every single vehicle that’s a four cylinder will f ow at least 0.4 gallons per minute (gpm) and any other vehicle with a turbo or larger engine will f ow at least 0.5 gpm. To be honest, do not be surprised to see even a known-good Honda four cylinder f owing at least 0.6 gpm. If a fuel pump is good, it will generally f ow even above these numbers, but when it is bad it will f ow below these numbers.

Just remember, if you f ow after the fuel

f lter (even though most f lters are in the tank anyway these days), a bad fuel f lter can cut both your pressure and volume.

How can you measure fuel volume without the gauge? If you can command on the fuel pump by jumping the connectors where the relay goes and disconnect the fuel line, you can take an empty windshield washer f uid bottle and see how much fuel you get in a minute. If about half of that bottle gets f lled up, your fuel pump is f ne.

Figure 6: Even BMW endorses this technique, as can be seen in the repair information available to us from Mitchell 1’s ProDemand software. The Germans give us the specif cation “one liter every 30 seconds” in order to confuse technicians across the ocean. Being that a gallon is 3.89 liters, the technician can surmise that every minute there is about half a gallon of fuel f ow on a known-good BMW.

However, sometimes this is too messy and inaccurate. There is one other way to get the job done without purchasing a fuel volume gauge.

If you are performing fuel system cleanings in your shop, chances are you have a tool that connects to the fuel rail in order to f ush the injectors out with a cleaning solvent. If this is the case, you can test fuel volume indirectly.

Figure 7: This is an example of how to hook up even a new vehicle for indirect fuel volume testing. Pictured here is a 2009 VW Jetta 2.0 Wolfsburg Edition.

Simply connect the tool to the fuel rail (which may be risky so be sure to wear and f ll it up with gasoline instead of solglasses or a face shield) and start up the vent. Then, put the tool at about 40 psi engine. If the engine runs normally, then what you have essentially done is proved that there was a fuel volume issue. Why? Because if the vehicle runs normally hooked up in this fashion when it did not before, the only thing that changed was the volume of fuel that reached the fuel rail. So, the problem has to be something fuel volume related farther down the fuel system, likely the pump or f lter. John Thompson of Thompson Automotive Figure 8: A leaking fuel tank on a Honda Civic. Not liking the Labs has been known to price of a new fuel tank, the owner went to a junkyard and got say, “Use a new fuel f lter his second cousin to install it for him. as a $10 tool.” If it f xes

Circle 121 on Reader Service Card

the problem, then you saved a lot of diagnostic time. If it doesn’t, a nice and prof table fuel pump job is in order.

Tip Number Three: Be on the lookout for obvious stuff.

Here, on this 1998 Honda Civic, the customer had a bad fuel tank (see Figure 8). He put a junkyard fuel tank on and, not surprisingly, a few months later, the engine starts running funny.

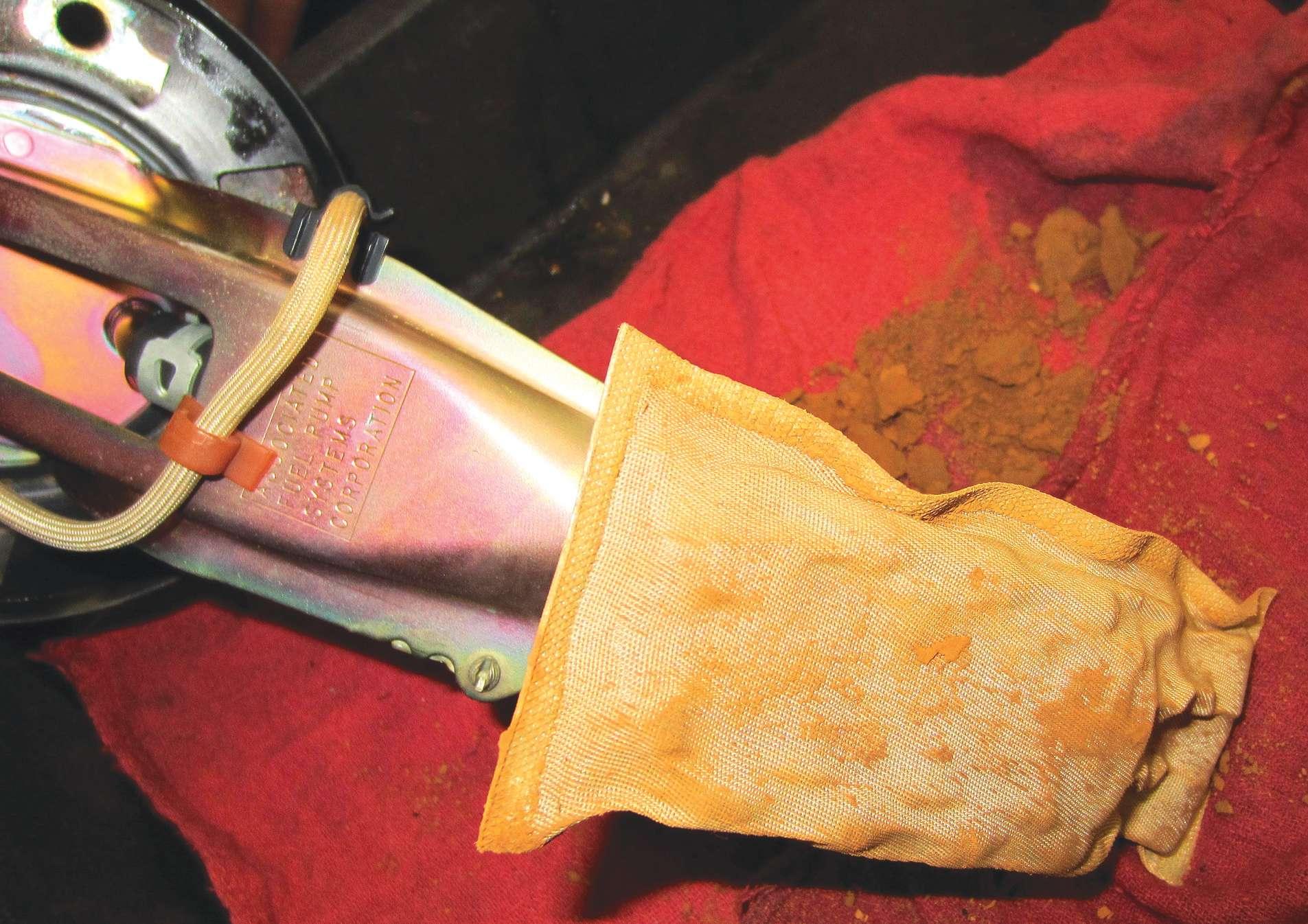

After testing at a fuel Figure 9: Here is an example of a rusted-up fuel sock, thanks to the junkyard fuel tank used on this Honda. See also how volume of 0.15 gpm the caked-on the rust was on the fuel pump sock. technician ascertained the junkyard tank must have had rust in it and even if you are a little “rusty” with fuelclogged the pump. Lo and behold, it did! delivery problems, they will help make what (See Figure 9). can be a much more complicated diagnosis

Just remember these three tips, because into a simpler one! ●

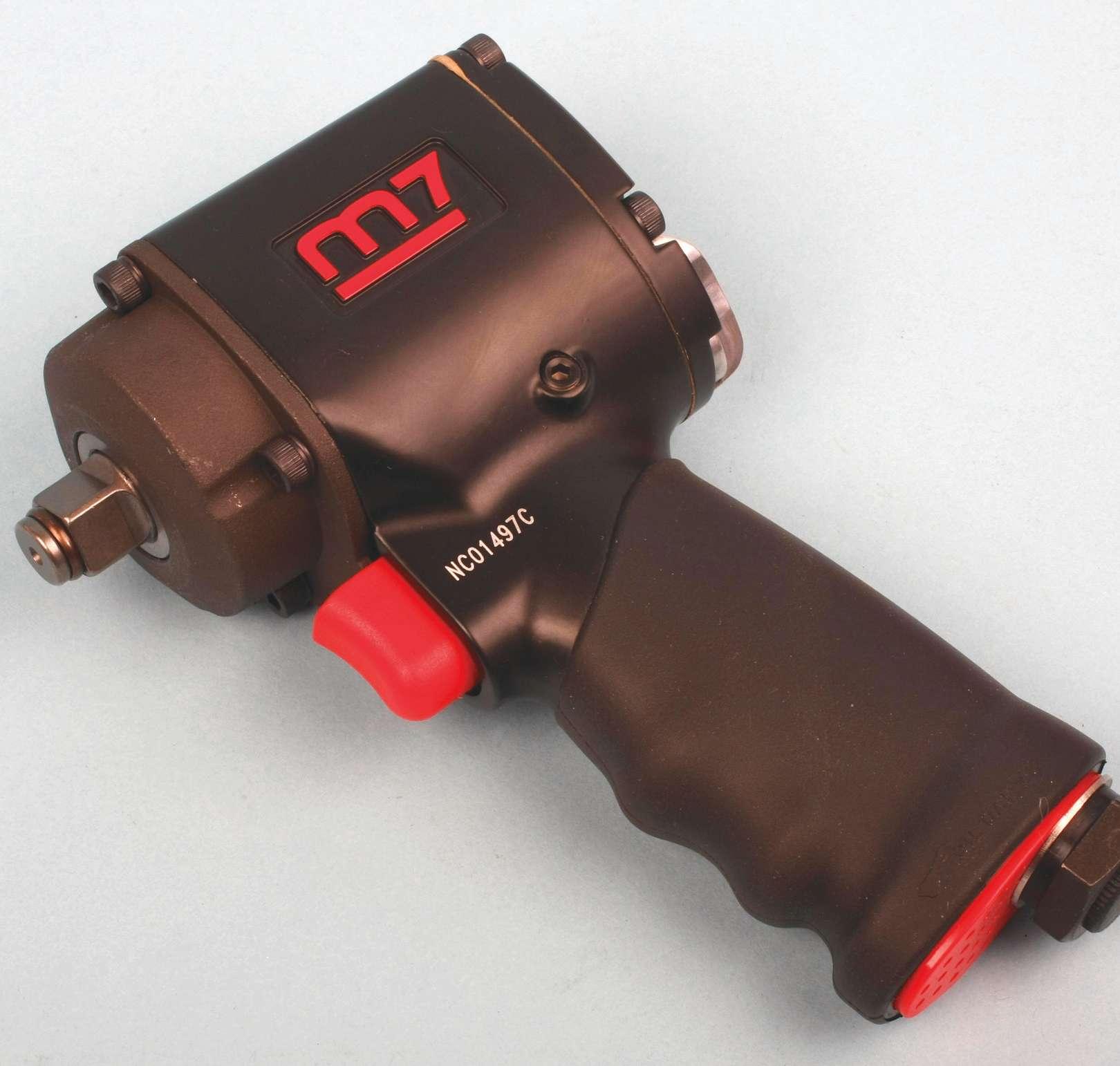

The M7 1/2-inch-drive air wrench from King Tony of America features a head that’s a mere 4-3/8 inches long. The comfy cushioned grip provides a nice tactile feel, and the grip length and angle provides an ideal balance point. The gun doesn’t feel top heavy at all.

Compact gun

A pneumatic air wrench for cramped spaces

By Mike Mavrigian

What appealed to me about the M7 (Mighty-Seven) 1/2-inch-drive air wrench from King Tony of America is its ultra-stubby size. It’s the cutest, shortest 1/2-inch-drive air wrench that I’ve had the pleasure to try.

The M7 offers a beefy, solid feel and is well built. I put this pro-level gun through its paces over a week’s worth of repair and restoration work, and I’m impressed. While the size and balanced feel is what f rst drew me to this gun, I did my best to beat it up and it never whimpered. It feels like a tool that will last.

I measured the wrench at 3-5/8 inches in length, from the back plate to the front nose housing. Overall length from the rear plate to the tip of the anvil measured at

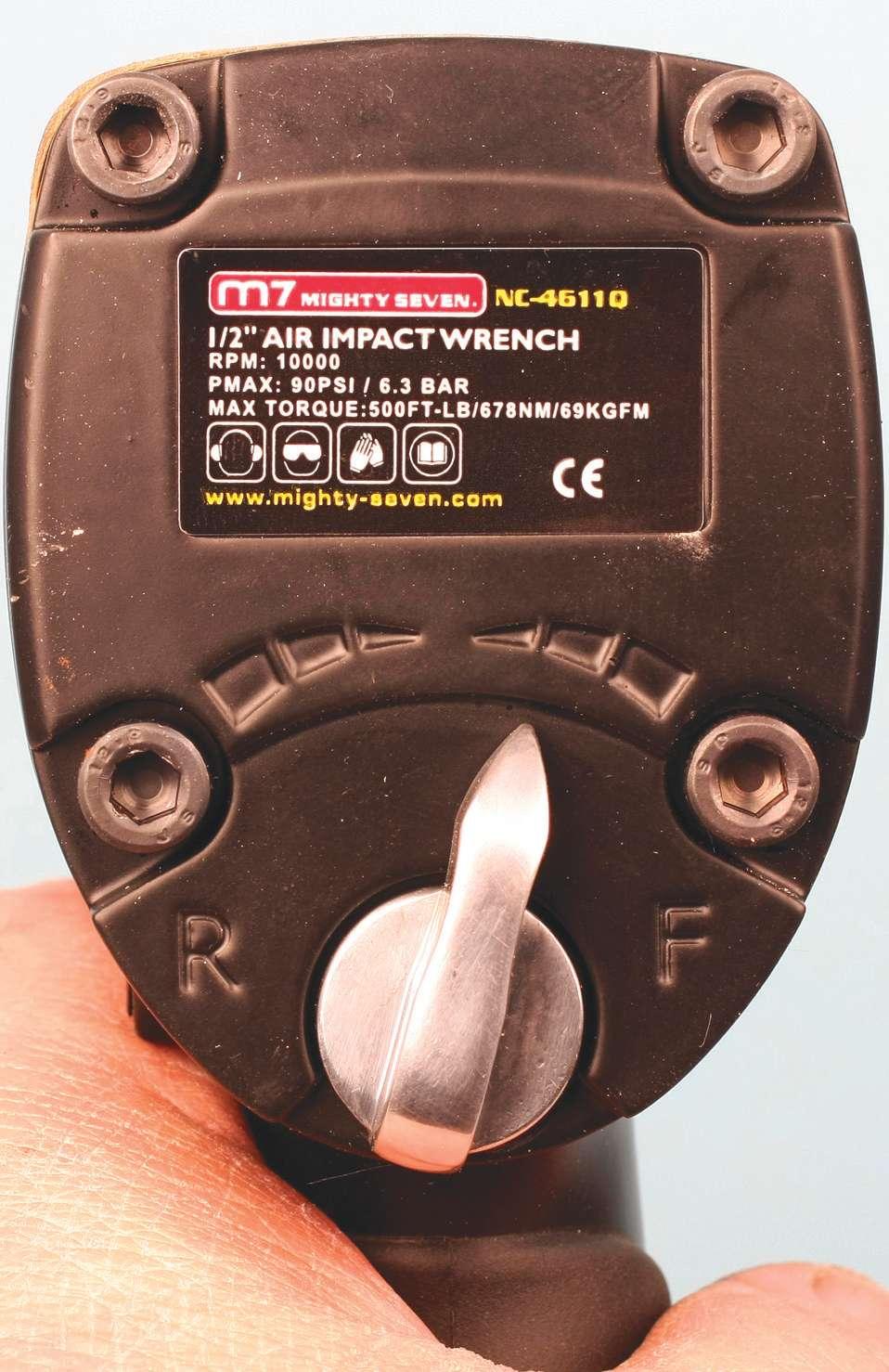

The forward/reverse switch is easy to access without digging and hunting around with your thumb, with positive detents. Breakaway torque in reverse is a hefty 500 ft.-lbs. 4-3/8 inches. Overall height (not including the air nipple) measured 7 inches. Thickness at the front of the housing measured 2.360 inches, tapering at a rear thickness of 2.185 inches. As far as I know, this has to be the shortest 1/2-inch-drive pneumatic wrench on the market, obviously designed to accommodate tight spaces. The tactile rubber-coated grip area features f nger grooves, with the f nger height area of about 2.760 inches, which provides an ideal f nger grip area for an average-size hand (full grip space with no pinky f nger overhang).

If I were forced to come up with a complaint (considering how much I like this little bugger, pointing out anything negative was diff cult), it would involve the trigger. While the plastic material seems tough enough for heavy-duty use, the very top of the trigger is open/hollow. In an ultra dirty environment I can see the

You’ll f nd the M7 1/2-inch-drive air wrench comes in handy for tight access use.

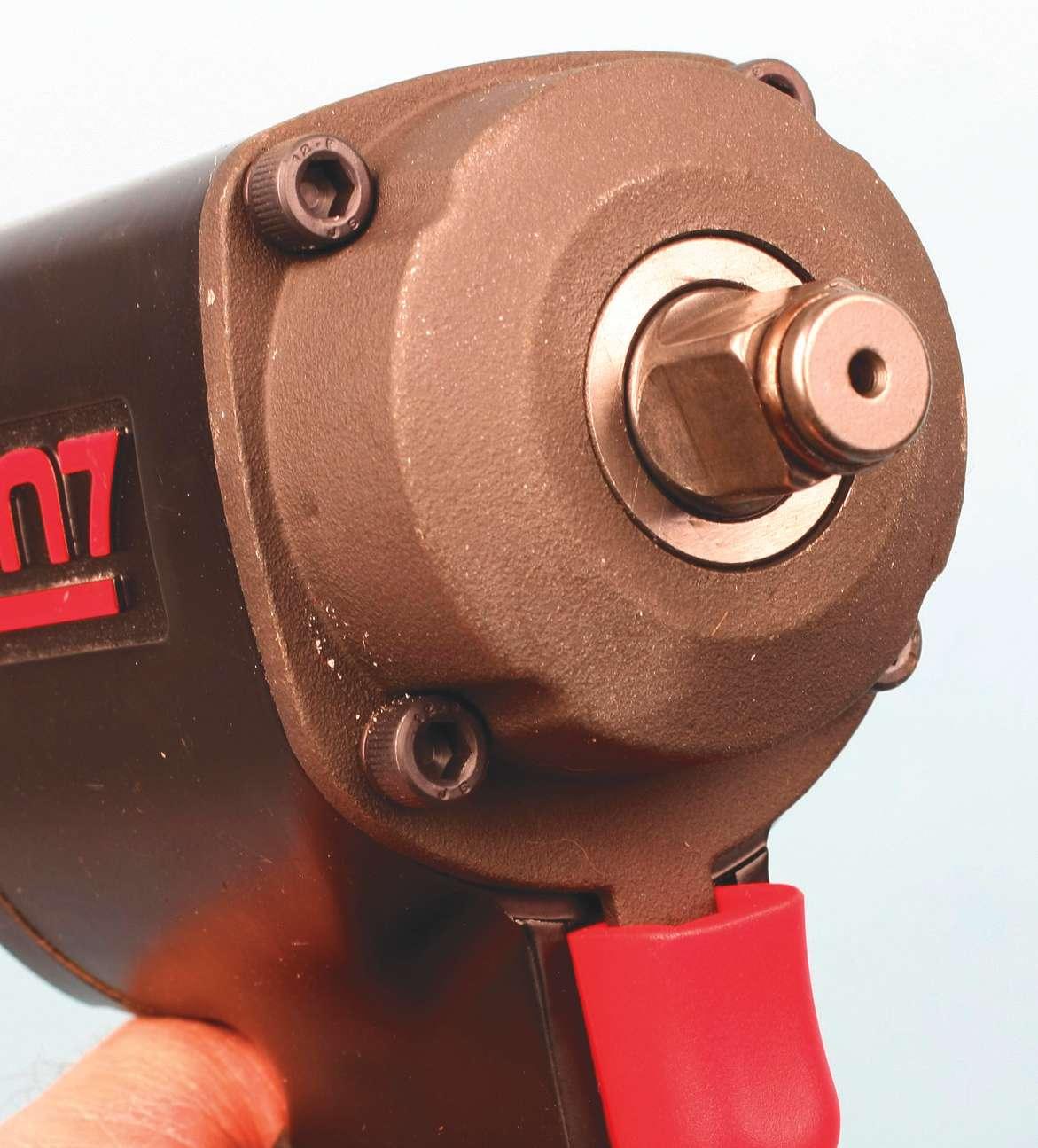

The nose is short and rounded to minimize obstruction and maximize utility.

possibility for debris to enter and possibly restrict movement. However, I’m not overly concerned, since the top of the trigger is shielded by the head. As long as you don’t immerse the gun into a bucket of sand, I don’t see this as something to worry about.

The M7 quickly earned a special place in my heart. For me, it’s one of those “must have” tools for dealing with cramped work areas. While I have 3/8-inch-drive guns of similar size, having something this tiny with a 1/2-inch-drive capability and plenty of gutsy reverse torque is a real blessing. Every time I picked it up, I couldn’t help smiling. It’s just so darned cool.

By the way, since the M7 specif cally addresses the subject of space-savings, the maker also offers sets of “stubby” socket wrenches in both fractional and metric formats. The sockets measure a scanty 1-7/64

Circle 127 on Reader Service Card

You don’t need to buy the stubby sockets, but they certainly come in handy to minimize the working package. The six-sided hex sizes range from 1/2-inch to 7/8-inch.

inches tall, regardless of the hex size. When coupled with the M7, this makes for a super-short working package to address those annoying tight spaces where nothing else wants to f t. The wrench package supplied to us for this review included six-sided hex sizes of 1/2-inch, 9/16-inch, 5/8-inch, 11/16-inch, 3/4-inch and 7/8-inch.

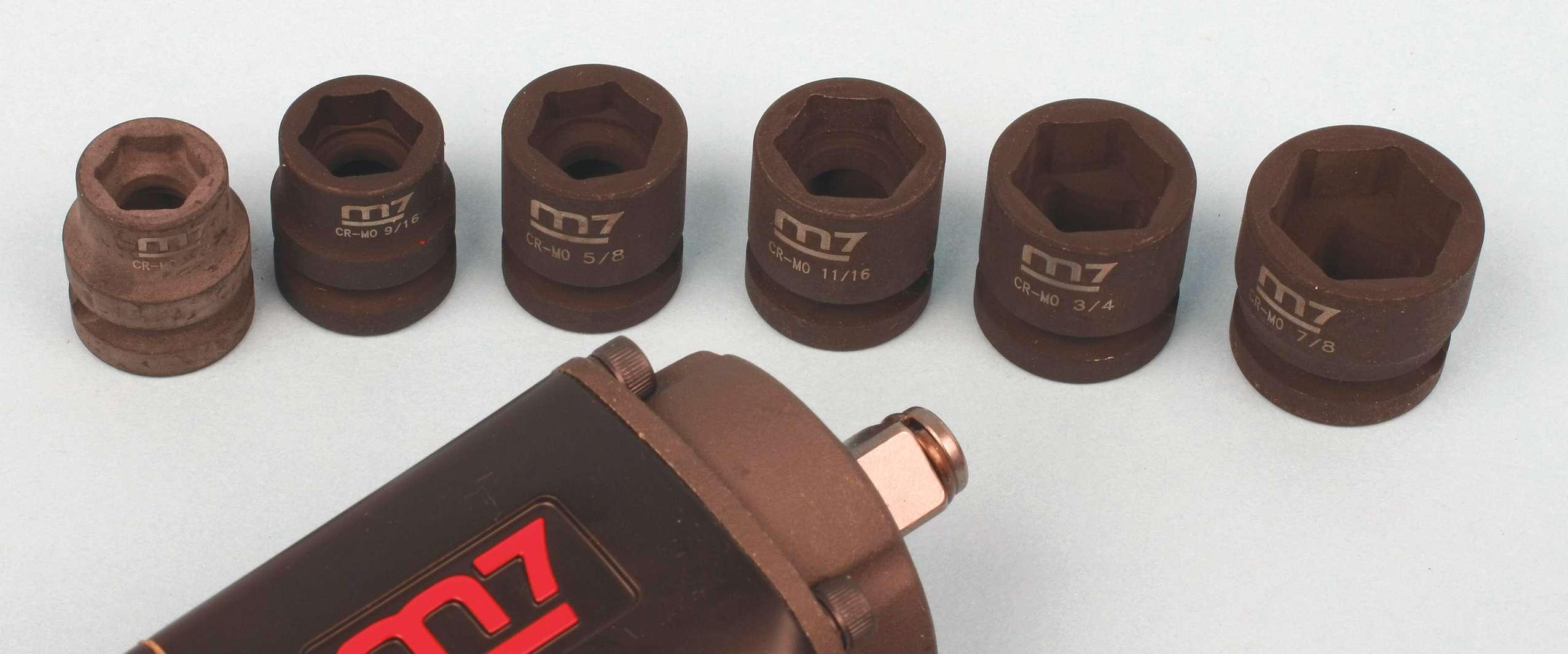

The space-saving “stubby” sockets at a mere 1 7/64-inch in length offer a nice complement to the M7 pneumatic air wrench.

We tried out the wrench during the replacement of a right rear wheel bearing on a Pontiac Torrent, which has miserable access to the inboard mounting bolts. The M7 wrench was the only pneumatic gun we had in the shop that would f t into the tight space.

M7 AIR IMPACT WRENCH MODEL NC-4611Q

Max. operating air pressure 90 psi

Square drive Bolt capacity (shank dia.) 1/2-inch

5/8-inch (16 mm)

Torque range

200-350 ft.-lbs. Max torque 500 ft.-lbs. (delivers 500 ft.-lbs. of reverse torque in only f ve seconds)

Free speed

10,000 rpm Avg. air consumption 4.0 cfm Overall length Net weight Air hose Sound level 4 3/8-inches 3.3 lbs. 3/8-inch 85.0 dba

TEST TOOL SOURCE:

KING TONY OF AMERICA 2432 Peck Rd.

City of Industry, CA 90601 (877) 708-6657 www.kingtonyamerica.com

Cadillac COOLANT TANK LEAK

Some 2012 Cadillac Escalade, Chevy Avalanche/Silverado/Suburban/Tahoe, GMC Sierra/Yukon/Denali vehicles may experience a coolant leak. The cause may be traced to an ill-f tting coolant overf ow tank nipple.

The leak is caused by excess plastic at the parting seam on the tank nipple, preventing proper hose sealing.

The repair involves sanding the plastic seam on the nipple to create a more uniform sealing surface for the hose. Do not replace

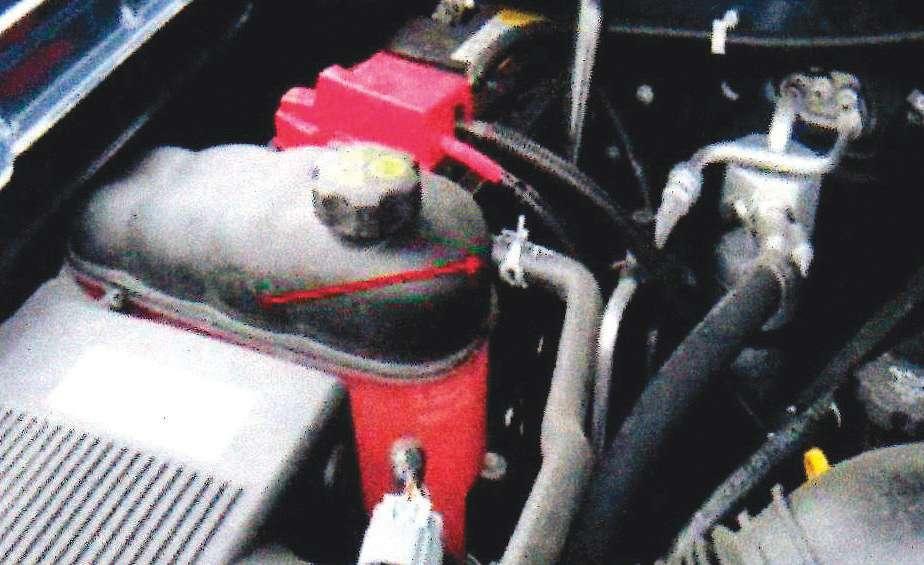

Look for traces of coolant leak at the hose-tocoolant overf ow tank nipple.

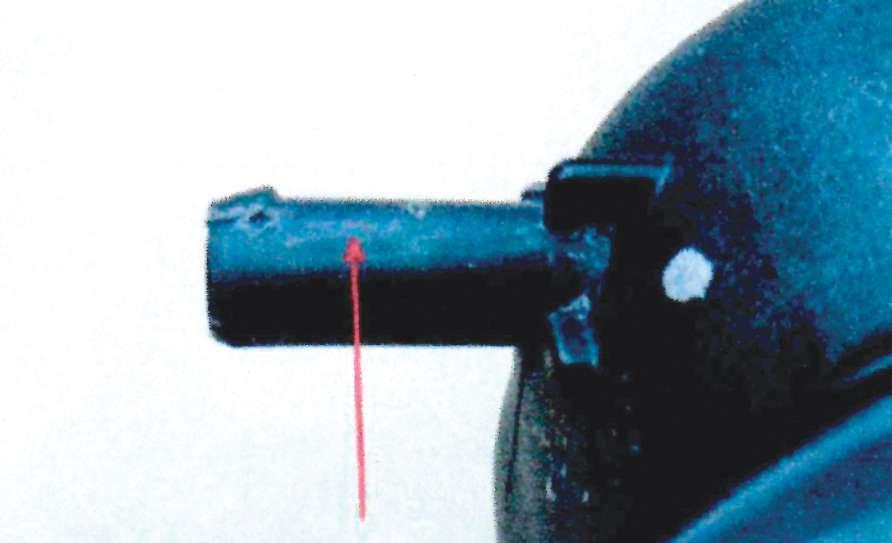

Notice the raised rib at the mold seam on the overf ow tank nipple. This excess plastic may be enough to prevent proper hose seal.

Don’t disturb the barb at the tip of the nipple, but use sandpaper to reduce and smooth out the excess plastic found at the seam. the overf ow tank, since sanding the seam will f x the problem; and the replacement tank might have the same excess plastic on the nipple.

General Motors TICKING HEAD

This concern applies to a variety of GM vehicles equipped with the 2.0L LSJ, 2.0L LNF, 2.2L L61, 2.2L LAP, 2,2L LE8, 2.4L LE5, 2.4L LE9, 2.4L LAT and 2.4L LAF engine (vehicles include Buick Regal and LaCrosse, Chevy Cavalier/Cobalt/Equinox/HRR/Malibu, GMC Terrain, Olds Alero, Pontiac G5/G6/Grand Am/Sunf re/Pursuit/Solstice, Saturn Aura/ Ion/L Series/Vue).

A ticking noise at the cylinder head may be heard, which may be traced to a loss of oil pressure. The concern may be caused by debris clogging the oil feed restrictor in the cylinder head passage. The oil feed hole has a small inner diameter and may clog if debris or excessive RTV/sealer has dislodged and has become stuck in this passage. Whenever RTV (or other gasket sealer) is used, care must be taken to avoid excessive amounts that can become dislodged. This restrictor is located in the oil feed passage to the cylinder head and cannot be inspected or cleaned without removal of the The oil restrictor (2) can eascylinder head. NOTE: ily become plugged with Per typical GM poldebris. Removing one of the icy, the restrictor is oil galley plugs (1) allows oil not available sepapressure gauge testing. rately from the cylinder head.

To diagnose this concern, use a mechanical oil pressure gauge. Check and compare oil pressure in the block with oil pressure in the cylinder head. The block can be checked by removing the oil pressure sender. The oil pressure in the cylinder head can be checked by removing one of the oil galley plugs in the head. If no oil pressure is evident in the cylinder head, the head must be removed and thoroughly cleaned. Inspect the valvetrain for wear/damage and repair as necessary.

Circle 129 on Reader Service Card

14-inch rear disc brake

Vehicle outside Old

New

1 2

16-inch rear disc brake Vehicle outside BASIC BRAKE SYSTEM On-vehicle service Attachment 1.

Right side

3 Deleted Left side

3

2

Old

3 Right side 3 Deleted Wear indicator 3

3

Left side

2 New

1

Vehicle outside

1

2

3 Wear indicator

3 1

Vehicle outside

2. Remove the following parts from the caliper body. (1) Shim (2) Brake pad assembly (3) Clip NOTE: • The brake pad assembly with wear indicator is installed only to the inner side of the brake disc of the left-side brake at the factory. • As for the accessary pad set, the brake pad with wear indicator has been installed to the inner side of the brake disc on both right side and left side brakes.

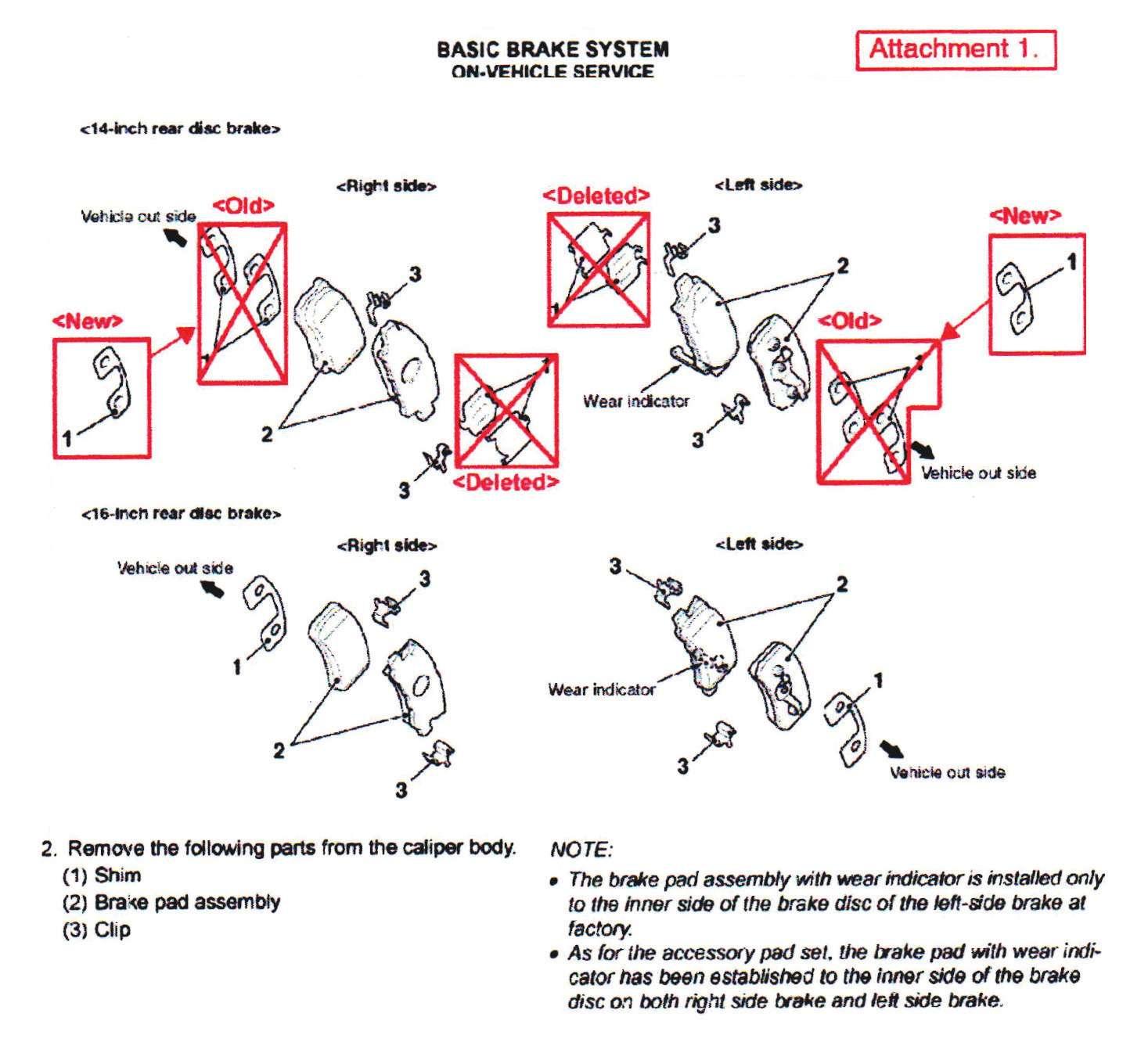

Mitsubishi’s revised rear disc brake service now requires only one shim at the outer pad only.

Mitsubishi FEWER BRAKE PAD SHIMS

Mitsubishi notes that they’ve changed the rear disc brake pad shim requirement for the 2008-2009 Lancer. The number of rear brake pad shims (per wheel location) has been reduced from four to one. A single shim is now installed at the outer pad only. The inner pad now uses no shims. The bulletin also applies to earlier models where the shims are replaced with new parts.

Jeep JEEP REAR END

Replacing the rear axle ring and pinion on the 8-1/4 inch axle with a 3.21 gear ratio has specif c and unique service procedures. This applies to 2007-2008 Nitro and 2008 Liberty vehicles.

Follow procedures available in DealerCONNECT > TechCONNECT under Service > 3 – Differential & Driveline > rear Axle – 81/4 > Gear-Pinion/Ring > Removal and Installation > Gear-Pinion/Ring:

a. Removal of the ring gear from the differential requires pressing the ring gear off of the differential with Plug 8926-2 and Remover 10126-1. b. Installation of the ring gear onto the differential requires the use of a bearing heater and left hand threaded Pins 10126-2.

These service special tools are required for the 8-1/4 inch ring gear in addition to standard rear axle service special tools:

Plug 8926-2 Remover 10126-1 Pins 10126-2

You’re mere seconds away from receiving free product information. Just go to the website(s) listed to the right of each advertiser below and you’re there! Instant product information at your f ngertips.

Of course, you can always use the Reader Service Card to the right and send it to us, and we’ll connect you to the advertiser.

Advertiser 31 Incorporated ACDelco ADVICS North America Inc. Aftermarket Auto Parts Alliance Inc. Aftermarket Auto Parts Alliance Inc. Airtex Products LP ANCO ANSED Diagnostic Solutions AutoPride CARQUEST Auto Parts Champion Spark Plug DENSO Products and Services Americas Inc. Drew Technologies Eastern Manufacturing Inc. Federated Auto Parts Fel-Pro Ford Parts GMB North America Inc. Homak Manufacturing IMC Parts Intermotor Mahle Aftermarket Inc., RTI Division Monroe Shocks & Struts MOOG Steering & Suspension Nissan North America Inc. O’Reilly Auto Parts Philips Automotive Lighting Robinair SKF USA Inc. Toyota Motor Sales U.S.A. Inc. Tracer Products TRICO Products VDO OE Replacement Parts Wagner ThermoQuiet Walker Emissions Control Page R.S # 46 7 43 17 55 23 29 28 53

OBC 57 27 41 40 5 9 19 32 21

IFC-3 45 51 50 47 49 33 42 15

IBC 35-37 22 39 25 69 31 122

120 105 128 108 111 110 127 132 129

118 117 102 103

113 106 101 121 126 125

124 114 119 104 131 115 107 116 109 130 112 Quik-Link www.aspquiklink.com/12122

www.aspquiklink.com/12120 www.aspquiklink.com/12105 www.aspquiklink.com/12128 www.aspquiklink.com/12108 www.aspquiklink.com/12111 www.aspquiklink.com/12110 www.aspquiklink.com/12127 www.aspquiklink.com/12132 www.aspquiklink.com/12129

www.aspquiklink.com/12118 www.aspquiklink.com/12117 www.aspquiklink.com/12102 www.aspquiklink.com/12103

www.aspquiklink.com/12113 www.aspquiklink.com/12106 www.aspquiklink.com/12101 www.aspquiklink.com/12121 www.aspquiklink.com/12126 www.aspquiklink.com/12125

www.aspquiklink.com/12124 www.aspquiklink.com/12114 www.aspquiklink.com/12119 www.aspquiklink.com/12104 www.aspquiklink.com/12131 www.aspquiklink.com/12115 www.aspquiklink.com/12107 www.aspquiklink.com/12116 www.aspquiklink.com/12109 www.aspquiklink.com/12130 www.aspquiklink.com/12112

ACDelco adds Professional remanufactured alternators, starters ACDelco has released an additional 143 Professional remanufactured alternator and starter part numbers covering 1992-2012 models from GM, Toyota, Chrysler, Ford, Honda, Nissan and other manufacturers. The expansion consists of 64 additional Professional remanufactured alternators and 79 Professional remanufactured starters. In total, the ACDelco Professional remanufactured alternator and starter line now features more than 2,500 SKUs, providing a competitively priced aftermarket service solution for most makes and models. ACDELCO ANSED video scope ANSED Diagnostic Solutions is offering a full-featured video scope packaged with the company’s Hyperion technology 5.5 mm x 1 m probe. The scope has three unique modes to enhance viewing capability: the light boost improves image clarity; mirroring and image rotation allows the image to be viewed in proper orientation; and particle-free and anti-ref ection reduces image glare and impurities for improved image quality. The tool features a shock-resistant 3.5 inch screen. Screen images can be recorded in inspection, snapshot and video modes. Date and time is displayed and transferred to picture and video recordings. A 3x and 5x digital zoom allows for close-up inspections. ANSED DIAGNOSTIC SOLUTIONS Circle 150 on Reader Service Card www.aspquiklink.com/12150 ATP cable coverage ATP is a one-stop source for all types of automotive cables, including hard-to-f nd applications. ATP offers a full line of speedometer cables and speedometer cable core kits. Also available are cables for the accelerator, clutch release, detent, transhift, manual shift and tailgate applications. Universal detent and choke/throttle cables are also supplied by ATP. ATP INC. Circle 151 on Reader Service Card www.aspquiklink.com/12151 TPMS application and parts guide Standard Motor Products has released its printed TPMS Application and Illustrated Parts Guide. This comprehensive catalog includes many new items as well as updates to existing product coverage for both the Standard and Intermotor OE-matching, clone-able TPMS sensor lines. Catalog highlights include: numerical index for TPMS sensors, service kits and sensors grouped together by vehicle application, additional details on valve stem applications for Audi, BMW and Mercedes, expanded frequency applications for Toyota and new sensor illustrations with enhanced features and service kit applications. STANDARD MOTOR PRODUCTS INC. Circle 152 on Reader Service Card www.aspquiklink.com/12152 AutoTex Windshield Wipers catalog The 2014 AutoTex Windshield Wipers catalog contains comprehensive information and images on the company’s three aftermarket lines, AutoTex Automotive, AutoTex Pink and AutoTex Heavy Duty. Each line has its own section with application information, cross reference data and industry-specif c insight. AUTOTEX WINDSHIELD WIPERS Circle 153 on Reader Service Card www.aspquiklink.com/12153

Bosch expands QuietCast brake rotor line The Bosch Group has expanded its line of premium QuietCast brake rotors. QuietCast brake rotors are manufactured using a heat f ow casting process that produces high carbon, vehicle-specif c castings to ensure a smooth ride and quiet braking. Bosch QuietCast brake rotors feature 100% factory mill balancing with lowest run-out for safe, smooth operation. An OEM-style vane conf guration provides eff cient heat dissipation, reduces vibration that can cause noise, and extends the life of the rotor. THE BOSCH GROUP Circle 154 on Reader Service Card www.aspquiklink.com/12154 Bartec software update Bartec USA’s tool update 51 includes the ability to program Alligator sens.it sensors, Huf IntelliSens sensors, and integrated programming of Cubelec sensors using the Tech500 tool. Alligator sens.it consists of three blank sensors that cover up to 95% of TPMS vehicles to provide maximum coverage with minimum inventory. The Huf IntelliSens sensors software update adds IntelliSens conf gurable sensors to the Bartec Tech500 and Tech400SD TPMS tools. The software update enables both tools to program the IntelliSens sensor using Bartec’s make, model, year look-up system. BARTEC USA LLC Circle 155 on Reader Service Card www.aspquiklink.com/12155 Blackburn features WheelFinder Blackburn’s Hubcap & Wheel Inc.’s corporate website at www.blackburnwheels.com features descriptions of the company’s products including OEM alloy and steel wheels, late-model hubcaps, TPMS components, center caps/trim rings and antique/classic caps. The site also describes Blackburn’s alloy wheel ref nishing services, as well as bumper and parts rechroming. The site

is linked with www.blackburnswheelf nder.com, a site that features a Wheel Finder function that goes back 50+ years. BLACKBURN’S HUBCAP & WHEEL INC. Circle 156 on Reader Service Card www.aspquiklink.com/12156 Cardone expands coverage A1 Cardone remanufactured master cylinders have a total of 2,164 SKUs with coverage of over 217 million vehicles. Cardone Select All New Master Cylinders have a total of 1,097 SKUs which cover 97% of reman sales with coverage of over 187 million vehicles including popular Chevy trucks and Toyota Camry/Avalon. Cardone Service Plus Master Cylinder Reservoirs have 136 total SKUs which cover 57% of reman sales that require a plastic reservoir. Coverage includes over 87 million vehicles including popular GM trucks. CARDONE INDUSTRIES INC. Circle 157 on Reader Service Card www.aspquiklink.com/12157 Centric Parts releases brake catalog Centric Parts has released its 2014 mediumduty brake systems catalog which details brake, clutch hydraulic, wheel bearing, hub and seal components for medium-duty truck applications through 2014. Brake system components listed include brake pads and shoes; rotors and drums; hydraulic cylinders; remanufactured loaded and semi-loaded calipers; caliper kits, wheel cylinder kits and hardware kits; and adjusters, brake hoses, hubs, bearings and seals. CENTRIC PARTS Circle 158 on Reader Service Card www.aspquiklink.com/12158

CP7732 impact wrench Chicago Pneumatic’s 4.4- inch CP7732 Stubby 1/2- inch impact wrench is an ultra-compact, powerful impact wrench designed for diff cult work in conf ned spaces. It provides 450 ft.-lbs. of torque and weighs only 2.9 lbs., and can easily remove or tighten fasteners in the most diff cult to reach spots. The single-handed trigger offers three power settings in both forward and reverse. The tool features the Jumbo Hammer impact mechanism that provides both power and durability at 9,000 rpm. CHICAGO PNEUMATIC TOOL CO. Circle 159 on Reader Service Card www.aspquiklink.com/12159 Elgin PRO-STOCK push rods The Elgin PRO-STOCK line of one-piece thickwall performance push rods now includes onepiece 5/16-in.-diameter push rods featuring 0.110-in. wall thickness and 3/8-in.-diameter rods with 0.137-in. wall thickness. Available lengths range from 7.900 in. to 9.400 in. for 3/8-in. push rods and 6.250 in. to 8.800 in. for 5/16-in. push rods. The push rods are manufactured from seamless, aircraftquality chrome-moly material, then throughhardened and black oxide coated for strength and durability. ELGIN INDUSTRIES Circle 160 on Reader Service Card www.aspquiklink.com/12160 EnerSys introduces Group 65 battery EnerSys Energy Products Inc. has expanded its ODYSSEY Performance Series battery product offering to include the Group 65 battery. The ODYSSEY Performance Series 65-760 battery features 762 cold cranking amps, 129 reserve capacity minutes and deep cycle capability up to 400 cycles at 80% depth of discharge. Engineered with Thin Plate Pure Lead technology, the batteries feature rugged construction, high reliability and deep cycling capabilities. ENERSYS ENERGY PRODUCTS INC. Circle 161 on Reader Service Card www.aspquiklink.com/12161 Moog steering and suspension line Federal-Mogul has added dozens of part numbers to its Moog steering and suspension brand. The latest expansion includes 14 new Moog R-Series control arm assemblies, six ball joints, four link kits and a variety of other components. Six of the new Moog parts are the first available in the aftermarket for their respective applications. They are: sway bar bushing for the Land Rover Range Rover Sport; lower front ball joints for 1998-2000 Lexus LS400; lower front ball joint for the 1999-2001 Honda Prelude; and lower front ball joints for the 2008-2013 Audi TT Quattro; 2008-2009 TT. The expanded Moog line of complete strut assemblies now includes four new units covering 2003-2005 Honda Civic and 2000-2006 Toyota Tundra models. FEDERAL-MOGUL CORP. Circle 162 on Reader Service Card www.aspquiklink.com/12162 Wagner sealed beam headlamps Federal-Mogul’s Wagner Lighting brand has introduced long-lasting, maintenance-free LED sealed beam replacement headlamps for commercial applications and some passenger vehicles. The new LED lamps dramatically improve driving visibility in a full range of operating conditions. The new lamps’ bulb-free LED design eliminates damage caused by road shock and vibration while projecting a brighter, whiter and crisper light that extends the driver’s f eld of vision. FEDERAL-MOGUL CORP. Circle 163 on Reader Service Card www.aspquiklink.com/12163

Heavy-duty coolant tubing The Gates Corp. has added five heavy-duty coolant tubes that help to minimize the effects of corrosion. This product features Gates proprietary Tuffcoat plating for better rust resistance on straight tubes. Stateof-the-art bending and forming technology and thicker wall tubing withstand the rigors of installation and harsh over-the-road conditions. THE GATES CORP. Circle 164 on Reader Service Card www.aspquiklink.com/12164 General Tools product catalog General Tools & Instruments’ 2014 full-line tools and instruments catalog features more than 1,300 items in categories such as specialty tools, video inspection and electrical. The two sections of the catalog — one for tools and the other for instruments — are organized by product category and formatted for easy product look-up. The catalog also introduces several new products such as the expansion of General’s line of electrical instruments and video inspection systems. The electrical line includes new clamp meters, multimeters, electrical testers and multi-component kits. GENERAL TOOLS & INSTRUMENTS Circle 165 on Reader Service Card www.aspquiklink.com/12165 Bosch engine sensors The Bosch line of engine management sensors includes 370 part numbers covering 89.4 million vehicles in operation in the U.S. Featuring high accuracy in measurement with fast response times, these sensors are all exactly the same as those manufactured for OEMs. The line includes: pressure sensors; low pressure sensors (oil, fuel, coolant); high pressure sensors (fuel); differential pressure sensors; engine position sensors; crankshaft sensors; camshaft sensors; throttle sensors; knock sensors; air management sensors; mass air f ow sensors; manifold intake pressure sensors; and temperature sensors. ROBERT BOSCH LLC Circle 166 on Reader Service Card www.aspquiklink.com/12166

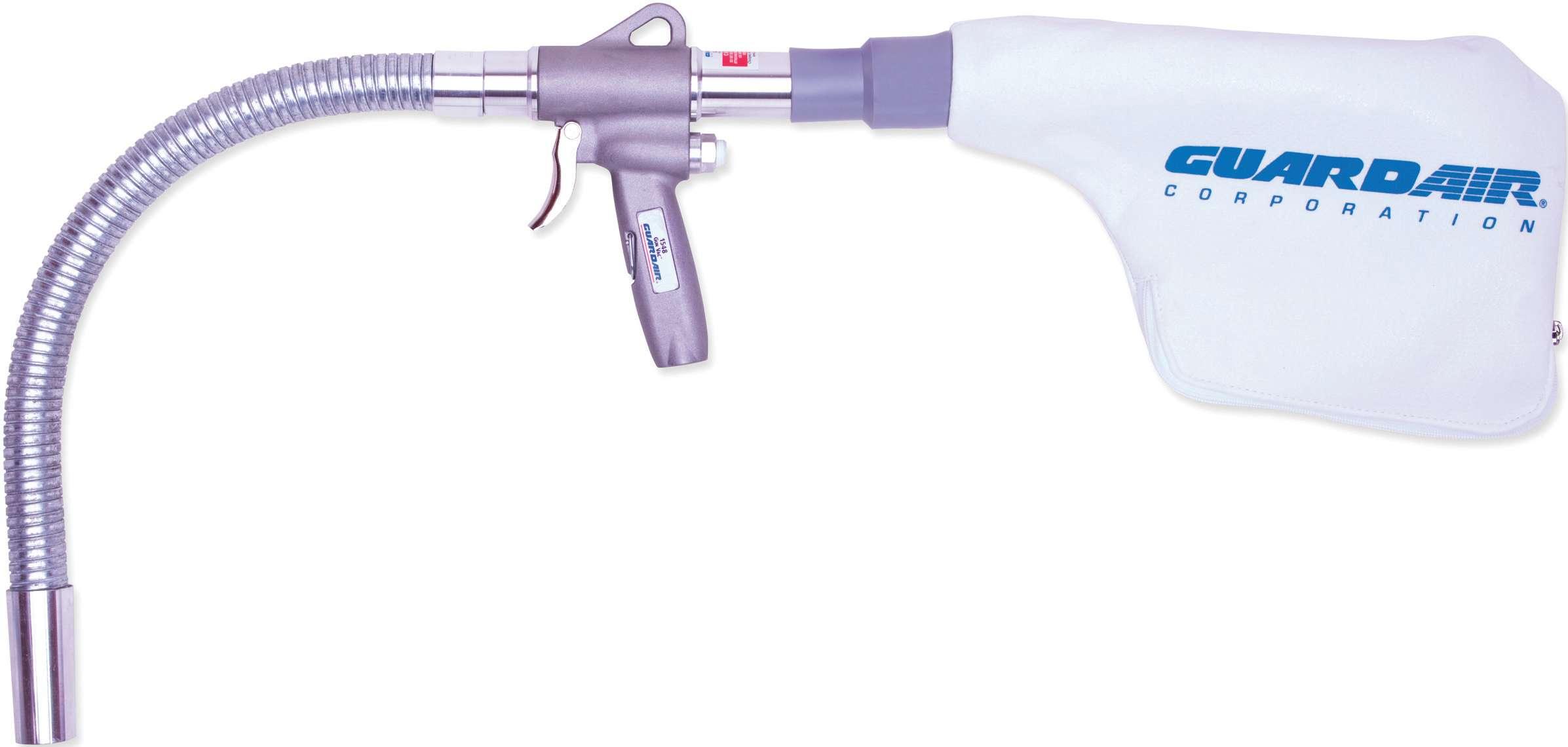

Guardair Gun Vac extension Guardair Corp.’s pneumatic hand-held Gun Vac features a new tapered 18-inch f exible metal extension that accommodates standard 1 1/4-inch vacuum accessories and attachments. The f exible metal extension makes cleaning easy in hard-to-reach areas by capturing debris versus blowing it around. Powered by compressed air, the lightweight Flexible Gun Vac has no electric motor to burn out. The high f ltration collection bag makes it ideal for cleaning metal chips, dirt, dust and f ner materials. GUARDAIR CORP. Circle 167 on Reader Service Card www.aspquiklink.com/12167

Innova QUICKLINK virtual dashboard Innova Electronics says the award-winning QUICKLINK device pairs with a smart device for immediate access to a virtual dashboard of information that can help keep vehicle owners safe, save time and money, and provide peace of mind. It can be used to solve check engine problems, check for road trip readiness, doublecheck automotive repair shop estimates, improve fuel economy and more. It is compatible with 1996 and newer import and domestic cars, light trucks, minivans, SUVs and hybrids. QUICKLINK users also have easy access to RepairSolutions online free basic reports. INNOVA ELECTRONICS CORP. Circle 168 on Reader Service Card www.aspquiklink.com/12168

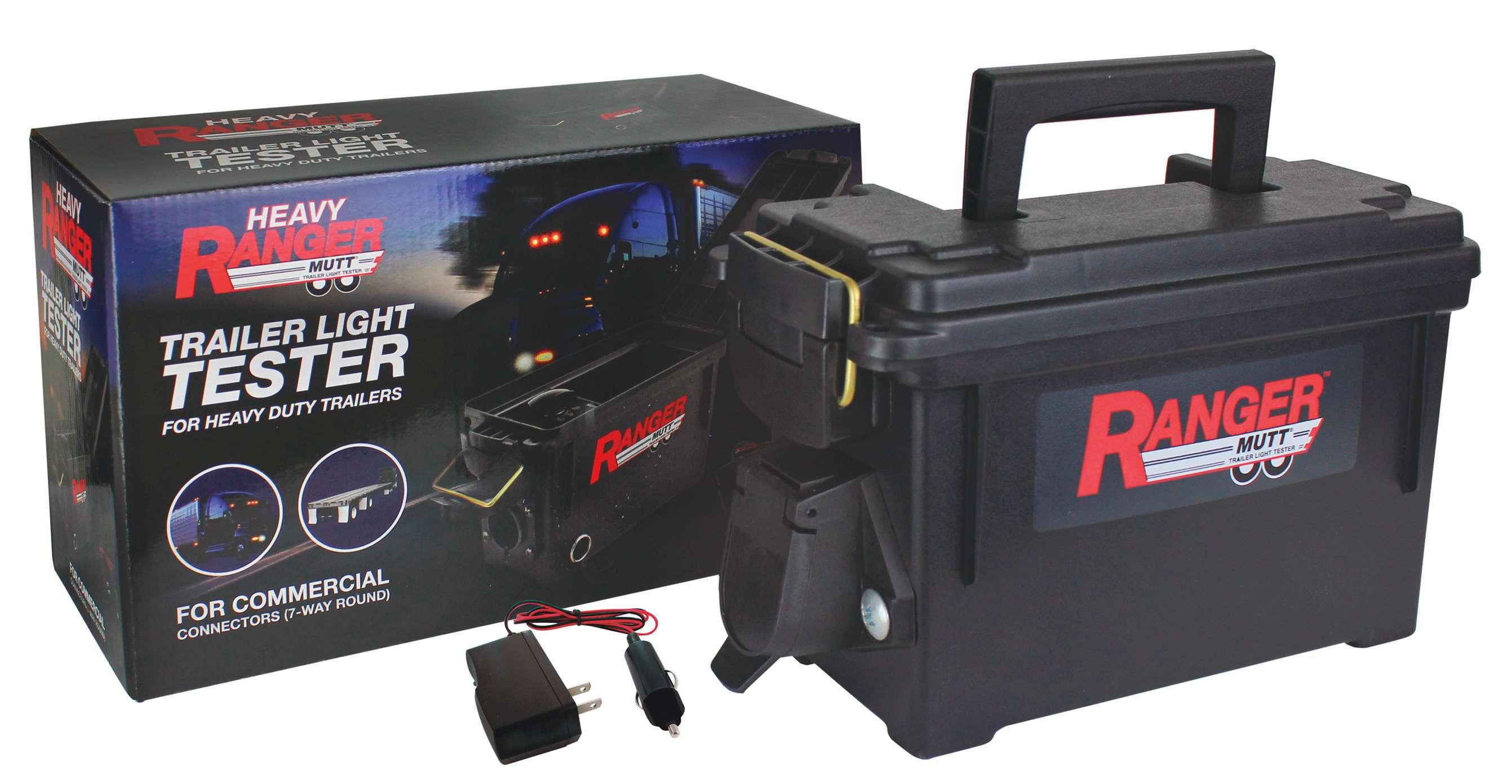

IPA trailer lights and brake tester Innovative Products of America Inc. has expanded its line of trailer testers with the #9102 Heavy Ranger MUTT, a portable and lightweight solution for testing lights and electric brakes. The trailer tester is compatible with seven-way round pin connection types and is designed to simulate all electrical circuits while providing short protection on industry standard pin conf gurations. INNOVATIVE PRODUCTS OF AMERICA INC. Circle 169 on Reader Service Card www.aspquiklink.com/12169 Kaeser variable speed drive screw compressors Kaeser Compressors says its SFC 30S and SFC 30 variable speed drive rotary screw compressors deliver “built-for-a-lifetime” reliability including simple maintenance and sustainable energy savings. The SFC 30S has a f ow range of 37-171 cfm at 125 psig and is available with pressures up to 190 psig. The SFC 30 has a f ow range of 47-202 cfm at 125 psig, with pressures up to 217 psig. KAESER COMPRESSORS INC. Circle 170 on Reader Service Card www.aspquiklink.com/12170 DENSO develops EGR valve unit DENSO has developed an exhaust gas recirculation (EGR) valve unit which integrates an air intake throttle valve and an EGR valve, is half the size of conventional models and requires fewer components, thus reducing costs. By integrating the two valves into one unit, DENSO combined the ducts and reduced the connectors, reducing the size to half compared to previous models. DENSO’s new unit needs only one motor and one sensor. DENSO PRODUCTS AND SERVICES AMERICAS INC. Circle 171 on Reader Service Card www.aspquiklink.com/12171 KYB expands MonoMax line KYB Americas Corp. has expanded the coverage of its truck and SUV MonoMax shock absorber lineup. New part numbers for this release cover nearly 12 million pickup trucks and SUVs on the road today, including the most popular l a t e - m o d e l Ford, General Motors and Dodge applications. KYB’s M o n o M a x shock absorbers are large bore monotube shock absorbers built to handle the demands of working trucks, vans and SUVs. The MonoMax line also has been popular among the off-road vehicles market. KYB AMERICAS CORP. Circle 172 on Reader Service Card www.aspquiklink.com/12172 Lisle expands its Davco line of diesel f lter wrenches Lisle’s line of Davco wrenches are designed for removing and replacing the main f lter collar and vent cap on aftermarket diesel fuel f lter systems. The 5-, 6- and 8-inch wrenches feature a halfmoon design for easy access to the fuel f lter. High strength steel prevents the wrench from flexing while loosening stubborn f lter collars. Four teeth grab the vent cap securely to prevent damage. A thick padded grip cushions the technician’s hand. LISLE CORP. Circle 173 on Reader Service Card www.aspquiklink.com/12173
