Folder JOICE englisch

JOICE Walk In +

WOR

LD’S

Pate n

t pen

The fifirst barrier-free walk-in shower, in which you can also take a bath!

FIRS

ding

.

T!

Modern

2 in 1 concept

for frequent shower-takers and occasional bathers!

NEW: JOICE Walk In + : Trendy walk-in solution with the bath-plus!

Behind this elegant front is a completely new 2 in 1 concept: The floor level, barrier-free, generously sized shower compartment, can be transformed into a full- sized bathtub in just a few easy steps. For the style-conscious, who like to shower without limits, but don’t want to give up bathing completely.

2

You have the JOICE!

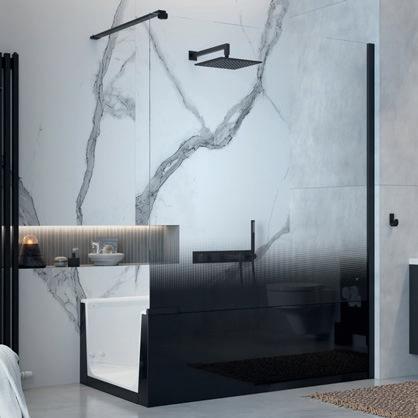

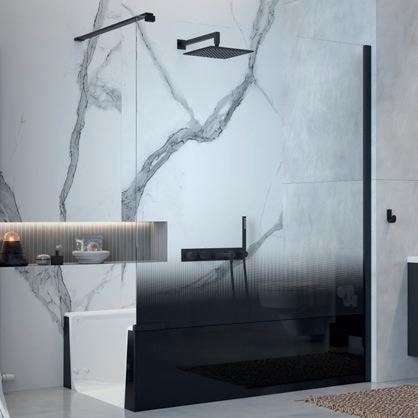

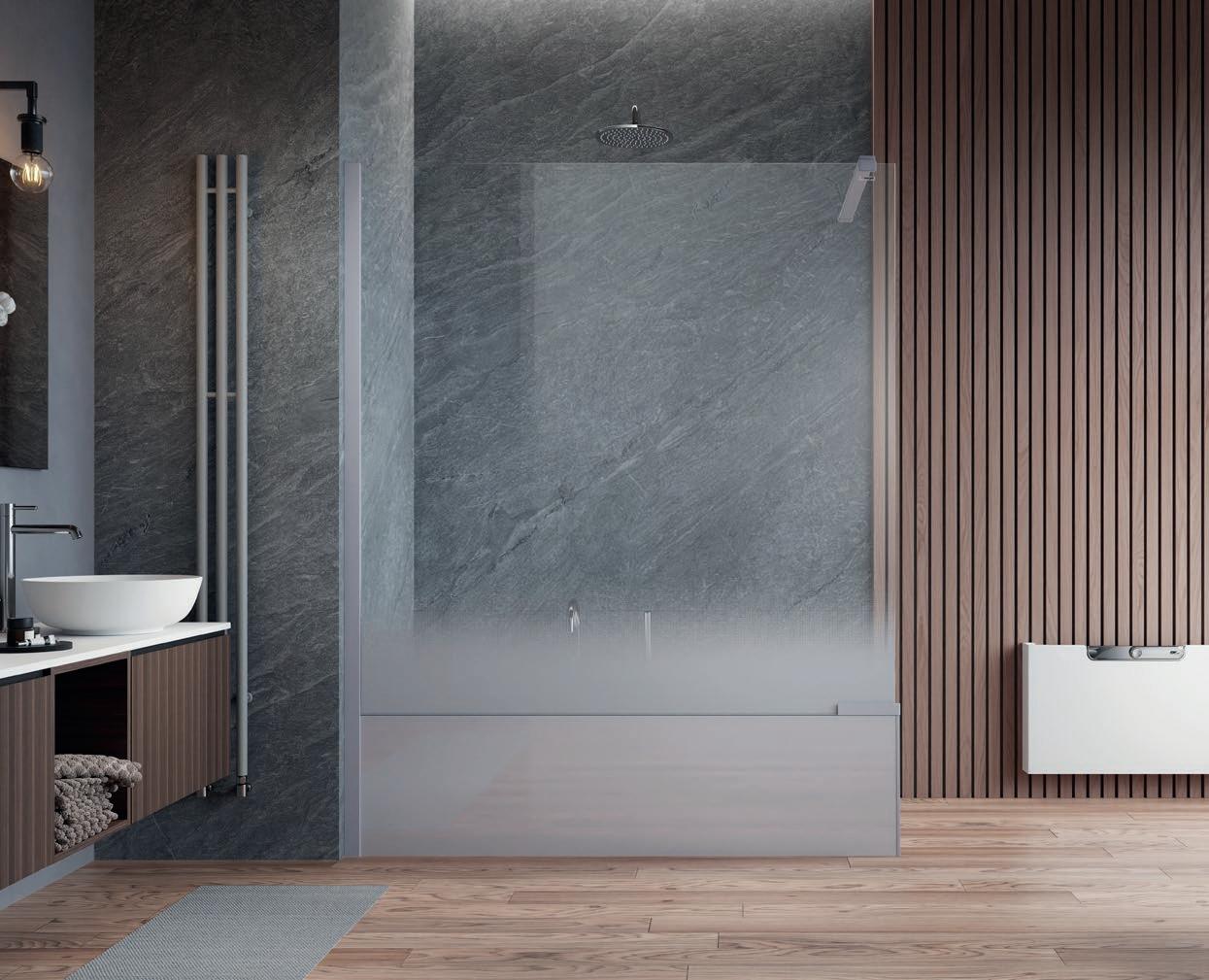

A large glass front in-front of a spacious, door-free shower area this is what characterises this trendy, walk-in shower. With the JOICE Walk-In + , this wide glass front creates a modern eye-catching appearance, stylishly set in place using contemporary colours that fade upwards into a transparent optic at the top.

JOICE Walk In +

JOICE - The ingenious Walk In + solution for modern bathrooms ++

Walk In + shower with door-free access

++

Trendy look

++

100% barrier-free

++

Wide splash guard

++

Converts into a bathtub in a few easy steps

++

Full-sized bath tub

++

Available in two sizes: 150cm and 160cm, suitable for niche widths of 200cm or more 3

The new JOICE Walk In + is a full-sized bathtub.

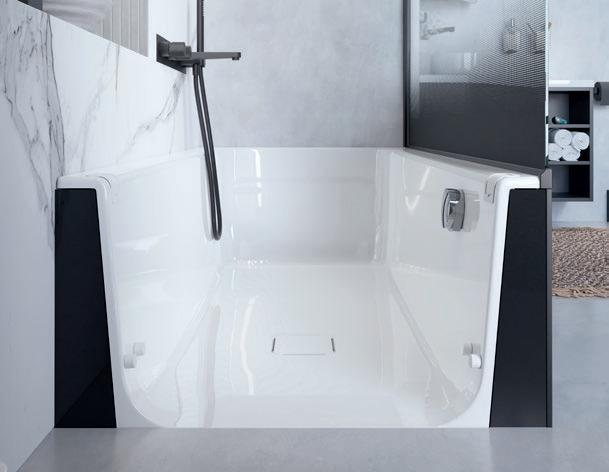

Bathing in the JOICE Despite the short tub length, the JOICE offers enough space for a full bath as the straight door panel allows the space to be used to a maximum. And with a tub width of 85 cm, the JOICE offers plenty of room to move.

To bathe, the door panel is added and simply locked into place. A continuous seal around the panel ensures it’s reliably watertight. The safety mechanism prevents the drain from closing if the panel is not inserted or is incorrectly inserted.

After bathing, the panel can be put into the storage box and the Walk-In + is ready for showering again.

Lever to the left = panel open 4

Lever to the right = panel closed

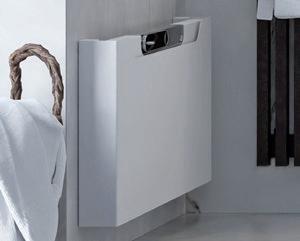

Storage box for panel. (optional)

JOICE Walk In +

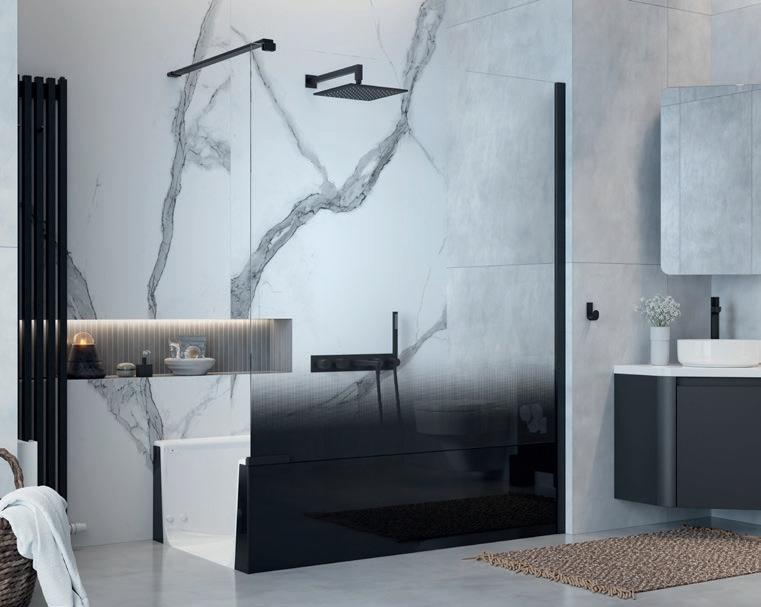

SHOWERING IN THE JOICE The new JOICE Walk In + is a cool walk-in solution for modern bathrooms.

The wide glass front and the completely floor-level, door-free access make daily showering a unique experience.

After shower care is also a joy with the JOICE. The high tub without any edges and corners and the treated ARTCLEAR glass, make cleaning child’s play.

Completely floor-level entry to the shower

Plenty of room for an enjoyable shower experience

You have the JOICE!

The new JOICE Walk In + is the cool solution for modern bathrooms.

5

1. Installation in floor as simple as with a shower tray:

2. Installation on the floor the quick solution for renovation:

The JOICE tub is sunk 8cm into the floor and glued to the substrate. The installation is as easy as with the mineral-cast tub, ARTSTONE. This type of installation is the most stable in use. The installation in the floor means that access to the shower is completely level and barrier-free.

For installation where the tub cannot be sunk into the floor, it is possible to put the tub onto the floor. Only the drainage is set below floor level.

This means there is a small 8cm step into the shower area which can be easily managed.

You have the JOICE!

Installation Variations

3. Tub and drainage on floor level: Sometimes it’s not possible to dig into the existing floor. With this type of installation, there is a walk-in step of 16.5 cm high. We recommend adding a platform in the entry area, so that floor-level access can be guaranteed.

Easy-cleaning with ARTCLEAR GLASS Thanks to the high tub, the hard wearing lower part of the shower area is particularly easy to clean without any corners or edges. The pore-free, smooth acrylic surface is simple and easy to clean.

In addition, the JOICE shower panel can be supplied optionally with the unique ARTCLEAR treated glass to give even easier cleaning for the life-time of the shower!

6

JOICE Walk In +

2000

Models and Colours JOICE 160: 160cm long, 85cm wide.

430

Left or right entry possible.

Floor dimensions: 60 x 125cm.

Tub capacity: 190L

85

00 15

0

60 /1

0

JOICE 150: 150cm long, 85cm wide.

Left or right entry possible.

Floor dimensions: 60 x 115cm.

Tub capacity: 170L

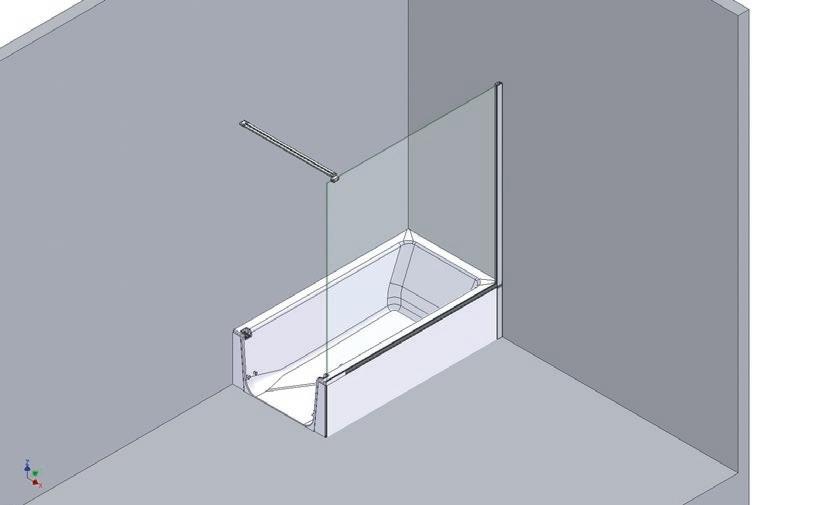

Series standard wall mounting

Optional storage box

Possible colour design:

BLACK:

WHITE:

Glass black decor Wall profile and stabiliser matt black, all other parts glossy black.

Glass white decor Wall profile and stabiliser matt white, all other parts glossy white.

PROFILE: Colours (Wall connection and stabiliser)

high gloss metal

white

matt white

Further colours on request.

matt black grey matt

GREY:

Glass grey decor Wall profile and stabiliser matt grey, all other parts glossy grey.

GLAZING: Genuine glassclear

REAL GLASS LIGHT: Tub front glossy white with a 3cm white stripe on the glass, wall profile and stabiliser glossy metal.

Colored glass grey

COLOURED GLASS GREY:

Tub front glossy black with a 3cm black stripe on the glass, wall profile and stabiliser matt black.

Genuine glassclear with decor

white

black

grey

7

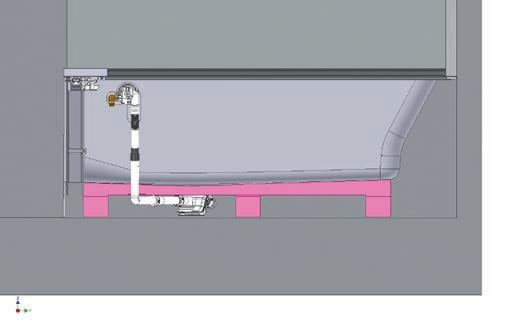

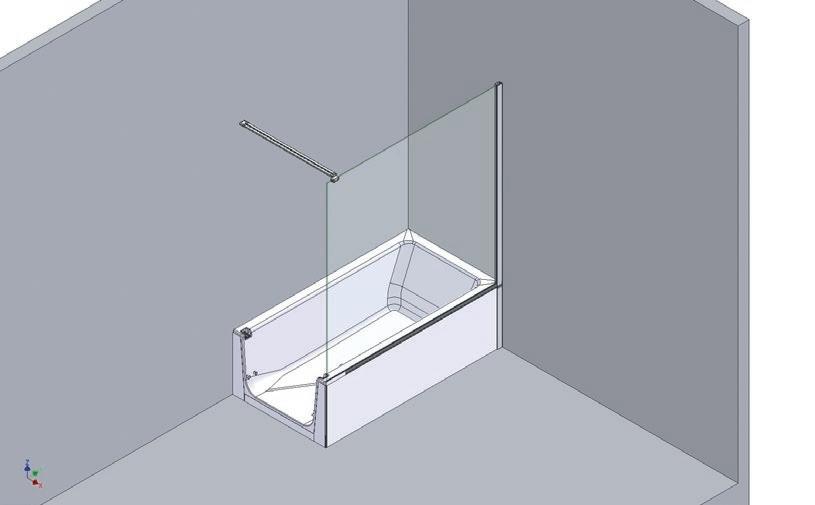

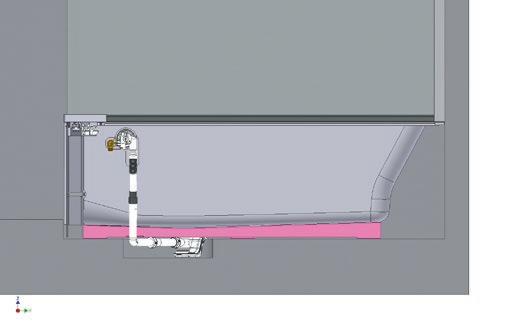

Details installation options Option A1 – flush with floor Completely recessed in the floor Totally barrier-free Depth of recess for tub support: 80 mm Depth of recess for drainage fittings: 165 mm

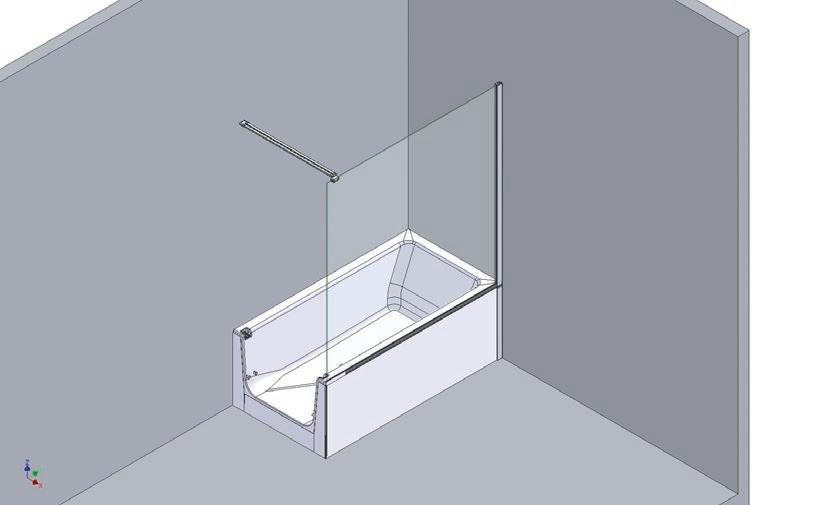

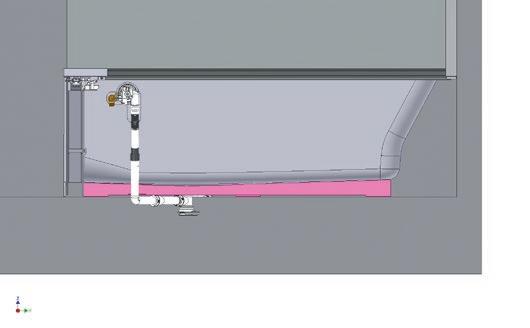

Option A2 – Mounted on floor Only drainage fittings recessed in the floor step 80 mm Depth of recess for drainage fittings: 85 mm

Recommended : additional pedestal to enable floor level entry.

Option A3 – Mounted completely on floor Drainage fittings above the floor,step 165 mm (no floor recess)

Recommended : additional pedestal to enable floor level entry.

8

JOICE Walk In +

Price list 2023/24 (Price guarantee until 30 June 2024)

ACCESSORIES

Art. no.

J C

ARTWEGER price list 06/2023. For specialised trade outlets only.

Suggested retail prices in EUR not including VAT. DIMENSIONS IN MILLIMETRES.

Base price

Art. no.

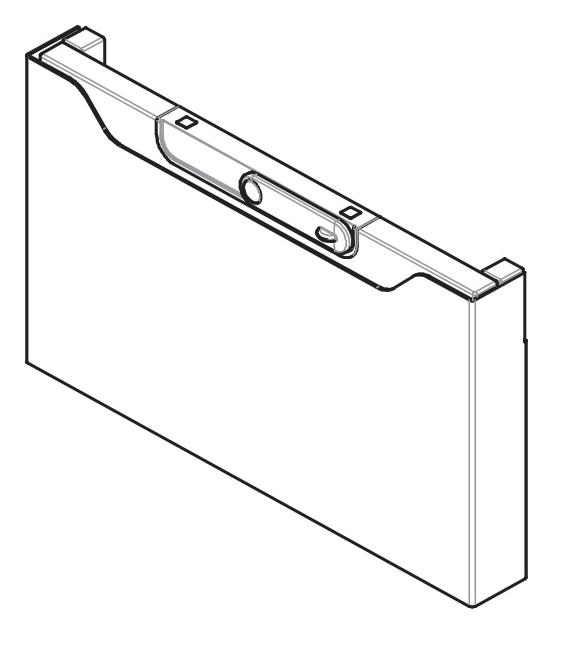

Storage box for door panel Height 440 mm, width 755 mm, depth 92 mm.

Colour matt white,

Flexible connection hose, ½“ Length 1500 mm. For inlet/drain/overflow set.

Sealing tape - set Sealing tape 3600 mm, sound insulation tape 3600 mm, tile separation tape 3600 mm, 2 x corner extensions and adhesive tapes.

For sealing and sound installation between the tub, the structure and the tiles.

JC00 01

213

JC00 02

50

JC00 03

97

JOICE DESIGN RECOMMENDATION Corner installation left

Art. no.

Tub 1600 × 850 mm A JCW1 02 WS • Walk‑in tub in white including door panel and drain fittings with mechanical closure.

• Tub and door panel in matt white, operating elements in chrome finish.

• Including wall mounts in white for the door panel.

B

C

A

Prices in EUR 3 058

Shower screen • Colour: high‑gloss metal • Glazing: glass clear

B

JCA1 K3 MH EK

785

Skirt (optional), installation version A

C

JCB0 11 WG

614

• For floor level fitting or up to an 80 mm high step in entry area.

• Front skirt and cover panel for entrance area in the selected ARTWALL surface.

• Including mounting plate for front skirt.

Total price in EUR:

4 457

JOICE WALK IN + ARTWEGER price list 06/2023. For specialised trade outlets only. Suggested retail prices in EUR not including VAT. DIMENSIONS IN MILLIMETRES.

left

right

Product description / features

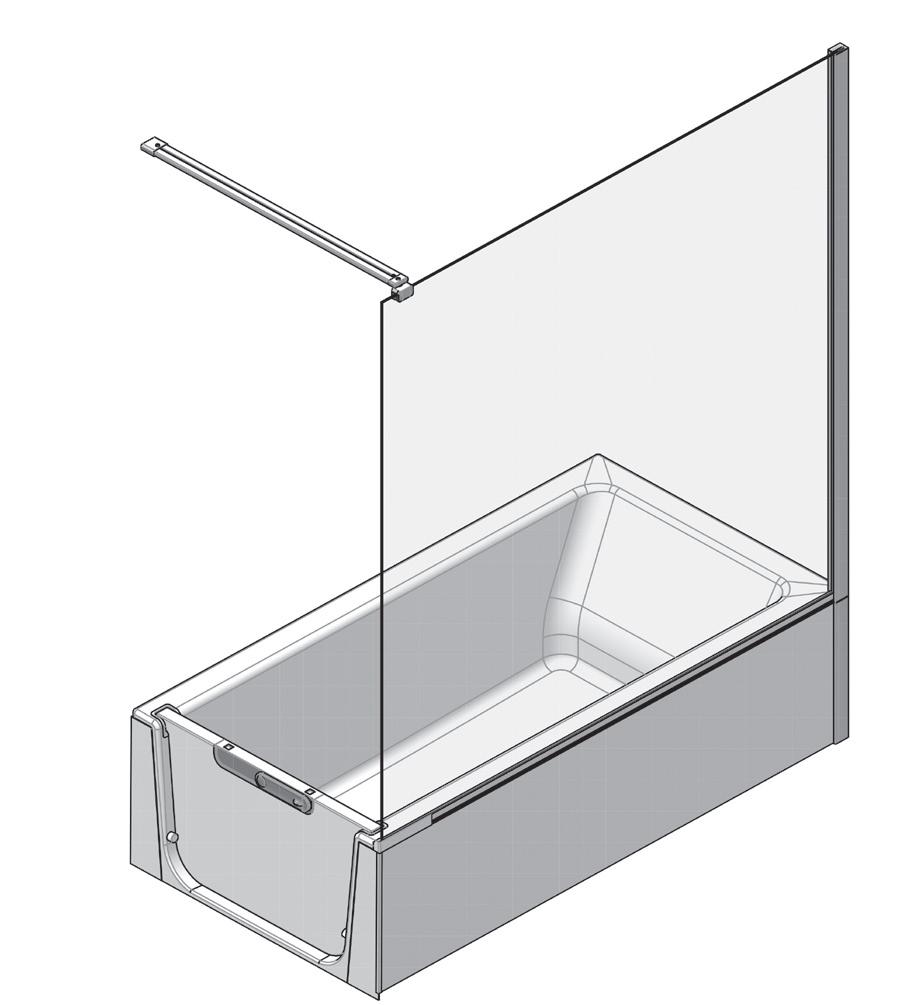

Shower screen • Shower attachment including wall profile and stabiliser.

• The stabiliser and the lower cover of the wall profile must be adapted on site.

• The total height depends on the actual height of the tub in place.

• Please order tub extra.

Height/height of glass × width

2000/1570 × 1500 2000/1570 × 1600

Länge × width

Tub • Walk‑in tub in white including door panel and drain fittings with mechanical closure.

• Tub and door panel in matt white, operating elements in chrome finish.

• Including wall mounts in white for the door panel.

• Height of 430mm by floor level entry.

• Shower attachment, tub skirt or tile support to be ordered separately.

A ‑ For floor level fitting or up to an 80 mm high step in entry area.

B ‑ For fitting up to a 165mm high step in entry area.

A/B cover panel for entrance area • Colour glossy white • Only required if skirt or tile support is not ordered.

Skirt • Suitable for tubs on left and right.

• Front skirt and cover panel for entrance area in the selected ARTWALL surface.

• Corner connection profile ‑ Colour matching the chosen surface.

• Including mounting plate for front skirt.

• The exact height should be determined on site.

Length × height

A/B 850 × 570

1500 × 485 1600 × 485

B 1500 × 570 1600 × 570

A

A

B

1600 × 850

A

A

B

1500 × 850

Tile substrate • Suitable for tubs on left and right.

• Mounting plate for individual tiling and cover panel for entrance area in white.

• Corner connection profile in white.

• The exact height should be determined on site.

• Suitable for tiles with a thickness of at most 10 mm.

1500 × 485 1600 × 485

B 1500 × 570 1600 × 570

IMPORTANT • Height of glass + 30 mm = total height incl. stabiliser. Required installation height is total height + 100 mm.

Art. no.

Frame colour

Glass finishing (optional)

Glazing

J C Base price

left

right

JCA1 H3

JCA2 H3

JCA1 K3

JCA2 K3

MH High‑gloss metal

WS White WM Matt white SM Matt black GM Matt grey . . Additional colours

785

Art. no.

Surcharge

EK Glass clear TG Coloured glass grey DW White Decor DS Black Decor DG Grey Decor

EK TG DW DS DG

981

C ARTCLEAR GLAZING

0 134 207 207 207

Colour

Additional features

Base price

Surcharge

J C

left

right

JCW1 01

JCW2 01

JCW1 02

JCW2 02

WS White

E Inlet/drain/overflow¹ (optional)

3 058

E

Art. no.

161

Colour

J C Base price

Art. no.

JCBE 01

JCB0 10 JCB0 11

JCB0 20 JCB0 21

JCF0 10 JCF0 11

JCF0 20 JCF0 21

WG Glossy white

SW Gloss black GA Grey black

. . Colour not specified

138

–

–

614

614

–

706

706

–

–

–

384

–

–

479

IMPORTANT ¹ In case of the integrated tub inlet a pipe interrupter type A2 according to EN 1717 is to be installed.

211

JOICE WALK IN + : The brand new success story for modern bathrooms ++ Walk In with real benefits - unique selling points für Artweger Partner ++ No internet price dumping, due to the unique 2 in 1 concept ++ Bathroom up-grade with additional bathing possibilities ++ Enthusiastic customers ++ Extremely attractive pricing in accordance with the Artweger middle-price collection ++ High income due to the best direct conditions ++ Own brand upgrade, eg. by advertising the new 2 in 1 concept

Success in the future:
