Architectural Undergraduate Portfolio | Arnesh Ghosh | WCFA

portfolio Arnesh Ghosh

selected works

Architcture Undergraduate

2019-2023

Arnesh Ghosh Date of birth: Place:

29/06/2001 Kolkata, West Bengal

Languages:

English, Hindi and Bengali

Email:

arnesh.ghosh@gmail.com

Contact:

+91 9836516985

Education 2004

Delhi Public School, Ruby park, Kolkata

2019

Wadiyar Centre for Architecture, Mysuru

2023

Interests Photography & Cinematography Photo & Video Editing Graphic Design Muusic

2

Experience

Skills Drafting

2017-

Freelance graphic designer for various companies

2019

Logo design competition winner

2019

WCFA newsletter Graphics team

Trimble Sketchup

2020

ANDC design trophy Participation

Blender

2020

College digital media team

2021

ANDC Music trophy participation

V-Ray

2022

ZNC Music trophy 2nd Runner up

Enscape

Autodesk AutoCAD

Modeling

Rhinoceros

Renders

Lumion

D5 renderer

Miscelleneous Achievments

Adobe Suite Adobe Illustrator

Logo design competition winner.

Adobe Photoshop

Regional classical music competition

Adobe Premiere Pro

winner Karate black belt Product Photographer and digital Graphics for Company

Adobe InDesign Adobe Lightroom Adobe Dimensions

3

01

02

03

Weavers Trust Colony

Cullinary Arts School

Habitação em Goa

Anegundi, Karnataka

Chennai, Tamil Nadu

Goa

PLAN SCALE (1:25) Towel Holder 02

1500

Shower Head 01

1800

Towel Holder 03

Wash Basin 01

04

05

06

Towel Holder 01

Geyser 01

Soap Holder 01

Soap Holder 01

Drain 01

880

875

3200

2700

Geyser 01

2400

3000

Shower Head 01

Towel Holder 01

Soap Holder 01

1600

800

Western Commode 01

1100

1200

Wash Basin 01

SECTION SCALE (1:25)

Art Museum Srirangapatna, Karnataka

Interior Design

Working Drawings

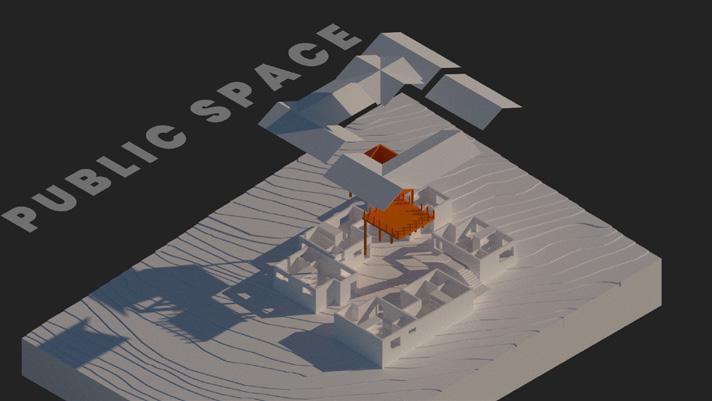

Handicraft colony Semester 7 | Anegundi, Karnataka

Studio Guide : Prof. Prashant Pole

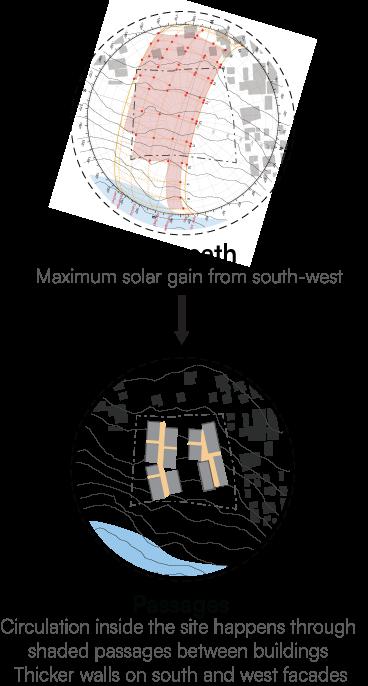

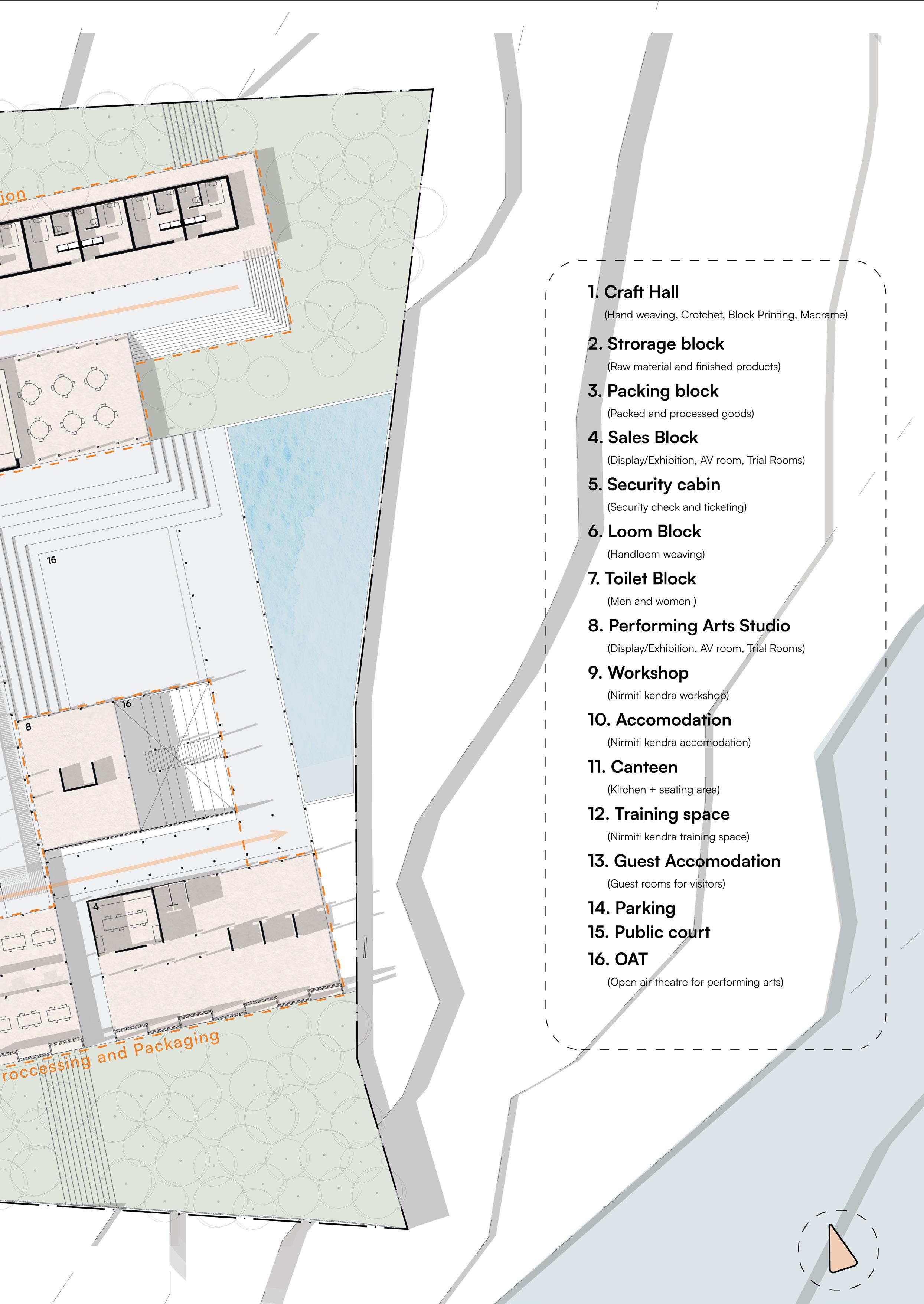

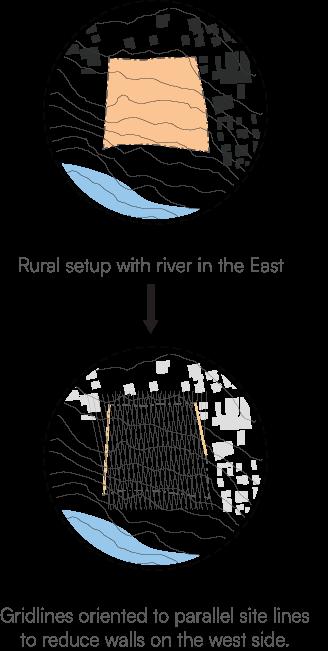

Prof. Anand Krishnamurthy Asst. Prof. Surendran Aalone Prof. Shrutie Shah Asst. Prof. Asijit Khan Studio Brief : The semester was based on a rural handicraft group, called the Kishkinda Trust . Idea was to create a space for these women to permorm their craft, while also looking at the idea of sustainability.

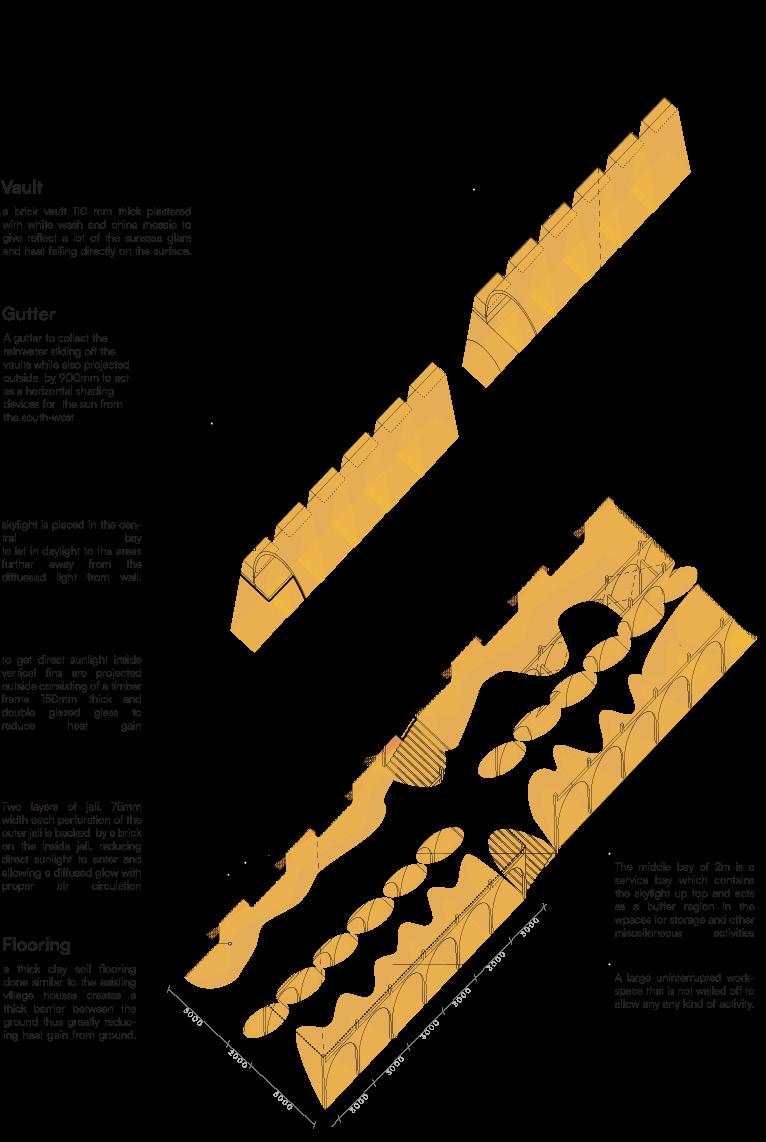

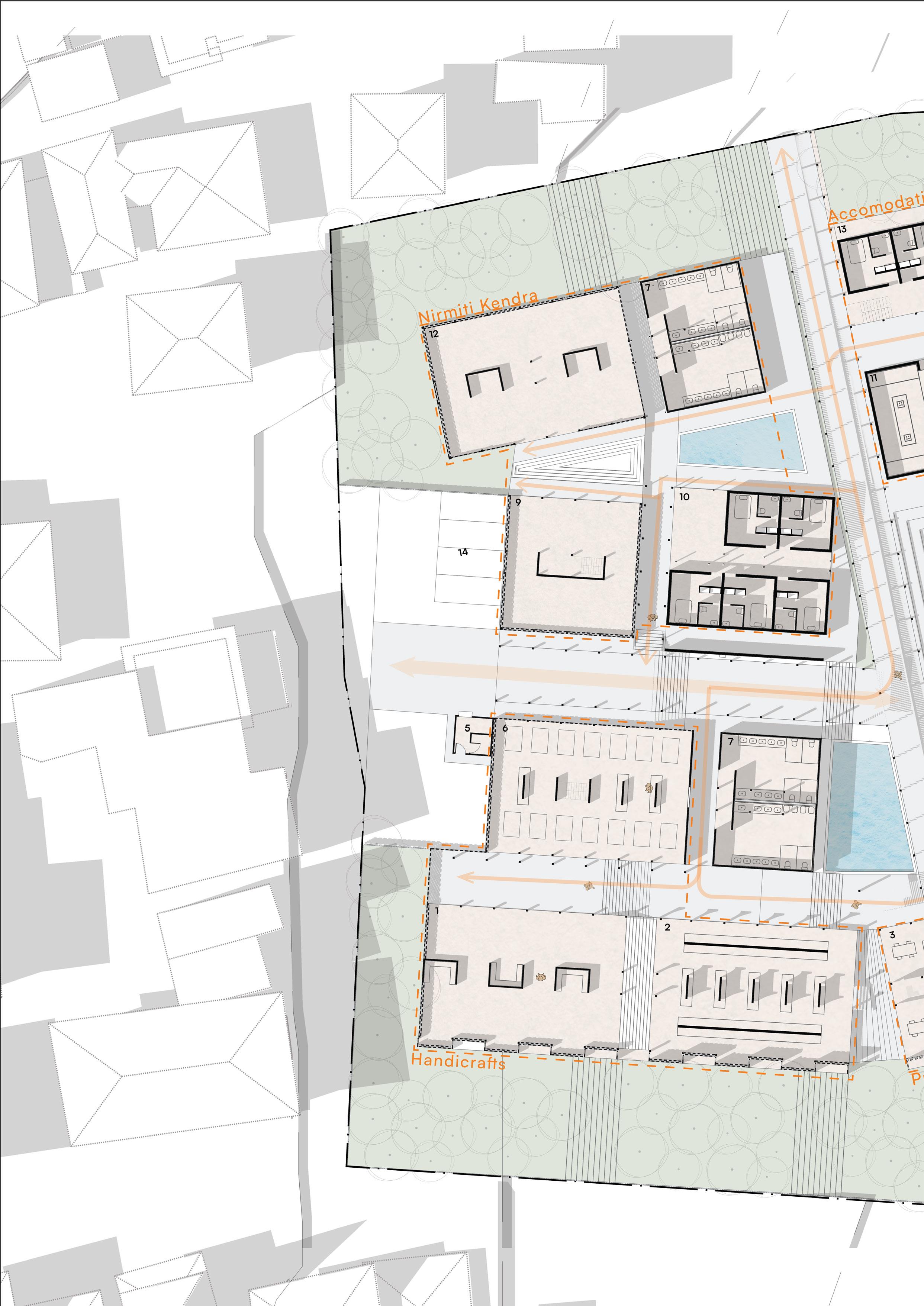

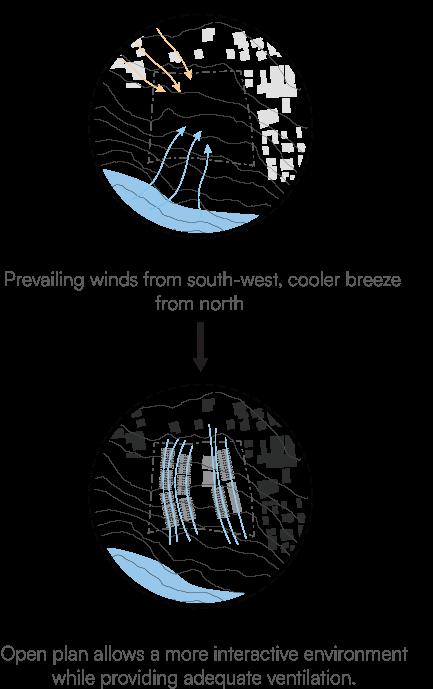

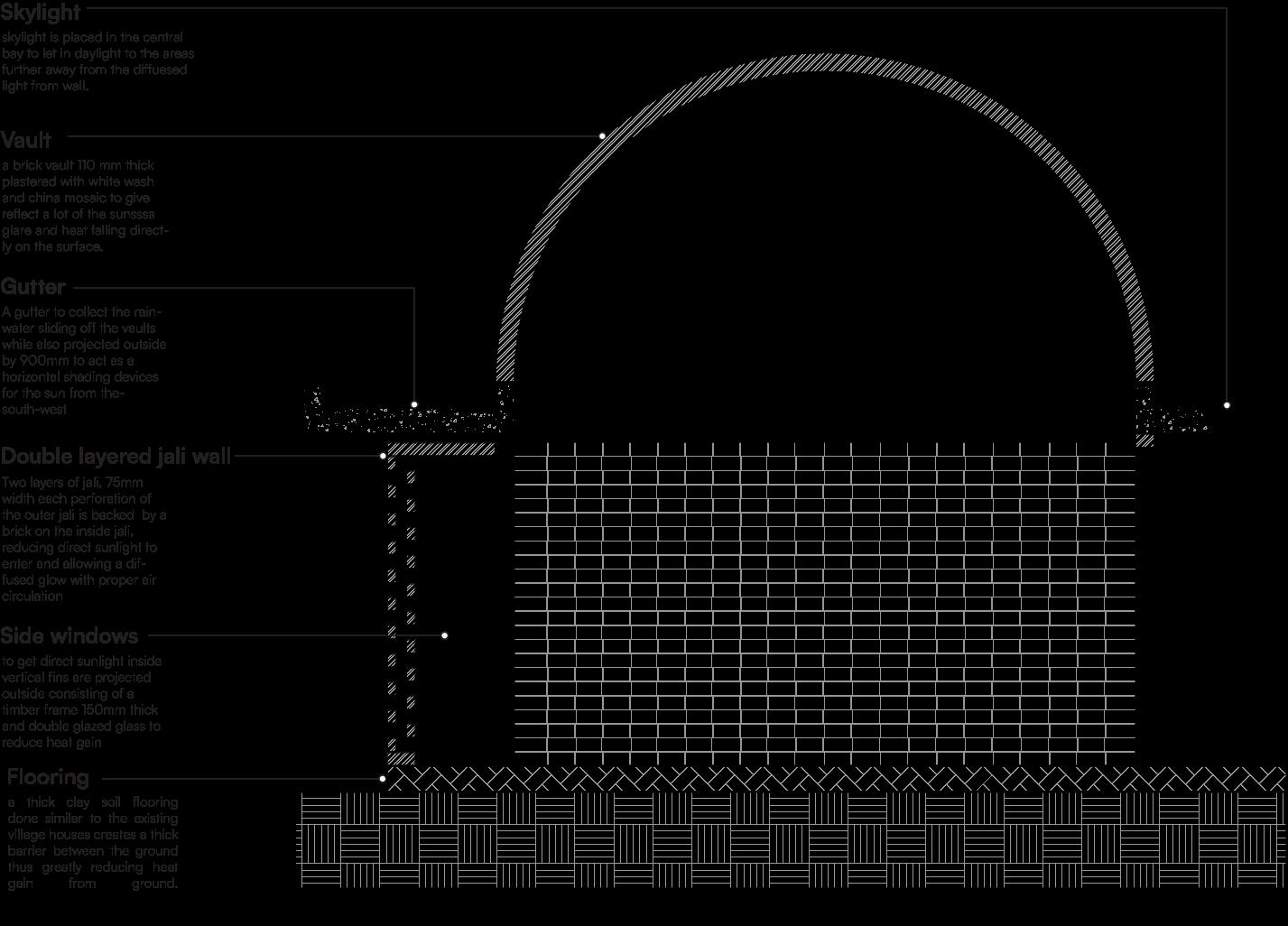

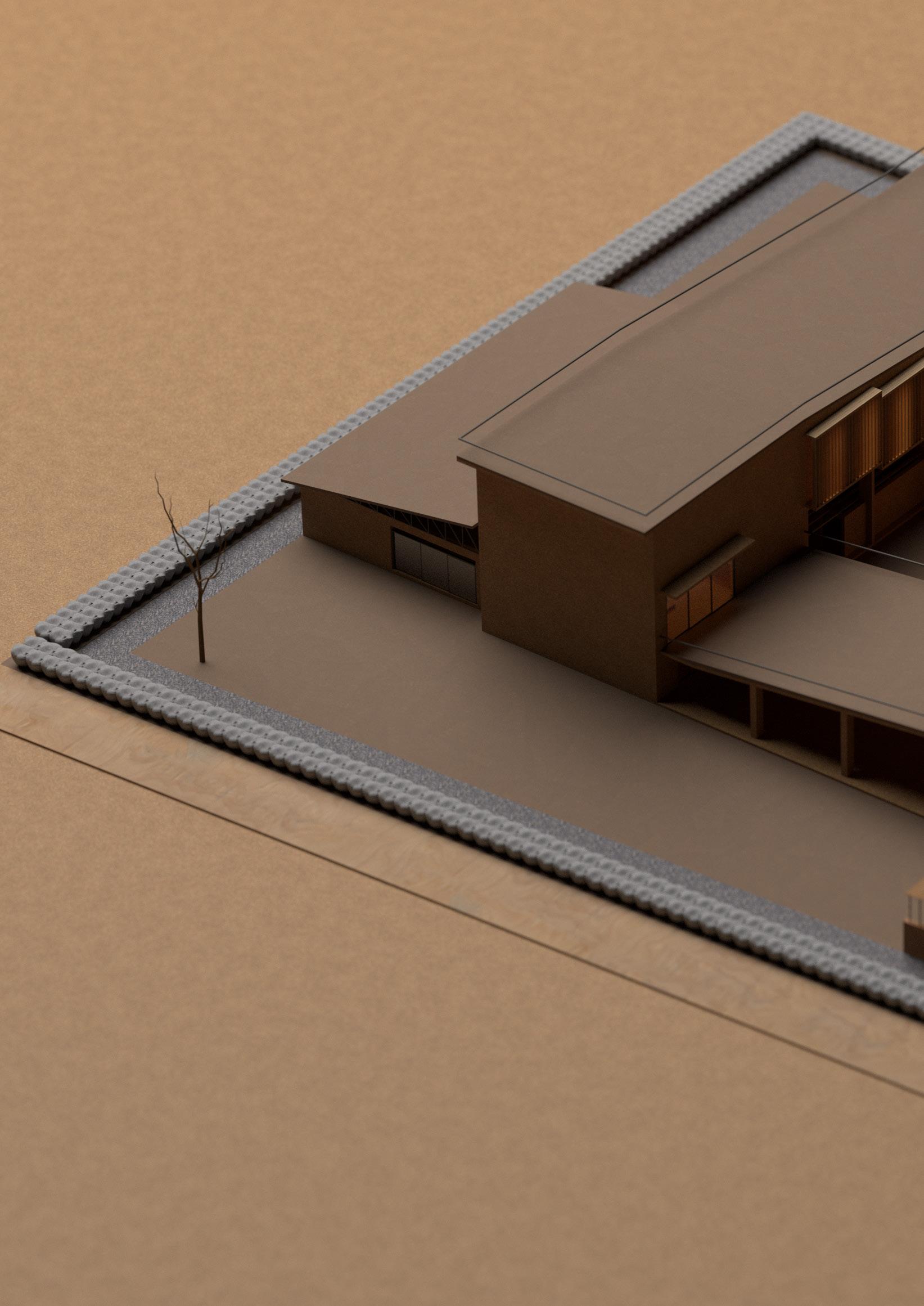

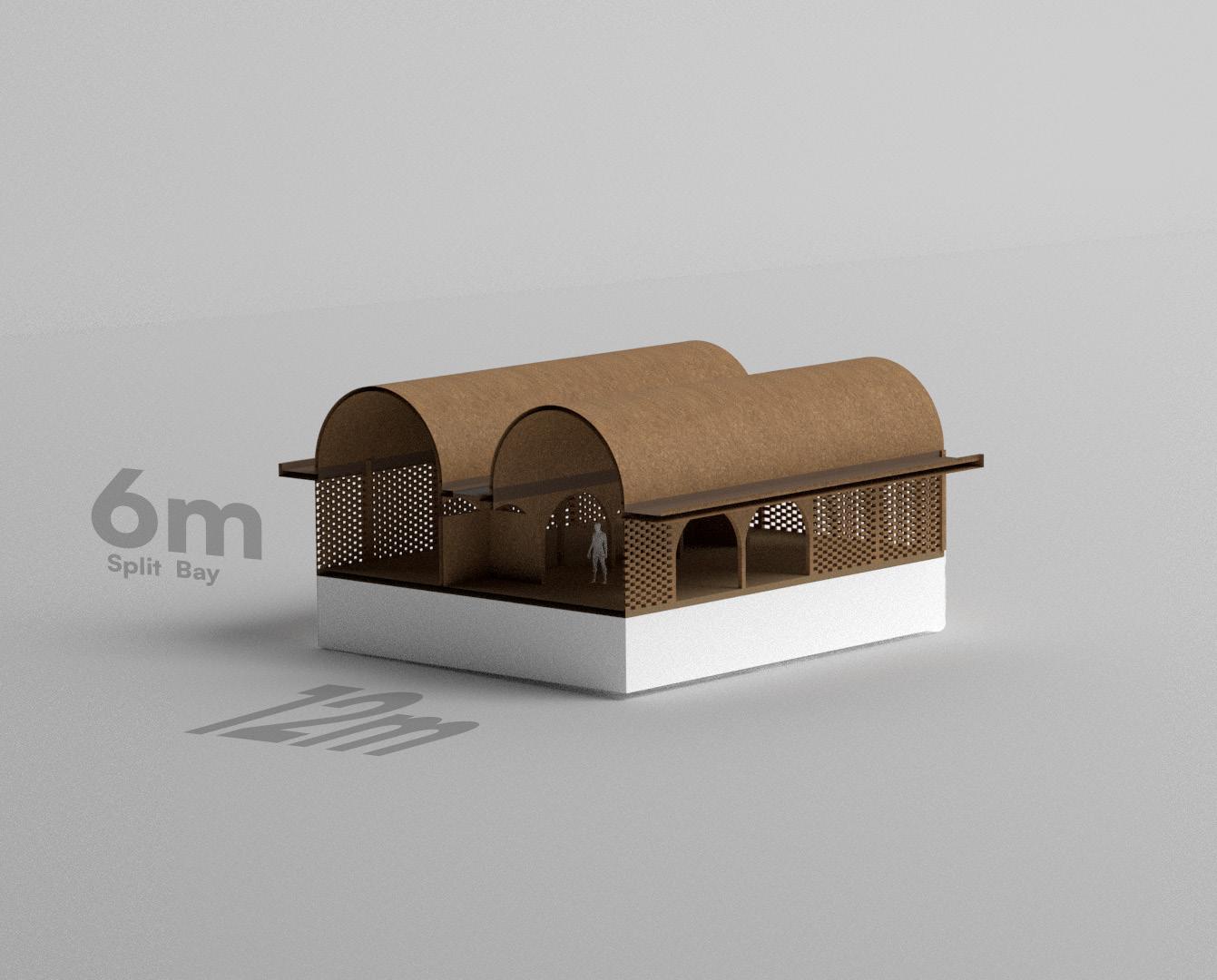

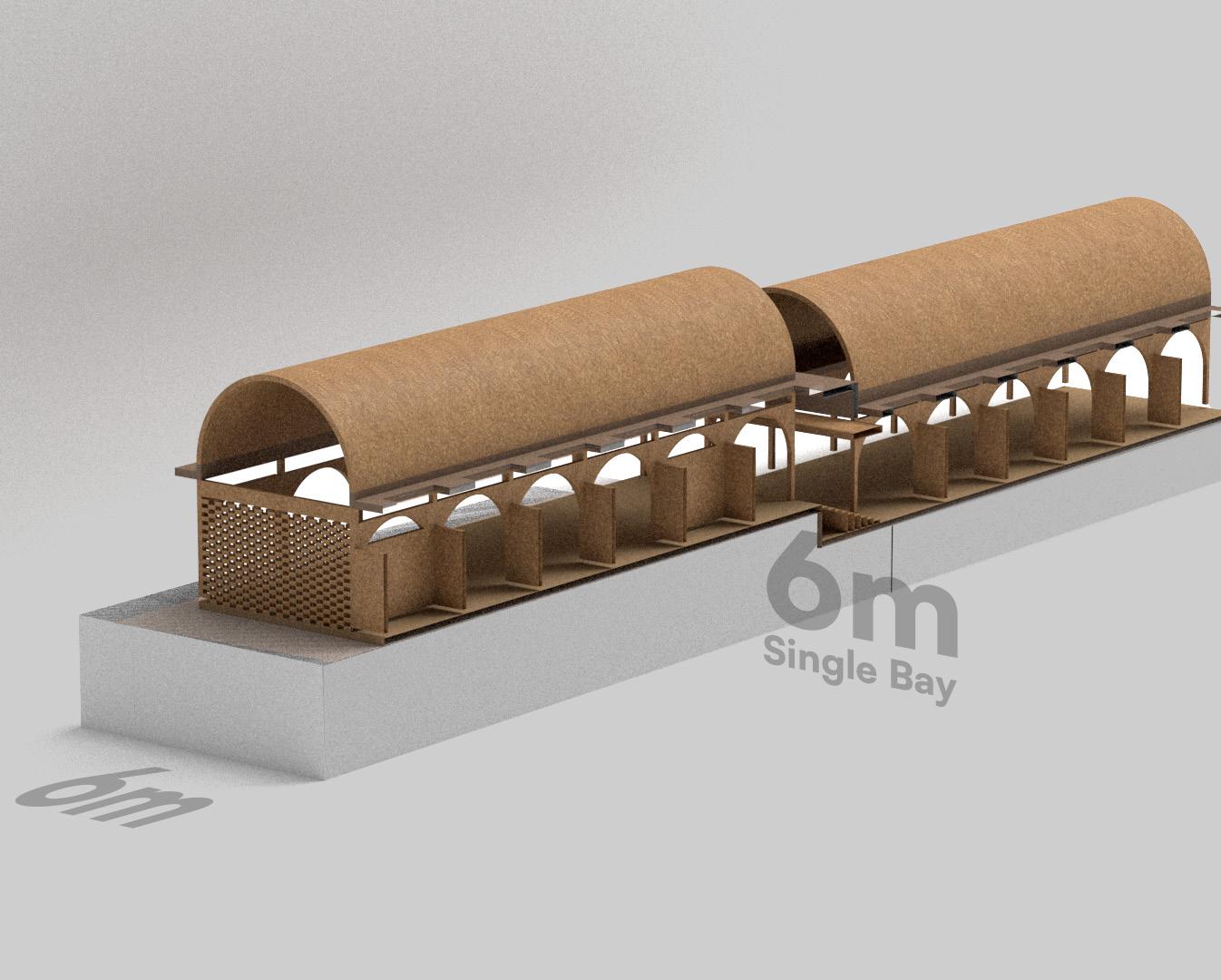

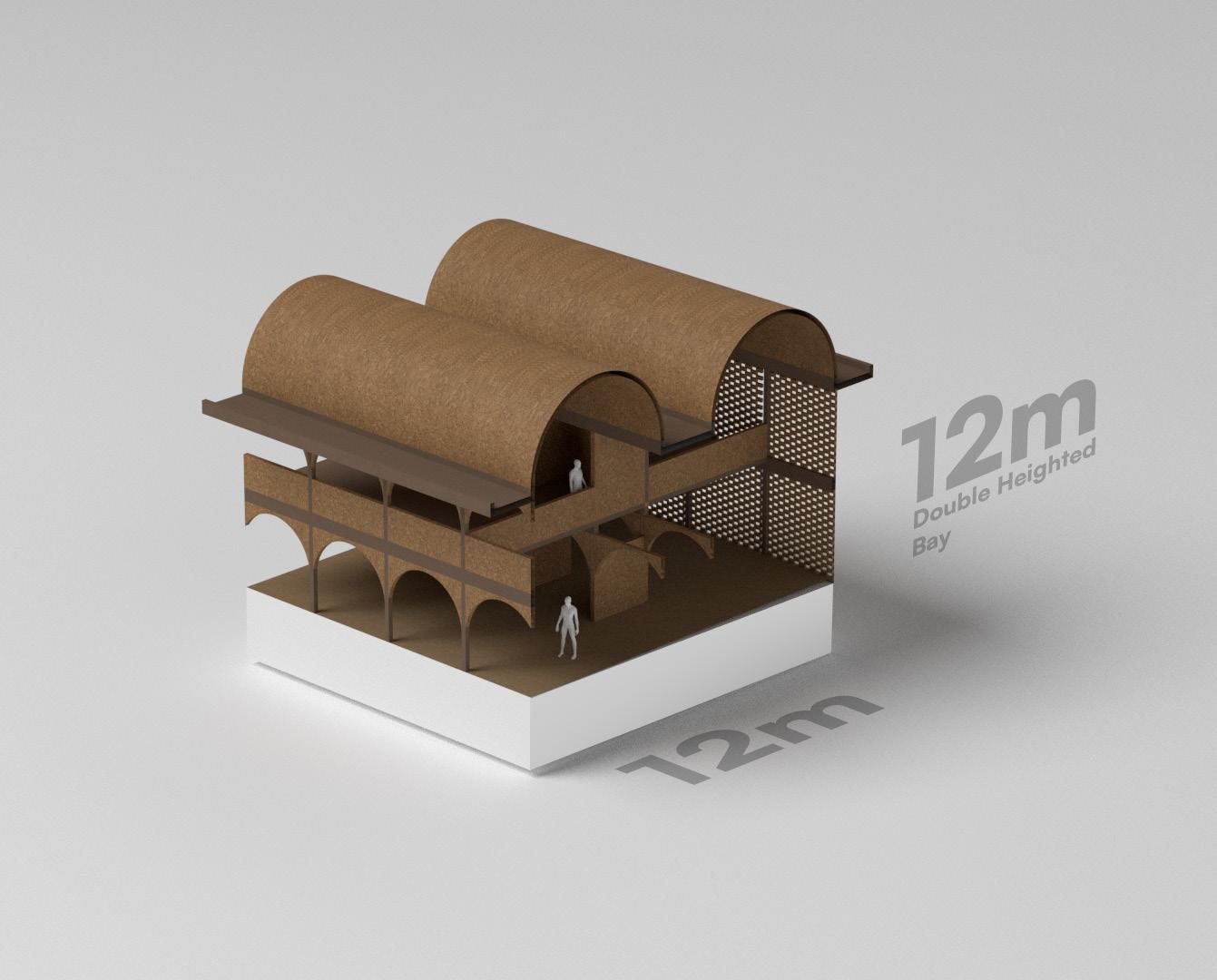

Model maquete of the overall project

7

10

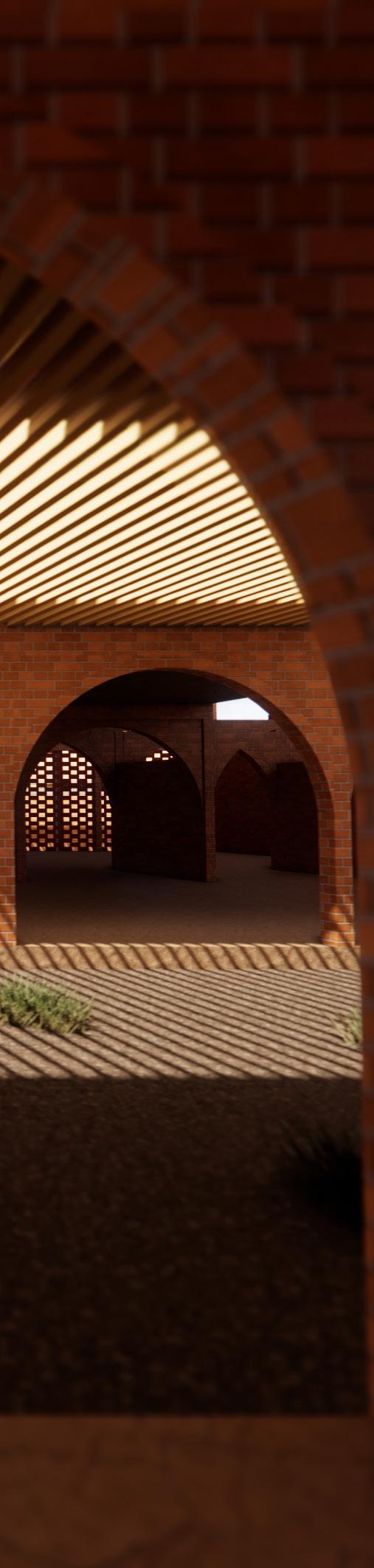

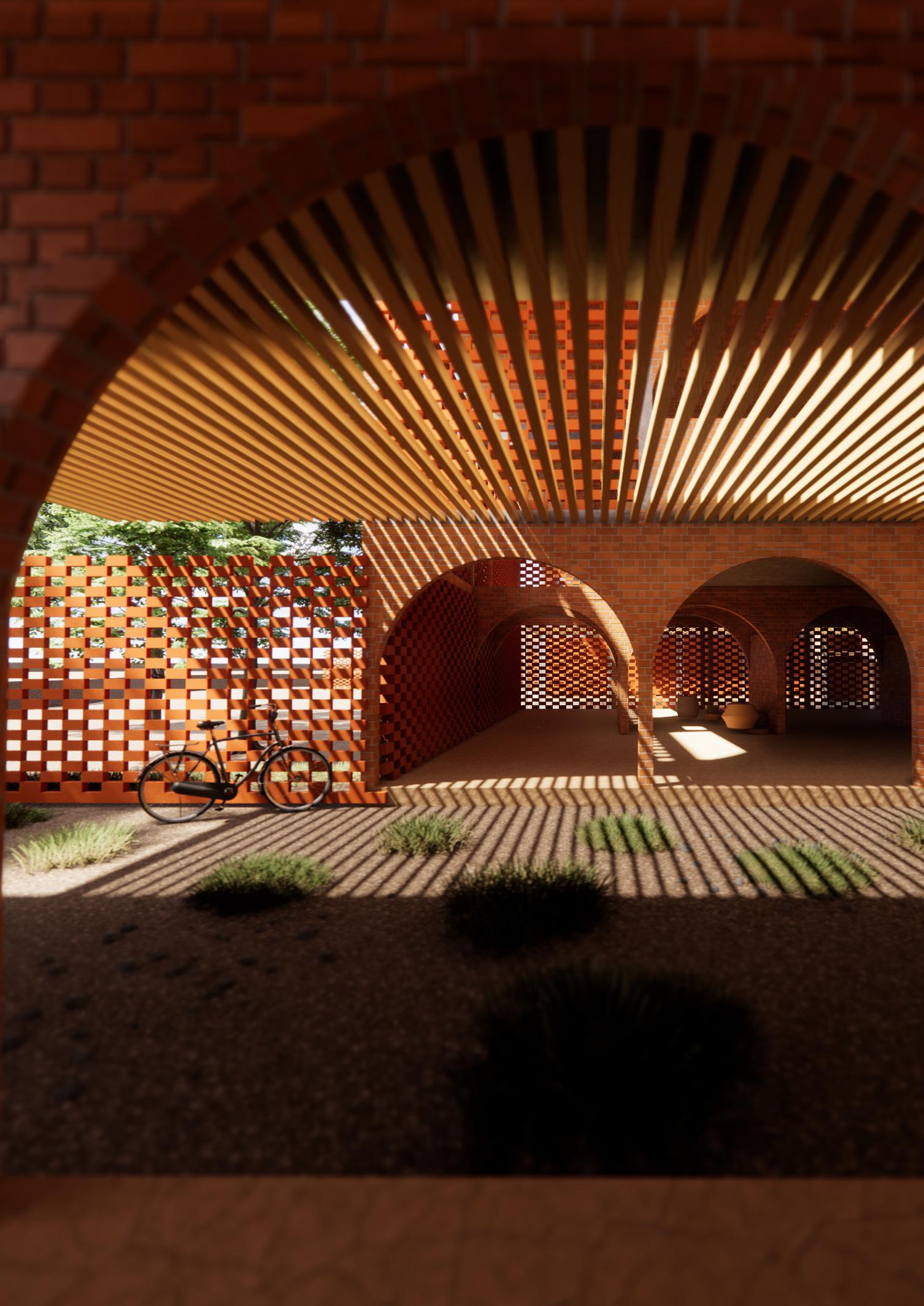

View from one bay to another

11

12

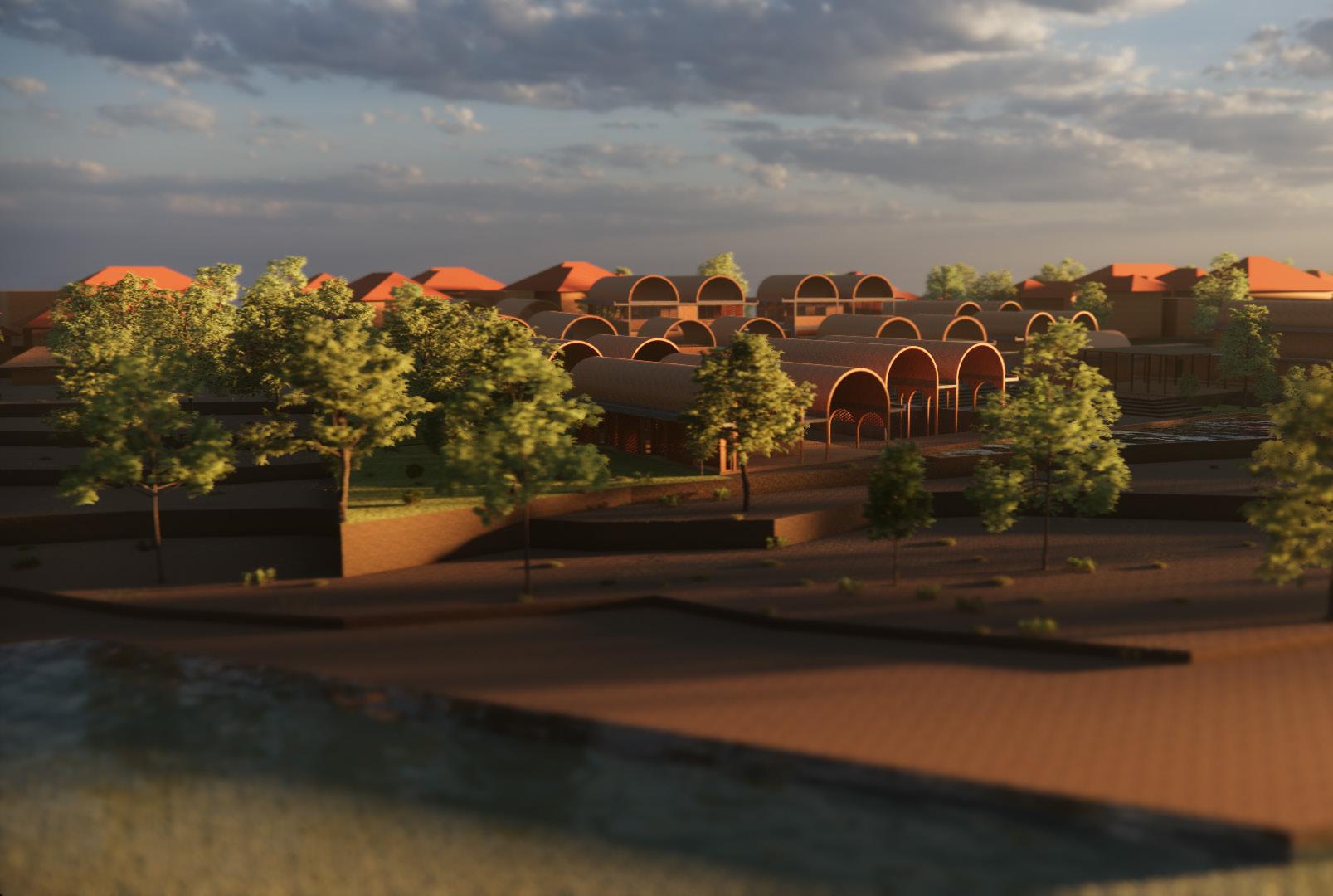

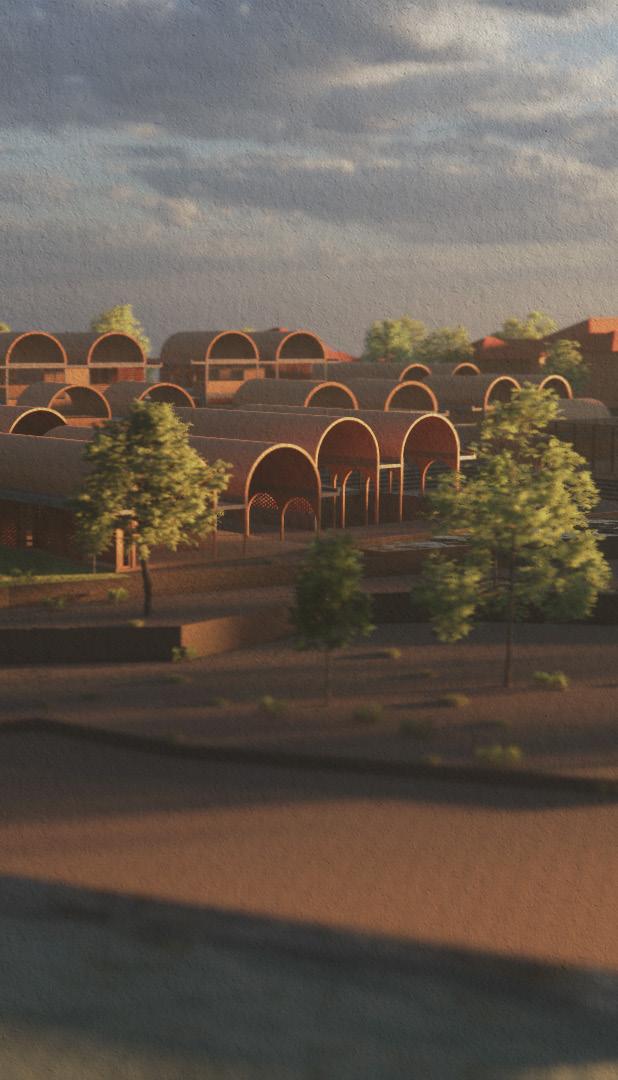

View from the river

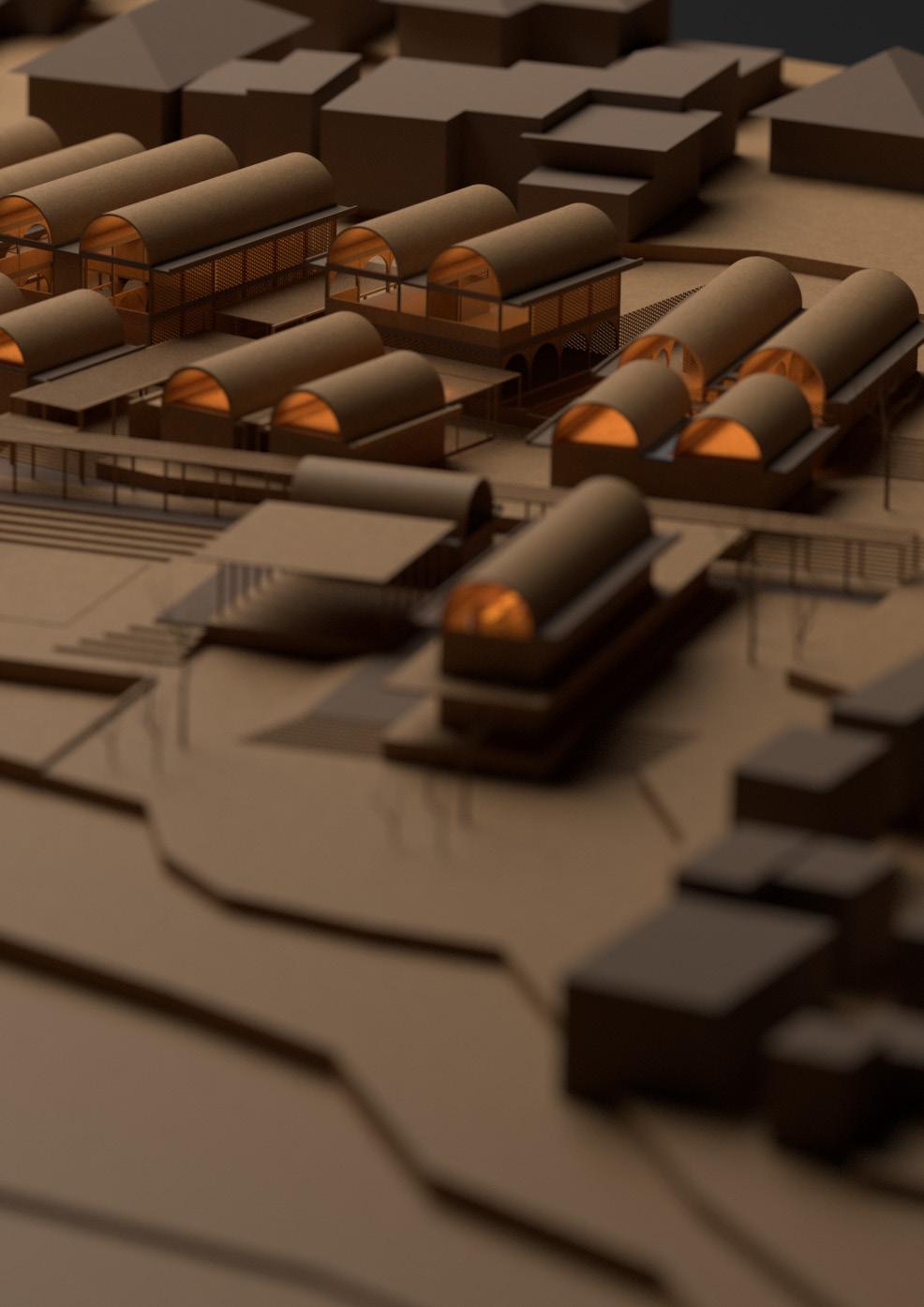

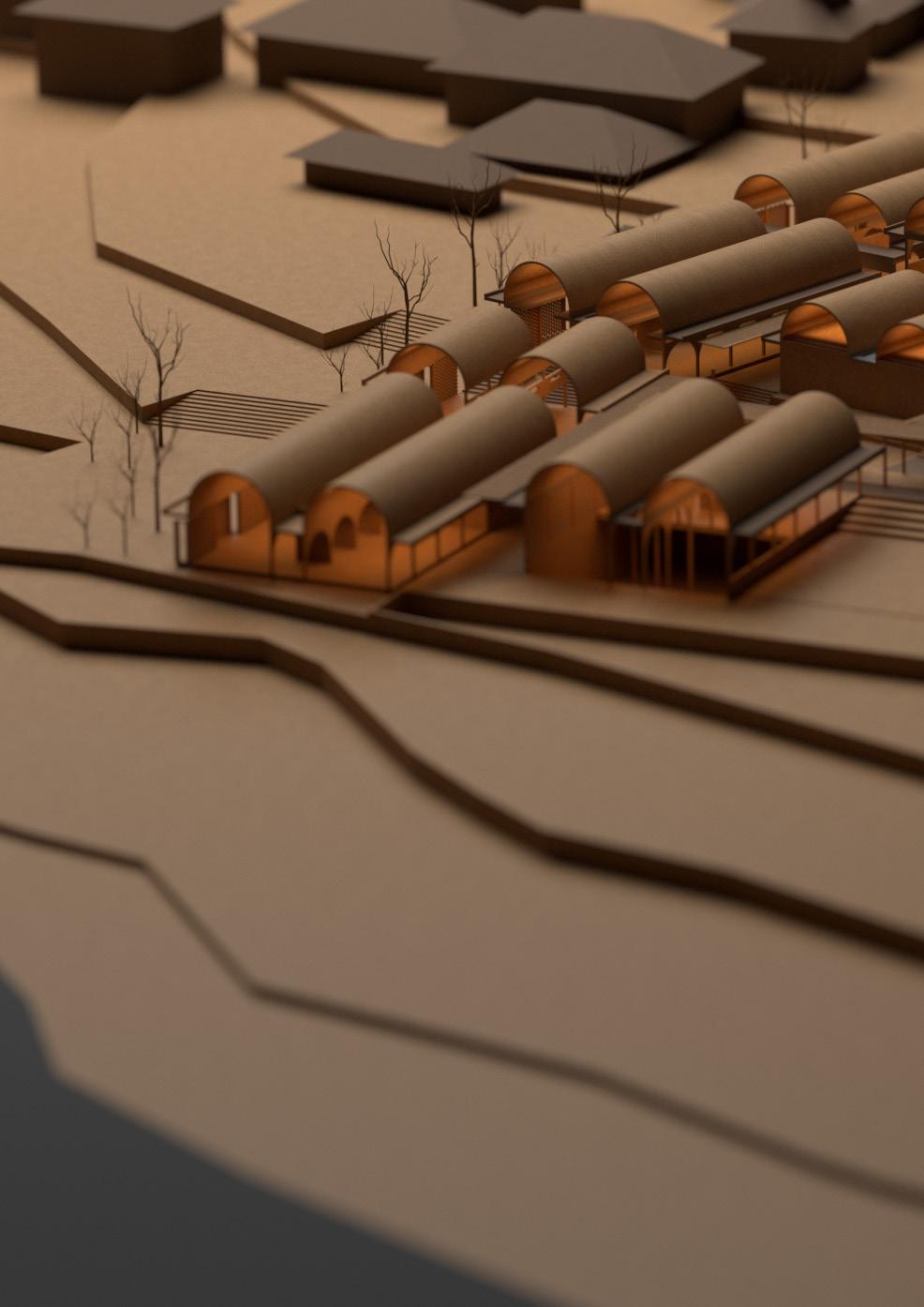

Model maquete of the overall project

14

Cullinary School Semester 6 | Chennai, Tamil Nadu

Studio Guide : Asst. Prof. Kiran Kumar

Assoc. Prof. Surendra Aalone Prof. Ryan Thomas Asst. Prof. Akash Rai Prof. S.G Srinivas Asst. Prof. Kavana Kumar Studio Brief : The semester was based on the idea of a “Farm to table” concept, In which the cullinary institute would consist of a set of farms surrounding the institute itself.

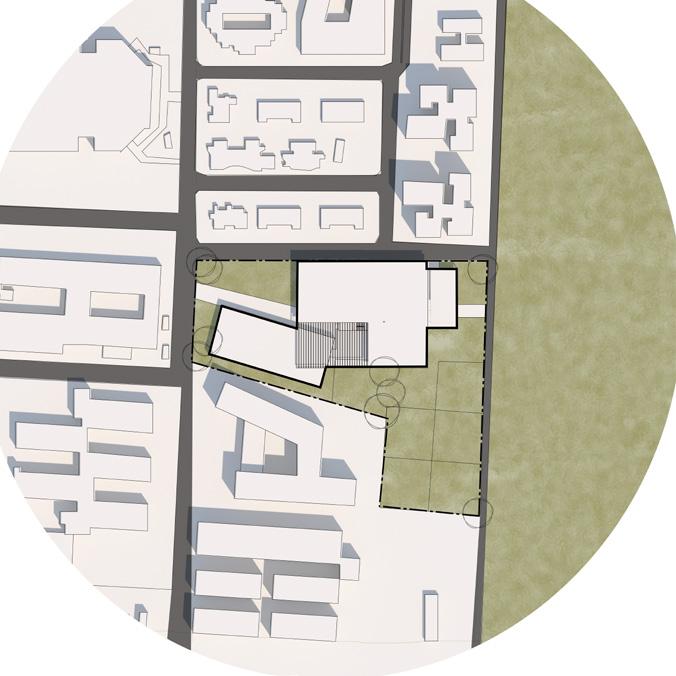

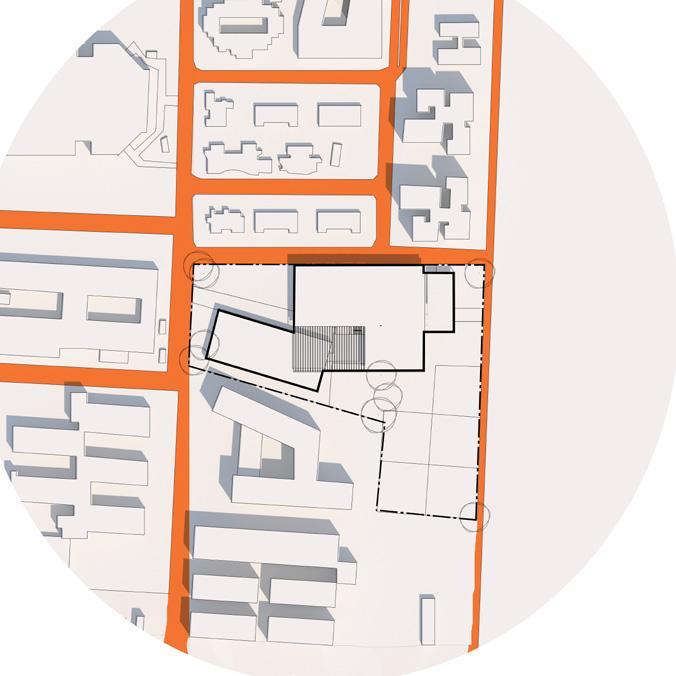

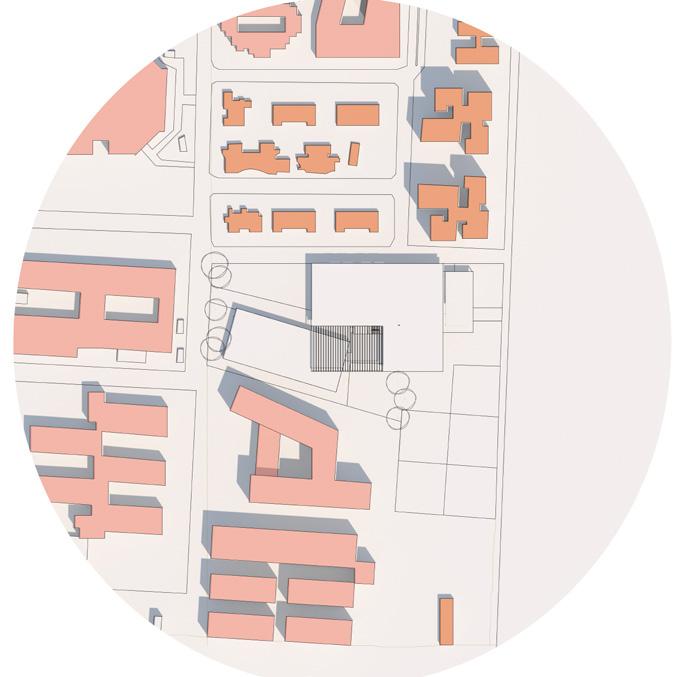

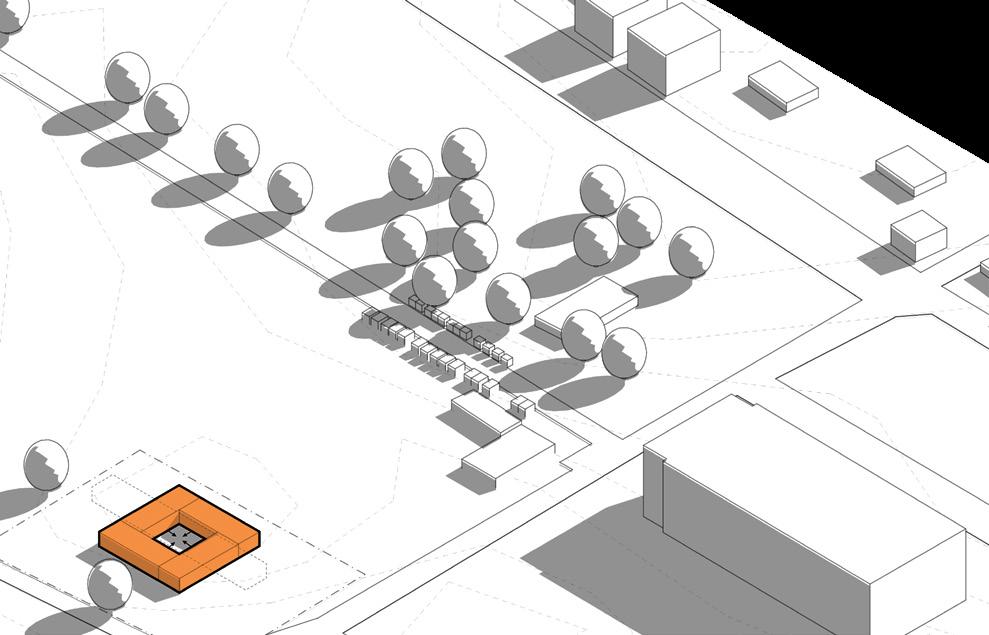

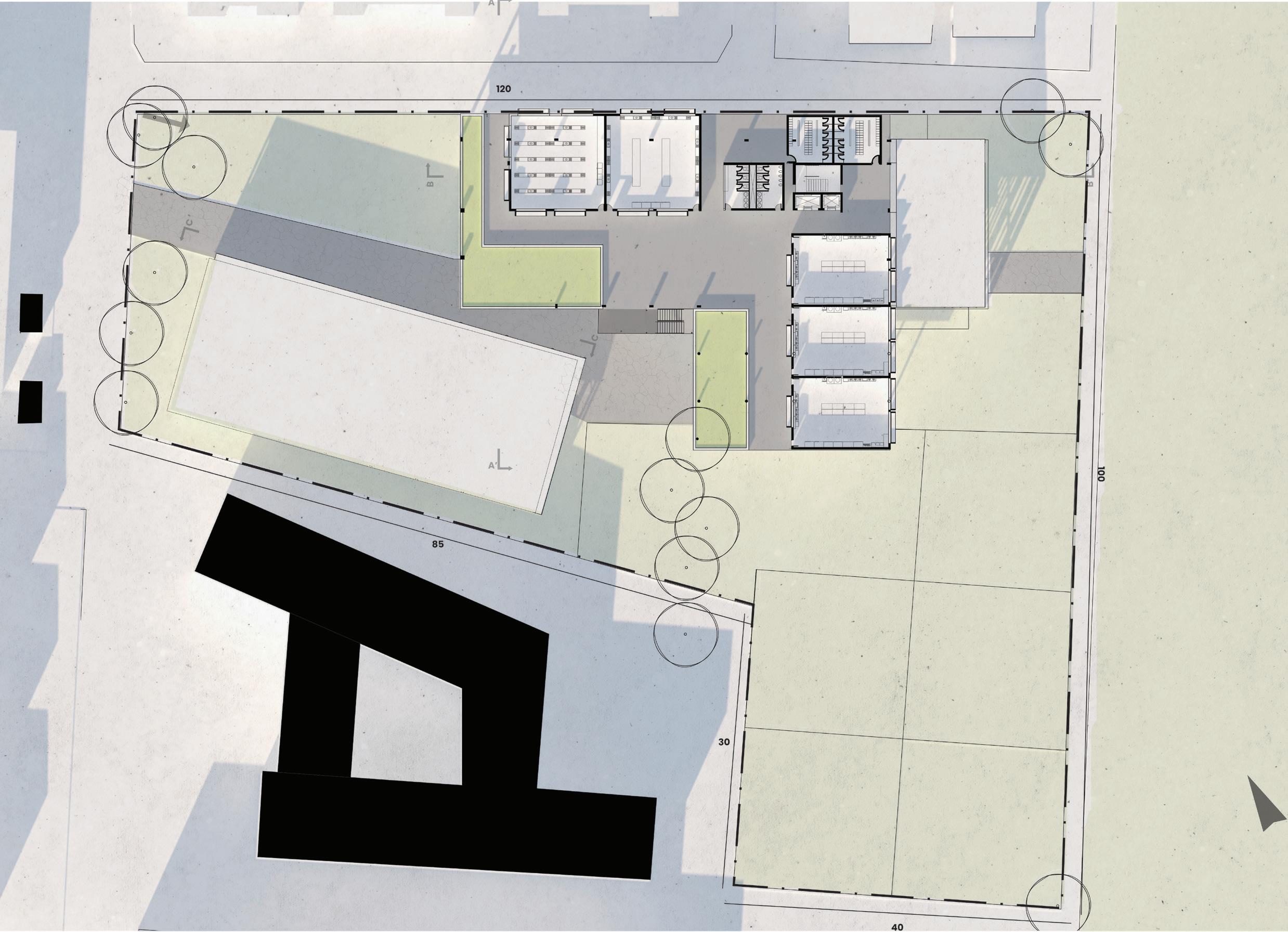

Most of the buildings around the site are public academic blocks. There are also a couple of residencial blocks in the form of student hostels and staff quaters.

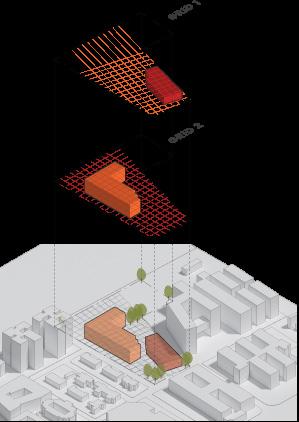

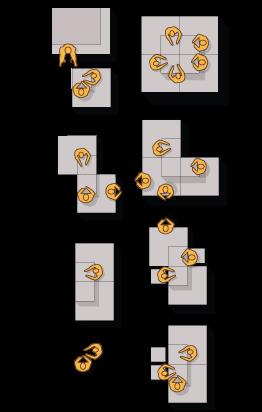

Dia1: Blocks on Grids

The site is connected from roads on all 4 sides. 2of them having vehichular axis and the other two being pedestrian in nature.

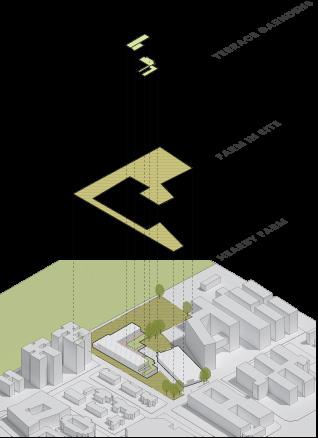

Dia2: Farms

Dia2: Pavillion in a Garden

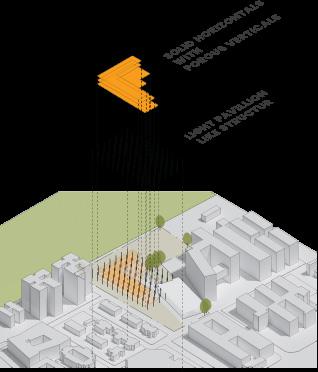

The farm to table concept was highlited across by bringing the idea of farm inside the site while also giving a connection to the existing farm right accross the site

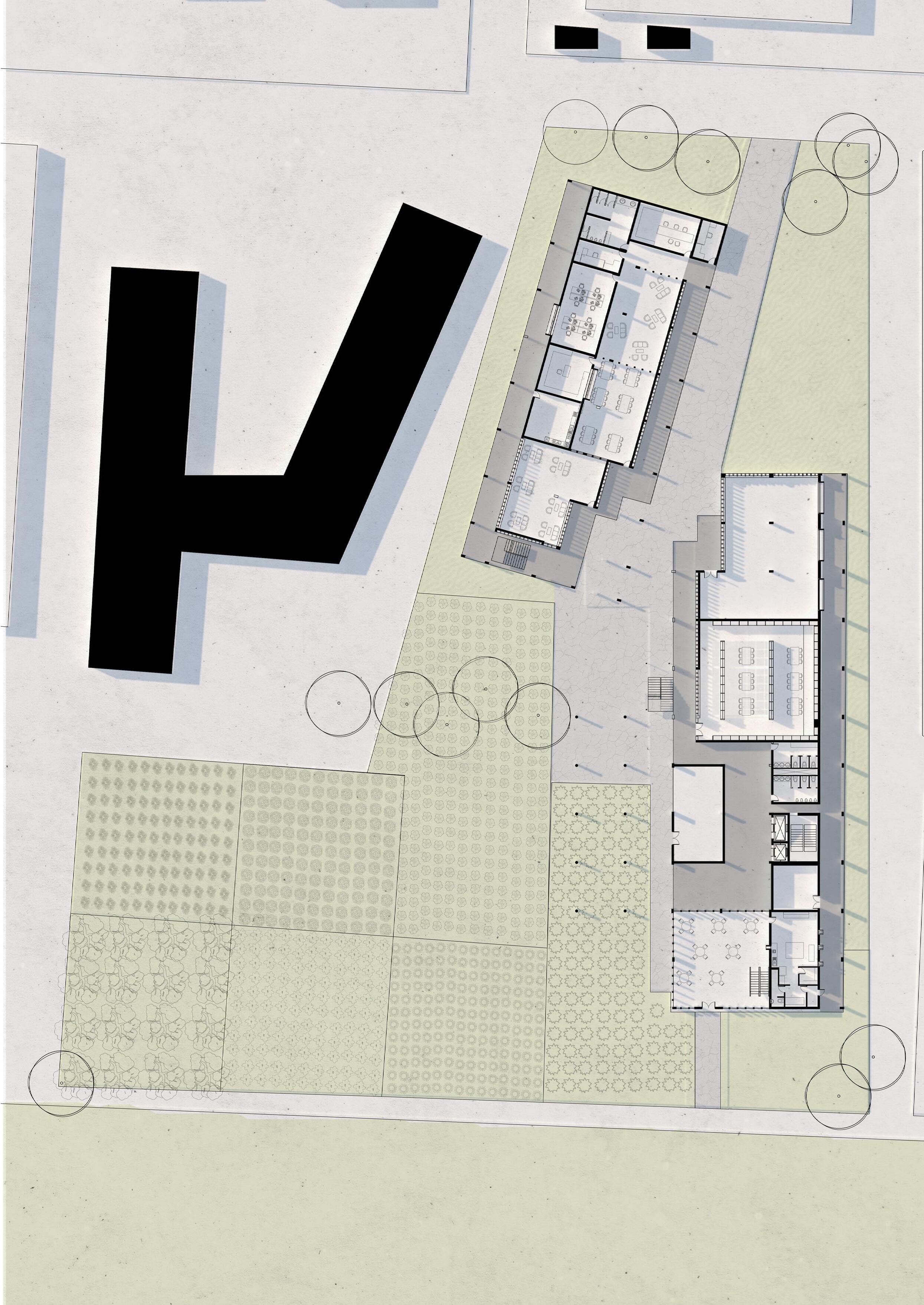

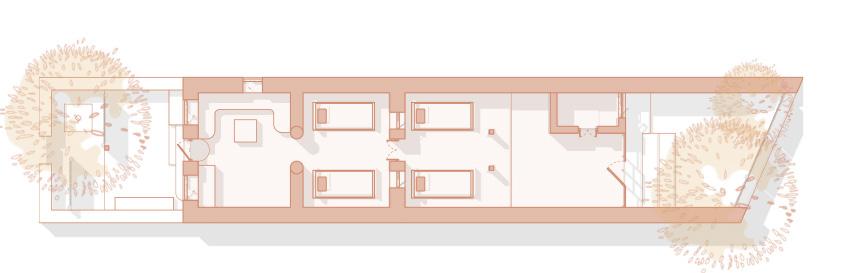

Ground Floor Plan

17

First Floor Plan

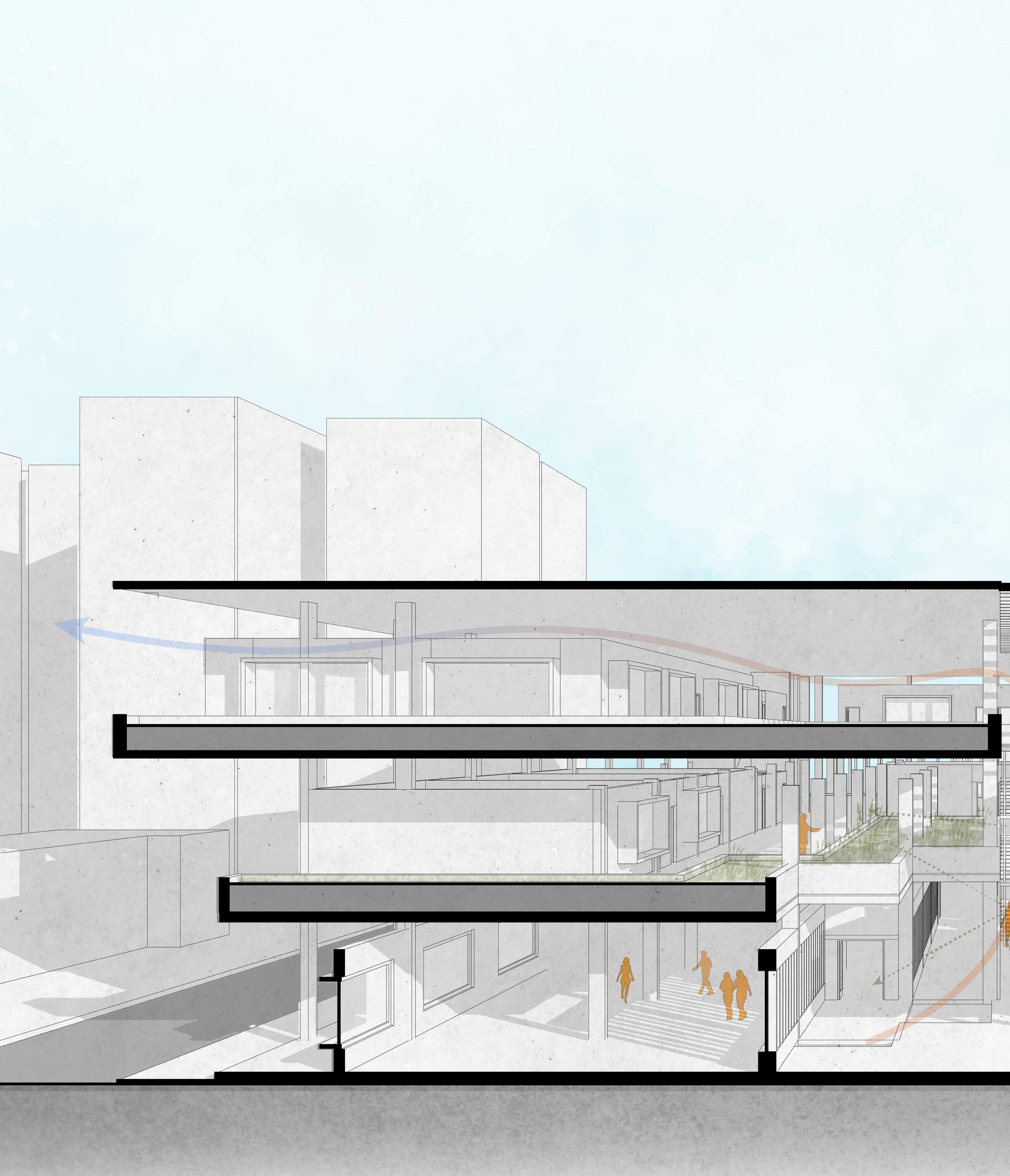

Longitudinal Section 1 18

Second Floor Plan

Longitudinal Section 2 19

20

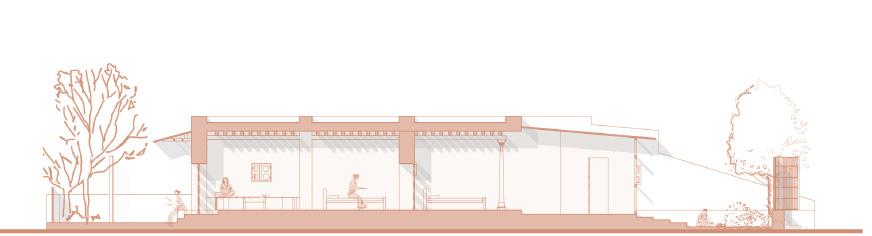

Transverse Section 1

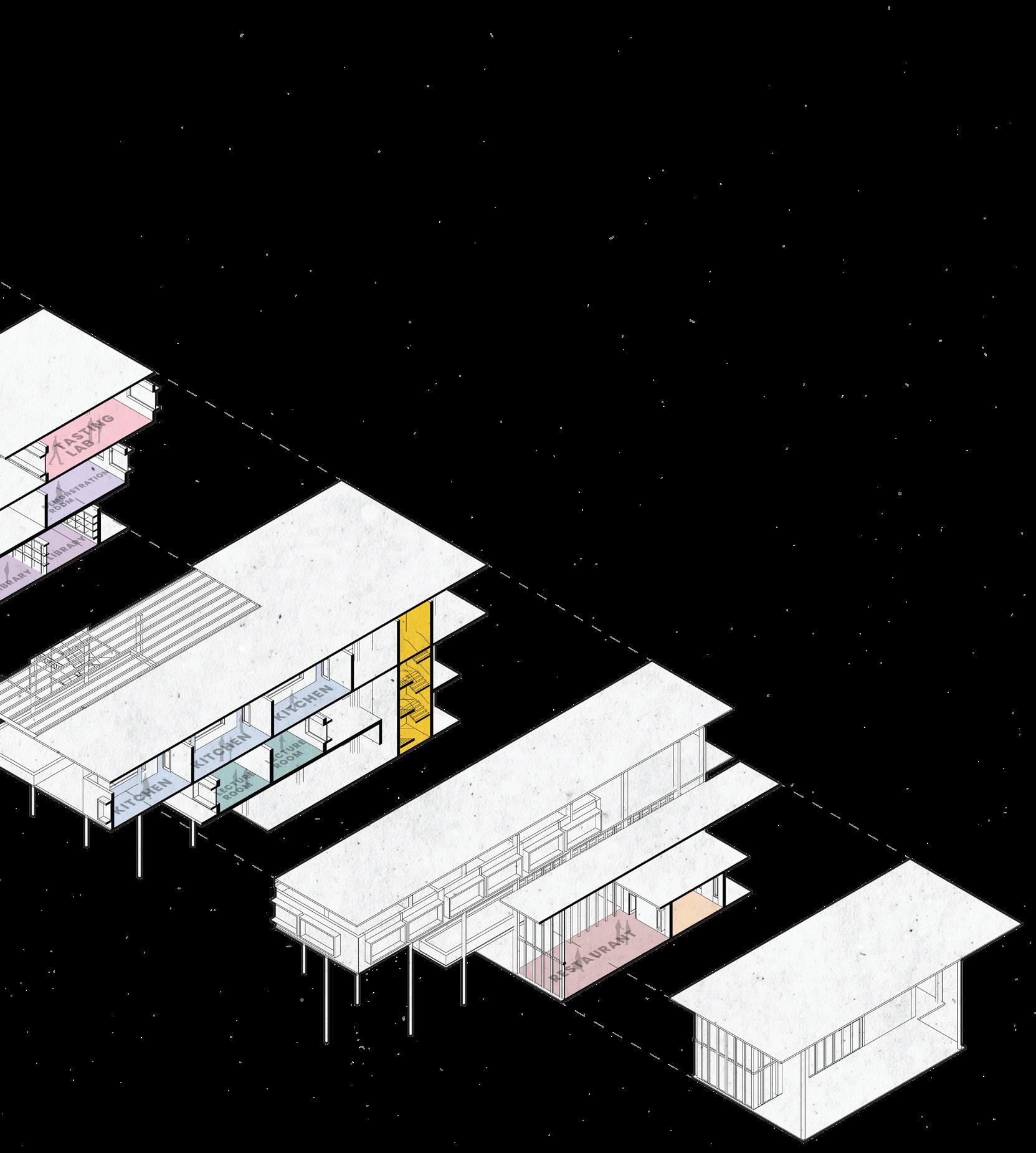

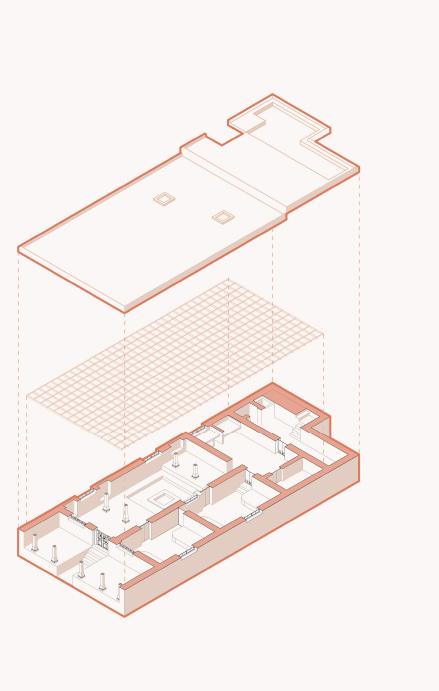

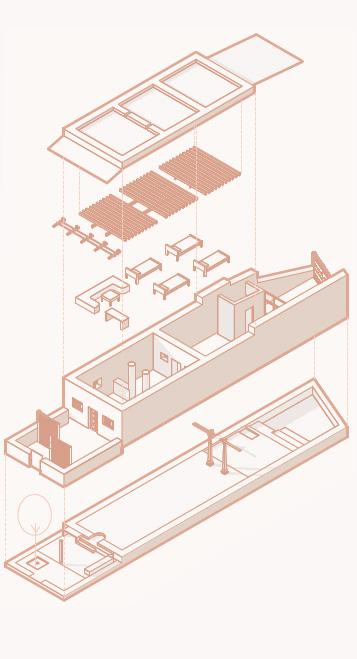

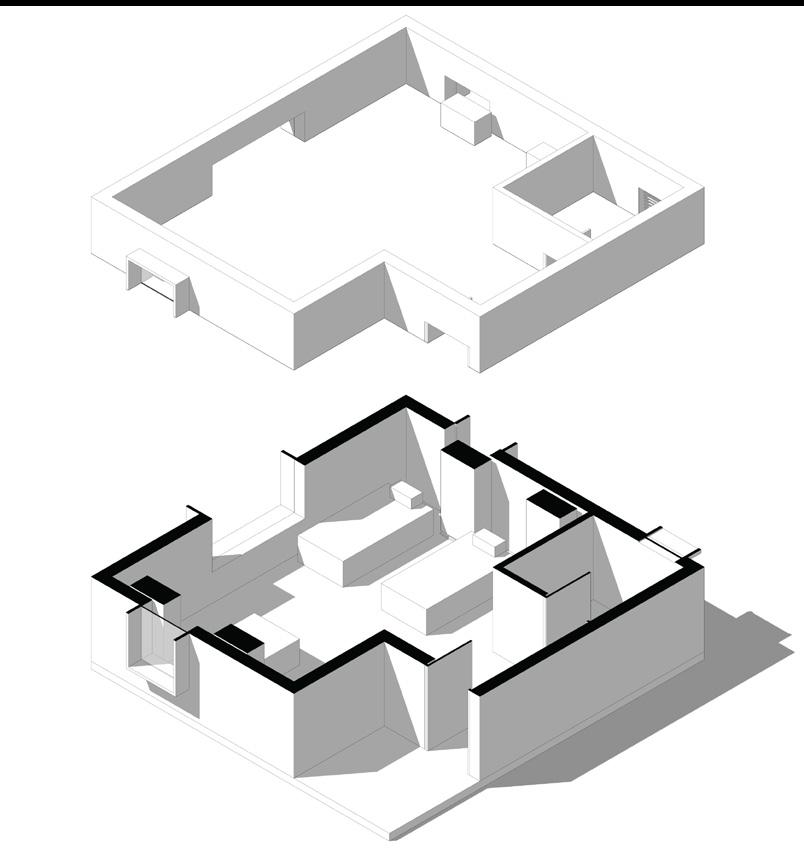

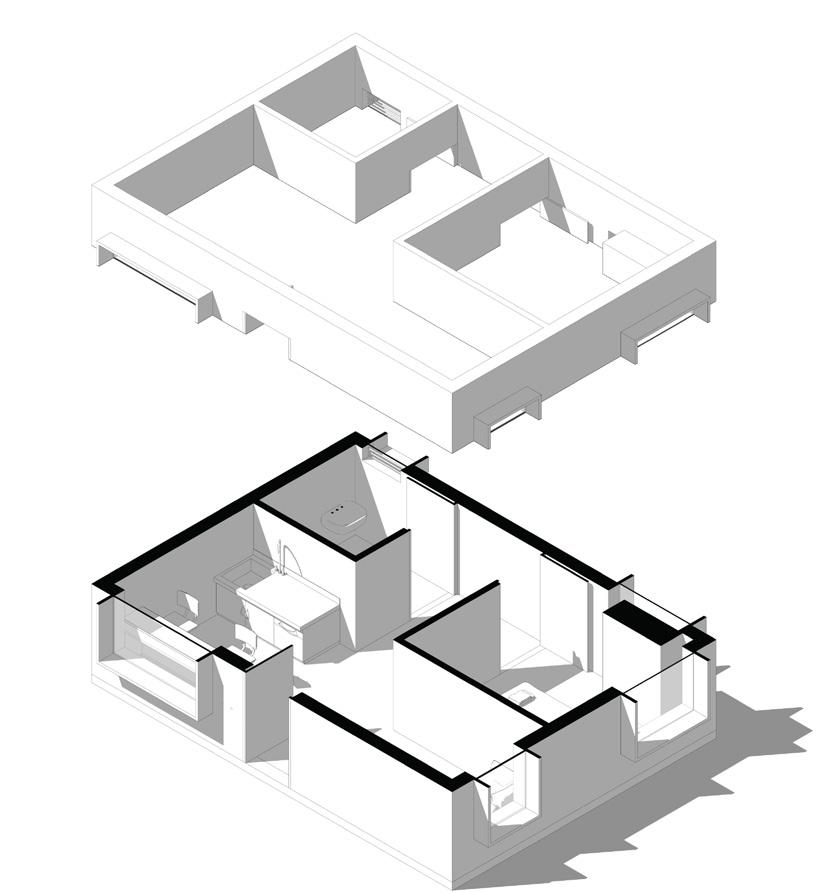

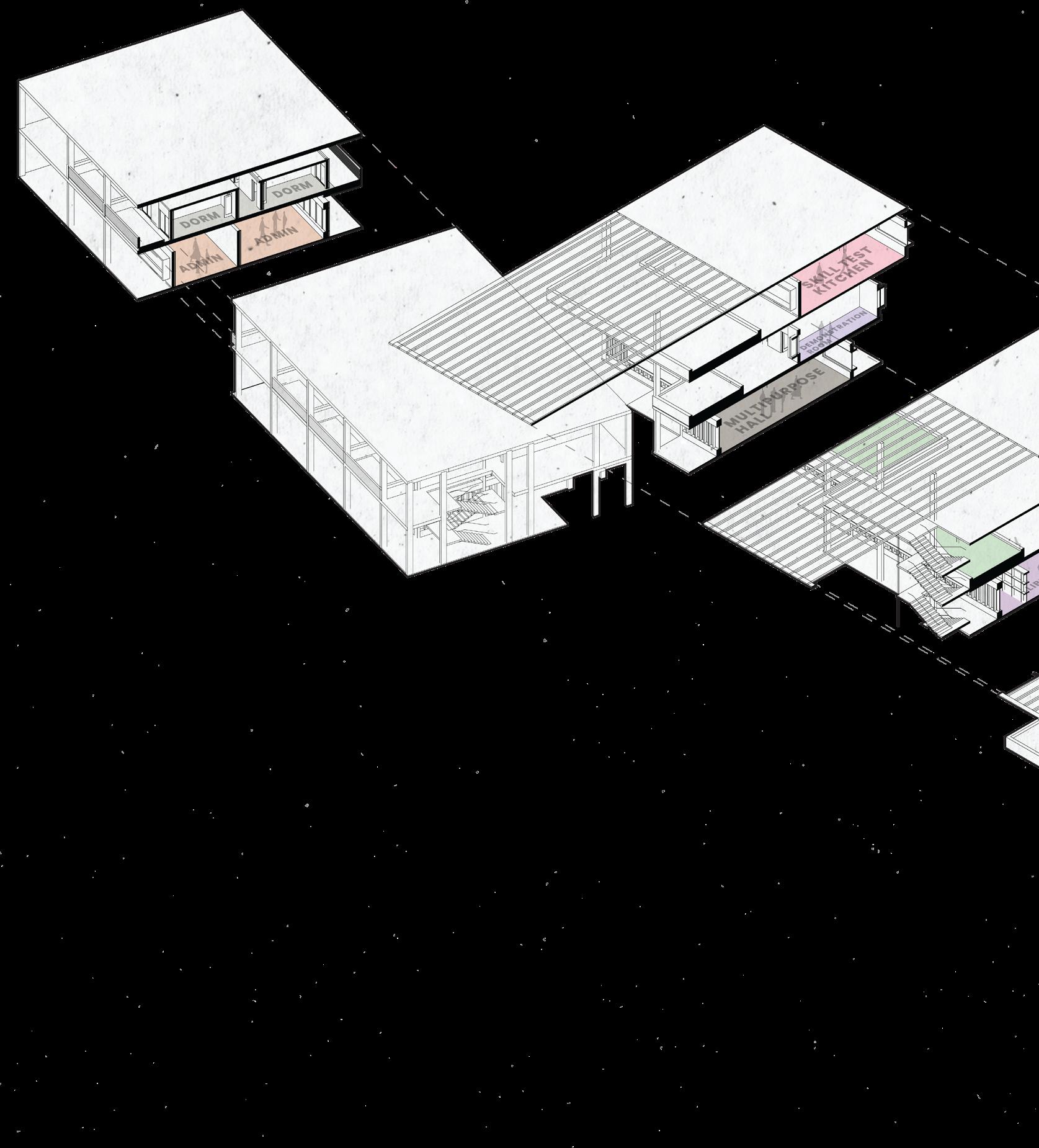

Exploded Section 1

21

22

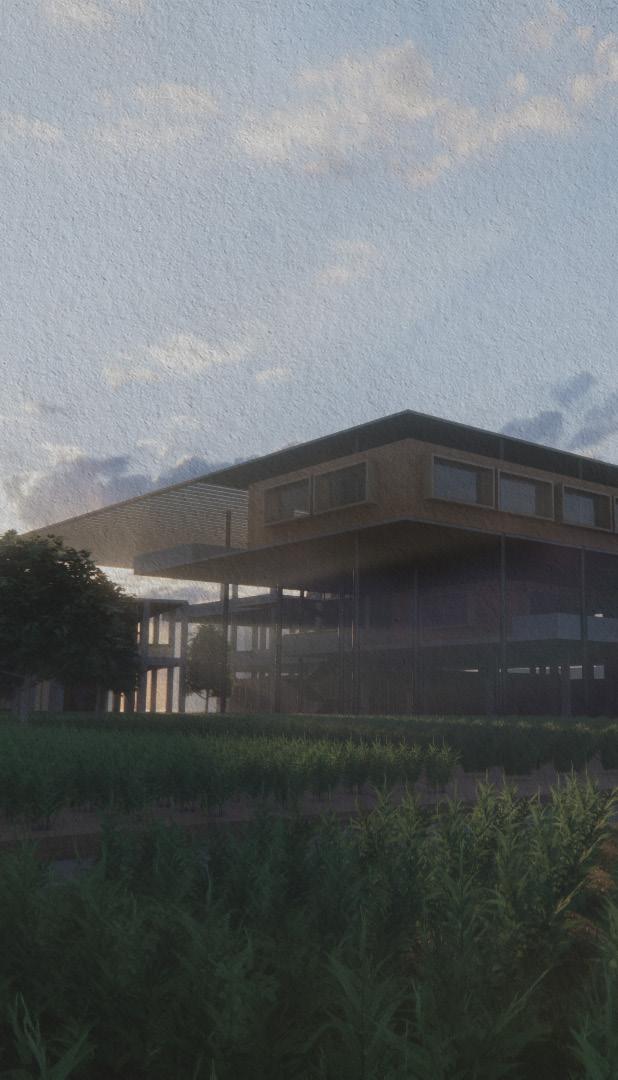

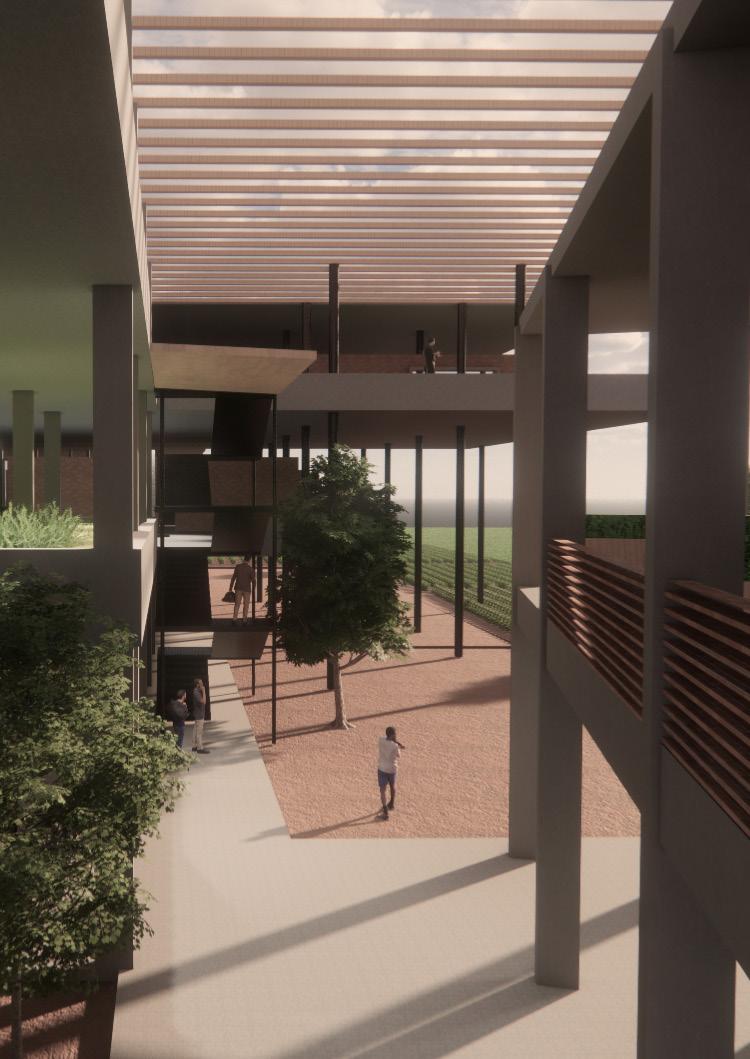

23 View from the site entry towards farm

Museum of Regional Arts Semester 5 | Srirangapatna, Karnataka

Studio Guide : Asst. Prof. Akash Rai Prof. Anand Krishnamurthy Assoc. Prof. Kiran Kumar Asst. Prof. Shreyas Baindur Asst. Prof. Asijit Khan

Studio Brief : The semester explored the idea of a public building in Srirangapatna. The typology was museum. Tackling the local cammunity along with visitors was a crucial point we had to tackle

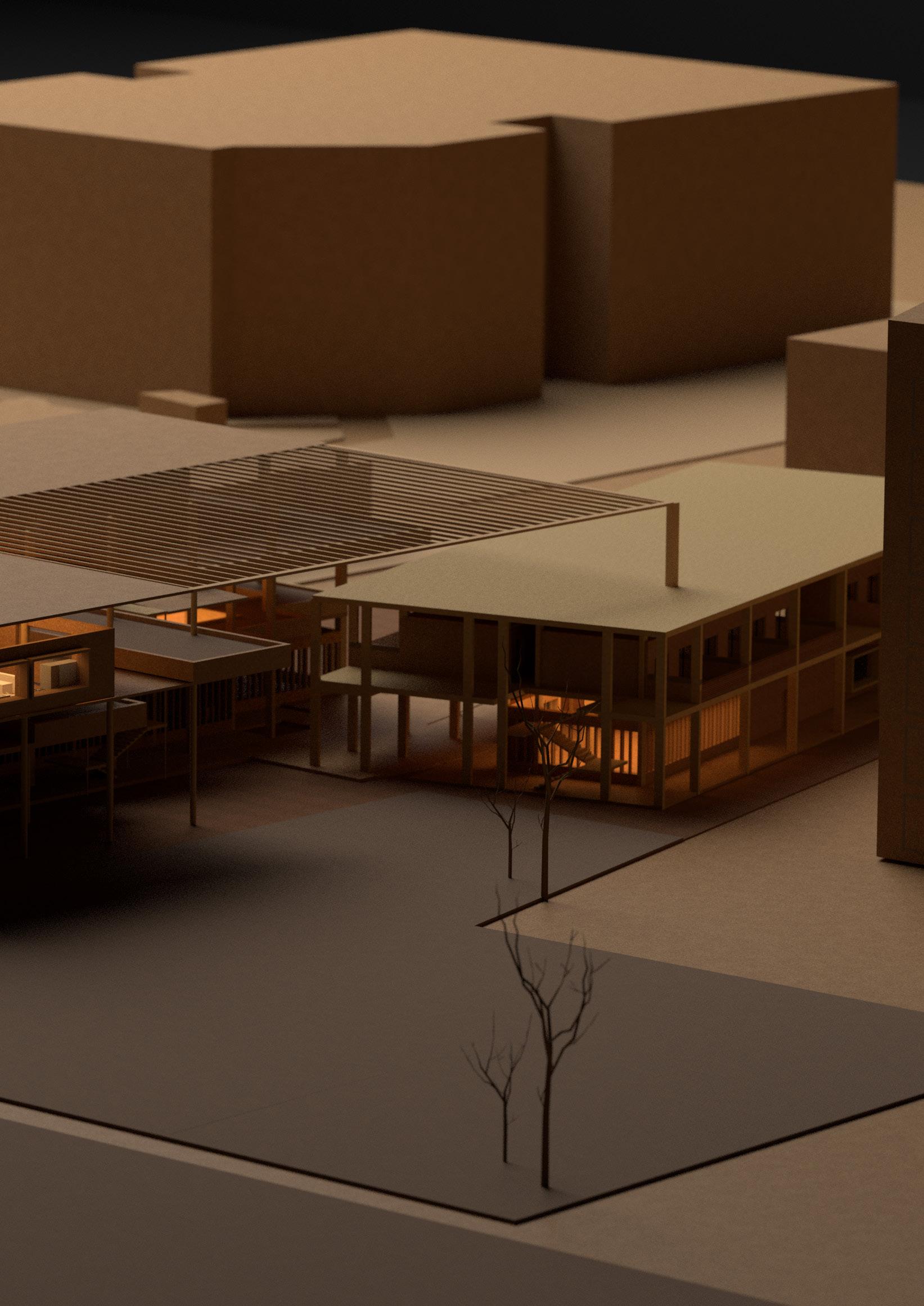

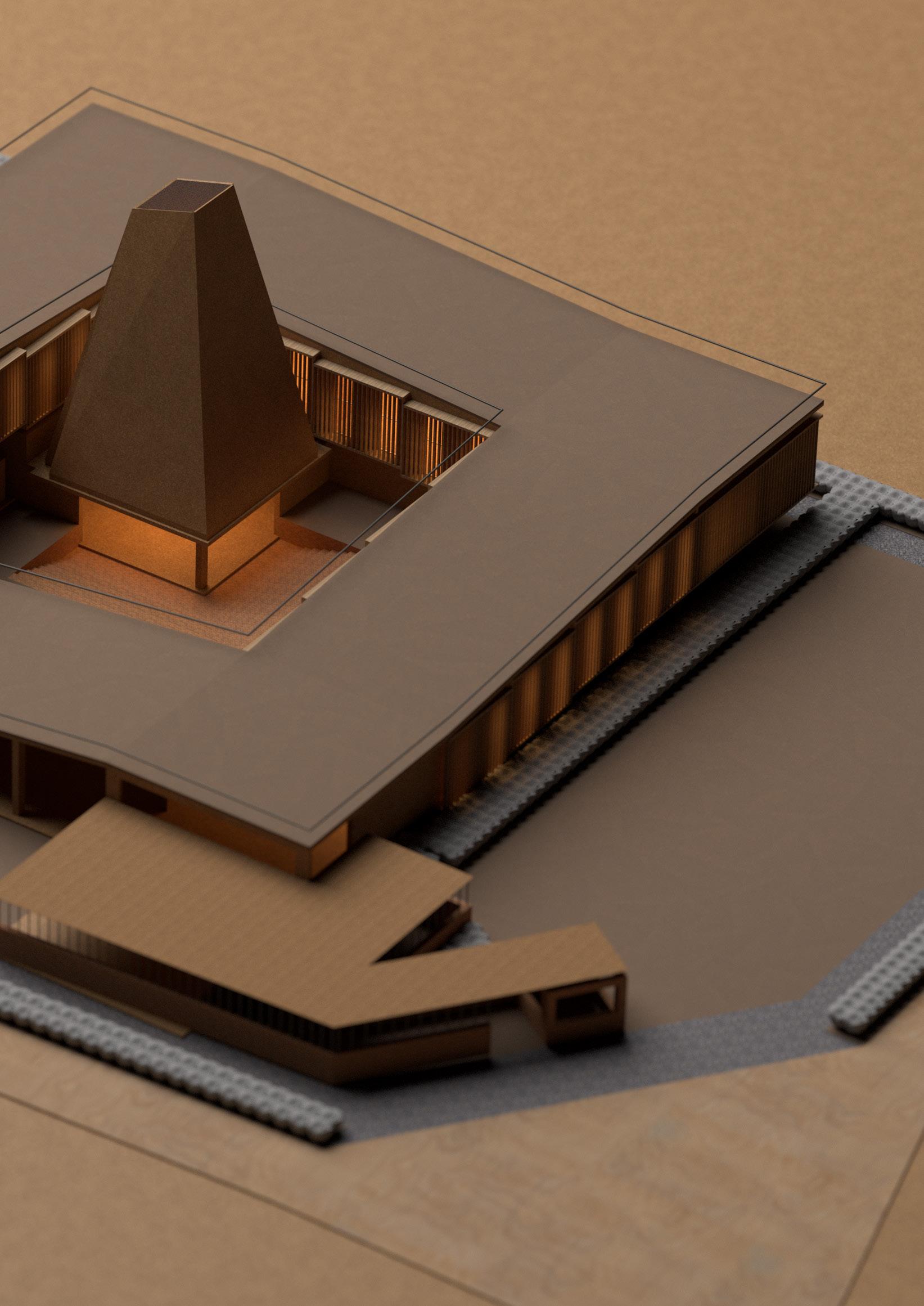

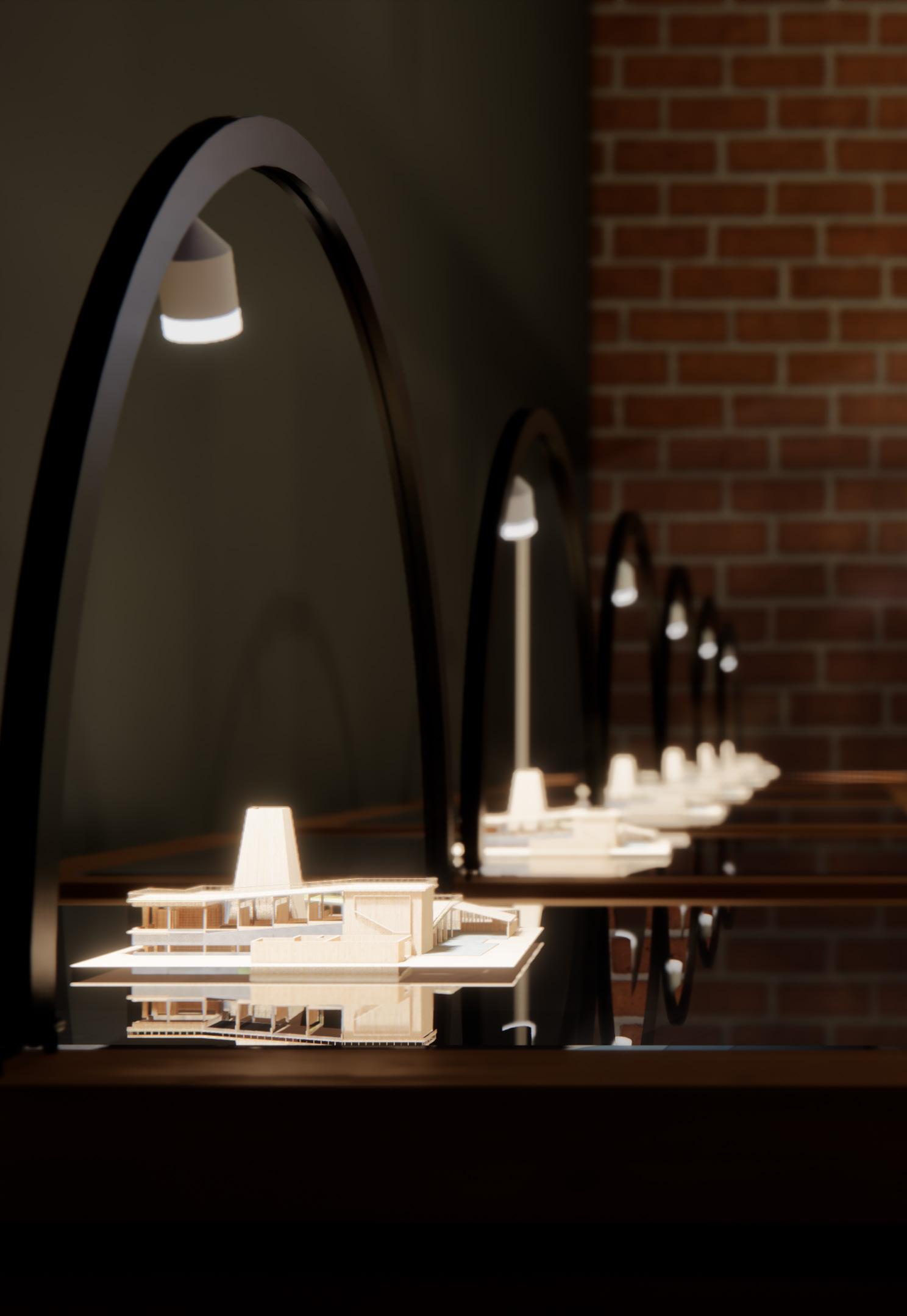

Model maquete of the overall project

25

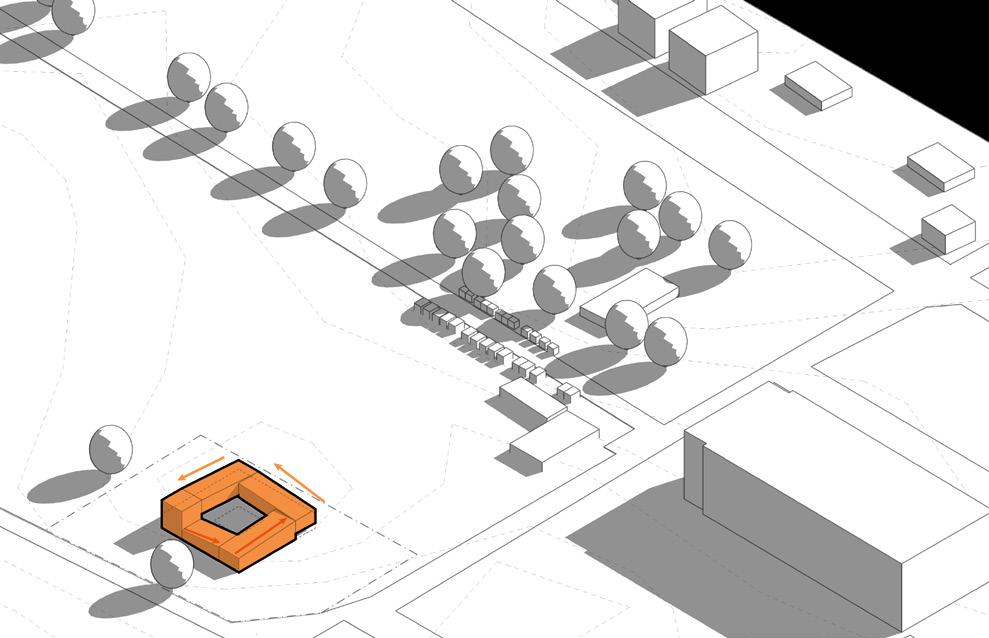

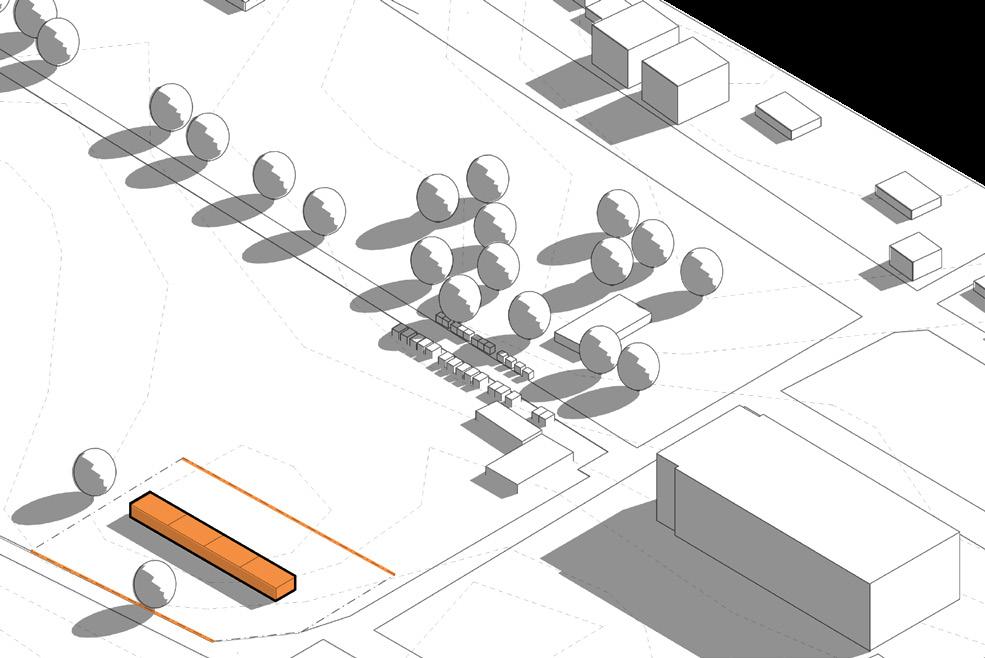

Starting with a linear organization to react to the parallel lines around the site.

Bending the shape to form a square with an open space in the centre to represent local street character.

Making the block as a ramp to explore the idea of a `journey.

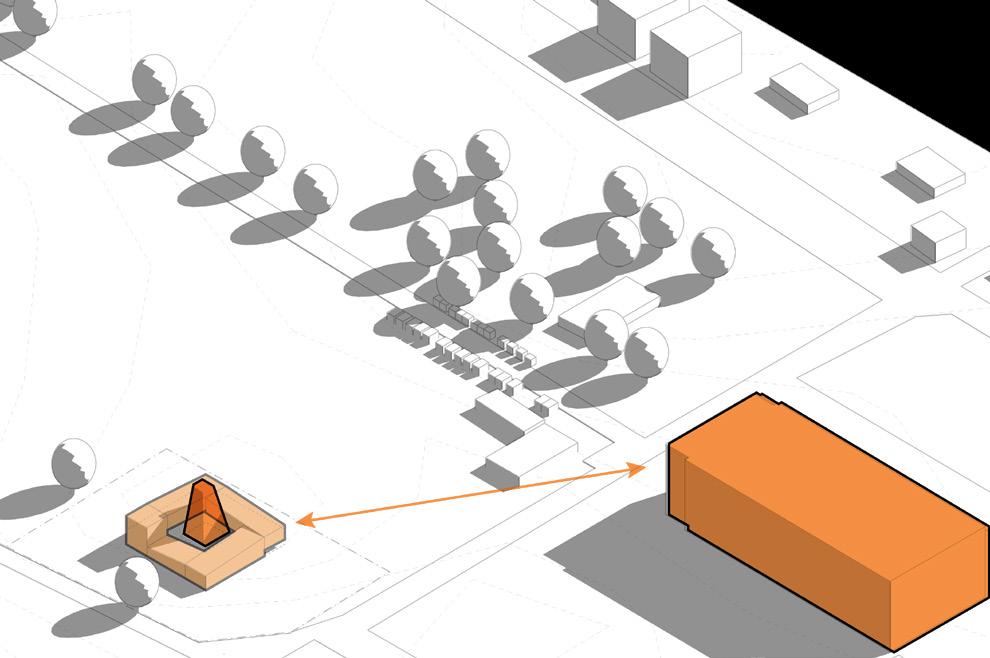

Adding a light tower to create a link with the Temple Gopura.

26

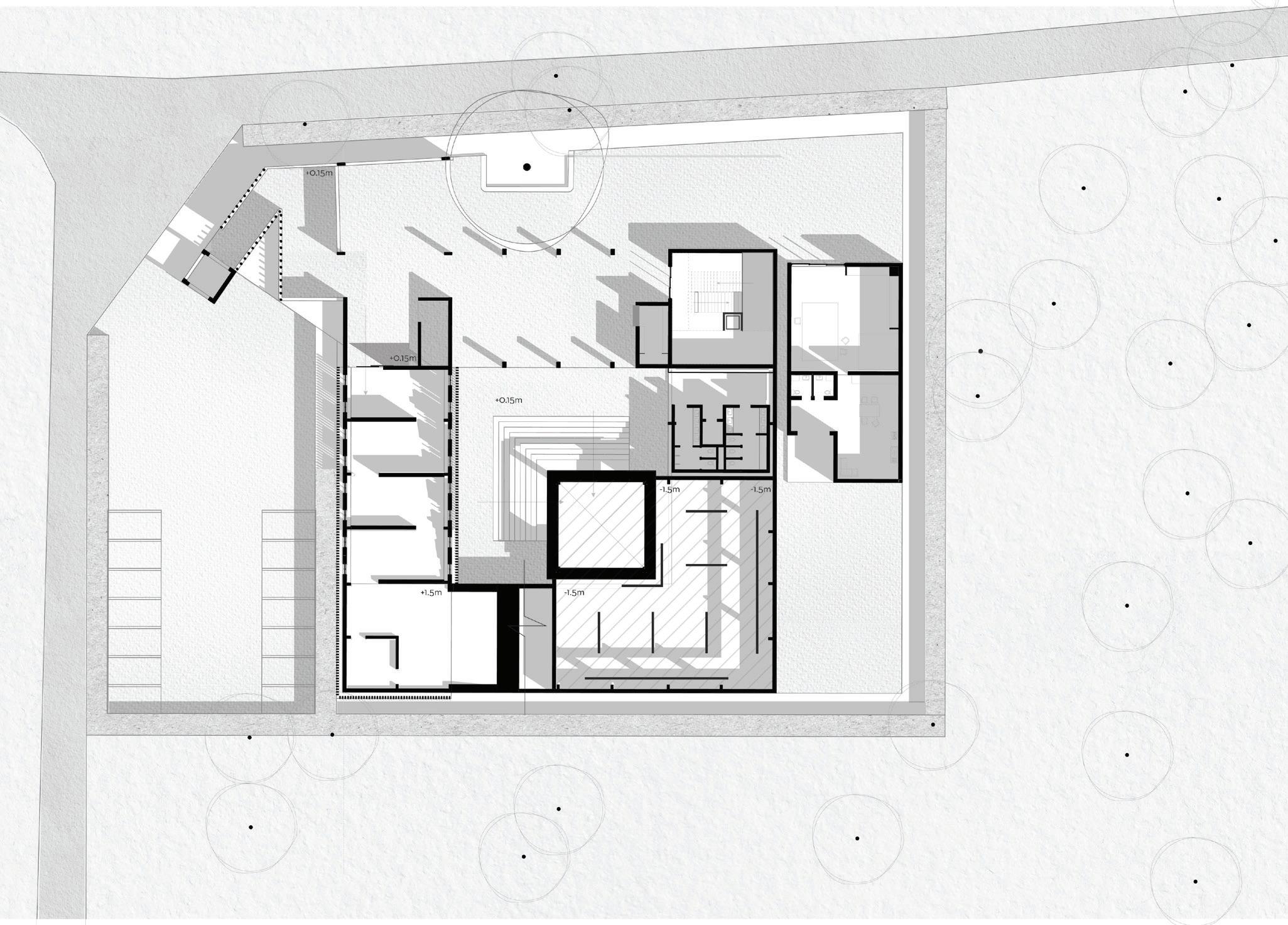

Plans at +1.5m

Plans at +4.5m 27

Workshop & Restoration

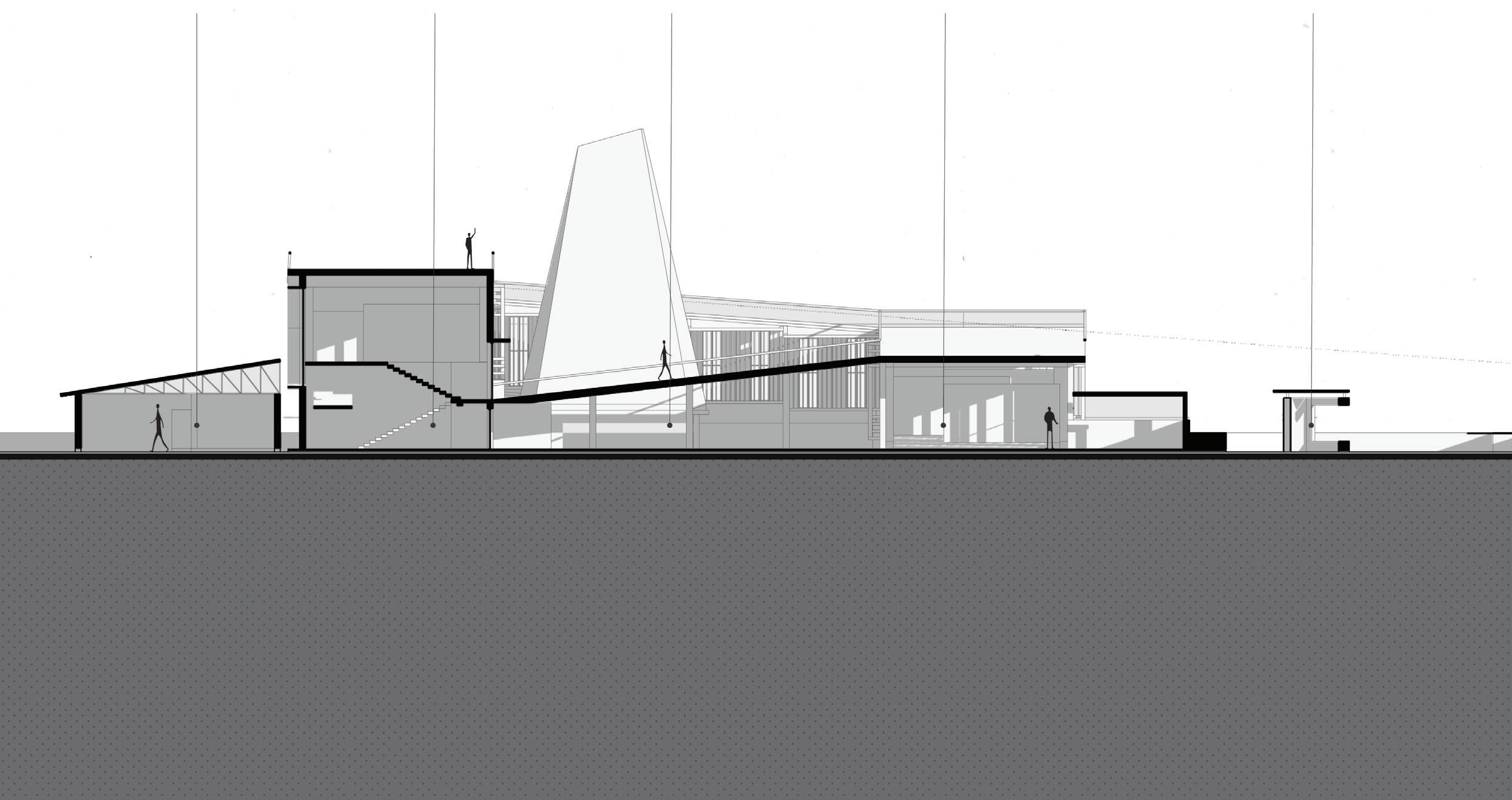

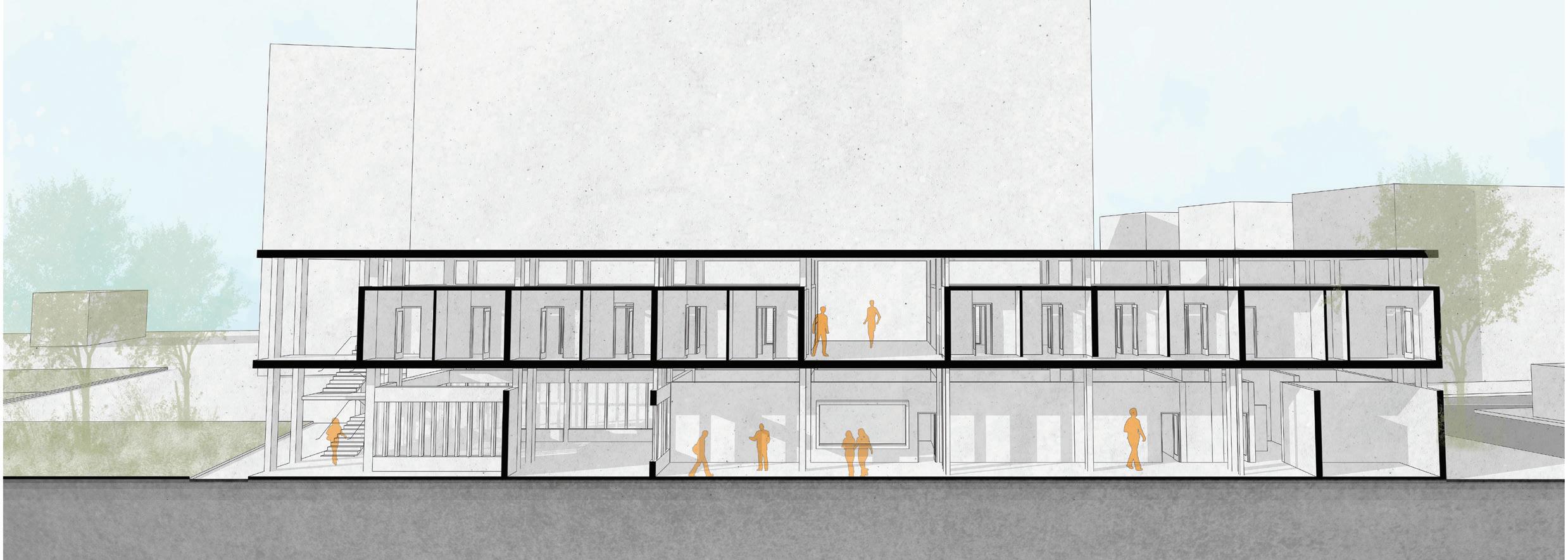

Section 1

28

Souvenir Shop

Canteen

Permanent exhibit gallery

Ticket & Security

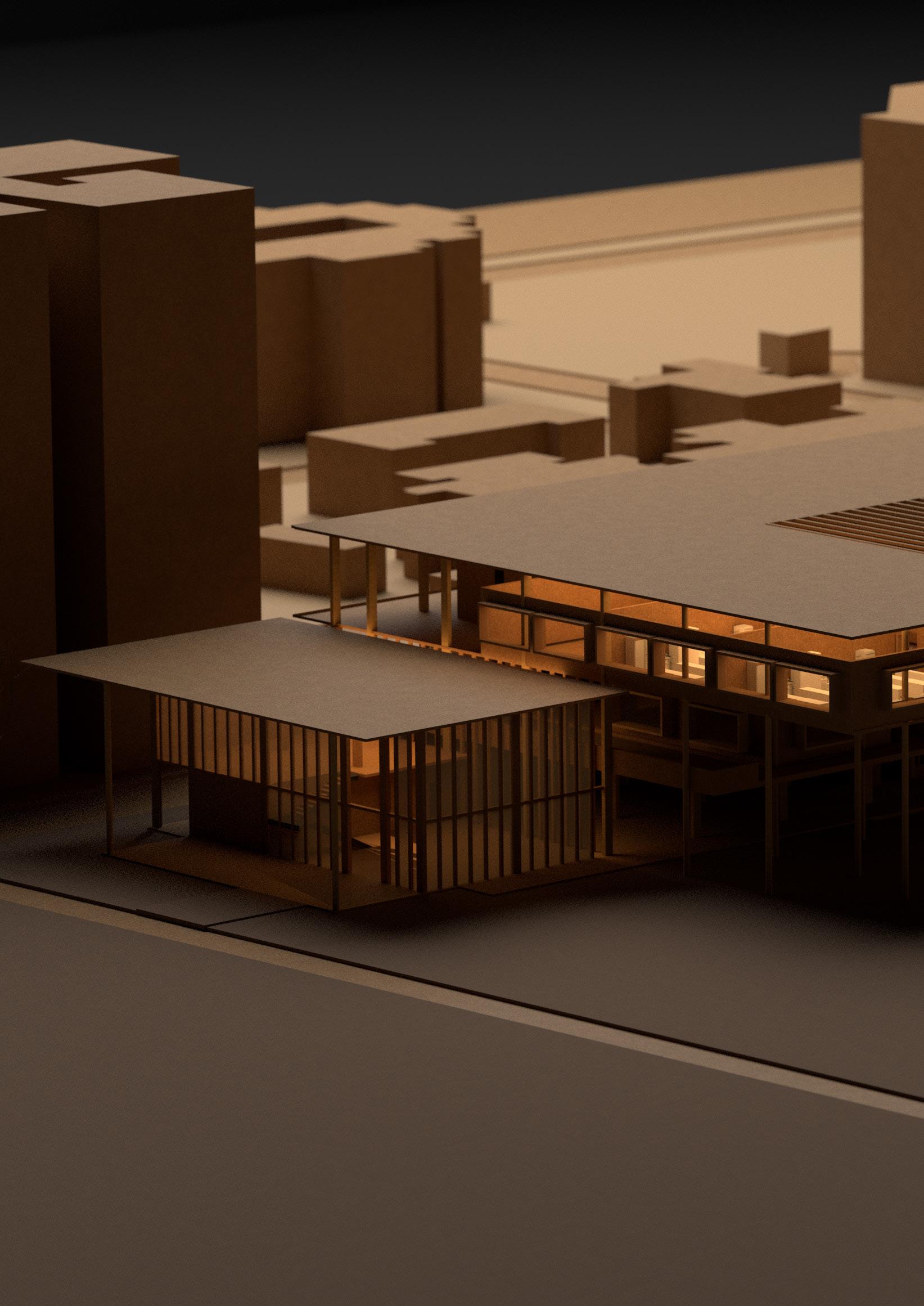

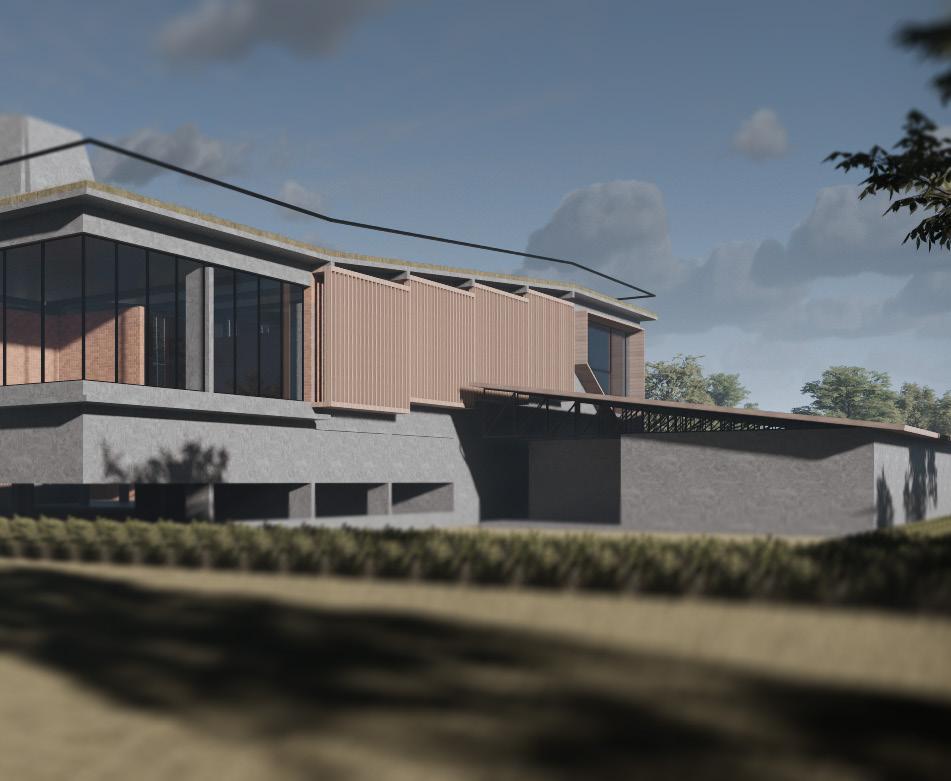

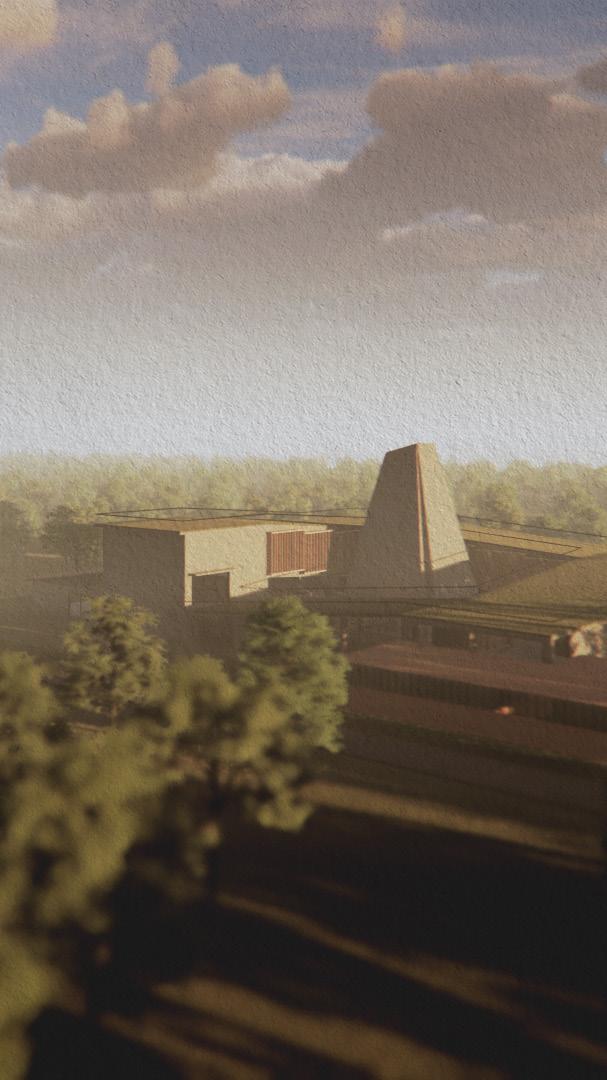

View from Maidan towards the Museum

Temporary Exhibit Gallery

Permanent Exhibit

Light Pyramid

Permanent Exhibit

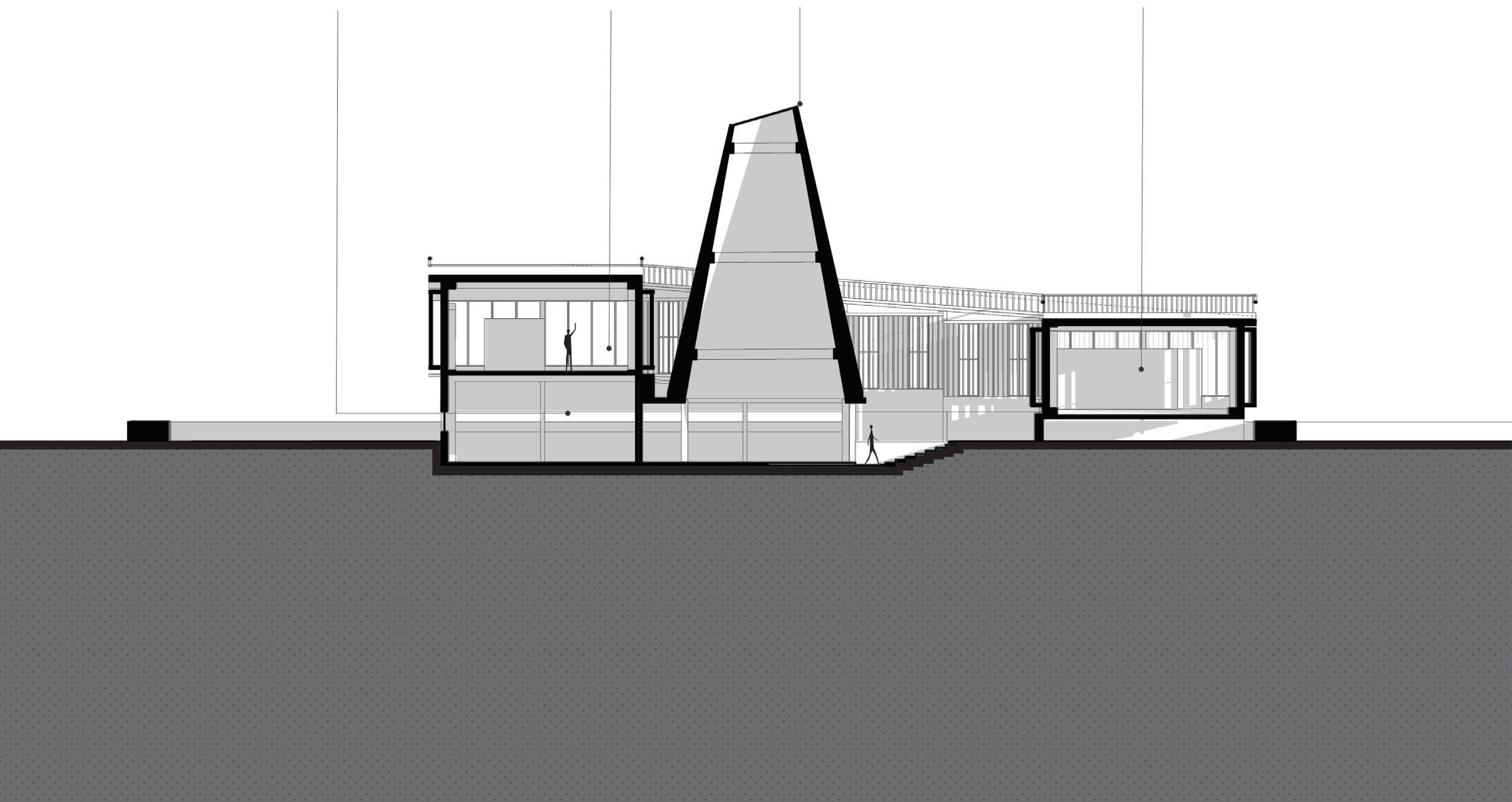

Section 1

29

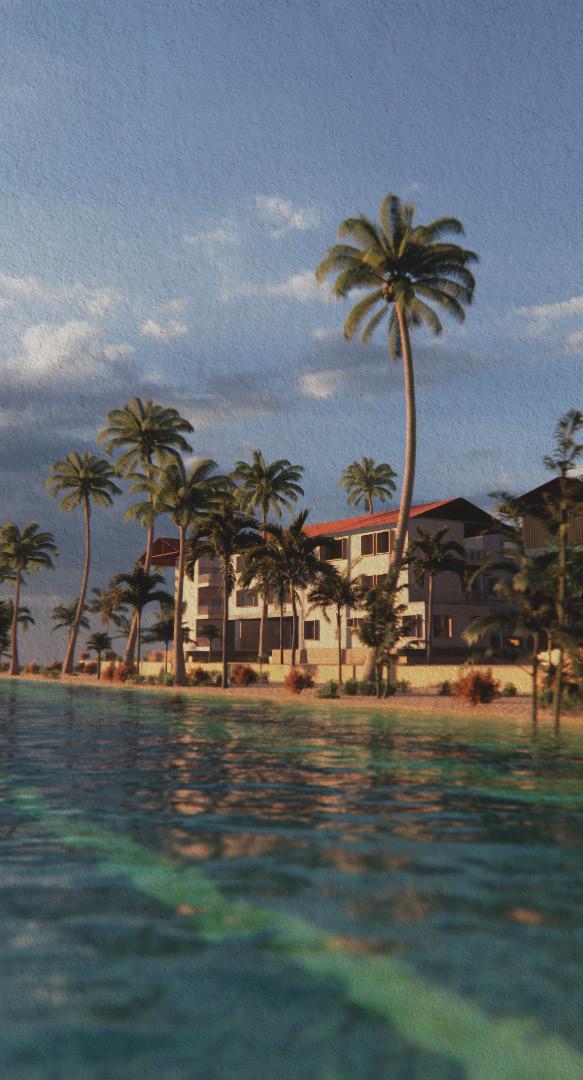

Habitação em Goa Semester 4 | Goa

Studio Guide : Prof. Kukke Subramanyam

Asst. Prof. Julie ann Tharakan Prof. Anand Prakash Prof. Anand Chalawadi Asst. Prof. Akash Rai Prof. Umesh Nuchin Studio Brief : The task is to design a housing accomodating requirements of “Cherish” while fulfilling the agenda. A housing that is the language of the place. Changes in the mundane fabric of the place.

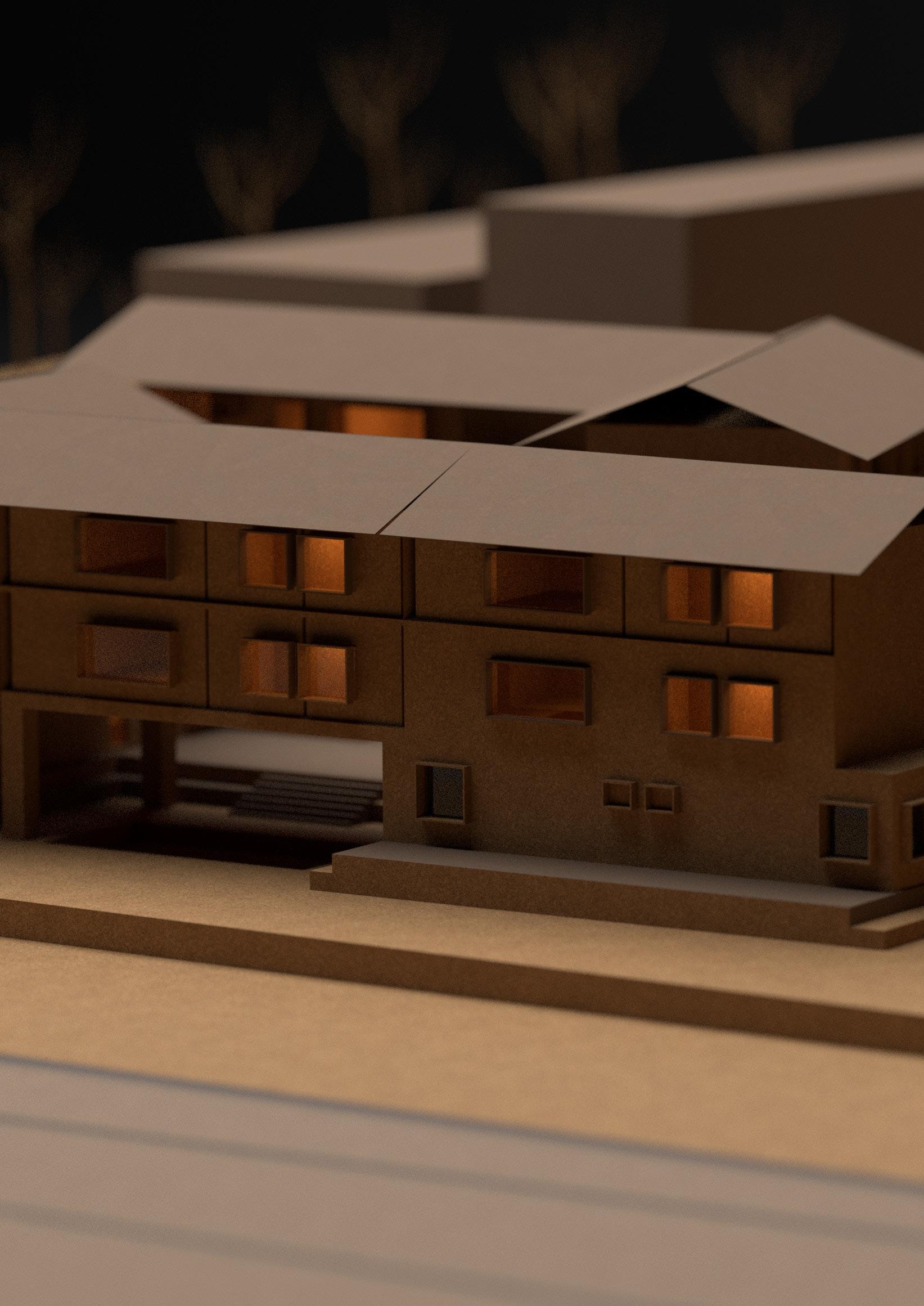

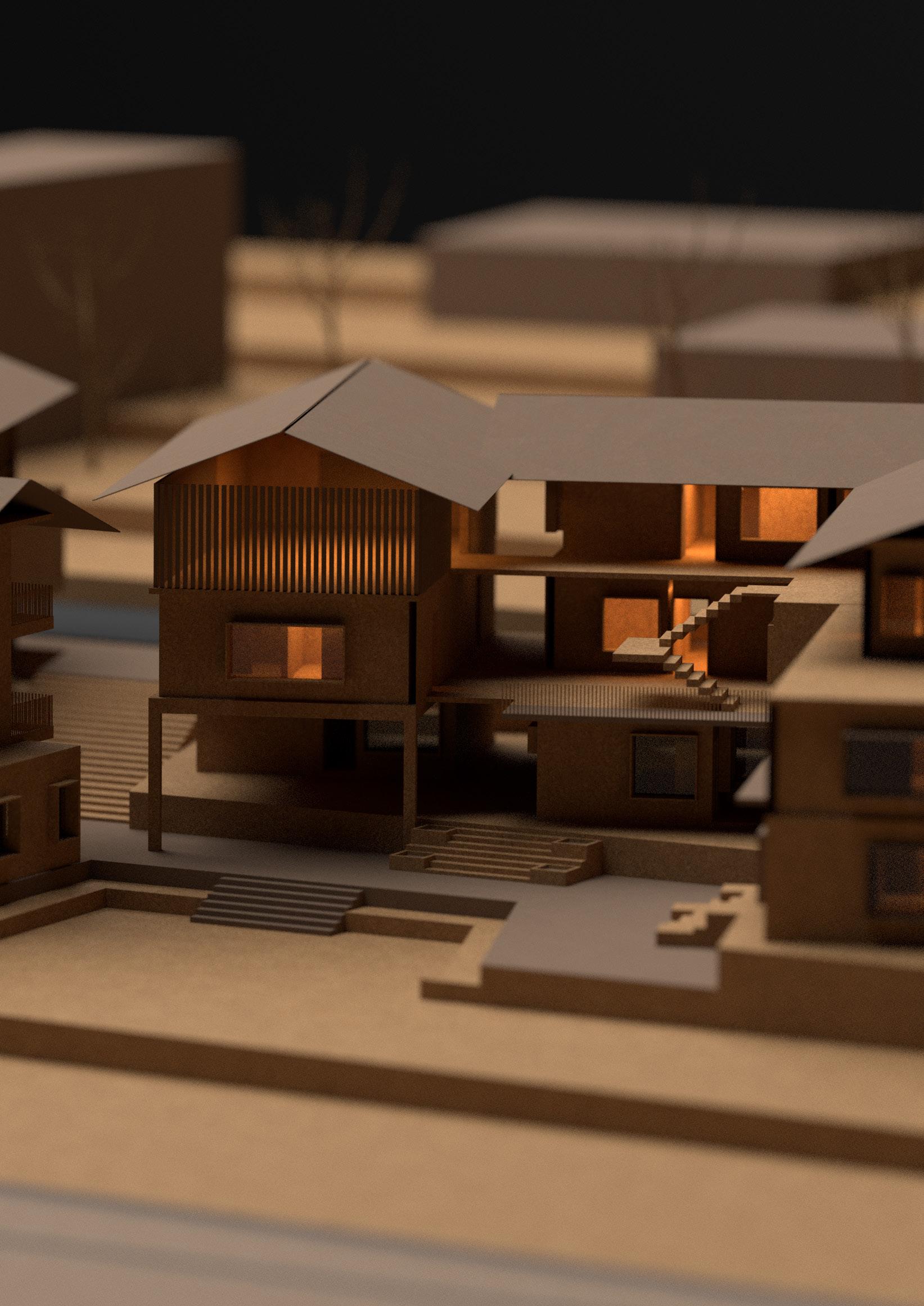

Model maquete of the overall project

31

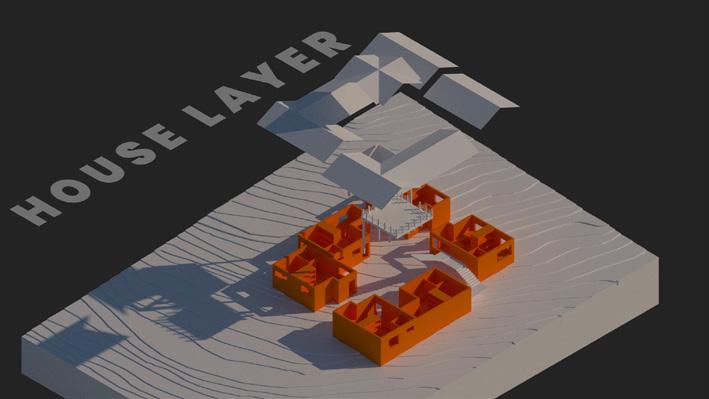

32

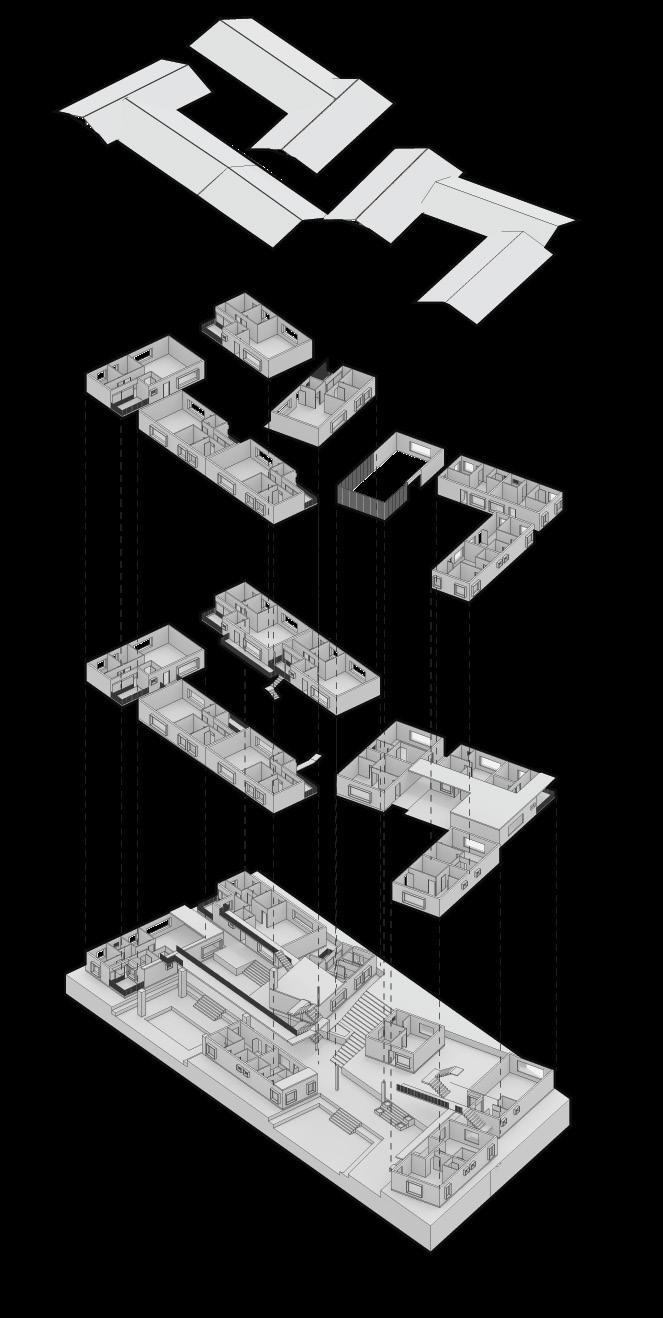

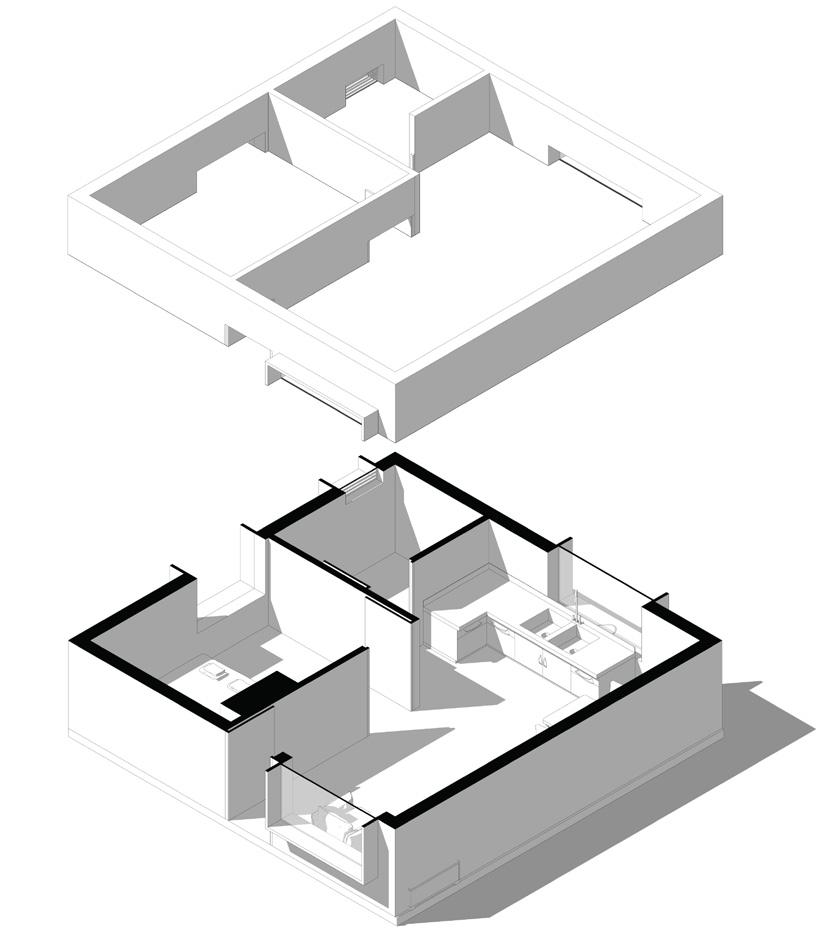

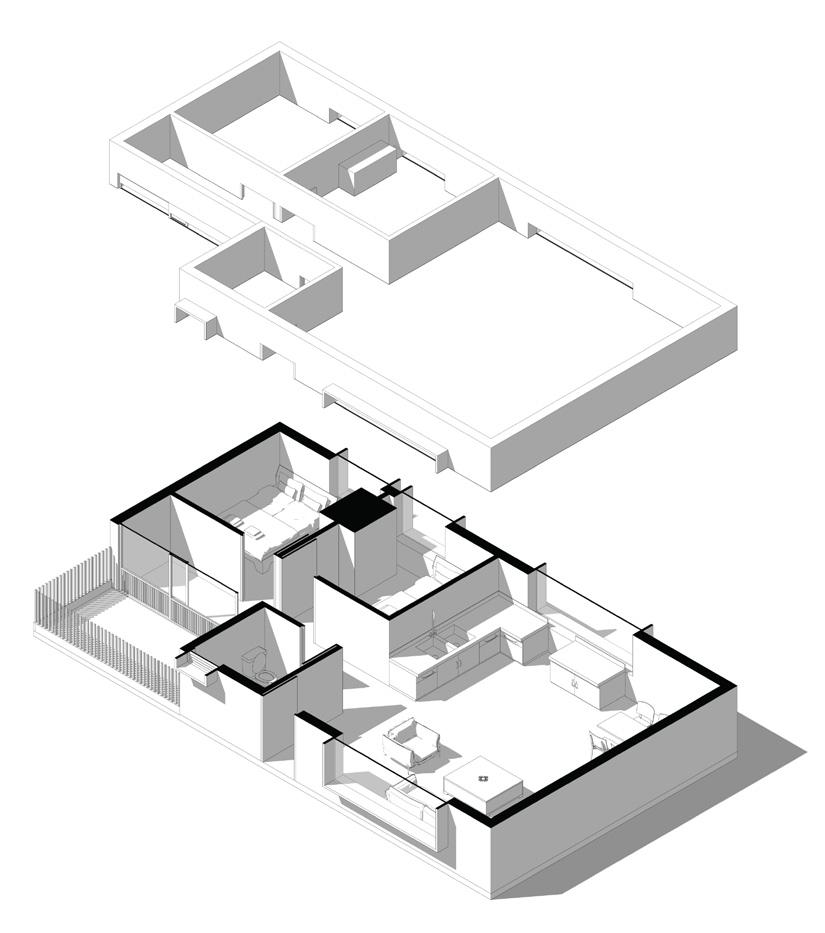

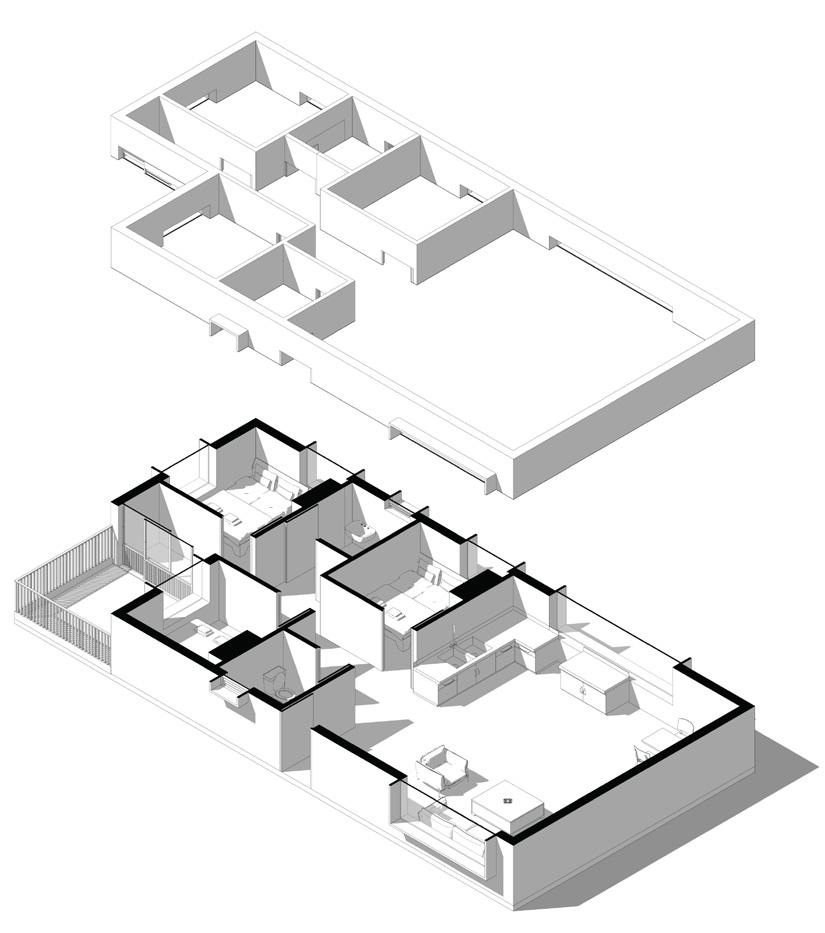

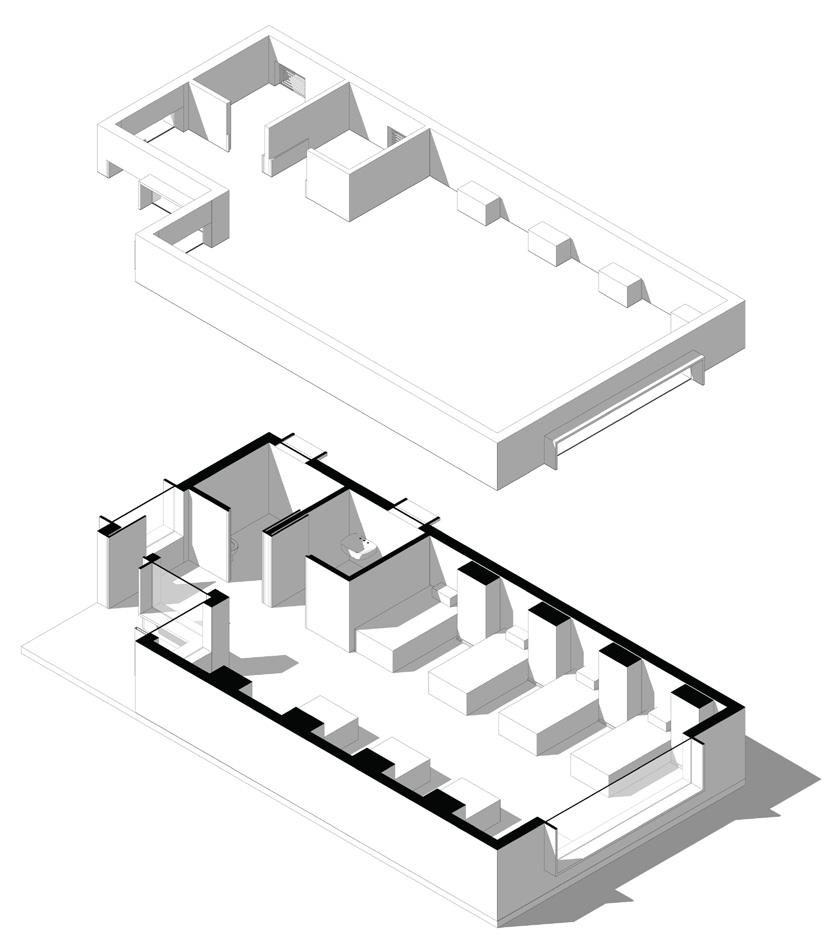

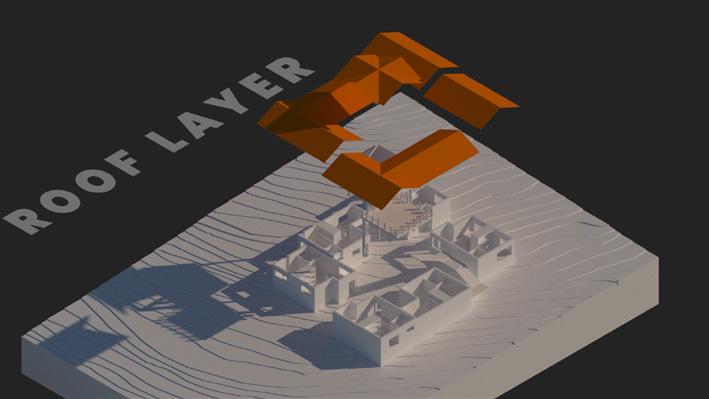

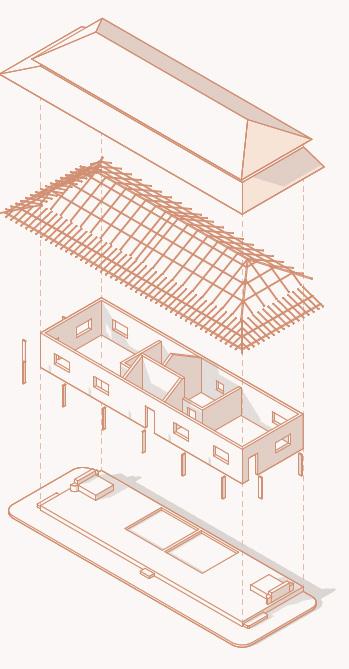

Exploded Isometric

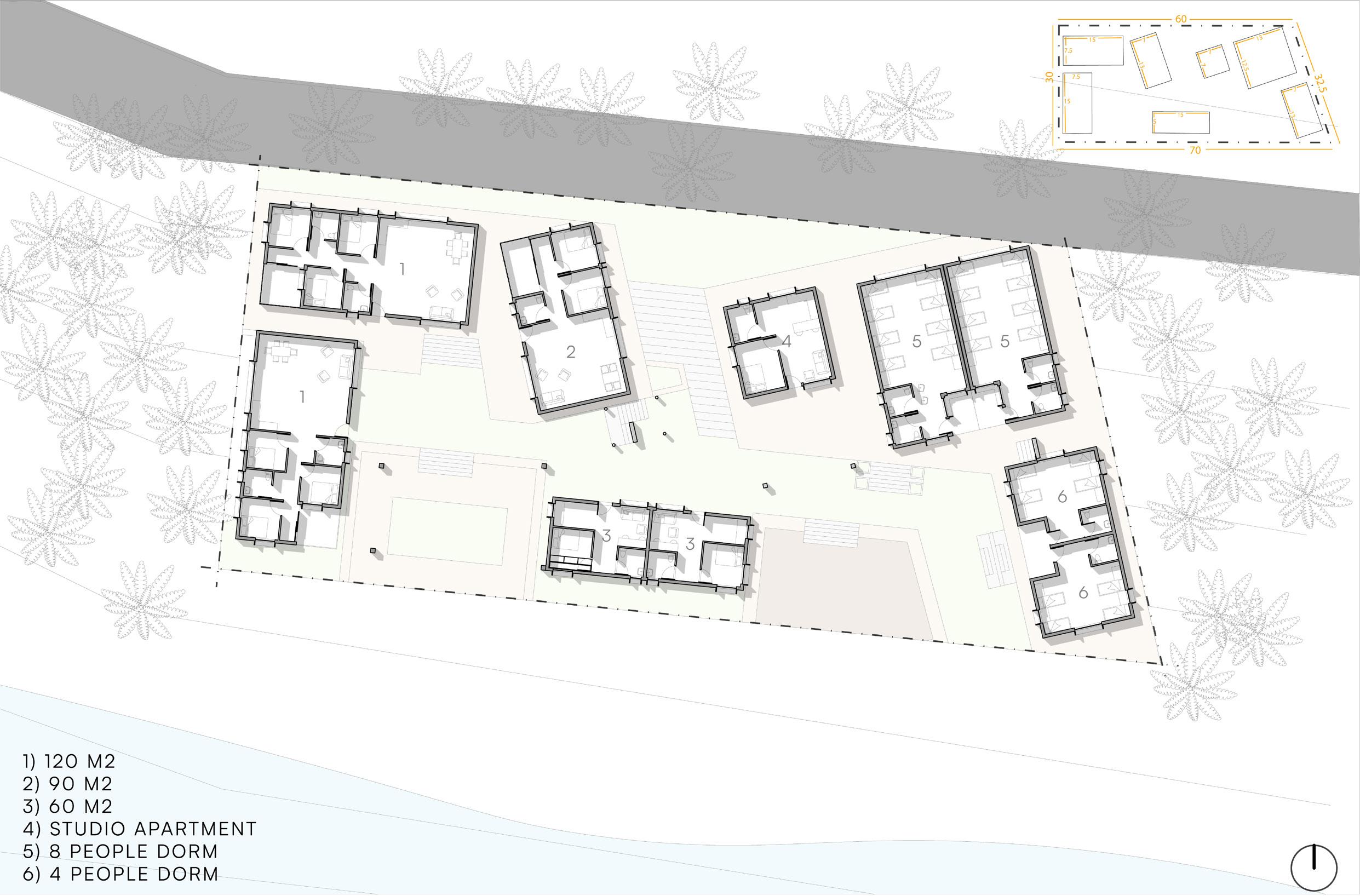

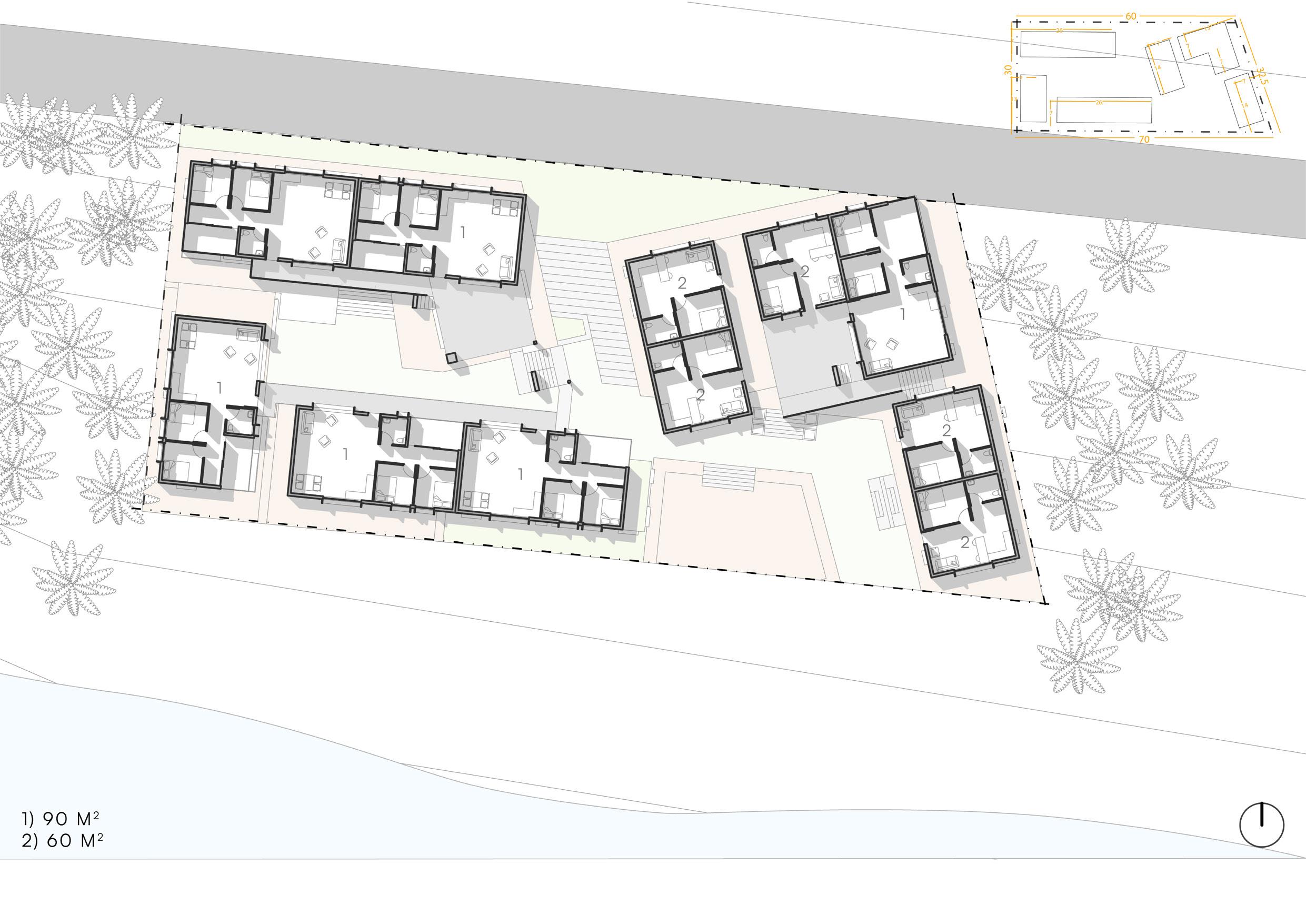

Ground Floor Plan

120 m2 unit

90 m2 unit

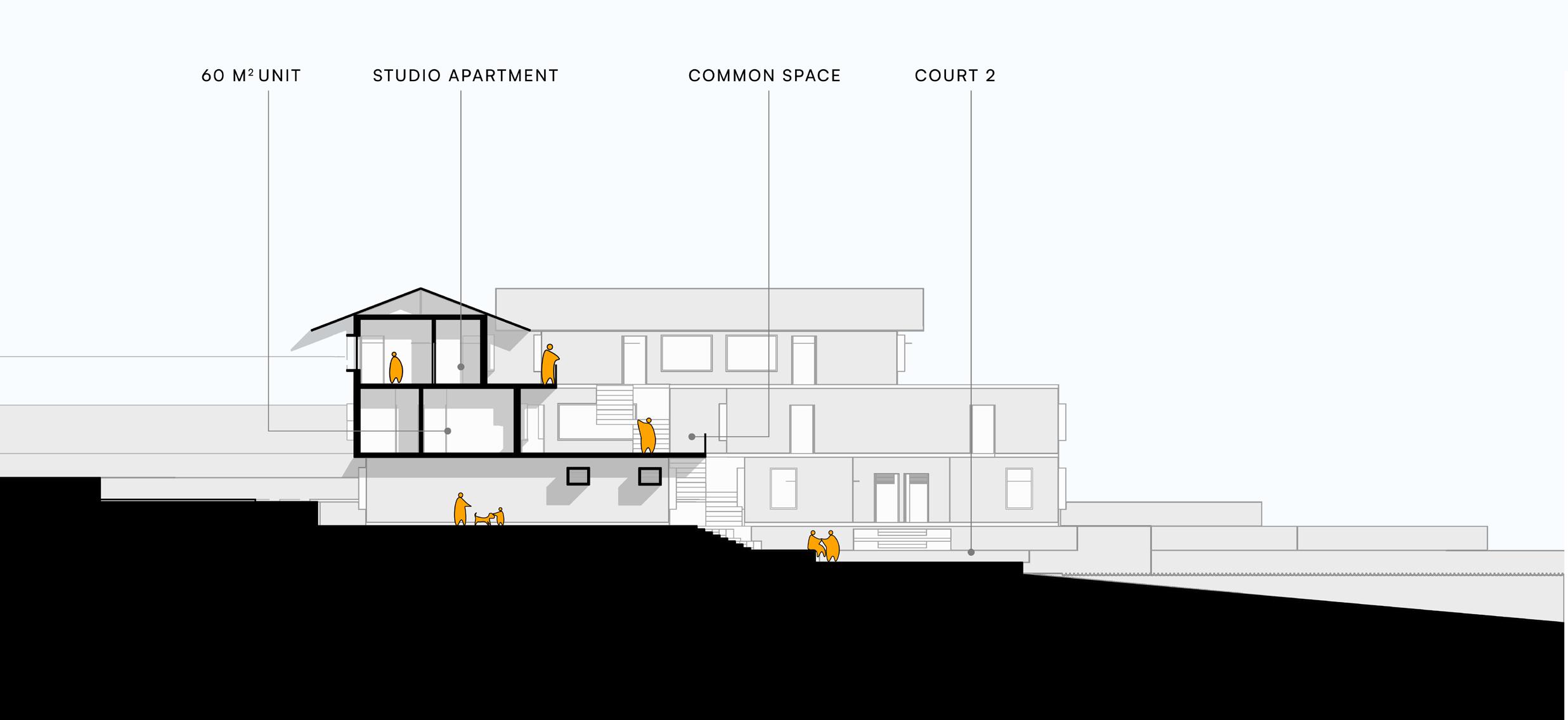

Longitudinal Section

90 m2 unit

90 m2 unit

30 m2 unit

30 m2 unit

Dorm

33

First Floor Plan

60 m2 unit

Transverse Section

Studio Apartment

Common Space

Court

90 m2 Unit

120 m2 Unit

Studio Unit

60 m2 Unit

Dormitory Unit 1

Dormitory Unit 2

View of the entrance foyer

Interior Design Semester 7 Studio Guide : Asst. Prof. Anna Cheriath

37

38

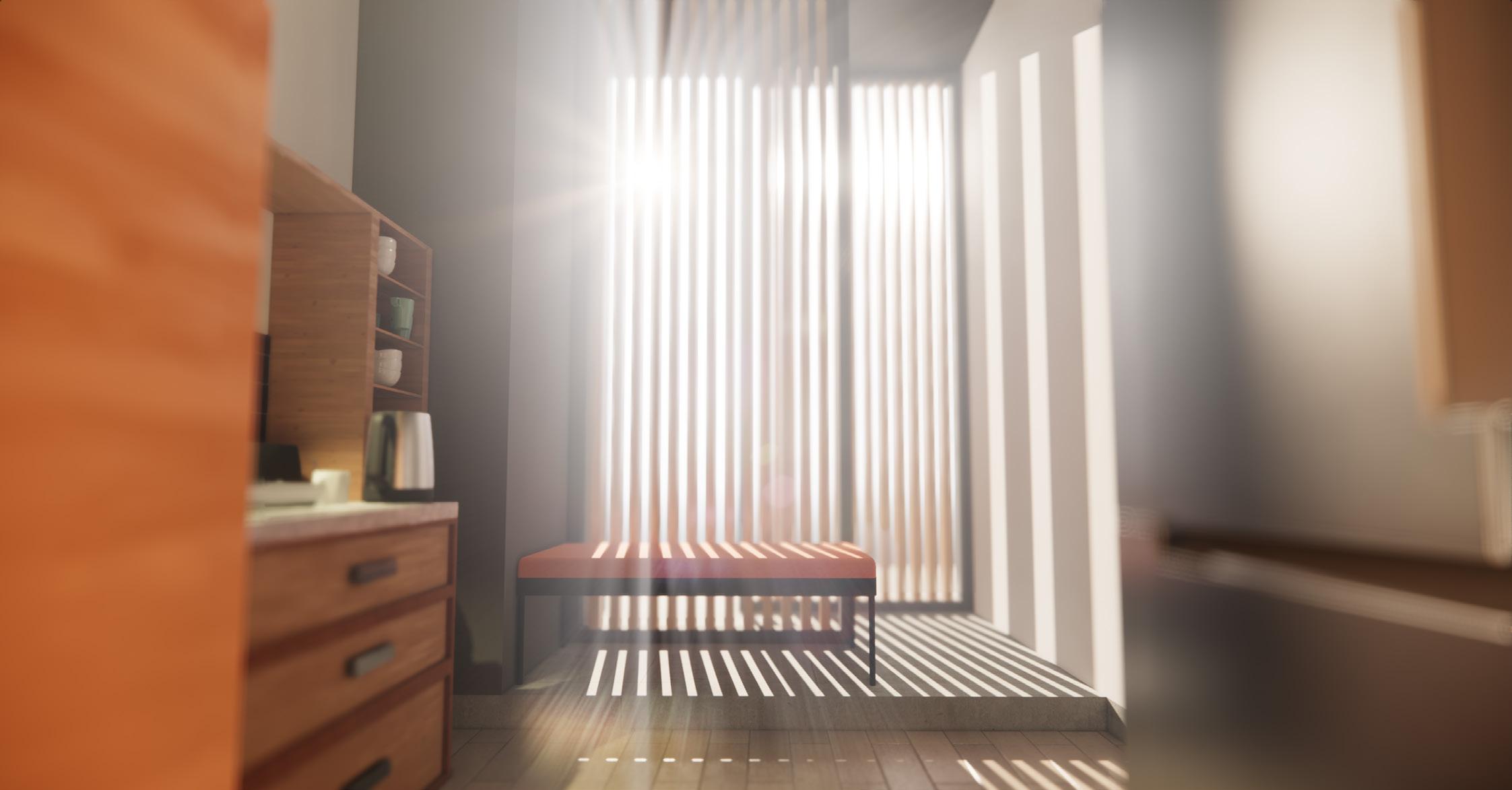

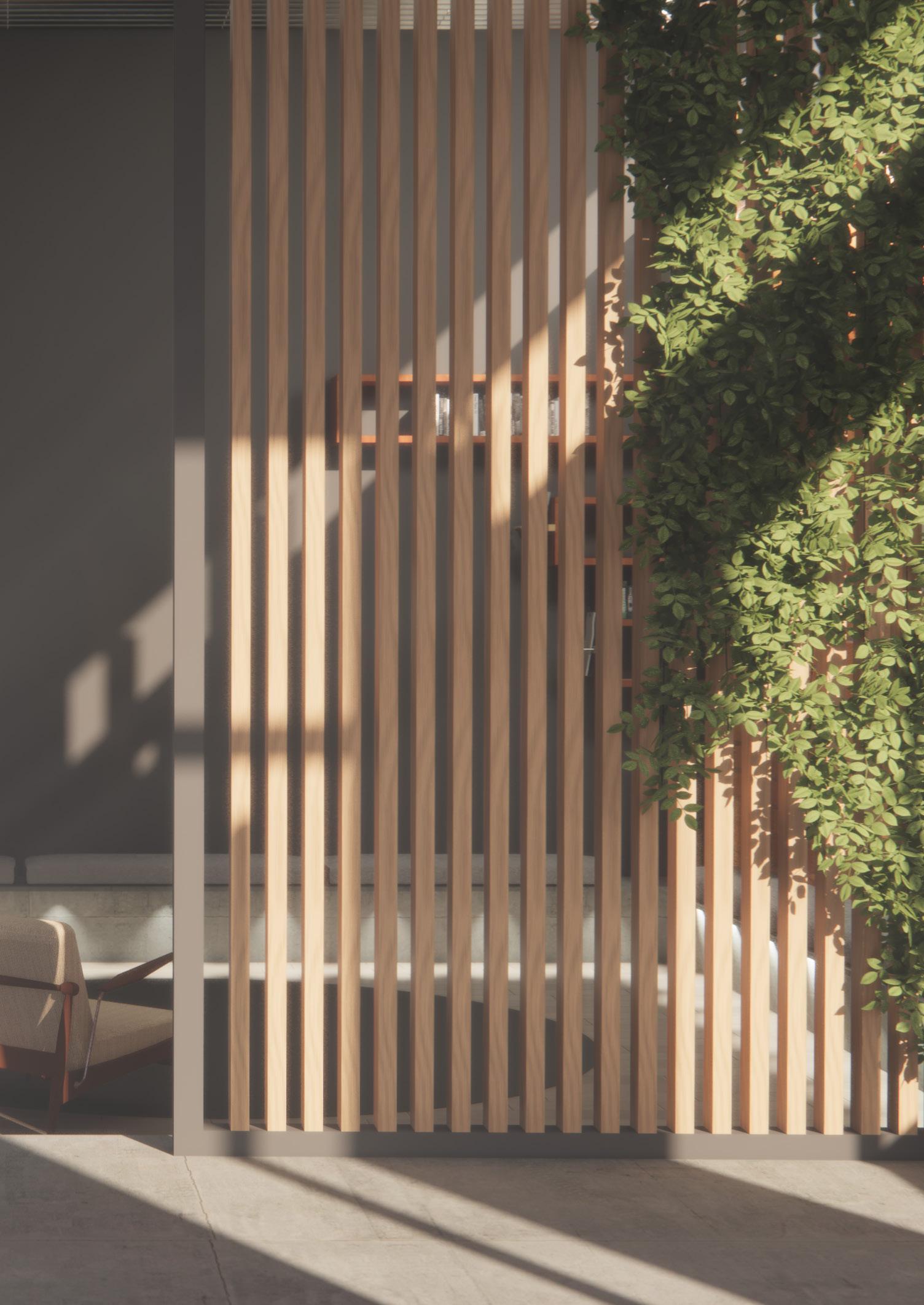

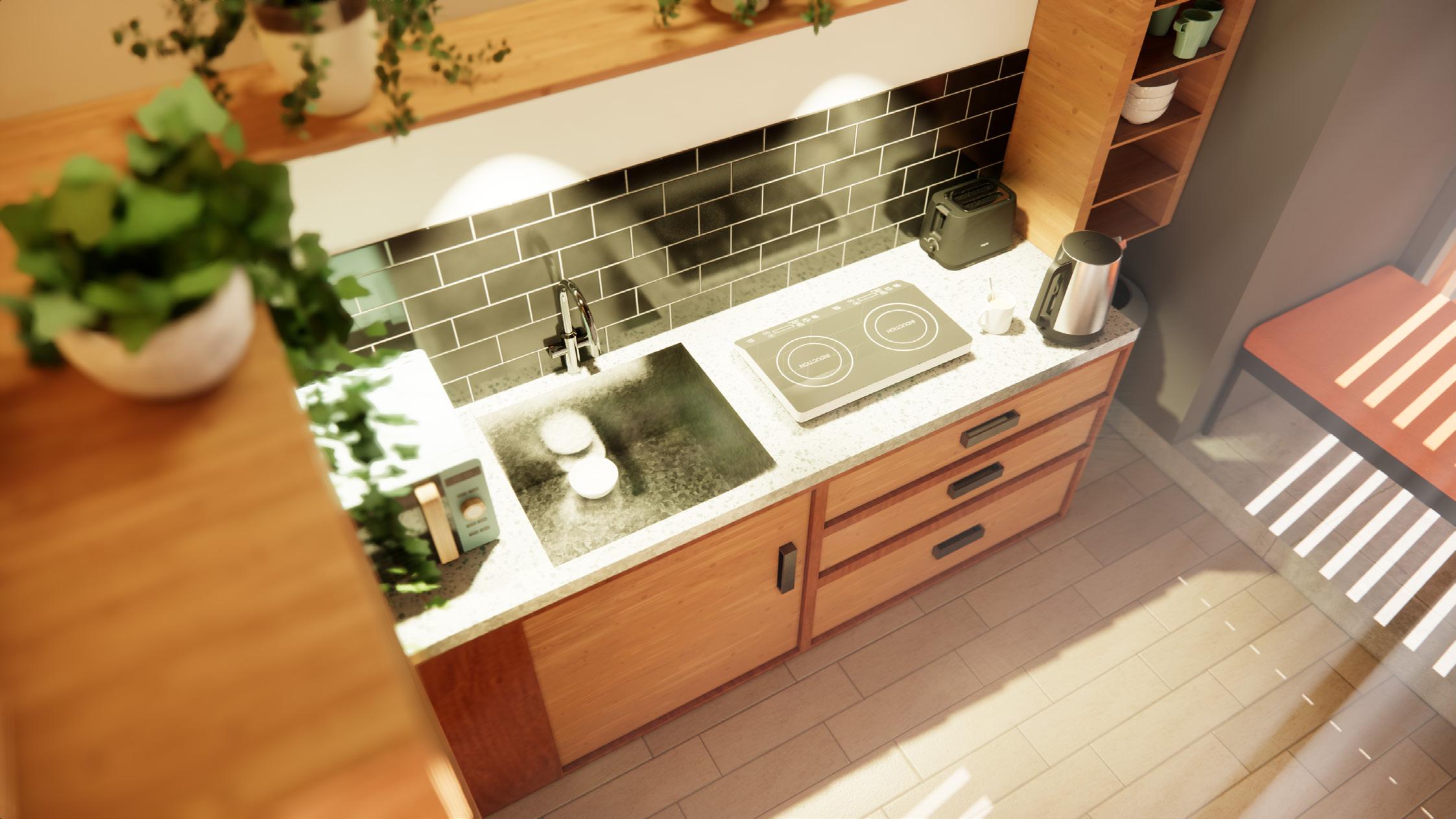

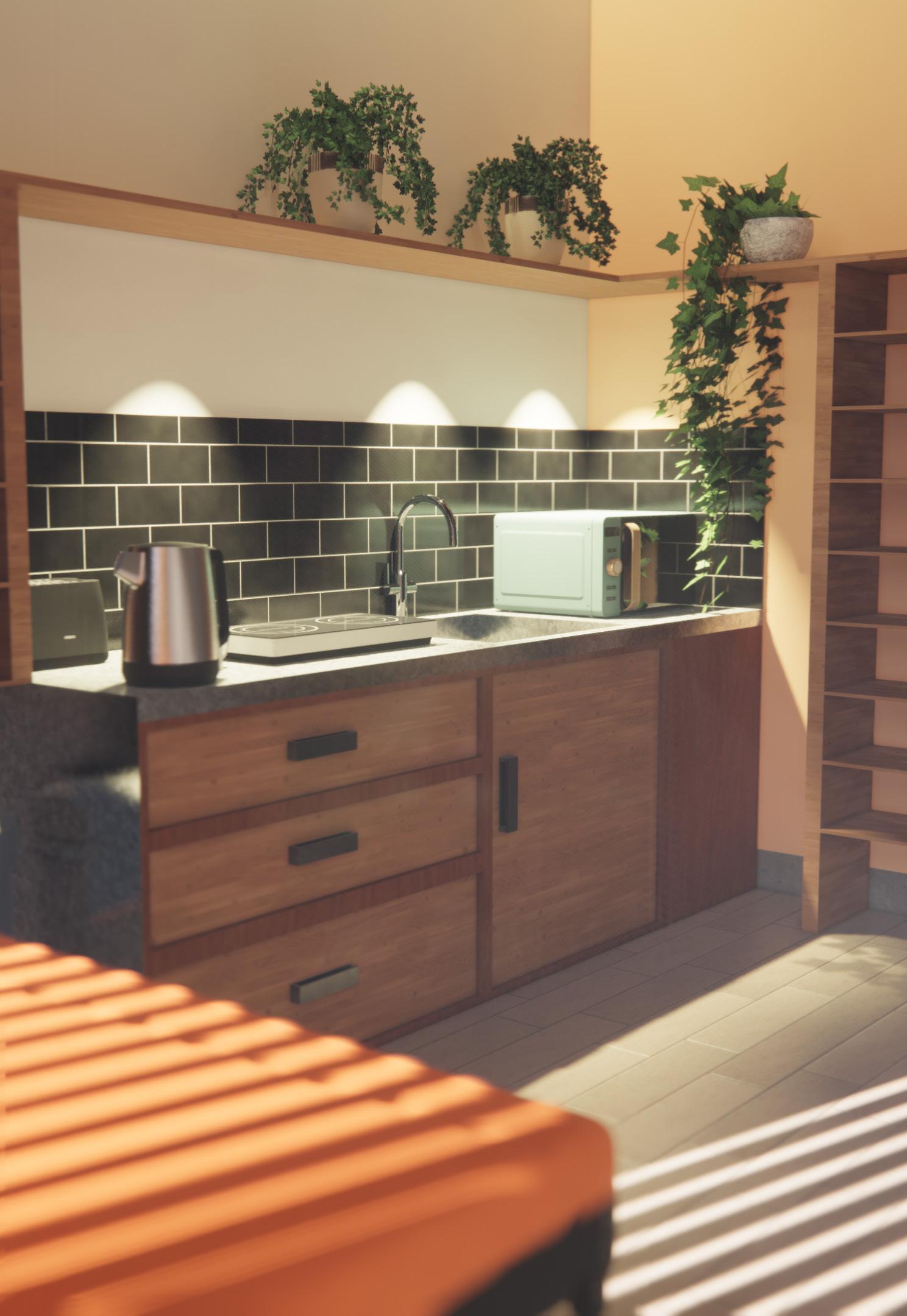

Brief A redesign of an existing room into a pantry for the college that could serve as a place to cook-up fast meals when students need to stay up late Material Palette A light colour palette with a vibrant orange to make the room feel bigger. Wooden cabinetry to make it feel homely yet sophisticated. A two piece entry screen helps is distuinguishing the in from out while also letting in tons of natural light.

Potted plants to bring the outside inside.

39

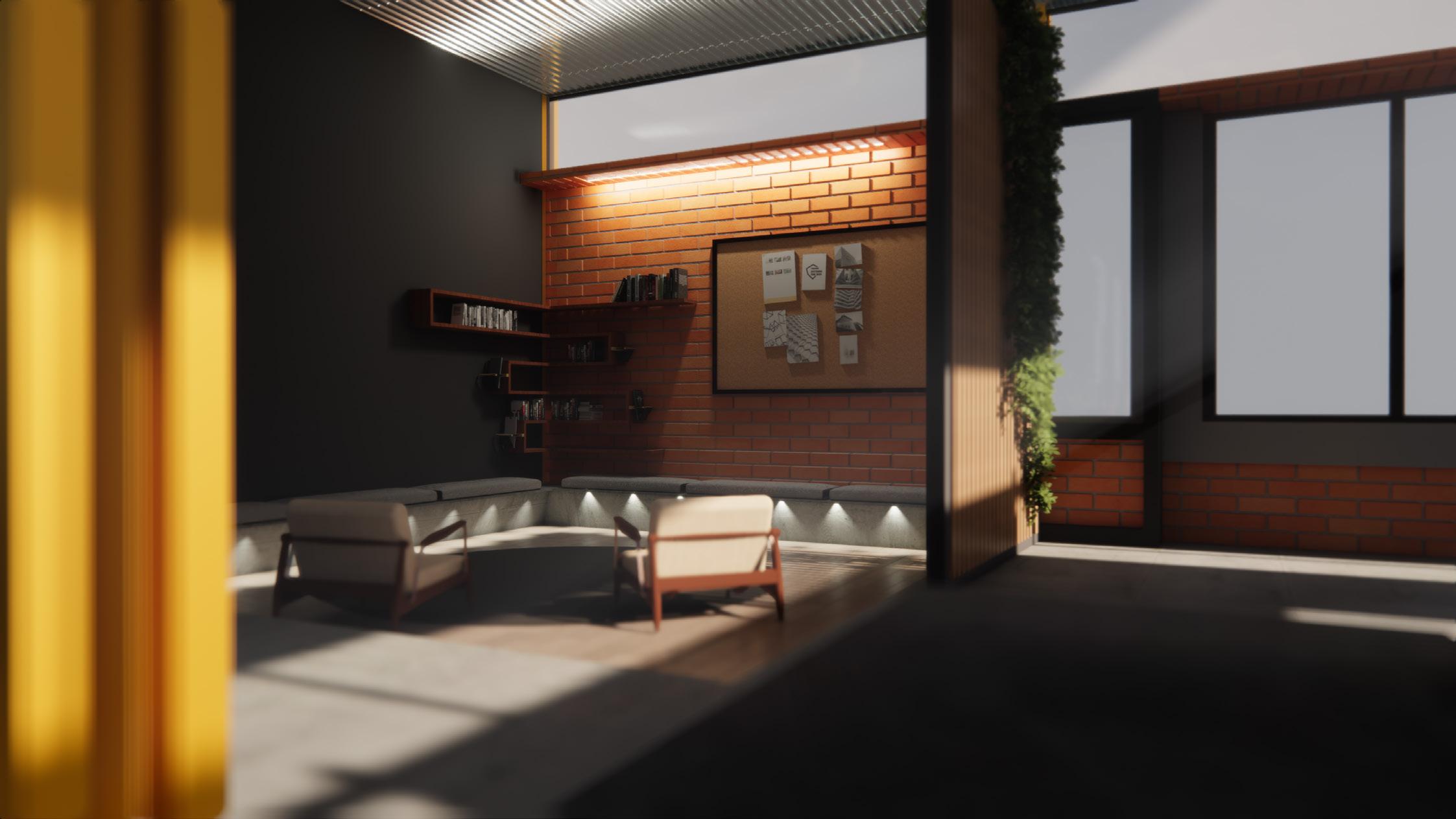

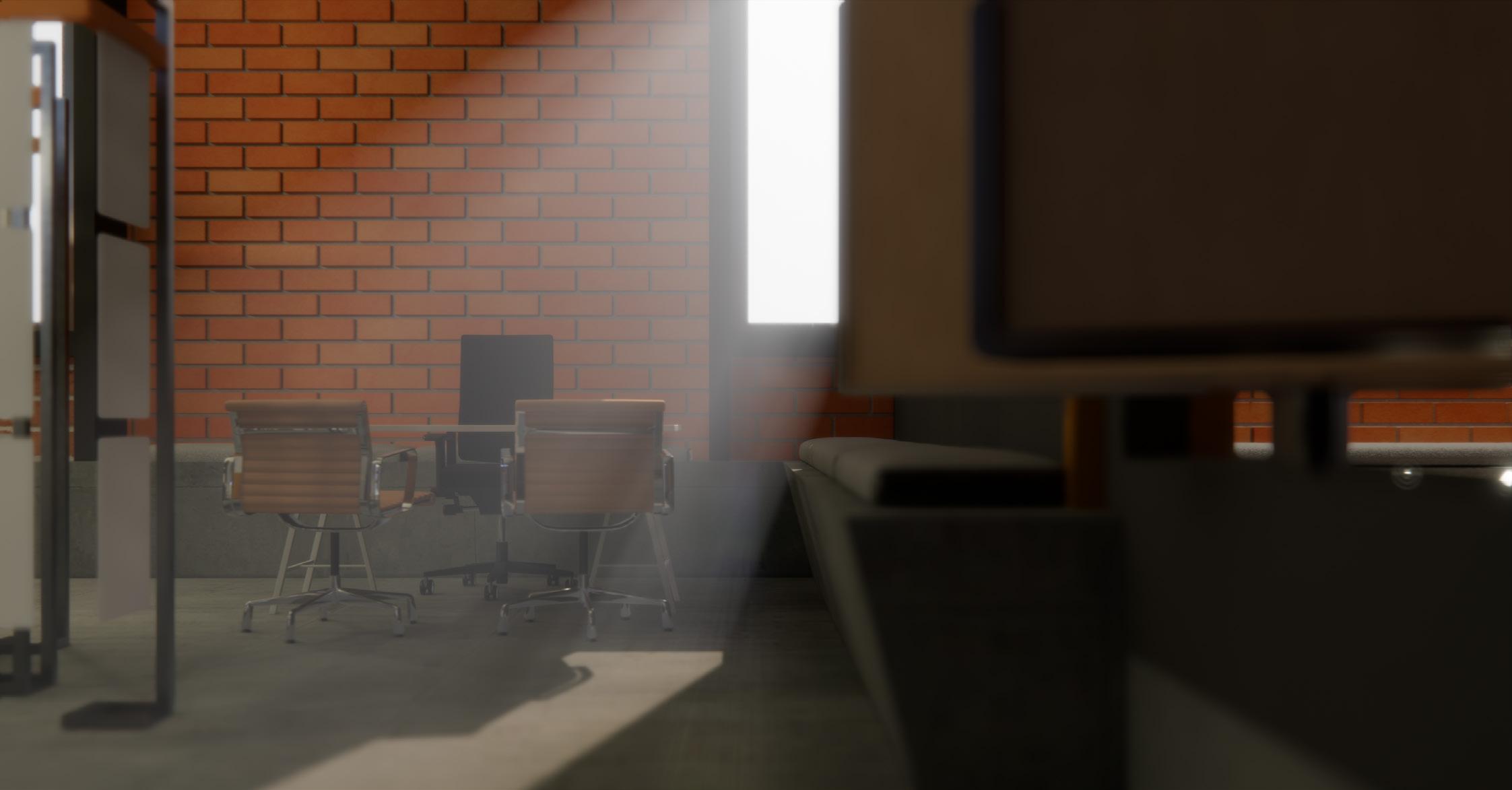

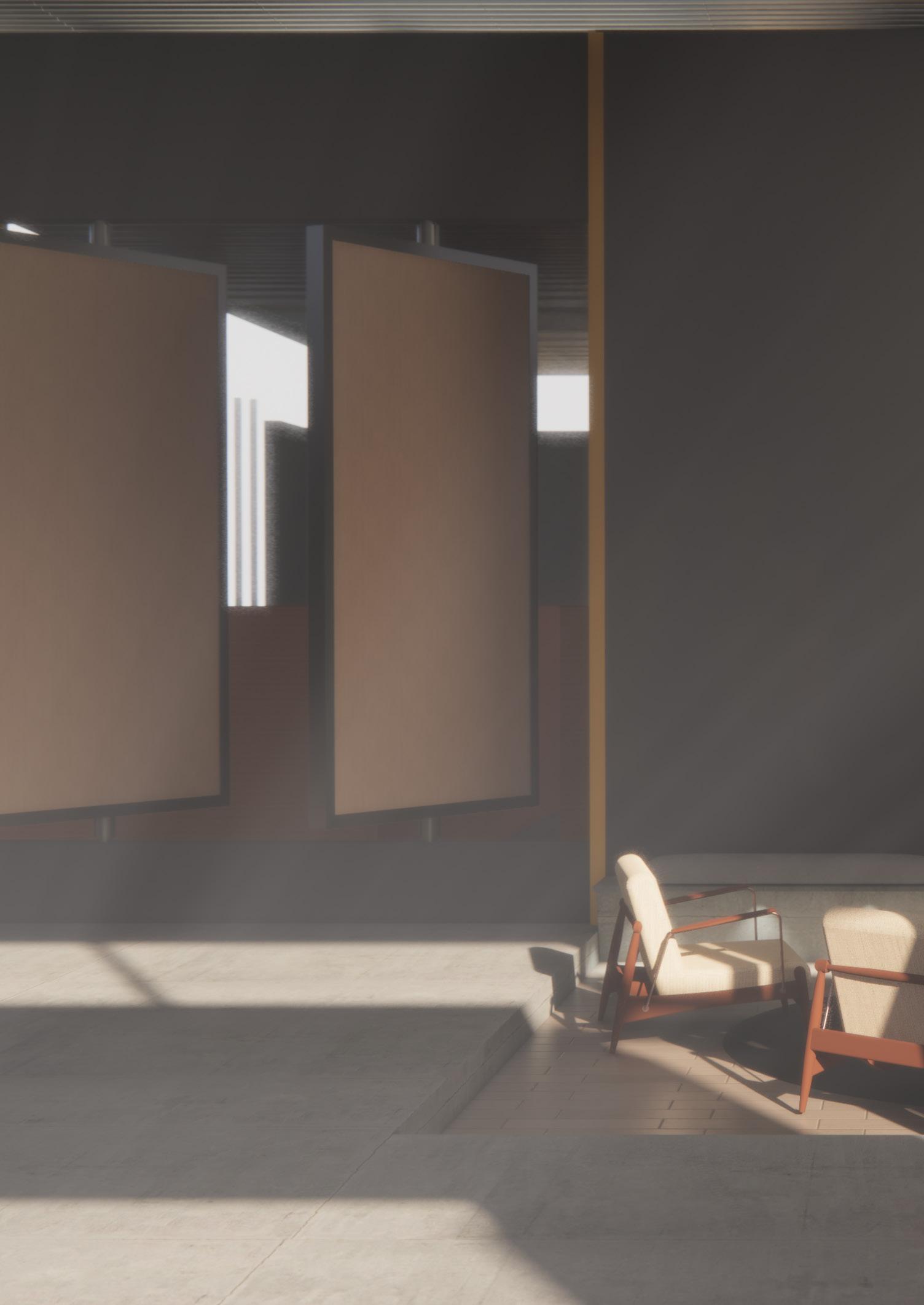

Brief A redesign of the college lobby and exhibition space to revamp it and give it a character that can be comfortable and usable by the public.

While also keeping it looking part of the college.

Material Palette A darker more moody and sophisticated colour matching the existing college colour palette. Exposed brick roots the whole structure down to the ground while giving it a warm tone. A proposed table design for the exhibition that can replicated the sunpath using an adjustable arc.

40

41

1300 2400

BEDROOM 4200*6600MM

980

940

D3

D2

980

WASHROOM 2750*1550MM

675

110

2750

2100

2750

2100

1990

3816

700

2100 900

675

1190

252

2100 1000

3816

2700

LIVING & DINING SPACE 4000*9000MM

980

D3

885

W1

3930

3930

KITCHEN 2700*3900MM

3810

855

600

1900

2100 900

WASH ROOM 2750*1550MM 2820

1500

WASH ROOM 2750*1550MM

1975

2225

2225

1975

820

1500

1230 940

1500

480

128

D4

1500

252

3884

120

D3

2225

1975

3810

3810

LIVING & DINING SPACE 4000*9000MM

370

525

2100 900

584

130

1565

1570

1320

4060

1370

3825

1387

2100 3600

120

2700

BEDROOM 4200*6600MM

128

9000

D2

240

W1

820

128

D4

9000

2100 1000

1574

D2

2100 1000

128

2100 3600

1500

1625

128

120

D4

120

2100 3600

128

600

1300 2400

UTILITY 1800*2700MM

KITCHEN 2700*3900MM

BEDROOM 4200*3600MM

3080 128

890

3560

BALCONY 3600*1800MM

600

BALCONY 1800*2100MM

3810

364

W1

3560

1300 2400

BALCONY 1800*2100MM

250

0

250

628,46 1380

120

240

W1

2225

1300 2400

UTILITY 1800*2700MM

3810

120

162

2420

1196,61

MD1

1200 2100

MD1

574

2581 1081,47 2100 1200

MD1

1200 2100

MD1

1542,36

2348,13

1219,47 2100 1200

3599,32 1108,17 2799,82

2728,28 899,94 799,95

3599,32

2313,64

1196,61

574

2420

1542,36

2581

4060

1370

1565

1570

1320

162

2400 1300

600

128

600

128

D2

BEDROOM 4200*6600MM

D4

128

128

3600 2100

D4

KITCHEN 2700*3900MM

3810

3810 3600 2100

820

128

600

855

W1

240

820

UTILITY 1800*2700MM

1975

BALCONY 1800*2100MM

2225

BALCONY 1800*2100MM

2225

128

2225

250

UTILITY 1800*2700MM 120

3810

3810

3810 890

675

675 1500

1900

1500

1000 2100

250

364

387,99

1975

W1

980 980

KITCHEN 2700*3900MM 3560

2400 1300

1990

110

120

2400 1300

W1

3930

D2

D3

1190

LIVING & DINING SPACE 4000*9000MM

3930

1000 2100

2225

120

370

0

1380

LIVING & DINING SPACE 4000*9000MM

900 2100

120

BEDROOM 4200*3600MM

BALCONY 3600*1800MM

940

1230

1574

3080

WASHROOM 2750*1550MM

1975

252

1625

980

9000

525

120

D4

3560

128

3600 2100

D3

3884

D2

1000 2100

9000

940

2700

900 2100

1500

1500

D3

2820

1500

480

900 2100

WASH ROOM 2750*1550MM

120

584 3825

BEDROOM 4200*6600MM

WASH ROOM 2750*1550MM

2700

252

3816

3816

700

130

1387

240

2400 1300

W1

885

628,46 364

3810

890

120 2100 900

252

2700

940

WASH ROOM 2750*1550MM 2700

D3

2100 900

BEDROOM 4200*6600MM 1387 700

3816

3816

1570

1320

4060

1565

1370

128

525

D3

WASH ROOM 2750*1550MM 2820

130

162

2581 1081,47

MD1

2100 1200

MD1

1200 2100

2420

1219,47

574

MD1

2100 1200

MD1

1200 2100

1196,61

2313,64

3599,32

799,95

899,94

2728,28

1108,17 2799,82

3599,32

2348,13

1542,36

2100 3600

120

980

1500

D4

1625 2100 1000

480

9000

9000

1574

3884

1230

940

BALCONY 3600*1800MM

3080

584

675

2100 1000

D2

2750

2100

D2

370

1500

2100 900

WASHROOM 2750*1550MM

1380

1300 2400

BEDROOM 4200*3600MM

1500

1190

D3

LIVING & DINING SPACE 4000*9000MM

1500

252

980

1500

1900

LIVING & DINING SPACE 4000*9000MM

2100 1000

980

110

W1

3825

600

3560

600

128

120

128

250 2100 3600

120

D2

675

D4

KITCHEN 2700*3900MM

BEDROOM 4200*6600MM

1990

128

128

2100 3600

3810

3930

KITCHEN 2700*3900MM

D4

3810

128

820

3810

600

3810

855

1300 2400

3930

W1

250

885

120

1300 2400

0

2225

128

820

W1

UTILITY 1800*2700MM

1975

BALCONY 1800*2100MM

2225

1975

1975

240

BALCONY 1800*2100MM

3560

120

1300 2400

2225

W1

UTILITY 1800*2700MM

2225

240

1542,36

2581

574

1196,61

2420

1320

1570

1565

1370

162

4060

BEDROOM 4200*6600MM

D4

3600 2100

128

128

D4

3600 2100

1574

W1

2400 1300

1000 2100

600

BALCONY 1800*2100MM

240

480

584

3825

D4

1625

890

364

3600 2100

128

3560

BALCONY 3600*1800MM

3560

3810 600

1975

2225

BALCONY 1800*2100MM

2225

1975 120

2225

UTILITY 1800*2700MM

128

2225

820

240

D2

1000 2100

3080

BEDROOM 4200*3600MM

3810

128 128

W1

2400 1300

1380

250

250

128

3810

3810

3810 820

BEDROOM 4200*6600MM

525

D2 370

0

600

855

900 2100

120

1500

1500

3884

KITCHEN 2700*3900MM

KITCHEN 2700*3900MM

3930

3930 2400 1500

1230

LIVING & DINING SPACE 4000*9000MM

D3

2700

120

1975

W1

940

252

LIVING & DINING SPACE 4000*9000MM

1000 2100

900 2100

120

252

1500

1500 1190

980

D3

980

940

1387

2700

WASH ROOM 2750*1550MM

120

900 2100

9000

D3

9000

980

D2

2820

WASHROOM 2750*1550MM

1500

1900

110

885

WASH ROOM 2750*1550MM

2750

675

675

2100

3816

3816

700

130

1990

628,46

UTILITY 1800*2700MM W1

2400 1300

120

43

Service Space 2800X2200

Kitchen 2820X3800

Bedroom 4200X3600

Bedroom 4200X4000

Living & Dining 4000X9000 Bathroom 2700X1500

Service Space 2800X2200

Bedroom 4200X3600

Bathroom 2700X1500

Balcony 4000X2200

Kitchen 2820X3800

Bedroom 4200X4000

Living & Dining 4000X9000 Bathroom 2700X1500

44

Balcony 4000X2200

Bathroom 2700X1500

PLAN SCALE (1:25) Towel Holder 02

1500

Shower Head 01

1800

Towel Holder 03

Wash Basin 01

Geyser 01 Towel Holder 01

Soap Holder 01

Soap Holder 01

Drain 01

880

875

3200

2700

Geyser 01

2400

3000

Shower Head 01

Towel Holder 01

Soap Holder 01 1600

800

Western Commode 01

1100

1200

Wash Basin 01

SECTION SCALE (1:25) 45

150

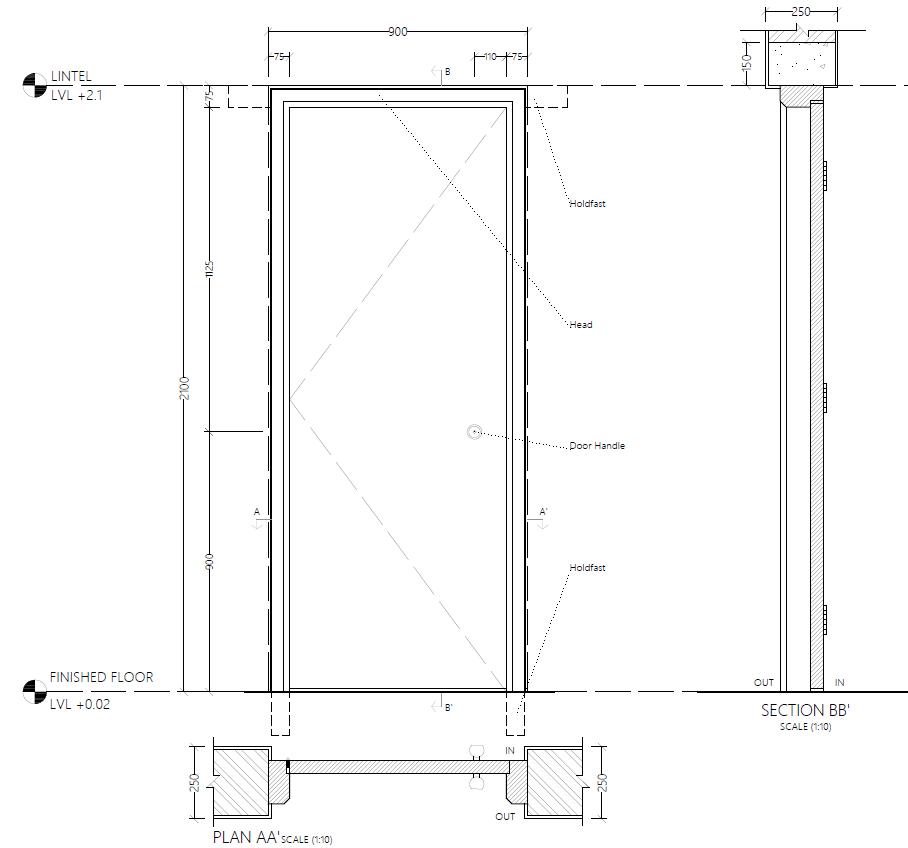

Holdfast

Top Rail

600

945

Head

Panel

ISSUED:

Door Handle

200

2100

150

Mid Rail

JAYALAKSHMIPURAM

75

150

A COZY NEST OF FAMILY HOMES

750 B

75

LVL +2.1

150

150

75

LINTEL

THE METROPOLIS

250

1200

Panel A

A'

900

Mullion

943

Bottom Rail

ACCEPTED: AUTHOR: MADHURYA K

Threshold

CHECKER: DATE:

150

Holdfast

B&W IN

OUT

75

FINISHED FLOOR

LVL +0.02

B'

DESIGN STUDIO

SCALE (1:10)

IN

MAIN DOOR 1 (MD1)

250

250

GRAPHICS | ANIMATION | ARCHITECTURE

06.4

OUT

2400 438 50

500 30

50

500 30

38

438 30

50

30

50

B

LINTEL

CILL

OUT

LVL +1.1

JAYALAKSHMIPURAM

A COZY NEST OF HOMES

A'

1080

1300

A

THE METROPOLIS

LVL +2.1

IN

ISSUED:

Glass pane

Hinge

Mullion

Frame

Grille

Stile

Rail

ACCEPTED: AUTHOR: MADHURYA K CHECKER: DATE:

FINISHED FLOOR

B&W

GREGORY A DD-MM-YYYY

A2

B'

LVL +0.02

IN

JAMS

230

DESIGN STUDIO

GRAPHICS | ANIMATION | ARCHITECTURE

PLAN AA' SCALE (1:10)

46

A3

JAMS

SECTION BB'

PLAN AA' SCALE (1:10)

GREGORY A DD-MM-YYYY

OUT

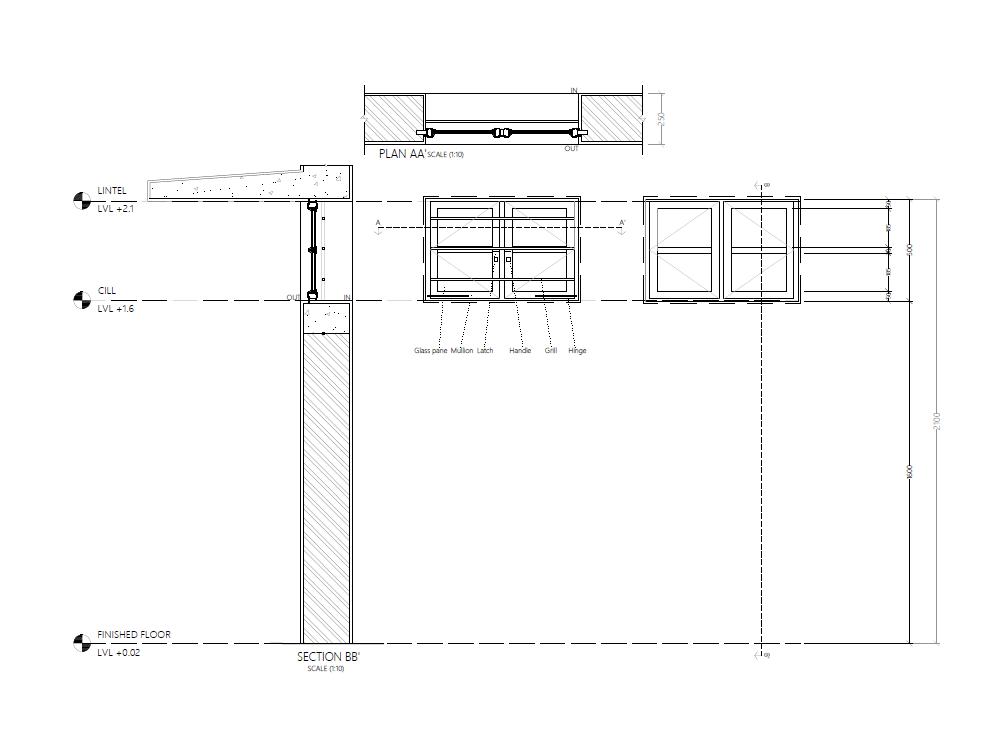

WINDOW 1 (W1)

07.5

47

Related Study Program Semester 07 | Group Work Research and documentation of traditional houses in Anegundi.

Furniture Design Competition Semester 05 | Group Work A furniture design competition in college to propose a new design of canteen furniture in campus

49

2019_arnesh.g@wcfa.ac.in +91 9836516985
