CARBON MASTS INTEGRATED
SEAMLESS POWER ASSIST
THE FIRST ARMSTRONG MASTS BUILT SPECIFICALLY FOR FOIL DRIVE.
MEETS ARMSTRONG FEEL
FULLY INTEGRATED, FREAKISHLY SMOOTH.
INTRODUCING THE

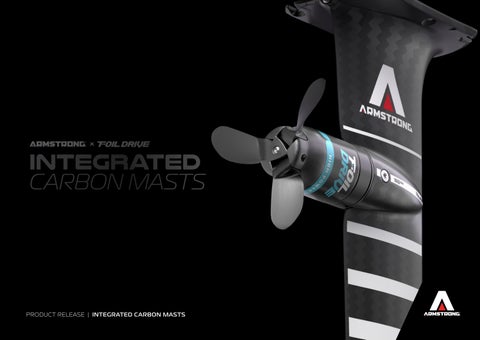

Armstrong X Foil Drive INTEGRATED CARBON MASTS
The Armstrong Foil Drive Integrated Carbon Masts redefine what’s possible with powered foiling. Unlike standard integrated systems, this setup is purpose-built to reduce drag and unlock a smoother ride from takeoff to touchdown.
For beginners, that means easier lift and no more sudden stalls when the motor pod hits the water. For advanced riders, it’s seamless wave performance, can glide through without experiencing drag or stopping abruptly, unlike with standard designs where hitting the motor pod can cause you to bog.
Whether you’re chasing bumps on windless days or just starting out, it turns small waves into endless sessions with unmatched performance, flow, and clean lines.
E-FOIL FOIL ASSIST
MULTIPLY YOUR SESSION
PRODUCT OVERVIEW

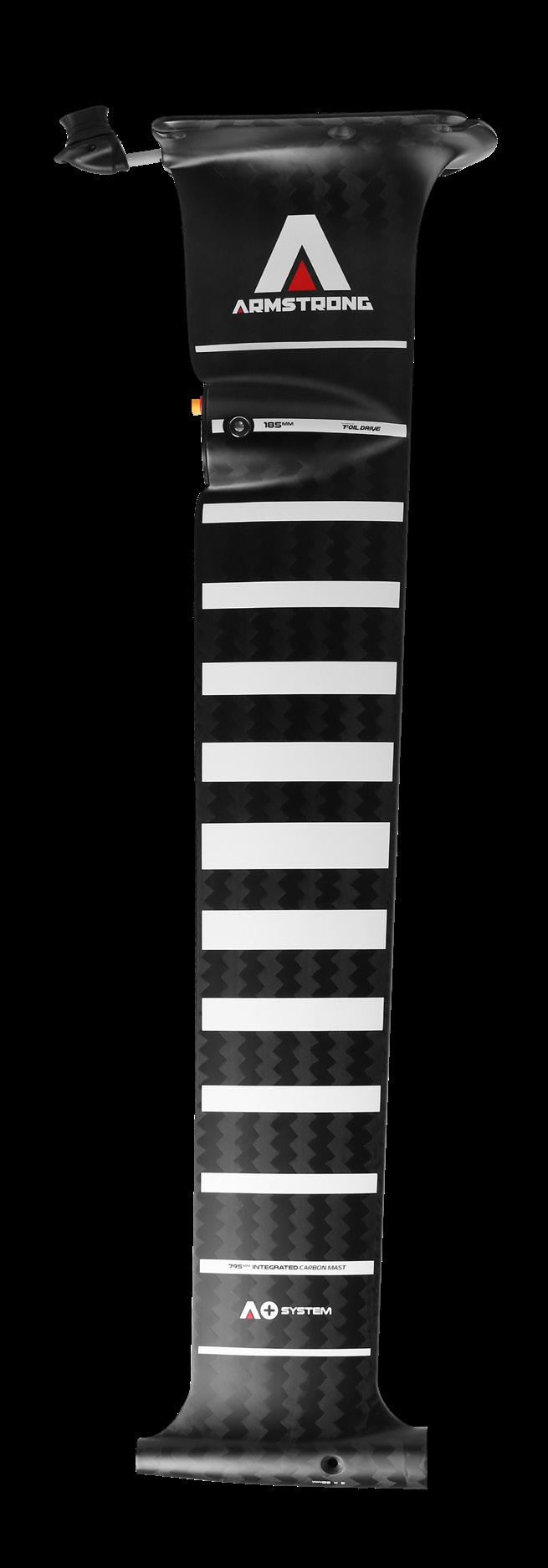

ASSIST INTEGRATED CARBON MAST

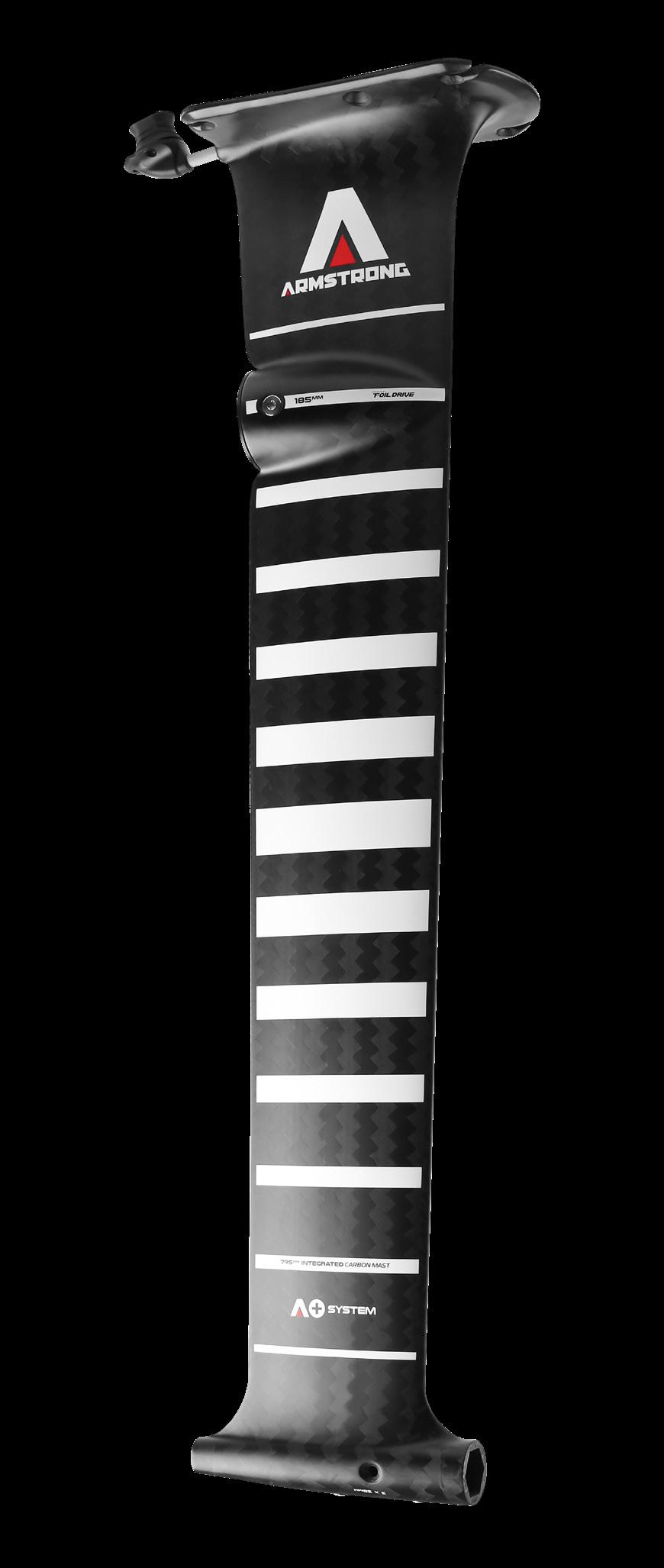

INTEGRATED CARBON MAST
185MM | 795MM
650MM | 795MM FOIL ASSIST
E-FOIL

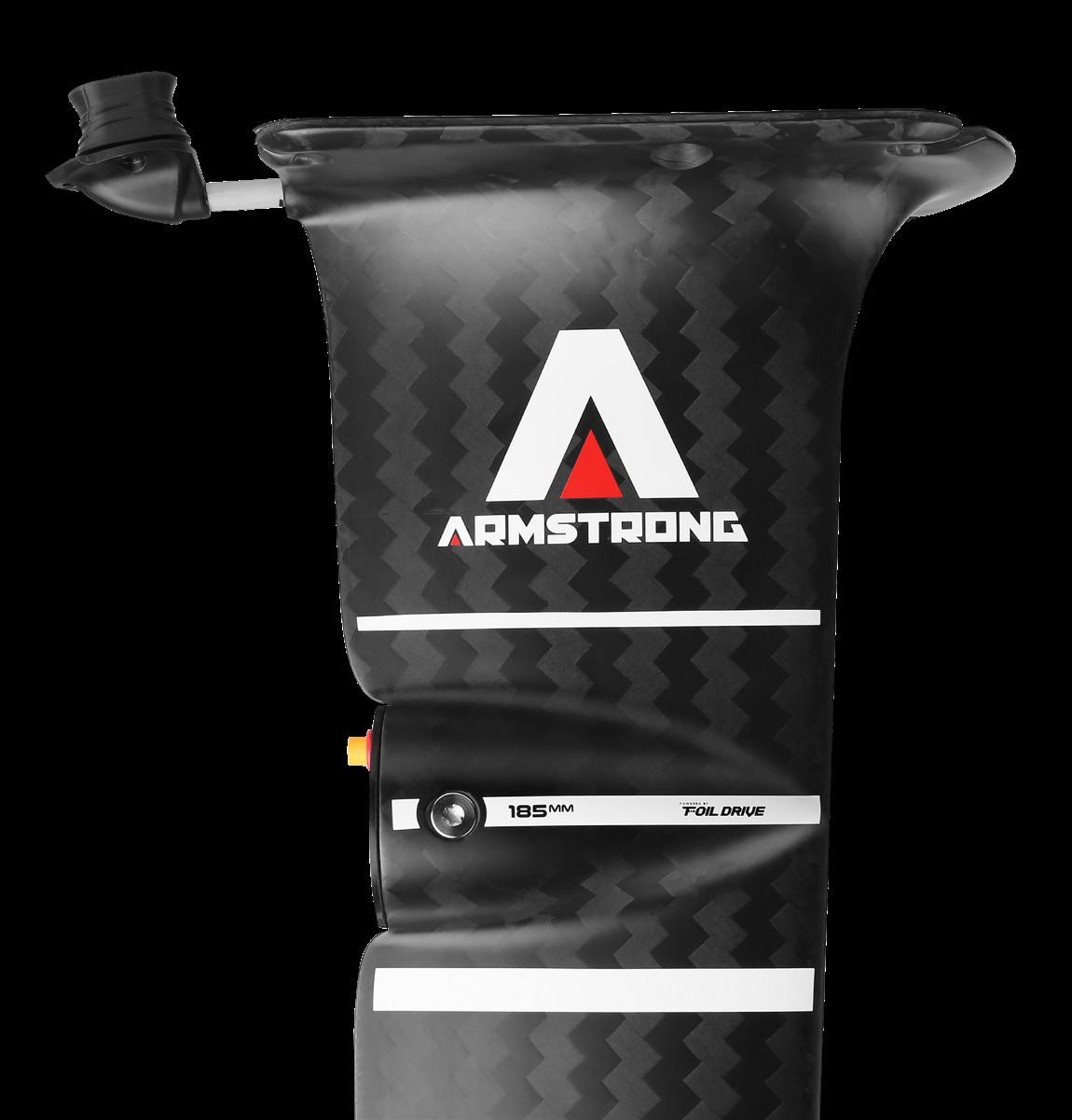

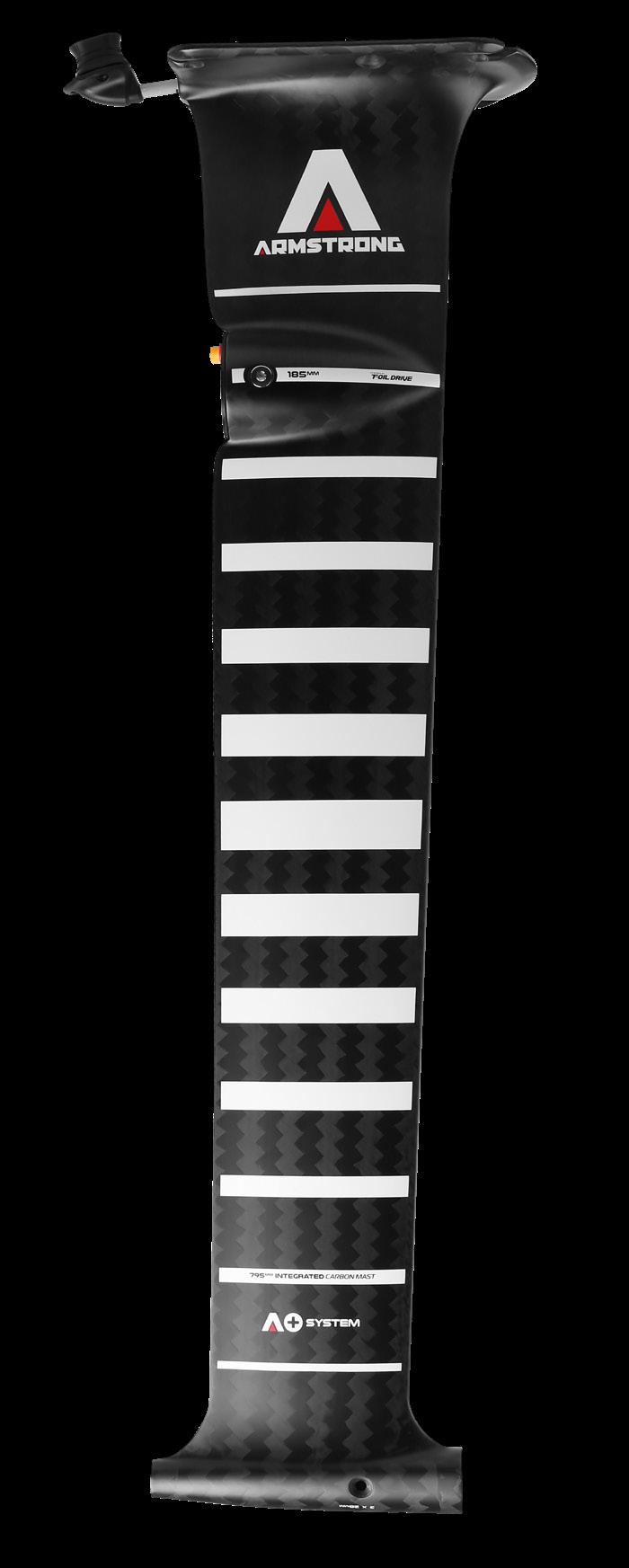

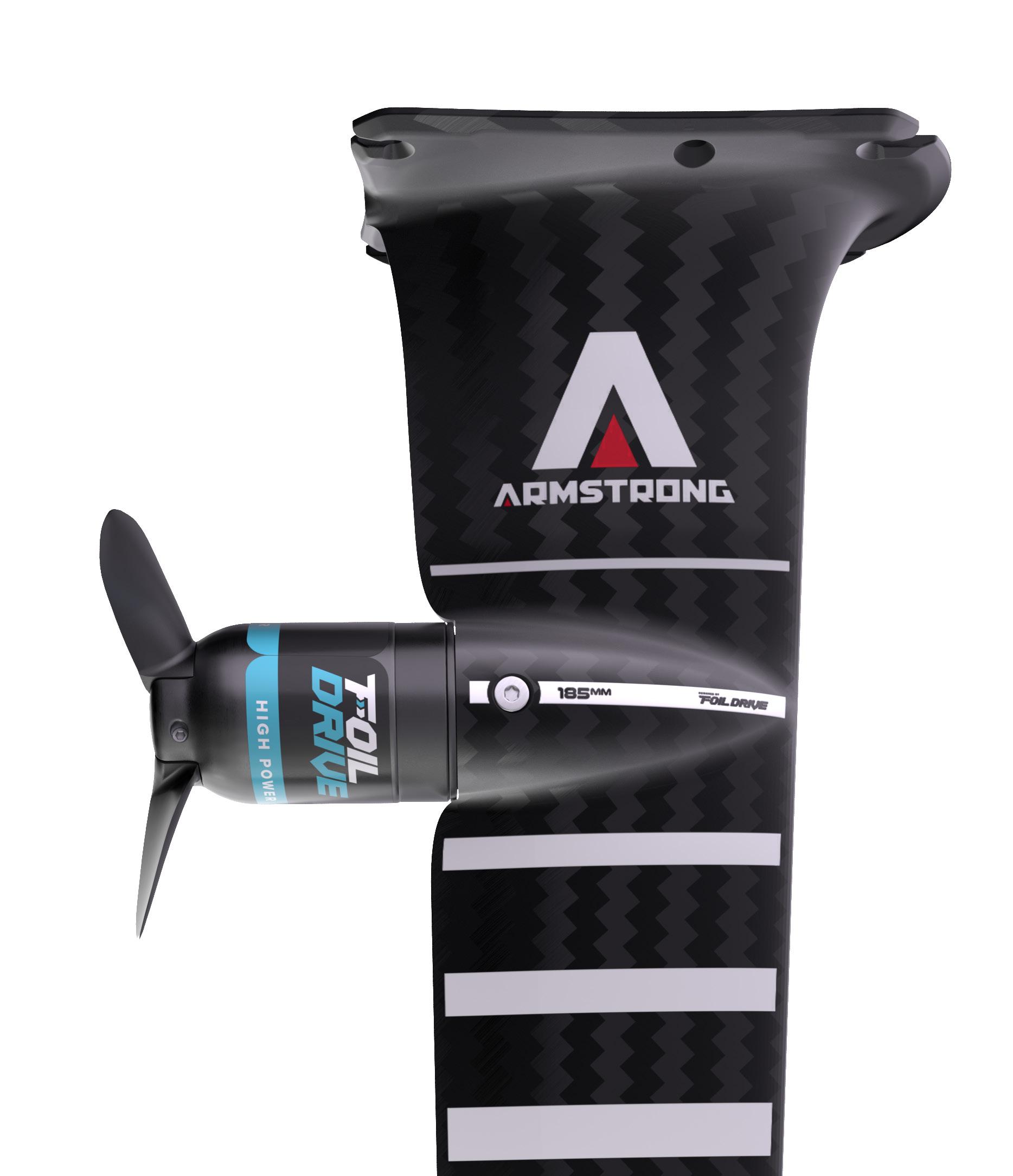

The 185mm motor pod position hits the sweet spot for most foil-assist disciplines, low drag, wellbalanced, and basically invisible once you’re on foil. While some advanced riders prefer to mount it closer to the board, and beginners stretch it out to 220mm for extra margin, 185mm remains the goldilocks zone for everyday versatility.

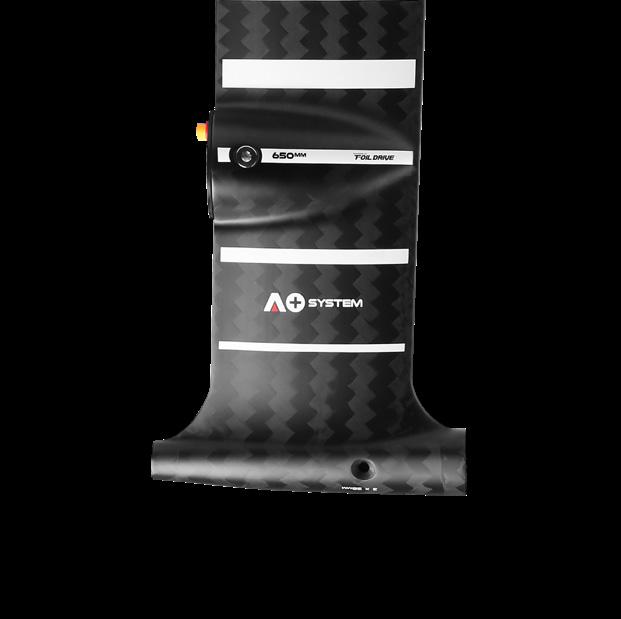

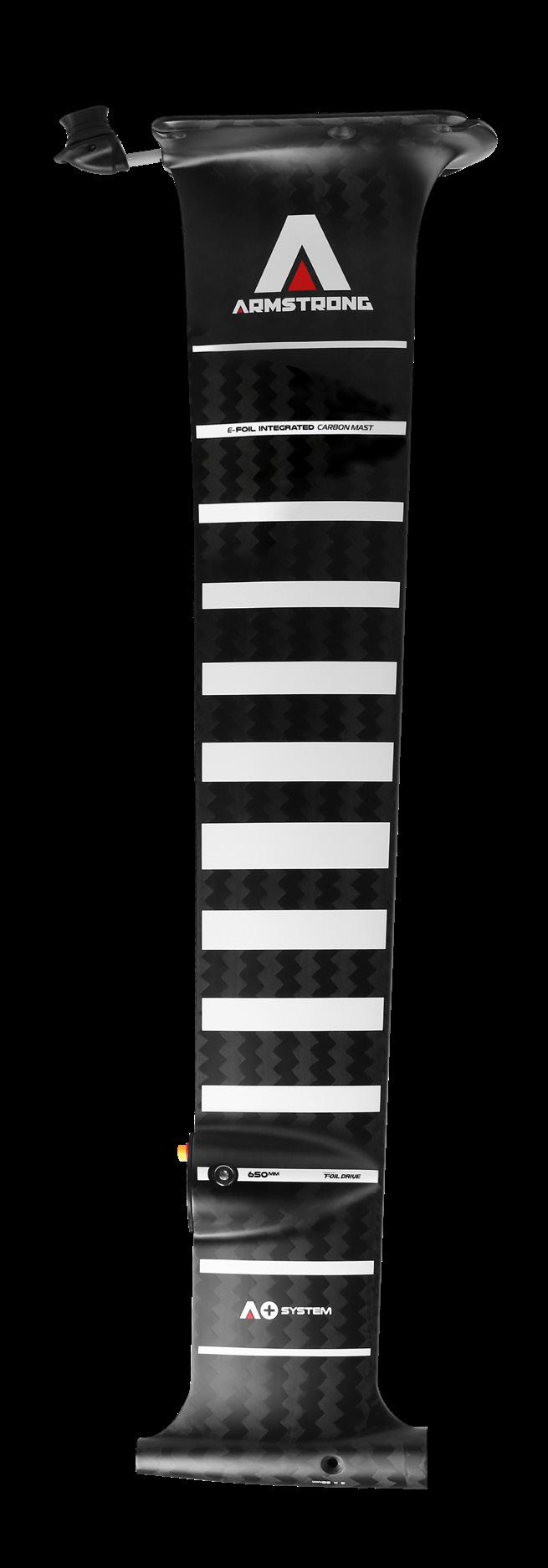

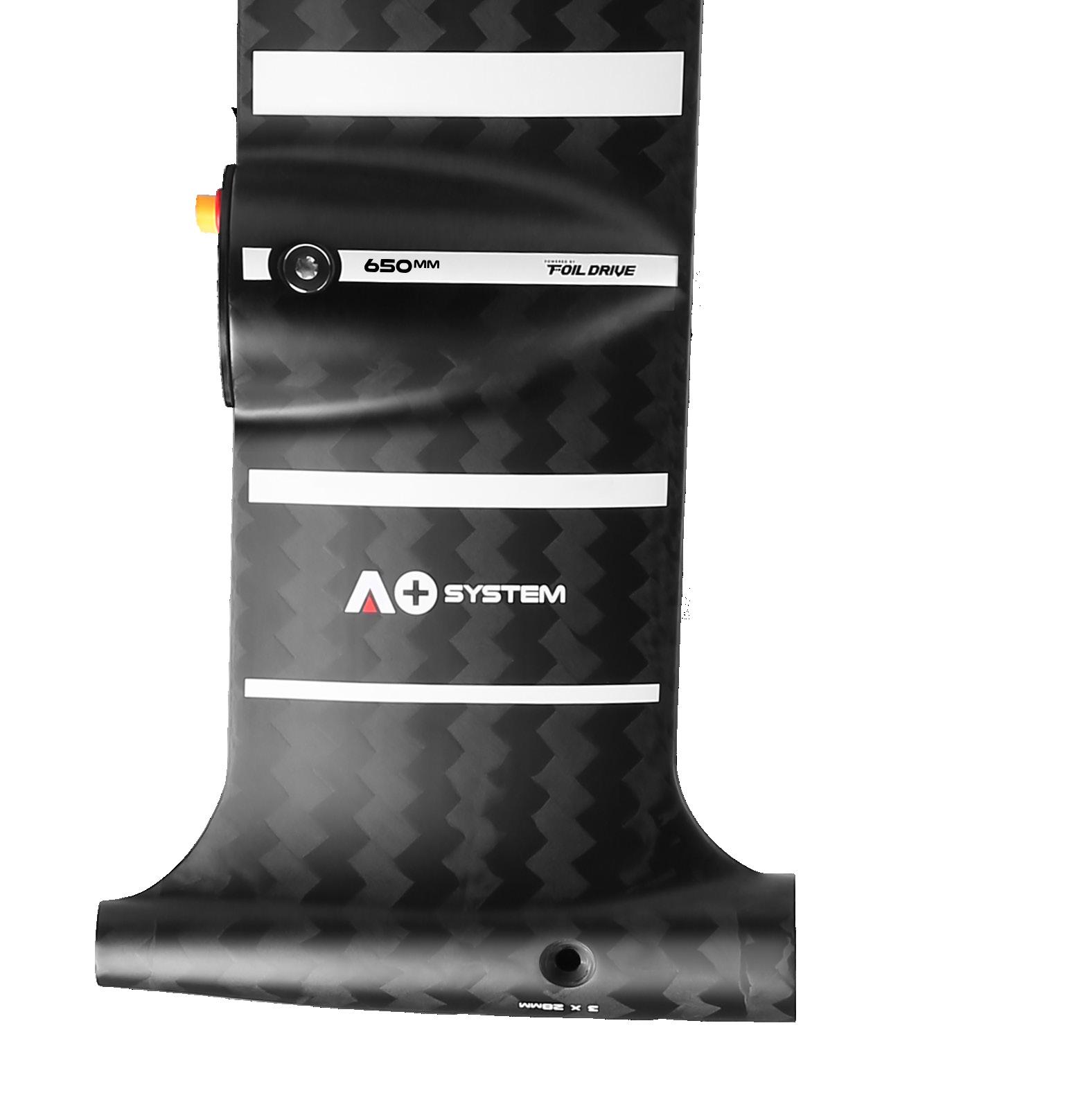

Meet the next evolution in powered foiling. The E-Foil mast drops the motor pod to 650mm for consistent submersion and full-time motoring.
CARBON MAST
FORWARD-SET
Motor-pod

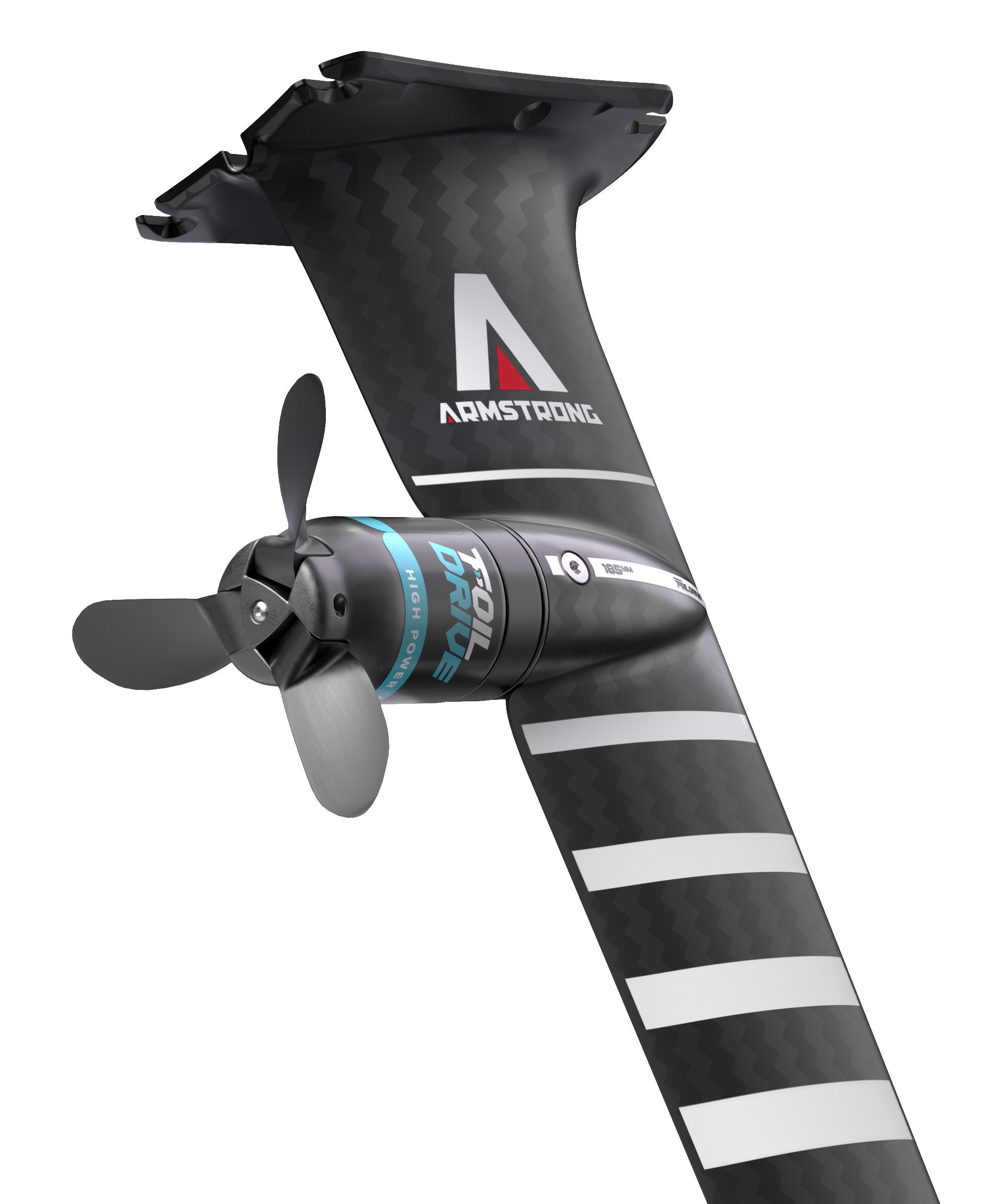

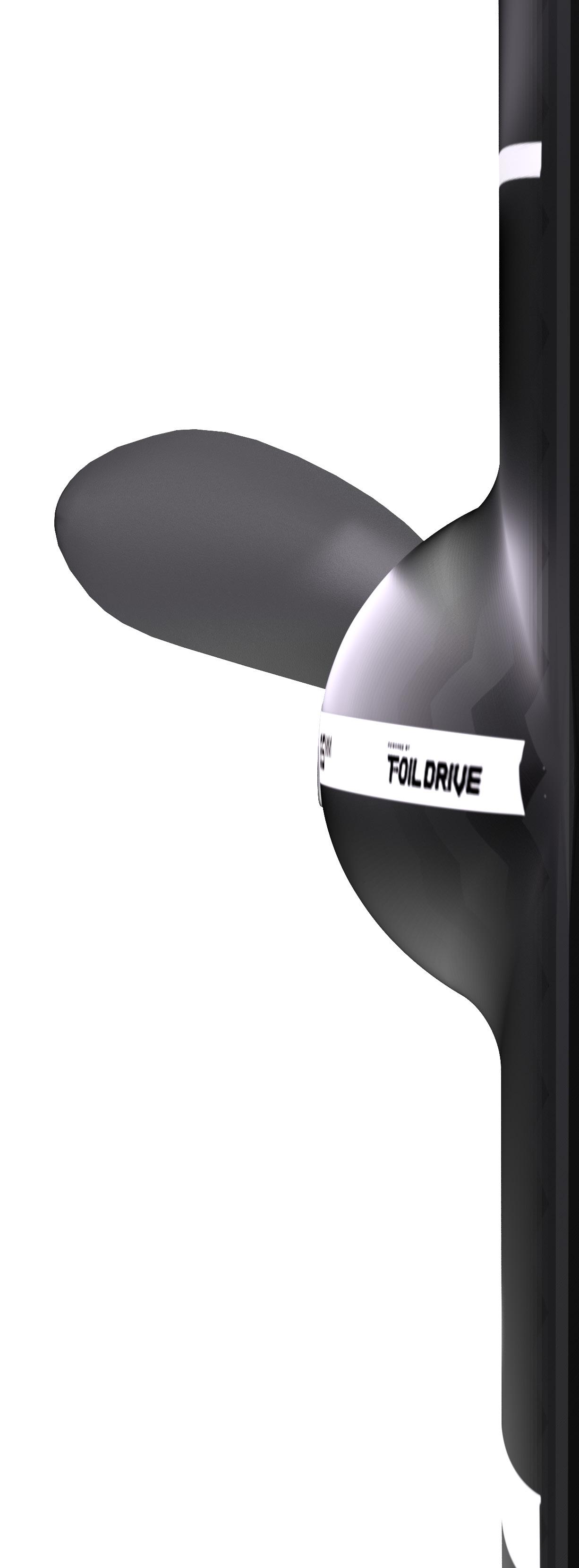

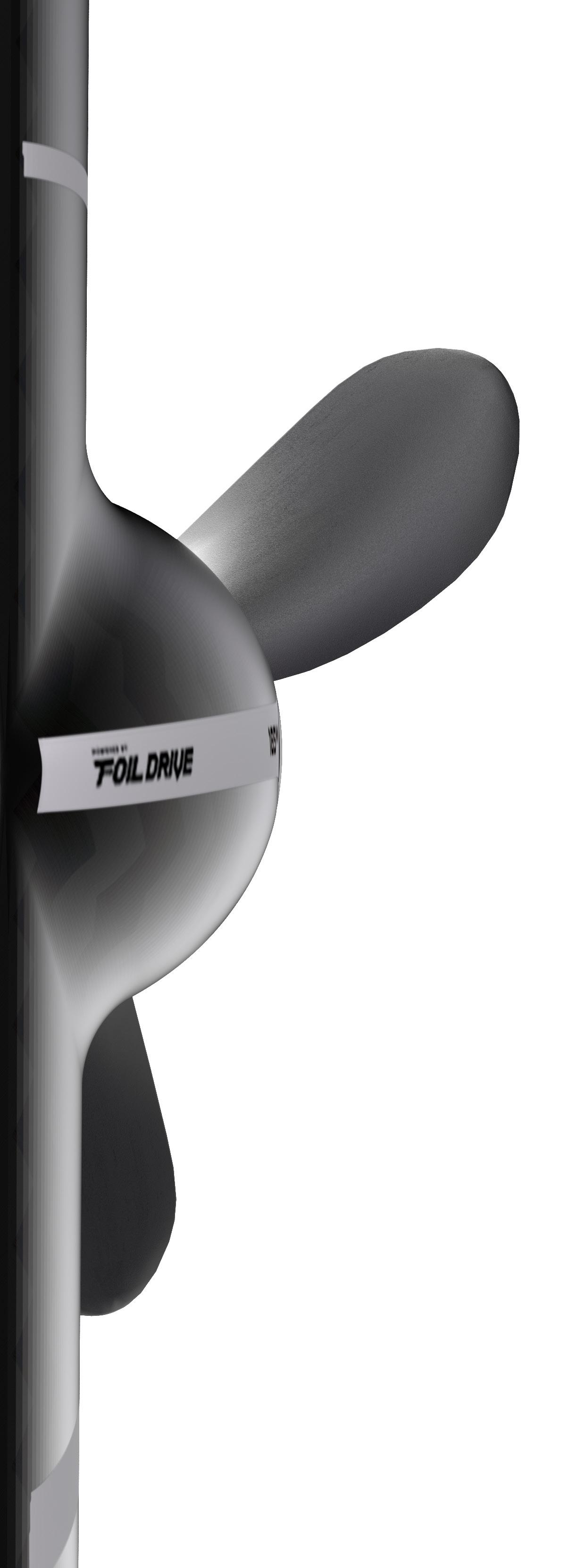

Positioned further forward than typical motor mounts, the forward-set pod means the motor is as far forward as possible to reduce lifting torque and deliver smoother takeoffs and touchdowns.
A+ SYSTEM
The ultimate modular foil assembly system.

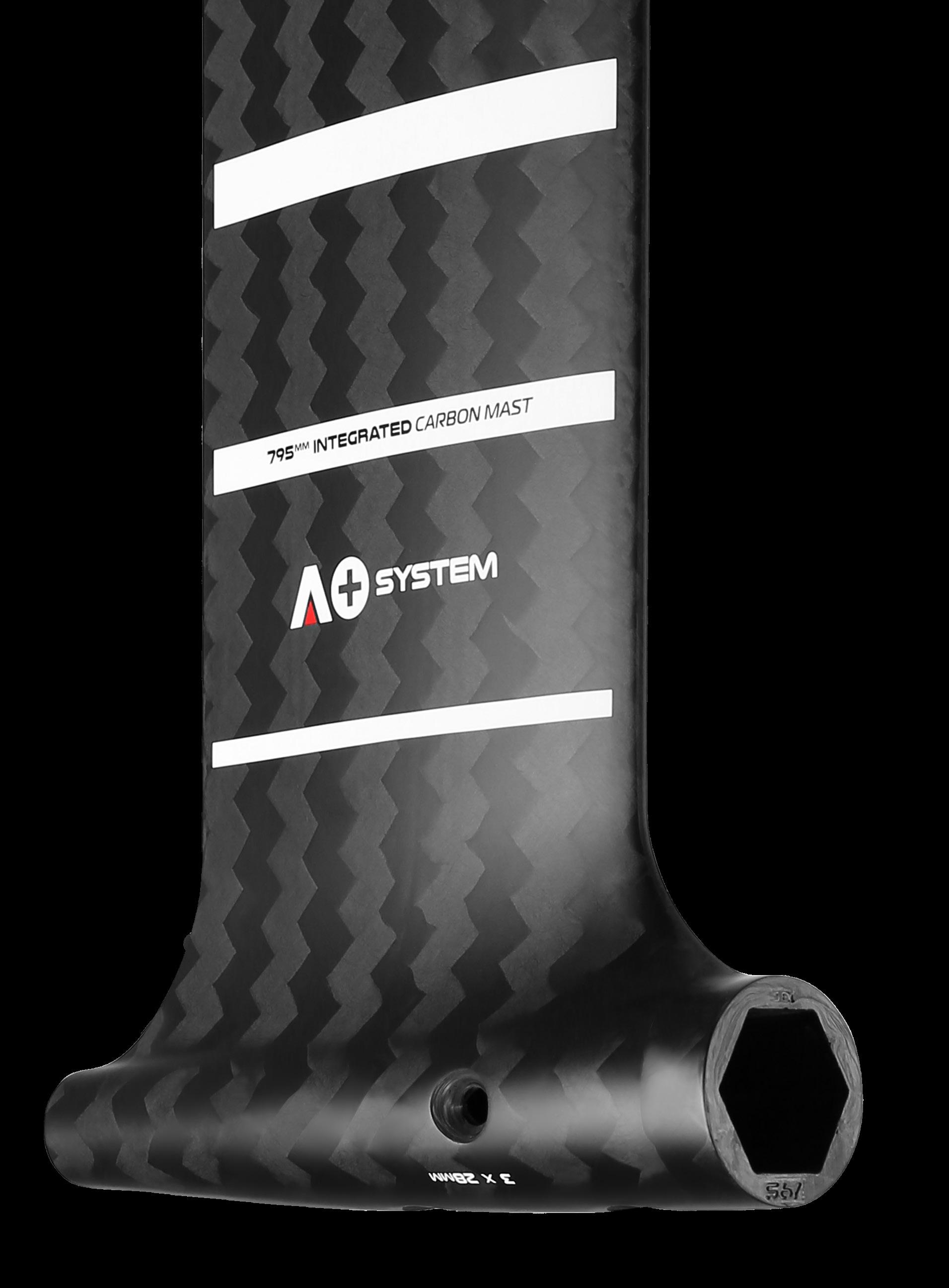

The A+ System is our proprietary foil assembly designs that join the mast, fuselage, front foil, and stabilizer with a hexagonal tapered fit into the front foil. This design is incredibly strong, torsionally rigid, and durable when combined with our material selection. Paired with our premium titanium and stainless steel hardware, corrosion is minimized and the whole package has an industry-leading fit and finish.
CARBON MAST
TOP TIER CONSTRUCTION
Ultra precise feedback

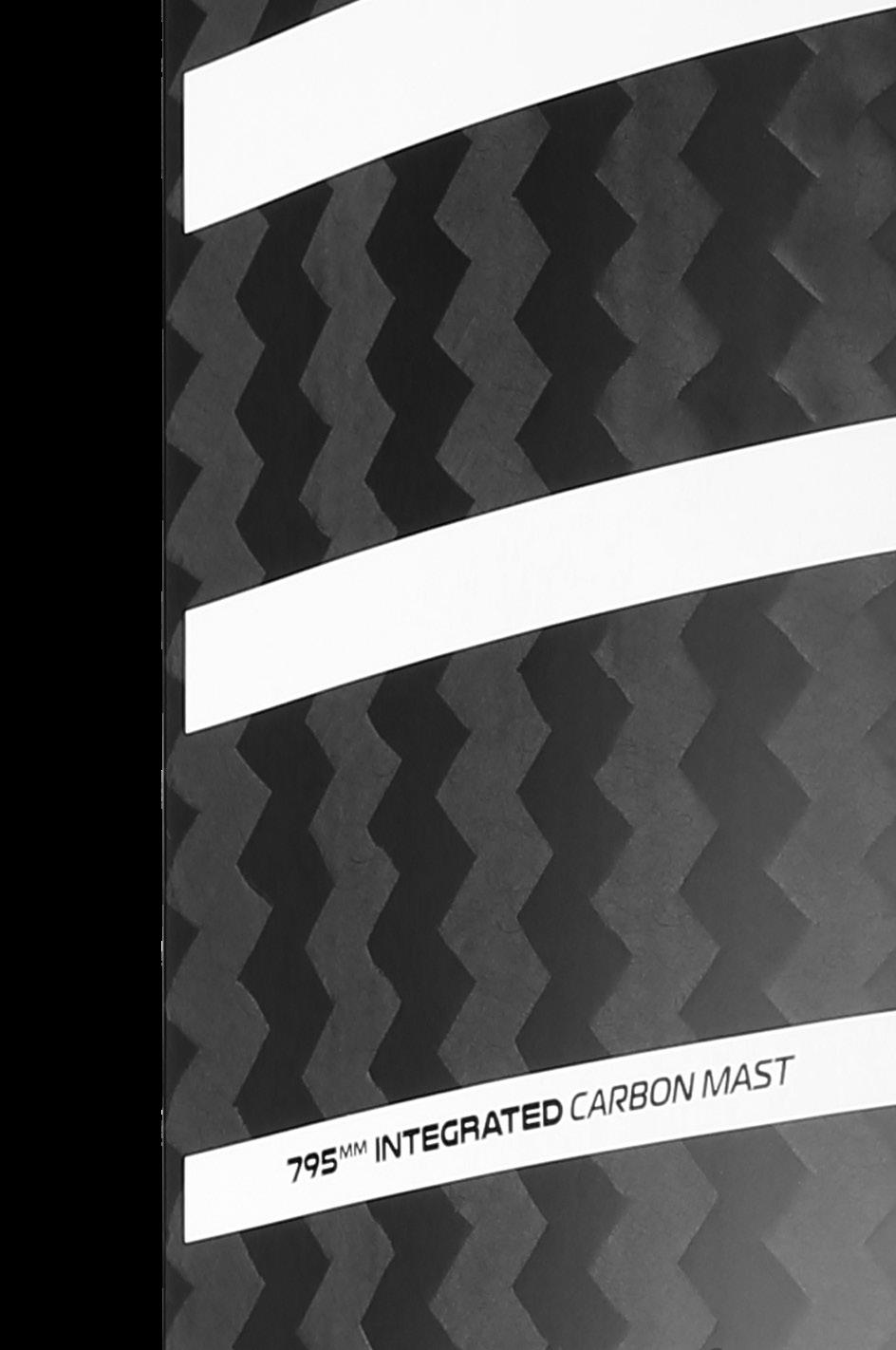

Manufactured with Toray high modulus carbon fiber and finished to the same spec as our Performance Masts, this mast is built to handle real-world torsional loads without flinching meaning you get high stiffness, low flex, and ultra-precise feedback whether you’re pumping through bumps or carving through sections.
Premium Toray high and intermediate modulus carbon fiber.
FEATURES
Fully Integrated Clean and integrated cable routing.
Forward-set motor pod
Foil Drive motor pod position for reduced drag and improved lift.
Toray carbon fiber
Premium high modulus Toray carbon fiber for exceptional stiffness and light weight.
Premium Hardware
Titanium and 316L stainless steel hardware throughout.
The original Armstrong HEX connection.
MAST LENGT H
E-FOIL
ARMSTRONG INTEGRATED MAST - PARTS INCLUDED
Integrated Foil Drive Motor Cable Motor Plug Protector

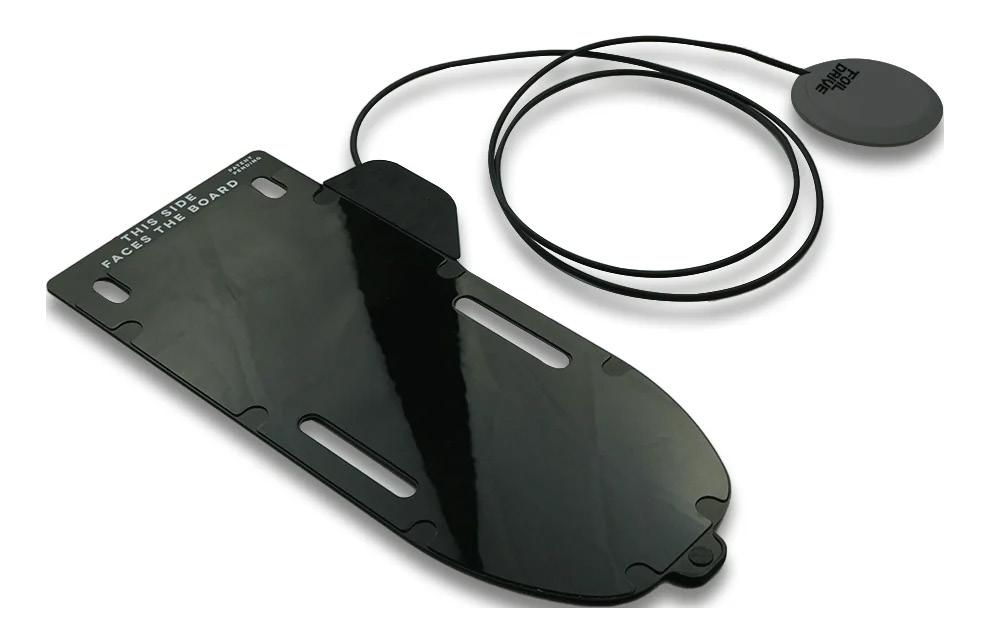

Integrated Puck with O-Ring
Puck Hardware
4 x M4 10mm 316 Dome Head Screw
1 x M5 52mm Ti CSK Screw
1 x M5 20mm Ti Barrel Nut
Extras
T30 Torx Tool
Mast Cover
Not Included
Foil Drive Motor
Armstrong Fuselage
Mast Top Plate Hardware
Sold Seperately 2 x M8 16mm 316 Ti Coating CSK Screw (T40 torx head)
4 x M7 79mm Titanium Mast Top Screws 4 x Titanium T-Nuts
Mast Bottom Hardware
3 x M6 28.5mm CSK Screw
1 x M6 Barrel Nut
FOIL DRIVE REQUIRED PARTS
To complete your Armstrong Mast
FD255 - Integrated Mast High Power Motor
(Includes: Rotor, Stator, hub and Three Blade Propellers)

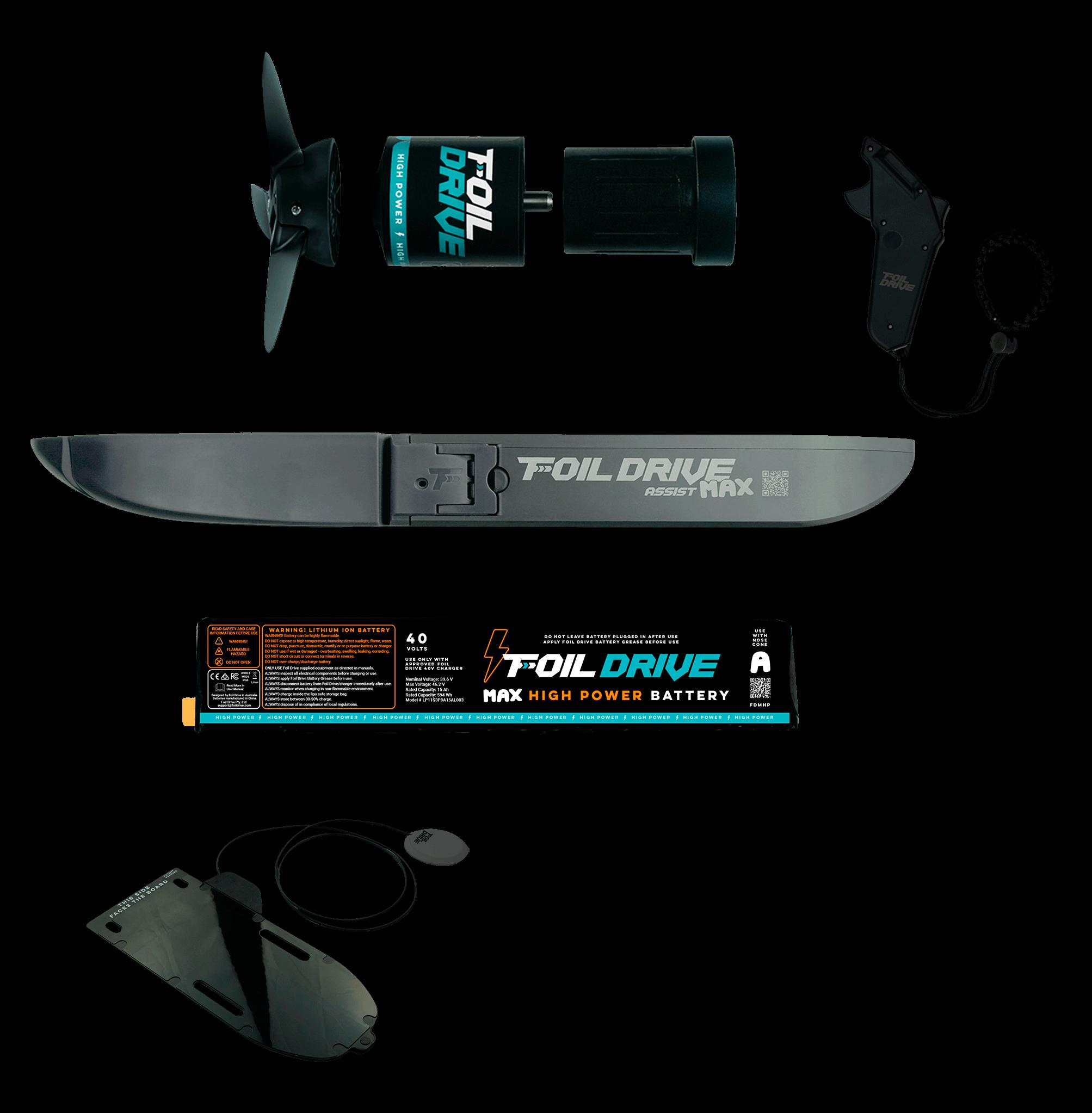

To build a complete Armstrong x Foil Drive Kit
Motor:
FD255 - Integrated Mast High Power Motor
(Includes: Rotor, Stator, hub and Three Blade Propellers)
System:
FD100 - Assist MAX Base Kit
(Note: The mast is also compatible with the Slim)
Battery:
FD213 - Assist MAX High Power Battery
(Note: Other battery options available and do vary depending on which system you select)
Compatibility
Only V2 motors will work with the mast.
Compatible with Standard and High Power Motors. Compatible with two blade props.
The Armstrong carbon masts will NOT be compatible with any Gen1 Foil Drive Systems (Assist or Assist PLUS).
Compatible with:
Foil Drive Assist MAX
Foil Drive Assist Slim
CARBON MAST
FOIL ASSIST RECOMMENDED SETUP
E-FOIL RECOMMENDED SETUP
