Spotlights For Distributors

Arm Protective Packaging’s

s t h g i l t Spo F Distribut s

ARMOR Training

Activities

Taking the work out of your

workday!

About ARMOR Armor Protective Packaging® manufactures rust prevention and rust removal products that are clean, safe and easy. To protect metal and metal parts, we produce ARMOR VCI Nanotechnology™ -- that’s the formal name for our “secret recipe” of rust-preventing vapor corrosion inhibitors. ARMOR combines its VCI with materials such as paper or poly film, to create packaging supplies that offer the added benefit of rust prevention. Simply wrap or enclose metal parts in any ARMOR VCI product and quickly the VCIs kick into action to create a blanket of protection on the surface of metal that repels rust.

ARMOR has been eradicating rust for customers from around the globe for more than 40 years with its arsenal of products that include VCI paper, film, and emitters; as well as desiccants and rust prevention/ rust remover liquids. At ARMOR, our goal is to “Take the Work Out of Your Workday!”

What is VCI?

VCI is an acronym for Vapor Corrosion Inhibitor. When you combine VCI compounds with ferrous or non-ferrous metal in an enclosed space like a bag, container, tool box, or storage bin, something magical happens. VCI molecules are released and they are attracted to the surface of the metal just like a magnet.

Even more amazing, the VCI molecules attach themselves to the surface of the metal and they form a thin, protective shield. Just imagine, it is like covering metal or metal parts with a warm, cozy blanket that keeps the rust away.

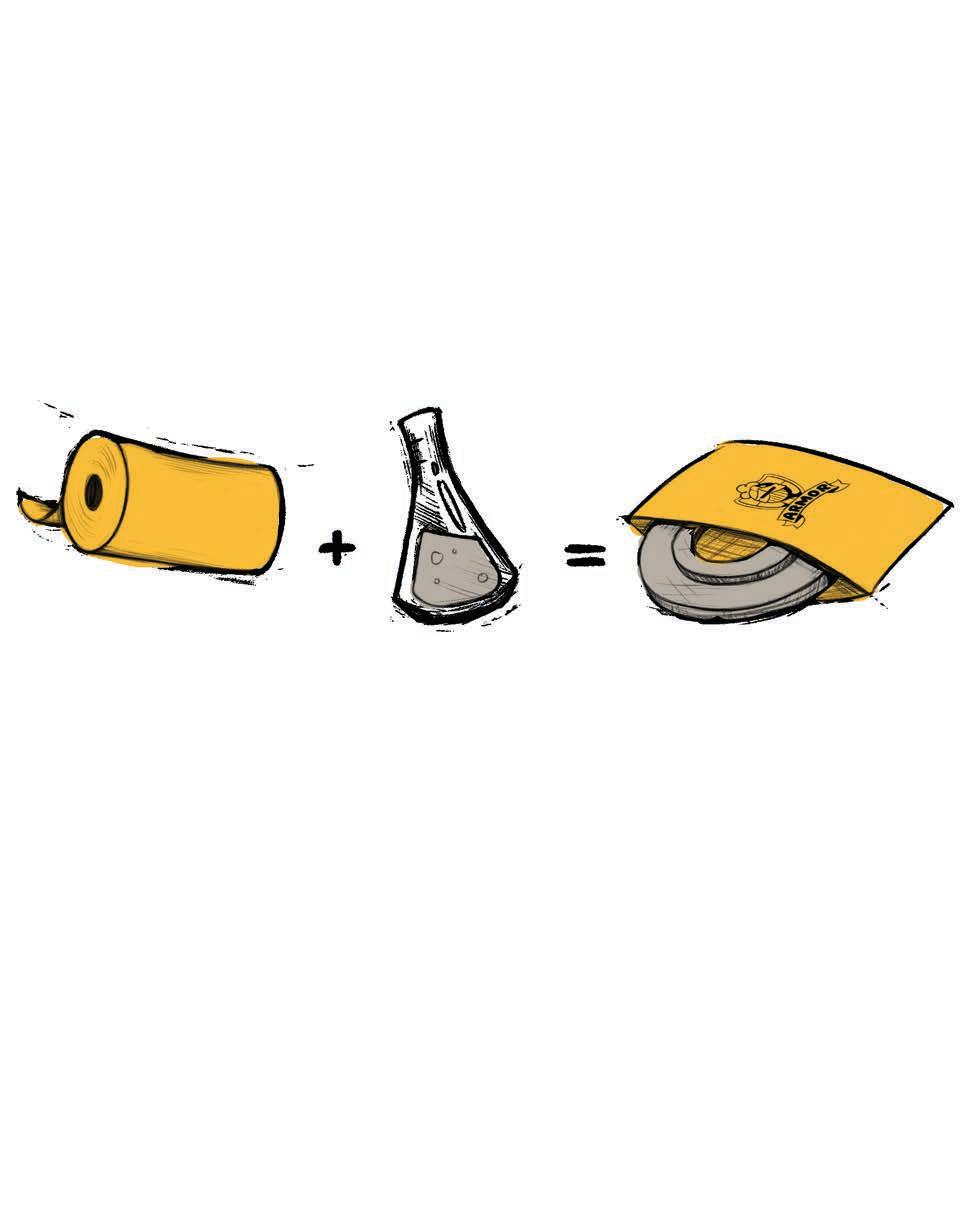

At ARMOR we have our own secret formula of VCI -- we call it ARMOR VCI Nanotechnology™. We combine ARMOR VCI Nanotechnology with materials like paper, poly film, foam or chipboard, to create packaging materials that protect metal or metal parts while they are in process, in storage or while they are being shipped. What makes ARMOR products so great is that they are a clean, safe and easy replacement for other common rust prevention methods like messy grease, oils or other protective coatings. Using VCI products to protect metal/metal parts also saves on time, materials and money, and they do what ARMOR does best: “Take the Work Out of Your Workday!”.

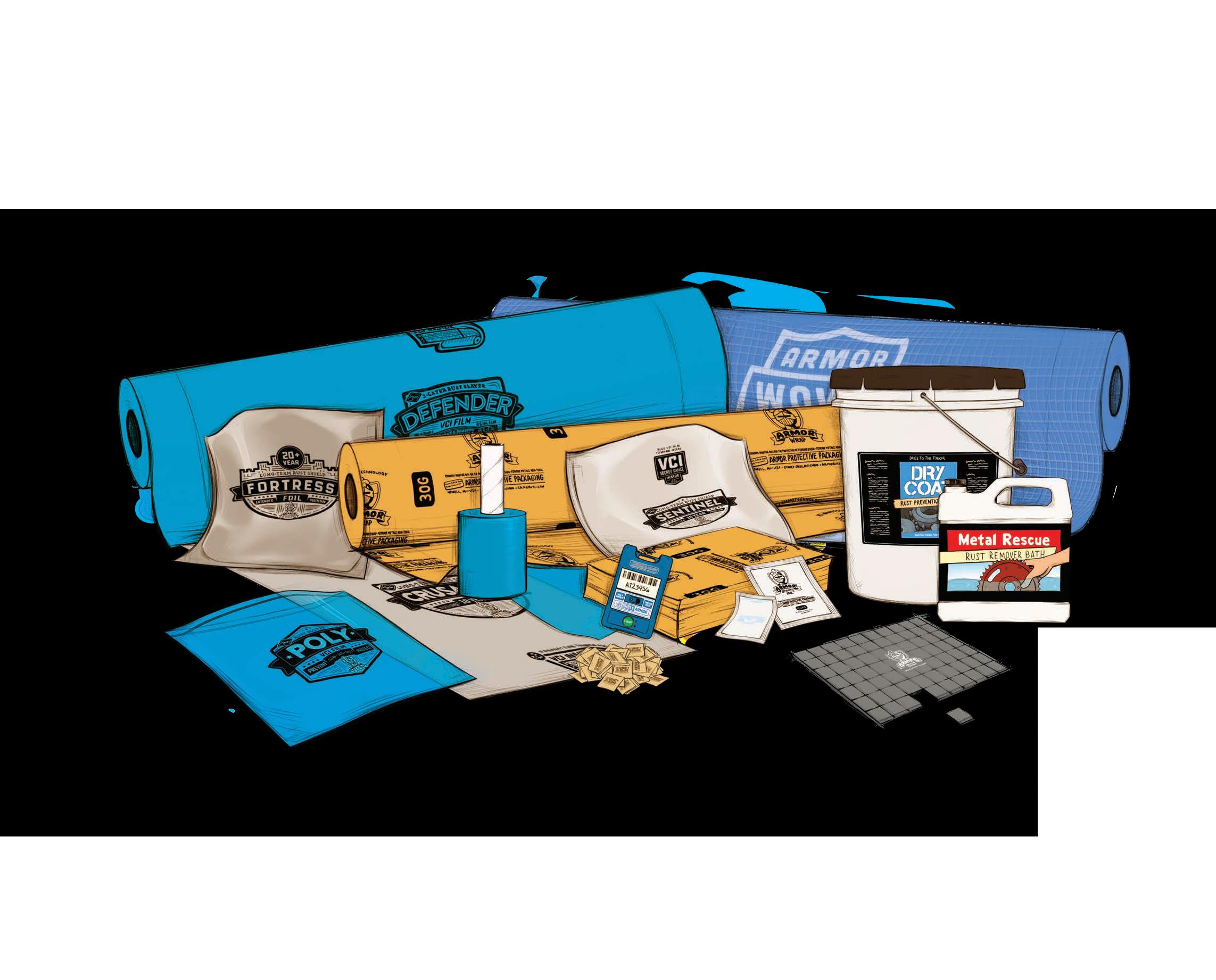

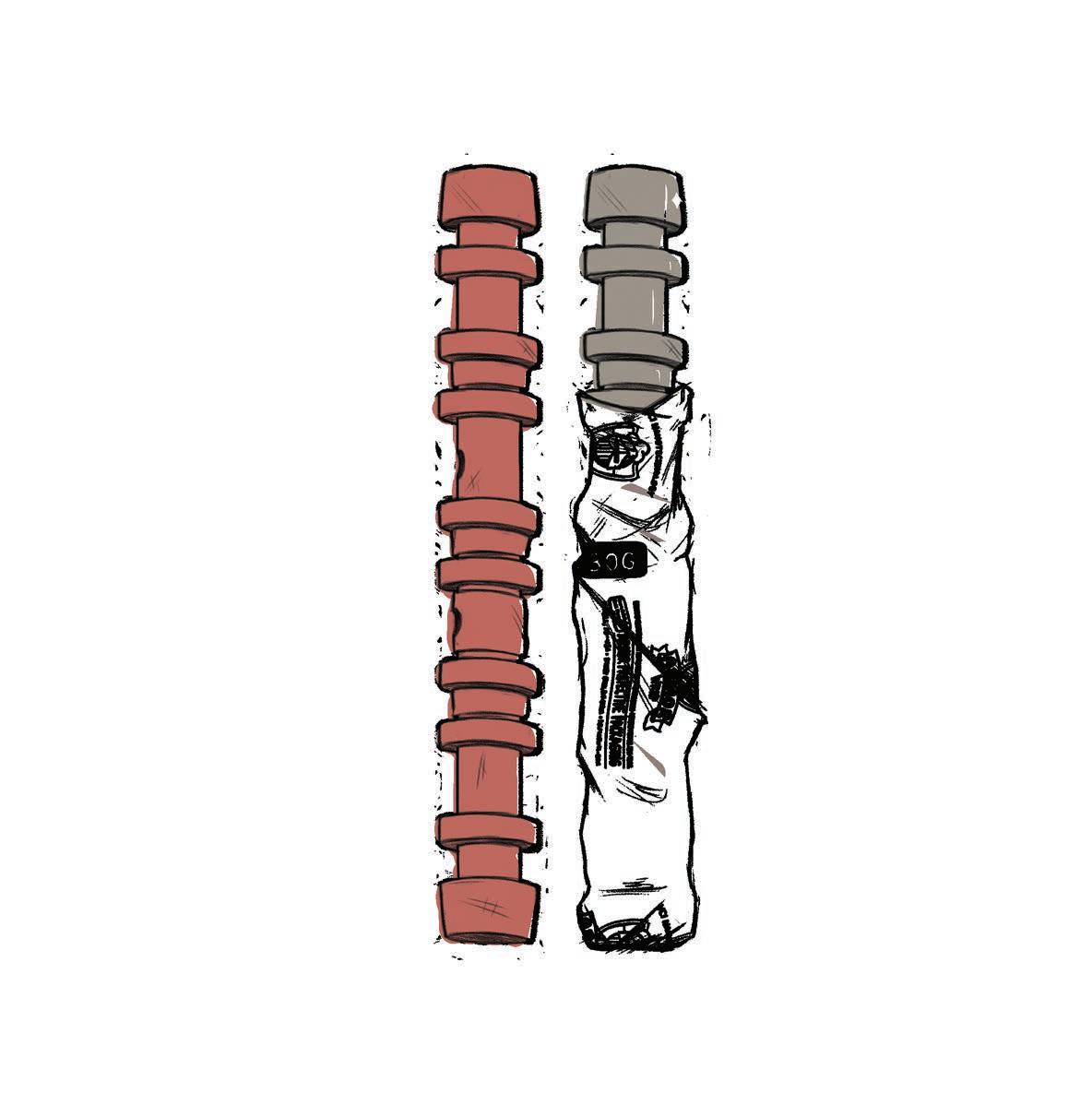

ARMOR Products Name That Product!

Word Bank 1 VCI Stretch Film 2 Narrow Stretch Film 3 SMARTY PAK 4 Shield CF33 Emitter 5 Dry Coat RP 6 ARMOR POLY Film 7 VCI Chipboard Emitter 8 Metal Rescue Bath 9 ARMOR WRAP Paper 10 ARMOR WRAP Paper 11 ARMOR WRAP Paper 12 CRUSADER VCI Film 13 Metal Rescue GEL 14 FOUNDRY Film 15 VCI Foam Pads 16 Desiccants 17 DEFENDER VCI Film

ARMOR Products Name That Product! ANSWERS 17 9,10 or 11

9,10 or 11

2 12

9,10 or 11

6

15 4

7

Word Bank 1 VCI Stretch Film 2 Narrow Stretch Film 3 SMARTY PAK 4 Shield CF33 Emitter 5 Dry Coat RP

1

14

6 ARMOR POLY Film 7 VCI Chipboard Emitter 8 Metal Rescue Bath 9 ARMOR WRAP Paper 10 ARMOR WRAP Paper

8 16

3

5 13

11 ARMOR WRAP Paper 12 CRUSADER VCI Film 13 Metal Rescue GEL 14 FOUNDRY Film 15 VCI Foam Pads 16 Desiccants 17 DEFENDER VCI Film

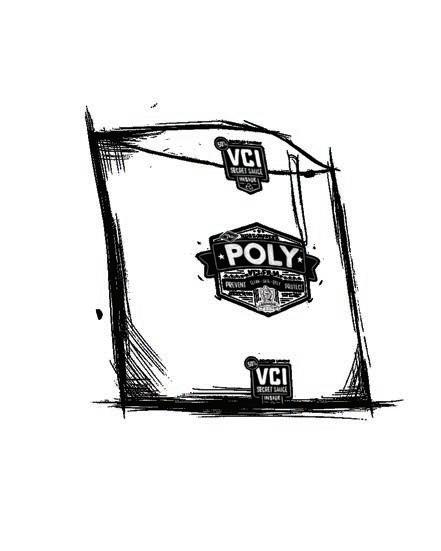

ARMOR Products VCI Films ARMOR POLY® Description Rust-preventing film, made of high-tech resins, protects ferrous and non-ferrous metals both as a physical barrier against the elements and emits ARMOR VCI Nanotechnology™ which forms a protective shield on surface of the metal that repels rust.

Benefit Easy-to-use; reduces materials and labor costs; available in rolls, sheeting, bags and tubing.

Application Protects metals while in process, in storage on in transport.

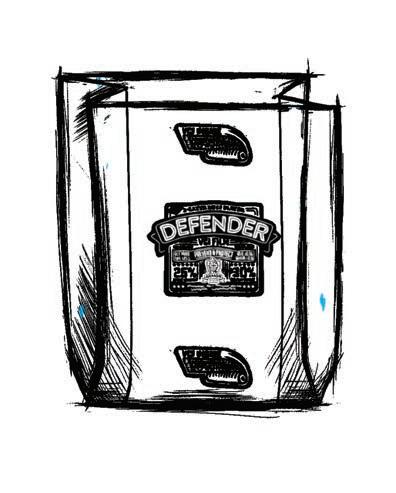

DEFENDER™ Description Multi-layer film designed for rust prevention, barrier protection and increased puncture resistance.

Benefit Unique construction positions ARMOR VCI on the inside layer closest to metal parts; offers high performance using less material; saves on cost.

Application Provides a tough physical barrier against the elements and long-term protection for metals in storage or shipping.

CRUSADER™

FOUNDRY Film™

Description Premium, multi-layer film protects metals even in extreme conditions and/or long-term storage.

Benefit Unique construction allows for added strength; durable moisture barrier; and positions ARMOR VCI on the inside layer closest to metal parts.

Application Best for metal parts/equipment exposed to the elements in storage or export or for longterm storage.

Description Film that protects metal from the hot/humid conditions in metal foundries, stamping plants, and machine shops.

Benefit Strong/puncture resistant, made partially from recycled material for increased performance at a reduced cost.

Application Use bin liners, bags or sheets to protect small/odd-shaped metal pieces.

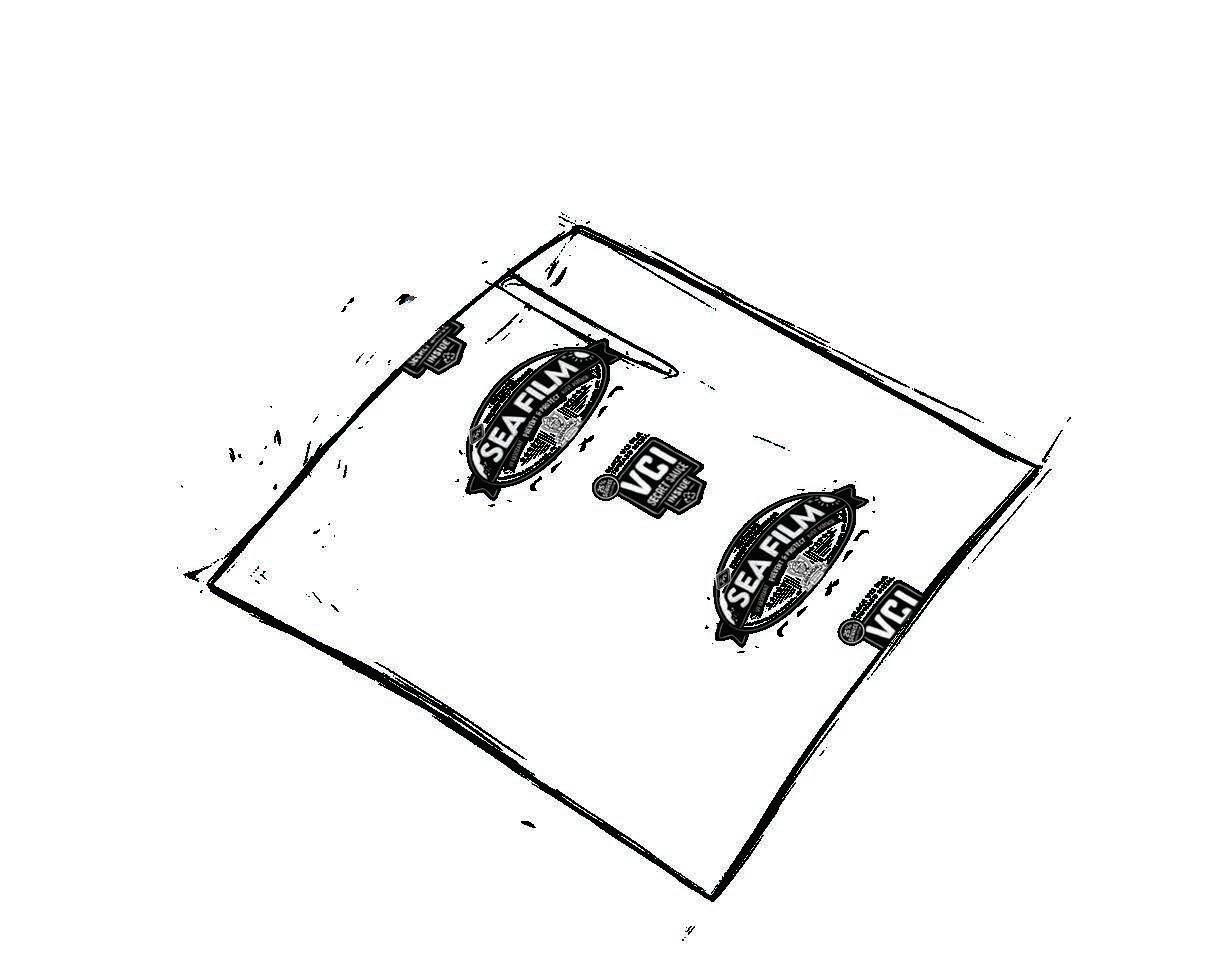

SEA Film™

Description Heavy duty, rustpreventing film protects metal from the harshest of outdoor conditions.

Benefit Strong physical barrier is UV resistant and designed to withstand outdoor exposure.

Application Made for use in outdoor storage or for prolonged exposure to severe conditions in overseas export.

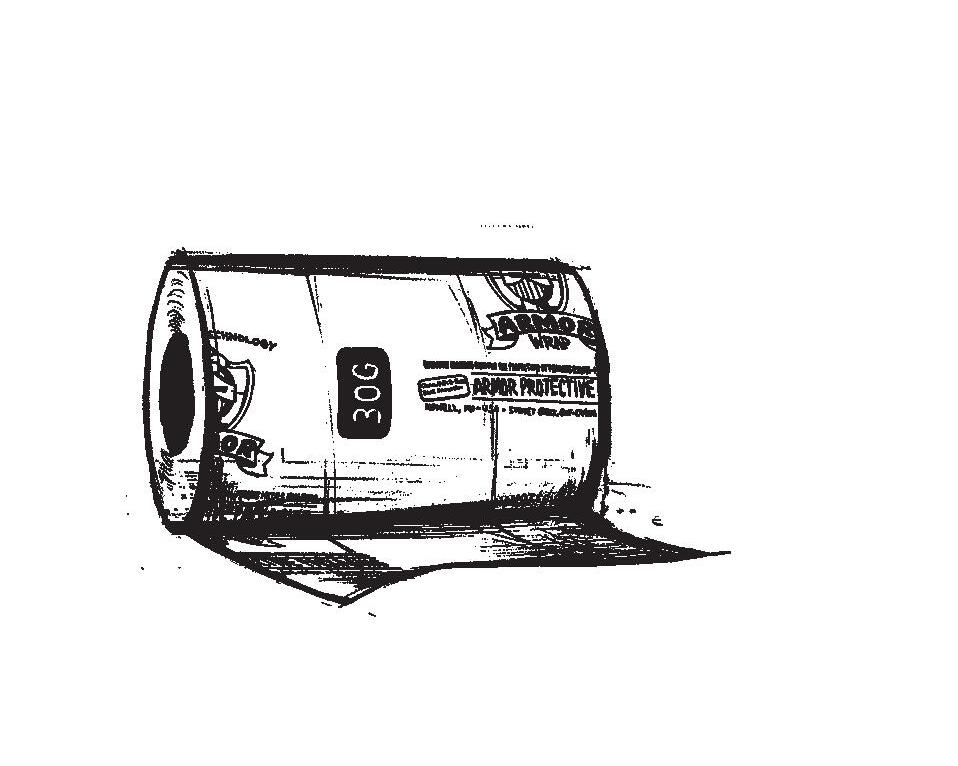

VCI Stretch Film VCI Paper ARMOR WRAP® Description This rust-preventing paper is infused with VCI (which stands for vapor corrosion inhibitor) on BOTH sides to eliminate confusion when applying. Wrap, enclose or interleave metal parts for clean, dry protection in storage or shipping.

Benefit Easy-to-use; environmentally safe, fully recyclable and repulpable, and offered in sheets or rolls of global, multi-metal protection and military-approved formulations.

Application Protects metals while in process, during shut downs or in storage, or in transport or shipping.

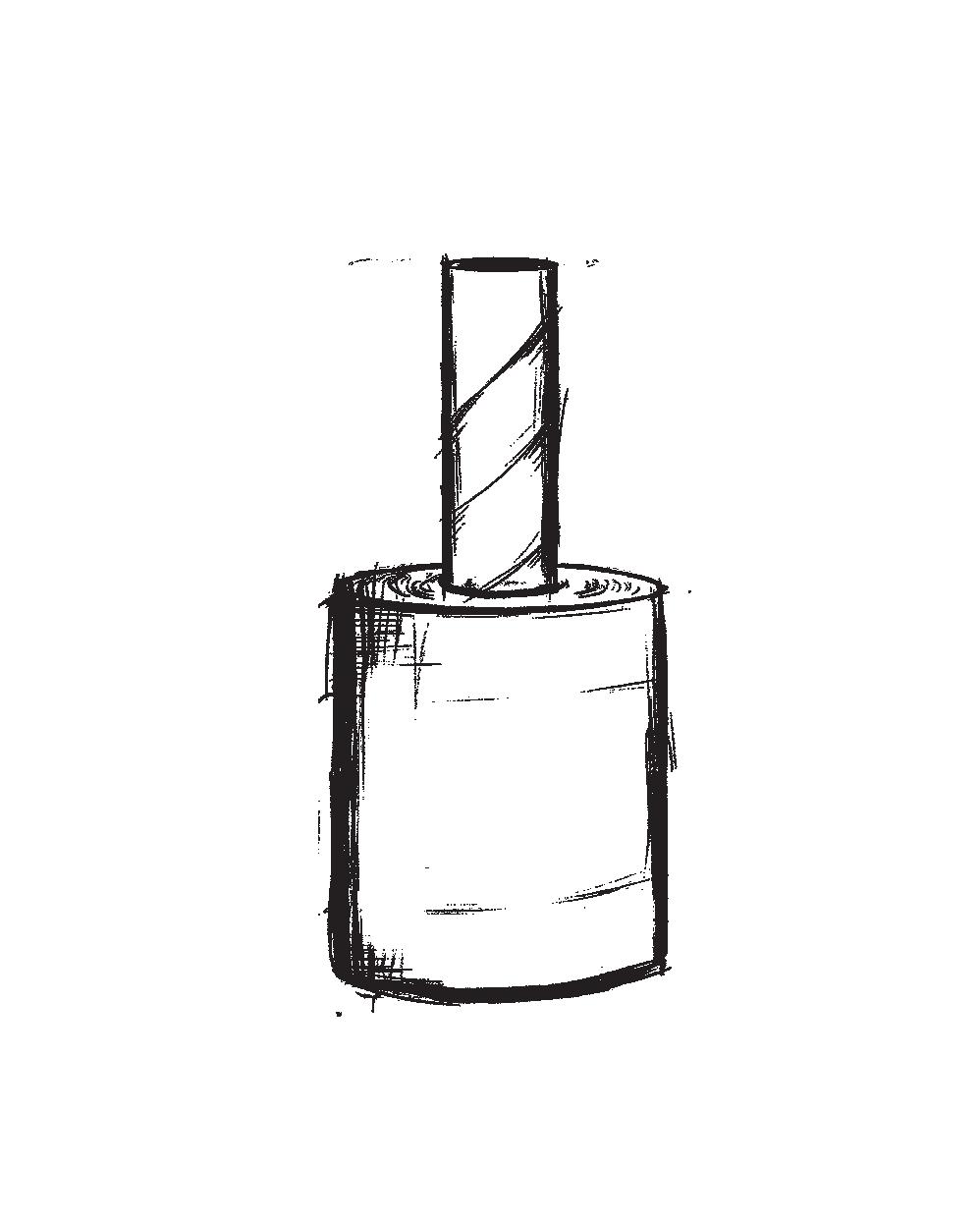

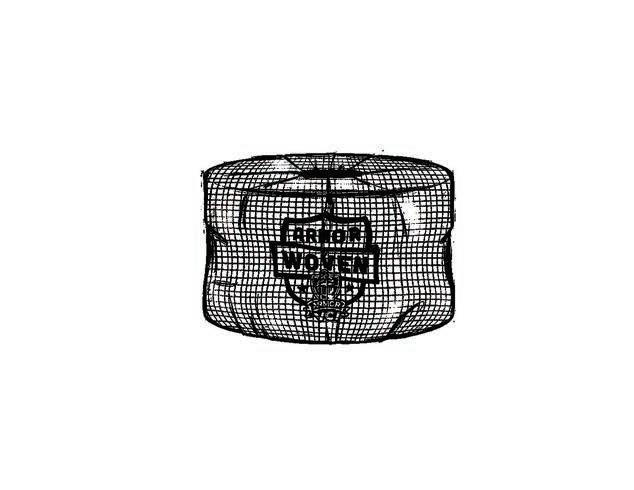

ARMOR POLY® VCI Stretch Film Description Double protect metal parts or metal cargo with ARMOR POLY® VCI Stretch Film to both secure parts with strong, punctureresistant stretch film and prevent rust and corrosion with VCI. Benefit Made using a premium stretch film that is durable, self-clinging, residue-free and recyclable.

Available in both a hand- and machine-grade, and contains the added benefit of ARMOR VCI Nanotechnology™ to protect cargo’s metal contents from rust and corrosion.

Application Wrap individual, large metal parts or equipment; band, bundle, fasten, tighten or unitize metal cargo on pallets, racking systems, or to enclose an entire container for shipping or transport.

Desiccants VCI + DESICCANT

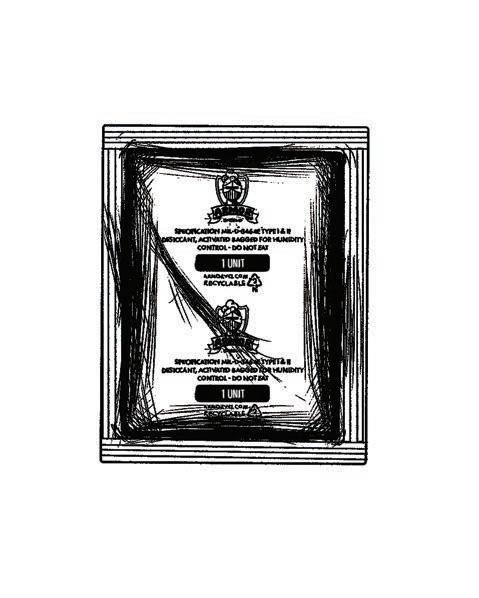

ARMOR SHIELD® Desiccants

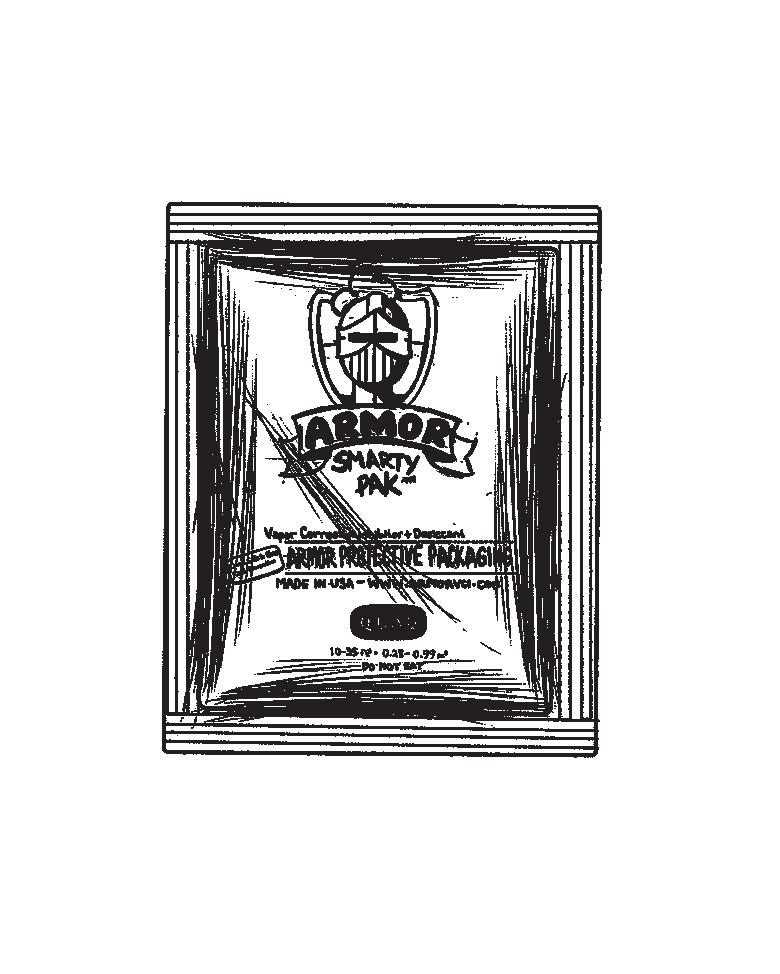

ARMOR SMARTY PAK™ Description The ARMOR SMARTY PAK™ is a supercharged, multi-tasking, rust-preventing powerhouse. SMARTY PAKs are one-part ARMOR VCI Nanotechnology™, which emit corrosion-inhibiting vapors to prevent rust, and one-part specialty desiccant to adsorb moisture.

Benefit Safe and easy-to-use; combined benefit of VCI and desiccant, mess-free and up to 24 months of continuous protection. Also comes in a variety of sizes including: NANO, MINI and QUAD. Application Use in environments were both moisture control and VCI are essential; nondusting and lint-free option when fibrous packaging materials are not allowed; protect metal/metal parts when packaged, during storage or in transport.

Description Desiccants are drying agents used to reduce the humidity and moisture in an enclosed space.

ARMOR offers desiccants that range in size from .5 grams to 2,500 grams in clay, silica gel or calcium chloride.

Benefit Safe and easy-to-use, both adsorbs moisture and holds on to it-desiccant does not re-release it; reduces and maintains lower humidity level within packaging for an extended period of time.

Application Use for moisture management during short or long-term storage of metals or during domestic shipping or export.

Rust Preventative (RP) Liquid

VCI Emitters ARMOR VCI Emitters Description ARMOR infuses a range of carriers such as polyurethane foam or chipboard with VCI Nanotechnology™ to create a line of rustpreventing emitters. When placed in an enclosed space, ARMOR emitters give off VCI to create a blanket of protection on the surface of ferrous and non-ferrous metal to repel rust.

Benefit Clean, safe and easy-to-apply; foam-pad emitters offer added benefit of cushion; VCI chips are infused on both sides for ease of use.

Application Protect small/fragile metal parts or electronics in packaging, cabinets, closed bins, boxes, storage and/ or shipping containers during inventory storage or shipment.

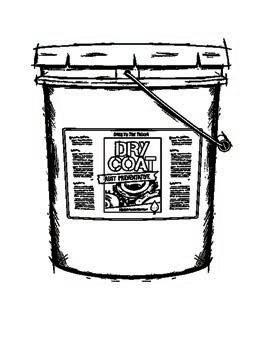

Dry Coat™ Description A water-based rust preventative for ferrous metals. Once applied to the surface of metal, Dry Coat dries-totouch leaving a clear, protective coating that is not sticky or tacky and protects metal stored indoors for up to one year.

Benefit Clean application; eliminates messy and hazardous oils and solvents; does not attract dirt or dust; reduces cost of labor and materials.

Application Spray, dip or flow coat Dry Coat on metal parts and when dry, it provides a clear, tackfree finish that is nearly undetectable. Does not interfere with advanced processing such as stamping, grinding, cutting, welding or burnishing.

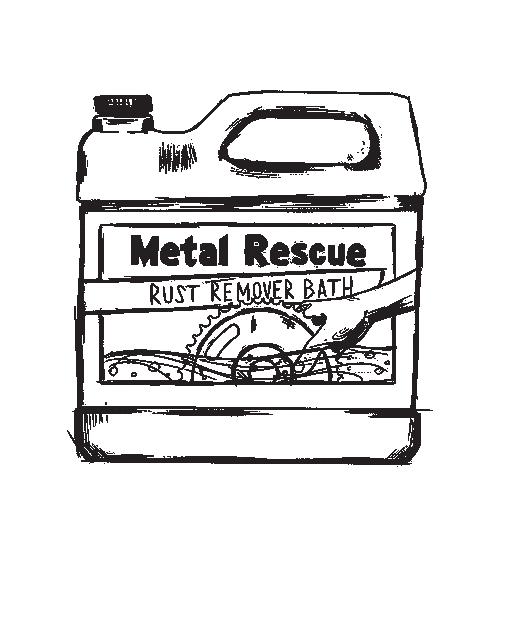

Metal RescueÂŽ GEL Rust Remover Liquid/GEL Metal RescueÂŽ BATH Description Metal Rescue is a water-based rust remover designed for use with ferrous and non-ferrous metals. Designed to be used as a bath or a soak, it works on all levels of rust from light-to-heavy and does not etch or remove properties of the metal.

Benefit Eliminates exposure to harsh acids or alkalis, no scrubbing or wire brushing needed; easy, simple, three-step process of soak, check, rinse/dry; fume-free and easy disposal; reusable and good for up to one year upon opening.

Application Ideal for end users who remove rust onsite or supply chain partners looking to provide valueadded service. Once rust has been removed, leaves clean, bare metal ready for use or additional processing. Safe on other materials such as rubber, elastomers, plastic, vinyl, wood, glass, clothing and skin.

Description Metal Rescue GEL is your on-the-spot rust remover -- it is formulated to cling to metal. Designed to remove spot rust from iron and steel, GEL’s citricacid based formula is unique -- does not contain any harmful or corrosive acids, alkalis, or solvents.

Benefit Highly adhesive formula is simple to apply; no need to scrub, dip or wire brush. GEL is ideal for use on spot rust, vertical surfaces or rust in hard-to-reach areas. Controlled application eliminates waste and the risk of harming the area around the rust.

Application Ideal for end users who remove rust onsite or supply chain partners looking to provide value-added service. GEL does not compromise mechanical properties or functionality of metal. Once rust has been removed, result is clean, bare metal ready for use or additional processing.

Markets ARMOR products can be used for any metal application...

Automotive

Aerospace

Industrial

Jewelry

Marine

Agriculture

Construction

Export Musical Instruments

Electronics

Steel Processing

If you sell to a company who produces or packages METAL PARTS an opportunity exists!

People To Talk To:

Quality Department

Purchasing Manager

Tool Crib Manager

Facilities Manager

Packaging Engineer

Manufacturing Engineer

Shipping/Receiving Manager

Step 1 Find the Rust!

•

Have you experienced any rust issues either with metal parts coming in or metal parts going out?

•

Do you experience any rust during WIP (work in process)?

• •

Do you experience rust issues when metal parts are stored at your facility or off-site at a customer’s facility?

The big question of the day … (drumroll please): What are you doing to PREVENT rust?

IF You are Using VCI to prevent rust…

You’re one smart cookie! VCI (that’s short for Vapor Corrosion Inhibitor) is the clean, safe and easy-to-use approach to rust prevention. At ARMOR, we have our own secret formula of VCI – we call it ARMOR VCI Nanotechnology™ -- and we combine it with materials like paper, poly film, foam or chipboard, to create rust-prevention packaging that protects metal parts while they are in process, in storage or in shipment. Using VCI to protect metal/metal parts means you can say goodbye to the mess, risk, and labor of using oil, grease or solvent-based RPs and say hello to the sweet savings of time, materials and money!

A member of the ARMOR Team would be happy to assist you with any questions, input on rust prevention “best practices,” or cost-savings suggestions.

IF You are Using Oil, Grease, Solvent-Based RPs… Your rust prevention efforts could crumble as quickly as a dry, day-old cookie!

An ARMOR Team member would love the chance to intervene and find you a cleaner, safer, rust-prevention option to protect your metal and metal parts while they are in process, in storage or in shipment. We want to save you from the health, safety and environmental risks that are the reality of using messy oil, grease and hazardous solvent-based RPs. Better yet, we want to save you time, labor and the cost of unnecessary materials costs as well.

We’ve said it before and we’ll say it again -- a member of the ARMOR Team (we like to call ourselves Eradicators of Rust), would be happy to assist you with any questions, input on rust prevention “best practices,” or cost-savings suggestions.

IF YOU are Using None of the Above…

Are you really working with metal parts? :)

Step 2 Gather Information on Rust Issue

Questions to Ask Your Customers 1. Have you had any rust problems in the past?

• If yes, are they seasonal?

9. How long are the metal parts being stored prior to shipment?

2. Is rust an issue on incoming or outgoing metal parts?

10. Is your facility climate controlled?

3. What are you currently doing to prevent rust?

4. What measures do you take today in regards to rust prevention?

5. Do you scrap or rework rusty parts?

• What is the associated cost of the scrap or rework?

6. What is the size of the part? Or, what is the size of the pack?

7. Describe your current pack out?

8. Do you currently use VCI or other RPs? • If yes, what brand?

11. Where are the metal parts in question shipping from and where are they shipping to?

12. Do you have a packaging spec you are working off of?

• If yes, can you share?

13. Any packaging restrictions that we need to be aware of?

14. Do you have any pictures you can share?

15. I’d like to bring this information to our corrosion partner, ARMOR, for their recommendation on next steps. ARMOR will be able to assist on rust prevention best practices, cost savings ideas, and suggestions to improve your overall corrosion management process.

Circle The ARMOR VCI Opportunities!

2

Open Garage Door

1

Inbound Rusty Parts

Circle The ARMOR VCI Opportunities! ANSWERS

Oily RP Spray

Oily Floors

3

4

Wet Metal Parts

6

5

No Gloves

7

Competitor’s VCI

ARMOR Stock & Ready

®

We took the concepts of ease and convenience perfected by innovators such as Amazon Prime® and Little Caesars® HOT-N-READY® and applied them to the world of “VCI Packaging” and the result is ARMOR Stock & Ready. It is simple, any item on the Stock & Ready product list is just that—it is in stock and ready-to-ship.

All items on the Stock & Ready product list are in-stock and ready-to-ship with no order minimums.

Stock & Ready orders placed by 1 p.m. EST will ship by next business day.

Benefits of Stock & Ready • • • • •

Product inventory that is immediately available, in stock, ready-to-ship Quick order turnaround Value priced No required order minimums; purchase only what is needed Increased customer warehouse storage space; no need to order/store large inventory • Save money—free up money previously spent on required orders of large inventory

ry Delive s Path

HUNGRY PIZZA CONSUMER

CUSTOM PIZZA

END-USER/CHANNEL PARTNER

MENU OPTIONS & PRICING

GREET PATRON

GATHER INFO

PRICING & AVAILABILITY

CUSTOM QUOTE

FAST & READY TRACK WALK-IN CALL-IN

READY TO GO

ORDER

STOCK & READY

QUOTE

ORDER CONFIRM

MAKE PIZZA

ADD-ON MENU

CUSTOMER WAITING ADD BREAD & WINGS!

PREPARE ITEMS

Custom Purchase

PRE-MADE PIZZA READY-TO-EAT FLAT COST NO WAITING

IN-STOCK READY-TO-SHIP FAST PRICING QUICK DELIVERY

SIMPLE. EASY. FAST.

Delivery

END-USER OUT OF PRODUCT

CUSTOMER WAITING 911 WE’RE OUT! EXPEDITE

Custom Methods

Custom Options?

Yes, Custom Sizes are available. Minimums and lead time may apply.

Typically, custom paper requires at least a 1 week lead time while custom poly carries a minimum of approx. 1000 lbs. and a 2-5 week lead time depending on the item.

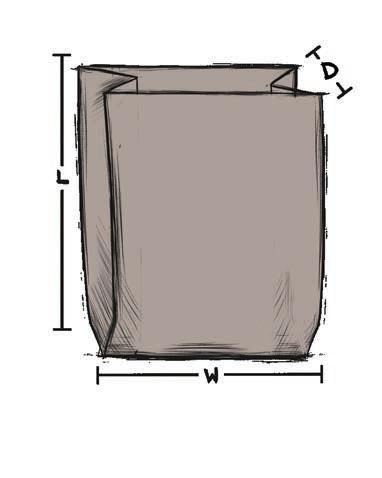

How are ARMOR products measured? Length, Width, Thickness

ARMOR POLY® VCI Film (specify LLDPE, HDPE, CO-EX)

Bags (gusseted) Bags (flat, zipper) Sheets Sheeting (sws, cfs) Tubing

L (inches) x W/gusset (inches) x Height (inches) W (inches) x L (inches) W (inches) x L (inches) W (inches) x L (feet) W (inches) x L (feet)

ARMOR WRAP® VCI Paper (specify paper weight, ferrous or multi-metal protection)

Sheets Rolls Stretch Film

W (inches) x L (inches) W (inches) x L (lineal yards) W (inches) x L (inches) x Thickness/Gauge

Metal Rescue® Rust Remover Available in 1 gallon, 5 gallon pails, 55 gallon drums, and 330 gallon totes (BATH); 17.64 oz. jars (GEL)

Dry Coat™ Rust Preventative Available in 16 oz. spray bottles, 5 gallon pails, 55 gallon drums, and 330 gallon totes

ARMOR SHIELD® VCI Products

Foam Chipboard Desiccant/ Smarty Pak

W (inches) x L (inches) x Thickness W (inches) x L (inches) Specified by ounce or unit; required formula is based on cubic inches, feet, or meters of the storage environment.

Common Product Terms VCI, VPI, Volatile Corrosion Inhibitor, Vapor Phase or Contact Corrosion Inhibitor Many manufacturers refer to VCI using their own terminology or customcreated acronyms to describe their particular brand of VCI. They do this to differentiate their VCI from their competitors.

But don’t be confused, terms such as VCI, VPI and MPI are the same … but different. By that we mean, they are different names for the same thing -volatile or vapor phase corrosion inhibitors.

The list below is a sample of a few of the terms you will see used to reference VCI on rust prevention/corrosion control packaging currently offered in the marketplace: • VCI: Vapor Corrosion Inhibitor or Volatile Corrosion Inhibitor • VPI: Vapor Phase Inhibitor or Vapor Paper Inhibitor • MPI: Multi(metal) Purpose Inhibitor or Multi(metal) Phase Inhibitor **The current, generally accepted term used by knowledgeable and experienced companies in North America today is VCI.

Our Own Pages

Industrial Plant

Sales Meeting

ARMOR Knight

Roselyn Bryant, age 53 Nashville, TN

Darrell O’ Neal, age 35 Chicago, IL

Tania Chan, age 47 Boston, MA

Metal Rescue Bath

Salesman on the Road

ARMOR VCI Lab

Cherry Whitman, 72 Cincinnati, OH

Chris Woodward, age 26 Detroit, MI

Alice Weaver, age 64 Richmond, VA

READING AND LEARNING ABOUT RUST PREVENTION AND RUST REMOVAL IS FUN WITH THE HELP OF SPOTLIGHTS FOR DISTRIBUTORS TO ENTERTAIN AND TEACH. WE CHOCKED THIS ISSUE FULL OF GAMES, PUZZLES, AND SKILL-BUILDING ACTIVITIES DESIGNED TO SHOW YOU HOW EXCITING LEARNING ABOUT THE WORLD OF RUST PREVENTION CAN BE! WITH ARMOR SPOTLIGHTS FOR DISTRIBUTORS YOU CAN BE SILLY AND SMART!
