THE HEAVY-DUTY STANDARD SINCE 1988.

Proven track record – Over 35 years of delivering safe, reliable, high-quality vehicle maintenance equipment and solutions for heavy-duty operations.

Comprehensive solutions – Extensive line of mobile column and drive-on lifts, wheel service, shop equipment and exhaust systems; built to perform and built to last.

Direct nationwide support – A dedicated team of sales and service professionals focused on maximizing uptime and prioritizing customer satisfaction.

Learn more at www.ARI-hetra.com

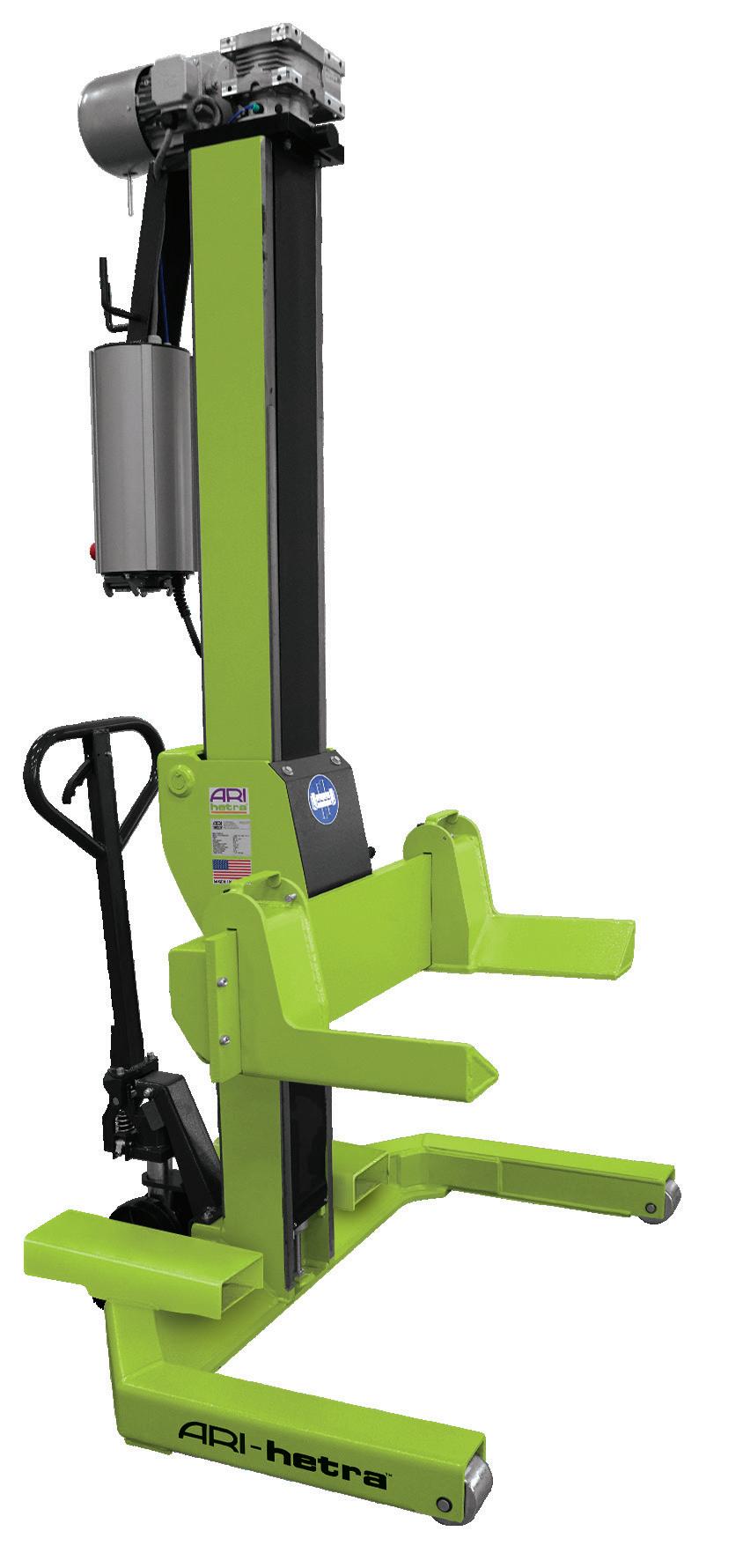

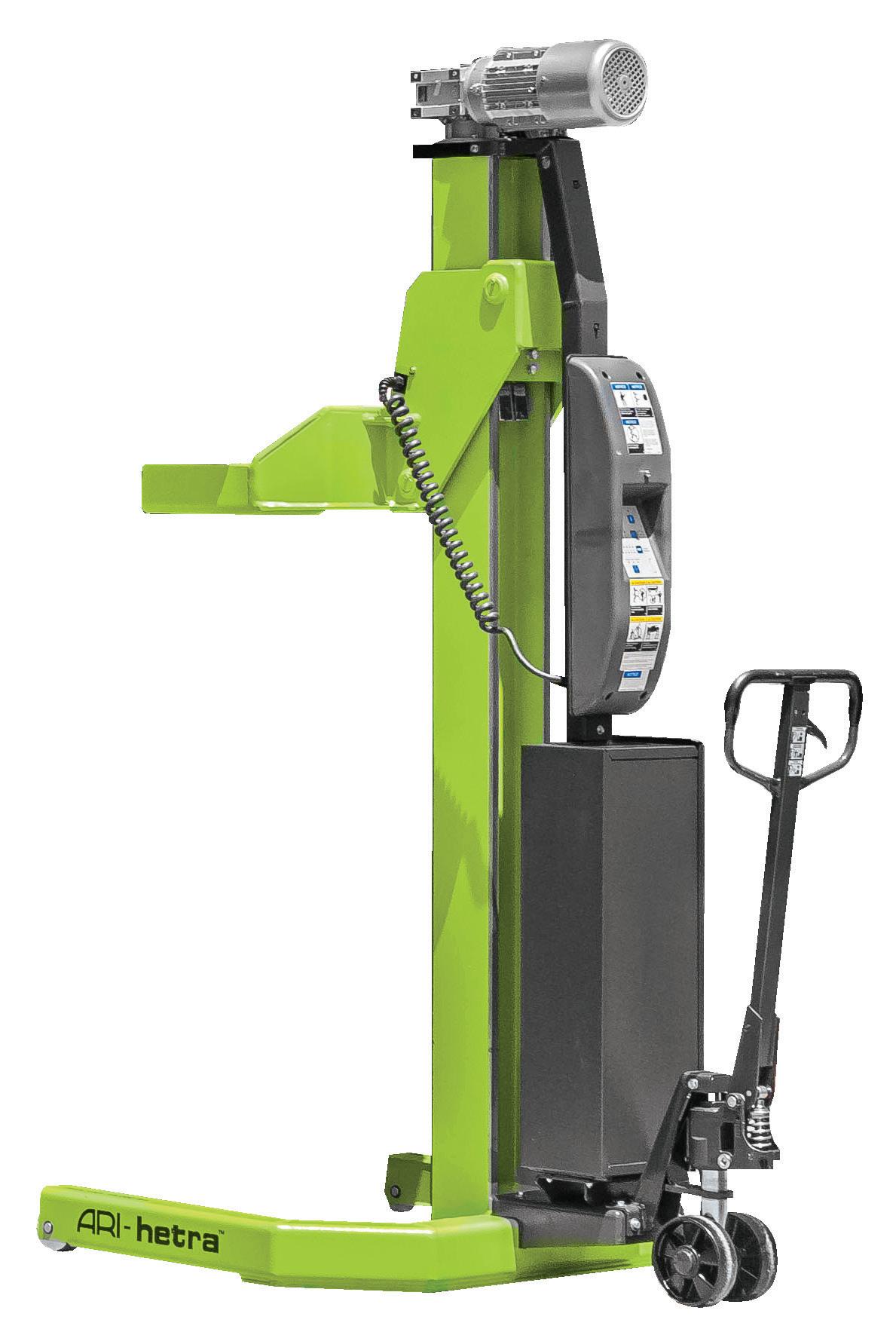

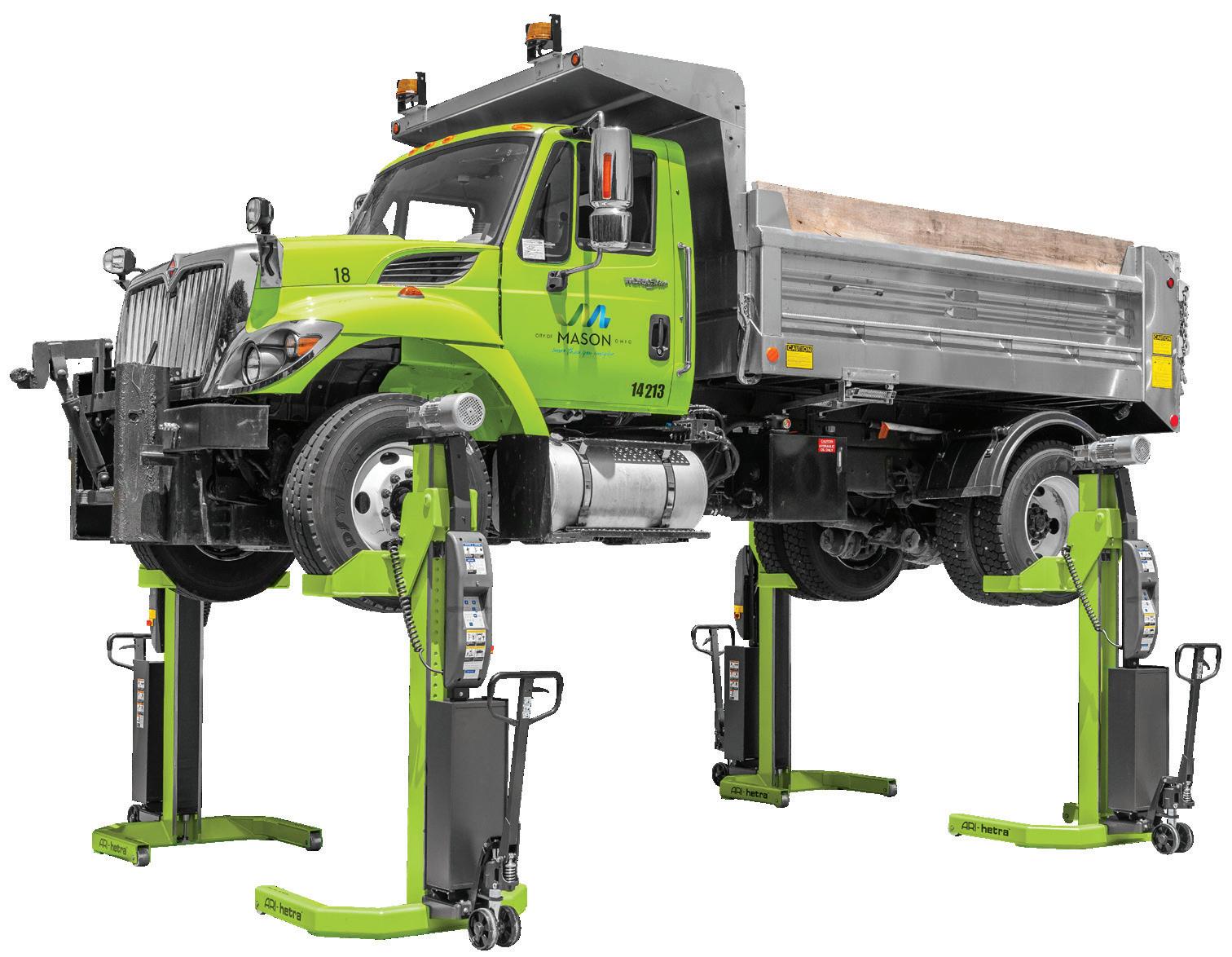

MOBILE COLUMN LIFTS - WIRELESS

MAIN MENU

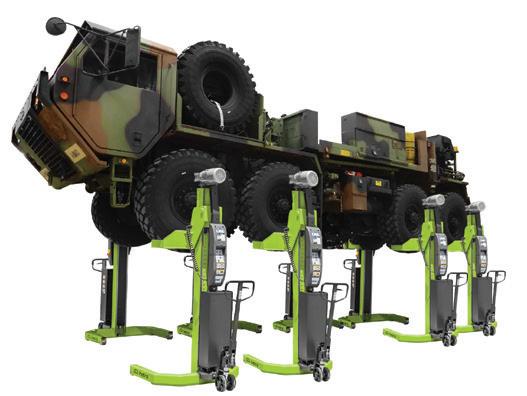

The Wireless Mobile Column Lift System built to last with ball-screw technology for precise control and maximum efficiency.

W irelessly control up to 8 columns to lift up to 144,000 lbs. all-screw technology offers low B maintenance and high reliability N o hydraulics = no fluid, no bleeding, no leaks, and no mess!

F ully self-powered with long-lasting battery life to maximize uptime ALI-certified

C ompact design and slim profile for easy mobility and positioning I nherently safe design with continuous mechanical locking

Simple, intuitive controls

Long-lasting battery life

Redundant safety measures

Learn more at www.ARI-hetra.com

Adjustable carriage

Recirculating stainless steel ball screw

MOBILE COLUMN LIFTS - WIRELESS

MAIN MENU

Power (per post): 110V, 60Hz, 1-PH 48V DC - (4) 12V Batteries 3 Amps charging max

8-hour charging cycle 2 HP Motor

Standard Wireless Lifts Model

Capacity Per Post

Carriage Width

Fork Length

BPW-4-AJ

9,000 lbs.

35.43 in. (900mm)

15 in.

BPW-6-M

12,000 lbs.

32.28 in. (820mm)

16 in.

BPW-6-AJ

12,000 lbs.

35.43 in. (900mm)

15 in.

BPW-9-M

16,000 lbs.

32.28 in. (820mm)

16 in.

BPW-9-AJ

16,000 lbs.

35.43 in. (900mm)

15 in.

BPW-10-AJ

18,000 lbs.

35.43 in. (900mm)

13 in.

Model

Capacity Per Post

Carriage Width

BPW-6-XXW

12,000 lbs.

48.23 in. (1,225mm)

BPW-8-20

15,000 lbs.

31.5 in. (800mm)

BPW-8-20W

15,000 lbs.

35.43 in. (900mm)

BPW-9-XW

16,000 lbs.

36.61 in. (930mm)

Specialty Wireless Lifts Fork Length 20 in.

16 in.

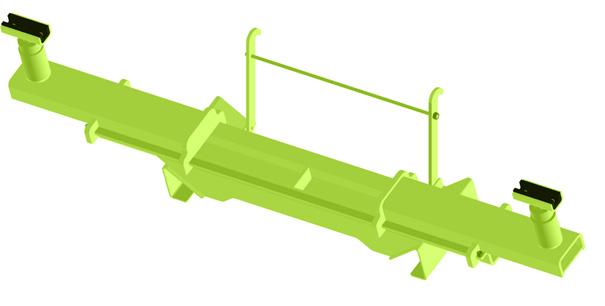

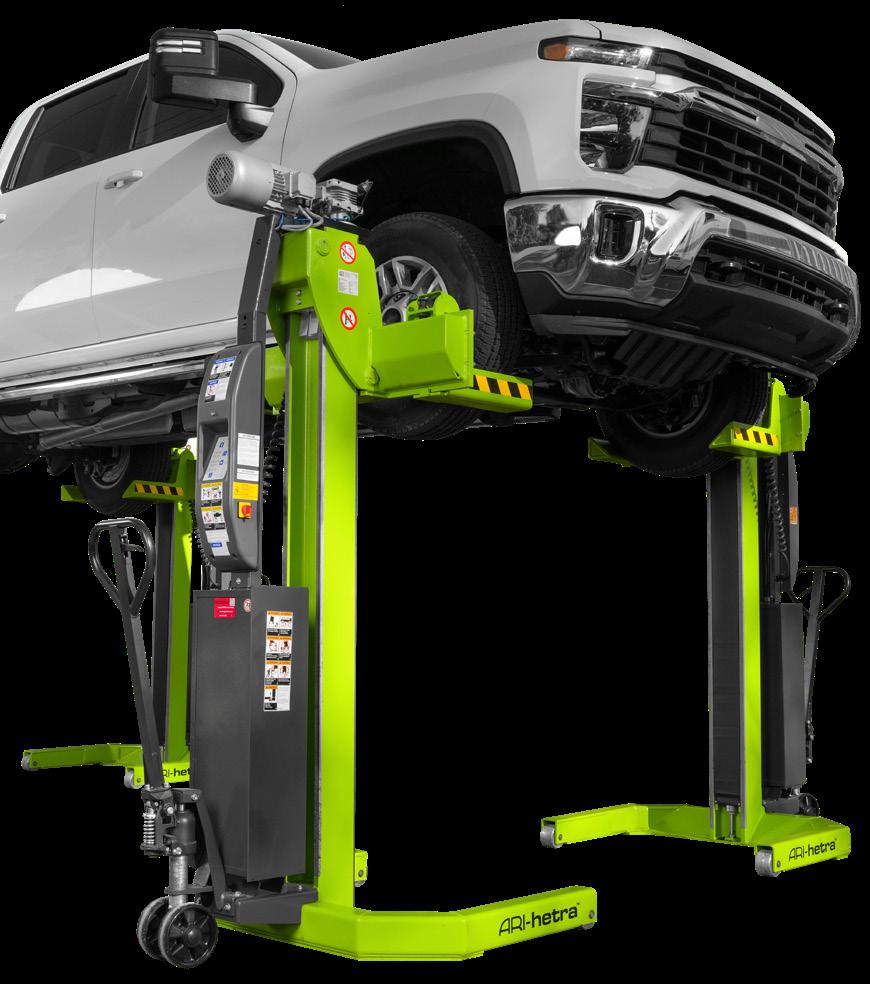

MULTI-PURPOSE ADAPTER

Wheels-free lifting of full-frame light trucks for service or complete cab removal.

Learn more at www.ARI-hetra.com

For use with two mobile columns

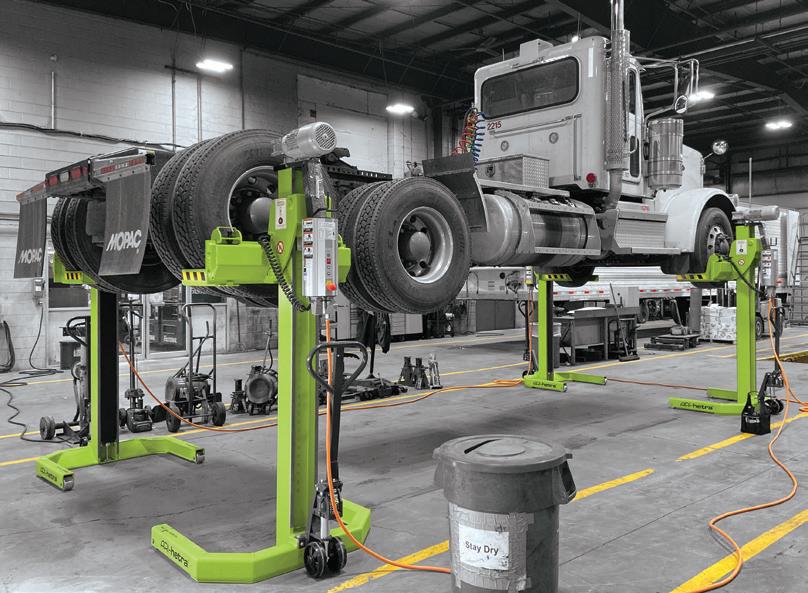

MOBILE COLUMN LIFTS - CABLE BATTERY-POWERED Power up productivity with cable-connected, battery-powered mobile column lifts that deliver up to 144k lbs. of lifting capacity.

D irect connection ensures safety and maximum productivity—no need to sync or reboot O verload protection shuts down system when load is over rated capacity Quick connect cables for fast and easy setup Self-contained wheels and hydraulic jack/steering assembly for mobility

Secure cleat system keeps cables up and out of the way for added safety and ease of use.

Standard Cable Battery-Powered Lifts

Power (per post): 110V, 60Hz, 1-PH 48V DC - (4) 12V Batteries 3 Amps charging max 8-hour charging cycle 2 HP Motor

Model

Capacity Per Post

Carriage Width

Fork Length

CB-9-M

16,000 lbs.

32.28 in. (820mm)

16 in.

CB-9-AJ

16,000 lbs.

35.43 in. (900mm)

15 in.

CB-10-AJ

18,000 lbs.

35.43 in. (900mm)

13 in.

Specialty Cable Battery-Powered Lifts Model

Capacity Per Post

Carriage Width

CB-8-20

15,000 lbs.

31.5 in. (800mm)

CB-8-20W

15,000 lbs.

35.43 in. (900mm)

Learn more at www.ARI-hetra.com

Fork Length 20 in.

MAIN MENU

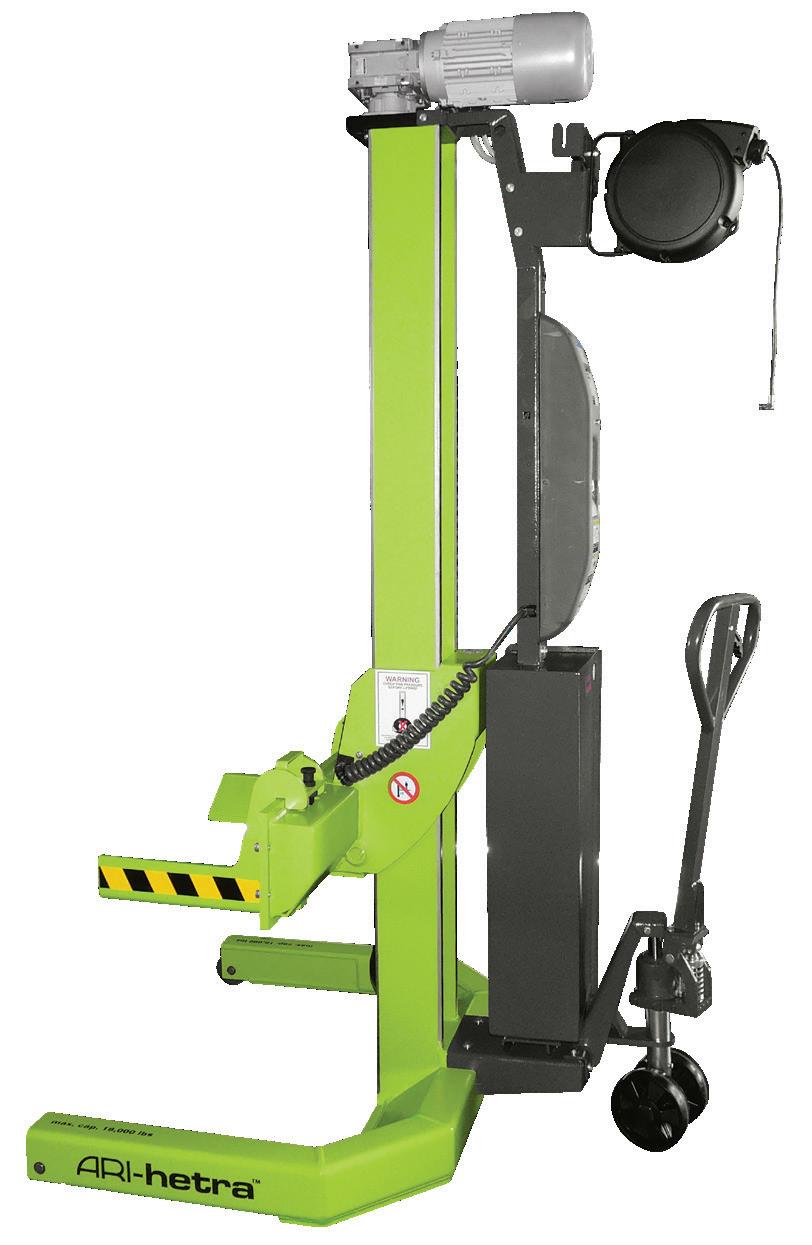

MOBILE COLUMN LIFTS - LINE-POWERED

MAIN MENU

Line-Powered Mobile Column Lifts deliver safe, flexible, and easy operation with direct connections for precise, synchronized lifting of heavy-duty vehicles.

E ngineered for years of reliable service in demanding environments T ight turning radius and compact design allow for easy maneuverability and storage in confined shops S ystem automatically shuts down if load exceeds capacity rating with electronic overload protection S afety braking system keeps brake engaged until power is applied

Standard Line-Powered Lifts Model

Capacity Per Post

Carriage Width

Fork Length

LP-6-M

12,000 lbs.

32.28 in. (820mm)

16 in.

LP-6-AJ

12,000 lbs.

35.43 in. (900mm)

15 in.

LP-9-M

16,000 lbs.

32.28 in. (820mm)

16 in.

LP-9-AJ

16,000 lbs.

35.43 in. (900mm)

15 in.

LP-10-AJ

18,000 lbs.

35.43 in. (900mm)

13 in.

Learn more at www.ARI-hetra.com

Power Options 208-230V 3-PH or 460-480V 3-PH Power on demand No battery maintenance No need to sync or reboot Specialty Line-Powered Lifts Model

Capacity Per Post

Carriage Width

LP-6-XXW

12,000 lbs.

48.23 in. (1,225mm)

LP-8-20

15,000 lbs.

31.5 in. (800mm)

LP-8-20W

15,000 lbs.

35.43 in. (900mm)

LP-9-XW

16,000 lbs.

36.61 in. (930mm)

Fork Length 20 in.

16 in.

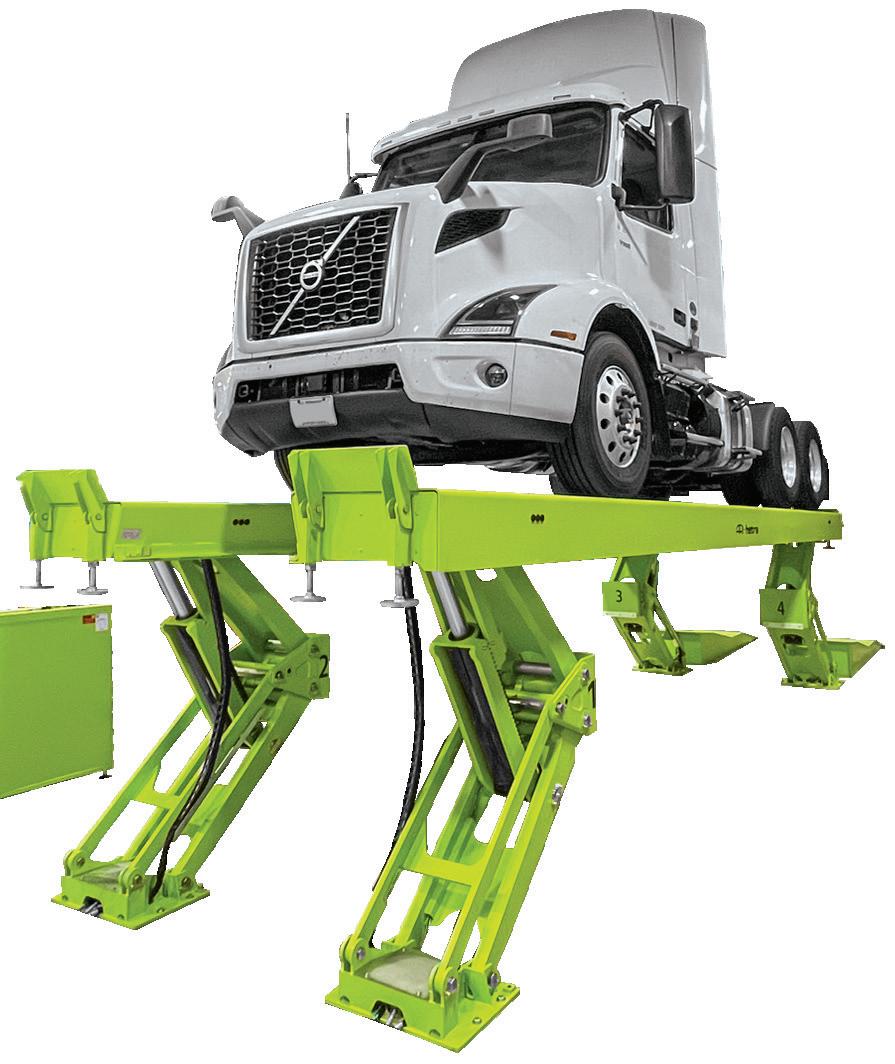

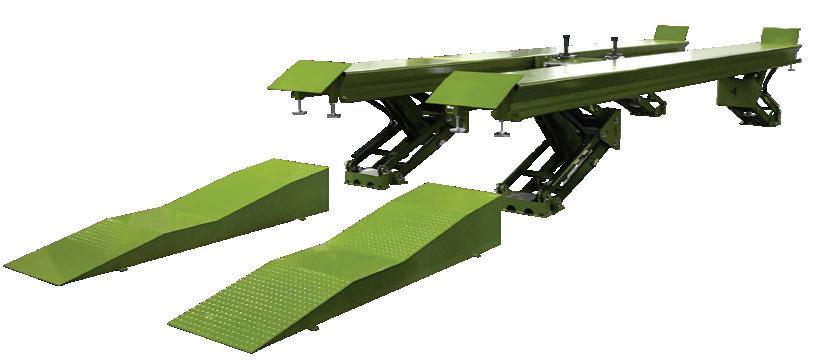

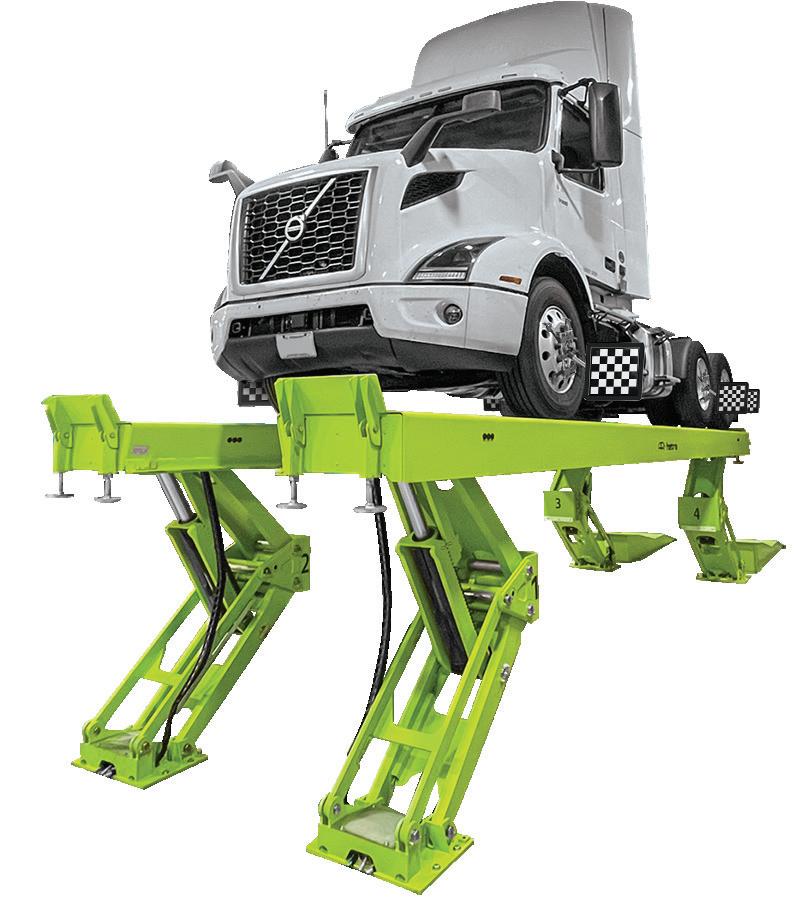

DRIVE-ON LIFTS - PLATFORM

MAIN MENU

Heavy-Duty Platform Lifts offer 55k to 154k lbs. of lifting capacity and feature a unique design with no sliding parts or lubrication needs, minimizing wear and downtime while providing maximum accessibility in the work area.

M echanical locking with automatic engagement and pneumatic release on each piston E lectronic sensors for auto-leveling and independent load distribution

Heavy-duty design from the ground up!

H igh-performance components and materials designed for maximum reliability and uptime S elf-lubricating bushings reduce wear and maintenance downtime I ndividual height display for each column with adjustable maximum lift limit uilt-in self-diagnostics for real-time performance monitoring— B track operating hours, system events, and incidents for easy maintenance oversight Rolling Jacks:

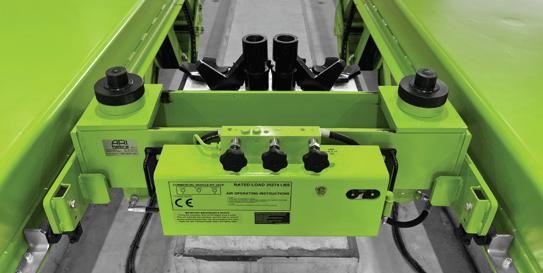

Air/hydraulic Rollers tucked into and protected by platform

Learn more at www.ARI-hetra.com

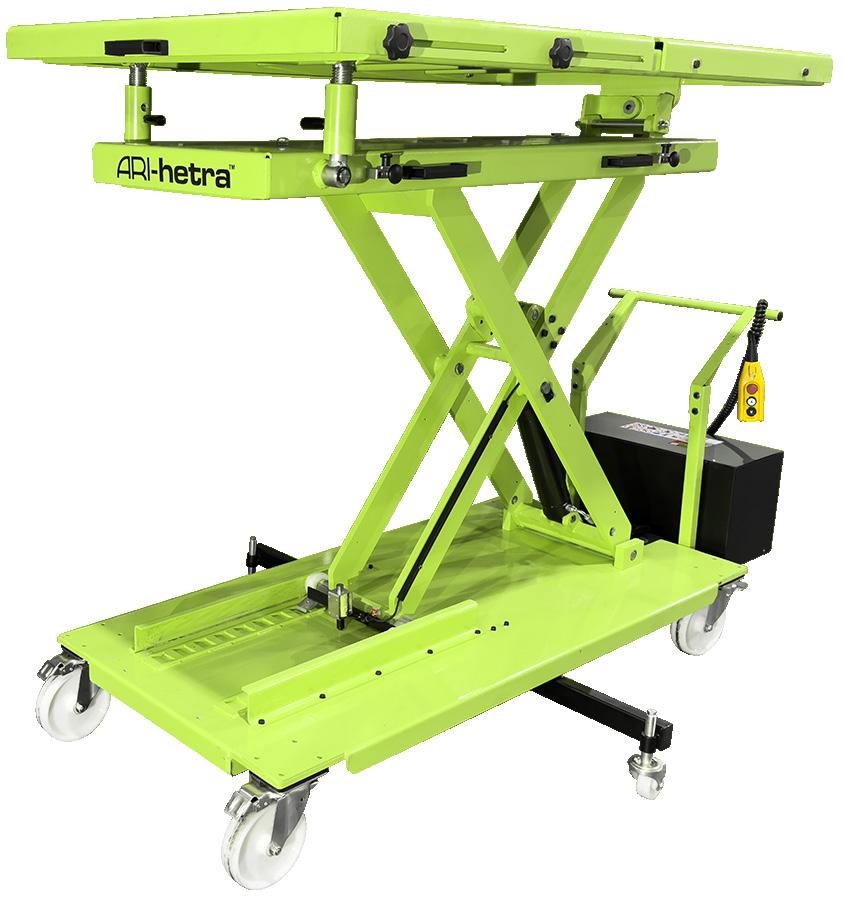

WHEEL SERVICE - EV BATTERY LIFT

MAIN MENU

The WS-25EV Electric and Pneumatic Battery Lifts provide safe, precise, hydraulic-free lifting for hybrid and EV batteries to maximize shop efficiency and uptime.

SLIDING

W ide base for stability for large & heavy batteries P neumatic or 110V single-phase electric operation S urface table with 4” x 4” grid pattern and M10 holes T he platform tilts forward, backward, and side to side by 1.25 inches L arge, extendable/sliding platform from 69” to 81.5” Heavy-duty caster wheels with a large diameter for easy rolling and built-in brake Max. Cap.

4,500 lbs.

Stroke

40 in.

Platform

43 in. x 81.5 in.

Lifting Time

55 sec.

Max. Height

70.5 in.

Pneumatic (opt.)

116 PSI

Min. Height

30.5 in.

Electric (opt.)

110V 1-PH

Weight

1,322 lbs.

WS-25EV-E - Electric 110V 1-PH WS-25EV-P - Pneumatic

Optional

Learn more at www.ARI-hetra.com

FIXED

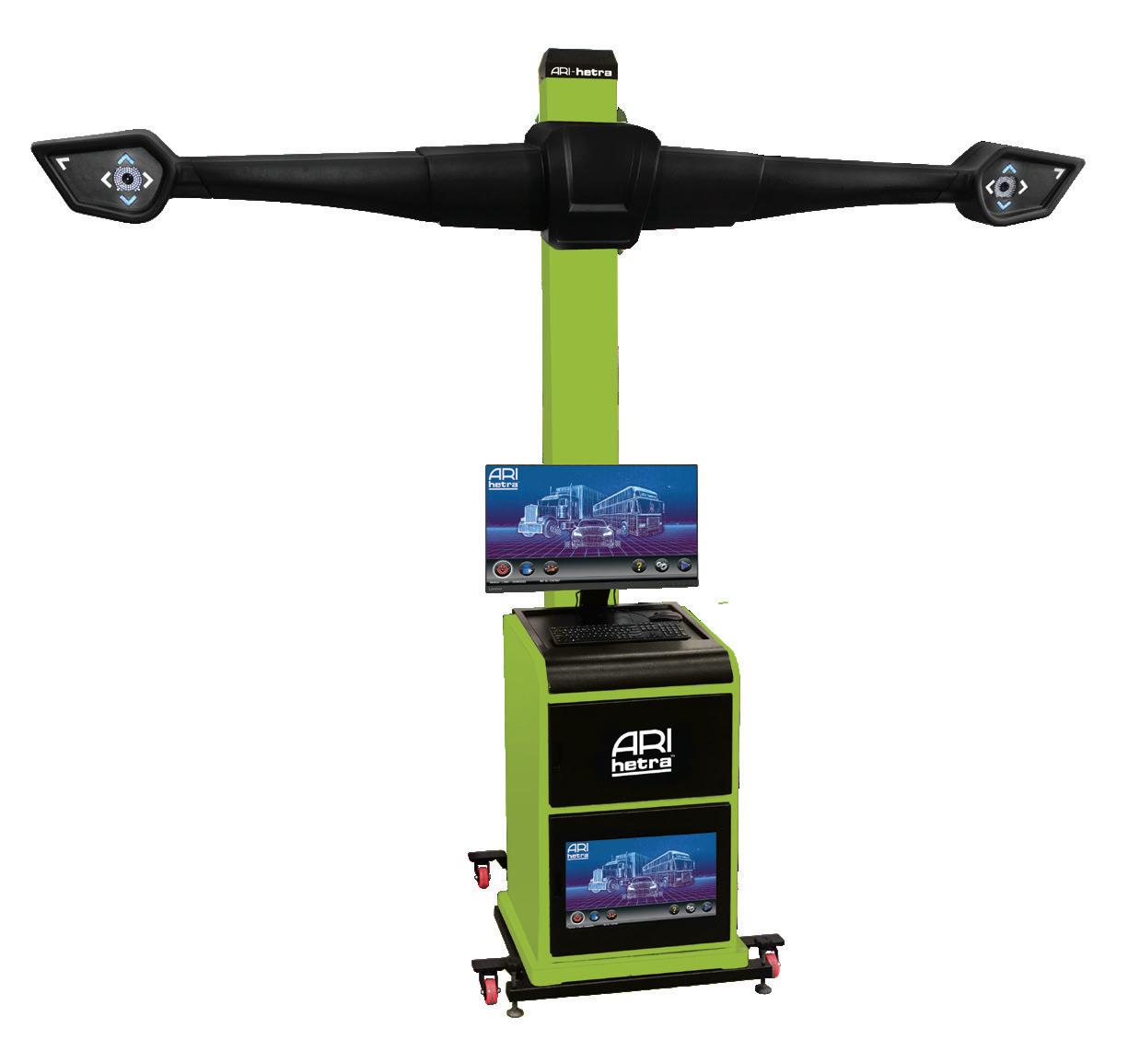

WHEEL SERVICE - MOBILE ALIGNMENT

MAIN MENU

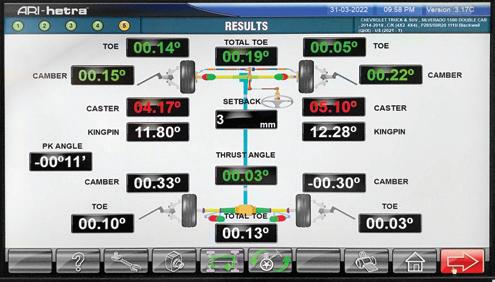

The Mobile Alignment Machine delivers quick, accurate alignments with intuitive software and a fully mobile design that works seamlessly on the ground or with any lift to maximize shop efficiency. dvanced 3D imaging & HD cameras A Wheel-mounted targets ensure precise calculations and optimal alignment results Versatile Operation: Works on the ground or on various lift types, including four-post, scissor, and platform lifts, while retaining calibration during elevation Mobile design for quick relocation from bay to bay S econdary monitor enhances visibility at ground level Operate the system remotely from any tablet for added convenience QUICK ALIGNMENT

Enter Vehicle Data Mount Targets Perform Runout Perform Caster Sweep View Results Make Adjustments

Learn more at www.ARI-hetra.com

WORKS WITH: Trucks Buses Coverage up to 43 feet

Adjustable camera movement for alignment adjustments at variable heights.

Trailers

Cars

WHEEL SERVICE - TIRE SERVICE Easily mount and dismount truck, bus, and super single tires.

MAIN MENU Achieve perfect balance for every heavy-duty wheel with precision and speed.

Digital display

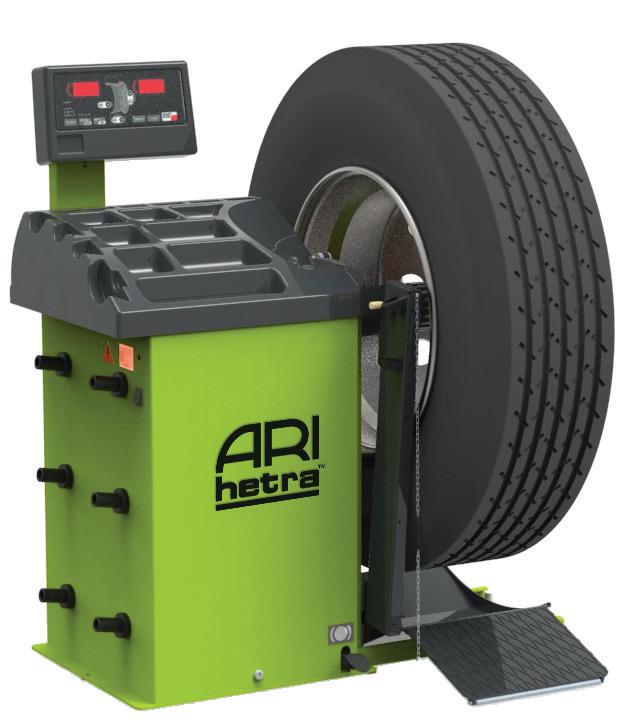

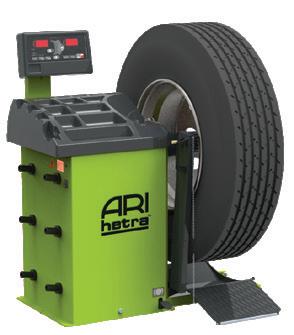

WS-25WB30 Heavy-Duty Wheel Balancer

Overall width of just 60” Uses 3 sensors for excellent balancing precision

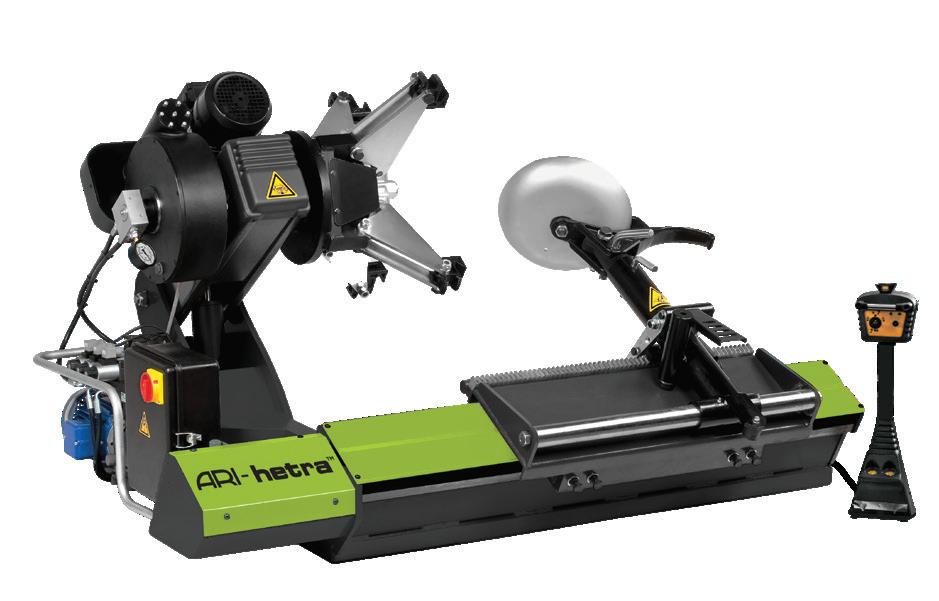

WS-25TC30 Heavy-Duty Tire Changer

Mechanical wheel brake pedal uick-lock arbor/spindle nut Q Automatically measures wheel distance and diameter Weight tray on top and flange holder on side

Electro Hydraulic Automatic carriage Manual tool arm & head Truck, bus, and super single tires H ardwired remote control

Rim Diameter

14 – 30 in.

Max Wheel Diameter

65 in.

Max Wheel Width

34 in.

Hydraulic Drive Motor

2 HP

Max Wheel Weight

2,645 lbs.

nline management console O 40mm arbor shaft

0 in.

ONLY 6

TRI- SENSOR TECH

Chuck Rotation Speed

7 RPM

Max Bead Breaker Force

5,620 lbf.

25,000 N

Max Rim Diameter

8 - 26 in.

Air Required

Yes

Max Wheel Diameter

50 in.

Wheel Lift

Included

Power

400V, 3-PH, 60 Hz 230V, 3-PH, 60 Hz

Max Wheel Width

3.5 - 17.5 in.

Arbor/Shaft Dia.

40mm

Max Tire Weight

440 lbs.

Learn more at www.ARI-hetra.com

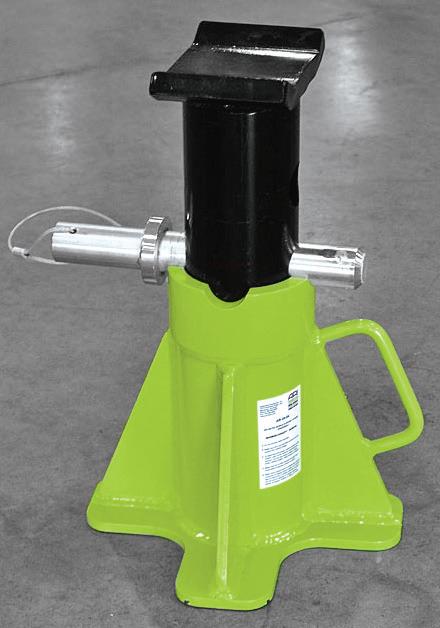

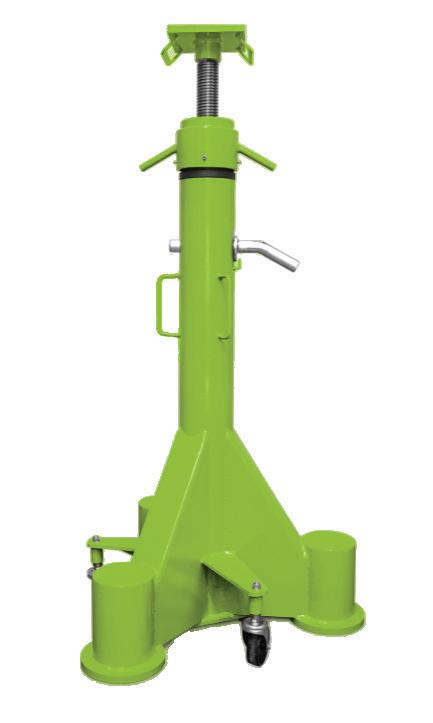

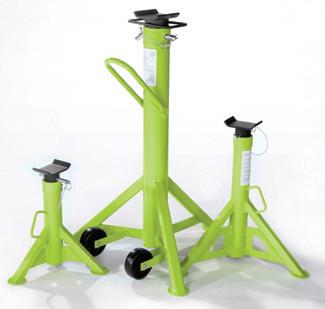

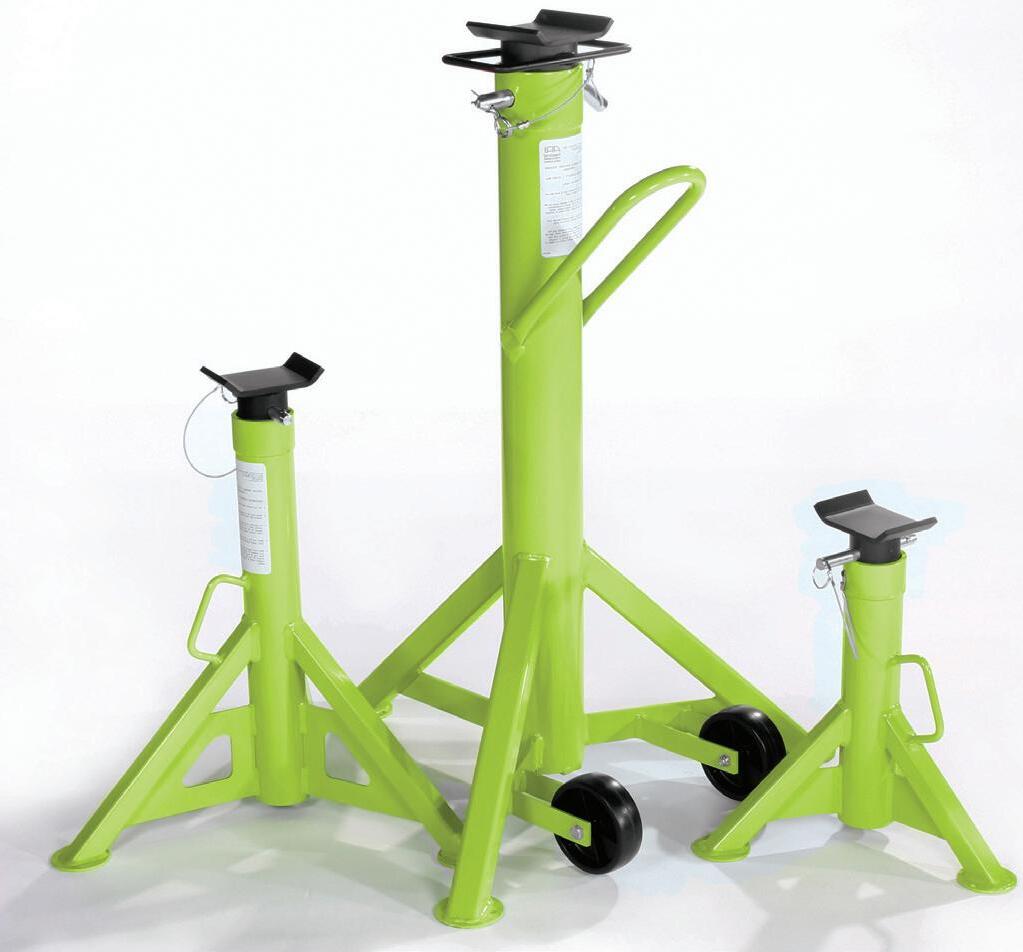

SHOP EQUIPMENT - SUPPORT STANDS

MAIN MENU

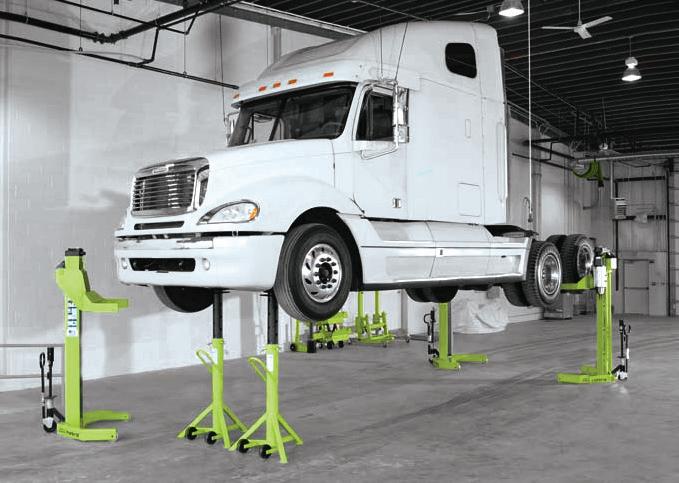

Step up your support game and free up your mobile column lifts for other jobs with ARI-hetra’s Heavy-Duty Support Stands.

L ifting capacity ranges from 18k to 60k lbs.

Quick and easy height adjustment Steel quick-release pin with lanyard for added safety Model AB-33K-57-79-T Model AB-6-20 Model AB-24-04

Model AB-6-12 Model AB-6-07

Learn more at www.ARI-hetra.com

Model

Capacity

Adjustment Range

AB-6-07 Small

18,000 lbs.

20 - 30 in.

AB-6-12 Medium

18,000 lbs.

28 - 46 in.

AB-6-20 Tall

18,000 lbs.

48 - 72 in.

AB-12-07 Small

30,000 lbs.

24 - 36 in.

AB-12-12 Medium

30,000 lbs.

28 - 46 in.

AB-12-20 Tall

30,000 lbs.

53 - 78 in.

AB-33K-57-79-T

33,000 lbs.

57 - 79 in.

AB-24-04 Ultra Heavy-Duty

60,000 lbs.

12 - 18 in.

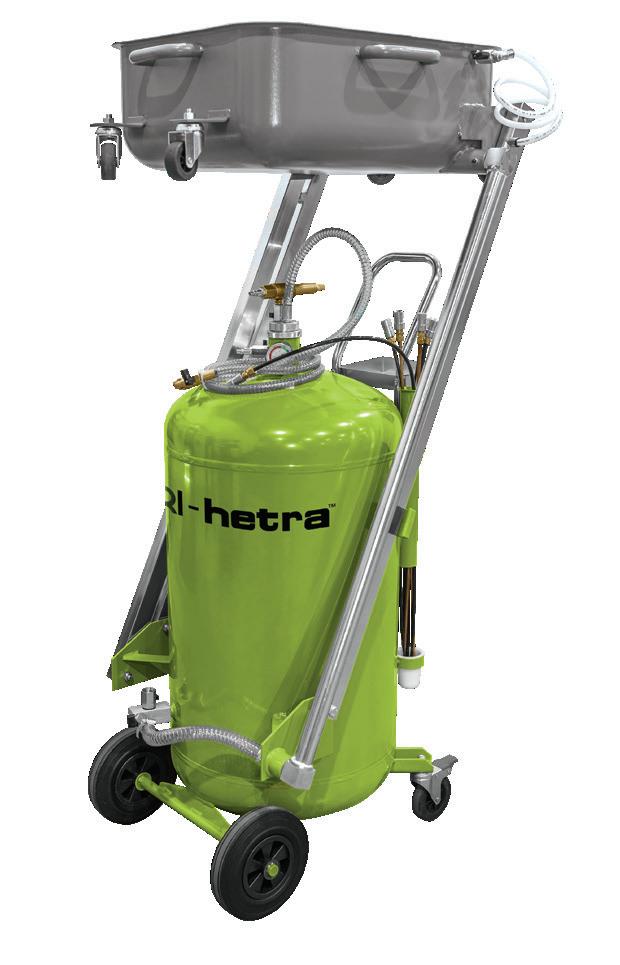

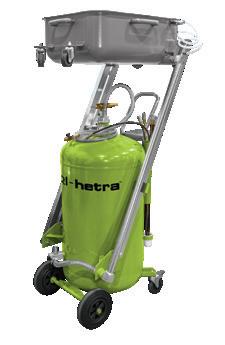

SHOP EQUIPMENT - GENERAL WASTE OIL DRAIN Easy to maneuver, simple to use Large 13.5 gal. collection tray Tank is equipped with fill sight tube Suction probes included

MAIN MENU

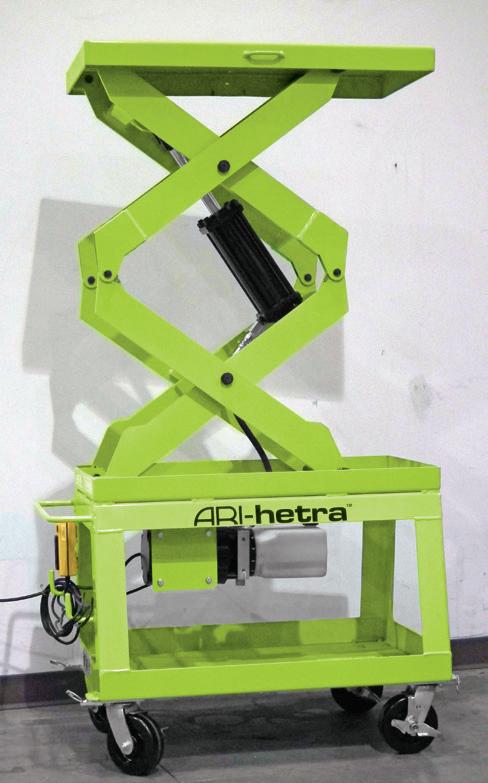

LIFT TABLE Solid steel lifting surface Lifetime self-lubricating, anti-friction bushings at all pivot points 115 VAC electric hydraulic pump

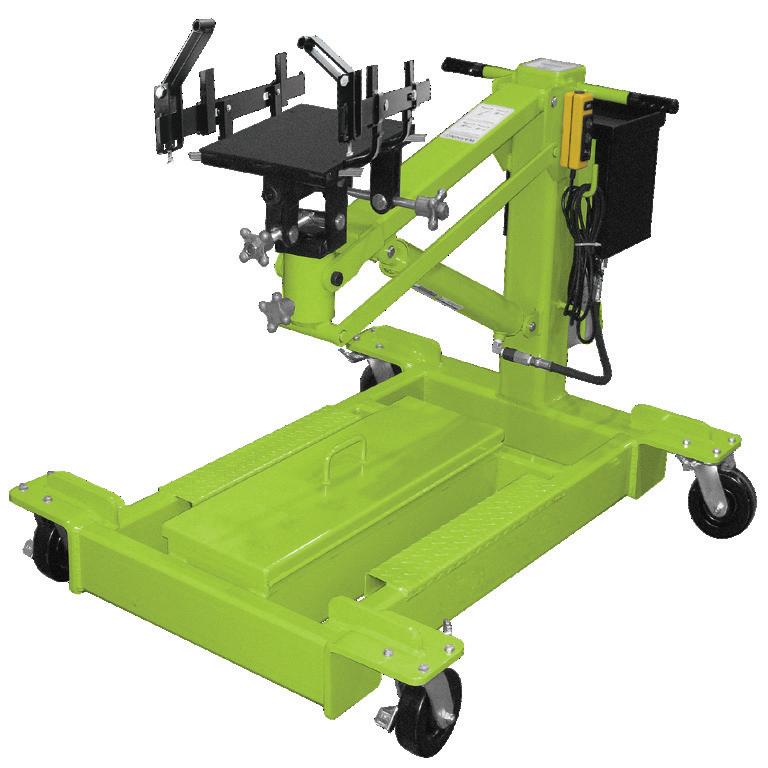

TRANSMISSION JACKS Durable 6 in. lockable caster wheels U niversal cradle adjusts to service

most driveline components C radle brackets and adapters supplied in a built-in tool box

Versatile Extraction: G rounded vehicle (gravity) L ifted vehicle (gravity)

Optional Transmission Adapter TT-2000-S

Suction via wands

Model

Top Surface

Lift Height (L / H)

Capacity

AH-2500

36 in. x 18 in.

36 in. / 72 in.

2,500 lbs.

Adds 14.25 in.

2,500 lbs.

AH-2500-S

Learn more at www.ARI-hetra.com

Model

Lift Height

Dimensions (LxWxH)

AH-2500

36 in. – 71 in.

58 in. x 42 in. x 71 in. 2,500 lbs.

Capacity
