Area Safe Products - Jan - Jun 2024 Catalogue by Area Safe Products Pty Ltd

PHONE 1300 889 821 areasafe.com.au EASY TO DEAL WITH FAST DISPATCH AND DELIVERY INNOVATIVE PRODUCTS Trade Catalogue #3 7 2024 JANUARY - JUNE

Hours:

Call:

Email: sales@areasafe.com.au

Web: www.areasafe.com.au

Mail: PO Box 82, Plumpton NSW 2761

Address: 3 Jamieson Place, Glendenning, NSW

ABN:

7:00am - 5.00pm, Monday-Friday

889

1300

821

2761

185 FAST RESPONSE TIMES & DELIVERY EASY TO WORK WITH INNOVATIVE & QUALITY PRODUCT DESIGNS Why Area Safe? View trade prices Download spec sheets, assembly guides, installation procedures and maintenance recommendations. Create an Area Safe login to: The Area Safe Group ALL PRICES ADVERTISED THROUGH THIS CATALOGUE EXCLUDE 10% GST. DESIGN & PRICES SUBJECT TO CHANGE WITHOUT NOTICE. E&OE. © 2024 AREA SAFE PRODUCTS PTY LTD. Preferred supplier & government contracts LB303 & LB304 Pre-Qualified Supplier NSW Government Schools EDConnectVendor No. 100301263 –Gold status QLD State Schools Vendor No. S00007620 Catholic Schools Offices Preferred Supplier VIC Education Approved Vendor No. CR21117E SA Schools Vendor No. AREASAF TAFE NSW Vendor No. 100301263 (Ariba #1020) TAFE Victoria Vendor No. ARSAPR.00 Unimarket Charles Sturt University & University of Tasmania Portalink Multiple Universities Downer Group Vendor No. 1017152 Programmed Property Services Vendor No. 24122 Spotless Group Vendor No. 2023373 Programmed Facility Management Vendor No. S10484 City Holdings Vendor No. C002468 Buy.NSW Supplier Scheme No. SCM0256

74 114 414

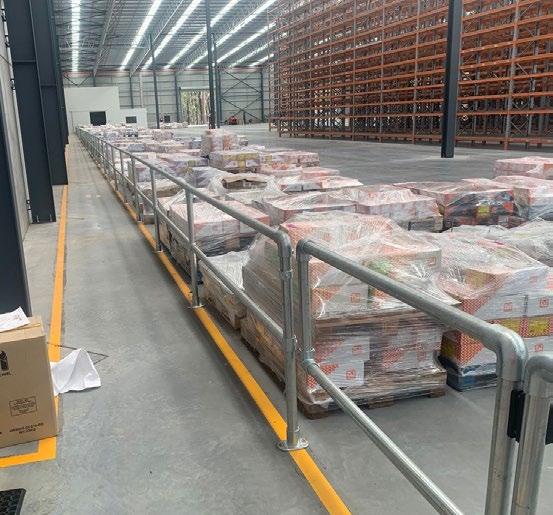

4 Car Park Protection 70 Industrial Safety Pedestrian Barriers 120 Matting, Ramps, & Tactiles 136 Signage & Safety AREA SAFE PRODUCTS TRADE CATALOGUE #37 JANUARY / JUNE 2024 Contents Priority Order Form 161 Index 162

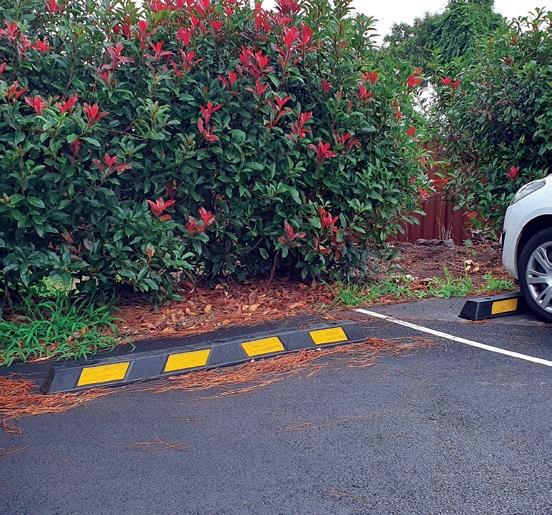

Rubber Wheel Stop Features

1. High density long lasting rubber (does not break up like alternatives)

2. Fixing holes sizing suitable for concrete or bitumen slabs

3. 100% Australian Standards size compliant

Concrete Wheel Stop Features

1. Lower height to suit all vehicles

2. 100% Australian Standards compliant

3. Flat front to stop vehicle mounting

4. Larger fixing points

5. Reinforced concrete

6. Extra wide base for stability

7. Bevelled edges to stop tipping

3 2 1

Rubber Wheel Stop

1.65m Concrete Wheel Stop Black/Yellow 1.65m Concrete Wheel Stop Black/Yellow

Rubber Wheel Stop

1 3 4

5 6 7 6 5 4

CAR PARK PROTECTION 4

Car Wheel Stops

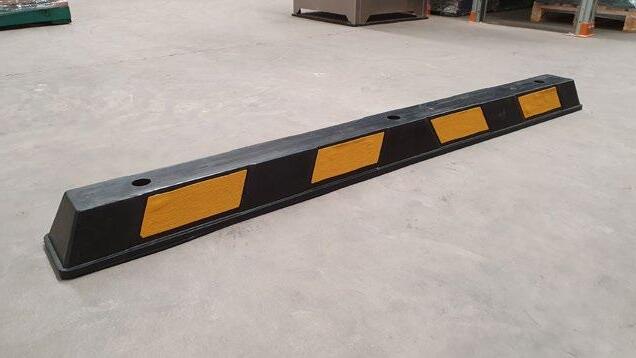

Premium Rubber Wheel Stops

1.65m Precast Concrete Wheel Stops - For

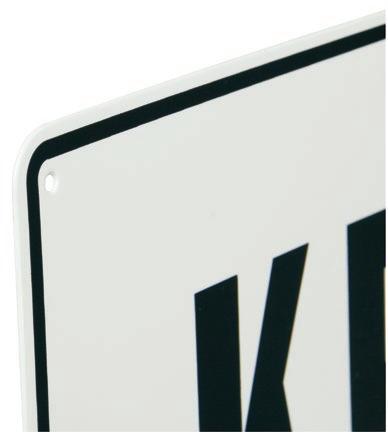

Wheel Stop / Kerb Signs

CODE DESCRIPTION 1-9 10-49 50-99 100+ 07-WSRT Rubber wheel stop black/yellow $82.90 / ea $67.90 / ea $59.90 / ea $54.90 / ea 07-WSRFC Fasteners - into concrete M12 x 150mm Gal Screw Bolt (x3) $12.00 / set 07-WSRFB Fasteners - into bitumen M12 x 300mm gal with head (x3) $12.00 / set

Size: 1650(L) x 100(H) x 140(W)mm Weight: 14kg CODE DESCRIPTION PRICE 07-RPWSS $59.90 / ea 07-SPWWS $59.90 / ea 07-CPOWSS $59.90 / ea 07-CUSWWS $72.90 / ea Note: Pricing is only for signs

Size: 60mm (H) x 600mm (W) • Material: Metal

CODE DESCRIPTION 1-9 10-49 50+ 07-WSC Concrete wheel stop for cars $94.90 / ea $89.90 / ea $79.90 / ea 07-WSCF-C Fasteners - into concrete M12 x 150 dowel (x2) $8.00 / set 07-WSCF-B Fasteners - into bitumen M12 x 300 gal with head (x2) $8.00 / set

Cars Size: 1650(L) x 90(H) x 190(W)mm Weight: 55Kg 190 40 90 50 90 50 NEW Complies with AS2890.1-2004 Complies with AS2890.1-2004 CAR PARK PROTECTION 5 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

2m Concrete Wheel Stop 2.4m Concrete Truck Wheel Stop Video - Concrete Wheel Stop Overview 2.4m Precast Concrete Wheel Stop Features

Australian Made

Perfect for small trucks, large vans and buses

Heavy duty fixings for concrete or bitumen slabs available

Bevelled edged to lessen the risk of tripping hazard

High strength concrete construction

Fixing holes positioned for maximum impact strength

Strengthened through heavy duty reinforcing bars

3 4 5 6 7 1 CAR PARK PROTECTION 6

1m Precast Concrete Wheel Stops - For Trucks & Equipment

• Size: 1000(L) x 190(W) x 145(H)mm

• Weight: 55Kg

2m Precast Concrete Wheel Stops

- For Minibuses & Trucks

•

2.4m Precast Concrete Wheel Stops

- For Trucks

• Size: 2400(L) x 260(W)x 205(H)mm

• Weight: 260kg

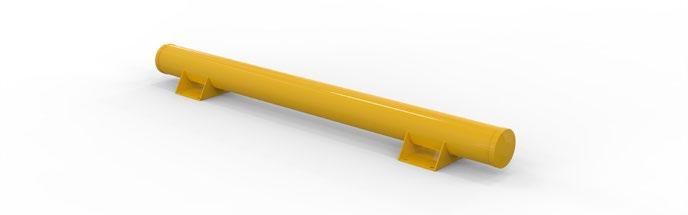

Galvanised Steel Wheel Stops

- For Trucks

Curved Size: 2303(L) x 220(W) x 311(H)mm (Diameter 165mm)

Flat Size: 2205(L) x 300(W) x 311(H)mm (Diameter 165mm)

CODE DESCRIPTION 1-9 10+ 07-WSC-1 1m concrete wheel stops (2 Required per vehicle) $135.00 / ea $115.00 / ea 07-WSCF-C Fasteners - into concrete M12 x 150 dowel (x2) $8.00 / set 07-WSCF-B Fasteners - into bitumen M12 x 300 gal with head (x2) $8.00 / set CODE DESCRIPTION 1-9 10+ 07-WSC-2 2m concrete wheel stops $245.00 / ea $215.00 / ea 07-WSCF-C Fasteners - into concrete M12 x 150 dowel (x2) $8.00 / set 07-WSCF-B Fasteners - into bitumen M12 x 300 gal with head (x2) $8.00 / set CODE DESCRIPTION 1-9 10+ 07-TWSC Concrete wheel stop for trucks $349.00 / ea $319.00 / ea 07-TWSCF Heavy Duty Steel Rod for fixing - M20 x 400mm (x2) $59.90 / set 07-WSCF-B Light Duty Positioning Pin - M12 x 300mm (x2) $8.00 / set 07-EB12 M12 lifting eye bolts (2 required) $19.90 / ea CODE DESCRIPTION 1+ 07-STWSC-Y Curved steel wheel stop for trucks - Yellow $1595.00 / ea 07-STWSC-G Curved steel wheel stop for trucks - Galvanised $1495.00 / ea 07-STWSF-Y Flat steel wheel stop for trucks - Yellow $929.00 / ea 07-STWSF-G Flat steel wheel stop for trucks - Galvanised $899.00 / ea 08-GBM16110 Galvanised M16x110mm Sleeve Anchor with Washer (8 required per wheel stop) $4.20 / ea

Truck and Large Vehicle Wheel Stops

Size:

190(W) x 145(H)mm Weight: 110Kg

2000(L) x

190 20 20 110 145 20 190 20 20 110 145 20 35 35 150 205 35 Curved Yellow Curved Galvanised Flat Yellow Flat Galvanised NEW CAR PARK PROTECTION 7 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

1. Recycleable HDPE

2. 100% Australian Standard Compliant

3. Heavy duty moulded plastic construction

4. Reinforced honeycomb core

5. Concealed fixing points

6. Inset reflectors for night visibility

7. Flat sides for effective speed control

Heavy Duty Rubber Speed Hump Heavy Duty Plastic Speed Hump Heavy Duty Plastic Speed Hump Heavy Duty Plastic Speed Hump Rubber Speed Hump Features Plastic Speed

1. UV resistant for colour consistency 2. ‘Easy ride’ profile 3. Inset reflectors for night visibility 4. Flexi Rubber for uneven surfaces 5. Heavy Duty

Hump Features

2 3 4 5 1 1 2 3 4 5 6 7 CAR PARK PROTECTION 8

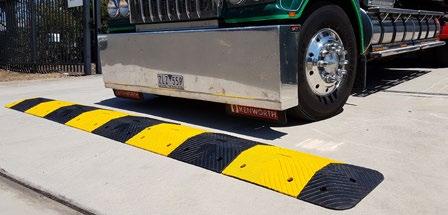

Heavy Duty Speed Humps

Heavy Duty Solid Rubber Speed Hump

- For Cars & Trucks

• Material: Solid heavy duty rubber/PVC combination

• Size: 500(L)mm x 350(W)mm

15kg

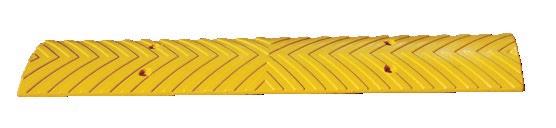

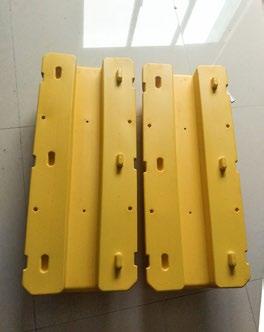

Heavy Duty Plastic Speed Hump

- For Cars & Trucks

Material: Tough UV stabilised HDPE plastic

End Cap Modules End Cap Modules Centre Modules Centre Module CODE DESCRIPTION 1-9 10+ 30+ 03-HSD500 Black/yellow module (2 per metre) 500(L) x 350(W) x 50(H)mm $119.00 / mtr $99.00 / mtr $85.00 / mtr 03-HSD5E End cap set (Set/2) 250(L) x 350(W) x 50(H)mm $69.00 / set 03-HERFC Fasteners - concrete M12 x 65 D Bolts $12.90 / mtr 03-HERFB Fasteners - bitumen M14 x 75 Plug/CS $12.90 / mtr 28-SBS Sealant Adhesive 600ml $33.90 / ea CODE DESCRIPTION 1-9 10+ 30+ 03-HPC Black/yellow module (Minimum order 1m) $119.00 / mtr $99.00 / mtr $85.00 / mtr 03-HPCE End cap set (Set/2) $69.00 / set 03-HPCF Fasteners M14 x 75 Plug/CS (Minimum order 1m) $12.90 / mtr 28-SBS Sealant Adhesive 600ml $33.90 / ea

Weight

per metre

Modules:

End caps: 170(L) x 350(w) x 50(H)mm Weight: 7kg per metre Complies with AS2890.1-2004 CAR PARK PROTECTION 9 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

250(L) x 350(W) x 50(H)mm

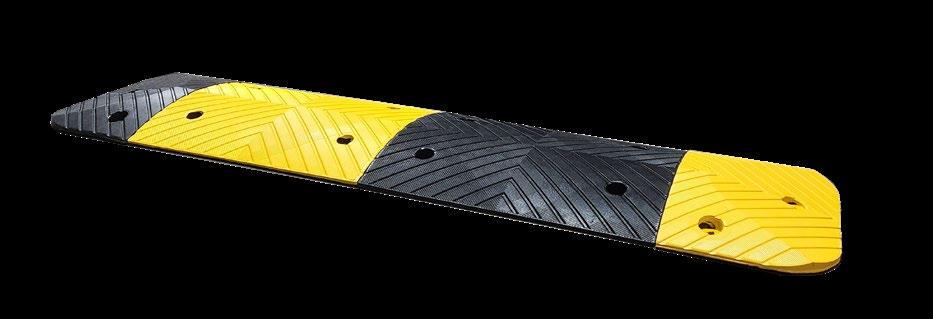

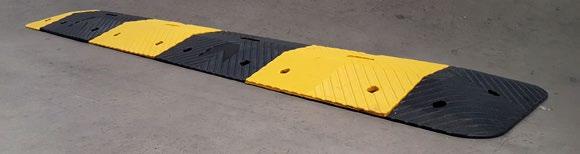

Heavy Duty Recycled Rubber Speed Humps

Heavy Vehicle Recycled Rubber Speed

CODE DESCRIPTION 1+ 03-HRF75 Black/yellow modules $199.00 / mtr 03-HRF75E End cap set (Set/2) $125.00 / set 03-HRF75FC Fasteners to suit concrete M 12 x 80 D Bolts $12.90 / mtr 03-HRRFB75 Fasteners to suit bitumen M 14 x 75 Plug/CS $12.90 / mtr 28-SBS Sealant Adhesive 600ml $33.90 / ea Heavy Vehicle Recycled Rubber Speed Hump - 75mm for Trucks Material: Heavy duty recycled rubber Module: 500(L) x 550(W) x 75(H)mm End Caps: 250(L) x 550(W) x 75(H)mm Weight: 30kg per metre 160 205 75 CODE DESCRIPTION 1+ 03-HRR5 Black/yellow modules $159.00 / mtr 03-HRR5E End cap set (Set/2) $99.00 / set 03-HRRFC Fasteners to suit concrete M 12 x 65 D Bolts $12.90 / mtr 03-HRRFB Fasteners to suit bitumen M 14 x 75 Plug/CS $12.90 / mtr 28-SBS Sealant Adhesive 600ml $33.90 / ea

CAR PARK PROTECTION 10 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Hump - 50mm for Trucks

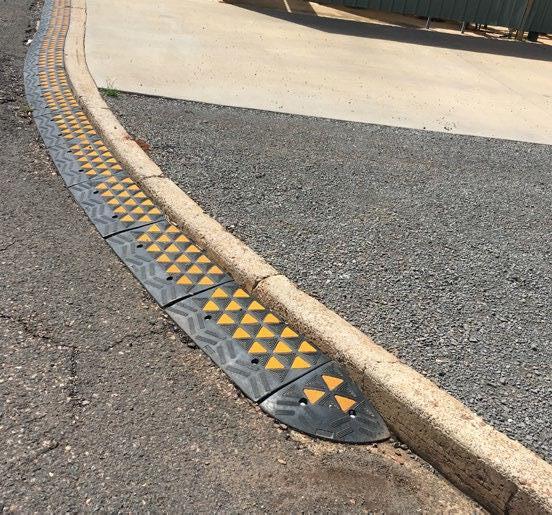

Rubber Speed Calmers

Rubber Speed Calmer

- 900mm Wide

• Material: Solid virgin rubber

• Height: 50mm - calming speed bump

Modules: 500(L) x 900(W) x 50(H)mm

End Cap: 270(L) x 900(W) x 50(H)mm

from Premium Recycled Rubber

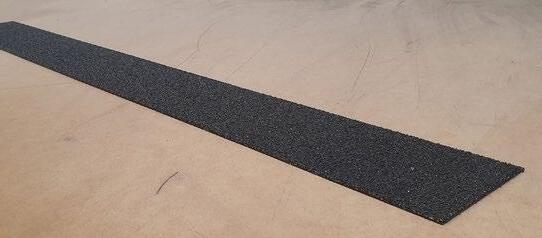

Safety Rumble Strips

Material: Solid rubber/PVC combination

Height: 15mm - calming speed bump

Size: 500(L) x 100(W) x 15(H)mm modules

CODE DESCRIPTION 1-9 10+ 03-RSC Black/yellow module $233.00/ mtr $215.00 / mtr 03-RSC-E End cap set (set/2) $99.00 / set 03-HRCFC Fasteners to suit concrete M12 x 65 D Bolts $12.90 / mtr 03-HRCFB Fasteners to suit bitumen M14 x 75 Plug/CS $12.90 / mtr 28-SBS Sealant Adhesive 600ml $33.90 / ea CODE DESCRIPTION 1-29 30+ 03-SRS-Y Yellow modules $25.50 / ea $23.90 / ea 03-SRS-B Black modules $25.50 / ea $23.90 / ea

Made

CAR PARK PROTECTION 11 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Weight: 30kg per metre

7. Double reinforcing gussets

8. Individual 1m modules

9. Flush gussets prevent leverage on ﬁxings

10. Cable channel

11. Wider footprint makes more secure ﬁxings

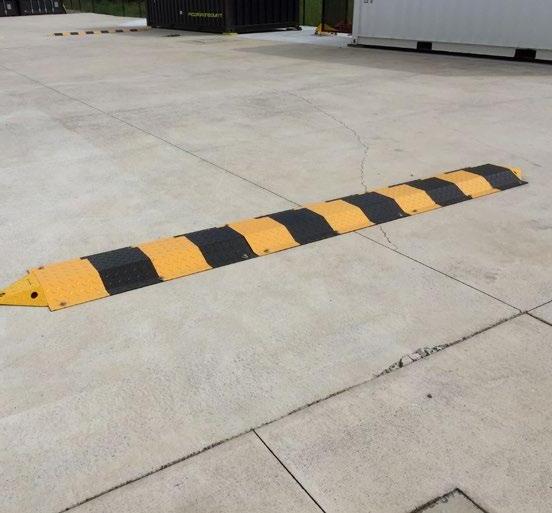

Steel Speed Hump - 3mm Plate Steel Speed Hump - 3mm Plate Steel Speed Hump - 5mm Plate Premium Steel Speed Hump Features

Heavy 5mm Wall thickness

Stronger Flanged mounting points

100% Australian standard compliant

Powder Coated Black Sections (not sprayed over)

Powder Coated Yellow Sections

Large cable channel

1 2 3 4 5 6 7 8 9 0 - CAR PARK PROTECTION 12

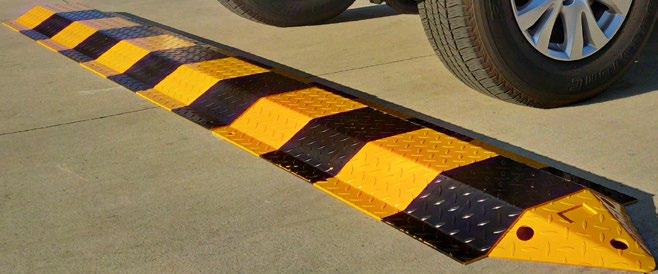

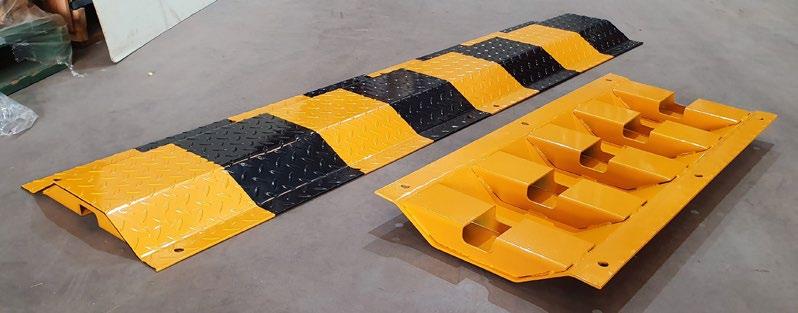

Premium Steel Speed Humps

Steel Speed Hump - 3mm Plate

Material: 3mm steel plate

Treatment: Hot-dipped galvanised

Finish: Powdercoated checker plate

Modules: 1000(L) x 450(W) x 60(H)mm

End caps: 210(L) x 343(W) x 56(H)mm

Weight: 19kg per metre

30(H) x 65(W)mm

02-SMWE

Steel Speed Hump - 5mm Plate

Material: 5mm steel plate

Treatment: Hot-dipped galvanised

Finish: Powdercoated checker plate

Modules: 1000(L) x 450(W) x 60(H)mm

• Weight: 26kg per metre

End caps: 210(L) x 343(W) x 56(H)mm

• Cable channel: 30(H) x 65(W)mm

03-HMFC

CODE DESCRIPTION 1-9 10+ 03-SMW Black & Yellow Module - 1m $277.00 / mtr $245.00 / mtr 03-SMWY Plain Yellow Module - 1m (DISCONTINUED LINE - PRICE TO CLEAR STOCK) $149.00 / mtr 03-SMWE Steel End Cap (Set/2) $149.00 / set 03-HMFC Fasteners - concrete $12.90 / mtr 03-HMFB Fasteners - bitumen $12.90 / mtr 28-SBS Sealant Adhesive 600ml $33.90/ ea

CODE DESCRIPTION 1-9 10+ 03-HMW Heavy Duty Module - 1m (Black/Yellow) $349.00 / mtr $319.00 / mtr 03-HMWE Steel End Cap (Set/2) $149.00 / set

Fasteners - concrete $12.90 / mtr

Fasteners - bitumen $12.90 / mtr

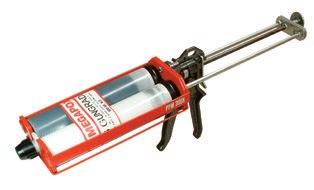

Sealant Adhesive 600ml $33.90/ ea

02-HMFB

28-SBS

Cable channel:

End Cap

End Cap 02-SMWY Plain Yellow Option Complies with AS2890.1-2004 Complies with AS2890.1-2004 CAR PARK PROTECTION 13 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

02-HMWE

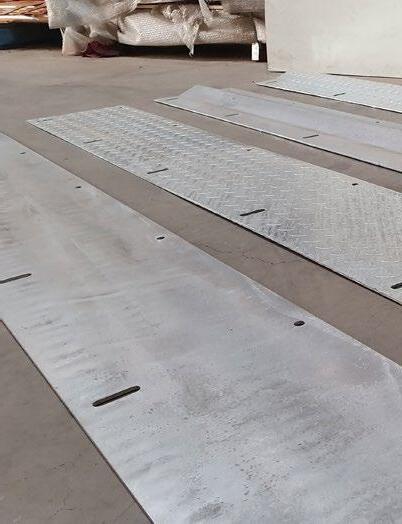

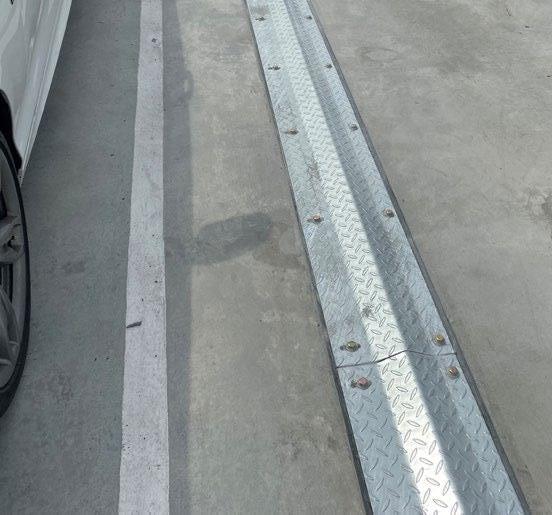

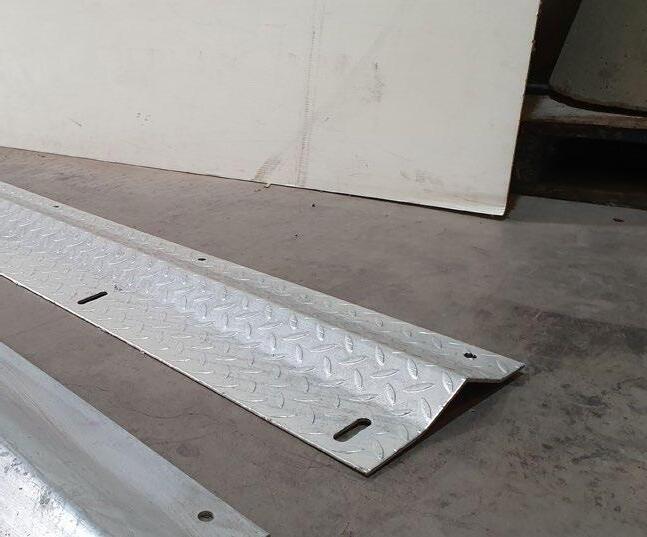

Expansion Joint Cover - Humped Checker Plate Expansion Joint Cover - Humped Smooth Expansion Joint Cover - Humped Smooth Correct fittings supplied with cover

Features

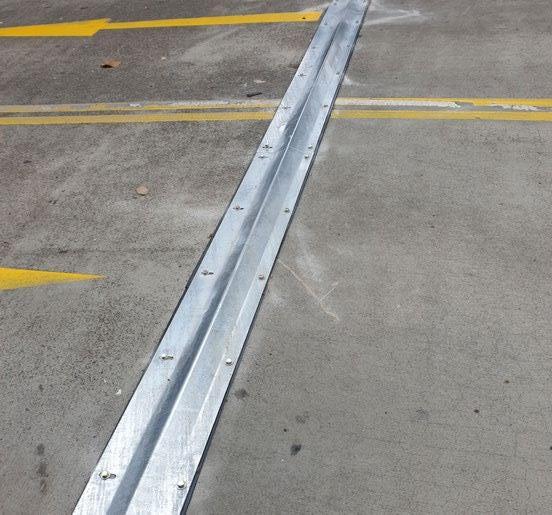

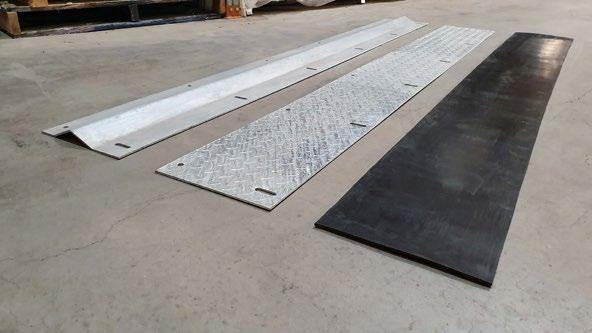

Expansion Joint Cover

Slotted holes

5mm plate thickness

Hot dip galvanised — never rusts

Humped option for cable access or waterprooﬁng protection

Checker plate option provides slip-resistance

Flat area around slots for free movement

Humped smooth

Flat checker

Noise silencing 10. Rubber underlay 11. 4.5mm thick 12. 2-ply reinforced to ensure it won’t break down 13. Rubber is standard with all covers 14. Correct density to withstand friction 1 2 3 4 5 6 7 8 9 0= q w CAR PARK PROTECTION 14

Expansion Joint Cover - Humped Smooth

Thickness: 5mm plate

Size: 2400(L) x 285(W)mm

Fixing Points: Slot is 50 x 14mm, Hole Ø14mm

Clearance: 25mm under hump

Underlay: 4.5mm fibre reinforced insertion rubber

Fixings: M12 x 65mm flush head bolt and washer

Weight: 27kg/ea

Expansion Joint Cover - Humped Checker Plate

Thickness: 5mm plate

Size: 2400(L) x 285(W)mm

Fixing Points: Slot is 50 x 14mm, Hole Ø14mm

Clearance: 25mm under hump

Underlay: 4.5mm fibre reinforced insertion rubber

Fixings: M12 x 65mm flush head bolt and washer

Expansion Joint Covers - Flat Smooth

Thickness: 5mm plate

Size: 2400(L) x 297(W) mm

• Fixing Points: Slot is 50 x 14mm, Hole Ø14mm

• Underlay: 4.5mm fibre reinforced insertion rubber

• Fixings: M12 x 65mm flush head bolt and washer

Weight: 27kg/ea

Expansion Joint Covers - Flat Checker Plate

• Thickness: 5mm plate

• Size: 2400(L) x 297(W) mm

• Fixing Points: Slot is 50 x 14mm, Hole Ø14mm

Underlay: 4.5mm fibre reinforced insertion rubber

Fixings: M12 x 65mm flush head bolt and washer Weight: 27kg/ea

Weight: 27kg/ea

CODE DESCRIPTION 1-19 20+ 32-HEJ-CP Humped Checker Cover Kit - (Cover, Underlay, Fixings) $375.00 / ea $355.00 / ea -32-HEJ-CP Humped Checker Cover Only $329.00 / ea $315.00 / ea CODE DESCRIPTION 1-19 20+ 32-FEJ-CP Flat Checker Cover Kit - (Cover, Underlay, Fixings) $339.00 / ea $299.00 / ea -32-FEJ-CP Flat Checker Cover Only $289.00 / ea $265.00 / ea CODE DESCRIPTION 1-19 20+ 32-HEJ-24 Humped Smooth Cover Kit - (Cover, Underlay, Fixings) $349.00 / ea $319.00 / ea -32-HEJ-24 Humped Smooth Cover Only $299.00 / ea $288.00 / ea CODE DESCRIPTION 1-19 20+ 32-FEJ-24 Flat Smooth Cover Kit - (Cover, Underlay, Fixings) $319.00 / ea $285.00 / ea -32-FEJ-24 Flat Smooth Cover Only $279.00 / ea $249.00 / ea CAR PARK PROTECTION 15 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

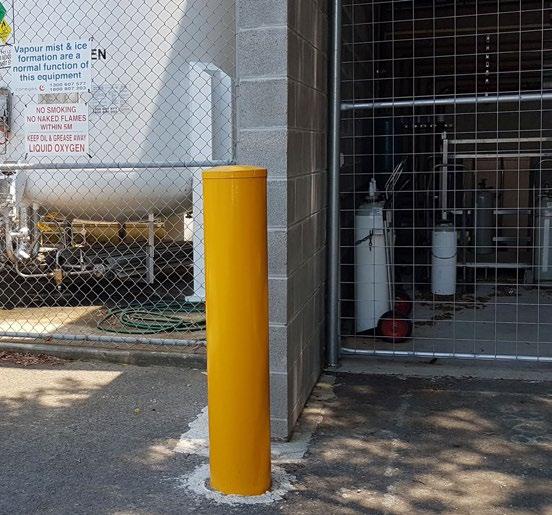

Steel Bollards - White Satin - Inground - 140mm

Steel Bollards - Galvanised - Base Plate - 140mm (See page 22)

Steel Bollard - Yellow - In-Ground - 220mm (See page 19)

Steel Bollards - Yellow - Base Plate - 140mm (See page 18)

Fixed

(See Page 19)

Fixed

- In-Ground - 90mm (See

19) CAR PARK PROTECTION 16

Fixed

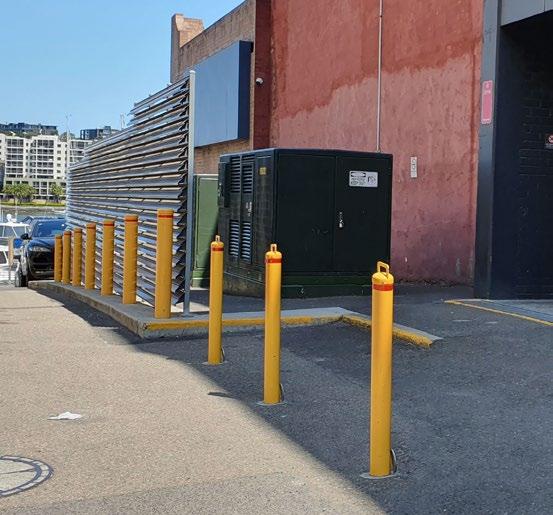

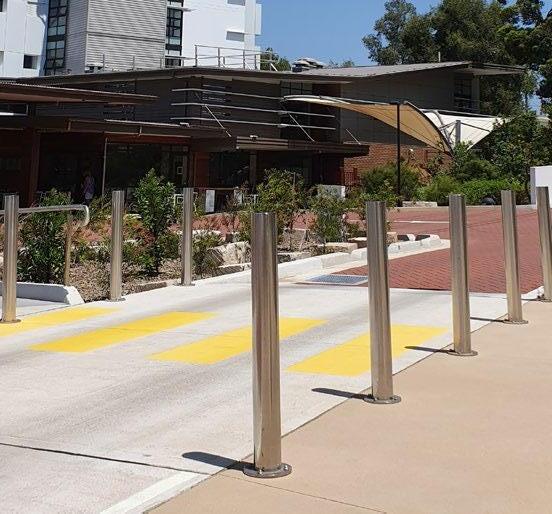

Steel Bollards

Yellow

page

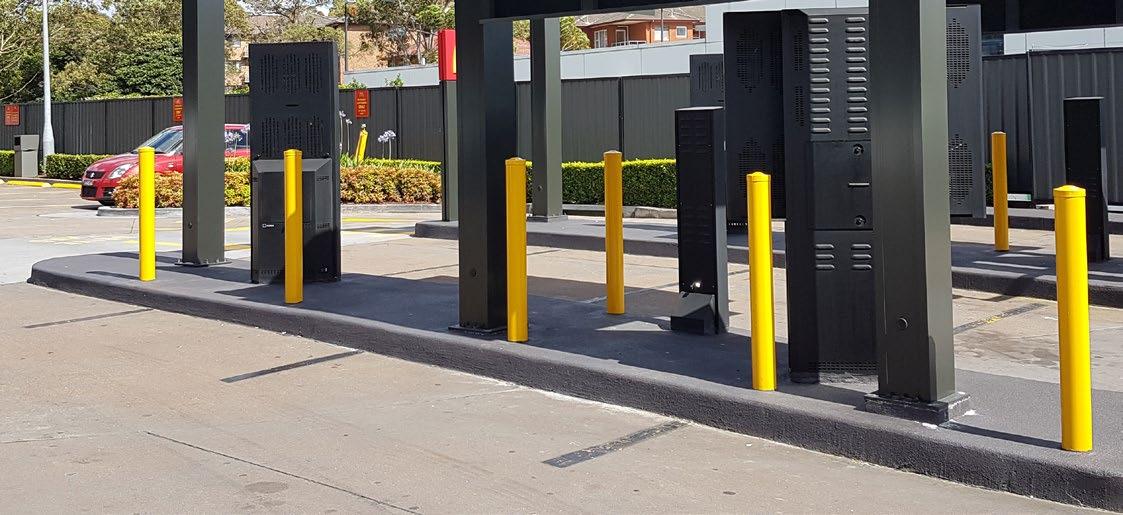

Premium Bollards

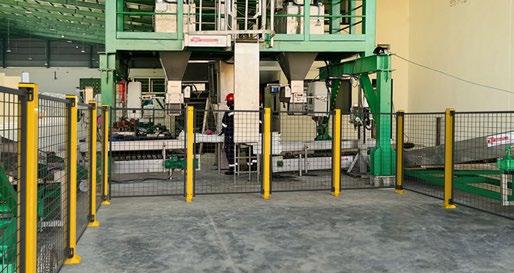

Area Safe steel bollards are essential for separating pedestrians from vehicles and for protecting property. Bollards are a legal requirement for accessible parking shared zones and for preventing obstruction of fire egress doors. Standard powder coat colour is safety yellow — other colours made to order (please enquire).

• Optional chain rings available

• Standard colour is safety yellow

• Other colours available - See pages 18-19

• Custom bollards - POA

Galvanised

AREA SAFE PREMIUM BOLLARDS Galvanised pressure fit cap powdercoated yellow 1 25mm red reflective Strip - class 1 reflective 2 Premium powdercoated Safety yellow, gloss 3 Hot dip galvanised 4 Blasted alloy steel 5 5mm heavy wall 6 Continuous post avoids base plate warping 7 Laser cut base plate, Opening & fixing holes 8 300mm diameter, 10mm thick base plate 9 Neat and strong 3mm CFW electronic weld 10

continues through base plate for extra strength

Post

cut base plate, opening & fixing holes Post continues through base plate for extra strength

Laser

pressure fit cap powdercoated yellow Neat and strong continuous fillet weld 1 10

heavy wall 6 Continuous post avoids base plate warping

red reflective strip - Class 1 reflective 2 8 11 300mm diameter, 10mm thick base plate 9 7 Premium powdercoated safety yellow Blasted alloy steel 4 5 Hot dip galvanised 3 11 CAR PARK PROTECTION 17 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

5mm

25mm

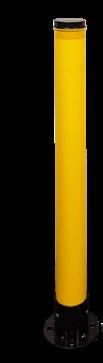

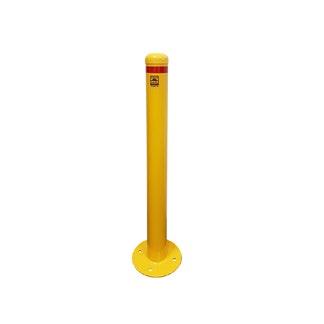

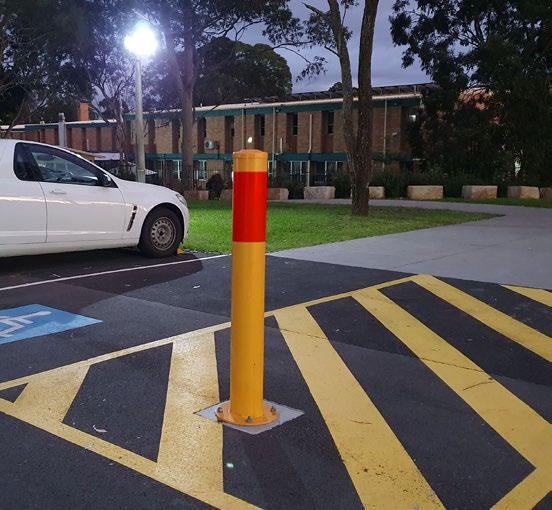

Fixed Steel Bollards - Yellow (Base Plate)

09-SF220BP

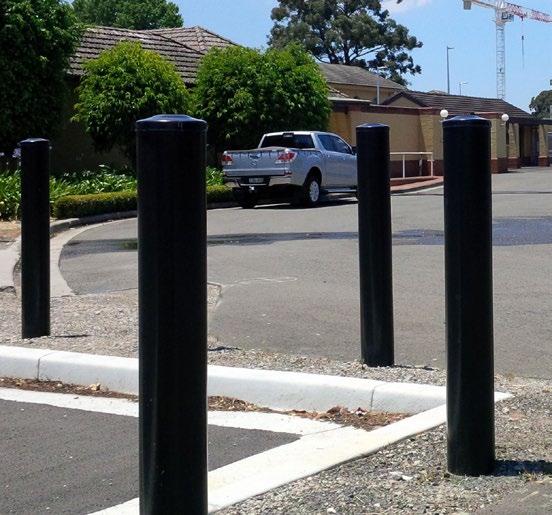

Fixed Steel Bollards - Black (Base Plate)

Made to order - lead time applies Other

Fixed Steel Bollards - Custom Colour (Base Plate)

Ø220 Ø165 Ø140 Ø90 Ø115 Ø75 Ø165 Ø140 Ø90 Ø115 Ø90

below applicable to below colours only (other colours available $POA) CODE DESCRIPTION 1-10 11-25 26+ 08-SF75BP Fixed Base Plate Bollard (Round base plate & Black Plastic Cap) 3mm Wall - Ø75 x 900(H)mm - 8kg $142.90 / ea $118.90 / ea $POA 08-SF90BP Fixed Base Plate Bollard (Round base plate), 5mm Wall - Ø90 x 900(H)mm - 10kg $194.90 / ea $176.90 / ea $POA 08-SF115BP Fixed Base Plate Bollard (DDA - Round base plate) 3mm Wall - Ø115 x 1300(H)mm - 12kg $219.90 / ea $199.90 / ea $POA 08-SF140BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $299.00 / ea $286.00 / ea $POA 09-SF165BP Fixed Base Plate Bollard (Square base plate) 5mm Wall - Ø165 x 1200(H)mm - 30kg $369.00 / ea $349.00 / ea $POA

Pricing

Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø220 x 1200(H)mm - 50kg $POA 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Suits 75mm, 90mm, 115mm Bollards) $9.90 / set 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 (Suits 140mm, 165mm, 220mm Bollards220mm require 5 bolts) $23.90 / set

colours available

reflective tape

supplied

CODE DESCRIPTION 1+ 08-BL90BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø90 x 900(H)mm - 10kg $209.90 / ea 08-BL115BP Fixed Base Plate Bollard (Round Base Plate) 3mm Wall - Ø115 x 1300(H)mm - 12kg $299.00 / ea 08-BL140BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $319.00 / ea 09-BL165BP Fixed Base Plate Bollard (Square base plate) 5mm Wall - Ø165 x 1200(H)mm - 30kg $385.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Suits 90mm, 115mm Bollards) $9.90 / Set 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 (Suits 140mm, 165mm Bollards) $23.90 / Set CODE DESCRIPTION 1-4 5+ 08-CB90BPCOLOUR Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø90 x 900(H)mm - 10kg $325.00 / ea $249.00 / ea 08-CB115BPCOLOUR Fixed Base Plate Bollard (Round Base Plate) 3mm Wall - Ø115 x 1300(H)mm - 12kg $359.00 / ea $299.00 / ea 08-CB140BPCOLOUR Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $465.00 / ea $359.00 / ea 09-CB165BPCOLOUR Fixed Base Plate Bollard (Square base plate) 5mm Wall - Ø165 x 1200(H)mm - 30kg $510.00 / ea $395.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4, (Suits 90mm, 115mm Bollards) $9.90 / set 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 (Suits 140mm, 165mm Bollards) $23.90 / set Charcoal Monument Anotec Dark Grey Woodland Grey Notre Dame Apo Grey White Satin Orange X15 Signal Red Blaze Blue Mistletoe NEW NEW NEW NEW NEW

- Base plate CAR PARK PROTECTION 18 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

- please enquire Red

loose

Bollards

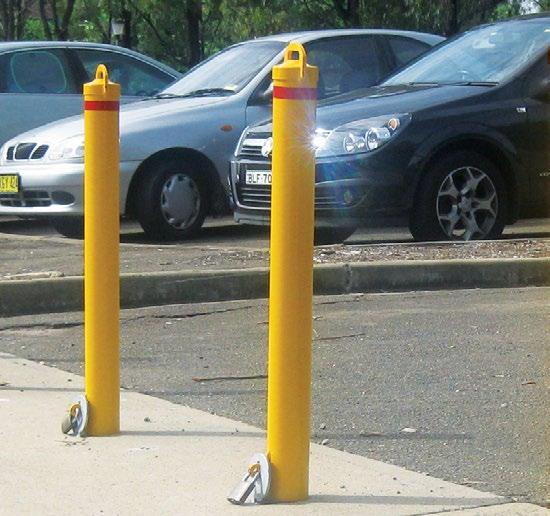

Bollards - Inground

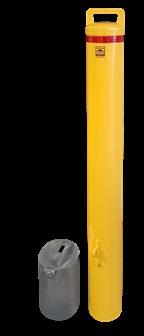

Fixed Steel Bollards – Yellow (In-ground)

•

Fixed Steel Bollards - Black (In-ground)

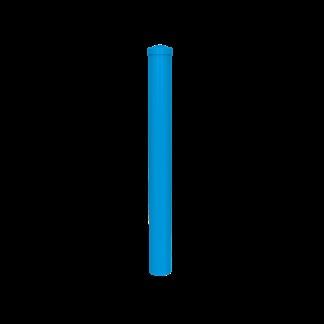

Fixed Steel Bollards - Custom Colour (In-ground)

Pricing below applicable to below colours only (other colours available $POA)

CODE DESCRIPTION 1 - 4 08-CB90IG-COLOUR Fixed In-Ground Bollard - Custom Colour 5mm Wall - Ø90 x 1300(H)mm(Overall) - 13kg $359.00 / ea 08-CB115IG-COLOUR Fixed Base Plate Bollard (Round Base Plate) 5mm Wall - Ø115 x 1625(H)mm - 13kg $389.00 / ea 08-CB140IG-COLOUR Fixed In-Ground Bollard 5mm Wall - Ø140 x 1625(H)mm(Overall) - 30kg $515.00 / ea 09-CB165IG-COLOUR Fixed In-Ground Bollard 5mm Wall - Ø165 x 1625(H)mm(Overall) - 35kg $595.00 / ea

CODE DESCRIPTION 1-10 11-25 26+ 08-SF90IG Fixed In-Ground Bollard 5mm Wall - Ø90 x 1300(H)mm(Overall) - 13kg $219.90 / ea $194.90 / ea $POA 08-SF115IG Fixed In-Ground Bollard 5mm Wall - Ø115 x 1625(H)mm (Overall) - 13kg $219.00 / ea 08-SF140IG Fixed In-Ground Bollard 5mm Wall - Ø140 x 1625(H)mm(Overall) - 30kg $329.00 / ea $309.00 / ea $POA 09-SF165IG Fixed In-Ground Bollard 5mm Wall - Ø165 x 1625(H)mm(Overall) - 35kg $399.00 / ea $382.00 / ea $POA 09-SF220IG Fixed In-Ground Bollard 5mm Wall - Ø220 x 1800(H)mm(Overall) - 50kg $POA

Caps and reflective tape supplied loose

colours available

Caps and reflective

CODE DESCRIPTION 1+ 08-BL90IG Fixed In-Ground Bollard 5mm Wall - Ø90 x 1300(H)mm(Overall) - 13kg $232.00 / ea 08-BL115IG Fixed In-Ground Bollard 5mm Wall - Ø115 x 1625(H)mm (Overall) - 13kg $299.00 / ea 08-BL140IG Fixed In-Ground Bollard 5mm Wall - Ø140 x 1625(H)mm(Overall) - 30kg $355.00 / ea 09-BL165IG Fixed In-Ground Bollard 5mm Wall - Ø165 x 1625(H)mm(Overall) - 35kg $429.00 / ea Charcoal Monument Anotec Dark Grey Woodland Grey Notre Dame Apo Grey White Satin Orange X15 Signal Red Blaze Blue Mistletoe NEW NEW Ø220 Ø165 Ø140 Ø90 Ø165 Ø140 Ø90 Ø115 Ø115 Ø115 NEW

Made to order — lead time applies Other

— please enquire

tape supplied loose

CAR PARK PROTECTION 19 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Other-user spaces Other-user spaces 5400 7200min 2400 2400 2400 Dedicated space Dedicated space Shared area Bollard 1300mm high 750 - 1750 AS2890.1:2004 AS2890.6:2022 Compliant Shared Zone CPD Car Park Compliance Course Scan QR to see online page Fixed teel Bollards - Yellow - 140mm (See Page 18) Fixed Steel Bollards - Yellow - 140mm (See Page 18) Fixed Steel Bollards In Ground - Yellow - 140mm (See Page 19) Shared Zone Bollard - Base Plate Yellow - 115mm CAR PARK PROTECTION 20

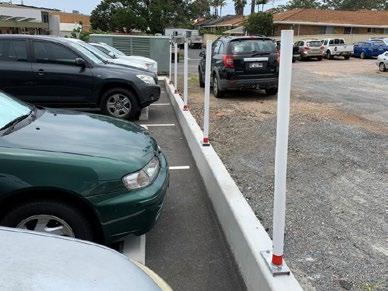

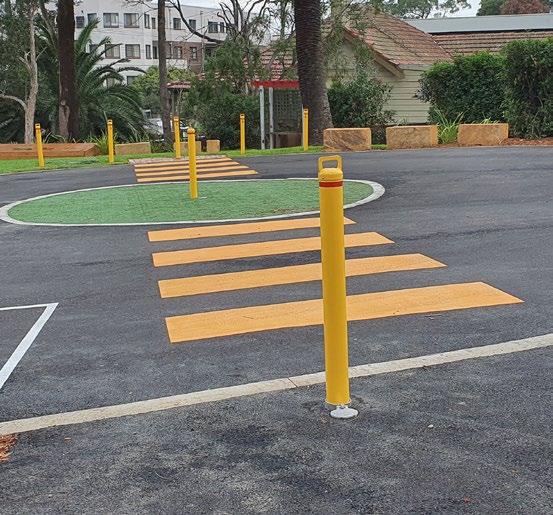

Bollards - Accessible Shared Zone

Shared Zone Bollards - Base Plate

Compliant 1300mm High

Compliant 300mm Wide Red Reflective Strip (supplied loose)

Colours: Yellow, Black, Blue or Plain Galvanised

Shared Zone Bollards - Inground

Compliant 1300mm High (Overall height 1625mm)

Compliant 300mm High Red Reflective Strip (supplied loose)

Colours: Yellow, Black, Blue or Plain Galvanised

115mm

Compliant Shared Zone Bollard Reflective

Reflective Strip to apply to old or existing bollards

Diameter:

CODE DESCRIPTION PRICE 08-SF115BP-SZ Yellow $259.90

ea 08-BL115BP-SZ Black $339.00 / ea 08-CB115BP-BLU-SZ Blue $339.00 / ea 08-B115BP-SZ Plain Galvanised $238.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set

115mm

Diameter:

CODE DESCRIPTION PRICE 08-SF115IG-SZ Yellow $259.00 / ea 08-BL115IG-SZ Black $339.00 / ea 08-CB115IG-BLU-SZ Blue $339.00 / ea 08-B115IG-SZ Plain Galvanised $238.00 / ea

NEW NEW New Parking Australian Standards AS2890.6:2022 affect Shared Zone Bollards - Area Safe Bollards now compliant! New Parking Australian Standards AS2890.6:2022 affect Shared Zone Bollards - Area Safe Bollards now compliant! NEW CODE DESCRIPTION PRICE 08-SZBR300 300(H) x 450(W)mm $39.90 / ea New Parking Australian Standards AS2890.6:2022 affect Shared Zone Bollards - Area Safe Bollards now compliant! CAR PARK PROTECTION 21 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

300(H) x 450(W)mm - Suits up to 140mm diameter bollards Red Microprismatic Retroreflective sheet

Steel Bollards - Gal Finish (Base Plate)

Steel Bollards - Gal Finish (In-ground)

•

Architectural Steel Bollards with Apollo Cap (Base Plate)

Heavy

Architectural Steel Bollards with Apollo Cap (In-Ground)

Heavy

Bollards

Reflective tape supplied loose CODE DESCRIPTION 1-10 11-25 26+ 08-B90IG Fixed In-Ground Bollard 5mm Wall - Ø90 x 1300(H)mm(Overall) - 13kg $165.00 / ea $142.00 / ea $128.00 / ea 08-B115IG Fixed In-Ground Bollard 5mm Wall - Ø115 x 1625(H)mm (Overall) - 13kg $199.00 / ea 08-B140IG Fixed In-Ground Bollard 5mm Wall - Ø140 x 1625(H)mm(Overall) - 30kg $299.00 / ea $272.00 / ea $255.00 / ea 09-B165IG Fixed In-Ground Bollard 5mm Wall - Ø165 x 1625(H)mm(Overall) - 35kg $362.00 / ea $335.00 / ea $315.00 / ea 09-B220IG Fixed In-Ground Bollard 5mm Wall - Ø220 x 1800(H)mm(Overall) - 50kg $POA Ø90 Ø140 Ø220 Ø90 Ø140 Ø165 Ø220

Reflective tape supplied loose CODE DESCRIPTION 1-10 11-25 26+ 08-B90BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø90 x 900(H)mm - 10kg $148.50 / ea $129.90 / ea $119.90 / ea 08-B115BP Fixed Base Plate Bollard (Round Base Plate) 3mm Wall - (0)115 x 1300(H)mm - 12kg $199.00 / ea $192.00 / ea $179.00 / ea 08-B140BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $269.90 / ea $245.90 / ea $229.90 / ea 09-B165BP Fixed Base Plate Bollard (Square base plate) 5mm Wall - Ø165 x 1200(H)mm - 30kg $329.00 / ea $299.00 / ea $289.00 / ea 09-B220BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø220 x 1200(H)mm - 50kg $POA

M12 x 75mm Galvanised Screw Bolt - Set of 4 (Suits 90mm,

08-GSB1275X4

115mm Bollards) $9.90 / Set

100mm

165mm,

$23.90 / Set

08-GSB16100X4 M16 x

Galvanised Screw Bolt - Set of 4 (Suits 140mm,

220mm Bollards220mm require 5 bolts)

duty galvanised steel safety bollards with polished aluminium Apollo cap

Red

CODE DESCRIPTION 1+

Galvanised finish $497.90 / ea 09-SF165BP-A Yellow powder coat $537.90 / ea 09-BL165BP-A Black powder coat $553.90 / ea 09-CB165BP-A-COLOUR Custom Colour Powder Coat (See page 19 for available colours) $563.90 / ea 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 $23.90 / Set

Size: Ø165 x 1350(H)mm Weight: 30kg

reflective tape is supplied loose

09-B165BP-A

duty galvanised steel safety bollards with polished aluminium Apollo cap

Ø165 x 1770(H)mm overall Weight: 35kg • Reflective tape supplied loose CODE DESCRIPTION 1+ 09-B165IG-A Galvanised Finish $529.00 / ea 09-SF165IG-A Yellow Powder Coat $567.90 / ea 09-BL165IG-A Black Powder Coat $597.90 / ea 09-CB165IG-A-COLOUR Custom Colour Powder Coat (See page 19 for available colours) $637.70 / ea Ø115 Ø165 NEW NEW NEW Ø115 CAR PARK PROTECTION 22 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Size:

Bollard Accessories

Apollo Polished Dome Cap

Plastic Bollard Covers

Pop over existing damaged bollards

Saves painting old bollards

Supplied with foam packers

Chain Ring

D-Shackle

CODE DESCRIPTION 1-10 11-25 26+ 09-ADT165 Apollo Dome Cap $129.00 / ea $109.00 / ea $99.00 / ea 08-CR-FIT Factory Fitting Cost $45.90 / ea CODE DESCRIPTION 1+ 08-PBS100 101.6(NB) x 1320(H)mm - Suits 90-100(OD)mm bollards $59.00 / ea 08-PBS150 152(NB) x 1320(H)mm - Suits 140(OD)mm bollards $69.00 / ea 08-PBS175 177(NB) x 1320(H)mm - Suits 165(OD)mm bollards $85.00 / ea CODE DESCRIPTION 1+ 08-RCS 2m length $59.90 / length 08-RCS-20 20m Roll $449.00 / roll CODE DESCRIPTION 1+ 08-SCH-CR Chain Ring $15.90 / ea 08-CR-FIT Factory Fitting Cost $45.90 / ea CODE DESCRIPTION 1+ 08-SCH-DS $6.20 / ea Galvanised Steel & Plastic Chain Size: 6mm gal chain with 22x35mm links Length: Cut to any length (Maximum 30m) Hi-Vis Chain

- Reflective • High-vis class 1 reflective (Red) • 2m length or 20m roll Suits 6mm chain

Sleeve

Polished aluminium Size: Ø165 x 150(H)mm Factory fitting available - see price block Can be retro-fitted on site by others

38(L) x 25(W)mm

suit 6mm chain Size:

Size: Ø45mm Thread: M10

Custom powder coat colours available - please enquire. CODE DESCRIPTION 1+ 08-SCH-GAL Galvanised Chain $16.50 / mtr 08-SCH-PC Galvanised Chain - Powder Coated Yellow $24.80 / mtr 24-PLC610M Plastic Chain - Yellow 10m $49.00 / ea 24-PLC640M Plastic Chain - Yellow 40m $139.00 / ea 24-PLC640M-W Plastic Chain - White 40m $139.90 / Set NEW CAR PARK PROTECTION 23 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

•

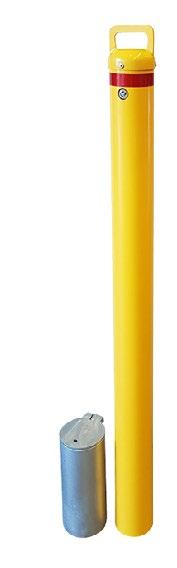

Key Operated In-Ground Removable Bollard - 90mm Key Operated In-Ground Removable Bollard - 90mm Key Operated In-Ground Removable Bollard - 90mm Key Operated Surface Mount Removable Bollard - Yellow

Removable Bollard

25mm red class 1 reﬂective strip

Heavy 5mm wall thickness

Heavy duty gal sleeve

Fixed security cap with handle

Heavy duty security key

Unique locking system Premium powder coated Safety Yellow Blasted alloy steel Hot dip galvanised 1 2 3 4 5 6 CAR PARK PROTECTION 24

Key Operated In-Ground

Features 1.

Key Operated Surface Mount

Removable Bollard - Yellow

• Bollard: Ø90 x 1020(H)mm

• Receiver Shoe: 200(W) x 18(H)mm

Weight: 14kg

Key Operated In-ground

Removable Bollard - 90mm

Bollard: Ø90 x 950(H)mm (Overall length: 1150mm)

Weight: 12kg bollard + 3kg sleeve

Key Operated In-ground

Removable Bollard - 140mm

Bollard: Ø140 x 950(H)mm (Overall length: 1150mm)

Weight: 18kg bollard + 6kg sleeve

CODE DESCRIPTION 1-4 5+ 09-SRSMK Bollard & Receiver Shoe $319.00 / ea $299.00 / ea 09-SRSMK-B Storage Shoe - Yellow $98.00 / ea

M12

65 Flush Head anchors (Set of 4) $9.00 / set CODE DESCRIPTION 1-4 5+ 09-SRK90 Bollard & Sleeve $365.00 / ea $329.00/ ea 09-SRK90-BDS Bolt-down Storage Sleeve $149.00 / ea CODE DESCRIPTION 1-4 5+ 09-SRK140 Bollard & Sleeve $499.00 / ea $455.00 / ea 09-SRK140-BDS Bolt-down Storage Sleeve $199.00 / ea CODE DESCRIPTION 1-4 5+ 09-SRSMK-BL Bollard & Receiver Shoe $349.00 / ea $319.00 / ea 09-SRSMK-BBL Storage Shoe - Black $109.00 / ea 09-FHSA M12 x 65 Flush Head anchors (Set of 4) $9.00 / set Bolt-down Storage Sleeve Bolt-down Storage Sleeve Storage Shoe Storage Shoe CAR PARK PROTECTION 25 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Removable Bollards - Key Operated

09-FHSA

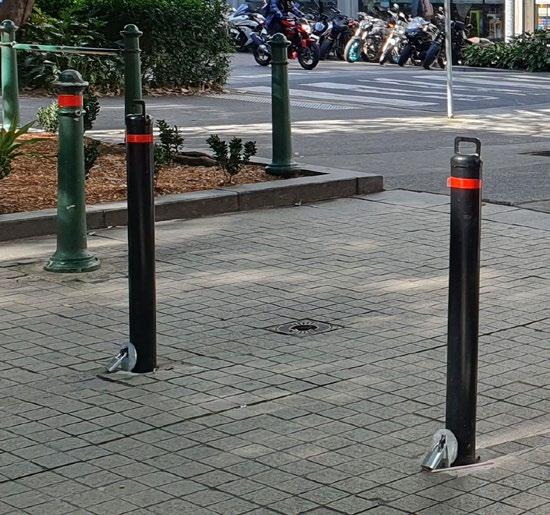

Padlock Secured Removable Bollard - 90mm Black Padlock Secured Removable Bollard - 140mm Yellow Padlock Secured Removable Bollard - 90mm Yellow Padlock Secured Removable Bollard - 90mm Yellow Padlock In-Ground Removable Bollard Features Premium powdercoated safety yellow Blasted alloy steel Hot dip galvanised

25mm red class 1 reﬂective strip

Heavy 5mm wall thickness

Heavy duty gal sleeve

Fixed security cap with handle

Heavy duty padlock lug 1

CAR PARK PROTECTION 26

2 3

Removable Bollards / Padlock Secured

Padlock Secured In-Ground Removable

Bollards - 90mm - Yellow

• Bollard: Ø90 x 950(H)mm (above ground)

• Weight: 12kg bollard + 3kg sleeve

Padlock Secured In-Ground Removable

Bollards - 140mm - Yellow

• Bollard: Ø140 x 1050(H)mm (above ground)

• Weight: 18kg + 6kg sleeve

Padlock Secured In-Ground Removable

Bollards - 90mm - Black

Bollard: Ø90 x 950(H)mm (above ground)

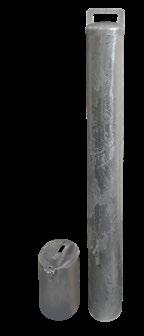

Padlock Secured In-ground Removable Bollards - 90mmGalvanised

Bollard: Ø90 x 950(H)mm (above ground)

Weight: 12kg bollard + 3kg sleeve

Padlock Secured In-Ground Removable

Bollards - 140mm - Black

Padlock Secured In-ground Removable

Bollards - 140mm - Galvanised

Bollard: Ø140 x 1050(H)mm (above ground)

• Weight: 18kg + 6kg sleeve

CODE DESCRIPTION 1-4 5+ 09-SRP90 Bollard & Sleeve (Yellow) $299.00 / ea $259.00 / ea 09-SRK90-BDS Bolt-down Storage Sleeve $149.00 / ea CODE DESCRIPTION 1-4 5+ 09-SRP90-G Bollard & Sleeve (Gal Finish) $279.00 / ea $249.00 / ea 09-SRK90-BDS Bolt-down Storage Sleeve $149.00 / ea CODE DESCRIPTION 1-4 5+ 09-SRP140 Bollard & Sleeve (Yellow) $469.00 / ea $445.00 / ea 09-SRK140-BDS Bolt-down Storage Sleeve $199.00 / ea CODE DESCRIPTION 1-4 5+ 09-SRP140-G Bollard & Sleeve (Gal Finish) $439.00 / ea $399.00 / ea 09-SRK140-BDS Bolt-down Storage Sleeve $199.00 / ea Bolt-down Storage Sleeve Bolt-down Storage Sleeve Bolt-down Storage Sleeve Bolt-down Storage Sleeve

Weight: 12kg bollard + 3kg sleeve

CODE DESCRIPTION 1-4 5+ 09-SRP90-BK Bollard & Sleeve (Black) $349.00 / ea $319.00 09-SRK90-BDS Bolt-down Storage Sleeve $149.00 / ea CODE DESCRIPTION 1-4 5+ 09-SRP140-BK Bollard & Sleeve (Black) $499.00 / ea $469.00 / ea 09-SRK140-BDS Bolt-down Storage Sleeve $199.00 / ea Bolt-down Storage Sleeve Bolt-down Storage Sleeve CAR PARK PROTECTION 27 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Bollard: Ø140 x 1050(H)mm (above ground) Weight: 18kg + 6kg sleeve

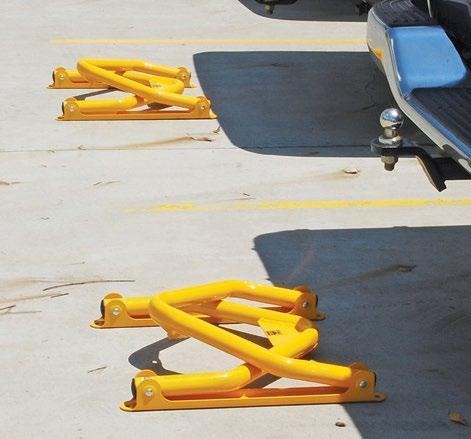

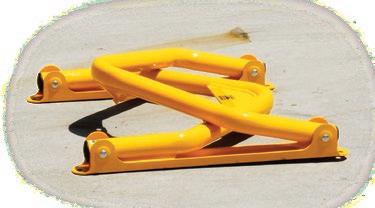

Key Operated Parking Space Protector - Round Heavy Duty Pivoted Base Plate Space Protector Padlock Secured Parking Space Protector - Traditional Style Padlock Secured Parking Space Protector - Traditional Style Traditional Parking Space Protector Features

Easy to use padlock gusset

Heavy duty 3mm wall thickness

Strong tubular design

8 ﬁxing points for extra security

Strong security pivot points

Wide footprint for better car space protection

Folds down for low clearance

Hi-vis safety yellow ﬁnish 1 2 3 4 5 6 7 8 CAR PARK PROTECTION 28

Key

Plate Parking Space Protectors

Locked up: 750(H) x 300(W)mm Locked flat: 35mm low Reflective Sign: No Parking

Space Protector Height: 800mm / 102mm Post: 90 x 90mm Wall: 5mm Weight: 10kg 102mm 85mm 3. GO! 1. LIFT SLIGHTLY 2. TILT

Heavy Duty Pivoted Base Plate Bollard /

Operated Parking Space Protector - Round

Height: 670mm / 85mm • Post: Ø60mm All keyed alike Weight: 6kg

CODE 1-5 6+ 16-KOSP-R $219.00 / ea $189.00 / ea

•

Parking Space Protectors

Space

CODE 1-5 6-10 11+ 16-SMK $349.00 / ea $319.00 / ea $299.00 / ea CODE 1-5 6+ 09-SPBP $299.00 / ea $269.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set CODE 1-5 6+ 16-SPSP-F $488.00 / ea $599.00 / ea • No Entry signs also available - please enquire. Side View Top View Lock Provision Fixdown Holes 503 Wide 416 560 CAR PARK PROTECTION 29 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Padlock Secured

Protector Traditional Style

Stainless Steel Bollards - Base Plate - 140mm Stainless Steel Bollards - In-Ground - 140mm Stainless Steel Bollards - Mitred Top - Base Plate - 140mm Stainless Steel Bollards - Base Plate - 90mm Stainless Steel Mitred Top Bollard Features

316 grade stainless steel

Heavy duty 10mm base plate

Smooth welded mitred top

Brushed finish

Heavy 3mm wall

Continuous post avoids base plate warping

CAR PARK PROTECTION 30

1 2 6 3 4 5

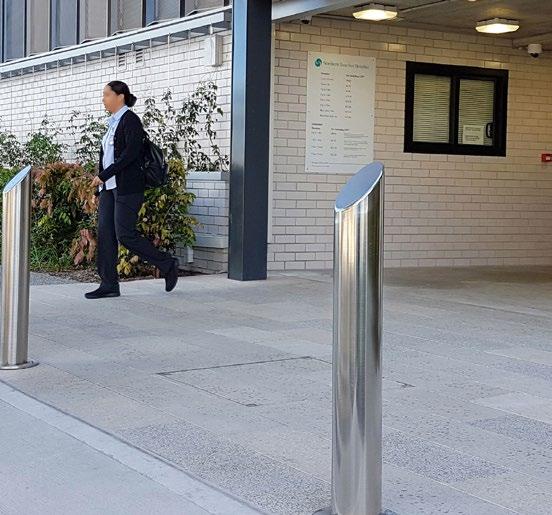

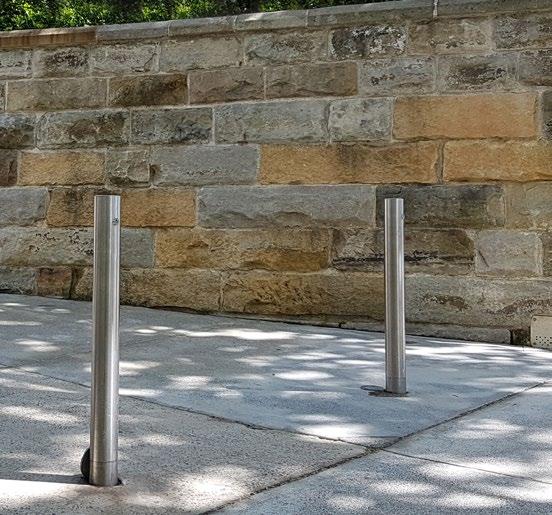

Stainless Steel Bollards

Stainless Steel Bollards - Base Plate

• Heavy wall 316 marine grade stainless with #4 brush polish.

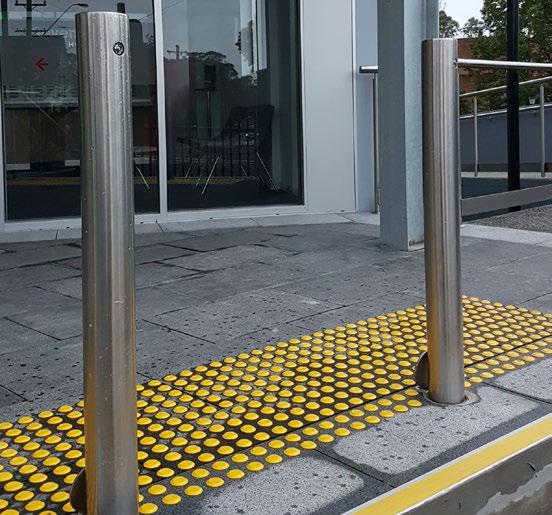

Stainless Steel Bollards - In-Ground

• Heavy wall 316 marine grade stainless with #4 brush polish.

Stainless Steel Bollards - Mitre-Top (Base Plate)

•

Stainless Steel Bollards - Mitre-Top (In-Ground)

• Heavy wall 316 marine grade stainless with #4 brush polish.

CODE DESCRIPTION 1+ 08-SS90BP Ø90 x 900 (H)mm - 9kg $449.00 / ea 08-SS140BP Ø140 x 1000 (H)mm - 14kg $649.00 / ea 08-SS165BP Ø165 x 1000(H)mm - 16kg $799.00 / ea 08-SS220BP Ø220 x 900mm (H)mm -35kg $POA 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Suits 90mm Bollards) $9.90 / set 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 (Suits 140mm, 165mm Bollards) $23.90 / Set CODE DESCRIPTION 1+ 08-SS90IG Ø90 x 1100 (H)mm - 14kg $389.00 / ea 08-SS140IG Ø140 x 1300 (H)mm - 22kg $595.00 / ea 08-SS165IG Ø165 x 1300 (H)mm - 30kg $739.00 / ea 08-SS220IG Ø220 x 1300 (H)mm - 40kg $POA CODE DESCRIPTION 1+ 08-SS90MIG Ø90 x 1100(H)mm - 6.5kg $439.00 / ea 08-MCD-SS90MIG Ø90 x 1500(H)mm - 8kg $499.00 / ea 08-SS140MIG Ø140 x 1300(H)mm - 14kg $639.00 / ea

Heavy wall 316 marine grade stainless with #4 brush polish. CODE DESCRIPTION 1+ 08-SS90MBP Ø90 x 900(H)mm - 7kg $469.00 / ea 08-SS140MBP Ø140 x 1000(H)mm - 13kg $679.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Suits 90mm Bollards) $9.90 / set 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 (Suits 140mm Bollards) $23.90 / set Ø90 Ø90 Ø90 Ø90 Ø140 Ø140 Ø165 Ø165 Ø140 Ø140 Ø90 CAR PARK PROTECTION 31 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Black Bollard 140mm In-Ground Stainless Steel Bollards - Removable Stainless Steel Bollards - Removable Stainless Steel Bollards - Internal Base Plate Stainless Steel Internal Base Plate Bollard Features Unique internal Locking System 1. 316 grade stainless steel 2. Heavy duty 3mm wall thickness 3. Smooth welded flat cap 4. Neat finish base, No trip hazards 1 2 3 4 CAR PARK PROTECTION 32

Stainless Steel & Steel Bollards

Stainless Steel Bollards - Internal Base Plate

• Heavy wall 316 marine grade stainless with #4 brush polish.

• For surface mounting

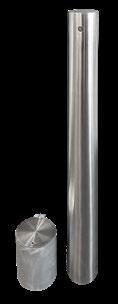

Stainless Steel Bollards - Removable Heavy wall 316 marine grade stainless with #4 brush polish.

Fixed Steel Bollards - Black (Base Plate)

Made to order - lead time applies

Architectural Steel Bollards with Apollo Cap (Base Plate)

•

CODE DESCRIPTION 1+ 08-SS90R Ø90 x 900(H)mm - 14kg $669.00 / ea 08-SS140R Ø140 x 1000(H)mm - 22kg $995.00 / ea 08-SS165R Ø165 x 1000(H)mm - 20kg $1,349.00 / ea

CODE DESCRIPTION 1+ 08-SS60IBP Ø60 x 700(H)mm - 5kg $479.00 / ea 08-SS90IBP Ø90 x 900(H)mm - 7kg $619.00 / ea Internal View Internal Base Plate Ø90 Ø60

Red reflective tape is supplied

CODE DESCRIPTION 1+ 08-BL90BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø90 x 900(H)mm - 10kg $209.90 / ea 08-BL140BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $319.00 / ea 09-BL165BP Fixed Base Plate Bollard (Square base plate) 5mm Wall - Ø165 x 1200(H)mm - 30kg $385.00 / ea

Other colours available - please enquire

loose

Heavy duty galvanised steel safety

Apollo cap

bollards with polished aluminium

Size: Ø165 x 1350(H)mm Weight: 30kg Red reflective tape is supplied loose CODE DESCRIPTION 1+ 09-BL165BP-A Black powder coat $479.00 / ea Ø90 Ø140 Ø165 Custom Colour Bollards also available, see page 18-19 CAR PARK PROTECTION 33 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

The Berlin Bollard Suite

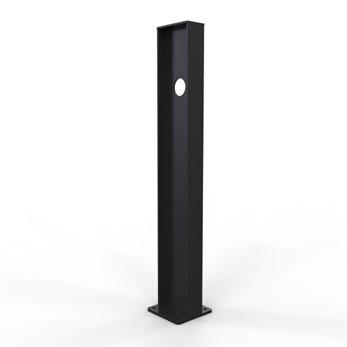

The Berlin Bollard - Base Plate Unslatted

The Berlin Bollard - In-Ground Unslatted

The Berlin Bollard - Removable Unslatted

Size: 1006(H) x 155(W) x 75(D)mm (Ø) 60mm Hole - can be used as a bike locking stand. CODE DESCRIPTION 1+ 09-ABG Plain Galvanised Bollard with Bike Locking Hole $555.00 / ea 09-ABB Plain Black Bollard with Bike Locking Hole $615.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set

Size: 1300(H) x 155(W) x 81(D)mm (1000m above ground) (Ø) 60mm Hole

can be used

bike locking stand. CODE DESCRIPTION 1+ 09-ABG-IG Plain Galvanised In-Ground Bollard with Bike Locking Hole $675.00 / ea 09-ABB-IG Plain Black In-Ground Bollard with Bike Locking Hole $790.00 / ea

as a

Size: 1300(H) x 155(W) x 89(D)mm (1000m above ground) (Ø) 60mm Hole - can be used as a bike locking stand. In-Ground Sleeve with Padlockable Latch CODE DESCRIPTION 1+ 09-ABG-RE Plain Galvanised Removable Bollard with Bike Locking Hole $899.00 / ea 09-ABB-RE Plain Black Removable Bollard with Bike Locking Hole $995.00 / ea NEW NEW NEW CAR PARK PROTECTION 34 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

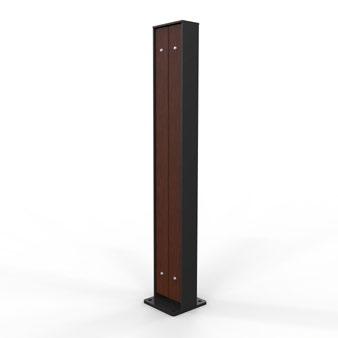

The Berlin Bollard Suite

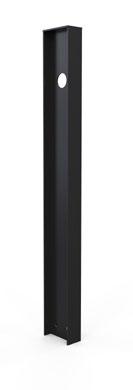

The Berlin Bollard - Base Plate Black - Slatted

Size: 1006(H) x 155(W) x 75(D)mm

Optional (Ø) 60mm Hole - can be used as a bike locking stand.

The Berlin Bollard - Base Plate Galvanised - Slatted

Size:

1006(H) x 155(W)

75(D)mm Optional (Ø) 60mm Hole

be used as a bike locking stand. CODE DESCRIPTION 1+ $825.00 / ea $935.00 / ea Enviroslat Walnut $825.00 / ea Wood Grain Aluminium - Western Red Cedar $945.00 / ea 09-ABBS-BO Wood Grain Aluminium - Blonde Oak $945.00 / ea Merbau Hardwood + Bike Locking or Fencing Hole $924.00 / ea Anodised Aluminium + Bike Locking or Fencing Hole $1,114.00 / ea Enviroslat Walnut + Bike Locking or Fencing Hole $924.00 / ea Wood Grain AluminiumWestern Red Cedar + Bike Locking or Fencing Hole $1,124.00 / ea 09-ABBS-BO-H Wood Grain Aluminium - Blonde Oak + Bike Locking or Fencing Hole $1,124.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4- $9.90 / Set CODE DESCRIPTION 1+ $765.00 / ea $899.00 / ea Enviroslat Walnut $765.00 / ea Wood Grain Aluminium - Western Red Cedar $885.00 / ea 09-ABGS-BO Wood Grain Aluminium - Blonde Oak $885.00 / ea Merbau Hardwood + Bike Locking or Fencing Hole $864.00 / ea Anodised Aluminium + Bike Locking or Fencing Hole $1,054.00 / ea Enviroslat Walnut + Bike Locking or Fencing Hole $864.00 / ea Wood Grain AluminiumWestern Red Cedar + Bike Locking or Fencing Hole $1,064.00 / ea 09-ABGS-BO-H Wood Grain AluminiumBlonde Oak + Bike Locking or Fencing Hole $1,064.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set Blonde Oak Enviroslat Anodised Ali with Hole Western Red Cedar with Hole Merbau Hardwood Merbau Hardwood NEW NEW CAR PARK PROTECTION 35 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

- can

The Berlin Bollard Suite

The Berlin Bollard - In-Ground Black - Slatted

Size: 1300(H) x 155(W) x 81(D)mm (1000m above ground)

(Ø) 60mm Hole - can be used as a bike locking stand.

The Berlin Bollard - In-Ground Galvanised - Slatted

Size: 1300(H) x 155(W) x 81(D)mm (1000m above ground)

(Ø) 60mm Hole - can be used as a bike locking stand.

Enviroslat

CODE DESCRIPTION 1+ $990.00 / ea $1,110.00 / ea Enviroslat Walnut $990.00 / ea Wood Grain Aluminium - Western Red Cedar $1,150.00 / ea 09-ABBS-BO-IG Wood Grain Aluminium - Blonde Oak $1,150.00 / ea Merbau Hardwood + Bike Locking or Fencing Hole $1,090.00 / ea Anodised Aluminium + Bike Locking or Fencing Hole $1,299.00 / ea Enviroslat Walnut + Bike Locking or Fencing Hole $1,090.00 / ea Wood Grain AluminiumWestern Red Cedar + Bike Locking or Fencing Hole $1,330.00 / ea 09-ABBS-BO-H-IG Wood Grain Aluminium - Blonde Oak + Bike Locking or Fencing Hole $1,330.00 / ea

CODE DESCRIPTION 1+ $890.00 / ea $999.00 / ea

Walnut $890.00 / ea Wood Grain Aluminium - Western Red Cedar $1,025.00 / ea 09-ABGS-BO-IG Wood Grain Aluminium - Blonde Oak $1,025.00 / ea

Hardwood + Bike Locking or Fencing Hole $995.00

Aluminium

Locking

Fencing

Enviroslat

Merbau

Anodised

+ Bike

Hole $1,180.00 / ea

Walnut

Fencing

Wood Grain AluminiumWestern Red Cedar + Bike Locking or Fencing Hole $1,199.00 / ea 09-ABGS-BO-H-IG Wood Grain AluminiumBlonde Oak + Bike Locking or Fencing Hole $1,199.00 / ea NEW NEW

Western Red Cedar Merbau Hardwood with Hole Anodised Ali Enviroslat with hole Merbau Hardwood with Hole CAR PARK PROTECTION 36 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

+ Bike Locking or

Hole $995.00 / ea

Enviroslat

The Berlin Bollard Suite

The Berlin Bollard - Removable Black - Slatted

Size: 1300(H) x 155(W) x 89(D)mm (1000m above ground)

(Ø) 60mm Hole - can be used as a bike locking stand.

The Berlin Bollard - Removable Galvanised - Slatted

Size: 1300(H) x 155(W) x 89(D)mm (1000m above ground)

(Ø) 60mm Hole - can be used as a bike locking stand.

Inground Sleeve with Padlockable Latch.

CODE DESCRIPTION 1+ $1,250.00 / ea $1,360.00 / ea Enviroslat Walnut $1,250.00 / ea Wood Grain Aluminium - Western Red Cedar $1,380.00 / ea 09-ABBS-BO-RE Wood Grain Aluminium - Blonde Oak $1,380.00 / ea Merbau Hardwood + Bike Locking or Fencing Hole $1,350.00 / ea Anodised Aluminium + Bike Locking or Fencing Hole $1,550.00 / ea Enviroslat Walnut + Bike Locking or Fencing Hole $1,350.00 / ea Wood Grain AluminiumWestern Red Cedar + Bike Locking or Fencing Hole $1,570.00 / ea 09-ABBS-BO-H-RE Wood Grain Aluminium - Blonde Oak + Bike Locking or Fencing Hole $1,570.00 / ea

Inground Sleeve with Padlockable Latch.

CODE DESCRIPTION 1+ $1,080.00 / ea $1,190.00 / ea Enviroslat Walnut $1,080.00 / ea Wood Grain Aluminium - Western Red Cedar $1,199.00 / ea 09-ABGS-BO-RE Wood Grain Aluminium - Blonde Oak $1,199.00 / ea Merbau Hardwood + Bike Locking or Fencing Hole $1,180.00 / ea Anodised Aluminium + Bike Locking or Fencing Hole $1,380.00 / ea Enviroslat Walnut + Bike Locking or Fencing Hole $1,180.00 / ea Wood Grain AluminiumWestern Red Cedar + Bike Locking or Fencing Hole $1,399.00 / ea 09-ABGS-BO-H-RE Wood Grain AluminiumBlonde Oak + Bike Locking or Fencing Hole $1,399.00 / ea

NEW NEW Anodised Ali with Hole Merbau Hardwood Blonde Oak with Hole Enviroslat with Hole Western Red Cedar Blonde Oak CAR PARK PROTECTION 37 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Concrete Sphere Bollards Features

3. Reinforced concrete for strength & longevity

4. Doesn’t crumble like sandstone

5. High strength 32Mpa

6. Natural concrete white ﬁnish

7. Flat base for installation stability

8. Threaded insert lifting point

Bollards

800mm

Concrete

Sphere

Bollards

600mm

Custom Painted

Concrete

Sphere

Concrete

Cube Bollards

Concrete

Sphere Bollards - 800mm

Steel internal ﬁxing cavity

Smooth ﬁnish sides

1 2

5 6 7 8 CAR PARK PROTECTION 38

3 4

Concrete Bollards

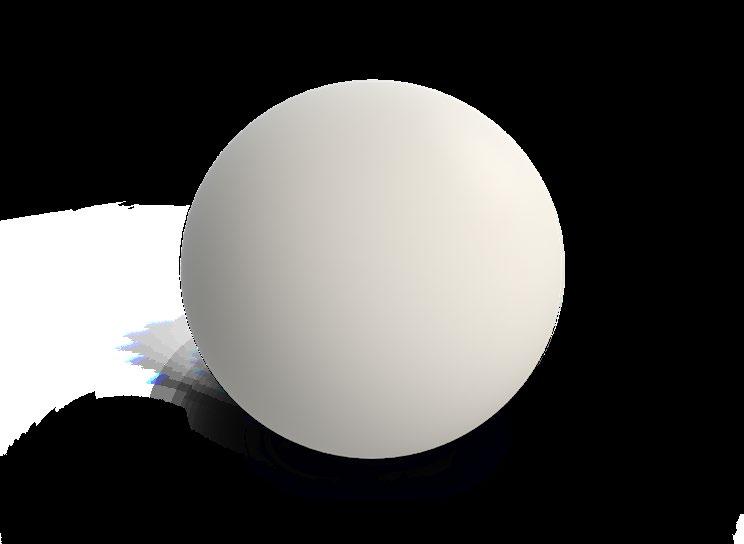

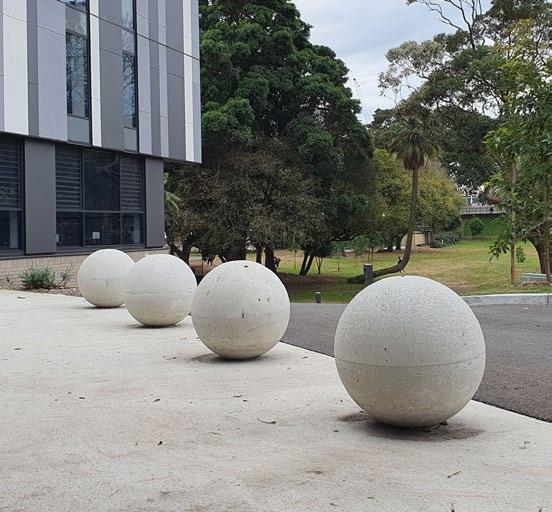

Concrete Sphere Bollards

Concrete Cube Bollard

• Size: 500(L) x 500(W) x 500(H)mm

275kg

Concrete Frustum Bollard

• Size: Ø600(base), Ø230(top) x 750(H)mm

•

Ø600 Ø800

600mm Size 800mm Size CODE DESCRIPTION 1+ 09-BCB-6 Concrete Sphere Bollard Ø600 x 560(H)mm with Ø200mm flat base - 270kg $1,425.00 / ea 09-BC-FC 48 x 400mm gal steel pipe ground anchor $19.00 / ea 07-EB12 M12 Lifting Eye Bolt $19.90 / ea CODE DESCRIPTION 1+ 09-BCB-8 Concrete Sphere Bollard Ø800 x 750(H)mm with Ø250mm flat base - 640kg $2,335.00 / ea 09-BC-FC 48 x 520mm gal steel pipe ground anchor $19.00 / ea 07-EB16 M16 Lifting eye bolt $24.90 / ea Typical Installation

Cross Hole:

ground

Ø60 at 515mm above

Weight: 250kg CODE DESCRIPTION 1+ 09-BCF Concrete Frustum Bollard $1,450.00 / ea 09-BC-FC 48 x 520mm gal steel pipe ground anchor $19.00 / ea 07-EB12 M12 Lifting eye bolt $19.90 / ea Typical Installation

CODE DESCRIPTION 1+ 09-BCC Concrete Cube Bollard $1,199.00 / ea 09-BC-FC 48 x 520mm gal steel pipe ground anchor $19.00 / ea 07-EB12 M12 Lifting eye bolt $19.90 / ea Typical Installation CAR PARK PROTECTION 39 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Weight:

Concrete

Logs & Cubes

Custom Concrete Logs Custom Curved Concrete Logs

Concrete Spheres (See Page 39)

CAR PARK PROTECTION 40

Concrete Logs and Cubes

Concrete Logs

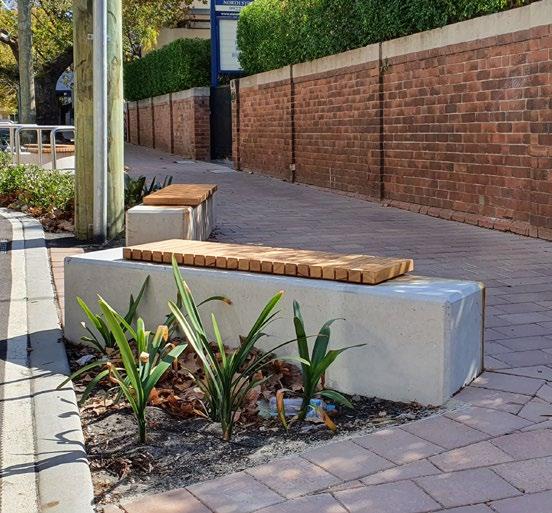

Concrete Log/Bench

Size: 1800(L) x 400(W) x 450(H)mm

Concrete Plinth

Concrete Hexagon Bollard

Weight:

780kg

Size: 1900(L)

300(W)

290(H)mm Weight: 400kg CODE DESCRIPTION 1+ 09-BCL Concrete Log/Bench $2,590.00 / ea 09-BC-FC 48 x 520mm gal steel pipe (2 required) $19.00 / ea 07-EB12 M12 Lifting Eye Bolt (2 required) $19.90 / ea CODE DESCRIPTION 1+ 09-BCP Concrete Plinth $1,599.00 / ea 09-BC-FC 48 x 520mm gal steel pipe (2 required) $19.00 / ea 07-EB12 M12 Lifting Eye Bolt (2 required) $19.90 / ea Typical Installation Typical Installation Refer to website for Plinth mounted seats Custom Seating - Please enquire. Typical Installation

Size: 693(L) x 600(W) x 500(H)mm Weight: 375kg CODE DESCRIPTION 1+ 09-BCH Concrete Hexagon Bollard $1,490.00 / ea 09-BC-FC 48 x 520mm gal steel pipe ground anchor $19.00 / ea 07-EB12 M12 Lifting eye bolt $19.90 / ea CAR PARK PROTECTION 41 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Shock Absorbing Bollards Features

1. Hot-dipped gal steel inner

2. Up to 20mm side shift movement

3. 360° degree rotation

4. Heavy 5mm wall thickness

5. Surface mount or core drill options

6. Hi-vis reﬂective

7. High impact HDPE cover (no rusting or peeling)

8. Tilts up to 8 degrees and returns to vertical

9. Engineered composite materials

10. Heavy duty base plate or in-ground shaft

Flexible Traffic Separator (See Page 44) Shock Absorbing Bollards - Surface Mounted Heavy Duty Plastic Impact Bollards - Yellow - 140mm

1 6 2 7 3 8 4 9 5 0 CAR PARK PROTECTION 42

Impact Bollards

Heavy Duty Plastic Impact Bollards

10mm wall thickness

Flexes slightly on impact

Shock Absorbing Bollards

- Surface Mounted

Engineered to tilt and return to vertical

• Bollard: Ø160 x 1330(H)mm

• Base: Ø350mm

Shock Absorbing Bollards

- Core Drilled

• Engineered to tilt and return to vertical

Bollard: Ø160 x 1330(H)mm

In-ground shaft: Ø50mm x 300(L)mm

8 degree tilt and return 20mm side shift 360 degree rotation

CODE DESCRIPTION 1+ 09-SP90BP-B Ø90 x 1000 (H) - Black $259.00 / ea 09-SP90BP-Y Ø90 x 1000 (H) - Yellow $259.00 / ea 09-SP140BP-Y Ø140 x 1200 (H) - Yellow $519.00 / ea CODE 1+ 09-SAB140BP $1,390.00 / ea 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 $23.90 / Set CODE 1+ 09-SAB140CD $998.00 / ea Ø140 Ø90 Ø90 8 degree tilt and return 20mm side shift 360 degree rotation CAR PARK PROTECTION 43 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Impact Bollards

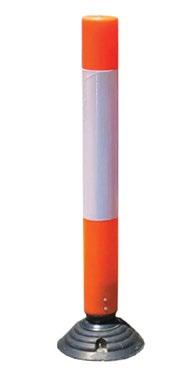

One-Piece Flexible Bollards

Durable one piece moulded robust plastic (PU)

Rebounds after impact

Can be completely run over

Lane Master Bollards

Bollard: 100(D) x 490(H)mm

Insert: 38(D) x 200(H)mm

Impact Recovery Bollards

•

CODE DESCRIPTION 1-9 10+ 15-OPF45R Ø80 x 450(H)mm - Base: Ø205mm $59.90 / ea $55.90 / ea 15-OPF75 Ø80 x 750(H)mm - Base: Ø205mm $74.90 / ea $68.50 / ea

Knock down bollards

joint

with elasticised

Complete

piece base

and post

Post twist locks into rubber base

Size: 1000(H)mm CODE 1-9 10+ 15-KDB10 $99.50 / ea $88.90 / ea Note: Reflective band pattern may vary. NEW CAR PARK PROTECTION 44 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Not designed to be completely run over

Flexible Traffic Separator

Centre module: 1000(L) x 250(W) x 80(H)mm

End cap: 500(L) x 250(W) x 80(H)mm

Round Post: 900(H)mm

Panel Post: 750(H)mm

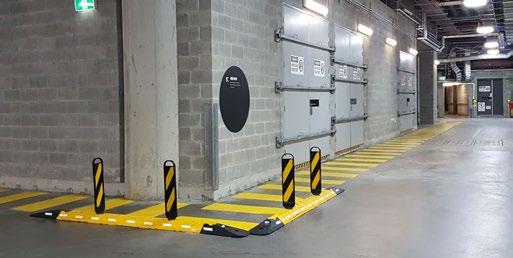

Flexible Traffic Separator

CODE DESCRIPTION 1-29 30+ 03-FTS 1m Centre Modules $99.00 / ea $89.00 / ea 03-FTS-E End Cap Set (2 modules/set) $119.00 / set 03-FTS-P Round Post (1 post required/1mtr centre module) $24.00 / ea 03-FTS-PF Panel Post - Flat (1 panel required/1mtr centre module) $24.00 / ea 03-FTS-FC Fasteners - into concrete 150mm C/Screw + Plug (x2) $8.00 / set 03-FTS-FB Fasteners - into bitumen/roadbase M12 x 300mm Gal with head (x2) $6.00 / set Round post style Panel post style Portable Carpark Signs See pages 147 NEW CAR PARK PROTECTION 45 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Lane Dividers

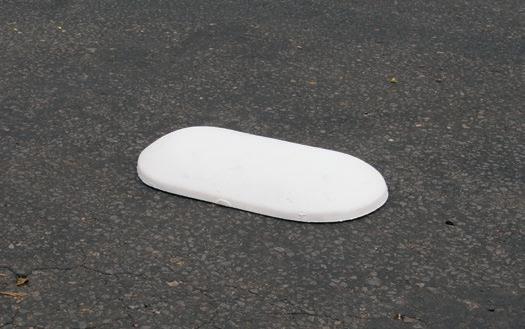

Solid Plastic Rumble Bar

Size: 390(L) x 205(W) x 60(H)mm

Colour: White

Plastic Line Marking Dots

Colours: White/Yellow

Diameter is 100mm

Includes 125mm nail

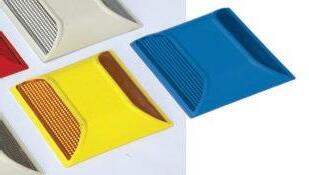

Raised Pavement Markers

Size: 100 x 100mm

Colours:

White - Lane lines

Yellow - Dividing lines

Red - Left hand edge lines

Blue - Fire Hydrant locations

Corner Cube Reflectors

• Size: Ø90mm

• For vertical surfaces - not suitable for driving on.

Megapoxy

CODE 1-19 20+ 22-PRB $72.90 / ea $64.90 / ea CODE 1+ 22-LANDN $199.00 / ea CODE COLOUR 1-50 51+ 22-CCUBE-W White $6.90 / ea $5.80 / ea 22-CCUBE-R Red $6.90 / ea $5.80 / ea CODE 1-99 100+ 22-RPM-W White $5.90 / ea $4.75 / ea 22-RPM-Y Yellow $5.90 / ea $4.75 / ea 22-RPM-R Red $5.90 / ea $4.75 / ea 22-RPM-B Blue $5.90 / ea $4.75 / ea CODE COLOUR 1-99 100-299 300+ 22-LOD-Y Yellow $3.40 / ea $2.70 / ea $2.20 / ea 22-LOD-W White $3.40 / ea $2.70 / ea $2.20 / ea CODE DESCRIPTION 1+ 22-600MP 600ml Twin Pack Tubes $119.00 / pack 22-4000MP 4Lt Bulk Kit $289.00 / kit 22-EPOGUN Dispensing Gun $269.00 / ea 22-EPOMH Mixing Heads $8.00 / ea

Base Size: 150 x 220 x 25mm Flap height: 285mm

Lane Dividers

CAR PARK PROTECTION 46 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

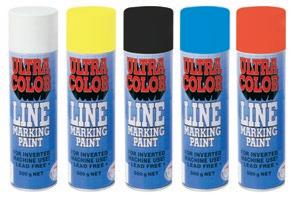

Aerosol Line Marking Paint

Road/Line Marking Paint - Bulk

12 Cans per carton For machine application only (see line marking machine below) Coverage: Approximately 50lm per coat depending on surface and width of line Line Marking Machine Accurate line width adjustments Centre pointer Start/stop trigger • Wind guard Instant Pothole Filler - 20kg Bag Coverage is approximately 0.3m2 at 25mm thick Apply in wet or dry conditions Cures on compaction

Colours: White, Yellow or Blue Coverage: Approximately 2.5m2 per litre depending on the surface

CODE DESCRIPTION 1-11 CARTON (12) 23-LMP500 (Specify colour) $17.50 / can $13.90 / can (same colour) CODE 1+ 23-LMM $499.00 / ea CODE 1+ 22-MPR20 $87.50 / ea CODE DESCRIPTION 1-3 4+ 23-LMP4L 4L Tin $149.00 / ea $135.00 / ea 23-LMP15L 15L Pail $335.00 / ea $288.00 / ea W Y B blu R NO PARKING Car Park Signs See page 145 CAR PARK PROTECTION 47 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Line Marking

Car Park Stencil Sets

Car Park Stencil Sets - Polypropylene

Kit contains:

VISITOR............. (320mm)

RESERVED........ (254mm)

NO PARKING.... (500mm)

IN.........................

Tough 1.9mm thickness Can be reused for many years

CODE 1+ 23-PS-KIT $275.00 / kit CODE DESCRIPTION 1+ 23-PS-CS Charging Station - 640mm $179.00 / ea 23-PS-ELD Elderly - 640mm $179.00 / ea 23-PS-MB Motorbike - 640mm $179.00 / ea 23-PS-NPG No Parking - Text - 150mm High $199.90 / ea 23-PS-PG Parking - Text - 150mm High $199.90 / ea 23-PS-PWP Parents with Pram - 640mm High $179.00 / ea 23-PS-RES Reserved - Text - 150mm High $199.90 / ea 23-PS-VIS Visitor - Text - 150mm High $179.90 / ea CODE DESCRIPTION 1+ 23-PS09-100 0 - 9 Set - 100mm High $94.90 / set 23-PS09-200 0 - 9 Set - 200mm High $125.50 / set 23-PS09-300 0 - 9 Set - 300mm High $189.90 / set 23-PSAZ-100 A - Z Set - 100mm High $158.90 / set 23-PSAZ-200 A - Z Set - 200mm High $249.00 / set 23-PSAZ-300 A - Z Set - 300mm High $379.00 / set 23-PS-DIS Accessible - Picto - 600mm High $229.00 / ea 23-PS-DIS-AS Accessible - Picto - 800mm High $244.00 / ea 23-PS-BIC Bicycle - Picto- 490(H)x800(W)mm $133.00 / ea

23-PS-CS

23-PS-PG

23-PSAZ (3 Sizes)

(800mm)

23-PS09 (3 Sizes)

23-PS-NPG 23-PS-RES 23-PS-DIS-AS

23-PS-DIS (600mm)

23-PS-MB 23-PS-VIS 23-PS-ELD 23-PS-BIC

Kit

Oilboard

23-PS-PWP

Car Park Stencil

(480mm) OUT..................... (480mm) (600mm) ARROWS........... (1100mm)

CAR PARK PROTECTION 48 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

0-9 (285mm)

Safety Stencils

Picto Safety Stencils - Polypropylene 1.9mm Polypropylene

Size 640mm x 640mm

• Lasts for hundreds of uses

• Larger sizes available on request

• For permanent marking of safety messages on floors and walls

01 04 07 13 19 25 31 37 02 05 08 14 20 26 32 03 06 09 10 12 11 15 16 18 17 21 22 24 23 27 28 30 29 33 34 36 35

CODE DESCRIPTION 1+ 23-PS-PICTO-(#) (Specify item number) $179.90 / ea CAR PARK PROTECTION 49 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

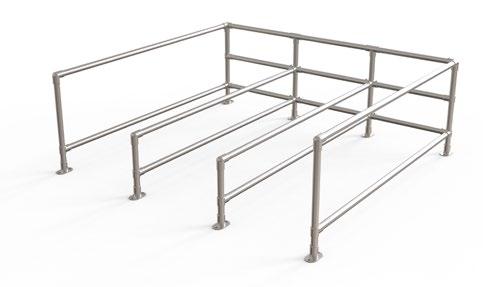

Trolley Bay

Triple

Single

Double

Single

1 Trolley Bay Features

Heavy duty galvanised cast fittings

In-Ground versions also available

customisable

Easily

Trolley bay wheelstop, to stop trolleys rolling away (optional)

rail to safely secure trolleys

Mid

Modular construction — easy install & repair

length configurations available:

half & back-to-back

Three

standard,

3 finishes available:

galvanised, yellow, or black

plain

48mm gal pipe

Heavy

6 7 8 9 CAR PARK PROTECTION 50

3 4 2 5

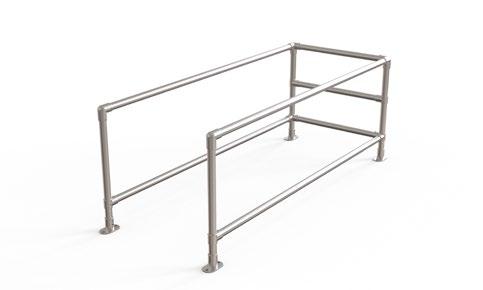

Modular Trolley Bays - Standard Size

Trolley Bay Wheel Stop Retains

Trolley Bay Standard Size - Single Bay

Size: 750(W) x 4470(L) x 950(H)mm

Trolley Bay Standard Size - Double Bay

Size: 1500(W) x 4470(L) x 950(H)mm

Trolley Bay Standard Size - Triple Bay

Size: 2250(W) x 4470(L) x 950(H)mm

Signboard Kits

trolleys on sloping carparks Size: 650(L) x 165(W) x 20(H)mm

Size: 900(W) x 1200(H) mm Includes frame, sign and brackets Custom signs can be made to order - please enquire 900 1200

CODE FINISH COLOUR 1+ 11-TS10 Galvanised $1,360.00 / ea 11-TS10-Y Yellow $1,899.00 / ea 11-TS10-B Black $1,899.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set CODE FINISH COLOUR 1+ 11-TS20 Galvanised $1,999.00 / ea 11-TS20-Y Yellow $2,940.00 / ea 11-TS20-B Black $2,940.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set CODE FINISH COLOUR 1+ 11-TS30 Galvanised $2,770.00 / ea 11-TS30-Y Yellow $3,980.00 / ea 11-TS30-B Black $3,980.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set CODE 1+ 11-TS03 $119.00 / ea CODE DESCRIPTION 1+ 11-TS01 Signboard Kit - Single Sided $645.00 / ea 11-TS02 Signboard Kit - Double Sided $898.00 / ea -11-TBS Trolley Bay Sign Only 1200x900mm $275.00 / ea Yellow Black Yellow Black Yellow Black Note: In-Ground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. Note: In-Ground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. Note: In-Ground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. CAR PARK PROTECTION 51 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Modular Trolley Bays - Half Size

Trolley Bay Half Size - Single Bay

Trolley Bay Half Size - Double Bay

Trolley Bay Half Size - Triple Bay

Size: 750(W) x 2230(L) x 950(H)mm CODE FINISH COLOUR 1+ 11-THS10 Galvanised $930.00 / ea 11-THS10-Y Yellow $1,240.00 / ea 11-THS10-B Black $1,240.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set

• Size: 1500(W) x 2230(L) x 950(H)mm CODE FINISH COLOUR 1+ 11-THS20 Galvanised $1,430.00 / ea 11-THS20-Y Yellow $1,990.00 / ea 11-THS20-B Black $1,990.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set

Size: 2250(W) x 2230(L) x 950(H)mm CODE FINISH COLOUR 1+ 11-THS30 Galvanised $1,970.00 / ea 11-THS30-Y Yellow $2,740.00 /ea 11-THS30-B Black $2,740.00 / ea08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set Galvanised Yellow Black Galvanised Yellow Black Galvanised Yellow Black NEW NEW NEW Note: Inground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. Note: Inground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. Note: Inground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. CAR PARK PROTECTION 52 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Trolley Bay Back-to-Back - Single Bay

Trolley Bay Back-to-Back - Double Bay

Trolley Bay Back-to-Back - Triple Bay

Size: 750(W) x 8920(L) x 950(H)mm CODE FINISH COLOUR 1+ 11-TBBS10 Galvanised $2,590.00 / ea 11-TBBS10-Y Yellow $3,690.00 / ea 11-TBBS10-B Black $3,690.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set

• Size: 1500(W) x 8920(L) x 950(H)mm CODE FINISH COLOUR 1+ 11-TBBS20 Galvanised $3,890.00 / ea 11-TBBS20-Y Yellow $5,699.00 / ea 11-TBBS20-B Black $5,699.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set

Size: 2250(W) x 8920(L) x 950(H)mm CODE FINISH COLOUR 1+ 11-TBBS30 Galvanised $5,220.00 / ea 11-TBBS30-Y Yellow $7,650.00 / ea 11-TBBS30-B Black $7,650.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set Modular Trolley Bays - Back to Back Galvanised Yellow Black Galvanised Yellow Black Galvanised Yellow Black NEW NEW NEW Note: Inground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. Note: Inground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. Note: Inground versions also available. Add “-IG” to the end of the above codes. Pricing is the same as above prices. CAR PARK PROTECTION 53 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

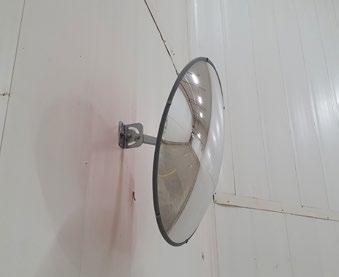

Convex Safety Mirrors

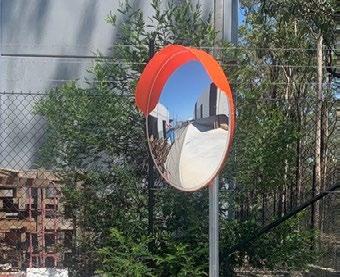

Outdoor Convex Mirrors

Indoor Convex Mirrors

Stainless Steel Convex Traffic Mirrors

Brackets

included to fit 75mm posts Brackets suit wall or post mounting

CODE DESCRIPTION 1+ 18-SS600V 600mm Stainless Steel Mirror $619.00 / ea 18-SS800V 800mm Stainless Steel Mirror $725.00 / ea 18-SS1000V 1000mm Stainless Steel Mirror $998.00 / ea 18-SSWMB Wall Mount Bracket $85.00 / ea

Heavy duty polycarbonate Brackets suit wall or post mounting CODE DESCRIPTION 1+ 18-IN450D 450mm Mirror (60mm Post Bracket) $139.00 / ea 18-IN600D 600mm Mirror (60mm Post Bracket) $199.00 / ea 18-IN760D 800mm Mirror (75mm Post Bracket) $289.00 / ea

Heavy duty polycarbonate Brackets suit wall or post mounting CODE DESCRIPTION 1+ 18-TRAF450 450mm Mirror (60mm Post Bracket) $199.00 / ea 18-TRAF600 600mm Mirror (60mm Post Bracket) $239.00 / ea 18-TRAF800 800mm Mirror (75mm Post Bracket) $349.00 / ea 18-TRAF1000 1000mm Mirror (75mm Post Bracket) $495.00 / ea Flexible but strong mirror - will not smash or crack Heavy Duty Polycarbonate backing and sun shield Heavy Duty Brackets to suit mounting on both a wall or a post UV Protected materials Wide sun shield for protecting against glare of the sun CAR PARK PROTECTION 54 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Safety Dome Mirrors

Half Dome Mirrors - 180˚

Quarter Dome Mirror - 90°

Anti-ligature

The

Heavy duty polycarbonate Supplied with fixings

Full Dome Mirrors - 360˚

CODE SIZE 1+ 18-DOM360-40 400mm diameter $275.00 / ea 18-DOM360-60 600mm diameter $399.00 / ea CODE DESCRIPTION 1+ 18-DOM180-40 400mm diameter $249.00 / ea 18-DOM180-60 600mm diameter $339.00 / ea CODE SIZE 1+ 18-DOM90-40 400mm diameter (200mm radius) $159.00 / ea 18-DOM90-60 600mm diameter (300mm radius) $188.00 / ea

Security Anti-Ligature Mirrors (for Prison & Mental Health Facilities)

High

security mirrors are extremely robust polycarbonate dome mirrors for visual surveillance with one-piece steel frame and a rigid foam infill.

single piece surround encapsulates the polycarbonate mirror facing. Designed to reduce the potential for self-harm.

Unbreakable. Improved hygiene. Long lasting durability. Available in half dome, quarter dome and full dome. Please enquire for sizes and pricing. CAR PARK PROTECTION 55 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

•

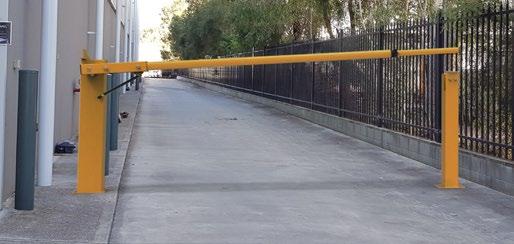

Height Restriction Bar - 4m on In-Ground Support Posts Height Restriction Bar - 6m Height Restriction Bar - 4m on Base Plate Support Posts Height Restriction Bar - 3m Height Restriction Bar Features 1. Wind resistant 2. Reﬂective caution chevrons 3. Large text - easy to read 4. Galvanised chain included (1m drop) 5. End caps

Heavy wall 2mm RHS

Galvanised steel never rusts 8. Height is 100mm below lowest ceiling

Hi-Vis safety yellow 1 2 3 4 5 3 7 8 9 CAR PARK PROTECTION 56

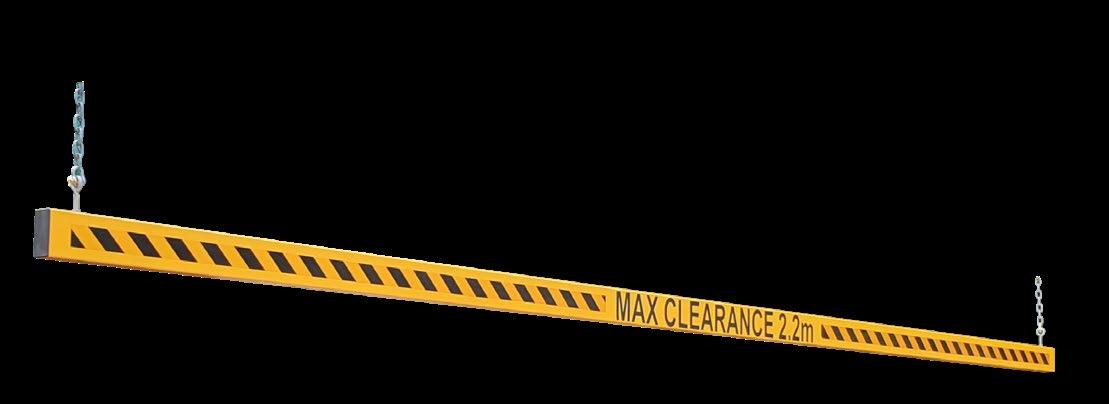

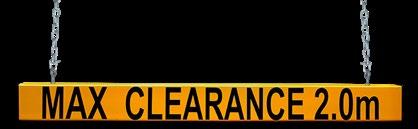

Height Restriction Bars

Height Restriction Bars

Height Bar Supports

Height Warning Signs

Height labels in stock: 1.8m, 1.9m, 2.0m, 2.1m, 2.2m, 2.3m, 2.4m Specify clearance height when ordering

White background with black text For fascias & bulkheads Specify clearance height when ordering Material: Metal 14-HRS212 14-HRS16 In-Ground Surface Mount Hanger Bracket on post

CODE DESCRIPTION 1+ 12-HRB1 Yellow Height Bar - 1m long $309.00 / ea 12-HRB2 Yellow Height Bar - 2m long $409.00 / ea 12-HRB3 Yellow Height Bar - 3m long $459.00 / ea 12-HRB4 Yellow Height Bar - 4m long $549.00 / ea 12-HRB5 Yellow Height Bar - 5m long $699.00 / ea 12-HRB6 Yellow Height Bar - 6m long $689.00 / ea CODE DESCRIPTION 1+ 12-HRB-SOB Adjustable Hanger Bracket - 500mm long & chain ring $175.00 / ea 12-HRB-SMP Surface Mounted Post - 3000(H) x 89 x 89 x 4mm $719.00 / ea 12-HRB-IGP In-Ground Post - 4000(H) x 89 x 89 x 4mm $689.00 / ea 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 $23.90 / Set CODE SIZE 1+ 14-HRS212 1200(W) x 200(H)mm $99.00 / ea 14-HRS16 600(W) x 125(H)mm $69.00 / ea Standard 1m Height Bar Design 1m, 2m, 3m and 4m height bars also available in white and black. Additional $50/metre for black or white height bars - add to above pricing Custom height bars available - please enquire Custom signs available - please enquire CAR PARK PROTECTION 57 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

2 CAR PARK PROTECTION 58

3 4 5

1. Heavy duty 5mm base plates

2. AS2890.3 compliant

3. High quality polished finish

4. 316 grade stainless steel

Single Hoop Bike Rail - In-Ground Single Hoop Bike Rail - Base Plate Single Hoop Bike Rail - In-Ground Single Ring Bike Rail

Rail

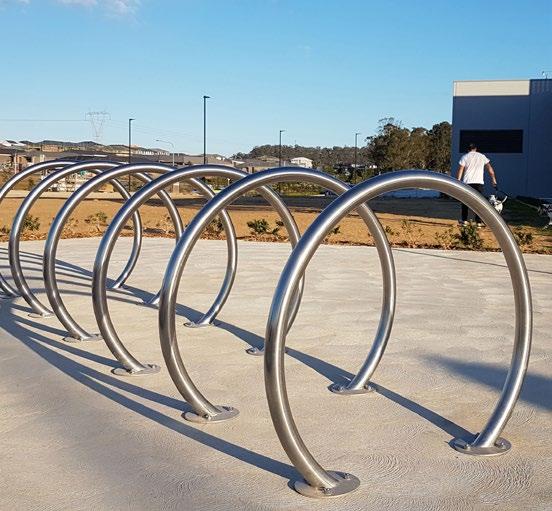

Single Ring Bike

Features

5. Base plate or inground mounting options

Bike Rails

Single Ring Bike Rail 316

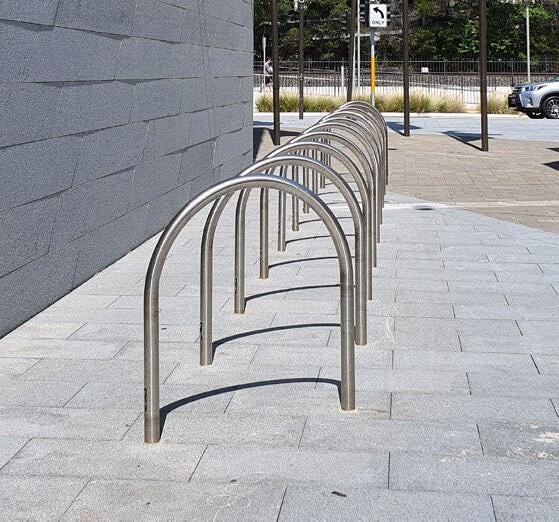

Single Hoop Bike Rail - Stainless Steel •

Single Arch Bike Rail

CODE DESCRIPTION 1-9 10+ 10-SRBD Bolt Down $439.00 / ea $395.00 / ea 10-SRIG In Ground $439.00 / ea $395.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set CODE DESCRIPTION 1-9 10+ 10-SSR-BD Bolt Down $369.00 / ea $339.00 / ea 10-SSR-IG In-Ground $369.00 / ea $339.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set CODE 1+ 10-SABR-G $169.00 / ea

marine grade stainless steel Surface mounted: 940(L) x 800(H)mm

1000(overall height) x 940(L)mm

Inground:

316 marine grade stainless steel Length: 850mm Height: 800mm * Overall height of in-ground style is 1100mm

Galvanised steel finish Length: 400mm

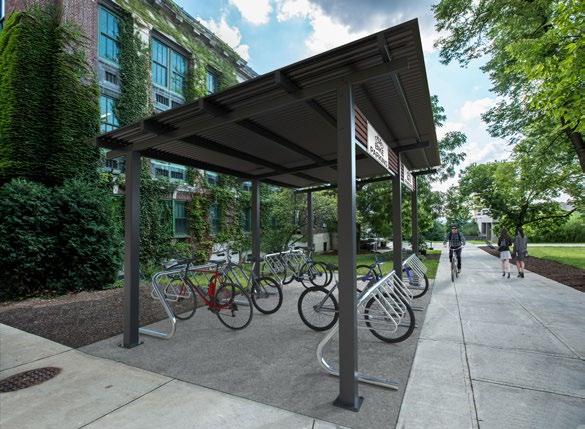

Height: 800mm See Online Bike Storage Shelters See online CAR PARK PROTECTION 59 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

•

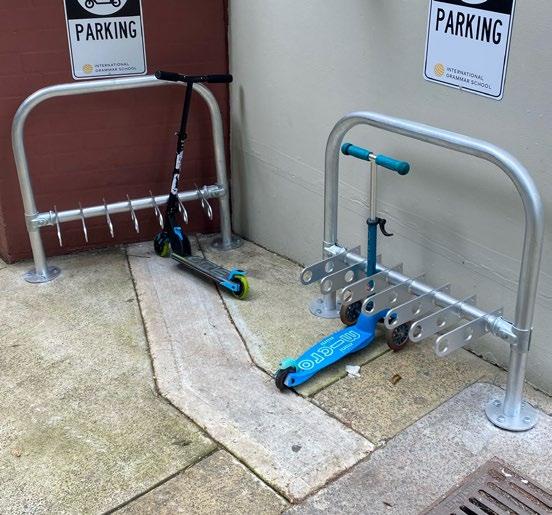

Scooter Rack Features

Single Hitch Bike Rail - Gal Single Hitch Bike Rail - Stainless Steel Single Hitch Bike Rail - Stainless Steel Single Hitch Bike Rail - Gal

Hot dipped galvanised

Single or double sided

Functional design

Holding rail

Large capacity 8-16 scooters

Cable holes for security

Neat scooter parking 1

4 5 6 7 CAR PARK PROTECTION 60

2 3

Bike Rails & Scooter Racks

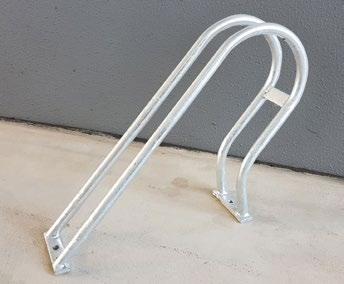

Single Hitch Bike Rail - Stainless Steel

Single Hitch Bike Rail - Galvanised Steel

Scooter Racks - Single Sided

Length: 850mm Height: 800mm Overall height of in-ground style is 1100mm.

Length: 850mm Height: 800mm

• Parking for up to 6-8 scooters Length: 850mm Height: 800mm Width: 287mm (Single Sided) & 464mm (Double Sided) CODE DESCRIPTION 1+ 10-SSSH-BD Stainless Steel - Bolt Down $229.00 / ea 10-SSSH-IG Stainless Steel - In-Ground $190.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set CODE DESCRIPTION 1+ 10-SHBIKE-G Galvanised finish $179.00 / ea 10-SHBIKE Powder Coated Black $249.00 / ea 10-SHBIKE-Y Powder Coated Yellow $249.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set CODE 1+ 10-SCOOT-S $419.00 / ea 10-SCOOT-D $459.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set DISCONTINUED - ONLY WHILE STOCKS LAST! Architectural Bike Lock Bollard See page 34-37 CAR PARK PROTECTION 61 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Compact P4 Multi Bike Rack with rubber Compact P4 Multi Bike Rack with Rubber Compact P4 Multi Bike Rack with Rubber Compact P4 Multi Bike Rack with Rubber Compact P4 Bike Rack Features

Varying height wheel supports to stop bikes hitting each other

Open ends for continuous line installation

Modular construction for easy assembly

Concealed ﬁxings for extra security

Hot dip galvanised

Heavy duty rubber for extra protection (optional) 1 6 5

CAR PARK PROTECTION 62

4 3 2

Bike Racks

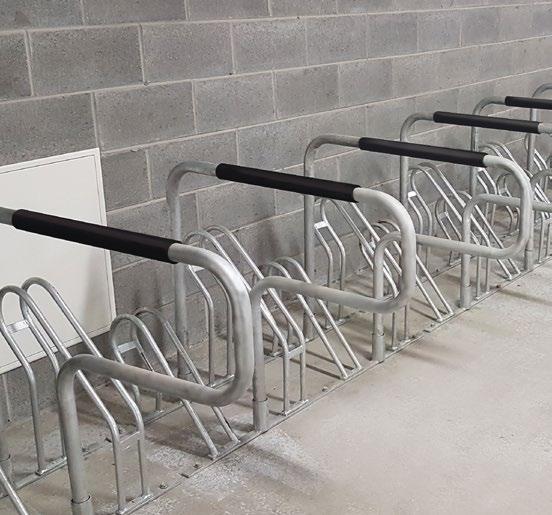

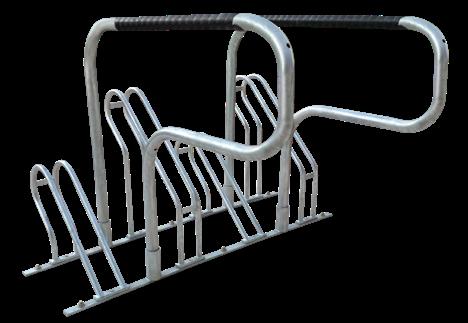

Compact P4 Multi Bike Rack

Size: 1200(L) x 830(H) x 1060(D)mm

Can also be installed on 30° angle

Wheel gap is 60mm

Compact P2 Multi Bike Rack

Size: 600(L) x 830(H) x 1060(D)mm

Micro Bike

Size: 470(L) x 345(H) x 110(W)mm

Wheel gap is 60mm

Rack

gap is 60mm CODE 1+ 10-MBR $119.00 / ea CODE DESCRIPTION 1+ 10-CP4 Bike rack (no rubber) $445.00 / ea 10-CP4-R Optional rubber (as shown) $139.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set CODE DESCRIPTION 1+ 10-CP2 Bike rack (no rubber) $325.00 / ea 10-CP2-R Optional rubber (as shown) $69.50 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set See Online Bike Storage Shelters See online CAR PARK PROTECTION 63 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Wheel

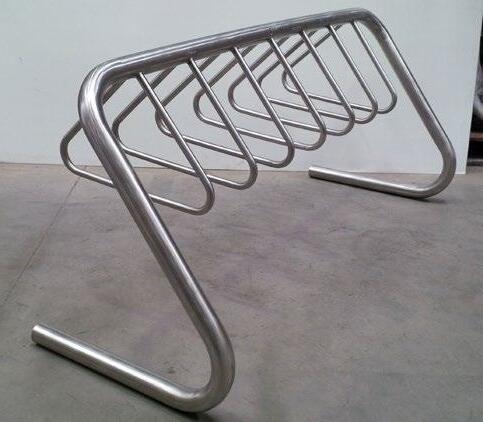

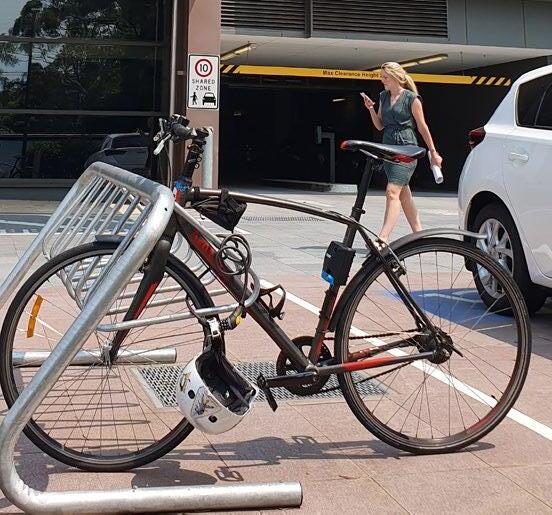

Coat Hanger Bike Rack - Large - Stainless Steel Coat Hanger Bike Rack - Large - Galvanised Steel Coat Hanger Bike Rack - Small - Galvanised Coat Hanger Bike Rack - Large - Galvanised

Rack Features 1. Meets Class 2 or 3 security level 2. Fixing points 3. Heavy wall tube frame

Heavy duty ‘hangers’ for safely securing bike

Galvanised or stainless steel finish

Drain holes inside bend 1 2 3 4 5 6 CAR PARK PROTECTION 64

Coat Hanger Bike

Bike Racks

•

Small Coat Hanger Bike Rack

Medium Coat Hanger Bike Rack

Large Coat Hanger Bike Rack

•

Capacity: Up to 5 bikes Size: 800(L)

850(W)

x 850(H)mm

Weight: 21kg

Capacity: Up to 7 bikes Size: 1250(L)

850(H)

850(W)mm Weight: 30kg

Capacity: Up to 10 bikes

Size: 1900(L) x 850(W) x 850(H)mm

Weight: 47kg CODE DESCRIPTION 1+ 10-CHS-G Galvanised finish $739.00 / ea 10-CHS-SS Stainless steel $1,165.00 / ea CODE DESCRIPTION 1+ 10-CHM-G Galvanised finish $939.00 / ea 10-CHM-SS Stainless steel $1,289.00 / ea CODE DESCRIPTION 1+ 10-CHL-G Galvanised finish $1,199.00 / ea 10-CHL-SS Stainless steel $1,995.00 / ea CAR PARK PROTECTION 65 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Bike Rack

Bike Low Profile Rack

Bike Low Profile Rack Multi Bike Station

Bike Rack Features Find out ways bike parking facilities will benefit your business

duty steel frame

Heavy

bolted down, can be attached

wall,

can be joined

Can be

to a

back to back

Modular

easy assembly

for

High quality black gloss finish 1

3 CAR PARK PROTECTION 66

Bike Racks

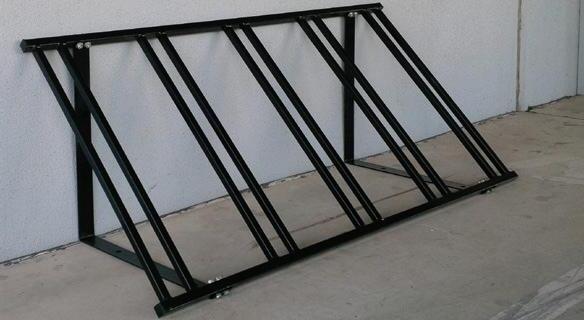

5 Bike Rack

• Powder coated gloss black

Size: 1400(L) x 600(W) x 600(H)mm

Wheel gap is 56mm

Multi Bike Station

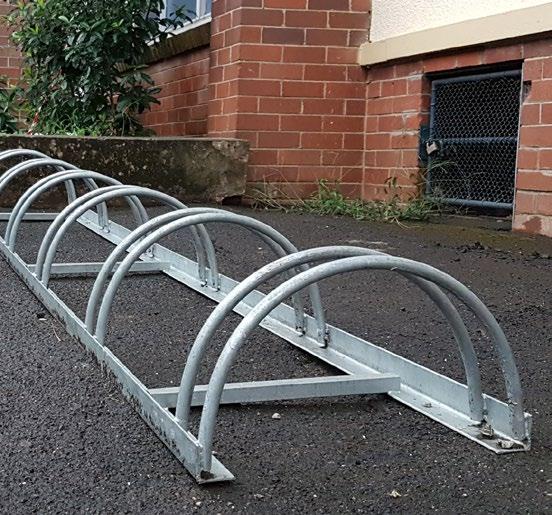

4 Bike Low Profile Bike Rack

Galvanised steel

Size: 1500(L) x 440(W) x 270(H)mm

• Wheel gap is 70mm

• Weight: 14kg

6 Bike Low Profile Bike Rack

Galvanised steel finish

Size: 2415(L) x 440(W) x 270(H)mm

Wheel gap is 70mm

Weight: 24kg

finish

Weight: 15kg CODE 1+ 10-5BIKE $449.00 / ea CODE 1+ 10-4BLP $429.00 / ea CODE 1+ 10-6BLP $539.00 / ea

steel finish Size: 2400(L) x 250(W) x 600(H)mm Wheel gap is 58mm Weight: 35kg CODE 1+ 10-MBS $725.00 / ea CAR PARK PROTECTION 67 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Galvanised

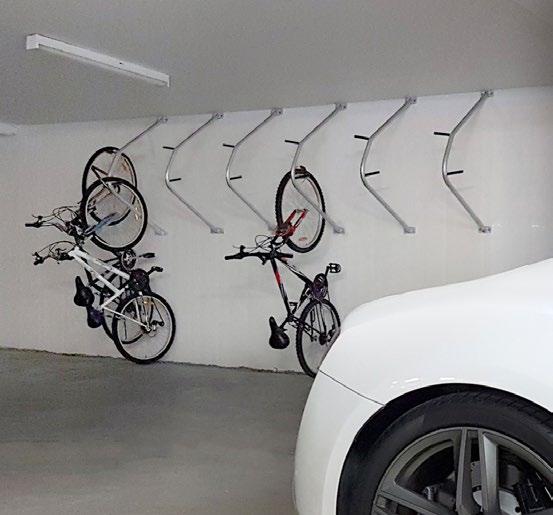

Floor Mounted Hanging Bike Rack Wall Mounted Hanging Bike Rack - Double Wall Mounted Hanging Bike Rack - Single Buffalo Bike Rack Features

Utilise over-bonnet car park wall space

Upturn prevents bikes from accidental dislodgement

Attractive black gloss ﬁnish

Safe rounded corners

Wire rack for hanging gloves, helmets and small accessories

Self-adhesive closed-cell foam padding prevents scratching the bike frame

4 holes for secure wall mounting

Loop frame helps store recreation accessories

Meets AS28903 for Class 2 or 3 Security level 1 2 3 4 5 9 8 7 6 CAR PARK PROTECTION 68

Hanging Bike Racks

Buffalo Bike Rack

Size: 350(W) x 450(H) x 600(D)mm

4.5kg

Includes foam rubber protectors

Wall Mounted Hanging Bike Rack - Single Size: 750(H) x 600(D) x 200(W)mm

3.5kg

• Includes rubber protectors

Wall Mounted Hanging Bike Rack - Double

Capacity: 2 bikes Size: 1100(H) x 720(D) x 276(W)mm

• Weight: 4kg

• Includes rubber protectors

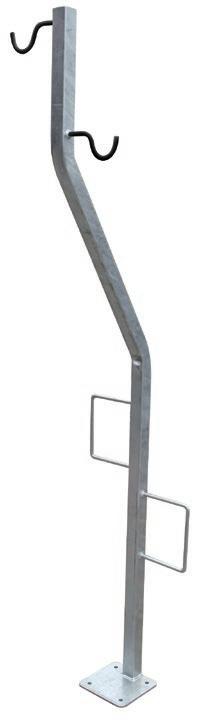

Floor Mounted Hanging Bike Rack - Double

Size: 2150 (H) x 430(W) x 480(D)mm

12kg

rubber protectors

Weight:

Includes

Weight:

CODE 1-9 10+ 10-BBR $159.00 / ea $145.00 / ea CODE 1-9 10+ 10-SWMBR $139.00 / ea $115.00 / ea CODE 1-9 10+ 10-WMBR $199.00 / ea $175.00 / ea CODE 1-9 10+ 10-SMHBR $388.00 / ea $345.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set CAR PARK PROTECTION 69 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

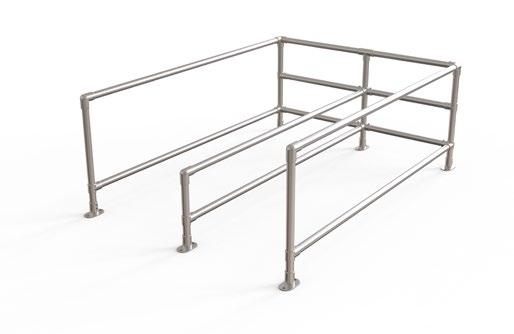

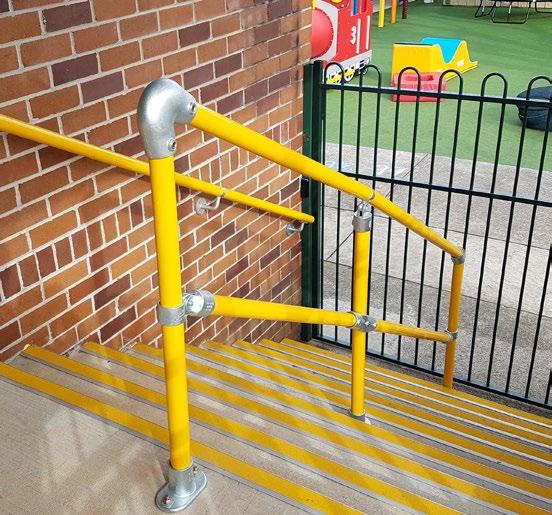

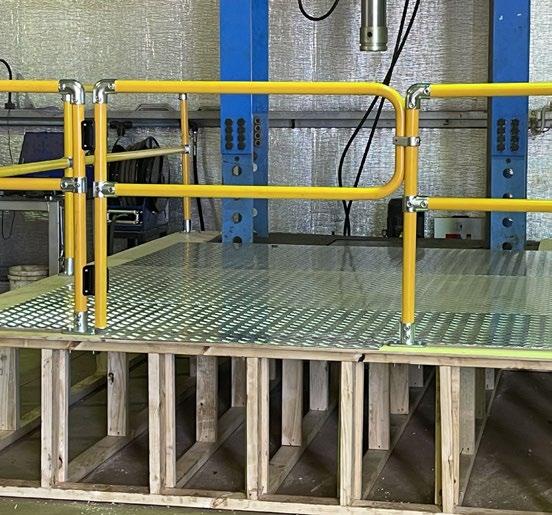

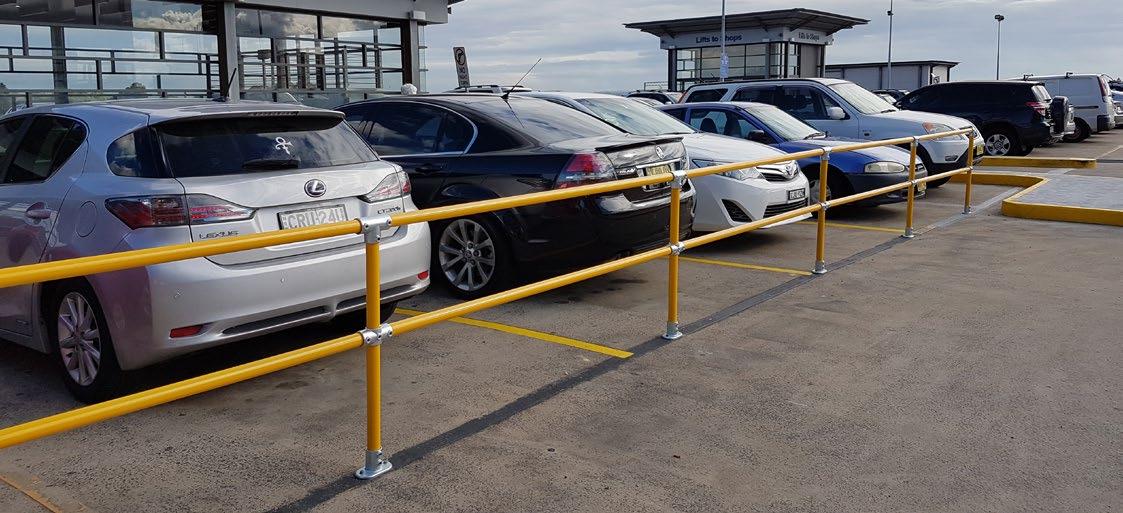

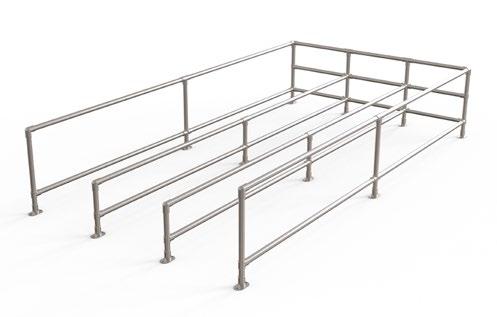

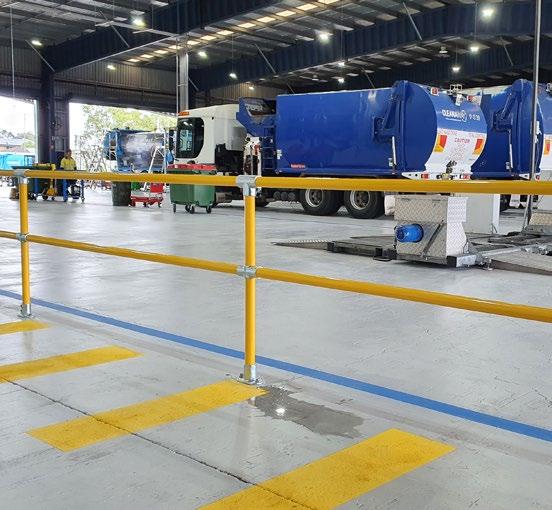

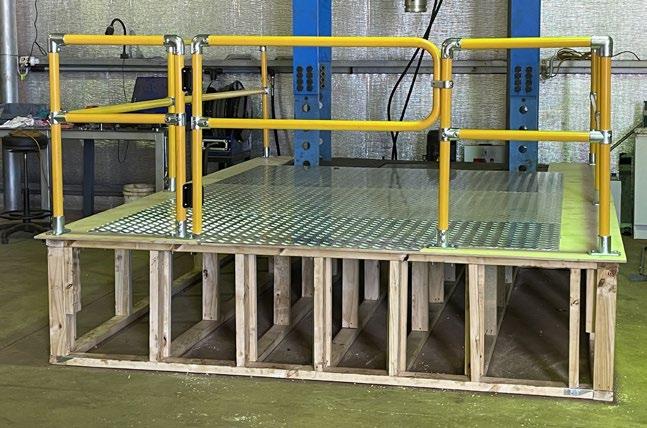

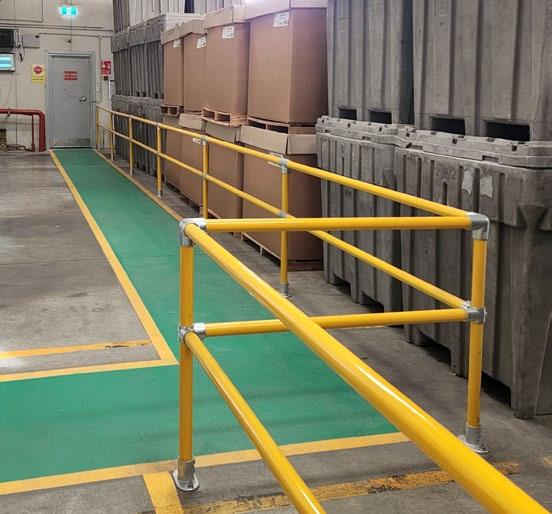

Modular Pedestrian Rail - Yellow Modular Pedestrian Rail - Yellow Modular Pedestrian Rail - Yellow Modular Pedestrian Rail and Pedestrian Gate - Yellow Pedestrian Rail Features

High quality gloss safety yellow powder coat

Easily customisable

Heavy duty customisable cast fittings

Modular construction - easy install & repair

Heavy duty 48mm gal pipe 1

3 4 5 We can powder coat the colour to your specific colour requirements INDUSTRIAL SAFETY 70

Surex Pedestrian Rail Kits - Rail Kits - Safety Yellow

End Section Kit

Corner Section Kit

• Includes: 1 x Corner Post, 2 x Rails (3x Rails for 1650mm)

• Rails: Ø48 x 2160(L)mm

Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall Height 1650mm)

Mid Section Kit

Includes: 1 x Intermediate Post, 2 x Rails (3x Rails for 1650mm)

Ø48 x 2160(L)mm

• Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x

Post, Rail and Fastener Kits

• Includes post and fittings

•

1000mm (H) 1650mm (H) 1000mm (H) 1650mm (H) 1000mm (H) 1650mm (H) End Post Intermediate Post Corner Post 1000mm (H) 1000mm (H) 1000mm (H) 1650mm (H) 1650mm (H) 1650mm (H)

Post:

height 1000mm)

1600 (Overall Height 1650mm) CODE OVERALL SIZE 1+ 11-MHRE 1000(H)mm x 2200(L)mm - 2 rails $319.00 / set 11-MHRE-165 1650(H)mm x 2200(L)mm - 3 rails $499.00 / set CODE OVERALL SIZE 1+ 11-MHRC 1000(H)mm x 2200(L)mm - 2 rails $319.00 / set 11-MHRC-165 1650(H)mm x 2200(L)mm - 3 rails $499.00 / set

Includes: 1 x End Post, 2 x Rails (3x Rails for 1650mm)

Ø48

950mm (overall

/ Ø48 x

Post:

CODE OVERALL SIZE 1+ 11-MHRM 1000(H)mm x 2200(L)mm - 2 rails $319.00 / set 11-MHRM-165 1650(H)mm x 2200(L)mm - 3 rails $499.00 / set CODE DESCRIPTION OVERALL HEIGHT 1+ 11-MHR-PE End Post with fittings 1000mm $165.00 / set 11-MHR-PE-165 End Post with fittings 1650mm $245.00 / set 11-MHR-PM Intermediate Post with fittings 1000mm $165.00 / set 11-MHR-PM-165 Intermediate Post with fittings 1650mm $245.00 / set 11-MHR-PC Corner Post with fittings 1000mm $165.00 / set 11-MHR-PC-165 Corner Post with fittings 1650mm $245.00 / set 11-MH-PCRAIL Horizontal Rail (ø48mm x 2160mm Yellow) $115.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate $4.95 / Set

Post:

x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall Height 1650mm)

Ø48

Rails:

1600

Height 1650mm) Self Closing Gate KitsSafety Yellow See pages 81 INDUSTRIAL SAFETY 71 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

(Overall

Modular Pedestrian Rail - Yellow (See Page 71) Modular Pedestrian Rail - Yellow (See Page 71) Modular Pedestrian Rail - Yellow (See Page 71) Modular Pedestrian Rail Handrail Components (See Page 80)

INDUSTRIAL SAFETY 72

Modular Pedestrian Rail - Custom Red

Modular Pedestrian Rail - Yellow (See Page 71) Modular Pedestrian Rail - Yellow (See Page 71) Modular Pedestrian Rail - Yellow (See Page 71) Modular Pedestrian Rail - Yellow (See Page 71)

INDUSTRIAL SAFETY 73

Modular Pedestrian Rail - Black (See Page 76)

Modular Pedestrian Rail - Galvanised Modular Pedestrian Rail - Galvanised Modular Pedestrian Rail - Galvanised Self Closing Gate Modular Pedestrian Rail - Galvanised

INDUSTRIAL SAFETY 74

“Recessed Rail vs Modular Pedestrian Rail Which suits my needs?”

Surex Pedestrian Rail Kits - Galvanised

End Section Kit

Includes: 1 x End Post, 2 x Rails (3x Rails for 1650mm)

Rails: Ø48 x 2160(L)mm

Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall Height 1650mm)

Corner Section Kit

• Includes: 1x Corner post, 2 Rails (3x Rails for 1650mm)

Rails: Ø48 x 2160(L)mm

Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall Height 1650mm)

Mid Section Kit

Includes: 1 x Intermediate Post, 2 x Rails (3x Rails for 1650mm)

Rails: Ø48 x 2160(L)mm

• Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall Height 1650mm)

Post, Rail and Fastener Kits

Includes post and fittings

Size: Ø48 x 1000mm (overall) / Ø48 x 1600 (Overall 1650mm)

CODE OVERALL SIZE 1+ 11-MHRC-G 1000(H)mm x 2200(L)mm - 2 rails $229.00 / set 11-MHRC-G-165 1650mm x 2200(L)mm - 3 rails $339.00 / set

1000mm (H) 1650mm (H) 1000mm (H) 1650mm (H) 1000mm (H) 1650mm (H) End Post Intermediate Post Corner Post 1000mm (H) 1000mm (H) 1000mm (H) 1650mm (H) 1650mm (H) 1650mm (H)

CODE OVERALL SIZE 1+ 11-MHRE-G 1000(H)mm x 2200(L)mm - 2 Rails $229.00 / set 11-MHRE-G-165 1650mm x 2200(L)mm - 3 rails $369.00 / set

CODE OVERALL SIZE 1+ 11-MHRM-G 1000(H)mm x 2200(L)mm $229.00 / set 11-MHRM-G-165 1650mm x 2200(L)mm - 3 rails $369.00 / set CODE DESCRIPTION OVERALL HEIGHT 1+ 11-MHR-PE-G End Post with fittings 1000mm $139.00 / set 11-MHR-PE-G-165 End Post with fittings 1650mm $215.00 / set 11-MHR-PM-G Intermediate Post with fittings 1000mm $139.00 / set 11-MHR-PM-G-165 Intermediate Post with fittings 1650mm $215.00 / set 11-MHR-PC-G Corner Post with fittings 1000mm $139.00 / set 11-MHR-PC-G-165 Corner Post with fittings 1650mm $215.00 / set STEEL40NBX2160 Horizontal Rail (ø48mm x 2160mm Galvanised) $79.90 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set Self Closing Gate Kits - Galvanised See pages 81 INDUSTRIAL SAFETY 75 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Surex Pedestrian Rail Kits - Black

End Section Kit

Includes: 1 x End Post, 2 x Rails (3x Rails for 1650mm)

Rails: Ø48 x 2160(L)mm

Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall 1650mm)

Corner Section Kit

Includes: 1x Corner post, 2 x Rails (3x Rails for 1650mm)

Rails: Ø48 x 2160(L)mm

Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall 1650mm)

Mid Section Kit

Includes: 1 x Intermediate Post, 2 x Rails (3x Rails for 1650mm)

Rails: Ø48 x 2160(L)mm

• Post: Ø48 x 950mm (overall height 1000mm) / Ø48 x 1600 (Overall 1650mm)

Post, Rail and Fastener Kits

Includes post and fittings

Size: Ø48 x 1000mm (overall) / Ø48 x 1600 (Overall 1650mm)

CODE OVERALL SIZE 1+ 11-MHRC-B 1000(H) x 2200(L)mm - 2 rails $359.00 / ea 11-MHRC-B-165 1650(H) x 2200(L)mm - 3 rails $569.00 / ea CODE OVERALL SIZE 1+ 11-MHRE-B 1000(H) x 2200(L)mm - 2 rails $359.00 / ea 11-MHRE-B-165 1650(H) x 2200(L)mm - 3 rails $569.00 / ea CODE OVERALL SIZE 1+ 11-MHRM-B 1000(H) x 2200(L)mm - 2 rails $359.00 / ea 11-MHRM-B-165 1650(H) x 2200(L)mm - 3 rails $569.00 / ea

1000mm (H) 1650mm (H) 1000mm (H) 1650mm (H) 1000mm (H) 1650mm (H) End Post Intermediate Post Corner Post 1000mm (H) 1000mm (H) 1650mm (H) 1650mm (H) 1000mm (H) 1650mm (H) NEW NEW NEW NEW CODE DESCRIPTION HEIGHT 1+ 11-MHR-PE-B End Post with fittings 1000mm $175.00 /ea 11-MHR-PE-B-165 End Post with fittings 1650mm $259.00 / ea 11-MHR-PM-B Intermediate Post with fittings 1000mm $175.00 / ea 11-MHRPM-B-165 Intermediate Post with fittings 1650mm $259.00 / ea 11-MHR-PC-B Corner Post with fittings 1000mm $175.00 / ea MHR-PC-B-165 Corner Post with fittings 1650mm $259.00 / ea -11-MH-PCRAIL-B Horizontal Rail - (ø 48mm x 2160mm Black) $119.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set Self Closing Gate Kits - Black See pages 81 INDUSTRIAL SAFETY 76 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Surex DDA Pedestrian Rail Kits

End Section Kit - DDA

Includes: 1x Post, 1x 180deg Rail End Size: 1065(H) x 350(W)mm

Mid Section Kit - DDA

Includes: 1x Intermediate Mid Post and 2 Rails

Rails: Ø48 x 2160(L)mm (overall length 2200mm) Post: Ø48 x 950(H) (overall height 1065mm)

Corner Section Kit - DDA

Includes: 2x Posts and 2x 90(deg)

• Corner Bends - Size: 1065(H) x 300(W)

Intermediate Mid Post - DDA

Includes: Post & fittings Size: Ø48 x 1065(H)mm (Overall)

Surex DDA Pedestrian Rail - Components

CODE COLOUR SIZE 1+ 11-MHRDDAM Yellow 1065(H x 2200(L)mm $359.00 / set 11-MHRDDAM-G Gal 1065(H) x 2200(L)mm $359.00 / set CODE COLOUR 1+ 11-MHRDDA-PC Yellow $535.00 / set 11-MHRDDA-PC-G Gal $535.00 / set

CODE COLOUR 1+ 11-MHRDDA-PE Yellow $295.00 / set 11-MHRDDA-PE-G Gal $295.00 / set CODE COLOUR 1+ 11-MHRDDA-PM Yellow $185.00 / set 11-MHRDDA-PM-G Gal $185.00 / set 11-MH-PCRAIL 721D48G STEEL40NBx2160 721D48Y 11-MH-PCUPRIGHT STEEL40NBx950 720D48Y 720D48G 724C42 133D48 CODE DESCRIPTION 1+ -11-MH-PCRAIL Horizontal Rail (ø48 x 2160mm Yellow) $115.00 / ea -STEEL40NBX2160 Horizontal Rail (48 x 2160mm Gal) $79.90 / ea -11-MH-PCUPRIGHT Vertical Post (ø48 x 940mm Yellow) $58.90 / ea -STEEL40NBX950 Vertical Post (ø48 x 940 Gal) $44.90 / ea -721D48Y DDA Assist 180° Hand Rail End Return (300 x 457mm Yellow) $169.00 / ea -721D48G DDA Assist 180° Hand Rail End Return (300 x 457mm Gal) $139.00 / ea -720D48Y DDA Assist Hand Rail - 90° Corner Bend (300 x 300mm Yellow) $129.00 / ea -720D48G DDA Assist Hand Rail - 90° Corner Bend (300 x 300mm Gal) $109.00 / ea -133D48 Black Plastic Stop End $6.90 / ea -724C42 DDA J-End Rail (Ø42 x 1600mm Gal) $335.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set

INDUSTRIAL SAFETY 77 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Surex Pedestrian ‘Tall-Rail’ Kits - Safety Yellow

End Section Kit -‘Tall-Rail’

• Includes: 1 x End Post, 4 x Rails

• Rails: Ø48 x 2160(L)mm (overall length 2200mm)

Post: Ø48 x 2160mm (overall height 2200mm)

Corner Section Kit - ‘Tall-Rail’

Includes: 1x Corner post, 4 x Rails

Rails: Ø48 x 2160(L)mm (overall length 2200mm)

Post: Ø48 x 2160mm (overall height 2200mm)

Mid Section Kit - ‘Tall-Rail’

Includes: 1x Intermediate post, 4 x Rails

Rails: Ø48 x 2160(L)mm (overall length 2200mm)

Post: Ø48 x 2160mm (overall height 2200mm)

Post, Rail, Brace & Fastener Kits - ‘Tall Rail’

Includes post and fittings

Size: Ø48 x 2200mm (overall)

CODE OVERALL SIZE 1+ 11-MTRE 2200(H) x 2200(L)mm - 4 Rails $649.00 / set End Intermediate Corner

2.2m High

CODE OVERALL SIZE 1+ 11-MTRC 2200(H) x 2200(L)mm - 4 Rails $649.00 / set

CODE OVERALL SIZE 1+ 11-MTRM 2200(H) x 2200(L)mm - 4 Rails $649.00 / set Rail to Wall Brace Rail to Rail Brace Custom Configured Tall Rail with Rail-to-Rail Braces NEW NEW NEW NEW Custom Configured Tall Rail with Rail-to-Rail Braces CODE DESCRIPTION 1+ 11-MTR-PE Yellow End Post with fittings $285.00 / set 11-MTR-PM Yellow Intermediate Post with fittings $285.00 / set 11-MTR-PC Yellow Corner Post with fittings $285.00 / set 11-MH-PCRAIL Yellow Horizontal Rail - (ø48mm x 2160mm) $115.00 / ea 11-MTR-R2R-Y Rail To Rail Brace Yellow - 1000mm $165.00 / set 11-MTR-W2R-Y Wall To Rail Brace Yellow - 1000mm $165.00 / set 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set INDUSTRIAL SAFETY 78

Surex Pedestrian ‘Tall-Rail’ Kits - Black and Galvanised

End Section Kit -‘Tall-Rail’

Includes: 1 x End Post, 4 x Rails

Rails: Ø48 x 2160(L)mm (overall length 2200mm)

Post: Ø48 x 2160mm (overall height 2200mm)

Corner Section Kit - ‘Tall-Rail’

• Includes: 1x Corner post, 4 x Rails

Rails: Ø48 x 2160(L)mm (overall length 2200mm)

Post: Ø48 x 2160mm (overall height 2200mm)

Mid Section Kit - ‘Tall-Rail’

Includes: 1 x Intermediate Post, 4 x Rails

Rails: Ø48 x 2160(L)mm (overall length 2200mm)

Post: Ø48 x 2160mm (overall height 2200mm)

Post, Rail, Brace & Fastener Kits - ‘Tall Rail’

• Includes post and fittings

• Size: Ø48 x 2200mm (overall)

CODE COLOUR OVERALL SIZE 1+ 11-MTRC-B Black 2200(H) x 2200(L)mm - 4 Rails $699.00 / set 11-MTRC-G Gal 2200(H) x 2200(L)mm - 4 Rails $449.00 / set

CODE COLOUR OVERALL SIZE 1+ 11-MTRE-B Black 2200(H) x 2200(L)mm - 4 Rails $699.00 / set 11-MTRE-G Gal 2200(H) x 2200(L)mm - 4 Rails $449.00 / set

CODE COLOUR OVERALL SIZE 1+ 11-MTRM-B Black 2200(H) x 2200(L)mm - 4 Rails $699.00 / set 11-MTRM-G Gal 2200(H) x 2200(L)mm - 4 Rails $449.00 / set

End Intermediate Corner

CODE DESCRIPTION 1+ 11-MTR-PE-B Black End Post with fittings $295.00 / set 11-MTR-PE-G Galvanised End Post with fittings $235.00 / set 11-MTR-PM-B Black Intermediate Post with fittings $295.00 / set 11-MTR-PM-G Galvanised Intermediate Post with fittings $235.00 / set 11-MTR-PC-B Black Corner Post with fittings $295.00 / set 11-MTR-PC-G Galvanised Corner Post with fittings $235.00 / set 11-MH-PCRAIL-B Black Horizontal Rail - (ø48mm x 2160mm) $129.90 / ea -STEEL40NBx2160 Galvanised Horizontal Rail - (ø48mm x 2160mm) $79.90 / ea 11-MTR-R2R-B Black Rail To Rail Brace - 1000mm $175.00 / set 11-MTR-R2R-G Galvanised Rail To Rail Brace - 1000mm $139.00 / set 11-MTR-W2R-B Black Wall To Rail Brace - 1000mm $175.00 / set 11-MTR-W2R-G Galvanised Wall To Rail Brace - 1000mm $139.00 / set 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set 2.2m High Rail to Rail Brace Rail to Wall Brace NEW NEW NEW NEW INDUSTRIAL SAFETY 79 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Surex Pedestrian Rail Fixings and Components

-137D48 -143D48 -146D48 CODE DESCRIPTION 1+ -101D48 Short Tee $27.90 / ea -104D48 Long Tee $43.90 / ea -116D48 3-Way Mid Corner $36.90 / ea -119D48 2-Way Cross Clamp $41.90 / ea -123D48 Variable Acute Elbow (40° - 70°) $65.90 / ea -124D48 Variable Obtuse Elbow (15° - 60°) $54.90 / ea -125D48 2-Way Elbow 90° $33.90 / ea -128D48 3-Way Elbow $52.50 / ea -130D48 Variable Cross Over (30° - 45°) $69.90 / ea -131D48 Wall Flange $37.90 / ea -132D48 Base Plate $59.90 / ea -134D48 In-Ground Post Socket $115.00 / ea -137D48 Add-On Cross Over $88.00 / ea -143D48 Handrail Through Bracket $37.90 / ea -146D48 Wall Mount Post Bracket $62.90 / ea -150D48 DDA End-to-End Internal Joint $29.90 / ea -152D48 Slope Base Flange (0° - 11°) $66.90 / ea -158D48 6-Way Crossover $66.90 / ea -161D48 2-Way Offset Cross Over $31.90 / ea -166D48 Adjustable Angle Knuckle $76.90 / ea -169M Plate connector $27.50 / ea -169D48 Swivel Bracket (not for base plate use) $66.90 / ea -173D48 Single Swivel T Combination $44.90 / ea -176D48 5-Way Mid Cross Tee $49.90 / ea -197D48 Sign/ Kick Plate Clamp $33.90 / ea -198D48 Kick Plate Bracket $66.90 / ea -199D48 Gate Striker/Flush Lug $23.90 / ea -745D48 DDA Handrail Joiner Wall Bracket $88.00 / ea -746D48 DDA Handrail Saddle Wall Bracket $55.90 / ea -748C42 DDA Offset Handrail Saddle $55.90 / ea -750D48 DDA Assist Expanding Fitting $69.90 / ea -751D48 DDA Handrail Saddle $55.90 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set Surex Pedestrian Rail Fixings and Components To suit 48mm OD Pipe -176D48 -198D48 -101D48 -152D48 -158D48 -745D48 -750D48 -748C42 -751D48 -197D48 -746D48 -161D48 -166D48 -169M -169D48 -173D48 -104D48 -116D48 -119D48 -123D48 -124D48 -125D48 -128D48 -130D48 -131D48 -132D48 -134D48 -199D48 -150D48 INDUSTRIAL SAFETY 80 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

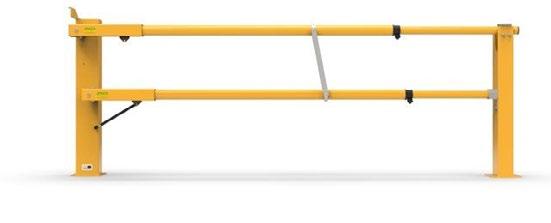

CODE DESCRIPTION 1+ 11-MHRG-900 Self Closing Gate - 900mm $449.00 / ea 11-MHRG-1200 Self Closing Gate - 1200mm $549.00 / set -199D48 Gate Striker $23.90 / ea Self-Closing Gate Kits - Safety Yellow 900mm wide - Fixed width 1200mm wide - Adjustable - Can be cut to size on site. Self-Closing Gate Kits - Black 900mm wide - Fixed width 1200mm wide - Adjustable - Can be cut to size on site CODE DESCRIPTION 1+ 11-MHRG-B-900 Self Closing Gate - 900mm $489.00 / ea 11-MHRG-B-1200 Self Closing Gate - 1200mm $599.00 / ea -199D48 Gate Striker $23.90 / ea Self-Closing Gate Kits - Galvanised 900mm wide - Fixed width 1200mm wide - Adjustable - Can be cut to size on site CODE DESCRIPTION 1+ 11-MHRG-G-900 Self Closing Gate - 900mm $399.00 / set 11-MHRG-G-1200 Self Closing Gate - 1200mm $499.00 / set -199D48 Gate Striker $23.90 / ea Surex Pedestrian Rail Gates 900mm 1200mm 900mm 1200mm 900mm 1200mm Gate Striker Gate Striker Gate Striker NEW INDUSTRIAL SAFETY 81 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

‘Recessed

3m ‘Recessed Rail’ Kit 4m ’Recessed Rail’ Kit 4m and 3m ‘Recessed Rail’ Kits 3m ‘Recessed Rail’ Kit 82 Surex ‘Recessed Rail’ Barrier Features

Premium safety yellow powder coat

Optional compliant handrail

Heavy wall steel post & rail

Recessed rail attachment for extra strength

4 sizes options

Optional kick plate 7. Non-trip base plates 8. Full galvanised - no rust! 1 2 3 4 5 6 7 8 INDUSTRIAL SAFETY 82

Pictured : 2m

Rail’

with

Kick Plate

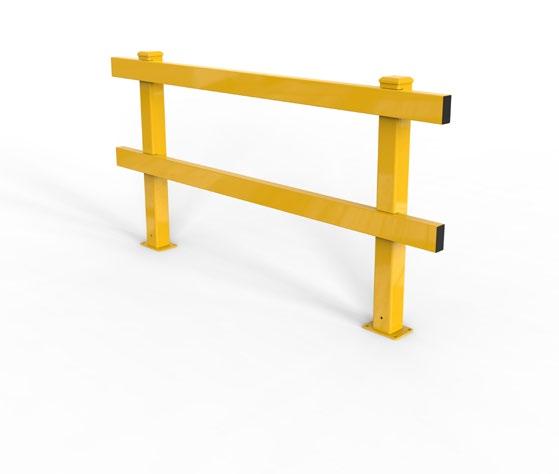

Surex ‘Recessed Rail’ Warehouse Barriers

•

Surex ‘Recessed Rail’ Warehouse Barrier (Powder Coated Safety Yellow)

•

2m 1m 4m 3m with Kick Plate 2m with Handrail

Heavy Wall Galvanised Steel Posts & Rails powder coated Safety Yellow Optional Kick Plate Available Post Height: 1000mm

Rail Height: 970mm

Custom colours available, please enquire Optional Kick Plate 100mm High Galvanised Steel Plate Optional Hand Rail Galvanised Steel Rail CODE DESCRIPTION 1+ 12-SWB1 1m Post & Rail Kit $889.00 / set 12-SWB2 2m Post & Rail Kit $999.00 / set 12-SWB3 3m Post & Rail Kit $1,199.00 / set 12-SWB4 4m Post & Rail Kit (3 posts) $1,599.00 / set 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Require 1 set of fixings per base plate) $9.90 / Set CODE DESCRIPTION 1+ 12-SWBKP1 1m Kick Plate $159.00 / ea 12-SWBKP2 2m Kick Plate $299.00 / ea 12-SWBKP3 3m Kick Plate $429.00 / ea 12-SWBKP4 4m Kick Plate $519.00 / ea CODE DESCRIPTION 1+ 12-SWBHR1 1m Hand Rail Kit $149.00 / ea 12-SWBHR2 2m Hand Rail Kit $189.00 / ea 12-SWBHR3 3m Hand Rail Kit $229.00 / ea 12-SWBHR4 4m Hand Rail Kit $339.00 / ea Surex Recessed Rail Pedestrian Gates (Standard) Extra Heavy Duty Galvanised Steel Construction Standard Gate Size: 1090(W) x 1006(H) mm (Gate Opening Width: 859mm) NEW CODE DESCRIPTION 1+ 09-RRPGS Standard Gate $1,670.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set Standard Gate See full range of Recessed Rail Pedestrian Gates on Page 95 including Audio & Visual Alarmed Gates Surex Black Recessed Rail Scan QR code INDUSTRIAL SAFETY 83 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Surex ‘Recessed Rail’ Warehouse Barriers

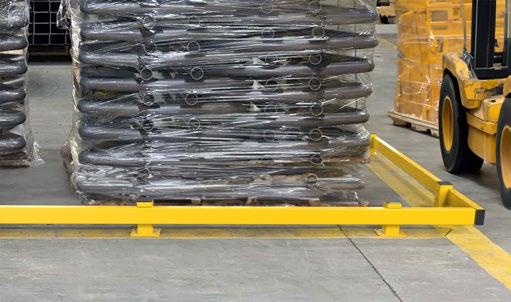

Surex Low Recessed Rail

Heavy wall galvanised steel posts and rails

Powder coated safety yellow

• Size: 124.5mm (W) x 211.5mm (H)

Custom colours and lengths available, please enquire

Lengths: 1m, 2m, 3m and 4m

NEW CODE DESCRIPTION 1+ 12-SRLR1 1m - Low Recessed Rail $585.00 / set 12-SRLR2 2m - Low Recessed Rail $699.00 / set 12-SRLR3 3m - Low Recessed Rail $825.00 / set 12-SRLR4 4m - Low Recessed Rail $995.00 / set 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Require 1 set of fixings per base plate) $9.90 / set 1m Low Recessed Rail

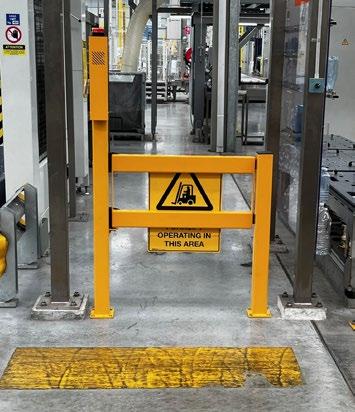

Rail Pedestrian Gates - Alarmed

Recessed

2m Low Recessed Rail 3m Low Recessed Rail 4m Low Recessed Rail INDUSTRIAL SAFETY 84 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

See pages 97

Surex Machine Guarding

Surex Machine Guarding

• Manufactured from 25 x 25 x 1.6mm thick SHS tube • Quick and easy installation • Flexible system mainly applicable to warehouses and factories • Available in safety yellow or black 2m High Screens and Posts 1.2m High Screens and Posts CODE DESCRIPTION 1+ 12-SMS20-POST-Y Surex Machine Guarding - Tall post yellow 75x75x2140(H) $299.00 12-SMS20-PANEL-Y Surex Machine Guarding - Yellow with 4 brackets 2000(H) x 1200(W) $279.00 12-SMS20-PANEL -B Surex Machine Guarding - Black with 4 brackets 2000(H) x 1200(W) $279.00 CODE DESCRIPTION 1+ 12-SMS12-POST-Y Surex Machine Guarding - Post yellow 75 x 75 x 1340(H)mm $199.00 12-SMS12-P1000-Y Surex Machine Guarding - Yellow with 4 brackets 1200(H) x 1000(W) $179.00 12-SMS12-P1000-B Surex Machine Guarding - Black with 4 brackets 1200 (H) x 1000(W) $179.00 12-SMS12-P2400-Y Surex Machine Guarding - Yellow with 4 brackets 1200(H) x 2000(L) $279.00 12-SMS12-P2400-B Surex Machine Guarding - Black with 4 brackets 1200(H) x 2000(L) $279.00 2.14m posts 1.34m posts 1200mm (H) x 1000mm (W) screens 1200mm (H) x 2000mm (W) screens NEW Example configuration using all sizes of screens and posts. 2000mm (H) x 1200mm (W) screens INDUSTRIAL SAFETY 85 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

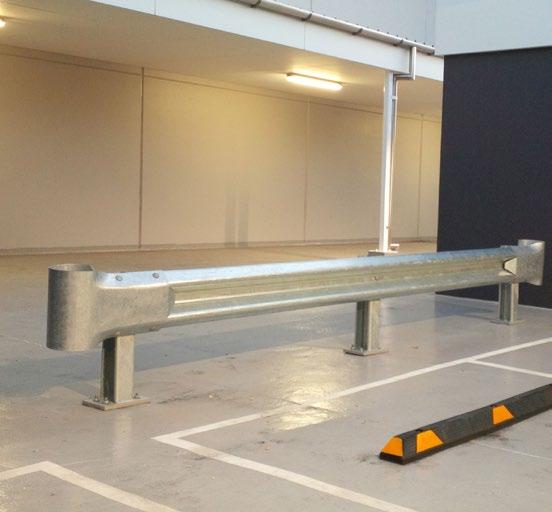

W-Beam Guard Rail with 725mm Base Plate Posts, Hand Rail & Anti Climb Mesh (See Page 88) W-Beam Guard Rail with 1225mm Base Plate Posts & C Ends Double Height W-Beam Guard Rail with 725mm Base Plate Posts W-Beam Guard Rail with 725mm Base Plate Posts & C Ends W-Beam Guard Rail with 725mm Base Plate Posts & 90� External Corners (Flexible) 86 INDUSTRIAL SAFETY 86

W-Beam Guard Rails

W-Beam Guard Rails

W-Beam

W-Beam Terminals

Galvanised finish

Galvanised finish or powder coated yellow 12-W509G / 12-WBSN-Y 12-W504G / 12-W90EC-Y 12-W507G / 12-WBFT-Y 12-W90IC-G Terminal Options CODE DESCRIPTION 1+ 12-W113G 1m - W-Beam Rail (use 2 posts) $159.00 / ea 12-W105G 2m - W-Beam Rail (use 2 posts) $339.00 / ea 12-W303G 2.5m - W-Beam Rail (use 2 posts) $419.00 / ea 12-W3000G 3m - W-Beam Rail (use 3 posts) $459.00 / ea 12-W100G 4m - W-Beam Rail (use 3 posts) $515.00 / ea 12-F1002 Splice Bolt/Nut (use 8 per join) $5.40 / ea CODE DESCRIPTION 1+ 12-P400SM 400mm - C-Post, Surface Mount $229.00 / ea 12-PB110G 725mm - C-Post, Surface Mount (standard size) $299.00 / ea 12-P1140DSM 1140mm - C-Post, Surface Mount (double height) $359.00 / ea 12-P1225BG 1225mm - C-Post, In-ground $289.00 / ea 12-P100G 1850mm - C-Post, In-ground (double height) $329.00 / ea 12-F1012 Post Bolt/Nut $5.40 / ea 12-M2075X4 Ground Fixings – Gal Sleeve Anchor M20 x 75mm (Set of 4) $24.90 / set CODE DESCRIPTION 1+ 12-W509G Car Park C-End, Gal (use 4 splice bolts) $319.00 / ea 12-WBSN-Y Car Park C-End, Yellow (use 4 splice bolts) $399.00 / ea 12-W507G Fish Tail - Gal (use 8 splice bolts) $285.00 / ea 12-WBFT-Y Fish Tail - Yellow (use 8 splice bolts) $349.00 / ea 12-W504G 90° Corner - External, Gal (use 8 splice bolts total) $265.00 / ea 12-W90EC-Y 90° Corner - External, Yellow (use 8 splice bolts total) $399.00 / ea 12-W90IC-G 90° Corner - Internal, Gal (use 8 splice bolts total) $279.00 / ea 12-F1002 Splice Bolt/Nut $5.40 / ea

Posts • Galvanised finish 1140mm 1225mm 1850mm 725mm 400mm INDUSTRIAL SAFETY 87 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

W-Beam

W-Beam Hand Rails

W-Beam Anti Climb Mesh

Configurations Standard 725mm Standard with Handrail Standard with Handrail Standard with Handrail & Mesh Panel

Guard Rails W-Beam

Galvanised finish Kit includes: mesh panel, steel angle, fixings to suit Mesh & angle can be cut down on site CODE DESCRIPTION 1+ 12-WMK24 Anti-Climb Mesh Panel Kit 2400x900(H)mm $699.00 / kit

Galvanised finish CODE DESCRIPTION 1+ 12-WHR4 4m - W-Beam Hand Rail $149.90 / ea 12-WHR2.5 2.5m - W-Beam Hand Rail $89.90 / ea 12-WHRC Single Crank Handrail (1 per post) $119.00 / ea 12-WHRCM Handrail Crank to Suit Mesh Panel $119.00 / ea 12-WHRF Fixings Set (1 per posts) $3.90 / ea 12-WHRJ Hand Rail Straight Joiner $24.90 / ea 12-WHREC Hand Rail End Cap $8.90 / ea INDUSTRIAL SAFETY 88 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Driver Safe Zone Kits

•

Driver Safe Zones - Modular Pedestrian Rail Kit (Pedestrian Duty)

Overall Footprint : 3200mm x 2200mm Kit Includes: 3 x 2.2m Modular Rail Kits 1 x 900mm Pedestrian Gate 2x 2m Aluminium Benches (Optional) CODE DESCRIPTION 1+ 12-DSZ-MPR Driver Safe Zone - Modular Pedestrian Rail Kit $1,890.00 / ea 12-DSZ-MPRB Driver Safe Zone - Modular Pedestrian Rail Kit (With Benches) $2,690.00 / ea 08-GSB1275X2 M12 x 75mm Galvanised Screw Bolt - Set of 2 (Requires 1 Set of Fasteners Per Base Plate) $4.95 / Set Driver Safe Zones - Double Rail U-Bollard Kit (Pedestrian Duty) Overall Footprint : 3200mm x 2200mm Kit Includes: 3 x 2m Double Rail U-Bollard 2 x 90mm Yellow Bollards 1 x 900mm Pedestrian Gate 2x 2m Aluminium Benches (Optional) CODE DESCRIPTION 1+ 12-DSZ-DRU Driver Safe Zones - Double Rail U-Bollard Kit $2,399.00 / ea 12-DSZ-DRUB Driver Safe Zones - Double Rail U-Bollard Kit (With Benches) $3,169.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Requires 1 Set of Fasteners Per Base Plate) $9.90 / Set

Safe Zones

Recessed Rail Kit

Duty) Overall Footprint : 3000mm x 2000mm Kit Includes: 3 x 2m Recessed Rail Standard Recessed Rail Gate 2x 2m Aluminium Benches (Optional) CODE DESCRIPTION 1+ 12-DSZ-RR Driver Safe Zone - Recessed Rail Kit $4,250.00 / ea 12-DSZ-RRB Driver Safe Zone - Recessed Rail Kit (With Benches) $4,940.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Requires 1 Set of Fasteners Per Base Plate) $9.90 / Set INDUSTRIAL SAFETY 89 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Driver

(Heavy

Bollards

Holding Rail

Class / reflective to RMS specs

Size: 800mm x 1400mm

Post Ø: 60mm (OD)

15kg

U-Bar Bollards - 48mm Galvanised

U-Bar Bollards - 90mm Heavy Duty - Galvanised

Powder

Weight:

CODE DESCRIPTION 1+ 09-HRR/R Holding rail $269.00 / ea 10-VLOCK V type socket (2 required) $49.90 / ea

Galvanised finish Heavy 5mm wall thickness CODE DESCRIPTION 1+ 09-UB10-BP 1000(L) x 700(H)mm Base Plate, 31kg $829.00 / ea 09-UB10-IG 1000(L) x 1200(H)mm In-Ground, 31kg $889.00 / ea 09-UB15-BP 1500(L) x 700(H)mm Base Plate, 36kg $990.00 / ea 09-UB15-IG 1500(L) x 1200(H)mm In-Ground, 36kg $1,095.00 / ea 09-UB20-BP 2000(L) x 700(H)mm Base Plate, 41kg $1,130.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set

Coated Yellow Galvanised finish - Powder Coated Yellow Heavy 5mm wall thickness CODE DESCRIPTION 1+ 09-UBY10-BP 1m Long U Bollard Surface Mount - Size: 1000(L) x 700(H)mm, 31kg $919.00 / ea 09-UBY10-IG 1m Long U Bollard In-ground - Size: 1000(L) x 1200(H)mm, 31kg $999.00 / ea 09-UBY15-BP 1.5m Long U Bollard Surface Mount - Size: 1500(L) x 700(H)mm, 36kg $1,075.00 / ea 09-UBY15-IG 1.5m Long U Bollard In-ground - Size: 1500(L) x 1200(H)mm, 36kg $1,229.00 / ea 09-UBY20-BP 2m Long Mount U Bollard Surface - Size: 2000(L) x 700(H)mm, 41kg $1,239.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set V type socket

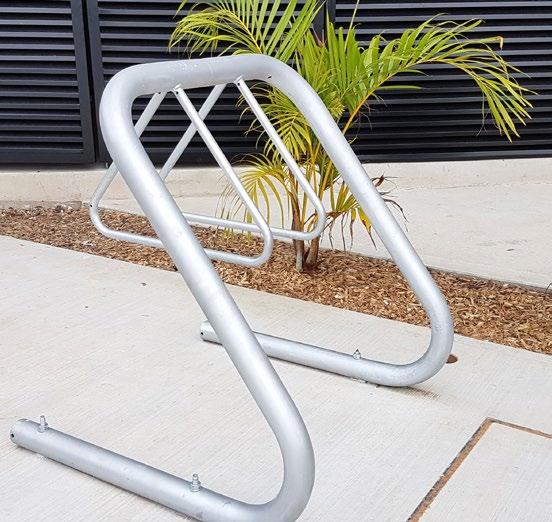

Length: 850mm • Height: 800mm CODE DESCRIPTION 1+ 10-SHBIKE-G Galvanised finish $179.00 / ea 10-SHBIKE Powder Coated Black $249.00 / ea 10-SHBIKE-Y Powder Coated Yellow $249.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set INDUSTRIAL SAFETY 90 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Double

Galvanised finish • Size: Ø48 x 1340(H)mm overall CODE DESCRIPTION 1+ 09-DRB10-IG 1m Long In Ground Double Rail U Bollard $339.00 / ea 09-DRB15-IG 1.5m Long In Ground Double Rail U Bollard $399.00 / ea 09-DRB20-IG 2m Long In Ground Double Rail U Bollard $449.00 / ea

Rail U Bollards - In-ground

Galvanised Size: Ø48 x 1040(H)mm CODE DESCRIPTION 1+ 09-DRB10-BP 1m Long Double Rail U Bollard Surface Mount $219.00 / ea 09-DRB15-BP 1.5m Long Double Rail U Bollard Surface Mount $249.00 / ea 09-DRB20-BP 2m Long Double Rail U Bollard Surface Mount $295.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set CODE DESCRIPTION 1+ 09-DRB10-BP-Y 1m Long Double Rail U Bollard Surface Mount $319.00 / ea 09-DRB15-BP-Y 1.5m Long Double Rail U Bollard Surface Mount $379.00 / ea 09-DRB20-BP-Y 2m Long Double Rail U Bollard Surface Mount $459.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set

Double Rail U Bollards - Bolt Down -

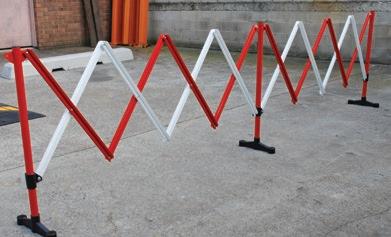

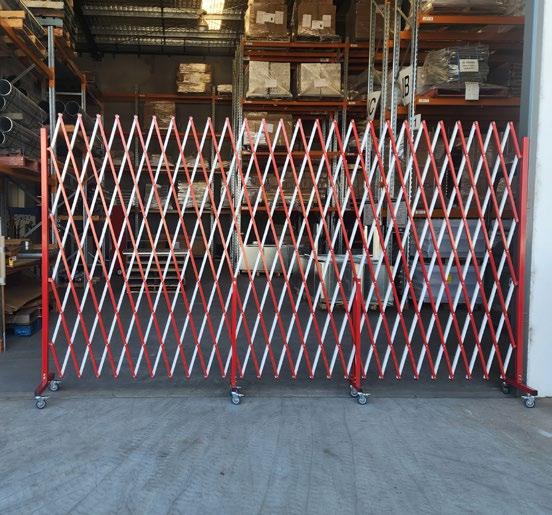

• Size: Ø48 x 1040(H)mm Double Rail U-Bollards Industrial Expanding Barriers & Belt Barriers See pages 106-115 INDUSTRIAL SAFETY 91 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Rail U Bollards - Bolt Down - Galvanised Powder Coated Yellow

1. Heavy duty ballbearing hinge

2. Reﬂective strips & standard or customised messages also available

3. Aluminium beam for easy opening & closing

4. 2m, 3m or 4m length options

5. Wall, post or bollard mounting options

6. Galvanised steel support braces for added support

7. Premium powder coat finish (yellow or black)

8. Gate receiver also available

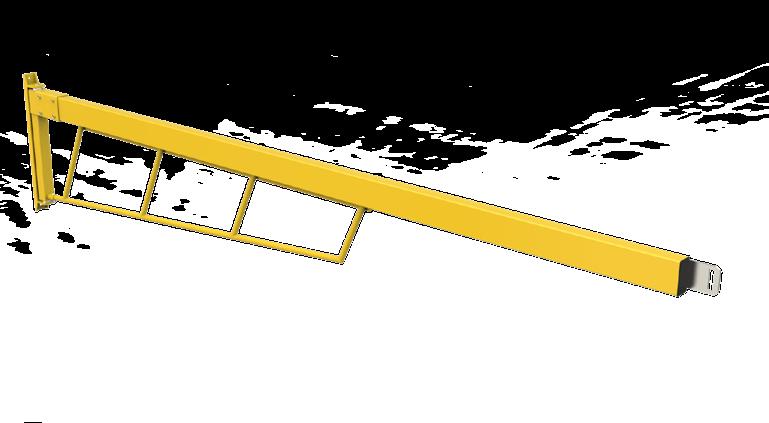

Heavy Duty Industrial Swing Gate - Manual - Yellow 3m Heavy Duty Industrial Swing Gate - Manual - Yellow 3m Heavy Duty Industrial Swing Gate - Manual Heavy Duty Industrial Swing Gate - Manual - Black 4m & Pedestrian Modular Rail Black (See Page 76)

1 5 6 7 8 2 3 4 INDUSTRIAL SAFETY 92

Manual Swing Gates

Heavy Duty Industrial Swing Gate - Manual

Aluminium beam, steel supports & hinge

Heavy duty ballbearing hinge (180° swing arc)

Colours: Yellow or Black (custom colours available)

Wall or post / bollard mounting

Standard Messaging Applied

to Gate Arm - 1 Side

(Purchase x2 for both sides)

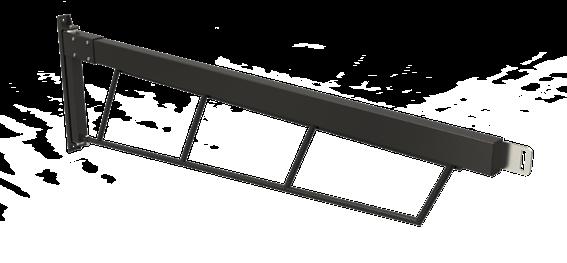

Manual Swing Gate - Aluminium

Wall mounting

Bollard mounting

270° swing

Padlock not

• Adjustable • 3 standard size s

supplied. Some assembly on site - assembly guide is available. CODE DESCRIPTION 1+ 09-MSGM2 Aluminium Swing Gate 2400mm $699.00 / ea 09-MSGM3 Aluminium Swing Gate 3400mm $819.00 / ea 09-MSGM4 Aluminium Swing Gate 4400mm $939.00 / ea 09-MSGM-R Gate Receiver $55.00 / ea 08-SF140BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $299.90 / ea CODE DESCRIPTION 1+ 09-SGM2-Y/B 2m Swing Gate $1,720.00 / ea 09-SGM3 -Y/B 3m Swing Gate $1,860.00 / ea 09-SGM4 -Y/B 4m Swing Gate $2,110.00 / ea 09-SGM-R Gate Receiver $59.90 / ea 09-SGMF Fastener Kit for bolting swing gate to bollard (2x Gal Bolt & Nut M10 x 170mm with washers) $9.90 / kit 08-SF140BP Fixed Base Plate Bollard (Round base plate) 5mm Wall - Ø140 x 1200(H)mm - 25kg $299.90 / ea

CODE DESCRIPTION 1+ 09-AVO12 $129.00 / ea 09-KCT12 $129.00 / ea 09-NOE12 $129.00 / ea 09-NOP12 $129.00 / ea 09-NPAT12 $129.00 / ea 09-GT-REFL(LENGTH) Specify Length (2m, 3m, 4m) $99.00 / ea 2m Black 3m Yellow with Standard Message 3m Black with Black & Yellow Reflective Tape INDUSTRIAL SAFETY 93 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

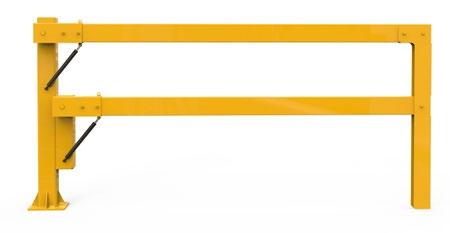

Boom Gate - Single Arm

Heavy Duty Manual Industrial Boom Gate

Heavy duty galavanised steel construction

Premium gas strut for smooth raising & lowering

3 boom lengths

Colours: Yellow or Black (custom colours available)

Lockable

CODE DESCRIPTION OPENING MEASUREMENT 1+ 09-HDMBG-2-Y/B 2m Industrial Boom Gate 1720mm $2,240.00 / ea 09-HDMBG-3-Y/B 3m Industrial Boom Gate 2720mm $2,499.00 / ea 09-HDMBG-4-Y/B 4m Industrial Boom Gate 3720mm $2,690.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set 2m Industrial Boom Gate - Yellow

(Purchase x2 for both sides) Assisted raising and lowering of the boom arm CODE DESCRIPTION 1+ 09-AVO12 $129.00 / ea 09-KCT12 $129.00 / ea 09-NOE12 $129.00 / ea 09-NOP12 $129.00 / ea 09-NPAT12 $129.00 / ea 09-GT-REFL(LENGTH) Specify Length (2m, 3m, 4m) $99.00 / ea 2m Industrial Boom Gate - Black INDUSTRIAL SAFETY 94 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

receiver post

Standard Messaging Applied to Gate Boom - 1 Side

Boom Gates - Double Arm

Heavy Duty Manual Boom Gates - Double Arm

Heavy duty aluminium construction

Premium gas strut for smooth raising

& lowering

3 boom lengths - 2m, 3m, 4m

Assisted raising and lowering of the boom arm

Boom heights when open

2m Boom: 3095mm (H)

3m Boom: 4095mm (H)

4m Boom: 5095mm (H)

• Powder coated premium safety yellow

NEW CODE DESCRIPTION 1+ 09-MBGDA-2-LH 2m Double Arm Boom Gate - Left Hand Mount $2,590.00 / ea 09-MBGDA-3-LH 3m Double Arm Boom Gate - Left Hand Mount $2,740.00 / ea 09-MBGDA-4-LH 4m Double Arm Boom Gate - Left Hand Mount $2,880.00 / ea 09-MBGDA-2-RH 2m Double Arm Boom Gate - Right Hand Mount $2,590.00 / ea 09-MBGDA-3-RH 3m Double Arm Boom Gate - Right Hand Mount $2,740.00 / ea 09-MBGDA-4-RH 4m Double Arm Boom Gate - Right Hand Mount $2,880.00 / ea 08-GSB1275X4 M12 x 75mm Gal Screw Bolt and Washer - Set of 4 $9.90 / Set 3m 4m 2m Open position 2m Part Open 3m Part Open 4m Part Open 4m Open position 3m Open position 2m Industrial Safety Signs See pages 148-156 INDUSTRIAL SAFETY 95 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Boom Gates

Manual Telescopic Boom Gate

Size:

Max. Opening 3825mm (telescopic)

• Min. Opening 2325mm

• Rail Height 940mm (to centre)

O/H Clearance 3450m m (for minimum length boom)

Assisted raising and lowering of the boom arm

Manual Telescopic Boom Gate – Dual Arm

Size:

Max. Opening 3825mm (telescopic)

Min. Opening 2464mm

Rail Height 940mm (to centre)

O/H Clearance 4981mm (for minimum length boom)

Note: Assisted raising and lowering of the boom arm

Double Safety Boom Gate

• Creates air-lock safety zone

Protects workers from exposed edges

Optional double

Assisted raising and lowering of the boom arm

rail U-bollards can be installed as side infills if required.

CODE 1+ 09-TBG38 $2,550.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set CODE 1+ 09-TBG38-DA $4,790.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set CODE DESCRIPTION 1+ 09-DBG15 Double Safety Boom Gate $5,499.00 / ea 09-DRB15-BP-Y Double Rails U-Bollard - Yellow $379.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 (Requires 1 Set of Fixings per base plate) $9.80 / Set Inner Gate Up Outer Gate Down Receiver Post Receiver Post Optional Double Rail U Bollard Double Safety Boom Gate (Floor Plan) DROP 200 200 1508 200 200 1259 200 200 1603 200 200 1602 2002

3m INDUSTRIAL SAFETY 96 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Recessed Rail Pedestrian Gates - Alarmed

•

Recessed Rail Pedestrian Gates - Alarmed

Options

Standard

Alarmed

x 1006(H)

Size: 1090(W) x 1665(H)

Width: 859mm)

Alarm is activated upon opening of gate

Alarmed Gates use 8x ‘D’ Batteries (Not included - client to supply)

CODE DESCRIPTION 1+ 09-RRPGS Standard Gate - No Alarm $1,550.00 / ea 09-RRPGAA Gate with Audio Alarm $2,330.00 / ea 09-RRPGVA Gate with Visual Alarm $2,330.00 / ea 09-RRPGVAA Gate with Visual and Audio Alarm $2,380.00 / ea 09-WMAB Wall Mount Alarm Box (Visual & Audio) $699.00 / ea 08-GSB1275X8 M12 x 75mm Galvanised Screw Bolt - Set of 8 $19.80 / Set

Extra Heavy Duty Galvanised

Construction

Steel

standard gate, gate

visual

with

alarm, gate with audio alarm and gate with visual and audio alarm

Gate Size: 1090(W)

(Gate Opening Width: 859mm)

Gate

Opening

(Gate Height: 1006mm, Gate

NEW Gate with Visual Alarm Gate with Audio Alarm Gate with Visual and Audio Alarm Wall Mount Alarm Box

Warning light (visual) 2. Warning alarm (audio) 3. High visibility safety yellow powder coat

Heavy duty hinges

Heavy duty gate stopper

1.66m high post for added safety visibility

Heavy duty 8mm base plates Surex Pedestrian Gate Features Standard Gate 3 1 INDUSTRIAL SAFETY 97 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

2 3 4 5

Galvanised Steel Downpipe Protector Features

1. Galvanised steel — suitable for harsh conditions

2. Wide 50mm flanges for stronger securing

3. 1200mm high for better protection (other heights also available)

4. Heavy 2mm wall thickness (3mm also available)

5. Pre-drilled ﬁxing holes for faster and easier installation

Galvanised Steel Downpipe Protector 150mm - Safety Yellow Galvanised Steel Dowanpipe Protector 200mm - Safety Yellow Galvanised Steel Dowanpipe Protector 200mm

INDUSTRIAL SAFETY 98

Downpipe Guards

Galvanised Steel Downpipe Protectors

Yellow Downpipe Protectors

Industrial 2mm thickness (3mm available - please enquire) Galvanised Side flanges 50mm wide Pre-drilled Ø14 f ixing holes CODE DESCRIPTION 1+ 21-GDP150 150(W) x 150(D) x 1200(H) x 2mm $179.00 / ea 21-GDP200 200(W) x 200(D) x 1200(H) x 2mm $199.00 / ea 21-GDP250 250(W) x 250(D) x 1200(H) x 2mm $225.00 / ea CODE DESCRIPTION 1+ 21-GDP150-Y 150(W) x 150(D) x 1200(H) x 2mm $288.00 / ea 21-GDP200-Y 200(W) x 200(D) x 1200(H) x 2mm $319.00 / ea 21-GDP250-Y 250(W) x 250(D) x 1200(H) x 2mm $359.00 / ea

Industrial 2mm thickness (3mm available - please enquire) powder coat Safety Yellow Side flanges 50mm wide Pre-drilled Ø14 fixing holes

Steel Bollards - Yellow (Base Plate)

page 18 INDUSTRIAL SAFETY 99 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Fixed

See

Steel Truck Loading Dock Reversing Guides

•

•

Angle

Surex Heavy Duty Floor

Very heavy duty floor stop, ideal for stopping pallets hitting and damaging walls or barriers

Galvanised Steel Truck Loading Dock Reversing Guides

Size: 2303(L) x 220(W) x 311(H)mm (Diameter 165mm)

Finish: Yellow & Galvanised CODE DESCRIPTION 1+ 10+ 12-HDFA12 100x100x5(T) x 1200(L)mm $249.00 / ea $219.00 / ea 12-HDFA24 100x100x5(T) x 2400(L)mm $329.00 / ea $299.00 / ea 08-GSB1275X4 M12 x 75mm Galvanised Screw Bolt - Set of 4 $9.90 / Set CODE DESCRIPTION 1+ 07-STWSC-Y Yellow $1595.00 / ea 07-STWSC-G Galvanised $1495.00 / ea 08-GBM16110 Galvanised M16x110mm Sleeve Anchor with Washer (8 required per reversing guide) $4.20 08-GSB16100X4 M16 x 100mm Galvanised Screw Bolt - Set of 4 (Requires 2 sets per base plate) $23.90 / Set NEW INDUSTRIAL SAFETY 100 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Corner Guards

Stainless Steel Corner Guard (No Holes)

• Size: 40 x 40 x 1200(L)mm

• Thickness: 1.6m m

•

Galvanised Steel Corner Guard 50mm Profile (no holes)

• Size: 50 x 50 x 1200(L)mm

2mm

Rubber Corner Guard

Size: 100 x 100 angl e x 800(L)mm

Colour: Black/Yellow Hi-V is or Plain Black

PVC Corner Guard

Size: 50 x 50 x 1200(L)mm

• Thickness: 2.5mm

Colour: White

• * Small order charge $25.00+GST for less than 10.

Thickness:

100mm Profile (with holes) Size: 100 x 100 x 1200(L)mm Thickness: 3mm CODE 1-9 10-24 25+ 21-SSCG40 $89.00 / ea $79.00 / ea $65.00 / ea CODE DESCRIPTION 1-9 10+ 21-GCG-50 50mm $65.90 / ea $59.90 / ea 21-GCG 100mm $119.00 / ea $108.00 / ea CODE 1-19 20+ 21-PVC5012 $74.90 / ea $62.90 / ea

CODE DESCRIPTION 1-9 10+ 21-RCP-BY Black/Yellow $32.00 / ea $26.50 / ea 21-RCP-B Plain Black $32.00 / ea $26.50 / ea

INDUSTRIAL SAFETY 101 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Extruded Rubber Dock Fender

Rubber Dock

Rubber Wall Protector

D-Type Moulded

Bumper

Rubber Corner Guards (See Page 101)

Black/Yellow

Page 101) INDUSTRIAL SAFETY 102

Black/Yellow

Rubber Corner Guards (See

Rubber Guards

Extruded Rubber Dock Fender

Size: 92(D) x 105(H) x 2400(L)mm

Thickness: 19.5mm

D Type Moulded Rubber Dock Bumper

Size: 100(D) x 100(H) x 900(L)mm

Thickness: 25mm

Non-flexible.

Extruded Rubber Wall Guard

Rubber Dock Bumper

• Size: 100(D) x 330(H) x 250(W)mm

Rubber Wall Protector

Size: 55(D) x 150(H) x 1000(L)mm

Heavy Duty Wall & Column Protector

Size: 40(D) x 115(H) x 5000(L)mm

Size: 40(D) x 50(H) x

Thickness: 8mm CODE 1+ 21-RDF $419.00 / ea CODE 1+ 21-RWG $199.00 / ea CODE 1-4 5+ 28-RBS115 $449.00 / roll $399.00 / roll CODE 1-9 10+ 21-RDDB $69.90 / ea $57.80 / ea CODE 1-9 10+ 21-RDB $145.00 / ea $129.00/ ea CODE 1-9 10+ 21-RWP $49.90 / ea $42.50 / ea Front Underside 92 19.5 103.6 8 40 50 INDUSTRIAL SAFETY 103 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

3000(L)mm

Size: 30(D) x 200(H) x 5000(L)mm CODE 1-5 6+ 21-RCG $145.00 / roll $125.00 / roll Column Cushion Foam filled LDPE 2 halves with velcro straps • Suits 5 different column diameters CODE DESCRIPTION 1+ 21-CC350-100 350mm outer, 100mm inner, 900mm high $825.00 / ea 21-CC350-150 350mm outer, 150mm inner, 900mm high $825.00 / ea 21-CC610-200 610mm outer, 200mm inner, 900mm high $1,288.00 / ea 21-CC610-250 610mm outer, 250mm inner, 900mm high $1,288.00 / ea 21-CC610-300 610mm outer, 300mm inner, 900mm high $1,288.00 / ea DESCRIPTION 1-9 10+ Angle Profile $46.90 / ea $42.90 / ea ‘C’ Profile $46.90 / ea $42.90 / ea

Impact Strips Closed cell polyurethane foam Self adhesive backing INDUSTRIAL SAFETY 104 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Rubber Protectors Rubber Column Guard

Safety

Document Holders

Manifest Cabinet

Size: 460(W) x 350(H) x 100(D)mm

Document Storage Box - Medium

Top opening

Heavy duty polyethylene - Made in USA

Weather proof and lockable (padlock by others)

Size: 318(H) x 260(W) x 57(D)mm

• Includes standard and blank labels

Document Storage Box - Large

Front opening

Heavy duty polyethylene - Made in USA

Weather proof and lockable (padlock by others)

Size: 400(H) x 340(W) x 90(D)mm

Includes standard and blank labels

S.D.S. Folder

Bright coloured folder to store A4 Safety Data Sheets.

CODE 1+ 26-23306 $295.00 / ea CODE 1+ 26-23303 $229.00 / ea CODE 1+ 26-MSDSF $44.50 / ea CODE 1+ 26-25001 $229.00 / ea INDUSTRIAL SAFETY 105 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Silver Ball Top Rope Barrier with Blue Rope Crown Top Rope Barrier with Black Rope Gold Ball Top Rope Barrier with Red Rope Gold Ball Top Rope Barrier with Red Rope Deluxe Rope Stand Features underside

Extra high 1000mm 2. Premium gold finish 3. Heavy 8kg weight base

Heavy duty 2mm thick stainless steel post

High quality velvet rope

Heavy duty snap lock on end of rope

Head can be replaced with sign holder

Rubber ring to avoid scratching ﬂoor surface 1 2 3 4 5 6 7 8 PEDESTRIAN BARRIERS 106

Rope Stands

Deluxe Rope StandGold Ball Top

Deluxe Rope StandSilver Crown Top

Clips

Rope Barrier Sign Holder

Wall Receiver Plate

• Height: 1000mm • Base: Ø320mm Weight: 8kg

Rope length: 1.5m Clips: Gold or Silver Rope: Black, Blue or Red

Ropes &

CODE 1-5 6-11 12+ 19-QS-G-B $145.00 / ea $120.00 / ea $105.00 / ea CODE DESCRIPTION 1-5 6-11 12+ 19-VRBK-G Black Rope - with Gold Clip $95.00 / ea $78.00 / ea $65.00 / ea 19-VRBU-G Blue Rope - with Gold Clip $95.00 / ea $78.00 / ea $65.00 / ea 19-VRR-G Red Rope - with Gold Clip $95.00 / ea $78.00 / ea $65.00 / ea 19-VRBK-S Black Rope - with Silver Clip $95.00 / ea $78.00 / ea $65.00 / ea 19-VRBU-S Blue Rope - with Silver Clip $95.00 / ea $78.00 / ea $65.00 / ea 19-VRR-S Red Rope - with Silver Clip $95.00 / ea $78.00 / ea $65.00 / ea CODE DESCRIPTION 1+ 19-WP-S Wall Receiver Plate - Silver $19.90 / ea 19-WP-G Wall Receiver Plate - Gold $19.90 / ea CODE DESCRIPTION 1+ 19-QSH-S A4 Portrait - Silver $109.00 / ea 19-QSH-G A4 Portrait - Gold $109.00 / ea COLOURS

1000mm • Base: Ø320mm • Weight: 8kg CODE 1-5 6-11 12+ 19-QS-S-C $145.00 / ea $120.00 / ea $105.00 / ea PEDESTRIAN BARRIERS 107 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

•

3m Premium Belt Barrier Black Post & Black Belt 4m Premium Belt Barrier with Black Belt 3m Premium Belt Barrier with Black Belt 3m Premium Belt Barrier with Black Belt & Sign Holder Premium Belt Barrier Stanchion Features

Heavy duty spring-loaded braking cassette

Head is compatible with A4 or A3 sign holders

Heavy duty 2mm wall thickness stainless steel post

Heavy 10kg weight base

304 stainless steel post & base

Custom printed or coloured belt or top available

Heavy duty webbing belt

Belt available in extra long 4m option

Automatic locking clip heavy duty 10. 4-way connector head 11. 1m extra high post 12. Rubber ring to avoid scratching ﬂoor surface 1 2 3 4 5 6 7 8 9 0= PEDESTRIAN BARRIERS 108

•

Belt Barriers

4m Premium Belt Barrier Stanchions

•

3m Premium Belt Barrier Stanchions

3m Premium Belt Barrier Stanchion - Black

• Material: Black powder coated steel

• Height: 1000mm

• Post: Ø65mm

• Base: Ø360mm

10kg

3m

Material: Stainless

Steel

Height:

Base:

Weight: 10kg 19-WRC Belt Colours 19-WRC Belt Colours

1000mm Post: Ø77mm

Ø360mm

Material: Stainless Steel

Height:

Weight: 10kg

1000mm Post: Ø65mm Base: Ø360mm

Premium Belt Barrier Stanchions - Printed Belt Full colour printing on both sides Minimum order - 10 units Lead time applies CODE DESCRIPTION 1-9 10-24 25+ 19-RBS4-BK Black Belt $159.00 / ea $145.00 / ea $133.00 / ea 19-RBS4-BU Blue Belt $159.00 / ea $145.00 / ea $133.00 / ea 19-RBS4-R Red Belt $159.00 / ea $145.00 / ea $133.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea Belt Stanchion Sign Holders - Stainless Steel CODE DESCRIPTION 1+ 19-RBSH-P3-P A4 Portrait to suit 3m $98.00 / ea 19-RBSH-P3-L A4 Landscape to suit 3m $98.00 / ea 19-RBSH-A3-P A3 Portrait to suit 3m $109.00 / ea 19-RBSH-P4-P A4 Portrait to suit 4m $98.00 / ea 19-RBBH-P3-P A4 Portrait (Black) to suit 3m $98.00 / ea CODE DESCRIPTION 1-9 10-24 25+ 19-RBS3-BK Black Belt $139.00 / ea $129.00 / ea $119.00 / ea 19-RBS3-BU Blue Belt $139.00 / ea $129.00 / ea $119.00 / ea 19-RBS3-R Red Belt $139.00 / ea $129.00 / ea $119.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea 19-WRC

Weight:

CODE DESCRIPTION 1-9 10-24 25+ 19-RBSB3-BK Black Belt $139.00 / ea $129.00/ ea $119.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea Belt Colours CODE 10-24 25+ 19-RBS3-CUSTOM $269.00 / ea $229.00 / ea PEDESTRIAN BARRIERS 109 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Barriers & Stanchion Storage Cart Stanchion Storage Cart Stores up to 18 stanchions • Size: 810(W) x 790(L) x 1830(H)mm • Weight: 80kg * Carton size is 1180 x 600 x 870mm 4m Retractable Hazard Belt Barrier - Yellow Post 4m Retractable Hazard Belt Barrier - Black Post CODE 1+ 19-SSC $1,459.00 / ea CODE DESCRIPTION 1-9 10-24 25+ 19-RBY4 Belt 4m - Yellow Post $148.00 / ea $135.00 / ea $122.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea CODE DESCRIPTION 1-9 10-24 25+ 19-RBB4 Belt 4m - Black Post $148.00 / ea $135.00 / ea $122.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea 19-WRC PEDESTRIAN BARRIERS 110 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Belt

Industrial Belt Barriers

Indoor/Outdoor 9m Portable Belt Barrier - Yellow Head

Industrial Hazard Belt Barrier - 3m

•

Indoor/Outdoor 9m Portable Belt Barriers - Red Head

Plastic post and rubber base 19-PBB-RW Wall Receiver Bracket Wall Support Bracket Strap Holders (Post Mount) CODE DESCRIPTION 1+ 19-PBB-BY Yellow Barrier Unit - 9m Black/Yellow Belt $199.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea 20-1000GC Gorilla Cone 1000(H)mm $58.50 / ea CODE DESCRIPTION 1+ 19-PBB-RW Red Barrier Unit - 9m Red/ White Belt $199.00 / ea 19-PBB-P Skipper Post & Base 1000(H) x 500(W)mm $169.00 / ea 19-PBB-WS Wall Support Bracket (Magnetic) $119.90 / ea 19-PBB-WRC Wall Receiver Bracket (Magnetic) $69.00 / ea 19-PBB-CM Magnetic Cord Strap Holder/Receiver - angled surfaces $115.00 / ea 19-PBB-CP Curved Cord Strap Holder / Receiver - poles $79.90 / ea CODE DESCRIPTION 1-9 10+ 19-RBPY3 Industrial Hazard Barrier $129.00 / ea $115.00 / ea 19-WRC Wall Receiver Clip $14.90 / ea 19-SKIP-BY 19-WRC 19-WRC PEDESTRIAN BARRIERS 111 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Belt Barrier Reels

Safety Barrier Tape Reels

Australian Made.

in 15M and 25M tape lengths.

Woven nylon webbing for a long working life. Fully enclosed case to protect the tape and reel mechanism. Light weight and portable.

Non rust UV resistant polypropylene case.

• Mounting bracket, carry handle, and 1x receiver latch plate supplied standard with reel.

• Full range of safety tapes available

Magnetic brackets and catches available.

Steel Bollards with mounting plates available.

CODE 19-BR15FY 19-BR15FY-B 15m Black 19-BR25FY 19-BR25FY-B 25m Yellow Black $619.00 / ea 19-BR15FYB 19-BR15FYB-B 15m Yellow Black $595.00 / ea 19-BR25YB 19-BR25YB-B 25m Yellow Black $745.00 / ea 19-BR15FYBC 19-BR15FYBC-B 15m Yellow Black $819.00 / ea 19-BR25FYBC 19-BR25FYBC-B 25m Yellow Black $955.00 / ea 19-BR15WR 19-BR15WR-B 15m Yellow Black $595.00 / ea 19-BR25WR 19-BR25WR-B 25m Yellow Black $745.00 / ea 19-BR15WRD 19-BR15WRD-B 15m Yellow Black $819.00 / ea 19-BR25WRD 19-BR25WRD-B 25m Yellow Black $975.00 / ea 19-BR15WB 19-BR15WB-B 15m Yellow Black $595.00 / ea 19-BR25WB 19-BR25WB-B 25m Yellow Black $745.00 / ea 19-BR15FO 19-BR15FO-B 15m Yellow Black $519.00 / ea 19-BR25FO 19-BR25FO-B 25m Yellow Black $619.00 / ea 19-BR15FOB 19-BR15FOB-B 15m Yellow Black $595.00 / ea 19-BR25FOB 19-BR25FOB-B 25m Yellow Black $745.00 / ea 19-BR15GY 19-BR15GY-B 15m Yellow Black $519.00 / ea 19-BR25GY 19-BR25GY-B 25m Yellow Black $619.00 / ea 19-BR15GYB 19-BR15GYB-B 15m Yellow Black $595.00 / ea 19-BR25GYB 19-BR25GYB-B 25m Yellow Black $745.00 / ea 19-BRRLP Wall Mount Receiver Latch Plate $24.90 / ea

Available

PEDESTRIAN BARRIERS 112 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Wall Mount Belt Barriers

Stainless Steel Premium Wall Mounted Belt Barriers

•

-

Magnetic Wall Mount Retractable Belt Barrier - 5m & 9m

•

Stainless steel

Belt Length is 1.9m CODE DESCRIPTION 1-9 10+ 19-WS3-BK Belt Barrier & Receiver - Black belt $109.00 / ea $99.00 / ea 19-WS3-BU Belt Barrier & Receiver - Blue belt $109.00 / ea $99.00 / ea 19-WS3-R Belt Barrier & Receiver - Red belt $109.00 / ea $99.00 / ea Wall Mount Retractable Belt Barrier

5m & 9m Size: 145(H) x96(W) x 90(ø)mm CODE DESCRIPTION 1-9 10+ 19-WU-P-BY 5m Black/Yellow Belt $99.00 / ea $85.00 / ea 19-WU-P-BK 5m Black Belt $99.00 / ea $85.00 / ea 19-WU-P-R 5m Red Belt $99.00 / ea $85.00 / ea 19-WU9-P-BY 9m Black/Yellow Belt $139.00 / ea $119.00 / ea 19-WU9-P-BK 9m Black Belt $139.00 / ea $119.00 / ea 19-WU9-P-R 9m Red Belt $139.00 / ea $119.00 / ea

•

Size: 145(H) x96(W) x 90(ø)mm Magnetic Connec tors on both casing & belt CODE DESCRIPTION 1-9 10+ 19-MWU-P-BY 5m Black/Yellow Belt $129.00 / ea $115.00 / ea 19-MWU-P-BK 5m Black Belt $129.00 / ea $115.00 / ea 19-MWU-P-R 5m Red Belt $129.00 / ea $115.00 / ea 19-MWU9-P-BY 9m Black/Yellow Belt $169.00 / ea $149.00 / ea 19-MWU9-P-BK 9m Black Belt $169.00 / ea $149.00 / ea 19-MWU9-P-R 9m Red Belt $169.00 / ea $149.00 / ea NEW PEDESTRIAN BARRIERS 113 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Industrial Expanding Barriers - Red/White - 6m(L) x 1.35m(H) Industrial Expanding Barriers - Red/White - 6m (L) x 1.35m (H) Industrial Portable Barrier - Plain Aluminium - 7m Industrial Portable Barrier - Red / White - 7m(L) x 2.1m(H) Wall or Racking Mount Expanding Barrier PEDESTRIAN BARRIERS 114

Industrial Portable Barrier

Industrial Expanding Barriers - Red/White

Industrial Portable Barrier - Plain Aluminium

Aluminium slats, galvanised slide components and stainless steel fixings

•

Wall- or Racking-Mount Expanding Barriers

Size:

6.7m open, 0.58m closed. (H) 1.43m extended, 1.6m closed.

Standard

(L)

Weight: 32kg Large Size: (L) 7.8m open, 0.58m closed. (H) 1.8m extended • Weight: 40kg CODE DESCRIPTION 1+ 17-XPB Standard size 6700(L)mm $2,385.00 / ea 17-XPBL Large size 7800(L)mm $2,990.00 / ea 17-XPBB Joiner bracket set $89.00 / set Heavy Duty Lockable Castors

Aluminium slats, galvanised slide components and stainless steel fixings • Ideal for end of warehouse aisles • Mount on racking or wall and pull open to shut off aisles Very compact when closed • Heavy Duty Rubber centre wheel • Colour: Red/White CODE DESCRIPTION 1+ 17-WRMEB-6 Open Length: 6000mm Open Height: 1500mm $1,880.00 / ea

slats, galvanised slide components and stainless steel fixings. Heavy Duty Lockable Castors Strong 20x20mm expanding slats CODE DESCRIPTION 1+ 17-EBRW-4 Open length: 4000mm Open Height: 2000mm $1,745.00 / ea 17-EBRW-6 Open length: 6000mm Open Height: 1350mm $1,695.00 / ea 17-EBRW-7 Open length: 7000mm Open Height: 2100mm $2,795.00 / ea NEW NEW Folded up barrier 17-EBRW-6 17-EBRW-7 17-EBRW-4 PEDESTRIAN BARRIERS 115 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Aluminium

Expanding Barriers

Plastic Folding Mobile Barrier

• Open: 4000(L) x 580(W) x 800(H)mm

• Closed: 370(L) x 580(W) x 950(H)mm

Weight: 16kg

Flush to floor - no gaps underneath

Deluxe Single Expanding Barriers

Open: 3000(L) x 990(H)mm

Closed: 325(L) x 990(H)mm

Weight: 5.7kg

A Versatile 2-in-1 pedestrian safety barrier that can be used as a free-standing or wall-mounted configuration (comes with wall mounting brackets). .

Deluxe Tri Leg

Open: 6000(L) x 990(H)mm

Closed: 625(L) x 990(H)mm

Weight: 9.2kg

Plastic Expanding Barrier

• Size: 1100(H) x 480(W)mm

• Closed: 150(L)mm

Expands to: 2250(L)mm

Weight: 5.5kg

Budget Style Expanding Barrier

Open: 3200(L) x 980(H)mm

Closed: 355(L) x 980(H)mm

Weight: 5.5kg

Deluxe Tri Leg Flexi Barrier

Open: 6000(L) x 990(H)mm

Closed: 625(L) x 990(H)mm

Weight: 9.2kg

CODE 1-4 5+ 17-BEXB $355.00 / ea $319.00 / ea CODE 1+ 17-EXB-TRI-F $845.00 / ea CODE 1+ 17-EXB-TRI $739.00 / ea CODE 1-4 5+ 17-PEXB $176.00 / ea $159.00 / ea CODE 1-5 6+ 17-EXB-5 $519.00 / ea $469.00 / ea CODE 1-4 5+ 17-PMB $579.00 / ea $529.00 / ea Water Fillable PEDESTRIAN BARRIERS 116 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

CODE DESCRIPTION 1+ 17-2HG-B 3m “High-Guard” Barrier - Black $1,695.00 / ea 17-2HG-B-4M 4m “High-Guard” Mobile Barrier - Black $1,745.00 / ea 17-2HG-B-7M 7m “High-Guard” Mobile Barrier - Black $2990.00 / ea 17-XPBB Joiner bracket set $89.00 / set 3m NEW 4m 7m “High Guard” Mobile Expanding Barriers “High-Guard” Mobile Barriers 3m Barrier • Colour: Black Height: 2000mm Length open: 3000mm Length closed: 390mm Weight: 35kg 4m Barrier • Colour: Black Height: 2000mm Length open: 4000mm Length closed: 400mm 7m Barrier • Colour: Black Height closed: 2050mm, extended: 1930mm Length open: 7000mm Length closed: 560mm Weight: 36kg Folded up barrier Joiner bracket set PEDESTRIAN BARRIERS 117 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Crowd Control Barriers

Surex Plaslink Barriers

Surex Steelink Barriers

Size: 2000(L) x 1000(H)mm Weight: 15.2kgs

Hot dipped galvanised steel Size: 2200(L) x 1100(H)mm Weight: 15kg CODE DESCRIPTION 1-19 20+ 19-SPTF Plaslink Barrier $199.00 / ea $185.00 / ea CODE DESCRIPTION 1-9 10+ 19-SSLINK Surex Steelink Barrier $199.00 / ea $185.00 / ea PEDESTRIAN BARRIERS 118 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Sign Holders

Floor Sign System - Stainless Steel

Snap Frames

• Aluminum frame

Polycarbonate

Includes

facing

fixings

pole

sturdy 9kg base

sided poster

acrylic facing Height to underside of of sign is 980mm Base diameter 350mm PE4 PE2 PE1 PE3 Top opening CODE DESCRIPTION 1+ PSR4 A4 $44.00 / ea PSR3 A3 $58.00 / ea PSR2 A2 $84.00 / ea PSR1 A1 $109.00 / ea CODE DESCRIPTION 1+ PE4 A4 $339.00 / ea PE3 A3 $359.00 / ea PE2 A2 $449.00 / ea PE1 A1 $599.00 / ea

Stainless steel

and

Double

holder with

PEDESTRIAN BARRIERS 119 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Stainless Steel Tactile Plates - See Page 123 Stainless Steel Tactile Pads - See Page 121 Peel & Stick Tactile Pads - Charcoal Peel & Stick Tactile Pads - Yellow Peel and Stick Tactile Indicator Features

Hi-vis safety yellow

Extra high-bond bituminous adhesive backing

Peel and stick backing for fast, easy install

3 colour options

Australian Standard Compliant

Australian Made

P5 anti-slip rating 1 2 3 4 5 6 7 MATTING, RAMPS & TACTILES 120

Tactile Indicators

Tactiles - Acrylic - Peel and Stick

Size: 300mm x 300mm

Fast, easy installation - saves on labour

Can be walked on immediately

Suitable for indoor and outdoor applications.

Complies to AS/NZS 4586 for slip resistance. R12.

Complies to AS/NZS 1428.4.1:2009 for tactiles for vision impaired.

• Colours: Yellow, Charcoal (black), Light Grey

Tactile Pad - Rubber

Complies with AS/NZS 1428.4.1:2009

Size: 600 x 300mm

Stock colours: Yellow, Black, Grey, Terracotta & Ocean Blue

P5 anti-slip rating

Requires epoxy

Tactile Plate – Fibreglass

Material: UV Stabilised resin / reinforced embedded fibreglass

• P5/R12 Slip Rating

• Hazard or Directional

• Colours: Yellow, Black or Ivory

Fixing Method: Plugged, Screwed and glued (Fixings included)

Complies with AS1428.1-2009

Size: 600x300x 2mm

Directional Tiles 40-ACTT-DY 40-ACTT-DC Tactiles are GST Free Tactiles are GST Free Tactiles are GST Free

Two Part Tactile Epoxy - 5kg

MATTING, RAMPS & TACTILES 121 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

*GST

applies

epoxy CODE DESCRIPTION 1-19 20+ 40-RCTT-Y Tactile Pad - Yellow $59.50 / ea $51.90 / ea 40-RCTT-B Tactile Pad - Black $59.50 / ea $51.90 / ea 40-RCTT-G Tactile Pad - Grey $59.50 / ea $51.90 / ea 40-RCTT-T Tactile Pad - Terracotta $59.50 / ea $51.90 / ea 40-RCTT-OB Tactile Pad - Ocean Blue $59.50 / ea $51.90 / ea CODE DESCRIPTION 1-19 20+ 40-FCTT-DB Directional Black $69.90 / ea $63.90 / ea 40-FCTT-DY Directional Yellow $69.90 / ea $63.90 / ea 40-FCTT-DW Directional Ivory $69.90 / ea $63.90 / ea 40-FCTT-HB Hazard Black $69.90 / ea $63.90 / ea 40-FCTT-HY Hazard Yellow $69.90 / ea $63.90 / ea 40-FCTT-HW Hazard Ivory $69.90 / ea $63.90 / ea CODE 1-19 20-49 50-99 100+ As shown top right $42.90 / ea $36.90 / ea $33.90 / ea $28.90 / ea CODE 1+ 40-RCTTG-5 $135.00 / ea

The correct adhesive for applying pads to concrete, asphalt, timber, ceramic tiles, steel etc Coverage: 25-35 Tactile Pads (300 x 600mm) 40-ACTT-G 40-ACTT-C 40-ACTT-Y

Tactile Studs Poly - Yellow Stainless Steel Pressure Fit Tactile Studs Stainless Steel Stemless Tactile Studs Stainless Steel Stemless Tactile Studs Pressure Fit

Indicator Features

Grit top P5 slip rating

316 grade stainlees steel

Unique pressure fit stem

Australian Standards compliant 1 2

MATTING, RAMPS & TACTILES 122

Tactile

3 4

Tactile Indicators

Tactile Studs - Stainless Steel

Complies with AS/NZS 1428.4.1:2009

400 studs per m2

• P4 anti-slip rating (Grit infill is P5)

Tactile Studs - Poly

Complies with Australian and NZ standards 1428.4.1:2009

Developed from a mix of polymers to guarantee long lasting UV stable

Patent DIY Drill and Lock Technology, thus no adhesive required

• Supplied in packs of 100

• P4 anti-slip rating

Tactile Plates - Stainless Steel

Marine

Peel

•

Tactile Positioning Template

Tactile Plates - Grit Top Stainless Steel

40-SSSO 40-SSL

Australian standards - 400 studs per m 2 Holes to suit each type of tactile stud Size: 1200(L) x 600(W)mm

CODE DESCRIPTION 20+ 40-PSD-TEMP (Specify which tactile) $149.00 / ea CODE COLOUR 1-4 5+ 40-PSD-Y Yellow $115.00 / pk 100 $99.00 / pk 100 40-PSD-G Grey $115.00 / pk 100 $99.00 / pk 100 40-PSD-B Black $115.00 / pk 100 $99.00 / pk 100 40-PSD-T Terracotta $115.00 / pk 100 $99.00 / pk 100 CODE DESCRIPTION 10-400 410-2000 2010+ 40-SSSDC SS Pressure-Fit $4.80 / ea $3.99 / ea $3.60 / ea 40-SSL SS Stemless $4.40 / ea $3.80 / ea $3.30 / ea 40-SSSO SS Screw On $5.40 / ea $4.95 / ea $4.50 / ea 40-SSSBG SS Black Grit Infill $5.40 / ea $4.95 / ea $4.50 / ea 40-SSSBG 40-SSSDC

316 grade stainless steel Size: 300x300mm

and stick adhesive backing Indoor/outdoor use

P4 anti-slip rating

Marine 316 grade stainless steel Epoxy carborundum infill

Size: 300 x 300mm

Peel and stick adhesive backing • Indoor/outdoor use P5 anti-slip rating CODE 1-5 6+ 40-SSTP33 $249.00 / ea $219.00 / ea CODE 1-5 6+ 40-SSGTP33 $269.00 / ea $235.00 / ea NEW Tactiles are GST Free Tactiles are GST Free Tactiles are GST Free Tactiles are GST Free GST applies to the template, but not to tactiles NEW MATTING, RAMPS & TACTILES 123 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

•

Stair Nosing

•

Epoxy Full Bar Anti-Slip Nosing - 200 Series

210

212

* Small order set up charge is $25.00 +GST for 10m or less.

Carborundum Anti-Slip Nosing - 400 Series

•

410

412

Profile - 85(W) x 35(H)mm

Profile - 68(W) x 10(H)mm

P5 anti-slip rating

AS 1428.1-2009

Insert: Carborundum CODE DESCRIPTION 1+ 27-SMN410B Black - Cut to order $59.90 / mtr 27-SMN410Y Yellow - Cut to order $59.90 / mtr CODE DESCRIPTION 1+ 27-SMN412B Black - Cut to order $59.90 / mtr 27-SMN412Y Yellow - Cut to order $59.90 / mtr 27-SMN412B-12 Black - stock 1200mm $75.90 / mtr 27-SMN412Y-12 Yellow - stock 1200mm $75.90 / mtr

Small order set up charge is $25.00 +GST for 10m or less.

Profile - 85(W) x 35(H)mm

Profile - 68(W) x 10(H)mm

anti-slip rating AS 1428 .1-2009

Insert: Epoxy Full Bar CODE DESCRIPTION 5+ 27-SMN210B Black - Cut to order $74.90 / mtr 27-SMN210Y Yellow - Cut to order $74.90 / mtr CODE DESCRIPTION 5+ 27-SMN212B Black - Cut to order $74.90 / mtr 27-SMN212Y Yellow - Cut to order $74.90 / mtr

Small order set up charge is $25.00 +GST for 10m or less.

412 Profile Carborundum Anti-Slip Stair Nosing - Black 410 Profile Carborundum Anti-Slip Stair Nosing - Yellow 120 Profile Epoxy Full Bar Anti-Slip Stair Nosing - Black 712 Profile Ribbed Aluminium Anti-Slip Stair NosingBlack on Clear Anodised MATTING, RAMPS & TACTILES 124 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Stair Nosing

Plain Aluminium Stair Nosing

Ribbed Aluminium Anti-Slip Nosing – 700

710

85(W) x 35(H)mm

712 Profile: 68(W) x 10(H)mm

10(H)mm Supplied cut to length

finish

Clear or Black P4 anti-slip rating Use adhesive to secure down CODE DESCRIPTION 1+ 27-SMN720C Clear Anodised Nosing $49.90 / mtr 27-SMN720B Black Anodised Nosing $49.90 / mtr

Size: 74(W) x

Anodised

Small order set up charge is $25.00 +GST for 10m or less. CODE DESCRIPTION 1+ 27-SMN710CC Clear Anodised Insert on Clear Anodised Nosing $55.90 / mtr 27-SMN710CB Clear Anodised Insert on Black Anodised Nosing $55.90 / mtr 27-SMN710BB Black Anodised Insert on Black Anodised Nosing $55.90 / mtr 27-SMN710BC Black Anodised Insert on Clear Anodised Nosing $55.90 / mtr

Profile:

Series

P4 anti-slip rating

AS1428.1-2009 Insert: Ribbed Aluminium

•

+GST

less.

Small order set up charge is $25.00

for 10m or

CODE DESCRIPTION 1+ 27-SMN712CC Clear Anodised Insert on Clear Anodised Nosing $55.90 / mtr 27-SMN712CB Clear Anodised Insert on Black Anodised Nosing $55.90 / mtr 27-SMN712BB Black Anodised Insert on Black Anodised Nosing $55.90 / mtr 27-SMN712BC Black Anodised Insert on Clear Anodised Nosing $55.90 / mtr

Small

$25.00 +GST for 10m

less. Typical Stair Nosing Installation Diagram NEW NEW MATTING, RAMPS & TACTILES 125 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

order set up charge is

Anti-Slip Nosing, Plates & Tapes

•

Grit Topped Stair Nosing

•

Grit Topped Ramp Plates

Anti Slip Ladder Rung Covers

Anti-Slip Stair Tape - 50mm

P5 anti-slip rating (Grit 60 slip resistance) Size: 18m rolls. Colour: Black, Yellow or Black/Yellow Hazard CODE DESCRIPTION 1-9 10+ 27-AS18-50 (Specify colour) $56.90 / roll $49.90 / roll * Small order set up charge is $25.00 +GST for 10 Pieces or less. CODE DESCRIPTION 1+ 27-GT80 (Specify colour) $72.90 / mtr CODE DESCRIPTION 1+ 27-GT100 (Specify colour) $72.90 / mtr CODE DESCRIPTION 1-19 20+ 27-LRC35 20(D) x 350 (L) mm $49.90 / ea $44.70 / ea 27-LRC45 20(D) x 450 (L) mm $54.80 / ea $49.50 / ea

Size: 80(W) x 20(H)mm Supplied cut to length (maximum 2m long)

Colours: Safety Yellow or Black

Size: 100mm wide Supplied cut to length (maximum 2m long) Colours: Safety Yellow or Black

•

Yellow

Colour: Safety

Small order set up charge is $25.00 +GST for 10m or less.

Anti-slip rating R12 Anti-slip rating R12 Anti-slip rating P5 Anti-slip rating MATTING, RAMPS & TACTILES 126 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

R12

Ramps and Trench Covers

Large Kerb Ramp - Portable

Small Kerb Ramp - Portable

Safety Trench Covers

Steel reinforced HDPE

Anti-slip surface

Bevelled edges

Pedestrian use only

CODE DESCRIPTION 1-5 6+ 38-STC1280 1200 x 800mm $225.00 / ea $199.00 / ea

Steel reinforced HDPE Size: 1300(W) x 700(L) x 80(H)mm Width between sides: 1200mm Weight - only 13kg Load Capacity: 250kg

Engineered HDPE Size: 690(W) x 690(L) x 100(H)mm Width between sides: 610mm • Weight - only 4kg 700(L)mm Sides80(H)mm Kerb / Step 690(L)mm Sides100(H)mm Kerb / Step CODE 1-4 5+ 38-KRN $95.00 / ea $79.00 / ea CODE 1-4 5+ 38-KRRA $299.00 / ea $259.00 / ea Underside

Underneath

MATTING, RAMPS & TACTILES 127 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Underneath

Carpet Runners

Safety Cushion Matting

Colours: Red, Blue, Smoke

Plush pile • Anti-slip PVC backing Solution dyed anti-fade • 6mm thickness CODE DESCRIPTION COLOUR 1+ 25-RCR123 1200mm x 3m roll Fully Edged Red $975.00 / ea 25-RCR126 1200mm x 6m roll Red $1,860.00 / ea 25-RCR1212 1200mm x 12m roll Red $3,390.00 / ea 25-BCR123 1200mm x 3m roll Fully Edged Blue $975.00 / ea 25-BCR126 1200mm x 6m roll Blue $1,860.00 / ea 25-BCR1212 1200mm x 12m roll Blue $3,390.00 / ea 25-SCR123 1200mm x 3m roll Fully Edged Smoke $975.00 / ea 25-SCR126 1200mm x 6m roll Smoke $1,860.00 / ea 25-SCR1212 1200mm x 12m roll Smoke $3,390.00 / ea

Custom Logo Entrance

Nylon plush pile surface Nitrile rubber backing remains supple. Indoor / Outdoor Machine washable Thickness: 7mm Sizes: 600 x 900mm 900 x 1500mm 1200 x 1800mm 1200 x 2400mm Custom sizes also available. CODE 1+ CUS-MATTING $POA / ea

Smoke

•

Entrance Matting

Mats

Red

• Anti-fatigue • Anti-slip • For wet & dry areas • Thickness: 12mm CODE DESCRIPTION 1-9 10+ 25-SC69 600 x 900mm $66.90 / ea $58.90 / ea 25-SC915 900 x 1500mm $115.00 / ea $96.90 / ea Blue MATTING, RAMPS & TACTILES 128 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Entrance Matting

Rubber Backed Entrance Matting

Ribbed Carpet Mats

High traffic Indoor/Outdoor Colour: Charcoal 8mm thickness Heavy Duty Rubber Backed Entrance Mats High traffic premium grade Indoor/Outdoor 8mm thickness Blue Brown Red Charcoal CODE DESCRIPTION CHARCOAL OTHER COLOURS 25-AB46 1140 x 1690mm N/A $1,055.00 / ea 25-AB46-P 1200 x 1800mm $779.00 / ea N/A 25-AB410 1140 x 2970mm N/A $1,849.00 / ea 25-AB410-P 1200 x 3000mm $1,299.00 / ea N/A 25-AB610 1750 x 2920mm N/A $2,550.00 / ea 25-AB610-P 1800 x 3000mm $1,839.00 / ea N/A 25-AB620 1800 x 6045mm $3,499.00 / ea N/A CODE DESCRIPTION 1+ 25-EM69-C 600 x 900mm $135.00 / ea 25-EM915-C 900 x 1500mm $395.00 / ea 25-EM1218-C 1200 x 1800mm $589.00 / ea

Vinyl backed general purpose Indoor use Colour: Charcoal • 7mm thickness CODE DESCRIPTION 1+ 25-RM69 600 x 900mm $95.00 / ea 25-RM915 900 x 1500mm $179.00 / ea 25-RM1218 1200 x 1800mm $275.00 / ea MATTING, RAMPS & TACTILES 129 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Reflective Kerb Ramp Features

1. Reﬂective triangles for safety & visability

2. 3 heights for most kerb sizes

3. Heavy vehicle compatible

4. Premium recycled rubber — long lasting

5. Anti-slip grooves & reﬂectors

6. 2 cable or stormwater channels

Kerb Ramp - 200mm

Reflective

Kerb Ramp - 150mm

Reflective

Kerb Ramp - 150mm

Reflective

Kerb Ramp - 150mm

Reflective

2 3 4 5 6 MATTING, RAMPS & TACTILES 130

Kerb Ramps

Reflective Kerb Ramp (100mm High)

Centre modules: 600(L) x 300(D) x 100(H)mm

End module: 300(L) x 300(D) x 100(H)mm

Reflective Kerb Ramp (150mm High)

• Centre modules: 600(L) x 360(D) x 150(H)mm

module: 360(L) x 360(D) x 150(H)mm

Reflective Kerb Ramp (200mm High)

Centre modules: 600(L) x 450(D) x 200(H)mm

module: 450(L) x 450(D) x 200(H)mm

End

CODE DESCRIPTION 1+ 38-RKRM10 Centre Module $94.00 / ea 38-RKRE10 End Module $59.00 / ea 38-RKRFC Fastener Set - M14 x 75mm Plug & Coach Screw - Set of 2 $6.00 / Kit CODE DESCRIPTION 1+ 38-RKRM15 Centre Module $125.00 / ea 38-RKRE15 End Module $79.00 / ea 38-RKRFC Fastener Set - M14 x 75mm Plug & Coach Screw - Set of 2 $6.00 / Kit CODE 1+ 38-RKRM20 Centre Module $189.00 / ea 38-RKRE20 End Module $119.00 / ea 38-RKRFC Fastener Set - M14 x 75mm Plug & Coach Screw - Set of 2 $6.00 / Kit 100 150 200 MATTING, RAMPS & TACTILES 131 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Vehicle Cable Covers

Rubber Channel Hose Ramp - Medium

Flip

Rubber Channel Hose Ramp - Large

Flip

40mm Cable/Hose

Drop Over Humps

80mm Cable/Hose Drop Over Humps

Size: 1000(L) x 350(W) x 75(H)mm Weight 12kg

Size: 1000(L) x 550(W) x 110(H)mm 80(W) x 40(H)mm Channel

Top Cable Cover -

Size: 1000(L) x 250(W) x 45(H)mm • 2 Cable channels - 30x30mm each • Weight: 7.5kg

Top Cable Cover - Small Flip

Large

Top Cable Cover - Large

Suits hose up to 90mm Weight: 12kg

Suits hose up to 150mm Weight: 22kg CODE 1+ 38-RHR-M $129.00 / ea CODE 1-9 10+ 33-CABC-S $99.00 / ea $89.00 / ea CODE 1-5 6+ 33-CHH-84 $282.00 / ea $259.00 / ea CODE 33-CPR8 $372.00 / ea CODE 10+ 33-CABC 3-Channel $175.00 / ea $159.00 / ea 33-CABC-5C 5-Channel $199.00 / ea $169.00 / ea 3 Channel Size: 900(L) x 600(W) x 75(H)mm Channel Size: 60 x 50mm Weight: 19kg 5 Channel • Size: 915(L) x 500(W) x 60(H)mm • Channel Size: 35 x 35mm Weight: 19kg 850 300 90 90 85(H) 1010 300 150 150 135 CODE 1+ 38-RHR-L $189.00 / ea MATTING, RAMPS & TACTILES 132 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Pedestrian Cable Covers

Single Channel Drop Over Cable Cover - Black

Size: 1000(L) x 133(W) x 20(H)mm

38(W) x 12.7(H)mm

Single Channel Drop Over Cable Cover - Yellow

•

Channel:

Size:

Channel:

12.7(H)mm

1000(L) x 133(W) x 20(H)mm

38(W) x

CODE 1-5 6+ 33-DOCG-Y $39.00 / ea $33.00 / ea CODE 1-5 6+ 33-DOCG-B $39.00 / ea $33.00 / ea

Top Cable Covers

Hose Ramp Cable and Hose Drop Over Humps Single Channel Drop Over Cable Cover - Black MATTING, RAMPS & TACTILES 133 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Flip

Rubber Channel

Skate Deterrents

Stainless Steel Bullnose

Size: 120(L) x 16(W) x 12(H)mm

Stem: Ø6x 30(L)mm

Mushroom Stud

Size: Ø20x 10(H)mm

Stem: M6 x 40(L)mm with nut

Remove the nut to use the threaded spigot for epoxying into a hole in a concrete wall

Stainless Steel Blade

• Size: 100(L) x 60(H) x 4(T)mm

Handrail Anti-Skate Bar

• Profiled to fit round or flat hand rails

• Security screws supplied*

60(L) x 12(W) x 8(H)mm

Also suitable for low walls and seats

* Some hand rail materials may require fixings by others

Large Dome Stud

Size: Ø30x 30(H)mm

Stem: Ø6 x 30(L)mm

Tapered Stud

CODE 1-4 5+ 42-SK8N-BN $199.00 / 10pk $189.00 / 10pk CODE 1-4 5+ 42-SK8-BR $199.00 / 10pk $189.00 / 10pk

Size:

CODE 1-4 5+ 42-ASD $179.00 / 10pk $169.00 / 10pk

Size: Ø20x 30(H)mm Stem: Ø6x 30(L)mm CODE 1-4 5+ 42-ASST $179.00 / 10pk $169.00/ 10pk CODE 1+ 42-SK8-HR $149.00 / 10pk CODE 1-4 5+ 42-SK8M-BO $99.00 / 10pk $89.00 / 10pk MATTING, RAMPS & TACTILES 134 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Bird Spikes & Umbrella Wrappers

Bird Deterrent Spikes - Triple

• Size: 600(L)x150(W)x115(H)mm, Base 50(W)mm

lengths per carton = 15Lm

Bird Deterrent Spikes - Triple

Wet Umbrella Bag Dispenser

Weight: 14kg Size: 305 x 460 x 780mm NEW Bio-Degradable Poly Bags CODE 5-24 25-100 101+ 43-BS60 $15.50 / length $13.90 / length $11.90 / length CODE DESCRIPTION 1-5 6+ 34-WU2-SS Double Bag Dispenser $649.00 / ea $599.00 / ea 34-WUB-L Poly Bags - Long 130 x 700mm - 1000/pk $169.00 / pk $159.00 / pk 34-WUB-S Poly Bags - Short 130 x 400mm - 1000/pk $169.00 / pk $159.00 / pk NEW

Bio-Degradable Poly Bags

Entrance Matting See pages 128-129 MATTING, RAMPS & TACTILES 135 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

115L

General Purpose Mini Boom

40L General Purpose Spill Kit

240L General Purpose Spill Kit

CODE 1+ 28-SKGPPP 335.00 / kit CODE DESCRIPTION 1+ 28-SKGPB120 115L Portable Kit $679.00 / kit 28-SKGPB120-R 115L Refill Kit $489.00 / kit

General

Includes: - 2 x 1.2m booms - 1 x 2.4m boom - 25 x pads - 2 x 50L floor sweep bags - 3 x disposal bags - 1 pair PVC gloves CODE DESCRIPTION 1+ 28-SKGPB240-R 240L Refill Kit $719.00 / kit 28-SKGPB240 240L Portable Kit $885.00 / kit

Purpose Spill Kit

Includes: - 4 x 1.2m booms - 2 x 2.4m booms - 50 x pads - 3 x 50L floor sweep bags - 6 x disposal bags - 1 pair PVC gloves Budget Absorbent Floor Sweep 50L, 14kg bag - absorbs approx 27L 20L, 3.6kg bag - absorbs approx 11L

Purpose Pads Grey pads for absorbing water and other liquid spills Absorbs up to 83L per 100 pads (2 packs) • Size: 450 x 450mm • Supplied in packs of 50 CODE 1+ 28-MGP50 $388.00 / 50pk

General

• For absorbing water and other liquid spills • Absorbs up to 16L per boom Size: 2.4m x 75mm Supplied in pack of 5 CODE 1-2 3+ 28-MSB2.4 $399.00 / 5pk $355.00 / 5pk CODE DESCRIPTION 1+ 10+ 28-BSB50L 14kg Floor Sweep $79.90 / ea $65.90 / ea 28-BSB20L 3.6kg Floor Sweep $39.90 / ea

Dimensions: 640 x 580 x 200mm Includes: - 4x 1.2m booms - 12x pads - 1x PVC gloves - 2x disposal bags Spill Kits and Components SIGNAGE & SAFETY 136 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Containment Bunds Pallet Bunds Extruded Rubber Hump Bund Size: 115(W) x 40(H) x 5000(L)mm CODE DESCRIPTION 1-4 5+ 28-RBS115 Rubber Bund $449.00 / roll $399.00 / roll 28-SBS Sealant Adhesive 600mL $33.90 / ea CODE DESCRIPTION 1+ 28-4DSP 4 Drum Pallet Bund $859.00 / ea The Rubber Bund in use Speed Hump Bunding

pages 8-13 SIGNAGE & SAFETY 137 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Spill

See

•

Flammable Liquid Storage Cabinets

30L Cabinet

100L Cabinet

250L Cabinet

•

207L Vertical Drum Cabinet

•

60L Cabinet

x 375(D)mm

x 465(D)mm

160L Cabinet

350L Cabinet

•

x 785(W) x 785(D)mm

1760(H) x 870(W) x 870(D)mm

207L Horizontal Drum Cabinet

Internal Size: 560(H)

x 505(W) x 375(D)mm

External Size: 800(H)

Weight:

x 595(W) x 465(D)mm

45kg

Weight:

Internal Size: 765(H) x 505(W)

External Size: 1005(H) x 595(W)

59kg

Internal Size: 560(H) x 830(W) x 480(D)mm External Size: 800(H) x 920(W) x 565(D)mm Weight: 8 6.1kg

Internal Size: 990(H)

External Size: 1230(H)

Weight: 109.8kg

x 1020(W) x 375(D)mm

x 1100(W) x 465(D)mm

Internal Size: 1520(H)

x 1020(W) x 375(D)mm

External Size: 1850(H)

Weight: 143.8kg

x 1115(W) x 520(D)mm

Internal

Size: 1520(H)

External

Weight:

Size:

177.8kg

Horizontal Drum Storage - drum cradle purchased separately* External Size: 1385(H) x 765(W) x 1225(D)mm • Weight: 168.3kg

Vertical Drum Storage - includes roller base External Size: 1760(H) x 870(W) x 870(D)mm Weight: 192.8kg CODE 1+ 26-F207V $4290.00 / ea CODE 1+ 26-F250 $3250.00 / ea CODE 1+ 26-FUB100 $2750.00 / ea CODE 1+ 26-F30 $1950.00 / ea CODE 1+ 26-F60 $2110.00 / ea CODE 1+ 26-F350 $3750.00 / ea CODE 1+ 26-F160 $2890.00 / ea CODE DESCRIPTION 1+ 26-F207H 207L Cabinet $3950.00 / ea *26-F207C Drum Cradle $549.00 / ea SIGNAGE & SAFETY 138 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Safety Vests

First

Warden

- Red

Embroidered Caps

CODE DESCRIPTION 1+ 20-SVWCW (Specify Size) $53.90 / ea CODE DESCRIPTION 1+ 20-SVGFA (Specify Size) $53.90 / ea CODE DESCRIPTION 1+ 20-SVWW (Specify Size) $53.90 / ea

Vest

Complies to AS/NZS4602:2011. • Vest Sizes: L, XL

Warden Vest - White Complies to AS/NZS4602:2011. Vest Sizes: L, XL

Chief

Aid Vest - Green Complies to AS/NZS4602:2011. Vest Sizes: L, XL, 2XL CODE DESCRIPTION 1+ 37-CCAPW Warden Cap - Red $28.90 / ea 37-CCAPCW Chief Warden Cap - White $28.90 / ea 37-CCAPFA First Aid Cap - Green $28.90 / ea

SIGNAGE & SAFETY 139 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Safety Supplies

Safety Tags - Caution

Safety Tags - Danger

•

Double Sided VHB Tape

•

Reflective Zebra Tape

Out of Service 50 tags per pack Size: 75 x 150mm

Do Not Operate

50 tags per pack

Size: 75 x 150mm

High Bond V.H.B. tape is ideal for fixing signs and other items to smooth surfaces Size: 33m x 12mm x 1.1mm thick

600ml sausage Used for speed hump, bunding, signage and general use. CODE 1+ 83-CT00S $69.90 / 50 pk CODE 1+ 13-990 $175.50 / Roll CODE 1+ 28-SBS $33.90 / ea CODE 1+ 83-DTDN0 $69.90/ 50 pk Megaphone & Siren Takes standard ‘C’ batteries (not included) CODE 1+ 38-MPWS $279.00 / ea

Very

Sealant Adhesive

Class 2 reflective CODE DESCRIPTION 1+ 22-F2T48-RW Red/White - 48mm x 45.7m $172.50 / roll 22-F2T48-YB Yellow/Black - 48mm x 45.7m $172.50 / roll SIGNAGE & SAFETY 140 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

T-Top Bollards

Traffic Cones Traffic Cones - Reflective Gorilla Cones 1m high Heavy 9kg base Fully stackable • 250mm Class 1 reflective Stackable “Mighty” Bollard 1m high Heavy 8kg base Fully stackable, even with base attached • With ‘T-Top’ handle • With Class 1 Reflective

Traffic Control

T-Top Bollards with heavy base and reflective collar. Height: 1150mm Retractable Barrier Bar Extendable bar • Extends up to 2m Reflective CODE DESCRIPTION 1+ 20-TC300 300mm Cone $13.90 / ea 20-TC450 450mm Cone $19.50 / ea 20-TC700 700mm Cone $34.50 / ea CODE DESCRIPTION 1+ 20-TC450R 450mm w/150mm Reflective $29.90 / ea 20-TC700R 700mm w/250mm Reflective $44.90 / ea CODE 1-9 10+ 20-SMC1M $54.90 / ea $49.90 / ea CODE 1-5 6+ 20-RBBAR $36.00 / ea $29.50 / ea CODE 1-19 20+ 20-1150BL $52.90 / ea $46.90 / ea CODE 1-19 20+ 20-1000GC $58.50 / ea $49.90 / ea *Cones Supplied seperately. Barrier Tape - Red/White Coloured on both sides with U.V. resistant inks. • Size: 75 x 100m CODE 1+ 20-400 $14.90 / Roll Surex Plaslink Barriers See page 118 SIGNAGE & SAFETY 141 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

•

Sign Posts & Brackets

Single Sided Sign Bracket

- 1 Piece

• For 50mm N.B. (60mm O.D.) posts

• With bolt and washer

Double Sided Sign Bracket

- 1 Piece

• For 50mm N.B. (60mm O.D.) posts

• With 2 bolts and nuts

•

•

Arc Sign Brackets - For Signs with Bracing

Sign Bracing Aluminium bracing is for making large signs rigid and can be easily attached with rivets or double sided tape.

•

* Other lengths available, please enquire.

For 50mm N.B. (60mm

posts

Piece Sign Bracket - For Existing Sign Posts

O.D.)

With bolt and washer

Single sided

Positioning Supplied with bolts

Parking Sign Brackets - For Offset

Requires 2 brackets (top & bottom)

Double length supports 2 signs Double Single Construction Grout

Fine builders flow grout (non-shrink) Mix to your desired consistency 20kg bag

Set Concrete Mix

Rapid

20kg bag Hardens in 15 minutes with approximately 2.5L water CODE 1-99 100+ 13-SSPB $6.70 / ea $5.80 / ea CODE 1-19 20+ 13-2PSB $18.80 / ea $16.90/ ea CODE 1-99 100+ 13-6NRB $11.40 / ea $9.95 / ea CODE 1+ 13-980-3 $82.90 / ea CODE 1+ GROUT20KG $29.90 / ea CODE 1+ 22-RSC $29.90 / ea CODE DESCRIPTION 1-19 20+ 13-PBD Double (for 2 signs) $18.50 / ea $16.20 / ea 13-PBS Single (for 1 sign) $13.50 / ea $11.80 / ea CODE 1-99 100+ 13-DSPB $11.20 / ea $10.40 / ea

For 50mm N.B.

with bolt & nut

(60mm O.D.) posts

Factory

• Supplied in 3m length

fitting available - POA

SIGNAGE & SAFETY 142 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Sign Posts & Brackets

Sign Post (In-Ground)

50mm

Sign Post (with Base Plate)

50mm

Caps for Sign Posts

‘V’ Type Post Sockets

Metal Spike Post Sockets

Impact Recovery Posts

Sign Post Base Plate Socket

For 50mm N.B. (60mm O.D.) posts

(60mm outside diameter). Length: 3.2m

N.B galvanised steel posts

Length: 2.6m Base: 130 x 130mm with 12mm holes

N.B. galvanised steel posts (60mm outside diameter)

Size: 150x150 x 200(H)mm • With 14mm holes • Includes wedge

To be driven in soil to hold sign posts • Includes wedge • Length: 440mm CODE 1-9 10+ 10-45SPS $53.90 / ea $44.50 / ea CODE DESCRIPTION 1-19 20+ 10-BPSPS $69.90 / ea $56.90 / ea CODE DESCRIPTION 1+ 13-50CSP Caps for 60mm O.D. Posts $6.40 / ea CODE 1-9 10+ 13-5032SP $84.90 / ea $76.90 / ea CODE 1+ 13-50SPBP $119.90 / ea CODE 1-9 10+ 10-VLOCK $69.90 / ea $57.50 / ea

Galvanised, flush-to-ground type socket for setting in concrete. Includes wedge • Length: 275mm * 3.2m length also available - please enquire

• Size: Ø60 x 1300(H)mm • Post fits standard sign brackets (for keep left or parking signs etc) CODE DESCRIPTION 1+ 15-IRPSM Impact Recovery Post with Surface Mount Base Plate 1300mm $249.00 / ea SIGNAGE & SAFETY 143 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Swing Stand Signs

Standard

•

SST1-3-1 (A)

SST1-5DG (A,B) (Diamond Grade)

SST-ARMG

SST1-5 (A,B)

SST1-6-BLK (A) (Req. magnetic arrow)

SST-FPC(A)

SST-WSP (A) SST-GCP (A)

SST1-1 (A,B)

SST2-16 (A,B)

*Prices apply to signs shown above only (includes sign & stand)

SST1-200-1 (A,B) (Diamond Grade)

SST1-200-2 (A,B) SST8-2 (A) (Requires magnetic arrow)

SST8-1 (A) SST8-3 (A)

SST2-23 (A)

SST1-6 (A) SST1-23 (A)

SST3-3 (A)

SST3-14 (A)

Stand Only

• Frame size is larger than the sign size listed below

Swing Stand Sign Only

Made-To-Order Signs

*Prices apply to signs shown here only

Class 1 reflective Size A = 900 x 600mm Size B = 1200 x 900mm

SST2-4 (A) SST1-18 (A,B) SST9-9 (A,B) SST2-25 (A,B) SST2-TT (A) SST2-5 (A) SST3-9 (A) SST3-7(A) SST-RCA(A) SSTI-10(A) SST2-13(A) SST-RPA(A) SST5-5(A)

Message (Stock Lines)

(stand purchased separately)

A: 900 x 600mm

B: 1200 x 900mm Class 1 reflective.

Size

SSCPC(A,B) SST-WAC(A,B) SST-RAO(A,B)

SST-NE(A,B) SST-TWP(A,B) CUS-REFLSIGN

SIZE TYPE 1+ A 1 Side $149.00 / ea B 1 Side $219.00 / ea A 2 Side $275.00 / ea B 2 Side $369.00 / ea CODE SIGN SIZE 1+ -SST-S01 900 x 600 mm $85.00 / ea -SST-S02 1200 x 900 mm $115.00 / ea SIZE DESCRIPTION 1+ 900 x 600mm (A) Class 1 Reflective $189.00 / ea 900 x 600mm (A) Fluoro Diamond Grade $229.00 / ea 1200 x 900mm (B) Class 1 Reflective $285.00 / ea 1200 x 900mm (B) Fluoro Diamond Grade $339.00 / ea 600 x 240mm Magnetic Arrow (SST-ARMG) $72.50 / ea SIGNAGE & SAFETY 144 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

SST-WAF(A,B) SSSCPF(A,B)

(A,B)

Traffic Signage

Road Signs

SIZE 1+

300 x 300mm $77.00 / ea

300 x 400mm $77.00 / ea

150 x 1150mm $89.00 / ea

450 x 450mm $82.00 / ea

450 x 600mm $89.00 / ea

450 x 750mm $109.00 / ea

450 x 900mm $129.00 / ea

600 x 400mm $89.00 / ea

600 x 600mm $109.00 / ea

600mm Round $139.00 / ea

600 x 750mm $109.00 / ea

600 x 800mm $109.00 / ea

750mm Triangle $149.00 / ea

800 x 500mm $119.00 / ea

The above prices apply here unless individually marked otherwise.

*Made

W8-25 (A 600 x 400)*

W8-22 (A 600 x 400)*

WRONG WAY GO BACK

OJ-WWAR* (A 450 x 600) $99.00 ea (Custom)

W2-204 (A 600 x 600)*

W3-1 (A 600 x 600)*

W5-9 (A 600 x 600)*

W3-2 (A 600 x 600)*

W6-209 (A 600 x 600)*

W3-3 (A 600 x 600)*

W6-6 (A 600 x 600)*

Class 1 Reflective Prices apply to signs shown here excluding made-to-order signs Aluminium backing R1-1

R1-2

R1-3*

R2-2

R2-6

R7-1-4

450 x 600)* R2-4 NSW

450 x 750) R2-17 (A 450 x 750) R2-14 (A 600 x 800) L or R R4-4

450 x 750) R2-11

R8-2

300

400)* R3-1

R4-1#

R2-10

R4-5

R2-3

Left

R2-209

(A-600 x 600)

(A 750)

(A-450 x 600) L or R

NSW (A 450 x 900)

or R

(A 450 x 750)*

(A 600)

(A 450 x 600)

(A 600 x 600)

(A 450 x 750) D4-6X (A-600 x 750)* G9-18 (A - 600 x 450)*

(A 450 x 600)

or Right

(A 150 x 1150)

W6-3

W8-207

W3-4

to order - lead time applies. W6-1 (A 600 x 600) W6-2 (A 600 x 600)

(A 600 x 600) W8-207 L (A 800 x 500)*

R (A 800 x 500)* W2-7 (A 600 x 600)*

600 x 600) W5-10 (A 600 x 600) W1-3 L or R (A 600 x 600)* W5-22 (A 600 x 600) R6-10-2A (600 x 600mm) R6-10-3 (A 450 x 450mm) (B 600 x 600mm) R6-15 (A 300 x 300mm)* (B 450 x 450mm) (C 600 x 600mm) R6-10-1A (600 x 600mm)

# Specify speed when ordering 20

R2-5 (A 450 x 450mm) (B 600 x 600mm) R2-4 (A 450 x 450mm) (B 600 x 600mm) R2-6A(R) (450 x 450mm) R2-6B(R) (600 x 600mm) R2-6A(L) (450 x 450mm) R2-6B(L) (600 x 600mm)

SIGNAGE & SAFETY 145 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

W6-216 (A 600 x 600)*

Parking Signs

Non-reflective

Specify

225(W)x450(H)mm Price

Non-reflective

Aluminium

left

(-L), right (-R) or double arrows (-LR)

for signs shown here only. Price for signs shown here only.

Signs

Made-To-Order

Parking

Aluminium Specify left (-L), right (-R) or double arrows (-LR) 225(W) x 450(H)mm 01-CP07C (225 x 300) TC446LSM (300 x 450) NO PARKING TOW AWAY ZONE SMALL CAR ONLY TC426LSM (300 x 450) TC426LM (450 x 600) TC416MM (225 x 300) TC416LSM (300 x 450) TC416LM (450 x 600) KEEP CLEAR AT ALL TIMES TC457LSM (300 x 450) TC457LM (450 x 600) TC454LS (300 x 450) 01-SCOMM (300 x 450) NO PARKING R5-41 Specify times Left, Right or Double Arrow Durable 1.6mm Aluminium 9AM - 5 PM 30 MON - FRI 9AM - 12 PM SAT 30 01-CSMM (225 x 300) 01-CSLSM (300 x 450) 01-CSLM (450 x 600) R5-1 R5-13 R5-26 R5-25 R5-21 R5-20 R5-23 R5-24

QTY 1+ 1-9 $39.90 / ea 10-29 $34.90 / ea 30+ $29.90 / ea QTY 1+ 1+ $49.90 / ea

Park Signs Non-reflective metal Price for signs shown here only. 01-CP06C (225 x 300) G7-6-1 (A - 600 x 600) (B - 900 x 900) 01-PWPMM (225 x 300) 01-PWPLSM (300 x 450) 01-PWPLM (450 x 600) SIZE 1+ 225 x 300 $36.90 / ea 300 x 450 $39.90 / ea 450 x 600 $49.90 / ea 600 x 600 $79.00 / ea 900 x 900 $POA R5-10DO R5-40 R5-35 Not App. NSW R5-NS Custom signs available SIGNAGE & SAFETY 146 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Car

Portable Industrial Signs with Wheels Height: 1600mm Base: 27kg with wheels 5 standard signs Custom signs also available CODE DESCRIPTION 1+ 13-PS-R1-1A Stop Sign $549.00 / ea 13-PS-R2-4ANSW No Entry Sign $549.00 / ea 13-PS-R4-IA-10 10km/h $549.00 / ea 13-PS-TC426LM No Parking Sign $549.00 / ea 13-PS-353LM Forklifts Sign $549.00 / ea 13-PS-834LM Stop - Watch for Moving Vehicles Sign $549.00 / ea NEW NO PARKING FORKLIFTS OPERATING IN THIS AREA 13-PS-R1-1A 13-PS-R2-4ANSW

Portable Industrial Signs with Wheels

13-PS-TC426LM

13-PS-R4-IA-10

Customised Industrial Signs Scan QR to order online SIGNAGE & SAFETY 147 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

13-PS-353LM 13-PS-834LM

Self Adhesive Vinyl Outdoor heavy duty permanent adhesive vinyl. Simply peel backing paper off and apply to any clean smooth surface. * Signs with custom text are priced according to material, size, & qty. Safety Sign Price List Standard Sign Pricing (Not Applicable To Custom Signs) NOTE: Not all sizes apply to every sign, standard sizes are listed adjacent to each sign image. SIZE 1+ 225 x 150mm $39.90 / ea 300 x 225mm $41.90 / ea 270 x 270mm $59.90 / ea 450 x 200mm $41.90 / ea 450 x 300mm $44.90 / ea 600 x 450mm $54.90 / ea SIZE 1+ Ø200mm $29.90 / ea 225 x 150mm $36.90 / ea 240 x 180mm $29.90 / ea 270 x 270mm $53.90 / ea 300 x 140mm $29.90 / ea 300 x 225mm $38.90 / ea 450 x 200mm $39.90 / ea 450 x 300mm $40.90 / ea 600 x 450mm $46.90 / ea 225 x 225mm - Off Wall V Sign $43.90 / ea SIZE 1+ 20 x 20mm (paper) $54.90 / 250 roll 50 x 50mm $59.90 / 12pk 50 x 50mm (paper) $62.90 / 250roll Ø 50mm $43.90 / 12pk 90 x 55mm $43.90 / 10pk 100 x 100mm $39.90 / 6pk 100 x 100mm (paper) $83.90 / 250 roll 120 x 140mm $31.90 / 4pk 150 x 150mm $63.90 / 5pk 200 x 50mm $28.90 / 4pk 200 x 200mm $83.90 / 5pk Ø 200mm $19.90 / ea 240 x 180mm $22.90 / ea 270 x 270mm $33.90 / ea 300 x 100mm $22.90 / ea 300 x 140mm $23.90 / ea 300 x 225mm $31.90 / ea METAL SELF ADHESIVE VINYL POLY PROPYLENE Can’t find the sign you need in this catalogue? See 1000’s more signs on our website www.areasafe.com.au or scan the QR code below. Anti-graffiti coating available - call for a price on your requirements! SIGNAGE & SAFETY 148 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

General Signs

TC460LM 600 x 450mm Metal TC460LP 600 x 450mm Poly 836LSP 450 x 300mm Poly PEDESTRIAN CROSSING 835LSP 450 x 300mm Poly

608LM 600 x 450mm Metal 608LP 600 x 450mm Poly 608OLM 450 x 200mm Metal 608OLP 450 x 200mm Poly EXIT 609MM 300 x 225mm Metal 609MP 300 x 225mm Poly 609LM 600 x 450mm Metal 609LP 600 x 450mm Poly 609OLM 450 x 200mm Metal 609OLP 450 x 200mm Poly 610LM 600 x 450mm Metal 610LP 600 x 450mm Poly 610OLM 450 x 200mm Metal 610OLP 450 x 200mm Poly ENTRY TC304MM 300 x 225mm Metal TC304MP 300 x 225mm Poly TC304LM 600 x 450mm Metal TC304LP 600 x 450mm Poly TC410MM 300 x 225mm Metal TC410MP 300 x 225mm Poly TC410LM 600 x 450mm Metal TC410LP 600 x 450mm Poly 5km - TC409(+suffix) 8km - TC422(+suffix) 20km - TC462(+suffix) TC408MM 300 x 225mm Metal TC408MP 300 x 225mm Poly TC408LM 600 x 450mm Metal TC408LP 600 x 450mm Poly Scan here to view full range 954OLM 450 x 200mm Metal 954OLP 450 x 200mm Poly 946OLM 450 x 200mm Metal 946OLP 450 x 200mm Poly 938OLM 450 x 200mm Metal 938OLP 450 x 200mm Poly TC431LM 600 x 450mm Metal TC431LP 600 x 450mm Poly TC432LM 600 x 450mm Metal TC432LP 600 x 450mm Poly TC430LM 600 x 450mm Metal TC430LP 600 x 450mm Poly TC415LSM 450 x 300mm Metal TC415LSP 450 x 300mm Poly TC415LM 600 x 450mm Metal TC415LP 600 x 450mm Poly TC418LSM 450 x 300mm Metal TC418LSP 450 x 300mm Poly TC418LM 600 x 450mm Metal TC418LP 600 x 450mm Poly TC421LSM 450 x 300mm Metal TC421LSP 450 x 300mm Poly TC421LM 600 x 450mm Metal TC421LP 600 x 450mm Poly S P E E D H U M P A H E A D See page 148 for pricing. See online for full range. SIGNAGE & SAFETY 149 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

WATCH FOR FORKLIFTS

Prohibition Signs

Security Signs

432MM 300 x 225mm Metal 432MP 300 x 225mm Poly 432LSM 450 x 300mm Metal 432LSP 450 x 300mm Poly 432LM 600 x 450mm Metal 432LP 600 x 450mm Poly NOÊPEDESTRIAN ACCESS 409SA 140 x 120mm, 4pk SA 409DA 240 x 180mm SA 409MM 300 x 225mm Metal 409MP 300 x 225mm Poly 409LSM 450 x 300mm Metal 409LSP 450 x 300mm Poly 437LSM 450 x 300mm Metal 437LSP 450 x 300mm Poly 427MM 300 x 225mm Metal 427MP 300 x 225mm Poly 447LSM 450 x 300mm Metal 447LSP 450 x 300mm Poly 447LM 600 x 450mm Metal 447LP 600 x 450mm Poly 455LSM 450 x 300mm Metal 455LSP 450 x 300mm Poly 401RA 50mm (ø), 12pk SA 401RLA 200mm decal SA 401DA 240 x 180mm SA 401MM 300 x 225mm Metal 401MP 300 x 225mm Poly 401OLM 450 x 200mm Metal 401OLP 450 x 200mm Poly 401LSM 450 x 300mm Metal 401LSP 450 x 300mm Poly 401LM 600 x 450mm Metal 401LP 600 x 450mm Poly P003AP 600 x 450mm POLY P003LM 600 x 450mm METAL P003DAA 300 x 225mm SA P003MM 300x225mm METAL 402RA 50mm (ø), 12pk SA 402SSA 90 x 55mm, 10pk SA 402SA 140 x 120mm, 4pk SA 402RLA 200mm (ø) SA 402DA 240 x 180mm SA 402MM 300 x 225mm Metal 402MP 300 x 225mm Poly 402LSM 450 x 300mm Metal 402LSP 450 x 300mm Poly 402LM 600 x 450mm Metal 402LP 600 x 450mm Poly

SN021LSM 450 x 300mm Metal SN021LSP 450 x 300mm Poly 959MM 300 x 225mm Metal 959MP 300 x 225mm Poly 959LM 600 x 450mm Metal 959LP 600 x 450mm Poly SN023LSM 450 x 300mm Metal SN023 LSP 450 x 300mm Poly SN022LSM 450 x 300mm Metal SN022LSP 450 x 300mm Poly SN015LSM 450 x 300mm Metal SN015 LSP 450 x 300mm Poly SN015LM 600 x 450mm Metal SN015LP 600 x 450mm Poly SN017LSM 450 x 300mm Metal SN017 LSP 450 x 300mm Poly SN017LM 600 x 450mm Metal SN017LP 600 x 450mm Poly SN018LSM 450 x 300mm Metal SN018 LSP 450 x 300mm Poly SN018LM 600 x 450mm Metal SN018LP 600 x 450mm Poly SN010DAA 300x225mm Self-Adhesive SN010DA 240x180mm Self-Adhesive SN010MP 300x225mm Poly SN010LSP 450x300mm Poly SN010LP 600x450mm Poly SN010MM 300x225mm Metal SN010LSM 450x300mm Metal SN020DAA 300x225mm Self Adhesive SN020DA 240x180mm Self Adhesive SN020E-SA 90x55mm (10pk) Self Adhesive SN020MP 300x225mm Poly SN020LSP 450x300mm Poly SN020LP 600x450mm Poly SN020MM 300x225mm Metal SN020LSM 450x300mm Metal SN020LM 600x450mm Metal See page 148 for pricing. See online for full range. See page 148 for pricing. See online for full range. SIGNAGE & SAFETY 150 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Notice Signs

Danger Signs

225SA 140 x 120mm, 4pk SA 225DA 240 x 180mm SA 225MM 300 x 225mm Metal 225MP 300 x 225mm Poly 225MA 300 x 225mm SA 225LSM 450 x 300mm Metal 225LSP 450 x 300mm Poly 225LM 600 x 450mm Metal 225LP 600 x 450mm Poly CONFINED SPACE ENTRY BY PERMIT ONLY 218DA 240 x 180mm SA 218MM 300 x 225mm Metal 218MP 300 x 225mm Poly 218LSM 450 x 300mm Metal 218LSP 450 x 300mm Poly 218LM 600 x 450mm Metal 218LP 600 x 450mm Poly KEEP OUT 226DA 240 x 180mm SA 226MM 300 x 225mm Metal 226MP 300 x 225mm Poly 226LSM 450 x 300mm Metal 226LSP 450 x 300mm Poly 226LM 600 x 450mm Metal 226LP 600 x 450mm Poly ASBESTOS REMOVAL IN PROGRESS 245SA 140 x 120mm, 4pk SA 245DA 240 x 180mm SA 245MM 300 x 225mm Metal 245MP 300 x 225mm Poly 245LSM 450 x 300mm Metal 245LSP 450 x 300mm Poly 245LM 600 x 450mm Metal 245LP 600 x 450mm Poly 246LSM 450 x 300mm Metal 246LSP 450 x 300mm Poly 236DA 240 x 180mm SA 236MM 300 x 225mm Metal 236MP 300 x 225mm Poly 236LSM 450 x 300mm Metal 236LSP 450 x 300mm Poly 236LM 600 x 450mm Metal 236LP 600 x 450mm Poly 217MM 300 x 225mm Metal 217MP 300 x 225mm Poly 217LSM 450 x 300mm Metal 217LSP 450 x 300mm Poly 217LM 600 x 450mm Metal 217LP 600 x 450mm Poly CONSTRUCTION SITE DO NOT ENTER 229DA 240 x 180mm SA 229MM 300 x 225mm Metal 229MP 300 x 225mm Poly 229LM 600 x 450mm Metal 229LP 600 x 450mm Poly 257DA 240 x 180mm SA 257MM 300 x 225mm Metal 257MP 300 x 225mm Poly 257LSM 450 x 300mm Metal 257LSP 450 x 300mm Poly 257LM 600 x 450mm Metal 257LP 600 x 450mm Poly CHEMICAL STORAGE 156LM 600 x 450mm Metal 156LP 600 x 450mm Poly 161LM 600 x 450mm Metal 161LP 600 x 450mm Poly 143LM 600 x 450mm Metal 143LP 600 x 450mm Poly TC406MM 300 x 225mm Metal TC406MP 300 x 225mm Poly TC406LM 600 x 450mm Metal TC406LP 600 x 450mm Poly 165LM 600 x 450mm Metal 165LP 600 x 450mm Poly 167DAA 300x225mm (Self-Adhesive) 167DA 240x180mm (Self-Adhesive) 167SA 120x140mm (Self-Adhesive) 167MP 300x225mm Poly 167LSP 450x300mm Poly 167LP 600x450mm Poly 167MM 300x225mm Metal 167LSM 450x300mm Metal 167LM 600x450mm Metal 157DAA 300x225mm (Self-Adhesive) 157DA 240x180mm (Self-Adhesive) 157MP 300x225mm Poly 157LSP 450x300mm Poly 157LP 600x450mm Poly 157MM 300x225mm Metal 157LSM 450x300mm Metal 157LM 600x450mm Metal 148DAA 300x225mm (Self-Adhesive) 148DA 240x180mm (Self-Adhesive) 148MP 300x225mm Poly 148LSP 450x300mm Poly 148LP 600x450mm Poly 148MM 300x225mm Metal 148LSM 450x300mm Metal 148LM 600x450mm Metal 145DAA (Self-Adhesive) 300x225mm 145LDA (Self-Adhesive) 240x180mm 145MP Poly 300x225mm 145LSP Poly 450x300mm 145LP Poly 600x450mm 145MM Metal 300x225mm 145LSM Metal 450x300mm 145LM Metal 600x450mm See page 148 for pricing. See online for full range. See page 148 for pricing. See online for full range. SIGNAGE & SAFETY 151 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Restricted Area Signs

Caution Signs

364MM 300 x 225mm Metal 364MP 300 x 225mm Poly 364LSM 450 x 300mm Metal 364LSP 450 x 300mm Poly 364LM 600 x 450mm Metal 364LP 600 x 450mm Poly

8903LSM 450 x 300mm Metal 897LM 600 x 450mm Metal 897LP 600 x 450mm Poly 897LSM 450 x 300mm Metal 897LSP 450 x 300mm Poly 896LM 600 x 450mm Metal 896LP 600 x 450mm Poly 896LSM 450 x 300mm Metal 896LSP 450 x 300mm Poly 895LM 600 x 450mm Metal 895LP 600 x 450mm Poly 895LSM 450 x 300mm Metal 895LSP 450 x 300mm Poly 894LM 600 x 450mm Metal 894LP 600 x 450mm Poly 894LSM 450 x 300mm Metal 894LSP 450 x 300mm Poly 891LM 600 x 450mm Metal 891LP 600 x 450mm Poly 891LSM 450 x 300mm Metal 891LSP 450 x 300mm Poly 890LP 600 x 450mm Poly 890LM 600 x 450mm Metal 890LSP 450 x 300mm Poly 890LSM 450 x 300mm Metal 892LM 600 x 450mm Metal 892LP 600 x 450mm Poly 892LSM 450 x 300mm Metal 892LSP 450 x 300mm Poly 893LM 600 x 450mm Metal 893LP 600 x 450mm Poly 893LSM 450 x 300mm Metal 893LSP 450 x 300mm Poly 303SA 140 x 120mm, 4pk SA 303DA 240 x 180mm SA 303MM 300 x 225mm Metal 303MP 300 x 225mm Poly 303LSM 450 x 300mm Metal 303LSP 450 x 300mm Poly 303LM 600 x 450mm Metal 303LP 600 x 450mm Poly 307DA 240 x 180mm SA 307MM 300 x 225mm Metal 307MP 300 x 225mm Poly 307LM 600 x 450mm Metal 307LP 600 x 450mm Poly 353DA 240 x 180mm SA 353MM 300 x 225mm Metal 353MP 300 x 225mm Poly 353LSM 450 x 300mm Metal 353LSP 450 x 300mm Poly 353LM 600 x 450mm Metal 353LP 600 x 450mm Poly FORKLIFTS OPERATING IN THIS AREA 355DA 240 x 180mm SA 355LSM 450 x 300mm Metal 355LSP 450 x 300mm Poly 355LM 600 x 450mm Metal 355LP 600 x 450mm Poly 375LM 600 x 450mm Metal 375LP 600 x 450mm Poly 317DA 240 x 180mm SA 317MM 300 x 225mm Metal 317MP 300 x 225mm Poly 317LM 600 x 450mm Metal 317LP 600 x 450mm Poly 338DA 240 x 180mm SA 338MM 300 x 225mm Metal 338MP 300 x 225mm Poly 338LM 600 x 450mm Metal 338LP 600 x 450mm Poly 380LSM 450 x 300mm Metal 380LSP 450 x 300mm Poly 380LM 600 x 450mm Metal 380LP 600 x 450mm Poly See page 148 for pricing. See online for full range. See page 148 for pricing. See online for full range. SIGNAGE & SAFETY 152 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Fire Signs

Emergency Signs

705SSA 90 x 55mm, Pkt 10 SA 705SA 140 x 120mm, Pkt 4 SA 705MSM 225 x 150mm Metal 705MSP 225 x 150mm Poly 705DA 240 x 180mm SA 705MM 300 x 225mm Metal 705MP 300 x 225mm Poly 705LSM 450 x 300mm Metal 705LSP 450 x 300mm Poly 705LM 600 x 450mm Metal 705LP 600 x 450mm Poly 707MM 300 x 225mm Metal 707MP 300 x 225mm Poly 707LSM 450 x 300mm Metal 707LSP 450 x 300mm Poly 707LM 600 x 450mm Metal 707LP 600 x 450mm Poly 707DA 240 x 180mm SA 712MSP 225 x 150mm Poly 712MSM 225 x 150mm Metal 712DA 240 x 180mm SA 712MP 300 x 225mm Poly 725DP 240 x 180mm Poly 725DA 240 x 180mm SA F010C-M 300 x 225mm Metal F010C-P 300 x 225mm SA 701DA 240x180mm SA 701MM 300x225mm Metal 701MP 300x225mm Poly 701LM 600x450mm Metal 701LP 600x450mm Poly 764MP 300x225mm Poly 764MM 300x225mm Metal 501SSA 90 x 55mm, 10pk SA 501SA 140 x 120mm, 4pk SA 501OA 200 x 50mm, 4pk SA 501RLA 200mm decals SA 501DA 240 x 180mm SA 501OMA 300 x 100mm SA 501MM 300 x 225mm Metal 501MP 300 x 225mm Poly 501LSM 450 x 300mm Metal 501LSP 450 x 300mm Poly 501LM 600 x 450mm Metal 501LP 600 x 450mm Poly 509MM 300 x 225mm Metal 509MP 300 x 225mm Poly 509LSM 450 x 300mm Metal 509LSP 450 x 300mm Poly 509LM 600 x 450mm Metal 509LP 600 x 450mm Poly 505DA 240 x 180mm SA 505MM 300 x 225mm Metal 505MP 300 x 225mm Poly 505LSM 450 x 300mm Metal 505LSP 450 x 300mm Poly 505LM 600 x 450mm Metal 505LP 600 x 450mm Poly 519MM 300 x 225mm Metal 519MP 300 x 225mm Poly 519LSM 450 x 300mm Metal 519LSP 450 x 300mm Poly 519LM 600 x 450mm Metal 519LP 600 x 450mm Poly 506DA 240 x 180mm SA 506MM 300 x 225mm Metal 506MP 300 x 225mm Poly 506LSM 450 x 300mm Metal 506LSP 450 x 300mm Poly 506LM 600 x 450mm Metal 506LP 600 x 450mm Poly 515DA 240 x 180mm SA 515MM 300 x 225mm Metal 515MP 300 x 225mm Poly 515LSM 450 x 300mm Metal 515LSP 450 x 300mm Poly 515LM 600 x 450mm Metal 515LP 600 x 450mm Poly

858LM 600 x 450mm Metal 858LP 600 x 450mm Poly 851LM 600 x 450mm Metal 851LP 600 x 450mm Poly 856LM 600 x 450mm Metal 856LP 600 x 450mm Poly 858LM 600 x 450mm Metal 858LP 600 x 450mm Poly 853LM 600 x 450mm Metal 853LP 600 x 450mm Poly 936OLM 450 x 200mm Metal 936OLP 450 x 200mm Poly See page 148 for pricing. See online for full range. See page 148 for pricing. See online for full range. See page 148 for pricing. See online for full range. SIGNAGE & SAFETY 153 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Bio Security Signs

101RA 50mm (ø), 12pk SA 101SSA 90 x 55mm, 10pk SA 101SA 140 x 120mm, 4pk SA 101DA 180 x 240mm SA 101RLA 200mm (ø) SA 101MM 300 x 225mm Metal 101MP 300 x 225mm Poly 101MA 300 x 225mm SA 101LSM 450 x 300mm Metal 101LSP 450 x 300mm Poly 101LM 600 x 450mm Metal 101LP 600 x 450mm Poly 102RA 50mm (ø), 12pk SA 102SSA 90 x 55mm, 10pk SA 102SA 140 x 120mm, 4pk SA 102DA 180 x 240mm SA 102RLA 200mm (ø) SA 102TMA 300 x 140mm SA 102MM 300 x 225mm Metal 102MP 300 x 225mm Poly 102MA 300 x 225mm SA 102LSM 450 x 300mm Metal 102LSP 450 x 300mm Poly 102LM 600 x 450mm Metal 102LP 600 x 450mm Poly 103RA 50mm (ø), 12pk SA 103SSA 90 x 55mm, 10pk SA 103SA 140 x 120mm, 4pk SA 103DA 180 x 240mm SA 103RLA 200mm (ø) SA 103MM 300 x 225mm Metal 103MP 300 x 225mm Poly 103MA 300 x 225mm SA 103LSM 450 x 300mm Metal 103LSP 450 x 300mm Poly 103LM 600 x 450mm Metal 103LP 600 x 450mm Poly 106DA 180 x 240mm SA 106MM 300 x 225mm Metal 106MP 300 x 225mm Poly 106LSM 450 x 300mm Metal 106LSP 450 x 300mm Poly 106LM 600 x 450mm Metal 106LP 600 x 450mm Poly 107RA 50mm (ø), 12pk SA 107SSA 90 x 55mm, 10pk SA 107SA 140 x 120mm, 4pk SA 107DA 180 x 240mm SA 107RLA 200mm (ø) SA 107MM 300 x 225mm Metal 107MP 300 x 225mm Poly 107LSM 450 x 300mm Metal 107LSP 450 x 300mm Poly 107LM 600 x 450mm Metal 107LP 600 x 450mm Poly 108RA 50mm (ø), 12pk SA 108SSA 90 x 55mm, 10pk SA 108SA 140 x 120mm, 4pk SA 108DA 180 x 240mm SA 108RLA 200mm (ø) SA 108MM 300 x 225mm Metal 108MP 300 x 225mm Poly 108LSM 450 x 300mm Metal 108LSP 450 x 300mm Poly 108LM 600 x 450mm Metal 108LP 600 x 450mm Poly 109RA 50mm (ø), 12pk SA 109SA 140 x 120mm, 4pk SA 109DA 180 x 240mm SA 109RLA 200mm (ø) SA 109MM 300 x 225mm Metal 109MP 300 x 225mm Poly 109LSM 450 x 300mm Metal 109LSP 450 x 300mm Poly 109LM 600 x 450mm Metal 109LP 600 x 450mm Poly 110RA 50mm (ø), 12pk SA 110SSA 90 x 55mm, 10pk SA 110SA 140 x 120mm, 4pk SA 110DA 180 x 240mm SA 110RLA 200mm (ø) SA 110MM 300 x 225mm Metal 110MP 300 x 225mm Poly 110LSM 450 x 300mm Metal 110LSP 450 x 300mm Poly 110LM 600 x 450mm Metal 110LP 600 x 450mm Poly 111RA 50mm (ø), 12pk SA 111SSA 90 x 55mm, 10pk SA 111SA 140 x 120mm, 4pk SA 111DA 180 x 240mm SA 111RLA 200mm (ø) SA 111MM 300 x 225mm Metal 111MP 300 x 225mm Poly 111LSM 450 x 300mm Metal 111LSP 450 x 300mm Poly 111LM 600 x 450mm Metal 111LP 600 x 450mm Poly 112RA 50mm (ø), 12pk SA 112SSA 90 x 55mm, 10pk SA 112SA 140 x 120mm, 4pk SA 112DA 180 x 240mm SA 112RLA 200mm (ø) SA 112MM 300 x 225mm Metal 112MP 300 x 225mm Poly 112LSM 450 x 300mm Metal 112LSP 450 x 300mm Poly 112LM 600 x 450mm Metal 112LP 600 x 450mm Poly 113RA 50mm (ø), 12pk SA 113SA 140 x 120mm, 4pk SA 113DA 180 x 240mm SA 113RLA 200mm (ø) SA 113MM 300 x 225mm Metal 113MP 300 x 225mm Poly 113LSM 450 x 300mm Metal 113LSP 450 x 300mm Poly 113LM 600 x 450mm Metal 113LP 600 x 450mm Poly 118RA 50mm, 12pk SA 118SA 140 x 120mm, 4pk SA 118DA 180 x 240mm SA 118RLA 200mm (ø) SA 118LM 600 x 450mm Metal 118LP 600 x 450mm Poly 126DA 180 x 240mm SA 126MM 300 x 225mm Metal 126MP 300 x 225mm Poly 126LSM 450 x 300mm Metal 126LSP 450 x 300mm Poly 126LM 600 x 450mm Metal 126LP 600 x 450mm Poly Decal Size = Ø200mm 101RLA 105RLA 110RLA 114RLA 102RLA 107RLA 111RLA 118RLA 103RLA 108RLA 112RLA 125RLA 104RLA 109RLA 113RLA 140RLA Hard Hat Decals* Self Adhesive 50mm diameter • Packs of 12 F533G WARDEN F532G DEPUTY CHIEF WARDEN F531G CHIEF WARDEN F528G FLOOR WARDEN E530G E547G FIRST AID OFFICER E537G SAFETY OFFICER E529G E501G M535G F548G M534G *Price for these decals only. Multi-Signs • Size: 900 x 600mm • Also available in large 1200 x 900mm size - POA 100ELP-S1 POLY $89.90 ea 100ELM-S1 METAL $99.90 ea STANDARD CORPORATE MULTI-SIGN* 02-22MSJ POLY $89.90 ea *Prices for signs shown here only. TYPE 1+ 12pk $39.90 / pk F700G E500G Mandatory Signs See page 148 for pricing. See online for full range. SIGNAGE & SAFETY 154 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Waste Bin Signs

Door Signs

Engraved Door Signs - Traffolyte

These made to order decorative signs are made from traffolyte with a brushed silver face. Identify your rooms, doors, offices, and working areas with these graphic architectural signs. Double sided tape backing supplied for easy mounting.

Children Crossing Flag

Children Crossing Flag

Children Crossing Flag is an outdoor grade PVC sign with 2 wooden handles for mounting at school crossings. Size: 600(W) x 600(H)mm

01-AS01 01-AS04 01-AS07 01-AS10 01-AS02 01-AS05 01-AS08 01-AS11 01-AS13 01-AS14 01-AS03 01-AS06 01-AS09 01-AS12

Size: 300(W) x 100(H)mm CODE 1-9 10+ AS ABOVE $59.90 / ea $54.50 / ea 882LSM 450x300mm Metal 882LSP 450x300mm Poly 881LSM 450x300mm Metal 881LSP 450x300mm Poly 880LSM 450x300mm Metal 880LSP 450x300mm Poly 139260/1 300x225mm Metal 139260/2 300x225mm Self Adhesive 139260/3 240x180mm Self Adhesive 139260/8 300x225mm Metal 139260/9 300x225mm Self Adhesive 139260/10 240x180mm Self Adhesive 139260/16 300x225mm Metal 139260/11 300x225mm Self Adhesive 139260/12 240x180mm Self Adhesive

CODE DESCRIPTION PRICE 20-CC600 $285.00 / ea

See page 148 for pricing. See online for full range. Need custom text? Please enquire Ladies Disabled This Way Out This Way Out Fire Extinguisher Toilet Smoking Area Rest rooms Lift No Smoking First aid Lunch room Men Women SIGNAGE & SAFETY 155 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

50x50mm, 12pk Self Adh. Vinyl

HLL110A 100x100mm, 6pk Self Adh. Vinyl

HLL110PAP 100x100mm, 250/roll Self Adh. Paper

HLX110A 150x150mm, 5pk Self Adh. Vinyl

HLZ110A 200x200mm, 5pk Self Adh. Vinyl

HLTM110A 270x270mm Self Adh. Vinyl

HLTM110M 270x270mm Metal

HLTM110P 270x270mm Poly

See online for full range.

See page 148 for pricing.

See online for full range.

See page 148 for pricing.

See online for full range.

See page 148 for pricing.

HLS101PAP 20x20mm, 250/roll Self Adh. Paper

HLM101A 50x50mm, 12pk Self Adh. Vinyl

HLM101PAP 50x50mm, 250/roll Self Adh. Paper

HLL101A 100x100mm, 6pk Self Adh. Vinyl

HLL101PAP 100x100mm, 250/roll Self Adh. Paper

HLX101A 150x150mm, 5pk Self Adh. Vinyl

HLZ101A 200x200mm, 5pk Self Adh. Vinyl

HLTM101A 270x270mm Self Adh. Vinyl

HLTM101M 270x270mm Metal

HLTM101 270x270mm Poly

HLS107.3PAP 20x20mm Self Adh. Paper

HLM107.3A 50x50mm, 12pk Self Adh. Vinyl

HLL107.3A 100x100mm, 6pk Self Adh. Vinyl

HLL107.3PAP 100x100mm, 250/roll Self Adh. Paper

HLX107.3A 150x150mm, 5pk Self Adh. Vinyl

HLZ107.3A 200x200mm, 5pk Self Adh. Vinyl

HLTM107.3A 270x270mm Self Adh. Vinyl

HLTM107.3M 270x270mm Metal

HLTM107.3P 270x270mm Poly

501DA 240x180mm 501SA 140x120mm, 4pk 932DA 240x180mm 932SA 140x120mm, 4pk 932SSA 90x55mm, 10pk 348SA 140x120mm, 4pk 986SSA 90x55mm, 10pk 989SSA 90x55mm, 10pk 996OA 200x50mm, 4pk Exit

*Prices for signs shown here only. Luminous Exit Signs Luminous signs are a must for all exits as they glow in the dark to ensure the exits are identified in smoke and darkness. 631OLA 350 x 140mm Adh. Lum. 631OLM 350 x 140mm Metal Lum. 631OLUP 350 x 140mm Poly Lum. 601OLA 350 x 140mm Adh. Lum. 601OLM 350 x 140mm Metal Lum. 601OLUP 350 x 140mm Poly Lum. 642OLA 350 x 140mm Adh. Lum. 642OLM 350 x 140mm Metal Lum. 642OLUP 350 x 140mm Poly Lum. 635OLA 350 x 140mm Adh. Lum. 635OLM 350 x 140mm Metal Lum. 635OLUP 350 x 140mm Poly Lum. 637OLA 350 x 140mm Adh. Lum. 637OLM 350 x 140mm Metal Lum. 637OLUP 350 x 140mm Poly Lum. MATERIAL 1+ Adhesive Luminous $29.90 / ea Metal Luminous $44.90 / ea Poly Luminous $39.90 / ea E M E R G E N C Y S T O P N F I R S T A I D DIESELÊFUEL Vehicle & Safety Stickers

Signs HLS102.1PAP 20x20mm, 250/roll Self Adh. Paper HLM102.1A 50x50mm , 12pk Self Adh. Vinyl HLM102.1PAP 50x50mm, 250/roll Self Adh. Paper HLL102.1A 100x100mm, 6pk Self Adh. Vinyl HLL102.1PAP 100x100mm, 250/roll Self Adh. Paper HLX102.1A 150x150mm, 5pk Self Adh. Vinyl HLZ102.1A 200x200mm, 5pk Self Adh. Vinyl HLTM102.1A 270x270mm Self Adh. Vinyl HLTM102.1M 270x270mm Metal HLTM102.1P 270x270mm Poly HLS110PAP 20x20mm, 250/roll Self Adh. Paper HLM110A

Signs

Hazchem

luminous signs also available online SIGNAGE & SAFETY 156 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Other

Can’t find the sign you need? Build your own! Custom Stair Signs Inspire, Educate, Inform. Standard lead time is approximately 5-7 working days. For urgent requirements, ask about our 1-2 day express service. CUSTOM Build Your Own Sign NO SMOKING MESSAGE YOUR CUSTOM Stair Signs HERE Standard lead time is approximately 5-7 working days. Scan QR code or visit areasafe.com.au Scan QR code or visit areasafe.com.au SIGNAGE & SAFETY 157 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Braille Signage

Braille Signs

Made to BCA and Aus. Stds AS1428.

• Durable polycarbonate with a self adhesive backing.

• Signs have raised pictograms, text and braille.

• Custom text available - POA.

SIZES

• 210(W) x 180(H)mm

• 180(W) x 180(H)mm

• 180(W) x 210(H)mm

Unisex Toilet and Shower 40-BTS016 Female Ambulant Toilet 40-BTS013 Male Ambulant Toilet 40-BTS012 Unisex Toilet LH + Shower 40-BTS011-LH Unisex Toilet RH + Shower 40-BTS011-RH Unisex Accessible LH 40-BTS008-LH Unisex Accessible RH 40-BTS008-RH Unisex Accessible LH 40-BTS009-LH Unisex Accessible RH 40-BTS009-RH Female Toilet LH 40-BTS007-LH Female Toilet RH 40-BTS007-RH Male ToiletLH 40-BTS006-LH Male Toilet RH 40-BTS006-RH Unisex Toilet LH 40-BTS003-LH Unisex Toilet RH 40-BTS003-RH Unisex Toilet 40-BTS004 Female Toilet 40-BTS002

CODE PRICE

$85.00 / ea 40-BTS013 $85.00 / ea 40-BTS012 $85.00 / ea 40-BTS011-LH $85.00 / ea 40-BTS011-RH $85.00 / ea 40-BTS008-LH $85.00 / ea CODE PRICE 40-BTS006-RH $85.00 / ea 40-BTS003-LH $85.00 / ea 40-BTS003-RH $85.00 / ea 40-BTS004 $85.00 / ea 40-BTS002 $85.00 / ea 40-BTS001 $85.00 / ea CODE PRICE 40-BTS008-RH $85.00 / ea 40-BTS009-LH $85.00 / ea 40-BTS009-RH $85.00 / ea 40-BTS007-LH $85.00 / ea 40-BTS007-RH $85.00 / ea 40-BTS006-LH $85.00 / ea Yes, we can make Custom Braille Signs! Fully Compliant with BCA & AS1428 SIGNAGE & SAFETY 158 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au

Male Toilet 40-BTS001

40-BTS016

Braille Signage

Silver Braille Signs

Made to BCA and Aus. Stds AS1428.

Durable polycarbonate with a self adhesive backing.

Signs have raised pictograms, text and braille.

Custom text available - POA.

• 210(W) x 180(H)mm

• 180(W) x 180(H)mm

• 180(W) x 210(H)mm

SIZES

Toilet and Shower 40-BTS016B Female Ambulant Toilet 40-BTS013B Male Ambulant Toilet 40-BTS012B Unisex Toilet LH + Shower 40-BTS011B-LH Unisex Toilet RH + Shower 40-BTS011B-RH

Accessible LH 40-BTS009B-LH

Accessible RH 40-BTS009B-RH Unisex Accessible LH 40-BTS008B-LH Unisex Accessible RH 40-BTS008B-RH

Toilet LH 40-BTS007B-LH

Unisex

Female

Toilet RH 40-BTS007B-RH

ToiletLH 40-BTS006B-LH

Female

Male

Toilet RH 40-BTS006B-RH

Toilet LH 40-BTS003B-LH

Toilet

40-BTS003B-RH

Male

Unisex

Unisex Toilet 40-BTS004B Female Toilet 40-BTS002B

40-BTS001B CODE PRICE 40-BTS016B $85.00 / ea 40-BTS013B $85.00 / ea 40-BTS012B $85.00 / ea 40-BTS011B-LH $85.00 / ea 40-BTS011B-RH $85.00 / ea 40-BTS008B-LH $85.00 / ea CODE PRICE 40-BTS006B-RH $85.00 / ea 40-BTS003B-LH $85.00 / ea 40-BTS003B-RH $85.00 / ea 40-BTS004B $85.00 / ea 40-BTS002B $85.00 / ea 40-BTS001B $85.00 / ea CODE PRICE 40-BTS008B-RH $85.00 / ea 40-BTS009B-LH $85.00 / ea 40-BTS009B-RH $85.00 / ea 40-BTS007B-LH $85.00 / ea 40-BTS007B-RH $85.00 / ea 40-BTS006B-LH $85.00 / ea Yes, we can make Custom Braille Signs! Fully Compliant with BCA & AS1428 SIGNAGE & SAFETY 159 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821

Male Toilet

www.astrastreetfurniture.com.au 93% Of Australians view buying Australian Made products as 1st priority BUY AUSTRALIAN! BUY ASTRA! Australian Made All items in stock Dispatch in under 1 week

Company Name: Contact Name: Invoice Address: Order No.: Date: / / Del. Date Required: / / Phone No.: Fax No.: ABN No.: Email: Delivery Address: Del. Contact: Phone: CODE DESCRIPTION SIZE COLOUR QTY PRICE EA +10% GST TOTAL INC. GST Freight - All prices FOB Glendenning (please phone for freight costs or advise us of your nominated freight company). TOTAL GST TOTAL INC. GST Your nominated freight company: Account No.: Phone: (If applicable) Is there anyone you know that may be interested in our products? Company: Contact Name: Phone: ORDER DETAILS CONTACT DETAILS PAYMENT DETAILS Cheque Enclosed I wish to apply for a 30 day credit account - please send me a credit application. (Minimum purchases $500 per month - allow 5 days for approval) I wish to pay by EFT - please advise me of Area Safe's bank details Please charge my credit card: Visa Mastercard Card Number Exp. Date Card Holder's Name: Signature: (Minimum order $100) Subject to Area Safe Products Standard Terms and Conditions. Copy available upon request. Note: A 20% re-stocking fee applies to all returns! Please call or email your order or place it online: PHONE 1300 889 821 EMAIL sales@areasafe.com.au ONLINE www.areasafe.com.au (Please photocopy or scan for future use) ABN: 74 114 414 185 161 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821 ORDER FORM

Priority Order Form

Index # 5-Bike Rack 67 A Absorbent Pads 136 Access Ramps 127, 131 Accessible Space Bollards 20-21 Aisle Barriers Expanding 115 Alarmed Gates 97 Anti-Ligature Mirrors 55 Anti-Slip Nosing, Plates & Tapes 126 Anti-Slip Tape 126 Arc Brackets 143 Architectural Bollards 34-41 Astra Street Furniture 160 B Bag Dispenser - Umbrella 135 Barrier - Belt Stanchions 108-111 Barrier - DDA Pedestrian 77 Barrier - Expanding 114-117 Barrier - Forklift 82-88 Barrier - Industrial 70-91 Barrier - Machine 85 Barrier - Mezzanine 70-91 Barrier - Pedestrian 70-91 Barrier - Recessed Rail 82-84 Barrier - Rope Stand 106-107 Barrier - Safety 70-91 Barrier - Tall-Rail 78-79 Barrier - W Beam 86-88 Barrier - Warehouse 70-91 Barrier Tape 141 Base Plate - Sign Posts 143 Base Plate Bollards 18, 21, 22, 31, 34-35 Belt Barrier - Wall Mount 112-113 Belt Barrier Reels 112 Belt Barrier Storage Cart 110 Belt Barriers 108-113 Berlin Bollards 34-37 Bike Racks 60-69 Bike Racks - Wall Mounted 69 Bio Security Signs 153 Bird Spikes 135 Black Bollards 18-19, 34-37 Black Pedestrian Rails 76, 79 Blind Spot Mirrors 54-55 Bollard Covers 23 Bollards 16-44 Bollards - Accessible Space 20-21 Bollards - Accessories 23 Bollards - Architectural 34-41 Bollards - Base Plate 18, 21, 22, 31, 35 Bollards - Black 18, 19, 22, 25, 27, 33-37 Bollards - Car Park 16-44 Bollards - Coloured 18-22 Bollards - Concrete 38-41 Bollards - Cube 39 Bollards - Disabled Space 20-21 Bollards - Dome Cap 22-23 Bollards - Flexible 43-44 Bollards - Fold Down 29 Bollards - Galvanised 22, 34-37 Bollards - Impact 43-44 Bollards - Inground 19-22, 31, 34-37 Bollards - Key Operated 25, 29 Bollards - Lane Master 44 Bollards - One-Piece 44 Bollards - Parking Space Protectors 28-29 Bollards - Plastic 43-44 Bollards - Removable 24-27, 33-37 Bollards - Safety 16-27 Bollards - Shared Zone 20-21 Bollards - Shock Absorbing 42-44 Bollards - Sphere 39 Bollards - Stackable 141 Bollards - Stainless Steel 30-32 Bollards - T Top 141 Bollards - Traffic Control 141 Bollards - U Bollards 90-91 Bollards - Yellow 18-22, 25-29 Boom Gates 94-96 Booms - Absorbent 136 Bracing - Signs 142 Brackets - Road & Car Park Signs 142 Braille Signs 158-159 Buffalo Bike Rack 69 Bumper Guards 101-103 Bunding 137 C Cable Covers 132-133 Caps - Sign Posts 143 Car Park Bollards 16-44 Car Park Dots 45 Car Park Height Bars 56-57 Car Park Mirrors 54 Car Park Signs 144-146 Car Park Stencils 48-49 Car Park Trolley Bays 50-53 Car Space Protector 28-29 Car Stops 5 Caution Signs 152 Chain - Gal & Plastic 23 Chain Ring 23 Coat Hanger Bike Racks 64-65 Cold Mix 47 Column Cushion 104 Column Protector 102-104 Compact P4 Bike Racks 62-63 Concrete Bollards 38-41 Concrete Log Bollards 41 Concrete Rapid Set 142 Concrete Wheel Stops 5, 7 Cones - Traffic 141 Convex Mirrors 54-55 Corner Cube Reflectors 46 Corner Guards 101 Cube Bollards 39 Cushion Mats 128 Custom Logo Mats 128 Custom Signs 147, 157 D D Shackle 23 Dangerous Goods Signs 156 DDA Pedestrian Barrier 77 Deterrents - Skate Boarding 134 Disabled Space Bollards 20-21 Disabled Stencils 48-49 Do Not Operate Tags 140 Dock Bumper 102-103 Dock Fender 102-103 Dock Gates 94-96 Document Storage Box 105 Dome Cap - Bollards 23 Dome Mirrors 54-55 Door Signs 155 Dots - Car Park 46 Double Arm Boom Gate 95-96 Double Rail U Bollards 91 Double Safety Boom Gate 95-96 Double Sided Tape 140 Double Trolley Bays 50-53 Downpipe Guards 98-99 Driver Safe Zone Kits 89 Drop Over Cable Covers 132 E Emergency Exit Signs 153, 156 Emergency Signs 153 Entrance Matting 128-129 Epoxy - Tactile 121 Exit Signs 156 Expanding Barriers 114-117 Expansion Joint Covers 14-15 F Fencing 85 Fibreglass Tactiles 121 Fire Signs 153 Fire Warden Vests & Hats 139 First Aid Signs 153 First Aid Vests & Hats 139 Flammable Storage Cabinets 138 Flexible Bollards 43-44 Flexible Bunding 137 Flexible Traffic Separator 45 Flip Top Cable Covers 132 Floor Angle 100 Floor Sweep Absorbent 136 Fold Down Bollards 28-29 Forklift Barrier 82-88 G Gal Chain 23 Gal Corner Guard 101 Galvanised Bollards 22, 34-37 Gates 81, 83, 92-97 Gates - Alarmed 97 Gates - Boom 94-96 Gates - Mezzanine 94-96 Gates - Pedestrian 81, 83, 97 Gates - Swing 92-93 General Purpose Spill Kits 136 Gorilla Cones 141 Grit Topped Stair Nosing 126 Grout 142 Guard - Bumper 102-103 Guardrail W Beam 86-88 Guards - Corner 101 Guards - Dock Fender 102-103 Guards - Downpipe 98-99 Guards - Machinery 85 Guards - Perimeter 85 Guards - Rubber 102-103 H Hanging Bars 56-57 Hanging Bike Racks 69 Hazard Belt Barrier 110-113 Hazchem Signs 156 Height Bars 56-57 Holding Rail 90 Hoop Bike Racks 59 Hose Covers 132 I Impact Bollards 42-44 Impact Recovery Posts 143 Industrial Barriers 70-97 Industrial Belt Barriers 110-113 Industrial Gates 92-97 Industrial Mobile Barriers 114-115 Inground Bollards 19-22, 31, 34-37 Instant Pothole Repair 47 K Kerb Ramps 127, 130-131 Kerb Signs 5 Kerbing - Rubber 130-131 Key Operated Removable Bollards 24-25, 33 L Ladder Rung Covers 126 Lane Dividers 46 Lane Master Bollards 44 Letter Stencils 48 Line Marking Paint 47 Loading Dock Reversing Guides 100 Loading Dock Gates 94-96 Logo Mats 128 Low Clearance Bars 56-57 Low Recessed Barriers 84 M Machine Screening 85 Machine Guarding 85 Mandatory Signs 154 Manifest Cabinet 105 162 web www.areasafe.com.au sales 1300 889 821 email sales@areasafe.com.au INDEX

Matting 128-129 Max Clearance Bars 56-57 Megaphone 140 Megapoxy 46 Message Boards & Frames 119 Metal Speed Hump 12-13 Mezzanine Barrier 70-85 Mezzanine Gates 94-96 Micro Bike Racks 63 Mirrors - Convex 54 Mirrors - Dome 55 Modular Pedestrian Rail 70-81 Multi Bike Station 67 N Nosings - Skate Deterrents 135 Nosings - Stairs 124-126 Notice Signs 151 Number Stencils 48 O Oil Spill Kits 136 One-Piece Flexible Bollards 44 Out Of Service Tags 140 P P2 & P4 Bike Racks 63 Padlock Removable Bollards 27, 37 Paint - Line Marking 47 Pallet Bunds 137 Pallet Stops 100 Parking Sign Brackets 142 Parking Signs 146 Parking Space Protector 28-29 Pedestrian Barrier 70-97 Pedestrian Gates 81, 97 Pedestrian Kerb Ramps 127 Peel n Stick Tactiles 121 Perimeter Fence 85 Perimeter Guards 85 Pipe Guards 98-99 Plaslink Barrier 118 Plastic Bollards 44 Plastic Chain 23 Plastic Corner Guard 101 Plastic Mobile Folding Barrier 116 Plastic Speed Hump 9 Poles - Signage 143 Portable Barriers 114-118 Portable Signs 147 Post Sockets 143 Posts - Signage 143 PPE Signs 154 Prohibition Signs 150 Q Queue Control Barrier 106-110 R Rail - Bike Parking 61 Rail - Guard 86-88 Rail - Recessed 82-83 Railing 70-91 Raised Pavement Markers 46 Ramp Plates Anti Slip 126 Ramps 127, 130-131 Rapid Set Concrete 142 Rebound Bollards 42-44 Recessed Rail 82-84 Reflective Chain Sleeve Cover 23 Reflective Kerb Ramps 130-131 Reflective Tape 140 Removable Bollards 24-27, 33, 34, 37 Restricted Area Signs 152 Reversing Guides 100 Ring Bike Racks 59 Road Signs 145-146 Rope Stand Barriers 106-107 RPM’s 46 Rubber Backed Entrance Mats 129 Rubber Channel Hose Ramps 132 Rubber Column Guard 104 Rubber Corner Guards 101 Rubber Speed Hump 8, 9, 10, 11 Rubber Tactiles 121 Rubber Wall Protector 103 Rubber Wheel Stops 5 Rumble Bar 11 S Safe Zone Kits 89 Safety Barriers 70-97 Safety Bollards 16-37 Safety Chain 23 Safety Cushion Mats 128 Safety Machine Guarding 85 Safety Impact Strips 104 Safety Signs 148-156 Safety Tags 140 Safety Trench Cover 127 Safety Vests 139 Screening 85 Scooter Racks 61 SDS Folder 105 Security Signs 150 Shared Zone Bollards 20-21 Shock Absorbing Bollards 43 Shopping Centre Barriers 106-113 Showroom Barriers 106-110 Sign Bracing 142 Sign Brackets 142 Sign Post Sockets 143 Sign Posts 143 Signs 144-159 Signs - Bio Security 153 Signs - Braille 158-159 Signs - Car Park 145-149 Signs - Caution 157 Signs - Custom 157 Signs - Dangerous Goods 156 Signs - Door 155 Signs - Emergency 153 Signs - Emergency Exit 156 Signs - Exit 156 Signs - Fire 153 Signs - First Aid 153 Signs - Hazchem 156 Signs - Mandatory 154 Signs - Notice 151 Signs - Parking 146 Signs - Portable 147 Signs - PPE 154 Signs - Prohibition 150 Signs - Restricted Area 152 Signs - Road 145-146 Signs - Safety 148-156 Signs - Security 150 Signs - Speed 145, 147, 149 Signs - Stair Riser 157 Signs - Toilet Braille 158-159 Signs - Traffic Control 144 Signs - Trolley Bays 51 Signs - Vehicle & Safety Stickers 156 Signs - Waste Bins 155 Single Bike Hoop 59 Single Sided Ring Brackets 142 Single Trolley Bays 50-53 Skate Deterrents 134 Snap Frames 119 Sockets - Sign Post 143 Space Protector 28-29 Speed Cushion 11 Speed Hump 8-13 Speed Signs 145, 147, 149 Sphere Bollards 39 Spikes - Birds 135 Spill Bunding 137 Spill Kits 136 Spill Pallets 137 Stackable Bollards 141 Stainless Steel Bollards 30-31 Stainless Steel Corner Guard 101 Stainless Steel Mirrors 54-55 Stainless Steel Tactiles 123 Stair Nosing 124-126 Stair Riser Signs 157 Stanchions - Belt Barriers 108-110 Steel Speed Hump 13 Steel Warehouse Barrier 70-97 Steel Wheel Stops 7 Steelink Barrier 118 Stencils 48-49 Stoppers 4-7 Storage Box - Documents 105 Storage Cabinets - Flammable 138 Storage Cart - Belt Barriers 110 Studs - Skate Deterrents 134 Studs - Tactiles 123 Swing Gates 92-93 Swing Stand Signs 144 T T Top Bollards 141 Tactile Epoxy 121 Tactile Studs 123 Tactiles 120-123 Tactiles - Stainless Steel 123 Tags - Safety 140 Tall-Rail Safety Barrier 78-79 Tape - Anti-Slip 126 Tape - Barrier Red White 141 Tapes 126, 140, 141 TD1 Brackets 142 Toilet Signs 158-159 Traffic Cones 141 Traffic Control Signs 144 Traffic Separator 45 Trench Covers 127 Trolley Bays 50-53 Truck Reversing Guides 100 Truck Speed Hump 10, 13 Truck Stops 7 U U Bollards 90-91 Umbrella Bag Dispenser 135 Unisex Toilet Signs - Braille 158-159 V V Lock Sockets 143 Vehicle Kerb Ramps 130-131 Vehicle Stickers 156 Vests - Safety 139 W W Beam Guardrail 86-88 Wall Guard 101-104 Wall Mount Belt Barriers 112-113 Wall Mounted Bike Racks 69 Warden Vests & Hats 139 Warehouse Aisle Barriers 115 Warehouse Barriers 70-97 Warehouse Stencils 48-49 Wash Bay Bunding 137 Waste Bin Signs 155 Wheel Stop Signs 5 Wheel Stops 5, 7 Wheel Stops - Steel 7 Wrapper - Umbrella Bags 135 Y Yellow Bollards 16-27 Yellow Pedestrian Rails 70-73, 77, 78, 81, 83 Z Zebra Tape 140 163 email sales@areasafe.com.au web www.areasafe.com.au sales 1300 889 821 INDEX

BUILDING & CONSTRUCTION FACILITY MAINTENANCE & PROPERTY MANAGEMENT INDUSTRIAL SHOPPING CENTRES EDUCATION HEALTH & AGED CARE CLUBS & FUNCTION CENTRES TRANSPORT HUBS PARKS & LANDSCAPING STRATA & ACCOMMODATION Phone: 1300 889 821 Email: sales@areasafe.com.au Mail: PO Box 82, Plumpton NSW 2761 Address: 3 Jamieson Place, Glendenning NSW 2761 Hours: 7:00am - 5.00pm, Monday to Friday PHONE 1300 889 821 areasafe.com.au The Area Safe Group
