Optional Accessories

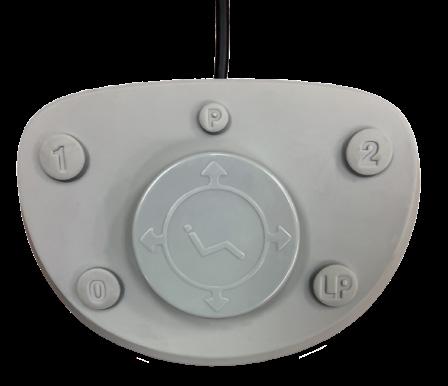

FOOT CONTROL
Rugged foot control with two presets and auto return. Durable Rubber cover around a metal shell, all weather!
TOUCHPAD OPTIONS
Three (3) presets, auto return, and multiple mounting options on chair or unit head.
Smooth Shape for easy antispetic wrap coverage and durable
LED ELLIPTICAL LIGHT
The LED Elliptical Light uses some of the most advanced LED technology in the industry to create a superior entry level LED light for the dental operatory. Replaceable LEDs ! Hands-Free activation
Amber II LED Dental Light
Power input: AC24V
Illuminance: 8000-40000 lux
Color temperature:
White Light............ 5200k
Yellow Light 3500k
Composite Light: 4400k-5200k
Power consumpion: <10W

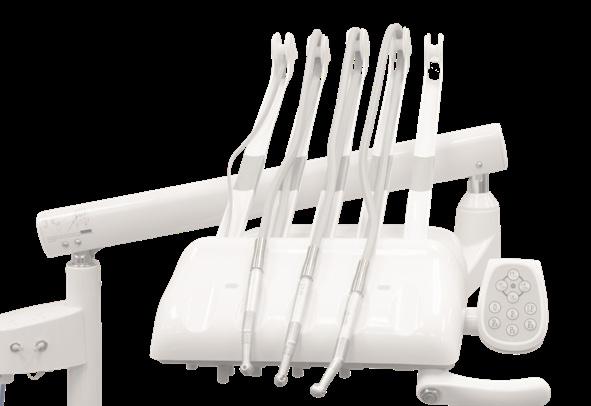

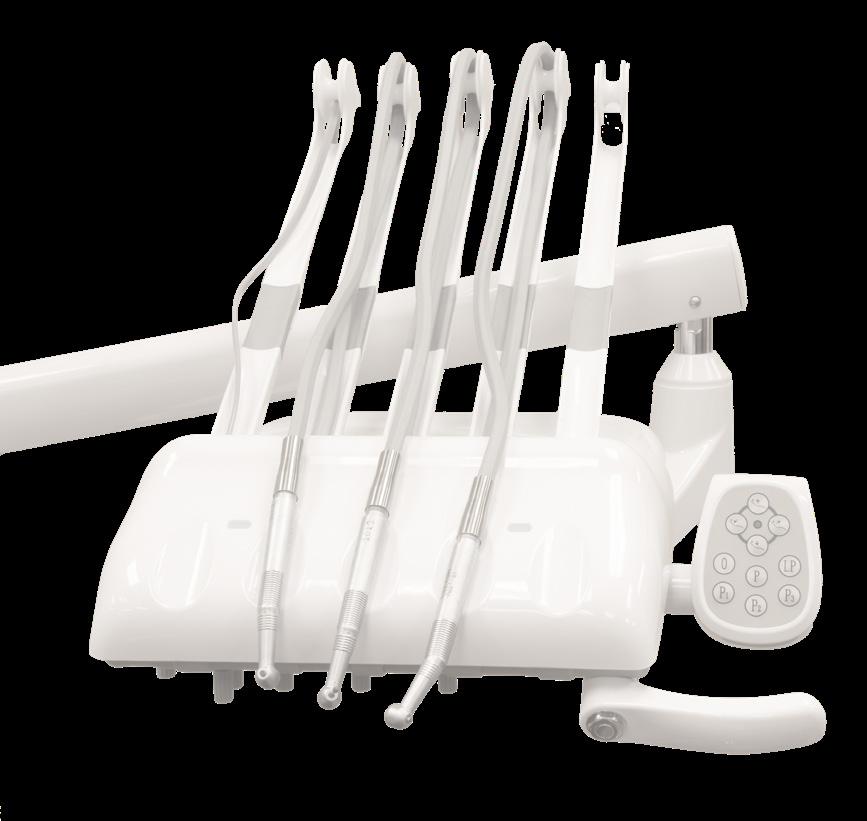

ADS Delivery Head Styles
Continental Delivery System
• Continental luxury dentist’s control head
• Cast aluminium delivery head base
• Double pivot delivery head
• 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry foot control
• Stainless steel tray with non-slip pad
Only for the Evolution or Contour Chair

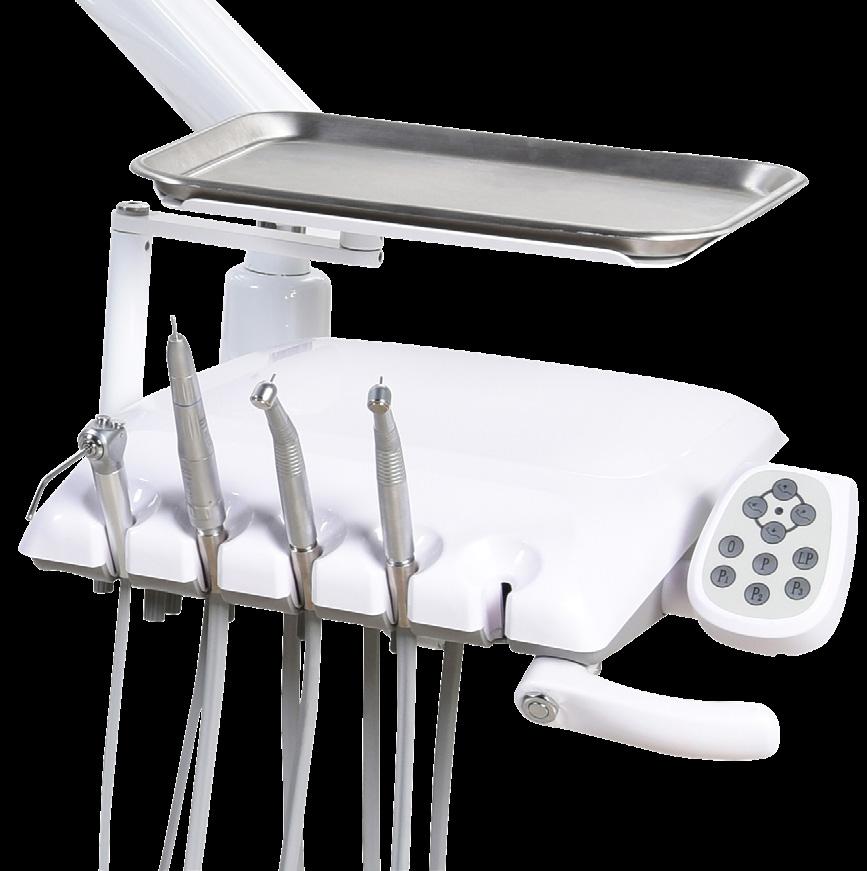

EURO Delivery System
• Luxury dentist’s control head
• Cast aluminium delivery head base
• Double pivot delivery head
• 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry foot control
• Stainless steel tray with non-slip pad
Only for the Evolution or Contour Chair
U.S. CLASSIC Delivery System
• Classic dentist’s control head with 3 auto H.P.
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry foot control
• Stainless steel tray with non-slip pad
• Flex arm air brake switch
Only for the Evolution or Contour Chair
The Evolution – E Motor Drive with
Standard Features

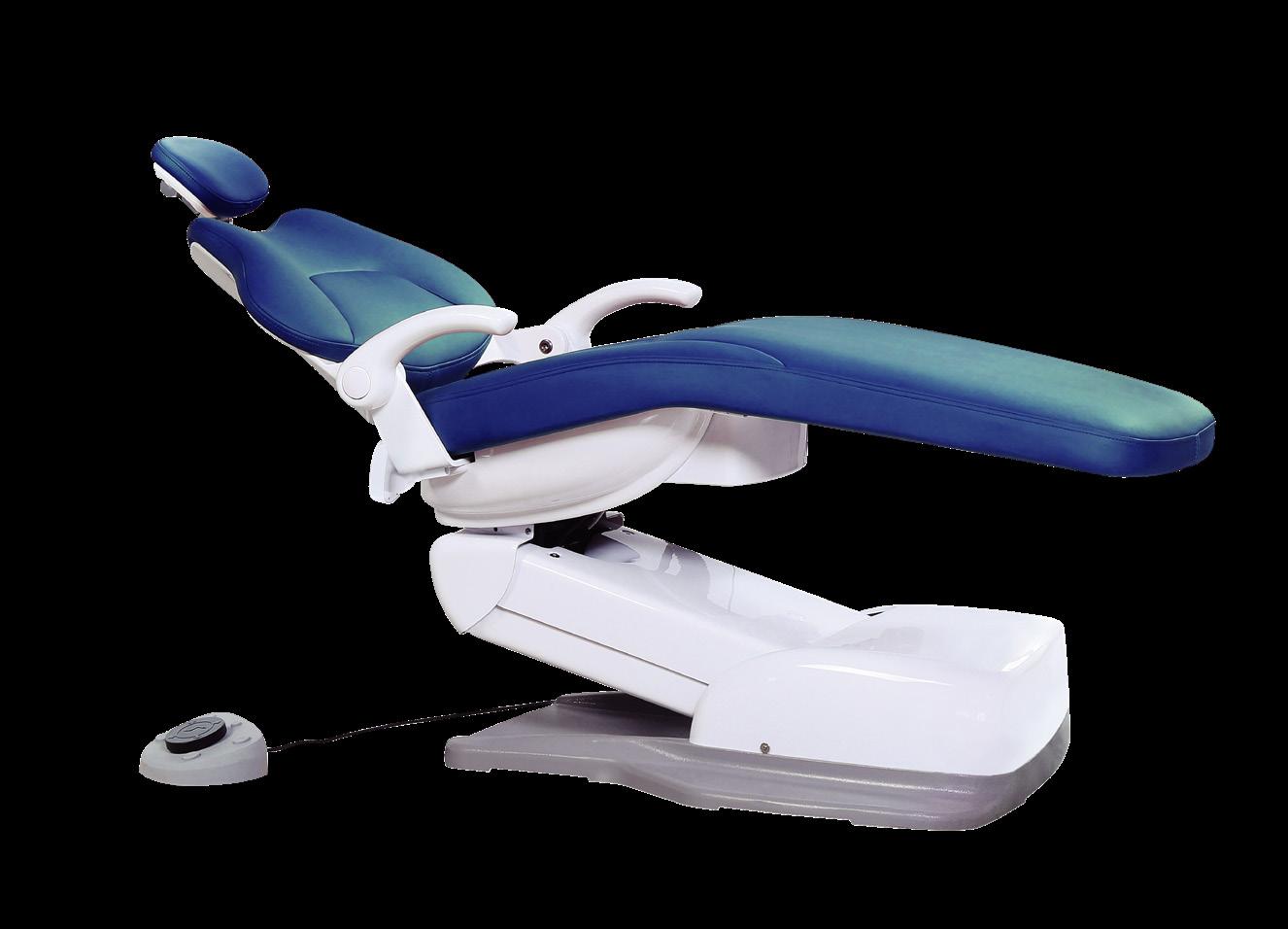

Evolution-E Electromechanical chair with 3 programmable positions
• Articulating headrest, Swing out armrest
• Steel backrest stand, Steel base plate, Chair safety switch
• Wide backrest, Upgraded fiber leather
• One touchpad, Foot control
• Classic dentist’s control head with 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, Wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
Specifications: Weight
Electrical requirements
400 lbs
AC110V+22v 50HZ, 60HZ
50H2-, 60HZ;
Max Patient Load
Steel Backrest Stand, Steel Base Plate
The Contour Chair – Narrow Back
Contour Narrow Back
Standard Features
Hydraulic Chair with 3 programmable positions
• Articulating headrest

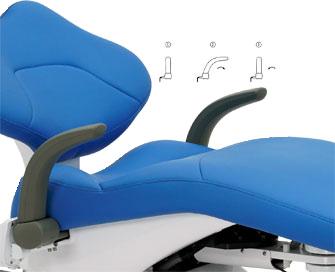

• Swing up/down aluminum armrest
• Narrow backrest, upgraded fiber leather
• Cast iron chair frame
• Steel backrest stand
• Steel base plate
• 60 degrees seat rotation, chair safety switch
• One touchpad attached on armrest, Foot control
Specifications:
Weight 641bs; Max patient load ............................ 550Ibs; Electrical requirements ....................... AC110V±22V; 50H2-, 60HZ;
Chair Highlights
Max Patient Load

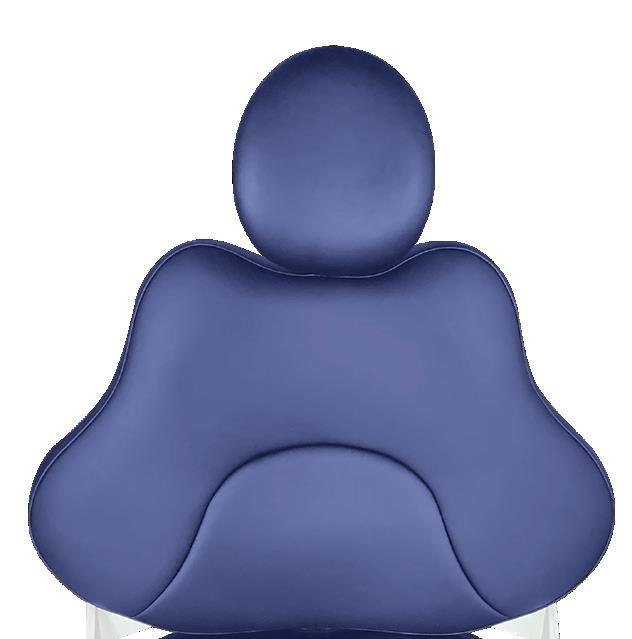

Thin Wide Back
Foot
Standard Features
Luxury hydraulic chair with 3 programmable positions
• Articulating headrest
• Swing up/down aluminium armrest
• Wide backrest, upgraded fiber leather
• Cast iron chair frame
• Cast aluminium backrest stand
• Cast aluminium base
• 60 degrees seat rotation, chair safety switch
• One touchpad attached on armrest, Foot control
Specifications:
Weight 366Ibs; Max patient load ............................ SS0lbs; Electrical requirements ....................... ACl 10V±22V; S0HZ, 60HZ;
Chair Highlights
Max Patient Load
The Apex Hydraulic Chair
Contour Narrow Back
Foot control
Standard Features
• Apex Euro Swing chair with 3 programmable positions

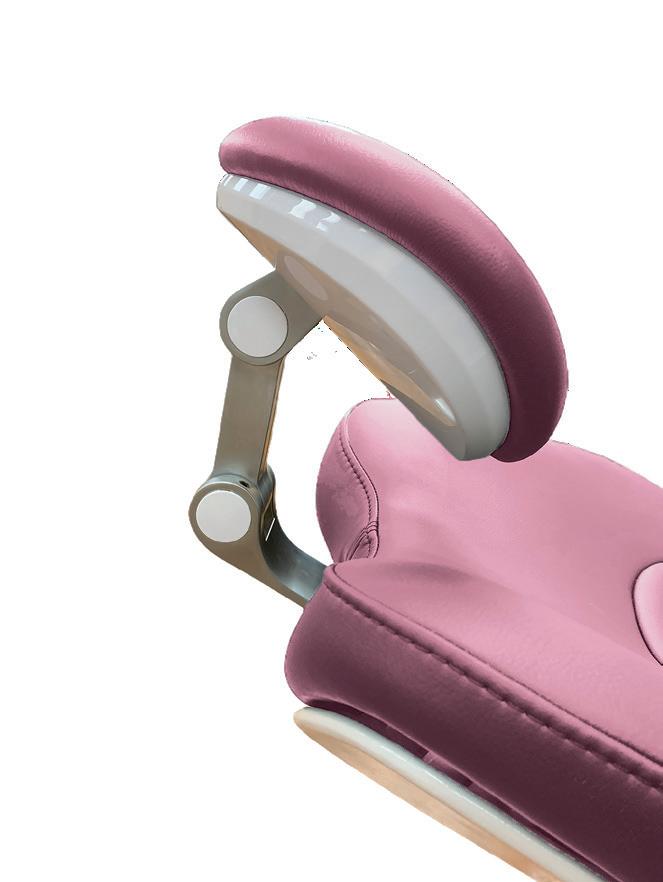

• Double articulating headrest
• Swing up/down iron armrest
• Cast iron chair frame
• Cast iron backrest stand
• Cast aluminum base
• Wide backrest, upgraded fiber leather
• 60 degrees seat rotation, chair safety switch
• One touchpad, foot control
• Apex Euro Swing luxury dentist’s control head, standard touchpad
• Cast aluminum delivery head base, double pivot delivery head, with 3 auto H. P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master handpiece air coolant ajustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
• Apex Euro Swing post mounted utlity (PMU) with silver side box
• City water/bottled system, water outlet, and air QD
• Swing assistant tray with touchpad
• Solid collector
• 2 HVE, 1Se, 1 syringe
• Aluminum base junction box with air/water filter, regulators, master shut-off valves
• 5 ft umbilical
• Post-mount LED light with sensor control, 3 level intensity adjustment
Chair Highlights
Max Patient Load

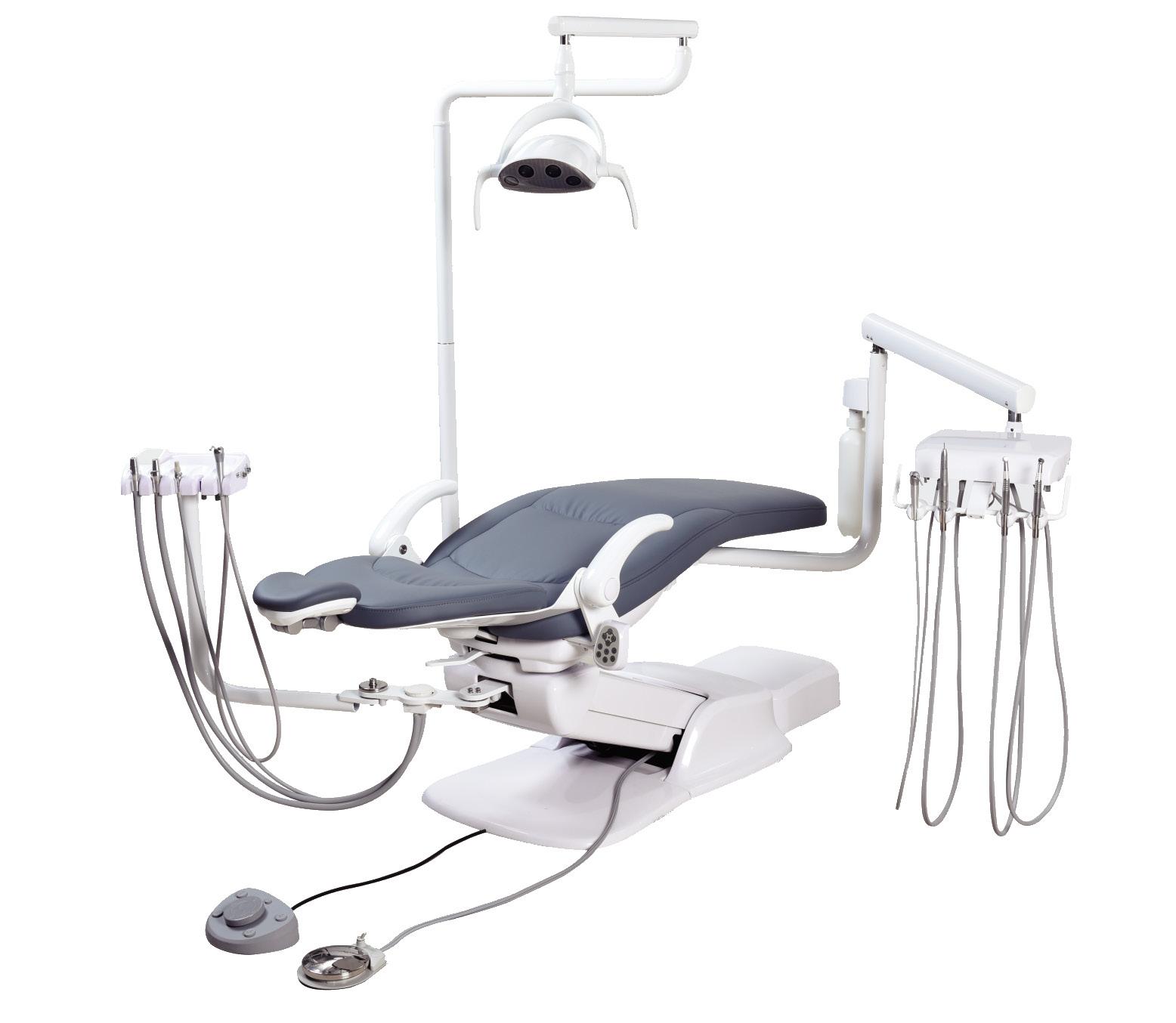

The Evolution Hydraulic Wideback
Contour Narrow Back
Standard Features
• Apex Euro Swing chair with 3 programmable positions
• Double articulating headrest
• Swing up/down iron armrest
• Wide backrest, upgraded fiber leather
• Cast iron chair frame
• Cast iron backrest stand
• Cast aluminum base
• 60 degrees seat rotation, chair safety switch
• One touchpad, foot control
• Apex Euro Swing luxury dentist’s control head, standard touchpad
• Cast aluminum delivery head base, double pivot delivery head, with 3 auto H. P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master handpiece air coolant ajustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
• Apex Euro Swing post mounted utlity (PMU) with silver side box
• City water/bottled system, 5 ft umbilical
• Swing assistant tray with touchpad
• Solid collector, 2 HVE, 1SE, 1 syringe
• 2 HVE, 1Se, 1 syringe
• Aluminum base junction box with air/water filter, regulators, master shut-off valves
• Post-mount LED light with sensor control, 3 level intensity adjustment
• Chair mounted swing rear ssistant vacuum package
• Assistant touchpad, water outlet and air QD on assistant tray 550
Max Patient Load Chair Highlights
Standard Features
Electromechanical chair with 3 programmable positions
• Articulating headrest, Swing out armrest
• Steel backrest stand, Steel base plate, Chair safety switch
• Wide backrest, Upgraded fiber leather
• One touchpad, Foot control
• Classic dentist’s control head with 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, Wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
• Classic 100 Post mounted utility (PMU) with steel side box
• City water/bottled system, Water outlet and air QD
• Solids collector
• 2 HVE, 1 SE, 1 syringe on telescoping assistant’s control
• Junction box with air/water filters, regulators, master shut-off valves
• 5 ft. umbilical
• Post mount LED light with sensor control, 3 level intensity adjustment
Popular Add-ons
Evolution – E Radius
Standard Features
Electromechanical chair with 3 programmable positions
• Articulating headrest, Swing up/down aluminium armrest
• Narrow backrest, upgraded fiber leather, Cast iron chair frame
• Steel backrest stand, Steel base plate
• 60 degrees seat rotation, chair safety switch
• One touchpad, Foot control
• Swing Classic dentist’s control head with 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry foot control, Stainless steel tray with non-slip pad
• City/bottled water system, 5 fl umbilical
• Junction box with air/water filters, regulators, master shut.off valves
• Chair mounted swing rear assistant vacumm package
• Water outlet and air QD on assistant tray, Solids collector
• 2 HVE, 1SE, 1 syringe
• Post mount LED light with sensor control, 3 level intensity adjustment
Popular Add-ons
Built-in Piezo Scaler
LED Optic System

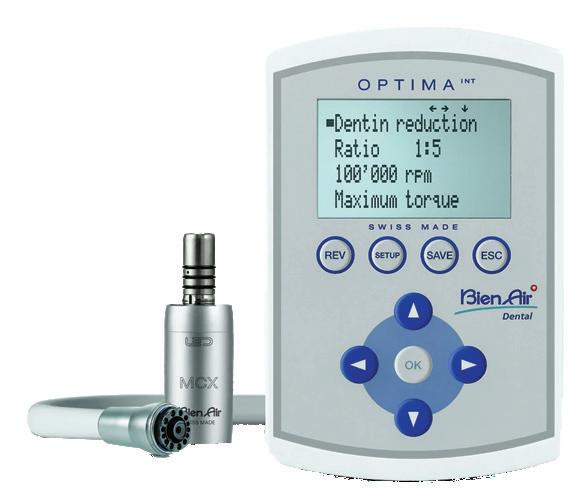

Bien Air Electric Handpiece
Standard Features
Hydraulic chair with 3 programmable positions
• Articulating headrest, Swing up/down aluminium armrest
• Narrow backrest, upgraded fiber leather, Cast Iron chair frame
• Steel backrest stand, Steel base plate
• 60 degrees seat rotation, chair safety switch
• One touchpad, Foot control
• Classic dentist’s control head with 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing, Handpiece flush system
• Master on/off switch, 1 doctor syringe, Wet/Dry foot control
• Stainless steel tray with non•slip pad, Flex arm air brake switch
• Classic 100 Post mounted utility (PMU) with steel side box
• City water/bottled system, Water outlet and air QD
• Solids collector
• 2 HYE, 1 SE, 1 syringe on telescoping assistant’s control
• Junction box with air/water filters, regulators, master shut-off valves
• 5 ft. umbilical
• Post mount LED light with sensor control, 3 level intensity adjustment
Popular Add-ons
Bien Air Electric Handpiece
Standard Features
Hydraulic chair with 3 programmable positions
• Articulating headrest, Swing up/down aluminium armrest
• Narrow backrest, upgraded fiber leather, Cast Iron chair frame
• Steel backrest stand, Steel base plate
• 60 degrees seat rotation, chair safety switch
• One touchpad, Foot control
• Swing Classic dentist’s control head with 3 auto H.P. control
• lndividual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry foot control, Stainless steel tray with non-slip pad
• City/bottled water system, 5 ft umbilical
• Junction box with air/water fitters, regulators, master shut-off valves
• Chair mounted swing rear assistant vacumm package
• Water outlet and air QD on assistant tray
• Solids collector
• 2 HYE, 1SE, 1 syringe
• Post mount LED light with sensor control, 3 level intensity adjustment
Popular Add-ons
Bien Air Electric Handpiece
Built-in Piezo Scaler
Optic System

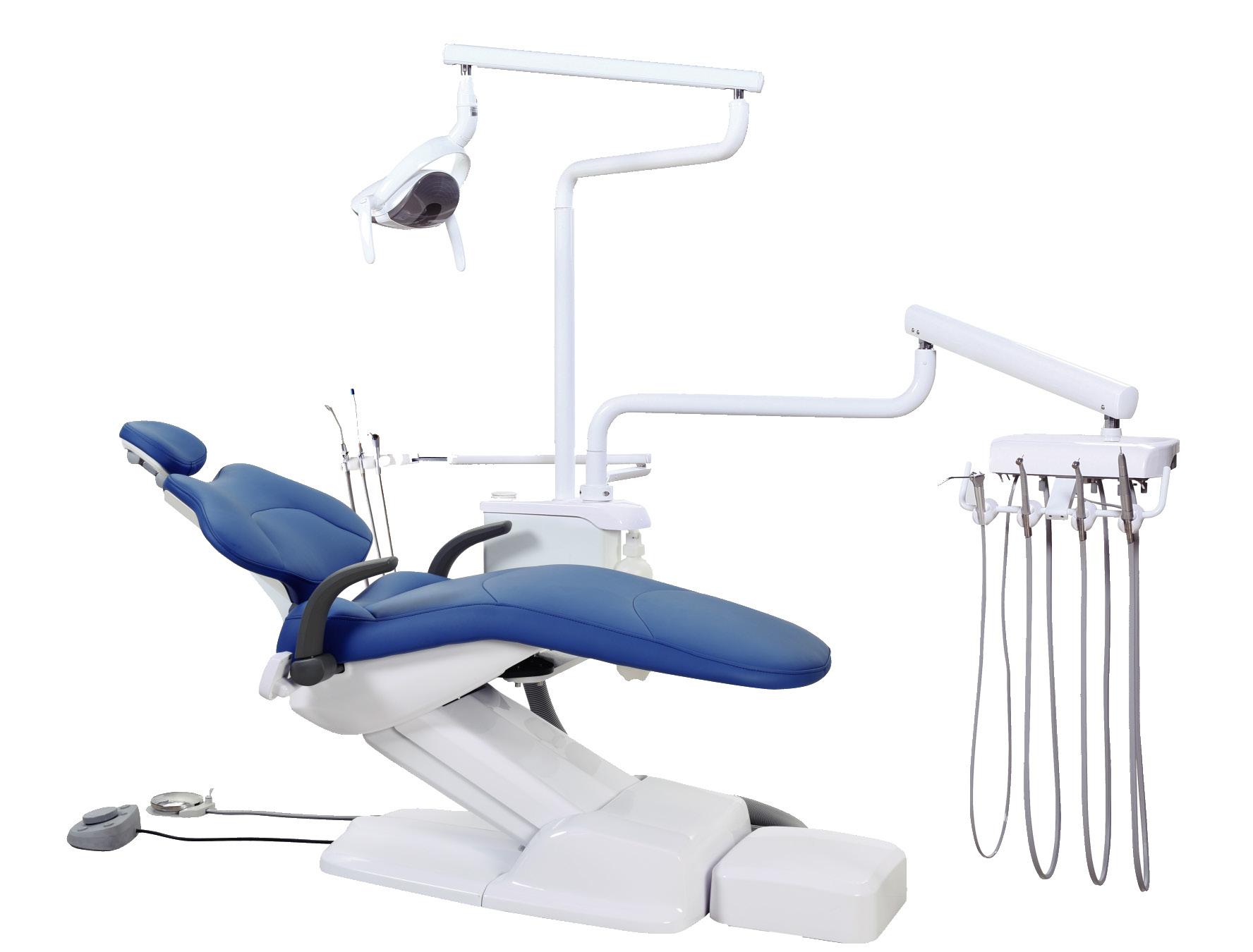

Evolution – 1000 Package
Optonal: Delivery System
Standard Features
Luxury Hydraulic chair with 3 programmable positions
• Articulating headrest, Swing up/down aluminium armrest
• Wide backrest, upgraded fiber leather, Cast Iron chair frame
• Cast aluminium backrest stand, Cast aluminium base
• 60 degrees seat rotation, chair safety switch
• One touchpad, Foot control
• Classic dentist’s control head with 3 auto H.P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, Wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
• Classic 100 Post mounted utility (PMU) with steel side box
• City water/bottled system, Water outlet and air OD, Solids collector
• 2 HVE, 1SE. 1 syringe on telescoping assistant’s control
• Junction box with air/waterillters, regulators, master shut-off valves
• 5 ft. umbilical
ARCHERDENTA
• Post mount LED light with sensor control, 3 level intensity adjustment
Popular Add-ons
LED Optic System
Bien Air Electric Handpiece

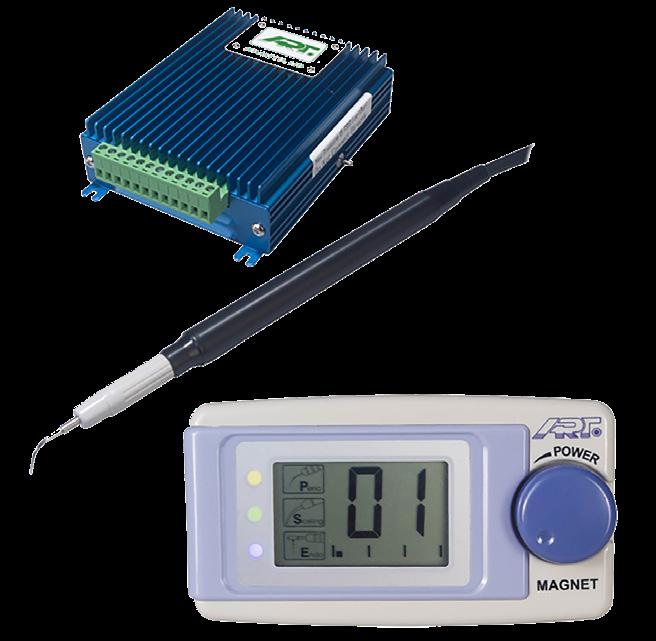

Built-in Magnetostrictive Scaler
Built-in Piezo Scaler
Touch Pad

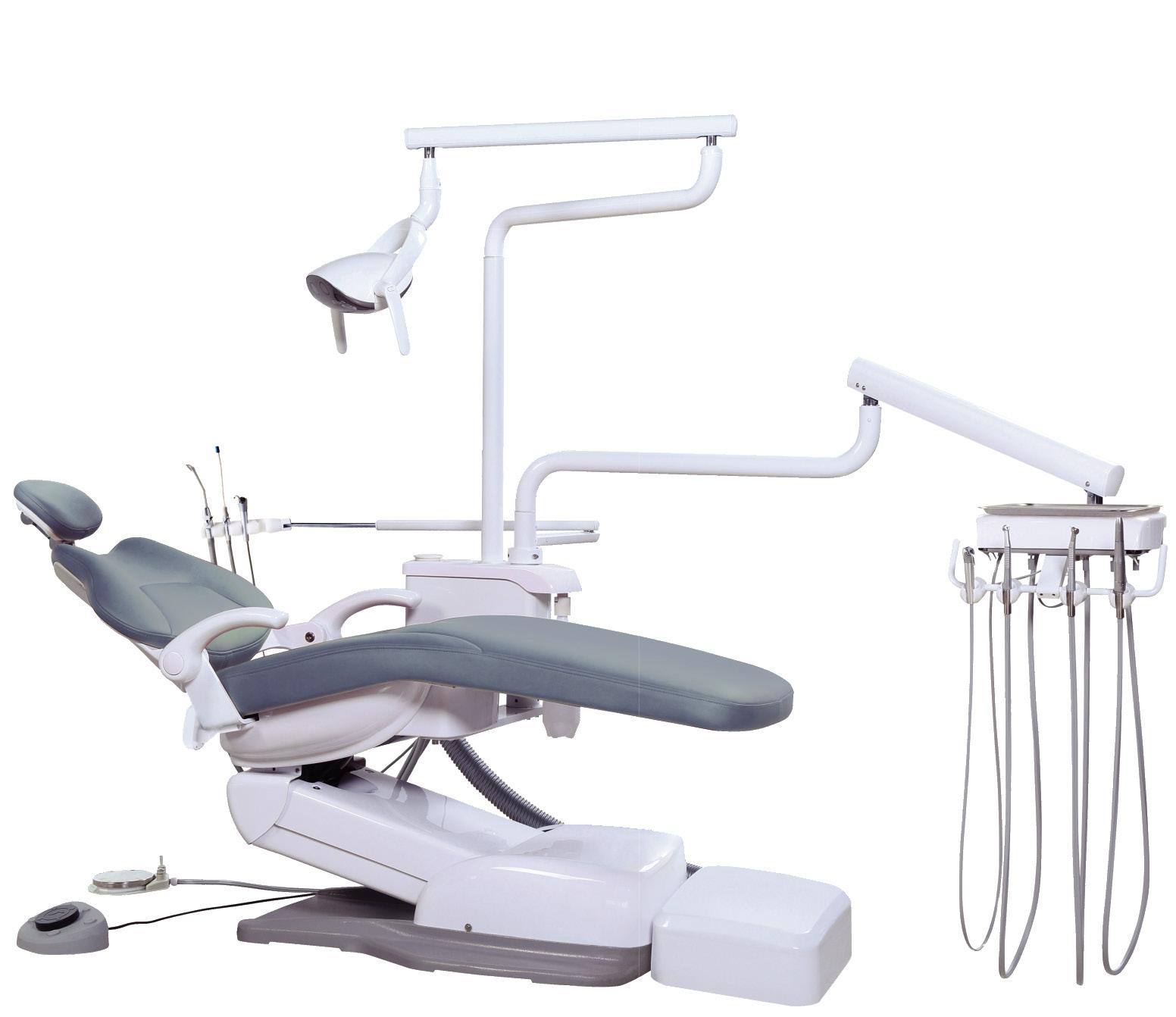

Evolution – 180 Radius Swing
Optonal: Delivery System

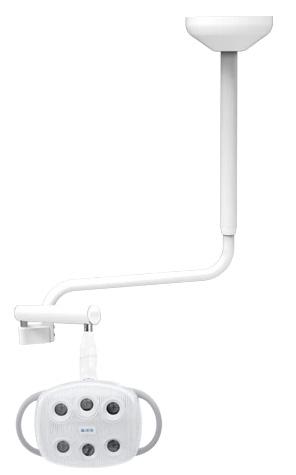

Optonal: Amber II LED Dental Light
Standard Features
Luxury Hydraulic chair with 3 programmable positions
• Articulating headrest, Swing up/down aluminium armrest
• Wide backrest, upgraded fiber leather. Cast Iron chair frame
• Cast aluminium backrest stand, Cast aluminium base
• 60 degrees seal rotation, chair safety switch
• One touchpad, Foot control
• Swing Classic dentist’s control head with 3 auto H.P. control
• lndivldual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece lubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry fool control, Stainless steel tray with non•slip pad
• City/bottled water system. 5 ft umbilical
• Junction box with air/water fitters, regulators, master shut off valves
• Chair mounted swing rear assistant vacumm package
• Water outlet and air QD on assistant tray
• Solids collector
• 2 HYE, 1SE, 1 syringe
• Post mount LED light with sensor control, 3 level intensity adjustment
Popular Add ons
LED Optic System
Bien Air Electric Handpiece Built-in Magnetostrictive Scaler
Built-in Piezo Scaler
Evolution – Euro 180 Swing
Optonal: Delivery System
Optonal: Amber II LED Dental Light
Standard Features
Luxury hydraulic chair, with 3 programmable positions
• Articulating headrest, Swing up/down aluminium armrest
• Wide backrest, upgraded fiber leather, Cast Iron chair frame
• Cast aluminium backrest stand, Cast aluminium base
• 60 degrees seat rotation, chair safety switch
• One touchpad attached on armrest, Foot control
• Swing Beyond dentist’s control head, Standard touchpad
• Cast aluminium delivery head base, double pivot delivery head
• 3 auto H.P. control, Individual water coolant controls
• Master handpiece air coolant adjustment, Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe
• Wet/Dry foot control, Stainless steel tray with non-slip pad
• City/bottled water system, 5 fl umbilical
• Junction box with air/water filters, regulators, master shut-off valves
• Chair mounted swing rear assistant vacumm package
• Assistant touchpad, Water outlet and air QD on assistant tray
• Solids collector, 2 HVE, 1SE, 1 syringe
• Post mount LED light with sensor control, 3 level intensity adjustment
ARCHERDENTA
Popular Add-ons
LED Optic System
Bien Air Electric Handpiece
Built-in Piezo Scaler

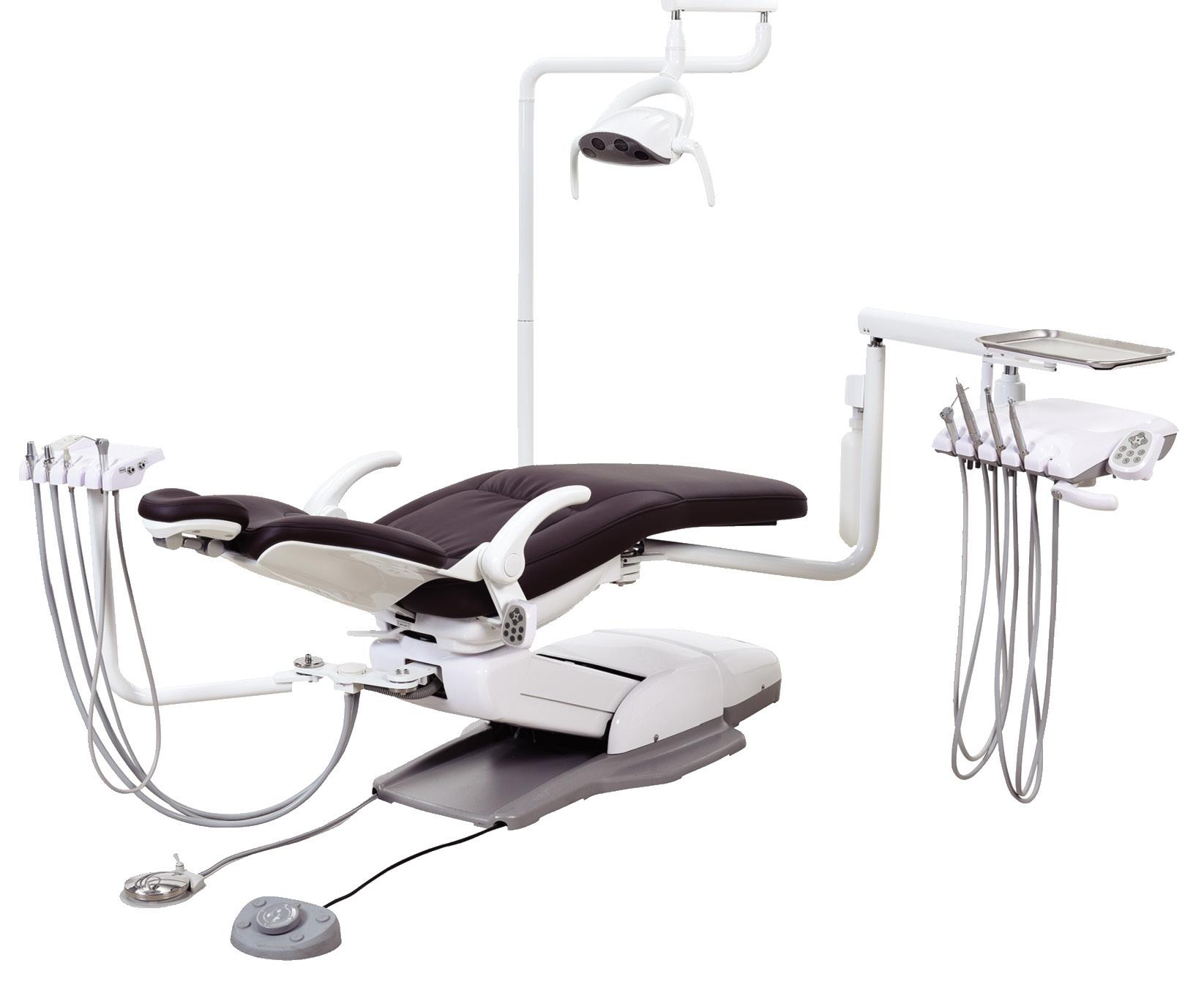

The Apex Euro Swing
Standard Features
• Apex Euro Swing chair with 3 programmable positions
• Double articulating headrest
• Swing up/down iron armrest
• Cast iron chair frame
• Cast iron backrest stand
• Cast aluminum base
• Wide backrest, upgraded fiber leather
• 60 degrees seat rotation, chair safety switch
• One touchpad, foot control
• Apex Euro Swing luxury dentist’s control head, standard touchpad
• Cast aluminum delivery head base, double pivot delivery head, with 3 auto H. P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master handpiece air coolant ajustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
• Apex Euro Swing post mounted utlity (PMU) with silver side box
• City water/bottled system, water outlet, and air QD
• Swing assistant tray with touchpad
• Solid collector
• 2 HVE, 1Se, 1 syringe
• Aluminum base junction box with air/water filter, regulators, master shut-off valves
• 5 ft umbilical
• Post-mount LED light with sensor control, 3 level intensity adjustment
Popular Add-ons
Bien Air Electric Handpiece
LED Optic System
ARCHERDENTA
Built-in Piezo Scaler
• Apex Euro Swing chair with 3 programmable positions
• Double articulating headrest
• Swing up/down iron armrest
• Wide backrest, upgraded fiber leather
• Cast iron chair frame
• Cast iron backrest stand
• Cast aluminum base
• 60 degrees seat rotation, chair safety switch
• One touchpad, foot control
• Apex Euro Swing luxury dentist’s control head, standard touchpad
• Cast aluminum delivery head base, double pivot delivery head, with 3 auto H. P. control
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master handpiece air coolant ajustment
• Asepsis handpiece tubing
• Master on/off switch, 1 doctor syringe, wet/Dry foot control
• Stainless steel tray with non-slip pad, Flex arm air brake switch
• Apex Euro Swing post mounted utlity (PMU) with silver side box
• City water/bottled system, 5 ft umbilical
• Swing assistant tray with touchpad
• Solid collector, 2 HVE, 1SE, 1 syringe
• 2 HVE, 1Se, 1 syringe
• Aluminum base junction box with air/water filter, regulators, master shut-off valves
• Post-mount LED light with sensor control, 3 level intensity adjustment
• Chair mounted swing rear ssistant vacuum package
• Assistant touchpad, water outlet and air QD on assistant tray
Popular Add-ons
Standard Features
• Chrome plated pneumatic cylinder
• Height Adjustment
• Backrest forward-backward adjustment
• Seat surface adjustment
• Contoured seat & back
• Fiber leather upholstery
• Cast Aluminum star
• Quiet twin wheel casters
• Easy to change casters!
• Common diameter caster for adaptation to special flooring!
• 1-Year Warranty
Color Chart
Fiber leather
Brown U1
Grey U5
Orange U8
Champagne U2
Cobalt Blue U6
Wine Red U10
Blue U3
Misty Grey U7
Black U14
The Ultra Assistant Stool
Standard Features
• Round Seat
• Sturdy Elevated Armbar
• Fiber leather upholstery
• Chrome plated pneumatic cylinder
• Adjustable chrome foot ring
• Cast aluminum star
• Ratcheting body support
• Quiet Twin Wheel Casters
• Easy to change casters!
• Common diameter caster for adaptation to special flooring!
• 1 Year Warranty
Color Chart
Fiber leather
Brown U1
Grey U5
Orange U8
Champagne U2
Cobalt Blue U6
Wine Red U10
Blue U3
Misty Grey U7
Black U14
