Architecture | Landscape | Urbanism
Selected Works 2020-2024
Archana Menath
I believe Architecture is a Way of Life
ACADEMIC PROJECTS
CONTENTS
1 2 3
REVIVE & RECONNECT
Thesis - Heritage Regeneration & Adaptive Reuse
COMPETITION IDEA
4
5
SPINE
Advanced Architectural Design
UNVEIL
Landscape Design
PROFESSIONAL WORKS
6
CO-TRIBE
An Urban Co-Living Space
IL BORGO
A Rural Co-Living Experience
YASHODA Hi-Tech Hospital - Hyderabad, India
FULVIO TESTI - Milan, Italy
5
REVIVE & RECONNECT 1
THE HISTORICAL PERMANENIES OF PORTO DI MARE
Location: Porto di Mare, Milan, Italy
Type: Thesis -Heritage Regeneration & Adaptive Reuse
Tutors: Paola Nella Branduini
Co-Author : Claudia Levina
Located in southeast Milan, Porto di Mare faces neglect and safety concerns despite its rich history tied to agricultural traditions and architectural landmarks.
Our thesis project aims to revive these historical elements, rejuvenating the area for contemporary and future relevance. We’ll repurpose structures, revive Marcita cultivation, and collaborate with locals to stimulate economic growth and foster community connections. Our vision includes creating communal spaces, promoting cultural exchange, and boosting tourism while preserving Porto di Mare’s heritage. Ultimately, we aim to establish Porto di Mare as a hub for heritage-led tourism, regeneration, and sustainable development, ensuring its resilience and vitality for the future.

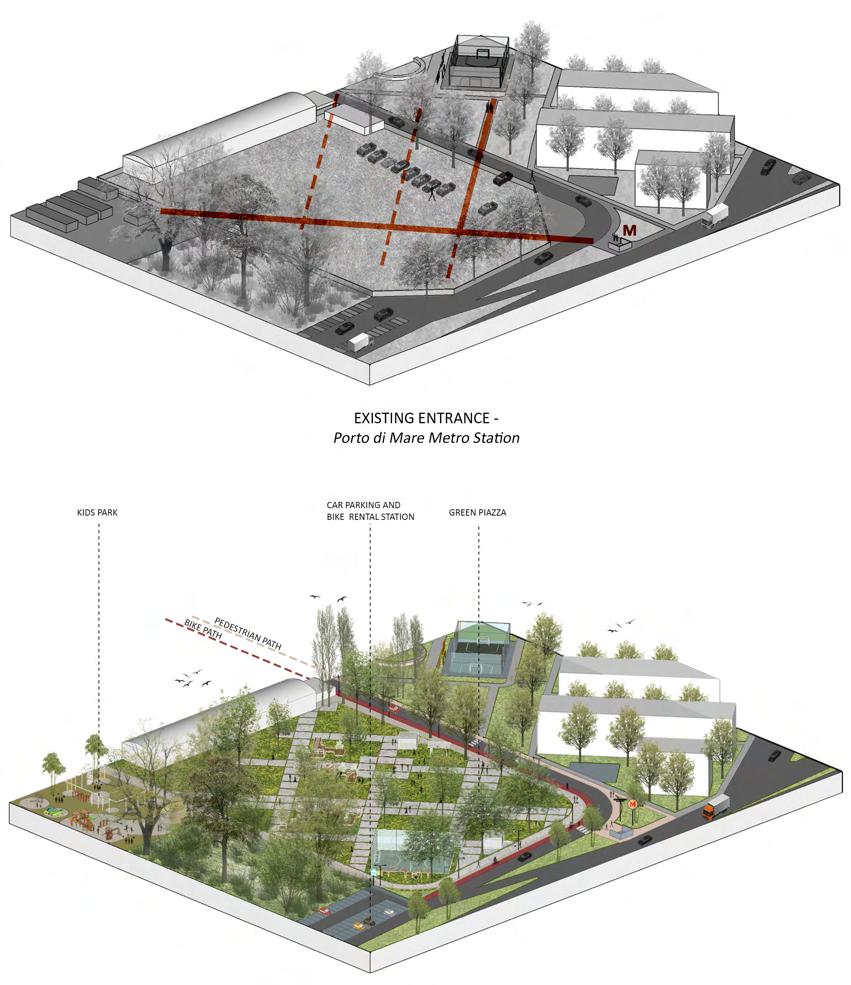

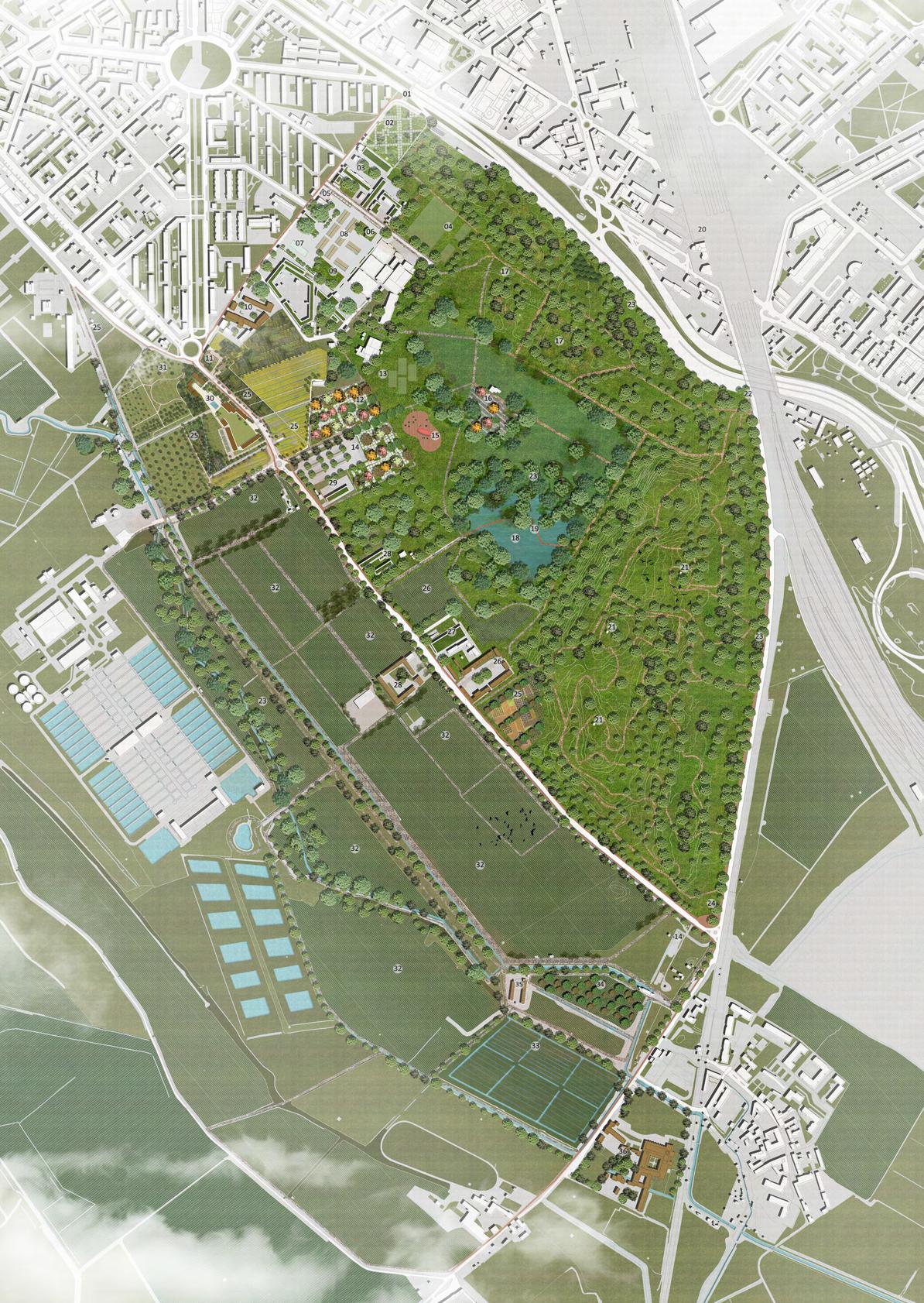

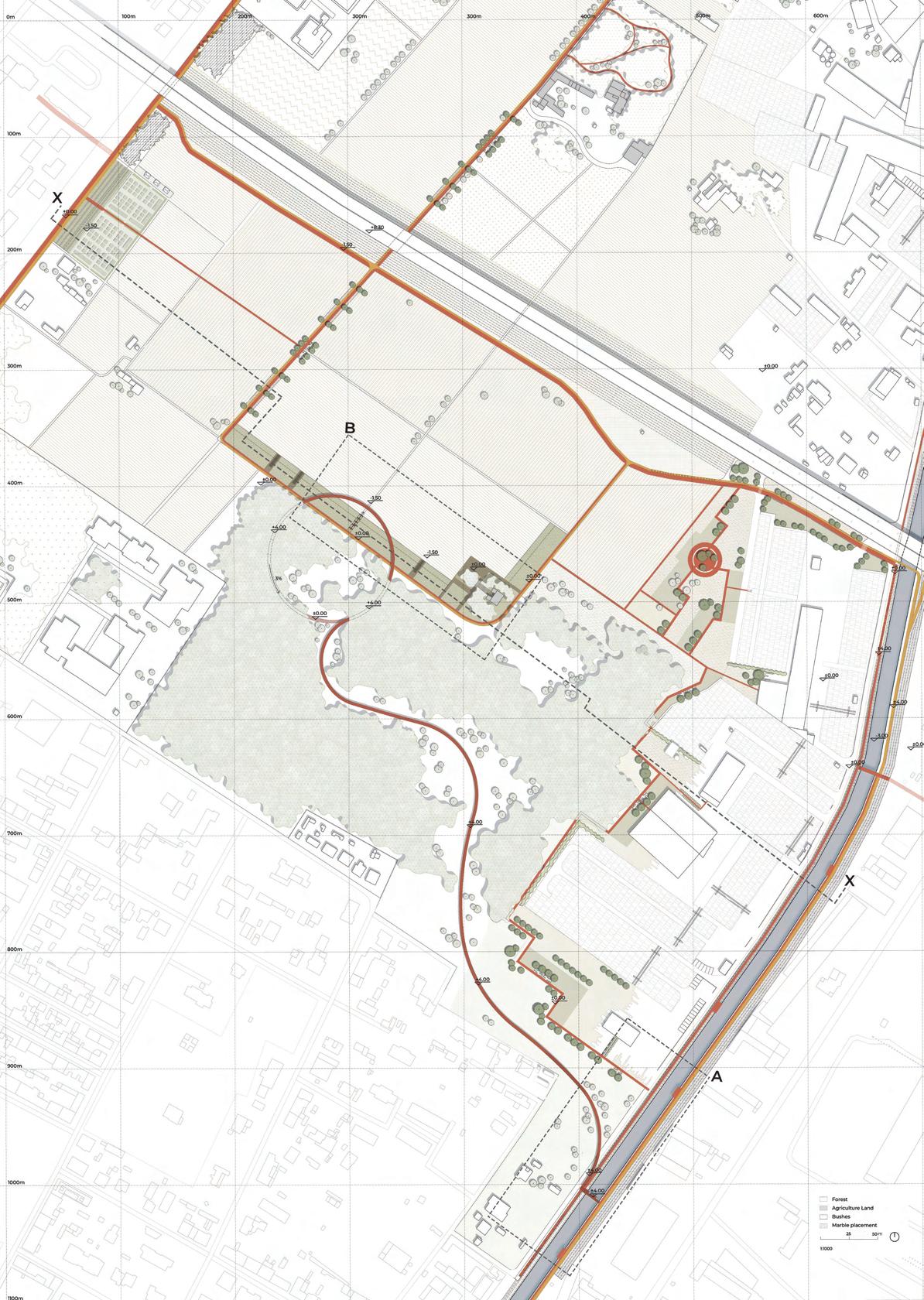

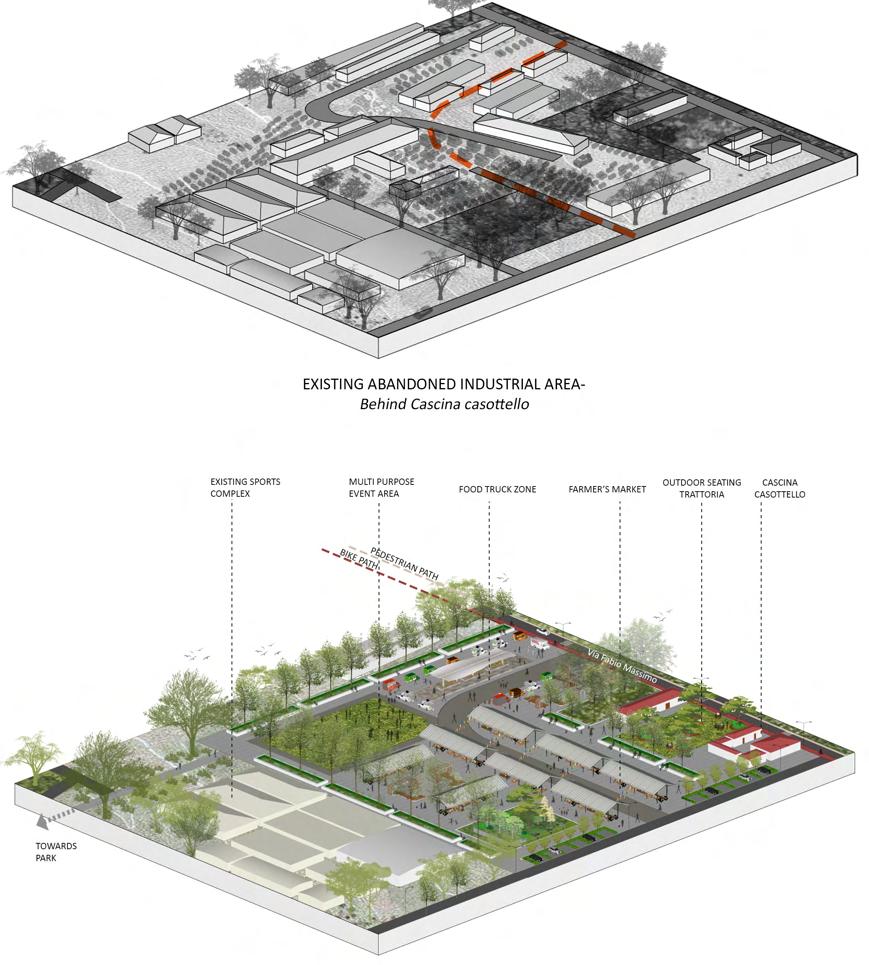

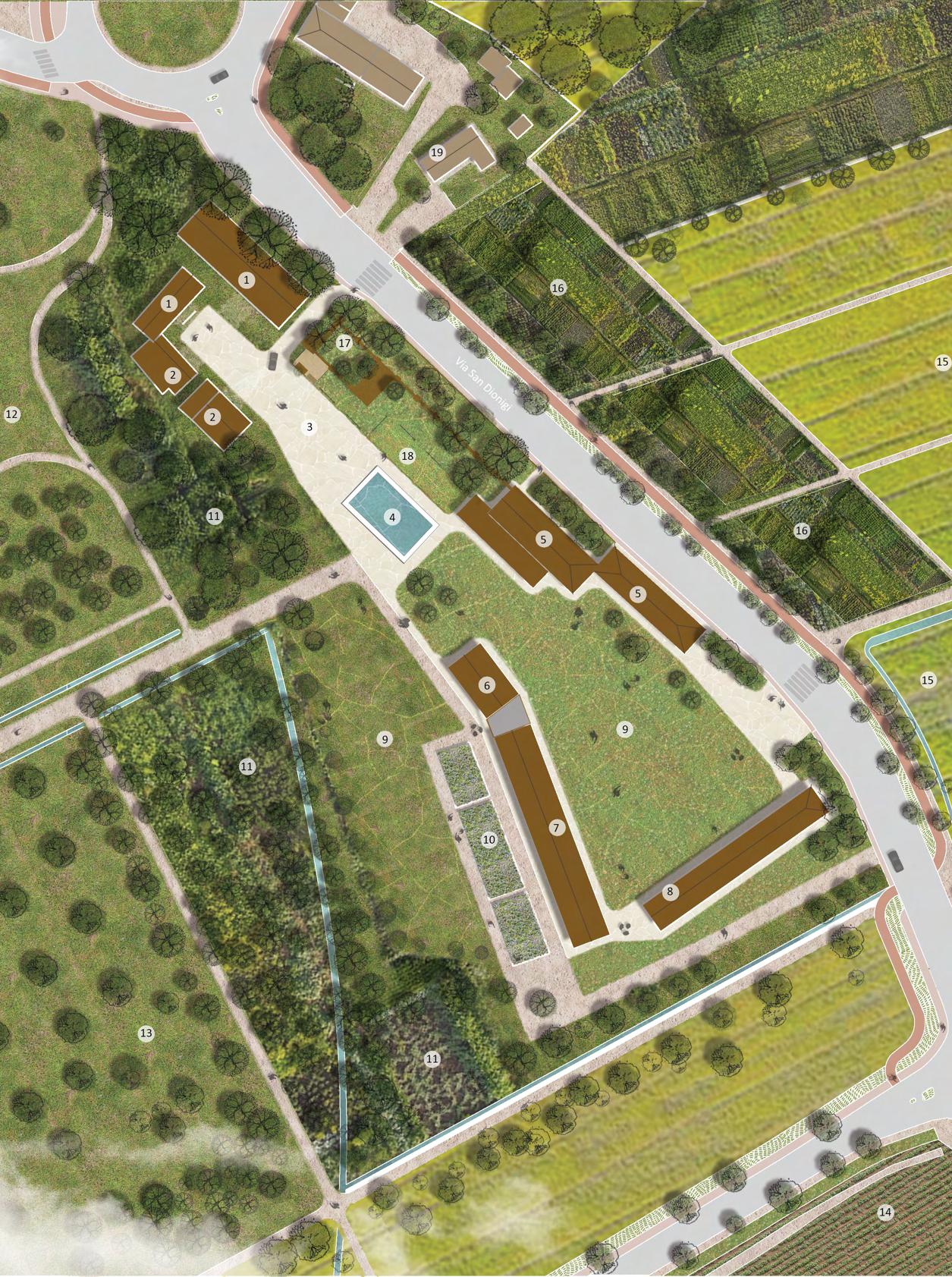

LEGENDS 01. Porto di Mare Metro Station 02. Entrance Piazza 03. Existing Sport Building Facility 04. Existing Sport Field 05. Cascina Casottelo 06. Outdoor Seating Area 07. Food Truck Area 08. Farmer’s Market 09. Multipurpose Event Area 10. Cascina San Nazzaro 11. Cacina Nocetum 12 Orchard 13. Sport Field 14. Parking Area 15. Playground 16. Apiary 17. Camping Area & Adventure park 18. Wetland 19. Viewing Bridge 20. Milano Rogoredo Train Station 21. Viewpoint Platform 22. Entrance from Milano Rogoredo Station 23. Buffer Zone 24. Entrance from Via S. Dionigi 25. Community Garden and Orchards 26. Cascina Carpana (Home for DAD, Honey production) 27. Green House and Research Center 28. Cascina Grande (Horse stable, Horse riding, Library) 29. Information Center 30. Cacina Nosedo (Farmstay, cafe, souvenir shop, office) 31. Existing Park 32. Agriculture Field 33. Marcita 34. Existing Ancient Orchard 35. Cascina San Bernardo (Stable for Cows, Cheese Production, Educational Center) 36. Chiaravalle Abbey

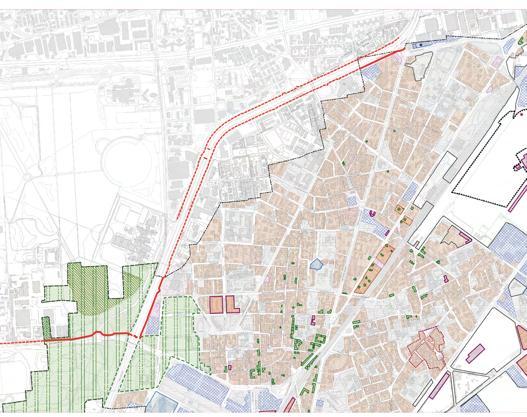

STRATEGY

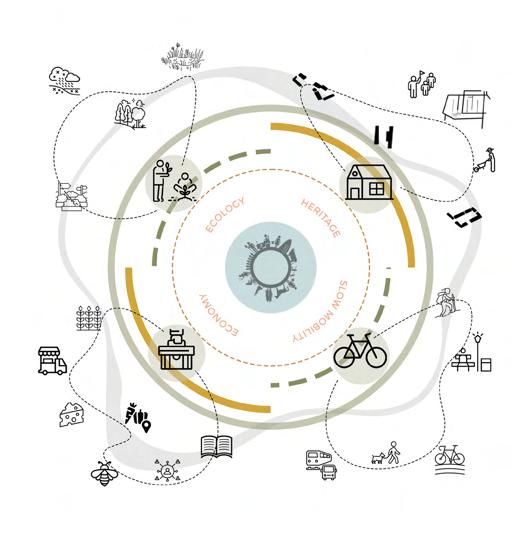

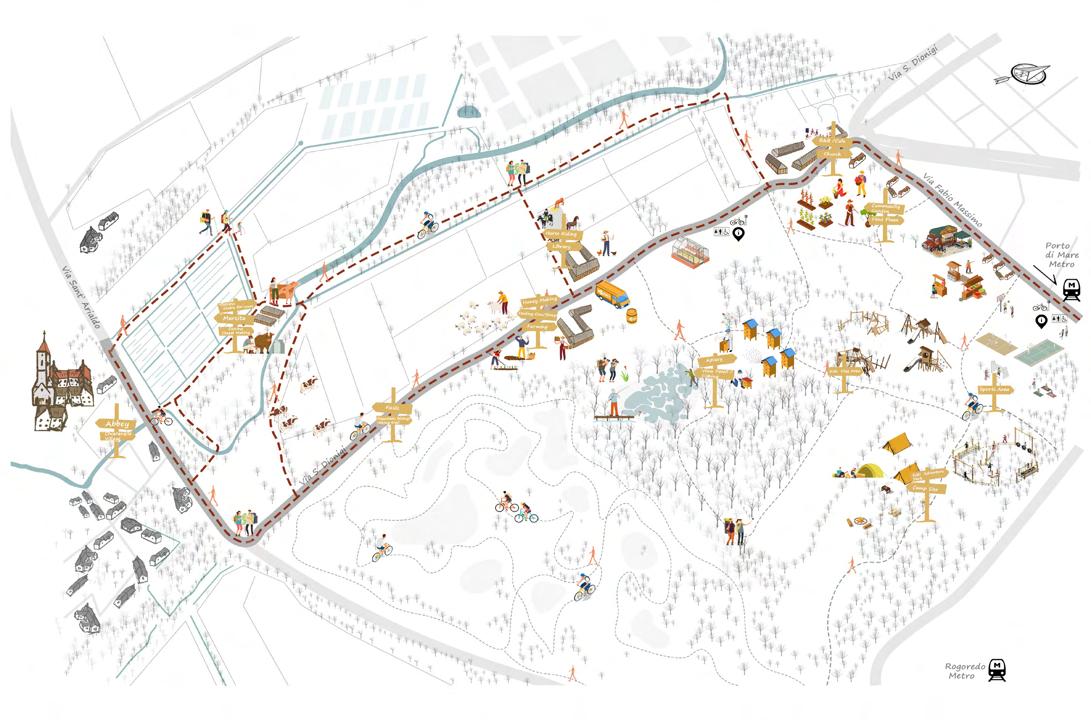

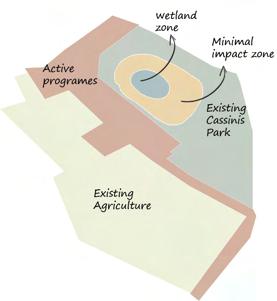

“ECOLOGICAL HARMONY” - ZONING FOR SUSTAINABLE PARK ENGAGEMENT

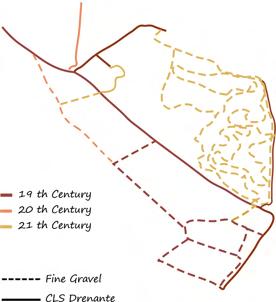

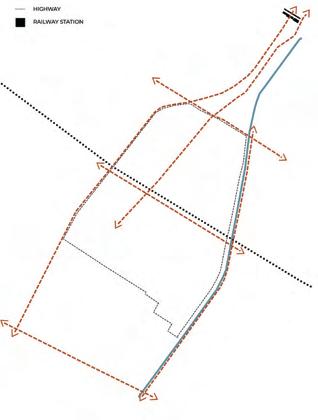

“POROSITY” - BREAKING THE BARRIERS “IMPART A CHRONOLOGICAL IDENTITY” TO THE LANDSCAPE

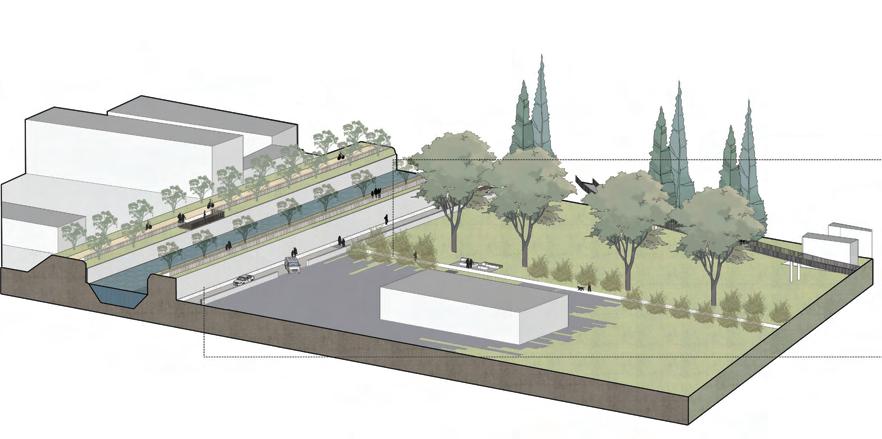

TERRITTORIAL SECTION
8
9
SOLUTIONS

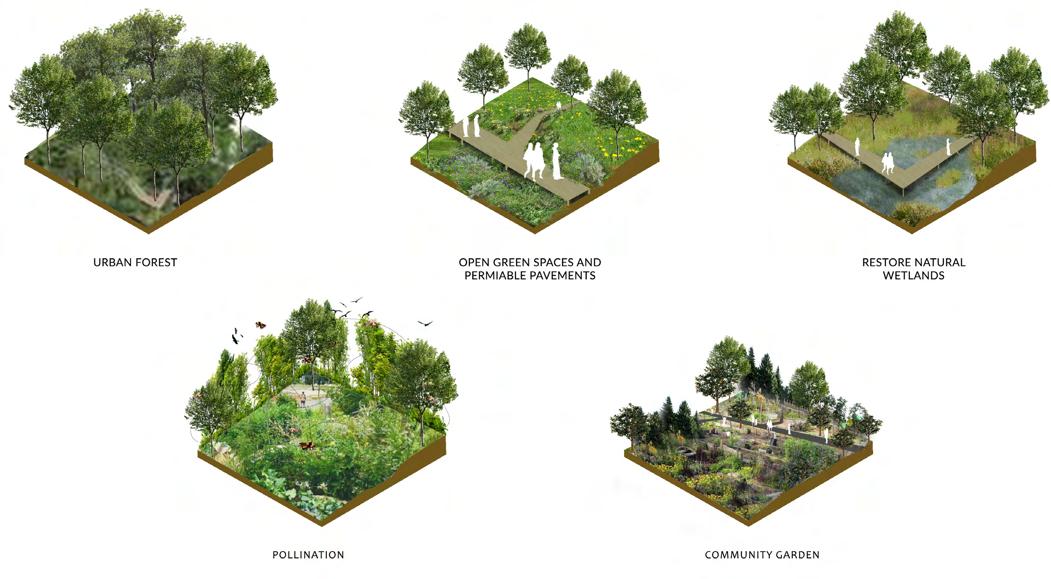

NATURE BASED

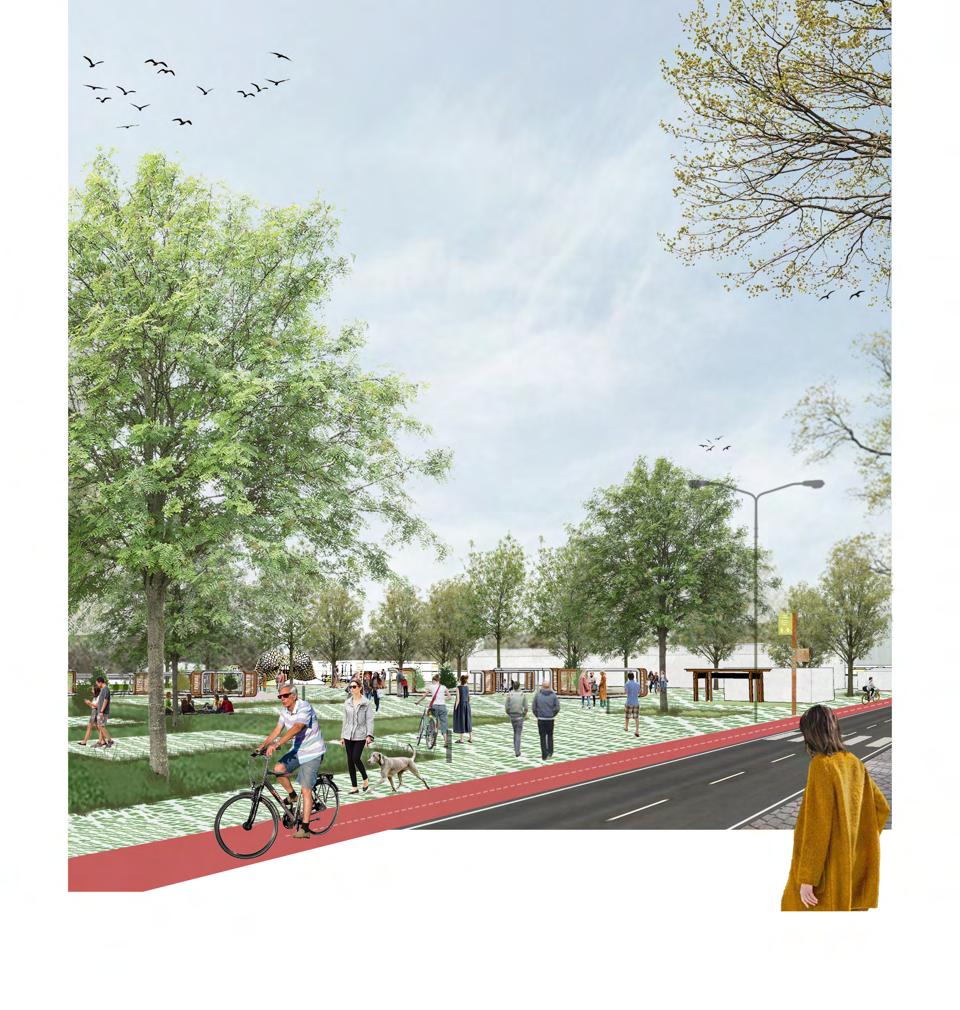

10 PROPOSED ENTRANCE PIAZZA
11 PROPOSED FOOD TRUCK -
- EVENT PIAZZA

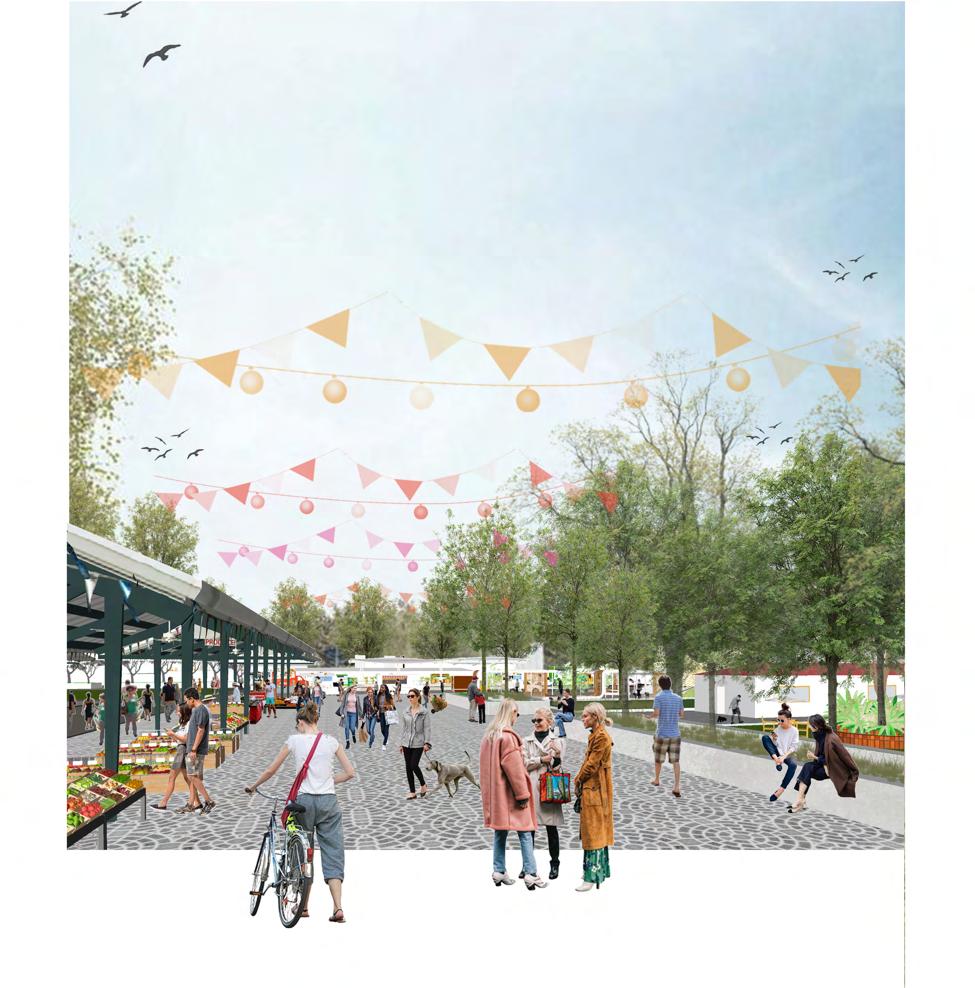

FARMER’S MARKET
12

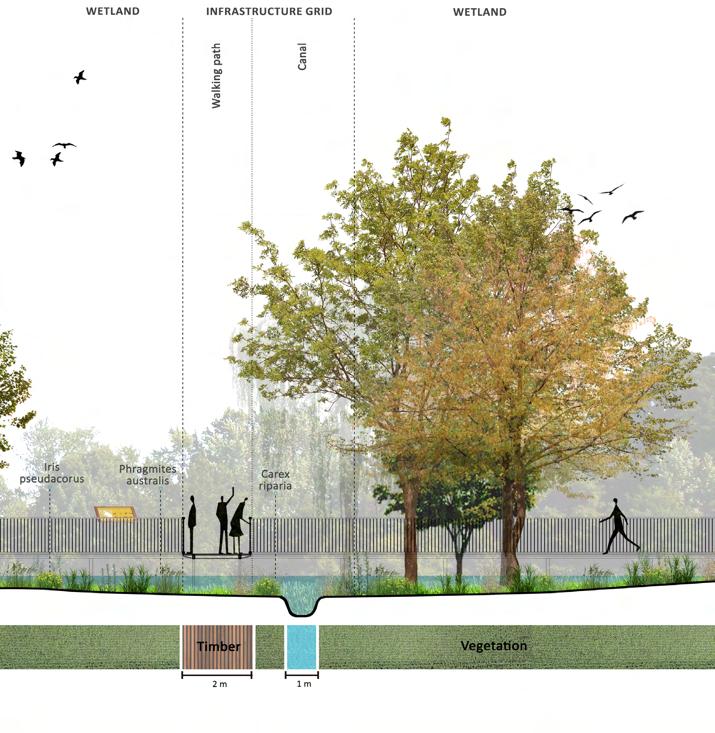

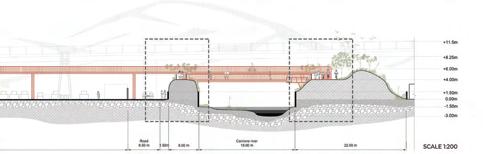

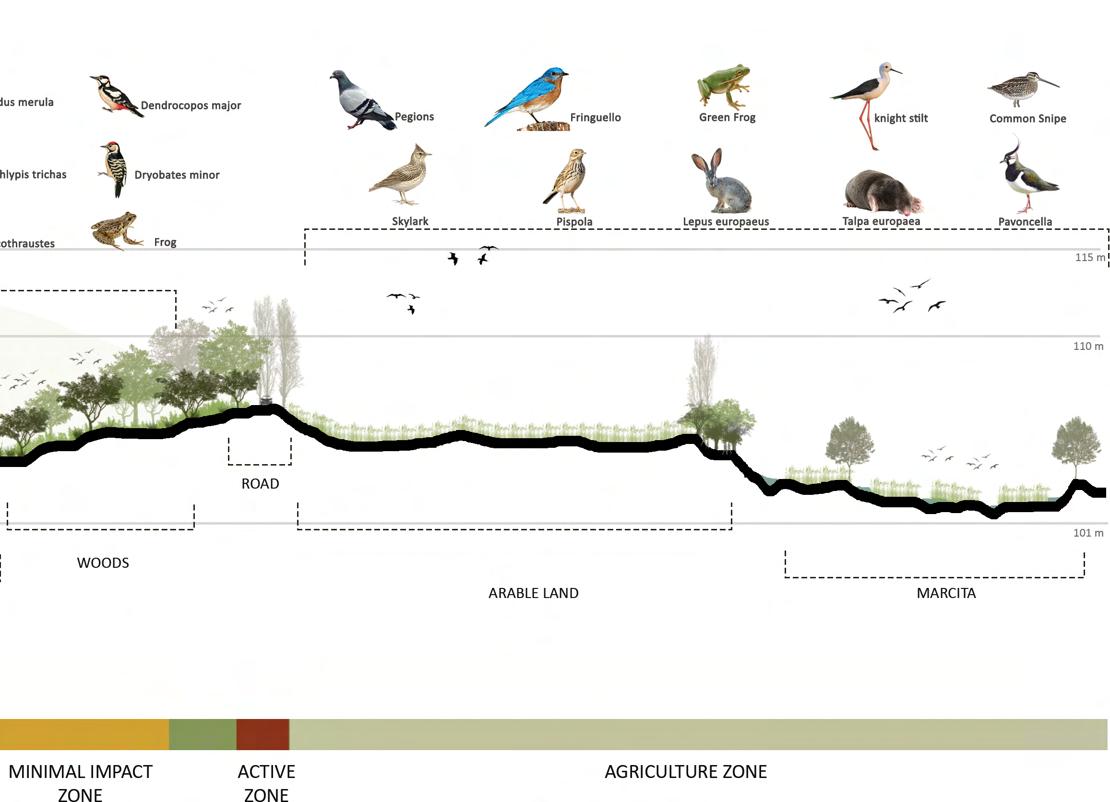

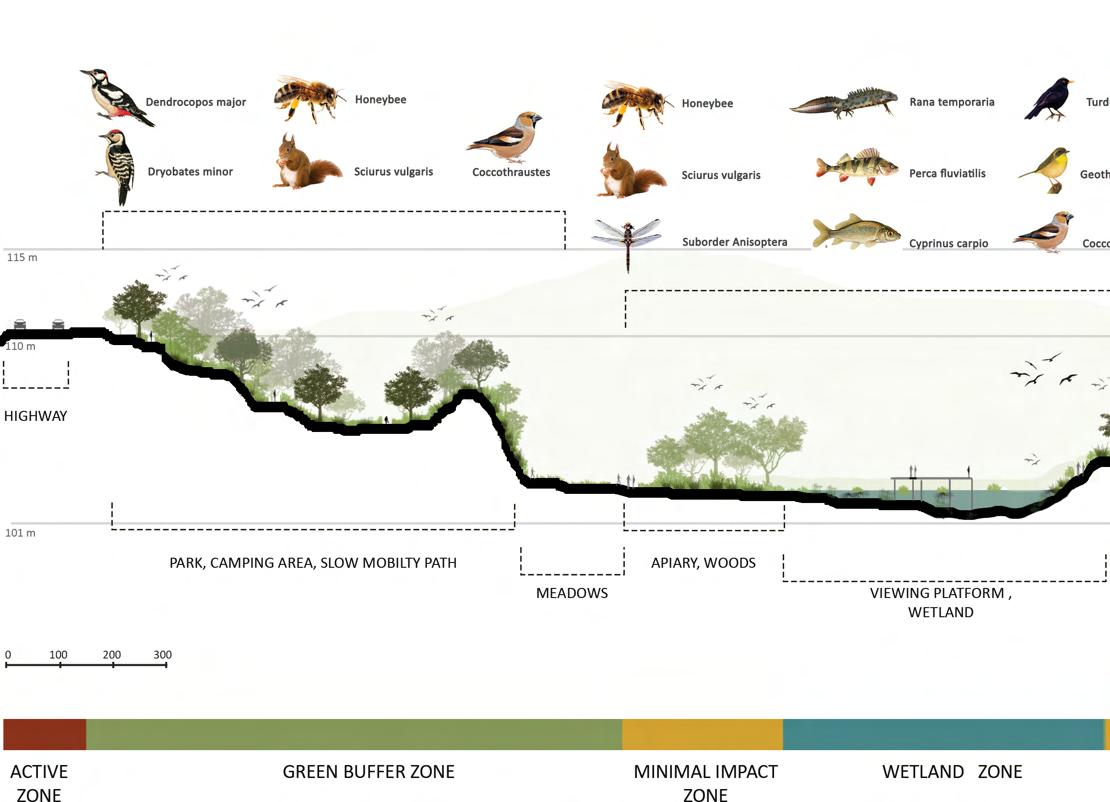

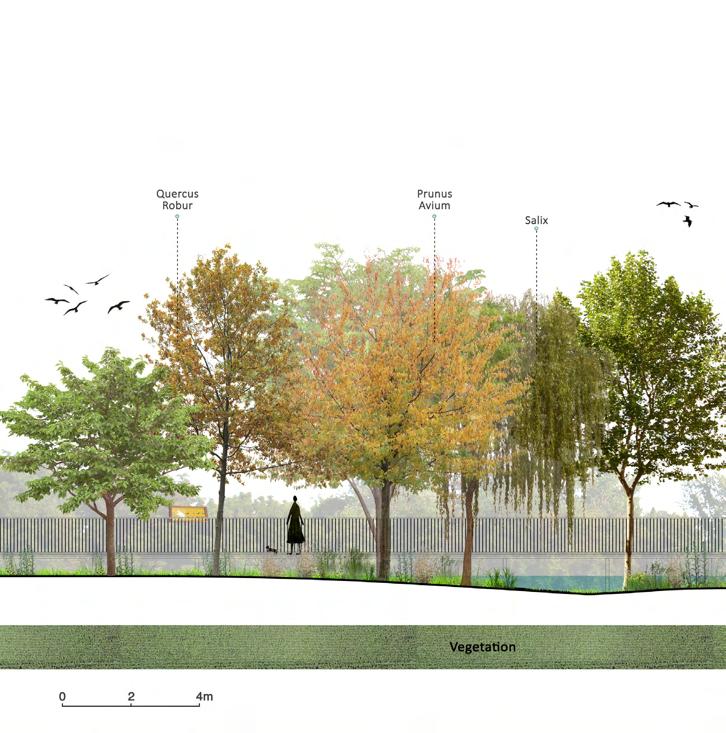

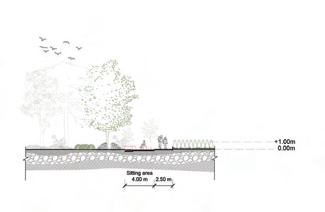

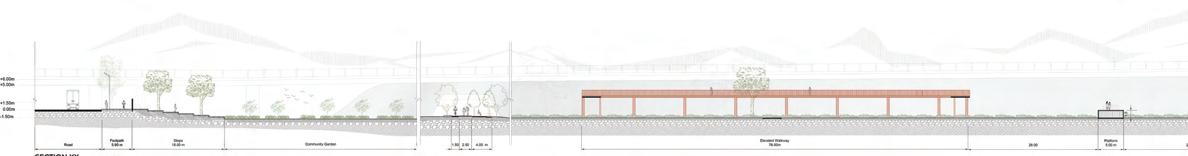

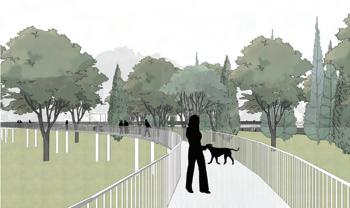

SECTION C - Wetland

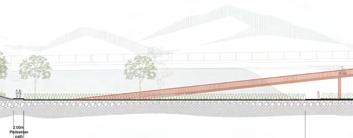

SECTION
A
- Via San Donigi
13

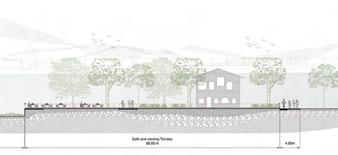

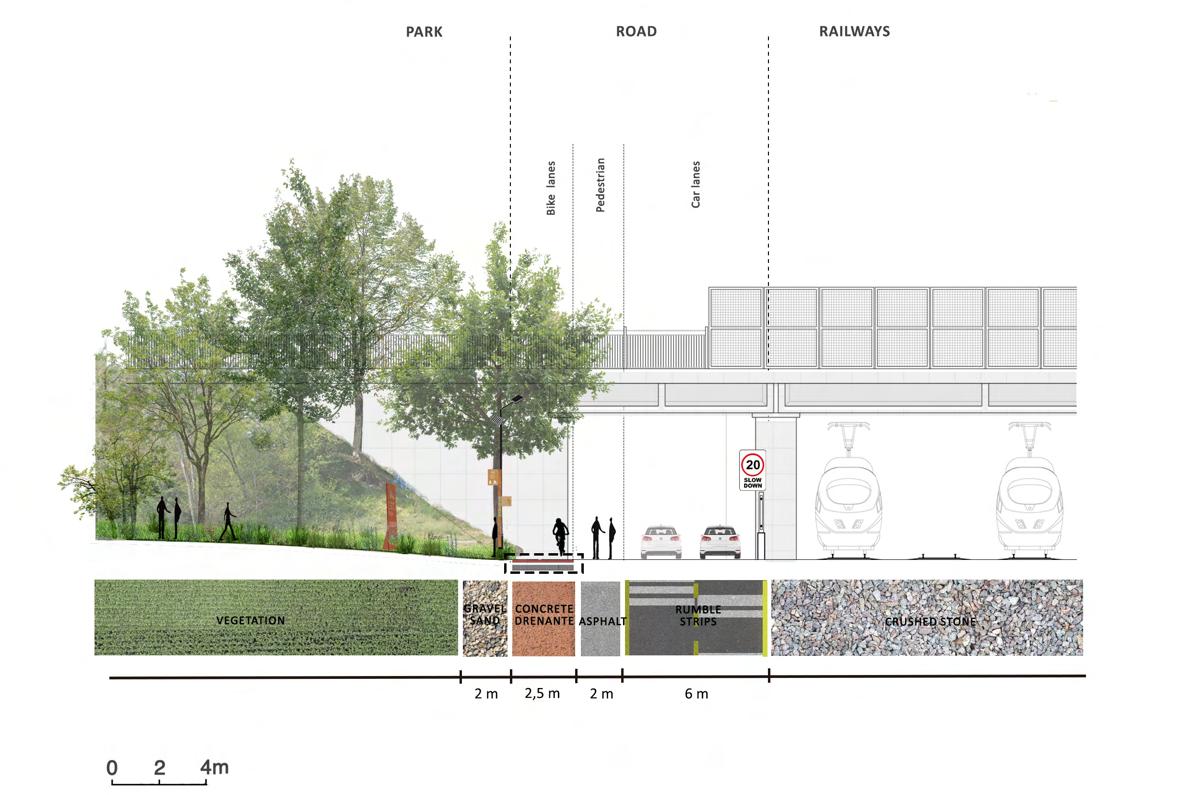

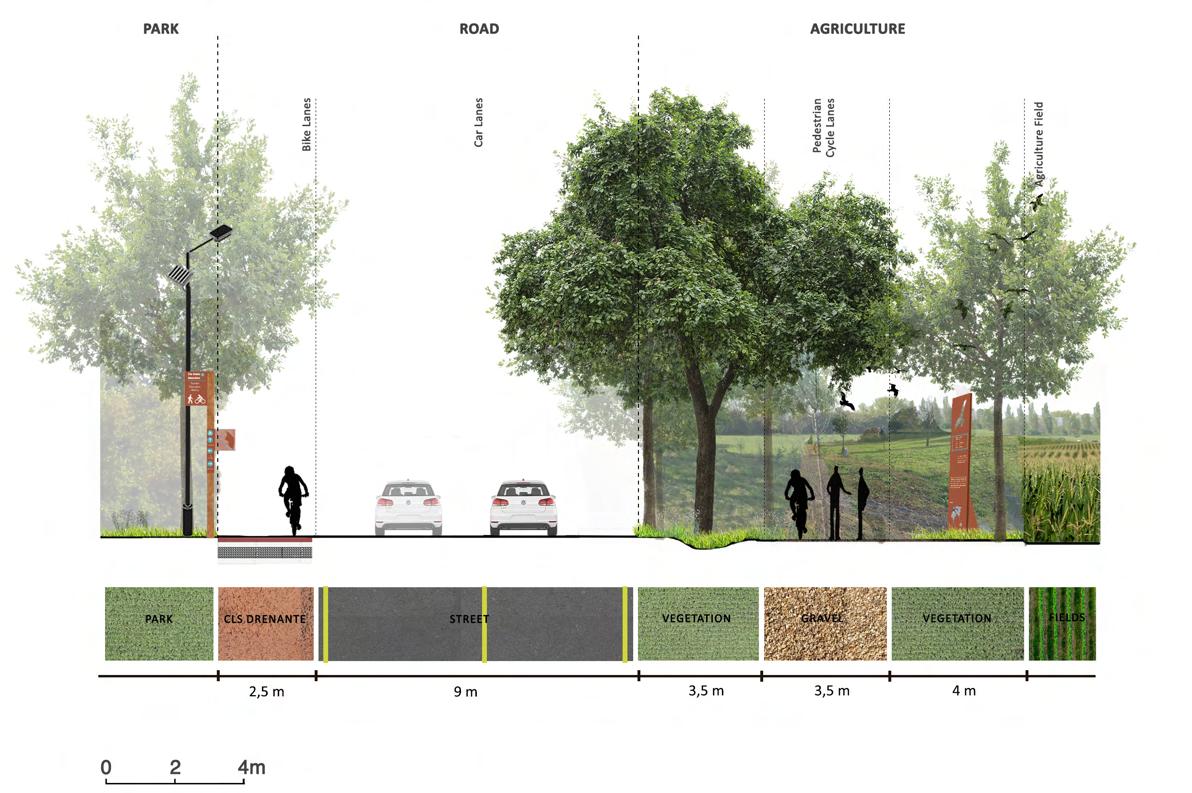

SECTION B - Via Sant’ Arialdo - Rogoredo Node

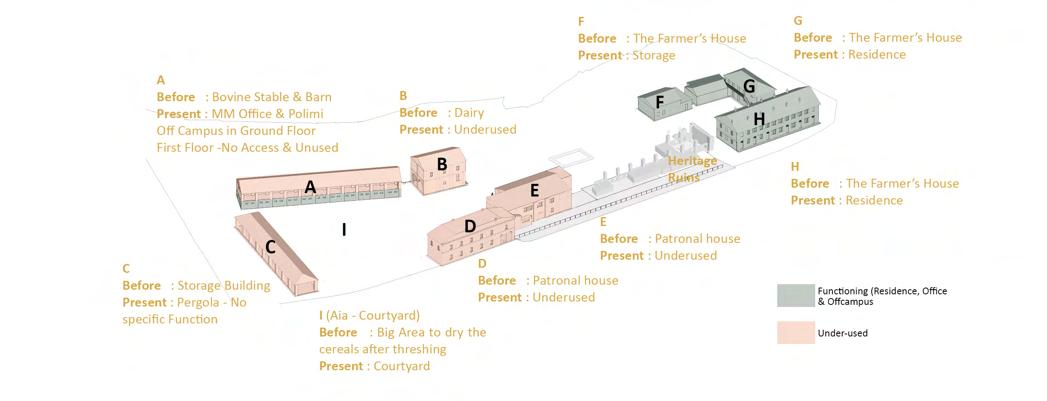

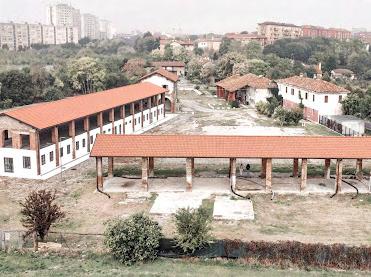

PRESENT & PAST USE OF CASCINA
The interventions applied here involve respecting the original structure and identity. The new elements such as windows, doors and Stairs are made with metal and glass whereas, New partitions with plywood. This means making Minimal, Reversible, Recognizable, Compatible, and Durable changes.

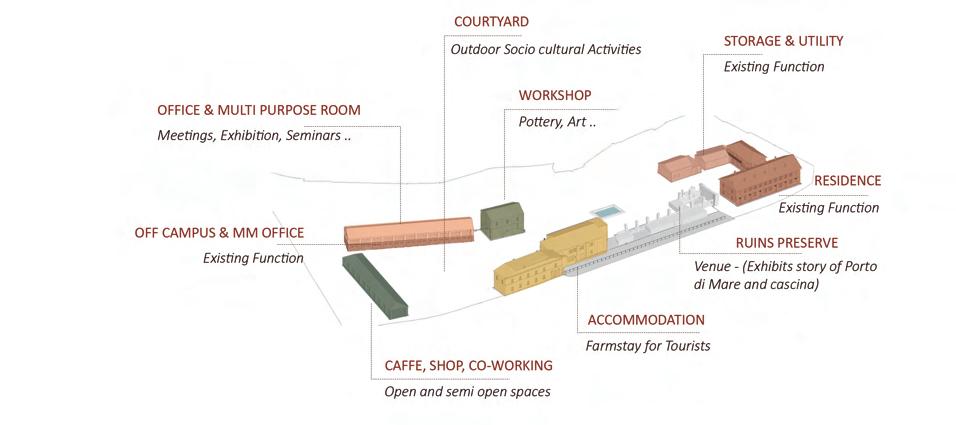

PROPOSED BUILDING FUNCTIONS

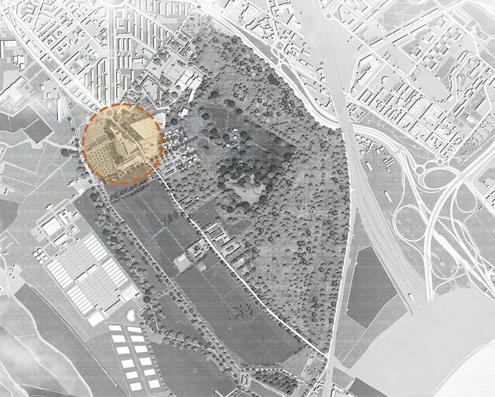

14 FOCUS AREA - CASCINA NOSEDO
LEGENDS 1. Existing Residence (GF & FF) 2. Garage/Storage & Utility 3. Courtyard 4. Water Feature 5. Farmstay for Tourists (GF & FF) 6. Workshop (GF- Pottery & FF - Art) 7. Existing Off Campus & MM Office (GF) , Office and multi purpose hall (FF) 8. Open cafe, Souvenir Shop & Co-Working space 9. Courtyard with Lawn (Social activities) 10. Aromatic Garden (Traced from old porch extension) 11. Vegetable Garden 12. Urban Park 13. Walnut Grove 14. Arable Field 15. Medows 16. Community Garden 17. Ruined Monument (Restricted entry) 18. Venue Lawn (Open entry) 19. Church SS.Filippo e Giacomo
16

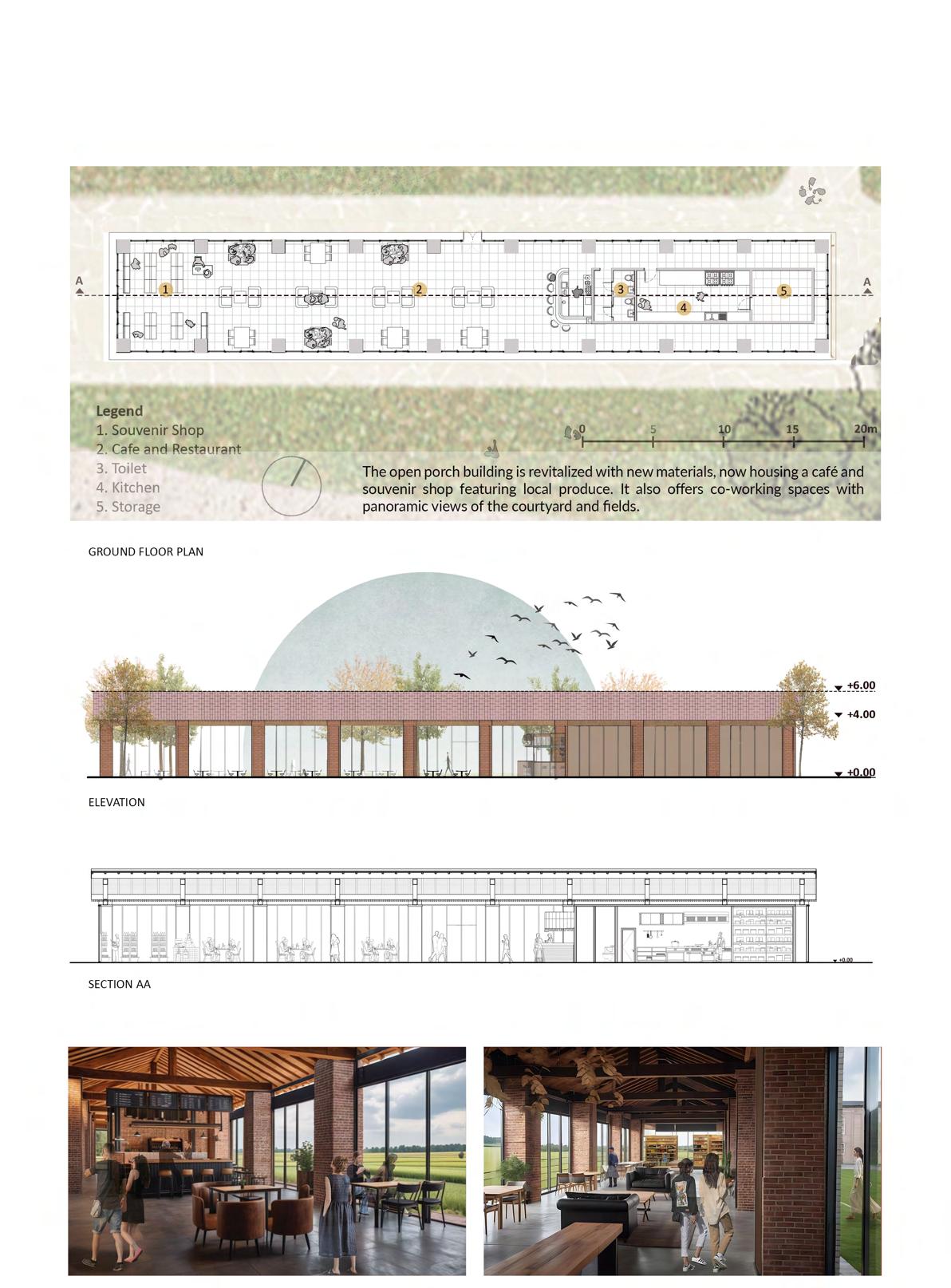

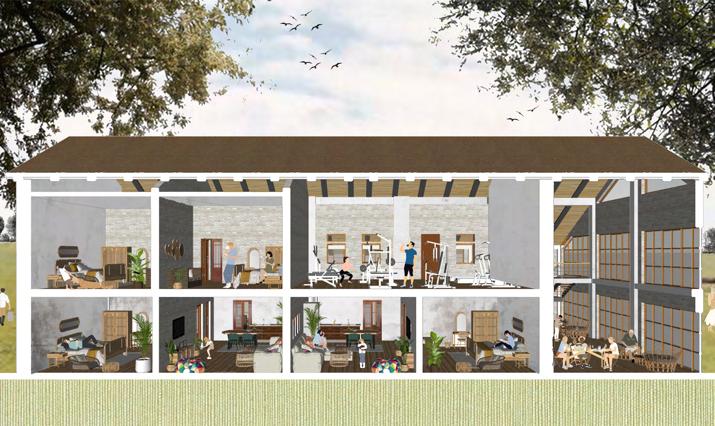

DESIGN DETAILS - OPEN CAFE , CO-WORKING SPACE & SOUVENIR SHOP

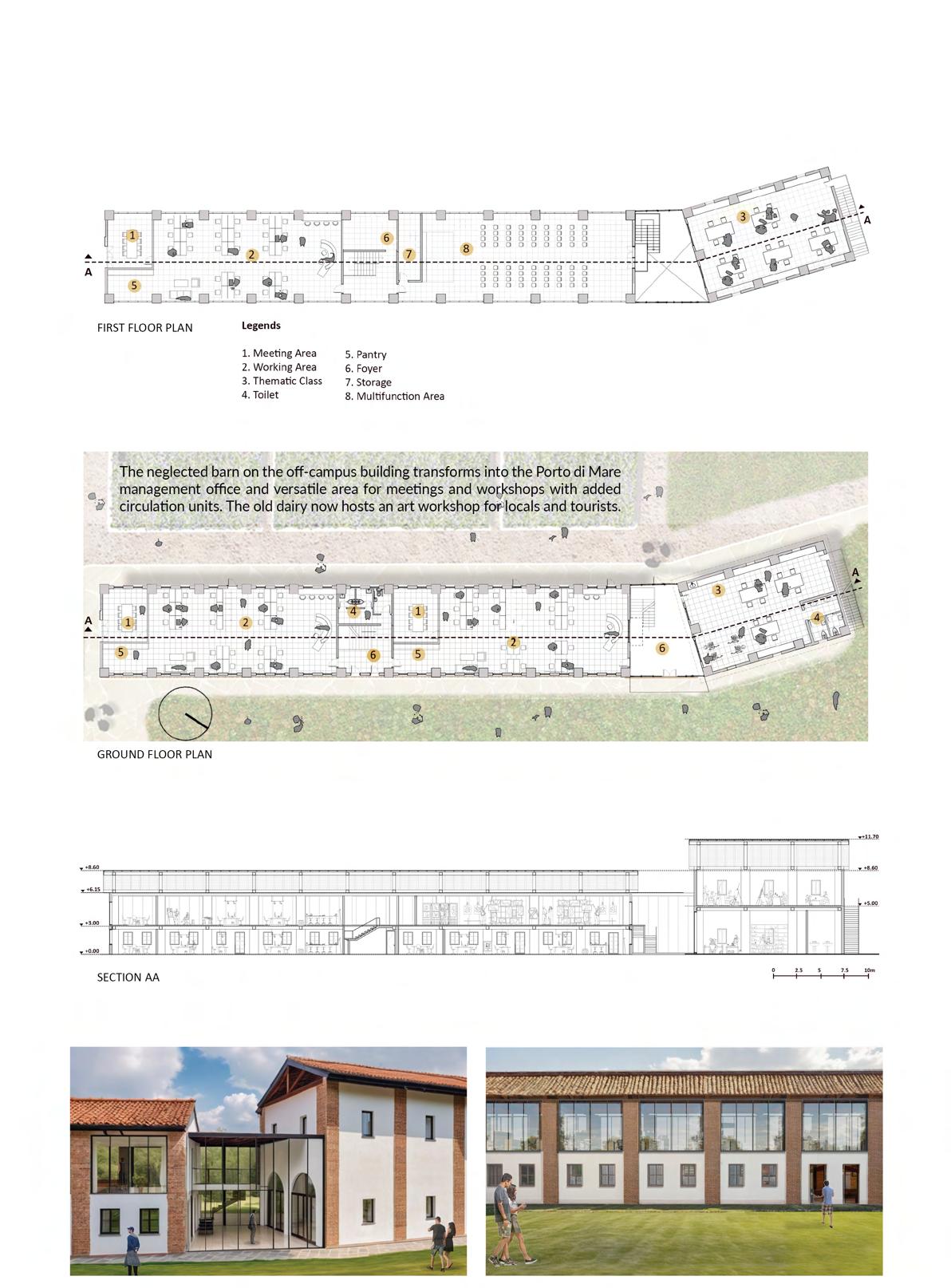

17 DESIGN DETAILS - OFFICE & WORKSHOP
AIA - THE COURTYARD
18

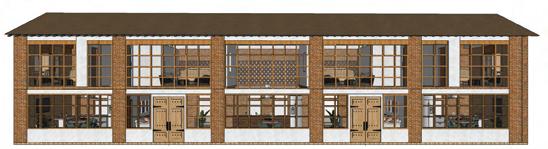

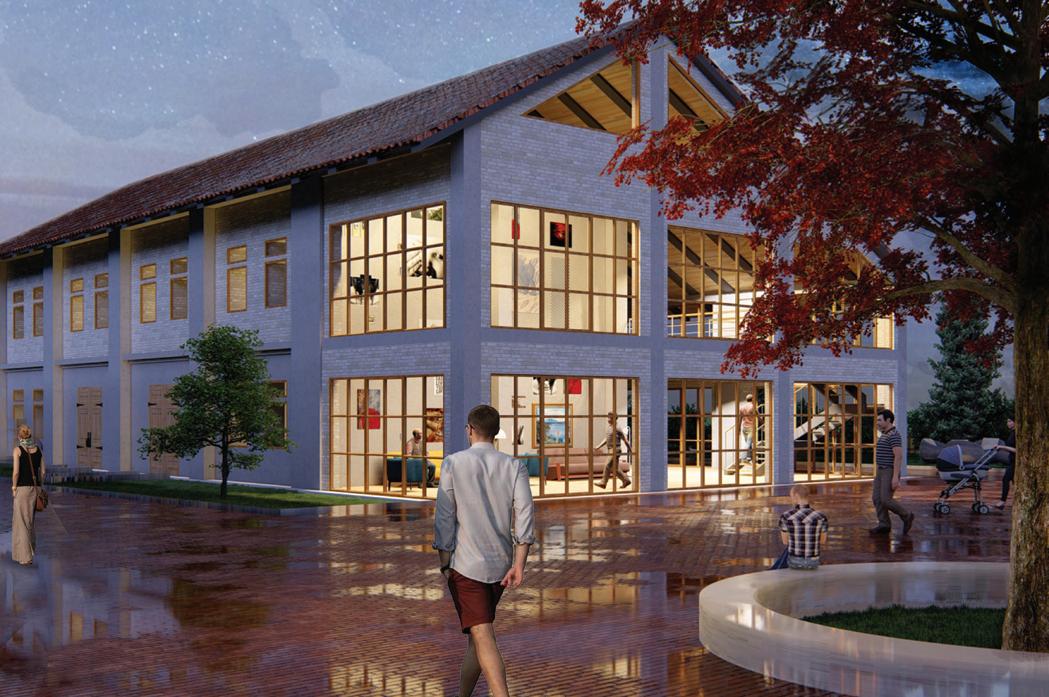

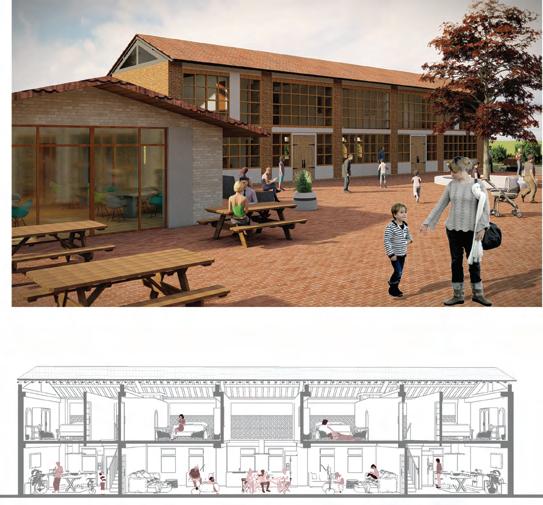

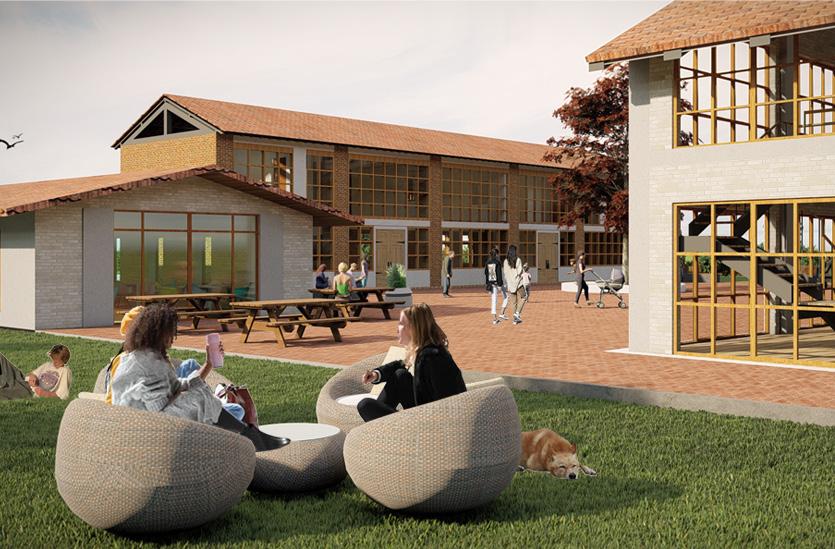

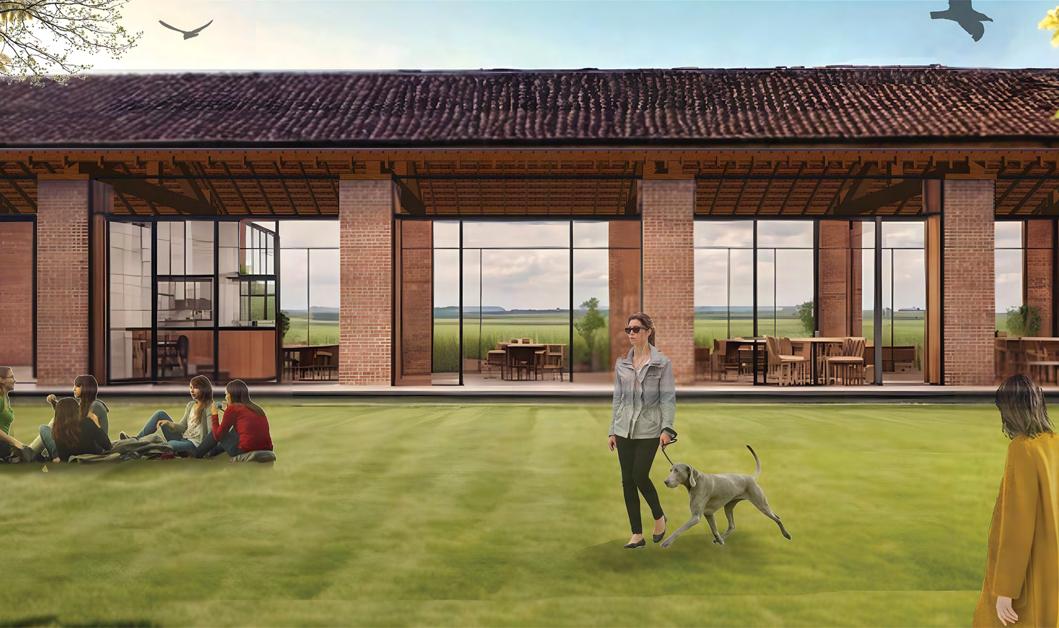

Exterior view of Cafe from the Courtyard

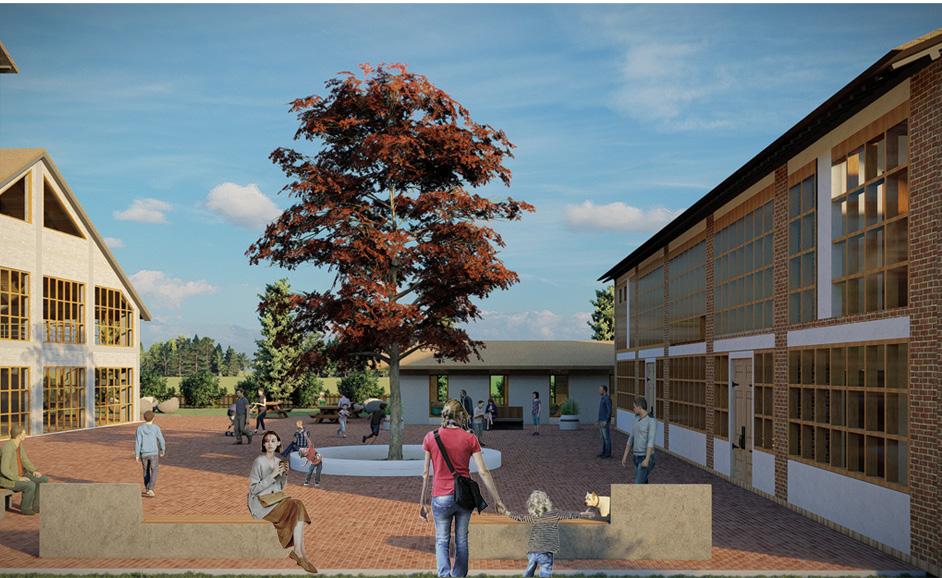

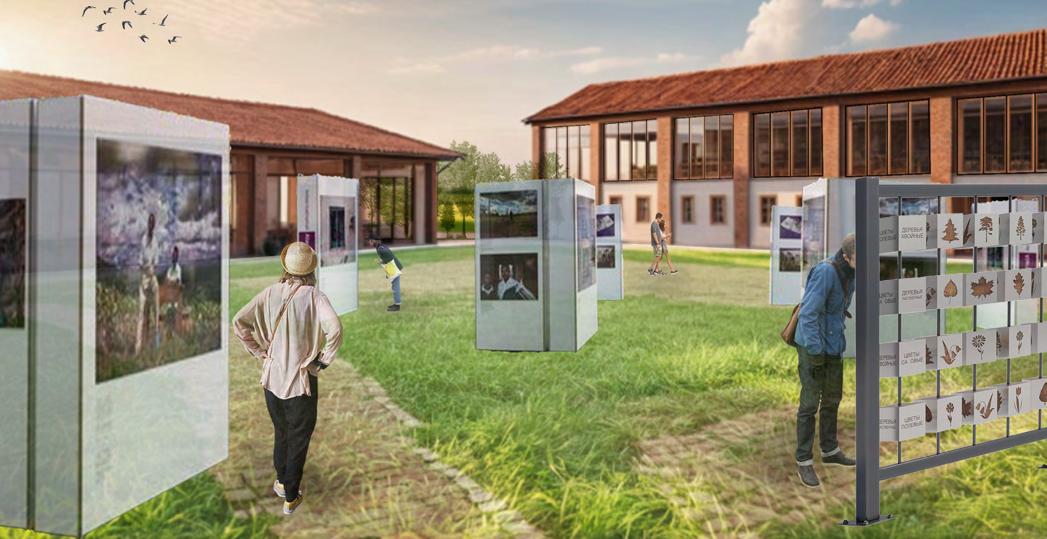

View of Courtyard as an open exhibition space
RUINS AS A MONUMENT
19

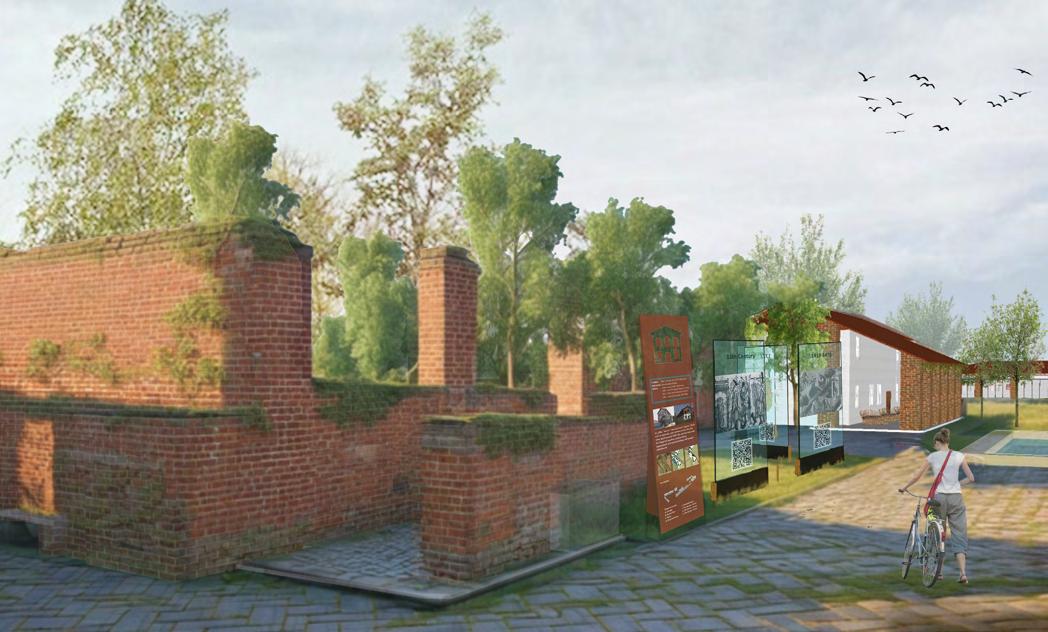

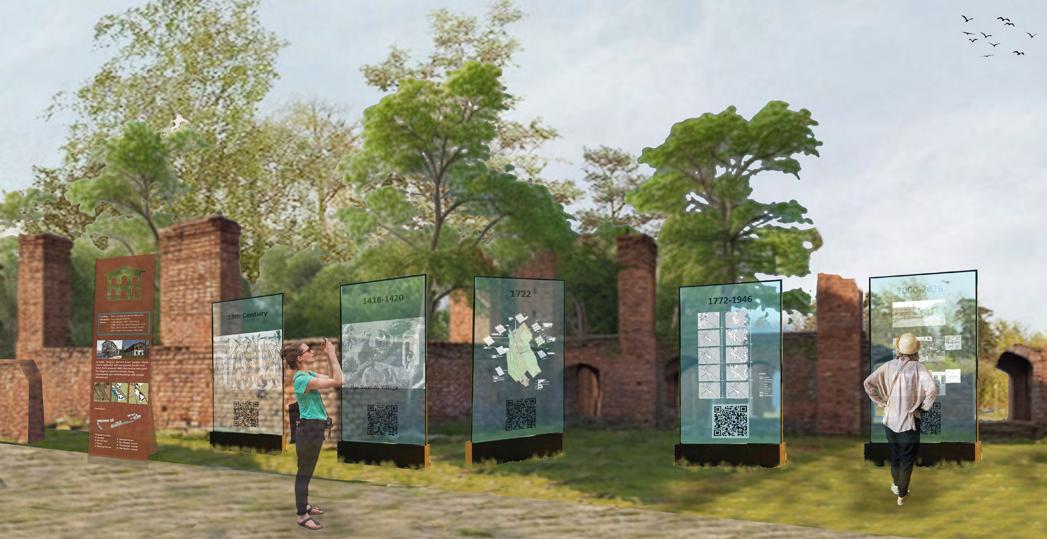

Monumental Ruins with information boards (Audio Visual guide)
View of the Ruins integrated as a part of landscape
SPINE 2
Location: Aleixo, Porto
Type: Advanced Architectural Design Studio- semester 4
Tutors: Alison Aurorarosa , Da Cunha B. Rodrigues Rebelo Camilo
Team: Group of 5
The objective of the project is to build one cohesive project giving importance to structure, composition and materiality in 3 different scale such as city scale, equipment scale and small scale in the themes of a gate to city/river, gate to knowledge and gate to family respectively.
The site, rooted in the core concept of exchange, intertwines historical trade significance into every aspect. The axis defines the connection between the city and river, emphasizing symmetry and the importance of water and greenery. In Alexio, the project stands as a landmark, blending nature, glass, and concrete—an amalgamation showcasing human engineering brilliance and tangible materiality on a human scale.
STRATEGY
Cultural exchange blends and subtracts elements, creating a dynamic interplay. As something is taken away, it leaves a void, simultaneously giving rise to something new and substantial.
LAND & WATER
Make the river more than just a route or scenic view. Integrate it into the city recalling the era when water facilitated trade and cultural exchange. Bring the river into the site where it meets the city, creating a dynamic balance through the interchange of space and footprint.

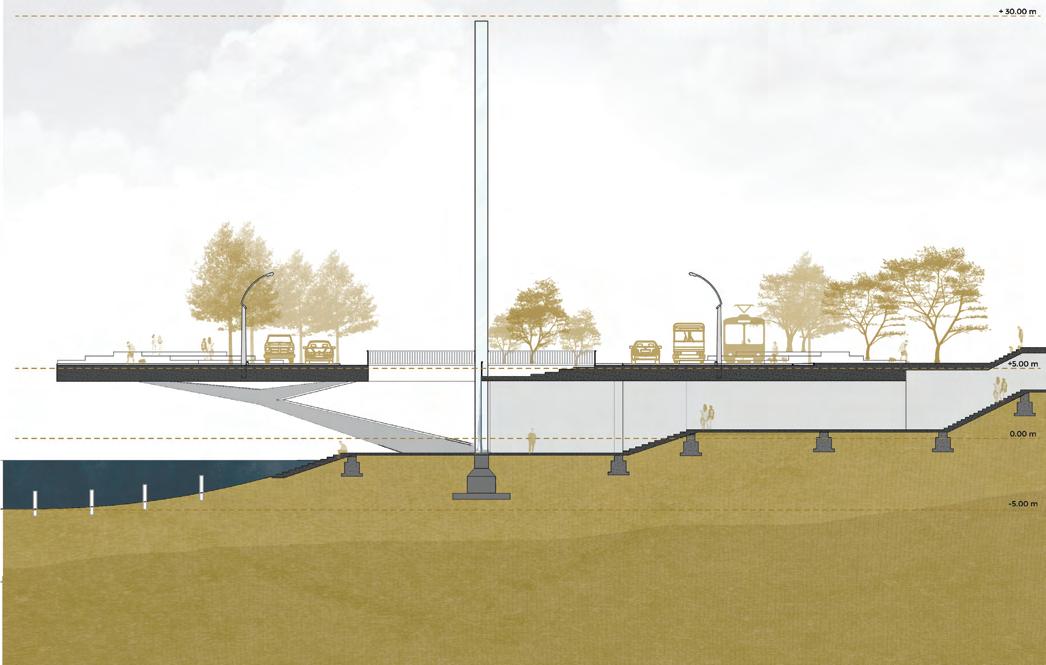

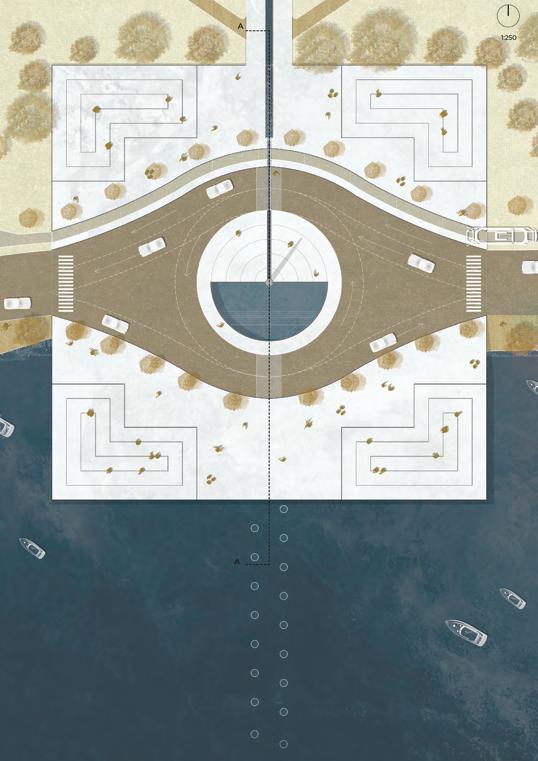

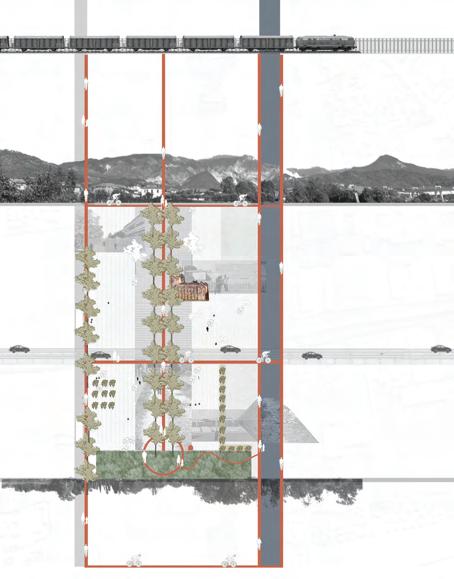

Master plan 1:2000
22

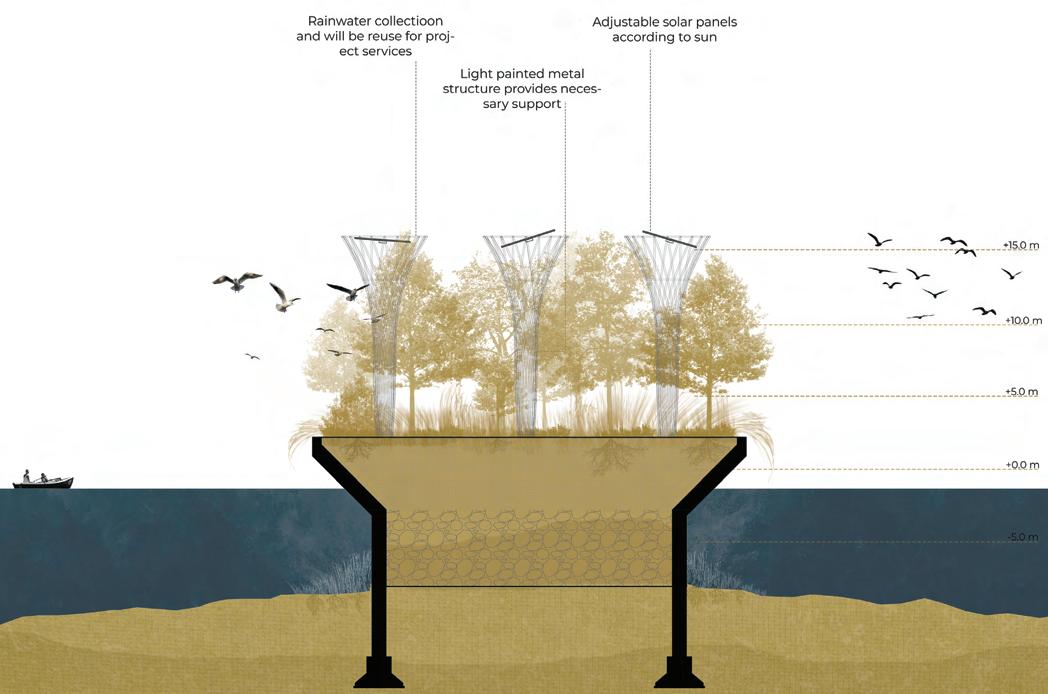

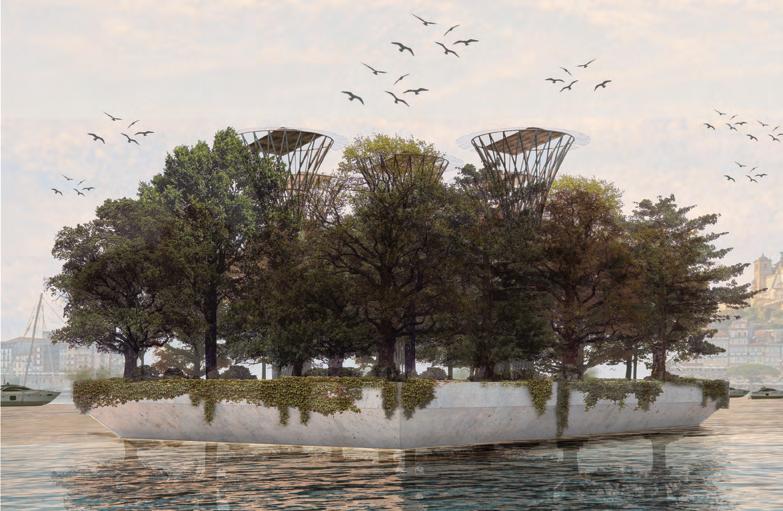

The Island, a floating haven for migratory birds, symbolizes the serene balance between land and water, offering a peaceful refuge from human hustle.
A third landscape secluded from the city

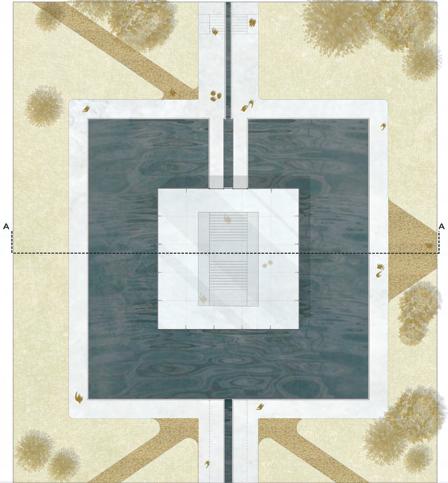

THE BIOTOPE

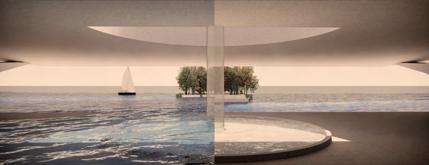

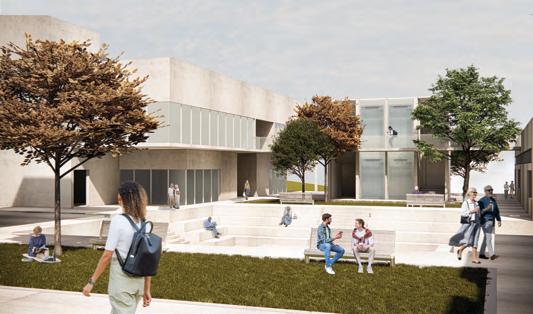

The convergence of our project's key axes - the main street (x), water axis (y), and glass obelisk (z) - forms the origin, a focal point. The piazza, a pedestrian-friendly space, serves as a social hub for Alexio, with roads and tram lines intersecting. Beneath, the water pavilion offers a dynamic panorama of Porto across the Douro, creating an immersive volumetric experience.
THE ORIGIN
The Parallel Worlds
23

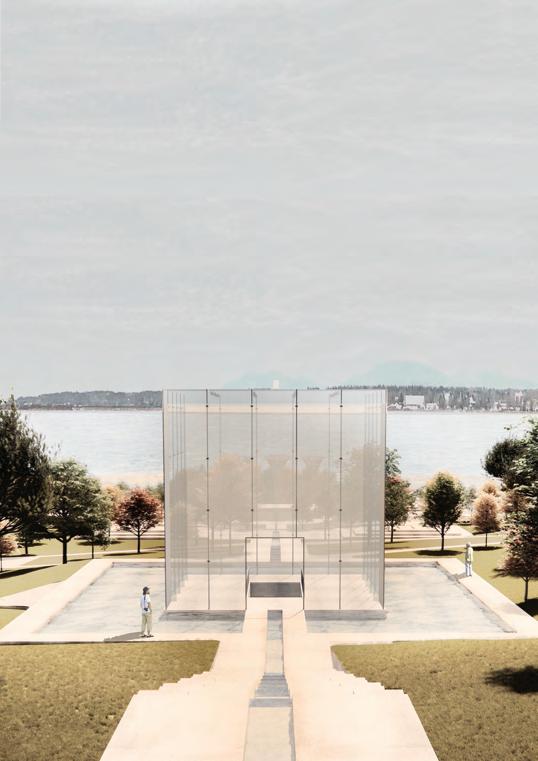

The Arrival, an entrance to the water pavilion, redefines man’s engineering of the material glass, floating on water. The stairwell to the tunnel offers a striking shift in volume, transforming from vast to confined space. A strategic landmark, this glass structure now defines Alexio.
24
ARRIVAL

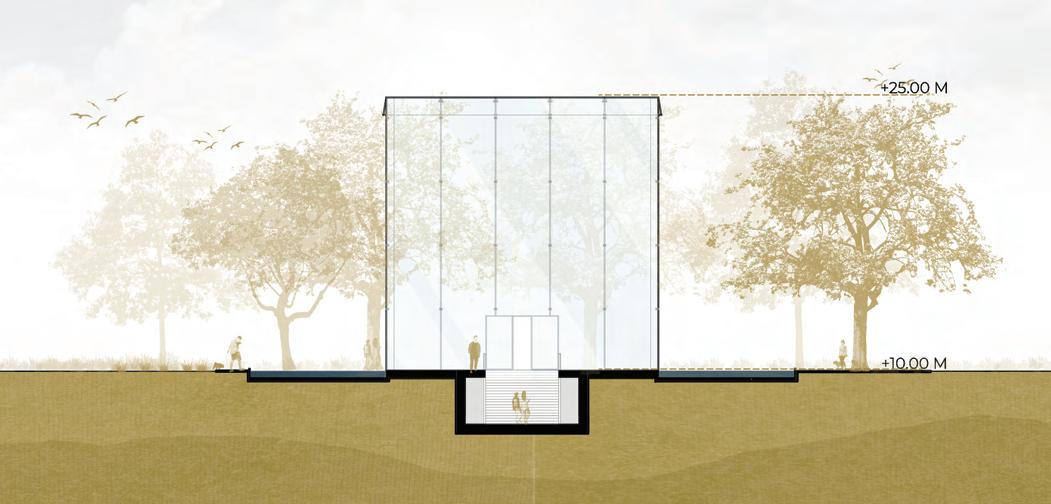

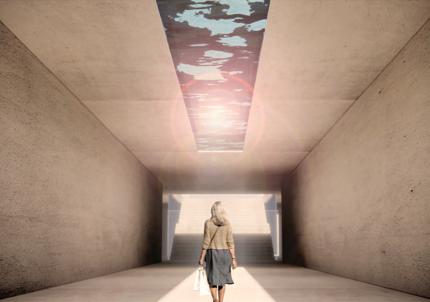

The Stairway to Water Pavilion
THE

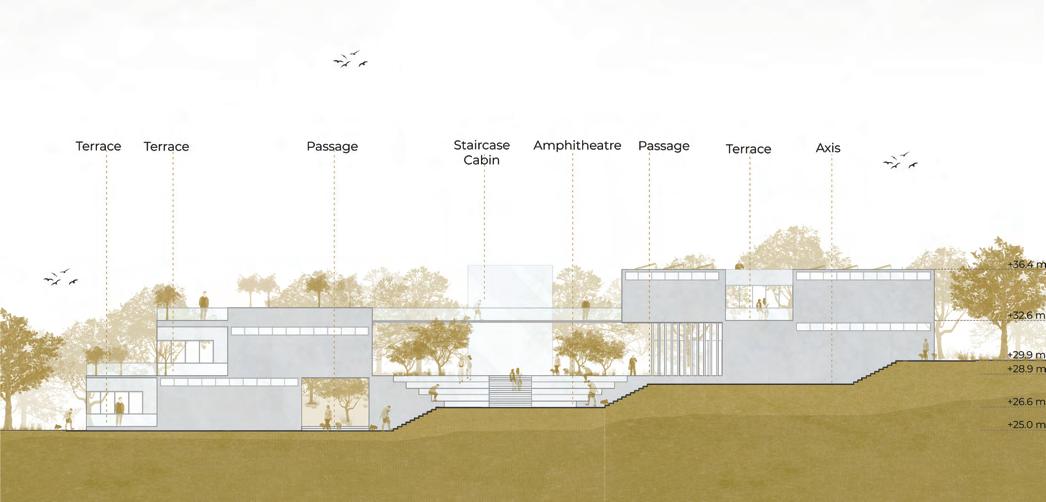

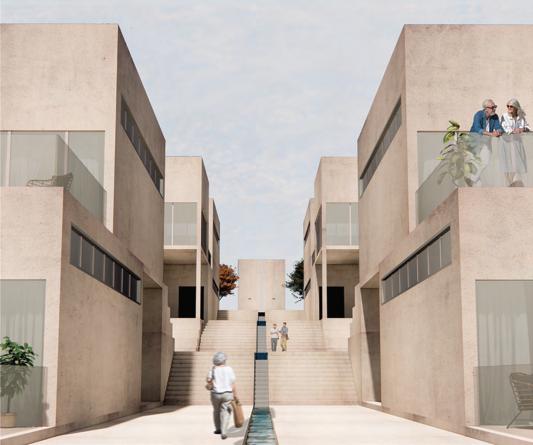

The housing door opens to a co-housing space designed for both dependent elderly and the young, fostering interaction, interdependence, and the exchange of experiences. Featuring flexible spaces and movable partition walls, the living areas adapt to become private units, aligning with Post-COVID space design needs.
25

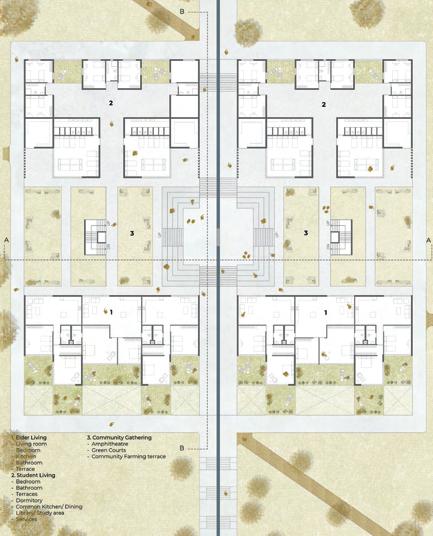

Co Housing for Students and Elderly THE HAMLET
UNVEIL 3
Location: White waters of Carrara,Italy
Type: Advanced Landscape Design- semester 3
Tutors: Phd.Ar. Sara Protasoni, Pergalani Floriana, Francesca Neonato
Team: Group of 4
Carrara is home to world-renowned Italian marble quarries. It is located on the Carrione River, approximately 100 kilometers (62 miles) west-northwest of Florence. Because of the marble dust, the river has turned white and dry. The city’s youth are leaving, and there is little tourism or a proper public landscape for the locals.

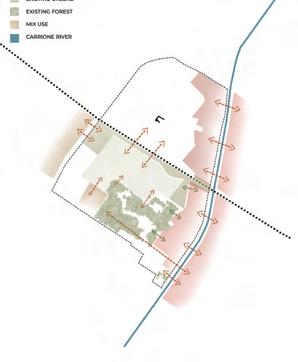

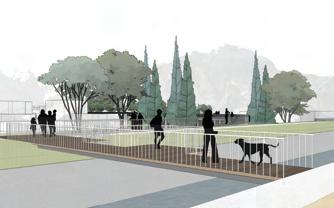

During the analysis, we discovered visual, physical, and social barriers that prevent users from connecting with the river, city, and site. To address this issue and highlight the beautiful existing sequential landscape, we attempted to re-create the connection with the river, existing greens, Villa Ceci, the city, and our site. Our strategy is to transform Carrara’s lost and underdeveloped landscape into a more breathable cultural landscape.
BREAKING THE BARRIERS
REVIVING THE PERPETUAL CULTURAL LANDSCAPE

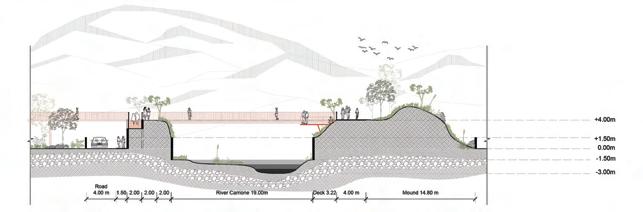

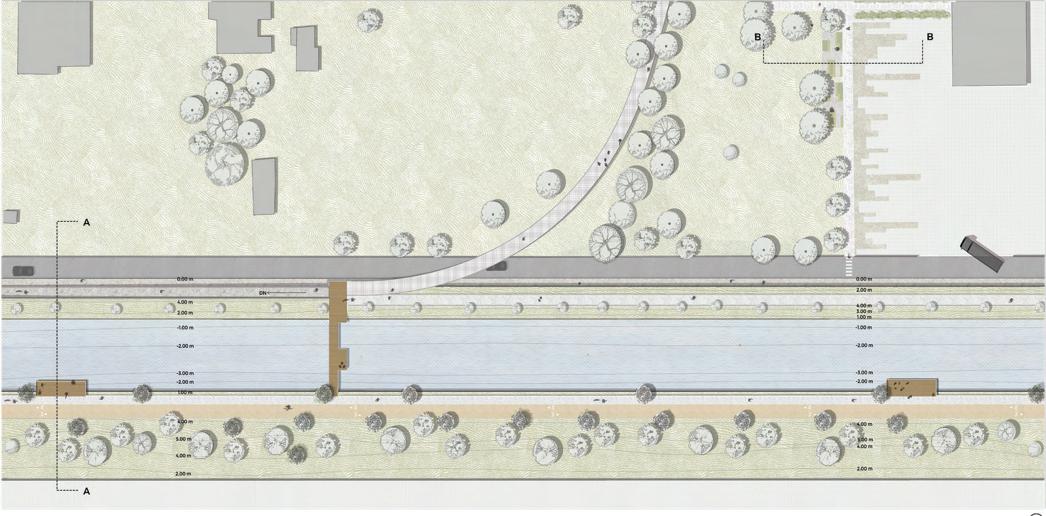

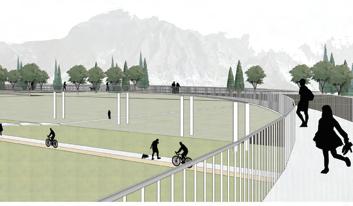

28 FOCUS AREA - A SECTION- A SECTION- B
29

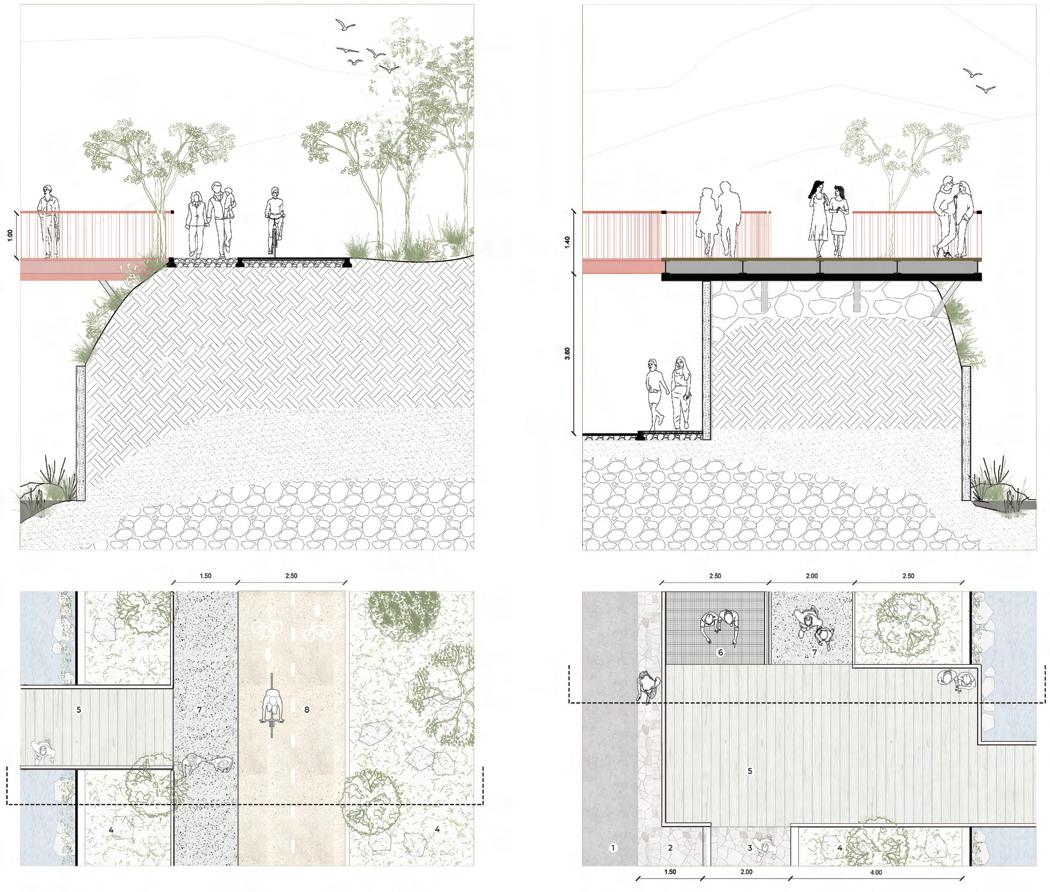

DETAIL - A
DETAIL - B
1. Road - Existing (Asphalt)
2. Foot path (Reclaimed stone paving)
3.Ramp
4.Grass Mount
5.Pedestrian bridge
6.Elevated Walkway (Metal Grate)
7.Gravel Pathway
8. Bike Lane (Cls Drenante)
Location: Bangalore, India
Type: Competition Idea - London Design Binnale 2020
Team: Suman Paul, Suganth Sreenivasan, Hrishi Ramesh
CO-TRIBE excels as a co-living hive, hosting around a hundred individuals in diverse combinations. The focus is not just on where we live but on how we live. Embracing the primordial connection of humans with Earth, CO-TRIBE embodies sustainable living through harmonious coexistence with nature, surroundings, and oneself.
The motto is ‘CO-EXIST to CO-LIVE.’ This space welcomes citizens from different locations, residing together temporarily, engaging in various pursuits to make a living.

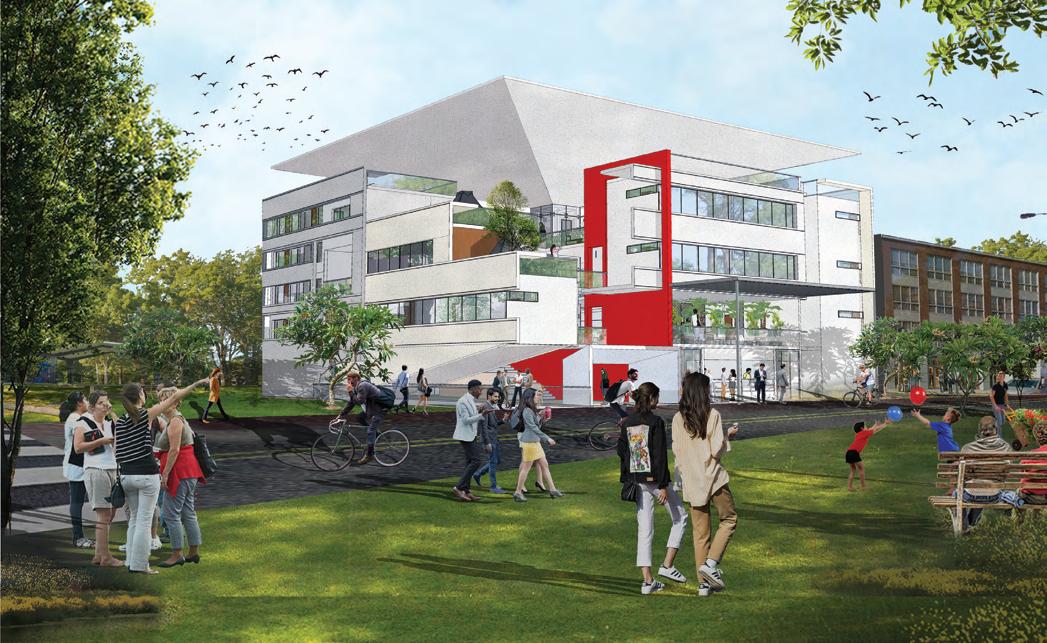

CO-TRIBE 4
31

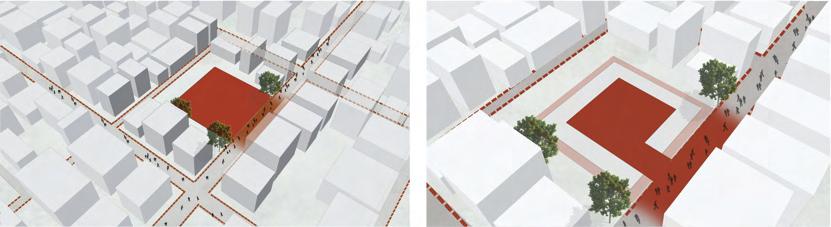

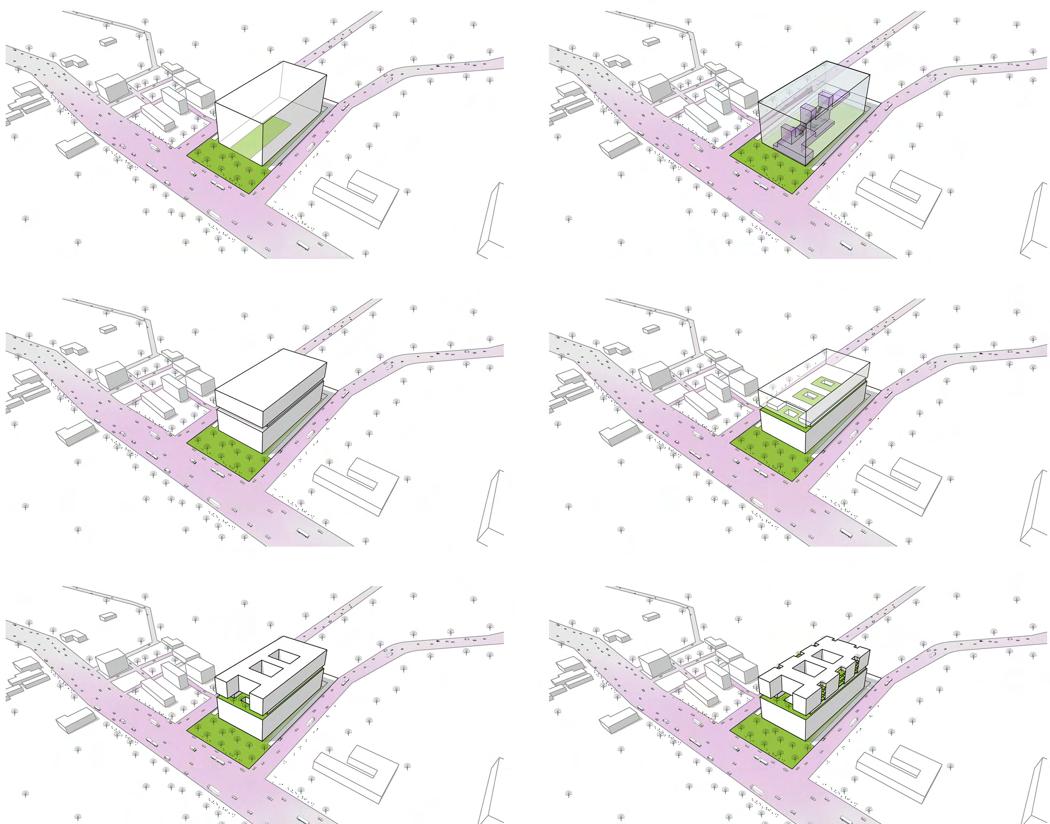

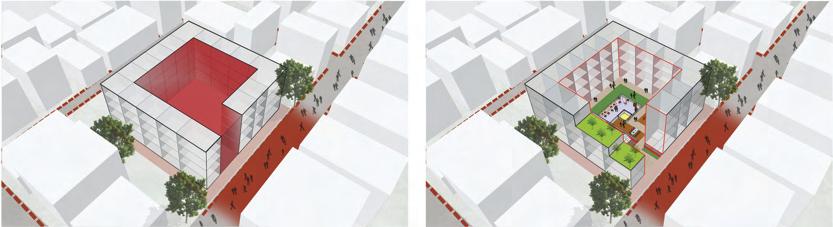

The Site and Neighbourhood City is becoming “City - Room”
“PODS” are surrounding City Room

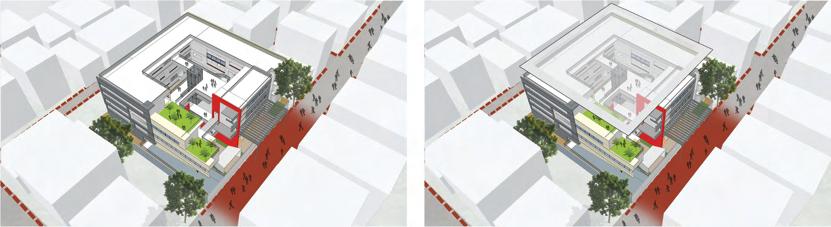

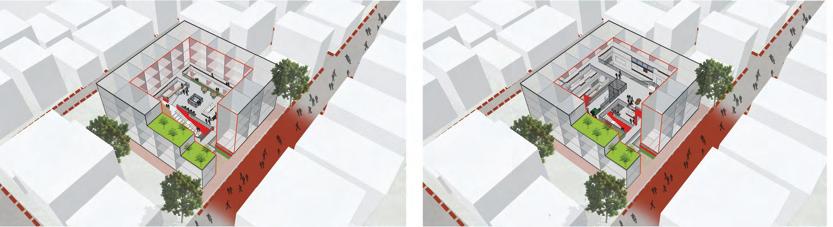

Different modules of “PODS”
City - Room” Opens up at the corner
“City - Room” at different levels

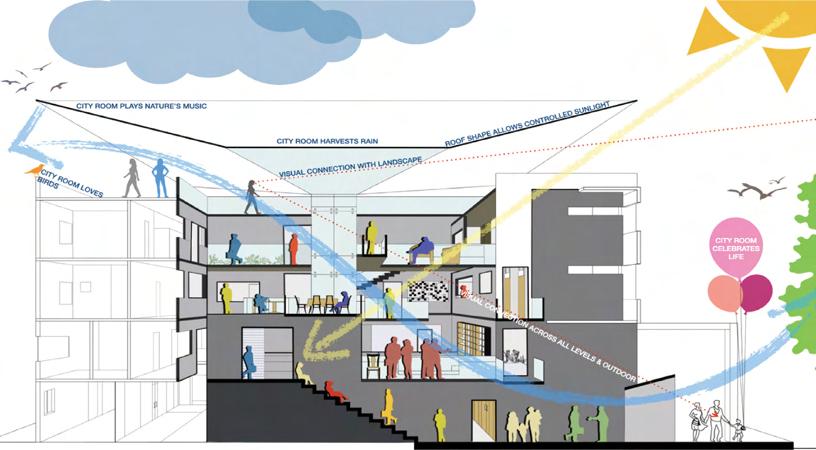

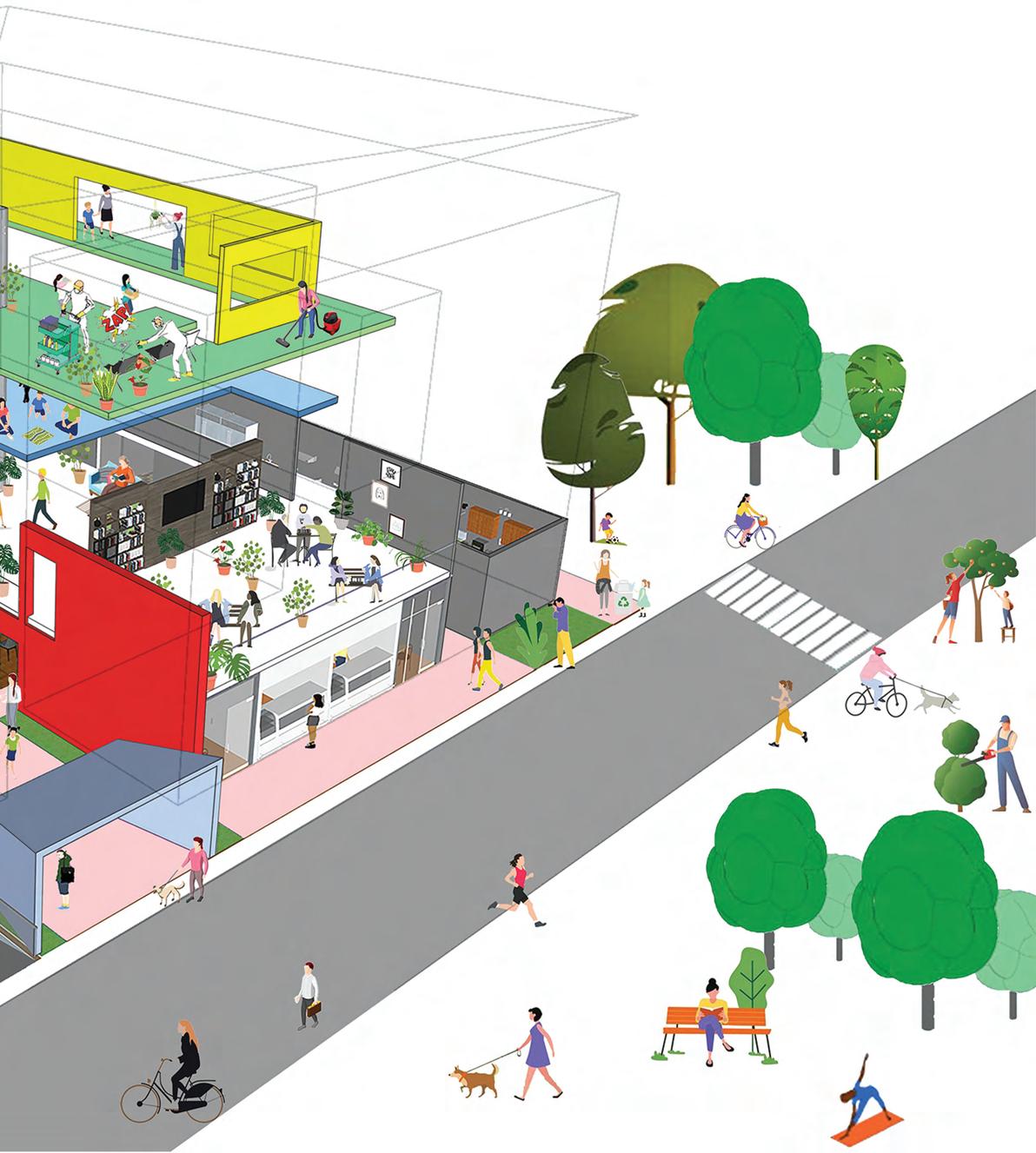

“City - Room” one place many Activities
Internal Intimacy Of Spaces

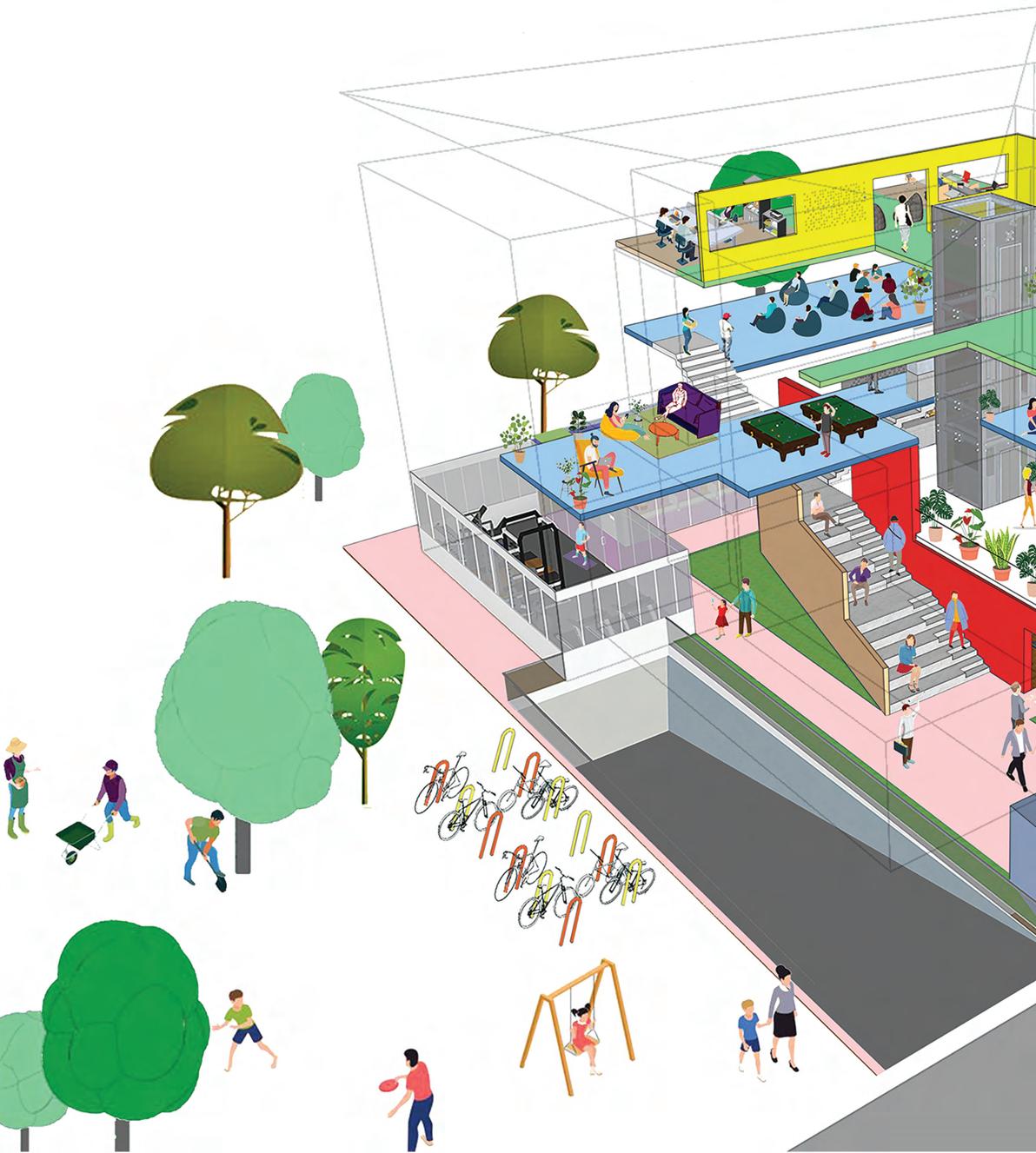

Everything under one Roof
“City - Room”
The focus is on a family where each member has their own small nest, with bedrooms serving multiple functions like sleeping, leisure, eating, and communication. This individualized living may underutilize common spaces, weakening family bonds. The ‘world within a world’ concept could lead society towards greater personal cocooning, distancing individuals from a sense of oneness and promoting divergence.
the
as
Anchor
Location: Pavia, Italy
Type: Terraviva Competition, 2023
Project: Rural Housing- Adaptive Reuse of an Italian Casina
Team: Hrishi Ramesh, Claudia Levina
Rural Housing aims to define new ways of living in the Italian countryside through the adaptive reuse of traditional constructions. The transformation of this historic complex into contemporary homes immersed in the landscape will determine a new beginning for this Lombard farmhouse.

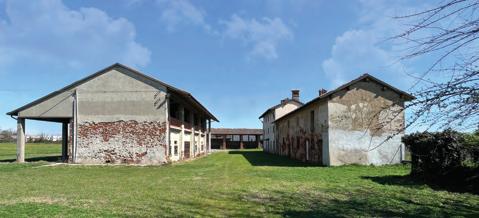

The challenge is to transform Cascina Lossano into a new housing complex capable of serving the needs of the present while respecting the history of its past. One of the project’s primary objectives is to promote inclusivity and community living. To achieve this, a diverse range of housing options will be created, accommodating various income levels and family sizes.
A RURAL CO-LIVING EXPERIENCE

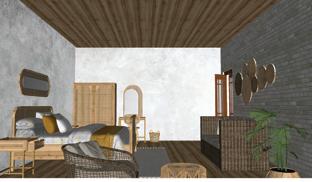

IL BORGO 5

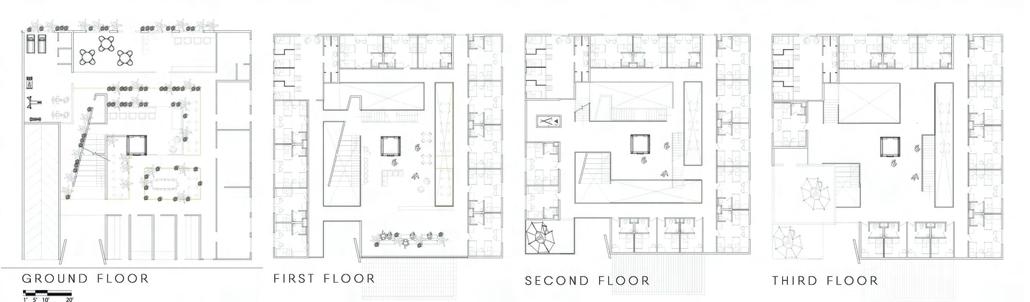

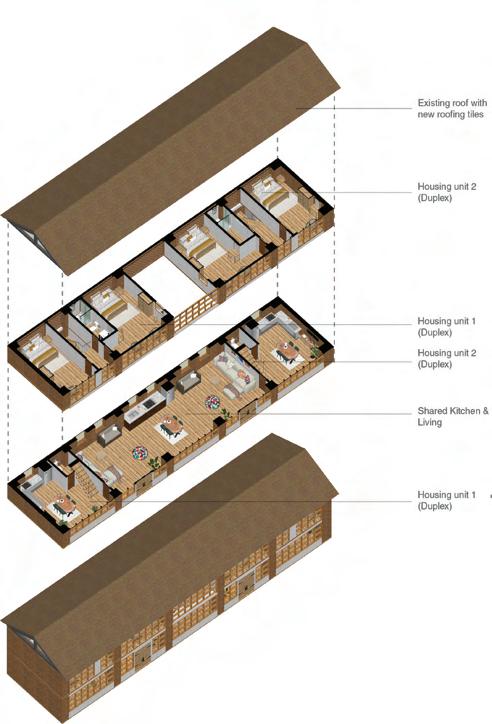

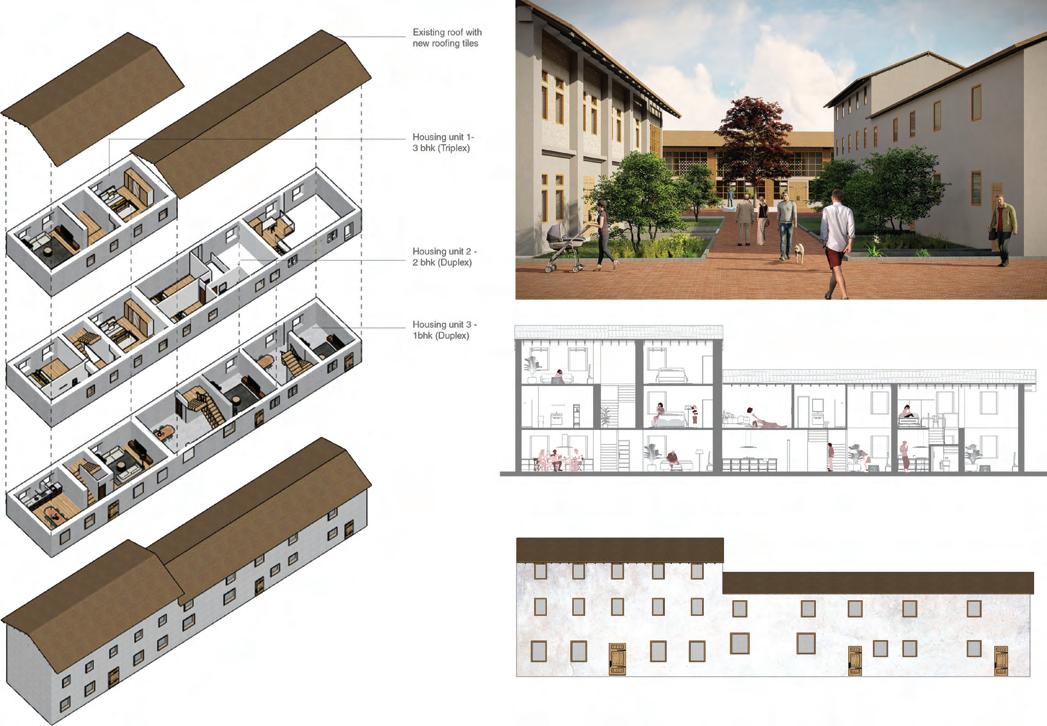

35 PROGRAM AXONOMETRY SECTION STABLE
36 MANOR HOUSE/ FARMER’S HOUSE AXONOMETRY SECTION ELEVATION
37 PORCH SECTION ELEVATION AXONOMETRY
PROFESSIONAL WORKS 6
Project : Yashoda Hi-tech Hospital
Location: Hyderabad, India
Type: Health Care
Project Architect: Suman Paul
Project Summery: Yashoda Hospitals in Hitch City, situated in Hyderabad’s tech hub, is poised to become one of India’s largest medical facilities, spanning 20 lakhs sq. ft. with 2000 beds. Emphasizing patient recovery, each floor incorporates 4000-5000 sq. ft. of greenery.

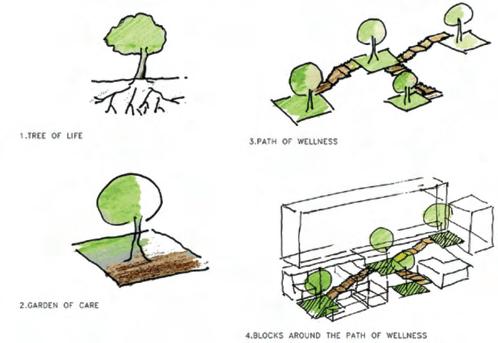

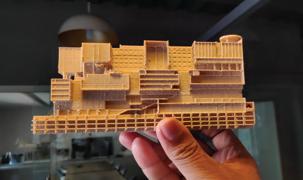

The hospital is conceived as a ‘Medical Park,’ drawing inspiration from nature, featuring distinct gardens like the Garden of Care, Garden of Hope, Garden of Prayer, and Garden of Solace. These courts form a Wellness Path, organizing public and private hierarchies. The architecture’s gradual breakup, marked by a triple-height entrance and staggered cutouts, enhances the overall design.
39

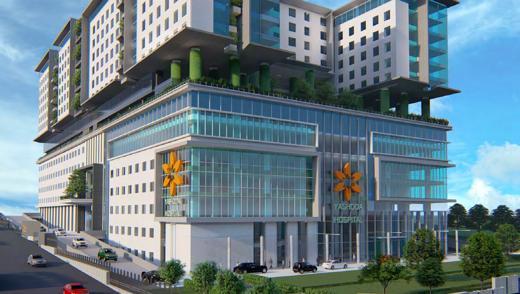

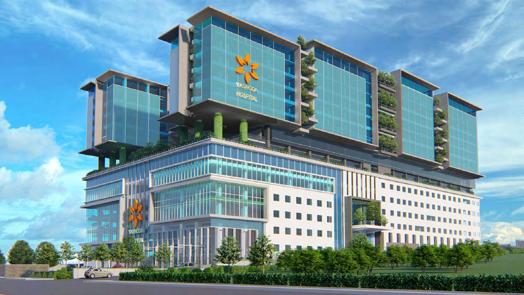

Renders | Lumion

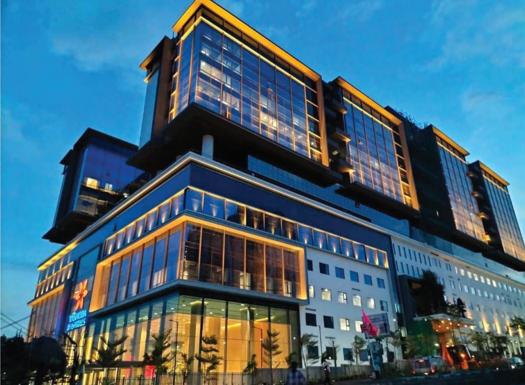

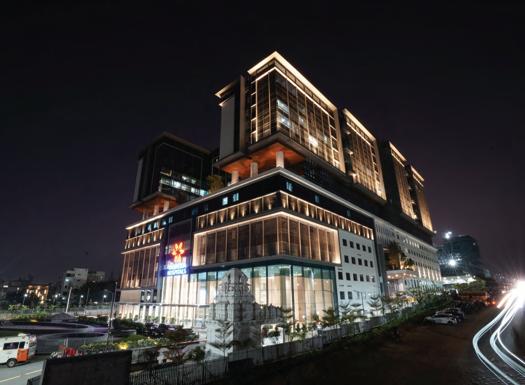

Photograph after Completion
1400 1700 3175 685 3515 3600 8400 4500 4500 4200 4200 4200 4200 4200 3600 4700 3600 3600 3600 3600 3600 3600 60900 LG FLOOR LEVEL SSL +1.0 m lvl UG FLOOR LEVEL SSL + 5.5 m lvl GROUND FLOOR LEVEL SSL +10.0 m lvl FIRST FLOOR LEVEL SSL + 14.2 m lvl SECOND FLOOR LEVEL SSL + 18.4 m lvl THIRD FLOOR LEVEL SSL +22.6 m lvl FOUTH FLOOR LEVEL SSL + 26.8 m lvl FIFTH FLOOR LEVEL SSL +31.0 m lvl SIXTH FLOOR LEVEL SSL +34.6 m lvl SEVENTH FLOOR LEVEL SSL +39.3 m lvl EIGHT FLOOR LEVEL SSL 42.9 m lvl NINTH FLOOR LEVEL SSL +46.5 m lvl TENTH FLOOR LEVEL SSL +50.1 m lvl ELEVENTH FLOOR LEVEL SSL 53.7 m lvl TWELETH FLOOR LEVEL SSL +57.3 m lvl TWELETH A FLOOR LEVEL SSL +60.9 m lvl 3050 2400 1250 INSIDE OUTSIDE Al. flashing running continuously Weather sealant SS Screws as per strl. requirements 12mm thk. heat Strengthned as / Specifications Transom of approved colour Aluminium Mullion Section (20 mic anodized) SS Anchor bolt as per strl. requirements 122 INSIDE OUTSIDE M.S. 'L' type Bracket with hot dip Galvanised as per Strl. requirement Structural silicon-DC-995/983 Aluminium Sash Section (20 mic anodized) Aluminium Transom Section (20 mic anodized) 12mm thk.heat Strengthned as Specifications Aluminium Mullion Section (20 mic anodized) EPDM Rubber Gasket SS 304 Anchor fastener as per Strl. requirement 100 100 x 100 Box Section KEY PLAN SCALE 1:750 EAST ELEVATION - E2 SCALE 1:750 SECTION DETAIL 18 SCALE 1:150 DETAIL 39 SCALE 1:2 DETAIL 40 SCALE 1:2 DETAIL 39 #61, 2nd floor,100' road, Indiranagar,Bangalore-38 1:150 SUMAN DKP ARCHITECTURE GFC 07/03/2020 DETAIL 40 MODEL VIEW - DETAIL 39 SCALE : NTS MODEL VIEW - DETAIL 40 SCALE : NTS
Facade Detail Drawing
Project : Redevelopment of Cycle Lanes Viale Fulvio Testi
Location: Milan,Italy
Type: Urban Mobilty
Project Architect: Sabrina Freda

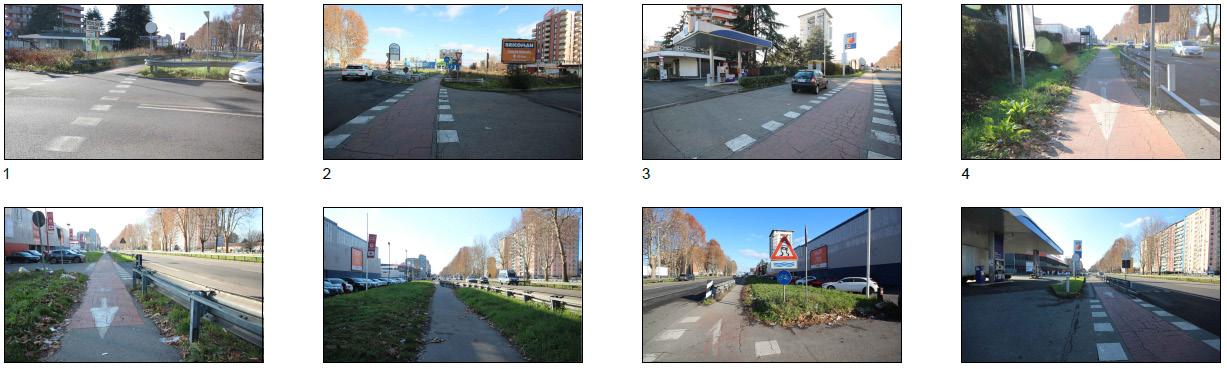

Project Summery: The project aims to design a dedicated slow mobility path along Via Fulvio Testi , a significant radial road in Milan, Italy. This initiative seeks to enhance pedestrian and cyclist safety, promote sustainable transportation
40

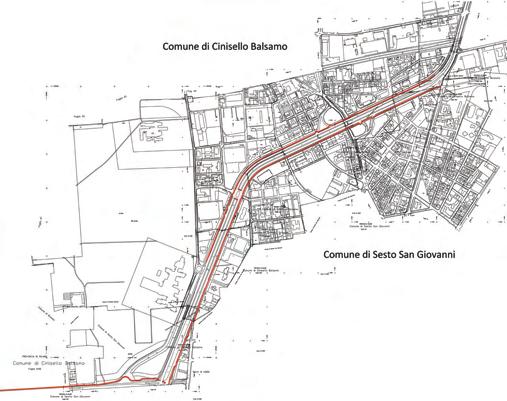

Planimetria Sud - tratto 1 scala 1:250 Viale Romagna 148.0 147.7 147.7 148.0 148.0 147.9 148.0 148.0 148.1 148.0 148.2 148.1 148.3 148.2 70 0.88 2.50 PK 15 PK 16 B B 12.13 4.30 6.10 6.58 0.43 0.83 0.97 0.70 2.50 0.88 Viale Fulvio Testi R10.00 9.80 0.73 LEGENDA COSTRUZIONE NUOVO PERCORSO BICI NUOVO VERDE NUOVO PERCORSO PEDONALE 1 2 3 4 NUOVO ASFALTO 5 NUOVO FERMATA BUS 6 CADITOIE,POZZETTO 7 PIANTAGIONE DI ALBERI LEGENDA DEMOLIZIONI DEMOLIZIONE DI ASFALTO SCAVO DI TERRENO 1 2 3 DEMOLIZIONE DI CALCESTRUZZO 4 5 CADITOIE,POZZETTO REMOZIONE ALBERATURA 6 SCARIFICA ASFALTO Sezione B-B Scala 1:50 0.43 0.82 FRONTE RETRO 70 3.71 2.04 1.70 2.44 C C D D Planimetria Sud - tratto 2 scala 1:250 LEGENDA COSTRUZIONE NUOVO PERCORSO BICI NUOVO VERDE NUOVO PERCORSO PEDONALE 1 2 3 4 NUOVO ASFALTO 5 NUOVO STAZONE BUS LEGENDA DEMOLIZIONI DEMOLIZIONE DI ASFALTO SCAVO DI TERRENO 1 2 3 DEMOLIZIONE DI CALCESTRUZZO 4 SCARIFICA ASFALTO 5 REMOZIONE ALBERATURA 2.39 1.00 1.23 Sezione D-D Scala 1:50 0.40 0.60 0.60
41 STATO DI CONFRONTO IL PROGETTISTA: VISTO E APPROVATO: Oggetto: file: Fase Elaborato: SCR 01 Def/Esec DESCRIZIONE REV.DATA controllato: STATO DI CONFRONTO TRATTO 1 - PLANIMETRIA E SEZIONI SC.1:250 redatto: RIQUALIFICAZIONE PISTE CICLABILI LATERALI ALLA EX SP5/V.le FULVIO TESTI COMUNI DI CINISELLO BALSAMO E SESTO SAN GIOVANNI CUP: I77H21003700001 Ing. Gabriella D'Avanzo Via Pennazzi 23/a 29122 PIACENZA fredafogstudio@gmail.com Ing. Arch. Sabrina Freda Responsabile Unico Procedimento 1 148.5 148.4 148.1 148.5 148.4 148.7 148.6 148.3 148.4 148.0 70 0.85 2.50 0.72 2.50 20.50 3.00 30.00 PK 17 PK 18.45 2.50 Viale Fulvio Testi 2.50 R22.50 R20.00 18.00 0.30 R12.50 BOXCARITAS RICOLLOCARE PUNTOPOSTE LEGENDA (CLS DRENANTE COLORATO IN PASTA) PIATTAFORMA FERMATA AUTOBUS AREA FERMATA AUTOBUS CADITOIA ISOLA SALVAGENTE IN PORFIDO ZONE A VERDE POZZETTO PALOSEMAFORO PALOMETALLO SOVRAPPOSIZIONE TAVOLE NB:L'ESATTA COLLOCAZIONE DELLA SEGNALETICA 03/ 11/ 2022SCR PLANIMETRIA E SEZIONI 01 17/ 07/ 2023SCR PLANIMETRIA E SEZIONI 02 0.45 Sezione A-A Scala 1:50 0.45 Viale Romagna 2.52 2.40 2.36 Viale Romagna 90M STATO DI CONFRONTO file: Fase Elaborato: SCR 02 Def/Esec DESCRIZIONE REV.DATA 03/ 11/ 2022 SCR - PLANIMETRIA E SEZIONI Oggetto: STATO DI CONFRONTO TRATTO 2 - PLANIMETRIA E SEZIONI SC.1:250 01 IL PROGETTISTA: VISTO E APPROVATO: RIQUALIFICAZIONE PISTE CICLABILI LATERALI ALLA EX SP5/V.le FULVIO TESTI COMUNI DI CINISELLO BALSAMO E SESTO SAN GIOVANNI CUP: I77H21003700001 Ing. Gabriella D'Avanzo Via Pennazzi 23/a 29122 PIACENZA fredafogstudio@gmail.com Ing. Arch. Sabrina Freda Responsabile Unico Procedimento 02 ?????? 2.50 Sezione C-C Scala 1:50 2.50 0.30 1.00 2.45 0.42
