DEHUMIDIFICATION

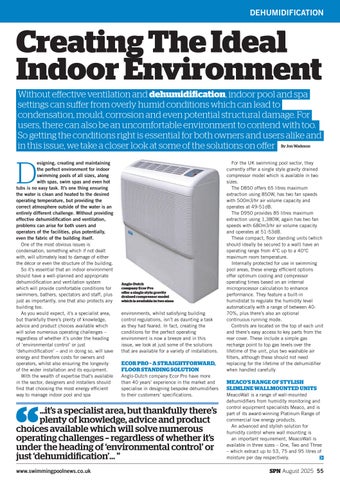

Creating The Ideal Indoor Environment Without effective ventilation and dehumidification, indoor pool and spa settings can suffer from overly humid conditions which can lead to condensation, mould, corrosion and even potential structural damage. For users, there can also be an uncomfortable environment to contend with too. So getting the conditions right is essential for both owners and users alike and in this issue, we take a closer look at some of the solutions on offer By Jon Wadeson esigning, creating and maintaining the perfect environment for indoor swimming pools of all sizes, along with spas, swim spas and even hot tubs is no easy task. It’s one thing ensuring the water is clean and heated to the desired operating temperature, but providing the correct atmosphere outside of the water is an entirely different challenge. Without providing effective dehumidification and ventilation, problems can arise for both users and operators of the facilities, plus potentially, even the fabric of the building itself. One of the most obvious issues is condensation, something which if not dealt with, will ultimately lead to damage of either the décor or even the structure of the building. So it’s essential that an indoor environment should have a well-planned and appropriate dehumidification and ventilation system which will provide comfortable conditions for swimmers, bathers, spectators and staff, plus just as importantly, one that also protects any building too. As you would expect, it’s a specialist area, but thankfully there’s plenty of knowledge, advice and product choices available which will solve numerous operating challenges – regardless of whether it’s under the heading of ‘environmental control’ or just ‘dehumidification’ – and in doing so, will save energy and therefore costs for owners and operators, whilst also ensuring the longevity of the wider installation and its equipment. With the wealth of expertise that’s available in the sector, designers and installers should find that choosing the most energy efficient way to manage indoor pool and spa
D
Anglo-Dutch company Ecor Pro offer a single style gravity drained compressor model which is available in two sizes
environments, whilst satisfying building control regulations, isn’t as daunting a task as they had feared. In fact, creating the conditions for the perfect operating environment is now a breeze and in this issue, we look at just some of the solutions that are available for a variety of installations.
ECOR PRO – A STRAIGHTFORWARD, FLOOR STANDING SOLUTION Anglo-Dutch company Ecor Pro have more than 40 years’ experience in the market and specialise in designing bespoke dehumidifiers to their customers’ specifications.
...it’s a specialist area, but thankfully there’s plenty of knowledge, advice and product choices available which will solve numerous operating challenges – regardless of whether it’s under the heading of ‘environmental control’ or just ‘dehumidification’... ” www.swimmingpoolnews.co.uk
For the UK swimming pool sector, they currently offer a single style gravity drained compressor model which is available in two sizes. The D850 offers 65 litres maximum extraction using 850W, has two fan speeds with 500m3/hr air volume capacity and operates at 49-51dB. The D950 provides 85 litres maximum extraction using 1,380W, again has two fan speeds with 680m3/hr air volume capacity and operates at 51-53dB. These compact, floor standing units (which should ideally be secured to a wall) have an operating range from 4°C up to a 40°C maximum room temperature. Internally protected for use in swimming pool areas, these energy efficient options offer optimum cooling and compressor operating times based on an internal microprocessor calculation to enhance performance. They feature a built-in humidistat to regulate the humidity level automatically with a range of between 4070%, plus there’s also an optional continuous running mode. Controls are located on the top of each unit and there’s easy access to key parts from the rear cover. These include a simple gas recharge point to top gas levels over the lifetime of the unit, plus two washable air filters, although these should not need replacing for the lifetime of the dehumidifier when handled carefully
MEACO’S RANGE OF STYLISH SLIMLINE WALLMOUNTED UNITS MeacoWall is a range of wall-mounted dehumidifiers from humidity monitoring and control equipment specialists Meaco, and is part of its award-winning Platinum Range of commercial low energy products. An advanced and stylish solution for humidity control where wall mounting is an important requirement, MeacoWall is available in three sizes – One, Two and Three – which extract up to 53, 75 and 95 litres of moisture per day respectively.
