Welcome to Aqua Cure
At Aqua Cure, our unwavering commitment is to provide your commercial kitchen with the most comprehensive selection of water treatment solutions, which you will find in this brochure.
Aqua Cure offers an easy-to-use, one-stop-shop approach backed by technical support and many decades of experience in the water treatment industry.

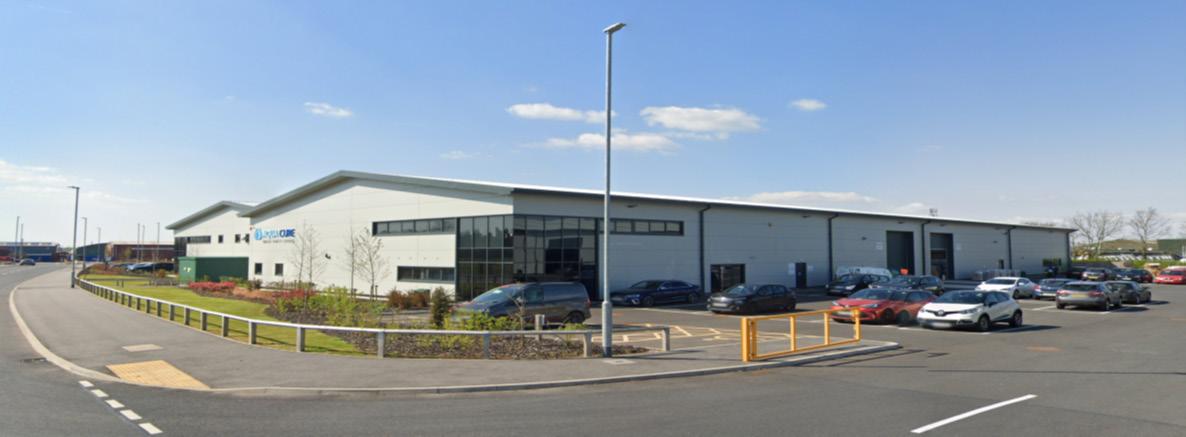

In the heart of Burscough Lancashire lies our state-of-the-art manufacturing facility, where our processes are designed to minimise water and energy consumption whilst maintaining high levels of product quality.
Perfect water for commercial kitchens
COFFEE MACHINE FILTERS
WAREWASHING
SOFTENERS WATER BOILER FILTERS
BOILING WATER TAP FILTERS
STEAM / COMBI OVEN FILTERS ICE MACHINE FILTERS
ESPRESSO MACHINE FILTERS
CoffeeandEspresso

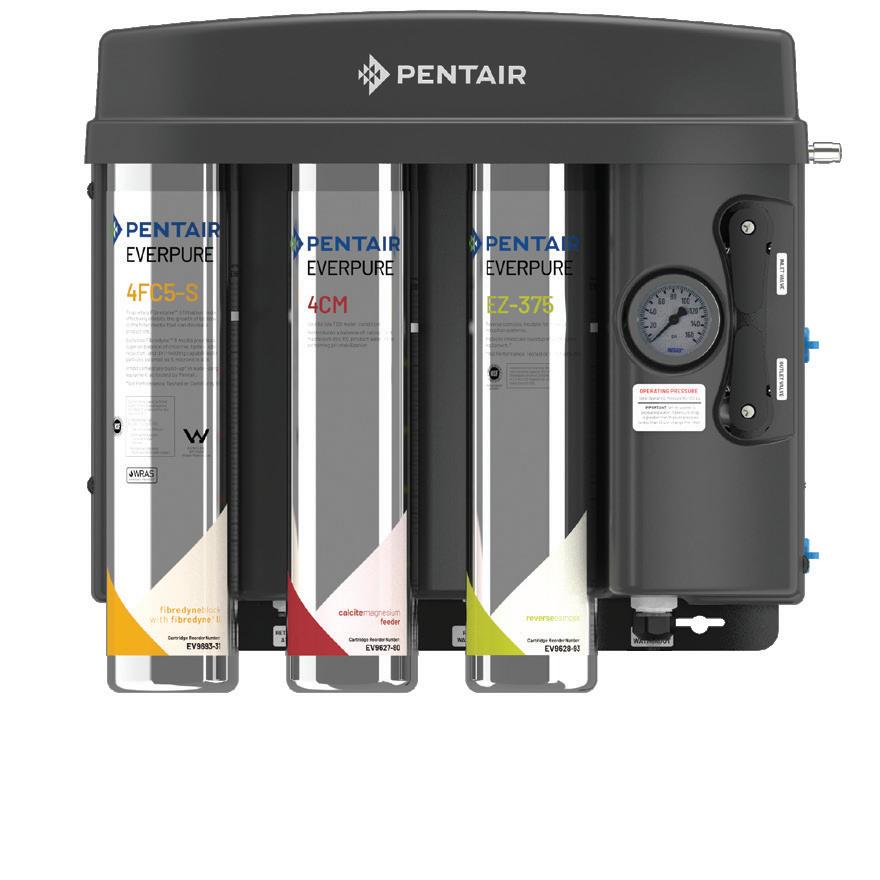

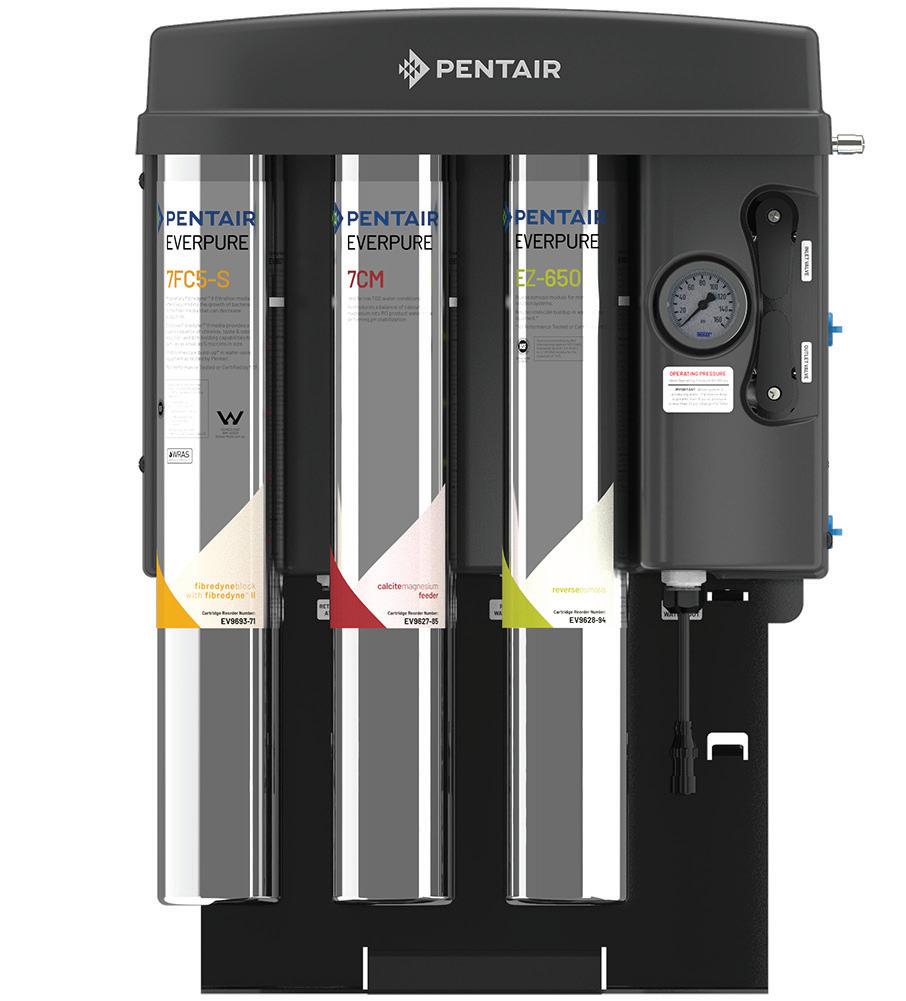

EZ-RO Reverse Osmosis Systems
Choosing the right filtration system is essential for foodservice applications to ensure a consistent, quality customer experience.

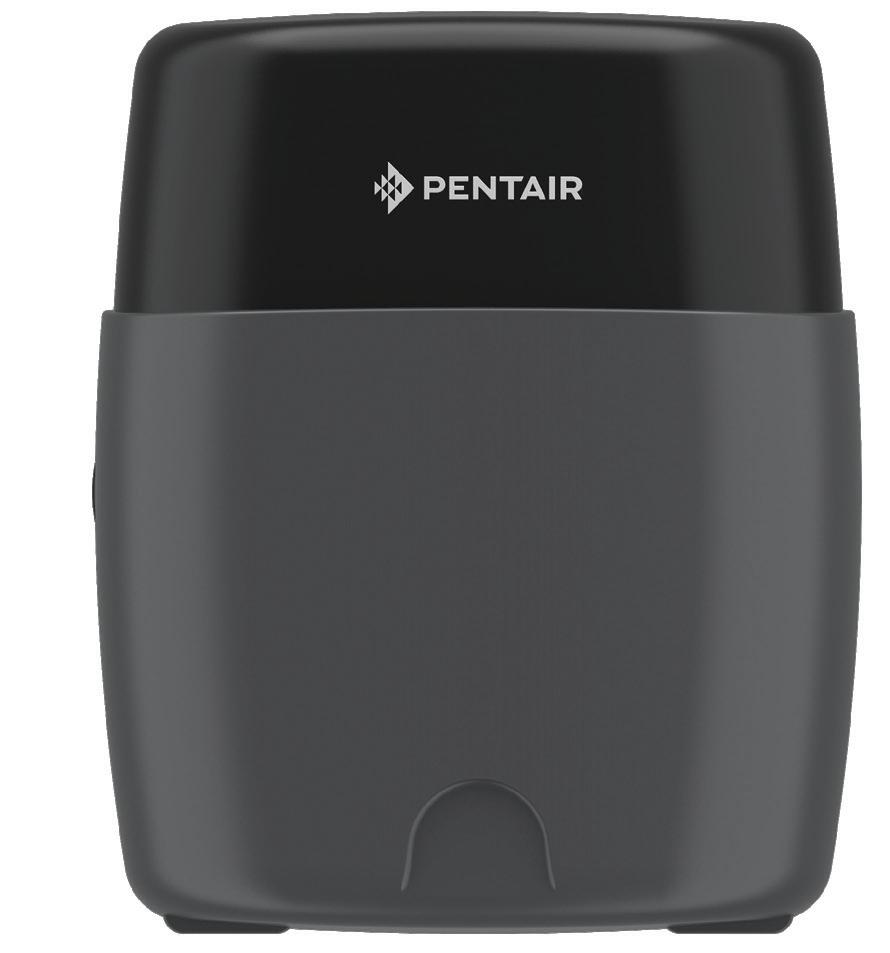

The Pentair® Everpure® EZ-RO™ is all that’s needed to reduce Total Dissolved Solids (TDS) & boost mineral content using Magnesium (Mg) with systems that can produce up to 1419L per day.
ONE SYSTEM HAS IT ALL. Everything you need is included with no additional SKUs or costs.
HASSLE-FREE SETUP AND MAINTENANCE. Easy installation kit and easy-to-access ports make operating and servicing EZ-RO a breeze.
ROOM TO GROW. Larger capacity membrane filter and tank sizes fit into the same compact EZ-RO system without having to replace the processor.
FLEXIBLE FIT. EZ-RO can be wall mounted, free standing, or under the counter thanks to its space-saving, compact design.
MAXIMUM WATER SAVINGS AND OUTPUT. High efficiency RO membrane saves up to two times more water than standard RO membranes.*
RE-MINERALIZATION LIKE NO OTHER. The EZ-RO adds back calcium and magnesium to help protect equipment, enhance coffee extraction, and improve water taste.
Overall DimensionsProcessor 16.6” H x 18.0” W x 8.0” D ( 42.2cm x 45.7cm x 20.3cm )
Tank Dimensions & Capacity
Membrane Capacity
20.3” H x 12.4” DIA ( 51.6cm x 31.5cm ) 5 gallons ( 18.9L )
16.6” H x 18.0” W x 8.0” D ( 42.2cm x 45.7cm x 20.3cm)
16.6” H x 18.0” W x 8.0” D ( 42.2cm x 45.7cm x 20.3cm )
Water Temperature Connections
Inlet: 3.8” push - to - connect Outlet: 1/2” OD push - to-connect
Pressure Requirements
50 - 100 psi ( 3.5 - 6.9 psi ) non - shock
40 - 100°F ( 4 - 38°C )
Other EZ-RO sizes available, Please contact to discuss further.
Inlet: 3.8” push - to - connect Outlet: 1/2” OD push - to-connect 23.2” H x 15.6” DIA ( 58.9cm x 39.6cm ) 10 gallons ( 37.8L ) 30.4” H x 15.6” DIA ( 77.2cm x 39.6cm ) 16 gallons ( 60.6L)
Inlet: 3.8” push - to - connect Outlet: 1/2” OD push - to-connect
- 100 psi ( 3.5 - 6.9 psi ) non - shock
40 - 100°F ( 4 - 38°C )
- 100 psi ( 3.5 - 6.9 psi ) non - shock
40 - 100°F ( 4 - 38°C )
Coffee and Espresso
Claris from

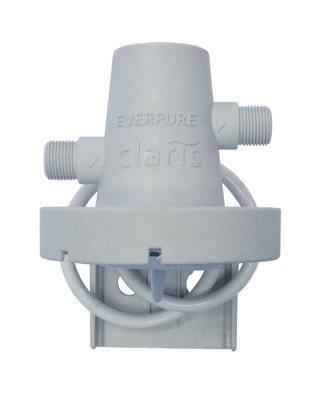

Claris head / DuoBlend® technology with bypass* (Compatible with entire Claris Range)
Adjustable ion-selective filter to tailor carbonate hardness levels in potable water. DuoBlend bypass technology for the precise adjustment of carbonate hardness.
The Everpure Claris Ultra is the world's first filter cartridge family designed using a new patent-pending water filtration and conditioning technology which effectively combines mineral reduction and corrosion protection within one compact unit.
As a result Claris Ultra helps you achieve the best quality brewed coffee, espresso and hot drinks in addition to helping make clear, hard ice cubes.
Push Fit Variant

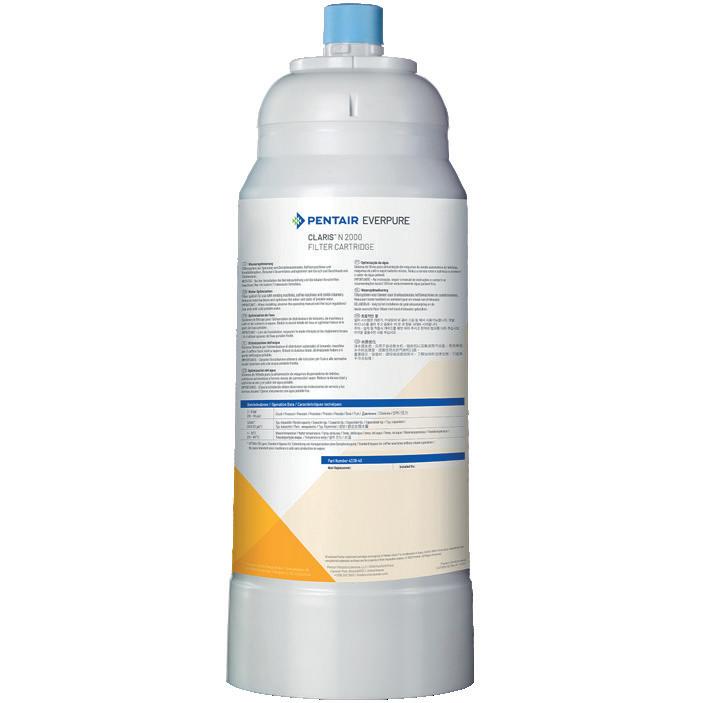

Claris N technology can remove total hardness coming both from sulphates (gypsum) and carbonate hardness coming from bicarbonate It is also more convenient to use than softeners which need regeneration and refill.

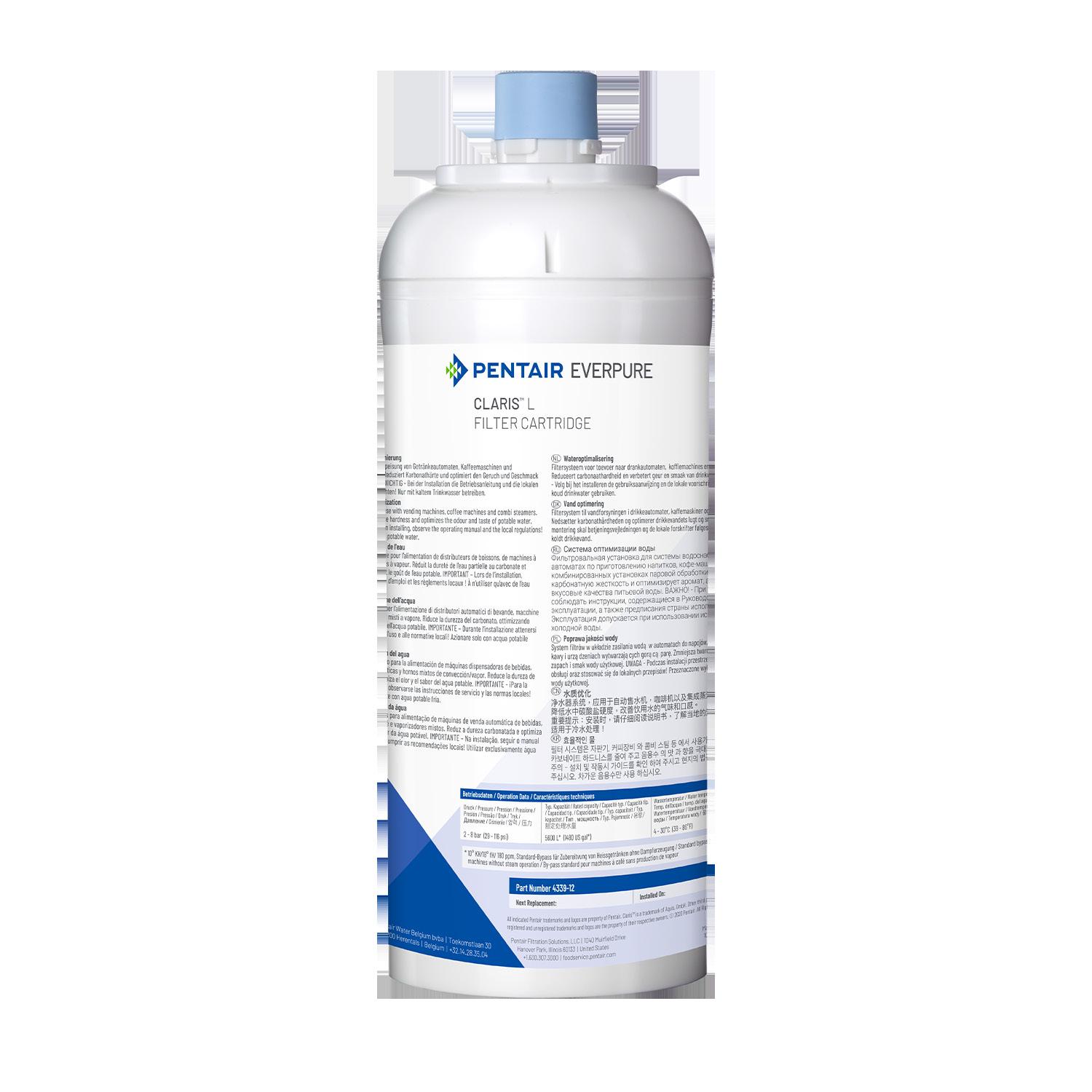

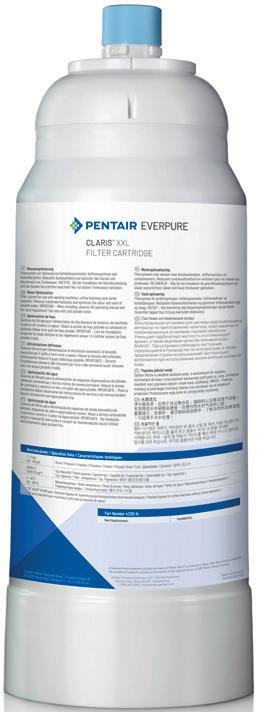

Claris

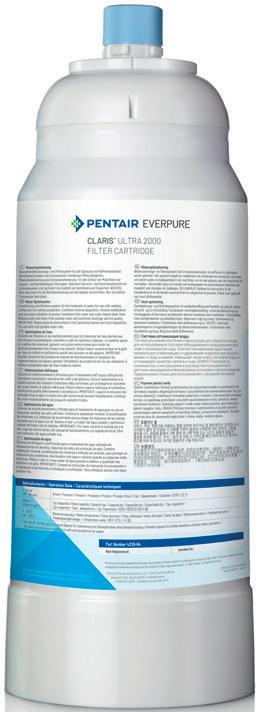

Claris Ultra
Claris N

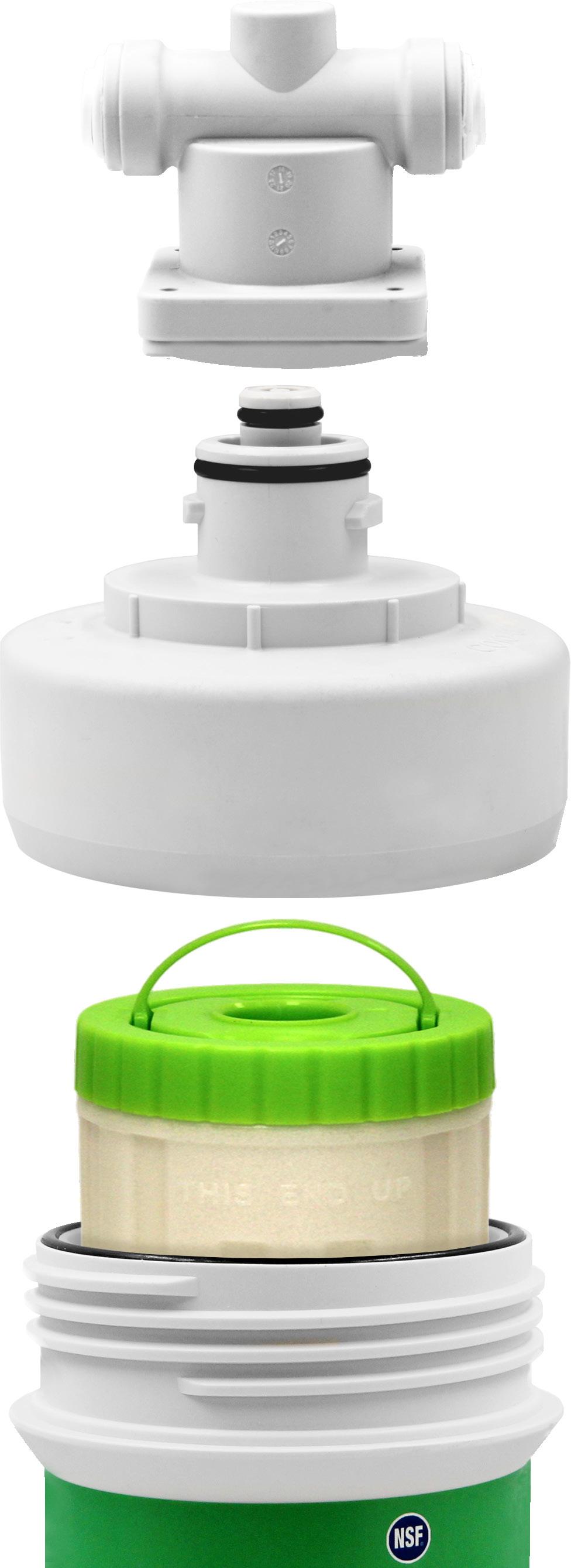

Discover our innovative enviro+ series, designed to meet your water treatment needs with enhanced sustainability in mind.
A variety of inserts are available taking out various contaminants from the water from Chlorine all the way to sub micron Bacteria and Scale Control.
Fixed and Variable bypass head options are available with 3/8 inlet and outlet fittings.
Crafted specifically for commercial applications, enviro+ offers versatile solutions with carbon filter refills and ion exchange cartridges. It excels in removing contaminants and reducing scale, making it a cost-effective choice for the food service industry.

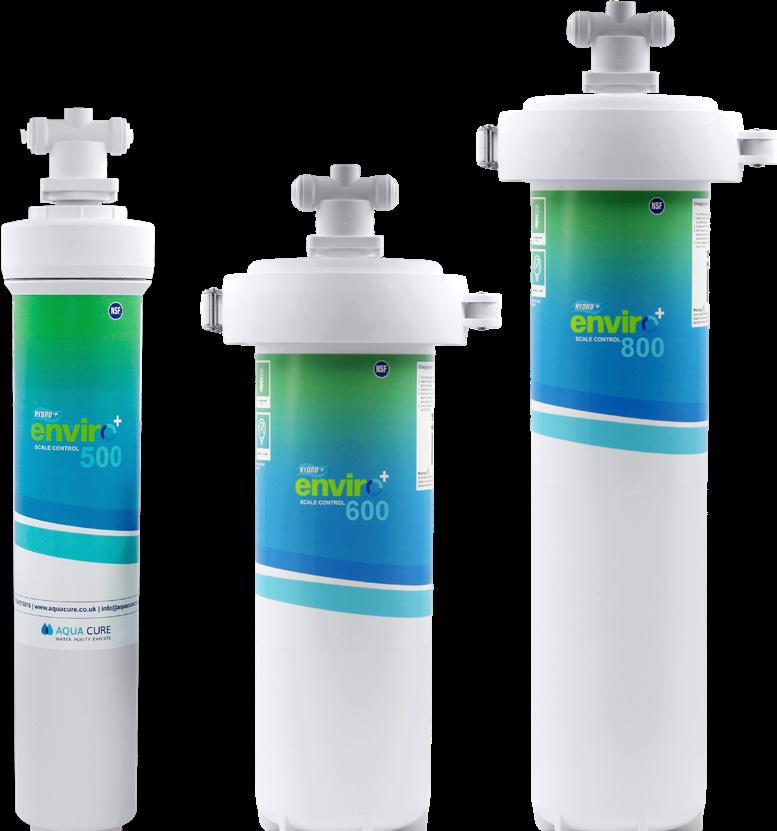

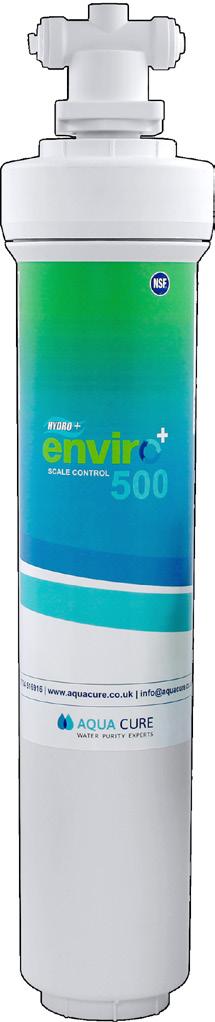

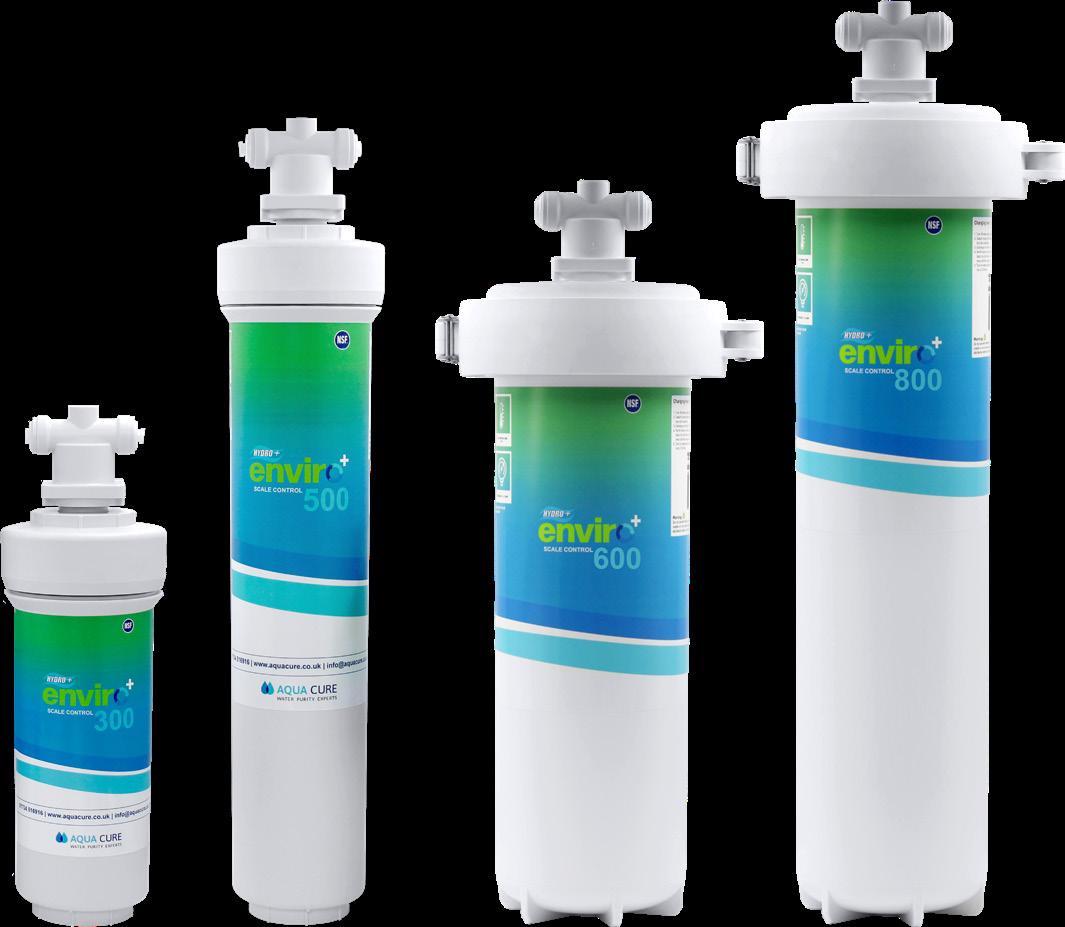

ENVI500/600/800 Scale Control
Specifically manufactured for hot water dispensing equipment that requires high capacity scale control and chlorine reduction, without severely reducing the Ph value of the feedwater. enviro+ 5/6/800 is an excellent choice for vending and traditional espresso machines as well as combination ovens and water boilers.
Ion Exchange Resin Cartridge: Ideal for hot or boiling water applications, the enviro+ reduces scale, safeguarding dispensing equipment and minimising servicing costs.
Tailored for commercial use
Chlorine and odour removal
Scale and hardness reduction
Ideal for boiling water tanks, coffee machines, steam ovens, and more.
IceMachines
Quick & easy cartridge change
NSF certified
Cost Efficient Scale Inhibitor

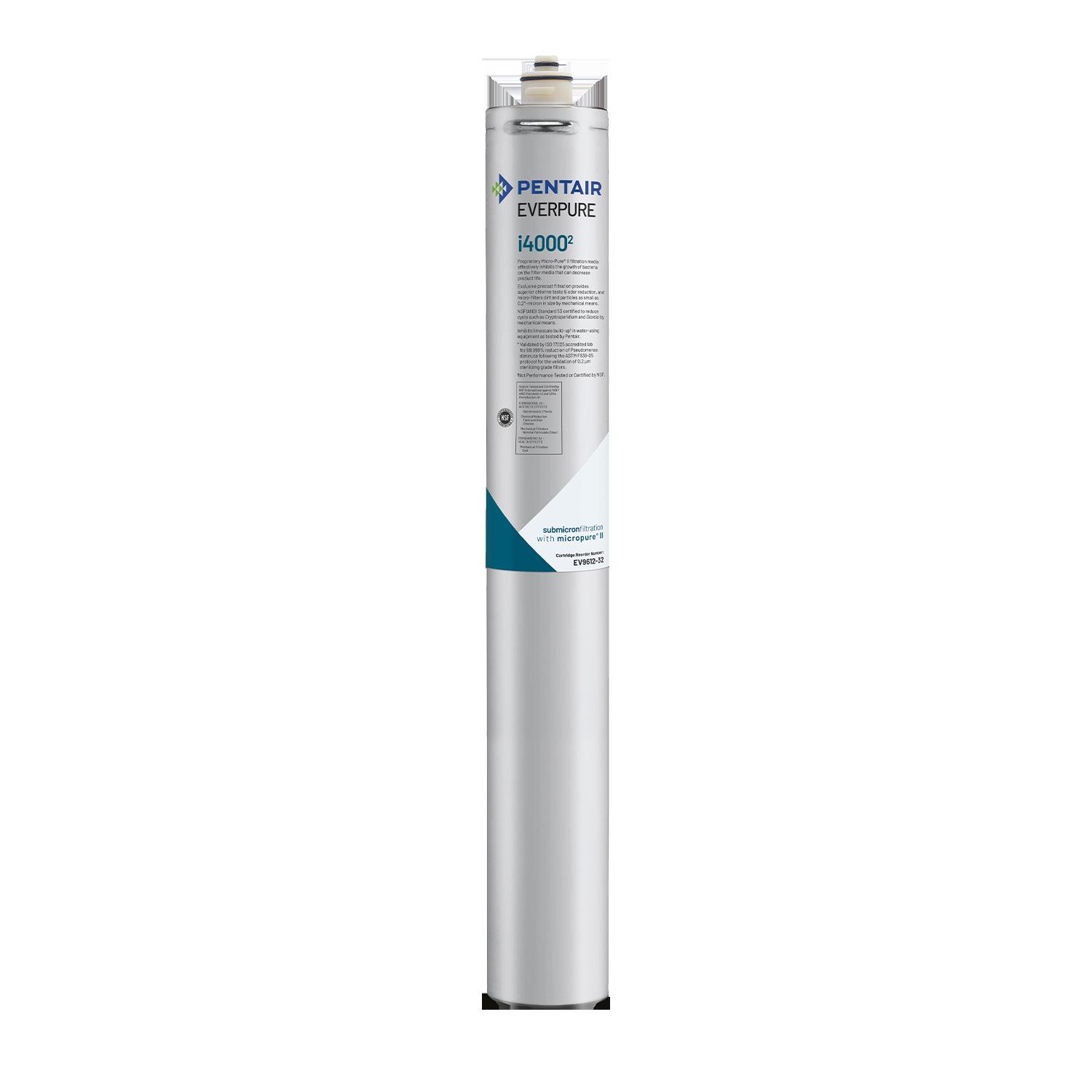

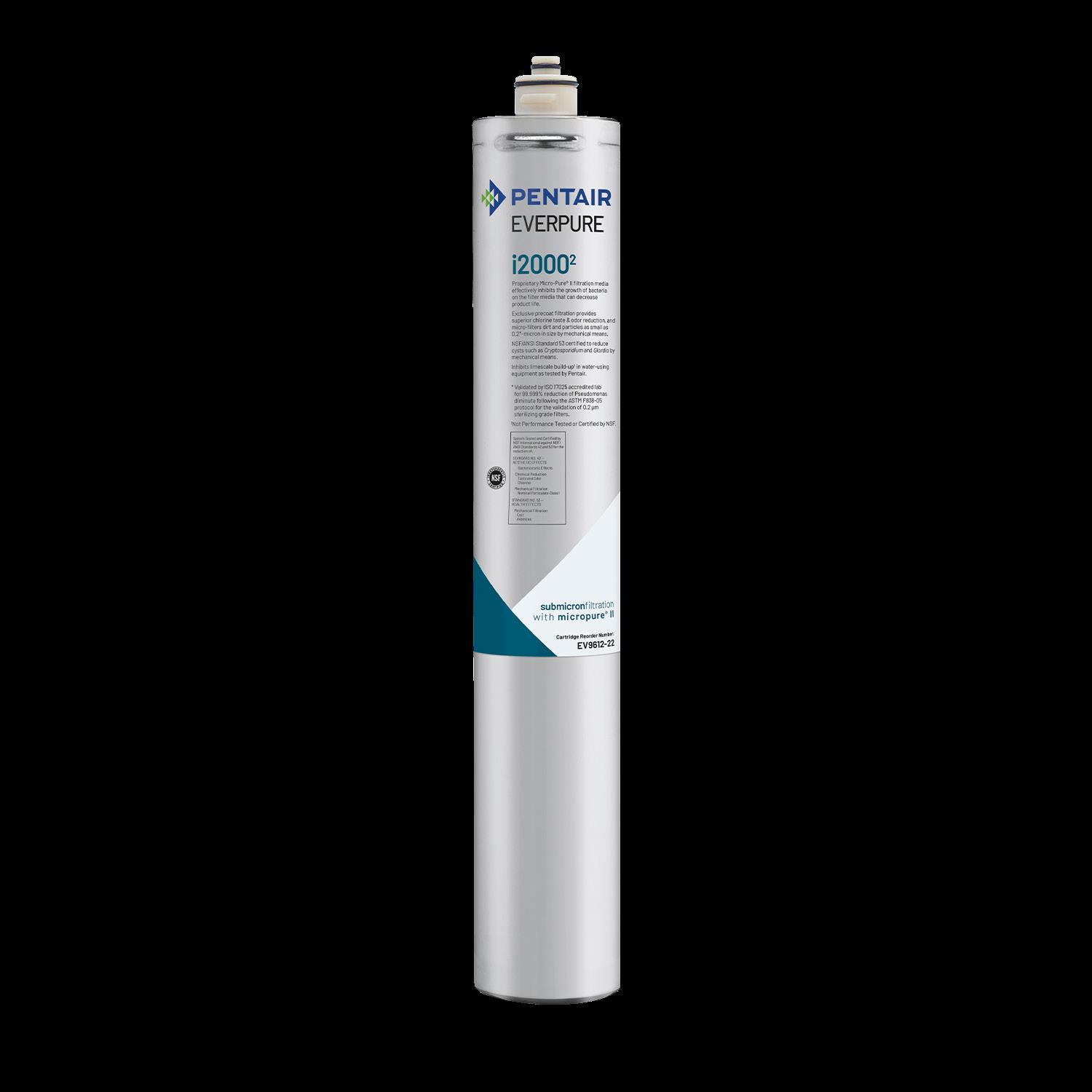

Insurice Advanced ice machine filters
Reduces water-related ice machine problems caused by scale build-up from dirt and dissolved minerals.
Reduces chlorine taste and odor and other offensive contaminants. Self-contained scale inhibitor feed keeps ice machines functioning at full capability.
Reduces maintenance and service costs by reducing scale and clogging of distribution lines, evaporator plate and pumps.
Micro-Pure® II media with AgION® antimicrobial protection inhibits any potential bacterial growth.
Reduces health contaminants such as asbestos fibers and cryptosporidium, giardia and cysts.

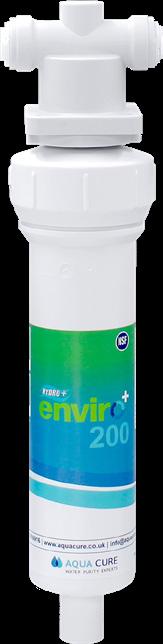

Enviro+ 200 Carbon Block with Polyphosphate
Enviro+ 200 Fiberdeyne With Polyphosphate
Enviro+ 300 Carbon Block with Polyphosphate
Enviro+ 300 Fiberdeyne With Polyphosphate
The Everpure 4SI cartridge retains chlorine which reduces biological growth and sludge in ice bins.
Everpure® Filter Heads
The QL and QC filter heads will accept all Everpure® silver canister style cartridges ensuring optimum filtration performance, consistent drink quality and enhanced protection from scale build-up. To ensure compatibility with a wide range of equipment we also stock a range of adapters. Please contact us for details.
QL3B
EV927241
EV927222
EV927223
QL3B Single Head - 3/8” BSP Female

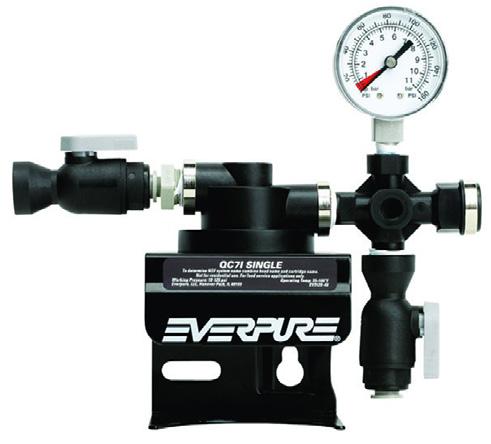

QC7I Single Filter Head - 3/8” BSP Female
QC7I Twin Parallel Filter Head - 3/4” NPT

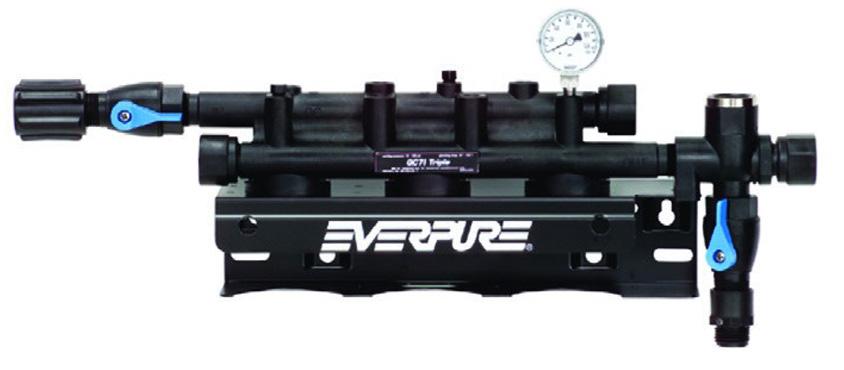

QC7I Triple Parallel Filter Head - 3/4” NPT

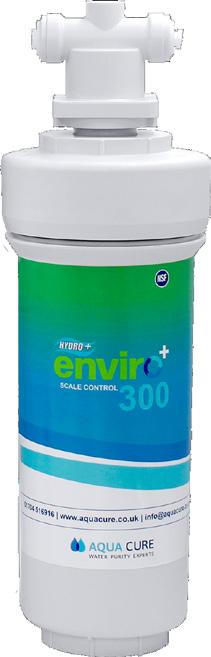

With solutions crafted especially for ice machines, the enviro+ 200/300 both offer versatile solutions with chlorine, bacteria and scale inhibition cartridges. These excel in removing chlorine and reducing scale while also removing bacteria from the water.
Fibredyne Block (0.5m)
Fibredyne Block with Phos (0.5m)
Ahlstrom (0.2m)
Ahlstrom with Phos (0.2m)
Steam/CombiOvens
Quick & easy cartridge change Prevents limescale damage Cost Efficient
to limescale and corrosion if the water going into them is not treated correctly with pipework and nozzles prone to clogging. Many manufacturers have specific guidelines on the best feed water for their products, water treatment can help you meet these guidelines.

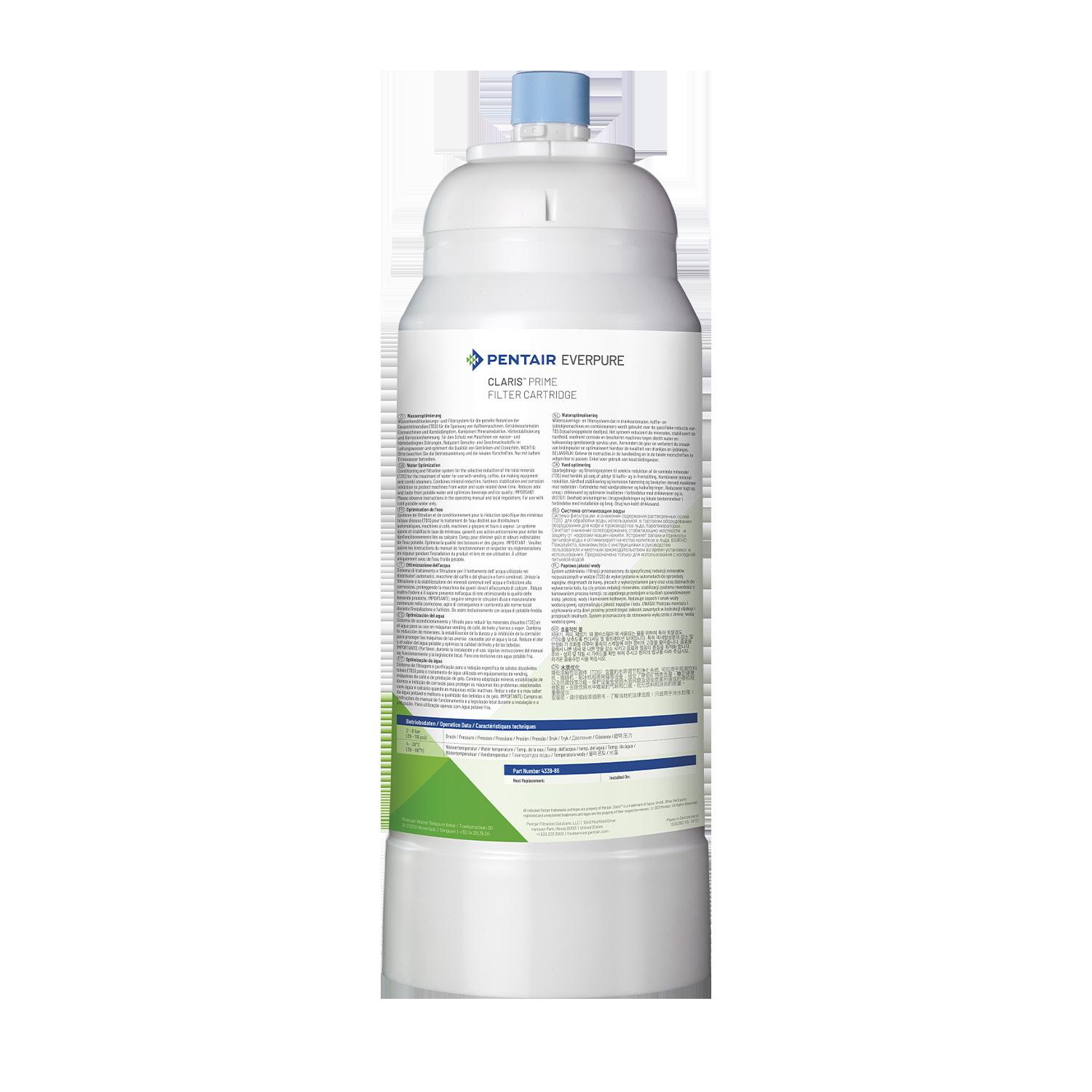

The Everpure Claris range is ideal for combi and steam ovens while the specialised Claris Prime water filter is designed for 'problem sites' as it enables the user to reduce TDS (Total Dissolved Solids) and is the only filter of its type on the is not recyclable
Tailored for commercial use, offering carbon filter refills or ion exchange cartridges to remove contaminants. It’s especially suitable for hot water applications, minimising maintenance costs. An excellent choice for steam / combination ovens.

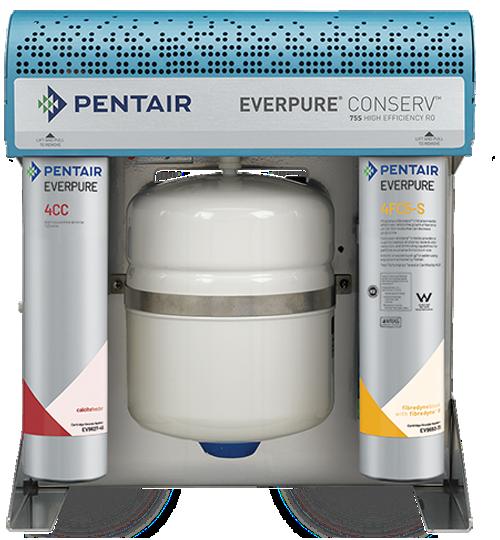

PENTAIR EVERPURE CONSERV 75S
The Everpure Conserv 75S is a high efficiency commercial reverse osmosis (RO) system which is ideal for lower capacity foodservice equipment such as countertop combi-ovens, proofers and small steamers. It combines a carbon filter, scale inhibitor, calcite feeder, carbon post filter and blending to create the right balance of minerals to prevent both corrosion and scale formation, differentiating it from conventional RO systems. It is a reliable, simple to install and easy to operate solution that only requires cartridge changes once a year. The system helps users meet foodservice equipment manufacturers’ water specification requirements, maintaining warranty compliance, reducing premature warranty claims, increasing equipment life, and ensuring customer satisfaction.
SUITABLE FOR 6 AND 10 GRID COMBI OVENS
ACRO500GPD
Specification
Daily Production Rate
Service Flow Rate
Inlet / Outlet Connection
Wastewater Connection
Operating Pressure Requirements
Maximum Operating Pressure
Inlet Temperature
Inlet Total Dissolved Solids (TDS)
Storage Tank Capacity
Overall dimensions
Operating Weight
The ACRO500GPD is the reverse osmosis system for professional use that best provides a compromise between high flow rate and small footprint. With its 4 membranes, in a very small space this machine can deliver up to 400 liters per hour plus the water accumulated in its tanks. The ease of maintenance, from the filter change to the membrane change, makes the RO one of the most efficient reverse osmosis systems on the market.
ACROSmart330GPD
Configurable Reverse Osmosis Systems
The ACROSmart330GPD is compact, versatile and easy to use. It is equipped with a front filter and new vessel with intelligent waste management. In addition to this, the machine is also fitted with a water-cooled vane pump that allows 24-hour work.
Compact, High Production Up To 50% Recovery Rate
Better Taste
Scale And Corrosion Protection
191 Litres per Day (LPD)
1.9 L @ 3.4 - 5.8 bar
3/8” OD John Guest® fitting
1/4” OD John Guest® fitting
2.7 - 5.8 bar, non-shock
8.6 bar
0 - 37.7°C
1,000 ppm maximum
7.6 L tank
47.5 cm (h)
WareWashing
Cost Efficient – keeps equipment running Reduces scale build up Keeps glassware / Crockery streak free
Both hot and cold feed softeners available
Authorised Distributor for Monarch Softeners
Our range of competitively priced water softeners can help keep your dishes, cutlery and glassware free of spots and streaks caused by total hardness. We offer a range of different size solutions for glass washers, under-counter dishwashers and rack conveyors.

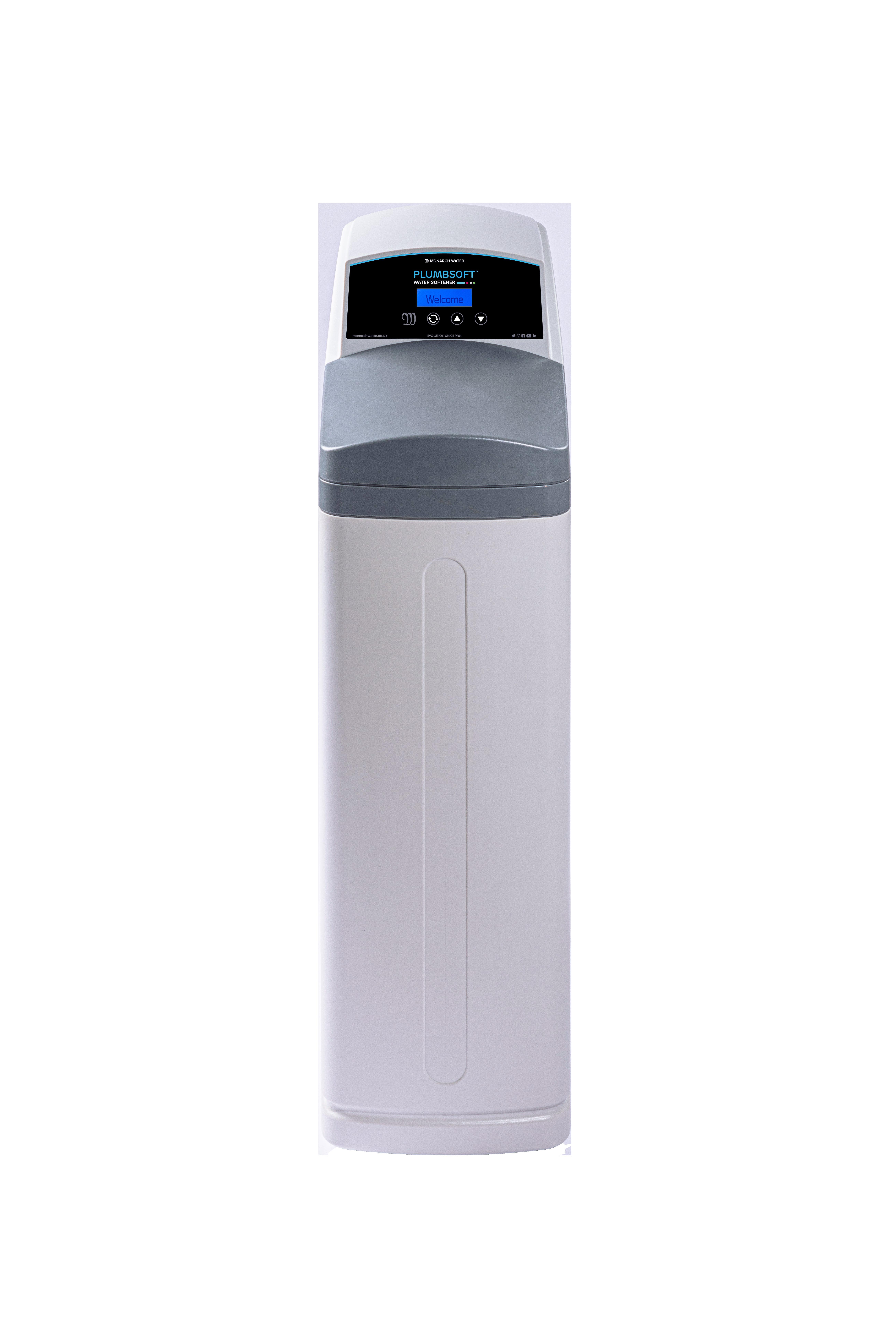

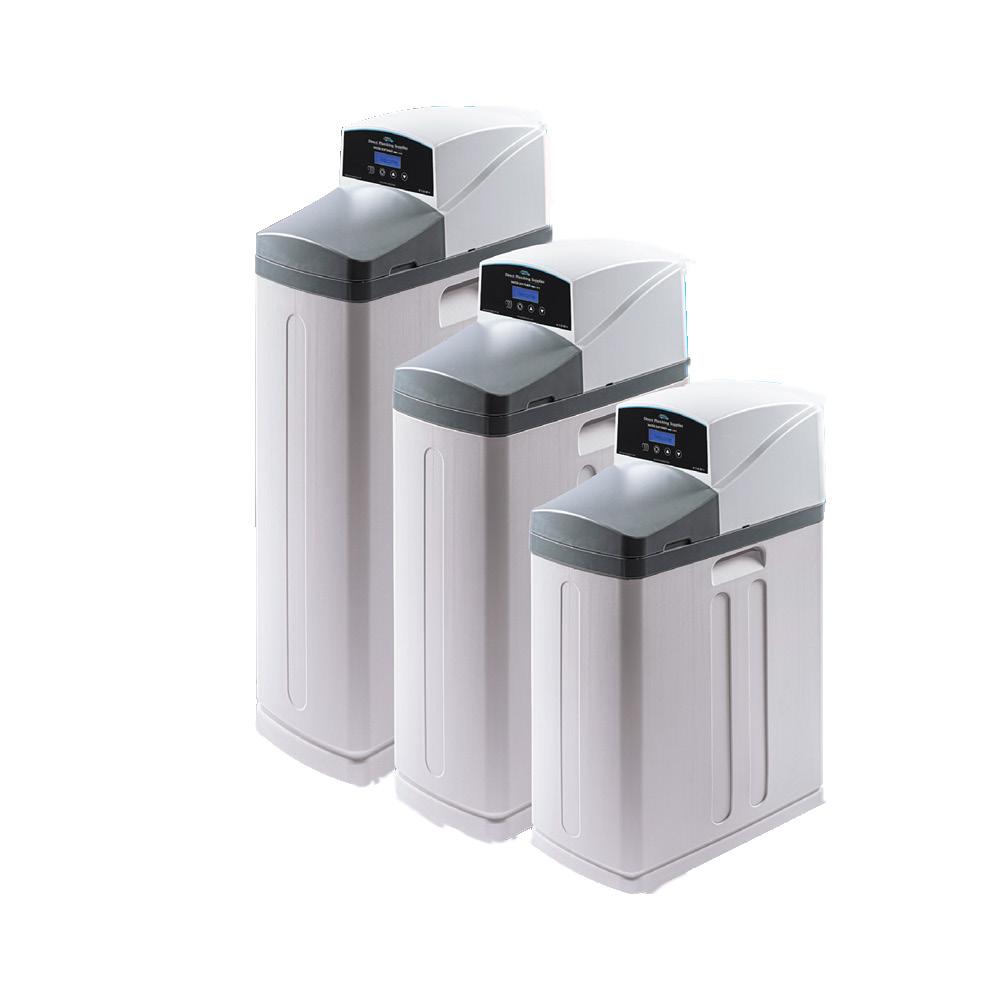

Plumbsoft Water Softeners
• Slimline for easy installation.
• Flow Rates up to 78 lpm.
• Meter Control for Optimum Performance.
• Savings on all Hard Water Costs.
• Ware washing protection and cleaner looking dishes.
• Scale free hot water cylinder, reduces energy bills as no scale to heat first.
Reduce Spotting and Streaking in Glassware
De-Ion filters reduce TDS (Total Disolved Solids) in dishwashers by utilising ion exchange resins to remove ions and impurities from water, resulting in highly purified water that enhances the cleaning performance and appearance of dishes and glassware.

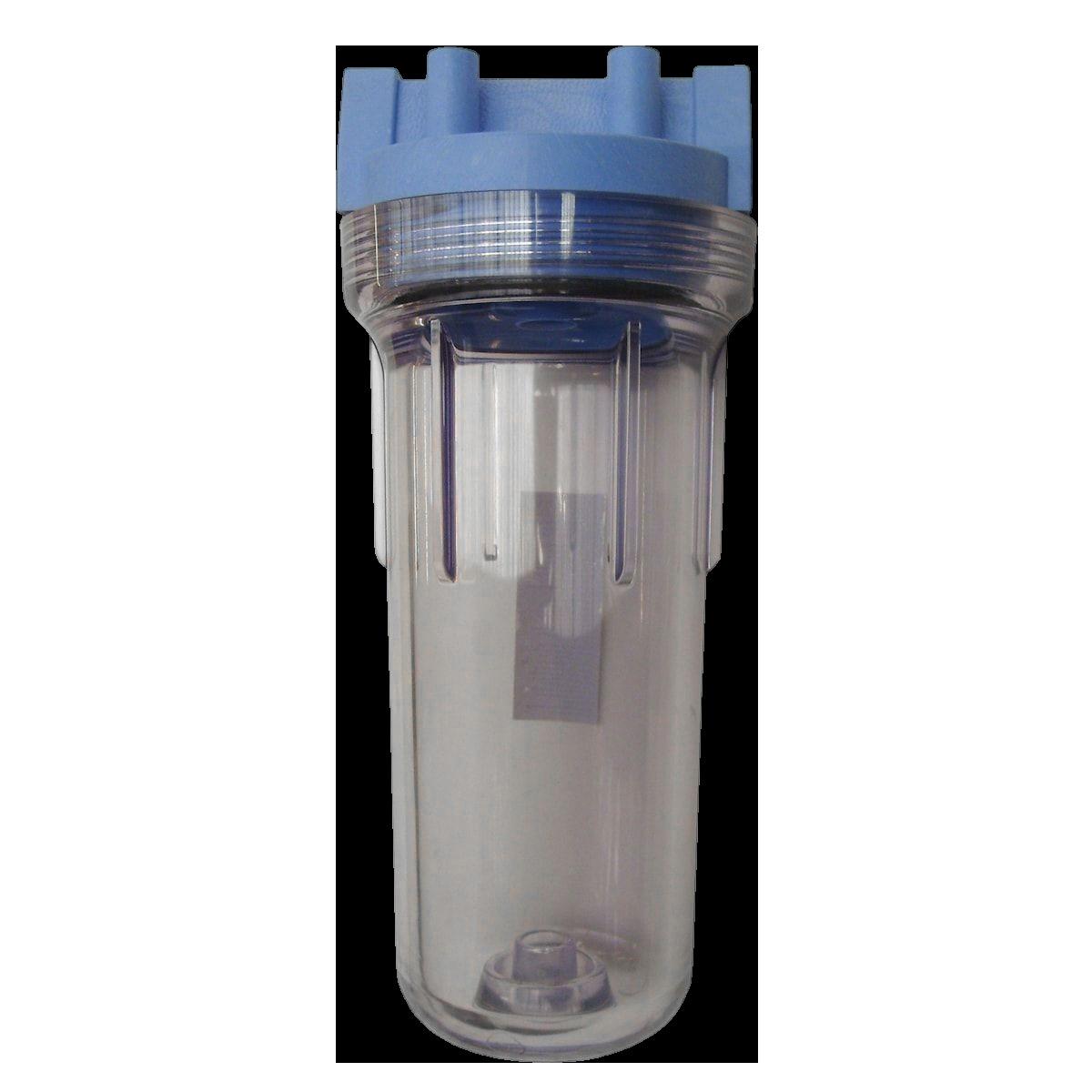

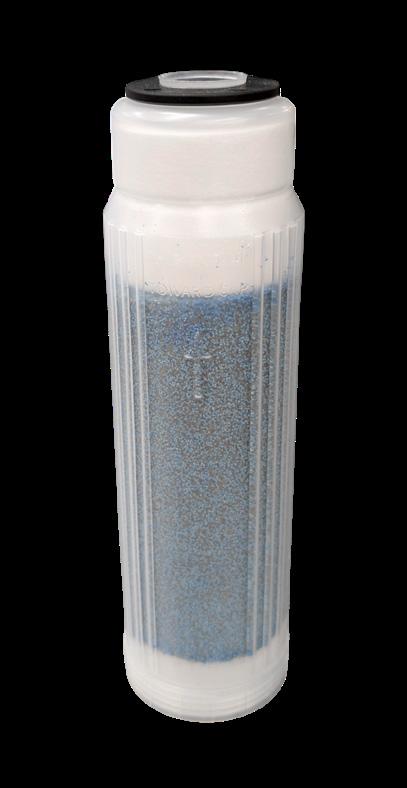

Pentek Style D.I. Colour Change Resin Filter 10"
BoilingWaterBoilersand WaterTaps
WRAS Approved
Retrofit solutions
Cost effective
No compromise on performance

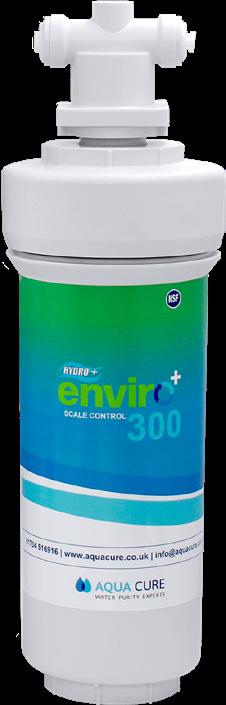

ENVI300
Crafted specifically for commercial applications, ENVI300 offers versatile solutions with carbon filter refills and ion exchange cartridges. It excels in removing contaminants and reducing scale, making it a cost-effective choice for the food service industry.
ENVI500
Tailored for commercial use, offers carbon filter refills or ion exchange cartridges to remove contaminants. It's especially suitable for hot water applications, minimising scale and maintenance costs, making it an excellent choice for boiling water tanks and coffee machines.
Tailored for commercial use
Chlorine and odour removal
Prevents Scale build up
Ideal for boiling water tanks, coffee machines, steam ovens and more
RETROFITS

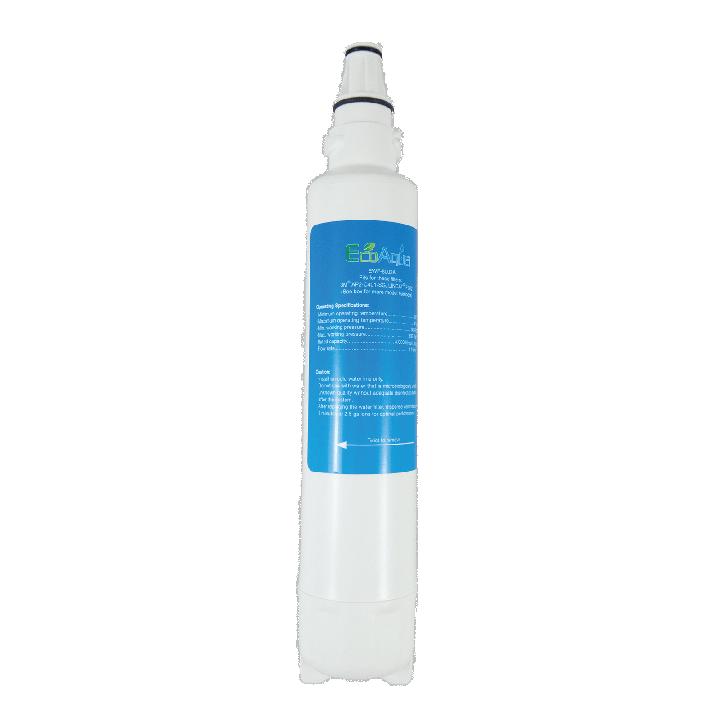

ECOAQUA F-601 STYLE CARTRIDGE
SKU: EWF8005A
Great value WRAS approved EcoAqua direct replacement for InSink water filter cartridges offering the same specification as InSink
Improves water taste by removing impurities such as chlorine.
ECOAQUA FCO4 COMPATIBLE
SKU: EWF8007A
Great value WRAS approved EcoAqua direct replacement for Lincat water filter cartridge. Offering the same great taste, made to t specification and quality as the original as it's made with NSF approved components.
This carbon block filter fits directly into the boiler and improves water taste by removing impurities such as chlorine and reduces limescale build up in the equipment due to the added scale inhibitor.
ECOAQUA AP2-C401-SG
FC02 COMPATIBLE CARTRIDGE
SKU EWF8002A
A great value direct replacement for 3M® AP2-C401-SG, LINCAT FC02 water boiler filter. WRAS approved product manufactured from NSF approved materials this high-quality filter which offers the same specification as the 3M more economical price point . Reduces scale, temporary hardness and impurities such as chlorine, lead, turbidity, particles and other unwanted tastes and odours for better tasting water.
andAncillaries Recycing
Bio-degradable powder descaler
Fast and Effective
Perfect for use with coffee brewers, espresso machines, kettles and more NSF certified

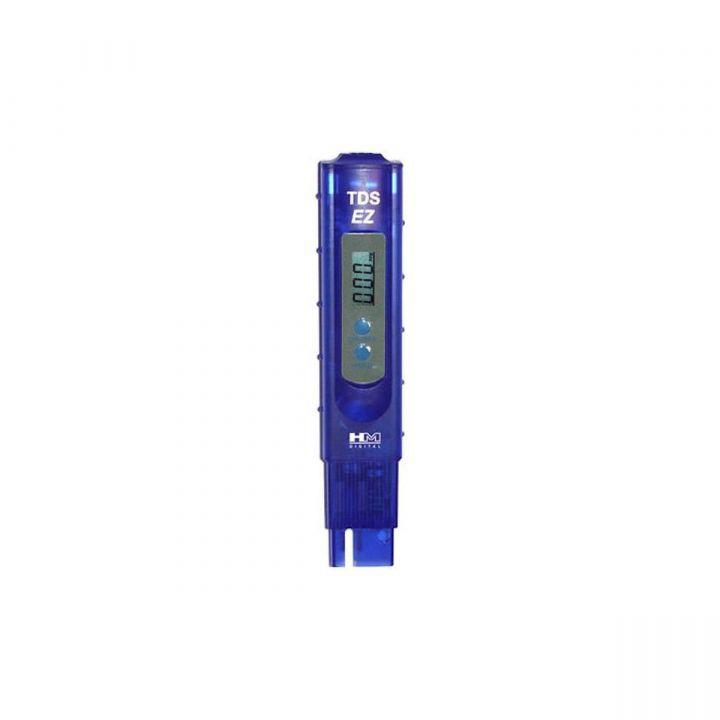

Testing equipment
Water Hardness
TDS Ph Pressure
Softener Cleaning Solutions
Rust Out - Eliminates rust from resin bed and reduces staining Softener Mate - An all purpose cleaner to maintain performance of softeners
Meters
Measure the amount of water that’s passed through your filter Know precisely when your filter is exhausted
Comes in ⅜”PF or ⅜” BSP
Available in a variety of sizes

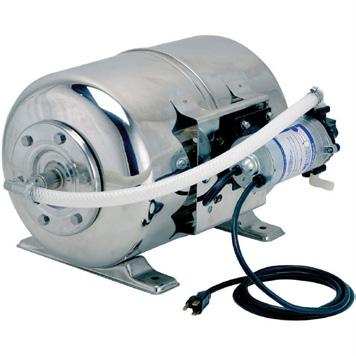

Boosts Mains Pressure if needed
Available for liquid, gas and syrup applications Pumps
WRAS Approved
Available in a range of sizes
Food Grade

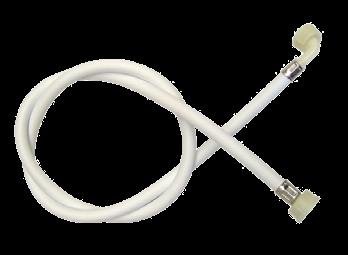

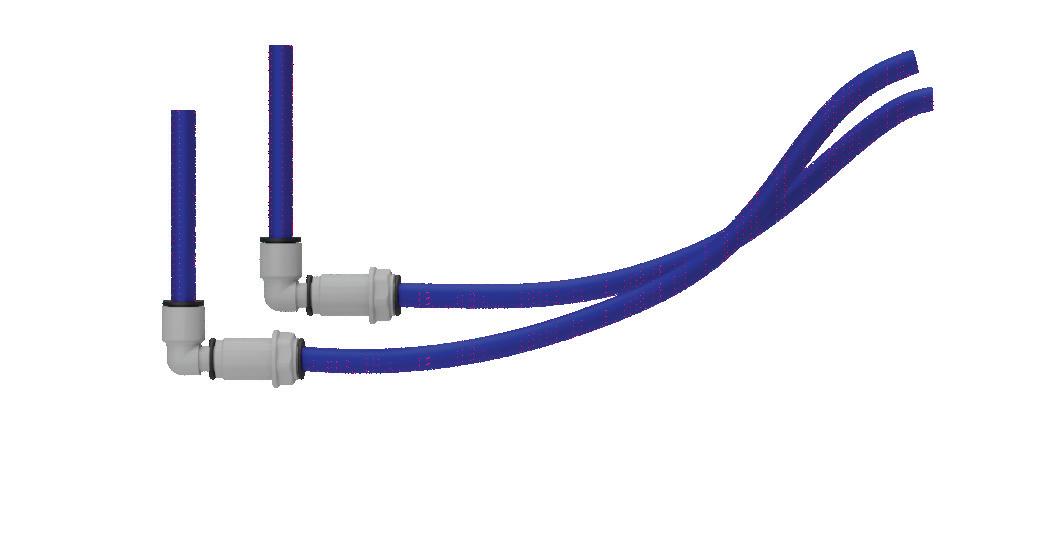

Range of connections available Hoses

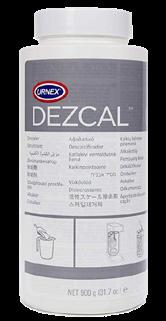

Urnex Dezcal
Resources Reduce, Reuse, Recycle
Sustainability in action
With waste materials ranking as a paramount environmental concern for everyone, Aqua Cure has proactively implemented a filter recycling service to recover and repurpose valuable components from used water filter cartridges.
How does it work?
You simply send the filters to us. All the useful components that can be reused are recovered and the remaining plastic is turned into plastic pellets ready to be recycled into other plastic products.
Which Filters Do We Accept?
Filters contain many recyclable materials and as such, we’re accepting all used Everpure® Claris, Claris Ultra and selected enviro+ filters*. We may also be able to help with the recycling of other manufacturer’s filters, please contact us to discuss this further.
For more informaton, please contact us:
recycle@aquacure.co.uk | www.aquacure.co.uk/recycle
