What we do

TOGETHER LET’S:

✓ REDUCE YOUR COST PER ACRE ✓ IMPROVE CROP YIELDS ✓ REDUCE DOWNTIME ✓ IMPROVE OVERALL PROFITABILITY

72%

OF OUR CUSTOMERS... Said that our sales and customer service team’s knowledge was“excellent”

% OF OUR CUSTOMERS... Said that our extensive product range satisfied their needs.

Call Sales on: 01794 388622

sales@apm-supplies.co.uk

www.apm-supplies.co.uk

Open: Monday - Friday 8am - 5pm

APM, Winchester Road, Little

Follow us on:

FREE NEXT DAY DELIVERY* Visit our Headquarters

Contact us today on: Order Online

✓ 6,000SQ FT RETAIL SPACE ✓ 25,000SQ FT WAREHOUSING

✓ TRADE & PROMOTIONAL PRICING

✓ ORDER 24 HOURS A DAY 365 DAYS A YEAR

✓ RE-ORDER WITH EASE

✓ STAY UP TO DATE WITH THE LATEST INFORMATION

✓ TRACK YOUR COMPLETE APM SALES HISTORY

✓ CHECK YOUR ACCOUNT BALANCE

Somborne, Stockbridge, Hampshire, SO20 6QT. *Call

HIGH PERFORMANCE GRAIN STORE VACUUMS

PROFESSIONAL RODENTICIDES AND PEST CONTROL

Cultivation Hints & Tips

Right hand (

Wearing Parts Hints & Tips

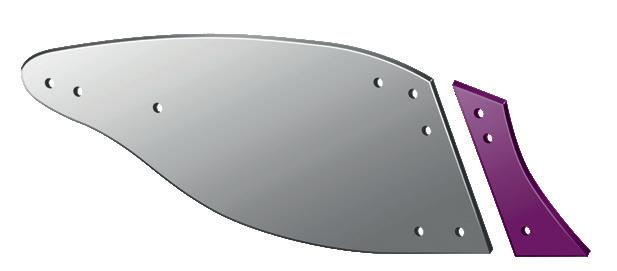

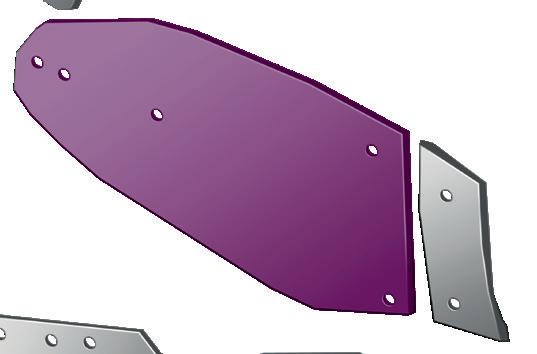

Plough Hints & Tips

Wearing Parts Fixings

Bolt Head Sizes in Relation to Fixings

Recommended tightening torque for tillage tools (guide only)

Tightening bolts:

Bolts with a quality of 8.8, 10.9 and 12.9 are used in ploughs. When changing bolts, you must ensure that bolts and nuts of the same quality are used. A different torque should be used for tightening different bolts. Bolts coated with oil are easier to tighten.

Do not tighten bolts and nuts with a pneumatic tool as this can damage the tillage tool (stress cracks). Please always refer to your user manual for manufacturer recommended torque settings.

THE POWER OF TUNGSTEN

Research & development, and customer feedback.

Please call your sales rep or the office if you have anything to discuss.

Although all of the main soil-engaging edges are protected with tungsten and have enabled the point to retain its overall shape, aggressive soils have exposed secondary wear areas. This clearly shows the power of tungsten. We constantly work with farmers to see how we can best improve our wearing parts.

We need to angle the tungsten down so that it covers the whole depth of the wing, which will help protect the underside.

We also ensured that the tungsten was tightly embedded into the body of the point to prevent soil ingress and wear cutting in behind the tungsten.

TWICE THE AMOUNT OF TUNGSTEN RETAINING FULL WORKING WIDTH

By adding twice the amount of tungsten two main advantages are immediately seen. The first is the extended life of the tine and secondly as the original points begins to wear you can clearly see that a hook wear pattern emerges, this hook will then gather trash whereas the Maxipart® version retains its original shape and trash flows through the drill.

(Left)

Version 1

This looks good as we have tungsten on the leading nose and the strip between the nose and the shin, the shin and the wings. However there were still a couple of areas for improvement.

Final Version

Certain conditions have led to the shin narrowing and also wearing above the tungsten leading to excessive leg wear,

So this is what we have done. (1.) We have extended the tungsten to the top of the point. (2.) We have added hard facing to the secondary wear area behind the tungsten and then a further at the rear of the point. Both of these innovations together will mean far more extra acres out of the point as well as keeping your legs working for longer.

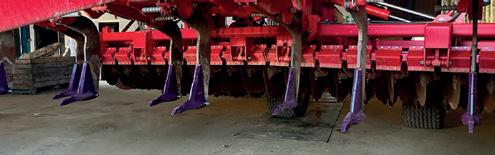

MXP v Original. Tines run side by side on the same drill in the same conditions, both have done exactly the same hectares.

For further features and benefits of the two points offered, see page 112.

Amazone Cultivation Discs Catros / Centaur / Ceus Cultivation Discs

AMP340MXP Maxipart® Disc Plain 18” (460mm) - Ø-Ø120mm, Ø11.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP341MXP Maxipart® Disc Cut-Away 18” (460mm) - Ø-Ø120mm, Ø11.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP342MXP Maxipart® Disc Cut-Away 20” (510mm) - Ø-Ø120mm, Ø10.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP343MXP Maxipart® Amazone Catros Disc 18” (460mm)- Ø-Ø110mm, Ø12.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

(Fitted on some later models to check dimensions)

Maxipart® Identification - Hints & Tips For hints & tips on Maxipart® wearing metal please see

APC377A APC377B HC121 HC122

Point L485mm x W75mm x T13mm - Ø-Ø 45-75mm Point L485mm x W75mm x T13mm - Ø-Ø 45-75mm

AMC30114MXP Maxipart® Point Tungsten L420mm x W50mm x T23mm - Ø-Ø 30-145mm with Hard Facing

1. 10mm central fin for additional strength and wear life

2. Deeply recessed bolt holes for extra protection.

AMC30105 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-85mm

– Universal

AMC30106 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-80mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

AMC30304 Universal Point Tungsten 450mm x 100mm x 15mm - Ø-Ø 45-85mm

– Universal

AMC30410 Universal Point Tungsten 330mm x 80mm x 15mm - Ø-Ø 45-80mm

Amazone Cenius / Centaur / Ceus - New Leg

Amazone Pegasus

Amazone Pegasus (Continued)

part® Wing 355mm

Tungsten 360mm

part® Cranked Wing 345mm

Wing 370mm

Bomford Superflow

Browns Hectavator

Tungsten 285mm x 70mm x 23mm - Ø-Ø 45mm

1. Additional metal throughout to ensure tungsten tiles are fully supported throughout the parts life.

2. Bolt holes deeply recessed to ensure bolts last for the duration of extended life of the points.

3. No weak points between tungsten tiles extending wear life.

4. 5mm thick tungsten tile on leading point, and 4mm thick tungsten tiles on wings.

AMC30111MXP Maxipart®

Tungsten 285mm x 110mm x 23mm - Ø-Ø 45mm

1. Additional metal throughout to ensure tungsten tiles are fully supported throughout the parts life.

2. Bolt holes deeply recessed to ensure bolts last for the duration of extended life of the points.

3. No weak points between tungsten tiles extending wear life.

4. 5mm thick tungsten tile on leading point, and 4mm thick tungsten tiles on wings.

Browns Pan-Buster

Claydon Stubble Rake

Claydon Terrastar

AMP188A

AMP188B

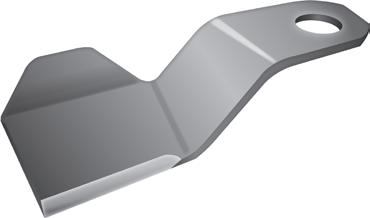

Terrastar Blade L430mm x W74mm x T10mm (Fits square shaft 26mm x 26mm)

Terrastar Blade L430mm x W74mm x T10mm (Fits square shaft 26mm x 26mm)

Cousins Level-Lift / V-Form / Patriot

APC1293 Leg 900mm x 200mm x 25mm - (8 hole Ø-Ø-50mm)

APX312 Shear Bolt M20 x 110mm

APC1687MXP Maxipart® Cutter Bar 28” (700mm)

APC1684MXP Maxipart® Roman Nose Point

1. Additional roll pin protection built into point

APC1683 Straight Nose Point

Maxipart® Wing 4” (100mm) Maxipart® Wing 4” (100mm) 1400-594 1400-595

APC 1239 LEG PTO FOR MORE

Cousins Level-Lift / V-Form / Patriot (Continued)

1. APC1196MXP

2. APC1197MXP

Maxipart® Heavy Duty Point 8” (200mm) Maxipart® Heavy Duty Point 12” (300mm)

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper leg protector for extra wear protection for the leg.

4. Bolt holes to allow wings to be fitted.

2.

Maxipart® Heavy Duty Point Tungsten 8” (200mm) & 12” (300mm) AMP531MXP & AMP530MXP

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

5. Tungsten tip to ensure that point length is retained.

5 4 3 Part Code Description Hand OEM Number AMP531MXP Maxipart® Heavy Duty Point 8” (200mm) Tungsten – 8100-526L195 AMP530MXP Maxipart® Heavy Duty Point 12” (300mm) Tungsten – 8100-526L195

2 1

“I’m really happy with the wear on these. I get about 600-700 hundred acres out of the points which is great. Also even in harsh conditions I’ve never lost a tungsten plaque With regards to wearing parts – “I’ve tried just about everybody’s and yours are the best.”

– J R Wilson & Sons (Will Dixon), Nr. Stevenage, Hertfordshire

Soil Type: Mixed – Red clay and gravel

AMP520AMXP AMP520BMXP 1400-594 1400-595

AMP521AMXP AMP521BMXP

Maxipart® Wing to fit 8”Point Maxipart® Wing to fit 8”Point

Maxipart® Wing to fit 8”Point Tungsten Maxipart® Wing to fit 8”Point” Tungsten

1. Extended wing with drop down leading edge for increased protection and wear life.

RH LH 1400-594 1400-595

2. Tapered shin to reduce draft.

Cousins Level-Lift / V-Form / Patriot (Continued)

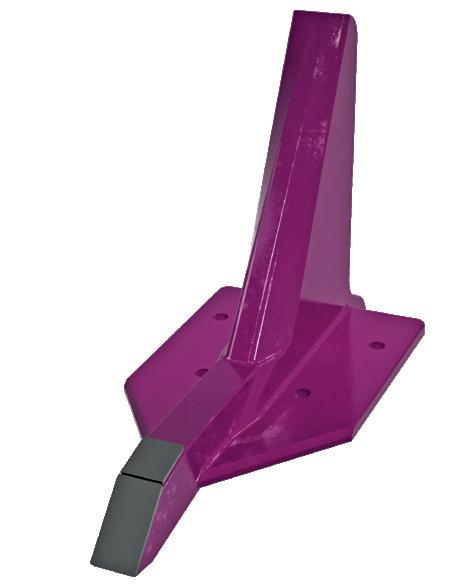

Maxipart® Micro Leg Tungsten

1. Tungsten tiles applied to the point, wings, and shin to ensure that all the working edges of the part are protected. This will ensure its original working dimensions are maintained throughout its extended working life.

WHAT DO OUR CUSTOMERS SAY?

“I tried Maxipart® full tungsten legs, and these are fantastic. The shape holds up throughout and they last a good four or five times longer than Cousins tungsten points on my land. As the genuine points wear, you can see the difference in the establishment of the crop as it comes up, resulting in lost crop.

However, we put in over 1,500 acres of rape with your leg, and we have hardly lost an acre to either the flea beetle or pigeons, and I put this down to your leg. The establishment was so good that the rape got up and away so quickly. I would certainly recommend these to anybody.”

– Foudry Farming (Peter Miller), Nr. Reading, Berkshire

Soil Type: Chalky flints, sands and gravels

Product & machine it was used on: AMP532MXP Cousins Tungsten Micro leg on a Cousins V Form

AMP532EXT Cousins Micro Leg Extension (Not needed on most machines) –

Dalbo Cultimax

APC725 “S” Tine & Point (L495mm x W45mm x T10mm)

APC1040MXP Maxipart® Reversible Point L210mm x mm x W40mm x T8mm

1. 8mm thick, as opposed to standard 6mm points

APC138/25 Reversible Point L210 mm x W35mm x T6mm - (Pack 25) cw Bolt & Nuts

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

Farmet Fantom

AMP670MXP Maxipart® Point Tungsten with Hard Facing

For Drill Parts see page 101

Farmforce

Flexicoil

1.

2.

Flat Lift / Taylor-Gent

APC1586 Leg 34” (Diamond Leg Fitting)

APX261 Shear Bolt M16 x 90mm, 8.8

APC1583MXP Maxipart® Point

AMC30700MXP Maxipart® Point Tungsten

1. 5mm thick x 15mm wide tungsten profiled plaques keeping the cutting edge whilst also protecting the sides of the point.

Maxipart® Upper Shin

APC1585MXP Maxipart® Lower Shin

AMC30701AMXP AMC30701BMXP

part® Wing Extra Long

part® Wing Extra Long

Maxipart® Wing Extra Long Tungsten

part® Wing Extra Long Tungsten

1. Extra thick 15mm base metal

Goliath Stubble System

APC986 Universal Point L440mm x W125mm x T14mm - Ø-Ø 45-75mm

–

AMC30115MXP Maxipart® Point Tungsten L420mm x W80mm x T23mm - Ø-Ø 30-145mm

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

AMC30105 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-85mm – Universal

AMC30106 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-80mm – Universal

AMC30116MXP Maxipart® Point Tungsten 420mm x 110mm x 40mm - Ø-Ø 35-150mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

– Universal

AMC30304 Universal Point Tungsten 450mm x 100mm x 15mm - Ø-Ø 45-85mm – Universal

AMC30410 Universal Point Tungsten 330mm x 80mm x 15mm - Ø-Ø 45-80mm – Universal

APC990 Wing 17” (430mm) - Ø-Ø45mm-75mm – Universal

AMC30107 Wing 20” (500mm) Tungsten - Ø45mm-85mm

Grange Machinery - Old Leg (Cultivating Solutions) 140mm Shin height

AMP540MXP Maxipart® Point Tungsten with Hard Facing (127mm / 5”)

1. The base metal is one-piece cast steel which presents far better wear properties than a fabricated wear point.

2. It has extended tungsten throughout, covering the nose, shins and wings, ensuring a perfect working shape throughout its life

3. Added ridges to the wings to help extend its life further.

4. Hard facing has been added to the top of the point to help retain it’s shape and extend its life

AMP541 Leg 430mm x 170mm x 15mm

Grange Machinery - New Leg 200mm Shin Height

AMP543MXP Maxipart® Grange Drill Disc 16” (400mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP544 Grange Leg

Grange Machinery - New Leg 200mm Shin Height (Continued)

Maxipart® Grange Point Tungsten (127mm / 5”)

1. The base metal is one-piece cast alloy which presents far better wear properties than a fabricated wear point.

2. Tungsten tiles are applied to the points, wings and shin so that all the working edges are protected ensuring a perfect working shape is maintained throughout its extended working life.

3. Ridges have been added to the wings which helps with soil flow as well as helping extend its life

4. Hard facing has been added to the top of the shin and to the underside of the point to further extend its working life and prevent excessive wear to the leg.

Usually the mixture of hard facing and tungsten is enough, but if your working conditions require further protection see AMP545MXP below.

1. The base metal is one-piece cast steel which presents far better wear properties than a fabricated wear point.

2. It has extended tungsten throughout, covering the nose, shins and wings, ensuring a perfect working shape throughout its life.

3. Added ridges to the wings to further improve the life of the wings.

4. With tungsten to the top of the point hardfacing has been added to the rear of the point and below to extend the life of the leg.

Grange Machinery - New Leg 200mm Shin Height (Continued) Need to protect your legs further? See page 100 for weld on

Gregoire Besson Discordon

Part Code Description Hand OEM Number Image

AMC30210MXP Maxipart® Wing Tungsten

1. Extra thick 15mm base metal

2. One piece cast design offering strength throughout this means there are no welded areas which can impede fitment and also create weak areas.

AMC30302MXP Maxipart® Point Tungsten

1. Wear fin to increase wear life and stop premature breakage across the shin.

2. Foot on the bottom of the point to allow machine to be sat on hard ground when machine not working. This foot also helps reduce wear to the underside of the point.

Maxipart® Disc Plain 26” (660mm)

Maxipart® Disc Cut-Away 26” (660mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

2. AMP804MXP

Maxipart® Disc Plain 28” (710mm) (Fits Square shaft 40mm)

Maxipart® Disc Cut-Away 28” (710mm) (Fits Square shaft 40mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Plain 28” (710mm) (Fits Square shaft 50mm)

Maxipart® Disc Cut-Away 28” (710mm) (Fits Square shaft 50mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

1. AMP801MXP

2. AMP802MXP

1. AMP803MXP

1. AMP805MXP

2. AMP806MXP

1.

2.

1.

2.

1.

2.

Heva - Subsoiler/CombiLift/Disc Roller/Stealth (Continued)

1. It has extended tungsten throughout, covering the nose, shins and wings, ensuring a perfect working shape throughout its extended life

2. Added ridges to the wings to further extend their life.

3. Hard facing added to the rear of the point to both extend its wear life and to also protect the leg from excessive wear.

Tungsten added to the top of the shin and hard facing to the sides to extend life, protect the leg, and maintain a perfect working shape

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

APC647 Heva Stealth weld on leg bottom

For Heva Stealth development stages see page 82

R&D Update

For Weld on Tiles see page 100

Maxipart® Heva Stealth Disc 19” (470mm x 5mm) AMP351MXP

Heva - Subsoiler/

APC649 Heva Shearbolt leg To Fit.

Maxipart® Heva Stealth Ultra Low Disturbance Point (121mm wide) APC1194MXP

Heva Stealth Heva Stealth (Continued)

Maxipart Vs Original

Heva - Subsoiler / CombiLift / Disc Roller

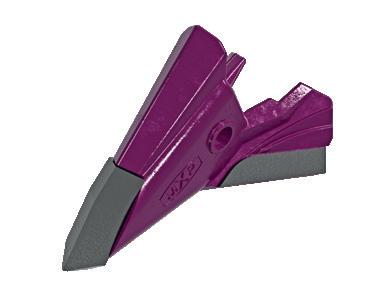

Maxipart® Point Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. Deeper leg protector for extra wear protection for the leg.

3. Bolt holes to allow wings to be fitted.

4. Tungsten tip to ensure that point length is retained.

Need to protect your legs further?

See

100 for weld on tungsten tiles.

1. Additional metal throughout to ensure maximum wear life.

2. Deeper leg protector for extra wear protection for the leg.

3. Bolt holes to allow wings to be fitted.

Maxipart® Low Disturbance Point Tungsten (115mm wide) APC1193MXP

1. Low disturbance point to fit as per APC1192MXP & APC1191MXP.

2. Narrowed shin with 120mm strip of 10mm tungsten to cut through soil.

3. Angled tungsten edged wings to allow lift with minimal disturbance.

4. Angle of wings also ensures bolt hole protection.

5. Narrowed tungsten nose allows for great wear properties with minimal disturbance.

6. ® Unique registered design only available via Maxipart

page

Heva - Subsoiler / CombiLift / Disc Roller (Continued)

APC1195MXP Maxipart® Weld-on Point 35mm

AMP520AMXP

AMP520BMXP

Maxipart® Wing to fit 8”Point

Maxipart® Wing to fit 8”Point

AMP521AMXP

AMP521BMXP

Maxipart® Wing to fit 8”Point Tungsten

Maxipart® Wing to fit 8”Point Tungsten

1. Extended wing with drop down leading edge for increased protection and wear life.

AMP522AMXP AMP522BMXP

Maxipart® Wing to fit 12” Point

Maxipart® Wing to fit 12” Point

AMP523AMXP AMP523BMXP

Maxipart® Wing to fit 12” Point Tungsten Maxipart® Wing to fit 12” Point Tungsten

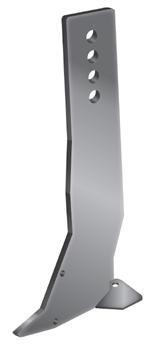

2. APC610 Leg (880mm long x 25mm wide) Weld-On Leg

AMP350MXP Maxipart® Discroller Disc Cut-Away 20” (510mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

1. APC609

1.

2.

Horsch Cruiser

Heva - Subsoiler/CombiLift/Disc Roller/Stealth (Continued)

Maxipart® Horsch Cruiser Point Tungsten with Hard Facing 285mm x 50mm x 20mm Ø - Ø 45mm

AMC30414MXP

1. Slightly raised center with ridges extending to the sides to help with soil flow and slow wear rates

2. Hard facing applied to the sides to extend life and keep original shape

3. Deeply recessed bolt holes to prevent bolt heads from wearing through

4. Additional casting added to rear to protect leg

5. Chisel edge tungsten for a consistent & level cultivation depth, especially important for shallow cultivations.

Horsch Terrano / Tiger / Mono

Heva - Subsoiler/CombiLift/Disc Roller/Stealth (Continued)

1. Low disturbance option, especially good for cutting through heavy clays and reducing surface clods

2.

on nose and shin to ensure extended wear life

Horsch Terrano / Tiger / Mono (Continued)

Maxipart® Low Disturbance Point Tungsten with Hard Facing (50mm)

AMC30411MXP

Maxipart® Low Disturbance Premium Point Tungsten (50mm)

AMC30412MXP

1. Deeply recessed bolt holes ensure bolts last the life of the point.

2. Hard facing on the sides ensures wear life extended and helps prevent sides undercutting

3. Tungsten tiles added to varying depths to suit depth of cultivations and your working conditions.

AMC30405 Mulch Point Tungsten with Hard Facing (80mm)

AMC30408MXP Maxipart® Chisel Type Point Tungsten with Hard Facing (80mm)

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Recess on rear locks perfectly in place with APC458A/BMXP

4. Tungsten across the bottom and the upper section of the point to keep working dimensions throughout its life

5. Hard facing to the side to keep its working width as well as helping to support the tungsten tiles above

AMC30409MXP Maxipart® Mulch Point Tungsten (90mm)

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Recess on rear locks perfectly in place with APC458A/BMXP

4. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Horsch Terrano / Tiger / Mono (Continued)

Mulch Shin, 270mm Mulch Shin, 270mm 34060863 34060862

APC458AMXP

APC458BMXP

Maxipart® Mulch Shin, 378mm

Maxipart® Mulch Shin, 378mm

1. Much thicker than the APC457A/B, designed to lock in place perfectly with AMC30408MXP, AMC30409MXP and AMC30405

APC456BMXP

Maxipart® Mulch Wing

Maxipart® Mulch Wing

AMC30050BMXP

Maxipart® Mulch Wing Tungsten

Maxipart® Mulch Wing Tungsten

1. Tungsten plaques butted into the bend of the wing to prevent wear at this often unprotected and vunerable area.

2. Extra thick wings with countersunk bolt holes for bolt head/nut protection.

3. Countersunk holes to protect the bolt head from wearing off

AMC30051BMXP

Maxipart® Mulch Wing Tungsten

Maxipart® Mulch Wing Tungsten

1. Tungsten plaques butted into the bend of the wing to prevent wear at this often unprotected and vunerable area.

2. Extra thick wings with countersunk bolt holes for bolt head/nut protection.

3. Countersunk holes to protect the bolt head from wearing off

RH LH 34060858 34060859

RH LH 34060857 34060856

RH LH 34060857 34060856

RH LH 34060857 34060856 212mm 270mm 212mm 125mm 264mm 264mm 179mm

Double Following Tine (12mm thick) Double Covering Tine (12mm thick) 34217502 00430507

AMP810MXP Maxipart® Disc Cut-away 18” (460mm)

– 23246102 Horsch

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

Maxipart® Disc Cut-away 20” (520mm)

AMP 749 - TINE 360mm 423mm 1. 2.

1. Slow press to eliminate disc distortion

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP826MXP 3 1 2 5 4

AMP827MXP Maxipart® Disc Cut-away 27” (684mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Spider Disc 520mm

Spider Disc 460mm

Spider Disc 460mm

Maxipart® Disc Cut-away 20” (520mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Heva - Subsoiler/CombiLift/Disc Roller/Stealth (Continued)

Horsch Joker

Keeble

Keeble

Maxipart® Subsoil Point Tungsten with Hard Facing (215mm)

AMC30801MXP

Maxipart® Keeble Wide Point Tungsten with Hard Facing (315mm)

AMC30805MXP

1. Built in leg protection.

2. Tapered shin to cut through soil & reduce draft.

3. Hard facing on sides to help protect base metal

4. Tungsten plaques to protect not only the tip but also the vulnerable area behind the tip

5. 15mm thick tungsten edged ridged wings, the ridges help protect the wing from excessive wear and extends its life

Maxipart® Subsoil Point Tungsten with Hard Facing (215mm)

AMC30805MXP Maxipart® Keeble Wide Point Tungsten with Hard Facing (315mm)

AMC30804MXP Maxipart® Subsoil Narrow Wing Point Tungsten with Hard Facing

1. Tapered shin to cut through soil & reduce draft.

2. Hard facing on sides to help protect base metal

3. Two x tungsten plaques to protect not only the tip but also the vulnerable area behind the tip

4. Bolt hole protection

Maxipart® J Leg Point Tungsten with Hard Facing AMC30802MXP

1. Hard facing on sides to help protect base metal.

2. Two x tungsten plaques to protect not only the tip but also the vulnerable area behind the tip

Maxipart® J Leg Point Winged Tungsten AMC30803MXP

1. Two x tungsten plaques to protect not only the tip but also the vulnerable area behind the tip.

2. 15mm thick tungsten edged wings

Keeble (Continued)

Maxipart®Disc Cut-away 20” (510mm) AMP811MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Cut-away 20” (510mm)

AMP814MXP Maxipart® Xpress Soil Razor Disc 22” (560mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Need to protect your legs further?

See page 100 for weld on tungsten tiles.

Maxipart® PROUD TO BE PURPLE

Knight C-Type, M-Type, SC Cultivators and Triple Presses

✓ 8MM THICK WITH RIDGES RISING TO 11MM. THIS 3MM RIDGE HAS PROVEN VERY POPULAR AND HAS INCREASED THE WEAR LIFE CONSIDERABLY.

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. 20mm wings for superb wear resistance

1. Very thick tungsten plaques across all leading edges.

2. 20mm central ridge for additional strength, wear life and and bolt hole protection.

3. 20mm tungsten edged wings for ultimate wear resistance

Maxipart® Sweepshares 2” (55mm)

Part Code AMP057MXP

OEM Number 200SPK0215

Maxipart® Boxer Point 4” (100mm)

Part Code AMP103MXP

OEM Number –

Maxipart® Sweepshare 4” (110mm)

Part Code AMP575MXP

OEM Number 200PWV0405

Maxipart® Sweepshare 4” (110mm) Tungsten

Part Code AMP105MXP

OEM Number 200PWV0405

Maxipart® Boxer Point 4” (100mm) Tungsten

Part Code AMP104MXP

OEM Number –

Maxipart® Sweepshare 9” (230mm)

Part Code AMP230MXP

OEM Number 200PWV0908

Maxipart® Sweepshare 10” (250mm)

Part Code AMP255MXP

OEM Number 200PWV1008

Maxipart® Sweepshare 5” (140mm)

Part Code AMP140MXP

OEM Number 200PWV0518

Maxipart® Sweepshare 7” (180mm)

Part Code AMP180MXP

Sweepshare Adaptor (125mm)

Hole centres 45mm

Part Code AMP557

OEM Number 200QCA4710

Sweepshare Pin

Part Code AMP781

OEM Number 200SLC1020

Maxipart® Sweepshare 12” (280mm)

Part Code AMP305MXP

OEM Number 200PWV1208

OEM Number 200REL1010

Sweepshare Press Stud

Part Code AMP780

OEM Number 200SLC1035

Knight Press Disc 24” (600mm)

Part Code AMP430

OEM Number –

Kockerling Allrounder

AMC30108MXP Maxipart® Kockerling Point Tungsten

1. Tungsten tile much thicker than most of the competion.

AMP606 175mm Winged Point

AMP595 "S" Tine L730mm x W70mm x T12mm - Ø-Ø 45mm

Kockerling Quadro / Trio

AMP591MXP Maxipart® Share/Wing 11” (275mm)

AMC301MXP Maxipart® Share/Wing 11” (275mm) Tungsten

See next page for more parts

Kockerling Quadro / Trio (Continued)

AMC30121 Point 3” (80mm) Tungsten with Hard Facing

AMC30122 Chisel Type Point 3” (80mm) Tungsten with Hard Facing

AMC30123MXP Maxipart® Heavy Duty Point 3-1/2” (90mm) Tungsten

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

AMP592 Point 4” (100mm)

Kockerling Rebell

Centre

AMP845MXP Maxipart® Kockerling Rebell Disc 18” (460mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP680 Following Tine (13mm)

Kockerling Vario / PC

Maxipart® Kockerling Point Tungsten (60mm)

1. Perfect fitment, designed exclusively for the Kockerling.

2. Slightly raised center with ridges extending to the sides to help with soil flow and slow wear rates.

3. Chisel shaped tungsten tip ensures an even cultivation across the full width of the point. This full width coverage also helps to protect the sides helping to keep it’s original shape throughout its life.

Point

Maxipart® Identification - Hints & Tips

For hints & tips on Maxipart® wearing metal please see page 5

AMC30112 Universal Point Tungsten L330mm x W70mm x T15mm - Ø-Ø 45-80mm

AMC30115MXP Maxipart® Point Tungsten L420mm x W80mm x T23mm - Ø-Ø 30-145mm

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

AMC30105 Universal Point Tungsten L410mm x W100mm x T20mm - Ø-Ø 45-85mm

AMC30106 Universal Point Tungsten L410mm x W100mm x T20mm - Ø-Ø 45-80mm

AMC30116MXP Maxipart® Point Tungsten L420mm x W110mm x T40mm - Ø-Ø 35-150mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

AMC30304 Universal Point Tungsten L450mm x W100mm x T15mm - Ø-Ø 45-85mm

AMC30410 Universal Point Tungsten L330mm x W80mm x T15mm - Ø-Ø 45-80mm

Kockerling Vector

AMP591MXP Maxipart® Share/Wing 11” (275mm)

1. Cast rather than fabricated pressed steel for superior wear properties & perfect fitment.

AMC301MXP Maxipart® Share/Wing 11” (275mm) Tungsten

AMP592 Point 4” (100mm)

AMC30121 Point 3” (80mm) Tungsten with Hard Facing

AMC30122 Chisel Type Point 3” (80mm) Tungsten with Hard Facing

AMC30123MXP Maxipart® Heavy Duty Point 3-1/2” (90mm) Tungsten

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Upper Shin Centre

Kongskilde Delta

Kongskilde Germinator

The 5 stages of Maxipart®

1. We consult...

2. We refine...

3. We test...

5. We deliver...

4. We Manufacture...

Kongskilde KKK

Kongskilde Vibroflex

APC1308MXP Maxipart® Point L295mm x W65mm x T8mm - Ø-Ø 45mm

APC587MXP Maxipart® Point L300mm x W110mm x T8mm - Ø-Ø 45mm

AMC30110MXP Maxipart® Point Tungsten L285mm x W70mm xT23mm - Ø-Ø 45mm

1. Additional metal throughout ensures tungsten tiles are supported and protected throughout the life of the parts.

2. Bolt holes are deeply recessed to protect the bolts for the life of the points.

3. No weak points between tungsten tiles extending wear life.

4. 5mm thick tungsten tile on leading point, and 4mm thick tungsten tiles on wings.

AMC30111MXP Maxipart® Point Tungsten L285mm x W110mm x T23mm - Ø-Ø 45mm

1. Additional metal throughout ensures tungsten tiles are supported and protected throughout the life of the parts.

2. Bolt holes are deeply recessed to protect the bolts for the life of the points.

3. No weak points between tungsten tiles extending wear life.

4. 5mm thick tungsten tile on leading point, and 4mm thick tungsten tiles on wings.

Kongskilde Vibroflex 7400 VFM

Maxipart® Kuhn Chisel Point Tungsten 80mm

1. Deeply recessed bolt holes to stop wear on bolt head

2. Ridges to help reduce wear on base metal

Maxipart® Kuhn Culitmer Wing Tungsten

1. 16mm thick wings with tungsten leading edge for extended life

2. Recessed bolt holes to protect bolt heads for longer

3. Tungsten tiles butted into the bend of the wing to prevent wear at this often unprotected area

Kuhn Optimer and Performer

Maxipart® Kuhn Disc 20” (510mm)

AMP355MXP

Maxipart® Kuhn Disc Aggressive 20” (510mm)

AMP356MXP

AMP355MXP for the Kuhn Cultimer/Optimer machines.

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP355MXP Maxipart® Kuhn Disc 20” (510mm)

AMP356MXP Maxipart® MXP Kuhn Disc Aggressive 20” (510mm)

Kuhn Prolander

AMP597 Reversible Point L300mm x W57mm x T10mm - Ø-Ø 45mm

AMC30108MXP Maxipart® Kockerling Point Tungsten

1. Tungsten tile much thicker than most of the competion.

AMP606 175mm Winged Point

2. AMP595 "S" Tine L730mm x W70mm x T12mm - Ø-Ø 45mm

Kverneland CLD / CLM

AMP567 Double Heart Point

AMC30105 Universal Point Tungsten L410mm x W100mm x T20mm - Ø-Ø 45-85mm

AMC30106 Universal Point Tungsten L410mm x W100mm x T20mm - Ø-Ø 45-80mm

1.

1.

2.

1.

2.

1.

2.

Kverneland CLD / CLM (Continued)

x W110mm x T40mm - Ø-Ø 35-150mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

Kverneland CTC

Kverneland Leaf Spring Cultivator

APC738 Universal Point 255mm x 65mm

Lemken Heliodor

8

AMP380MXP Maxipart® Disc Cut-Away 18” (462mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Lemken Karat

APC380 Point 120mm

AMC30205MXP Maxipart® Point Tungsten 120mm

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Thick tungsten tiles extends the life whilst also keeping its original profile.

AMC30208MXP Maxipart® Chisel Type Point Tungsten 80mm

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Thick tungsten tiles extends the life whilst also keeping its original profile.

AMC30209 Point Tungsten 80mm with Hard Facing

APC382MXP Maxipart® Centre Shin 80mm

Lemken Karat (Continued)

APC381AMXP APC381BMXP

Maxipart® Wing 200mm

Maxipart® Wing 200mm

AMC30206AMXP

AMC30206BMXP

AMC30306AMXP

AMC30306BMXP

Maxipart® Wing Tungsten 200mm

Maxipart® Wing Tungsten 200mm

Maxipart® Short Wing Tungsten 150mm

Maxipart® Short Wing Tungsten 150mm

1. Tungsten plaques butted into the bend of the wing to prevent wear at this often unprotected and vulnerable area.

2. Extra thick wings with countersunk bolt holes for bolt head/nut protection.

AMP360MXP Maxipart® Disc Cut-Away (Karat 9) 18” (450mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Lemken Kristall

APC380 Point 120mm

AMC30205MXP Maxipart® Point Tungsten 120mm

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Thick tungsten tiles extends the life whilst also keeping its original profile.

AMC30208MXP Maxipart® Chisel Type Point Tungsten 80mm

1. Central fin gives extra strength to point.

2. Deeply recessed holes means almost no wear to bolts.

3. Thick tungsten tiles extends the life whilst also keeping its original profile.

AMC30209 Point Tungsten 80mm with Hard Facing

1.

2.

1.

2.

Lemken Kristall (Continued)

Lemken Rubin 9

AMP320MXP Maxipart® Disc Cut-Away 24” (620mm) (6 hole)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Cut-Away 24” (620mm) (5 hole)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Lemken Terradisc / Smaragd

Lemken Terradisc / Smaragd (Continued)

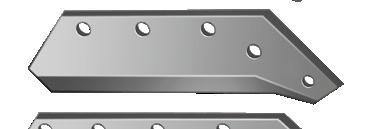

part® 345mm Straight Wing

345mm Straight Wing

360mm Wing Tungsten

Cranked Wing 345mm

Cranked Wing 345mm

Wing 360mm

Wing 360mm

360mm Wing Tungsten

360mm Wing Tungsten

Massey Ferguson

McConnel Shakaerator New Style Leg

Maxipart® Discaerator Wide Point

APC2651MXP

1. Roll pin fixing system for quicker point changes

2. Thicker wings with ridges for increased wear resistance

Maxipart® Discaerator Wide Point

APC1651MXP Maxipart® Discaerator Point (New style Shakaerator) Roll pin system

McConnel Shakaerator Old Style Leg

APC1650MXP Maxipart® Point

4307602

1065430/ 1065920 APC2650MXP Maxipart® Delta Point

APC1348MXP Maxipart® Shin

1066139

1065782 APC1347 Strap

(Right) APC2651MXP shakaerator during 3D development stage shows roll pin fitment which is much easier to change.

McConnel Shakaerator Old Style Leg (Continued)

Michel Leg - Remac / Techmagri / Quivogne Saturn

Mzuri Rehab

Maxipart® Mzuri Tungsten Point (115mm)

AMC30215MXP

Maxipart® Mzuri Narrow Tungsten Point (60mm)

AMC30218MXP

1. The base metal is a one-piece cast alloy point/ wing offering far greater wear properties and better fitment than fabricated pressed steel parts.

2. Tungsten tiles are perfectly positioned on the nose and wings to ensure the correct profile is kept throughout its extended life.

3. Added ridges to the wings to further extend their life.

4. Integral roll pin protection within the casting.

5. Hard facing added to AMC30218MXP to back up tungsten tile and to ensure shape is maintained throughout the life of the point.

APC1062MXP Maxipart® Drill Disc Shallow Cut-away 16” (410mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Mzuri Stubble Rake

APC780 Stubble Rake Tine L600mm x T14mm

AMP723MXP Maxipart® Rexus Disc Shallow Cut-away 16” (410mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

NRH Subsoiler

AMP531MXP Maxipart® Heavy Duty Point 8” (200mm) Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

5. Tungsten tip to ensure that point length is retained.

6. Thinner leading edge of shin for reduced movement of soil

APC1196MXP Maxipart® Heavy Duty Point 8” (200mm)

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

APC1197MXP Maxipart® Heavy Duty Point 12” (300mm)

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

AMP530MXP Maxipart® Heavy Duty Point 12” (300mm) Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

5. Tungsten tip to ensure that point length is retained.

APC1195MXP Maxipart® Weld-on Point 35mm

Maxipart® Wing to fit 8”Point

part® Wing to fit 8”Point

Maxipart® Wing to fit 8”Point Tungsten

part® Wing to fit 8”Point Tungsten

1. Extended wing with drop down leading edge for increased protection and wear life.

part® Wing to fit 12” Point

part® Wing to fit 12” Point

part® Wing to fit 12” Point Tungsten

part® Wing to fit 12” Point Tungsten

Opico Megadan

Cranked Wing 345mm

Cranked Wing 345mm

Wing 360mm

Wing 360mm

360mm Wing Tungsten

360mm Wing Tungsten

Opico Varidisc / Varitilth

Maxipart®Disc Cut-away 20” (510mm)

AMP811MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP811MXP Maxipart® Disc Cut-away 20” (510mm)

AMP814MXP Maxipart® Soil Razor Disc 22” (560mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Pottinger TerraDisc

AMP334MXP Maxipart® Pottinger TerraDisc 23” (580mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

9771.03.025.1

Proforge Maxtilla

For Power Harrow & Rotary Tiller see page 183

Maxipart® MADE TO LAST LEADING TECHNOLOGY CUTTING EDGE DESIGNS

Rau Polymag

Point L440mm x W125mm x T14mm

AMC30105

Point Tungsten L410mm x W100mm x T20mm - Ø-Ø 45-85mm

AMC30106 Universal Point Tungsten L410mm x W100mm x T20mm - Ø-Ø 45-80mm

AMC30116MXP Maxipart® Point Tungsten L420mm x W110mm x T40mm - Ø-Ø 35-150mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

AMC30304 Universal Point Tungsten L450mm x W100mm x T15mm - Ø-Ø 45-85mm

AMC30410 Universal Point Tungsten L330mm x W80mm x T15mm - Ø-Ø 45-80mm

Wing 260mm Wing 260mm

APC990 Wing 17” (430mm) - Ø-Ø45mm-75mm

S.K.H-PZ

Simba Great Plains Low Disturbance Leg - Used on SL / SLD / DTX / Xpress

AMP772 Weld-on Leg

AMP775 Leg (630mm) (Does not fit DTX)

P13813

AMP774MXP Maxipart® Point Tungsten

1. Additional 4th tungsten plaque for extended life of the point.

AMP773MXP Maxipart® 228mm Wing

1. 14mm thick wings for extended life

AMC30150MXP Maxipart® 228mm Wing Tungsten

1. 14mm thick tungsten edged wings for extended life

AMC30151MXP Maxipart® Narrow 150mm Wing Tungsten

1. 14mm thick tungsten edged wings for extended life

P15957

P13812

Simba Great Plains Prolift Leg - Used on DTX, Solo, SLD and New Style Flatliner

Maxipart® Pro-Lift Point (42mm) Tungsten AMP708MXP

1. Two tungsten tiles extending 120mm up the point. The leading tile is 5mm thick to help cope with tough conditions

Maxipart® Pro-Lift Premium Point (50mm) Tungsten with Hard Facing AMP790MXP

1. Huge slab of tungsten (50 x 62 x 5 mm) on a slightly lowered nose coupled with a hard faced base (no hole) ensures optimum wear properties. Has been very successful where operators have experienced extra wear on the underside of the point and thus excessive wear to the bottom of the leg.

2. Hard facing on the underside of the point to work with the lowered tungsten nose and help reduce wear to the bottom of the leg

✓ Great point if you’re experiencing wear on the bottom of your point

Pro-Lift Heel Piece

Simba Great Plains Prolift Leg - Used on DTX, Solo, SLD and New Style Flatliner (Continued)

Maxipart® Pro-Lift Wing 275mm Tungsten AMP709MXP

1. Thicker 12mm wing with tungsten edge for extended wear life.

AMP711MXP Maxipart® Pro-Lift Wing 260mm

1. Thicker 12mm wing

AMP716MXP Maxipart® Pro-Lift Wing Wide 350mm

1. Thicker 12mm wing

Simba Great Plains Prolift Leg - Used on DTX, Solo, SLD and New Style Flatliner (Continued)

AMP706

Prolift Leg (Working depth 100-250mm)

Identification: Leg flat at top (100mm - 250mm working depth below front discs) Prolift Leg (Working depth 50-200mm)

Identification: Leg cut away at top (50mm - 200mm working depth below front discs)

AMP707 Prolift Weld-on Leg

AMP715 Pro-Lift Leg 960mm Old Style Flatliner to Prolift Conversion Leg

Simba Great Plains Old Style Flatliner

APC1443 Simba Flatliner Point

Point working depth below front discs

1. AMP705

2.

1. 2.

Simba Great Plains ST Leg - Used on Solo / SL / Xpress

✓ 8MM THICK WITH RIDGES RISING TO 11MM. THIS 3MM RIDGE HAS PROVEN VERY POPULAR AND HAS INCREASED THE WEAR LIFE CONSIDERABLY.

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. 20mm wings for superb wear resistance

1. Very thick tungsten plaques across all leading edges.

2. 20mm central ridge for additional strength, wear life and and bolt hole protection.

3. 20mm tungsten edged wings for ultimate wear resistance

Maxipart® Sweepshares 2” (55mm)

Part Code AMP057MXP

OEM Number 200SPK0215

Maxipart® Boxer Point 4” (100mm)

Part Code AMP103MXP

OEM Number –

Maxipart® Sweepshare 4” (110mm)

Part Code AMP575MXP

OEM Number 200PWV0405

Maxipart® Sweepshare 4” (110mm) Tungsten

Part Code AMP105MXP

OEM Number 200PWV0405

Maxipart® Boxer Point 4” (100mm) Tungsten

Part Code AMP104MXP

OEM Number –

Maxipart® Sweepshare 9” (230mm)

Part Code AMP230MXP

OEM Number 200PWV0908

Maxipart® Sweepshare 10” (250mm)

Part Code AMP255MXP

OEM Number 200PWV1008

Maxipart® Sweepshare 5” (140mm)

Part Code AMP140MXP

OEM Number 200PWV0518

Maxipart® Sweepshare 7” (180mm)

Part Code AMP180MXP

OEM Number 200PWV0708

Maxipart® Sweepshare 12” (280mm)

Part Code AMP305MXP

OEM Number 200PWV1208

OEM Number 200REL1010

Sweepshare 130mm Adaptor

Hole centres 57mm

Part Code AMP556

OEM Number 200QCA5010

Sweepshare Pin ST Leg

Part Code AMP781

OEM Number 200SLC1020

Sweepshare Press Stud

Part Code AMP780

OEM Number 200SLC1035

Part Code AMP566

OEM Number P13093

Simba Great Plains Top Tilth / Cultipress / Unipress

APC983 Pigtail Tine 1” Shallow, Total Height 730mm, Height to Frame 400mm, Bolt to Bolt 60mm, 16.5mm Bolt Hole

APC760MXP Maxipart® Reversible Point L230mm, W40mm, T15mmØ-Ø57-65mm, Ø12.5mm

AMC30102MXP Maxipart® Point Tungsten with Hard Facing L345mm x W40mm x T18mm - Ø-Ø 45-80mm

AMP505 Rigid Leg 670mm x 50mm x 25mm, Ø - Ø 60mm for point (6 hole - Ø - Ø 50mm)

Maxipart® Simba Cultipress/Freeflow Straight Tungsten Point (To fit leg AMP505)

AMC30130MXP

1. Angled V-form tungsten plaque allows for smooth flow through the soil producing unparalleled wear properties.

2. The base metal is a 15mm thick cast alloy which presents far better wear properties than a pressed steel point

Simba Great Plains Top Tilth / Cultipress / Unipress (Continued)

Simba Great Plains Top Tilth / Cultipress / Unipress (Continued)

Simba Great Plains Discs - Used on Solo

APC1641MXP

APC1642MXP

Maxipart® Disc Plain 26” (660mm)

Maxipart® Disc Cut-away 26” (660mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

APC1643MXP

APC1644MXP

Maxipart® Disc Plain 28” (710mm)

Maxipart® Disc Cut-away 28” (710mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

APC1648MXP

APC1649MXP

Maxipart® Disc Cut-Away 30” (760mm)

Maxipart® Disc Plain 30” (760mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

Maxipart®Disc Cut-away 20” (510mm) AMP811MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Simba Great Plains Discs - Used on DTX / SL / SLD / Xpress

Simba Great Plains Discs - Used on DTX / SL / SLD / Xpress (Continued)

AMP813MXP Maxipart® SL Disc Cut-Away 24” (610mm)

Fits SL (7m) / SLD

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP814MXP Maxipart® Xpress Soil Razor Disc 22” (560mm)

Fits SL / SLD / Xpress

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Simba Great Plains Press - DD Rings / Press

Maxipart® Sumo LDS / GLS Point Tungsten

AMP584MXP

1. Tungsten tiles are applied to the points, wings and shin so that all the working edges are protected ensuring a perfect working shape is maintained throughout its extended working life.

2. Added ridges to the wings to further extend their life.

3. Hard facing has been added to the back of the point and to the area behind the tungsten on the shin to further extend its working life and prevent excessive wear to the leg.

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

1. APC625 Weld-on leg

2. APC612 Full Leg

SW1151

1.

2.

Sumo Subsoiler

AMP531MXP Maxipart® Heavy Duty Point 8” (200mm) Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

5. Tungsten tip to ensure that point length is retained.

6. Thinner leading edge of shin for reduced movement of soil

APC1196MXP Maxipart® Heavy Duty Point 8” (200mm)

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

8100-526L195

APC1197MXP Maxipart® Heavy Duty Point 12” (300mm)

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

AMP530MXP Maxipart® Heavy Duty Point 12” (300mm) Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

5. Tungsten tip to ensure that point length is retained.

APC1195MXP Maxipart® Weld-on Point 35mm

AMP521AMXP AMP521BMXP

Maxipart® Wing to fit 8”Point Maxipart® Wing to fit 8”Point ––

Maxipart® Wing to fit 8”Point Tungsten Maxipart® Wing to fit 8”Point Tungsten

1. Extended wing with drop down leading edge for increased protection and wear life.

RH LH ––

Maxipart® Wing to fit 12” Point Maxipart® Wing to fit 12” Point ––

Maxipart® Wing to fit 12” Point Tungsten Maxipart® Wing to fit 12” Point Tungsten ––

Sumo Trio/Quatro - Used on

Pre

/ Post 2007 Models

Maxipart® Low Disturbance Point (Pre/Post 2007) 115mm wide Tungsten

1. Low disturbance point to suit SW353 leg and SW777 legs. Narrowed shin with 120mm strip of 10mm tungsten to cut through soil.

2. Angled tungsten edged wings to allow lift with minimal distrbance.

3. Angle of wings also ensures bolt hole protection.

4. Narrowed tungsten nose allows for great wear properties with minimal disturbance.

Maxipart® Point (Pre/Post 2007) 210mm wide Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. Deeper leg protector for extra wear protection for the leg.

3. Bolt holes to allow wings to be fitted.

4. Tungsten tip to ensure that point length is retained.

Sumo Trio/Quatro - Used on Pre / Post 2007 Models (Continued)

Maxipart® Sumo Ridge Wing Tungsten (80mm)

AMP577AMXP & AMP577BMXP

1. Leading edge lips over point for increased wear life

2. Ridges help to increase wear life

Ridge Wing (80mm)

1. Leading edge lips over point for increased wear life

2. Ridges help to increase wear life

Need to protect your legs further? See page 100 for weld on tungsten tiles.

Sumo Trio/Quatro - Used on Pre / Post 2007 Models (Continued)

Sumo Trio/Quatro - Used on 2010 & 2011 models (Multipoint & Hybrid System)

Maxipart® Sumo Hybrid Point Tungsten

AMP527MXP

Can be used as a one piece point to fit directly onto the leg replacing the multipoint system (part codes AMP586 point, APC607MXP shin and wings)

1. One piece fast and easy to fit point

2. Tapered shin with increased casting to reduce draft & extend wear life

3. Deeper leg protection built into point to stop wear on leg

4. Can be fitted with ridged tungsten wings to increase life of point and keep working width throughout its extended working life

Ridge Wing (80mm)

Ridge Wing (80mm)

1. Leading edge lips over point for increased wear life

2. Ridges help to increase wear life

Maxipart® Sumo Ridge Wing Tungsten (80mm)

& AMP577BMXP

1. Leading edge lips over point for increased wear life

2. Ridges help to increase wear life

Sumo Trio/Quatro - Used

on 2010 & 2011 models (Multipoint & Hybrid System) (Continued)

Sumo Trio/Quatro - Used on 2012 Models (Concorde System)

Sumo Trio/Quatro - Used on 2012 Models (Concorde System) (Continued)

Maxipart® Low Disturbance Point 110mm wide Tungsten

1. Tungsten applied to wings as well as the nose for extended life of the point.

2. Hard facing applied from behind tungsten to the back of the wing. This improves wear significantly.

Maxipart® Concorde Point 180mm wide Tungsten

1. Raised central ridge protected by a large triangular plaque of tungsten resulting in significantly extended life of the point.

Maxipart® Sumo Ridge Wing Tungsten (80mm) AMP577AMXP & AMP577BMXP

1. Leading edge lips over point for increased wear life

2. Ridges help to increase wear life

1. Leading edge lips over point for increased wear life

2. Ridges help to increase wear life

Sumo Discs

Maxipart® Disc Cut-Away 20” (510mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Cut-Away 20” (510mm)

Sumo Scrapers

APC602 Scraper (Post 2007) Central holes W208mm x H122mm x T10mm

APC614 Scraper (Post 2007) Off-Set holes W208mm x H122mm x T10mm

(offset holes)

APC605 Scraper (Post 2009) W220mm x H135 x T12mm

AMP617 Scraper (Post 2011) W232mm x H162mm x T6mm

Maxipart® Heavy Duty 8” (200mm) Point

AMP531MXP

1. Additional metal throughout to ensure maximum wear life.

2. A deeper and tapered shin to both reduce draft and wear

3. Bolt holes to allow wings to be fitted.

4. Tungsten tip to ensure that point length is retained.

5. Thinner leading edge of shin for reduced movement of soil

AMP530MXP Maxipart® Heavy Duty Point 12” (300mm) Tungsten

1. Additional metal throughout to ensure maximum wear life.

2. A deeper and tapered shin to both reduce draft and wear

3. Bolt holes to allow wings to be fitted.

4. Tungsten tip to ensure that point length is retained.

APC1196MXP Maxipart® Heavy Duty Point 8” (200mm)

1. Additional metal throughout to ensure maximum wear life.

2. A deeper and tapered shin to both reduce draft and wear

3. Bolt holes to allow wings to be fitted.

APC1197MXP Maxipart® Heavy Duty Point 12” (300mm)

1. Additional metal throughout to ensure maximum wear life.

2. A deeper and tapered shin to both reduce draft and wear

3. Bolt holes to allow wings to be fitted.

APC1195MXP Maxipart® Weld-on Point 35mm

Tim Howard (Continued)

AMP520AMXP

AMP520BMXP

Maxipart® Wing to fit 8”Point

Maxipart® Wing to fit 8”Point

AMP521AMXP

AMP521BMXP

Maxipart® Wing to fit 8”Point Tungsten

Maxipart® Wing to fit 8”Point Tungsten

1. Extended wing with drop down leading edge for increased protection and wear life.

AMP522AMXP AMP522BMXP

Maxipart® Wing to fit 12” Point

Maxipart® Wing to fit 12” Point

AMP523AMXP AMP523BMXP

Maxipart® Wing to fit 12” Point Tungsten

Maxipart® Wing to fit 12” Point Tungsten

Need to protect your legs further?

See page 100 for weld on tungsten tiles.

1. APC1198 Leg 1039mm

2. APC604 Weld-On Leg

1.

2.

Usually the mixture of hardfacing and tungsten is enough but if your working conditions require further protection.

Maxipart® TWB LD Point Tungsten To fit short shin leg (width 150mm)

AMC30824MXP

1. The base metal is one-piece cast steel which presents far better wear properties than a fabricated wear point.

2. It has extended tungsten throughout, covering the nose, shins and wings, ensuring a perfect working shape throughout its life.

3. Added ridges to the wings to further improve the life of the wings.

4. Added hard facing to secondary wear areas to extend the life of the point and also to help protect the leg.

AMC30824MXP Maxipart® TWB LD Point Tungsten to fit short shin leg (width 150mm)

AMC30820MXP Maxipart® Point Tungsten (width 270mm)

1. Hardened cast base metal ensures perfect fitment every time as well as giving extended life over fabricated products.

2. Tungsten nose and wings for extended life.

3. Raised ridge behind the leading tungsten nose for increased strength and wear resistance.

4. Ridges to further improve life of wings

Maxipart® 380mm Shin with Hard Facing

1. 120mm of hard facing for extended wear life.

2. Additional “upper wear plate” gives greater protection to the leg.

Maxipart® 300mm Shin with Hard Facing

1. 120mm of hard facing for extended wear life.

2. Additional “upper wear plate” gives greater protection to the leg.

AMC30823 TWB Short Leg (takes AMC30822HFMXP shins)

TWB10020

1. AMC30821HFMXP

2. AMC30822HFMXP

To fit TW1007

To fit TW1004

TW10004

1. 2.

Maxipart® Disc Cut-away 20” (510mm) AMP811MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Cut-away 20” (510mm)

AMP814MXP Maxipart® Xpress Soil Razor Disc 22” (560mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Vaderstad Carrier & Carrier L & Carrier XL

Maxipart® Disc Cut-Away 18” (450mm) AMP727MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP734MXP Maxipart® Vaderstad CrossCutter Disc

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Cut-Away 19” (470mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP736MXP Maxipart® Disc Cut-Away 19” (470mm) – 179857

AMP737MXP Maxipart® Disc Cut-Away 20” (510mm) (5 Hole)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP767MXP Maxipart® Disc Cut-Away 24” (610mm) (5 Hole)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Part Code Description

Hand OEM Number

Part Code Description

Hand OEM Number Image

– 170097

– 154626

1. AMP763 Following Tine (12mm) – 427497

2. AMP769 Paddle Point

440603

Scraper 40mm

Vaderstad Carrier & Carrier L & Carrier XL (Continued)

THE POWER OF TUNGSTEN

Research & development, and customer feedback.

Although all of the main soil-engaging edges are protected with tungsten and have enabled the point to retain its overall shape, aggressive soils have exposed secondary wear areas. This clearly shows the power of tungsten. We constantly work with farmers to see how we can best improve our wearing parts.

We need to angle the tungsten down so that it covers the whole depth of the wing, which will help protect the underside.

We also ensured that the tungsten was tightly embedded into the body of the point to prevent soil ingress and wear cutting in behind the tungsten.

TWICE THE AMOUNT OF TUNGSTEN RETAINING FULL WORKING WIDTH

By adding twice the amount of tungsten two main advantages are immediately seen. The first is the extended life of the tine and secondly as the original points begins to wear you can clearly see that a hook wear pattern emerges, this hook will then gather trash whereas the Maxipart® version retains its original shape and trash flows through the drill.

Version 1

This looks good as we have tungsten on the leading nose and the strip between the nose and the shin, the shin and the wings. However there were still a couple of areas for improvement.

Final Version

Certain conditions have led to the shin narrowing and also wearing above the tungsten leading to excessive leg wear,

So this is what we have done. (1.) We have extended the tungsten to the top of the point. (2.) We have added hard facing to the secondary wear area behind the tungsten and then a further at the rear of the point. Both of these innovations together will mean far more extra acres out of the point as well as keeping your legs working for longer.

MXP v Original. Tines run side by side on the same drill in the same conditions, both have done exactly the same hectares.

For further features and benefits of the two points offered, see page 112.

(Left)

Vaderstad Cultus / Swift / Opus

Maxipart® Point 50mm Tungsten with Hard Facing

1. Deeply recessed bolt holes for extra protection.

2. Hard facing added to the side to further increase life

3. Slightly raised center tapering to edges t o help with soil flow. This has proved extremely popular in shallow cultivations

4. Three tungsten tiles configuration helping with penetration, but also giving a level profile in the cultivated ground.

Maxipart® Point 80mm Tungsten

1. Deeply recessed bolt holes for extra protection.

2. Slightly raised center tapering to edges to help with soil flow. This has proved extremely popular in shallow cultivations

3. Three tungsten tiles configuration helping with penetration, but also giving a level profile in the cultivated ground.

Vaderstad Cultus / Swift / Opus (Continued)

AMC30502 Vaderstad 50/80 Point Tungsten

AMC30503 Vaderstad BreakMix Point 80mm Tungsten

AMC30509MXP Maxipart® Vaderstad Half-Moon Point 50mm Tungsten

1. Low disturbance option, especially good for cutting through heavy clays and reducing surface clods

2. Tungsten on nose and shin to ensure extended wear life

1. APC792

2. APC793

Vaderstad Swift Shin 50mm Vaderstad Swift Shin 80mm

3. APC794

4. APC795

Vaderstad Cultus Shin 50mm Vaderstad Cultus Shin 80mm

AMC30501AMXP

Maxipart® Wing 200mm Tungsten Maxipart® Wing 200mm Tungsten

1. Tungsten plaques butted into the bend of the wing to prevent wear at this often unprotected and vunerable area.

2. Extra thick wings & countersunk bolt holes for bolt protection

Vaderstad NZ

APC1058 Agrilla "S" Tine & Point L485mm x W45mm x T10mm

APC1057

Agrilla Xtra Tine & Point L650mm x W65mm x T10mm Agrillia Super Tine (excluding point) L530mm x W45mm x T10mm 443831/ 443832 20106470

AMP768 Agrilla Cobra Tine L560mm x W45mm x T10mm

–428797/ 427760/ 428732

APC750MXP Maxipart® Agrilla Point

APC138/25 Reversible Point L210 mm x W35mm x T6mm - (Pack 25) cw Bolt & Nuts

1. 8mm thick, as opposed to standard 6mm points

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

– Universal

AMP762 Following Tine 550mm x 12mm

Vaderstad Rexius Twin

Tungsten with Hard Facing

Vaderstad Topdown (Up to Serial Number 1649)

part® Point Tungsten with Hard Facing

x W50mm x T23mm - Ø-Ø 30-145mm

1. 10mm central fin for additional strength and wear life.

2. Deeply recessed bolt holes for extra protection.

Half Moon Point

1.

2.

1.

2.

Vaderstad Topdown (Up to Serial Number 1649) (Continued)

AMC30115MXP Maxipart® Point Tungsten L420mm x W80mm x T23mm - Ø-Ø 30-145mm

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

AMC30501BMXP

Wing 205mm Wing 205mm

Maxipart® Wing 200mm Tungsten

Maxipart® Wing 200mm Tungsten

1. Tungsten plaques butted into the bend of the wing to prevent wear at this often unprotected and vunerable area.

2. Extra thick wings with countersunk bolt holes for bolt head/nut protection & countersunk bolt holes for bolt protection

Maxipart® Disc Cut-Away 18” (450mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP736MXP Maxipart® Disc Cut-Away 19” (470mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP719 Scraper 40mm

1. AMP764

1. AMP765

2. AMC30501AMXP

2.

Vaderstad Topdown (Serial Number 1650 Onwards)

Maxipart® Point Tungsten (50mm)

AMC30505MXP

1. Deeply recessed bolt holes for extra protection.

2. Hard facing added to the side to further increase life

3. Slightly raised center tapering to edges to help with soil flow. This has proved extremely popular in shallow cultivations

4. Three tungsten tiles configuration helping with penetration, but also giving a level profile in the cultivated ground.

Maxipart® Point 80mm

Maxipart® Point 50mm

AMC30509MXP Maxipart® Vaderstad Half-Moon Point 50mm Tungsten

1. Low disturbance option, especially good for cutting through heavy clays and reducing surface clods

2. Tungsten on nose and shin to ensure extended wear life

Vaderstad 50/80 Point Tungsten

Vaderstad BreakMix Point 80mm Tungsten

1. AMP777MXP

2. AMP776MXP

Title... Vaderstad Topdown (Serial Number 1650 Onwards) (Continued)

Maxipart® Point 80mm Tungsten

AMC30506MXP

1. Deeply recessed bolt holes for extra protection.

2. Slightly raised center tapering to edges to help with soil flow. This has proved extremely popular in shallow cultivations

3. Three tungsten tiles configuration helping with penetration, but also giving a level profile in the cultivated ground.

Maxipart® Wing 200mm Tungsten

Maxipart® Wing 200mm Tungsten

1. 10mm central fin for additional strength and wear life.

2. Deeply recessed bolt holes for extra protection& countersunk bolt holes for bolt protection

Vaderstad Topdown (Serial Number 1650 Onwards) (Continued)

Maxipart® Disc Cut-Away 18” (450mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP727MXP 3 1 4 2 5

Maxipart® Disc Cut-Away 19” (470mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

Levelling Disc 425mm RH Levelling Disc 425mm LH Part Code Description Hand OEM Number AMP727MXP Maxipart® Disc Cut-Away 18” (450mm) – 466947

5. Optimum hardness ensures extended wear life without cracking

AMP724A AMP724B 443680/ 459685/ 473586 443678/ 459684 /473585

For Drill Parts see page 101 Maxipart®

PROUD

Weaving Subdisc

Weaving Topsoiler

AMP539 Weaving top soiler conversion leg

Maxipart® Weaving Conversion Point Tungsten (127mm

AMP542MXP

/ 5”)

1. The base metal is one-piece cast alloy which presents far better wear properties than a fabricated wear point.

2. Tungsten tiles are applied to the points, wings and shin so that all the working edges are protected ensuring a perfect working shape is maintained throughout its extended working life.

3. Ridges have been added to the wings which helps with soil flow as well as helping extend its life

4. Hard facing has been added to the top of the shin and to the underside of the point to further extend its working life and prevent excessive wear to the leg.

Usually the mixture of hard facing and tungsten is enough, but if your working conditions require further protection see AMP545MXP below.

Maxipart® Weaving Conversion Point Tungsten

1 - 4. (Features as AMP542MXP Above)

5. With tungsten to the top of the point hardfacing has been added to the rear of the point and below to extend the life of the leg.

Both points put on the same Weaving Topsoiler at the same time and run side by side in the same conditions, both have done exactly the same hectares

Need to protect your legs further? See page 100 for weld on tungsten tiles.

Wilberg

APC1515 "S" Tine L538mm x W32mm x T12mm

APC1040MXP Maxipart® Reversible Point L210mm x W40mm x T8mm

1. 8mm thick, as opposed to standard 6mm points

APC138/25 Reversible Point L210 mmx W35mm x T6mm - (Pack

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

APC1041 Wiberg Following Harrow 470mm x 9mm

Wilrich

Wiberg Following Harrow 590mm x 12mm

1.

2. APC1042

2.

Universal - 1” Pigtail Tines and Point to fit Bomford / Cousins / Demblon / Haylock / Massey Ferguson / Twose

Universal - Cambridge Roll Rings (Standard)

Universal - Cambridge Roll Rings (Breaker Rings)

Universal - Cambridge Roll Rings (Spacers)

Specific - Cambridge Roll Rings & Breakers

Universal - Clamps

APC1515 "S" Tine L538mm x W32mm x T12mm

APC1040MXP Maxipart® Reversible Point L210mm x W40mm x T8mm

1. 8mm thick, as opposed to standard 6mm points

APC138/25 Reversible Point L210 mmx W35mm x T6mm - (Pack 25) cw Bolt & Nuts

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

Universal - Spring Tines to fit Kongskilde / Lawrence Edwards / Massey Ferguson / Parmiter / Ransomes / Rekord / Wiberg

Universal - Subsoil Parts to fit Blench / Cooper / Cousins / Haylock / Ransomes

1. 2. 3.

Universal - Sweepshare System Bourgault

✓ 8MM THICK WITH RIDGES RISING TO 11MM. THIS 3MM RIDGE HAS PROVEN VERY POPULAR AND HAS INCREASED THE WEAR LIFE CONSIDERABLY.

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. 20mm wings for superb wear resistance

Maxipart® Sweepshares 2” (55mm)

Part Code AMP057MXP

OEM Number 200SPK0215

Maxipart® Boxer Point 4” (100mm)

Part Code AMP103MXP

OEM Number –

Maxipart® Sweepshare 4” (110mm)

Part Code AMP575MXP

OEM Number 200PWV0405

Maxipart® Sweepshare 4” (110mm) Tungsten

Part Code AMP105MXP

OEM Number 200PWV0405

1. Very thick tungsten plaques across all leading edges.

2. 20mm central ridge for additional strength, wear life and and bolt hole protection.

3. 20mm tungsten edged wings for ultimate wear resistance

Maxipart® Boxer Point 4” (100mm) Tungsten

Part Code AMP104MXP

OEM Number –

Maxipart® Sweepshare 5” (140mm)

Part Code AMP140MXP

OEM Number 200PWV0518

Maxipart® Sweepshare 7” (180mm)

Part Code AMP180MXP

OEM Number 200PWV0708

Maxipart® Sweepshare 9” (230mm)

Part Code AMP230MXP

OEM Number 200PWV0908

Maxipart® Sweepshare 10” (250mm) ® Sweepshare 12” (280mm)

Part Code AMP255MXP

OEM Number 200PWV1008

Sweepshare 130mm Adaptor

Hole Centres 57mm

Part Code AMP556

OEM Number 200QCA5010

Sweepshare Adaptor 134mm

Hole Centres 63-80mm

Part Code AMP558

OEM Number 200QCA5020

Sweepshare Pin

Part Code AMP781

OEM Number 200SLC1020

Sweepshare Adaptor 125mm

Hole Centres 45mm

Part Code AMP557

OEM Number 200QCA4710

Sweepshare Press Stud

Part Code AMP780

OEM Number 200SLC1035

Sweepshares Press Stud (For AMP558)

Part Code AMP782

OEM Number 200SLC1037

Universal - Tungsten Cultivator Points, Wings and Weld on Edges

1. 10mm central fin for additional strength and wear life.

2. Deeply recessed bolt holes for extra protection.

1. 20mm thick base metal with an additional 5mm central ridge for strength,wear life and bolt hole protection.

1. 40mm thick base metal with an additional 20mm central ridge for additional strength,wear life and bolt hole protection.

1. 20mm thick base metal with an additional 5mm central ridge for additional strength,wear life and bolt hole protection.

AMC30104

AMC30112

AMC30115MXP

AMC30105

AMC30106

& Subsoil Drill Parts

✓

In

Amazone Cayena

Maxipart® Point Tungsten with Hard Facing

AMC30207HFMXP

1. Additional tungsten for extra wear life

2. Splayed seed plates at rear to ensure free flow of seed and stop blockages

3. Smooth surface hard facing completely covers the side of the tine greatly reducing wear and extending its life

Hard

1. AMC30207MXP Maxipart® Point Tungsten

2. AMC30207SP Maxipart® Point Side Plates Tungsten (Pair) To be used if required with AMC30207MXP (not AMC30207HFMXP)

1. Tungsten plaques extend to the bottom side plates which ensures the bottom of the coulter is also protected.

2. The plates are also reversible extending their value and life.

Following Tine Rear 490mm x 12mm

APC273 Amazone Cayena Scraper

1. 2. 490mm

Amazone

(Continued)

WHAT DO OUR CUSTOMERS SAY?

“

It’s easily done as much as anything else I’ve used, so it is comparable if not better. It really has performed very well and has done over 600 hectares in a hard season, so it’s very impressive.”

– M E S Dart (Mark Oldroyd), Nr. Wallinford, Oxfordshire.

Soil type & conditions: Medium to heavy loams

Product & machine it was used on: APC263MXP – Claydon tungsten leading leg on a Claydon Hybrid 6 meter.

AMC30220 Condor Point Tungsten

2. APC272 Following Tine Long 580 x 15mm

Cayena

Amazone Condor

1. Four plaques/200mm of tungsten up the leg.

2. 6th hole in leg means that this extended tungsten is fully utilised.

3. Thicker tungsten tiles for increased wear life.

Maxipart® Leading Leg Tungsten APC263MXP

Claydon (Continued)

Maxipart® Low Disturbance Sweepshare 5” (140mm) AMP183MXP

Maxipart® Low Disturbance Sweepshare 7” (180mm)

See page 99 for all Sweepshare Options

See page 99 for pin and press-stud

Claydon

1. APC262 Following Tine 600mm x 10mm

2. AMP822 Levelling Board Tine L575mm x W45mm x T10mm Height to frame 375mm (Excluding Point)

APC265 Levelling Board 270mm x 150mm

Cross-Slot

AMP850MXP Maxipart® Disc Cut-Away 22” (560mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Hatzenbichler / Opico

APC873 Covering Tine L510mm x W107mm x T7mm

Horizon DSX

AMP365MXP Maxipart® Horizon Disc 18” (460mm x 5mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

Horsch Avatar

Maxipart® Horsch Avatar Disc 19” (480mm x 5mm)

AMP829MXP

5mm Thick 5mm & 6mm versions available

Maxipart® Horsch Avatar Disc 19” (480mm x 6mm)

AMP833MXP

6mm Thick

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP829MXP Maxipart® Horsch Avatar Disc 19”

AMP833MXP

x 5mm)

part® Horsch Avatar disc 19” (480mm x 6mm)

Horsch Focus

AMC30412MXP

Maxipart® Low Disturbance Point Tungsten with Hard Facing (50mm)

Maxipart® Low Disturbance Premium Point Tungsten (50mm)

1. Deeply recessed bolt holes ensure bolts last the life of the point.

2. Hard facing on the sides ensures extended wear life and helps prevent sides undercutting

AMC30406 Low Disturbance Point Tungsten with Hard Facing (50mm)

AMC30413MXP Maxipart® Horsch Half-Moon Tungsten Point (50mm)

AMP821MXP Maxipart® Coulter Disc 13” (340mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP825 Following Tine 420mm x 12mm

1. AMC30411MXP

2.

Horsch Co & Sprinter - to fit Dutch Opener System

1. High Chrome content for extended wear life

2. 50% more tungsten on the nose. Competitor points typically have 30mm of tungsten whereas the MXP points have 45mm

3. Wing tungsten closer to tip

4. Added bolt hole protection

5. Tungsten on wing extends right to extremity of the wing/width

Award-winning arable farm goes Dutch

“

So far, we have run them for 700 hectares this season and will be using the same set of 3-inch openers next year, which is excellent on our extremely hard-wearing ground.

When choosing wear parts, performance, wear properties, cost and availability are the most important factors. Maxipart® Dutch Openers meet all these requirements, and we will reinvest next year. I thoroughly recommend Maxipart® to anyone.”

50% more tungsten on the nose. Competitor points typically have 30mm of tungsten whereas the MXP points have 45mm

– Richard at Nonington Farms

Image shown after 700 hectares

Horsch Co & Sprinter

Maxipart® Direct Drill Point AMC30125MXP

1. 12mm leading edge for hugely reduced fuel and horse power requirement

2. Reduced width means far less disturbance

3. 130mm of tungsten up leading edge to extend working life

4. Tungsten placement prevents trash “hooking” around tine allowing surface material to flow through the legs

5. Hard facing on side and underside helps protect integral seed plates

6. Splayed seed plates at rear to ensure free flow of seed reducing bridging and thus blockages

Maxipart® Direct Drill Point

AMP759MXP Maxipart® Point Tungsten (45mm)

1. High chrome content for extended wear life.

AMP740MXP Maxipart® Point Tungsten (92mm)

1. High chrome content for extended wear life.

AMP741MXP AMP752

Maxipart® Base Plate 170mm

1. High chrome content for extended wear life. Base Plate 200mm

AMP744MXP AMP745MXP

Maxipart® Base Plate 170mm Tungsten Maxipart® Base Plate 200mm Tungsten

1. High chrome content for extended wear life

2. Tungsten tile in front of bolt hole to protect bolt head.

3. Tungsten applied to rear of baseplate to ensure seeding band maintained throughout its life.

Direct drill coulter Spring beans 30cm spacings*

Spring beans 25cm spacing*

Inset images - Both pictures show Spring beans drilled in 1st week of March. Both photos taken on 23rd May.

Horsch CO & Sprinter

AMP828MXP Maxipart® Horsch Serto Disc

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

1.

2.

1.

2.

AMP810MXP Maxipart® Disc Cut-away 18” (460mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP821MXP Maxipart® Coulter Disc 13” (340mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

23246102

AMP815A AMP815B

Horsch Spider Disc 18” (460mm x 8mm)

Horsch Spider Disc 18” (460mm x 8mm)

1. AMP822 Levelling Board Tine L575mm x W45mm x T10mm Height to frame 375mm (Excluding Point)

23010201

2. AMP823 Levelling Point 200mm x 45mm x 10mm. Hole spacings - Ø-Ø 45mm

RH LH

00310893 00310892

AMP824 Eradicator Point 170mm x 90mm x 8mm

AMP825 Following Tine 420mm x 12mm

AMP748 Following Tine Rear 490mm x 12mm

1. This tine has twice the amount of tungsten compared to competitors.

2. Smooth hard facing applied to the side of the tine, which will not increase draft but will provide protection to the coulter.

3. Hard facing applied to the underside of the point to slow wear in this area.

One piece integral design ensuring pipe remains in place throughout its life. No bolts to wear out leading to coulters coming loose and irregular seed placement. Twice the amount of tungsten compared to competitors. Hard facing to protect seed coulter and underneath to prevent secondary wear.

APC253 Following Tine 590mm x 8mm

1. APC262 Heavy Duty following tine 600 x 10mm

2. APC626 Heavy Duty John Dale Scraper 10mm

John Dale AMP750 Disc 14” (350mm)

N283805

John Deere 740A

Maxipart® Drill Tine Tungsten with Hard Facing (For bolt on boot) AMC30212MXP

Maxipart® Drill Tine Tungsten with Hard Facing (With integral boot) AMC30213MXP

MXP vs Original - Same drill, time, conditions & acreage.

Maxipart® Disc 18” (460mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

Kockerling Jockey

AMP595 "S" Tine L730mm x W70mm x T12mm - Ø-Ø 45mm Height to frame 555mm (Excluding Point)

AMP597 Reversible Point L300mm x W57mm x T10mm - Ø-Ø 45mm

AMC30108MXP Maxipart® Point Tungsten

1. 5mm thick tungsten tile for additional wear life

Sweepshare Adaptor 125mm

Sweepshare 3/4” (19mm) Tungsten

Kockerling Jockey (Continued)

Kockerling Ultima

Reversible Point L470mm x W65mm x T16mm - Ø-Ø 45-75mm

AMP799MXP Maxipart® Point Tungsten

1. Long life cast point with 4.5mm thick tungsten tile

1. APC935 Following Tine Short 360mm x 8mm thick (Top Coil to Tip)

2. APC936 Following Tine Long 380mm x 8mm thick (Top Coil to Tip)

AMP840MXP Maxipart® Kuhn Espro Disc 18” (460mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP839MXP Maxipart® Kuhn Espro Drill Disc 14” (350mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

Weld on tiles - See page 100

Kuhn Megant

AMP386 Kuhn Venta Drill Disc 14” (350mm)

APC941 Coulter Tip

APC939 Front Facing Tine 290mm x 8.5mm

APC940 Rear Facing Tine 190mm x 8.5mm

Kverneland TS

APC934MXP Maxipart® Point 1. Long life cast point.

AMP799MXP Maxipart® Point Tungsten

1. Long life cast point with 4.5mm thick tungsten tile

APC932 Reversible Point L240mm x W37mm x T6mm - Bolt Holes 40mm

APC945 Seed Coulter

1.

2.

Kverneland TS

APC946 Seed Coulter Leg

APC942 Front Following Tine 285mm x 9mm

APC943 Rear Following Tine 285mm x 9mm

APC944 Tine Bolt, Hexagonal Head - (Bolt Only) M8 x 75mm

AC420859

AC420860

AC420416

AMP322MXP Maxipart® Disc Plain 14” (350mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP834MXP Maxipart® Disc 14” (350mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP333 Following Tine 570mm x 12mm

1.

2.

Lemken Solitair

1. The base metal is a one-piece cast alloy point/wing offering far greater wear properties and better fitment than fabricated pressed steel parts.

2. Tungsten tiles are perfectly positioned on the nose and wings to ensure the correct profile is kept throughout its extended life.

3. Added ridges to the wings to further extend their life.

4. Integral roll pin protection within the casting.

5. Hardfacing applied to sides of wing to slow wear in this area

Maxipart® Mzuri Narrow Tungsten Point (60mm) AMC30218MXP Part

Maxipart® Mzuri Tungsten Point (115mm)

AMC30215MXP

The base metal is a one-piece cast alloy point/wing offering far greater wear properties and better fitment than fabricated pressed steel parts. Tungsten tiles are perfectly positioned on the nose and wings to ensure the correct profile is kept throughout its extended life.

Added ridges to the wings to further extend their life. Integral roll pin protection within the casting.

Maxipart® Mzuri 1” Drill Point AMC30217MXP

1. The base metal is a one-piece cast steel point offering far greater wear properties and fitment than fabricated pressed steel parts.

2. Extended tungsten on the nose (45mm) for excellent wear resistance.

3. Integral roll pin protection within the casting.

Maxipart® Mzuri Coulter Tungsten Point

AMC30216MXP

1. The base metal is a one-piece cast steel point/wing offering far greater wear properties and fitment than fabricated pressed steel parts.

2. Extended tungsten on the wing right to the body and a tall tungsten tile on the nose (45mm) for excellent wear resistance.

3. Added ridges to the wings to further improve the life of the wings

4. Integral roll pin protection within the casting.

Mzuri Pro-Til (Continued)

Part Code Description

APC1062MXP Maxipart® Drill Disc Shallow Cut-away 16” (410mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

APC262 Following Tine 600mm x 10mm

Pottinger Terrasem

AMP330MXP Maxipart® Disc Plain 20” (510mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP331MXP Maxipart® Disc Cut-away 20” (510mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP332MXP Maxipart® Seed Disc Plain 15” (380mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

310526/ 451371

AMP333 Following Tine 570mm x 12mm

– 85041024.1

– 85041023.1

– 85043308.1

63374902

Pottinger

Rabe

AMP370MXP Maxipart® Drill Disc Shallow Cut-Away 14” (355mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Tine 460mm x 9mm

AMP505 Rigid Leg 670mm x 50mm x 25mm, Ø - Ø 60mm for point (6 hole - Ø - Ø 50mm)

APC980HD Straight Point 16mm

AMC30130MXP Maxipart® Simba Cultipress/Freeflow Straight Tungsten Point (To fit as per APC980HD)

1. Angled V-form tungsten plaque allows for smooth flow through the soil producing unparalleled wear properties.

2. The base metal is cast steel which presents far better wear properties than a fabricated wear point.

AMP701 Miniflow Boot

AMP704 Miniflow Point

AMP748 Following Tine Rear 490mm x 12mm

AMP702 Scraper 6mm

Sky Drill

Maxipart® Sky Drill 18” (450mm)

AMP420MXP

Maxipart® Sky Drill 17” (435mm) AMP421MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP660MXP Maxipart® Sly Drill Disc 18” (460mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

Maxipart® Front Disc Shallow Cut-away 18” (450mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Loosening Leg Tungsten

1. More clearance behind the leg to allow opener to work-in, without gathering trash.

2. Highest grade of boron steel, heat treated to ensure maximum wear life

3. Tungsten tiles that reach 185mm on the face of the leg to prolong life of leg

Sumo DD

Sumo DTS - to fit Dutch Opener System

1. High Chrome content for extended wear life

2. 50% more tungsten on the nose. Competitor points typically have 30mm of tungsten whereas the MXP points have 45mm

3. Wing tungsten closer to tip

4. Added bolt hole protection

5. Tungsten on wing extends right to extremity of the wing/width

Award-winning arable farm goes Dutch

50% more tungsten on the nose. Competitor points typically have 30mm of tungsten whereas the MXP points have 45mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

– SWB442

Image shown after 700 hectares

1. AMP728 Press Leg L710mm x W25mm x T50mm, 13 holes (45mm centres)

2. AMP779 Carrier/Ripper Leg, L730mm x W25mm x T50mm, 6 holes (45mm centres)

3. AMP739 Carrier/Ripper Leg, L520mm x W25mm x T50mm, 13 holes (45mm centres)

APC1604 Universal Point L222mm x W40mm x T8mm - Ø-Ø 40mm

4. APC1057 Agrilla Xtra Tine & Point L650mm x W65mm x T10mm Height to frame 455mm (Excluding Point)

5. AMP768 Eradicator Tine L500mm x W65mm x T10mm Height to frame 345mm (Excluding Point)

APC138/25 Reversible Point L210 mmx W35mm x T6mm - (Pack 25) cw Bolt & Nuts

APC1040MXP Maxipart® Reversible Point L210 mm x W40mm x T8mm

1. 8mm thick, as opposed to standard 6mm points.

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

Rexus/System disc options

Maxipart® Rexus Disc Shallow Cut-away 16” (410mm)

AMP723MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Maxipart® Disc Cut-Away 18” (450mm) AMP652MXP

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP651MXP Maxipart® Rexus Disc Shallow Cut-away 18” (450mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP727MXP Maxipart® Disc Cut-Away 18” (450mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Vaderstad Rapid (Continued)

Coulter/Seeding disc options

Maxipart® Drill Disc Shallow Cut-away 16” (410mm) - 5 Hole

Maxipart® Drill Disc Shallow Cut-away 16” (410mm) - 4 Hole

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

1. AMP726 Following Tine Single Bottom Fixing 550mm x 12mm

2. AMP762 Following Tine Double 550mm x 12mm

3. APC1059 Following Tine Single Top Fixing 490mm x 12mm

4. AMP763 Following Tine Single 700mm x 12mm

APC1062MXP

AMP650MXP

Vaderstad Spirit

APC1057 Agrilla Xtra Tine & Point L650mm x W65mm x T10mm Height to frame 455mm (Excluding Point)

APC138/25 Reversible Point L210 mmx W35mm x T6mm - (Pack 25) cw Bolt & Nuts

APC1040MXP Maxipart® Reversible Point L210 mmx W40mm x T8mm

1. 8mm thick, as opposed to standard 6mm points.

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

Vaderstad Tempo

Part Code Description

AMP653MXP Maxipart® Vaderstad Tempo Disc (410mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Weaving Tine Drill

APC995 Drill Point 230mm x 50mm x 8mm - Ø-Ø 42-48mm

Weaving GD

AMP440MXP Maxipart® Weaving GD Cut-Away Disc 16” (405mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP441MXP Maxipart® Weaving GD Plain Disc 14” (345mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

1. We consult...

2. We refine...

3. We test...

5. We deliver...

4. We Manufacture...

The 5 stages of Maxipart®

Weaving Sabre Tine Drill

Maxipart® Weaving Sabre Tine with Hard Facing

AMC30225HFMXP

(For later drills - with 4 rows of legs)

1. Additional tungsten for extra wear life

2. Splayed seed plates at rear to ensure free flow of seed and stop blockages

3. Smooth surface hard facing completely covers the side of the tine greatly reducing wear and extending its life

4. Seed pipe securely welded in place

Maxipart® Weaving Sabre Tine with Hard Facing

Part Code Description

1. AMC30225MXP Maxipart® Weaving Sabre Tine

1. Additional tungsten for extra wear life

2. Splayed seed plates at rear to ensure free flow of seed and stop blockages

3. Smooth surface hard facing completely covers the side of the tine greatly reducing wear and extending its life

4. Seed pipe securely welded in place

2. AMC30207SP Maxipart® Point Side Plates Tungsten (Pair)

To be used if required with AMC30225MXP (not AMC30207MXP)

1. Tungsten plaques extend to the bottom side plates which ensures the bottom of the coulter is also protected.

2. The plates are also reversible extending their value and life.

1.

2.

Extended seed pipe (85mm)

AMC30701

(For earlier drills - with 3 rows of legs)

Maxipart® Point Tungsten

1. Additional tungsten for extra wear life

2. Splayed seed plates at rear to ensure free flow of seed and stop blockages

3. Smooth surface hard facing completely covers the side of the tine greatly reducing wear and extending its life

4. Seed pipe securely welded in place

Maxipart® Point Tungsten with Hard Facing

1. Additional tungsten for extra wear life

2. Splayed seed plates at rear to ensure free flow of seed and stop blockages

3. Smooth surface hard facing completely covers the side of the tine greatly reducing wear and extending its life

4. Seed pipe securely welded in place

part® Point Side Plates Tungsten (Pair)

To be used with AMC30207MXP (not AMC30207MXP)

1. Tungsten plaques extend to the bottom side plates which ensures the bottom of the coulter is also protected.

2. The plates are also reversible extending their value and life.

For Power Harrow & Rotary Tiller see page 183 Maxi

1. AMC30207MXP

2. AMC30207HFMXP

3. AMC30207SP Maxi

AMC30126 Straight Tungsten Point L140mm x W35mm x T23mm

2.

3.

Universal Eradicator Tines

THE POWER OF TUNGSTEN

Research & development, and customer feedback.

Maxipart® PROUD TO BE PURPLE

Please call your sales rep or the office if you have anything to discuss.

RETAINING FULL WORKING WIDTH

Wearing top and back

TWICE THE AMOUNT OF TUNGSTEN

By adding twice the amount of tungsten two main advantages are immediately seen. The first is the extended life of the tine and secondly as the original points begins to wear you can clearly see that a hook wear pattern emerges, this hook will then gather trash whereas the Maxipart® version retains its original shape and trash flows through the drill.

Version 1

This looks good as we have tungsten on the leading nose and the strip between the nose and the shin, the shin and the wings. However there were still a couple of areas for improvement.

Final Version

Certain conditions have led to the shin narrowing and also wearing above the tungsten leading to excessive leg wear,

So this is what we have done. (1.) We have extended the tungsten to the top of the point. (2.) We have added hard facing to the secondary wear area behind the tungsten and then a further at the rear of the point. Both of these innovations together will mean far more extra acres out of the point as well as keeping your legs working for longer.

v Original. Tines run side by side on the same drill in the same conditions, both have done exactly the same hectares.

For further features and benefits of the two points offered, see page 112.

1. APC1322 Eradicator Tine & Point L800mm x W40mm x T10mm

2. APC1323 Eradicator Tine Helper L470mm x W40mm x T10mm

3. APC1324 Eradicator Tine & Point L570mm x W32mm x T10mm

4. APC1325 Eradicator Tine Helper L290mm x W32mm x T10mm

(Left) MXP

Follow us on: Follow us on social #TeamMXP #TeamAPM

Maxipart®

PROUD TO BE PURPLE

19 10

20

18 9

17 8

1 11

3 13

2 12

PBS0188RD/AMC10101 PBS0188RD/AMC10101HFDowdswellpointwithhardfacing ✓ Slab Share

Dowdswellpointwithhardfacing Slab Share

16 7

21

4 14 5 15 6

Gregoire Besson Skimmer Parts to fit all bodies

Kuhn HB4 Slatted Body

Kuhn HC4 Body

Kuhn Skimmer Parts

✓ BOTH STYLES OF SKIM POINTS WILL FIT KUHN PLOUGHS. IN PROFILE THE REVERSIBLE SKIM IS FLATTER AND THE HANDED POINTS ARE SLIGHTLY MORE CURVED

Photo by: A F Monk (Rookley) Ltd - Hampshire

Follow us on: Follow us on social #TeamMXP #TeamAPM

The APM website open 24 hrs a day...

Why order online?

✓ TAKE ADVANTAGE OF YOUR TRADE AND PROMOTIONAL PRICING

✓ ORDER 24 HOURS A DAY 365 DAYS A YEAR

✓ USE YOUR COMPUTER TABLET OR PHONE ON THE GO

✓ RE-ORDER WITH EASE

✓ STAY UP TO DATE WITH THE LATEST INFORMATION

✓ TRACK YOUR COMPLETE APM SALES HISTORY

✓ CHECK YOUR ACCOUNT BALANCE

Not got an account?

✓ NO PROBLEM, CALL OR EMAIL US AND WE’LL SET YOU UP WITH AN ACCOUNT SO YOU CAN ENJOY THE BENEFITS LISTED ABOVE.

95% of our customers...

✓ ... SAID OUR CATALOGUE WAS EITHER EASY OR VERY EASY TO USE.

✓ WE LOVE FEEDBACK - WHAT DO YOU THINK OF OUR WEBSITE?

Kverneland No 8 Body

1. Tungsten goes to the very top of the shin giving greater wear life

See page 164 for Skimmer parts

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

1. Additional tungsten at front, or if you would prefer the additional protection at the rear simply use the left hand landside on the right and vice versa.

2. Extended T piece of tungsten below meaning greater wear life

Maxipart® MAXIMISE EFFICIENCY, MAXIMISE PROFITS

THE M7 SYSTEM POINT PROTECTS THE HOLDER MORE SUCCESSFULLY, ENSURING A GREATER WEAR LIFE, THAN THE ORIGINAL SYSTEM POINT DOES.

Kverneland No 9 Body

1. Tungsten goes to the very top of the shin giving greater wear life

See page 164 for Skimmer parts

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

1. Additional tungsten at front, or if you would prefer the additional protection at the rear simply use the left hand landside on the right and vice versa.

2. Extended T piece of tungsten below meaning greater wear life

THE M7 SYSTEM POINT PROTECTS THE HOLDER MORE SUCCESSFULLY, ENSURING A GREATER WEAR LIFE, THAN THE ORIGINAL SYSTEM POINT DOES.

Flush-Fit

Knock-On-System

Knock-On-System

Knock-On-System

Kverneland No 19 Body

See

page 164 for Skimmer parts

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

1. Additional tungsten at front, or if you would prefer the additional protection at the rear simply use the left hand landside on the right and vice versa.

2. Extended T piece of tungsten below meaning greater wear life

Photo by: George Brown - Berkshire

Follow us on: Follow us on social #TeamMXP #TeamAPM

THE M7 SYSTEM POINT PROTECTS THE HOLDER MORE SUCCESSFULLY, ENSURING A GREATER WEAR LIFE, THAN THE ORIGINAL SYSTEM POINT DOES.

Knock-On-System

Knock-On-System

Knock-On-System

Knock-On-System

Kverneland No 28 body

1. Tungsten goes to the very top of the shin giving greater wear life

See page 164 for Skimmer parts

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

1. Additional tungsten at front, or if you would prefer the additional protection at the rear simply use the left hand landside on the right and vice versa.

2. Extended T piece of tungsten below meaning greater wear life

Maxipart® DEVELOPED FROM THE GROUND UP

Knock-On-System

THE M7 SYSTEM POINT PROTECTS THE HOLDER MORE SUCCESSFULLY, ENSURING A GREATER WEAR LIFE, THAN THE ORIGINAL SYSTEM POINT DOES.

Flush-Fit

Knock-On-System

Knock-On-System

Knock-On-System

Flush-Fit

Flush-Fit

Kverneland No 30 body

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

1. Additional tungsten at front, or if you would prefer the additional protection at the rear simply use the left hand landside on the right and vice versa.

2. Extended T piece of tungsten below meaning greater wear life

See page 164 for Skimmer parts

Photo by: Sam Phillips, TK Phillips - Bedfordshire

Follow us on: Follow us on social #TeamMXP #TeamAPM

THE M7 SYSTEM POINT PROTECTS THE HOLDER MORE SUCCESSFULLY, ENSURING A GREATER WEAR LIFE, THAN THE ORIGINAL SYSTEM POINT DOES.

Knock-On-System

Knock-On-System

Knock-On-System

Knock-On-System

1. Tungsten goes to the very top of the leading edge giving greater wear life

Kverneland Skimmer, Furrow & Coulter Parts

Kverneland Shear Bolts

The 5 stages of Maxipart®

1. We consult...

2. We refine...

3. We test...

5. We deliver...

4. We Manufacture...

Lemken BS20, BS25, B25H, B30 Body

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

Lemken BS40 Body

Maxipart® HAVE YOU TRIED IT? CAN YOU AFFORD NOT TO?

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

Lemken C40 Body

Photo by: Will Bateman, Grant Farming LTD - Lincolnshire Follow us on: Follow us on social #TeamMXP #TeamAPM

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

Lemken CD Body

Maxipart® Clothing

Find out more on page 230

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

10504 - SHARE

Lemken W52 Body

Maxipart® Identification - Hints & Tips

Turning soil to the right

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

Turning soil to the left Right Hand No. Part Code MXP Description Hand OEM Number 1. APC1645A Mouldboard RH 3441240 APC1645B Mouldboard LH 3441241 2. APC1621A Shin RH 3451004 APC1621B Shin LH 3451005 3. AMC10511A Shin Tungsten RH 3451004 AMC10511B Shin Tungsten LH 3451005 4. APC1652AMXP Maxipart® Share 14" RH 3352010 APC1652BMXP Maxipart® Share 14" LH 3352011 5. APC1627AMXP Maxipart® Share 16" RH 3352020 APC1627BMXP Maxipart® Share 16" LH 3352021 6. AMC10504A Share 16" Tungsten RH 3352020 AMC10504B Share 16" Tungsten LH 3352021 7. APC1620AMXP Maxipart® Reversible Point RH 3365540 APC1620BMXP Maxipart® Reversible Point LH 3365541 8. APC965A Flat Point RH 3364050 APC965B Flat Point LH 3364051 9. APC965AHF Flat Point & Hard Facing RH 3364050 APC965BHF Flat Point & Hard Facing LH 3364051 10. AMC10501AMXP Maxipart® Flat Point Tungsten RH 3364050 AMC10501BMXP Maxipart® Flat Point Tungsten LH 3364051 11. AMC10501AHFMXP Maxipart® Flat Point Tungsten & Hard Facing RH 3364050 AMC10501BHFMXP Maxipart® Flat Point Tungsten & Hard Facing LH 3364051 12. APC1625MXP Maxipart® Landside – 3411504 13. AMC10508 Landside Tungsten – 3411504 14. APC1626AMXP Maxipart® Wedge Landside RH 3401900 APC1626BMXP Maxipart® Wedge Landside LH 3401901 15. APC1629 Deep Landside – 3411460 16. APC1630 Long Landside – 3411450 17. APC1653A Sword Landside RH 3492890 APC1653B Sword Landside LH 3492891 18. APC1637A Mouldboard Extension RH 3476000 APC1637B Mouldboard Extension LH 3476001

Left Hand

Maxipart® PROUD TO BE PURPLE

Lemken Duramaxx Body (Juwel)

Photo by: Will Bateman, Grant Farming LTD - Lincolnshire

Follow us on: Follow us on social #TeamMXP #TeamAPM

1. Smooth hardfacing covering across and up the leading edge of the point offering better wear life and a smoother cut through the soil

AMB4522-BOLT [TOUSEFORALLBOLTS]

AMB4522-BOLT [TOUSEFORALLBOLTS] APC962

The adapter APC962 replaces the Lemken Duramaxx “hook-on” part of the point by creating a bolt hole in the frog.

The adapter is placed on the inside of the frog, behind the slot for the point, creating a fixing point for the bolt and nut.

DURAMAXX ADAPTOR EXPLAINED

Lemken Skimmer Parts

Photo by: Dean Flower, Maurice Flower & Son Limited - Wiltshire Follow us on: Follow us on social #TeamMXP #TeamAPM

PBS0188RD/AMC10101HFA/B

Cultivation & Subsoil Power Harrow & Rotary Tiller

Amazone KE Single Hole Tine

Amazone KG Single Hole Tine

Tines Per Machine: 2.5m - 8LH/8RH, 3m - 10LH/10RH, 3.5m12LH/12RH, 4m - 14LH/14RH, 5m - 16LH/16RH, 6m - 20LH/20RH

Tines Per Machine: 2.5m - 8LH/8RH, 3m - 10LH/10RH, 3.5m12LH/12RH, 4m - 14LH/14RH, 5m - 16LH/16RH, 6m - 20LH/20RH

Jones Rotary Tiller Blade

Kuhn Fast Fit Tine (340mm)

Kuhn Straight Tine (320mm Long)

Kuhn Bolt-On Tine ‘L’ Type

Kuhn Quick-Fit Tine (1st Generation)

Kuhn Quick-Fit Tine (2nd Generation)

Tines Per Machine: 3m - 10 RH/LH, 4m - 14RH/12LH, 4.5m - 16RH/14LH, 6m - 20RH/20LH

Tines Per Machine: 3m - 10 RH/LH, 4m - 14RH/12LH, 4.5m - 16RH/14LH, 6m - 20RH/20LH

Kverneland / KRM 280mm

Bolt-On Tine (17mm Hole)

Kverneland/ KRM 330mm

Bolt-On Tine (19mm Hole)

Tines Per Machine: 3m - 10RH/10LH, 3.5m - 12RH/12LH, 4m - 16RH/16LH, 5m - 20RH/20LH, 6m - 24RH/24LH

Kverneland / KRM Quick Fit

Tine (18mm Thick)

Tines Per Machine: 3m - 10RH/10LH, 3.5m - 12RH/12LH, 4m - 16RH/16LH, 5m - 20RH/20LH, 6m - 24RH/24LH

Kverneland / KRM Quick Fit

Tine (15mm Thick)

Tines Per Machine: 3m - 10RH/10LH, 3.5m - 12RH/12LH, 4m - 16RH/16LH, 5m - 20RH/20LH, 6m - 24RH/24LH

Lely Roterra Tine Lely Club Tine

Tines Per Machine: 2.5m - 10RH/10LH, 3m - 12RH/12LH, 3.5m - 14RH/14LH, 4m - 16RH /16LH

Maxipart® Identification - Hints & Tips

For hints & tips on Maxipart® wearing metal please see page 5

Lemken Zirkon 7 Bolt-On

Lemken Zirkon 6 & 9 Bolt-On Tine

Lemken Zirkon 12 Quick Fit Tine

Maschio / Reco DC Bolt-On Tine

90mm 285mm Ø17mm Optional 2 Tile 3 Tile

Maschio / Reco DM Bolt-On Tine

Tines Per Machine: 3m - 12RH/12LH, 3.5m - 14RH/14LH, 4m - 16RH/16LH, 5m - 20RH/20LH, 6m - 24RH/24LH

Maschio / Reco

Optional 2 Tile 3 Tile Optional 2 Tile

Tines Per Machine: 3m - 12RH/12LH, 3.5m - 14RH/14LH, 4m - 16RH/16LH, 5m - 20RH/20LH, 6m - 24RH/24LH

Quick Fit Tine

100mm 165mm 100mm APC393 95 88 42 33 9 APC1699 APC1700

Maschio Rotary Tiller Blade

Rabewerk MKE Tine

Scanstone L Type Rotary Tiller Blade

Simone Rotary Tiller Blade

Sulky Quick Fit Tine

Universal Parts

Need Some Grease?

Find out more on page 292

Cultivation & Subsoil Hedgecutter, Topper & Flail Mower

Hedgecutter, Topper & Flail Mower 05

Berti Light Flail

Berti Heavy Flail

Desvoys / Wessex Hammer Flail (20.5mm Hole)

Desvoys / Wessex Curved Flail

Kidd Grass Topper Flail

Kuhn Flail (120mm Wide)

Kuhn Curved Flail

McConnel Boot Flail

F10H Multicut Flail

Looking for Air Tools?

See more on page 390

Perfect Flail (108mm Wide)

Perfect Flail (195mm Wide)

Spearhead Rotary Topper

For hints & tips on Maxipart® wearing metal please see page 5

Photo by: McConnell

Photo by: Wessex

Spearhead Rotary Topper

Spearhead Rotary Topper

Buck Rake, Bucket & Loader Parts 06

Weld-On Bucket Edges

HIGH GRADE BORON STEEL WELD-ON EDGES, FOR ULTIMATE WEAR LIFE. PLUS - TALK TO US ABOUT BOLT-ON EDGES TO FIT YOUR BUCKET.

Weld-On Loader Brackets

ABT4000 Matbro Brackets - Cone & Pin (Pair)

ABT4001 JCB Brackets - Quick Hitch (Pair)

ABT4002 Euro Brackets - Quickie Hitch (Pair)

ABT4003 Manitou Brackets - Quick Hitch

ABT4004 Weld-On Brackets Kramer (Set)

Buck Rake, Bucket & Loader Parts 06

Buckrake Tines Conus 1 – Kverneland Fitment Straight (20mm Thread)

Image for guidance only

Buckrake Tines Conus 1 – Kverneland Fitment Cranked

Image for guidance only

Buckrake Tines Conus 1

Image for guidance only

Buckrake Tines Conus 1 – Kverneland Fitment Bushes

Buckrake Tines Conus 2 – Kverneland Fitment Straight (28mm Thread)

Image for

only

Buckrake Tines Conus 2 – Kverneland Fitment Bushes

210 - 214 Wearing Parts Fixings

Cultivation & Subsoil Wearing Parts Fixings

Bolt Head Sizes in Relation to Fixings

Recommended tightening torque for tillage tools (guide only)

Tightening bolts:

Bolts with a quality of 8.8, 10.9 and 12.9 are used in ploughs. When changing bolts, you must ensure that bolts and nuts of the same quality are used. A different torque should be used for tightening different bolts. Bolts coated with oil are easier to tighten.

Do not tighten bolts and nuts with a pneumatic tool as this can damage the tillage tool (stress cracks). Please always refer to your user manual for manufacturer recommended torque settings.

Equivalent Size Chart Bolt Head Sizes in Relation to Fixing

Round Countersunk Square Neck - (Standard Tensile Bolt & Nut)

Round Countersunk Square Neck - (High Tensile Bolt & Nut)

Twin Nibbed - (Bolt & Nut)

Saddle Head Countersunk Square Neck - (Bolt & Nut)

Square Conical Head - (Bolt & Nut)

1 Flat Edge - (Bolt & Nut)

2 Flat Edges - (Bolt &

Oval Conical Head - (Bolt & Nut)

* To suit Kverneland spanner

Hexagonal Head Bolt & NYLOC Nut - (Bolt & Nut)

Key 8.8 Grade 10.9 Grade 12.9 Grade

Hexagonal Head - (Bolt Only)

Key 8.8 Grade 10.9 Grade 12.9 Grade

See page 462 for Coarse thread nuts, Fine thread available on special order

Hexagonal Head - (Bolt & Deep Nut with Spring Washer)

Key 12.9 Grade

Flanged Hexagonal Head - (Bolt Only)

Key 8.8 Grade 10.9 Grade

Dome Head Square Neck - (Bolt & Nut)

Hexagonal Socket Cylinder - (Bolt Only)

Hexagonal Socket Countersunk - (Bolt Only)

Disc Studs

Standard Nuts

See page 462 for Washers

Nyloc Nuts

Flanged Serrated Nuts

Roll Pins

Spirol Pins

Simba Pro-Lift Roll Pin

Agriforce Tuff Wipes

Heavy duty abrasive cleaning wipes. Can be used to clean paint, tar, wax, grease, oil and many other substances. Tub contains approximately 80 wipes.

HC320 80 wipes, Small, compact 20Ltr tub

Agriforce Super Wipes

100 strong wet wipes, with antibacterial additive. Great for cleaning work surfaces and tools. Proven to be effective against Weil’s disease.

HC340 100 wipes, 25cm x 20cm

Agriforce Tuff Wipes Flat Pack x 70

Handy cab-size, abrasive wipes in a resealable pack containing approximately 70 wipes.

HC341 70 wipes, Flat Pack

Agriforce Super Wipes Pack x 100

Handy cab-size, strong, wet wipe in a resealable pack containing approximately 100 wipes.

HC342 100 wipes, Flat Pack

Cotton Rags

An economy pack of mixed cotton rags, for use all around the workshop in many applications.

HP001 10kg

Tork X60 Handy Box

A portable box of paper wipes with carrying handle so it can be close to hand at all times. High quality ‘cloth’ style material to allow it to be used several times.

HP211 300 Sheets, 35cm x 35cm

Centre Feed Dispenser

Wall mounted dispenser, for use with HP213/6 & HP225/6 paper rolls.

HP202 For use with HP213 & HP225

Tork Uni-Box Dispenser

Wall mounted dispenser, for use with HP103/2 & HP209/2 paper rolls. A hygienic dispenser for maxi centrefeed rolls that is optimised for single hand dispensing.

HP204

For use with HP103 & HP209

Economy White Paper

A large economically priced 2-ply paper for use all around the farm or workshop. Use with HP204 dispenser.

HP209/2 1000 Sheets, 2-Ply, 2 pack, 370m x 28cm

Tork Wiping Paper

A superior quality 2-ply paper, with new ply bonding technology. Amazingly absorbent, very strong and ideal for use with HP 204 dispenser.

HP103/2 750 Sheets, 2-Ply, 2 pack, 250m x 24cm

Tork Mini-Roll Paper

Supplied in a single Mini-roll and made from highly absorbent 2-ply paper. 80m x 21.5cm.

HP101 200 Sheets, 2-Ply, 1 Roll, 80m x 21.5cm

Workshop Wipes

Universal 2-ply blue paper roll. Supplied in 6 roll packs, this paper can be used off the roll or in a wall-mounted dispenser (HP 202).

HP225/6 400 Sheets, 2-Ply, 6 pack, 150m x 19cm

Toilet Rolls

2-ply conventional toilet rolls, roll size 40m x 10cm - 320 sheets per roll.

HP212/36 320 Sheets, 2-Ply, 36 rolls 40m x 10cm

Premium Dairy Wipe

Our premium grade dairy paper supplied in a 6 roll pack. Made from highly absorbent 2-ply paper that remains strong in use. Ideal for use in dairies and other livestock applications. Use with HP202.

HP213/6 450 sheets, 2-ply, 6 pack, 180m x 22cm

Standard Green C-Fold Towel

Very popular in washrooms or any other environment where waste and hygiene is concerned. 230mm x 310mm.

HP155 2,640 Sheets, 1-Ply, 15 Sleeves 230mm x 310mm

Agriforce Autowash Premium

Powerful yet kind to paintwork, Agriforce

Autowash Premium is the supreme traffic film remover. Perfect for applying through power washers or by hand.

HD325/20 20 litre

Agriforce Wash & Wax

Special formula vehicle shampoo and wax suitable for use both by hand or through power washers. Gentle on paintwork, protecting colour and shine.

HD329 20 litre

Agriforce Autowash

Powerfully removes dirt, mud, grime and general traffic film from cars, trucks and machinery. Perfect for applying through pressure washers or by hand.

HD200/20 20 litre

Agriforce Hygieneclean

Ideal for use in dairies, milking parlours, calf pens, piggeries, poultry houses,transport etc. Simply spray on and wash off.

HD2002/20 20 litre

Agriforce Superclean

Ideal for engine degreasing, machinery cleaning, pig pens and buildings, muck spreaders and implement cleaning. Very simple to use, apply by hand or through a pressure washer system. Not recommended for vehicle washing.

HD2001/20 20 litre

Agriforce Sodium Hypochlorite

A versatile disinfectant and biocide. For use in all areas of dairy hygiene and effective against a wide spectrum of bacteria.  Also suitable for general farm use.

HD170/20 20 litre

Agriforce Concentrated Screenwash

SuperScreen includes de-icing agents for winter use, while powerful cleansers make short work of summer flies on the windscreen. Used undiluted it will even work at -57°C!

MRA1010-5 5 litre

Window Cleaning Squeegee

HC333

Giant Sponge

Suitable for many uses such as vehicle cleaning.

HC337

Agriforce Glass Cleaner

Agriforce Glass Cleaner is a simple and no-nonsense smear-free product. Just spray on glass, leave for 15-20 seconds and wipe off with a paper or cloth wipe.

MRA1038/075 750ml

Glass Cleaner Aerosol

Glass cleaner in a powerful aerosol can - this lightly foams on contact and eats into dirt and grime, leaving a crystal-clear finish, with no residue.

MRA1036 500ml

Agriforce Glass Wipes

Agriforce Glass Wipes make it easy to keep cab glass clear and clean. Each tub contains approx 70 wipes. Every cab should have one!

MRA1037 70 wipes

Aluminium squeegee with rubber blade and handgrip. Can be pole-mounted.

Jeyes Fluid

The original all-purpose disinfectant and cleaner. Use in a multitude of applications around the farm or workshop.

HD199 5 litre

Virkon S Powder

✓ THE PREMIER BROAD SPECTRUM VIRCIDAL DISINIFECTANT IS RECOGNISED BY INDUSTRY AND GOVERNMENTS WORLDWIDE AS A DISINFECTANT OF CHOICE FOR LIVESTOCK DISEASE CONTROL.

Agriforce Black Magic

An all-purpose disinfectant and cleaner for use in a multitude of applications around the farm or workshop.

HD198/5 5 litre

Bleach

A 5 Litre general purpose thin Bleach used to kill germs, clean worktops and sinks and also for general cleaning and laundry use. Contains sodium hypochlorite.

HD197/5 5 litre

Duck Toilet Cleaner

Disinfectant kills 99.99% of bacteria. Fresh Pine fragrance eliminates odours with no harsh toilet cleaner smell.

Find out more on page 337

Mr Muscle Multi Surface Antibacterial Spray

Disinfects by killing 99.99% of bacteria and specific viruses on hard, non-porous surfaces.

HD184/075 750ml

Persil Washing Powder

Persil Non-Biological washing powder. Dermatologically tested, light fresh fragrance, brilliant cleaning at low temperatures.

HD196 130 wash

HD188 750ml (Pine Fresh)

GOJO Wall Dispenser

High-capacity manual Dispenser for GOJO® Heavy Duty Hand Cleaners.

HC376 For use with 2Ltr Cartridge

GOJO Supro Max 2Ltr Cartridge

Fast and effective hand cleaner removes tough or sticky soils. For use with HC376 Wall dispenser.

HC375 2L Cartridge

GOJO Wall Dispenser

Manual dispenser for GOJO 1250mL (HC377) foam soap refills

HC378 For use with HC377

GOJO Foam Handwash 1.25Ltr

Antimicrobial foaming lotion for hygienic hand washing.

HC377 1250ml

GOJO Supro Max 4Ltr Pump-Pack

Fast and effective hand cleaner removes tough or sticky soils. Effective on oil, grease, paint, and adhesives.

HC374 4Ltr Pump-Pack

GOJO Foam Handwash 535ml

Spa-inspired foam hand soap that is unfragranced and colourless.

HC379 535ml

Find

Need more help?

✓ SEE WORKSHOP CONSUMABLES FOR MORE

Hand Sanitiser Gel

For the rapid disinfection of hands. Effective in 30 seconds. Leaves the skin feeling soft and soothed. Contains 70% denatured Ethanol with emollient.

HC357 500ml

Find out more on page 448

Mighty Oak Air Freshener

CarPlan Mighty Oak is a carded air freshener, providing a fragrance that lasts for weeks. Ideal for use in any tractor cab.

HC338

Salt Tablets

Specially developed for use in water softeners, shaped to reduce damage and dissolve easily. 25kg bag

HD300 25kg

Swarfega Jizer

The original water rinsable parts degreaser. Powerfully breaks down oil, grease, tar, bitumen and waxes. Use it to clean engines, bodywork, components, paint and brushes.

HD150/5 5 litre

HD150/25 25 litre

Dustbin Bags Pack-10

Extra strength black plastic refuse sacks, in rolls of 10. Approximate size 740 x 990 mm (29”x39”).

TCC402 Pack-10, 29”x39”

GUY COTTEN CLOTHING

Waterproof ✓ ✓ Windproof

GUY COTTEN HAS SPECIALIZED IN PERSONAL PROTECTIVE EQUIPMENT (PPE) FOR MORE THAN 50 YEARS.

THE COMPANY HAS A REPUTATION THAT IS SECOND TO NONE IN PROTECTIVE EQUIPMENT FOR THE HIGHLY DEMANDING AGRICULTURAL INDUSTRY.

GUY COTTEN USE HIGH FREQUENCY WELDING ON ALL ITEMS TO ENSURE THAT GARMENTS ARE FULLY WATERPROOF DURING THE MOST ADVERSE WEATHER CONDITIONS.

Waterproof & Windproof Clothing

Premium Guy Cotten Waterproof Jacket

• Premium, tough yet comfortable PVC coated fabric, with reduced condensation technology

• Clever hood design for easy wearing in wet conditions

• Zip under press-stud flap

• Two pockets

• Adjustable cuffs

• Fully waterproof

Guy Cotten Waterproof Trouser

• Premium outdoor overtrousers, with protective waterproof coating

• Elasticated waist for comfortable fit

• Welded seams

Guy Cotten Waterproof Bib & Brace

• A premium, flexible, yet tough oil and grease-resistant fabric

• Elastic braces

• Inside knee-pad compartments

• Reversible

Betacraft 5 Piece

Thermal Pack

With these five quality, comfortable fleece items, you’re set for anything!

• T-Shirt – 280gsm Anti-pill fleece, zipped chest pocket

• Shirt – 280gsm Anti-pill fleece, half zip, two chest pockets with flaps

• Dry seat trousers – 280gsm Anti-pill fleece

• Beanie – 220gsm Microfleece

• Bag – Canvas

• Colour – Olive green

Betacraft Fleece Half-Zip

• Comfortable, warm and flexible

• Half zip opening with chin guard

• Two zipped chest pockets, one with a storm flap

• Shoulder and elbow reinforcement panels in 100% Nylon

• Stylish two tone quality 280gsm fleece

Betacraft

Bib & Brace

• Seam sealed

• 100% Waterproof

• Tuff outer and breathable liner

• Adjustable elastic shoulder straps

Betacraft

Waterproof Jacket

• Seam sealed

• 100% waterproof

• Tuff outer and breathable liner

• Two-way zip with stormflap

• Face protection design with draw cord

• Four pockets

Betacraft

Waterproof Trouser

• Seam sealed

• 100% waterproof

• Tuff outer and breathable liner

• Buckle and belt adjustable waist

• Side access pocket openings

GCJ9-2/3/4 M-L-XL GPW17-2/3/4

GPW17-1 L

Airflex Lined Waterproof Jacket

• Waterproof stretchable PU tricot fabric

• Fleece lined

• Zip front with studded storm flap

• Quilt lined sleeves

• Studded adjustable cuffs

• Detachable hood

• Large pockets

• Welded seams

Airflex

Waterproof

Trouser

• Lightweight

• Fully Waterproof

• Windproof

• Noiseless tricot fabric

• Ankle adjustment

• Hip pockets

• Elasticated waist

✓ Warm

✓

Windproof

Waterproof ✓

Airflex Waterproof Jacket

• Extremely Lightweight

• Waterproof

• Windproof

• Tricot fabric

• Breathable PU outer

• Concealed hood

• Welded seams

• Studded storm flap

✓

Windproof

Waterproof ✓

✓ Windproof

Waterproof ✓

Airflex Waterproof

Bib & Brace

• Breathable PU tricot fabric

• Fully waterproof

• Zipped central chest pocket

• Extremely lightweight

• Ankle adjustment

• Welded seams

Waterproof ✓

GPWJ20-2/3/4/5 M-L-XL-XXL

GPWJ25-2/3/4/5 M-L-XL-XXL

GPW21-2/3/4/5 M-L-XL-XXL

For more spraying PPE see page 330

Spray Coveralls

Type 5/6

Disposable hooded coveralls.

• Colour: blue

• Particle and liquid-splash protective fabric

• Ideal for non-hazardous uses such as low-level chemical handling,

• Conform to EN340 & EN1149-1

• Designed to CE Type 5 & 6 registrations

GPS31-2 M

GPS31-3 L

GPS31-4 XL

GPS31-5 XXL

Dupont Spray Coveralls

Type 4/5/6

Robust yet lightweight (<250g per garment) hooded spray coverall.

• Self-adhesive chin flap

• Elasticated face, wrists and ankles as well as glued-in waist elastic

• Elasticated thumb loops prevent sleeves from riding up.

• High density polyethylene, providing an ideal balance of protection, durability and comfort.

• Tyvek is permeable to both air and water vapour, yet repels water-based liquids & aerosols.

• No Silicon added.

GPS52-2 M

GPS52-3 L

GPS52-4 XL

GPS52-5 XXL

Deluxe Overalls

• Overalls with new and improved ergonomic fit and new design

• The boilersuit has a stretch back, adjustable waist, tailored knees and back pleat for extra freedom of movement when working

• Two-way front zip and vents under the arms

• Phone pocket on both the chest and thigh pockets

• The boilersuit with extra leg length is supplied turned up and ready to wear

• Very hard-wearing

GPB50-2/3/4/5 M-L-XL-XXL, Green & Navy

Standard Zip Front Overalls

• Two way metal zip front with over cover.

• Full back elasticated waistband for comfort.

• Two zipped chest pockets.

• Two swing pockets with side access.

• Two back pockets, one with Velcro®

• Pen and ruler pocket

GPB40-2/3/4/5 L-XL-XXL, Navy

GPB30-2/3/4/5 L-XL-XXL, Green

Boilersuit Sizing Chart

Skellerup Field Non-safety Wellington

Quatro Sport insulated country field boot

• Full rubber cladding

• Fleece lined 4mm neoprene insulation

• Side gusset with adjustable strap for customised calf fit

• Removable premium Quatro Comfort innersole

• Hardened rubber toe cap protector

• Ankle - locking design

• Mud releasing natural rubber outsole

• Easy kick off lug

GWH2-5/6/7/8/9/10/11/12 5 - 12

Nora Dolomite

Non-Safety Wellington

• Tractor tread sole for extra grip

• Resistant to acids, manure, fertilisers, sprays, animal fats, grease, oils and benzine

• Suitable for professional agriculture including dairy

Dunlop Purofort Field

PRO Non-Safety Wellington

• Lightweight for minimizing foot fatigue

• SRC certified slip resistant

• Cold insualted down to -20 C

• Fully waterproof, Fuel Oil resistant outsole

• Offers protection against a wide variety of chemicals

GWL4-5/6/7/8/9/10/11/12 5 - 12

Dunlop Purofort Field

PRO Safety Wellington

• Lightweight for minimizing foot fatigue

• Slip resistant

• Protective toecap, midsole and cleated outsole

• Fully waterproof, Cold resistant

• Fuel Oil resistant outsole

• Offers protection against a wide variety of chemicals

V12 Non-Safety Dealer Boot

• Crafted from rugged oil stuffed hide which brings out the natural beauty of the leather and helps to repel the elements

• Reinforced pull on loop

• Leather wipe clean side panel

• Triple stitched seams

• Bound top band

GB38-8/9/10/11/12 8 - 12

VR6 Safety Dealer Boot Brown

• Made with oiled brown hide

• Premium dealer boot

• Steel midsole

• Composite toe cap for all day long comfort as well as protection

✓ HEAT RESISTANT

• Strong pull loop for quick and easy wear

GB42-7/8/9/10/11/12 7 - 12

✓ COMPOSITE TOE CAP

✓ HEAT RESISTANT

✓ SLIP RESISTANT

✓ STEEL MIDSOLE

Waterproof

V12 Rocky Waterproof Zipup Safety Boot

• Intelligent Grip System (IGS) heat resistant sole

• Easy on/off side zip

• Waterproof and breathable construction

• Lightweight composite safety toecap

• Flexible anti-penetration composite midsole

GB52-8/9/10/11 8 - 11

V12 Brown Safety Boot

• Constructed from an oiled full grain leather upper

• Cut away scoop collar for easy foot access and comfort

✓ COMPOSITE MIDSOLE

✓ COMPOSITE TOE CAP

✓ HEAT RESISTANT SOLE

✓ INCREDIBLY COMFORTABLE!

✓ BEST SELLER!

V12 Safety Dealer Boot Brown

• Traditional welted heat resistant sole

• Leather-covered elastic side panels

• Mesh moisture-wicking lining

• Wide fitting steel safety toecap

• Flexible anti-penetration composite midsole

GB33-7ZZ/8/9/10/11/12 7 - 12

• The innovative IGS rubber sole unit ensures superb grip on all surfaces and increased cushioning underfoot

• Lightweight, metal-free and with nonsnagging eyelets

GB46-7/8/9/10/11/12 7 - 12

✓ ANTI-STATIC

✓ COMPOSITE MIDSOLE

✓ COMPOSITE TOE CAP

✓ HEAT RESISTANT

✓ COMPOSITE MIDSOLE

✓ HEAT RESISTANT

✓ STEEL TOE CAP

Agriforce Manure

Fork 4 Prong

Lightweight yet hardwearing manure fork. The fully forged head has no weak points and will withstand arduous agricultural work.

TCF004

Agriforce Manure

Fork 4 Prong

4 tined manure fork with a 48” long metal tubular handle.

TCF005 48” Long Handle

Bulldog Manure

Fork 4 Prong

This manure fork is lightweight, strong and well balanced. It has 4 sharp prongs and a 48” long wooden handle.

TGF008 48” long wooden handle

Agriforce Pitch

Fork 2 Prong

Agriforce 2 tine hay/pitch fork with a 54” handle.

TCF006 54” Long Handle

Agriforce Digging Spade

Weather proofed digging spade with a hardwood shaft and a wooden YD handle.

TCS300

Broomex Push Brooms

Agriforce Metal Shovel

Used for shovelling out or concrete mixing, working tarmac and cement, backfilling trenches and manoeuvring ballast.

TCS100

65% faster than a standard push broom

Draper Lightweight Shovel

Pressed steel blade with varnished hardwood shaft and YD shaped handle.

TCS105

See pages 263 for the full range

Plastic Shovel

Plastic grain shovel. Lightweight, strong, easy to clean and crack resistant. Ideal for grain and snow. Temperature range –30° to +80°C. Suitable for fertiliser due to its non-corrosive material.

TCS109

Agriforce Plastic Grain Shovel

Suitable for a wide range of tasks including; Equestrian use, snow clearing, agricultural use. UV stabilised, tough and durable, lightweight and easy to clean, non-stick, rot and rust proof.

TCS111

Agriforce Grain Shovel

Aluminium grain shovel with a round back.

TCS116 Round Back

Small Draper Sledge Hammer

Expert Quality, forged from fine grain carbon steel correctly hardened and tempered with a polished head. Fibreglass shaft fitted with comfortable shockabsorbing rubber grip.

THD50006 1.8kg / 4lb

Sledge Hammer

Top quality, fibreglass handled sledge hammer. Ultra - strong - yet lightweight.

TCK002 4kg / 10lb

Sledge Hammer

Top quality, fibreglass handled sledge hammer. Ultra - strong - yet lightweight.

TCK003 5kg / 14lb

Sledge Hammer Wedges

Sledge hammer wedges. One of each size 4A, 4AH and 5. Pack-3

THD38994

Post Hole Digger

Post Driver 6” 6” diameter post driver with two handles.

TCJ020

Heavy duty long wooden handled post hole digger, FSC Certified Ash handles with rubber grips, pressed steel blade for digging smaller (6”) holes.

TCS115

Agriforce Garden Rake

This garden rake is the ideal tool for the preparation of soil prior to planting. The head is rust resistant, with a 54” PVC aluminium coated lightweight shaft and comfort feel grip.

TGR001 54” PVC aluminium shaft

Agriforce Springbok Rake

Used to scarify lawns and remove unwanted growth, which helps surface aeration and improves the quality of the lawn. 122 cm/48” ash shaft.

TCR101

Agriforce

Polypropylene Rake

25” wide with back supports to allow debris to build up on the rake. When full, lift and turn and the debris will fall cleanly away from the rake.

TCR109 25” Head Width

Brigadier Grainstore Vacuums

The Farmers Hero

Bulldog Leaf Rake

A wide headed leaf rake with 23 plastic tines mounted on a rigid plastic head. Aluminium handle with non-slip comfort feel grip. Its’ width makes it particularly useful for clearing large lawns.

TGR002

See pages 260 for the full range

GrainVac – the Grainstore’s best friend

Plastic Calf Bucket 9Ltr

Heavy duty 2 gallon calf bucket, with internal graduations.

TCC200 9 litre

Plastic Bucket 13.5Ltr

Black 3 gallon robust bucket, with internal graduations and easy pour spout.

TCC300 13.5 litre

Black Flexible Bucket 42Ltr

Flexible soft-sided bucket with handles. For carrying water, sand, building and garden rubbish.

TCC350 42 litre

Plastic Dustpan

Enclosed 180 mm dustpan. Ideal for removing large amounts of debris. Brush sold separately (TCB505)

Plastic Hand Brush

Plastic Churn Brush

Plastic churn brush with stiff polyester bristles, heat tolerant and Food Hygiene Act compliant. Ideal for use in dairies.

good water holding qualities. Excellent quality.

A fine bristle, soft coco hand brush. Ideal for fine dusts.

TCB179

TCB177

TCB175

Broom Head 12” Soft

Soft broom 12” head. A single holed round backed broom with soft natural coco bristles. Ideal for fine dusts. See TCH009 for handle.

Broom Head 13” Stiff

Double holed broom head, with bass, cane and polypropylene bristles. 13” Wide. Supplied without clamp. See TCB150 for clamp. See TCH003 and TCH004 for handle.

Broom Head 13” Stiff

A double holed stiff broom head with long lasting polypropylene bristles. 13” wide. See TCB150 for clamp. See TCH003 and TCH004 for handle.

24” Medium

A medium soft broom, with polypropylene bristles. Excellent for concrete, tarmac and similar dry surfaces. Complete with handle.

Platform Broom 36” Medium

A medium stiff synthetic broom for wet or dry rough surfaces. This product is ideal for cleaning rough outdoor areas and large quantities of debris in yards.

Platform Broom 24” Soft

Soft broom, suitable for smooth dry surfaces. Made with natural coco bristles. Handled and stayed.

Platform Broom 18” Stiff

This product is ideal for sweeping muddy areas, farmyards and stables.

Platform Broom 24” Stiff

Stiff platform broom. 24” wide.

Broom Head Clamp

Galvanised for long life. Will fit brush heads 9298mm wide. Easily fitted and reversible for even wear of brush. To suit TCB112 and TCB113. Accepts 5ft x 1-1/8” handle. TCH004.

TCB150 To suit TCB112 & TCB113

Broom Handle

4ft x 1-1/8” Suitable for broom heads and yard scrapers.

Handle required TCH3003 or TCH004

Broom Handle

5ft x 1-1/8” use with TCB 150 clamp. Suitable for broom heads and yard scrapers.

Broom Handle

4ft x 15/16” Suitable for broom heads and also to fit paint roller.

Heavy Duty Metal Scraper 18”

Heavy duty metal squeegee. Ideal for removing water from small to medium areas.

For hammer wedges see page 233

Metal Scraper 24”

Made from 14 gauge steel for strength. Ideal for moving quantities of mud, slurry, snow etc.

Rubber Squeegee 30”

Complete with tough flexible and reversible rubber blade. Ideal for piggeries, yards, poultry houses etc. Curved galvanised style.

Handle

Sledge Hammer Handle 30”

Sledge Hammer Handle 36”

Polypropylene

Wheelbarrow 100Ltr

100 litre polypropylene pan on a lightweight steel frame with pneumatic tyre. This barrow is ideal for a wide range of jobs - gardening and stable work etc.

100 Litre

TCW301 100 litre

Polypropylene

Wheelbarrow 90Ltr

90 litre capacity purple polypropylene barrow.

Steel Wheelbarrow 85Ltr

Contractors style, 85 litres capacity barrow. Pressed steel, seamless body, with pneumatic tyred wheel.

Tyre & Tube 400 x 8

Tyre and Tube for wheelbarrows TCW300, TCW301 & TCW303.

TE371

Inner Tube 400 x 8

Wheelbarrow/implement inner tube only for TE371.

TE354

TCW300 85 Litre

TCW303 90 Litre

Black Plastic Dustbin 94L

A strong plastic dustbin complete with lid. 94 litre capacity.

TCC401 94 Litre

Galvanised Dustbin 18”x24”

Galvanised c/w metal lid. 18” x 24”.

TCC400 80 Litre

De-Icer Aerosol

For use on windscreens, to clear frost, ice and snow quickly. Non smearing and methanol free, can also be used to free frozen locks.

MRA1009 600ml

Ground Rock Salt 20kg

Specially developed salt for use as a de-icing agent, suitable for roads and paths. Contains suitable balance of coarse and fine particles. Complies to BS 3247.

HG020 20kg

LOOKING FOR SOME WINTER PROTECTION?

Lockfast Drain Rods 3/4” x 36”

Manufactured from the highest grade of polypropylene, whilst the joints are manufactured from solid brass. Ideal for small diameter drains, flues and septic tanks.

TCR300/10 Pack-10

See page 296 for more information

Energiser comparison

*Good conditions = well maintained fences i.e, zero vegetation, good conductors and good insulators. **Poor conditions = poorly maintained fences i.e, heavy vegetation, poor conductors and poor insulators.


Agriforce Leisure

Battery 80 Type

Agriforce 12V leisure batteries are made for the demands of agricultural use, and are available in 80 type or 100 type formats.

Agriforce Leisure Battery 100

Type

Crocodile Clips with M8 Ends

For connecting batteries to Energisers with M8 lead ends.

Earthing Stake 1m

Professional Circuit

Breaker

Professional circuit breaker with 4 operating positions as shown.

EFA012 With 4 Operating Positions

Energiser Earthing Post

Ideal for mounting the DUO 6 and DP Energiser range. EFA011 Earthing Stake 1m

Coated & hardened steel earth stakes with unique clamp design for easier installation and removal. Ideal for mounting and earthing DP Energiser range. EFA117 Energiser Earthing Post

Energisers ✓ EASY TO USE - ONE SETTING ✓ GERMAN MADE ✓ 3 YEAR WARRANTY

ECO MODE ✓ALLOWS THE POWER TO BE TURNED DOWN TO SAVE THE BATTERY

Fencing Energiser & Earth Rod

Fencing Energiser

Battery Powered Energisers - Duo 6. 4 x D cell or 12v battery.

EFA004 Battery Powered

ECO MODE ✓ALLOWS THE POWER TO BE TURNED DOWN TO SAVE THE BATTERY

Battery Powered Energisers. Complete with post and mains power adaptor. DP1205.

EFA005 Battery or Mains Powered

ECO MODE ✓ALLOWS THE POWER TO BE TURNED DOWN TO SAVE THE BATTERY

Fencing Energiser & Earth Rod

Battery Powered Energisers. Complete with post and mains power adaptor. DP1210.

EFA095 Battery or Mains Powered

Fencing Energiser & Earth Rod

Battery Powered Energisers. Complete with post and mains power adaptor. DP1230.

EFA097 Battery or Mains Powered

Solar Power Fencing Energiser

Designed for continuous use throughout the grazing season. In-built technology monitors the fence and only sends full power when needed. Can be topped up via mains power charger. Complete with post and mains power adaptor.Compact, robust and reliable all-in-one solar powered energisers. Easy to use with built-in 12v gel battery.

• 3 year warranty.

• 12v gel battery built-in.

• Fence pulse indicator.

• Battery protect function.

• Mount post / earth stake included.

• Mains charger included.

• Fence and earth leads included.

EFA002 0.23 Joules

Electrifiable Wire

2.5mm x 500m

An excellent general purpose 2.5mm wire for use on short cattle grazing or anti-cribbing lines in good conditions. Maximum recommended fence length 1000m.

Electrifiable Wire

2.5mm x 400m

A premium 2.5mm wire with unique external cross-over wire pattern for maximum contact with the animal. Highly recommended for use with sheep and pigs. Maximum recommended fence length 7000m.

Electrifiable Wire

2.5mm x 500m

High visibility orange and black wire which is over 80 times more conductive than standard Polywire. Suitable for medium to long fence lines in most conditions.

Electrifiable Wire

6.0mm x 200m

A superior 6mm rope with good conductive properties. Can be used as reinforcement to tape lines, anti-cribbing lines, or for cattle grazing lines as a preference over thinner wires. Maximum recommended fence length 7000m.

7 Strand Galv Wire

1.7mm x 400m

A popular general purpose electric fence wire used for sub-divisional cattle lines, or to reinforce post and rail fences against chewing. Maximum recommended fence length 4,000m.

Aluminium Wire

2.0mm x 400m

Ideal for permanent installations. A highly conductive and durable aluminium construction for strong and aggressive animals. Highly visible. Requires little mechanical tension during installation. A 10-year life span can be expected.

Expert Fibreglass Hammers

Electrifiable Tape

20mm x 200m

An economical tape ideal for use on short temporary fence lines in good conditions. Maximum recommended fence length 500m.

Electrifiable Tape

20mm x 500m

A premium reinforced tape 20 times more conductive than EFA125. Excellent for medium to long fences in most conditions or for better performance against more difficult animals. Maximum recommended fence length 5,000m.

See page 275 for more details

Plastic Fencing Post 1050mm

• Compact and lightweight post

• Install wire and tape quickly and simply thanks to 11 clip points

• Excellent choice for grazing or subdivision lines

EFA070/10 Pack-10, 1,050mm

Plastic Fencing Post 1400mm

• For wire, ropes and tapes up to 40mm wide

• 200 x 8mm penetration point, for excellent anchorage

• Double reinforced flange base

EFA071/10 Pack-10, 1,400mm

Pigtail Fencing Post 1090mm

Galvanised spring steel with plastic coated eyelet

Double pronged base for extra

EFA072 Galvanised, 1,090m

Easy Screw Ring Insulator

A wooden post Insulator for wires, cords and tapes up to 20 mm wide. Ring reinforced against shocks and rounded edges to protect the conductors .New galvanisation by thermo diffusion for 10 times better resistance to corrosion.

EFA048/25 Pack-25

Tensioning Tools

Economy Ring Insulator

Economical wood screw insulator for wire, rope or tapes up to 12mm.

EFA053/120 Pack-120

Offset Ring Insulator

A wooden post insulator that is ideal for more permanent installations. 21cm with straight shaft.

EFA138 Pack-10

Easy Screw Tape Insulator

Clip insulator for tapes up to 40mm wide. Clip protects tape from wear and tear.

See pages 247

Broomex Push Brooms

EFA051/25 Pack-25

Screw On Claw Insulator

A screw-on wooden post insulator. Unique design securely holds wire to post. Ideal for more permanent installations.

EFA054/25 Pack-25

See pages 263 for the full range

Clamp On Ring Insulator

A metal post insulator that clamps on to posts of 8-14mm diameter. Can be nailed to a wooden post. Large diameter ring to allow for movement of knots and connections.

EFA055/25 Pack-25

Egg Strain Insulator

High tensile insulator with exceptional resistance. Can be used as a starter, corner or end insulator.

EFA059/10 Pack-10

Tape End Tensioner

Screw-on insulator for tapes 20-40mm wide. Can be used as a starter, corner or end insulator.

EFA060/2 Pack-2

Adaptor for Screw Insulators

Fitted to a cordless drill, these chuck fittings make insertion of all our screw-in insulators an absolute doddle!

EFA150 Fit to a cordless drill

Water Management

Economy Insulated Gate Handle

Simple sprung handle for maintaining wire / rope / tape tension across gateway.

Premium Insulated

Gate Handle

Heavy duty sprung handle for regular access use. An oversized handle ensures perfect insulation even in wet weather.

See page 429 for our full range

Electric Fencing Hand Reel

• Extremely robust and versatile unit

• High capacity reel - will contain over 1000m of wire!

EFA062

Screw In Gateway Insulator

Ensures electrical continuity between main fence run and gateway barrier system.

Spring Gateway Kit

• 1 x EFA 063 premium gate handle

• 2 x EFA 066 screw-in gateway insulator

• 1 x 5 m gate spring

EFA064

EFA063 EFA066/4

• High speed reeling, adjustable brake and blocking marker

• Can be hung on wire, or connected to any square or round post with 8-14mm diameter

• Will also handle Rappa reels

• Reel only

EFA076 400m Tape or 1000m Wire

Why Use Electrified Netting?

✓ SOME ANIMALS ARE BETTER SUITED TO A CLOSER-KNIT CONDUCTOR SYSTEM, AND THIS IS WHERE ELECTRIFIED NETTING IS THE ANSWER

✓ APM’S ELECTRIFIED NETTING IS MADE FROM THE HIGHEST GRADE POLYPROPYLENE, AND COMES COMPLETE WITH SUPPORT POSTS

✓ CONDUCTOR USED IS STAINLESS STEEL FOR STRENGTH AND DURABILITY

✓ LOWEST HORIZONTAL WIRE IS NOT PART OF LIVE WIRE SYSTEM – CAN BE CONNECTED TO EARTH TERMINAL TO PROVIDE A CONSTANT EARTH CONTACT, IN ADDITION TO EARTH STAKE

Electric Sheep Netting Kit

900mm high sheep netting. 50m roll.

Underground

Cable 50m

• Conducts electrical current from power source or Energiser onto fence

• Superb conductivity, even over long distances, under ground, and under water

• Ideal for running under gateways, to maintain continuity even when gate is open

• Double insulated

EFA015 50m

EFA016 100m

Electric Fence Warning Sign

Pack of 3. A legal requirement every 50m along public right of ways.

Ratchet Controlled Tensioner

Over time an electric fence may lose tension and begin to sag. This is where tensioners are invaluable. Fit during fence installation, to maintain wire tension.

Voltmeter Tester 10KV

Voltmeter tester with 6 lamps to indicate voltage level of fence at any given point. Checks earth connection and line tests.

Voltmeter & Leakage Detector

• Conveniently determines direction of fault in a fence system

• Reduces time spent searching for a fault along length of fence

• Gives accurate voltage reading at any point along fence

EFA018 Pack-3

EFA081 900mm x 50m

EFA046/2 Pack-2

EFA047

EFA090

Galvanised Wire

Mild Steel, plain wire, heavily galvanised to BS 443.

Barbed Wire 2.5mm x 200m

Galvanised barbed wire, 2 lines twisted together with 4 point barbs at regular intervals. Mild steel.

Stock Fence 800mm x 50m

Many areas of use around the farm. Ideal for fencing in sheep, pigs, etc. 800mm high, 50m long and C8/80/15 grade.

Rabbit Netting

1050mm x 50m

Specially made to protect land from rabbits. Extra height allows some netting to be buried, preventing burrowing. 1050mm high.

Mesh Netting

1000mm x 50m

Quality mesh fencing – economical and easy to erect. Use with TCR610 pins.

Use with TCR610 pins, 1000mm x 50m

Fencing Pins 1200mm

1.2m fencing pins for the quick construction of a temporary fence

Fencing Pliers

Carbon steel pliers with incorporated striking face; staple removing hook; pincer and clamp on top jaw; for straining and twisting wire and two shear type wire cutters.

Gripples Barbed Wire

Barbed wire Gripples. Pk of 20.

VEH183/20 Pack-20, 2 x 2.5mm

Gripples Small

To suit barbed wire 2 x 2.5mm, 1.40mm - 2.20mm. Single wire 1.4mm to 2.2mm. Pk of 20.

VEH180/20 Pack-20, Single Barbed

Gripples Medium

To suit barbed wire 2.00mm - 3.25mm or 2 x 1.6mm wire. Single wire 2.0 mm to 3.25 mm. Pk of 20.

VEH181/20 Pack-20, Single Barbed

Gripples Large

To suit barbed wire 3.25mm - 4.20mm or 2 x 2.0mm. Single wire 3.25 mm to 4.20 mm. Pk of 20.

VEH182/20 Pack-20, Single Barbed

Gripple Tensioning Tool

This robust tool will consistently tension the wire to the correct strain and is easy-to-use, with a settable tension gauge; for wire between 1.4 and 4.0mm.

VEH185 For wire between 1.4 and 4.0 mm

Hog Ring Pliers

Ideal for fixing thicker wire netting and chain link fencing to fence wires. Quick and easy to load, supplied with 200 galvanised steel hog rings.

TCR403

Hog Ring Fasteners

Manufactured from galvanised steel they are designed for use with the TCR403 hog ring pliers.

TCR405 Pack-1100 use with the TCR403

Wire Tensioning Tool

For tensioning wire (including barbed) up to 4 mm diameter prior to stapling onto wood fence posts.

THD57547

Barbed Staples

Barbed staples offer superior resistance to pull-out, making your fencing stronger and longer-lasting.

XWN042/5 40mm x 5kg

XWN042/20 40mm x 25kg

Galvanised Staples

Self Locking Gate Catch

Galvanised self-locking gate catch

TCG001

Cranked Gate Catch Striker

TCG002

Adjustable Gate Eyes

Galvanised

Adjustable gate eyes with 3/4” thread.

TCG003 4” x 3/4”

TCG004 6” x 3/4”

TCG005 8” x 3/4”

Drive-In Gate Hook

8”x3/4” Pin

Gate Hook to Drive 3/4” pin.

TCG017 Galvanised

Bolt-On Gate Hook

11”x3/4” Pin

Gate Hook to Drive 11” x 3/4” pin.

TCG018 Galvanised

Gate Hook on Plate

4”x3/4” Pin

4” square galvanised x 3/4” pin. M10 bolts required.

TCG019 Galvanised

Gate Staple on Plate 2” x 2”

TCR401 Galvanised

Ring On Plate 2”

TCR400 Galvanised

Tee Hinge

Medium tee hinges - Sold in pairs.

TCG009 16” (Pair) Galvanised

Straight Band & Hook 16”

Heavy Hook & Band 16” galvanised (lift-off)Sold in pairs.

TCG016 Galvanised

Eye Bolt 10” With Nut & Washer

Welded Eyebolt Zinc plated, 10” long c/w nut and washer.

TCR018 Welded Eyebolt Zinc plated

Cabin Hook 6”

6” galvanised cabin hook

TCR021 Galvanised

Need Some Fixings?

See pages 462 for full range

Brenton Padbolt 6”

6” Brenton padbolt - galvanised

TCG029 Galvanised

Brenton Padbolt 8”

8” Brenton padbolt - galvanised

TCG051 Galvanised

Gate Bolt 18”

18” Gate Bolt - Galvanised.

TCG038 Galvanised

Spring Loaded Bolt 4-1/2” Spring Loaded Bolt 1/2” Diameter.

TCG031

Heavy Safety Hasp & Staple

7” Galvanised

TCG064

Hook to Weld Flat 3/4” Pin

Hook to Weld Flat 3/4” Pin.

TCG021

Hook to Weld

Radius 3/4” Pin

Hook to Weld Radius 3/4” Pin.

TCG022

Eye to Weld Flat 3/4”

Eye to Weld Flat 3/4”.

TCG023

Barn Paint 18Ltr

An economically priced paint for requirements where paint finish is not so critical. Common uses include barns, cultivators and skips. Creates a hard moisture resistant finish. Can be used with PTX46-5 thinners.

PXL01 Black Gloss 18Ltr

PXL02 Green Gloss 18Ltr

PXL04 Red Oxide Matt 18Ltr

Hammerite Smooth Paint

Hammerite is the leading one coat metal finish paint. It will protect, decorate and rejuvenate metal, without the need for a primer. Can be applied directly on to rusty metal.

Hammerite Thinners

Due to its unique formulation, Hammerite paint and equipment must be cleaned and thinned using Hammerite thinners. White spirit or cellulose thinners are not suitable.

Red Oxide Primer

Red Oxide Primer

Aerosol 400ml

High performance, rust-resistant primer for use on all metal surfaces.

High performance, rust-resistant primer for use on all metal surfaces. Can be used with thinner PTX46-5.

Grey Oxide Primer

High performance, rust-resistant primer for use on all metal surfaces. Can be used with thinner PTX46-5.

Bitumen Black Paint

A thick black, bitumen based paint, for protecting and waterproofing. Can be used on ferrous and non ferrous metals, concrete, roofing felt, fibre cement, corrugated iron and asphalt, to provide anti-corrosion protection.

PBT01-5 5Ltr

PBT01-25 25Ltr

Evercryl Roof Repair Compound

A resin based, fibre re-enforced roof repair compound which is effective on all common roofing surfaces, giving instant roof repairs even in the wet and on wet surfaces. May also be applied in frosty conditions down to -5°C.

PSQ01-5 5kg tub

Heavy Duty Floor Paint 5Ltr

Designed to provide a clean hard wearing finish to concrete, stone and wooden floors. Ideal for use on garage floors, workshops, storerooms, walkways etc.

PFG01-5 Resin Based-Grey

Chestnut Brown Shed & Fence 5Ltr

Advanced formulation for protection of rough sawn timbers. One coat required by brush or sprayer. Low odour, quick-drying and weatherproof. Safe for use near plants and pets.

PPC02-5 5Ltr

Light Brown Creocote 20Ltr

Similar characteristics of traditional Creosote but contains no biocide/ preserver. An bitumen/wax based treatment to protect exterior rougher cut timber by repelling water and preventing ingress.

PPC12-25 20Ltr

Dark Brown Creosote

Excellent traditional wood preservative. Professional use only.

PPC01-25 25Ltr

PPC01-00 205Ltr

Creosote Brush 4” Wide

Pure bristle block brush, with tin edge hanger.

PBB050 4” Wide

Professional Paint Brush

Professional paint brush range with a pure bristle flat brush.

PBB2-20

Economy 5pc Paint Brush Set

Economy paint brush range. Complete with pure black bristles.

Universal Thinners

Suitable for use with all C71, machinery enamel, industrial synthetic, bitumen and chlorinated rubber paints and primers. Not suitable for cellulose paints such as automotive paints. Can even be used with a spray gun.

PTX46-5 5Ltr

Spray Thinners

For best top coat/spray gun applied paint use speed/spray thinners. Not for use with Primers, Btumins or Rubber paints.

PTX75-5 5Ltr, Suitable for cellulose paints

White Spirit

White Spirit is a solvent designed for thinning paints and varnishes, cleaning brushes and general household degreasing and cleaning. Conforms to BS245.

PTX01-2 2Ltr

For All Other Oils

See pages 284 for full range

Oregon 2-Stroke Oil

100ml Shot

Two stroke 100ml one shot oil.

LUB34100 100ml

Oregon 2-Stroke Oil 1Ltr

Semi-synthetic oil with low-ash additives for clean low-smoke burning.

LUB34001 1Ltr

Oregon 2-Stroke Oil 5Ltr

Two Stroke Oil - 5ltr.

LUB35005 5Ltr

Oregon 4-Stroke Oil

SAE30 5Ltr

5 ltr SAE30 Four Stroke Oil.

LUB29305 5Ltr

Oregon Chainsaw Oil 5Ltr

High quality chain oil, with antifling additives to help to keep the lube on the chain.

LUB5005 5Ltr

Oregon Chainsaw Oil 20Ltr

LUB5020 20Ltr

Oregon Chainsaw

Bio-Oil 5Ltr

Top quality bio-degradable high-performance oil.

LUB5105 5Ltr

Oregon Chainsaw Bio-Oil 25Ltr

LUB5125 25Ltr

Oregon File Holder & 4.0mm File

Supplied with file and handle. Holder marked with sharpening angles.

THC907 For 5/32”chain

Oregon Wooden File Handle

Comfortable wooden file handle. Fits round and flat handles.

THC906

Oregon Round File

Excellent quality chainsaw file, without handle.

THC900 Oregon Round File 7/32”

THC901 Oregon Round File 5/32”

THC902 Oregon Round File 3/16”

Oregon Spark Plug

Oregon ignition spark plugs have been specially designed for chainsaw, brushcutter and lawn mower applications.

HSP032 Oregon Spark Plug BPMR7A

HSP035 Oregon Spark Plug CMR6H

HSP037 Oregon Spark Plug BPR6ES

Oregon Starter Cord

For use with strimmers, chainsaws, mowers etc. Excellent fray and abrasion resistance. Oil and petrol resistant. Supplied in 100m roll or can be cut to length.

HEC004 Oregon Starter Cord 4.0mm

Oregon Chainsaw Chain

Line Marker

An aerosol line marking paint that marks durable, brightly coloured lines in a quick simple operation, whatever the surface, indoors or out. Cans are supplied with nozzles for use by hand.

PSA501 White, 750ml

PSA502 Yellow, 750ml

Oregon Poly Visor & Earmuffs

Polycarbonate visor and muff combination, providing face and ear protection with lightweight and comfortable design. Single-point adjustable headband. High noise reduction qualities.

GPC005

Specified Protective Area

Type A: Recommended for fully trained chainsaw operators.

Oregon Safety Helmet & Earmuff

• 6 Point fabric harness

• Easy fit ratchet adjustment

• 25.9dB helmet mounted ear defenders

• Mesh visor

• Lightweight but durable

GPC008

Oregon Pro Helmet & Earmuffs

• Professional forestry orange chainsaw safety helmet

• Moulded in ABS for increased lateral rigidity

• 4 point quick adjustable harness from 52-64cm

• Easy to use “pull push” system for a precise snug fit

• Durable stainless steel mesh visor with removable chin and neck protector

• Optimim and consistent noise attenuation (SNR value 27dB).

GPC009

Oregon Bib & Brace Type A

Superb quality, 2-way stretch polyester chainsaw trouser offering EN381-5 Class 1 protection (20 m/s), which offers chainsaw protection to the front of the leg.

GPC13-2 Medium

GPC13-3 Large

GPC13-4 X Large

Type C: Recommended for occasional chainsaw users and those engaged in off the ground tree work such as tree surgeons.

Oregon Type A Trouser

Frontal protection trouser covering the front and side of legs (180°) with protective fabric. These are recommended for fully trained chainsaw operators.

GPC8-2 Medium

GPC8-3 Large

GPC8-4 X Large

Oregon

Yukron

Chainsaw Boot

• High quality and resistant chainsaw leather boots. Class 1 (20m/s)

• Lightweight: 2.10kg.

• Hooks & eyelets.

• Up to 65kg pulling resistance.

• Premium quality lace hooks.

• Non corrosive metal lacing hardware.

GWC5-9 9

GWC5-10 10

GWC5-11 11

Oregon

Chainsaw Gloves

• High quality, durable leather and 4-way stretch fabric for extra comfort, breathability and manoeuverability

• Excellent fit to the hand

• Excellent operational control

• Reinforced stitching

• Reinforcement on the palm area and fingers

GPC501-2 Medium

GPC501-3 Large

GPC501-4 X Large

Bahco

Felling Axe 2.4kg

Felling axe with a strong hickory handle.

Bahco

Splitting Axe 2.5kg

Excellent top quality fibreglass handle for durability. Wood Splitting Axe 2.5kg.

Bahco Hatchet 800g

Hatchet 800 gram.

Bahco Folding Pruning Saw 7.5”

Made from hardened and tempered high quality steel with high frequency, induction hardened peg toothing. Will fit most makes of bowsaw frame.

TCB721 Raker Tooth Point

Designed for cutting both green and dry wood and ideal for professional fruit growers. Complete with safety lock for the folding blade.

Bahco Bypass Secateurs 230mm

For general purpose gardening, maximum cut 25mm. Large comfortable handles.

Bahco Hedge Shear 580mm

Super

Bulldog Extending

Bulldog Anvil Lopper

Overall length: 750mm Capacity: 45mm (2”)

For Knives

See Tools & Workshop Equipment on page 380

Dashel Basher 34”

Ideal for control of thistles etc. Total length including

Alpine Scythe Blade

Top quality alloy scythe blade - very light and very strong.

TCS210 Alpine Scythe Handle

TCR110 Dashel Basher 34”

handle: 34”/86cm.

Alpine Scythe Blade

Strimmer Line

Universal round nylon strimmer line. Yellow/Round.

HEC203 2.4mm x 88m

HEC205 2.4mm x 264m

HEC206 3.0mm x 169m

Nylium Line

Very hard wearing, imbedded aluminium particle nylon line. Square profile for aggressive cutting. Ideal for cutting long grass and bracken etc. Black/Square.

Jerrican

Metal cans, for the safe transportation of flammable or harmful fluids.

Jerrican Clip-On Flexi Spout

Easy clip on flexi-spout for attachment to metal jerricans. LUE326 10Ltr, Red

20Ltr, Green

FlexiBlade Line 3.0mm x 37m

FlexiBlade is a revolution in trimmer technology, with the ability to sever weed stalks up to 3/4”. Ideal for cutting weeds and heavy grass. Grey/ Flexiblade.

HEC212 3.0mm x 37m

Nylon Lightning Load Head

To fit 90% of >33 cc brushcutters on the market using > 4 mm lines.

HEC303 Fits 90% of >33cc Brushcutters

Clear Combi-Can 5Ltr/3Ltr

Combination

260 - 262 Brigadier Vacuums

263 - 265 Broomex Push Brooms

266 Attachments

(See next page)

The

GrainVac Plus Kit Only)

One of the key weapons in the Brigadiers armoury is the simplicity of its emptying process of the

Step 1

Simply release the container handle...

Step 2 lower the full container safely and securely....

Step 3 roll out on four smooth rolling castors...

All models have 3 independently switchable motors

Step

and roll off for emptying!

large collection container.

4

Pleated filter for high capacity cleaning (GrainVac Plus & GrainVac Plus kit).

Basket filter for GrainVac.

4 heavy-duty castors (GrainVac Plus & GrainVac Plus kit).

GrainVac Plus

For kit contents and accessories see page 262

VL121 Brigadier GrainVac Plus

VL115+NEW KIT Brigadier Grainvac Plus with Full Kit

Why buy a Brigadier?

✓ DESIGNED FOR GRAINSTORE USE

✓ UNBEATABLE SUCTION POWER

✓ PROVEN RELIABLE PERFORMANCE ON FARM

✓ EXTENSIVE RANGE OF ACCESSORIES WET OR DRY VACUUMING

Brigadier Grainstore Vacuums

Testimonial

The Brigadier has been designed specifically for agricultural and industrial use, and is the perfect tool for grain stores, barns & general farm cleaning tasks. As well as swallowing sludge, oil & muck without the need for filter changes, the Brigadier is also quick & easy to empty. Built to extremely high quality standards, the Brigadier is fitted with three heavy duty 1150W motors, which are all independently switchable for maximum efficiency.

It features small but highly significant details such as extra cable protection, heavy-duty motor housing clips and smooth rolling castors, one of which is braked. When the Brigadier’s collection tank is full, the emptying process is quick, safe and easy. Just raise the handle to lower the container, and roll it off to a skip or waste bin. No removing motor heads or struggling to overturn heavy and cumbersome barrels! To re-fit the container, simply position it under the Brigadier, lower the handle and the container lifts neatly into position, ready for use.

• VL121 comes with a 10 mtr hose (VLA1010) and suction nozzle (VLA161)

• VL115+NEW KIT comes with a 10 mtr hose (VLA1010) and suction nozzle (VLA161) and the additional accessories listed on page 244.

Specification (All models)

Motors 1150w x 3 (independently switchable)

“The Brigadier GrainVac is a great part of our kit as it can quickly clear the pit and easily sucks up both wet and dry grain.”

– Steve Burt, Sutton Scotney, Manor Farms Ltd.

GrainVac – the Grainstore’s best friend

Wand

Floor Brush 430mm 430mm Floor brush.

Crevice Tool 500mm (50mm Connection)

Handgrip Nozzle (60mm Connection)

Crevice Tool 1000mm (50mm connection)

Floor Attachment Kit

This floor attachment fits neatly to the lower front frame of the Brigadier™ DS-3450 vacuum, and allows you to use the Brigadier as a walk-behind vacuum. Simply fit the hose to the front inlet on the vacuum, switch on, and walk behind.

Round Brush (50mm Connection) Ideal for using to vacuum tractor cabs, flat surfaces in the dryer, and many other applications.

Brigadier Pleated Filter MK2 Replacement Brigadier Pleated Filter Mk2

VLA167 Brigadier Bag Filter MK1 Cloth Filter (Mk1)

Benefits of a Broomex Push Broom

The unique modular brush system that is extremely efficient and economical for all commercial sweeping!

✓ TACKLES BULKY MATERIALS

✓ WILL ‘SQUEEGEE’ WET SURFACES

✓ GENERATES MINIMAL DUST

✓ HIGHLY DURABLE

✓ SUPERB QUALITY

✓ AN EFFICIENT SWEEPING SOLUTION

✓ THE ORIGINAL AND THE BEST!

Why Broomex?

✓ DO YOU WANT TO KEEP THE PREMISES TIDY?

✓ CONCERNED ABOUT HEALTH & SAFETY?

✓ DO YOU HAVE LIMITED FREE TIME?

From building sites to farmyards the versatile Broomex sweeper system saves time and money. With no moving parts to increase the danger of flying debris, Broomex is safe and maintenance-free.

Attach a Broomex brush quickly and simply to your host vehicle and off your go! A wide range of hitches enables Broomex to be attached to compact and large tractors, telehandlers, forklifts, loaders and skidsteers.

Key Features & Benefits

✓ SWEEP UP TO 450 MILES BEFORE CHANGING THE BRISTLES –SAVE TIME AND MONEY

✓ A WIDE RANGE AVAILABLE – A PUSH BROOM TO SUIT ANY SWEEPING APPLICATION

✓ UNIQUE PATENTED FEATURES – A SUPERIOR SWEEPING PERFORMANCE

✓ A WIDE RANGE OF HITCHES – MOUNT THE BROOMEX TO THE MACHINE OF YOUR CHOICE

✓ NO MAINTENANCE REQUIRED – ZERO DOWNTIME

✓ 4MM HOOD THAT HAS BEEN SHOTBLASTED, UNDERCOATED AND POWDERCOATED – EXTREMELY ROBUST

✓ HARD WEARING POLY BRISTLES – LONGEVITY

✓ NO STORAGE STAND REQUIRED – SIMPLE STORAGE WHEN NOT IN USE

✓ OPTIONAL MAGNETIC BARS – NO MORE PUNCTURES OR INJURED LIVESTOCK

Sweep up to 450 miles before changing the bristles!

C-Max Series

11 Rows of Bristles

Working widths: 2.4m, 1.8 and 1.5m

The Range

BM Series

11 Rows of Bristles

Working widths: 2.4m, 1.8 and 1.5m

BP Series

8 Rows of Bristles

Working widths: 2.4m, 1.8m, 1.5m

Change The Bristles With Ease...

PLUS...

✓ NO moving parts

✓ NO belts or chains

✓ NO motor

✓ NO downtime

✓ NO problem

65% faster than a standard push broom

Sweep against a wall

BROOMEX

Hold bulk volumes

C-Broom

Combines the Broomex C-Broom concept of a heavy duty 11 row push broom, together with patented side retainers, which will hold bulk volumes of material in front of the brush without spillage. Reduce sweeping time by up to 65% compared to a conventional push broom.

Hitches & Bristles

SWXM600MAX Broomex C-Broom Max-150, (5’/1.5m)

SWXM720MAX Broomex C-Broom Max-180, (6’/1.8m)

SWXM960MAX Broomex C-Broom Max-240, (8’/2.4m)

SWXM300MAX Broomex C-Broom Max-300 (9.8”/3m)

SWXM360MAX Broomex C-Broom Max-360 (11.8”/3.6m)

SWXWBM360 Broomex 3.6m Mount to join together 2x BM-180

SWXFSH400ZZ Broomex Fork Sleeve Hitch Std

✓ NO SIDE SPILL

✓ A CLEAN SWEEP

✓ HOLD BULK VOLUMES OF MATERIAL

✓ 65% FASTER THAN A CONVENTIONAL PUSH BROOM

✓ SWEEP CLOSE TO A WALL

SWXFSH200 Broomex Fork Sleeve Hitch Wide

SWXTPH200 Broomex 3-Point Linkage Hitch

SWXSQH200 Broomex Telehandler Hitch

SWXMBK600 Broomex Bristles 1.5m

SWXMBK720 Broomex Bristles 1.8m

SWXMBK960 Broomex Bristles 2.4m

SWXMM175 Broomex C-Broom End Brushes

BROOMEX C-MAX Offers..

C-Max fork sleeve hitch

C-Max fork sleeve hitch for 150mm forks

C-Max 3 point linkage hitch

C-Max telehandler quick hitch

BROOMEX

BM Push Brooms

With 11 rows of bristles for maximum sweeping power in demanding applications. Ideal for use with full sized tractors and telehandlers. Hitch options include fork sleeve hitch, three-point tractor hitch or custom hitches to suit any type of materials handler, loader or skidsteer. Available in 5’ (1.5m), 6’ (1.8m), 8’ (2.4m), 9.8’ (3m) and 11.8’ (3.6m) widths.

SWXM600ZZ Broomex Push-Broom BM-150, (5’/1.5m)

SWXM720ZZ Broomex Push-Broom BM-180, (6’/1.8m)

SWXM960 Broomex Push-Broom BM-240, (8’/2.4m)

SWXM300 Broomex Push-Broom BM-300 (9.8”/3m)

SWXM360 Broomex Push-Broom BM-360 (11.8”/3.6m)

SWXWBM360 Broomex 3.6m Mount to join together 2x BM-180

Available

Hitches

BROOMEX

BP Push Brooms

With 8 rows of bristles, the Broomex BP is ideal for counter-balance fork trucks and compact tractors. An integral fork hitch is standard, however three-point or skidsteer hitches may be specified as options. Available in 5’ (1.5m), 6’ (1.8m) and 8’ (2.4m) widths.

SWXP600 Broomex Push-Broom BP-150, (5’/1.5m)

SWXP720 Broomex Push-Broom BP-180, (6’/1.8m)

SWXBR240 Broomex Push-Broom BP-240, (8’/2.4m)

SWXPBK600 Broomex Bristles 1.5m

SWXPBK720 Broomex Bristles 1.8m

SWXPBK960 Broomex Bristles 2.4m

SWXFSH400ZZ Broomex Fork Sleeve Hitch Std

SWXFSH200 Broomex Fork Sleeve Hitch Wide

SWXTPH200 Broomex 3-Point Linkage Hitch

SWXSQH200 Broomex Telehandler Hitch

SWXMBK600 Broomex Bristles 1.5m

SWXMBK720 Broomex Bristles 1.8m

SWXMBK960 Broomex Bristles 2.4m

Every farm should own a Broomex!

Sweep up to 450 miles before changing the bristles.

BM fork sleeve hitch BM fork sleeve hitch for 150mm forks BM 3 point linkage hitch

BM telehandler quick hitch

Rotary Brush

Replacement rotary bristles. Suitable for virtually all road sweepers.

RB500-127P Rotary Brush 500mm/127mm, (20”/5”, Plastic, Yellow)

RB500-127S Rotary Brush 500mm/127mm, (20”/5”, Steel, Steel Colour)

RB550-127P Rotary Brush 550mm/127mm, (22”/5”, Plastic, Yellow)

RB550-127S Rotary Brush 550mm/127mm, (22”/5”, Steel, Steel Colour)

RB600-178P Rotary Brush 600mm/178mm, (24”/7”, Plastic, Yellow)

RB600-178S Rotary Brush 600mm/178mm, (24”/7”, Steel, Steel colour)

RB685-178P Rotary Brush 685mm/178mm, (27”/7”, Plastic, Yellow)

RB685-178S Rotary Brush 685mm/178mm, (27”/7”, Steel, Steel Colour)

RB127-30 Rotary Brush Spacer 5”/30mm

RB178-30 Rotary Brush Spacer 7”/30mm

HSE Access Cage 500kg

Work at height in safety with this UK-made access cage. Fully compliant to HSE regulations, this cage is lifted with telehandler or forklift tines and has a maximum load capacity of 500kg, meaning 1 or 2 person use is possible. A lift-up bar gives easy access to the cage, while anti-slip floor tread and safety harness anchorage points help to keep occupants safe. Fully tested and certified.

Platform size 1000mm x 1000mm.

See page 325 for fall-arrest safety harness

ATT103 Access Cage

PV250 Fan

All Aluminium construction 1.1 kw fan. High performance impeleer for improved air movement, integrally fitted guard, 150mm round inlet and outlets. Wired with 16amp plug and 2.5m cable. Complete with thermal cut out switch. Suck or blow as standard with no additional cost. For use with standard pedestals.

GE116 PV250 Fan 1.1kw (150mm)

GE117 PV250 Fan 1.1kw (3-Phase) (150mm)

GE118 16AMP to 13AMP Plug Converter

PV400 Fan

Top performaing all Aluminium construction 2.2kw Fan. High performance impeleer for improved air movement, integrally fitted guard, 200mm round inlet and outlets. Suck or blow as standard with no additional cost. 3phase only, no plug supplied. Will need to be installed by a qualified electrician.

GE113 PV400 Fan 2.2kw 3-Phase (200mm)

GE114 PV400 Starter/Overload

What is Polycool?

Polycool is a vertically standing, crop cooling and conditioning system, which has evolved from 40 years of research and development. It’s used to draw heat out of floor stored crops, using a fan that is positioned at the top of the Polycool pedestal. Polycool is a cost effective, flexible and robust ventilation system that ensures crops stay free from moulds and insects.

How does it work?

Polycool consists of a 450mm slotted base section, this is where the air is drawn in. This section is then reduced down to either a 200mm or a 150mm extension pipe, which is not slotted. Once grain is covering the pedestal, a fan is placed on top and used to either suck or blow the heat from the crop.

Evolution Fan

Only pedestal fan with inbuilt differential temperature controller to automate fan running times. Uses brushless motor technology to match VBW8 performance but 30% less power. Typically pays back increased costs over 3 years. For use with standard pedestals.

• 60% saving on energy costs

• Differential temperature control

• High air movement

• Long life

• Versatile

• Quickly pays back extra purchase cost

• Easier to move between pedestal units

GE752 0.35kw (150mm)

Grain Fan Assist

The Store Control smart fans automate the cooling of your crops without the need for costly electrical installation and annual data hosting charges.

GE122 Grain Fan Assist Wireless 1ph

GE123 Grain Fan Assist Wireless 3ph

GE124 Grain Fan Assist Sensor

GE125 Grain Fan Assist Twin 1ph

GE126 Grain Fan Assist Twin 3ph

StoreCool

• Airflow 40% greater than traditional systems

• Unique design smooths airflow to fan

• Efficient crop store cooling

Plastic base:-

• Easy placement of large base

• Rotationally moulded for durability

• No filters required for Oil Seed Rape

• Perfect for shallow filled stores

• Stackable for easy storage

• Easy to fill store

• Improved design for increased strength

Polycool Standard Pedestal

Polycool are free standing and has the required open area to deliver cooling rates equal to metal pedestals but more robust. The perforated base is 1.2m x 450mm and with the reducer and pipes stand at 3.5m but can be extended up to 5.5m.

• High airflow

• More robust than metal Pedestals

• Ease of set up

• Improve store unloading times

GE176 Polycool Standard Pedestal

• Recommended storage of crops between 3m-5.5m

Polycool Standard Pedestal Accessories

GE177 Polycool Extension 150mm x 1m

GE178 Polycool Extension 150mm x 2m

GE179 Polycool Coupler 150mm

GE180 Polycool Endcap 150mm

Metalcool Standard Pedestal

Metalcool pedestrals have a high strength louvered, perforated base standing 1.2m x 250mm with intergrated reducer. With additional pipes will stand at 3.5m but can be extended up to 5.5m. Does not need filter for OSR.

• High airflow

• High strength

• No filter needed for OSR

Polycool Maxi Pedestal

Polycool are free standing and has the required open area to deliver cooling rates equal to metal pedestals but more robust. The perforated base is 2m x 450mm and with the reducer and pipes stand at 5.3m but can be extended up to 9m. For use with the HFM225 fan.

• High airflow

• More robust than metal Pedestals

• Ease of set up

• Improve store unloading times

GE104 Metalcool Standard Pedestal

• Recommended storage of crops between 3m-5.5m

GE174 Polycool Maxi Pedestal

• Recommended storage of crops between 5.2m-9m

Polycool Maxi Pedestal Accessories

GE119 StoreCool Mini

GE120 StoreCool Standard

GE121 StoreCool Base Only

GE182 Polycool Reducer 450 - 150mm

GE181 Polycool Oilseed Rape Filter

Metalcool Standard Pedestal Accessories

GE105 Metalcool Extension 150mm x 1m

GE106 Metalcool Extension 150mm x 2m

GE107 Metalcool Coupler 150mm

GE108 Metalcool Endcap 150mm

GE183 Polycool Extension 200mm x 1m

GE184 Polycool Extension 200mm x 2m

GE185 Polycool Coupler 200mm

GE187 Polycool Endcap 200mm

GE186 Polycool Reducer 450mm-200mm

Aeration Spear Fan Motor 0.25kw

This exhausting fan unit has been designed for use with Hot Spot Spear GE151. Supplied with a tapered inlet spigot 100mm-150mm, and wired with a 13amp plug and 2.5m of cable.

GE154 0.25KW

Aeration Spear

2.3m semi perforated spiral wood grain cooling aeration spear with positive drive handles to make winding into crop easier.

Aeration Spear Drive Handle

Anti-slip winding handle for use with aeration spears.

GE158 Aeration Spear Drive Handle

Sample Bags

Clear bag, with self sealing opening. White strips on bag allow writing by ballpoint pen.

GE012 125mm x 190mm, Pack-100

GE013 150mm x 230mm, Pack-100

Hessian Roll

Natural fibre hessian roll.

Hessian Bags

Natural fibre hessian bags.

TCR500 Hessian Roll 1350mm x 46M

TCR505/50 Hessian Bags, 30”x13”. Pack-50

for smaller seeds such as oilseed rape. 2.3m semi perforated spiral wood grain cooling aeration spear with positive drive handles to make winding into crop easier.

GE157 2.35m Length x 100mm Diameter

8 Hole Sampling Spear

Takes a sample of approximately 680g Supplied in two halves with a streamlined brass coupler High build quality and easy to use.

Wile 65 Temp & Moisture Meter

An easy-to-use menu-driven precision temperature & humidity measuring instrument for whole grains and seed.

• 16 of the most popular grain types and seeds can be read off directly

• Allows automatic compensation of temperature differences in the grain and equipment

• The measured values of a test can be stored, and the average value computed

• Storage temperature -15 degrees C to +50 degrees C

• Supplied with 9v battery – ETB 002 Range

• 8 to 35% with grain

• 6 to 25% with oil plants

• Measuring accuracy +/-0.5% (Range depends on crop being tested.)

Wile 78 Temp & Moisture Meter

This meter uses a grinding technique to crush the grain and accurately test the moisture of the sample.

• Improved Interactive LCD Back-lit display

• Improved scale selection

• Displays moisture, average and temperature at the same time

• 21 Pre-programmed scales

• Automatic temperature compensation

• Multi-lingual options

• Small sample size required (9 or 18 ml)

• 20 second single action grinding / measurement

• Robust Carry Case

• Hard and soft brush for cleaning the measuring chamber between samples

• 9v Battery

• Range: Grains 9 - 38% Oil seeds 5 - 30% Accuracy +/- 0.5% moisture below 18% (Range depends on crop being tested.)

Agriforce Plastic Grain Shovel

Plastic Shovel

Agriforce Grain

Suitable for a wide range of tasks including; Equestrian use, snow clearing, agricultural use. UV stabilised, tough and durable, lightweight and easy to clean, nonstick, rot and rust proof.

Plastic grain shovel. Lightweight, strong, easy to clean and crack resistant. Ideal for grain and snow. Temperature range –30° to +80°C. Suitable for fertiliser due to its non-corrosive material.

GE650

GE652

Shovel

Aluminium grain shovel with a round back.

TCS116 Round Back

TCS111

TCS109

Wile Grain Temperature Probe

Accurately measures temperature of grain at tip of probe, and displays via large clear LCD. From minus 15 degrees to 70 degrees measurement range. Includes 9v battery.

GE510

Wile Soil Compaction Tester

Used to measure soil compaction. Increase plant root development, fertiliser effectiveness, water retention and reduce input costs. Supplied with two tips, for use in firm or soft soil.

GE502

Premium Wile Bale Moisture Meter

For testing moisture and temperature of hay, straw and silage. Measures 8-72% moisture content. Memory stores results up to 64 bales with a total of 1000 saveable moisture and temperature readings. Complete with USB port for measurement download and program updates.

GE501

Wile Bale Moisture Meter

Easy-to-use measurement probe for baled hay, straw, haylage and silage. Between 10% and 70% moisture. 0.5 m probe. LCD display shows moisture in weight percent and can be set to different types of bales with carrying densities. Can also be used for defining moisture or dry matter content of silage bales.

GE500

Anemometer Windspeed

Digital wind speed meter measuring in km/hour, Miles/hour, Metres/second or in knots.

• Electronic Wind Meter with digital Display

• Reading: m/sec, km/h, mph, knots

• Splash Waterproof House

• Complet with 3V battery

• Measure reach: 0,2 - 30m/sec.

• Precise: +/- 5% off small decimal

• Delivery without Protection Cover

SA005

Insect Monitor

Insect monitor for either standalone use or with the GE010.

GE011 Pre-Harvest, Pack-10

Insect Bait Traps

Used for the detection and identification of insects in empty stores and as an inspection aid at all times of the year.

GE004 Pre-Harvest, Pack-10

Pitfall Trap

For use in the early detection and identification of pests in stored grain. More effective than spear or vacuum sampling.

GE005 Post-Harvest, Pack-10

Floor Trap Attractant

Floor traps attractant - for GE011 and GE005 traps.

GE010 Pack-10

Insecticidal Smoke Fumer

Phobi Smoke PRO 90 is an acaricide/ insecticide smoke generator to treat empty silo/grain stores before the intake of grain. The smoke generator will control red-rust beetle, sawtoothed grain beetle, grain weevil, flour moths and grain mite in cereal grains (wheat, barley, oats, triticale, millet, sorghum, buckwheat, maize, rice and rye).

• MAPP 17117 Approval

Entrap4 Grain Store Floor Trap

For use in empty grain stores to monitor insect levels. Easy to assemble sticky trap with luring agent. Contains no grain or nuts.

GE006 Pack-4, Luring Agent Included

• Active ingredient of 22.5% w/w pirimiphos-methyl

• 90g Canisters

• Treats 570 m

GE017 Treatment up to 525 m3

Min-Max Thermometer

A simple digital thermometer capable of recording the highest and lowest temperatures, both indoors and outdoors. Full instructions and batteries included.

GE003

Spring Dial Scale

160mm diameter scale, protected by high impact polycarbon.

Large, easy to read figures with dual calibration, in kg and lbs. Stainless steel hangpoints and hook.

TCS504 25kg, 100g Increments

Plastic Rain Gauge

Plastic, conical shaped container for measuring rainfall. Complete with embossed calibrations, up to 50ml.

GE001

For All Our Lighting

See Security & Lighting pages 339

Wildcat Rat Poisons - The Lethal Solution

The Wildcat range of rat and mouse poisons is used and trusted by thousands of farmers and pest controllers across the UK, and has a product for your application.

Talk to us about effective pest control with Wildcat poisons. ANOTHER QUALITY

See Pest Control, Section 15 page 308 for more.

276 - 277 Swagers, Tools & Hose

278 - 279 BSP Fittings

280 Metric Fittings

280 JIC Fittings

281 Reusable Fittings

282 Quick Release Fittings

Cultivation & Subsoil Hydraulics

Quick Change BS16 Swaging Machine

Suitable for workshop or mobile use. Simple to set and adjust using the direct reading micrometer gauge.

Consists of:

• Hand operated swaging machine.

• 6 sets of dies 16, 20, 23, 26, 29 and 39 to cover 1/4” to 1” fittings.

• 47mm die set available as an option for swaging 1” to 1/4” fittings.

Technical information:

• 70 tonne single acting gas spring return ram - manually driven.

Crimping range:

• Maximum die length 62mm.

• Maximum swage diameter 55mm.

• Maximum die opening is die + 24mm.

• Die holder throat (open) 70mm.

HYM100 BS16 Swaging Machine

Hydraulic Hose (Double Wire)

Specifications

• Rubber hydraulic hose with 2 plies of high-strength steel wire mesh

• Sold by the metre

• High pressure

• For general use in hydraulic systems, especially suitable for agricultural equipment

• Will handle mineral-based and glycol-based liquids, vegetable and mineral lubricants, crude oils, coolant water, compressed air, etc.

Hose Protector

Nylon flexible guard wraps around hose protecting against wear. One size suits 1/4 - 1/2’ hose. Supplied by the metre. Can be used to hold two or a number of pipes together.

HYB1700 Sold by the Metre

Twin Hose Clamp

Hydraulic Oil

See our hydraulic oils on page 291

APM Hydraulic BSP Starter Kit

Swage Ferrule Double Wire

Bonded Seal

BSP Swivel Insert Female 90° Block

BSP Adaptor Male/Female BSP

Blanking Plug

Metric Light Insert Male

Metric Light Swivel Insert

See page 278 for swage ferrules

Metric Light

Metric/BSP Adaptor Male/Female

REUSABLE PARTS

IDEAL FOR EMERGENCY BREAKDOWN, THESE FITTINGS PROVIDE A STRONG, LONG-LASTING REPAIR.

KEEP A SELECTION ON THE SHELF OR IN THE TOOLBOX. CUT BREAKDOWN TIME.

1 FERRULES - FOR USE WITH SINGLE OR TWO (DOUBLE) WIRE THIN COVER HOSE.

Reusable Ferrule For Double Wire Hose

HYC9032 1/4” (R2A)

HYC9033 3/8” (R2A)

HYC9034 1/2” (R2A)

Reusable Insert Male

HYC1200 1/4” x 1/4” Hosetail

HYC1201 3/8” x 3/8” Hosetail

HYC1203 1/2” x 1/2” Hosetail

Reusable Insert Female

HYC2200 1/4” x 1/4” Hosetail

HYC2201 3/8” x 3/8” Hosetail

HYC2203 1/2” x 1/2” Hosetail

Reusable Insert Female 90° Swept

HYC4200 1/4”

HYC4201 3/8”

HYC4203 1/2”

& Fuel Equipment

Total Tractagri HDX 15W-40

Motor Oil with high thermal stability ensuring efficient lubrication of hot engines during severe and long working periods. Its excellent oxidation resistance guarantees proper lubrication during the oil life, particularly in recent engines with longer oil drain intervals.

LUB29600 Engine Oil, 208Ltr

LUB29620 Engine Oil, 20Ltr

Fuchs Agrifarm MOT SAE 15W-40

Motor Oil with high thermal stability ensuring efficient lubrication of hot engines during severe and long working periods. Its excellent oxidation resistance guarantees proper lubrication during the oil life, particularly in recent engines with longer oil drain intervals.

LUB29600F Engine Oil, 205Ltr

LUB29620F Engine Oil, 20Ltr

Total Tractagri T4R 10W-40

“Low-SAPS technology” engine oil developed for tractors and agricultural equipment lubrication, with or without Diesel particulate filters that require a Tier 4 final or lower emission standard. Complies with ACEA E4 classification.

LUB26121 Engine Oil-Low SAPS/Tier4/ ACEA E4, 208Ltr

LUB26120 Engine Oil-Low SAPS/Tier4/ ACEA E4, 20Ltr

Fuchs Agrifarm MOT-XLA 10W-40

Premium Low-SAPS engine oil. Due to its low ash content the product offers optimum protection for diesel particulate filters and catalysts and ensures improved durability.

LUB26120F Agrifarm MOT-XLA, 20Ltr

LUB26121D Agrifarm XLA 10W-40 205L

Total Rubia Optima 1100 15W-40

Very high performance lubricant, which is suitable for all types of gas & ULSD diesel engines. Particularly ecological using ultra low sulphur diesel fuels.

LUB31000 Engine Oil-Low SAPS, 208Ltr

LUB31020 Engine Oil-Low SAPS, 20Ltr

Fuchs Titan Cargo SAE 15W-40

Very high performance lubricant, which is suitable for all types of Gas & ULSD Diesel engines. Particularly ecological using ultra low sulphur Diesel fuels.

LUB31000F Engine Oil-Low SAPS, 205Ltr

LUB31020F Engine Oil-Low SAPS, 20Ltr

Total Tractagri HDZ 10W-40

“Low SAPS technology” lubricant specially developed for agricultural machinery engines, with or without diesel particulates filter.

LUB29500 Engine Oil-Low SAPS/Tier4, 208Ltr

LUB29520 Engine Oil-Low SAPS/Tier4, 20Ltr

Fuchs Agrifarm MOT X-LA SAE 10W-40

“Low SAPS technology” lubricant specially developed for Agricultural machinery engines, with or without Diesel Particulates Filter.

LUB29500F Engine Oil-Low SAPS/Tier4, 205Ltr

LUB29520F Engine Oil-Low SAPS/Tier4, 20Ltr

Total Tractagri HDZ FE 10W-30

“Low SAPS technology” lubricant specially developed for agricultural machinery engines, with or without diesel particulates filter.

LUB31500 Engine Oil-Low SAPS, 208Ltr

LUB31520 Engine Oil-Low SAPS, 20Ltr

Fuchs Titan Cargo SAE 10W-30

“Low SAPS technology” lubricant specially developed for agricultural machinery engines, with or without diesel particulates filter.

LUB31500F Engine Oil-Low SAPS, 205Ltr

LUB31520F Engine Oil-Low SAPS, 20Ltr

Total Dynatrans MPV 10W-30

Lubricant for wet disk brake transmissions and hydraulic systems for agricultural tractors and Public Works or handling equipment.

LUB33100 Transmission Oil, 208Ltr

LUB33120 Transmission Oil, 20Ltr

Fuchs Agrifarm UTTO MP 10W-30

Lubricant for wet disk brake transmissions and hydraulic systems for agricultural tractors and Public Works or handling equipment.

LUB33100F Transmission Oil, 205Ltr

LUB33120F Transmission Oil, 20Ltr

Total Dynatrans VX FE 10W-30

High performance transmission oil based on synthesis technology dedicated for Earthmoving machinery axles and agricultural tractors transmissions and hydraulics.

LUB33200 Transmission Oil, 208Ltr

LUB33210 Transmission Oil, 20Ltr

Fuchs Titan UTTO 10W-30

Lubricant for wet disk brake transmissions and hydraulic systems for agricultural tractors and Public Works or handling equipment.

LUB33200D UTTO 10W-30, 205L

Total Trans Axle 7

Oil for manual gearboxes, rear axles, transfer boxes and all gear where an oil ML-L-2105D is required. Particularly recommended for highly loaded gears.

LUB8100 Transmission Oil, 80W-90, 208Ltr

LUB8120 Transmission Oil, 80W-90, 20Ltr

LUB8105 Transmission Oil, 80W-90, 5Ltr

LUB8220 Transmission Oil, 85W-140, 20Ltr

Fuchs Titan Gear HYP 80W-90

Oil for manual gearboxes, rear axles, transfer boxes and all gear where an oil ML-L-2105D is required. Particularly recommended for highly loaded gears.

LUB8020F Transmission Gear 7, 80W-90, 20Ltr

LUB8120F Transmission Supergear HYP, 80W-90, 20Ltr

LUB8220F Transmission Supergear HYP, 85W-140, 20Ltr

LUB8100F Transmission Oil, HYP 80W-90, 205Ltr

Total Fluid ATX

Transmission oil for automatic or semi-automatic gear boxes and torque converters of all cars, light commercial and industrial vehicles.

LUB3020 Automatic Transmission Oil, 20Ltr

Fuchs Titan ATF 3000

Super high performance generation ATF Dexron II (D) For Automatic Transmission Fluid in commercial vehicles, working machinery and in accordance with manufacturers regulations.

LUB3020F Automatic Transmission Oil, 20Ltr

Total Azolla ZS32

Very high performance anti-wear hydraulic oil. Designed for use in hydraulic systems running under the most difficult conditions.

LUB4000 Hydraulic Oil-32 Grade, 208Ltr

LUB4020 Hydraulic Oil-32 Grade, 20Ltr

Fuchs Renolin B10 VG32

Very high performance anti-wear hydraulic oil. Designed for use in hydraulic systems running under the most difficult conditions.

LUB4000F Hydraulic Oil-32 Grade, 205Ltr

LUB4020F Hydraulic Oil-32 Grade, 20Ltr

Total Azolla ZS46 /ZS68

Very high performance anti-wear hydraulic oil. Designed for use in hydraulic systems running under the most difficult conditions.

LUB4100 Hydraulic Oil-46 Grade, 208Ltr

LUB4120 Hydraulic Oil-46 Grade, 20Ltr

LUB4220 Hydraulic Oil-68 Grade, 20Ltr

Fuchs

Renolin B15 VG46

Very high performance anti-wear hydraulic oil. Designed for use in hydraulic systems running under the most difficult conditions.

LUB4100F Hydraulic Oil-46 Grade, 205Ltr

LUB4120F Hydraulic Oil-46 Grade, 20Ltr

LUB4220F Hydraulic Oil-68 Grade, 20Ltr

Total Equivis ZS46

The Equivis ZS range is a multi-grade hydraulic oil recommended for hydraulic systems operating under high pressure (limit as indicated by the pump manufacturer) and high temperature.

LUB9000 Hydraulic Oil-High Viscosity, 208Ltr

LUB9020 Hydraulic Oil-High Viscosity, 20Ltr

Fuchs Renolin B46 HVI

Oil recommended for hydraulic systems operating under high pressure (limit as indicated by the pump manufacturer) and high temperature.

LUB9000F Hydraulic Oil-High Viscosity, 205Ltr

LUB9020F Hydraulic Oil-High Viscosity, 20Ltr

Total Multagri Pro-Tec 10W-40

A multi-purpose oil made of ultra high performance base oils and designed for year-round lubrication of all mechanical systems in tractors, agricultural machinery and related equipment.

LUB29700 Universal Oil-Semi Synthetic, 208Ltr

LUB29720 Universal Oil-Semi Synthetic, 20Ltr

Fuchs Agrifarm STOU MC 10W-40

A multi-purpose oil made of ultra high performance base oils and designed for year-round lubrication of all mechanical systems in tractors, agricultural machinery and related equipment.

LUB29700F Universal Oil, 205Ltr

LUB29720F Universal Oil, 20Ltr

Total Multagri Super 10W-30

High performance multigrade oil designed for year-round multipurpose lubrication of the different systems in agricultural tractors and harvesters.

LUB24100 Universal Oil, 208Ltr

LUB24120 Universal Oil, 20Ltr

Fuchs Agrifarm STO PLUS 10W-30

High performance multigrade oil designed for year-round multipurpose lubrication of the different systems in agricultural tractors and harvesters.

LUB24100F Universal Oil, 205Ltr

LUB24120F Universal Oil, 20Ltr

Total Osyris DWX300

• Rust preventative oil

• Spray, dip or brush on to machinery while wintered up to prevent corrosion

• Excellent for ploughs, cultivators etc

LUB25225 Rust Prevention Oil, 19Ltr

Fuchs Anticorit BW366

Corrosion protection fluids which form thick, waxy and dry films for outdoor and long-term protection. Can also be used for underfloor and cavity protection.

LUB25225F Rust Protection Oil, 20Ltr

Total

The highest specification semi-synthetic lubricant, recommended for all high performance petrol engine cars equipped with direct-injection, multi valve & turbo technologies.

LUB27220 Engine Oil-Semi-Synthetic, 20Ltr

LUB27205 Engine Oil-Semi-Synthetic, 5Ltr

Fuchs Titan SYN-MC 10W-40

Synthetic–based technology particularly suited to turbocharged and multi-valve engines.

LUB27220F Engine Oil-Semi-Synthetic, 20Ltr

LUB27205F Engine Oil-Semi-Synthetic, 5Ltr

A fully-synthetic technology engine oil that has been developed to cover the most stringent requirements of both petrol and diesel engines. It is particularly suited to turbocharged, multi-valve and direct injection engines.

LUB27320 Engine Oil-Synthetic, 20Ltr

LUB27305 Engine Oil-Synthetic, 5Ltr

Fuchs Titan Super SYN ECO 5W-30

Synthetic technology formulation for FORD & Volvo vehicles designed to reduce fuel consumption (3%) & easy cold starts.

LUB27320F Engine Oil-Semi-Synthetic, 20Ltr

LUB27305F Engine Oil-Semi-Synthetic, 5Ltr

Total

A fully synthetic low SAPS technology oil specially designed for Peugeot and Citroen engines.

LUB27405 Engine Oil-Low SAP/Synthetic, 5Ltr

Fuchs Titan GT1 PRO 5W-30

A fully synthetic low SAPS technology oil specially designed for Peugeot and Citroen engines.

LUB27405F Engine Oil-Low SAP/Synthetic, 5Ltr

Quartz INEO ECS 5W-30

Quartz 7000 10W-40

Total Quartz 9000 Future NFC 5W-30

Total Quartz INEO Long-Life 5W-30

The new generation of Low SAPS engine oil specifically formulated to meet technical requirements of Volkswagen group vehicles.

LUB27505 Engine Oil-Low SAP/Synthetic, 5Ltr

Fuchs Titan GT1PRO C3 5W30

The new generation of Low SAPS engine oil specifically formulated to meet technical requirements of Volkswagen group vehicles.

LUB27505F Engine Oil-Low SAP/Synthetic, 5Ltr

Total Quartz INEO C1 5W-30 5Ltr

The new generation of Low SAPS engine oil specifically formulated to meet technical requirements of Ford, Jaguar and Land Rover vehicles.

LUB27605 Engine Oil-Low SAP/Synthetic, 5Ltr

Fuchs Titan GT1PRO C1 5W-30

Synthetic technology formulation for FORD & Volvo vehicles designed to reduce fuel consumption (3%) & easy cold starts.

LUB27605F Engine Oil-Low SAP/Synthetic, 5Ltr

Total Agritraite 68

For vacuum, vane or rotary piston pumps. Excellent demulsification and perfect neutrality safeguards seals.

LUB23005 Milking Machine Oil, 5Ltr

Fuchs Agrifarm 5Ltr

Ultra High Performance Milking Machine Oil specially developed for use in the vacuum pumps of milking machines.

LUB23005F Milking Machine Oil, 5Ltr

Total LHM Fluid Mineral Oil

Mineral based fluid oil for brakes and hydraulic systems.

MRA1007 Brake & Hydraulic Systems, 1Ltr

Which Grease Should I Use?

✓ LITHIUM EP2 COMPLEX RED – A general purpose lubrication designed to reduce wear, improve grease performance and extend component life. For use in dry, dusty, wet and shock loaded conditions at high operating temperature.

Operating range -30 °C to 150°C

✓ LITHIUM EP3 – Suited for application in larger diameter bearings. Operating range -30 °C to 120°C

✓ LITHIUM EP2 – An appropriate choice for general purpose lubrication. Operating range -25 °C to 120°C

✓ LITHIUM EP0 – Suited to centralised and gear lubrication systems. Operating range -30 °C to 120°C

✓ EASY GREASE – Boasting the same features and benefits of EP2 and EP2 Complex, fast change Agriforce Easy-Grease has been designed to increase productivity, reduce waste and keep workshops clean. Requires specific Easy Grease Gun.

Agriforce EP2 Grease

Extreme pressure multipurpose grease for the lubrication of all sliding and rolling bearings, slides and racks subjected to high loadings. Operating temperature range: -25°C to 120°C.

LUB2001 400g, Single

LUB2001/24 400g, Box-24

LUB20012 12.5kg Keg

Agriforce EP2 Complex

A lithium complex grease with extreme pressure and tacky additives. Withstands abnormal operating conditions such as high temperatures, excessive loading and presence of water. Operating temperature range: -30°C to 150°C.

LUB20501 400g, Single

LUB20501/24 400g, Box-24

LUB20512 12.5kg Keg

EP2 Easy-Grease

Fast-change grease reduces waste and helps keep your workshop clean. Perfect for the lubrication of all sliding and rolling bearings, slides and racks subjected to high loadings. Operating temperature range: -25°C to 120°C. Use with LUE005 and LUE006.

LUB2002/12 400g, Box-12

P2 Complex Easy-Grease

Fast-change complex grease reduces waste and helps keep your workshop clean. Withstands abnormal operating conditions such as high temperatures, excessive loading and presence of water. Operating temperature range: -30°C to 150°C. Use with LUE005 and LUE006.

LUB2003/12 400g, Box-12

Lithium EP3 Grease

Suited for application in larger diameter bearings. Operating range -30 °C to 120°C.

LUB2005 400g, Single

LUB2005/12 400g, Box-12

LUB20312 12.5kg Keg

Moly EPM Grease

Extreme pressure multi-purpose molybdenum grease particularly suitable for lubrication of slow-moving mechanisms subjected to high loading or where shock loading may occur, i.e. telehandler booms.

LUB20101/12 400g, Box-12

NEED WORKSHOP SPRAY GREASES AND OILS?

Agriforce EP0 Grease

A semi fluid grease with excellent adhesion to metal surfaces. Can be used in certain gearboxes where noise is a problem. Suitable for many power harrow beds.

LUB20212 12.5kg keg

Boom Grease PTFE MP2.5

For use on the booms of telescopic handlers, cranes and overhead gantry hoists. Boom Grease reduces drag and judder and helps eliminate the loss of power consumption related to friction.

LUB2004 400g single

LUB2004/12 400g, Box-12

See Workshop Consumables pages 448 - 449

MacNaught Side Lever Grease Gun

MacNaught Lever Grease Gun is a high quality, lever action grease gun designed for high pressure, high volume greasing. Comes complete with 150mm (6”) rigid high pressure extension and KY SUPERGRIP™ coupler.

LUE451

Groz Heavy Duty Side Lever Grease Gun

Variable stroke feature for use in confined areas. Heavy-duty grease gun head incorporates a bulk loader and an air bleeder valve. Unique lock lever mechanism allows user to easily lock plunger rod in any position. Suitable for 400g standard grease cartridges, bulk or manual fill. Supplied with rigid tube and chuck.

LUE461

Economy Side Lever Grease Gun

General purpose side lever grease gun with a drop resistant steel head construction. Accepts standard 400g cartridge, but can also be bulk or suction filled. Supplied with rigid extension tube and push-on 4-jaw hydraulic coupler.

Metabo Air Grease Gun

Groz Heavy Duty Pistol Grip Grease Gun

MacNaught Pistol Grip Grease Gun

A high quality pistol grip gun that is able to reach increased greasing pressures from short strokes and high volumes for full strokes. Comes complete with flexihose and coupler.

LUE452

Groz Pistol Grip Easy Grease Gun

Pistol grip grease gun for spin-on easy grease cartridges with a flexible extension and 4 jaw coupler. No air bleeding required. Minimal wearing parts for longer life. For use with LUB2002 and LUB2003.

Ergonomic one hand operation grease gun with unique variable stroke mechanism for both highvolume and high-pressure applications. Simple adjustment lever to switch between high pressure and high volume setting. Suitable for 400g standard grease cartridges, bulk or manual fill. Comes with Flexihose and chuck.

LUE462

Groz Side Lever Easy Grease Gun

Side lever grease gun for 400gm spin-on easy grease type cartridges. Vacuum technology ensures full utilisation of grease in the cartridge. No air bleeding required. Professional 4 jaw coupler with ball check valve. For use with LUB2002 and LUB2003.

LUE006 For use with Easy Grease LUB2002 LUB2003 LUE005 For use with Easy Grease LUB2002 LUB2003

• Automatic: continuous material flow as long as trigger guard is activated; uniform flow at required rate

• No material drip, for clean and effective operation

• Rigid and flexible connection including grease nipple

• For filling from external grease containers or for use with ordinary cartridges (400g)

TAD104

Cordless Grease Gun 18V

High power, professional, cordless grease gun, developing 8000psi. Ideal for screw type or standard 400ml cartridges.

LUE457

TPM117

For Metabo Cordless Grease Gun See page 382

Grease Bucket Pump

Standard bucket pump for 12.5kg grease kegs. Kit includes pump with die cast head, carrying handle, steel keg cover, follower plate, 1.7 meter rubber hose, shut off valve and stem/4 jaw connector.

LUE010

Grease Gun Flexi-Hose

A high pressure flexible extension, for grease gun use. Threaded ends, supplied without chuck.

LUE003 300mm

LUE002 500mm

Pressol G-Coupler

Enables easy and safe lubrication during maintenance work, prevents loss of grease even during operation under high load - simply connect and you can work hands-free.

LUE015 Thread M 10 x 1

Quick Connect Grease Coupler

Quick and easy release mechanism up to 10,000psi, which reduces the risk of high pressure grease release with its simple snap on-and-off connection.

LUE014

Compact Quick Connect Grease Coupler

The Safe-Lock Grease Coupler has 4 hardened tool steel jaws that provide a secure connection, once clicked on to the grease nipple it can only be released by pressing the lever down. There is no spurt/mess when uncoupling.

LUE009

Groz HD Grease Chuck

Professional hydraulic chuckr. 4-Jaw 1/8” BSPT thread and hex nut. Suitable for hand operated grease guns. Maximum pressure 6000psi 413bar.

LUE463

Macnaught Professional

LUE453

Grease Chuck

4-jaw grease chuck - to fit all standard grease nipples.

LUE007/2 Pack-2

Grease Nipple

Multi-Pack 25pcs

Straight and angled.

MRA3109 Imperial

MRA3110 Metric

See page 458 for assortment boxes

Grease Nipple Unblocker

Expert Quality, designed to be tapped with a hammer, which forces either paraffin or a light viscosity oil through the tool into the grease nipple, enabling the penetration of the clogged grease fitting. Supplied with two spare plunger seals.

LUE016

Grease Gun Mounting Bracket

Spring loaded clip, for mounting grease gun on the side of tractors.

LUE322

Magnetic Grease Gun Bracket

Fixing clip for grease guns with magnetic bracket and other devices with a tube of 56mm. Suitable for universal attachment on magnetic surfaces.

LUE347

Agriforce Anti-Freeze

Anti-Freeze Tester

Disc type tester which checks condition of coolant antifreeze, hot or cold. Virtually unbreakable plastic body with easy-to-read temperature table.

MRA2040

Fuel Set Concentrate

Adding Fuel Set to your storage or vehicle fuel tank enables the elimination of contaminates and the ‘diesel bug’ that inhabits the sludge created by water contamination. Can also be used as a water additive. 1 Litre/ 4000 litres of fuel ratio.

LUB9050 1Ltr

LUB9051 5Ltr

Excellent quality 100% ethylene gylcol mix. Suitable for all engines including aluminium cylinder heads.

LUB1025-20 20Ltr

LUB1000 210Ltr

For De-icer see page 239

Agriforce Coolshield

Ready to use premixed product, less maintenance due to long life additive. Suitable for all engines, including latest Euro 4 specifications, even under warranty.

LUB1125 Coolant & Anti-Freeze, 20Ltr

Portable Diesel Tank 220Ltr

• 12V 50L/MIN Pump,

• Tank is moulded from 17Kgs of strong and robust Polyethelene,

• In-line filter on pick up pipe,

• 5 Meters of delivery hose,

• Lifting handles on either side for easy lifting, neat pipe storage,

• Dimensions: 1030mm long, 600 mm high, 600mm wide

LUE220DT 220Ltr Diesel Dispenser

Portable Diesel Tank 180Ltr Low Profile

Ideal for the back of Pick-Up Trucks:

• 12V 40L/MIN Pump,

• Tank is moulded from 17Kgs of strong and robust Polyethelene,

• In-line filter on pick up pipe,

• 5 Meters of delivery hose,

• Lifting handles on either side for easy lifting, neat pipe storage,

• Dimensions: 1000mm long, 410 mm high, 700mm wide

LUE220DTLP Low Profile Dims: 1000mm L x 410mm H x 700 mm W

Portable Diesel Tank 440Ltr

• 440 Ltr transportable diesel bowser.

• 12V 50L/MIN Pump,

• Auto off nozzle as standard,

• Optional flow meter,

• Tank is moulded from 35Kgs of strong and robust Polyethelene,

• In-line filter on pick up pipe,

• Lockable lid,

• Forklift tine slots in base,

• 5 Meters of delivery hose, neat pipe storage,

• Flow meter available on request,

• Dimensions: 940mm long, 840 mm high, 760mm wide

LUE440DT 440Ltr Diesel Dispenser

Agriforce AdBlue

Premium quality Adblue manufactured to ISO 22241 specifications. See LUE106 & LUE109.

LUB11300 20Ltr

LUB11350 200Ltr

Adblue IBC 1000Ltr

Premium quality Adblue manufactured to ISO 22241 specifications. 2” trisure thread at the bottom of the IBC. For delivery only. Does not come with suction tube (see LUE123), Use LUE111 and LUE113 for dispensing options.

LUB11351D 1000Ltr IBC

Piusi Adblue IBC Suction Tube

Rigid Suction tube for dispensing Adblue from an IBC or drum with a 56 x 4 trisure connection.

Piusi Adblue IBC Pump

Kit 230V

A plated Piusi pump kit designed for the dispensing of AdBlue, specifically from an IBC. Complete with self-priming membrane pump, manual nozzle, delivery and suction hose and an IBC connector. Dispenses 32 LPM.

LUE113 6M Hose, Nozzle & Adaptor

Piusi Rotary IBC AdBlue PumpKit

The Stainless Steel Rotary IBC AdBlue Pump is designed for dispensing AdBlue directly from both round and squared IBCs. Kit comes with a 2m suction hose, IBC bracket for fitting to lower IBC bars, 3m delivery hose with swivel spout and SEC connector. Dispenses 380ml per revolution.

LUE122 3m Hose, On-Off spout

Piusi AdBlue Drum/IBC Pump Kit12V

The safe and clean way to dispense Adblue from barrels or IBCs (using optional adaptor LUE108). Duty cycle: 20 minutes. Dispenses 35LPM.

LUE109 4M Hose, Nozzle & Adaptor, 35 LPM

AdBlue IBC Gravity Hose Kit

For safe and secure dispensing of Adblue from IBCs. This kit comprises of a nozzle, 4m hose and connector, which attaches to the bottom outlet of the IBC. Only suitable for Adblue use.

LUE111 4M Hose, Nozzle & Adaptor

Piusi AdBlue Manual Pump Kit

Piston hand operated AdBlue pumps are designed for the easy delivery of AdBlue from a drum. They are a popular choice when there is no power available. Dispenses 330ml per stroke.

LUE106 2M Hose, Nozzle & Adaptor

Piusi AdBlue IBC Adaptor

These IBC connectors work by screwing the valve open/closed without acting any angular pressure on the IBC connection point.

LUE108 For use with LUE109

Convert the drum pump into an IBC pump with this adaptor

Portable AdBlue Tank

• Tank is moulded from robust polythene

• Inline filter on end of pick-up pipe

• 5m of delivery hose

• Lifting handle at either end for easy handling.

• 17kg when empty

• Dimensions: 1030mm long x 600mm high x 600mm wide

LUE220ABT 12V Pump, 50LPM, 220Ltr

Low Profile Portable Adblue Tank

Ideal For The Back Of Pick Up Trucks

• Tank is moulded from robust polythene

• Inline filter on end of pick-up pipe

• 5m of delivery hose

• Lifting handle at either end for easy handling.

• 17Kg when empty

• Dimensions: 1000mm long x 410mm high x 700mm wide.

LUE220ABTLP 12V Pump, 40LPM, 180Ltr

Groz AdBlue Manual Nozzle

A cost effective, manual AdBlue nozzle. Nylon construction with stainless steel internal parts and viton seal. Manual control but also includes continuous flow switch for unattended dispensing. Supplied with 3/4” hose tail inlet.

LUE118 Max Flow 90 LPM

Piusi AdBlue Automatic Nozzle

The Piusi SB325 AdBlue nozzle - also referred to as a DEF nozzle is an automatic nozzle complete with breakaway spout. Supplied with 3/4” plastic hose barb.

LUE119 Max Flow 35LPM

PVC Adblue Hose 3/4” 19mm ID, 28mm OD.

HOS350 19mm ID, 28mm OD

Piusi Mains Fuel Pump 56LPM 230V

Simple, ready to fit refuelling solution, which can be connected to new or existing static or mobile fuel storage tanks. Comes complete with a 3/4” hose and nozzle.

LUE415 56LPM

Piusi Mains Fuel Pump 70LPM 230V

This Piusi pump unit, which comes complete with a 1” hose and nozzle, can be mounted directly onto the tank or on a wall piped back into a tank.

LUE416 70LPM

Piusi 12V Diesel Pump 50LPM

Designed as a ready to use mobile refuelling pump solution for diesel dispensing from drums or small tanks to refuel vehicles. Extremely popular in both agricultural and construction markets for refuelling plant machinery, tractors and other vehicles. Comes with 3/4” hose.

LUE227 50LPM Pump, 4m Delivery Hose

Piusi 12V Diesel Pump 80LPM

Superb performance and heavy duty build, with 80 litre per minute flow rate and a 12V supply. Supplied with manual nozzle, swivel and 1” hose.

LUE229 80 LPM Pump, 4m Delivery Hose

Piusi K33 Diesel Flow Meter

Mechanical fuel flow meter that measures the exact quantity of dispensed diesel fuel or oil. The meter measures up to 999.9 litres, and is reliable, inexpensive, and easy to install.

LUE205 120LPM

LUE101

Lever Operated Barrel Pump

Designed for dispensing a variety of fluids. Adblue, anti-freeze, oils, diesel fuels, fertilisers and degreasers.

• For use with 60l to 205l drums

• Telescopic riser 950mm

• 325ml per stroke pump outlet

• 2” BSP drum adaptor

• Polypropylene and NBR seals”

LUE216 325ml Per Stroke

When using with a 200 litre Adblue barrel please also order LUE114 adapter

Telescopic Drum Pump

Self priming pump with polypropylene body. Suitable for pumping gear oil and other products with a similar viscosity. Dispenses 200ml per action.

LUE450 1.65m Hose, Nozzle & Adaptor

Piusi Manual Fuel Nozzle

Strong, polished diecast aluminium body, with locking latch. Suitable for gravity and electric pumps. 1” female BSP swivel.

LUE198 120LPM Nozzle

Professional Automatic Nozzle

Max flow 80 lpm. Higher flow models available. Not suitable for gravity systems. Strong, polished diecast aluminium body, with locking latch. Suitable for gravity and electric pumps. Automatic nozzle - 1” BSP

LUE196 80LPM Auto Nozzle

Diesel Delivery Hose 3M

Smooth bore, oil resistant diesel 3m hose. 1” BSP male ends.

LUE202 Hose 3M

Piusi Hose Swivel Hosetail

The Brass Hose Swivel is specifically designed for connection to Piusi parallel fitting hose tails and nozzles. Brass body F BSP Inlet and M BSP Outlet NBR Seal.

LUE251 1” Male BSP x 1” Female BSP

Brass Hosetail

Hosetail adaptor - Brass, male taper.

LUE211 1” Hosetail x 1” BSP

LUE212 1” Hosetail x 3/4” BSP

LUE213 3/4” Hosetail x 3/4” BSP

LUE214 3/4” Hosetail x 1” BSP

Female IBC to 2”

BSP Male Thread

Female IBC to 2” Male Camlock

2” BSP Outlet Adaptor

NOTE: Trisure fittings are found on some IBC’s but are not common

IBC Outlet Adaptor

Metal Drum Tap 3/4” BSP

LUE103

Plastic Barrel

Tap 2” BSP

2” BSP thread fits small 2” BSP threaded hole on 208 ltr barrels.

LUE105

GoldenRod Particle Filter

This filter removes particulate and water from fuel to a micron rating of 10, usually within a gravity flow system due to the low flow rate requirement.

• Filters for diesel tanks

• 1” BSP head

LUE219 10 Micron-95LPM, Filter Assembly

GoldenRod Particulate Element

The GoldenRod Fuel Filter Element is the replacement, 10 micron element for the GoldenRod particulate fuel filter LUE 219.

LUE221 10 Micron-95LPM, Element Only

GoldenRod Bio Fuel Filter

A particle filter for biodiesel up to B100 to a micron rating of 10.

LUE480 10 Micron-95LPM, Filter Assembly

GoldenRod BIO

Particle Fuel

10 micron replacement filter element for LUE480. Filter Element Only. Removes particulates and water from biodiesel.

LUE470 10 Micron-95LPM, Particle Filter

GoldenRod Water & Particulate Filter

This filter removes particulate and water from fuel to a micron rating of 15, usually within a gravity flow system due to the low flow rate requirement.

• Filters for diesel tanks

• 1” BSP head

LUE220 15 Micron-95LPM, Filter Assembly

GoldenRod Water & Particulate Element

Water and particulate replacement filter element for LUE220. Filter Element Only. Removes particulates and water from diesel.

LUE222 15 Micron-95LPM

✓ COMPATIBLE HEAD IS NO LONGER MANUFACTUREDELEMENT IS SUPPLIED FOR EXISTING FILTERS ONLY

Cim-Tek Fuel Filter 70066

Filter element replacement. No more fuel can be pumped through if the filter element is saturated. The mat absorbs water and lets fuel pass through. For filtering dirt and water out of fuel.

• P max: 3.4 bar

• Length: 220mm

• Diameter: 92mm

LUE336 Gravity, 30micron, 70LPM

Cim-Tek Fuel Filter 70067

Spare spin on filter for LUE331. Simple filter element replacement. For filtering dirt and water out of fuel.

• Filter connection (Imperial): 1”-12 UNF

• P max: 3.4 bar

• Length: 220mm

• Diameter: 95mm

LUE332 Pump, 30micron, 65LPM

Cim-Tek Fuel Filter 70062

Spare spin on filter for LUE331. Simple filter element replacement. For filtering dirt and water out of fuel.

• Filter connection (Imperial): 1”- 12 UNF

• P max: 3.4 bar

• Length: 220mm

• Diameter: 94mm

LUE333 Pump, 10micron, 65LPM

Cim-Tek Fuel Filter 70068

Filter element replacement. No more fuel can be pumped through if the filter element is saturated. The mat absorbs water and lets fuel pass through. For filtering dirt and water out of fuel. Spare spin on filter for LUE341

• Filter connection (Imperial): 1 1/2” - 16 UNF

• P max: 3.4 bar

• Length: 279mm

• Diameter: 127mm

LUE342 Pump, 30micron, 150LPM

Cim-Tek Fuel Filter 70063

Filter element replacement. No more fuel can be pumped through if the filter element is saturated. The mat absorbs water and lets fuel pass through. For filtering dirt and water out of fuel. Spare spin on filter for LUE341.

• Filter connection: 1-1/2” - 16 UNF

• P max: 3.4 bar

• Length: 279mm

• Diameter: 127mm

LUE343 Pump, 10micron, 151LPM

Cim-Tek Fuel Filter 70076

Spare spin on filter for LUE337. Simple filter element replacement. For filtering dirt and water out of fuel.

• Filter connection (Imperial): 1 1/2”- 16 UNF Inch

• P max: 3.4 bar

• Length: 200mm

• Diameter: 95mm

LUE338 Gravity & Pump, 30micron, 90LPM

Cim-Tek Fuel Filter 70075

Spare spin on filter for LUE337. Simple filter element replacement. For filtering dirt and water out of fuel.

• Filter connection (Imperial): 1 1/2”- 16 UNF Inch

• P max: 3.4 bar

• Length: 200mm

• Diameter: 95mm

LUE339 Gravity & Pump,10micron, 90LPM

Plastic

Funnel & Filter 12” x 8”

Made from high density polyethylene, resistant to acids, fuels and saline. Supplied with a zinc plated steel filter.

LUE300 12” x 8”

Plastic Anti-Splash

Funnel 6”

Anti-splash and spill proof funnel with 1.7 litre capacity. Supplied with dust cap and wire mesh screen to keep contaminants out.

LUE324

Plastic Funnel, Spout & Filter 6”

Plastic Funnel Round 6” Plastic funnel without filter - 6” diameter.

LUE308

Metal Oil Can 450cc

450cc metal oil cans with fitted flexible spout and a loose interchangeable rigid spout.

LUE318

Jerrican Clip-On

Flexi Spout

Easy clip on flexispout for attachment to metal jerricans.

LUE329

Polythene Container 25Ltr

Poly container.

LUE340 25Ltr

Polythene Jug & Spout

Manufactured from heavy duty polythene.

LUE412 5Ltr

See spraying for calibration jugs

Measuring

Jug

Measuring jugs, made from chemical resistant polypropylene. Calibrations in mls and fluid oz.

LUE323 1Ltr

LUE321 2Ltr

LUE315 5Ltr

Orange plastic funnel - 6” diameter without filter with a 10” flexible spout and filter.

LUE303

Jerrican

Metal cans, for the safe transportation of flammable or harmful fluids.

LUE326 10Ltr, Red

LUE327 20Ltr, Green

Plastic Fittings

See pages 362 for our range

Barrel Nipple Male/Male

Iron Reducing Bush Male/Female

Iron Socket

Iron Equal Tee Female/ Female/Female

Iron Reducing Nipple

Iron Plug Male

Lever Type Ball Valve

Ideal for use in domestic, industrial, agricultural, water, oil, gasoline and many other non-aggressive fluid applications.

• Body made from hot pressed brass.

• Ball made from brass and chromium plated.

• Working pressures - Water 32 bar (464 psi)

• Working temperature - Fluids at -20ºC to 150ºC.

Gate Valve Female/Female

HOS002 3/4”

HOS003 1”

HOS004 1 - 1/2”

HOS005 2”

Non-Return Valve

Brass, single check non return valve, for fitting in line to prevent back flow.

HOS3012 1/2”

HOS3034 3/4”

HOS3010 1”

HOS3015 1-1/2”

HOS3020 2”

Tank Outlet

All fittings have an internal female thread at the flange end only.

STO1200 Male/Female 1/2”

STO3400 Male/Female 3/4”

STO1500 Male/Female 1-1/2”

STO2000 Male/Female 2”

STO3000 Male/Female 3”

Oil Absorbent Granules

20Ltr

Clay absorbency product for use in all general spillage applications. Non-carcinogenic material absorbs spills such as oils, antifreeze, and some chemicals.

HG010/20 20Ltr

Maintenance Spill Kit

Superior grade disposable spillage kit. Designed to absorb and retain all industrial liquids, oil, coolant, and solvent-based spills.

LUA100 15Ltr

LUA101 25Ltr

Cim-Tek Tank Dryer

Drop the Cim-Tek fuel tank dryer into your fuel storage tank to soak up unwanted condensation.

LUE330

Spill Pallets

Incorporates a removeable grate that holds the drums clear of leakages. Compatible with most fork and pallet trucks for easy manoeuvring. Extra tough poly construction will resist knocks and direct impacts.

LUA200 2 Drum Spill Pallet

308 - 311 Wildcat Rodenticides

311 - 313 Cages & Traps

313 - 316 Bird Scaring

317 - 318 Insect Traps & Killers

Cultivation & Subsoil

Control & Game Keeping

Wildcat FX

Difenacoum Whole Wheat Bait

Wildcat FX is the premium whole wheat difenacoum rodenticide. Made with the finest food-grade wheats. Carefully micronized to prevent germination, then blended with added sweeteners and attractants to improve rodent take-up, while a 0.005% difenacoum poison provides the lethal dose.

• Wildcat FX is ideal for use in the PCW401 Eezi-Baiter bait station.

Specifications Wildcat FX

Type Whole Wheat

Poison Difenacoum

Multi / Single feed Multi

Best for Mice

HSE # 8730

PCW620 20kg Sack

PCW610 10kg Tub

Professional use only - Use biocides safely - always read the label and product information before use!

Wildat ST

Bromadiolone Whole Wheat Bait

Wildcat ST is the premium whole wheat bromadiolone rodenticide. Made with the finest food-grade wheats, carefully micronized to prevent germination, then blended with added sweeteners and attractants to improve rodent take-up, while a 0.005% bromadiolone poison provides the lethal dose.

• Wildcat ST is ideal for use in the PCW401 Eezi-Baiter bait station.

Specifications Wildcat ST

Type Whole Wheat

Poison Bromadiolone

Multi / Single feed Multi

Best for Rats

HSE # 8731

PCW720 20kg Sack

PCW722 20kg Tub

PCW710 10kg Tub

Professional use only - Use biocides safely - always read the label and product information before use!

Wildcat VR

Brodifacoum Whole Wheat Bait

Due to its extremely powerful active ingredient and highly palatable additives on a top grade base grain, Wildcat VR is the poison to use for infestations that are too intense for other poisons to control. Wildcat VR should be used in a highly responsible manner and baiting should return to difenacoum and bromadiolone poisons once infestations are reduced to a manageable level.

PCW200 20kg Tub

PCW100 10kg Tub

Professional use only - Use biocides safely - always read the label and product information before use!

Wildcat CX

Difenacoum Cut Wheat Bait

Wildcat CX is the ideal poison for mice, as they will tend to nibble a whole grain wheat, stripping off the outer layer and only eating the inside, although CX is equally effective when used on rats. Mice will consume a lethal dose of cut wheat in a shorter time than a whole wheat poison. CX place packs are the ideal product to use when baiting under sheds, in silage stacks, between bales or burrow baiting.

Professional use only - Use biocides safely - always read the label and product information before use!

Wildcat Blocks

Difenacoum Block Bait

Wildcat Blocks can be nailed or wired into place for increased bait security and monitoring, helping to reduce non-target poisoning. Also good for baiting in hard to reach places. Blocks should ideally be fixed into bait stations (PCW400 / PCW401).

Professional use only - Use biocides safely - always read the label and product information before use!

Wildcat Rodeblocks

Bromadiolone Wax Block Bait

Wildcat RodeBlocks are great for baiting applications where exposure to moisture may occur. The wax coating encourages the rodent to exercise gnawing instincts, with highly palatable additives. Can be fixed through centre hole with wire or nail, or in a bait station. Excellent for use on rat populations in particular, indoors or outdoors.

Professional use only - Use biocides safely - always read the label and product information before use!

8kg Tub

Wildcat VR Wax Blocks

Brodifacoum Block Bait

Powerful wax-based block, with brodifacoum active ingredient. Use securely and return to multi-feed baits once control is acheived.

Specifications Wildcat VR

Type Wax Blocks

Poison Brodifacoum

Multi / Single feed Single

Best for Rats

HSE # 7439

PCW300 4kg Tub

Professional use only

- Use biocides safelyalways read the label and product information before use!

Wildcat Pasta

Difenacoum Pasta Bait

Wildcat Pasta is ideal for tempting rodents away from other food sources nearby. A highly palatable and versatile bait with high energy content, making it particularly attractive during cold weather and breeding.

Specifications Wildcat Pasta

Type Pasta

Poison Difenacoum

Multi / Single feed Multi

Best for Mice

HSE # 8718

PCW9205 3kg Tub

PCW903 300ml Cartridge

Professional use only

- Use biocides safelyalways read the label and product information before use!

Venom Lipogel Bait

• The Venom Lipogel combines brodifacoum within an increased water activity formulation offering rapid efficacy as well as the convenience and capacity of rapid baiting. The availability of Brodifacoum in this format gives rapid absorption into soft tissues.

Specifications Gel

Type Gel

Poison Brodifacoum

Best for Rats & Mice

HSE # 2016/1041/0002

PC513/10 Pack-10 x 300g tubes

Racumin Foam

• Racumin® Foam Takes advantage of a rat’s grooming behaviour; rats groom 20% of the time in a 24 hour period, therefore contact with Racumin® Foam will ensure ingestion of the active ingredient

• Can be placed in locations such as cavity walls, where traditional baiting methods are not possible

• Not to be sprayed on electrics

• Ideal for integrated pest control products

• Rats 20g - 30g foam (size of half a block)

• Mice 4g approx. the size of a tennis ball

Specifications Racumin

Type Foam

Poison Coumatetralyl/Bitrex

Professional use only

- Use biocides safelyalways read the label and product information before use!

Best for Rats & Mice

HSE # 6753

PC512 500ml

Professional use only

- Use biocides safelyalways read the label and product information before use!

Wildcat Mouse Bait Station

Slimline mousebait box, keeps the bait dry and helps prevent spillage and wastage.

Wildcat Rat Bait Station

The Wildcat bait box is ideal for all baiting purposes, whether whole wheat, cut wheat, Blocks, Pasta or even traps. Supplied with metal rods to secure Pasta sachets or Blocks inside, the Wildcat bait box is the essential tool for your baiting schedule.

Wildcat Eezi Baiter

The Eezi Baiter is the best bait station for use with loose grain baits. This is because the two clear tubes enable you to see at a glance what bait take-up there has been, making it the ideal station to use with Wildcat VR, FX and ST baits. As the rodent takes bait from inside the station, the level will drop in the tubes, meaning monitoring is quick and easy.

Electronic Rat Killer

Delivers a powerful electrical shock quickly and safely to kills rats humanely. Simply apply a small amount of attractant (eg peanut butter) to back plate, place trap on floor against wall and switch on. Rat enters trap and is electrocuted from one of three contact plates. Green indicator light flashes for up to 24 hours to signal a kill. Indoor use only. Red indicator light flashes when batteries need replacing. 4 x ‘C’ cell batteries will kill approx 12 rats.

Plug-In Rodent Repeller

Plug-in pest control for the home. Combines swept ultrasound and electromagnetic action. Electromagnetic signal pulses through wiring to reach nest sites within walls, ceilings and wall cavaities. Ultrasonic waves cover over 4,000 square feet. Inaudible to humans, cats and dogs.

Live Catch Mouse Trap

Large multi-catch mouse trap. Will catch up to 10 live mice at a time.

PCW399

PCW401

PC408

PCW400

PC421 Plugs in to 13A Wall Socket

PC407

Wooden Mouse Traps

The little Nipper wooden mouse trap. The original and the best. A highly sensitive and effective wooden trap with high catch rates.

PC403 Sold Singularly

Mouse Snap Trap

An easy to set and release mouse trap. One click set and release mechanism. No touch disposal - easy to release, clean and reuse.

PC415 Pack-2

Rat Snap Trap

Easy to set by hand or foot - kills rats quicklyone click to set, one click to dispatch.

PC417 Sold Singularly

Mouse and Rat Glue Boards

The effective last resort for control of rats and mice. Rodent simply sticks to ultrasticky board and then can be humanely dispatched on inspection. Very effective - a cure for infestation of mice and as a means of preventing spread of associated disease carrying matter.

PC399 Mouse Sold Singular

PC400 Rat Sold Singular

Rat Cage Trap

Galvanised steel cage, highly effective for catching rats. Reliable trip-plate mechanism securely contains rat inside. Rust resistant. Reusable cage for indoor and outdoor use. No assembly required, just set and go.

PEST CONTROL FOR YOUR GRAIN STORE

Rat MK4 Fenn Trap

All steel trap with very powerful spring action. The trap is to be set in runs or burrows. An artificial surround or tunnel should be created around the trap to protect non target species.

Rabbit & Squirrel Cage Trap

High quality, robust, galvanised steel rabit cage. Reliable trip-plate mechanism safety seals rabbit inside. Rust resistant and reusable. No assembly required, just set and go.

PC002 670mm x 270mm x 270mm

See page 318 for more

PC402

PC405 375mm (L) x 185mm (W) x 160mm (H)

Barrel Type Mole Trap

A galvanised trap which is set in the mole run. The mole triggers the spring and is caught within the barrel.

PC005

Claw Type Mole Trap

Galvanised trap, with sprung jaws which are set in the run, once sprung, the trap catches the mole in the jaws.

PC006

Fox Snares

Pack of 5 Fox Wires - Complete with swivel and loose safety stops

PC015/5 Pack-5

‘Armed with my lightsabre and a huge amount of doubt I arrived at my farm gate. These geese are at least 600m away – “no chance” I thought. Anyway, one quick wave and they were in the air on their way with absolutely no intentions of landing anywhere else on my field.’

- Simon Beddows 1,000ha Oxfordshire farmer

APM Laser Bird Scarer

The APM bird-scaring laser is a pocket-sized device that can be used to clear birds from fields where traditional methods have failed or where noise pollution is an issue because of proximity to residential dwellings. The APM bird scaring laser is totally silent and is most effective when used in low light conditions and at dusk and dawn when the birds are most active.

PC214 Laser Torch

Accessories and Spares

PC212 Laser Torch Charger Plug 3-Pin

ETB009 3.7V Rechargeable Battery

Pigeons

• Seagulls

• Crows

• Rooks

• Starlings

• Geese

• Cormorants

Wavelength

Key Features

• 1 x hand-held laser

• 2 x power switch keys

• 2 x batteries (model no. 18650)

• 1 x mains charger that will charge 2 batteries

• 1 x carry case with 2 keys

Expected Lifetime 5000hrs

Scatterbird Mk4

This gas gun has been designed and developed to incorporate all the features requested by farmers over the past 32 years.

The Scatterbird MK4 is the next generation of gas powered bird scarers. Like its predecessor, the Scatterbird MK4 is a sturdy, purpose built bird scaring gas gun designed specifically to meet the needs of the farmer. The Scatterbird range has for many years set the industry standard for durability.

The newly designed Scatterbird MK4 incorporates many innovative features, including the use of UV stabilised, impact resistant polypropylene for the casing, and improved performance with the added feature of controlling the Scatterbird MK4 by Bluetooth from an iOS or Android smart device.

A superb all-weather piece of equipment, the Scatterbird MK4 provides excellent value for money and uniquely high performance. To operate the Scatterbird MK4 you will require a 12-Volt battery and a cylinder of propane gas (any size of propane cylinder is suitable for use). Use of an optional internal 12-Volt battery (not included) is recommended to keep the wiring away from vermin and prevent flood damage to the battery and wiring. The MK4s plated integral stainless steel legs raise the unit off the ground and allow the full force of the “BANG” to be heard with maximum effect.

PC260

Scatterbird Accessories

Part # Product

PC246 Scatterbird Two Piece Jet

PC247 Scatterbird Earth Lead

PC261 Scatterbird Remote Control Mk4

PC262 Scatterbird Internal Battery

PC263 Scatterbird Solenoid & Filter

PC264 Scatterbird Spark Plug

PC265 Scatterbird Spark Generator

PC266 Scatterbird High Tension Lead

PC267 Scatterbird Circuit Board

PC268 Scatterbird Batt and Lead Kit

Vari-Scary Gas Gun

Made of an extremely durable rotomoulded plastic and complete with integral legs, internal battery and mains charger. Add in some propane gas and you have everything you’ll need to get started.

• 7-day 24-hour programmable routine provides pin point customisation

• Completely variable firing sequences, preventing pest familiarisation

• Comes complete with an internal battery, mains charger and integral legs

PC221 Gun, Battery, Charger & Legs

Vari-Scary Accessories

Part # Product

PC222 Vari-Scary Battery Kit for PC 221

EHT038 Vari-Scary Internal Battery for PC221

PC244 Vari-Scary Panel

Includes Legs

Scatterbird App

The ScatterbirdApp provides an easy way of programming the Scatterbird MK4 in the comfort of your home, then sending the program to the birdscarer by Bluetooth when close to the unit at a later time.

The Scatterbird Mark 4 bird scaring gasgun features a sophisticated, flexible, yet simple to operate control system allowing you to programme the frequency of the bangs and the interval between them. The Scatterbird can be set for an automatic start at dawn and an automatic shutoff at dusk. The bangs can be pre-set at precise intervals or a random pattern can be easily selected.

Scatterbird Mk3

The Scatterbird Mark 3 is a sturdy, purpose built bird-scaring gun designed specifically to meet the needs of the farmer.

PC230

Scatterbird Mk 3 Accessories

Part # Product

EHT037 Scatterbird Internal Battery

PC215 Scatterbird Mk3 Spark Plug

PC228 Scatterbird Spark Generator

PC235 Scatterbird Mk3 Legs

PC236 Scatterbird Battery Charger

PC237 Scatterbird Circuit Board

PC238 Scatterbird Short Battery Lead

PC239 Scatterbird Long Battery Lead

PC241 Scatterbird Gas Pipe

PC242 Scattergird Gas Regulator

PC243 Service Exchange PCB

Agriforce Leisure Batteries

Leisure batteries are deep-cycle lead-acid batteries designed to be regularly deep-discharged, which makes them ideal for uses such as electric fencing or with gas-powered bird scarers. Agriforce 12V leisure batteries are made for the demands of agricultural use, and are available in 80 Type or 100 Type formats.

Specifications Agriforce Leisure Batteries

80 Type 100 Type

BAT678 12V battery, 80 Type

BAT679 12V battery, 100 Type

Scatterbird Mk 3 Legs

Bird Scaring Pole & Kite Kit

Two kites each with their own flight characteristics adding to your bird scaring armoury. Fly in the lightest breeze - one swoops and the other soars, great for open fields as well as buildings. Create the maximum visual impact with this product! Comes with a 7m telescopic pole, ground stake, and a 5m line for the kite.

PC250 Pack-2

Day Rope Bangers

Bird Scaring Hawk

Replacement Hawk (kite only). For use with PC253.

Bird

7m telescopic Pole for use with Hawks and Kites. Please note only the pole is supplied. Replacement Kite (kite only). For use with PC253.

PC252 Kite Only

Banger ropes are still one of the most cost effective means of scaring birds and other pests off new crops. These unique double banger ropes (every other bang is a double), is designed to emulate a shotgun in the field and to make birdscaring more effective. Simply hang the rope vertically, light the rope end and the smouldering rope will ignite each banger as it burns. Can be used in conjunction with continuation ropes (PC233) for 12 hour control.

Specifications Day Rope Bangers

No of bangs 18 bangs per rope

Banger size 1.9” (50 mm)

Time between bangs Approx. 30 mins

Ropes per box 12 ropes per box

Ropes diameter 0.5” (15 mm)

Ropes length 40” (1015 mm)

Total burn time Approx. 6 hours

PC231 Pack-12

Hawk Eye Bird Scarer

As the wind turns the Hawk Eye, it panics, confuses and unsettles the birds. Supplied as red or yellow (or combination) for optimum crop protection.

PC253 Pole Only

Continuation Bangers

The Continuation bird scaring banger ropes provide continuous protection to keep birds away all day long. Has a unique 6 hour burning time before the first bang. Can be used in conjunction with PC231 Day rope bangers for 12 hour control.

Specifications Day Rope Bangers

No of bangs 12 bangs per rope

Banger size 1.9” (50 mm)

Time between bangs Approx. 30 mins

Ropes per box 6 ropes per box

Ropes diameter 0.5” (15 mm)

Ropes length 80” (2032 mm)

Total burn time Approx. 12 hours

PC233 Pack-6

Crop Guard Bird Scarer

As the wind rotates the fins, the combination of unsettling movement, bright warning colours and flashing strobe light effects, panics, alarms and confuses the birds. Robust and brightly coloured polypropylene. Simple tread in forks for maximum stability.

PC234 PC225

Scaring Pole 7M

Insect Killer

Protector FCIK is an instant kill aerosol to spray on cluster flies. Simply spray the flies when visible and eliminate the problem. Up to 6 weeks of protection in one spray!

PC624 400ml Aerosol

Fly Papers

Easy to use, simply untwist and hang. Drawing pin and hanging loop provided. Can catch up to 100 flies per tube.

Outdoor Fly Trap

This disposable fly trap can hold up to 20,000 flies. Simply add water to activate. Resealable for extended life. For outdoor use. The trap attracts flies up to a 10m radius and keeps them out of buildings.

Doff Wasp Nest Powder

Fast Acting Doff Wasp Nest Killer Powder is an insecticide powder for use against wasps, ants, cockroaches, woodlice and fleas in domestic premises.

Wasp Nest Killer Foam

A highly effective insecticidal foaming spray for killing wasps in the nest. For best results use late evening or early morning when wasps/ hornets are less active.

Antri Rodent Spray

Specialised spray to protect electrical cabling and insulation materials from rodent attack for up to 6 months.

Virkon S Powder

The premier broad spectrum vircidal disinfectant is recognised by industry and governments worldwide as a disinfectant of choice for livestock disease control. In terms of efficacy Virkon® has been proven highly effective against 100 strains of bacteria and 100 strains of fungi including the major OIE list A diseases of concern, Avin Influenza (HN51), classical swine fever (Hog Cholera), Foot and Mouth disease and Newcastle disease.

AH20-5 5kg

AH20-10 10kg

PC626 300ml

PC514 500ml

PC614 Pack-4

PC625 300g

PC620

Insect Monitor

Insect monitor for either standalone use or with the GE010.

GE011 Pre-Harvest, Pack-10

Insect Bait Traps

Used for the detection and identification of insects in empty stores and as an inspection aid at all times of the year.

GE004 Pre-Harvest, Pack-10

Pitfall Trap

For use in the early detection and identification of pests in stored grain. More effective than spear or vacuum sampling.

GE005 Post-Harvest, Pack-10

Floor Trap Attractant

Floor traps attractant - for GE011 and GE005 traps.

GE010 Pack-10

Insecticidal Smoke Fumer

Phobi Smoke PRO 90 is an acaricide/ insecticide smoke generator to treat empty silo/grain stores before the intake of grain. The smoke generator will control red-rust beetle, sawtoothed grain beetle, grain weevil, flour moths and grain mite in cereal grains (wheat, barley, oats, triticale, millet, sorghum, buckwheat, maize, rice and rye).

• MAPP 17117 Approval

• Active ingredient of 22.5% w/w

Entrap4 Grain Store Floor Trap

For use in empty grain stores to monitor insect levels. Easy to assemble sticky trap with luring agent. Contains no grain or nuts.

GE006 Pack-4, Luring Agent Included

pirimiphos-methyl

• 90g Canisters

• Treats 570 m

GE017 Treatment up to 525 m3

Welders

Air-Fed Respirator

Features and benefits

Jetstream Respirator

The Jetstream powered air respirator supplies clean air via a highly flexible reinforced hose through large capacity disposable dust filters. (Equivalent toP3 dustmask).

Features and benefits

• Ultimate respiratory protection

• Belt-mounted powerpack supplies stream of fresh filtered air through strong flexible hose to protective head top

• Superb for long hours in the grainstore

• All spares available

• Suitable for: Construction and grainstore dusts, odours, fumes, woods, fibres, some painting tasks and maintenance. *Depending on filter choice

GPF200 Jetstream Air-Fed Respirator

GPF201 Jestream Replacement Visor

GPF202 Jetstream Dust Filter TH2PSL

GPF203 Jetstream Replacement Charger

PowerCap Respirator

PowerCap Active is a lightweight, firm fitting, ergonomically designed positive pressure respirator, designed to protect the user from dust and most airborne particulate pollutants to EN12949+A2 TH1P. PowerCap Active excels in very dusty environments within light industry (machining and milling), agriculture (livestock, poultry farming, grain silos), landscaping, and food processing.

Features and benefits

• Gives a cooling, comfortable supply of filtered air at 160 litres per minute eliminating breathing resistance and visor misting.

• Peel-off covers available.

• Battery lasts 8 hours.

GPF226 PowerCap Air-Filtered Respirator

GPF221/2 PowerCap Filters THP

GPF222 PowerCap Replacement Visor

GPF223 PowerCap Chin Strap/Face Seal

• Lightweight, ergonomic design with high impact resistance material

• Flip up with large clear view for grinding/cutting

• All-around head protection

• Fast and easy switch between Grinding and Welding

• Simple in/out structure for convenient replacement of external cover lens

• User-friendly remote design with wireless interface and OLED display

• Multi-featured interface menu provides easy and quick ADF setting

• Remote can either be locked on helmet or taken off

• Environmentally friendly rechargeable Li-ion battery design

• No battery replacement needed.

• Lightweight, slim compact design to reduce fatigue and increase comfort

• The ADF is 27% thinner and 20% lighter

• Unprecedented true colour technology provides a true visual world

• Supplied with a carrying bag

GPF300 Welders Air-Fed Respirator

GPF302 Welding Respirator Pre-Filter (Pack-5)

GPF303 Welding Respirator P3 Filter

Force 10 Typhoon Twin Cartridge Face Mask

The Force10TM is a full face twin cartridge mask with Class 3 heavy duty filter connections. The completely clear panoramic visor maximises light levels within the mask giving optimum visibility, whilst the lens has impact protection, anti-mist and anti-scratch coating as standard. The mask is easy to adjust and moulds to the shape of the face for an excellent seal, whilst there is padding for extra comfort over prolonged use.

Features and benefits

• Fully adjustable 5-point suspension harness for optimum fit and comfort.

• Quick release buckles for ease of use.

• Panoramic anti-mist, anti-scratch design providing impact protection.

• Exhalation valve to reduce heat and moisture build-up.

• Filters available with low profile angle design.

• Replacement filters GPF1622, GPF1623, GPF1624.

• Tested to the relevant European standards (EN136 (Class1), EN143, EN14387.

GPF1630 Full Mask Twin Filter Respirator (Mask Only)

GPF1631 Full Mask Replacement Visor

GPF1632 Full Mask Peel-Off Visor (Pack-10)

Half Mask Respirator

The Force8TM offers superior low breathing resistance. A durable thermoplastic rubber offers a superior fit to most face shapes. The mask accepts the full range of low profile Force8TM filters giving the Force8TM the flexibility to be used for many applications.

Features and benefits

• Durable thermoplastic rubber mask for superior fit to most face shapes.

• Fully adjustable 4-point cradle suspension ensuring an effective facial fit.

• CR2 Reflectivity - Reflective strips create increased visibility in low-light environments for added safety.

• Typhoon exhalation valve low resistance exhalation valve for easy breathing, with stable mask configuration.

• Filters available with low profile angle for minimum visual impairment.

• Conforms to EN140 (Face piece), EN14387:2004 (Filter performance), EN143:200 (Filter performance)

• Replacement filters GPF1622, GPF1623, GPF1624.

GPF1621 Half Mask Twin Filter Respirator (Mask Only)

Press to Check Application Guide

Full/Half Mask Filters

Features and benefits

• Save money vs disposables

• Compatible with the Force 8™ half-mask & Force 10™ full-face mask.

• High efficiency dust protection

• Low Capacity Gas / Vapour protection

• Protects against - Silica (Force 10™ only), Concrete & stone cutting (Force 10™ only), Plaster (Force 10™ only), Earth moving (Contaminated), Resins, Welding (Ferrous & Lead), Hardwood, Soft wood, MDF (Machine tooling), Fibres & Fibre glass, Water based, Brush (Solvent based), Spray (Solvent based), Manual prep, Powered prep, Chemical paint stripping, Heat paint stripping, White spirit, Chlorine, Glyphosate (Weed Killer), Brick acid.

GPF1622 Full/Half Mask Filters P3 (Pack-2)

GPF1623 Full/Half Mask Filters A2P3 (Pack-2)

GPF1624 Full/Half Mask Filters ABEK1P3 (Pack-2)

Goggle & Respirator Set Valved

The unique design combines both eye & respiratory protection. The one-piece poly lens offers optimal coverage, whilst soft goggles provide excellent levels of comfort and unbeatable levels of protection. Anti-Scratch coating as standard. FMP2 filtration giving 94% efficiency. Includes white holder, 3 filters and spectacle with Clear HC & Anti-Mist Lens.

GPF1633 (Comes with 3 filters) FMP2

Filterspec FMP2V Filters (Pk10)

Replacement Filters for the FilterSpec® & FilterSpec® Pro™.

GPF106/10 For GPF1633

Sign - Wear Dust Masks

Sign - Wear Dust Masks

Exposure Chart

* ALL OF THE BELOW RECOMMENDATIONS ARE ONLY GUIDELINES, THE ACTUAL “WORKPLACE EXPOSURE LEVEL” (WEL) SHOULD ALWAYS BE CONSIDERED

3 WHY USE MOULDED? FOR COMFORT AND EASE OF USE

3 WHY USE FOLDFLAT? EASE OF STORAGE

3 WHY USE VALVED? REDUCES HEAT AND MOISTURE

3 WHY USE CHARCOAL? OFFERS RELIEF FROM ODOURS/ORGANIC VAPOURS BELOW THE WEL

3 WHY USE INDIVIDUALLY WRAPPED? CONVENIENT STORAGE WHILST NOT IN USE

Anti-Mist Safety Goggles

Modern and sleek, wide-view safety goggles. For various applications requiring versatile and comfortable wide-view goggles. 99g.

Anti-Scratch Safety Glasses

Extra lightweight safety specs, anti-scratch lens, excellent all-round protection.

Anti-Scratch Safety Glasses

Extra lightweight safety specs, anti-scratch lens, excellent all-round protection.

Anti-Scratch/Mist Safety Glasses

Top spec safety glasses, soft padded nose bridge, brow seal and sidearms, adjustable sports cord, anti-scratch and anti-fog lens.

Sign - Eye Protection

Rigid plastic.

Over Spec Safety Glasses

The stylish and spacious design of the Stealth™ CoverLite™ means that they can comfortably fit over prescription eye wear whilst having a modern look, unlike traditional, bulkier over-spectacles.

Heavy Duty Face Shield & Replacement Visor

User friendly full face shield for protection against chemical splashes and low energy impacts.

Browband & Visor Face Shield

A good all-round lightweight brow guard with a polycarbonate face shield that offers unrestricted working vision and protection against medium energy flying particles and liquid splashes.

Hi-Viz Waistcoat

Class 2 waistcoat. EN471. Knitted polyester fabric, 2 bands and brace style with Velcro front fastening.

SCAN HERE

To learn more...

Fall Arrest Harness Kit

Comprises of a full body webbing harness and a shock-absorbing lanyard in a backpack - designed to be worn when working at height; on roofs, in grain bins and in pits etc.

• For working at height, roofs, pits etc

• 2-Point Spartan™ Harness

• 1.8m Fall Arrest Lanyard

• Woven draw-string bag

• Harness conforms to EN 361:2002

• Retractable fall limiter conforms to EN 355:2002

PSH101 1.8M Shock Absorbing Lanyard

Fall Restraint Harness Kit

The restraint kit will satisfy every situation that you may come across whilst working at height. Suitable for working from a cherry picker, cage or from a leading edge we have the harness and accessories you need in a handy kit.

• 1-Point Spartan™ Harness

• 1.8m Fixed Length Lanyard

• Woven draw-string bag

• Harness conforms to EN 361:2002

• Retractable fall limiter conforms to EN 354:2010

PSH102 1.8M Fixed Lanyard

Foam Ear Plugs

Pack of 100 polymer earplugs in handy podshaped dispenser. Ideal for use on the move.

GPF002 Ear Plugs Pack-100

Folding Ear Defenders

Our top selling ear defender, suitable for medium to heavy industrial use. With a fully adjustable padded headband, soft ear cushions and folding arms to provide compact storage.

Sign - Wear Ear Protection

Rigid plastic.

GPF325 Premium Ear Defenders SNR30 FSM24AZZ 480mm x 360mm

Ear Defenders

Lightweight and durable earmuffs with easy adjustment.

GPF324 Standard Ear Defenders SNR27

Mechanics Nitrile Glove

GPG321 Medium, Pack 100

GPG322 Large, Pack 100

Blue Economy Nitrile Gloves

Strong, versatile, Nitrile Gloves. Pack of 100. Allergy free. Powder free. Latex free. Micro textured. Pack of 100.

GPG310 Medium GPG311 Large GPG312 X-Large

Colourways: PRODUCT INFORMATION Product Codes: S - XL PG-901 Diamond Grip Black 12771-4 Issue No.: 2 Issue Date: 24.04.2020 7 (S) 171 178 Measurements in mm Hand Length (A) Hand Circumference (B) 11 (2XL) 215 279 10 (XL) 204 254 9 (L) 192 229 8 (M) 182 203 A B 2cm Size Chart: Standards: PPE Regulation (EU) 2016/425 Plastic Materials and Articles in Contact with Food Regulation (EU) No 10/2011 EN 374-1:2016/Type B EN 374-4:2013 % Degradation EN ISO 374-5:2016 PG-901 Diamond Grip Nitrile Description: These robust and durable gloves feature a unique “diamond grip” texture across their surface, allowing for outstanding grip - even when being used in greasy environments. The PG901 is made from a heavy-duty nitrile featuring tough tear resistance without compromising dexterity. This glove is also extremely easy to don and remove thanks to its polymer coating. Conforms to EN ISO 374-1:2016 Type B AQL 4.0 CAT III Polymer Coated Chemical resistant Level 5 dexterity Food Approved 100% Latex Free Ambidextrous Textured grip Powder Free Single use only 100 pieces per dispenser sizes S-L 90 pieces per dispenser size XL Type: - Nitrile Applications: Tasks include automotive, engineering, agriculture, general use, cleaning & janitorial, care home work & chemical handling. Black Product does not contain latex Single use only Do not reuse Product is free from powder Suitable for use with food 2016/Type B - y EN 3 4- 2 13 D �d d O 5% H d O B 1 9 % P 0% H d d P d 0 1 % T 37% h d d 5 7 % “Supertouch” is a registered trademark of Allied International Trading Ltd - Unit 3 Rabone Park, Rabone Lane, Smethwick, West Midlands, B66 2NN, UK Colourways: PRODUCT INFORMATION Product Codes: S - XL PG-901 Diamond Grip - Black 12771-4 Issue No.: 2 Issue Date: 24.04.2020 7 (S) 171 178 Measurements in mm Hand Length (A) Hand Circumference (B) 11 (2XL) 215 279 10 (XL) 204 254 9 (L) 192 229 8 (M) 182 203 A B Size Chart: Standards: PPE Regulation (EU) 2016/425 Plastic Materials and Articles in Contact with Food Regulation (EU) No 10/2011 EN 374-1:2016/Type B EN 374-4:2013 % Degradation EN ISO 374-5:2016 PG-901 Diamond Grip Nitrile Description: These robust and durable gloves feature a unique “diamond grip” texture across their surface, allowing for outstanding grip - even when being used in greasy environments. The PG901 is made from a heavy-duty nitrile featuring tough tear resistance without compromising dexterity. This glove is also extremely easy to don and remove thanks to its polymer coating. Conforms to EN ISO 374-1:2016 - Type B AQL 4.0 CAT III Polymer Coated Chemical resistant Level 5 dexterity Food Approved 100% Latex Free Ambidextrous Textured grip Powder Free Single use only 100 pieces per dispenser sizes S-L 90 pieces per dispenser size XL Type: - Nitrile Applications: Tasks include automotive, engineering, agriculture, general use, cleaning & janitorial, care home work & chemical handling. Black EN ISO 374-5:2016 Product does not contain latex Single use only Do not reuse Product is free from powder Suitable for use with food 2016/Type B - / EN 3 4- 0 3 J -H H d b 7 1% K 0% H d d 2 2% O 5% Ammon m H d o d Org n a e 9 0% % y g % y “Supertouch” is a registered trademark of Allied International Trading Ltd Unit 3 Rabone Park, Rabone Lane, Smethwick, West Midlands, B66 2NN, UK

Indigo Nitrile Gloves

Stronger than latex and stretchier than vinyl, these powder free nitrile gloves are the perfect all-rounder for general farm use. Supplied in ‘tissue box’ pack of 100.

GPG317

GPG318 GPG319 GPG416 GPG417 GPG418 GPG419

Heavy Duty Nitrile Gloves

Natural Latex Gloves

Large X-Large

Model Textured Length Pack Qty Blue Nitrile Soft & Flexible High High Medium Finger tip 24cm 100 Indigo Nitrile Soft & Pliable Best Medium High Finger tip 24cm 100 HD Nitrile Tough & Re-useable Medium Best Best Finger tip 30cm 50

Red PVC Knit Wrist Gloves

Fully coated in PVC, these knitwrist gloves are an excellent general purpose choice, particularly when handling wet products and substances.

GPG101 Large

Reusable Nitrile Glove

A reusable powder free nitrile glove that offers a longer lasting solution compared with disposable gloves. Detergent, oils and certain solvent resistant. Sold in pairs.

GPG427 Medium (Size 7-7.5)

GPG428 Large (Size 8-8.5)

GPG429 X-Large (Size 9-9.5)

Flock Lined Nitrile Spray Gloves

18”

Nitrile-coated gloves with outstanding resistance to chemicals, and good mechanical strength. Comfortable and flexible.

• In sizes 8-10

• 18” Long

GPG113-8 Small

GPG113-9 Medium

GPG113-10 Large

Red PVC Open Wrist Gloves

Red single dipped PVC coated gloves with cotton interlock liner.

GPG102 Large 11” Gloves

GPG103 Large 18” Gloves, Long Cuff

Flock Lined Nitrile Spray Gloves

13”

Nitrile-coated gloves with outstanding resistance to chemicals, and good mechanical strength. Comfortable and flexible.

• In sizes 8-11

• 13” Long

GPG114-8 Small

GPG114-9 Medium

GPG114-10 Large

GPG114-11 X-Large

Black Rubber Gloves

17”

Black rubber glove, ideal for chemical use.

• Resistant to acids and alkalis

• 17” long

• Rolled cuff to prevent chemical run back

• In sizes 9-11

GPG115-9 Medium

GPG115-10 Large

GPG115-11 X-Large

Nitrile Coated Grip Gloves

Ultra-light stretchy fabric gloves with excellent ‘feel’ due to thin yet strong latex

GPG124 Large

GPG132 X-Large

Latex Coated Grab & Grip Gloves

Seamless knitted fabric glove with latex coated palm and fingers, offering excellent wet and dry grip. Slightly thicker and warmer than Grippa Lite gloves, the Grab n Grips are excellent for use all-round the farm in the colder months.

GPG112 Medium

GPG122 Medium

GPG123 Large

Matrix Touch 1 Grip Gloves

Tactile touch sensitive fingertips enable the wearer to use touch screen machinery or portable devices without the need to remove the glove. Polyurethane palm coating is flexible and provides good mechanical protection.

GPG130 Large

GPG1120 Large

GPG1121 X-Large

Oregon Chainsaw Gloves

• Excellent fit to the hand

• Excellent operational control

• Reinforced stitching

• Reinforcement on the palm area and fingers

• High quality, durable leather and 4-way stretch fabric for extra comfort, breathability and manoeuverability

GPC501-2 Medium

GPC501-3 Large

GPC501-4 X Large

Standard Rigger Gloves

Heavy Duty Rigger Gloves

Fleece Lined Leather Gloves

Excellent quality cowhide gloves with Thinsulate lining for extra warmth and comfort. Excellent for general purpose use, particularly in the colder months. With knitted wrist.

Lined Leather Gloves

Drivers Style Lined Glove

Drivers style glove made with a full micro-foam nitrile coating and a soft fleece liner. Excellent grip even when wet.

GPG125 Large

Rubber Apron 48” x 36”

High quality apron that protect in environments not suitable for a disposable. Excellent resistance to fats, animal and vegetable oil and grease and a wide range of chemicals. Made from natural rubber, hemmed on every edge, with four brass eyelets securing adjustable white ties. Flexible, waterproof and resistant to high temperatures.

See page 202 for overalls

GPA001 One Size 91x107cm / 36x42”

Disposable Coveralls

A one piece, disposable coverall, for single use applications, such as painting, garage work, gardening etc. Polyethylene coated with hood and elasticated cuffs and ankles. Zip front, colour white

GPB80-2 Medium

GPB80-3 Large

GPB80-4 X Large

Spray Coveralls

Type 5/6

Disposable hooded coveralls.

• Colour: blue

• Particle and liquid-splash protective fabric

• Ideal for non-hazardous uses such aslow-level chemical handling,

• Conform to EN340 & EN1149-1

• Designed to CE Type 5 & 6 registrations

GPS31-2 Medium

GPS31-3 Large

GPS31-4 X Large

GPS31-5 XX Large

Dupont Spray Coveralls Type 4/5/6

Robust yet lightweight (<250g per garment) hooded spray coverall.

• Self-adhesive chin flap

• Elasticated face, wrists and ankles as well as glued-in waist elastic

• Elasticated thumb loops prevent sleeves from riding up.

• High density polyethylene, providing an ideal balance of protection, durability and comfort.

• Tyvek is permeable to both air and water vapour, yet repels water-based liquids and aerosols.

• No Silicon added.

GPS52-2 Medium

GPS52-3 Large

GPS52-4 X-Large

GPS52-5 XX-Large

Tractor Cab First Aid Kit

Contents:

• 1 x guidance card

• 1 x assorted plasters pk 10

• 2 x triangular bandage

• 1 x safety pins pk6

• 1 x large dressing 18 x 18cm

• 4 x moist cleansing wipes

• 1 x disposable nitrile gloves

• 1 x foil blanket

• 2 x eye wash solution 20ml

• In nylon pouch

HFA001 Nylon Pouch

Small First Aid Box & Bracket

Contents:

• 1 x first aid guidance leaflet

• 1 x first aid contents list

• 2 x medium 12 x 12cm dressing

• 2 x large 18 x 18cm dressing

• 2 x triangular bandages

• 2 x finger bandages

• 2 x no16 Sterile Eye Pads

• 40 x adhesive plasters assorted

• 1 x burn dressing 10cm

• 20 x alcohol free cleansing wipes

• 1 x adhesive tape 2.5cm x 10m

• 6 x pairs of disposable nitrile gloves

• 1 x face shield

• 1 x emergency foil blanket 2.1m x 1.3m

• 1 x pair of heavy duty clothing shears

• 1 x conforming bandage 7.5cm x 4m

• 270mm x 170mm x 80mm

HFA002 270mm x 170mm x 80mm, For less than 25 Employees

Medium First Aid Box & Bracket

Contents:

• 1 x first aid guidance leaflet

• 60 x assorted washproof plasters

• 3 x no.16 sterile eye pads

• 3 x triangular bandages

• 3 x finger dressings

• 4 x 12cm medium dressing

• 3 x 18cm large dressing

• 9 x pairs of disposable gloves

• 30 x alcohol free wipes

• 2 x micropore tape

• 2 x foil blankets

• 1 x first aid shears

• 2 x 10cm burn dressing

• 1 x face shield

• 2 x 7.5cm conforming bandage

• 270mm x 220mm x 100mm

HFA007 270mm x 220mm x 100mm, For 25 - 100 Employees

For less than 25 employees

For 25 - 100 employees

Eye Wash Solution

0.9% W/V sterile saline solution. Isotonic with tears. Safe smooth easy-pouring.

HFA016 Pod 20ml (Pack-25)

HFA017 250ml Bottle

HFA006 500ml Bottle

Eye Wash Station & Bracket

• 2 x eyepads

• 0.9% W/V sterile saline solution

• Isotonic with tears. safe smooth easypouring outlet

• Eye wash station wall mounted holder, with two 500ml bottles

• Clear protective lid.

HFA011 2 x 500ml Bottles in Stations

Sterile Plaster Assortment Box

Assorted waterproof adhesive dressings.

HFA012 Pack-120 Approx

Fabric Plaster Assortment Box

Assortment of medicated cloth adhesive dressings.

HFA013 Pack-120 Approx

Fire Extinguisher

The Firechief range of products set the standard for those who are seeking superior quality, UK approved fire extinguishers. Firechief products carry a range of accreditations and carry the CE mark.

• 5 year guarantee

• Designed, developed and tested in UK

• Squeeze grip operation

• Corrosion resistant finish

• Approved to BS EN3

• Supplied with J bracket

• Internal polyethylene lining

Which fire extinguisher?

Padlock Security Rating

The rating indicates relative security of each Squire padlock or padlock fitting from 1 (low) to 10 (maximum). The Squire rating system is for guidance only and not to be compared to other manufacturers ratings. The only Grading Rating Systems that are cross comparable are CEN, LPCB and Sold Secure.

Shackle Size Key (mm)

SECURITY LEVELS

Warrior Combi Range:

Stronghold Professional Range:

✓ THE ULTIMATE IN HIGH SECURITY COMBINATION PADLOCKS.

FEATURES INCLUDE:

• Solid hardend steel lock body

• Anti corrosion finish

• Hardened alloy steel shackle

• Anti drill protection

• Storm proof, suitable for the harshest environment.

Squire

Stronghold HD Combination

Padlock 55mm

Closed Shackle.

5 Combination wheel fully recodable combination padlock.

✓ A TOUGH AND HEAVY DUTY MID RANGE OF HIGH PERFORMANCE COMBINATION PADLOCKS.

FEATURES INCLUDE:

5 Combination wheel fully recodable combination padlock.

• Hardened Boron steel shackle with Satin Chrome finish.

• Armoured steel body

• Protective cover

• Crimestoppers approved

Squire

Open shackle, 4 combination wheeled padlock.

The Home Combination and Abus Range:

✓ STANDARD AND EASY TO USE FULLY RECODABLE COMBINATION LOCKS.

FEATURES INCLUDE:

• Over 100 000 combinations for maximum Security.

• 5 dial lock with recordable combination

• Ideal for multi-personal use applications

• Hardened steel shackle

• Diecast alloy or brass body

• Fully recodable

• Non corrosive.

Solid Brass open shackled. 4 combination wheeled. Fully recodable combination padlock.

✓ THE ULTIMATE IN HIGH SECURITY PADLOCKS.

FEATURES INCLUDE:

• Solid hardend steel lock body

• Anti corrosion finish

• Hardened alloy steel shackle

• Anti drill protection

• Storm proof, suitable for the harshest environment.

✓ A TOUGH AND HEAVY DUTY MID RANGE OF HIGH PERFORMANCE PADLOCKS.

FEATURES INCLUDE:

• Hardened Boron steel shackle with Satin Chrome finish

• Armoured steel body

• Protective cover

• Crimestoppers approved.

✓ STANDARD AND EASY TO USE SOLID BRASS PADLOCKS.

FEATURES INCLUDE:

• Hardened steel shackle

• Solid brass body

• Pin tumbler lock mechanism

Chain Measurements

Chain and Padlock Compatibility

Squire Security Chain

Ultra high security chain with fabric sleeve to protect paintwork from accidental damage. Hardened steel fully welded links, for extra protection against hacksaw and cropping attacks.

Recommended PadlockPAD39.

Chain Link 5.5mm x 29mm

Light duty small link galvanised chain. 5.5mm thick chain x 29mm internal measurement links. Supplied per metre.

Chain Link 6.0mm x 40mm

Large link galvanised chain. 6mm thick chain x 40mm internal measurement links. Supplied per metre.

Chain

Large link galvanised chain - 8mm thick chain x 58mm internal measurement links - Supplied per metre.

Chain Link 9.0mm x 70mm

Heavy duty security chain 9mm thick chain x 32mm x 70mm internal measurement linksSupplied per metre.

Chain Link 10.0mm x 55mm

Super heavy duty bolt cropper proof security chain, zinc plated hexagon section 10mm thick chain x 35mm x 55mm internal measurement links - Supplied per metre.

Link 8.0mm x 58mm

LED JARO Floodlight

• 50W high-power Chip LED Light for wall installation, with extra-wide light diffusion to illuminate a large area.

• Light unit not replaceable.

• Power output: 50W

• Luminous flux: 4400lm

• Colour temperature: 6500K

• Energy efficiency class: A

• IP54.

• Range of detection: up to 10 metres, angle approx 180°

• Uses 80 % less energy than conventional lamps.

• Instant bright light with low heat generation and safety glass

EMM049 LED Light JARO 5000 4400lm, 50W, IP65

EMM050 LED Light JARO 5000P with PIR sensor 4400lm, 50W, IP65

Looking for Vehicle Bulbs?

Halogen Bulb 120W

120W Halogen 80mm Long.

EMB004 80mm Long

Halogen Bulb 230W

230W Halogen 120mm long.

EMB002 120mm Long

Halogen Bulb 400W

400W halogen tube, 120mm long (fits older 500W capacity units).

Find out more on page 408

LED Bulbs

These Opal Finish Energizer® LED GLS Bulbs replicate traditional halogen bulbs in appearance and output, whilst offering an 85% energy saving versus their halogen equivalent. The bulbs are a true retrofit design, provide instant, flicker-free light and have an average rated life of 15,000 hours.

EMB034 LED Light Bulb 9.2W BC (60W)

EMB035 LED Light Bulb 12.5W BC (100W)

EMB001 120mm Long

Fluorescent LED Tube

Slimline fluorescent tubes available in 5ft and 6ft T8 (approx. 25mm diameter).

50W, IP:65, 4770lm

EMB048 5ft 58W LED Fluorescent Tube

EMB049 6ft 50W, IP:65 4770lm LED Fluorescent Tube - With Starter

Fluorescent Tube Starter

Starter, 2 pin to fit most standard light fittings. *Not suitable for LED tubes.

EMF021

CluLite Classic LED Torch

Produces an impressive 500m focused beam with high and low brightness modes for more light control and longer battery life. Quick charge from supplied USB cable.

EHT002 CluLite Classic LED Torch

EHT030 Replacement battery for EHT002

CluLite LED Head Torch

• Super bright 3W adjustable headlight

• 180 Lumens on high output

• Shines over 30 meters

• High, low & strobe beam

• Durable rubberized coating

• Adjustable head strap

EHT045 With 3 x AAA batteries

Dual Colour Cordless

15W LED

Powerful 15W dual colour rechargeable LED inspection lamp

CluLite Adjust-a-Beam Torch

A compact and incredibly robust 500 lumen torch with aluminium body. It has an impressive beam of 300 metres that is adjustable from spot to flood by sliding or retracting the head. The tactical switch allows you to select high or low power mode. Comes complete with torch, rechargeable Li-ion battery and USB charging lead.

CluLite LED Hand Torch

Superb compact rechargeable torch, with a 250m focused single LED beam. Up to 20 hours use on a single charge. Complete with a rechargeable lithium-ion battery, mains and a 12V charger.

CluLite LED Worklight

Three light functions: Main Light produces 400

Lumens of intense light.

• Secondary light modes include a low beam 160 lumen light and a red emergency flashing light

• Magnetic Base

• Water and impact resistant

EMM047 With 3 x AAA Batteries

Complete with a cigarette plug charger & a 5V 2.1A output USB port.

• 1000 Lumens

• IP65 protected

• CE approved

• 2 Light modes 30% and 100%

• Dual colour: clear & amber

• Colour temperature LEDs: 6500K white & 1800K amber

• Powerful magnetic base

EAC125 Rechargeable

LED Inspection Lamp 4W

• 4W COB LED on the face plate producing a 120∞ 350 lumen output

• 1W LED on the end producing 80 lumens

• 3 UV LEDs for leak detection

• Magnetic swivel base with protective cover

• 2 x hang hooks

• Operating time 4W= 3hrs, 1W= 8hrs, 3 UV LED= 28hrs (all approx)

• Charging time 5 hours (approx)

• Battery type Li-ion

• 230V and 12V chargers supplied

THD04978 4W

All signs are made of 3mm Foamex

All signs are made of 3mm Foamex

SignEnvironmental Stewardship

FSC11BP 480mm x 360mm

SignNotice Keep Gate Shut

FSE26R 240mm x 360mm

Sign - Please Shut the Gate

FSE29Z 200mm x 65mm

Sign - No Parking

FSG17A 600mm x 200mm

Sign - Wildlife Conservation

FSW20B 480mm x 360mm

SignWarning CCTV Cameras

FSG35B 480mm x 360mm

Sign - Farm Livestock

FSE39B 480mm x 360mm

Signs - 5MPH - 10MPH

Sign - No Entry Disease

FSP17B 480mm x 360mm

Sign - No Naked Flames

FSW17B 480mm x 360mm

FS5MPH 5MPH, 240mm x 360mm

FS10MPH 10MPH, 240mm x 360mm

Sign - Flammable Liquid

FSW16B 480mm x 360mm

Sign - No Smoking No Naked Flames

FSW19B 480mm x 360mm

Sign - These Crops have been Sprayed

FSW38B 480mm x 360mm

388622

All signs are made of 3mm Foamex

Sign - Fire Extinguisher

FSS29R 240mm x 360mm

Sign - No Smoking

FSP18F 120mm x 360mm

SignNo Unauthorised Persons

FSP922B 480mm x 360mm

Sign - Beware of the Bull

FSW37B 480mm x 360mm

Sign - Caution Farm Livestock

FSW34B 480mm x 360mm

Sign - Shooting In Progress

FSW45A 480mm x 360mm

Sign - Agricultural Vehicles

FSW60A 480mm x 360mm

Sign - Spraying in Progress

FSW46B 480mm x 360mm

SignDanger Forklift Trucks

FSW57B 480mm x 360mm

SignWarning Electrified Fence

FSW51B 480mm x 360mm

SignDanger High Voltage Cable

FSW52F 120mm x 360mm

Sign - Danger Deep Water

FSW61B 480mm x 360mm

All signs are made of 3mm Foamex

Sign - Danger Slurry Store

FSW18B 480mm x 360mm

Sign - Chemical store

FSW22B 480mm x 360mm

Sign - Hazardous Substances

FSW14B 480mm x 360mm

Sign - Oxidising Agent

FSW11B 480mm x 360mm

Sign - Fertiliser Store

FSW95B 480mm x 360mm

Sign - Danger Beware of Farm Vehicles

FSW56B 480mm x 360mm

Sign - Danger Bale Stacks Sign - Fragile Roof

FSW62B 480mm x 360mm

FSW71R 240mm x 360mm

Sign - Warning Fragile Roof

FSW68A 600mm x 200mm

Sign - Danger Keep Out

FSW67A 600mm x 200mm

Sign - CCTV in Operation

FSW974B 480mm x 360mm

Sign- Keep Access Clear

FSG940BZZ 480mm x 360mm

Sign - Wear Safety Equipment

Sign - Wear Mask

Sign - Wear Dust Masks

Sign - Ear Protectors

Sign - Eye Protection

Sign - Dip your Feet

Sign - First Aid

Health & Satefy Law Poster

Chevron Marker Board

Warning Marker Plate - Made from heavy gauge aluminium plate, with yellow reflective and red fluorescent panels.

VEH206 1132mm x 132mm

Chevron Marker Board

Warning Marker Plate - Rectangular chevron. Made from heavy gauge aluminium plate, with yellow reflective and red fluorescent panels.

Marker

BoardWide Vehicle

Wide vehicle marker board made from heavy gauge aluminium plate, 1260mm x 255mm Reflective. Manufactured to BS AU 152.

VEH202 1260mm x 255mm VEH207 700mm x 140mm, Pack-2 VEH209

Marker BoardVehicle Following

Wide vehicle following marker board made from heavy gauge aluminium plate, 1260mm x 255mm. Reflective. Manufactured to BS AU 152.

Metal Road Sign Frame

Metal Road Sign - Frame Only (use with FS201, 202, 204) Manufactured from steel, these single sided frames are lightweight yet very stable. They fold flat for storage. Use with supplementary signs.

FS200 For FS201, FS202 & FS204

Folding Metal Frame with 750mm Explanation Mark Sign

Used to conform with the UK Department of Transport for single and dual carriageways, with a speed limit of 40mph or less.

FS120 For FS123, FS124 & FS125

Supplementary Plate For FS120

FS123 Hedge Cutting

FS124 Tractors Turning

FS125 Mud on Road

Hedge cutting Tractors Turning Tractors Turning Mud on Road

Roll-Up Polyethylene Sign

Designed as a temporary road sign, that can easily be folded away after use. Requires very little storage space and is lightweight.

FS160 Men at Work

Roll-Up Polyethylene Sign

Designed as a temporary road sign, that can easily be folded away after use. Requires very little storage space and is lightweight.

FS161 Exclamation Mark

Tractors Turning

Hedge cutting Mud on Road

Supplementary Plates For FS160/FS161

FS165 Hedge Cutting

FS166 Tractors Turning

FS167 Mud on Road

3mm Foamex supplementary plates for metal road sign FS200.

FS201 600mm x 450mm

FS202 600mm x 450mm

FS204 600mm x 450mm

350 - 357 Nozzles, Holder Bodies & Caps

359 Knapsack Sprayers & Accessories

360 - 361 Measuring & Spray Equipment

362 - 363 Pipe Fittings & Camlok Couplers

364 Spraying PPE

366 LED Lighting 19

Cultivation & Subsoil

Spraying Nozzles & Equipment

Hypro Flat Fan VP Nozzle

• Elliptical spray pattern

• Uniform distribution of droplets

• Mixed droplet spectrum allows effective delivery and retention of agrochemicals

• Suitable for application of herbicides, fungicides, insecticides and PGRs

• Spray angle tolerance of +/-5%

• Not suitable for windy conditions

Billericay Bubble Jet Nozzle

Precision performance.

• Finest droplet size of any air-induction nozzle

• Awarded top LERAP 3* star rating

• Flexible spraying range 2-5 bar

• Cuts spray drift by 75%

• Improves chemical efficacy

• Extends spraying day opportunities SPJ3211/10 Yellow, Pack-10

Hypro GuardianAir Nozzle

• Produces air-induced droplets that achieve up to 75% drift reduction, reducing environmental impact and allowing more spraying days in the field.

• All jets are LERAP 3 star rated.

• Maintains spray angle and even distribution down to 1 bar.

• Uniform coverage on front and back of foliage.

• Spray from the optimised Guardian Air at 100 l/ha outperforms 200 l/ha flat fan sprays.

• For applying cereal, oilseed rape and pea fungicides, and for pre-eminent herbicides and glyphosate.

Yellow, Pack-10

Lilac, Pack-10

Blue, Pack-10

Brown/Red, Pack-10

Optimised spray angle for uniform

Hypro GuardianAir Twin Nozzle

GuardianAir Twin spray pattern

A twin spray with 30° incline forward and backward to help penetration and spray distribution in denser crop canopies.

SPJ70060/10 Yellow, Pack-10

SPJ70070/10 Lilac, Pack-10

SPJ70030/10 Blue, Pack-10 SPJ70040/10 Red, Pack-10 SPJ70050/10 Brown, Pack-10

Hypro 3D Defy Nozzle

• Angled nozzle, designed to run alternating forwards and backwards along the boom to give an even coverage on the front and back of targets

• 60-75% less drift (size dependent) compared to a conventional flat fan nozzle giving a greater number of spray days

SPJ2003/10 Blue, Pack-10

SPJ20035/10 Red/Brown, Pack-10

SPJ2004/10 Red, Pack-10

SPJ2005/10 Brown, Pack-10

NEED EXPERT HELP ON ALL SPRAYING NEED?

Talk to us, we’re here to help.

Hypro 3D90 Defy Nozzle

The iconic design of the Syngenta 3D ninety combines the exceptional performance of the renowned 3D nozzle, with all the benefits of revolutionary 90% drift reduction technology (DRT).

Hypro Ultra Low Drift 120° Nozzle

Significant reduction in drift from coarse air-filled droplets. For spraying in the widest weather window. Suitable for soil active and translocated foliar sprays on larger targets. Avoid for smaller targets and contact acting chemicals.

SNC3100 Black

SNC3110 Yellow

Blue

Red

Pack-10

SPJ501/10 Brown,

SPJ502/10 Grey,

Minimum Order 10

Six individual streams that distribute the fertiliser on the soil while getting less on the crop.

• Ideal for applying fertiliser into solid seeded crops.

• It creates six individual streams that distribute the fertiliser on the soil while getting less on the crop.

• Uniform distribution evenly spaced across a 110 degree pattern.

Six uniform stable streams ideal for postemerge liquid fertiliser

Billericay 5 Star Plus Variable Rate Liquid Fertiliser Nozzles

A new version of the 5 Star Variable Rate Fertiliser Nozzle to apply higher volumes of product per hectare. One nozzle will cover the output of three fixed output nozzles. At 12 KPH speed and 2.5 bar pressure, you could now achieve 368 litres/hectare for a 30N application. Optimum boom height is 700mm and fits all standard quick-fit nozzle bodies

SPJ510 Liquid Fertiliser

Billericay Dribble Bars

Billericay Dribble Bar 2

The Dribble Bar accurately applies liquid fertiliser through four equally spaced openings along the boom. The rates can be pre-set to one of five different flow-rates by the flow dial.

Billericay AutoStreamer

The AutoStreamer applies accurate amounts of liquid fertiliser through its unique auto-valve and four spaced openings along the bar. The flow rate of the AutoStreamer works in partnership with the in-cab rate controller. No leaving the cab, no flow dials to rotate or slide.

SPR380

Billericay Stabilisers

SPR381 Stabiliser for Autostreamer

SPR371 Stabiliser

Billericay AutoStreamer Cap

Another major advantage of the AutoStreamer is the ability to replace the cap.

SPR370 Ezfit 3 Bayonet Fitting

Liquid Fertiliser Applicator

30° Angled Spray Cap

Hypro Polijet

Knapsack Nozzle

• Specifically designed for use with knapsack sprayers.

SPJ06 Yellow

SPJ12 Green

SPJ18 Blue

SPJ24 Red

Hypro Eezifit 3 DCV

Diaphragm

Replacement DCV diaphragm - EPDM.

SNH3004 Hypro Eezifit 3 EPDM Diaphragm

Angles spray to 30°, forwards and backwards along the spray boom, when used with existing 8 mm air induction or flat fan nozzles.

SNC1400 Spray Cap

30° Angled Spray Cap Seal

Seal to suit angled cap.

SNC1401 Cap Seal

Hypro TRI-JET Holder

A flexible system allowing three different nozzles to be mounted onto one body. Allows quick nozzle changeovers, without removing bayonet cap. Fits most popular sprayers.

SNH4012 To fit 1/2” booms. (21mm pipe Ø)

SNH4034 To fit 3/4” booms. (27mm pipe Ø)

Hypro Eezifit 3 Holder

Features a unique on/off control to limit chemical spill. Clamps to the boom sprayer pipe and will accept a wide variety of bayonet caps including Hardi and Teejet. Incorporates a diaphragm check valve (DCV) to prevent dripping.

SNH3012 1/2”

SNH3034 3/4”

Ball Check Nozzle Filter Medium

For use where nozzle holders are fitted with diaphragm check valves.

SPJ004 50 Mesh

Cup-type Nozzle Filter Medium

Suitable for use where nozzle body aperture is restricted.

SPJ005 50 Mesh

Standard Nozzle Filter Fine

For use where nozzle holders are fitted with diaphragm check valves.

SPJ001 100 Mesh

LOOKING FOR MORE INFORMATION ON SPRAY NOZZLES?

Hypro Eezifit 1 Cap

Caps not supplied with washer SNC1200 as standard.

SNC1100 Black

Hypro Eezifit

1 Cap Washer

Washer to suit SNC 1100.

SNC1200 Washer

Hypro Blanking Nozzle

SNH2020 Hypro Blanking Nozzle

Specifications:

• Weight when full: 21.5 kg

• Dry/empty weight: 2.2 kg

• Pressure range: 0-5 bar

• Capacity: 16 Litre

Vermorel 2000 Pro

Berthoud Knapsack Sprayer 16Ltr

Robust, hand powered, 16 litre sprayer, with a pressurising pump lever action.

Features:

• Selection of nozzles included

• Adjustable lance (0.6 m to 1.0 m)

• External pressure adjustment - Less than 10 strokes per minute to maintain operating pressure.

• Translucent 16 litre tank with filing level indicator.

• Adjustable wide shoulder straps, quick release belt. Comfortable to wear

• Pumping lever has automatic return, and can be mounted either side

SPK020 16Ltr

Specifications:

• Weight when full: 7.2 kg

• Weight when empty: 1.5 kg

• Pressure range: 0-3 bar

• Capacity: 6 Litre

Elyte 8 Berthoud Hand -Pump Sprayer 6Ltr

Features:

• Ideal for applying timber treatments, spot spraying of herbicides and pesticides

• With shoulder strap, hose and lance with flexible end

• Wide opening on reservoir separate from pump

• Cap with multi-compartment measurer and storage trap for nozzle

Specifications:

• Weight when full: 23.5 kg

• Dry/empty weight: 3.4 kg

• Pressure range: 0-3 bar

• Capacity: 16 Litre

SPK033 6Ltr

Oregon Knapsack Sprayer 16Ltr

Pressure sprayer that will enable you to get those weed control and general cleaning jobs done with the minimum of fuss.

Features:

• Non pressurised tank type

• Pressurised chamber capacity 0.9 litres

• Includes lance and spray Nozzle (Choice of 2 in kit, adjustable)

• Length of flexible tube and spray lance 2m

• Shoulder strap, spare seal kit included

• Lance Holder

• Easy to store

SPK015 16Ltr

Specifications:

• 10 litre capacity

• Weight when empty: 1.28 kg

Draper Knapsack Sprayer 10Ltr

Features:

• Vertical hand pump and double strap system

• Telescopic lance

• Hose storage Winder

• Viton chamber closing valve

• Automatic decompression valve

• Coloured pressure indicator

• Double strap system

• Ideal for back-pack use

• Easy to use and maintain

SPK034 10Ltr

Berthoud Multifunction trigger

Fitted with viton seals. Ideal for the spraying of aggressive chemicals, including creosote and acids.

SPK555 Berthoud Multifunction trigger

Berthoud Knapsack Lance

Trigger and Lance Assembly.

SPK021 Berthoud Knapsack Lance & Gun

Berthoud Telescopic

Lance 2.4M

2.4m telescopic lance complete with hose and connector. For use with SPK020 sprayer.

SPK022 Telescopic Lance 2.4M

Berthoud Triple Nozzle Boom

3 nozzle boom kit. For use with SPK020 sprayer.

Berthoud Weed Control Shield

Sprayshield to prevent accidental overspray. For use with SPK020 sprayer.

SPK025 Weed Control Shield SPK026 Triple Nozzle Boom

Berthoud Hollow Cone Nozzle Kit

Kit containing a 45°elbow complete, to fit to all Berthoud 8 mm spray lances, and also the following nozzles in colour coded caps:

• 10/10e green hollow cone

• 12/10e yellow hollow cone

• 15/10e black hollow cone

• 18/10e red hollow cone

SPK027 Nozzle Holder & 4 Nozzles

Berthoud Pump Repair Kit

Multifunction pump repair kit for SPK020. Once fitted allows knapsack to be used for acids and wood preservatives.

SPK028 Berthoud Pump Repair Kit

Berthoud Hand Sprayer 1.5Ltr

A 1.5 litre capacity hand held pressure sprayer. Safety valve prevents over pressurisation, whilst adjustable nozzle allows various spray distribution.

SKH013 Berthoud Hand Sprayer 1.5Ltr

Hand Sprayer 500ml

For use with non corrosive fluids. Approx 500ml capacity.

LUE320 500ml

1Litre Chemical Resistant Cylinder

Highly transparent, calibrated with a raised scale. Ring marks at the primary scale points with hexagonal base.

SPA001 Calibrated

Weed Killer

Kills weeds right down to the root. The weedkiller breaks down in the soil, meaning treated areas can be replanted. Concentrated formulation treats up to 416m² when diluted.

Measuring Jug

Tough and robust measuring jugs, made from chemical resistant polypropylene. Units of measurement in mls and fluid oz.

LUE323 1 litre

LUE321 2 litre

LUE315 5 litre

Measuring Beaker

100ml

Printed information on measuring jug supplies pressure, L/Ha and nozzle size checks for accurate spraying.

SPK024 100ml

Pressure Gauge

0-11 bar (160psi) Stainless steel casing. Glycerine filled gauges that provides a ‘smooth’ pressure reading, with a bottom entry male thread.

Blob Marker Bouta Foam

Bouta Foam liquid produces stable long life foam marks for accurate field marking. 2.5 Litres provides enough fluid to mark up to 250 acres.

HD180 2.5 litre

Bolted 2-Way Ball Valve

Heavy duty bolted manual valve. 2” BSP F 2-way made from glass reinforced polypropylene, for strength, durability and excellent chemical resistance. Excellent patented fixing system.

SBV2002 2”

Available sizes:

• 2-1/2” diameter x 1/4” male connection

• 4” diameter x 3/8” male connection.

SPG2500 2-1/2”

SPG4000 4”

Foot Filter Assembly 2”

Foot Filters - 2” hosetail. For the first stage of filtration into the tank. Coarse mesh, filters out large particles.

SFF2000 Black Coarse, 20-Mesh

Suction Filter Assembly 2”

Available in either 1-1/2” or 2” BSP.

• Provides second stage filtration, from tank to pump.

• Protects pump and spray components.

• Moulded in polypropylene for extra strength and durability.

SFS2000 2”, Blue Medium Filter, 50-Mesh

Anemometer Windspeed

Digital wind speed meter measuring in km/hour, Miles/hour, Metres/second or in knots.

SA005

PWK01C Glyphosate content: 90g/l, 1Ltr

Poly Back Nut

Poly Nipple Poly Threaded Union

Poly Reducer

Poly Reducing Nipple

Poly Tee

Poly Hosetail

Poly Blanking Cap

Poly Hosetail Female Thread

Poly Hose Joiner

Poly Hosetail Elbow Male Thread

Tank Outlet/inlet

Assembly size is classed by outside male thread size. All fittings have an internal female thread at the flange end only.

See page

for mikalor and jubilee clamps

Spray Coveralls

Type 5/6

Disposable hooded coveralls.

• Colour: blue

• Particle and liquid-splash protective fabric

• Ideal for non-hazardous uses such as low-level chemical handling,

• Conform to EN340 & EN1149-1

• Designed to CE Type 5 & 6 registrations

GPS31-2 Medium

GPS31-3 Large

GPS31-4 X-Large

GPS31-5 XX-Large

Need a Respirator?

Find out more on pages 320

Flock Lined

Nitrile Spray

Gloves 18”

Nitrile-coated gloves with outstanding resistance to chemicals, and good mechanical strength.

Comfortable and flexible.

• In sizes 8-10

• 18” Long

GPG113-8 Small

GPG113-9 Medium

GPG113-10 Large

Dupont Spray Coveralls

Type 4/5/6

Robust yet lightweight (<250g per garment) hooded spray coverall.

• Self-adhesive chin flap

• Elasticated face, wrists and ankles as well as glued-in waist elastic

• Elasticated thumb loops prevent sleeves from riding up.

• High density polyethylene, providing an ideal balance of protection, durability and comfort.

• Tyvek is permeable to both air and water vapour, yet repels water-based liquids & aerosols.

• No Silicon added.

GPS52-2 Medium

GPS52-3 Large

GPS52-4 X-Large

GPS52-5 XX-Large

Flock Lined

Nitrile Spray

Gloves 13”

Nitrile-coated gloves with outstanding resistance to chemicals, and good mechanical strength. Comfortable and flexible.

• In sizes 8-11

• 13” Long

For the complete range of gloves, see page 326 - 329

GPG114-8 Small

GPG114-9 Medium

GPG114-10 Large

GPG114-11 X-Large

Black Rubber

Gloves 17”

Black rubber glove, ideal for chemical use.

• Resistant to acids and alkalis

• 17” long

• Rolled cuff to prevent chemical run back

• In sizes 9-11

GPG115-9 Medium

GPG115-10 Large

GPG115-11 X-Large

Heavy Duty

Face Shield & Replacement Visor

User friendly full face shield for protection against chemical splashes and low energy impacts.

See pages 323 - 324 for masks and safety eyewear options

GPF386 Heavy Duty Face Shield

Browband & Visor Face Shield

A good all-round lightweight brow guard with a polycarbonate face shield that offers unrestricted working vision and protection against medium energy flying particles and liquid splashes.

GPF387 Browband & Visor Face Shield

Rubber Apron 48” x 36”

High quality apron that offers protection in environments not suitable for a disposable. Excellent resistance to fats, animal and vegetable oil and grease and a wide range of chemicals. Made from natural rubber, hemmed on every edge, with four brass eyelets securing adjustable white ties. Flexible, waterproof and resistant to high temperatures.

GPA001 One Size 91x107cm / 36x42”

Need a Sign?

Find out more on page 345

Find out more on page 322

APM Draper Expert

Farmers Tool Kit

82-piece tool set includes:

• Cantilever toolbox (530 x 200 x 210mm)

• Expert 75mm 1/2” Square Drive Extension Bar

• Expert parallel pin punch 210 x 8mm

• Expert parallel pin punch 200 x 6mm

• Expert parallel pin punch 200 x 5mm

• Expert parallel pin punch 185 x 4mm

• 10 piece metric hexagon and ball end hexagon key set

• Expert 23 piece 1/2” square drive metric Hi-Torq® Sockets 8 - 32mm

• 900g (32 oz) ball pein hammer

• 25 Piece Draper Hi-Torq® metric combination spanner set 6 - 32mm

• Expert 250mm soft grip curved jaw self-grip pliers

• 300mm adjustable wrench

• 1/2” square drive quick release soft grip ratchet

• Expert 6 Piece ‘Pound Thru’ screwdriver set

• 3 piece soft grip pliers set, 160mm long nose pliers

• Retractable trim knife.

• 400mm 1/2” Square drive. retaining bar with 14 Clips for 1/2” square drive sockets

• Expert 200mm heavy duty soft grip waterpump pliers

• Expert 450g (16 oz) claw hammer

• APM 5m tape measure

THD001

Draper Expert Combination

Spanner Set, 11pc

• Forged from chrome vanadium steel

• Hardened, tempered and chrome plated for corrosion protection

• Supplied in Tetron divided wallet with tie cord.

THD29545 Metric 6-19 mm

Draper Expert Combination

Spanner Set, 14pc

• Forged from chrome vanadium steel

• Hardened, tempered and chrome plated for corrosion protection

• Supplied in Tetron divided wallet with tie cord.

THD29547 Metric 8mm - 32mm

Draper Reversible Ratcheting

Combi-Spanner Set, 7pc

• Forged from chrome vanadium steel

• Forward and reverse action ratcheting offering a smooth motion in both direction

• Supplied in a wall hanging storage case.

THD073 Metric 8mm - 19mm

Draper Expert Hi-TORQ™ Metric Reversible Combination Spanner

• Reversible ratchet ring end offset at 15° requiring only 5° movement to turn fastener

• Forged from chrome vanadium steel, hardened, tempered, chrome plated and fully polished throughout.

THD06841 10mm (M6)

THD09844 13mm (M8)

THD06849 17mm (M10)

THD06851 19mm (M12)

Draper Expert Adjustable Wrench

Expert Quality, crescent-type wrenches manufactured from chrome vanadium steel hardened, tempered and chrome plated with mirror polished jaws offset at 22°.

THD30055 8” - jaw width 24mm

THD30063 10” - jaw width 30mm

THD30071 12” - jaw width 35mm

THD71552 15” - jaw width 45mm

THD71544 18” - jaw width 52mm

Draper Expert Hi- TORQ™ Metric Combi Spanner

• Hardened, tempered, chrome plated and fully polished throughout.

• Deep offset ring end cranked at 15°

• Forged from chrome vanadium steel

THD54283 10mm (M6)

THD54286 13mm (M8)

THD54288 15mm

THD54289 16mm

THD54290 17mm (M10)

THD54291 18mm

THD54292 19mm (M12)

THD54295 22mm (M14)

THD54297 24mm (M16)

THD54300 27mm (M18)

THD54302 30mm (M30)

Draper Expert Adjustable Pipe Wrench

• Handle drop forged hardened and tempered.

• Jaws additionally induction hardened to 55-60 HRC for durability and long life.

• Frame and handle electrostatically painted.

THD050 12” - Jaw Width 45mm

THD051 18” - Jaw Width 65mm

THD052 24” - Jaw Width 75mm

Draper Expert Heavy Duty Bolt Cutter

• Suitable for cutting high tensile material up to 40 HRC.

• Jaws hardened to HRC 58-60 to give long life.

• Centre cut jaw pattern.

• Grips on handles.

THD003 24”

Economy Bolt Cropper

• Suitable for cutting high tensile material up to 40HRC.

• Jaws hardened and tempered to HRC58-62 to give long life and good cutting capability.

• Centre cut jaw pattern.

• Plastic grips on handles.

THD14001 14”

THD12949 18”

Draper Expert 1/4” Sq. Dr. Socket Set, 26pc

Six point sockets made from chrome vanadium steel for added corrosion protection. Each socket has a knurled ring for extra grip. Packed in a steel carrying case with EVA foam inserts.

• 13 socket sizes from 4mm - 14mm

• 7 Deep socket sizes : 5,6,7,8,10,11,13 mm

• 1 x 72 tooth reversible ratchet

• 2 x extension bars sizes: 50 and 100mm

• 1 x sliding tee bar

• 1 x universal joint

• 1 x spinner handle

THD43675 Metric 4mm -14mm

Draper Expert 1/2” Sq. Dr. Socket Set, 28 pc

Sockets have knurled ring for extra grip. Packed in steel carrying case with laser cut foam insert.

• 20 sockets size 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32mm

• 2 x spark plug sockets size 10, 14mm

• 1 x 72 tooth reversible ratchet with soft grip handle and “quick release” button

• 3 x wobble extension bars size: 75, 125, 250mm

• 1 x T’ bar head 1/2”(M) x 3/8”(F)

• 1 x universal joint.

• T’ bar head/converter when used with wobble extension bar forms a sliding ‘T’ bar

THD43647 Metric

Draper Expert 1/2” Sq. Dr. Reversible Ratchet

• Forged from chrome vanadium steel hardened, tempered, satin chrome plated for corrosion protection.

• 72 tooth reversible ratchet with soft grip handle and quick release button head.

• 245mm long.

• Soft grip handle for user comfort.

THD43668

Draper Expert 1/4” Sq. Dr. Reversible Ratchet

• Forged from chrome vanadium steel hardened, tempered, satin chrome plated for corrosion protection.

• 72 tooth reversible ratchet with soft grip handle and quick release button head.

• 145mm long.

• Soft grip handle for user comfort.

THD11080 72 tooth - soft grip

Draper Expert 1/2” Sq. Dr. Combined

Socket Set, 41pc

Sockets have a knurled ring for extra grip. Packed in a tough plastic storage case with soft grip handle.

• 22 x 6 point sockets size: 8 - 32mm

• 10 x 6 point sockets size: 7/16 - 1”

• 3 x 12 point spark plug sockets size: 10, 12 and 14mm

• 1 x 72 tooth reversible ratchet

• 3 x extension bars size: 75, 125 and 200mm

• 1 x sliding tee bar

• 1 x universal joint

THD43636 Metric and Imperial

• Reversible ratchet head.

• The in-lb and Nm scale is engraved on the barrel of the wrench.

• A micrometer type sleeve for accurate preset torque values

• When torque is reached the wrench produces an audible click and a release of tension.

• Marked range: 30-210Nm/22.1-154.9 lb-ft.

• Supplied in blow mould storage case.

THD30357 Supplied with calibration certificate

Draper Expert 1/2” Sq. Dr. Extension Bar

Expert Quality, manufactured from chrome vanadium steel hardened, tempered, chrome plated and polished for corrosion protection. Spring-loaded ball bearing for secure socket holding.

THD25458 250mm

Draper Expert 1/2” Sq. Dr. Flexi Handle

Specially designed chrome molybdenum hinged joint head for extra torque. Spring-loaded ball bearing for secure socket holding.

THD053 375mm

THD054 640mm

THD004 760mm

Draper Expert 1/2” Sq. Dr. Socket

• 6 point sockets manufactured from chrome vanadium steel hardened

• Chamfered end allows positive nut location & entry.

• Hole for driving accessory spring-loaded ball.

THD24559 10mm

THD24583 13mm

THD24624 17mm

THD24640 19mm

THD096 22mm

THD24690 24mm

THD24723 27mm

THD097 30mm

IMPACT SOCKETS: FOR USE WITH AIR, ELECTRIC OR MANUAL IMPACT WRENCHES. PLEASE NOTE ONLY IMPACT SOCKETS AND ACCESSORIES CAN BE USED WITH AIR OR ELECTRIC POWERED WRENCHES. DO NOT USE NON IMPACT SOCKETS WHICH COULD SHATTER AND CAUSE INJURY.

Sealey 1/2” Sq. Dr. Impact / Deep Impact Socket Set, 34pc

Manufactured from Chrome Vanadium steel. Standard and deep WallDrive® sockets allow a transfer of up to 30% more torque to the fixing. Sets include the following socket sizes in standard and deep impact sizes: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32mm.

• 1 x 125mm Extension Bar

• 1 x Universal Joint

• Supplied in carry-case.

TAD003 Standard & Deep

Draper Expert Hi- TORQ™ 1/2” Sq. Dr. Deep Impact Socket Set, 10pc

Forged from chrome vanadium steel hardened, tempered and chemically blacked for corrosion protection. Packed in steel carrying case. Socket sizes: 10, 11, 12, 13, 14, 17, 19, 22, 24 and 27mm. Hole for receiving ball retainer.

TAD002 Metric

Draper Expert 1/2” Sq. Dr. Deep Impact Socket

6 point sockets forged from chrome vanadium steel hardened, tempered and chemically blacked for corrosion protection. For use with air, electric or manual impact wrenches. Overall lengths 78mm.

THD098 10mm

THD099 13mm

THD010 17mm

THD011 19mm

Draper Impact Converter

THD100 22mm

THD012 24mm

THD013 27mm

THD014 30mm

Forged from chrome vanadium steel hardened, tempered and chemically blacked for corrosion protection.

THD034 1/2”F - 3/4”M

THD035 3/4”F - 1/2”M

Draper 3/4” Sq. Dr. Socket Set, 26pc

Manufactured from carbon steel.

• Packed in plastic storage case

• 1 x reversible ratchet

• 3 x extension bars : 100, 150, 200mm

• Sliding ‘T’ bar.

THD89029 Metric/Imperial

Draper Expert 3/4” Sq. Dr. Roundhead Reversible Ratchet

• Fine 43 tooth ratchet, 500mm long with forward/reverse selector.

• Handle with knurled grip.

• Spring-loaded ball bearing for secure socket holding.

THD33768

3/4” Drive Torque Wrench

Micrometer adjustable 3/4” drive torque wrench. When torque is applied, a click can be heard and felt when the desired torque is reached. Ergonomically moulded handle, grip and durability. Capacity: 103-516 ft-lb (140-700 Nm). Length: 1230mm.

THD070

Draper Expert 3/4” Sq. Dr. Flexi Handle

Specially designed chrome molybdenum hinged joint head for extra torque. Spring-loaded ball bearing for secure socket holding.

THD055 640mm

Draper Expert 3/4” Socket

12 point sockets forged from chrome vanadium steel hardened, tempered, chrome plated and polished for corrosion protection. Chamfered end allows positive nut location.

Draper Expert 3/4” Sq. Dr. Extension Bar

Manufactured from chrome vanadium steel hardened, tempered, chrome plated and polished for corrosion protection. Spring-loaded ball bearing for secure socket holding.

THD01143 200mm

THD10150 24mm (M16)

THD10152 27mm (M18)

THD10154 30mm (M20)

THD10159 38mm (Either M24/M27)

Draper Expert Multi Socket Set, 149pc

Six point sockets made from chrome vanadium. Each socket has a knurled ring for extra grip. Supplied with a 72 tooth reversible soft grip ratchet and accessories. Packed in a tough plastic storage case with soft grip handle.

1/4” square drive

• 13 sockets size 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm

• 7 deep sockets size 6, 7, 8, 9, 10, 11, 12mm

• 5 E-sockets size E4, E5, E6, E7, E8

• 72 tooth reversible ratchet with soft grip handle and “quick release” button

• universal joint

• spinner handle

• 2 wobble extension bars 50, 100mm

• sliding T-bar

• 30 socket bits - 4 plain slot bits 4, 5, 6, 7mm, 3 cross slot bits #1, 2, 3, 3 PZ Type bits #1, 2, 3, - 8 Torq bits T8, T9, T10, T15, T20, T25, T27, T30, - 8 Tamperproof Torq socket bits T8, T9, T10, T15, T20, T25, T27, T30, - 4 hex socket bits 3, 4, 5, 6mm

3/8” square drive

• 10 sockets size 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm

• 6 deep sockets size 10, 11, 12, 13, 14, 15mm

• 5 E-Sockets size E10, E11, E12, E14, E16

• 72 tooth reversible ratchet with soft grip handle and “quick release” button

• universal joint

THD43648

Draper Expert Pound-Thru Slot

Screwdriver

Slot screwdriver, with soft grip and two tone handles with integrated toughened metal cap for receiving hammer blows without causing damage.

THD038 100mm Pound-Thru, 6.5mm Tip

THD039 150mm, Pound-Thru, 6.5mm Tip

• wobble extension bar 150mm

• square drive coupler

• spark plug socket 10mm

1/2” square drive

• 17 sockets size 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32mm

• 5 deep sockets size 16, 17, 18, 19, 22mm

• 3 E-sockets size E18, E20, E24

• 72 tooth reversible ratchet with soft grip handle and “quick release” button

• universal joint

• 2 wobble extension bars 125, 250mm square drive coupler

• 2 spark plug sockets 12, 14mm

• 3-way adaptor

• 3 plain slot bits 8, 10, 12mm

• 2 cross slot bits #3, 4

• 2 PZ Type bits #3, 4

• 6 Draper TX-STAR® bits T30, T40, T45, T50, T55, T60

• 8 Draper TX-STAR® tamperproof bits T30, T40, T45, T50, T55, T60

• 4 hex bits 7, 8, 10, 12, 14mm

• 5 hex keys 1.5, 2, 2.5, 3, 4mm

Draper Expert Screwdriver Set, 16 pc

• 4 x plain slot size: 6.0 x 38, 6.0 x 100, 8.0 x 150 and 9.5 x 200mm

• 3 x plain slot with parallel tips size: 3.2 x 75, 5.0 x 100 and 5.0 x 150mm

• 3 x cross slot: No 1, 2 and 3

• 1 x cross slot chubby: No .2

• 4 x PZ-TYPE: No 0, 1, 2 and 3

• 1 x PZ-TYPE chubby: No.2

THD56773

Draper Expert Pound-Thru Screwdriver Set, 6pc

• 2 x plain slot size: 6 x 100 and 8 x 150mm

• 2 x cross slot: No.2 and 3

• 2 x PZ TYPE: No.2 and 3

THD27611 Pound Thru

Sealey HammerThru Screwdriver, Hex Key and Bit Set 44pc

Chrome Vanadium steel satin finish hexagonal shafts with shot blasted and magnetised tips. Contoured soft grip handles with colour-coding for fast identification and hanging hole for alternative storage. Supplied in display stand. Set contains:

• Screwdrivers; Slotted - 3 x 75, 4 x 100, 5 x 100, 6 x 125, 8 x 150mm,

• Phillips - 0 x 75, 1 x 75, 2 x 100, 3 x 150,

• Pozi - 0 x 75, 1 x 75, 2 x 100, 3 x 150

• TRX-Star* - T25 x 100, T27 x 100, T30 x 125, T40 x 125mm

• Bit Driver, 1/4”Hex Bits;

• TRX-Star* - T7, T8, T9, T10, T15, T20,

• Hex - 3, 4, 5, 6mm

• Hex Keys; Metric - 1.5, 2, 2.5, 3, 4, 5, 5.5, 6mm,

Draper Expert Screwdriver

Set, 8 pc

• 3 x plain slot size: 6.0 x 38, 6.0 x 100 and 8 x 150mm

• 1 x plain slot with parallel tip size: 3.2 x 75mm

• 2 x cross slot: No 1 and 2

• 2 x PZ TYPE: No 1 and 2

THD56772

• AF - 1/16”, 5/64”, 3/32”, 1/8”, 5/32”, 3/16”, 7/32”, 1/4”

THD072

Draper Expert Side Cutters

Drop forged from chrome vanadium steel, hardened and tempered with additionally induction hardened cutting edges.

Draper Expert Combination Pliers

Drop forged from chrome vanadium steel, hardened and tempered with additional induction hardened cutting edges.

Draper Expert Waterpump Pliers

Draper Expert Long Nose Pliers

Drop forged from chrome vanadium steel, hardened and tempered with additional induction hardened cutting edges.

• Heavy duty soft grip handles with slip guards. • Multi position adjustments, with ‘no-nip’ feature preventing handles locking together at largest capacity and damaging user’s hands.

45mm (THD057), 110mm (THD040)

200mm (THD057), 400mm (THD040)

11pos. (THD040)

Draper Expert Self Grip Pliers

Jaws manufactured from good quality steel hardened and tempered. Serrated gripping surfaces and adjustable opening, with quickrelease lever. Soft grip handle for user comfort.

Draper Expert Self Grip Plier Set, 3 pc

Three piece set with jaws manufactured from chrome vanadium steel hardened and tempered. Serrated gripping surfaces and adjustable opening with quick release lever.

• 185mm and 230mm curved

Draper Internal Circlips Pliers 180mm

Industrial quality, chrome nickel steel hardened and tempered with a polished finish, chemically blacked tips and special non slip cushion-grip handles.

°

Draper Internal Circlips 90

170mm

Industrial quality, chrome nickel steel hardened and tempered with a polished finish, chemically blacked tips and special non slip cushion-grip handles.

Draper External Circlips

Pliers 180mm

Industrial quality, chrome nickel steel hardened and tempered with a polished finish, chemically blacked tips and special non-slip cushion-grip handles.

THD062 Capacity 19mm-60mm

Draper External Circlips

90° 170mm

Industrial quality, chrome nickel steel hardened and tempered with a polished finish, chemically blacked tips and special non slip cushion-grip handles.

THD063 Capacity 19mm-60mm

Draper Expert Ball Pein

Hammer

Forged from fine grain carbon steel correctly hardened, tempered with a black painted head. Fibreglass shaft fitted with comfortable shockabsorbing rubber grip.

THD064 900g

For Sledge Hammer Range page 233

Draper Expert Fibreglass

Claw Hammer

General purpose, hammer with fibreglass shaft and hardened, drop forged steel head, ground and polished faces and sides.

THD62163 450g

Draper Expert Fibreglass

Club Hammer

Hammer with drop forged head from special high carbon steel, heat treated and hardened. Safe striking faces are accurately ground and polished.

THD63350 1kg

THD62165 1.8kg

Draper Expert Fibreglass

Sledge Hammer

Forged from fine grain carbon steel correctly hardened and tempered with a polished head. Fibreglass shaft fitted with comfortable shockabsorbing rubber grip.

THD50006 1.8kg

Draper Expert Digital Vernier Caliper

Good quality tape in a tough impact resistant rubber case. Clear, easy to read with metric and imperial measurements.

THA002 5m

THA003 8m

Metal-bodied manufactured from brushed stainless steel. Extra large display reading 0.01 mm and 0.005”. Range 0-150 mm/6”. Supplied with ETB011 battery.

THD52427

Surveyors Tape

In an ABS plastic case with grab handle, plastic winding handle and stainless steel holding claw on end of tape.

THD13974 50m

12pc Cold Chisel & Punch Set

Chrome vanadium steel hardened and tempered with a chemically blacked finish and plastic grips. Supplied in storage roll. Contents:

• 4 x cold chisels: 13 x 150, 16 x 180, 19 x 190, 22 x 205mm

• 1 x taper punch: 5 x 255mm

• 2 x parallel pin punches: 4 and 6 x 150mm

• 2 x parallel taper pin punches: 3 and 6 x 150mm

• 1 x centre punch: 6 x 150mm

• 1 x point chisel: 150mm long

• 1 x cross cut chisel: 150mm long

THD091

Parallel Pin Punch Set, 6pc

• One of a comprehensive range of Premier Hand Tools, suitable for daily professional use. •

THS050

Draper Venom Handsaw

Each 500mm first fix saw blade is manufactured from high quality 1mm carbon steel, that’s been correctly hardened, tempered, straightened and stress relieved to ensure the blades strength and straightness

frame which is suitable for all-round use. It has a slim design to improve access in confined spaces and to allow easier storage.

G-Clamp

Malleable cast iron frame with chrome plated square thread screw, tommy bar handle and swivel shoe.

• Capacity 200mm

• Throat 85mm

THD066 200mm

Engineers Bench Vice

High quality grey cast iron with trapezoidal thread leadscrew. Hardened carbon steel interchangeable jaws.

THD45783 150mm

Portek Heavy Duty FlexiVice

Heavy duty, multi-functional vice with both 5” standard vice clamp and pipe clamp jaws for a safe and secure working position.

THD095

THB63830 500mm

THB012556 300mm

THC501/10 24tpi, Pack-10

Farmers File

Single cut files to give fine/sharp finish to tools. Carbon chrome steel hardened and tempered with rust preventative finish and dipped in rust preventative oil. Self handled with hang hole

THD60308 250mm

LOOKING FOR SOME HAND TOOLS?

3pc File Set

Flat, round & 1/2 round 200mm tempered blades with soft-grip handles.

THD44963 200mm

Rapid Heavy Duty Staple Gun

Heavy duty gun type stapler with chrome finish. Suitable for use with 6, 8, 10, 12, 14mm staples.

THB101802

Rapid Staples

Staples to suit Staple Gun

THB101823 8mm, Pack-2000

THB101824 10mm, Pack-2000

THB101825 12mm, Pack-2000

THB101826 14mm, Pack-2000

Draper Expert Hand Riveter

Aluminium head and body. Supplied with four nozzles to accept 2.4 3.2, 4.0 and 4.8 mm aluminium rivets. Steel handle clip acts as nozzle change wrench.

See Rivets on page 459

THD067 Accepts 2.4mm, 3.2mm, 4.0mm & 4.8mm

Draper Expert Ratchet Crimping Tool

Allows accurate crimp at pre-set tension. Suitable for insulated terminals. Carbon steel with hardened and tempered jaws.

See Crimp Connectors page 455

THD35574

Expert Crimping Kit, 590pc

Ratchet crimping kit, includes: ratchet crimper and 590 (approx) mixed pre-insulated terminals in a steel storage case with dividing insert.

THD56383

Draper Expert Measuring Wheel

One person operation, automatically records measurements whilst user walks. Supplied with a stand and a durable canvas carrying bag.

THD44238 Measures up to 9999 Metres

Draper Expert Screw Extractor Set, 5pc

Manufactured from chrome vanadium steel with square drive ends. One each of size: 1 (3-6mm), 2 (6-8mm), 3 (8-11mm), 4 (11-14mm) and 5 (14-18mm).

THB222193

Hex Key Set, 25pc

• Thirteen standard length metric keys: 1.5, 2.0, 2.5, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0, 8.0, 9.0, 10.0mm

• Twelve long reach AF keys: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16 and 3/8” AF supplied in vinyl storage roll.

THD14023 Metric/Imperial

Draper Expert Mechanics Bit Set, 40pc

Insert bits manufactured from S2 silicon steel, hardened and tempered with shot blasted finish. Bit holders made from chrome vanadium steel hardened, tempered and chrome plated.

Contents:

• 1 x bit holder 10mm hexagon x 3/8” sq. drive

• 1 x bit holder 10mm hexagon x 1/2” sq. drive

• 7 x Draper TX-STAR bits: T20, T25, T30, T40, T45, T50 and T55 x 30mm long

• 7 x Draper TX-STAR bits: T20, T25, T30, T40, T45, T50 and T55 x 75mm long

• 5 x XZN spline bits: 5, 6, 8, 10 and 12mm x 30mm long

• 5 x XZN spline bits: 5, 6, 8, 10 and 12mm x 75mm long

• 7 x hexagonal bits: 4, 5, 6, 7, 8, 10 and 12 x 30mm long

• 7 x hexagonal bits: 4, 5, 6, 7, 8, 10 and 12mm x 75mm long

THD21932 3/8” & 1/2”

Hex Key Set ,10pc

Manufactured from hardened and tempered chrome vanadium steel. Held in plastic storage holder. 2.0, 2.5, 3.0, 4.0, 5.0, 5.5, 6.0, 7.0, 8.0 and 10.0mm

THD043 2mm - 10mm, Ball End

Heavy Duty 4 Row Wire Brush

Expert Quality, industrial wire scratch brushes with wooden stock incorporating a hang hole.

THD12589

Strap Wrench Set, 2pc

Two different sized wrenches for loosening oil filters, plastic pipe joints, sanitary fittings and many other similar applications. Smaller wrench strap has ridges on strap for extra grip.

THD044

Oil Filter strap Wrench

Heavy duty webbing strap 1000mm x 38mm with 3/8” x 1/2” square drive /21mm x 13/16” AF cam for tightening. Cam has plated finish for corrosion protection.

THB503860 300mm

Heel Bar

Used for levering, positioning and aligning jobs. The long pointed taper can be used for lining up drift. Roll head increases leverage.

THD31496 450mm

Wrecking Bar

Manufactured from selected tempered steel with chisel and swan neck ‘v’ groove end for high leverage.

THD64854 600mm

Engineers Chalk

Engineers Chalk - 100mm x 10mm (4” x 3/8”) square.

THB311340 Pack-12

NOT FOR SALE TO PERSONS UNDER THE AGE OF 18. BY PLACING AN ORDER FOR THIS PRODUCT, YOU DECLARE THAT YOU ARE 18 YEARS OF AGE OR OVER. THIS ITEM MUST BE USED RESPONSIBLY AND APPROPRIATELY.

Folding Trimming Knife

Soft grip body with safety locking mechanism and belt clip. Blade folds back into knife body for safety. Supplied in countertop dispenser in equal quantities of green and orange.

THD11530

THD11529

Trimming Knife Blades

• Reversible polished steel blades with accurately ground cutting edge.

• Packed in plastic dispenser.

• Suitable for use with most trimming knives .

THD63749 Pack-10

Opinel Knife

Feature stainless steel non-spring blade, with twist lock collar to lock blade open or closed. The iconic design object: instantly recognisable, imminently useful, and designed to stand the test of time. Opinel knives and tools are made with Opinel’s original dedication to craftsmanship and quality.

THK121 No 7 - Blade length 80mm - With APM logo

THK122 No 8 - Blade length 85mm - With APM logo

THK123 No 10 - Blade length 100mm

THK124 No 12 - Blade length 120mm

Whitby Pocket Knife 3”

• 3” stainless steel blade

• 4.25” plastic handle

THK140 Plastic Handle

(Image shown THK122)

Whitby Pruning Knife 2-1/4” 2.25” carbon steel pruning blade 3.75” wooden handle

Wooden Handle

Whitby Pocket Knife 2-1/2”

• 2.5” carbon steel lambfoot blade

• 3.5” black textured wooden handle

THK144 Wood Handle

Whitby Camo Lock Knife 3-1/2”

• 3.5” Stainless steel blade, part serrated

• 4.5” closed length

• Aluminium handle with Camo coating

• Thumb stud, Pocket Clip, Lanyard hole

THK195

• Blade: 420HC stainless steel

• Handle: Black glass re-reinforced nylon

• Stainless steel clip

• Blade length: 3”/75mm

• Knife length Closed: 4 3/8”/110mm

• Weight: 2.6oz/74g

THK146

For More Bladed Tools

See Estate Management on pages 257

Metabo Cordless 18V Pick & Mix

Its so simple:

BODY

Metabo 18V

Angle Grinder 115mm

Giving you the same performance as a mains powered grinder.

Features include:

• Slim design for prolonged comfort when working in areas with limited space

• Metabo Quick for tool-free disc change by means of a quick-locking nut

• Tool-free adjustable guard; twist-proof

• Battery pack can be swiveled for better access in hard to reach places

• Overload protection

• Electronic soft start for smooth start-up

• Restart protection: prevents unintentional start-up

• Detachable dust protection filter protects motor from coarse particles

TPM461 Body only, 18V

BODY BODY

✓ SELECT THE BODY YOU WANT

✓ SELECT THE BATTERY YOU WANT

✓ SELECT YOUR CHARGER

Metabo 18V Combi Drill

The lightest and most powerful cordless drill in its class.

Features include:

• Selectable “impulse” mode for removal of stubborn screws

• High-performance impact mechanism

• Spindle with hexagonal recess for screwdriver bits for working without chuck

• Integrated working light

• Up to 110Nm Torque

Drill diameter in Concrete: 16mm, Steel: 13mm, Soft wood: 65mm

TPM106 Body only, SB18LTX, 18V

Metabo 4.0Ah LiHD

Battery

LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation. Battery pack voltage 18V.

Metabo 18V

Impact Wrench 800Nm

• Twelve speed/torque levels

• Integrated work light

• Robust die cast aluminium gear housing

• Belt hook

• 3 year XXL warranty

TPM115 Body only, 18V

BODY

Metabo Cordless Grease Gun

• High discharge pressure (max. 690 bar)

• Select high pressure or high flow rate

• Switch lock

• 3-way-filling: grease cartridges, containers or direct filling

• Magnet for fixing on metal

• Shoulder Strap and long hose with holder

• Optimal view during lubrication via LED display

• Covered by the 3 year XXL warranty

TPM117 High pressure (max. 690 bar)

Metabo 18V

Angle Grinder 230mm

• Large cutting depth - 77 mm

• Deadman’s switch for high user safety

• Fast brake system for highest user safety

• Rotating main handle

• Side handle can be mounted in three positions

• Electronic safety shutdown: reduces kickback if the disc stops unexpectedly

• Overload protection, soft start and restart protection

• Covered by the 3 year XXL warranty

TPM116 Body only, 18V

TPM255 Compatible with all 18V machines

Metabo 5.5Ah LiHD

Battery

LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation. Battery pack voltage 18V.

TPM256 Compatible with all 18V machines

Metabo ASC30

Battery Charger

• Intelligent battery charger tests each battery individually and measures correct charge according to battery condition.

• Air cooling system keeps batteries cool under charge, giving the unit a longer service life.

• Can fully charge a Metabo 18V 4ah li-ion battery in just 30 minutes

TPM254

Metabo Angle Grinder 115mm

Up to 50% more torque and up to 20% higher overload capacity for quicker material removal and longer service life. Tool-free adjustable guard; twist-proof.

Technical specifications:

• Grinding wheel: 115mm

• Rated input power: 900 W

• Output power: 550 W

• No-load speed: 10500 rpm

• Revolutions at rated load: 7500 rpm

• Torque: 2.5 Nm

• Spindle thread: M 14

• Weight (without power cable): 2.1kg

• Cable length: 2.5m

TPM245 240V - 900W

CORDED

Metabo Angle Grinder 230mm

Metabo safety switch prevents unintentional start-up. Deadman switch for high user protection. Side handle can be mounted at three positions.

Technical specifications:

• Grinding wheel: 230mm

• Rated input power: 2000 W

• Output power: 1350 W

• No-load speed: 6600 rpm

• Revolutions at rated load: 4500 rpm

• Torque: 13 Nm

• Spindle thread: M 14

• Weight (without power cable): 5.8kg

• Cable length: 4m

TPM155 240V - 2000W

CORDLESS

CORDED +

Metabo 18V Drill Pack

• Powerful Metabo 4-pole motor for quick drilling and screwdriving.

• High-performance impact mechanism for optimum drilling performance.

• Spindle with hexagonal recess for screwdriver bits for working without chuck.

• Integrated working light to illuminate the work site

• Belt hook and bit case

Drill diameter in Concrete: 13mm, Steel: 13mm, Wood: 38mm

TPM107 Comes with 2 x 4.0Ah Battery & Charger

Angle Grinder Lock Nut M14

SDS clic flange unit, will fit all grinders with a 14mm thread. Eliminates the use of spanners to change discs.

TPA100

Dormer HSS Drill Bit

High speed steel drill bits. Sold individually.

Metabo Bit Assortment, 32pc

Made of chrome vanadium steel, bits are colour coded: for faster and simpler detection of the suitable bit. Magnetic quick change adaptor with adapter for sockets (socket wrench adaptor).

32 Piece Bit Set.

• S 2-Bits:

• L = 25mm (30 pieces)

• 1 x Adaptor

• 1 x Magnetic quick change bit holder

HSS Cobalt Drill

Bit Set, 25pc

High speed steel with 5% cobalt makes these drill bits ideal for drilling extra hard materials. Split tip enables bits to bite into workpiece quickly, reducing the need for centre punch mark. In 0.5 mm increments, supplied in metal storage case.

THS4702 1mm - 13mm

HSS Coated Drill Bit Set, 15pcs

High speed steel drills coated with titanium nitride for longer life. Display packed in soft grip plastic case.

THD35374 1.5mm - 10mm

Draper Expert Masonry Drill Bit Set, 8pc

Expert Quality, tungsten carbide tipped straight shank drill bits. Suitable for use with impact or power drills. 3.0-10.0mm

THC320 3mm - 10mm

HSS Step Drill

For drilling steel, brass, copper, aluminium, wood and plastics. 75mm in length and titanium coated for longer life. Drill steps in 2mm increments from 4mm to 20mm.

THS4732 4mm - 20mm

Metabo Chop Saw 355mm

For quick and easy workshop cutting of steels and ferrous metals use a stationary metal chopsaw. Clamp on saw bed holds workpiece secure while blade is lowered through material.

• 3 year guarantee

• Motor and gearbox designed for heavy duty loads, with sealed ball bearings for long life

• Spindle lock for easy blade change

• Quick clamp device on base with variable mitre up to 45 degrees either side

• Motor W 2300

• Cutting capacities (mm) round 125

Specifications

• Grinding wheels (Ø x bore)355 x 25.4 mm

• Torque18 Nm

• No-load speed4000 rpm

• Rated input power2300 W

• Cutting capacity steel bars65 mm

• Cutting capacity pipes125 mm

• Cutting capacity steel sections115 x 130 mm

• Maximum opening of vice jaws238 mm

• Dimensions of the base plate468 x 282 mm

• Transport height400 mm

• Weight16.9 kg

• Cable length2.7 m

• Noise emission

• Sound pressure level91 dB(A)

• Sound power level (LwA)104 dB(A)

• Uncertainty of measurement K3 dB(A)

TPM130

Domestic cable reel.

EMW204 1.25mm x 10m

EMW205 1.25mm x 25m

EMW206 1.25mm x 50m

Industrial heavy duty cable reel.

EMW202 2.5mm x 20m

EMW203 2.5mm x 40m

Cable Reel

Cable Reel

Draper 486mm Toolbox

Impact - resistant polypropylene with three storage compartments in lid. Fitted with sturdy carrying handle, two metal closing latches and a padlock eye for security. The removable tote tray measures 470 x 200 x 45mm. Sold loose.

THD068 486 x 267 x 242mm

Expert Cantilever Tool Box 22L

Expert Quality, professional’s extra long tool box manufactured from heavy gauge sheet steel, tubular handles and powder coated finish. Trays open automatically when handle is depressed and close when lifted. The lid form incorporates provision for a padlock.

THB015806 530 x 200 x 210mm

Bin Storage System

• Powder coated steel racking with composite storage

• Mounted on heavy-duty castors (2 lockable) for mobility

• Can fit 64 x medium bins (110 x 160 x 75mm) and 30 x Large bins (150 x 235 x 125mm)

STG011

Storage Bins

Ideal for keeping small items tidy and together in workshops. Can be used on shelving, louvered panels or free standing. Made from tough polypropylene. Solvent, oil and corrosion resistant.

STG002 L 165 x W 100 x H 75 mm

STG003 L 240 x W 145 x H 125 mm

24 Bin Wall Storage Unit

Comprises 24 plastic storage bins;

• 4 large 102 x 215 x 75mm

• 8 medium 102 x 160 x 75mm

• 12 small 102 x 100 x 75mm that fix to a heavy duty plastic mounting board size 483 x 540mm.

STG016 Small, Medium & Large Bins

Heavy Duty Shelving Unit Extra Wide 225kg

Expert quality, five shelf unit of robust construction manufactured from high quality steel. Boltless for easy assembly. Ideal for industrial use. Each shelf can carry up to 225kg (evenly distributed) giving it a total of 1125kg.

STG019 1220mm x 450mm x 1830mm

Find out more...

See pages 231 - 258

Consumables

Find out more...

See pages 445 - 464

Male Coupler x Hosetail (mm)

Male coupler x 6mm hosetail

Male coupler x 8mm hosetail

BSP Female x Male Coupler

BSP Male x Male Coupler

BSP Female x Female Coupler

BSP Male x Female Coupler

PCL Y Coupler

TA011 1 x Male by 2 x Female Y Coupler

Hosetail x BSP Male

Air Hose Mender

For connecting differing pipe diameters (male to female). Corrosive-resistant plated reducing bush (male to female).

PCL Interchange Coupler

1/4” coupling that interchange from a Euro male fitting to a BSP Female or Male thread to be used with any adaptor on page 278 Will fit the hose reel TAH2001 on page 392.

PCL General Purpose Air Impact Wrench 1/2”

1/2” general purpose impact wrench with a pin clutch hammer mechanism for forward and reverse mode.

Features:

• Pin clutch hammer mechanism

• Forward and reverse mode

• Rear exhaust

• 4 forward operation impact settings

• Single handed direction change

• Non slip comfortable grip

• Positive action trigger (allows variable speed)

Specifications:

• Size: 1/2 “

• Maximum Torque: 400 ft-lb / 540 Nm

• Mechanism: Pin clutch Twin HammerFree

• Speed: 7,500 rpm

• Minimum Hose Size: 3/8 “ / 10mm

• Air Inlet Thread Size: 1/4 “

• Average Air Consumption: 3.6 cfm / 101.9 l/min

TAS200 504Nm

PCL Air Ratchet 1/2”

Ideal for use in confined areas and quick, effortless tightening of fasteners, to a maximum torque of 60Nm.

Features:

• Forward/reverse knob on the ratchet head

• Maximum Torque 60 Nm

• Ball type retainer

• Easy speed control

• Progressive throttle

• Accommodates larger socket range

Specifications:

• Size: 1/2 “

• Maximum Torque: 45 ft-lb / 60 Nm

• Free Speed: 150 rpm

• Minimum Hose Size: 1/2” / 13mm

• Average Air Consumption: 3.6 cfm / 101 l/min

TAS275 60Nm

PCL Turbo Air Impact Wrench 1/2”

1/2” twin hammer powered turbo Impact Wrench provides high power and smooth balanced blows, with the most modern energy efficient motor. Ideal for use in heavy automotive, tyre changing and anywhere else where extra powerful tools are needed.

Features:

• Ergonomic warm grip handle

• Lightweight with excellent weight distribution

• Low vibration

• Twin hammer impact mechanism

• TURBO power

Specifications:

• Size: 1/2 “

• Maximum Torque: 780 ft-lb / 1058 Nm

• Mechanism: Twin Hammer

• Free Speed: 7,700 rpm

• Minimum Hose Size: 3/8 “/ 10 mm

• Air Inlet Thread Size: 1/4 “

• Average Air Consumption: 4.7 cfm / 133 l/min

TAD41096

PCL Air Impact Wrench 3/4”

This 3/4” Impact Wrench is ideal for truck, bus and farm machinery work. With a single handed direction change facility this 3/4” Impact Wrench has a non-slip comfortable grip for users.

Features:

• Maximum Torque 1350 Nm

• High power output

• Pin clutch hammer mechanism

• Forward and reverse mode

• Rear exhaust through handle

• 3 forward & 3 reverse operating impact settings

• Non slip comfortable grip

• Single handed direction change

Specifications:

• Size: 3/4 “

• Maximum Torque: 996 ft-lb / 1,350 Nm

• Mechanism: Pin Clutch Hammer

• Free Speed: 4,000 rpm

• Minimum Hose Size: 1/2”/ 13 mm

• Air Inlet Thread Size: 3/8 “

• Average Air Consumption: 10 cfm / 283 l/min”

TAD48413 1,350Nm

PCL Suction Spray Gun

This newly developed “compliant” HVLP Suction Spray Gun offers the user high transfer efficiency, lower material consumption and is environmentally friendly:

Features:

• Suitable for water based paints

• 1.7mm fluid nozzle

• 1 litre aluminium cup

Specifications:

• Air Consumption: 6 cfm

• Working Pressure: 50 psi”

Air Paraffin/Washing Gun

For applying oils, cleaning / degreasing agents and rustproofing liquids. With adjustable nozzle.

Specifications:

• 40-90psi operating pressure

• 750ml metal pot

• 1/4” BSP air inlet

TAD43135 750ml

PCL Plastic Blowgun

Manufactured from chemical and impact resistant acetal resin, this blowgun is suitable for use with both air and water. Ergonomically designed handle, for comfort in use. Valve allows trigger-adjustable airflow.

TAD914 Conical Nozzle

PCL Plastic Blowgun Long

Manufactured from chemical and impact resistant acetal resin. Extension Nozzle Blowgun is suitable for use with both air and water.

Features:

• Valve allows trigger

• Adjustable airflow

• 9” extension nozzle

Specifications :

• Maximum Supply Pressure: 10 bar / 140 psi

• Connection: 1/4” Female

• Air Flow: 270 l/min / 9.3 cfm

Plastic Blowgun Extra Long 20”

Nylon body with trigger, suitable for cleaning liquid, swarf or dust during manufacture or assembly. Supplied with safety nozzle. 1/4” BSP air inlet.

PCL Palm Blowgun

Manufactured from high quality die-cast alloy, PCL’s Palm Blowgun has a robust and compact design.

Features:

• Robust and compact design

• Supplied with a conical and safety nozzle

Specifications:

• Maximum Supply Pressure: 10 bar /140psi

• Connection: Rp 1/4” Female

• Air Flow: 240 l/min / 8.9 cfm”

TAG001 Conical & Safety Nozzle

Coiled Air Hose

TAH1000 1/4” Male x 7.6m

Air Tool Whip Hose

A flexible isolating hose to be used between the air tool and coupling, thus isolating the tool’s vibration.

TAH050 1/4” x 600mm

Airline Hose

TAH010 3/8” x 10m, 1/4” Swivel Ends

TAH011 3/8” x 15m, 1/4” Swivel Ends

TAH012 3/8” x 20m, 1/4” Swivel Ends

Air Hose Reel

• 20m of 8mm air hose on a reel

• Ideal for light duty workshop use

• Centre-flow design

• Quick coupler Euro hose fittings

• 116.0psi (8.0 bar) working pressure

TAH2001 20m

Metal Air Hose Reel

• 9.5mm diameter / 15m full length

• 1 metre full hose connection length

• 218psi (15 bar) max. working pressure

• Durable and heavy-duty metal casing

• Reliable bracket for wall attachment

• Quality ratchet and recoil system

• 1/4” BSP male air inlet

TAH2003 Wall Mountable, 15m

Plastic Air Hose Reel

• 9.5mm hose diameter

• 15. metre max. hose length

• 1.4 metre hose connection length

• 145.0psi (10.0 bar) working pressure

• Auto-Layer technology - prevents bunching

• Quality ratchet and recoil system

• Pivot wall mounting bracket

• 1/4” BSP male air inlet

Air Tool Oil

Specially blended to provide mist lubrication in pneumatic tools. Use in inline oilers or tool reservoirs, also suitable for use as general purpose light lubricant.

TA350 1Ltr

Metabo Air Grease Gun

• Automatic: continuous material flow as long as trigger guard is activated; uniform flow at required rate

• No material drip, for clean and effective operation

• Rigid and flexible connection including grease nipple

• For filling from external grease containers or for use with ordinary cartridges (400g)

Airline Filter & Regulator

Essential for the control of output air pressure, eliminate moisture and contaminants from the air flow and to lubricate tools during use.

Features:

• 1/2” BSP ports

• Manual/semi automatic drain

• 10 micron filter

• Complete with wall bracket and pressure gauge

Specifications:

• Adjustments: 0-16 Bar

• Maximum inlet pressure: 16 Bar

• Flow rate: 5000l/min

TAS22001

1 Year Warranty

SIP Compressor 50Ltr 2HP

Features:

• Direct-Drive Oil-lubricated unit.

• Powerful 2.0hp (1.5kW) motor.

• Compact 50 litre air receiver size.

• 116psi (8 bar) max. working pressure.

• Built with an efficient cooling system

• External air filters for easy access

• Fitted with quality twin gauges

• 30v (13amp) input supply

1 Year Warranty

SIP Compressor 100Ltr 3HP

Features:

• Belt Driven Oil-lubricated unit.

• Powerful 3.0hp (2.2kW) motor.

• Heavy duty 100 litre air receiver size.

• 145psi (10 bar) max. working pressure.

• Extra-strong moulded plastic guarding

• Finned manifolds and cast iron barrel

• Wheel-mounted for easy movement

2 Year Warranty

SIP Compressor 150Ltr 3HP

Features:

• Belt Driven Oil-lubricated unit.

• Powerful 3.0hp (2.2kW) motor.

• Heavy duty 150 litre air receiver size.

• 145psi (10 bar) max. working pressure.

• Standard B3800 for high performance

• Multi-finned flywheel for high cooling

• Durable heavy-duty cast iron barrel.

1 Year Warranty

SIP Compressor 200Ltr 5.5HP

Features:

• Belt Driven Oil-lubricated unit.

• Powerful 5.5hp (4.1kW) motor.

• Heavy duty 200 litre air receiver size.

• 145psi (10 bar) max. working pressure.

• 400v (20A), 3PH input supply

• 2-stage pump for a greater efficiency

• Ideal for heavy and prolonged tasks

• Supplied with anti-vibration mounts

• Super heavy-duty cast iron barrel

• Shock-resistant flywheel guard

Compressor Oil

An excellent blend of mineral oils suitable for all leading brands of air compressor.

Turbofan Electric Heater

2Kw 230v

A compact and lightweight electric fan heater that is ideal for smaller domestic and trade applications.

Specifications:

• 230v (13amp) input supply

• 6,820 BTU/hr (2kW) heat power Heavyduty powder-coated finish

• 3 distinct heat output levels: Setting 1: Fan

- 25w Setting 2: Heat - 1000w Setting 3: Heat - 2000w

THD07572

3 Heat Settings

Compac Bottle Jack

Compac high performance bottle jacks in 5, 10, 20 and 30 ton capacities. Made with Compacs unique hydraulic components and high quality materials. All jacks come with a 3 year guarantee.

Compac Trolley Jacks

Features include:

• Ergonomically designed handle for operator comfort

• Additional foot pedal pumping feature provides fast raising of the load

• Safety lowering control valve for safe lowering even under max load

• Pressure relief valve prevents overloading

Axle Stands 7.5T (Pair)

All steel stands, with pin and chain load support. Full width ‘V’ crutch support for safe support. Supplied in pairs.

See page XXX for more details

TWCJ08T High Lift

TWCJ10T

Wireless 7” CCTV Reversing Kit

Wireless 12/24V 7” CCTV kit Supplied with:

• Colour screen with infrared and sound.

• 1 single CMOS rear view camera.

• Can receive signals from up to 2 cameras.

ECT128 1 x Camera & Remote

7” CCTV Reversing Kit

2 Channel Reversing Camera system.

Features include:

• 7” Colour TFT LCD Monitor

• 1 Rear view Sony CCD Camera

• 20m shielded cable for robust installation

• Remote control

• Suitable for 12V/24V applications

• Colour camera protected to IP68

• 1 additional camera can be fitted to this kit.

ECT120 1 x Camera, 20M Cable & Remote

7” CCTV Quad-Cam Reversing Kit

Can run with up to 4 cameras.

Features include:

• 1 colour camera with infrared and sound

• Day/night mode sensor operated

• Split screen function for four different camera angles

• 20m shielded cable Short circuit protected

• Remote control

• Audio enabled

• Camera protected to IP66

ECT121 1 x Camera, 20M Cable & Remote

Wireless CCTV Camera

Wireless CCTV Colour Infrared

2.9mm Camera with Sound - IP69K.

Supplied with:

• CMOS image sensor.

• Automatic gain control (AGC).

• 18 infrared LEDs.

• Compatible with wireless CCTV kit ECT128

ECT129 Infrared & Microphone

1080P Full HD Mini Dash Camera

Mini dash camera with 2.0” screen. Stores camera video onto 64GB micro SD (not included) 1080P Full HD real time recording.

Features include:

• Built-in G-force sensor

• Motion detection/theft prevention

• Large depth of field with 170° wide angle lens

• Suitable for 12/24V application

If a vehicle is allocated to a specific driver, this will count as personal information under data protection law - Data Protection Act 1998.

PLEASE NOTE SD CARD IS NOT INCLUDED

ECT150 SD Card not included

Colour Rear View Camera

With infra-red colour and sound mirror image.

• The CCD image sensor provides a high-quality picture.

• Automatic gain control (AGC) provides a clear image in both strong sunlight and low light conditions.

• Compact in size and easy to install.

• Extremely long life through excellent build quality.

• Protected to IP66.

ECT122 For use with ECT120 and ECT121

CCTV Cable

Camera to monitor cable with, DIN Connections. For surveillance / vehicle safety vision systems. For use with ECT120 & ECT121.

ECT124 10m

ECT125 15m

ECT126 20m

Dash Cam Fused Cable Kit

For use with ECT150 Dash Camera. Professional fused wiring kit ensures automatic power-up as ignition is switched on leaving 12V adapter to be used for other applications. 650mm cable length.

ECT151 For use with ECT150 Dash Camera

Universal Mirror Head

Bolt and clamp fixing.

VEH105 10” x 6” Flat Glass

Universal Mirror Head

Rear groove and bolt clamp fixing.

VEH115 16” x 8” Convex Glass

On/Off Toggle Switch

Single pole on/off switch. 13mm fixing.

EAC031 10A at 12V

4 Position Ignition Switch

A robust ignition switch with 16mm fixing hole. Four position switch, off, ignition, pre-heat and start. Supplied with 2 keys.

EAC040

Cigarette Lighter Plug

A universal light plug, suitable for fitting to cigarette lighter sockets of 21mm and 22mm diameter. Removal of adaptor enables use on 12mm standard sockets.

EAC061 Green LED Indicator

Battery Isolator, Key & Cover

Battery isolator with removable key and splashproof cover. Rated 100 amps at 24 volts and 500 amps for 5 seconds. M8 studs and requires 24mm hole.

EAM008

Top Link Cat.1/1 (580mm-750mm)

Top Link Cat.1/1 580mm-750mm. Thread 1-1/6” UNF.

LIN154 Thread 1-1/6” UNF

Top Link Cat.2/2 (622mm-790mm)

Min-Max length ball centre to centre, 622 - 790. Thread 1-1/4 UNC.

LIN150 Thread 1-1/4” UNC

Top Link Cat.3/3 (660mm-920mm)

Min-Max length ball centre to centre, 660-920. Thread M36 x 3.0mm.

LIN159 Thread

Hydraulic Top Link Cat.3/3

Cat 3 swivel/hook 6.8 tonne pull strength. 9 tonne push strength. 666-906 c-c thread. For a variety of tractor models.

Consists of

• Check valve

• Stroke scale

• Release cable

• Retaining bracket

LIN188ZZ 9.0 Tonne, Thread 3/8”

Lower Link Ball

Replacement Linkage Balls - Lower LinkStandard Ball

LIN236 Cat 2/2

LIN238 Cat 3/2

LIN239 Cat 3/3

Top Link Ball

For top-link hooks.

LIN232 Cat 2/2

LIN233 Cat 3/2

LIN234 Cat 3/3

Linkage Bushes

For top and lower links.

LIN207 Top Link Cat 2/1

LIN209 Top Link Cat 3/2

LIN208 Lower Link Cat 2/1

LIN210 Lower Link Cat 3/2

Lower Link Weld On End

Lower link weld on ends.

LIN220 Cat. 1 Straight

LIN221 Cat. 2 Straight

M36 x 3.0mm

Top Link Pin

Lower Link Pin •

Pin Cat.2

Drawbar Pin

Complete with chain and linch pin.

Ball Hitch Pin

These pins are supplied with a 50mm ball. Bright zinc plated and manufactured from a one-piece forging. Supplied with lock nuts.

Linch Pins

Manufactured from quality steel, zinc plated and passivated.

See multi packs on page 459

Safety Linch Pin

Safety linch pin 11mm (47mm long) - loop clips into slot on the end of the pin. Pack-10.

11mm

R Clips

Made from high quality oil tempered spring steel wire, bright zinc plated for corrosion resistance. Pack-50.

See multi packs on page 458

Lower Link Ball & Cone

Lower link balls fitted with guide cone, link pin and chain assembly.

LIN241 Cat 3/2

LIN242 Cat 3/3

Draw Bar Foot

Drawbar shoe removes the need of a jack, reducing unhitching/hitching time. To suit 100150mm (4”-6”) width drawbars. Supplied with pin.

Quick Hitch A-Frame Cat.2 Male

Female Implement Triangle

Weld on implement female. Suitable for any threepoint couplings for equipment up to 1500kg.

Male C Coupling 1/2” BSP

Air brake fittings.

VAB010

Female C Coupling 1/2” BSP

Air brake fittings.

VAB011

VAB001 1/2” BSP (Red)

Droplock Pins 1/2”

Bolt on short thread 3/4”. Pack-2.

Rubber Lined Clamps

Rubber lined clamps. Ideal for securing cable and light pipework to trailers etc.

LIN001 5mm, 3/16”

LIN004 19mm, 3/4”

Trailer Hitch for 50mm

Drawbar

Pressed steel 50mm coupling. Suitable for trailers up to 750kg. To suit 45 x 50mm drawbar. 12mm holes.

Heavy Duty Hitch Eye

Straight

• Extra heavy duty - 300mm (12”) Straight

• 20 ton rated heat treated hitch eye

• 40mm thick

Hitch Eye Cranked

Drawbar Eye Bush

Drawbar Eye Bush Fits weld-on hitch eyes reducing diameter to 30mm to accept a standard drawbar pin when required. Helps stop uneven pin and trailer eye wear. Allows towing control when using a drawbar pin.

Super Hitch.

• 50mm ball with thumb press safety lock pin

• Max height of clevis 32mm

• Max width between back of hitch and pin 35mm

• Max static load on ball 3500kg (7700lbs)

Tow Ball Hitch & Hitch Pin

Heavy Duty Ball Hitch - Deep Clevis.

• 50mm ball with hitch pin and chain assembly

• Max height of clevis 50mm

• Max width between back of hitch and pin 48mm

• Max static load on ball 2000kg (4400lbs)

• Vertical load 1500kg

LIN467 Clevis Max Height 50mm

Tractor, Trailer & Vehicle Parts

Weld On Trailer Jack

For agricultural machines and trailers.

LIN700 600kg, 460/590mm (60x60mm) 160mm

LIN701 1000kg, 500/670mm (70x70mm) 160mm

Jockey Wheel & Solid Tyre

Standard, telescopic, 42mm tube with 200mm diameter steel wheel with solid rubber tyre. Supplied with clamp.

• Minimum height 570mm

• Maximum height 810mm

• Max weight on wheel 100kg

LIN473 Max Weight 100kg

Jockey Wheel & Pneumatic Tyre

Standard, telescopic, 48mm tube with 260mm x 85mm wheel and pneumatic tyre. Supplied with clamp.

• Minimum height 620mm

• Maximum height 820mm

• Max weight on wheel 100kg

LIN474 Max Weight 100kg

3 Pin Panel Socket Male

3 pole plug round 12/24v Universal application. Fits with EAC042.

EAC041

3 Pin D-Plug Female

3 pole socket round 12/24v Universal application. Fits with EAC041.

EAC042

3 Pin D-Plug Male

3 pole plug flat/round 12/24v Universal application.

EAC043

3 Pin Panel Socket Female

3 pole socket flat round 12/24 V Universal application. Fits with EAC043.

EAC044

13 Pin plug adaptor - 7 pin socket (12N) to 13 pin plug.

EAC060

7 Pin Plastic Plug

7 pin PVC trailer plug suitable for 12V systems, with screw connection. For 12V trailer lighting Terminal capacities (2mm) 1,5/2,5.

EAC065

Fits with EAC044.

7 Pin Socket-13 Pin Plug

7 Pin Metal Plug

Metal alloy 7 pin plug, for use with plastic or metal sockets in trailer lighting. 12V. EAC066

7 Pin Metal Socket

Made from heavy duty alloy, complete with a hinged lid, to lock plug in position. Will take plastic or metal plugs.

7 Pin Plastic Trailing Socket

Made with heavy duty plastic for extension leads and other similar applications.

7 Pin Extension Cable

Used to extend trailer lighting board cables to fit longer trailers.

• Complete with 7 pin plug and socket attached

• 2.8m or 7m extension

2 Piece Trailer Light Kit

Wireless, magnetic and cable free. Charge for 4 hours for 10 hours of bright light. Function: 4, Brake / Tail / Indicator / Number Plate Volts: 12V.

Contains:

• 1 x S.143235 x 1 LH Rear Light

• 1 x S.143236 RH Rear Light

• 1 x S.143237 Transmitter

Board

plastic moulded board, fitted with 4 LED function square lights, 6 m of 7 core cable and mounting holes.

LED Trailer Board

4ft LED Light board & 10M cable, with mounting holes, fog light & warning triangle.

2 Piece Lighting Pod 14m

2 square plastic boards, fitted with 4 bulbed function lights and triangle. Supplied with 14m cable and 3m retractable cable between boards.

LED Magnetic Lighting Set

An all purpose magnetic trailer lighting set, for use in temporary applications with 2 EU approved 12V LED combination lamps. Each independent unit joined by a 3m retractable cable. Will fasten to any metal surface. Supplied with 6m or 10m cable with plug.

Triangle Reflectors

• Height 140mm

• Depth 7mm

• E Approved

• Holes for mounting the triangle 70mm

VEH120 Pack-2

Amber Reflector

Universal and inexpensive reflector for general use.

EAL030 L91 x W40 x D5mm

Rear Combination Lamp

Economy rear 4 function lamp supplied with bulb.

• 12V

• E approved

• Width 98mm, Height 98mm, depth 49mm

EAL031 Supplied with Bulbs

LED Rear Combination Lamp

Replacement lens unit for EAL065.

• Rear 4 function lamp

• Stop/Tail/Indicator functions

• 12V

• E approved

• Length 100mm x 100mm x 33mm

EAL064 100mm x 100mm x 33mm

LED Rear Slimline Lamp

12/24V LED rear combination lamp with stop, tail and indicator functions.

• E approved

• Comes with mounting base and fixing screws.

EAL053 190mm x 28mm x 85mm

LED Amber Strobe Slimline Lamp

• Amber 6 x 3W LED ultra-high intensity flush/ slimline warning light.

• 12/24V DC

• 20 programmable flash sequences.

• CE, ECE R65 Class 1 and SAE Class 1 approved. Protected to IP68.

EAL056 H28 x W113 x D9mm

Flexible LED Marker Lamp

Type Red, White & Amber

LED outline marker

• Front, side and rear - Right hand side

• 6 LEDs (2 per function)

• 10.8W (1.8W per LED)

• Protected to IP67

• 500mm flying leads

• Polycarbonate Lens

LED Side Marker Lamp

Moulded rubber unit with white and red, front and rear lenses. Ideal for use with trailers etc.

EAL038

LED Number Plate Lamp

12 White LED number plate lamp. 12/24V LED. Supplied with 250mm flying leads ECE approved.

EAL070 H45 x W58.5 x L120mm

• L175 x W109 x H89mm

• E-Marked, R10 R7, R91 approved

EAL057 Right hand

EAL058 Left hand

Need

a

Pole Mounted Flexi DinLED Beacon

Bright 40x3w LED pole mounted beacon can be used on either 12 or 24V vehicles.

• Very low power consumption.

• 3 selectable flash pattern 360° rotating, low speed strobe and high speed strobe.

• EMC R10 approved.

• IP66 - dust and water protection.

• DIN mount connection.

EAL062

3 Bolt LED Beacon

Bright 40x3w LED 3 bolt fixing Beacon can be used on either 12 or 24V vehicles.

• Very low power consumption.

• 3 selectable flash patterns 360° rotating, low speed strobe and high speed strobe.

• EMC R10 approved

• IP66 - dust and water protection

• Hard wired 3 bolt mount.

EAL063

FOR GRAINSTORE LIGHTING

Magnetic LED Beacon

Bright 40x3w LED magnetic Beacon can be used on either 12 or 24V vehicles.

• Very low power consumption.

• 3 selectable flash patterns 360° rotating, low speed strobe and high speed strobe.

• EMC R10 approved.

• IP66 - dust and water protection.

• Tested to 70mph

• Cigar lighter adaptor with integrated mode selection switch.

EAL061

Beacon Mounting Pole

EAL023 24mm Thread

LED Magnetic Amber Light Bar

For small and larger commercial vehicles.

• 850 Lumens

• 26 flash patterns

• Low power consumption: max. 0.5 A per module

• Synchronisation of multiple modules

• Moisture resistant

EAL060 250mm x 173mm

LED Magnetic 12V Work Lamp

A powerful 6 x 3 watt (1350 Lumens), 12/24V IP67 LED work lamp. Low current draw, 1.4 amp at 12VDC. Supplied with stainless steel adjustable bracket, magnetic base and 2.5m working length retractable cable with a cigarette lighter plug.

EAL059 1350 Lumens

LED Square 9x3W Work Lamp

Powerful LED Work lamp. 9 x 3 Watt 12/24 Volt Low current draw, 1.5 Amp at 12 Voltdc Black powder coated die cast aluminium case, polycarbonate lens, supplied with stainless steel adjustable bracket and 2.5m flying lead Protected to IP67.

EAL039 1700 Lumens

LED Round 9x3W Work Lamp

Powerful LED Work lamp 9 x 3 Watt 12/24 Volt. Low current draw, 1.5 Amp at 12 Volt dc Black powder coated die cast aluminium case. Polycarbonate lens Supplied with stainless steel adjustable bracket and 2.5 m flying lead Protected to IP67.

EAL041 1700 Lumens

Dual Colour Cordless 15W LED

Powerful 15W dual colour rechargeable LED inspection lamp. Complete with a cigarette plug charger & a 5V 2.1A output USB port.

• 1000 Lumens

LED Low Profile 5x3W Work Lamp (1440 Lumens)

Powerful LED Work lamp Compact 5 x 3 Watt 12/24 Volt Low current draw, 1.2 amp at 12 Volt dc Black powder coated die cast aluminium case, polycarbonate lens, supplied with stainless steel adjustable bracket and 350 mm flying lead. Protected to IP67.

EAL042 1440 Lumens

• 2 Light modes 30% and 100%

• Dual colour: clear & amber

• Colour temperature LEDs: 6500K white & 1800K amber

• Powerful magnetic base

• IP65 protected

• CE approved

EAC125 1000 Lumens

Halogen Bulb H1

EAB448 12V/55W

Halogen Bulb H3

Halogen headlight bulbs H3 12V 55W. (To suit flashing beacon).

EAB453 12V/55W

Halogen Bulb H4

Halogen headlight bulbs H4 12V 60/55W.

EAB472 12V 60/55W

Halogen Bulb H7

Halogen headlight bulbs H7 12V 55W.

EAB499 12V/55W

Stop/Tail Bulb

Stop/tail/flasher bulbs 12V 21W - single filament, single pole. Pack-10.

EAB382/10

Stop/Tail Bulb

21W - single filament (EAB335), double pole. 12V 21/5W - double filament (EAB381), double pole. Pack-10.

EAB335/10 Double Pole 12V/21W

EAB381/10

Stop/Tail Bulb

Stop/tail/flasher bulbs 12V 21/5W or bulbs 24V 24/6W - double filament, double pole, staggered pin. Pack-10.

EAB380/10 Staggered Pin, 12V 21/5W

EAB334/10 Staggered Pin, 24V 24/6W

Side/Instrument Bulb

Side/instrument bulb 12V 4W. Pack-10.

EAB233/10 Single Pole, 12V/4W

Side/Instrument Bulb

Side/instrument bulb 12V 5Wpush In. Pack-10.

EAB501/10 Push In, 12V/5W

Sidelight Bulb

Sidelights 12V 5W - single pole. Pack-10.

EAB207/10 Single Pole, 12V/5W

Sidelight Bulb

Sidelights 12V 5W - double pole Pack-10.

EAB209/10 Double Pole, 12V/5W

Festoon Bulb

Festoon bulbs. Pack-10.

EAB239/10 12V/5W

EAB265/10 12V/10W

Agriforce Vehicle 12V Batteries

12V Layout

Agriforce Leisure Battery 80

Type

Agriforce 12V leisure batteries are made for the demands of agricultural use, and are available in 80 type or 100 type formats.

BAT678 12V battery, 80 Type

Tractor, Trailer & Vehicle Parts 21

APM’s batteries are built to an exacting standard and are original equipment quality *CCA Maximum current battery will give out in one go *Amps/Hrs

Total amount of electricity battery will hold

Agriforce

Leisure Battery 100 Type

BAT679 12V battery, 100 Type

See page 436 for battery terminals

These chargers will also keep batteries of a higher Ahr on a maintainance charge. A maintainance charge is keeping a battery in good working order (between 95 and 100%) throughout a period of no use, ie combines over winter.

It is recommended that the “RECOND” option/step is carried out on Wet and Ca/Ca batteries approximately once a year or after a deep discharge in order to maximise lifetime and capacity. Frequent use of the RECOND programme may cause water loss.

C-Tek Battery Charger MXS 12V - 0.8A

This is a simple 6 stage charger with 0.8amp output suitable for batteries up to 60ah. This suits someone looking for a charger for ride on mowers or ATVs etc and occasional car use.

• Ideal for charging 12V batteries from 1.2 Ah to 32 Ah and maintaining the batteries of cars, motorcycles and other vehicles up to 100 Ah.

• IP 65 splash and dust proof

• 6-stage, fully automatic IUoUp characteristic curve with pulse charging, (Charges drained batteries)

• 5yr warranty.

EMM022

C-Tek Battery Charger MXS 12V - 5.0A

Our most popular charger with 5amp output and suitable for batteries up to 110ah. It covers almost everything from lawn mowers through cars to combine harvesters. It has the full 8 step charge system with recondition mode.

• The compact all-rounder

• Ideal for all types of lead-acid battery

• Pulse maintenance mode

• Cold weather mode

• Brings new life to deep discharged batteries

• IP65 splash and dust proof

• 5yr warranty.

EMM020

C-Tek Battery Charger MXS 12V - 7.0A

This is a higher power 8 step charger with a 7amp output suitable for batteries from 14ah to 150ah from fully discharged. It also a 12 volt supply mode for maintaining vehicle electronics when batteries are disconnected.

• The universal solution

• Can provide 12V supply even without using a battery

• IP65 splash and dust proof

• Delivers 7 A to 12V batteries from 14-150 Ah

• Suitable for maintenance charging up to 225 Ah

• 8-stage, fully automatic IUoUp characteristic curve with pulse charging (Charges drained batteries)

• 5yr warranty

EMM024

C-Tek Battery Charger MXS 12V - 25A

The MXS 25 is a professional 12V charger. It offers efficient and fast charging and is ideal in workshops, trucks and tractors etc, and is equipped with all necessary features and functions to solve a broad range of battery related problems.

• Battery diagnostic mode

• IP44 splash protection

• 8 step, fully automatic charging cycle

• 25 A charges and maintains batteries from 50Ah to 500 Ah

• Cable length 2m

• 2yr warranty

EMM026

Battery Booster 12V with Surge Protection

Professional pro booster with a built in surge protection, a 3100amp boost peak rate and a 940amp cranking rate.

• 3100amp Boost Peak Rate

• 940amp Cranking Rate

• LED Charge Indicators

• 25Ah Battery

• Swiss Made

EMM310 3100 Peak Amps

4M Jump Leads 900A

Jump Leads/booster cables made using stranded copper welding cable, which gives superior flexibility and durability, whilst reducing heating and providing maximum power transfer. Resistant to oil, grease and most acids.

EAW100 4m, 900A

4.5M Jump Leads 1200A

Jump Leads/booster cables made using stranded copper welding cable, which gives superior flexibility and durability, whilst reducing heating and providing maximum power transfer. Resistant to oil, grease and most acids.

EAW104 4.5m 1200A

Tarpaulin

A range of lightweight tarpaulins, with welded seams and rust free eyelets at 1.0m spacings. Strong and hardwearing, waterproof and flexible.

TT001 3.6m x 2.7m

TT002 5.4m x 3.6m

TT003 6m x 4.5m

x

Elastic Rope 20M

Suitable for tarpaulins

Shock Cord Hook Ends

For

Wheel Nut Indicator

TE830/100 30mm, Pack-100

TE832/100 32mm, Pack-100

Bungee Strap 800mm Elastic strap with plastic coated hooks. 800mm long.

Hydraulic Ram Depth Stops

An efficient way to adjust hydraulic ram calibrations up to Ø60 cylinders.

LIN500 Blue 6.5mm

LIN501 Red 9.5mm

LIN502 Green 13mm

LIN503 Yellow 19mm

LIN506 Black 30mm

LIN504 Black 38mm

LIN505 Silver 51mm

Barrel Strainer

TCR015

D-Shackles

VEH151/10

TCR011/25 50mm x 5mm, Pack-25

TCR12/10 70mm x 7mm, Pack-10

TCR013/10 90mm x 9mm, Pack-10

For Air Fittings and Equipment

Pin, Pack-10 VEH154/2

out more on page 388

-

Tie Down Ratchet Strap

Made from nylon webbing, ideal for small trailers, complete with hooks.

TCR097 25mm x 4M, 800kg Max

TCR098 35mm x 6M, 3,000kg Max

Ratchet Strap

5000 kg max tension with hook end.

TCR215 50mm x 10M, 5,000kg Max

TCR235 50mm x 15M, 5,000kg Max

Polypropylene Rope

220m coils of polypropylene rope.

TCR206 6mm x 220m

TCR208 8mm x 220m

TCR210 10mm x 220m

TCR212 12mm x 220m

Wagon Rope

Polypropylene rope with eye one end.

TCR213 10mm x 27M

10ft Tow Chain

10ft tow chain hook one end, ring the other, 3/8” chain. Tested minimum breaking load 12.6 tonne on a straight pull.

TCR219 12.6T, 12,600kg

3 x 6ft Leg Lifting Chain

10mm chain with grab hooks on each end. Safe working load 3.1 ton per leg at 0 degrees and 6.7 ton for all 3 legs at 45 degrees.

TCR220 6,700kg

3m Lifting Sling

100% polyester round webbing lifting slings, with eye at each end to go over forklift tine. Safety factor 7:1 *Manufactured to BS EN 1492-2-2000.

TCR33 3000kg

TCR35 5000kg

8m Towing Sling

8m flat webbing sling, made from light polyester which makes storing a lot easier. Reinforced eyes give added security when lifting, towing or pulling the goods.

TCR37 4 Ton Flat Duplex Towing Sling - 120mm x 8M

TCR38 8 Ton Flat Duplex Towing Sling - 240mm x 8M

TCR39 12 Ton Flat Duplex Towing Sling - 300mm x 8M

Screw Pin Bow Shackle

VEH099 4.75T (Dia 19mm/Jaws 31mm/28.5T Max)

VEH100 9.5T (Dia 28mm/Jaws 50mm/57T Max)

VEH101 13.5T (Dia 35mm/Jaws 58mm/81T Max)

Galvanised Wire Rope

Available per metre or in 100m coil.

VEH139 3mm, Breaking Load 1000kg

VEH143 6mm, Breaking Load 2000kg

VEH147 8mm, Breaking Load 3500kg

Wire Rope Grips

VEH132/25 3mm, Pack - 25

VEH133/25 4mm, Pack - 25

VEH134/25 6mm, Pack - 25

VEH135/25 8mm, Pack - 25

VEH141/5 19mm, Pack - 5

Wire Rope Cutters

Superb quality steel rope and cable cutters. Will cut wire rope up to 6mm Ø, copper and aluminium up to 10mm Ø and round steel up to 4mm. Spring-loaded handles for comfortable gripping.

THD30738

Total Osyris DWX300

• Rust preventative oil

• Spray, dip or brush on to machinery while wintered up to prevent corrosion

• Excellent for ploughs, cultivators etc

LUB25225 19 Ltr Tub

Hammerite Waxoyl

Provides excellent, all-round rustproofing treatment. Its unique formula solves the problem of hidden rust once and for all.

LUB36005 Clear 5Ltr

LUB36001 Aerosol 400ml

Swarfega Duck Oils

Multi-purpose, silicone-free liquid. It will lubricate, penetrate, displace water, inhibit rust formation, waterproof electrical systems, clean and protect electrical and metal components.

MRA1015-5 5Ltr

Swarfega Jizer

The original water rinsable parts degreaser. Powerfully breaks down oil, grease, tar, bitumen and waxes. Use it to clean engines, bodywork, components, paint and brushes.

HD150/5 5 litre

HD150/25 25 litre

Machinery Enamel Paint

Fast drying and high resistant synthetic paint suitable for finishing of utility vehicles, machines and construction elements for interior and exterior use. Excellent weathering resistance.

Benefits

• Short drying time and long working life

Application

• Top coat for painting commercial vehicles, machines and structures indoors and outdoors

Properties

• Highly stable

• Outstanding running qualities

• Excellent final hardness

• Stable sheen, gloss finish (DIN 67 530) >80%/60° (high-gloss)

• Compliant with solvent regulation

• Can be stored in original container for at least 3 years

WD-40 Degreaser

Deep foaming penetrating action quickly removes grease, oil, dirt and grime. An ideal engine cleaner and industrial degreaser

MRA2008 500ml

Brake and Clutch Cleaner

Cleans brakes and clutch parts without the need to dismantle. Dissolves grease, oil and removes rust. Available in 400ml and 25 Litres.

MRA1012 400ml

MRA1012/25 25 litre

Paint Brushes & White Spirit

Tractor, Trailer & Vehicle Parts 21

Machinery Enamel Paint

Universal Front Seat Cover For Cars

• 100% waterproof

• Keeps your seat looking new

• Protects against mud, water & slurry, grease, oil & dust, paint and food & drink

SC1001 Black

Small Tractor Seat cover

Velcro access holes for seats with headrest. Velcro access pouch for back of seat.

• 100% waterproof

• Keeps your seat looking new

• Protects against mud, water & slurry, grease, oil & dust, paint and food & drink

SC1004 Grey SC1017 Black

Large Tractor Seat Cover

Universal Tractor Seat Cover (type 2) - Black or grey. Fits most new shaped tractor seats, with rounded back restraint and cushion. Will accept arm rests and head restraints.

• 100% waterproof

• Keeps your seat looking new

• Protects against mud, water & slurry, grease, oil & dust, paint and food & drink

SC1043 Black

Wrap Around Seat Cover For Cars and Vans

Designed to fit single seats without side airbags. To fit models with larger single front seats and seats with side wings.

SC1046 Grey SC1007 Grey

APM Rema Farmers Tyre Repair Kit

A tyre repair kit for tubeless tyre repairs. Selection of bow tie and doughnut inserts, contents:

• 1 x 225g cement (TE616)

• 50 x small inserts (TE610)

• 5 x small plugs (TE613)

• 20 x bow tie inserts (TE611)

• 1 x insert tool (TE617)

• 1 x spiral cement tool (TE915)

• 1 x insert tool (TE925T)

TE230

OKO Off-Road Sealant

OKO quickly moves to seal small-hole tyre damage, giving you time to get back to the workshop to permanently repair punctures.

• Available in 1.25 ltr (with applicator), 25 ltr drum

Approx quantity required:

OKO Off-Road Sealant

TE210 1.25Ltr

TE020 25Ltr TE019 25Ltr

OKO X-Tra Heavy Sealant

OKO Drum Pump

Hand pump for use with TE020 OKO sealant in 25 litre drums.

TE021

Repair Inserts

For repair of punctures and small holes in tubeless tyres.

TE610/50 95mm, Pack-50

TE223 190mm, Pack-50

Vulcanising Cement 225g

Chemical vulcanising solution for plugs/inserts and butterflies.

TE616

Hand Rasp Spiral Cement Tool

For use in nail hole repairs.

Universal Insert Tool

For use with TE611 (butterflies) and plugs.

Repair Insert Tool

Allows easy application of repair inserts.

Sealastic Butterfly Inserts

For use in repairing punctures and small to medium holes in tubeless tyres.

TE611/20 Pack-20

For temporary sealing of tread punctures

• Remove the tyre from the rim in order to determine the actual damage size

• Observe local rules and guidelines for the repair of tyres

• Permanent repairs should be performed from the inside of the tyre, for example with patch & plug mushroom (TE510, TE511, TE512)

• Not suitable for the repair of sidewalls

TE221 Pack-25

Patch & Plug Mushroom

The patch restores the tubeless properties of the tyre, whilst the rubber stem seals the tread to prevent the ingress of potentially damaging water and contaminants.

TE511/40 6mm

TE512/20 10mm

Radial Repair Patch

Repair patches for the permanent repair of radial tyres of all sizes and applications

• For cold and warm repairs

• Also suitable for tube type tyres

• Only use with vulcanising cement (TE616)

TE523 75 x 55mm, 1 Ply

TE524 104 x 67mm, 1 Ply

TE526 125 x 80mm, 2 Ply

TE015 175 x 75mm, 2 Ply

TE531 190 x150mm, 2 Ply

TE014 203 x148mm, 3 Ply

Cross-Ply Repair Patch

Tyre repaired without placing it under undue load. For long lasting repairs to cross-ply tyres

• Suitable for all standard vulcanisation systems

• Fully integrated bonding layer

TE538 100mm, 2 Ply

TE540 160mm, 4 Ply

Tube Patch

Tube patches with double-scalloped edge ensure perfect bonding and 100% vulcanisation. Even stretch in all directions when the tube is inflated.

TE052/30 35mm, Pack-30, PP1 35mm

TE053/30 45mm, Pack-30, PP2 45mm

TE054/30 54mm, Pack-30, PP3 55mm

TE055/30 75mm, Pack-30, PP4 75mm

TE504/10 94mm, Pack-10

See page 394 for more

Vulcanising Fluid 250ml

Chemical vulcanising solution for patches, fast drying, complete with brush.

TE202

Bead Sealer

Seals small leaks between bead and wheel flange. Supplied with brush.

TE555 1Ltr

Liquid Buffer

A pre-buff cleaner specially formulated to dissolve mould-release lubricants and other contaminants creating a clean surface prior to inner liner buffing.

TE203 1Ltr

TE204 500ml Aerosol

Tyre Mounting Compound

Rust inhibitor with three main uses:

• Dilute to liquid form with water to soak around wheel rim to ease tyre removal.

• Dilute to paste form with water to ease mounting tyre (tyre paste).

• Use in non-diluted form to pack between tyre and rim of tubeless tyre to enable inflation. Excess can be returned to container for reuse.

TE722 3.63kg

NEED A LIFT? SEE OUR RANGE OF JACKS

Portable Bead Buster

The bead buster grips onto the wheel rim by operating the lever. The tyre is pushed off the rim by turning the head nut with a spanner or socket.

Tyre Lever 30”

Valve Fishing Tool

Used to roll or stitch patches, gaiters, and repair materials such as A+B compound, ensuring a firm bond to the tyre.

For guiding standard tube valves through the wheel rim hole during tyre mounting. Allows inner tube to move away from rim while mounting, preventing pinching and damage. Flexible shaft.

Valve Repair Tool

Re-threads standard valves inside and out, and extracts broken valve cores.

Need More Impact?

Valve Core Screwdriver

Screwdriver version with plastic handle for standard valve core.

Buffing Stone Black

Two carbide wheels back to back with arbor adapter, to fit drill chuck. 65mm diameter 5000rpm Max.

22 x 760mm (7/8” x 30”).

20mm diameter x 860mm long (3/4” x 3/4”).

TE558 4mm x 35mm

TE254

TE253

TE264

TE561

Tyre Connector Twin Clip-On

Allows air flow through rear of connector when not connected to value. To be used with airline guages & PTO pumps. Twin clip-on connector, open-end 1/4” BSP female end.

TE408 Open End

Tyre Connector Twin Clip-On

Only allows exit of air when connected to a valve. To be used when connected to a compressor without a trigger. Twin clip-on connector, closedend 1/4” BSP female end.

TE409 Closed End

Tyre Connector Single Clip-On

Single clip-on connector, closed-end 6 mm (1/4”) hosetail end.

TE407 Closed End

Tyre Inflator & Gauge 500mm

Industrial quality, designed to EC Standards and constructed in die cast aluminium. Each gauge is supplied complete with a certificate of calibration and full operating instructions.

Tyre Inflator & Gauge 1.8m

Airline gauge with 1.8m hose and twin clip on open end connector 0-138psi/0-9.6 bar.

TE401 TE402

Digital Tyre Inflator

This highly accurate tyre inflator is suitable for all kinds of tyre applications; its ability to inflate up to 170 psi, coupled with its robust construction makes it an ideal addition to the tyreshop tool box.

TE400 1.8M

Tyre Inflator & Dial Gauge

Pistol-grip with guidance dial. Suitable for use with motor vehicles, ATVs, cycles, etc. Clip-on connector. Dial reads 0-140bar and 0-10psi.

TAD27871

Durite Portable Twin Piston Air Compressor - 12V

• Twin piston Air Compressor with delivery of 65 L/pm output.

• 150 PSI maximum inflation.

• 5M coil air hose with pressure gauge.

• 3M Flying lead with croc clips

• Supplied in a robust carry case with 2 nozzle adapters & 1 sports needle.

THD65959

Bead Seating Tool

Bead seating tool seats tubeless tyres effortlessly - 20 litre tank dumps air into tyre void forcing bead to seat against rim for inflation. Fully certified tank with gauge and safety valve prevents over pressurising. Suitable for use on cars, commercials, agricultural and ATV tyres.

TE420 20Ltr Tank

Tyre Pressure Gauge

Hand-held dual reading gauge with a straight push-on valve chuck.

• Scale graduated 0-60 psi in increments of 2 psi and 0-4 bar in increments of 0.1 bar.

• Colours may vary.

THD69923

• 2-95.5psi (1psi increments).

• Tyre depth gauge 0-16mm (0.5mm increments).

• Replaceable battery.

• 90 second auto power off.

• Self-calibrating.

TE577

Wheel Nut Indicator

TE830/100 30mm, Pack-100

TE832/100 32mm, Pack-100

Short Valve Core

High quality valve cores.

TE305

Plastic Valve Cap

Valve caps prevent the penetration of dirt into the valve, causing damage and leakage.

TE307

Air & Water Valve

Fast flow water ballast valve assembly. Suits most water ballast type valve bodies.

TE304

Snap-In Valve

Snap-In tubeless tyre valves.

TE565 11mm x 43mm

Snap-In Valve

Snap-In tubeless tyre valves.

TE567 16mm x 43mm

Compac Hydraulic Wheel Changer

• Ideal for use with agricultural wheels - will lift up to 1600kg, and wheels up to 2400mm Ø.

• Double action hydraulic system via a foot-operated pedal, to help provide precise locating of wheel onto hub.

• Enables safe and controlled raising and lowering of wheel.

• 150mm Ø castors for easy manoeuvrability.

• Two blocks of 4 large rollers for improved handling of tyres with deep treads.

• Adjustable top connection rod keeps wheel in safe balance.

• Superb build quality for a long service life

• 3yr warranty

• Will handle wheels up to 1600kg weight

• Not to be confused with cheap imitations

• 3 year guarantee

Hydraulic Wheel Changer

• 1,200kg lifting capacity

• Wheel width max 800mm

• 8 adjustable rollers for easy wheel turning

• Locking mechanism fixes rollers in pre-set positions

• Mounted on 4 heavy duty castors (two locking type) for easy movement

Ideal for use on commercial and agricultural wheels and tyres. A convenient, safe and easy way to handle wheels.

TE951

Yellow Water Hose

Soft yet highly durable PVC hose with three layer construction.

Features include:

• Improved low temperature flexibility

• Effective kink resistance

• Made from specially selected high tensile polyester fibres

HOS413/25 ID-13mm (25m)

HOS413/50 ID-13mm(50m)

HOS419/25 ID-19mm (25m)

HOS419/50 ID-19mm (50m)

HOS425/25 ID-25mm (25m)

HOS425/50 ID-25mm (50m)

Wash Down Hose

Plasticised PVC hose with polyester yarn reinforcement offering all the features of yellow water hose but with a far stronger exterior.

HOS411 ID-19mm

HOS412 ID-25mm

Braided PVC Hose

An economical Glass clear braided PVC hose that can be used on a wide variety of applications.

Features include:

• Glass clear clarity for excellent visibility

• Excellent resistance to abrasion

• Suitable for food, water, chemicals, gas, fuels and oils

HOS310 ID-10mm

HOS312 ID-13mm

HOS319 ID-19mm

HOS325 ID-25mm

Black Rubber Hose

• Highly resistant to a wide variety of acids and alkali’s

• Service temperature -15C to 60C

• NSF61 approved for the transfer of drinking water.

• Suitable for petrol, diesel, compressed air, water and some chemicals.

• Supplied in 50m coils or cut to metre lengths.

• Extremely flexible

HOS213 ID-13mm HOS219 ID-19mm HOS225 ID-25mm

Seed Drill Hose

Lightweight clear non toxic PVC delivery hose, suitable for food and seed delivery applications.

Features include:

• EN No 10/2011 compliant for food contact applications

• Transparent for easy visibility

• Excellent chemical and abrasion resistance. Other sizes are available on request

• Fantastic flexibility even in cold weathers

PVC Suction Hose

Robust general purpose hose, ideally suited to slurry, cess pit, irrigation, waste water uses. Opaque, green, flexible hose with a white spiral helix embedded. Excellent weather and crush-resistance.

HOS525 ID-25mm

HOS532 ID-32mm

HOS538 ID-38mm

HOS550 ID-51mm

HOS563 ID-63mm

HOS576 ID-76mm (30m Roll)

HOS576/10 ID-76mm (10m)

HOS576/5 ID-76mm (5m)

HOS5102 ID-102mm

HOS5150 ID-152mm

Call us for any MDPE required in 50m and 63mm

MDPE Pipe

Quality MDPE pipe supplied in blue or black. Blue - for potable (drinking) water and below ground applications. Black - for non-potable (non-drinking) water. Coil lengths of 50m - longer lengths available on request.

(50M) Blue HOS56000/100

(100M) Blue HOS56002/50 OD-25mm (50M) Blue

HOS56002/100 OD-25mm (100M) Blue

HOS56004/50 OD-32mm (50M) Blue

HOS56004/100 OD-32mm (100M) Blue

HOS56001/50 OD-20mm (50M) Black

HOS56001/100 OD-20mm (100M) Black

HOS56003/50 OD-25mm (50M) Black

HOS56003/100 OD-25mm (100M) Black

HOS56005/50 OD-32mm (50M) Black

HOS56005/100 OD-32mm (100M) Black

Layflat Hose

Blue reinforced PVC delivery hose, suitable for drainage, irrigation and transfer of non-solvent liquids.

• Abrasion resistant

• Tough and durable for extended life

• RoHS 3 compliant

HOS732 32mm

HOS750 50mm

HOS775 75mm

Blue: For Potable (Drinking) Water and Below Ground Applications

Black: For Non-Potable (Non-Drinking) Water

Saddle Clips

For fixing pipes to walls etc.

HOS55102/20 20mm (Pack-20)

HOS55103/20 25mm (Pack-20)

Ratchet Action Pipe Cutter

Heavy duty ratchet action tool with strong aluminium body and replaceable stainless steel blade. Will cut plastic / MDPE pipe and tubing up to 35mm OD.

THD31985 Up to 35mm Capacity

HD Ratchet Action Pipe Cutter

Trigger operated cutter for cutting plastic and vinyl pipes (3 - 42mm O/D). Safety clip keeps handles closed when not in use. Cutter body is manufactured from diecast aluminium and fitted with a hardened and tempered steel blade. Length 200mm. Display packed.

THD54465 Cuts (3 - 42mm O/D)

Seven Pattern Spray Gun

Draper Expert water spray gun.

• Seven pattern spray gun - flat, jet, shower, centre, mist, soaker and cone sprays.

• Aluminium diecast body with contoured rubber grip and brass inlet nozzle.

THD89323 1/2” Quick Release Connector

High Pressure Spray Gun

High pressure water gun. A robust, heavy duty gun, suitable for washing down large areas ie. Dairy parlours, yards, industrial sites.

• On/Off Trigger and adjustable spray arm

• Max water temperature 50°C

• Max operating pressure 24 bar

• ½” BSP Female Fitting

HOS2110 1/2” Female Fitting

Tap Connector

HOS332 1/2” F-Thread (Male Quick Release)

Hose Connector Hose Repair Connector

HOS333 3/4” F-Thread (Male Quick Release)

HOS330 1/2” (Female Quick Release) HOS331 3/4” (Female Quick Release)

HOS340 1” F-Thread (Male Quick Release) HOS338

/ Max

Hose Connector 1/2”

Shut-Off

1/2” Hose connector with shut off valve x female quick release. Stops water flow when disconnected.

HOS336 Female Quick Release

Hose Connection 4pc Set

Connection set, set of three connections and spray nozzle. Contains 1x HOS 333, 1x HOS 330, 1x HOS 336 and 1x spray nozzle.

HOS343 Pack-4

Geka Rubber Seal Rubber Seal.

HOS2107 Pack-10

Geka Male Thread Geka Hosetail

HOS2102 1/2”

HOS2100 3/4”

HOS2101 1”

Mikalor Clamp

High clamping power, heavy duty hose clamps suitable for heavy duty applications, eg. slurry hose etc.

HOS832 32mm-35mm

HOS836 36mm-39mm

HOS840 40mm-43mm

HOS844 44mm-47mm

HOS848 48mm-51mm

HOS852 52mm-54mm

HOS856 56mm-59mm

HOS860 60mm-63mm

HOS864 64mm-67mm

HOS868 68mm-73mm

HOS874 74mm-79mm

HOS2109 1/2”

HOS2104 3/4”

HOS2106 1”

HOS2108 1/2”

HOS2103 3/4”

HOS2105 1”

HOS880 80mm-85mm

HOS886 86mm-91mm

HOS892 92mm-97mm

HOS898 98mm-103mm

HOS8104 104mm-112mm

HOS8113 113mm-121mm

HOS8122 122mm-130mm

HOS8131 131mm-139mm

HOS8140 140mm-148mm

HOS8149 149mm-161mm

HOS8162 162mm-174mm

Geka Female Thread

Hose Clip

Pack of 25 unless stated.

HOS112/25 9.5mm-12mm

HOS116/25 11mm-16mm

HOS120/25 13mm-20mm

HOS122/25 16mm-22mm

HOS125/25 18mm-25mm

HOS130/25 22mm-30mm

HOS135/25 25mm-35mm

HOS140/25 30mm-40mm

HOS150/25 32mm-45mm

HOS155/10 35mm-50mm

HOS160/10 40mm-55mm

HOS170/10 55mm-70mm

Camlock Fittings

Stainless Hose Clip

Pack of 10.

HOS613/10 13mm-20mm

HOS635/10 22mm-30mm

HOS650/10 35mm-50mm

HOS670/10 50mm-70mm

Philmac Joiner

HOS7122 20mm (Poly x Poly)

HOS7133 25mm (Poly x Poly)

HOS7144 32mm (Poly x Poly)

handles, providing excellent grip which helps deliver higher torque.

HOS801

See Spraying on page 346

Philmac End Connector

HOS7221 20mm x 1/2”M (Poly x Male)

HOS7222 20mm x 3/4”M (Poly x Male)

Philmac Reducer

HOS7132 25mm x 20mm (Poly x Poly)

HOS7143 32mm x 25mm (Poly x Poly)

HOS7163 50mm x 25mm (Poly x Poly)

HOS7164 50mm x 32mm (Poly x Poly)

HOS7166 50mm (Poly x Poly)

HOS7177 63mm (Poly x Poly)

Philmac MDPE Pipe Liner

Pipe support liner for MDPE water pipe. Essential for secure clamping of Philmac fittings above and below ground.

HOS78002 20mm

HOS78003 25mm

HOS78004 32mm

HOS78006 50mm

Philmac Connector

HOS7821 20mm x 1/2”F (Poly x Female)

HOS7822 20mm x 3/4”F (Poly x Female)

HOS7832 25mm x 3/4”F (Poly x Female)

HOS7843 32mm x 1”F (Poly x Female)

HOS7844 32mm x 1-1/4”F (Poly x Female)

HOS7865 50mm x 1-1/2”F (Poly x Female)

HOS7866 50mm x 2”F (Poly x Female)

Philmac Equal Tee

HOS7322 20mm (Poly x Poly x Poly)

HOS7333 25mm (Poly x Poly x Poly)

HOS7344 32mm (Poly x Poly x Poly)

HOS7366 50mm (Poly x Poly x Poly)

HOS7377 63mm (Poly x Poly x Poly)

Philmac Unequal Tee

HOS7421 20mm x 1/2” x 20mm (Poly x Female x Poly)

HOS7432 25mm x 3/4” x 25mm (Poly x Female x Poly)

HOS7332 25mm x 20mm x 25mm (Poly x Poly x Poly)

HOS7334 25mm x 32mm x 25mm (Poly x Poly x Poly)

Philmac Elbow

HOS7621 20mm x 1/2” (Poly x Female)

HOS7631 25mm x 1/2” (Poly x Female)

HOS7632 25mm x 3/4” (Poly x Female)

HOS7643 32mm x 1” (Poly x Female)

Philmac Elbow

HOS7522 20mm (Poly x Poly)

HOS7533 25mm (Poly x Poly)

HOS7544 32mm (Poly x Poly)

HOS7566 50mm (Poly x Poly)

HOS7577 63mm (Poly x Poly)

Philmac End Cap

HOS7029 20mm (Poly)

HOS7039 25mm (Poly)

HOS7049 32mm (Poly)

HOS7069 50mm (Poly)

HOS7079 63mm (Poly)

Philmac Transition Coupling

HOS1032 15-20mm, 15/21mm x 20mm MDPE

HOS1033 15-25mm, 15/21mm x 25mm MDPE

HOS1042 21-20mm, 21/27mm x 20mm MDPE

HOS1043 21-25mm, 21/27mm x 25mm MDPE

HOS1053 27-25mm, 27/34mm x 25mm MDPE

HOS1054 27-32mm, 27/34mm x 32mm MDPE

HOS1064 34-32mm, 39/43mm x 32mm MDPE

HOS1074 39-32mm, 34/39mm x 32mm MDPE

Philmac Blanking Plug

HOS9128 20mm

HOS9138 25mm

HOS9148 32mm

Philmac Reducing Kit

HOS98032 25 x 20mm

HOS98042 32 x 20mm

HOS98043 32 x 25mm

HOS98064 50 x 32mm

Poly Nipple Poly Threaded Union

Poly Reducer

Poly Reducing Nipple

Poly Tee

Poly 90˚ Elbow

Non-Return Valve

Female x Female Brass, single check non return valve, for fitting in line to prevent back flow.

HOS3012 1/2”

HOS3034 3/4”

HOS3010 1”

HOS3015 1-1/2”

HOS3020 2”

Philmac Wall Plate

Ideal for attaching to walls, post etc, when a tap is needed.  Body made from gunmetal.

HOS8228 20mm x 1/2”

HOS8229 25mm x 3/4”

Philmac Plastic Stockcock

Poly x Poly, suitable for above and below ground use.

HOS2622 20mm

HOS2633 25mm

HOS2644 32mm

Bibtap

Hose union bibtap, Crutch head, brass body.

HOS2200 1/2”

HOS2203 3/4”

Bibtap & Non-Return Valve

Bibtap supplied with internal double check valve.

HOS2201 1/2” with non return valve

Ice Resistant Bibtap

Winter proof ice resistant hose union bib tap.

HOS2204 1/2”

HOS2205 3/4”

Lever Type Ball Valve

Ideal for use in domestic, industrial, agricultural, water, oil, gasoline and many other non-aggressive fluid applications.

• Body made from hot pressed brass.

• Ball made from brass and chromium plated.

• Working pressures - Water 32 bar (464 psi)

• Working temperature - Fluids at -20ºC to 150ºC.

Gate Valve Female/Female

HOS002 3/4”

HOS003 1”

HOS004 1 - 1/2”

HOS005 2”

TAT1200 1/2”

TAT3400 3/4”

TAT1000 1”

TAT1500 1-1/2”

TAT2000 2”

Ball Valve Assembly 1/2”

Brass water valve assembly, 1/2” fitment. Supplied without float valve (HOS2253).

HOS2251 High Pressure

Water Meter

Multi-jet water meters, made from corrosion proof copper alloy, giving accuracy down to 50ml.

HOS8206 1/2” M/M, Model BSP

HOS8207 3/4” M/M, Model BSP

HOS8208 1” M/M, Model BSP

Ball Valve Assembly 3/4”

3/4” Ball Valve Assembly.

HOS2257 3/4” High Pressure

1/2” Ball Valve Arm Only.

HOS2252 1/2” x 8-3/4”

HOS2266 1/2” x 6”

HOS2259 3/4” x 13”

Ball Valve Washer

1/2” Washers for ball valve.

3/4” Washers for ball valve.

HOS2260 1/2”, Pack-5

HOS2261 3/4”, Pack-5

Plastic Valve Seat

Ball Valve Float

4-1/2” Ball float to suit 1/2” valve. 6” Ball float to suit 3/4” valve.

HOS2253 1/2” x 4-1/2”

HOS2258 3/4” x 6”

Ball Valve Repair Kit

Kit contains:

• Piston

• Cotter Pin

• Nylon Seat

• Washers

• Jet

HOS2256 1/2”

Metabo Submersible

Pump 1100W

Heavy duty pump for pumping out ditches, drains etc.

Specifications:

• Rated input power: 1100 W

• Maximum delivery rate: 19000 l/h

• Maximum immersion depth: 7m

• Discharge port: 1 1/2” female thread

• Dimensions: 265 x 200 x 360mm

• Cable length: 10 meters

HOS2500 Trash Water

Metabo Submersible

Pump 970W

Cotter Pins

Brass Cotter Pins for 1/2”

HOS2262/5 1/2”, Pack-5 HOS2263/5 3/4”, Pack-5 HOS2264/5 1/2”, Pack-5

Ball Valve. Brass Cotter Pins for 3/4” Ball Valve.

HOS2265/5 3/4”, Pack-5

For pumping out, pumping dry and recycling fresh water and waste water from containers, tanks or flooded cellar.

Specifications:

• Rated input power: 970 W

• Maximum delivery rate: 16000 l/h

• Maximum immersion depth: 7m

• Discharge port: 1 1/2” female thread

• Maximum particle size up to: 30mm

• Dimensions: 245 x 179 x 360mm

• Cable length: 10m

HOS2401 Semi Trash Water

ARC Inverter Welder 160AMP

• Digital display

• Built-in hot star, anti sticking and arc force

• Lift/Tig facility

• Includes 3m earth return lead and 3m electrode lead.

ARC Inverter Welder 200AMP

• Excellent duty cycle

• Digital display

• Built-in hot star, anti sticking and arc force

• Lift/Tig facility

• Includes 3m earth return lead and 3m electrode lead.

MIG Welder 210AMP

• Excellent workshop welder

• Easy to use with front castor wheels

• With Euro torch and regulator

• Accepts mig wire up to 0.8mm

• Accepts 5kg and 15kg reels

• Supplied with torch and regulator

Mild Steel Mig Wire

General purpose, precision wound, mild steel copper coated mig wire.

WM024 0.8mm, 5kg

WM026 0.8mm, 15kg

WM027 1.0mm, 15kg

WM028 1.2mm, 15kg

Hardfacing Mig Wire

Solid hard facing MIG wire for wear resistance. Ideal for agriculture, earth moving and stone crushing parts.

WM060/15 1.2mm, 15kg

General Purpose Electrode

Rutile cellulosic coated electrodes for welding in all positions, especially suitable for where one single type of electrode is required.

WA602 2.5mm, Pack 5kg

WA603 3.2mm, Pack 5kg

WA604 4.0mm, Pack 5kg

All-Position Electrode

Vacuum packed, superior general-purpose electrode for welding mild and low-alloyed structural steels. It deposits smooth weld beads in all positions including vertical down. It is very easy to strike and restrike with self-peeling slag.

WA202 2.5mm, Pack 5kg

WA203 3.2mm, Pack 5kg

WA204 4.0mm, Pack 5kg

Dissimilar Electrode

A stainless steel electrode for joining mild, medium and high carbon alloy and spring steel together with ferritic and austenitic stainless steels of themselves and each other.

WA223 3.2mm, Pack 2kg

Hard Facing Electrode

Basic coated electrode for wear resistant surfacing of steel, cast-steel and high Mn-steels that are subject to abrasion and metal-to-metal wear.

WA232 3.2mm, Pack 4.5kg

WA233 4.0mm, Pack 6kg

Contact Tip M6 x 25mm

To fit M15 Euro torch (TPD40397).

TPD50803 0.8mm, Pack-5

TPD04613 1.0mm, Pack-5

Conical Nozzle

0.6mm-1.0mm

For M15 Euro Torch (M6 x 25mm).

Conical Nozzle

0.6mm-1.2mm

For M25 Euro Torch (M6 x 28mm).

M25 Euro Torch & 3M Cable

Mig welding torch with 3m cable. Complete with Euro fitting. Rating: 200A@60% Duty cycle.

WA300 Wire 0.6mm-1.2mm

Heavy Duty 4 Row Wire Brush

THD12589

TPD33886 Pack-5

Welding Cable

• Supplied by the metre. WA002 50mm

Contact Tip M6 x 28mm

To fit M25 Euro torch (WA300).

TPD38454 Pack-5 TPD38456 0.8mm, Pack-5

Re-Usable Cable Lugs

Earth Clamp Screw

Twist-Type Electrode Holder

Expert Quality, industrial wire scratch brushes with wooden stock incorporating a hang hole.

Anti-Spatter Spray

Aerosol spray to prevent the build up of spatter on nozzles, jigs and fixings.

MRA1026 300ml

Multi-Purpose Magnetic Holder

Strong, powerful welding magnet of triangular shape. Suitable for a large range of applications. Holds work at 45°, 90° or 135° angles.

All steel, with spring taper handle, especially for de-slagging.

Triple Spark Lighter

WG301

90° Cutting Torch

High performance, quality, one piece cutting blowpipe for use with acetylene or propane. Suitable for heavy duty heating.

Cutting Nozzle

Argon Regulator

Excellent quality argon regulator for mig welding. Double regulator shows cylinder pressure and flow rate.

WG516

2 Gauge Oxygen Regulator

2 Gauge Acetylene Regulator

Welding Hose Set

WG197 10mm x 5m, Oxygen & Acetylene

WG198 10mm x 10m, Oxygen & Acetylene

Flashback Arrestor

Acetylene

WG103

Flashback Arrestor Oxygen

WG104

CO2 Gas Cylinder

Portable size CO2 cylinder for mini mig and pocket mig welders.

WM011 60Ltr

Handy Auto Blowgun & Gas

With Piezo automatic ignition, it is extremely easy to light. The brass burner produces a flame which allows fine adjustment via a nozzle.

GAS146 Handy Auto Blowgun

GAS152 Butane/Propane Cartridge 350g

Charcoal/Odour P3

Leather Welders Gauntlet

Long gauntlet style, one size fits all.

WA303 14”

Offering a wide field of vision and can be worn over spectacles. With heat resistant and ventilated frames.

WG001

Moulded Dustmask P3

Pack-10 GPF9930/10

Variable Shade Welding Helmet

Excellent all-purpose unit variable shade welding helmet. Now has grinding protection included.

WA114 Solar Welding Helmet

WA115 Clear Front Lens, 110mm x 90mm

WA116 Clear Inner Lens, 104mm x 47mm

Welders Air Fed Respirator

Features and benefits

• Lightweight, ergonomic design with high impact resistance material

• Flip up with large clear view for grinding/cutting

• All-around head protection

• Fast and easy switch between Grinding and Welding

• Simple in/out structure for convenient replacement of external cover lens

• User-friendly remote design with wireless interface and OLED display

• Multi-featured interface menu provides easy and quick ADF setting

• Remote can either be locked on helmet or taken off

• Environmentally friendly rechargeable Li-ion battery design

• No battery replacement needed.

• Lightweight, slim compact design to reduce fatigue and increase comfort

• The ADF is 27% thinner and 20% lighter

• Unprecedented true colour technology provides a true visual world

• Supplied with a carrying bag

GPF300 A2PSL Welders Kit

GPF302 Welding Respirator Pre-Filter (Pack-5)

GPF303 Welding Respirator P3 Filter

Portable Oxyacetylene Kit

Oxyacetylene Welding & Cutting Set

• 1/32” & 3/64” A-FN Nozzles

• S/S oxygen 2g regulator

• Cup spark lighter

• Nozzle cleaners (red lid)

• Oxygen flashback arrestor

• Fuel gas flashback arrestor

• D/H cutting attachment

• No. 2, 3, 5, 7 lightweight nozzle

• S/S acetylene 2g regulator

• Panorama safety goggles

• 1/4” x 5mm oxygen fitted hose - 6mm

• 1/4” x 5mm acetylene fitted hose - 6mm

• DF combination spanner

• D/H mixer

• D/H shank

• Portable trolley

• Sturdy carry case

WA850ZZ

446 Cutting & Grinding Discs

447 - 449 Lubricants & Penetrating Fluids

449 Aerosol Paints

450 Machinery Paint

451 - 452 Sealants & Adhesives

452 Tapes & Patches

453 - 457 Electrical Products

455 - 459 Assortment Packs

460 - 463 Fixings

Cultivation & Subsoil Workshop Consumables

Metal Cutting Disc Depressed

Premium quality general purpose disc. Free of iron, sulphur and chlorine.

AMT24578/25 115 x 3.4 x 22d mm, Pack - 25

AMT29078/25 230 x 3.4 x 22d mm, Pack - 25

Metal Cutting Disc Flat

Premium quality general purpose disc. Free of iron, sulphur and chlorine.

AMT14578/25 115 x 2.5 x 22f mm, Pack - 25

AMT19078/25 230 x 2.5 x 22f mm, Pack - 25

AMT112020/10 300 x 3.5 x 20f mm, Pack - 10

AMT114025/10 356 x 2.6 x 25f mm, Pack - 10

Extra Thin Metal Cutting Disc Flat

Premium quality general purpose disc. Free of iron, sulphur and chlorine. Extra thin disc for easy and comfortable cutting. Burr free cutting results with minimum wastage and wear.

AMT34578/25 115 x 1.0 x 22f mm, Pack - 25

AMT39078/25 230 x 1.9 x 22f mm, Pack - 25

Metal Grinding Disc

Excellent quality metal grinding discs for general fettling of all ferrous metals.

AMG24578/10 115 x 7 x 22mm, Pack - 10

AMG29078/10 230 x 7 x 22mm, Pack - 10

Flap Disc

Layer angled to natural position in which angle grinders are used – no backing pads required. Lasts up to 25 times longer than flexible sanding discs reducing down time.

ABR200 115 x 22. 80 Grit

ABR201 115 x 22. 40 Grit

Poly Carbine Wheel

Ideal for removal of paint/rust and other flaking materials from wood and metal. Cleans without damaging or leaving contaminants.

ABR2008 115mm

Flexible Sanding Disc

Flexible sanding discs for all metal grinding and finishing operations. Use with ABR176 backing pad.

ABR164/25 113mm, Pack of 25, P36 Grade

Flexible Backing Pad

Use on an angle grinder with sanding discs. For use with ABR164/25.

ABR176 115mm

Crimped Wire Brush

Expert quality, manufactured from 0.3 mm hardened brassed steel wire. Designed for use with angle grinders.

ABR132 80mm x M14

Twisted Wire Brush

Expert quality manufactured from hardened steel wire. Designed for use with angle grinders.

ABR136 60mm (2-3/8”) x M14

ABR137 80mm (3-1/8”) x M14

Emery Cloth Strips

Emery cloth medium and coarse.

ABR102 25mm x 50m, Medium, P120 Grit

ABR103 25mm x 50m, Coarse, P80 Grit

Swarfega Duck Oil

Multi-purpose, silicone-free liquid. It will lubricate, penetrate, displace water, inhibit rust formation, waterproof electrical systems, clean and protect electrical and metal components.

MRA1015-5 5Ltr

Hammerite Waxoyl

Provides excellent, all-round rustproofing treatment. Its unique formula solves the problem of hidden rust once and for all.

LUB36005 Clear 5Ltr

LUB36001 Clear Aerosol 400ml

3-In-One Oil

A high quality light lubricating oil, which lubricates, cleans and polishes. Contains effective rust inhibitors. Has hundreds of uses around the farm and home.

MRA2003 200ml

GT85

GT85 is a specially formulated maintenance spray which lubricates, penetrates and displaces water. Contains PTFE for long life.

Agriforce Chainlube

Designed not to ‘throw off’ moving chains thus providing excellent lubrication. Anti-rust capability, can also be used as a slide-way on machine beds.

WD-40 Dry PTFE Lubricant

Lubricates and provides superior long-lasting corrosion protection with no oily residue. It dries quickly and resists dirt, dust and oil. Reduces friction and wear on blades and bits, door and window tracks, slides, conveyor belts, rollers, hinges, power tools and equipment.

Loctite Freeze & Release

WD-40 Smart Straw

Essential for keeping in the cab or multiple uses around the workshop.

WD-40 White Lithium Grease

Ideal for metal-to-metal applications that require heavyduty lubrication and protection against rust and corrosion.

MRA2010 400ml

Brake & Parts Cleaner

Cleans brake and clutch parts without dismantling. Dissolves grease, oil and removes dust.

Penetrates the rust layer directly through capillary effect. Loose parts remain lubricated and thus protected against corrosion. Loosens rusted, corroded and seized parts through shock freeze action.

WD-40 Silicone Spray

Lubricates, waterproofs and protects metal and non-metal surfaces, including rubber, plastic and vinyl. Effective in a temperature range from -100°F to 500°F.

Dashboard Cleaner

This fragranced polish that cleans & sheens plastics, wood, leather, trim and vinyl surfaces.

Brake and Clutch Cleaner

A powerful cleaning fluid which is ideal for fast and effective cleaning of all brake and clutch assemblies. Removes all contaminants such as grease, oil, dust and dirt.

Copper Anti-Sieze

Thick, protective lubricant for metal parts, eliminates corrosion, seizures and brake squeal.

Copper Grease

A copper based, anti-seize compound. Specially suited to high temperatures and harsh climatic conditions.

Belt Dressing Spray

Conditions drive and conveyor belts whilst preventing glazing, cracking, and slipping.

MRA1025 300ml

Swarfega Jizer

The original water rinsable parts degreaser. Powerfully breaks down oil, grease, tar, bitumen and waxes. Use it to clean engines, bodywork, components, paint and brushes.

HD150/5 5Ltr

HD150/25 25Ltr

WD-40 Degreaser

Deep foaming penetrating action quickly removes grease, oil, dirt and grime. An ideal engine cleaner and industrial degreaser

MRA2008 500ml

Electrical Cleaner

Cleans electrical hardware, removes oil and grease from most surfaces.

MRA1033 400ml

ZG90 Cold Zinc Galvanise

Provides cathodic and mechanical protection, which gives a weatherproof coating. Contains more than 90% pure zinc in a dry film and can be used on bare steel and galvanised steel.

PSA410 500ml

Traffic Film Remover

ZG90 Topcoat Flat Black

Gives high coverage and is fast drying. Can be used inside and out, on metal, wood and concrete.

PSA422 500ml

Red Oxide Primer Aerosol

An economically priced paint for requirements where paint finish is not so critical. Common uses include barns, cultivators and skips. Creates a hard moisture resistant finish.

See page 250 for 2.5/5 & 20 Litres

PRM56-400 400ml

Heat Resistant Black

Flat black colour, will resist heat up to 535°C. Can be used on a topcoat on radiators and exhausts etc.

PSA430 400ml

Line Marker

An aerosol line marking paint that marks durable, brightly coloured lines in a quick simple operation, whatever the surface, indoors or out. Cans are supplied with nozzles for use by hand.

PSA501 White, 700ml

PSA502 Yellow, 700ml

De-Ionised Water

Prevents fur and scale formation in batteries. Can also be used in steam irons.

MRA1014-5 5Ltr

See page 218

MRA1019 25Ltr

Easy Engine Starter

A mixture of volatile aromatics which ensures initial firing even under extreme conditions. Contains an upper cylinder lubricant.

MRA1008 300ml

Machinery Enamel Paint

Fast drying and high resistant synthetic paint suitable for finishing of utility vehicles, machines and construction elements for interior and exterior use. Excellent weathering resistance.

See page 252 for paint brushes and white spirit

Benefits: Short drying time and long working life

Application: Top coat for painting commercial vehicles, machines and structures indoors & outdoors

Properties: Highly stable. Outstanding running qualities. Excellent final hardness. Stable sheen, gloss finish (DIN 67 530) >80%/60° (high-gloss). Compliant with solvent regulation. Can be stored in original container for at least 3 years.

Oil Absorbent Granules

Granular clay absorbency product for use in all general spillage applications. Non-carcinogenic material absorbs spills such as oils, antifreeze, and some chemicals, ready for safe containment and disposal.

HG010/20 20Ltr

Silicone Sealant Clear

A ready to use silicone sealant, ideal for making flexible, watertight seals, between a range of materials, both interior and exterior.

MRA1070 310ml

Puraflex 25 Sealant

A synthetic rubber based sealant, for wall joints, cracks and expansion joints. Forms a permanently flexible seal. Ideal for vertical joints in silage clamps.

PRC03 300ml

Pinkgrip

A high performance, high strength gap filling adhesive, which will bond a wide variety of materials, to itself or each other.

MRA1073 350ml

All-Weather Sealant

Multi use sealant, which can be applied in all weathers, to all surfaces, including wet surfaces.

MRA1074 310ml

Roof & Gutter Sealant

Bitumen based, water resistant sealant for use in gutter cracks, flashings, asphalt repairs, roofing felt and asbestos.

MRA1071 310ml

Stixall Extreme Power

Everbuild Stixall Extreme Power will bond and seal virtually anything in nearly all conditions, even under water or in the rain!

MRA1076 790ml

PTFE Tape

A

MRA1060 12mm x 2533mm

thread seal tape for use on metal or plastic joints.

Sticky Back Foam

Sticky back foam tape can be used as a door sealant, tailgate sealant or draught excluder. Especially popular for grain trailer tailgates to reduce leakage.

MRA1089/6 25mm wide x 12mm thick x 6m

Industrial Grade SuperGlue

An industrial strength

Cyanoacrylate adhesive. One of the best general purpose adhesives on the market, bonding metals, rubber, vinyls and most plastics.

MRA1064 20g

Stud & Bearing Sealant

Green colour, high strength for locking and sealing studs, nuts, bolts, threaded fasteners and close fitting parts.

MRA1059 50ml

Medium Strength Threadlock

Blue colour, medium strength for thread sealing and locking nuts and bolts that may require dismantling.

MRA1058 50ml

2 Part Rapid Epoxy Adhesive

Industrial strength 2-part adhesive which sets hard in just 10 mins.

MRA1052 15ml Per Tube

Agriforce Silage Patches

Designed for repairing silage bags, sheets and bale wrap. Highly adhesive to polythene, and can

Agriforce Silage Tape

Black PVC self-adhesive tape, ideal for use when repairing damage to bale wrap, silage sheeting and bags.

MRA1082 75mm x 33m

MRA1083 100mm x 33m

Agriforce Duct Tape

Heavy-duty silver cloth-based ductape, with an improved formula adhesive. Ideal for sealing gaps in grain store walls, patching up silage bales or general ‘hold-it-together’ farm use.

MRA1086 50mm x 50m

MRA1088 75mm x 50m

or temporary taping jobs due to its non-surface marking qualities.

MRA1085 50mm x 50m

Barrier Tape

A red and white hazard tape, ideal for marking out signs, hazards and safety zones. Choice of adhesive or non-adhesive

MRA1078 50mm x 33M Self Adhesive

MRA1087 75mm x 500M Non-Adhesive

Reinforced Plastic 13A Plug 240V plug - rubber 13A fused.

7 Pin Plugs & Sockets

Single Trailing Socket 13A 240V socket - 13A trailing socket - single outlet.

Double Trailing Socket 13A 240V socket - 13A trailing socket - double outlet. EMC001 240V Plug

EMC010 240V Sockets

EMC012 240V Socket

3 Core Cable

2.5mm 240V mains cable. Will suit most applications. Available in rolls of 50m or cut to length (min 5m length).

3 Pin Plug & Socket

EMW001 Rubber, 5m Increments

See Tractor & Trailer on page 403

EMC151-2

EMW002 White PVC, 5m Increments

Blue Wall Socket 16A 16A 240V wall mounting.

Blue Trailing Socket 16A 16A 240V trailing.

Blue Trailing Plug 16A 240V plug - 16A trailing.

Blue Trailing Socket 32A 32A 240V trailing.

Blue Trailing Plug 32A 240V plug - 32A trailing.

Red Trailing Plug 3-Phase

415V Plug - 3 phase - Plug 16A - 3 pin and earth - red.

Cartridge Fuses 13A

240V - Fits standard 13 amp plugs.

EMF005 Pack - 10

Medium Duty Starter Cable 170A

PVC covered copper stranded wire. Supplied per metre.

EAW082 25mm2

Medium Duty Cable Eyelet

Starter Cable Eyelet. Spade type light duty.

EAW021

Car Battery Terminal

Solderless battery terminals.

Heavy Duty Cable Eyelet

Starter cable eyelet. Spade type heavy duty.

EAW022

Converter Battery Terminal

Solderless battery terminals.

EAW006 Positive

EAW005 Negative

EAW001 Positive

EAW002 Negative

Commercial Battery Terminal

Solderless battery terminals.

EAW003 Positive

EAW004 Negative

Twin Core Black Cable - 30m Roll

2 x cables with each one comprising of either 14 or 28 strands of 0.3mm wire.

EAW042/30 Twin Core Cable 8.75A, 14 Strands

EAW041/30 Twin Core Cable 17.5A, 28 Strands

Black PVC 5 Core Cable

5 core PVC covered electrical cable, suitable for trailer wiring. Available per metre or in full roll.

EAW087 30m

Black PVC 7 Core Cable

7 core PVC covered electrical cable, suitable for trailer wiring. Available per metre or in full roll.

EAW083 30m

Rubber Junction Box

An electrically insulated unit, manufactured from natural rubber, fitted with a transparent cover to facilitate inspection without removal.

EAC153

Red Connector Butt 4mm

Pre-insulated terminals for permanent and temporary connecting and earthing of automotive type cables.

EAC102 8.75A, Pack-50

Red Connector Male Blade 6.3mm

EAC103 8.75A, Pack-50

Red Connector Female

6.6mm

EAC105 8.75A, Pack-50

Blue Female Connector

Blue Butt Connector 4.5mm

Pre-insulated terminals for permanent and temporary connecting and earthing of automotive type cables.

EAC113 17.5A, Pack-50

Blue Male Connector Blade 6.3mm

EAC114 17.5A, Pack-50

Blue Ring Connector 6.4mm

EAC116 17.5A, Pack-50

Blue Female Connector

6.6mm

Pre-insulated terminals for permanent and temporary connecting and earthing of automotive type cables.

EAC120 17.5A, Pack-50

Blue Nipple Connector 5mm

EAC118

6.6mm

Pre-insulated terminals for permanent and temporary connecting and earthing of automotive type cables.

EAC117 17.5A, Pack-50

Superseal Crimping Tool

All steel construction with anti-slip handles. For use on .5 terminals. Parallel jaw movement ensures consistent crimp tension.

EAC126 All steel - 210mm length

Crimping Assortment & Ratchet

Terminal Assortment

Blue Recepticle Connector 5mm

EAC119 17.5A, Pack-50

Includes ratchet crimper and mixed pre-insulated terminals, in a steel storage case with dividing insert.

THD56383 Approx 590 pcs

An assortment of approximately 18 different terminals, covering the popular sizes, including connectors, male and female spade joiners, ring joiners etc.

MRA3028 Approx 380 pcs

MRA3029 Approx 350 pcs

12V Blade Fuse

EAF044 10A Red, Blowing Rate = 20A, Pack-10

EAF041 15A Blue, Blowing Rate = 30A, Pack-10

EAF042 20A Yellow, Blowing Rate = 40A, Pack-10

EAF043 30A Green, Blowing Rate = 60A, Pack-10

Blade Fuse

Assortment 3A-30A

Assortment of blade fuses 3amp to 30amp.

EAF011 Approx 80 pcs

Assortment

Assortment of mini blade Type fuses - 2amp to 30amp.

MRA3019 Approx 100 pcs

Grey Trailer Plug 50A

EAC150 50A

In-Line Fuse Holder

Blade fuse holder, splash proof, accepts standard blade fuses, max fuse rating 30 Amps. Snap-on splash proof cover.

EAF065 Pack-10

Crocodile Clips 25A

Can be used on a variety of applications including battery chargers and electric fencers.

EAC021 Pack-2

Crocodile Clips 25A

Can be used on a variety of applications including battery charges and electric fencers.

EAC074 Insulated, Pack-2

Crocodile Clips 50A

Can be used on a variety of applications including battery chargers and electric fence energisers.

EAC022 Pack-2

Crocodile Clips 100A (2x Pairs)

Can be used on a variety of applications including battery chargers and electric fencers.

EAC023 Pack-2, (2 x Red & 2 x Black)

Heat Shrink Tubing Assortment

Slide over wires or joints and heat to protect and insulate. Various colours and sizes.

MRA3020 200mm x 30pcs

Mini Blade Fuse

Cable Ties

Flexible nylon straps, with positive locking eyes.

EAC056 140mm x 3.6mm, Pack-100

EAC054 160mm x 4.8mm, Pack-100

EAC053 300mm x 4.8mm, Pack-100

EAC052 370mm x 4.8mm, Pack-100

EAC055 300mm x 7.6mm, Pack-100

EAC058 370mm x 7.6mm, Pack-100

EAC202 580mm x 13.0mm, Pack-100

Insulation Tape

A good quality PVC electrical insulation tape - selection of colours in 20m rolls x 19mm width.

EMM011 Red

EMM012 Black

EMM013 Blue

EMM014 Green

EMM015 Yellow

AquaLube

Lubricant Spray

Aqualube is a synthetic liquid that lubricates and removes moisture in all types of mechanical and electrical equipment. It instantly resolves issues with flooding and dampness as well as improving electrical efficiency.

MRA1039 500ml

Coloured Cable Ties

Flexible nylon straps, with positive locking eyes. Assorted colours.

MRA3022 200mm x 4.8mm, Pack-100

Sticky Back Cable Clips

Sticky backed nylon cable clip holder. 27mm square and will take up to 5mm cable ties. Takes up to 5mm cable tie.

EAC051 27mm, Pack-25

Strip Connectors

Flexible transparent insulators, used for multi cable joins. Supplied in strips of 12, but can be cut to required size.

EAC005 10A, Pack-12

EAC006 25A, Pack-12

Duracell 1.5V Battery

ETB008 AAA Pack-4

ETB003 AA Pack-4

ETB006 C Pack-2

ETB001 D Pack-2

9V

Duracell Battery

9v Battery. Ref 9v/6LR61.

ETB002 9V, Pack-1

Duracell Industrial

The Duracell battery designed for professional users delivers long-lasting power across a multitude of uses.

ETB005 AAA, Pack-10

ETB004 AA, Pack-10

6V Battery

Battery 6V - fits torches, fence units etc.

ETB007

6V Electric Fence Battery

6V electric fence battery. Ref PP8/2.

ETB010

Hose Clip Assortment

Assortment of hose clips 9.5mm - 55mm.

See page 432 for individual packs

MRA3021 Approx 50 pcs

Imperial Grease Nipple Assortment

Straight and angled grease nipples. Sizes 1/4”5/16” UNF and 1/8” GAS.

MRA3008 Approx 120 pcs

Metric Grease Nipple Assortment

Straight and angled grease nipples. Size 6 - 10mm.

MRA3009 Approx 135 pcs

O’Clip & Hose Mender Assortment

Cold formed special quality zinc plated steel joiners from 6 - 16mm diameter.

See page 432 for individual packs

MRA3033 Approx 72 pcs

Metric Rubber

O-Ring Assortment

30 sizes, 2mm thick x 3mm ID - 4mm thick x 44mm ID.

MRA3042 Approx 300 pcs

Bonded Washer Assortment

Rubber/metal bonded ‘Dowty’ washers from 1/8” BSP to 7/8” BSP.

See page 278 for individual packs

MRA3000 Approx 90 pcs

Roll Pin Assortment

Assortment of roll pins 2.5mm x 24mm8mm x 55mm.

MRA3003 Approx 385 pcs

Circlip Assortment

Assortment of circlips 12mm - 25mm. Internal and external.

MRA3005 Approx 280 pcs

R-Clip Assortment

Assortment of zinc plated R-Clips - Diameter 2.5mm - 6mm, length 45mm - 117mm.

See page 401 for individual packs

MRA3018 Approx 75 pcs

Split Pin Assortment

Large zinc plated 3-8mm diameter 38-76mm long.

MRA3034 Approx 220 pcs

Self Tapping Screw Assortment

Self Tapping Screws - assortment. Pan head, Pozidrive, zinc plated. No. 4 - 10.

MRA3011 Approx 700 pcs

Pop Rivet Assortment

Aluminium Rivet assortment - 1/8” x 3/8” to 3/16”x 1”.

See page 463 for individual packs

MRA3016 Approx 500 pcs

Machine Screw & Nut Assortment

Metric, panhead, zinc plated. M3, M4 and M5, 8 - 50mm long with nuts. Machine screws assortment.

MRA3017 Approx 300 pcs

Imperial Repair Washer Assortment

Zinc plated 3/16” x 1” to 3/8”x 2” diameter.

See page 462 for individual packs

MRA3035 Approx 240 pcs

Metric Nut & Bolt Assortment

Nuts selection in a plastic tub. Metric M6 - M10 fasteners assortment

MRA3051 Approx 100 pcs

Metric Nut & Bolt Assortment

M6 - M12 nut and bolt assortment.

MRA3049 Approx 430 pcs

Expansion Spring Assortment

Zinc plated spring expansions, various sizes.

MRA3030 Approx 70 pcs

Linch Pin Assortment

6mm, 8mm, 11mm.

See page 400 for individual packs

MRA3053 Approx 20 pcs

Wearing Part Fixings

Need fixings for your wearing parts? See page 209 for a factsheet

8.8 Tensile Hex Bolts

M10 x 70mm 8.8 Tensile, Pack-100

XBM1075/100 M10 x 75mm 8.8 Tensile, Pack-100

XBM1080/100 M10 x 80mm 8.8 Tensile, Pack-100

XBM1085/100 M10 x 85mm 8.8 Tensile, Pack-100

XBM1090/100 M10 x 90mm 8.8 Tensile, Pack-100

XBM10100/100 M10 x 100mm 8.8 Tensile, Pack-100

XBM1250/100 M12 x 50mm 8.8 Tensile, Pack-100

XBM1255/100 M12 x 55mm 8.8 Tensile, Pack-100

XBM1260/100 M12 x 60mm 8.8 Tensile, Pack-100

XBM1265/50 M12 x 65mm 8.8 Tensile, Pack-50

XBM1270/50 M12 x 70mm 8.8 Tensile, Pack-50

XBM1275/50 M12 x 75mm 8.8 Tensile, Pack-50

XBM1280/50 M12 x 80mm 8.8 Tensile, Pack-50 XBM1285/50

8.8 Tensile Set Screws

8.8 Tensile, Pack-100

XSM1035/100 M10 x 35mm 8.8 Tensile, Pack-100

XSM1040/100 M10 x 40mm 8.8 Tensile, Pack-100

XSM1045/100 M10 x 45mm 8.8 Tensile, Pack-100

XSM1050/100 M10 x 50mm 8.8 Tensile, Pack-100

XSM1055/100 M10 x 55mm 8.8 Tensile, Pack-100

XSM1060/100 M10 x 60mm 8.8 Tensile, Pack-100

XSM1065/100

XSM1070/100

XSM1075/100

XSM1090/100

x 65mm 8.8 Tensile, Pack-100

Coach

Bolt & Nut

XCB024/50 M8 x 40mm, Pack-50

XCB030/50 M8 x 80mm, Pack-50

XCB032/50 M8 x 100mm, Pack-50

XCB042/50 M10 x 50mm, Pack-50

XCB076/50 M12 x 80mm, Pack-50

Anchor Bolt

XPB003/5 M10 x 90mm, Pack-5 XPB005/5 M12 x 100mm, Pack-5

Studding

1M

Flat Washers

XWF206/100 M6, Pack-100

XWF208/100 M8, Pack-100

XWF210/100 M10, Pack-100

XWF212/100 M12, Pack-100

XWF216/50 M16, Pack-50

XWF220/25 M20, Pack-25

Spring Washers

XWS210/100 M10, Pack-100

XWS212/100 M12, Pack-100

XWS216/50 M16, Pack-50

Repair Washers

XWM206/25 M6, Pack-25

XWM208/25 M8, Pack-25

XWM210/25 M10, Pack-25

XWM212/25 M12, Pack-25

Full Nut

Serrated Washers

XWD012/10 M12, Pack-10

Flanged Serrated Nut

XNF010/10 M10, Pack-10

XNF012/10 M12, Pack-10

XNF014/10 M14, Pack-10

XNF016/10 M16, Pack-10

Coach Screw

Ideal for applications such as fitting gate furniture onto wooden posts.

Wood Screw

Hardened, twin thread, zinc plated countersunk, wood screw.

XSW016/200 No 8 x 1-1/2”, Pack-200

XSW028/100 No 10 x 2-1/2”, Pack-100

XCS10120/10 M10 x 120mm, Pack-10

XCS10150/10 M10 x 150mm, Pack-10

XSW043/100 No 12 x 3”, Pack-100

XSW044/100 No 12 x 4”, Pack-100

Timberlock Screw

The fasteners to use for large section timber beams and sleepers. Simply drive these self-countersinking screws straight in - no pre-drilling required. Can be removed and re-used over again. Anticorrosive long-life coating. 1 x driver bit included in each box.

XTX100/50 6.3 x 100mm, Pack-50

XTX125/50 6.3 x 125mm, Pack-50

Roofing Bolt & Nut

XRB604/100 M6 x 35mm, Pack-100

XRB606/100 M6 x 50mm, Pack-100

For fixing metal roofing or cladding sheets to light steel sections (1.2 - 3.0mm thick).

Tek Screw – For Timber

For fixing metal profiled roofing or cladding sheets to timber.

NEED A HAMMER? SEE OUR TOOLS

Tek Bit Driver

Used

Roundhead Galvanised Nail

See page 375 for more

Pop Rivet Large Head

Index A - L

1. Please ensure that this form is completed in BLOCK CAPITALS so as to avoid unnecessary delays in processing.

2. PLEASE SUPPLY A COPY OF YOUR OFFICIAL NOTEPAPER.

3. Please allow up to 21 days for the application to be processed.

4. PLEASE COMPLETE SECTIONS OVERLEAF.

FULL TRADING NAME

FULL NAME OF APPLICANT Phone Numbers : Main

Full Delivery Address (if different from the above)

I / We wish to apply for a Credit Account, for which purpose the following three references are tendered Bankers Sort Code

TRADE REFERENCE (1) Name Address

TRADE REFERENCE (2) Name Address

Phone Numbers: Main Fax

AVERAGE MONTHLY CREDIT REQUIRED £

I/ We understand all your accounts are strictly nett and that settlement is due by the 15th day of the month following the date of invoice Signed

In order for us to be able to monitor our marketing and to ensure that we provide the best possible service, would you please be kind enough to answer the following questions in order to help us with this process.

If your business is non farming, please state business type?

Could you please give additional information on farm implements used i.e. for plough type, if you have a Dowdeswell plough and a Kverneland plough, please write Dowdeswell x 1 and Kverneland x 1. If you know that the Dowdeswell is a DD and the Kverneland is a Number 8 body, please add this also.

Additional Information which you feel may be helpful

THANK YOU VERY MUCH FOR YOUR HELP. WE LOOK FORWARD TO SERVICING YOUR NEEDS

Conversion Tables

Conversion Tables
