APL Specifier Guide

A COMPLETE WINDOW SYSTEM

Specifier Guide Helping you specify the right products for your project

19 / 05 / 2026

Introduction About APL Window Solutions For more than 50 years, APL Window Solutions has been dedicated to designing and manufacturing window and door systems tailored for New Zealand homes and conditions. Since 1971, we’ve grown from a family-owned Waikato business into one of the country’s leading providers of window and door solutions.

Our focus on quality, innovation, and continuous improvement drives every part of our operation, from exploring new materials and finishes to refining our manufacturing processes. Everything we supply is designed and tested to meet the New Zealand Building Code, ensuring reliable performance and long-term durability.

In 2020, Architectural Glass Products (AGP) was established to complete APL’s vertically integrated window system offering. Glass is fundamental to any window solution, and AGP brings some of the most advanced glazing technology in the country - including Low-E options for improved thermal performance, insulated glass units with argon gas, and warm-edge spacer technology that reduces heat transfer and minimises condensation - all made in a purpose built, world-class manufacturing facility in Cambridge.

Through our brands - Altherm Window Systems, First Windows & Doors, and Vantage Windows & Doors - we work with a nationwide network of independent manufacturers who share our commitment to craftsmanship and service. Together, we’re helping shape the future of New Zealand’s homes and buildings.

Exclusively available through:

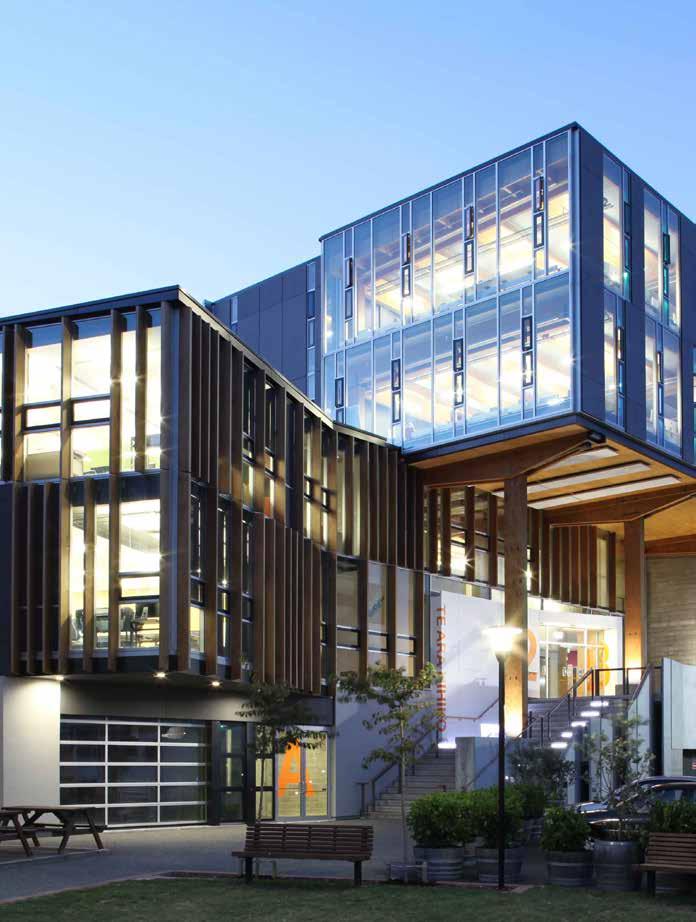

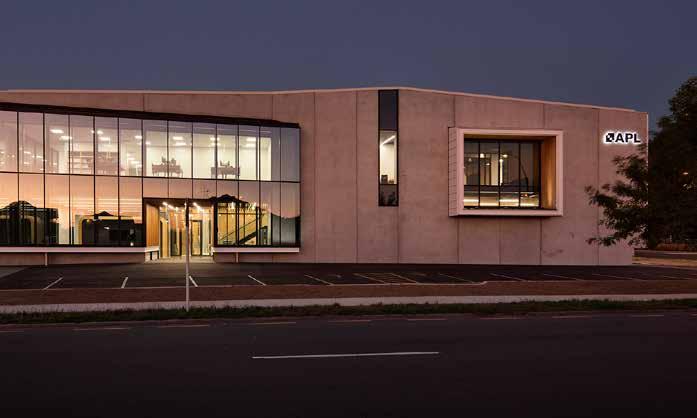

APL's Centre of Innovation building in Hamilton

1.4

APL Window Solutions - Specifications subject to change

Contents Introduction

1.4

About Profile Group

1.6

Proudly New Zealand made

1.8

APL and sustainability

1.9

Range overview

1.12

Technical information

1.14

Product guide

1.18

Residential Series ThermalHeart+®

2.1

Residential Series

3.1

Metro Series ThermalHeart+®

4.1

Metro Series ThermalHeart+® with Centrafix®

5.1

Metro Series

6.1

APL Architectural Series ThermalHeart+®

7.1

APL Architectural Series

8.1

Minima Series

9.1

Klima®

10.1

AGP glass

11.1

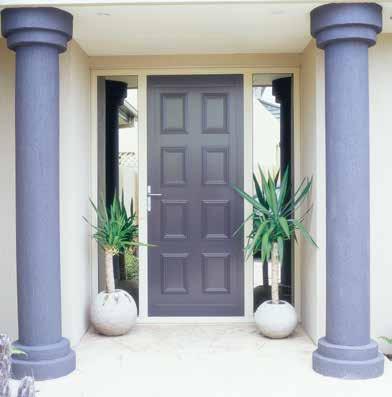

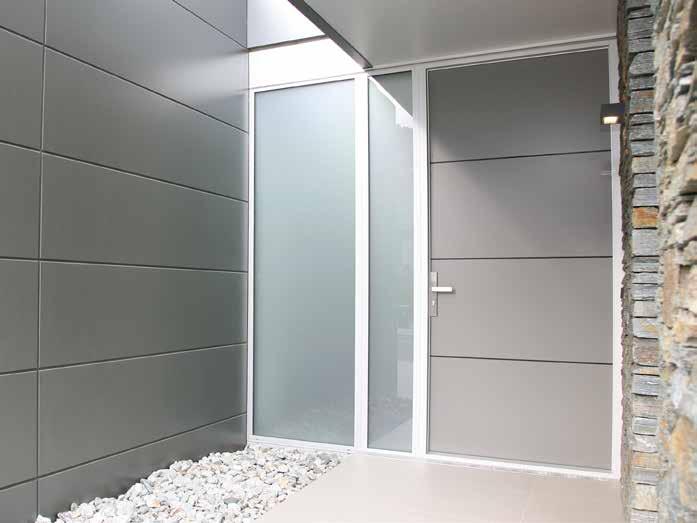

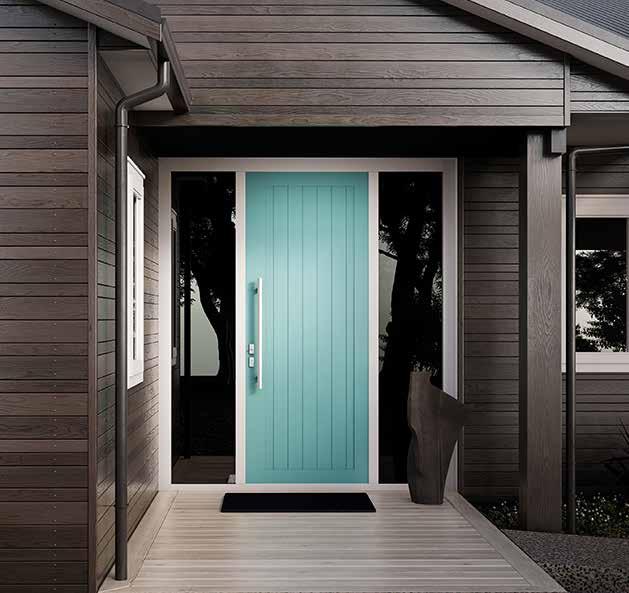

Entrance doors

12.1

Plus Entrance doors

13.1

Entrance doors Hardware

14.1

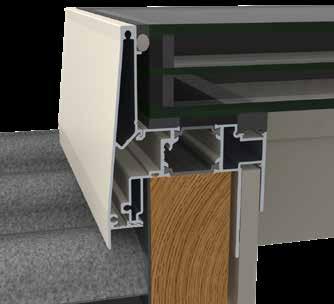

Roof windows

15.1

Passive ventilation

16.1

Commercial series

17.1

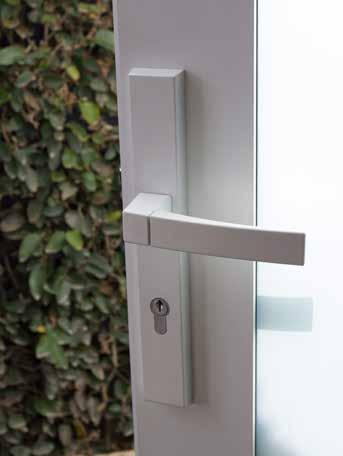

Hardware

18.1

Aged Care and Education

19.1

Social Housing and Multi-Unit

19.3

Surface finishing

20.1

Care and maintenance/warranty

21.1

1.5

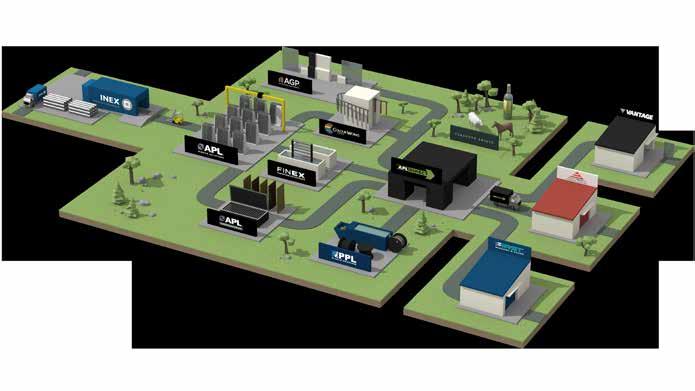

Vertically integrated supply chain About Profile Group Profile Group is the parent company behind APL Window Solutions, bringing together a family of specialised businesses that together, create New Zealand’s only fully integrated window system. While APL has long delivered industry-leading aluminium window and door solutions, the addition of Architectural Glass Products (AGP) marked a pivotal step, enabling us to control and coordinate every component required to engineer a complete, high-performance window system.

Within Profile Group, each stage of the process - from aluminium extrusion, component design, and surface finishing to glass manufacture, unit assembly, logistics, and distribution - is handled internally. This level of integration provides confidence in complete system compatibility and consistency. It also ensures every element is designed with a unified approach to design and is tailored specifically to the demands of New Zealand’s varied climates.

APL and AGP ensure the frame and glass are designed to perform together, not as separate components. The window and door systems are designed with high-performance glass technologies in mind, ensuring the two parts operate as a single, optimised unit.

This alignment is critical for achieving reliable thermal performance, compliance outcomes, acoustic control, and long-term durability.

In practice, it means architects can specify with certainty, knowing the window system has been designed, tested, and validated together to deliver predictable real-world results.

'Simplicity is at the core of our philosophy, embodied in our seamless, one-stop-shop approach'

1.6

APL Window Solutions - Specifications subject to change

Karewa Place site, home to PPL Plastic Solutions and APL's Design and Innovation team

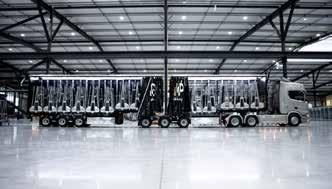

AGP's purpose designed truck for glass transportation, as seen at Profile Park

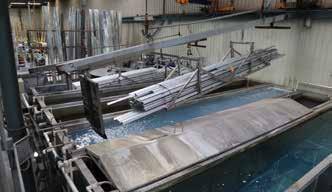

Aluminium going into conversion coating at Colour Works

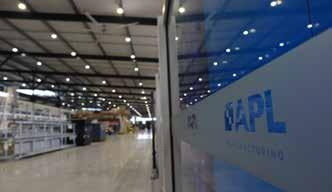

APL Manufacturing at Profile Park

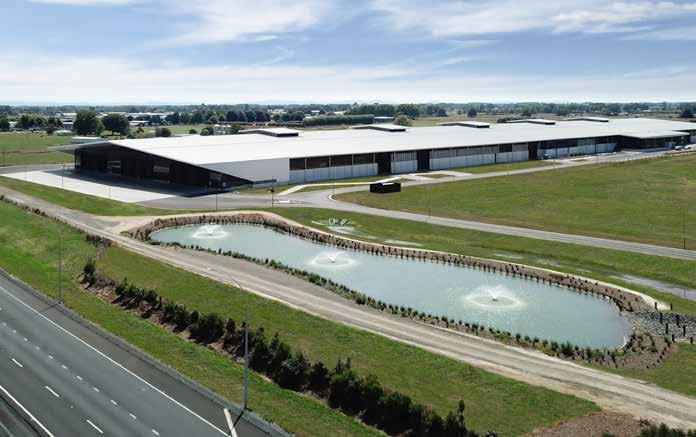

Profile Park in Cambridge

1.7

Proudly New Zealand made Since 1971, APL have been designing and manufacturing windows and doors right here in New Zealand. Local manufacturing isn’t just a point of pride; it’s a conscious choice that reflects our values of transparency, responsibility and innovation.

PROUDLY NEW ZEALAND MADE

Being New Zealand made means we understand our environment - from coastal winds to crisp alpine air. Every system we design is tested to perform beyond the toughest local standards, ensuring that every build, from Northland to Southland, benefits from proven, future-focused Kiwi engineering.

Customisable Design without compromise

APL

Our systems allow broad architectural freedom. You can adjust thermal specifications, colours, hardware, and configuration to suit regional requirements, building type, or aesthetic intent. All ranges have versatility to mix and match, and there are options for residential, architectural, and commercial applications.

Innovative Systems you can trust to perform in New Zealand conditions We invest heavily in research and development and use a purpose-built IANZ accredited testing facility to develop joinery specifically for New Zealand’s requirements and environmental pressures - high UV, variable temperature, coastal exposure, seismic movement, wind zones, and moisture.

Responsible Build better with sustainable design We’re committed to transparency and full traceability across our materials and manufacturing processes.

Independent assessments verify our sustainability measures, helping you meet environmental and compliance objectives with confidence.

Reliable Over 50 years of proven performance End-to-end quality assurance across our integrated supply chain ensures our systems perform as specified and are made to the New Zealand Building Code requirements, supporting reliable outcomes from design to installation.

Local Specification support and consistent supply, wherever your project is A nationwide network of expert Altherm, First, and Vantage manufacturers provides local specification advice and dependable lead times, ensuring you get consistent product quality and support through the entire process.

1.8

APL Window Solutions - Specifications subject to change

Our commitment to sustainability

OUR COMMITMENT TO SUSTAINABILITY

As the country's largest manufacturer of aluminium windows and doors, we believe we have a responsibility to improve the way we do things and reduce our environmental impacts.

We're rethinking what we make and how we produce it. We are reconsidering what we buy, and how we can reuse more of what is leftover.

We are measuring ourselves, committing to targets and openly sharing our learnings so that we not only reduce our own impact as a group but reset industry expectations and provide a model for circular success.

Our goals

Close the loop

Design out waste

Regenerate nature

Renewable packaging with full circle recovery reuse

A range of carbonzero products

Manufacturing powered by renewable energy

APL

Our approach to sustainability is guided by these three pillars, they drive decision-making and actions we take as a business.

Within each pillar are a number of initiatives that collectively have the power to make a big impact within our industry, and the country we call home.

Our sustainable changes to date Our aluminium comes from Tiwai Point, a NZ based smelter producing the world's

Our new packaging system will

eliminate over 1 million kg's of single use packaging

Supporting

83ha of native plant and wildlife regeneration at Sanctuary Mountain Maungatautari

100% circularity through packaging.

through Kawatiri’s renewable hydro station

purest aluminium

with renewable electricity sources

Linear Circular economy economy

Our target is

We offset all energy used

We diverted

350T of waste from landfill in 2024. That's

equivalent to 17 fully loaded 20 foot shipping containers!

We're proudly Toitū carbonreduce certified, Declare certified, and have four EPDs, ensuring our products are a smart, future-ready choice for sustainable builds

We're currently at 95%

96% of our fleet is rated Euro star 5 or better, and 60% is rated Euro 6 - the highest rating available for exhaust emissions

Over 28,500

trees and native plants have been planted by our staff

This is just the beginning

We use a

Learn more about our goals and initiatives in the APL Sustainability brochure

powdercoating process

chromate free

1.9

APL

ACCREDITATIONS AND AFFILIATIONS

Our accreditations and affiliations We believe investment in sustainability is not only an opportunity, but a responsibility we hold as a proud family-owned business.

The following accreditations have been carefully selected due to their credibility, rigorous verification process and international recognition. They reflect our commitment to material traceability, sustainable processes, and circular use of resources.

Environmental Product

Toitū carbonreduce

Declaration (EPD)

product certification

APL’s Declaration quantifies a wide range of product parameters, including material and accessory composition, raw material and packaging use, resource depletion and climate change impacts, energy use waste flows, end-of-life impacts and recovery practices. The EPD includes calculated values involved

Using science-based tools, actions and evidence, Toitū supports, recognises and certifies businesses reducing their carbon footprint.

in the extraction of raw materials and transport to and from APL production facilities.

We are certified for: This is to certify that

■ Residential Series ThermalHeart+®

APL Window Solutions’ Residential Series ThermalHEART®, Metro Series ThermalHEART® and Commercial Series is Toitū carbonreduce product certified.

Toitū carbonreduce certified means measuring cradle-to-grave lifecycle emissions to ISO 14067:2018 and Toitū requirements; managing and reducing the emissions intensity against Toitū requirements.

Billy Ziemann— Certifier Date issued: 22 February 2024 | Valid until: 22 February 2027 Certificate Number: 2024051J | Certification Status: Certified carbonreduce product Company Address: 19 Northpark Drive, Te Rapa, Hamilton, 3200, New Zealand Level of Assurance: Limited for verification and validation (methodology and assumptions)

■ Metro Series ThermalHeart+®

Please refer to the disclosure page on www.toitu.co.nz for further details.

Toitū carbonreduce is an annual certification programme and this certificate only remains valid with an annual surveillance audit.

■ Commercial Series

See our EPD’s

See our Toitū certificate

https://epd-australasia.com/company-epd/apl-window-solutions/

https://epd-australasia.com/company-epd/apl-window-solutions/

Declare certified

Electricity neutral

Our Declare label, certified

by International Living Future Institute discloses where our products come from, what they’re made of, and life expectancy and where the products go at the end of their life.

APL’s parent company, Profile Group, has acquired renewable energy certificates from Kawatiri Energy one of New Zealand’s newest hydroelectricity projects which generates power from the Lake Rochfort Scheme near Westport. Manufacturing windows and doors requires a lot of energy. And now, through this innovative certificate system, that energy can be considered renewable.

We are certified for:

DocuSign Envelope ID: 05A87524-55BB-4A93-8E27-9C5340B2BF16

■ Residential Series

BraveTrace certifies that

■ Metro Series ■ APL Architectural Series

HAS PURCHASED 100% RENEWABLE ELECTRICITY BraveTrace certifies that Profile Group Ltd voluntarily purchased 21,090 MWh of zero emission renewable energy certificates (NZ-ECs) to cover 100% of their Scope 2 New Zealand electricity consumption for the period 1 April 2023 - 31 March 2024.

Responsible supplier (NZECS Participant):

KAWATIRI ENERGY

Issuer(s) supported (NZECS Registrant(s)):

KAWATIRI ENERGY, PIONEER ENERGY

Renewable energy production device(s):

ROCHFORT HYDRO SCHEME, WYE CREEK HYDRO

Registry:

NEW ZEALAND ENERGY CERTIFICATE SYSTEM (NZECS)

For full details refer to related Statement of Position dated 24 April 2024

Shaun Goldsbury Chief Executive Officer BraveTrace

See our Declare label

See our Brave Trace certificate

https://declare.living-future.org/products/residential-series-metro-

https://bravetrace.co.nz/bravetrace-network/

series-and-apl-architectural-series

1.10 APL Window Solutions - Specifications subject to change

ACCREDITATIONS AND AFFILIATIONS

Biodiversity credits

APL

Profile Group is the first participant in a new biodiversity market, launched by New Zealand carbon management and certification company, Ekos. Profile Group purchased biodiversity units from Sanctuary Mountain Maungatautari which directly funds the conservation management of 83 hectares on the mountain.

Read more https://www.aplnz.co.nz/our-responsibility/biodiversity-initiative

Member of New Zealand Green Building Council APL has been a proud member of New Zealand Green Building Council (NZGBC) since 2018. Aligning with the NZGBC vision, we believe all homes and buildings in Aotearoa should be green and sustainable, making healthier and happier New Zealanders. We’re proud to be aligned with this not-for-profit industry organisation, helping to influence the ‘green movement’ through industry specification (Green Star and Homestar sustainability rating systems).

Visit NZGBC https://nzgbc.org.nz

1.11

Technical Information

Product drawings and technical information are available on the EBOSS website: eboss.co.nz EBOSS is an online library for specifiers which hosts a range of product catalogues.

The online technical manual includes product data sheets, installation drawings and sectional details for a range of configurations for each product. Profile sections are supplied in a range of drawing formats – PDF, DWF, DWG, DXF. Revit (RFA) details are available for most product ranges.

https://www.eboss.co.nz/library/altherm-window-systems

https://www.eboss.co.nz/library/first-windows-and-doors

https://www.eboss.co.nz/library/vantage-windows-and-doors

https://www.eboss.co.nz/library/architectural-glass-products

Detailed specification clauses for products are available on the Masterspec website (masterspec.co.nz) under both APL Window Solutions, and Architecture Glass Products.

Masterspec serves the New Zealand construction industry with a pre-formatted, up-to-date database of specification clauses, using an online interface to structure, edit, add support documentation and output to multiple formats.

APL specifications are also available on Smartspec.co.nz ■ APL on Masterspec: https://masterspec.co.nz/Architectural-Profiles-Ltd/6702-660d54e5-a80f-4568-8b7b-db5b6b80299f/ ■ AGP on Masterspec: https://masterspec.co.nz/Link-to-Masterspec-Result/6702-be3d457b-830f-447b-8d63-01562c806621/

Technical advice

Manufacturer advice

Our advisory service draws on the wide expertise of the technical team at APL.

Our manufacturers are in your local area and have a wealth of experience in meeting specifier design requests and queries on technical issues. Because of their involvement in manufacturing and installation on a daily basis, manufacturer advice is highly practical.

For APL technical information, please contact: ■ Phone: 07 849 8888 ■ Email:

apl.techinfo@aplnz.co.nz

For AGP technical information, please contact: ■ Phone: +6427 205 6166

Contact your local manufacturer through our websites: https: http://altherm.co.nz, http://firstwindows.co.nz or http://vantage.co.nz

■ Email: technical@agpl.co.nz

Note on R-values and U-values ThermalHeart+® aligns with revised H1 regulations. Our manufacturers can provide calculations. To calculate your own values, refer to our H1 table in section 1.15, or use APL's online thermal calculator tool https://www.aplnz.co.nz/ThermalCalculator Another useful tool for calculating the thermal efficiency of a window or door configuration, inclusive of the glass chosen, is Design Navigator – an easy to use online platform.

1.12 APL Window Solutions - Specifications subject to change

Span Tables Span Tables outline the maximum length or span that profiles can be built to, and therefore the size of the relevant window or door.

Span Tables should be used as a guide for the suitability and compliance of the product. Span tables relate primarily to mullions, transoms and door stiles.

Span Tables for all products are available on EBOSS.

Three simple steps for using a Span Table 1.

Select the centres of your product. Centres refers to glass width between mullions and stiles i.e. panel width e.g. 1500mm centres as highlighted on the Span Table below

2.

Select the column in the Span Table relating to the wind zone, the product will be located in e.g. Very high wind zone as highlighted on the Span Table below

3.

Select the intersection on the Span Table where the centre and the wind zone meet. This will give you the maximum height you are able to achieve using this product e.g. 2245mm maximum height as highlighted on the Span Table below

SPANS FOR EACH WIND ZONE Centres

Low

Medium

High

Very High

Extra High

1000

3337

3039

2710

2499

2350

1100

3243

2956

2639

2435

2289

1200

3163

2885

2579

2382

2216

1300

3094

2825

2528

2337

2157

1400

3033

2772

2485

2291

2110

1500

2981

2727

2448

2245

2073

1600

2936

2689

2418

2208

2044

1700

2897

2657

2393

2179

2023

1800

2863

2629

2373

2157

2009

1900

2834

2606

2357

2142

2001

2000

2810

2587

2344

2133

1998

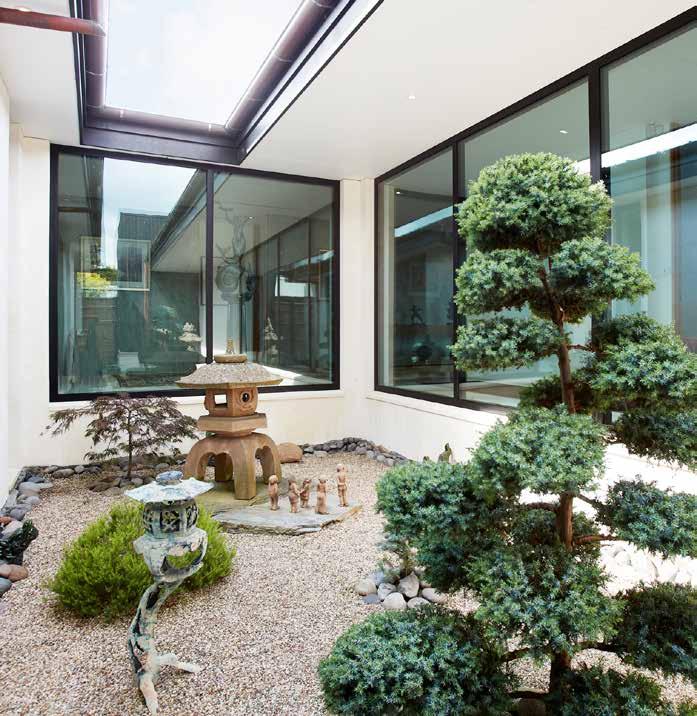

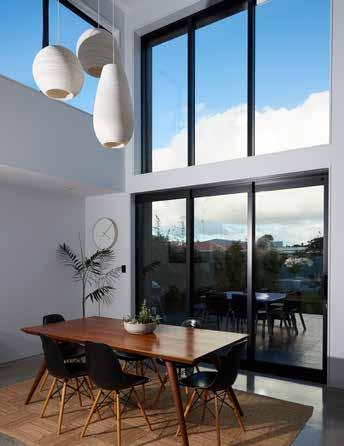

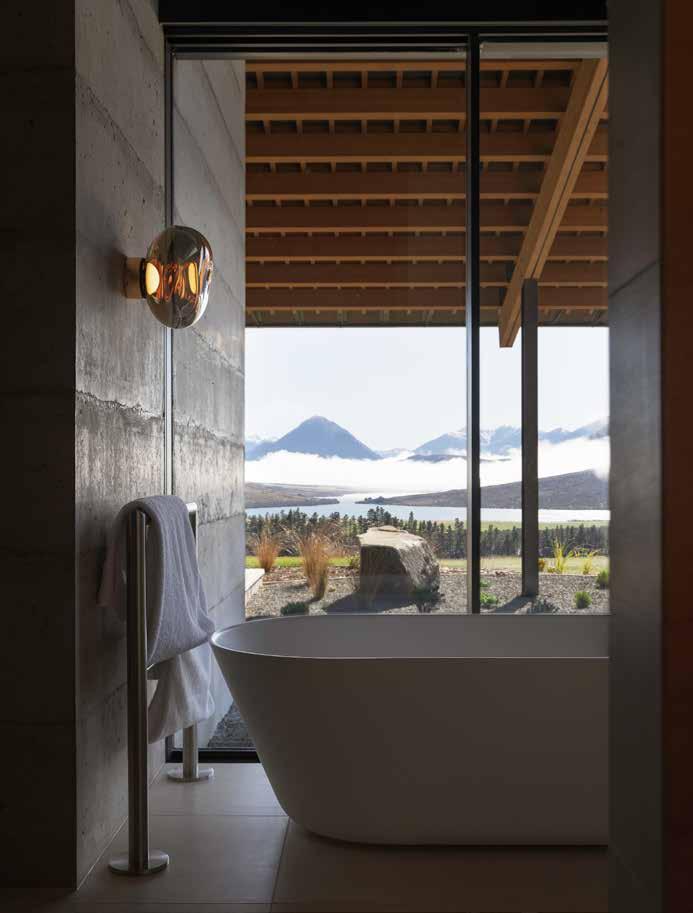

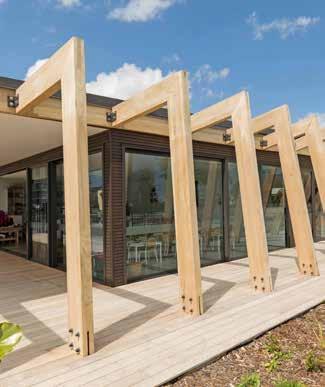

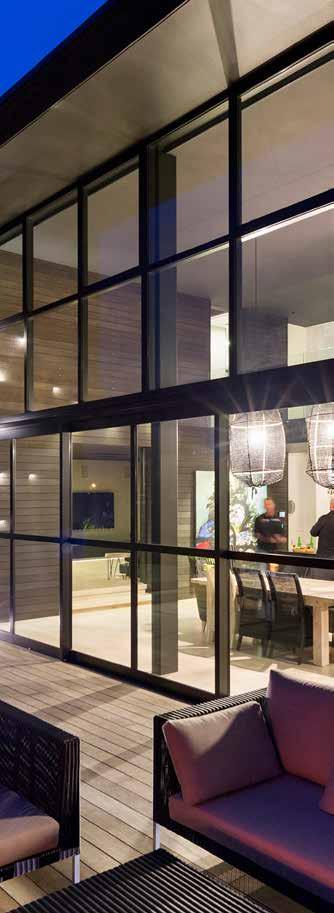

APL Architectural Series in Matt Black powdercoat with Urbo hardware

1.13

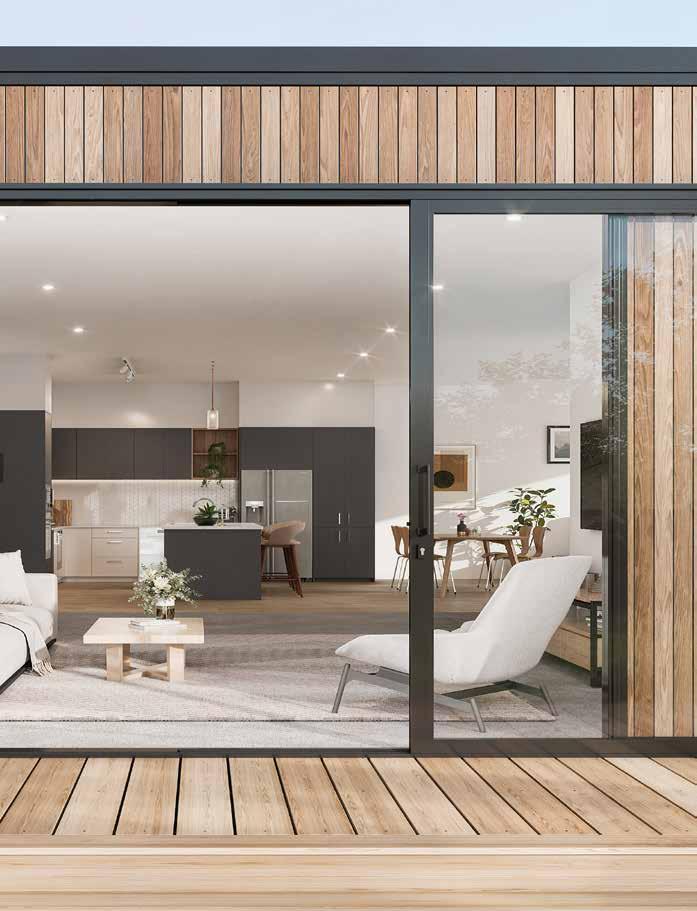

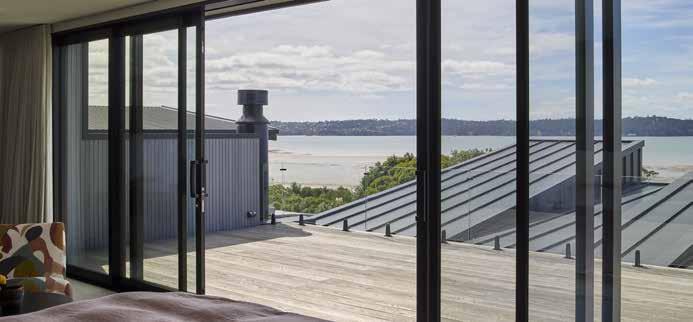

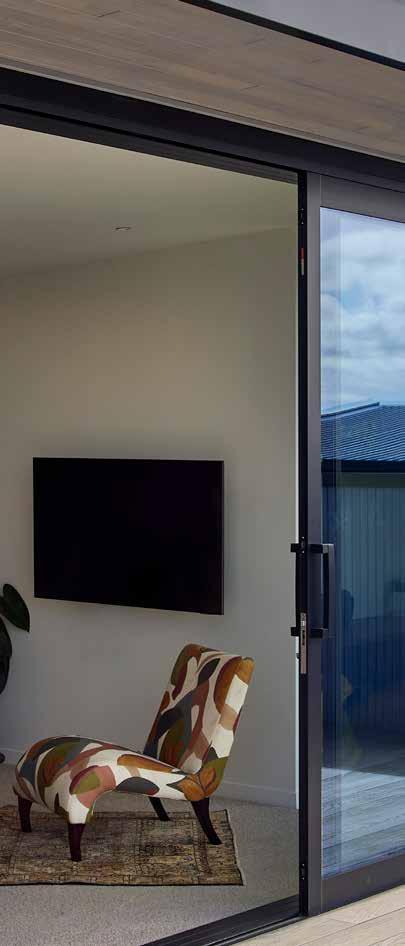

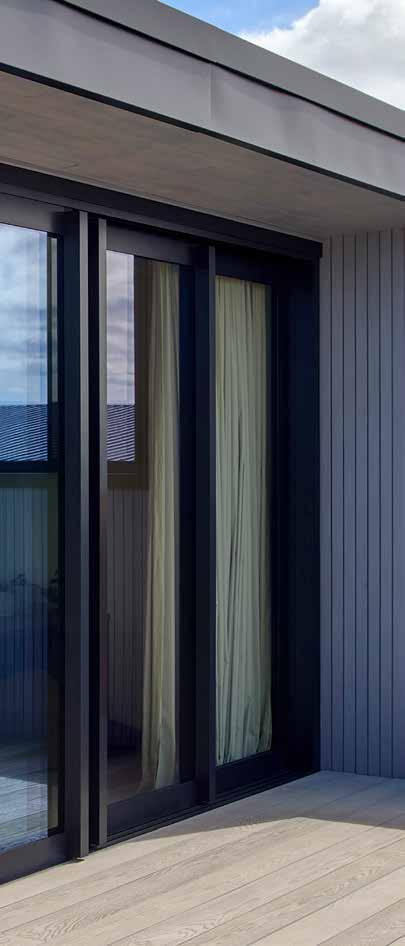

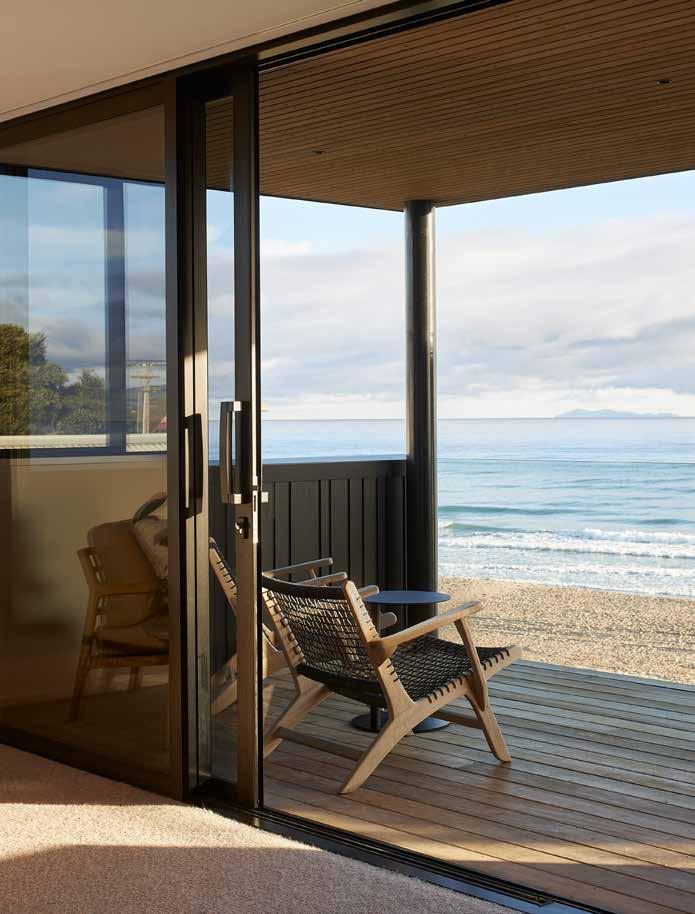

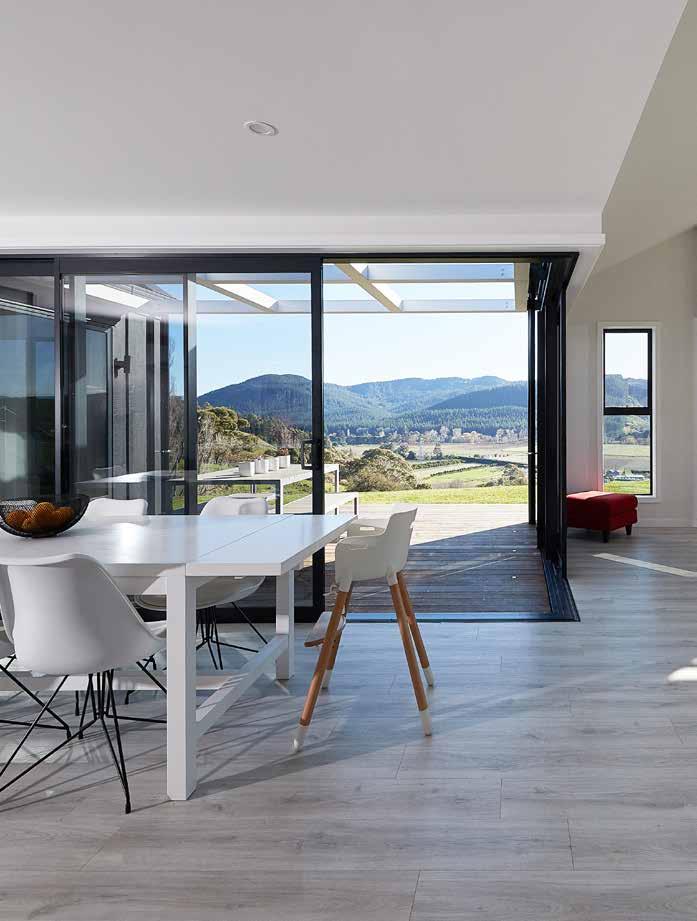

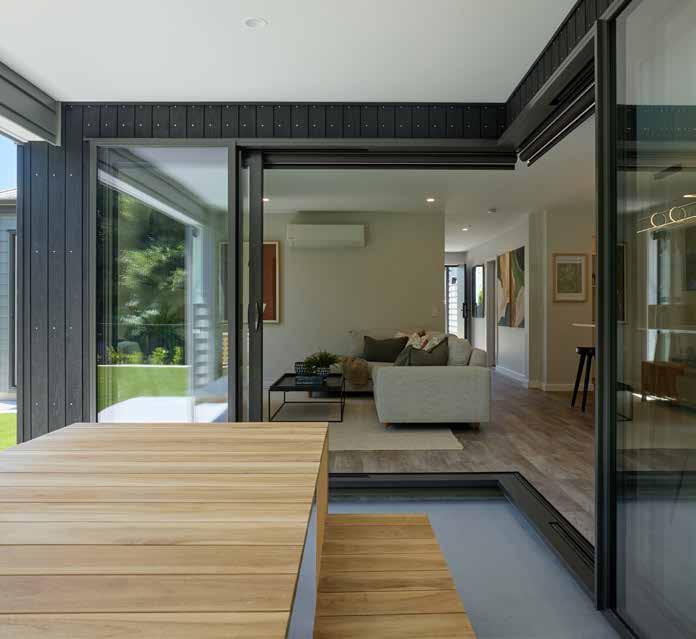

Metro Series ThermalHeart+® sliding windows, in Dark Bronze Anodised with Elemental hardware

1.14 APL Window Solutions - Specifications subject to change

Calculate the values of your window system Use this table to work back from your target R-value or Ug-value, or calculate values by following your selected range and glass specification.

APL product range Residential Series ThermalHeart+® (44mm) Metro Series ThermalHeart+® (44mm) APL Architectural Series ThermalHeart+® (44mm)

Glazing type

Double Glazed

Metro Series ThermalHeart+® (56mm)

Triple

APL Architectural Series ThermalHeart+® (56mm)

Glazed

Double Glazed

IGU Ug EN673

System R-Value EN/ISO

Solux-E®

1.1

0.50

Solux Ultra®

1.0

0.52

Solux-E® x 1

0.9

0.54

Solux Ultra® x 1

0.9

0.54

Solux-E® x 2

0.6

0.62

Solux Ultra® x 1, Solux-E® x 1

0.6

0.62

Solux-E®

1.1

0.69

Solux Ultra®

1.0

0.73

Solux-E® x 1

0.9

0.76

Solux Ultra® x 1

0.9

0.76

Solux-E® x 2

0.6

0.91

Solux Ultra® x 1, Solux-E® x 1

0.6

0.91

Solux-E®

1.1

0.37

Solux Ultra®

1.0

0.39

[The AGP System® ] Low-E

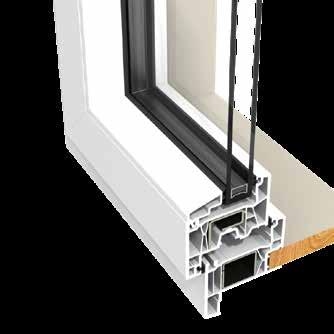

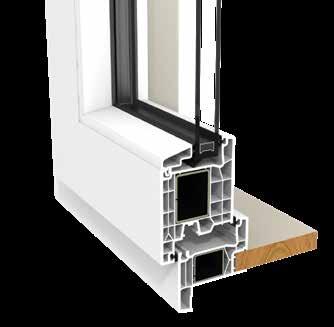

Klima uPVC ®

Triple Glazed

Residential Series Metro Series APL Architectural Series

Double Glazed

Based on NZBC H1/AS1 table E.1.1.1 information Low-E coating ‘x1’ or x2’ refers to how many panes of glass have the specified coating.

For example ‘Triple Glazed – Solux-E®️ x 2’ denotes 2 panes of Solux-E®️ within the triple glazed combination.

1.15

Range overview

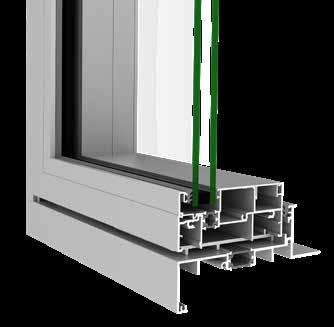

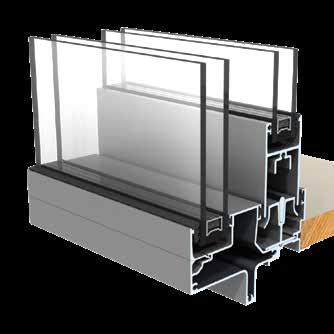

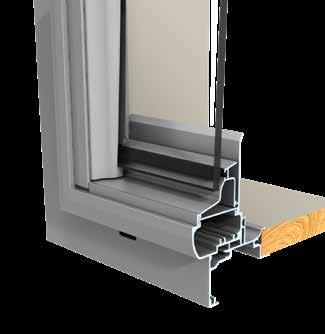

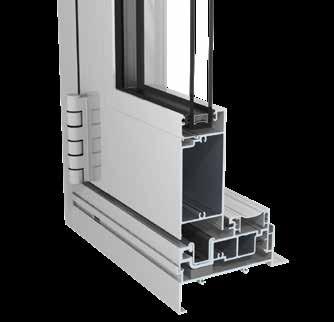

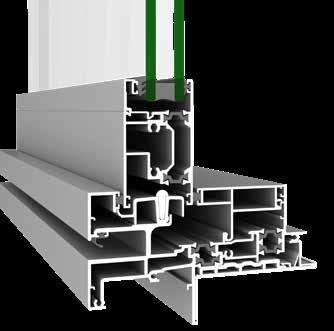

Residential Series ThermalHeart+® A popular and versatile range of thermally efficient windows and doors for mainstream residential applications across a range of standard sizes. A polyamide insulator stitched into the core of ThermalHeart+® newly designed extrusion acts as thermal insulation. Recommended door height of 2.2m - 2.4m, depending on site conditions. A ThermalHeart+® roof window is also part of the offering.

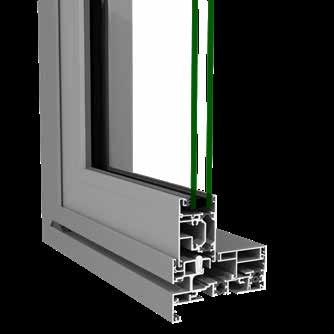

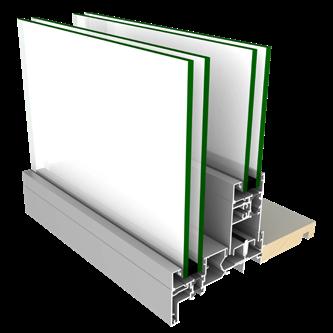

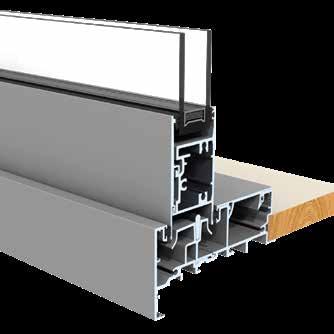

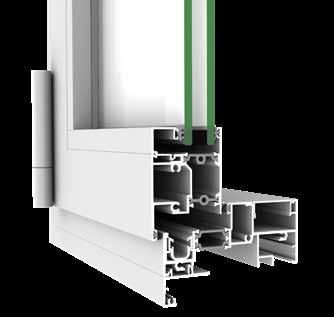

Metro Series ThermalHeart+® A thermally efficient range of higher performing windows and doors suitable for larger formats and more exposed locations where strength and structural factors are a priority. Based on the Metro Series of high specification joinery, ThermalHeart+® products include an insulator or thermal insulation between the aluminium interior and exterior. The transmission of cold or heat from the outside is dramatically reduced. Recommended door height of 2.7m - 3m, depending on site conditions.

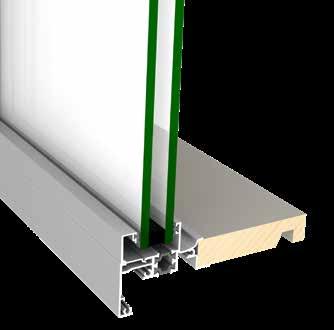

Residential Series Residential Series is a non-thermally improved, mainstream suite of aluminium windows and doors designed to suit a wide range of size preferences and product selection options.

Different window and door types are available as well as specialised formats and optional product features, including hardware, glass and surface finish choices. Recommended door height of 2.2m - 2.4m, depending on site conditions.

Metro Series Metro Series is a non-thermally improved, stylish and versatile range of heavy duty windows and doors. Metro Series is based on a unified and contemporary design approach. It occupies an intermediate position between Residential Series and the high-performance APL Architectural Series. Recommended door height of 2.7m, however doors can potentially be higher depending on site conditions.

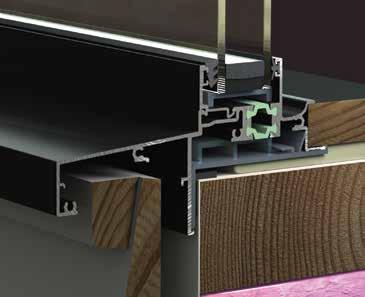

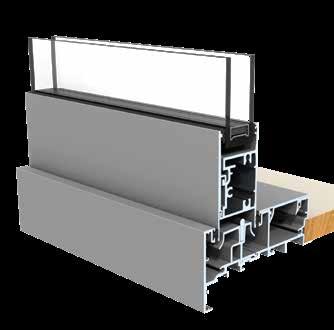

Metro Series ThermalHeart+® with Centrafix® A recessed window and door system combining Metro Series strength, ThermalHeart+® efficiency and the aesthetic appeal of an in-wall frame. The Centrafix® system optimises thermal efficiency and weathertightness, and offers ‘passive house’ capability. Simplified onsite window and door installation improves site productivity. Dual colour is available, offering different interior and exterior surface finishes. Recommended door height 2.7m - 3m, depending on site conditions.

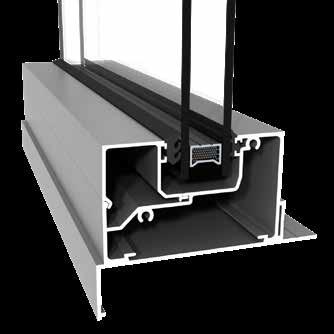

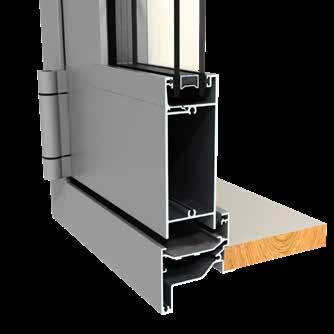

APL Architectural Series ThermalHeart+® APL Architectural Series ThermalHeart+® windows and doors are a high performing, thermally insulated product range suitable for large formats even in exposed locations. It moves New Zealand’s premier window range into full conformance with NZBC clause H1 Energy Efficiency (all climate zones) when used in conjunction with high performing Low-E double glazing. Triple glazing is also available, including the option for AGP's Solux Ultra® Low-E. There are two frame depth options, 114mm and 171mm. Recommended door height of 3m, however doors can potentially be higher depending on site conditions.

1.16 APL Window Solutions - Specifications subject to change

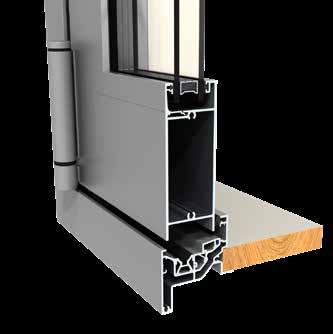

APL Architectural Series A non-thermally improved, high performance range designed to have strength and versatility to allow large formats and sizes even in exposed locations. Ideal for architecturally designed homes and apartments, APL Architectural Series products offer clean, flush surfaces, continuous sightlines and squareedges. Recommended door height of 3m, however doors can potentially be higher depending on site conditions.

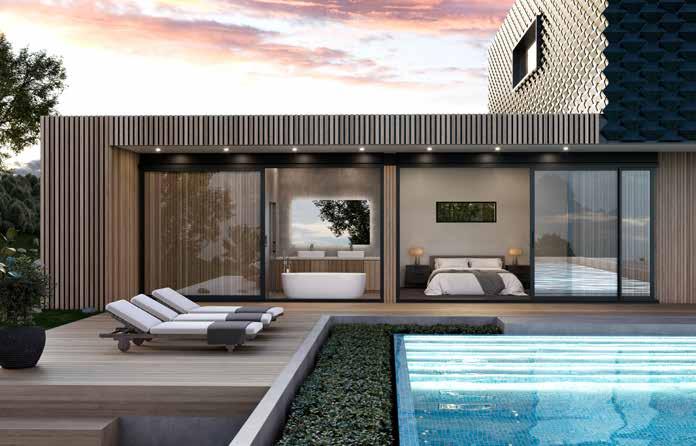

Minima Series Minima sliding doors deliver maximum transparency with frames recessed into the floor, walls and ceiling. Door heights up to 4.5m and panels up to 2.8m wide create bold architectural scale with understated frame sightlines. The concealed sill track sits beneath the threshold, leaving just an 11mm-wide slot, paired with a 22mm bottom rail and 30mm verticals for uninterrupted vision. Precision installation ensures perfectly level sills, making ground-floor applications ideal.

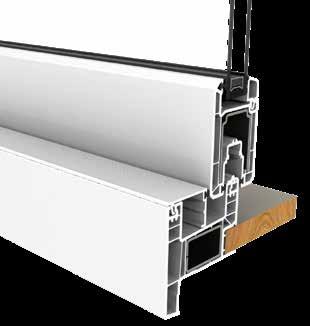

Klima uPVC Windows and Doors ®

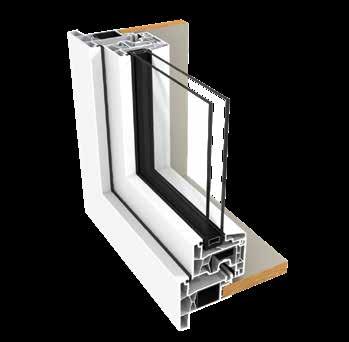

An innovative range of uPVC windows and doors, optimised for New Zealand conditions. Klima® is designed and made in New Zealand. It is adapted from products by Kömmerling, a market leader in Europe. Available in white as standard, however a coloured AluClip aluminium exterior facing is available. Sliding doors height of 2.4m is possible in certain wind zones.

Commercial Series Overhead Glazing System For overhead or sloped glazing in commercial or residential applications. Bars with drainage and condensation collection systems are available.

40mm Window Series A varied, multi-product window system based on a 40mm frame platform. For low to high rise applications. Glazed frames and sashes for general commercial applications.

80mm and 100mm Shopfront A window system for shop front locations, generally at ground level and in protected situations up to 6m in height. Can incorporate opening sashes from the 40mm Window Series.

Magnum Commercial Doors A versatile and robust commercial door system that can be hinged, pivoting, or sliding. Designed for mainstream and advanced commercial locking systems.

100mm, 125mm and 150mm Flushglaze System

The AGP System® AGP - APL’s sister company - is the dedicated glass manufacturer that completes our window system. AGP produces high-performance insulated glass units (IGUs) designed to work with APL and Klima frames, ensuring system-level thermal performance, compliance certainty and documented consistency across specifications.

Suitable for low to medium rise commercial applications as well as shop front uses. Glazing is near flush with the outside face, reducing the visual effect of aluminium from the outside.

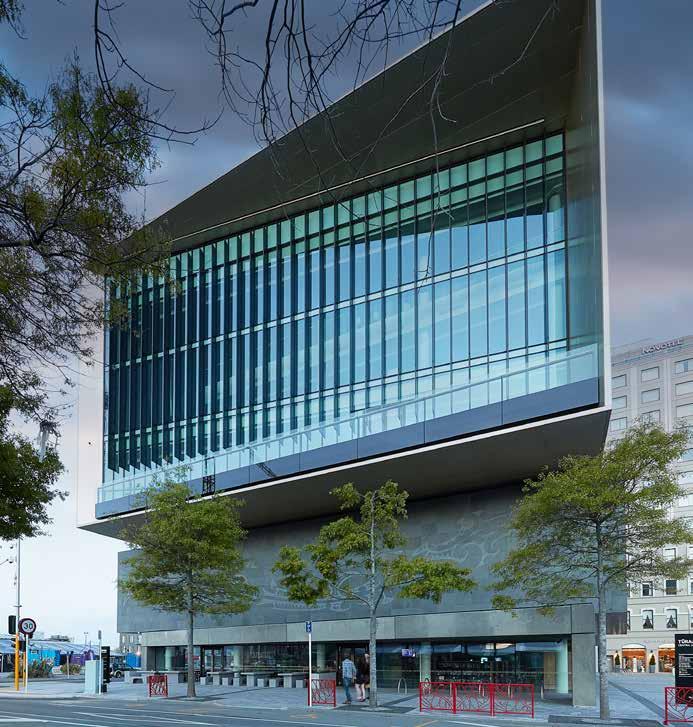

125mm, 150mm, 168mm, 175mm and 200mm Structural Glaze Systems A four-sided, structural glazed commercial window system suitable for low to high rise applications. Five systems offer different levels of performance. The 168mm system has a thermally insulated and shielded option available.

AGP’s IGUs are manufactured in a fully automated, purposebuilt facility, enabling tight quality control and delivering an industry-leading 12-year IGU warranty.

Solux-E® A versatile Low-E coating that provides year-round comfort by blocking excessive heat in summer, retaining warmth in winter, and controlling fading.

Solux Ultra® A higher-performance Low-E delivering enhanced insulation, improved solar control and lower Ug-values for projects requiring elevated thermal efficiency.

1.17

Quick product guide Use this quick product guide to help you narrow down products that are suitable for your project.

Each tile gives you a snapshot of the product’s key performance factors. Tiles are grouped in two ways; by product type and by product range: ■ Check across rows to see all product options in a specific product type such as sliding doors.

■ Check down tile columns to see all product options in a specific product range such as Metro Series.

Key

F

Flush sill

2.7m

Ms

Dc

XH

44

TH

Range abbreviation (Metro Series) Product

Rs

Residential Series

Standard height

RsTH

Residential Series ThermalHeart+®

Dual Colour

MsTH

Metro Series ThermalHeart+®

MsCTH

Metro Series ThermalHeart+® with Centrafix®

Ms

Metro Series

AsTH

APL Architectural Series ThermalHeart+®

As

APL Architectural Series

Mis

Minima Series

Ks

Klima®

Thermal

Sliding Door

Wind zone

Glass thickness

Windows Awning / Casement Windows 1.4m

Rs

TH

Awning / Casement Windows

XH

32

1.4m

Rs

1.4m

Ms

Dc

Dc

XH

44

TH

Awning / Casement Windows

XH

1.4m

24

Awning / Casement Windows

1.4m

MsC Ms TH

1.5m

As

Dc

As

Dc

XH

44

XH

28

TH

Awning / Casement Windows

Awning / Casement Windows

XH

XH

44

1.5m

28

Awning / Casement Windows

Awning / Casement Windows

1.5m

Ks

Awning / Casement Windows

XH

46

Sliding Windows F

1.8m

Rs

1.9m

Rs

TH

Sliding Window

XH

F

XH

2.0m

2.0m

Ms

Dc

Dc

XH

44

TH

Sliding Window

32

F

Sliding Window

24

F

2.0m

MsC Ms TH

Sliding Window

XH

XH

Rs

Rs

TH

Bi-fold Window

XH

1.8m

XH

2.0m

Ms

Dc

Dc

MsC Ms

XH

44

XH

TH

Bi-fold Window

32

2.0m

Bi-fold Window

24

28

1.18 APL Window Solutions - Specifications subject to change

2.1m

TH

Bi-fold Window

Bi-fold Window

44

XH

As

Dc

XH

44

Sliding Window

Bi-fold Windows 1.8m

2.0m

TH

Sliding Window

44

F

24

F

2.2m

2.0m

As

Dc

Ks

XH

28

XH

Sliding Window

Sliding Window

28

Doors Sliding Doors F

2.4m

Rs

2.4m

Rs

TH

Sliding Door

XH

F

XH

2.7m

2.7m

Ms

Dc

Dc

XH

44

TH

Sliding Door

32

F

Sliding Door

23

F

2.4m

MsC Ms TH

Sliding Door

XH

XH

3m

As

Dc

XH

44

TH

Sliding Door

44

F

Sliding Door

29

F

4.5m

3m

As

Dc

XH

28

Sliding Door

Mis

Ks

Sliding Door

XH

2.2m

Sliding Door

36

XH

28

Hinged Doors 2.4m

Rs

Rs

TH

Hinged Door

XH

2.4m

XH

2.7m

Ms

Dc

Dc

XH

44

TH

Hinged Door

32

2.7m

Hinged Door

24

2.4m

MsC Ms TH

Hinged Door

XH

XH

2.7m

As

Dc

As

Dc

Ks

XH

44

XH

28

XH

TH

Hinged Door

44

2.7m

Hinged Door

24

Hinged Door

2.2m

Hinged Door

46

French Doors 2.4m

Rs

Rs

TH

French Door

XH

2.4m

XH

2.7m

Ms

Dc

Dc

XH

44

TH

French Door

32

2.7m

French Door

24

2.4m

MsC Ms TH

French Door

XH

XH

2.7m

As

Dc

As

Dc

Ks

XH

44

XH

28

XH

TH

French Door

44

2.7m

French Door

24

French Door

2.2m

French Door

46

Bi-fold Doors 2.4m

Rs

Rs

TH

Bi-fold Door

XH

2.4m

XH

2.7m

Ms

Dc

Dc

XH

44

TH

Bi-fold Door

32

2.7m

Bi-fold Door

24

2.4m

MsC Ms TH

Bi-fold Door

XH

XH

2.7m

As

Dc

As

Dc

XH

44

XH

28

TH

Bi-fold Door

44

2.7m

Bi-fold Door

24

Bi-fold Door

1.19

Our complete window system Next-Level thermal performance for smarter specification ThermalHeart+® is engineered as a fully integrated window and door system, giving specifiers a cohesive, high-performance solution.

ThermalHeart+® almost doubles the performance of standard non-thermally improved aluminium windows and doors¹, resulting in significant thermal gains without limiting aesthetic or structural intent.

By combining thermally efficient frames with AGP’s advanced glass, the system supports healthier, warmer interior environments and helps you meet tightening performance requirements with ease. Pair it with Centrafix® installation to lift thermal performance by a further 20%+² and unlock even stronger modelling outcomes across your projects.

Combined window system performance This chart shows the improved thermal performance that can be achieved with a whole window system approach, combining components of the ThermalHeart+® system, compared to non-thermally improved standard aluminium window systems.

Thermal performance

Centrafix® installation method can be used alongside improvement of standard Metro Series ThermalHeart+® for a further enhanced aluminium thermal envelope.window systems

Centrafix® installation

+21.6%

Additional 21.6% thermal performance improvement2

ThermalHeart+® frames + The AGP System®

+94.7%

94.7% thermal performance improvement of standard non-thermally improved aluminium joinery1

Non-thermally improved aluminium windows and doors

1 Comparison figures are based on complete thermal modelling of an average house lot of Metro Series ThermalHEART® products with The AGP System® double glazing using the WEERS modelling methodology. The benchmark figures were calculated by modelling the same average house lot of products using the equivalent non-thermally broken products glazed with standard double glazing. A “standard aluminium window or door” refers to a non-thermally broken aluminium frame with standard double glazing.

2 Centrafix® comparison figures are based on complete thermal modelling of an average house lot of products installed in 90mm timber framing. The standard installation benchmark was calculated by modelling the same house lot of comparable products using a typical E2/AS1 cavity construction installation on 90mm timber framing.

1.20 APL Window Solutions - Specifications subject to change

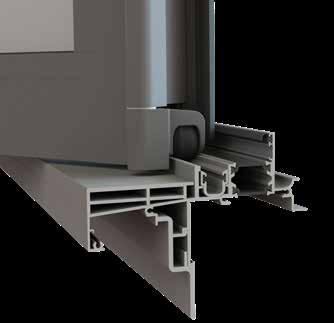

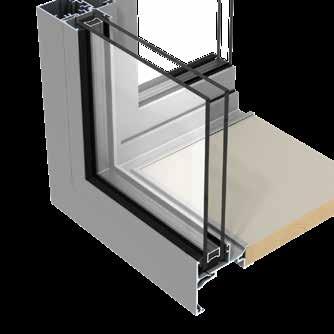

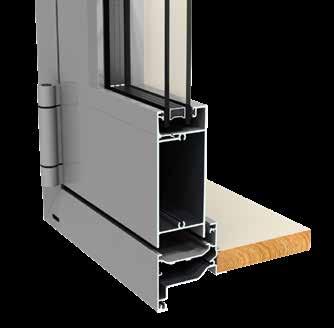

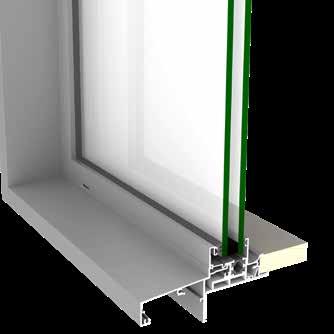

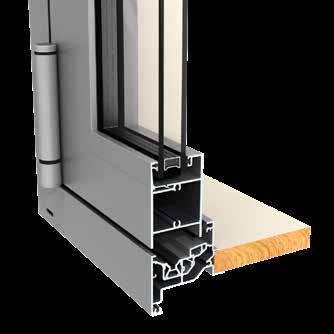

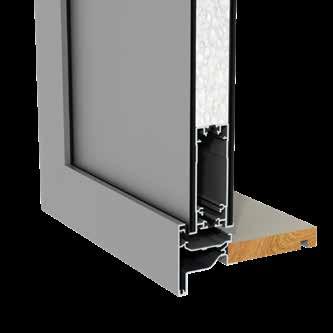

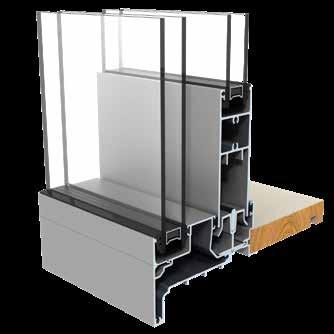

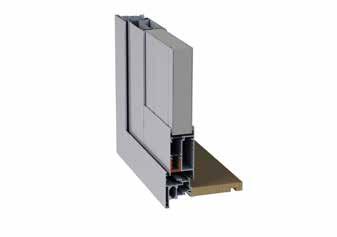

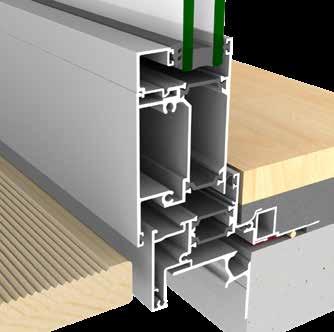

components ThermalHeart+® frames Leading thermal performance designed and made right here for warmer, drier, healthier New Zealand homes. The ThermalHeart+® polyamide barrier insulates the frame of the window system, separating warm and cold areas.

■ ThermalHeart+® frames deliver almost double the thermal performance of nonthermally improved aluminium windows and doors1 ■ A comprehensive and highly versatile range of products ■ Clean, modern lines ■ High performance in extreme weather conditions.

The AGP System® Not all windows and doors are created equal and The AGP System® sits right at the heart of our products’ thermal performance.

■ The ATS - Architectural Thermal Spacer® reduces the transfer of hot and cold temperatures ■ Argon gas creates an additional barrier to heat loss and improves insulation ■ Solux-E® and Solux Ultra® are low-e coatings that reduce heat loss in winter and over-heating in summer. They protect your home’s interior while providing a similar clarity to clear glass ■ Our double-glazed products are backed with an extended 12-year warranty – two years longer than the current industry standard.

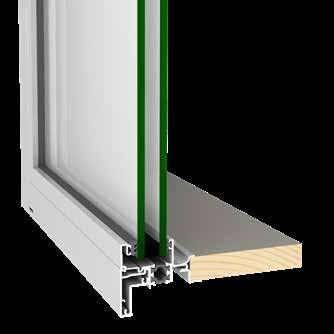

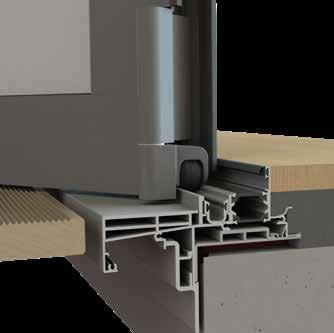

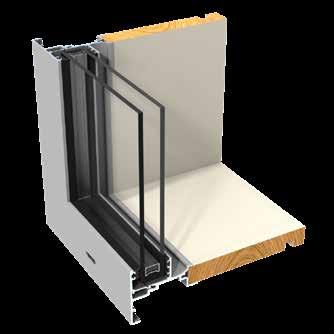

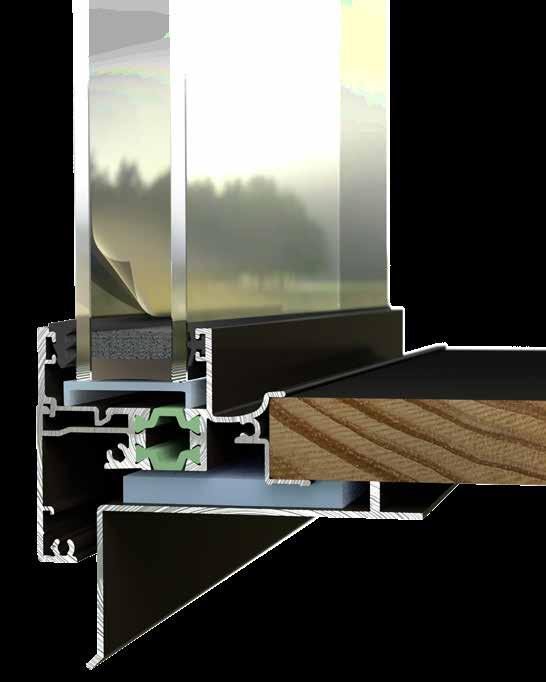

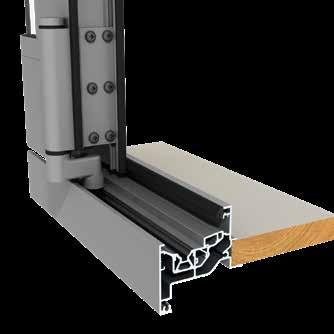

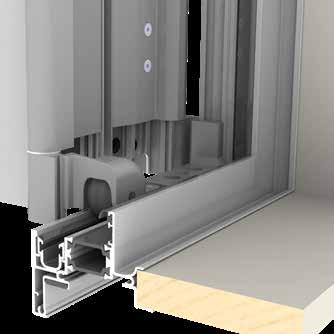

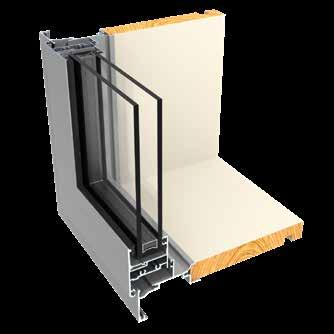

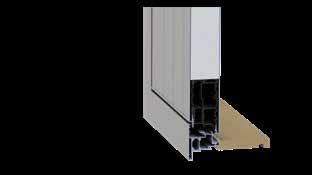

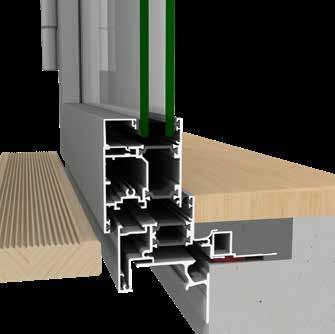

Centrafix® Installation The Centrafix® installation method recesses the joinery into the building wall, aligning the insulation elements - wall, window frame, glazing – to prevent cold air from circulating around the frame. This New Zealand-designed innovation increases the thermal 2 performance in your home by over 20% .

For a visual representation of Centrafix® installation, refer to APL on Workingspec: https://workingspec.com/ models/whitelabel/apl

CMNZ10033

1.21

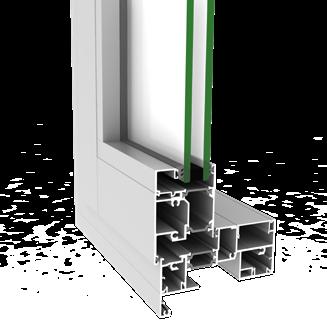

ThermalHEART® Technology Our innovative ThermalHEART® technology uses a high-performance polyamide insulator at the core of the aluminium system, reducing heat transfer through the frame. The result is a warmer, healthier interior environment, achieved without compromising the clean architectural lines aluminium is known for.

ThermalHEART® is available across four ranges, with each range sharing the same core design principles for exceptional versatility.

The three standard E2/AS1 installation ranges can be used within one project while maintaining a consistent aesthetic and meeting performance requirements.

Benefits of ThermalHEART® technology include

Thermal efficiency

High performance

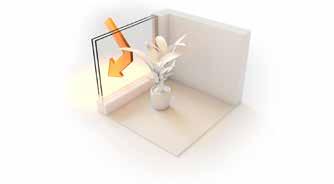

ThermalHEART® insulates the window system which helps to keep cool temperatures out in colder months, and decrease solar gain in warmer months, assisting in yearround warmth and comfort.

A comprehensive, highly versatile product suite engineered to maintain strong performance even in demanding weather conditions.

Year round comfort

Aesthetics

ThermalHEART® technology minimises heat flow through the frame, creating a more stable internal temperature in your home.

Clean, modern lines, and the ability to choose different colours on the interior and exterior when using Metro Series ThermalHeart+® and APL Architectural Series ThermalHeart+®.

Versatility

Aids in managing the risk of condensation forming

Our three standard ThermalHeart+® ranges share the same core design principles, giving the ability to mix-and-match within one project and maintain a consistent look.

ThermalHEART® technology can aid in managing the risk of condensation forming, therefore reducing the risk of mould growth.

Your windows and doors are a complete thermal system with each component contributing to the overall performance and comfort of your home. Some profiles in a ThermalHeart+® window or door system are not required to be thermally improved.

As a home’s thermal performance is determined by the whole house lot of joinery, this doesn’t impact the overall thermal efficiency of a house.

1.22 APL Window Solutions - Specifications subject to change

Ranges comparison Residential Series ThermalHeart+®

Metro Series ThermalHeart+®

Metro Series ThermalHeart+® with Centrafix®

APL Architectural Series ThermalHeart+®

Door height

Door height

Door height

Door height

2.2m - 2.4m depending on site conditions

2.7m - 3m depending on site conditions

2.7m - 3m depending on site conditions

3m

■

ThermalHeart+® technology

■

ThermalHeart+® technology

■

ThermalHeart+® technology

■

ThermalHeart+® technology

■

Ability to mix and match

■

Ability to mix and match

■

Ability to mix and match

■

Ability to mix and match

■

Clean, modern look

■

Clean, modern look

■

Clean, modern look

■

Clean, modern look

■

Designed and made in NZ

■

Designed and made in NZ

■

Designed and made in NZ

■

Designed and made in NZ

Installation options

Installation options

Installation options

Installation options

- E2/AS1

- E2/AS1

- Centrafix

- E2/AS1

and alternative solutions

®

and alternative solutions

Passive House version also available

and alternative solutions

Product features

Product features

Product features

Product features

՟

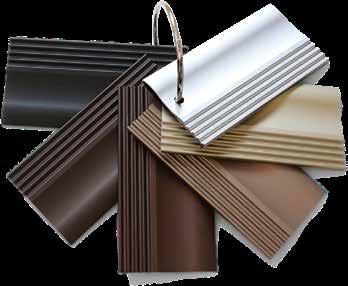

Dual colour

■

Dual colour

■

Dual colour

■

Dual colour

՟

Flush sash for improved aesthetics

■

Flush sash for improved aesthetics

■

Flush sash for improved aesthetics

■

Flush sash for improved aesthetics

■

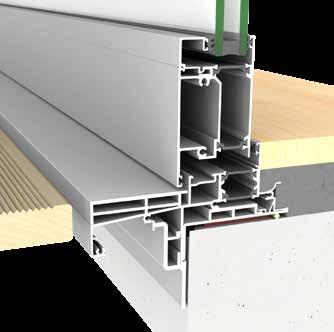

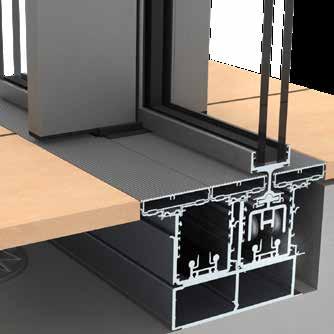

Flush sliding door tracks

■

Flush sliding door tracks

■

Flush sliding door tracks

■

Flush sliding door tracks

■

Products to suit all environments and applications

■

Products to suit all environments and applications

■

Products to suit all environments and applications

■

Products to suit all environments and applications

■

Additional air tightness and security

■

Additional air tightness and security

■

Additional air tightness and security

■

Additional air tightness and security

■

Internal sliding door

■

External sliding door

■

External sliding door

■

External sliding door

■

Sliding door sidelight sash ability

՟

Sliding door sidelight sash ability

՟

Sliding door sidelight sash ability

՟

Sliding door sidelight sash ability

՟

Triple glazing

■

Triple glazing

■

Triple glazing

■

Triple glazing

■

Improved acoustic performance

■

Improved acoustic performance

■

Improved acoustic performance

■

Improved acoustic performance

՟

Specialty products

՟

Specialty products

՟

Specialty products

■

Specialty products available including multi-stacking tracks, over-the-wall and cavity slider options. Deep internal aluminium frame for various finishing details

Recommended glass

Recommended glass

Recommended glass

Recommended glass

®

The AGP System

®

The AGP System

®

The AGP System

The AGP System®

Solux-E or upgrade to Solux Ultra® Argon gas ATS - Architectural Thermal Spacer®

Solux-E or upgrade to Solux Ultra® Argon gas ATS - Architectural Thermal Spacer®

Solux-E or upgrade to Solux Ultra® Argon gas ATS - Architectural Thermal Spacer®

Solux-E® or upgrade to Solux Ultra® Argon gas ATS - Architectural Thermal Spacer®

®

®

®

The Window Energy Efficiency Rating System (WEERS) is a 6-star rating system for assessing the thermal performance of new residential windows. It was developed by BRANZ in conjunction with the Window and Glass Association of New Zealand (WGANZ). WEERS combines the thermal performance of the frame and glazing, together with the window size, to allocate between one and six stars to a job lot of windows and doors. The more stars, the better the thermal efficiency

1.23

APL

RESIDENTIAL SERIES THERMALHEART+®

Residential Series ThermalHeart+® overview

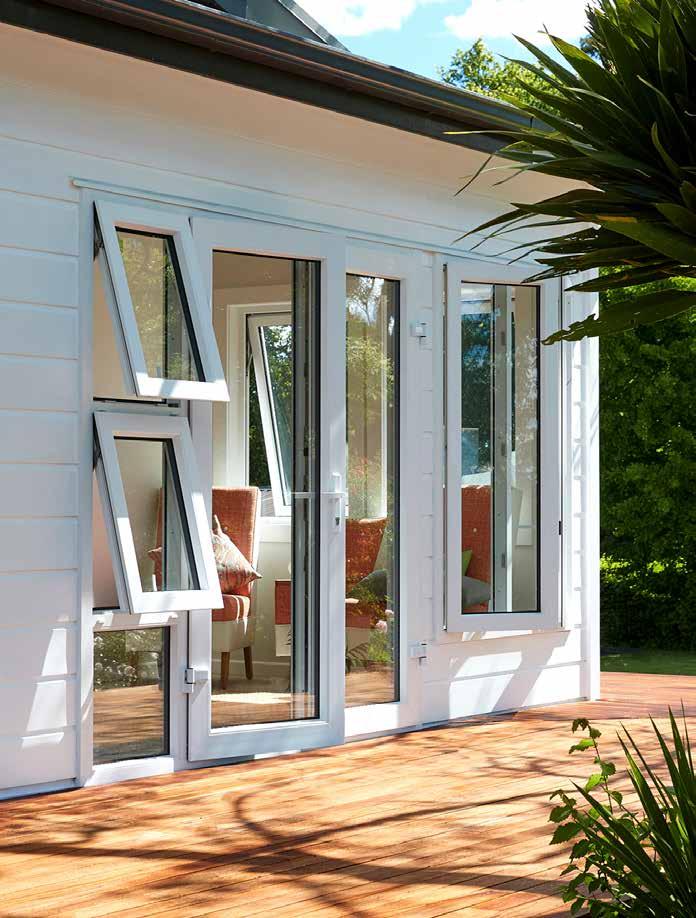

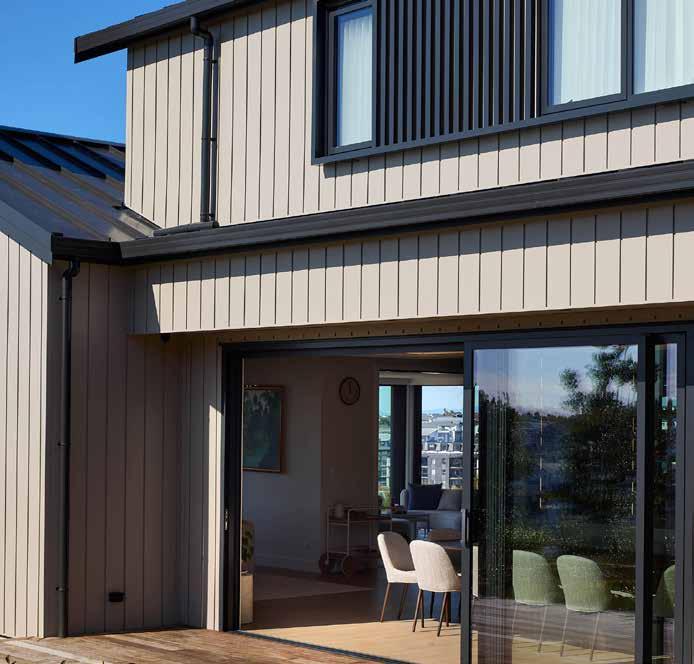

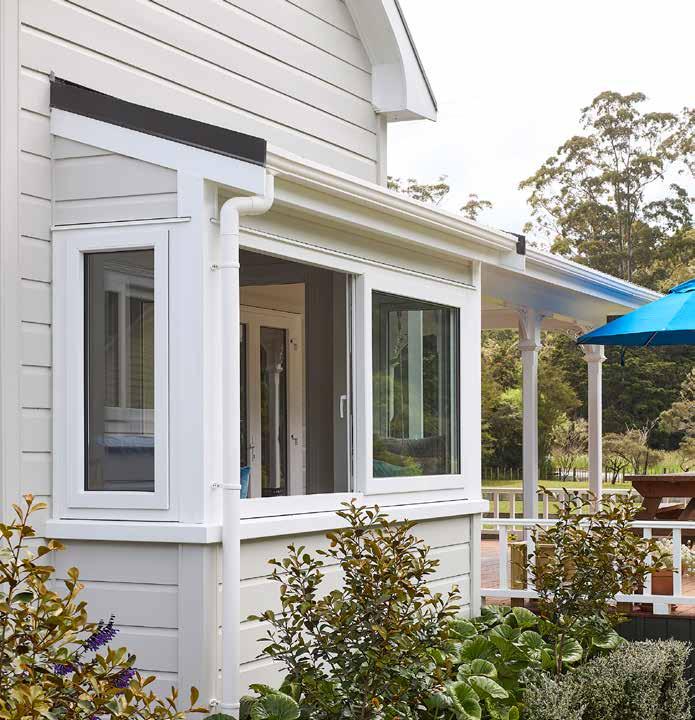

Matt Ironsand powdercoat with Aria hardware

■ A mainstream suite of thermally efficient windows and doors suitable for a wide range of residential projects ■ A polyamide insulator is stitched into the core of the aluminium window system ■ Compliance with Building Code Clause H1 on thermal efficiency requires high performing Low-E double glazing ■ Contains a full product portfolio including awning, sliding, casement windows and bi-folding windows, as well as hinged, sliding and bi-folding doors ■ Recommended door height of 2.2m - 2.4m, depending on site conditions ■ Maximum 32mm IGU ■ A ThermalHeart+® roof window is available (opening and fixed).

2.1

APL Window Solutions - Specifications subject to change

RESIDENTIAL SERIES THERMALHEART+® APL Black Matt apowdercoat with Urbo hardware

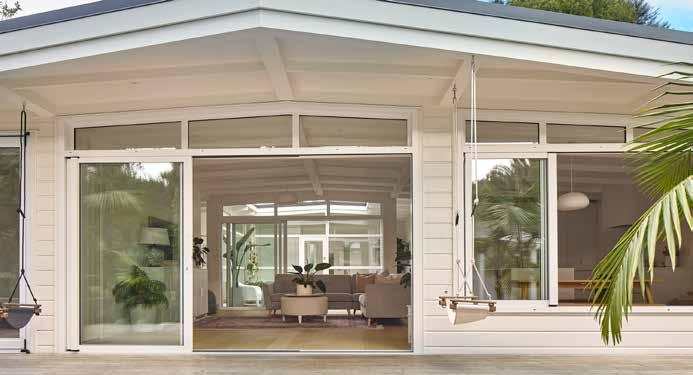

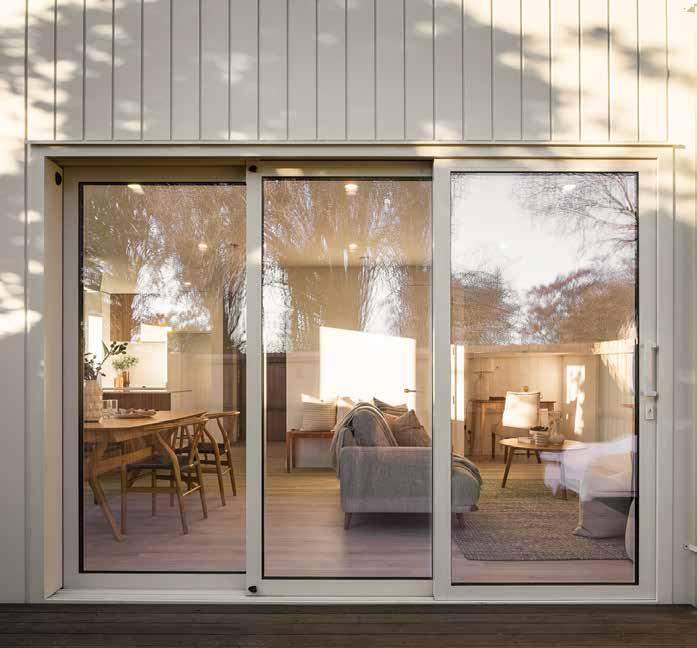

Matt Appliance White powdercoat with Urbo hardware

2.2

Residential Series ThermalHeart+®

Residential Series ThermalHeart+® overview

APL

RESIDENTIAL SERIES THERMALHEART+®

Key Features

Specifications

Design Considerations

Matt Silver Pearl powdercoat with Urbo hardware Technical drawings & product information – eboss.co.nz

2.3

APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Bi-fold Windows 2.6

2.7

APL

2.5

Sliding Windows

RESIDENTIAL SERIES THERMALHEART+®

Awning and Casement Windows

Sliding Doors

Hinged and French Doors 2.8

2.9

Bi-fold Doors 2.10

2.4

Residential Series ThermalHeart+®

Awning and Casement Windows

RESIDENTIAL SERIES THERMALHEART+®

Key Features ■ Frames based on a wide platform ensuring stability for a wide range of residential projects ■ Facing sash used for optimum weather protection ■ Square bead ■ Seven mullion / transoms are offered – one flush on the interior face, two with inward projecting stiffening boxes and four with exterior fins ■ Two corner posts are offered for 90° and 45° corners ■ An insert frame is available for replacement windows

APL

■ Maximum 24mm IGU as standard, but 32mm IGU can be used with a wedged bead - compliance with Building Code Clause H1 requires high performing Low-E double glazing.

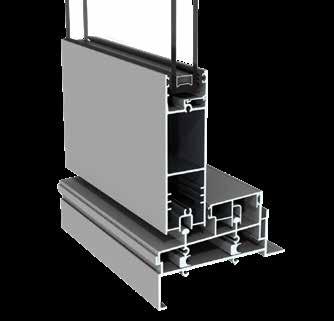

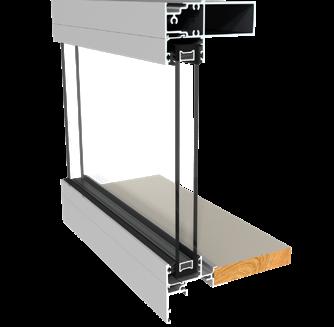

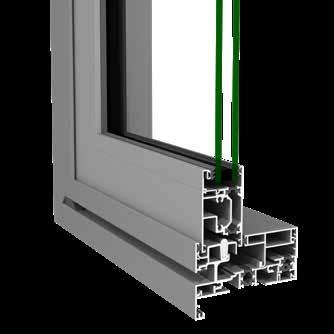

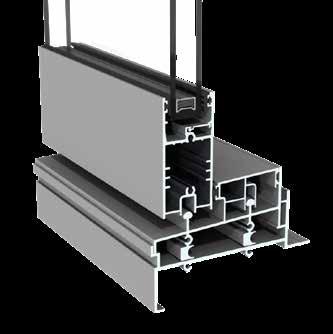

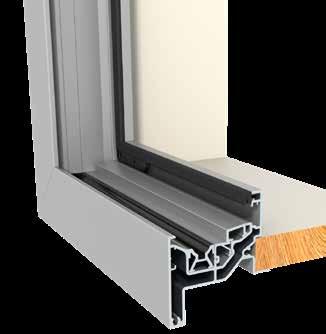

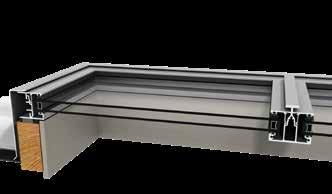

Standard frame and sash.

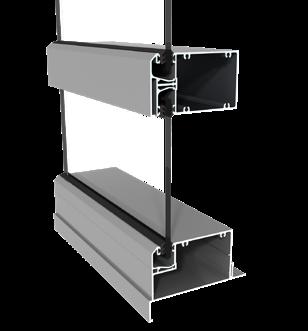

Sash (above) and transom.

Heavy duty mullion and sash left.

Fixed window jamb.

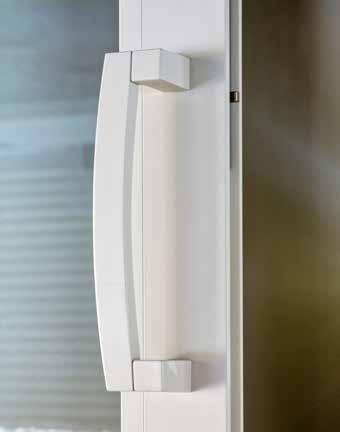

Urbo window fastener and venting option.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awnings 1400mm high x 1000mm wide; casements 1400mm high x 800mm wide. May be restricted by weight and wind zones.

Maximum Glass Thickness

24mm IGU as standard, but 32mm IGU possible

Performance

Tested to Extra High wind zone

■ Care needed if projecting on to walkways and decks, restrictor stays can limit opening in such situations ■ Consider the ThermalHeart+® horizontal sliding window to protect walkways ■ Caution is required for the use of casements which open directly into prevailing winds ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Thermal Values

1.4m

R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Rs

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.5

APL Window Solutions - Specifications subject to change

Awning / Casement Windows

For specifications – masterspec.co.nz

XH

32

Residential Series ThermalHeart+®

Sliding Windows

RESIDENTIAL SERIES THERMALHEART+®

Key Features ■ Flush track design ■ Thermal efficiency achieved through thermal insulation in aluminium profiles ■ Stiles and rails feature slender sightlines ■ Interlocker stiles vary in depth according to height, width and wind pressure requirements ■ Sliding windows use the sliding door system

APL

■ Maximum 24mm IGU as standard, but 32mm IGU can be used with a wedged bead - compliance with Building Code Clause H1 requires high performing Low-E double glazing.

Fixed panel with slider behind.

Sliding window jamb cross section.

Sliding window sill and two sliding panels.

Single sliding frame and flush track.

Sliding window threshold and double slider track.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Recommended maximum 1800mm high x 1500mm wide panels in Extra High wind zones. For larger panels consult your window manufacturer

Maximum Glass Thickness

24mm IGU as standard, but 32mm IGU can be used with a wedged bead

Thermal Values

R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ A good option for servery windows ■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench ■ Work well with insect screens ■ Larger sliding window frames may require a thicker wall ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

F

Performance

Tested to Extra High wind zone

Rs

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

1.8m

Sliding Window

For specifications – masterspec.co.nz

XH

32

2.6

Residential Series ThermalHeart+®

Bi-fold Windows

RESIDENTIAL SERIES THERMALHEART+®

Key Features ■ A wide range of configurations available ■ Assured smooth operation through enhanced adjustability ■ Jamb pivots provide easy adjustability and remove any stresses in bi-fold geometry ■ Overlights and sidelights possible ■ Window panels lap over frame for superior aesthetics, air tightness, weather tightness, security and thermal performance ■ Thermal efficiency achieved through thermal insulation in aluminium profiles and controlled air spaces via panel lap ■ Recommended maximum height 1800mm. For larger sizes consider using Metro Series ThermalHeart+®

APL

■ The bi-fold window system uses the bi-fold door system with a smaller top and bottom panel rail.

Sill frame and panels.

Sill frame interior view.

Bi-fold frame coupled to awning window above.

High performance overlight transom and awning window above.

Urbo, Miro and Icon bi-fold handles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 1800mm high and 900mm wide

Maximum Glass Thickness 24mm IGU as standard, but 32mm IGU can be used with a wedged bead

Thermal Values

R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ Consider the ease of reaching to the bi-fold handle if the window is placed beyond a bench ■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging single panels not recommended ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

1.8m

Tested to Extra High wind zone

Rs

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.7

APL Window Solutions - Specifications subject to change

Bi-fold Window

For specifications – masterspec.co.nz

XH

32

Residential Series ThermalHeart+®

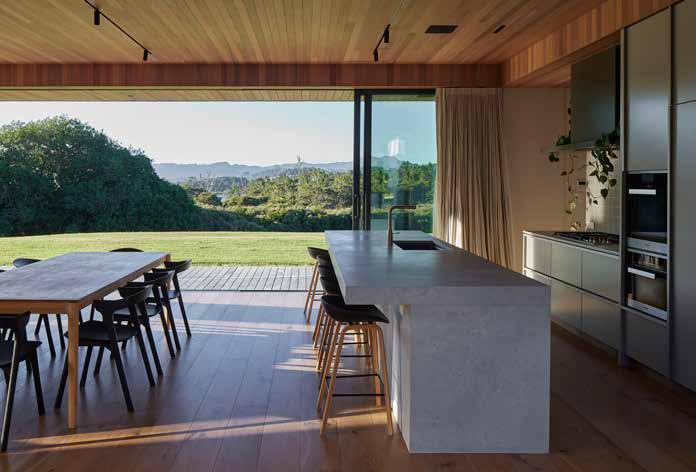

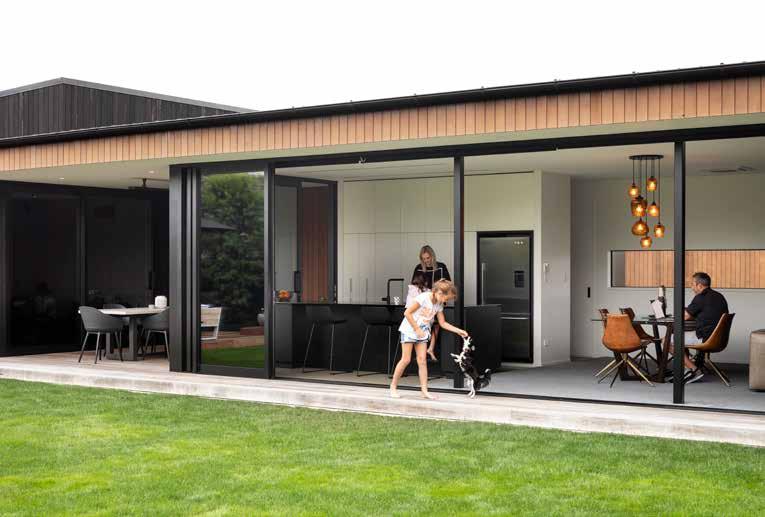

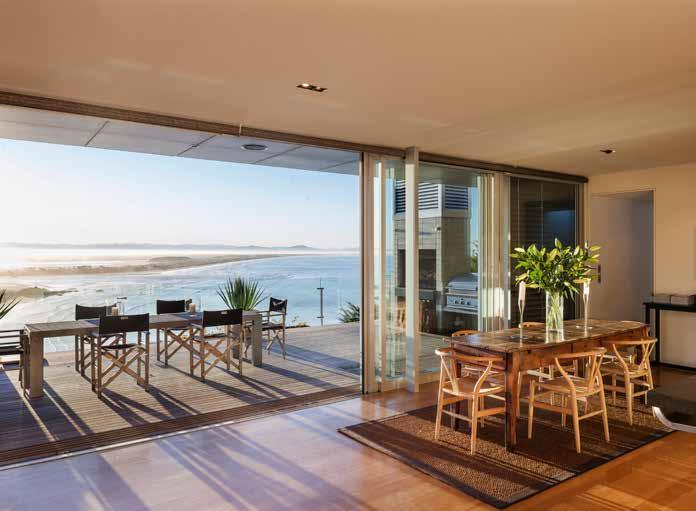

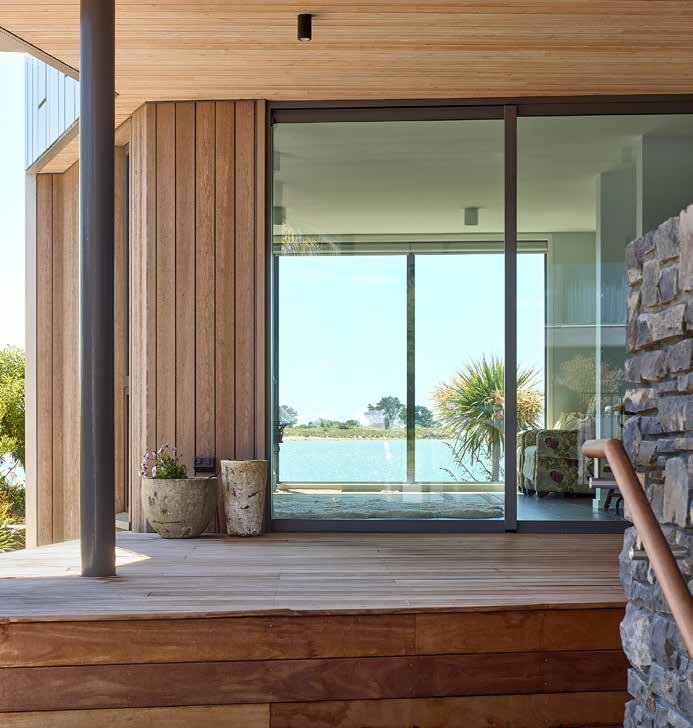

Sliding Doors

RESIDENTIAL SERIES THERMALHEART+®

Key Features ■ Flush track design ■ Thermal efficiency achieved through thermal insulation in aluminium profiles ■ Wide opening is possible in bi-parting or stacking configurations ■ Stiles and rails feature slender sightlines ■ Interlocker stiles and mullions are flush in the closed position ■ Interlocker stiles vary in depth according to height, width and wind pressure requirements ■ Maximum 24mm IGU as standard, but 32mm IGU can be used with a wedged bead - compliance with Building Code Clause H1 requires high performing Low-E double glazing

APL

■ Corner sliding doors (90°) are available with no corner post (exterior and interior corners).

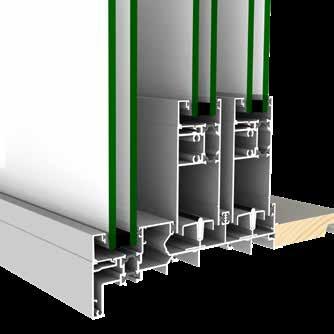

Stacking sliding door frame.

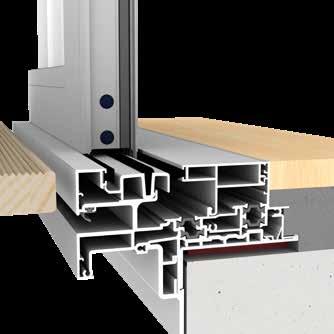

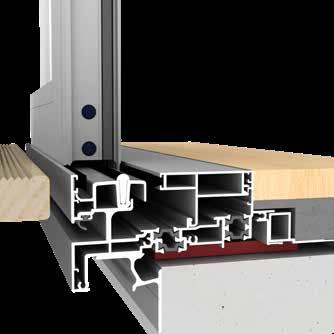

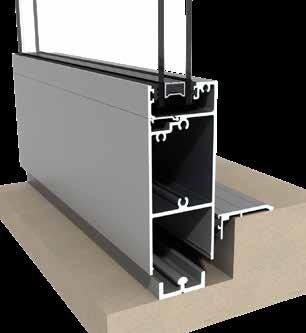

Flush sill cross section.

Jamb frame – awning sash shown.

Heavy duty interlocker mullion – closed position.

Sliding door overlight transom – awning sash shown above.

Specifications

Design Considerations

Dimensions

■ Sliding doors allow wide opening without the danger of slamming shut in windy conditions

Recommended maximum panels of 2400mm high and 1500mm wide

Maximum Glass Thickness

24mm IGU as standard, but 32mm IGU can be used with a wedged bead

Thermal Values

R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

■ Multi sliding doors allow approximately two-thirds opening ■ Narrow stiles and large glass expanses maximise views in the closed position ■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand ■ Larger sliding door frames may require a thicker wall ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

2.4m

Rs

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

F

Sliding Door

For specifications – masterspec.co.nz

XH

32

2.8

Residential Series ThermalHeart+®

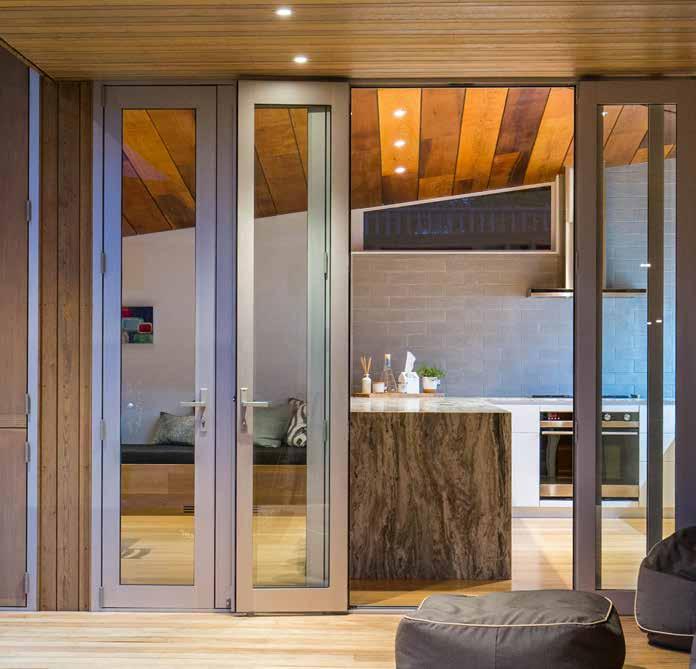

Hinged and French Doors

RESIDENTIAL SERIES THERMALHEART+®

Key Features ■ Door panels lap over frame for superior aesthetics, air tightness, weather tightness, security and thermal performance ■ Flush meeting stiles give a clean appearance in French doors and provide superior weathering ■ Thermal efficiency achieved through thermal insulation in aluminium profiles and controlled air spaces via panel lap ■ Two-way adjustable hinges for optimum installation and performance

APL

■ Maximum 24mm IGU as standard, but 32mm IGU can be used with a wedged bead - compliance with Building Code Clause H1 (requires high performing Low-E double glazing, such as The AGP System® with Solux-E®).

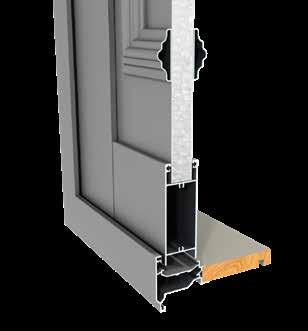

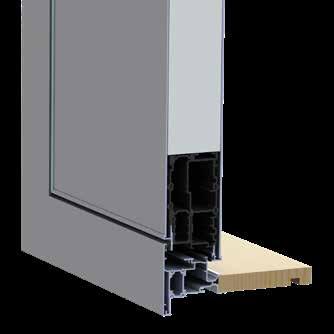

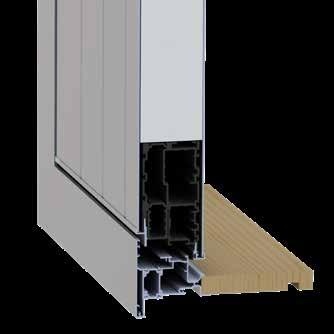

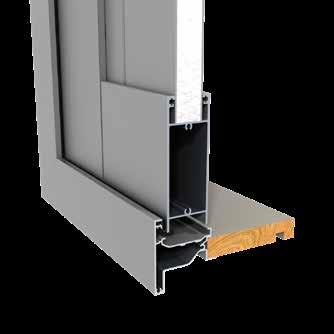

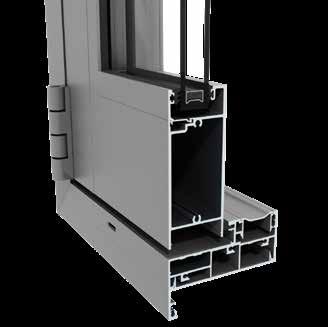

Hinged door (open-out) frame and section.

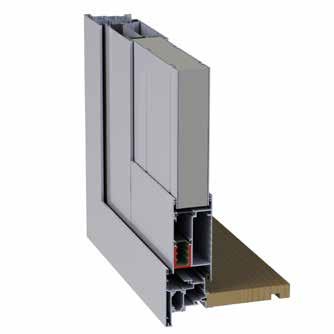

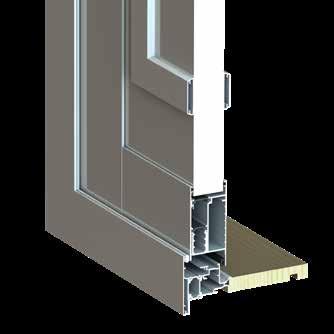

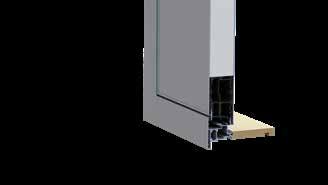

Hinged door (open-in) frame and section.

Parliament hinge option.

French door meeting stiles.

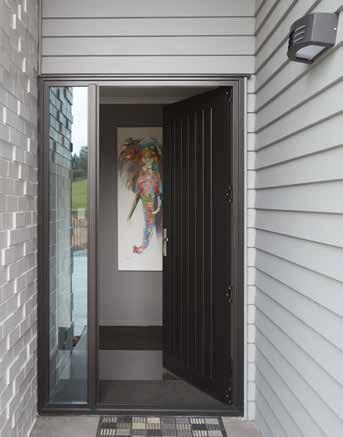

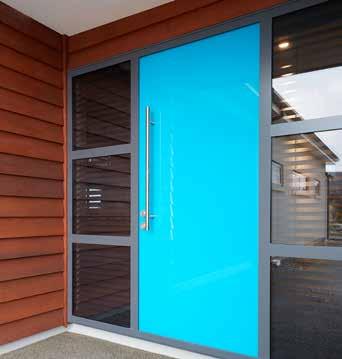

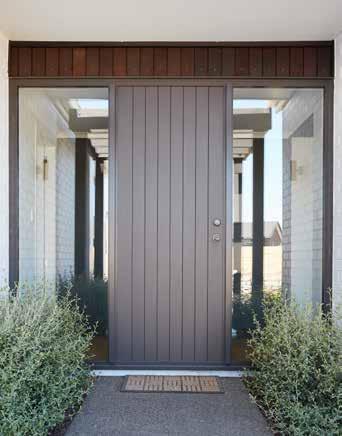

Hinged door and sidelight (left).

Specifications

Design Considerations

Dimensions

■ Single panels ideal as utility doors

Recommended maximum panels of 2400mm high and 900mm wide

■ Open-in frame available but open-out applications will generally be preferred

Maximum Glass Thickness

■ Parliament hinges are available to allow a full 180° opening for open out French doors

24mm IGU as standard, but 32mm IGU can be used with a wedged bead

Thermal Values

R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ Overlights and sidelights are possible ■ Multi-point locking available with most hardware options ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

2.9

APL Window Solutions - Specifications subject to change

Rs

Rs

TH

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.4m

2.4m

Tested to Extra High wind zone

Hinged Door

For specifications – masterspec.co.nz

XH

French Door

32

XH

32

Residential Series ThermalHeart+®

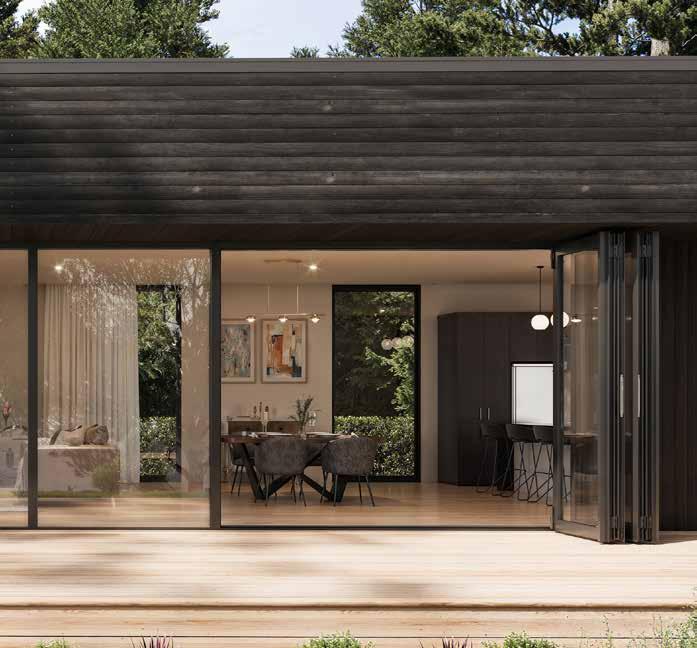

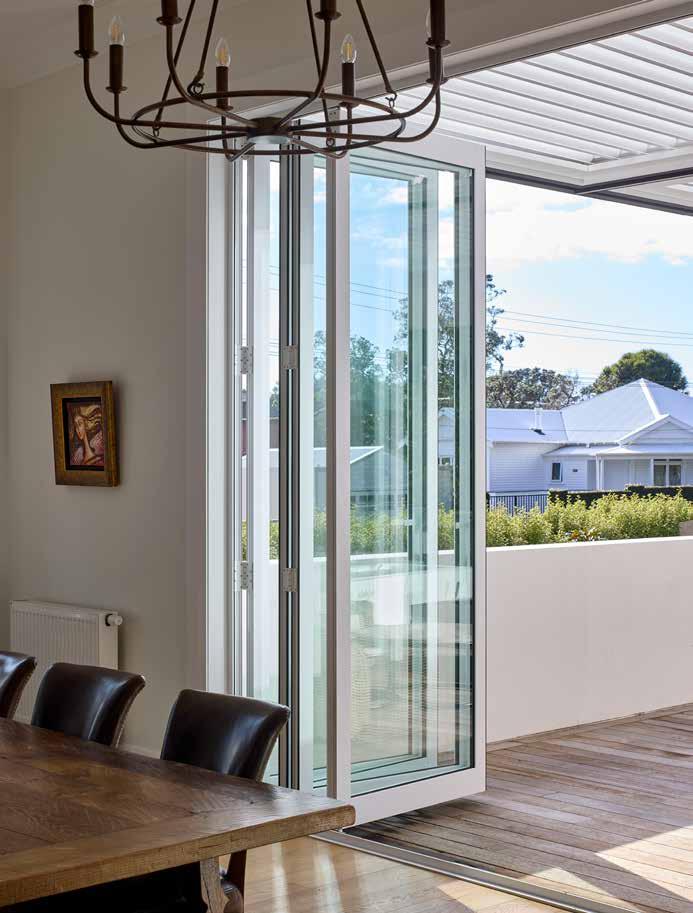

Bi-fold Doors

RESIDENTIAL SERIES THERMALHEART+®

Key Features ■ A wide range of configurations available ■ Overlights and sidelights possible ■ Door panels lap over frame for superior aesthetics, air tightness, weather tightness, security and thermal performance ■ Thermal efficiency achieved through thermal insulation in aluminium profiles and controlled air spaces via panel lap ■ Recommended maximum door height 2200mm. For larger sizes consider using Metro Series ThermalHeart+® ■ For uncluttered decks a lay-back option allows two panels to swing back rather than project out at a 90 degree angle - available in 2-panel, 2+1 and 2+2 configurations (Note: facing has to be within 15mm of final finished cladding line in order to achieve 180 degree opening)

APL

■ Single panel access door can be used in conjunction with bi-fold doors.

Open two panel bi-fold, corner view.

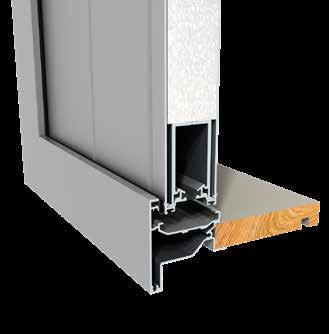

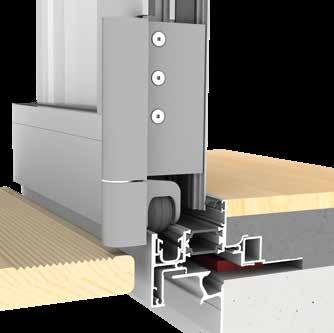

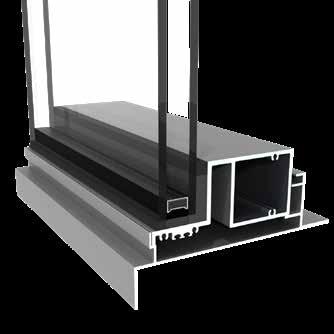

Near flush sill frame detail.

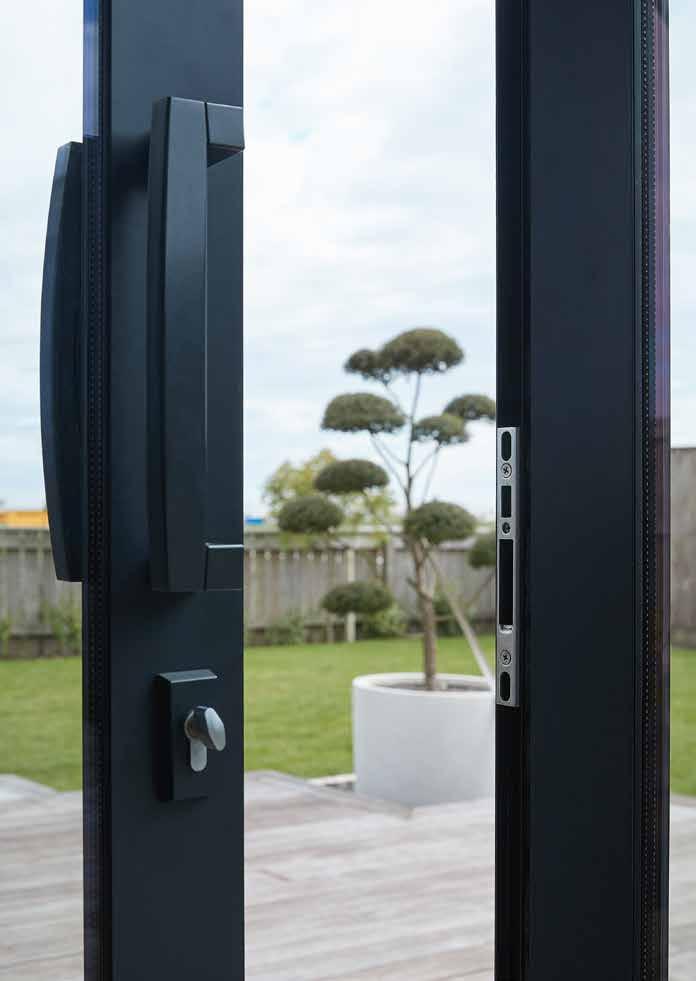

Bi-fold door meeting stiles.

Lay-back fully open.

Urbo, Miro and Icon bi-fold handles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2400mm high x 900mm wide.

Maximum Glass Thickness

24mm IGU as standard, but 32mm IGU can be used with a wedged bead

Thermal Values

R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E double glazing)* ®

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Single panel access door can be used in conjunction with bi-folds ■ In closed position bi-fold door stiles impact views ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

2.4m

Tested to Extra High wind zone

Rs

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

Bi-fold Door

For specifications – masterspec.co.nz

XH

32

2.10

APL

RESIDENTIAL SERIES

Residential Series overview

Matt Black powdercoat with Urbo hardware

■ A mainstream suite of aluminium windows and doors suitable for a wide spectrum of residential projects ■ A full product suite available with many specialised formats and optional features ■ Window frame based on a strong 35mm platform ■ Glazing to 24mm insulated glass units (22mm standard) ■ Sliding doors feature a flush sill for easy inside-outside movement ■ Available with ThermalHeart+® technology ■ Recommended door height of 2.2m - 2.4m, depending on site conditions.

3.1

APL Window Solutions - Specifications subject to change

RESIDENTIAL SERIES APL

Matt Gravel powdercoat with Urbo hardware

Matt Black powdercoat with Miro hardware

Dark Bronze anodised with Icon hardware

Metropolis Coal Dust with Aria hardware

3.2

APL

RESIDENTIAL SERIES

Residential Series

Flax Pod Matt powdercoat with Urbo hardware and roof windows

Matt Lignite powdercoat with Urbo hardware

3.3

APL Window Solutions - Specifications subject to change

Sliding Windows

Bi-fold Windows 3.6

3.8

APL

3.5

RESIDENTIAL SERIES

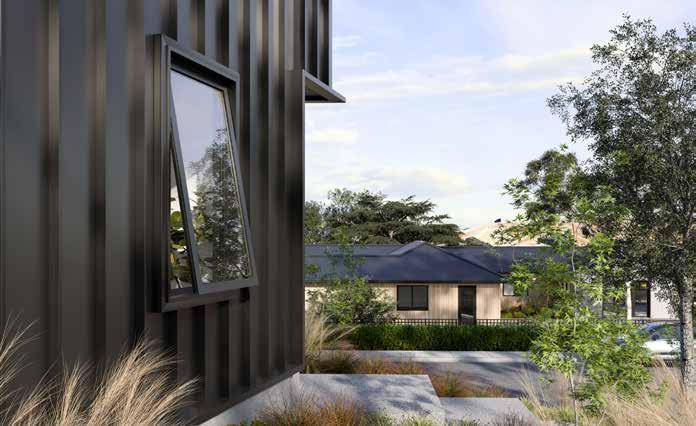

Awning and Casement Windows

Bi-fold Doors Sliding

Louvres

Custom

3.10

3.9

Hinged And French Doors 3.12

3.11 2.10

Bi-fold Doors 3.13 2.10

3.4

Residential Series

Awning and Casement Windows Key Features ■ Bead-glazed or pocket-glazed options with possible maximum IGU thickness of 24mm ■ Flat-face frame for clean aesthetics ■ No grooves or die lines on sashes and frames for a clean, contemporary appearance

RESIDENTIAL SERIES

■ Condensation collected in a channel ■ French casements available ■ Three passive ventilation options - Aerovent, Sashvent and Ventient all with windows closed

APL

■ Three frame options - standard frame, replacement frame and chair frame.

Standard frame and sash.

The replacement frame fits into existing timber frame rebates.

Sashvent allows trickle ventilation through the bottom rail.

Urbo and Miro window fasteners.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awnings 1400mm high x 1000mm wide; casements 1400mm high x 800mm wide. Larger sashes possible dependent on width, height, weight and wind zone

■ Care needed if projecting on to walkways and decks ■ Restrictor stays can limit opening in such situations

Maximum Glass Thickness

■ Consider a horizontal sliding window to protect walkways

24mm IGU (22mm standard)

■ Caution is required for the use of casements which open directly into prevailing winds

Thermal Values

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

1.4m

Tested to Extra High wind zone

Rs

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

3.5

APL Window Solutions - Specifications subject to change

Awning / Casement Windows

For specifications – masterspec.co.nz

XH

24

Residential Series

Sliding Windows Key Features ■ Ideal for non-projecting or servery windows ■ Wide opening is possible in bi-parting or stacking configurations ■ Two ranges are available – Slimline (single glaze only) and a heavier duty Slidemaster range

RESIDENTIAL SERIES

■ Flat-face frame for clean, contemporary look ■ Double sliding panels are available where two panels slide past each other ■ Overlights are possible ■ Corner Sliding windows without a corner post are possible with the Slidemaster range

APL

■ Security screens or flyscreens can be fitted to frames.

Slidemaster sliding window.

The Slimline sliding window, as with the Slidemaster, slides on the inside.

The Slidemaster track has a flush sill (single slider shown).

Slidemaster interlocker stiles are flush in the closed position.

The Slidemaster roller is rated to 40kg so windows of 80kg can be carried.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Slidemaster 1870mm high x 1600mm wide (800mm panel width) easily conformed to Very High wind zone

Maximum Glass Thickness

Slimline 6mm, Slidemaster 24mm IGU (22mm standard)

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ A good option for servery windows ■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench ■ Work well with insect screens ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

Tested to Extra High wind zone

F

Rs

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

1.9m

Sliding Window

For specifications – masterspec.co.nz

XH

24

3.6

APL

RESIDENTIAL SERIES

Residential Series

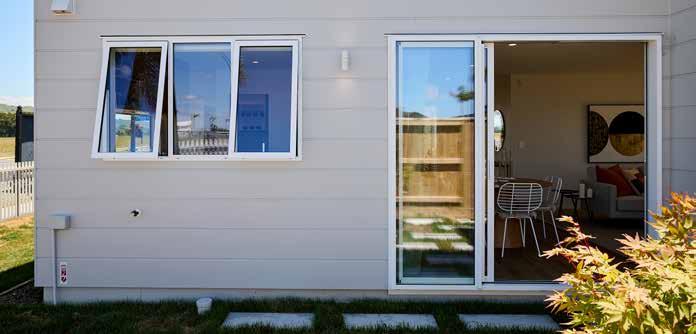

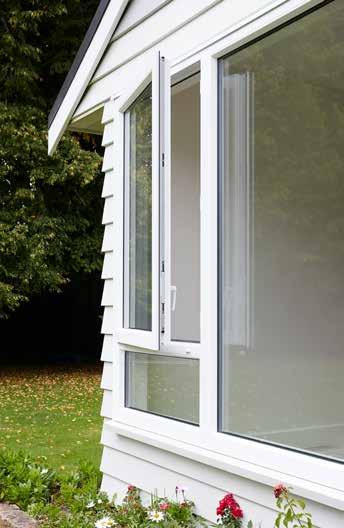

Matt Appliance White powdercoat with Urbo hardware

3.7

APL Window Solutions - Specifications subject to change

Residential Series

Bi-fold Windows Key Features ■ Ideal for wide openings ■ A wide range of configurations available ■ An in-frame track provides optimum panel support ■ Flat-face frame for a clean, contemporary look

APL

RESIDENTIAL SERIES

■ For uncluttered decks a lay-back option allows panels to fold back against adjoining walls – available in 2-panel and 2+2 formats (Note: facing has to be within 15mm of final finished cladding line in order to achieve 180° opening).

Sill frame and track.

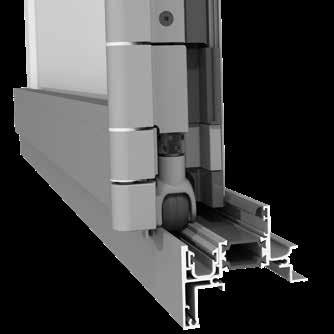

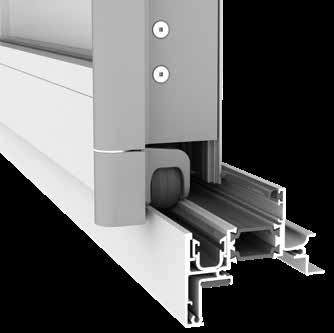

Roller and hinge on bi-fold stile.

Urbo, Miro and Icon bi-fold handles.

Lay-back fully open.

Bi-fold window meeting stiles.

Specifications

Design Considerations

Dimensions

Recommended maximum panels of 1800mm high and 900mm wide

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas, unless a layback option is being used.

Maximum Glass Thickness

■ Consider the ease of reaching to the bi-fold handle if the window is placed beyond a bench

24mm IGU (22mm standard)

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur

Thermal Values

■ Free-swinging single panels not recommended

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Very High wind zone

1.8m

Rs

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

Bi-fold Window

For specifications – masterspec.co.nz

XH

24

3.8

Residential Series

Custom Key Features ■ Greenhouse, box and bay windows all project from the wall of a house ■ Greenhouse windows normally have a sloped glass top while a box window is capped by the eaves ■ All three formats can be ventilated with a choice of awning, casement or sliding windows

RESIDENTIAL SERIES

■ Full height bays can incorporate doors, including French doors and Sliding windows ■ Glass block windows are available using an 80mm-thick block

APL

■ The glass block system has 90° or 135° corner posts available.

Greenhouse window corner with awning sash.

Greenhouse window front corner.

Opening sash (left) on side of greenhouse or box window.

135° corner detail with opening sash (left).

Specifications

Design Considerations

Dimensions

■ Greenhouse, box and bay windows provide extra space and light

Can be built to a range of sizes. Consult a manufacturer for advice

Maximum Glass Thickness

24mm IGU (22mm standard), Glass blocks 80mm thick

Thermal Values

■ The inclusion of opening sashes is recommended for ventilation ■ Greenhouse windows can admit generous sunlight so customised window shades or blinds may be advisable ■ Box windows can be formed as corner units

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

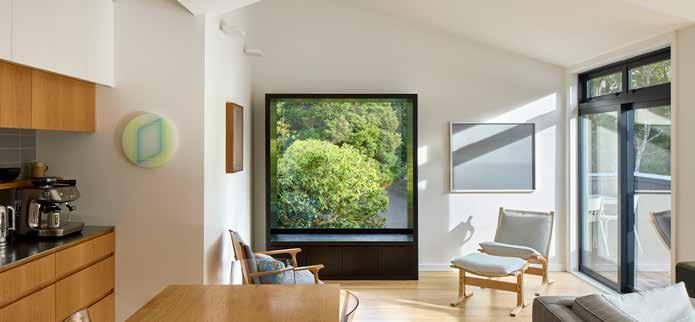

■ Box or bay windows can create a good environment for window seats

Performance

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Very High wind zone

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

3.9

Greenhouse window corner with awning sash.

APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Residential Series

Louvres Key Features ■ Louvres provide easily controlled ventilation with minimum projection ■ Residential Series uses the Altair louvre system from Breezway Australia which fits into the awning or casement frame

RESIDENTIAL SERIES

■ A 102mm (4 inch) or 152mm (6 inch) glass, aluminium or timber louvre is available ■ Altair louvres comply with NZ weatherproofing requirements up to Extra High wind zones when used together with the louvre weather bar system ■ All operating mechanisms and bars are non-corrosive and are hidden in the louvre mullion, giving a clean and compact appearance

APL

■ A fixed louvre system is also available for ventilating plant rooms and similar areas.

Louvre frame and bottom glass blade (with weather bar).

Window frame and louvre jamb.

Louvre head section with external weather bar fitted.

Louvre control lever (nylon grip).

Fixed louvre frame and profile.

Specifications

Design Considerations

Dimensions

■ Standard colour for handles and blade clips is black or white (custom colouring can be done using our 40 popular powdercoat colours)

Maximum spans of 550mm are recommended, with wider spans possible in lower wind zones

Maximum Glass Thickness

Glass 6mm, aluminium 6mm and timber (rebated) 6mm

Thermal Values

■ Double glazing available ■ Fly screens may be possible with louvre windows depending on window recess position ■ Fly screens can be fitted to the fixed louvre.

Consult APL Technical Department

Performance

Altair louvres comply with NZ weatherproofing requirements up to Extra High wind zone when used together with the louvre weather bar system. Fixed louvres should not be used in most exposed situations Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

3.10

Residential Series

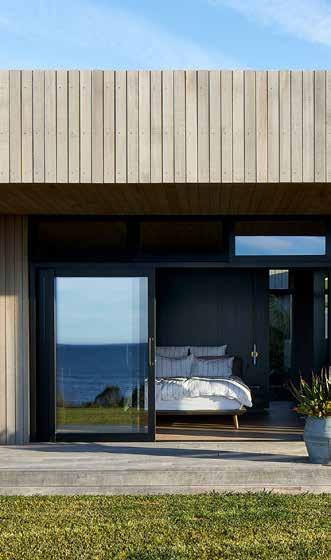

Sliding Doors Key Features ■ Flush sills facilitate easier indoor-outdoor movement ■ Single sliding, double sliding, and multi slider options ■ Doors slide on the inside of fixed panels ■ The double slider has two sliding panels, either can be moved

RESIDENTIAL SERIES

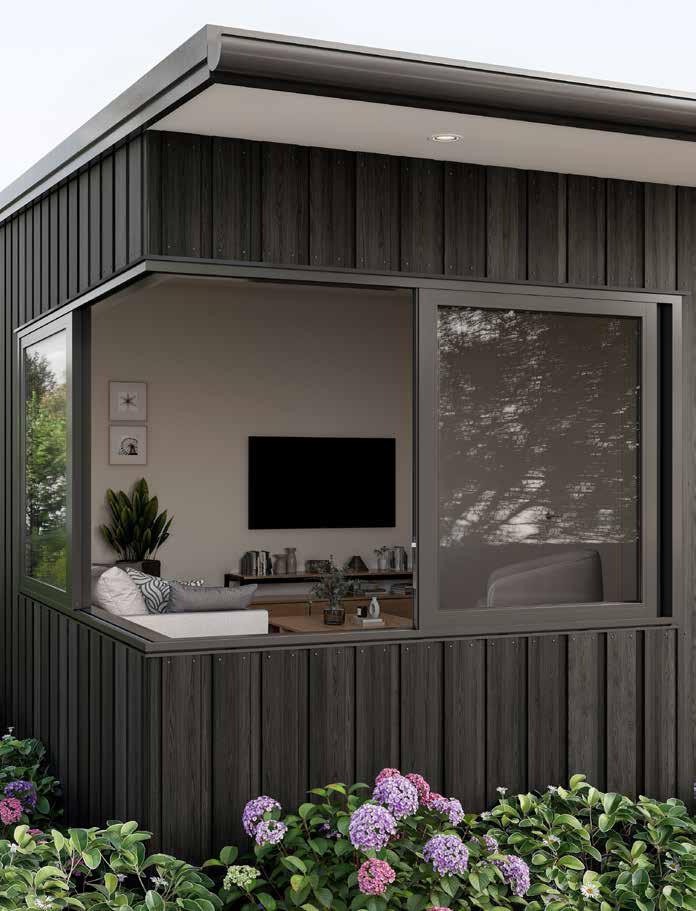

■ Corner Sliding doors without a corner post are possible – either exterior or interior corner formats ■ Interlocker stiles are flush in the closed position for a clean look

APL

■ Overlights are possible.

Sliding panel and exterior fixed panel.

Multi slider sill and rails.

Bi-parting slider meeting stiles.

Overlight transom sectional view.

Corner slider sectional view.

Specifications

Design Considerations

Dimensions

■ Sliding doors allow wide opening without the danger of slamming shut in windy conditions

Recommended maximum panels of 2400mm high and 1700mm wide

Maximum Glass Thickness 24mm IGU (22mm standard)

Thermal Values R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

■ Multi sliding doors allow approximately two-thirds opening ■ Narrow stiles and large glass expanses maximise views in the closed position ■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand ■ A four-panel slider (three sliding) is available and requires appropriate wall thickness. Note only suitable up to Very High wind zone.

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

3.11 APL Window Solutions - Specifications subject to change

F

2.4m

Rs

Sliding Door

For specifications – masterspec.co.nz

XH

23

Residential Series

Hinged and French Doors Key Features ■ Bottom rails can be extended in height by 85mm for a classic hinged/French door proportion ■ Rebated meeting stiles give a flush appearance where French doors overlap and provide superior weathering ■ Open-out and open-in frames available

RESIDENTIAL SERIES

■ Flat-face frame for clean, contemporary look ■ Wide stile option available ■ French door flush bolts are concealed from view in the leading edge of the ‘lazy’ door panel ■ Awning or casement sashes can be installed into hinged door panels

APL

■ A range of door handle and lock options are available, including multi-point locking.

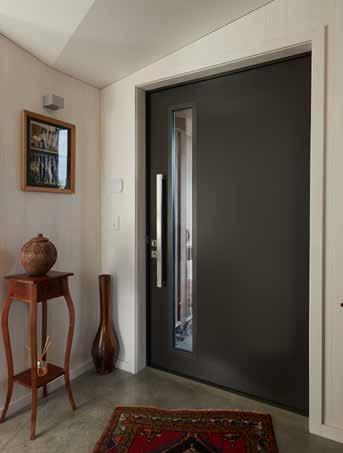

Hinged door frame and section.

Bottom rail extender.

Parliament hinge for full opening.

French door meeting stiles.

Hinged door and sidelight.

Specifications

Design Considerations

Dimensions

■ Single panels ideal as utility doors

Recommended maximum panels of 2400mm high and 900mm wide

■ Open-in frame available for use in appropriate weather exposures, using a different frame

Maximum Glass Thickness

■ Parliament hinges are available to allow a full 180° opening in brick veneer situations

24mm IGU (22mm standard)

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ Overlights and sidelights are possible ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

Tested to Extra High wind zone

Rs

Rs

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.4m

2.4m

Hinged Door

For specifications – masterspec.co.nz

XH

French Door

24

XH

24

3.12

Residential Series

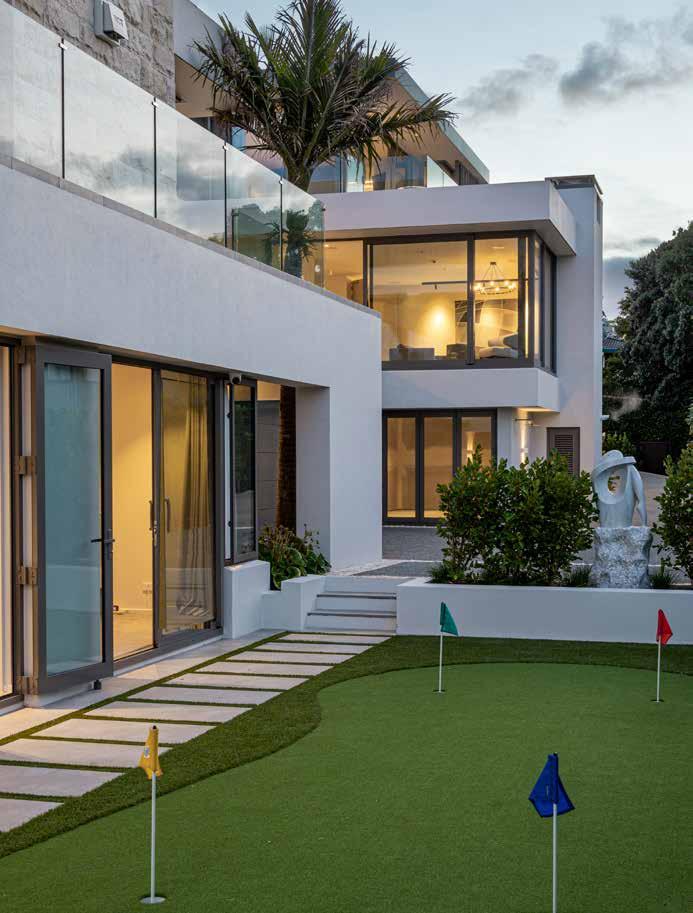

Bi-fold Doors Key Features ■ The efficient bottom roller system allows optimum load capacity and increased panel width

RESIDENTIAL SERIES

■ For uncluttered decks a lay-back option allows two panels to swing back against adjoining walls rather than project out at 90° - available in 2-panel, 2+1 and 2+2 configurations (Note: facing has to be within 15mm of final finished cladding line in order to achieve 180° opening) ■ Corner bi-folds (90°) are available that do not require a corner post ■ Same profiles as hinged and French doors ensure continuity of style

APL

■ Flat-face frame for clean, contemporary look

Sill frame and bi-fold panel.

Roller and hinge on bi-fold door stile.

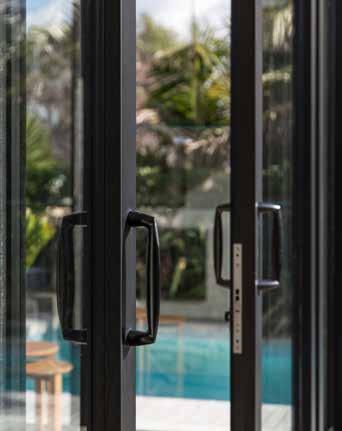

Urbo, Miro and Icon bi-fold handles.

Lay-back fully open.

Bi-fold door meeting stiles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2400mm high and 900mm wide. Maximum panel weight 50kg

Maximum Glass Thickness 24mm IGU (22mm standard)

Thermal Values R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ In closed position bi-fold door stiles impact views ■ Free-swinging panels can provide easy exit in bi-fold sets ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Very High wind zone

2.4m

Rs

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

3.13 APL Window Solutions - Specifications subject to change

Bi-fold Door

For specifications – masterspec.co.nz

XH

24

APL Matt Appliance White with Aria hardware

3.14

APL

METRO SERIES THERMALHEART+®

Metro Series ThermalHeart+® overview

Gunmetal Metallic Kinetic powdercoat with Miro hardware

■ A thermally efficient range of windows and doors suitable for larger formats ■ Thermally efficient joinery with an insulator stitched into the core of our aluminium window system ■ Dual colour available (differing interior and exterior surface finishes) ■ Flush sliding doors and windows ■ A unified look across the full range ■ Window frame based on a 44mm glazing platform.

■ Wide 56mm platform option available for triple glazing across all products– windows, sliding doors, hinged, french and bi-fold doors ■ Recommended door height of 2.7m - 3m, depending on site conditions.

4.1

APL Window Solutions - Specifications subject to change

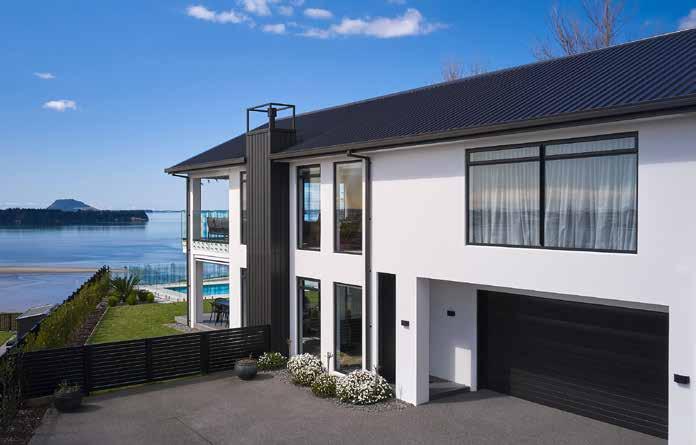

METRO SERIES THERMALHEART+® APL Matt Appliance White powdercoat with Urbo hardware

Dark Bronze anodised with Elemental hardware

4.2

APL

METRO SERIES THERMALHEART+®

Metro Series ThermalHeart+® overview

Charcoal Matt powdercoat with Icon hardware

Flax Pod Matt powdercoat with Urbo hardware

4.3

APL Window Solutions - Specifications subject to change

Bi-fold Windows 4.6

4.7

APL

4.5

Sliding Windows

METRO SERIES THERMALHEART+®

Awning and Casement Windows

Sliding Doors

Hinged and French Doors 4.8

4.9

Bi-fold Doors 4.10

4.4

Metro Series ThermalHeart+®

Awning and Casement Windows Key Features METRO SERIES THERMALHEART+®

■ Awning and casement windows have a facing option and a flush, non-facing option ■ Facing sashes available in varying performance grades ■ Mullions and transoms with external fins or internal boxes available ■ Concealed drainage option available ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing ■ Vent options – Aerovent, SashVent and Ventient ■ Multi-point locking for enhanced security is available on awning and casement sashes. This feature utilises a Eurogroove profile and is available as an option

APL

■ Triple glazing is available as an option.

Metro Series ThermalHeart+® window frame (fixed light).

44mm window frame with facing sash.

56mm window frame with flush sash.

Multi point sash window.

Internal box mullion option.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awning and casement windows have a recommended size of 1400 mm high x 800mm wide

Maximum Glass Thickness 44mm IGU

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ Care needed if projecting on to walkways and decks.

Restrictor stays can limit opening in such situations ■ Consider a horizontal sliding window to protect walkways ■ Caution is required for the use of casements which open directly into prevailing winds ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

1.4m

Tested to Extra High wind zone

Ms

Dc

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

4.5

APL Window Solutions - Specifications subject to change

Awning / Casement Windows

For specifications – masterspec.co.nz

Metro Series ThermalHeart+®

Sliding Windows Key Features ■ An exterior sliding track as standard

METRO SERIES THERMALHEART+®

■ Ideal for non-projecting or servery windows ■ Smooth sliding action ■ Interlocker stiles are fully thermally isolated to maximise thermal efficiency ■ Interlocker stiles are flush in the closed position ■ Wide opening is possible in bi-parting or stacking configurations ■ Stiles and rails feature slender sightlines ■ Corner sliding windows (90°) are available with no corner post (exterior and interior corners) ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

APL

■ Triple glazing is available as an option.

Sliding window sill and panel rail.

Sliding window sill (single slider).

Multi slider window track and panel rails.

Fully thermally isolated interlocker stiles in closed position.

The sliding window jamb section.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Metro Series ThermalHeart+® sliding windows can be made to large door-size panels if needed, because they are based on the sliding door system. Panels 2000mm high x 1500mm wide would conform

Maximum Glass Thickness 44mm IGU

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ A good option for servery windows ■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench ■ Larger sliding window frames may require a thicker wall ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

F

Tested to Extra High wind zone

Ms

Dc

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.0m

Sliding Window

For specifications – masterspec.co.nz

4.6

Metro Series ThermalHeart+®

Bi-fold Windows Key Features METRO SERIES THERMALHEART+®

■ Bottom rolling with an in-frame track for optimum panel support ■ A wide range of configurations available ■ Assured smooth operation through enhanced adjustability ■ Adjustable jamb pivots remove and stresses in bi-fold geometry ■ Overlights possible ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

APL

■ Triple glazing is available as an option.

Sill track and panel roller.

Slender rail option.

Urbo, Miro and Icon bi-fold handle.

Bi-fold window stile.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Because they use the bi-fold door system, windows can be built to tall heights with a recommended panel size of 2000mm high by 900mm wide

Maximum Glass Thickness 44mm IGU

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance Tested to Extra High wind zone

■ Consider the ease of reaching to the bi-fold handle if the window is placed beyond a bench ■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging panels are not recommended in bi-fold window applications ■ In closed position, bi-fold window stiles impact views ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

4.7

Bi-fold window meeting stiles.

APL Window Solutions - Specifications subject to change

2.0m

Ms

Dc

XH

44

TH

Bi-fold Window

For specifications – masterspec.co.nz

Metro Series ThermalHeart+®

Sliding Doors Key Features ■ An exterior sliding track as standard

METRO SERIES THERMALHEART+®

■ The sill frame has a flush track to optimise inside-to-outside plane ■ Interlocker stiles are fully thermally isolated to maximise thermal efficiency ■ Interlocker stiles are flush in the closed position ■ Door stiles and rails feature slender sightlines ■ Interlockers vary in depth according to height, width and wind pressure requirements ■ Corner sliding doors (90°) are available with no corner post (exterior and interior corners) ■ Innovative sill frame design improves weather and water resistance – door height of 2700mm possible in demanding wind zones. For larger sizes consider using APL Architectural Series ThermalHeart+®

■ Triple glazing is available as an option.

Sliding door sill – single panel.

Multi slider sill frame.

APL

■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Fully thermally isolated interlocker stiles in closed position with strengthening box on external stile.

Door overlight coupling detail.

The sliding door jamb detail.

Specifications

Design Considerations

Dimensions

■ Sliding doors allow wide opening without the danger of slamming shut in windy conditions

Recommended maximum panels of 2700mm - 3000mm high by 1500mm, depending on site conditions.

Maximum Glass Thickness 44mm IGU

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance Tested to Extra High wind zone *Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

■ Multi sliding doors allow approximately two-thirds opening ■ Narrow stiles and large glass expanses maximise views in the closed position ■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise the upstand ■ Interlocker stiles vary in depth according to strength requirements – consider in placement of blind boxes ■ Larger sliding door frames may require a thicker wall

F

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Ms

Dc

XH

44

For specifications – masterspec.co.nz

2.7m

TH

Sliding Door

4.8

Metro Series ThermalHeart+®

Hinged and French Doors Key Features METRO SERIES THERMALHEART+®

■ Door panels lap over frame for superior aesthetics, weather tightness and thermal performance ■ Lapped panels enhance security by hindering access to door latch ■ Flush meeting stiles give a clean appearance in French doors and provide superior weathering ■ Open-out and open-in frames available ■ Parliament hinges allow doors to open outwards a full 180° in brick veneer situations ■ Two-way adjustable hinges for optimum installation and performance ■ Overlights and sidelights are possible

APL

■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing ■ A range of door handle and lock options are available, including multi-point locking ■ Triple glazing is available as an option.

Hinged door frame – open-out.

Hinged door panel (at left) with side light.

French door meeting stiles.

Monza hinge in open position.

Urbo and Icon lever locks.

Specifications

Design Considerations

Dimensions

■ Door panels overlap frame for superior aesthetics obviating issues of uneven perimeter gaps

Recommended maximum panels of 2700mm - 3000mm high by 900mm, depending on site conditions

Maximum Glass Thickness 44mm IGU

Thermal Values

■ Single panels ideal as utility doors ■ Open-in frame available but open-out applications will generally be preferred for utility and French doors ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

4.9

APL Window Solutions - Specifications subject to change

Ms

Dc

Ms

Dc

XH

44

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.7m

2.7m

Tested to Extra High wind zone

Hinged Door

For specifications – masterspec.co.nz

TH

French Door

Metro Series ThermalHeart+®

Bi-fold Doors Key Features METRO SERIES THERMALHEART+®

■ Bottom rolling with an in-frame track for optimum panel support ■ A wide range of configurations available ■ Assured smooth operation through enhanced adjustability ■ Adjustable jamb pivots remove any stresses in bi-fold geometry ■ Overlights possible ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

APL

■ Triple glazing is available as an option.

Bi-fold sill and roller.

Narrow rail option.

Urbo, Miro and Icon bi-fold handle.

Bi-fold door meeting stiles.

Bi-fold door meeting stiles with exterior box stiffeners.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2700mm - 3000mm high by 900mm, depending on site conditions

Maximum Glass Thickness 44mm IGU

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging panels can provide easy exit in bi-fold sets ■ In closed position, bi-fold door stiles impact views ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

2.7m

Tested to Extra High wind zone

Ms

Dc

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

Bi-fold Door

For specifications – masterspec.co.nz

4.10

APL

METRO SERIES THERMALHEART+® WITH CENTRAFIX®

Metro Series ThermalHeart+® with Centrafix® overview

Titania Matt powdercoat with Urbo hardware

■ A recessed window and door system combining the strength of Metro Series, the efficiency of ThermalHeart+®, and the aesthetic appeal of a recessed frame.

■ The Centrafix® system uses Metro Series ThermalHeart+® internals - panels, sashes and mullions ■ The Centrafix® system provides superior thermal performance and offers a Passive House variant ■ The recessed frame enhances weathertightness and thermal efficiency ■ Simplified onsite window and door installation improves site productivity ■ Dual colour available (differing interior and exterior surface finishes) ■ Flush track sliding doors and windows ■ A unified look across the full range ■ Window frame based on 44mm and 56mm glazing platforms ■ Wide platform option available for triple glazing across all products – windows, sliding doors, hinged, french and bi-fold doors ■ Recommended door height 2.7m - 3m, depending on site conditions.

5.1

APL Window Solutions - Specifications subject to change

METRO SERIES THERMALHEART+® WITH CENTRAFIX®

APL Example of Centrafix® system shown

Flax Pod Matt powdercoat with Urbo hardware

5.2

APL

METRO SERIES THERMALHEART+® WITH CENTRAFIX®

Metro Series ThermalHeart+® with Centrafix® overview

Example of Centrafix® system shown

Example of Centrafix® system shown

5.3

APL Window Solutions - Specifications subject to change

Bi-fold Windows 5.6

5.7

APL

5.5

Sliding Windows

METRO SERIES THERMALHEART+® WITH CENTRAFIX®

Awning and Casement Windows

Sliding Doors

Hinged and French Doors 5.8

5.9

Bi-fold Doors 5.10

5.4

Metro Series ThermalHeart+® with Centrafix®

Awning and Casement Windows METRO SERIES THERMALHEART+® WITH CENTRAFIX™

Key Features ■ Glazing is deeply set within the building wall, delivering a strong appearance ■ Awning and casement windows have a facing option and a flush, non-facing option ■ Mullions and transoms with external fins or internal boxes available ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing ■ Vent options – Aerovent, SashVent and Ventient

APL

■ Triple glazing is available as an option.

Metro Series Centrafix® window frame (fixed light).

44mm window frame with facing sash.

56mm window frame with flush sash.

Internal boxed mullion option.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awning and casement windows have a recommended size of 1400 mm high x 800mm wide

Maximum Glass Thickness 44mm IGU

Thermal Values

Complies with the Construction R-values provided in NZBC clause H1, Appendix E, 1.1.1., table E1.1.1.

R values for windows and doors used in buildings other than for Housing please consult APL Technical Department

Performance

Tested to Extra High wind zone Technical drawings & product information – eboss.co.nz

5.5

Jamb section (fixed light).

APL Window Solutions - Specifications subject to change

■ Care needed if projecting on to walkways and decks ■ Restrictor stays can limit opening in such situations ■ Consider a horizontal sliding window to protect walkways ■ Caution is required for the use of casements which open directly into prevailing winds ■ Centrafix® has a predefined distance to accommodate the building cavity and claddings, some bespoke claddings may not suit ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

For specifications – masterspec.co.nz

1.4m Dc

MsC

TH

Awning / Casement Windows

XH

44

Metro Series ThermalHeart+® with Centrafix®

Sliding Windows METRO SERIES THERMALHEART+® WITH CENTRAFIX™

Key Features ■ An exterior sliding track as standard ■ Ideal for non-projecting or servery windows ■ Smooth sliding action ■ Wide opening is possible in bi-parting or stacking configurations ■ Stiles and rails feature slender sightlines ■ Corner sliding windows (90°) are available with no corner post (exterior and interior corners) ■ Interlocker stiles are fully thermally isolated to maximise thermal efficiency

APL

■ Triple glazing is available as an option.

Sliding window sill and panel rail.

Sliding window sill and jamb (single slider).

Multi slider window track and panel rails.

Fully thermally isolated interlocker stiles, shown in flush closed position.

Sliding window jamb detail.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Metro Series ThermalHeart+® with Centrafix® sliding windows can be made to large door-size panels if needed, because they are based on the sliding door system. Panels 2000mm high x 1500mm wide would conform

■ A good option for servery windows ■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench

Maximum Glass Thickness 44mm IGU

■ Centrafix® has a predefined distance to accommodate the building cavity and claddings, some bespoke claddings may not suit

Thermal Values

■ Larger sliding window frames may require a thicker wall

Complies with the Construction R-values provided in NZBC clause H1, Appendix E, 1.1.1., table E1.1.1.

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Dc

MsC

TH

Performance

Tested to Extra High wind zone Technical drawings & product information – eboss.co.nz

2.0m

Sliding Window

For specifications – masterspec.co.nz

XH

44

5.6

Metro Series ThermalHeart+® with Centrafix®

Bi-fold Windows METRO SERIES THERMALHEART+® WITH CENTRAFIX™

Key Features ■ Bottom rolling with an in-frame track for optimum panel support ■ Panels are deeply set within the building wall, delivering a strong appearance ■ A wide range of configurations available ■ Assured smooth operation through enhanced adjustability ■ Adjustable jamb pivots remove any stresses in bi-fold geometry ■ The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail ■ Overlights possible ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

APL

■ Triple glazing is available as an option.

Bi-fold sill and panel roller.

Narrow rail option.

Urbo, Miro and Icon bi-fold handle.

Bi-fold window meeting stiles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Because they use the bi-fold door system, windows can be built to tall heights with a recommended panel size of 2000mm high by 900mm wide

Maximum Glass Thickness 44mm IGU

Thermal Values

Complies with the Construction R-values provided in NZBC clause H1, Appendix E, 1.1.1., table E1.1.1.

Performance

Tested to Extra High wind zone Technical drawings & product information – eboss.co.nz

5.7

Bi-fold window stile.

APL Window Solutions - Specifications subject to change

■ Consider the ease of reaching to the bi-fold handle if the window is placed beyond a bench ■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging panels are not recommended in bi-fold window applications ■ In closed position bi-fold window stiles impact views ■ Centrafix® has a predefined distance to accommodate the building cavity and claddings, some bespoke claddings may not suit.

For specifications – masterspec.co.nz

2.0m Dc

MsC

TH

Bi-fold Window

XH

44

Metro Series ThermalHeart+® with Centrafix®

Sliding Doors METRO SERIES THERMALHEART+® WITH CENTRAFIX™

Key Features ■ Features an exterior sliding track as standard ■ The sill frame has a flush track to optimise inside-to-outside plane ■ Interlocker stiles are fully thermally isolated to maximise thermal efficiency ■ Interlocker stiles are flush in the closed position ■ Door stiles and rails feature slender sightlines ■ Interlockers vary in depth according to height, width and wind pressure requirements ■ Corner sliding doors (90°) are available with no corner post (exterior and interior corners) ■ Innovative sill frame design improves weather and water resistance – door height of 2700mm possible in demanding wind zones

■ Triple glazing is available as an option.

Sliding door sill – single panel.

Multi slider sill frame.

APL

■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Fully thermally isolated interlocker stiles in closed position with strengthening box on external stile.

Sliding door jamb section.

Sliding door roller.

Specifications

Design Considerations

Dimensions

■ Multi sliding doors allow approximately two-thirds opening

Recommended maximum panels of 2700mm - 3000mm high by 1500mm wide, depending on site conditions.

■ Narrow stiles and large glass expanses maximise views in the closed position

Maximum Glass Thickness

■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise the upstand

Thermal Values

■ Interlocker stiles vary in depth according to strength requirements – consider in placement of blind boxes

Performance

■ Centrafix® has a predefined distance to accommodate the building cavity and claddings, some bespoke claddings may not suit 2.7m

44mm IGU

Complies with the Construction R-values provided in NZBC clause H1, Appendix E, 1.1.1., table E1.1.1.

Tested to Extra High wind zone

Technical drawings & product information – eboss.co.nz

■ Larger sliding door frames may require a thicker wall.

For specifications – masterspec.co.nz

Dc

MsC

TH

Sliding Door

XH

44

5.8

Metro Series ThermalHeart+® with Centrafix®

Hinged and French Doors METRO SERIES THERMALHEART+® WITH CENTRAFIX™

Key Features ■ Panels are deeply set within the building wall, delivering a strong appearance ■ Lapped panels enhance security by hindering access to door latch ■ Flush meeting stiles give a clean appearance in French doors and provide superior weathering ■ Open-out and open-in frames available ■ Parliament hinges allow doors to open outwards a full 180° in brick veneer situations ■ Two-way adjustable hinges for optimum installation and performance ■ Concealed hinge option available utilising the Eurogroove feature ■ Overlights and sidelights are possible

APL

■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing ■ A range of door handle and lock options are available, including multi-point locking Hinged door frame – open-out.

French door meeting stiles.

■ Triple glazing is available as an option.

Urbo and Icon lever locks.

Door hinge in open position.

Hinged door and sidelight on right.

Specifications

Design Considerations

Dimensions

■ Door panels overlap frame for superior aesthetics obviating issues of uneven perimeter gaps

Recommended maximum panels of 2700mm - 3000mm high by 900mm wide, depending on site conditions.

■ Single panels ideal as utility doors

Maximum Glass Thickness

■ Open-in frame available but open-out applications will generally be preferred for utility and French doors

Thermal Values

■ Centrafix® has a predefined distance to accommodate the building cavity and claddings, some bespoke claddings may not suit.

44mm IGU

Complies with the Construction R-values provided in NZBC clause H1, Appendix E, 1.1.1., table E1.1.1.

R values for windows and doors used in buildings other than for Housing please consult APL Technical Department

Performance

5.9

APL Window Solutions - Specifications subject to change

2.7m

Dc

MsC

Dc

MsC

XH

44

XH

TH

Tested to Extra High wind zone Technical drawings & product information – eboss.co.nz

2.7m

Hinged Door

For specifications – masterspec.co.nz

TH

French Door

44

Metro Series ThermalHeart+® with Centrafix®

Bi-fold Doors METRO SERIES THERMALHEART+® WITH CENTRAFIX™

Key Features ■ Panels are deeply set within the building wall, delivering a strong appearance ■ A wide range of configurations available ■ Assured smooth operation through enhanced adjustability ■ Adjustable jamb pivots remove any stresses in bi-fold geometry ■ Overlights possible ■ Door height of 2700mm possible in demanding wind zones.

For larger sizes consider using APL Architectural Series ThermalHeart+® ■ Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

APL

■ Triple glazing is available as an option.

Bi-fold sill, rail and roller.

Bi-fold door fold (inside view).

Urbo, Miro and Icon bi-fold handle.

Flush sill with small rail option.

Bi-fold door meeting stiles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2700mm - 3000mm high by 900mm wide, depending on site conditions.

Maximum Glass Thickness 44mm IGU

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging panels can provide easy exit in bi-fold sets ■ In closed position bi-fold door stiles impact views

Thermal Values

Complies with the Construction R-values provided in NZBC clause H1, Appendix E, 1.1.1., table E1.1.1.

■ Centrafix® has a predefined distance to accommodate the building cavity and claddings, some bespoke claddings may not suit.

R values for windows and doors used in buildings other than for Housing please consult APL Technical Department

2.7m Dc

MsC

Performance

TH

Tested to Extra High wind zone Technical drawings & product information – eboss.co.nz

Bi-fold Door

For specifications – masterspec.co.nz

XH

44

5.10

APL

METRO SERIES

Metro Series overview

Flat Pod Matt powdercoat with Urbo hardware

■ A stylish and versatile range of heavy-duty windows and doors with a unified aesthetic ■ Occupies an intermediate position between Residential Series and the high-performance APL Architectural Series ■ Flat-faced frames ■ Suitable for larger formats and more exposed locations ■ Window frame based on a 44mm glazing platform ■ Wide platform option for some products for aesthetic and span benefits ■ Flush sliding doors and windows ■ Sliding and bi-fold doors have a smooth, easy-glide action ■ Opening products are double weather sealed for superior weather performance ■ Concealed drainage option available ■ Recommended door height 2700mm.

6.1

APL Window Solutions - Specifications subject to change

METRO SERIES APL Duratec Metropolis Electric Cow Matt powdercoat with Urbo hardware

Silver Pearl powdercoat with Icon hardware

6.2

APL

METRO SERIES

Metro Series

Matt Black powdercoat with Urbo hardware

6.3

APL Window Solutions - Specifications subject to change

Bi-fold Windows 6.6

6.7

APL

6.5

Sliding Windows

METRO SERIES

Awning and Casement Windows

Sliding Doors

Hinged and French Doors 6.8

6.9

Bi-fold Doors 6.11

6.4

Metro Series

Awning and Casement Windows Key Features ■ Awning and casement windows have a facing option and a flush, non-facing option ■ Facing sashes available in four performance grades ■ Mullions and transoms with external fins and internal boxes available

METROMETRO SERIESSERIES

■ Condensation collected in a channel with drainage to the outside through a proprietary drainage diverter system

APL

■ Concealed drainage option available.

Standard window frame (fixed light).

The standard sash and frame.

Non-facing sash.

Finned overlight transom with sash below.

Internal box mullion option.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awning and casement windows suitable for Specific Design. In Extra High wind zones recommended sash size 1400mm high and 900mm wide

Maximum Glass Thickness 28mm IGU

■ Care needed if projecting on to walkways and decks ■ Restrictor stays can limit opening in such situations ■ Consider a horizontal sliding window to protect walkways ■ Caution is required for the use of casements which open directly into prevailing wind

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

1.4m

Tested to Extra High wind zones

Ms

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

6.5

APL Window Solutions - Specifications subject to change

Awning / Casement Windows

For specifications – masterspec.co.nz

XH

28

Metro Series

Sliding Windows Key Features ■ Sliding windows use the sliding door system, which has slender sightlines ■ The sill frame has a flush track ■ Interlocker stiles and mullions are flush in the closed position ■ Ideal for non-projecting or servery windows

METROMETRO SERIESSERIES

■ Smooth sliding action

APL

■ Wide opening is possible in bi-parting or stacking configurations.

Window sill – single slider.

Sliding window sill and jamb (single slider).

Metro Series sliding window interlockers are flush in the closed position.

Double slider track and panel rails.

The sliding window roller is rated to 100kg so windows of 200kg can be carried.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Sliding windows can be made to large door-size panels, if needed, because they are based on the Metro Series sliding door system. Windows 2000mm high and 1500mm wide would conform in Extra High wind zones

Maximum Glass Thickness

■ A good option for servery windows ■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench.

28mm IGU

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

F

Tested to Extra High wind zone

Ms

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.0m

Sliding Window

For specifications – masterspec.co.nz

XH

28

6.6

Metro Series

Bi-fold Windows Key Features ■ The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail ■ The system is bottom rolling with an in-frame track for optimum panel support ■ A wide range of configurations available

METROMETRO SERIESSERIES

■ Assured smooth operation through enhanced adjustability ■ Jamb pivots remove any stresses in bi-fold geometry

APL

■ Overlights possible

Sill frame and panel section.

Sill track and panel roller.

Urbo, Miro and Icon bi-fold handles.

Lay-back fully open.

Bi-fold window meeting stiles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 1800mm high x 900mm wide

Maximum Glass Thickness 24mm IGU

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

■ Consider the ease of reaching to the bi-fold handle if the window is placed beyond a bench ■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging single panels not recommended ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Very High wind zone

2.1m

Ms

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

6.7

APL Window Solutions - Specifications subject to change

Bi-fold Window

For specifications – masterspec.co.nz

XH

24

Metro Series

Sliding Doors Key Features ■ Features an exterior sliding track as standard ■ The sill frame has a flush track to optimise inside-to-outside plane ■ Interlocker stiles and mullions are flush in the closed position ■ Door stiles and rails feature slender sightlines

METROMETRO SERIESSERIES

■ Interlockers vary in depth according to height, width and wind pressure requirements ■ Corner sliding doors (90°) are available with no corner post (exterior and interior corners)

APL

■ Innovative sill frame design improves weather and water resistance – door height of 2700mm possible in demanding EM7 Wind Zones.

Sliding door sill – single panel.

Multi slider sill frame.

Jamb detail with fixed light shown.

Sliding door interlockers are flush in the closed position.

Door overlight coupling detail.

Specifications

Design Considerations

Dimensions

■ Sliding doors allow wide opening without the danger of slamming shut in windy conditions

Suitable for specific design applications. Recommended maximum panels of 2400mm high and 2000mm wide. Sliding door rollers are rated to 100kg each (200kg per panel)

Maximum Glass Thickness 29mm IGU

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

■ Multi sliding doors allow approximately two-thirds opening ■ Narrow stiles and large glass expanses maximise views in the closed position ■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand ■ Interlocker stiles vary in depth according to strength requirements – consider in placement of blind boxes ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

F

2.4m

Ms

Sliding Door

For specifications – masterspec.co.nz

XH

29

6.8

Metro Series

Hinged and French Doors Key Features ■ Door panels lap over frame for superior aesthetics, weather tightness and thermal performance ■ Lapped panels enhance security by hindering access to door latch

METROMETRO SERIESSERIES

■ Rebated meeting stiles give a flush appearance when French doors overlap and provide superior weathering ■ Open-out and open-in frames available ■ Parliament hinges allow doors to open outwards a full 180° in brick veneer situations ■ Three-way adjustable hinges for optimum installation and performance ■ Concealed hinge option available utilising the Eurogroove feature ■ Overlights and sidelights are possible

APL

■ A range of door handle and lock options are available, including multi-point locking Hinged door frame – open-out.

Parliament hinge for full opening.

French door meeting stiles.

Hinged door and sidelight on right (standard mullion).

Urbo and Icon Lever handles.

Specifications

Design Considerations

Dimensions

■ Door panels overlap frame for superior aesthetics obviating issues of uneven perimeter gaps

Recommended maximum panels of 2400mm high and 900mm wide

Maximum Glass Thickness 24mm IGU

Thermal Values

■ Single panels ideal as utility doors ■ Open-in frame available but open-out applications will generally be preferred for utility and French doors ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

6.9

APL Window Solutions - Specifications subject to change

Ms

Ms

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.4m

2.4m

Hinged Door

For specifications – masterspec.co.nz

XH

French Door

24

XH

24

Matt Black powdercoat with Urbo hardware

Metro Series

Bi-fold Doors Key Features ■ The bi-fold system is bottom rolling with an in-frame track for optimum panel support ■ A wide range of configurations available ■ Assured smooth operation through enhanced adjustability ■ Jamb pivots remove any stresses in bi-fold geometry

METROMETRO SERIESSERIES

■ A slender door stile and rail option is available to minimise visual intrusion ■ Layback bi-fold option available in APL Architectural Series

APL

■ Overlights possible

Sill frame and panel section.

Bi-fold hinged stiles and Miro handle with hinge/ handle.

Lay-back fully open.

Bi-fold door meeting stiles.

Urbo, Miro and Icon bi-fold handles.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2400mm high and 900mm wide. Maximum panel weight 50kg

Maximum Glass Thickness 24mm IGU

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ A slender door stile and rail option is available to minimise visual intrusion in the closed position ■ In closed position bi-fold door stiles impact views ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Extra High wind zone

2.4m

Ms

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

6.11 APL Window Solutions - Specifications subject to change

Bi-fold Door

For specifications – masterspec.co.nz

XH

24

APL

METRO SERIES

Metro Series

Matt Gravel powdercoat with Urbo hardware

6.12

APL

APL ARCHITECTURAL SERIES THERMALHEART+®

APL Architectural Series ThermalHeart+® overview

Example of APL Architectural Series ThermalHeart+®

■ A thermally insulated version of the high performance APL Architectural Series, though with different frame sizes ■ Double glazed and triple glazed options available ■ Suitable for windows and doors in large formats even in exposed locations ■ Can achieve tall heights and wide spans, and has been designed for suitability for Extra High wind zones and Specific Design applications ■ Frames designed with 114mm and 171mm options ■ Ideal for architecturally designed homes and apartments ■ Designed with clean, flush surfaces and square-edge forms ■ Flush sill sliding doors and windows are an option ■ Recommended door height of 3m, however doors can potentially be higher depending on site conditions ■ Dual colour available (differing interior and exterior surface finishes).

7.1

APL Window Solutions - Specifications subject to change

APL ARCHITECTURAL SERIES THERMALHEART+®

APL Example of APL Architectural Series ThermalHeart+®

7.2

APL

APL ARCHITECTURAL SERIES THERMALHEART+®

APL Architectural Series ThermalHeart+®

Example of APL Architectural Series ThermalHeart+®

Example of APL Architectural Series ThermalHeart+®

7.3

APL Window Solutions - Specifications subject to change

Sliding Windows

Sliding Doors 7.6

7.7

APL

7.5

APL ARCHITECTURAL SERIES THERMALHEART+®

Awning and Casement Windows

Hinged and French Doors 7.8

Bi-fold Doors

Pivot Door 7.9

7.10

7.4

APL Architectural Series ThermalHeart+®

Awning and Casement Windows APL ARCHITECTURAL SERIES THERMALHEART+®

Key Features ■ The window frame is available in two options, 114mm and 171mm, which couple with adjoining door frames for a continuous interior edge ■ Awning and casement sashes have a facing sash option, though a non-facing sash option is available ■ Frames have facing adaptors which allow 20mm of weather cover if desired ■ A full range of sill trays and seismic frames are available ■ Mullions and transoms have stiffening boxes which project to the interior ■ Multi-point locking for enhanced security is available on awning and casement sashes.

This feature utilises a Eurogroove profile and is available as an option

APL

■ Triple glazing is available as an option.

Standard window frame (114mm option) with sill tray

171mm awning window frame with sill applied facings.

Multi point sash window.

Internal box mullion – sash on left.

Seismic frame option at head with fixed light.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awnings and casements 1500mm high x 900mm wide. Fixed lights 3000mm high x 2000mm wide.

Maximum Glass Thickness

■ Care needed if projecting on to walkways and decks ■ Restrictor stays can limit opening in such situations

44mm IGU

■ Consider a horizontal sliding window to protect walkways

Thermal Values

■ Caution is required for the use of casements which open directly into prevailing winds

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Specific Design applications to wind pressures of 2.4kPa serviceability (3.4kPa UWP)

1.5m

As

Dc

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

7.5

APL Window Solutions - Specifications subject to change

Awning / Casement Windows

For specifications – masterspec.co.nz

APL Architectural Series ThermalHeart+®

Sliding Windows APL ARCHITECTURAL SERIES THERMALHEART+®

Key Features ■ Uses the sliding door frame but generally have narrower stiles depending on lock options chosen ■ The sill frame has a flush track ■ Sill tray and seismic frames are available ■ Interlocker stiles are flush in the closed position ■ Ideal for non-projecting or servery windows ■ Wide opening is possible in bi-parting or stacking configurations

APL

■ Triple glazing is available as an option.

Sliding window sill – single slider with applied facings.

Sliding window sill with sill tray.

Stacker sliding sill.

90° corner meeting stiles.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Sliding windows can be made to large sizes because they are based on the sliding door system. Panels of 2000mm high x 2000mm wide. Panel weight maximum, 2 00kg/panel

Maximum Glass Thickness 44mm IGU

■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

F

Tested to Specific Design applications to wind pressures (3.4kPa UWP)

As

Dc

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.0m

Sliding Window

For specifications – masterspec.co.nz

7.6

APL Architectural Series ThermalHeart+®

Sliding Doors APL ARCHITECTURAL SERIES THERMALHEART+®

Key Features ■ The sill frame has two flush track options ■ Interlockers stiles and mullions are flush in the closed position ■ A bypass slider is available where two or more panels can be moved independently without a fixed panel ■ Sill tray and seismic frames are available ■ Two or more sliding doors can stack over a fixed panel ■ Wide opening is possible in bi-parting or stacking configurations ■ Over-the-wall and cavity sliding options are available

APL

■ Triple glazing is available as an option.

Sliding door sill – single slider with applied facings.

Sliding door sill with sill tray.

Multi slider sill on sill tray.

90° corner meeting stiles.

Specifications

Design Considerations

Dimensions

■ Sliding doors allow wide opening without the danger of slamming shut in windy conditions

Recommended maximum panels of 3000mm high and 2000mm wide. Rollers are rated to 225kg each i.e. 450kg/panel.

Doors can potentially be higher depending on site conditions.

Maximum Glass Thickness 44mm IGU

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Specific Design applications to wind pressures of 2.4kPa serviceability (3.4kPa UWP)

■ Multi sliding doors allow approximately three-quarters opening ■ Narrow stiles and large glass expanses maximise views in the closed position ■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Technical drawings & product information – eboss.co.nz APL Window Solutions - Specifications subject to change

F

3m

As

Dc

XH

44

TH

*Refer to page 1.15 for more values information

7.7

Over-the-wall slider - single track.

Sliding Door

For specifications – masterspec.co.nz

APL Architectural Series ThermalHeart+®

Hinged and French Doors APL ARCHITECTURAL SERIES THERMALHEART+®

Key Features ■ Flush meeting stiles for French doors ■ Open-out and open-in frames available ■ Sill tray and seismic frame options ■ Parliament hinges allow doors to open outwards a full 180° in brick veneer situations ■ French door flush bolts are concealed from view in the leading edge of the ‘lazy’ door panel ■ Overlights and sidelights are possible ■ A range of door handle and lock options are available, including multi-point locking ■ Sill tray and seismic frames are available

APL

■ Triple glazing is available as an option.

Hinged door frame (114mm) – open-out with applied facings.

Hinged door frame (114mm) - open -in with applied facings.

Hinged door frame (171mm) – open-out with applied facings.

French door meeting stiles interior view.

Hinged door, coupling bar and sidelight on right.

Specifications

Design Considerations

Dimensions

■ Single panels ideal as utility doors

Recommended maximum panels of 2700mm high x 900mm wide. Doors can potentially be higher depending on site conditions.

Maximum Glass Thickness 44mm IGU

■ Open-in frame available but open-out applications will generally be preferred for utility and French doors ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Specific Design applications in wind pressures of 2.4kPa SWP (3.4kPa UWP) Open-in and flush door sills have a lower rating.

As

Dc

XH

44

TH

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.7m

2.7m

Hinged Door

For specifications – masterspec.co.nz

As

Dc

XH

44

TH

French Door

7.8

APL Architectural Series ThermalHeart+®

Bi-fold Doors APL ARCHITECTURAL SERIES THERMALHEART+®

Key Features ■ The system is bottom rolling with an in-frame track for optimum panel support ■ A unique roller design ensures panels move smoothly when built in large sizes ■ The track uses an aluminium insert (black anodised) to better resist roller wear ■ A flush sill track is available for sheltered locations ■ Sill tray and seismic frames are available

APL

■ Triple glazing is available as an option.

Sill frame and panel section.

Bi-fold sill and end gear.

Bi-fold panels and mid gear.

Bi-fold 2 + 2 meeting stiles.

Bi-fold sill and roller on a sill tray.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2700mm high x 900mm wide. Doors can potentially be higher depending on site conditions.

Maximum Glass Thickness 44mm IGU

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging access panels are possible ■ In closed position bi-fold door stiles impact views

Thermal Values

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Performance

Tested to Specific Design applications in wind pressures of 2.4kPa SWP (3.4kPa UWP) flush door sills have a lower rating.

2.7m

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

7.9

APL Window Solutions - Specifications subject to change

As

Dc

XH

44

TH

Bi-fold Door

For specifications – masterspec.co.nz

APL Architectural Series ThermalHeart+®

Pivot Door APL ARCHITECTURAL SERIES THERMALHEART+®

Key Features ■ FritsJurgens pivot gear transfers panel loads vertically rather than laterally ■ Precise control over closing speed, latching speed, and damping ■ Maximum weight of 500kg in appropriate wind exposures ■ Maximum height over 3m high, subject to site conditions ■ Compatible with AGP high performance glass, or APL’s Plus range of entrance doors ■ Overlights and sidelights are possible

APL

■ Maximum glass thickness of 44mm

FritsJurgens pivot gear for concealed top and bottom pivot mechanisms

Designed for a grand entrance

Flush design with drop seals at head and sill

Electronic locking systems available

Specifications

Design Considerations

Dimensions

■ Recommended maximum 3000mm high doors in Extra High wind zones

Maximum height 3000mm and width 2800mm. Doors can be larger depending on site conditions and engineering.

Maximum Glass Thickness 44mm IGU

Thermal Values

■ Adequate weatherproofing requires that external pivot doors are installed in sheltered porches and locations ■ For best performance with glazing, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

[44mm] R-Value 0.50, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Specific Design applications to wind pressures of 2.4kPa serviceability (3.4kPa UWP)

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

7.10

APL

APL ARCHITECTURAL SERIES

APL Architectural Series overview

Lower level is Silver anodised with Electro Natural Silver hardware and upper level is Light Bronze anodised

■ A high performance series of aluminium windows and doors suitable for large sizes even in exposed locations ■ Can achieve tall heights and wide spans, and has been designed for suitability for Extra High wind zones and Specific Design applications ■ Ideal for architecturally designed homes and apartments ■ Designed with clean, flush surfaces and square-edge forms ■ Frame designed with 106mm and 158mm options ■ Many specialised product formats available ■ Flush sill sliding doors and windows are an option ■ Recommended door height 2700mm.

8.1

APL Window Solutions - Specifications subject to change

APL ARCHITECTURAL SERIES APL Mineral Brown powdercoat with Urbo

8.2

APL

APL ARCHITECTURAL SERIES

APL Architectural Series

Matt Flat Pod powdercoat with Icon hardware

Matt Flax Pod powdercoat with Urbo hardware

8.3

APL Window Solutions - Specifications subject to change

Matt Black powdercoat with Urbo hardware

Sliding Windows

Sliding Doors 8.6

8.7

APL

8.5

APL ARCHITECTURAL SERIES

Awning and Casement Windows

Hinged and French Doors 8.8

Bi-fold Doors 8.9

8.4

APL Architectural Series

Awning and Casement Windows Key Features ■ The window frame is available in two options, 106mm and 158mm, which couple with adjoining door frames for a continuous interior edge

APL ARCHITECTURAL SERIES

■ Awning and casement sashes have a flush, non-facing sash ■ Frames have facing adaptors which allow 25mm of weather cover if desired ■ Mullions and transoms have stiffening boxes which project to the interior

APL

■ Triple glazing is available as an option.

Standard window frame (106mm option) and awing sash.

Fixed light – 158mm frame.

Overlight transom with sash above.

Internal box mullion – sash on left.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Awnings and casements 1500mm high x 900mm wide. Fixed lights 2600mm high x 2000mm wide.

Maximum Glass Thickness 28mm IGU

Thermal Values R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

■ Care needed if projecting on to walkways and decks ■ Restrictor stays can limit opening in such situations ■ Consider a horizontal sliding window to protect walkways ■ Caution is required for the use of casements which open directly into prevailing winds ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Tested to Specific Design applications in wind pressures of 2.2kPa serviceability (3.4kPa UWP)

1.5m

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

8.5

Seismic frame option at head.

APL Window Solutions - Specifications subject to change

As

Dc

XH

28

Awning / Casement Windows

For specifications – masterspec.co.nz

APL Architectural Series

Sliding Windows Key Features ■ Uses the sliding door frame but generally have smaller interlocker stiles, mullions and bi-parting meeting stiles ■ The sill frame has both sloped and flush track options

APL ARCHITECTURAL SERIES

■ The sloped sill option has a smaller top and bottom rail ■ Interlocker stiles are flush in the closed position ■ Ideal for non-projecting or servery windows ■ Wide opening is possible in bi-parting or stacking configurations

APL

■ Triple glazing is available as an option.

Sliding window sloped sill – single slider.

Fixed light – 158mm frame.

Flush sill option with bottom rail.

Bi-parting meeting stiles.

90° corner meeting stiles.

The sliding window roller is rated to 150kg so windows of 300kg can be carried.

Specifications

Design Considerations

Dimensions

■ Sliding windows are good for applications where wide opening, non-projecting windows are wanted

Sliding windows can be made to large sizes because they are based on the sliding door system. Panels of 2000mm high x 2000mm wide. Panel weight maximum, 300kg/panel

Maximum Glass Thickness 28mm IGU

■ Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

F

Tested to Specific Design applications in wind pressures of 2.2kPa serviceability (3.4kPa UWP) *Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.0m

As

Dc

XH

28

Sliding Window

For specifications – masterspec.co.nz

8.6

APL Architectural Series

Sliding Doors Key Features ■ The sill frame has both sloped and flush track options ■ Interlocker stiles and mullions are flush in the closed position

APL ARCHITECTURAL SERIES

■ A bypass slider is available where two or three panels can be moved independently without a fixed panel ■ Corner sliding doors (90°) are available with no corner post (exterior and interior corners) ■ Three sliding doors can stack over a fixed panel ■ Overwall and cavity sliding options are available ■ Wide opening is possible in bi-parting or stacking configurations ■ Two sill options are available, one sloped and the other with a flush plane

APL

■ Triple glazing is available as an option.

Sliding door sloped sill – single slider.

Flush sill option – single slider.

Multi slider sill.

Overwall slider - single track.

Specifications

Design Considerations

Dimensions

■ Sliding doors allow wide opening without the danger of slamming shut in windy conditions

Recommended maximum panels of 3000mm high and 2000mm wide. Rollers are rated to 150kg each i.e. 300kg/panel.

Doors can potentially be higher depending on site conditions.

■ Multi sliding doors allow approximately three-quarters opening

Maximum Glass Thickness

■ Narrow stiles and large glass expanses maximise views in the closed position

Thermal Values

■ For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand

28mm IGU

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Specific Design applications in wind pressures of 2.2kPa serviceability (3.4kPa UWP) *Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

8.7

90° corner meeting stiles.

APL Window Solutions - Specifications subject to change

■ Not all sill options are suitable for use in Extra High wind zones.

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

For specifications – masterspec.co.nz

F

3m

As

Dc

XH

28

Sliding Door

APL Architectural Series

Hinged and French Doors Key Features ■ Flush meeting stiles for French doors ■ Open-out and open-in frames available

APL ARCHITECTURAL SERIES

■ Frame facing adaptors available ■ Parliament hinges allow doors to open outwards a full 180° in brick veneer situations ■ French door flush bolts are concealed from view in the leading edge of the ‘lazy’ door panel ■ Overlights and sidelights are possible ■ A range of door handle and lock options are available, including multi-point locking

APL

■ Triple glazing is available as an option.

Hinged door frame (106mm) – open-out.

Open-in door with weather bar on door rail.

Hinged door frame (158mm) – open-out.

French door meeting stiles.

Hinged door, coupling bar and sidelight on right.

Specifications

Design Considerations

Dimensions

■ Single panels ideal as utility doors

Recommended maximum panels of 3000mm high x 900mm wide. Doors can potentially be higher depending on site conditions.

Maximum Glass Thickness

■ Open-in frame available but open-out applications will generally be preferred for utility and French doors ■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

28mm IGU

Thermal Values

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Extra High Wind Zone *Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.7m

2.7m

As

Dc

As

Dc

XH

28

XH

28

Hinged Door

For specifications – masterspec.co.nz

French Door

8.8

APL Architectural Series

Bi-fold Doors Key Features ■ The system is bottom rolling with an in-frame track for optimum panel support

APL ARCHITECTURAL SERIES

■ A unique roller design ensures panels move smoothly when built in large sizes ■ The track uses an aluminium insert (black anodised) for roller wear ■ A flush sill track is available for sheltered locations ■

Square cut corners for improved aesthetics

APL

■ Triple glazing is available as an option.

Sill frame and panel section.

Bi-fold sill and roller.

Bi-fold hinge roller with free swinging panel.

Bi-fold 2+2 meeting stiles.

Bi-fold flush sill/track option.

Specifications

Design Considerations

Dimensions

■ Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas

Recommended maximum panels of 2700mm high x 1000mm Recommended maximum panels of 3000mm high x 900mm wide. Doors can potentially be higher depending on site conditions.

■ A good option for maximum views and ventilation when open, but needs to be monitored if windy conditions occur ■ Free-swinging access panels are possible

Maximum Glass Thickness

■

Thermal Values

■ Complete your window system using The AGP System® with Solux-E® or Solux Ultra® low-e glass.

28mm IGU

In closed position bi-fold door stiles impact views

R-Value 0.37, Ug-Value 1.1 (with AGP Solux-E® double glazing)*

Performance

Tested to Specific Design applications in wind pressures of 2.2kPa serviceability (3.4kPa UWP)

2.7m

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

8.9

APL Window Solutions - Specifications subject to change

As

Dc

XH

28

Bi-fold Door

For specifications – masterspec.co.nz

APL

APL ARCHITECTURAL SERIES

APL Architectural Series

Matt Appliance White powdercoat with Urbo colour matched hardware

8.10

APL

MINIMA SERIES

Minima Series overview

Minima Sliding Doors in an Electro Dark Bronze powdercoat finish, with Elemental styled hardware

9.1

APL Window Solutions - Specifications subject to change

Minima Series

Minima Sliding Doors Key Features ■ A high performance sliding door with maximum transparency and flush sills ■ Maximum height is 4500mm subject to wind zone and panel width ■ Maximum panel width is 2800mm with a maximum area of 12m² ■ Minima Series comes with Solux Ultra® as standard

MINIMA SERIES

■ In order to minimise the appearance of aluminium the frame is recessed into the floor, walls and ceiling for clear sightlines ■ The track system is completely hidden beneath a threshold that allows for suitable flooring materials to be laid, leaving only an 11mm wide slot ■ While there may be multiple tracks at head and sill there is only ever one track at the jamb

Minima sill frame – fixed and single sliding

Recessed jamb frame.

Recessed head frame.

■ Vertical members between panels are a slender 30mm wide (when viewed from front and rear), with two different fin sizes to suit the application.

Minima interlocker.

Minima flushbolt lock in door stile.

Specifications

Design Considerations

Dimensions

■ Careful detailing is required to allow for deeply recessed frame at sill, jambs and head

Suitable for Extra High wind zones and Specific Design applications. Maximum panel width will depend on wind zone and aspect ratio.

Maximum Glass Thickness 36mm IGU

Thermal Values

APL

■ A bottom rail of only 22mm height, with glass lines flush with frame at jambs and head

■ Stacking slider configurations are possible ■ Due to heavy panel weight and the need for perfectly level sills floor sag cannot be tolerated; ground level applications are optimum. Geotechnical engineering is important ■ For a premium option, Low-Iron glass is available from AGP for the inner lite of a Solux Ultra® IGU.

Consult APL Technical Department

Performance

4.5m

Tested to Specific Design applications in wind pressures of 2.2kPa serviceability (3.4kPa UWP)

Mis Sliding Door

Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

XH

36

9.2

APL

KLIMA®

Klima® overview

Klima® White with Urbo hardware

■ An innovative range of uPVC windows and doors optimised for New Zealand conditions ■ Designed for mainstream residential uses and standard installation practices ■ Made in New Zealand, adapted from products by a European market leader, Kömmerling ■ Available in white as standard, however a coloured AluClip aluminium exterior facing is available ■ Klima® is rated to the maximum 6 energy stars under WEERS (Window Energy Efficiency Rating System) when used with AGP Low-E double glazing (4.5 with standard clear double glazing). Klima® comes with AGP glass as standard.

10.1 APL Window Solutions - Specifications subject to change

APL

KLIMA®

Klima®

Klima® White fixed windows

Klima® White with Urbo hardware

Klima White with Urbo hardware

10.2

APL

KLIMA®

Klima®

Klima® White with Urbo hardware

10.3

Klima®

Sliding Windows and Doors 10.6

10.7

APL

10.5

Tilt-and-Turn Windows

KLIMA®

Awning and Casement Windows

Hinged and French Doors 10.8

10.4

Klima®

Awning and Casement Windows Key Features ■ Hidden steel reinforcing is included in most uPVC frames to ensure shape stability and structural excellence ■ Standard outward opening windows available as well as a tilt-and-turn window with inward opening casement and hopper window feature (see next page) ■ Outward opening windows locked by an espagnolette, multi-point locking system using an Urbo style handle ■ Klima® comes with AGP Solux-E® as standard

APL

KLIMA®

■ Triple glazing is available as an option.

Standard window frame with awning sash.

Window frame and sash with Aluclip exterior.

Chair frame and sash.

Awning sash and transom exterior view.

Urbo hardware on sash.

Specifications

Design Considerations

Dimensions

■ Awning windows provide good weather cover when open; casements less so

Recommended maximum awnings 1500mm high x 900mm wide, casements 1500mm high x 800mm wide.

Maximum Glass Thickness

■ Care needed if projecting on to walkways and decks ■ Restrictor stays can limit opening in such situations

46mm IGU

■ Caution is required for the use of casements which open directly into prevailing winds

Thermal Values

■ For enhanced thermal efficiency, upgrade your glass to AGP Solux Ultra®.

R-Value 0.69, Ug-Value 1.1 (with Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

1.5m

Ks

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

10.5 APL Window Solutions - Specifications subject to change

Awning / Casement Windows

For specifications – masterspec.co.nz

XH

46

Klima®

Tilt-and-Turn Windows Key Features ■ Tilt-and-turn windows open inwards in casement (side opening) and hopper (top opening) mode ■ Window operation is by a lever handle which is turned from the locked downwards position horizontally for casement opening and vertically for hopper window mode ■ In hopper window mode the top of the sash is held by a folding steel arm in the open position ■ Casement window mode requires careful consideration from a weathering and obstruction point of view

KLIMA®

■ Hidden steel reinforcing is included in most uPVC frames to ensure shape stability and structural excellence ■ Klima® comes with AGP Solux-E® as standard

APL

■ Triple glazing is available as an option.

Tilt and turn frame and sash.

Opening sash in hopper window mode.

Casement lock keeper on window jamb.

Inward opening sashhopper window mode.

Multi-point locking available with Urbo hardware.

Specifications

Design Considerations

Dimensions

Inward opening casement and hopper windows (tilt-and-turn) 1500mm high x 800mm wide

■ Inward opening tilt-and-turn windows avoid outward projection but need to be treated with caution from a weathering perspective when open in casement mode

Maximum Glass Thickness

■ Inward opening casement mode needs careful attention in the open position to avoid contact with room occupants.

46mm IGU

Thermal Values

■ For enhanced thermal efficiency, upgrade your glass to AGP Solux Ultra®.

R-Value 0.69, Ug-Value 1.1 (with Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

1.5m

Ks

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

Awning / Casement Windows

For specifications – masterspec.co.nz

XH

46

10.6

Klima®

Sliding Windows and Doors Key Features ■ Sliding windows and doors use the same profiles ■ The Klima® sliding door has fixed sidelights (opening sashes not available) ■ Hidden steel reinforcing is included in all uPVC profiles to ensure shape stability and structural excellence ■ Interlocker stiles and mullions are flush in the closed position ■ Doors 2400mm high possible when reinforced with an aluminium attachment ■ Glazing beads are applied from the inside ■ Klima® comes with AGP Solux-E® as standard

APL

KLIMA®

■ Triple glazing is available as an option.

Sliding window and door sill – single panel.

Sliding window and door sill – stacking panels.

Fixed light jamb section.

Interlocker mullions are flush in the closed position.

Bi-parting slider meeting stiles.

Specifications

Design Considerations

Dimensions

■ Sliding windows and doors allow wide opening without the danger of slamming shut in windy conditions

Recommended maximum window and door panels of 2200mm high by 1200mm wide. Heights of 2400mm possible when reinforced with aluminium attachment.

Maximum Glass Thickness 28mm IGU

■ Multi sliding windows and doors allow approximately twothirds opening ■ For enhanced thermal efficiency, upgrade your glass to AGP Solux Ultra®.

Thermal Values

R-Value 0.69, Ug-Value 1.1 (with Solux-E® double glazing)*

Performance

2.2m

Tested to Extra High wind zone

Ks

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

10.7 APL Window Solutions - Specifications subject to change

Sliding Door

For specifications – masterspec.co.nz

XH

28

Klima®

Hinged and French Doors Key Features ■ Available in open-out and open-in formats ■ Open-in doors have a low threshold option ■ French doors can be open-in or open-out. The open-in version has meeting stiles that are flush on the interior while the open-out stiles are flush on the exterior ■ Hidden steel reinforcing is included in all uPVC profiles ■ An Urbo style lever lock activates multi-points of locking in the jamb frame ■ Doors 2400mm high possible when reinforced with an aluminium attachment

KLIMA®

■ Klima® comes with AGP Solux-E® as standard

APL

■ Triple glazing is available as an option.

Hinged door frame – open-out.

Open-in door frame corner.

Open-out door chair frame.

French door open-out meeting stiles.

Open-out hinged door with fixed light (left).

Specifications

Design Considerations

Dimensions

■ Single panels ideal as utility doors

Recommended maximum panels of 2200mm high and 900mm wide

Maximum Glass Thickness 46mm IGU

Thermal Values

■ Open-in frame available but French doors will generally be open out ■ Sidelights are possible ■ Multi-point locking available with Urbo style handle ■ For enhanced thermal efficiency, upgrade your glass to AGP Solux Ultra®.

R-Value 0.69, Ug-Value 1.1 (with Solux-E® double glazing)*

Performance

Tested to Extra High wind zone

Ks

Ks

*Refer to page 1.15 for more values information Technical drawings & product information – eboss.co.nz

2.2m

2.2m

Hinged Door

For specifications – masterspec.co.nz

XH

French Door

46

XH

46

10.8

AGP Glass AGP Glass

Glass Types

Architectural Glass Products (AGP) is designed to work alongside APL frames for a complete high-performance window system. AGP and APL are both exclusively available through the Altherm, First, and Vantage network nationwide.

In addition to code-compliant and thermally-compliant Low-E glass (Solux-E® and Solux Ultra®), the following glass types are offered for specialised use or on customer or designer request:

Glass Selection Glass selection for residential projects has now been simplified through changes to the Building Code H1 energy efficiency standards.

GLASS

Wherever you are in New Zealand, your project will meet the required R and U values if you use The AGP System® glass with either Solux-E® or Solux Ultra®, alongside ThermalHeart+® frames.

Tinted Glass This is mainly chosen to further reduce solar heat gain and glare inside a building. Available in grey, green and bronze.

Reflective Glass This has a mirror-like appearance and reflects and absorbs a major proportion of solar short-wave radiation. Markedly reduces visibility from outside to inside the building. Available

AGP

in grey, dark blue and bronze.

Toughened Safety Glass Available in most glass types to meet human impact safety requirements.

Laminated Safety Glass Panes consist of two or more sheets of glass permanently bonded together offering safety in conformity with human impact safety requirements, and increased acoustic performance.

Obscured Glass Patterned or etched for privacy purposes.

Obscured glass options include Narrow Reeded, Opalucent, Acid Etch, Grey Acid Etch, Stippolite, Mistlite and Cathedral.

APL Architectural Series combined with The AGP System® with Solux-E®

11.1

APL Window Solutions - Specifications subject to change

The AGP System® The AGP System® is a double-glazed unit which is made using world-class components and industry leading, global technology. AGP developed this state-of-the-art product for New Zealand's varying conditions.

The AGP System® is comprised of four key components;

AGP offer two Low-E options that contribute towards the thermal efficiency of your home. Both Low-E coatings are virtually invisible, and are applied to the inside surface of the exterior glass pane, protecting it from the elements.

An inert gas which is used as an insulator to create an additional barrier to heat loss in winter and heat gain in summer, improving thermal performance.

AGP

Solux-E® or Solux Ultra®

GLASS

Argon gas

ATS - Architectural Thermal Spacer® A warm-edge spacer that bonds the two panes of glass together forming a double-glazed unit.

ATS - Architectural Thermal Spacer® creates an airtight bond to ensure the best retention of argon gas.

Bonded to glass and secondary sealant A proven formulation used to ensure durable bonding between glass panes. This creates an airtight seal for the space between panes, providing additional protection for the primary seal.

11.2

AGP Glass AGP's Low-E products

Solux-E® Year-round comfort and energy savings

AGP

GLASS

Solux-E® has a low emissivity (Low-E) coating applied to the glass, which is virtually invisible. The Solux-E® coating reflects the heat back to the inside, reducing winter heat loss through the glass. The reverse happens during summer helping to limit overheating.

Solux-E® is standard with The AGP System®.

Year-round comfort

Smaller energy bills

Solux-E® works to minimise heat flow allowing you to stay warmer through winter and cooler through summer. You'll have less warm air escaping in the winter and less heat entering through the glass in summer without the need to use tinted glass. The measure of heat entering through the glass is known as the Solar Heat Gain Coefficient (SHGC).

A more constant temperature means less energy used to heat and cool your space, providing energy savings year-round.

Reduced energy consumption puts less demand on New Zealand’s power grid, reducing the environmental footprint of your project.

Solux-E® helps to retain heat, achieving a more stable home temperature and yearround comfort.

Maximises natural daylight

Protects against fading Solux-E® reduces the amount of damaging light coming through the glass reducing fading in soft furnishings and fabrics.

Solux-E® provides excellent Visible Light Transmission (VLT)* and clarity, keeping the view clear and spaces light and bright.

APL Metro Series with The AGP System® with Solux Ultra® *For more information including VLT, including full glossary of terms, please refer to AGP's state of the art glass brochure

11.3 APL Window Solutions - Specifications subject to change

Take your project's comfort a step further with an upgrade to:

Solux Ultra® The perfect blend of clarity, overheating control and fading protection

AGP

GLASS

Due to its superior solar control, Solux Ultra® is the best choice to control overheating and is highly recommended for buildings with higher window-to-wall ratio (WWR).

Controls overheating

Retains heat

Stay comfortable inside with a further 23%* reduction in overheating. High insulation levels and large window areas in modern projects design can result in frequent overheating. Solux Ultra® works hard to let natural light stream in with less heat entering, reducing overheating and also minimising the need to use air conditioning.

Solux Ultra® reflects the warm air back into the building, rather than escaping through the glass, retaining heat by a further 9%*. This reduces the energy needed to keep your space warm in cooler months.

Protects against fading

Maximises natural daylight

Solux Ultra® delivers an additional 10%* increase in fading control, protecting your interior furnishings to keep them looking better for longer.

The brilliantly neutral colour of Solux Ultra® sets it apart from other Low-E glass and ensures you enjoy natural light and unblemished views all while delivering improved temperature and fading control.

*For statistics and technical data, please refer to comparison data in section 1.17

11.4

AGP Glass Solux-E® and Solux Ultra® comparison data

Light properties

The AGP System® with Solux-E®

The AGP System® with Solux Ultra®

4mm Solux-E® #2 / 16mm ATS with argon gas / 4mm clear

4mm Solux-Ultra® #2 / 16mm ATS with argon gas / 4mm clear

Visible light transmission (VLT)

76%

73%

External visible light reflection (VLR)

15%

13%

0.60

0.54

Solar Heat Gain Coefficient (SHGC)

0.51

0.39

g-value/Solar Factor (SF)

54%

43%

U-value (Ug Centre of glass)

1.1

1.0

Fading control (Tdw-ISO)

Energy properties

AGP

GLASS

Damage weighted UV transmission

The AGP System® with Solux-E®

The AGP System® with Solux Ultra®

Warmth within home

9%

Control of overheating Reduction in fading

23% 10%

* Data is indicative only. Data is for glazing placed vertically. Data is not a guarantee of in service performance. Tdw-ISO is a damaged-weighted UV transmittance. U-value & g-value calculated using CEN conditions, balance of data calculated using NFRC conditions.

For Passive House & Homestar ECCHO use g-value/Solar Factor.

APL Metro Series with The AGP System® with Solux Ultra®

11.5 APL Window Solutions - Specifications subject to change

5 Grey tint & Solux Ultra®

6 Grey tint & Solux-E®

6 Grey tint & Solux Ultra®

5mm Grey tint / 16mm ATS with Argon gas / 5mm Solux-E®

5mm Grey tint / 16mm ATS with Argon gas / 5mm Solux Ultra®

6mm Grey tint / 16mm ATS with Argon gas / 6mm Solux-E®

6mm Grey tint / 16mm ATS with Argon gas / 6mm Solux Ultra®

Visible light transmission (VLT)

42%

41%

37%

36%

External visible light reflection (VLR)

8%

7%

7%

6%

0.34

0.31

0.30

0.27

Solar Heat Gain Coefficient (SHGC)

0.37

0.31

0.34

0.28

g-value/Solar Factor (SF)

38%

33%

34%

29%

U-value (Centre of glass)

1.1

1.0

1.1

1.0

5 Bronze tint & Solux-E®

5 Bronze tint & Solux Ultra®

6 Bronze tint & Solux-E®

6 Bronze tint & Solux Ultra®

5mm Bronze tint / 16mm ATS with Argon gas / 5mm Solux-E®

5mm Bronze tint / 16mm ATS with Argon gas / 5mm Solux Ultra®

6mm Bronze tint / 16mm ATS with Argon gas / 6mm Solux-E®

6mm Bronze tint / 16mm ATS with Argon gas / 6mm Solux Ultra®

Visible light transmission (VLT)

47%

45%

43%

41%

External visible light reflection (VLR)

8%

8%

8%

7%

0.34

0.31

0.30

0.27

Solar Heat Gain Coefficient (SHGC)

0.40

0.33

0.37

0.30

g-value/Solar Factor (SF)

40%

34%

37%

31%

U-value (Centre of glass)

1.1

1.0

1.1

1.0

5 Green tint & Solux-E®

5 Green tint & Solux Ultra®

6 Green tint & Solux-E®

6 Green tint & Solux Ultra®

5mm Green tint / 16mm ATS with Argon gas / 5mm Solux-E®

5mm Green tint / 16mm ATS with Argon gas / 5mm Solux Ultra®

6mm Green tint / 16mm ATS with Argon gas / 6mm Solux-E®

6mm Green tint / 16mm ATS with Argon gas / 6mm Solux Ultra®

Visible light transmission (VLT)

66%

63%

64%

61%

External visible light reflection (VLR)

13%

12%

12%

11%

0.51

0.44

0.48

0.42

Solar Heat Gain Coefficient (SHGC)

0.38

0.36

0.35

0.34

g-value/Solar Factor (SF)

42% 39%

40%

37%

1.0

1.1

1.0

Fading control (Tdw-ISO) Damage weighted UV transmission

Energy properties

Light properties

Fading control (Tdw-ISO)Damage weighted UV transmission

Energy properties

Light properties

Fading control (Tdw-ISO)Damage weighted UV transmission

Energy properties

U-value (Centre of glass)

1.1

AGP

Light properties

5 Grey tint & Solux-E®

GLASS

AGP tint data

* Data is indicative only. Data is for glazing placed vertically. Data is not a guarantee of in service performance. Tdw-ISO is a damaged-weighted UV transmittance.

U-value calculated using CEN conditions, balance of data calculated using NFRC conditions.

For further information on AGP glass, please contact AGP's technical team technical@agpl.co.nz or phone +64 27 205 6166.

11.6

APL

ENTRANCE DOORS

Entrance doors overview

Glass Plasma door in Grey Friars with Icon hardware

■ Our entrance doors are made from aluminium for durability and wide design choice ■ Four ranges available, each with a different base design ■ Most doors can be supplied in dual colour panels ■ Dark colours are not suitable for doors exposed to prolonged direct sunlight ■ Greater thermal performance due to a foam core – less transfer of hot and cold temperatures.

Most doors are thermally insulated for even greater thermal efficiency ■ Door construction helps reduce noise transfer ■ Little risk of the door swelling or moving in damp conditions ■ Low maintenance and easy to clean, with no painting or oiling required.

12.1 APL Window Solutions - Specifications subject to change

ENTRANCE DOORS APL Axis door in Mannex Ironsand with Yale hardware

Latitude door in Matt Black powdercoat with Icon hardware

Plasma door in Weathered Steel with Windsor hardware

Plasma door in Metropolis Electric Cow Matt powdercoat with Yale hardware

12.2

APL

ENTRANCE DOORS

Entrance doors

Glass Plasma door in Sky with Yale hardware

Plasma door in Mannex Sandstone Grey powdercoat with Icon hardware

12.3 APL Window Solutions - Specifications subject to change

Classic door in Matt Grey Frairs powdercoat with Windsor hardware

Plasma

Axis 12.6

12.7

APL

12.5

ENTRANCE DOORS

Latitude

Classic 12.8

12.4

Entrance doors

Latitude Key Features ■ Aluminium clad doors combining tongue and groove boards (100mm wide) within a border of strong rails and stiles ■ Glass inserts (18mm double glazing only) are available with a flat-faced contemporary moulding as standard ■ Boards can be vertically or horizontally aligned ■ Maximum door size supplied 2150mm high x 960mm wide

ENTRANCE DOORS

■ Doors are filled with high density foam for thermal efficiency and sound dampening ■ Thermally insulated stiles and rails can be included as an option – also allowing dual colour doors ■ A wide range of door handle and lock options is available.

Multi-point locking can be included and is recommended

APL

■ Dense, rigid construction means Latitude doors rate highly for impact resistance.

Door frame and Latitude bottom rail (thermally insulated option).

Latitude tongue and groove joints.

Standard Latitude door stile.

Contemporary flat-faced glazing bead is used.

Urbo, Icon and Elemental lever handles.

Specifications

Design Considerations

Dimensions

■ Installation in sheltered environments recommended – away from full sun exposure

Height 2150mm x 960mm wide. Onsite trimming possible where required

Maximum Glass Thickness

18mm AGP double glazing as standard

Thermal Values

R-value 0.46 (2150mm x 860mm LAT00)

Performance

■ Inward opening entrance doors are generally favoured ■ Multiple locking points and robust aluminium construction ■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website ■ For glass inserts, use The AGP System® with Solux-E® or Solux Ultra®.

Consult Technical Department

Technical drawings & product information – eboss.co.nz

12.5 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Entrance doors

Plasma Key Features

Door frame and Plasma internal bottom rail.

Plasma door negative detail.

Plasma door and thermally insulated stile and rail.

Glass Plasma double door meeting stiles.

Design Considerations

Dimensions

■ An economic pivot door system is available using subframe adaptor and simplified pivot mechanisms

Maximum Glass Thickness

22mm AGP double glazing as standard

Thermal Values

R-value 0.44 (2150mm x 860mm PLA00)

Performance

Consult APL Technical Department

Technical drawings & product information – eboss.co.nz

APL

Plasma tongue and groove panel and bead detail.

(Horizontal or vertical)

Specifications Sheet and glass clad panels 3600mm x 1500mm wide, depending on wind load - Pivots essential over 960mm wide

ENTRANCE DOORS

■ Aluminium clad doors with a Mannex or Protexture finish for a minimalist architectural look ■ Durable 2mm aluminium sheet cladding means less prone to dents ■ Can be dual coloured to match interior and exterior colour schemes ■ Glass inserts (22mm IGU’s) possible – positioning and sizing by customer request ■ Fully glass clad Plasma panels also available with an opaque, vivid colour finish ■ A special profile provides a neat and tidy edge on all sides accepts either standard hinges or pivot gear ■ The use of horizontal lines (negative details) is also possible for extra visual appeal ■ A second design option offers a horizontal tongue and groove arrangement ■ An economic slimline Plasma entrance door is available using flat sheet aluminium cladding – available in restricted range of designs, colours and sizes ■ A commercial grade Plasma entrance door is available as a thicker door with extra internal aluminium webbing for enhanced rigidity and durability.

■ Dark colours not recommended for doors exposed to prolonged direct sunlight ■ Inward opening entrance doors are generally favoured ■ Double opening doors (French style) or opening sidelights possible for full-width access.

■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

For specifications – masterspec.co.nz

12.6

Entrance doors

Axis Key Features ■ Vertical tongue and groove panel doors ■ Panels are 41mm thick and tall heights up to 3000mm are possible depending on the site exposure ■ Two-part (interior/exterior) construction allows a different colour each side to match interior and exterior colour schemes

ENTRANCE DOORS

■ Thermal insulation and high density foam fill included in the door construction enhance thermal efficiency ■ Aluminium construction and internal stiffener rails ensure maximum strength, stability and minimal warping ■ Authentic and hard wearing wood grain appearance available, as well as powdercoat finishes ■ Various design options available with aluminium boards arranged vertically and glass inserts. Custom design available on request

APL

■ Matching sidelight options – equal and unequal French doors ■ A wide range of door lock options is available, including wide-backset locks.

Door frame and Axis rail section.

Axis door edge with internal stile.

Bead detail for glass insert.

Bead exterior shown.

Urbo, Icon and Elemental lever handles.

Specifications

Design Considerations

Dimensions

■ Installation in sheltered environments recommended – away from full sun exposure

Door widths from 210mm to 1060mm (in 50mm increments).

Wider panels are possible but would require pivoting gear. Door heights up to 2600mm depending on site exposure

■ Inward opening entrance doors are generally favoured ■ Multiple locking points and robust aluminium construction

Maximum Glass Thickness

■ Double opening doors (French style) or opening sidelights possible for full-width access.

Thermal Values

■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

22mm on AGP glass inserts

R-value 0.39 (2150mm x 860mm AX00)

Performance

Consult APL Technical Department

Technical drawings & product information – eboss.co.nz

12.7 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Entrance doors

Classic Key Features ■ Aluminium clad doors with the capability to display a range of rectangular patterns and glazed inserts ■ Applied mouldings can be either scrolled or flat-faced, the latter offering a more contemporary look ■ Glass beads take the form of the two moulding designs on offer

ENTRANCE DOORS

■ Arched-top glazed inserts are possible ■ Doors are filled with high density foam for thermal efficiency and sound dampening ■ Thermally insulated stiles and rails can be included as an option – also allowing dual colour doors ■ Double doors are possible with rebated meeting stiles ■ Matching sidelights are available which can be either fixed or opening, for full-width access

APL

■ A wide range of door handle and lock options are available.

Classic door frame and section.

Classic door stile (nonthermal option).

Classic door moulding/bead options.

Double door meeting stiles (non-thermal option).

Classic panel with opening sidelight (right).

Specifications

Design Considerations

Dimensions

■ Installation in sheltered environments recommended – away from full sun exposure

The standard Classic door panel size is 1980mm high x 810mm wide. A non-standard panel to a maximum size of 2150mm high x 960mm wide is also available

■ Inward opening entrance doors are generally favoured ■ Multiple locking points and robust aluminium construction

Maximum Glass Thickness

■ Double opening doors (French style) or opening sidelights possible for full-width access.

Thermal Values

■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

18mm AGP double glazing as standard

R-value 0.47 (2150mm x 860mm CLA00)

Performance

Consult APL Technical Department

Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

12.8

APL

PLUS ENTRANCE DOORS

Plus entrance doors

Latitude Plus door in Mannex Aquarium, with Porta hardware

■ Plus entrance doors are thermally enhanced to exceed H1 Energy Efficiency Requirements of the New Zealand Building Code ■ Our entrance doors are made from aluminium for durability and wide design choice ■ Four ranges available, each with a different base design ■ Plus entrance doors incorporate a larger polyamide thermal insulator, dual seals and a thicker solid high-density foam core which all work together to reduce heat loss and improve weatherproofing ■ Door construction helps reduce noise transfer ■ Low maintenance and easy to clean, with no painting or oiling required ■ The Plus range is only compatible with the latest ThermalHeart+® frames.

13.1 APL Window Solutions - Specifications subject to change

Latitude Plus

Plasma Plus

Axis Plus 13.4

13.5

APL

13.3

PLUS ENTRANCE DOORS

Plus entrance doors

Classic Plus 13.6

13.2

Plus entrance doors

Latitude Plus Key Features ■ High thermal performance with 56mm overall thickness ■ Flanged frame allows for dual sealing increasing thermal performance ■ Dense, rigid construction means Latitude Plus doors rate highly for impact resistance and low maintenance

PLUS ENTRANCE DOORS

■ Aluminium clad doors combining tongue and groove boards (100mm wide) within a border of thermally improved rails and stiles ■ Glass inserts (40mm triple glazing only) are available with a flat-faced contemporary moulding ■ Boards can be vertically or horizontally orientated ■ Doors are filled with high density foam for thermal efficiency and sound dampening ■ French Doors are possible with rebated meeting stiles ■ Dual colour door options available

APL

■ Compatible with either hinges or pivot gear ■ Flush sill options available Plus door frame and Latitude Plus bottom rail

Latitude Plus tongue and groove joints.

Latitude Plus door stile.

■ A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available.

Contemporary flat-faced glazing bead is used.

Urbo, Icon and Elemental lever handles.

Specifications

Design Considerations

Dimensions

■ Installation in sheltered environments recommended – away from full sun exposure

Maximum height 2250mm x 1160mm wide

Glass Thickness

40mm AGP triple glazing as standard

Thermal Values

R-Value 0.67 (2150mm x 960mm LTP00)

Technical drawings & product information – eboss.co.nz

13.3 APL Window Solutions - Specifications subject to change

■ Inward opening entrance doors are generally favoured ■ Multiple locking points and robust aluminium construction ■ Double opening doors (French style) or opening sidelights possible for full-width access.

■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

For specifications – masterspec.co.nz

Plus entrance doors

Plasma Plus Key Features ■ High thermal performance with 74mm overall thickness ■ Flanged frame allows for dual sealing increasing thermal performance ■ Aluminium clad doors for a minimalist architectural look

PLUS ENTRANCE DOORS

■ Doors are filled with high density foam for thermal efficiency and sound dampening ■ Can be dual coloured to match interior and exterior colour schemes ■ Glass inserts (50mm triple glazing only) ■ Fully glass clad Plasma panels also available with an opaque, vivid colour finish ■ Compatible with either hinges or pivot gear ■ The use of horizontal lines (negative details) is also possible for extra visual appeal

Plus door frame and Plasma Plus internal bottom rail.

Plasma Plus negative detail.

Plasma Plus glazing bead.

■ Flush sill options available.

Porta pull handles.

Urbo, Icon and Elemental lever handles.

Specifications

Design Considerations

Dimensions

■ An economic pivot door system is available using subframe adaptor and simplified pivot mechanisms

Sheet and glass clad panels 3500mm x 1450mm wide, depending on wind load - Pivots recommended over 960mm wide

Glass Thickness

■ Installation in sheltered environments is recommended, Glass Plasma is the best choice for sun exposure ■ Inward opening entrance doors are generally favoured

50mm AGP triple glazing as standard

■ Double opening doors (French style) or opening sidelights possible for full-width access.

Thermal Values

■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

R-Value 0.74 (2150mm x 960mm PLP00)

Technical drawings & product information – eboss.co.nz

APL

■ A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available

For specifications – masterspec.co.nz

13.4

Plus entrance doors

Axis Plus Key Features ■ High thermal performance with 74mm overall thickness ■ Flanged frame allows for dual sealing increasing thermal performance ■ Vertical tongue and groove panel doors

PLUS ENTRANCE DOORS

■ Two-part (interior/exterior) construction allows a different colour each side to match interior and exterior colour schemes ■ Thermal insulation and high density foam fill included in the door construction enhance thermal efficiency ■ Aluminium construction ensures maximum strength, stability ■ Glass inserts (50mm triple glazing only) design options available ■ Maximum door size supplied 2600mm high x 1460mm wide (50mm width increments) ■ Compatible with either hinges or pivot gear

APL

■ Matching sidelight options – equal and unequal French doors ■ Flush sill options available Plus door frame and Axis Plus rail section.

■ A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available.

Flat faced glazing bead.

Porta pull handles.

Axis Plus door edge with internal stile.

Urbo, Icon and Elemental lever handles.

Specifications

Design Considerations

Dimensions

■ An economic pivot door system is available using subframe adaptor and simplified pivot mechanisms

Door widths from 460mm to 1460mm (in 50mm increments).

Wider panels are possible but would require pivoting gear. Door heights up to 2600mm depending on site exposure

Glass Thickness

50mm AGP triple glazing as standard

Thermal Values

R-Value 0.74 (2150mm x 960mm AXP00)

Technical drawings & product information – eboss.co.nz

13.5 APL Window Solutions - Specifications subject to change

■ Installation in sheltered environments recommended – away from full sun exposure ■ Inward opening entrance doors are generally favoured ■ Multiple locking points and robust aluminium construction ■ Double opening doors (French style) or opening sidelights possible for full-width access.

■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

For specifications – masterspec.co.nz

Plus entrance doors

Classic Plus Key Features ■ High thermal performance with 56mm overall thickness ■ Flanged frame allows for dual sealing increasing thermal performance ■ Glass inserts (40mm triple glazing only)

PLUS ENTRANCE DOORS

■ Applied mouldings can be either scrolled or flat-faced, the latter offering a more contemporary look ■ Doors are filled with high density foam for thermal efficiency and sound dampening ■ French doors are possible with rebated meeting stiles ■ Matching sidelights are available which can be either fixed or opening, for full-width access ■ Maximum door size supplied 2250mm high x 1160mm wide ■ Dual colour door options available

APL

■ Compatible with either hinges or pivot gear ■ Flush sill options available ■ A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available

Plus door frame and Classic Plus.

Classic Plus stile.

Classic Plus moulding.

Porta pull handles.

Urbo, Icon and Elemental lever handles.

Specifications

Design Considerations

Dimensions

■ Installation in sheltered environments recommended – away from full sun exposure

Sizes from 1700mm high x 500mm wide up to 2250mm high x 1160mm wide

Maximum Glass Thickness

40mm AGP triple glazing as standard

Thermal Values

R-Value 0.67 (2150mm x 960mm CLP00)

Technical drawings & product information – eboss.co.nz

■ Inward opening entrance doors are generally favoured ■ Multiple locking points and robust aluminium construction ■ The Virtual Home entrance door tool allows you to explore the style, colour and hardware options and give clients an indication of what their preferences look like. Visit the Altherm, First or Vantage website.

For specifications – masterspec.co.nz

13.6

Entrance Doors

Urbo

Urbo

Icon

Icon

Pull handle

Lever handle

Pull handle

Lever handle

All about clean lines, clean shapes and a combination of square and radiused edges.

New Zealand's first fully integrated range of 316 grade stainless steel hardware.

Elemental

Elemental

Miro

Miro

Pull handle

Lever handle

Pull handles

Lever handle

APL

ENTRANCE DOORS HARDWARE

Hardware options

Striving for simplicity, made from extruded aluminium and is available in Silver or Black anodised.

Contemporary range of die-cast handles, characterised by elegant, ergonomic curves.

Windsor

Yale

Porta

Pull handles and Turn Sets

Pull handles and Apex Turn Sets

Pull handles and Turn Sets

Comprehensive range in 304 grade stainless steel.

Contemporary handles in 304 grade stainless steel.

Available in a 25 micron anodised surface finish.

14.1 APL Window Solutions - Specifications subject to change

ENTRANCE DOORS HARDWARE APL Solid French door in Mannex Cola Red with Yale 145 Pull Handles AX00

14.2

APL

ROOFLIGHT

ThermalHeart+® rooflight

Fixed rooflights in Matt Black

Designed for enhanced thermal efficiency, APL ThermalHeart+® rooflight can accommodate single, double, or triple glazing, allowing for a bespoke performance solution based on project needs.

■ The newly updated ThermalHeart+® rooflight is available in a fixed system ■ Rooflights can be customised, and are available in dual colour to match the interior and roof colours ■ A sleek design with flush structural glazing, elimination the need for protruding beads on top of the glass.

Technical drawings & product information – eboss.co.nz

15.1 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Key Features ■ Increased structural bite enabling greater glass spans and compatibility with extra high wind zones in extreme environments ■ Supplied with AGP’s highest performance Low-E, Solux Ultra® as standard ■ Unique design due to the thermally enhanced frame and a clip-on bead, enabling single, double and triple glazing on the same structural glazing platform

ROOFLIGHT

■ External bead is flush with glass surface, so water flows

APL

freely off the rooflight with no pooling

ThermalHeart+® triple glazed fixed rooflight

ThermalHeart+® rooflight roof bar and purlin junction

ThermalHeart+® double glazed fixed rooflight

ThermalHeart+® rooflight showing roof bar and purlins

Specifications

Design Considerations

Dimensions

■ New ThermalHeart+® rooflight is currently available in a fixed option only

Glass sizes can be up to 4.5m2 in high wind zones or 3.25m2 at Extra High*. Sizes up to 5750mm possible with additional roof bars. Three roof bar sizes possible; the largest spans up to 4000mm, subject to centres and loads.

Maximum Glass Thickness

52mm IGU using The AGP System® with Solux Ultra®

Thermal Values

R-value = 1.0 and 6-star WEERS rating achieved with 2000mm x 1000mm triple-glazed rooflight using 2x Low-E (1x Solux Ultra®, 1x Solux-E®) at a 5° pitch.*

■ Three different clip-on exterior frame options allows selection of either single, double, or triple glazing ■ Can be installed with as little as 5° slope and water will bead off ■ Available in dual colour as a standard option ■ Designed to handle snow loads of up to 1.0kPa, and an altitude of 420M above sea level - anything above will require project specific reviews.

Performance

Tested to Extra High wind zone *This may be limited by snow & wind loads Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

15.2

APL

PASSIVE VENTILATION

Passive ventilation

Metro Series in Black anodised

APL has a range of passive ventilation options available – from the straightforward Sashvent and Aerovent systems, to the sophisticated Ventient system.

■ Allows a continuous level of background ventilation ■ Makes homes healthier by improving air quality ■ Reduces stale air, mould and mildew ■ Systems are unobtrusive.

16.1 APL Window Solutions - Specifications subject to change

Sashvent ■ Sashvent can be installed in the bottom rail of awning and casement sashes ■ No intrusion into sightlines ■ Available in Residential Series and Metro Series windows

PASSIVE VENTILATION

■ Finger control option to open or close ■ Integrated insect screen ■ Sashvent has an optional colour-matching slide.

APL

Sashvent passive ventilator

Aerovent ■ Unobtrusive slotted ventilator ■ Opened and closed with a U-channel finger slide ■ Can be installed at the head or in transoms ■ Colour-matched to the window colour ■ Integrated insect screen ■ Airflow is directed upwards to minimise draughts ■ Residential TH and Metro TH Aerovent products are fully thermally isolated whilst vents are in the closed position.

Aerovent passive ventilator

Ventient ■ A naturally automated passive ventilator ■ The Ventient is suitable for high-end residential and commercial projects ■ It has an internal device incorporating a shape-memory alloy spring, which automatically opens and closes in response to outside temperatures ■ Usually fitted horizontally ■ Ventient has an automatic opening/closing temperature sensor for default, non-manual airflow control ■ Integrated insect screen.

Ventient in Metro Series ThermalHeart+® window head 16.2

APL

COMMERCIAL SERIES

Commercial Series overview

168mm Structural Glaze (thermally insulated) in Dark Bronze anodised

■ Window systems suitable for low-rise to high-rise applications ■ Flushglaze window systems available to minimise the exterior appearance of aluminium ■ Structural glaze systems offer a glazed curtain wall capability ■ Shop front suites are available ■ A robust commercial door system suitable for a wide variety of entranceways ■ Overhead glazing systems are offered.

17.1

APL Window Solutions - Specifications subject to change

COMMERCIAL SERIES APL 168mm Structural Glaze and Flushglaze in Duratec Matt Black powdercoat

135mm Flushglaze in Matt Charcoal powdercoat

17.2

APL

COMMERCIAL SERIES

Commercial Series

Custom made for client Silver anodised and Black anodised

17.3 APL Window Solutions - Specifications subject to change

80mm and 100mm Shop front 17.6

17.7

APL

17.5

40mm Window Series

COMMERCIAL SERIES

Overhead Glazing Systems

Magnum Commercial Doors 17.8

100mm, 125mm and 150mm Flushglaze Systems

17.9

125mm, 150mm, 168mm, 175mm, and 200mm Structural Glaze Systems

17.10

17.4

Commercial Series

Overhead Glazing Key Features ■ For commercial and residential applications ■ Glazing bars retain glass in sloping positions ■ A range of overhead glazing configurations is possible including lean-to, ridge line, double pitch and pyramid structures

COMMERCIAL SERIES

■ Bars with a drainage system and a condensation drainage

APL

system are available.

Fixed skylight with small fin rafter (right).

Glazing bar with condensation collection and interior stiffener.

Frame detail with condensation collection.

Specifications

Design Considerations

Dimensions

■ To minimise condensation double glazing is recommended

Dependent on glazing bar choice.

Maximum Glass Thickness

Glazing is system dependent (15mm single /24mm double possible).

in most glazing bar installations.

■ A minimum pitch of 5° is required to allow water to run off the glass.

Thermal Values

Consult Technical Department.

Performance

Consult APL Technical Department.

Technical drawings & product information – eboss.co.nz

17.5 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Commercial Series

40mm Window Series Key Features ■ For low to high rise applications ■ A varied, multi-product window system based on a 40mm frame platform ■ It includes: - Glazed frames and sashes for general commercial

COMMERCIAL SERIES

applications - Glazed frames and sashes for strip windows - Hopper windows - Pivoting windows - Glazed frames seismically separated from the building structure - Curtain walling ■ Substantially sized box-section extrusions allow large

APL

sashes up to 1600mm high x 1000mm wide dependent on the glass used (awning and casement applications).

40mm facing frame and internal box transom above.

40mm window with external fin transom.

40mm window with heavy duty box mullion.

40mm window frame with seismic sill.

40mm strip window sill.

Specifications

Design Considerations

Dimensions

■ The 40mm window system is compatible with the use of Magnum commercial doors

Awning windows up to 1600mm high x 1000mm wide, casements 1600mm high x 800mm wide (larger possible depending on width, height, weight and hardware).

Maximum Glass Thickness 28mm IGU

Thermal Values Consult APL Technical Department

Performance

Tested to Extra High / Specific Design wind zones. Projects may require project specific testing Technical drawings & product information – eboss.co.nz

■ Hopper window option is suitable for institutional and education sector use ■ The 40mm seismic system is for banks of windows requiring seismic separation in low to medium rise applications and is also required for continuous strip windows that exceed the facing frame extrusion length of 5000mm ■ Depending on type of project, windows may come fully assembled and glazed or be assembled on site from premade modules ■ 40mm curtain wall glazed panels are generally preassembled and fixed to continuous runs of curtain wall mullion on site ■ Shop drawings can be supplied by manufacturers when requested.

For specifications – masterspec.co.nz

17.6

Commercial Series

80mm and 100mm Shop front Key Features ■ For shop front locations, generally at ground level and in protected situations up to 6000mm in height ■ The glazing pocket lies in a central position in the frame and mullion for the 100mm suite, and in an offset position in the 80mm suite

COMMERCIAL SERIES

■ Can incorporate opening sashes from the 40mm Window Series using an inserted sash adapter ■ Compatible with Magnum commercial doors ■ Incorporates individually drained transoms

APL

■ Sill tray available.

80mm shop front with sill flashing.

80mm shop front transom, double and single glazed.

100mm shop front mullion and Magnum hinged door.

100mm shop front with glazing above and pivot door below.

100mm shop front corner post.

Specifications

Design Considerations

Dimensions

■ Designed for ground level environments in weather

80mm system with mullions at 1500mm centres, recommended to 2100mm high. The 100mm system with stiffened mullions recommended to 3500mm high or 2800mm without stiffeners

■ Compatible with opening sashes or Magnum commercial

Maximum Glass Thickness Single glazing 8mm, 24mm IGU

Thermal Values Consult Technical Department

protected situations doors mounted in a range of styles – conventional hinged, floor sprung, with concealed transom closer, manual sliding and automatic ■ 80mm and 100mm shop front windows are generally preassembled in sections at the factory and joined and sealed on site; glazing is also usually done on site.

Performance Consult APL Technical Department

Technical drawings & product information – eboss.co.nz

17.7 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Commercial Series

Magnum Commercial Doors Key Features ■ A versatile and robust commercial door system that can be: - Hinged - Floor sprung (pivot door) - Hung on concealed transom closers (pivot door) - Sliding – stacking on multiple tracks

COMMERCIAL SERIES

(with bottom rollers) - Sliding top hung ■ Magnum doors have been designed for advanced locking capability and for mainstream heavy duty commercial and residential locks ■ Different rails, stiles and glazing bead options for different

APL

aesthetic effects and wind pressures.

Magnum slider – stepped threshold shown.

Magnum multi slider sill.

Sliding door 50mm meeting stiles.

Magnum hinged door sill and rail (low threshold option).

French door meeting stiles.

Specifications

Design Considerations

Dimensions

■ Magnum sliding doors need good weather cover in either

Sliding doors recommended maximum panels 2700mm high and 2400mm wide. Hinged doors recommended maximum panels 2700mm high and 1000mm wide

Maximum Glass Thickness 27mm IGU

commercial or residential settings (consider the use of APL Architectural Series sliding doors if appropriate) ■ Magnum overwall sliding doors can be specified with appropriate detailing ■ Sliding door stiles come in standard and heavy duty options ■ Magnum sliding doors are compatible with the 100mm Shop

Thermal Values Consult Technical Department

front suite ■ Sliding door rail extenders are available ■ Hinged doors have a low threshold option.

Performance Consult APL Technical Department

Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

17.8

Commercial Series

100mm, 125mm and 150mm Flushglaze Systems Key Features ■ Suitable for shop front and medium rise commercial applications ■ Three systems with different levels of performance available ■ Glazing is near flush with the outside face reducing the visual effect of aluminium as viewed from the outside ■ Provision can be made for seismic and thermal movement

COMMERCIAL SERIES

■ Can incorporate matching opening sashes, including an unobtrusive structurally glazed sash ■ Includes internal drainage which allows this system to be used with confidence on multi-storey buildings ■ Single and double glazing options including mixed within the same façade ■ Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line

APL

■ Can be used as a strip curtain wall system and can be structurally glazed vertically to minimise the impact of aluminium beads ■ Structural glazed mullions can be included in the system.

100mm Flushglaze sill and transom (single glaze) with sill flashing shown.

100mm Flushglaze mullion (double glaze).

Flushglaze sun fin.

125mm Flushglaze transom and sash.

150mm Flushglaze seismic sill.

Specifications

Design Considerations

Dimensions

■ Flushglaze systems are generally pre-assembled in sections at the factory and joined and sealed on site

Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure. Consult your manufacturer for specific information

Maximum Glass Thickness

100mm single glazing 8mm, IGU 24mm.

125mm and 150mm single glazing 12mm, IGU 30mm.

Thermal Values

■ Two-piece mullions and transoms facilitate practical transportation of pre-fabricated sub-assemblies ■ Shop drawings can be supplied when specified ■ Project-specific flashings and brackets are often required and are supplied by the window manufacturer ■ Compatible with Magnum commercial doors ■ Opening windows can be included in the façade.

Consult Technical Department

Performance

Tested to Extra High / Specific Design wind zones. Projects may require project specific testing Technical drawings & product information – eboss.co.nz

17.9 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Commercial Series

125mm, 150mm, 175mm and 200mm Structural Glaze Key Features ■ For low to high rise applications ■ Five systems with different levels of performance available ■ A four-sided structural glazed, fully panelised system ■ Glazing is on the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside

COMMERCIAL SERIES

■ The 168mm system has a thermally insulated and shielded option available ■ Unobtrusive opening sashes for natural ventilation ■ Single and double glazing options, including within the same façade with retention of the glass plane ■ Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line ■ Can be used as a strip curtain wall system

APL

■ Can accommodate interfloor deflection, consult APL Technical Department for more information.

125mm structural glaze seismic sill.

125mm structural glaze transom.

125mm transom and opening sash below.

150mm structural glaze mullion.

168mm thermally insulated mullion.

Specifications

Design Considerations

Dimensions

■ Structural glazed systems are generally pre-assembled in sections at the factory and joined and sealed on site

Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure. Consult your manufacturer for specific information

Maximum Glass Thickness

Single glazing 18mm, double glazing between 32mm-38mm is possible depending on the system

Thermal Values

Consult Technical Department

Performance

Tested to Very High and Specific Design wind zone.

Projects may require project specific testing

Technical drawings & product information – eboss.co.nz

■ Frames are glazed on site ■ Where thermal efficiency is a high priority, the ■ 168mm thermally broken or thermally shielded system is recommended. 200mm thermally shielded option is available ■ Shop drawings can be supplied when specified ■ Project-specific flashings and brackets are often required and are supplied by the window manufacturer ■ Compatible with Magnum commercial doors ■ Opening windows can be included in the façade.

For specifications – masterspec.co.nz

17.10

APL

HARDWARE

Hardware

APL Architectural Series in Silver anodised with Urbo Electro natural Silver hardware

We have window and door hardware to suit all tastes and performance requirements.

There are five ranges to choose from: ■ Urbo: Designed with fine lines, clean shapes and a combination of square and radiused edges ■ Miro: A timeless look with elegant, ergonomic curves and a comfortable hand grip ■ Icon: Square-form shapes in durable 316-grade stainless steel ■ Elemental: Sleek minimal lines. Made from extruded aluminium (available in Silver, Bronze or Black anodised) ■ Porta: Delivering simple, clean lines, these bespoke handles offer a premium feel.

18.1 APL Window Solutions - Specifications subject to change

HARDWARE APL Icon lever handle

Urbo lever handle

Urbo pull handle

Miro pull handle

18.2

APL

HARDWARE

Hardware

Urbo pull handle in Matt Gravel powdercoat

18.3 APL Window Solutions - Specifications subject to change

Hardware

Urbo

Lever Door Handle

Bi-fold Handle

An upward handle movement activates multi-point locking. Snib or key operation is available.

This swivel lock activates locking rods in the top and bottom of the door or window panel. Optional key-locking (separately installed) is available.

Small ■ Handle length - 125mm ■ Baseplate - 214mm

HARDWARE - URBO

Urbo has fine lines, clean shapes and a combination of square and radiused edges, delivering a lighter look without compromising on strength.

■ 220mm h x 25mm w

Surface Mount Sliding Door Handle An all-in-one handle and lock for sliding doors or windows. Snib or keyway installed in the body of the handle.

■ 180mm h

Flush Pull The flush pull is ideal for lighter sliding panels where a robust hand grip is not required.

■ 220mm h x 44mm w

APL

Large ■ Handle length - 125mm ■ Baseplate - 290mm

Window Fastener Closes against the window frame with no visible flap or wedge.

■ 110mm w x 31mm d

Architectural Window Fastener Fastener at top with separate wedge is suitable for the APL Architectural Series.

■ 110mm w x 40mm d

Pull Handle A comfortable grip for sliding panels with inner edges that are smoothly radiused. A separate lock is operated by key or snib (shown).

Venting Window Fastener A venting option is available which allows the window to be fastened in a partially open position for passive ventilation.

■ 110mm w x 33mm d

■ Small - 255mm h ■ Large - 323mm h

18.4

Hardware

Miro The Miro range of die-cast handles is a contemporary classic, characterised by elegant, ergonomic curves.

APL

HARDWARE - MIRO

Lever Door Handle An upward handle movement activates multi-point locking.

Snib or key operation is available.

■ Handle length - 117mm ■ Baseplate - 210mm

Window Fastener A window fastener that combines a sure hand grip with clean lines. Available in a low profile option.

■ 100mm h x 39mm d

Architectual Window Fastener

Surface Mount Sliding Door Handle An all-in-one handle and lock for sliding doors or windows.

Snib or keyway installed in the body of the handle.

■ 175mm h x 54mm d

Pull Handle A smooth grip for sliding panels. A separate lock (shown) is operated by key or snib.

■ Small - 166mm h ■ Large - 240mm h

Bi-fold Handle This swivel operator throws locking rods into the frame at the top and bottom of the panel. Optional key-locking (separately installed) is available.

■ 153mm h x 24mm w

18.5 APL Window Solutions - Specifications subject to change

Suitable for APL Architectural Series and Smartwood windows. A separate colour matching wedge is fitted to the frame or transom.

■ 100mm w x 48mm d

Venting Window Fastener A venting option is available which allows the window to be fastened in a partially open position for passive ventilation.

■ 100mm w x 39mm d

Hardware

Icon New Zealand’s first fully integrated range of 316 grade stainless steel hardware for aluminium windows and doors.

Small ■ Handle length - 110mm ■ Baseplate -210mm

This fastener for Residential Series awning and casement windows blends square-edged and radiused looks. Closes against the window frame with no visible flap or wedge.

Available in a low profile option.

Large ■ Handle length - 150mm ■ Baseplate - 290mm

■ 110mm w x 31mm d

Flush Pull

Suitable for APL Architectural Series and Smartwood windows.

A separate colour matching wedge is fitted to the frame or transom.

An alternative to a sliding door handle, the flush pull is ideal for lighter sliding panels.

A lock is fixed separately.

■ 230mm h x 43mm w

HARDWARE - ICON

An upward handle movement activates multi-point locking. Snib or key operation is available.

Window Fastener

Architectural Window Fastener

APL

Lever Door Handle

■ 110mm w x 36mm d

Pull Handle Several sizes available for sliding panels. A separate lock (shown) is operated by key or snib.

■ ■ ■ ■

Small - 325mm Medium - 630mm Large - 930mm Extra Large - 1230mm, 1530mm or 1830mm

Bi-fold Handle This swivel operator throws locking rods into the frame at the top and bottom of the panel. Optional key-locking (separately installed) is available.

■ 170mm h x 25mm w

18.6

Hardware

Elemental

APL

HARDWARE - ELEMENTAL

As its name implies, the Elemental hardware range strives for simplicity. Architect-designed with the goal of eliminating frills and fuss, Elemental is a unique range of hardware that is made from extruded aluminium, and is available in a Silver, Bronze or Black anodised finish. With this durability it is therefore suited to coastal environments.

Lever Door Handle

Bi-fold Handle

Available in two sizes – small or large. An upward handle movement activates multi-point locking. Snib or key operation is available.

A sleek swivel lock that activates locking rods in the top and bottom of the door or window panel. Optional key-locking (separately installed) is available.

Small ■ Handle length - 125mm ■ Baseplate - 221mm

Always to be used with a hinge/handle ■ 160mm h x 34mm w

Large ■ Handle length - 140mm ■ Baseplate - 292mm

Flush Pull Ideal for lighter sliding panels. The lock is mounted separately from the pull, and is operated by a key or snib.

■ 269mm h x 44mm w

Window Fastener Closes against the window frame with no visible flap or wedge.

Available in a low profile option.

■ 110mm w x 35mm d

Venting Window Fastener Pull Handle Available in two sizes - large or small, but can be made to any length by special order.

The sliding door handle is separate from the lock, which is operated by a key or snib (shown).

■ Small - 250mm h ■ Large - 325mm h

Custom Due to the precision machining and engineering process, Elemental is capable of some custom sizing, especially with the pull handle.

18.7 APL Window Solutions - Specifications subject to change

A venting option of the window fastener is available which allows the window to be fastened in a partially open position for passive ventilation.

■ 110mm w x 35mm d

Hardware

Porta

Solo

Solo offset

With a sleek rounded look, Solo is a modern design engineered from solid aluminium.

With a sleek rounded look and offset fixings, Solo is a modern design engineered from solid aluminium.

■ Small: 600mm h ■ Medium: 900mm h ■ Large: 1200mm h ■ XL: 1500mm h ■ XXL: 1800mm h ■ XXXL: 2100mm h

Available sizes ■ Small: 600mm h ■ Medium: 900mm h ■ Large: 1200mm h ■ XL: 1500mm h ■ XXL: 1800mm h ■ XXXL: 2100mm h

Duo

Trio

Duo is a modern crescent shaped design engineered from solid aluminium.

Three levelled peaks define the Trio handle, a contemporary square shaped design engineered from solid aluminium.

Available sizes ■ Small: 300mm h

APL

Available sizes

HARDWARE - PORTA

Delivering simple, clean lines, the bespoke Porta handle range offers a premium feel. Excellently engineered from aluminium and available in either a 25 micron anodised or powdercoated surface finish. For all Porta handles, the lock is fixed separately to the door and is activated by a key or interior turn knob.

■ Medium: 600mm h

Available sizes ■ Small: 600mm h

■ Large: 900mm h

■ Medium: 900mm h

■ XL: 1200mm h

■ Large: 1200mm h ■ XL: 1500mm h ■ XXL: 1800mm h ■ XXXL: 2100mm h

18.8

Aged Care and Education

APL

AGED CARE AND EDUCATION

Aged Care Sector APL Window Solutions offers a range of products designed to comply with New Zealand standards and design best practice for aged care facilities and homes occupied by the elderly. All products are available with high-performance glass from AGP, for a complete window system.

New Zealand has an increased demand for aged care facilities and appropriately designed products because of the rise in our ageing population. The design emphasis is on enhancing secure, healthy and comfortable environments that are easy to move around in.

We have a number of products designed to make living easier for the elderly. APL is a Lifemark product partner.

Secure ventilation ■ Ventilation can be a problem in homes occupied by the elderly and often windows are kept closed for long periods. Passive ventilation options are a good solution, offering year-round comfort.

Sashvent

Aerovent

Ventient

810mm Clear opening

Enhanced accessibility ■ Flush sills reduce tripping hazards and cater for walking frame and wheelchair use. Available for hinged doors, sliding doors, and near-flush interior sliding doors (Magnum Doors) ■ Lifemark recommends minimum door widths of 810mm clear opening.

Flush sill sliding door sill.

Minimum opening needed.

Magnum hinged door (low threshold option).

Interior slider track.

■ A flush entry door threshold is desirable with recessed drain or elevated floating deck for a level entry (generous overhead weather cover recommended) ■ Near-flush interior track available for Magnum sliding doors

Technical drawings & product information – eboss.co.nz

19.1 APL Window Solutions - Specifications subject to change

For specifications – masterspec.co.nz

Convenient hardware

Urbo Lever handle.

Urbo Pull handle.

APL

■ The Urbo Helix window fastener with no visible flap or wedge is recommended as a user-friendly choice for the elderly.

AGED CARE AND EDUCATION

■ Security and ease of operation of door and window handles and locks are priorities in ‘New Zealand Standard NZS4121:2001 Design for Access and Mobility-Buildings and Associated Facilities.’ We offer a range of hardware suitable for the aged care sector.

Urbo helix fastener.

Interior comfort - thermal options ■ In colder parts of the country, products from APL’s high thermal efficiency ranges need to be considered. These include Residential and Metro Series ThermalHeart+® windows and doors with thermal insulation to optimise interior temperatures and comfort, including Metro Centrafix® ■ Klima® uPVC windows are rated to a maximum 6 energy stars under WEERS (Window Energy Efficiency Rating System) when used with Low-E double

Residential ThermalHeart+® sliding door

Standard Klima® window frame and sash

Glazing for interior comfort ■ Aged care facilities often have limited cross ventilation, increasing the need for higher solar control to reduce overheating and operating costs.

■ The AGP System® with Solux Ultra® works hard to admit natural light while limiting heat gain, avoiding the need for tinted glass that reduces clarity. As glass drives most heat transfer in buildings, correct specification is critical for longterm performance.

Argon gas Solux-E® or Solux Ultra®

ATS - Architectural Thermal Spacer®

Bonded to glass and secondary sealant

19.2

Aged Care and Education Education Sector

APL

AGED CARE AND EDUCATION

APL has partnered with Massey University to understand the education sector better and identify the best products for schools and tertiary institutions. As a result, we have created some guidelines for product specification in the Education Sector.

Healthy ventilation ■ Optimum levels of ventilation for student health, comfort and learning are vitally important ■ The Covid-19 pandemic has underlined the benefits of continuous fresh air circulation through open windows in classrooms ■ The ‘Healthy Schools’ project part-sponsored by APL and carried out by Massey University’s School of Engineering and Advanced Technology carried out extensive monitoring of air quality in numerous schools, and tracked the build-up of CO2 under a variety of conditions ■ Excessive CO2 concentrations are known to lead to cognitive impairment. Now, however, concerns over preventing cross-infection from student carriers of Covid-19 are a new driver in the move to optimise fresh air in the learning environment

■ With windows open the viral concentration from droplets and micro droplets remains densest near the infected student but the contaminants are diluted in the rest of the room ■ There are many window formats appropriate for education facilities e.g. high level, remotely controlled ashes, hopper windows, awning and sliding windows, as well as passive ventilation options ■ Trickle ventilators can help provide a useful level of background ventilation. Options include Aerovent (head or transom of fixed windows), Sashvent (bottom rail of awning windows), and Ventient (range of installations possible).

■ Covid-19 has transformed the design and operational management of learning environments to ensure consistent air quality is maintained ■ Studies have shown that even with students wearing masks and distancing in a classroom layout an airborne virus from droplets and micro droplets will spread dangerously with closed windows

Open windows are the easiest form of ventilation.

Aerovent in transom.

Technical drawings & product information – eboss.co.nz

19.3 APL Window Solutions - Specifications subject to change

Sashvent is a convenient and straight forward passive ventilator.

For specifications – masterspec.co.nz

Ventient with acoustic baffle in APL Architectural Series window.

Strength and durability AGED CARE AND EDUCATION

■ Windows and doors must be able to cope with heavy use. They must be commercial grade in order to offer good durability ■ Ministry of Education guidelines specify windows with minimum 40mm frame and doors with minimum 50mm panel thickness ■ APL recommends Metro Series windows, which have a 40mm frame platform. These can be coupled with Magnum Series hinged doors which have a 50mm panel thickness and a wide stile option which allows the use of heavy-duty 60mm backset lever handles and locks.

Metro Series window.

Urbo Helix sash fastener recommended.

APL

■ For extra strength and resistance to impact, it is recommended that bottom rails on hinged and sliding doors be doubled in height with a rail extender

Magnum hinged door (low threshold option).

Metro sliding door with bottom rail extended.

Enhanced accessibility

Interior comfort

■ Mobility-friendly thresholds for hinged doors are available as well as for flush sill sliding doors and near-flush interior sliding doors (Magnum Doors).

This also reduces tripping and falls.

■ In colder parts of the country, Metro Series ThermalHeart+® may need to be considered ■ Commercial systems that include sun control fins may have a place on medium to high rise education projects ■ Reduce glare and improve overall thermal and solar comfort within classrooms with AGP's Solux-E® + Tint range.

Interior slider track.

19.4

Social Housing and Multi-Unit

APL

SOCIAL HARDWARE HOUSING AND MULTI-UNIT

Social Housing Social or public housing has its own set of distinctive requirements, with window and door products that are robust and contribute to a safe, healthy and adequately ventilated interior environment.

New Zealand has a large and growing social housing stock. Modern and more convenient windows are being retrofitted into older dwellings; fully customised and optimum product ranges are being specified in new builds.

On this page are some of our recommendations for products suitable for the social housing sector.

Residential Series and ThermalHeart+® ■ Residential Series and Residential Series ThermalHeart+® ranges are good options as they combine robust frames and profiles with economy of pricing. They are suitable for a wide spectrum of housing projects.

Residential Series ThermalHeart+® offers extra thermal efficiency in colder parts of the country.

Residential Series hinged door.

Residential Series ThermalHeart+® hinged door.

Metro Series awning window and frame.

Metro Series ThermalHeart+® awning window and frame.

Metro Series suitability ■ Because Metro Series windows and doors are rated for heavy duty applications they may be appropriate in situations where hard wearing or robust treatment are likely to be encountered. They are also suitable for larger formats and more exposed locations.

Metro Series also has a ThermalHeart+® option available for colder environments.

Specific products ■ Secure and consistent background ventilation is important in living spaces in social housing. Factors influencing this relate to potential tenant turnover and the State commitment to a high quality interior environment. Passive ventilation options and robust hardware need careful consideration.

Sashvent is a convenient and straightforward passive ventilator.

Technical drawings & product information – eboss.co.nz

19.5 APL Window Solutions - Specifications subject to change

The Urbo Helix window fastener with no flap or wedge is a robust option.

For specifications – masterspec.co.nz

SOCIAL HOUSING AND MULTI-UNIT HARDWARE - URBO APL Duratec Silver Star powdercoat with Miro hardware

Glazing suitability ■ Where maintenance allowances are minimal you need a robust, high-performance glazing solution. Toughened glass is heat treated to increase its strength compared to ordinary annealed glass.

It is resistant to impact and thermal stress fractures. When it does break, it disintegrates into blunt fragments reducing the risk of injury.

AGP's low-e toughened glass, such as Solux-E®, will meet specification requirements for social housing.

19.6

APL

MULTI-UNIT PROJECTS AND APARTMENTS

Multi-Unit projects and Apartments Multi-unit projects and Apartments Multi-unit developments are on the rise, in part through the encouragement of Government and local authority policies. The projects are seen as an effective way of addressing New Zealand’s housing shortage. Such developments offer scope for the use of a wide range of APL products influenced primarily by project budget, marketing considerations and target purchaser.

Some of the products suitable for multi-unit application include those outlined here.

Residential Series and ThermalHeart+® ■ Residential Series and Residential Series ThermalHeart+® ranges are good options as they combine robust frames and profiles with economy of pricing. They are suitable for a wide spectrum of housing projects. Residential Series ThermalHeart+® offers extra thermal efficiency in colder parts of the country.

Residential Series hinged door.

Residential Series ThermalHeart+® hinged door.

Metro Series awning window and frame.

Metro Series ThermalHeart+® awning window and frame.

Centrafix® Window

Centrafix® Door

Metro Series suitability ■ Because Metro Series windows and doors are rated for heavy duty applications they may be appropriate in situations where hard wearing or robust treatment are likely to be encountered. They are also suitable for larger formats and more exposed locations. Metro Series also has a ThermalHeart+® option available for colder environments.

Metro Series ThermalHeart+® with Centrafix® ■ This is a recessed window and door system combining the strength of Metro Series, the efficiency of ThermalHeart+®, and the aesthetic and thermal advantages of a mid-position frame ■ Can be used by public agencies and developers who are interested in achieving the Passive House standard or low net energy outputs ■ The recessed frame enhances weathertightness and thermal efficiency ■ Wide platform option available for triple glazing across all products – windows, sliding doors, hinged, French and Bi-fold doors.

19.7 APL Window Solutions - Specifications subject to change

MULTI-UNIT PROJECTS AND APARTMENTS

Healthy ventilation ■ Optimum levels of ventilation for occupant health and comfort are important, as well as for the prevention of mould and mildew ■ The Covid-19 pandemic has underlined the benefits of fresh air circulation in all shared domestic environments and enclosed access ways and common areas

Open windows are the easiest form of ventilation

Aerovent in transom.

Sashvent is a convenient and straight forward passive ventilator.

Ventient with acoustic baffle in APL Architectural Series window.

■ Trickle ventilators can help provide a useful level of background ventilation. Options include Aerovent (head or transom of fixed windows), Sashvent (bottom rail of awning windows), and Ventient (range of installations possible).

APL

■ Studies have shown that airborne virus transmission from droplets and micro droplets will spread dangerously with closed windows. Open windows or a level of background, passive ventilation are important.

Enhanced accessibility

Management of overheating

■ Mobility-friendly thresholds for hinged doors are available as well as for flush sill sliding doors and near-flush interior sliding doors (Magnum Doors).

This also reduces tripping and falls.

■ An increased focus in thermal performance over recent years has also resulted in higher risk of overheating. With clear or tinted IGUs, apartments have been trapping heat and significantly overheating the internal spaces. High performance low-e glass, such as AGP's Solux Ultra®, is designed to combat this solar heat gain.

■ With population density increasing, consideration for acoustic performance is becoming more prevalent. Thicker glass substrates can be used and/or laminated glass components. However, colour rending of glass and visual light transmission (VLT) remain important for visibility.

Interior slider track.

Technical drawings & product information – eboss.co.nz

For specifications – masterspec.co.nz

19.8

Surface finishing Powdercoating

APL

SURFACE FINISHING

New Zealand’s most popular surface finish for windows and doors. It’s a baked-on coating that’s tough and durable and comes in a wide range of colours. Powder options are as follows: Duralloy Plus+ / Protexture: Used on most domestic and smaller commercial projects. Carries a 15-year film and colour integrity warranty. Suitable for applications more than 10m from high tide level. Protexture powder coatings from the Duralloy range have been introduced for use on entrance doors. Are for areas where high mar and scuff resistance is required.

Duratec: A highly durable polyester system for more severe coastal and multi-storey exposures. For properties greater than 10m from high tide level. Carries a 20-year film integrity warranty (Colour integrity warranty will be less in duration and colour dependant).

Fluoroset FP: This is a 100% fluoropolymer powder coating with outstanding colour retention and film performance. It is designed for use on headline commercial-type projects in environmentally challenging locations. Fluoroset FP offers a 20year warranty on colour, film integrity and gloss retention.

Popular Colours: A colour range is available which has 40 colours. These are more economical in price than lesser sought colours and have more readily available colour-matching hardware. A booklet of over 80 powdercoat colours is also available.

Chromate-free: APL has a chromate-free pretreatment for the powdercoating of its aluminium extrusions. Toxic chromate formulations have been phased out and non-hazardous pre-treatments adopted. This upgrade is part of a wide-ranging APL strategy to reduce its environmental footprint.

APL Architectural Series in Matt Black powdercoat with Urbo hardware

20.1 APL Window Solutions - Specifications subject to change

Anodising Silver

Anodising is a very durable and colour-fast finish that has been proven over many decades. It is popular in high end residential developments where its durability and metallic sheen are seen as desirable attributes. APL offers the ‘frost’ finish as standard.

Black

There are several options for colours and film thickness: Silver, in 12 and 25 microns. Bronze in light, medium or dark, 12 and 25 microns. Black, in 25 microns only. Champagne, in 25 microns only.

Anodising is unavailable in Residential ThermalHeart+®

SURFACE FINISHING

Dark Bronze

Light Bronze

APL

For properties in coastal, industrial or other corrosive environments, 25 microns is recommended, and may even be required to qualify for a warranty. (Note: the anodised coating has a 10-year warranty for 12 micron anodising, and 20 years for 25 microns.)

Champagne

Medium Bronze * Colours shown give only an indication of colour. Please contact your local manufacturer for accurate colour matching.

APL Architectural Series Sliding doors in Silver Anodised with Custom hardware

20.2

Care, maintenance and warranty

CARE, MAINTENANCE AND WARRANTY

Window and door frames should be cleaned each time your windows and doors are washed in order to remove atmospheric dirt and grime. A soft brush with warm water and a mild household detergent are recommended. Rinse with fresh water.

APL

Joinery care and maintenance

Cleaning once every three months should be sufficient, however, in coastal or industrial environments more frequent washing will be required. The frequency of washing in these harsh environments should be determined by the degree of salt and/or other contaminant build up on the windows and doors, but ideally should be at least once a month. Washing should include the rinsing of all window and door cavities to avoid salt build up and corrosion.

■ DO remove obvious deposits as they occur including cement-based products ■ DO mask windows if painting. Use only methylated spirits, isopropanol or water to remove fresh paint splashes ■ DO NOT use abrasive steel wool, scrapers, scouring liquids or aggressive solvents, thinners, petrol, etc. These will all damage the windows and doors and the surface finish ■ DO NOT expose your joinery to excessive heat, heaters or hot air guns as these may damage the surface finish of the joinery.

Powdercoated joinery can be damaged by some sunscreens.

Avoid touching the surface where possible and wash any sunscreen residue off powdercoated joinery immediately after contact.

Warranty Our Windows and Doors comply with the New Zealand Building Code and the relevant New Zealand standards, NZS4211, Performance of Windows, and NZS4223, Glazing in Buildings – Parts 1-4.

The window systems are extensively tested to perform in New Zealand’s diverse weather conditions, meeting requirements for strength, deflection, weathertightness and air leakage. A warranty for all windows and doors is provided under normal conditions of use against failure of materials and workmanship for a period of 5 years.

The surface finish of aluminium extrusions is covered by a separate performance warranty which is dependent on the actual finish selected. A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of 5 years, providing care and maintenance guidelines have been followed (plated ‘soft’ finishes excluded).

APL Metro Series with AGP Solux Ultra® glass

21.1 APL Window Solutions - Specifications subject to change

CARE, MAINTENANCE AND WARRANTY

AGP Glass care and maintenance After house construction is completed make sure any stickers and cork/foam pads have been removed. Rinse the glass thoroughly with clean water to ensure that builder’s debris and dirt are removed.

Cleaning once every three months is recommended for your glazing. In coastal or industrial environments more frequent washing will be required.

To clean your glass, we recommend soaking the glass surfaces with clean water to loosen dirt and debris. Then wash the glass using clean water, glass cleaning squeegee or clean cloth, and one of the recommended cleaning products listed below. Rinse with clean water and wipe dry with a clean squeegee ensuring the glass is dry and water droplets are removed to avoid permanently marking the surfaces.

APL

Recommended products for cleaning glass are: ■ Glasscorp Universal Glass & Mirror Cleaner GCGC / GC5 / GC20 / GC200 (glasscorp.co.nz) ■ Or 10-parts clean water, 1-part white vinegar ■ Or 9-parts clean water, 1-part Methylated Spirits Do not use abrasive steel wool, scrapers, scouring liquids or aggressive solvents, thinners or products containing hydrofluoric acid, fluorine derivatives, any abrasive elements, or products with high acidic or alkaline content. These are likely to damage the glass.

Warranty AGP back their world-class double-glazing products with a 12-year warranty – two years longer than the industry standard or legislative requirements.

AGP’s double-glazed units have been designed and successfully tested to perform in New Zealand’s most diverse conditions.

IGUs supplied by AGP meet, or exceed, the requirements of the New Zealand Building Code and New Zealand Standards NZS 4223, Glazing in buildings - Parts 1-4 included, Joint Australian/New Zealand Standard AS/NZS 4667 (Quality requirements for cutto-size and processed glass).

21.2

W altherm.co.nz

|

|

P 07 849 2113

firstwindows.co.nz

|

vantage.co.nz

99 9060 0

19 Northpark Dr, Hamilton 3200
