Fashion Park
Academic Project sem10
Convention Centre cademic Project sem 07
Shopping Mall
Academic Project sem 06
Practical Training sem 09

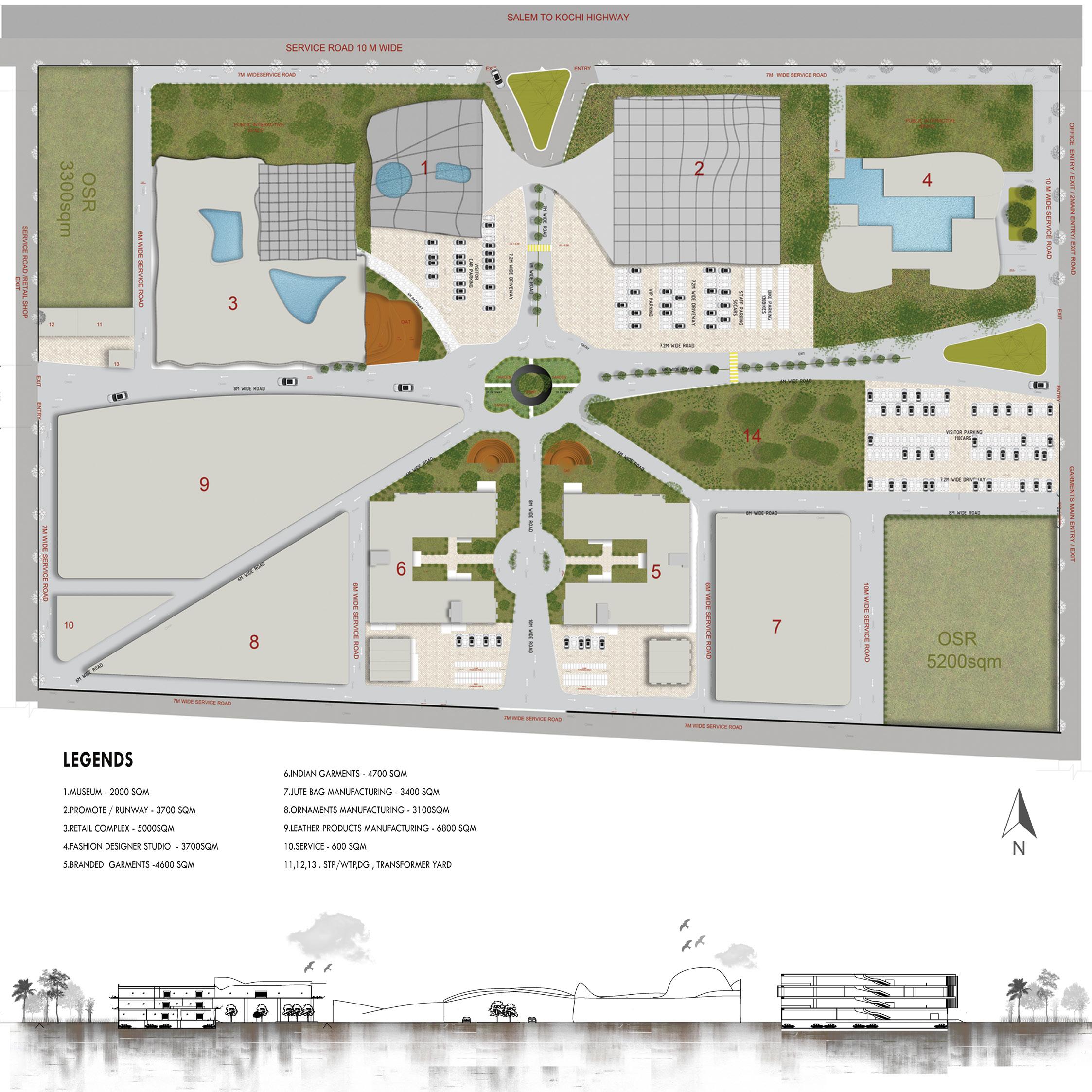

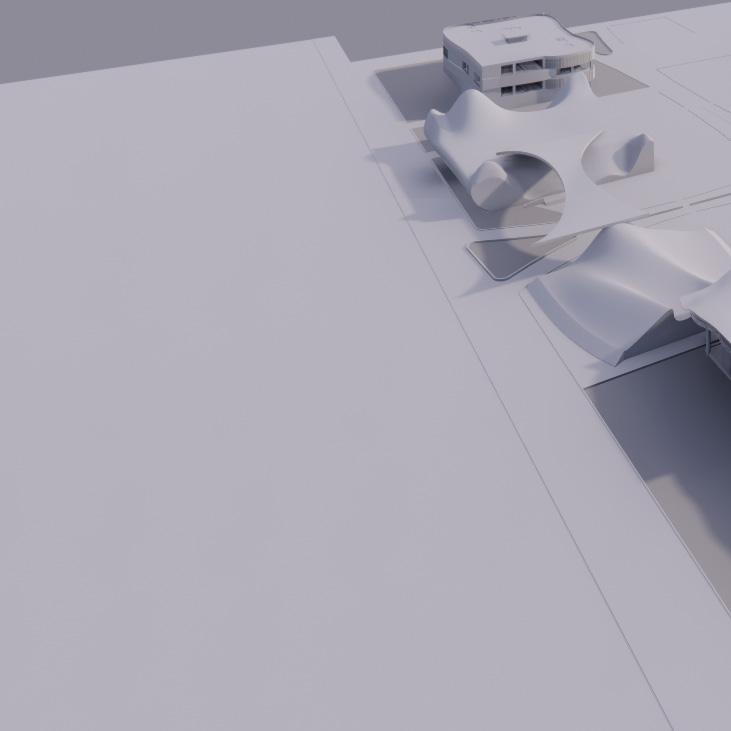

01 FASHION PARK
Building Typology: Mixed use Building
Location: Coimbatore, Tamilnadu. Site Area: 21 acres

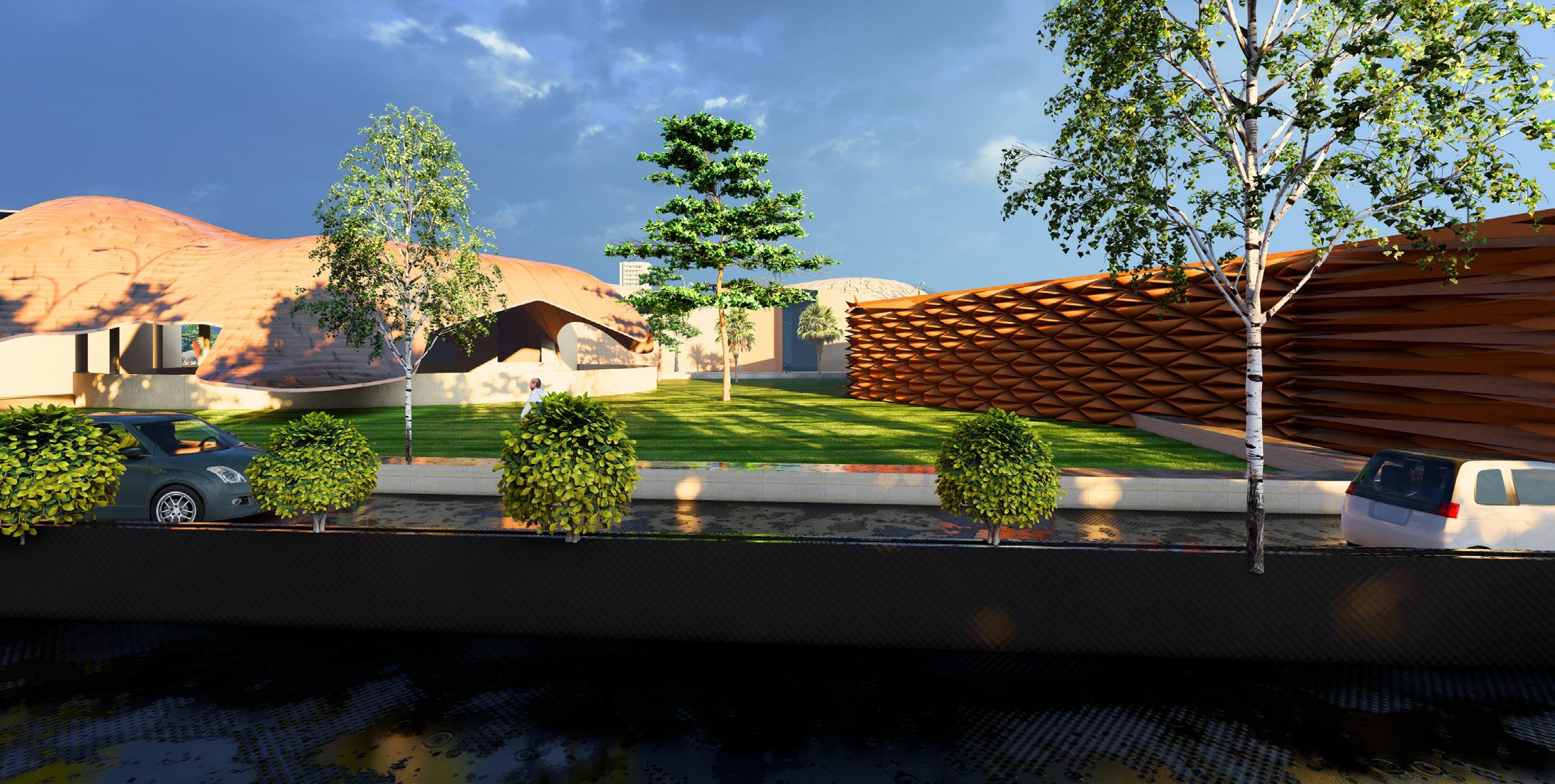

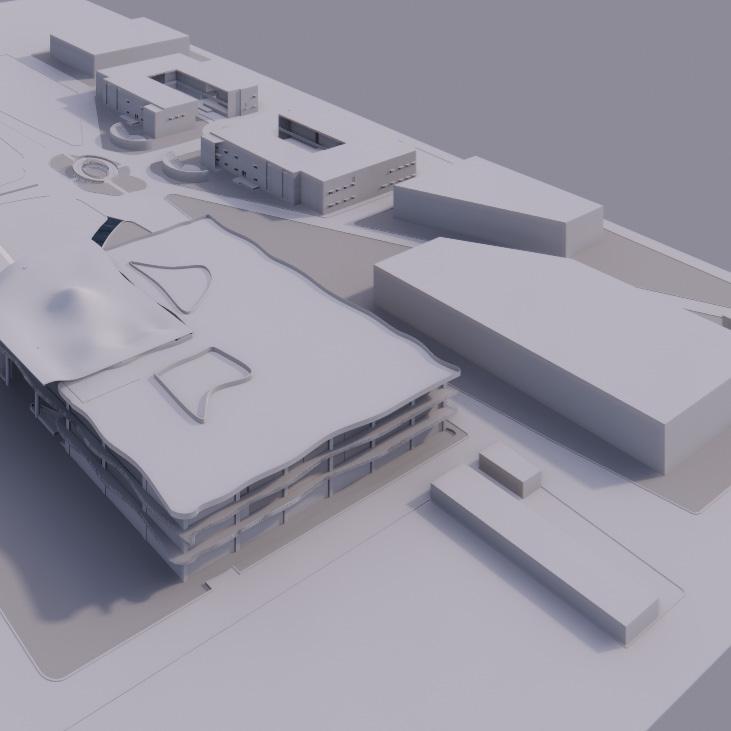

A fashion park is being planned in Coimbatore, the second largest city in Tamil Nadu and a prominent Tier 2 city known for its textile industry. This mixed-use project integrates commercial and industrial elements, including a museum, runway hall, fashion designer studios, and retail shops (mall), with a focus on textile manufacturing such as clothing and shoes. Designed to harness Coimbatore’s developmental potential, the project aims to cater to both private and public users, leveraging the city’s textile-centric economy and urban features.

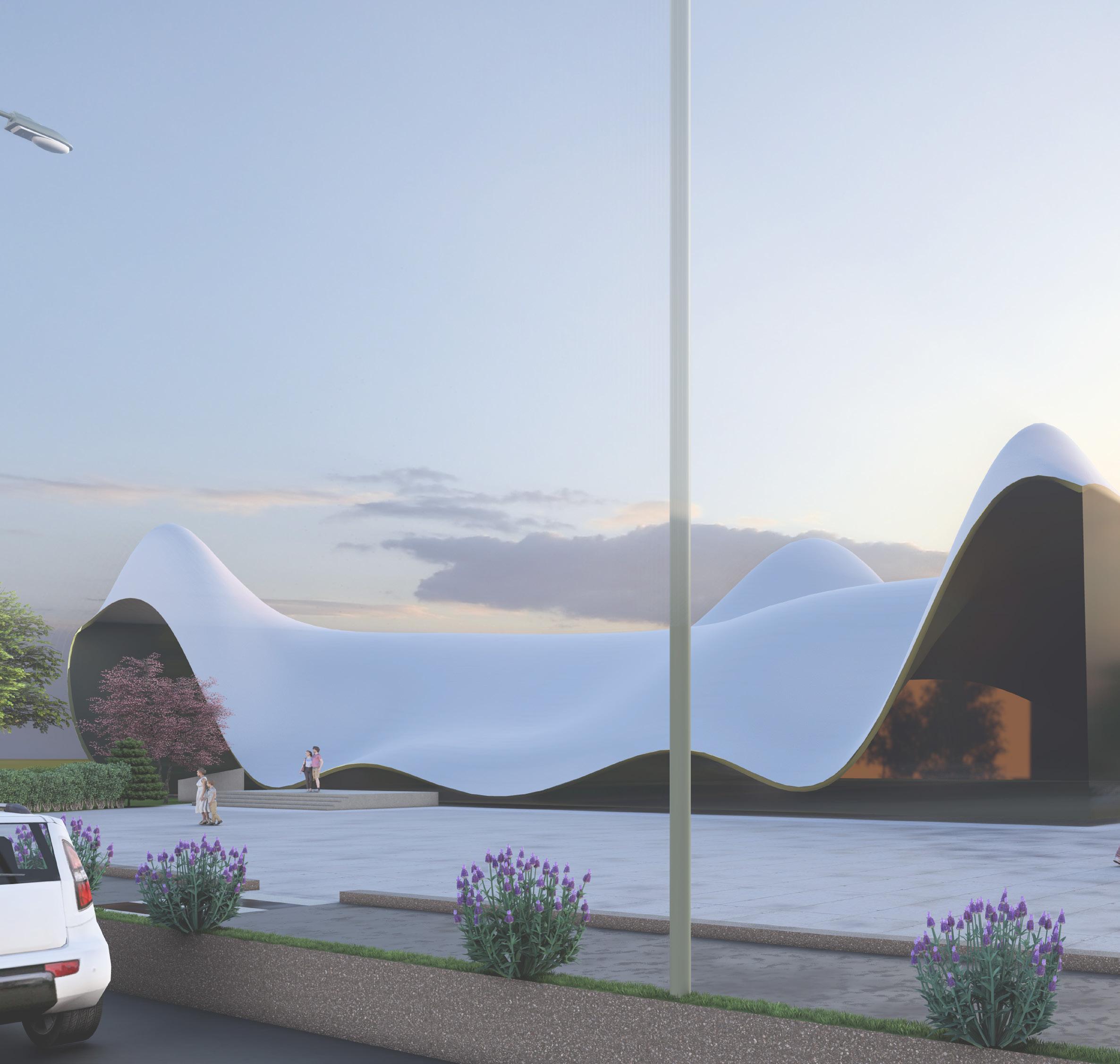

Promote and Runway Block

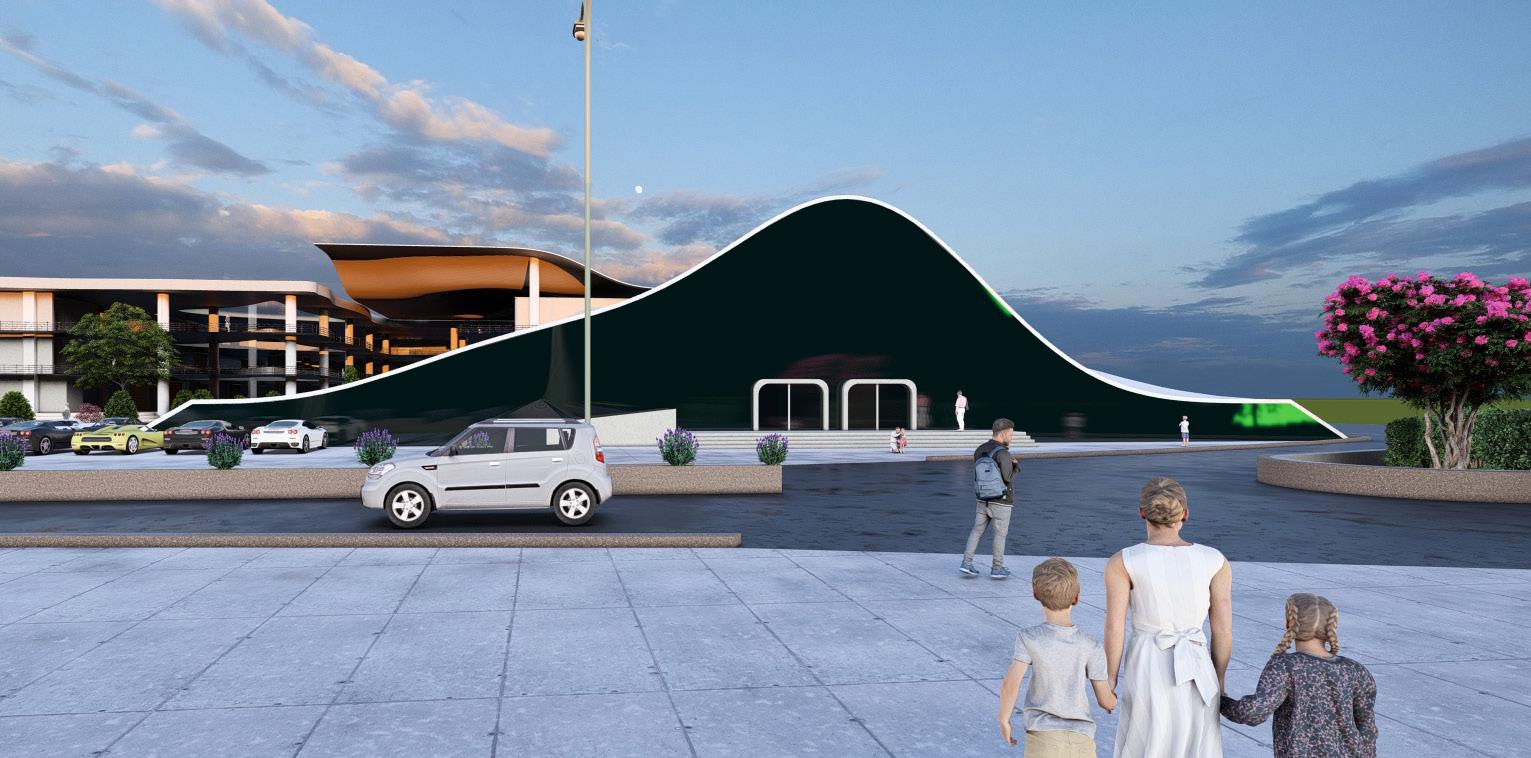

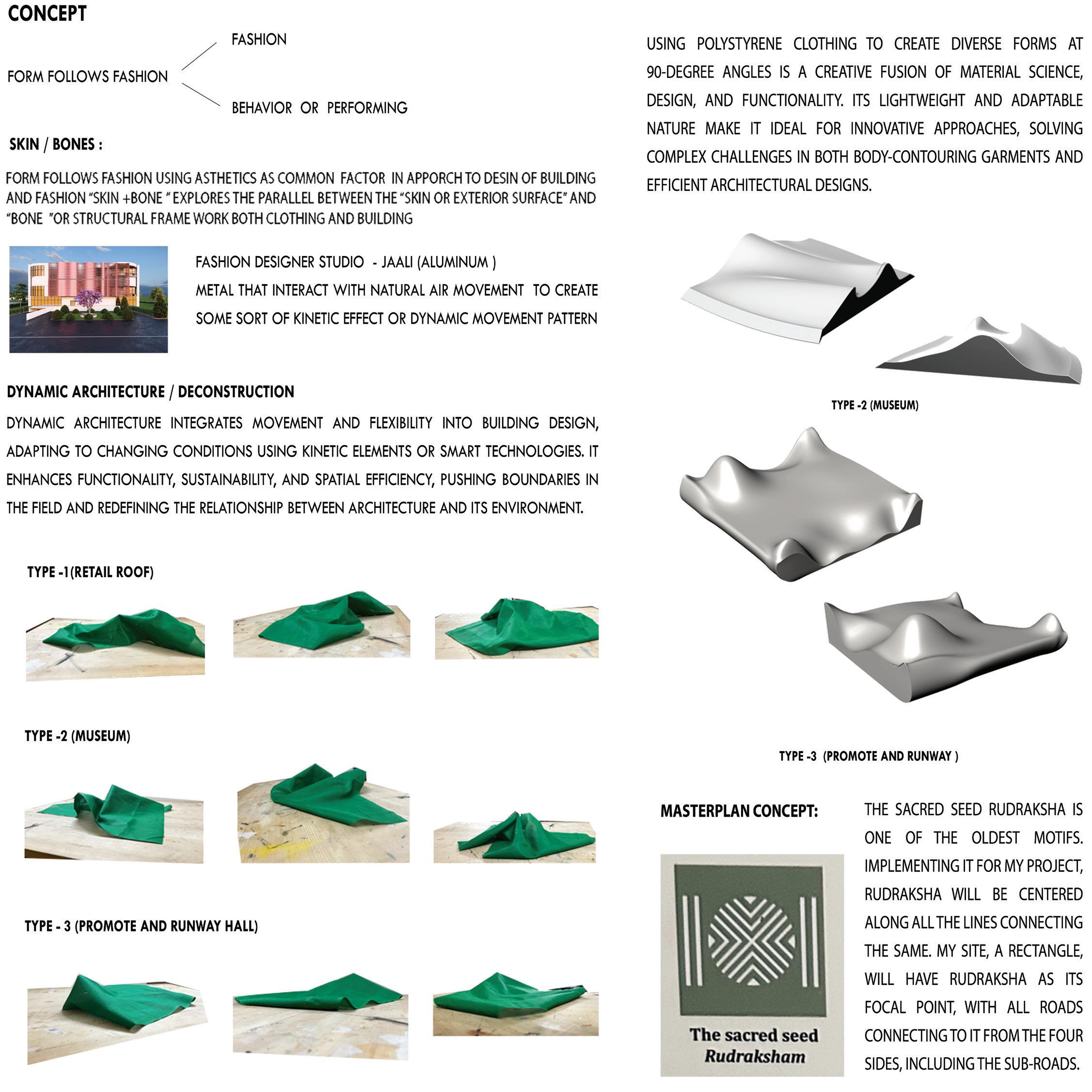

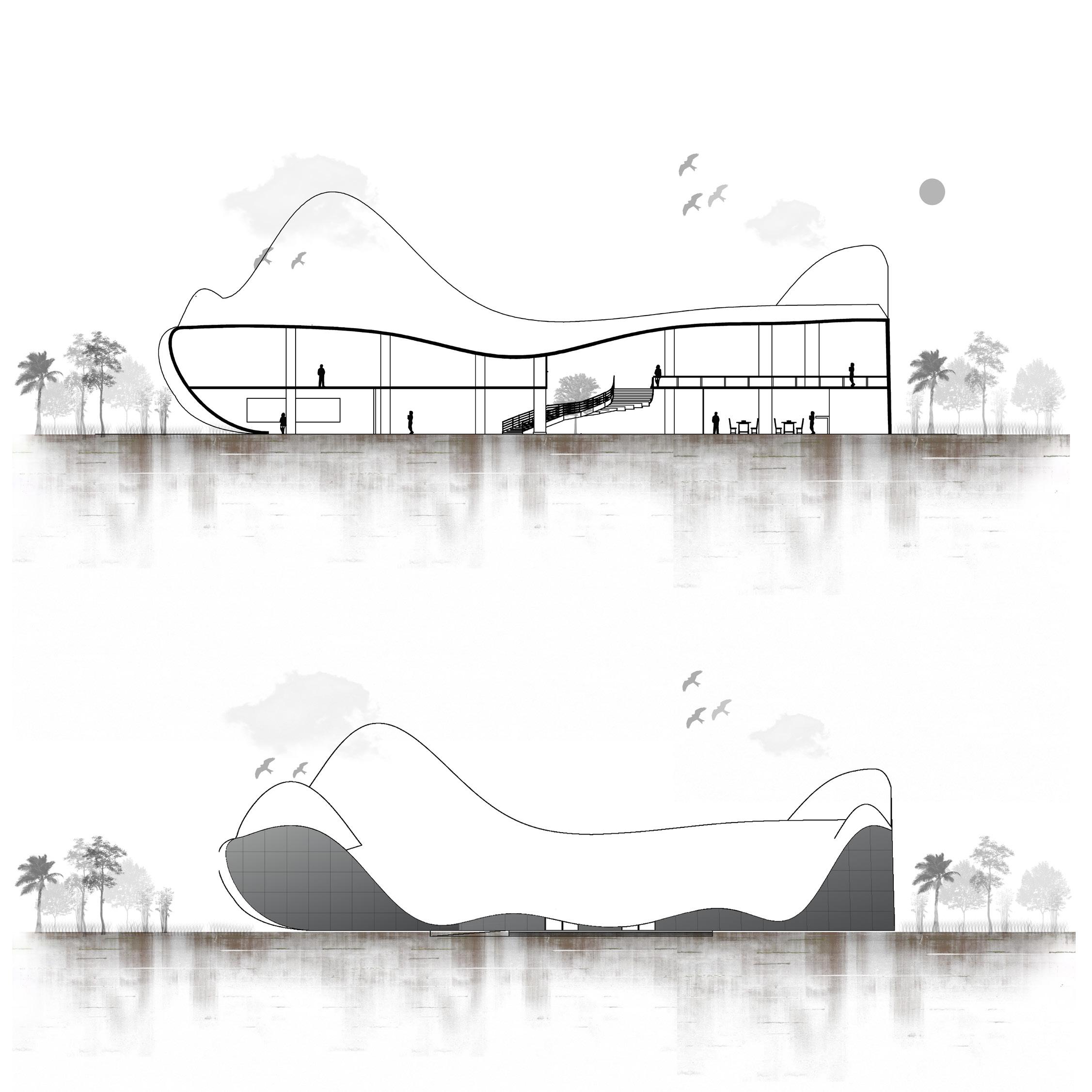

THE “PROMOTE AND RUNWAY HALL” IS A VENUE DESIGNED FOR FASHION SHOWS, PRIMARILY FOR MODELS. IT OFFERS ROOMS FOR PREPARATION. THE CONCEPT OF THE VENUE DRAWS INSPIRATION FROM ABSTRACT CLOTHING FORMS, WITH VARIOUS SHAPES AND SIZES.

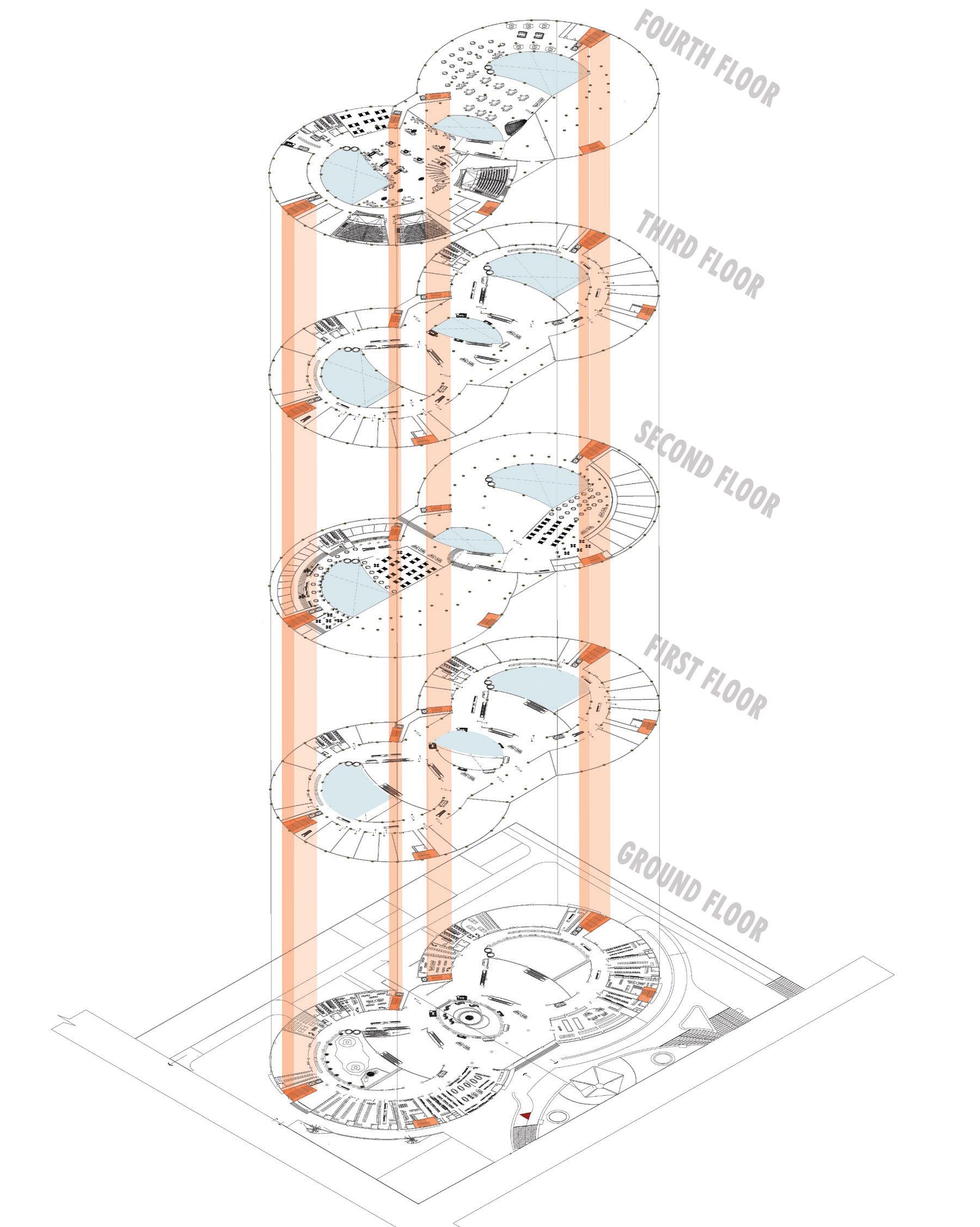

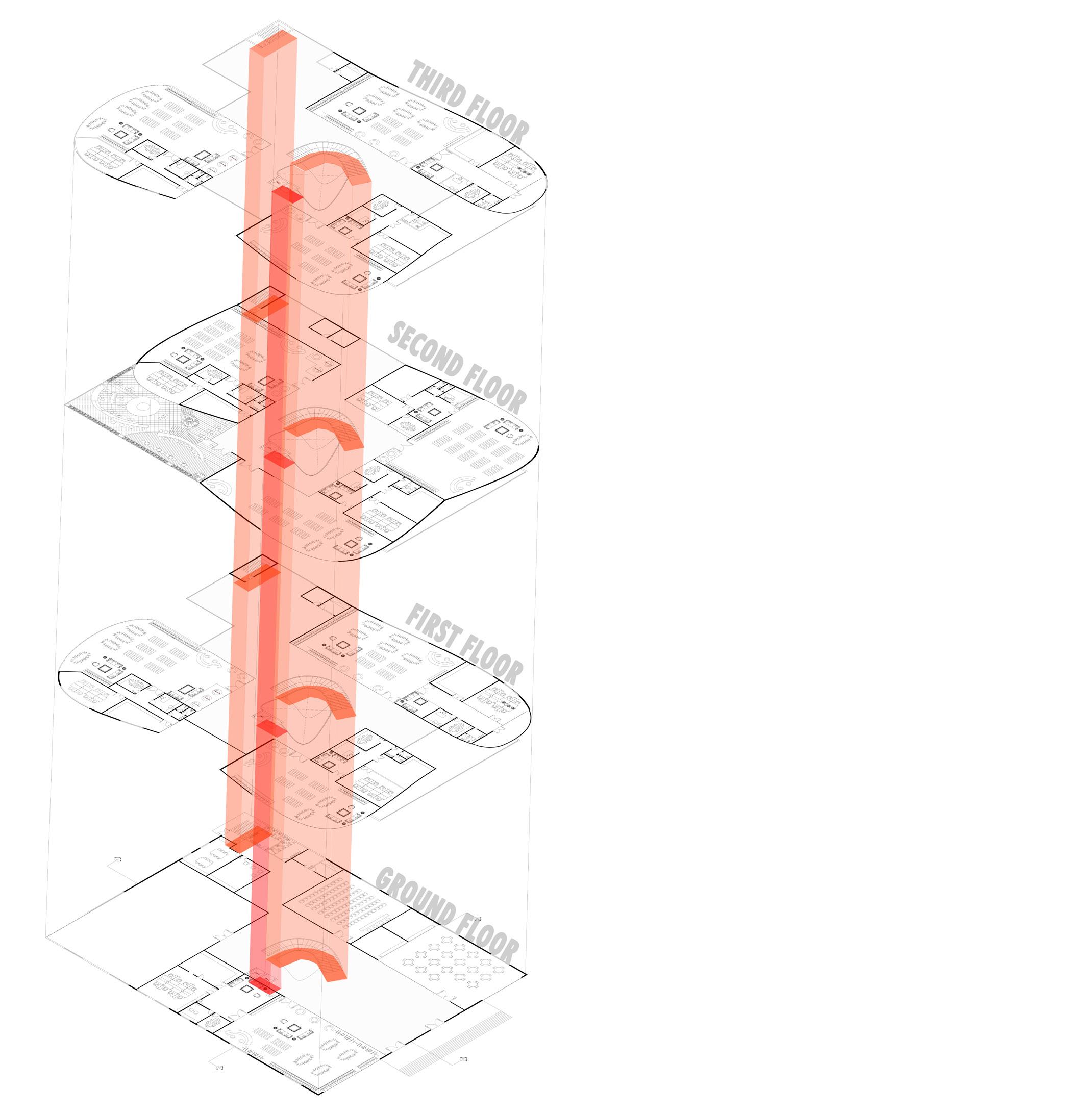

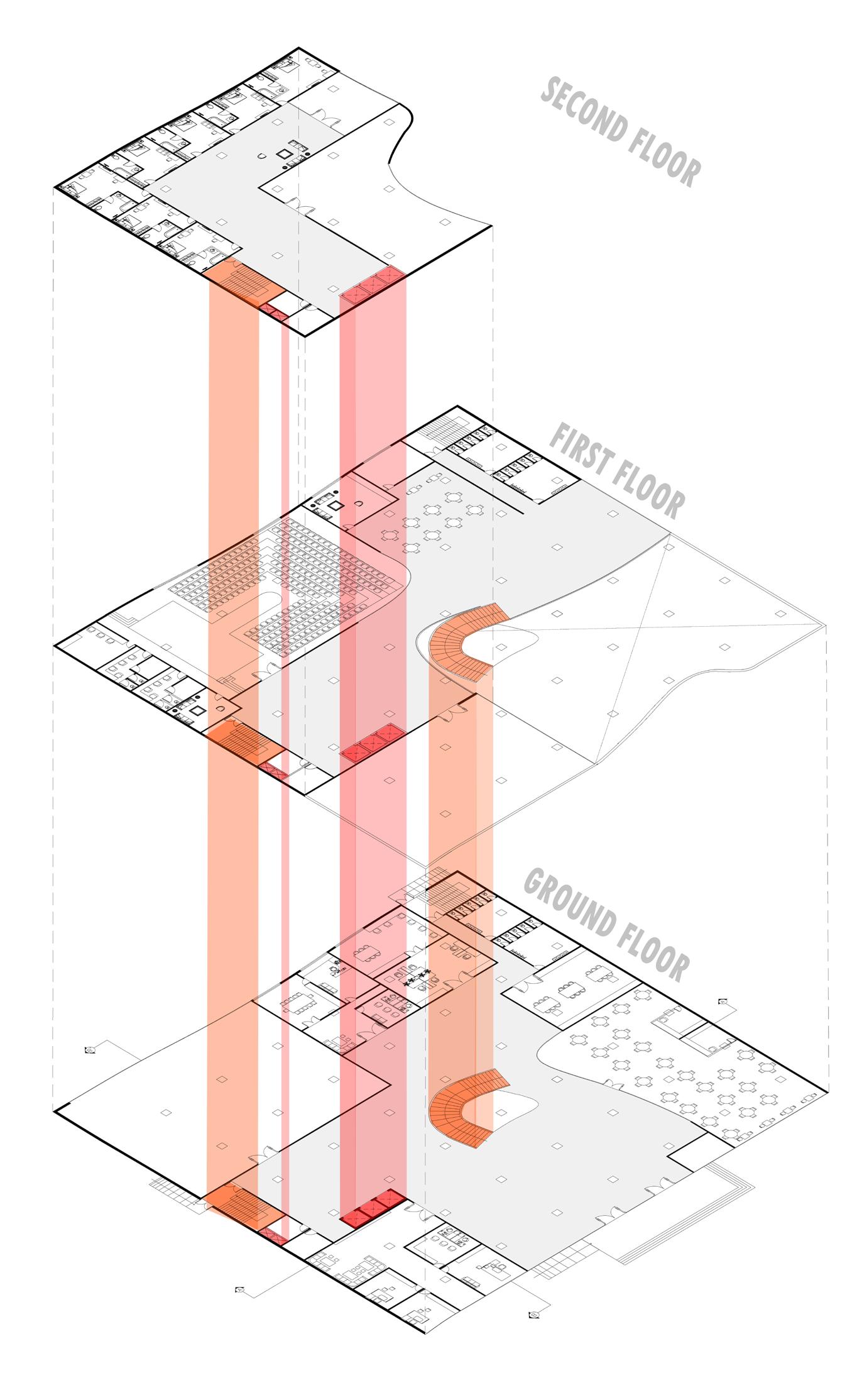

THE GROUND AND FIRST FLOORS SHARE A SIMILAR FLOOR PLATE DESIGN, WHILE THE SECOND FLOOR FEATURES A DIFFERENT LAYOUT. THE SECOND FLOOR IS NOTABLY DOUBLE IN HEIGHT COMPARED TO THE OTHERS, CREATING A DYNAMIC SPACE FOR SHOWCASING FASHION.
LEGENDS:
Medium shop
Large shop
Anchor shop

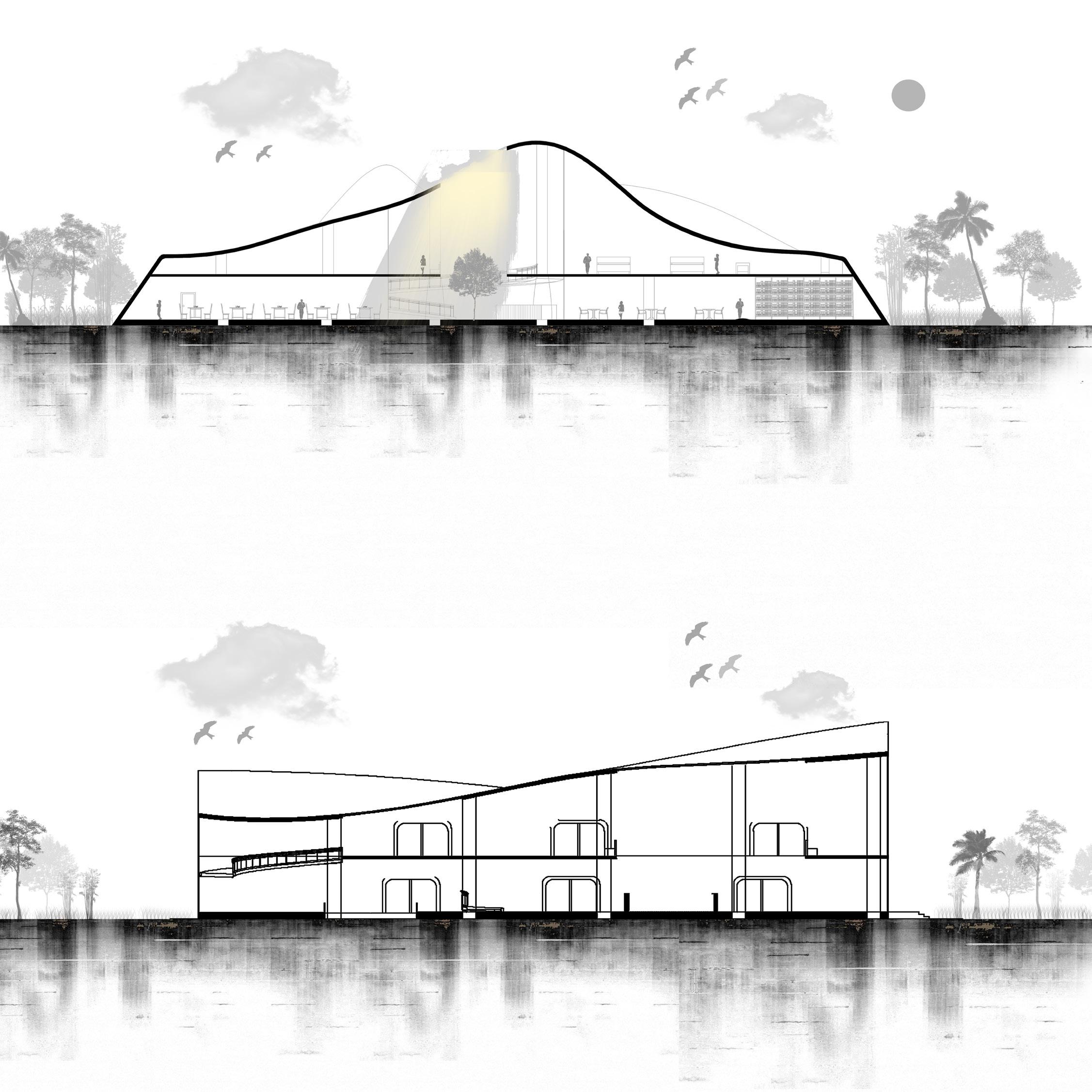

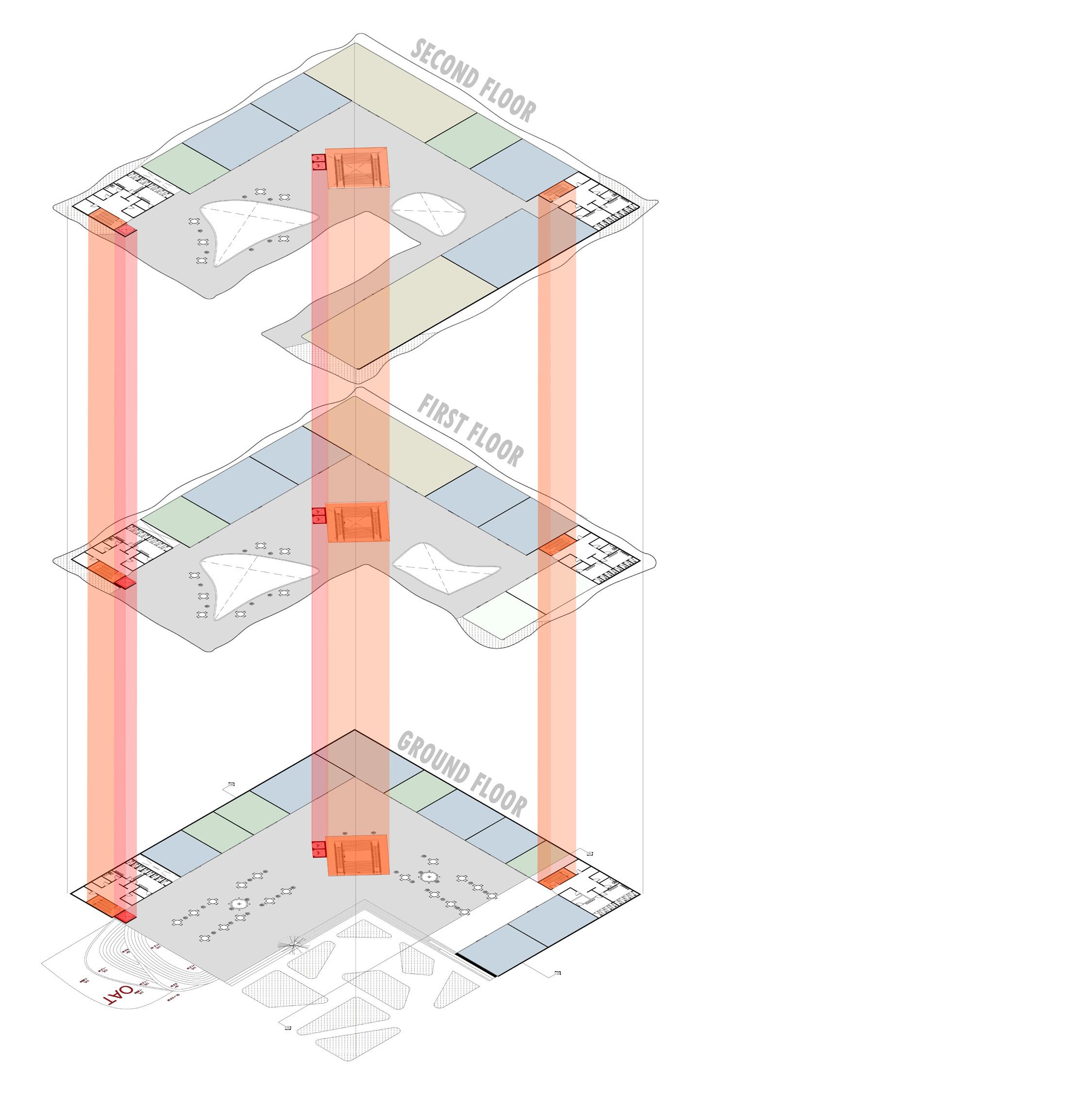

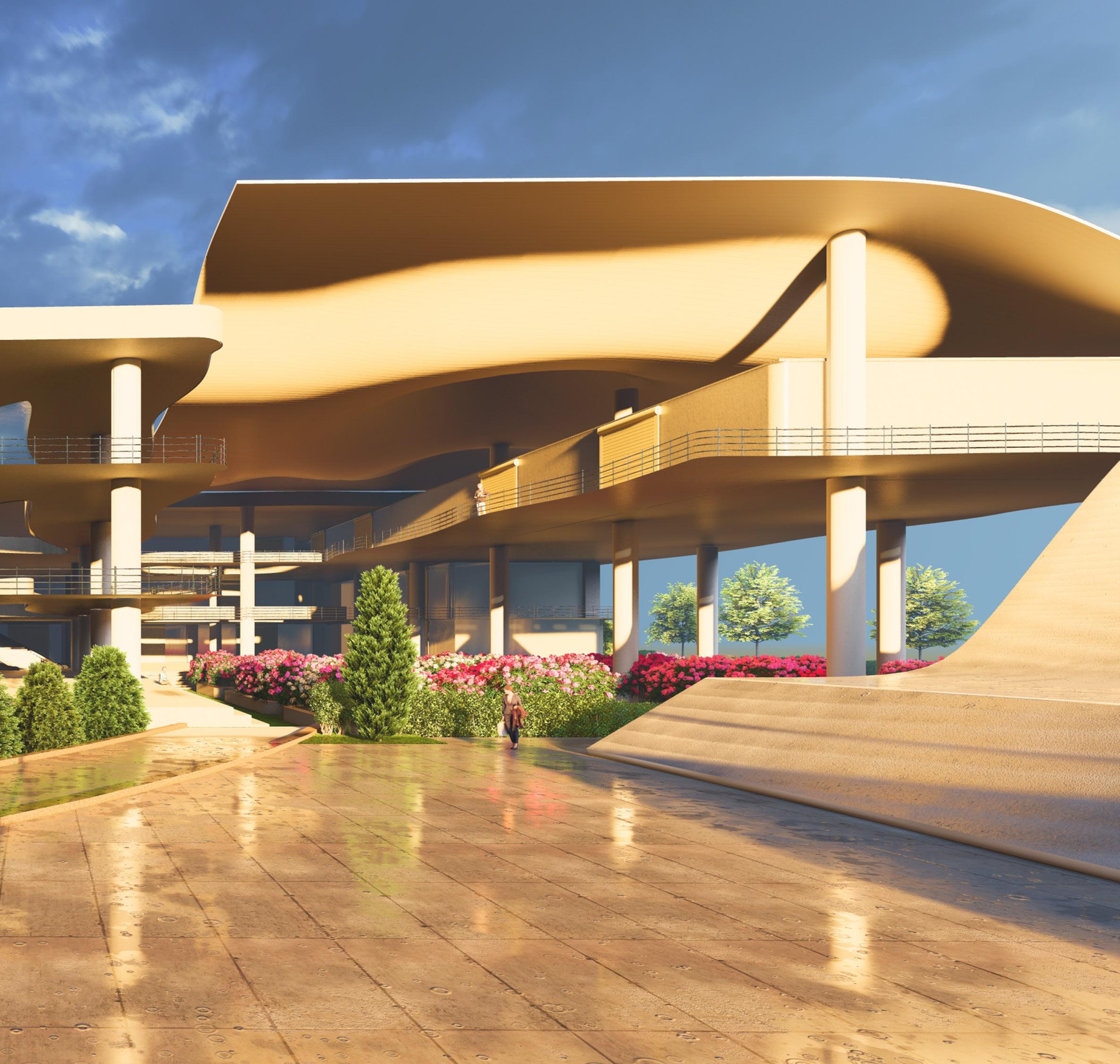

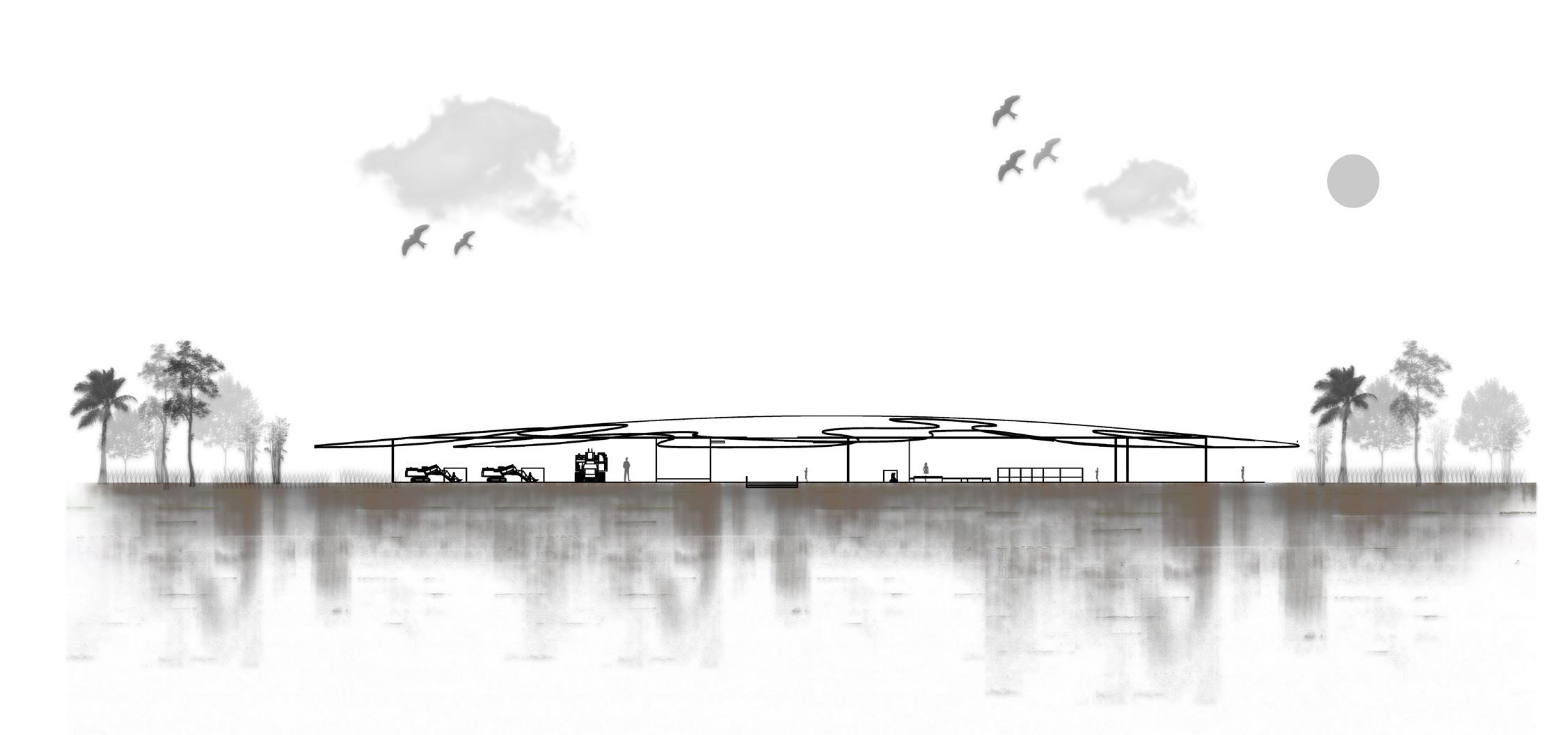

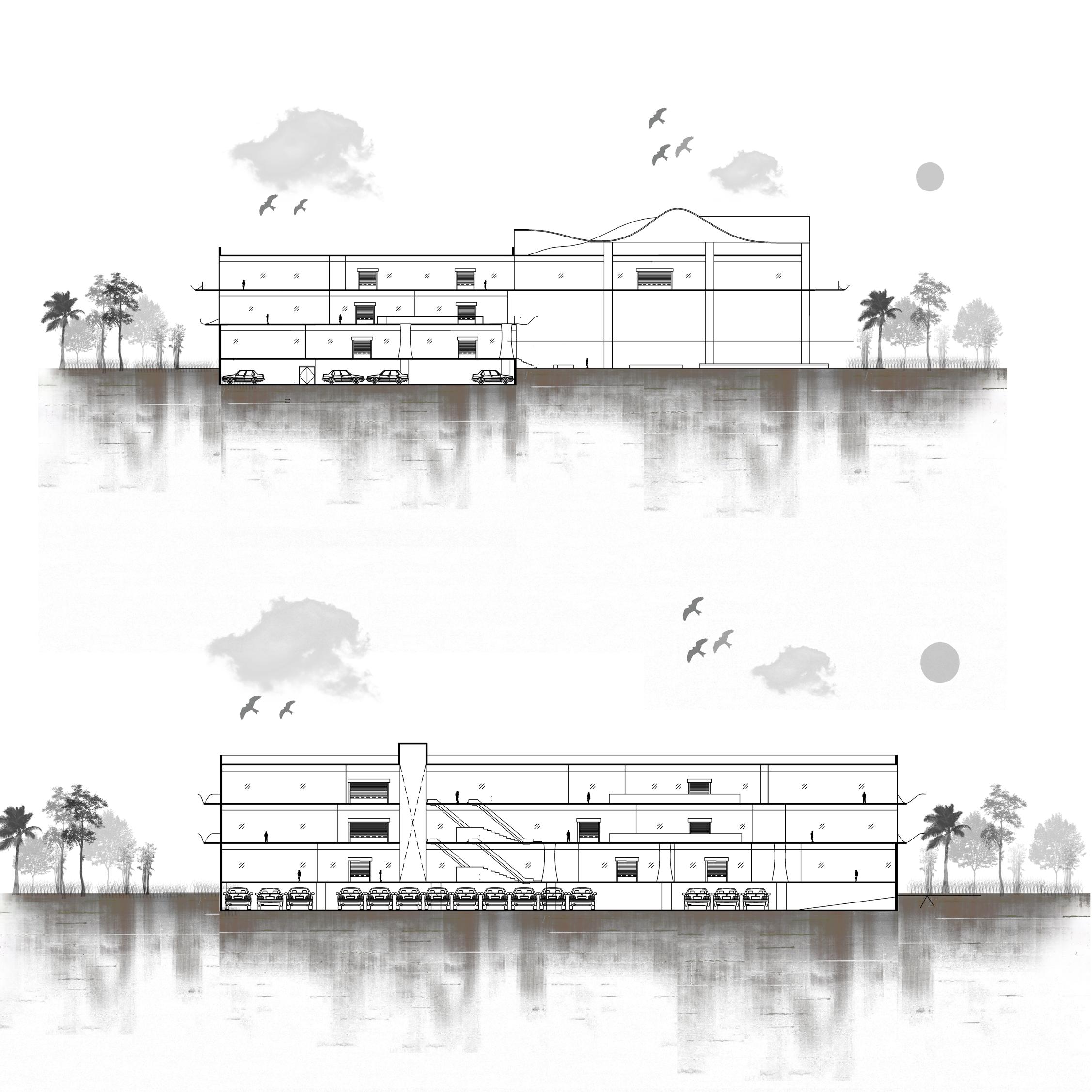

THE CONCEPT DIVIDES THE RETAIL BLOCK INTO FOUR PHASES, WITH ONE DEDICATED TO LANDSCAPING AND THE OTHER THREE TO RETAIL. THE GROUND FLOOR WILL BE OPEN ON ALL SIDES, TAKING INSPIRATION FROM SECTOR 17. THE TOP ROOF WILL FEATURE A CLOTH ABSTRACT, RESEMBLING A TENSILE STRUCTURE. THERE WILL BE THREE TYPES OF SHOPS: LARGER, SMALLER, AND ANCHOR. STAIRS WILL SERVE AS GRAND FOCAL POINTS IN THE PLAN, AND ALL FLOORS WILL HAVE CORRIDORS TO FACILITATE NATURAL VENTILATION.

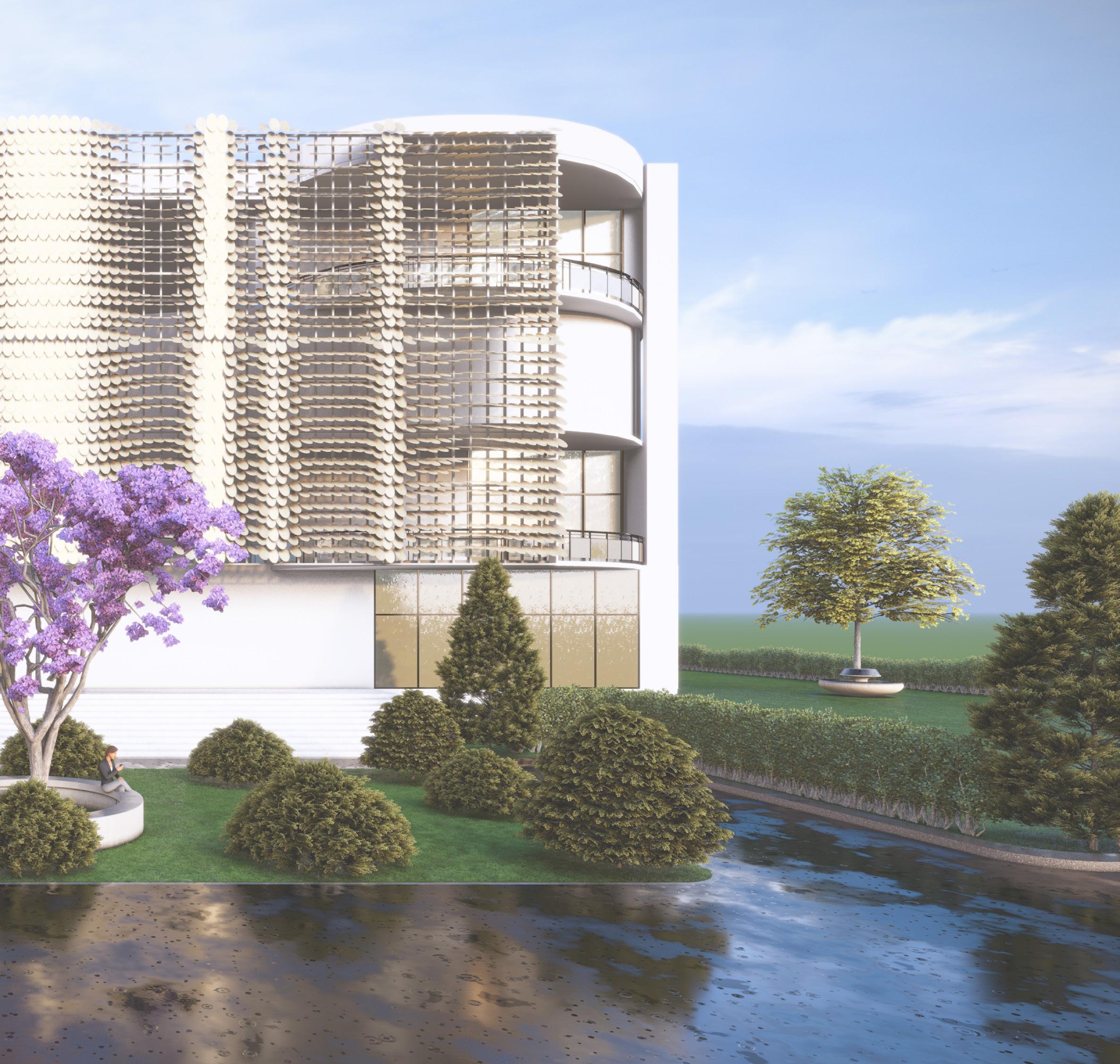

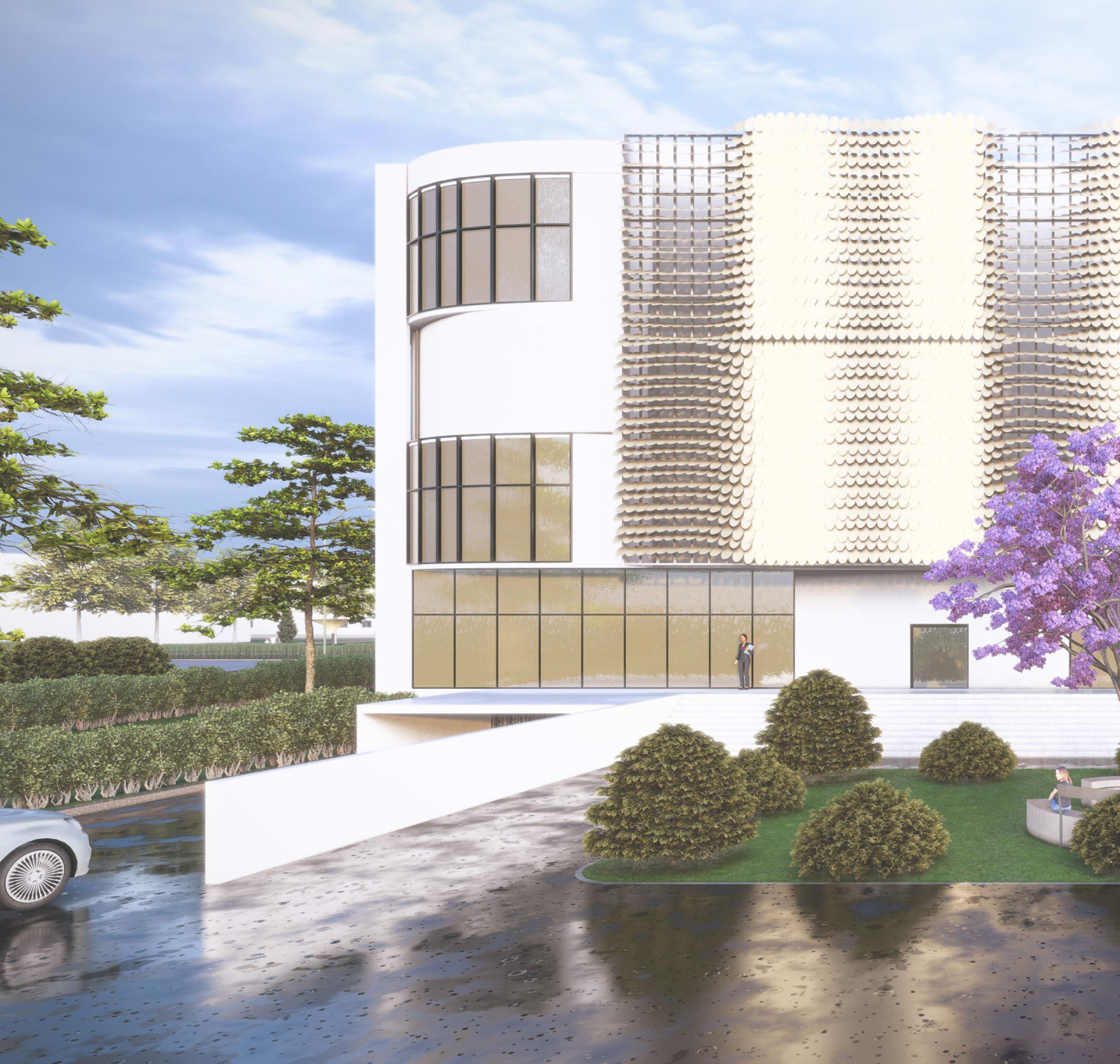

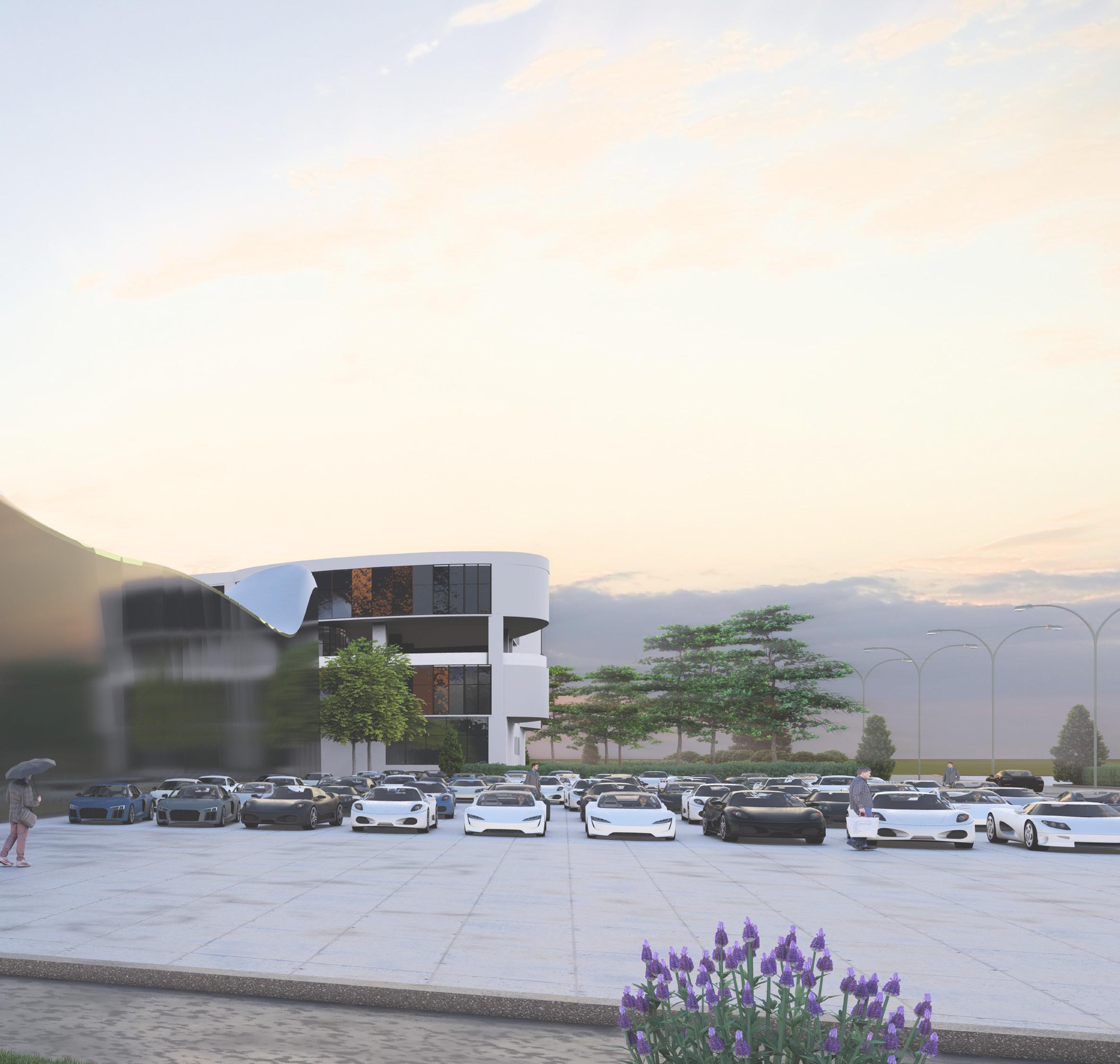

Fashion Design Studio
The floor plate will feature an irregular, amoeba-shaped layout, with a central lobby connecting a permanent exhibition hall and a versatile, naturally-lit multipurpose hall. Toilet facilities will be located at the end of the floor plate. The design will comply with building codes to ensure safety and functionality, providing visitors with an immersive experience of contemporary architecture.
Ground

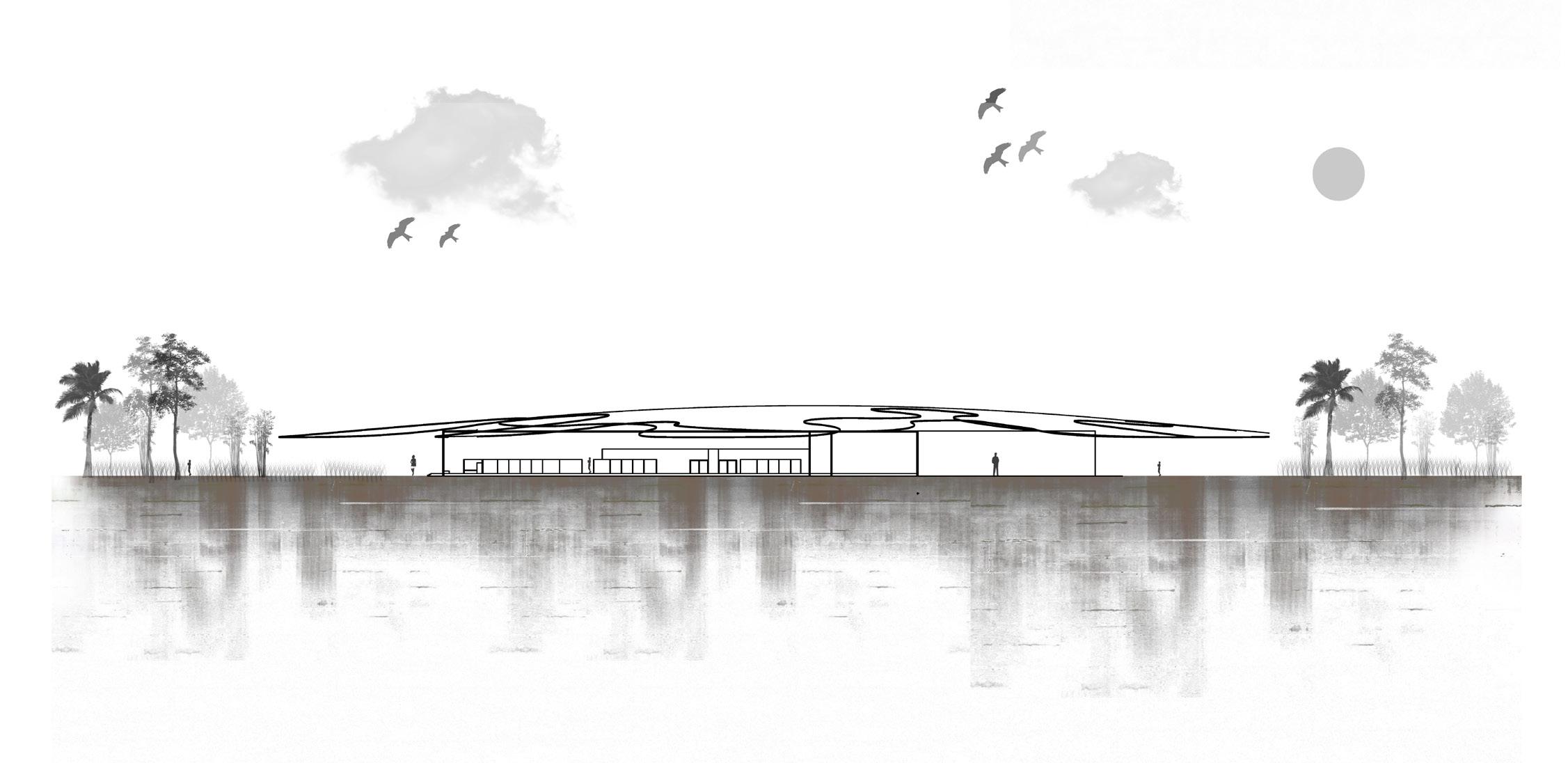

02 EXHIBITION CENTRE
Building Typology: Commercial Building
Location: Foreshore Estate, Chennai
Site Area: 25.16 acres

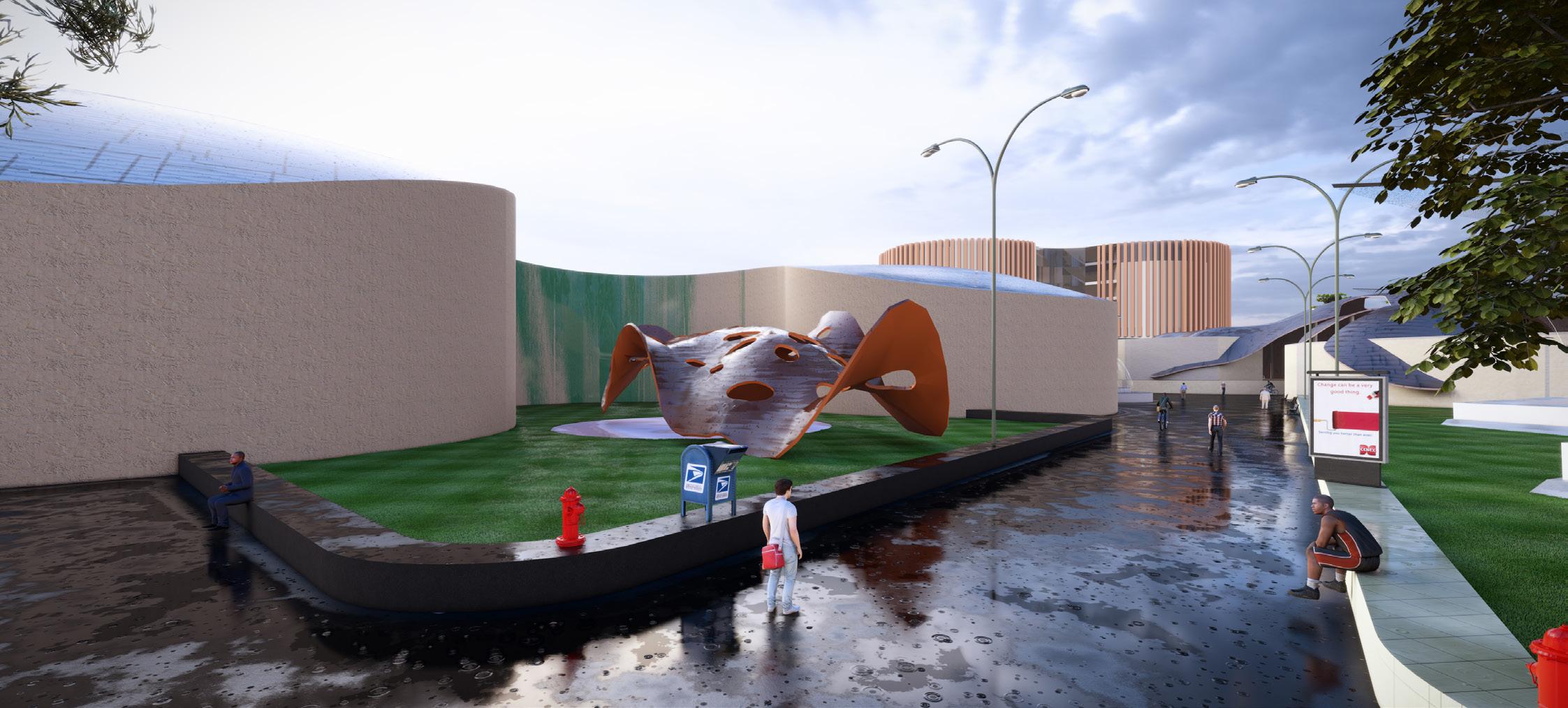

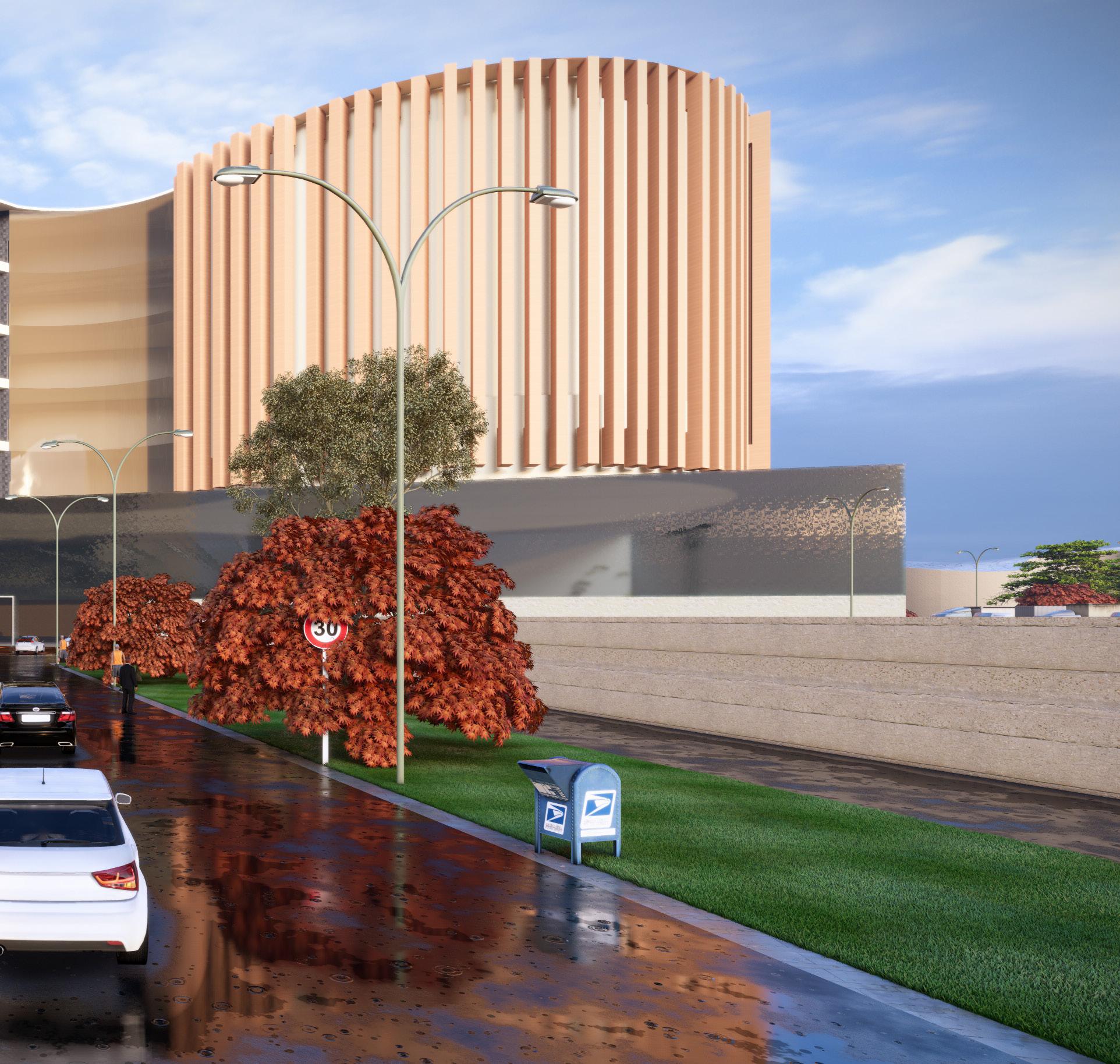

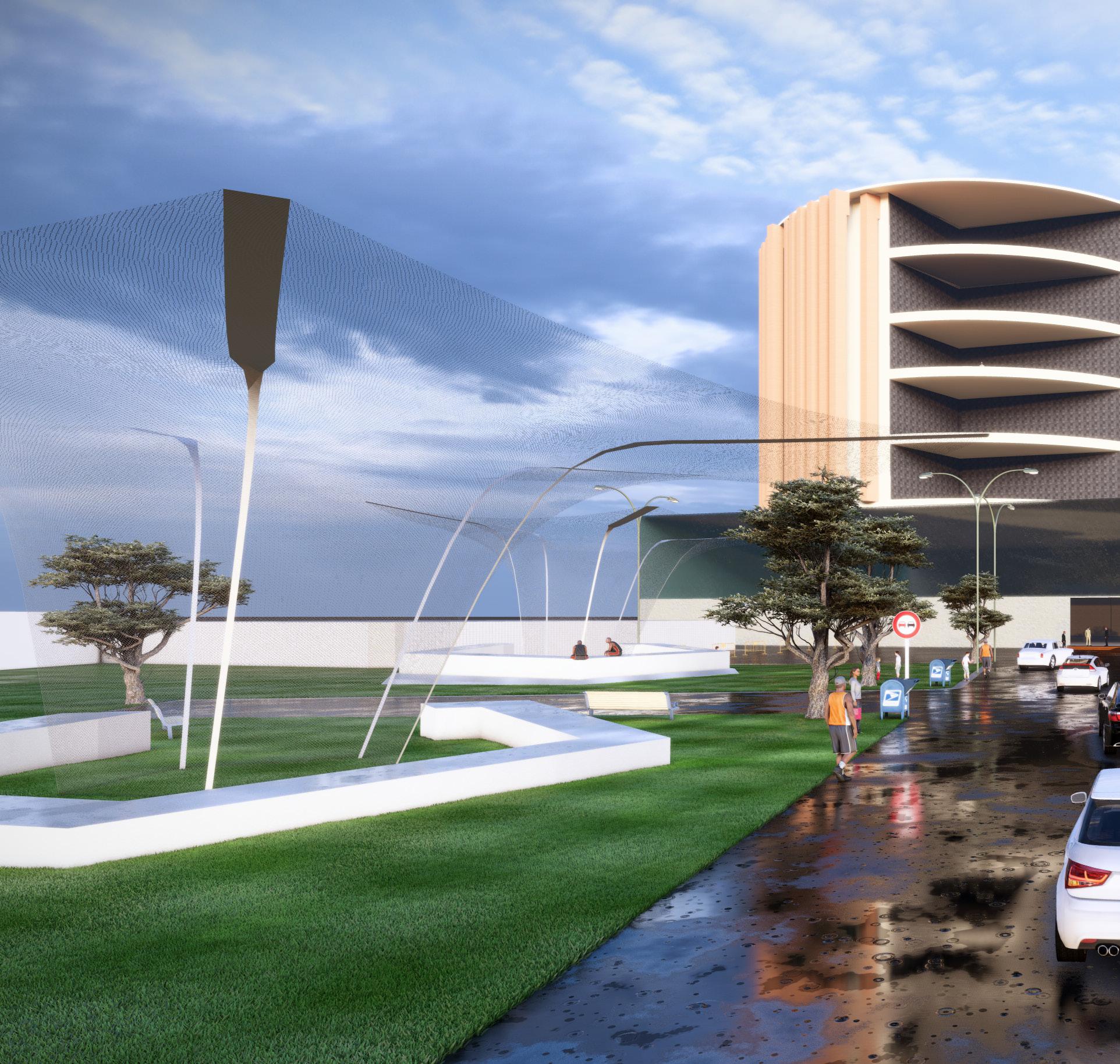

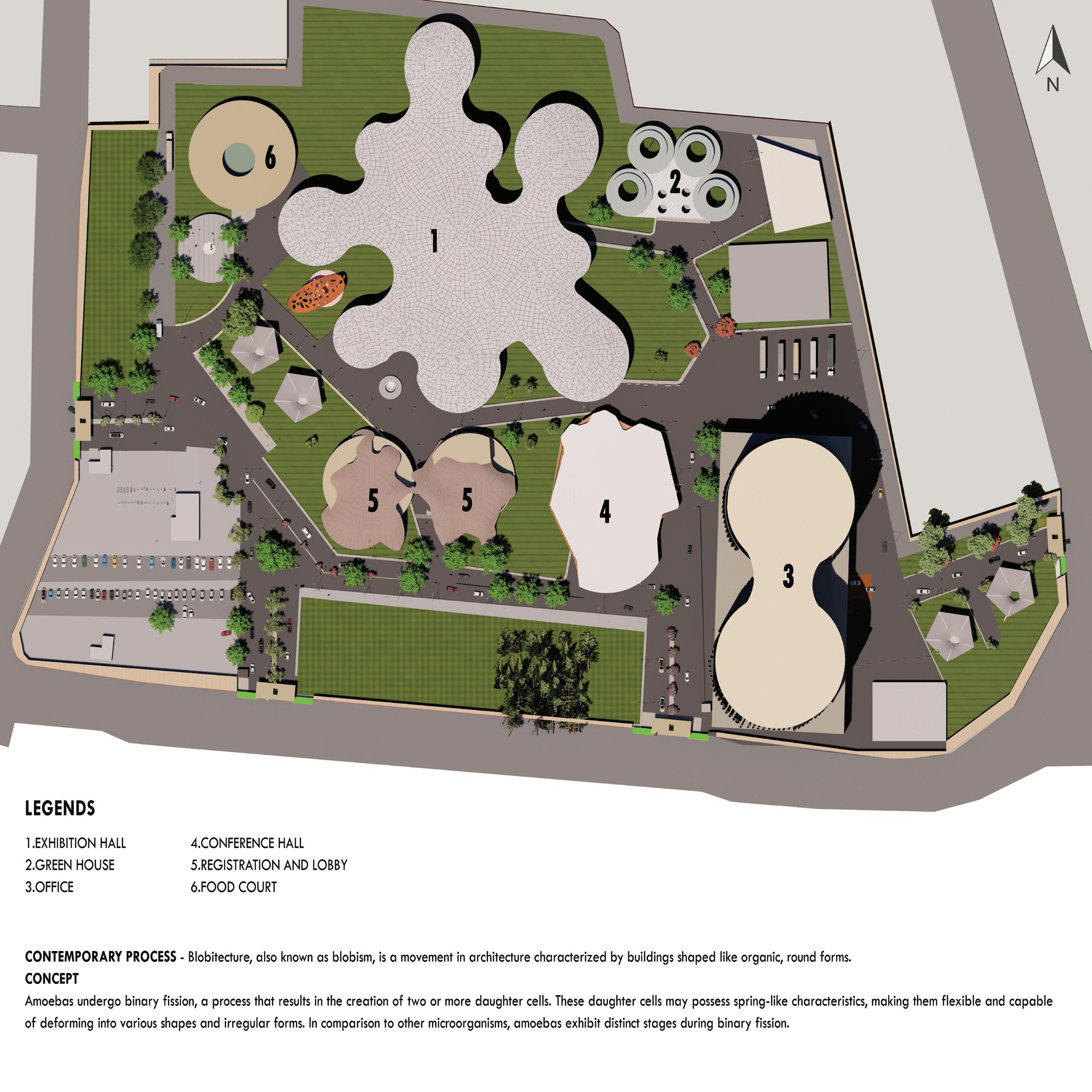

This project aims to embody Chennai’s identity, promoting social, cultural, and economic activities. It seeks to revitalize an iconic architectural landmark to attract tourism, investors, traders, and other business activities. Proposed by Tamil Nadu’s Housing and Urban Development. The goal is to establish a landmark for business and tourism, featuring a mixeduse development with amenities like a convention center, exhibition spaces, hospitality services, offices, and a horticulture convention center.

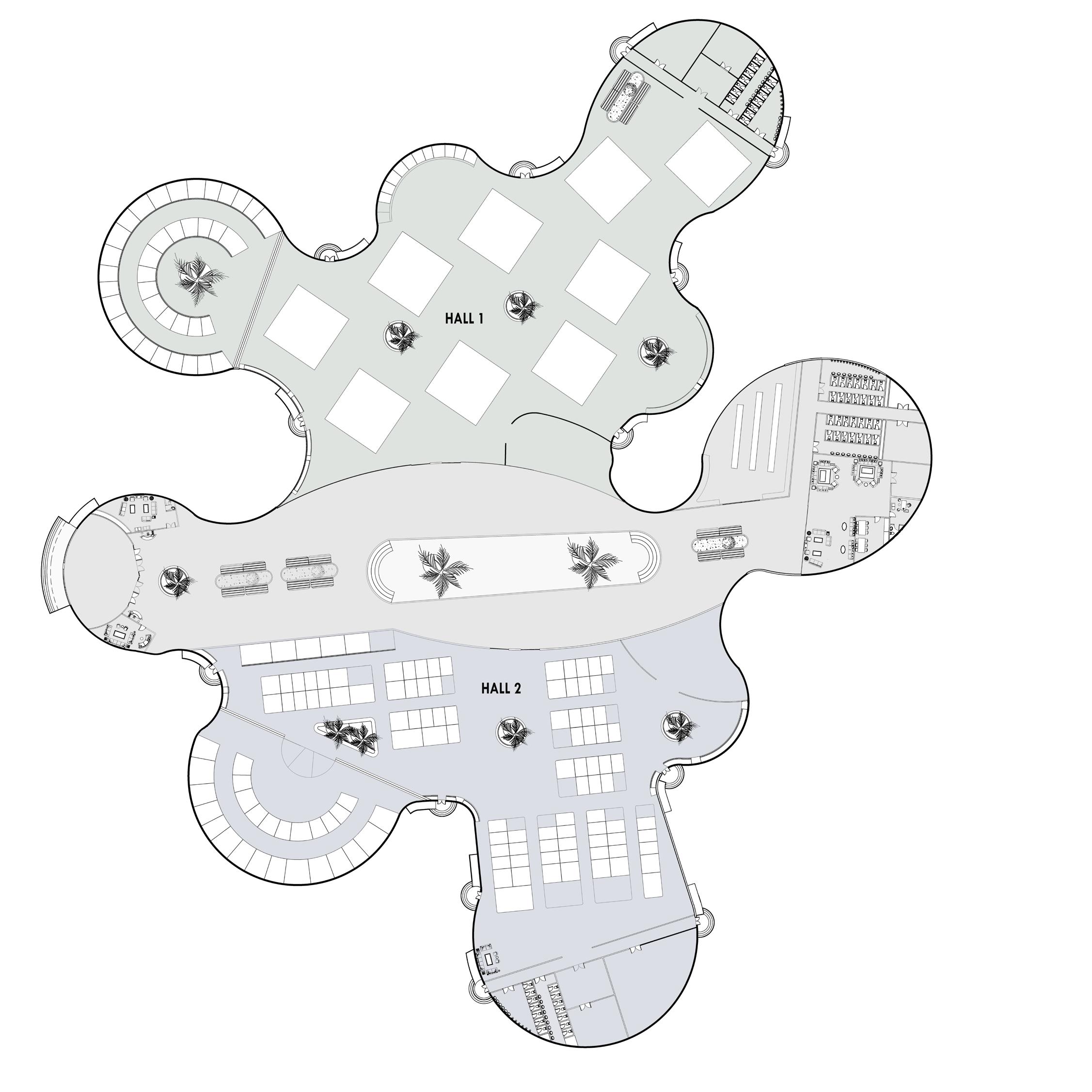

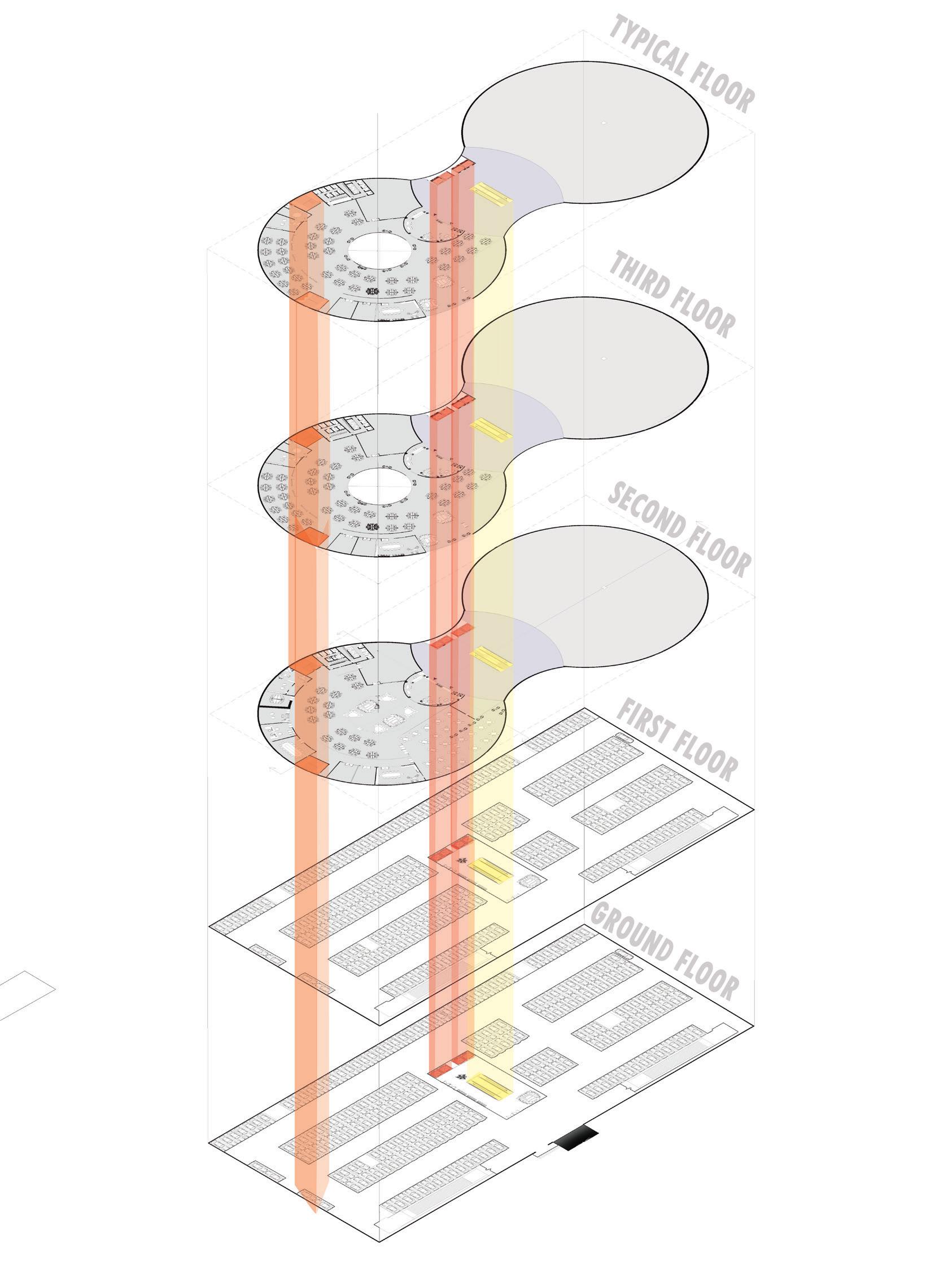

The floor plate will feature an irregular, amoeba-shaped layout, with a central lobby connecting a permanent exhibition hall and a versatile, naturally-lit multipurpose hall. Toilet facilities will be located at the end of the floor plate. The design will comply with building codes to ensure safety and functionality, providing visitors with an immersive experience of contemporary architecture.

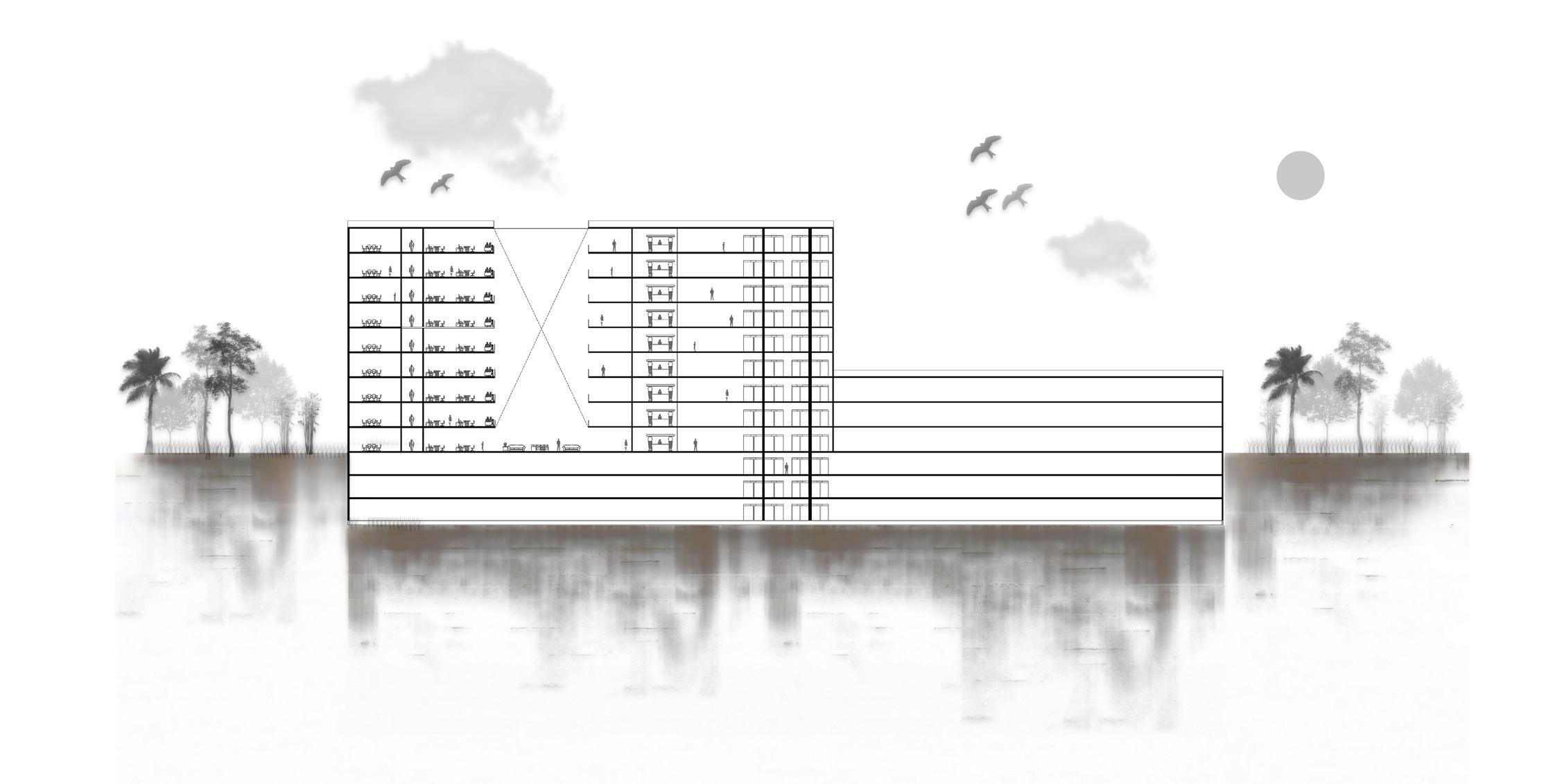

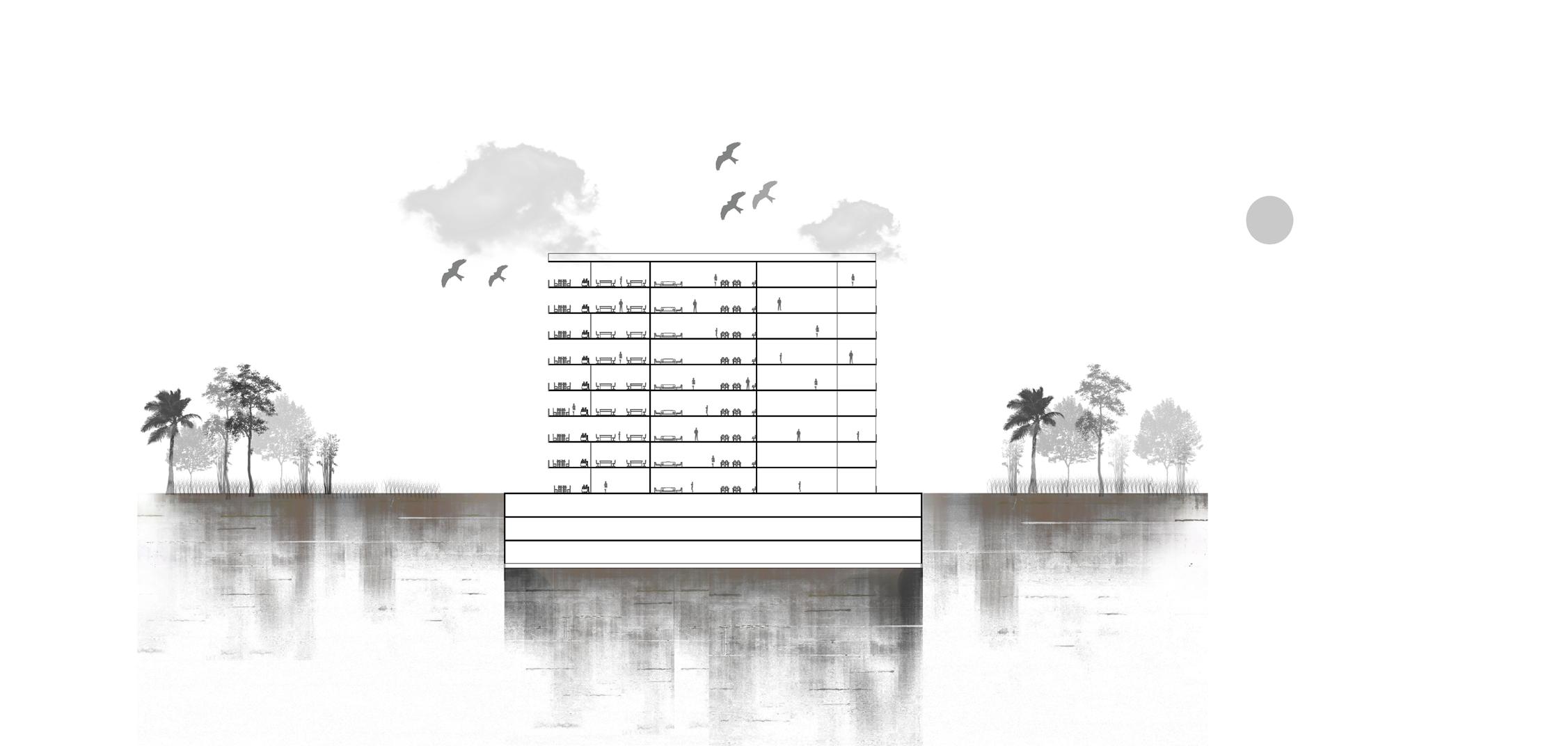

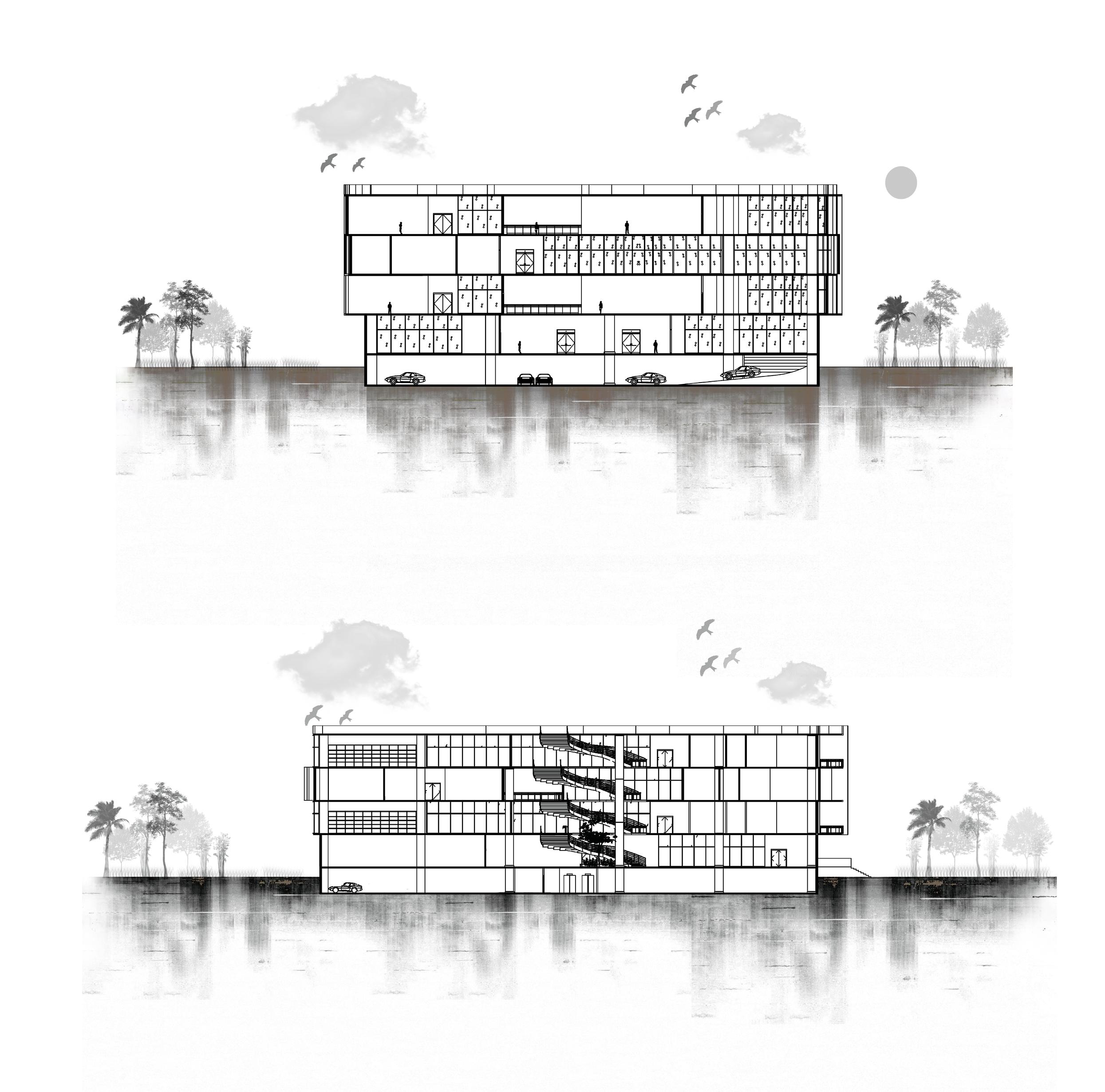

The first three floors will be planned for multi-surface parking. Above these, there will be floors for offices and organic farming, each designed appropriately for its purpose. The central core will serve as the main connection for all floors.

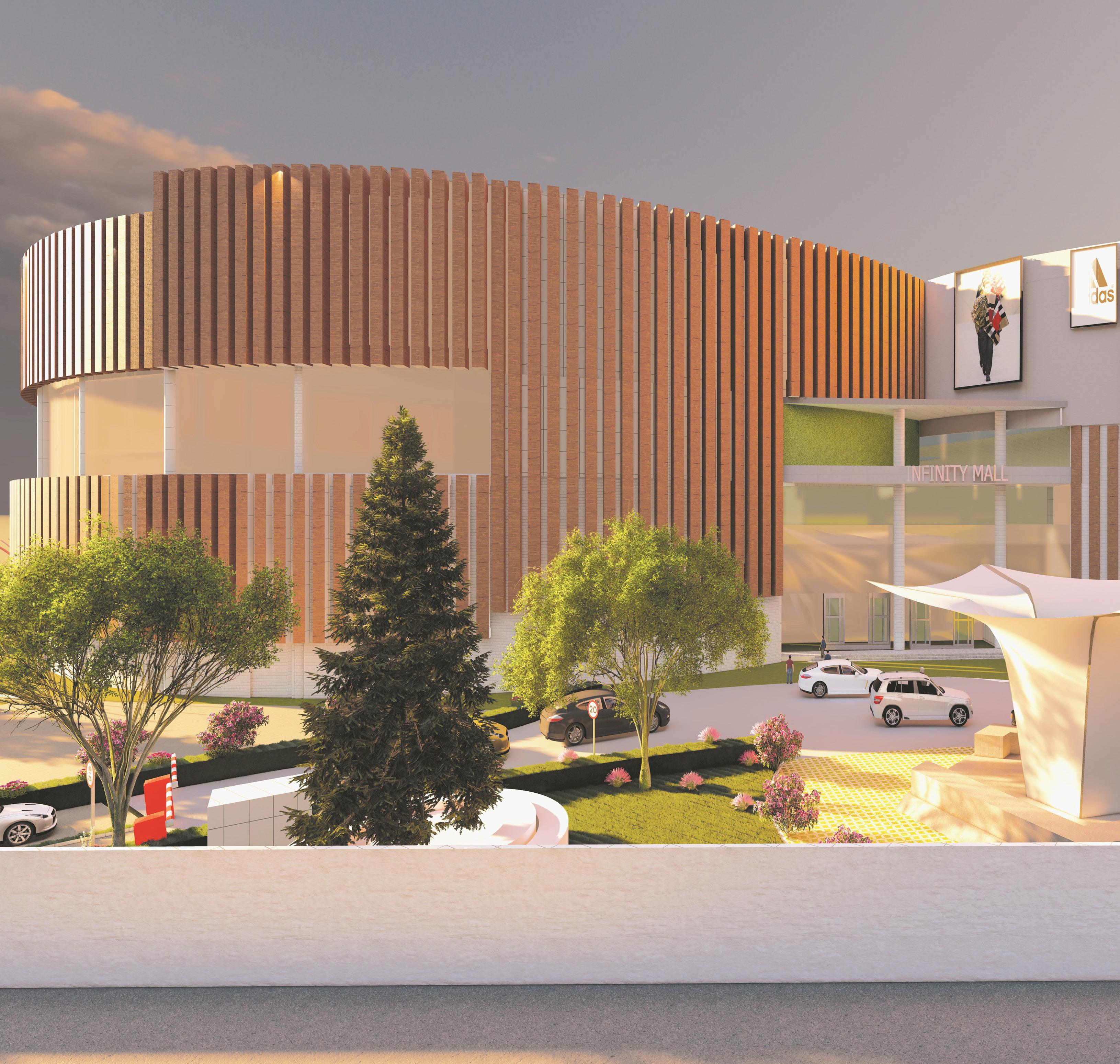

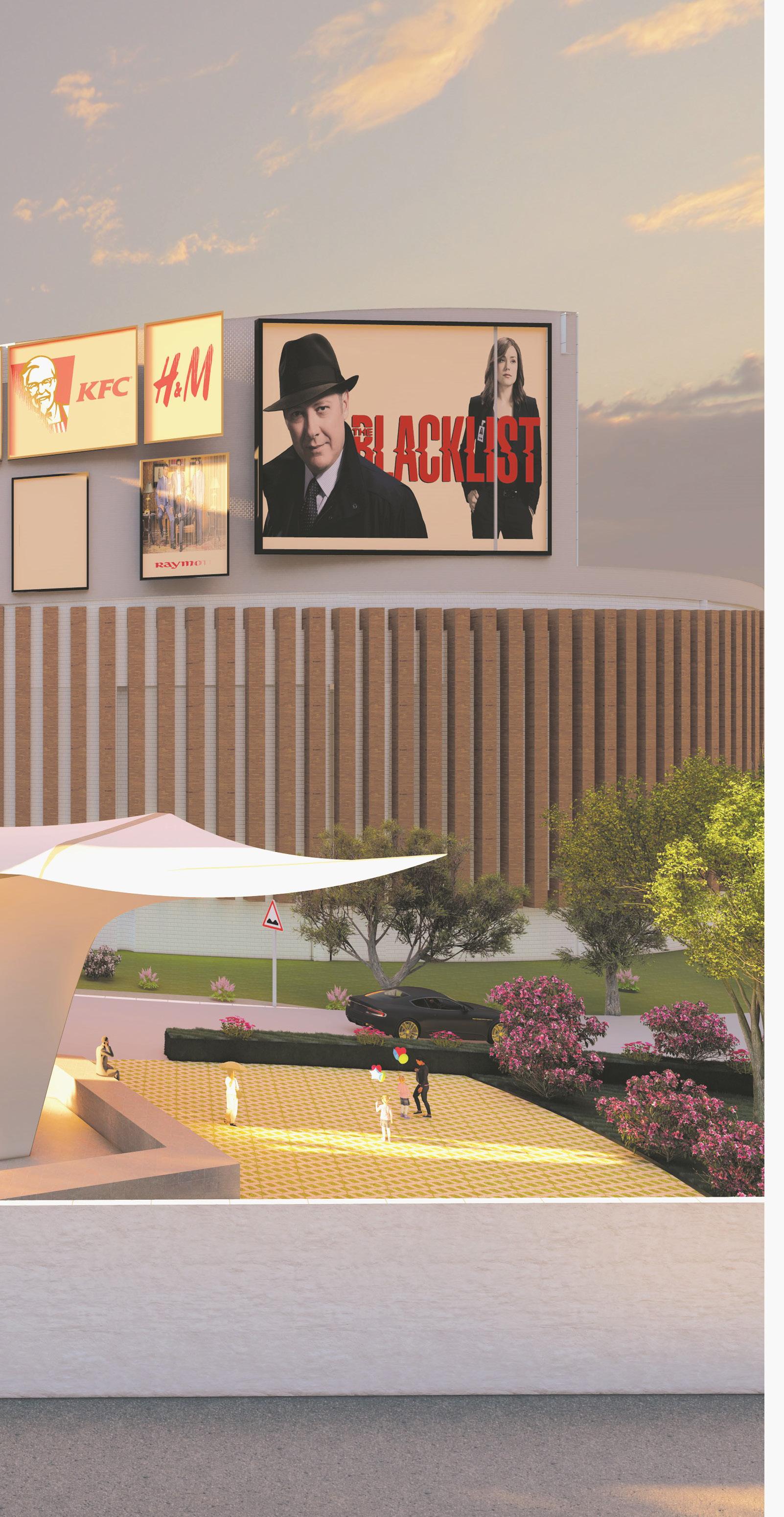

03 SHOPPING MALL
Building Typology: Commercial Building
Location: Perambur, Chennai
Site Area: 8.5 acres
Mall offer a very productive use of space by combining multiple uses within a single tower, adding vitality to urban areas. Mixed-use facilities are a viable design solution in terms of various environmental concerns, effective land management, and economy, while also bringing socially interactive opportunities.It enable people to live, work, play, and shop in one place. This approach allows for the sharing of infrastructure, utilities, and public amenities.

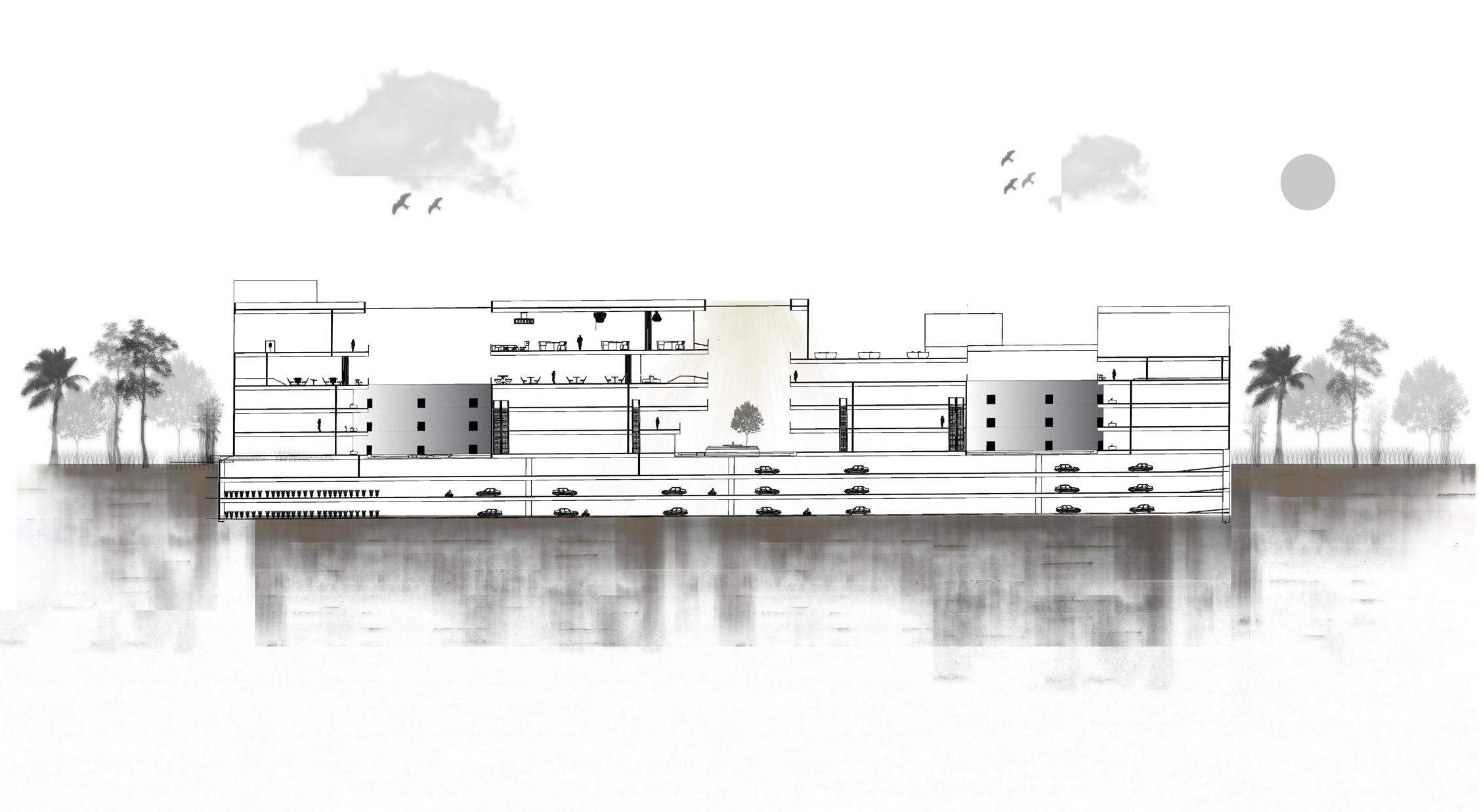

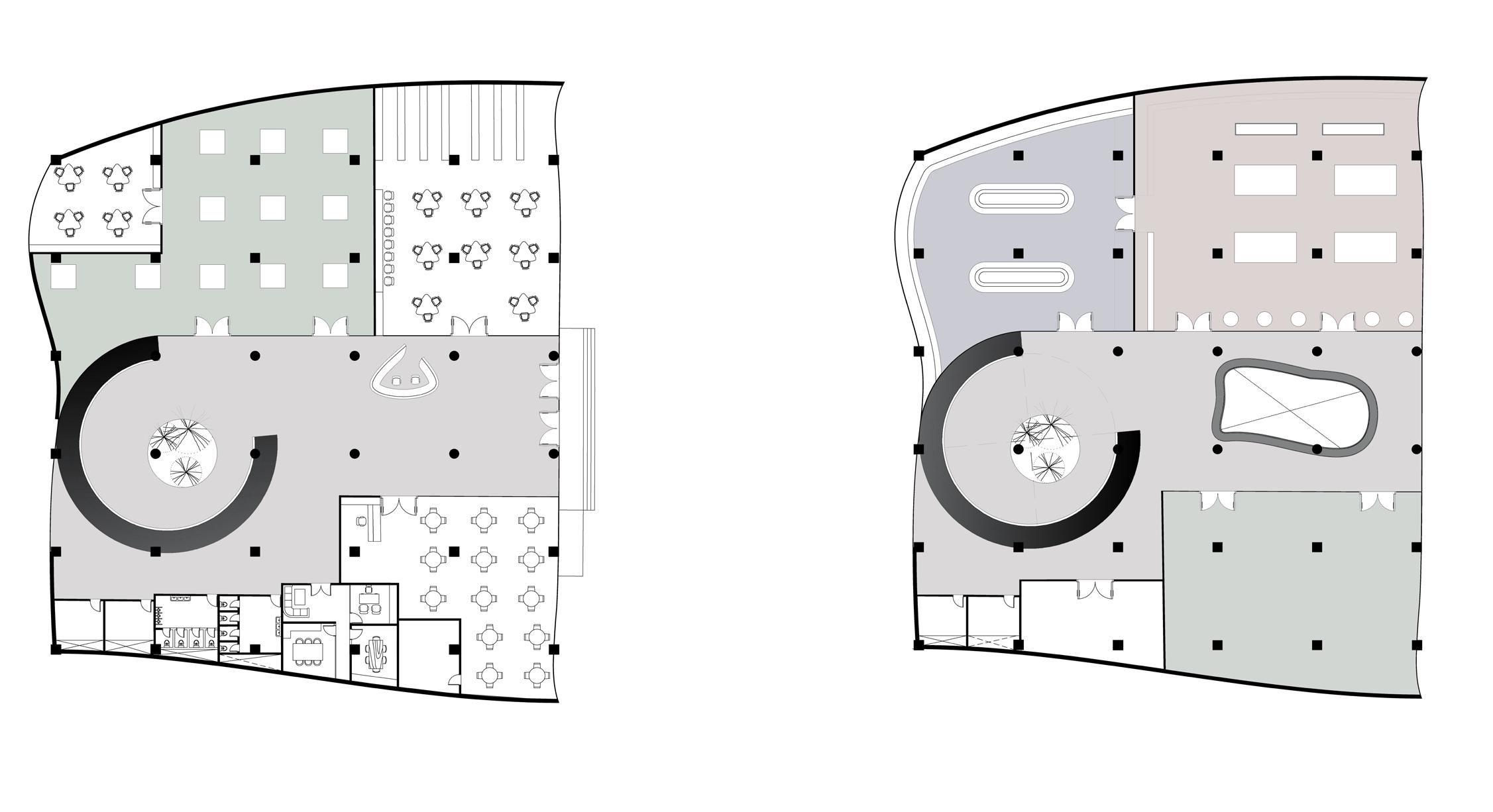

The lower ground floor is allocated for parking and a supermarket, with easy access. The ground floor includes a lobby and an anchor shop, other shops, and a food court. The first and second floors are similar, with a central elevator connecting to the third floor. The third floor features an atrium and socializing area. A ramp connects the third and fourth floors. The fourth floor includes a multiplex cinema, refuge areas, and a rooftop cinema, with service lifts and stairs throughout the building for convenience.
DAV GROUPS
DAV ASHRAM - PONDICHERRY
CLIENT: MR. MINOO AGARWAL
TYPOLOGY: INSTITUTION
SITE AREA: 68000SQM

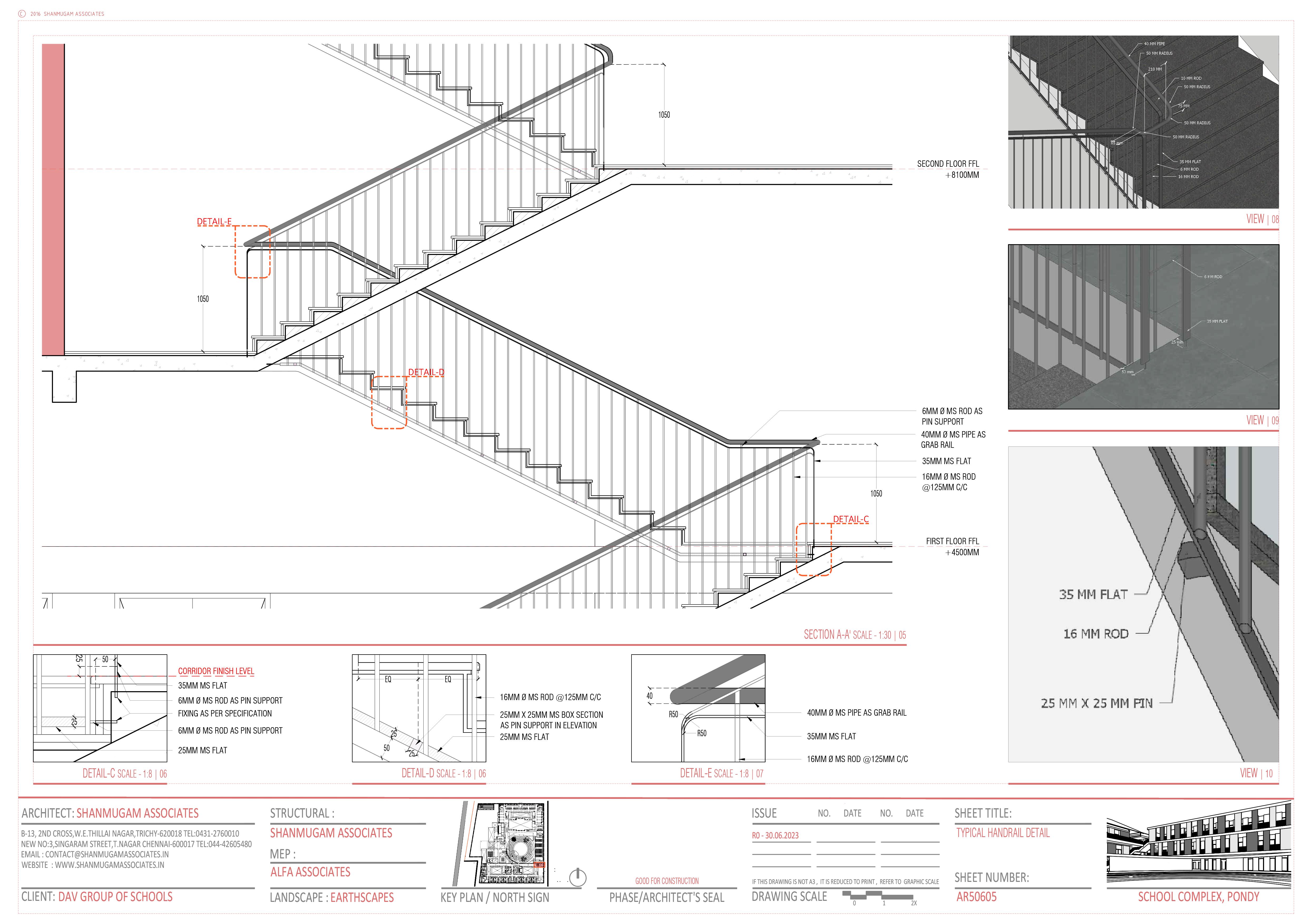

SCOPE OF WORK : DETAIL DRAWING
PLANNING : DAV SCHOOL PLANNED AS FOUR BLOCK SEPERATED IN FOUR DIREC-
TIONEACH CARRYING A RESPECTIVE FUNCTION CONNECTED BY OAT AS GATHERING SPACE .
SCOPE OF WORK : DETAIL DRAWING WEST BLOCK - ENTRY AND ADMINISTRATION
EAST BLOCK - MAIN DINNING AND CAMP DORM
NORTH BLOCK -DORMITORY
SOUTH BLOCK - STUDIO APPARTMENTS
SHANMUGAM ASSOIATES

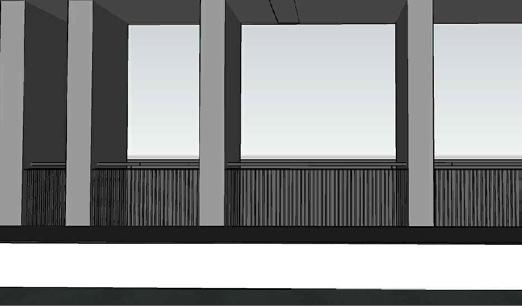

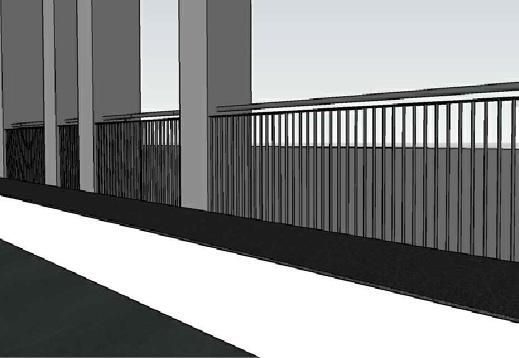

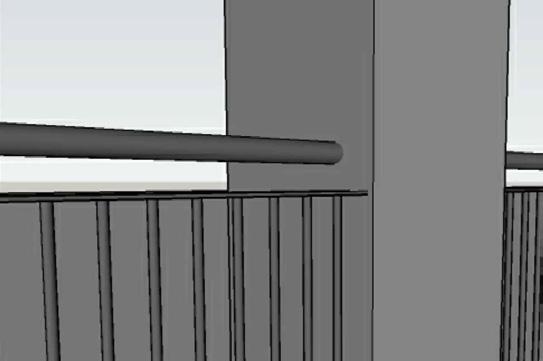

COLUMN IN
BRICK MASONRY
GRANITE SKIRTING

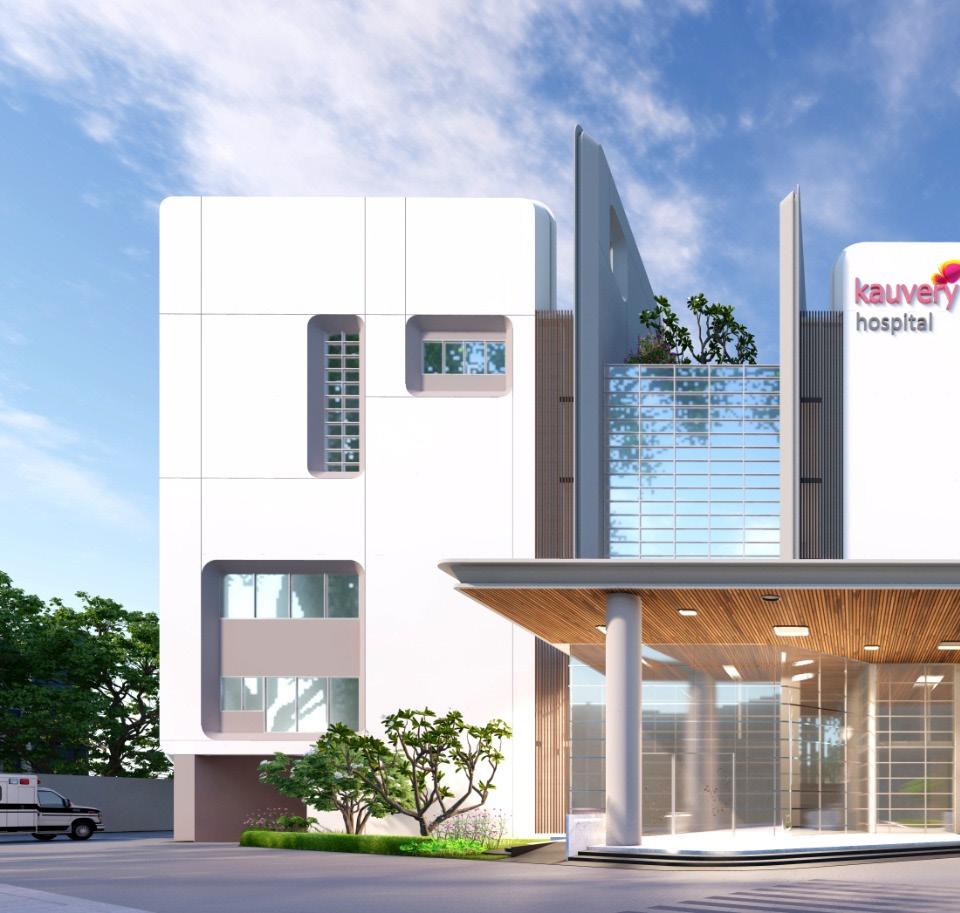

SHANMUGAM ASSOIATES KAUVERY GROUPS

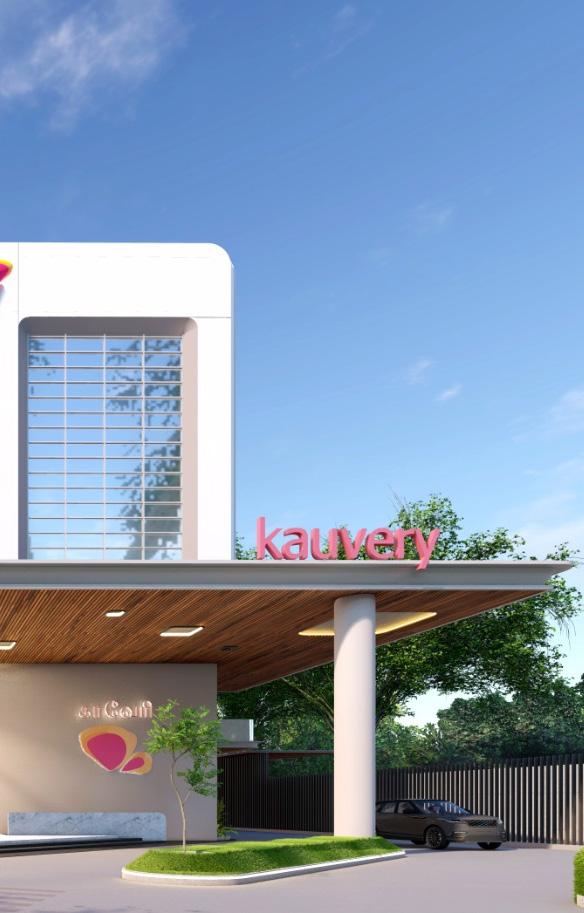

KMCC - TRICHY
CLIENT : KAUVERY GROUP
TYPOLOGY : HOSPITAL
SITE AREA : 4.3 ACRES
SCOPE OF WORK : INTERIOR DETAIL DRAWING AND MODELING
PLANNING : THE KMCC HOSPITAL HAS FIVE FLOORS , AND THE SPACES ON EACH FLOOR HAVE BEEN CAREFULLY PLANNED AND ORGANIZED TO SERVE THEIR INTENDED PURPOSES EFFECTIVELY.
GF - ENTRANCE LOBBY , ADMINISTRATION ,EMERGENCY WARD ,MHC
CONSULTATIONS ,CANTEEN ,DIAGNOSTICS.
1F - CONSULT ROOMS,DAY CARE , LABORATATORY , STAFF
AREAS,LIBARY,CONFERENCE ROOMS.
2F - MOTHER ‘S ICU LABOR SUITE DOCTOR ‘S LOUNGE ,IVF,OT.
3F- PRIVATE ROOMS , COMMON WARDS ,NICU,MOTHER’S STAY.
4F- PRIVATE ROOMS,DUPLEX ROOMS,COMMON WARDS.
5F - PRIVATE ROOMS , DUPLEX ROOMS ,SUITE ROOM,BMT ,PICU , OG WARD .
SECTION A - A' |SCALE 1:35
GYPSUM FALSE CEILING FINISHED WITH WHITE PAINT
DUMMY BOXING
VINYL GRAPHIC WALL
DUMMY BOXING DUMMY BOXING
SECTION B - B' |SCALE 1:35
LINTEL LEVEL AT 2200 MM FROM F.F.L STORAGE RACK FALSE CEILING LEVEL AS PER RCP
MEDICAL TROLLEY
PATIENT BED
PREPARATION TABLE AS PER FURNITURE DETAIL
ATTENDANT BED AS PER FURNITURE DETAIL
PLWOOD BOXING FINISHED WITH MERINO CRESCENT HOLZ ACACIA 14551 (THICKNESS OF PLY AND LAMINATE AS PER BOQ)
DUMMY BOXING
2MM THK VINYL TARKETT: ECLIPSE PREMIUM MUDIUM WARM. BEIGE(CODE:21020973)
FINISHED FLOOR LEVEL
GYPSUM FALSE CEILING FINISHED WITH WHITE PAINT
DUMMY BOXING
LINTEL LEVEL AT 2200 MM FROM F.F.L FALSE CEILING LEVEL AS PER RCP
STORAGE RACK
SETUP BOX ON METAL PLATE
CABLE HOLE BEHIND TV
WALL MOUNTED 50" TV SWITCHBOARD FOR SETUP BOX AND TV
DOOR AS PER DETAIL
2MM THK VINYL TARKETT: ECLIPSE PREMIUM MUDIUM WARM. BEIGE(CODE:21020973)
FINISHED FLOOR LEVEL
EMAIL : CONTACT@SHANMUGAMASSOCIATES.IN
PMC : ISHA HOMES, CHENNAI
STRUCTURAL : BURO ENGINEERS,CHENNAI
ELECTRICAL : SIVACHI ENGINEERS, CHENNAI
VINYL: JEOFLOR SHADE: 3001WALL FINISH
VINYL: JEOFLOR SHADE: 3001WALL FINISH
PICU 5 BEDS INTERIOR LAYOUT | SCALE 1:50
LINTEL LEVEL AT 2200MM FROM FFL
PRIVACY CURTAIN AS PER SELECTION
18MM THCK JET BLACK
GRANITE COPING IN BOTTOM VINYL GRAPHIC WALL VISITOR CHAIR
75MM THK BED-HEAD PANEL
PREPARATION TABLE
VISITOR CHAIR
2MM THK VINYL TARKETT:
ECLIPSE PREMIUM MEDIUM
WARM BEIGE (CODE:21020973)
FINISHED FLOOR LEVEL
HOMES, CHENNAI
NOTE:
1. DETAILS FOR FURNITURE TO FOLLOW THE FURNITURE CARPENTRY DRAWINGS.
2. ROOM DIMENSIONS ARE TO BE AS PER MASONRY DRAWINGS.
MEDICINE TROLLEY AS PER ARCHITECT'S SELECTION
RD PLAST FASTRACK CUBICLE
CURTAIN (SHADE AS PER ARCHITECTS SELECTION) BED HEAD PANEL
BREAKFAST TABLE/ TRAY
ATTENDANT'S CHAIR
PATIENT BED TO BE BOUGHT AS PER ARCHITECT'S SELECTION
SCRUB STATION (600 MM)
BIOMEDICAL WASTE BINS
DRY WALL FINISHED WITH PUTTY AND PAINT (VINYL : JEOFLOR SHADE: 3001)
3. FALSE CEILING LEVELS TO BE AS PER FALSE CEILING DRAWING
4. ALL LOOSE FURNITURE ARE TO BE AS PER ARCHITECTS SELECTION
5. ANY SITE CONDITION WHICH MAY AFFECT THE DESIGN SHALL BE CONVEYED.
6.DUMMY BOXING ABOVE LINTEL LEVEL IS GYPSUM BOARD AND BELOW LINTEL LEVEL IS DRYWALL.
7.MEDICAL PIPELINE TO BE DROPPED TO BED HEAD PANEL (HT 1500 MM) FROM CEILING ON EITHER SIDE OF WARD. TO BE ENCASED IN GYPSUM DRYWALL WITH 75MM CLEARANCE.
SCRUB STATION
UNDER COUNTER TABLE
PATIENT BED
ATTENDANT CHAIR
PREPARATION TABLE
BREAKFAST TABLE
MEDICINE TROLLEY
PRIVACY CURTAIN 8
FALSE CEILING LEVEL AS PER RCP
LINTEL LEVEL AT 2200MM FROM FFL
PRIVACY CURTAIN AS PER SELECTION
18MM THCK JET BLACK GRANITE COPING IN BOTTOM
BED-HEAD PANEL
PATIENT BED
SCRUB STATION(600 MM)
2MM THK VINYL TARKETT: ECLIPSE PREMIUM MEDIUM WARM BEIGE (CODE:21020973)
FINISHED FLOOR LEVEL
