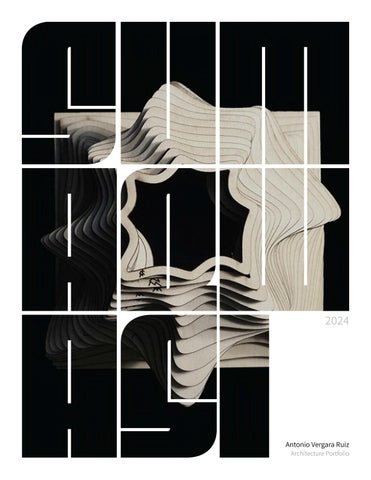

2024 antonio vergara architecture portfolio

00. antonio vergara “As an aspiring architect, I strive to explore the potential of sustainable vernacular architecture in the form of affordable housing for marginalized communities. I want to challenge the current notions of architecture as being for the top 1%, rather using it as a means to mitigate poverty, the current housing crises and environmental challenges that developing countries, such as my own, face today.”

2

Antonio Vergara

contact

+1 (416) 435-0677 antonio.vergara@mail.utoronto.ca avergararuiz@gmail.com From: Lima, Peru Based in: Toronto, ON Student Membership: OAA, RAIC, TSA

Daniels Faculty of Architecture 2020 - 2024

University of Toronto

experience

education

BA (Hons). Architectural Studies, Design Specialist + Minor in Human Geography + Certificate of Sustainability + Certificate of Global Studies + Dean’s List (2021, 2022, 2023, 2024) + CGPA: 3.78 + Orientation Leader, Student Mentor, AVSSU (Student Union) Panelist

Mallol Arquitectos

May 2023 - Aug. 2023

+ Architectural Intern. Panama City, Panama July 2022 - Sept. 2022

Larkin Architects

+ Architectural Assistant. Toronto, ON, Canada Sept. 2020 - Nov. 2020

Re-create Studio

+ Student Intern. Madrid, Spain. Brussels, Belgium July 2020 - Aug. 2020

GNS Architects

+ Student Intern. Brussels, Belgium

Software + Rhino 3D, Grasshopper, AutoCAD, Revit, V-Ray, Photoshop, Illustrator, Indesign, ArcGIS, Lumion.

Model-making + Laser Cutting, 3D Printing, CNC Milling, Woodworking, Casting.

skills

Languages + English

Native

+ Spanish

Native

+ French

Work Proficiency

curriculum vitae 3

01 02 03 04 05 06 07 08

sanctuary Protection or safe place.

adaptability The quality of being able to adjust to new conditions.

waves Movement with an undulating motion that remains fixed to one point.

duality An instance of opposition or contrast between two concepts.

parametric Design based on algorithmic processes rather than direct manipulation.

habitat The natural home or environment of an animal, plant, or other organism.

urbanism The way of life of cities and towns.

campus The grounds and buildings of a university or college.

4

6-17 18-21 22-25 26-33 34-37 38-43 44-45 46-49

table of contents 5

01. sanctuary Protection or safe place.

Student Housing | Instructor: Chloe Town | ARC362: Architecture Studio IV | Winter 2023 | Academic | UofT Campus

Leading a proposal to build new student housing for the University of Toronto campus, this state-of-the-art residence becomes a sanctuary of green areas, sports courts and gathering spaces that foster community and improve the mental health and well-being of 350 students. In terms of its architecture, the project explores the themes of public engagement and circulation, the duality of solid and void, and the aggregation of units.

Furthermore, the addition of an adjustable louvered facade empowers students to adapt their units to their liking by tailoring views, natural light and enhancing privacy, while also giving a sense of dynamism to the design. The building features three large atriums (voids) created from the subtraction of units that accomodate a cafeteria, library, and a vertical garden with terraces to enjoy the views of downtown Toronto.

6

1

site

2

extrude

3

voids

4

pilotis

5

dynamic louvered facade

concept diagram

8

isometric

9

site

site plan

Students in the cafeteria atrium can enjoy looking out onto the beautiful ravine below known as Philosophers Walk.

10

ground floor plan

circulation The building is elevated on pilotis to allow for optimal circulation for pedestrians on the ground level. As such, this open-concept layout allows students moving between classes to traverse the site with ease while protected from rain and snow.

11

floor plans

rooftop

ninth floor

fourth floor

second floor

below grade

12

longitudinal section

manually-adjustable louvers +/- natural light +/- views +/- privacy

cross section

13

typical room layout + bedroom + ensuite bathroom + walk-in closet

north elevation north elevation

14

15

concept

massing model 1:100

The massing model for this project depicts the adjustable louvered facade and pilotis made out of basswood dowels. We can see less density of the louvers in the three atrium areas of the building allowing for increased natural light and views in these communal gathering areas. Moreover, the rooftop garden receives increased sunlight and fresh air - two aspects proven to improve the mental health and well-being of students.

16

massing model on site 1:100

17

02. adaptability The quality of being able to adjust to new conditions.

Bookshelf | Instructor: Aziza Chaouni | ARC465: Designing for the 99%, Innovative Tactics of the Global South | Fall 2023 | Academic | Partners

In partnership with Lamalif, an NGO that supports the educational development of children within impoverished regions of Morocco, an adaptable bookshelf furniture was designed as a solution to the limited space and lack of furniture to store books in local schools. The design encourages reading and other student activities by engaging with students in a fun and innovative way.

Inspired by the accordion, the Qira’a (Arabic for reading), is able to expand and compress depending on its use and environment, creating a unique interior space. As such, it can be placed in interior environments with more limited space as well as in exterior conditions given its resistant, transluscent waterproof material. Replicating the vernacular Moroccan architecture, the colourful arch design empowers the local community by representing the rich heritage of their culture, while also providing a creative solution that successfully meets their needs.

18

exterior render

19

interior render

20

1

compress

three functions

21

expand

floor plans

2

3

butterfly

exploded isometric

03. waves Movement with an undulating motion that remains fixed to one point.

Study Space | Instructor: Jamie Lipson | ARC201: Design Studio II | Winter 2022 | Academic | UofT Campus

This study space within the University of Toronto’s downtown campus embodies light, openness, and flow. Inspired by the concept of waves, an organic form was developed to contrast the rigidity of the conventional rectilinear buildings that exist on campus. Creating a sense of motion and flow, students are invited to explore this eccentric design while studying, researching and reading. The building consists of five floors connected by stairs and bridges, with an outer shell supported by columns. The interior features an open-concept layout with vast natural light from the side openings and large skylight above.

isometric

22

shell facade

section

columns

floors

exploded isometric

plan

23

concept model 1:100

24

concept Inspired by the free-form properties of waves, the form was reached by drawing a series of NURBS curves which were then converted to 3D by using the loft command.

Then, the contour function was used to further segment the form into additional surfaces. Finally, some of these surfaces were removed to allow natural light to enter the building. The concept model allows us to fully visualize and grasp the unique form of the building.

25

04. duality An instance of opposition or contrast between two concepts.

Scissor House | Instructor: Carol Moukheiber | ARC361: Architecture Studio III | Fall 2022 | Academic | Kensington Market

After investigating the precedent of Tadao Ando’s Row House, students were given a narrow site within the highdensity neighbourhood of Kensington Market in Toronto.

The Scissor House responds to its context by integrating both a private residence and a street-food restaurant within the same space. Given the limited area available, the concept of scissor staircases is implemented in order to maximize the floor space, natural light, and views for the residents and customers alike. As such, both parties share each floor of the house, while still maintaining a sense of privacy and duality that the clients require.

Furthermore, through a light-shadow study, a skylight penetrating the whole building and a series of adjustable flaps were created to maximize natural light flowing into the spaces, while still maintaining a sense of privacy from the bohemian neighbourhood.

26

massing model on site

27

site

extrude

setback

voids

+

windows

flaps

+

private

public

+

private + stairs

floors

staircases

=

public + stairs

scissor house

scissor staircases This diagram depicts the concept of scissor staircases - two interlocking stairways providing two separate paths of circulation located within one stairwell enclosure. Scissor stairs are particularly effective at reducing the floor area required for circulation and save on the cost of building two distinct stair enclosures.

28

elevation The house successfully blends into the landscape given its opaque concrete finishes and low height due to regulations of the area, while also representing a beacon for modernity in a neighbourhood filled with traditional architecture and masonry facades. The lower-level adjacent to the street opens up as a bar/delivery booth, integrating the public with the private and inviting the Kensington Market residents to try the food.

west elevation

29

fourth floor

third floor

cross section

second floor

longitudinal section ground floor

30

isometric

31

concept model core structure depicting scissor staircases 1:10

32

massing model to place within neighbourhood context 1:100

33

05. parametric Design based on algorithmic processes rather than direct manipulation.

Diamond Towers | Instructor: Nicholas Hoban | ARC280: Modeling and Fabrication in Design | Winter 2022 | Academic | Downtown Toronto

Exploring the endless possibilities of computational design, a parametric tower was developed using an algorithm produced with Grasshopper software. The iterative process, made possible through the adjustment of various parameters within the algorithm, allows us to obtain a series of iterations from one base script. With a rapidly evolving architectural scene, and the rising demand for high-rise residences in Toronto, the need for efficient and continuous development is essential within our field.

Parametric architecture allows us to do so by providing adaptable and adjustable designs in minutes rather than re-modelling each tower from scratch. The result is a state-of-the-art development known as the Diamond Tower, the newest and most exclusive high-rise residential and office building within Toronto’s financial district.

34

diamond tower render

35

iterations Six different iterations of the tower were created by adjusting the different components and sliders within the algorithm. Parametric design allows us to modify the tower easily rather than modeling the whole tower again from scratch.

spire roof

glass facade

structural columns metal frames

floors

NURBS curve

loft

rotate

array

facade

The NURBS curve is formed using 8 points and determines the geometric base shape of the tower.

The loft between NURBS curves determines the height of the tower (120m).

The upper NURBS curve is scaled at the top.

The tower is rotated counter clockwise by 90 degrees at the top.

A series of floor plates are created using the linear array command.

The facade is created through the use of the Voronoi command forming a 3D surface that resembles diamonds.

36

isometric

37

06. habitat The natural home or environment of an animal, plant, or other organism.

Project Llama | Instructor: Claire Zimmerman | ARC451: Animals, Architecture and Ecosystems | Fall 2023 | Academic | Southern USA

Large packs of llamas and alpacas, originally from the Andean region of Peru, have recently been displaced around various regions of the globe to face adverse climates. In response to the growing stress and hyperthermia that llamas and alpacas endure due to excessive heat and humidity of the Southern US region, Project Llama seeks to provide a shelter for these displaced animals that find themselves battling for survival. This architectural intervention is successful in creating a new habitat that features abundant cooling techniques proven to be effective. Inspired by the vernacular hacienda-style architecture of the South, the building is able to generate a microclimate through passive cooling system composed of thick clay walls for insulation, high ceilings, small louvered windows and rotating doors allowing for cross-ventilation. The lush vegetation, interior courtyard with a pool, drinking and shearing stations also directly benefit these animals.

aerial render

38

39

vernacular architecture

website

This isometric drawing shows the interaction between animals and building. It shows how llamas and alpacas can use the space, creating a new habitat away from home. It also depicts the successful integration of vernacular hacienda-style architecture with a modern twist.

While developing this project, a website was created to share the ways in which Project Llama is working towards improving the quality of life of these animals, and future projects in the works!

Check out: https://sites.google.com/view/projectllama.

40

elevation

7

3

2

1

4

5 6

floor plan Seven different stations have been identified within the layout of this architectural intervention. They serve the purposes of cooling, shearing, drinking, feeding, moving, and resting.

41

1

stables

2

lush vegetation

3

pool

4

drinking station

5

shearing station

6

animal threshold

7

sprinkler system

07. urbanism The way of life of cities and towns.

Affordable Housing | Instructor: Reza Nik | ARC200: Drawing and Representation II | Fall 2021 | Academic | Finch Hydro Corridor

In an effort to combat Toronto’s current housing crisis, a series of affordable housing interventions were designed to meet the requirements of the Yellowbelt - an area of land designated as suburban neighbourhoods by the City of Toronto that prevents high-density development. Focusing on the Finch Hydro Corridor, a neighbourhood to the north of Toronto, a series of roof additions were proposed as rental units for each single-family detached house. These units follow their respective roof typologies to stay in line with the architecture of a typical suburban North American nieghbourhood.

Furthermore, these units receive vast amounts of sunlight, are adjacent to green spaces and are located at a close proximity to Toronto’s Line 1 subway. This intervention would generate a positive return to the local economy as the owners would make profit while renting at an affordable price for students and young professionals alike. site plan

1

hip

2

mixed

3

gable

4

flat

collage

44

Aerial render view of the INADEH campus masterplan

46

08. campus The grounds and buildings of a university or college.

INADEH Campus | Credits to Mallol Arquitectos | Summer 2023 | Professional Internship| Tocumen, Panama City, Panama

The INADEH (National Institute of Professional Training for Human Development) is a college in Panama that aims to nurture, educate and develop young professionals with technical skills and applicable capacities to prepare them for the workforce. It mainly tailors to lower income sectors of the population given its location in an impoverished sector called Tocumen, in the outskirts of Panama City. As part of the Comprehensive Transformation and Improvement Plan, INADEH commissioned Mallol Arquitectos, a leading architectural firm of the region, to develop a new masterplan for the campus. Working alongside the design team of Mallol, I helped with 3D modeling of the masterplan on Rhino, particularly with the canopy design and entrance guardhouse. On a smaller scale, I developed a series of recyclable kiosks for students to sell their products made in their courses, and parametric benches to be placed all across the campus.

47

Above, we can see the main entrance guard booth that I designed for the project.

Here, we can see part of the canopy that I designed for the exterior area of the campus.

48

kiosk design

recyclable materials In order to reduce their carbon footprint and make their campus eco-friendly, the clients required that several furniture pieces were made from recyclable materials. As such, both the kiosk and benches were designed using high-density polyethylene (HDPE) - sheets made by compressing recycled plastic.

benches design parametric benches The bench design was achieved through changing parameters of a simple Grasshopper script. Here, we can see two prototypes for benches and a prototype for a front desk, also made out of HDPE sheets outsourced from Clandestino Labs.

49

thank you. gracias.
