IT’S NOT TOUGH… UNLESS IT’S
RHINO TOUGH
Protect. Preserve. Prevent.

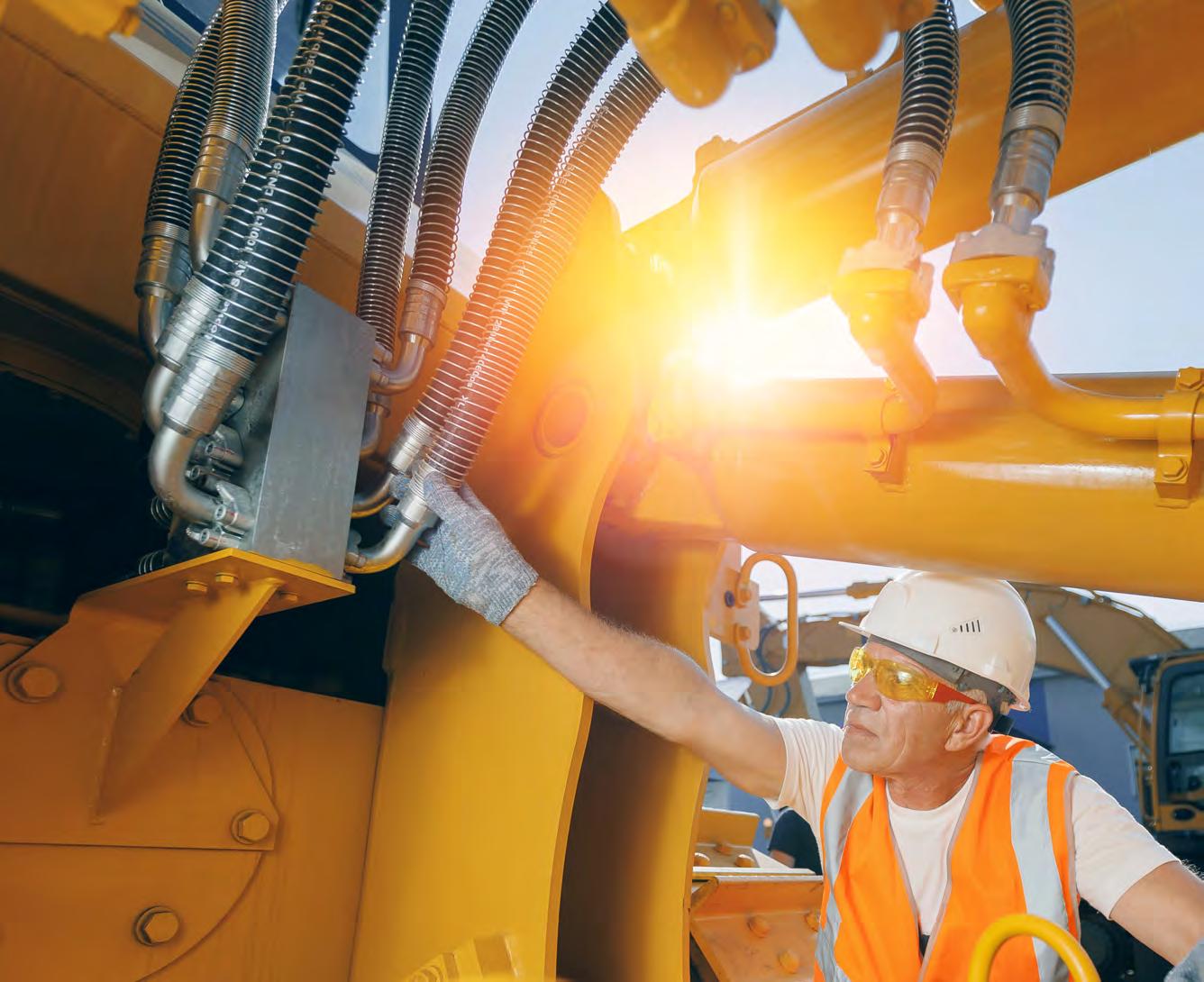

A hydraulic hose burst on-site can cause catastrophic injuries, halt company operations, and become hazardous to the environment. Our goal? We want to protect operators from harm’s way, preserve the lifespan of hose assemblies, and prevent environmental damage from hydraulic oil.
The power behind choosing rhino
RHINO products offer unmatched durability and toughness compared to competing hose protection on the market. Built for the toughest job sites, they provide superior defense against damage, offering superior protection that keep hazards at bay.
Where RHINO Makes a Difference
RHINO products are commonly utilized on machinery pertaining to the industries below:
• Agriculture
• Chem Process & Refining
• Coal Mining
• Construction
• Energy / Utilities
• Food & Beverage / Cosmetics
• Fracking

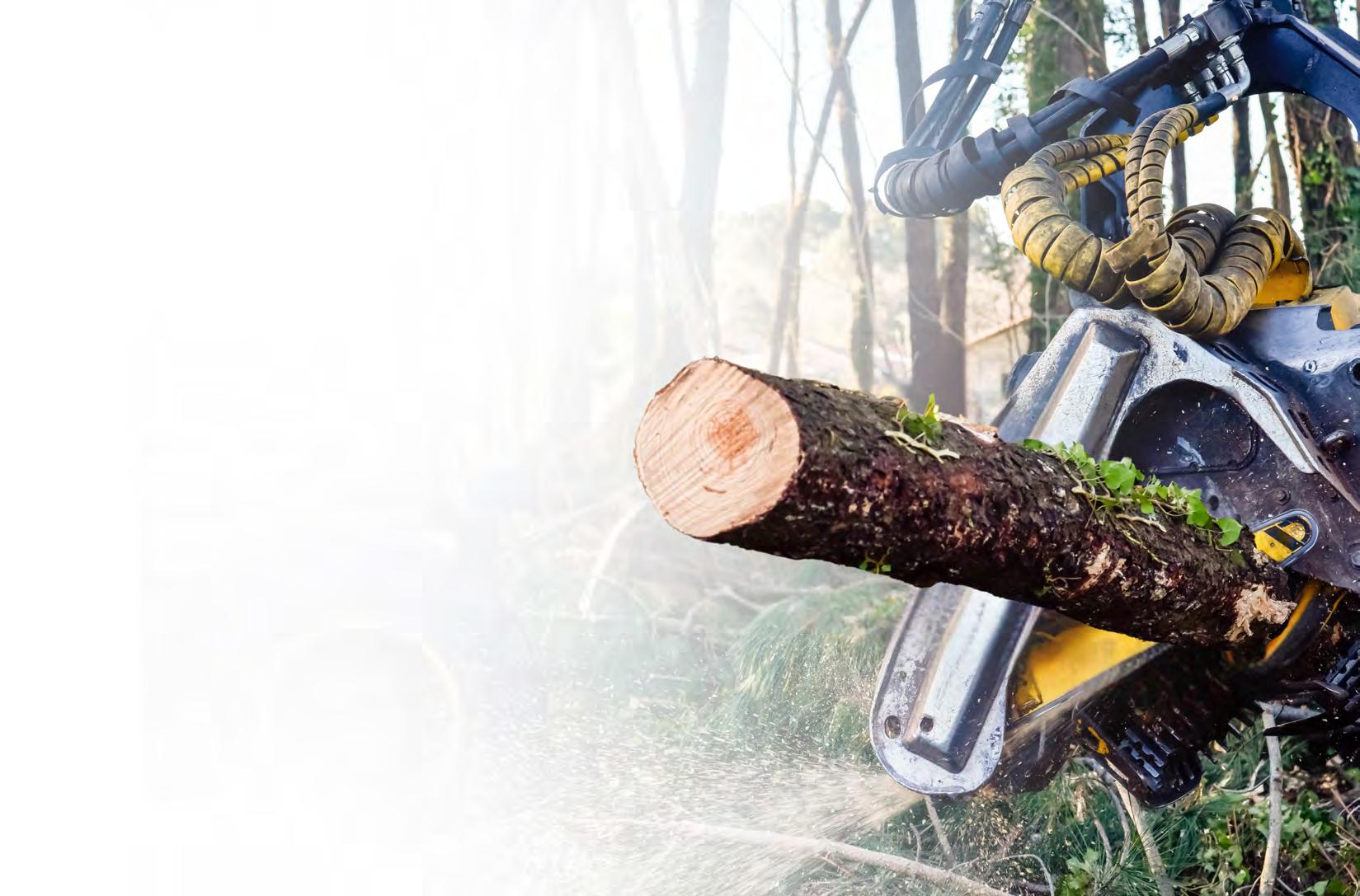

• Forestry & Lodging
• Manufacturing
• Marine / Offshore Oil & Gas
• Marinas
• MRO – Pulp & Paper Mills
• Oil & Gas Extraction
• Petroleum
• Quarrying
• Railway

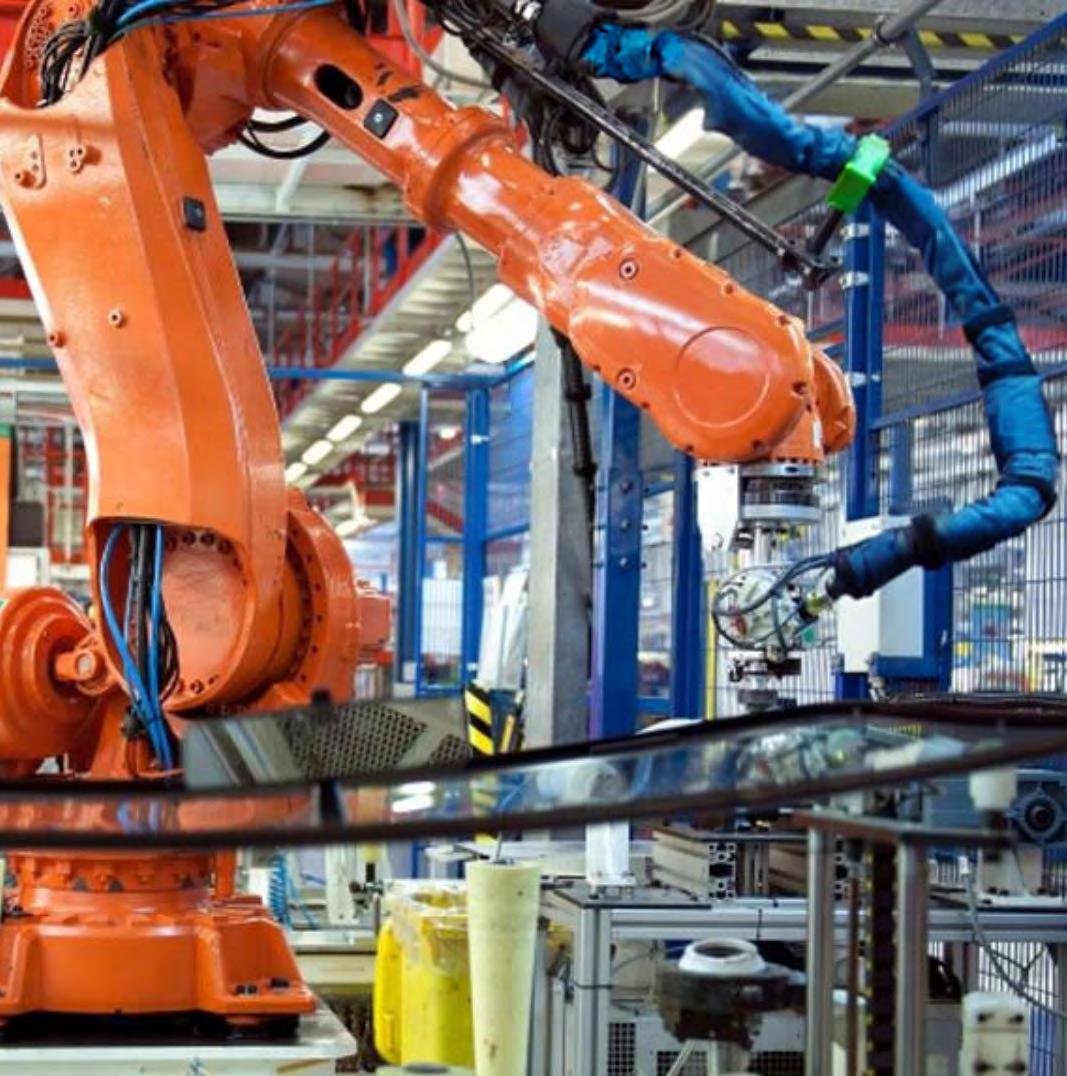

• Robotics
• Strip Mining
• Transportation
• Waste Management
• Welding

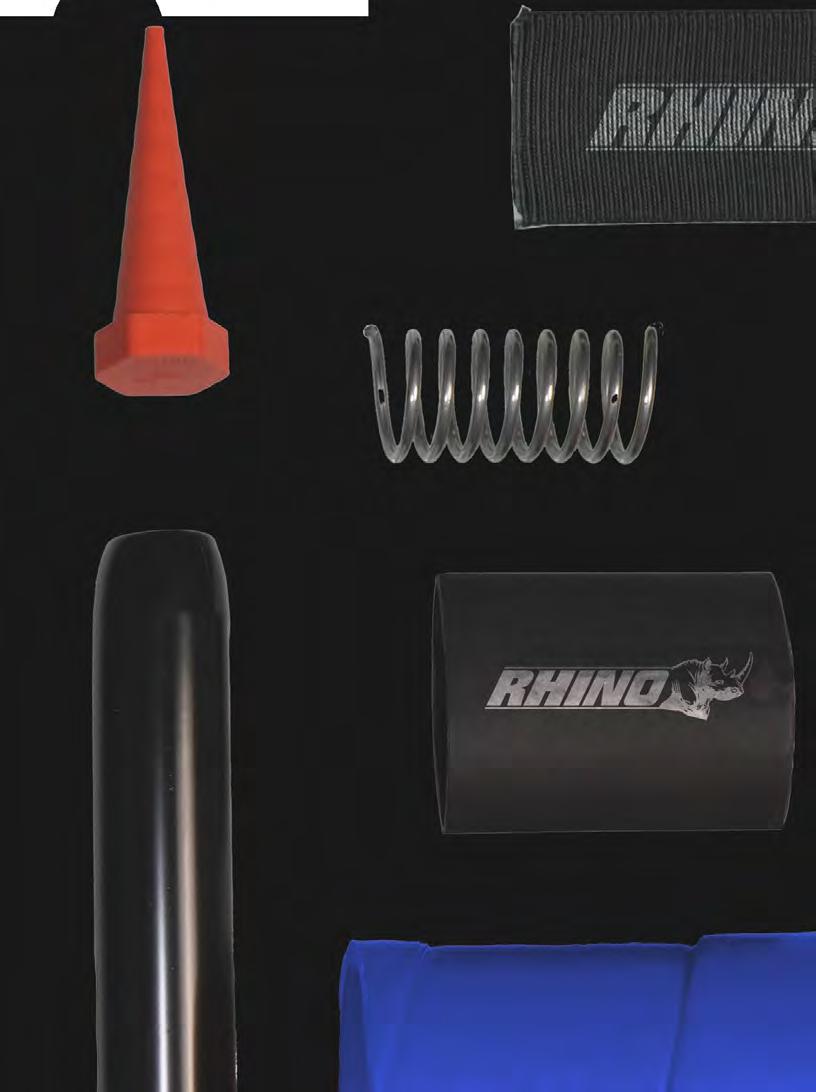

Product overview
Category Product Names
• RHINO Sleeve®
Sleeves
Guards
• RHINO Grip
• RHINO Firesleeve
• RHINO Color Coded Shrink Tubing
• RHINO Spiral Guard
• RHINO Spring Guard
• RHINO Hide
• RHINO Bend Restrictor
Wraps
Straps
Plugs
• RHINO Wrap 1050
• RHINO Blue Vinyl Wrap
• RHINO FRAC Pad
• RHINO Cinch Straps
• RHINO Safety Strap
• RHINO Hanging Straps
• RHINO Orange Drip Proof Plugs

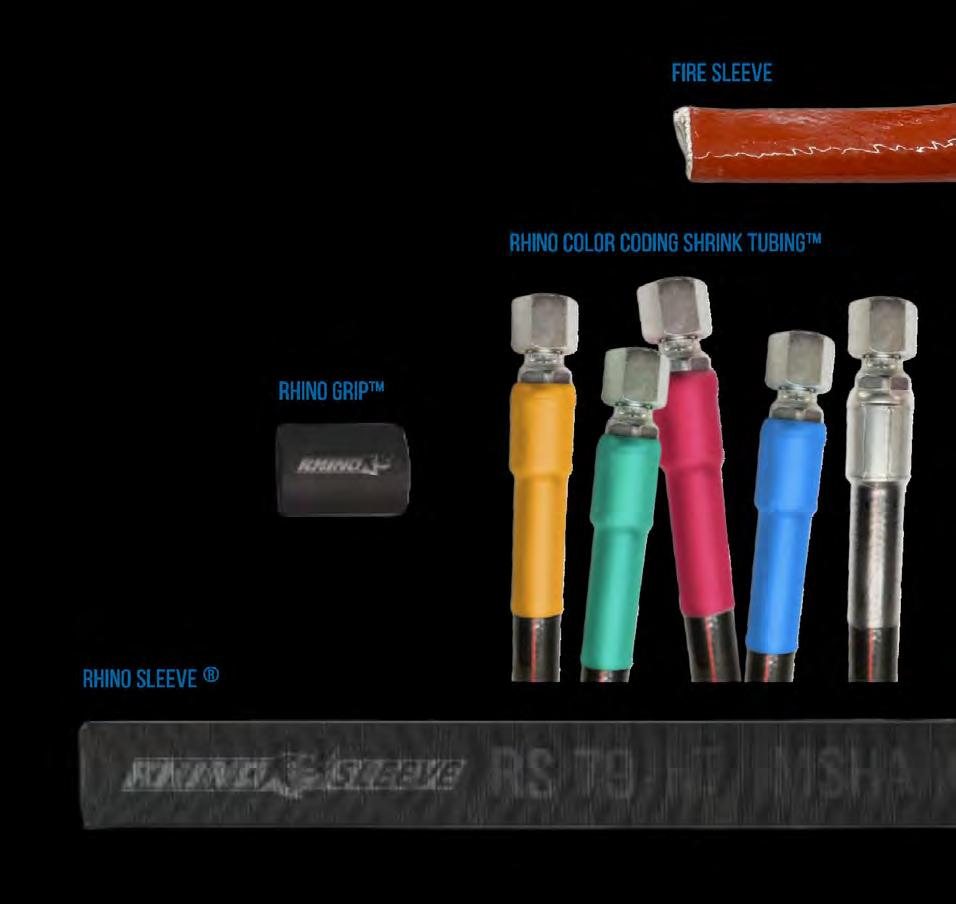

Product overview: Sleeves
• RHINO Sleeve®
Sleeves
Guards
• RHINO Grip
• RHINO Firesleeve
• RHINO Color Coded Shrink Tubing
• RHINO Spiral Guard
• RHINO Spring Guard
• RHINO Hide
• RHINO Bend Restrictor
Wraps
Straps
Plugs
• RHINO Wrap 1050
• RHINO Blue Vinyl Wrap
• RHINO FRAC Pad
• RHINO Cinch Straps
• RHINO Safety Strap
• RHINO Hanging Straps
• RHINO Orange Drip Proof Plugs

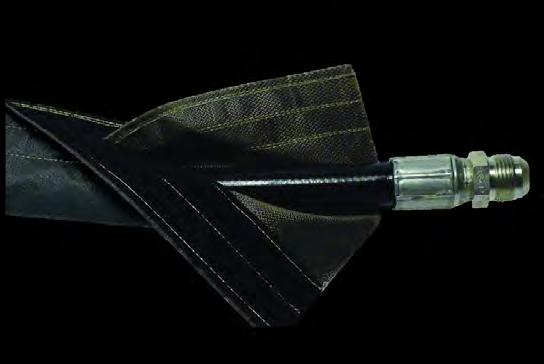

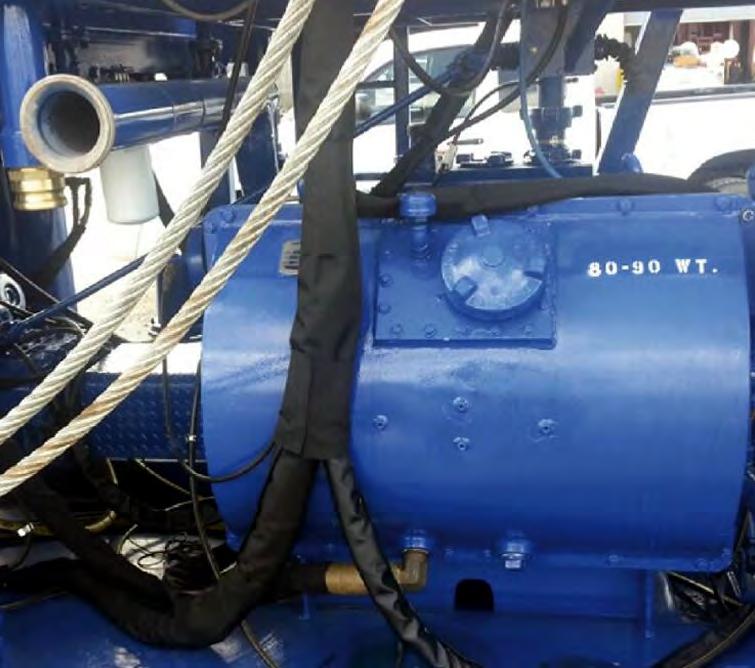

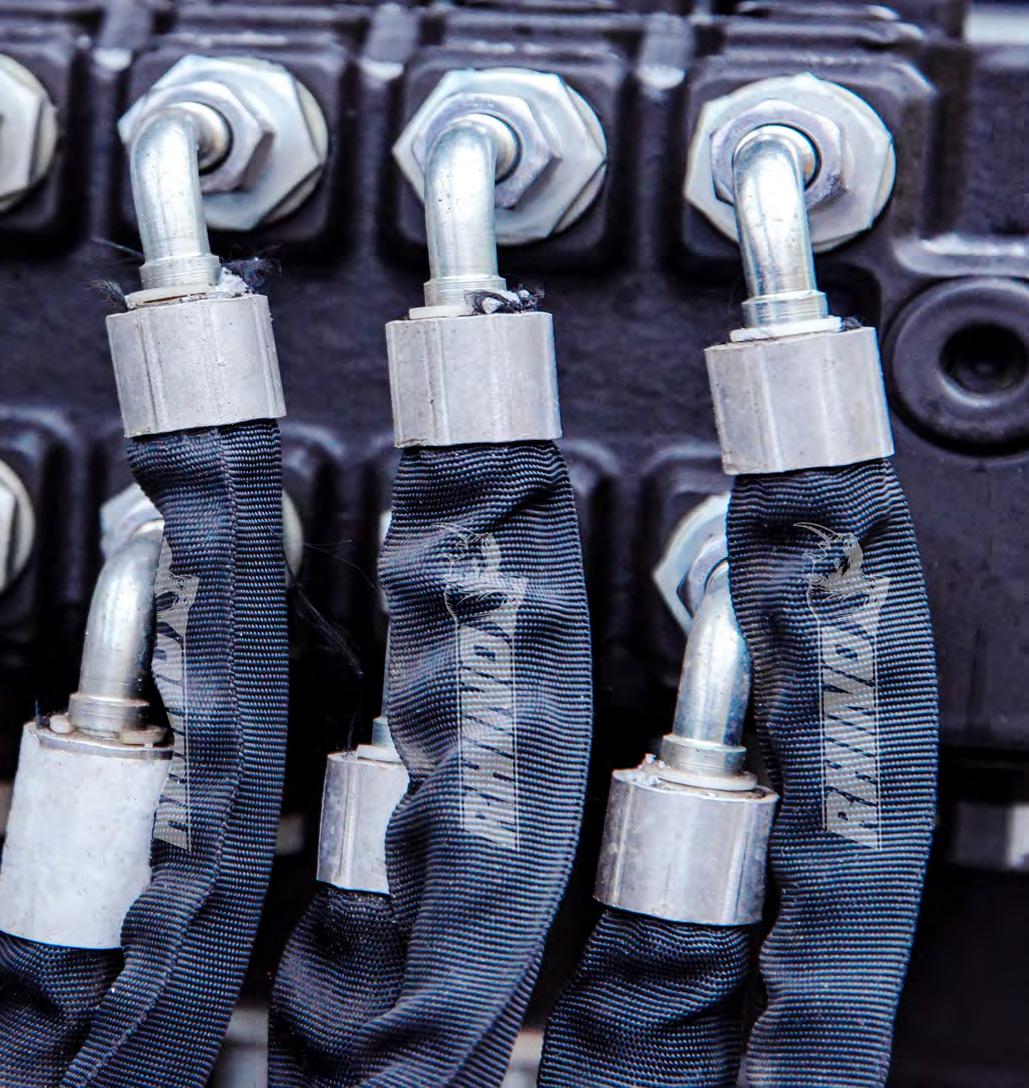

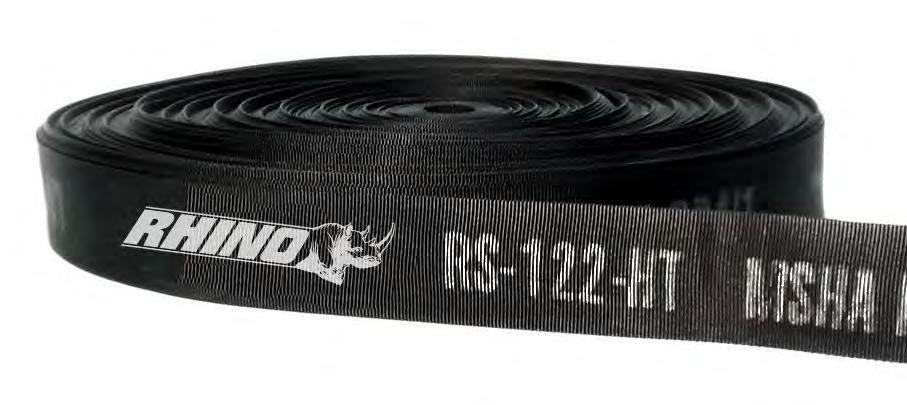

RHINO SLEEVE® HT
Key Features
Can withstand 4,000 psi pinhole hose burst
Has a melting points of 480 °F (248 °C)
Designed with needle-woven construction for a tighter, smoother sleeve
Disperses hose burst pressure, reducing environmental impact & harm to operators
RHINO SLEEVE® HT SPECIFICATIONS
Material Specifications
Color & Material Black, Proprietary Engineered Fabric Melting Point +248 °C, +480 °F
Dimensional Stability Great resistance to sun, atmospheric agents and aging
Toxicity Non-toxic
Meets or Exceeds
ISO 6945 (Abrasion Standards -exceeds >400,00 abrasion cycles),
ISO 8031 (Conductivity Requirements), ISO 3457 (Earth-MovingMachinery), ISO 833 (Quantitative Chemical Analysis)
Meets FED-STD-191 Test Method (Abrasion Resistance), Meets
ASTM D6770 (Abrasion Resistance of Textile Webbing), M.S.H.A. # IC-234/1
European Line of Sight legislated specification EN9823 ISO norm 833, Machinery Directive 2006/42/EC (Safety of Machinery), NSW –
MDG 41
Acids (Strong and concentrated acids that may have
RHINO SLEEVE® HT SIZes
*It’s important to properly size your sleeve for optimum protection. Please refer to the RHINO Hose Accessory catalog for sleeve sizing selection.

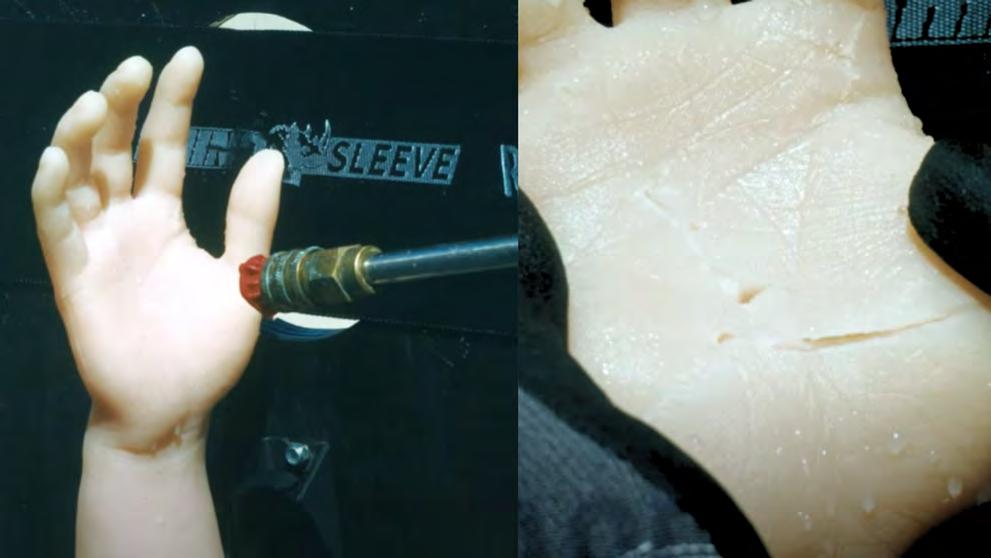

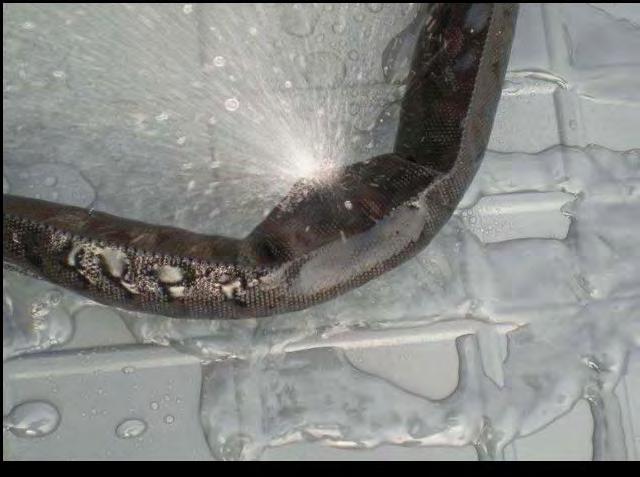

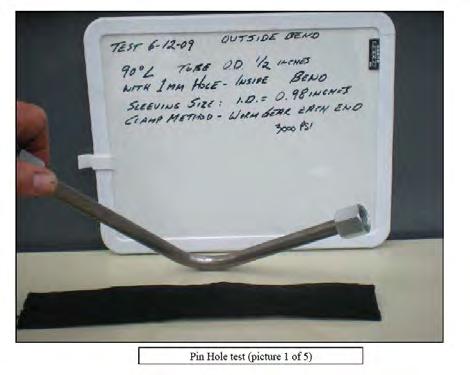

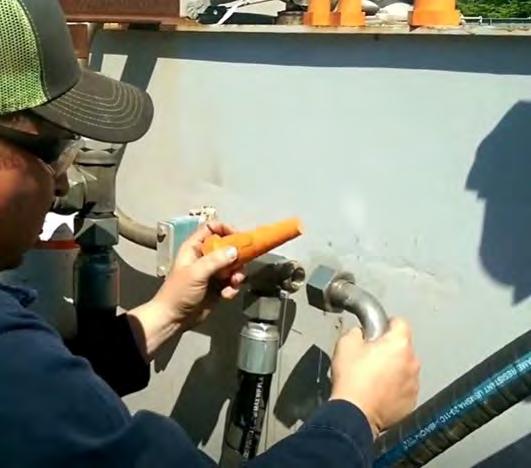

Just how much pressure can the sleeve take?

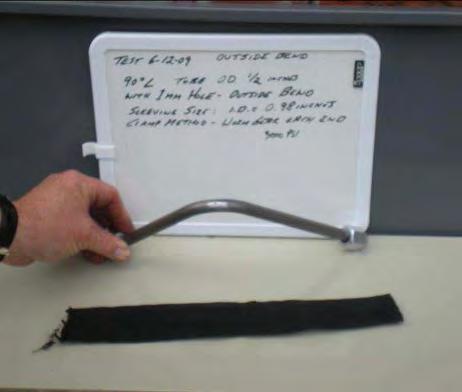

We tested the sleeve against a 4,000 psi pinhole burst to determine the potential danger and level of sustained protection provided by the sleeve. Equipment:
• Sleeve: RS-98HT (0.98 inch thickness at 12 inches long)
• Tubing: Two, 90° L steal tubes with a 1mm hole drilled in the inside of a tube and one drilled on the outside of a tube.
RESULTS
• Pressure was diffused by the sleeve creating a wide spray pattern that didn’t spray beyond 24 inches

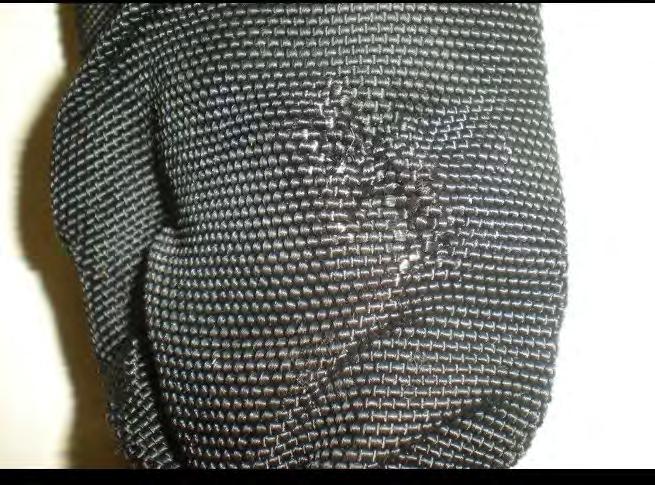

• Examination of the sleeve after the test showed minimal fiber damage
CONCLUSION
• RHINO Sleeve ® HT will minimize potential damage to operators

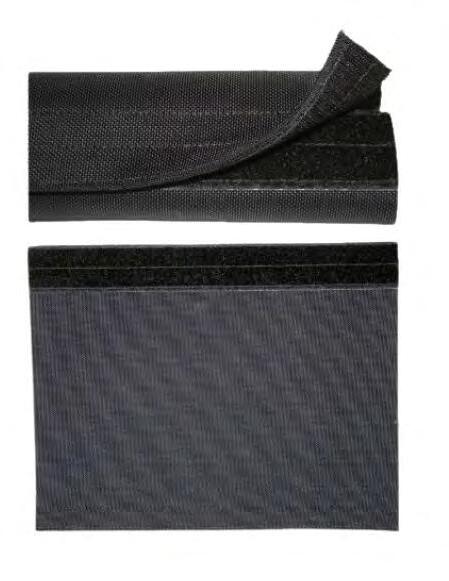

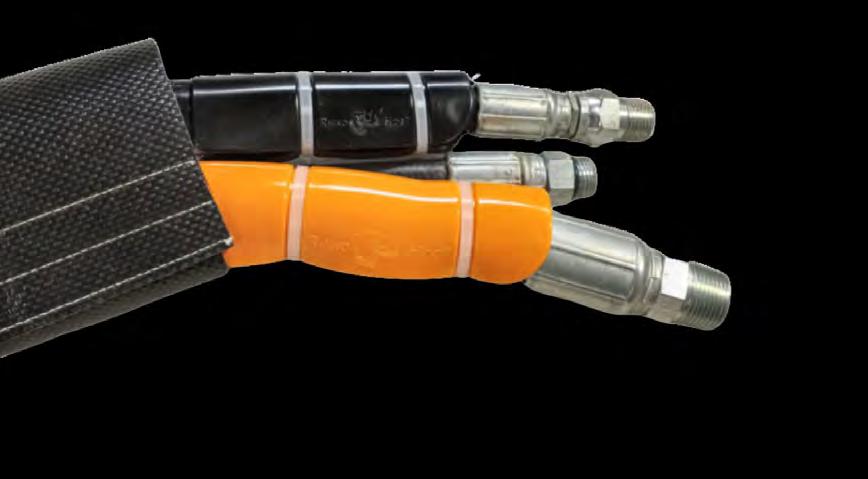

RHINO Grip
Key Features
Used in conjunction with RHINO Sleeve® HT
Eliminate sharp edges from clamps & cable ties
Tightly seals hose sleeving onto the fitting of a hose assembly
RHINO Grip SPECIFICATIONS
Specifications

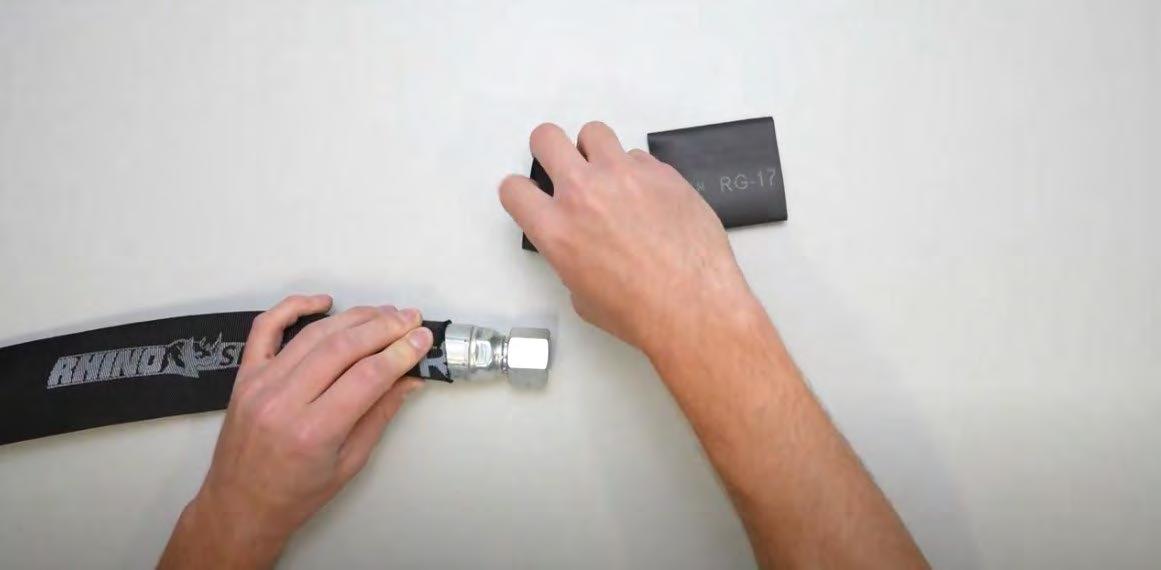

How Easy is it to install?
Click here to view larger.

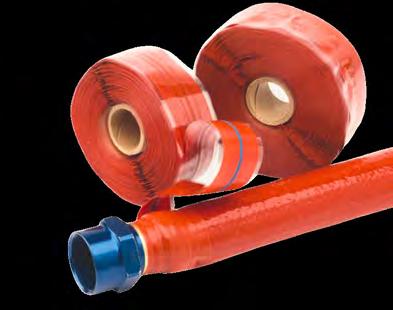

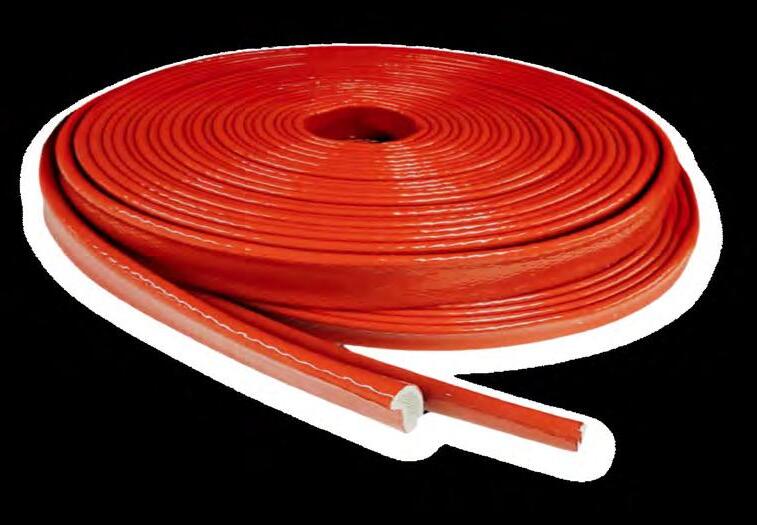

RHINO firesleeve
Key Features
Flame, water, oil, and molten splash resistant
Can withstand continuous exposure of up to 500° (200 °C)
Protects hoses, wires, and cables from the hazards of high heat
RHINO firesleeve SPECIFICATIONS
Used in conjunction with RHINO Pyrosil Tape
*Please refer to the RHINO Hose Accessory catalog for further material & sizing details.

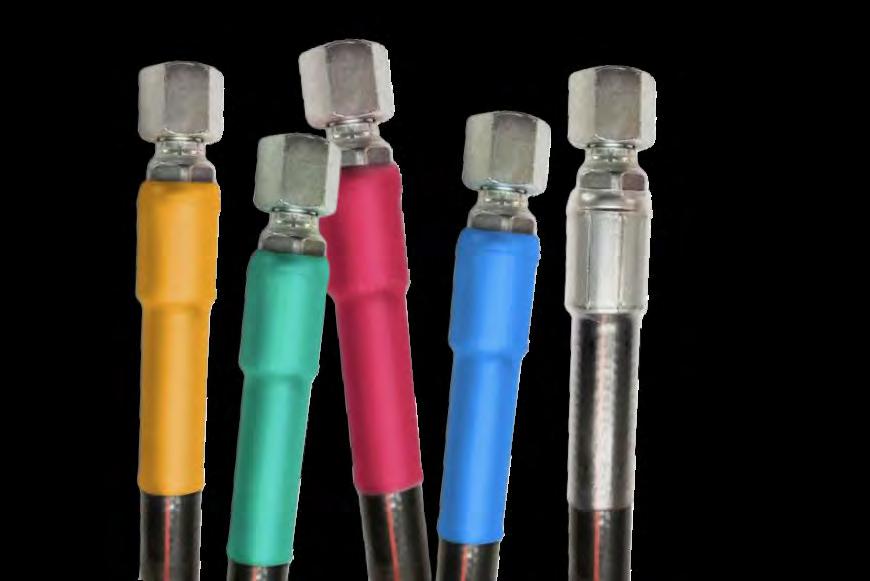

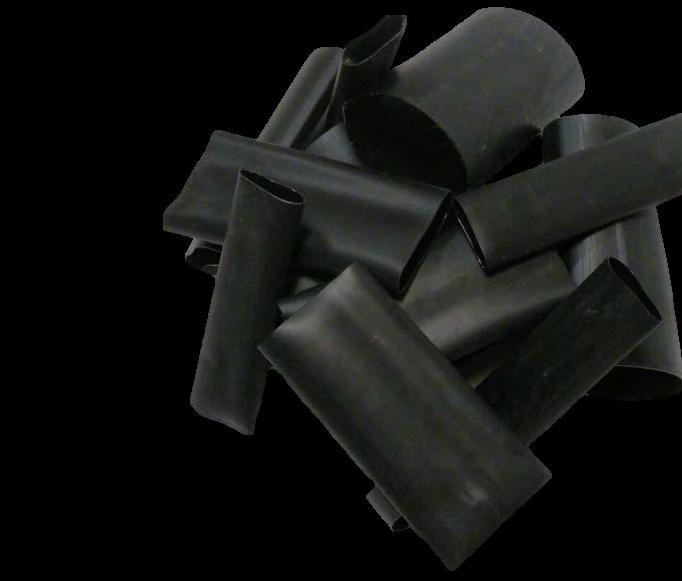

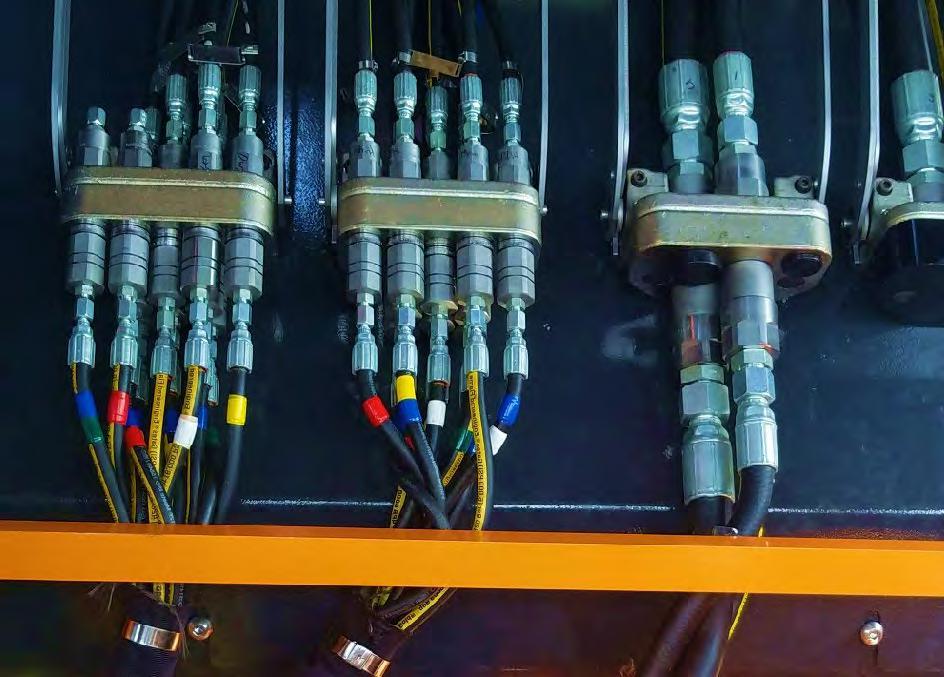

RHINO Color Coding Shrink Tubing
Key Features
Highly flexible & flame resistant
Allows operators to easily mark & identify hoses
RHINO shrink tubing SPECIFICATIONS
Below sizes available in 100-ft rolls upon request and in the colors Blue (BL), Green (GR), Orange (O), Red (R), White (W) & Yellow (Y).
RCT-4.00
Below sizes available only in Clear (CL)
or Exceeds Meets all of
Product overview: GUards
• RHINO Sleeve®
Sleeves
Guards
• RHINO Grip
• RHINO Firesleeve
• RHINO Color Coding Shrink Tubing
• RHINO Spiral Guard
• RHINO Spring Guard
• RHINO Hide
• RHINO Bend Restrictor
Wraps
Straps
Plugs
• RHINO Wrap 1050
• RHINO Blue Vinyl Wrap
• RHINO FRAC Pad
• RHINO Cinch Straps
• RHINO Safety Strap
• RHINO Hanging Straps
• RHINO Orange Drip Proof Plugs
Key Features
Comes in high-visibility colors
Allows for bundling of hoses and cables
Protects hoses against harsh environments (abrasion & friction)

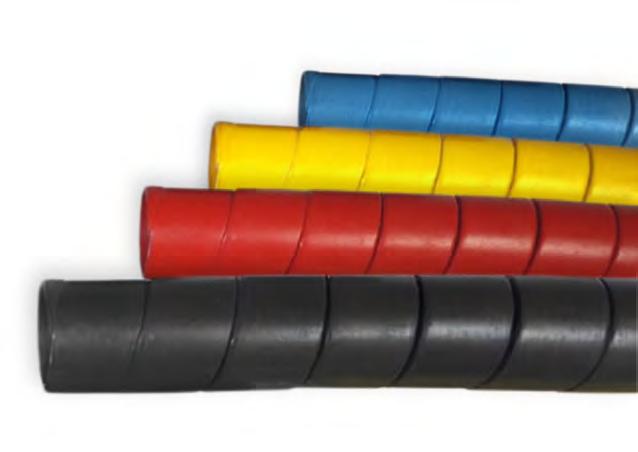

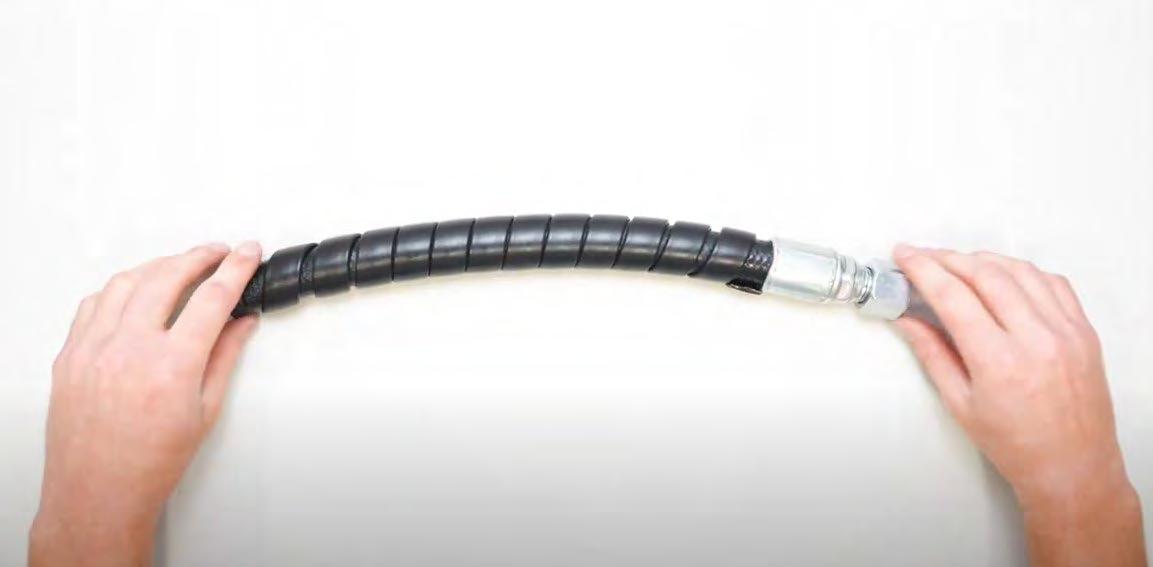

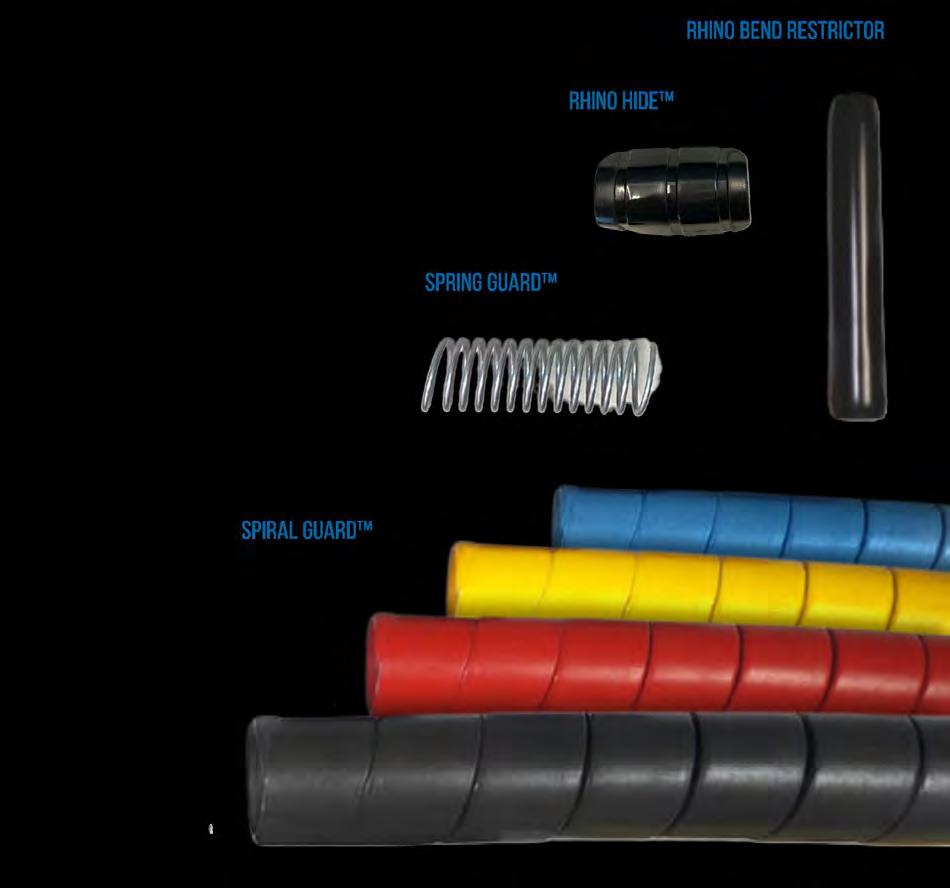

RHINO spiral guard
RHINO spiral guard SPECIFICATIONS
*Please refer to the RHINO Hose Accessory catalog for further sizing information.
How Easy is it to install?
Click here to view larger.
Key Features
Impact resistant
Made of high-strength plated steel
Has tightly pitched coils for maximum protection

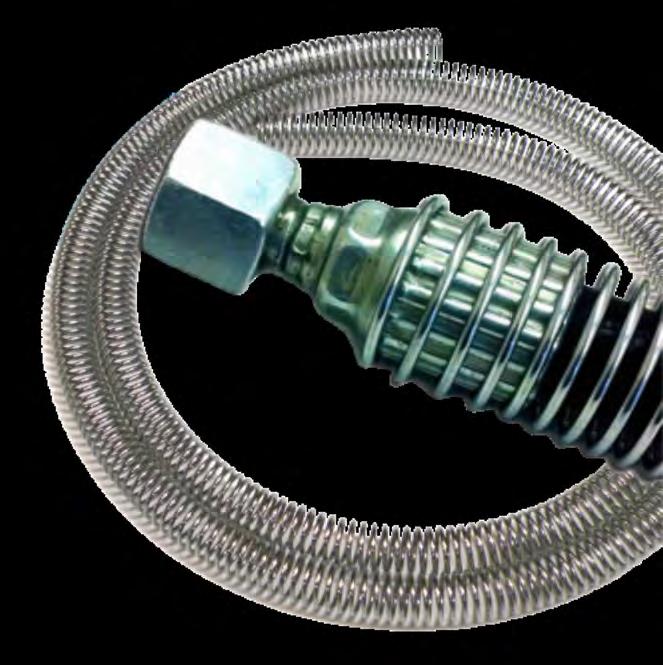

RHINO spring guard
RHINO spring guard SPECIFICATIONS

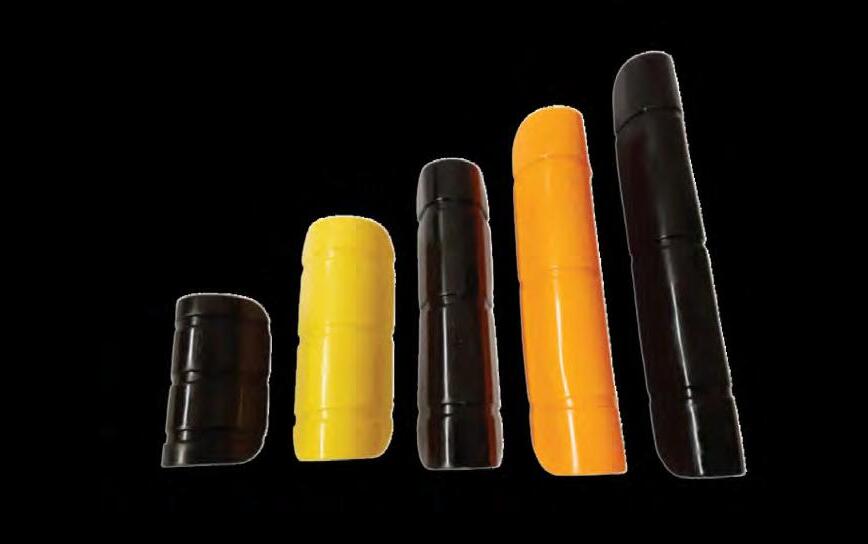

RHINO hide
Key Features
Easy to assemble & disassemble
Has grooves designed to fit cable ties
Typically used on hydraulic hoses, fuel and oil lines, brake systems, wiring harnesses & battery cables
RHINO hide SPECIFICATIONS

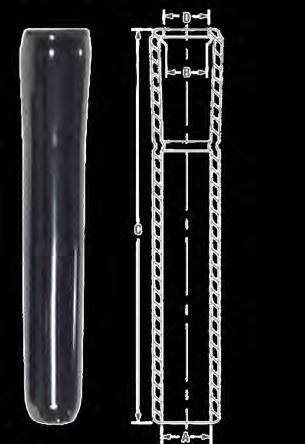

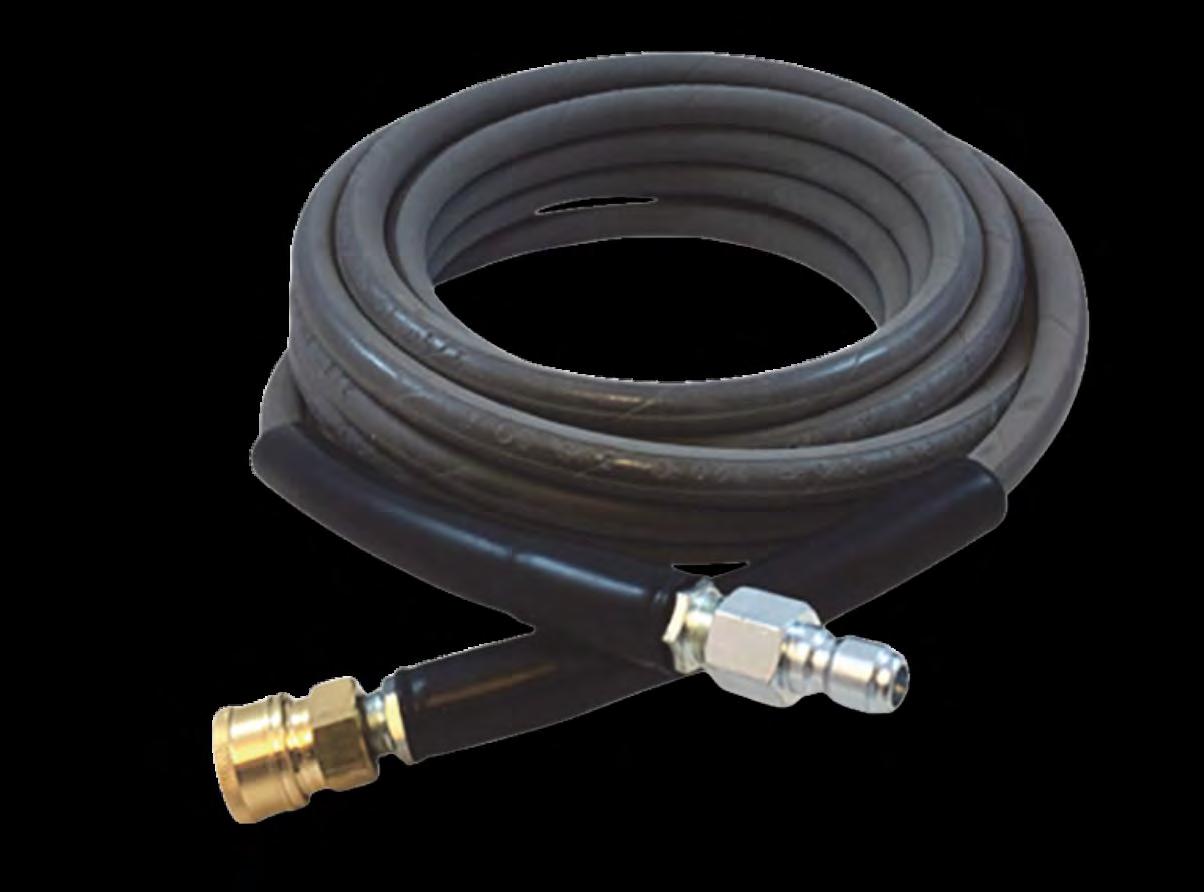

RHINO bend restrictor
Key Features
Prevents damage to the hose and extends its life cycle
Works with a variety of hydraulic & pressure-wash hoses
Firmly attaches to the coupling, holding the restrictor in place, eliminating the need for costly adhesives or clamps
RHINO bend restrictor SPECIFICATIONS
Product overview: wraps
• RHINO Sleeve®
Sleeves
• RHINO Grip
• RHINO Firesleeve
• RHINO Color Coding Shrink Tubing
• RHINO Spiral Guard
Guards
Wraps
• RHINO Spring Guard
• RHINO Hide
• RHINO Bend Restrictor
Straps
Plugs
• RHINO Wrap 1050
• RHINO Blue Vinyl Wrap
• RHINO FRAC Pad
• RHINO Cinch Straps
• RHINO Safety Strap
• RHINO Hanging Straps
• RHINO Orange Drip Proof Plugs

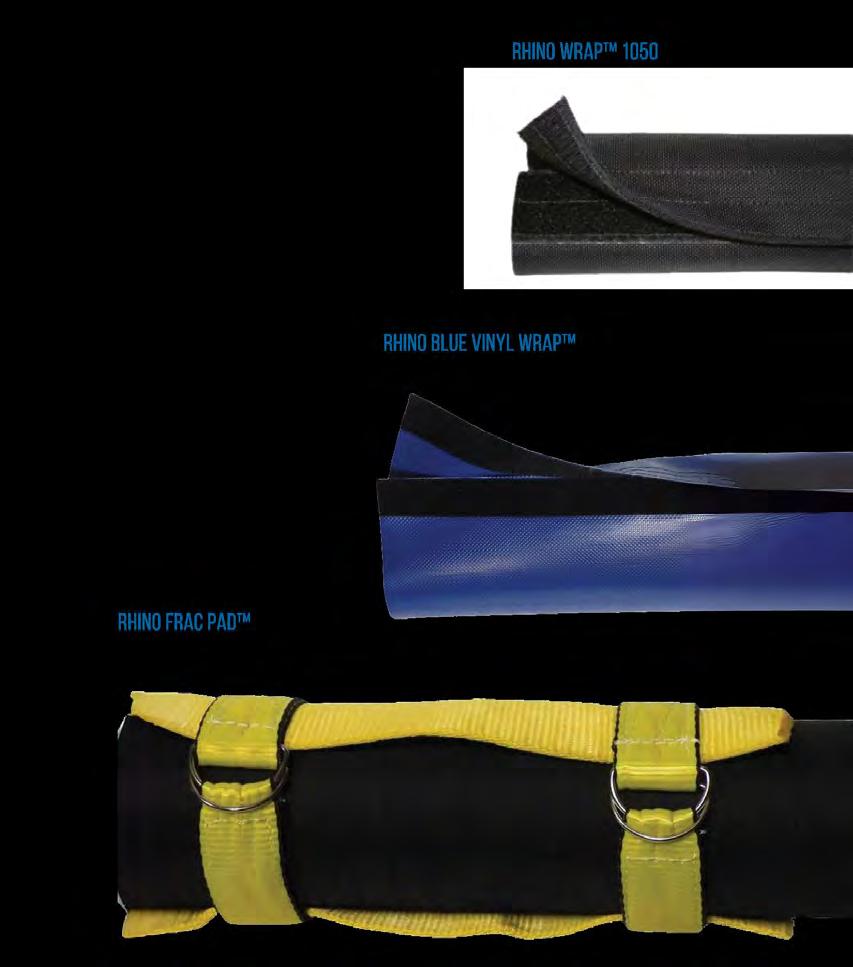

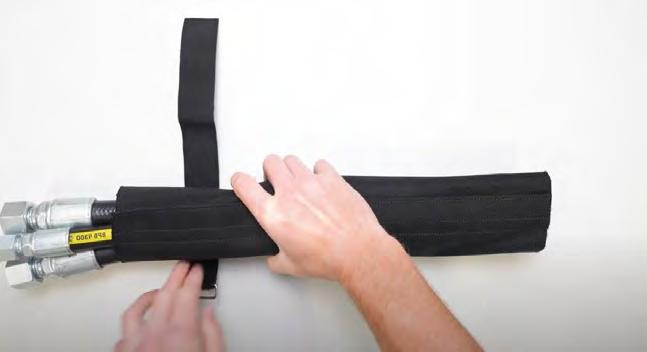

RHINO wrap 1050
Key Features
Offers abrasion and cylinder rod protection
Used to prevent damage and bundle hoses
Eliminates the need for costly adhesives or clamps
RHINO wrap 1050 SPECIFICATIONS

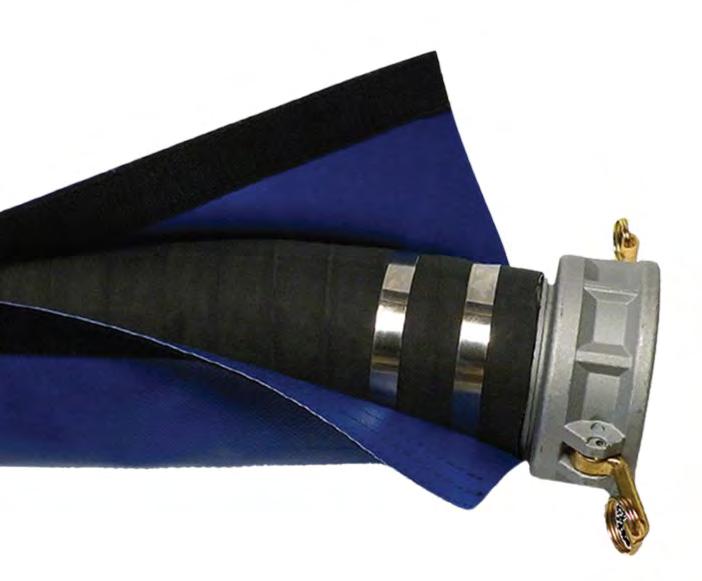

RHINO Blue Vinyl wrap
Key Features
Abrasion and cylinder rod protection
Used to prevent damage and bundle hoses
Eliminates the need for costly adhesives or clamps
RHINO Blue Vinyl wrap SPECIFICATIONS
Additional mad-to-order sizes available upon request.
Vinyl woven polyester construction coated with 35 oz. Poly Vinyl Chloride (60% Front / 40% Back). Proprietary bonding process allows cutting without fraying Properties
Mildew and UV resistant
Meets or Exceeds
Grab Tensile: ASTM D5034 - Results: 696-741 Lbs.
Strip Tensile: ASTM D5035 - Results: 356-530 Lbs
Tongue Tear: ASTM D2261 - Results: 84-111 Lbs.
Adhesion: ASTM D751 - Results: 33 Lbs. Temperature: ASTM D751
In what instance should I purchase the RHINO Wrap vs the RHINO Blue Vinyl Wrap ?

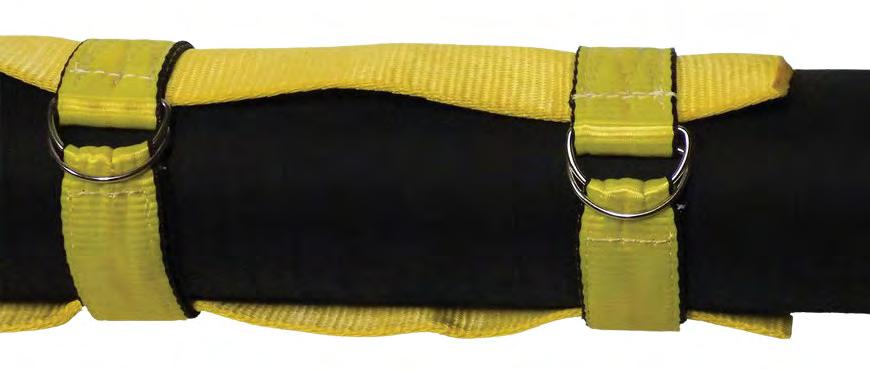

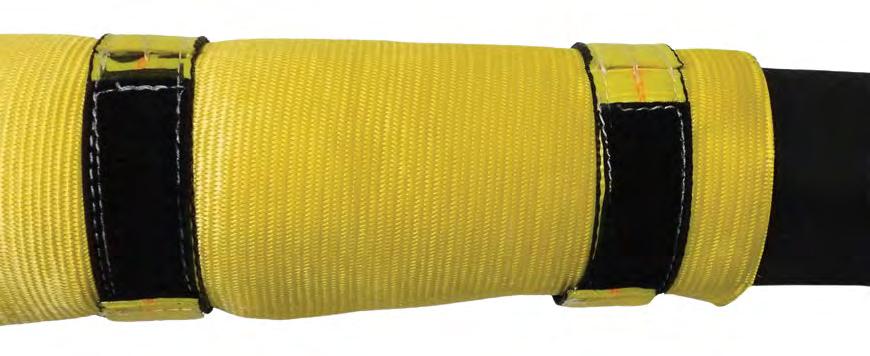

RHINO frac pad
Key Features
Extra heavy nylon abrasion pad
Designed for use on frac mud pump hoses
Offers protection in high-activity applications such as drilling and fracking.
RHINO FRAC Pad SPECIFICATIONS
Custom
Product overview: Straps
• RHINO Sleeve®
Sleeves
Guards
• RHINO Grip
• RHINO Firesleeve
• RHINO Color Coding Shrink Tubing
• RHINO Spiral Guard
• RHINO Spring Guard
• RHINO Hide
• RHINO Bend Restrictor
Wraps
Straps
Plugs
• RHINO Wrap 1050
• RHINO Blue Vinyl Wrap
• RHINO FRAC Pad
• RHINO Cinch Straps
• RHINO Safety Strap
• RHINO Hanging Straps
• RHINO Orange Drip Proof Plugs

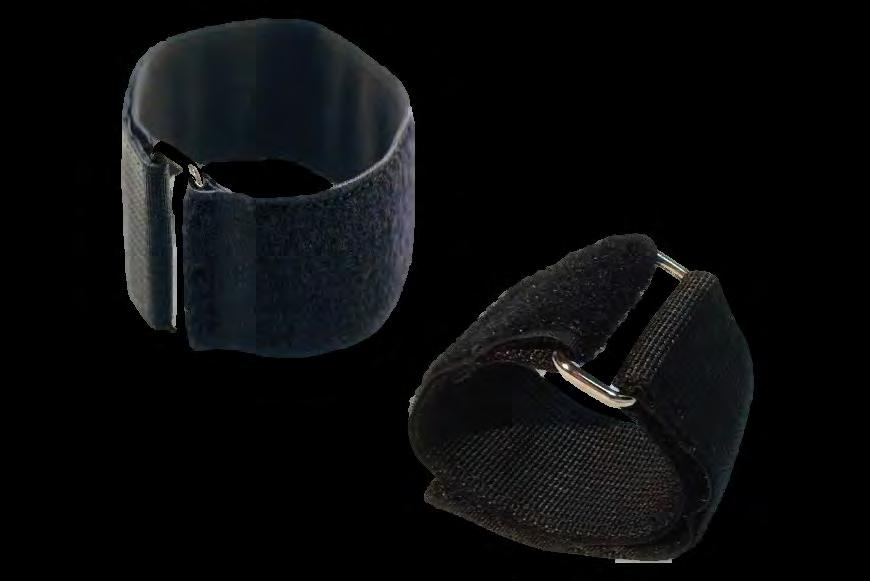

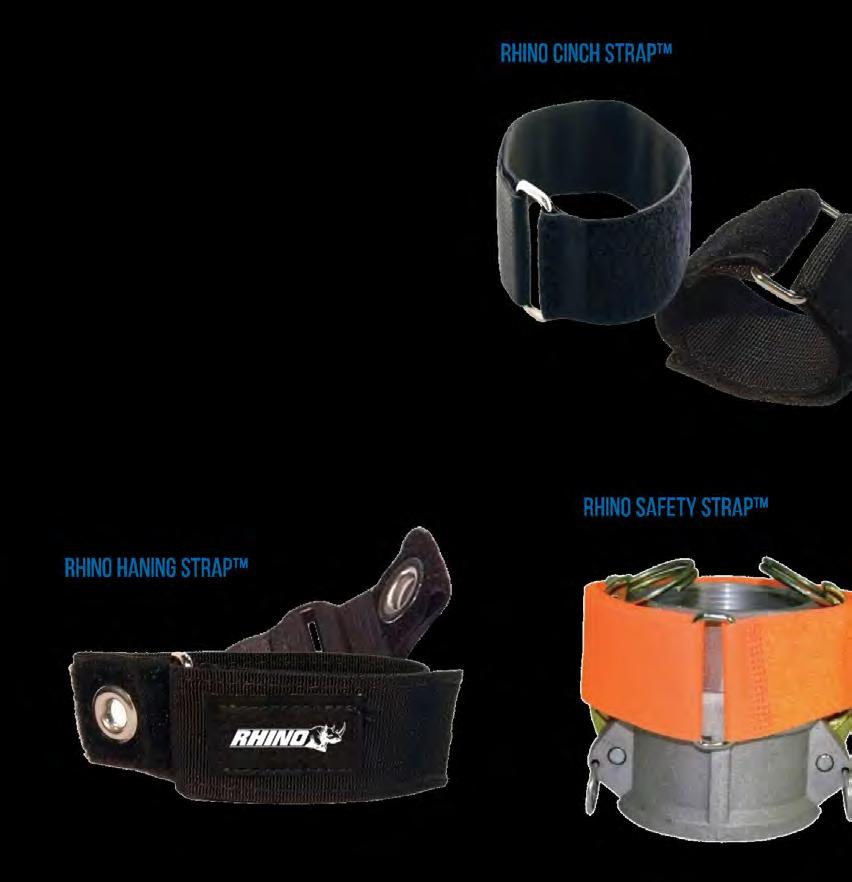

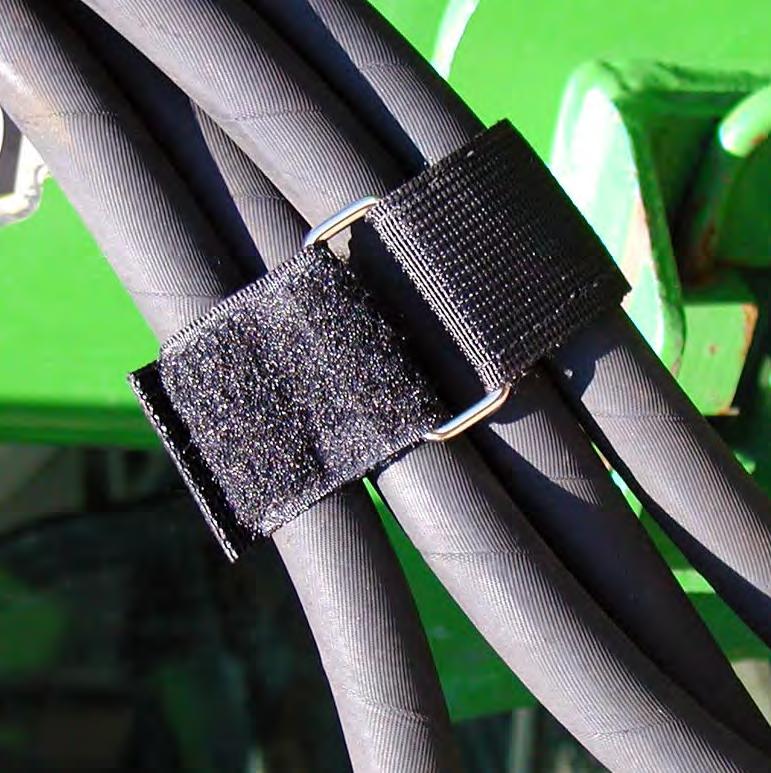

RHINO cinch strap
Key Features
Eliminates cable tie damage
Dependable containment that cuts down installation time
Allows natural hose expansion & movement without damage
RHINO Cinch Strap Specifications
RCS-404H 4 102
RCS-406H 6 152
RCS-408H 8 203
RCS-410H 10 254
RCS-412H 12 305
RCS-416H 16 406
RCS-420H 20 508
RCS-424H 24 610
RCS-430H 30 762
RCS-436H 36 914
Material Specifications
Material Nylon with nickel-plated buckle and milspec hook & loop
RCS-440H 40 1016
How Easy is it to install?
Click here to view larger.

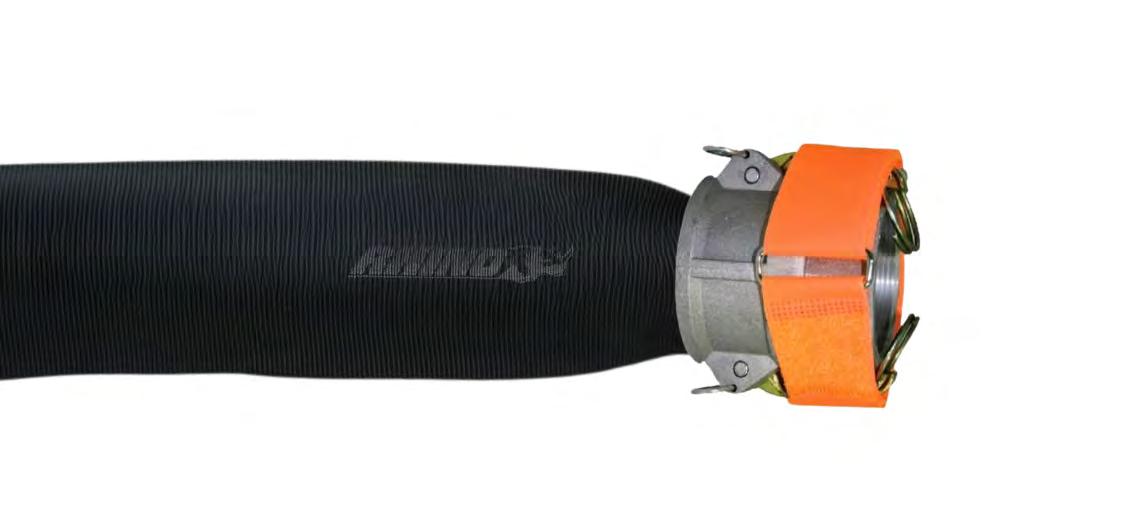

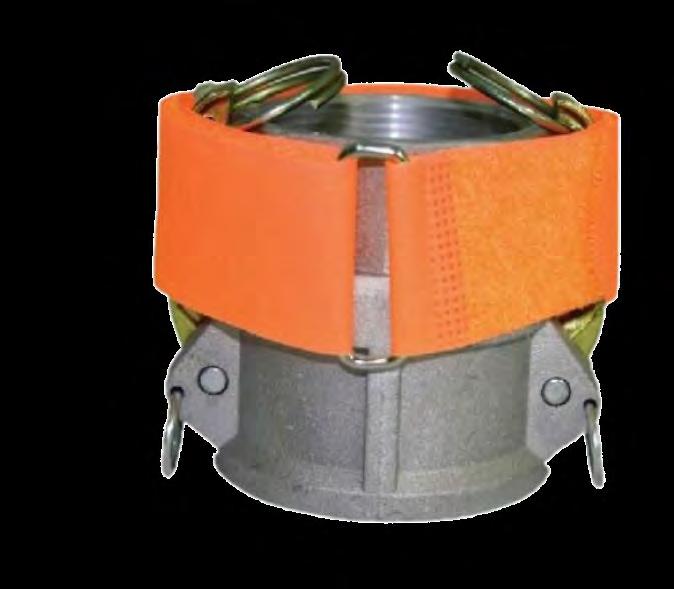

RHINO safety strap
Key Features
Ensures a secure connection for fluid transfer operations, preventing damage and holding hydraulic connections in place
Commonly used in agriculture, oil, and gas, pumps, military, and sanitation
RHINO safety Strap Specifications
RSS-16 1.5 to 3 38.1 to 76.2
4 to 8 101.6 to 2023.2
Material Specifications
Material High visibility orange brand hook and loop and a metal buckle Properties
Meets or Exceeds
RHINO hanging strap
Key Features
Used to mount on a surface & hold hose cables in place
Allows for natural hose expansion & application movement without damage
RHINO hanging Strap Specifications
RHS-406H 6 152
RHS-408H 8 203
RHS-412H 12 305
RHS-416H 16 406
RHS-418H 18 457
RHS-420H 20 508
RHS-426 26 660
RHS-436 36 914
Material Specifications
Material High visibility orange brand hook and loop and a metal buckle
Properties
Excellent U.V. & weather resistance
Meets or Exceeds California Prop 65 and RoHs
Product overview: plugs
• RHINO Sleeve®
Sleeves
Guards
• RHINO Grip
• RHINO Firesleeve
• RHINO Color Coding Shrink Tubing
• RHINO Spiral Guard
• RHINO Spring Guard
• RHINO Hide
• RHINO Bend Restrictor
Wraps
Straps
Plugs
• RHINO Wrap 1050
• RHINO Blue Vinyl Wrap
• RHINO FRAC Pad
• RHINO Cinch Straps
• RHINO Safety Strap
• RHINO Hanging Straps
• RHINO Orange Drip Proof Plugs

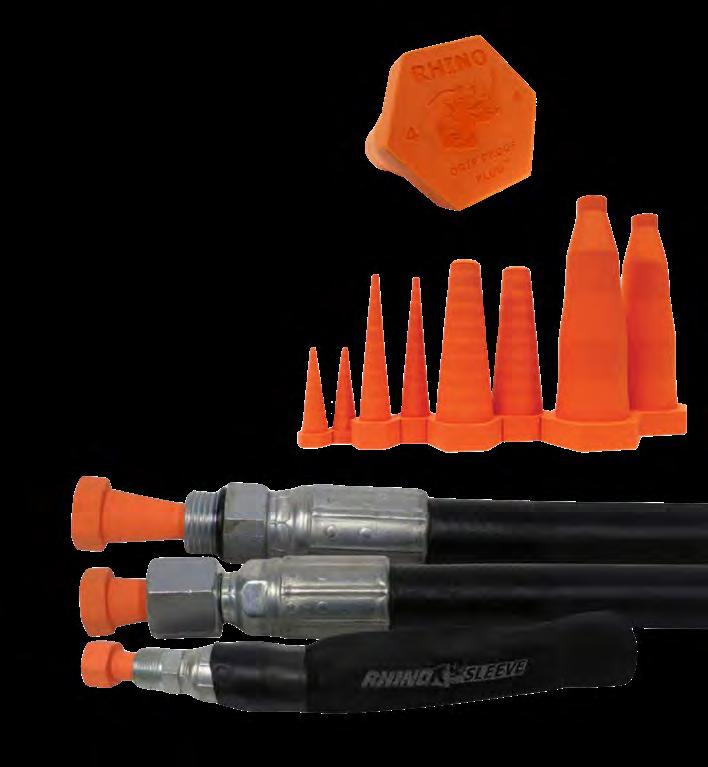

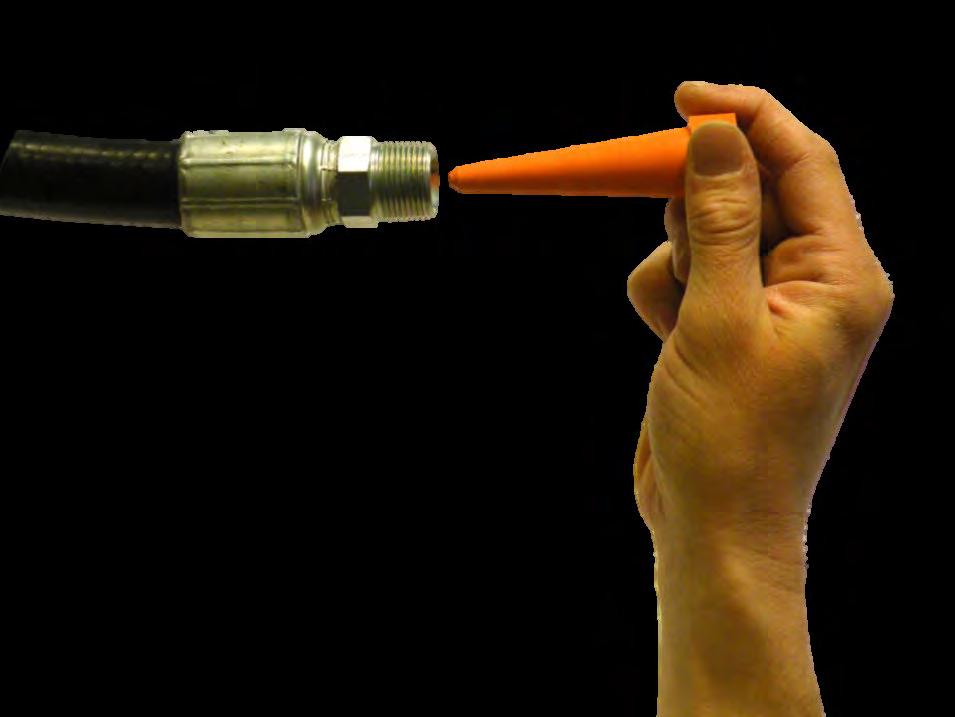

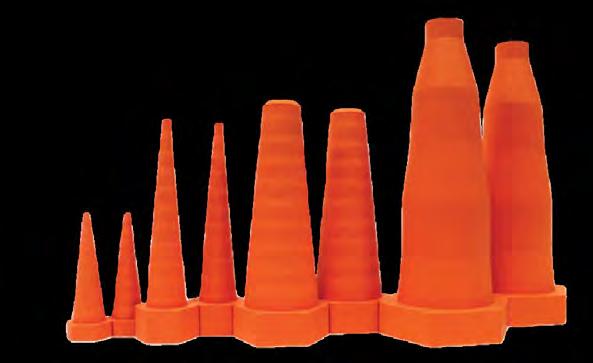

Rhino drip proof plugs
Key Features
Easy push, twist, and secure installation
Used for controlling fluid leakage during equipment maintenance
RHINO drip proof plugs Specifications
