Object Assignment 11Room Assignment

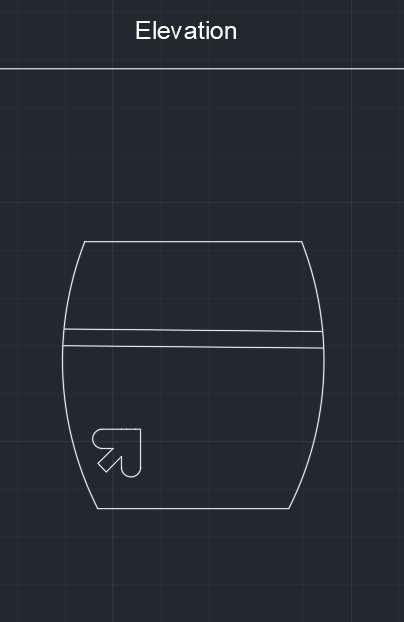

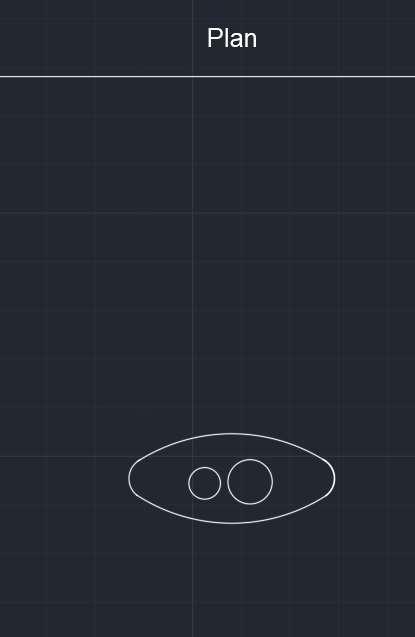

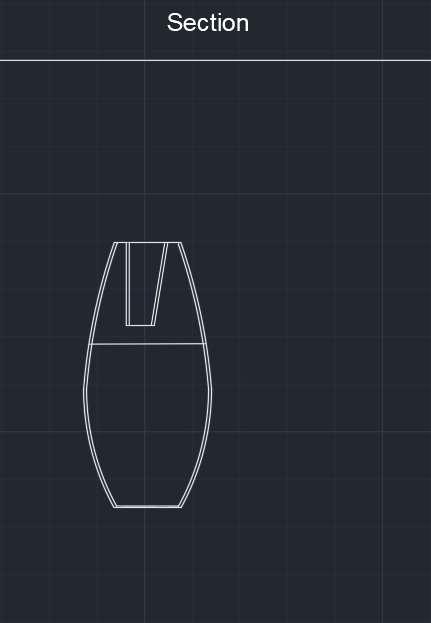

10 This pencil sharpener was made on AutoCad. The purpose of this assignment was to explore the tools on Cad and learn how to use the software in a very simple way.
Advertisement
Room Assignment

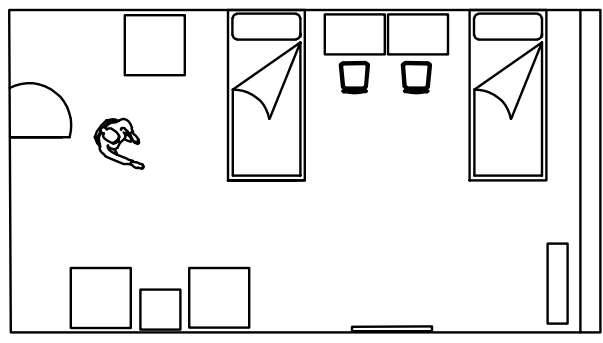

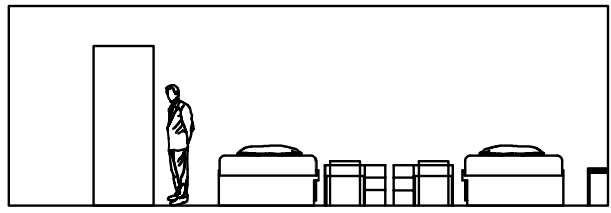

The plan and section on the left were made in autocad. It was assigned to further our knowlesge with the software. The plan and section were achieved with drawing and also using cad blocks for furniture. We were also challenged with scaling the drawings to the size of our dorm room.

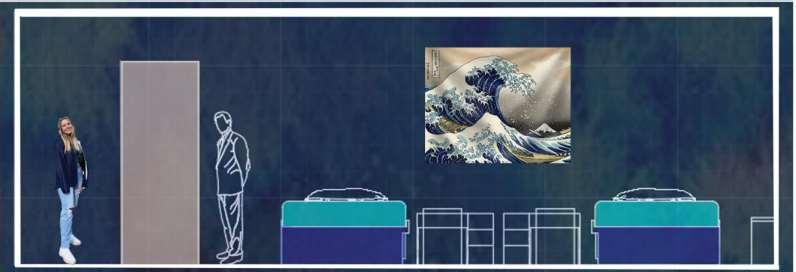

The section below was taken from Cad and put into photoshop. Keeping the elements from the room while also exploring colors and being creative with it.
