DETAILED FOCUS ON ROOF

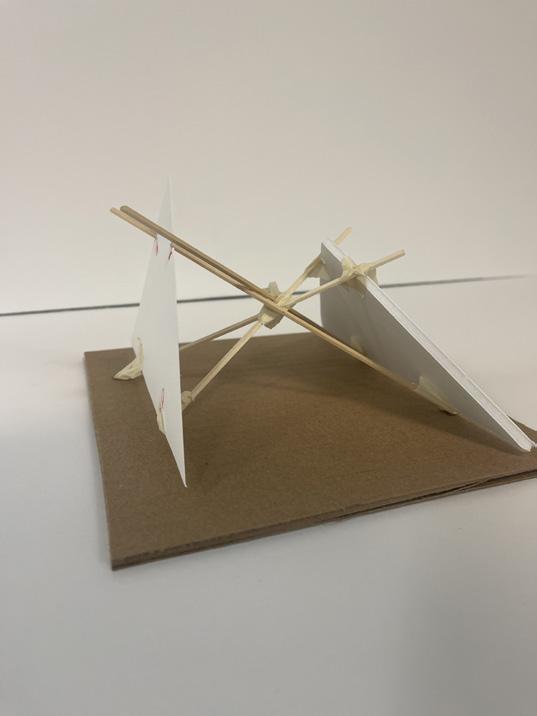

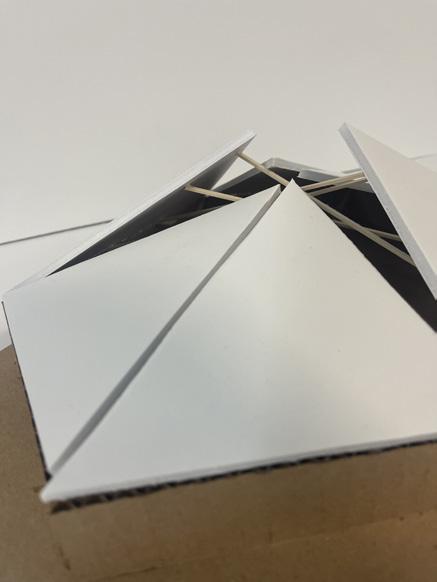

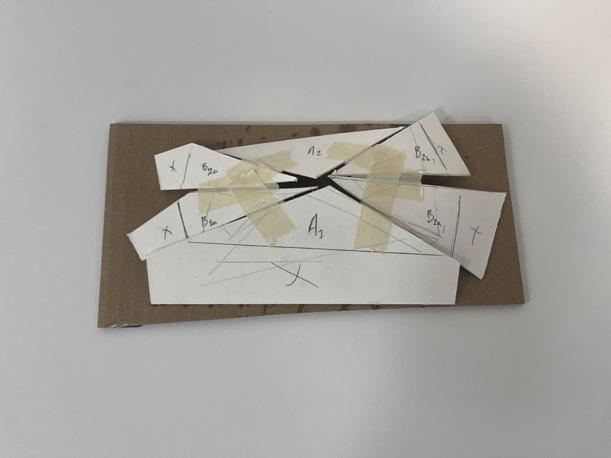

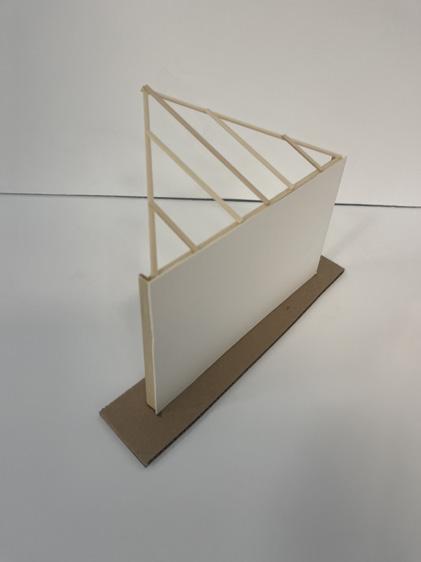

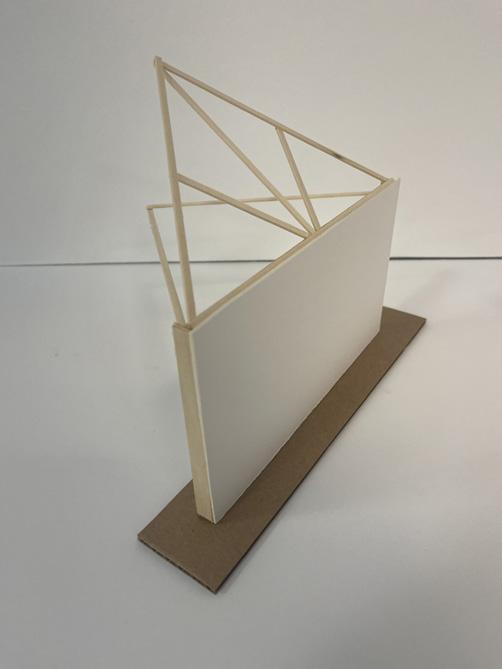

FROM THE SANCTUARY PROJECT, THE ROOF OF THE MAIN GATHERING SPACE WHERE THE ALTAR PIECE SITS, WAS NOT FULLY DEVELOPED. AFTER CHOOSING TO FURTHER DEVELOP THE ROOF STRUCTURE, MORE CLARITY WAS MADE ABOUT THE LIGHT IN THE SPACE. THE BEAMS PLAY A ROLE IN MAKING LIGHT PATTERNS THROUGHOUT THE DAY. THE MODEL PHOTOS SHOW HOW LIGHT PIERCES THROUGH INTO THE SPACE WITHOUT THE STRUCTURE BLOCKING IT. THE BEAMS ARE SUPPORTING THE OPPOSING PART OF THE ROOF WHICH ARE MADE OF STEEL TO SUPPORT THE HAVINESS OF THE ROOF. THEY CROSS IN AN X PATTERN TO KEEP THE MIDDLE OPEN.

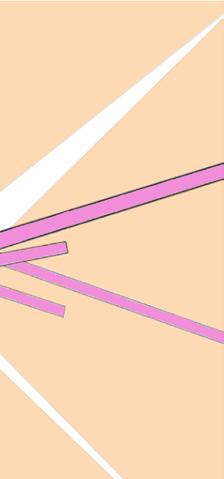

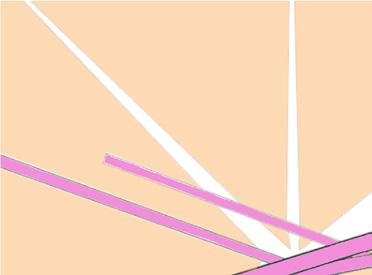

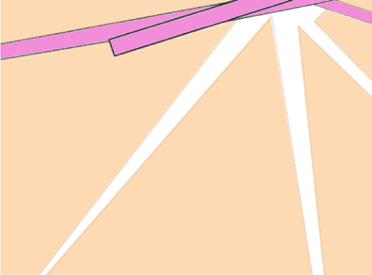

DIAGRAM SHOWING BEAM TO ROOF RELATIONSHIP FROM INSIDE THE SPACE
Advertisement

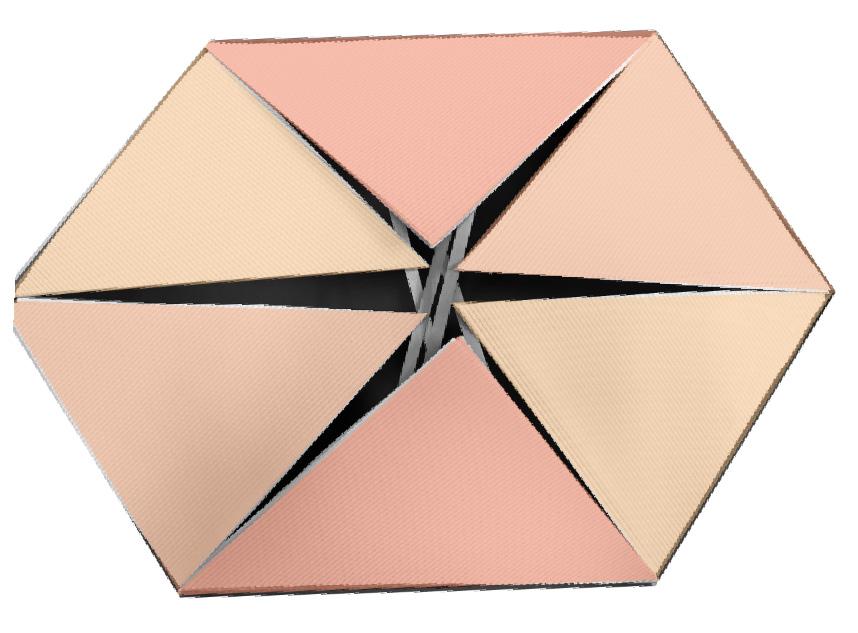

DIAGRAM O F ROOF
COLORS REPRESENT CORRELATING PIECES
CONCRETE BLOCKS
OUTER PROFILED METAL SHEET
FIBERGLASS BATTS

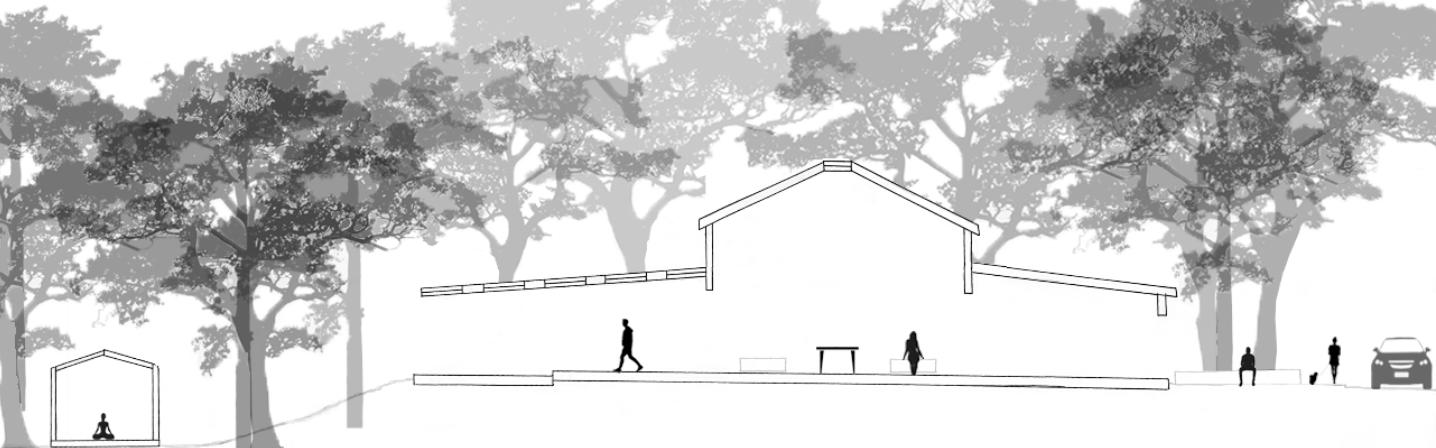

INTERIOR PLASTER FINISH KEY SECTION 1’ 4’ 11’ KEY PLAN 1’ 4’ 15’
STEEL BEAMS WITH WOOD CLADDING
LOAD BEARING BRICK WALL
HARDWOOD FLOORING
DETAILED N
