Plastic Letters and Logos

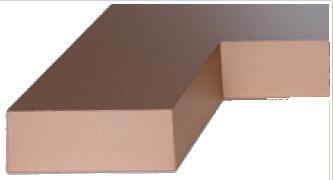

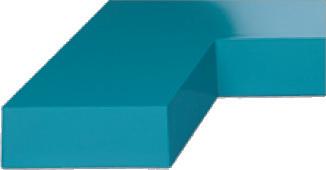

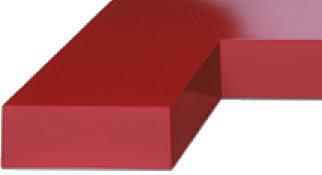

Flat Cut

Formed

Injection Molded

Laminated

Formed Plastic

Premium Finishes

Logos with Custom Painting

All Products

Custom Paint Colors It’s easy to request custom color matching! Simply tell us the paint number or name of the brand of paint you’d like us to match (e.g. PMS 186 or Sherwin-Williams Boathouse Blue) and we will obtain a mixing formula at no cost to you.

Don’t have a paint name or number and still need a color exactly matched? Please send us a sample (sample item must be at least 3”x 3”) and our paint lab will run it through an exacting color match process. Extra charges apply.

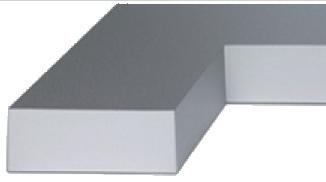

Flat Cut

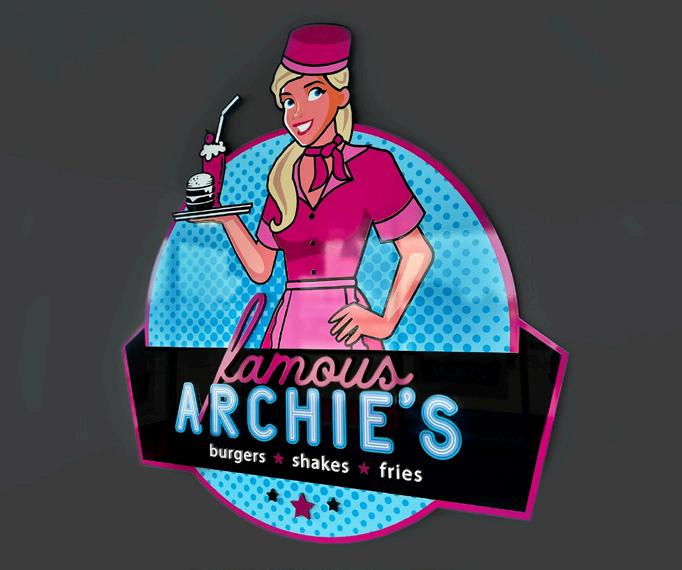

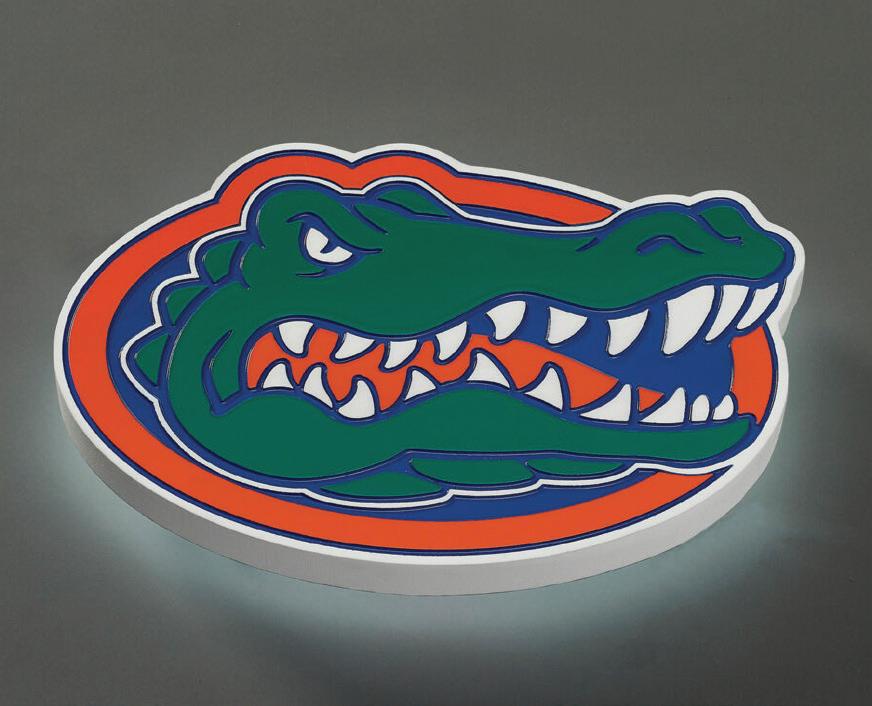

UV Colorlast and Custom Painting

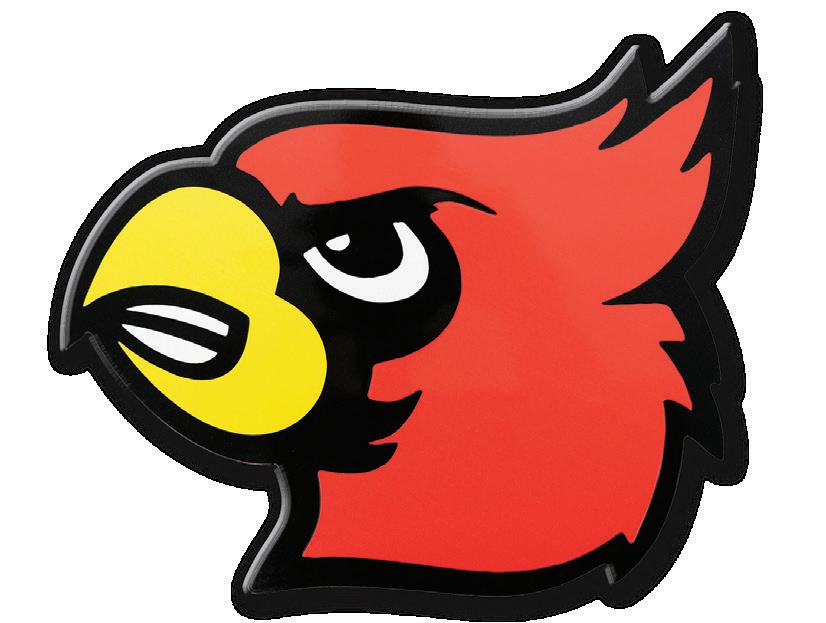

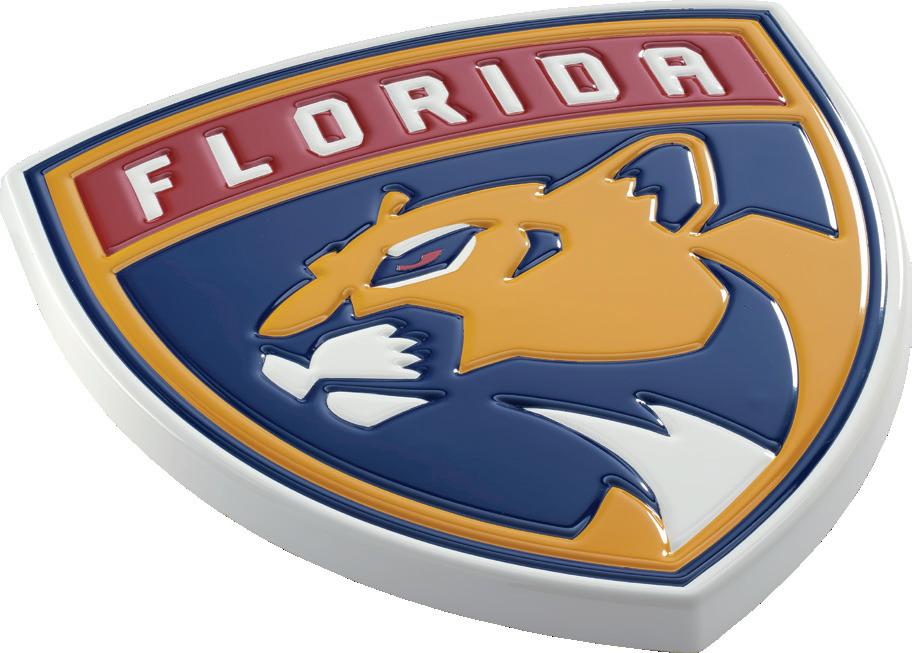

UV Colorlast is a new finishing process for multi-color logos that offers customers a cost-effective, exteriorgrade product delivered faster than traditional multi-color paint without sacrificing quality. Suitable for Flat Cut Acrylic and Flat Cut Metal materials, UV Colorlast is a combination of paint and masking and UV print that provides customers with a premium quality multi-color logo backed by Gemini’s Lifetime Guarantee.

Custom Painting Per Your Art

1,200 dpi UV Colorlast

Flat Cut - Formed - Injection Molded

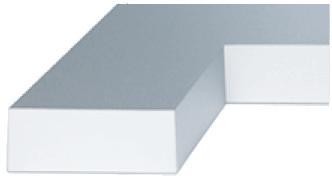

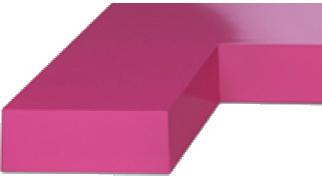

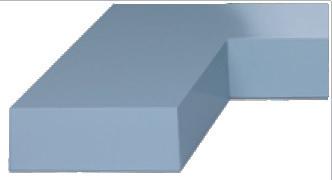

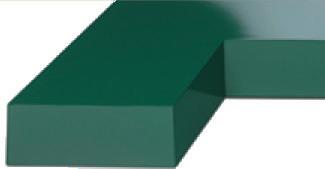

Colors

2225

2025

5687

8886

0209

4310

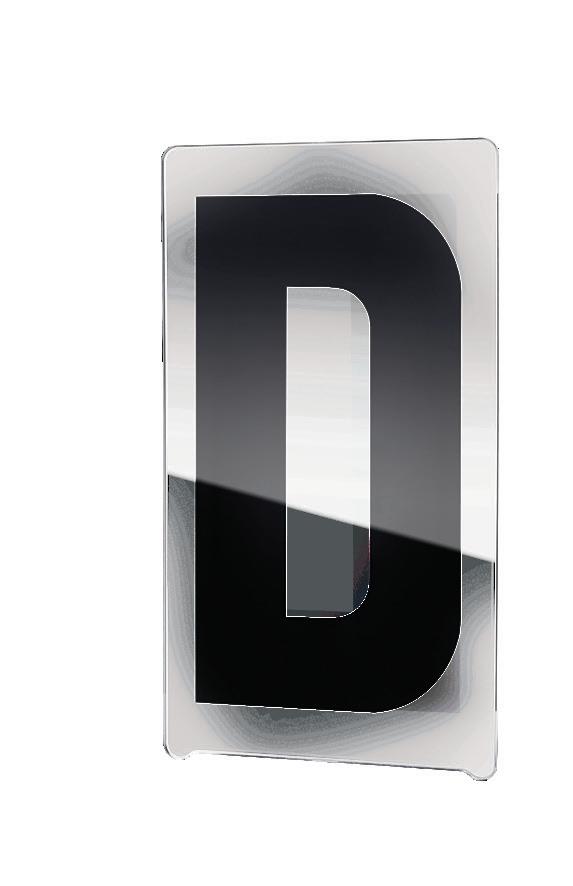

Optical Clear Flat Cut Acrylic ONLY

Black Approx PMS Black

White Approx PMS White

Metallic Silver* Approx PMS 420

Grey Approx PMS 423

Dove Grey Approx PMS 431

2000 Yellow Approx PMS 108

0217 Citrus Yellow Approx PMS 606

0218 Sundance Yellow Approx PMS 116

BEST VALUE (Flat Cut Acrylic)

2718 Ivory Approx PMS 7499

4660 Desert Sand Approx PMS 7506

2037 Lemon Yellow Approx PMS 102

0254

2119

2662

0256

2793

1875

Mango Approx PMS 137

Orange Approx PMS 021

Red-Orange Approx PMS 485

Rampart Orange Approx PMS 172

Red Approx PMS 185

Brick Red Approx PMS 7623

2280

2240

2410

2287

0246

2767

Black Cherry Approx PMS 1817

Maroon Approx PMS 202

Magenta Approx PMS 241

Purple Approx PMS 2695

Violet Toner Approx PMS 2725

Midnight Blue Approx PMS 5395

2050

2860

3000

2648

5425

3210

Dark Blue Approx PMS 281

Medium Blue Approx PMS 286

Blue Approx PMS 300

Light Blue Approx PMS 2995

Marine Reef Blue Approx PMS 5425

Teal Blue Approx PMS 321

8090

3555

0222

0259

2108

2030

Safety Green Approx PMS 809

Spring Green Approx PMS 355

Emerald Green Approx PMS 356

Federal Green Approx PMS 350

Light Green Approx PMS 3415

Dark Green Approx PMS 3435

2162

1315

Hunter Green Approx PMS 3308

Dark Oxide Approx PMS 447

3130 Duranodic Bronze* Approx PMS 2336

0314 Old Copper* Approx PMS 2334

2418 Brown Approx PMS 476

3120 Medium Bronze* Approx PMS 2335

4195

0253 Copper Approx PMS 7600

0402 Aztec Copper Approx PMS 7599

2756 Metallic Gold* Approx PMS 465

0401 Aztec Gold Approx PMS 2317

0400 Brilliant Gold Approx PMS 7556

Legacy Bronze Approx PMS 445

* Indicates colors that do not have a full gloss finish.

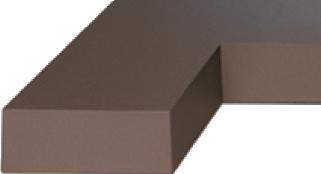

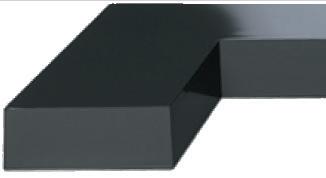

GemLeaf Laminate

On Flat Cut Plastic

INTERIOR ONLY

Brushed Aluminum

Polished Aluminum

Brushed Silver

Brushed Pewter

Brushed Brass

Polished Brass

• 1” - 22” Letter Height • 21-1/2” x 46” Max Single Piece • 1/8”, 1/4”, 3/8” & 1/2” Thicknesses Brushed Bronze

Brushed Medium Bronze

Brushed Copper

Brushed Bright Copper

Metal Laminate

On Flat Cut Acrylic & Foam

INTERIOR ONLY 901

902

903

904

906

908

909

Polished Aluminum

Brushed Aluminum

Polished Brass Aluminum

Brushed Light Brass Aluminum

Brushed Copper Aluminum

Satin Black Aluminum

Satin Silver Aluminum

910

912

915

916

917

924

925

Satin Gold Aluminum

Satin Bronze Aluminum

Brushed Brass Aluminum

Brushed Pewter Aluminum

Brushed Black Aluminum

Bronze Stainless Aluminum

Brushed Medium Bronze Aluminum

927

Light Stainless Aluminum

The edges of GemLeaf and Metal Laminate on Acrylic can be painted any color. We also offer Black & Platinum Grey as a “Best Value” option for edge color.

2025 Black Approx PMS Black

8808 Platinum Grey Approx PMS 427

BEST VALUE

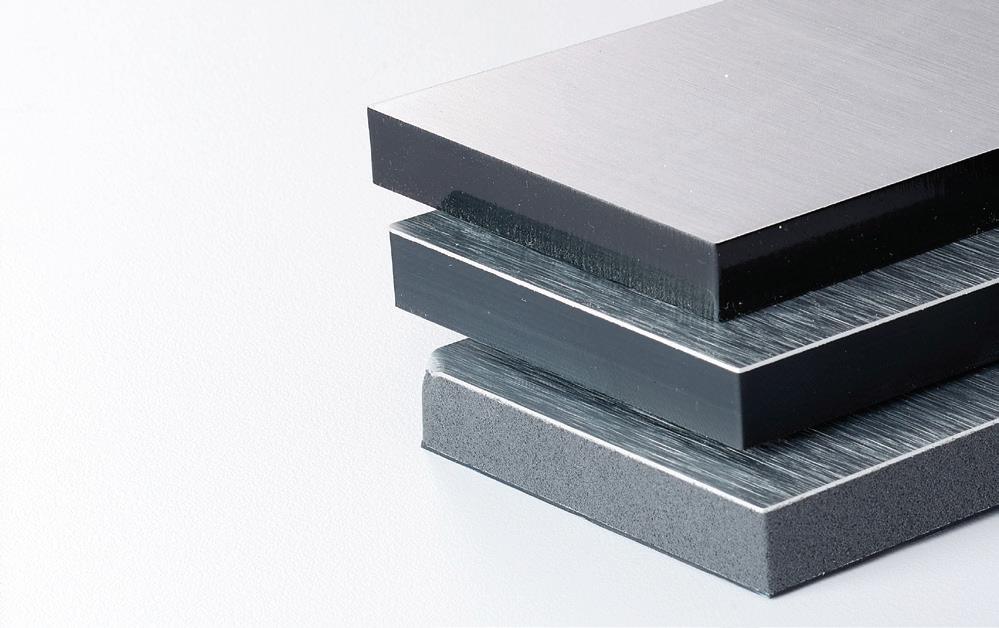

Metal or Acrylic Laminate On Foam

Metal Laminate On Flat Cut Acrylic

• 3” - 46” Letter Height (Depending on Thickness) • 46.5” x 95” Max Single Piece (Depending on Thickness) • 1/2”, 3/4”, 1”, 1.5”, 2” & 3” Thicknesses

• 3” - 46” Letter Height • 46.5” x 95” Max Single Piece

Gemini products are sold exclusively through Authorized Resellers.

Printed in USA | © 2023 Gemini Incorporated

• 1/8”, 3/16”, 1/4”, 3/8”, 1/2”, 3/4”, 1” & 1.5” Thicknesses

Standard Formed

Styles & Sizes

......................... 4”, 6”, 8”, 9”, 10”, 12”, 15”, 18”, 24”, 30”, 36”, 48” ARIAL BOLD ........................................................................4”,6”,8”,12”,15”,18”,24”,30”,36” Clarendon Fortune Bold ................................................. 6”, 9”, 12”, 15”, 18”, 24” Futura ............................................................................................. 6”, 9”, 12”, 15”, 18”, 24” Futura Bold .......................................................... 4”, 6”, 8”, 12”, 15”, 18”, 24”, 30”, 36” Goudy Extra Bold ................................................... 4”, 6”, 9”, 12”, 15”, 18”, 24”, 30”, 36” Helvetica .............................................4”, 6”, 8”, 9”, 10”, 12”, 15”, 18”, 24”, 30”, 36”, 48” Helvetica Bold .................................4”, 6”, 8”, 9”, 10”, 12”, 15”, 18”, 24”, 30”, 36”, 48” Helvetica Medium Condensed....................................................... 6”, 9”, 12”, 15”, 18”, 24” OPTIMA SEMI BOLD................................................................ 6”, 9”, 12”, 15”, 18”, 24” ROMAN CLASSIC ..................................................................... 6”, 9”, 12”, 15”, 18”, 24” Standard Block................................................................ 6”, 9”, 12”, 15”, 18”, 24” Times Bold. . . . . . . . . . . . . . . . . . . . . . . . . . . 4”, 6”, 8”, 9”, 10”, 12”, 15”, 18”, 24”, 30”, 36”, 48” Times New Roman ...................................4”, 6”, 8”, 9”, 10”, 12”, 15”, 18”, 24”, 30”, 36” TRAJAN B OLD ............................................................................ 6”, 9”, 12”, 15”, 18”, 24” ARCHITECTURAL

Standard Injection Molded

Styles & Sizes

.................................................................. 2”, 3”, 4”, 6”, 8”, 10”, 12” Helvetica ........................................... 2”, 3”, 4”, 5”, 6”, 8”, 9”, 10”, 12”, 15”, 18” Times Bold........................................................... 2”, 3”, 4”, 6”, 8”, 10”, 12”, 15”, 18” ARCHITECTURAL

PRISMATIC FACE INJECTION MOLDED

PRISMATIC FACE FORMED

Formed Plastic

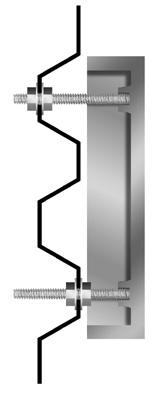

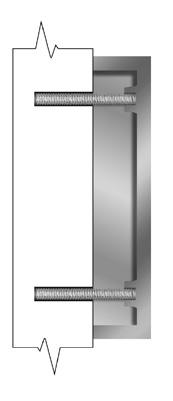

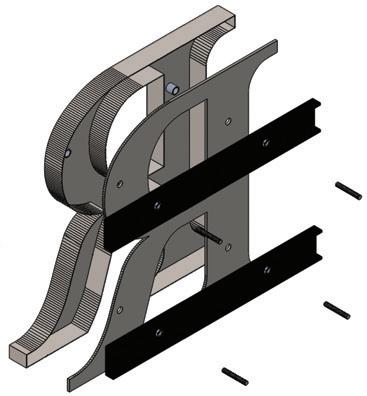

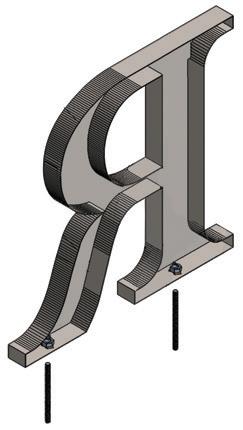

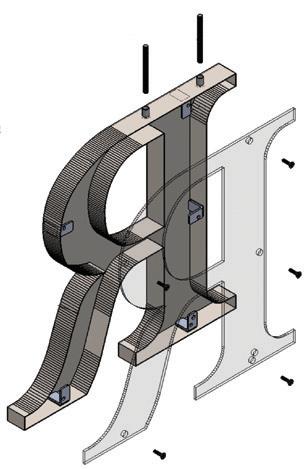

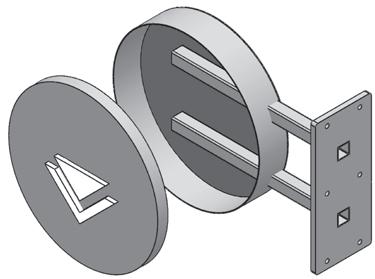

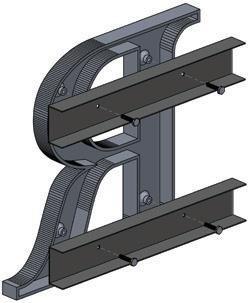

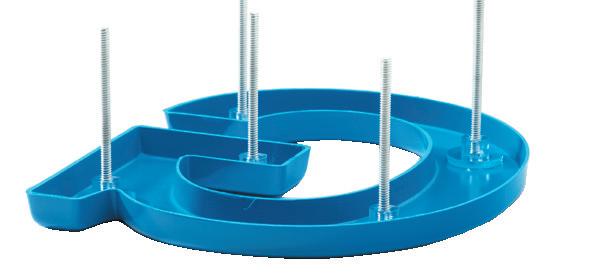

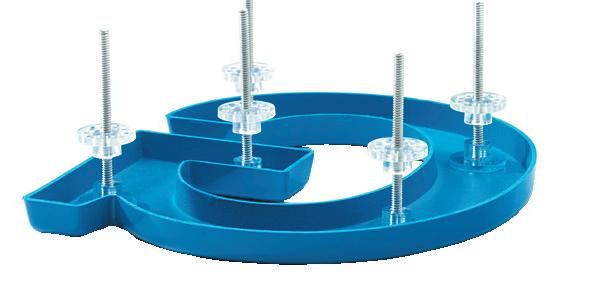

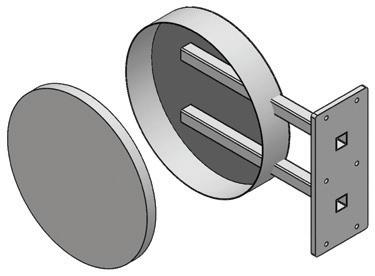

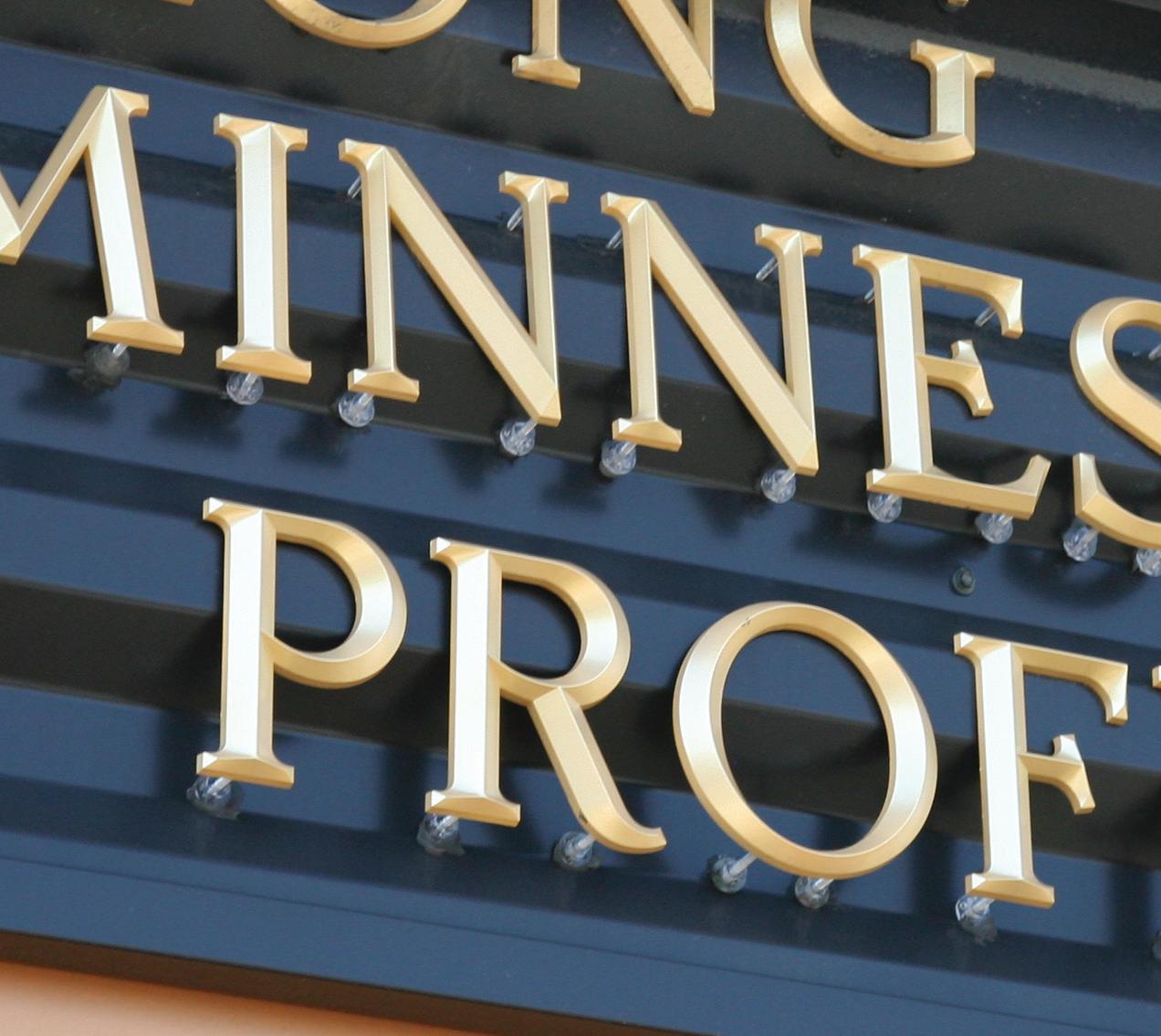

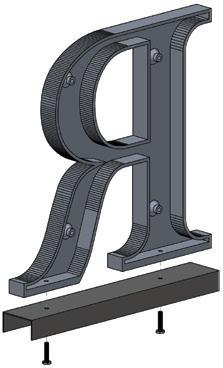

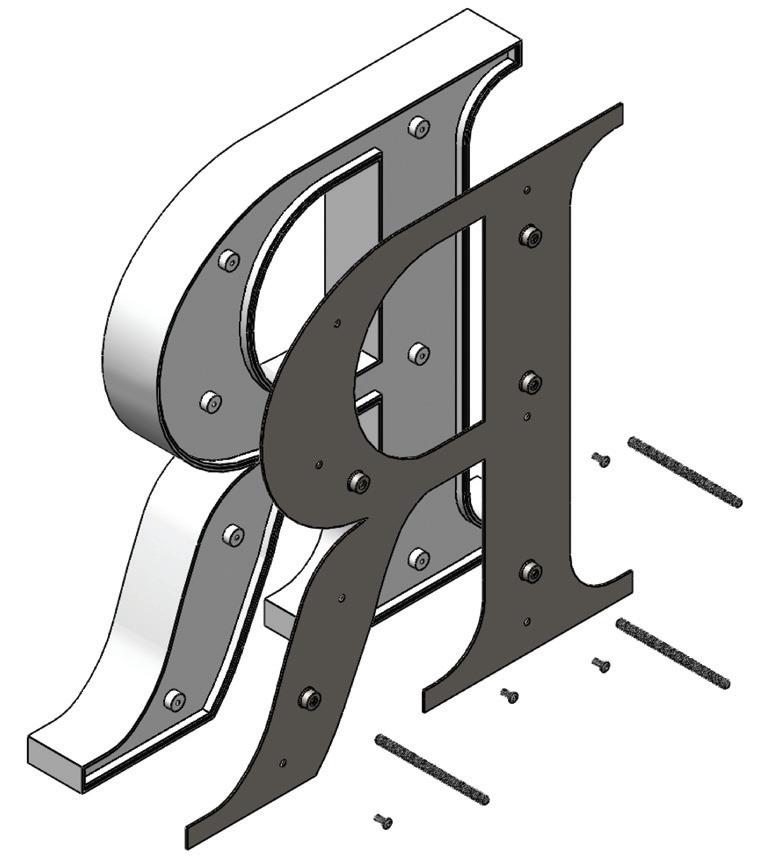

Mountings

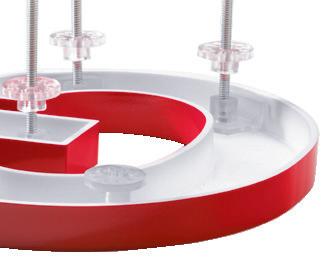

Stud

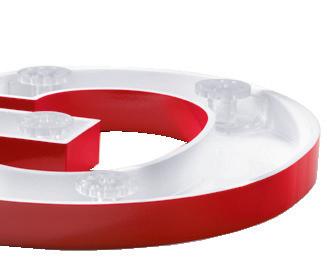

Pad

Combination

Combination All

Injection Molded

Stud

Mountings

Pad

Combination

Flat Cut & Laminate

Plain

Combination All

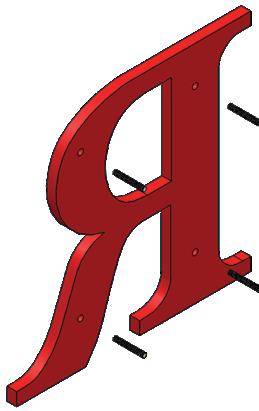

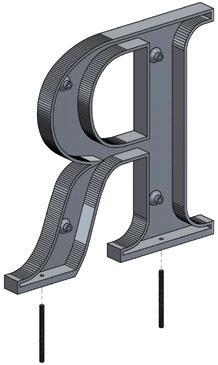

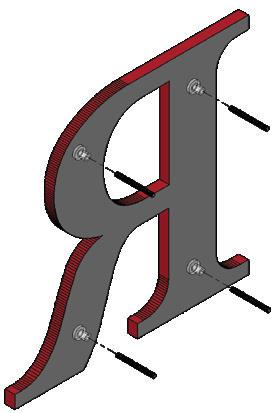

Mountings

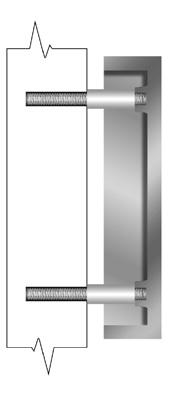

Flush Stud

Stud

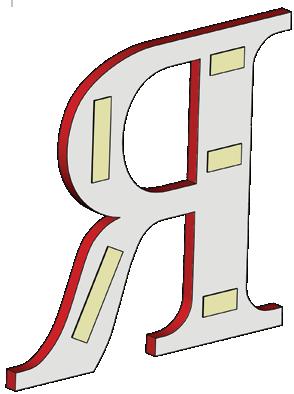

Double Face Tape

Formed & Flat Cut

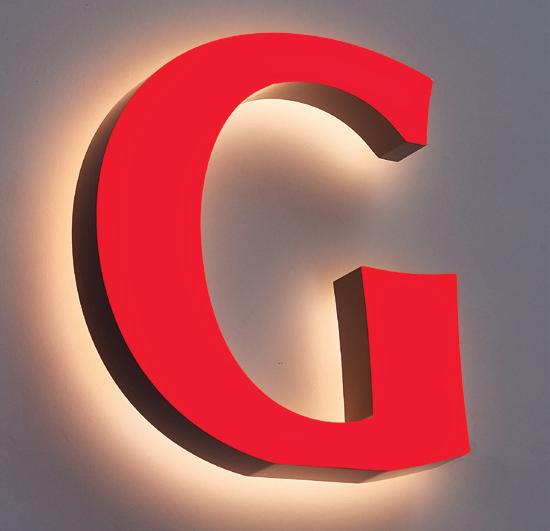

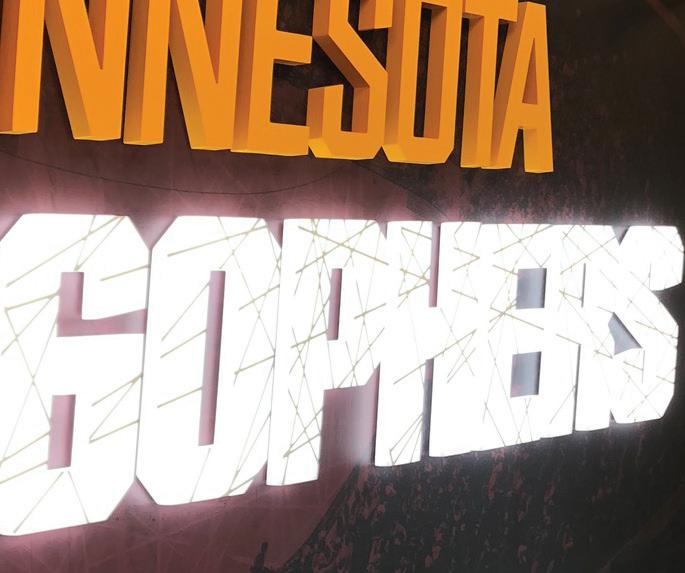

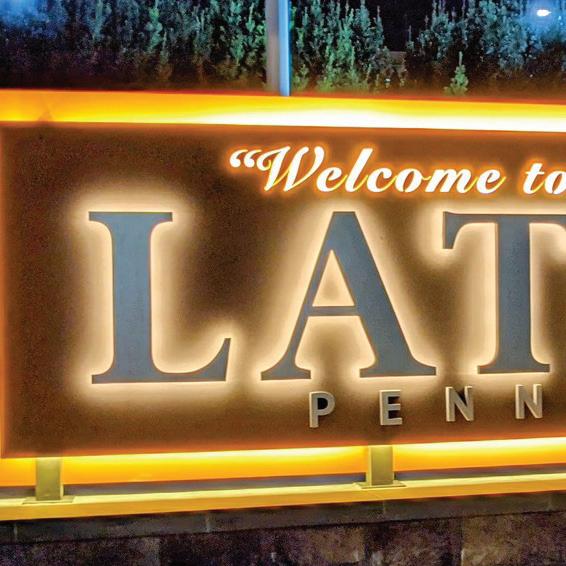

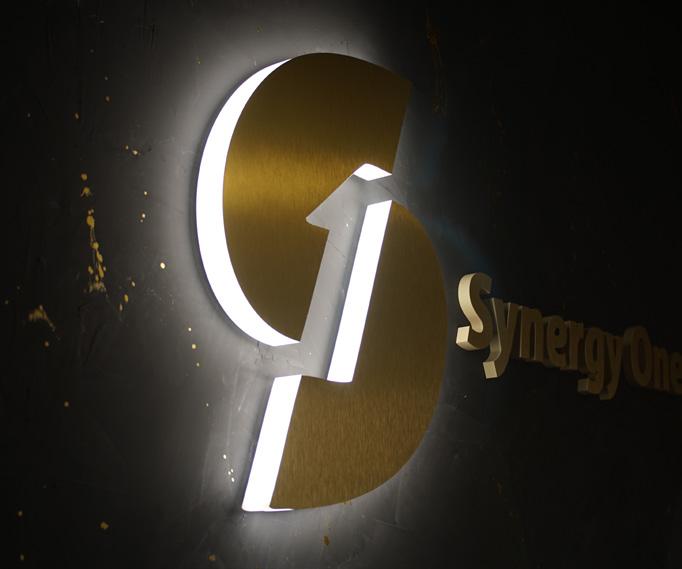

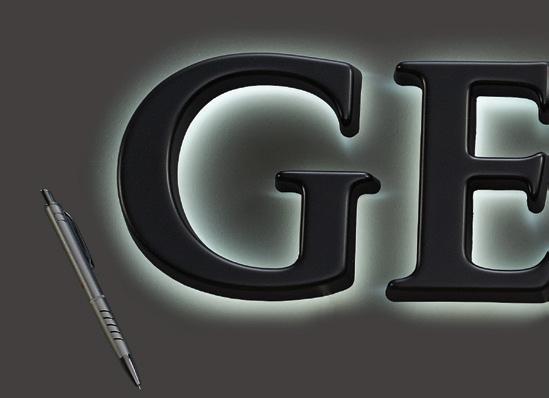

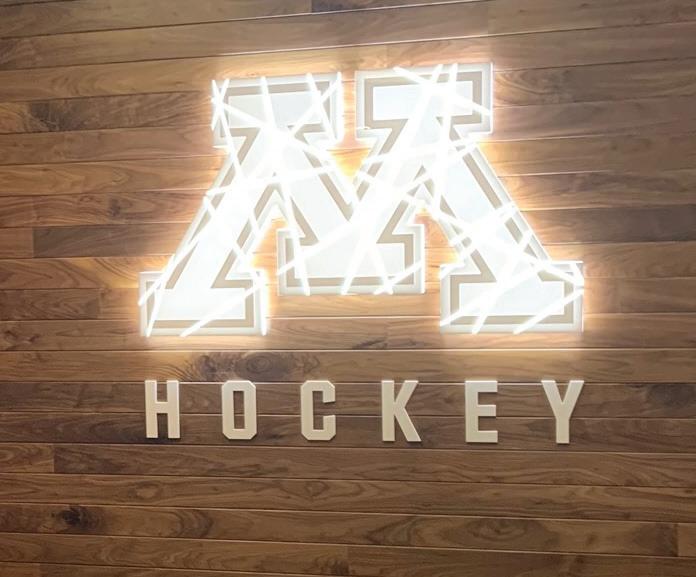

Halo & Face Illumination

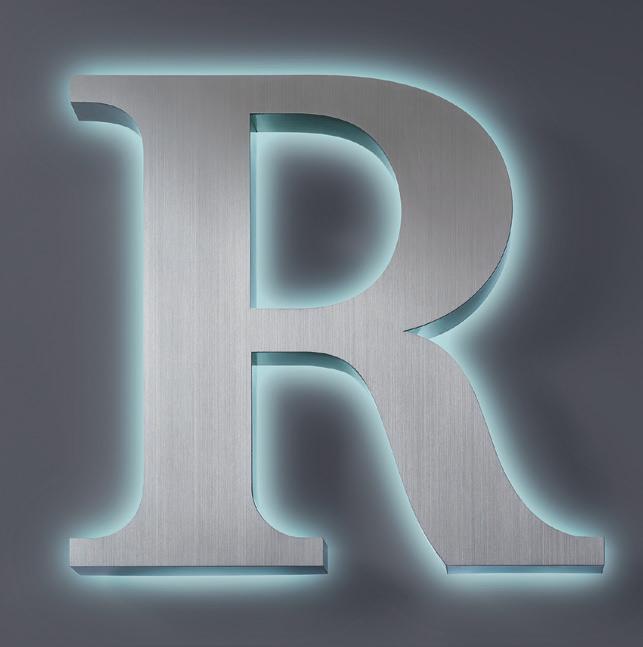

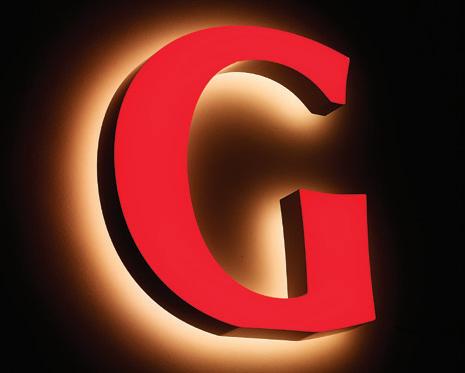

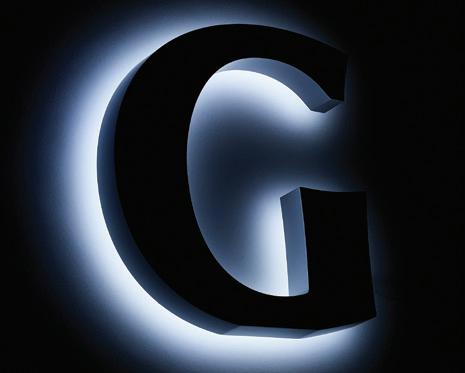

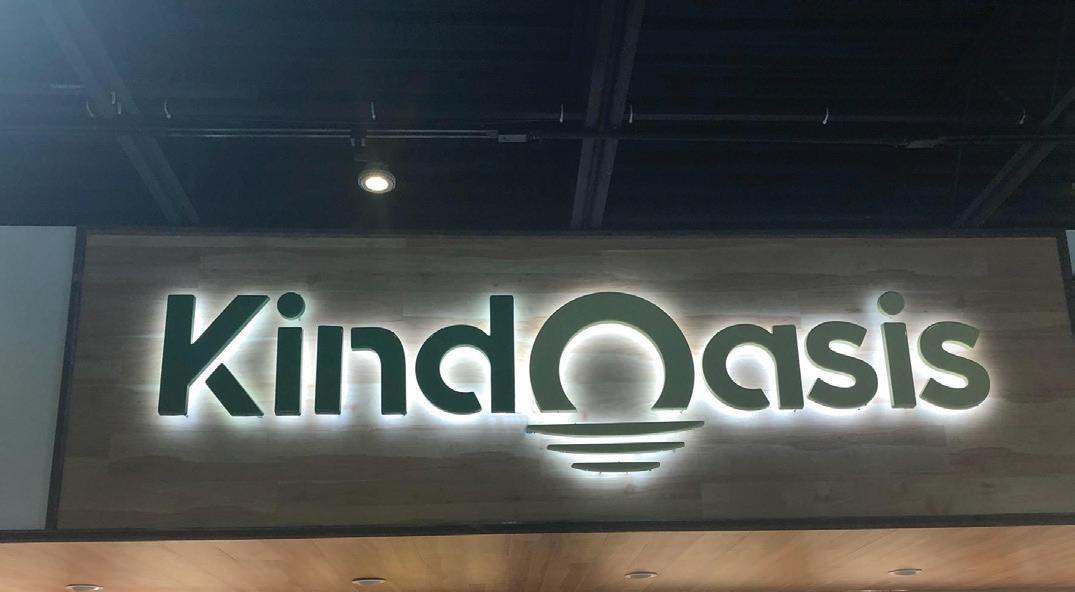

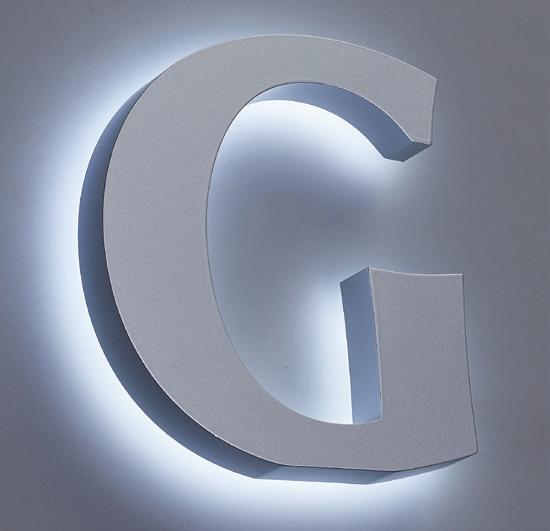

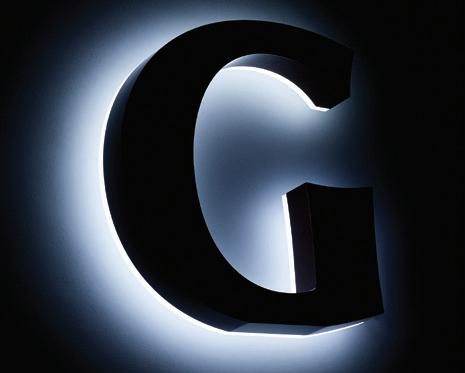

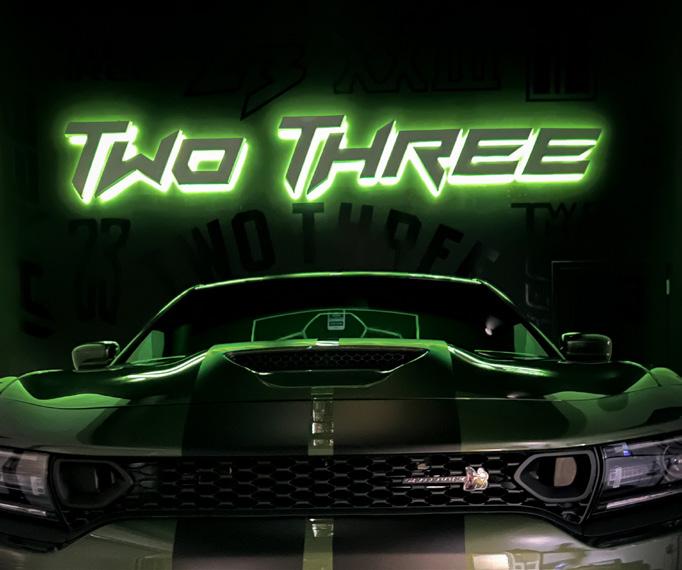

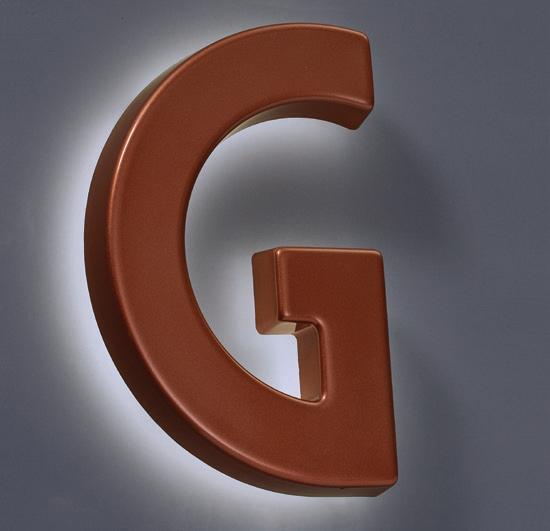

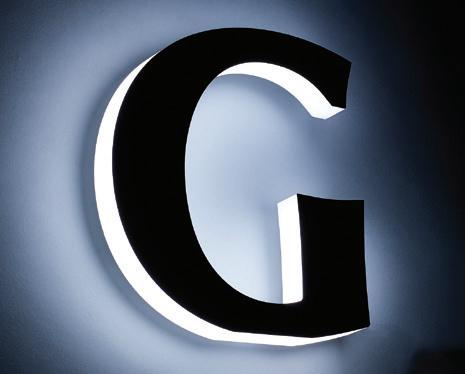

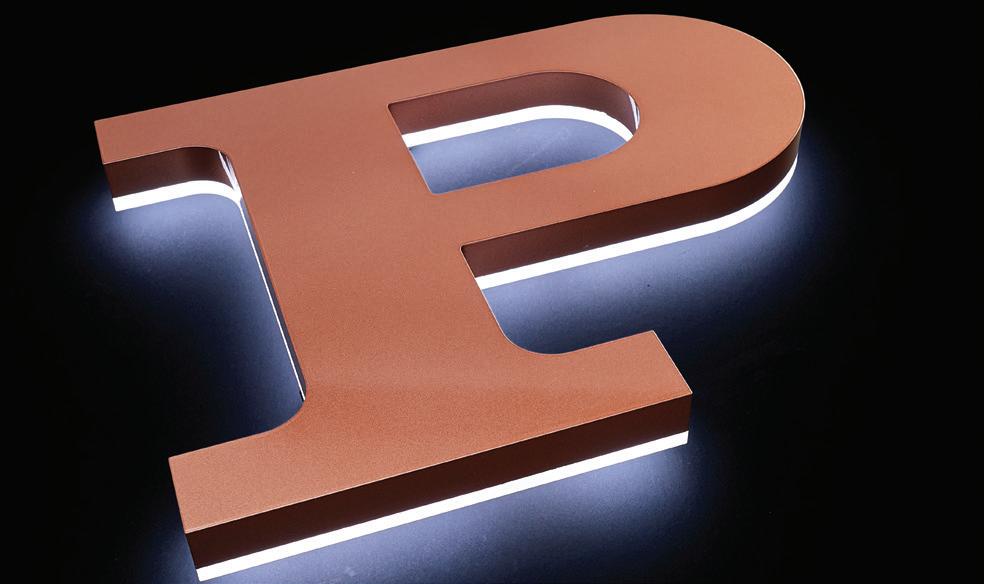

Halo Illumination

Trimless Acrylic L-900

Halo Illumination

Illuminated Acrylic Reveal

Acrylic L-1000

Halo Illumination

Halo Illumination

Formed G-200 - Flat Return

Acrylic w/Translucent Vinyl L-700

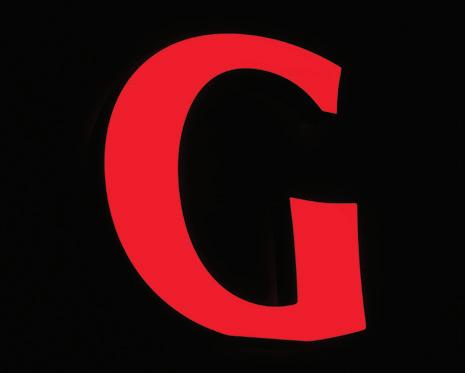

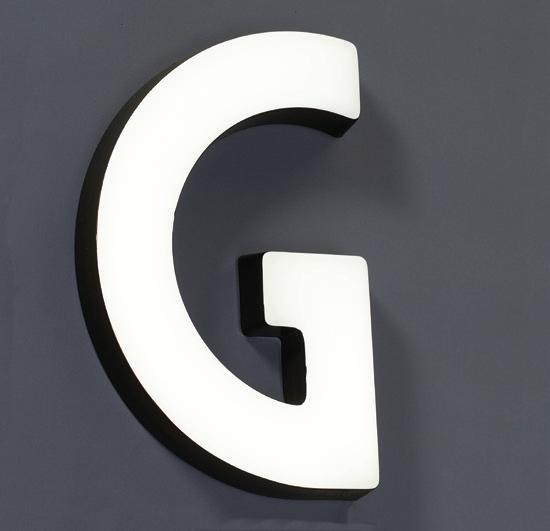

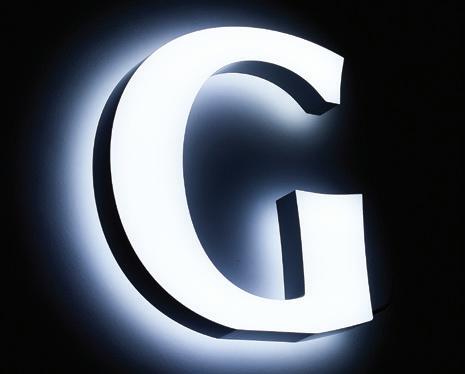

Face Illumination

Face Illumination

Translucent Acrylic L-100

Formed G-300 - Flat Return Halo Illumination

• Unlimited custom styles • UL Certified • 8 standard translucent colors • 5 standard LED colors • Vinyl accenting available As small as 6”

Formed & Flat Cut

Specialty Illumination

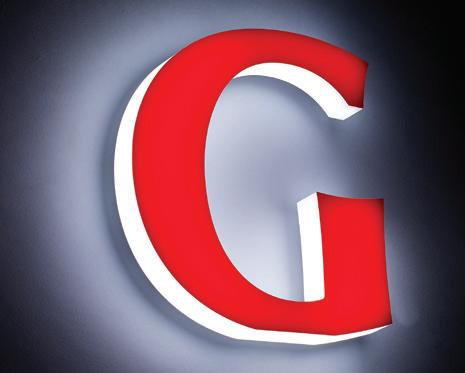

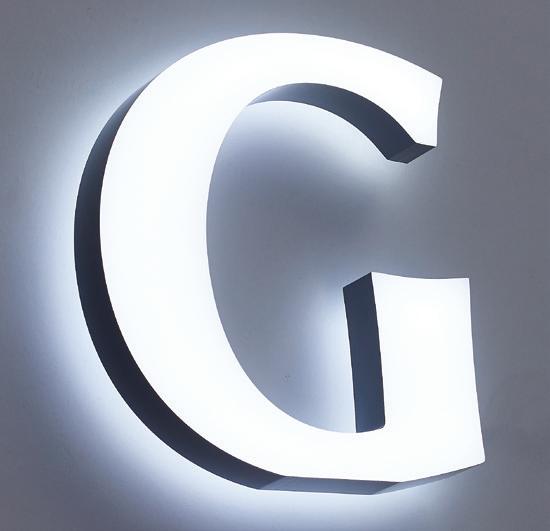

Face & Halo Illumination

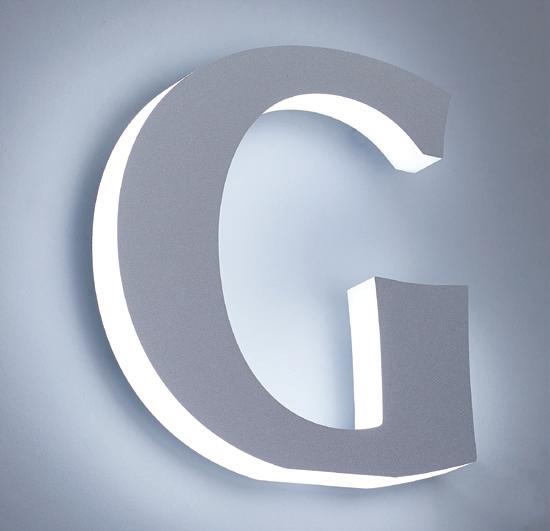

Face & Side Illumination

Acrylic L-200

Acrylic L-300

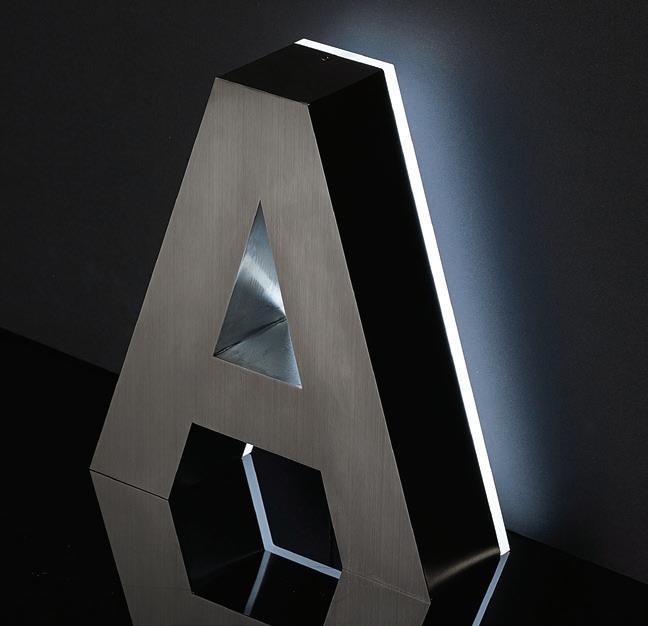

Side Illumination

Side Illumination

Acrylic L-400 (Metal Face)

Acrylic L-500 (Painted Face)

Face & Side Illumination

Face & Halo Illumination

Acrylic L-600 (Vinyl Face)

Acrylic L-800 (Vinyl Face)

Face & Side Illumination

Face & Side Illumination

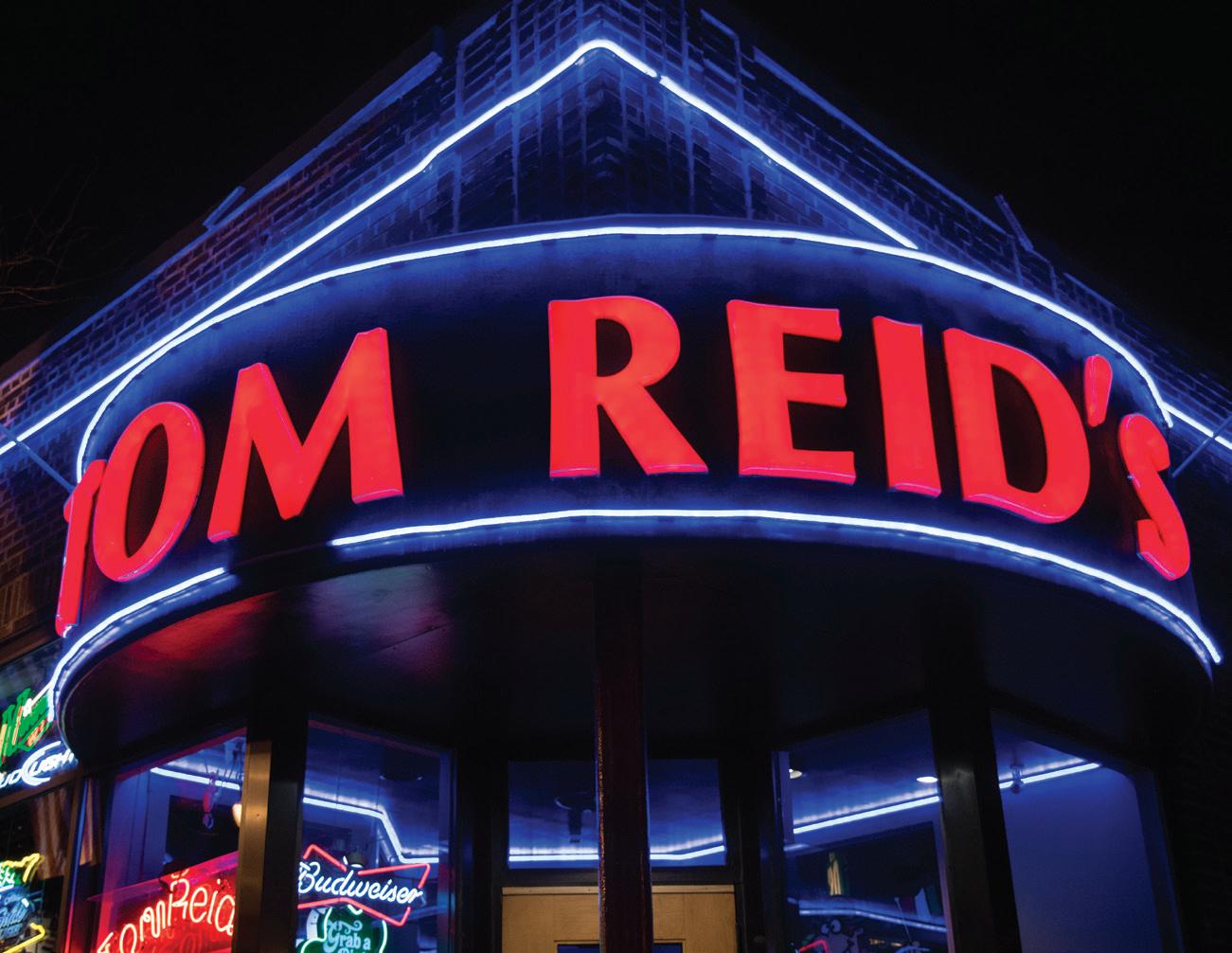

Formed G-500 (Face & Side Lit) Faxu Neon

Formed G-100

Formed G-400 (Painted Face)

Flat cut PVC Signage that doesn’t break the bank

Our eye-catching PVC signs are affordable, lightweight, and versatile, making them a perfect choice for retail and hospitality applications. Great for recurring projects or program work, PVC signs are used for indoor use and are backed by Gemini’s lifetime guarantee.

commonly used in these environments:

SPECIFICATIONS • 1/4”, 3/8", 1/2", 3/4”, 1" & 1-1/2” available.

Other thickness available on request.

• Lifetime guarantee for interior use • 46.5" x 95" max size

GROCERY

RETAIL

POINT OF PURCHASE

EXHIBIT & DISPLAY

• 2" min letter height at 1/4" - 1/2" thickness • 3" min letter height at 1" thickness • 0.188" min stroke with plain mounting • 0.25" min stroke with tape or stud mounting • Standard, custom, and metallic painted colors for no extra cost • Standard and custom fonts available • Mounting and installation pattern included at no extra cost

US: SIGNAGE@GEMINIMADE.COM | 800.538.8377 CANADA: CANADA@GEMINIMADE.COM | 800.265.0426 WWW.GEMINISIGNAGE.COM

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.13-0324 | Cannon Falls, MN

plastics

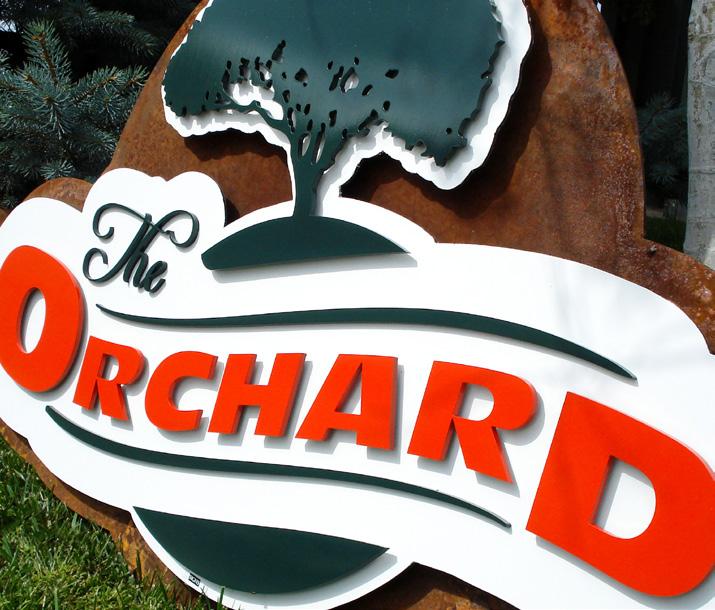

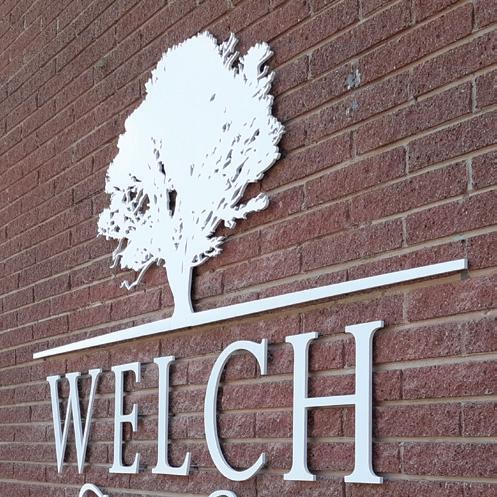

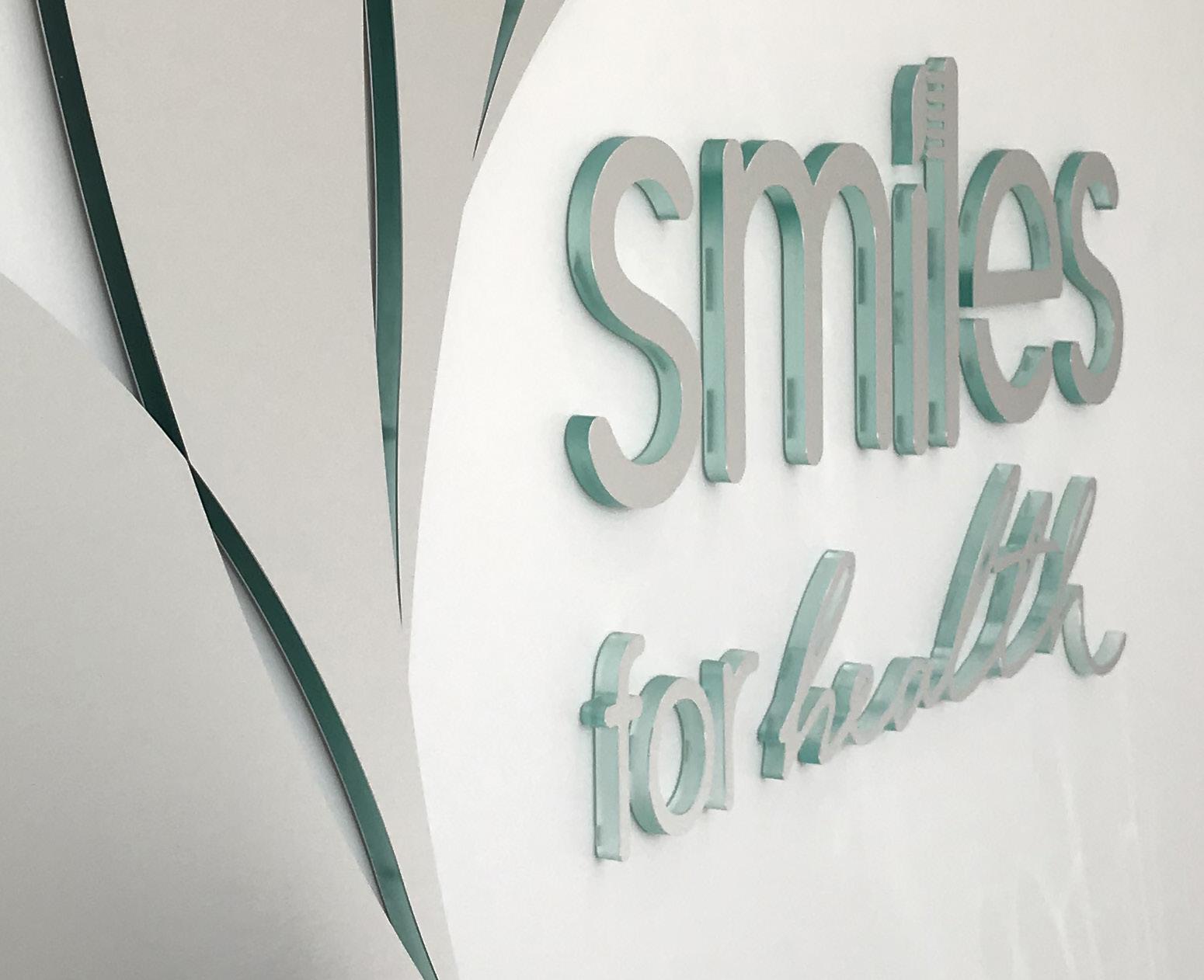

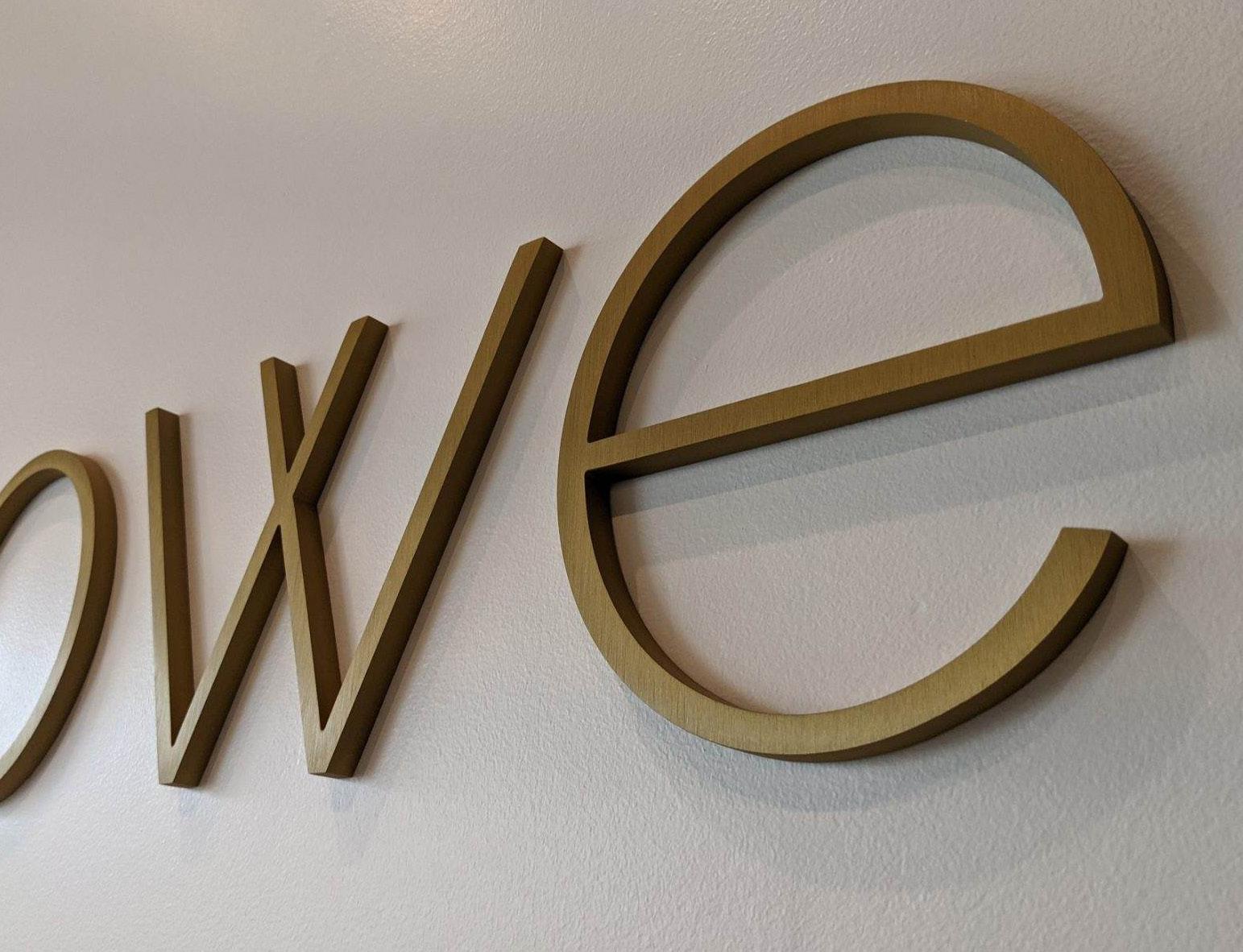

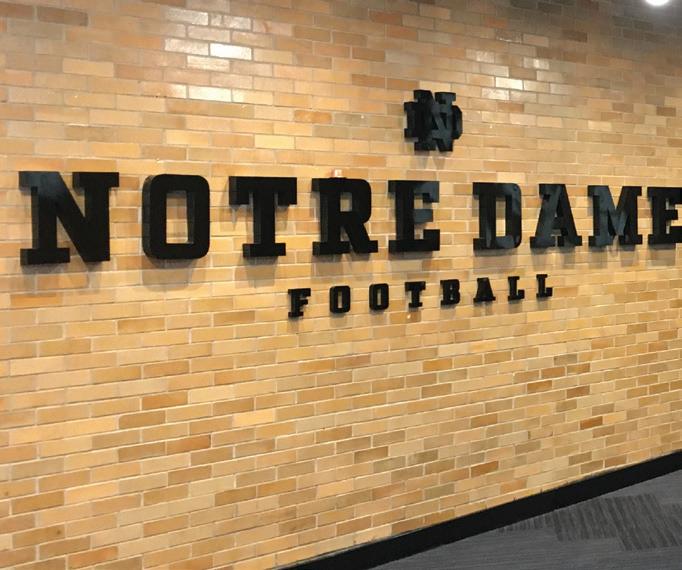

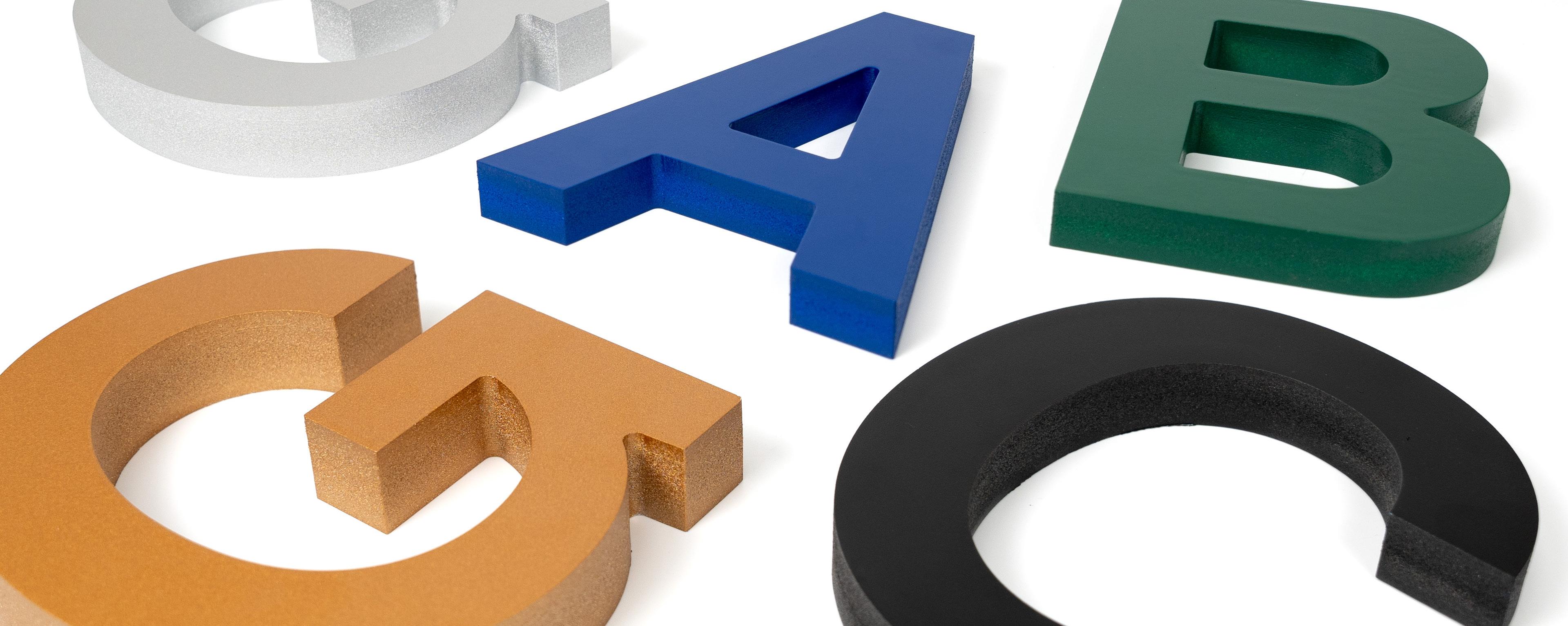

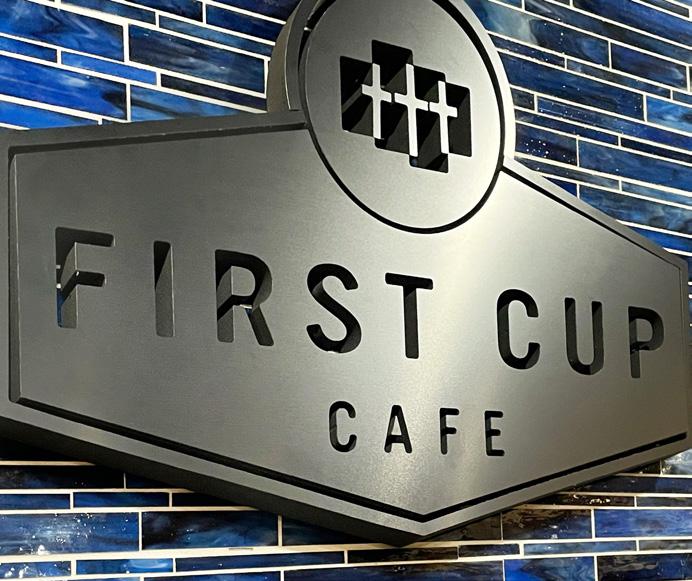

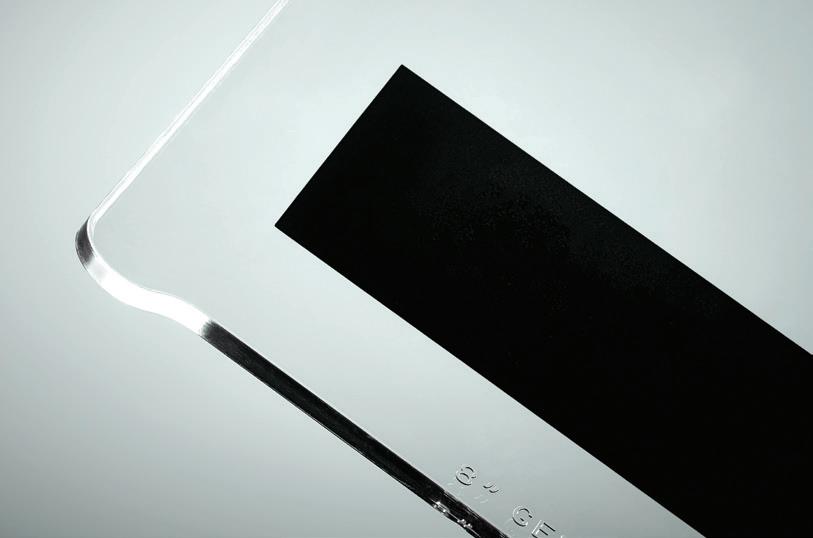

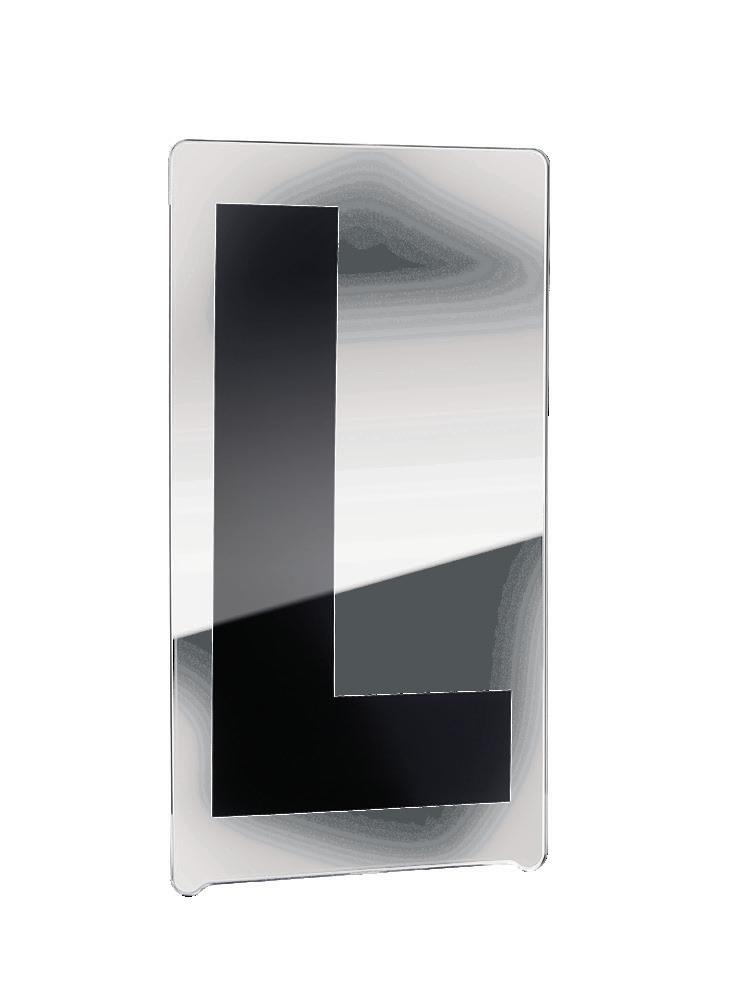

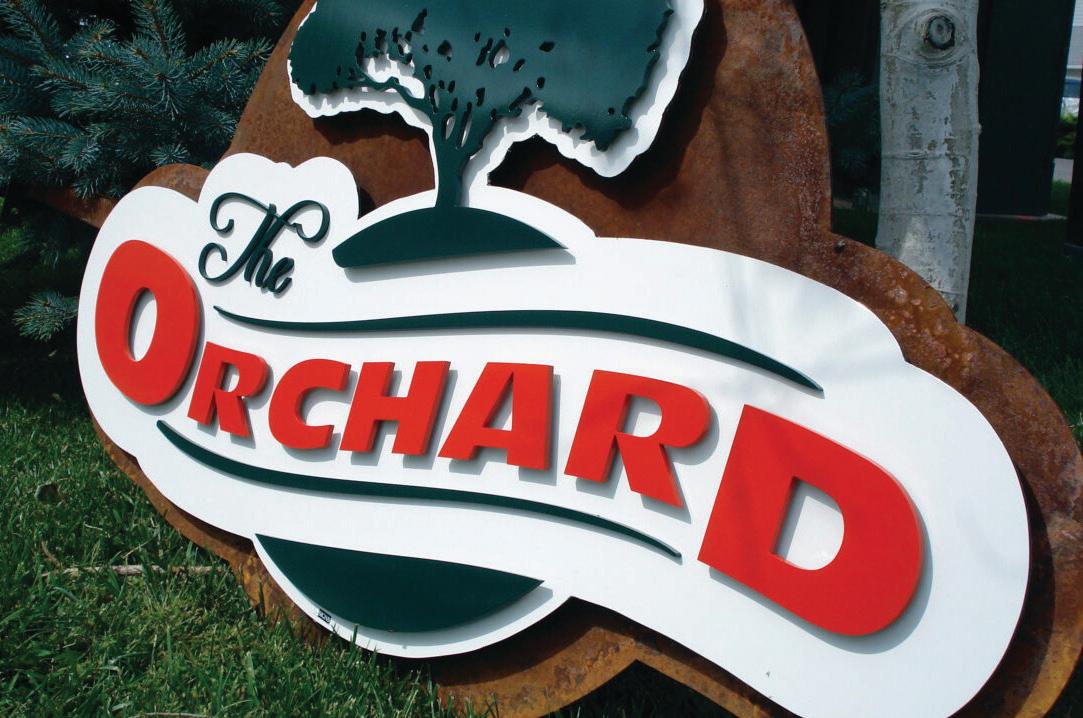

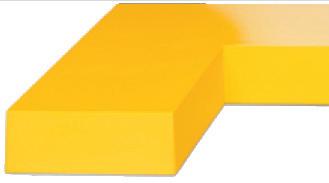

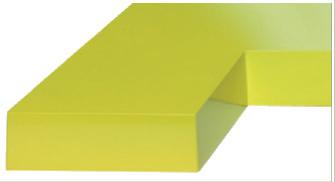

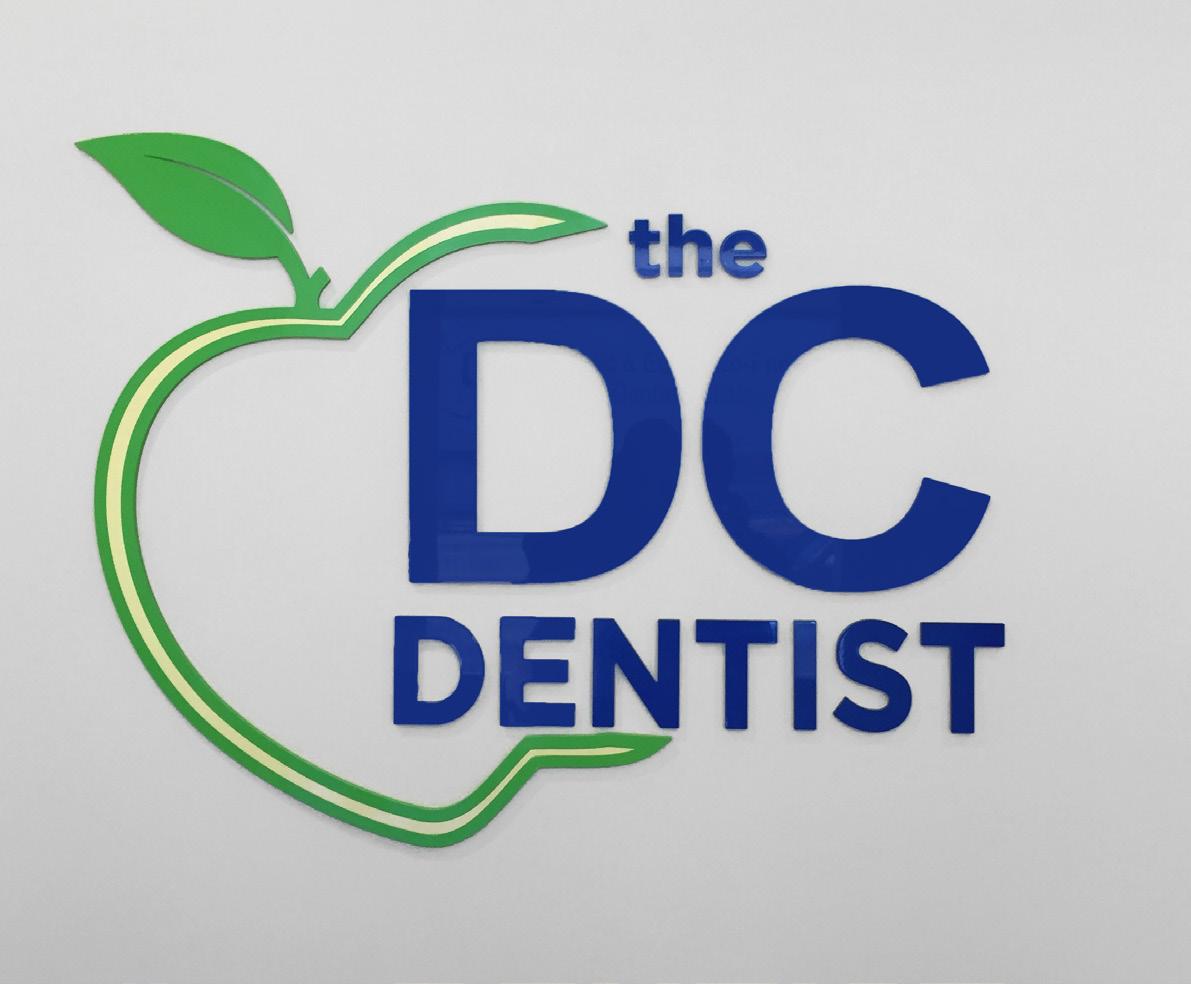

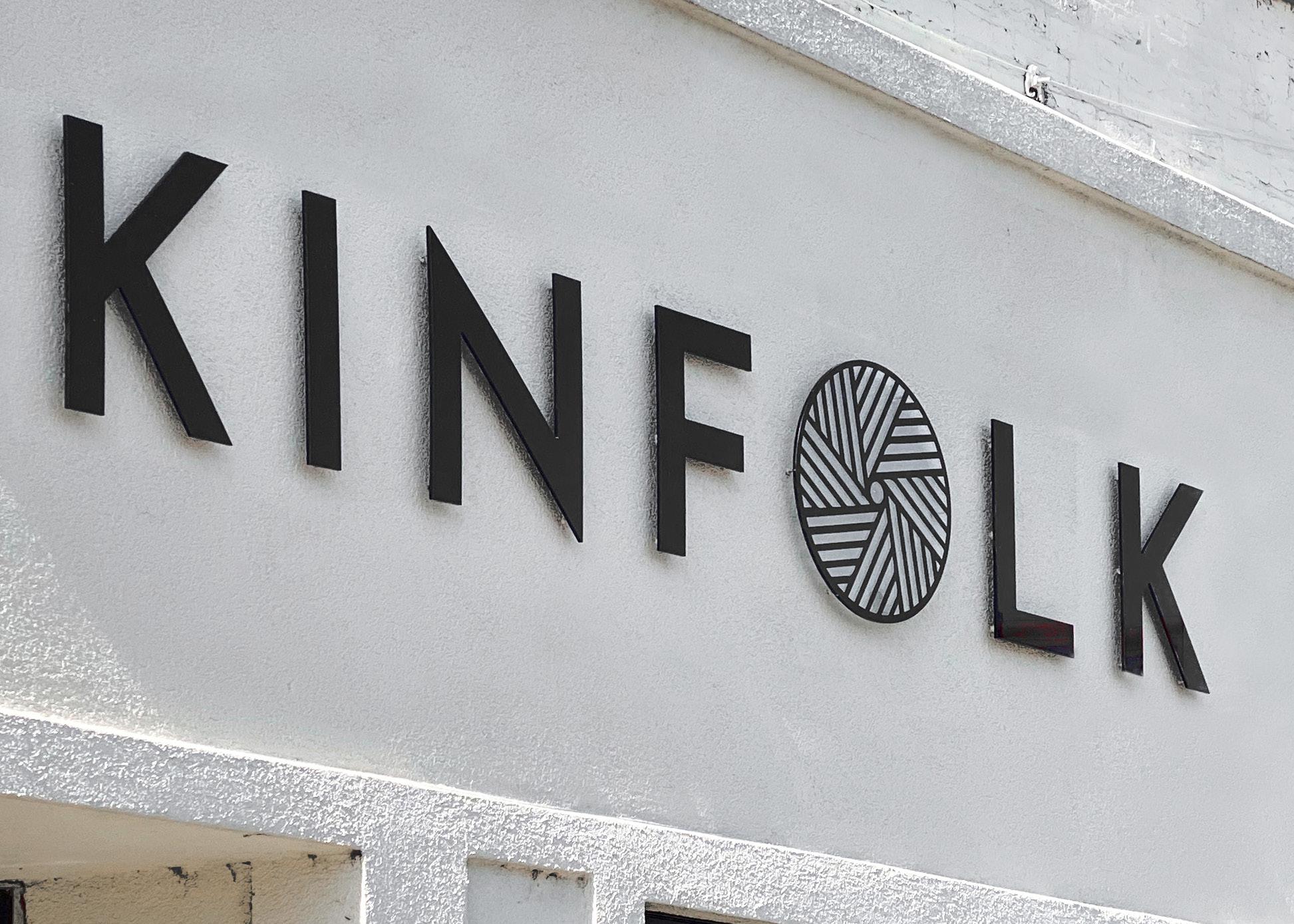

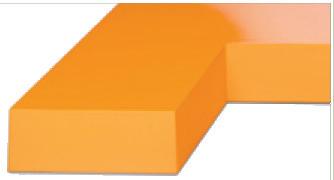

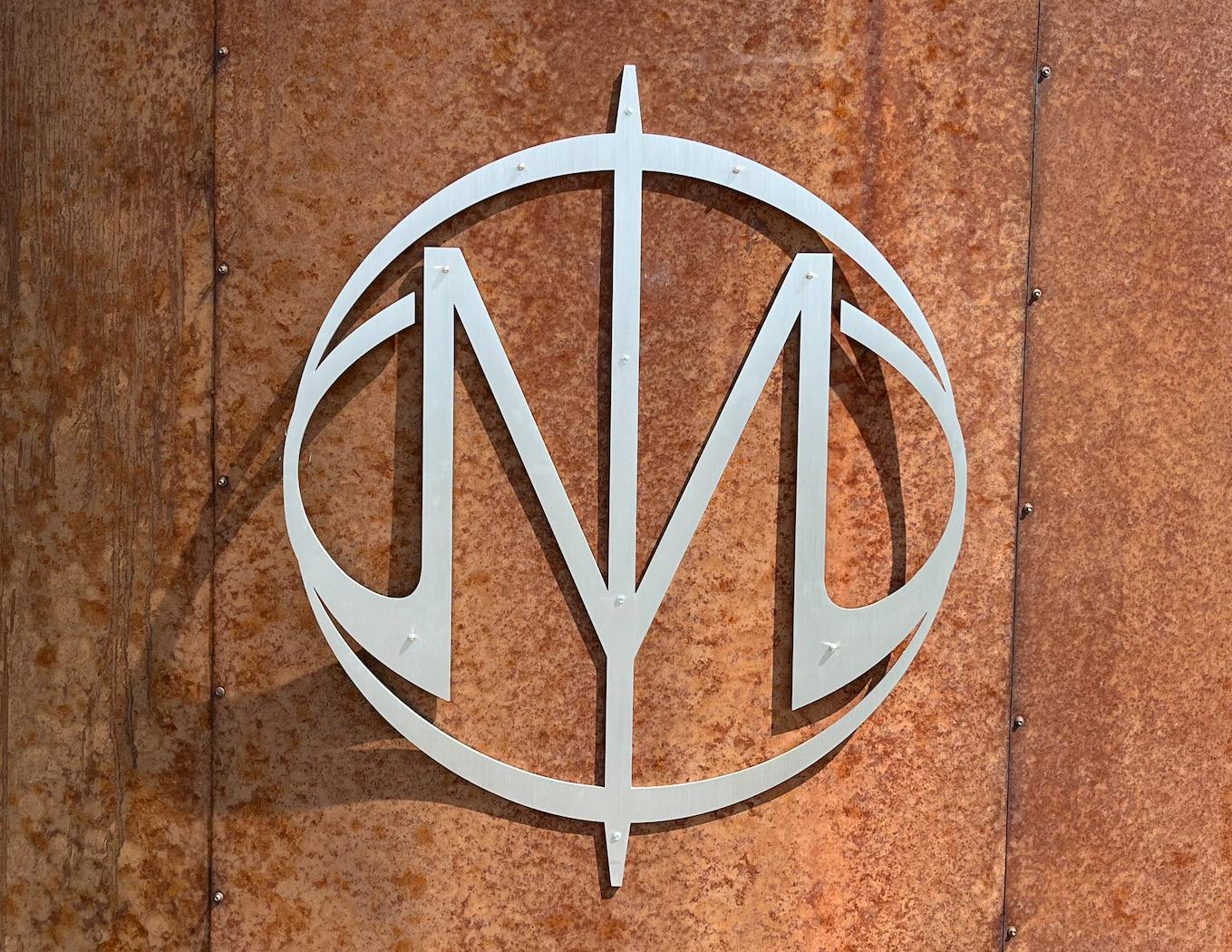

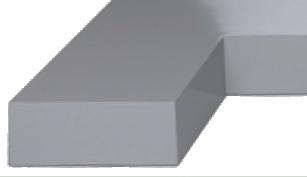

Flat cut acrylic vibrant, customizable signs to elevate any space Flat cut acrylic signs deliver highly-customizable signage at budget-friendly prices. Choose from a wide variety of vibrant colors, custom paints, or high-resolution prints for eye-catching impact. We can help further customize your sign by adding assembly of different elements including standoffs, custom painted details, and color printing.

DEFINITION Flat cut signs are a type of dimensional signage created by cutting individual letters, logos, or shapes from a flat sheet of acrylic.

SPECIFICATIONS • Size: Min: 3/4" Max: 95" (larger sizes available in separate pieces) • Thickness: 1/8", 3/16", 1/4", 3/8", 1/2", 3/4", 1", 1 1/2" • UV Colorlast combines paint with UV print for a cost-effective price for multi-color designs • Lifetime guarantee for interior and exterior use

commonly used in these applications

INTERIOR & EXTERIOR SIGNS

WALL DISPLAYS

OFFICE DOORS RETAIL & & ROOMS RESTAURANTS

WAYFINDING SIGNAGE

LOBBIES & DIRECTORIES

SPORT STADIUMS

SHOPPING MALLS

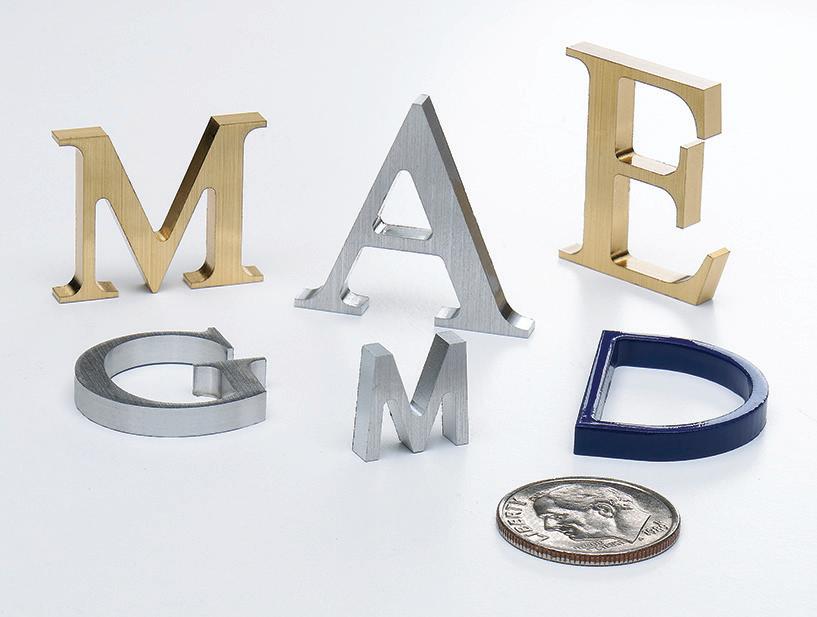

flat cut acrylic

Flat cut acrylic offers extreme versatility to match any design. Lightweight and easy to install, these signs elevate any space.

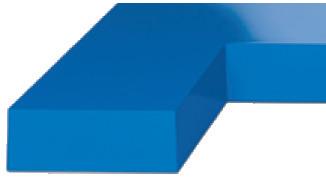

Precision cut edges

UV colorlast available

For unsurpassed reproduction quality of the most intricate designs, our state-of-the-art cutting capabilities offer superior detail.

Gemini’s UV Colorlast is a new, alternative solution to traditional painted surfaces. UV Colorlast combines painted base colors with UV-printed details, offering a cost-effective and fast way to add multiple colors to your sign.

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.27-0524 | geminimade.com

Wide range of sizes

Sizes can range from under an inch to 95" as a single piece - or even larger by using multiple pieces.

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

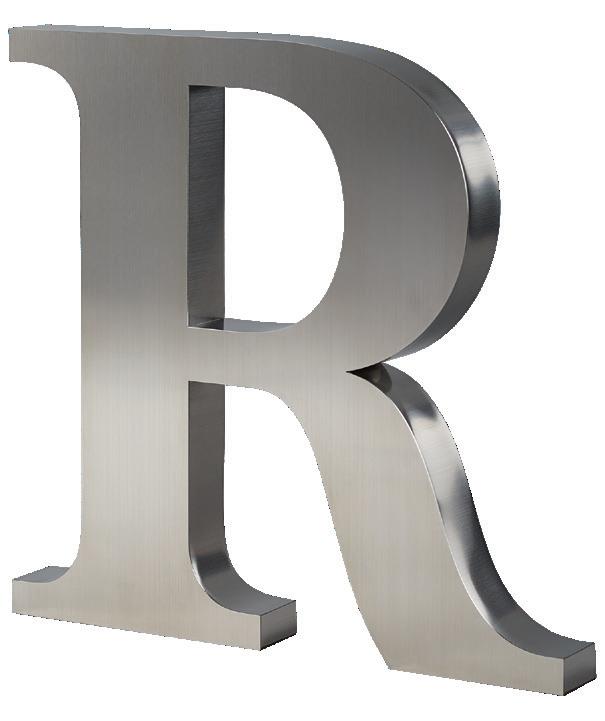

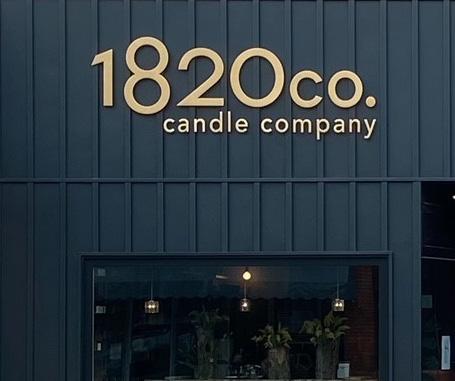

laminated

laminated Interior signs with a high-end look From lobby walls to retail displays, elevate your interior spaces with our sophisticated laminated signs. Our innovative technology artfully fuses metal, acrylic, or GemLeaf foil onto featherlight signs that can replicate the appearance of highercost, heavier sign alternatives. Each combination boasts a wide range of eye-catching face colors and finishes, letting you tailor your signs to perfection.

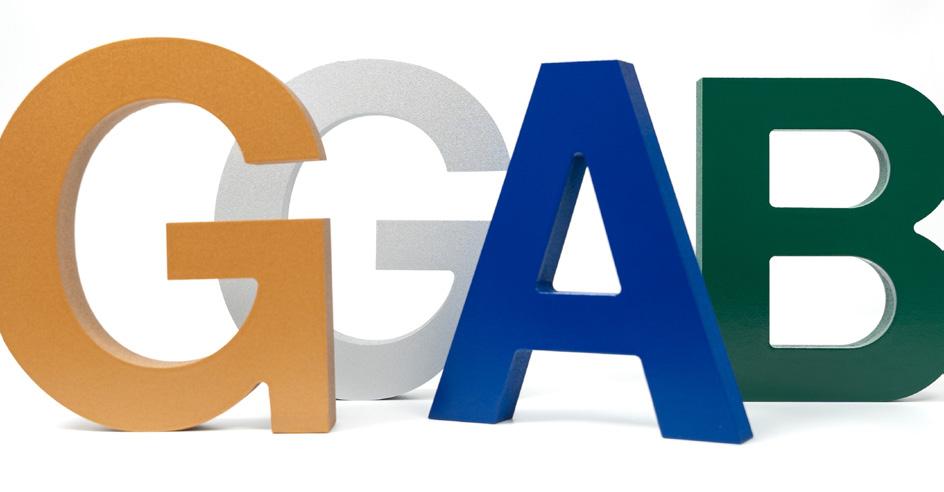

DEFINITION Laminated signs are flat cut foam or acrylic with a thin layer of metal, foil, or acrylic adhered to its face.

SPECIFICATIONS • Size: Min: 1" Max: 24" (min/max dimensions differ per material) • Depth: 1/8"to 3" (min/max depths differ per material) • Materials: GemLeaf foil on acrylic, metal on acrylic, metal on foam, acrylic on foam • Lifetime guarantee for interior use

commonly used in these applications GEMLEAF ON ACRYLIC INTERIOR SIGNS

WALL DISPLAYS

OFFICE DOORS & ROOMS

METAL ON ACRYLIC METAL OR ACRYLIC ON FOAM

LOBBIES & RECEPTION

INTERIOR RETAIL

WAYFINDING SIGNAGE

laminated

add instant sophistication to any interior space with these Laminated signs. Our variety of high-end finishes offer a premium look at competitive prices.

High-end look for interiors

Metal-look for 3 to 5 times less

lamination combinations

Laminated signs provide a sophisticated, high-end look for your interior spaces. Use acrylic or foam with a metal laminate to replicate the appearance of flat cut metal signs at a fraction of the price.

Achieve the rich, metallic allure of real aluminum, brass, and copper finishes without the hefty price tag or cumbersome weight.

Our laminated signs are available in four combinations: GemLeaf foil on acrylic, metal laminate on acrylic, metal laminate on foam, and acrylic laminate on foam.

Each combination is available in a large selection of eye-catching face colors and finishes.

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.31-0524 | geminimade.com

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

plastics

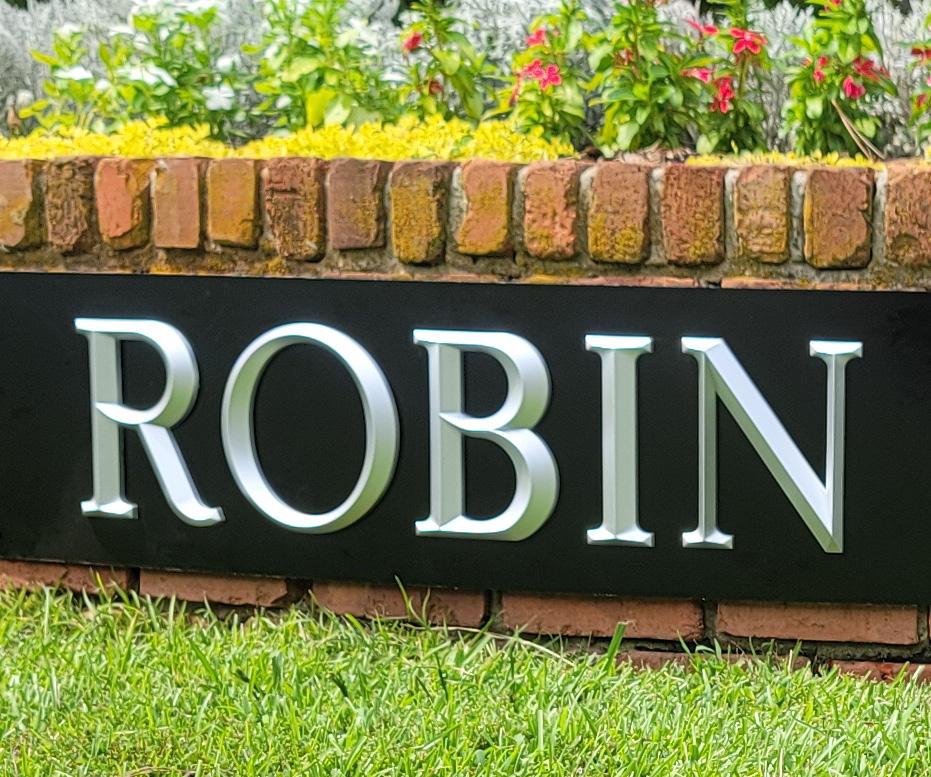

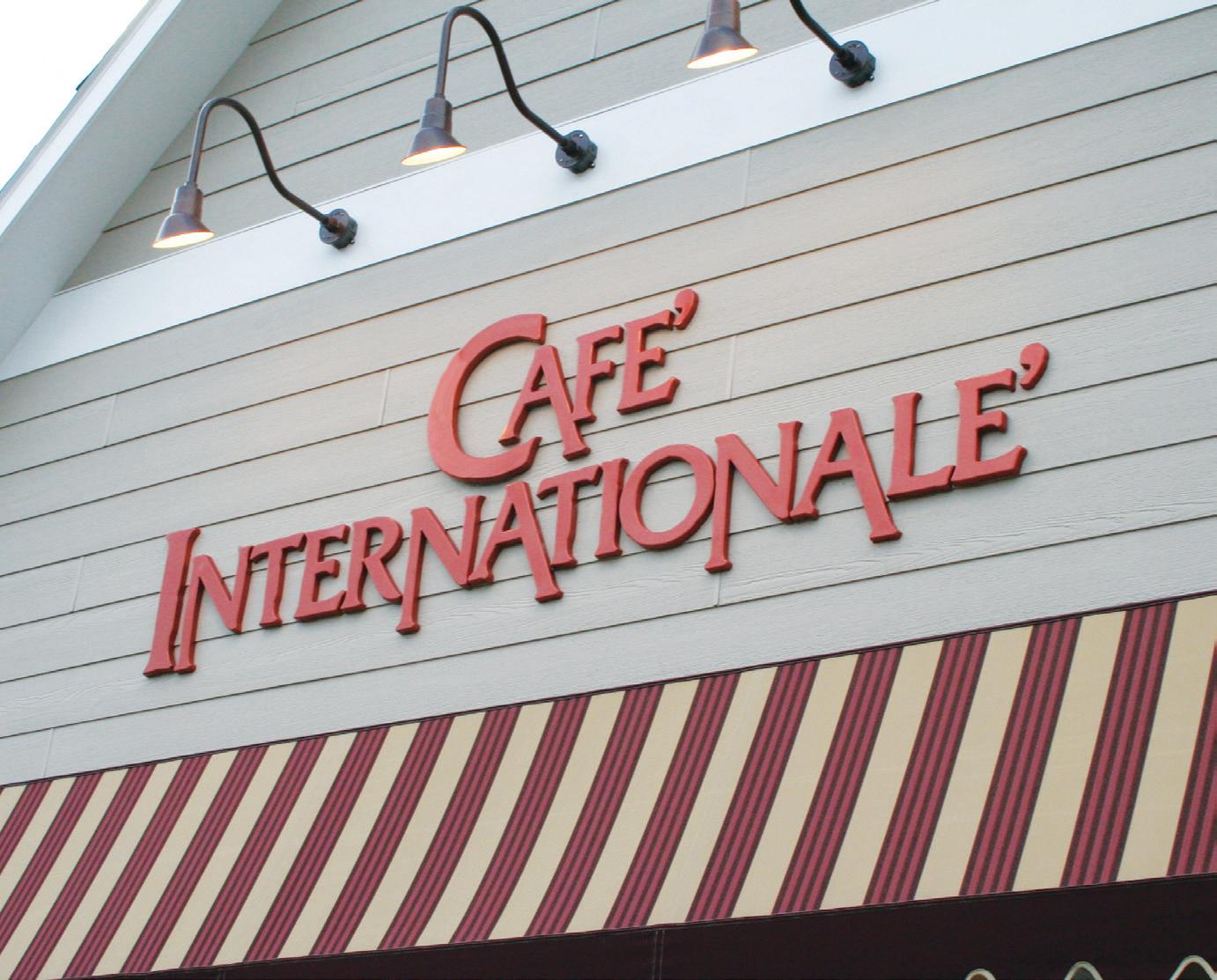

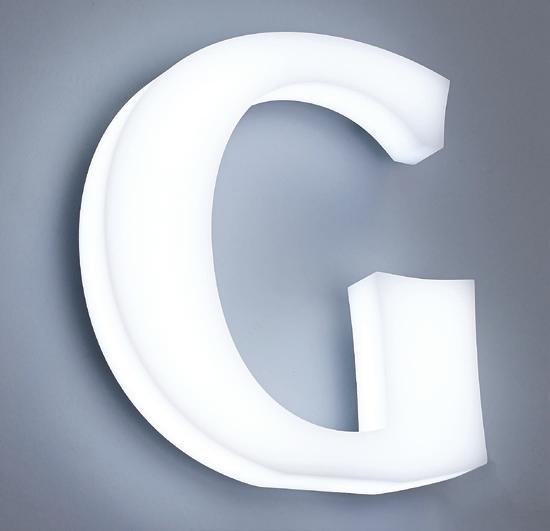

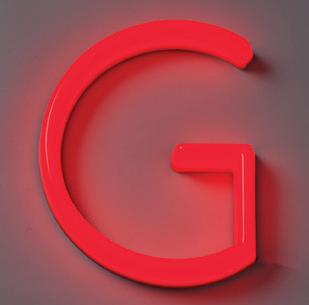

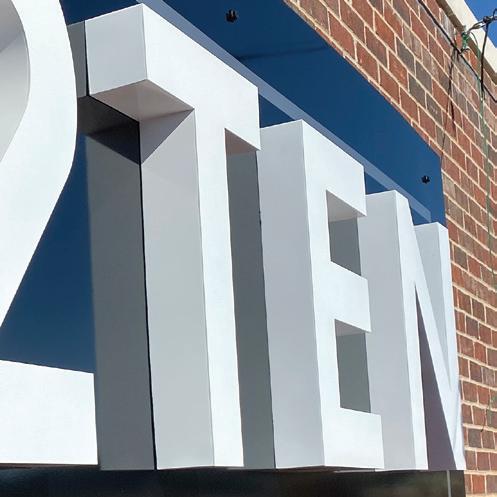

Formed Plastic the most budget-friendly signs for depth & lighting These affordable signs are made with 100% recyclable plastic, and are custom-formed to provide deep dimension and lighting options that can’t be achieved with flat cut signs. These tough, UV-resistant and lightweight, formed plastic signs are perfect for indoor and outdoor projects. Our UL-certified LED lighting and power supplies ensures your sign meets regulations and safety standards.

commonly used in these applications INTERIOR & EXTERIOR SIGNS

LOBBIES & RECEPTION

MONUMENT SIGNS

RETAIL & RESTAURANTS

PYLON SIGNAGE

GAS & CONVENIENCE

SPORT STADIUMS

SHOPPING MALLS

DEFINITION Gemini vacuum forms heated plastic sheets over a mold to create dimensional and sculpted letters, logos, and sign elements.

SPECIFICATIONS • Size: Min: 4" Max: 68" (larger sizes available in multiple pieces) • Depth: 1/4" to 3" • Face Profiles: flat, round, prismatic, and custom sculpted • Lifetime guarantee for interior and exterior use, 10 year warranty on electrical components

formed plastic

Cater to any scale, from petite to monumental. Whatever ideas you form, we can bring it to life.

Monumental signage for a minimal cost

Trimless and customizable illumination

dimensional versatility

Transform a 2D design into a 3D work of art. These formed plastic signs are one of the lightest we manufacture, making it easier to handle for installation.

Add extra wow factor with our trimless face lit, halo lit and side lit options. These illuminated signs are highly customizable, lightweight, UL certified and are guaranteed for life.*

Multi-level dimensional details allow for bold designs and letter profiles, adding intriguing depth and dimension to your sign. Choose from multiple face profiles or customize your own for the exact sculpted shape you want.

*10 year warranty on electrical components

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.29-0524 | geminimade.com

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

plastics

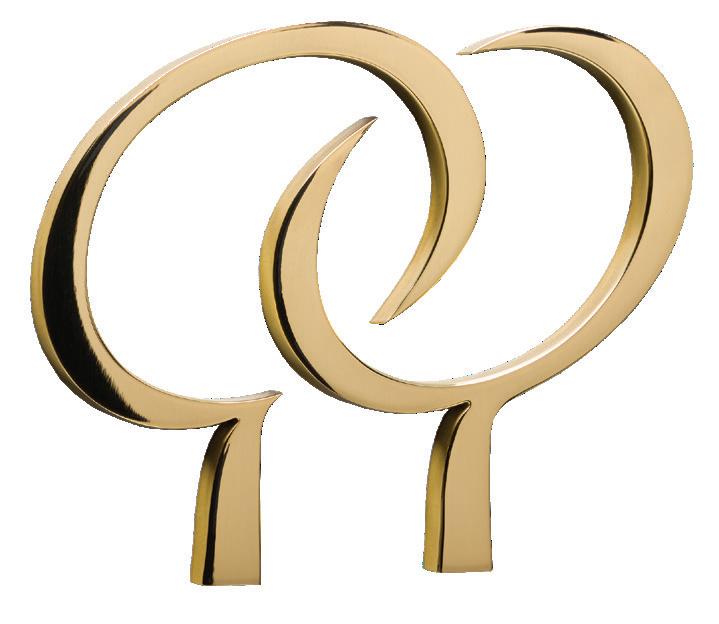

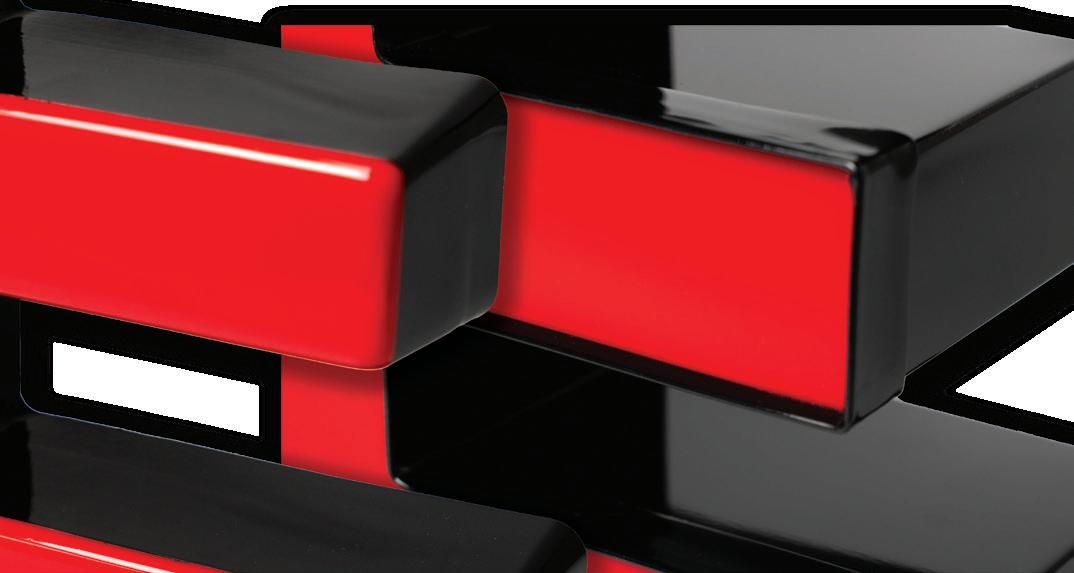

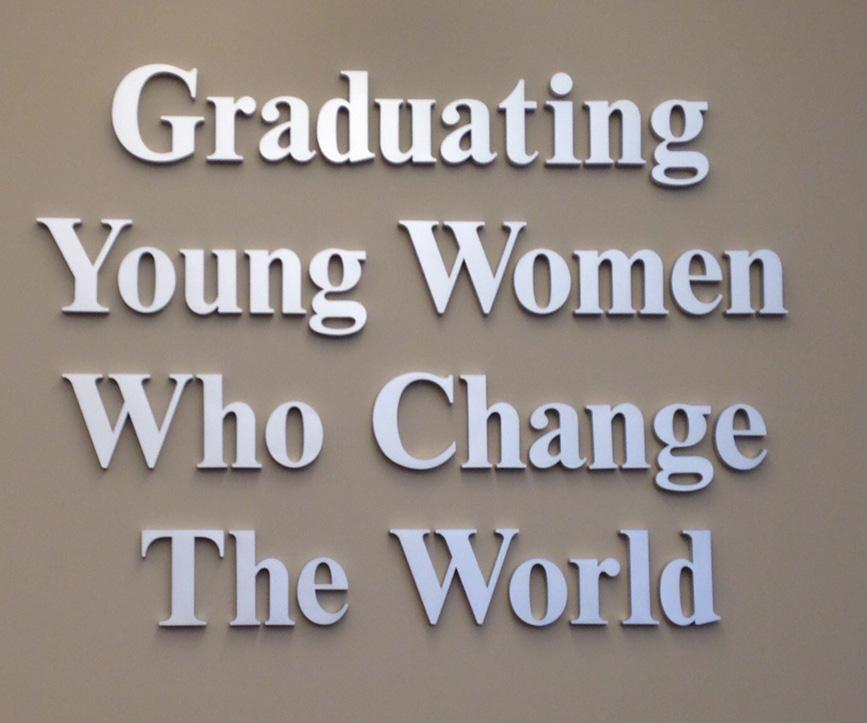

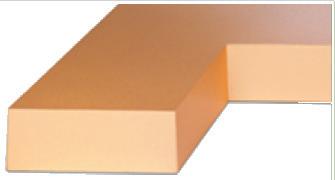

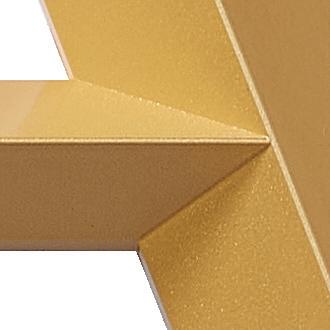

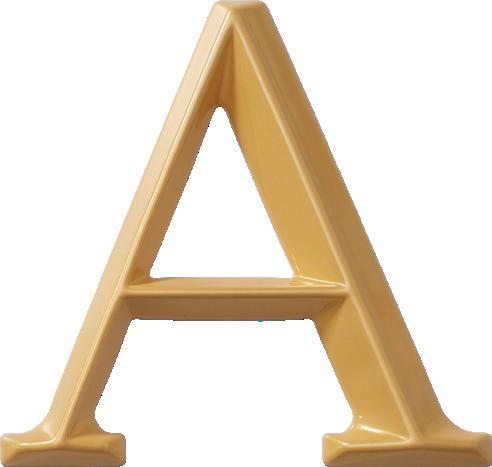

injection molded plastic the look of cast metal at a fraction of the price Gemini’s injection molded plastic signs provide the premium look of cast metal signage at budget friendly prices. After being molded, the letters are smoothed by hand and finished with automotivequality paint for lasting durability. Made from tough UV stable plastic, these lightweight letters are easy to mount and durable to withstand harsh outdoor environments.

commonly used in these applications

WALL DISPLAYS

OFFICE DOORS & ROOMS

WAYFINDING SIGNAGE

LOBBIES & DIRECTORIES

MEMORIAL & RECOGNITION

RETAIL & RESTAURANTS

1803 SIXTH STREET

SCHOOLS & UNIVERSITIES

ADDRESS SIGNS

DEFINITION Injection molded plastic signs are created by injecting recyclable plastic into precise reusable molds. The plastic fills the mold, cools, and hardens. Each letter is then ejected from the mold and finished by hand.

SPECIFICATIONS • Size: Min: 2" Max: 18" • Thickness: 3/8" to 1 1/2" • Fonts: architectural, helvetica, or times bold • Lifetime guarantee for interior and exterior use

injection molded plastic

smooth returns, sharp edges, and unblemished letter faces give our injection molded letters a look of cast metal for a fraction of the cost.

the look of cast metal for less

unlimited color choices

hastle-free design & ordering

Discover the stunning beauty and budget-friendly appeal of injectionmolded letters. With architectural styles, crisp edges, and smooth returns, injection molded plastic signs mimic the premium look of cast metal, but they typically cost 2 to 4 times less.

Explore our wide variety of curated colors or use our custom color matching service to perfectly match your brand. Our injection molded plastic sign letters are finished with automotive-quality paint for ultimate colorfastness and durability.

There’s no need to draw up artwork - simply choose between three fonts and select your letter size and mounting option. Choose from three fonts: Architectural, Helvetica, or Times Bold. Available in 2" to 18" sizes (2"-12" for Architectural).

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.3-0524 | geminimade.com

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

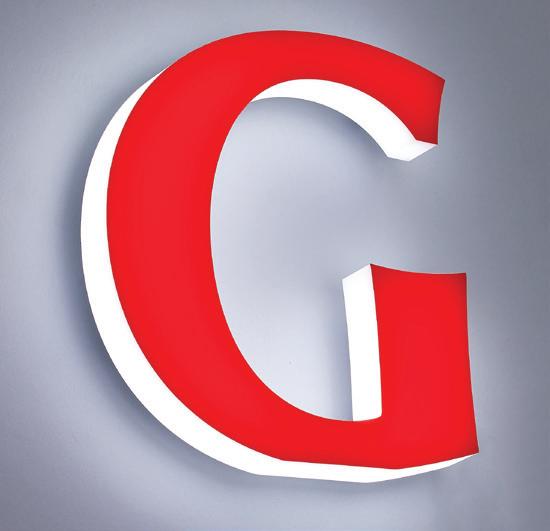

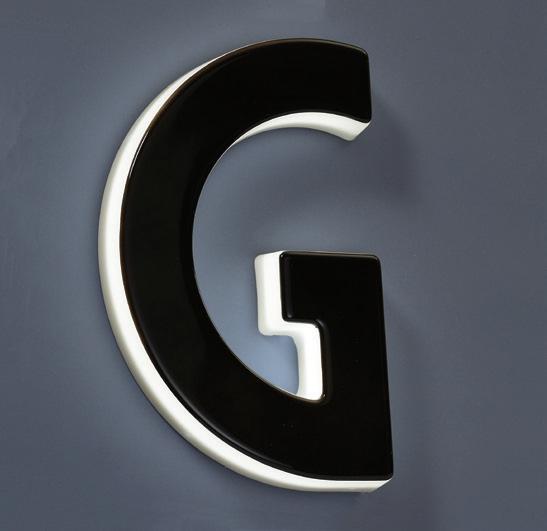

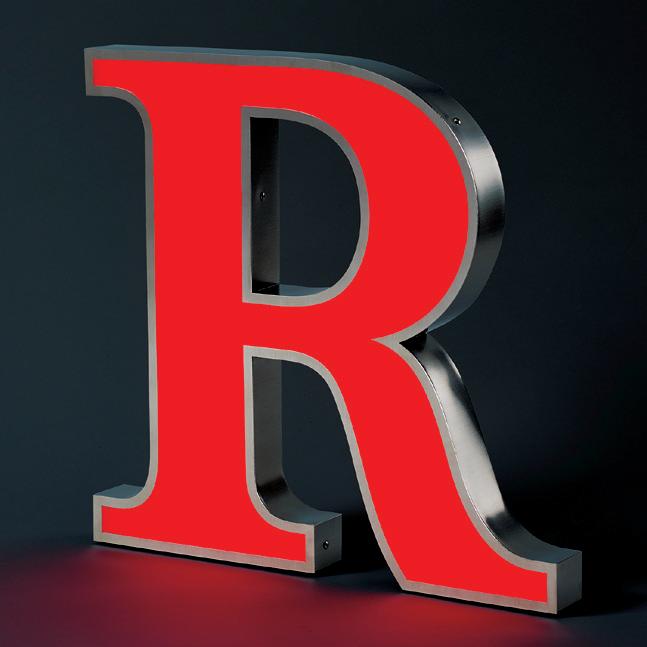

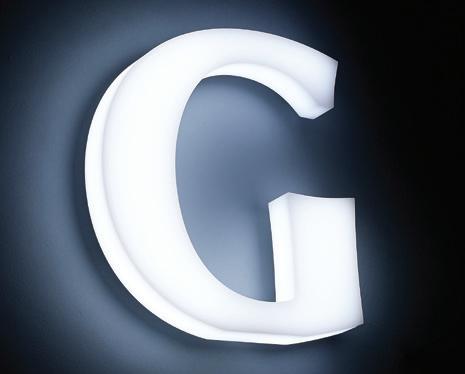

IlLuminated

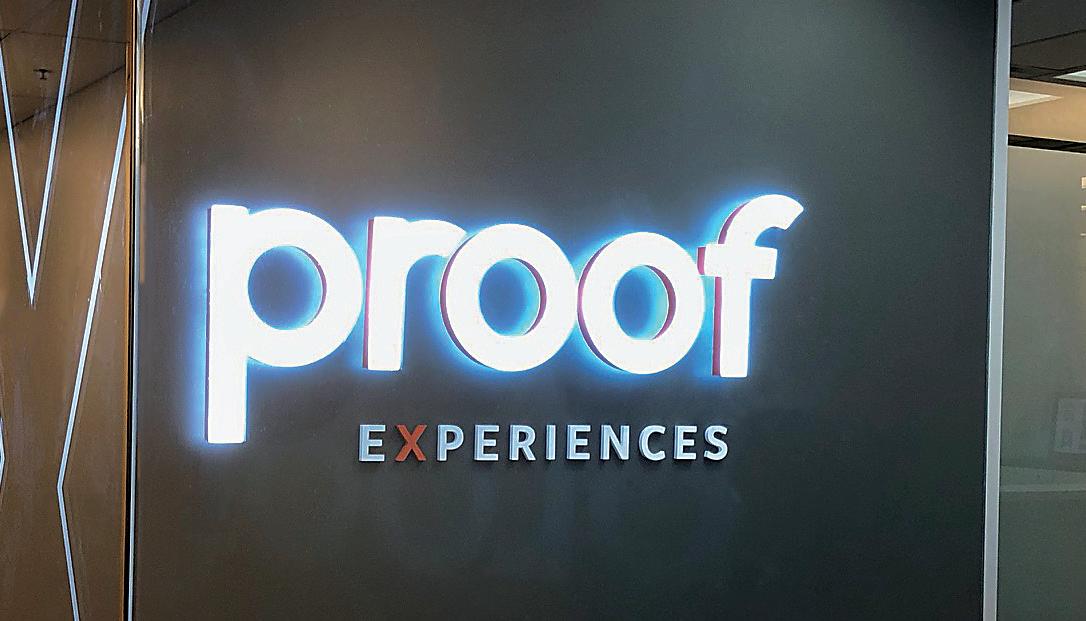

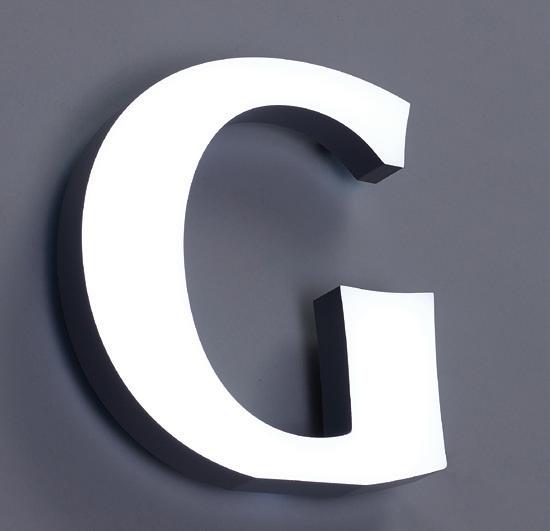

Lit Acrylic Sleek signage with lasting brilliance

DEFINITION

Gemini’s lit acrylic signs emit a sophisticated glow that illuminates the sign, elevating any space indoor and out. Choose from a variety of exquisite face finishes like metal, translucent vinyl, and painted hues. Our UL-certified LED lighting and power supplies ensures your sign meets regulations and safety standards.

commonly used in these applications

Gemini’s lit acrylic signs are precision-machined, premium letters made from UV-stable acrylic and embedded with energy-efficient LEDs to illuminate the face, side, and/or back of the sign.

LIGHTING OPTIONS

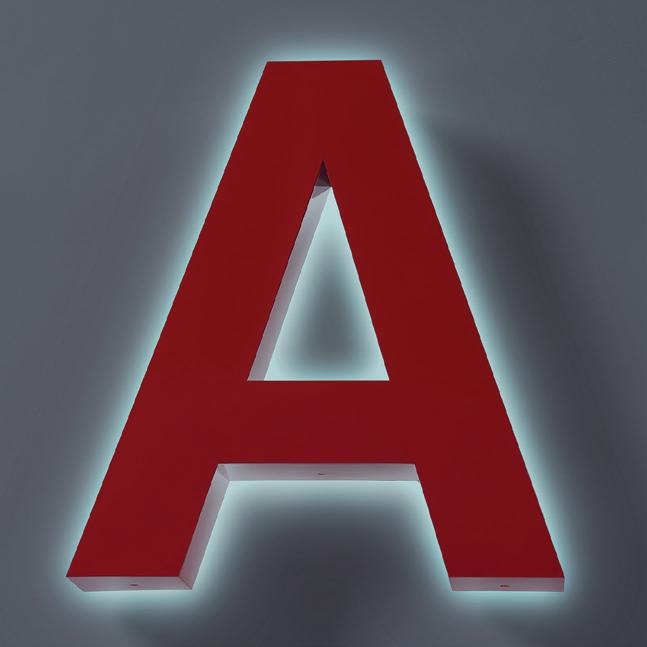

HALO LIT

FACE LIT

SIDE LIT

COMBO

SPECIFICATIONS • Size: Min: 8" Max: 24" INTERIOR & EXTERIOR SIGNS

STOREFRONT SIGNS

WALL DISPLAYS

LOBBIES & RECEPTION

• Depth: 1 1/2" • Face Finishes: metal laminates, translucent vinyl, or painted • LED colors: white, warm white, red, green, and blue

MONUMENT SIGNS

SCHOOLS & UNIVERSITIES

SHOPPING MALLS

SPORT STADIUMS

• Lifetime guarantee for interior and exterior use, 5 year warranty on electrical components

Lit Acrylic

Gemini’s lit acrylic signs emit a glow that illuminates the sign, adding timeless sophistication to any setting.

double the brilliance

smart lighting and face options

refined elegance

Combine the captivating glow of face lighting with the bold aura of side lighting to create a truly multidimensional experience.

Craft a masterpiece with 10+ lighting options and sophisticated face finishes like sleek metal laminates, translucent vinyl, and painted hues.

Gemini’s lit acrylic signs cast a mesmerizing glow. Achieve sign designs that shimmer with subtle brilliance, perfect for large-scale installations that captivate.

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.32-0524 | geminimade.com

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

LIT FORMED PLASTIC A trimless, more customizable upgrade to trim cap channel letters LIT FORMED PLASTIC BENEFITS •

Free replacement faces for life*.

•

10-year warranty on electrical components.

•

30% lighter than trim cap channel letters

•

Multiple Set Discounts

•

Free Paint Color Matching

•

Free patterns included with every order

•

UL Certified

•

Versatile and customizable

•

o

Pick any depth between 1.25” and 3”

•

o

Sizes from 6” – 45” available

•

o

Face, Halo and Side lighting available – Or pick any combination of the three.

•

o

Multiple face profiles (flat, round, prismatic and custom sculpted)

•

o

Customize color with RGB LEDs

•

Trimless construction

* Should any Gemini produced product fade, break or contain

any defect, we will replace the defective materials at no cost to you, as long as they are installed on thier original location.

3

GEMINI FORMED PLASTIC VS TRIM CAP CHANNEL

GET INSTANT PRICING ON LIT FORMED PLASTIC: GEMINIMADE.COM/PARTNER

Metal

Flat cut metal Durable flat cut signs with unmatched versatility Gemini’s flat cut metal signs combine the elegance and durability of quality metals with unmatched design flexibility and precision. By using the latest innovations we can create thin, more exact stroke lines to replicate intricate designs and deliver sharp, smooth edges and precise details. Select from a range of high-end finishes to customize your sign.

commonly used in these applications

SCHOOLS & INTERIOR & EXTERIOR SIGNS UNIVERSITIES

WAYFINDING SIGNAGE

LOBBIES & DIRECTORIES

OFFICE DOORS & ROOMS

SPORT STADIUMS

SHOPPING MALLS

RETAIL & RESTAURANTS

DEFINITION Flat cut metal signs are a type of dimensional signage created by cutting individual letters, logos, or shapes from a flat sheet of metal.

SPECIFICATIONS • Size: Min: 1/2" Max: 95" (larger sizes available in multiple pieces) • Thickness: 1/8", 1/4", 3/8", 1/2", 3/4", 1" • Materials: aluminum, brass, bronze, copper, stainless (304 & 316), and Corten • UV Colorlast combines paint with UV print for a cost-effective price for multi-color designs • Lifetime guarantee for interior and exterior use

flat cut metal

For those who want ultimate design flexibility and superior quality, these durable precisioncut metal signs elevate any space, indoor or out.

Precision cut edges

Wide range of sizes

expressive, vivid finishes

For unsurpassed reproduction quality of the most intricate designs, our state-of-the-art lasers, routers, and waterjets offer superior detail.

Sizes can range from under an inch to 95" as a single piece - or even larger by using multiple pieces.

Gemini’s UV Colorlast is a new, alternative solution to traditional painted surfaces. UV Colorlast combines painted base colors with UV-printed details, offering a cost-effective and fast way to add multiple colors to your sign.

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.26-0524 | geminimade.com

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

Metal

fabricated metal Premium quality and endless possibilities

DEFINITION

Gemini’s fabricated metal signs are expertly crafted to your specifications. Constructed from robust stainless steel or aluminum, our manufacturing technology allows for letters as narrow as 3/8" and return depths up to 6". Choose from a variety of face finishes like metal, translucent vinyl, and custom painted hues. Our UL-certified LED lighting and power supplies ensures your sign meets regulations and safety standards. Fabricated metal signs stand up to the harshest environments.

commonly used in these applications INTERIOR & EXTERIOR SIGNS

BLADE SIGNS

MONUMENT SIGNS

SCHOOLS & UNIVERSITIES

GOVERNMENT & MILITARY

RETAIL & RESTAURANTS

LOBBIES & RECEPTION

SPORT STADIUMS

Gemini’s fabricated metal signs are precisionmanufactured by welding or soldering stainless steel or aluminum into premium letters and sign elements that can be embedded with energy-efficient LEDs to illuminate the face or back of the sign.

SPECIFICATIONS • Size: Min: 2" Max: 100" (sizes up to 10' upon request) • Depth: 1" to 6" • Materials: stainless steel and aluminum • Lifetime guarantee for interior and exterior use, 5 year warranty on electrical components

fabricated metal

Go beyond the ordinary with fabricated metal signs. Ultimate design flexbility and durability for your most prominent signs.

Dimensional flexibility

From mini to monumental

Bring your vision to light

Our precision manufacturing technology allows for a wide variety of stroke-to-depth ratios, letting you achieve delicate strokes as narrow as 3/8" and return depths of up to 6".

Our metal fabrication capabilities include structurally robust gauges of stainless steel and aluminum, allowing for sign elements as small as 2" or as massive as 10'.

Achieve a beautiful, diffused illumination with face or halo lighting options. Make a dramatic statement and provide outstanding visibility day and night. Our ULcertified LED lighting and power supplies ensures your sign meets regulations and safety standards.

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.25-0524 | geminimade.com

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

S P E CIFIER

G U I D E

MADE-TO-ORDER. MADE TRUE.™

Cast & Flat Cut Metal Letters and Logos

Flat Cut

Cast

Premium & MINI

FLAT CUT METAL

FINISHES

Aluminum (1/8” max. single piece - 24” x 30”, 1/4” max. single piece - 46” x 48”, 3/8” max. single piece - 46.5” x 95”, 1/2” max. single piece - 46.5” x 95”, 3/4” max. single piece 46.5” x 95”, 1” max. single piece - 46.5” x 95”, max. single piece polished -30” diameter) Alloy 5052:

Brushed

Primed for Paint

Painted

#4 Brushed

Orbital

Random Arc

Rust Powdercoat

Polished

Anodized and Anodized Polish

Clear

Champagne

Gold

Light Bronze

Medium Bronze

Dark Bronze

Black

Clear

Champagne

Gold

Light Bronze

Medium Bronze

Dark Bronze

Black

Bronze (Max. single piece 1/8” - 35” x 95”, 1/4”, 3/8” & 1/2” max. single piece - 45” x 59”, max single piece oxidized or patina - 29” x 29”, max. single piece polished - 30” diameter) Alloy C22000: 90% copper & 10% zinc – 0% lead.

Brushed

Oxidized

Dark Oxidized

Polished

Traditional Verde Patina

Verde Patina

(Alternative oxidized finish also available)

Brass (1/8” max. single piece - 47” x 59”, 1/4” max. single piece - 47” x 73”, 3/8” & 1/2” max. single piece - 48” x 59”, 3/4” max. single piece - 35” x 59”, max single piece oxidized or patina - 29” x 29”, max. single piece polished - 30” diameter) Alloy C46400: 60% copper, 39.25% zinc and .75% tin – 0% lead.

Brushed

Polished

Oxidized

Dark Oxidized

(Alternative oxidized finish also available)

FLAT CUT METAL

FINISHES

Copper (1/8” max. single piece - 35” x 95”, 1/4” max. single piece - 39” x 59”, 3/8” max. single piece - 35” x 95”, max. single piece polished - 30” diameter) Alloy C11000:

Brushed

Alt. Oxidized

Alt. Dark Oxidized

Polished

Stainless Steel (1/8”, 1/4”, 3/8” & 1/2” max. single piece - 46.5” x 95”, max. single piece polished - 30” diameter) Alloy C304: Corrosion resistant stainless steel.

Alloy 316: More corrosion and tarnishing resistant for marine and harsh environments.

Brushed

#4 Brushed

Polished

NOTE: Stainless steel letters and logos are produced without a clear coating. Alloy C304 will not tarnish under most conditions. In cases where stainless steel letters and logos will be installed in salt water or harsh environments Alloy 316 offers even better corrosion and tarnishing resistance. Using harsh chemicals may cause permanent damage to the materials surface. Clean letters with a soft cloth and warm soapy water, white vinegar or glass cleaner.

Cor-Ten® Steel (1/8" & 1/4" max. single piece - 46.5” x 95”)

Natural (with some rust)

Cor-Ten® Steel is the ideal material for a rustic or antique look. All Cor-Ten® Steel, by its very nature, will vary from letter to letter and order to order and will form a protective surface coating when exposed to the weather.

Flat Cut Metal Mounting Options Plain (no mounts) Stud (1/8” is stud welded, 1/4” + is drilled & tapped to receive stud) NOTE: Studs required for polished and anodized finishes.

Letters / logos can also be stud mounted to metal rails.

Plain

Stud Weld

Drilled & Tapped

Gemini products are sold exclusively through Authorized Resellers.

Printed in USA | © 2023 Gemini Incorporated

CAST

ALLOYS & FINISHES

Aluminum Alloy #514

Brushed

Primed for Paint

Painted

#4 Brushed

Buffed

Orbital

Ramdom Arc

Finish Note: Brushed finishes have a low gloss clear coating. Buffed finish has a gloss clear coat. Painted letters are available with a gloss, satin or matte sheen.

Anodized

Clear

Champagne

Gold

Light Bronze

Medium Bronze

Dark Bronze

Black

ANODIZING: Anodized letters meet the requirements of A43 from the Aluminum Association's Architectural finish thickness standards, by producing an Anodic coating of .8 to 1.0 mils deep. The hardness of the aluminum oxide coating rivals hard stones, giving it greatly improved abrasion resistance. The aluminum oxide surface is also corrosion resistant, making it ideal for industrial, humid and marine atmospheres. Anodized letters are not clearcoated.

Bronze Alloy NAVY G: 88% copper, 8% tin, 4% zinc – 0% lead.

Brushed

Oxidized

Dark Oxidized

Polished

Traditional Verde Patina

Verde Patina

(Alternate oxidized finish also available)

FINISH NOTES: Brushed and oxidized finishes are coated with a low gloss acrlic polyurethane to prevent corrosion. Polished finishes are coated with a high gloss acrylic polyurethane to prevent corrosion.

All Patinas, by their very nature, will vary from letter to letter and order to order. These finishes will change in appearance over time depending on contact with moisture and temperature. Patinas can "bleed" onto the installation surface when installed outside.

PAINTED

2718 Ivory Approx PMS 7499

COLORS

2025

5687

8886

0209

4310

Black Approx PMS Black

White Approx PMS White

Metallic Silver* Approx PMS 420

Grey Approx PMS 423

Dove Grey Approx PMS 431

4660 Desert Sand Approx PMS 7506

2037 Lemon Yellow Approx PMS 102

2000 Yellow Approx PMS 108

0217 Citrus Yellow Approx PMS 606

0218 Sundance Yellow Approx PMS 116

0254

2119

2662

0256

2793

1875

Mango Approx PMS 137

Orange Approx PMS 021

Red-Orange Approx PMS 485

Rampart Orange Approx PMS 172

Red Approx PMS 185

Brick Red Approx PMS 7623

2280

2240

2410

2287

0246

2767

Black Cherry Approx PMS 1817

Maroon Approx PMS 202

Magenta Approx PMS 241

Purple Approx PMS 2695

Violet Toner Approx PMS 2725

Midnight Blue Approx PMS 5395

2050

2860

3000

2648

5425

3210

Dark Blue Approx PMS 281

Medium Blue Approx PMS 286

Blue Approx PMS 300

Light Blue Approx PMS 2995

Marine Reef Blue Approx PMS 5425

Teal Blue Approx PMS 321

8090

3555

0222

0259

2108

2030

Safety Green Approx PMS 809

Spring Green Approx PMS 355

Emerald Green Approx PMS 356

Federal Green Approx PMS 350

Light Green Approx PMS 3415

Dark Green Approx PMS 3435

2162

1315

Hunter Green Approx PMS 3308

Dark Oxide Approx PMS 447

3130 Duranodic Bronze* Approx PMS 2336

0314 Old Copper* Approx PMS 2334

2418 Brown Approx PMS 476

0312 Medium Bronze* Approx PMS 2335

4195

0253 Copper Approx PMS 7600

0402 Aztec Copper Approx PMS 7599

2756 Metallic Gold* Approx PMS 465

0401 Aztec Gold Approx PMS 2317

0400 Brilliant Gold Approx PMS 7556

Legacy Bronze Approx PMS 445

* Indicates colors that do not have a full gloss finish.

CAST

STANDARD STYLES & SIZES

Adrianna Bold ...................................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” AMERICANA BOLD ................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24”

ARIAL ................................................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” ARIAL BOLD ................................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18", 24" ARC HITEC TURAL ........................................... 2”, 3”, 4”, 5”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 24” AVANT GARDE ................................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” CLAREND ON MEDIUM ....................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” COPPERPLATE ....................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” EUROSTYLE BD EXT. ................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” FRIZ QUADRATA .......................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” FUTURA BOLD ..............................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” FUTURA .................................................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” GARAMOND BOLD ...................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” GARAMOND REGULAR .................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” G i l Sans Bold ......................................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Goudy Extra Bold ......................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Helvetica Bold .............................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” HELVETI CA BOLD EXT. .................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Helvetica Medium Condensed ..........................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Helvetica Medium Italic ............................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” HELVETICA LIGHT ........................................................................ 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Helvetica ............................................... 2”, 3”, 4”, 5”, 6”, 8”, 9”, 10”, 12”, 14”, 15”, 16”, 18”, 20”, 24” KABEL ......................................................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” OPTIMA SEMI BOLD ..........................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Optima ..........................................................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” PALATINO ................................................................................................ 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” PALATINO SEMI BOLD .............................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” RIBBON ........................................................................................................4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” RIBBON DEEP .......................................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” R I B B O N C O N D E N S E D ............................................................................ 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” ROFFE ......................................................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Roman .................................................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” STANDARD BLOCK ........................................................................ 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Ti mes Bold ....................................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Times New Roman .................................. 2”, 3”, 4”, 5”, 6”, 8”, 9”, 10”, 12”, 15”, 16”, 18”, 20”, 24” TRAJAN BOLD PRISMATIC .................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18” TWENTIETH CENTURY .................................................................... 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” Univers 67 .............................................................................................. 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” (Additional Standard Sizes may be available depending on font selection)

CAST

CUSTOM & MOUNTING

Custom Cast Metal Letters

Custom Cast – Per vector art. Flat, prismatic, round, sculpted & profile options. Letters & logos.

Cast Metal Letter Mounting Options

Flush Stud

3A - Singel or Double Rail Mount Includes painted or anodized c-channel rails.

Letters 4”-24”

Projected Jam Nut Mount

Projected Spacer Mount

3B - Bottom & Top Rail Mount Letters 4”-24”, Minimum 3/8” thick Includes painted or anodized c-channel rails. Letters over 8” may require tie-back (not supplied).

Corrugated Mount

3C - Bottom or Top Stud Letters 4”-24”, Minimum 3/8” thick Letters over 8” may require tie-back (not supplied).

Flat Metal Wall Mount

3D - Bottom Back Angle Bracket Mount Letters 4”-24”, Minimum 3/8” thick. Letters over 12” may require tie-back (not supplied). Angle iron is 2” x 2” with a painted finish.

PREMIUM & MINI LETTERS

FINISHES

Premium Premium Metal Letters are waterjet or laser cut then hand-stroked or polished—in such a way that the returns and faces are perpendicular, so there is little if any rounding of the edges. Premium finishes are available in most flat cut out materials and thicknesses—in sizes over 3.” Minimum 1/4” thick for polished finishes.

Aluminum & Stainless Steel Finishes Polished Face Polished Return

Polished Face Hand Sanded Return

Hand Sanded Face Polished Return

Hand Sanded Face Hand Sanded Return

Hand Sanded Face Polished Return

Hand Sanded Face Hand Sanded Return

Painted Face Hand Sanded Return

Bronze, Brass & Copper Finishes Polished Face Polished Return

Polished Face Hand Sanded Return

Mini Metal Letters (1/8", 3/16" & 1/4") Elegantly crafted for interior needs, yet sturdy enough for exterior signage, Mini Metal Letters are precision-made letters that are ideal where the use of extremely small letters is a necessity. Made of the finest grade bronze, brass and aluminum, they are precision cut with crisp, clean edges and smooth, nearly polished returns. Mini metal letters are produced in sizes ranging from 1/2” to 3” in height.

Aluminum mini letters come in brushed, painted, anodized or polished finish.

Flat Cut Metal Styles: Virtually any style available with vector art.

S P E CIFIER

G U I D E

MADE-TO-ORDER. MADE TRUE.™

Fabricated Lit and Unlit

Letters

Logos

LED Illuminated

FABRICATED METAL

STAINLESS STEEL

Stainless Steel Fabricated without Back Precision fabricated stainless steel Letters, expertly crafted from pre-finished C304 or 316 Alloys. Offering heavy-gauge construction with multiple finish options— all internally secured with lead-free continuous solder or laser welds. Produced in sizes from 2” high to 36” high, in nearly any letter style or logo of your choice. Return depths from 3/8” to 6” deep.

18 or 16 gauge face 24 gauge return - up to 24” high 22 gauge return - over 24” high

24 gauge = .0239” 18 gauge = .0478”

22 gauge = .0299” 16 gauge = .0598”

Precision welded/soldered construction

Mounting

Stud

Bottom or Top Stud

Bottom or Top Stud w/Back

Bottom or Top Stud w/Thick Back

Double Rail

FABRICATED METAL

ALUMINUM

Aluminum Fabricated without Back Heavy gauge fabricated aluminum letters, handcrafted from 5052 alloy aluminum with .090” faces and .063” returns that are MIG welded for extra strength and stability. Typically painted, but can be brushed or anodized to lock-in corrosion resistance. Produced in nearly any letter style or logo of your choice in sizes from 16” to 100”—with 1” to 6” deep returns.

.063” return - All sizes Return grain will run from face to back .090” face - All sizes

Precision MIG welded

Mounting

Stud

Bottom or Top Stud

Bottom or Top Stud w/Back

Bottom or Top Stud w/Thick Back

Double Rail

FABRICATED METAL

FINISHES & BLADE SIGN

Stainless Steel Alloy 304: Vertical grain is standard.

Horizontal grain available.

Mixed face and return finishes available.

Brushed

#4 Brushed

Polished

Perforated Random Arc

Titanium Coated - Brushed

Gold

Copper

Bronze

Orbital Titanium Coated - Polished

Black

Gold

Copper

Bronze

Black

Medium Bronze

Dark Bronze

Stainless Steel Alloy 316

Brushed

#4 Brushed

Polished

Aluminum Alloy 5052:

Brushed

Clear

Champagne

Anodized Aluminum

Gold

Light Bronze

Black

Aluminum Fabricated Blade Sign Fabricated metal blade signs, available in aluminum, offer an upscale, projected sign that offers a refined look in our 5 available configurations. With heights up to 46 inches blade signs make an impact on any walkway. Finish blade signs in any of our standard painted colors, or request a custom match at no cost to you.

Configurations

1-Sided Solid Face

1-Sided w/Push Thru

1-Sided w/Acrylic Insert

2-Sided Solid Face

2-Sided w/Push Thru

2-Sided w/Acrylic Insert

Gemini products are sold exclusively through Authorized Resellers.

Printed in USA | © 2023 Gemini Incorporated

FABRICATED METAL

2718 Ivory Approx PMS 7499

PAINTED COLORS

2025

5687

8886

0209

4310

Black Approx PMS Black

White Approx PMS White

Metallic Silver* Approx PMS 420

Grey Approx PMS 423

Dove Grey Approx PMS 431

4660 Desert Sand Approx PMS 7506

2037 Lemon Yellow Approx PMS 102

2000 Yellow Approx PMS 108

0217 Citrus Yellow Approx PMS 606

0218 Sundance Yellow Approx PMS 116

0254

2119

2662

0256

2793

1875

Mango Approx PMS 137

Orange Approx PMS 021

Red-Orange Approx PMS 485

Rampart Orange Approx PMS 172

Red Approx PMS 185

Brick Red Approx PMS 7623

2280

2240

2410

2287

0246

2767

Black Cherry Approx PMS 1817

Maroon Approx PMS 202

Magenta Approx PMS 241

Purple Approx PMS 2695

Violet Toner Approx PMS 2725

Midnight Blue Approx PMS 5395

2050

2860

3000

2648

5425

3210

Dark Blue Approx PMS 281

Medium Blue Approx PMS 286

Blue Approx PMS 300

Light Blue Approx PMS 2995

Marine Reef Blue Approx PMS 5425

Teal Blue Approx PMS 321

8090

3555

0222

0259

2108

2030

Safety Green Approx PMS 809

Spring Green Approx PMS 355

Emerald Green Approx PMS 356

Federal Green Approx PMS 350

Light Green Approx PMS 3415

Dark Green Approx PMS 3435

2162

1315

Hunter Green Approx PMS 3308

Dark Oxide Approx PMS 447

3130 Duranodic Bronze* Approx PMS 2336

0314 Old Copper* Approx PMS 2334

2418 Brown Approx PMS 476

0312 Medium Bronze* Approx PMS 2335

4195

0253 Copper Approx PMS 7600

0402 Aztec Copper Approx PMS 7599

2756 Metallic Gold* Approx PMS 465

0401 Aztec Gold Approx PMS 2317

0400 Brilliant Gold Approx PMS 7556

Legacy Bronze Approx PMS 445

* Indicates colors that do not have a full gloss finish.

FABRICATED METAL

HALO-LIT

Stainless Steel Fabricated Halo-Lit Produced in a wide range of sizes from 6” to 36” high, and depths from 1" to 6", in multiple stainless finish options, all lit with one of five LED colors. Halo Lit fabricated letters are produced with a removable can to allow for servicing of LEDs. In addition, optional detachable studs create a 1-1/2” stand-off, and allow easy removal of letters from the wall.

Aluminum Fabricated Halo-Lit Gemini’s aluminum reverse channel letters, available from 16" to 100", feature a durable .090” (2.3mm) face gauge with .063” gauge returns, and offer a choice of light diffused plastic backs with integrated LEDs to provide the lighting effect you desire.

Available in depths from 1" to 6", these letters provide outstanding light consistency and brightness.

Halo Lit fabricated, produced with a removable can to allow for servicing of LEDs—or optional detachable studs to create a 1-1/2” stand-off, and allow easy removal of letters from the wall.

LED Color Options:

White

Warm White†

Red

Green

†Warm White LEDs are not warrantied for Trimless/Minis

Blue

RGB*

(programmable custom color) * Additional charges apply

Trimless Halo-Lit

STAINLESS STEEL Size: 3” to 36” high Depth: 2" to 3” deep Acrylic Reveal: 1/4”, 1/2" & 3/4"

Illuminated Acrylic Reveal

ALUMINUM Size: 16” to 48”+ high Depth: 2" to 3” deep Acrylic Reveal: 1/4”, 1/2" & 3/4"

FABRICATED METAL

STAINLESS STEEL FACE-LIT

Stainless Steel Fabricated Face-Lit Our durable and attractive fabricated stainless steel channel letters with illuminated acrylic faces make a dramatic statement and provide outstanding low-light visibility. Get the exact combination of daylight and nighttime colors you want with a broad selection of translucent acrylic in letter heights from 9” to 36”. The stainless steel return provides a sophisticated look and depth. Choose from light diffused plastic or stainless steel backing with the brilliance of integrated LEDs included as part of this letter package.

Fabricated Face Colors:

White

Ivory

Yellow

Red

Purple

Warm White

Red

Blue

Green

Blue

Green

LED Colors

White

RGB*

(programmable custom color) * Additional charges apply

Trimless Stainless Steel Face Lit

Size: 3” to 36” high Depth: 1-1/2” to 3” deep Acrylic Reveal: 1/4”, 1/2" & 3/4" Warm White LEDs are not warrantied for Trimless/Minis Illuminated Acrylic Reveal

FABRICATED METAL

ALUMINUM FACE-LIT

Aluminum Fabricated Face Lit The lightweight solution for letters 16” and up to an astounding 100”+ tall – with 3" to 6" deep returns, let you offer the most highly visible, largescale dimensional letters available. Get the exact combination of colors that function effectively in daylight and low light with a broad selection of acrylic that features a removable face retainer or removable can, dependent on size, for easy access.

Fabricated Face Colors:

White

Ivory

Yellow

Red

Purple

Warm White

Red

Blue

Green

Blue

Green

LED Colors

White

RGB*

(programmable custom color) * Additional charges apply

Trimless Aluminum Face Lit

Size: 16” to 36” high Depth: 2” to 3” deep Acrylic Reveal: 1/4”, 1/2" & 3/4"

Illuminated Acrylic Reveal

L I T A C RY L I C L E T T E R S A N D L O G O S

LIT ACRYLIC

by GEMINI

The glow of sophistication.

Take your signage upscale. Let us give your signage a distinctive, sophisticated look with crisp, precision-machined letters, producing an even diffused glow. This line of acrylic letters feature seamless, precisely defined edges and a low, 1½” profile. Illuminated, the result is a beautifully sophisticated, diffused effect, worthy of the highest-end establishment.

Available in 10 varieties of face, side and halo lit versions – including new face options of Chemetal™ laminate and paint, all with lit returns. These letters are designed with a removable back, to be able to service the LEDs. As with all Gemini products, lit acrylic letters are backed by a lifetime warranty. UL-certified LED lights and power supplies come with a five-year manufacturer’s warranty.

©2022 Gemini, Inc.

• Face, halo and return illumination options • Nearly limitless customization options on sizes, finishes and colors • Lifetime warranty on letters and logos • Made in USA • Typical 10 day production time • UL Certified

L U X E I L L U M I N AT E D L E T T E R S A N D L O G O S

Get into the Spotlight. Lit acrylic has specially designed LED lighting that uses less power, while providing better light diffusion. This sophisticated-looking, in-demand, signage solution will put your business in a glowing light with your customers.

LIGHTING OPTIONS

1.5" Cast Acrylic

Removable Back L-100: Face Lit

L-200: Face & Halo Lit

L-300: Face & Side Lit

L-400: Metal Face - Side Lit

L-500: Painted Face - Side Lit

L-600: Face & Side Lit

LEGENDARY QUALITY

L-700: Vinyl Face-Face Lit

L-800: Face & Halo Lit

L-900: Halo & Partial Return Lit

All Gemini products are built to last and guaranteed with a lifetime warranty on letters & logos, and a 5 year manufacturer’s warranty on UL-Certified LED lights and power supplies.

For the highest quality in lighted dimensional letters and logos, turn to Gemini.

L-1000: Halo Lit

Learn More For more information about lit acrylic letters and logos or other quality Gemini products, please contact your sales representative.

LED Colors 6500K White

3000K Warm White

Red

Blue

Green

GEMINI INCORPORATED 800-538-8377 Signage@GeminiMade.com

GeminiSignage.com

©2022 Gemini, Inc.

PRONTO™ CHANGEABLE COPY

A better letter lasts longer.

Pronto™ Changeable Copy.

Gemini Pronto™ Changeable Copy is a cut above traditional saw-cut changeable copy. Made from a rigid and durable injectionmolded blank, each panel is molded with a small raised edge on the back designed to prevent scratching as the letters are moved in and out of the Pronto track, extending the useful life of each letter. The molded-in feet keep debris and ice from interfering with the change out. Best of all, eco-friendly Pronto letters use highly durable UV inks with no VOCs. With Pronto, there are no harmful

Our Pronto letters and accessories are available through our nationwide network of sign supply distributors.

emissions created during our manufacturing process.

LETTER PANEL HEIGHT (IN.) HEIGHT (IN.) Panel Height

Letter Height

Pronto Standard Sizes

Important Note: To order, please specify Letter Height and Panel Height

3"

3 7/8”

4

4 7/8

6

6 7/8

8 on 9

8 7/8

8

9 7/8

10

11 7/8 Gemini's exclusive injection-molded Pronto letter design offers crystal clarity and features slightly raised edges to protect the letter from scratches, plus molded feet to make changing signs easier and faster.

©2018 Gemini, Inc.

PRONTO™ CHANGEABLE COPY

NOTE: Pronto letters enclosed in a sealed vandal-proof cover require venting, otherwise warping may occur.

Pronto Styles

★✱ =

()/ ★ ✱ = LETTER HEIGHT

PANEL HEIGHT

AVG. PANEL WIDTH

BLACK

RED

WHITE

LETTER HEIGHT

PANEL HEIGHT

AVG. PANEL WIDTH

3"

3 7/8"

2 3/8"

•

•

•

4"

4 7/8"

3 1/2"

•

•

4

4 7/8

3

•

•

•

6

6 7/8

4 5/8

•

•

•

6

6 7/8

4

•

•

•

8 on 9

8 7/8

6 3/4

•

•

na

8 on 9

8 7/8

5 1/2

•

•

na

8

9 7/8

6 3/4

•

•

•

10

11 7/8

7 1/2

•

•

na

8

9 7/8

5 1/2

•

•

•

10

11 7/8

6 3/4

•

•

na

•

★✱ = LETTER HEIGHT

PANEL HEIGHT

AVG. PANEL WIDTH

4"

4 7/8"

2 3/8"

•

•

6

6 7/8

3 1/4

•

•

•

8 on 9

8 7/8

4 7/8

•

•

na

8

9 7/8

4 3/8

•

•

•

10

11 7/8

5 1/2

•

•

na

•

Pronto Standard Set (Set of 100) EACH

PC. EACH

E

7

AI

6

OU

5

LNRSTP

4

FGHM

3

BCD

3

JKVWYZ

2

QX$¢

1

0123456789

1

Pronto Accessories

Each Standard Set contains the following character counts.

Gemini also offers Pronto Track, Track Rivets, Storage Cabinets, Change Arm Poles

Sets are available in the following colors: all black, black letters with red numbers, all red.

We also offer Español, Punctuation and Theater Rating Symbol sets.

Learn More

EACH

PC. EACH

& . , ! – ? : ; “ ” ’ / $ ¢

2

To learn more about Pronto in Canada contact us at:

1/2 1/4 ( ) @ # .com

2

GEMINI CANADA 800-265-0426 Canada@GeminiMade.com GeminiSignage.com

2 + %

1

Distributed by

nglantz.com 866-645-2689 ©2019 Gemini, Inc.

gogsg.com 800-366-1776

jdsindustries.com 855-661-2388

nationalreaderboard.com 800-243-6676

reecesupply.com estore.tubelite.com 800-776-7448 800-505-4900

estore.tubelite.com 800-505-4900

fabricated blade signs

fabricated blade signs Attract customers from every angle

DEFINITION

Gemini’s fabricated blade signs face pedestrians and vehicles as they approach your business from either direction, maximizing visibility on busy streets and tight spaces. Choose from six configurations, vibrant colors, and LED illumination to create a high-impact, custom sign that gets your brand noticed. Our blade signs are produced fast and guaranteed for life.

commonly used in these applications

Gemini’s fabricated blade signs are aluminum signs mounted on either the top, side, or bottom at a 90-degree angle to their mounting surface.

They can be single or double-sided, lit or unlit.

They are typically crafted in circular or rectangular shapes, but are also available in custom shapes.

SPECIFICATIONS • Size: Min: 12" Max: 46" (sizes may vary on configuration) • Depth: Min: 3" Max: 6" • Materials: aluminum • Configurations: solid, push thru, and acrylic faces on one or both sides of the sign • Lifetime guarantee for interior and exterior use, 5 year warranty on electrical components

INTERIOR & EXTERIOR SIGNS

STOREFRONT SIGNS

BLADE SIGNS

WAYFINDING SIGNAGE

RESTROOM SIGNAGE

SHOPPING MALLS

SPORT STADIUMS

1803 SIXTH STREET

ADDRESS SIGNS

fabricated blade signs

Don’t let customers pass you by. Project your brand with Perpendicular signs for greater visibility to cross traffic.

Greater visibility Big sign, small Lit from within & to cross traffic mounting surface vivid LED hues Because they’re perpendicular to a wall, fabricated blade signs face pedestrians and vehicles as they approach your business from either direction - making your business more noticeable and easier to find.

When wall space is limited, fabricated blade signs offer a creative way to attract attention and draw in customers. Blade signs as large as 46" x 12" and can be mounted onto smaller surface areas.

START A PROJECT AT GEMINIMADE.COM/PARTNER

©2024 Gemini Incorporated. Our products are sold through Authorized Resellers.

9100.33-0524 | geminimade.com

Add LED lighting to your fabricated blade sign to make it stand out day and night. Move beyond static illumination and step into a world of dynamic color expression with Gemini’s programmable color technology. Our UL-certified LED lighting and power supplies ensures your sign meets regulations and safety standards.

GEMINI PRODUCTS ARE GUARANTEED FOR LIFE

LEARN MORE AT GEMINISIGNAGE.COM

WHEN IT COMES TO COLOR MATCHING, OUR CAPABILITIES ARE UNMATCHED. S TA N D A R D C O LO R G U I D E

CUSTOM PAINTING By allowing us to provide you with high quality, UV st a ble , p oly u re t h a n e p ai nt ed p ro d u c t s , you can avoid extra labor, costly resources, and environmental challenges associated with spraying paint. Just like other Gemini products, our paint is guaranteed for life.

When requesting custom paint on your product, please be sure to provide: • The custom paint number (PMS Pantone, Matthews Paint, Benjamin Moore, Sherwin Williams, etc.)

• The color description (blue, red, etc.)

• The desired sheen level (gloss, satin, matte) Example: PMS 300C Blue Satin

MATCHING CUSTOM PAINT If you need to match a custom paint color, we suggest sending us a sample of that color. The ideal sample size for matching paint is 3"x3". You can also send in a piece of the sign you are trying to match. When paint matching is complete, we can send the piece back to you or recycle it.

Gemini dimensional letters, logo and plaques are sold exclusively by Gemini Authorized Resellers, and are backed by a Lifetime Guarantee.

If you are interested in samples of our metal finishes or other products, please contact customer service at 1-800-538-8377 or visit the Partner Portal on GeminiSignage.com GeminiSignage.com 103 Mensing Way, Cannon Falls, MN 55009 @2022 Gemini Incorporated | All Rights Reserved Signage@GeminiMade.com | 1-800-538-8377

Canada Letters, Logos & Plaques Canada@GeminiMade.com | 1-800-265-0426

G EMINI STAN DAR D C OLOR S

5687 WHITE

2025 BLACK

0222 EMERALD GREEN

0259 FEDERAL GREEN

2162 HUNTER GREEN

2418 BROWN

2108 LIGHT GREEN

2030 DARK GREEN

0209 GRAY

4310 DOVE GRAY

2718 IVORY

4660 DESERT SAND

8090 SAFETY GREEN

2037 LEMON YELLOW

2000 YELLOW

0217 CITRUS YELLOW

2018 SUNDANCE YELLOW

0254 MANGO

2119 ORANGE

2662 RED/ORANGE

0400 BRILLIANT GOLD

2756 METALLIC GOLD

0401 AZTEC GOLD

0253 COPPER

0256 RAMPART ORANGE

2793 RED

1875 BRICK RED

2280 BLACK CHERRY

0402 AZTEC COPPER

3120 MEDIUM BRONZE

4195 LEGACY BRONZE

0314 OLD COPPER

2240 MAROON

2410 MAGENTA

2287 PURPLE

0246 VIOLET TONER

3130 DURANODIC BRONZE

1315 DARK OXIDE

8886 METALLIC SILVER

2767 MIDNIGHT BLUE

2050 DARK BLUE

2860 MEDIUM BLUE

3000 BLUE

2648 LIGHT BLUE

5425 MARINE REEF BLUE

3210 TEAL BLUE

3555 SPRING GREEN

METALLICS

FINISHES

GLOSS FINISH

SATIN FINISH

MATTE FINISH
