Project SurveyProject SurveyProject Survey

The project site is located approximately 70km away from Borcity of southern Sudan.

The site is coordinated at 07.04~07.06 N, 31.21~31.23 E. Wanguleiis the head quarter of NyuakPayamin TwicEast county, JongleiState

CENAL

The satellite photography of the existing site area with significant building’s coordinate (Informed by the client).

CENAL ConsultancyCENAL Consultancy

location of JG (Dr. John Garang)

CENAL ConsultancyCENAL Consultancy

From the client

CENAL ConsultancyCENAL Consultancy

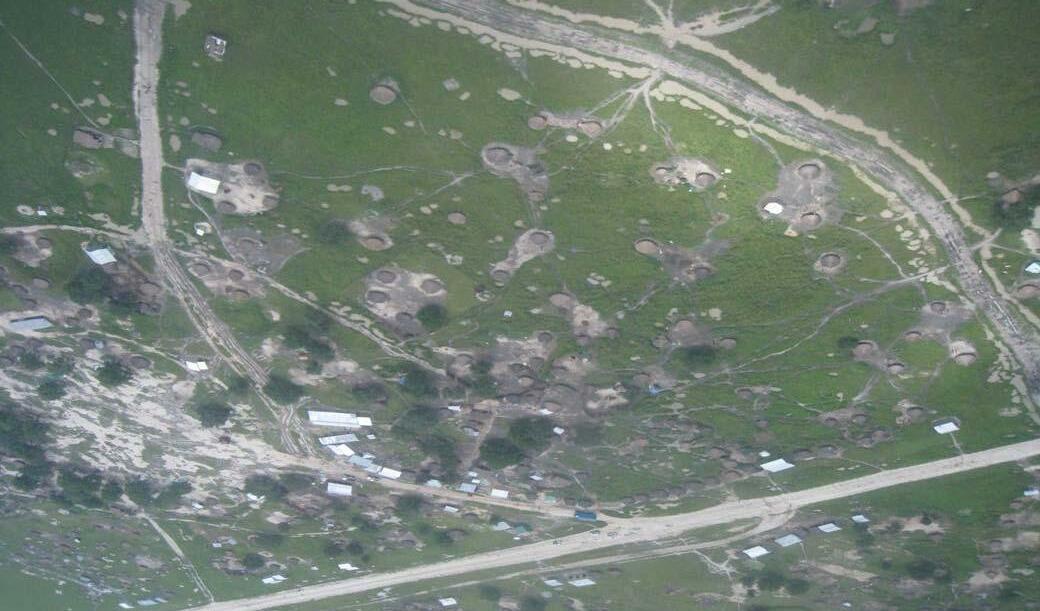

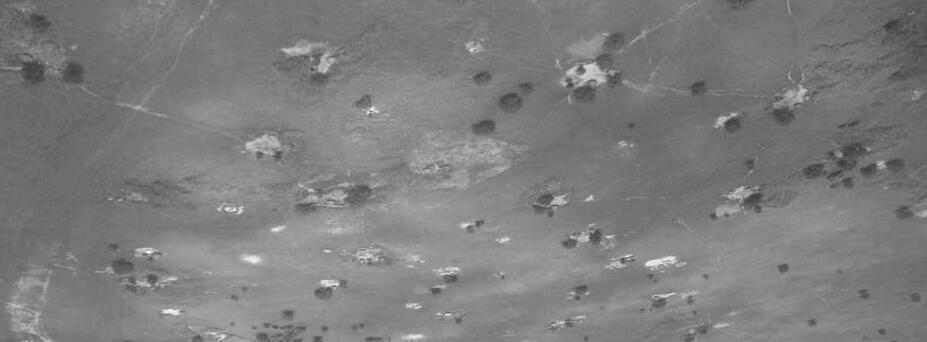

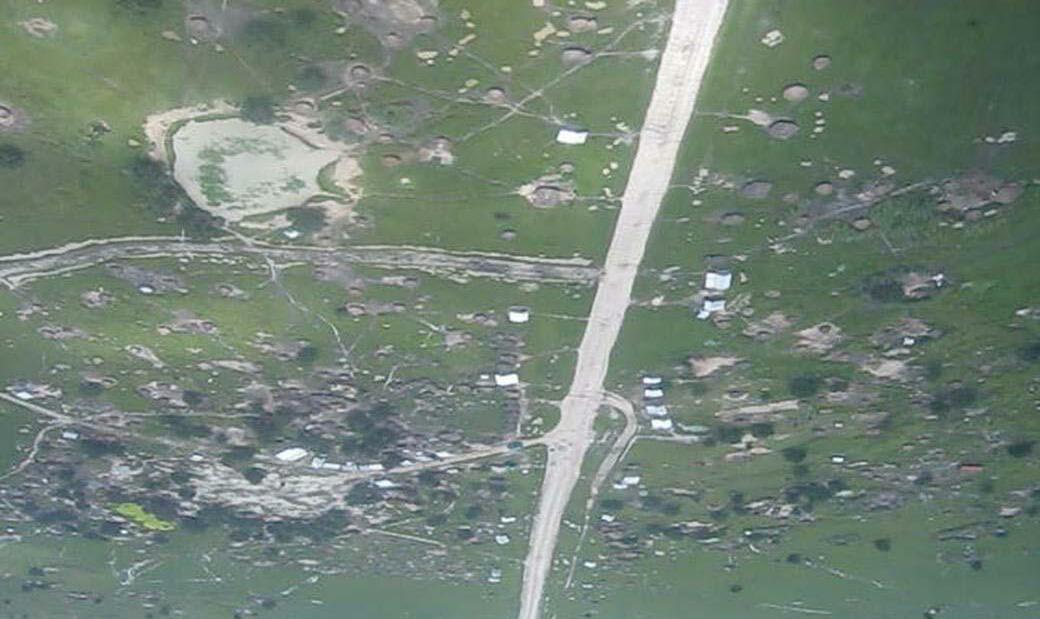

Scattered houses view in the village from the air

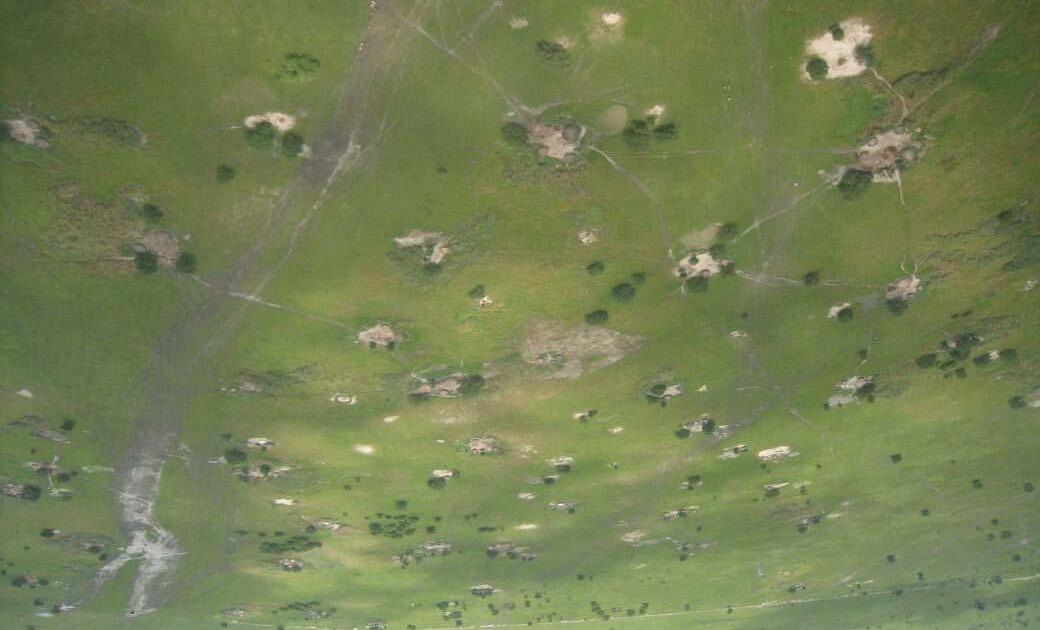

Main road to Borwith village view Village over all views from air Residents with prairie

CENAL ConsultancyCENAL Consultancy

Village ground views with water tank photo and village folks

CENAL ConsultancyCENAL Consultancy

household typical layout

CENAL ConsultancyCENAL Consultancy

Project program Memorial park Public Residential community Basic infrastructure

CENAL ConsultancyCENAL Consultancy

CENAL ConsultancyCENAL Consultancy

CENAL ConsultancyCENAL Consultancy

Master Plan

Site condition

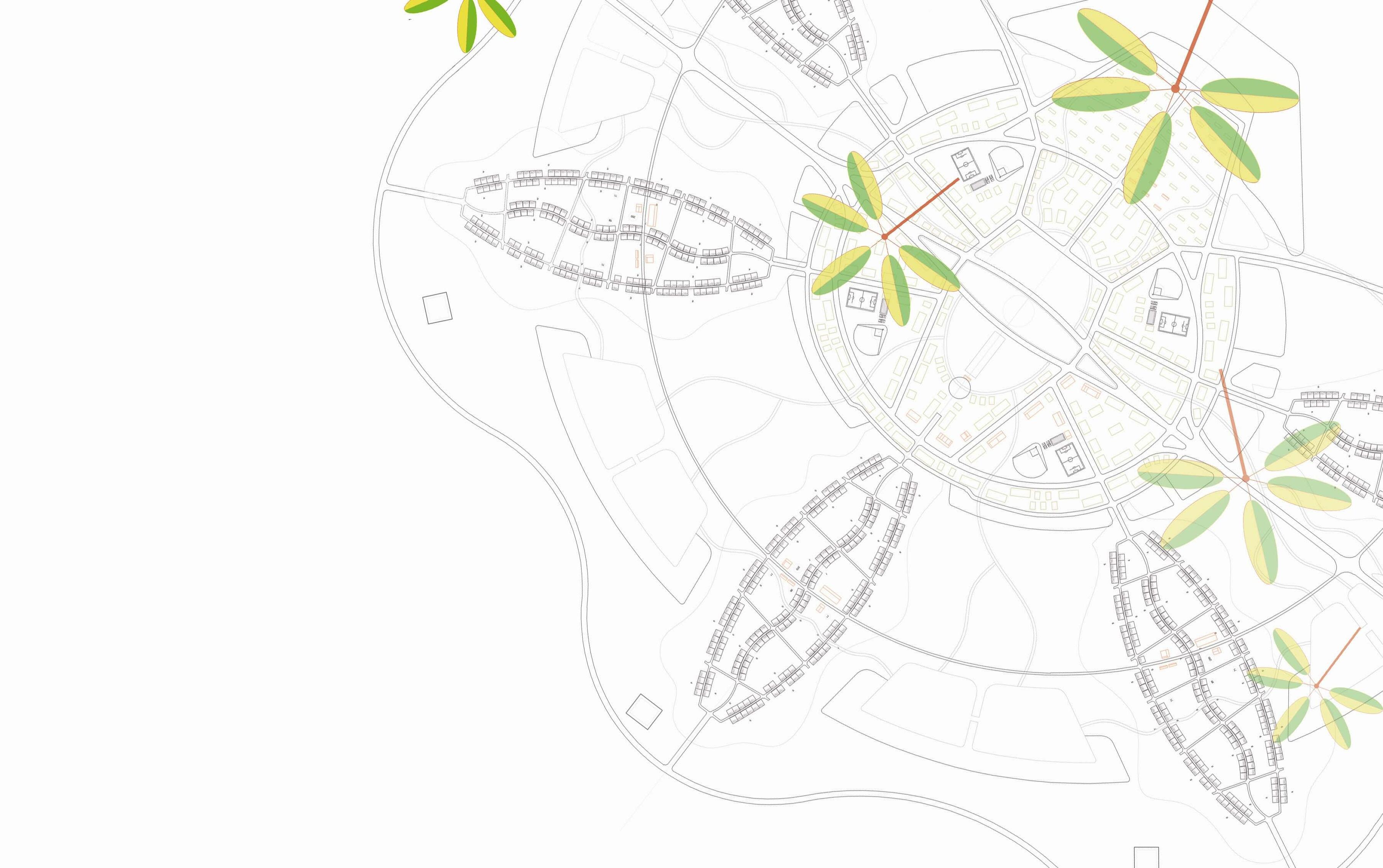

Preliminary master plan Land use plan Master plan Memorial park plan

Master planMaster planMaster plan

Main road crossing the project site connects to Malakaland to Bor.

Existing level of land consists from level 413 through 419 measured from the sea level from the survey map.

The topography is un even with trees and looks prairie with some beautiful scenery. Dr. John Garang’scemetery is located at the center of the village near the main road.

From the main road there is a main approach along with JG Cemetery and central space of the village.

Single family residents are scattered into the village.

The components of single family are master’s room, children’s room, kitchen, Luak, small parcel for farming

Two schemes are proposed based on the existing condition.

Main road view with village scene

CENAL

Alt-1 is a linear type of the new town concept designed with grid circulation system. Residential neighborhood communities are scattered along the main road and centered by the service zones such as government, education, commercial, sports, industry. 100 residents are accommodated in the one community with kinder garden, market, community activity space. The merit of the linear town is that the town expansion is unlimited in vast land.

CENAL ConsultancyCENAL Consultancy

Alt-2 is a radial type of the new town concept designed with circular street system. Residential neighborhood communities are radial location along the center service zones such as government, education, commercial, sports, industry. 200 residents are accommodated in the one community with kinder garden, market, community activity space. The Neighborhood community is surrounded by the park with vegetation where residents can recreate and play. At the center of the community flea market and other community activities can be taken place. Since the distance from neighborhood community is equally distributed from the centered service areas, circulation system is efficient, howeverhorizontal expansion of service area is limited due to the boundary of the center of village

CENAL ConsultancyCENAL Consultancy

belt

Green belt

belt

Green belt

Main road connecting to Malakaland to Borcrosses the center of the new town.

Along the main road arterial roads are planned as radial shape to concentrated on the center of the town.

From the center of the town loop roads are circulated to connect radial roads.

By pass road is created to avoid traffic jam when the main road is in heavy traffic.

At the 200 units resident neighborhood community, front street is designed with additional connecting roads among the front streets.

Each residential commune is connected to the center of the service areas where knowledge, health, economic, cultural villages are located.

-Main road is 28 m, 8 lanes+ pedestrian walkway

-Radial and loop road are 22m, 4 lanes+ pedestrian walkway

-Arterial roads connecting radial and loop are 20m, 4 lanes+ pedestrian walkway

CENAL Consultancy

At the center of the town Dr. John Garang memorial park is created as symbol of the town.

From the center memorial park government, education, commercial, industrial zone planned. Another layer of the commercial strip is created for future growth of the town economy.

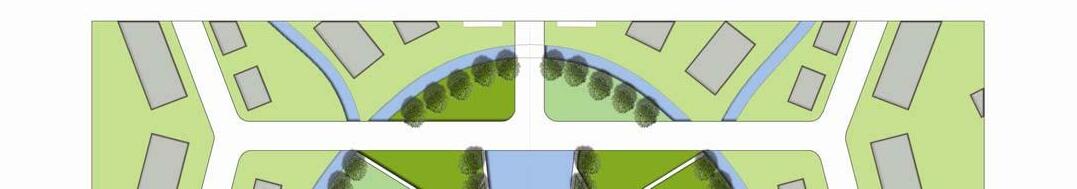

From the central service zones, five residential communes which house 200 single family household for each commune are designed as radial shape.

In each residential commune kinder garden, market place, recreation + play area, worship center are designed to serve the family houses.

On the edge of the town sewage treatment area are facilitated for sanitation.

CENAL ConsultancyCENAL Consultancy

The new town of Wanguleiis created as “Green Village”.

Each resident community is surrounded by the trees and park. The residents enjoy walking and playing.

Between residents zone and service zone there is Green Belt to limit spreading of commercial zone.

Another designated Green Belt is planned to alleviate the industrial pollution from the factories.

CENAL

The new town is called”Water Town”.

Large scale water reservoirs are planned to reserve water to supply plenty of the water for drinking, cooking, farming, producing goods.

The reservoirs are used as holding the water when heavy rain falls to protect flood during the rainy season.

The water way is also created toward the town central area to supply water for fountains and streams for better atmosphere of the village.

CENAL

Concept of “Green Water Village”. The new town with parks and water. It is sustainable and environmentally livable town. The water reservoirs are surrounded by the trees and parks whereresidents take rest in the area along the lake like reservoirs.

CENAL

Master

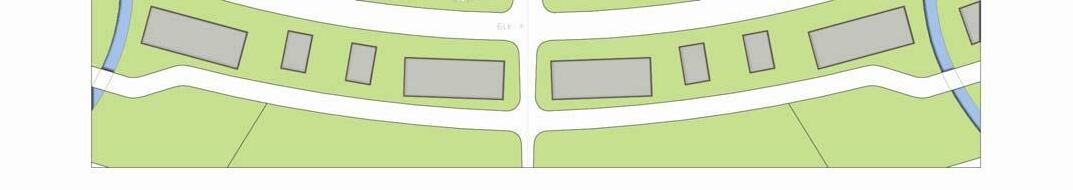

Each resident neighborhood community houses 200 units of single family housing where 5~7 family members reside.

The house is located along the street that connects to the center of the town where service facilities are such as post office, shops, fire station, police station, government offices, parks…

Within the community there are markets, kinder gardens, pre school, and worship center for the resident convenience. In each property of the house small farming land is provided forevery day instant food supply.

CENAL ConsultancyCENAL Consultancy

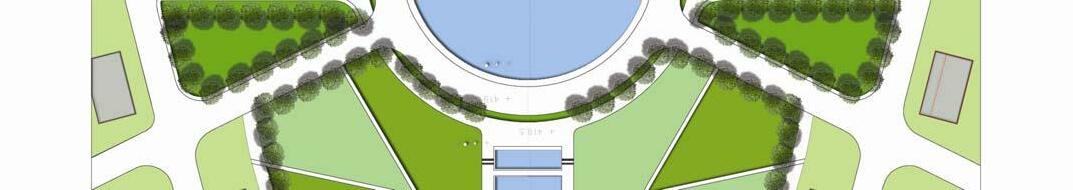

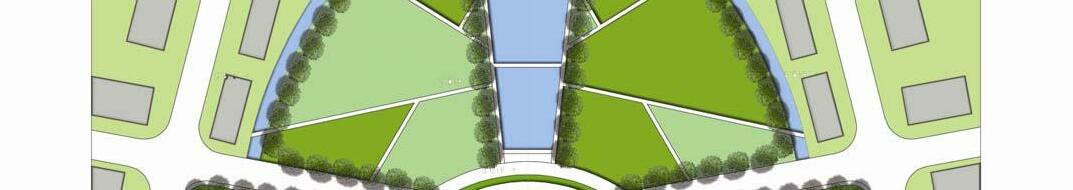

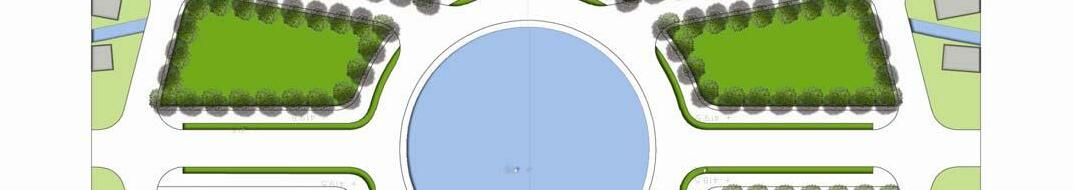

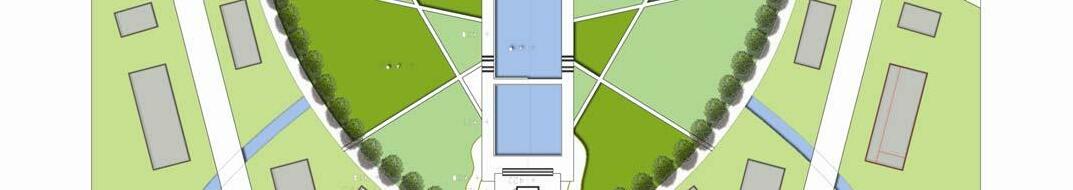

At the center of the new town Dr. John GarangMemorial Park is designed to commemorate the contribution of his life long achievements forSudan.

The large ponds are created at the memorial park to symbolize the eternity of peace and prosperity of Sudan and the Dr. J Ggarang’sdream.

At the very end of the memorial park the symbolic tower is monumental to celebrate the vision of the town and to be recognized as the landmark of the new town as the first modernization of southern villages in Sudan.

Dr. John GarangMemorial Park

Landmark Tower of the town as a monument

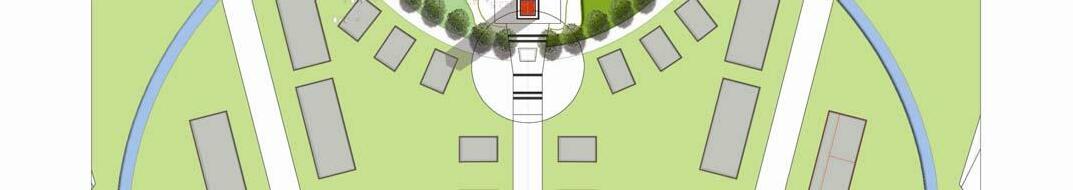

Conceptual Master plan

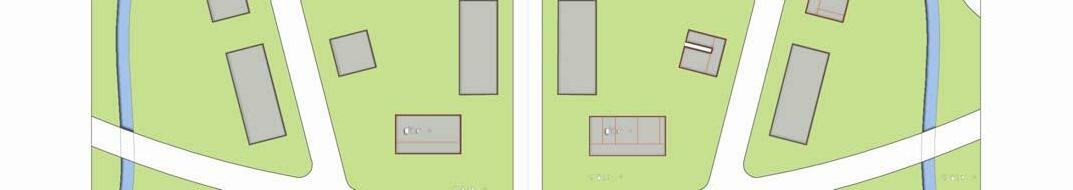

Master plan

Master plan

CENAL ConsultancyCENAL Consultancy

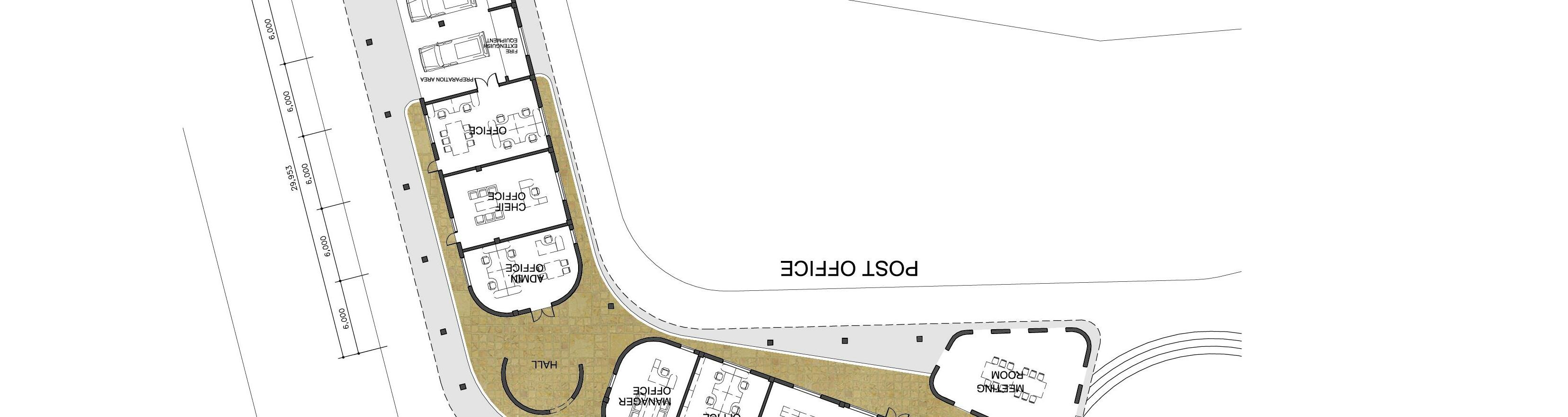

Buildings plans Government Public Commercial Resident
