Center of sustainable developement

- B.Sc. Thesis, “ Center of sustainable education and development with an approach to growth and sustainability energy”, Engineering Department, Hafez Institute Of Higher Education, Shiraz, Iran.

-Date: 2017 - 2018

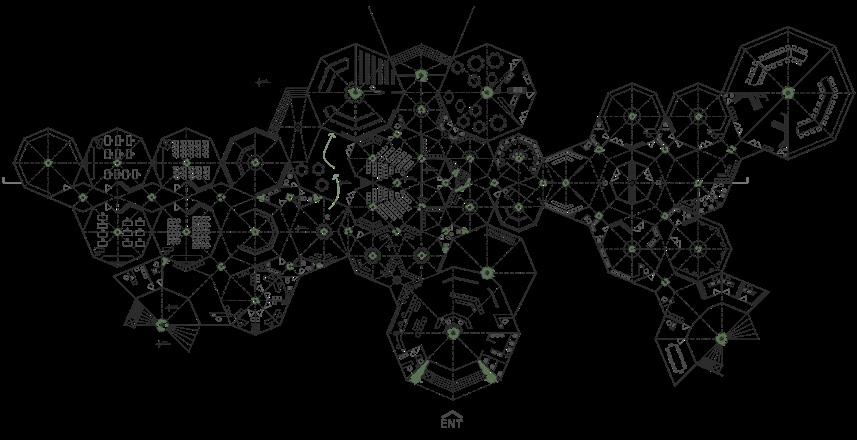

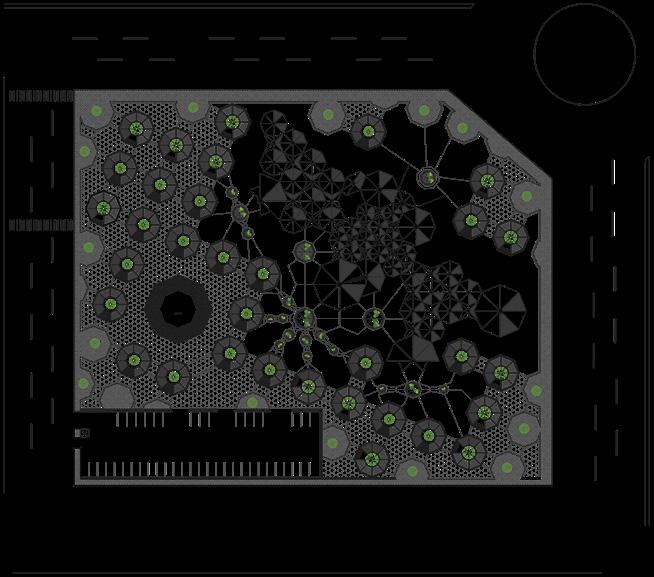

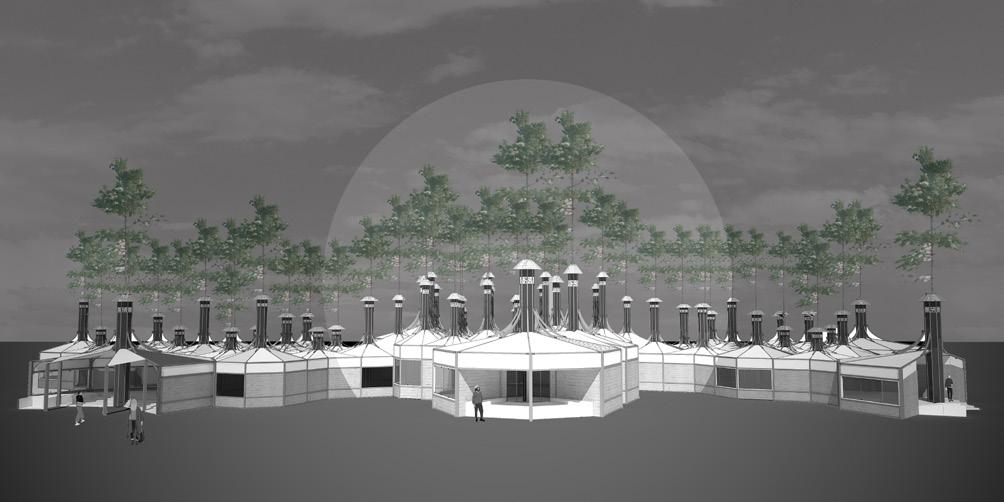

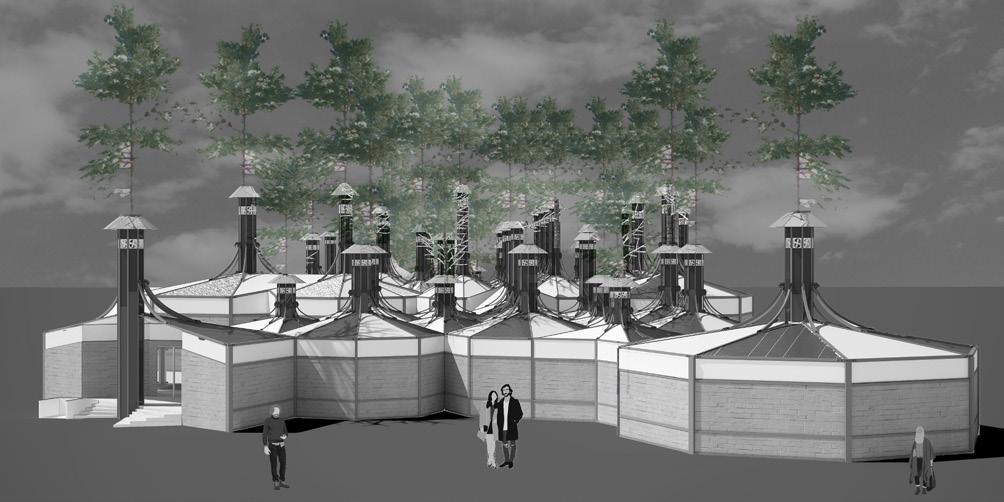

My thesis (sustainable development center) started with some simple ideas, how we can design a building that has no negative environmental impact? How we can have a structure that is capable to grow like a child? How we can construct a building which can produce its energy requirement? And finally how we can develop these ideas in society to achieve these aims, first I chose a site in one of the most crowded streets in my hometown (Shiraz, Iran), in which there were so many pine trees. Second, I designed a special structure and connected it to the trees (the structure can grow with a central pine tree). Clearly, I needed a modular style of designing. When the first form of the building was made, I designed my special structure, which is operated by fans and the collected water from rain as a cooling system. Likewise, I used solar cells to make electricity for the users, fans, and the warming system, as well as a sloping roof as a procedure to collect the water from the rain. As a matter of fact, our purpose for designing the building is cultural and it will be used to educate experts and the public about the power of sustainability.

We are aimed to design a sustainable project, in this respect the concept of this design is the sense of independence to reach that aim. All the parts of design indicate the independence with a special structure. The concept will be represented step by step.

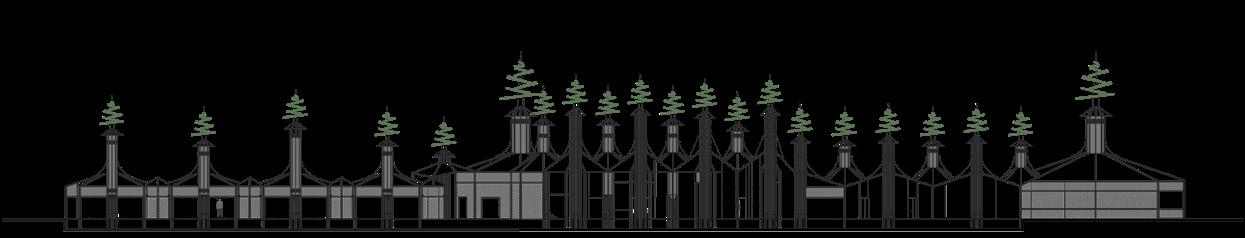

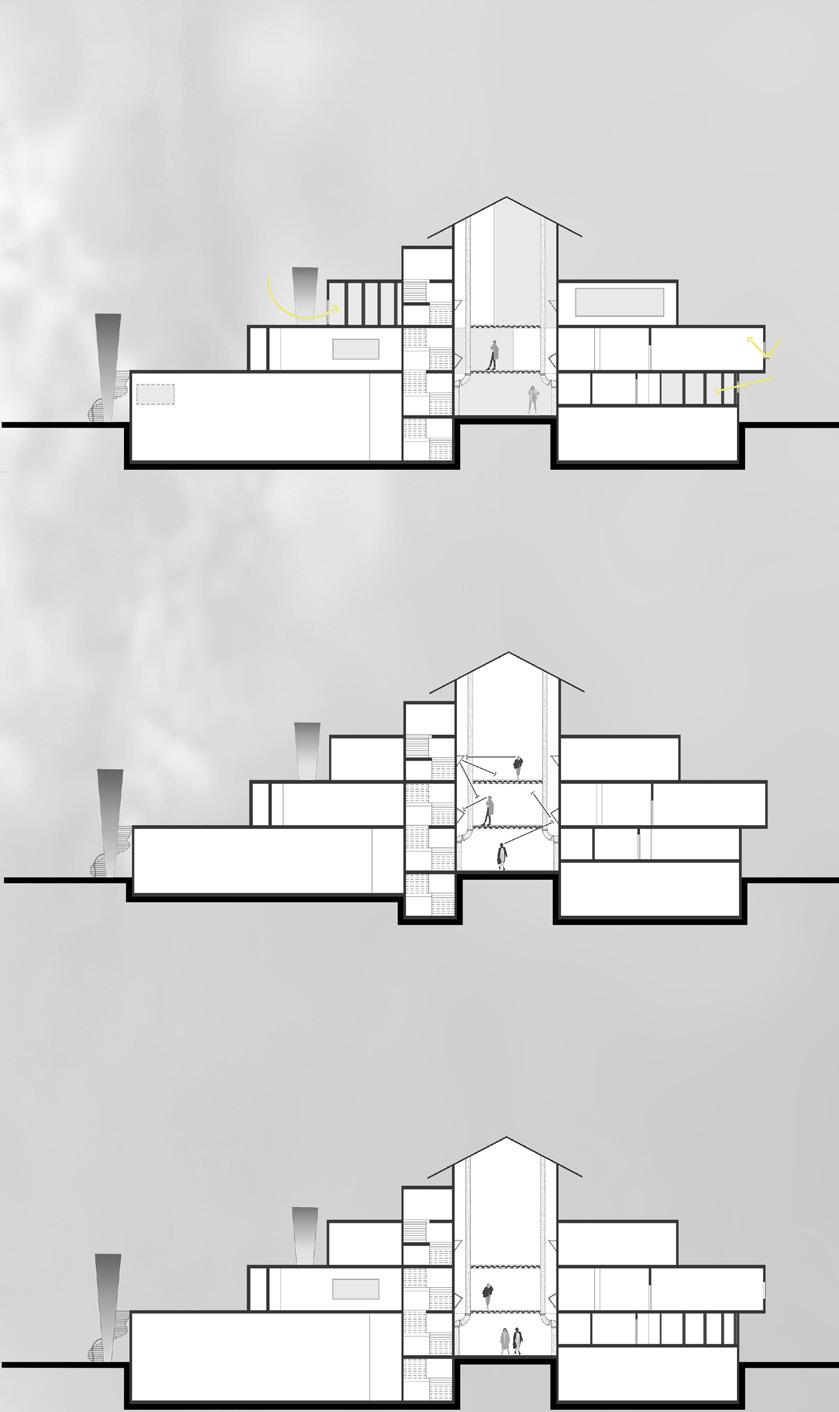

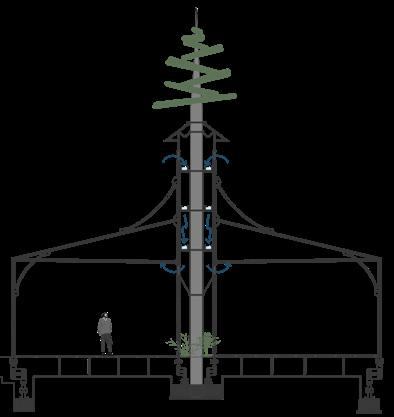

Wall section = step one

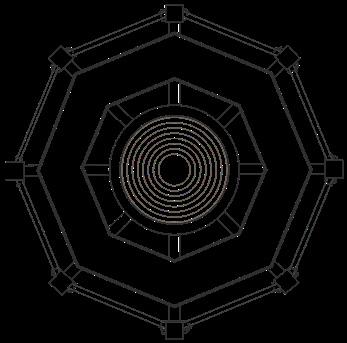

After designing the whole form of the building, I decided to connect the trees with a structure by helping iron profiles, then I invent a new type of windcatcher by using suction & pushing fan (gain the electricity – requirement from solar cells in the rooftop) and I mixed the air with water that has already been collected by the rain to make a sustainable cooling system. Furthermore, I located a new profile inside the main column in the case of growing the central tree to flourish the whole structure. I was faced with a new problem in the case of natural disasters such as earthquakes and typhoons. In this respect, I design a flexible structure to make flexibility for the structure of the building. The details illustrate the process.

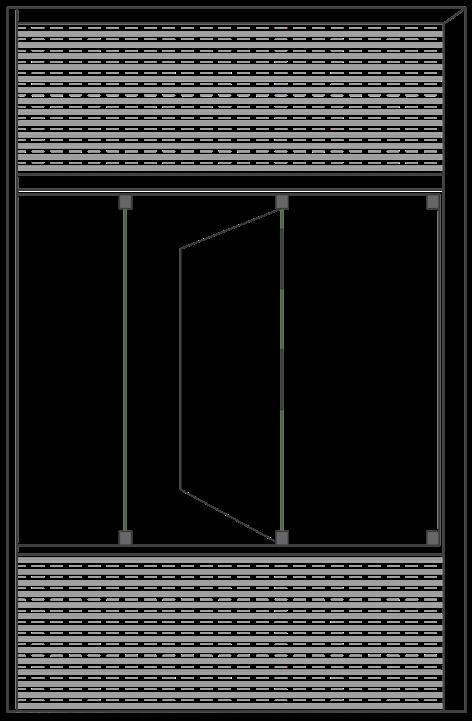

Wall detail = step two

The structure of the wall is completely different. The wall is made of exposure concrete and all the pole between concretes are filled with PVC to make a flexible wall. In the case of growing the structure, I used a special plastic fabric with tension cable which is connected to a pulley to grow the wall when the whole structure is on the point of flourishing. Details indicate the process.

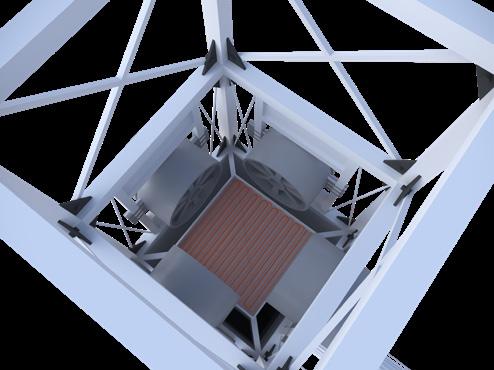

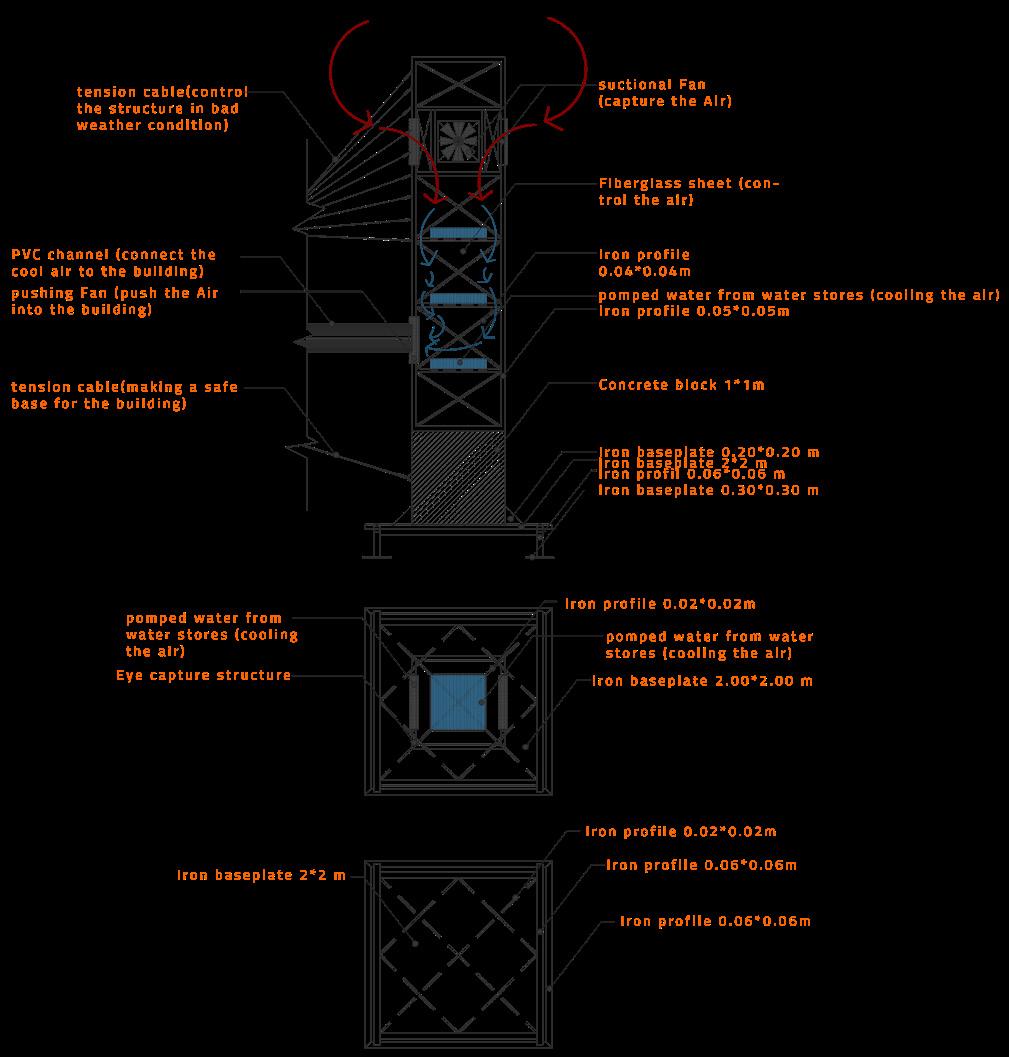

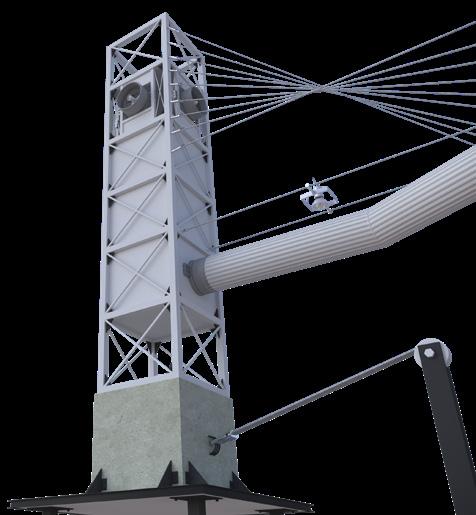

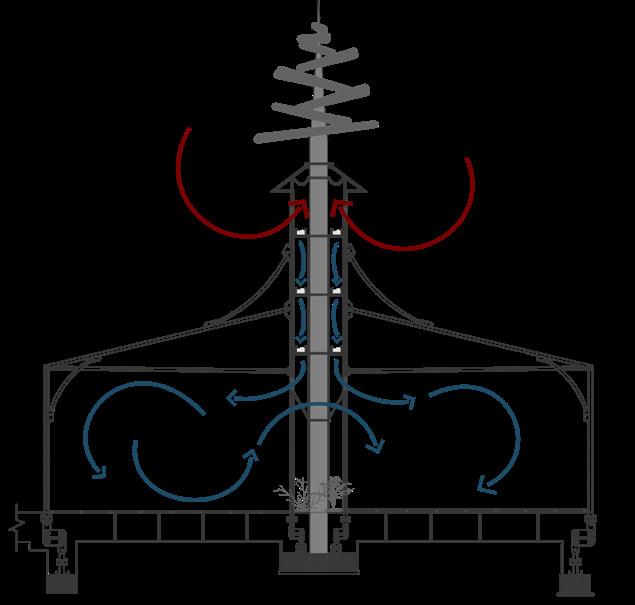

Air section = step three

This step is related to the fundamental of the cooling system. The cooling system works with fans and water of rain. In detail, the air would catch by suction fans in the top surface of the structure, the air that has been suctioned will mix with water and it will be cooled into the tower, then by pushing fans, push the cool water to the building. The surface of the tower is made of fiberglass to hold the temperature of air and also the roof of the structure is covered by aluminum to prevent evaporation of water. Details show the process.

Aluminium plate for controlling the tempreture

Iron plate thickness 5 mm

Section WA - WA

Fiberglass for controlling the tempreture

Iron item 6*6 cm

Fiberglass for controlling the tempreture

Iron profil 10*10 cm

Rain water

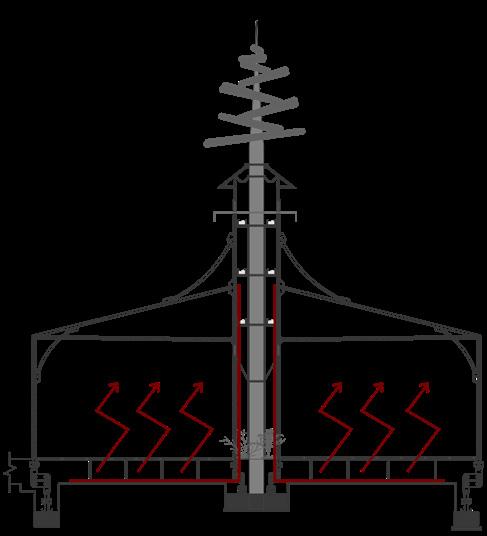

Warming heather section = step four

In this step, I used the electricity that has been generated by solar cells to make a new warming system for the building. In detail, the floor of the building is constructed by exposure concrete with PVC in the pole of the surface and there is a myriad of electrical elements which can turn the electricity into warming energy and transfer it to the building.

Final step

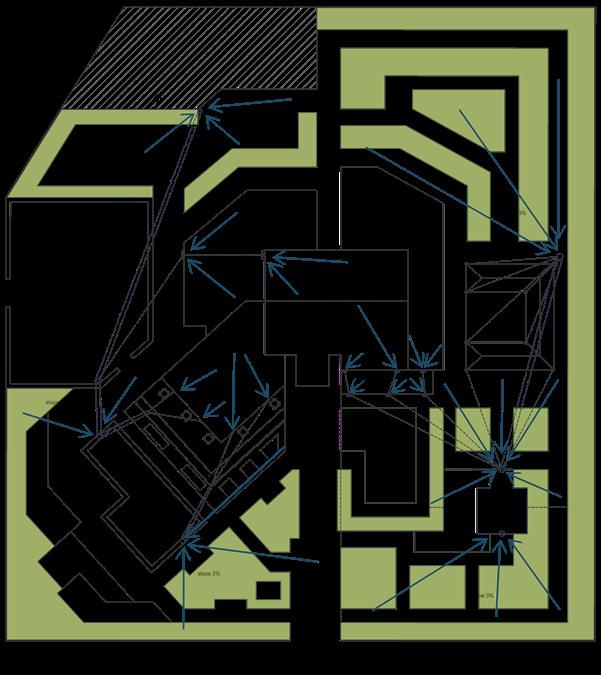

Last but not least, the final step of designing is related to collecting the water. All the roofs of the building are sloping to amass the water for cooling purposes and human use in a service area such as a toilet. There is no refinement for the water, so this would not be edible.

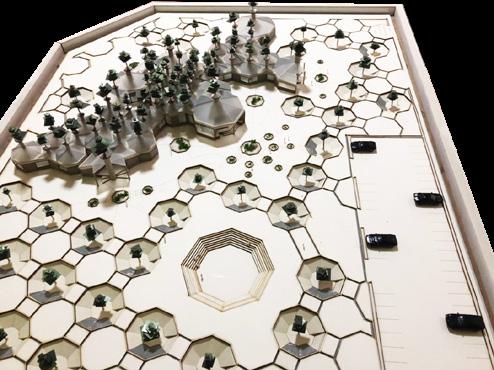

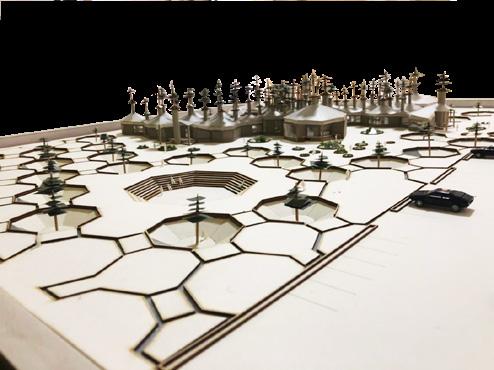

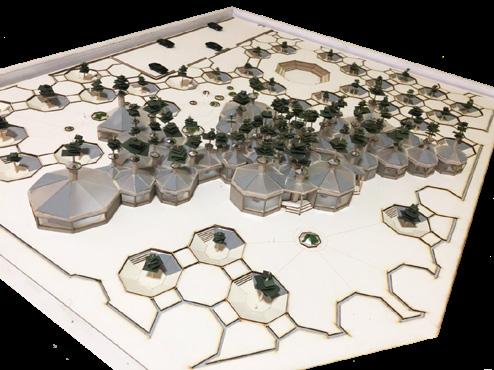

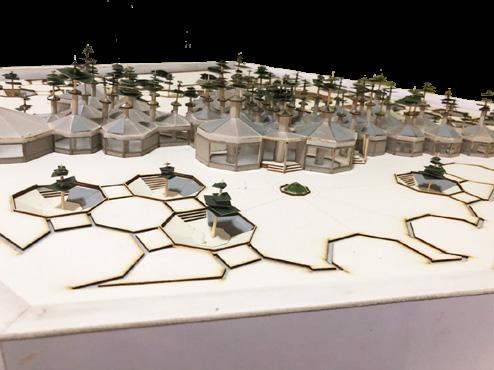

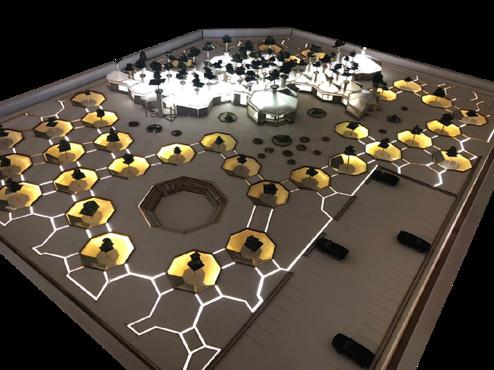

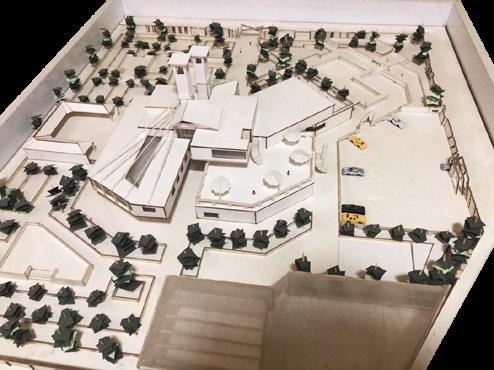

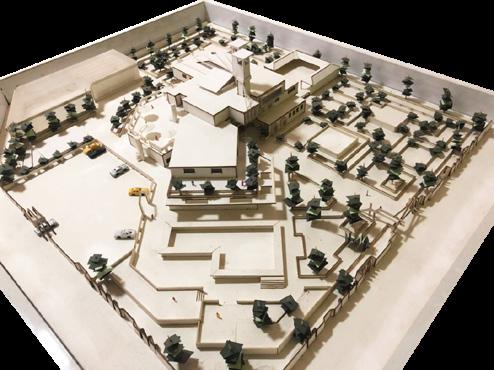

Project maquette

- Used material: plexiglas and maquette cardboard

Architectural Design V

- “Residential suites for environmental researchers (suitable for the vulnerable environment and portable capacity)”, Engineering Department, Hafez Institute Of Higher Education, Shiraz, Iran.

- Date: 2016 - 2017

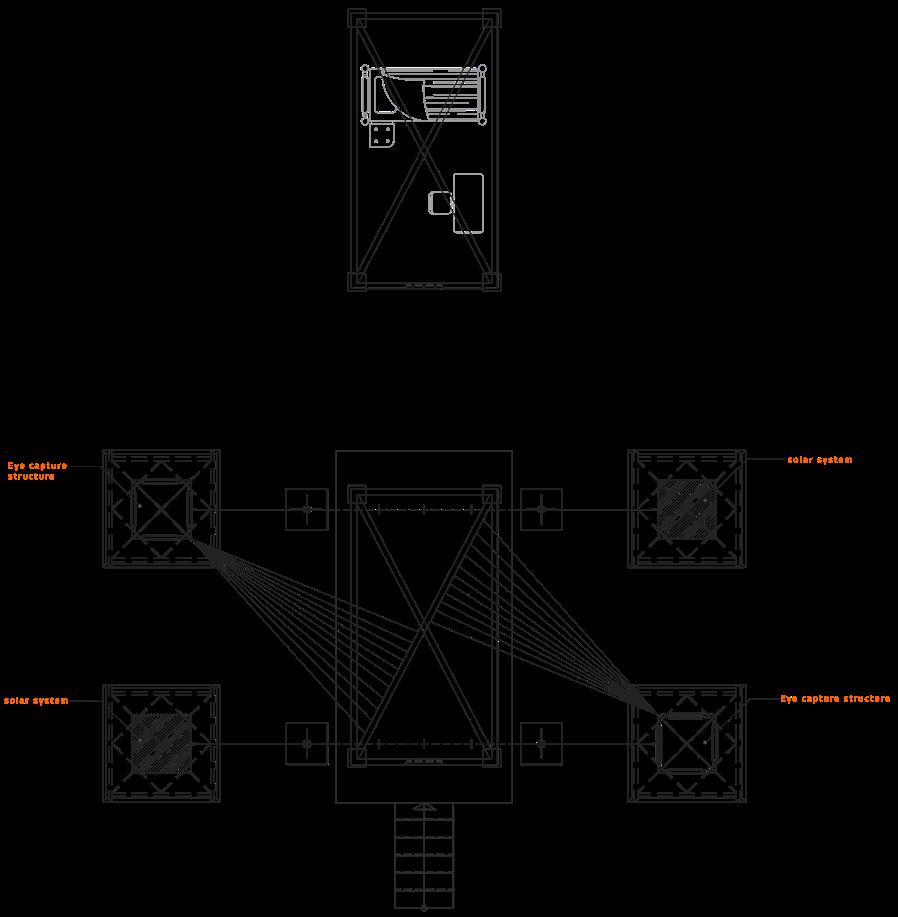

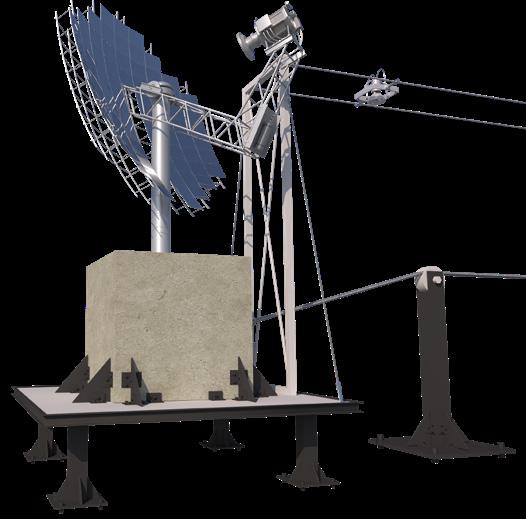

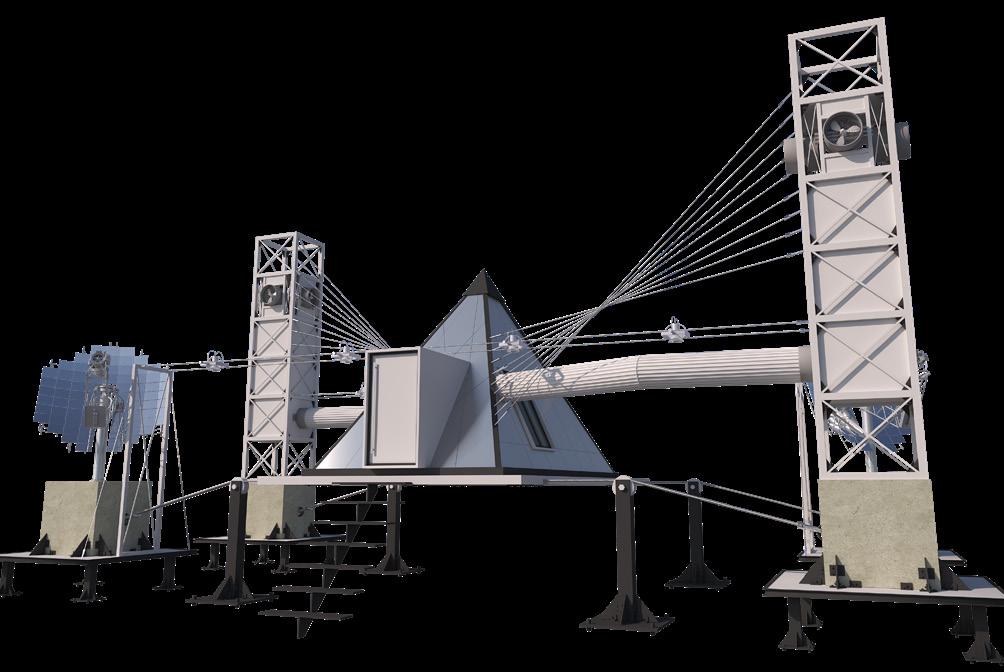

One of the major problems in scientific research is related to the shortage of residential areas in a fragile environment that has harsh climate such as deserts or hard accessibility like rocky mountains or arctic regions. In this respect, I design residential suits which could be suitable for these conditions. These suits are designed by sustainable energy such as solar system to generate electricity for users and I invented a new method of cooling and warming system which it runs by only electricity and a less amount of water that can be collected by rain and pushing the hot/cool air into the suits by fans. Also, the whole structures are not quite connected to the ground to protect the territory and prevent any soil degradation. The purpose of this design is to make residential suits for scientists who want to make some experiments in a sensitive environment.

Details

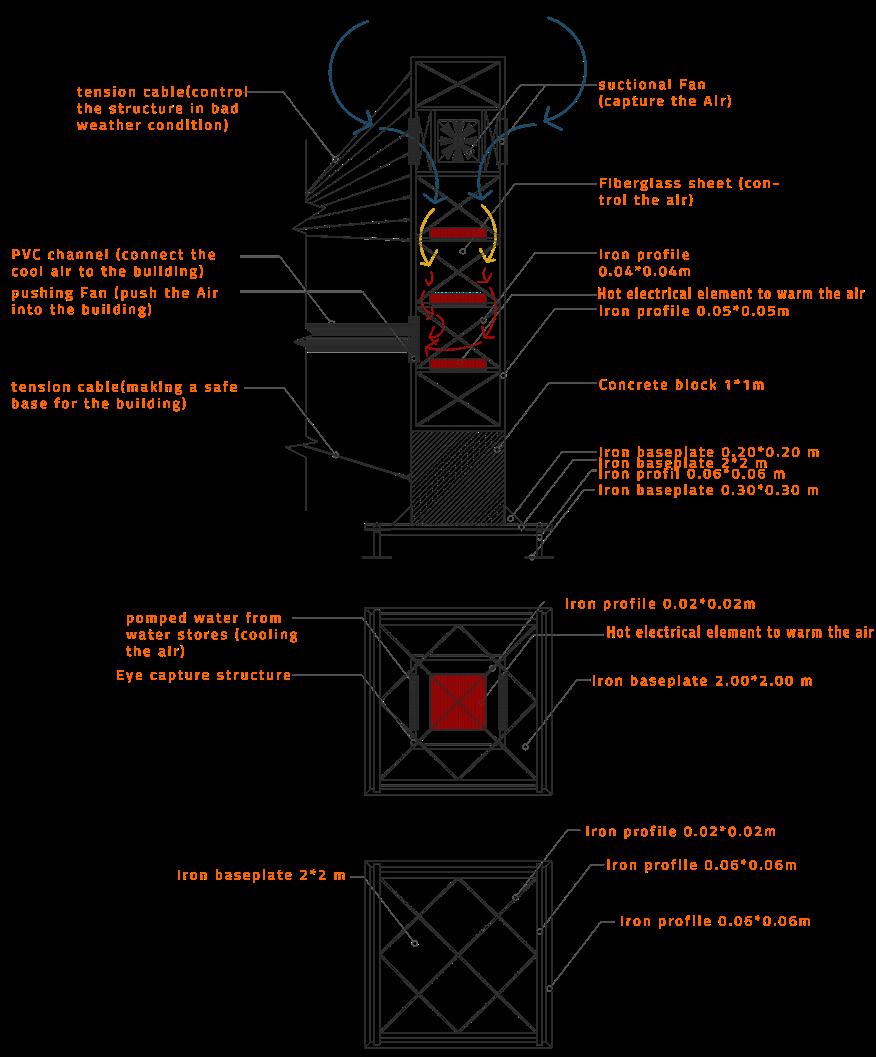

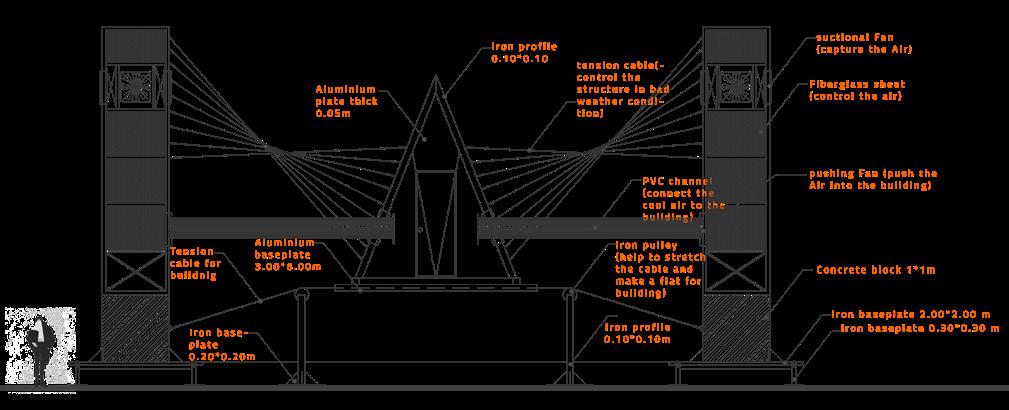

-Cooling system details

Details

-Warming system details

Renders

Architectural Design III

- “Garden museum of medical engineering with an approach high technology architecture in Shiraz”, Engineering Department, Hafez Institute Of Higher Education, Shiraz, Iran.

- Date: 2015 - 2016

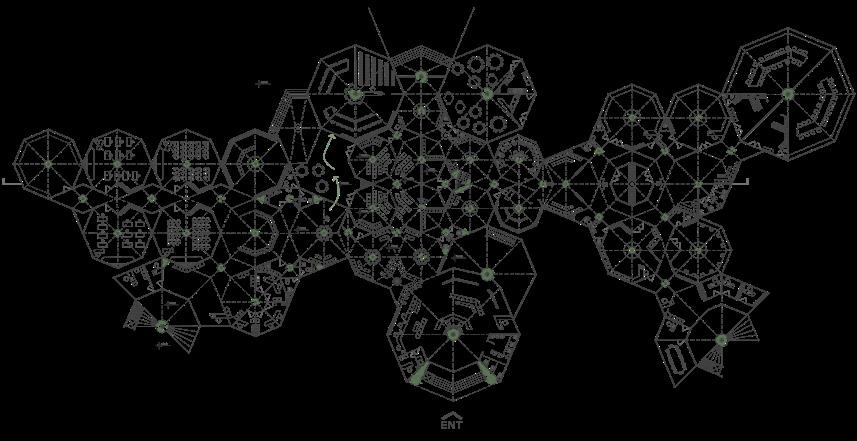

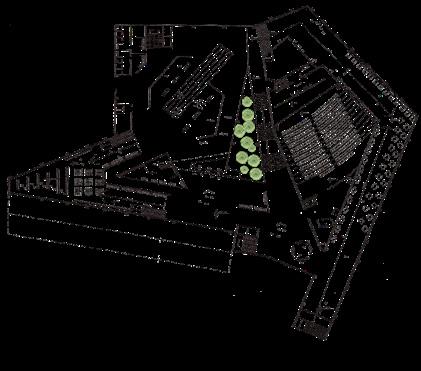

One of the important fields in the world is medical engineering which is as crucial as the medical system. In this respect, I decided to design a garden museum that can illustrate my achievement in this field. The form of the building was inspired by brain neurons to show the complexity of our brains. The concept of this design is the power of engineering and accuracy in medical that is required a high technology architectural style to achieve my concept and educate visitors about the crucial part of medical engineering in our well-being. To sum up, all the design is aimed to indicate this value.

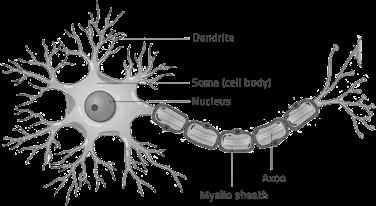

Concept

-Brain neurons

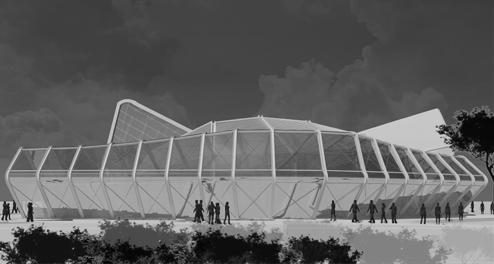

Renders

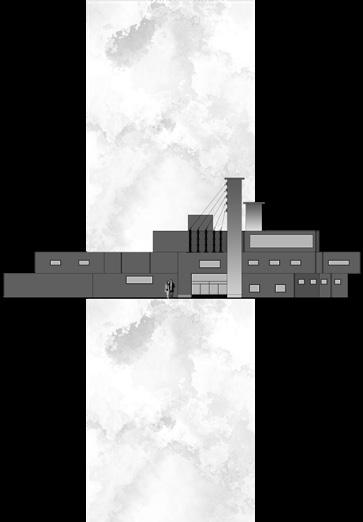

Architectural Design II

- Architectural Design II, “ Shiraz university of architecture with an approach sustainability and green architecture”, Engineering Department, Hafez Institute Of Higher Education, Shiraz, Iran.

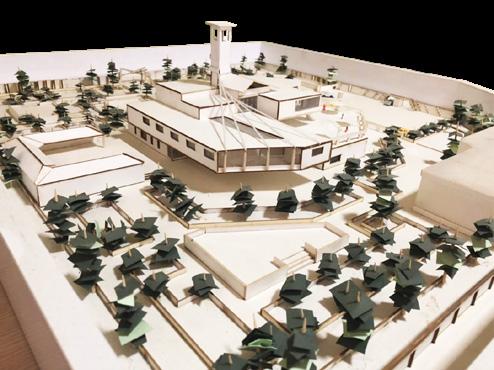

- Date: 2014 - 2015

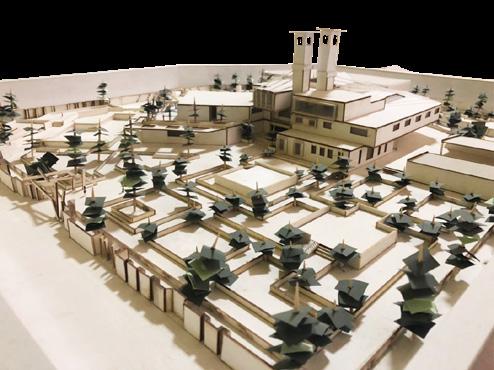

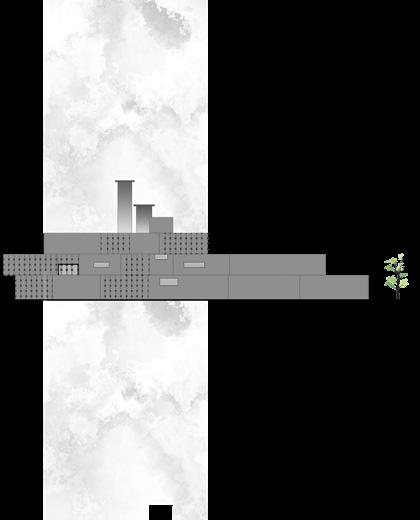

In this design, we are encouraged to design a university for architectural fields. The concept of this design is independence. To achieve this concept, for the first time I used sustainable architecture, thereby beginning a study on this field in our ancient architecture and I realized our predecessors had the best solution. In some deserts which have a harsh climate, ancient architects use a special tower as a facility for the cooling system, which is called a wind catcher. I redesign the towers with a new facility. The towers are worked by the solar system and collecting water from rain and make a new sustainable cooling system. In addition, I used the electricity of the solar system to gain a new warming system by using hot elements. The two towers of the building also have structural aims and control the whole structure by using tension cables. In conclusion, the building is completely sustainable and no source of energy is required and there is no environmental impact.

Interior design
