SLIDING STALL FRONTS

Our sliding stall fronts are a great choice for all barns. Since the door slides rather than swings outward, sliding doors save space in your aisle. This space-saving feature makes sliding doors especially a perfect choice for busier, larger facilities.

Our sliding stall fronts can be dressed up with brass accents, arches, and yokes. They can also be simple and functional with many feed and water options. Our sliding stall fronts are custom built to look, feel, and operate to your needs.

STEEL FABRICATION:

Steel: 100% United States made, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

Upper Bars: 1″ round tube on 3″ centers (2″ between bars) on upper bars

Lower Bars (Optional): 1" round tube placed on 2.5" centers

1.5" punched u-channel

THE FINISH:

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating done in-house using rigorous quality control process.

TRACK & LATCH:

Track: Industry-leading track and roller system with self cleaning design to allow easy sliding horse stall doors

Latch: Stainless steel pin lock latch (see page 15)

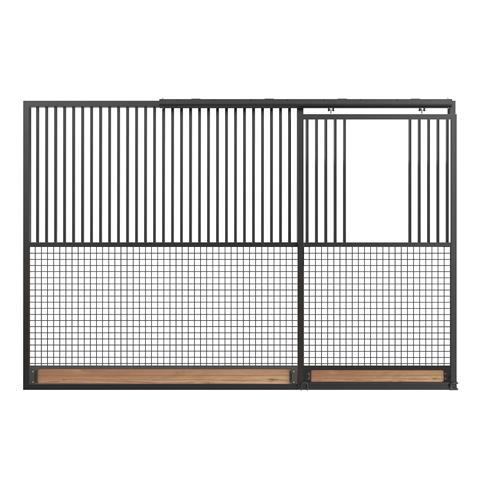

Sliding Stall Front Examples

Sliding Door | Horse Stall Kit

Our sliding door horse Stall Kits are a great alternative to our fully welded Sliding Stall Fronts. The main difference is that our fully welded Stall Fronts are ready to be installed while our kits require more onsite labor.

Each kit includes the same level of customization as our fully welded systems, but is more cost-effective. Each kit includes the following components:

Sliding Stall Door

Grillwork

Track System & Pin Lock Latch

U-Channel

Sliding Door | Horse Stall Kit

HARDWARE | Sliding Stall Fronts

Our sliding horse stalls include our state-of-the-art Pin Latch.

This system includes:

(1) Stainless Steel Pin & Chain

(1) Stainless Steel Pin

Receptacle

(1) Aluminum Wall Sheath

(4) Installation Screws
