EVERY GREAT BARN BEGINS WITH A VISION

WELCOME This guide is your starting point. It is not a parts catalog. It is a design consultation, a walkthrough of the decisions that will shape the look, feel, and performance of your barn for decades to come.

Every stall front, partition, door, and piece of hardware in this guide is custom-built to order in the United States. There are no standard configurations. There are no limitations. Your barn is a reflection of you, and we are here to bring that vision to life.

We invite you to explore, imagine, and design with us.

— The American Stalls Team

Your stall front should feel like a home, tailored to horse and human.

START WITH THE ESSENTIALS Our Horse Stalls 101 guide breaks down layout, styles, climate, and materials into clear, thoughtful steps to get you started confidently.

Our Planning Guide helps you consider your horses, your barn, and your longterm vision, before making any design decisions.

WWW.AMERICANSTALLS.COM | (855) 957-8255

3 2

FIVE DECISIONS THAT DEFINE YOUR BARN

YOUR DESIGN JOURNEY

Planning your stabling environment comes down to five core design decisions.

This guide walks you through each one, not as a checklist of components, but as a series of creative choices that together create something extraordinary.

01| YOUR STALL SYSTEM Sliding or European Hinged, the foundation of your barn’s character 02 | YOUR DESIGN PROFILE Door style, fill pattern, and the visual identity of each stall front 03 | YOUR HARDWARE Latches, feed systems, and water integration—where luxury meets daily function 04 | YOUR MATERIALS & FINISH Wood species, HDPE, and powder coat colors that set the tone 05 | YOUR FLOORING Mattress systems, rubber mats, and aisle pavers for health and performance

By the end of this guide, you will have a clear vision of your ideal stabling environment, and we will be ready to bring it to life.

WWW.AMERICANSTALLS.COM | (855) 957-8255

4 2

WHAT’ S POSSIBLE

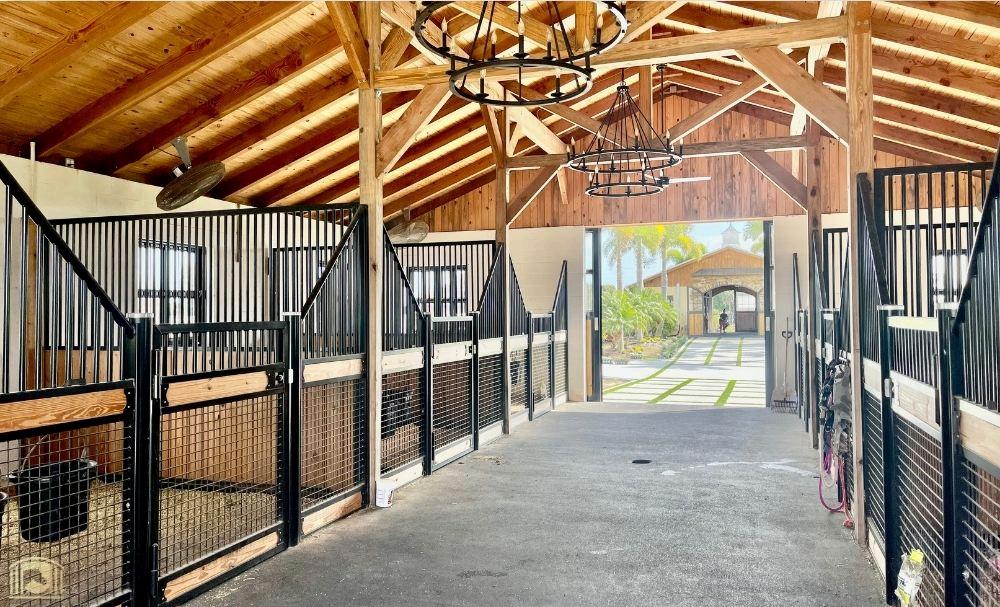

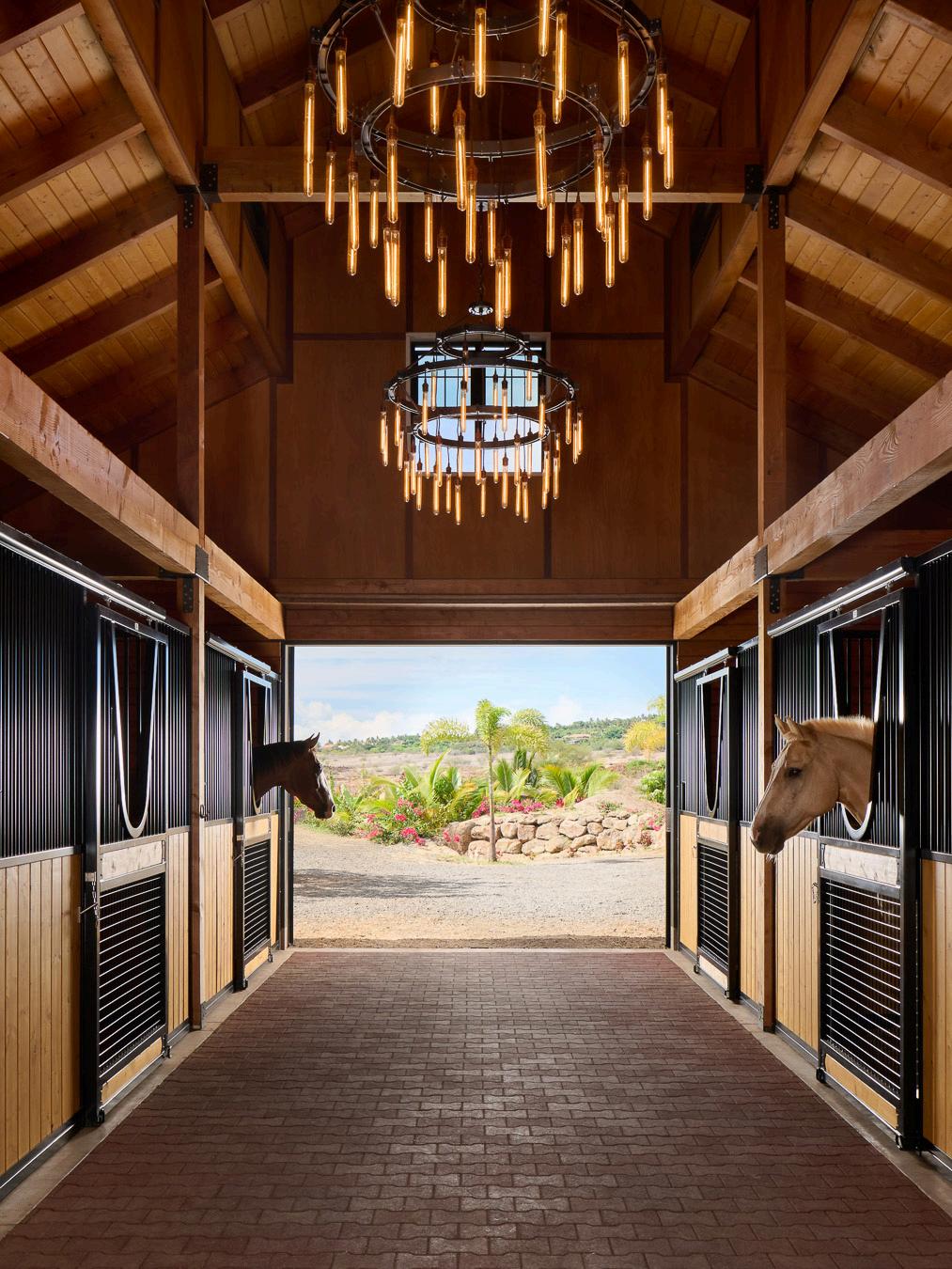

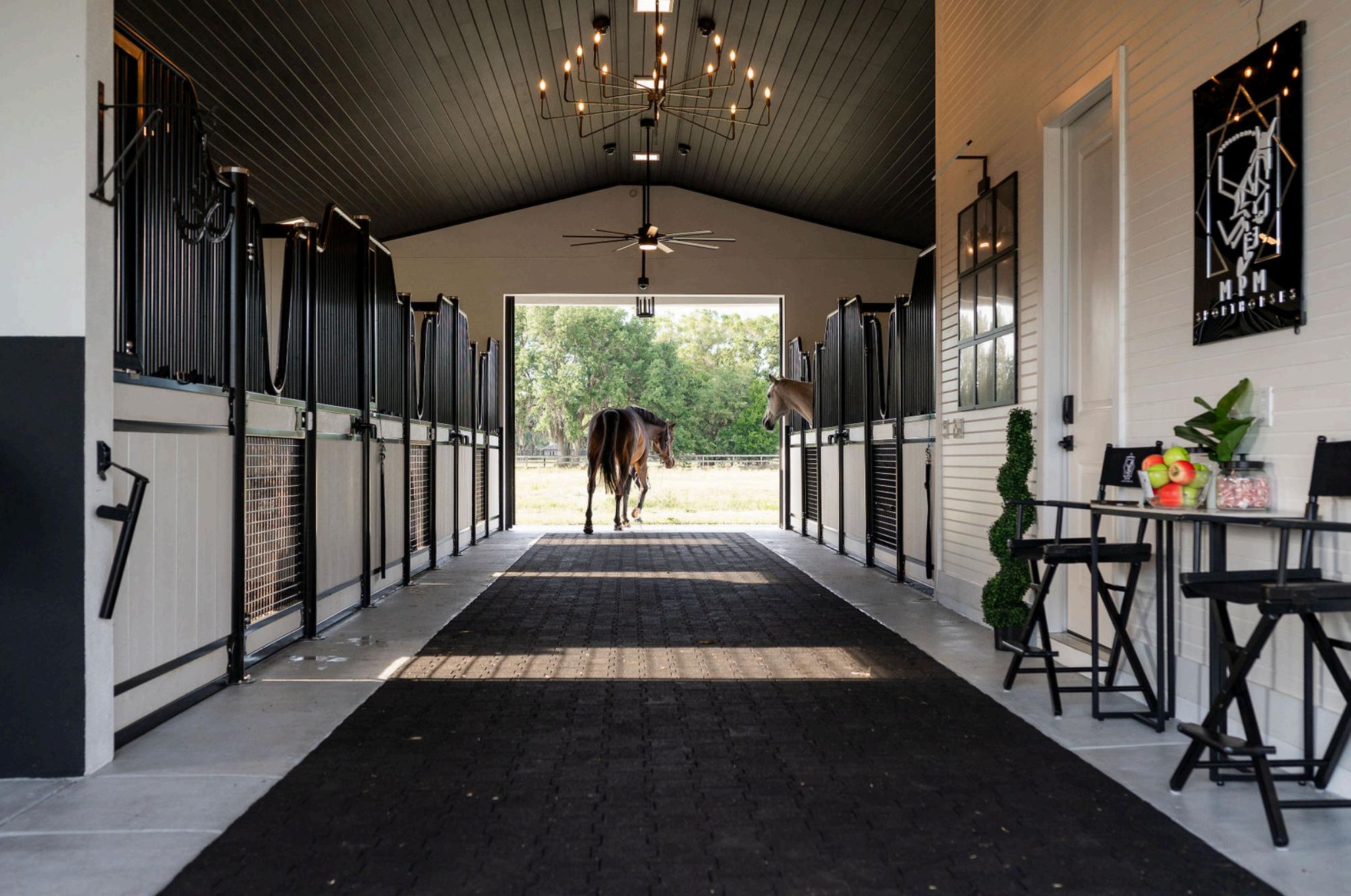

COMPLETED AMERICAN STALLS PROJECTS Before we explore the decisions ahead of you, take a moment to see what others have created. Each of these barns started exactly where you are now—with a vision and a conversation with our team.

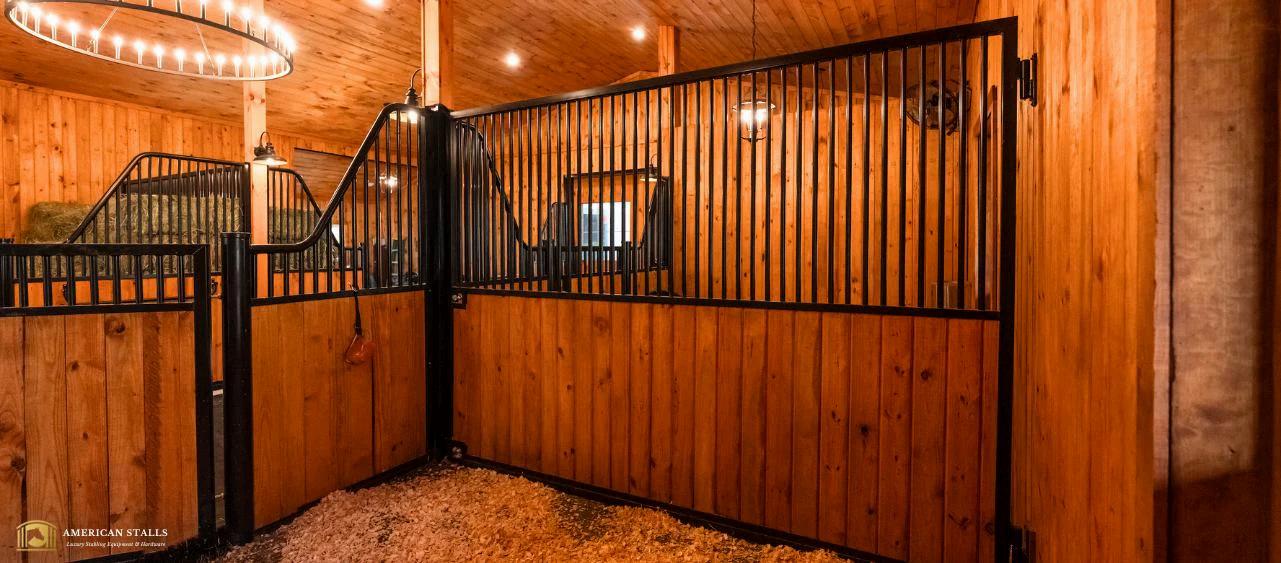

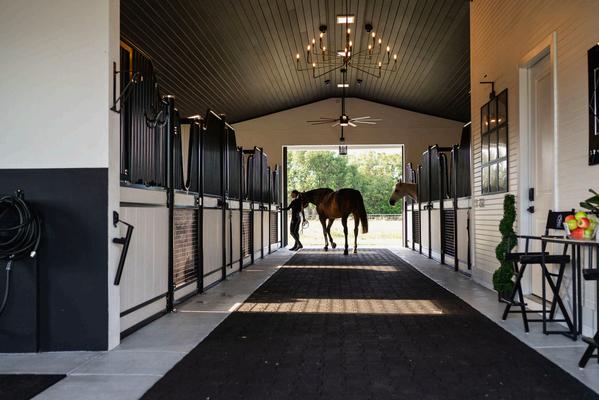

Straight “Low” Euro Stall Front Full HMH Design | Mesh Bottom & Shavings Guard | Brazilian Hardwood | Matte Black Powder Coat

5 2

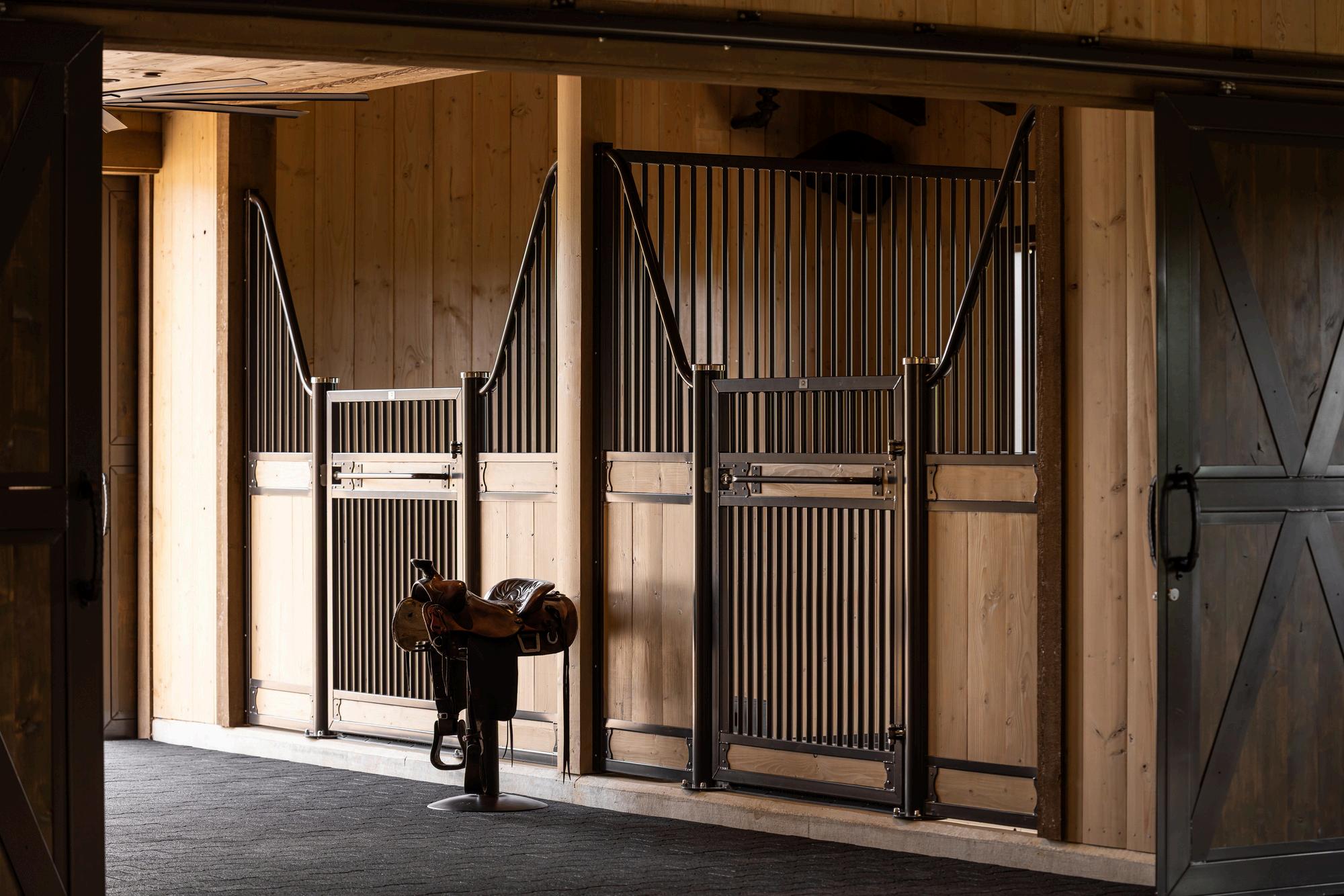

Bent “Low” Euro Stall Front; Vertical Fill Wings | Grilled Door with Center Name Plate & Shavings Guard | Brazilian Hardwood | Matte Black Powder Coat

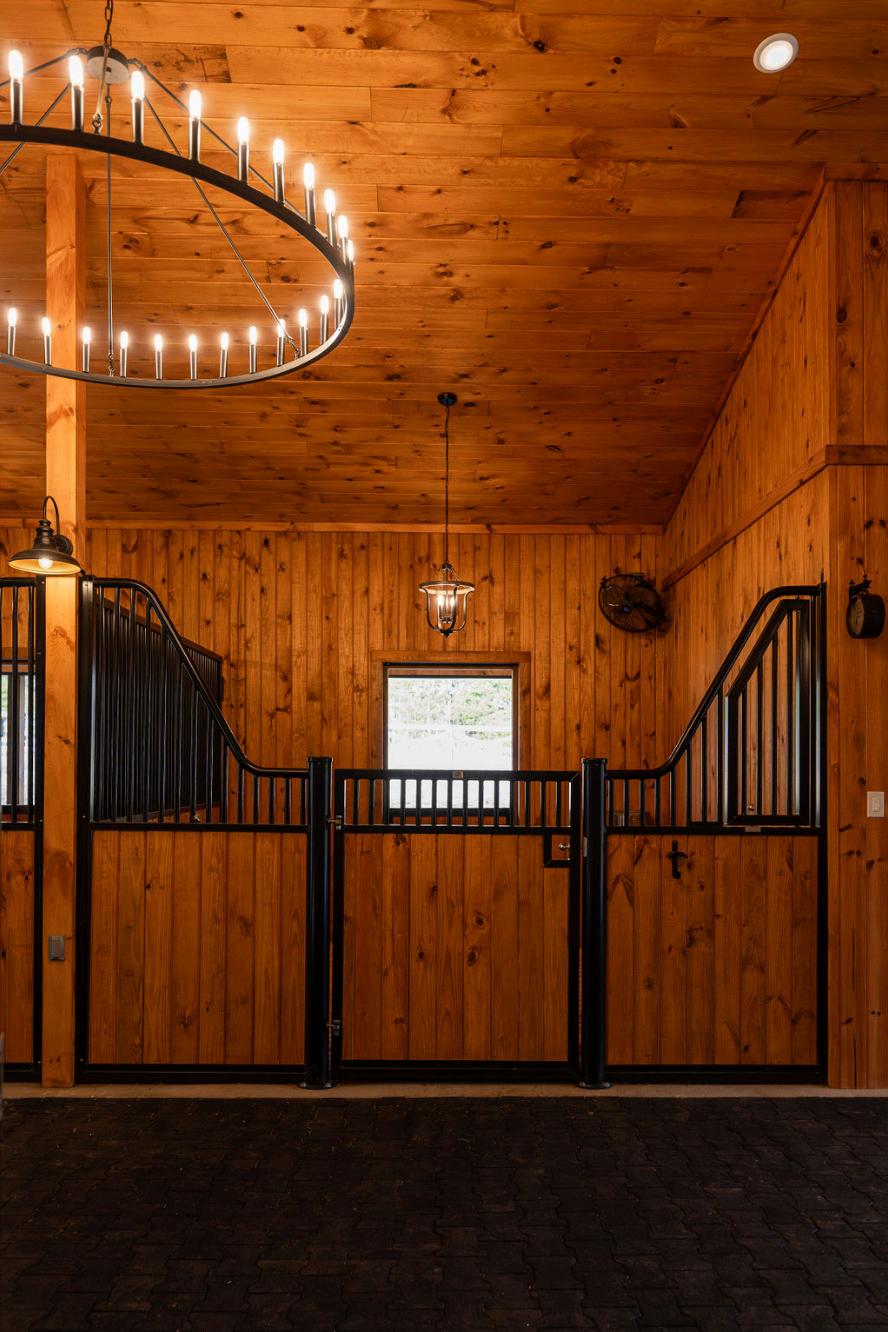

Bent “Low” Euro Stall Front Vertical Lumber In-Fill | Feed Hole | Yellow Pine Lumber | Matte Black Powder Coat

6 2

Bent “Low” Euro Stall Front; Vertical Fill Wings | Mesh Door with Center Name Plate & Shavings Guard | Feed Hole | Brazilian Hardwood | Matte Black Powder Coat

Bent “Low” Euro Stall Front Vertical Lumber In-Fill | Feed Hole | Yellow Pine Hardwood | Matte Black Powder Coat

7 2

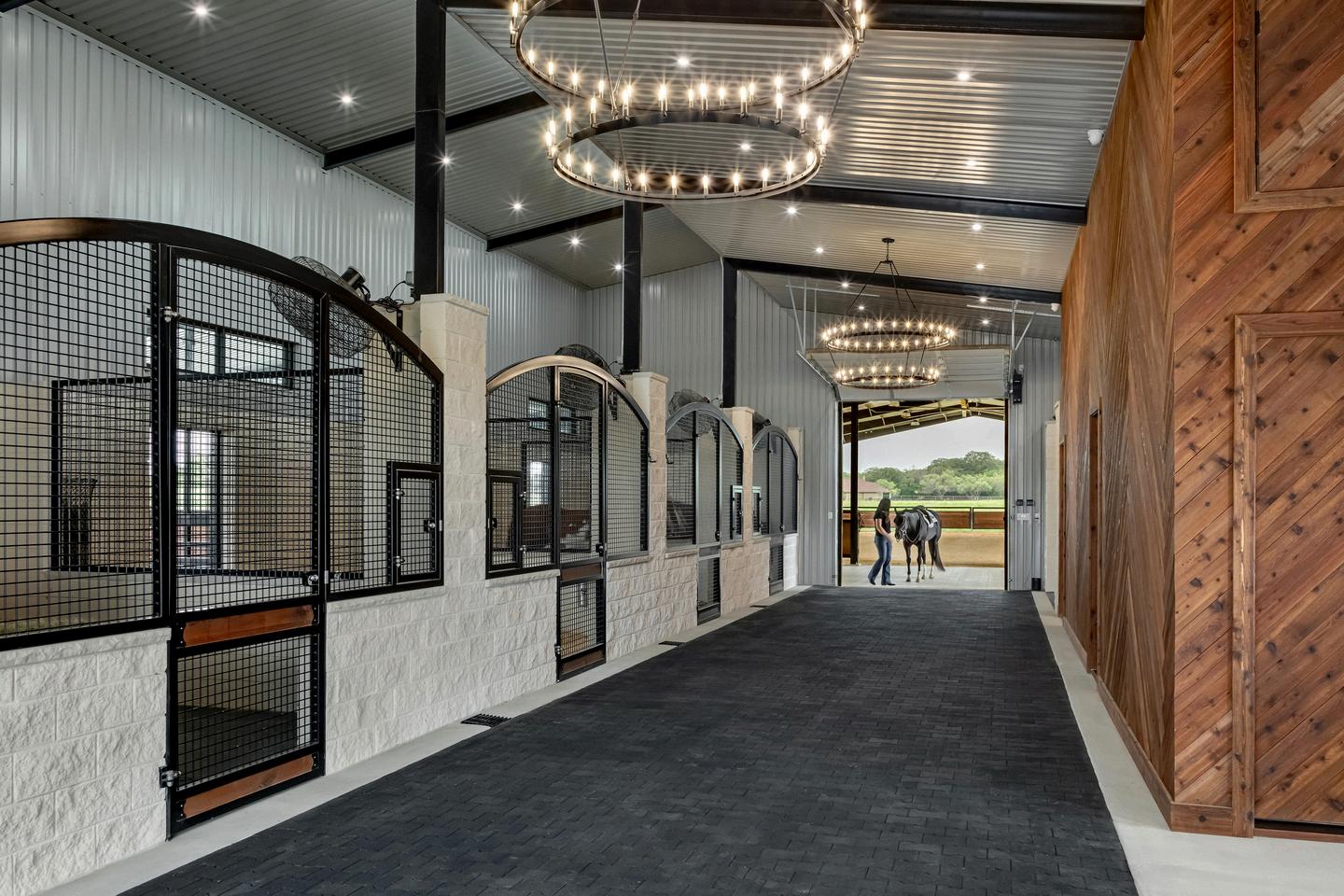

Full Custom Mesh Hinged Stall Front with Center Name Plate & Shavings Guard | Feed Door | Matte Black Powder Coat

Bent “High” Euro Stall Front; Full HVH Design (Center Name Plate & Bottom Shavings Guard) | Feed Door | Matte Black Powder Coat | Bridle Hooks and Water Lines

8 2

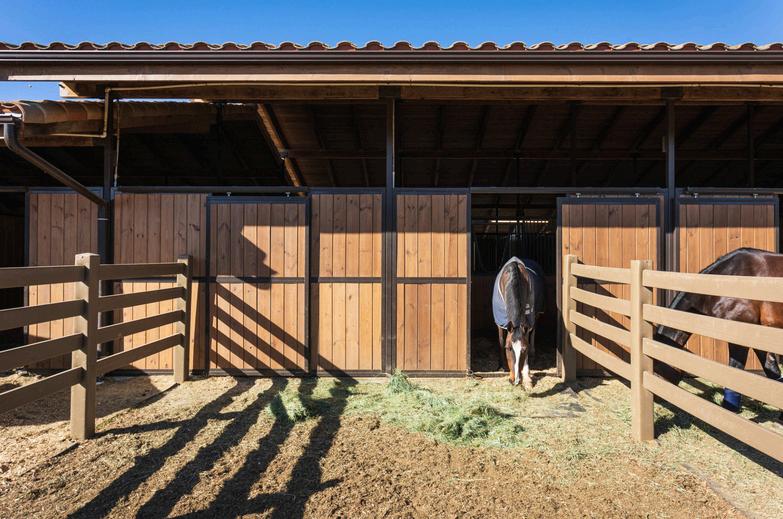

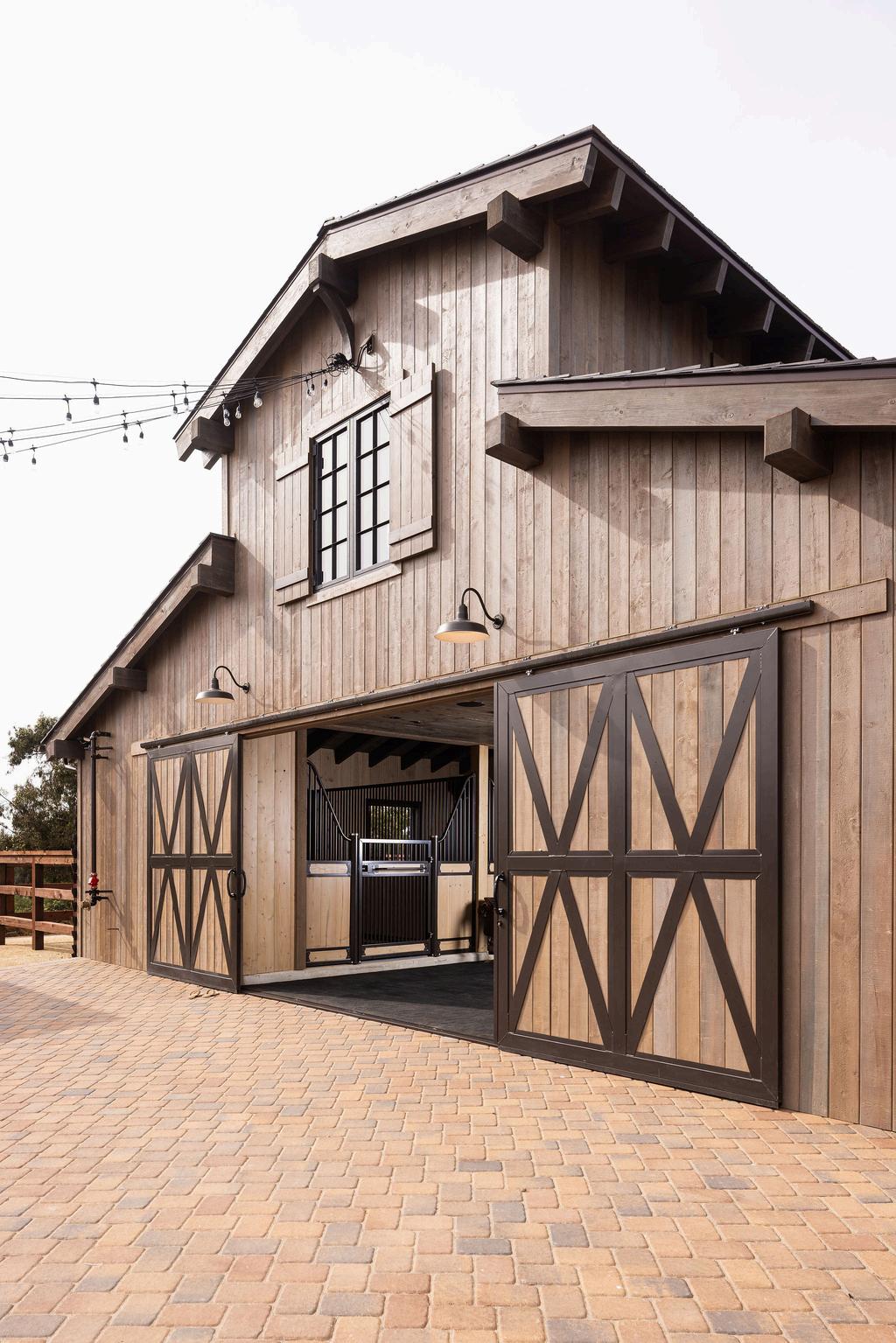

Arroyo Del Mar is home to Olympian dressage rider Steffen Peters and Shannon Peters.

Barn Renovation in one of Southern California’s top equestrian facilities featuring our Sliding Stall Fronts, all lumber with V Yoke, and Paddock Doors.

10 2

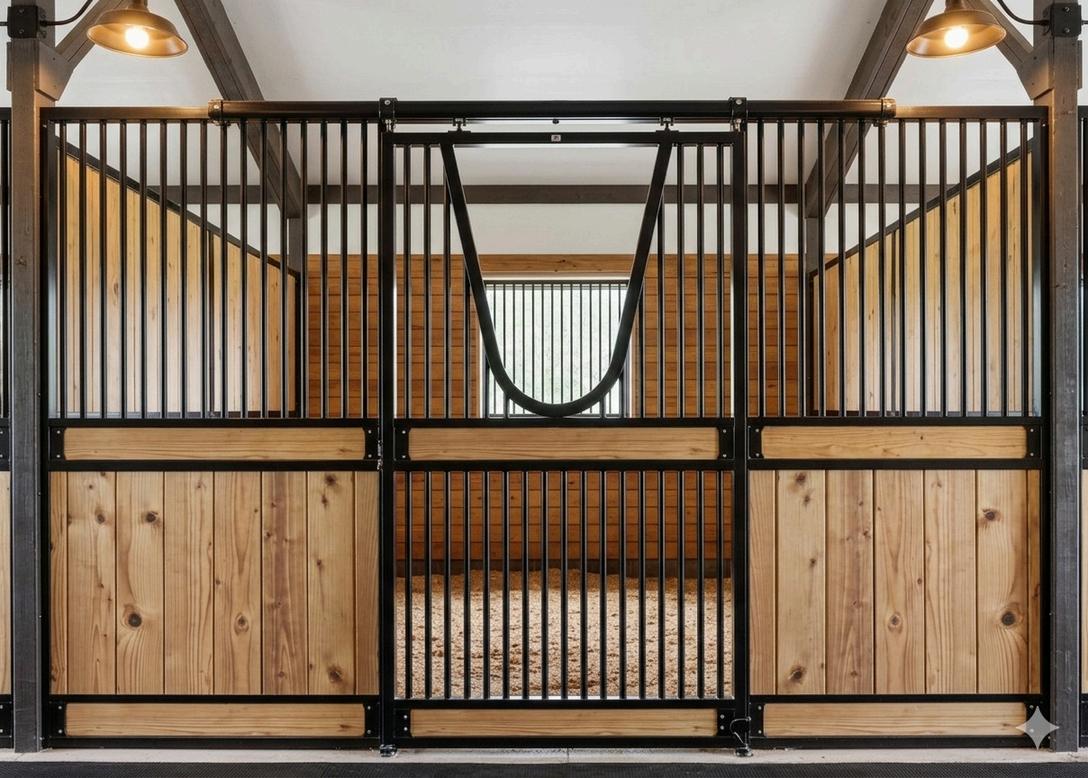

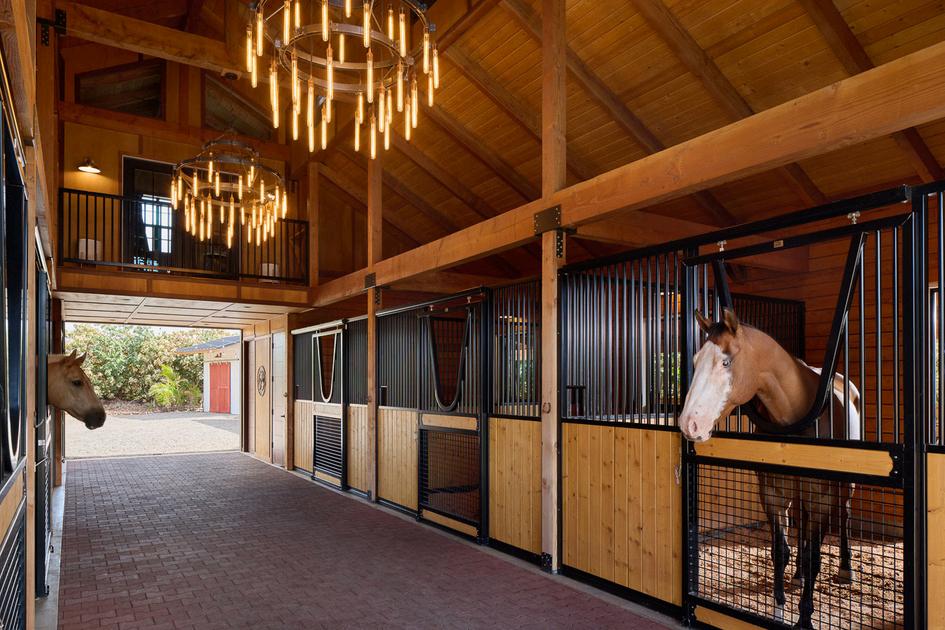

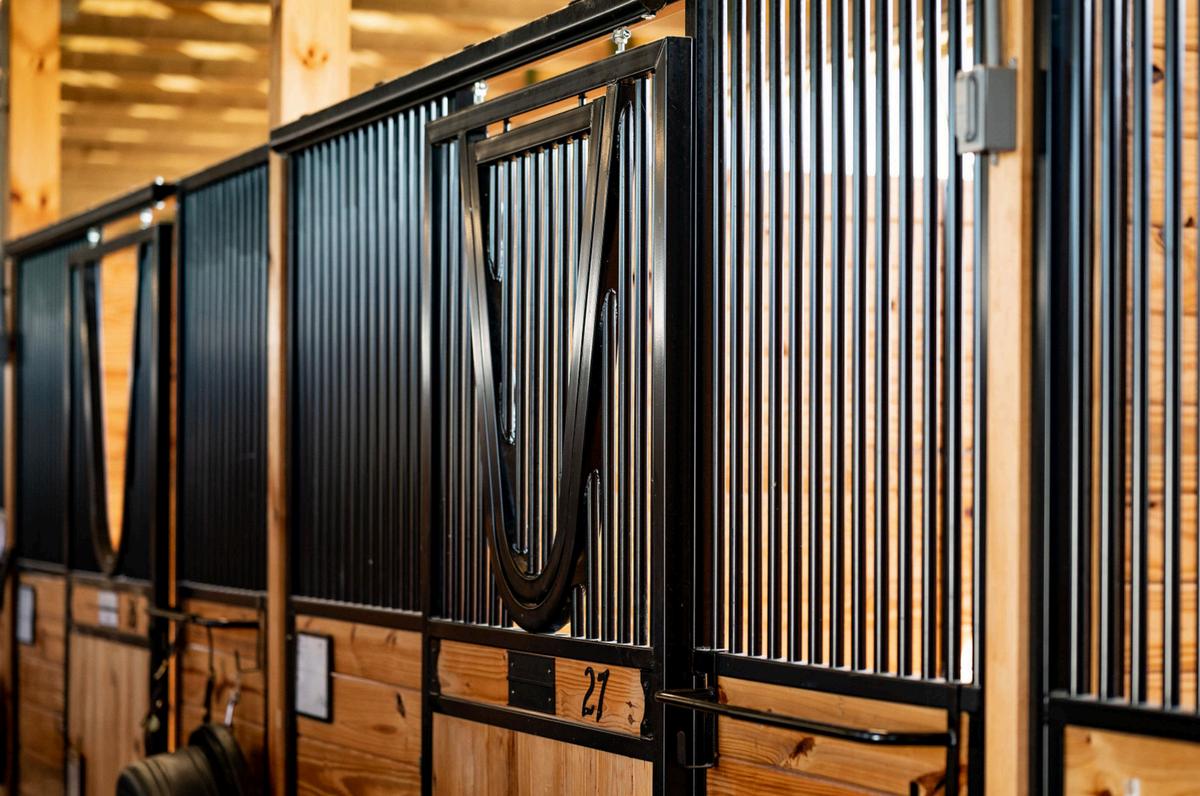

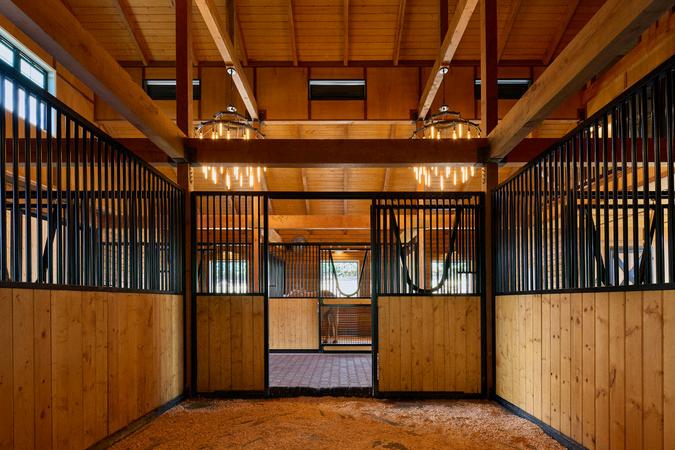

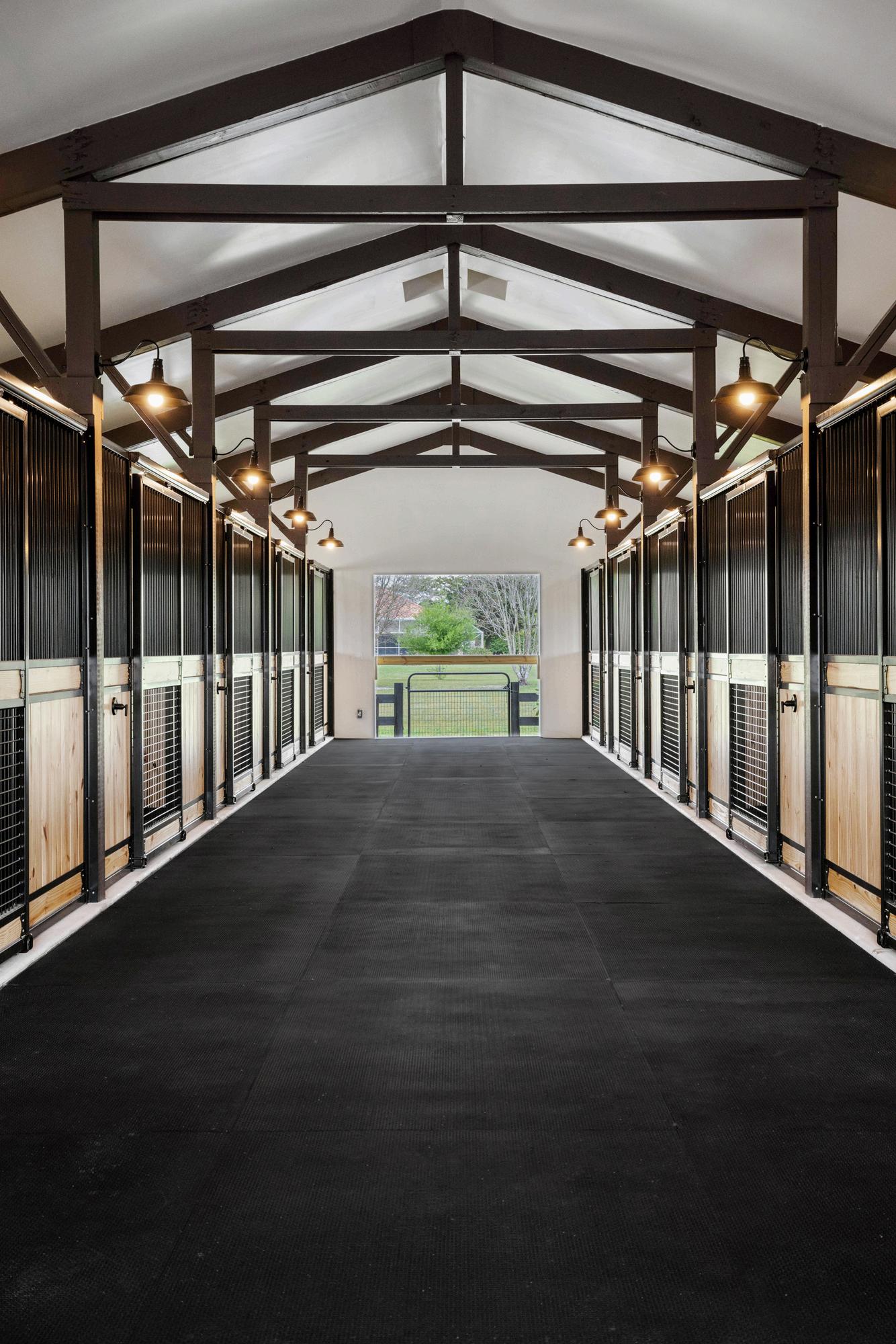

Centered Sliding Stall Front; Vertical Lumber In-Fill, V-Yoke | HMH Design on Door (Center Name Plate, Mesh, and Shavings Guard on Door) | Pin Lock Latch | Blanket Bar

Centered Sliding Stall Front; Vertical Lumber In-Fill, V-Yoke, and Center Name Plate and Shavings Guard on Door | Pin Lock Latch | Blanket Bar | Yellow Pine Lumber

11 2

Centered Sliding Stall Front; Vertical Lumber In-Fill, V-Yoke, and HMH Design on Door (Center Name Plate, Mesh, and Shavings Guard on Door) | Feed Hole

12 2

THE FOUNDATION OF YOUR BARN’ S CHARACTER

CHOOSING YOUR STALL SYSTEM The first and most defining decision you will make is which stall system to use. This is not just a mechanical choice; it sets the entire visual language of your barn. At American Stalls, we offer two primary systems, each with a distinct personality and set of advantages.

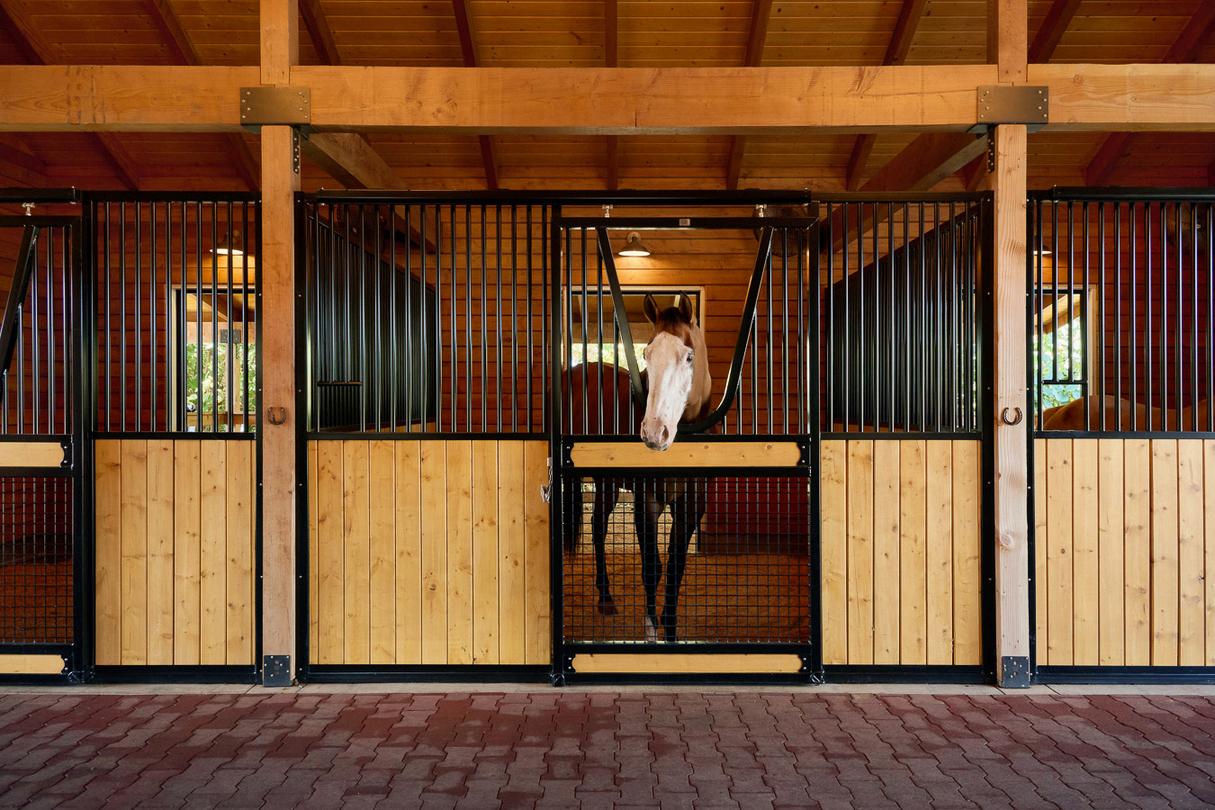

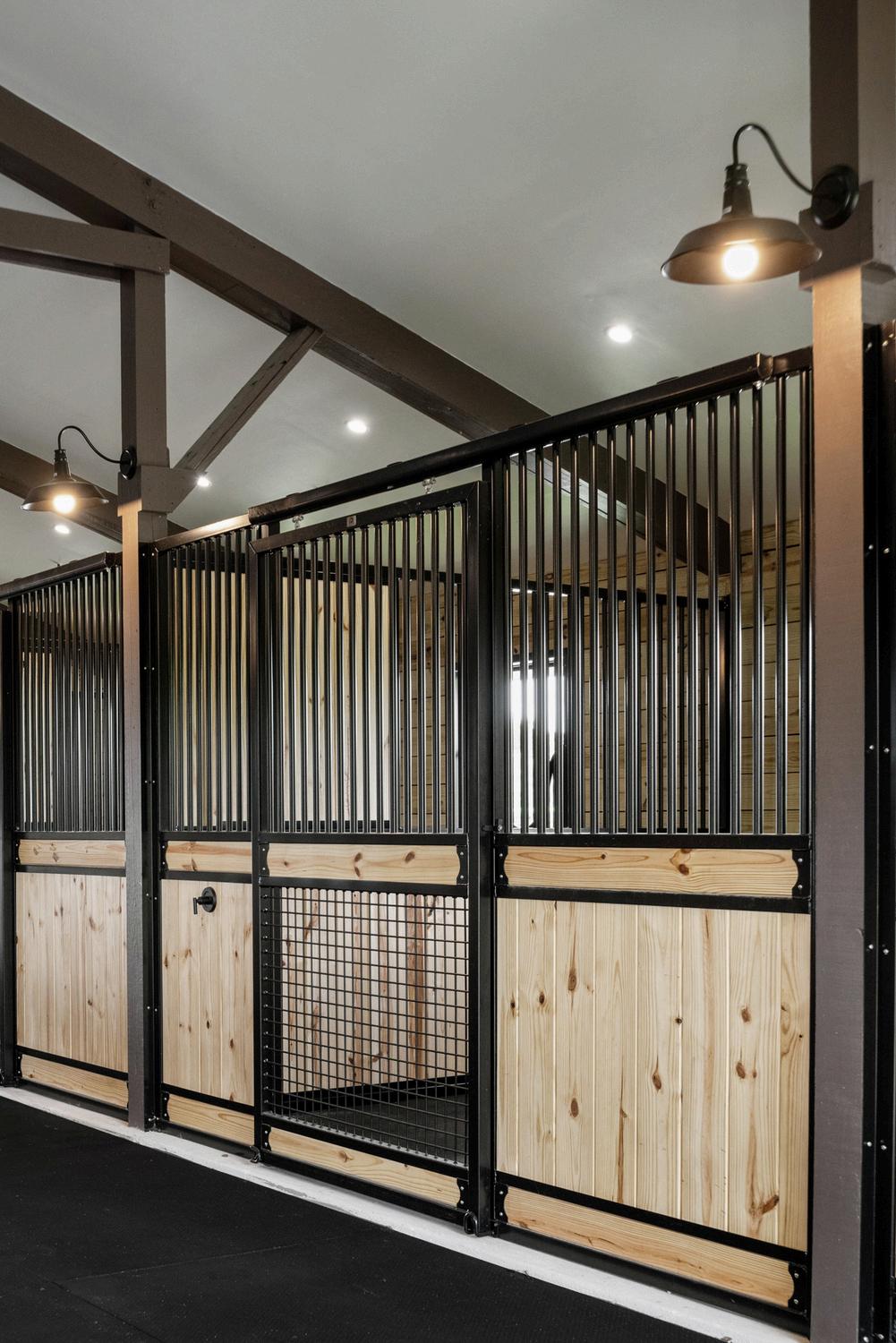

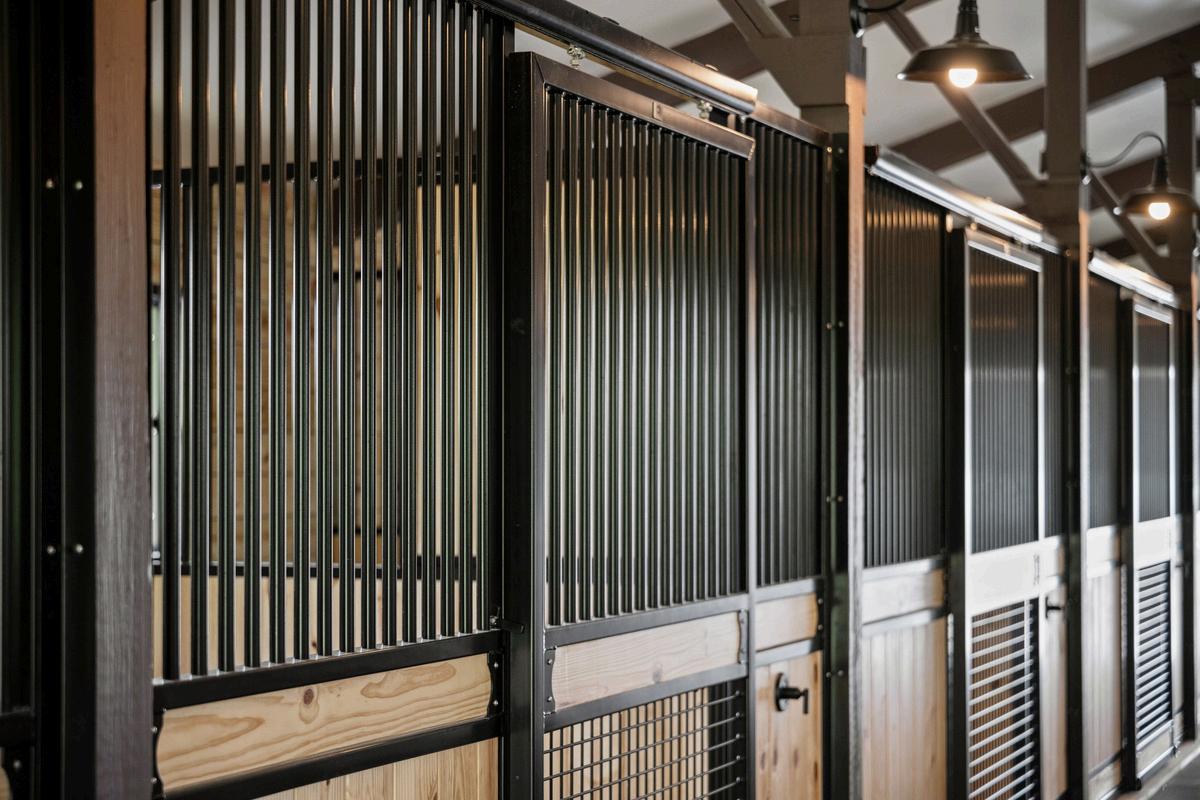

The Sliding System - Clean. Efficient. Modern.

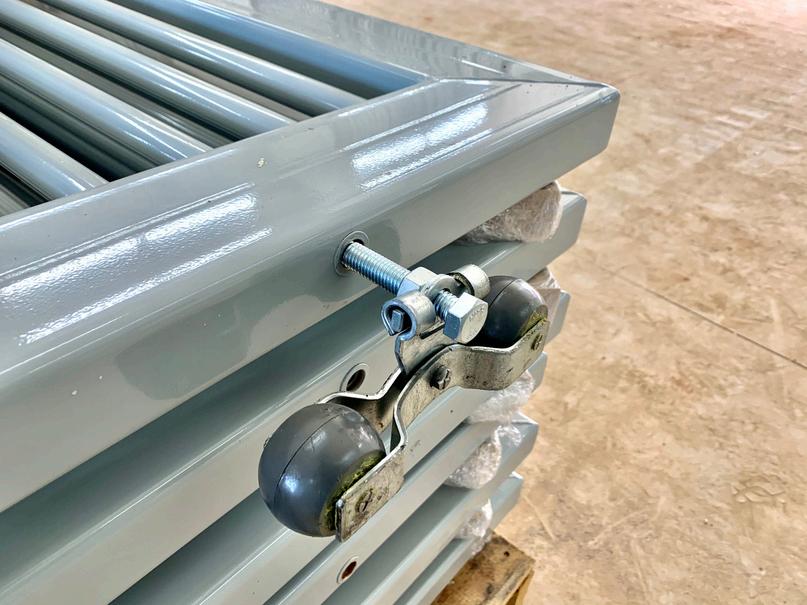

Our sliding stall fronts glide on a precision track system that requires zero floor clearance and keeps your aisle completely unobstructed. The result is a sleek, contemporary look with smooth daily operation. Sliding systems are ideal for barns that prioritize streamlined workflow, clean sightlines, and a modern aesthetic.

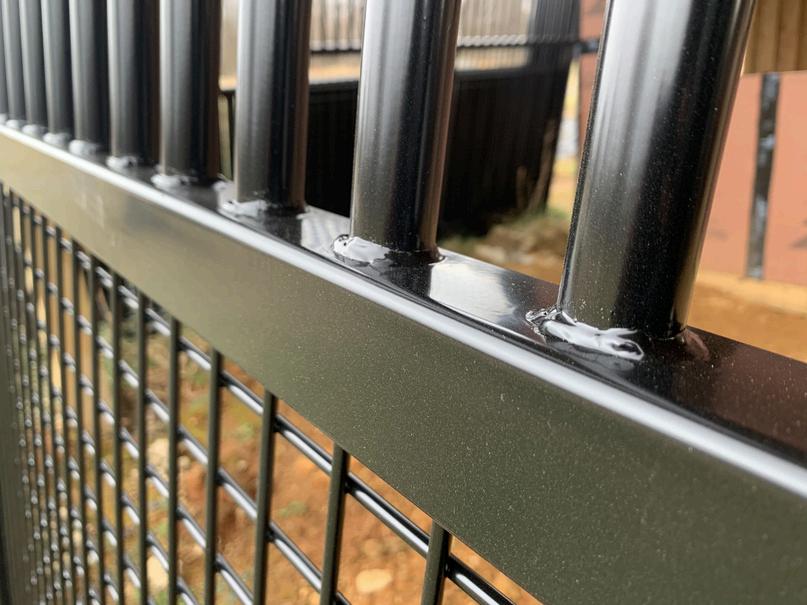

Every sliding stall front is fully welded from 14-gauge, 50ksi high-tensile-strength steel. Our track system and pin lock latches are engineered for silent operation and years of effortless use.

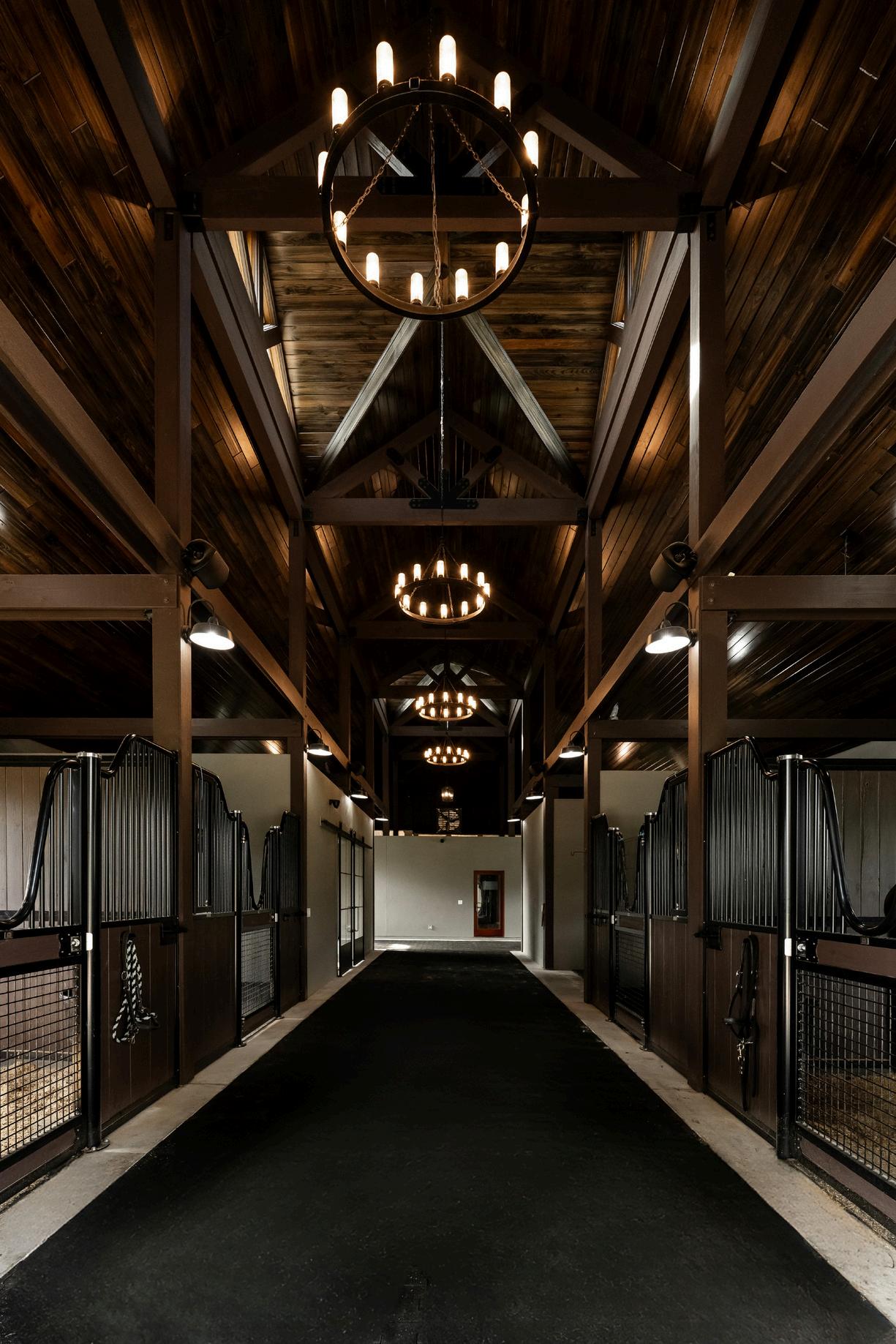

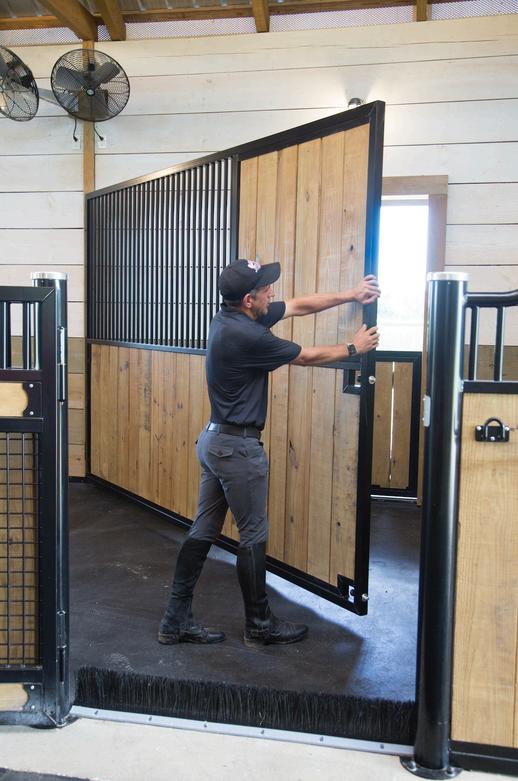

The European Hinged System - Elegant. Grand. Timeless.

Our European Stall Fronts feature swooping curves, graceful wing designs, and heavy-duty stainless steel hardware that evoke the great stabling traditions of Europe. These stall fronts transform a barn from a functional space into a statement of craftsmanship.

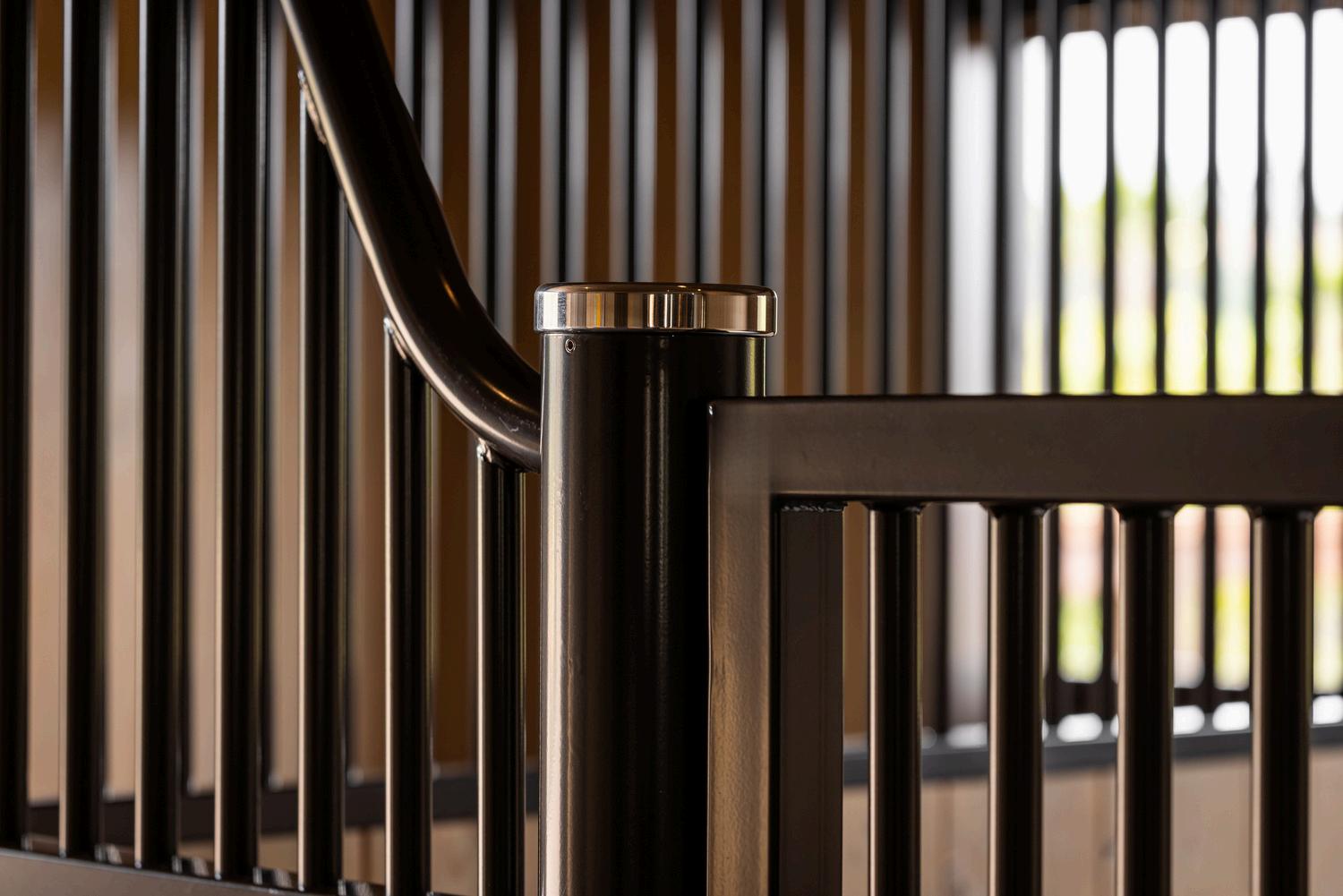

European fronts are built on 7-gauge, 4.5-inch round posts with fully adjustable 304 stainless steel rod-end hinges and spring-loaded plunger latches. The result is a door that swings with authority and closes with precision. Within the European family, you will choose between Low Euro and High Euro profiles, and from four wing styles: Diagonal, Bent, Straight, and Arched. Each creates a dramatically different silhouette, and we explore all of them in the pages ahead.

W W W . A M E R I C A N S T A L L S . C O M | ( 8 5 5 ) 9 5 7 - 8 2 5 5 14

SLIDING STALL FRONTS

THE SLIDING STALL EXPERIENCE Design profiles for our sliding stall front system Our sliding stall fronts are not one-size-fits-all. Each is custom-built to your specifications—but to help you envision the possibilities, we have organized our most popular configurations into design profiles. Think of these as starting points for your imagination, not limitations.

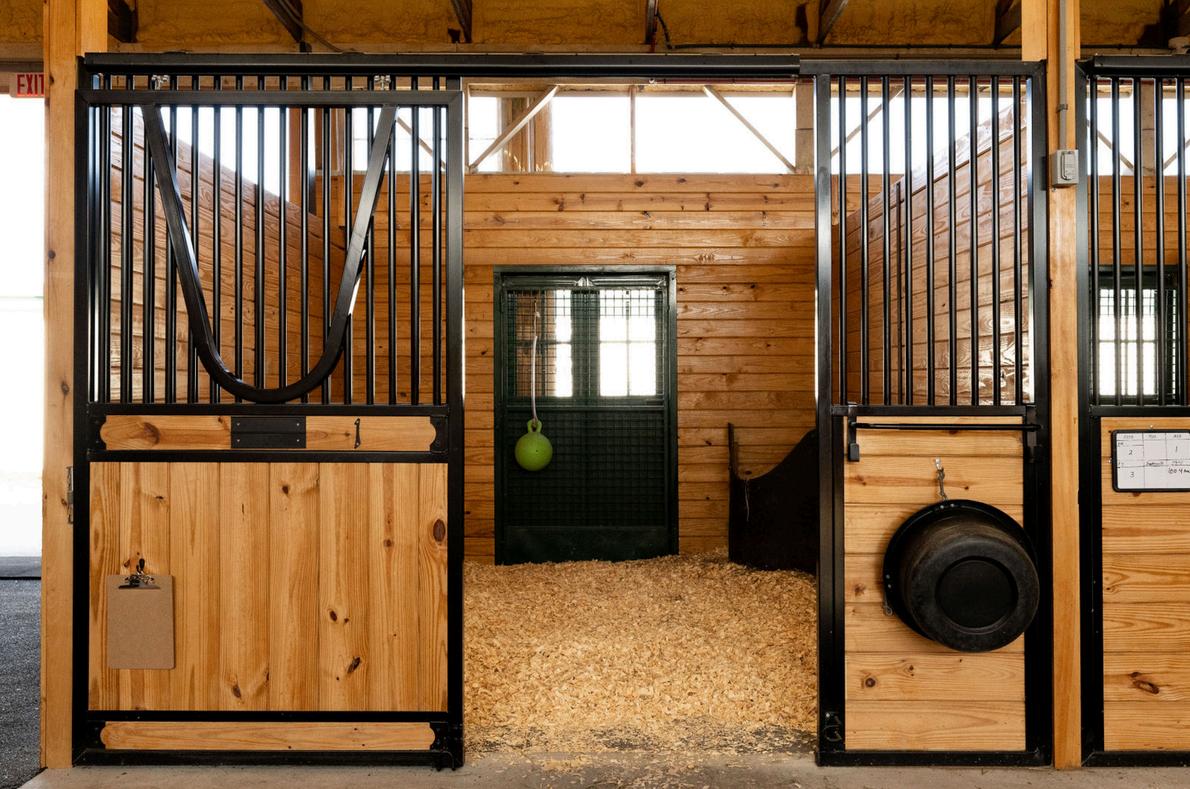

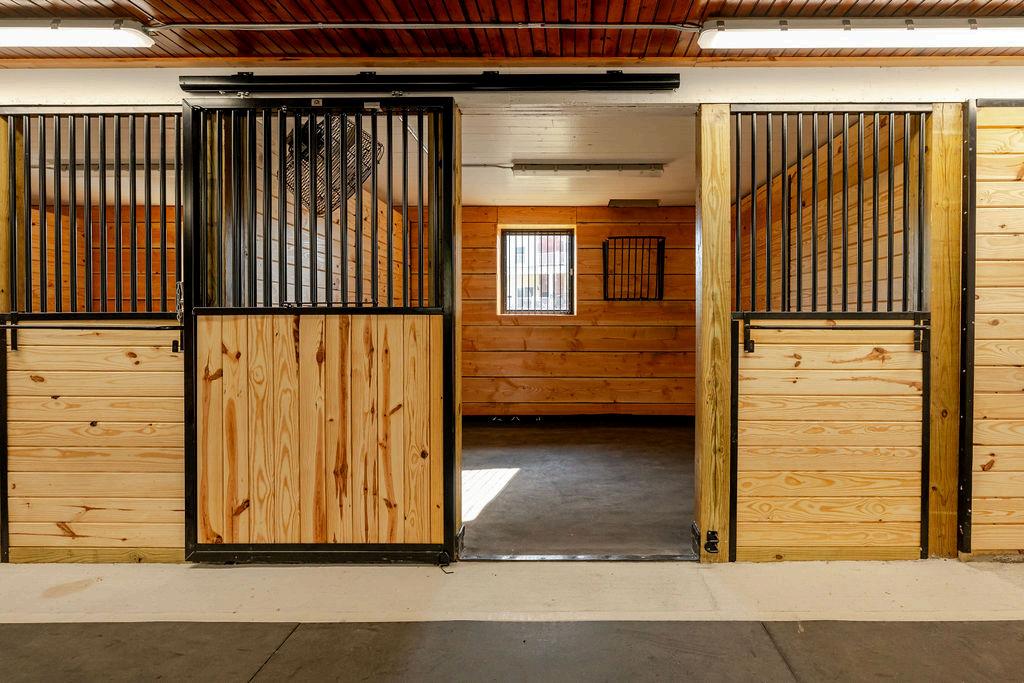

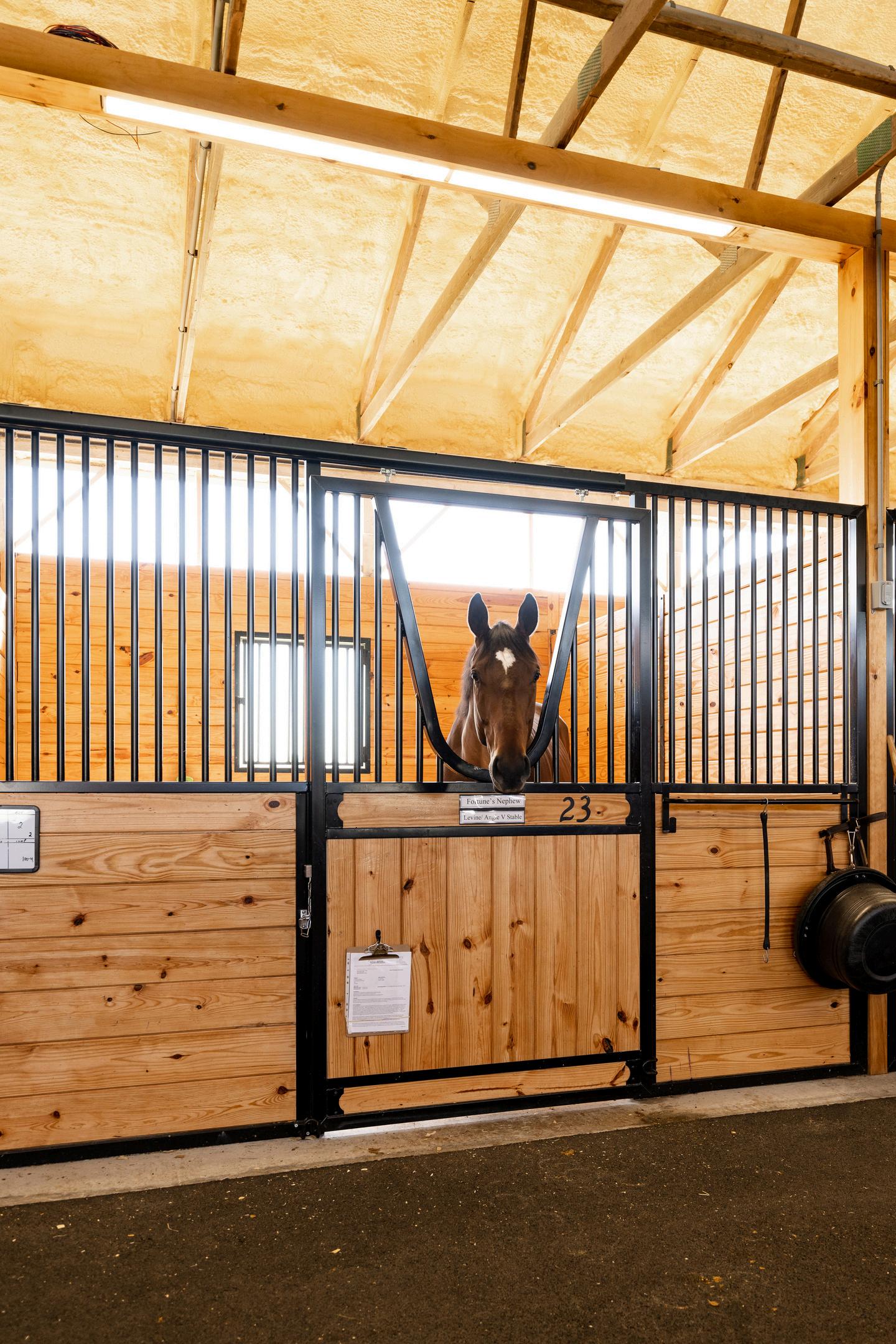

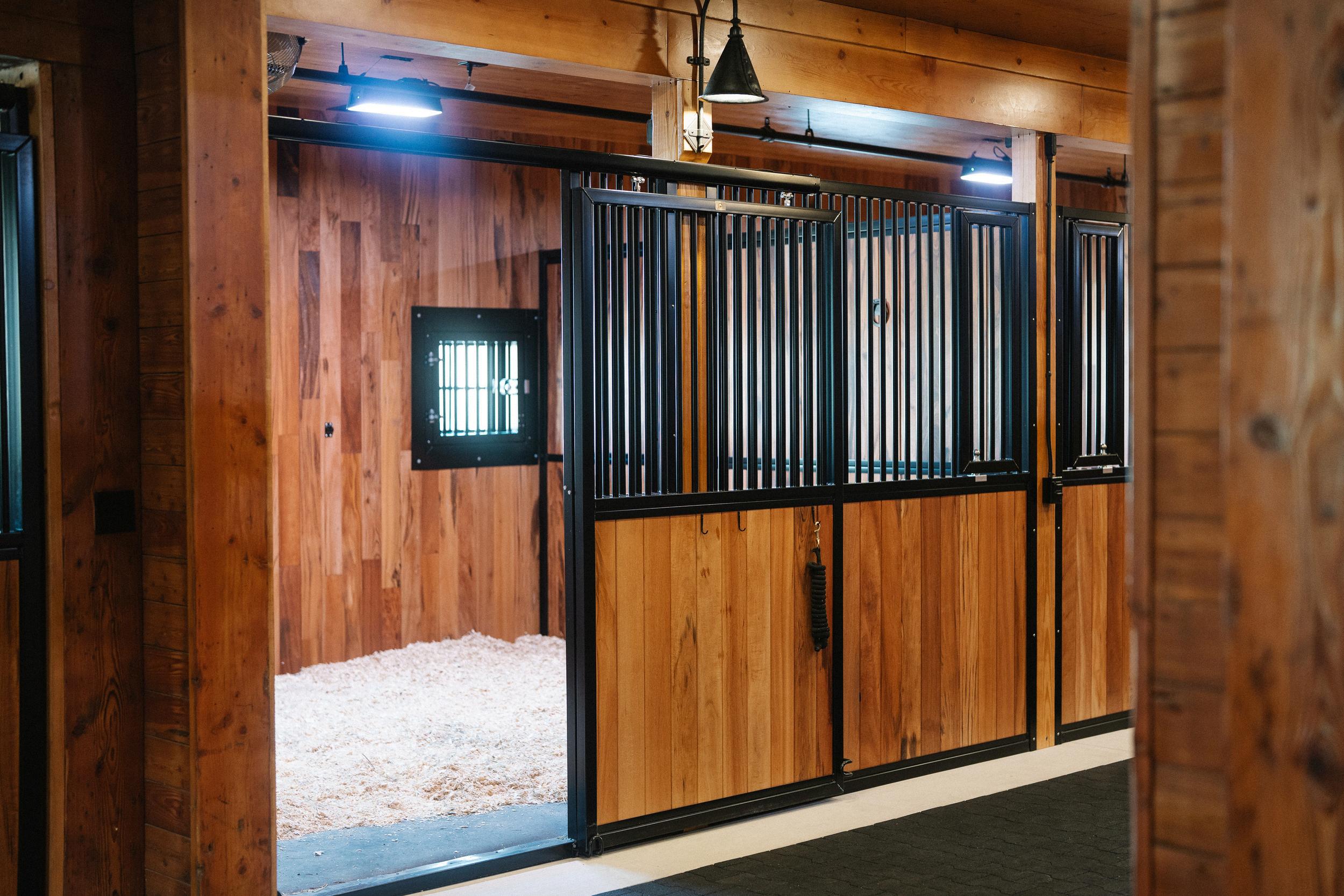

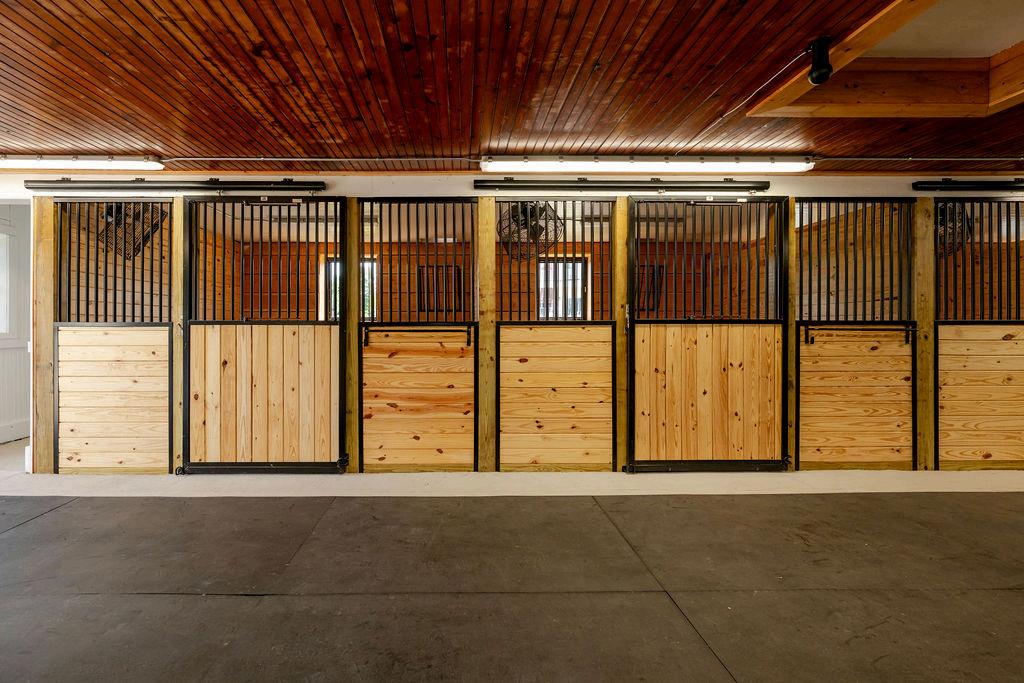

The Classic Vertical lumber in-fill from top to bottom. This is the foundation of our sliding stall front line: warm, natural, and beautifully simple. The clean vertical lines of the lumber create a traditional barn aesthetic that works in any setting, from a working horse farm to a private estate.

Design: Off-centered sliding door with vertical lumber in-fill Best for: Traditional barns, farms that value warmth and simplicity Catalog Reference: Styles 1N, 1O

16

SLIDING STALL FRONTS

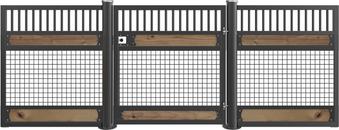

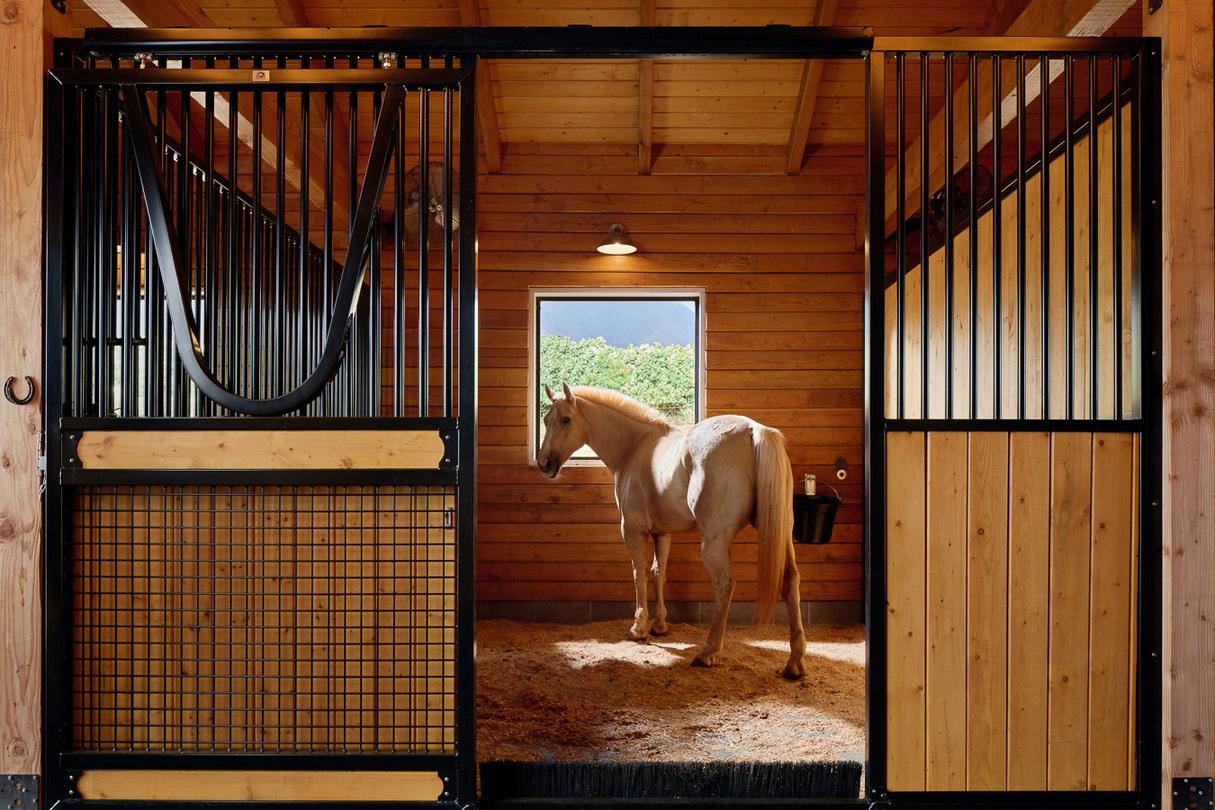

The Modern Mesh bottom with center name plate and shavings guard. This design introduces the HMH (HeaderMesh-Header) pattern to your door bottom, combining maximum ventilation with a clean, contemporary look. The 90-percent vented mesh allows for outstanding airflow, while the center nameplate adds a personal, branded touch.

Design: HMH door bottom with sliding door and mesh panels Best for: Performance barns, hot climates, owners who prioritize airflow Catalog Reference: Styles 1S, 1X, 1Y

17

SLIDING STALL FRONTS

The Distinguished HVH design with center name plate, vertical lumber fill bottom, and shavings guard. This is our most refined sliding door profile; the vertical lumber-fill bottom echoes the classic look, while the center nameplate and shavings guard add layers of functionality and visual structure. The result feels intentional and curated.

Design: HVH door bottom (center name plate, vertical fill, shavings guard) Best for: Show barns, estate properties, owners who want a signature look Catalog Reference: Styles 1T, 1U, 1V

19

SLIDING STALL FRONTS

The Statement Complete HVH or HMH design across the entire stall front, not just the door. This is the boldest sliding configuration we offer. The design pattern extends across every panel, creating a unified, architectural look that transforms the entire barn aisle. When combined with a rectangular or Euroarched yoke, this profile makes an unmistakable impression.

Design: Full stall front HVH or HMH with rectangular or arched yoke Best for: Luxury estates, competition barns, design-forward owners Catalog Reference: Styles 1U, 1X, 1Y

21

SLIDING STALL FRONTS

The Stall Door Kit For barns with existing infrastructure, our sliding door stall kits provide the same level of customization in an à la carte format. Each kit includes a custom stall door, custom grillwork, track system, pin-lock latch, and U-channel, all built to the same standards as our fully welded systems, but with greater cost flexibility.

Kit Includes: Custom stall door, grill section, track system and trolleys, pin lock latch, U-channel Best for: Barn renovations, phased upgrades, budget-conscious projects Catalog Reference: Styles 1K-A through 1K-M

23

SLIDING STALL FRONTS

The Estate Grilled bottom with 1-inch round bars, center name plate, and shavings guard, the HGH design. This profile opens up the stall front for maximum visibility and socialization. The grilled bottom provides an unobstructed view into the stall while maintaining structure through the header and shavings guard framework.

Design: HGH door bottom (center name plate, 1-inch grills, shavings guard) Best for: Social barns, training facilities, owners who want open sightlines Catalog Reference: Styles 1Q, 1W

25

SLIDING STALL FRONTS

SLIDING DOOR DESIGN OPTIONS Customizing the details that define your stall Within each design profile, you can further customize your sliding stall front with specific door bottom treatments, yoke styles, and fill patterns. Here is your visual guide to the options available.

Door Bottom Designs Vertical Lumber Fill Clean, traditional. Tongue-and-groove lumber fills the door bottom for a warm, solid look. This is the most classic option and works with every design profile.

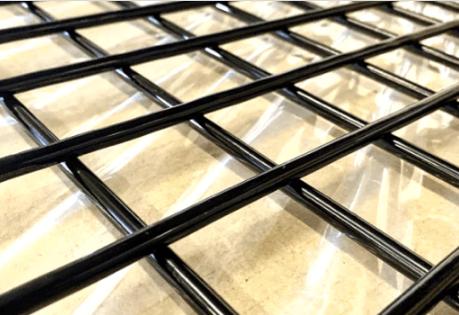

Mesh Bottom 90-percent vented welded mesh for maximum airflow.

Ideal for hot climates or horses that benefit from increased ventilation. The mesh is welded into the steel frame for durability.

Grilled Bottom 1-inch round bars spaced on 2.5-inch centers. Open sightlines with strong visual rhythm. Creates a more open, social feel than lumber or mesh.

27

SLIDING STALL FRONTS

Door Bottom Designs HVH Design Header Vertical Fill – Header. Center name plate at the top, vertical lumber fill in the middle, and a shavings guard at the bottom. Our most refined door bottom treatment.

HMH Design Header Mesh – Header. Center name plate at the top, 90-percent vented mesh in the middle, and a shavings guard at the bottom. Maximum airflow with a structured, intentional look.

HGH Design Header Grill – Header. Center name plate at the top, 1-inch round bars in the middle, and a shavings guard at the bottom. Open visibility with architectural framing.

Shavings Guards Available in 4, 6, and 8-inch heights. Shavings guards keep bedding inside the stall, adding a clean visual baseline to your door bottom design. Standard on all HVH, HMH, and HGH configurations.

Center Name Plates A personalized steel plate is integrated into the door's bottom design. Accommodate your horse’s name, your farm logo, or a custom design. Standard on all H-series door bottom configurations.

28

OLD-WORLD ELEGANCE MEETS MODERN ENGINEERING

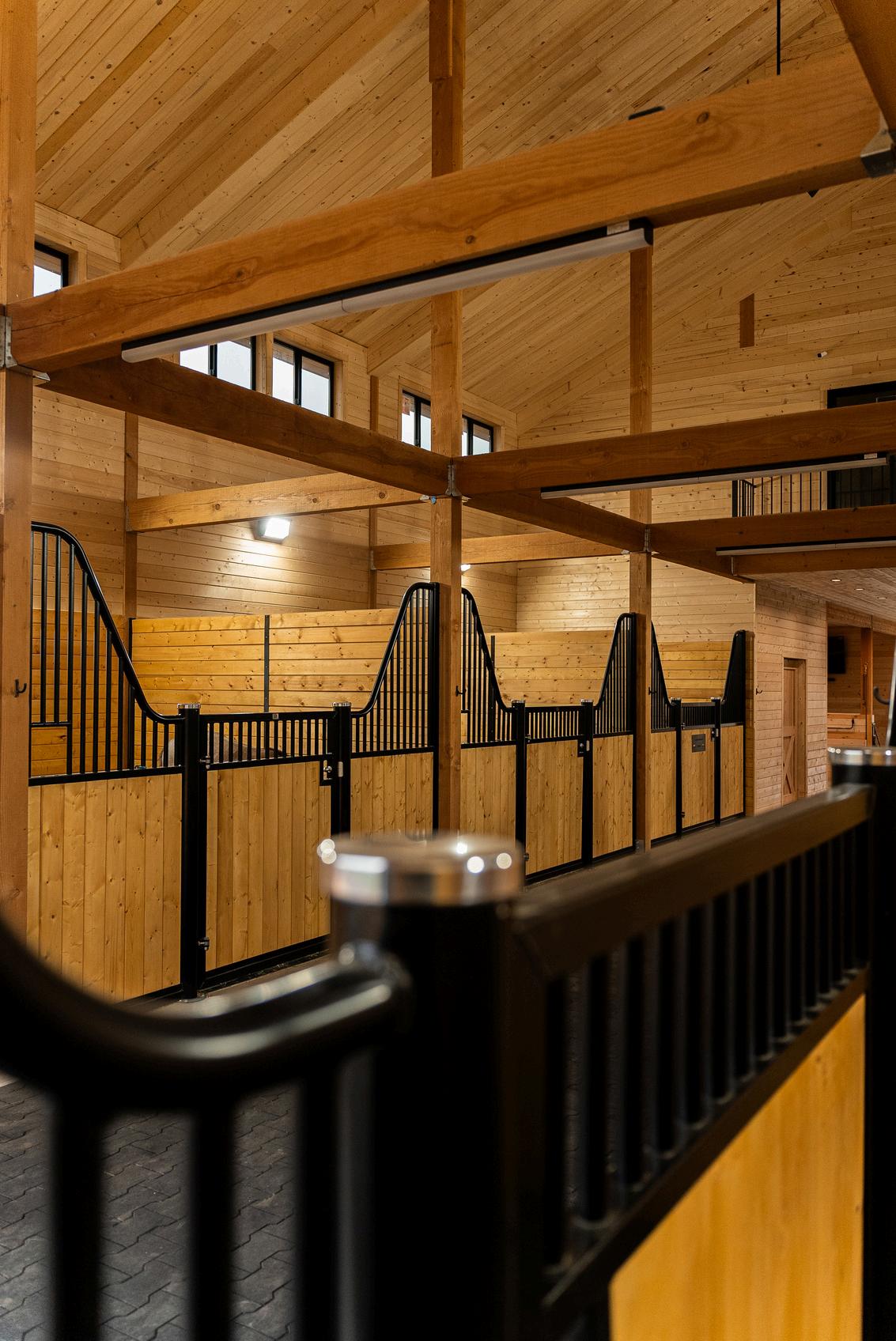

THE EUROPEAN STALL FRONT EXPERIENCE Our European stall fronts are the signature of a barn that takes design seriously. Swooping curves, graceful wing profiles, and heavy-duty stainless steel hardware create an atmosphere of timeless sophistication. Every European stall front is built on 7-gauge, 4.5-inch round posts with 1.9-inch round-tube Euro wings and yokes, materials chosen for both their structural integrity and visual presence.

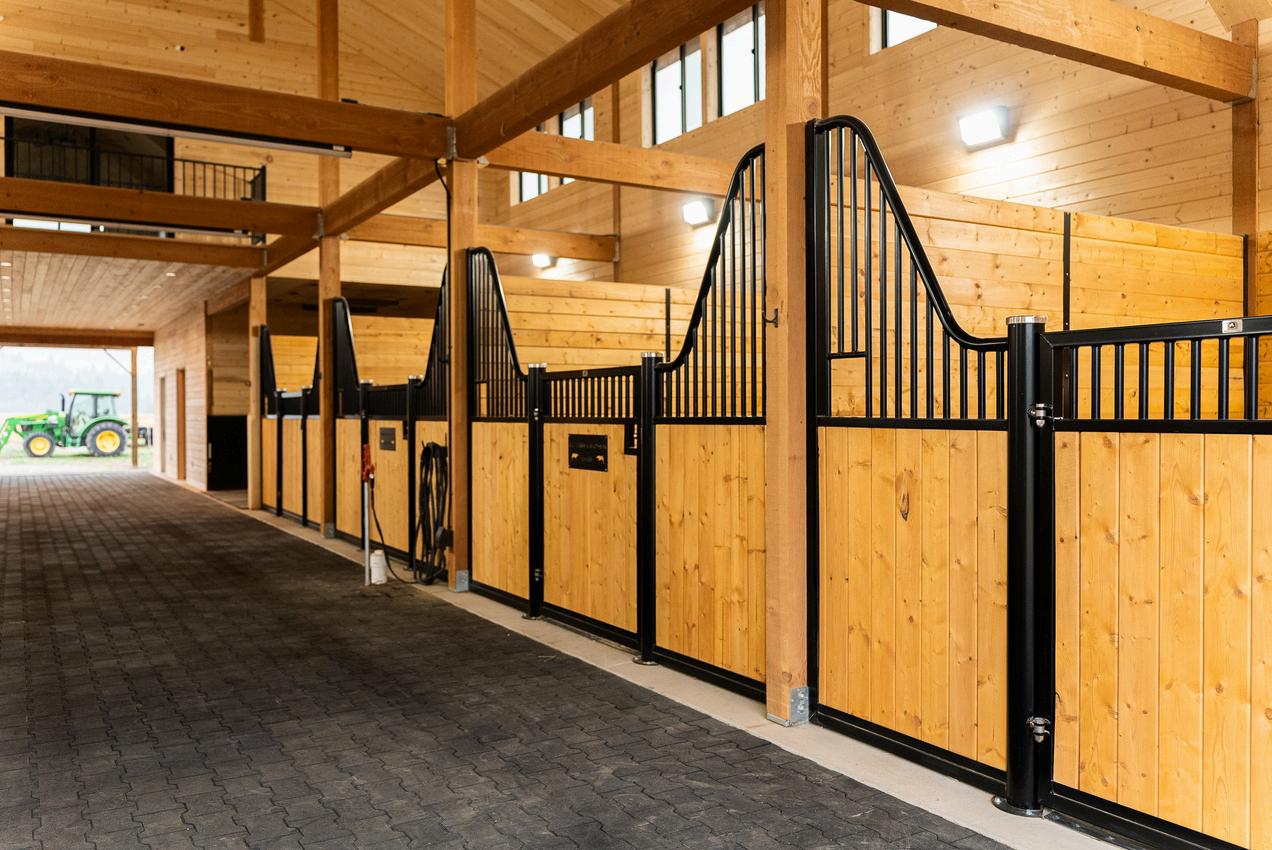

Low Euro vs. High Euro: Choosing Your Silhouette The most important decision within the European family is the height profile of your stall front. This determines the overall silhouette and the amount of open space above the door.

Low Euro The wing profile sits lower, creating a contemporary, open feel. More of the upper space above the door is open, which maximizes light and ventilation. Low Euros have a relaxed, modern elegance, less imposing, more inviting. This is our most popular European configuration.

High Euro The wing profile extends higher, creating a dramatic, grand silhouette. High Euros command attention; they frame the horse and the stall entrance with authority. Ideal for barns that want a bold architectural statement.

29

EUROPEAN STALL FRONTS

WING STYLES: THE CURVE THAT DEFINES YOUR BARN Within both Low Euro and High Euro profiles, you choose from four distinct wing styles. Each creates a different visual personality.

Straight Wing A horizontal wing that creates a clean, minimal profile. The straight wing is understated and refined, perfect for barns with a contemporary or minimalist design language.

Diagonal Wing Sharp, angular lines. The wing descends in a straight diagonal from the post to the door frame. This is the most contemporary European option, clean geometry with a modern edge.

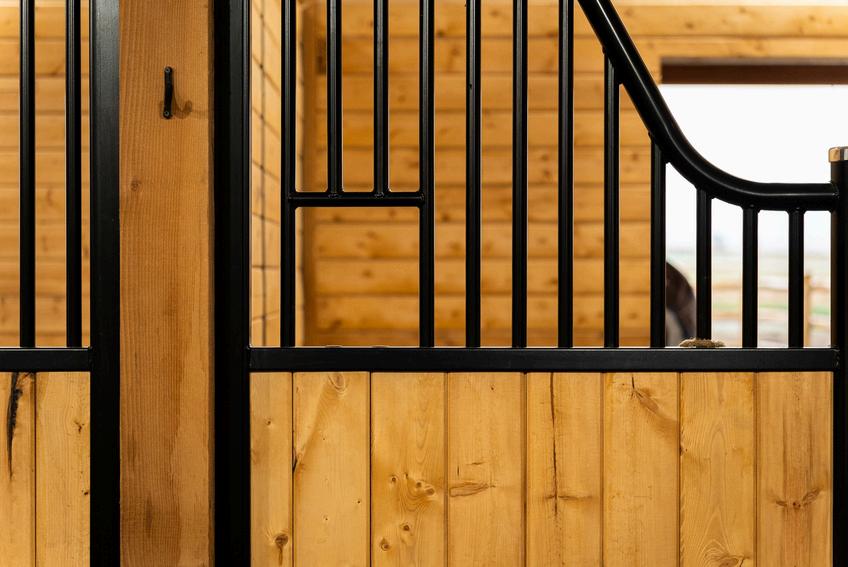

Bent Wing A gentle curve that transitions smoothly from the post to the door frame. This is the classic European silhouette, the one most people picture when they imagine a European-style barn.

Graceful without being ornate.

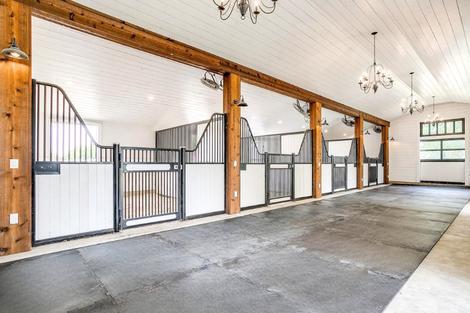

Arched Wing A full, sweeping arch that creates the most dramatic and traditional European silhouette. Arched wings reference the grand European riding halls and are the boldest design statement in our line.

30

EUROPEAN STALL FRONTS

EUROPEAN DESIGN PROFILES Just like our sliding system, European stall fronts support a full range of door bottom designs. Every configuration available in our sliding line, vertical lumber fill, mesh, grilled, HVH, HMH, and HGH is also available within a European frame. The difference is in the hardware and the visual character of the surrounding structure.

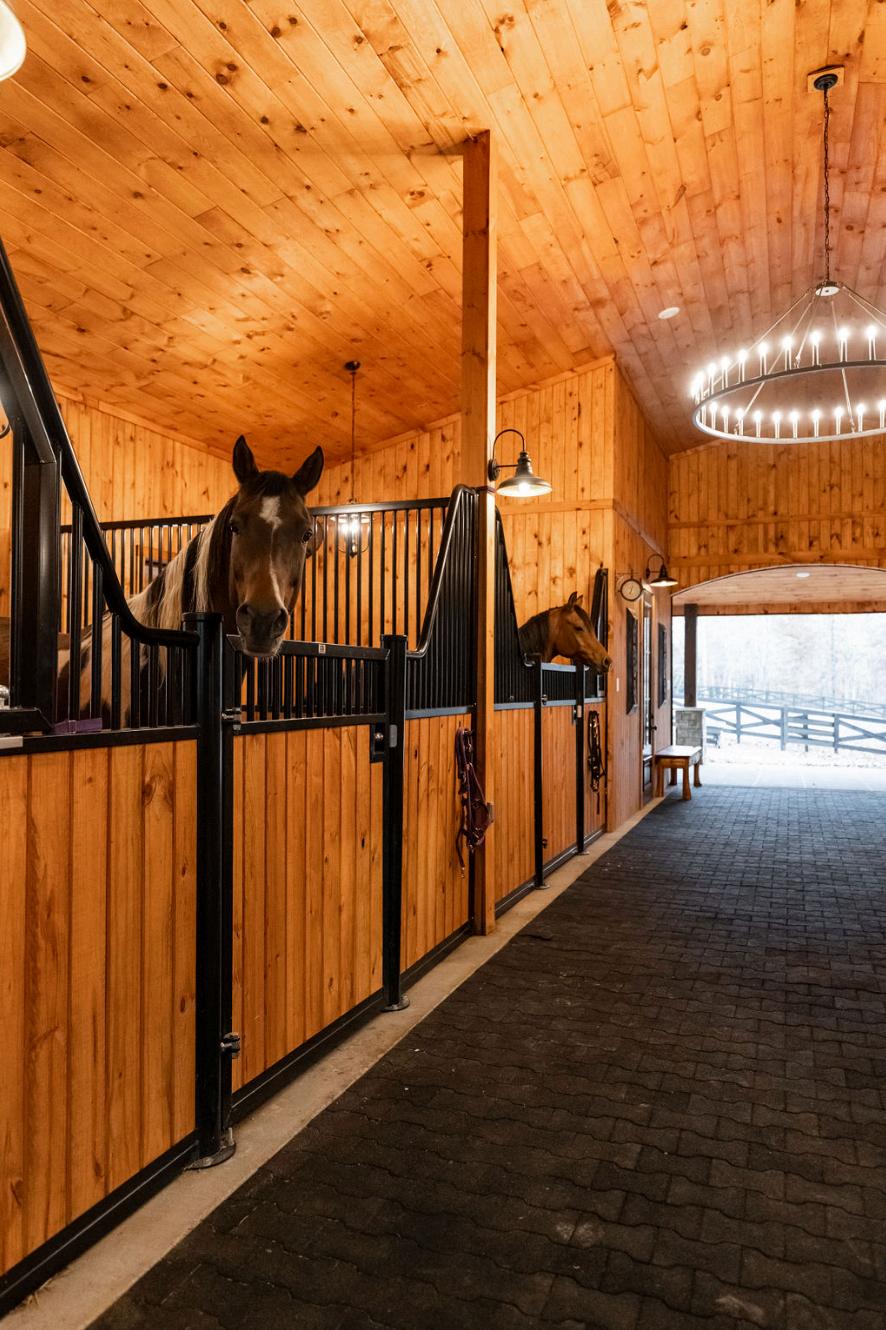

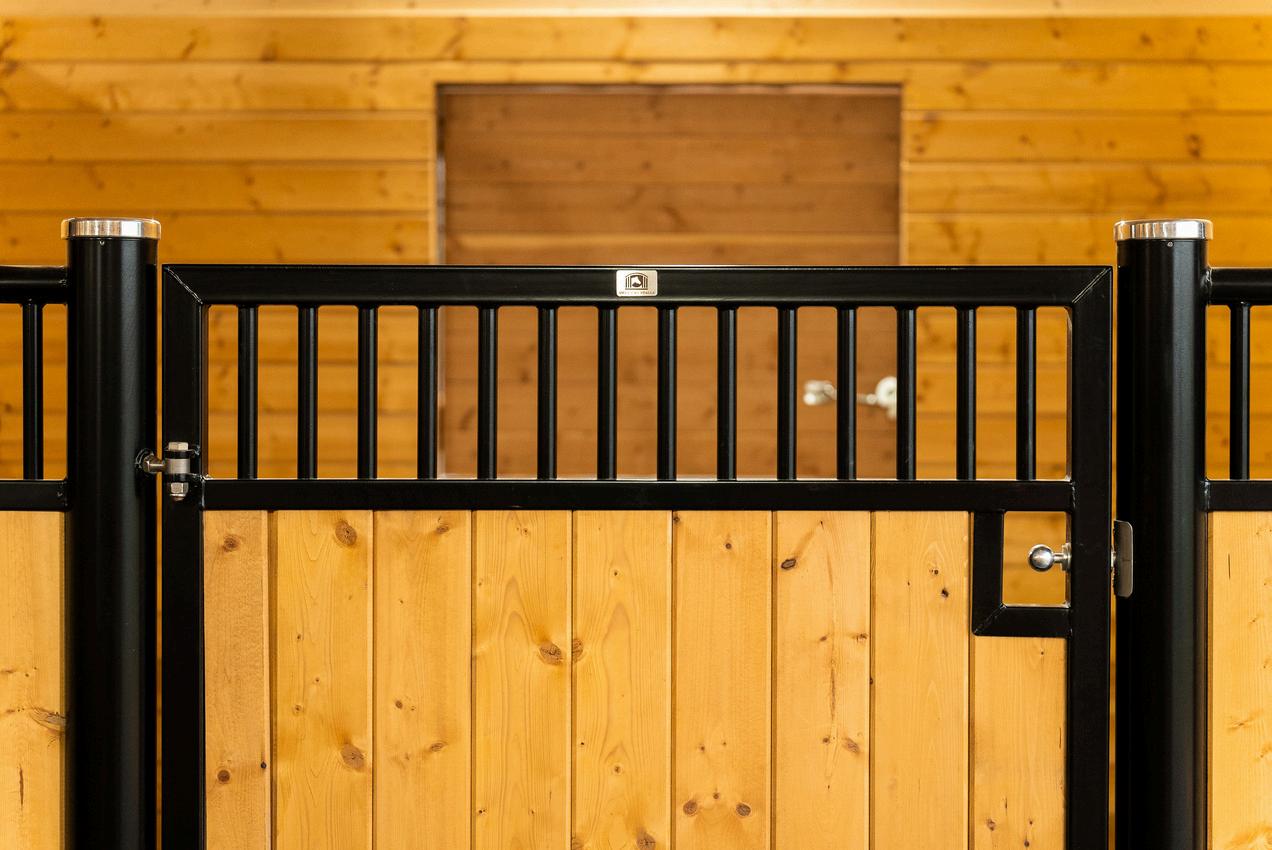

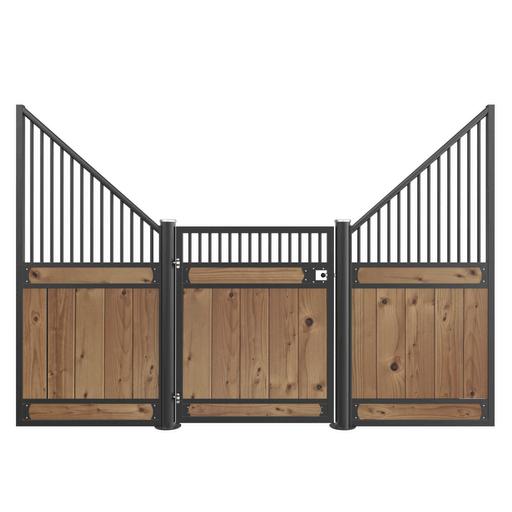

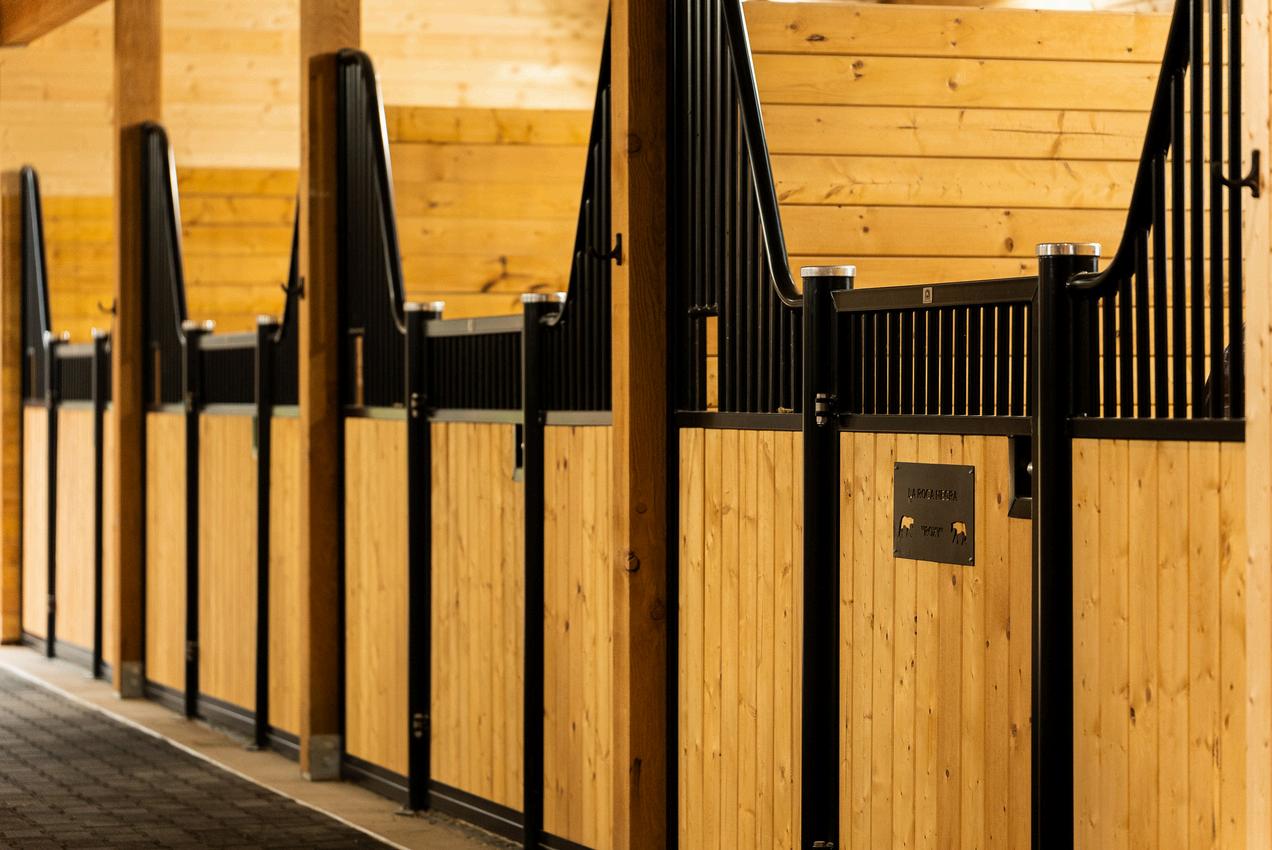

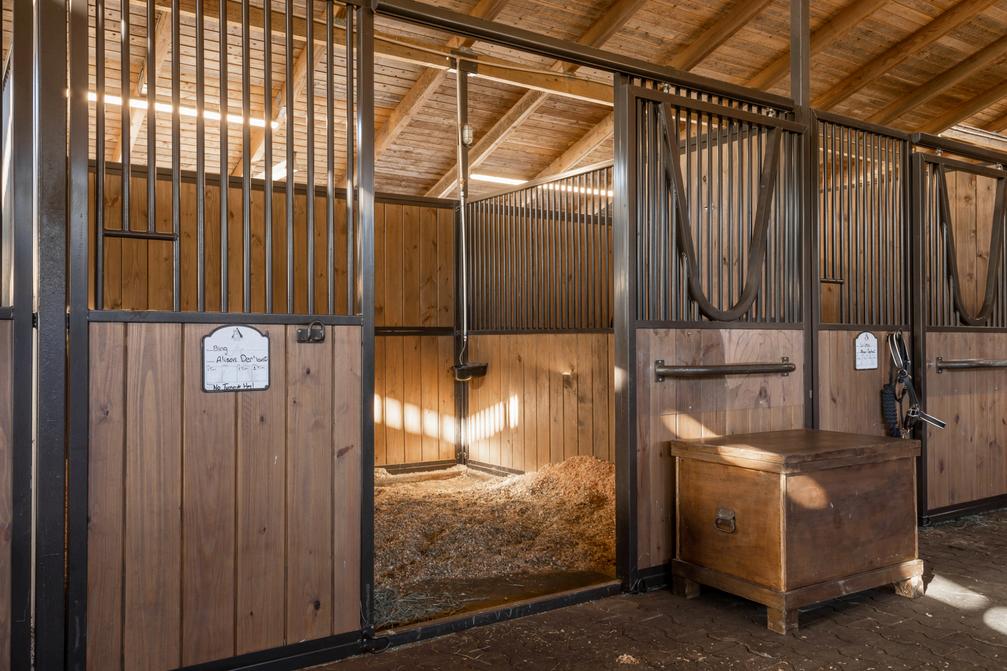

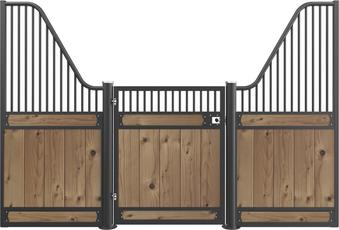

The European Classic Bent Low Euro with vertical lumber infill, wings, and a door. Warm, traditional, and approachable. The curved wings and natural wood create a welcoming barn environment.

Catalog Reference: Styles 2E, 2F

31

EUROPEAN STALL FRONTS

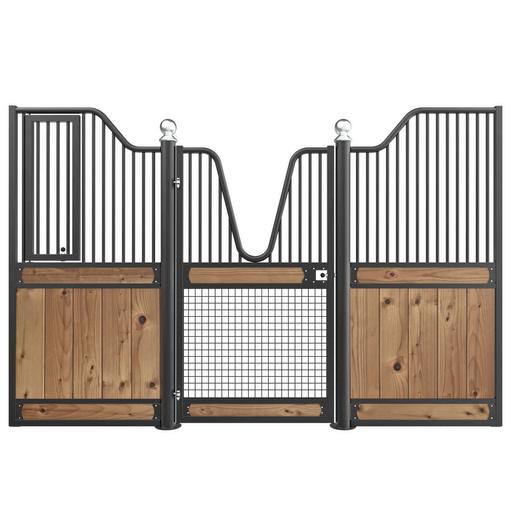

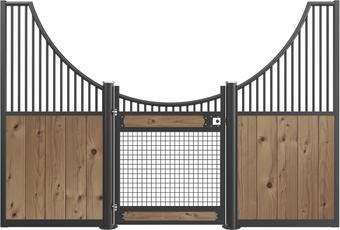

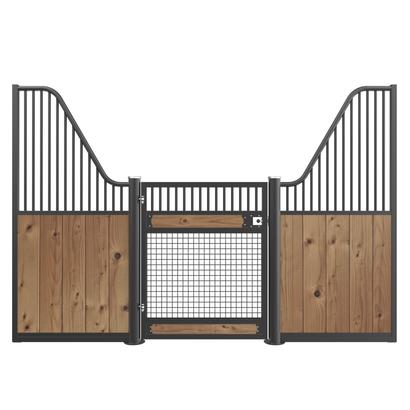

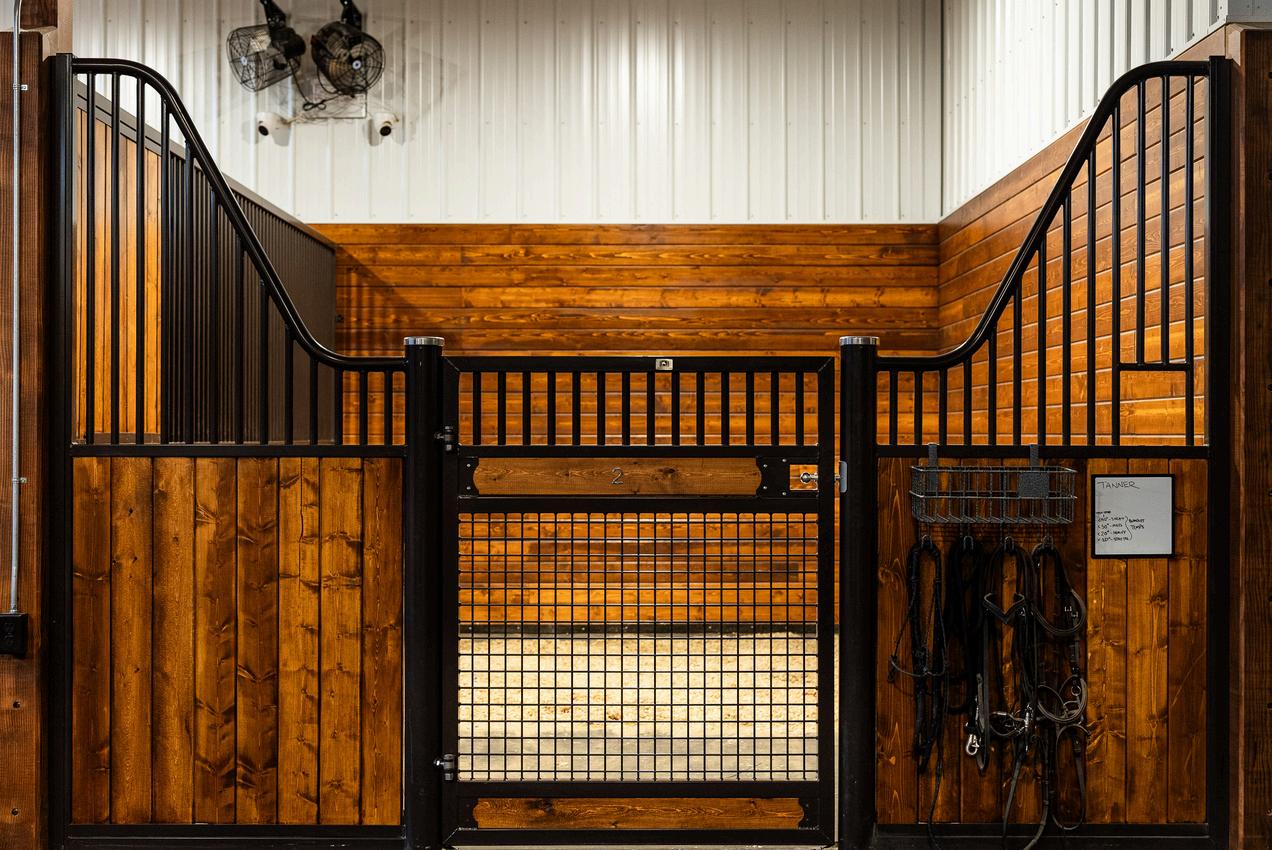

The European Modern Bent Low Euro with mesh door, center name plate, and shavings guard. Combines the elegance of curved Euro wings with the ventilation performance of mesh. A sophisticated balance of form and function.

Catalog Reference: Styles 2G, 2K

33

EUROPEAN STALL FRONTS

The European Estate Bent/Diagonal Low Euro with full HMH or HGH design across the entire front. The design pattern extends to the wings and door, creating a unified architectural statement. This is the most fully realized European configuration.

Catalog Reference: Styles 2L, 2M

34

EUROPEAN STALL FRONTS

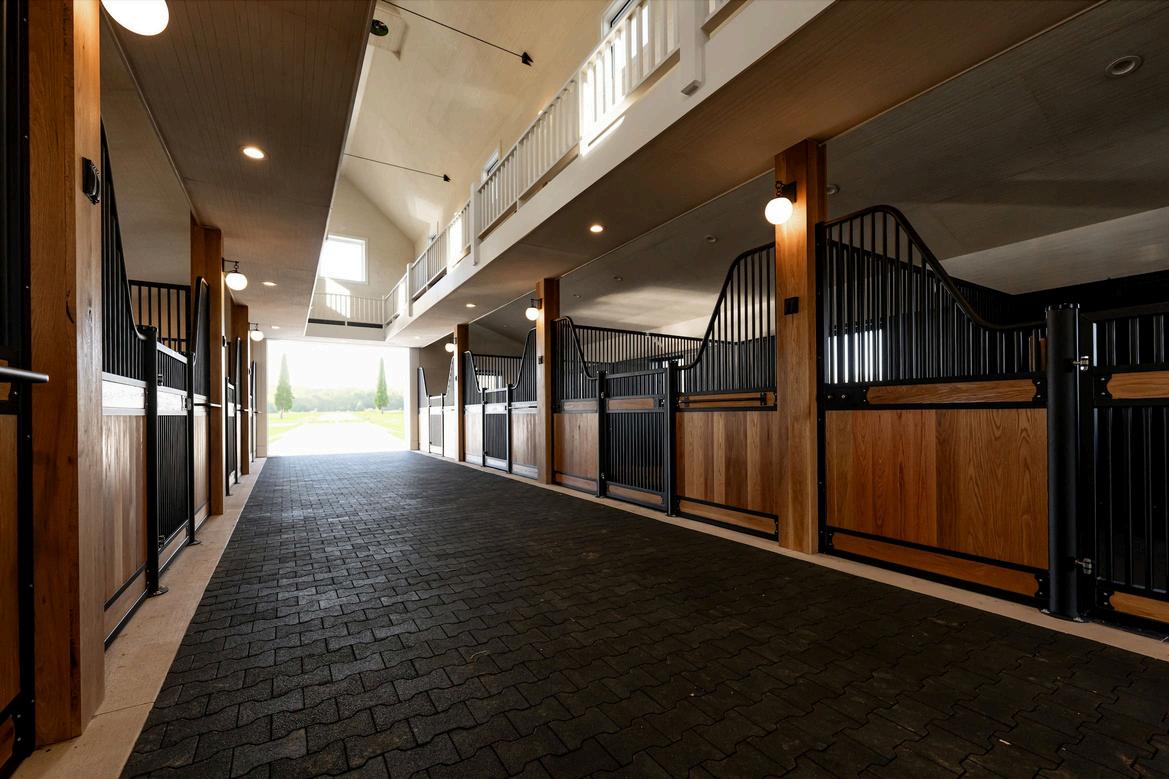

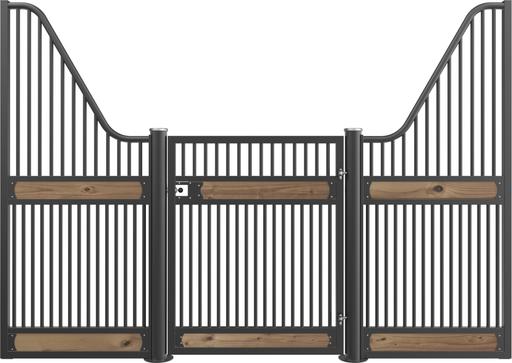

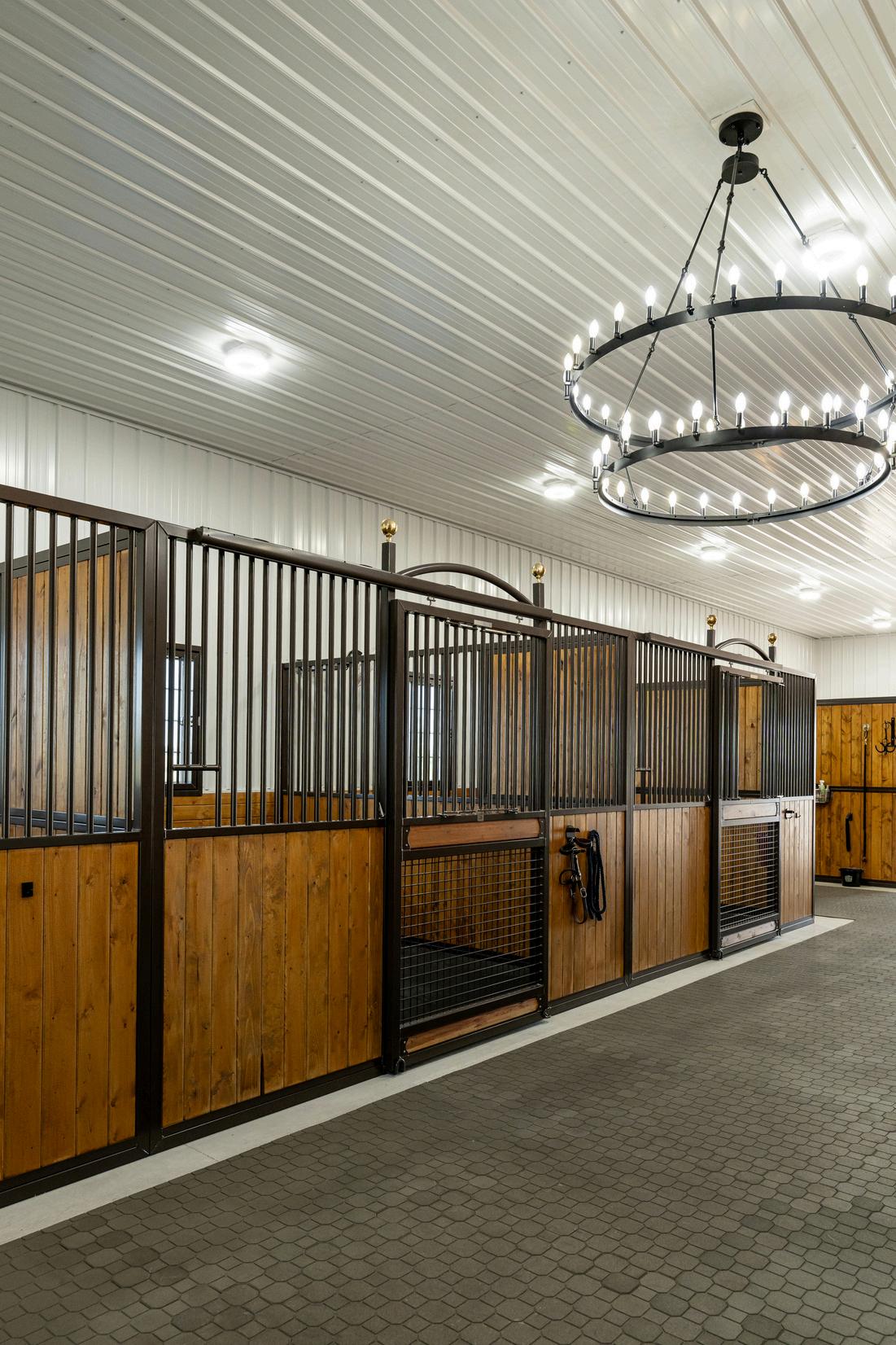

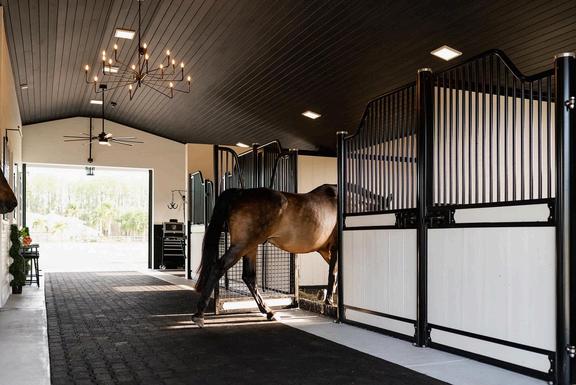

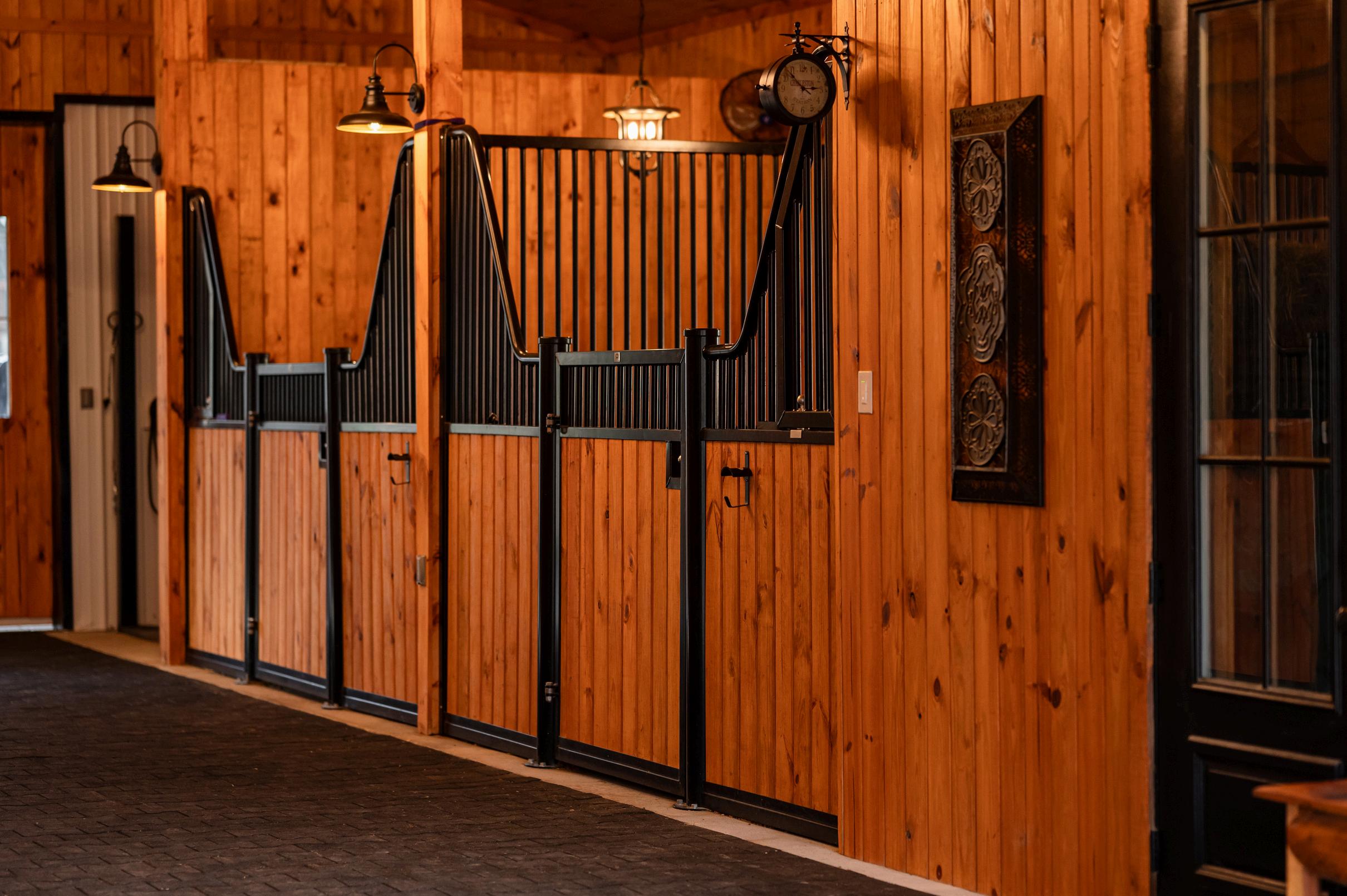

The Grand European High Euro with arched wings and full HMH or HGH design. The tallest, most dramatic profile in our line. For barns that want to make an unmistakable first impression.

Catalog Reference: Styles 2S, 2U, 2X

35

EUROPEAN STALL FRONTS

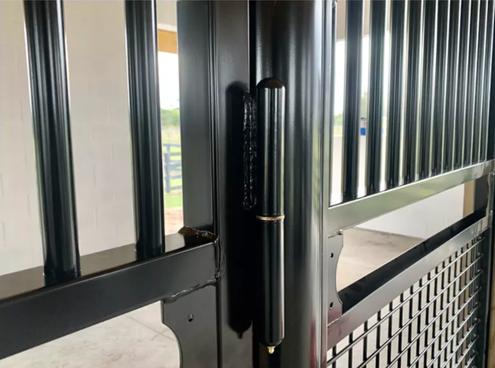

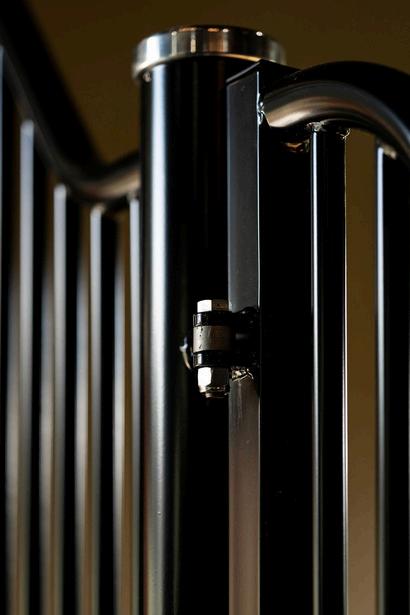

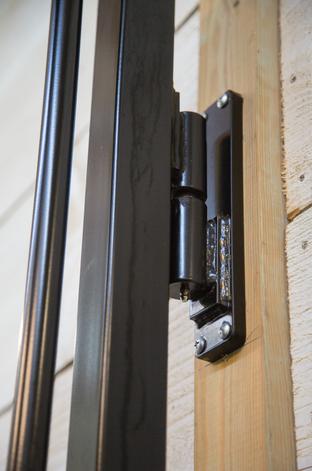

European Hardware All European stall fronts are equipped with 304 stainless steel rod-end hinges that are fully adjustable and field-serviceable. Our spring-loaded plunger latch with striker plate provides easy, one-hand operation and prevents pinched fingers. Decorative post end caps and finials are available in aluminum, brass, and custom powder coat finishes.

36

THE SAME FLEXIBILITY, A DIFFERENT FRAME

EUROPEAN DESIGN OPTIONS Every door-bottom design available for sliding stall fronts is also available in the European frame. The visual grid below shows how each option looks in a European context, as the surrounding wing style and hardware change the character of the same door-bottom treatment.

The key combinations to consider: Euro Wings + Vertical Fill Door The warmest European combination. Wood-on-wood with curved steel framing.

Euro Wings + Mesh Door with Name Plate Ventilation-forward with personal branding. The contrast between solid wings and open mesh creates visual depth.

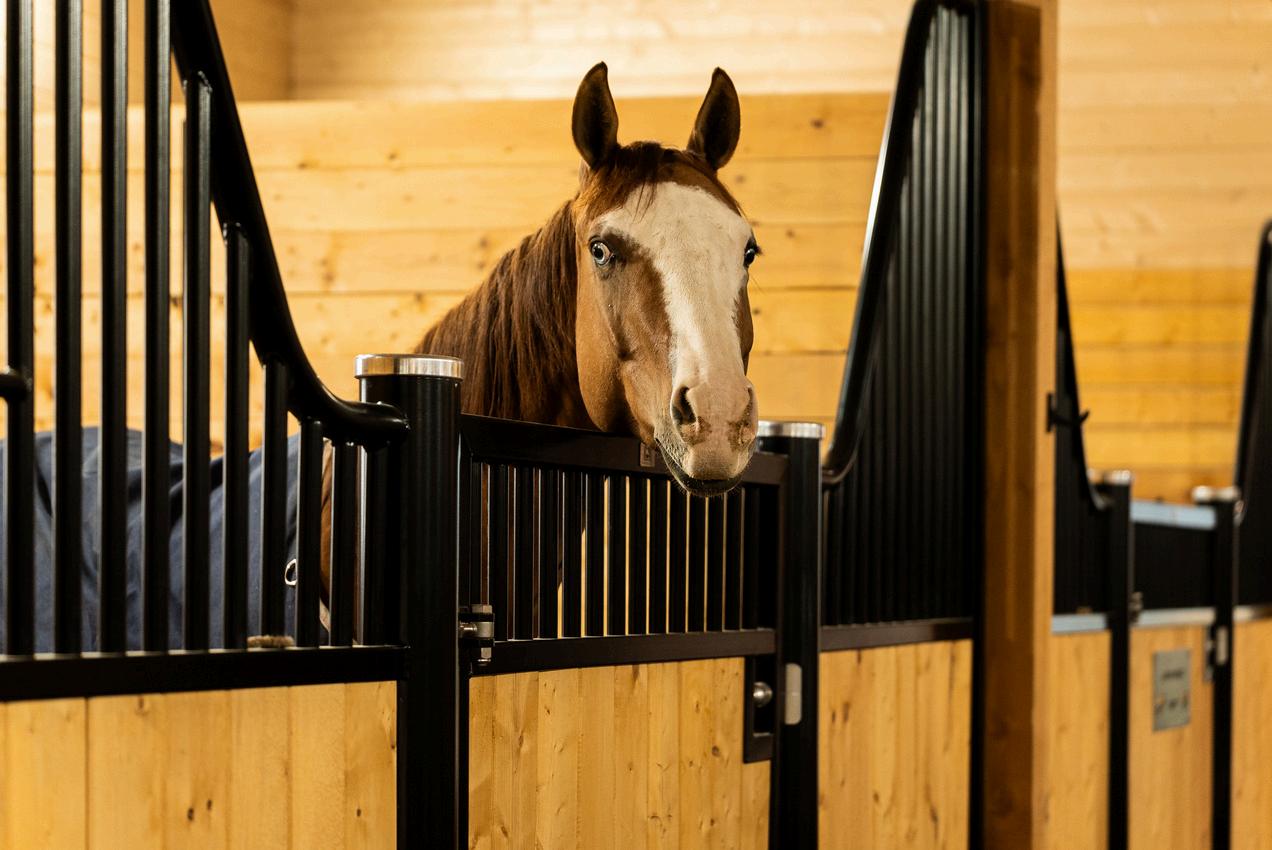

Euro Wings + Grilled Door with Name Plate Maximum openness. The round bars of the grilled door echo the round tube of the Euro wings for a cohesive, unified look.

Full Euro HVH / HMH / HGH The design pattern extends across the entire front, wings, and door for a fully integrated statement.

37

DESIGNING THE SPACE BETWEEN

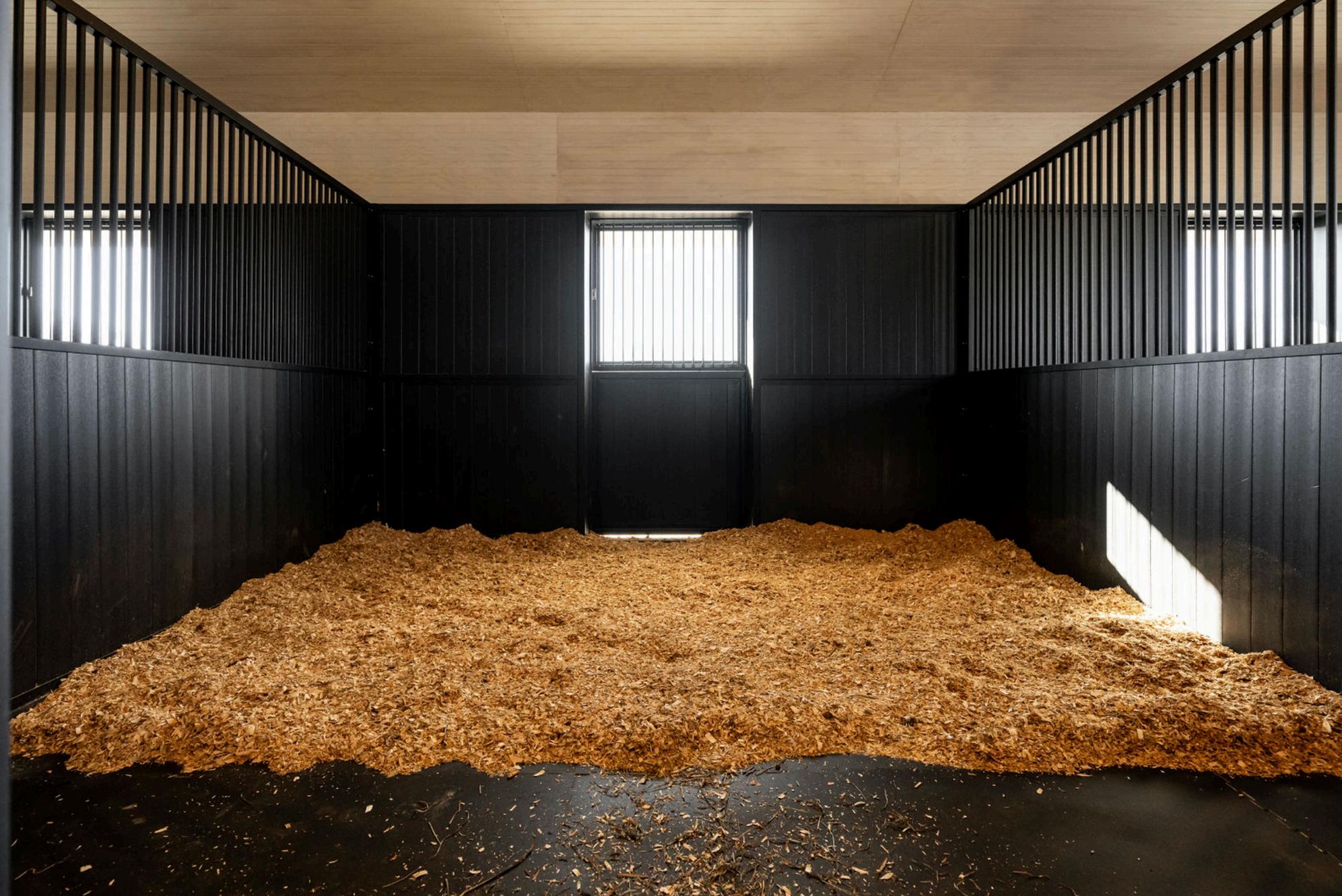

STALL PARTITIONS Stall partitions are more than dividers—they are a decision about your horses’ wellbeing, your barn’s airflow, and the visual rhythm of your interior space.

The right partition balances privacy, ventilation, and socialization based on how your barn operates and your horses' temperament.

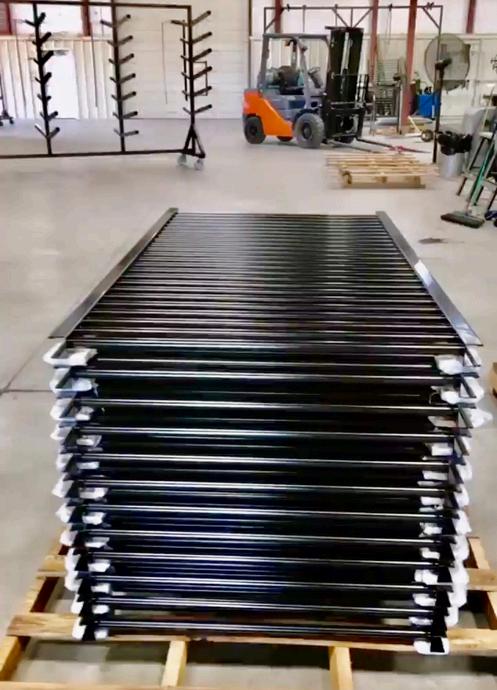

All partitions are built from 14-gauge United States steel, with 2x2 square-tube frames and 1-inch round tubes spaced 3 inches apart for grilled sections. Pre-galvanized steel with custom TGIC polyester powder coat and our zinc flow-coat galvanization with 30% more coverage inside and out.

Privacy Levels: A Spectrum of Design Full Privacy (Lumber In-Fill) Solid lumber from top to bottom. Complete visual and physical separation between stalls. Best for anxious horses, stallions, new arrivals, or quarantine situations. Creates a quiet, enclosed environment.

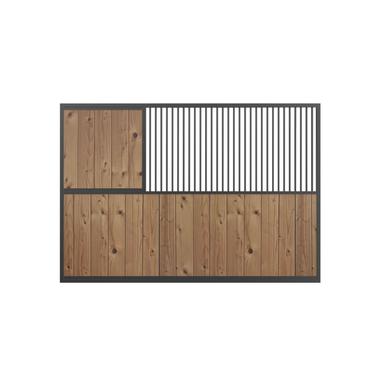

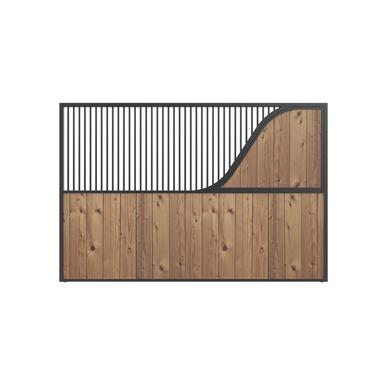

Catalog Reference: Style 5A Partial Privacy Two-Thirds Lumber Grilled top third with lumber fill on the lower two-thirds.

Allows horses to see neighbors while maintaining bodylevel privacy. The most popular partition configuration balances socialization with security.

Catalog Reference: Style 5C Partial Privacy One-Third Lumber Grilled top two-thirds with lumber fill on the bottom third.

More open and social than the two-thirds option. Ideal for calm, well-socialized horses in a training environment.

Catalog Reference: Style 5B Full Grilled (Round Bars) 1-inch round bars from top to bottom with lumber accent sections. Maximum airflow and visibility. Creates an open, connected barn environment. Best for social horses and barns with excellent ventilation systems.

Catalog Reference: Styles 5E, 5F

38

DESIGNING THE SPACE BETWEEN

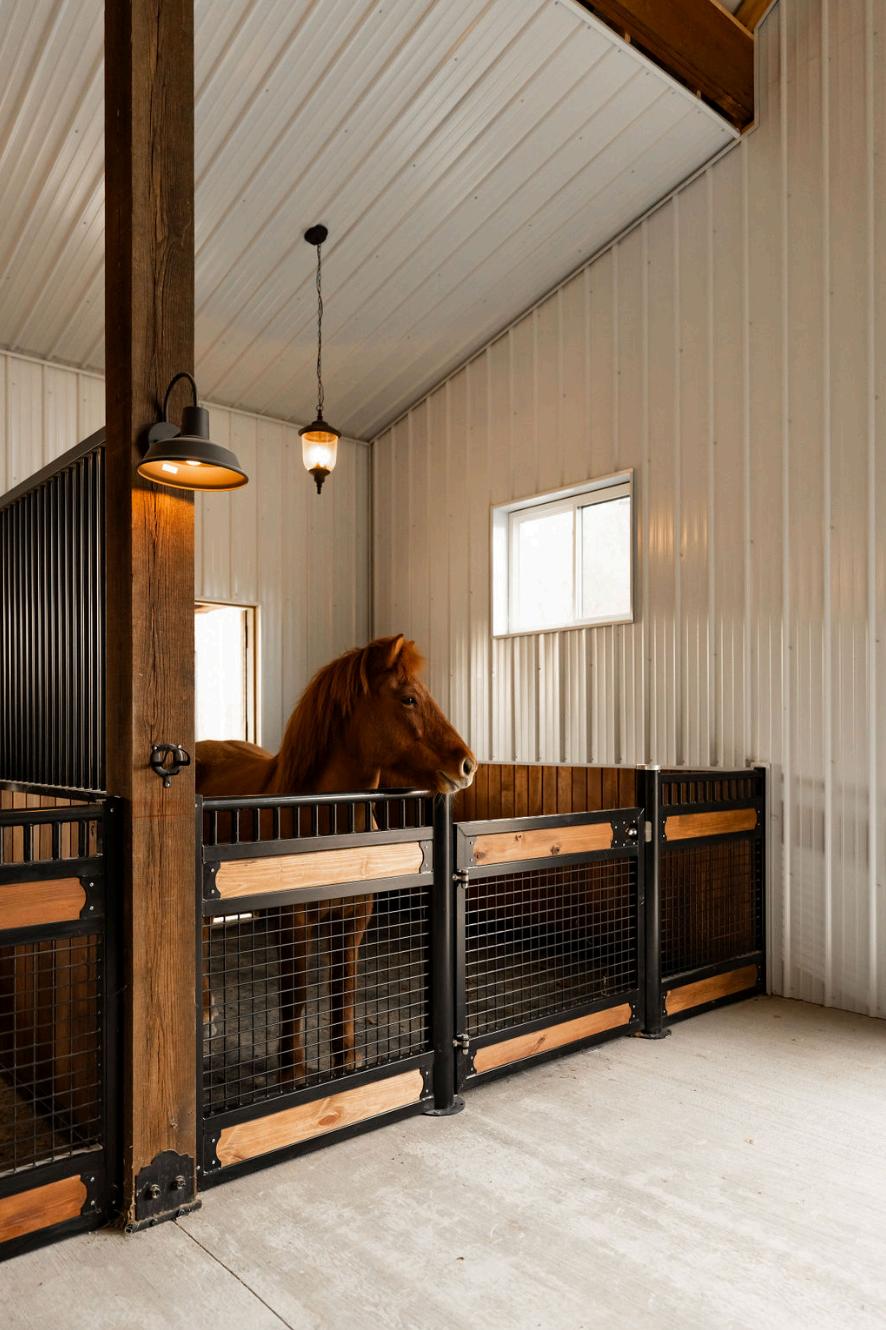

Full Mesh Vented mesh panels provide ventilation with visual softness. The mesh creates a more subtle separation than round bars, less industrial, more refined.

Catalog Reference: Styles 5G, 5H

Foaling Partition (Hinged) A grilled partition with hinged hardware that allows two adjacent stalls to be combined into a single large foaling stall (for example, 12x24 feet). The hinged panel swings open and latches securely in both configurations. Essential for any breeding or foaling operation.

Catalog Reference: Style 5J

39

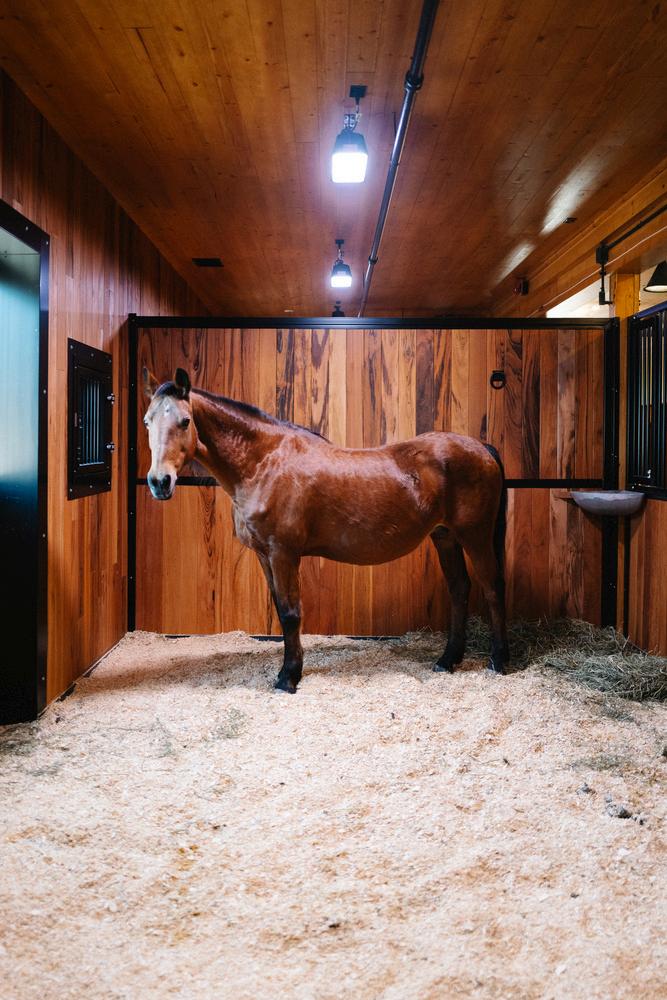

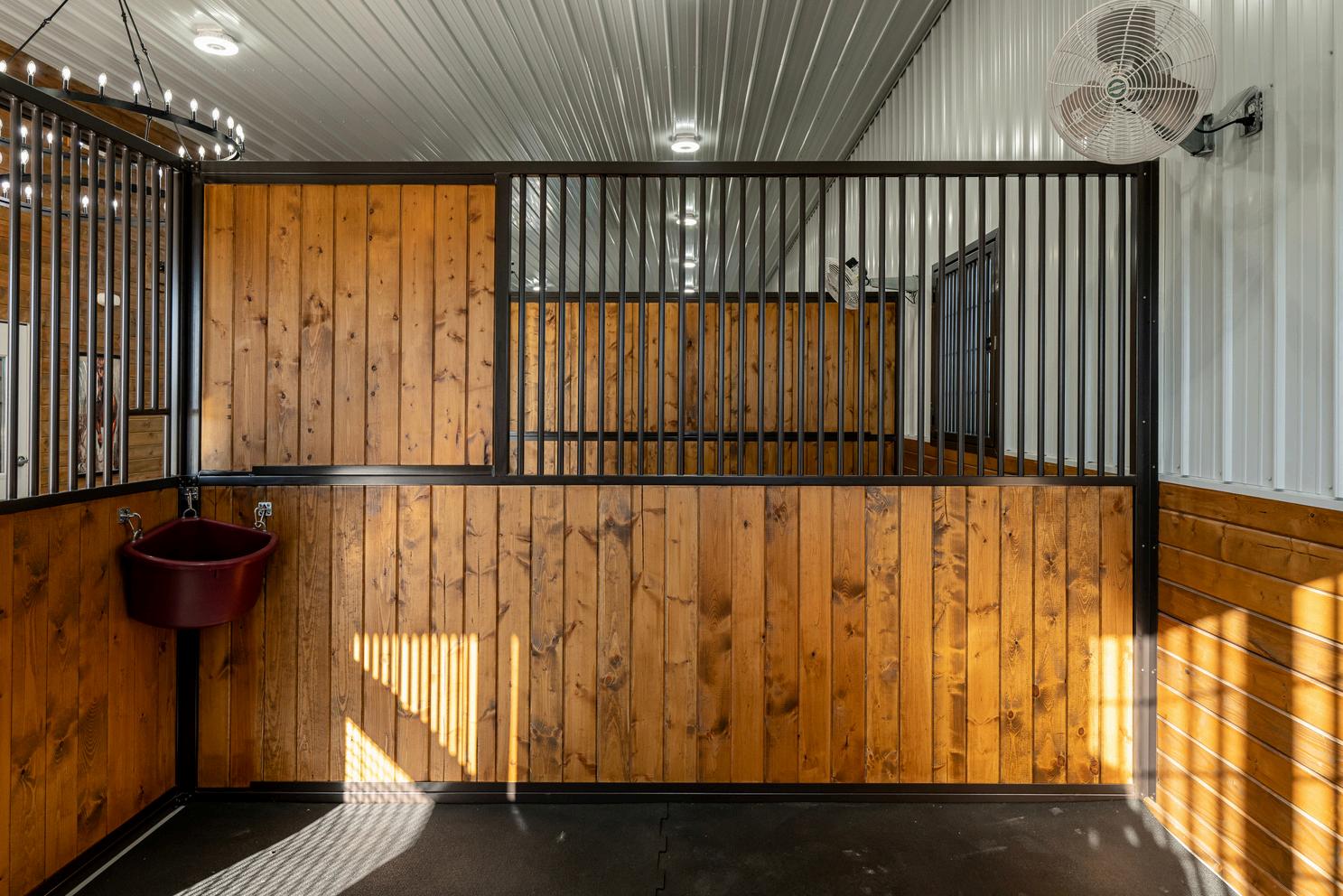

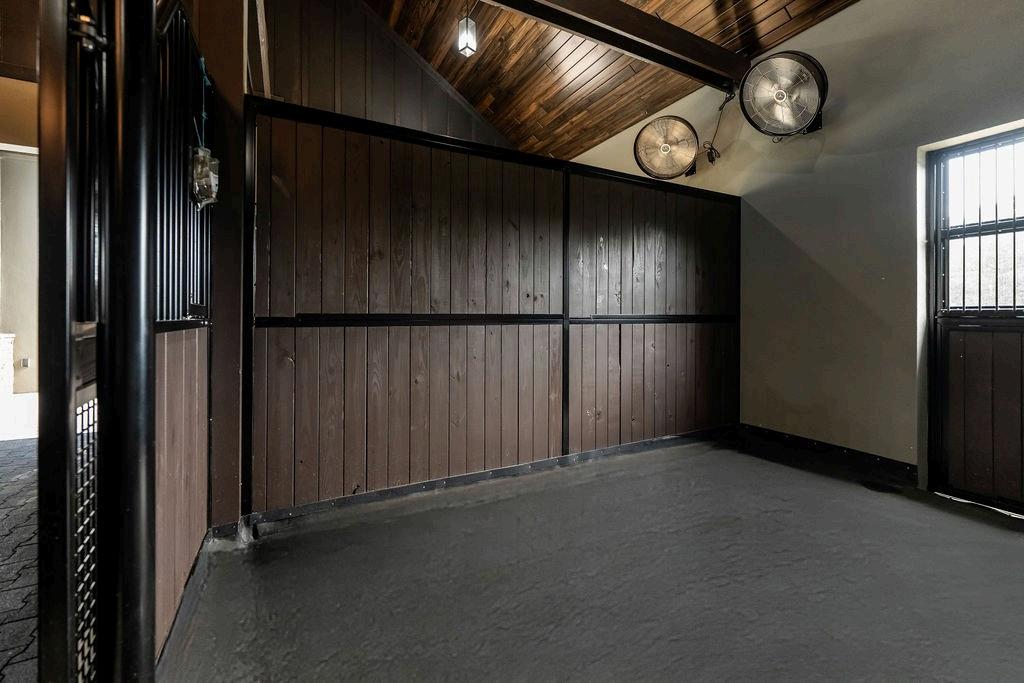

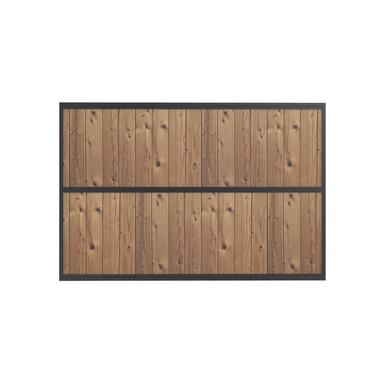

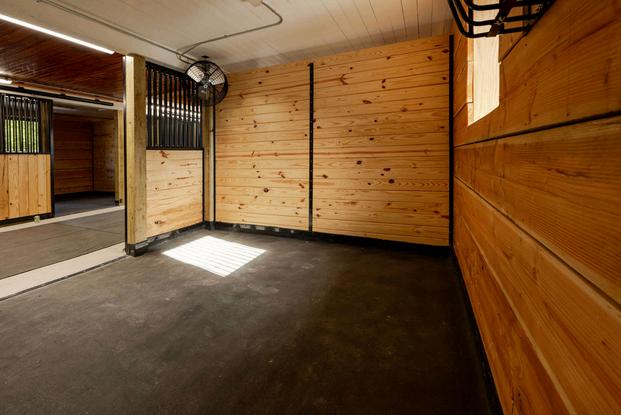

Full Privacy (Lumber In-Fill)

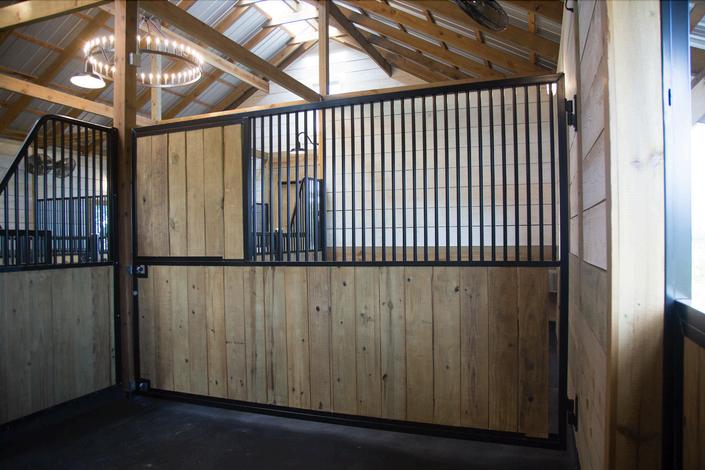

Partial Privacy Two-Thirds Lumber

40 2

Full Grilled (Round Bars)

41 2

FRAMING YOUR HORSE’ S VIEW

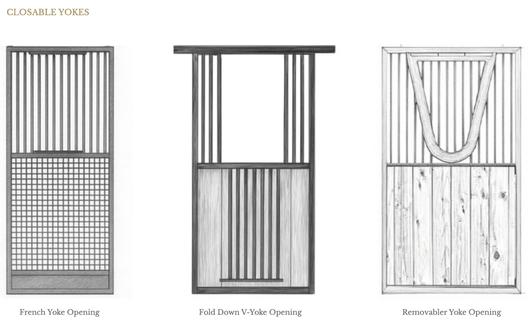

YOKE STYLES The yoke is the opening at the top of your stall door where your horse looks out into the aisle. It is one of the most personal design choices you will make, a daily touchpoint between you and your horse.

Yokes come in three families, each offering a different balance of aesthetics, functionality, and flexibility.

Yokes Styles Open Yokes (Cut-Out) A fixed-open cutout designed for maximum visibility and socialization, like the V Yoke, Arched Yoke, and Rectangular Yoke.

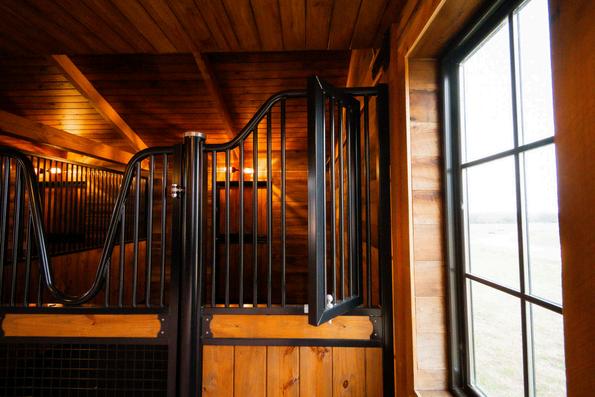

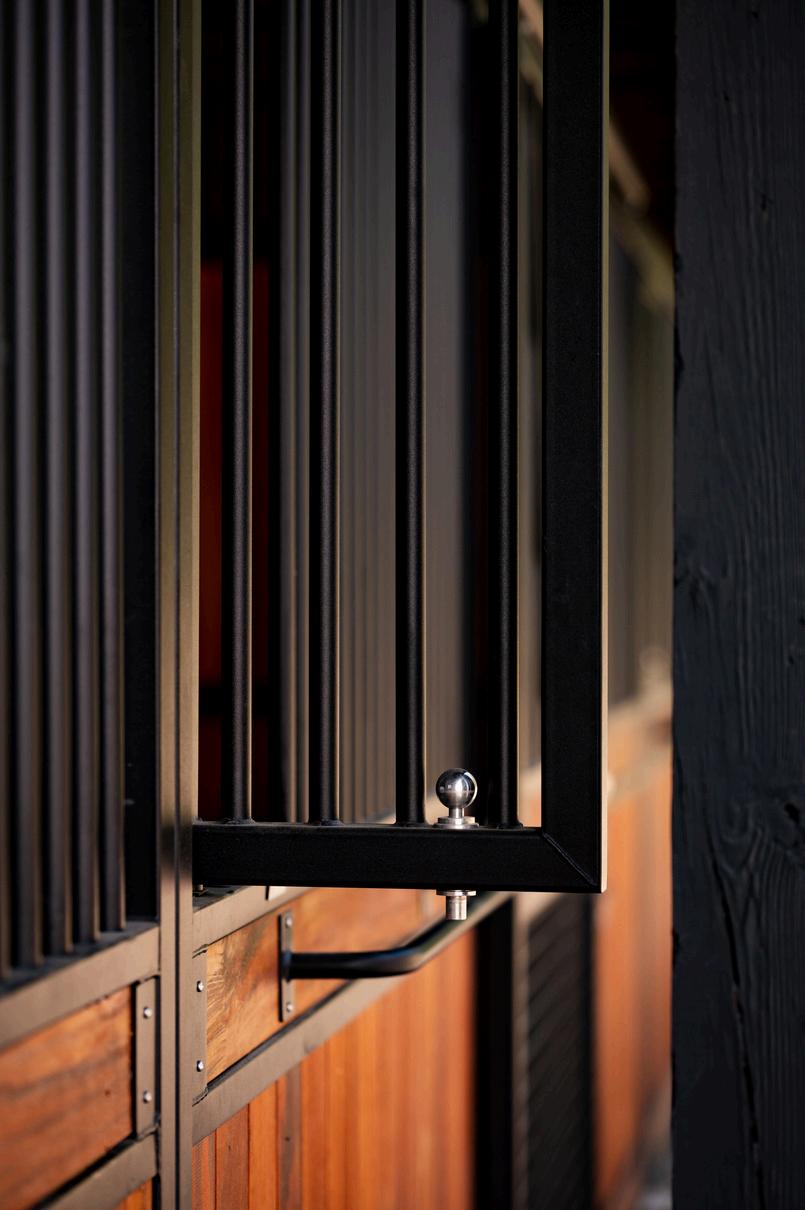

Hinged & Folding Yokes Fold Down Yokes: These yokes swing open and closed, providing you flexibility.

French-Style Yokes: A split, double-door design that opens from the center.

Removable Yokes Removable Yokes: Designed to be completely taken off when not in use.

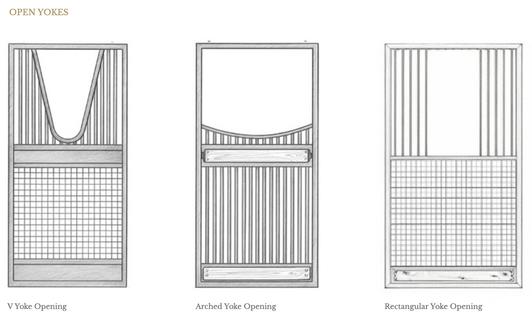

Open Yokes

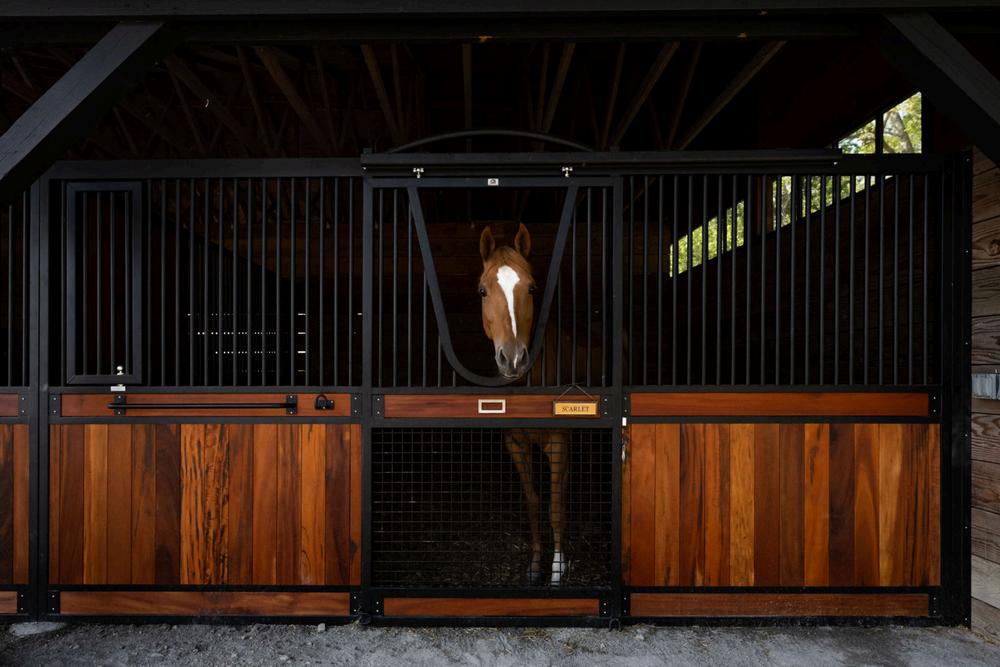

V Yoke Opening

Removable Yokes Hinged Yokes

Arched Yoke Opening

Rectangular Yoke Opening

Removable Yoke Opening

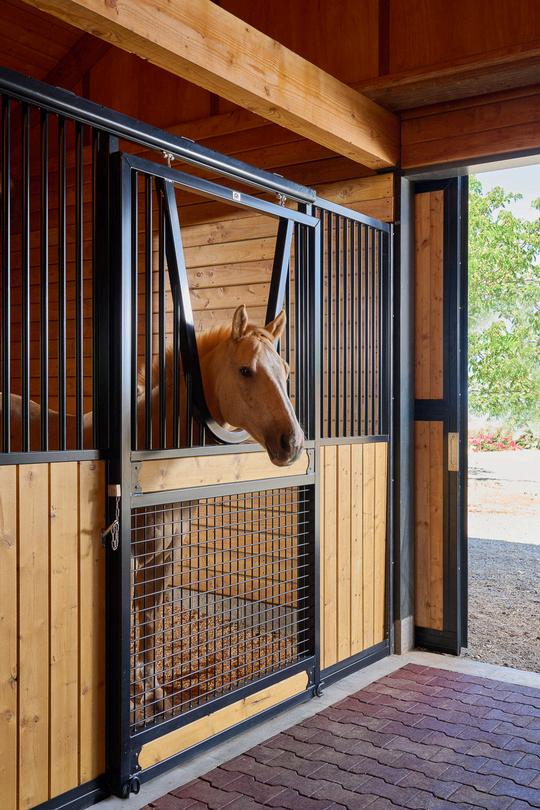

Fold Down Yoke Opening

French Yoke Opening

Bottom Fill Options Mesh for airflow and durability Grilled for balance of airflow, safety, and visibility Shavings Guard for cleanliness Lumber (HDPE, Southern Yellow Pine, Exotic Hardwoods) Accents & Finishes Arches, end caps, finials, nameplates, and more to perfect the look.

43

42 2

THE DETAILS THAT DEFINE LUXURY

HARDWARE & FUNCTIONALITY At American Stalls, hardware is not an afterthought—it is a design element. Every latch, hinge, and feed system is machined from 304 stainless steel or premium materials engineered for decades of daily use. These are the details that separate a barn that works from a barn that inspires.

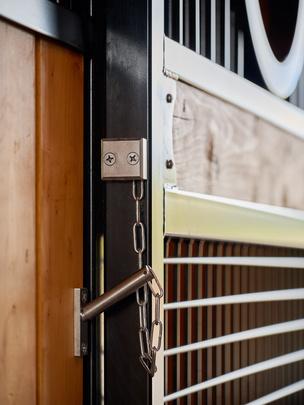

Latch Systems Flip Latch (Sliding Stalls Alternative) Watch it in action

A flip-style alternative for sliding stalls. Includes a flip latch and a safety mechanism.

Offers a different operational feel for owners who prefer it.

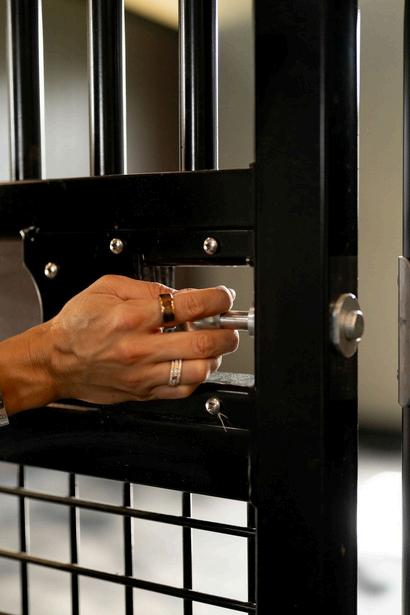

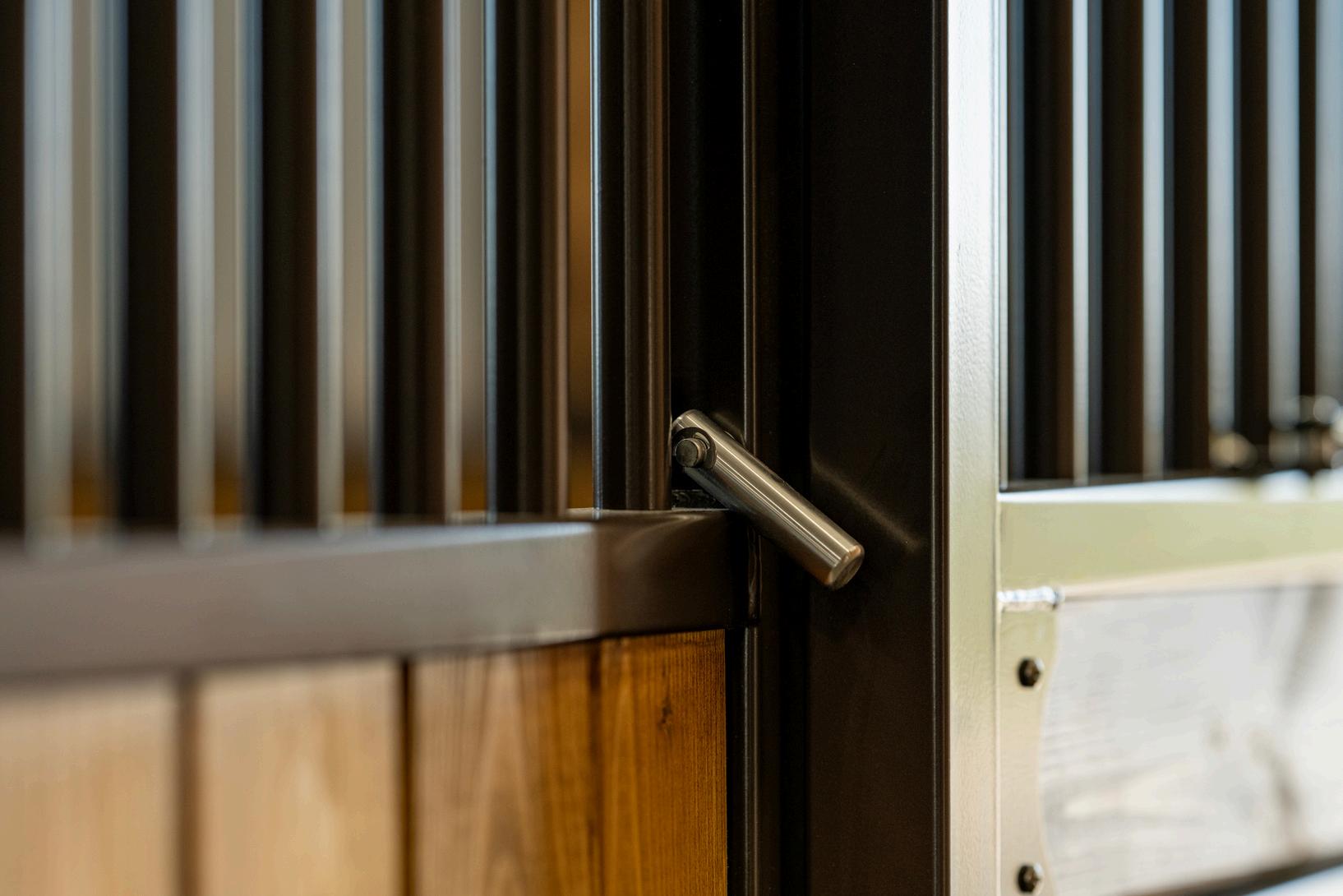

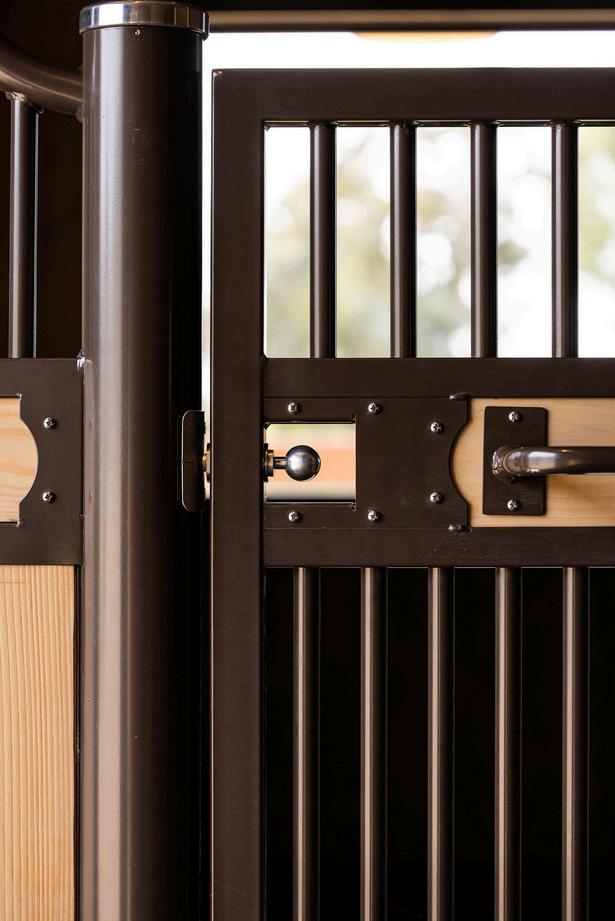

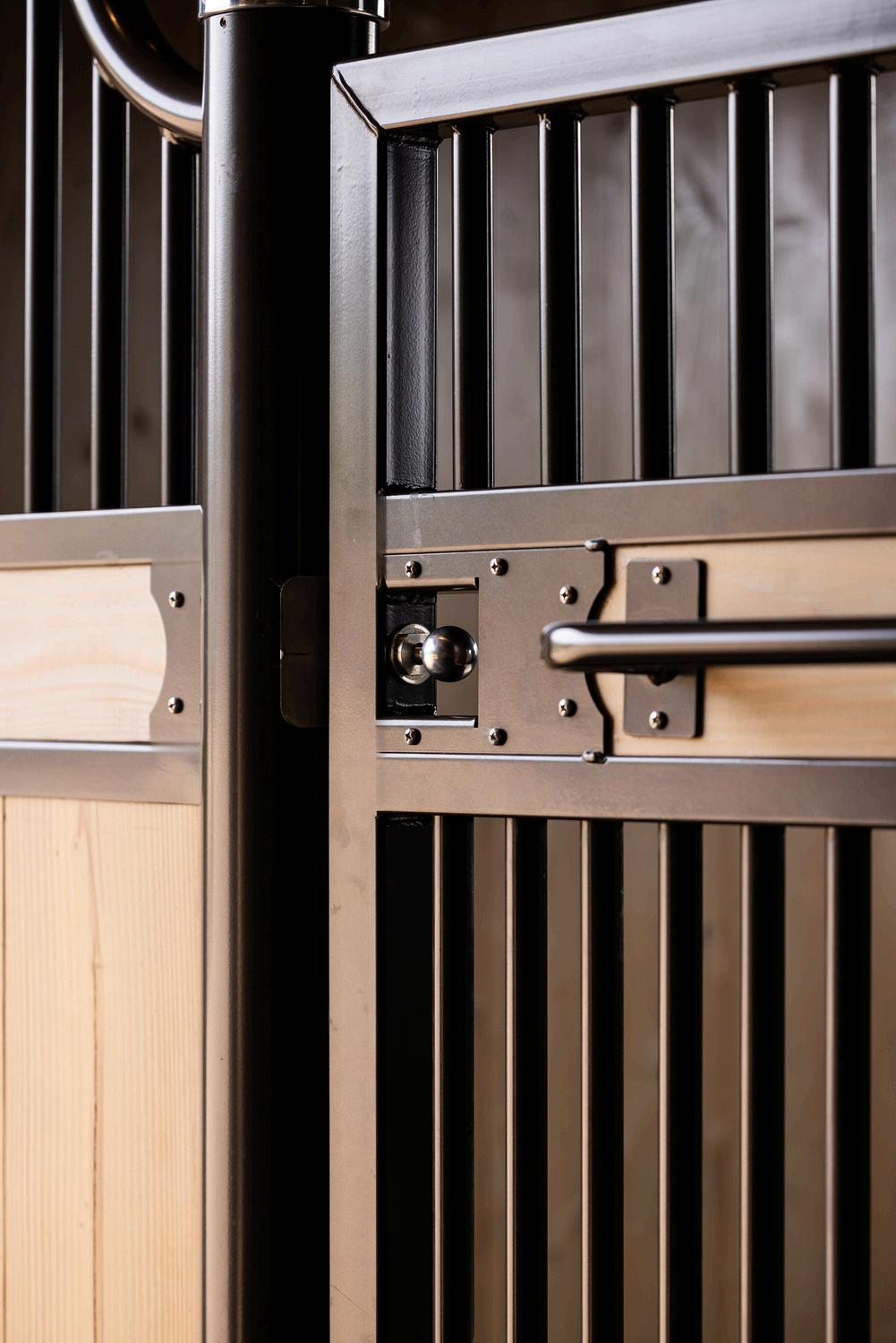

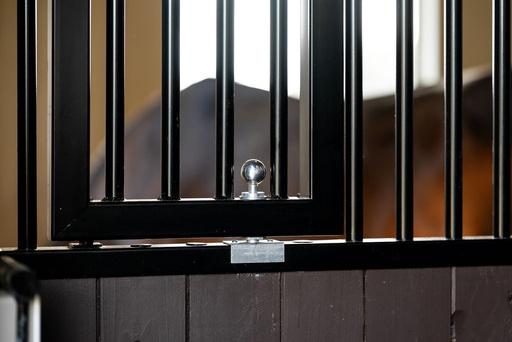

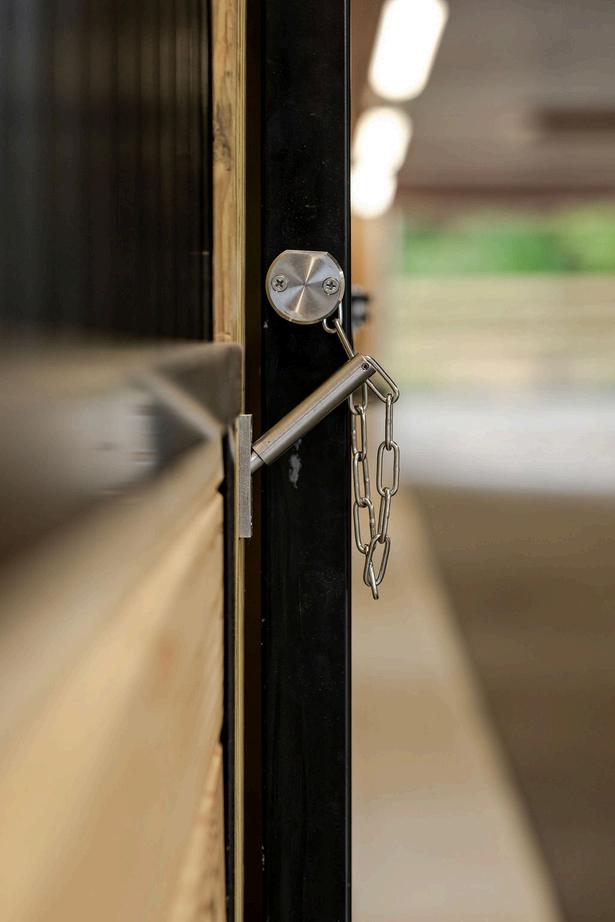

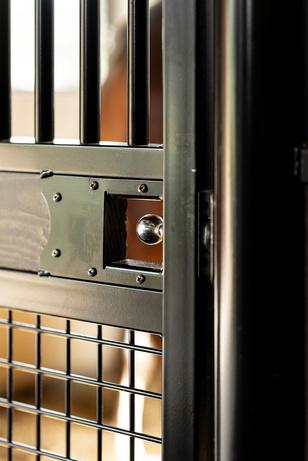

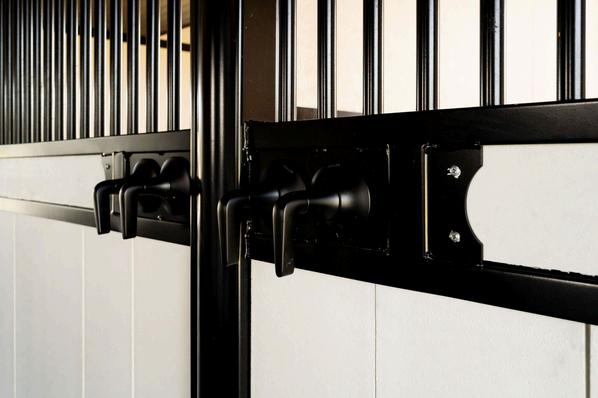

Plunger Latch (European Hinged Stalls) Watch it in action

Spring-loaded plunger with precision striker plate. The plunger engages automatically when the door swings closed, no fumbling, no pinched fingers.

The industry’s most user-friendly hinged stall latch.

45

THE DETAILS THAT DEFINE LUXURY

HARDWARE & FUNCTIONALITY At American Stalls, hardware is not an afterthought—it is a design element. Every latch, hinge, and feed system is machined from 304 stainless steel or premium materials engineered for decades of daily use. These are the details that separate a barn that works from a barn that inspires.

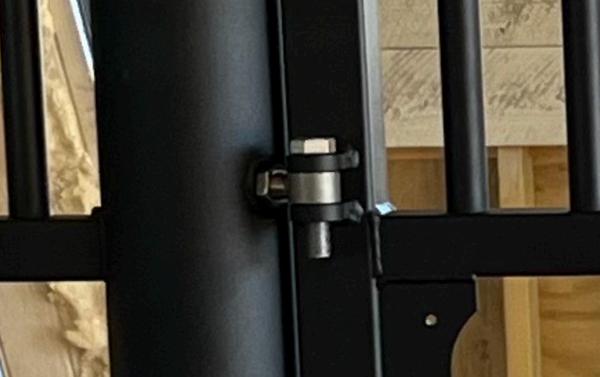

Latch Systems Flip Latch (Sliding Stalls Alternative) Watch it in action

Machined from thick stainless steel. When the door is closed, the pin is stored at a 45-degree angle inside a wall sheath bolted to the stall front. When the door is open, the pin is secured inside the provided receptacle. One-hand operation.

Gravity Latch System (Sliding Stall Doors) The Gravity Latch is a simple yet highly effective system designed specif- ically for sliding stall doors. It uses the force of gravity to secure the latch automatically when the door is closed, no need to fuss with additional hardware.

This ensures smooth daily operation, reliability, and enhanced safety for both horse and handler. Built with durable materials, the Gravity Latch is a low-maintenance solution that blends seamlessly with your stall design.

46

THE DETAILS THAT DEFINE LUXURY

Feed Systems Feed Hole

The Feed Hole is our simplest and most streamlined feeding option, included complimentary with all of our stall systems. This clean, square cut-out is welded directly into the grill portion of the stall front, allowing you to pour grain directly into your horse's feeder. With no doors or moving parts, it's a no-fuss solution that blends seamlessly into your stall design.

Benefits: Complimentary with all stall fronts Welded directly into the grill section for durability and simplicity Allows quick, no-hassle feeding directly into the stall Clean, minimalist design integrates with your stall front Ideal for private barns or straightforward daily routines

Grilled Feed Door

This feed option is seamlessly integrated into your stall front, allowing you to feed your horses conveniently from the aisle. A clean, square cut-out in the grill section makes feeding quick and efficient, while our durable Stainless Steel Plunger Latch ensures safety and ease of use.

Benefits: Blends seamlessly into stall front design for a clean, minimalist look.

Allows feeding from the aisle-no extra parts or moving pieces.

Welded into the grill section for durability and long-term use.

Stainless Steel Plunger Latch provides secure, smooth operation.

Ideal for private barns and straightforward daily routines.

47

THE DETAILS THAT DEFINE LUXURY

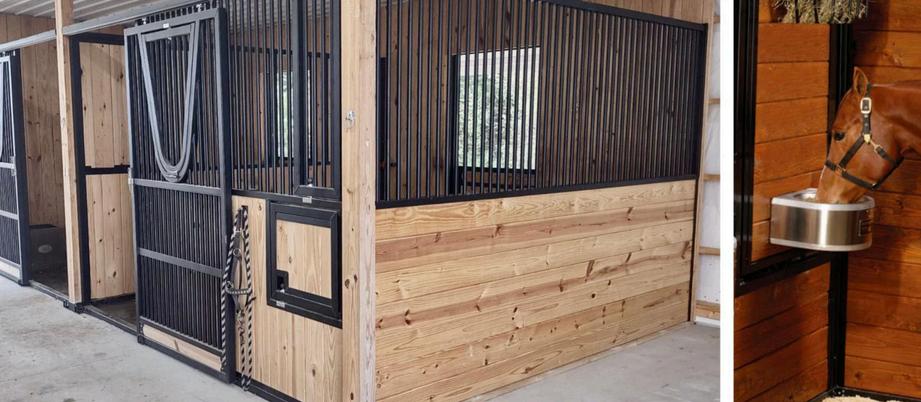

Feed Systems Swivel Feeder & Feed Bowl

Our Swivel Feeder is designed for both convenience and efficiency. The steel-framed, lumber-filled front panel blends seamlessly with your stall front, while the rear features a durable aluminum feed pan. With a quick swivel motion, you can fill grain from the aisle and rotate the pan into the stall-no need to open doors or step inside.

Benefits: Seamlessly integrates into the stall front for a clean, consistent look.

Allows feeding directly from the aisle-saves time and increases safety.

Rear-facing aluminum pan is durable, lightweight, and easy to clean.

Operates smoothly with our signature Stainless Steel Plunger Latch and swivel hinges.

Ideal for busy barns feeding multiple horses quickly and efficiently.

Water Systems Cascada Automatic Watering System

Our most advanced option yet, the Cascada Automatic Waterer features contactless sensor technology and appconnected smart monitoring. It learns your horse's drinking habits, automatically fills buckets to the ideal level, and alerts you to any changes in consumption.

Benefits: Contactless & hygienic App-connected with smart alerts Ideal for luxury barns & performance horses

48

THE DETAILS THAT DEFINE LUXURY

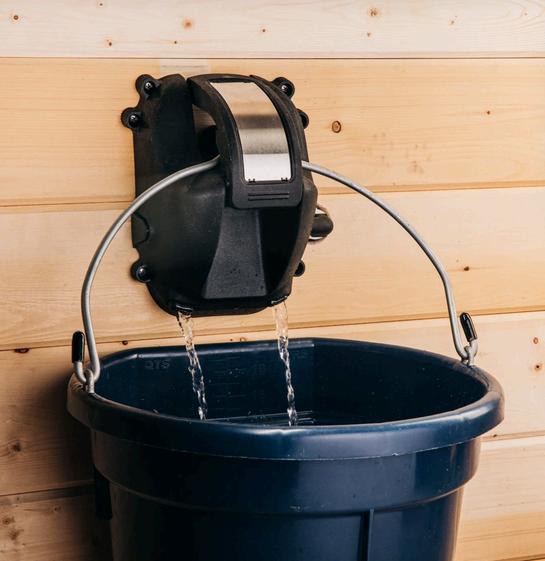

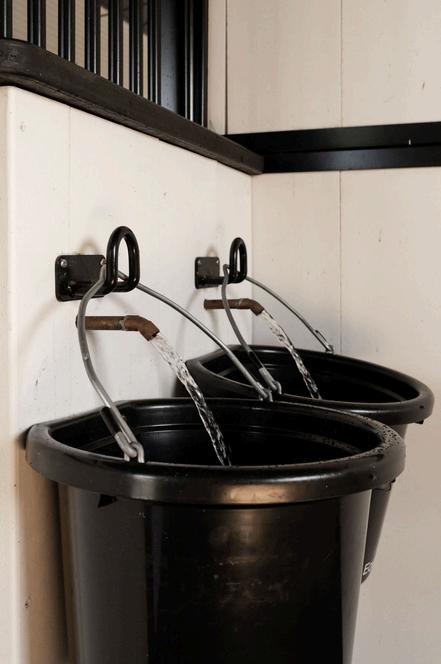

Water Systems Integrated Water Lines

Prefer to monitor your horses' water intake? Our Integrated Water Line System allows for exterior spigots and interior spouts, making it easier to fill water buckets without crossing the aisle. The heavy-duty steel casing protects the plumbing while giving you full control over water volume.

Benefits: Allows water tracking per horse Great for barns using buckets Seamless integration into your stall fronts

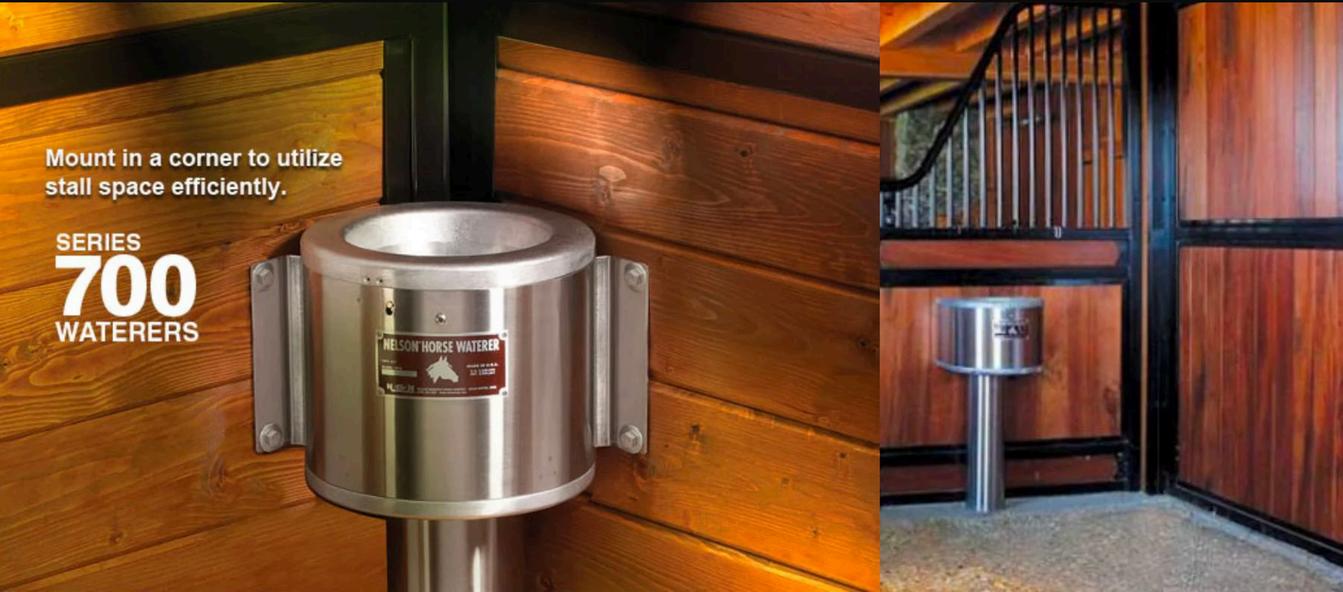

Nelson Automatic Waterers,

These waterers are built from durable stainless steel or aircraft-grade aluminum, ensuring strength and longevity in any barn environment. Each unit features a thoughtfully designed, removable drinking bowl for easy cleaning and maintenance. With a variety of models and mounting options-including wall-mounted or free-standing- you can select the best fit for your stall layout. For colder climates, an optional thermostatically controlled heater provides reliable freeze protection.

Benefits: Continuous supply of fresh water for horses.

Removable drinking bowl for quick, easy cleaning.

Available in wall-mount or free-standing options.

Optional heater for freeze protection in winter.

49

YOUR STALLS

CUSTOMIZATIONS; COLOR, FILL OPTIONS & MORE Your Color Palette Where design meets personality. Choose from a curated selection of premium powder coat finishes: Custom color matching is available to align with architectural finishes, barn branding, or personal taste.

Fill Options: Beauty, Strength & Longevity

Fill Option

Key Benefits

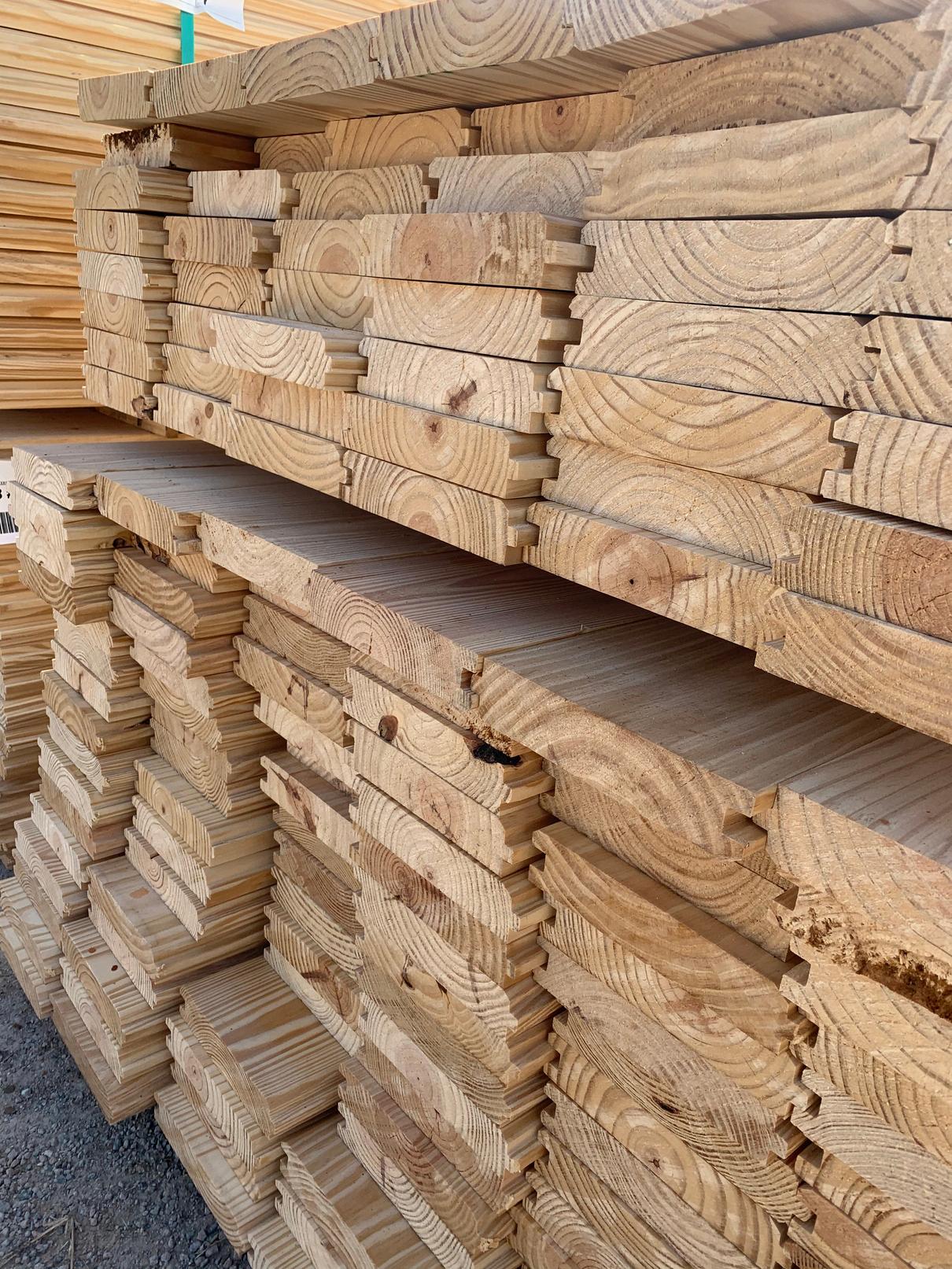

Southern Yellow Pine

A beautiful, cost-effective choice that brings warmth and tradition to any barn. Accepts stain and sealant beautifully.

HDPE Lumber

A synthetic, maintenance-free material available in 15+ colors.

HDPE never needs painting, staining, or sealing. It is resistant to moisture, insects, and UV damage.

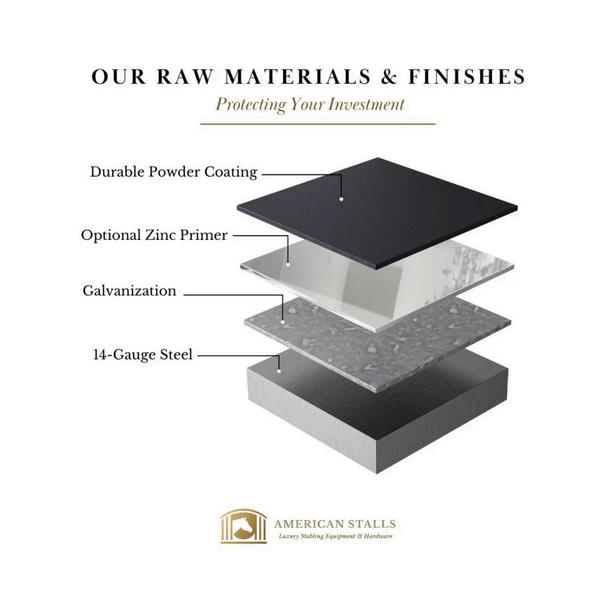

Powder Coat Colors

Our custom TGIC polyester powder coat is available in virtually any color. Most popular selections include matte black, textured bronze, satin white, hunter green, barn red.

Exotic Brazilian Hardwood

An exotic, premium hardwood with a rich, dramatic grain. The most durable and the most visually striking lumber option we offer. For barns where material quality is the top priority.

50

BUILT TO LAST GENERATIONS

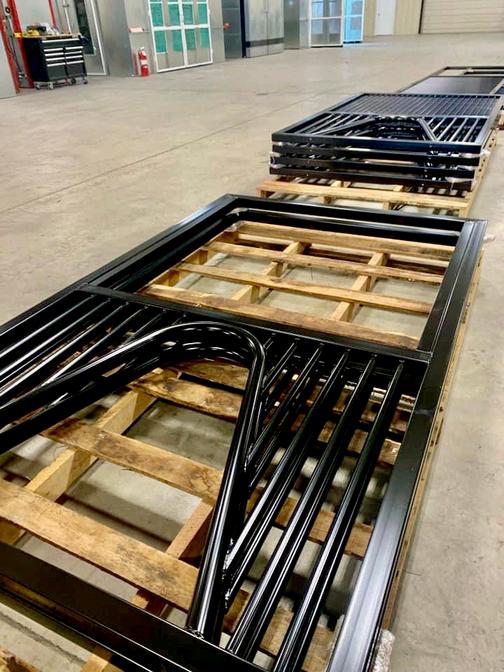

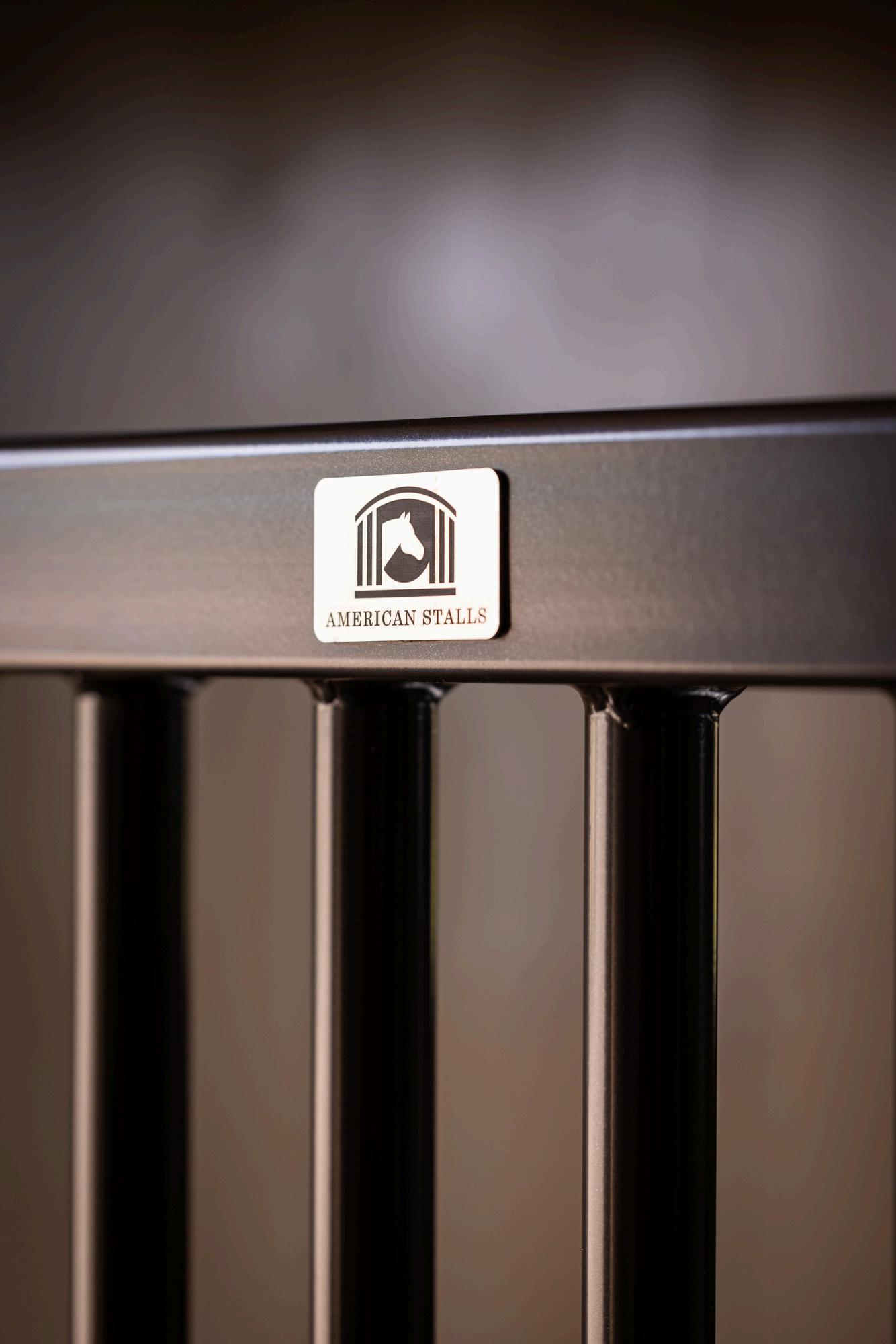

STEEL & FABRICATION Every American Stalls product is fabricated from 100 percent United States-made 50 ksi high-tensilestrength steel. We do not import our steel. We do not outsource our fabrication. Every cut, weld, and finish is performed by our team to our standards.

Frame Steel: 14-gauge 2x2 square tube (2x3 and 2x4 available upon request) European Posts: 7-gauge 4.5-inch round posts Euro Wings & Yoke: 1.9-inch round tube Upper Bars: 1-inch round tube on 3-inch centers (2 inches between bars) Lower Bars: 1-inch round tube on 2.5-inch centers U-Channel: 1.5-inch punched U-channel accepting standard construction kiln-dried lumber Our Finish Process Step 1 — Steel Treatment: Pre-galvanized steel with our zinc flow-coat galvanization. 30 percent more galvanization coverage on tubing, both inside and out.

Step 2 — Powder Coat: Custom TGIC polyester powder coat applied in-house. Rigorous quality control ensures consistent color and finish across every component.

The result is a product that resists corrosion, withstands the rigors of a working barn environment, and maintains its finish for years.

Our steel and finish process is one of the reasons our products are trusted in barns across the country, and why we stand behind every product we ship.

51

DEFINE YOUR STYLE

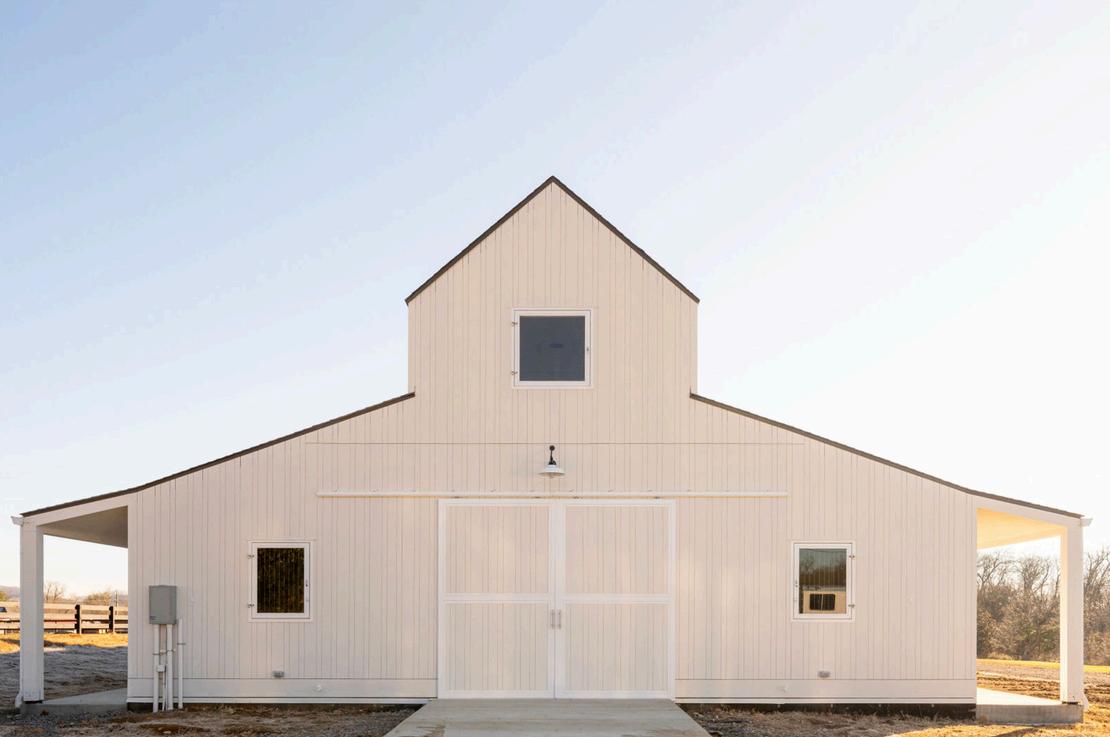

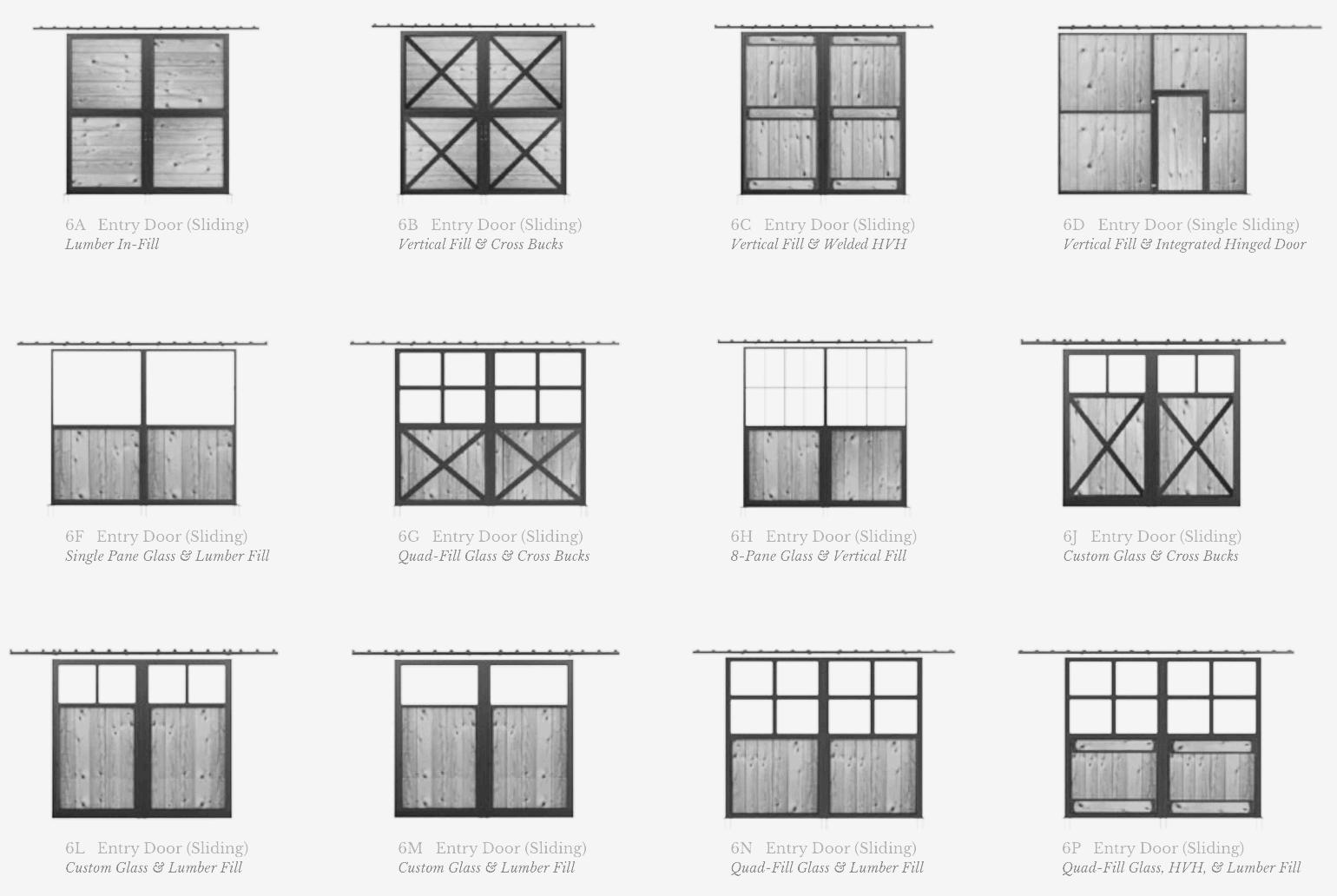

OUR SIGNATURE BARN DOOR DESIGNS We offer a curated selection of timeless, elegant designs to complement any barn style: Sliding Barn Entry Doors Our most space-efficient option is smooth, simple, and refined.

Hinged Barn Entry Doors Classic and strong, with premium 304 stainless steel barrel hinges.

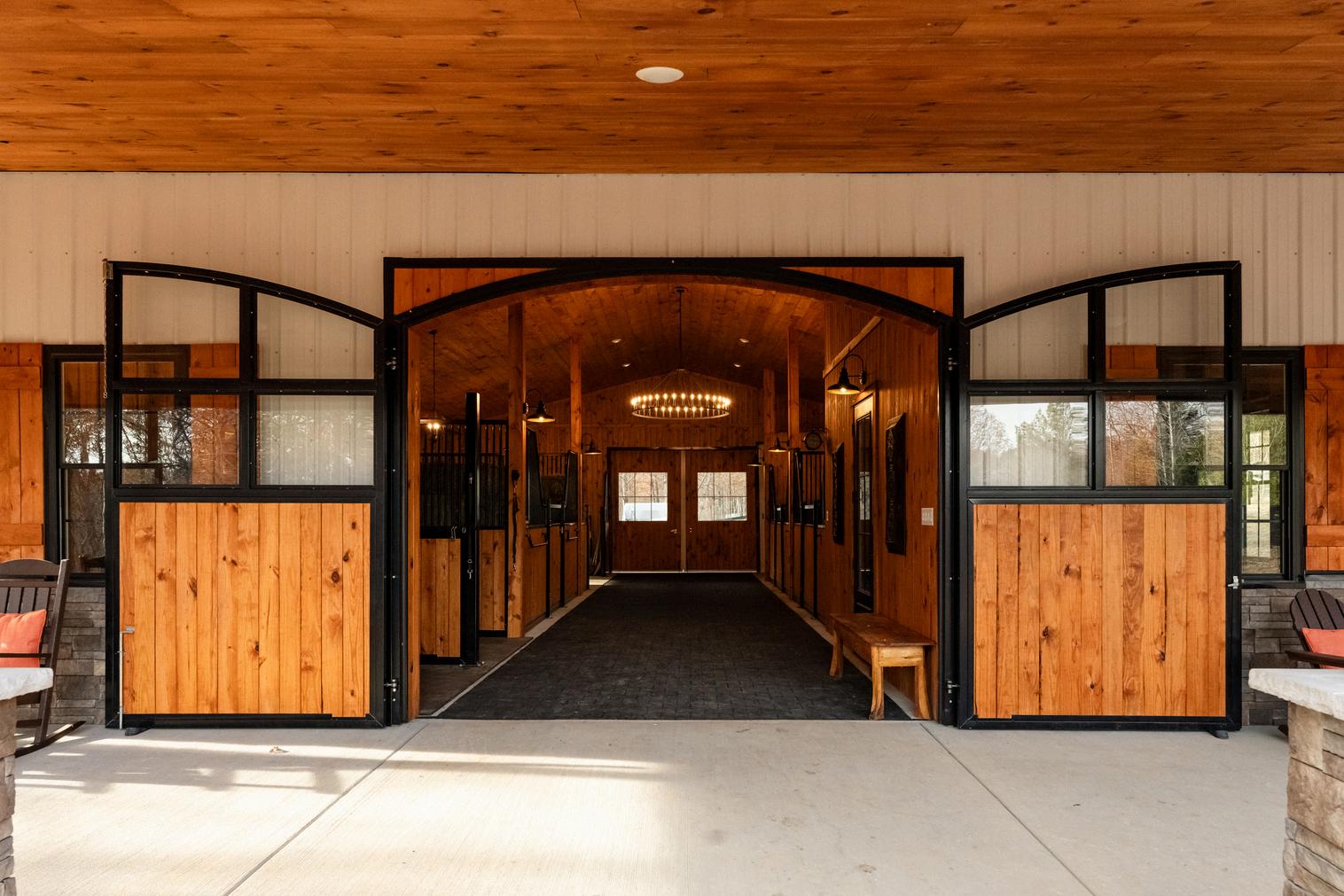

UPGRADES OPTIONS: Arched Design Doors An elegant architectural upgrade that softens the barn’s lines while adding timeless character and visual height to your entry doors.

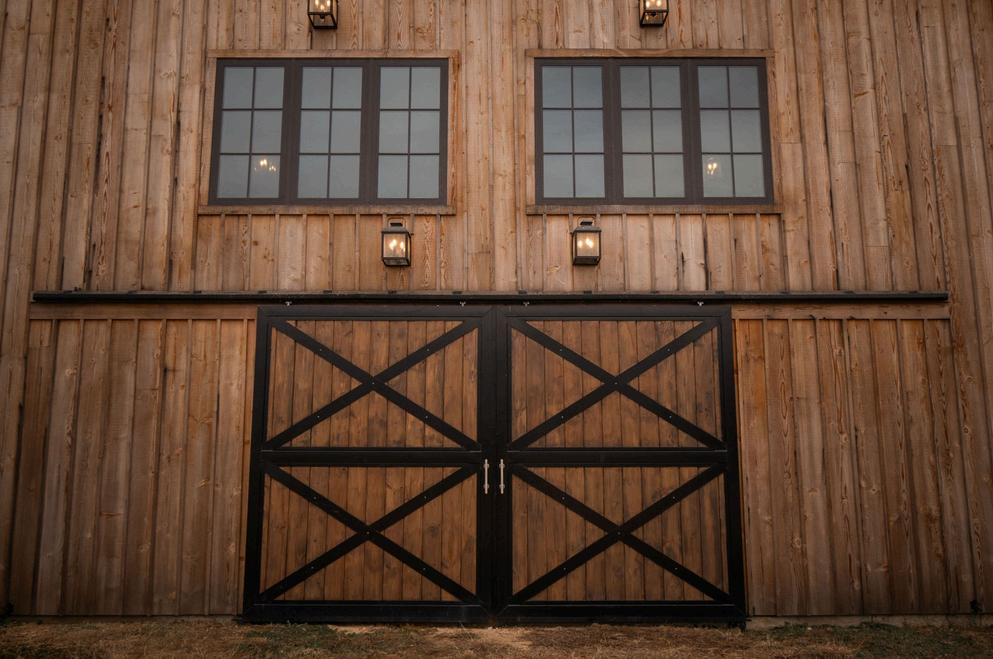

Welded Cross Bucks Design A classic detail reimagined with precision-welded steel, adding structure, strength, and a refined traditional look to your barn doors.

Glass Fill Design A functional and beautiful option that brings natural light into your barn aisle while maintaining durability and safety with tempered glass in-fills.

Every design is fully customizable to suit your barn’s character.

Arched Design Doors

Welded Cross Bucks Design

Glass Fill Design

53

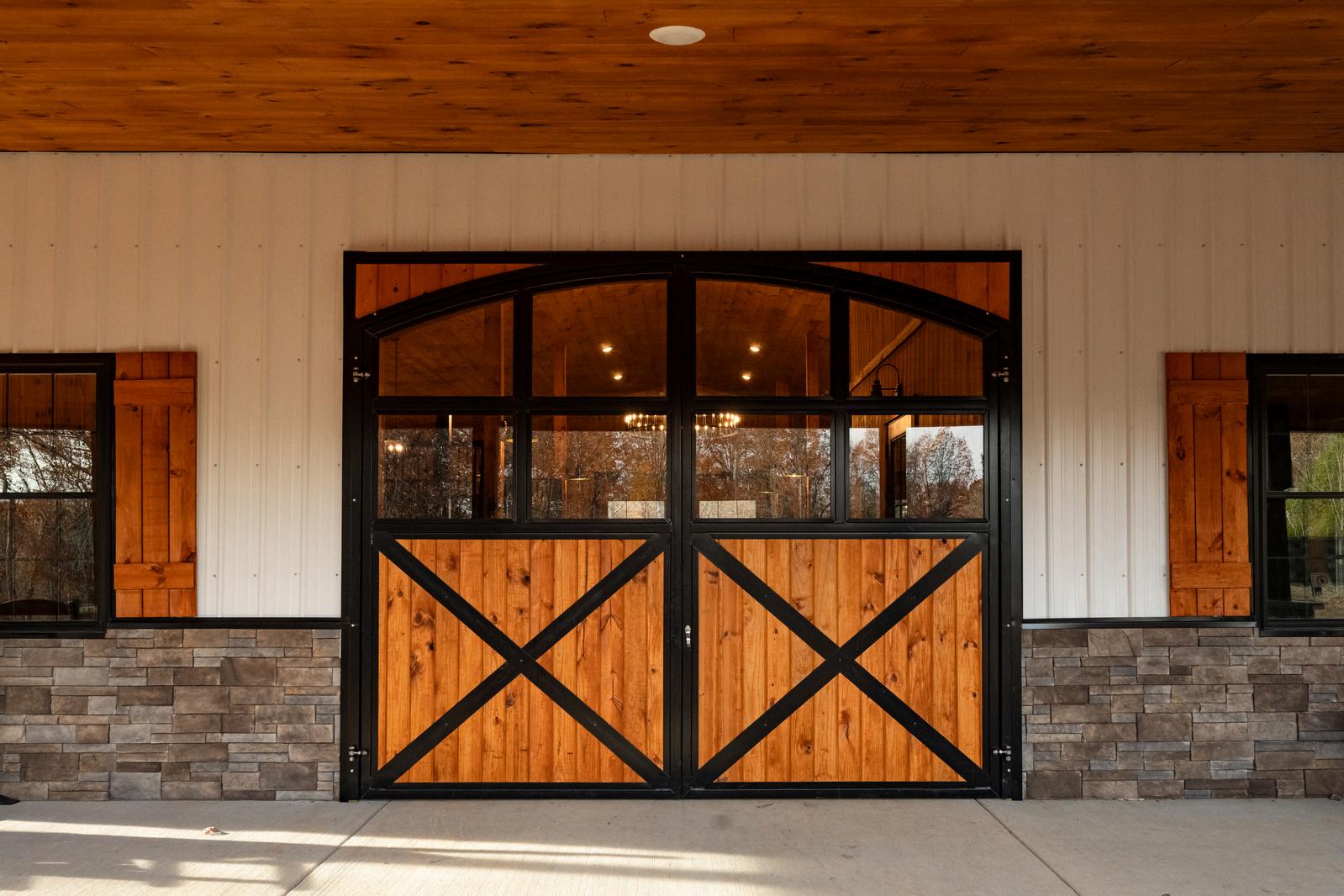

Hinged Arched Doors

54 2

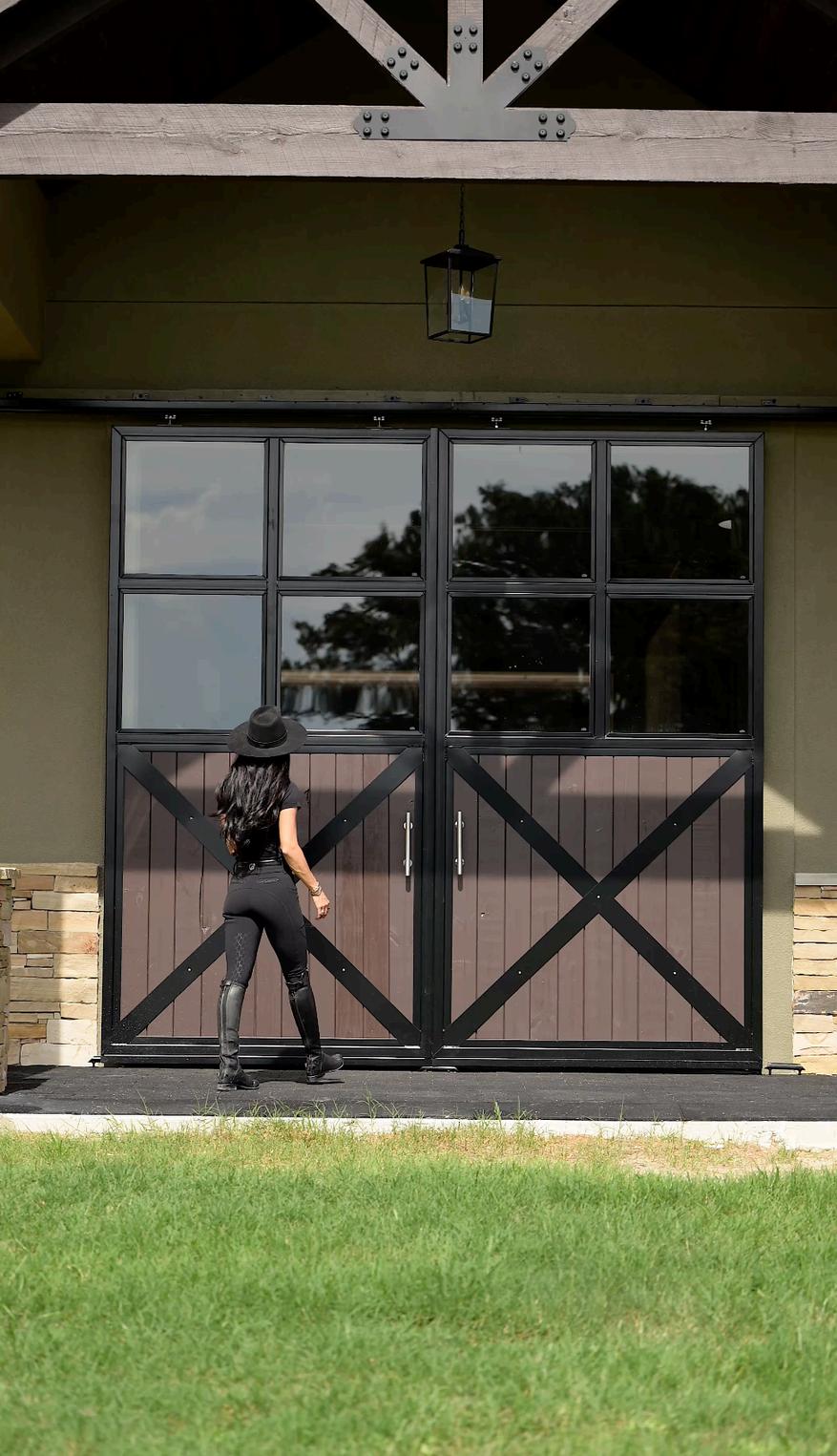

Welded Cross Bucks Design

55 2

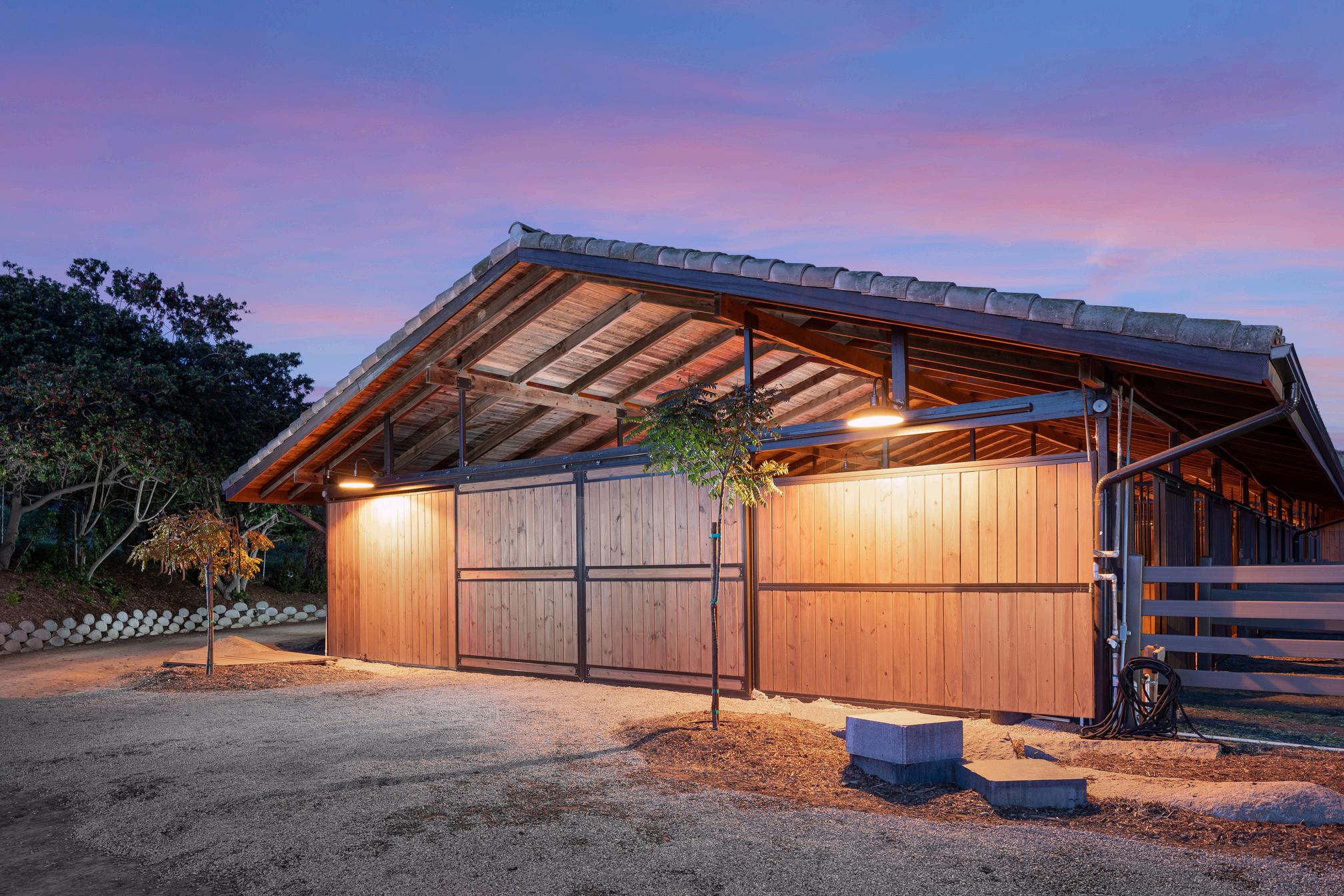

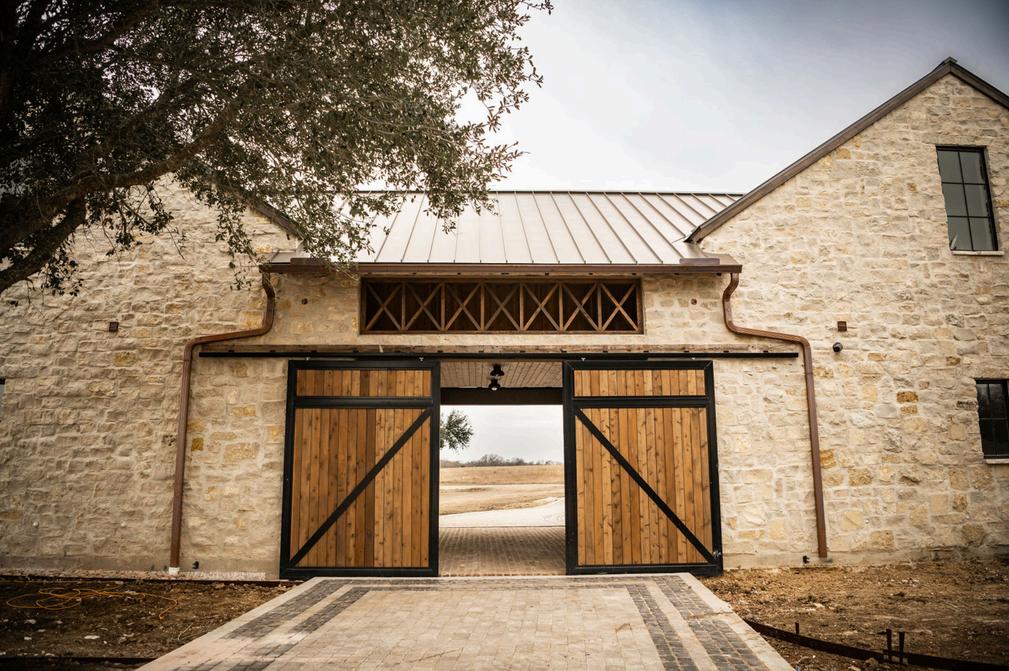

Sliding Barn Entry Doors (Infill Lumber)

56 2

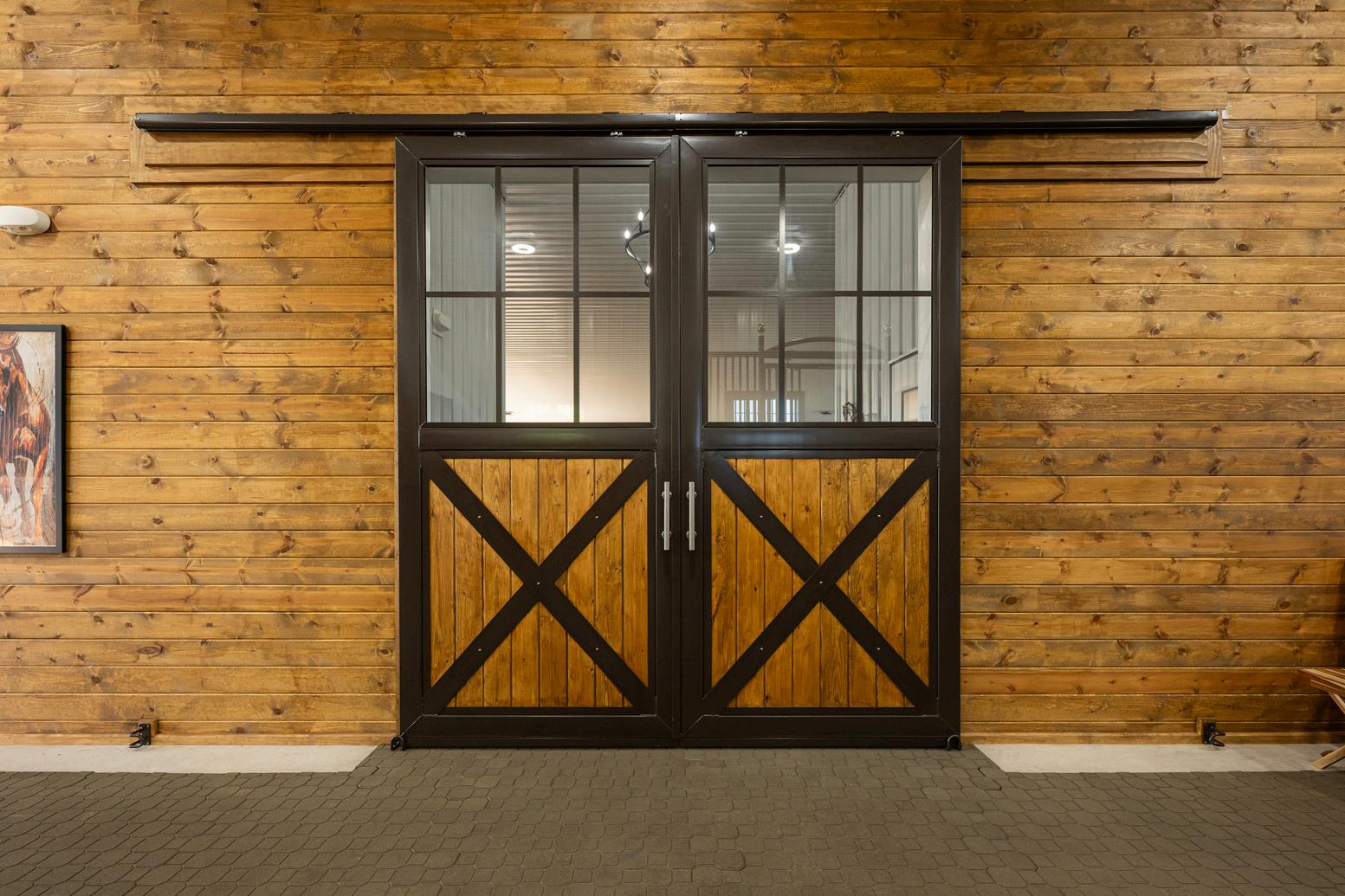

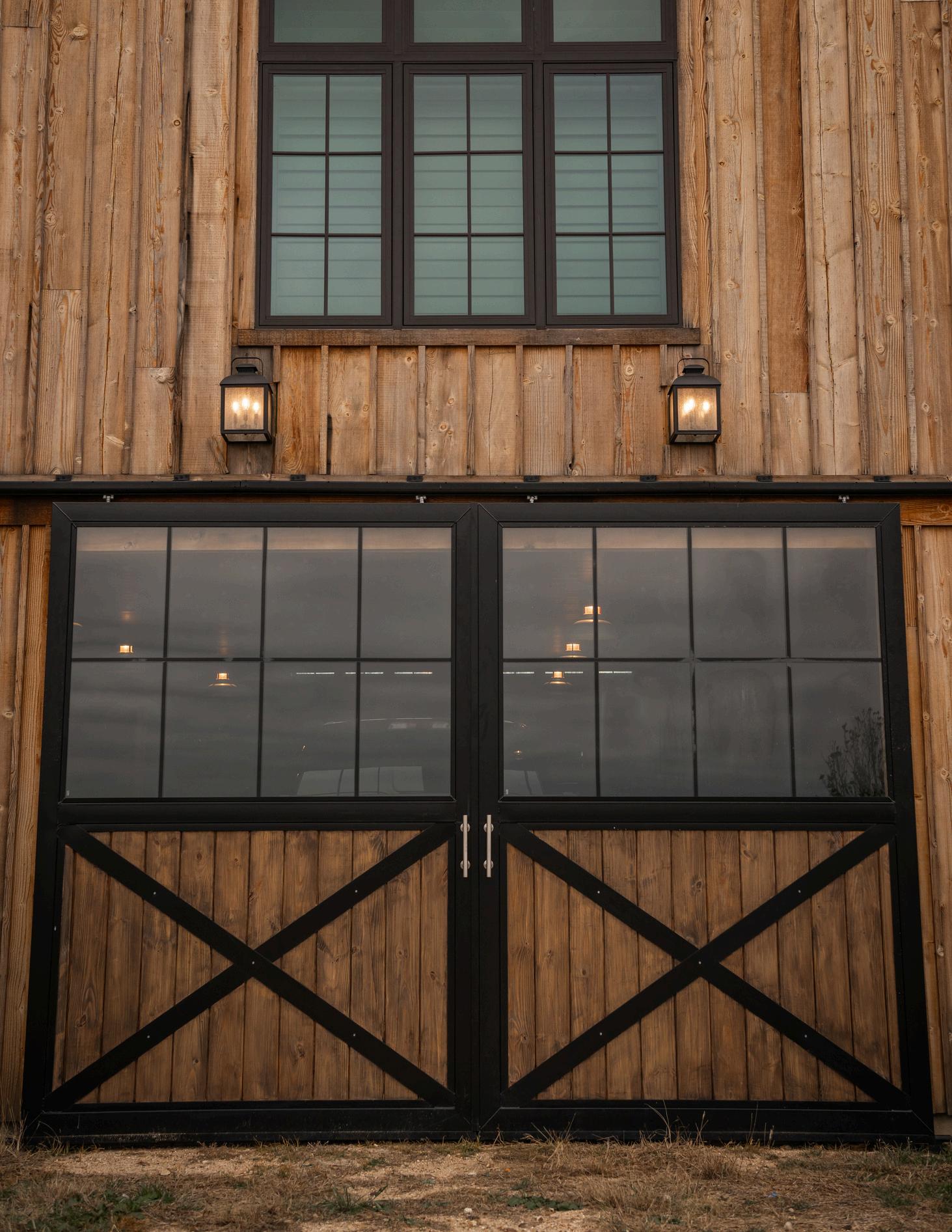

Sliding Barn Entry Doors with Glass Fill Design

57 2

Sliding Barn Entry Doors with Glass Fill Design

58 2

BUILT TO LAST GENERATIONS

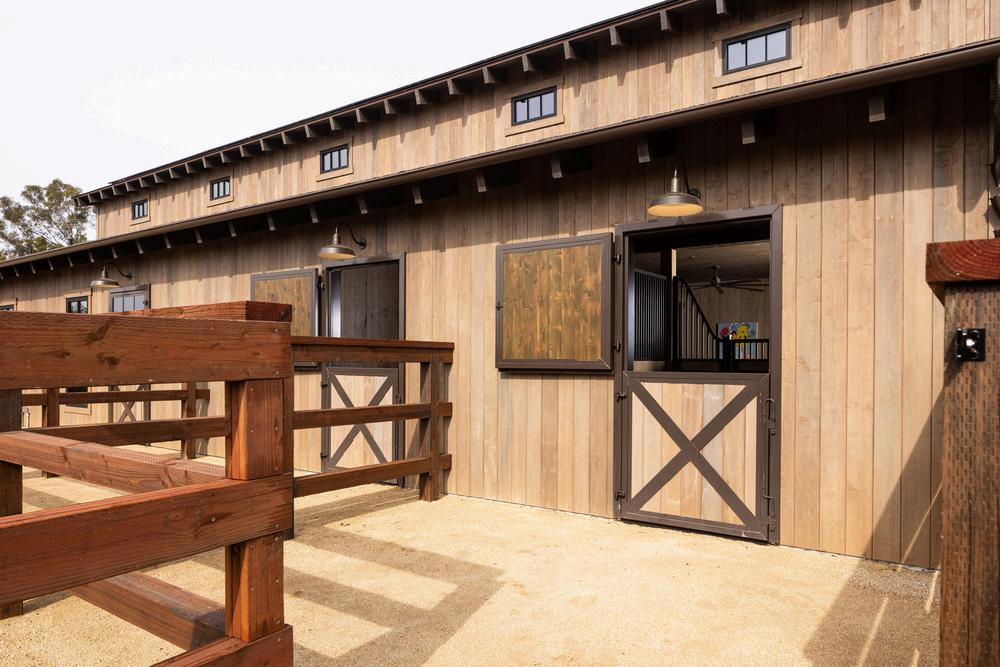

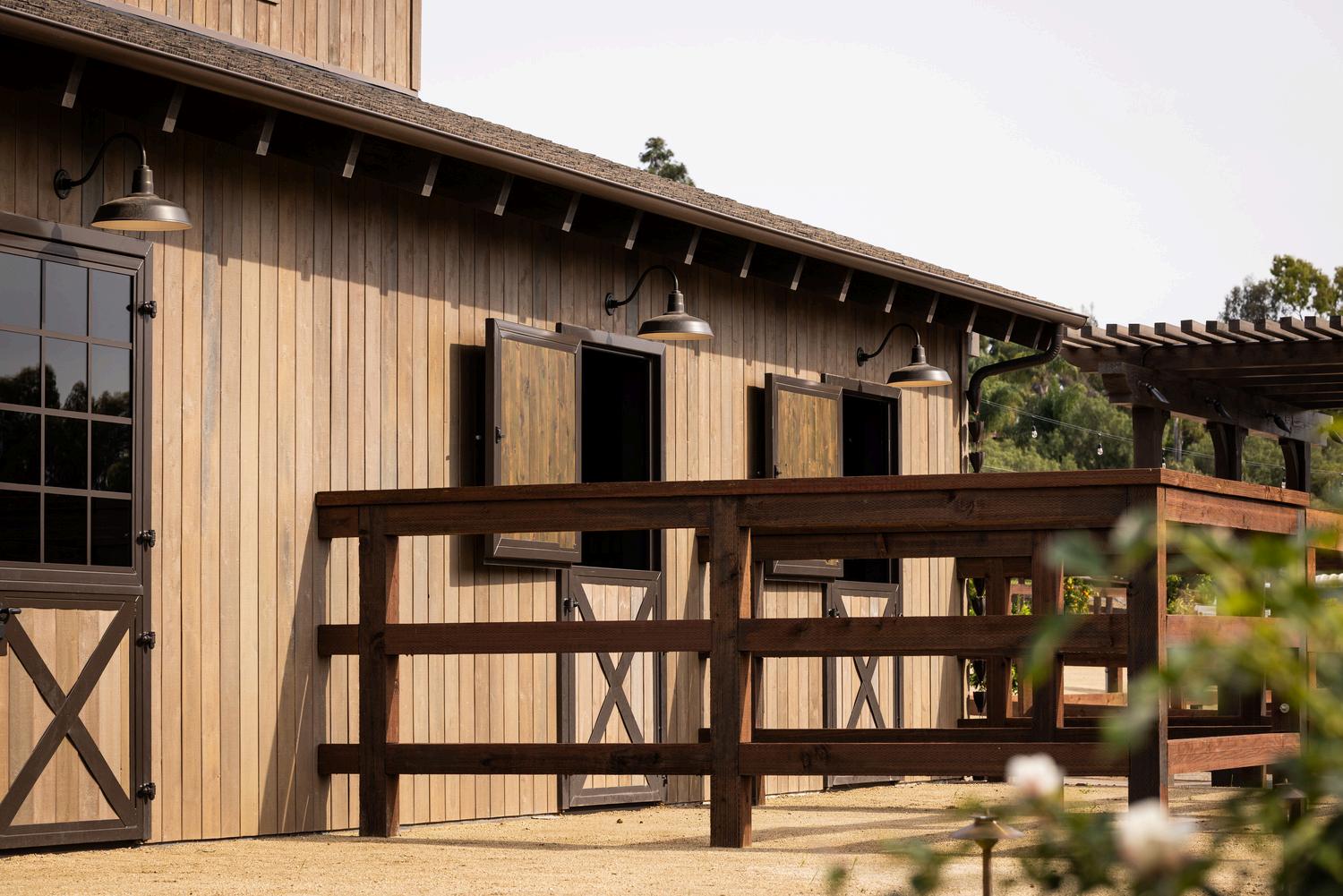

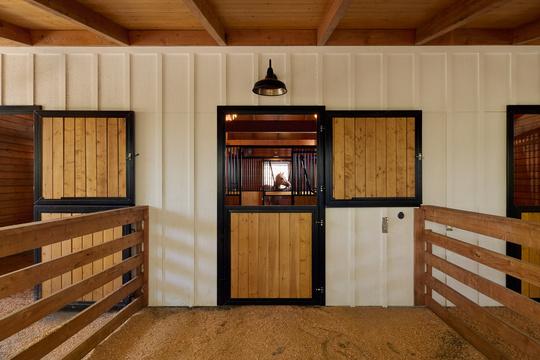

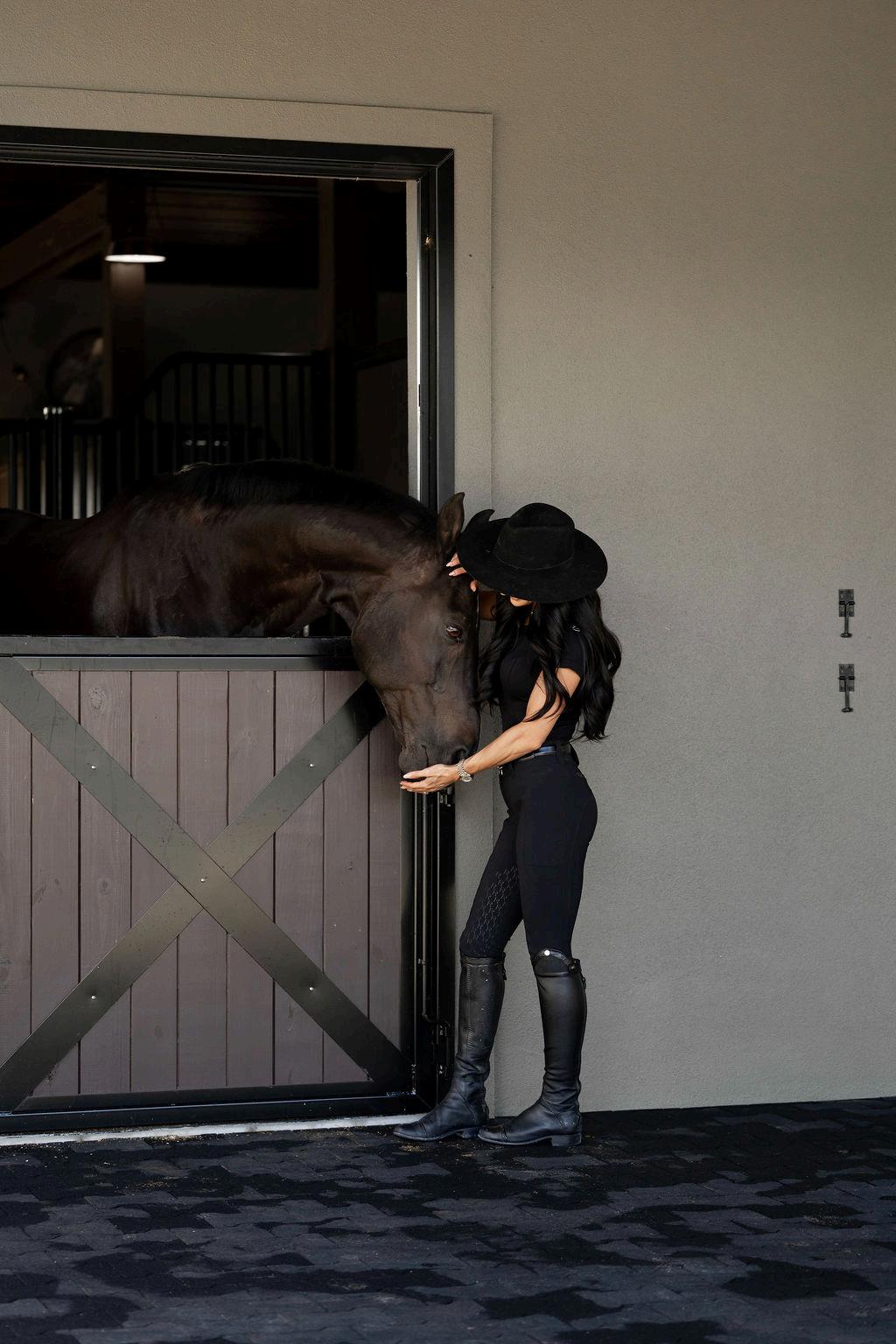

DUTCH DOORS & PADDOCK DOORS Dutch doors add style, ventilation, and sunlight to any barn. Our doors are solid-welded and come pre-hung for easy installation. Latch systems are made from galvanized steel for maximum durability against the elements. We also manufacture sliding paddock doors using the same track systems as our barn entry doors.

59

THE FOUNDATION OF HORSE HEALTH

EQUINE FLOORING

Stall flooring is essential to the performance and safety of any horse barn. The right flooring promotes joint health, provides traction with anti-slip properties, and reduces bedding and labor costs over the long run. American Stalls has partnered with the best flooring suppliers in the industry to provide superior flooring solutions.

StableComfort Stall Mattress System Watch it in action

Our premium flooring solution. The StableComfort system is a three-component design: a durable top cover, a highdensity foam core, and a sealed bottom layer. The system provides consistent cushioning across the entire stall floor, reducing stress on joints and encouraging horses to lie down and rest. Dramatically reduces bedding consumption and stall cleaning time.

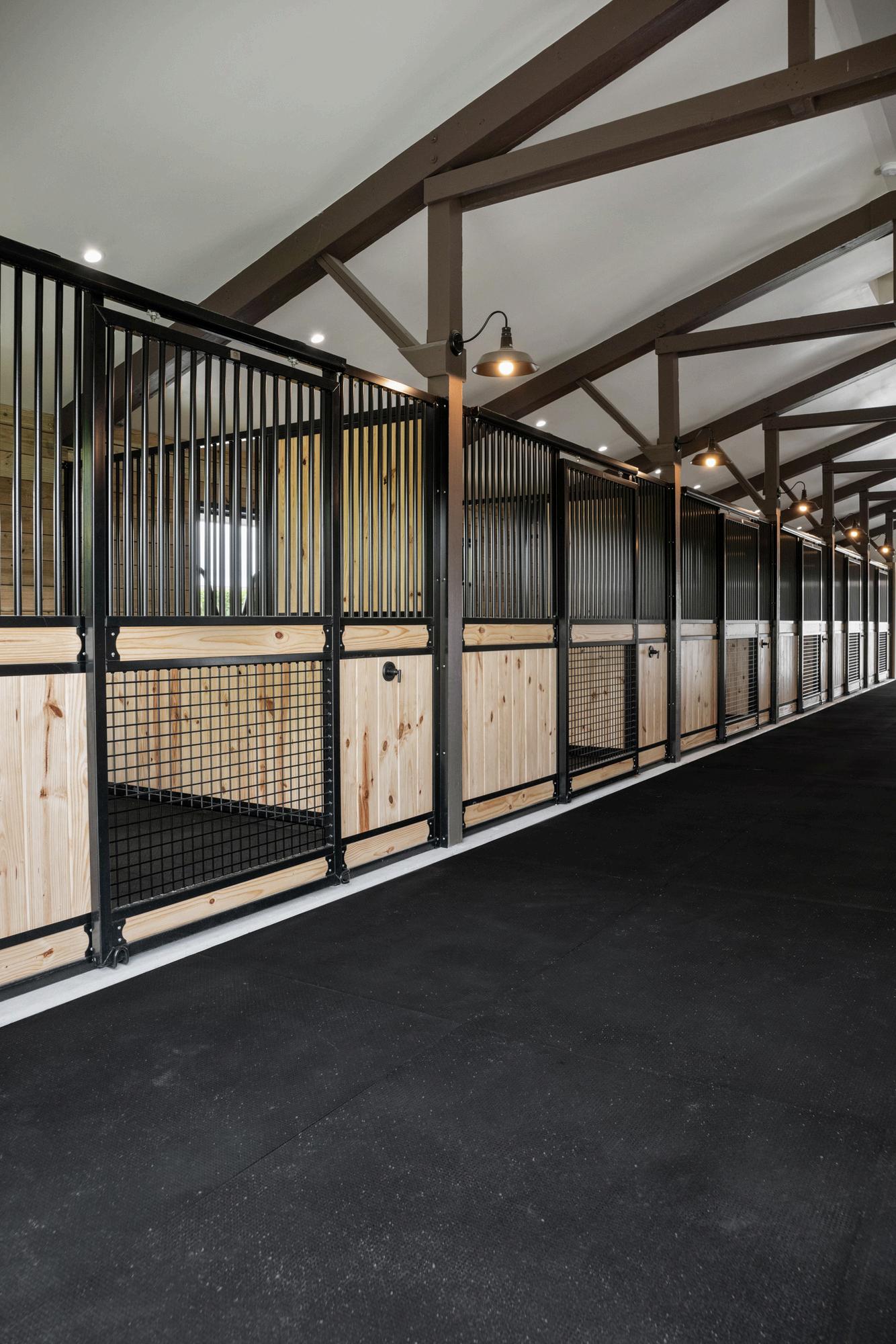

Interlocking Rubber Stall Mats Watch it in action

100 percent recycled, vulcanized rubber. Three-quarter-inch thickness with a flat surface texture. Available in standard stall sizes (12x12, 10x12, and custom). Our stall mat kits feature tight-fitting dovetail interlocking tabs that minimize movement and urine seepage. Recommended for installation on concrete, asphalt, or properly prepared surfaces.

Includes a 5-year limited warranty.

61

THE FOUNDATION OF HORSE HEALTH

EQUINE FLOORING

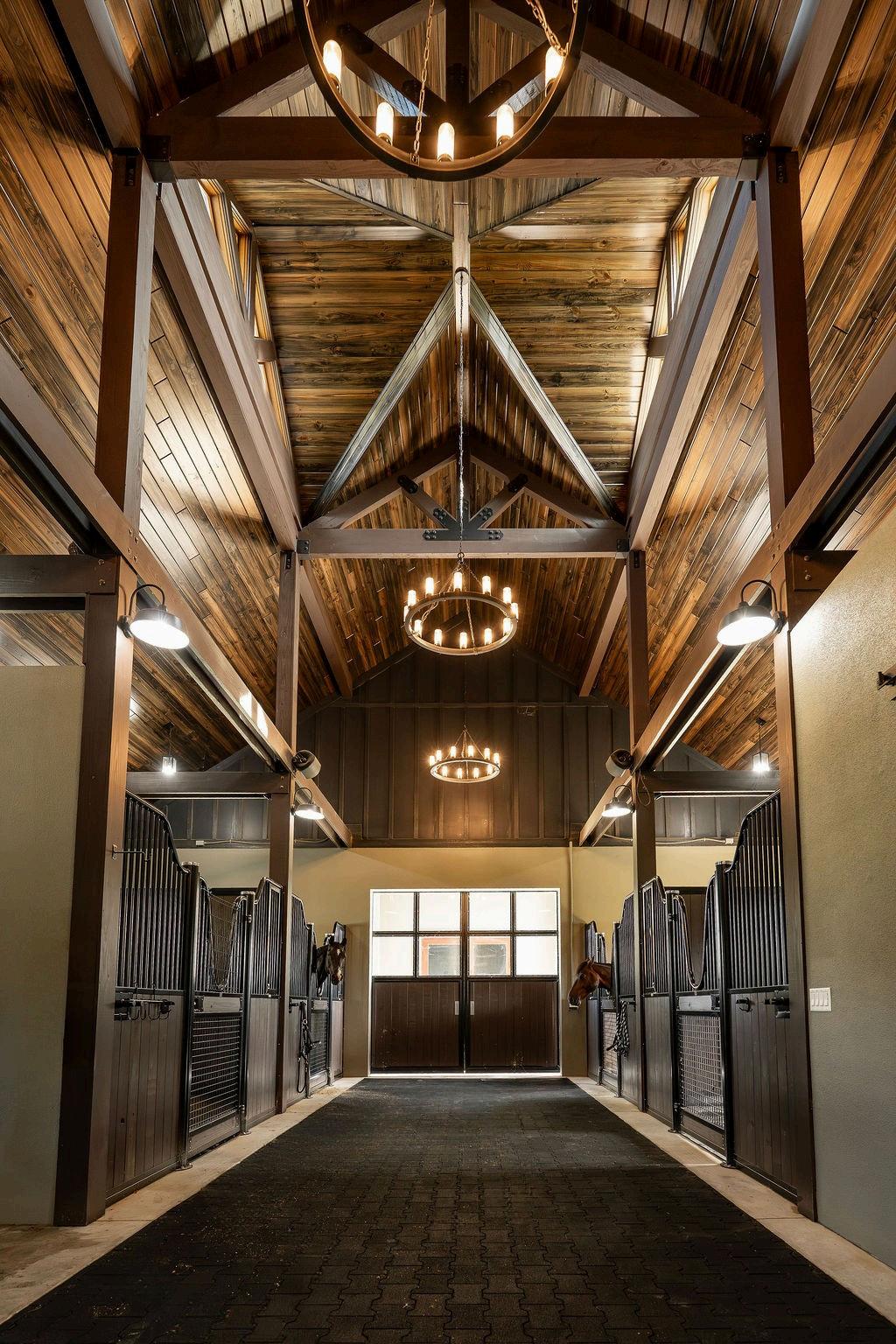

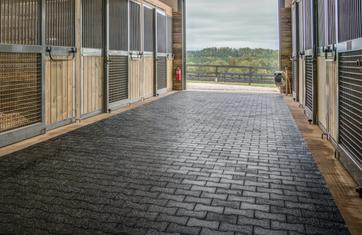

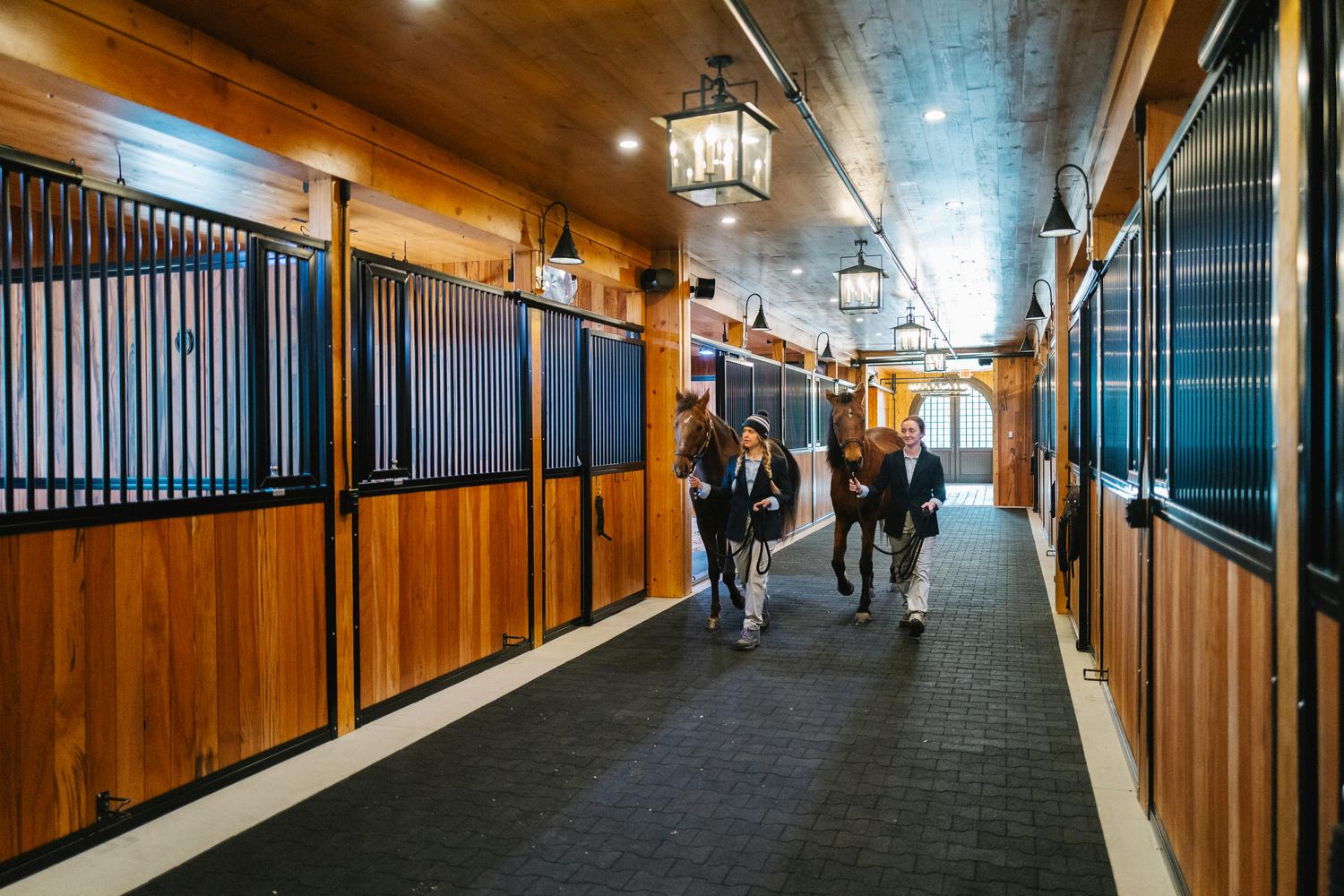

Rubber Aisle Pavers Watch it in action

Premium Rubber Pavers for barn aisles, grooming bays, and wash stalls. Anti-slip properties provide traction for both horses and handlers. Available in multiple profiles and colors to complement your barn’s interior design.

63

STEEL & FABRICATION

BUILT TO LAST GENERATIONS Every American Stalls product is fabricated from 100% United States made, 50ksi high-tensilestrength steel. We do not import our steel. We do not outsource our fabrication. Every cut, weld, and finish is performed by our team to our standards.

Horse Stall Systems

Barn Entry Doors

Dutch Doors

Barn Windows

Equine Flooring

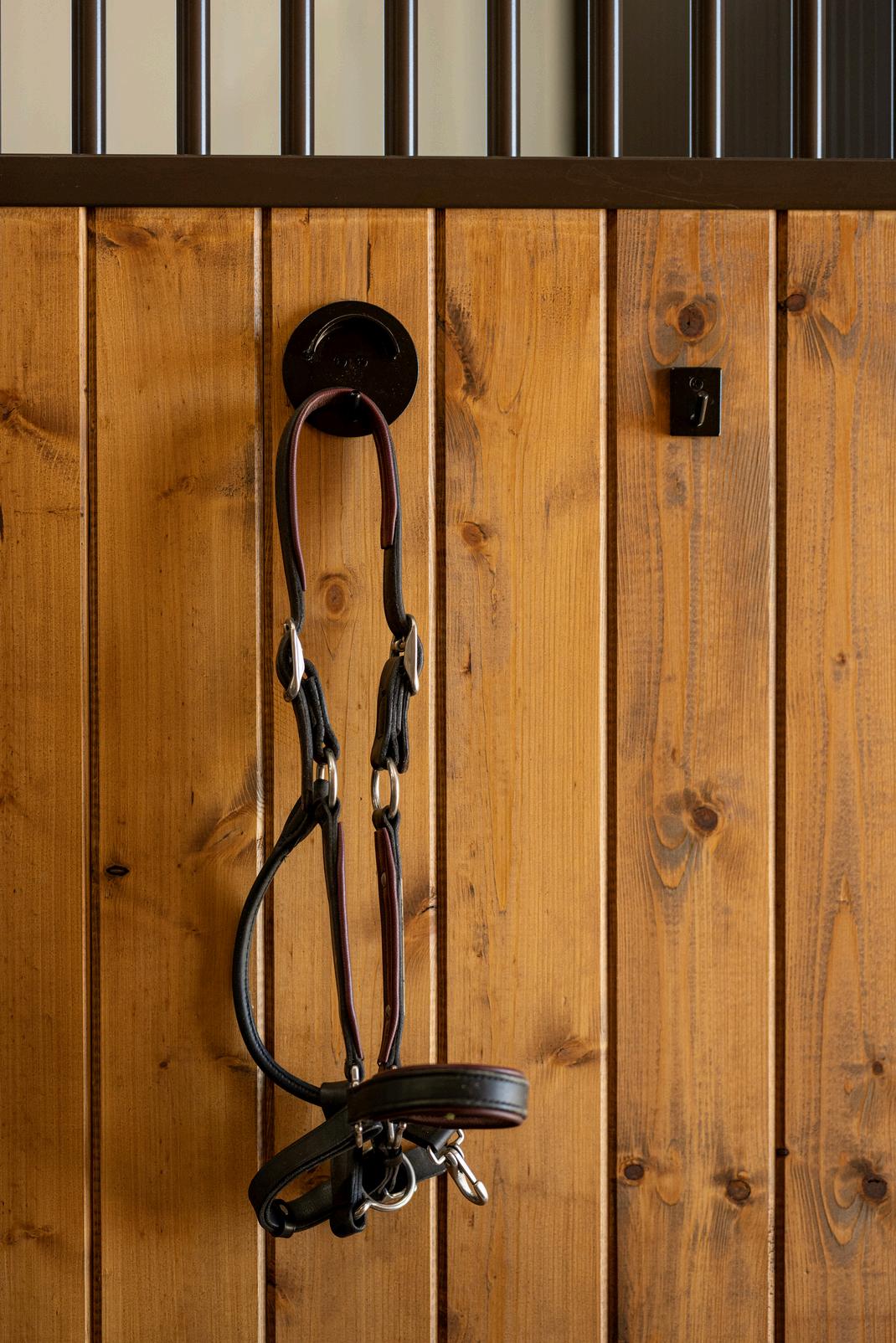

Tack Hardware & Accessories

65

CONTACT US START YOUR BARN PROJECT TODAY!

10625 Jones Street, Suite 101A, Fairfax, VA 22030

(855) 957- 8255

sales@americanstalls.com
