WHEEL BALANCER ACCESSORIES

51500

WHEEL CALIPER

Universal wheel balancer caliper to measure rim width Measures 3”-14” in 1/2” or 1” increments Constructed of ABS plastic for strength and durability

51000

CHROME NUT PLIERS, DELUXE

Heavy duty rubber head grips chrome nuts & prevents scratches on covers/wheels No adjustment, fits all size chrome nut covers 1/2” to 1-7/8” Use soft head to hammer nut covers onto nuts

51550

BOLT PATTERN F-CALIPER

Bolt pattern measuring gauge will measure most common patterns Easy to use slider tool, manufactured from heavy duty polymer for long life

51551

PCD (PITCH CIRCLE DIAMETER)

Easy to read - measures in millimeter & inches Measures 4-lug, 5-lug, 6-lug, and some 8-lug bolt patterns

51450

HUB CAP REMOVAL TOOL

Removes wheel hubs and dust caps quickly and easily without scratching Large rubber hammer is designed to prevent damage

69250

WHEEL GAUGE SET

Includes: 15 gauges, 2 conical adaptors Easily measure wheel bolt patterns

WB106822 – WB1061572

RUBBER GASKETS FOR WINGNUT PRESSURE CUPS

Model

WB106822 WB1061572

Size

4.5” 6”

26102C – 26123C

NUMAG PLUS BALANCE COMPOUND

• Tire balancing compound constantly balances tires • MicroBeads designed specifically for and compatible with TPMS valves • Available in sizes for light truck, commercial and difficult to balance tires

Model Bag Size No. of Bags

How to Install Numag Plus 26102C 2 oz Case of 48 • Check application chart for correct size of 26103C 3.5 oz Case of 36 26104C 4.5 oz Case of 36

Numag Plus 26106C 6.5 oz Case of 24 • Clean rim and use tire lubricant sparingly 26108C 8.5 oz Case of 24 • Open outer packet and drop INNER bag into tire 26110C 10.5 oz Case of 20 • Use dry air for inflating tire and install nickel 26113C 13 oz Case of 12 plated valve core and valve cap provided 26116C 16 oz Case of 12

26140

AME LIQUID TIRE BALANCER (CASE OF 12, 32 OZ BOTTLES)

• Instant tire balance that increases life of the tire, truck tires run 16% cooler • Increases casing retreadability in new and retread tires • Maintains air pressure – keeps bead area pliable and helps stop dry rot • Eliminates rust on rims • Tire changer friendly – mounting and dismounting is made easier • Helps detect valve and tire damage and rim cracks • Recap shop friendly – cleans out in seconds with wet vac • Lubricates for a perfect bead seat (tire goes on true) • Will not block valve stem • Does not freeze • Improves fuel mileage • Environmentally friendly and safe product, recognized by the United States E.P.A.

Meets E.P.A. standards for safe, risk-free disposal • Not compatible with TPMS

valves

26142 AME LIQUID TIRE BALANCER, 6 GALLON BUCKET

Applicator tip and tube included

AC HYDRAULIC A/S

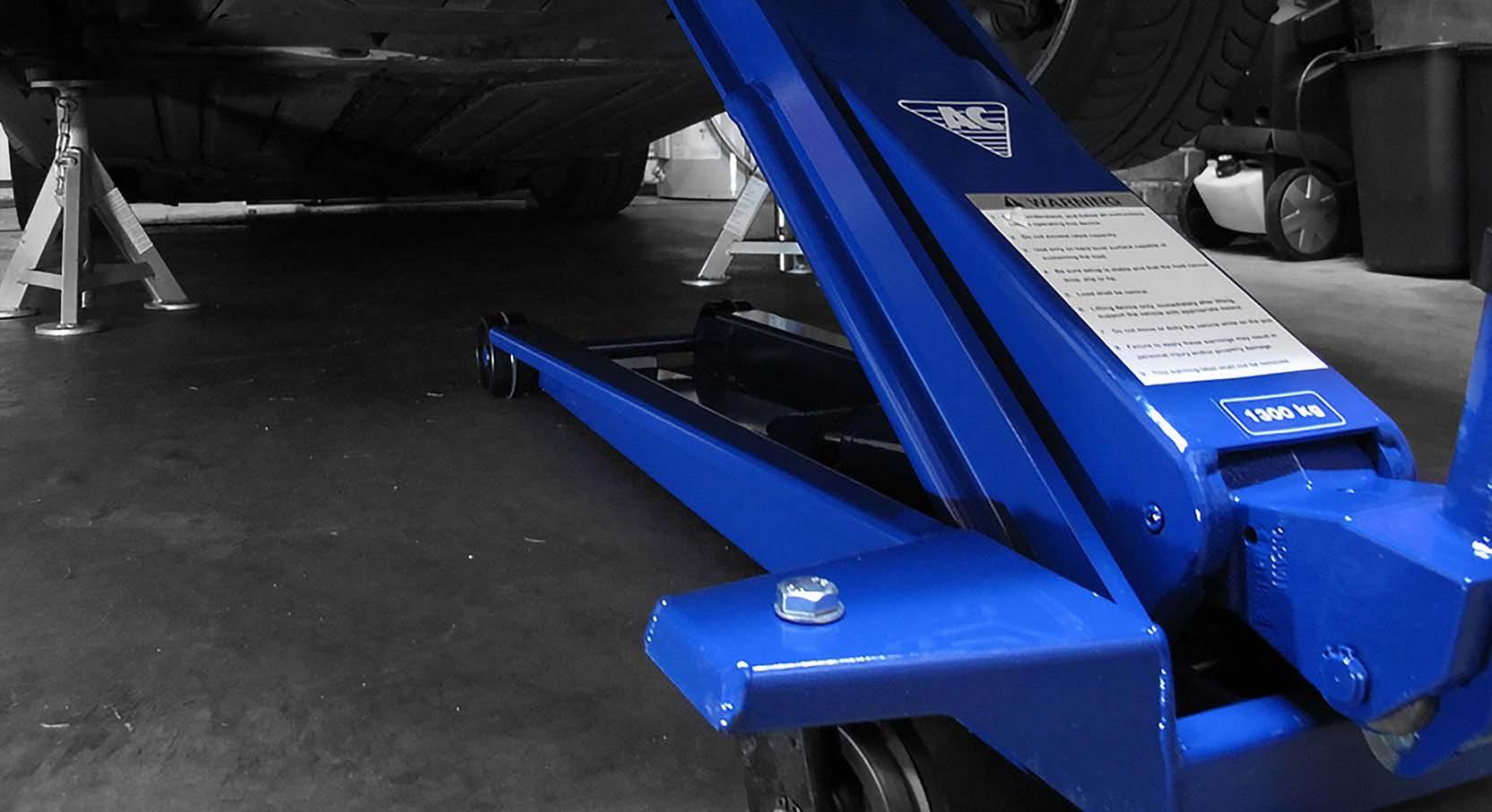

HYDRAULIC JACKS

AME International presents AC Hydraulic A/S Hydraulic Jacks, available in several models designed for passenger cars, low clearance cars, vans, and SUVs. Each jack is manufactured with a very low minimum height of only 3.15“ (8 cm), a handle length of 37.4” (95 cm), as well as a wide and robust frame made of high-strength steel. Each model is fitted with quick-lift pedal for easy reach of lifting point and operates with precise and safe control while lowering. Manual dead man’s release is also included for optimum safety when lowering, along with a built-in safety overload valve. Noiseless wheels incorporating a polyurethane central o-ring offer maximum surface protection. Ergonomically designed handle also ensures positive and safe operation.

Model

DK20Q DK13HLQ DK20HLQ

Capacity 2.2 tons 1.45 tons 2.2 tons

Min. Height 3.15” (8 cm) 3.15” (8 cm) 3.15” (8 cm)

Max. Height

19.49” (49.5 cm) 28.94” (73.5 cm) 31.3” (79.5 cm)

Total Width 16.14” (41 cm) 18.9” (48 cm) 19.69” (50 cm)

Frame Length 25.98” (66 cm) 37.01” (94 cm) 37.4” (95 cm)

GS-1 Rubber Cushion For protection of car body

Weight

68 lbs (31 kg) 68 lbs (31 kg) 108 lbs (49 kg)

AC HYDRAULIC A/S

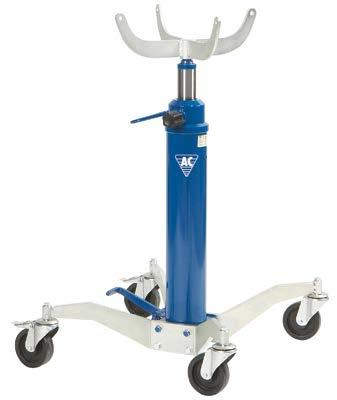

TRANSMISSION JACKS

AME International presents AC Hydraulic A/S Transmission Jacks, pedal operated and perfect for those who need both hands free for work. Each jack allows precise adjustment and positioning. All jacks come with some form of safety feature such as a hand operated dead man’s release and/or a built-in safety overload valve for optimum safety while in use. Models VL6 / VL10 / VLT12 are manufactured with a galvanized support saddle and base frame.

Model

VL6 VL10 VLT6 VLT12

Capacity 0.65 tons 1.1 tons 0.65 tons 1.3 tons

Stroke

- - 47.05” (119.5) -

Min. Height

44.49” (11.3 cm) 46.06” (117 cm) 28.35” (72 cm) 35.63” (90.5 cm)

Max. Height

77.36” (196.5 cm) 78.74” (200 cm) 75.39” (191.5 cm) 75.59” (192 cm)

Width

20.87” (53 cm) 21.65” (55 cm) 37.4” (95 cm) 28.35” (72 cm)

Wheel Diameter

3.15” (8 cm) 4.92” (12.5 cm) 4.92” (12.5 cm) 4.92” (12.5 cm)

Air Supply

- - 8.5-12 bar -

Weight

73 lbs (33 kg) 88 lbs (40 kg) 111 lbs (53 kg) 150 lbs (70 kg)

14980

3 TON JACK STANDS, FLAT TOP WITH RUBBER CUSHION, 1 PAIR

Flat top rubber pad grips the lifting point Ideal for low profile vehicles or custom cars Powder coat finish on base Zinc plated post to prevent rust Sold in pairs Capacity: 3 tons per stand Min Height: 13” (33 cm) Max Height: 21 1/2” (54.6 cm) Weight: 12 lbs (5.5 kg)
